HON HAI Precision Ind. Co., Ltd. Wireless Router for ADSL Users Manual

Contents

Users Manual

REV. 0.0
1
Engineering Requirement
Specification
of T07L022.00
Prepared by Reviewed by Approved by
Humphrey Huang
REV. 0.0
2
Contents
0. Revision History ......................................................................................................... 3
1. Introduction ................................................................................................................. 4
1.1 Referenced Documents ....................................................................................4
2. Hardware Requirements........................................................................................... 5
2.1 Overall Information .........................................................................................5
2.2 Detailed HW Information ................................................................................5
2.2.1 Generic assumptions........................................................................5
2.2.2 ADSL requirements...........................................................................6
2.2.3 Ethernet interface requirements .....................................................7
2.2.4 Wireless interface requirements .....................................................7
2.2.5 LEDs....................................................................................................8
3. Software Requirements ............................................................................................ 9
4. Regulatory requirements .......................................................................................... 9
REV. 0.0
3
0. Revision History
Date Revision Comment
2005/01/18 0.0 Initial released
REV. 0.0
4
1. Introduction
Project Name: T07L022.00
This documentation describes the Engineering Requirement Specification
(ERS) of the ADSL CPE with four Ethernet interfaces and a Wireless
interface using BRCM BCM6348 solution.
1.1 Referenced Documents
[1] Specifications for Next-Generation xDSL Broadband Access Network,
Chunghwa Telecom Co., Ltd.
REV. 0.0
5
2. Hardware Requirements
2.1 Overall Information
T07L022.00 for CHT 6th tender
ADSL2+ CPE
Four-port Ethernet
MiniPCI interface for 802.11g WLAN
2.2 Detailed HW Information
2.2.1 Generic assumptions
ADSL: BCM6348
Ethernet Switch: BCM5325E
SDRAM: 16MB - (4M*16) * 2 pcs
Flash: 4MB
WLAN Interface: MiniPCI
Standalone POTS Splitter/ Low-pass Filter
REV. 0.0
6
2.2.2 ADSL requirements
Standard: ITU-T G.992.5 (ADSL2+)

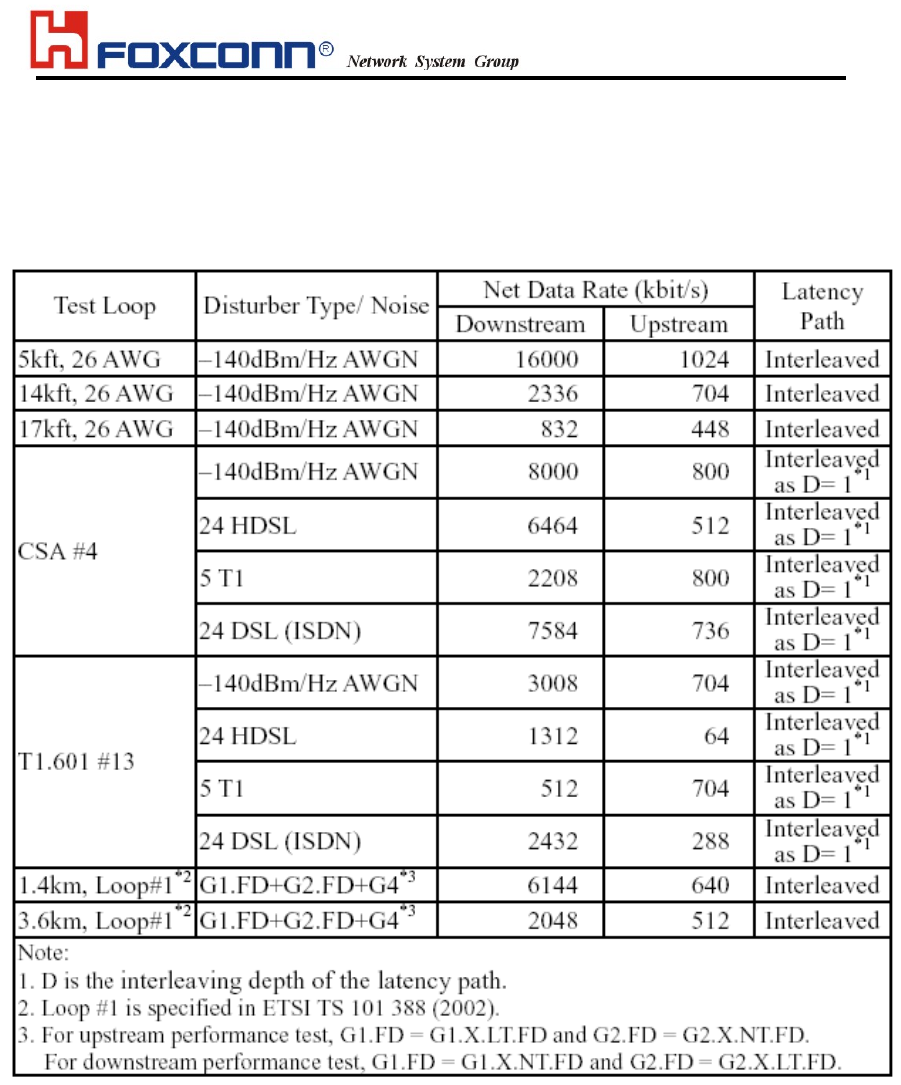

ADSL physical performance requirements:
REV. 0.0
7
2.2.3 Ethernet interface requirements
The ATU-R shall provide four 10/100 Base-T auto-sensing and half/full duplex
configurable Ethernet interfaces. The Ethernet interfaces for ATU-R shall be
able to operate well simultaneously. The 10/100 Base-T Ethernet interface
shall comply with the IEEE 802.3/IEEE 802.3u, respectively.
2.2.4 Wireless interface requirements
Transmitter:
Max. output power shall be ≧
15mW,
30mW,
60mW,
as an option and will be selected in procurement specification.

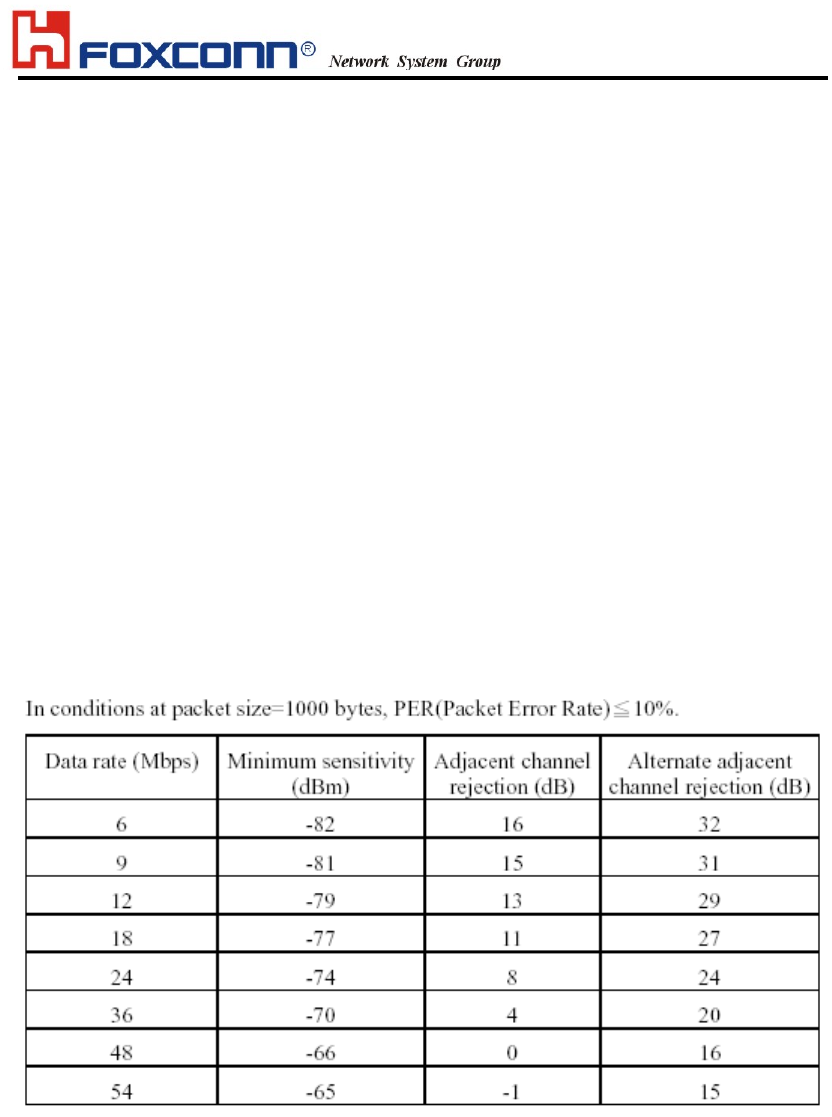

Receiver:
REV. 0.0
8
2.2.5 LEDs
Shall provide different status indicators on the front panel.
(1) Power,
(2) Alarm,
(3) LAN Connectivity for each LAN port,
(4) LAN Data Transmit/Receive for each LAN port,
(5) Line Synchronization, including retraining phase and in-synchronization,
(6) Line interface Data Transmit/Receive,
(7) Wireless Connectivity and Data Transmit/Receive.
REV. 0.0
9
3. Software Requirements
Follow the requirements of [1].
4. Regulatory requirements
Suitable protection devices in compliance with IEC 61000-4-5 class 3 at
least or FCC part 68 shall be provided on the line interfaces, the POTS
splitter/ Low-pass filter, and AC power supply lines to safeguard the unit
against the damage due to transient and lightning surge voltage presented
on the telephone line and AC power supply line. The test results of IEC
61000-4-5 can be temporary degradation or loss of function or
performance but must be self-recoverable and pass operationally within 10
minutes. To fulfill surge protection in easy-installation manner, the ATU-R
must incorporate with chassis grounding mechanism on the exterior of
device.
The electromagnetic compatibility requirements of the ATU-R shall comply
with class A of EN55022 of the CENELEC (the European Committee for
Electrotechnical Standardization), or class A of 22 of the CISPR
(International Special Committee on Radio Interference of the International
Electrotechnical Commission) or class A of Subpart B of Part 15 of the
FCC (Federal Communications Commission) rules of U.S.A.
REV. 0.0
1
Engineering Requirement
Specification
of T07L022.01
Prepared by Reviewed by Approved by
Devin Shyr Humphrey Huang
REV. 0.0
2
Contents
0. Revision History....................................................................................................3
1. Introduction .................................................................................................................4
1.1 Referenced Documents....................................................................................4
2. Hardware Requirements...........................................................................................5
2.1 Overall Information .........................................................................................5
2.2 Detailed HW Information ................................................................................5
2.2.1 Generic assumptions........................................................................5
2.2.2 ADSL requirements...........................................................................6
2.2.3 Ethernet interface requirements......................................................7
2.2.4 LEDs....................................................................................................7
3. Software Requirements ............................................................................................8
4. Regulatory requirements ..........................................................................................8
REV. 0.0
3
0. Revision History
Date Revision Comment
2005/07/19 0.0 Initial released
REV. 0.0
4
1. Introduction
Project Name: T07L022.01
This documentation describes the Engineering Requirement Specification
(ERS) of the ADSL CPE with four Ethernet interfaces.
1.1 Referenced Documents
[1] Specifications for Next-Generation xDSL Broadband Access Network,
Chunghwa Telecom Co., Ltd.
REV. 0.0
5
2. Hardware Requirements
2.1 Overall Information
T07L022.01 for CHT 6th tender
ADSL2+ CPE
Four-port Ethernet
2.2 Detailed HW Information
2.2.1 Generic assumptions
ADSL: BCM6348
Ethernet Switch: BCM5325E
SDRAM: 16MB - (4M*16) * 1 pcs
Flash: 2MB
Standalone POTS Splitter/ Low-pass Filter
REV. 0.0
6
2.2.2 ADSL requirements
Standard: ITU-T G.992.5 (ADSL2+)

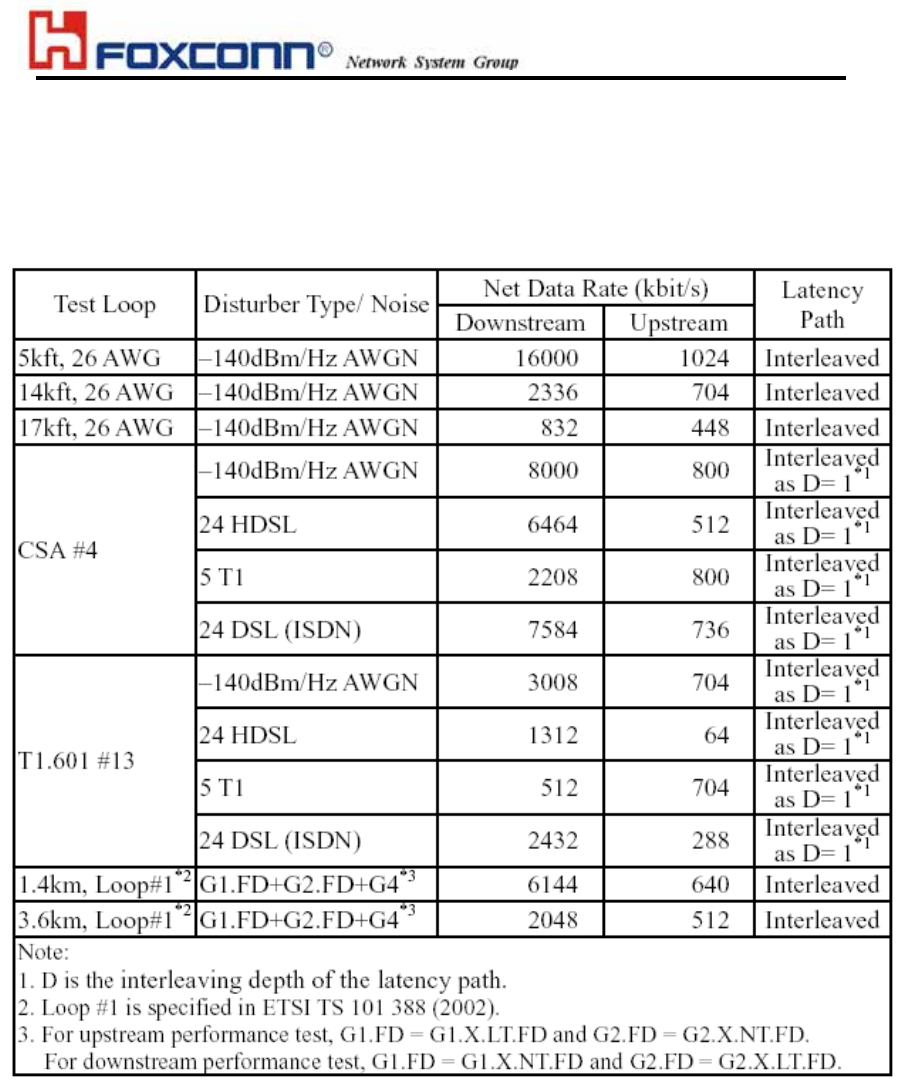

ADSL physical performance requirements:
REV. 0.0
7
2.2.3 Ethernet interface requirements
The ATU-R shall provide four 10/100 Base-T auto-sensing and half/full duplex
configurable Ethernet interfaces. The Ethernet interfaces for ATU-R shall be
able to operate well simultaneously. The 10/100 Base-T Ethernet interface
shall comply with the IEEE 802.3/IEEE 802.3u, respectively.
2.2.4 LEDs
Shall provide different status indicators on the front panel.
(1) Power,
(2) Alarm,
(3) LAN Connectivity for each LAN port,
(4) LAN Data Transmit/Receive for each LAN port,
(5) Line Synchronization, including retraining phase and in-synchronization,
(6) Line interface Data Transmit/Receive,
REV. 0.0
8
3. Software Requirements
Follow the requirements of [1].
4. Regulatory requirements
Suitable protection devices in compliance with IEC 61000-4-5 class 3 at
least or FCC part 68 shall be provided on the line interfaces, the POTS
splitter/ Low-pass filter, and AC power supply lines to safeguard the unit
against the damage due to transient and lightning surge voltage
presented on the telephone line and AC power supply line. The test
results of IEC 61000-4-5 can be temporary degradation or loss of function
or performance but must be self-recoverable and pass operationally within
10 minutes. To fulfill surge protection in easy-installation manner, the
ATU-R must incorporate with chassis grounding mechanism on the
exterior of device.
The electromagnetic compatibility requirements of the ATU-R shall comply
with class A of EN55022 of the CENELEC (the European Committee for
Electrotechnical Standardization), or class A of 22 of the CISPR
(International Special Committee on Radio Interference of the
International Electrotechnical Commission) or class A of Subpart B of Part
15 of the FCC (Federal Communications Commission) rules of U.S.A.
