1. Introduction
Project Name: Bluetooth Module
Project Number: T77H114
This document provides information for designing and using the Broadcom Bluetooth
module with BCM2070 solution. It is a confidential document of Foxconn.
The Broadcom BCM2070 Bluetooth module is compatible with Bluetooth Core
Specification, Version 2.1, available in the 2.4GHz (ISM) band, and support Enhanced
Data Rate (EDR) and Adaptive Frequency Hopping (AFH) schemes. The chipset is a
single-chip Bluetooth transceiver and baseband processor, with highest level of
integration and eliminating most of critical external components, and thus minimizing
the module size and its cost.
1.1 Major Components
Broadcom BCM2070 (50 pin BGA, single-chip Bluetooth transceiver and
base-band processor)
Serial Flash Memory
1.2 Features
Bluetooth 2.1 compliant
Point-to-multipoint operation
External USB interface for data
Coexistence support
1.3 Application
Laptop and desktop computers
Handheld devices
Embedded systems
![](/img.php?id=1172706&img=bg4.png)
COMPANY CONFIDENTIAL
2. Product Specification
2.1 Chipset
50 pin BGA BCM2070PB0KWFBG
2.2 Interfaces
Bluetooth RF interface
Zo = 50 ohm
USB compliant 2.0 Interface
Multi-Function GPIO Interface
2.3 Hardware Design Considerations
2.3.1 Power
The module requires either a 3.3V or 5V supply voltage. There are 2 integrated
on-chip LDOs; VREG and VREGHV. The BCM2070 I/O port is 3.3V tolerant. The
core and RF run at VREG (1.2V). VDDTF is tied to VREGHV which can be
programmed to operate as either a class 1 or a class 2 device.
2.3.2 Clock Sources
A high-accuracy crystal with ±10ppm tolerance is connected to the BCM2070 clock
input pins.
2.3.3 Serial Flash and Firmware Version
Firmware is stored on an onboard serial flash module.
2.3.4 Radio Characteristics
Bluetooth v2.1 + EDR
Frequency Band: 2402 - 2480 GHz
Number of Channels: 79 1MHz channels
![](/img.php?id=1172706&img=bg5.png)
COMPANY CONFIDENTIAL
3. Pin Assignment
Connector: 10pin Matsushita AXK6F10347YG
Pin Pin Name I/O Description
1 GND GND GND
2 BT_PRI Output INTEL_CH_CLK
3 Pairing In/Out GPIO_ANY_USE
4 Open Not Used NC
5 GND GND GND
6 LED Output BT_LED
7 USB D+ In/Out USB D+
8 USB D- In/Out USB D-
9 WLAN_ACT Input INTEL_CH_DATA
10 3.3V Power Power Vcc
Output indicates that the signal is driven by Bluetooth device and transmitted to other
devices.
Input indicates that the signal is driven by other devices and transmitted to Bluetooth
device.
10-pin Connector Description
![](/img.php?id=1172706&img=bg6.png)
COMPANY CONFIDENTIAL

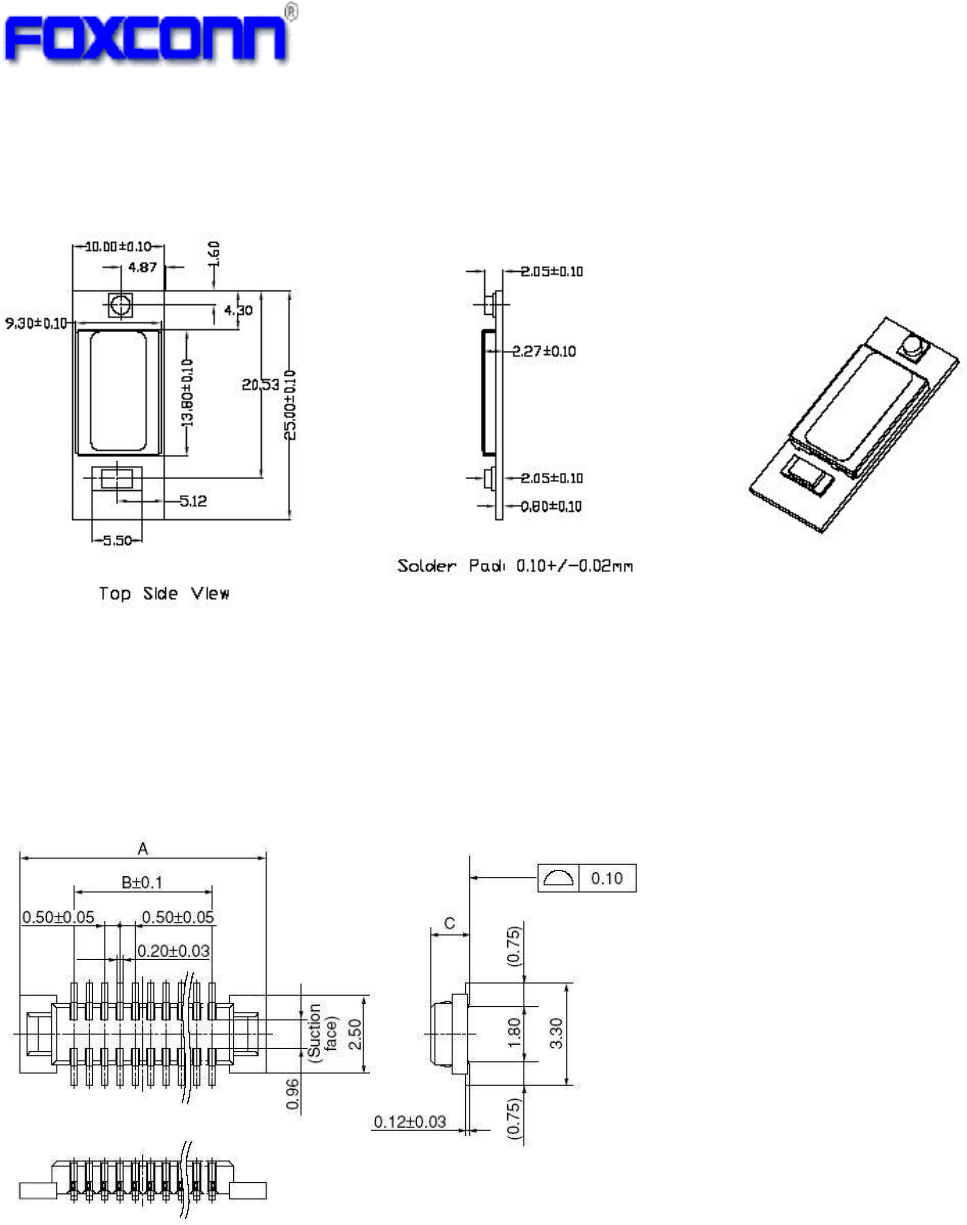

4. 2D Dimension
4.1 Module
4.2 10pin Board-to-Board Connector (Header)
Manufacturer: MATSUSHITA
Manufacturer P/N: AXK6F10347YG
Dimensions: (Unit: mm)
For AXK6F10347YG, A=5.50 mm, B=2.00 mm, C=1.25 mm.
![](/img.php?id=1172706&img=bg7.png)
COMPANY CONFIDENTIAL
5.3 RF connector
Manufacturer: Hirose /Foxconn
Manufacturer P/N: U.FL-R-SMT (10) /(HD96017)
5.3.1 Specification
Operating temperature range: 0℃~70℃
Storage temperature range: 0℃~70℃
Characteristic impedance: 50Ω (0~3GHz)
Voltage standing wave ratio: VSWR<=1.3 (0.045~3GHz)

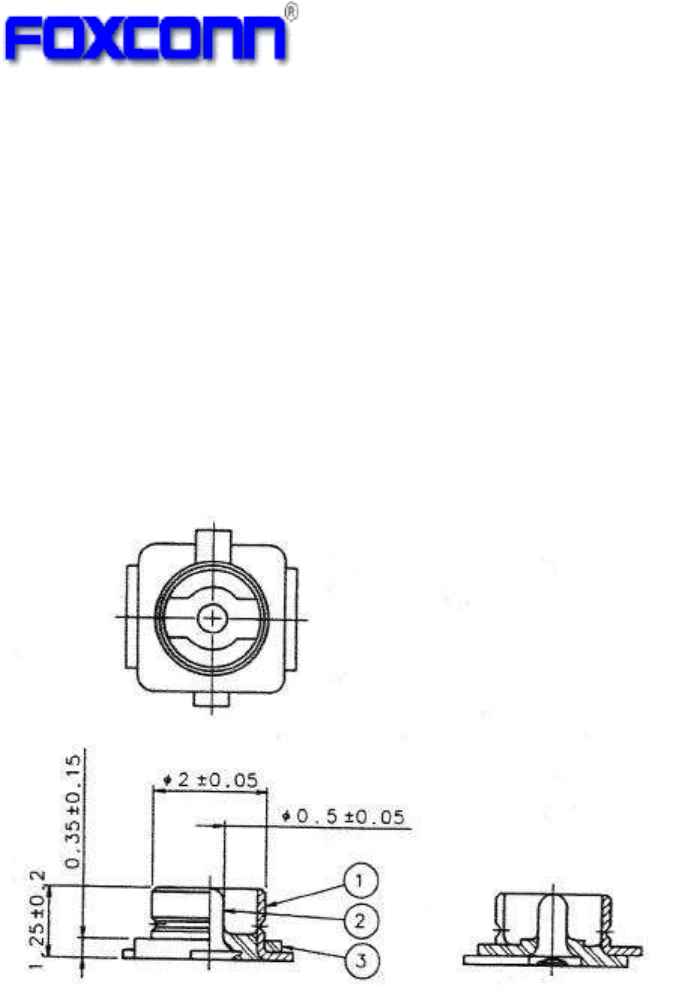

5.3.2 Dimensions
![](/img.php?id=1172706&img=bg8.png)
COMPANY CONFIDENTIAL
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device is intended only for OEM integrators under the following conditions:
The transmitter module may not be co-located with any other transmitter or antenna,
As long as the condition above is met, further transmitter test will not be required. However, the OEM
integrator is still responsible for testing their end-product for any additional compliance requirements
required with this module installed (for example, digital device emissions, PC peripheral requirements,
etc.).
IMPORTANT NOTE: In the event that the condition can not be met (for example certain laptop
configurations or co-location with another transmitter), then the FCC authorization is no longer
considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM
integrator will be responsible for re-evaluating the end product (including the transmitter) and
obtaining a separate FCC authorization.
End Product Labeling
The final end product must be labeled in a visible area with the following: “Contains FCC ID:
MCLT77H114”.
