ThinkPad

T30 Series

Service and Troubleshooting Guide



ThinkPad

T30 Series

Service and Troubleshooting Guide



Note

Before using this information and the product it supports, be sure to read the general information under

Appendix A, “Important safety instructions” on page 39, Appendix B, “Wireless related information” on

page 45, Appendix C, “Wireless regulatory notice” on page 47, Appendix D, “Warranty information” on page 53,

and Appendix E, “Notices” on page 67.

DANGER

vTo avoid electric shock hazard, connect and disconnect cables appropriately when installing, moving or opening

the covers of this product or attached devices. Use the power cord with a properly grounded outlet.

vDo not leave the base of your computer in contact with your lap or any part of your body for an extended

period when the computer is functioning or when the battery is charging. Your computer dissipates some heat

during normal operation. This heat is a function of the level of system activity and battery charge level.

Extended contact with your body, even through clothing, could cause discomfort or, eventually, a skin burn.

vTo reduce the risk of electric shock, do not use your computer in or near water.

vTo avoid electric shock, do not use your computer with the telephone cable connection during an electrical

storm. Do not connect the cable to or disconnect it from the telephone outlet on the wall during an electrical

storm.

vStore packing materials safely out of the reach of children to prevent the risk of suffocation from plastic bags.

vThe battery pack contains a small amount of harmful substances. There is danger of an explosion if the battery

pack is incorrectly replaced, exposed to fire or water, short-circuited or disassembled. Keep the battery pack

away from children and do not put it in trash that is disposed of in landfills.

vTo reduce the risk of fire, use only No. 26 AWG or thicker telephone cable.

vThe fluorescent lamp in the LCD contains mercury. Do not put it in trash that is disposed of in landfills. Rough

handling or dropping the computer can cause the LCD to break and the internal fluid to get into your eyes or

on your hands. Immediately wash the affected areas with water. If symptoms persist, seek medical care.

vDo not disassemble the optical storage drive unit, as this might result in hazardous radiation exposure.

vAvoid direct eye exposure with the laser beam contained in some drives.

First Edition (March 2002)

The following paragraph does not apply to the United Kingdom or any country where such provisions are

inconsistent with local law:

INTERNATIONAL BUSINESS MACHINES CORPORATION PROVIDES THIS PUBLICATION ″AS IS″WITHOUT

WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

Some states do not allow disclaimer of express or implied warranties in certain transactions, therefore, this statement

may not apply to you.

This information could include technical inaccuracies or typographical errors. Changes are periodically made to the

information herein; these changes will be incorporated in new editions of the publication. IBM may make

improvements and/or changes in the product(s) and/or the program(s) described in this publication at any time

without notice.

IBM may use or distribute any of the information you supply in any way it believes appropriate without incurring

any obligation to you.

US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract

with IBM Corp.

Important Notice for Users

The FCC RF Safety Requirement

Users are requested to use IBM

ThinkPad T30 Series computer with the

proper operation for each model shown below.

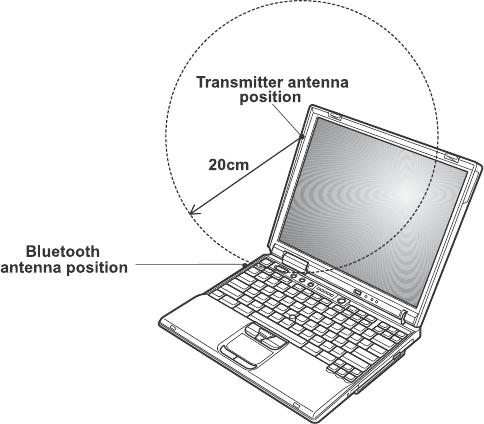

Multiple Transmitters model

If you find the FCC ID “ANOCORN1TASUHOP” on the label on the bottom

of your ThinkPad computer, your computer is approved as a Multiple

Transmitters device that is permitted to use two or more wireless option PC

Cards simultaneously in the computer. Please make sure of the following

grant conditions.

1. Before you use a Bluetooth option or wireless option PC Card in your

ThinkPad T30 computer, visit the IBM site at

www.ibm.com/pc/qtechinfo/MIGR-39377.html and confirm the updated

list of RF option devices that have been approved to cooperate with the

integrated wireless feature.

2. When you use any other RF option device that is not listed on the IBM

site, all other wireless features including the integrated transmitter in your

ThinkPad computer are required to be turned off.

3. Users are requested to follow the RF Safety instructions on wireless option

devices that are included in the RF option device’s user’s manual.

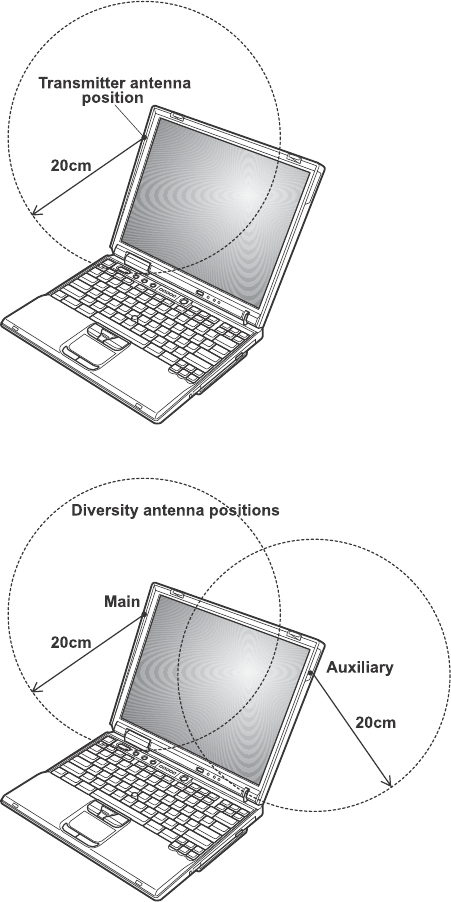

Single Transmitter model

There is no FCC ID shown on the enclosure of this model. Instead you will

find an indicator pointing the location of the FCC ID at the bottom side of

your ThinkPad computer. You are prohibited to use the integrated wireless

LAN Mini-PCI Card and a wireless option PC Card at once on this model.

See Appendix C, “Wireless regulatory notice” on page 47 for more details.

iv ThinkPad

T30 Series Service and Troubleshooting Guide

Finding information with Access ThinkPad

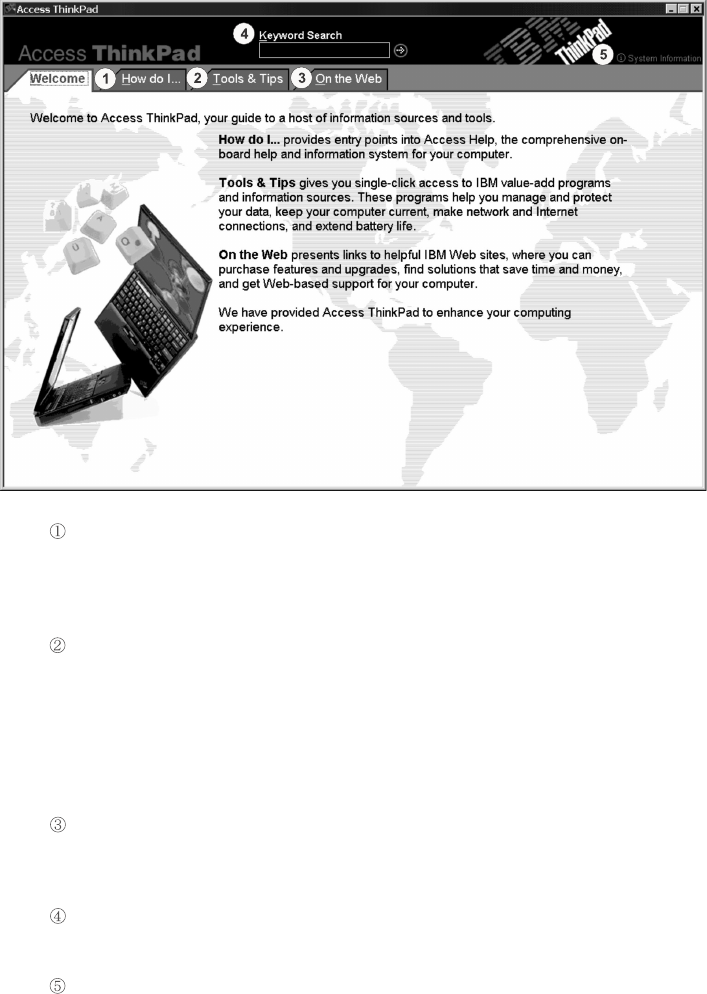

Find answers to questions about your computer and view IBM Web sites by

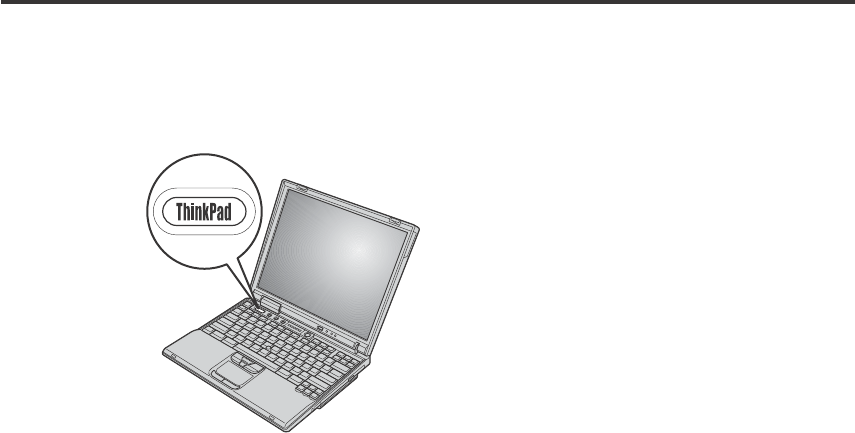

pressing the ThinkPad button to open Access ThinkPad, your on-board

computer help center.

Take a tour of your ThinkPad computer and learn how to get

started, customize your computer, add memory, protect data,

recover applications and data files, upgrade, and solve

problems.

Once you are familiar with the hardware features of your

computer, click the Tools and Tips tab to get the most out of

those features, like Wireless Networking, Maximizing your

battery life, and even personalizing Access ThinkPad. Click

Access Help to open a comprehensive help system that offers

information such as how to change or upgrade the memory in

your computer.

Visit these IBM Web sites to join an interactive community of

ThinkPad users, download new backgrounds, purchase

accessories, or get online support.

Keyword Search provides a quick way to search information in

Access Help.

Click System Information to view information about your

system, such as model number, serial number, and hard disk

capacity.

vi ThinkPad

T30 Series Service and Troubleshooting Guide

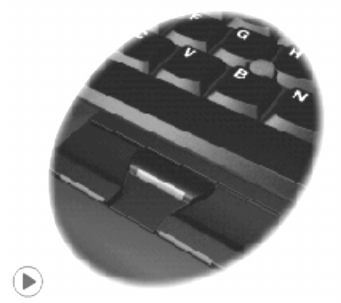

Some of the topics in your help system contain brief video clips that show

you how to perform certain tasks, such as replacing your battery, inserting a

PC Card, or upgrading your memory. Use the controls shown to play, pause,

and rewind the video clip.

Finding information with Access ThinkPad vii

viii ThinkPad

T30 Series Service and Troubleshooting Guide

Contents

Important Notice for Users.......iii

The FCC RF Safety Requirement .....iii

Finding information with Access ThinkPad vi

Chapter 1. Overview of your new ThinkPad

computer .............1

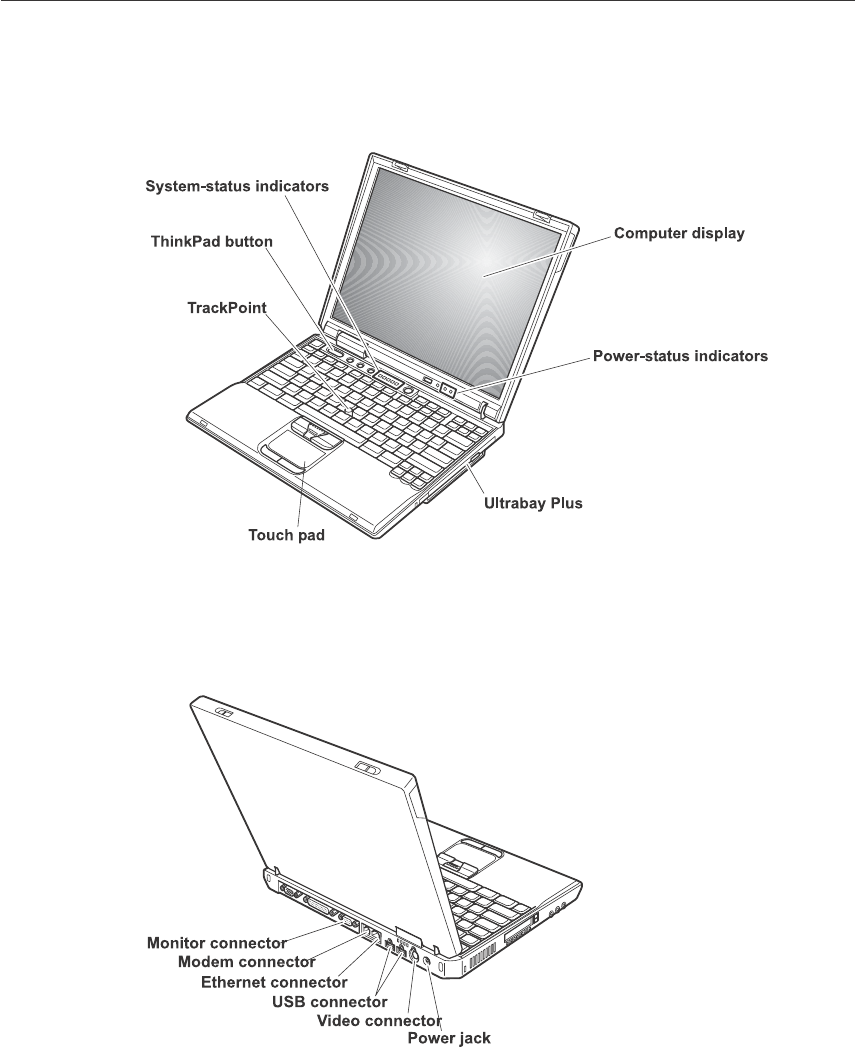

Your ThinkPad at a glance .......2

Features..............3

Specifications ............5

Caring for your ThinkPad computer ....6

Chapter 2. Solving computer problems . . 9

Diagnosing problems .........10

Troubleshooting ...........11

Error messages ..........11

Errors without messages .......14

A password problem ........15

A power switch problem .......16

Keyboard problems ........16

UltraNav

™

problems ........17

Standby or hibernation problems ....18

Computer screen problems ......21

Battery problems .........23

Hard disk drive problems ......24

Other problems

Problem: The computer locks or does not accept any input.

Solution: Your computer might lock when it enters standby mode during a

communication operation. Disable the standby timer when you are working

on the network.

To turn off the computer, press and hold the power switch for 4 seconds or

more.

Problem: The computer does not turn off with the power switch.

Solution: If the standby indicator is on and you are working under battery

power, replace the battery with a fully charged one or change your power

source to ac power.

If you still have a problem, press and hold the power switch for 4 seconds or

more; this forces the computer to turn off.

Solving computer problems

24 ThinkPad

T30 Series Service and Troubleshooting Guide

Problem: The computer does not start from a device you want, such as a

diskette drive.

Solution: Refer to the Startup menu of the IBM BIOS Setup Utility. Make sure

that the startup sequence in the IBM BIOS Setup Utility is set so that the

computer starts from the device you want.

Also make sure that the device from which the computer starts is enabled by

checking that there is no ! mark preceding the device name.

Problem: The computer does not respond.

Solution: IRQs for the PCI are all set as 11. The computer does not respond

because it cannot share the IRQ with other devices. Refer to the ThinkPad

Configuration Program.

Problem: Windows NT does not start; however, the message saying that

Windows NT is loading remains on the screen.

Solution: The USB setting might have been changed to Enabled. If so, it might

cause a conflict in allocating memory resources during startup. Disable the

setting, using the BIOS Setup Utility as follows:

1. Turn your computer off and then on again; then, while the message,

“Press F1 for IBM BIOS Setup Utility,” is displayed at the lower left of the

screen, press the F1 key to start the BIOS Setup Utility. The BIOS Setup

Utility menu appears.

2. With the cursor key, select Config; then press Enter.

3. Select USB by pressing Enter.

4. With the cursor key, select Disable; then press Enter.

5. Press F10 and Enter to save this setting and exit this utility.

Problem: Playback of DVD is not smooth.

Solution: If you select the Maximum Battery mode for the Intel SpeedStep

™

technology, this problem may occur. This mode is designed to achieve

maximum battery life by switching the processor speed between the regular

low speed and half of that speed, depending on how much the processor is

used. If the use increases, Intel SpeedStep switches the processor speed to the

lower speed. Operation in this mode can severely degrade the performance of

the processor, and thus cause the playback of a DVD to be jerky.

To avoid or reduce this problem, you can choose any of three other modes of

operation, as follows:

vMaximum Performance: Keeps the processor speed high at all times.

Solving computer problems

Chapter 2. Solving computer problems 25

vAutomatic: Switches the processor speed between high and low, depending

on how much the processor is used. If the use increases, Intel SpeedStep

switches the processor speed to high.

vBattery Optimized Performance: Keeps the processor speed low at all

times.

To choose a mode, do the following:

1. Start the ThinkPad Configuration Program.

2. Click Power Management.

3. Click the Intel SpeedStep technology tab.

4. From the list, select the mode you want.

5. Click OK.

Solving computer problems

26 ThinkPad

T30 Series Service and Troubleshooting Guide

Starting BIOS Setup Utility

Your computer provides a program, called IBM BIOS Setup Utility, that

enables you to select various setup parameters.

vConfig: Set the configuration of your computer.

vDate/Time: Set the date and time.

vPassword: Set security features.

vStartup: Set the startup device.

vRestart: Restart the system.

Note: You can set many of these parameters more easily by using the

ThinkPad Configuration Program. For more information on this

Program, refer to the on-board help.

To start IBM BIOS Setup Utility, do as follows:

1. To protect yourself against accidental loss of data, refer to “Backing up

your system” in Access ThinkPad. Open Access ThinkPad by pressing the

ThinkPad button. Backing up your registry saves your computer’s current

configuration.

2. Remove any diskette from the diskette drive, and then turn off the

computer.

3. Turn on the computer; then, while the “Press F1 for IBM BIOS Setup

Utility” message is displayed at the lower-left of the screen, press F1.

If you have set a supervisor password, the “IBM BIOS Setup Utility” menu

appears after you enter the password. You can start the utility by pressing

Enter instead of entering the supervisor password; however, you cannot

change the parameters that are protected by the supervisor password. For

more information, refer to the on-board help.

4. Using the cursor keys, move to an item you want to change. When the

item you want is highlighted, press Enter. A submenu is displayed.

5. Change the items you wish to change. To change the value of an item, use

the F5 or F6 key. If the item has a submenu, you can display it by pressing

Enter.

6. Press F3 or Esc to exit from the submenu.

If you are in a nested submenu, press Esc repeatedly until you reach the

IBM BIOS Setup Utility menu.

Note: If you need to restore the settings to their original state as of the

time of purchase, press the F9 key to load the default settings. You

can also select an option in the Restart submenu to load the default

settings or discard the changes.

7. Select Restart; then press Enter. Move the cursor to the option you want

for restarting your computer; then press Enter. Your computer restarts.

Solving computer problems

Chapter 2. Solving computer problems 27

Recovering pre-installed software

If your hard disk drive data is damaged or accidentally erased, you can

restore the software that was shipped with your computer. This software

includes your pre-installed operating system, applications, and device drivers.

You can restore your pre-installed software using the Product Recovery

program.

The Product Recovery program is in a section of your hard disk drive that is

not displayed by Windows Explorer.

Note: The recovery process might take up to 2 hours.

Attention

All of the files on the primary hard disk partition (usually drive

C) will be lost in the recovery process. Be sure to back up copies

of the files you have saved on your drive C before you begin.

Note: You might need to use a diskette drive in the recovery process. Use a

drive that is compatible with your computer.

Note: In the unlikely event that you need to recover the pre-installed software

and you are unable to start the Product Recovery program, you will

need a Recovery Repair diskette. Follow the instructions below, “To

create a Recovery Repair diskette,” soon after you start using your

computer. Save the Recovery Repair diskette in a safe place, in case you

need it later.

To use the Product Recovery program to restore your pre-installed software,

do the following:

1. Create a Recovery Repair diskette, according to the procedure below.

2. If possible, save all your files to media other than your hard disk.

3. Turn off your computer.

4. Turn on your computer. At the prompt, press F11. (The prompt to press

F11 appears for only a few seconds. You must press F11 quickly.) The

Product Recovery program main menu opens.

Note: If pressing F11 does not start the Product Recovery program, use

the Recovery Repair diskette to enable the Product Recovery

program.

5. Select the recovery options you want, and then follow the instructions on

the screen.

Solving computer problems

28 ThinkPad

T30 Series Service and Troubleshooting Guide

6. When the Product Recovery program finishes, your computer will restart

and begin the configuration process.

To create a Recovery Repair diskette

If the F11 recovery option is not present you can use the Recovery Repair

diskette to enable the F11 Product Recovery option.

To make a Recovery Repair diskette, do the following:

1. Shut down and restart your computer.

2. At the prompt, press F11. (The option to press F11 appears for only a few

seconds. You must press F11 quickly.) The Product Recovery program

main menu opens.

3. Select System Utilities from the main menu. Press Enter.

4. Select Create a Recovery Repair diskette. Press Enter.

5. Follow the on-screen instructions.

6. When the process is completed, label your diskette as the Recovery Repair

diskette and save it for future use.

To use the Recovery Repair diskette:

1. Shut down and turn off your computer.

2. Insert the Recovery Repair diskette into the drive; then turn on the

computer.

3. Follow the on-screen instructions.

Solving computer problems

Chapter 2. Solving computer problems 29

Upgrading the hard disk drive

You can increase the storage capacity of your computer by replacing the hard

disk drive with one of greater capacity. You can purchase a new hard disk

drive from your IBM reseller or IBM marketing representative.

Note: Replace the hard disk drive only if you upgrade it or have it repaired.

The connectors and bay of the hard disk drive were not designed for

frequent changes, or drive swapping.

Attention

Handling a hard disk drive

vDo not drop the drive or subject it to physical shocks. Put the drive on

a material, such as soft cloth, that absorbs the physical shock.

vDo not apply pressure to the cover of the drive.

vDo not touch the connector.

The drive is very sensitive. Incorrect handling can cause damage and

permanent loss of data on the hard disk. Before removing the hard disk

drive, make a backup copy of all the information on the hard disk, and

then turn the computer off. Never remove the drive while the system is

operating, in standby mode, or in hibernation mode.

To replace the hard disk drive, do the following:

1. Turn off the computer; then disconnect the ac adapter and all cables

from the computer.

2. Close the computer display, and turn the computer over.

3. Remove the battery.

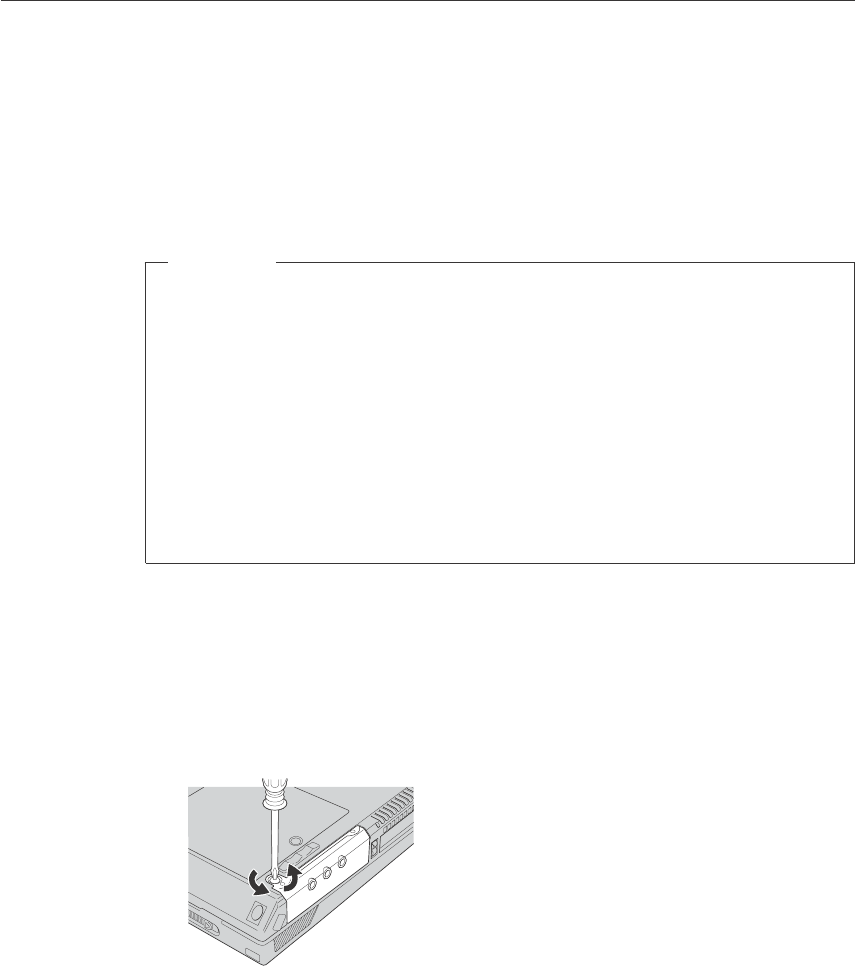

4. Remove the screw that secures the hard disk drive.

Upgrading the hard disk drive

30 ThinkPad

T30 Series Service and Troubleshooting Guide

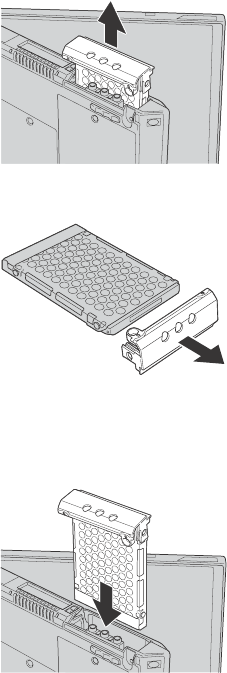

5. Open the computer display; then stand the computer on its side and

remove the hard disk drive by pulling the cover away from the

computer.

6. Detach the cover from the hard disk drive.

7. Attach the cover to a new hard disk drive.

8. Insert the hard disk drive and its cover into the hard disk drive bay; then

firmly install them.

9. Turn the computer over so that its bottom side is up. Reinstall the screw.

Note: You can replace the screw with a security screw to prevent the

hard disk drive from being removed easily. The security screw

may not be included in your ship group. You can, however,

purchase screw directly from NABS at www.nabsnet.com

10. Reinstall the battery.

11. Turn the computer over again. Connect the ac adapter and the cables to

the computer.

Upgrading the hard disk drive

Chapter 2. Solving computer problems 31

Replacing the battery

1. Turn off the computer, or enter hibernation mode. Then disconnect the ac

adapter and all cables from the computer.

Note: If you are using a PC Card, the computer might not be able to enter

hibernation mode. If this happens, turn off the computer.

2. Close the computer display, and turn the computer over.

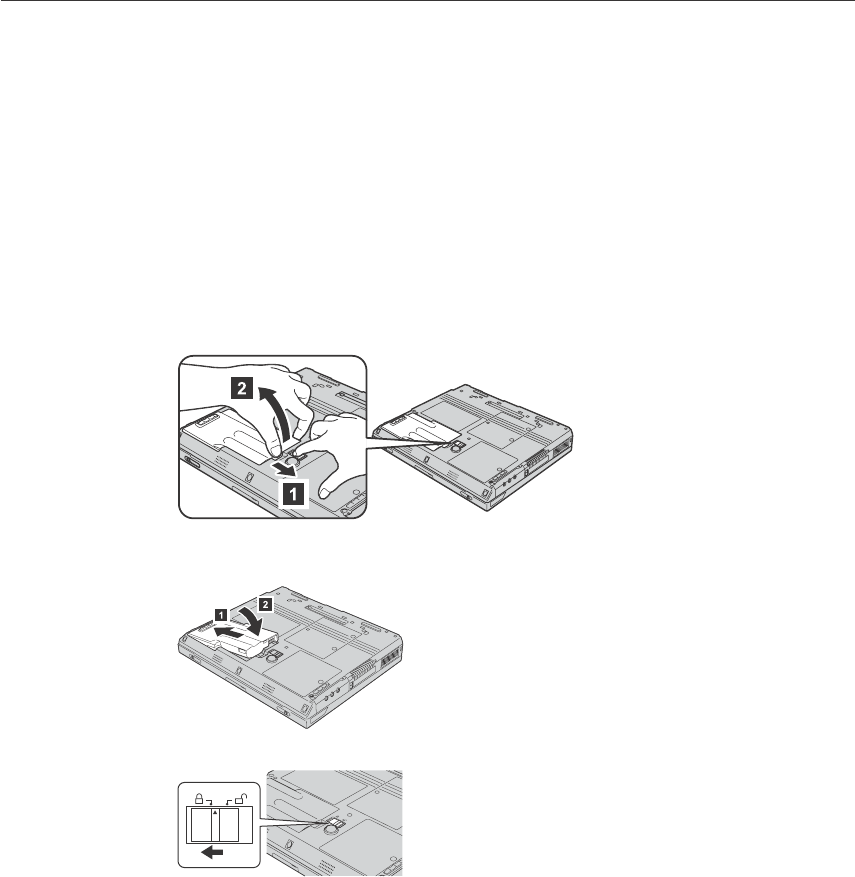

3. Slide the battery latch to unlock it 1; then remove the battery 2.

Note: The first position of the battery latch is for releasing the lock of the

battery.

4. Align the side of a fully charged spare battery with the side of the battery

space in the computer 1; then gently push the battery into the space 2.

5. Slide the battery latch to lock it.

6. Turn the computer over again. Connect the ac adapter and the cables to

the computer.

Replacing the battery

32 ThinkPad

T30 Series Service and Troubleshooting Guide

Chapter 3. Getting help and service from IBM

Getting help and service ........34

Getting help on the Web ........34

Getting help by fax .........35

Calling IBM ............36

Getting help around the world......37

Getting help and service

If you need help, service, technical assistance, or just want more information

about IBM products, you will find a wide variety of sources available from

IBM to assist you. This section contains information about where to go for

additional information about IBM and IBM products, what to do if you

experience a problem with your computer, and whom to call for service

should it be necessary.

Information about your IBM computer and preinstalled software, if any, is

available in the documentation that comes with your computer. That

documentation includes printed books, online books, README files, and help

files. In addition, information about IBM products is available on the World

Wide Web and through the IBM Automated Fax System.

For technical assistance with the installation of, or questions related to, Service

Packs for your preinstalled Microsoft Windows product, refer to the Microsoft

Product Support Services Web site at support.microsoft.com/directory/,oryou

can contact the IBM HelpCenter

. Some fees might apply.

Getting help on the Web

On the World Wide Web, the IBM Web site has up-to-date information about

IBM Personal Computer products and support. The address for the IBM

Personal Computing home page is www.ibm.com/pc

IBM provides an extensive Web site dedicated to mobile computing and to

ThinkPad computers at www.ibm.com/pc/support

Research this Web site to learn how to solve problems, find new ways to use

your computer, and learn about options that can make working with your

ThinkPad computer even easier.

If you select Profile from the support page, you can create a customized

support page that is specific to your hardware, complete with Frequently

Asked Questions, Parts Information, Technical Hints and Tips, and

Downloadable Files. In addition, you can choose to receive e-mail notifications

whenever new information becomes available about your registered products.

You also can order publications through the IBM Publications Ordering

System at

www.elink.ibmlink.ibm.com/public/applications/publications/cgibin/pbi.cgi

Getting help and service

34 ThinkPad

T30 Series Service and Troubleshooting Guide

Getting help by fax

If you have a touch-tone telephone and access to a fax machine, in the U.S.

and Canada you can receive by fax marketing and technical information on

many topics, including hardware, operating systems, and local area networks

(LANs).

You can call the IBM Automated Fax System 24 hours a day, 7 days a week.

Follow the recorded instructions, and the requested information will be sent

to your fax machine. In the U.S. and Canada, to access the IBM Automated

Fax System, call 1-800-426-3395.

Calling IBM

If you have tried to correct the problem yourself and still need help, during

the warranty period, you can get help and information by telephone through

the IBM PC HelpCenter. The following services are available during the

warranty period:

vProblem determination - Trained personnel are available to assist you with

determining if you have a hardware problem and deciding what action is

necessary to fix the problem.

vIBM hardware repair - If the problem is determined to be caused by IBM

hardware under warranty, trained service personnel are available to provide

the applicable level of service.

vEngineering change management - Occasionally, there might be changes

that are required after a product has been sold. IBM or your reseller, if

authorized by IBM, will make selected Engineering Changes (ECs) available

that apply to your hardware.

The following items are not covered:

vReplacement or use of non-IBM parts or nonwarranted IBM parts

Note: All warranted parts contain a 7-character identification in the format

IBM FRU XXXXXXX

vIdentification of software problem sources

vConfiguration of BIOS as part of an installation or upgrade

vChanges, modifications, or upgrades to device drivers

vInstallation and maintenance of network operating systems (NOS)

vInstallation and maintenance of application programs

Refer to your IBM hardware warranty for a full explanation of IBM warranty

terms. Be sure to retain your proof of purchase to obtain warranty service.

Getting help and service

Chapter 3. Getting help and service from IBM 35

If possible, be near your computer when you make your call in case the

technical assistance representative needs to help you resolve a computer

problem. Please ensure that you have downloaded the most current drivers

and system updates, run diagnostics, and recorded information before you

call. When calling for technical assistance, please have the following

information available:

vMachine Type and Model

vSerial numbers of your computer, monitor, and other components, or your

proof of purchase

vDescription of the problem

vExact wording of any error messages

vHardware and software configuration information for your system

Telephone numbers

Note: Telephone numbers are subject to change without notice. For the latest

list of IBM HelpCenter telephone numbers and hours of operation, visit

the Support Web site at www.ibm.com/pc/support

Country or region Language Telephone Number

Argentina Spanish 0800-666-0011

Australia English 1300-130-426

Austria German 01-24592-5901

Bolivia Spanish 0800-0189

Belgium Dutch

French

02-210 9820

02-210 9800

Brazil Portuguese 55-11-3889-8986

Canada English/ French 1-800-565-3344

in Toronto only call

416-383-3344

Chile Spanish 800-224-488

China Mandarin 800-810-1818

Colombia Spanish 980-912-3021

Denmark Danish 45 20 82 00

Ecuador Spanish 1-800-426911 (option #4)

Finland Finnish 09-459 69 60

France French 02 38 55 74 50

Germany German 07032-1549 201

Getting help and service

36 ThinkPad

T30 Series Service and Troubleshooting Guide

Country or region Language Telephone Number

Hong Kong Cantonese 2825-7799

Ireland English 01-815 9200

Italy Italian 02-7031-6101

Japan Japanese

Luxembourg French 298-977 5063

Mexico Spanish 001-866-434-2080

Netherlands Dutch 020-514 5770

New Zealand English 0800-446-149

Norway Norwegian 66 81 11 00

Peru Spanish 0-800-50-866

Portugal Portuguese 21-791 51 47

Russia Russian 095-940-2000

Spain Spanish 91-662 49 16

Sweden Swedish 08-477 4420

Switzerland German/

French/

Italian

0583-33-09-00

Taiwan Mandarin 886-2-2725-9799

United

Kingdom

English 0-1475-555 055

United States English 1-800-772-2227

Uruguay Spanish 000-411-005-6649

Venezuela Spanish 0-800-100-2011

Getting help around the world

If you travel with your computer or relocate it to a country where your

ThinkPad machine type is sold and serviced by IBM or by IBM resellers who

are authorized to perform warranty service, International Warranty Service is

available for your computer.

Service methods and procedures vary by country, and some services might

not be available in all countries. International Warranty Service is delivered

through the method of service (such as depot, carry-in, or on-site service) that

is provided in the servicing country. Service centers in certain countries might

Getting help and service

Chapter 3. Getting help and service from IBM 37

not be able to service all models of a particular machine type. In some

countries, fees and restrictions might apply at the time of service.

To determine whether your computer is eligible for International Warranty

Service and to view a list of the countries where service is available, go to

http://www.ibm.com/pc/support/, and click Warranty Lookup. Eligible IBM

computers are identified by their four-digit machine types. For more

information about International Warranty Service, see Service Announcement

601-034 at http://www.ibm.com/. Click Support & downloads, click

Announcement letters, and click Announcements search.IntheSearch by

letter number only field, type 601-034, and click Search.

Getting help and service

38 ThinkPad

T30 Series Service and Troubleshooting Guide

Appendix A. Important safety instructions

DANGER

Electric current from power, telephone, and communication cables is hazardous. To

avoid shock hazard, connect and disconnect cables as shown below when

installing, moving, or opening the covers of this product or attached devices. If the

3-pin power cord is provided with this product, it must be used with a properly

grounded outlet.

Turn everything OFF.

First, attach all cables to devices. First, remove the power cord from

the outlet.

Attach the signal cables to

receptacles.

Remove signal cables from

receptacles.

Attach the power cord to an outlet.

Remove all cables from devices.

Turn the device ON.

To Connect To Disconnect

DANGER

Reduce the risk of fire and electric shock by always following basic safety

precautions, including the following:

vDo not use your computer in or near water.

vDuring electrical storms:

–Do not use your computer with the telephone cable connection.

–Do not connect the cable to or disconnect it from the telephone outlet on the

wall.

DANGER

If the rechargeable battery pack is incorrectly replaced, there is danger of an

explosion. The battery pack contains a small amount of harmful substances. To

avoid possible injury:

vReplace only with a battery of the type recommended by IBM.

vKeep the battery pack away from fire.

vDo not expose it to water or rain.

vDo not attempt to disassemble it.

vDo not short-circuit it.

vKeep it away from children.

Do not put the battery pack in trash that is disposed of in landfills. When

disposing of the battery, comply with local ordinances or regulations and your

company’s safety standards.

DANGER

If the backup battery is incorrectly replaced, there is danger of explosion.

The lithium battery contains lithium and can explode if it is not properly handled

or disposed of.

Replace only with a battery of the same type.

To avoid possible injury or death, do not: (1) throw or immerse the battery into

water, (2) allow it to heat to more than 100 °C (212 °F), or (3) attempt to repair or

disassemble it. Dispose of it as required by local ordinances or regulations and

your company’s safety standards.

40 ThinkPad

T30 Series Service and Troubleshooting Guide

DANGER Main battery safety notice

DANGER Backup battery safety notice

Appendix A. Important safety instructions 41

DANGER

Follow the instruction below when installing or reconfiguring the Mini PCI option.

To avoid shock hazard, disconnect all the cables and the ac adapter when you

install the Mini PCI option or open the covers of the system or attached devices.

Electrical current from power, telephone, and communication cables is hazardous.

CAUTION:

When you have added or upgraded a Mini PCI Card or a memory card, do

not use your computer until you have closed the cover. Never use the

computer when the cover is open.

CAUTION:

The fluorescent lamp in the liquid crystal display (LCD) contains mercury.

Do not put it in trash that is disposed of in landfills. Dispose of it as

required by local ordinances or regulations.

The LCD is made of glass, and rough handling or dropping the computer

can cause the LCD to break. If the LCD breaks and the internal fluid gets

into your eyes or on your hands, immediately wash the affected areas with

water for at least 15 minutes; if any symptoms are present after washing,

get medical care.

CAUTION:

To reduce the risk of fire, use only No. 26 AWG or larger (thicker)

telephone cable.

Modem safety information

To reduce the risk of fire, electrical shock, or injury when using telephone

equipment, always follow basic safety precautions, such as:

Never install telephone wiring during an electrical storm.

Never install telephone jacks in wet locations unless the jack is specifically

designed for wet locations.

Never touch uninsulated telephone wires or terminals unless the telephone

line has been disconnected at the network interface.

42 ThinkPad

T30 Series Service and Troubleshooting Guide

Use caution when installing or modifying telephone lines.

Avoid using a telephone (other than a cordless type) during an electrical

storm. There may be a remote risk of electric shock from lightning.

Do not use the telephone to report a gas leak in the vicinity of the leak.

Laser compliance statement

An optical storage drive (device), such as a CD-ROM, CD-RW, DVD-ROM

drive and SuperDisk, which can be installed in the IBM ThinkPad computer is

a laser product. The drive’s classification label (shown below) is on the surface

of the drive.

CLASS 1 LASER PRODUCT

LASER KLASSE 1

LUOKAN 1 LASERLAITE

APPAREIL A LASER DE CLASSE 1

KLASS 1 LASER APPARAT

The drive is certified by the manufacturer to comply with the requirements of

the Department of Health and Human Services 21 Code of Federal

Regulations (DHHS 21 CFR) Subchapter J for Class I laser products at the date

of manufacture.

In other countries, the drive is certified to conform to the requirements of

IEC825 and EN60825 for Class 1 laser products.

DANGER

Do not open the optical storage drive unit; no user adjustments or serviceable parts

are inside.

Use of controls, adjustments, or the performance of procedures other than those

specified might result in hazardous radiation exposure.

Class 1 laser products are not considered hazardous. The design of the laser

system and the optical storage drive ensures that there is no exposure to laser

radiation above a Class 1 level during normal operation, user maintenance, or

servicing.

Some drives contain an embedded Class 3A laser diode. Note this warning:

Appendix A. Important safety instructions 43

DANGER

Emits visible and invisible laser radiation when open. Avoid direct eye exposure.

Do not stare into the beam or view it directly with optical instruments.

Save these instructions.

44 ThinkPad

T30 Series Service and Troubleshooting Guide

Appendix B. Wireless related information

Wireless Interoperability

Wireless LAN Mini-PCI Adapter is designed to be interoperable with any

wireless LAN product that is based on Direct Sequence Spread Spectrum

(DSSS) radio technology, and is compliant to:

vThe IEEE 802.11 Standard on Wireless LANs (Revision B), as defined and

approved by the Institute of Electrical and Electronics Engineers.

vThe Wireless Fidelity (WiFi) certification as defined by the WECA (Wireless

Ethernet Compatibility Alliance).

IBM Bluetooth Daughter Card is designed to be interoperable with any

Bluetooth product that is compliant to Bluetooth Specification 1.1 as defined

by the Bluetooth SIG. Following profiles are supported by IBM Bluetooth

Daughter Card:

vGeneric Access

vService Discovery

vSerial Port

vDial-up Networking

vFAX

vLAN Access

vGeneric Object Exchange

vGeneric Object Push

vFile Transfer

vSynchronization

Usage environment and your Health

Wireless LAN Mini-PCI Adapter and Bluetooth Daughter Card emit radio

frequency electromagnetic energy like other radio devices. However, the level

of energy emitted is far much less than the electromagnetic energy emitted by

wireless devices like for example mobile phones.

Because Wireless LAN Mini-PCI Adapter and Bluetooth Daughter Card

operate within the guidelines found in radio frequency safety standards and

recommendations, IBM believes the integrated wireless cards are safe for use

by consumers. These standards and recommendations reflect the consensus of

the scientific community and result from deliberations of panels and

committees of scientists who continually review and interpret the extensive

research literature.

In some situation or environment, the use of Wireless LAN Mini-PCI Adapter

or Bluetooth Daughter Card may be restricted by the proprietor of the

building or responsible representatives of the organization. These situations

may for example include:

vUsing the integrated wireless cards on board of airplanes, or in hospitals

vIn any other environment where the risk of interference to other devices or

services is perceived or identified as harmful.

If you are uncertain of the policy that applies on the use of wireless devices in

a specific organization (e.g. airport or hospital), you are encouraged to ask for

authorization to use Wireless LAN Mini-PCI Adapter or Bluetooth Daughter

Card prior to turning on the ThinkPad T30 Series computer.

46 ThinkPad

T30 Series Service and Troubleshooting Guide

Appendix C. Wireless regulatory notice

The ThinkPad T30 Series computer must be installed and used in strict

accordance with the instructions as described hereafter. This product complies

with the following radio frequency and safety standards.

USA - Federal Communications Commissions (FCC)

This device complies with part 15 of the FCC Rules. Operation is subject to

the following two conditions:

1. This device may not cause harmful interference, and

2. this device must accept any interference received, including interference

that may cause undesired operation.

The FCC RF Safety Requirement

The radiated output power of Wireless LAN Mini-PCI Adapter is far below

the FCC radio frequency exposure limits. Nevertheless, the ThinkPad T30

shall be used in such a manner that the potential for human contact during

normal operation is minimized as follows:

i) Multiple Transmitters model

If you find the FCC ID “ANOCORN1TASUHOP” on the label on the bottom

of your ThinkPad computer, your computer is approved as a Multiple

Transmitters device that is permitted to use two or more wireless option PC

Cards simultaneously with the integrated wireless features in your ThinkPad

computer.

The integrated wireless features (Wireless LAN Mini-PCI Adapter and

Bluetooth card) are preinstalled by IBM, and customers are not permitted to

use any other integrated wireless feature than those preinstalled modules. If

you will install an unauthorized module, your ThinkPad computer does not

start, but only displays an error message and emits beeps.

CAUTION:

To comply with FCC RF exposure compliance requirements, a separation

distance of at least 20 cm (8 inches) must be maintained between the

built-in antenna of this device and all persons.

Use of Wireless options

Please make sure of the following when you use a Bluetooth option or

wireless option PC Card in your ThinkPad computer.

1. Visit the IBM

site at www.ibm.com/pc/qtechinfo/MIGR-39377.html and

confirm the updated list of RF option devices that have been approved to

cooperate with the integrated wireless feature.

2. When you use any other RF option device that is not listed on the IBM

site, all other wireless features including the integrated transmitter in your

ThinkPad computer are required to be turned off.

3. Users are requested to follow the RF Safety instructions on wireless option

devices that are included in the RF option device’s user’s manual.

ii) Single Transmitter model

There is no FCC ID shown on the enclosure of this model. Instead you will

find an indicator pointing the location of the FCC ID at the bottom side of

your ThinkPad computer. If no integrated wireless LAN Mini-PCI Card has

been preinstalled in the computer, you can install one, provided by IBM as an

option.

Attention: If you install a wireless LAN Mini-PCI Card that is not authorized

for the ThinkPad T30 Series computer, the computer does not start, but only

displays an error message and emits four beeps.

CAUTION:

To comply with FCC RF exposure compliance requirements, a separation

48 ThinkPad

T30 Series Service and Troubleshooting Guide

distance of at least 20 cm (8 inches) must be maintained between the

built-in antenna of this device and all persons.

IBM High Rate Wireless LAN Mini-PCI Adapter with Modem II

(FCC ID: J3OM3AWEB56GA)

Cisco Aironet Wireless 802.11b (FCC ID: MCLU58H004)

Appendix C. Wireless regulatory notice 49

Note: The transmission diversity function is implemented for the Card. One

of the antennas is selected automatically or manually (by users) to have

good quality of radiocommunication.

Use of Wireless options

The FCC’s grant condition of the single transmitter model prohibits the use of

any other Radio Frequency wireless device in conjunction with the integrated

wireless LAN Mini-PCI Card in your ThinkPad computer. Do not use any

wireless option PC Card in the PC Card slot of your ThinkPad computer

while operating the integrated wireless LAN Mini-PCI Card.

Interference Statement

An improper installation or unauthorized use may cause harmful interference

to radio communications. Also any tampering of the internal antenna will

void the FCC certification and your warranty. Refer to the “Electronic

emission notices” on page 68 for more detail.

Canada - Industry Canada (IC)

Certification number

The term “IC” before the equipment certification number only signifies that

the Industry Canada technical specifications were met. The certification

number “IC: 349-CORN1BDC” on the label at the bottom of the computer is

for the integrated Bluetooth module. The number for the integrated wireless

LAN Mini-PCI Card is stuck on the Card installed in the Mini-PCI Card slot,

as shown below.

Attention: You can install or remove the wireless LAN Mini-PCI Card by

yourself. If you install a wireless LAN Mini-PCI Card that is not authorized

for the ThinkPad T30 Series computer, the computer does not start, but only

displays an error message and emits four beeps.

50 ThinkPad

T30 Series Service and Troubleshooting Guide

Low Power License-Exempt Radiocommunication Devices (RSS-210)

Operation is subject to the following two conditions: (1) this device may not

cause interference, and (2) this device must accept any interference, including

interference that may cause undesired operation of the device.

Numéro d’homologation signifie

Le terme «IC» avant le numéro d’homologation signifie seulement que les

normes d’Industrie Canada ont été respectées.

Permis d’émission à faible puissance - Cas des appareils de communications

radio (CNR-210)

Le fonctionnement de ce type d’appareil est soumis aux deux conditions

suivantes: (1) Cet appareil peut perturber les communications radio, et (2) cet

appareil doit supporter toute perturbation, y compris les perturbations qui

pourraient provoquer un dysfonctionnement.

Notice for Users in Singapore

The Wireless LAN adapter included in this equipment is for use only within

the confined area of a building. The equipment is restricted to operating

within the 2445 - 2483.5 MHz band.

Appendix C. Wireless regulatory notice 51

52 ThinkPad

T30 Series Service and Troubleshooting Guide

Appendix D. Warranty information

This appendix contains warranty information for your ThinkPad, warranty

period, warranty service and support, and the IBM Statement of Limited

Warranty.

Warranty Period

Contact your place of purchase for warranty service information. Some IBM

Machines are eligible for on-site warranty service depending on the country

or region where service is performed or the machine type.

Machine type 2366

Country or region Warranty period

Japan and Korea Parts - 1 year, labor - 1 year

Battery pack - 1 year

All except Japan and Korea Parts - 3 years, labor - 3 years

Battery pack - 1 year

Machine type 2367

Country or region Warranty period

All Parts - 3 years, labor - 3 years

Battery pack - 1 year

Warranty service and support

With the original purchase of an IBM ThinkPad, you have access to extensive

support. During the IBM Machine warranty period, you may call IBM or your

reseller for problem-determination assistance under the terms of the IBM

Statement of Limited Warranty.

The following services are available during the warranty period:

vProblem determination - Trained personnel are available to assist you with

determining if you have a hardware problem and deciding what action is

necessary to fix the problem.

vIBM hardware repair - If the problem is determined to be caused by IBM

hardware under warranty, trained service personnel are available to provide

the applicable level of service, either on-site or at an IBM service center as

determined by IBM.

vEngineering Change management - Occasionally, there might be changes

that are required after a product has been shipped from IBM. In those

instances, IBM will make Engineering Changes (ECs) available that apply to

your hardware.

The following items are not covered under warranty service:

vReplacement or use of non-IBM parts. All IBM parts contain a 7-character

identification in the format IBM FRU XXXXXXX.

vIdentification of non-IBM software problem sources.

vInstallation of customer replaceable units (CRUs).

vInstallation and configuration of machine code or licensed internal code

that is designated as customer installable.

If you do not register your computer with IBM, you might be required to

present proof of purchase to obtain warranty service.

Before you call for service

You can solve many problems without outside assistance by following the

troubleshooting procedures that IBM provides in the online help or in the

publications that are provided with your computer and software.

Most computers, operating systems, and application programs come with

information that contains troubleshooting procedures and explanations of

error messages and error codes. The information that comes with your

computer also describes the diagnostic tests that you can perform.

If you suspect a software problem, refer to the information for the operating

system or application program.

Calling for service

Please have the following information ready:

vMachine type, model, and serial number

vDescription of the problem

vExact wording of any error messages

vHardware and software configuration information

To find the telephone number for the HelpCenter nearest you, see “Telephone

numbers” in Chapter 3, “Getting help and service from IBM” on page 33

54 ThinkPad

T30 Series Service and Troubleshooting Guide

IBM Statement of Limited Warranty Z125-4753-06 8/2000

This warranty statement consists of two parts: Part 1 and Part 2. Be sure to

read Part 1 and the country-unique terms in Part 2 that apply to your country

or region.

Part 1 - General Terms

This Statement of Limited Warranty includes Part 1 - General Terms and Part

2 - Country-unique Terms. The terms of Part 2 replace or modify those of Part

1. The warranties provided by IBM in this Statement of Limited Warranty

apply only to Machines you purchase for your use, and not for resale, from

IBM or your reseller. The term “Machine” means an IBM machine, its features,

conversions, upgrades, elements, or accessories, or any combination of them.

The term “Machine” does not include any software programs, whether

pre-loaded with the Machine, installed subsequently or otherwise. Unless IBM

specifies otherwise, the following warranties apply only in the country where

you acquire the Machine. Nothing in this Statement of Limited Warranty

affects any statutory rights of consumers that cannot be waived or limited by

contract. If you have any questions, contact IBM or your reseller.

The IBM Warranty for Machines

IBM warrants that each Machine 1) is free from defects in materials and

workmanship and 2) conforms to IBM’s Official Published Specifications

(“Specifications”). The warranty period for a Machine is a specified, fixed

period commencing on its Date of Installation. The date on your sales receipt

is the Date of Installation unless IBM or your reseller informs you otherwise.

If a Machine does not function as warranted during the warranty period, and

IBM or your reseller are unable to either 1) make it do so or 2) replace it with

one that is at least functionally equivalent, you may return it to your place of

purchase and your money will be refunded.

Extent of Warranty

The warranty does not cover the repair or exchange of a Machine resulting

from misuse, accident, modification, unsuitable physical or operating

environment, improper maintenance by you, or failure caused by a product

for which IBM is not responsible. The warranty is voided by removal or

alteration of Machine or parts identification labels.

THESE WARRANTIES ARE YOUR EXCLUSIVE WARRANTIES AND

REPLACE ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS OR

IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED

WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE. THESE WARRANTIES GIVE

YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER

RIGHTS WHICH VARY FROM JURISDICTION TO JURISDICTION.

SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR

Appendix D. Warranty information 55

LIMITATION OF EXPRESS OR IMPLIED WARRANTIES, SO THE ABOVE

EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU. IN THAT

EVENT, SUCH WARRANTIES ARE LIMITED IN DURATION TO THE

WARRANTY PERIOD. NO WARRANTIES APPLY AFTER THAT PERIOD.

Items Not Covered by Warranty

IBM does not warrant uninterrupted or error-free operation of a Machine.

Any technical or other support provided for a Machine under warranty, such

as assistance via telephone with “how-to” questions and those regarding

Machine set-up and installation, will be provided WITHOUT WARRANTIES

OF ANY KIND.

Warranty Service

To obtain warranty service for a Machine, contact IBM or your reseller. If you

do not register your Machine with IBM, you may be required to present proof

of purchase.

During the warranty period, IBM or your reseller, if approved by IBM to

provide warranty service, provides without charge certain types of repair and

exchange service to keep Machines in, or restore them to, conformance with

their Specifications. IBM or your reseller will inform you of the available

types of service for a Machine based on its country of installation. At its

discretion, IBM or your reseller will 1) either repair or exchange the failing

Machine and 2) provide the service either at your location or a service center.

IBM or your reseller will also manage and install selected engineering changes

that apply to the Machine.

Some parts of IBM Machines are designated as Customer Replaceable Units

(called “CRUs”), e.g., keyboards, memory, or hard disk drives. IBM ships

CRUs to you for replacement by you. You must return all defective CRUs to

IBM within 30 days of your receipt of the replacement CRU. You are

responsible for downloading designated Machine Code and Licensed Internal

Code updates from an IBM Internet Web site or from other electronic media,

and following the instructions that IBM provides.

When warranty service involves the exchange of a Machine or part, the item

IBM or your reseller replaces becomes its property and the replacement

becomes yours. You represent that all removed items are genuine and

unaltered. The replacement may not be new, but will be in good working

order and at least functionally equivalent to the item replaced. The

replacement assumes the warranty service status of the replaced item. Many

features, conversions, or upgrades involve the removal of parts and their

return to IBM. A part that replaces a removed part will assume the warranty

service status of the removed part.

56 ThinkPad

T30 Series Service and Troubleshooting Guide

Before IBM or your reseller exchanges a Machine or part, you agree to remove

all features, parts, options, alterations, and attachments not under warranty

service.

You also agree to

1. ensure that the Machine is free of any legal obligations or restrictions that

prevent its exchange;

2. obtain authorization from the owner to have IBM or your reseller service a

Machine that you do not own; and

3. where applicable, before service is provided:

a. follow the problem determination, problem analysis, and service

request procedures that IBM or your reseller provides;

b. secure all programs, data, and funds contained in a Machine;

c. provide IBM or your reseller with sufficient, free, and safe access to

your facilities to permit them to fulfill their obligations; and

d. inform IBM or your reseller of changes in a Machine’s location.

IBM is responsible for loss of, or damage to, your Machine while it is 1) in

IBM’s possession or 2) in transit in those cases where IBM is responsible for

the transportation charges.

Neither IBM nor your reseller is responsible for any of your confidential,

proprietary or personal information contained in a Machine which you return

to IBM or your reseller for any reason. You should remove all such

information from the Machine prior to its return.

Limitation of Liability

Circumstances may arise where, because of a default on IBM’s part or other

liability, you are entitled to recover damages from IBM. In each such instance,

regardless of the basis on which you are entitled to claim damages from IBM

(including fundamental breach, negligence, misrepresentation, or other

contract or tort claim), except for any liability that cannot be waived or

limited by applicable laws, IBM is liable for no more than

1. damages for bodily injury (including death) and damage to real property

and tangible personal property; and

2. the amount of any other actual direct damages, up to the charges (if

recurring, 12 months’ charges apply) for the Machine that is subject of the

claim. For purposes of this item, the term “Machine” includes Machine

Code and Licensed Internal Code.

This limit also applies to IBM’s suppliers and your reseller. It is the maximum

for which IBM, its suppliers, and your reseller are collectively responsible.

Appendix D. Warranty information 57

UNDER NO CIRCUMSTANCES IS IBM LIABLE FOR ANY OF THE

FOLLOWING: 1) THIRD-PARTY CLAIMS AGAINST YOU FOR

DAMAGES (OTHER THAN THOSE UNDER THE FIRST ITEM LISTED

ABOVE); 2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR

3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY

ECONOMIC CONSEQUENTIAL DAMAGES, LOST PROFITS OR LOST

SAVINGS, EVEN IF IBM, ITS SUPPLIERS OR YOUR RESELLER IS

INFORMED OF THEIR POSSIBILITY. SOME JURISDICTIONS DO NOT

ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR

EXCLUSION MAY NOT APPLY TO YOU.

Governing Law

Both you and IBM consent to the application of the laws of the country in

which you acquired the Machine to govern, interpret, and enforce all of your

and IBM’s rights, duties, and obligations arising from, or relating in any

manner to, the subject matter of this Agreement, without regard to conflict of

law principles.

Part 2 - Country-unique Terms

AMERICAS

BRAZIL

Governing Law: The following is added after the first sentence:

Any litigation arising from this Agreement will be settled exclusively by the

court of Rio de Janeiro.

NORTH AMERICA

Warranty Service: The following is added to this Section:

To obtain warranty service from IBM in Canada or the United States, call

1-800-IBM-SERV (426-7378).

CANADA

Governing Law: The following replaces “laws of the country in which you acquired

the Machine” in the first sentence:

laws in the Province of Ontario.

UNITED STATES

Governing Law: The following replaces “laws of the country in which you acquired

the Machine” in the first sentence:

laws of the State of New York.

58 ThinkPad

T30 Series Service and Troubleshooting Guide

ASIA PACIFIC

AUSTRALIA

The IBM Warranty for Machines: The following paragraph is added to this

Section:

The warranties specified in this Section are in addition to any rights you may

have under the Trade Practices Act 1974 or other similar legislation and are

only limited to the extent permitted by the applicable legislation.

Limitation of Liability: The following is added to this Section:

Where IBM is in breach of a condition or warranty implied by the Trade

Practices Act 1974 or other similar legislation, IBM’s liability is limited to the

repair or replacement of the goods or the supply of equivalent goods. Where

that condition or warranty relates to right to sell, quiet possession or clear

title, or the goods are of a kind ordinarily acquired for personal, domestic or

household use or consumption, then none of the limitations in this paragraph

apply.

Governing Law: The following replaces “laws of the country in which you acquired

the Machine” in the first sentence:

laws of the State or Territory.

CAMBODIA, LAOS, AND VIETNAM

Governing Law: The following replaces “laws of the country in which you acquired

the Machine” in the first sentence:

laws of the State of New York.

The following is added to this Section:

Disputes and differences arising out of or in connection with this Agreement

shall be finally settled by arbitration which shall be held in Singapore in

accordance with the rules of the International Chamber of Commerce (ICC).

The arbitrator or arbitrators designated in conformity with those rules shall

have the power to rule on their own competence and on the validity of the

Agreement to submit to arbitration. The arbitration award shall be final and

binding for the parties without appeal and the arbitral award shall be in

writing and set forth the findings of fact and the conclusions of law.

All proceedings shall be conducted, including all documents presented in

such proceedings, in the English language. The number of arbitrators shall be

three, with each side to the dispute being entitled to appoint one arbitrator.

The two arbitrators appointed by the parties shall appoint a third arbitrator

before proceeding upon the reference. The third arbitrator shall act as

chairman of the proceedings. Vacancies in the post of chairman shall be filled

Appendix D. Warranty information 59

by the president of the ICC. Other vacancies shall be filled by the respective

nominating party. Proceedings shall continue from the stage they were at

when the vacancy occurred.

If one of the parties refuses or otherwise fails to appoint an arbitrator within

30 days of the date the other party appoints its, the first appointed arbitrator

shall be the sole arbitrator, provided that the arbitrator was validly and

properly appointed.

The English language version of this Agreement prevails over any other

language version.

HONG KONG AND MACAU

Governing Law: The following replaces “laws of the country in which you acquired

the Machine” in the first sentence:

laws of Hong Kong Special Administrative Region.

INDIA

Limitation of Liability: The following replaces items 1 and 2 of this Section:

1. liability for bodily injury (including death) or damage to real property and

tangible personal property will be limited to that caused by IBM’s

negligence;

2. as to any other actual damage arising in any situation involving

nonperformance by IBM pursuant to, or in any way related to the subject

of this Statement of Limited Warranty, IBM’s liability will be limited to the

charge paid by you for the individual Machine that is the subject of the

claim.

JAPAN

Governing Law: The following sentence is added to this Section:

Any doubts concerning this Agreement will be initially resolved between us

in good faith and in accordance with the principle of mutual trust.

NEW ZEALAND

The IBM Warranty for Machines: The following paragraph is added to this

Section:

The warranties specified in this Section are in addition to any rights you may

have under the Consumer Guarantees Act 1993 or other legislation which

cannot be excluded or limited. The Consumer Guarantees Act 1993 will not

apply in respect of any goods which IBM provides, if you require the goods

for the purposes of a business as defined in that Act.

60 ThinkPad

T30 Series Service and Troubleshooting Guide

Limitation of Liability: The following is added to this Section:

Where Machines are not acquired for the purposes of a business as defined in

the Consumer Guarantees Act 1993, the limitations in this Section are subject

to the limitations in that Act.

PEOPLE’S REPUBLIC OF CHINA (PRC)

Governing Law: The following replaces this Section:

Both you and IBM consent to the application of the laws of the State of New

York (except when local law requires otherwise) to govern, interpret, and

enforce all your and IBM’s rights, duties, and obligations arising from, or

relating in any manner to, the subject matter of this Agreement, without

regard to conflict of law principles.

Any disputes arising from or in connection with this Agreement will first be

resolved by friendly negotiations, failing which either of us has the right to

submit the dispute to the China International Economic and Trade Arbitration

Commission in Beijing, the PRC, for arbitration in accordance with its

arbitration rules in force at the time. The arbitration tribunal will consist of

three arbitrators. The language to be used therein will be English and Chinese.

An arbitral award will be final and binding on all the parties, and will be

enforceable under the Convention on the Recognition and Enforcement of

Foreign Arbitral Awards (1958).

The arbitration fee will be borne by the losing party unless otherwise

determined by the arbitral award.

During the course of arbitration, this Agreement will continue to be

performed except for the part which the parties are disputing and which is

undergoing arbitration.

EUROPE, MIDDLE EAST, AFRICA (EMEA)

THE FOLLOWING TERMS APPLY TO ALL EMEA COUNTRIES:

The terms of this Statement of Limited Warranty apply to Machines purchased

from IBM or an IBM reseller.

Warranty Service:

If you purchase an IBM Machine in Austria, Belgium, Denmark, Estonia,

Finland, France, Germany, Greece, Iceland, Ireland, Italy, Latvia, Lithuania,

Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland or

United Kingdom, you may obtain warranty service for that Machine in any of

those countries from either (1) an IBM reseller approved to perform warranty

service or (2) from IBM. If you purchase an IBM Personal Computer Machine

in Albania, Armenia, Belarus, Bosnia and Herzegovina, Bulgaria, Croatia,

Czech Republic, Georgia, Hungary, Kazakhstan, Kirghizia, Federal Republic of

Appendix D. Warranty information 61

Yugoslavia, Former Yugoslav Republic of Macedonia (FYROM), Moldova,

Poland, Romania, Russia, Slovak Republic, Slovenia, or Ukraine, you may

obtain warranty service for that Machine in any of those countries from either

(1) an IBM reseller approved to perform warranty service or (2) from IBM.

If you purchase an IBM Machine in a Middle Eastern or African country, you

may obtain warranty service for that Machine from the IBM entity within the

country of purchase, if that IBM entity provides warranty service in that

country, or from an IBM reseller, approved by IBM to perform warranty

service on that Machine in that country. Warranty service in Africa is available

within 50 kilometers of an IBM authorized service provider. You are

responsible for transportation costs for Machines located outside 50 kilometers

of an IBM authorized service provider.

Governing Law:

The applicable laws that govern, interpret and enforce rights, duties, and

obligations of each of us arising from, or relating in any manner to, the

subject matter of this Statement, without regard to conflict of laws principles,

as well as Country-unique terms and competent court for this Statement are

those of the country in which the warranty service is being provided, except

that in 1) Albania, Bosnia-Herzegovina, Bulgaria, Croatia, Hungary, Former

Yugoslav Republic of Macedonia, Romania, Slovakia, Slovenia, Armenia,

Azerbaijan, Belarus, Georgia, Kazakhstan, Kyrgyzstan, Moldova, Russia,

Tajikistan, Turkmenistan, Ukraine, and Uzbekistan, the laws of Austria apply;

2) Estonia, Latvia, and Lithuania, the laws of Finland apply; 3) Algeria, Benin,

Burkina Faso, Cameroon, Cape Verde, Central African Republic, Chad, Congo,

Djibouti, Democratic Republic of Congo, Equatorial Guinea, France, Gabon,

Gambia, Guinea, Guinea-Bissau, Ivory Coast, Lebanon, Mali, Mauritania,

Morocco, Niger, Senegal, Togo, and Tunisia, this Agreement will be construed

and the legal relations between the parties will be determined in accordance

with the French laws and all disputes arising out of this Agreement or related

to its violation or execution, including summary proceedings, will be settled

exclusively by the Commercial Court of Paris; 4) Angola, Bahrain, Botswana,

Burundi, Egypt, Eritrea, Ethiopia, Ghana, Jordan, Kenya, Kuwait, Liberia,

Malawi, Malta, Mozambique, Nigeria, Oman, Pakistan, Qatar, Rwanda, Sao

Tome, Saudi Arabia, Sierra Leone, Somalia, Tanzania, Uganda, United Arab

Emirates, United Kingdom, West Bank/Gaza, Yemen, Zambia, and Zimbabwe,

this Agreement will be governed by English Law and disputes relating to it

will be submitted to the exclusive jurisdiction of the English courts; and 5) in

Greece, Israel, Italy, Portugal, and Spain any legal claim arising out of this

Statement will be brought before, and finally settled by, the competent court

of Athens, Tel Aviv, Milan, Lisbon, and Madrid, respectively.

THE FOLLOWING TERMS APPLY TO THE COUNTRY SPECIFIED:

AUSTRIA AND GERMANY

62 ThinkPad

T30 Series Service and Troubleshooting Guide

The IBM Warranty for Machines: The following replaces the first sentence of the

first paragraph of this Section:

The warranty for an IBM Machine covers the functionality of the Machine for

its normal use and the Machine’s conformity to its Specifications.

The following paragraphs are added to this Section:

The minimum warranty period for Machines is six months. In case IBM or

your reseller is unable to repair an IBM Machine, you can alternatively ask for

a partial refund as far as justified by the reduced value of the unrepaired

Machine or ask for a cancellation of the respective agreement for such

Machine and get your money refunded.

Extent of Warranty: The second paragraph does not apply.

Warranty Service: The following is added to this Section:

During the warranty period, transportation for delivery of the failing Machine

to IBM will be at IBM’s expense.

Limitation of Liability: The following paragraph is added to this Section:

The limitations and exclusions specified in the Statement of Limited Warranty

will not apply to damages caused by IBM with fraud or gross negligence and

for express warranty.

The following sentence is added to the end of item 2:

IBM’s liability under this item is limited to the violation of essential

contractual terms in cases of ordinary negligence.

EGYPT

Limitation of Liability: The following replaces item 2 in this Section:

as to any other actual direct damages, IBM’s liability will be limited to the

total amount you paid for the Machine that is the subject of the claim. For

purposes of this item, the term “Machine” includes Machine Code and

Licensed Internal Code.

Applicability of suppliers and resellers (unchanged).

FRANCE

Limitation of Liability: The following replaces the second sentence of the first

paragraph of this Section:

In such instances, regardless of the basis on which you are entitled to claim

damages from IBM, IBM is liable for no more than: (items 1 and 2 unchanged).

IRELAND

Appendix D. Warranty information 63

Extent of Warranty: The following is added to this Section:

Except as expressly provided in these terms and conditions, all statutory

conditions, including all warranties implied, but without prejudice to the

generality of the foregoing all warranties implied by the Sale of Goods Act

1893 or the Sale of Goods and Supply of Services Act 1980 are hereby

excluded.

Limitation of Liability: The following replaces items one and two of the first

paragraph of this Section:

1. death or personal injury or physical damage to your real property solely

caused by IBM’s negligence; and

2. the amount of any other actual direct damages, up to 125 percent of the

charges (if recurring, the 12 months’ charges apply) for the Machine that is

the subject of the claim or which otherwise gives rise to the claim.

Applicability of suppliers and resellers (unchanged).

The following paragraph is added at the end of this Section:

IBM’s entire liability and your sole remedy, whether in contract or in tort, in

respect of any default shall be limited to damages.

ITALY

Limitation of Liability: The following replaces the second sentence in the first

paragraph:

In each such instance unless otherwise provided by mandatory law, IBM is

liable for no more than:

1. (unchanged)

2. as to any other actual damage arising in all situations involving

nonperformance by IBM pursuant to, or in any way related to the subject

matter of this Statement of Warranty, IBM’s liability, will be limited to the

total amount you paid for the Machine that is the subject of the claim.

Applicability of suppliers and resellers (unchanged).

The following replaces the third paragraph of this Section:

Unless otherwise provided by mandatory law, IBM and your reseller are not

liable for any of the following: (items 1 and 2 unchanged) 3) indirect damages,

even if IBM or your reseller is informed of their possibility.

SOUTH AFRICA, NAMIBIA, BOTSWANA, LESOTHO AND SWAZILAND

Limitation of Liability: The following is added to this Section:

IBM’s entire liability to you for actual damages arising in all situations

involving nonperformance by IBM in respect of the subject matter of this

64 ThinkPad

T30 Series Service and Troubleshooting Guide

Statement of Warranty will be limited to the charge paid by you for the

individual Machine that is the subject of your claim from IBM.

UNITED KINGDOM

Limitation of Liability: The following replaces items 1 and 2 of the first paragraph

of this Section:

1. death or personal injury or physical damage to your real property solely

caused by IBM’s negligence;

2. the amount of any other actual direct damages or loss, up to 125 percent

of the charges (if recurring, the 12 months’ charges apply) for the Machine

that is the subject of the claim or which otherwise gives rise to the claim;

The following item is added to this paragraph:

3. breach of IBM’s obligations implied by Section 12 of the Sale of Goods Act

1979 or Section 2 of the Supply of Goods and Services Act 1982.

Applicability of suppliers and resellers (unchanged).

The following is added to the end of this Section:

IBM’s entire liability and your sole remedy, whether in contract or in tort, in

respect of any default shall be limited to damages.

Appendix D. Warranty information 65

66 ThinkPad

T30 Series Service and Troubleshooting Guide

Appendix E. Notices

This publication was developed for products and services offered in the

U.S.A.

IBM may not offer the products, services, or features discussed in this

document in other countries. Consult your local IBM representative for

information on the products and services currently available in your area. Any

reference to an IBM product, program, or service is not intended to state or

imply that only that IBM product, program, or service may be used. Any

functionally equivalent product, program, or service that does not infringe

any IBM intellectual property right may be used instead. However, it is the

user’s responsibility to evaluate and verify the operation of any non-IBM

product, program, or service.

IBM may have patents or pending patent applications covering subject matter

described in this document. The furnishing of this document does not give

you any license to these patents. You can send license inquiries, in writing, to:

IBM Director of Licensing

IBM Corporation

North Castle Drive

Armonk, NY 10504-1785

U.S.A.

Processing date data

This IBM hardware product and IBM software products that might be

packaged with it have been designed, when used in accordance with their

associated documentation, to process date data correctly within and between

the 20th and 21st centuries, provided all other products (for example,

software, hardware, and firmware) used with these products properly

exchange accurate date data with them.

IBM cannot take responsibility for the date data processing capabilities of

non-IBM products, even if those products are preinstalled or otherwise

distributed by IBM. You should contact the vendors responsible for those

products directly to determine the capabilities of their products and update

them if needed. This IBM hardware product cannot prevent errors that might

occur if software, upgrades, or peripheral devices you use or exchange data

with do not process date data correctly.

The foregoing is a Year 2000 Readiness Disclosure.

References to the Web site addresses

Any references in this publication to non-IBM Web sites are provided for

convenience only and do not in any manner serve as an endorsement of those

Web sites. The materials at those Web sites are not part of the materials for

this IBM product, and use of those Web sites is at your own risk.

Electronic emission notices

Federal Communications Commission (FCC) Statement

ThinkPad T30, machine type 2366 or 2367

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

vReorient or relocate the receiving antenna.

vIncrease the separation between the equipment and receiver.

vConnect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

vConsult an IBM authorized dealer or service representative for help.

Properly shielded and grounded cables and connectors must be used in order

to meet FCC emission limits. Proper cables and connectors are available from

IBM authorized dealers. IBM is not responsible for any radio or television

interference caused by using other than recommended cables and connectors

or by unauthorized changes or modifications to this equipment. Unauthorized

changes or modifications could void the user’s authority to operate the

equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to

the following two conditions: (1) this device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

Responsible Party:

68 ThinkPad

T30 Series Service and Troubleshooting Guide

International Business Machines Corporation

New Orchard Road

Armonk, NY 10504

Telephone 1-919-543-2193

Industry Canada Class B Emission Compliance Statement

This Class B digital apparatus complies with Canadian ICES-003.

Avis de conformité à la réglementation d’Industrie Canada

Cet appareil numérique de la classe B est conform à la norme NMB-003 du

Canada.

European Community Directive Conformance Statement

This product is in conformity with the protection requirements of EU Council

Directive 89/336/EEC on the approximation of the laws of the Member States

relating to electro-magnetic compatibility. IBM cannot accept responsibility for

any failure to satisfy the protection requirements resulting from a

non-recommended modification of the product, including the fitting of

non-IBM option cards.

This product satisfies the Class B limits of EN 55022.

Telecommunication notices

Federal Communications Commission (FCC) and Telephone Company

Requirements (Part 68 of the FCC Rules)

1. The Telephone Consumer Protection Act of 1991 makes it unlawful for any

person to use a computer or other electronic device to send any message

via a telephone fax machine unless such message clearly contains in a

margin at the top or bottom of each transmitted page or on the first page

of the transmission, the date and time it is sent, and an identification of

the business or other entity, or other individual sending the message and

the telephone number of the sending machine or such business, other

entity, or individual.

In order to program this information into your computer, you should be

sure to follow the installation instructions for your fax software package.

2. The built-in modem is built into the ThinkPad computer. It complies with

Part 68 of the FCC Rules. A label is affixed to the bottom of the computer

that contains, among other things, the FCC registration number, USOC,

Appendix E. Notices 69

and Ringer Equivalency Number (REN) for this equipment. If these

numbers are requested, look at the label and provide this information to

your telephone company.

3. The REN is useful to determine the quantity of devices you may connect

to your telephone line and still have those devices ring when your number

is called. In most, but not all, areas, the sum of the RENs of all devices

should not exceed five (5.0). To be certain of the number of devices you

may connect to your line, as determined by the REN (REN:0.7), you

should call your local telephone company to determine the maximum REN

for your calling area.

4. If the built-in modem causes harm to the telephone network, the telephone

company may discontinue your service temporarily. If possible, they will

notify you in advance. But, if advance notice isn’t practical, you will be

notified as soon as possible. You will be advised of your right to file a

complaint with the FCC.

5. Your telephone company may make changes in its facilities, equipment,

operations, or procedures that could affect the proper operation of your

equipment. If they do, you will be given advance notice so as to give you

an opportunity to maintain uninterrupted service.

6. If you experience trouble with this built-in modem, contact your IBM

Authorized Seller, or the IBM Corporation, 500 Columbus Avenue,

Thornwood, NY 10594, 1-800-772-2227, for repair/warranty information.

The telephone company may ask you to disconnect this equipment from

the network until the problem has been corrected, or until you are sure the

equipment is not malfunctioning.

7. No customer repairs are possible to the modem. If you experience trouble

with this equipment, contact your Authorized Seller or the IBM

Corporation for information.

8. The modem may not be used on coin service provided by the telephone

company. Connection to party lines is subject to state tariffs. Contact your

state public utility commission or corporation commission for information.

9. When ordering network interface (NI) service from the Local Exchange

Carrier, specify service arrangement USOC RJ11C.

Fax Branding

The Telephone Consumer Protection Act of 1991 makes it unlawful for any

person to use a computer or other electronic device, including fax machines,

to send any message unless such message clearly contains in a margin at the

top of or bottom of each transmitted page or on the first page of the

transmission, the date and time it is sent and an identification of the business

or other entity, or other individual sending the message and the telephone

number of the sending machine or such business, other entity, or individual.

(The telephone number provided may not be a 900 number or any other

number for which charges exceed local or long-distance transmission charges.)

70 ThinkPad

T30 Series Service and Troubleshooting Guide

Industry Canada requirements

Notice

The Industry Canada label identifies certified equipment. This certification

means that the equipment meets certain telecommunications networks

protective, operational, and safety requirements. The Department does not

guarantee the equipment will operate to the user’s satisfaction.

Before installing this equipment, users should ensure that it is permissible to

be connected to the facilities of the local telecommunications company. The

equipment must also be installed using an acceptable method of

communication. In some cases, the company’s inside wiring associated with a

single line individual service may be extended by means of a certified

connector assembly (telephone extension cord). The customer should be aware

that compliance with the above conditions may not prevent degradation of

service in some situations.

Repairs to certified equipment should be made by an authorized Canadian

maintenance facility designated by the supplier. Any repairs of alterations

made by the user to this equipment, or equipment malfunctions, may give the

telecommunications company cause to request the user to disconnect the

equipment.

Users should ensure for their own protection that the electrical ground

connections of the power utility, telephone lines and internal metallic water

pipe system, if present, are connected together. This precaution may be

particularly important in rural areas.

Caution

Users should not attempt to make such connections themselves, but should

contact the appropriate electric inspection authority, or electrician, as

appropriate.

The Ringer Equivalent Number (REN:0.3) assigned to each terminal device

provides an indication of the maximum number of terminals allowed to be

connected to a telephone interface. The termination on an interface may

consist of any combination of devices subject only to the requirement that the

sum of the Ringer Equivalence Number of all the devices does not exceed 5.

Avis

L’étiquette du ministère de l’Industrie Canada identifie le matériel homologué.

Cette étiquette certifie que le matériel est conforme à certaines normes de

protection, d’exploitation et de sécurité des réseaux de télécommunications. Le

Ministère n’assure toutefois pas que le matériel fonctionnera à la satisfaction

de l’utilisateur.

Appendix E. Notices 71

Avant d’installer ce matériel, l’utilisateur doit s’assurer qu’il est permis de le

raccorder aux installations de l’entreprise locale de télécommunication. Le

matériel doit également être installé en suivant une méthode acceptée de

raccordement. Dans certains cas, les fils intérieurs de l’entreprise utilisés pour

un service individuel à ligne unique peuvent être prolongés au moyen d’un

dispositif homologué de raccordement (cordon prolongateur téléphonique

interne). L’abonné ne doit pas oublier qu’il est possible que la conformité aux

conditions énoncées ci-dessus n’empechent pas la dégradation du service dans

certaines situations. Actuellement, les entreprises de télécommunication ne

permettent pas que l’on raccorde leur matériel à des jacks d’abonné, sauf dans

les cas précis prévus par les tarifs paticuliers de ces entreprises.

Les réparations de matériel homologué doivent être effectuées par un centre

d’entretien canadien autorisé désigné par le fournisseur. La compagnie de

télécommunications peut demander à l’utilisateur de débrancher un appareil à

la suite de réparations ou de modifications effectuées par l’utilisateur ou à

cause de mauvais fonctionnement.

Pour sa propre protection, l’utilisateur doit s’assurer que tous les fils de mise

à la terre de la source d’énergie électrique, des lignes téléphoniques et des

canalisations d’eau métalliques, s’il y en a, sont raccordés ensemble. Cette

précaution est particulièrement importante dans les régions rurales.

Avertissement

L’utilisateur ne doit pas tenter de faire ces raccordements lui-même; il doit

avoir recours à un service d’inspection des installations électriques, ou à

électricien, selon le cas.

L’indice de charge (IC) assigné à chaque dispositif terminal indique (REN:0.3),

pour éviter toute surcharge, le pourcentage de la charge totale qui peut être

raccordée à un circuit téléphonique bouclé utilisé par ce dispositif. La

terminaison du circuit bouclé peut être constituée de n’importe quelle

combinaison de dispositifs, pourvu que la somme des indices de charge de

l’ensemble des dispositifs ne dépasse pas 5.

Notice for Australia

The following notice applies when using the telephony functions:

WARNING: FOR SAFETY REASONS, ONLY CONNECT EQUIPMENT WITH A

TELECOMMUNICATIONS COMPLIANCE LABEL. THIS INCLUDES CUSTOMER

EQUIPMENT PREVIOUSLY LABELLED PERMITTED OR CERTIFIED.

72 ThinkPad

T30 Series Service and Troubleshooting Guide

Notice for New Zealand

For the modem with approval number PTC 211/00/206

1. The grant of a Telepermit for any item of terminal equipment indicates

only that Telecom has accepted that the item complies with minimum

conditions for connection to its network. It indicates no endorsement of

the product by Telecom, nor does it provide any sort of warranty. Above

all, it provides no assurance that any item will work correctly in all

respects with another item of Telepermitted equipment of a different make

or model, nor does it imply that any product is compatible with all of

Telecom’s network services.

2. This equipment is not capable under all operation conditions of correct

operation at the higher speeds for which it is designed. The 33.6 kbit/s

and 56 kbit/s connections are likely to be restricted to lower bit rates

when connected to some PSTN implementations. Telecom will accept no

responsibility should difficulties arise in such circumstances.

3. This equipment may not provide for the effective hand-over of a call to

another device connected to the same line.

4. Under power failure conditions, this telephone may not operate. Please

ensure that a separate telephone, not dependent on local power is

available for emergency use.

5. Some parameters required for compliance with Telecom’s Telepermit

requirements are dependent on the equipment (PC) associated with this

device. The associated equipment shall be set to operate within the

following limits for compliance with Telecom’s specifications:

vThere shall be no more than 10 call attempts to the same number within

any 30-minute period for any single manual call initiation.

vThe equipment shall go on-hook for a period of not less than 30 seconds

between the end of one attempt and the beginning of the next attempt

to the same number.

6. Some parameters required for compliance with Telecom’s Telepermit

requirements are dependent on the equipment (PC) associated with this

device. In order to operate within the limits for compliance with Telecom’s

specifications, the associated equipment shall be set to ensure that

automatic calls to different numbers are spaced such that there is no less

than 5 seconds between the end of one call attempt and the beginning of

another.

7. This equipment shall not be set up to make automatic calls to Telecom’s

’111’ emergency service.

8. Some parameters required for compliance with Telecom’s Telepermit

requirements are dependent on the equipment (PC) associated with this

device. In order to operate within the limits for compliance with Telecom’s

specifications, the associated equipment shall be set to ensure that calls are

answered between 3 and 30 seconds of receipt of ringing.

Appendix E. Notices 73

For the modem with approval number PTC 211/01/004

The grant of a Telepermit for any item of terminal equipment indicates only

that Telecom has accepted that the item complies with minimum conditions

for connection to its network. It indicates no endorsement of the product by

Telecom, nor does it provide any sort of warranty. Above all, it provides no

assurance that any item will work correctly in all respects with another item

of Telepermitted equipment of a different make or model, nor does it imply

that any product is compatible with all of Telecom’s network services.

Some parameters required for compliance with Telecom’s Telepermit

requirements are dependent on the equipment (PC) associated with this

device. The associated equipment shall be set to operate within the following

limits for compliance with Telecom’s Specification:

vThere shall be no more than 10 call attempts to the same number within

any 30 minute period for any single manual call initiation, and

vThe equipment shall go offline for a period of not less than 30 seconds

between the end of one call attempt and the beginning of the next attempt.

Where automatic calls are made to different numbers, the equipment shall

go offline for a period of not less than 5 seconds between the end of one

call attempt and the beginning of the next attempt.

vWhen used in the automatic answer mode, the equipment shall be set to

answer within 3 to 30 seconds of the receipt of ringing.

This equipment shall not be set-up to make automatic calls to the Telecom 111

emergency service.

For the modem with approval number PTC 211/99/255

Not all phones connected to the phone port will respond to incoming ringing.

Do not report this as a fault unless the same phone will not respond to

ringing when connected to a standard phone socket.

This equipment shall not be set up to make automatic calls to the Telecom 111

Emergency Services.

The grant of a Telepermit for a device in no way indicates Telecom acceptance

of responsibility for the correct operation of that device under all operating

conditions. In particular, higher speeds at which this modem is capable of

operating depend on a specific network implementation which is only one of

many ways of delivering high quality voice telephony to customers. Failure to

operate should not be reported as a fault to Telecom.

In addition to satisfactory line conditions a modem can only work properly if:

it is compatible with the modem at the other end of the call and,

74 ThinkPad

T30 Series Service and Troubleshooting Guide

the application using the modem is compatible with the application at the

other end of the call - e.g. accessing the Internet requires suitable software

in addition to a modem.

This equipment should not be used in a manner which could constitute a

nuisance to other Telecom customers.

Some parameters required for compliance with Telecom’s PTC Specifications

are dependent on the equipment (PC) associated with this modem. The

associated equipment shall be set up to operate within the following limits for

compliance with Telecom specifications:

There shall be no more than 10 call attempts to the same number within

any 30 minute period for a single manual call initiation.

The equipment shall go back on-hook for a period of not less than 30

seconds between the end of one call attempt and the beginning of the next.

Automatic calls to different numbers shall be not less than 5 seconds apart.

When used in the Auto-Answer mode, the S0 register must be set with a

value between 2 and 5. This ensures:

A person calling your modem will hear a short burst of ringing before the

modem answers. This confirms that the call has been successfully switched

through the network.

Caller identification information (which occurs between the first and

second ring cadence) is not destroyed.

This equipment does not meet Telecom’s impedance requirements.

Performance limitations may occur when used in conjunction with some parts

of the network. Telecom will accept no responsibility should difficulties arise

in such circumstances.

The code for Call Waiting disable is *52 on the Telecom New Zealand

telephone network.

For the modem with approval number PTC 211/99/020

vThe grant of a Telepermit for any item of terminal equipment indicates only

that Telecom has accepted that the item complies with minimum conditions

for connection to its network. It indicates no endorsement of the product by

Telecom, nor does it provide any sort of warranty. Above all, it provides no

assurance that any item will work correctly in all respects with another item

of Telepermitted equipment of a different make or model, nor does it imply

that any product is compatible with all of Telecom’s network services.

vThis equipment is not capable, under all operating conditions, of correct

operation at the higher speeds for which it is designed. Telecom will accept

no responsibility if difficulties arise in such circumstances.

Appendix E. Notices 75

vThis device is equipped with pulse dialling, whereas the Telecom standard

is DTMF tone dialing. There is no guarantee that Telecom lines will always

continue to support pulse dialling.

vUse of pulse dialling, when this equipment is connected to the same line as

other equipment, may give rise to bell tinkle or noise and may also cause a

false answer condition. If such problems occur, the user should NOT

contact the Telecom Faults Service.

vThis equipment shall not be set to make automatic calls to the Telecom 111

Emergency Service.

vThis equipment might not provide for the effective hand-over of a call to

another device connected to the same line.

vThis equipment must not be used under any circumstances that might

constitute a nuisance to other Telecom customers.

vSome parameters required for compliance with Telecom’s Telepermit

requirements are dependent on the software. In order to operate within the

limits for compliance with Telecom’s specifications, the software shall be set

to ensure that calls are answered between 3 and 30 seconds of receipt of

ringing.

vAll persons using this device for recording telephone conversations shall

comply with New Zealand law. This requires that at least one party to the

conversation is to be aware that it is being recorded. In addition, the

Principles enumerated in the Privacy Act 1993 shall be complied with in

respect to the nature of the personal information collected, the purpose for

its collection, how it is to be used, and what it disclosed to any other party.

For the modem with approval number PTC 211/01/050

The grant of a Telepermit for any item of terminal equipment indicates only

that Telecom has accepted that the item complies with minimum conditions

for connection to its network. It indicates no endorsement of the product by

Telecom, nor does it provide any sort of warranty. Above all, it provides no

assurance that any item will work correctly in all respects with another item

of Telepermitted equipment of a different make or model, nor does it imply

that any product is compatible with all of Telecom’s network services.

This equipment is not capable, under all operating conditions, of correct

operation at the higher speeds for which it is designed. Telecom will accept no

responsibility should difficulties arise in such circumstances.

If a charge for local calls is unacceptable, the ’Dial’ button should not be used

for local calls. Only the seven digits of your local number should be dialled

from your modem. Do not dial the area code digit or ’0’ prefix.

This equipment should not be used under any circumstances that may

constitute a nuisance to other Telecom customers.

76 ThinkPad

T30 Series Service and Troubleshooting Guide

Some parameters required for compliance with Telecom’s Telepermit

requirements are dependent on the equipment (PC) associated with this

device. The associated equipment shall be set to operate within the following

limits for compliance with Telecom’s specifications:

Automatic re-attempts to the same number

There shall be no more than 10 call attempts to the same number within

any 30 minute period for any single manual call initiation, and

The equipment shall go on-hook for a period of not less than 30 seconds

between the end of one attempt and the beginning of the next call attempt.

Automatic calls to different numbers

Automatic calls to different numbers shall be spaced such that there is no

less than 5 seconds between the end of one call attempt and the beginning

of another.

Call answering

The associated equipment shall be set to ensure that calls are answered

between 3 and 30 seconds of receipt of ringing.

Appendix E. Notices 77

Notice for European Union countries

Hereby Ambit declares that this “J07M058” modem is in conformity with the

essential requirements and other relevant provisions of Directive 1999/5/EC.

78 ThinkPad

T30 Series Service and Troubleshooting Guide

Product notice requirements

The following notice applies to machines equipped with both a DVD and a

TV-out function:

This product incorporates copyright protection technology that is protected by

method claims of certain U.S. patents and other intellectual property rights owned by

Macrovision Corporation and other rights owners. Use of this copyright protection

technology must be authorized by Macrovision Corporation and is intended for home

and other limited viewing use only, unless otherwise authorized by Macrovision

Corporation. Reverse engineering or disassembly is prohibited.

Trademarks

The following terms are trademarks of the IBM Corporation in the United

States or other countries or both:

IBM ThinkPad

HelpCenter TrackPoint

PS/2 Ultrabay

ThinkLight UltraNav

Microsoft, Windows, and Windows NT are trademarks of Microsoft

Corporation in the United States and/or other countries.

Intel, Pentium, and SpeedStep are trademarks of Intel Corporation in the

United States and/or other countries. (For a complete list of Intel trademarks,

see www.intel.com/tradmarx.htm)

Other company, product, or service names may be the trademarks or service

marks of others.

Appendix E. Notices 79

80 ThinkPad

T30 Series Service and Troubleshooting Guide

Index

Access ThinkPad v

battery

problems 23

BIOS Setup 27

carrying the computer 6

cleaning the computer 8

computer display problems 21

configuration

setup 27

electronic help v

error messages 11

errors without messages 14

fax, help by 35

hard disk

problems 24

upgrading 30

hibernation problems 18

IBM help v

keyboard problems 16

on-board help v

password problems 15

PC-Doctor for Windows 10

power switch problems 16

problems, troubleshooting 11

recovering software 28

safety instruction 39

standby problems 18

storage device, upgrading 30

telephone, help by 35

testing with PC-Doctor 10

ThinkPad Assistant v

TrackPoint problems 17

UltraNav problems 17

Web, help by 34

82 ThinkPad

T30 Series Service and Troubleshooting Guide



Part Number: 62P9256

(1P) P/N: 62P9256

HON HAI PRECISION IND U58H004 Wireless LAN 802.11b MiniPCI Card User Manual

HON HAI Precision Ind. Co., Ltd. Wireless LAN 802.11b MiniPCI Card Users Manual

Users Manual

Navigation menu

Namespaces

Views

Navigation
