1. Introduction
Project Name: 802.11b/g/n WIFI module.
This documentation describes the product specification of the WIFI
802.11b/g/n module, it is a confidential document of FOXCONN.
1.1 Scope
The device provide communications for applications operating in the
globally available 2.4GHz unlicensed ISM band, which utilizing direct
sequence spread spectrum and OFDM/CCK technology, the maximum
data rate can reach to 65 Mbps(MCS7) for HT20.
1.2 Function
¾ Support single-band IEEE 802.11b/g and handheld device class
802.11n.
¾ 1x1 single stream with antenna diversity.
¾ SDIO v2.0 4bit mode interface support.
¾ Full support for power saving modes.
Confidential 4
2. Product Specification
2.1 Output Center And Symbol Clock Frequency Tolerance
Center frequency tolerance
CH1/CH7/CH13
Spec. (ppm) +/-25
2.2 RF Specification
2.2.1 Spectrum Mask spec
Mode of Operation 802.11g Specifications
802.11 g at r 9 MHz Offset 0 dBr
802.11 g at r 11 MHz Offset -20 dBr
802.11 g at r 20 MHz Offset -28 dBr
802.11 g at r 30 MHz Offset -40 dBr
Mode of Operation 802.11b Specifications
802.11b at +/-11MHz~+/-22MHz Offset -30 dBr
802.11b at >+22MHz,<-22MHz Offset -50 dBr
Mode of Operation 802.11n-HT20 Specifications
802.11n at r9 MHz offset 0 dBr
802.11n at r11 MHz offset -20 dBr
802.11n at r20 MHz offset -28 dBr
802.11n at r30 MHz offset -45 dBr
Confidential 5
2.3 Electrical Specification
2.3.1 Absolute Maximum Ratings
The specification indicates levels where permanent damage to the device
can occur. Functional operation is not guaranteed under these conditions.
Operation at absolute maximum conditions for extended can adversely
affect long-term reliability of the device.
Rating Symbol Value Unit
DC supply voltage for the device VDD -0.5~6 V
2.3.2 Recommended operating condition
Parameter Minimum Typical Maximum Unit
DC Supply Voltage 3 3.3ʳ 3.6 [v]
2.3.3 Current consumption in active on WLAN modes
Confidential 6

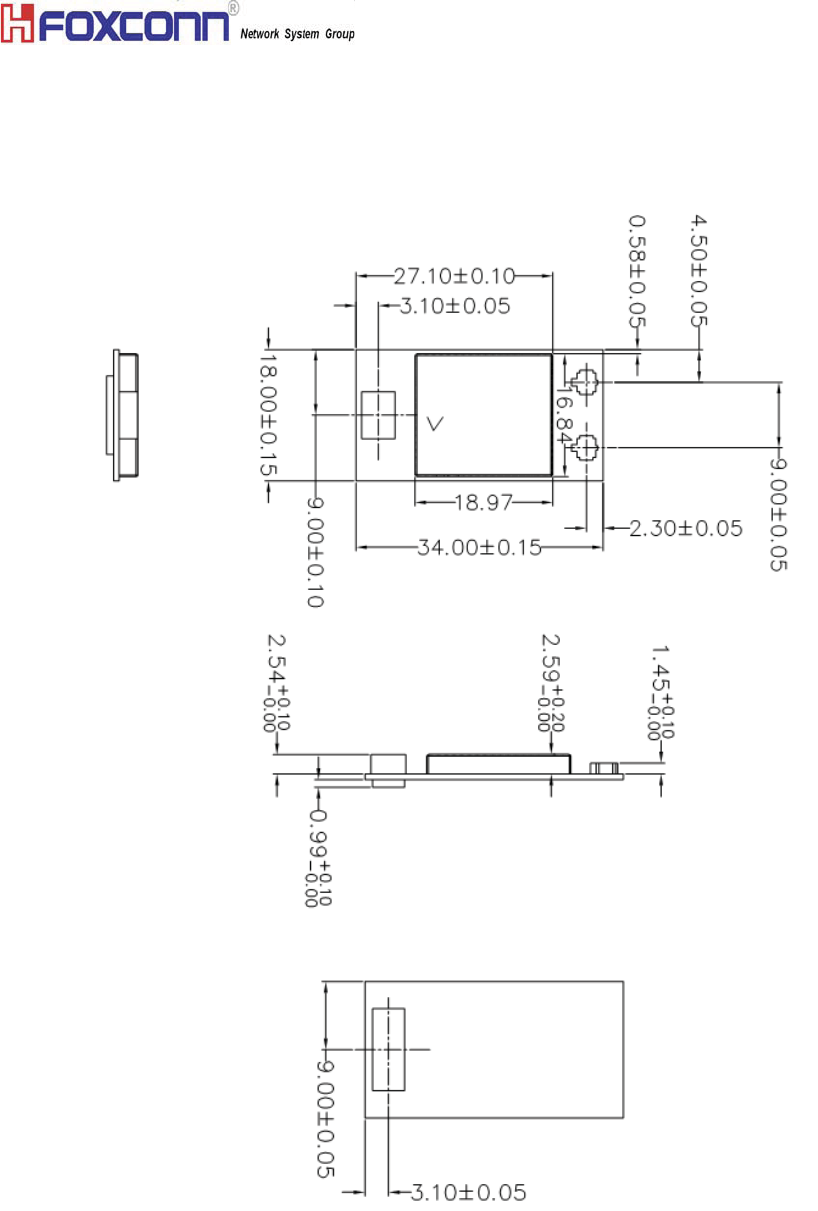

3. Mechanical Drawing
Confidential 7
