User Manual 2

156 Internet

When you tap Stop ( ) or finish watching the entire video, you are presented

with options on what you can do next.

Tap to send the link

to the video you just

watched to another

person using one

of the Messaging

accounts. Tap to add the

video to your

Bookmarks.

Tap to play back

the video again.

Tap to view details

about the video

you just watched.

Tap to go to the

next page of

Category

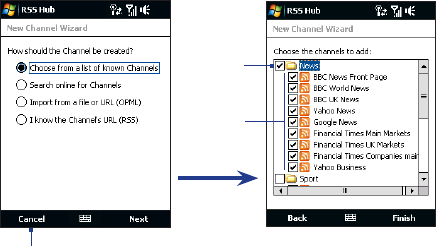

Tap to load pre-selected RSS channels.

Internet 169

Note If the RSS channel you want to subscribe to is not in the list of known channels,

tap Back, then select another option on the New Channel Wizard screen. For

more information on these other options, see the Help on your device.

3. Select the check boxes of the RSS channels you want to subscribe to, then tap

Finish.

Tip Channels are grouped by categories. If you want to select all channels in a

category, select the category check box.

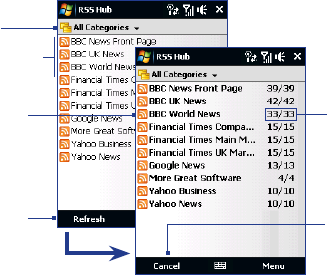

4. The channel list appears. Tap Refresh to update the channels.

Tap to cancel

channel updating

Channel is updated.

Tap it to view the

headlines.

Tap to select the

channel category

to display

Headline count

Tap to update

the channels

Channel list

170 Internet

To add new channels

1. In the channel list, tap Menu > Channel > New to open the New Channel

Wizard screen.

2. Select an option, then follow screen instructions to add new channels. For

more information on New Channel Wizard options, see Help on your device.

To filter the channels in the display

In the channel list, tap Menu > View, then select:

• Updated to display only those channels with unread headlines.

• All to display all subscribed channels.

Manage channel categories

To view all the channels in a particular category, tap All Categories in the upper left

area of the channel list, then tap the category you want to display.

To add a new category, tap Menu > Categories in the channel list to display all

categories, then tap Menu > New.

To rename or delete a category, tap Menu > Categories in the channel list to

display all categories, select a category, then tap Menu > Rename or Menu >

Delete.

If you want to change the channel category, tap and hold the channel in the

channel list, then tap Change Category. Select a new category and tap OK.

Internet 171

View and organize headlines

Tap a channel in the channel list to display the headlines for that channel.

Tap a headline to open

the news summary screen

Headline or news

summary contains

a keyword

Tap to download audio/

video file attachment

Audio/Video/Image

file attachment is

downloading

New or unread

headline

Headline has

been read

Tap to return to

the channel list

New or unread headlines display in bold and are marked with a blue newspaper

icon. Headlines that have been read are marked with a gray newspaper icon.

172 Internet

View the news summary

Tap a headline in the headline list to display the news summary.

Headline and

read status Audio/Video/Image

file attachment.

Tap to download

the file.

News summary

Tap to open the news

item in Opera Mobile.

See “Using Opera

Mobile” in this chapter

for details.

Channel name

Tap to return to the headline list

To change view options

In the news summary screen, tap Menu to change the text size, fit the text to the

screen (text wrap), or enable ClearType for better viewing.

Internet 173

To download, play, or save podcasts

1. When you see an audio or video file attachment

in the news summary, do one of the following to

download the file:

• Tap Menu > Podcasts > Start Download.

• Tap the Download audio/Download video

link below the audio/video file icon.

Tip To cancel the file download, tap Menu >

Podcasts > Cancel Download, or tap Cancel

download below the audio/video file icon.

2. After downloading the file, do one of the

following:

• Tap Menu > Podcasts > Play or tap Play

audio/Play video below the audio/video file

icon to play back the file.

• Tap Menu > Podcast > Save to save a copy

of the file to the device main memory or

storage card.

To send the headline link via e-mail

1. In the news summary screen, tap Menu > Send Link via Email.

2. Messaging opens and displays the Account Picker screen. Tap the e-mail

account you want to use to send the headline link.

A new e-mail message is then created with the headline link.

3. Specify the e-mail recipients, then send it.

Note For more information on how to compose e-mails, see “Using E-mail” in Chapter 6.

174 Internet

To view the next or previous news summary

In the news summary screen, tap Menu > Next or Menu > Previous, or press

NAVIGATION left or right.

For more information about the features and configuring RSS Hub, refer to the

online help. To open the online help, tap Start > Help while in RSS Hub.

Chapter 9

Bluetooth

9.1 Bluetooth Modes

9.2 Bluetooth Partnerships

9.3 Connecting a Bluetooth Hands-free or

Stereo Headset

9.4 Beaming Information Using Bluetooth

9.5 Bluetooth Explorer and Bluetooth

File Sharing

9.6 Printing Files via Bluetooth

176 Bluetooth

9.1 Bluetooth Modes

Bluetooth is a short-range wireless communications technology. Devices with

Bluetooth capabilities can exchange information over a distance of about eight

meters without requiring a physical connection.

Bluetooth on your device operates in three different modes:

• On. Bluetooth is turned on. Your device can detect other Bluetooth-enabled

devices, but not vice versa.

• Visible. Bluetooth is turned on, and all other Bluetooth-enabled devices can

detect your device.

• Off. Bluetooth is turned off. In this mode, you can neither send nor receive

information using Bluetooth.

Notes • By default, Bluetooth is turned off. If you turn it on, then turn off your device,

Bluetooth also turns off. When you turn on your device again, Bluetooth

automatically turns on.

• Turn off Bluetooth when not in use to conserve battery power, or in places where

using a wireless device is prohibited, such as on board an aircraft and in hospitals.

To turn Bluetooth on and make your device visible

1. On the Home screen, slide to the Settings tab and then tap Menu >

Bluetooth Devices > Mode tab.

2. Select the Turn on Bluetooth and Make this device visible to other devices

check boxes.

3. Tap OK. The Title bar will show to indicate that the device is in Visible

mode.

To turn off Bluetooth visibility after a certain period of time

You can automatically turn off Bluetooth visibility after a specified period of time.

1. On the Home screen, slide to the Settings tab and then tap Menu >

Bluetooth Devices > Timeout tab.

2. In Turn off Visible mode, select the time before your device’s Bluetooth

visibility turns off. Tap OK.

Bluetooth 177

9.2 Bluetooth Partnerships

A Bluetooth partnership is a relationship that you create between your device and

another Bluetooth-enabled device in order to exchange information in a secure

manner.

To create a Bluetooth partnership

1. On the Home screen, slide to the Settings tab and then tap Menu >

Bluetooth Devices > Devices tab.

2. Tap Add new device. Your device displays the names of other Bluetooth

devices within range.

3. Tap the device name in the box, then tap Next.

4. Specify a passcode to establish a secure connection. The passcode can be 1

up to 16 characters.

5. Tap Next.

6. Wait for the paired device to accept the partnership. The receiving party

needs to enter the same passcode that you specified.

7. After the receiving party enters the passcode, a message box appears on your

device confirming the partnership.

Tip Tap Advanced to change the paired device name and to set the services you

want to use for the paired device. After setting the name and options, tap Save.

8. Tap Done.

Note Creating a Bluetooth partnership between two devices is a one-time process. Once

a partnership is created, the devices can recognize the partnership and exchange

information without entering a passcode again.

178 Bluetooth

To accept a Bluetooth partnership

1. Ensure that Bluetooth is turned on and in visible mode.

2. Tap Yes when prompted to establish a partnership with the other device.

3. Enter a passcode (the same passcode that is entered on the device requesting

the partnership) to establish a secure connection. The passcode must be

between 1 and 16 characters.

4. Tap Next.

5. Tap Done. You can now exchange information with the paired device.

Tips • To rename a Bluetooth partnership, tap and hold the partnership’s name on the

Devices tab of the Bluetooth screen, then tap Edit.

• To delete a Bluetooth partnership, tap and hold the partnership’s name on the

Devices tab, then tap Delete.

9.3 Connecting a Bluetooth Hands-free or Stereo

Headset

For hands-free phone conversations, you can use a Bluetooth hands-free headset

such as a car kit with your device. Your device also supports A2DP (Advanced Audio

Distribution Profile) which allows you to use a Bluetooth stereo headset for hands-

free phone conversations and for listening to stereo music.

To connect a Bluetooth hands-free or stereo headset

1. Make sure that both your device and the Bluetooth headset are turned

on and within close range, and that the headset is visible. Refer to the

manufacturer’s documentation to find out how to set the headset in visible

mode.

2. On the Home screen, slide to the Settings tab and then tap Menu >

Bluetooth Devices > Devices tab > Add new device.

Bluetooth 179

3. Tap the name of the Bluetooth headset, then tap Next. The device will

automatically pair the device with the Bluetooth headset.

Windows Mobile will automatically try one of the preconfigured passcodes (0000,

1111, 8888, 1234) to pair the Bluetooth headset with the device. If this fails, you

have to enter the passcode delivered with your headset manually.

Note If the Bluetooth stereo headset becomes disconnected, turn the headset on and

repeat step 1 to 2 above. Tap and hold the name of the Bluetooth stereo headset and

tap Set as Wireless Stereo.

9.4 Beaming Information Using Bluetooth

You can beam information, such as contacts, calendar items, tasks, and files from

your device to your computer or to another Bluetooth-enabled device.

Note If your computer does not have built-in Bluetooth capability, you need to connect

and use a Bluetooth adapter or dongle on your computer.

To beam information from your device to a computer

1. Turn on Bluetooth on your device, and make your device visible. For

information about this, see “To turn Bluetooth on and make your device

visible”.

2. Set Bluetooth on your computer to visible mode, create a Bluetooth

partnership, then enable your computer to receive Bluetooth beams.

Note If the Bluetooth adapter or dongle on your computer was installed using a third-

party provided driver, open the Bluetooth software that came with the Bluetooth

adapter/dongle and enable the adapter/dongle to be discovered by other

devices. Refer to the Bluetooth adapter’s documentation for more information.

If your computer has Windows Vista or Windows XP SP2 and your

computer’s Bluetooth adapter is supported by your Windows version, do the

following steps:

180 Bluetooth

a. On your computer, open Bluetooth Devices from the Control Panel, then

click the Options tab on the Bluetooth Devices window.

b. For Windows Vista, select Allow Bluetooth devices to find this

computer.

For Windows XP, select Turn discovery on and Allow Bluetooth devices

to connect to this computer.

c. Create a Bluetooth partnership between your device and computer. For

information about creating a partnership, see “Bluetooth partnerships”.

d. In the Options tab of Bluetooth Devices, select Show the Bluetooth

icon in the notification area.

e. To enable your computer to receive Bluetooth beams, right-click the

Bluetooth icon in the notification area at the bottom-right corner of

your computer screen and select Receive a File. You are now ready to

beam.

3. On your device, select an item to beam. The item can be an appointment in

your calendar, a task, a contact card, or a file.

4. To beam a contact, tap Menu > Send Contact > Beam.

To beam other types of information, tap Menu > Beam [type of item].

5. Tap the device name to which you want to send the item.

6. If you beamed a calendar, task, or contact item to your computer and it is not

automatically added to Outlook, select File > Import and Export in Outlook

to import it.

To beam information to a Bluetooth-enabled device such as another Windows

Mobile-powered device, follow steps 1 to 5 in the above procedure.

Tips • The default folder on your computer where beamed items are stored may be

C:\Documents and Settings\your_username\My Documents in Windows XP or

C:\Users\your_username\My Documents in Windows Vista.

• For your device to receive Bluetooth beams, tap Start > Settings > Connections

tab > Beam and make sure the Receive all incoming beams check box is selected.

Bluetooth 181

9.5 Bluetooth Explorer and Bluetooth File Sharing

Bluetooth Explorer searches for other Bluetooth devices that have file sharing

enabled and lets you access their Bluetooth shared folder. You can copy files from

and to their shared folder, and create subfolders in it. When you enable Bluetooth

file sharing on your device, other Bluetooth-enabled devices will also be able to

access your Bluetooth shared folder.

To enable Bluetooth Explorer and Bluetooth file sharing on your device

1. On the Home screen, slide to the Settings tab and then tap Menu >

Bluetooth Devices > FTP tab.

2. Select the Enable Bluetooth Explorer check box. This makes the Bluetooth

device folder visible in File Explorer.

3. Select the Enable File Sharing check box.

You can use the default Bluetooth shared folder, or tap Browse to use

another folder as your shared folder.

4. Tap OK.

To use Bluetooth Explorer

1. Bluetooth Explorer is integrated with the File Explorer program. You can

open it by tapping Start > Programs > Bluetooth Explorer or by tapping

the down arrow ( ) on the upper left of File Explorer screen then tapping

Bluetooth.

182 Bluetooth

2. Bluetooth Explorer then scans for other

Bluetooth devices that have file sharing

enabled. From the list, tap to select a

Bluetooth device you want to connect to.

You may need to enter a passcode in order

for you to connect to the selected device.

If there are files contained in the Bluetooth

shared folder on the other device, you

will be able to see them on the Bluetooth

Explorer screen.

3. Select one or more files, then tap Menu > Edit and choose to cut or copy the

files.

4. Tap Up twice.

5. Navigate to the folder where you want to paste the files on your device, then

tap Menu > Edit > Paste.

9.6 Printing Files via Bluetooth

Connect your device to a Bluetooth printer to print contact information,

appointment details, images, and other file types.

Note You can print files in the .txt, .jpg, .xhtml, .vcf, .vcs file formats.

Before you start printing, make sure to turn on the Bluetooth printer and to turn

on Bluetooth on your device. To turn on Bluetooth, tap Start > Programs > Comm

Manager, then tap the Bluetooth button.

Bluetooth 183

To print contact information

1. On the Home screen, slide to the People tab and then tap All People.

2. Select the contact whose information you want to print.

3. Tap Menu > Print via Bluetooth > Menu > Search Devices. Your device

starts to search for Bluetooth devices.

4. Select the Bluetooth printer and tap Menu > Send File.

5. Set the printing options you want, then tap Print.

To print a calendar appointment

1. Tap Start > Calendar, then select (highlight) the appointment whose details

you want to print.

2. Follow steps 3 to 5 in the “To print contact information” procedure.

To print a JPEG file

1. In Pictures & Videos, locate the JPEG file you want to print.

2. Tap and hold the JPEG image file and then on the menu, tap Print via

Bluetooth.

3. Follow steps 3 to 5 in the “To print contact information” procedure:

To print a text file

1. In File Explorer, locate the text file you want to print.

2. Tap and hold the txt file and then on the menu, tap Print via Bluetooth.

3. Follow steps 3 to 5 in the “To print contact information” procedure:

184 Bluetooth

Chapter 10

Navigating on the Road

10.1 Google™ Maps (Available by Country)

10.2 Guidelines and Preparation for Using GPS

10.3 Downloading Satellite Data via QuickGPS

186 Navigating on the Road

10.1 Google™ Maps (Available by Country)

Google™ Maps lets you track your current location, view real-time traffic situations,

and receive detailed directions to your destination. It also allows you to search and

locate places of interest or even a contact address.

Note You need an active data connection or Wi-Fi connection to use Google Maps.

To launch Google Maps

Tap Start > Programs > Google Maps.

Note The first time you launch Google Maps, you will be asked to accept terms and

conditions when using Google Maps. You must agree to the terms and conditions for

you to be able to launch and use Google Maps.

The Google Maps screen

Tap to zoom

out on the map.

Tap to zoom in

on the map.

Tap to search for places of

interest and addresses.

Tap to open a menu where you

can set Google Maps to find and

display your current location,

get directions, see traffic

information, look up a contact

address, and more.

Your current location.

Notes • Currently, traffic information is only available for the U.S.

• Tap Menu > Options > Reset Google Maps to reset the Google Map cookies,

history of search terms, preferences, and image cache.

• Tap Menu > Help > Tips to learn more about the program and its many features.

Navigating on the Road 187

Search for a place of interest

You can easily search and locate a place of interest such as hotels, restaurants, and

other places using Google Maps. Google Maps can also show details on how to

contact and reach the place of interest from your current location.

Note You can also enter keywords, street addresses, or postal codes when searching places

using Google Maps.

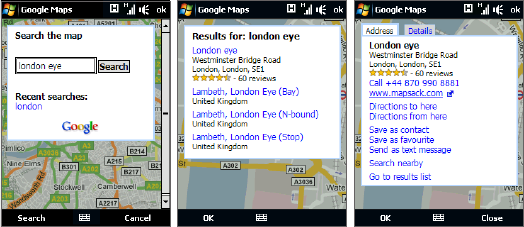

1. On the Google Maps screen, tap Search.

2. Enter the place of interest you want to find, and then tap Search:

3. Search results will then be listed. Tap the desired place from the list to view its

address, phone number, and other details.

4. On the Address tab, you can:

• Tap the web address to go to the web site of the place of interest.

Note This information only appears when the web site of the place of interest is

available.

• Tap the [phone number] to call the place of interest that you have

selected.

188 Navigating on the Road

• Tap Directions to here or Directions from here to get directions on how

to get to the place of interest from your current location or vice versa.

• Tap Search nearby to search for other places of interest near your current

location.

• Tap Send as text message to send the contact information of the place of

interest via SMS.

For more information about Google Maps, you can visit the following web site:

http://www.google.com/gmm/index.html.

10.2 Guidelines and Preparation for Using GPS

If you install a GPS software on your device, please follow these guidelines before

and when using your device as a GPS device.

• Do not operate the GPS system while driving. The plotted GPS route is only

for driving reference. It should not interfere with actual driving behavior.

• Do not leave your device in a vehicle or expose the device to direct sunlight

to avoid overheating the battery, which could pose damage to the device or

risk to the vehicle.

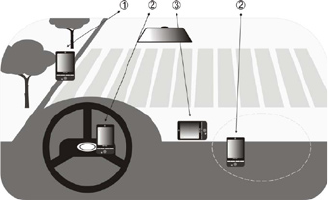

• When using the device inside a vehicle, use the car holder to mount the

device securely in place. Avoid placing the device in the areas shown in the

following diagram:

Navigating on the Road 189

1 Do not place where it will block the driver’s vision.

2 Do not place where air bags could deploy.

3 Do not place anywhere in the vehicle without securing the device in the

holder.

• Please use the GPS system cautiously. Users shall be liable for any damages

resulting from negligent operation of the system.

• The GPS signal cannot pass through solid non-transparent objects. Signal

reception may be affected by obstructions such as high-rise buildings,

tunnels, bridges, forests, weather (rainy or cloudy days), etc. If the vehicle’s

visor contains metal, it will be difficult for the GPS signal to pass through.

• Wireless communication products (such as mobile phones or radar-detecting

devices) may interfere with the satellite signal, resulting in unstable signal

reception.

• The Global Positioning System (GPS) is built and operated by the US

Defense Department. The Department is responsible for the accuracy and

maintenance of the system. Any changes that the Department makes may

affect the accuracy and function of the GPS system.

190 Navigating on the Road

10.3 Downloading Satellite Data via QuickGPS

Before you start using your device for GPS navigation, open the QuickGPS program

first to download ephemeris data (current satellite position and timing information)

onto your device. This data is needed to determine the GPS position of your current

location.

QuickGPS downloads ephemeris data from a web server, instead of from the

satellites, using the Internet connection on your device, which can be via Wi-Fi,

ActiveSync or GPRS/3G. This significantly speeds up the time for determining your

GPS position.

To open QuickGPS

Tap Start > Programs > QuickGPS.

To download data

Tap Download on the QuickGPS screen.

On the screen, initially, you will see the Valid

time of the downloaded data. As time passes,

the remaining days and hours of validity will be

shown.

To speed up GPS positioning, download the

latest ephemeris data when the validity of the

data expires.

Navigating on the Road 191

Download options

To configure download times, tap Menu > Options and choose from the available

options:

• Remind me when data expires.

Enables your device to display a reminder message when the validity of the

ephemeris data has expired.

When you see the reminder message, tap Menu to dismiss the reminder or to

set the snooze time so that you will be reminded again. Tap OK to open the

QuickGPS program and download the latest data.

• Auto download when data expires.

Allows ephemeris data to be automatically updated onto your device when

the data has expired.

• Auto download when connected to PC via ActiveSync.

Allows ephemeris data to be automatically downloaded via ActiveSync to

your device when your device is connected to your computer. Your computer

must be connected to the Internet in order to download data.

Note The ephemeris data is stored on HTC web servers. QuickGPS is preconfigured to

connect to these servers.

192 Navigating on the Road

Chapter 11

Experiencing Multimedia

11.1 Taking Photos and Videos

11.2 Viewing Photos and Videos Using Album

11.3 Using Windows Media® Player Mobile

11.4 Using Audio Manager

11.5 Using Audio Booster

194 Experiencing Multimedia

11.1 Taking Photos and Videos

Use Camera to take photos and record video clips.

To open the Camera screen

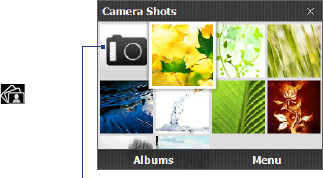

1. On the Home screen, slide to the Photos and Videos tab.

2. Tap the Camera icon ( ) or the Video Camera icon ( ).

The screen orientation automatically switches to landscape mode when you open

Camera.

Tip You can also tap Start > Programs > Camera to open the Camera program.

To exit the Camera

Tap the screen first to display the Camera screen icons, and then tap the

Exit icon ( ).

Capture modes

The camera on your device allows you to capture pictures and video clips by using

various built-in modes that provide you flexibility in taking your shots.

To change the capture mode

If icons are not showing on the screen, tap

the screen first to display the Camera screen

icons, and then do one of the following to

select a capture mode:

• Press NAVIGATION left or right

(Landscape orientation).

• Tap the middle icon at the bottom of

the screen (the icon displayed is based

on the current Capture mode.). On the

Capture Mode menu, tap the capture

mode you want to use.

Current capture mode

Experiencing Multimedia 195

You can select from the following capture modes:

Icon Capture Mode

Photo Captures standard still images.

Video Captures video clips, with or without accompanying audio.

Panorama Captures a sequence of still images continuously in one

direction, and allows stitching of all the images to create a panoramic

view of a scenery.

MMS Video Captures video clips suitable for sending with MMS

messages.

Contacts Picture Captures a still image and gives you the option to

immediately assign it as a Photo ID for a contact.

Picture Theme Captures still images and places them within frames.

Supported file formats

Using the available capture modes, the camera in your device captures files in the

following formats:

Capture mode Format

Photo / Contacts Picture /

Picture Theme / Panorama

JPEG

Video / MMS Video H.263 (.3gp) ; MPEG-4 (.mp4)

196 Experiencing Multimedia

Capture photos and videos

Use the ENTER button as the shutter release when capturing photos and videos:

Press the ENTER button to take a photo or to start capturing video.

In Video or MMS Video mode, press ENTER again to stop recording.

In Picture Theme or Panorama mode, press ENTER for each shot you need to

take.

On-screen controls and indicators

Tap the screen to display the controls and indicators.

When capturing in Video and MMS

Video modes

Photo, Video, MMS Video, and

Contacts Picture modes

6 7

1 Zoom control. Tap to zoom in, or to zoom out.

Tip You can also press NAVIGATION up/down (Landscape orientation) to zoom in or

out.

2 Album. Tap to open Album. See “Viewing Photos and Videos Using Album” for

details.

•

Experiencing Multimedia 197

3 Capture mode. Displays the current capture mode. Tap to open the Capture

Mode menu where you can choose from available capture modes.

4 Menu. Tap to display the Menu Panel. See “Menu Panel” for details.

5 Exit. Tap to exit the Camera program.

6 Remaining information indicator. In Photo, Contacts Picture, Picture Theme,

and Panorama modes, this shows the remaining/available shots of pictures

based on the current settings.

In Video and MMS Video modes, this shows the remaining duration that can

be recorded. While recording video, this shows the recorded duration.

7 Recording indicator. Flashes when recording a video.

Picture Theme mode

Template Selector icon. In Picture Theme mode, tap to toggle among

different templates.

Progress indicator. In Picture Theme and Panorama modes, this shows the

number of consecutive shots.

198 Experiencing Multimedia

Menu Panel

The Menu Panel provides a quick way of adjusting the most common camera

settings and lets you access more advanced camera settings. On the Camera screen,

tap to open the Menu Panel. To adjust a setting, keep tapping a button on

the panel, for instance, White Balance, to cycle through the available settings. To

access advanced options, tap .

Note The available settings on the panel depend on the selected capture mode.

1 Resolution. Tap to select the resolution to use when taking photos or

capturing videos.

2 Storage. Select where you want to save your files. You can either save the files

to the main memory ( ) or to a storage card ( if one is installed..

3 Self-timer. Tap to set the self-timer to 2 seconds, 10 seconds, or Off when

in the Photo or Contacts Picture mode. When you press the ENTER button to

capture a still image, it starts to count down, then captures a still image after

the time expires.

4 Advanced. Tap to access the advanced camera settings. See “Advanced

Options” for details.

Experiencing Multimedia 199

5 Brightness. Tap to open the Brightness bar at the bottom of the screen. On

the Brightness bar, tap to decrease, or to increase the brightness level.

Tap outside the Brightness bar to apply the change.

6 White Balance. White balance enables the camera to capture colors more

accurately by adjusting to different lighting conditions. White balance

settings include: Auto ( ), Daylight ( ), Night ( ), Incandescent ( ),

and Fluorescent ( ).

Zooming

Before capturing a photo or a video clip, you can zoom in to make the object in

focus move closer, or zoom out to make the object move farther away.

To zoom in

Press NAVIGATION up (Landscape orientation), or tap .

To zoom out

Press NAVIGATION down (Landscape orientation), or tap .

The camera zoom range for a photo or a video clip depends on the capture mode

and resolution. Refer to the table for more information.

Capture mode Resolution Zoom range


3M (2048 x 1536) 1.0x to 2.0x

2M (1600 x 1200) 1.0x to 2.0x

1M (1280 x 960) 1.0x to 2.0x

Large (640 x 480) 1.0x to 2.0x

Medium (320 x 240) 1.0x to 4.0x

200 Experiencing Multimedia

Capture mode Resolution Zoom range

Video

CIF (352 x 288) 1x and 2x

Large (320 x 240) 1x and 2x

Medium (176 x 144) 1x and 2x

Small (128 x 96) 1x and 2x

Panorama Large (640 x 480) 1x and 2x

Medium (320 x 240) 1x, 2x and 4x

MMS Video Medium (176 x 144) 1x and 2x

Small (128 x 96) 1x and 2x

Contacts Picture Medium (240 x 320) 1.0x to 4.0x

Picture Theme Determined by the current

template

Depends on the size of the

selected template

Experiencing Multimedia 201

The Review screen

After capturing, the Review screen lets you view, send, or delete the photo or video

clip by tapping an icon at the bottom of the screen.

Review screen

icons

Icon Function

Back Return to the live Camera screen.

Delete Delete the captured image or video.

View View the captured image in the Album program.

Play Play back the captured video or MMS video in the Album program.

Send Send the captured image or video via e-mail or MMS.

Assign to Contact After capturing in Contacts Picture mode, tap this icon to

assign the photo to a selected contact.

202 Experiencing Multimedia

Advanced Options

The Advanced Options let you adjust options for your selected capture mode

and set Camera program preferences. Access the Advanced Options by tapping

Advanced on the Menu Panel.

You can either tap on-screen or press NAVIGATION up/down (Landscape

orientation) to navigate through the Advanced Options screen.

Tap to go through

the different

Advanced Camera

Settings screens.

Tap to go back to

the Camera screen.

Tap an item to

change the setting.

• Review Duration. Set a time length for displaying the captured image/video

on the Review screen. Select No Limit if you do not want to impose a time

limit. Select No Review to immediately return to the live Camera screen after

capturing and saving.

• Quality. Select the JPEG image quality level for all captured still images.

Choose from Basic, Normal, Fine, and Super Fine.

• Capture Format (Video and MMS Video mode). Select the desired file format.

• Time Stamp (Photo mode). Choose whether or not to include the shooting

date and time on captured photos.

• Keep Backlight. Turn the backlight on or off. This overrides your device

backlight settings while you are using the camera.

• Shutter Sound. Choose whether or not you want the camera to make a

shutter sound when you press the ENTER button.

Experiencing Multimedia 203

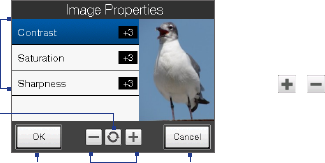

• Image Properties. This option lets you adjust the image Contrast,

Saturation, and Sharpness.

1Tap a property to adjust.

2Tap to reset all properties to their default

values.

3Tap to save the settings.

4Tap / or press NAVIGATION

left/right (Landscape orientation) to

increase/decrease the value.

5Tap to close the Image Properties screen

without applying and saving the changes.

• Effect. Choose a special effect such as Grayscale, Sepia, or Negative, to apply

to your photos or video clips.

• Metering Mode. Select a metering mode to allow the camera to measure the

amount of light and calculate the best-fit exposure value before capturing.

Choose either Center Area to measure light using the center area of the

subject, or Average to measure light using the area around the subject.

• Prefix. When Default is selected as the prefix, the file name of each new

captured file is set to “IMAGE” or “VIDEO” followed by a sequential number, for

example: IMAGE_001.jpg. You may also choose to name files using either the

current Date or Date & Time as the prefix.

Note If you set the Camera to save captured photos to a storage card, the prefix

cannot be selected. Captured photos will be named using the convention


Images) naming standard, and will be saved to the \DCIM\100MEDIA folder on

the storage card.

• Counter. To reset the file naming counter back to 1, tap Reset.

204 Experiencing Multimedia

• Flicker Adjustment. When taking indoor shots, flicker on the camera screen

may be caused by inconsistencies between the vertical scan rate of the

camera display and the flicker frequency of fluorescent lighting. To reduce

flicker, you can change the flicker adjustment setting to Auto or to the proper

frequency (50Hz or 60Hz) of the power in the country where your device is

being used.

• Grid (Photo mode). Choose whether or not to show a grid on the Camera

screen. Showing a grid helps you frame and center your subject easily and

accurately.

Grid marks

• Record with Audio (Video and MMS Video mode). Select On to record audio

with the captured video clips, or select Off to capture video without audio.•

• Recording Limit (Video mode). Set the maximum duration or file size for

recording video.

• Template (Picture Theme mode). Select a template.

• Template Folder (Picture Theme mode). By default, templates are stored

in the \My Documents\Templates folder on the device’s Main Memory. If

you transferred some templates to a storage card (via File Explorer), set this

option to Main + Card to specify that templates are located in both the main

memory and the storage card.

Experiencing Multimedia 205

• Show Reminder (Contacts Picture mode). Select On if you want the Camera

to always display a message that confirms whether or not to assign the

captured picture to a contact.

• Direction (Panorama mode). Choose in what direction images will be

stitched in a panorama.

• Stitch Count (Panorama mode). Select the desired number of images to be

captured and stitched into a panorama.

• Help. Tap to open the Camera program help file.

• About. Tap to display version and copyright information.

11.2 Viewing Photos and Videos Using Album

Use Album to view images and videos in your device. Album offers a host of

features that let you rotate images, view your images as a slideshow, use images as

contact pictures, and more.

Note Album can only display files in the BMP, GIF, PNG, JPG, Animated GIF, 3GP, MP4, and

WMV formats.

Launch Album

Do one of the following:

• On the Home screen, slide to the

Photos and Videos tab and tap

Album.

• In the Camera program, tap .

• Tap Start > Programs > Album.

Note Album is always displayed in

landscape mode.

Tap to open the Camera program.

206 Experiencing Multimedia

Select a photo or video to view

1. On the main Album screen, tap Albums and then select the album to view.

The contents of the album are then displayed on the main Album screen.

2. Browse through the files by sliding your finger upward or downward.

3. Do one of the following:

• Tap an image to view it in full screen mode. See “View an image” for

details.

• Tap a video file (files with the icon) to play back the video file. See “Play

back video” in this chapter for details.

• Select a still image and then tap Menu > Slideshow to view the images in

the album as a slideshow. Animated GIF and video files will not be played

back in the slideshow. See “To view still images as a slideshow” in this

chapter for details.

View an image

While viewing an image in full screen, tap the screen or press ENTER to open the

on-screen menu.

Tap to go back to

the main Album

screen, Photos

and Videos tab, or

Camera.

Tap to start the

slideshow.

Tap to send the

image using one

of the Messaging

accounts.

Tap to open a menu

where you can save the

screen image as a photo

for a contact, save the

current image as a new

file, delete the image, and

view file properties.

Experiencing Multimedia 207

Tip You can delete multiple files at once by selecting Menu > Delete Items on the main

Album screen and then selecting the files to delete.

To rotate the image

While viewing an image in full screen, make a half-circle gesture on the screen with

your finger to rotate the image.

To rotate the image 90 degrees

counter-clockwise, make an upward

half-circle gesture on the screen.

To rotate the image 90 degrees clockwise,

make a downward half-circle gesture on

the screen.

To view the next or previous image

When viewing images in full screen, go to the next image by swiping your finger

across the screen from right to left. Go back to the previous image by swiping your

finger from left to right.

208 Experiencing Multimedia

To zoom in or out of an image

While viewing an image, make a full-circle gesture on the screen with your finger.

Slide your finger clockwise on an area to

zoom in on that area.

Slide your finger counter-clockwise to

zoom out.

Tips • When you zoom in on an image, double-tap the screen to automatically zoom out

and fit the image to the screen.

• When you zoom in on an image, tap and hold the screen so you can pan the

image.

• When you zoom in on an image, tap the screen to open the on-screen menu. On

the on-screen menu, tap and then select Save Screen Image to save the

image on-screen as a new file.

Experiencing Multimedia 209

To view still images as a slideshow

While viewing the slideshow, tap the screen to show playback controls.

Tap to go back to the

previous image.

Tap to open the

Slideshow Options

screen where you can set

the transition effect to

use, time per slide, and

orientation of the images.

Tap to return to

the main Album

screen or the

Photos and

Videos tab.

Tap to play or pause the

slideshow playback.

Tap to go to the

next image.

Tip If the images are in your favorite album, you can start the slideshow from the Photos

and Videos tab on the Home screen. On the Photos and Video tab, tap Slideshow.

210 Experiencing Multimedia

Play back video

While playing back video, tap the screen to show the playback controls.

Tap to go back to

the beginning of

the video.

Tap to play or pause

video playback.

Tap to stop

video playback.

Drag to go forward

or backward in the

video.

Elapsed time Total duration

Tip If the video is in your favorite album, you can start the video playback from the

Photos and Videos tab on the Home screen. On the Photos and Video tab, tap Play.

Close Album

Close Album by tapping on the main Album screen. When viewing files in full

screen mode, tap the screen to show the on-screen menu or playback controls and

then tap to go back to the main Album screen.

Experiencing Multimedia 211

11.3 Using Windows Media® Player Mobile

Windows Media® Player Mobile plays digital audio and video files that are stored

on your device or on a network, such as on a web site.

Video File Formats Supported File Extensions

Windows Media Video

MPEG4 Simple Profile

H.263

H.264

Motion JPEG

.wmv, .asf

.mp4

.3gp, .3g2

.mp4, .3gp, .3g2, .m4v

.avi

Audio File Formats Supported File Extensions

Windows Media Audio

WAVE

MP3

MIDI and SP MIDI

AMR Narrow Band

AMR Wide Band

AAC, AAC+, and eAAC+

MPEG4 audio

QCELP

EVRC

.wma

.wav

.mp3

.mid, .midi, .rmi

.amr, .3gp

.awb,.3gp

.aac, .mp4, .m4a, .3gp

.m4a

.qcp, .3g2

.qcp

To open Windows Media® Player Mobile

Tap Start > Programs > Windows Media.

212 Experiencing Multimedia

About the controls

Play/Pause

Full screen

Visit WindowsMedia.com

Tap and drag to

jump to any part of

the video or audio

Skip to the beginning of

the current file or to the

previous file

Skip to the next file

Mute/Unmute

Increase volume

Decrease volume

About the screens and menus

Windows Media® Player Mobile has three primary screens:

• Playback screen. The screen that displays the playback controls (such as Play,

Pause, Next, Previous, and Volume) and the video window. You can change

the appearance of this screen by choosing a different skin.

• Now Playing screen. The screen that displays the Now Playing playlist. This

special playlist indicates the current file being played and any files that are

“queued up” to play next.

• Library screen. The screen that lets you quickly find your audio files, video

files, and playlists. It contains categories such as My Music, My Videos, My TV,

and My Playlists.

Experiencing Multimedia 213

At the bottom of each screen, you can open a Menu. The commands on this menu

vary, depending on which screen you are viewing. For more information about the

commands in these menus, see Help on your device.

Synchronize video and audio files

Use the latest version of Windows Media® Player on your computer to synchronize

digital media files from your computer to your device. This ensures that protected

files and album art (for skins) are copied to your device correctly.

To synchronize content to your device automatically

1. On your computer, open Windows Media® Player, then connect your device to

your computer.

2. In the Device Setup Wizard, select Yes, search my computer now.

Note If you have previously opened Windows Media® Player and searched for media

on your computer, you will not be prompted to search your computer in Step 2.

3. On the Device Setup dialog box, enter a name for your device and click

Finish.

Note If you installed a storage card that has a capacity of more than 4GB and

your entire library can fit into the storage card, Windows Media Player will

automatically synchorize your music files. The device also needs to be set to Disk

Drive mode for Windows Media Player to automatically synchronize.

4. On the left panel of Windows Media® Player, right-click the name of your

device and click Set Up Sync.

Note To set up media synchronization on a storage card, right-click Storage Card in the

left panel of Windows Media® Player, then click Set Up Sync.

5. Select the playlist(s) that you want to sync between your computer and

device, then click Add.

Note On the Device Setup dialog box, make sure that the Sync this device

automatically check box is selected.

6. Click Finish.

214 Experiencing Multimedia

The files will begin synchronizing to your device. The next time you connect your

device to your computer while Windows Media® Player is running, synchronization

will start automatically.

To synchronize content manually to your device

1. If you have not set up media synchronization between your device and

computer, follow steps 1 to 3 in “To synchronize content to your device

automatically”.

2. Click the Sync tab on the Windows Media® Player of your computer. Select a

Playlist or a Library on the left panel of the Windows Media® Player.

3. From the Content List, drag the media files that you want to sync to your

device and drop them to the Sync List.

Playlists and Library List Sync ListContent List

4. Click Start Sync to start synchronizing the selected files to your device.

Experiencing Multimedia 215

Notes • Use Windows Media® Player 11 or higher on your computer to synchronize media

files to your device.

• Audio files copy faster if Windows Media® Player is configured to automatically set

the quality level for audio files copied to your device. For more information, see the

Windows Media® Player Help.

Play media

Use the Library to find and play songs, videos, and playlists that are stored on your

device or an installed storage card.

To update the Library

1. If you are not on the Library screen, tap Menu > Library.

2. On the Library screen, tap the Library arrow (near the top of the screen), then

tap the media storage that you want use, for example, Storage Card.

3. In most cases, Windows Media® Player Mobile automatically updates the

library. However, you can manually update the library to ensure that it

contains new files that you recently copied to your device or storage card.

Tap Menu > Update Library to manually update the library list.

To play video and audio files on your device

1. Select a category (for example, My Music or My Playlists).

2. Tap and hold the item that you want to play (such as a song, album, or artist

name), then tap Play.

Tips • To play a media file that is stored on your device but is not in a library, on the

Library screen, tap Menu > Open File. Tap and hold the item that you want to play

(such as a file or a folder), then tap Play.

• To play a media file from the Internet or a network server, tap Menu > Library then

tap Menu > Open URL.

216 Experiencing Multimedia

Playlists

In Windows Media® Player Mobile, you can create a new playlist by saving the

current Now Playing playlist and giving it a new name.

To save a new playlist

1. If you are not on the Library screen, tap Menu > Library.

2. Tap to select a category (for example, My Music or My Playlists).

3. Select a media file that you want, then tap Menu > Queue Up. This adds the

file to the Now Playing list.

Repeat this step until you have added all desired media files to the Now

Playing list.

Note You cannot select multiple files simultaneously.

4. After adding the media files, tap Menu > Now Playing.

5. On the Now Playing screen, tap Menu > Save Playlist.

6. Enter the playlist name, then tap Done.

7. To play back the playlist you created, tap My Playlists in the Library, select

your playlist, then tap Play.

Troubleshooting

If you encounter a problem while using the Windows Media® Player Mobile, see the

Troubleshooting Windows Media® Player Mobile page at the Microsoft web site :

http://www.microsoft.com/windows/windowsmedia/player/windowsmobile/

troubleshooting.aspx.

Experiencing Multimedia 217

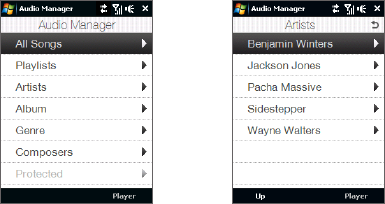

11.4 Using Audio Manager

Audio Manager is a music browser and player in one. It gives you access to all the

music files on your device, and allows you to easily browse for the music that you

want to play by organizing music into categories such as title, artist, album, and

more. You can also create playlists of your favorite songs and use the integrated

Music Player to play them back.

To launch Audio Manager

Tap Start > Programs > Audio Manager.

Notes • Audio Manager searches for all music files stored on your device memory and

memory card that have the following audio formats: MP3, WMA, AAC, and AAC+. It

will search in the following locations:

Device: My Music (including all subfolders)

\My Documents (including all subfolders)

Memory card: \Storage Card (including all subfolders)

• Music files are categorized under Artists, Album, Genre, and more, if such

metadata is found in the files.

Library

When you launch the Audio Manager, the Library screen opens and displays

categories such as All Songs, Artists, Genre, and more. An arrow that appears to

the right of a category indicates that it has submenus.

When you tap a category on the Library’s Main screen, you will see more submenus

which may have deeper levels of menus. For example, when you tap Artists,

another level of submenus will be listed showing artist names. When you tap an

artist name, more submenus showing album names will be displayed. Just keep

opening the submenus until you reach the level where song titles can be selected

for playback.

218 Experiencing Multimedia

Library: Main screen Library: Artists screen

Music files that are protected by Digital Rights Management (DRM) will be listed

under the Protected category. A lock icon shown before song titles indicates that

the music files are protected. Select a file then tap Info if you want to view file

information. A cross-marked lock icon shown before song titles indicates that the

rights for the music files have expired, and you will not be able to play them. Tap

Delete if you want to delete these files.

Note Audio Manager keeps track of the last submenu that you accessed. When you exit

Audio Manager and open it again, it will display the last submenu that you were in.

Keep tapping the submenu name at the top of the screen until you reach the Library's

Main screen.

Experiencing Multimedia 219

Music Player

When you select a music file in the Library, Music Player opens and automatically

plays it. Use the available buttons to control the playback.

Repeat

Shuffle

Playback time

Play/Pause

Go to previous

music track Return to

Library screen

Go to next

music track

Open a menu where you can choose

to add the current song to a playlist,

set the song as ring tone, and more.

Drag the slider to move

forward or backward in

a music track.

Playlists

The Playlists screen shows the current playlists that are found on the device

memory and memory card.

There are two types of playlists that will be shown on the Playlist screen:

• Windows Media® Player playlists. These are playlists that are in Windows

Media® Player Mobile’s Library (which is synchronized with Windows Media®

Player on your computer), and they are indicated by the Windows Media®

Player icon ( ). They can be played in Audio Manager’s Music Player but

cannot be edited.

220 Experiencing Multimedia

• Custom playlists. These are playlists that are created in Audio Manager and

can be edited.

To create a playlist

1. On the Library’s Main screen, tap Playlists.

2. On the Playlists screen, tap Menu > New.

3. Enter a Playlist name then tap OK.

4. On the Playlists screen, tap the playlist you have just created then tap Menu >

Edit.

5. Tap Menu > Add.

6. Tap the check boxes to select the songs you want to add to the playlist, or tap

Menu > Select All to choose all the songs.

7. Tap OK three times to return to the Playlists screen.

To play back a playlist

1. On the Playlists screen, tap to select a playlist.

2. Tap the first song in the selected playlist. Music Player automatically opens

and starts playing the first song. After each song, the next one in the playlist

will be played.

Note Playlists are not automatically updated when music files have been deleted from the

device memory or memory card.

Set music as ring tone

You can set your favorite music as a ring tone for your device.

1. Use the NAVIGATION CONTROL to select a song in the Library or tap a song to

play it in Music Player, then tap Menu > Set as Ring Tone.

2. If the selected music is an MP3 file, tap Trim if you want to trim it first to make

it shorter.

Experiencing Multimedia 221

Play/Stop

Mark the part of the music that

will be used as the ring tone.

Drag the left handle to mark the

start time, then drag the right

handle to mark the end time.

For more precise marking, you

can also tap these controls to

step backward/forward one

step and mark it.

Confirm

trimming the

ring tone.

Cancel

trimming.

3. Tap Set as Default Ring Tone.

Tip If you only want to save the song to the ring tone folder for future use, tap Save

to Ring Tone Folder. Later on, you can tap Start > Settings > Personal tab >

Phone to set it as your ring tone.

4. A confirmation message is then displayed. Tap OK.

222 Experiencing Multimedia

11.5 Using Audio Booster

Audio Booster optimizes sound for a better listening experience. It provides preset

moods, such as hip hop, jazz, rock, etc., and several enhancement presets that suit

different types of music.

To access Audio Booster

Tap Start > Programs > Audio Booster.

This control Does this

1On Select the check box to enable

or disable the equalizer.

2Equalizer

presets

Tap to choose the Equalizer

preset to use.

3Done Tap to apply the modified

settings.

4Menu • Tap Menu > Cancel to exit

Audio Booster without

applying the modified

settings.

• Tap Menu > Save as Preset

or Delete Preset to save

or delete preset equalizer

settings.

5Frequency

band

Drag the sliders to adjust the

frequency.

To use an Equalizer preset

Tap the list box then select a desired preset.

Experiencing Multimedia 223

To create a custom equalizer preset

1. Adjust the frequency bands to your desired values by dragging the equalizer

controls. The selected values are indicated on top of the sliders.

2. Save your equalizer settings as a preset by tapping Menu > Save as Preset.

3. Enter a preset name and then tap Done. The preset you created will be added

to the list box.

To delete a custom equalizer preset

1. Tap the list box then select the Equalizer preset you want to delete.

2. Tap Menu > Delete Preset.

Note You can only delete custom equalizer presets. Equalizer presets that are pre-installed

cannot be deleted.

224 Experiencing Multimedia

Chapter 12

Programs

12.1 Accessing Programs on Your Device

12.2 Adding and Removing Programs

12.3 Adobe® Reader® LE

12.4 Calendar

12.5 Contacts

12.6 Comm Manager

12.7 Microsoft® Office Mobile

12.8 Notes

12.9 Java

12.10 SIM Manager

12.11 Spb GPRS Monitor (Available by Country)

12.12 Sprite Backup

12.13 Tasks

12.14 Voice Recorder

12.15 Voice Speed Dial

226 Programs

12.1 Accessing Programs on Your Device

You will find preinstalled programs in the Start menu and on the Programs screen

of your device.

To launch and use a program

Do one of the following:

Tap Start to open the Start menu and then tap a desired program.

To access more programs, tap Start > Programs, or slide to the Programs tab

on the Home screen and then tap All Programs.

12.2 Adding and Removing Programs

Additional programs, such as the programs in the Application disc or other

programs that you purchase, can be installed and uninstalled on your device. Your

device does not allow you to uninstall most of the preinstalled programs.

Note Before you purchase additional programs for your device, make sure that they are

compatible with your device.

To install a program

1. Download the program to your computer (or insert the CD or disk that

contains the program into your computer).

You may see a single *.exe file, a *.zip file, a Setup.exe file, or several versions

of files for different device types and processors. Be sure to select only the

programs designed for your device.

2. Read any installation instructions or documentation that comes with the

program. Many programs provide special installation instructions.

3. Connect your device to the computer.

4. Double-click the installation setup file.

•

Programs 227

To uninstall a program

1. Tap Start > Settings > System tab > Remove Programs.

2. In the Programs in storage memory list, select the program you want to

remove, then tap Remove.

12.3 Adobe® Reader® LE

Adobe® Reader® LE is an application for viewing PDF (Portable Document Format)

documents on your device. It supports a subset of the features found in the PC

versions of Adobe Reader.

To open Adobe Reader LE

Tap Start > Programs > Adobe Reader LE.

To open a PDF file on your device

• Open a PDF file in Adobe Reader LE; or

• Open File Explorer, find the PDF file, then tap the file to open it.

To navigate through a PDF document

You can use the controls in the program and finger gestures to navigate a PDF

document.

• Tap Tools > View > Continuous and then slide your finger up or down the

screen to scroll through the pages in the document.

Tip You can also drag the scroll bars to scroll through the pages.

• Tap to zoom in or to zoom out. After zooming in, slide your finger on

the screen to pan the current page.

• Press NAVIGATION up/down/right/left to move to the desired direction of the

page.

• Tap to return to the previous page; tap to move to the next page. Tap

to jump to the first page; tap to jump to the last page.

• Tap Tools > Go To > Page Number to enter a page number that you want to

view.

228 Programs

To search for text in the document

1. Tap Tools > Find > Text or tap in the toolbar.

2. Type in the text to be searched, then tap Find.

The matched text in the document will be highlighted.

3. To view the next occurrence of the text, tap Tools > Find > Next.

Tips • Adobe Reader LE displays a bookmark pane for the PDF files that contain

bookmarks. Tap the bookmarks to go to a specific section/page within the file.

• Adobe Reader LE supports password-protected PDF files with up to 128-bit

encryption. When you open a password-protected PDF file, you will be prompted

to enter the password before opening it.

12.4 Calendar

Use Calendar to create appointments, including meetings and other events. You

can also synchronize Calendar appointments between your device and computer.

To open the Calendar screen

On the TouchFLO Home screen, tap Calendar or a displayed appointment; or

Tap Start > Calendar.

Create appointments

To schedule an appointment

1. Open the Calendar screen and then tap Menu > New Appointment.

2. Enter a name for the appointment.

3. Do one of the following:

• If it is a special occasion such as a birthday or a whole-day event, set the

All Day option to Yes.

• If there is a time frame for the appointment, set the start and end dates

and times.

•

Programs 229

4. Specify the type of category for your appointment, so that it can be grouped

with other related appointments. Tap Categories, then select a preset

category (Business, Holiday, Personal, or Seasonal), or tap New to create your

own category.

5. When finished, tap OK to return to the calendar.

Notes • All-day events do not occupy blocks of time in Calendar; instead, they appear in

banners at the top of the calendar.

• To remove an appointment, tap Menu > Delete Appointment.

Tip To have the time entered automatically in Day view, tap and drag to select a time slot

for the new appointment, and tap Menu > New Appointment.

To set the reminder time for new appointments

By default, Calendar has been set to display a reminder alert when you have new

upcoming appointments. You can change the reminder time.

1. Open the Calendar screen.

2. Tap Menu > Tools > Options > Appointments tab.

3. Make sure the Set reminders for new items check box is selected.

4. Set the time when you want the reminder to alert you.

5. Tap OK to return to the Calendar screen.

230 Programs

View appointments

By default, Calendar displays appointments in Agenda view. You can also look at

your appointments in Day, Week, Month, and Year views.

The highlighted hours

here indicate the time of

your appointments.

Tap to view appointment

details.

Agenda view

Tap to switch views.

The red box and

arrows indicate

that there are

conflicting

appointments.

• To see detailed appointment information in any view, tap the appointment.

• To view appointments by category, tap Menu > Filter, then select the desired

category.

• To change the default view that Calendar uses to display appointments, tap

Menu > Tools > Options > General tab. Tap the Start in box, then choose

the calendar view.

• When in Month view, you will see the following indicators:

Morning appointment

Afternoon or evening appointment

Both morning and afternoon/evening appointments

All-day event

Programs 231

Send appointments

To send a meeting request

Use Calendar to schedule meetings via e-mail with contacts who use Outlook or

Outlook Mobile.

1. Open the Calendar screen.

2. Schedule a new appointment, or open an existing one and tap Menu > Edit.

3. Tap Attendees, then tap Add Required Attendee or Add Optional

Attendee and add the contacts whom you want to invite.

Note You can specify if an attendee is required or optional only if your device is

connected to a Microsoft Exchange 2007 server. Otherwise, all attendees are

designated as required. For more information, see “Managing Meeting Requests”

in Chapter 7.

4. When you have finished adding attendees, tap Done.

5. Tap OK to send.

Tip To choose the e-mail account to use for sending meeting requests, tap Menu > Tools

> Options > Appointments tab. Tap the Send meeting requests via box and choose

to send via your Outlook E-mail, POP3/IMAP4 or Windows Live™ account.

Notes • If you’re sending the meeting request using your Outlook E-mail account, it will

be sent to the attendees the next time you synchronize your device with your

computer or Exchange Server.

• When attendees accept your meeting request, the meeting is automatically

added to their schedules. When their response is sent back to you, your calendar is

updated as well.

To send appointment details as a vCalendar

A vCalendar is a standard file format used for exchanging scheduling and task

information. vCalendar files can be exported to Outlook on the computer.

After selecting the appointment to send in the Calendar screen, tap Menu >

Send as vCalendar to send a vCalendar containing appointment details as a file

attachment in an MMS message. For more information, see “MMS” in Chapter 6.

232 Programs

12.5 Contacts

Contacts is your address book and information storage for people and businesses

you communicate with. You can add the following types of contacts to your device:

• Outlook contacts. Contacts that are stored on your device, which can be

created on your device or synchronized with your PC or the Exchange Server.

• SIM contacts. Contacts that are stored on the SIM card. Only a name and

phone number can be stored for each entry.

• Windows Live™ contacts. Contacts that you communicate with using

Windows Live™ Messenger or MSN.

Note You can only add Windows Live™ contacts after you have set up Windows Live™

on your device. See “Add Windows Live contacts” in Chapter 8 for details.

To open the Contacts screen

Do one of the following:

On the TouchFLO Home screen, slide to the People tab and then tap All

People; or

Tap Start > Contacts.

Add new contacts

To add a contact on your device

1. Open the Contacts screen.

2. Tap New, select Outlook Contact, and enter the contact information.

3. In the File as field, choose how you want the contact name to appear in the

contact list.

4. To add a photo of the contact, tap Select a picture, and then select the

picture file or tap Camera to take a photo of the contact.

•

Programs 233

5. To assign a ring tone to the contact, tap the Ring tone field, scroll through

the list of tones, then select a desired tone.

6. When finished, tap OK.

Tips • If a person who is not in your list of contacts called you and you want to save that

person’s phone number, tap and hold the phone number in the Call History and

then tap Save to Contacts from the shortcut menu.

• To save a phone number that is contained in a message, open the message, tap the

underlined phone number, and then tap Menu > Save to Contacts.

• To edit contact information, tap the contact name and then tap Menu > Edit.

To add a contact to your SIM card

1. Open the Contacts screen.

2. Tap New, then select SIM Contact.

3. Enter a contact name and phone number.

4. Tap OK.

Tip You can also use the SIM Manager to add and edit contacts on your SIM card. For

more information, see "SIM Manager" in this chapter.

Organize and search contacts

To group similar contacts

For easier management, you can group similar contacts by assigning them to

categories.

1. Create a new Outlook contact or edit an existing Outlook contact.

2. Tap Categories.

3. Select a preset category such as Business or Personal, or tap New to create

your own category.

4. When finished, tap OK.

234 Programs

To find a contact on your device

There are several ways to find a contact when your contact list is long:

Begin entering a contact name in the provided text box until the contact you

want is displayed.

On the Quick Scroll bar on the right of the Contacts screen, scroll to or tap a

letter to go directly to the part of the contacts list where contact names start

with that letter.

Quick Scroll

bar

Note You can disable the Quick Scroll bar by tapping Menu > Options and selecting

the Show alphabetical index check box. This will show the alphabetical index at

the top of the Contacts list.

Filter the list by categories. In the contact list, tap Menu > Filter, then tap

a category you’ve assigned to a contact. To show all contacts again, select

Menu > Filter > All Contacts.

•

Programs 235

Share contact information

To beam a contact’s details

You can quickly send contact information to another mobile phone or device

through Bluetooth beaming.

1. On the Contacts screen, select a contact.

2. Tap Menu > Send Contact > Beam, then select a device where to beam the

contact to.

Note Before beaming, make sure Bluetooth is turned on and set to visible mode on your

device and the target mobile device. You can also beam contact information to your

computer. See Chapter 9 for details.

To send contact information via text messaging

1. On the Contacts screen, select a contact.

2. Tap Menu > Send Contact > SMS \ MMS.

3. Select the contact information you want to send, then tap Done.

4. In the new text message, enter the mobile phone number of the recipient,

then tap Send.

To send contact information as a vCard

A vCard (virtual business card) is a standard file format used for exchanging contact

information. vCard files can be exported to Outlook on the computer. From your

device, you can send a vCard containing contact information as file attachment in

an MMS message.

1. On the Contacts screen, select a contact.

2. Tap Menu > Send as vCard.

3. A new MMS message is created with the vCard file attached. Enter the mobile

phone number or e-mail address of the recipient, then tap Send.

For more information, see “MMS” in Chapter 6.

236 Programs

12.6 Comm Manager

Comm Manager is a central location where you can easily turn on and off the

communication features of your device such as the phone, Wi-Fi, data connection,

Bluetooth, and more.

To access the Comm Manager

Do one of the following:

On the TouchFLO Home screen, slide to the Settings tab and then touch

Communications.

Touch Start > Programs > Comm Manager.

Touch Start > Settings > Connections tab > Comm Manager.

1Switch Airplane Mode on or off. Turning on Airplane Mode turns off the phone, Wi-Fi and

Bluetooth functions. For more information, see "To enable or disable Airplane Mode" in

Chapter 2.

2Switch the phone on or off. Tap Settings > Phone to set the ring tone and other phone

settings. See “Changing Basic Settings” in Chapter 13 for details.

3Switch Bluetooth on or off. Tap Settings > Bluetooth to configure Bluetooth on your

device. See Chapter 9 for details.

•

Programs 237

4Switch Wi-Fi on or off. Tap Settings > Wireless LAN to configure wireless network

connection settings. See “Wi-Fi” in Chapter 8 for details.

5Switch between automatically receiving (as items arrive) or manually retrieving Outlook

e-mails. See Chapter 7 for details.

6Turn your data connection (such as 3G or GPRS) on or off. See “Starting a Data

Connection” in Chapter 8 for details.

12.7 Microsoft® Office Mobile

Microsoft® Office Mobile consists of the following applications:

• Microsoft® Office Excel® Mobile lets you create and edit Excel workbooks

and templates on your device.

• Microsoft® Office OneNote® Mobile lets you create notes with text,

photos, and voice recordings for synchronization later with Microsoft® Office

OneNote® 2007 on your computer.

• Microsoft® Office PowerPoint® Mobile allows you to view (not create) slide

show presentations in *.ppt and *.pps formats.

• Microsoft® Office Word Mobile lets you create and edit documents and

templates in Word Mobile and save them as *.doc, *.rtf, *.txt, and *.dot files.

To use Microsoft Office Mobile

1. Tap Start > Office Mobile.

2. Tap the Office Mobile application that you want to use.

Word Mobile and Excel Mobile do not fully support some features of Microsoft®

Office Word and Microsoft® Office Excel®. To see a complete list of features that are

not supported in Word Mobile and Excel Mobile, see Help on your device.

238 Programs

Tips • By default, Word Mobile saves documents in .docx format, while Excel Mobile

saves workbooks in .xlsx format. If you want to open these types of files on

a computer that uses Microsoft Office 2000, Office XP, or Office 2003, you

need to download and install the File Format Converter in your computer.

You can find this converter at http://www.microsoft.com/downloads/details.

aspx?FamilyId=941B3470-3AE9-4AEE-8F43-C6BB74CD1466&displaylang=en.

• If you want Word Mobile to save documents in .doc format, tap Menu > Tools >

Options (or Menu > Options when no document is opened), then change the

Default template to Word 97-2003 Document (.doc).

• If you want Excel Mobile to save workbooks in a format that is compatible with

Microsoft Office 2000, Office XP, or Office 2003, tap Menu > Options (with no

workbook opened), then change the Template for new workbook to Blank 97-

2003 Workbook.

12.8 Notes

Using Notes, you can create handwritten and typed notes, record voice notes,

convert handwritten notes to text for easy readability, and more.

To create a note

1. Tap Start > Programs > Notes. In the note list, tap New.

2. Choose an input method and then enter your text.

Tip For more information about input methods and entering text, see Chapter 4.

3. When finished, tap OK to save and return to the note list.

Notes • To select handwritten text, tap and hold next to the writing. As soon as dots

appear, and before they form a complete circle, quickly drag across the writing.

• If a letter crosses three ruled lines, it is treated as a drawing rather than text.

To draw in a note

1. Create or open a note file.

2. Use the stylus to draw on the screen. A selection box then appears around

your drawing.

Programs 239

3. Tap OK to save.

Note To select a drawing (for example, to copy or delete it), tap and hold the drawing

briefly. When you lift the stylus, the drawing is selected.

To record a voice note

You can create a stand-alone recording (voice note) or you can add a recording to

a note.

1. Tap Start > Programs > Notes.

2. If you do not see the Recording toolbar, tap Menu > View Recording

Toolbar.

3. Do one of the following:

• To add a recording to a note, create or open a note.

• To create a stand-alone recording, record from the note list.

4. Tap the Record icon ( ) to begin recording your voice. Tap the Stop icon (

) when you are finished recording.

Tip

To select the voice recording format, return to the note list and then tap Menu >

Options > Global Input Options link (at the bottom of the Options screen). On the

Input screen, tap the Options tab and choose the desired format from the Voice

recording format list.

240 Programs

12.9 Java

MIDlets are Java applications such as games and tools that can run on mobile

devices, while a MIDlet suite is a collection of one or more MIDlets. The Java

program lets you download, install and manage MIDlets or MIDlet suites on your

device. Your device supports Java 2 Micro Edition, J2ME.

To open the Java program

Tap Start > Programs > Java.

Install and launch MIDlets/MIDlet suites

There are several ways to install a MIDlet/MIDlet suite.

To download and install via Internet Explorer Mobile

1. Tap Menu > Install > Browser to open Internet Explorer Mobile.

2. Locate the MIDlet/MIDlet suite while connected to the Internet.

3. Select the MIDlet/MIDlet suite to download.

4. Information about the MIDlet/MIDlet suite is then displayed. Tap Continue.

5. Confirm to start downloading.

6. Select <root> or a folder where to install the MIDlet suite to, then tap OK.

To install from your device

You can copy MIDlets/MIDlet suites from the computer to your device using the

USB sync cable or Bluetooth connection. Copy them to the root folder or any

subfolder on your device.

1. Tap Menu > Install > Local Files. The program then searches for MIDlets/

MIDlet suites on your device and displays them in a list.

2. From the list, tap the MIDlet/MIDlet suite that you want to install.

3. Confirm to start the installation.

4. Select <root> or a folder where to install the MIDlet suite to, then tap OK.

Programs 241

To run a MIDlet/MIDlet suite

Do one of the following:

• After installation of the MIDlet/MIDlet suite is complete, tap Yes.

• On the Java screen, open the folder that contains the MIDlet/MIDlet suite.

Select the MIDlet/MIDlet suite, then tap Launch.

Manage MIDlets/MIDlet suites

You can organize MIDlets/MIDlet suites into folders for easy identification,

renaming, updating, and more. If the device memory is full, uninstall some MIDlets/

MIDlet suites to free up memory space.

To create folders

1. On the Java screen, tap Menu > New Folder.

2. Enter a folder name, then tap Create.

To update a MIDlet/MIDlet suite

Tap and hold a MIDlet/MIDlet suite, then tap Update. Alternatively, you can tap

Menu > Actions > Update.

Java will search for updates for the selected MIDlet/MIDlet suite where it was

installed from before.

To uninstall MIDlets

Before you uninstall a MIDlet, make sure that it is not running.

1. Tap and hold the MIDlet, then tap Uninstall.

2. Tap OK to confirm.

Note To uninstall all MIDlets and folders from the current folder, tap Menu > Uninstall All.

242 Programs

12.10 SIM Manager

SIM Manager allows you to view the contents of your SIM card, transfer contacts

from your SIM card to your device or vice versa, and make a call to a SIM contact.

To create a contact on your SIM card

1. Tap Start > Programs > SIM Manager.

2. Tap New and enter a contact name and phone number.

3. Tap Save to save the information on your SIM card.

Tip To change contact information on your SIM card, tap a SIM contact, edit the

information, and then tap Save.

To copy SIM contacts to your device

If you have saved contacts on your SIM card, you can copy them into Contacts on

your device.

1. On the SIM Manager screen, select the desired contact, or select all SIM

contacts by tapping Menu > Select All.

2. Tap Menu > Save to Contacts.

To copy contacts to the SIM card

Only one phone number per contact name can be stored on a SIM card. When you

copy a contact that has several phone numbers to your SIM card, SIM Manager

saves each number under a separate name.

To save each number under a different contact name on the SIM card, SIM Manager

appends an indicator at the end of each name.

By default, /M, /W and /H are appended to indicate mobile, work and home phone

numbers respectively. You can edit this indicator first before you start copying

contacts to your SIM card. Indicators of the other types of phone numbers are left

empty for you to define them.

Programs 243

1. On the SIM Manager screen, tap Menu > Tools > Options.

2. Select the check boxes of the types of phone numbers that you want to be

added to the SIM card.

3. Under the Mark column, you can change the

indicator that will be appended to the SIM

contact names for each phone number type. To

do so, select a phone type, tap Edit, enter your

desired indicator, then tap Save.

4. After modifying, tap OK.

5. Tap Menu > Contacts to SIM.

6. Select the check boxes of the contact’s phone

numbers that you want to copy to your SIM card,

then tap Save.

To store your SIM card’s phone number

1. On the SIM Manager screen,

tap Menu > Tools > List of

Own Numbers.

2. Tap Voice Line 1.

3. Change the name, if desired,

then enter your mobile

phone number.

4. Tap Save.

When your phone

number is stored

on the SIM card,

it will appear on

the SIM Manager

screen.

244 Programs

12.11 Spb GPRS Monitor (Available by Country)

Using Spb GPRS Monitor, you can monitor how much data you have sent and

received on your device, and check the network usage costs by taking into account

your service plan details. You can also view connection cost and traffic charts,

generate reports of network connection usage, and export reports to CSV files for

use with Microsoft® Office Excel® and Access.

Install GPRS Monitor

The GPRS Monitor program is included in the Application disc. To install it onto

your device, run the program’s installer on your computer. Follow the on-screen

instructions on your computer and your device to complete the installation.

The GPRS Monitor icon and pop-up window

You can enable the GPRS Monitor icon to be shown on the title bar. This icon shows

the data connection or dial-up connection speed, data traffic, and battery status.

To show the GPRS Monitor icon on the title bar

1. Tap Start > Programs > Spb GPRS Monitor.

2. Tap Tools > Options > Icon tab.

3. Select the Show taskbar icon check box.

By default, the GPRS Monitor icon shows three bars that represent the following

status information:

Icon Bar 2: Traffic

(Full bar corresponds to

100%. Each bar is 20%.)

Icon Bar 3: Battery

(Each bar corresponds to

20% of the total charge.)

Icon Bar 1: Speed

(Full bar corresponds

to 19KB/sec.)

Programs 245

When you tap the GPRS Monitor icon on the title bar,

a pop-up window opens and shows you detailed

statistics about your data transfers, such as the

data size you have just transferred and its cost, the

allowable amount of data that you can transfer, and

more.

Set up monitoring and notification

To select the connection to be monitored

1. On the GPRS Monitor screen, tap Tools > Options > Connection tab.

2. Select the Enable connection monitoring check box.

3. In the Connection list, select the connection you want to monitor.

To enter your service plan details

Service plan details, or tariffs, determine the price that you pay for your data

transfers. The tariff may either be flat rate or time-based, depending on whether

you’re using GPRS or a phone dial-up connection for data transfers.

Contact your wireless service provider to find out about your tariff, and enter the

information in the Tariff tab or the Tariff Details tab on the Options screen.

Note The calculation of network usage costs is based on the information that you entered,

and is only an estimate. The actual amount billed by your service provider may differ.

246 Programs

To set up traffic limit notifications

You can set up traffic limit notifications if you want to be notified when a traffic limit

is reached.

1. On the GPRS Monitor screen, tap Tools > Options.

2. Enable the notifications on the Day Warn and Month Warn tabs. You can

specify up to three daily and three monthly limits.

Once traffic reaches one of these limits, you will receive a notification.

View charts and reports

On the GPRS Monitor, you can view network connection cost charts and traffic

charts, as well as generate detailed reports of network connection usage during

a given period of time. These reports can be exported to CSV files that you can

open using Excel, Access, or other similar spreadsheet and database software

applications.

To view charts and generate reports

On the GPRS Monitor screen:

• Tap the Chart tab to view the network connection cost charts and traffic

charts.

• Tap the Report tab to generate reports on network traffic and tariff.

For more information about using Spb GPRS Monitor, see Help on your device.

Programs 247

12.12 Sprite Backup

Use Sprite Backup to back up data, which includes settings, files, contacts, and all

other information, to the device memory, storage card or a computer.

Note If you are sending your device for repair or performing a hard reset, data from your

device will be lost. It is recommended that you use Sprite Backup to back up your

files including settings, contacts and other information to your computer or a storage

card.

To install Sprite Backup

1. Make sure your device is connected to your computer via a USB cable.

2. Insert the Application disc on your computer’s disc drive and start the Sprite

Backup installation.

3. Follow the on-screen instructions to install the Sprite Backup PC Manager to

your computer and the Sprite Backup program onto your device.

To open Sprite Backup

On your device, tap Start > Programs > Sprite Backup.

Before you start to back up or restore files, please check the following:

Make sure that the device storage memory has at least 15MB of free space.

To check, tap Start > Settings > System tab > Memory > Main tab.

If you have a storage card installed, make sure that it has at least 100MB of

free space. To check, tap Start > Settings > System tab > Memory > Storage

Card tab.

To back up data

1. To back up data remotely to a computer, enable the PC backup feature first.

See “To enable remote backup to a computer” for instructions.

2. On the Sprite Backup main screen, tap Backup.

3. On the Backup Data Selection screen, you will see a tree view of the data and

files on your device. Tap “+” on the left of an item to view its sub-items.

•

248 Programs

Use the check boxes to select or exclude items for backup.

Main screen Backup Data Selection screen

Notes It is recommended that you do not back up the File System of your device as

this may cause restoration problems. To not back up the File System, expand

the System Data folder by tapping “+” on its left side and then clearing the File

System checkbox.

 When File System is not backed up, you will need to reinstall all third party

software to your device after you do a hard reset and restored your files.

4. After selecting data items, tap Next. The Save As screen then appears.

5. Enter a file name for the backup file.

6. In Location, choose whether to save the backup file to \Storage Card (if one

is installed), \My Documents on the device memory, or to a PC.

Tip When backing up to a storage card or to \My Documents on the device memory,

you can also choose a specific folder where to save the backup file.

7. Tap Next.

8. On the Device Reset Required screen, tap Next to start the backup.

Note Do not start and use any programs on your device until the backup process is

completed.

Programs 249

To restore data

1. On the Sprite Backup main screen, tap Restore. Sprite Backup then searches

for all available backup files from the device memory and storage card and

then displays them on the Open File screen.

Tip To search for backup files created on your computer, connect your device to

your computer and run Sprite Backup PC Manager on your computer. In Sprite

Backup’s Open File screen on your device, set Location to PC.

2. Select the backup file you want to restore and then tap Next.

3. In the tree view, select the items you want to be restored to your device and

then tap Next.

Note If your phone has SIM PIN lock enabled, a screen will appear asking you to set up

Sprite Backup SIM Unlock feature. It is recommended that you set up this feature

to avoid file restoration errors. To set up, tap Setup Phone SIM Lock.

4. On the Device Reset Required screen, tap Next to begin restoring data.

Note Sprite Backup soft resets your device first before it begins the backup or restoration

process. It soft resets again after the operation is completed.

To enable remote backup to a computer

1. On the Sprite Backup main screen, tap Options > Networking > PC.

2. Select the Enable PC Backup check box and choose whether to do the

remote backup to your computer via ActiveSync or network.

For more information about using Sprite Backup, see the Sprite Backup Help or

download the Sprite Backup User Manual from http://www.spritesoftware.com/.

250 Programs

12.13 Tasks

Use Tasks to keep track of things you need to do. A task can occur once or

repeatedly (recurring).

Your tasks are displayed in a task list. Overdue tasks are displayed in red. A reminder

will be displayed when you have new tasks to be completed.

To create a task

1. Tap Start > Programs > Tasks.

2. Tap Menu > New Task, enter a subject for the task, and fill in information

such as start and due dates, priority, and so on.

3. Specify the type of category for your task, so that it can be grouped with

other related tasks. Tap Categories, then select a preset category (Business,

Holiday, Personal, or Seasonal), or tap New to create your own category.

4. When finished, tap OK.

To change the priority of a task

Before you can sort tasks by priority, you need to specify a priority level for each

task.

1. Tap Start > Programs > Tasks.

2. Tap the task you want to change the priority for.

3. Tap Edit, and tap a priority level in the Priority box.

4. Tap OK to return to the task list.

Note All new tasks are assigned a Normal priority by default.

To show start and due dates in the task list

1. Tap Start > Programs > Tasks.

2. Tap Menu > Options.

3. Select the Show start and due dates check box, then tap OK.

Programs 251

To send task information as a vCalendar

After selecting the task to send in the Task screen, tap Menu > Send as vCalendar

to send a vCalendar containing task details as a file attachment in an MMS message.

For more information, see “MMS” in Chapter 6.

12.14 Voice Recorder

Voice Recorder lets you record your voice and quickly send it as an MMS or e-mail

attachment, beam it via Bluetooth, or set the recorded voice as your ring tone.

Note

Voice Recorder saves voice recordings in AMR-NB (Adaptive Multi-Rate Narrowband)

format only. This is a common speech audio format used in mobile devices.

To record your voice

1. Tap Start > Programs > Voice Recorder.

2. Hold the device’s microphone close to your mouth.

3. Touch Record or to start recording. Tap Stop or to end the

recording.

To select or create a folder where to save voice recordings

By default, all recordings are saved in the My Voices folder of the device. You can

choose another folder or create a new folder to save your voice recordings.

Note If a storage card is installed before you open Voice Recorder, the recordings are saved

in the My Voices folder on the storage card by default.

1. Tap the arrow beside the folder name on the top-left of the screen.

2. In the menu that opens, choose an existing folder or touch Add/Delete to

create a new folder.

To play back a voice recording

On the Voice Recorder screen, touch a voice recording, or navigate to a voice

recording and then tap Play ( ).

252 Programs

Tip If you need to adjust the sound volume, touch any of the status icons on the title bar

and then touch the Volume icon ( ) to open the System Volume screen where you

can adjust the volume.

To send a voice recording through MMS

Select a voice recording, then tap Menu > Send via MMS. A new MMS message is

then created with the voice recording automatically inserted as an audio clip.

See “MMS” in Chapter 6 to learn how to compose and send MMS messages.

To send a voice recording via e-mail

Select a voice recording, tap Menu > Send, and then select an e-mail account.

This creates a new e-mail message with the voice recording inserted as a file

attachment.

See “Using E-mail” in Chapter 6 to learn how to send e-mails.

To beam a voice recording via Bluetooth

1. Select the voice recording you want to beam, then tap Menu > Beam File.

Tip To select multiple recordings, tap and drag over the desired recordings or tap

Menu > Select All.

2. Tap the device you want to send the voice recording to.

3. On the other device, accept the file transfer to receive the file.

To set a voice recording as ring tone

Select the voice recording, then tap Menu > Set as Ringtone.

To rename or move a recording

1. Select the voice recording, then tap Menu > Rename/Move.

Tip To select multiple recordings, tap and drag over the desired recordings or tap

Menu > Select All. Note that you can move multiple files, but you cannot

rename multiple files simultaneously.

2. In Name, enter the new voice recording name.

3. To move the voice recording, select the new destination Folder and

Location. Tap OK.

Programs 253

12.15 Voice Speed Dial

You can record voice tags so that you can dial a phone number or launch programs

simply by speaking a word.

To create a voice tag for a phone number

1. On the TouchFLO Home screen, slide to the People tab and then touch All

People to open the Contacts screen.

Tip You can also touch Start > Contacts to open the Contacts screen.

2. Do one of the following:

• Scroll to the desired contact, then touch Menu > Add Voice Tag.

• Touch the desired contact to open the contact card and then touch Menu

> Add Voice Tag.

• Use the stylus to tap and hold the desired contact, then tap Add Voice

Tag.

3. Select the phone number that you want to create a voice tag for, then touch

Record ( ).

Select the

desired

phone

number.

Touch the

Record

icon to start

recording.

254 Programs

Tip To ensure voice recognition accuracy, record your voice in a quiet place.

4. When completed, a Voice Tag icon is displayed on the right of the item.

To create a voice tag for a program

Touch Start > Settings > Personal tab > Voice Speed Dial > Application tab.

The Application tab displays a list of all installed programs on your device. The

procedure for creating a voice tag for a program is the same as the procedure for

creating a voice tag for a phone number.

To make a call or launch programs using a voice tag

1. Touch Start > Programs > Voice Speed Dial.

2. After the beep, say the recorded voice tag that you have assigned to the

phone number you want to call or the program you want to launch. The

system will repeat the voice tag, then dial out or launch the program

automatically.

Note If the system cannot recognize your voice tag, move to a quiet place, then try again

while speaking clearly.

To view and test the voice tags you have created

1. Touch Start > Settings > Personal tab > Voice Speed Dial.

2. The Voice Tag tab displays a list that contains all the voice tags you have

created. Select an item in the list, then do one of the following.

• Touch the Record button ( ) to rebuild the voice tag.

• Touch the Play button ( ) to play the voice tag.

• Touch the Delete button ( ) to delete the voice tag.

Programs 255

12.16 ZIP

The ZIP program increases the storage capacity of your device by allowing you to

compress files in the conventional ZIP format. It also allows you to extract files from

a zip file.

To start ZIP on your device

Tap Start > Programs > ZIP.

Each time you start ZIP, it searches for files that have the .zip file extension, and

displays these files on the Archive List screen.

To open a ZIP file and extract files

1. Touch a zip file to open it, or navigate to a zip file and then touch File > Open

Archive.

Note You cannot select multiple ZIP files.

2. From the zip file, select files by doing one of the following:

• Touch a file to select it.

• To select several files, touch Menu > Action and make sure Multi-Select

Mode is selected. Select files by touching each file. (Touch a selected file

to deselect it).

• To select all files, touch Menu > Action > Select All.

3. Touch Menu > Action > Extract.

4. Choose a folder where the files will be extracted to, then touch Extract.

5. Touch Menu > File > Close Archive to close the zip file.

To create a new zip archive

1. Touch File > New Archive.

2. On the Save As screen, enter the zip file name and choose a folder where

you want to save it. You can also choose whether to save the zip file on the

device’s main memory or a storage card.

256 Programs

3. Touch Save.

4. Touch Menu > Action > Add.

5. Navigate to the folder that contains the files you want to archive.

6. Select files to add by doing one of the following:

• Touch a file to select it.

• To select several consecutive files, drag over the files.

• To select several non-contiguous files, use the stylus to tap and hold on

the screen and then select Multi-Select Mode. Select files by tapping

each file. (Tap a selected file to deselect it).

• To select all files, use the stylus to tap and hold on the screen and then tap

Select All.

7. Touch Add.

8. Touch Menu > File > Close Archive to save and close the zip file.

Chapter 13

Managing Your Device

13.1 Copying and Managing Files

13.2 Settings on your Device

13.3 Changing Basic Settings

13.4 Using Connection Setup

13.5 Using Task Manager

13.6 Protecting Your Device

13.7 Managing Memory

13.8 Resetting Your Device

13.9 Windows Update

13.10 Battery Saving Tips

258 Managing Your Device

13.1 Copying and Managing Files

You can copy files between your device and computer, or copy files to a storage

card installed on your device. You can also efficiently manage your files and folders

using File Explorer.

To copy files using Windows Mobile Device Center or ActiveSync

1. Connect your device to the computer.

2. Click File Management > Browse the contents of your device in Windows

Mobile Device Center on your computer, or click Explore in ActiveSync on

your computer. This opens Windows Explorer on your computer and displays

the contents of your device.

3. To copy a file from your device to your computer:

a. Browse the contents of your device, right-click the file you want to copy,

then click Copy.

b. Right-click a folder on your computer, then click Paste.

4. To copy a file from your computer to your device:

a. Browse the folders on your computer, right-click the file you want to copy,

then click Copy.

b. Right-click a folder on your device, then click Paste.

To manage files on your device using File Explorer

File Explorer lets you browse and manage the contents of your device. The root

folder on the device is named My Device, and contains the following folders: My

Documents, Program Files, Windows, and more.

1. Tap Start > Programs > File Explorer.

2. Tap a folder or file to open it.

3. To return to an upper level folder, tap Up and select the folder.

4. To quickly delete, rename, or copy a file, tap and hold the file, then choose

Managing Your Device 259

the desired operation on the shortcut menu. To copy or delete multiple files,

tap and drag over the desired files to select, tap and hold the selection, then

choose the desired operation on the shortcut menu.

To copy files to a storage card

1. Make sure that the storage card is properly installed on your device.

2. Tap Start > Programs > File Explorer and navigate to the appropriate folder.

3. Tap and hold the file you want to copy, then tap Copy.

4. Tap the down arrow ( ), then tap Storage Card in the list.

5. Tap and hold an empty area on the screen and then select Paste on the

menu.

Tip You can configure programs such as Word Mobile and Excel Mobile to directly save

edited files onto a storage card. In the program's file list, tap Menu > Options, then

select the Storage Card in the Save to box.

13.2 Settings on your Device

You can adjust the device settings to suit the way you work. To see all available

settings, slide to the Settings tab on the Home screen and tap All Settings.

Personal tab

Icon Description

Buttons Assign a program or function to a hardware button. You can also set the

behavior when you press and hold the END key.

Input Set options for each of the input methods.

Lock Set a password for your device.

260 Managing Your Device

Icon Description

Menus Set which programs will appear in the Start menu.

Owner Information Enter your personal information on your device.

Phone Customize phone settings such as ring tone, set a PIN number for your

SIM card, and more.

Sounds & Notifications Enable sounds for events, notifications, and more, and

set the type of notification for different events.

Today Customize the appearance and the information to be displayed on the

Today screen.

Note You will not see the Today screen when the TouchFLO Home screen

is enabled. To display the Today screen, you can disable TouchFLO by

tapping Start > Settings > Personal tab > Today > Items tab and then

clearing the TouchFLO check box. However, you will not be able to use

the TouchFLO Home screen if you disable it.

Voice Speed Dial Create voice tags for voice dialing contacts and SIM contacts as

well as for launching programs.

System tab

Icon Description

About This is where you can see basic information such as the Windows Mobile®

version and type of processor used on your device. You can also specify a name

for your device.

Certificates See information about certificates that are installed on your device.

Managing Your Device 261

Icon Description

Clear Storage Reset your device to factory default settings.

Clock & Alarms Set the device clock to the date and time of your locale or to a

visiting time zone when you’re traveling. Alarms can also be set at specified days

and times of a week.

Customer Feedback Set your device to automatically send information about

how you use Windows Mobile. By default, this option is disabled.

Device Information See information about the firmware version, hardware,

identity, and the duration of calls made on your device.

Encryption Encrypt files on your storage card. Encrypted files will only be

readable on your device.

Error Reporting Enable or disable the device's error reporting function. When

this function is enabled and a program error occurs, technical data about the state

of the program and your computer will be logged in a text file and delivered to

Microsoft's technical support if you choose to send it.

External GPS Set the appropriate GPS communication ports, if required. You may

need to do this when there are programs on your device that access GPS data or

you have connected a GPS receiver to your device. See Help for details.

Key Lock Lock the buttons on your device except for the POWER button when

the device is in Sleep mode. This ensures you will not switch the device on by

accident and consume unnecessary power.

Managed Programs Displays the programs that were installed on your device

using System Center Mobile Device Manager.

Memory Check the device memory allocation status and storage card

information.

262 Managing Your Device

Icon Description

Microphone AGC Adjust the volume of your voice automatically when you are

recording.

Power Check the remaining battery power. You can also set the brightness of

the backlight and timeout for turning off the display (switching device to Sleep

mode) to conserve battery power.

Regional Settings Set the regional configuration to use, including the format for

displaying numbers, currency, date, and time on your device.

Remove Programs Remove programs that you installed on your device.

Screen Recalibrate the screen, apply ClearType, and change the screen text size.

Task Manager Stop running programs and set the ( ) button to end programs

immediately when you tap the button. For more information, see "Using Task

Manager" in this chapter.

TouchFLO You can enable or mute the finger scrolling and panning sound. You

can also enable or disable the large Start menu, and choose to show or hide the

System Status screen when title bar icons are tapped.

Windows Update Link to Microsoft's web site and update Windows Mobile® on

your device with the latest security patches or fixes, if they are available.

Managing Your Device 263

Connections tab

Icon Description

Advanced Network Turn on/off HSDPA, set the line type to use when making

circuit switch data (CSD) connection, and set the GPRS authentication method.

HSDPA is a 3.5G digital data service that provides high-speed downstream data

rates. In order for your device to attain the high connection speed of HSDPA, your

wireless service provider must support this feature and you must be within the

coverage area of your service provider’s HSDPA network. Your device supports up

to 7.2 Mbps download speeds.

Beam Set your device to receive incoming Bluetooth beams.

Bluetooth Turn Bluetooth on, set your device to visible mode, and scan for other

Bluetooth devices.

Comm Manager Manage your device’s connections (including GPRS, Wi-Fi,

and Bluetooth), turn the phone on or off, and enable or disable the Direct Push

function.

Connection Setup Configure your device’s data connections, such as 3G/GPRS,

WAP, and MMS, based on the detected or selected network operator. See “Using

Connection Setup” in this chapter for details.

Connections Set up one or more types of modem connections for your device,

such as phone dial-up, 3G/GPRS, and more, so that your device can connect to the

Internet or a private local network.

Domain Enroll Enroll your device in your company’s domain to let System

Center Mobile Device Manager to manage the device. Please ask your Server

Administrator for more details.

USB to PC Set the type of USB connection to your computer. Select the

ActiveSync option for synchronizing data, or use Disk Drive mode to quickly

transfer files to the storage card on your device. See “When Connecting Your

Device to a Computer” in Chapter 1 for details.

264 Managing Your Device

Icon Description

Wi-Fi Scan for available wireless networks.

Wireless LAN See information about the active wireless network, and customize

Wi-Fi settings.

13.3 Changing Basic Settings

Date and time

To set the date and time

1. On the Home screen Home tab, tap the time display and then tap the Time

tab.

Tip Tap the More tab and select the Display the clock on the title bar in all

programs option to show the clock on all screens.

2. Select the correct time zone and change the date or time.

Note During synchronization, the time on your device is updated with the time on your

computer.

To set the date and time for a different location

If you visit or communicate with someone in a particular time zone often, you can

select it as your visiting time zone.

1. On the Home screen Home tab, tap the time display and then tap the Time

tab.

2. Tap Visiting.

3. Select the correct time zone and change the date or time.

Managing Your Device 265

Regional settings

The style in which numbers, currency, dates, and times are displayed is specified in

regional settings.

1. On the Home screen, slide to the Settings tab and then tap All Settings.

2. On the System tab, tap Regional Settings > Region tab and then select your

region from the list.

Note This does not change the language of your device’s operating system.

The region you select determines which options will be available on the other

tabs.

3. To customize regional settings further, tap the appropriate tabs and set the

desired options.

Display settings

To adjust the screen brightness

1. On the Home screen, slide to the Settings tab and then tap All Settings.

2. On the System tab, tap Power > Backlight tab.

3. Clear the Auto adjust backlight check box to display the sliders for adjusting

brightness.

4. Adjust the brightness by dragging the slider under On battery power and

On external power.

To set the backlight to dim after a time delay

1. On the Home screen, slide to the Settings tab and then tap All Settings.

2. On the System tab, tap Power > Advanced tab.

3. In On battery power and On external power, select the Turn off backlight

if device is not used for check box, then specify the time delay.

266 Managing Your Device

To increase or decrease the size of text on the screen

1. On the Home screen, slide to the Settings tab and then tap All Settings.

2. On the System tab, tap Screen > Text Size tab.

3. Move the slider to increase or decrease the text size.

Device name

The device name is used to identify your device in the following situations:

• Synchronizing with a computer

• Connecting to a network

• Restoring information from a backup

Note If you synchronize multiple devices with the same computer, each device must have a

unique name.

To change the device name

1. On the Home screen, slide to the Settings tab and then tap All Settings.

2. On the System tab, tap About > Device ID tab.

3. Enter the device name.

Notes • The device name must begin with a letter, consist of letters from A to Z, numbers

from 0 to 9, and cannot contain spaces. Use the underscore character to separate

words.

• If you enroll your device to your company’s domain, the device name will be

changed to be the same as the one used to enroll the device.

Ringer settings

To change the ring type and ring tone

1. Press the TALK/SEND button to open the Phone screen and then tap Menu >

Options.

2. On the Phone tab, select the desired Ring type and Ring tone from the

provided lists and then tap OK.

Managing Your Device 267

Tips • You can use *.wav, *.mid, *.mp3, *.wma, or other types of sound files that you

downloaded from the Internet or copied from your computer as ring tones. To

quickly set the music file as a ring tone, tap and hold the music file and then select

Set As Ringtone. For a complete list of supported audio file formats for ring tones,

see "Specifications" in the Appendix.

• To use your sound files as ring tones, copy them first to the /My Documents/My

Ringtones folder on your device, then select the sound from the Ring tone list of

your device. For more information about copying files, see “Copying and Managing

Files” in this chapter.

Alarms and notifications

To set an alarm

1. On the Home screen Home tab, tap the time display and then tap the Alarms

tab.

2. Tap <Description> and enter a name for the alarm.

3. Tap the day of the week for the alarm. Select multiple days by tapping each

desired day. Tap again to deselect the day.

4. Tap the time to open a clock and set the time for the alarm.

Tip You can drag the hour and minute hands of the clock to set the time.

5. Tap the alarm icon ( ) to specify the type of alarm you want. You can

choose a flashing light, a single sound, a repeating sound, or vibration.

6. If you choose to play a sound, tap the list next to the Play sound check box

and tap the sound you want.

To choose how to be notified about events or actions

1. On the Home screen, slide to the Settings tab and then tap Sounds >

Advanced.

2. On the Sounds tab, choose how you want to be notified by selecting the

appropriate check boxes.

268 Managing Your Device

3. On the Notifications tab, in Event, tap an event name and choose how you

want to be notified by selecting the appropriate check boxes. You can choose

from several options, such as a special sound, a message, a flashing light, or

vibrate.

Tip Turning off sounds and flashing light notifications helps conserve battery power.

Phone services

Your device can directly link to the mobile phone network, and enable you to

access and change the settings of various phone services for your device. Phone

services may include Call Forwarding, Call Waiting, Voicemail, and more. Contact

your wireless service provider to find out about the availability of phone services for

your device.

To access and change settings of phone services

1. On the Home screen, slide to the Settings tab and then tap All Settings.

2. On the Personal tab, tap Phone > Services tab.

3. Select the service you want to use, then tap Get Settings.

4. Choose your desired options, then tap OK.

For more information about customizing settings of phone services, see Help on

your device.

Managing Your Device 269

13.4 Using Connection Setup

Connection Setup configures your device’s data connections, such as GPRS, WAP,

and MMS, for you so that you do not need to enter the settings manually onto your

device. All you need to do is to select your network operator, then Connection

Setup does all the configuration for you.

To automatically configure the device’s data connections

The first time you power on your device, or when you insert a new SIM card and

then power on your device, Connection Setup will display a notification message to

inform you that it will automatically configure your device’s connection settings.

1. Tap Yes on the notification message.

Note If your SIM card supports multiple network operator profiles, the next message

that appears will display network profile choices. Select the profile you want to

use and tap OK.

2. When prompted to automatically configure your device to the proper

network settings, tap Yes.

Connection Setup configures your device’s data connection settings.

3. After the Connection Setup completes the configuration, tap Restart.

To manually select the network operator to use for data connections

You can also manually select your network operator from Connection Setup’s

settings screen. Connection Setup will then reconfigure your device’s data

connections settings based on the operator that you selected.

270 Managing Your Device

1. On the Home screen, slide to the Settings tab and then tap All Settings.

2. On the Connections tab, tap Connection Setup.

3. Select the network Country and Operator you want to use, then tap OK.

Note If you choose a Country and/or Operator that is different from the installed SIM

card network operator, you may not be able to access network services.

4. When prompted to confirm whether you want to configure the data

connection settings based on the selected network, tap Yes.

Connection Setup configures the data connection settings.

5. After the Connection Setup completes the configuration, tap Restart.

13.5 Using Task Manager

Task Manager lets you view and stop running programs, configure the button,

and enable the Quick Menu on the Home screen.

To open Task Manager

• Tap the Quick Menu button on the top right corner of the Home screen to

open the Quick Menu, then tap ; or

• On the Home screen, slide to the Settings tab and then tap All Settings. On

the System tab, tap Task Manager.

To switch back to a running program

• Tap the program name in the Quick Menu; or

• On the Task Manager screen, tap and hold the program name on the

Running tab, then tap Activate.

To configure the Exit ( ) button

You can configure the Exit button to shut down running programs when the

button is tapped, or to just temporarily close the program screen but keep the

program running.

Managing Your Device 271

1. On the Task Manager screen, tap the Button tab.

2. Select the Enable the “X” button to end running programs check box.

Note When the Enable the “X” button to end running programs check box is not

selected, tapping the Exit button will only close a program screen. The program

is not ended and continues to run in the background.

3. Choose the action for shutting down programs (by tapping the button, or

by tapping and holding the button).

4. Tap OK.

To close running programs from the Task Manager

1. On the Task Manager screen, tap the Running tab.

2. Do one of the following:

• Select the check box of the programs that you want to close, then tap

Stop Selected.

• Tap Stop All to close all programs in the list.

• Tap Menu > Stop All but Selected to close all programs except those

which check boxes are selected.

Tip You can also close running programs from the Quick Menu on the Home screen. See

“Quick Menu” in Chapter 1 for details.

To add a running program to the exclusive list

If you add a running program to the Exclusive Programs List, it will not be closed

when you tap Stop Selected or Stop All and will not be listed in the Quick Menu

on the Home Screen.

1. On the Task Manager screen, tap the Running tab.

2. Tap and hold the program name, then tap Add Exclusive.

Tip To remove a program from the exclusive list, tap the Exclusive tab, select the check

box of the program, then tap Remove.

272 Managing Your Device

To set the sorting preference and program icon size in the Quick Menu

1. On the Task Manager screen, tap the Others tab.

2. In Sort programs in Quick Menu by, choose whether to sort according to

Program name or Memory usage. The list will be sorted in ascending order.

3. In Program icon size in Quick Menu, choose whether to use Small size or

Large size.

13.6 Protecting Your Device

Protect your SIM card with a PIN

You can protect your SIM card from unauthorized use by assigning a PIN (personal

identification number). The default SIM card PIN is provided by your wireless service

provider.

To enable the SIM card PIN

1. On the Home screen, slide to the Settings tab and then tap All Settings.

2. On the Personal tab, tap Phone > PIN/PIN2 tab.

3. Select the Require PIN when phone is used check box.

4. Enter the PIN number and then tap OK. To change the PIN at any time, tap

Change PIN.

Tip Emergency calls can be placed at any time, without requiring a PIN.

Protect your device with a password

You can help keep your data more secure by requiring a password every time the

device is turned on.

To set a device password

1. On the Home screen, slide to the Settings tab and then tap All Settings.

2. On the Personal tab, tap Lock.

Managing Your Device 273

3. Select the Prompt if device unused for check box, then specify the idle time

before the device requires a password.

4. In the Password type box, select the type of password you would like to use.

Tip If your device is configured to connect to a network, use an alphanumeric

password for increased security.

5. Enter the password in both the Password and Confirm boxes.

6. Tap OK. The next time the device is turned on, you will be prompted to enter

your password.

Notes • To ensure that you can always make emergency calls, do not begin your password

with the digits of your local emergency number.

• If you entered a hint, the hint will be displayed after the wrong password is entered

five times.

• Each time a wrong password is entered, the device response time gets longer until

the device appears to be not responding.

• If you forget your password, you can hard reset or clear the device memory. Before

you do this, make sure you back up your data and files so that you can restore

them back to your device. For more information about hard resetting the device

and clearing the memory, see “Resetting Your Device” in this chapter.

Encrypt files on your storage card

You can set your device to encrypt files as they are saved on the storage card.

1. On the Home screen, slide to the Settings tab and then tap All Settings.

2. On the System tab, tap Encryption.

3. Select Encrypt files when placed on a storage card.

Notes • Encrypted files can only be read on the device that encrypted them.

• Encrypted files are opened just like other files, provided you are using the device

that encrypted them. There is no separate step for you to take to read these files.

274 Managing Your Device

Important If Encrypt files when placed on a storage card is enabled, backup all files from

the storage card before using Clear Storage, hard reset, or updating the ROM

system software. Otherwise you will no longer be able to access the encrypted files

on the storage card. Use ActiveSync or Windows Mobile Device Center to transfer

files between your storage card and computer. After the procedure, copy your files

back to the storage card.

13.7 Managing Memory

To see how much memory is available for use

1. On the Home screen, slide to the Settings tab and then tap All Settings.

2. On the System tab, tap Memory > Main tab. The amount of memory

allocated to data storage versus program storage is displayed, as well as the

amount of memory in use versus the available memory.

To see the available space of the storage card

1. On the Home screen, slide to the Settings tab and then tap All Settings.

2. On the System tab, tap Memory > Storage Card tab.

If your device is running low on memory, try the following to free memory on your

device:

• Close programs which are not in use.

• Install a storage card and then move files and e-mail attachments to the

storage card.

• Delete unnecessary files. Tap Start > Programs > File Explorer. Tap and hold

the file, and tap Delete.

• Delete large files. To find large files on your device, tap Start > Programs >

Search. In the Type list, tap Larger than 64 KB, and tap Search.

•

In Opera Mobile or Internet Explorer Mobile, delete temporary Internet files

and clear history information.

Managing Your Device 275

• Remove programs you no longer use.

• Reset your device.

13.8 Resetting Your Device

Soft reset

Occasionally, you may need to reset your device. A soft (or normal) reset of your

device clears all active program memory and shuts down all active programs. This

can be useful when your device is running slower than normal, or a program is not

performing properly. A soft reset is also necessary after the installation of some

programs. If a soft reset is performed when programs are running, unsaved work

will be lost.

To perform a soft reset

1. Remove the back cover.

(See “To remove the back cover”

in Chapter 1 for instructions.)

2. Pull out the stylus, and use the

stylus tip to press the RESET

button located near the battery

compartment.

Your device then restarts and displays

the Home screen.

RESET

Hard reset

You can also perform a hard reset (also known as a full reset). A hard reset should

only be performed if a normal reset does not solve a system problem. After a

hard reset, the device is restored to its default settings—the way it was when you

first purchased it and turned it on. Any programs you installed, data you entered,

276 Managing Your Device

and settings you customized on your device will be lost. Only Windows Mobile®

software and other pre-installed programs will remain.

Warning! Your device will be set back to factory default settings. Make sure that any

additional installed programs and/or user data have been backed up before you

perform a hard reset.

Important If Encrypt files when placed on a storage card is enabled, backup all files from

the storage card before using Clear Storage, hard reset, or updating the ROM

system software. Otherwise you will no longer be able to access the encrypted files

on the storage card. Use ActiveSync or Windows Mobile Device Center to transfer

files between your storage card and computer. After the procedure, copy your files

back to the storage card.

To perform a hard reset

1. Remove the back cover and then pull out the stylus.

2. With the device turned on, press and hold the VOLUME DOWN and ENTER

buttons, then press the RESET button with the stylus tip.

3. Release the RESET button, but continue pressing the VOLUME DOWN and

ENTER buttons until you see this message on the screen:

This operation will delete

all your personal data,

and reset all settings

to manufacturer default.

Press Volume Up to restore

manufacturer default, or

press other keys to cancel.

4. Release the VOLUME DOWN and ENTER buttons, then press the VOLUME UP

button to perform the hard reset, or press any other button to cancel the

reset.

Managing Your Device 277

Clear Storage

You can also use Clear Storage to reset your device back to factory default settings.

1. On the Home screen, slide to the Settings tab and then tap All Settings.

2. On the System tab, tap Clear Storage.

3. Enter “1234” and then tap Yes.

13.9 Windows Update

You can update Windows Mobile® on your device with the latest updates, security

patches or fixes, if these are available.

To set up Windows Update

The first time you run Windows Update, you need to set up how you want Windows

Update to check for patches on the Microsoft web site.

1. On the Home screen, slide to the Settings tab and then tap All Settings.

2. On the System tab, tap Windows Update.

3. On the Update Setup screen, tap Next.

4. Choose how you want to check for updates, Manual or Automatic, then tap

Next.

Note If you select Automatic, you will be asked if you want to use your current data

plan to check for updates. Select or clear the Use my data plan to check for and

download updates check box and tap Next.

5. Tap Finish.

To check for updates

1. On the Home screen, slide to the Settings tab and then tap All Settings.

2. On the System tab, tap Windows Update.

3. Tap Check Now.

278 Managing Your Device

Note Windows Mobile® updates may not be available at all times. Check the Windows

Mobile® web site for update information.

To change Windows Update options

1. On the Home screen, slide to the Settings tab and then tap All Settings.

2. On the System tab, tap Windows Update.

3. Tap Menu and select the option you want to

change.

• Tap Connections to change how the

device connects to the Internet when

checking for updates.

• Tap Change Schedule to change how

Windows Update checks for Windows

Mobile® updates.

Managing Your Device 279

13.10 Battery Saving Tips

How long your battery power lasts depends on the battery type and how you use

your device. Try the following to help conserve battery life:

• When the device is not in use, press POWER to switch off the display.

• On the Home screen, slide to the Settings tab and then tap All Settings. On

the System tab, tap Power > Advanced tab of the Power settings screen.

Here, you can specify the time before your device automatically turns off the

display and backlight to conserve battery power. For optimum conservation,

specify 3 minutes or less.

• On the Home screen, slide to the Settings tab and then tap All Settings. On

the System tab, tap Power > Backlight tab. Clear the Auto adjust backlight

check box to be able to adjust the backlight brightness settings.

• Use the AC adapter to plug your device into an external power outlet

whenever possible, especially when using a storage card or when using a

modem or other peripherals.

• Turn Bluetooth off when you are not using it. Make your device visible to

other devices only when you are trying to establish a Bluetooth partnership.

For more information about Bluetooth, see Chapter 9.

• On the Home screen, slide to the Settings tab and then tap

Communications. On the Comm Manager screen, turn off Wi-Fi or your

active data connection when not in use.

• Tap Start > Settings > Connections tab > Wi-Fi and then tap Menu >

Advanced. From the Turn off Wi-Fi if not connected in list, select a timeout

period so that Wi-Fi can be automatically turned off when your device is not

connected to any wireless network for some time.

280 Managing Your Device

• Lower the volume.

• Close battery-intensive programs, such as the Camera, when you are done

using them. Make sure the programs are ended and are not continuously

running in the background. Refer to “Using Task Manager” in this chapter for

information on closing programs.

Appendix

A.1 Specifications

A.2 Regulatory Notices

282 Appendix

A.1 Specifications

System Information

Processor Qualcomm® MSM7225™ 528 MHz

Memory ROM : 256 MB

RAM : 192 MB DDR

Note: Figures are the total ROM and RAM memory available for use and

storage. Since the memory is shared by the operating system, applications,

and data, the actual available memory is less than what is specified.

•

Operating System Windows Mobile® 6.1 Professional

Power

Battery Rechargeable Lithium-ion or Lithium-ion polymer battery,

1100 mAh

Battery Life

(estimates)

Standby time: WCDMA: Up to 450 hours

GSM: Up to 365 hours

Talk time: WCDMA: Up to 360 minutes

GSM: Up to 400 minutes

Media playback

time:

Up to 9.1 hours (WMV)

Up to 20 hours (WMA)

(The above are subject to network and phone usage.)

AC Adapter Voltage range/frequency: 100 - 240V AC, 50/60 Hz

DC output: 5V and 1A

Communications

Network HSPA/WCDMA:

900/2100 MHz

Up to 384 Kbps up-link and 7.2 Mbps down-link speeds

Quad-band GSM/GPRS/EDGE:

850/900/1800/1900 MHz

(Band frequency and data speed are operator dependent.)

•

Internal Antenna Yes

Appendix 283

Physical

Dimensions 102 mm (L) X 53.5 mm (W) X 14.5 mm (T)

Weight 96 g (with battery)

Display

LCD Type 2.8-inch TFT-LCD flat touch-sensitive screen

Resolution 320 x 240 QVGA resolution

Camera Module

Type 3.2 megapixel CMOS color camera with fixed focus

Resolution Photo: 3M (2048 x 1536)

2M (1600 x 1200)

1M (1280 x 960)

VGA (640 x 480)

QVGA (320 x 240)

Video: CIF (352 x 288)

QVGA (320 x 240)

QCIF (176 x 144)

Sub-QCIF (128 x 96)

•

Digital Zoom Up to 4X

Connections

I/O Port HTC ExtUSB™

11-pin mini-USB and audio jack in one

USB 2.0 high speed

•

Wireless

Connections

Bluetooth® 2.0 with EDR

Wi-Fi® (IEEE 802.11 b/g)

•

284 Appendix

Audio

Microphone/

Speaker

Built-in

Ring tone Supports eAAC+, AAC+, AAC, AMR-NB, AMR-WB, QCP, MIDI, MP3,

MPEG4-Audio, WMA, WAV formats

40 polyphonic and standard MIDI format 0 and 1 (SMF) / SP MIDI

•

Supported

Playback Formats

Windows Media® Player: MP3, MPEG-4, AAC, AAC+, eAAC+,

WMA, WAV, AMR, AMR-NB, AMR-WB, AWB, SP-MIDI

•

Controls

Device Control TouchFLO™

Phone buttons: TALK/SEND and END

POWER button

VOLUME CONTROL button

RESET button

•

Expansion Slot

Card Slot microSD™ (SD 2.0 compatible)

Others

Special Features GPS and A-GPS ready

(GPS navigation software not included)

•

Appendix 285

A.2 Regulatory Notices

Regulatory Agency Identifications

For regulatory identification purposes, your product is assigned a model number of

JADE100.

To ensure continued reliable and safe operation of your device, use only the

accessories listed below with your JADE100.

The Battery Pack has been assigned a model number of JADE160.

Note This product is intended for use with a certified Class 2 Limited Power Source, rated 5

Volts DC, maximum 1 Amp power supply unit.

Federal Communications Commission Notice

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harm-ful interference to radio or TV reception, which can be determined by turning

the equipment on and off, the user is encouraged to try to correct the interference

by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

286 Appendix

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio or television technician for help.

Modifications

The FCC requires the user to be notified that any changes or modifications made

to the device that are not expressly approved by High Tech Computer Corporation

may void the user’s authority to operate the equipment.

Body-worn operation

This device was tested for typical body-worn operations with the back of the

phone kept 1.5cm from the body. To maintain compliance with FCC RF exposure

requirements, use only belt-clips, holsters or similar accessories that maintain a

1.5cm separation distance between the user’s body and the back of the phone,

including the antenna. The use of belt-clips, holsters and similar accessories should

not contain metallic components in its assembly. The use of accessories that do not

satisfy these requirements may not comply with FCC RF exposure requirements,

and should be avoided.

Safety Precautions for RF Exposure

Use only original manufacturer-approved accessories, or accessories that do not

contain any metal.

Use of non-original manufacturer-approved accessories may violate your local RF

exposure guidelines and should be avoided.

FCC RF Radiation Exposure Statement

• This Transmitter has been demonstrated co-location compliance

requirements with Bluetooth / QDID:B014495 and WLAN / CID:WFA6450.

This transmitter must not be co-located or operating in conjunction with any

other antenna or transmitter.

• This equipment complies with FCC RF radiation exposure limits set forth for

an uncontrolled environment.

Appendix 287

Exposure to Radio Frequency (RF) Signals

Your device contains a radio transmitter and receiver. The radiated output power

is far below the international radio frequency exposure limits. These limits are part

of comprehensive guidelines and establish permitted levels of RF energy for the

general population. The guidelines are based on the safety standards previously set

by international standards bodies:

• American National Standards Institute (ANSI) IEEE. C95.1-1992

• National Council on Radiation Protection and Measurement (NCRP). Report

86. 1986

• International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1996

• Ministry of Health (Canada), Safety Code 6. The standards include a

substantial safety margin designed to assure the safety of all persons,

regardless of age and health.

The exposure standard for wireless mobile phones employs a unit of measurement

known as the Specific Absorption Rate, or SAR. The standard incorporates a

substantial margin of safety to give additional protection for the public and to

account for any variations in usage.

As with other mobile radio transmitting equipment, users are advised that for

satisfactory operation of the equipment and for the safety of personnel, it is

recommended that no part of the human body be allowed to come too close to the

antenna during operation of the equipment.

Your device has an internal antenna. Use only the supplied integral antenna. Use of

unauthorized or modified antennas may impair call quality and damage the phone,

causing loss of performance and SAR levels exceeding the recommended limits as

well as result in non-compliance with local regulatory requirements in your country.

To assure optimal phone performance and ensure human exposure to RF energy

is within the guidelines set forth in the relevant standards; always use your

device only in its normal-use position. Do not touch or hold the antenna area

unnecessarily when placing or receiving a phone call. Contact with the antenna

288 Appendix

area may impair call quality and cause your device to operate at a higher power

level than needed. Avoiding contact with the antenna area when the phone is IN

USE optimizes the antenna performance and the battery life.

Tests for SAR are conducted using standard operating positions specified by

the FCC with the phone transmitting at its highest certified power level in all

tested frequency bands. Although the SAR is determined at the highest certified

power level, the actual SAR level of the phone while operation can be well

below the maximum value. This is because the phone is designed to operate at

multiple power levels so as to use only the power required to reach the network.

In general, the closer you are to a wireless base station antenna, the lower the

power output. Before a phone model is available for sale to the public, it must be

tested and certified to the FCC that it does not exceed the limit established by the

government-adopted requirement for safe exposure. The tests are performed in

positions and locations (for example, at the ear and worn on the body) as required

by the FCC for each model. (Bodyworn measurements may differ among phone

models, depending upon available accessories and FCC requirements). For body

worn operation, to maintain compliance with FCC RF exposure guidelines, use

only original manufacturer approved accessories. When carrying the phone while

it is on, use the specific original manufacturer supplied or approved carrying case,

holster, or other body-worn accessory

SAR Information

1.33 W/kg @ 1g

Telecommunications & Internet Association (TIA)

Safety Information

Pacemakers

The Health Industry Manufacturers Association recommends that a minimum

separation of six inches be maintained between a handheld wireless phone

and a pacemaker to avoid potential interference with the pacemaker. These

Appendix 289

recommendations are consistent with the independent research by and

recommendations of Wireless Technology Research. Persons with pacemakers:

• Should ALWAYS keep the phone more than six inches from their pacemaker

when the phone is turned ON.

• Should not carry the phone in a breast pocket.

• Should use the ear opposite the pacemaker to minimize the potential for

interference. If you have any reason to suspect that interference is taking

place, turn the phone OFF immediately.

Hearing Aids

Some digital wireless phones may interfere with some hearing aids. In the event

of such interference, you may want to consult your service provider, or call the

customer service line to discuss alternatives.

Other Medical Devices

If you use any other personal medical device, consult the manufacturer of your

device to determine if they are adequately shielded from external RF energy. Your

physician may be able to assist you in obtaining this information.

Turn the phone OFF in health care facilities when any regulations posted in

these areas instruct you to do so. Hospitals or health care facilities may be using

equipment that could be sensitive to external RF energy.

WEEE Notice

The Directive on Waste Electrical and Electronic Equipment (WEEE), which entered

into force as European law on 13th February 2003, resulted in a major change in the

treatment of electrical equipment at end-of-life.

The purpose of this Directive is, as a first priority, the prevention of WEEE, and

in addition, to promote the reuse, recycling and other forms of recovery of such

wastes so as to reduce disposal.

290 Appendix

The WEEE logo (shown at the left) on the product or on its box indicates

that this product must not be disposed of or dumped with your other

household waste. You are liable to dispose of all your electronic or

electrical waste equipment by relocating over to the specified collection

point for recycling of such hazardous waste. Isolated collection and

proper recovery of your electronic and electrical waste equipment at

the time of disposal will allow us to help conserving natural resources.

Moreover, proper recycling of the electronic and electrical waste

equipment will ensure safety of human health and environment. For

more information about electronic and electrical waste equipment

disposal, recovery, and collection points, please contact your local

city center, household waste disposal service, shop from where you

purchased the equipment, or manufacturer of the equipment.

RoHS Compliance

This product is in compliance with Directive 2002/95/EC of the European

Parliament and of the Council of 27 January 2003, on the restriction of the use of

certain hazardous substances in electrical and electronic equipment (RoHS) and its

amendments.

Index

A2DP 178

ActiveSync

- ActiveSync mode 47

- set up 100

- synchronize with computer 101

- synchronize with Exchange Server 130

Add and remove programs 226

Adobe Reader LE 227

Airplane Mode 60, 236

Alarm 267

Album

- about 205

- close Album 210

- play back video 210

- select a photo or video to view 206

- view an image 206

Answering calls 54

Attachment

- add to e-mail 123

- download 125

- set IMAP4 to automatically receive

attachments 127

- set Outlook to automatically receive

attachments 127

Audio Booster 222

Audio Manager 217

Back cover

- remove 28

Backlight

- adjust brightness 265

- set backlight timeout 265

Back up data 247

Basic settings 264

Battery

- battery information 30

- charge battery 33

- install 31

- remove 31

- save battery power 145, 279

Beam via Bluetooth 179

Block Recognizer 91

Bluetooth

- about 176

- Bluetooth Explorer 181

- Bluetooth ﬁle sharing 181

- Bluetooth shared folder 181

- hands-free headset 178

- modem 166

- modes 176

- partnership (pairing) 177

- printing 182

- SIM Access Proﬁle (SAP) 61

- stereo headset 178

292 Index

- synchronize 103

- turn on and o 236

- visible 176

Calendar

- create appointment 228

- send appointment 231

- view appointment 230

Call History 59

Calling

- from Contacts 53

- from Home screen 53

- from Phone screen 51

Camera

- about 194

- Advanced Options 202

- capture modes 194

- capture photos and videos 196

- ﬁle formats 195

- icons 196

- Menu Panel 198

- resolution 198

- speciﬁcations 283

- zooming 199

Capture photos and videos 196

Car kit phones 61

Clear Storage 277

Clock & Alarms 261, 264, 267

Comm Manager 236, 263

Compact QWERTY 86

Company Directory 138

Conference call 57

Configure data connection settings 35, 146,

269

Connect device to Internet

- Dial-up 147

- GPRS/3G 146

- start a connection 148

- ways of connecting 142

- Wi-Fi 142

Connection Setup 35, 41, 269

Contacts 232

Contacts Picture capture mode 195

Copy

- contacts to SIM card 242

- copy and manage ﬁles 258

- media ﬁles from PC to device 213

- SIM contacts to device 242

Data connection 146, 148, 237

Device name 266

Dial-up 147

Dimensions and weight 283

Direct Push 132, 237

Disk Drive mode 47

Download

- download complete e-mail 124

- e-mail download settings 120, 126

- ﬁle attachments 125

- Java applications 240

- satellite data 190

- synchronize e-mails 126

- web feeds 168

Draw 238

Index 293

E-mail

- Internet e-mail account (POP3/

IMAP4) 118

- mail server settings 119

- Mail tab (Home screen) 70

- send 123

- settings (POP3/IMAP4) 120

- setup wizard 118

- synchronize 96, 126, 130

- types of e-mail accounts 116

EDGE 146

Emergency call 53

Emoticon

- MMS 114

- Windows Live Messenger 163

Ending calls 54

Equalizer 222

Excel Mobile 237

Exchange Server 130

Favorite contacts 67

File Explorer 258

Find contact

- Company Directory 138

- on device 234

Finger gestures 81

Finger panning 82

Finger scrolling 81

Forward e-mail 125

Full QWERTY 85

Google Maps 77, 186

GPRS 146

GPRS Monitor 244

GPS 188, 190

Hard reset 275, 276

Home screen 39, 64

Home tab (Home screen) 66

IMAP4 118

Input methods

- Block Recognizer 91

- Compact QWERTY 86

- Full QWERTY 85

- Letter Recognizer 92

- Phone Keypad 87

- Transcriber 92

Input Panel 84

Input Selector arrow 84

International call 54

Internet 142

Internet e-mail 118

Internet Sharing 165

Internet tab (Home screen) 71

Java

- create folders 241

- install MIDlets/MIDlet suites from

device 240

294 Index

- install MIDlets/MIDlet suites from

Internet 240

- manage MIDlets/MIDlet suites 241

- uninstall MIDlets 241

- update a MIDlet/MIDlet suite 241

Key Lock 261

Letter Recognizer 92

Library

- Audio Manager 217

- Music tab (Home screen) 74

- Windows Media Player Mobile 212

Live Messenger 162

Mail tab (Home screen) 70

Making calls 51

Maps Search tab (Home screen) 77

Meeting request 136, 231

Memory 45, 274, 282

Messages tab (Home screen) 69

Messaging

- about 106

- e-mail 116, 118, 122

- multimedia (MMS) 111

- text (SMS) 107

Messenger 162

microSD card

- install 32

Microsoft Office Mobile 237

MIDlet/MIDlet suite 240

MMS

- about 111

- add audio clip 114

- add photo/video 113

- add text 114

- blacklist 116

- create MMS message 112

- MMS settings 111

- reply message 115

- view message 115

MMS Video capture mode 195

Modem

- Bluetooth 166

- USB 165

Multimedia 111, 193

Multitap 88

Music tab (Home screen) 73

News channels (web feeds) 168

Notes 238

Numeric and Symbol Mode 90

Office Mobile 237

OneNote Mobile 237

Open PDF file 227

Opera Mobile 149

Panorama capture mode 195

Password 272

Index 295

People tab (Home screen) 67

Phone 50

Phone Keypad 87

Phone services 268

Photo capture mode 195

Photos and Videos tab (Home screen) 71

Picture Theme capture mode 195

PIN 50, 272

Playlists

- Audio Manager 219

- Windows Media Player Mobile 216

Play media 215

Play music

- Audio Manager 217

- Music tab (Home screen) 73

- Windows Media Player Mobile 215

Podcasts 173

POP3 118

PowerPoint Mobile 237

Profile 78

Programs 226

Programs tab (Home screen) 80

Put call on hold 56

QuickGPS 190

Quick menu 45, 270

Record

- voice note 239

- voice recording 251

Regional Settings 262, 265

Regulatory notices 285

- e-mail 125

- MMS 115

- text (SMS) 69, 109

Reset

- clear storage 277

- hard reset 275

- soft reset 275

Resolution 198

Review screen (Camera) 201

Ring tone 220, 266

Ring type 266

RSS Hub

- about 168

- headline list 171

- news channels 168

- podcasts 173

- summary view 172

Safety information 5

Screen text size 266

Send

- e-mail 123

- MMS message 112

- text message (SMS) 107

Set music as ring tone 220

Settings (Connections tab)

- Advanced Network 263

- Beam 263

- Bluetooth 263

- Connections 146, 147, 263

296 Index

- Connection Setup 263, 269

- Domain Enroll 263

- USB to PC 103, 263

- Wi-Fi 145, 264

- Wireless LAN 144, 264

Settings (Personal tab)

- Buttons 259

- Input 259

- Lock 259, 272

- Menus 260

- Owner Information 260

- Phone 260, 266, 268

- Sounds & Notiﬁcations 260, 267

- Today 260

- Voice Speed Dial 254, 260

Settings (System tab)

- About 260, 266

- Certiﬁcates 260

- Clear Storage 261, 277

- Clock & Alarms 261, 264, 267

- Customer Feedback 261

- Device Information 261

- Encryption 261, 273

- Error Reporting 261

- External GPS 261

- Managed Programs 261

- Memory 261

- Microphone AGC 262

- Power 262

- Regional Settings 262, 265

- Remove Programs 227, 262

- Screen 262, 266

- Task Manager 262, 270

- TouchFLO 44, 82, 262

- Windows Update 262, 277

Settings tab (Connections)

- Comm Manager 263

Settings tab (Home screen) 78

Settings tab (System)

- Key Lock 261

SIM Access Profile (SAP) 61

SIM card

- install 28

- PIN 272

- remove 29

SIM Manager

- about 242

- copy contacts to SIM card 242

- copy SIM contacts to device 242

- create SIM contact 242

Sleep mode 36

Smart Dial 51

SMS 69, 107, 123

Soft reset 275

Sounds & Notifications 260, 267

Sound settings 78

Spb GPRS Monitor 244

Speakerphone 57

Specifications 282

Speed Dial 59

Sprite Backup 247

Start menu 44

Status icons 40

Storage card

- encrypt 273

- install 32

Strap holder 34

Streaming Media 158

Index 297

Swap/switch calls 56

Synchronize

- ActiveSync 101

- change information types 102

- music and videos 104

- via Bluetooth 103

- Windows Media Player 213

- Windows Mobile Device Center 97

- with computer 78, 101

- with Exchange Server 78, 130

T9 88

Task Manager 262, 270

Tasks 250

Text messages

- copy from SIM card 110

- copy to SIM card 109

- create new message 107

- Messages tab (Home screen) 69

- send 108

Text size (screen) 266

TouchFLO 63, 262

Transcriber 92

Troubleshoot

- sync connection 103

- Windows Media Player Mobile 216

Turn device on and off 35

Turn phone function on and off 60, 236

USB modem 165

USB to PC 103, 263

Vibrate 43, 46, 53, 267

Video capture mode 195

Voice call 51

Voicemail 54

Voice Recorder 251

Voice Speed Dial

- about 253, 260

- create

- voice tag for phone number 253

- voice tag for program 254

- make call or launch program 254

Voice tag

- create

- for phone number 253

- for program 254

- make call or launch program 254

Weather tab (Home screen) 75

Wi-Fi 142, 237

Windows Live 160

Windows Live Messenger 162

Windows Media Player Mobile

- ﬁle formats 211

- menus 212

- playlists 216

- troubleshoot 216

Windows Mobile Device Center 97

Windows Update 262, 277

Word Mobile 237

298 Index

YouTube 153

ZIP

- about 255

- create archive 255

- open zip ﬁle and extract ﬁles 255

Zooming

- Camera 199

- ﬁnger gestures 82

- Opera Mobile 151

User Manual2

156 Internet

When you tap Stop ( ) or finish watching the entire video, you are presented

with options on what you can do next.

Tap to send the link

to the video you just

watched to another

person using one

of the Messaging

accounts. Tap to add the

video to your

Bookmarks.

Tap to play back

the video again.

Tap to view details

about the video

you just watched.

Tap to go to the

next page of

Category

Tap to load pre-selected RSS channels.

Internet 169

Note If the RSS channel you want to subscribe to is not in the list of known channels,

tap Back, then select another option on the New Channel Wizard screen. For

more information on these other options, see the Help on your device.

3. Select the check boxes of the RSS channels you want to subscribe to, then tap

Finish.

Tip Channels are grouped by categories. If you want to select all channels in a

category, select the category check box.

4. The channel list appears. Tap Refresh to update the channels.

Tap to cancel

channel updating

Channel is updated.

Tap it to view the

headlines.

Tap to select the

channel category

to display

Headline count

Tap to update

the channels

Channel list

170 Internet

To add new channels

1. In the channel list, tap Menu > Channel > New to open the New Channel

Wizard screen.

2. Select an option, then follow screen instructions to add new channels. For

more information on New Channel Wizard options, see Help on your device.

To filter the channels in the display

In the channel list, tap Menu > View, then select:

• Updated to display only those channels with unread headlines.

• All to display all subscribed channels.

Manage channel categories

To view all the channels in a particular category, tap All Categories in the upper left

area of the channel list, then tap the category you want to display.

To add a new category, tap Menu > Categories in the channel list to display all

categories, then tap Menu > New.

To rename or delete a category, tap Menu > Categories in the channel list to

display all categories, select a category, then tap Menu > Rename or Menu >

Delete.

If you want to change the channel category, tap and hold the channel in the

channel list, then tap Change Category. Select a new category and tap OK.

Internet 171

View and organize headlines

Tap a channel in the channel list to display the headlines for that channel.

Tap a headline to open

the news summary screen

Headline or news

summary contains

a keyword

Tap to download audio/

video file attachment

Audio/Video/Image

file attachment is

downloading

New or unread

headline

Headline has

been read

Tap to return to

the channel list

New or unread headlines display in bold and are marked with a blue newspaper

icon. Headlines that have been read are marked with a gray newspaper icon.

172 Internet

View the news summary

Tap a headline in the headline list to display the news summary.

Headline and

read status Audio/Video/Image

file attachment.

Tap to download

the file.

News summary

Tap to open the news

item in Opera Mobile.

See “Using Opera

Mobile” in this chapter

for details.

Channel name

Tap to return to the headline list

To change view options

In the news summary screen, tap Menu to change the text size, fit the text to the

screen (text wrap), or enable ClearType for better viewing.

Internet 173

To download, play, or save podcasts

1. When you see an audio or video file attachment

in the news summary, do one of the following to

download the file:

• Tap Menu > Podcasts > Start Download.

• Tap the Download audio/Download video

link below the audio/video file icon.

Tip To cancel the file download, tap Menu >

Podcasts > Cancel Download, or tap Cancel

download below the audio/video file icon.

2. After downloading the file, do one of the

following:

• Tap Menu > Podcasts > Play or tap Play

audio/Play video below the audio/video file

icon to play back the file.

• Tap Menu > Podcast > Save to save a copy

of the file to the device main memory or

storage card.

To send the headline link via e-mail

1. In the news summary screen, tap Menu > Send Link via Email.

2. Messaging opens and displays the Account Picker screen. Tap the e-mail

account you want to use to send the headline link.

A new e-mail message is then created with the headline link.

3. Specify the e-mail recipients, then send it.

Note For more information on how to compose e-mails, see “Using E-mail” in Chapter 6.

174 Internet

To view the next or previous news summary

In the news summary screen, tap Menu > Next or Menu > Previous, or press

NAVIGATION left or right.

For more information about the features and configuring RSS Hub, refer to the

online help. To open the online help, tap Start > Help while in RSS Hub.

Chapter 9

Bluetooth

9.1 Bluetooth Modes

9.2 Bluetooth Partnerships

9.3 Connecting a Bluetooth Hands-free or

Stereo Headset

9.4 Beaming Information Using Bluetooth

9.5 Bluetooth Explorer and Bluetooth

File Sharing

9.6 Printing Files via Bluetooth
