120 Getting Connected

Tap Disconnect & unpair if you want the phone to erase all pairing

information with the hands-free headset or car kit. You will be

prompted to enter the passcode again when you connect to that

Bluetooth device.

7.1 Using Camera and Camcorder

Use Camera or Camcorder to take and share pictures and videos. Your

phone comes with a 5.0 megapixel camera with auto-focus feature

that lets you capture sharp pictures and videos.

Important You must install a storage card before you use Camera or

Camcorder. All pictures or videos that you capture on your phone

are stored on the storage card. For more information on how to

install a storage card on your phone, refer to Chapter 1.

Opening Camera

Press HOME, then tap > Camera if you want to capture photos

or Camcorder if you want to shoot videos. When you open Camera,

the screen orientation will depend on how you are holding the phone.

For camcorder, the screen automatically switches to landscape

orientation.

Tip You can easily switch to the other capture mode while you are in

Camera or Camcorder. Refer to “Changing capture modes” in this

chapter for details.

Chapter 7

Camera and Multimedia

122 Camera and Multimedia

Zoom

control

Remaining

available shots*

Current capture mode.

Tap to switch between

Photo and Video modes.

Opens the

Albums

program. See

“Albums” in

this chapter

for details.

Camera screen when

phone is held upright.

Camera screen when phone is held

horizontally.

* In Video mode, this shows the recording duration.

To show the Zoom control and the remaining available shots or

recording duration, slide your finger up or down on the Camera

screen. The Zoom control will disappear after a few seconds.

Tip You can also roll the TRACKBALL to show the Zoom control. When the

Zoom control is showing, roll the TRACKBALL up to zoom in or roll the

TRACKBALL down to zoom out.

Closing Camera

On the Camera screen, press HOME or BACK.

Camera and Multimedia 123

Changing capture modes

The phone offers two capture modes: Photo and Video. On the screen,

tap to switch between Photo and Video modes.

Taking pictures

1. Switch to Photo capture mode.

2. Frame your subject on the screen.

Tip Hold the phone upright when taking portrait shots or hold the

phone horizontally when taking landscape shots. By doing this, you

do not need to rotate the photo after capturing it.

3. Tap an area on the screen you want to focus. The auto-focus

indicator appears and starts to focus on the selected area.

4. Press the TRACKBALL to take the shot.

Auto-focus

indicator

Tip Slide your finger up or down on the Camera screen to show the Zoom

control. Drag the Zoom control slider up or down to zoom in or out. You

can also roll the TRACKBALL up or down to zoom in or out.

124 Camera and Multimedia

Shooting videos

1. Switch to the Video capture mode.

2. Frame your subject on the screen.

3. Press the TRACKBALL button to start capturing video. Press the

TRACKBALL again to stop capturing video.

Recording indicator Capture duration

Camera and Multimedia 125

Review screen

After capturing a photo or video, the review screen lets you save, view,

send, or delete the picture or video by tapping a button at the bottom

of the screen.

Review screen

buttons

Icon Function Icon Function

View View the captured image

or video in Albums.

Delete Delete the captured

image or video.

Send Send the captured image

or video via email or MMS or

set the captured image as your

Home screen wallpaper.

Back Return to the live

Camera or Camcorder screen.

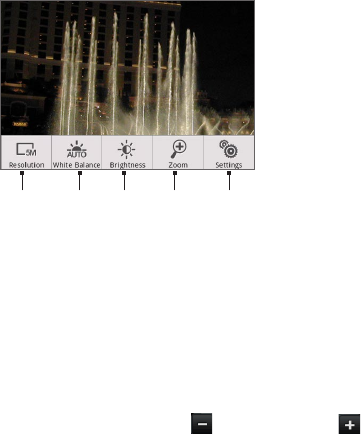

Camera menu panel

The Camera menu panel lets you adjust basic camera settings and

access advanced camera settings.

126 Camera and Multimedia

1 2 3 4 5

To open the menu panel

While on the Camera screen, press MENU.

1 Resolution Tap to change the resolution (capture size).

2 White Balance Tap to adjust the white balance. White balance

enables the camera to capture colors more accurately by

adjusting to the current lighting environment. White balance

settings include: Auto, Daylight, Cloudy, Incandescent, and

Fluorescent.

3 Brightness Tap to open the Brightness bar so you can adjust the

brightness. On the Brightness bar, tap to decrease, or to

increase the brightness level. Tap outside the Brightness bar to

apply the change.

4 Zoom Tap to show the Zoom control.

5 Advanced Tap to open the advanced camera settings.

Camera and Multimedia 127

7.2 Using Albums

Albums lets you view photos and play back videos. You can also view

your photos or your friends’ photos on Facebook or Flickr. For photos,

you can also do basic editing tasks, set them as your wallpaper or

contact picture, and share to your friends.

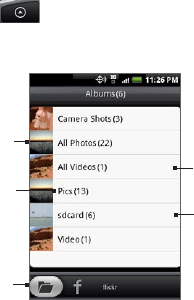

Opening Albums

Press HOME, then tap > Albums.

If you stored your files in folders (directories) on the storage card,

Albums will display these folders as separate albums.

Tap to view the

files inside the

album.

This album

contains all the

pictures inside

all the albums.

Album name

and number of

files inside.

This album

contains all the

videos inside all

the albums.

Tap to view pictures

in Albums or pictures

in your Facebook or

Flickr account.

When viewing pictures in Albums, scroll up the screen or roll the

TRACKBALL down to view more albums.

Notes • Depending on the number of pictures stored on the storage card, it

may take a while for Albums to load all your photos on the screen.

• You need to be signed in to your Facebook and Flickr accounts to

view the pictures in those accounts.

128 Camera and Multimedia

Working with pictures

Once you have taken a picture, you can view it or share it with friends.

You can also view your pictures or your friends’ pictures on your

Facebook or Flickr account.

To view pictures in Albums

1. On the Albums screen, go to the Albums tab, and then tap an

album to view the pictures inside the album.

2. Slide your finger onscreen to go through the pictures. Tap the

thumbnail to view it in full screen.

Tap to go back

to the Albums

screen.

Tip You can choose to display the photos as thumbnails. To view the

photos inside the album as thumbnails, press MENU and then tap

Grid view.

To view pictures in your Facebook or Flickr account

1. On the Albums screen, go to the Facebook or Flickr tab.

Note When you switch to the Flickr tab, you may be asked to give

authorization for the HTC Flickr client to connect to the Flickr web

site. You need to give authorization to access your Flickr account.

2. Tap your account name or your friend’s account on the list to

view the pictures in the account.

Camera and Multimedia 129

When viewing pictures in full screen, you can:

Slide your finger from right to left or left to right to view the next

or previous picture.

Roll the TRACKBALL left to view the previous picture, or roll it

right to view the next picture in the album or in the pictures list.

Press MENU to let you view the pictures as a slideshow, share,

delete, or rotate the picture, and more.

To zoom in or out on a picture

Tap the screen twice quickly to zoom in, then tap the screen twice

quickly again to zoom out. You can also use your fingers to pinch or

spread the screen to zoom in and out.

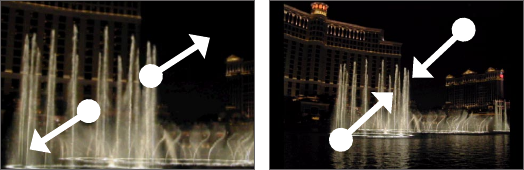

Use your thumb and index fingers to

‘spread’ the picture to zoom in.

Use your thumb and index fingers to

‘pinch’ the picture to zoom out.

To view a picture in landscape orientation

Turn your phone sideways to view the picture in landscape mode. The

picture orientation automatically adjusts to how you hold the phone.

Note The Orientation check box in HOME > MENU > Settings > Sound &

display needs to be selected for the screen orientation to automatically

change.

•

130 Camera and Multimedia

If you want to rotate the picture and save the rotated state, see “To

rotate and save the rotated state” below.

To rotate and save the rotated state

1. View the picture you want to rotate in full screen

2. Press MENU, then tap Rotate, and then select either Rotate left

or Rotate right.

Note The Picture rotates 90 degrees counter-clockwise (Rotate left) or 90

degrees clockwise (Rotate right) each time you tap one of the Rotate

options.

To crop a picture

1. While viewing a picture in full screen, press MENU and then tap

More > Crop. The cropper tool appears.

2. Do one of the following:

To adjust the cropper size, press and hold the edge of the

cropper tool. When the cropper arrows appear, drag your finger

inward to or outward from the centre of the cropper to resize it.

To move the cropper to another area on the picture, press and

hold inside the cropper, then drag it with your finger to the

desired position.

Cropper tool

Tap to save

the photo. Tap to discard

your changes.

Cropper arrow

Press and hold

inside the

cropper, then

drag it to any

area of the photo.

3. Tap Save to apply the changes to the picture.

•

Camera and Multimedia 131

Note The cropped picture is saved in the storage card as a copy. The original

picture remains unedited.

To share pictures on Facebook

You need to be logged in to your Facebook account to be able to

upload pictures.

1. In the Albums screen, open the album where the pictures you

want to share are in.

2. Tap and then on the Share options menu, tap Facebook.

3. Select the pictures you want to share and then tap Next.

4. Add a caption for each picture (if you want) and then tap

Upload.

5. Select which album to upload to and set privacy settings for the

uploaded pictures. Tap Done.

To share pictures on Flickr

You need to be logged in to your Flickr account to be able to upload

pictures.

1. In the Albums screen, open the album where the pictures you

want to share are in.

2. Tap and then on the Share options menu, tap Flickr.

3. Select the pictures you want to share and then tap Next.

4. Edit the file name and/or add a description for each picture (if

you want) and then tap Upload.

5. Select which album to upload to and set privacy settings for the

uploaded pictures. Tap Done.

132 Camera and Multimedia

To share a picture on Picasa

You need to be signed in to a Google Account to be able to upload

pictures to the Picasa™ photo organizing service.

1. In the Albums screen, open the album where the pictures you

want to share are in.

2. Tap and then on the Share options menu, tap Picasa.

3. Tap the picture you want to share

4. Enter a Caption for the picture and select the Album where you

want to upload the picture.

Tip Tap to create a new album where you can upload the picture.

5. Tap Upload. You can view the photos online at http://picasaweb.

google.com.

To send pictures using a messaging application

1. In the Albums screen, open the album where the pictures you

want to share are in.

2. Tap and then on the Share options menu, tap Messages,

Gmail, or Mail.

3. Select the pictures you want to share and then tap Next.

Note For Gmail and Messages, tap the picture you want to send. You can

only send one picture.

4. The pictures are automatically added as an attachment to the

email or added into the MMS message.

Note If you selected Mail and you have multiple email accounts, the

default email account will be used.

5. Compose your message and then tap Send.

Camera and Multimedia 133

Working with videos

Once you have taken a video, you can view it or share it with friends.

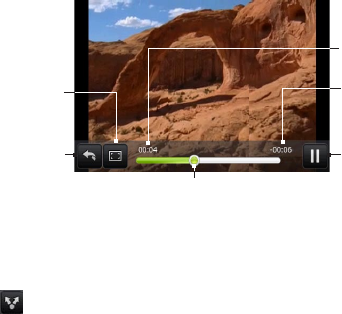

To watch videos

1. On the main Albums screen, tap a video album and then tap the

video you want to watch to start playing back the video.

2. Slide your finger onscreen to go through the videos. Tap the

thumbnail to view it in full screen. The screen automatically

switches to landscape mode when you play back a video.

Tap to toggle

between playing

and pausing the

video.

Tap to go back

to video album.

Elapsed time

Time remaining

Tap to view the

video in full

screen. Tap again

to revert to the

original size.

Drag to the left or right to go

back or forward in the video.

To send a video using email

1. In the Albums screen, open the album where the videos you want

to share are in.

2. Tap and then on the Share options menu, tap Gmail or Mail.

3. Select the videos you want to send and then tap Next.

Note For Gmail, tap the video you want to send. You can only send one

video.

4. The videos are automatically added as an attachment to the

email.

134 Camera and Multimedia

Note If you selected Mail and you have multiple email accounts,

the default email account will be used.

5. Compose your message and then tap Send.

To send a video using Messages

1. In the Albums screen, open the album where the videos you want

to share are in.

2. Tap and then on the Share options menu, tap Messages.

3. Tap the video you want to send and then tap Next.

4. The video is automatically added into the MMS message.

5. Compose your message and then tap Send.

To share videos on YouTube

You can share your videos by uploading them to YouTube™. Before

you do this, you must create a YouTube account and sign in to that

account on your phone.

1. While viewing videos in a list, press and hold the video, and then

tap Share on the options menu.

2. When prompted, tap YouTube.

3. Enter a Title, Description, and Tags for your video. Select the

Public check box if you want to share the video with everyone.

4. Tap Upload.

Tip You can view the upload progress by opening the Notifications panel

and then tapping YouTube. Refer to “To open the Notifications panel” in

Chapter 1 to learn how to open the Notifications panel.

Camera and Multimedia 135

Adding the Photo album or Photo frame widget

Add the Photo frame or Photo album widget to let you view a single

photo or a whole album on the Home screen. To learn how to add

widgets, refer to “To add an HTC widget” in Chapter 1.

Closing Albums

While in the Albums screen, press HOME or BACK to close the

application.

7.3 Using Music

Music plays digital audio files from the phone’s storage card. Since

Music only plays audio files saved on the storage card of your phone,

you must copy your audio files to the storage card before you open

Music.

Copying music on to the storage card

1. Set the phone’s storage card as a USB drive. See “Using the

Phone’s Storage Card as a USB Drive” in Chapter 1 for details.

2. On the computer, navigate to the USB drive and open it.

3. Create a folder on the root folder of the storage card

(for example, Music).

Tip You can also create and use folders to organize your music inside

the Music folder you have created.

4. Copy the music into the folder you have created.

5. After copying music, unmount or eject the drive as required by

your computer’s operating system to safely remove the phone.

6. Disconnect the phone from the computer.

136 Camera and Multimedia

Opening Music

Press HOME, then tap > Music. The Playback screen displays.

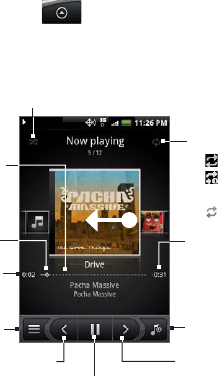

Playing music

Press and drag

to jump to any

part of the song.

Tap to turn shuffle on and off.

(Shuffle is off when button is gray.)

Tap to cycle through

the repeat modes:

Repeat all songs

Repeat current

song

Don’t repeat

•

Remaining time

Tap to pause or to

resume playing the

song.

Elapsed time

Progress bar

Tap to go to

the Library.

Tap to go to the

previous song in the

Now playing list.

Tap to go to the next song

in the Now playing list.

Tap to toggle

between showing the

Now playing list and

Playback screen.

Tip You can also swipe your finger from right to left or left to right to go to

the next or previous song in the Now playing list.

Notes • Press the VOLUME UP or VOLUME DOWN button to adjust the

playback volume.

• If you are using the wired headset to listen to music, press the center

button to toggle between playing and pausing playback. Press the

previous or next buttons to go to the previous or next song.

Camera and Multimedia 137

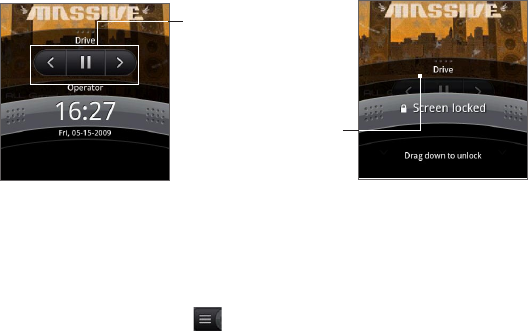

Listening to music on the Lock screen

When you are playing back music and the screen turns off, you can

control the music playback from the Lock screen when you “wake up”

the phone by pressing END/POWER.

Tap to go to the

previous song, play/

pause music, or go to

the next song in the

Now playing list.

If you do not see the

playback controls,

tap to show the

playback controls.

Library

Your music is organized into different categories such as Albums,

Artists, Genre, Composers, and more. Select a category by tapping

one of the category tabs at the bottom of the screen. Tap a song in

the category to play it back.

To go to the Library, tap at the bottom-left of the Playback screen

or the Now playing screen.

138 Camera and Multimedia

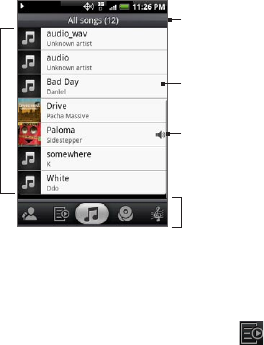

Indicates the song

currently being

played back.

Tap a music category

to open the music file

you want to play.

Tap to play back.

List songs in

the category.

Category name

Creating playlists

Use playlists to organize your music files. You can create as many

playlists as you want on your phone.

In the Library, go to the Playlist category ( ).

Tap Add playlist.

Enter the Playlist name and then tap Add songs to playlist.

Select a category from where to add songs to the playlist.

Tip Go to the Select music track category to show all the available

songs.

5. Select the songs you want to add to the playlist and then tap

Add.

6. Tap Save.

Camera and Multimedia 139

Managing your playlists

To play the songs in a playlist

In the Playlists screen, tap the playlist name and then tap a song.

To add songs to a playlist

1. In the Playlists screen, tap the playlist where you want to add

songs.

2. Press MENU and then tap Add songs.

3. Select a category to add songs from to the playlist.

Tip Go to the Select music track category to show all the available

songs.

4. Select the songs you want to add to the playlist and then tap

Add.

Tip While playing back a song, press MENU and then tap Add to playlist to

add the current song to a playlist.

To rearrange the songs in a playlist

1. In the Playlists screen, tap the playlist you want to edit.

2. Press MENU and then tap Change order.

3. Press and hold at the end of the song title you want to move.

When the row is highlighted in green, drag it to its new position,

then release.

4. Tap OK.

To delete a song in a playlist

1. In the Playlists screen, tap the playlist you want to edit.

2. Press MENU and then tap Delete songs.

3. Select the songs you want to delete and then tap Delete.

140 Camera and Multimedia

To delete a playlist

1. In the Playlists screen, press and hold the playlist you want to

delete.

2. In the options menu, tap Delete playlist.

Tip To delete multiple playlists, in the Playlist screen, press MENU and then

tap Delete playlists.

Setting a song as ringtone

You can use songs as your phone ringtone.

1. In the Library, select the song that you want to use as ringtone

and then play it back.

2. In the Playback screen, press MENU and then tap Set as ringtone.

3. In the Set as ringtone options menu, tap Phone ringtone or

Contact ringtone.

Note If you select Contact ringtone, you need to select the contacts you

want to associate the song with in the next screen.

To check if the song was added as a ringtone

1. On the Home screen, press MENU and then tap Settings.

2. On the Settings screen, tap Sound & display > Phone ringtone.

The song should be listed as an option.

Adding the Music widget

Add the Music widget to control music playback on the Home screen.

To learn how to add widgets, refer to “To add an HTC widget” in

Chapter 1.

8.1 Signing In to Your Google Account

Signing in to your Google Account lets you synchronize Gmail,

Calendar, and contacts between your phone and the web. You also

need to sign in to a Google Account to use Google Apps such as

Google Talk™ and Android Market.

When you turn on the phone for the first time, you are given the

option to sign in to your Google Account.

1. In the Setup accounts screen, tap Google account > Yes > Next.

2. Tap Sign in. Enter your user name and password, and then tap

on your Google Account will automatically synchronize with your

phone.

Note Tap Create if you do not have a Google Account yet.

Retrieving your Google Account password

If you forgot your Google Account password, you can retrieve it by

doing the following:

1. On your computer, open your browser and go to http://google.

com/accounts.

2. On the right side of the page, click I cannot access my account.

Chapter 8

Google Apps

142 Google Apps

3. In the Please select your issue section, select I forgot my

password.

4. Click Reset your password now, and then follow the procedure

on how to recover your password.

8.2 Using Gmail

Gmail is Google’s web-based email service. Gmail is configured when

you first set up your phone. Depending on your synchronization

settings, Gmail on your phone is automatically synchronized with

your Gmail account on the web. For more information about

synchronization, see “Synchronizing Google Apps” in this chapter.

To open Gmail

Press HOME, then tap > Gmail.

To scroll through the

message list:

Slide your finger up/

down on the screen.

Roll the TRACKBALL

up/down.

•

Checked email.

Select one or more

emails to apply an

action.

Note: Batch

operations needs to

be enabled.

Message label.

Starred message.

Tap to add or

remove the star.

Folder (or Label) and

number of unread email

messages.

Actions for checked

email(s). This will not

show if there is no item

selected in the inbox.

Unread messages

are displayed in

bold.

Google Apps 143

The Inbox conversations list (hereinafter referred to as Inbox) is your

default Gmail view. All your received emails are delivered to your

Inbox.

To refresh Gmail

Press MENU and then tap Refresh to send or receive new emails and

to synchronize your emails with your Gmail account on the web.

Creating and sending emails

To create and send an email

In the Inbox, press MENU and then tap Compose.

Enter the message recipient’s email address in the To field. If

you are sending the email to several recipients, separate the

email addresses with a comma. You can add as many message

recipients as you want.

Note If you want to send a carbon copy (Cc) or a blind carbon copy

(Bcc) of the email to other recipients, press MENU and then tap

Add Cc/Bcc.

3. Enter the email subject, and then compose your email.

Tip If you want to add a picture attachment, press MENU and then tap

Attach. Select the picture you want to attach, and then tap OK.

144 Google Apps

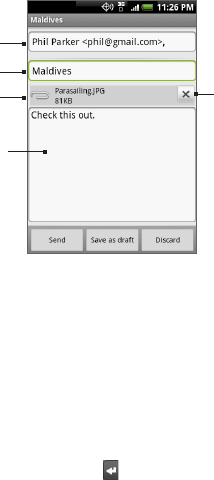

Enter your

message here.

Tap to

remove the

attachment.

Recipient

Subject

Attachment

4. After composing your email, tap Send.

Note While composing the message, tap Save as draft or press the BACK

button to save it as a draft. To view your draft email messages, in

the Inbox, press MENU and then tap View labels > Drafts.

To add a signature to emails

You can add a signature to email messages that you send.

In the Inbox, press MENU and then tap Settings > Signature.

Enter your signature in the text box, and then tap OK.

Tip You can create a signature consisting of multiple lines of text. At the

end of each line of text, tap on the onscreen keyboard to create

another line.

To view your sent messages

In the Inbox, press MENU and then tap View labels > Sent.

Google Apps 145

Receiving and reading emails

Depending on your notification settings, the phone plays a ring

tone, vibrates, or displays the email message briefly in the status bar

when you receive a new email. A new email message ( ) icon also

appears on the notifications area of the status bar to notify you of a

new email.

Note For more information on email notification settings, refer to the “Setting

Gmail settings” section later in this chapter.

Gmail groups each message you send with all the responses you

receive. This conversation list continues to grow as new replies arrive,

so you can always see your messages in context. Conversations are

also referred to as message threads. A new message or a change to

the subject of a current message will begin a new thread.

To view emails

Do one of the following:

Press HOME, then press and hold the status bar, and then slide

down your finger on the screen to open the Notifications panel.

Tap the new email to view it.

While in the Inbox, tap the unread email or the conversation with

the unread email to view it.

•

146 Google Apps

To scroll through the

message:

Slide your finger up/

down on the screen.

Roll the TRACKBALL

up/down.

•

Online status. Appears

when the contact is a

Google Talk friend and

you are signed in to

Google Talk.

Message subject

Message label

To search for email messages

You can search for a specific email message by sender, word in a

subject, or label.

In the Inbox, press MENU and then tap Search.

Enter the search keyword in the box, and then tap Search.

Google Apps 147

Replying to or forwarding emails

In the message thread, scroll

down to the end of the

conversation.

2. Tap Reply, Reply to all, or

Forward.

3. Do one of the following:

If you selected Reply or

Reply all, enter your reply

message.

If you selected Forward,

specify the message

recipients.

4. Scroll down to the end of the

message, and then tap Send.

•

Message

options

Thread

options

Managing conversations and emails

Conversations

In the Inbox, press and hold the conversation, and then tap:

Read to open the email.

Archive to archive the conversation.

Tip To display your archived messages, in the Inbox, press MENU and

then tap View labels > All Mail.

Mute to mute the entire conversation.

Tip If you’re part of a long message conversation that isn’t relevant, you

can ‘mute’ the conversation to keep all future additions out of your

Inbox.

•

148 Google Apps

Mark read or Mark unread as desired. Unread messages are

displayed in bold in the Inbox.

Delete to delete the conversation.

Add star or Remove star to assign a star or remove the star on

the conversation.

Change labels to add or change the label of the conversation.

Note You cannot use the phone to create labels; do that on the Gmail

web site.

Report spam to report the conversation as spam.

Email messages

In the message thread, navigate to the email header or message using

the TRACKBALL, press MENU and then tap:

Archive to archive the email message.

Tip To display your archived messages, in the Inbox, press MENU, and

then tap View labels > All Mails.

Add star or Remove star to assign a star or remove the star on

the conversation.

Mark read or Mark unread as desired. Unread messages or

threads with unread messages display in bold in the Inbox.

Change labels to add or change the label of the conversation.

Note You cannot use the phone to create labels; do that on the Gmail

web site.

Delete to delete the email message.

More >

Back to Inbox to return to your Inbox.

Mute to mute the entire conversation.

•

Google Apps 149

Tip If you’re part of a long message conversation that isn’t relevant, you

can ‘mute’ the email to keep all future additions out of your Inbox.

Report spam to report the email message as spam.

Setting Gmail settings

1. In the Inbox, press MENU and then tap Settings.

2. Set the following options:

Signature Tap to enter a signature that is appended at the end

of your emails.

Confirm delete Select the check box to show a confirmation

box when you delete a conversation.

Batch operations Select the check box to show the batch

operations feature. The Batch operations feature lets you

archive, delete, or apply a label to multiple emails at once.

Labels Tap to select which Gmail labels to synchronize.

Email notifications Select the check box to show a notification

icon on the status bar when you receive a new email.

Tap Select ringtone if you want your phone to ring when a

new email message arrives. On the ring tone menu, select a

ring tone specific to new email messages. The ring tone plays

briefly when selected. If you don’t want a ring tone to play

when you receive a new email message, tap Silent. Then tap

OK to confirm your ringtone selection.

Select Vibrate if you want your phone to vibrate when you

receive a new email message.

•

150 Google Apps

8.3 Using Google Talk

Google Talk is Google’s instant messaging program. It lets you

communicate with other people that also use Google Talk.

Note The Google Talk account that is set up is based on the Google Account

that you used when you set up the phone.

Signing in and chatting online

To open Google Talk

Press HOME, then tap > Google Talk.

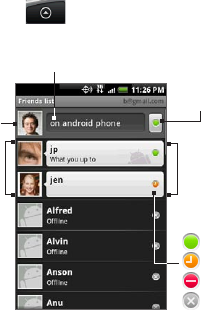

Online status:

Available

Idle

Busy

Offline

Opened chats. Tap a

callout to open the

chat screen and start

chatting with your

friend.

Friends list

Tap to

change your


Tap to change your online

status message.

Tap to change your

online status.

Google Apps 151

To add a new friend

You can only add people who have a Google Account.

In the Friends list, press MENU and then tap Add friend.

Enter the Google Talk instant messaging ID or Google email

address of the friend you want to add.

Note When you add a friend with an instant messaging ID and has been

saved in your contacts list, matching contacts will display on the

screen as you enter information. You can tap the contact or continue

entering the IM information.

3. Tap Send invitation.

To view and accept an invitation

In the Friends list, press MENU and then tap Invites. All chat

invitations you have sent or received are listed on the pending

invitations screen.

Tap a pending invitation, and then tap Accept or Decline.

Note When someone you invite to chat accepts your invitation, the pending

invitation disappears from the list.

To change your online status and message

1. Tap the online status icon ( ) beside your name, and then

select the status you want on the menu.

2. Tap the text box on the left of your online status icon and then

enter your status message using the onscreen keyboard.

3. Tap .

To start a chat

Do one of the following:

Tap a friend in the Friends list.

•

152 Google Apps

Navigate to a friend using the TRACKBALL, and then press

the TRACKBALL.

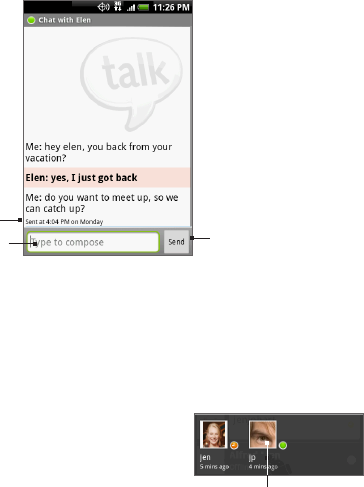

Tap to

send your

message.

Enter your

message here.

Timestamp.

Appears after

every minute of

inactivity.

2. Chat with your friend by entering text using the onscreen

keyboard.

Note To insert a smiley, press MENU and then tap Insert smiley. Tap a

smiley to insert it into your message.

3. After entering your message, tap Send.

To switch between active chats

You can switch between chats if you have

more than one chat going.

1. While on a chat screen or in the

friends list, press MENU and then tap

Switch chats.

2. On the panel that opens, tap the

friend you want to chat with.

Tap to switch chat

with this friend.

•

Google Apps 153

To close a chat

Do one of the following:

In your Friends list, press and hold a friend with an active chat

and then tap End chat on the menu.

While on a chat screen, press MENU and then tap End chat.

Managing your friends

Friends in your friends list is sorted by their online status — active

chats, online, busy, and offline. Within the status groupings, friends are

listed alphabetically.

By default, only the friends that you frequently communicate with

— the most popular — are in the Friends list. If you want to display all

your friends, press MENU and then tap All friends.

Tip To switch back to displaying only your most popular friends, press

MENU and then tap Most popular.

To block a friend

You can block a friend from sending you messages. When blocked,

your friend is also removed from your Friends list.

1. In the Friends list, locate the friend you want to block.

Note If you cannot see the friend, Press MENU and then tap All friends.

2. Press and hold the friend’s name, and then tap Block friend.

Your friend is removed from your friends list and is added to the

blocked friends list.

Note To unblock a friend, in the Friends list, press MENU and then tap

Blocked. In the Blocked friends list, tap the name of the friend you want

to unblock, and then tap OK when prompted.

•

154 Google Apps

To pin a friend

You can pin a friend to make sure that friend always appears in your

categories

Featured

videos. Scroll

your finger to

the left to view

more featured

videos.

Watching videos

On the YouTube screen, select a video to watch from the

available categories. Tap a category to see the available videos

for that category.

Tap a video to play it.

168 Google Apps

Note The screen automatically switches to landscape orientation when

you play a video.

3. Tap the screen to display the playback controls.

Tap to toggle between

playing and pausing

the video.

Drag to the left or right to

go backward or forward in

the video.

Progress bar

Elapsed time

Total playback

time

Press and hold

to fast forward

the video.

Press and hold

to rewind the

video.

4. Press BACK to stop playback and return to the videos list.

Searching for videos

On the YouTube screen, press SEARCH.

Enter a search keyword, and then press SEARCH again.

The number of search results appears below the status bar. Scroll

through the results and tap a video to watch it.

To clear the search history

1. Press MENU and then tap Settings.

2. Tap Clear search history and then tap OK when prompted.

Google Apps 169

Sharing videos

You can share a video by sending its link to your contacts.

Do one of the following:

While viewing videos in a list, press and hold the video, and

then tap Share on the options menu.

While watching a video, press MENU and then tap Share.

Note If you have set up an external email account in addition to your

Gmail account, you will be prompted to select the email account to

use to send the video link.

A new email message appears with the video link automatically

added to the email message.

2. Compose your email then send it. For more information about

composing and sending emails, refer to Chapter 5.

8.7 Using Android Market

Android Market provides direct access to useful applications and fun

games which you can download and install on your phone. Android

Market also allows you to send feedback and comments about an

application, or flag an application that you find objectionable or

incompatible with your phone.

Opening Android Market

1. Press HOME, then tap > Market.

2. When you open Android Market for the first time, the Terms of

Service window will appear. Tap Accept to continue.

•

170 Google Apps

Tap to open

the application

details screen.

Tap a category

to open a sub-

category and view

more applications.

Tap to search

Android Market.

Tap to view your

downloads.

Getting help

If you ever need help or have questions about Android Market, press

MENU and tap Help. The Browser will take you to the Android Market

Help webpage.

Finding applications

The Android Market home page provides several ways to find

applications. It showcases featured applications and includes a list of

item applications by category, a list of games, a link to search, and a

link to My downloads.

Scroll horizontally through the featured items or select a category

to browse its contents, then select a subcategory. Within each

subcategory you can select to view items sorted By popularity

or By date.

Google Apps 171

Tap the tab

to sort by

popularity or

date.

Note All items in a subcategory are listed in each tab; those in the By

popularity tab are sorted from most popular to least popular, and those

in the By date tab are sorted from newest to oldest

Installing and opening an application

1. Navigate to the item you want to download, and select it.

2. In the item details screen, read more about the application,

including its overall rating, and comments by users. If you scroll

down to the About the developer section, you can view more

applications by this developer, visit the developer’s website, and

send the developer an email message.

Important Press MENU and select Security permissions to view the functions

and data this item can access on your phone.

172 Google Apps

Scroll down to

view more of

this developer’s

applications or to

email the developer.

User comments

about item.

More info about item.

Press and hold

a comment to

let you report a

comment as spam.

3. On any application details screen, tap Install.

Important If the application requires either access to any of your data or

control of any functions on your phone, Market tells you what the

application can access.

Read it carefully! Be especially cautious with applications that have access to

many functions or a significant amount of your data. Once

you tap OK on this screen, you are responsible for the results

of using this item on your phone. Tap OK if you agree to the

conditions of the application.

4. To check the progress of the download, open the Notifications

panel. Most applications are installed within seconds. If you want

to stop downloading the item, tap Cancel download.

Download progress appears

in the Ongoing section of

the notifications window.

Once downloaded and

installed, a notification

appears.

Google Apps 173

5. After the item is downloaded and installed on your phone, the

content download icon ( ) appears in the notification area of

the status bar.

6. On the Android Market screen, tap My downloads.

7. Tap the installed application in the list, then tap Open.

Tip You can also find the icon of the installed application on the All

programs screen.

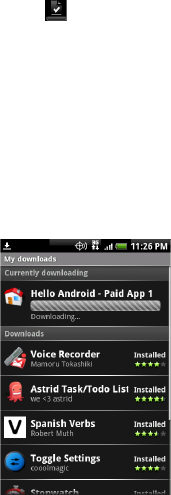

Managing applications

From the Android Market Home, tap My downloads to view your

downloaded items. From any of the Android Market screens, press

MENU and tap My downloads to go to the screen.

174 Google Apps

Uninstalling an application

You can uninstall any application that you have downloaded and

installed from Android Market.

1. On the My downloads screen, tap the application you want to

uninstall, then tap Uninstall.

2. When prompted, tap OK to remove the application on your

phone.

3. Choose the reason for removing the application, then tap OK.

8.8 Synchronizing Google Apps

Google Apps on your phone, such as Gmail, Calendar, and Contacts,

give you access to the same personal information (emails, events,

and contacts) that you add, view, and edit on your computer using

Gmail or Calendar. Synchronize the Google Apps you want to keep

information up-to-date.

To select which application to synchronize

Press HOME > MENU.

Tap Settings > Data synchronization > Google.

Note By default, all personal information in Gmail, Calendar, and Contacts

will sync whenever you make a change or receive a new message.

Google Apps 175

Date and

time of last

synchronization

Tap to include or

exclude the application

from automatic

synchronization.

The arrows move

clockwise when data is

being synchronized.

Indicates that there is

a problem with data

synchronization. Check

your data connection

and try again.

3. Select the Google Apps you want to synchronize.

Tip Select Auto-sync to automatically synchronize all applications. When

Auto-sync is disabled, you can synchronize individual applications

manually by selecting their respective check boxes.

To stop synchronization

During synchronization, press MENU, then tap Cancel sync to stop

synchronization.

9.1 Using Calendar

Use Calendar to create and manage events, meetings, and

appointments. Depending on your synchronization settings, the

Calendar on your phone stays in sync with your Calendar on the web,

Exchange ActiveSync calendar, and Outlook calendar.

Opening Calendar

Press HOME, then tap > Calendar.

Creating events

1. On any Calendar view, press MENU and then tap New to open

the Event details screen.

Tip If you are in the Agenda or Monthly view, tap at the bottom-

right of the screen.

2. If you have more than one calendar, select the Calendar where

you want to save the event.

3. Enter the event name using the keyboard.

Chapter 9

Other Applications

Other Applications 177

4. Do one of the following:

If there is a time frame for the event,

tap the From and To date and time

to set them.

If it is a special occasion such as a

birthday or a whole-day event, set

the From and To date, then select

the all day check box.

5. Enter the event location and

description.

•

Notes • You can create multiple calendars, such as Personal, Business,

or Family, using Calendar on the web. Depending on your

synchronization settings, these calendars are added to your phone

when you synchronize the Calendar. For more information on how to

create calendars, go to http://www.google.com/support/calendar/bin/

answer.py?answer=37095&topic=15281.

• If you have synchronize your phone with an Exchange ActiveSync

account or Outlook on your PC, you can also select these calendars.

6. Set the event reminder time in Reminders, then select whether

the event is recurring in Repeat.

Note Press MENU and then tap Add reminder to add another reminder.

7. When finished, tap Add.

178 Other Applications

Calendar views

You can display the Calendar in daily, weekly, monthly, or agenda view.

To change the Calendar view, press MENU, then tap Day, Agenda, or

Month.

Day view

Shows the weather information.

To show the weather information, in

any calendar view, press MENU, then

tap Settings > Views and then select

the Include weather check box.

Choose the city to display in City.

Colored bars indicate

which calendar the event

was created in.

Tap to open

event details.

Notes • The weather information appears only if the appointment is within the

5-day forecast of the Weather application.

• Weather information only appears when using Event list view.

To check, in any calendar view, press MENU, and then tap Settings >

Views > Day views.

Other Applications 179

Agenda and Month views

Tap to add a

new event.

Tap to switch

to Agenda

view.

Tap to view

events for

that day.

Indicates

there are

events for

that day.

Tap to

open event

details.

Tap to add a

new event.

Tap to switch

to Month view.

Agenda view Month view

Colored bars

indicate which

calendar the

event was

created in.

Swipe your finger up or down to view more events in Agenda

view or to go to the previous or next month in Month view.

In Month view, press and hold a day to open a menu to let you

quickly create an event, show the day’s events, or switch to

Agenda view.

Event reminders

If you have set at least one reminder for an event, the upcoming event

icon ( ) will appear in the notifications area of the status bar to

remind you of the upcoming event.

To view, dismiss, or snooze the reminder

1. Tap the status bar, then slide your finger down the screen to

open the Notifications panel.

•

180 Other Applications

2. Tap the upcoming event name to

display the event.

Note If you have other pending event

reminders, these events will also

appear on the screen.

3. Do one of the following:

Tap Snooze all to snooze all event

reminders for five minutes.

Tap Dismiss all to dismiss all event

reminders.

Press BACK to keep the reminders

pending in the notifications area of

the status bar.

•

Synchronizing Exchange ActiveSync Calendar

If you have set up a Microsoft Exchange ActiveSync account on your

phone, you can also synchronize Exchange ActiveSync calendar

events on your phone. Calendar events on your Exchange ActiveSync

will also show in Calendar if you chose to synchronize with the

Exchange ActiveSync Server.

To check if Exchange ActiveSync items are set to be synchronized,

go to the Home screen, press MENU, and then tap Settings > Data

synchronization > Exchange ActiveSync.

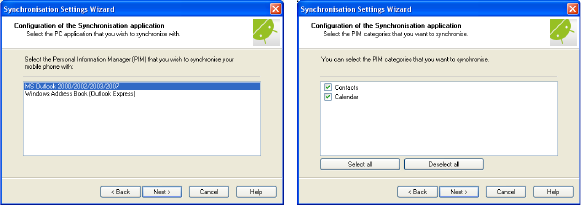

Synchronizing Outlook Calendar

See “HTC Sync” in this chapter for details.

Other Applications 181

Adding the Calendar widget

Add the Calendar widget to let you view your calendar and access

your appointments on the Home screen. To learn how to add widgets,

refer to “To add an HTC widget” in Chapter 1.

9.2 Using Clock

Clock lets you view the date and time of cities around the world. You

can also set alarms and use the stopwatch and timer.

Opening Clock

Tap the clock on the Home screen.

Note You can also press HOME, then tap > Clock.

List of the local time,

home city time, and

other cities that

you have added. By

default, the local,

home city, and most

major cities’ date and

time are listed.

Tap to add a city to

the world clock list.

Slide your finger

to switch to the

World Clock,

Alarms, Stopwatch

or Timer tab.

182 Other Applications

Setting the local date, time zone, and time

By default, your phone automatically uses the network-provided

date, time zone, and time. You can set the date, time zone, and time

manually.

1. In Clock, go to the World Clock tab, press MENU, and then tap

Local time settings.

Tip You can also press HOME > MENU, and then tap Settings > Date &

time.

2. Clear the Automatic check box.

3. Tap Set date. On the Change date window, adjust the date by

scrolling the date wheel. Tap Done when finished.

4. Tap Select time zone, then select the time zone in the list. Scroll

down the list to view more time zones.

5. Tap Set time. On the time window, adjust the time by scrolling

the time wheel. Tap Done when finished.

6. Select the Use 24-hour format check box to toggle between

using a 12-hour or a 24-hour format.

7. Tap Select date format then select how you want dates to display

on your phone. The selected date format also applies to the date

displayed in the Alarm Clock.

Adding cities to the world clock list

Keep track of the date and time of cities around the world.

1. In Clock, go to the World Clock tab, and then tap Add city.

2. Enter the city name you want to add. As you enter letters, the list

is filtered to show matching cities and countries.

3. Tap the city when it appears on the list.

Other Applications 183

Setting your home city’s date and time

1. In Clock, go to the World Clock tab, then press MENU, and then

tap Home settings.

2. Enter your home city name. As you enter letters, the list is filtered

to show matching cities and countries.

3. Tap the city when it appears on the list.

Setting an alarm

1. In Clock, go to the Alarms tab.

2. Tap one of the default alarms on the

screen.

3. In the Set alarm screen, set the alarm

time by sliding your finger up or down

on the numbers and AM/PM.

4. Enter the alarm Description, set the

Alarm sound and Repeat, and select

the Vibrate checkbox if you want the

phone to also vibrate when the alarm

goes off.

Note Scroll up the screen to see all the

Alarm options.

5. Tap Done.

Note If you need to set more than 3 alarms, you can add more alarms by

tapping Add alarm.

You can temporarily disable an alarm by clearing the check box

(by tapping it) of the alarm on the Alarms tab.

184 Other Applications

Deleting an alarm

On the Alarms tab, press MENU and

then tap Delete.

Select the alarms you want to delete

and then tap Delete.

Using Stopwatch and Timer

In Clock, go to the Stopwatch or Timer tab to use these functions.

Adding the Clock widget

Add another clock with the time of another city in the world on the

Home screen. To learn how to add widgets, refer to “To add an HTC

widget” in Chapter 1.

9.3 Using HTC Sync

HTC Sync™ lets you synchronize Outlook and Windows Address Book

(Outlook Express), contacts and calendar events on your PC with your

phone. It also lets you install third-party Android applications on the

phone.

Requirement For HTC Sync Sync Manager, you need Outlook

2000/2002/2003/2007 or Windows Address Book (Outlook

Express) and Windows XP Service Pack 2 (SP2) or higher or

Windows Vista to synchronize contacts and calendar events.

Notes • The USB debugging check box in HOME > MENU > Settings >

Applications > Development needs to be selected for the phone to

be able to synchronize with the PC using HTC Sync.

• If you have a Microsoft Exchange account, you can set up an

Exchange email account and synchronize emails, contacts, and

Other Applications 185

calendar items from the Exchange account.

To set up a Microsoft Exchange email account, see “Adding a

Microsoft Exchange ActiveSync account” in Chapter 5 for details.

Installing HTC Sync on your PC

1. Download the HTC Sync installer from the HTC website

(http://www.htc.com/us/support.aspx) to your computer.

2. Double-click HTCSync.exe and then follow the installation

instructions on the screen.

Setting up HTC Sync to synchronize Outlook items

Use Sync Manager to synchronize PC Outlook contacts and calendar

events between the phone and PC.

1. On your computer, run HTC Sync.

2. Connect the phone to the computer using the provided USB

cable.

Notes • On your phone, check Notifications on the status bar for the icon

to confirm if HTC Sync recognizes the phone.

• The first time you connect the phone to the PC using HTC Sync, the

Phone Connection Wizard runs. Follow the instructions to finish the

wizard.

186 Other Applications

3. The first time you synchronize the phone, the Synchronization

Settings Wizard starts automatically to help you set up HTC

Sync.

Note If the Synchronization Settings Wizard does not start, click

Synchronize Now.

4. On the Synchronization Settings Wizard screen, click Next.

5. Select the PC application you want to synchronize with and then

click Next.

6. Select the categories you want to synchronize and then click

Next.

Note After clicking Next, you may be asked to select additional

categories. This page will only appear if any additional categories

are supported by the connected phone.

7. Select when to synchronize data and then click Next.

8. Check the settings that you have chosen and then click Finish.

If you want to have more customization features when setting up HTC

Sync, you can use Manual settings. To learn how to set up HTC Sync

using Manual settings, consult the HTC Sync help on your PC. To learn

how to open the help, see “Opening Sync Manager help” later in this

chapter.

Other Applications 187

Synchronizing Outlook items

When you set up HTC Sync, you were asked to set when you want to

synchronize with the PC. Depending on the option you have selected,

you may need to manually start synchronization or it will automatically

start synchronization when you connect the phone to the PC.

If you chose I want to synchronize automatically each time I

connect my mobile phone or Automatic start of synchronization,

every time mobile phone is connected, follow this procedure:

On your PC, open HTC Sync.

Connect the phone to the PC using the USB cable.

Synchronization will automatically start.

If you chose I want to start the synchronization manually or Do

not synchronize automatic, manual start, follow this procedure:

On your PC, open HTC Sync.

Connect the phone to the PC using the USB cable.

On the HTC Sync window, Click Synchronize Now.

If you chose Schedule automatic synchronization, follow this

procedure:

On your PC, open HTC Sync.

Connect the phone to the PC using the USB cable.

Synchronization will start depending on the date and time you set.

•

188 Other Applications

Resolving conflicts between the phone and PC

1. On your PC, open HTC Sync.

2. On the HTC Sync window, click Sync Manager > Settings >

Conflict Policy.

3. Select the option you want and then click OK.

Opening Sync Manager help

Open the HTC Sync Sync Manager comprehensive help file to learn

more about the advanced features of Sync Manager.

1. On your PC, open HTC Sync.

2. On the HTC Sync window, click Sync Manager.

3. On Sync Manager menu bar, click Help > Sync Manager Help.

Installing Android applications

Use Application Installer to install Android applications (.apk) that are

on your PC to the phone.

Important The Unknown sources check box in Settings needs to be selected

to be able install Android applications from the PC. To check, press

HOME > MENU, and then tap Settings > Applications.

1. On your computer, run HTC Sync.

2. Connect the phone to the computer using the provided USB

cable.

Notes On your phone, check Notifications on the status bar for the

icon to confirm if HTC Sync recognizes the phone.

3. Click Application Installer.

4. On the Application Installer screen, click Next.

5. Click Browse to select the file to install. After selecting the file,

click Next.

Other Applications 189

6. Click Finish. Check the phone if there are additional instructions

to complete the installation.

9.4 Using HTC Footprints

HTC Footprints™ provides an easy way to record favorite places and

revisit those places. A footprint consists of a photo you take of a

location such as a restaurant, a sightseeing destination, etc., stored

together with a precise GPS position and other information about that

location such as the street address and phone number.

The next time you want to visit the same place, simply access the

footprint. You can then dial the phone number or view the location in

Google Maps.

Creating a Footprint

1. Press HOME, then tap > Footprints.

2. Tap New Footprint.

Note My Location sources options in Settings need to be selected to be

able to determine your GPS location. You will be asked to turn them

on if the options are turned off.

3. Point the camera at the scene you want to show the location.

Footprints starts to use GPS to search for your position.

Tip To change brightness and white balance settings before you take a

photo, press MENU, then tap Brightness or White Balance, and then

choose a setting.

4. Press the TRACKBALL to capture the photo.

Notes • If your GPS position has not been found yet, you are asked whether

to find the position on Google Maps, continue the GPS search, or stop

the GPS search.

190 Other Applications

• You may be asked if you want HTC Footprints to automatically

determine the address for the location.

5. Tap Done.

Note Before pressing Done, you can press MENU, and then tap Edit to

change the name, category, or address of the Footprint, enter the

phone and website, and add a voice memo to the Footprint.

Revisiting a Footprint

1. Press HOME, then tap , and then tap Footprints.

2. At the bottom of the screen, slide your finger to select the

Footprint category.

3. Tap the Footprint you want to revisit.

Tap to show

the address in

Google Maps.

Tap to open the

URL in Browser.

Tap to call the

phone number.

Scroll up the

screen to see more

information.

Editing or deleting a Footprint

On a category screen, press and hold the Footprint you want to edit

or delete, and then tap Edit or Delete on the options menu.

Other Applications 191

Backing up your Footprints

You can back up all your footprints by exporting them to a storage

card. When you import the backup from the storage card, any new

footprints you have added on the device are kept.

To back up your Footprints, on a category screen, press MENU

and then tap Export.

To import the backup file to the phone, press MENU and then tap

Import. If any footprints on the device are the same as footprints

on the card, you are asked whether you want to overwrite

them. You can also use Import to use a picture in Albums as a

Footprint.

Adding the Footprint widget

Add the Footprint widget to view and access your Footprints on the

Home screen. To learn how to add widgets, refer to “To add an HTC

widget” in Chapter 1.

9.5 Using PDF Viewer

Use PDF Viewer to view PDF files that you have copied to the phone’s

storage card.

Viewing a PDF file

1. Press HOME, then tap > PDF Viewer.

2. On the Open file screen, tap the file you want to view.

3. Slide your finger on the screen to pan or go through the pages

of the PDF file. While viewing a PDF file, press MENU to let you

open another PDF file, zoom in, search the file, and more.

•

192 Other Applications

Tap to zoom in on the

page. You can also

tap the screen quickly

twice to zoom in or

out of the page.

Tap to search the

PDF file, view

file properties or

information about the

PDF Viewer.

Tap to toggle

between showing

and hiding the page

toolbar.

Tap to open

another PDF

file.

Tap to go to a

specific page

on the PDF file.

Tap to let you change

the view: Continuous

or Reflow.

Turn your phone sideways (turn to the left) to view the PDF file

in landscape mode. The screen orientation automatically adjusts

depending on how you hold the phone.

Other Applications 193

9.6 Using Peep

Peep™ is a Twitter client that lets you enjoy “twittering’’ on your

phone. Send out tweets, read and receive tweets from people, search

for new Twitter users to follow, all from your phone.

Note You need to be signed in to your Twitter account to use Peep.

Opening Peep

Press HOME, then tap > Peep. Peep opens in the All Tweets tab.

Slide your finger on the bottom row to go to the tab you want.

Slide your finger to

select whether to show

All Tweets, Replies,

Direct Message, or

Favorites.

Tap to view the

Twitter user’s profile.

This also shows you

all tweets from this

Twitter user.

Press and hold an

item to open the

options menu to

let you reply, send

a direct message,

Retweet, add to

favorite, and view

the profile.

Tap to enter a

tweet to send out.

194 Other Applications

Sending a tweet

1. On the All Tweets tab, tap the text field with the words “What are

you doing?”.

2. Enter your tweet and then tap Update.

Tap to post a

picture from

Albums or Camera

to your default

photo hosting site

and add the link to

the picture into the

tweet.

Tap to insert your

location into the

tweet. You can

choose to add a

map link, insert

your location

name, or insert

your position

coordinates.

Enter your

tweet here.

On the Peep screen, press MENU and then tap Settings > Services to

check or change your photo hosting site, location options, and URL

shortening host.

Sending a direct message

Do one of the following:

On the Peep screen, press MENU and then tap New message.

On the All Tweets or Direct Message tab, press and hold the

person you want to send the direct message to, and then tap

Send direct message on the options menu.

To view your direct messages, go to the Direct Message tab.

•

Other Applications 195

Searching for Twitter users to follow

1. While on the Peep screen, press SEARCH.

2. Tap the text field with the words “Twitter Search” and then enter

the search criteria. Press SEARCH again or tap Search on the

screen.

3. On the Search result screen, scroll through the list to look for the

twitter user you want to follow.

Note The search results will also list down tweets that contain the search

word.

4. Press and hold the user name of the Twitter user you want to

follow and then on the options menu, tap Show profile > Follow.

To stop following a Twitter user

1. On the All Tweets tab, press and hold the Twitter user you want

to stop following.

2. On the options menu, tap Show profile > Unfollow.

Adding the Twitter widget

Add the Twitter widget to let you follow your tweets right on the

Home screen.

To learn how to add widgets, refer to “To add an HTC widget” in

Chapter 1.

196 Other Applications

9.7 Using Quickoffice

Quickoffice lets you view Microsoft Office Word, Microsoft Office

Excel, and Microsoft PowerPoint files on your phone. Quickoffice

supports viewing of Microsoft Office 2003 Word (.doc), Excel (.xls),

PowerPoint (.ppt) and text (.txt) files.

Viewing documents, presentations and spreadsheets

Make sure you have copied the files to the phone’s storage card before

you open Quickoffice.

1. Press HOME, then tap > Quickoffice.

2. Tap the file you want to open.

Tip In the Open file screen, press MENU and then tap Sort to let you

sort the list by Name or Date.

3. Slide your finger on the screen to pan or go through the pages of

the file.

Other Applications 197

4. While viewing a file, you can:

Slide your finger on the screen to bring up the zoom controls.

For Excel files, press MENU and then tap Worksheet to view

other worksheets on the file.

For Word and PowerPoint files, tap a URL link to open the

web page in Browser.

When you open Word documents, Quickoffice reflows the text

to make it fit the width of the screen. Double-tap the screen to

switch to continuous view so you can view the page layout.

Note Quickoffice does not reflow text in tables.

When you view PowerPoint files, after your zoom in on a slide,

you can double-tap the screen to zoom out automatically and

fit the slide to the width of the screen.

•

198 Other Applications

9.8 Using Stocks

Stocks lets you to add, view, and analyze stocks and stock market

movements using updated financial information.

Opening Stocks

Press HOME, then tap > Stocks.

Tap to add a stock

quote or stock

market index.

Tap to update the

stock information.

List of your stock

quotes and stock

market indices. Tap

an item to view its

intraday chart and

other details.

Shows the time

the information

was last updated.

Adding a stock quote or stock market index

1. On the Stocks screen, tap .

2. Enter the stock quote or stock market index on the text field

and then tap .

3. On the results list, tap the stock quote or stock market index you

want to add.

Other Applications 199

Changing the list order

1. On the stocks screen, press MENU and then tap Rearrange.

2. Press and hold at the end of the item you want to move.

When the row is highlighted in green, drag it to its new position,

then release.

3. Tap Done.

Deleting an item

1. On the Stocks screen, press MENU and then tap Delete.

2. Select the items you want to delete and then tap Delete.

Adding the Stocks widget

Add the Stocks widget to the Home screen to let you follow your

stock quotes on the Home screen. To learn how to add widgets,

refer to “To add an HTC widget” in Chapter 1.

9.9 Using Weather

Weather lets you view the current weather as well as the weather

forecast for the next four days of the week. You can display the

weather conditions in your current location and the weather in up to

ten cities.

Opening Weather

Press HOME, then tap > Weather.

If you enabled location service when you are setting the phone for the

first time, the weather in your current location displays the first time

you open Weather.

200 Other Applications

Add a location.

Shows the last

weather update.

To view the weather

in other cities, swipe

your finger upward/

downward on the

screen.

Download the

latest weather

information.

Displaying weather in your location

If location service is disabled, you can set your current location and

add it to Weather.

1. On the Weather screen, tap , and then tap My location.

2. When prompted to enable location source, tap Enable, select

the Use wireless networks check box, and then tap Agree on the

confirmation box.

3. Press BACK. A blinking dot shows your approximate location on

a map.

Tip If you want to adjust your location on the map, press and hold the

push pin, and then drag it to your desired location.

4. Tap Done. Your location information displays on the screen.

5. Tap Add. The weather in your current location displays on the

screen.

Other Applications 201

Adding a city

1. On the Weather screen, tap .

2. Enter the location you want to add on the text field. As you enter

text, the list is filtered to show the possible locations based on

the letters you entered.

3. Tap the desired city to select it.

Changing Weather options

1. On the Weather screen, tap Menu > Settings.

2. Do the following:

Select the Update automatically check box to automatically

download weather updates after a period of time.

Tap Temperature scale to change the temperature scale to

use.

Changing the order of cities

1. On the Weather screen, press MENU and then tap Rearrange.

2. Press and hold at the end of the item you want to move.

When the row is highlighted in green, drag it to its new position,

then release.

3. Tap Done.

Deleting a city

1. On the Weather screen, swipe your finger up or down to select

the city you want to delete.

2. Press MENU and then tap Delete. On the confirmation box,

tap Delete.

•

202 Other Applications

Adding the Weather widget

Add the Weather widget to let you view the weather conditions of the

cities you have set on the Home screen. To learn how to add widgets,

refer to “To add an HTC widget” in Chapter 1.

9.10 Using Voice Recorder

Voice Recorder is useful for quickly recording thoughts. You can also

record your voice and set it as a ringtone.

Note You need to have a microSD card installed on your phone to use Voice

Recorder.

Recording your voice

1. Press HOME, then tap > Voice Recorder.

2. Hold the device’s microphone near your mouth.

3. Tap to start recording a voice clip. Tap to stop recording.

4. Enter a name for the voice clip and then tap Save.

5. Tap to play back the voice recording.

Setting a voice clip as a ringtone

1. On the Voice Recorder screen, tap or to select the voice

clip you want to set as the ringtone.

2. Press MENU and then tap Set as ringtone.

Other Applications 203

Renaming a voice clip

1. On the Voice Recorder screen, tap or to select the voice

clip you want to rename.

2. Press MENU and then tap Rename.

3. Enter the new name and then tap Save.

10.1 Changing Basic Settings

Setting the date and time

See “Using Clock” in Chapter 9 for details.

Display settings

To adjust the screen brightness

1. Press HOME > MENU, then tap Settings.

2. Tap Sound & display > Brightness.

Note The Disable auto backlight check box needs to be selected for you

to be able to manually adjust screen brightness.

3. Drag the brightness slider to the left to decrease or to the right

to increase the screen brightness. Tap OK.

To adjust the time before the screen turns off

After a period of inactivity, the phone screen turns off to conserve

battery power. You can set the idle time before the screen turns off.

1. Press HOME > MENU, then tap Settings > Sound & display >

Screen timeout.

2. Tap the time before the screen turns off.

Tip To turn off the screen quickly, press END/POWER.

Chapter 10

Managing Your Phone

Managing Your Phone 205

To prevent the screen orientation from automatically changing

By default, the screen orientation automatically adjusts depending on

how you hold the phone.

Note Not all application screens support automatic rotation.

1. Press HOME > MENU, then tap Settings.

2. Tap Sound & display and then clear the Orientation check box.

To keep the screen on while charging the phone

You can keep the phone screen from turning off while you are

charging the phone.

1. Press HOME > MENU, then tap Settings.

2. Tap Applications > Development and then select the Stay awake

check box.

To recalibrate the screen

Recalibrate the screen if you feel that the screen orientation does not

respond properly to the way you hold the phone.

1. Press HOME > MENU, then tap Settings.

2. Tap Sound & display > G-Sensor calibration.

3. Place the phone on a flat surface and then tap Calibrate.

4. After the recalibration process, tap OK.

Ringer settings

To change the ring tone

1. Press HOME > MENU, then tap Settings.

2. Tap Sound & display > Phone ringtone.

3. Tap the ring tone you want to use, then tap OK. The ring tone

briefly plays when selected.

206 Managing Your Phone

Tip You can use *.wav, *.mid, *.mp3, *.wma, or other types of sound files that

you downloaded from the Internet or copied from your computer as

ring tones. For a complete list of supported audio file formats for ring

tones, see “Specifications” in the Appendix.

To enable touch tones

You can set the phone to play a sound when you are using the phone

pad and/or tapping the screen.

1. Press HOME > MENU, then tap Settings.

2. Tap Sound & display, then scroll down the screen.

3. Select the Audible touch tones and/or Audible selection

option(s).

To choose the notification ring tone

You can select the ring tone to play when your phone receives new

notifications.

1. Press HOME > MENU, then tap Settings.

2. Tap Sound & display > Notification sound.

3. Select your preferred notification sound in the list and then tap

OK.

Phone services

Your phone can directly link to the mobile phone network, and enable

you to access and change the settings of various phone services for

your phone. Phone services may include Call Forwarding, Call Waiting,

Voicemail, and more. Contact your service provider to find out about

the availability of phone services for your phone.

To access and change the phone services settings

Press HOME > MENU, then tap Settings > Call settings.

Managing Your Phone 207

Note For more information about the phone services on your phone, refer to

the “Adjusting Phone Settings” in Chapter 2.

To enable data roaming

Data roaming lets you connect to other operator’s networks and

access data services when you are out of the current coverage area.

1. Press HOME > MENU, then tap Settings.

2. Tap Wireless controls > Mobile network settings and then select

the Data roaming check box.

Important Accessing data services while roaming may incur significant

charges. Inquire the data roaming tariffs with your service provider

before enabling data roaming.

Language settings

You can change the platform language of the phone.

To change the language of the operating system

1. Press HOME > MENU, then tap Settings.

2. Tap Locale & text > Select Locale and then select the language

you want to use.

Social network settings

You can quickly sign in or sign out from your Facebook, Flickr, and

Twitter accounts.

1. Press HOME > MENU, then tap Settings > Social networks.

2. Tap the account you want to sign in to or sign out from in the list.

Tip Press MENU to let you quickly log out from all accounts or adjust

account settings.

208 Managing Your Phone

10.2 Protecting Your Phone

Protecting your phone with a screen lock

You can further secure your data by locking the screen and/or

requiring a screen unlock pattern every time your phone is turned on

or every time it wakes up from sleep mode (screen is off).

To lock the screen

Press END/POWER. Locking the screen prevents accidental screen

touches when the phone is in your bag, purse, or pocket.

To unlock the screen, see “To unlock the screen” in Chapter 1.

To create and enable the screen unlock pattern

You can increase the security of your phone by creating a screen

unlock pattern. When enabled, you have to draw the correct unlock

pattern on the screen to unlock the phone’s control buttons and touch

screen.

1. Press HOME > MENU, then tap Settings.

2. Tap Security > Set unlock pattern.

3. Read the information on the screen, then tap Next.

4. Study the example pattern on the screen, then tap Next.

Managing Your Phone 209

5. Draw the screen unlock pattern by

connecting at least four dots in a vertical,

horizontal and/or diagonal direction.

Lift your finger from the screen when

finished.

Note You must slide your finger on the

screen to create the pattern and not tap

individual dots.

6. The phone records the pattern. Tap

Continue.

7. When prompted, draw the screen unlock

pattern again, then tap Confirm.

Tip Clear the Use visible pattern check box, if you do not want the

unlock pattern to display on the screen when you unlock it.

Note To change your unlock screen pattern, press HOME > MENU, then

tap Settings > Security > Change unlock pattern.

When you fail to draw the correct unlock pattern on the screen after

five attempts, you will be prompted to wait for 30 seconds before you

can try again. If you forgot your screen unlock pattern, tap Forgot

pattern. You will be prompted to sign in using your Google Account

name and password, and create a new screen unlock pattern before

the Home screen displays.

210 Managing Your Phone

10.3 Managing Memory

To see how much phone memory is available for use

Press HOME > MENU, then tap Settings > SD card & phone storage.

The available phone memory is displayed in the Internal phone

storage section.

To see the available storage card space

Press HOME > MENU, then tap Settings > SD card & phone storage.

The total and available storage card space is displayed in the SD card

section.

To clear application cache and data

1. Press HOME > MENU, then tap Settings > Applications > Manage

applications.

2. In the Manage applications list, tap the application whose cache

and/or data you want to delete.

Tip Press MENU to bring up sort and filter options.

3. In the Application info screen, tap Clear data and/or Clear cache.

To uninstall third-party applications

You cannot uninstall applications that are pre-installed on the phone.

1. Press HOME > MENU, and then tap Settings > Applications >

Manage applications.

2. On the Manage applications screen, tap the application you want

to uninstall. On the Application info screen, tap Uninstall.

To free up more phone memory or storage card space

If your phone is running low on memory, try the following:

In Browser, clear all temporary Internet files and Browser

history information. See “Using Browser” in Chapter 6 for more

information.

•

Managing Your Phone 211

Uninstall downloaded programs from Android Market you no

longer use. See Chapter 8 for details.

10.4 Resetting the Phone

Resetting the phone deletes all data, including downloaded

applications, and resets the phone back to its initial state—the state

before you turned on the phone for the first time.

Important Make sure to back up important data you have on the phone

before you reset your phone.

To reset the phone

1. Press HOME > MENU, then tap Settings > Security > Factory data

reset.

2. On the Factory data reset screen, tap Reset phone and then tap

Erase everything.

To reset the phone using phone buttons

1. With the phone turned off, press and hold the VOLUME DOWN

and SEND buttons

2. Press the END/POWER button. You will see a screen with 3

Android images at the bottom of the screen.

3. Follow the instructions onscreen to reset your phone.

Tip If your phone hangs or freezes, remove the battery then wait for a few

seconds, and then re-install it. After re-installing the battery, turn on the

phone.

•

Appendix

A.1 Specifications

Processor Qualcomm® QSD8650™, 768 MHz

Platform Android™

Memory ROM: 512 MB

RAM: 448 MB

Dimensions

(LxWxT)

4.63 X 2.3 X 0.47 inches (117.5 X 58.5 X 11.9 mm)

Display 3.7-inch OLCD touch-sensitive screen with 480x800

WVGA resolution

Network Dual-band (800 and 1900 MHz)

CDMA2000 1xRTT/1xEVDO/1xEVDO rev. A and IS-

95A/B voice or data with up to 1.8 Mbps uplink and 3.1

Mbps downlink speeds

•

Device Control Trackball with Enter button

GPS Internal GPS antenna

Connectivity Bluetooth® 2.1 with Enhanced Data Rate and A2DP for

wireless stereo headsets

Wi-Fi®: IEEE 802.11 b/g

12-pin micro-USB

3.5 mm audio jack

•

Camera 8.0 megapixel color camera with auto focus

Audio supported

formats

MP3, AAC(AAC, AAC+), eAAC+, AMR-NB, AMR-WB,

WAV, and Windows Media Audio 9

Appendix 213

Video supported

formats

MPEG-4, H.263, H.264 and Windows Media Video 9

Battery Rechargeable battery

Capacity: 1300 mAh

•

Talk time: Up to 229 minutes

Standby time: Up to 300 hours

(The above are subject to network and phone usage.)

•

Expansion Slot microSD™ memory card (SD 2.0 compatible)

AC Adapter Voltage range/frequency: 100 - 240V AC, 50/60 Hz

DC output: 5V and 1A

Special Features G-sensor

Digital Compass

•

Operating

Temperature

Range

32°F to 104°F (0°C to 40°C)

Note Specifications are subject to change without prior notice.

A.2 Regulatory Notices

For regulatory identification purposes, your product is assigned a

model number of PB31200.

To ensure continued reliable and safe operation of your device, use

only the accessories listed below with your PB31200.

The Battery Pack has been assigned a model number of BB96100,

BB96200, BTR6300B, BTE6300B.

Operating temperature range: 32°F to 104°F (0°C to 40°C)

Note This product is intended for use with a certified Class 2 Limited Power

Source, rated 5 Volts DC, maximum 1 Amp power supply unit.

214 Appendix

Federal Communication Commission Interference

Statement

This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one of

the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

Consult the dealer or an experienced radio or television

technician for help.

FCC Caution: Any changes or modifications not expressly approved

by the party responsible for compliance could void the user’s

authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

IMPORTANT NOTE

Radiation Exposure Statement:

•

Appendix 215

This equipment complies with FCC radiation exposure limits set forth

for an uncontrolled environment. End users must follow the specific

operating instructions for satisfying RF exposure compliance. To

maintain compliance with FCC RF exposure compliance requirements,

please follow operation instruction as documented in this manual.

This transmitter must not be co-located or operating in conjunction

with any other antenna or transmitter, except the transmitters built-in

with the device.

FCC Hearing-Aid Compatibility (HAC) Regulations for

Wireless Devices

On July 10, 2003, the U.S. Federal Communications Commission (FCC)

Report and Order in WT Docket 01- 309 modified the exception of

wireless phones under the Hearing Aid Compatibility Act of 1988

(HAC Act) to require digital wireless phones be compatible with

hearing-aids. The intent of the HAC Act is to ensure reasonable

access to telecommunications services for persons with hearing

disabilities. While some wireless phones are used near some hearing

devices (hearing aids and cochlear implants), users may detect a

buzzing, humming, or whining noise. Some hearing devices are more

immune than others to this interference noise, and phones also vary

in the amount of interference they generate. The wireless telephone

industry has developed a rating system for wireless phones, to assist

hearing device users find phones that may be compatible with their

hearing devices. Not all phones have been rated. Phones that are

rated have the rating on their box or a label located on the box. The

ratings are not guarantees. Results will vary depending on the user’s

hearing device and hearing loss. If your hearing device happens to be

vulnerable to interference, you may not be able to use a rated phone

successfully. Trying out the phone with your hearing device is the best

way to evaluate it for your personal needs.

216 Appendix

M-Ratings: Phones rated M3 or M4 meet FCC requirements and are

likely to generate less interference to hearing devices than phones that

are not rated. M4 is the better/higher of the two ratings. PB31200 is

rated M4.

T-Ratings: Phones rated T3 or T4 meet FCC requirements and are

likely to be more usable with a hearing aid’s telecoil than phones that

are not rated. T4 is the better/higher of the two ratings. PB31200 is

rated T3.

Please power off the Bluetooth function while using hearing aid

devices with your PB31200.

Hearing devices may also be rated.

Your hearing device manufacturer or

hearing health professional may help

you find this rating. Higher ratings

mean that the hearing device is

relatively immune to interference noise.

The hearing aid and wireless phone rating values are then added

together. A sum of 5 is considered acceptable for normal use. A sum

of 6 is considered for better use. A sum of 8 is considered for best

use. In the above example, if a hearing aid meets the M2 level rating

and the wireless phone meets the M3 level rating, the sum of the two

values equal M5. This should provide the hearing aid user with “normal

usage” while using their hearing aid with the particular wireless phone.

“Normal usage” in this context is defined as a signal quality that is

acceptable for normal operation.

This methodology applies equally for T ratings. The M mark is

intended to be synonymous with the U mark. The T mark is intended

to be synonymous with the UT mark. The M and T marks are

recommended by the Alliance for Telecommunications Industries

Appendix 217

Solutions (ATIS). The U and UT marks are referenced in Section 20.19

of the FCC Rules. The HAC rating and measurement procedure are

described in the American National Standards Institute (ANSI) C63.19

standard.

For information about hearing aids and digital wireless phones

FCC Hearing Aid Compatibility and Volume Control:

http://www.fcc.gov/cgb/dro/hearing.html

Gallaudet University, RERC:

https://fjallfoss.fcc.gov/oetcf/eas/reports/GenericSearch.cfm

SAR Information

1.39 mW/g @ 1g (HEAD)

0.693 mW/g @ 1g (BODY)

THIS MODEL DEVICE MEETS THE GOVERNMENT’S REQUIREMENTS

FOR EXPOSURE TO RADIO WAVES. For body worn operation, this

phone has been tested and meets the FCC RF exposure guidelines

when used with the HTC Corporation. Accessories supplied or

designated for this product. Use of other accessories may not ensure

compliance with the FCC RF exposure guidelines.

Your wireless mobile phone is a radio transmitter and receiver. It

is designed and manufactured not to exceed the emission limits

for exposure to radio frequency (RF) energy set by the Federal

Communications Commission of the U.S. Government. These limits

are part of comprehensive guidelines and establish permitted levels

of RF energy for the general population. The guidelines are based

on the safety standards previously set by both U.S. and international

standards bodies:

American National Standards Institute (ANSI) IEEE. C95.1-1992.•

218 Appendix

National Council on Radiation Protection and Measurement

(NCRP). Report 86. 1986.

International Commission on Non-Ionizing Radiation Protection

(ICNIRP) 1996.

Ministry of Health (Canada), Safety Code 6. The standards

include a substantial safety margin designed to assure the safety

of all persons, regardless of age and health.

The exposure standard for wireless mobile phone employs a unit of

measurement known as the Specific Absorption Rate, or SAR. The

SAR limit set by the FCC is 1.6 W/kg*.

The FCC has granted an Equipment Authorization for this model

device with all reported SAR levels evaluated as in compliance

with the FCC RF exposure guidelines. SAR information on this

model device is on file with the FCC and can be found under the

Display Grant section of https://fjallfoss.fcc.gov/oetcf/eas/reports/

GenericSearch.cfm after searching on FCC ID: NM8PB31200.

Additional information on Specific Absorption Rates (SAR) can be

found on the Cellular Telecommunications & Internet Association

(CTIA) Web-site as http://www.phonefacts.net.

* In the U.S. and Canada, the SAR limit for mobile phone used by the

public is 1.6 Watts/kg (W/kg) averaged over one gram of tissue. The

standard incorporates a substantial margin of safety to give additional

protection for the public and to account for any variations in usage.

Normal condition only to ensure the radiative performance and

safety of the interference. As with other mobile radio transmitting

equipment, users are advised that for satisfactory operation of the

equipment and for the safety of personnel, it is recommended that no

part of the human body be allowed to come too close to the antenna

during operation of the equipment.

•

Appendix 219

Body-worn Operation

This device was tested for typical body-worn operations. To comply

with RF exposure requirements, a minimum separation distance

of 1.5 cm must be maintained between the user’s body and the

handset, including the antenna. Third-party belt-clips, holsters,

and similar accessories used by this device should not contain any

metallic components. Body-worn accessories that do not meet these

requirements may not comply with RF exposure requirements and

should be avoided.

Use only the supplied or an approved antenna. Unauthorized

antennas, modifications, or attachments could impair call quality,

damage the phone, or result in violation of regulations. Do not use the

phone with a damaged antenna. If a damaged antenna comes into

contact with the skin, a minor burn may result. Please contact your

local dealer for replacement antenna.

220 Appendix

Telecommunications & Internet Association (TIA) Safety

Information

Pacemakers

The Health Industry Manufacturers Association recommends that a

minimum separation of six inches be maintained between a handheld

wireless phone and a pacemaker to avoid potential interference

with the pacemaker. These recommendations are consistent with

the independent research by and recommendations of Wireless

Technology Research. Persons with pacemakers:

Should ALWAYS keep the phone more than six inches from their

pacemaker when the phone is turned ON.

Should not carry the phone in a breast pocket.

Should use the ear opposite the pacemaker to minimize the

potential for interference. If you have any reason to suspect that

interference is taking place, turn the phone OFF immediately.

Hearing Aids

Some digital wireless phones may interfere with some hearing aids. In

the event of such interference, you may want to consult your service

provider, or call the customer service line to discuss alternatives.

Other Medical Devices

If you use any other personal medical device, consult the

manufacturer of your device to determine if they are adequately

shielded from external RF energy. Your physician may be able to assist

you in obtaining this information.

Turn the phone OFF in health care facilities when any regulations

posted in these areas instruct you to do so. Hospitals or health care

facilities may be using equipment that could be sensitive to external

RF energy.

•

Appendix 221

WEEE Notice

The Directive on Waste Electrical and Electronic Equipment (WEEE),

which entered into force as European law on 13th February 2003,

resulted in a major change in the treatment of electrical equipment at

end-of-life.

The purpose of this Directive is, as a first priority, the prevention of

WEEE, and in addition, to promote the reuse, recycling and other

forms of recovery of such wastes so as to reduce disposal.

The WEEE logo (shown at the left) on the product or on

its box indicates that this product must not be disposed

of or dumped with your other household waste. You are

liable to dispose of all your electronic or electrical waste

equipment by relocating over to the specified collection

point for recycling of such hazardous waste. Isolated

collection and proper recovery of your electronic and

electrical waste equipment at the time of disposal will allow

us to help conserving natural resources. Moreover, proper

recycling of the electronic and electrical waste equipment

will ensure safety of human health and environment. For

more information about electronic and electrical waste

equipment disposal, recovery, and collection points, please

contact your local city center, household waste disposal

service, shop from where you purchased the equipment, or

manufacturer of the equipment.

RoHS Compliance

This product is in compliance with Directive 2002/95/EC of the

European Parliament and of the Council of 27 January 2003, on the

restriction of the use of certain hazardous substances in electrical and

electronic equipment (RoHS) and its amendments.

222 Appendix

A.3 Additional Safety Information

This section provides more safety information in addition to the

information at the beginning of the user manual.

When Driving

Do Not Use The PC Functions Of Your Pocket PC While Driving Or

Walking

Never use the personal computer functions of your device while

driving an automobile or any other moving vehicle. Always pull out

of traffic and come to a stop in a legally permissible and safe location

before using your device. Failure to do so could result in serious bodily

injury in a traffic accident.

When driving:

Always secure your device in its leather pouch.

Never place your device on the passenger seat or anyplace else

in the car where it can become a projectile during a collision or

stop.

An air bag inflates with great force. DO NOT place objects,

including either installed or portable wireless equipment, in the

area over the air bag or in the air bag deployment area. If in-

vehicle wireless equipment is improperly installed and the air bag

inflates, serious injury could result.

Never store or transport flammable liquids, gases or explosive

materials in the same compartment of your automobile as the device

or any of its accessories, as possible sparking in the device could

cause ignition or explosion.

Never use your device while walking. Usage while walking could result

in bodily injury caused by inattention to automobile traffic or other

pedestrian hazards.

•

Appendix 223

Using The Phone Function Of Your Pocket PC While Driving Is

Extremely Dangerous

Talking on or using your device while driving is extremely dangerous

and is illegal in some states. Remember, safety comes first. Check the

laws and regulations on the use of phones in the areas where you

drive. Always obey them.

If you must use the phone function while driving, please:

Give full attention to driving. Driving safely is your first

responsibility.

Use hands-free operation and/or one-touch, speed dialing, and

auto answer modes.

Pull off the road and park before making or answering a call.

WARNING! Failure to follow these instructions could lead to serious personal

injury and possible property damage.

When Using Your Device Near Other Electronic Devices

Your wireless handheld portable device is a low power radio

transmitter and receiver. When it is ON, it receives and also sends out

radio frequency (RF) signals.

Most modern electronic equipment is shielded from RF energy.

However, certain electronic equipment may not be shielded against

the RF signals from your wireless device; therefore, use of your device

must be restricted in certain situations.

In addition, the computer portion of your device produces low levels

of RF energy due to the generation of digital timing pulses by its

clock oscillator circuits. Your device has been equipped with internal

shielding to minimize stray emissions of RF energy. However, use of

the computer functions of your device must be restricted in certain

situations.

•

224 Appendix

PACEMAKERS

The Health Industry Manufacturers Association recommends that

a minimum separation of six (6”) inches be maintained between

a handheld wireless phone and a pacemaker to avoid potential

interference with the pacemaker. These recommendations are

consistent with the independent research by and recommendations of

Wireless Technology Research.

Never come closer than six (6) inches to a person with a heart

pacemaker implant when using your device. Doing so could result in

interference with the function of the pacemaker.

Persons with pacemakers:

Should ALWAYS keep the phone more than six inches from their

pacemaker when the phone is turned ON.

Should not carry the phone in a breast pocket.

Should use the ear opposite the pacemaker to minimize the

potential for interference.

Note This is not necessary if the device is not held to the ear.

If you have any reason to suspect that interference is taking

place, turn the phone OFF immediately.

HEARING AIDS

Some digital wireless phones may interfere with some hearing aids. In

the event of such interference, you may want to consult your service

provider, or call the customer service line to discuss alternatives.

For more regulatory information about hearing devices, see “FCC

Hearing-Aid Compatibility (HAC) Regulations for Wireless Devices”.

•

Appendix 225

OTHER MEDICAL DEVICES

If you use any other personal medical device, consult the manufacturer

of your device to determine if it is adequately shielded from external

RF energy. Your physician may be able to assist you in obtaining this

information.

HOSPITALS AND HEALTH CARE FACILITIES

Turn your device OFF in health care facilities when any regulations

posted in these areas instruct you to do so. Hospitals or health care

facilities may be using equipment that could be sensitive to external

RF energy.

ELECTRONIC DEVICES IN VEHICLES

RF signals may affect improperly installed or inadequately shielded

electronic systems in motor vehicles. Check with the manufacturer or

its representative regarding your vehicle. You should also consult the

manufacturer of any equipment that has been added to your vehicle.

POSTED FACILITIES

Turn your device OFF where posted notices so require.

Turn Off Your Device Before Flying

AIRCRAFT

FCC regulations prohibit using the transmitting and phone functions

of your device while in the air. In addition, most airline regulations

prohibit the on-board use of portable PCs (and all other portable

electronic devices that could potentially emit stray RF energy),

particularly during take-offs and landings, to prevent any possible

interference with the reception of signals by airborne electronic

navigational devices.

Turn your device OFF before boarding an aircraft. Always request

and obtain prior consent and approval of an authorized airline

226 Appendix

representative before using your device aboard an aircraft. Always

follow the instructions of the airline representative whenever using

your device aboard an aircraft, to prevent any possible interference

with airborne electronic equipment.

Turn Off Your Device in Dangerous Areas

BLASTING AREAS

To avoid interfering with blasting operations, turn your device OFF

when in a “blasting area” or in areas posted “Turn off two-way radio”.

Obey all signs and instructions.

POTENTIALLY EXPLOSIVE ATMOSPHERES

Turn your device OFF when in any area with a potentially explosive

atmosphere and obey all signs and instructions. Sparks in such areas

could cause an explosion or fire resulting in bodily injury or even

death.

Areas with a potentially explosive atmosphere are often, but not

always, clearly marked. They include fueling areas such as gas stations;

below deck on boats; fuel or chemical transfer or storage facilities;

vehicles using liquefied petroleum gas (such as propane or butane);

areas where the air contains chemicals or articles, such as grain, dust,

or metal powders; and any other area where you would normally be

advised to turn off your vehicle’s engine.

General Safety

Your pocket PC is a high quality piece of equipment. Before operating,

read all instructions and cautionary markings on the product, battery

and adapter/charger.

Failure to follow the directions below could result in serious bodily

injury and/or property damage due to battery liquid leakage, fire or

rupture.

Appendix 227

DO NOT use or store this equipment in a place where it will be

exposed to high temperatures, such as near an open flame or heat-

emitting equipment.

DO NOT drop your device or subject it to severe shock. When not

using, lay down the unit to avoid possible damage due to instability.

DO NOT expose this equipment to rain or spilled beverages.

DO NOT use unauthorized accessories.

DO NOT disassemble the device or its accessories. If service or repair

is required, return unit to an authorized cellular service center. If the

unit is disassembled, the risk of electric shock or fire may result.

Never allow metallic objects, such as staples and paper clips, to get

into the inside of your device.

Never touch the liquid that might leak from a broken liquid crystal

display. Contact with this liquid could cause a skin rash. If the crystal

display liquid should come into contact with the skin or clothing, wash

it immediately with clean water.

In the event that the device emits an unusual odor or sound or

generates smoke, immediately disconnect the AC adapter from the

power outlet, then detach the battery.

Antenna Safety

Use only the supplied or an approved replacement antenna.

Unauthorized antennas, modifications, or attachments could impair

call quality, damage your device, or result in violation of FCC

regulations. Please contact your local dealer for replacement antenna.

Do not use the device with a damaged antenna. If a damaged antenna

comes into contact with the skin, a minor burn may result. Please

contact your local dealer for replacement antenna.

228 Appendix

Battery Safety

Your device uses a removable and rechargeable lithium ion battery.

Please contact customer service for assistance should you need a

replacement battery.

DOs

Only use the battery and charger approved by the manufacturer.

Only use the battery for its original purpose.

Try to keep batteries in a temperature between 41°F (5°C) and

95°F (35°C).

If the battery is stored in temperatures above or below the

recommended range, give it time to warm up or cool down

before using.

Completely drain the battery before recharging. It may take one

to four days to completely drain.

Store the discharged battery in a cool, dark, and dry place.

Purchase a new battery when its operating time gradually

decreases after fully charging.

Properly dispose of the battery according to local regulations.

DON’Ts

Don’t attempt to disassemble the battery – it is a sealed unit with

no serviceable parts.

Don’t expose the battery terminals to any other metal object

(e.g., by carrying it in your pocket or purse with other metallic

objects such as coins, clips and pens). This can short circuit and

critically damage the battery.

Don’t leave the battery in hot or cold temps. Otherwise, it could

significantly reduce the capacity and lifetime of the battery.

Don’t dispose of the battery into a fire.

•

Appendix 229

Lithium ion batteries are recyclable. When you replace the removable

battery, please request the repair center to recycle the battery in

accordance with RBRC standards. When disposing of the battery by

yourself, please call RBRC at (800) 822-8837 for proper disposal tips.

Never touch any fluid that might leak from the built-in battery. Such

liquid when in contact with the eyes or skin, could cause injury to the

skin or eyes. Should the liquid come into contact with the eyes, irrigate

the eyes thoroughly with clean water and immediately seek medical

attention. In the event the liquid comes into contact with the skin or

clothing, wash it away immediately with clean water.

Adapter/Charger

Use the Correct External Power Source

A product should be operated only from the type of power source

indicated on the electrical ratings label. If you are not sure of the type

of power source required, consult your authorized service provider or

local power company. For a product that operates from battery power

or other sources, refer to the operating instructions that are included

with the product.

The AC Adapter/Charger designed for this unit requires the use of a

standard 120 V AC power source for device operation.

Never attempt to disassemble or repair an AC adapter/charger. Never

use an AC adapter/charger if it has a damaged or worn power cord

or plug. Always contact an authorized service center, if repair or

replacement is required.

Never alter the AC cord or plug on an AC adapter/charger. If the plug

will not fit into the available outlet, have a proper outlet installed by a

qualified electrician.

Never allow any liquids or water to spill on an AC adapter/charger

when it is connected to an AC power source.

230 Appendix

Always use the authorized AC adapter/charger to avoid any risk of

bodily injury or damage to your cellular phone or battery.

Never attempt to connect or disconnect the AC adapter/charger

with wet hands. Always unplug the AC adapter/charger from the

power source before attempting any cleaning. Always use a soft

cloth dampened with water to clean the equipment, after it has been

unplugged.

Handling the cord on this product or cords associated with

accessories sold with this product, will expose you to lead, a chemical

known to the State of California to cause birth defects or other

reproductive harm. Wash hands after handling.

Always disconnect the travel charger or desktop charger from the

power source when it is not in use.

Appendix 231

Index

Add an Exchange ActiveSync

account 99

Airplane Mode 66

Alarm clock 183

Albums 127

- opening 127

- widget 135

- working with pictures 128

- working with videos 133

Android Market 169

- ﬁnding applications 170

- getting help 170

- installing an application 171

- managing applications 173

- uninstalling an application 174

Android widget 43

Applications

- on your phone 50

- tab 50

Back cover

- remove 29

Backlight

- adjust brightness 204

Basic settings 204

Battery 29

- charge battery 32

- install 30

- remove 31

Bluetooth

- about 116

- modes 116

Bookmarks 115

- a web page 115

- edit 115

- open 115

Browser 109

- browsing classic views (not mobile

version) 110

- changing the screen

orientation 110

- ﬁnding text 112

- going to a web page 109

- links 113

- navigating 110

- opening 109

- opening a new browser window 111

- settings 116

- setting your home page 109

- switching windows 112

- zooming in or out 110

Index 233

Calendar 176

- create events 176

- Exchange ActiveSync 180

- open 176

- Outlook Calendar 180

- widget 181

Calendar views 178

Call History 63

- clear 64

Calling using the phone dialer 55

Call settings

- adjust the call settings 65

Camcorder 121

Camera 121

- changing capture modes 123

- menu panel 125

- Review screen 125

- shoot videos 124

Chat

- close 153

- sign out 156

- switch chats 152

Clock 181

- adding cities to the world clock

list 182

- setting home city date and

time 183

- widget 184

Compact QWERTY 84

Conference call 61

Connect phone to Internet

- ways of connecting 106

Contact details 79

Contacts 70

- add new 68, 72

- edit 72

- search 72

Creating another email account 100

Data Connection 106

Data roaming 207

Date 182

Disconnecting a Bluetooth hands-free

headset or car kit 119

Display settings 204

Editing email account settings 104

- create and send 143

- open 145

- receive and read 145

- search 146

Emergency call 58

Events

- create 176

Extended Home screens 42

External email accounts

- add 99

- compose and send emails 101

- delete a message 104

- sort 103

234 Index

Facebook and Flickr 69, 76

Favorite contacts 73

Folders 43

Footprints 189

- backing up 191

- creating 189

- deleting 190

- editing 190

- Revisiting 190

- widget 191

Friends list 153

- pin 154

Getting around your phone 35

Gmail 142

- create and send emails 143

- open 142

Google Maps 156

- ﬁnd your location 157

- location source 156

- navigate 158

- open 157

- search 157, 158

- view 158

- zoom in or out 158

Google password 141

Google Talk 150

- add a friend 151

- change the settings 155

- change your status 151

- friends list 153

- sign in automatically 155

- sign out 156

- view and accept invitations 151

GPS satellites 156

Groups 74

Home page 109

Home screen 41

- customize 42

- extended Home screens 42

HTC Sync 184, 185

- installing Android applications 188

- installing HTC Sync 185

- setting up 185

- synchronizing Outlook contacts

and calendar events 187

HTC widget 43

Inside the box 28

Internet 106

Landscape onscreen keyboard 82

Language settings 207

Location Setting 51

Location source 156

Index 235

Mail 99

- deleting an account 105

- widget 105

Making Calls 55

Map mode 158

- Map mode 159

- Satellite mode 159

- Street View 160

- Trac mode 159

Memory 210, 212

Memory card

- install 31

- remove 32

- remove while the phone is on 54

Message draft 94

Messages 89

- open 89

- widget 98

Message signature 144

Message threads 95

- delete 97

- open 95

Microsoft Exchange ActiveSync 99

- Calendar 180

- Synchronizing 100

Missed call 64

MMS settings 98

Mobile indicators 154

Music

- creating playlists 138

- Library 137

- managing your playlists 139

- opening 136

- playing 136

- setting a song as ringtone 140

- widget 140

Mute the microphone 62

My contact card 70

Notification LED 49

Notification ring tone 206

Notifications Panel 48

Onscreen keyboard 82

- Compact QWERTY 84

- Phone keypad 85

- QWERTY 83

PDF Viewer 191

Peep 193

- opening 193

- searching for Twitter users to

follow 195

- sending a direct message 194

- sending a tweet 194

- widget 195

People 67

- contact details 79

- contacts 70

- Facebook and Flickr 69, 76

- favorite contacts 73

- groups 74

236 Index

- My contact card 70

- People widget 67

Phone controls 33

Phone keypad 85

Phone services 206

Phone views

- back panel 27

- bottom panel 28

- front panel 26

- left panel 27

Picture message 89

- reply 96

- settings 98

- view 95

Proximity Sensor 49

Quickoffice 196

QWERTY 83

Regulatory notices 213

Ringer settings 205

Ring tone 140

- change 205

Roaming 207

Safety information 7

Screen lock 208

Screen unlock pattern 208

Search contacts 72

Sending a meeting request 105

Settings 51

Shortcut 42

SMS settings 97

Social network account settings 207

Speakerphone 62

Specifications 212

Status icons 46

Stocks 198

Stopwatch 184

Synchronizing Google Apps 174

Take pictures 123

Text message 89

- create and send 90

- reply 96

- settings 97

Time 182

Timer 184

Time zone 182

Touch Input Settings 87

Touch tones 206

Trackball 37

Turn off the display 39

Turn phone function on and off 66

Turn power on and off 37

USB drive 54

Index 237

Videos 167

Viewing and replying to emails 102

Voice call

- answer call 59

- end call 62

Voice Dialer 57

Voice Recorder 202

Voice search 35

Volume

- adjust 52

- media volume 53

- ringer volume 52

Wallpaper 45

Weather 199

Web applications 114

Wi-Fi 106

YouTube

- about 167

- open 167

- search videos 168

- share videos 169

- watch videos 167

238 Index

HTC PB31200 Smartphone User Manual Manual Part 2

HTC Corporation Smartphone Manual Part 2

Contents

Manual Part 2

Navigation menu

Namespaces

Views

Navigation
