Chapter 4
Entering Text
Selecting an Input Method4.1
When you start a program or select a field that requires text or numbers, the Input
Panel icon becomes available on the menu bar.
Tap the Input Selector arrow (that appears next to the Input Panel icon) to open a
menu where you can select a text input method and customize input options. After
selecting a text input method, the corresponding Input Panel is displayed, which
you can use to enter text.
Tip Select Other Input Methods to display more input methods.
To show or hide the Input Panel, tap the Input Panel icon.
Input Panel
(Full QWERTY)
Input Selector
arrow
Input Panel icon
Text input methods
Key when
pressed
78 Entering Text
Icon Input method Icon Input method Icon Input method
Full QWERTY Letter Recognizer or
Block Recognizer Phone Keypad
Compact QWERTY Transcriber Keyboard
Note Some text input methods may not be available in certain language versions of the
device.
Entering Text 79
Using the 4.2 Full QWERTY
The Full QWERTY is a full on-screen QWERTY keyboard layout similar to a desktop
PC keyboard.
Tip You can also use the Windows Mobile on-screen keyboard which also has a QWERTY
keyboard layout by selecting Keyboard (or Other Input Methods > Keyboard) on
the Text input method menu.
•Taptoenterletters
or symbols.
•Tapandhold
to enter a
punctuation mark,
symbol, or number
that appears on
top of a key.
•Taptoenteran
uppercase letter.
•Taptwicetoturn
on Caps Lock.
Tap to toggle between using Normal
or T9 mode.
Tap to open a keyboard layout
that lets you easily enter numbers
and symbols. See “Using Numeric
and Symbol Mode” for details.
Tap to create a
new line.
Tap to delete the
previous character.
Displays the word
candidate list in T9
mode. Tap a word
to insert it into your
text. Tap to add
a word to the T9
dictionary.
To enter text using the Full QWERTY
1. Start a program that accepts text input, such as Word Mobile.
2. Tap the Input Selector arrow, then tap Full QWERTY.
3. Start tapping keys on the keyboard as you would on a PC keyboard to enter
your text. To learn how to enter text using T9 mode, see “Using Multitap and
T9 Modes” in this chapter.
80 Entering Text
Using the 4.3 Compact QWERTY
The Compact QWERTY is a type of on-screen keyboard which features 20 keys.
With its large, touch-friendly keys and enhanced features such as T9 predictive
input, you can enter text faster and more accurately.
•Taptoenterletters
or symbols.
•Tapandhold
to enter a
punctuation mark,
symbol, or number
that appears on
top of a key
•Taptoenteran
uppercase letter.
•Taptwicetoturn
on Caps Lock.
Tap to toggle between using
Multitap or T9 mode.
Tap to create a
new line.
Tap to delete the
previous character.
Displays the word
candidate list in T9
mode. Tap a word
to insert it into your
text. Tap to add
a word to the T9
dictionary.
Tap to open a keyboard layout
that lets you easily enter numbers
and symbols. See “Using Numeric
and Symbol Mode” for details.
Tip You can tap and hold to immediately open the numeric keyboard.
To enter text using the Compact QWERTY
1. Start a program that accepts text input, such as Word Mobile.
2. Tap the Input Selector arrow, then tap Compact QWERTY.
3. Start tapping keys on the keyboard to enter your text. To learn how to enter
text using Multitap or T9 mode, see “Using Multitap and T9 Modes” in this
chapter.
Entering Text 81
Using the 4.4 Phone Keypad
The Phone Keypad is a 12-key on-screen keypad that has a layout similar to mobile
phone keypads, plus some additional keys. The Phone Keypad has large keys and
enhanced input features such as T9 predictive input, which makes it faster for you
to enter text in your messages and documents.
Tap to open a keyboard layout that lets
you easily enter numbers and symbols.
See “Using Numeric and Symbol Mode”
for details.
•Taptoenterletters
or symbols.
•Tapandhold
to enter a
punctuation mark,
symbol, or number
that appears on
top of a key
•Taptoenteran
uppercase letter.
•Taptwicetoturn
on Caps Lock.
Tap to toggle between using Multitap
or T9 mode.
Tap to create a new line.
Tap to delete the previous
character.
Displays the word
candidate list in T9 mode.
Tap a word to insert it
into your text. Tap
to add a word to the T9
dictionary.
Tap to open the input
settings.
Tip You can tap and hold to immediately open the numeric keyboard.
To enter text using the Phone Keypad
1. Start a program that accepts text input, such as Word Mobile.
2. Tap the Input Selector arrow, then tap Phone Keypad.
3. Start tapping keys on the keyboard to enter your text. To learn how to enter
text using Multitap or T9 mode, see “Using Multitap and T9 Modes” in this
chapter.
82 Entering Text
Using 4.5 Multitap and T9 Modes
When using the on-screen keyboards, you can choose to enter text using Multitap
or T9 mode.
Multitap mode
In Multitap mode (for Compact QWERTY and Phone Keypad), enter a character by
tapping a key until the desired character is displayed on the screen.
• To enter the first letter that shows on a key, tap the key once. To enter the
second letter, tap twice.
• To enter a punctuation mark, symbol, or number that appears on top of a key,
tap and hold the key.
T9 mode
T9 is a predictive text input mode which displays a word candidate list as you enter
the first few characters so you just select the word that you want.
To enter text using T9 mode
1. Start entering the first few letters of a word. As you enter each letter,
predicted words will appear above the keyboard.
2. Tap the desired word to immediately insert it to your text.
Note Navigate through the word candidate list if there are more words to choose from.
To add a word to the T9 dictionary
If the word that you have entered is not found in the dictionary, you can add it to
the dictionary.
1. While in T9 mode, type a letter and then tap on right side of the word
candidate list.
2. Type the word you want to add and then tap .
Entering Text 83
Tap to not add the word.
To customize Touch Input settings
1. Tap the Input Selector arrow, then tap Touch Input Settings.
2. On the Touch Input Settings screen, select or clear the following options
according to your preferences:
• Spell Correction. Lets you correct typographical errors by selecting from
a list of possible words that reflect the characters of the keys you have
tapped as well as characters of nearby keys.
• Word Completion in T9 mode. Lets you select from a list of possible
words based on the keys that you have tapped and on the words available
in the dictionary.
• Word Completion in ABC mode. Lets you select from a list of possible
combinations based on the characters that appear on the keys that you
tapped.
• Auto-Substitution. Automatically inserts an apostrophe when you type
common contracted words (for example, “dont” automatically becomes
“don’t”).
3. Tap Done.
84 Entering Text
Using 4.6 Numeric and Symbol Mode
Switch to Numeric and Symbol mode to let you easily enter numbers and common
symbols such as parentheses, braces, currency signs, punctuation marks, special
characters, and more. Numeric and Symbol mode is available when using the Full
QWERTY, Compact QWERTY, and Phone Keypad.
Tap a number or symbol
to insert it into your text.
Tap to go to the previous
or next page of symbols.
Tap to switch back to the
letter keyboard layout.
Tap to switch to the
numeric keyboard.
See “To lock the keyboard in
Numeric and Symbol mode.”
Compact QWERTY and
Phone Keypad
Full QWERTY
To switch to Numeric and Symbol mode
1. While using Full QWERTY, Compact QWERTY, or Phone Keypad, tap / .
2. Locate the number or symbol, then tap it to insert it into your text.
To lock the keyboard in Numeric and Symbol mode
You can lock the keyboard in Numeric and Symbol mode so you can continuously
enter symbols and numbers.
1. Tap the Input Selector arrow and then tap Other Input Methods > Options.
2. In the Input Method tab, select a Touch input method in the Input method
list, then tap Options.
3. Clear the Turn on one-touch symbol entry check box.
Entering Text 85
Tip In Compact QWERTY and Phone Keypad, tap / to toggle between locking
the keyboard in Numeric and Symbol mode and switching back to the letter keyboard
layout after tapping a symbol or number.
86 Entering Text
Chapter 5
Synchronizing Information
About Synchronization5.1
You can take information from your computer wherever you go by synchronizing
it to your device. The following types of information can be synchronized between
your computer and your device:
• Microsoft® Office Outlook® information — Office Outlook e-mail, contacts,
calendar, tasks, and notes
• Notes created using Microsoft® Office OneNote® 2007
• Media — Pictures, music, and video
• Favorites — Website addresses you save as Favorites in Pocket Internet
Explorer on your device or in the Mobile Favorites folder of Internet Explorer
on your computer.
• Files — Documents and other files
Tips • You can also synchronize Outlook e-mail, contacts, calendar, and tasks on your
device with the Exchange Server at your work. For more information about setting
up your device to synchronize with the Exchange Server, see Chapter 7.
• Try to synchronize regularly in order to keep information up-to-date on both your
device and your computer.
Before you can synchronize, you need to install and set up first the synchronization
software on your computer. For more information, see “Setting Up Windows Mobile
Device Center on Windows Vista®” and “Setting Up ActiveSync® on Windows® XP” in
this chapter.
88 Synchronizing Information
After installing the synchronization software on your computer, connect the
device to your computer using the USB sync cable. When the Connect to PC screen
appears on your device, touch ActiveSync, and then touch Done.
You can also synchronize information with your computer using Bluetooth. See
“Synchronizing via Bluetooth” later in this chapter.
Notes • ActiveSyncorWindowsMobileDeviceCenteronlysynchronizesdataonyour
computer and device. If you have installed a storage card and you want to back up
files from the storage card, use Windows Explorer on your computer to copy files
from the storage card to your computer.
• If you are sending your device for repair or performing a hard reset, data from your
device will be lost. It is recommended that you sync your device to your computer
to back up your files. To back up files from the storage card to your computer, use
Windows Explorer to copy files from the storage card to the computer.
Setting Up 5.2 Windows Mobile® Device Center on
Windows Vista®
Microsoft Windows Mobile® Device Center is the replacement for Microsoft®
ActiveSync® on Windows Vista®. Some versions of Windows Vista® come with
Windows Mobile Device Center already installed. If Windows Mobile Device Center
is not available on your Windows Vista®, you can install it from the Getting Started
Disc that came with your device.
Setting up synchronization in Windows Mobile Device Center
When you connect your device to your computer and start Windows Mobile Device
Center for the first time, you are asked to create a Windows Mobile partnership with
your device. To create a partnership:
1. Connect your device to your computer. Windows Mobile Device Center
configures itself, then opens.
Synchronizing Information 89
2. On the license agreement screen, click Accept.
3. On the Windows Mobile Device Center’s Home screen, click Set up your device.
Note Choose Connect without setting up your device if you only want to transfer
media files, check for updates, and explore your device but not synchronize
Outlook information.
4. Select the items you want to synchronize, then click Next.
5. Enter a device name, then click Set Up.
When you finish the setup wizard, Windows Mobile Device Center synchronizes
your device automatically. Notice that Outlook e-mail messages and other
information appear on your device after synchronization.
90 Synchronizing Information
Using Windows Mobile Device Center
To open Windows Mobile Device Center, click Start > All Programs >
Windows Mobile Device Center on your Windows Vista computer.
On Windows Mobile Device Center, you can do the following:
• Click Mobile Device Settings to change synchronization settings.
• When you click Pictures, Music and Video > XX new pictures/video clips
are available for import, a wizard guides you to tag and transfer photos
from your device to the Photo Gallery on your computer.
• Click Pictures, Music and Video > Add media to your device from
Windows Media Player to synchronize music and video files using Windows
Media® Player. For more information, see “Using Windows Media® Player
Mobile” in Chapter 11.
• Click File Management > Browse the contents of your device to view
documents and files on your device.
Note See Windows Mobile Device Center Help for more information.
Synchronizing Information 91
5.3 Setting Up ActiveSync® on Windows® XP
On a Windows® XP computer, you need to use Microsoft ActiveSync® 4.5 or later. If
you do not have this software on your computer, you can install it from the Getting
Started Disc that came with your device.
Setting up synchronization in ActiveSync
1. Connect your device to your computer. The Synchronization Setup Wizard
automatically starts and guides you to create a synchronization partnership.
Click Next to proceed.
2. To synchronize your device with your computer, clear the Synchronize
directly with a server running Microsoft Exchange check box, then click
Next.
3. Select the information types that you want to synchronize, then click Next.
4. Select or clear the Allow wireless data connections check box according to
your preference.
5. Click Finish.
When you finish the wizard, ActiveSync synchronizes your device automatically.
Notice that Outlook e-mail messages and other information appear on your device
after synchronization.
92 Synchronizing Information
5.4 Synchronizing With Your Computer
Connect and synchronize your device with your computer using the USB cable or
Bluetooth connection.
Starting and stopping synchronization
You can manually synchronize either from your device or computer.
From your device
• Tap Start > Settings, and then touch Sync Data; or
• Tap Start > ActiveSync, and then tap Sync.
To end synchronization before it completes, tap Stop.
Tip To delete a partnership with one computer completely, disconnect your device
from that computer first. In ActiveSync on your device, tap Menu > Options, tap the
computer name, then tap Delete.
From Windows Mobile Device Center
1. Click Start > All Programs > Windows Mobile Device Center.
2. Click at the lower left of the Windows Mobile Device Center.
To end synchronization before it completes, click .
From ActiveSync on your computer
When you connect your device to your computer, ActiveSync automatically opens
on your computer and synchronizes.
• To manually start synchronization, click .
• To end synchronization before it completes, click .
Synchronizing Information 93
Selecting information to synchronize
You can select the information types and the amount of information to synchronize
for each type either on your device or your computer. Follow the steps below to
change synchronization settings on your device.
Note Before changing synchronization settings on your device, disconnect it from your
computer.
1. In ActiveSync on your device, tap Menu > Options.
2. Select the check box for any items you want to synchronize. If you cannot
select a check box, you might have to clear the check box for the same
information type elsewhere in the list.
3. To change synchronization settings for an information type, for instance,
E-mail, select it and tap Settings.
You can then set the download size limit, specify the time period of
information to download, and more.
Notes • Some information types such as Favorites, Files and Media cannot be selected in
ActiveSync Options on your device. You can only select or clear these items from
your computer’s Windows Mobile Device Center or ActiveSync.
• A computer can have sync partnerships with many different Windows Mobile
powered devices, but a device can have sync partnerships with at most two
computers. To ensure that your device synchronizes properly with both computers,
set up the second computer using the same synchronization settings you used on
the first computer.
• Outlook e-mail can be synchronized with only one computer.
94 Synchronizing Information
Troubleshooting sync connection problem
In some cases, when the computer connects to the Internet or a local network, it
may disconnect the connection with your device in favor of the Internet or network
connection.
If this happens, tap Start > Settings, and then tap All Settings. Tap Connections
tab > USB to PC, then clear the Enable faster data synchronization check box.
This makes your computer utilize a serial USB connection with your device.
Synchronizing via Bluetooth5.5
You can connect and synchronize your device with the computer using Bluetooth.
Note To connect and synchronize your device with a computer via Bluetooth, your
computer must have a built-in Bluetooth or installed with a Bluetooth adapter or
dongle.
To synchronize with a computer via Bluetooth
1. Set up Windows Mobile Device Center or ActiveSync on your computer to
synchronize through Bluetooth. See the program’s Help for instructions.
2. Make sure that Bluetooth on both your device and the computer are turned
on and set to visible mode. See “Bluetooth Modes” in Chapter 9 for details.
If this is the first time you have connected to this computer via Bluetooth,
you must first set up a Bluetooth partnership between your device and the
computer. For more information about creating a Bluetooth partnership, see
“Bluetooth Partnerships” in Chapter 9.
3. On your device, tap Start > ActiveSync.
4. Tap Menu > Connect via Bluetooth.
Note To conserve battery power, turn off Bluetooth when not in use.
Synchronizing Information 95
5.6 Synchronizing Music and Video
If you want to carry your music or other digital media along with you while you
travel, set up Windows Media® Player on your computer to synchronize music and
video with your device.
Other than selecting the Media information type to be synchronized, all media
synchronization settings must be set in Windows Media® Player. Before media can
be synchronized, you must do the following:
• Install Windows Media® Player Version 11 on your computer. (Windows
Media® Player 11 works only in Windows XP or later versions).
• Connect your device to the computer with a USB cable. If your device is
currently connected using Bluetooth, you must end that connection before
media can be synchronized.
• Set up a sync partnership between your device and your computer’s Windows
Media® Player.
See “Using Windows Media® Player Mobile” in Chapter 11 for details.
96 Synchronizing Information
Chapter 6
Exchanging Messages
6.1 Messaging
Messaging is a central location where you can find all types of messaging accounts,
which include text messages (SMS) and e-mail accounts.
To select a messaging account
Do one of the following:
• Tap Start > All Programs > Messaging. The
Account Picker screen then opens and you can
select an account.
• While you are in a message list of a certain
account, for example SMS / MMS, tap
Menu > Go To to switch to other messaging
accounts.
To configure message account settings
• Tap Menu > Options on the Account Picker
screen; or
• Tap Menu > Tools > Options while you’re in a
message list.

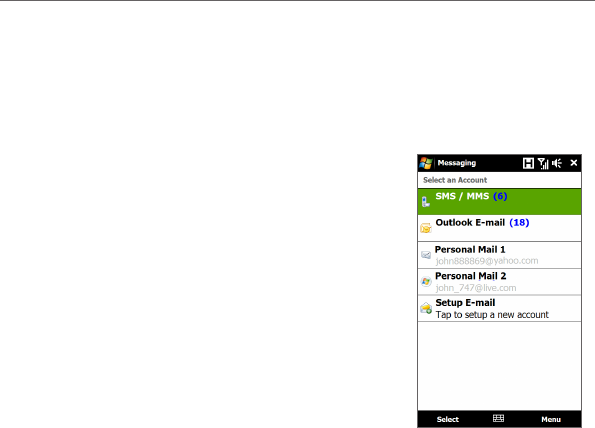

Account Picker screen
98 Exchanging Messages
To automatically add a signature in outgoing messages
You can automatically add your name and other information as your signature in
outgoing SMS and e-mail messages:
Note You need to specify your signature for each type of messaging account.
1. Tap Start > All Programs > Messaging, and then tap Menu > Options.
2. Tap Signatures.
3. Select the desired account.
4. Select the Use signature with this account check box.
5. In the text box, enter your signature.
6. To add the signature when you reply to or forward messages, select the
Use when replying and forwarding check box, and then tap OK.
To filter the Inbox message list
When the SMS/MMS or e-mail Inbox on your device
is full of messages, you can filter your Inbox to
display only the messages that contain a particular
sender or subject you are searching for.
To filter your Inbox
1. Tap Start > All Programs > Messaging and
then tap a messaging account.
2. Enter the sender name or e-mail subject you
want to look for. As you type characters, the
message list narrows down to the sequence of
characters you have entered.
When filtering your e-mail Inbox, for example,
entering “B”, then “E” narrows the list to only
the e-mail messages that contain sender
names and e-mail subjects that start with “BE.”
Exchanging Messages 99
Text 6.2 Messages
Send short text messages (SMS) to other mobile phones. If your message is more
than 160 characters, it will be sent as two or more separate messages and you will
be billed accordingly.
Creating and sending a new text message
1. On the Home screen, slide to the Messages tab.
2. Touch the New Message icon ( ) on the upper right side of the screen.
3. To add recipients,
enter their mobile phone numbers in the To field, separating
the numbers with a semicolon (;). Y
ou can also tap To or tap Menu > Add
Recipient to add mobile phone numbers from Contacts.
4. Enter your message.
Tips • To choose from preset messages, tap Menu > My Text and tap a desired message.
• To check the spelling, tap Menu > Spell Check.
5. When finished, tap Send.
Note If you want to know when a text message is received, before sending the message
that you are composing, tap Menu > Message Options, then select the Request
message delivery notification check box. To always receive a delivery notification,
tap Menu > Tools > Options in the text message list, tap SMS / MMS, then select the
Request delivery notifications check box.
Managing text messages from a contact
You can easily read, reply or delete text messages that you received from a certain
contact by opening his or her contact details and accessing the Messages tab.
1. On the TouchFLO 3D Home screen, slide to the People tab.
2. Touch All People, and then touch the name of the desired contact.
3. The Contact Details screen then appears. Touch the Messages tab ( ).
100 Exchanging Messages
Enter your reply
message here and
then touch Send.
Lists the exchange
of text messages
between you and
the contact.
Touch Menu to forward
a text message, delete
messages, and more.
Managing text messages in the Inbox
Text messages that are sent to and received from a contact (or number) are
grouped as a single thread in your Inbox. Threaded SMS shows your messages to
and from a contact in a single conversation thread.
To open a thread and view the exchange of text messages
1. In the SMS / MMS Inbox, tap a message thread to open it.
Exchanging Messages 101
2. You can tap links in the messages to directly open contact details, access a
web site, send e-mail, or call the displayed number.
Enter your reply
message here.
•Tapthesendernameto
open the Contact Details
screen.
•Ifthesenderisnotinyour
contacts, tap the mobile
phone number to call
the number, reply to the
sender, or save it as a new
contact.
Tap a web address
to open the link in
Opera Mobile.
Tap these navigation
keys to select a message
in the thread.
To reply to a text message
At the bottom of the screen, type your reply message and then tap Send.
To copy a message in the thread to the SIM card
1. In the SMS / MMS Inbox, tap a message thread to open it.
2. Tap the up or down navigation key at the bottom of the on-screen keyboard
to select a message in the thread.
3. Tap Menu > Copy to SIM.
Notes • You cannot copy a sent message from the thread to the SIM card.
• Copying text messages from your device to the SIM card results in duplicate
messages in the Inbox when your SIM card is in use.
102 Exchanging Messages
To delete a message in the thread
1. In the SMS / MMS Inbox, tap a message thread to open it.
2. Tap the up or down navigation key at the bottom of the on-screen keyboard
to select a message in the thread.
3. Tap Menu > Delete.
To delete all messages in a thread
In the SMS / MMS Inbox, tap and hold a message thread, and then tap Delete.
Placing a call to the sender of a text message
While reading a text message, you can directly call the sender by pressing the TALK/
SEND button. See “Making a call from a text message” in Chapter 2 for details.
Exchanging Messages 103
6.3 MMS
Sending multimedia messages (MMS) to your friends and family is fun and easy.
You can include pictures, videos, and audio clips in a multimedia message.
Notes • Multimedia messaging is a charged service and has to be provisioned on your
mobile phone account. Contact your wireless service provider to have MMS
provisioned as part of your calling plan.
• Make sure the size of MMS messages that you send is within the limits allowed by
your wireless service provider.
Changing the MMS settings
Check your device to see if it is preconfigured with your wireless service provider’s
MMS settings. Add the MMS settings of your wireless service provider if there are no
preset MMS settings found on your device.
To configure MMS message settings
1. Tap Start > All Programs > Messaging > SMS / MMS.
2. Tap Menu > MMS Options. The Settings screen then appears.
3. In the Preferences tab, choose from the available options according to your
needs.
4. Tap the Servers tab and check if your device is preset with MMS server
settings. If there are no preset settings, tap New and enter the MMS settings
which you obtained from your wireless service provider.
Note If your device already has preset MMS settings, it is recommended that you do
not change these settings. If you change the preset settings, your device may not
be able to send and receive MMS messages.
5. Tap Done.
Note If you add several MMS message service providers to the Settings screen, you can
choose one as your default provider. Select the provider's name in the list, then tap
Set As Default.
104 Exchanging Messages
Creating and sending MMS messages
You can compose MMS messages in a combination of slides, where each slide can
consist of a photo, video or audio clip, and/or text.
To compose an MMS message
1. Tap Start > All Programs > Messaging > SMS / MMS.
2. Tap Menu > New > MMS.
3. When the Choose a MMS screen opens, tap a preset template, or tap Custom
to open a blank MMS message.
Note If you prefer to start composing from a blank MMS message every time, select
the Always choose custom check box.
4. In To, enter the recipient’s phone number or e-mail address directly, or tap To,
Cc, or Bcc to choose a phone number or an e-mail address from Contacts.
Note You may need to scroll up to see the Cc and Bcc fields.
5. Enter a subject for your message.
6. Tap the Insert icon ( )to insert a photo or video clip. When selecting a
photo or video clip, you can:
• Tap the photo or video clip to insert it into the MMS message.
• Tap to take a photo and insert it into the MMS message.
• Tap to record MMS video and insert it into the MMS message.
• Tap to quit selection and return to the MMS message.
7. Enter text and insert audio clips by tapping the respective areas. See “To add text
to an MMS message” and “To add an audio clip to an MMS message” for details.
8. To add more slides, tap or tap Menu > Slides > Insert Slide. Repeat steps
5 and 6 to add photos/videos, text, and audio to your slides.
9. Tap Send to send the MMS message.
Tip You can also send an MMS message from Pictures & Videos, Album, or the Camera
program.
Exchanging Messages 105
To add text to an MMS message
When you tap Insert text here on your MMS message, an empty screen appears
where you can enter your text. You can insert the following types of information:
Enter your own text
Choose from common words
or phrases from the My Text list
Include a Favorites link
Add an emoticon
Insert contact
information
Insert calendar
appointment
Tip To edit or delete a phrase on the My Text list, tap and hold a string, and then tap Edit
or Delete from the shortcut menu. To add a new phrase, tap New.
To add an audio clip to an MMS message
You can add one audio clip per slide in your MMS message.
1. Tap Insert audio on your MMS message.
By default, the My Documents is shown. Tap My Music or another folder that
contains audio files. When navigating folders, tap the down arrow ( ) to
return to the upper folder.
2. Select an audio file. When selected, you can:
• Tap to play the audio clip, to pause, or to stop playback.
• Tap Select to insert it to the MMS message.
106 Exchanging Messages
• Tap to quit selection and return to your MMS message.
Note To record a new audio clip and add it to your MMS message, tap . The Record pop-
up window then opens. Tap Record to start recording, and Stop to end the recording.
Tap Play to listen to the recorded audio clip, then tap Add. The new audio clip is then
inserted to the MMS message.
Viewing and replying to MMS messages
To view an MMS message
1. In the SMS / MMS Inbox, tap the MMS message.
2. In the threaded message, tap the MMS icon ( ), and then use the playback
controls , , and to view the MMS message.
3. Tap Contents to see a list of files included in the message. On the Message
Contents screen, you can do the following:
• To save a file, select it, and tap Menu > Save.
• To save the contents of a text file to the My Text list, tap
Menu > Save into My Text.
• To associate a photo to one of your contacts, tap
Menu > Assign to Contact.
To reply to an MMS message
1. In the SMS / MMS Inbox, select the mobile phone number or name of the
contact who sent you the MMS message.
2. In the threaded message, tap the MMS message to open and view an MMS
message.
3. After viewing the MMS message, tap Menu > Reply > via MMS to reply
with an MMS message or tap Menu > Reply > via SMS to reply with a text
message.
Exchanging Messages 107
To block a phone number from sending you MMS messages
If you do not want to receive MMS messages from a particular sender, you can add
the sender’s phone number to the MMS Blacklist.
1. When you receive a new MMS message, open and view the message.
2. To avoid receiving multimedia messages from this sender next time, tap
Menu > Show > Contact Details.
3. Tap Menu > Save to Blacklist.
4. Tap Done.
Tip To unblock a phone number and allow the sender to send you MMS messages,
remove the number from the Blacklist. Go to the SMS / MMS Inbox, tap Menu > MMS
Options > Blacklist tab, tap and hold the phone number in the Blacklist, and then
tap Delete.
E-mail6.4
You can set up the following types of e-mail accounts on your device:
• Outlook e-mail that you sync with your computer or the Exchange Server.
• E-mail account that you have from an Internet Service Provider (ISP) or other
e-mail provider.
• Web-based e-mail accounts such as Yahoo!® Mail Plus, AOL®, and others.
• Custom domain e-mail accounts. The e-mail domain name is hosted by a
different e-mail provider. For more information, search for “custom domain
e-mail” in the Help on your device.
• Work account that you access using a VPN connection.
108 Exchanging Messages
Synchronizing Outlook e-mail with your computer
If you have installed the synchronization software on your computer and created a
partnership with your device, then your device is ready to send and receive Outlook
e-mail.
If you have not yet installed the synchronization software nor created a partnership,
do so by following the procedures in Chapter 5.
Tip To set up your company e-mail account so that you can access Outlook e-mail
messages wirelessly, you must set up your device to synchronize via an over-the-
air connection with your company’s Exchange Server. For more information about
synchronizing with your company e-mail server, see Chapter 7.
Setting up an Internet e-mail account
Use Windows Mobile’s E-mail Setup Wizard to set up a POP3 or IMAP4 e-mail
account on your device if you have an e-mail account from an Internet service
provider (ISP) or other e-mail service provider, or a web-based account such as
Yahoo! Mail Plus or AOL. You can also add a work account that you access using a
VPN server connection as a POP3/IMAP4 account.

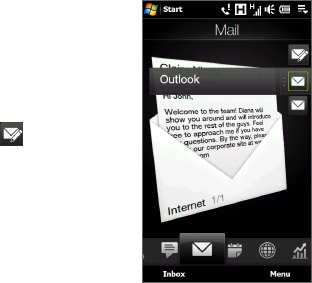

Note You can also set up an Internet e-mail account from the TouchFLO 3D Mail tab using
the simplified Mail Setup. See “Mail” in Chapter 3 for details.
1. Tap Start > All Programs > Messaging > Setup E-mail.
2. Enter your E-mail address and the Password for your e-mail account and
select the Save password option. Tap Next.
3. If e-mail provider settings are found preconfigured on your device, the E-mail
Setup wizard shows a successful message. Tap Next.
If the settings are not found on your device, select the Try to get e-mail
settings automatically from the Internet checkbox to find and download
e-mail server settings from the Internet and then tap Next.
Note You may be charged when your device connects to the Internet and downloads
the e-mail server settings.
Exchanging Messages 109
4. Enter Your name and the Account display name and then tap Next.
Note If the E-mail Setup wizard was unsuccessful in finding and downloading settings
from the Internet, select Internet e-mail from the Your e-mail provider list on
the next screen. You will be asked to enter e-mail server settings. See “To specify
e-mail server settings” for details.
5. In the Automatic Send/Receive list, choose how frequent you want e-mail
messages to be automatically sent and downloaded on your device.
Note Tap Review all download settings to select download options, set the e-mail
format as HTML or plain text, and more. For more information, see “To customize
download and format settings."
6. Tap Finish.
To specify e-mail server settings
If Auto Setup is unsuccessful, contact your ISP or e-mail provider for the Incoming
mail server and Outgoing mail server settings so you can enter them on your
device.
Other options that you can select include the following:
• Select the Outgoing server requires authentication check box, if required
by your provider.
• If the outgoing e-mail server requires a different user name and password
for sending e-mail, clear the Use the same user name and password for
sending e-mail check box. You will be prompted to enter this information.
• Tap Advanced Server Settings, then select the Require SSL check boxes if
your e-mail provider uses an SSL connection for more secured e-mail. From
the Network connection list, select the data connection that you use for
connecting to the Internet.
110 Exchanging Messages
To customize download and format settings
Before you tap Finish when setting up your POP3 or IMAP4 e-mail account, you can
tap the Review all download settings link at the bottom of the screen to choose
download options, message format, and other settings.
Options Description
Automatic Send/Receive Select a time interval for connecting to the Internet
automatically to send and receive messages.
Download messages Set the number of days of messages that you want to be
downloaded to your device.
Send/receive when I
click Send
By default, messages are immediately delivered when you
tap Send. If you prefer to save outgoing messages to the
Outbox folder first, clear the check box. (In this case, you will
need to manually send messages by tapping
Menu > Send/Receive).
Use automatic send/
receive schedule when
roaming
This allows your device to data roam when there is a set time
interval for connecting to the Internet automatically. Since
this may result in higher connection costs, you may want to
leave the check box cleared.
When deleting
messages
Choose whether to delete messages from the mail server
when you delete them on your device.
Message format Select HTML or Plain Text.
Message download limit Select the e-mail download size. If you have large volumes of
e-mail, use a lower size or select to download headers only.
Exchanging Messages 111
Creating and sending an e-mail message
After setting up e-mail accounts on your device, you can start sending and
receiving e-mail messages.
1. On the TouchFLO 3D Home screen, slide to the
Mail tab.
2. At the right side of the screen, tap an e-mail
account you want to use, or slide your finger
up or down until you have selected the desired
account.
3. Touch the New E-mail icon ( ).
4. To add recipients, enter their e-mail addresses,
separating them with a semicolon ( ; ). You can
also tap To if you want to add e-mail addresses
stored in Contacts.
5. Enter a subject and compose your message.
Tips • To choose from preset messages, tap Menu > My Text and tap a desired message.
• To check the spelling, tap Menu > Spell Check.
6. To add an attachment to your message, tap Menu > Insert and tap the item
you want to attach: Picture, Voice Note, or File. Select the file or picture you
want to attach, or record a voice note.
7. When finished composing the message, tap Send.
Tips • Formoreinformationaboutenteringtextandsymbols,seeChapter4.
• To set the message priority, tap Menu > Message Options.
• If you are working offline, e-mail messages are moved to the Outbox folder and
will be sent the next time you connect.
112 Exchanging Messages
Viewing and replying to e-mail messages
To view an e-mail message
1. On the TouchFLO 3D Home screen, slide to the Mail tab, select the e-mail
account, and then tap Inbox.
2. Tap an e-mail to open it.
To download a complete e-mail
By default, long e-mail messages that you receive contains only the first few
kilobytes of the message. When you open an e-mail, it displays only the headers
and part of the message. You must download the whole e-mail to view the
complete content.
To download a complete e-mail message, open the e-mail, and then do one of the
following:
• Finger-scroll to the end of the message, and tap Get entire message and
any attachments (POP3 e-mail account) or tap Get the rest of this message
(IMAP4 and Outlook e-mail accounts).
• Tap Menu > Download Message.
Notes • The Fetch Mail feature, which is available for POP3 and IMAP4 Internet e-mail
accounts, downloads an entire e-mail without the need for you to perform a full
synchronization. This limits the download to just the e-mail message that you want
and helps save data cost.
Fetch Mail is also available for Outlook E-mail. See “Instant download through
Fetch Mail” in Chapter 7 for details.
• Download may take some time, depending on the speed of your Internet
connection, size of the whole e-mail, and whether file attachments are
automatically downloaded.
Exchanging Messages 113
To download file attachments
POP3 e-mail account:•
File attachments are automatically downloaded when you download a
complete e-mail.
IMAP4 and Outlook e-mail accounts:•
File attachments appear below the subject of an e-mail message. Tapping an
attachment opens the attachment if it has been fully downloaded or marks it
for download the next time you send and receive e-mail.
You can set automatic download of file attachments. See “Customizing e-mail
settings” in this chapter for details.
To reply to or forward a message
1. On the TouchFLO 3D Home screen, slide to the Mail tab, select the e-mail
account, and then tap Inbox.
2. Open the message and tap Menu > Reply, Menu > Reply All, or
Menu > Forward.
3. Enter your reply message, and then tap Send.
Notes • You can receive and view HTML e-mail messages from any type of e-mail account.
The HTML format is retained, without layout shifting or resizing. HTML e-mail
support in Outlook Mobile is available only if you are synchronizing your device
with Microsoft Exchange Server 2007.
• When replying using an Outlook e-mail account, you can customize ActiveSync to
exclude addresses, including your own, from being added to the recipient list. Tap
Menu > Options in ActiveSync, select the E-mail item, tap Settings, and then tap
Advanced. In the My e-mail addresses text box, enter the e-mail addresses that
you want to exclude.
114 Exchanging Messages
Directly making calls from an e-mail
While reading an e-mail, you can directly place a call to the sender, start a
conference call, access contact details, and more.
•Tapthesenderphotoornameto
open the Contact Details screen.
•Ifthesenderisnotstoredinyour
contacts, tap the e-mail address
to send e-mail or save it as a new
contact.
Tap this Talk
button to call
the sender.
Tap links in the
message body
to access a
web site, send
e-mail, or call
the displayed
number.
•Taparecipientnameto
open his or her contact
details.
•Taparecipient’se-mail
address to send e-mail or
save it as a new contact.
Tap the To or Cc button or press TALK/SEND
to place a call or start a conference call.
See Chapter 2 for details.
Note If the sender’s name or e-mail address is shown on the e-mail message with a Search
button ( ) and you have an Exchange Server e-mail account set up on your device,
you can tap this button to search for the sender from the Company Directory. For
more information about finding contacts in the Company Directory, see Chapter 7.
Exchanging Messages 115
Synchronizing e-mail messages
Synchronizing e-mail messages ensures that new e-mail messages are downloaded
to the device Inbox folder, e-mail messages in the Outbox folder are sent, and
e-mail messages deleted from the server are removed from your device. The
manner in which you synchronize e-mail messages depends on the type of e-mail
account you have.
To automatically synchronize an Outlook e-mail account
1. Connect your device to your computer through USB or Bluetooth.
Otherwise, connect through Wi-Fi, or a data connection if you are
synchronizing Outlook e-mail with the Exchange Server. For more
information, see Chapter 7.
2. Synchronization automatically begins, and your device sends and receives
Outlook e-mail.
To manually synchronize your Outlook or Internet e-mail account
On the TouchFLO 3D Home screen, slide to the Mail tab, select the e-mail account,
and then tap Menu > Send/Receive.
Customizing e-mail settings
To change the download size and format for Outlook e-mail
1. Disconnect your device from the computer.
2. Tap Start > ActiveSync.
3. Tap Menu > Options, select E-mail, then tap Settings.
4. On the E-mail Sync Options screen:
• Under Message format, select HTML or Plain Text. HTML is only available
when connected to Microsoft Exchange Server 2007 or later.
• Under Download size limit, select the desired e-mail size.
5. Close ActiveSync and reconnect your device to the computer.
116 Exchanging Messages
To change the download size and format for Internet e-mail
1. Tap Menu > Options on the Account Picker screen, or tap Menu > Tools >
Options while you’re in a message list.
2. Tap your POP3 or IMAP4 Internet e-mail account.
3. Tap Download Size Settings.
4. Under Message format, select HTML or Plain Text.
5. Under Download size limit, select the desired e-mail size.
6. Tap Done.
To automatically receive attachments on Outlook e-mail messages
1. Tap Start > ActiveSync.
2. Tap Menu > Options.
3. Tap E-mail > Settings, and then select Include file attachments.
To automatically receive attachments on IMAP4 e-mail messages
1. Tap Menu > Options on the Account Picker screen, or tap Menu > Tools >
Options while you’re in a message list.
2. Tap the name of your IMAP4 e-mail account.
3. Tap Download Size Settings.
4. In Download attachments:
• Select All attachments to always download file attachments; or
• sSelect a file size limit for auto-downloading attachments.
5. Tap Done.
To store attachments on the storage card
1. Tap Start > All Programs > Messaging.
2. Tap Menu > Options > Storage tab.
3. Select the When available, use this storage card to store attachments
check box.
Chapter 7
Working With Company E-mail and
Meeting Appointments
Synchronizing7.1 with the Exchange Server
To keep up-to-date with your company e-mail messages and meeting schedules
while you’re out of the office, you can connect your device to the Internet through
Wi-Fi or a data connection and synchronize with your company’s Exchange Server.
Setting up an Exchange Server connection
Before you can synchronize or access information on the Exchange Server, you
need to set up an Exchange Server connection on your device. You need to get the
Exchange Server name (must be Outlook Web Access server name), domain name,
user name, and the password that you use at work from your network administrator
and enter them on your device.
Note You can set up an Outlook e-mail account that synchronizes with the Exchange Server
from the TouchFLO 3D Mail tab using Mail Setup. See “Mail” in Chapter 3 for details.
If you have not synchronized your device with your computer, follow these steps to
set up an Exchange Server connection.
1. Tap Start > All Programs > Messaging > Setup E-mail.
2. Enter the E-mail address and Password for the e-mail account and select the
Save password option. Tap Next.
118 Working With Company E-mail and Meeting Appointments
3. Clear the Try to get e-mail settings automatically from the Internet option
and tap Next.
4. In Your e-mail provider, select Exchange server and tap Next.
5. Tap Next again.
6. Select the Attempt to detect Exchange Server Settings automatically
option and tap Next.
7. Enter the Domain name and tap Next.
8. In Server address, enter the Exchange Server address and tap Next.
9. Select the items that you want to sync with the Exchange Server.
Tips • To change synchronization settings of an information item, for example, E-mail,
select the item, then tap Settings.
• To change the rules for resolving synchronization conflicts, tap Menu >
Advanced.
10. Tap Finish.
Notes • If you synchronized e-mail messages with your computer before, open ActiveSync
on your device, then tap Menu > Add Server Source to set up an Exchange Server
connection. When prompted to select information types for synchronization, you
must first clear the E-mail check box under the Windows PC item before you can
select E-mail under Exchange Server.
• To change Exchange Server settings, open ActiveSync on your device, and then tap
Menu > Configure Server.
Starting synchronization
Before you start synchronizing with the Exchange Server, make sure your device
has been set up with a Wi-Fi or data connection to the Internet so that you can
synchronize over the air. For more information about connections, see Chapter 8.
After you finish setting up an Exchange Server connection, your device
automatically starts synchronization.
Working With Company E-mail and Meeting Appointments 119
To manually start synchronization, tap Start > Settings, and then touch Sync Data.
Note If you connect your device to your office computer via a USB or Bluetooth connection,
you can use this connection to the computer to “pass through” to the network and
download Outlook e-mail messages and other information to your device.
Working With Company E-mail Messages7.2
Your device gives you instant access to your company e-mail messages and lets you
manage your messages easier. Direct Push, Fetch Mail, Remote e-mail search, and
e-mail flags are just some of the tools you can use to manage your e-mail messages.
Note Some messaging features depend on the Microsoft Exchange Server version used in
your company. Check with your network administrator for the availability of these
features.
Automatic synchronization through Direct Push
Direct Push technology (push e-mail feature) enables you to receive new e-mail
messages on your device as soon as they arrive in your Inbox on the Exchange Server.
Items such as contacts, calendar and tasks are also immediately updated onto your
device when these items have been changed or new entries have been added on
the Exchange Server. To make Direct Push work, you need to have a Wi-Fi or data
connection on your device.
You need to perform a full synchronization between your device and the Exchange
Server before Direct Push can be enabled.
Requirement The Direct Push feature works for your device only if your company is
using Microsoft Exchange Server 2003 Service Pack 2 (SP2) with Exchange
ActiveSync or later.
120 Working With Company E-mail and Meeting Appointments
To turn on Direct Push in Comm Manager
1. Tap Start > Settings, and then touch Communications.
Tip You can also tap Start > All Programs > Comm Manager.
2. On the Comm Manager screen, touch the OFF/ON slider at the right side of
the Microsoft Direct Push item.
To turn on Direct Push in ActiveSync
1. Tap Start > ActiveSync and then tap Menu > Schedule.
2. Select As items arrive in the Peak times and Off-peak times boxes.
Note When Direct Push is off, you need to manually retrieve your e-mail messages.
Scheduled synchronization
If you do not want to use Direct Push, you can set a regular schedule for
synchronizing Outlook e-mail and information.
1. In ActiveSync on your device, tap Menu > Schedule.
2. Select from the available options to set the synchronization schedule.
Tip You can select a shorter interval in the Peak times box and a longer interval in
the Off-peak times box, so that your e-mail messages are synchronized more
frequently when you are working. To set the days and hours that make up your
peak and off-peak times, tap the peak times link at the bottom of the screen.
Instant download through Fetch Mail
The Fetch Mail feature downloads an entire e-mail immediately without the need
for you to perform a full Send/Receive action. This limits the download to just the
e-mail message that you want and helps save data cost.
Requirement Fetch Mail works for your device only if your company is using Microsoft
Exchange Server 2007 or later.
1. Tap Start > All Programs > Messaging > Outlook E-mail.
2. Open an e-mail message.
Working With Company E-mail and Meeting Appointments 121
3. By default, only the first few words of the message are shown. To download
the whole e-mail, finger-scroll to the end of the message, then tap Get the
rest of this message.
4. Wait for the remainder of the message body to download.
Notes • For information about changing e-mail sync options such as setting the download
size for e-mail, see "Customizing e-mail settings" in Chapter 6.
 • When you receive an e-mail that contains a link to a document such as a PDF or
Microsoft Office document located on SharePoint or an internal file server, you
can tap the link to view the document on your device. You can view the document
only if you have a Microsoft Outlook account that synchronizes with Microsoft
Exchange Server 2007 or later. Exchange Server must also be set up to allow access
to SharePoint document libraries or internal file servers.
Searching for e-mail messages on the Exchange Server
You can access e-mail messages that are not available on your device by searching
your Microsoft Exchange Server mailbox. The search results are downloaded and
displayed in a Search Results folder.
Requirement Your company must be using Microsoft Exchange Server 2007 or later.
1. Tap Start > All Programs > Messaging > Outlook E-mail.
2. Tap Menu > Tools > Search Server.
3. In the Look for text box, enter the search keyword.
4. Choose the date range of messages to search from.
5. In the Look in list, specify whether to search in the Inbox, Sent Items, or
All Folders, and then tap Search.
Tip To clear the search results and return to the message list, tap Menu > Clear Results.
122 Working With Company E-mail and Meeting Appointments
Flagging your messages
Flags serve as a reminder for you to follow-up on important issues or requests
contained in e-mail messages. Flagging messages, which has been a useful feature
on desktop Outlook E-mail, can also be done in Outlook Mobile on your device. You
can flag received e-mail messages on your device.
Requirement Flags are enabled only if e-mail messages are synchronized with Microsoft
Exchange Server 2007 or later. Flags are disabled or hidden if e-mail
messages are synchronized with earlier versions of Microsoft Exchange
Server.
To flag or unflag a message
1. Tap Start > All Programs > Messaging > Outlook E-mail.
2. Open a message.
3. Tap Menu > Follow Up and select one of the following options:
• Set Flag Mark the message with a red flag to remind yourself to follow it up.
• Complete Flag Mark the message with a check mark to indicate that the
issue or request in the e-mail is already completed.
• Clear Flag Remove the flag to unmark the message.
Note E-mail message reminders are displayed on your device if the messages are flagged
with reminders and synchronized from the Exchange Server.
Working With Company E-mail and Meeting Appointments 123
Out-of-office auto-reply
Outlook Mobile allows you to retrieve and change your out-of-office status. Just like
desktop Outlook, Outlook Mobile automatically sends an auto-reply message when
you’re not available.
To send out-of-office auto-reply messages
1. Tap Start > All Programs > Messaging >
Outlook E-mail.
2. Tap Menu > Tools > Out of Office.
3. In the I am currently list, select Out of the
Office.
4. Enter your auto-reply message, and then tap
Done.
Managing 7.3 Meeting Requests
When you schedule and send meeting requests from your device, you can invite
attendees to your meeting and check their availability.
When you receive a meeting request, you can reply by accepting or declining
the request. The meeting request also clearly indicates whether or not there are
conflicting or adjacent meetings.
Requirement Your company must be using Microsoft Exchange Server 2007 or later.
To reply to a meeting request
1. When you receive a meeting request e-mail, a notification is displayed on
your device. Open the e-mail.
2. Tap Accept to reply and accept the meeting request, or tap Menu > Decline
if you cannot attend the meeting.
124 Working With Company E-mail and Meeting Appointments
Tips • Before responding, you can check your availability during the time of the
requested meeting by tapping View your calendar.
• If the time of the meeting conflicts with your other appointments, a
“Scheduling Conflict” status appears on top of the e-mail.
3. Choose whether or not to edit your response e-mail before sending, then tap OK.
If you accept the meeting request, it is automatically added as an
appointment in Calendar on your device.
7.4 Finding Contacts in the Company Directory
In addition to having contacts on your device, you can access contact information
from your organization’s Company Directory. By having over-the-air access to the
Company Directory, you can easily send e-mail messages and meeting requests to
anyone in your company.
Requirement Access to the Company Directory is available only if your organization is
running Microsoft Exchange Server 2003 SP2 or higher, and you have
completed your first synchronization with the Exchange Server.
When browsing Contacts, composing e-mail, or creating a
meeting request
1. Synchronize with the Exchange Server.
2. Do any of the following:
• While browsing through your contacts on the Contacts or Phone screen,
tap Menu > Company Directory.
• In a new e-mail message, tap the To box (or tap Menu > Add Recipient),
and then tap Company Directory on the top of the list.
• When creating a meeting request and selecting required and optional
attendees in Calendar, tap Company Directory.
Working With Company E-mail and Meeting Appointments 125
3. Enter a partial or full contact name and tap Search. In the search results list,
tap a contact to select it.
4. You can save a contact from the Company Directory to your device by
selecting the contact, and then tapping Menu > Save to Contacts.
Note You can search for the following information as long as that information is included
in the Company Directory: First name, Last name, E-mail name, Display name, E-mail
address, or Office location.
When viewing a received Outlook e-mail message
1. Open a received Outlook e-mail message.
2. If a Search button ( ) appears to the right of the sender name in the e-mail
message, tap this button to search for the sender in the Company Directory.
3. If the sender is found, the contact details will be displayed. You can then
choose to save the sender to your contacts, call the sender, and more.
126 Working With Company E-mail and Meeting Appointments
Chapter 8
Internet
Ways of 8.1 Connecting to the Internet
Your device’s networking capabilities allow you to access the Internet or your
corporate network through Wi-Fi, GPRS/3G (or EDGE when available), or dial-up.
You can also add and set up a VPN or proxy connection.
Wi-Fi
Wi-Fi provides wireless Internet access over distances of up to 100 meters (300 feet).
To use Wi-Fi on your device, you need access to a wireless access point or “hotspot”.
Note The availability and range of your device’s Wi-Fi signal depends on the number,
infrastructure, and other objects through which the signal passes.
To turn Wi-Fi on and connect to a Wi-Fi network
1. Tap Start > Settings, and then tap Communications.
2. Tap Wi-Fi. Detected wireless networks are displayed on the screen.
3. Tap the desired Wi-Fi network.
• If you selected an open (unsecured) network, you are automatically
connected to the network.
• If you selected a secured network, enter the security key and then tap
Done. You are then connected to the network.
128 Internet
Indicates a secured
Wi-Fi network.
Indicates that
your device is
connected to this
Wi-Fi network
Signal strength
Network name (SSID)
4. Tap Back to return to the Communications screen.
Next time you use your device to detect Wi-Fi networks, you will not be prompted
to enter the network key of the previously accessed Wi-Fi network (unless you
perform a hard reset which will erase custom settings on your device).
Notes • Wi-Fi networks are self-discoverable, which means no additional steps are required
for your device to connect to a Wi-Fi network. It may be necessary to provide a
username and password for certain closed wireless networks.
• To turn off Wi-Fi, on the Communications screen, tap the OFF/ON slider at the right
side of the Wi-Fi item.
Internet 129
To check Wi-Fi network status
Aside from the Wi-Fi status icon on the title bar, you can check the current
Wi-Fi connection status from any of the following screens of your device:
• Wireless LAN screen
Tap Advanced on the Wi-Fi screen.
On the Main tab, you will see the Wi-Fi network
that your device is currently connected to.
The configuration and signal quality of the Wi-Fi
network are also shown.
• Configure Wireless Networks screen
Tap Start > Settings > All Settings >
Connections tab > Wi-Fi and then tap the
Wireless Networks button. This screen displays
all available Wi-Fi networks in range.
To connect to a Wi-Fi network in the list, tap
and hold on the desired network, and then tap
Connect.
Tap a Wi-Fi network in the list to view or change
its connection settings.
You can also add new Wi-Fi networks, if
available, by tapping Add New.
130 Internet
To save battery power while connected to a Wi-Fi network
Using Wi-Fi quickly consumes battery power. Turn off Wi-Fi when not in use.
You can also enable power saving settings while using Wi-Fi.
1. Tap Start > Settings, and then tap Menu > Wireless Networks >
Power Mode tab.
2. Move the Power Save Mode slider to a position
that optimizes performance with the least
power consumption.
For example, move the slider to the left (Best
Performance) to have the optimal wireless
network performance; move to the right (Best
Battery) to obtain the maximum battery usage.
GPRS/3G
Use GPRS/3G (or EDGE, if available) to connect to the Internet and to send and
receive email on your device. You will need a data plan to use your wireless service
provider’s GPRS/3G network. Check with your wireless service provider to find out
about GPRS/3G rates.
If you completed the Connection Setup process for auto-configuring the data
connection the first time you turned on your device, your device is ready to use
your wireless service provider’s GPRS/3G services. Do not change the connection
settings as this may cause services to stop working. If you need to add another
GPRS/3G connection on your device, contact your wireless service provider.
Note If you did not complete the auto-configuration process before, follow the instructions
in “To manually select the network operator to use for data connections” in Chapter
13 to configure the data connection for your device.
Internet 131
Dial-up
To set up a dial-up connection to your Internet Service Provider (ISP) on your device,
you need the same settings that you normally use when you dial up from your
computer. This includes the ISP server phone number, your user name and password.
1. Tap Start > Settings, and then tap All Settings.
2. On the Connections tab, tap Connections.
3. Tap Add a new modem connection.
4. In the Select a modem list, select Cellular Line, then tap Next.
5. Enter the ISP server phone number, then tap Next.
6. Enter your user name, password, and any other information required by your
ISP, then tap Finish.
Starting a data connection
After setting up a data connection such as GPRS/3G or ISP dial-up on your device,
you can now connect your device to the Internet. The connection is automatically
started when you begin using a program that accesses the Internet such as Opera
Mobile.
To manually start a data connection
If you have set up multiple types of data connections on your device, you can
manually start a connection.
1. Tap Start > Settings, and then tap All Settings.
2. On the Connections tab, tap Connections.
3. Tap Manage existing connections.
4. Tap and hold the name of the desired connection, and then tap Connect.
To disconnect active data connections
1. On the Home screen, slide to the Settings tab, and then tap Communications.
2. Tap the OFF/ON slider at the right side of the Data Connection item.
132 Internet
Using 8.2 Opera Mobile™
Opera Mobile™ is a full-featured Internet browser, optimized for use on your device.
To open Opera Mobile and go to a website
1. On the Home screen, slide to the Internet tab and then tap Launch Browser.
2. On the Opera Mobile screen, tap the address bar.
Note If the address bar is hidden, tap at the bottom-right corner of the screen.
3. Enter the URL address and tap .
The browser screen
1
2
3 4 5 6 7
8
9
1Refresh the web page being viewed.
2Enter the URL of the web site here.
Internet 133
3Return to the previous web page viewed.
4Go to the Bookmarks screen where you can add, edit, or send bookmarks.
5Add a new browsing tab or switch to another browsing tab.
6Go to the home page.
7Open a list where you can change Opera Mobile settings. See “Opera Mobile
menu” in this chapter for details.
8Close the current tab. This is enabled only if you have more than one tab opened.
9When browsing the web, Opera Mobile automatically switches to full screen mode.
Tap to show the address and Menu bars again.
Opera Mobile menu
On the menu bar, tap to open the menu.
Open the Settings screen where you
can set your home page, change display
settings, set privacy settings, and more.
View items being downloaded, and
resume or stop current downloads.
View information about the
web page you are browsing.
See web pages that you have viewed.
Manage and view web pages
that you have saved.
Open the Opera Mobile help file.
Close Opera Mobile completely.
Note For more information about using Opera Mobile, go to:
http://www.opera.com/products/mobile/.
134 Internet
Navigating web pages
To pan on the web page
While browsing web pages, use finger
gestures to pan on the web page.
Tip Touch and hold an empty area on a web
page to open a shortcut menu that lets
you go back to the previous page, reload
the page, add the page as a Favorite, and
more. You can also tap and hold a link or
image on a web page to open a menu
with different options.
To zoom in and out on web pages
While viewing a web page in full screen,
slide to the right of the zoom bar to
zoom in on the web page. To zoom out,
slide your finger to the left.
Tip You can also tap the screen twice
to zoom in. To zoom out, tap the
screen twice again.
Zooming in Zooming out
Internet 135
Using 8.3 YouTube™
YouTube™ lets you browse, search, and watch Internet videos that are posted in
YouTube.
Note You need an active data or Wi-Fi connection to use YouTube. If you are using a
GPRS/3G connection, watching Internet videos may significantly increase your data
connection costs.
To open YouTube
On the Home screen, slide to the Internet tab, and then tap YouTube.
Open the
Program Guide.
Displays the current
program channel
being viewed.
Close YouTube.
Filter the list by type of video
(Featured, Most Viewed, Top
Favorited, or Top Rated) and
by the time period when
videos were uploaded to the
YouTube server.
Displays the available
videos for the
selected program
channel. Tap a video
to watch it. Tap
to view details about
the video. Switch between the
YouTube screens.
Set the quality of
downloaded videos and
site (country) preference.
Searching videos
1. On the YouTube screen, tap .
2. On the Search screen, enter the video information, and then tap Search.
136 Internet
YouTube searches for the video, and then displays all related videos on the
screen.
3. Tap on a video to watch it. See “Watching videos” for details.
Using the Program Guide
The Program Guide categorizes videos into channels so you can browse and watch
related videos available on YouTube. You can also add your favorite video channel
in the Program Guide.
To add a new channel
1. Search the channel or video you
want to add to the Program Guide.
See “Searching videos” for details.
2. In the search results list, tap at
the right side of the video or channel
to open the details screen.
3. Tap , and then tap OK on the
confirmation screen.
The channel you just subscribed to
is shown when you tap Program
Guide.
Tip You can also add a search information
as a program channel.
To change the program channel
1. On the Videos screen, tap Program Guide at the top of the screen.
2. On the Program Guide, select a channel.
Internet 137
Tip You can scroll down to view more channels.
The video list refreshes to display the available videos for the selected
channel.
To delete a program channel
You can only delete channels that you have added to the Program Guide.
1. Tap Program Guide.
2. Scroll down to the channel that you want to delete, and then tap .
3. On the confirmation screen, tap Yes.
Watching videos
Tap a video on any YouTube screen, program guide channel, or search results list to
launch the YouTube Video Player.
Go back to the
beginning of the video.
Play/pause the video.
Stop the video playback.
Depending on the
quality of downloaded
videos you selected,
tap to view the video
in its actual size, in
expanded size, or in
full screen.
Drag to go forward or
backward in the video.
Buffered video
Download progress
Tip To adjust the volume, press the VOLUME UP and VOLUME DOWN buttons on the left
panel of the device.
138 Internet
When you tap Stop ( ) or finish watching the entire video, you can select from
the following options.
Send the link of the
previously watched
video via e-mail, or
to send the video
thumbnail via MMS. Add the video to
your Bookmarks.
Replay the video.
View information
about the video
you just watched.
Go to the next page
of related videos.
If no action is taken,
the next page
is automatically
displayed after 10
seconds.
Go back to the
previous page of
related videos.
Bookmarks
You can save your favorite videos in Bookmarks for quick access.
To save a video in Bookmarks
After watching a video, tap . You can also
tap on any video that you want to add to
Bookmarks and then tap on the video details
screen.
To watch videos in Bookmarks
On the YouTube screen, tap . Tap a video to
watch it.
Internet 139
To delete a video from Bookmarks
1. On the Bookmarks screen, tap Edit.
2. Tap on the video you want to remove.
3. On the confirmation screen, tap Yes.
4. Tap Done.
History
View recently watched videos on the History screen. On the YouTube screen,
tap and then tap a video to watch it.
Note To clear the History list, tap Clear.
Using 8.4 Streaming Media
Streaming Media lets you stream live broadcasts or on-demand media content
from the web. The media is sent in a continuous stream to your device and is played
as it arrives, along with the audio.
The Streaming Media program allows you to play 3GP and MPEG-4 files. It also
supports playback of SDP (Session Description Protocol) files.
To access streaming content via Opera Mobile
In Opera Mobile, you can open a web page containing RTSP (Real Time Streaming
Protocol) links to streaming media content then play the content in the Streaming
Media program.
1. On the Home screen, slide to the Internet tab and tap Launch Browser.
2. In the address bar, enter the URL address of the web page that contains the
RTSP link to the desired *.3gp, *.mp4, or *.sdp file.
3. On the web page, tap the RTSP link.
140 Internet
4. Streaming Media then automatically opens and starts playing the file. During
playback, use the slider and button controls to play/pause, switch to full
screen, replay, and fast forward.
Switch to full screen
mode. In full screen
mode, tap to
switch back.
Play video from
the beginning.
Tap to toggle
between playing
or pausing the
video playback.
Drag the slider to go
backward or forward
on the video.
Stop playback.
View the video in its
actual size, in expanded
size, or in full screen.
To stream media files directly on the Streaming Media Player
Streaming Media only supports RTSP links when you stream *.3gp and *.mp4 files
directly on the program.
1. Tap Start > All Programs > Streaming Media.
2. Tap Menu > Connect.
3. Enter the complete RTSP link, and then tap Connect. Streaming Media starts
playing the file.
4. During playback, use the slider and playback control buttons to play/pause,
switch to full screen, replay, and fast forward.
Internet 141
To view streaming video information
While streaming a video clip, tap Menu > Properties to view the video properties
such as the video link or location, duration, and bit rate.
To configure streaming video connection settings
Tap Menu > Options to configure the Streaming Media settings. From this screen,
you can set the media buffer, select the connection to use, and set all streaming
videos to play in full screen.
Using Windows Live™8.5
Windows Live™ helps you quickly find information using Windows Live™ Search,
access and synchronize your Windows Live™ Mail e-mails and contacts, and send
instant messages using Windows Live™ Messenger.
To set up Windows Live™ for the first time
1. Tap Start > All Programs > Windows Live, and then tap Sign in to Windows
Live.
2. Tap the links to read the Windows Live™ Terms of Use and the Microsoft
Online Privacy Statement. After reviewing them, tap Accept.
3. Enter your Windows Live™ Mail or Hotmail address and password, select the
Save password checkbox, and then tap Next.
4. Tap Next.
5. Choose what information you want to sync
online with your device.
If you select Store Windows Live contacts
in your mobile phone’s contact list, your
Windows Live™ contacts will be added to the
contact list and to Windows Live™ Messenger
on your device.
142 Internet
If you select Sync e-mail, your Windows Live™ Mail or Hotmail inbox
messages will be downloaded to your device.
6. Tap Next.
7. After synchronization is complete, tap Done.
The Windows Live™ screen
Search bar. Enter the
information you want
to search, then tap .
Switch between
the Windows Live™
Messenger, Windows
Live™ Mail, and Sync
status screens.
Adjust Windows Live™
settings.
Change your display
name, picture, and
personal message.
Using Windows Live™ Messenger
With this mobile version of Windows Live™ Messenger, you can send and receive
instant messages.
To sign in to Windows Live™ Messenger and start a conversation
1. Tap Messenger on the Windows Live™ screen.
2. Tap Sign in on the Messenger screen. Signing in may take several minutes,
depending on your connection speed.
Internet 143
3. In the contact list, select an online contact, and then tap Send IM to open the
message screen.
4. On the message screen, enter your message in the text field, then tap the
Enter key on the on-screen keyboard to send the message. You can also do
any of the following on the message screen:
• To add an emoticon, tap Menu > Add
emoticon, then tap an emoticon on the screen.
The emoticon is attached to your message.
• To send a file, tap Menu > Send, select the
type of file (picture, voice clip, or any file), and
then locate the file you want to send.
• To invite one or more contacts to the
conversation, tap Menu > Options >
Add participant.
• To send a voice message, tap Voice clip on
the message screen, then start talking. When
you have finished recording, tap Send.
5. To end the conversation with the current contact,
tap Menu > End conversation.
6. To sign out, tap Menu > Sign Out.
To add a Windows Live™ contact
You can add new Windows Live™ contacts in Windows Live™ Messenger.
1. Tap Menu > Add new contact.
2. Enter the e-mail address of the contact, and then tap OK.

Navigation menu
