Users Manual 1
Your HTC Flyer
User guide
HTC Confidential
Conventions used in this guide
In this user guide, we use the following symbols to indicate useful and important
information:
This is a note. A note often gives additional information, such as what happens
when you choose to do or not to do a certain action. A note also provides
information that may only be applicable to some situations.
This is a tip. A tip gives you an alternative way to do a particular step or procedure,
or lets you know of an option that you may find helpful.
This indicates important information that you need in order to accomplish a certain
task or to get a feature to work properly.
This provides safety precaution information, that is, information that you need to be
careful about to prevent potential problems.
7 Conventions used in this guide
HTC Confidential
Getting started
Inside the box
You will find the following inside the box:
§HTC Flyer
§Tablet pen
§Tablet pen battery
§USB cable
§Power adapter
§3.5mm stereo headset
§Protective case
§Quick guide
§Safety and regulatory guide
§Call center card (hotline card)
§Warranty card
HTC Flyer
Front panel
1. HOME
2. MENU
3. BACK
4. PEN OPTIONS
5. Front camera
6. Front camera on or off indicator
8 Getting started
HTC Confidential
Right panel
1. Microphones
2. VOLUME UP
3. VOLUME DOWN
Back panel
1. Top cover
2. 5 megapixel camera
3. Speakers
4. USB connector
Top panel
1. 3.5mm headset jack
2. POWER
3. Notification LED
9 Getting started
HTC Confidential
Top cover
Removing the top cover
Remove the top cover to access the storage card slots.
1. Turn off HTC Flyer and hold it securely with the front facing down.
2. With your right and left thumbs, push the top cover out to remove it.
Replacing the top cover
1. Align the two teeth underneath the top cover (one on each side) with the two
notches on the top of HTC Flyer.
2. Place the top cover on HTC Flyer, gently press down on the cover with your
thumbs, and then push it in until it clicks and locks into place.
10 Getting started
HTC Confidential
Storage card
HTC Flyer comes with an internal storage that you can use to store your photos,
videos, and music. If you need more storage space, you can insert a storage card into
HTC Flyer.
Inserting the storage card
1. Take the top cover off
2. Insert the storage card into the storage card slot with its gold contacts facing
down and push it until it clicks into place.
Removing the storage card
If HTC Flyer is on you must first "unmount" the storage card before removing it to
prevent corrupting or damaging the files in the storage card.
1. Take the top cover off
2. Push the storage card in to eject it from its slot.
3. Slide the storage card out from its slot.
Unmounting the storage card
When you need to remove the storage card while HTC Flyer is on, unmount the
storage card first to prevent corrupting or damaging the files in the storage card.
1. From the Home screen, press , and then tap Settings.
2. Tap Storage > Unmount SD card.
12 Getting started
HTC Confidential
Battery
HTC Flyer uses a rechargeable battery. How long the battery can last before it needs
recharging depends on how you use HTC Flyer. Among these are the features and
accessories you use (for example, leaving your Bluetooth™ connection always on uses
more power). Frequent web browsing uses up a lot of battery power. Also, consider
your location: poor signal strength from your mobile network and extreme
temperature make the battery work harder.
Charging the battery
The battery is partially charged when shipped. Before you turn on and start using HTC
Flyer, it is recommended that you charge the battery. Some batteries perform best
after several full charge/discharge cycles.
Only the power adapter provided in the box must be used to charge the battery.
1. Plug the power adapter into the USB connector of HTC Flyer.
2. Plug in the power adapter to an electrical outlet to start charging the battery.
As the battery is being charged, the notification LED shows a solid orange light. The
light turns to solid green when HTC Flyer is fully charged.
When you charge the battery while HTC Flyer is on, the charging battery icon is
displayed in your tablet’s status bar. After the battery has been fully charged, the
charging battery icon turns to a full battery icon .
As a safety precaution, the battery stops charging when it overheats.
Switching the power on or off
Switching the power on
Press the POWER button. Easy.
When you turn on HTC Flyer for the first time, you’ll need to set it up.
13 Getting started
HTC Confidential
Switching the power off
1. If the display is off, press the POWER button to turn it back on, then unlock the
screen.
2. Press and hold the POWER button for a few seconds.
3. When the Power options menu appears, tap Power off.
Finger gestures
Tap When you want to type using the keyboard, select items onscreen such
as application and settings icons, or press onscreen buttons, simply tap
them with your finger.
Press and
hold
To open the available options for an item (for example, a contact or link
in a web page), simply press and hold the item.
Swipe or
slide
To swipe or slide means to quickly drag your finger vertically or
horizontally across the screen.
Drag Press and hold your finger with some pressure before you start to drag.
While dragging, do not release your finger until you have reached the
target position.
Flick Flicking the screen is similar to swiping, except that you need to swipe
your finger in light, quicker strokes. This finger gesture is always in a
vertical direction, such as when flicking the contacts or message list.
Rotate For most screens, you can automatically change the screen orientation
from portrait to landscape by turning HTC Flyer sideways. When
entering text, you can turn HTC Flyer sideways to bring up a bigger
keyboard.
Pinch In some apps, like Gallery or the web browser, you can “pinch” the screen
using two fingers (for example, thumb and index finger) to zoom in or
zoom out when viewing a picture or a web page.
14 Getting started
HTC Confidential
Setting up HTC Flyer for the first time
When you switch on HTC Flyer for the first time, you’ll be asked to set it up. You can
choose your language, how you want to connect to the Internet, and whether you
want your current location to be automatically detected. If you still have personal
contacts and calendar events stored on your old phone, you can easily transfer them
to HTC Flyer through Bluetooth as well.
Be sure to sign in to your Google Account so you can use Google apps like Gmail™ and
Android Market™. You can also set up your other email accounts, favorite social
networks like Facebook and Twitter™, and more.
Just follow the onscreen instructions and you’ll be up and running in no time.
Some features that need to connect to the Internet such as location-based services
and auto-sync of your online accounts may incur extra data fees from your mobile
operator. Don’t worry. You can enable or disable them in settings later on.
Ways of getting contacts into HTC Flyer
There are several ways you can add contacts to HTC Flyer. You can sync HTC Flyer
with contacts from your Google Account, computer, Facebook, and more.
HTC Sync Sync the contacts from your old phone to your computer, and
then use HTC Sync to sync HTC Flyer with your computer's
Microsoft Outlook, Outlook Express or Windows Contacts.
Gmail Google contacts are imported to HTC Flyer after you sign in to
your Google Account. You can also create more Google contacts
right from HTC Flyer.
Facebook Log in to your Facebook account through Facebook for HTC
Sense to import your Facebook friends' contact information.
Phone contacts You can choose to create and store contacts directly in HTC Flyer
or transfer existing ones from your old phone.
Microsoft
Exchange
ActiveSync
HTC Flyer syncs your work contacts from the Microsoft Exchange
ActiveSync Server in your workplace.
Transfer Use the Transfer app to transfer not only your contacts, but also
calendar events and text messages from your old phone to HTC
Flyer.
15 Getting started
HTC Confidential
Home screen
Your Home screen is where you make HTC Flyer your own. It comes with a weather
clock widget that shows the time and weather in your current location. You can also
add your favorite applications, shortcuts, folders and widgets so they’re always just a
tap away. To find out how, see Personalizing on page 27.

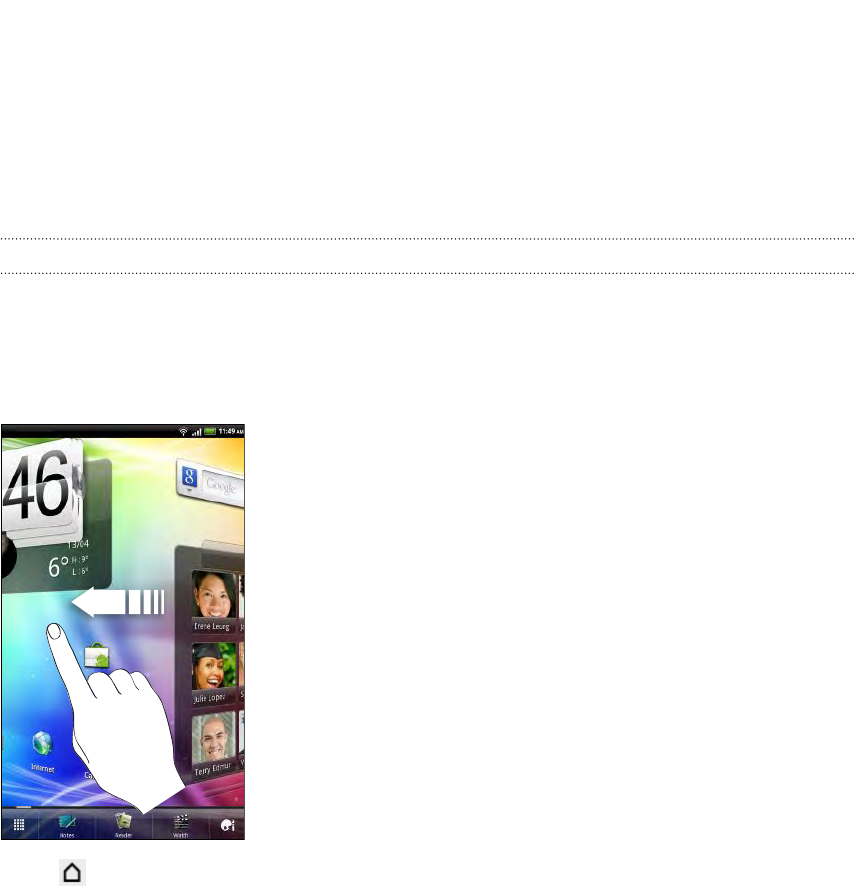

Extended Home screen
As you start to do more things with HTC Flyer, you might find that one Home screen
is not enough. No problem. You can use up to seven extra screens. It should be plenty.
Slide your finger horizontally to the left or right and you’ll discover more space for
adding icons, widgets, and more.
Press to return to the main Home screen (that is, the left-most home screen).
16 Getting started
HTC Confidential

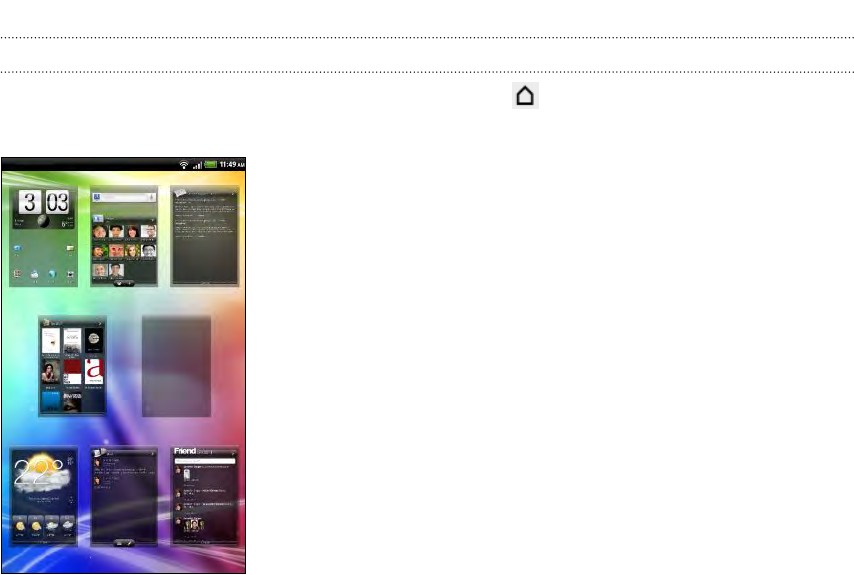

Using Leap view
To jump straight to the screen that you want, press or pinch the screen to show
the Leap view. It reveals all eight Home screens as thumbnails.
Just tap the one you want and you’ll leap right there.
17 Getting started
HTC Confidential
Basics
Adjusting the volume
Change the volume levels for alarms, notifications, and when you're playing back
music or video on HTC Flyer.
Adjusting the media volume
Press the VOLUME UP or VOLUME DOWN button to adjust the volume. The Media
volume window appears on the screen to display the volume level.
Adjusting the volume via settings
1. From the Home screen, press , and then tap Settings > Sound > Volume.
2. Drag the volume sliders to the left or right to adjust the volume levels of media
playback, alarms, and notifications. A sample tone is briefly played with the
volume being adjusted as you drag a slider.
3. When you’re done, tap OK.
Sleep mode
Sleep mode saves battery power by putting HTC Flyer into a low power state while
the display is off. It also stops accidental button presses when HTC Flyer is in your
bag. You’ll still receive messages though.
Switching to Sleep mode
Briefly press the POWER button to turn off the display and switch to Sleep mode.
HTC Flyer also automatically goes into Sleep mode when it’s idle for a while.
Waking up from Sleep mode
To wake HTC Flyer up manually, press the POWER button. You’ll need to unlock the
screen.
HTC Flyer automatically wakes up when you have an event reminder or set an
alarm.
18 Basics
HTC Confidential
Unlocking the screen
Pull up the ring to unlock the screen.
If you have set up a screen unlock pattern, pin, or password, you will be asked to
draw the pattern on the screen or enter the PIN or password before it unlocks.
If you've set an event reminder or an alarm, you can drag or to the ring to
snooze or dismiss the event or alarm.
Opening an app from the lock screen
On the lock screen, drag an app icon to the ring to unlock the screen and directly go
to the app.
You can customize the lock screen in Settings > Personalize > Lock screen to show
your four favorite apps.
Status and notifications
Status icons
Here’s what each icon means:
Battery is full
Battery is charging
19 Basics
HTC Confidential
Battery is low (20% remaining)
Battery is very low (10%
remaining)
Silent mode
Vibrate mode
Wired microphone headset
connected
Wired headset connected
Bluetooth is on
Connected to a Bluetooth device
Airplane mode
GPS is on
Connected to a Wi-Fi network Alarm is set
Data synchronizing
Notification icons
Notification icons on the status bar make it easy for you to keep on top of your
messages, calendar events, and alarms.
Here’s what each one means:
New Gmail message More (not displayed) notifications
New Microsoft Exchange
ActiveSync or POP3/IMAP email General notification
20 Basics
HTC Confidential
Problem with email delivery HTC Flyer is connected to a
computer via USB cable
Wi-Fi is on and wireless networks
are available
Problem with SMS/MMS delivery
New Google Talk instant message Uploading data (animated)
New voicemail Downloading data (animated)
Upcoming event Waiting to upload
New updates from your social
networks
Downloaded Android Market app
installed successfully
Matched contacts suggestion Update available for an app
downloaded from Android Market
Bluetooth pairing request Storage card is safe to remove or
storage card is being prepared
HTC Flyer software update
available
Storage card or internal storage is
low on free space
Song is playing
Notification LED
The notification LED shows a:
§Solid green light when HTC Flyer is connected to the power adapter or a
computer and the battery is fully charged.
§Flashing green light when you have a pending notification.
§Solid orange light when the battery is being charged.
§Flashing red light when the battery level reaches very low.
21 Basics
HTC Confidential
Notifications panel
When you get a new notification, you can open the Notifications panel to see the
message, reminder or event notification. The Notifications panel lets you quickly
switch between recently-opened apps, and also lets you easily turn on settings such
as Wi-Fi and Bluetooth.
To open the Notifications panel, press and hold the status bar, then slide your finger
downward.
If you have several notifications, you can scroll down
the screen to see them all.
You can also open the Notifications panel on the Home screen by pressing and
then tapping Notifications.
Switching between recently opened apps
On the Notifications panel, you can easily access up to ten apps you just recently
opened.
1. Press and hold the status bar, then slide your finger downward to open the
Notifications panel.
2. In the Recent apps section, tap an app to open it.
Press and hold to view recently used apps.
22 Basics
HTC Confidential
Using Quick Settings
The Quick Settings tab lets you easily turn on Wi-Fi, Bluetooth, GPS, and more, and
also provides a quick shortcut to all HTC Flyer settings.
1. Press and hold the status bar, then slide your finger downward to open the
Notifications panel.
2. Tap the Quick Settings tab.
3. Tap the check box next to an item to turn it off or on.
Closing the Notifications panel
Press and hold the bottom bar of the Notifications panel, then slide your finger up the
screen. Or just press .
Connecting HTC Flyer to a computer
Whenever you connect HTC Flyer to a computer using the USB cable, the Connect to
PC screen opens and lets you choose the type of USB connection.
Select one of the following choices, and then tap Done:
Charge only Select this option if you only want to charge the battery while HTC
Flyer is connected to your computer.
HTC Sync Select this option to synchronize contacts, calendar, and other
information between your computer and HTC Flyer.
23 Basics
HTC Confidential
Disk drive Select this mode when you want to copy files between the internal
storage of HTC Flyer or storage card (if one is inserted) and your
computer.
When Disk drive mode is enabled while HTC Flyer is connected to the
computer, you will not be able to use apps on HTC Flyer to access the
internal storage or storage card (if one is inserted).
USB
tethering
When you do not have Internet connection on your computer, you
can select this mode to share the mobile data connection of HTC
Flyer with your computer.
Internet
pass-through
If you don’t have a data plan or you don’t have access to a Wi-Fi
network, you can select this mode to share your computer’s Internet
connection with HTC Flyer.
Copying files to or from the internal storage or
storage card
You can copy your music, photos, and other files to the internal storage or storage
card (if one is inserted).
1. Connect HTC Flyer to your computer using the supplied USB cable.
2. On the Connect to PC screen on HTC Flyer, tap Disk drive, and then tap Done.
On your computer, the internal storage of HTC Flyer and storage card are
recognized as two removable disks.
3. Navigate to the internal storage of HTC Flyer or storage card.
4. Do one of the following:
§Copy the files from the computer to the internal storage of HTC Flyer or
storage card’s root folder.
§Copy the files from the internal storage of HTC Flyer or storage card to a
folder in your computer.
5. After copying the files, unmount the removable disk (that is, HTC Flyer) as
required by your computer’s operating system to safely remove HTC Flyer.
6. Do one of the following:
§Disconnect HTC Flyer from the computer.
§If you want to keep HTC Flyer connected to the computer but want HTC
Flyer to be able to access the internal storage or storage card, open the
Notifications panel, tap Disk drive, select an option except Disk drive, and
then tap Done.
24 Basics
HTC Confidential
Copying text, looking up information, and
sharing
In apps such as the web browser and Mail, you can select text and choose what you
want to do with it.
Selecting text
1. Press and hold on a word.
2. Drag the start and end markers to highlight the surrounding text you want to
select.
To select text in a link, press and hold the link, and then tap Copy link URL.
Copying and pasting text
1. After you have selected the text you want to copy, tap .
The selected text is then copied to the clipboard.
2. In a text entry field (for example while composing a message), press and hold at
the point where you want to paste the text.
3. Tap Paste.
Searching or translating text
1. After you have selected the text you want to search for or translate, tap .
2. Tap one of the following tabs:
Google Search
Look for related information using Google Search, based on the text that
you selected.
Wikipedia
Look for related information on Wikipedia, based on the text that you
selected.
25 Basics
HTC Confidential
YouTube
Look for videos on YouTube, based on the text that you selected.
Google Translate
Translate the text to another language.
Google Dictionary
Look up the selected text in the dictionary.
Pasting text in a new message or social network status update
1. After you have selected the text you want to share, tap .
2. Choose whether to paste the selected text in a new text, multimedia, or email
message or in your status update on a social network such as Twitter.
Printing
Connect HTC Flyer to a supported printer and print out documents, email messages,
photos, and more.
§Both printer and HTC Flyer must be turned on and connected to the same local
network. Connect HTC Flyer to the local network using Wi-Fi. To learn how to
connect the printer to a local network, refer to your printer user guide.
§The local network must not be behind a firewall.
1. Open an app such as Mail or Gallery, and then select the file you want to print.
2. Press , and then tap Print. In some apps, after pressing , you may need to
tap More to see Print.
3. In the Print screen, tap the printer you want to use.
4. Select the files you want to print at the top of the screen or set the page range
you want to print.
Tap Advanced to set the page size, print layout, and page orientation, and choose
if you want to print in color or black and white.
5. Tap Print.
You can check the printing details by opening the Notifications panel, and then
tapping the item you're printing.
26 Basics
HTC Confidential
Personalizing
Making HTC Flyer truly yours
Make HTC Flyer look and sound just the way you want it. Personalize it with a
different wallpaper, skin, and notification sound for events such as incoming text,
email, and calendar reminders.
Tap the Personalize button right on the Home screen to get started.
Personalizing HTC Flyer with scenes
Use scenes to create different Home screen arrangements that reflect different
aspects of your life. Customize different Home screens for your work, play or travel,
and easily switch between them.
Everytime you add or modify something on the Home screen, HTC Flyer
automatically saves your changes to the current scene.
Using a preset scene
HTC Flyer features preset scenes, each preconfigured with a different wallpaper and
collection of widgets that reflect different moments in your life. You can choose a
scene that is suitable for work, play, travel, or your social life.
1. From the Home screen, tap > Scene.
2. Slide your finger on the screen from right to left to select the scene you want.
3. Tap Apply.
To download more scenes, tap > Scene > Get more.
Creating a new scene
You’ll start with an empty Home screen when you create a new scene.
1. From the Home screen, tap > Scene.
2. Press , and then tap New.
3. Enter a new scene name, then tap Done.
4. Personalize the scene by adding widgets and other elements, arranging the
Home screen layout, and changing the skin or wallpaper. All of your changes will
be automatically saved to this scene.
27 Personalizing
HTC Confidential
Renaming a scene
1. From the Home screen, tap > Scene.
2. Slide your finger on the screen from right to left to select the scene you want to
rename.
3. Press and hold a scene thumbnail, then tap Rename.
4. Enter a new scene name, then tap Done.
Deleting scenes
1. From the Home screen, tap > Scene.
2. Press , and then tap Delete.
3. Slide your finger on the screen from right to left to browse through scenes, then
tap one or more scenes you want to delete.
4. Tap Delete.
Changing your wallpaper
Personalizing your wallpaper with your favorite photo is a quick and easy way to give
HTC Flyer a fresh look. Browse the collection of wallpapers included in HTC Flyer or
choose from photos that you have taken with the camera. You can also change your
Home screen to use an animated wallpaper.
1. From the Home screen, tap > Wallpaper.
2. Tap one of the following:
HTC wallpapers Choose a preset wallpaper, then tap Preview > Apply.
Live wallpapers Choose from preset animated wallpapers. Tap Preview to
view the animation, and then tap Apply.
Gallery Choose an existing photo. Crop the photo and then tap Save.
To download more wallpapers, tap > Wallpaper > HTC wallpapers > Get more.
28 Personalizing
HTC Confidential
Applying a new skin
Personalize beyond the Home screen by applying a new skin. Skins are set to give a
different look and feel to most onscreen buttons, application screens, option menus,
and other items.
1. From the Home screen, tap > Skin.
2. Slide your finger on the screen from right to left to select the skin you want.
3. Tap Apply.
To download more skins, tap > Skin > Get more.
Personalizing your Home screen with widgets
Widgets put at-a-glance important information and media content up front on your
Home screen. Some widgets are already added to your Home screen for your
convenience. You can add more from the available selections of widgets.
Adding a widget to your Home screen
1. Go to a part of the Home screen where there’s space to add a new widget.
2. Tap > Widget.
3. Select a widget that you want.
4. Most HTC widgets are available in a variety of designs and sizes to suit your
needs. Slide your finger on the screen from right to left to view the different
styles, and then tap Select to choose one.
You can also add widgets that allow you to quickly switch on or off certain settings
such as Wi-Fi, Mobile Network, and Bluetooth. Scroll down the widgets list, tap
Settings, and then tap the widget that you want.
To download more widgets, tap > Widget > Get more HTC widgets.
29 Personalizing
HTC Confidential
Changing the settings of a widget
You can modify basic settings of some widgets (for example, the People and Mail
widgets) from the Home screen.
1. Press and hold a widget on the Home screen. HTC Flyer vibrates and you’ll see a
colored box around the widget. Don’t lift your finger just yet.
2. Drag the widget to the edit button (if it’s enabled).
The relevant screen where you can change some settings for this widget then
opens.
3. Customize the widget settings.
30 Personalizing
HTC Confidential
Adding icons and other shortcuts on your
Home screen
Place app icons on your Home screen to open apps quicker. You can also add
shortcuts to settings and specific information such as a bookmarked webpage,
someone’s phone number, a music playlist, route directions, and many other items, to
your Home screen.
The shortcuts available depend on the apps that are installed on HTC Flyer.
1. Go to a part of the Home screen where there’s space to add a new icon or
shortcut.
2. Tap and then tap App to add an app icon, or Shortcut to add a shortcut to a
setting or information.
To add an app icon on the Home screen, you can also press , tap , and then
press and hold an app icon. Without lifting your finger, drag the icon to an empty
area on the Home screen, and then release it.
Adding folders on your Home screen
Use folders to group related apps and other shortcuts to keep your Home screen tidy
and organized. You can also add information folders that show up-to-date information
such as Bluetooth received files, your Facebook phonebook, and more.
Creating a new folder and adding items to it
1. Go to a part of the Home screen where there’s space to add a new folder.
2. Tap > Folder.
3. Tap New Folder.
4. Press and hold an app icon or a shortcut that you want to move to the folder.
HTC Flyer then vibrates. Don’t lift your finger just yet.
5. Drag the app icon or shortcut and drop it on top of the folder.
Simply tap the folder to open it so you can access the apps and shortcuts inside the
folder.
31 Personalizing
HTC Confidential
Renaming a folder
1. Tap the folder to open it.
2. Press and hold the folder window’s title bar.
3. Enter a new folder name and then tap OK.
Rearranging or removing widgets and icons on
your Home screen
Rearrange the widgets and icons on your Home screen to make room for adding more
items. You can also remove widgets and icons that you don’t frequently use.
Moving a widget or icon
1. Press and hold the widget or icon you want to move. HTC Flyer vibrates and
you’ll see a colored box around the widget or icon. Don’t lift your finger just yet.
2. Drag the widget or icon to a new location on the screen.
§You can pause at the left or right edge of the screen to drag the widget or icon
onto another Home screen panel.
§When you drag an icon to a spot that’s occupied by another icon, the occupant
automatically moves away to give room.
3. When the widget or icon is where you want it, lift your finger.
Removing a widget or icon
1. Press and hold the widget or icon you want to remove. HTC Flyer vibrates and
you'll see a colored box around the widget or icon. Don’t lift your finger just yet.
2. Drag the widget or icon to the remove button .
3. When the widget or icon also turns red, lift your finger.
32 Personalizing
HTC Confidential
Customizing the launch bar
You can personalize the launch bar at the bottom of the Home screen and replace it
with different apps or shortcuts that you often need to use.
1. Remove an app that you don't need from the launch bar. Press and hold its icon,
and then drag it out to the Home screen or to the remove button .
2. Press and hold on the empty slot, and then choose whether to add an app or a
shortcut.
33 Personalizing
HTC Confidential
Rearranging the Home screen
Reorder your Home screen panels in any way that fits how you use them. For
example, move the panels with frequently-used widgets, shortcuts, and folders closer
to the main Home screen.
The center thumbnail in Leap view is always the main Home screen.
1. Pinch the Home screen to show the Leap view.
2. Press and hold the thumbnail of the home screen you want to move. HTC Flyer
then vibrates. Don’t lift your finger just yet.
3. Drag the thumbnail to its new position, and then lift your finger.
Using sound sets
Personalize HTC Flyer to use different sound notifications. By switching between
sound sets, you can instantly make HTC Flyer alert you with fun sounds when you're
out with friends or change to subtle sounds while you're at work. Each sound set gives
you a different combination of sounds for incoming messages, email, calendar event
reminders, alarms, and other notifications.
Choosing a preset sound set
1. From the Home screen, tap > Sound set.
2. On the Sound sets screen, tap a sound set name.
34 Personalizing
HTC Confidential
3. You can tap to listen to the different sounds for that sound set.
4. Tap Apply.
To download more sound sets, tap > Sound set > Get more.
Creating a sound set
1. From the Home screen, tap > Sound set.
2. On the Sound sets screen, tap New sound set.
3. Enter a new sound set name, and then tap Done.
The newly created sound set is then added to the list of sound sets. You can assign
different tones to the sound set to your preference.
Customizing a sound set
Customize a sound set by choosing different sounds for alarms, notifications, new
messages, email, and calendar reminders from the preset selection or your sound files
(except for notification sounds).
1. From the Home screen, tap > Sound set.
2. Choose a sound set you want to customize or create a new one, and then tap
Apply.
3. Change the notification sound and alarm from the Personalize screen. Go to the
Messages, Mail and Calendar apps to choose sounds for new messages, email,
and calendar reminders respectively.
HTC Flyer automatically saves your choices to the current sound set.
Changing notification sounds
1. From the Home screen, tap > Notification sound.
2. Choose the type of notification that you want to change.
3. Tap the sound you want to use. A sample tone briefly plays when selected.
4. Tap Apply.
Although you can't import notification sounds, you can tap Get more to download
more audio files from HTC Hub.
35 Personalizing
HTC Confidential
Changing the alarm sound
1. From the Home screen, tap > Alarm.
2. Tap a preset sound you want to use.
To use your sound file, tap New alarm, select the item you want to import to the
Alarms list, and then tap OK.
3. Tap Apply.
Deleting sound sets
1. From the Home screen, tap > Sound set.
2. Press , and then tap Delete.
3. Tap one or more sound sets you want to delete.
4. Tap Delete.
Rearranging or hiding application tabs
You can rearrange the tabs at the bottom of some apps to prioritize the types of
information you frequently use or remove the tabs you don’t really need.
1. Open an app that has the usual tabs at the bottom of its screen (for example,
the library screen in Music).
2. Press and hold a tab. When the screen changes and shows you an empty area,
lift your finger.
3. Do any of the following:
Move a tab Press and hold the tab you want to move, and then drag it to its
new position.
Remove a tab Press and hold a tab you want to hide, then drag it up. When
you see a colored box, lift your finger.
4. When you’re done, press .
Adding a tab back
1. Open the app from which you previously removed some tabs.
2. Press and hold a tab. When the screen changes and shows you some of your
hidden tabs, lift your finger.
36 Personalizing
HTC Confidential
3. Press and hold the tab you want to show, then drag it down to where you want
to position it again.
4. When you’re done, press .
Customizing the lock screen
You can change the apps on the Lock screen to your favorite ones.
1. From the Home screen, tap .
2. Tap Lock screen.
3. Tap an app that you want to change, and then choose another app to replace it.
37 Personalizing
HTC Confidential
Search and Web browser
Searching HTC Flyer and the Web
You can search for information on HTC Flyer and on the Web by using Google Search.
Some applications, such as People or Mail, have their own search function, which you
can use to search only within those applications.
Setting search options
1. From the Home screen, press , and then tap Settings.
2. Tap Search > Google search.
3. Choose the settings that you want.
Show web
suggestions
Display suggestions for Google web searches below the
search box as you type.
Use My Location Include your location in searches to get local search
results.
Search history Use suggestions from the web-based Google search
history, from your Google Account. Tap Manage search
history to view or manage the web search history
associated with your Google Account on the web browser.
4. Press .
5. Tap Searchable items, and then select the items you want included when doing
a search.
Performing searches on the Web and HTC Flyer
1. From the Home screen, press , and then tap Search.
2. Choose where you want to search.
Initially, the Google search box displays the All icon , indicating that it’s
configured to search on both the Web and HTC Flyer. You can target your
searches to just the Web only or to just a single application’s information on
HTC Flyer. Tap and then tap to set the searchable items.
38 Search and Web browser
HTC Confidential
3. In the search box, enter the words you want to searc for. As you type, matching
items on HTC Flyer and suggestions from Google web search are shown as a
list.
4. Do one of the following:
§If what you’re searching for is in the list of suggestions, tap it in the list. The
item opens in the appropriate application.
§To edit an item in the list, tap . The item will appear in the search box,
where you can edit it.
§If what you’re searching for is not in the list, tap to search the Web. The
web browser opens, displaying the results of a Google search.
Quickly looking up information on the Web
Quick Lookup helps you learn about something right on the spot. When you enter a
new word or phrase, you can easily look it up in popular websites or search services
such as Google Search and Wikipedia®.
1. From the Home screen, tap > Quick Lookup.
2. If the onscreen keyboard is open, press to close it first so you’ll see the
bottom tabs.
3. Slide across the tabs to pick where you want to look up information. Then in the
search box, enter what you want to search for.
4. Tap .
After looking up the item on one tab, you can slide to other tabs to automatically
look up the same term there.
Translating words to other languages
1. From the Home screen, tap > Quick Lookup.
2. If the onscreen keyboard is open, press to close it first so you’ll see the
bottom tabs.
3. Slide to the Google Translate tab.
4. Under From language, choose the original language, then enter the word or
phrase you want to translate.
5. Under To language, choose from the languages available for translation.
6. Tap Translate.
39 Search and Web browser
HTC Confidential
Using the web browser
You must have an active data connection or Wi-Fi connection to access the
Internet.
Do one of the following to open the web browser and start surfing the Web:
§On the Home screen, tap Internet.
§From the Home screen, tap > Internet.
Going to a webpage
1. On the browser screen, tap the URL box on top of the screen.
2. Enter the webpage address using the keyboard. As you enter the address,
matching webpage addresses will appear on the screen.
3. Do one of the following:
§Tap an address to go directly to that webpage.
§Continue typing in the webpage address, then tap .
Changing the screen orientation
Turn HTC Flyer sideways to display the web browser in landscape orientation.
If the screen orientation doesn’t change automatically, turn on automatic screen
orientation. From the Home screen, press , tap Settings > Display, and then
select the Auto-rotate screen check box.
Navigating and zooming on a webpage
§You can swipe your finger on the screen to navigate and view other areas of the
webpage.
§Tap the screen twice quickly to zoom in, then tap the screen twice quickly again
to zoom out. You can also use your fingers to spread or pinch the screen to
zoom in and out.
Selecting a link on a webpage
You can tap a link to open it, or press and hold a link for more options.
Link What to do
Webpage
address
(URLs)
§Tap the link to open the webpage.
§Press and hold the link to open a menu that allows you to open,
bookmark, copy to the clipboard, or share the link.
40 Search and Web browser
HTC Confidential
Link What to do
Email address §Tap to send an email message to the email address.
§Press and hold, then tap Copy on the menu to copy the email
address to the clipboard. You can paste the email address later
when creating a new contact or sending a new email message.
Opening a new browser window
Open multiple browser windows to make it easier for you to switch from one website
to another.
1. While viewing a webpage, tap to display the Windows pane.
2. Tap .
A new browser window opens to full screen.
Switching between browser windows
1. On the browser screen, tap to display the Windows pane.
2. Swipe your finger right or left on the Windows pane to browse through the
webpage thumbnails.
3. Tap the thumbnails to quickly switch between the browser windows.
When you tap a thumbnail, the corresponding webpage will be displayed below
the Windows pane.
4. Do one of the following:
§Tap to close a browser window.
§To display a webpage in full screen and close the Windows pane, tap .
41 Search and Web browser
HTC Confidential
Downloading from the Web
Do more than just browsing the Web. You can download files such as photos and
music as well as apps using the web browser.
§All downloaded files will be saved to the internal storage.
§Before downloading an app, check first its compatibility with HTC Flyer to make
sure it can be installed.
Downloading apps from the Web
You can download apps directly from your favorite websites. Apps downloaded from
the Web can be from unknown sources. To protect HTC Flyer and your personal data,
we strongly recommend that you download and install only apps you trust.
1. Open your web browser, then go to the website where you can download the
app you want.
2. Follow the website's instructions for downloading the app.
Before you can install the downloaded app, you need to set HTC Flyer to allow
installation of third-party apps. From the Home screen, press , then tap Settings >
Applications > Unknown sources.
Viewing your downloads
While viewing a webpage, press and then tap More > Downloads.
Viewing bookmarks and previously visited
pages
You can store as many bookmarks as you want on HTC Flyer. You can also access a
convenient list of the sites you have visited, or quickly view the pages that you access
most often.
Bookmarking a webpage
1. While viewing a webpage, tap .
2. To bookmark the web page under a certain category (such as sports or dining),
tap Add tags and enter a tag name. This groups similar web pages so you can
easily locate them.
3. Edit the bookmark name if needed, and then tap Add.
42 Search and Web browser
HTC Confidential
Opening a bookmark
1. While viewing a webpage, tap .
2. Do one of the following:
§On the Bookmarks tab , navigate to the bookmark you want to open,
and then tap it.
§On the Tags tab , open a tag group, navigate to the bookmark you want
to open, and then tap it.
Editing a bookmark
1. While viewing a webpage, tap .
2. On the Bookmarks tab , press and then tap Edit.
3. Tap the bookmark you want to edit.
4. Enter your changes, and then tap Edit.
Viewing a previously visited page
1. While viewing a webpage, tap .
2. On the History tab , navigate to the page you want to view and then tap the
page.
Clearing the list of previously visited pages
1. While viewing a webpage, tap .
2. On the History tab , press , and then tap Clear history.
Viewing a page that you often visit
1. While viewing a webpage, tap .
2. On the Most visited tab , navigate to the page you want to view, and then
tap the page.
Clearing the list of most visited pages
1. While viewing a webpage, tap .
2. On the Most visited tab , press , and then tap Clear all.
43 Search and Web browser
HTC Confidential
Setting browser options
Customize the web browser to suit your browsing lifestyle. Set display, privacy, and
security options when using the web browser.
From the browser screen, press , and then tap More > Settings.
Setting your home page
1. From the browser screen, press , and then tap More > Settings > Set home
page.
2. Select the home page you want to use.
Choosing when to show Flash content
Choose which Flash® content you want to see on a webpage, and when you want to
view it.
1. From the browser screen, press , and then tap More > Settings > Enable
plugins.
2. Tap On demand.
After selecting On demand, you can show the Flash content by tapping on the
webpage.
44 Search and Web browser
HTC Confidential
Tablet pen and fun apps
About the tablet pen
Whether for work or play, we've made something so common yet useful as a pen
seamlessly fit your mobile experience. On HTC Flyer, use the tablet pen to take notes,
draw pictures, sign contracts, and more.
1Battery cap Open the cap when you want to replace the
battery of your tablet pen.
2ERASER button Lets you erase your pen strokes on the current
screen.
3HIGHLIGHTER
button
Lets you highlight text in pen-integrated apps.
For example, highlight your favorite quotes when
in Reader.
4Pen nib If the nib or tip of your tablet pen wears out, you
can replace it. Contact your service provider or
retail store on how to purchase a replacement
pen nib.
Inserting a battery into the tablet pen
Before you start using the tablet pen, you need to first install the disposable AAAA
battery that's included in the box. After a period of time, change the tablet pen's
battery when you feel that HTC Flyer is not responding too well to your pen strokes.
1. Twist the battery cap counter-clockwise until it detaches from the tablet pen,
then remove it completely.
2. With the positive pole first, insert a new battery into the tablet pen.
3. Put the battery cap back into the tablet pen, and then twist it clockwise until it
locks in place.
45 Tablet pen and fun apps
HTC Confidential
What your tablet pen can do
Use the tablet pen to tap the button on HTC Flyer and open the Pen options
palette. This lets you choose from a variety of pen types, strokes, and colors. Here are
some of the pens and strokes you can use:
1Pencil
2Ballpoint pen
3Paintbrush
4Calligraphy pen
5Marker
6Highlighter
7Eraser
How you typically use your regular pen on a piece of paper is also the way you can
use the tablet pen on HTC Flyer. In other words, your tablet pen is for:
§Writing and drawing.
§Highlighting text.
When you're reading something interesting in pen-integrated apps, use the
tablet pen as a highlighter and mark your favorite words and phrases.
§Erasing.
Make quick edits to your notes or sketches.
You still need to use your finger to slide to another screen, scroll through a web
page, or select onscreen items in the Home screen and other apps.
Choosing your pen type, color, and stroke
Use your tablet pen (and not your finger) to tap on the button and any item on
the Pen options palette.
1. Open a pen-integrated app. Or if you want to create a note or draw on any app
screen or web page, use your tablet pen to tap on the screen to switch to
Scribble mode.
2. Tap . This opens a palette where you can customize your pen menu and
options. At the bottom, you'll see whether you're in Menu or Options mode.
3. If you're seeing the word Options on the Pen options palette, tap on it to switch
to Menu mode.
46 Tablet pen and fun apps
HTC Confidential
4. When in Menu mode, tap any of the following to customize your pen settings:
Color
Tap this button to see the available pen colors. Tap the color you want to
use.
Type
Tap this button to see different pen types. Tap a pen to use.
Stroke
Tap this button to see available stroke sizes for the your selected pen
type. Tap the stroke size to use.
5. Tap to close the Pen options palette.
While you're using the tablet pen
1. While you're writing down notes or scribbling, tap to open the Pen options
palette. At the bottom, you'll see whether you're in Menu or Options mode.
2. If you're seeing the word Menu on the Pen options palette, tap on it to switch to
Options mode.
3. When in Options mode, you can then do any of the following:
Undo or redo Tap to delete your last pen stroke. Tap to revert to it
again.
Show or hide
pen strokes
Tap to toggle between showing or hiding pen strokes.
It's helpful to hide pen strokes at times to view the original
page or screen before your edits.
Clear all Tap to delete all pen strokes on the current screen.
4. You can also press and hold the tablet pen's ERASER button. Don't lift your
finger until you're done erasing.
Changing the settings for the tablet pen
From the Home screen, press , and then tap Settings > Pen.
Pen history for
each app
Select this option if you want HTC Flyer to display recent pen
types, strokes, and colors you used in different apps.
Auto launch
Scribble mode
Select this option to always switch to Scribble mode every time
you tap the tablet pen on the screen (while you're on the Home
screen or in an app where you don't normally use the tablet pen).
47 Tablet pen and fun apps
HTC Confidential
Highlighting and drawing in pen-integrated
apps
Open a document or photo in a pen-integrated app and easily highlight words or
draw over it.
Highlighting text
1. Open any of the following:
§An eBook in Reader
§A Word document in Polaris Office
§A PDF document in PDF Viewer
2. Look for the text you want to highlight.
3. Press and hold the tablet pen's HIGHLIGHTER button, and then highlight the
phrase or sentence. Don't release the HIGHLIGHTER button until you're done.
Available pen types depend on the app you're using.
4. To change the highlight color, tap the highlighted text with your finger, and then
select a color from the popup menu.
To remove the highlight, tap the highlighted text with your finger, and then tap
Unhighlight.
Drawing over text
1. Open any of the following:
§An eBook in Reader
§A Word document in Polaris Office
§A PDF document in PDF Viewer
2. Go to the part where you want to place your signature or draw over text.
3. Use the tablet pen to sign or draw.
Available pen types depend on the app you're using.
Drawing over a photo
1. On the Gallery app’s Albums screen, tap an album.
2. Tap a photo to view it in full screen.
48 Tablet pen and fun apps
HTC Confidential
3. Use the tablet pen to draw over your photo.
4. Press to apply your changes.
A pen icon appears on the photo thumbnail to indicate that you retouched this
photo.
Your pen strokes will be saved as a different layer over the photo so you can
remove them anytime. To delete pen strokes, open Gallery, and then view the
photo in full screen. Use the tablet pen as an eraser or tap in the Pen options
palette to clear all pen strokes.
You can also send the photo merged with your artwork by email or Bluetooth, or
share it to friends in your social networks.
About Notes
Seen something inspiring lately? Jot it down in Notes and make it easy to remember
your ideas, questions, and everything else. You can write, record audio, attach photos
and documents, and even clip your favorite web pages. If you're taking notes during a
meeting, you can conveniently link them to the meeting event saved in Calendar.
Create and sign in to your Evernote account from HTC Flyer if you want to back up
your notes to Evernote's secure online server. For details, visit www.evernote.com/
about/learn_more.
Creating a notebook
1. From the Home screen, tap > Notes.
The first time you open the app, you can take a quick tour and set up your
Evernote account. If you choose to skip this, you can later on log in to Evernote
in the Accounts & sync settings.
2. On the All notes screen, tap > New notebook.
3. Type in a notebook title.
49 Tablet pen and fun apps
HTC Confidential
4. Select a notebook type.
§Tap Local notebook to save this notebook only on HTC Flyer.
§Tap Synchronized notebook to sync your notes with your Evernote
account.
5. Tap Create.
To open or switch to another notebook, simply tap , then tap a notebook name.
Syncing notes
You can choose whether to automatically or manually sync your notes between HTC
Flyer and your Evernote account on the Web.
You need to log in to your Evernote account from HTC Flyer to start syncing notes.
1. From the Home screen, tap > Notes.
2. To manually sync notes, press , and then tap Sync.
3. To set Notes to automatically update, press on the All notes screen, and
then tap More > Settings > Accounts and sync.
4. Customize your sync settings.
Writing a note
1. From the Home screen, tap > Notes.
If you open the Notes app while you have an ongoing meeting (saved in Calendar),
you can associate a note directly with this event.
2. Open a notebook, and then tap .
3. Do any of the following:
§Tap Enter title with your finger, and then type in a note title.
§Tap on the note to move the text cursor to a page line, then start typing in
your text.
4. Use your tablet pen to write, draw over text, highlight, doodle, and more.
5. When done, press , and then tap Save.
50 Tablet pen and fun apps
HTC Confidential
Adding a photo or attachment to your note
While you have a note open, do any of the following:
Insert a photo §Move the text cursor to where you want to insert the photo,
and then tap > Picture to insert a photo from HTC Flyer.
§Tap to take a picture.
Attach a
document
Tap > Document, and then browse for the document to
attach.
Clipping an app screen or a web page
On HTC Flyer, you can clip app screens and web pages as images, and then insert
them to your notes.
1. Open the app or web page you want to clip.
2. With the tablet pen, tap any part of the screen to enter Scribble mode.
3. Tap Save to add the clipped image into a new note.
If you want to clip web pages without converting them to images, you can sign in
and use Evernote on your computer, and then sync your clipped notes with the
Notes app. You need to install the Evernote Web Clipper on your computer before
you can clip content from the Web. For details, see www.evernote.com.
Taking notes during meetings or discussions
The Notes app lets you capture thoughts, action plans, and meeting minutes better
than just writing them down.
While you have a note open, you can:
Create a new note Tap .
Record voice clips Tap to start and stop audio recording.
(You also need to stop recording first when you want to
create a new note page.)
Link the note to an
event
Tap , and then select the event to link to in Calendar.
Saving a note
Although the Notes app automatically saves your work when you press , you can
still manually save your notes to make sure nothing is lost.
While you have your note open, press , and then tap Save.
51 Tablet pen and fun apps
HTC Confidential
Reviewing a note
1. From the Home screen, tap > Notes.
2. Open a notebook, and then tap a note thumbnail.
3. While on the note, you can:
§Slide your finger up or down the screen to
scroll the page.
§Tap a file attachment to open it in an
appropriate app.
§Tap to view or change the linked event in
Calendar. Or if you haven't linked the note yet,
tap to select a calendar event.
Playing an audio recording in Notes
After recording a meeting, you can listen to the audio clip to review key points. If you
took notes while audio recording, 'timemarks' (small green nodes in the audio bar) are
added to pin your notes within the audio recording's time frame.
1. Open a note where you have recorded voice clip.
2. Tap to play the audio recording.
3. Tap or to go to the next or previous timemark. When you're moving from
one timemark to another, you'll see a note thumbnail for a quick preview of
what you noted down while recording.
You can also tap a particular content on your note to jump to its timemark and hear
the audio you've recorded at that time.
52 Tablet pen and fun apps
HTC Confidential
Sharing a note
You can send your notes by email or Bluetooth, or share them with friends in your
social networks.
1. From the Home screen, tap > Notes.
2. Open a notebook, and then tap the note to share.
3. Press , and then tap Share note.
4. Choose how you want to share your note.
§For most sharing options, notes are automatically converted and sent as images.
§You can print notes when HTC Flyer is connected to a printer over Wi-Fi.
Switching to Kid Mode
Afraid that your kids might wander off to inappropriate web sites or your important
work files while using HTC Flyer? Don't worry. Open Kid Mode and let your children
enjoy fun games, art, and books that are right for their age.
To learn more about Kid Mode, visit www.zoodles.com.
To use this app, you need to:
§Connect to the Internet (using a data or Wi-Fi connection)
§Create or sign in to your Zoodles™ account
From the Home screen, tap > Kid Mode.
Setting your Zoodles Kid Mode options
1. From the Home screen, tap > Kid Mode.
2. On the Zoodles main screen, press , and then tap Settings.
To return to the Zoodles main screen, tap on the upper left corner of the app.
3. With your finger, confirm the action by drawing the letter Z on the screen.
4. Under Device options, do any of the following:
Lock Home
Button
Select this option to disable while in Kid Mode.
53 Tablet pen and fun apps
HTC Confidential
High-quality
Video
Tap to choose whether to play high-quality videos always
or just when you're connected to Wi-Fi.
Selecting Always may incur additional fees from your
mobile operator.
Startup Volume Set the volume level for the app's startup sound.
Maximum
Volume
Set the maximum volume limit to use for this app.
5. Press to return to the Zoodles main screen.
Closing Kid Mode
Press twice, and then confirm your action by drawing the letter Z with your finger.
Scribble mode
In apps that don't have integrated support for tablet pen interactions, you can switch
on Scribble mode so you can use the tablet pen. When in Scribble mode, HTC Flyer
captures the current screen as an image where you can freely draw or mark items.
1. While you're in an app that supports Scribble mode, switch the mode on by
tapping any part of the screen with the tablet pen.
Scribble mode is not supported when you're:
§Using an app that lets you freely draw with the tablet pen.
§Playing a video or slideshow in Gallery.
§Reading, playing, or viewing copyrighted materials.
§Framing subjects in the Viewfinder screen of Camera or Camcorder.
§Entering text using the onscreen keyboard.
2. Press when you no longer want to be in Scribble mode. This discards all your
scribbles on the current screen.
If you don't want to enter Scribble mode every time you tap the tablet pen on HTC
Flyer, press from the Home screen, and then tap Settings > Pen. Clear the Auto
launch Scribble mode check box.
54 Tablet pen and fun apps
HTC Confidential
After scribbling
Tap with your finger to select the next action you want for your scribbles.
When you're done scribbling on an app screen, press to show the following
options:
Save Tap to save the clipped screen and your scribbles as an image.
When you select this option, your scribbled image is automatically
inserted into a page in Notes. You can also view your scribbles in Gallery.
Share via Tap to send the image to your computer or another device using
Bluetooth, send it by email, or select a social network where you want to
upload it to.
Print If you're connected to a printer over Wi-Fi, tap to send the image for
printing.
Discard Tap to delete the image and exit Scribble mode.
You can also tap the screen with your finger to show or hide the Scribble mode
options.
55 Tablet pen and fun apps
HTC Confidential
Snapbooth and Camera
Snapbooth
Using Snapbooth
Have fun taking closeup shots of yourself or with your loved ones using Snapbooth.
Choose from virtual lenses or add effects to make moments memorable. You can also
choose to take a composite photo with four different shots.
Taking your closeup shot
1. From the Home screen, tap > Snapbooth.
2. Choose how you want to take your photo.
In One shot mode, the front camera takes a single shot.
In Four shots mode, the front camera takes four shots and combines
them into a single photo.
3. Choose an effect to apply to your photo.
4. Hold HTC Flyer in portrait or landscape position with both hands, and then
adjust or move it to center yourself inside the Viewfinder window.
5. When you're ready to take your photo, look at the front camera lens, and then
tap .
Snapbooth counts down before taking the shot. To cancel the shot, tap .
After taking your photo, you can choose to share it or just delete it if you want to take
another shot.
Your photo is then displayed as a thumbnail on the screen. Tap the thumbnail to view
it in full screen or edit it.
You can use Gallery to view the photos you've taken. Go to the Snapbooth album in
Gallery to view them.
56 Snapbooth and Camera
HTC Confidential
Viewing or editing a photo in full screen
§While viewing a photo in full screen, swipe your finger left or right across the
screen to go through the other photos you've taken.
§Tap anywhere on the screen and then choose what to do with the current
photo.
Edit the photo. You can crop, rotate, or add effects.
Share the photo. You can send it in an email, upload to Facebook, and
more.
Delete the photo.
Open other albums or folders to view.
Take a new photo.
§You can also zoom in or out of a photo.
Camera
Camera basics
Whether traveling for business or fun, enjoy taking photos and videos of your trip and
encounters with HTC Flyer.
You can capture photos and videos to the internal storage or your inserted storage
card.
§To open the camera in photo mode and take photos, tap from the Home
screen, and then tap Camera.
§To open the camera directly in video mode so you can immediately start
capturing videos, tap from the Home screen, and then tap Camcorder.
Viewfinder screen
You’ll find the following onscreen controls on the Viewfinder screen:
57 Snapbooth and Camera
HTC Confidential
Zoom bar
Auto focus indicator
Photo/Video mode
switch
Shutter release/
Record button
Effects button
Gallery button
or Switch to front or main
camera button
Zooming
Before taking a photo or video, you can first use the onscreen zoom bar to zoom in or
out of your subject.
Simply slide your finger up or down the zoom bar to zoom in or out.
When you're recording video, the zoom bar is always shown onscreen. You can freely
zoom in or out while recording.
Auto focusing
Whenever you point the camera at a different subject or location, it shows the auto
focus indicator at the center of the Viewfinder screen.
Let the camera auto focus on the center of the screen. Or you can tap another area on
the screen that you want to focus on.
Using the front camera
Take a picture or shoot a video of yourself using the front camera.
To switch to the front camera, on the camera screen, tap or . To switch back
to the main camera, tap or again.
Some camera features are not available when you’re using the front camera, such
as auto focusing, zooming, and face detection.
58 Snapbooth and Camera
HTC Confidential
Taking a photo
1. From the Home screen, tap > Camera.
2. Before taking the photo, you can zoom in or out first on your subject.
3. Choose the resolution and other camera settings you want to use.
4. Choose an effect to apply to your photo.
5. Point the camera and focus on your subject.
If you're taking people's photo, the camera will automatically recognize faces
and adjust the focus. You'll see boxes on people's faces.
Make sure the Auto focus and Face detection check boxes are selected in the
camera settings.
6. When you're ready to take the photo, tap .
7. Choose what you want to do with the photo you’ve just taken.
Recording video
1. From the Home screen, tap > Camcorder.
2. Choose the video quality and other camera settings you want to use.
3. Choose an effect to apply to your video.
4. Frame your subject on the Viewfinder screen.
5. Tap to start recording.
6. You can freely zoom in or out while recording video.
7. You can change focus to a different subject or area by just tapping it on the
Viewfinder screen.
8. To stop recording, tap again.
9. Choose what you want to do with the video you’ve just recorded.
59 Snapbooth and Camera
HTC Confidential
Adding effects
Want to make your photos look more interesting? Easy. Use the available camera
effects to make your photos look like they’ve been taken through special lenses and
filters. You can also add certain effects to videos.
Choose an effect first before you start taking a photo or video.
1. Tap .
2. Scroll through the available effects and tap one that you like.
When you choose certain photo effects such as depth of field, distortion, or vignette,
drag the bar that appears on the screen to adjust the intensity of the effect.
After capturing
After capturing a photo or video, the Review screen will display the photo or the
starting image of the video that you have just captured. Tap the onscreen buttons to
choose what you want to do next.
Return to the Viewfinder screen.
Delete the photo or video
Send the photo or video to your computer or another device using Bluetooth,
send it by email, or select a social network where you want to upload it to.
Choose how you want to use the photo, such as to use it as your wallpaper
Watch the video.
Changing camera settings
Open the menu panel to access and change camera settings.
To open the camera settings, press .
Some camera features are not available when you’re using the front camera, such
as auto focusing, zooming, and face detection.
Self-timer (photo mode
only)
Set a time delay before your camera automatically takes
the photo.
Image adjustments Slide your finger across each of the slider bars to adjust the
exposure, contrast, saturation, and sharpness.
White balance White balance enables the camera to capture colors more
accurately by adjusting to your current lighting
environment.
Resolution/Video
quality
Choose a photo or video resolution to use.
60 Snapbooth and Camera
HTC Confidential
ISO (photo mode only) Choose an ISO level or set it back to Auto. Higher ISO
numbers are better for taking pictures in low light
conditions.
Review duration Set the time for a captured photo or video to be displayed
on the Review screen before the camera changes back to
the Viewfinder screen.
Storage Choose whether to capture photos and videos to the
internal storage or your storage card.
Widescreen (photo
mode only)
When this check box is selected (default), photo resolutions
available for selection are in 16:9 ratio and you can use the
entire Viewfinder screen to frame your subject. When not
selected, photo resolutions available for selection are in
standard 4:3 ratio.
Geo-tag photos (photo
mode only)
Select to store GPS location in your captured photos.
Mirror mode (front
camera only)
Select to show the mirror image on the viewfinder screen.
Auto enhance (photo
mode only)
Select to reduce noise when using a high ISO setting and to
automatically adjust photo brightness.
Auto focus (photo
mode only)
Enables or disables centered auto focus.
Face detection (photo
mode only)
Select to automatically recognize faces and adjust the
focus when you take people photos. Face detection will be
turned off if you disable auto focus.
Shutter sound Select to play a sound when you press the shutter release
or record button.
Grid (photo mode only) Select to display a grid on the Viewfinder screen so you can
easily frame and center your subject before taking the
photo.
Record with audio
(video mode only)
Select to record audio when capturing videos.
Reset to default Change the camera settings back to default.
61 Snapbooth and Camera
HTC Confidential
Photos, videos, and music
Gallery
About the Gallery app
Relive the fun while viewing photos and videos of your latest travels or your pet’s
newest tricks. Get an audience by tagging your Facebook and Flickr friends. You can
even play your media on a TV screen.
To start using Gallery, check first if you have photos or videos copied to the internal
storage.
What’s more, you can edit and add effects to your photos. You can also easily use a
photo as your contact icon, location icon, or wallpaper.
Selecting an album
From the Home screen, tap > Gallery. The Gallery app opens on the Albums screen
where your photos and videos are organized by albums for easy viewing.
Turn HTC Flyer to the left to see your albums and thumbnail previews of the
albums' content side-by-side.
The following are preset albums:
§Camera shots lets you view photos and videos
that are stored in the camera’s folder.
§My favorites lets you group photos and videos
that you set as your favorites.
§All photos lets you view all photos that are stored
in all the folders on the internal storage.
§All videos lets you view all videos that are stored
in all the folders on the internal storage.
§All downloads lets you view photos and videos
that you downloaded.
§Snapbooth lets you view all photos you've taken
using Snapbooth.
Folders in the internal storage that contain photos and videos will also be treated as
albums and will be listed after the preset albums. The actual folder names will be used
as the album names.
62 Photos, videos, and music
HTC Confidential
§If there are photos or videos under the root path of the internal storage (that are
not contained in folders), they will be grouped under the Other album.
§If you've inserted a storage card into HTC Flyer, the photos and videos in the
storage card will show as well.
Viewing photos
After you’ve selected an album, you can browse through your photos and videos.
Slide your finger up or down to scroll through the thumbnails. Tap a photo or video to
view it in full screen.
Zooming in or out on a photo
There are two ways you can zoom in or out of a photo.
§Tap the screen twice quickly to zoom in, then tap the screen twice quickly again
to zoom out.
§Press your thumb and index finger on the screen and then spread your fingers
apart to zoom in; pinch your fingers together to zoom out.
63 Photos, videos, and music
HTC Confidential
Viewing photos as a slideshow
View the photos in an album as a slideshow.
1. Select an album whose photos you want to view as a slideshow.
2. Tap .
§Tap the screen to show the playback controls.
§With the playback controls showing, tap to set slideshow preferences.
Watching videos
While browsing an album, tap a video to play it.
Another way to easily get to your videos is to tap from the Homescreen, and
then tap Videos.
§Use the onscreen controls to play, pause, or stop the video.
§For an enhanced audio experience, tap to turn on SRS. (Not available when
you're using a Bluetooth headset.)
§Tap to toggle between full and best-fit screens.
Editing your photos
Do basic editing tasks on your photos such as rotate and crop. You can also enhance
your photos by applying effects such as high contrast, vintage, and more.
Rotating a photo
1. On the Gallery app’s Albums screen, tap an album.
2. Press and hold on the photo that you want to rotate.
3. In the menu that opens, tap Edit, and then tap either Rotate left or Rotate right.
Cropping a photo
1. On the Gallery app’s Albums screen, tap an album.
2. Press and hold on the photo that you want to crop.
64 Photos, videos, and music
HTC Confidential
3. In the menu that opens, tap Edit, and then tap Crop. You’ll see a crop box
around the photo.
4. To adjust the crop box size, press and hold the edge of the box.
5. When directional arrows appear, drag your finger inward or outward to resize
the crop box.
6. To move the crop box to the part of the photo that you want to crop, drag the
crop box to the desired position.
7. Tap Save to keep the changes.
The cropped photo is saved as a copy. The original photo remains unedited.
Adding effects
1. On the Gallery app’s Albums screen, tap an album.
2. Press and hold on the photo that you want to add effects to.
3. In the menu that opens, tap Edit, and then tap Effects. On the panel that opens,
you’ll see options available to you.
4. Tap an effect to apply on the photo.
5. Tap Save to keep the changes.
The enhanced photo is saved as a copy. The original photo remains unedited.
Sending your photos and videos
Send photos and videos via email or MMS to your computer or another device using
Bluetooth.
Sending photos or videos by email
You can send several photos, videos, or both in an email message. They are added as
file attachments in your email.
1. From the Home screen, tap > Gallery.
2. Tap the album that has the photos or videos you want to share.
3. Tap and then tap Gmail or Mail.
65 Photos, videos, and music
HTC Confidential
4. Select the photos or videos you want to share and then tap Next.
5. Compose your message and then tap (Gmail) or Send (Mail).
If you selected Mail and you have multiple email accounts, the default email
account will be used.
Sending a photo or video by MMS
1. From the Home screen, tap > Gallery.
2. Tap the album that has the photos or videos you want to share.
3. Tap and then tap Messages.
4. Tap the photo or video you want to send. The photo or video is automatically
added into the MMS message.
5. To add another photo or video to your slideshow attachment, tap and then
tap Picture or Video.
6. Compose your message and then tap Send.
Sending photos or videos using Bluetooth
You can select several photos, videos, or both and send them to someone’s device or
your computer using Bluetooth.
1. From the Home screen, tap > Gallery.
2. Tap the album that has the photos or videos you want to share.
3. Tap and then tap Bluetooth.
4. Select the photos or videos you want to share and then tap Next.
In the next few steps, you’ll be asked to turn on Bluetooth on HTC Flyer and connect
to the receiving Bluetooth device so the files can be sent.
Sharing your photos and videos on the Web
Using the Gallery app, you can share photos and videos on your social networks, as
well as post videos on YouTube.
You can also use the Camera or Camcorder app to share a photo or video right
after you’ve captured it.
Sharing photos or videos on Facebook
You need to be logged in to your account to be able to upload photos or videos.
1. From the Home screen, tap > Gallery.
2. Tap the album that has the photos or videos you want to share.
3. Tap and then tap Facebook for HTC Sense.
4. Select the photos or videos you want to share and then tap Next.
66 Photos, videos, and music
HTC Confidential
5. Enter a different caption on each photo or video. You can also tag friends on
your photos. Tap Tap to add tag, and then tap the part where your friend is.
From the list that shows, select who you want to tag.
6. Slide to the left to go to the next photo or video.
7. Tap Upload.
8. Select which album to upload to and set privacy settings for the uploaded
photos or videos.
9. Tap Done.
Sharing photos and videos on Flickr
You need to be logged in to your Flickr account to be able to upload photos or
videos.
1. From the Home screen, tap > Gallery.
2. Tap the album that has the photos or videos you want to share.
3. Tap and then tap Flickr.
4. Select the photos or videos you want to share and then tap Next.
5. Enter a different title and description on each photo or video. You can also tag
friends on your photos. Tap Tap to add tag, and then tap the part where your
friend is. From the list that shows, select who you want to tag.
6. Slide to the left to go to the next photo or video.
7. Tap Upload.
8. Select which album to upload to and set privacy settings for the uploaded
photos or videos.
9. Tap Done.
Sharing photos on Picasa
You need to be signed in to a Google Account to be able to upload photos to the
Picasa photo organizing service.
1. From the Home screen, tap > Gallery.
2. Tap the album that has the photos you want to share.
3. Tap and then tap Picasa.
4. Select the photos you want to share and then tap Next.
5. Enter a caption for the photos you're uploading.
6. Select the online album where you want to upload the photos, or tap to
create a new album.
7. Tap Upload.
You can view the photos online at http://picasaweb.google.com.
67 Photos, videos, and music
HTC Confidential
Sharing videos on YouTube
You can share your videos by uploading them to YouTube.
1. From the Home screen, tap > Gallery.
2. Tap the album that has the videos you want to share.
3. Tap and then tap YouTube.
4. Select the videos you want to share and then tap Next. Sign in to your YouTube
or Google Account, if you’re asked to do so.
5. Enter a title for the videos you're uploading.
6. Tap More details where you can enter information such as description and tags,
and select a privacy option.
7. Tap Upload.
Viewing photos in your social networks
Right in the Gallery app, check what you and your friends have uploaded to your
social networks (Facebook and Flickr only).
Viewing photos on Facebook
You need to be logged in to your Facebook account to view Facebook photos.
1. From the Home screen, tap > Gallery.
2. On the top of the screen, tap the bar that displays the current view (for
example, Albums), and then tap Facebook.
3. Tap your account name or your friend’s account on the list to view the photos in
the account.
You can view photos in your online albums in the same way as you view photos in
Gallery.
68 Photos, videos, and music
HTC Confidential
Viewing photos on Flickr
You need to be logged in to your Flickr account to view Flickr photos.
1. From the Home screen, tap > Gallery.
2. On the top of the screen, tap the bar that displays the current view (for
example, Albums), and then tap Flickr.
You may be asked to give authorization for the app to connect to the Flickr
website. If this happens, you need to give authorization to access your Flickr
account.
3. Tap your account name or your friend’s account on the list to view the photos in
the account.
You can view photos in your online albums in the same way as you view photos in
Gallery.
Commenting on photos in your social networks
Add comments to your uploaded photos as well as your friends’ photos.
1. Do one of the following:
§While browsing online albums, press and hold a photo and then tap Add
comment.
§While viewing a photo in full screen, tap anywhere on the screen, and then
tap .
2. Tap the box that says “Write a comment.”
3. Enter your text, and then tap Comment.
69 Photos, videos, and music
HTC Confidential
Music
Listening to music
Enjoy listening to songs and music on HTC Flyer using the Music app.
You need to copy music files to the internal storage first (or an inserted storage
card) to use the Music app to play music.
1. From the Home screen, tap > Music.
2. In the playback screen, swipe your finger left or right across the screen to go to
the next or previous music album.
If you're not in the playback screen, tap or .
3. Tap the onscreen icons to control music playback, select a song to play, repeat
songs, and more.
Tap to share music on your home network.
Turn shuffle on or off. (Shuffle is off when
button is gray.)
Cycle through the repeat modes: repeat all
songs, repeat current song, and don’t
repeat.
Enjoy listening to your music with SRS. Or,
if you’re using a wired headset, you can
also choose from various preset equalizer
settings. (SRS and equalizer are not
available when you’re using a Bluetooth
stereo headset.)
Press and drag your finger across the
progress bar to jump to any part of the
song.
Tap to check out featured albums from
HTCSense.com. (Availability depends on
your country.)
Go to the library.
Switch between showing the Now playing
list and playback screen. You can
rearrange songs in the Now playing list.
70 Photos, videos, and music
HTC Confidential
Playing music from the Lock screen
When you’re listening to music and the screen turns off, press POWER to turn the
screen back on and control the music playback directly on the Lock screen.
If you don’t see the playback controls on the Lock screen, swipe your finger from left
to right on the box onscreen.
You can also pause music playback right from the Notifications panel.
Browsing and playing music in landscape view
Turn HTC Flyer to the left to switch to landscape view. In landscape view, you can see
the library and the playback screen or Now playing list side-by-side making it easier
for you to browse and play your music at the same time.
In landscape view, tap to let you skim through your albums easily.
§If you have lots of albums, flick left or right across the screen to quickly skim
through them.
§Tap an album to see the song list of the current album.
About the Music widget
You can use the Music widget to play music right from your Home screen.
71 Photos, videos, and music
HTC Confidential
Browsing music in the library
1. Tap on the Music app’s playback screen or Now playing list to go to the
library. In the library, your music is organized by categories such as Artists and
Albums. Choose a category by tapping one of the tabs at the bottom of the
screen.
2. Tap a song in a category to play it. The Now playing list is updated with the
song list from your selected category.
You can add, remove, or rearrange the tabs in the library.
Creating a playlist
Personalize your music experience by creating music playlists. Make a playlist
containing just your favorite songs or create one to match your mood for the day.
You can make as many playlists as you like.
1. From the Home screen, tap > Music.
2. Tap to go to the library.
3. In the library, tap or slide your finger on the bottom row to go to the Playlists
category.
4. On the upper-right corner of the screen, tap .
5. Enter a playlist name, and then tap Add songs to playlist.
6. Choose a category.
7. Select the check boxes of songs you want to add to the playlist and then tap
Add.
8. Tap Save.
Playing the songs in a playlist
1. In the library, tap or slide your finger on the bottom row to go to the Playlists
category.
2. Tap a playlist to open it.
3. Tap the first song or any song in the playlist.
When you tap a song in the list to play it, the playback screen is updated with the
songs from your playlist.
72 Photos, videos, and music
HTC Confidential
Managing playlists
After creating a playlist, you can add more songs to it, rearrange their order, and
more.
1. In the library, tap or slide your finger on the bottom row to go to the Playlists
category.
2. Tap a playlist to open it.
3. Press , and then choose what you want to do:
Add more songs to
a playlist 1. Tap Add songs.
2. Go to the Songs category or any other category.
3. Select the songs you want to add to the playlist and
then tap Add.
Rearrange songs 1. Tap Change order.
2. Press and hold at the end of the song title you want
to move. When the row is highlighted, drag it to its new
position, then release.
Delete songs from
a playlist 1. Tap Remove songs.
2. Select the songs you want to delete and then tap
Remove.
Change playlist
name
Tap Rename playlist.
Deleting playlists
1. In the library, tap or slide your finger on the bottom row to go to the Playlists
category.
2. Press and then tap Delete playlists.
3. Select the playlists to delete and then tap Delete.
Sharing music using Bluetooth
You can choose a song from the Music app’s library and send it to someone’s phone
or your computer using Bluetooth.
1. From the Home screen, tap > Music.
2. Tap to go to the library.
73 Photos, videos, and music
HTC Confidential
3. In the library, choose the song that you want to send via Bluetooth and then
play it back.
4. On the playback screen, press and then tap Share > Bluetooth.
In the next few steps, you’ll be asked to turn on Bluetooth on HTC Flyer and connect
to the receiving Bluetooth device so the music can be sent.
Finding music videos on YouTube
You can find music videos of the song you’re listening to on YouTube. It’s simple. On
the playback screen, just press and then tap Find videos.
Connected Media
Sharing media on your home network
Sharing photos, videos, and music with a bigger circle of friends is easy on your home
network. Simply connect HTC Flyer to the network and instantly show your captured
photos and videos on a big TV, or start streaming your favorite music tracks on hi-fi
speakers — all via DLNA®. For more information about DLNA, visit www.dlna.org.
Before you share media through the network:
§Connect HTC Flyer to the network via Wi-Fi.
§Connect the TV or speakers to the network. Check the documentation that
came with your TV or speakers to know how.
1. Open the Gallery or Music app.
2. Locate the media that you want to share, and then tap it.
3. While viewing the photo or playing the video, press , and then tap Select
player or More > Select player if you're playing music.
When playing music, you can also tap .
74 Photos, videos, and music
HTC Confidential
4. Choose the device on your network where you want to play the media.
5. Once connected to the other device, HTC Flyer opens up the Controller screen
where you can tap:
Controls To
Play the media on the other device.
Pause the music or video playback.
Play the previous photo or music track.
Play the next photo or music track.
Shuffle your music playlist.
Select a repeat mode for photos or music tracks.
Show available media that you can share.
When playing music, tap to turn on SRS.
When playing music, tap to switch to the Now playing list.
Connect to another player on the network.
While playing a media on another device, you can press and do other things on
HTC Flyer. To return to the Controller screen, slide open the Notifications panel,
and then tap the device you’re connected to.
75 Photos, videos, and music
HTC Confidential
HTC services
HTC Watch
HTC Watch
Use HTC Watch to watch trailers of current movies and to purchase movies.
Purchasing movies is only available in some regions. Movies that can be bought and
other premium content will be available in your region once they're ready.
HTCSense.com
Signing up for your HTCSense.com account
You can sign up for your HTCSense.com account on HTC Flyer or your computer’s
web browser.
Signing up from HTC Flyer
1. From the Home screen, press , and then tap Settings > Accounts & sync.
2. Tap Add account > HTC Sense.
3. Follow the onscreen instructions to sign up for your HTCSense.com account.
Signing up from your computer
Make sure you have HTC Flyer close by. You’ll need it to complete the sign-up
process.
1. On your computer, open your web browser.
2. Go to www.htcsense.com.
3. Follow the onscreen instructions to sign up for your HTCSense.com account.
After signing up to HTCSense.com on the Web, you have to sign in using the same
account credentials on HTC Flyer.
Updating your HTCSense.com account details
1. On your computer, open your web browser and sign in to your HTCSense.com
account.
2. On the upper-right corner, click Account.
3. Update your account details, and then click Save Changes.
76 HTC services
HTC Confidential
Using HTCSense.com
Forgot HTC Flyer at home or you can’t find it? Or worse, you forgot it on the train.
Use HTCSense.com to communicate with HTC Flyer so you can forward messages to
a different number, make HTC Flyer ring, lock it, and even erase its contents.
To use these features, you'll need to sign in to HTCSense.com on a computer web
browser.
Turning on Device finder
Some features of HTCSense.com require that the Device finder option on HTC Flyer is
selected.
1. On HTC Flyer, from the Home screen, press , and then tap Settings.
2. Tap Location.
3. Select the Device finder check box.
Forwarding messages
You can forward messages to another phone if you don’t have HTC Flyer with you.
On the HTCSense.com, click the Forward messages On/Off switch.
Making HTC Flyer ring
You know HTC Flyer is somewhere in your home but you just can’t find it. Make HTC
Flyer ring, even if it’s on mute, so that you can find it. Hopefully, it’s just buried under
some clothes in the hamper.
On HTCSense.com, click Ring.
Locating HTC Flyer
Left HTC Flyer somewhere while doing your errands? You can use HTCSense.com to
find its approximate location.
You must have the Device finder option selected on HTC Flyer for this feature to
work.
On HTCSense.com, check the map to see where HTC Flyer is. Click Refresh location to
refresh the map.
Locking HTC Flyer
Lost HTC Flyer? Lock HTC Flyer and show a message onscreen.
1. On HTCSense.com, click Lock device.
2. Enter a PIN and a short message to show onscreen.
3. Click Save.
77 HTC services
HTC Confidential
Erasing the contents of HTC Flyer
If there’s no chance of getting HTC Flyer back, you can erase the contents of HTC
Flyer and the installed storage card so no one sees sensitive information on HTC Flyer.
There’s no way to recover HTC Flyer and storage card data after you erase the
contents so be absolutely sure before you proceed.
1. On HTCSense.com, click Erase device.
2. When asked to confirm, click Erase device.
Deleting your HTCSense.com account
1. On your computer, open your web browser and sign in to your HTCSense.com
account.
2. On the upper-right corner, click Account.
3. Click Click here to delete your HTCSense account.
Deleting your HTCSense.com account will also delete your data on HTCSense.com
servers.
78 HTC services
HTC Confidential
Accounts and sync
About online accounts
HTC Flyer can sync with popular online social networking and email accounts.
The information you can get includes:
§Gmail, Exchange ActiveSync®, and other POP3/IMAP email.
§Google and Exchange ActiveSync contacts, as well as your friends’ contact
information in Facebook and their Twitter profiles.
§Calendar events from your Google Account(s), from Exchange ActiveSync, and
from your Facebook account.
§Status updates and links shared by your friends and yourself on social networks
such as Facebook and Twitter.
§Flickr and Facebook photo uploads.
You can set up your Exchange ActiveSync and POP3/IMAP email accounts on HTC
Flyer either in the Mail app or the Accounts & sync settings.
Synchronizing with a Google Account
Signing in to your Google Account lets you sync Gmail and your Google contacts and
calendars between HTC Flyer and the Web. You also need to sign in to a Google
Account to use Google apps such as Google Talk™ and Android Market.
If you skipped adding a Google Account when you first set up HTC Flyer, you may
encounter problems when using some Google apps. If these problems persist, you
may need to factory reset HTC Flyer and enter your Google Account details when
you set up HTC Flyer again.
Adding more Google Accounts
You can add more than one Google Account. However, subsequent Google Accounts
can only sync contacts, emails, and calendar events. Other Google services use the
first Google Account you added.
1. From the Home screen, press , and then tap Settings > Accounts & sync.
2. Tap Add account > Google.
3. Follow the onscreen instructions to sign in to an account or create a new
account.
79 Accounts and sync
HTC Confidential
Forgot your Google Account password?
If you have forgotten your Google Account password, you can try to recover it
by going to the Google website.
1. On HTC Flyer or on your computer, open your web browser and go to
https://www.google.com/accounts/ForgotPasswd.
2. Enter the email address or username that you use to sign in to your
Google Account and click Submit.
3. Follow the instructions on the screen to reset your password.
If you don’t have an alternate email address or cannot access the email
account you used to create your Google Account, you can reset your Google
Account after 24 hours by answering the security question for password
recovery.
Adding a social network account
Skipped signing in to your social network accounts (such as Facebook, Twitter, or
Flickr) when you first turned on and set up HTC Flyer? You can still add these
accounts.
1. From the Home screen, press , and then tap Settings > Accounts & sync.
2. Tap Add account, and then tap the account type you want to add.
3. Follow the onscreen instructions to enter the account information.
Your social network account is then added to the list on the Accounts & sync screen.
Depending on how you configured the account, the new information may start
synchronizing with HTC Flyer.
Managing your online accounts
Changing general sync settings
1. From the Home screen, press , and then tap Settings > Accounts & sync.
2. Select or clear the following:
Background
data
If this is selected, apps can send and receive online account
information even if you are not currently using them.
Auto-sync If this is selected, apps can use the sync schedule defined in
the account settings. If this is cleared, you will need to sync
accounts manually.
80 Accounts and sync
HTC Confidential
Synchronizing an account manually
1. From the Home screen, press , and then tap Settings > Accounts & sync.
2. Tap the account that you want to sync.
3. Tap Sync now.
Changing account settings
You can change settings such as the sync frequency and the types of information
synchronized, the kinds of notification you receive, and the way that account
information is displayed.
1. From the Home screen, press , and then tap Settings > Accounts & sync.
2. On the Accounts & sync screen, tap the account that you want to edit.
3. Tap the type of information you want to sync or select an item to edit its
settings.
Removing an account
You can remove an account to delete it and all information associated with it from
HTC Flyer, for example messages, contacts, or settings. Removing an account does
not delete information from the online service itself.
You cannot remove some accounts, such as the first Google account you signed
into, except by deleting all personal information from HTC Flyer with a hard reset.
1. From the Home screen, press , and then tap Settings > Accounts & sync.
2. Tap the account that you want to remove.
3. Tap Remove account, and then confirm that you want to remove the account.
81 Accounts and sync
HTC Confidential
Social
Facebook for HTC Sense
If you signed in to your Facebook account when you turned on and set up HTC Flyer
for the first time, that means your Facebook account is linked to Facebook for HTC
Sense on HTC Flyer.
With Facebook for HTC Sense, you can:
§See all your Facebook contacts and their instant status updates in People.
When you tap a contact on the All tab, slide to
the Updates and events tab to see updates such
as posted status messages, uploads, and profile
changes.
When there is a notification of the contact’s
birthday, you can tap the notification to send a
greeting.
§See Facebook photos right on the Gallery app.
You can also upload one or more photos to
Facebook, then tag and add captions that go with
it.
When you’re viewing the albums of a Facebook
friend, you can also share a link to a particular
album, or comment on the album photos.
82 Social
HTC Confidential
§Check your friends’ Facebook status updates in Friend Stream.
§Add your Facebook events and your friends’ birthdays to the Calendar app.
Facebook app
The Facebook app lets you keep up and stay close with your friends in Facebook. It
offers most of the features that you are familiar with when using Facebook on your
computer.
With the Facebook app, you can:
§Share your thoughts and check other people’s status updates.
§View your friends list and write on someone’s wall.
§Comment on and like a friend’s post.
§View someone’s personal information, including photo albums.
§Check your Facebook notifications.
§Take a photo and upload it straight to your Facebook account.
Using the Facebook app
1. From the Home screen, tap > Facebook.
2. If this is your first time to use Facebook, follow the onscreen instructions to sign
in to your Facebook account.
3. On the News Feed screen, tap to access the other functions.
§While on the Facebook home screen, press , and then tap Settings to set
refresh and notification options.
§On some Facebook screens, you can press and hold an item to open an options
menu.
Adding the Facebook widget
Add the Facebook widget to the Home screen so you can easily post updates and
check status updates of your friends.
The widget will only link to the Facebook account that you logged into on the
Facebook app.
83 Social
HTC Confidential
What’s the difference between Facebook app
and Facebook for HTC Sense?
§Facebook for HTC Sense is not a standalone app. It is integrated in People,
Friend Stream, Gallery, and Calendar to give you up-to-date information about
your Facebook contacts (their status updates, shared links, and photos) in these
apps.
§The Facebook app is a standalone app. Use this app to do most of the things
that you would do when you’re using your computer’s web browser to access
your Facebook account, such as adding a friend and sending Facebook
messages.
§The two do not share the same login credentials. Signing in to Facebook for
HTC Sense does not sign you in to the Facebook app and vice versa. If you want
to use the same Facebook account for both, you’ll have to sign in to both using
the same login credentials.
If you have more than one Facebook account, you may sign in to the Facebook app
using your second account, since the Facebook app does not share the same login
credentials as Facebook for HTC Sense.
Twitter for HTC Sense
If you signed in to your Twitter account when you turned on and set up HTC Flyer for
the first time, that means your Twitter account is linked to Twitter for HTC Sense on
HTC Flyer. (If you did not do this, add the Twitter for HTC Sense account in Settings >
Accounts & sync.)
With Twitter for HTC Sense, you can:
§Link your contacts in People to their Twitter profiles (if you’re following them).
§Send tweets and check your friends’ tweets in Friend Stream.
Twitter for HTC Sense and the Twitter app do not share the same login credentials.
Signing in to Twitter for HTC Sense does not sign you in to the Twitter app and vice
versa. If you want to use the same Twitter account for both, you’ll have to sign in to
both using the same login credentials.
84 Social
HTC Confidential
Using Friend Stream
Friend Stream connects you to your social networks. Share and get updates from
friends in popular networks like Facebook and Twitter in a single feed. With Friend
Stream, you can easily track your friends’ status messages, photo uploads,
notifications, and more — or comment and post your own.
§You must be signed in to at least one social network account to use Friend
Stream.
§To use your Facebook account on Friend Stream, you need to be signed in via
Facebook for HTC Sense.
From the Home screen, tap > Friend Stream. Friend Stream opens on the All
updates tab.
When you tap someone’s status update, you can:
§View all tweets.
§Write a comment. Like or unlike someone’s
Facebook posts.
§Look at someone’s album photos.
When you tap someone’s photo or name, you can:
§Check the person’s profile details.
§Look at the person’s Facebook wall.
§Check the person’s posted tweets.
Slide to the other tabs to view social network updates grouped as status updates
only, photo uploads, links, updates from members of your Facebook list, or social
network notifications.
Updating your status
You can update your status simultaneously on all the social network accounts you are
signed in to.
1. From the Home screen, tap > Friend Stream.
2. On the All updates tab, tap the text box that says What's on your mind.
3. Enter your status update.
4. If you do not want to send the status update to all your social network
accounts, tap and clear the check boxes of the social networks to
exclude.
85 Social
HTC Confidential
5. Tap and then choose what you want to attach to your tweet or status
update.
Picture Select From Camera to take a photo and attach it or
From Gallery to attach a photo.
Location Add your current location or a location you pick on a
map.
App
recommendation
Choose an app you’ve installed from Android Market that
you want to share with others. The URL from which the
app can be downloaded will be inserted to your status.
6. Tap Post.
Commenting on and liking Facebook posts
Tap someone’s status update on the All updates tab, and do any of the following:
§Tap or to like or unlike the person’s
status update.
§Tap to comment on the person’s status
update.
86 Social
HTC Confidential
Checking notifications from your social networks
Slide to the Notifications tab to easily see a single feed of your notifications from
different social networks. It can be a comment on your Facebook post, a mention or
direct message in Twitter, a tagged photo of you, and more.
About the Friend Stream widget
Use the Friend Stream widget so you can easily update your status and view other
people’s status updates right on the Home screen. If you want to keep up with just
one person's Facebook updates, you can add the Friend Channel widget. You can find
it in the Friend Stream widget layout options.
87 Social
HTC Confidential
Tweeting in Friend Stream
In Friend Stream, tap the bar at the top of the screen (for example, All networks), and
then tap Twitter.
Tap to compose and send a tweet.
Tap a person’s name to check profile
details and all of his or her tweets.
If you have linked the contact in
People, tap the photo or icon to open
a menu where you can quickly choose
how to communicate with the
contact.
Press and hold a tweet to open an
options menu to reply, send a direct
message, retweet, and more.
View all the tweets from people you
follow and tweets that you have
posted.
View all tweets that mention your
username using the “@[your
username]” convention.
View all private/direct messages that
you have received or sent.
View tweets that you have marked as
favorites.
Sending a tweet
1. On the All tweets tab, tap the text box that says What's happening.
2. Type your tweet.
3. Add a picture or location to your tweet.
§Tap to post a picture from Gallery or Camera to your default photo
hosting site and add the link to the picture in your tweet.
§Tap to insert your location into the tweet. You can choose to add a
map link, insert your location name, or insert your position coordinates.
4. Tap Post.
88 Social
HTC Confidential
Searching for Twitter users to follow
1. In any of the tabs, tap .
2. Type a Twitter name in the search box, and then tap Search online.
If you don't see Search online, scroll down the screen.
3. In the list of search results, tap the Twitter user you want to follow.
4. Press , and then tap Follow.
Sending a direct message
You can only send a direct message to someone who is following you.
1. In any of the tabs, press , and then tap New message.
2. Tap the text box at the top of the screen, and then enter the name. As you enter
characters, the names of the Twitter users that match the characters you enter
will appear. Tap the name when you see it.
3. Enter your message, and then tap Post.
You can also send a direct message when you press and hold a tweet of the person
you want to send the direct message to, and then tap Send direct message on the
options menu.
Chatting in Google Talk
Google Talk is Google’s instant messaging program. It lets you communicate with
other people that also use Google Talk. If you signed in to your Google Account when
you first set up HTC Flyer, you are already signed in to Google Talk.
Chatting with a friend
1. In Google Talk, tap a friend in the Friends list.
2. Enter your message in the text box. You can also insert a smiley by pressing ,
and then tapping More > Insert smiley.
3. Tap Send.
4. While chatting, press and then tap any of these options:
Chat off
record
Your Google Talk messages are stored in the Chats folder of
your Gmail account. Tap this option if you don’t want to store
your chat messages.
Switch chats If you have more than one chat going, tap to switch chat with
another friend.
Friends list Return to the Friends list.
89 Social
HTC Confidential
Add to chat Add another friend to your chat. The friend you invited and
the friend you're currently chatting will receive an invitation to
a group chat. Each one who accepts the invitation joins the
group chat.
End chat End your current chat.
More Clear the chat history, insert a smiley or view your friend’s
contact details.
Accepting a chat invitation
When a friend sends you a Google Talk message, you receive a notification. Their
entry in the Friends list displays the message.
Do one of the following:
§In the Friends list, tap the friend who sent you the invitation to chat.
§Open the Notifications panel, and then tap the chat notification.
Changing your online status and picture
1. In Google Talk's Friends list, tap your name to open the Set Status screen.
2. Enter your new status message. Or press to choose a custom status from
the list.
3. Tap the online status beside your picture, and then select the status you want
on the menu.
4. Tap your picture, and then do one of the following:
§Tap Remove to remove your photo.
§Tap Change to select another picture.
5. Tap Done.
Your online status, message, and picture appear in your contacts' Friends list and in
other apps where your Google Talk status are displayed.
90 Social
HTC Confidential
Adding and managing friends
The Friends list is where you add and manage your friends in Google Talk.
In Google Talk's Friends list, you can:
Invite a friend 1. Press , and then tap Add friend.
2. Enter the Google Talk instant messaging ID or Gmail address of
the friend you want to add.
3. Tap Send invitation.
View all
friends
Initially, only those friends that you often chat with — the most
popular — are shown in the Friends list. To view all your friends,
press , and then tap All friends. To view only friends that you
often chat with, press , and then tap Most popular.
Make a friend
popular 1. Press , and then tap All friends.
2. Press and hold a friend’s name, and then tap Always show friend.
Block a friend You can block a friend from sending you messages. When blocked,
your friend is removed from the Friends list and is added to the
Blocked friends list.
1. Press , and then tap All friends.
2. Press and hold a friend’s name, and then tap Block friend.
Unblock a
friend Press , and then tap More > Blocked.
View all
invited friends
Press , and then tap More > Invites. Friends who have not yet
accepted your invitation are listed on the screen.
Changing settings or signing out
In Google Talk's Friends list, press and then tap:
§Settings to change the app and notification settings.
§Sign out to sign out.
91 Social
HTC Confidential
Email
Gmail
Using Gmail
When you first set up HTC Flyer, make sure you sign into your Google Account to use
Gmail. If you didn’t do so, go to the Accounts & sync setting to sign in.
You can also set up more than one Google Account on HTC Flyer, and then switch
between accounts in Gmail.
Viewing your Gmail Inbox
All your received emails are delivered to your Inbox.
From the Home screen, tap > Gmail. Your Gmail inbox then opens.
Archive or delete
multiple
conversations
Tap before the email or
conversation. Then tap the
onscreen buttons at the bottom
to choose what to do with the
selected messages or
conversations.
Display drafts, sent
messages, and
other labels
Tap Inbox at the top left of the
screen, and then tap another label
(such as Sent, Drafts, or your
created label) to view its
messages and conversations.
Switch to your
other Gmail
account
Tap the current account at the
top right of the screen, and then
tap another account you want to
switch to.
Refresh the Inbox Press , and then tap Refresh.
Sending a new message
1. In the Gmail inbox, press and then tap Compose.
2. If you’ve set up multiple Google Accounts on HTC Flyer, choose which Gmail
address you want to use for sending your email. Tap the box that shows your
current Gmail address, and then tap another address that you want to use for
sending.
92 Email
HTC Confidential
3. Enter the message recipient’s email address in the To field. If you are sending
the email to several recipients, separate the email addresses with a comma.
If you want to send a carbon copy (Cc) or a blind carbon copy (Bcc) of the email to
other recipients, press and then tap Add Cc/Bcc.
4. Enter the email subject, and then compose your email.
5. If you want to attach a picture, press and then tap Attach.
6. Locate and then tap the picture you want to attach.
7. After composing your message, tap .
While composing the message, tap to save it as a draft. Or press to discard
the message.
Replying to or forwarding an email message
1. In the Gmail inbox, tap the email message or conversation.
2. To reply to the sender, tap . Or, tap and choose whether to Reply all or
Forward.
3. Do one of the following:
§If you selected Reply or Reply all, enter your reply message.
§If you selected Forward, specify the message recipients.
Tap Respond inline if you want to interleave your new message with the received
email. But this removes any attachments or formatting in the original email.
4. Tap .
Getting help
To find out more about using Gmail, press , and then tap More > Help. The web
browser will take you to the Google Mobile Help site.
Mail
About the Mail app
Use the Mail app to add your webmail and other POP3 or IMAP email accounts. You
can also set up and use your Exchange ActiveSync email on HTC Flyer.
You can add the Mail widget to view your POP3/IMAP or Exchange ActiveSync
emails on the Home screen.
93 Email
HTC Confidential
Adding a POP3/IMAP email account
1. From the Home screen, tap > Mail.
2. Do one of the following:
§If this is your first time to add an email account in Mail, tap Other (POP3/
IMAP) on the Choose a mail provider screen.
§If you’ve already added an email account in Mail, press , and then tap
More > New account. If the Choose a mail provider screen is displayed, tap
Other (POP3/IMAP).
3. Enter the email address and password for your email account and then tap
Next.
4. If the account type you want to set up is not in the internal database, you’ll be
asked to enter more details.
5. Enter the account name and your name and then tap Finish setup.
Adding a Microsoft Exchange ActiveSync account
You can add one or more Microsoft Exchange ActiveSync accounts on HTC Flyer. You
can sync with Microsoft Exchange Server 2003 Service Pack (SP2) or later.
You can add up to 15 Exchange ActiveSync accounts on HTC Flyer.
1. From the Home screen, tap > Mail.
2. Do one of the following:
§If this is your first time to add an email account in Mail, tap Microsoft
Exchange ActiveSync on the Choose a mail provider screen.
§If you’ve already added an email account in Mail, press , and then tap
More > New account. If the Choose a mail provider screen is displayed, tap
Microsoft Exchange ActiveSync.
3. Enter the Exchange ActiveSync account details, and then tap Next. If your
corporate Exchange Server does not support auto-detect, you’ll need to enter
your Exchange Server settings after you tap Next. Ask your Exchange Server
administrator for details.
4. Choose the types of information you want to sync. Also choose how often you
want to update and sync email to HTC Flyer, then tap Next.
5. Enter the account name, then tap Finish setup.
94 Email
HTC Confidential
Checking your Mail inbox
When you open the Mail app, it displays the inbox of one of your email accounts that
you’ve set up on HTC Flyer.
To switch between email accounts, tap the bar that shows the current email account,
and then tap another account.
Viewing the unified inbox of all your email accounts
You can view email messages from all your accounts just in one place without having
to switch to different accounts.
Just tap the bar that shows the current email account, and then tap All accounts.
Email messages are color coded so you can easily distinguish which email accounts
they belong to.
Up to 15 email accounts can be shown in the unified inbox.
Switching between different views of your inbox
If you have lots of email messages, it may take you some time to browse through the
long list and find a single email or related email messages. Use the tabs of the Mail app
to sort your emails into different categories.
To skim through your email messages easier, tap one of the following tabs to change
the view of your inbox:
Inbox
Displays email messages as individual items.
Conversations
Displays email messages as conversations, grouped according to the subject
line. Tap a subject in the list to show the email conversation.
95 Email
HTC Confidential
Group
Displays all email messages from a contact group. To choose which contact
group to display, press , tap View, and then select a group.
Unread
Displays unread messages.
Marked (Exchange ActiveSync only)
Displays all flagged messages.
Invites (Exchange ActiveSync only)
Displays meeting invitations which you have not yet accepted or declined.
Attachments
Displays all messages that have attachments.
Previewing email messages
You can preview email messages while you're browsing through the messages in your
inbox or any mail folder.
§Turn HTC Flyer to the left and hold it in landscape orientation to see a split-
window preview, with the email list on the left and the preview of the selected
message on the right.
§While in landscape orientation, tap to view the email message in full screen.
To change back to the split-window preview, tap .
Refreshing an email account
Whatever your automatic synchronization settings are, you can also synchronize your
sent and received emails manually at any time.
§While in the account you want to synchronize, press , and then tap Refresh.
§If you have several email accounts, you can refresh them all at the same time.
Go to the unified inbox first. Then press and tap Refresh.
96 Email
HTC Confidential
Sorting email messages
You can sort email messages by date received, priority, subject, sender, or size.
On the inbox, press , tap Sort, and select from the sorting options.
Quickly browsing your inbox
If you have a long list of email messages in your inbox, it may not be easy to browse
the list and find an email that you want. You can quickly browse through your inbox
by using finger gestures.
1. Choose a sorting order for displaying your email messages.
2. Press and hold two fingers on any email message, and then drag upward or
downward without lifting your fingers. Your screen then jumps to the set of
email messages based on your chosen sorting order.
Managing email messages
Deleting an email message
1. On the inbox, press and hold the message you want to delete.
2. On the options menu, tap Delete.
Selecting several email messages
1. Tap the check boxes of email messages to select them.
2. Choose what you want to do with the selected messages: Mark read (or mark
Mark unread), Delete, or Move to another folder.
You cannot move email messages when you’re in the unified (All accounts) inbox.
Moving several email messages to another folder
1. Switch to the email account you want to use.
2. Tap the check boxes of email messages you want to move.
3. Tap Move to, and then tap the folder where to move the email messages.
Moving an email message after reading
1. In the open message, tap .
2. Tap the folder where you want to move the email message.
Deleting all messages
1. First tap the check box of any email message.
2. Press , and then tap Select all.
3. Tap Delete.
97 Email
HTC Confidential
Switching to other mail folders
1. Press , and then tap Folders.
2. Tap the mail folder whose messages you want to view.
Sending an email message
1. From the Home screen, tap > Mail.
2. Switch to the email account that you want to use for sending email.
3. On the email account inbox, tap .
4. Fill in one or more recipients. You can:
§Enter email addresses directly in the To field, separating them with a
comma. As you enter email addresses, any matching addresses from your
contacts list are displayed. Tap a match to enter that address directly.
§Tap the icon, and then choose the contacts to whom you want to send
the message. You can also select contact groups as recipients, or search
and add contacts.
If the contact name you entered is not found and you have an Exchange
ActiveSync account in the Mail app, you can search for the contact in your
company directory.
If you want to send a carbon copy (Cc) or a blind carbon copy (Bcc) of the email to
other recipients, press , and then tap Show Cc/Bcc.
5. Enter the subject, and then compose your message.
6. To add an attachment, press , tap Attach, and choose from the following
options:
Picture Take a photo and attach it, or attach an existing photo.
Video Record a video and attach it, or attach an existing
video.
Audio Attach an audio file.
App recommendation Choose an app you’ve installed from Android Market
that you want to tell other people about. The URL from
which the app can be downloaded will be inserted in
your email.
Location You can attach location information. Send your current
location (requires GPS to be turned on) or a location
you pick on a map.
Document Attach a PDF file or an Office document such as a text
file or a spreadsheet.
Contact (vCard) Attach someone’s contact information.
98 Email
HTC Confidential
Appointment
(vCalendar)
Attach a calendar event.
File Attach any other file.
7. Tap Send to send the message immediately, or tap Save as draft to send it later.
If there’s no Wi-Fi or data connection available or Airplane mode is on when you
send your email, the email will be saved to the Outbox folder. Once there’s Wi-Fi or
data connection available, the saved email will be sent automatically next time HTC
Flyer syncs.
Resuming a draft email message
1. In the email account inbox, press , and then tap Folders > Drafts.
2. Tap the message.
3. When you finish editing the message, tap Send.
Reading and replying to an email message
1. From the Home screen, tap > Mail.
2. Switch to the email account you want to use.
3. On the email account inbox, tap the email you want to read.
4. Do any of the following:
Reply to the message Tap or .
Forward the message Tap .
Delete the message Tap .
Mark the message as unread Press , and then tap Mark unread.
Setting the priority for an email message
You can set the priority for an email message that you send.
1. While composing the message, press .
2. Tap Set priority.
3. Select the priority for the message.
If you selected High or Low priority, the priority appears below the subject line of the
message.
99 Email
HTC Confidential
Working with Exchange ActiveSync email
You can read, reply, send, and manage your work email in the same easy way as with
a POP3/IMAP account. In addition, you can also use some powerful Exchange
features.
Flagging an email
§While viewing the inbox, tap the white flag icon that appears on the right of
an email message. The icon turns red after you flagged the email.
§While reading an email, you can also tap the flag icon in the email.
Setting your Out of the office status
1. Switch to your Exchange ActiveSync account.
2. Press and then tap More > Out of the office.
3. Tap the box, and then select Out of the office.
4. Set the dates and times for the period when you will be out of the office.
5. Enter the auto-reply message.
6. Tap Save.
Sending a meeting request
1. Switch to your Exchange ActiveSync account.
2. Go to the Invites tab, and then tap .
3. Enter the meeting details.
4. Tap Send.
Changing email account settings
1. Switch to the email account whose settings you want to change.
2. Press , and then tap More > Settings.
3. Select from the following:
Account settings Change the email account settings such as the name,
email address, password, and description.
General settings Set the font size when reading emails, enable, disable or
set the signature, set the account as the default email
account, and set where to save email attachments.
Send & Receive Set the sync settings for incoming and outgoing emails
such as maximum size limit, update schedule, and more.
100 Email
HTC Confidential
Notification
settings
Set email notification settings.
Delete account Tap to delete the email account.
4. Press to save your changes.
Deleting an email account
1. Switch to the email account you want to delete.
2. Press , and then tap More > Settings > Delete account.
101 Email
HTC Confidential
Calendar
About Calendar
Never miss an important date again. Use the Calendar app to schedule your events,
meetings, and appointments.
You can set up HTC Flyer to stay in sync with the following types of calendars:
§On HTC Flyer, sign in to your Google Account so you’ll be able to sync the
Calendar app with your Google Calendar online. You can add multiple Google
Accounts.
§If you’re using Microsoft Outlook® on your computer, you can set up HTC Sync
on your computer to sync Outlook Calendar with the Calendar app.
§If you have a Microsoft Exchange ActiveSync account and you've added it on
HTC Flyer, you can sync the Calendar app with your Exchange ActiveSync
calendar events.
If you’ve signed in to your social network accounts such as Facebook, birthdays and
events of friends will appear in Calendar.
Creating an event
You can create events that sync with your Google Calendar, your computer’s Outlook
Calendar, or Exchange ActiveSync calendar, as well as events that appear on HTC
Flyer only.
1. From the Home screen, tap > Calendar.
2. On any Calendar view, tap .
3. If you have more than one calendar, select a calendar in which to add the event:
§Select your Google Account to create a Google Calendar event. If you have
several Google calendars on the Web, select one in which to add your
event.
§Select PC Sync to create calendar events on HTC Flyer. You can sync them
with your computer's Outlook Calendar using HTC Sync.
§Select your Exchange ActiveSync account to create an Exchange
ActiveSync calendar event.
4. Enter a name for the event.
102 Calendar
HTC Confidential
5. To specify the date and time of the event, do one of the following:
§If there is a time frame for the event, tap the From and To date and time to
set them.
§If it is a whole-day event, such as a birthday, set the From and To date, then
select the All day check box.
6. Enter the event location and description.
7. Set the reminder time.
You can add another reminder time in a Google Calendar event. Press and then
tap Add reminder.
8. If the event occurs on a regular basis, tap the Repetition box and then choose
how often the event occurs.
9. Tap Save.
Inviting guests to your event (Google Calendar only)
After you invite guests to your event, an invitation email will be sent using your
Google Account.
If you want to invite guests to your event, you need to create and add the event in
your Google Calendar.
1. Open Calendar and create a new event. Tap the Calendar field and then select
your Google Account (or one of your other Google Calendars).
2. Add details about the event, such as date and time, location, and more.
3. In the Guests field, enter the email addresses of everyone you want to invite to
the event. Separate multiple addresses with commas (,). If the people to whom
you send invitations use Google Calendar, they’ll receive an invitation in
Calendar and by email.
4. Tap Save to add the event to your Google Calendar.
Sending a meeting request using Calendar (Exchange ActiveSync only)
If you have an Exchange ActiveSync account set up on HTC Flyer, you can use
Calendar to create a meeting appointment and send a meeting request email to the
people you want to invite to your meeting.
1. Open Calendar and create a new event. Tap the Calendar field and then select
your Exchange ActiveSync account.
2. Add details about the meeting, such as date and time, location, and more.
3. Press and then tap Meeting invitation.
4. Tap and choose attendees from your contacts or the company directory.
5. Enter your message and then tap Send.
103 Calendar
HTC Confidential
Changing Calendar views
When you open Calendar, it displays the Month view by default.
To change to another view, simply tap (Day), (Week), or (Agenda).
Using month view
In month view, you will see markers on days that have events.
Do any of the following in month view:
§Tap a day to view the events for that day.
§Press and hold a day to open an options menu from which you can also choose
to create an event or switch to either day or agenda view.
§Slide your finger up or down the screen to view earlier or later months.
Using day and agenda views
Day view displays a list of the events of one day and also shows weather information
at the bottom of the screen when you’re viewing events of the current day.
In day view, the weather information appears only if the event is within the five-day
forecast of the Weather app.
Agenda view shows a list of all your events in chronological order.
§The colored bars on the left side of the events indicate the type of calendar the
event is part of. To find out what each color represents, tap .
§When in day view, slide left or right across the screen to view earlier or later
days.
Using week view
Week view displays a chart of the events of one week.
When in week view, you can:
§Press and hold on a time slot to create a new event at that time.
§Tap an event (shown as colored blocks) to view its details.
§Slide left or right across the screen to view earlier or later weeks.
104 Calendar
HTC Confidential
Managing Calendar events
Viewing an event
You can view your own events as well as events that other people have shared with
you.
1. In day view or agenda view, tap an event. The Event details screen then opens
and shows the summary of the event.
2. Depending on the event information, do any of the following:
§Find the event’s location in Maps.
§Check the participants of the event.
§If the event was sent as a meeting invitation, respond to the invitation.
§If it’s an Exchange ActiveSync calendar event, reply by email to the
organizer or to all the guests. Press , and then either tap Reply or Reply
all.
§Select any text and look it up on the Web.
§Tap the reminder time to change it. Press to save changes.
Need to jot down discussion points? While viewing a calendar event, tap Create
note. Or maybe you'd like to link an existing note to your event. Press , and then
tap More > Associate note. The Notes app will open.
Editing an event
You can edit events that you have created.
1. While viewing an event, press , and then tap Edit event.
2. Make your changes to the event.
3. When you’re done editing, tap Save.
Deleting an event
Do any of the following:
§While viewing the summary of an event on the Event details screen, press and
then tap Delete event.
§In day, agenda or week view, press and hold an event and then tap Delete event.
§When editing an event, tap Delete.
If the event repeats, you’ll be asked whether you want to delete just that occurrence,
this and all future occurrences, or all past and future occurrences in your Calendar.
105 Calendar
HTC Confidential
Sharing an event (vCalendar)
You can share a calendar event as a vCalendar using Bluetooth or by sending it as a
file attachment with your email or message.
1. While viewing an event, press , and then tap Share vCalendar.
2. Do one of the following:
§Tap Bluetooth. You’ll be asked to turn on Bluetooth on HTC Flyer and
connect to the receiving Bluetooth device.
§Tap Mail. A new message window opens and automatically includes the
vCalendar as an attachment. Your default email account will be used to
send the message.
§Tap Message. A new message window opens and automatically includes
the vCalendar as a multimedia attachment.
Dismissing or snoozing event reminders
If you have set at least one reminder for an event, the upcoming event icon will
appear in the notifications area of the status bar to remind you of the upcoming
event.
1. Tap the status bar, then slide your finger down the screen to open the
Notifications panel.
2. Do one of the following:
§Tap Clear to dismiss event reminders and all other notifications. Other
types of notifications such as new messages and missed calls will also be
deleted.
§After sliding open the Notifications panel, tap the calendar event reminder.
You’ll then see a list of all pending event reminders. Tap Snooze all to
snooze all event reminders for five minutes, or tap Dismiss all to dismiss all
event reminders.
§Press to keep the reminders pending in the notifications area of the
status bar.
Showing or hiding calendars
In any Calendar view, tap , and then select or clear a calendar to show or hide it.
Calendars are kept synchronized on HTC Flyer, whether or not you hide them.
106 Calendar
HTC Confidential
Changing Calendar settings
You can change Calendar settings to specify how it displays events and how it notifies
you of upcoming events.
In any Calendar view, press and then tap Settings (or More > Settings).
Reminder settings
All calendars Select this check box to use the same event reminder settings
for all types of calendars. If you clear this check box, you can
set different reminder settings for each calendar.
Set alerts &
notifications
Configure event reminders to open an alert, send you a
notification, or turn off event notifications on HTC Flyer.
Default reminder
time
Choose how soon before an event you want to be notified.
Select ringtone Choose a ringtone to sound when you receive an event
reminder.
Hide declined events Choose whether to show or hide events for which you've
declined invitations.
Calendar view settings
Start in Choose the default view to display when you open Calendar.
First day of
week
Set the month and week views to start on a Sunday or Monday.
Include weather Select this check box to show weather information in the day view
events list.
City If weather is included, by default, day view displays your current
location's weather. You can change it to display the weather of
another city.
About the Calendar widget
You can add a Calendar widget to your Home screen. The widgets offer different
calendar views.
Tapping a day or event on the widget brings you to the Calendar app.
107 Calendar
HTC Confidential
Maps and location
Location settings
Turning on location services
In order to find your location on HTC Flyer, you need to enable location sources.
1. From the Home screen, press and then tap Settings > Location.
2. Select one or both of the following:
Use wireless
networks
Uses Wi-Fi or your mobile data connection to find your
approximate location.
Use GPS satellites Finds your exact GPS location. This requires a clear view
of the sky and more battery power.
Locations
About Locations
Search for places of interest, get directions to places you want to go to, and drive
using turn-by-turn GPS navigation with Locations. Locations is also your perfect travel
companion, whether you’re at home or when you’re in a different country. With
Locations, you can download maps beforehand so you don’t have to worry about
having an Internet connection while on the road or costly data roaming charges when
abroad. Have your map ready before you start your journey.
If you are in an area where there are a lot of surrounding buildings, Locations may
have a hard time pinpointing your location.
HTC Flyer comes with an installed map, which depends on the country where you
bought it. Don’t worry, you can download other maps when you need them.
Finding your location and what’s around you
1. From the Home screen, tap > Locations.
2. Tap to update your current location or tap to show your current location
on the map.
3. Select a category that you’re interested in to see the places that are close by.
The places are listed according to the distance from your current location.
108 Maps and location
HTC Confidential
Searching for a place of interest
You can search using a name of an establishment, street, or city. As you enter the
place to look for, suggested matches from the database, footprints, and previously
searched items are displayed.
1. In Locations, tap .
2. Enter the place you want to search in the search box. Matching establishments
are shown sorted by the distance from your current location.
3. If you don’t see what you are looking for, keep entering characters to narrow
down the search.
Search is done in your current country. If you want to do a search on a different
country, tap Current search region.
4. Tap an establishment to get directions, show on map, and more.
Searching for an address
1. In Locations, tap .
2. Enter the street or city name you want to find (you don't need to enter the
complete address) in the search box. For example, to find “321, Church Street,
London, UK”, just enter “Church” or “London” to start your search.
You can also search by entering a zip code. Just enter the zip code in the search
box, and then tap .
A list of suggestions will appear to guide you to what you're looking for.
Viewing maps
In Locations, tap .
Tap to switch between 2D and 3D views.
Point of interest. Tap to see details, call, get
directions, or share.
Your current location.
Tap to use or not use the compass.
Tap the screen to show the zoom buttons and My location button.
109 Maps and location
HTC Confidential
Using the compass
Should I turn left or right? By using the compass, the map adjusts depending on
where you’re facing so you know where to go.
Moving around the map
Swipe your finger on the screen to view other areas of the map.
Zooming in or out of a map
Do one of the following:
§Spread your thumb and index finger across the map to zoom in.
§Pinch your thumb and index finger on the map to zoom out.
§Double-tap a location on the map to zoom in to that location.
Choosing which places of interest to show on the map
1. While viewing a map, press and then tap View (or More > View).
2. Choose the points of interest you want or don’t want to see when you’re
viewing a map.
You can also choose to show or not show footprints and 3D buildings on the map.
3. Tap Done.
Pinning a location on the map
Pin a favorite location on the map and add it as a footprint, get directions to it, or
share it with friends. Sharing is a great way to let your friends know about that little
place you found that has the best sandwiches in town.
1. While viewing a map, press and hold an area on the map that you want to pin.
2. Tap and then choose if you want to add the location as a footprint, get
directions to it, or share it.
To remove all the pins on the map, while viewing a map, press , and then tap
More > Clear pin.
110 Maps and location
HTC Confidential
Changing the language of street names and places of interest
1. From the Home screen, tap > Locations.
2. On the Nearby tab, press , and then tap Settings > Map > Map language.
3. Choose one of the following.
Use native map
language
Use this if you want to use the local language of the map.
For example, if you are looking at a map of Japan, it will
use Japanese characters.
Use language that
fits best
Use this if you want to use your current language settings.
This may not be available for all maps.
Recording favorite places as footprints
A footprint consists of a photo of a location such as a restaurant, a sightseeing
destination, etc., stored together with a precise GPS position and other information
about that location such as the street address and phone number.
The next time you want to visit the same place, just open the footprint. You can then
view the location on the map, search for it on the Web, and more.
Adding a location as a footprint
1. Search for the destination you want to go to.
2. Tap Save to Footprints.
3. You can:
§Tap to take a picture and add it as a photo for the footprint.
§Tap to fine tune the position of the footprint on the map.
§Tap to add a note for the footprint.
§Tap Select categories, and then choose the appropriate labels for the
location.
§Press , and then tap Record voice to add a voice memo to the footprint.
4. Tap Done.
Setting a footprint as your home location
Save your home address as a footprint to make it easier to set it as your destination.
1. While at your home location, open Locations, and then go to the Footprints tab.
2. Under Current Location, tap .
3. Tap Done.
4. Tap Set my home, select your home address from the list, and then tap Done.
To change your home address at any time, tap .
111 Maps and location
HTC Confidential
Revisiting a footprint
1. On the Footprints tab, tap a category.
2. Tap the footprint you want to revisit.
3. Tap the information fields to get directions, share the footprint, search the Web,
and more.
Editing or deleting a footprint
1. On the Footprints tab, tap a category.
2. Press and hold the footprint you want to edit or delete.
3. Tap Edit or Delete on the options menu.
Sharing your footprints
1. Create a footprint.
2. On the Footprints tab, tap the footprint that you have just created.
3. Tap Share, and then choose how you want to share the footprint.
Deleting multiple footprints
1. On the Footprints tab, tap a category.
2. Press , and then tap Delete.
3. Select the footprints you want to delete, and then tap Delete.
Exporting your footprints
Back up footprints by exporting and saving them as .kmz files. You can also open
exported footprints files in other applications such as Google Earth™ on your PC.
1. On the Footprints tab, tap a category.
2. Press , and then tap Export.
Press and then tap Deselect all to deselect all the footprints.
Exported footprints are saved as .kmz files in the Footprints folder on the internal
storage. If you exported multiple footprints at one time, they are saved together in
one .kmz file.
112 Maps and location
HTC Confidential
Importing footprints
Bring back footprints you previously backed up on the internal storage. You can also
import .kmz files that you saved in other applications, or use a photo as a footprint.
1. On the Footprints tab, press , and then tap Import.
2. Do one of the following:
§To import a photo, tap Photos, navigate to the photo you want to import,
and then tap the photo. You can then add Footprints information such as
location and category.
§To import a saved footprint or another .kmz file, tap Footprints data, and
then tap the file you want to import.
Getting directions
Get detailed driving or walking text instructions on how to get to your destination.
Getting directions from your current location
1. In Locations, search for the destination you want to go to.
You have footprints saved? You can also set a footprint as your destination. Just go
to the Footprints tab, and then choose a footprint.
2. Tap Directions.
3. Choose how you want to get to your destination. The map opens showing the
route to your destination.
4. Do one of the following:
§At the bottom of the screen, tap or to follow the route to your
destination.
§Slide up the directions bar, and then tap the instructions to follow the route
to your destination.
If you have turn-by-turn navigation for that country, press , and then tap
Premium Navi to start turn-by-turn navigation.
Getting directions by setting a start and end location
1. While viewing the map, press , and then tap Directions.
2. Tap the My location text box, and then search for the starting location you want.
113 Maps and location
HTC Confidential
3. Tap the End point text box, and then search for the destination you want.
4. Tap Driving or Walking depending on how you want to get to your destination.
5. Do one of the following:
§At the bottom of the screen, tap or to follow the route to your
destination.
§Slide up the directions bar, and then tap the instructions to follow the route
to your destination.
If you have turn-by-turn navigation for that country, press , and then tap
Premium Navi to start turn-by-turn navigation.
Using turn-by-turn navigation (Premium navigation)
§To use turn-by-turn navigation, the Use GPS Satellites option in Location
sources needs to be selected.
§Check if you have the turn-by-turn navigation for the country or region you’re
using.
Using Locations to navigate to a destination
1. In Locations, search for the destination you want to go to.
You have footprints stored? You can also set a footprint as your destination. Just
go to the Footprints tab, and then choose a footprint.
2. Tap Premium navigation.
While navigating, you can tap the screen to see what other options are available.
Setting navigation preferences
Choose how you want Locations to map your route. You can tell Locations to avoid
highways or toll roads, show lane information, choose your route preference, and
more.
1. While using turn-by-turn navigation, tap the screen.
2. Tap Car Panel > Settings > Navigator.
3. Set your preferences by selecting or tapping an item.
Turning off speed and safety camera alerts
If you have the safety camera service, you can choose to turn this service off
temporarily.
1. While using turn-by-turn navigation, tap the screen.
2. Tap Car Panel > Settings > Warnings
3. Clear the Speed warning and Safety camera warning check boxes.
114 Maps and location
HTC Confidential
Managing Locations services
Check maps, navigation, safety camera information, and voices for turn-by-turn voice
instructions that are already on HTC Flyer.
1. From the Home screen, tap > Locations.
2. Press , and then tap Get more. In the My licenses & content tab, you’ll see a
list of services that you already have on HTC Flyer.
Downloading maps or purchasing services
Going to a different country for vacation? You can download the map of the country
you’re going to for free. You can also download or purchase additional services such
as navigation, safety camera, and turn-by-turn voice instructions.
You need a data or Wi-Fi connection to download or purchase maps and services.
1. From the Home screen, tap > Locations.
2. Press , and then tap Get more.
3. Slide to the tab of the item or service that you want to download.
4. Depending on what you selected, tap Download or Purchase.
Depending on the country where you bought HTC Flyer, you may only need to enter a
voucher code to activate turn-by-turn navigation. If you have a voucher code, enter it
by tapping Voucher code at the top of the Purchase navigation tab.
Adding navigation widgets
Add a favorite destination and places of interest that are nearby and your footprints
as widgets on your Home screen. Add the Navigate widget to start turn-by-turn
navigation to your favorite destination. Add the Locations widget to let you browse
places of interest and your footprints right on the Home screen.
Car Panel
Using Car Panel
Easily access footprints, points of interest, and places nearby with Car Panel, and then
start navigation to show you how to get there.
From the Home screen, tap > Car Panel.
Search for a destination to go to.
Check points of interest near your current location, such as shops or banks.
115 Maps and location
HTC Confidential
Download or purchase additional services such as navigation, safety camera,
and turn-by-turn voice instructions.
Select a footprint to set as a destination.
Check the places you’ve search before, and then choose one to set as your
destination.
Set Car Panel options.
Google Maps
About Google Maps
Google Maps lets you track your current location, view real-time traffic situations, and
receive detailed directions to your destination. It also provides a search tool where
you can locate places of interest or an address on a map, or view locations at street
level.
§You need an active mobile data or Wi-Fi connection to use Google Maps.
§To find your location with Google Maps, you need to enable location sources.
§The Google Maps app does not cover every country or city.
Getting around maps
When you open Google Maps, you can easily find your location on the map or check
out nearby places by panning and zooming in and out on the map.
To find your location with Google Maps, you need to enable location sources.
1. From the Home screen, tap > Maps.
2. Tap to show your current location. The blue marker shows your location
on the map.
3. Do any of the following:
Move around Swipe your finger to any direction on the screen to view
nearby places on the map.
Zoom in §Place your thumb and index fingers on top of the area that
you want to zoom in, and then spread your fingers across
the map.
§Tap .
§Double-tap the area on the map that you want to zoom in.
116 Maps and location
HTC Confidential
Zoom out §Pinch your thumb and index finger on the map to zoom
out.
§Tap .
View
information for
a random
location
1. Press and hold a location on the map. A balloon opens over
the location, with the address and a thumbnail from street
view (if available).
2. Tap the balloon to see more information.
You can get directions to the location, check for nearby
places of interest, and more.
Searching for a location
In Google Maps, you can search for a location, such as an address or a type of
business or establishment (for example, museums).
1. In Maps, enter the place you want to search for in the search box.
2. Tap to search for the location you entered or tap a suggested search item.
The search results are displayed as markers on the map.
3. Do any of the following:
§Tap a marker to see if that is what you’re looking for, tap the balloon if it
is.
§Tap to show the search results as a list, and then tap the location.
Details about the selected location displays on the screen.
4. Do any of the following:
§Tap the onscreen buttons to view the location on a map, get directions,
view the location in Street View, if available, and more. Scroll down the
screen to view more options.
§Swipe left or right across the screen to view the information for the next or
previous search result.
Clearing the map
After searching on a map, you can clear away the various markers drawn on it.
Press , and then tap Clear Map.
117 Maps and location
HTC Confidential
Searching for a place of interest near you
Use Places to find places of interest near your current location. Places uses Google
Maps to search common places that you would want to find, such as the nearest gas
station or ATM kiosk.
Before using Places, you need to enable location sources.
1. From the Home screen, tap > Places.
2. Tap the place you want to search.
3. Do any of the following:
§When one or two places of interest are found, the search results are
displayed as markers on the map. You can tap the marker, and then tap the
balloon to view more information about the place.
§When several places are found, the search results display in a list. Tap a
place to show its location on a map, and then tap its balloon to view more
information about the place.
Getting directions
Get detailed directions to your destination. Google Maps can provide directions for
travel by foot, public transportation, or car.
1. While viewing a map, press , and then tap Directions.
2. Do any of the following:
§Use your current location as the starting point, or enter a location from
where to start in the first text box. Then enter your destination in the
second text box.
§Tap to select an address from your contacts or a point that you tap on a
map.
3. Choose how you want to get to your destination by tapping the car, public
transit, or walk button.
118 Maps and location
HTC Confidential
4. Tap Go. The next screen displays the directions to your destination in a list.
If the place you’ve set as your destination has several locations available, choose
which one to go to.
5. Tap an item to view the directions on the map.
6. Tap the arrow buttons on the map to follow the directions.
When you’re finished viewing or following the directions, press and then tap Clear
Map to reset the map. Your destination is automatically saved in the Google Maps
history.
Getting help
Get help and more information about Maps.
To open the help, press , and then tap More > Help. The web browser opens and
takes you to the Google Maps Help site.
Finding your friends with Google Latitude (available by country)
Google Latitude user location service lets you and your friends share locations and
status messages with each other. It also lets you get directions to your friends’
locations, send text and email messages, and more.
Your location is not shared automatically. You must join Latitude, and then invite your
friends to view your location or accept their invitations. Only friends that you have
explicitly invited or accepted can see your location.
Opening and joining Latitude
1. From the Home screen, tap > Maps.
2. While viewing a map, press and then tap Join Latitude.
3. After you’ve joined Latitude and closed the application, you can do any of the
following to open it from the Home screen:
§Tap > Latitude.
§Open Maps, press , and then tap Latitude.
119 Maps and location
HTC Confidential
People
Transferring contacts from your old phone
Easily transfer contacts from your old phone to HTC Flyer through Bluetooth.
Depending on your old phone’s model, you may also transfer other types of data such
as calendar events and text messages to HTC Flyer.
1. From the Home screen, tap > Transfer.
2. Tap Next to begin.
3. Choose your old phone's name and model.
4. On your old phone, turn Bluetooth on and set it to discoverable mode.
5. On HTC Flyer, tap Next to continue. HTC Flyer automatically turns Bluetooth on
and searches for Bluetooth devices.
6. From the device list, choose your old phone and then tap Next. HTC Flyer then
tries to pair with your old phone. You’ll see a security passkey on the screen.
7. On your old phone, enter this passkey or simply confirm it.
8. Select the Contacts check box (and other supported types of data you want to
import), and then tap Next.
9. When HTC Flyer finishes importing data, tap Done.
120 People
HTC Confidential
About the People app
In the People app, you’ll see the contacts you've created on HTC Flyer as well as your
contacts from your Google Account, social networks such as Facebook and Twitter,
and your Exchange ActiveSync work account if you’re signed in to these accounts.
Aside from their contact details, you’ll also see their status updates, birthday
reminders, and other information.
You can even see and manage the communications you had with your contacts such
as your exchange of email messages.
1. From the Home screen, tap > People.
2. Tap one of the following tabs:
All
Lists all contacts created on HTC Flyer, your online accounts, and more.
Groups
Lets you assign contacts to groups so you can easily send a message or
email to a whole group.
121 People
HTC Confidential
Your contacts list
The People app's All tab lists all contacts stored on HTC Flyer and from the online
accounts you're logged in to. When you open the People app after you've just logged
in to a new account, you'll be asked whether to add contacts from that account to
your contacts list.
From the All tab, you can:
§Open your profile and edit your own contact
information.
§Create, edit, or find contacts.
§See status updates from friends in your social
network accounts such as Facebook and Twitter.
§Tap a contact's name to open the contact details
screen for that contact.
§See a notification icon such as when a contact
has sent you something such as new email
messages, posted live feeds, or when it's the
contact's birthday.
§Check out who's online in Google Talk. Online
status icons are displayed if you’re signed in to
Google Talk on HTC Flyer. For example,
means the contact is available to chat.
Filtering your contacts list
You can choose to only display contacts from particular account types (for example,
Google contacts or Facebook contacts).
1. From the Home screen, tap > People.
2. On the All tab, you can:
§Tap the arrow or the title area below the status bar to open a selection
menu of your online accounts, and then tap the account whose contacts
you want to display.
§Press , tap View, and then choose the types of contacts you want to
show in your contacts list.
You can also choose how you want to display and sort your contacts.
122 People
HTC Confidential
Setting up your profile
Store your personal contact information to easily send it to other people.
1. From the Home screen, tap > People.
2. On the All tab:
§Tap Me, and then choose whether to link your profile to an existing contact
entry that already contains your personal information or edit your profile.
§You'll see your account name or email address if you're logged in to any of
your online accounts such as your Google Account or Facebook for HTC
Sense. Tap your name or email address, press , and then tap Edit.
3. Enter or edit your name and contact details.
4. Tap or your photo, and then choose whether to take your self-portrait or use
another photo for your profile.
5. Tap Save.
123 People
HTC Confidential
4. Tap the Name field, and then enter the contact name.
Tap if you want to separately enter the contact's first, middle, and last name.
Depending on the contact type, you may also be able to add a name prefix (such as
Mr. or Ms.) or a name suffix (such as Ph.D., Jr, or Sr).
5. Enter the contact information in the fields provided.
Press if you want to close the onscreen keyboard first and easily scroll
through the other fields.
6. Tap Save.
Searching for a contact
Search for names or email addresses of contacts that you created on HTC Flyer or
synchronized from your online accounts.
1. From the Home screen, tap > People.
2. In the search box, enter the first few letters of a contact’s name or email
address. Matching contacts are displayed.
3. Tap the contact to open his or her contact details screen.
Importing a contact from an Exchange
ActiveSync account
You can search for a work contact from your Exchange ActiveSync account, and then
copy it on HTC Flyer.
You need to have your Exchange ActiveSync account set up on HTC Flyer first.
1. From the Home screen, tap > People.
2. In the search box, enter the first few letters of the contact's name or email
address.
3. Tap . Under Company contacts, matching names are listed.
4. Tap the name of the contact you want copied on HTC Flyer, and then tap Save
to People.
124 People
HTC Confidential
Merging contact information
If you have the same contacts on HTC Flyer, Google Account, and social network
accounts such as Facebook and Twitter, HTC Flyer will try to combine them
automatically or let you decide which contacts to combine. Combining the same
contacts avoids duplicated entries in your contacts list.
Accepting matched contacts suggestions
When HTC Flyer finds contacts that can be merged, you’ll see a link icon in the
notifications area of the status bar.
1. Slide the Notifications panel down, and then tap Matched contacts suggestion.
You'll see a list of suggested contacts to merge.
2. To merge, tap .
3. Tap OK.
If you don’t want to merge any of your contacts, tap Dismiss all.
Viewing a list of all your linked contacts
1. From the Home screen, tap > People.
2. On the All tab, press , and then tap Linked contacts (or More > Linked
contacts). The All linked contacts screen then opens where you can see the
account types and information merged.
3. You can choose to break the link of an account type or relink.
4. When you're done, tap OK.
125 People
HTC Confidential
Manually merging contact information
1. From the Home screen, tap > People.
2. On the All tab, tap the name of the contact (not the icon or photo) you want to
link.
3. Tap or (if there are suggested links).
4. On the screen, you can:
§Under Suggest links, tap to link the contact to an account.
§Under Add contact, tap one of the options to link to another contact.
Breaking the link
1. From the Home screen, tap > People.
2. On the All tab, tap the name of the contact (not the icon or photo) whose link
you want to break.
3. Tap .
4. Under the Linked contacts section, tap beside an account type to break
the link.
Backing up your contacts to the storage card
1. From the Home screen, tap > People.
2. Press , and then tap Import/Export > Export to SD card.
3. Select an account or type of contacts to export, then tap OK.
Importing contacts from the storage card
You can only import contacts that were exported to the storage card using the
Export to SD card feature.
1. From the Home screen, tap > People.
2. Press , and then tap Import/Export > Import from SD card.
3. If you have Google or Exchange ActiveSync accounts set up on HTC Flyer, tap
the type for the imported contacts.
Contact information and conversations
When you tap a contact on the People screen, the contact details screen opens,
showing you the information you've stored or linked for that contact.
The contact details screen has the following tabs:
126 People
HTC Confidential
Details
Shows the information you have stored for the contact. Get in touch with the
contact directly by tapping any of the displayed methods. For example, if the
contact has a stored mobile phone number, you can tap Send message.
Messages
Shows your exchanged SMS messages with the contact. You can reply to the
contact’s message directly from this tab.
Mail
Shows all the email you have received from the contact. Tap an email to view
it.
From this tab, you can also directly create a new email to send to the contact.
Updates and events
Shows the contact’s updates and events from social network accounts you've
linked like Facebook, Twitter, and Flickr.
If you see a notification of the contact’s birthday under the Events section, you
can tap the notification and choose how you want to greet your contact, such
as to write on the person's Facebook wall.
Gallery
Shows the linked contact’s Facebook and Flickr albums and photos.
Editing a contact’s information
1. From the Home screen, tap > People.
2. On the All tab, press and hold the contact, and then tap Edit contact.
The contact details of your Facebook and Twitter contacts cannot be edited.
3. Enter the new information for the contact.
4. Tap Save.
Deleting contacts
1. From the Home screen, tap > People.
2. On the All tab, press , and then tap Delete.
3. Select the contacts you want to remove, and then tap Delete.
4. When prompted, tap OK.
127 People
HTC Confidential
Sending contact information as a vCard
Easily share with others your own contact information or any contact from HTC Flyer.
1. From the Home screen, tap > People.
2. On the All tab, do the following:
To send Do this
Someone's contact
information
Press and hold the name of the contact (not the icon or
photo) whose contact information you want to send,
and then tap Send contact as vCard.
Your contact
information
Press and hold My profile, and then tap Send my profile.
3. Choose how you want to send it.
4. Select the type of information you want to send, and then tap Send.
Contact groups
Assign contacts to groups so you can easily send a message or email to a whole
group. You can also sync groups on HTC Flyer with the groups in your Google
Account, accessible via your computer’s web browser.
Creating a group
1. From the Home screen, tap > People.
2. On the Groups tab, tap .
3. Enter a name for the group, and then tap Add contact to group.
4. Select the contacts you want to add to the group, and then tap Save
If your contacts list is long, you can use the search bar to search for contacts
quickly, or press to hide the onscreen keyboard and scroll through the list.
5. Tap to select a photo for the group.
6. Tap Save.
128 People
HTC Confidential
Editing a contact group
1. From the Home screen, tap > People.
2. On the Group tab, press and hold the group, and then tap Edit group.
3. You can:
§Tap the group name to change the name. You can only change the name
for groups that you have created.
§Tap the icon to the left of the group name to change or remove the group
photo.
§To add contacts to the group, tap Add contact to group, select the
contacts you want to add, and then tap Save.
§To remove a contact from the group, tap at the right side of the contact
name.
4. Tap Save.
Sending a message or email to a group
You will be charged by your mobile provider for each message sent. For example, if
you send a message to a group of five people, you will be charged for five
messages.
1. From the Home screen, tap > People.
2. On the Group tab, tap the group you want to send a message or email to.
3. Go to the Group action tab, and then do one of the following:
§Tap Send group message to send a message to the group.
§Tap Send group mail to send an email to the group.
Rearranging your contact groups
1. From the Home screen, tap > People.
2. On the Groups tab, press , and then tap Rearrange (or Rearrange groups).
3. Press and hold at the end of the group you want to move. When the row is
highlighted, drag it to its new position.
4. Tap Save.
129 People
HTC Confidential
Rearranging the members of a contact group
1. From the Home screen, tap > People.
2. On the Groups tab, tap the group to see its members.
3. Press , and then tap Rearrange (or Rearrange group members).
4. Press and hold at the end of the contact’s name you want to move. When
the row is highlighted, drag it to its new position.
5. Tap Save.
Deleting groups
You can only delete groups that you have created.
1. From the Home screen, tap > People.
2. On the Groups tab, you can:
§Press and hold a group you want to delete, and then tap Delete group.
§Press and then tap Delete groups to choose several contact groups to
remove.
Adding People widgets
Stay in touch with different circles of friends or colleagues in your life. You can add
several People widgets on the Home screen, with a different group of contacts on
each widget.
1. From the Home screen, tap > Widget > People.
2. Choose the widget style, and then tap Select.
3. Select the group you want to add as a widget.
130 People
HTC Confidential
4. Drag the widget to a blank space on a Home screen. When the widget is where
you want it, lift your finger.
5. Repeat the above steps to add another People widget.
Getting in touch with a contact
1. On the Home screen, go to the People widget.
2. Tap a contact's photo (not the name or status update) on the widget. The
default communication method you've set for this contact will be performed.
On the People widget:
§Tap a contact's name or status update to open the contact details screen for that
contact.
§Tap to open the People app and view all your contacts.
Adding group members to a People widget
You can add more members to the contact group that's on a People widget.
§To add just one member, tap .
§To add several members, tap .
131 People
HTC Confidential
Market and other apps
Finding and installing apps from Android
Market
Android Market is the place to go to find new apps for HTC Flyer. Choose from a wide
variety of free and paid apps ranging from productivity apps, entertainment, to
games.
Paid apps are currently only available in certain countries.
Finding and installing an app
When you install apps and use them on HTC Flyer, they may require access to your
personal information or access to certain functions or settings. Download and install
only apps that you trust.
Be cautious when downloading apps that have access to functions or a significant
amount of your data on HTC Flyer. You’re responsible for the results of using
downloaded apps.
You need a Google Checkout account to purchase items on Android Market.
1. From the Home screen, tap > Market.
2. Do any of the following to find an app:
Browse featured
apps
Scroll through the list of featured apps.
Browse apps by
categories
Tap Apps or Games, and then tap a category. Under a
category, you can filter the apps by Top paid, Top free
or Just in.
Search for an app Tap , enter the name or type of app you’re looking
for, and then tap .
3. When you find the app that you like, tap it and read its description and user
reviews.
142 Market and other apps
HTC Confidential
4. To download or purchase the app, FREE (for free apps) or the price button
under Buy (for paid apps).
5. If you agree to the conditions, tap OK to begin downloading and installing the
app.
You can uninstall an app for a refund within a limited time after your purchase. To
know more about the refund policy for paid apps, please visit the Android Market
Help site (http://market.android.com/support).
Opening an installed app
Do one of the following:
§If you see this icon on the status bar, open the Notifications panel, and then
tap the app.
§From the Home screen, tap > Market. Press and then tap My apps. On the
My apps screen, tap the app, and then tap Open.
§From the Home screen, tap . On the All apps screen, slide to the Downloaded
tab, and then tap the app.
Uninstalling an app
You can uninstall any app that you have downloaded and installed from Android
Market.
1. From the Home screen, tap > Market.
2. Press and then tap My apps.
3. Tap the app you want to uninstall, and then tap Uninstall.
4. When asked, tap OK.
5. Choose the reason for removing the app, and then tap OK.
Getting help
If you need help or have questions about Android Market, press , and then tap
Help. The web browser will take you to the Android Market Help site.
143 Market and other apps
HTC Confidential
Using the Clock
About the HTC Clock widget
Use the HTC Clock widget to see your current date, time, and location. You can also
use the Clock to show the time in another city.
Changing the location on the Clock widget
By default, the Clock widget displays your current weather. You can customize the
Clock widget on your Home screen to show the weather of another location.
1. Press and hold the Clock widget and then drag it to the edit button .
2. Choose a city.
You can add more than one Clock widget to the extended Home screen. Choose
from a variety of looks and designs and select the city to display.
Using the Clock app
Get more from the Clock app than just the regular date and time. Use HTC Flyer as a
desk clock complete with weather information or as a world clock so you can see
what time it is in several cities across the globe. You can also use it as an alarm clock,
stopwatch, and countdown timer.
To open the Clock app, do one of the following:
§Tap the Clock widget on the Home screen.
§From the Home screen, tap and then tap Clock.
Tap the tabs on the bottom row or slide your finger across the tabs to switch
between the different functions of the Clock app.
144 Market and other apps
HTC Confidential
Using Desk Clock
The Desk Clock displays the current date, time, and weather. It also shows an alarm
clock indicator, the battery level, and your upcoming calendar events.
§Tap the weather image or information to open the Weather app where you can
see weather forecasts for the next few days.
§Tap to dim the screen slightly on the Desk Clock.
To light up the screen again, tap anywhere on the screen.
§Tap to dim the screen completely and go into screensaver mode.
When in screensaver mode, the Desk Clock shows the time and date only and
their position changes on the screen every few minutes. To light up the screen
again, tap anywhere on the screen.
§Turn power saving mode on or off by selecting or clearing its check box.
§If you have several upcoming calendar events, scroll down the list to check your
events.
Using World Clock
Use the Clock app's World Clock tab to check the current time in several places
around the globe simultaneously. You can also set your home city, add more cities to
the world clock list, and manually set your time zone, date, and time.
Setting your home city
1. On the World Clock tab, press and then tap Home settings.
2. Enter your home city’s name. As you enter letters, the list is filtered to show
matching cities and countries.
3. Scroll through the list and tap your home city.
Setting the time zone, date, and time
To set the time zone, date, and time on HTC Flyer manually, you need to turn off auto
time sync first.
1. On the World Clock tab, press and then tap Local time settings.
2. Clear the Automatic check box, and then set the time zone, date, and time as
required.
From the Home screen, you can also press and then tap Settings > Date & time
to open the Date & time settings screen.
145 Market and other apps
HTC Confidential
Adding a city to the World Clock screen
Add more cities to the World Clock screen so you can instantly check the date and
time in these cities.
1. On the World Clock tab, tap .
2. Enter the city name you want to add. As you enter letters, the list is filtered to
show matching cities and countries.
3. Scroll through the matching list and tap the city that you want to add.
Setting an alarm
You can use the Clock app's Alarms tab to set up one or more wake-up alarms.
1. On the Alarms tab, select the check box of an alarm.
2. Under Set alarms, drag your finger up or down to roll the time scroll wheels and
set the alarm time.
3. Choose from the available options. You can:
§Enter the alarm Description and choose the Alarm sound to use.
§Tap Repeat. Select which days of the week to sound the alarm, and then
tap OK.
§Select the Vibrate check box if you want HTC Flyer to also vibrate when
the alarm goes off.
4. After you've finished setting the alarm, tap Done.
§To turn off an alarm, clear the check box of that alarm.
§If you need to set more than three alarms, tap .
Deleting an alarm
1. On the Alarms tab, press and then tap Delete.
2. Select the alarms you want to delete and then tap Delete.
Changing alarm sound settings
On the Alarms tab, press and then tap Settings. You can change the following
settings:
Alarm in silent
mode
Selected by default, this option allows the alarm to sound even
when the volume is set to silent. Clear this check box if you want to
silence the alarm when HTC Flyer is in silent mode.
Alarm volume Set the volume level that you want for the alarm.
146 Market and other apps
HTC Confidential
Snooze
duration
Set how long to snooze between alarms.
Side button
behavior
Choose what happens to the alarm when pressing the side button
(VOLUME UP/VOLUME DOWN). You can set the button to snooze,
dismiss the alarm, or disable the button. The side button works only
when the screen is not locked.
Checking Weather
Use the Weather app and widget to check the current weather and weather forecasts
for the next few days. In addition to your current location, you can view weather
forecasts for other cities around the globe. Your settings in the Weather app also
control the weather information that is shown in the Clock and Calendar.
For HTC Flyer to detect your current location and display your local weather in the
Weather app and widget as well as in Clock and Calendar:
§You need to turn on and use Wi-Fi or the mobile network to connect to the
Internet.
§Location services must be enabled. If you didn't enable it when you first set up
HTC Flyer, you can do so in Settings > Location.
1. From the Home screen, tap > Weather.
You'll see a full screen animation of your current weather and weather
information such as the temperature, approximate time of sunset, and more.
While in full screen view, tap or to check the weather in other cities.
2. Tap to view more information. You can check weather forecasts for the
current day and the upcoming days.
3. While viewing forecasts, you can:
§Swipe your finger up or down the list of cities, and then tap a city to view
its weather forecasts.
§Tap to update the weather information at any time.
Adding a city to the Weather screen
Add more cities to the Weather screen so you can instantly check the weather
forecasts in these cities. In addition to your current location, the Weather screen can
display up to fifteen cities.
1. On the Weather screen, tap .
2. Enter the location you want to add. As you type, the list is filtered to show the
possible locations based on the letters you entered.
3. Tap the desired city to select it.
147 Market and other apps
HTC Confidential
Changing the order of cities on the Weather screen
1. On the Weather screen, press and then tap Edit.
2. Press and hold at the end of the item you want to move. When the row is
highlighted in green, drag it to its new position, then release.
3. Tap Done.
Deleting cities from the Weather screen
1. On the Weather screen, press and then tap Edit.
2. Select the cities you want to remove and then tap Done.
Changing Weather options
1. On the Weather screen, press and then tap Settings.
2. You can change the following weather settings:
Update when opened Select this check box to refresh weather updates every
time you open the Weather app.
Scheduled sync Select this check box to automatically download
weather updates.
Update schedule Set an auto update schedule.
Temperature scale Choose whether to display the temperature in Celsius or
Fahrenheit.
Sound effects Choose whether to play sound effects related to the
weather conditions.
About the Weather widget
Use the Weather widget to instantly check weather forecasts of your current location
and other cities without having to open the Weather app. The Weather widget comes
in different looks and styles.
You can add this widget to the Home screen, if it’s not yet added.
Reading eBooks
Start your own library of bestsellers and literary classics right on HTC Flyer. Use the
Reader app to read and download eBooks from Kobo, an online bookstore.
We’ve included some eBooks for you to try. To browse for more titles from Kobo, you
need to be connected to the Internet.
1. From the Home screen, tap > Reader. On the Reader main screen, you’ll find
thumbnails of your recently read and downloaded eBooks.
2. Slide your finger left or right across the screen to browse through the available
eBooks. You can also tap to browse through these eBooks in list view.
148 Market and other apps
HTC Confidential
3. Tap an eBook to open it.
4. Slide your finger left or right to flip through pages in the eBook.
5. To zoom in or out, spread or pinch your thumb and index fingers across the
page.
6. To view in landscape, turn HTC Flyer sideways.
7. Tap anywhere on the screen to use these controls:
Quickly jump between chapters by dragging the slider.
View the table of contents and your bookmarked pages. You can
also see the notes and highlights that you've marked in the eBook.
Add a bookmark.
Change the font size.
Search for keywords or phrases.
8. When you're done reading, press to close the eBook.
When you reopen an eBook, it will take you to the page that you last viewed.
Adding a note or highlighting selected text
Spotted an interesting quote or a less-known fact? Take note or highlight it.
1. Press and hold on a word, and then drag the start and end markers to select the
surrounding text.
2. On the popup bar:
Tap To
Highlight Mark the selected text with your choice of color.
New note Add a short comment or remark.
Viewing notes and highlights you've created
1. Tap anywhere in the eBook you're reading, and then tap .
2. Go to the Notes tab or Highlights tab to view the information that you want.
149 Market and other apps
HTC Confidential
Downloading an eBook
Browse the bookstore and choose from hundreds of available titles to download.
You need to have:
§an active Wi-Fi or data connection
§a Kobo account and an Adobe® ID account. If you don’t have these accounts yet,
either sign up from HTC Flyer or from your computer’s web browser. (On your
computer, go to: www.kobobooks.com/signup.html and www.adobe.com/
cfusion/membership/index.cfm.)
1. If you have not yet logged in to Kobo and Adobe ID accounts, press , and
then tap Accounts to sign in.
2. On the Reader main screen, tap .
3. In the eBooks by Kobo tab, do any of the following to find a book:
§Tap a category to see available book titles.
§View more categories. Press , and then tap either Browse or Discover.
§Tap to find a specific book title or author.
4. Tap the eBook you want to download. You’ll then see information such as the
eBook’s price, its summary and ratings.
5. Tap to place your order.
6. Provide your purchase details, and then tap Buy.
7. Tap to download the eBook. When downloading is complete, you'll find the
eBook in your library.
§After you’ve used Kobo once to purchase an eBook, HTC Flyer remembers your
billing details so you don’t need to enter them the next time.
§If you've previously bought eBooks from Kobo using your computer, go to the
Available for download tab in Reader to download them to HTC Flyer.
About the My Shelf widget
Use the My Shelf widget to easily open your eBooks for reading right from your Home
screen.
150 Market and other apps
HTC Confidential
Reading news feeds
Don’t get left behind with yesterday’s stories. Use the News app to subscribe to news
feeds that cover breaking news, sports, top blogs, and more. You can also get
updates based on specific keywords.
Subscribing to news channels
You need to be signed in to a Google Account before using the News app.
1. From the Home screen, tap > News.
2. Tap , and then tap Subscriptions > Add feeds.
3. Do one of the following:
§Tap a category such as Blogs or Entertainment to choose from popular
news feeds.
§Tap Search more to search for a specific keyword or feed URL.
4. After selecting the channel or channels to subscribe to, tap Add.
To manually update news stories on your channels, press , and then tap Refresh.
Adding a keyword
Easily find stories that interest you by entering a search keyword.
1. From the Home screen, tap > News.
2. Tap , and then tap My items > Keywords > Add keywords.
3. Enter the keyword, and then tap Add. Your new keyword is displayed under the
Keywords list.
4. Tap the keyword to show the stories that contain that keyword.
Reading a story
1. From the Home screen, tap > News.
2. On the All items screen, tap a story that you want to read. While reading the
story, you can:
Tap To
Star the story as a favorite.
Read full article Go to the web page where the story is published.
Share article Share a link to the story from the available options.
151 Market and other apps
HTC Confidential
Tap To
Go to the next or previous story in the channel.
Changing update schedule and content settings
While on the News app, press > Settings (or More > Settings), and then tap any of
the following:
Accounts & sync Manage sync options and general News settings.
Update when
opened
Update the content of the channels you’ve subscribed to every
time you open the News app.
Update schedule Choose a time interval when the channels you’ve subscribed to
are updated. Select Manual to refresh the content only when you
like.
News content Choose how to read news stories by default: whether as a
summary or as a full web page article.
Mobile view If you’ve selected to view the news content as a web page article,
choose to display web page articles optimized for mobile viewing.
About the News widget
Use the News widget to read snippets of stories that you've subscribed to right from
your Home screen.
152 Market and other apps
HTC Confidential
Keeping track of your stocks
Use the Stocks app to get the latest stock updates for stock quotes and market
indices you follow.
1. From the Home screen, tap > Stocks.
2. On the Stocks main screen, do any of the following:
§Tap an item to view from the list of stock quotes and market indices.
§Tap to update the stock information.
§Tap to add a stock quote or stock market index.
§To change the stock list order, press , and then tap Edit. Press and hold
at the end of the item you want to move, then drag it to its new
position.
3. When you've selected a particular stock quote or stock market index, you can:
§View an item’s trade information as well as its
price chart for a specific period.
§Tap another date period to view an item’s past
trade information.
Adding a stock quote or stock market index
1. On the Stocks main screen, tap .
2. Enter the stock quote or stock market index on the text field, and then tap .
3. Tap the stock quote or stock market index you want to add.
To delete an item, press while on the Stocks main screen, and then tap Edit.
Mark the items you want to delete, and then tap Done.
153 Market and other apps
HTC Confidential
Changing update schedule and color settings
Downloading stock information automatically may incur additional fees from your
mobile operator.
On the Stocks main screen, press , and then tap Settings. Do any of the following:
Tap To
Update when opened Update the stock information every time you open the
Stocks app.
Scheduled sync Set automatic downloads of stock information.
Update schedule Choose a time interval for checking updates.
Set color for price raise Change the color for displaying stock price increases to
either red or green, depending on what’s being used in your
country.
About the Stocks widget
Use the Stocks widget to instantly check stock updates right on your Home screen.
Working on documents
Need to tweak a report while you're on the go? Use Polaris Office to easily view and
edit Microsoft Office Word (.doc and .docx), Microsoft Office Excel (.xls and .xlsx),
Microsoft Office PowerPoint (.ppt, .pps and .pptx), and plain text (.txt) files.
Viewing a document
1. From the Home screen, tap > Polaris Office.
2. On the Polaris Office main screen, tap the file you want to open.
3. Slide your finger on the screen to pan or go through the pages.
4. To zoom in or out, spread or pinch your thumb and index fingers across the
page.
5. To view in landscape, turn HTC Flyer sideways.
6. Press to see options for saving or printing the file, and more.
Editing a document
1. From the Home screen, tap > Polaris Office.
2. On the Polaris Office main screen, tap the file you want to edit.
154 Market and other apps
HTC Confidential
3. Do any of the following:
§If your file is a Microsoft Office Word, a Microsoft Office PowerPoint, or a
plain text document, press > Edit.
§If your file is a Microsoft Office Excel document, tap a cell and then enter
your changes in the text box. To choose a different worksheet, press >
Worksheet.
4. When done making your changes, press and then tap either Save or Save as.
Viewing a PDF
Use PDF Viewer to read PDF files that you've downloaded or copied to HTC Flyer.
1. From the Home screen, tap > PDF Viewer.
2. On the Open file screen, browse for and tap the file you want to view.
3. Slide your finger on the screen to pan or go through the pages.
4. To zoom in or out, spread or pinch your thumb and index fingers across the
page.
5. To view in landscape, turn HTC Flyer sideways.
6. Press , and then tap:
Open Open another PDF file.
Save/Save as Save comments you've made using the tablet pen on the PDF
file.
Print Print the PDF file.
Watching videos on YouTube
Use the YouTube app to check out what’s popular on the online video-sharing
website.
1. From the Home screen, tap > YouTube.
2. Scroll through the list of videos, and then tap a video to watch it.
155 Market and other apps
HTC Confidential
3. While watching a video, you can:
§Turn HTC Flyer sideways or double-tap the screen to watch the video in full
screen.
§Tap the video screen to pause, resume playback, or drag the slider to jump
to a different part of the video.
§Tap a tab to learn more about the video, see related videos, or check out
what other viewers think. You can also slide your finger across the tabs to
see if there are more items available.
§Tap the thumbs-up or thumbs-down icon to add your video rating. Tap
More to see other options.
4. Press , and then tap Home to return to the YouTube main screen.
Searching for videos
1. On the YouTube main screen, tap .
2. Enter a search keyword, and then tap .
3. Scroll through the results and tap a video to watch it.
You also have the option to show results that were just recently posted. Tap All
time, and then select a time period you want.
Clearing the search history
1. On the YouTube main screen, press , and then tap Settings.
2. Tap Clear search history, and then tap OK when prompted.
Sharing a video link
1. On the video’s watch screen, tap More > Share.
2. Choose how you want to share the video link from the available options.
Capturing and sharing videos on YouTube
1. From the Home screen, tap > YouTube.
2. Tap .
3. Tap to start capturing video.
4. When you're finished capturing, tap again, and then tap Done.
5. Enter a title, description, and tags for your video.
6. Set the privacy level.
7. Tap Upload.
156 Market and other apps
HTC Confidential
Sharing games and apps
Having fun with a game or app that you found from Android Market? Share your
favorite games and apps instantly with your circle of friends.
For your friends to link to the app and download it from Android Market, they must
be using an Android device.
1. From the Home screen, tap .
2. Press , and then tap Share. You’ll then see the list of games and apps that
you downloaded and installed from Android Market.
3. Tap an app, and then choose how to share it.
When your friends see the link in your sent message, email, or status update, they can
simply tap the link to go directly to the game or app in Android Market to download it.
§While entering your status update in Friend Stream, you can also tap to choose
from games or apps that you want to share in your social networks.
§If you’ve already created a new text or email message, press and then tap
> App recommendation to choose from your list of installed games and apps.
157 Market and other apps
HTC Confidential
HTC Sync
About HTC Sync
You have your new vacation photos on HTC Flyer while your business calendar is on
your computer. Why not make these types of files and information available on both
devices?
With HTC Sync, you can:
§Sync your contacts between your Microsoft Outlook, Outlook Express or
Windows Contacts on your computer and HTC Flyer.
§Sync your calendar events between the Outlook or Windows Calendar on your
computer and HTC Flyer.
§Bring your photos, videos, documents, songs, and playlists to HTC Flyer and
enjoy them on the go.
§Easily import your captured photos and videos from HTC Flyer to your
computer.
§Store the same bookmarks on both your computer and HTC Flyer web
browsers.
§Use your computer's Internet connection to download maps and useful add-on
services for the Locations app.
§Install third-party mobile phone apps (not downloaded from Android Market)
from your computer.
§You need a storage card inserted into HTC Flyer to be able to sync multimedia
files, maps, and documents.
§The available categories and options depend on the device you've connected to
your computer.
158 HTC Sync
HTC Confidential
Installing HTC Sync
§Install HTC Sync on a computer running Windows 7, Windows Vista, or Windows
XP.
§HTC Sync requires USB 2.0 on your computer to connect and sync with HTC Flyer.
§For trouble-free installation, first quit all running programs and temporarily exit
from your anti-virus program before you start installing HTC Sync.
Download the HTC Sync installer from the HTC support website (www.htc.com/
support/) to your computer and use it to install.
After installing HTC Sync, the HTC Sync icon is added to your computer’s system
tray (check the bottom-right side of your computer screen). You can double-click this
icon to open HTC Sync.
Setting up HTC Sync to recognize HTC Flyer
1. Connect HTC Flyer to your computer using the USB cable that came in the box.
2. When HTC Flyer prompts you to choose a type of USB connection, tap HTC
Sync, and then tap Done. Wait for HTC Sync to recognize HTC Flyer.
3. On the Device setup screen, enter a name for HTC Flyer.
4. Click Save. The Device panel then opens.
To change the name of HTC Flyer later, click Overview > Device setup.
159 HTC Sync
HTC Confidential
Getting to know the workspace
On the Device panel, you can set your sync options, see general information about
HTC Flyer, check the used and available space on your storage card, and begin
synchronization.
The available categories and options depend on the device you've connected to
your computer. For example, Locations appears in the Device panel when you have
the Locations app on HTC Flyer.
§You can click a category of items to see its sync options on the right side of the
Device panel.
Clicking Overview displays basic software information and storage card usage,
and lets you change the name of HTC Flyer, or install third-party applications to
HTC Flyer.
§The Sync now button lets you start syncing the categories and options you've
selected.
§The estimated storage usage bar beside the Sync now button shows you the
estimated storage card space that will be used when there are new items to be
synchronized and added to HTC Flyer.
Setting up synchronization
You can choose the types of files and information you want to sync between HTC
Flyer and your computer.
Music sync options
Bring the music tracks and songs you play on your computer to HTC Flyer. If you have
playlists created in iTunes® or Windows Media® Player, you can sync these too and
enjoy them on the go.
You can sync audio files in these formats: *.aac, *.amr, *.m4a, *.mid, *.midi, *.mp3,
*.wav, *.wma
1. On the Device panel, click Music, and then click the On button. Turning Music
sync on means you want this category included every time you sync your
computer and HTC Flyer.
2. Select Sync music files from, and then click Add.
3. Choose a folder that contains your audio files, and then click OK.
4. Select Sync music files from iTunes and Windows Media Player if you're using
iTunes or Windows Media Player on your computer, then choose the playlists
you want to sync on HTC Flyer.
160 HTC Sync
HTC Confidential
Gallery sync options
You can automatically sync photos and videos between HTC Flyer and a computer.
You can sync audio files in these formats:
§Photos: *.bmp, *.gif, *.jpeg, *.jpg, *.png
§Videos: *.3gp, *.3g2, *.mp4, *.wmv
1. On the Device panel, click Gallery, and then click the On button. Turning Gallery
sync on means you want this category included every time you sync your
computer and HTC Flyer.
2. To automatically import your camera shots to your computer during
synchronization, select Copy device Camera Shots to PC. Photos and videos
from your storage card will be saved to the \My Photos\Device Camera Shots
folder on your computer.
3. Select Sync PC photos & videos from, and then click Add.
4. Choose a folder that contains your multimedia files, and then click OK. All
supported image and video files added to this folder will be copied to the
storage card during synchronization.
Calendar sync options
HTC Flyer can sync appointments and events with your calendar in Outlook (Outlook
XP, Outlook 2003 or Outlook 2007) or Windows Calendar.
1. On the Device panel, click Calendar, and then click the On button. Turning
Calendar sync on means you want this category included every time you sync
your computer and HTC Flyer.
2. Select the application you want to sync calendar events with.
3. Choose from which point you want to start synchronizing your calendar events.
4. In cases when conflicting information is found on both HTC Flyer and the
computer, choose which information you want to keep.
Only the calendar fields supported on HTC Flyer will be synchronized.
161 HTC Sync
HTC Confidential
People sync options
Sync HTC Flyer contacts with your Outlook (Outlook XP, Outlook 2003 or Outlook
2007), Outlook Express, or Windows Contacts.
1. On the Device panel, click People, and then click the On button. Turning People
sync on means you want this category included every time you sync your
computer and HTC Flyer.
2. Choose the application you want to sync your contacts with.
3. In cases when conflicting information is found on both HTC Flyer and the
computer, choose which information you want to keep.
Only the contact fields supported on HTC Flyer will be synchronized.
Bookmarks sync options
Sync web browser bookmarks between HTC Flyer and a computer.
If you are using Google Chrome or Firefox Internet browser and have selected it to
sync with HTC Flyer, make sure to close all browser windows before you begin
synchronization.
1. Using your favorite web browser on your computer, create a favorites folder
named HTC bookmarks. Make sure to save your favorite bookmarks in this
folder to be able to sync them with HTC Flyer.
2. On HTC Sync's Device panel, click Bookmarks, and then click the On button.
Turning Bookmarks sync on means you want this category included every time
you sync your computer and HTC Flyer.
3. Choose the web browser that stores the bookmarks to sync with HTC Flyer.
When conflicting information is found on both HTC Flyer and computer, HTC Sync
keeps the information from your computer.
162 HTC Sync
HTC Confidential
Documents sync options
You can sync files and documents from your computer to HTC Flyer. You can also
sync email attachments that you stored on the HTC Flyer storage card to your
computer.
§To open a document on HTC Flyer, you'll need a compatible app.
§To sync email attachments stored on the storage card to your computer, you must
set up an Exchange ActiveSync or POP3/IMAP email account from the Mail app on
HTC Flyer.
1. On the Device panel, click Documents, and then click the On button. Turning
Documents sync on means you want this category included every time you sync
your computer andHTC Flyer.
2. To sync email attachments that you've stored on the storage card, select Copy
all download Mail documents to PC.
3. Select Sync PC documents from, and then click Add.
4. Choose a folder that contains the documents you want to sync on HTC Flyer,
and then click OK.
Email attachments from the storage card will be saved to the \My Documents\ folder
on your computer. Documents from your computer will be saved to the \My
Documents\ folder on your storage card.
Locations sync options
Before going on a trip to another city or country, you can download the maps you
need using HTC Sync on your computer, then sync them to HTC Flyer. You can also
purchase licenses for other useful data such as driving and walking navigation, safety
cameras alerts, and more.
1. On the Device panel, click Locations, and then click the On button. Turning
Locations sync on means you want this category included every time you sync
your computer and HTC Flyer.
2. Select and download maps and additional map features. To find out how, see
Downloading maps or purchasing services on page 165.
3. After you're done downloading items on your computer, you'll see these items
in the Locations content list. You can then choose whether you want to sync all
maps and licenses or just the items you select.
163 HTC Sync
HTC Confidential
Synchronizing HTC Flyer
Check the estimated usage bar beside the Sync now button for the estimated file size
of new items to sync on HTC Flyer.
When there's not enough space left on your storage card, you'll see a warning icon
and you won't be able to sync.
1. After selecting and customizing the categories you want to sync, click Sync
now.
2. After synchronization is complete, click Disconnect.
3. Safely remove HTC Flyer as required by your computer's operating system.
The next time you connect HTC Flyer to your computer, synchronization
automatically begins based on your sync settings.
Installing an app from your computer to HTC
Flyer
If you have application files (*.apk) on your computer, you can use HTC Sync to
install them to HTC Flyer. We strongly recommend you install only applications that
you trust.
Before you begin, make sure that HTC Flyer is set to allow applications from your
computer to be installed toHTC Flyer. To do this, press while on the Home
screen, tap Settings > Applications, and then select the Unknown sources check
box.
1. On the Device panel, click Overview.
2. Click Application installer.
3. Browse for the application file on your computer, and then click Open. The
installation process starts on HTC Flyer.
4. Check the screen on HTC Flyer to see if there are additional instructions to
complete the installation.
5. After installation is complete, you can click Disconnect.
6. Safely remove HTC Flyer as required by your computer's operating system.
164 HTC Sync
HTC Confidential
Downloading maps or purchasing services
You can download maps for free or purchase premium services such as navigation,
safety cameras, and turn-by-turn voice instructions.
1. On the Device panel, click Locations, and then click the On button.
2. Click Get more Maps and Licenses.
3. On the left side of the Navigation store window, click the type of content you
want to download, and then select a country.
4. Under the Additional map features section, you can choose one or more
navigation products you want to download or purchase. When purchasing
navigation products, you also need to consider the license duration for using the
downloaded content.
5. Click Add to Shopping cart .
Checking out products or licenses
1. Click Add to Shopping cart beside Navigation store to view your shopping
cart.
2. Review the items you've selected and the total amount of purchase.
3. Click Check out.
4. Enter your email address and your billing information (if you selected a premium
navigation product).
5. Please take time to review the agreement, and then click I agree to the terms
and agreement to continue.
6. Click Review purchase to see a list of items you've selected, your email address,
and the billing information you've provided.
7. When everything is correct, click Confirm and download. The download
progress of your selected maps will then display in the Device panel.
Synchronizing another device with your
computer
You can switch from one device to another, if you have more than one device to sync.
1. Connect another device to your computer, then set up HTC Sync to recognize
it.
2. Click the device you want to set up or begin synchronization. The Device panel
then opens, where you can separately customize your sync settings for this
device.
To switch to another device to sync, click Devices, and then click the device's name or
image.
165 HTC Sync
HTC Confidential
Downloading the latest HTC Sync upgrade
Visit the HTC support website (www.htc.com/support/) from time to time to check
for the most recent HTC Sync upgrade so you can download and install it on your
computer.
After installing the latest upgrade, set up HTC Sync again to recognize and sync with
HTC Flyer.
166 HTC Sync
HTC Confidential
Keyboard
Using the onscreen keyboard
When you start an app or select a field that requires text or numbers, the onscreen
keyboard becomes available. After entering your text, you can tap or press to
close the onscreen keyboard.
Entering text
Use the following keys while entering text using the onscreen keyboard:
Press and hold keys with gray characters at the top to enter numbers, symbols,
or accented letters. The gray character displayed on the key is the character that
will be inserted when you press and hold that key. Some keys have multiple
characters or accents associated with them.
Shift key. Tap to enter an uppercase letter. Tap twice to turn on caps lock.
Tap to switch to the numeric and symbol keyboard.
Enter key. Tap to create a new line.
Backspace key. Tap to delete the previous character.
Language key. The key you see depends on the keyboard language you are
currently using. Tap to switch to another keyboard language. You can also
access onscreen keyboard settings.
Tap to hide the onscreen keyboard.
167 Keyboard
HTC Confidential
Enabling multiple keyboard languages
If there are multiple keyboard languages available on HTC Flyer, you can choose
which languages to enable in the onscreen keyboard so that you can switch to these
languages and use them to enter text.
1. From the Home screen, press , and then tap Settings > Language & keyboard
> Touch Input.
2. Tap International keyboard.
3. Choose the languages you want.
Available languages depend on the region where you purchased HTC Flyer.
Changing to the landscape onscreen keyboard
When entering text, you can choose to use the landscape orientation of the onscreen
keyboard. Turn HTC Flyer sideways to use a larger keyboard for easy typing.
§Select the Auto-rotate screen check box in > > Settings > Display to allow
the screen orientation to automatically change.
§The landscape orientation keyboard is not supported in all apps.
Entering words with predictive text
The onscreen keyboard has predictive text to help you type quickly and accurately.
Predictive text input is enabled by default, and word suggestions are displayed as you
type.
To enter a word in predictive mode, do any of the following:
§If you see the word you want highlighted in green or orange, just tap the space
bar to insert the word into your text.
§If you see the word you want shown in the suggestions before you have finished
typing the entire word, tap the word to insert it into your text.
§If an arrow is shown to the right of the suggestion list, tap the arrow to see more
suggestions.
168 Keyboard
HTC Confidential
Setting a second language for the keyboard
Aside from the keyboard language you are currently using, you can set the predictive
text to be bilingual. As you type, you’ll get word suggestions in two languages that
you’ve selected.
1. From the Home screen, press , and then tap Settings > Language & keyboard
> Touch Input.
2. Tap Bilingual prediction, and then choose the language you want.
Adding a word to the predictive text dictionary
HTC Flyer comes with a list of words that it references for predictive text suggestions.
While entering text, if you tap any word on the suggestion list, it is automatically
added to the predictive text dictionary if it was not in the dictionary already.
You can also add a word to the list manually.
1. From the Home screen, press , and then tap Settings > Language & keyboard
> Touch Input.
2. Tap Personal dictionary > Edit personal dictionary > Add new.
3. Enter the word to add, and then tap OK.
Editing or deleting a word in the predictive text dictionary
You can edit or remove words that you previously added to the predictive text
dictionary.
1. From the Home screen, press , and then tap Settings > Language & keyboard
> Touch Input.
2. Tap Personal dictionary > Edit personal dictionary
§To edit a word, tap the word itself.
§To delete words from the dictionary, press and tap Delete. Then choose
the words to remove and tap Delete.
Backing up your personal dictionary to your storage card
If you have a storage card installed, you can back up the new words you’ve added to
the predictive text dictionary.
1. From the Home screen, press , and then tap Settings > Language & keyboard
> Touch Input.
2. Tap Personal dictionary > Sync personal dictionary > Copy to storage card
3. When prompted, tap OK.
169 Keyboard
HTC Confidential
Importing your personal dictionary from your storage card
1. From the Home screen, press , and then tap Settings > Language & keyboard
> Touch Input.
2. Tap Personal dictionary > Sync personal dictionary > Restore from storage card
3. When prompted, tap OK.
Entering text by speaking
No time to type? Try speaking the words to enter them in most text fields that let you
use the onscreen keyboard.
§First make sure to select the language you’ll be using in the Voice input & output
settings.
§Since HTC Flyer uses Google’s speech-recognition service, you need to be
connected to the Internet to enter text by speaking.
1. Press and hold the language key. HTC Flyer cues you to speak.
2. Tell HTC Flyer what you want to be typed in.
Setting the voice input language
1. From the Home screen, press , then tap Settings > Voice input & output >
Voice recognizer settings.
2. Tap Language, then choose the language you want.
Available languages depend on the voice input languages supported by Google.
Entering text by tracing
Instead of tapping the keys on the onscreen keyboard, you can "trace" to type words.
Trace prediction in Settings > Language & keyboard > Touch Input > Trace keyboard
must be selected for you to use the Trace keyboard.
To trace, slide your finger on the onscreen keyboard to enter words. For example, if
you want to type “the”, put your finger on the “t” key, and then trace the word (by
sliding your finger) “the” on the onscreen keyboard.
170 Keyboard
HTC Confidential
Editing text
It's easy to cut, copy, and paste text using the keyboard.
Some apps may offer their own way of selecting or copying text.
Selecting text
Highlight the text that you want to copy or cut.
1. Press and hold the text field that contains the text to select until the magnifier
appears.
2. Drag your finger to move the text cursor to a letter within the text that you
want to select.
3. After positioning the text cursor, lift your finger. The text selection menu then
pops up.
4. Do one of the following:
§Tap Select word. When the word where you’ve placed the text cursor is
highlighted, drag the start and end markers to select the text you want.
§Tap Select all to select everything in the text field.
Copying and pasting text
1. After you have selected the text you want to copy, tap Copy or Cut. The
selected text is then copied to the clipboard.
2. Press and hold a text field in the same or other app until the magnifier appears.
3. Drag your finger to move the text cursor to where you want to paste the text.
4. After positioning the text cursor, lift your finger. The text selection menu then
pops up.
5. Tap Paste.
171 Keyboard
HTC Confidential
Adjusting input settings
Open the Touch Input settings by doing one of the following:
§On the onscreen keyboard, tap the language key (for example, tap if you’re
currently using the English onscreen keyboard). Then on the International
keyboard options menu, tap Settings.
§From the Home screen, press , and then tap Settings > Language & keyboard
> Touch Input.
International
keyboard
Add or remove languages from the onscreen keyboard
language list.
Bilingual prediction Select a secondary keyboard language to use.
Text input §Turn on or off predictive text, spell correction, and word
completion.
§Enable audible or vibration feedback when typing.
§Calibrate the touch keyboard accuracy.
Tutorial Learn how to use the onscreen keyboard with this interactive
tutorial.
Trace keyboard Turn on Trace keyboard and set options when tracing to enter
text.
Personal dictionary Add, edit or remove words in the predictive text dictionary.
172 Keyboard
HTC Confidential
Wi-Fi
To use Wi-Fi, you need access to a wireless access point or “hotspot”. The availability
and strength of the Wi-Fi signal will vary depending on objects, such as buildings or
simply a wall between rooms, the Wi-Fi signal has to pass through.
Turning Wi-Fi on and connecting to a wireless network
1. From the Home screen, press , and then tap Settings > Wireless & networks.
2. Select the Wi-Fi check box to turn Wi-Fi on. HTC Flyer then scans for available
wireless networks.
3. Tap Wi-Fi settings. The network names and security settings of detected Wi-Fi
networks are displayed in the Wi-Fi networks section.
4. If the wireless network you want to connect to is not in the list of detected
networks, scroll down the screen, and then tap Add Wi-Fi network. Enter the
wireless network settings, and then tap Save.
5. Tap the Wi-Fi network you want to connect to. If you selected an open network,
you will be automatically connected to the network.
6. If you selected a network that is secured with WEP, enter the key and then tap
Connect.
When HTC Flyer is connected to the wireless network, the Wi-Fi icon appears in
the status bar and tells you the approximate signal strength (number of bands that
light up).
The next time HTC Flyer connects to a previously accessed secured wireless network,
you won’t be asked to enter the key or other security information again, unless you
reset HTC Flyer to its factory default settings.
174 Internet connections
Internet connections
Data connection
Checking the data connection you're using
HTC Confidential
Connecting to a Wi-Fi network with EAP-TLS security
You may need to install a network certificate (*.p12) to HTC Flyer before you can
connect to a Wi-Fi network with EAP-TLS authentication protocol.
1. Save the certificate file to the root folder of the storage card.
2. From the Home screen, press , and then tap Settings > Security.
3. Tap Install from SD card.
4. Select the network certificate needed to connect to the EAP-TLS network.
5. Turn on Wi-Fi and connect to a wireless network.
Checking the wireless network status
1. From the Home screen, press , and then tap Settings > Wireless & networks.
2. On the Wireless & networks screen, tap Wi-Fi settings, and then tap the wireless
network that HTC Flyer is currently connected to.
A message box is then displayed showing the Wi-Fi network name, status, speed,
signal strength, and more.
If you want to remove the settings for this network, tap Forget. If you want to
reconnect to a wireless network that you have removed, you'll need to choose the
wireless network from the list of available Wi-Fi networks again. If it is a secured
wireless network, you'll need to enter the wireless network credentials again.
Connecting to another Wi-Fi network
1. From the Home screen, press , and then tap Settings > Wireless & networks.
2. Tap Wi-Fi settings. Detected Wi-Fi networks are displayed in the Wi-Fi
networks section.
3. To manually scan for available Wi-Fi networks, on the Wi-Fi screen, press ,
and then tap Scan.
4. Tap another Wi-Fi network to connect to it.
175 Internet connections
HTC Confidential
About connection widgets
Add the Mobile Network and Wi-Fi widgets or the Data dashboard widget to the
Home screen to make it faster for you to turn on or off these connections. Tap the
widget or icon on the dashboard to turn on or off the connection.
Connecting to a virtual private network (VPN)
Add, set up, and manage virtual private networks (VPNs) so you can connect and
access resources inside a secured local network, such as your corporate network.
Depending on the type of VPN you’re using at work, you may be asked to enter your
login credentials and install security certificates before you can connect to your
company’s local network. You can get this information from your network
administrator.
Also, HTC Flyer must first establish a Wi-Fi or data connection before you can start a
VPN connection.
Setting up secure credential storage
If your network administrator tells you to download and install security certificates,
you must first set up secure credential storage on HTC Flyer.
1. From the Home screen, press , and then tap Settings > Security.
2. Tap Set password.
3. Enter a new password for the credential storage.
4. Scroll down and confirm the password, and then tap OK.
5. Select the Use secure credentials check box.
You can then download and install the certificates needed to access your local
network. Your network administrator can tell you how to do this.
Adding a VPN connection
1. From the Home screen, press , and then tap Settings > Wireless & networks.
2. Tap VPN settings > Add VPN, and then tap the type of VPN you want to add.
3. Tap the VPN settings and set them up according to the security details your
network administrator gave you.
4. Press , and then tap Save.
The VPN is then added to the VPNs section of the VPN settings screen.
176 Internet connections
HTC Confidential
Connecting to a VPN
1. From the Home screen, press , and then tap Settings > Wireless & networks.
2. Tap VPN settings.
3. In the VPNs section, tap the VPN that you want to connect to.
4. When asked, enter your log in credentials, and then tap Connect. When you’re
connected, the VPN connected icon appears in the notification area of the
title bar.
You can then open the web browser to access resources such as your corporate
network intranet.
Disconnecting from a VPN
1. Press and hold the title bar, and then slide down your finger to open the
Notifications panel.
2. Tap the VPN connection to return to the VPN settings screen, and then tap the
VPN connection to disconnect from it.
When HTC Flyer has disconnected from the VPN, the VPN disconnected icon is
displayed in the notification area of the title bar.
177 Internet connections
HTC Confidential
Bluetooth
Bluetooth basics
Turning Bluetooth on or off
1. From the Home screen, press , and then tap Settings > Wireless & networks.
2. Select or clear the Bluetooth check box.
An even easier way to turn Bluetooth on or off is with the Bluetooth widget on the
Home screen.
Turn off Bluetooth when not in use to save battery power, or in places where using
a wireless device is prohibited, such as on board an aircraft and in hospitals.
Changing the device name
The device name identifies HTC Flyer to other devices.
1. From the Home screen, press , and then tap Settings > Wireless & networks.
2. Tap Bluetooth settings.
3. If the Bluetooth check box is not selected, select it to turn Bluetooth on.
4. Tap Device name.
5. Enter the new name for HTC Flyer in the dialog box, and then tap OK.
Connecting a Bluetooth headset or car kit
You can listen to music over a Bluetooth stereo headset, or have hands-free
conversations using a compatible Bluetooth headset or car kit. It’s the same
procedure to set up stereo audio and hands-free.
§For you to listen to music with your headset or car kit, the headset or car kit must
support the A2DP Bluetooth profile.
§Before you connect your headset, you need to make it discoverable so HTC Flyer
can find it. You can find out how to do this by referring to your headset manual.
1. From the Home screen, press , and then tap Settings > Wireless & networks.
2. Tap Bluetooth settings.
3. If the Bluetooth check box is not selected, select it to turn Bluetooth on.
4. Make sure that the headset is discoverable.
179 Bluetooth
HTC Confidential
5. Tap Scan for devices. HTC Flyer will start to scan for Bluetooth devices within
range.
6. When you see the name of your headset displayed in the Bluetooth devices
section, tap the name. HTC Flyer then automatically tries to pair with the
headset.
7. If automatic pairing fails, enter the passcode supplied with your headset.
The pairing and connection status is displayed below the hands-free headset or car kit
name in the Bluetooth devices section. When the Bluetooth headset or car kit is
connected to HTC Flyer, the Bluetooth connected icon is displayed in the status
bar. Depending on the type of headset or car kit you have connected, you can then
start using the headset or car kit.
Reconnecting a headset or car kit
Normally, you can easily reconnect your headset by switching on Bluetooth on HTC
Flyer, and then turning on the headset. However, you might have to connect manually
if your headset has been used with another Bluetooth device.
1. From the Home screen, press , and then tap Settings > Wireless & networks.
2. Tap Bluetooth settings.
3. If the Bluetooth check box is not selected, select it to turn Bluetooth on.
4. Make sure that the headset is discoverable.
5. Tap the headset’s name in the Bluetooth devices section.
6. If prompted to enter a passcode, try 0000 or 1234, or consult the headset/car
kit documentation to find the passcode.
If you still cannot reconnect to the headset or car kit, follow the instructions in
Unpairing from a Bluetooth device on page 181, and then follow the steps under
Connecting a Bluetooth headset or car kit on page 179.
Disconnecting or unpairing from a Bluetooth
device
Disconnecting a Bluetooth device
1. From the Home screen, press , and then tap Settings > Wireless & networks.
2. Tap Bluetooth settings.
3. In the Bluetooth devices section, press and hold the device to disconnect.
4. Tap Disconnect.
180 Bluetooth
HTC Confidential
Unpairing from a Bluetooth device
You can make HTC Flyer forget its pairing connection with another Bluetooth device.
Doing so may require you to enter or confirm a passcode again if you want to
reconnect to the other device.
1. From the Home screen, press , and then tap Settings > Wireless & networks.
2. Tap Bluetooth settings.
3. In the Bluetooth devices section, press and hold the device to unpair.
4. Tap Disconnect & unpair, or tap Unpair if the Bluetooth device is currently not
connected to HTC Flyer.
Sending information using Bluetooth
You can use Bluetooth to send information from HTC Flyer to another Bluetooth
enabled device such as a phone or notebook computer. You can send the following
types of information, depending on the device you are sending to:
§Images and videos
§Calendar events
§Contacts
§Audio files
Before you begin, set the receiving device to discoverable mode. You may also
need to set it to “Receive Beams” or “Receive Files”. Refer to the device’s
documentation for instructions on receiving information over Bluetooth.
1. On HTC Flyer, open the app that contains the information or file you want to
send.
2. Follow the steps for the type of item you want to send:
Captured photo or
video
After capturing, on the Camera preview screen, tap ,
and then tap Bluetooth.
Photos or videos 1. On the Gallery app, choose an album.
2. Tap , and then tap Bluetooth.
3. Choose the photos and videos you want to share, and
then tap Next.
181 Bluetooth
HTC Confidential
Contact 1. On the People app, tap a contact to view the contact's
details.
2. Press and then tap Send contact.
3. Tap the down arrow icon, and then select Bluetooth.
4. Choose which details to share, and then tap Send.
Calendar
appointment or
event
In Day view, Agenda view, or Week view, press and hold
the event, and then tap Share vCalendar > Bluetooth.
Music track With the track displayed on the Music app’s Now playing
screen, press , and then tap Share > Bluetooth.
3. Turn on Bluetooth if you’re asked to do so.
4. If you haven't paired with the receiving device before, tap Scan for devices.
5. Tap the name of the receiving device.
6. If prompted, accept the pairing request on HTC Flyer and on the receiving
device. Also enter the same passcode or confirm the auto-generated passcode
on both devices.
7. On the receiving device, accept the file.
Where sent information is saved
When you send information using Bluetooth, the location where it's saved depends on
the type of information and the receiving device.
If you send a calendar event or contact, it is normally added directly to the
corresponding application on the receiving device. For example, if you send a
calendar event to a compatible phone, the event is shown in that phone’s calendar
application.
If you send another file type to a Windows computer, it is normally saved in the
Bluetooth Exchange folder within your personal document folders.
§On Windows XP, the path may be: C:\Documents and Settings\[your
username]\My Documents\Bluetooth Exchange
§On Windows Vista, the path may be: C:\Users\[your username]\Documents
§On Windows 7, the path may be: C:\Users\[your username]\My Documents
\Bluetooth Exchange Folder
If you send a file to another device, the saved location may depend on the file type.
For example, if you send an image file to another mobile phone, it may be saved in a
folder named “Images”.
182 Bluetooth
HTC Confidential
Receiving information using Bluetooth
HTC Flyer lets you receive various files with Bluetooth, including photos, music tracks,
and documents such as PDFs.
1. From the Home screen, press , and then tap Settings > Wireless & networks.
2. Tap Bluetooth settings.
3. If the Bluetooth check box is not selected, select it to turn Bluetooth on.
4. Select the Discoverable check box.
5. On the sending device, send one or more files to HTC Flyer. Refer to the
device’s documentation for instructions on sending information over Bluetooth.
6. If asked, accept the pairing request on HTC Flyer and on the receiving device.
Also enter the same passcode or confirm the auto-generated passcode on both
devices.
You'll then get a Bluetooth authorization request.
7. If you want to automatically receive files from the sending device in future,
select the Always check box.
8. Tap Accept or OK.
9. When HTC Flyer receives a file transfer request notification, slide down the
Notifications panel, tap the incoming file notification, and then tap Accept.
10. When a file is transferred, a notification is displayed. To open the file
immediately, slide down the Notifications panel, and then tap the relevant
notification.
When you open a received file, what happens next depends on the file type:
§Media files and documents are usually opened directly in a compatible app. For
example, if you open a music track, it starts playing in the Music app.
§For a vCalendar file, choose the calendar where you want to save the event, and
then tap Import. The vCalendar is added to your Calendar events.
§For a vCard contact file, you can choose to import one, several, or all of those
contacts to your contacts list.
Adding the Bluetooth received folder to the Home screen
You can add a folder to the Home screen that shows all files you have received with
Bluetooth.
1. From the Home screen, tap .
2. On the Personalize screen, tap Folder > Bluetooth received.
3. Press and hold the Bluetooth received folder icon, and drag it to the Home
screen position you want.
To view the folder contents, tap the folder icon. To open a file, tap the file name.
183 Bluetooth
HTC Confidential
Security
Protecting HTC Flyer with a screen lock
pattern, or password
Protect your personal information and prevent others from using HTC Flyer without
your permission by setting a screen lock pattern, or password.
Your screen lock will be asked every time HTC Flyer is turned on or when it’s idle for a
certain period of time.
1. From the Home screen, press , and then tap Settings > Security.
2. Tap Set up screen lock.
184 Security
HTC Confidential
3. Tap one of the following:
None Disable the screen lock you’ve previously created.
Pattern Set a screen lock pattern by following the onscreen instructions.
PIN Set a numeric password of at least four digits.
Password Set an alpha-numeric password.
4. On the Security screen, tap Lock phone after, then specify the idle time you can
allow before the screen is locked.
You can also clear the Use visible pattern or Visible passwords on the Security
screen if you don’t want your screen lock to display as you enter it onscreen.
Changing your screen lock
1. From the Home screen, press , and then tap Settings > Security.
2. Tap Change screen lock.
3. Enter your current screen lock to confirm that you want to change it.
4. Choose a different screen lock type, then enter your new pattern, PIN, or
password. Or tap None if you don’t want to use a screen lock.
Forgot your screen lock pattern?
If you’ve forgotten your screen lock pattern, you have up to five attempts to
try and unlock HTC Flyer.
If this fails, you can unlock HTC Flyer by entering your Google Account user
name and password.
1. On the unlock screen, enter your lock pattern.
2. After the fifth attempt, when you’re asked to wait for 30 seconds, tap
OK.
3. If the display goes off, press the POWER button to turn the display back
on, and then unlock the screen.
4. Tap the Forgot pattern? button when it appears.
5. Enter your Google Account name and password, and then tap Sign in.
You’ll then be asked to create a new screen lock pattern. If you no
longer want to do so, tap Cancel.
185 Security
HTC Confidential
Settings
Settings on HTC Flyer
Control and customize tablet settings on the Settings screen.
From the Home screen, press , and then tap Settings.
Personalize Make HTC Flyer truly yours with the various personalization
options available.
Wireless &
networks
Set up wireless connections, such as Wi-Fi, data connection, and
Bluetooth, enable Airplane mode, and more.
Sound §Choose sounds to use for notifications.
§Adjust media playback volume.
Display Set up display settings such as automatic screen orientation,
brightness, screen timeout, and more.
Accounts & sync §Log in or out of your social network accounts, Google Account,
and Exchange ActiveSync account.
§Sign in or out of your HTCSense.com account.
§You can also manage synchronization and other settings for your
accounts.
Location §Select the sources to use when determining your location.
§Select Phone finder so you can use HTCSense.com to locate HTC
Flyer.
Search Select items to include when you do a search and set Google
search options.
Pen Set options for the pen when you use it to interact with HTC Flyer.
Privacy Choose to automatically back up some settings (e.g. Wi-Fi
passwords or Bookmarks) to Google servers using your Google
Account so you can restore them when needed.
Connect to PC §Set the default USB connection type to use whenever you
connect HTC Flyer to your computer.
§Or, select the Ask me check box to set HTC Flyer to always
display the screen for selecting the USB connection type.
Security Set a screen lock, or manage the
credential storage.
186 Settings
HTC Confidential
Dock If you purchased the dock, choose the behavior when you mount
HTC Flyer to the dock.
Power Turn on power saver to automatically switch to power saving
mode when the battery level goes down to the level that you set.
Applications Manage running applications, install or uninstall programs, set low
memory notification, and more.
Storage §Check the available space in the internal storage and your
storage card.
§Erase the internal storage or storage card content.
§From this screen, be sure to unmount your storage card before
you remove it from HTC Flyer.
§You can also do a factory reset.
Date & time Set the date and time, time zone, and date or time format.
Language &
keyboard
Set the operating system language and region. You can also set
onscreen keyboard options.
Accessibility Use these settings when you’ve downloaded and installed an
accessibility tool, such as a screen reader that provides voice
feedback. You can turn accessibility functions or services on or off.
Voice input &
output
Set up the voice input options. Also, if you’ve installed a text-to-
speech (voice data) application, use this to set the text-to-speech
settings.
About tablet §Turn on or off scheduled checks for system software updates, or
manually check for updates.
§Turn Tell HTC on or off. When enabled, you're helping us know if
HTC Flyer encounters a technical problem.
§View different information about HTC Flyer, such as the battery
level, hardware and software information, and more.
Changing display settings
Adjusting the screen brightness manually
1. From the Home screen, press , and then tap Settings.
2. Tap Display > Brightness
3. Clear the Automatic brightness check box.
4. Drag the brightness slider to the left to decrease or to the right to increase the
screen brightness.
5. Tap OK.
187 Settings
HTC Confidential
Adjusting the time before the screen turns off
After a period of inactivity, the screen turns off to conserve battery power. You can
set the idle time before the screen turns off.
1. From the Home screen, press , and then tap Settings.
2. Tap Display > Screen timeout.
3. Tap the time before the screen turns off.
Turning automatic screen rotation off
By default, the screen orientation automatically adjusts depending on how you hold
HTC Flyer.
Automatic rotation is not supported in all application screens.
1. From the Home screen, press , and then tap Settings.
2. Tap Display.
3. Clear the Auto-rotate screen check box.
Recalibrating the G-sensor
Recalibrate the screen if you feel that the screen orientation does not respond
properly to the way you hold HTC Flyer.
1. From the Home screen, press , and then tap Settings.
2. Tap Display > G-Sensor calibration.
3. Place HTC Flyer on a flat and level surface, and then tap Calibrate.
4. After the recalibration process, tap OK.
Keeping the screen on while charging HTC Flyer
You can keep the screen from turning off while you’re charging HTC Flyer.
1. From the Home screen, press , and then tap Settings.
2. Tap Applications > Development.
3. Select the Stay awake check box.
Switching animation effects on or off
You can turn off the animation or enable only some animations when switching
between screens.
1. From the Home screen, press , and then tap Settings.
2. Tap Display > Animation.
3. On the options menu, select the animation setting you want.
188 Settings
HTC Confidential
Changing sound settings
Enabling or disabling audible selection
You can choose to play a sound when you’re selecting items onscreen.
1. From the Home screen, press , and then tap Settings.
2. Tap Sound.
3. Select the Audible selection check box.
Changing the language
When you turn HTC Flyer on for the first time, you’re asked to choose the language
you want to use. If you want, you can still change the language after you set up HTC
Flyer. Changing the language adjusts the keyboard layout, date and time formatting,
and more.
The languages available to choose from may depend on the version of HTC Flyer you
have.
1. From the Home screen, press , and then tap Settings.
2. Tap Language & keyboard > Select language.
3. Tap the language and corresponding region you want to use.
4. Press to return to the Home screen. The new language will be applied after a
few seconds.
Optimizing battery life
You can set HTC Flyer to automatically switch to power saving mode when the
battery level reaches a certain level.
1. From the Home screen, press , and then tap Settings.
2. Tap Power.
3. Select the Enable power saver check box.
4. Tap Turn power saver on at, and then select when to switch to power saver
mode.
5. Tap Power saver settings, and then set and select the behavior when HTC Flyer
switches to power saving mode.
Checking the power usage of applications
1. From the Home screen, press , and then tap Settings.
2. Tap About tablet > Battery > Battery use.
189 Settings
HTC Confidential
Managing memory
Checking how much internal storage is available for use
1. From the Home screen, press , and then tap Settings.
2. Tap Storage. The available storage for use is displayed in the Internal storage
section.
Checking the available storage card space
1. From the Home screen, press , and then tap Settings.
2. Tap Storage. The total and available storage card space is displayed in the SD
card section.
Clearing application cache and data
1. From the Home screen, press , and then tap Settings.
2. Tap Applications > Manage applications.
3. On the All tab, tap an application.
4. On the screen, tap Clear data and/or Clear cache.
Uninstalling third-party applications
You cannot uninstall applications that are preinstalled on HTC Flyer.
1. From the Home screen, press , and then tap Settings.
2. Tap Applications > Manage applications.
3. On the Downloaded tab, tap the application you want to uninstall.
4. Tap Uninstall.
Moving applications to or from the storage card
Move downloaded applications to the storage card if the internal storage on HTC
Flyer is getting low. Or, if your storage card is getting full, you can also move
applications from the storage card to the internal storage.
You can only move applications that are not preinstalled on HTC Flyer.
1. From the Home screen, press , and then tap Settings.
2. Tap Applications > Manage applications.
3. On the Downloaded tab, tap the application you want to move.
4. Choose whether to move the application to the storage card or to HTC Flyer.
190 Settings
HTC Confidential
Stopping running applications using Task Manager
Use Task Manager to free up memory by stopping running applications that you're
not currently using.
1. From the Home screen, tap > Task Manager.
2. In the All applications list, tap to the right of the application name to stop it.
Checking information about HTC Flyer
1. From the Home screen, press , and then tap Settings.
2. Tap About tablet.
3. Select one of the following:
Software
updates
Enable or disable the automatic check feature for software
updates for HTC Flyer. You can also tap Check now to
manually check for software updates.
Tell HTC Turn Tell HTC on or off. When enabled, you’re helping us
know if HTC Flyer encounters a technical problem. You can
also choose when you want to send error reports.
Network Check information about your mobile operator and its
service status.
Battery Check information about the battery such as its current
battery level, status, and what programs are using the
battery.
Hardware
information
Check the Wi-Fi MAC and Bluetooth addresses.
Software
information
Check the version and other information about the Android
platform being used by HTC Flyer. You can also check the
version of the web browser.
Legal
information
Read legal information from HTC and Google, and licenses
used by HTC Flyer.
191 Settings
HTC Confidential
Update and reset
Software updates
From time to time, software updates for HTC Flyer may be available. HTC Flyer can
check and then notify you if there’s a new update. You can then download and install
the software update using the Wi-Fi. You can also manually check
if there's an available software update.
Depending on the type of update, the update may erase all your personal data and
customized settings, and also remove any applications you’ve installed. Make sure that
you’ve backed up the information and files you want to keep.
Installing an update
Make sure HTC Flyer has a storage card inserted. The update will be downloaded to
the storage card.
1. Do any of the following after HTC Flyer receives a software update:
§If the display is on and you're not using any application, the Install system
software update dialog box appears on screen. Select Install now, and then
tap OK.
§If you're in a call, the update notification icon appears in the status bar.
After the call, slide open the Notifications panel, and then tap the update
notification.
2. Wait for the update to download and install on HTC Flyer. When the update is
finished, HTC Flyer will automatically restart.
Checking for updates manually
1. From the Home screen, press , and then tap Settings.
2. Tap About tablet > Software updates > Check now.
192 Update and reset
HTC Confidential
Restarting HTC Flyer
If HTC Flyer is running slower than normal, an application is not performing properly,
or HTC Flyer becomes unresponsive, try restarting HTC Flyer and see if that helps
solve the problem.
1. If the display is off, press the POWER button to turn it back on.
2. Unlock the display.
3. Press and hold the POWER button, and then tap Restart.
4. When asked to confirm, tap Restart.
HTC Flyer not responding?
If HTC Flyer does not respond when you touch the screen or press the
buttons, you can still restart HTC Flyer by using its buttons.
1. Press and hold the VOLUME UP and VOLUME DOWN buttons.
2. While still pressing the VOLUME UP and VOLUME DOWN buttons, press
and hold the POWER button. HTC Flyer will restart after a few seconds.
Resetting HTC Flyer
Do a factory reset to return HTC Flyer to its original state before the first time you
turned it on.
If you’re passing HTC Flyer on to someone else or HTC Flyer has a persistent problem
that cannot be solved, you can perform a factory reset (also called a hard reset).
Factory reset is not a step to be taken lightly. It’ll permanently delete all your data and
customized settings, and will remove any applications you’ve downloaded and
installed. Be sure to back up any data and files you want to keep before you do a
factory reset.
Performing a factory reset via settings
The most convenient way to do a factory reset is via the settings.
1. From the Home screen, press , and then tap Settings.
2. Tap Storage > Factory data reset
3. Tap Reset phone, and then tap Erase everything.
193 Update and reset
HTC Confidential
Performing a factory reset using the tablet buttons
If you can’t turn on HTC Flyer or access the tablet settings, you can still perform a
factory reset by using the buttons on HTC Flyer.
The Fast boot option in Settings > Power must not be selected.
1. Press and hold the VOLUME DOWN button, and then briefly press the POWER
button.
2. Wait for the screen with the three Android images to appear, and then release
the VOLUME DOWN button.
3. Press VOLUME DOWN to select FACTORY RESET, and then press the POWER
button.
194 Update and reset
HTC Confidential
Trademarks and copyrights
©2011 HTC Corporation. All Rights Reserved.
HTC, the HTC logo, the HTC quietly brilliant logo, HTC Flyer, Footprints, HTC Sense,
and HTC Sync are trademarks or service marks of HTC Corporation.
©2011 Google Inc. Used with permission. Google, the Google logo, Android, the
Android logo, Android Market, the Android Market logo, Google Apps, Google
Calendar, Google Checkout, Google Earth, Google Latitude, Google Maps, Google
Talk, Gmail, Picasa, and YouTube are trademarks of Google Inc.
Microsoft, Windows, ActiveSync, Outlook, PowerPoint, Windows Media, Windows
Vista, and Word are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
Bluetooth and the Bluetooth logo are trademarks owned by Bluetooth SIG, Inc.
This device contains Adobe® Flash® Player and Adobe® Reader® Mobile software under
license from Adobe Systems Incorporated. Copyright ©1995–2011 Adobe Systems
Incorporated. All rights reserved. Adobe and Reader are trademarks of Adobe
Systems Incorporated.
Wi-Fi is a registered trademark of the Wireless Fidelity Alliance, Inc.
microSD is a trademark of SD Card Association.
Facebook is a trademark of Facebook, Inc.
Twitter is a trademark of Twitter, Inc., and is used under license.
Flickr is a trademark of Yahoo! Inc.
DLNA is a registered trademark, DLNA disc logo is a service mark, and DLNA Certified
is a trademark of the Digital Living Network Alliance.
©2011 Kobo Inc. All rights reserved. Kobo and the Kobo logo are trademarks of Kobo
Inc.
iTunes is a trademark of Apple Inc.
All other company, product and service names mentioned herein are trademarks,
registered trademarks or service marks of their respective owners.
HTC shall not be liable for technical or editorial errors or omissions contained herein,
nor for incidental or consequential damages resulting from furnishing this material.
The information is provided “as is” without warranty of any kind and is subject to
change without notice. HTC also reserves the right to revise the content of this
document at any time without prior notice.
No part of this document may be reproduced or transmitted in any form or by any
means, electronic or mechanical, including photocopying, recording or storing in a
retrieval system, or translated into any language in any form without prior written
permission of HTC.
195 Trademarks and copyrights
HTC Confidential
