HUIZHOU GAOSHENGDA TECHNOLOGY WT21M2610 WIFI+BT Module User Manual
Hui Zhou Gaoshengda Technology Co.,LTD WIFI+BT Module
User manual
PRODUCT SPECIFICATION Version 1.0
802.11b/g/n Wi-Fi 2T2R / Bluetooth v5.0 Combo Chip over
USB v2.0 interface
Model Number:
WT21M2610
(MediaTek ：MT7638GU )
客户认可
Custom Approval Section
Custom Name
Department
Approval Date：
拟制
DESIGN
审核
CHECK
批准
APPROVAL
秦楠 陈宇科 熊运自
2018-05-09 2018-05-09
2018-05-09
惠 州 高 盛 达 科 技 有 限 公 司
HUIZHOU GAOSHENGDA TECHNOLOGY CO.,LTD
中国惠州仲恺高新技术开发区华宇路 75 号
HUA YU RD., NO.75, ZHONGKAI HIGH-TECH DEVELOPMENT AREA, HUIZHOU, CHINA
TEL：（0752）2096932 E-mail： qinn@gaosd.com
PRODUCTS SPECIFICATION
PAGE 2 OF 8
WT21M2610
Version 1.0
Document revision history
Revision Date Approved by Remarks
Version 1.0 2018-05-09 Draft
PRODUCTS SPECIFICATION
PAGE 3 OF 8
WT21M2610
Version 1.0
1. General Description
MT7638G is highly integrated single chip which features a low power 2x2 11b/g/n dual-band Wi-Fi
subsystem and a Bluetooth subsystem. The Wi-Fi subsystem contains the 802.11b/g/n radio,
baseband,and MAC that are designed to meet both the low power and high throughput application.
MT7638G has a 32-bit RISC MCU that handles Wi-Fi and Bluetooth tasks, and an ARM Cortex-R4
MCU that could offload data frame processing in Wi-Fi host driver. The Bluetooth subsystem contains the
Bluetooth radio, baseband, link controller. It also uses the 32-bit RISC MCU for the Bluetooth protocols.
2. Features
Compatible with IEEE 802.11b standard to provide wireless 11Mbps data rate.
Compatible with IEEE 802.11g standard to provide wireless 54Mbps data rate.
Compatible with IEEE 802.11n standard to provide wireless 300Mbps data rate.
Support 20MHz, 40MHz,bandwidth in 2.4GHz band
Dual-band 2T2R mode, data rate up to 300Mbps with USB2.0.
Support STBC, LDPC, TX Beamformer and RX Beamformee
Greenfield, mixed mode, legacy modes support
IEEE 802.11 d/e/h/i/j/k/mc/r/v/w support
Security support for WFA WPA/WPA2 personal, WPS2.0, WAPI
QoS support of WFA WMM, WMM PS
Bluetooth specification 2.1+EDR
Bluetooth 4.2 Low Energy (LE)
Bluetooth 5.0
ROHS compliant
PRODUCTS SPECIFICATION
PAGE 4 OF 8
WT21M2610
Version 1.0

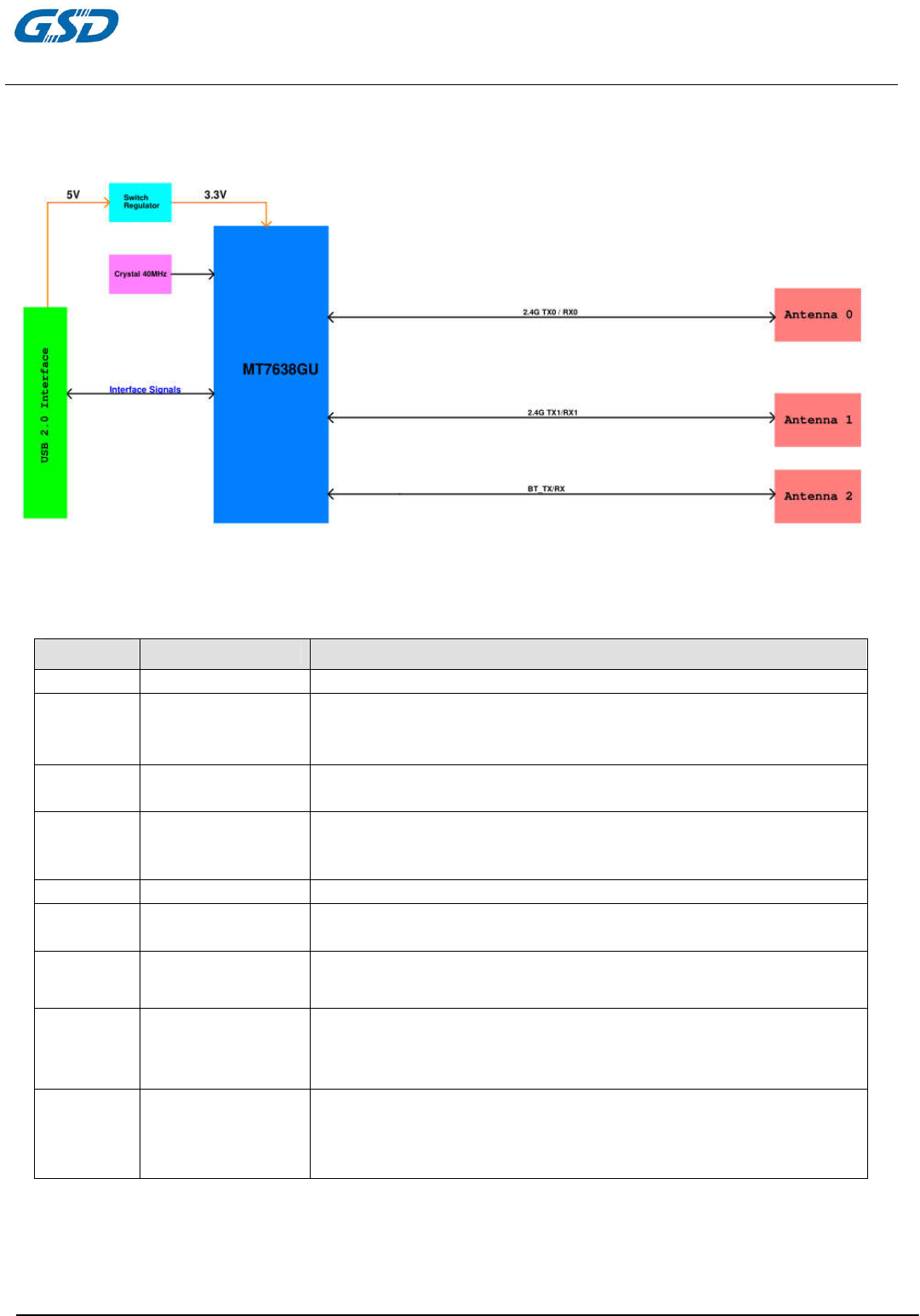

3. Application Diagrams
3.1
Functional Block Diagram
3.2 General Requirements
3.2.1 IEEE 802.11b Section
Feature
Detailed Description
3.2.1.1
Standard
● IEEE 802.11b
3.2.1.2
Radio and
Modulation
Schemes
● DQPSK , DBPSK and CCK with DSSS
3.2.1.3 Operating
Frequency
● 2400 ～ 2483.5MHz ISM band
3.2.1.4 Channel Numbers ● 13 channels for Worldwide
3.2.1.5
Data Rate
● at most 11Mbps
3.2.1.6 Media Access
Protocol
● CSMA/CA with ACK
3.2.1.7
Transmitter Output
Power at Antenna
Connector
● Typical RF Output Power at each RF chain,and
at room Temp. 25℃
3.2.1.8
Receiver
Sensitivity
at Antenna
Connector
● Typical Sensitivity at each RF chain. @Frame (1000-byte PDUs)
Error Rate<8% at room Temp 25℃
● -83 dBm for 11Mbps
●11 channels for USA
PRODUCTS SPECIFICATION
PAGE 5 OF 8
WT21M2610
Version 1.0
3.2.2 IEEE 802.11g Section
Feature
Detailed Description
3.2.2.1
Standard
● IEEE 802.11g
3.2.2.2 Radio and
Modulation Type
● QPSK , BPSK , 16QAM ,64QAM with OFDM
3.2.2.3 Operating
Frequency
● 2400 ～ 2483.5MHz ISM band
3.2.2.4 Channel Numbers ● 13 channels for Worldwide / 11 channels for USA
3.2.2.5
Data Rate
● at most 54Mbps
3.2.2.6 Media Access
Protocol
● CSMA/CA with ACK
3.2.2.7
Transmitter Output
Power at Antenna
Connector
● Typical RF Output Power at each RF chain,
at room Temp. 25℃
3.2.2.8
Receiver
Sensitivity
at Antenna
Connector
● Typical Sensitivity at each RF chain. @Frame (1000-byte PDUs)
Error Rate<10% at room Temp 25℃
● -71 dBm for 54Mbps
3.2.4 IEEE 802.11n Section
Feature
Detailed Description
3.2.4.1 Standard ●IEEE 802.11n
3.2.4.2 Radio and
Modulation Type
●BPSK , QPSK , 16QAM ,64QAM with OFDM
3.2.4.3 Operating
Frequency
●2.4GHz :2400 ~ 2483.5MHz for ISM band
3.2.4.4 Data Rate at most 300 Mbps
3.2.4.5 Media Access
Protocol ● CSMA/CA with ACK
3.2.4.6
Transmitter Output
Power at Antenna
Connector
● Typical RF Output Power at each RF chain,and at roomTemp. 25℃
●2.4GHz Band/HT20 ●2.4GHz Band/HT40
3.2.4.7
Receiver Sensitivity
at Antenna
Connector
Typical Sensitivity at each RF chain. @Frame(1000-byte PDUs)Error
Rate=10% and at room Temp. 25℃
2.4GHz Band/HT20
●-68dBm at MCS7
2.4GHz Band/HT40
● -66dBm at MCS7
●2.4GHz :2412~ 2462MHz for USA
PRODUCTS SPECIFICATION
PAGE 6 OF 8
WT21M2610
Version 1.0
3.2.5Bluetooth Section
Feather Description
General specification
Bluetooth standard
Bluetooth V5.0 of 1,2,and3 Mbps
Frequency band
2402MHz-2480MHz
Channel Numbers 79 channels for BDR+EDR
40 channels for BLE
Modulation
GFSK, π/4-DQPSK and 8DPSK
RF specification
Min
（
dBm
）
Type
（
dBm
）
Max
（
dBm
）
BDR Output Power
5
BLE Output Power
12
Sensitive @BER=0.1% FOR
GFSK(1Mbps)
-86
Sensitive @BER=0.01% FOR
π
/4-DQPSK(2Mbps)
-86
Sensitive @BER=0.01% FOR
8DPSK(3Mbps)
-80
Maximum input level
GFSK(1Mbps) -20dBm
π
/4-DQPSK(2Mbps) -20dBm
8DQPSK(3Mbps) -20dBm
Sensitive @PER=30.8% FOR
BLE
-90
4. Electrical and Thermal Characteristics
4.1
Temperature
Limit
Ratings
Parameter
Minimum
Maximum
Units
Storage
Temperature
-40
+80
C
Ambient
Operating
Temperature
0
60
C
Junction
Temperature
0
125
C
4.2
General Section
Feature
Detailed Description
5.2.1 Antenna Type ● WIFI: PIFA Antenna ;
5.2.2
Operating Voltage ● 5V±10%
5.2.3
Current Consumption ●＜300mA@RX
●＜1000mA@TX
5.2.4
Form Factor and Interface
● High Speed USB2.0 Interface
4.3 Software
Driver Win7, Linux, MAC
Security 64/128-bits WEP, WPA, WPA2
PRODUCTS SPECIFICATION
PAGE 7 OF 8
WT21M2610
Version 1.0
4.4 EEPROM Information
BT
Vendor ID default
Product ID default
WiFi
Reg Domain
Worldwide 2.4G
Read from registry
:
Control by driver
——
Vendor ID default
Product ID default
4.5 DC Characteristics
5. Component preparation
关键器件清单 Key device list
物料名称 name of material 供应商品牌Supplier brand
晶振crystal oscillator
晶宝时频/加高Jinbao time frequency/higher
电阻resistance 华新科/国巨Huaxinke/guoju
WIFI 芯片 WiFi SoC MTK
电容 capacitance Murata（村田）/华新科/国巨(murata)/hua xinke/guo ju
电感inductance Murata（村田）/佳邦/奇立新(murata)/karabong/kiriyoshi
印制板printed board 柏承/富智祥/科翔Bai cheng/fu zhixiang/ke xiang
Symbol Parameter Min TYPE Max Unit
VIL Input Low Voltage -0.3 VDD3.3*0.25 V
VIH Input High Voltage VDD3.3*0.625
VDD3.3+0.3 V
VOL Output Low Voltage -0.3 0.4 V
VOH Output High Voltage VDD3.3-0.4 VDD3.3+0.3 V
PRODUCTS SPECIFICATION
PAGE 8 OF 8
WT21M2610
Version 1.0
6 Mechanical Dimensions
Pin
Symbol Remark
I/O
1 NC NC
-
2NC NC
-
3BT-WAKE –HOST BT wake up host（内有10K电阻到3.3V上拉）
O
4 GND GND -
5 WOWLAN
Wake on Wireless LAN
（内有10K电阻到3.3V上拉）
O
6 Power_EN Power_EN（低电平有效） I
7
GND GND -
8 USB- DP USB Communication signal USB-DP
I/O
9
USB -DM USB Communication signal USB-DM
I/O
10 5V VDD 5V
I
*TLERANCES ARE +/-0.15mm UNLESS OTHERWISE SPECIFIED
*UNIT:mm
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
● Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
Any changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Important Note:
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator
and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Country Code selection feature to be disabled for products marketed to the US/Canada.
This device is intended only for OEM integrators under the following conditions:
1. The antenna must be installed such that 20 cm is maintained between the antenna and users,
and
2. The transmitter module may not be co-located with any other transmitter or antenna,
3. For all products market in US, OEM has to limit the operation channels in CH1 to CH11 for 2.4G
band by supplied firmware programming tool. OEM shall not supply any tool or info to the end-
user regarding to Regulatory Domain change.
As long as the three conditions above are met, further transmitter testing will not be required.
However, the OEM integrator is still responsible for testing their end-product for any additional
compliance requirements required with this module installed.
Important Note:
In the event that these conditions cannot be met (for example certain laptop configurations or co-
location with another transmitter), then the FCC authorization is no longer considered valid and the FCC
ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible
for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed such
that 20 cm may be maintained between the antenna and users. The final end product must be labeled in
a visible area with the following: Contains FCC ID: 2AC23-WT21M2610.
Manual Information to the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to install
or remove this RF module in the user’s manual of the end product which integrates this module.
The end user manual shall include all required regulatory information/warning as show in this manual.
Antenna Information
The WT21M2610 has been designed to pass certification with the antenna listed (for BT) below. The
required antenna impedance is 50 ohms.
The WT21M2610 has been designed to pass certification with ingrate antenna for WLAN.
Model Type Connector
Peak gain ( dBi )
Description
2400 – 2483.5 MHz
WC0D-60
PIFA
R-SMA
1.72
BT Antenna
