6110R-IF
WiFi Single-band 1X1 11n
Product Specification
Fn-Link
Confidential
6110R-IF
FN-LINK TECHNOLOGY LIMITED 1 Proprietary & Confidential Information
Revision History
Version Date Modifications Draft Approved
1.0 2016-12-26 Initial release Colin Ming WILLIAM TAN
1.1 2017-01-17 Add reference design Colin Ming WILLIAM TAN
1.2 2017-02-15 Modified module height Colin Ming WILLIAM TAN
1.3 2017-04-05 Modified operating temperature Colin Ming WILLIAM TAN
Fn-Link
Confidential
6110R-IF
FN-LINK TECHNOLOGY LIMITED 1 Proprietary & Confidential Information
CONTENTS
1. Introduction.....................................................................................................................1
2. Features...........................................................................................................................2
3. General specification......................................................................................................3
3.1 General Information .................................................................................................................... 3
3.2 Operating Conditions .................................................................................................................. 3
4. WIFI RF Specification .....................................................................................................4
4.1 2.4GHz RF Specification............................................................................................................. 4
5. Pin Assignments.............................................................................................................6
5.1 Pin outline ................................................................................................................................... 6
5.2 Pin Definition ............................................................................................................................... 7
5.2.1 Pin Function Group Table ................................................................................................ 8
6. Ordering Information......................................................................................................9
7. Dimensions....................................................................................................................10
7.1 Physical Outline ........................................................................................................................ 10
7.2 Physical Dimensions ................................................................................................................. 11
7.3 Layout Recommendation .......................................................................................................... 12
8. Reference Design..........................................................................................................13
9. Environmental Requirements ......................................................................................14
9.1 Recommended Reflow Profile................................................................................................... 14
9.2 Patch WIFI modules installed before the notice: ....................................................................... 15
10. Package Information...................................................................................................16
Fn-Link
Confidential
6110R-IF
FN-LINK TECHNOLOGY LIMITED 1 Proprietary & Confidential Information
1. Introduction
6110R-IF is a highly integrated module with low power 802.11n Wireless LAN(WLAN) network controller.
It combines an ARM-CM3 MCU, WLAN MAC, a 1T1R capable WLAN baseband, and RF function. It
also provides a bunch of configurable GPIO which are configured as digital peripherals for different
applications and control usage.
6110R-IF integrates internal memories for complete WIFI protocol functions.
6110R-IF integrates 1MB ROM to provide high access speed, low leakage memory. The ROM memory
clock speed is up to 166MHz.The ROM lib provides the following functions:
z Boot Code and MCU initialization.
z Default UART driver.
z Non-flash booting functions and drivers.
z Peripheral libs.
z Security functions libs.
Fn-Link
Confidential
6110R-IF
FN-LINK TECHNOLOGY LIMITED 2 Proprietary & Confidential Information
2. Features
General
z 22.6mm*13.0mm*2.1mm
z CMOS MAC, Baseband PHY, and RF in the module for 802.11b/g/n compatible WLAN
z Complete 802.11n solution for 2.4G band
z 150Mbps receive PHY rate and 150Mbps transmit PHY rate using 40MHz bandwidth
Standards Supported
z 802.11b/g/n compatible WLAN
z 802.11e QoS Enhancement(WMM)
z 802.11i(WPA,WP2). Open, shared key, and pair-wise key authentication services
z WiFi Direct support
z Light Weight TCP/IP protocol
WLAN PHY Features
z 802.11n OFDM
z One Transmit and one Receive path(1T1R)
z 20MHz and 40MHz bandwidth transmission
z Short Guard Interval(400ns)
z Maximum data rate 54Mbps in 802.11g and 150Mbps in 802.11n
Host Interface
z 2 high speed UART
z 1 I2C
z GPIO
The general block diagram for the module is shown in Figure 1
Figure 1
Fn-Link
Confidential
RTL8711AF
6110R-IF
FN-LINK TECHNOLOGY LIMITED 3 Proprietary & Confidential Information
3. General specification
3.1 General Information
Model Name 6110R-IF
Main Chipset Realtek RTL8710AF/ RTL8711AF
Host Interface UART,GPIO,SDIO(8711AF)
Wifi Standards 802.11b/g/n
Other RF Standards N/A
Dimension L22.5mm*W13.0mm*H2.1mm
3.2 Operating Conditions
Operating Voltage 3.3±10% Vdc
Operating Temperature -20°C to +85°C
Storage Temperature -40°C to +80°C
Fn-Link
Confidential
6110R-IF
FN-LINK TECHNOLOGY LIMITED 4 Proprietary & Confidential Information
4. WIFI RF Specification
4.1 2.4GHz RF Specification
Operating Frequency 2.400～2.4835GHz
Channels
WiFi:
USA/Canada: channel 1~11;
Europe/China/Australia: channel 1~13;
Japan: channel 1~14
Modulation
WiFi:
802.11b(DSSS): CCK(11, 5.5Mbps), DQPSK(2Mbps), DBPSK(1Mbps);
802.11g(OFDM): BPSK(9,6Mbps), QPSK(18,12Mbps),
16QAM(36,24Mbps), 64QAM(54,48Mbps);
802.11n(OFDM): BPSK, QPSK, 16QAM, 64QAM(150Mbps)
PHY Data rates
WiFi:
802.11b: 11,5.5,2,1 Mbps
802.11g: 54,48,36,24,18,12,9,6 Mbps
802.11n: up to 150Mbps
Output Power
WiFi:
802.11b 16.5dBm
EVM
802.11b EVM≦35%
802.11g EVM≦-25dB
802.11n EVM≦-28dB
Sensitivity
WiFi:
802.11b@8% PER
1Mbps -88dBm
2Mbps -87dBm
5.5Mbps -85dBm
11Mbps -82dBm
802.11g@10% PER
6Mbps -86dBm
9Mbps -85dBm
12Mbps -84dBm
18Mbps -82dBm
24Mbps -80dBm
36Mbps -77dBm
48Mbps -73dBm
54Mbps -71dBm
802.11n_HT20@10% PER
MCS 0 -83dBm
MCS 1 -82dBm
MCS 2 -80dBm
Fn-Link
Confidential
≦
802.11g 14.5dBm
≦
802.11n 13.5dBm
≦
6110R-IF
FN-LINK TECHNOLOGY LIMITED 5 Proprietary & Confidential Information
MCS 3 -78dBm
MCS 4 -75dBm
MCS 5 -71dBm
MCS 6 -69dBm
MCS 7 -67dBm
Network Architecture
WiFi:
Ad-hoc mode (Peer-to-Peer )
Infrastructure mode
WiFi Direct
Security 802.11i(WPA,WP2). Open, shared key, and pair-wise key
authentication services
Antenna Integral Antenna (PCBA)
Fn-Link
Confidential
6110R-IF
FN-LINK TECHNOLOGY LIMITED 6 Proprietary & Confidential Information
5. Pin Assignments

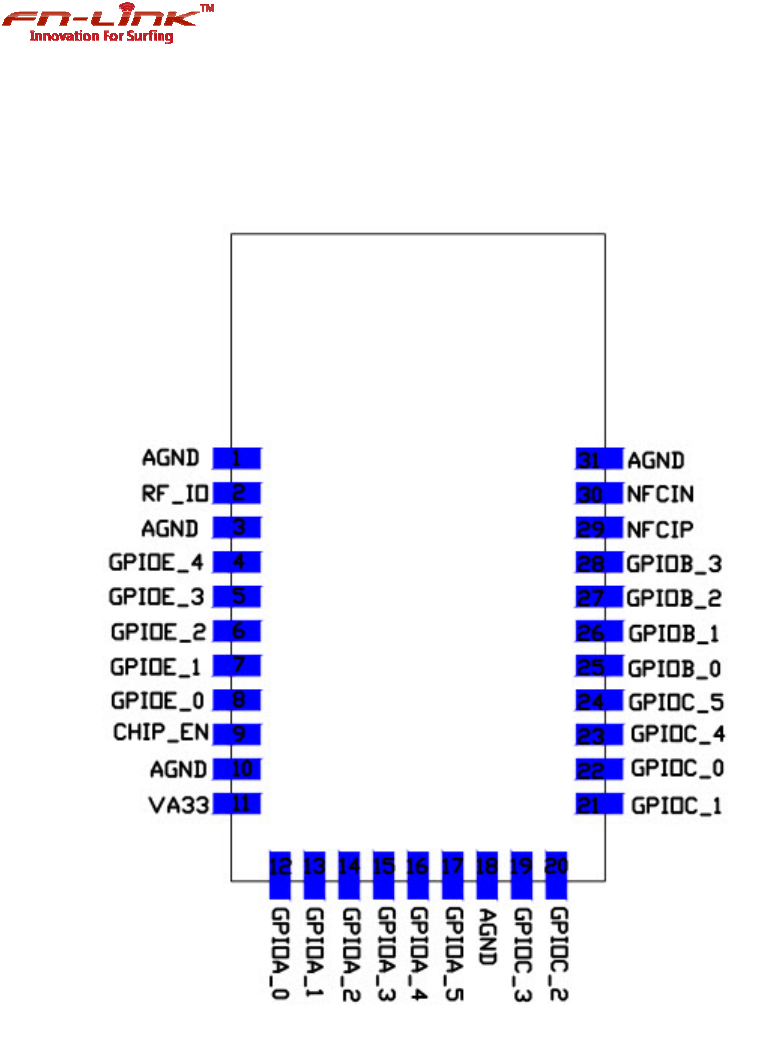

5.1 Pin outline
Fn-Link
Confidential
6110R-IF
FN-LINK TECHNOLOGY LIMITED 7 Proprietary & Confidential Information
5.2 Pin Definition
Pin# Name Description
1 AGND Ground connections
2 RF_IO WLAN RF Signal
3 AGND Ground connections
4 GPIOE_4 GPIO Pin. The MUX Function can be referred to Pin Function
Table
5 GPIOE_3 GPIO Pin. The MUX Function can be referred to Pin Function
Table
6 GPIOE_2 GPIO Pin. The MUX Function can be referred to Pin Function
Table
7 GPIOE_1 GPIO Pin. The MUX Function can be referred to Pin Function
Table
8 GPIOE_0 GPIO Pin. The MUX Function can be referred to Pin Function
Table
9 CHIP_EN Enable chip. 1: Enable Chip,0: Shut Down Chip.
10 AGND Ground connections
11 VA33 3.3V Input
12 GPIOA_0 GPIO Pin. The MUX Function can be referred to Pin Function
Table
13 GPIOA_1 GPIO Pin. The MUX Function can be referred to Pin Function
Table
14 GPIOA_2 GPIO Pin. The MUX Function can be referred to Pin Function
Table
15 GPIOA_3 GPIO Pin. The MUX Function can be referred to Pin Function
Table
16 GPIOA_4 GPIO Pin. The MUX Function can be referred to Pin Function
Table
17 GPIOA_5 GPIO Pin. The MUX Function can be referred to Pin Function
Table
18 AGND Ground connections
19 GPIOC_3 GPIO Pin. The MUX Function can be referred to Pin Function
Table
20 GPIOC_2 GPIO Pin. The MUX Function can be referred to Pin Function
Table
21 GPIOC_1 GPIO Pin. The MUX Function can be referred to Pin Function
Table
22 GPIOC_0 GPIO Pin. The MUX Function can be referred to Pin Function
Table
23 GPIOC_4 GPIO Pin. The MUX Function can be referred to Pin Function
Table
24 GPIOC_5 GPIO Pin. The MUX Function can be referred to Pin Function
Table
Fn-Link
Confidential
6110R-IF
FN-LINK TECHNOLOGY LIMITED 8 Proprietary & Confidential Information
25 GPIOB_0 GPIO Pin. UART1_OUT(multiplexing)
26 GPIOB_1 GPIO Pin. UART1_IN(multiplexing)
27 GPIOB_2 GPIO Pin. The MUX Function can be referred to Pin Function
Table
28 GPIOB_3 GPIO Pin. The MUX Function can be referred to Pin Function
Table
29 IP Input Differential Signal
30 IN Input Differential Signal
31 AGND Ground connections

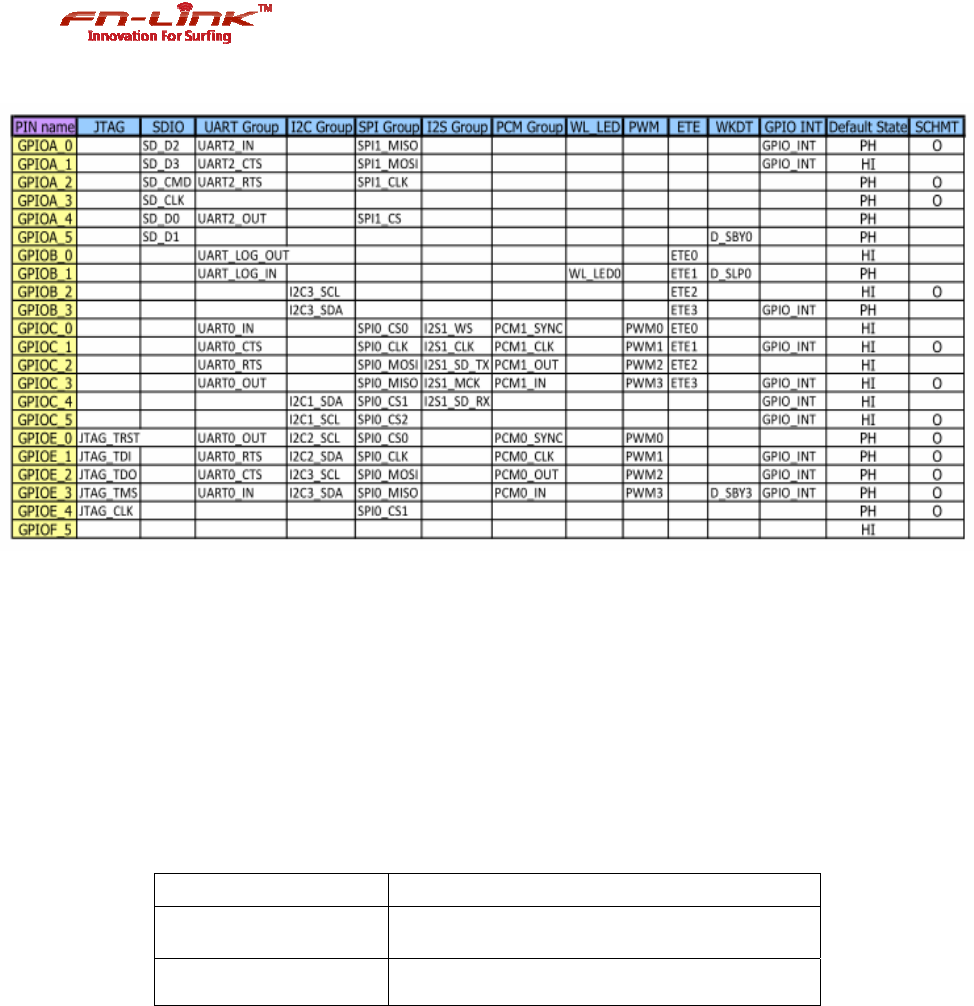

5.2.1 Pin Function Group Table
(For 8710)
Note1: PH = Pull-High, HI = High-impedance
Note2: Others’ pull control can be done by register setting.
Fn-Link
Confidential
6110R-IF
FN-LINK TECHNOLOGY LIMITED 9 Proprietary & Confidential Information
(For 8711)
Note1: PH = Pull-High, HI = High-impedance
Note2: GPIOA_1 needs external circuit to do the pull high control; Others’ pull control can be done by
register setting(including GPIOA_1’s PD).
6. Ordering Information
Part No. Description
FG6110RRF0-00 SOC model RTL8710AF.
FG6110RRF1-00 SOC model RTL8711AF
Fn-Link
Confidential
6110R-IF
FN-LINK TECHNOLOGY LIMITED 10 Proprietary & Confidential Information
7. Dimensions

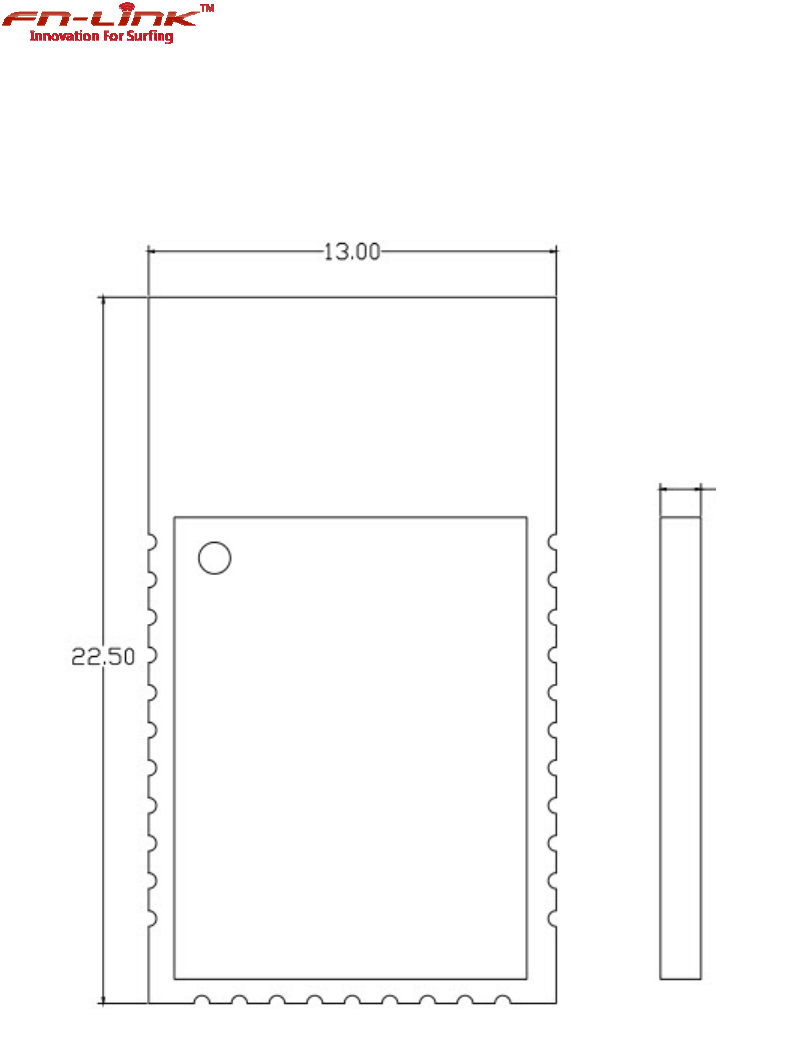

7.1 Physical Outline
(unit: mm)
2.10
Fn-Link
Confidential
6110R-IF
FN-LINK TECHNOLOGY LIMITED 11 Proprietary & Confidential Information
7.2 Physical Dimensions
(unit: mm)
Fn-Link
Confidential
6110R-IF
FN-LINK TECHNOLOGY LIMITED 12 Proprietary & Confidential Information

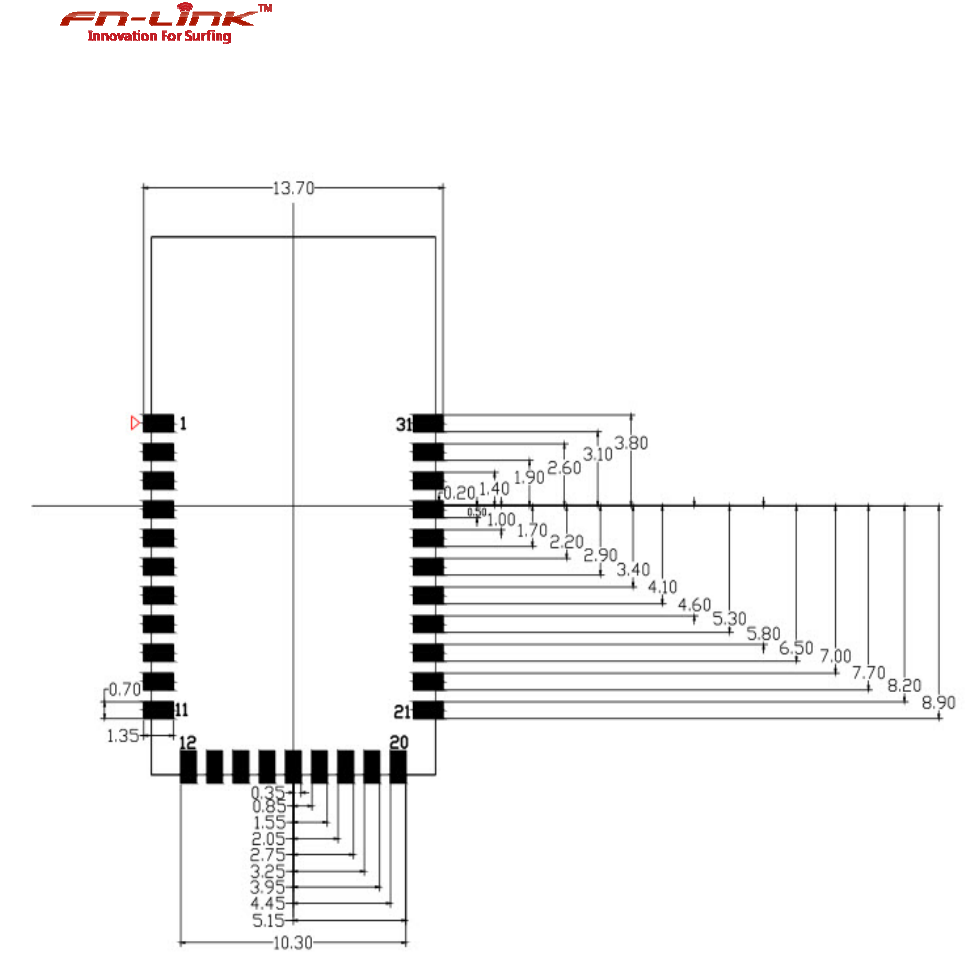

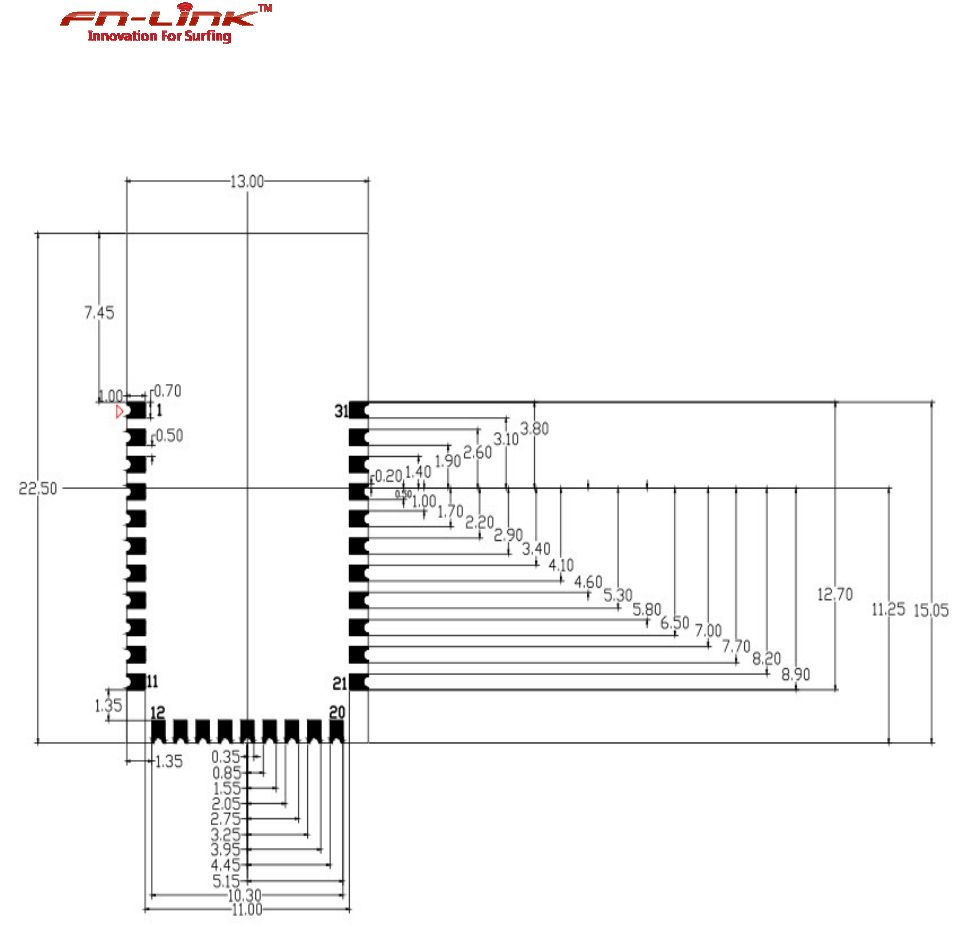

7.3 Layout Recommendation
(unit: mm)
Fn-Link
Confidential
6110R-IF
FN-LINK TECHNOLOGY LIMITED 13 Proprietary & Confidential Information

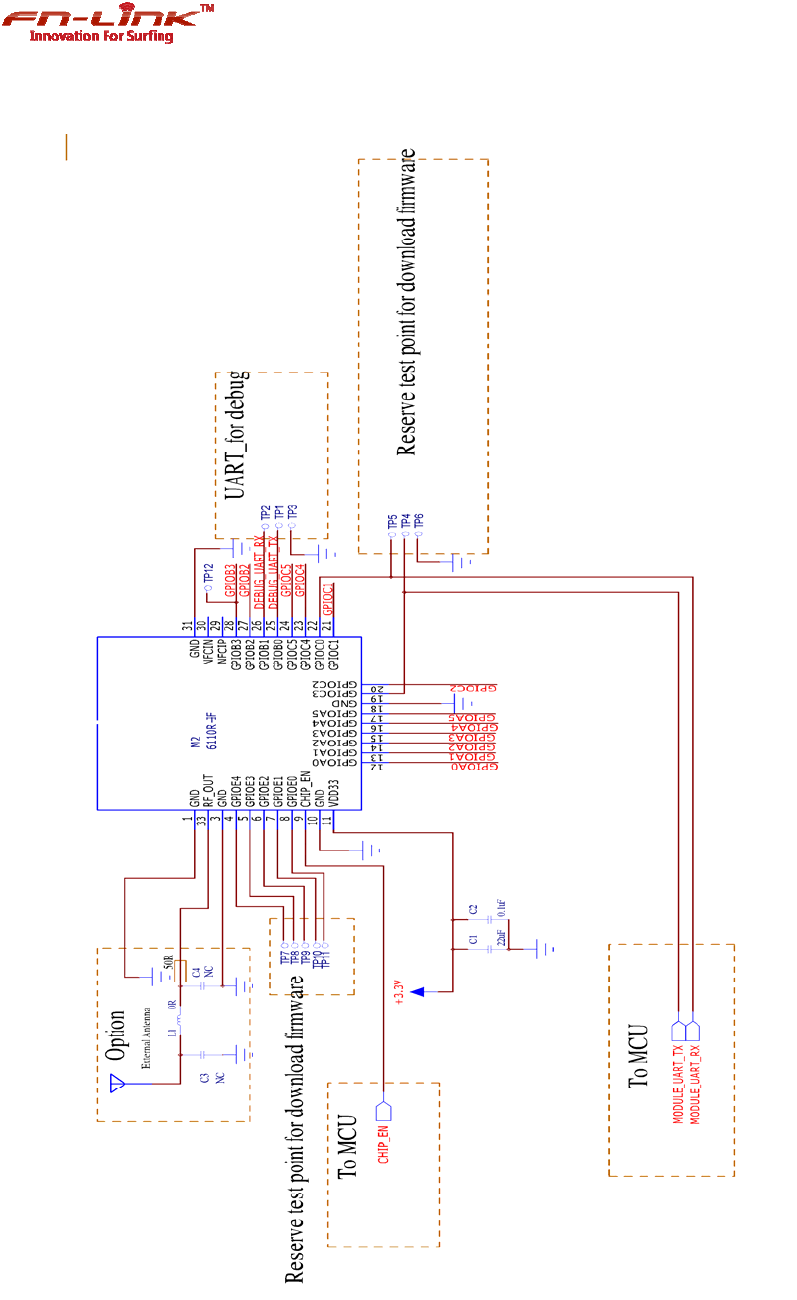

8. Reference Design
Fn-Link
Confidential
6110R-IF
FN-LINK TECHNOLOGY LIMITED 14 Proprietary & Confidential Information
9. Environmental Requirements

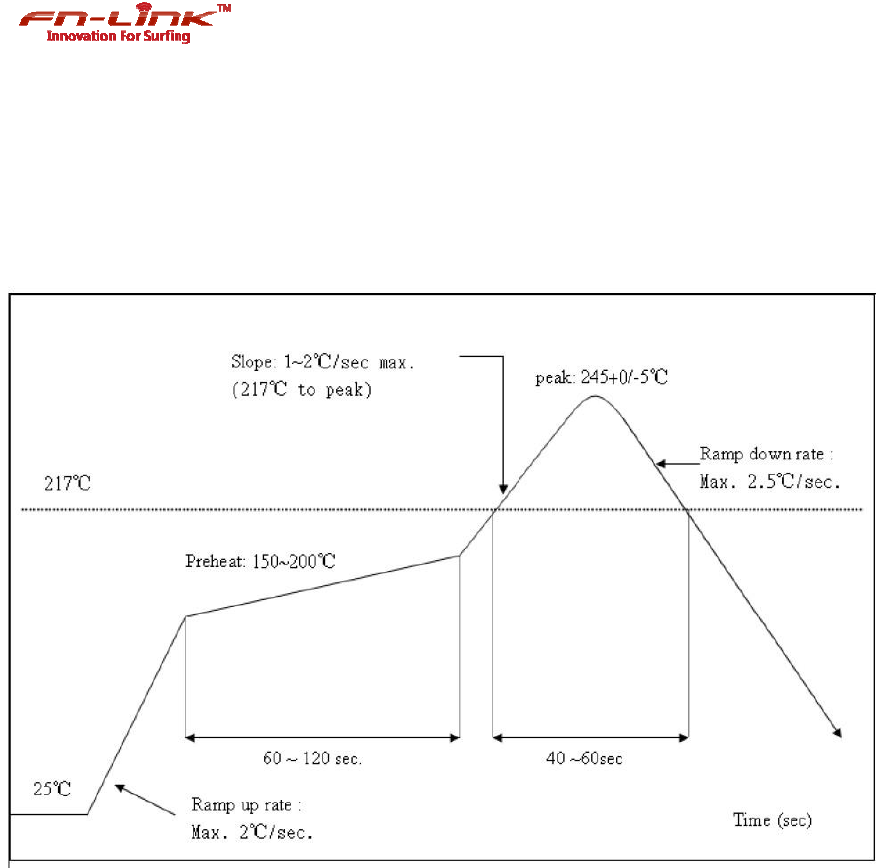

9.1 Recommended Reflow Profile
Referred to IPC/JEDEC standard.
Peak Temperature : <250°C
Number of Times : ≤2 times
Fn-Link
Confidential
6110R-IF
FN-LINK TECHNOLOGY LIMITED 15 Proprietary & Confidential Information
9.2 Patch WIFI modules installed before the notice:
WIFI module installed note:
1. Please press 1 : 1 and then expand outward proportion to 0.7 mm, 0.12 mm thickness When open a
stencil
2. Take and use the WIFI module, please insure the electrostatic protective measures.
3. Reflow soldering temperature should be according to the customer the main size of the products,
such as the temperature set at 250 + 5 ℃for the MID motherboard.
About the module packaging, storage and use of matters needing attention are as
follows:
1. The module of the reel and storage life of vacuum packing: 1). Shelf life: 8 months, storage
environment conditions: temperature in: < 40 ℃, relative humidity: < 90% r.h.
2. The module vacuum packing once opened, time limit of the assembly:
Card: 1) check the humidity display value should be less than 30% (in blue), such as: 30% ~ 40%
(pink), or greater than 40% (red) the module have been moisture absorption.
2.) factory environmental temperature humidity control: ≦30 ℃, ≦60% r.h..
3). Once opened, the workshop the preservation of life for 168 hours.
3. Once opened, such as when not used up within 168 hours:
1). The module must be again to remove the module moisture absorption.
2). The baking temperature: 125 ℃, 8 hours.
3.) After baking, put the right amount of desiccant to seal packages.
Fn-Link
Confidential
6110R-IF
FN-LINK TECHNOLOGY LIMITED 16 Proprietary & Confidential Information

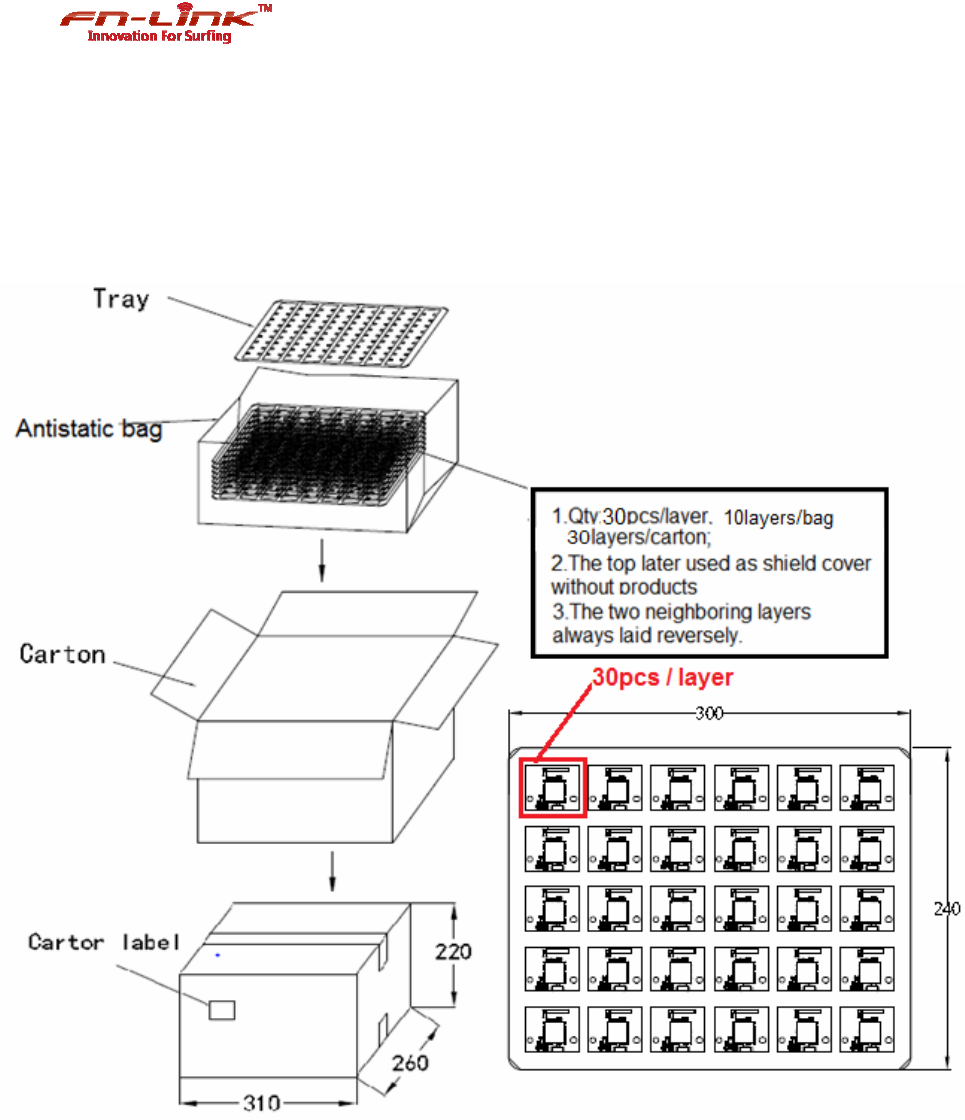

10. Package Information
Layer size: L300.0*W240.0 mm
Layer material: PVC
Carton size: L310.0*W260.0*H220.0 mm
Carton material: A=A
Fn-Link
Confidential
WARING:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference. (2) This device must accept any interference
received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
---Reorient or relocate the receiving antenna.
---Increase the separation between the equipment and receiver.
---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
---Consult the dealer or an experienced radio/TV technician for help.
WARNING: Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
LABEL OF THE END PRODUCT:
The final end product must be labelled in a visible area with the following "Contains TX FCC ID:
2AATL-6110R-IF". If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19
statement is required to be available in the users manual: This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
RF Exposure
This device has been evaluated and shown compliant with the FCC RF Exposure limits under fixed
exposure conditions (antennas are greater than 20cm from a person's body) when installed in certain
specific OEM configurations.
IMPORTANT NOTE:
Integration is typically strictly restricted to Grantee himself or dedicated OEM integrators under control
of the Grantee. The module will be responsible to satisfy SAR/RF Exposure requirements, when the
module integrated into any (portable, mobile, fixed) host device. This module is intended for OEM
integrator only and the OEM integrators and instructed to ensure that the end user has no manual
instructions to remove or install the device. The OEM integrator is still responsible for the FCC
compliance requirement of the end product, which integrates this module.
EU Regulatory Conformance
Hereby, we (FN-Link Technology Limited) declared that this device is in compliance with the essential
requirements and other relevant provisions of Directive 2014/53/EU.

Navigation menu
