HUNAN FN LINK TECHNOLOGY F88ETUM35-C2 WiFi Module User Manual
FN-LINK TECHNOLOGY LIMITED WiFi Module Users Manual
15_F88ETUM35-C2 UserMan,r4
FN-LINK TECHNOLOGY LIMITED
http://www.fn-link.com Page 1/11
Product Specification
IEEE 802.11b/g/n 1T1R USB WiFi Module
Project Name RTL8188ETV 1T1R USB WIFI Module
Model NO F88ETUM35-C2
Customer
Customer’s Part NO
Approved: SYMEN SONG Check: Jim Hu Drafted: SJ LI
Feedback of customer’s Confirmation
We accept the specification after Confirmed.
Customer name Customer signature Confirmation Date
FN-LINK TECHNOLOGY LIMITED
5th Floor, A Building, Haoye Logistics Park,
Shugang Channel, Bao'an District,
Shenzhen City, CHINA
TEL: 86-0755-29558186
FAX: 86-0755-29558196
Website: www.fn-link.com
FN-LINK TECHNOLOGY LIMITED
http://www.fn-link.com Page 2/11
CONTENTS
0 REVESION HISTORY.......................................................................................................................................3
0.1 MODEL NO DEFINITION........................................................................................................................... 3
1 INTRODUCTIONS.............................................................................................................................................4
1.1 OVERVEIW...................................................................................................................................................4
1.2 SPECIFICATION REFERENCE................................................................................................................4
2 GENERAL SPECIFICATION............................................................................................................................5
2.1 WIFI SPECIFICATION................................................................................................................................ 5
2.2 POWER CONSUMPTION..........................................................................................................................6
3 MECHANICAL SPECIFICATION.................................................................................................................... 6
3.1 OUTLINE DRAWING...................................................................................................................................6
3.2 PIN DEFINITION..........................................................................................................................................7
3.3 LAYOUT REFERENCE............................................................................................................................... 7

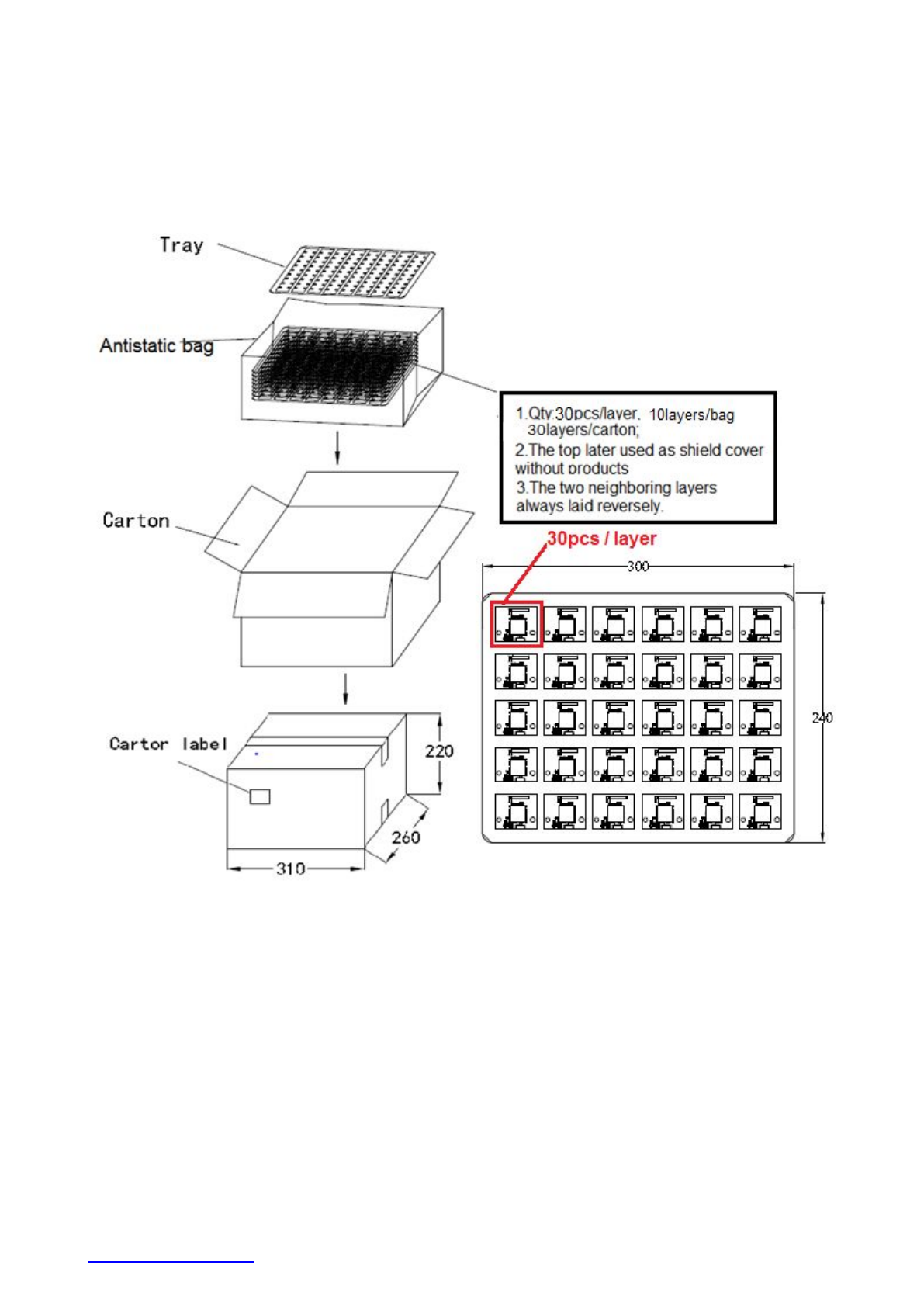

4 PACKAGE INFORMATION.............................................................................................................................. 8
4.1 PACKAGE INFORMATION........................................................................................................................ 8
5 USER’S MANUAL..............................................................................................................................................9
5.1 OPERATING & STORAGE CONDITIONS.............................................................................................. 9
5.2 RECOMMENDED REFLOW PROFILE....................................................................................................9
5.3 NOTICE..........................................................................................................................................................9
0. Revision History
FN-LINK TECHNOLOGY LIMITED
http://www.fn-link.com Page 3/11
REV NO Date Modifications Draft Approved
Rev1.0 Jul.10,2014 First Released SJ LI SYMEN
Rev1.1 Aug.15,2014 Updated the PIN definition SJ LI SYMEN
Rev1.2 Aug.20,2014
1. Added Package information;
2. Added Label information;
3. Added the shielding case.
SJ LI SYMEN
Rev1.3 Oct.30 2014 Added Label information; SJ LI SYMEN
0.1. Model No Definition
Example: F88ETUM35-C2
1. Introduction
F 88E T U M 3 5-C 2
IC Part NO: RTL8188ETV
IC Version: T
Interface: S SDIO, U USB, E PCI-E
Product Type: M Module, D Dongle
Voltage: 3 3.3Vdc, 5 5Vdc
ANT: W External, B Print, C Metal ANT
Product NO: 1, 2, 3….
Control NO: 0, 1, 2….
Manufacturer: FN-LINK
FN-LINK TECHNOLOGY LIMITED
http://www.fn-link.com Page 4/11
F88ETUM35-C2 is a highly integrated and excellent performance Wireless LAN (WLAN) USB2.0
network interface device. High-speed wireless connection up to 150 Mbps.
1.1 Overview

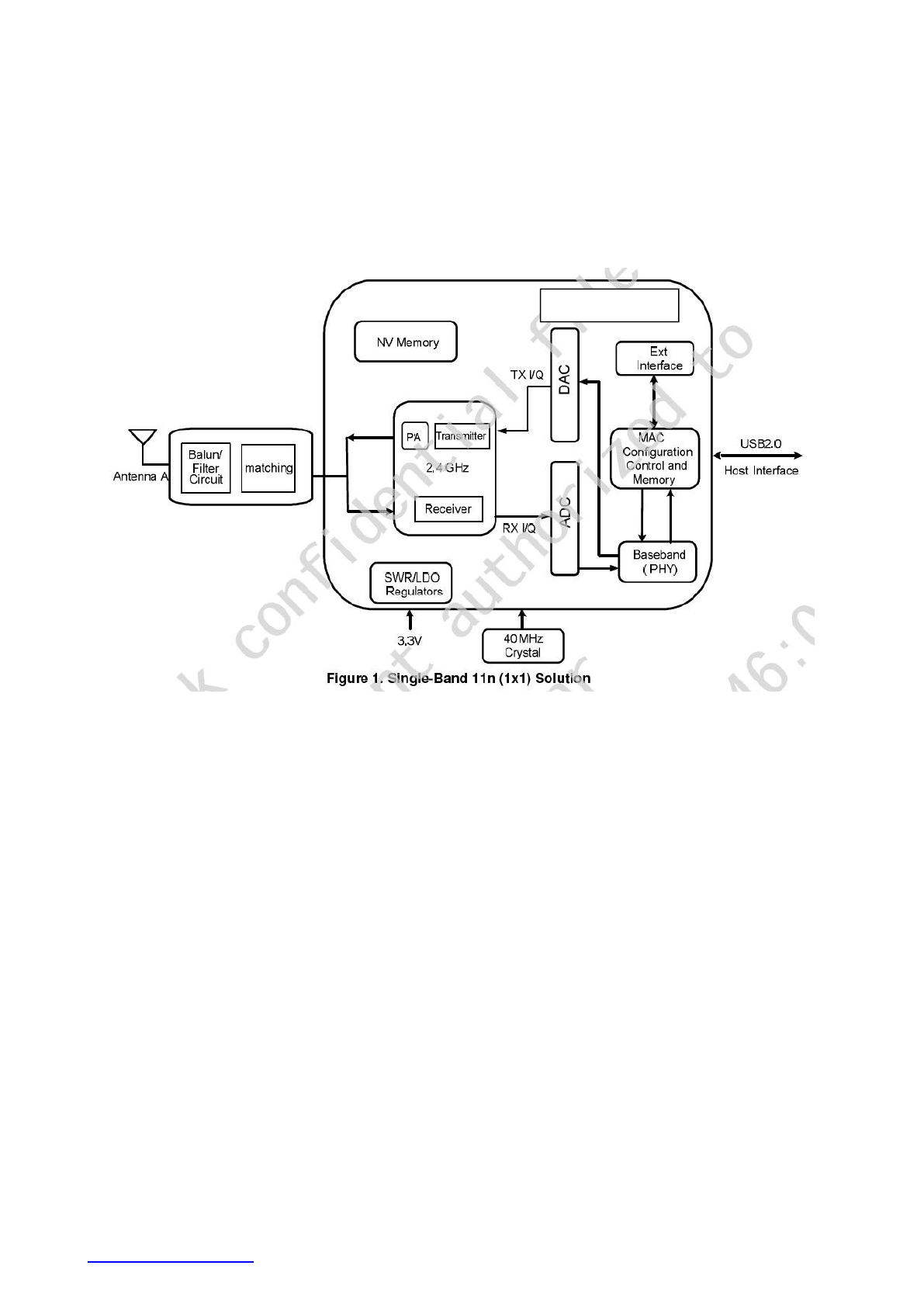

The general hardware for the module is shown in Figure 1. This WLAN Module design is based on
Realtek RTL8188ETV. It is a USB2.0 network interface controller complying with the 802.11n
specification. It combines a MAC, a 1T1R capable baseband, and RF in a single chip.
It is designed to provide excellent performance with low power Consumption and enhance
the advantages of robust system and cost-effective.
1.2 SPECIFICATION REFERENCE
This specification is based on additional references listed as below.
iEEE 802.11b
iEEE 802.11g
iEEE 802.11n
2. GENERAL SPECIFICATION
&RTL8188ETV
FN-LINK TECHNOLOGY LIMITED
http://www.fn-link.com Page 5/11
2.1 WiFi Specifications
Features Descriptions
Main Chipset RTL8188ETV
Frequency Range 2.400～2.4835GHz
Operating Voltage 5.0Vdc ±5% I/O supply voltage
Host Interface WiFi: USB
Standards WiFi:
IEEE 802.11b,
IEEE 802.11g,
IEEE 802.11n,
Modulation WiFi:
802.11b: CCK(11, 5.5Mbps), QPSK(2Mbps), BPSK(1Mbps),
802.11 g/n: OFDM
PHY Data rates WiFi:
802.11b: 11,5.5,2,1 Mbps
802.11g: 54,48,36,24,18,12,9,6 Mbps
802.11n: up to 150Mbps
Transmit Output
Power
WiFi:
802.11b@11Mbps 16±2dBm
802.11g@6Mbps 14±2dBm
802.11g@54Mbps 14±2dBm
802.11n@65Mbps 13±2dBm (MCS 0_HT20)
13±2dBm (MCS 7_HT20)
13±2dBm (MCS 0_HT40)
13±2dBm (MCS 7_HT40)
EVM 802.11b /11Mbps : EVM≦-9dB
802.11g /54Mbps : EVM≦-25dB
802.11n /65Mbps : EVM≦-28dB
Receiver Sensitivity
(HT 20)
802.11b@8% PER
1Mbps -88±1dBm
2Mbps -87±1dBm
5.5Mbps -85±1dBm
11Mbps -82±1dBm
802.11g@10% PER
6Mbps -86±1dBm
9Mbps -85±1dBm
12Mbps -84±1dBm
18Mbps -82±1dBm
24Mbps -80±1dBm
36Mbps -77±1dBm
48Mbps -73±1dBm
54Mbps -71±1dBm
802.11n@10% PER
MCS 0 -83±1dBm
MCS 1 -82±1dBm
MCS 2 -80±1dBm
MCS 3 -78±1dBm
MCS 4 -75±1dBm
MCS 5 -71±1dBm
MCS 6 -69±1dBm
MCS 7 -67±1dBm
Operating Channel WiFi 2.4GHz:
11: (Ch. 1-11) – United States(North America)
13: (Ch. 1-13) – Europe
14: (Ch. 1-14) – Japan
Media Access Control WiFi: CSMA/CA with ACK
Network Architecture WiFi: Ad-hoc mode (Peer-to-Peer )
FN-LINK TECHNOLOGY LIMITED
http://www.fn-link.com Page 6/11
Infrastructure mode
Software AP
WiFi Direct
Security WiFi: WPA, WPA-PSK, WPA2, WPA2-PSK, WEP 64bit & 128bit,
Antenna Onboard Metal ANT
OS Supported Android /Linux/ Win CE /iOS /XP/WIN7
Dimension Typical L40.0*W33.0*T3.5mm
2.2 Power Consumption
STATUS Power Consumption (mA)
LINK 140
TX (11n,20M MCS7) 210
TX (11n,40M MCS7) 180
TX (11g,54M) 220
TX (11b,CCK11) 310
RX 145
3. Mechanical Specification

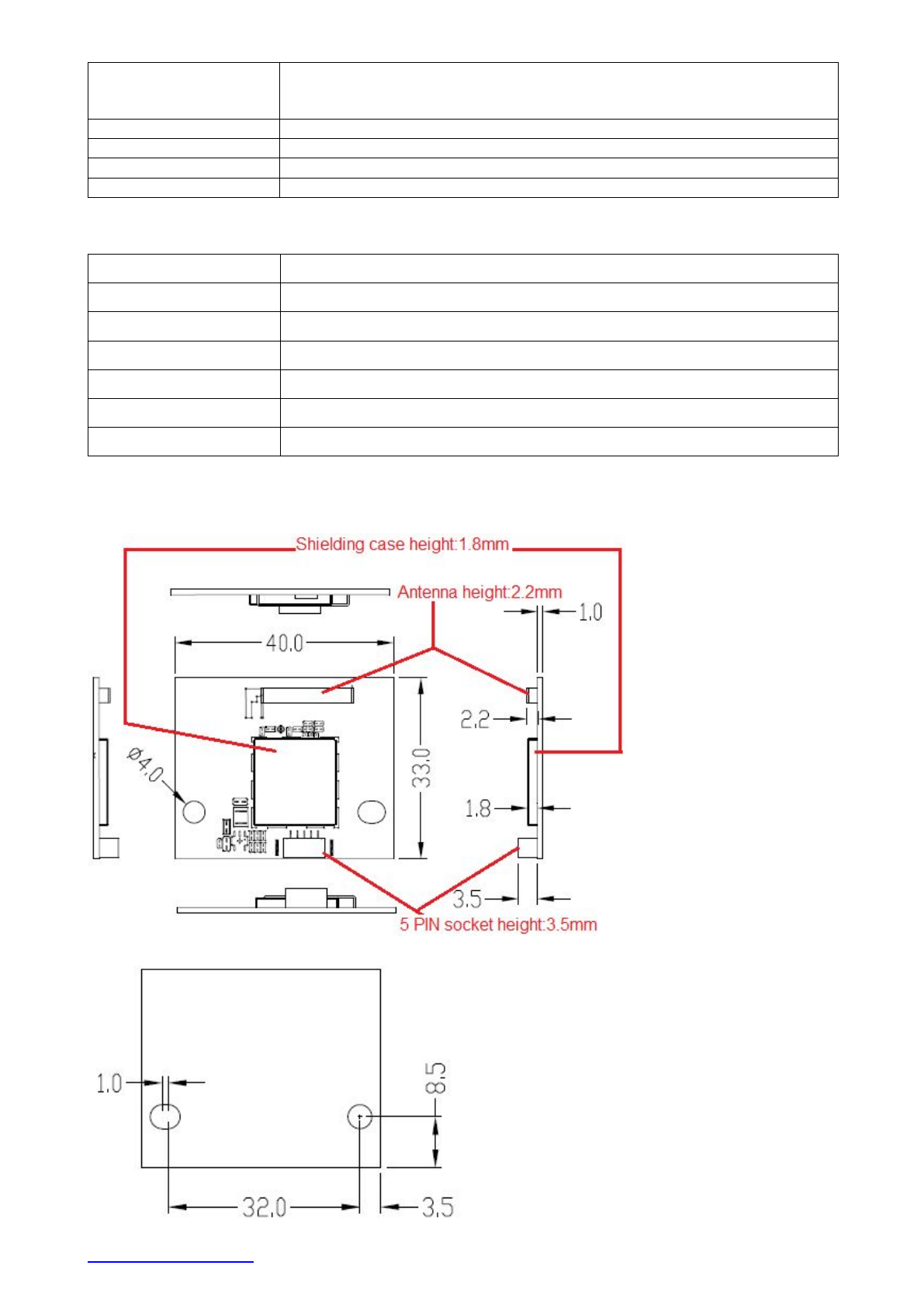

3.1 Outline Drawing (unit: mm)

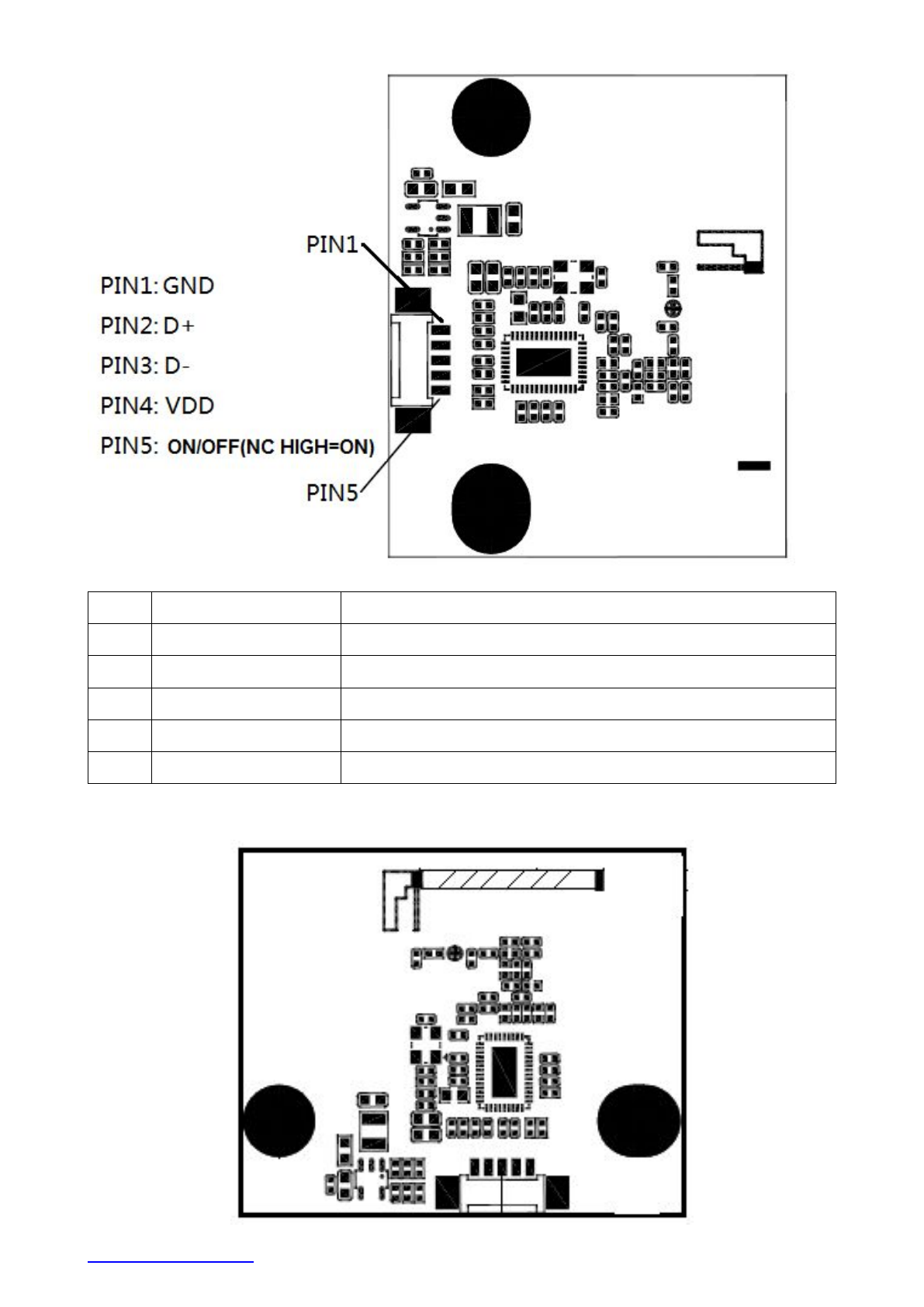

3.2 Connector Pin Definition
FN-LINK TECHNOLOGY LIMITED
http://www.fn-link.com Page 9/11
5.User’s Manual
5.1 Operating& Storage Conditions
Operating Temperature: -5°C to +55°C
Relative Humidity: 10-90% (non-condensing)
Storage Temperature: -40°C to +80°C (non-operating)
Relative Humidity: 5-90% (non-condensing)
MTBF (Mean Time Between Failures) Over 150,000hours

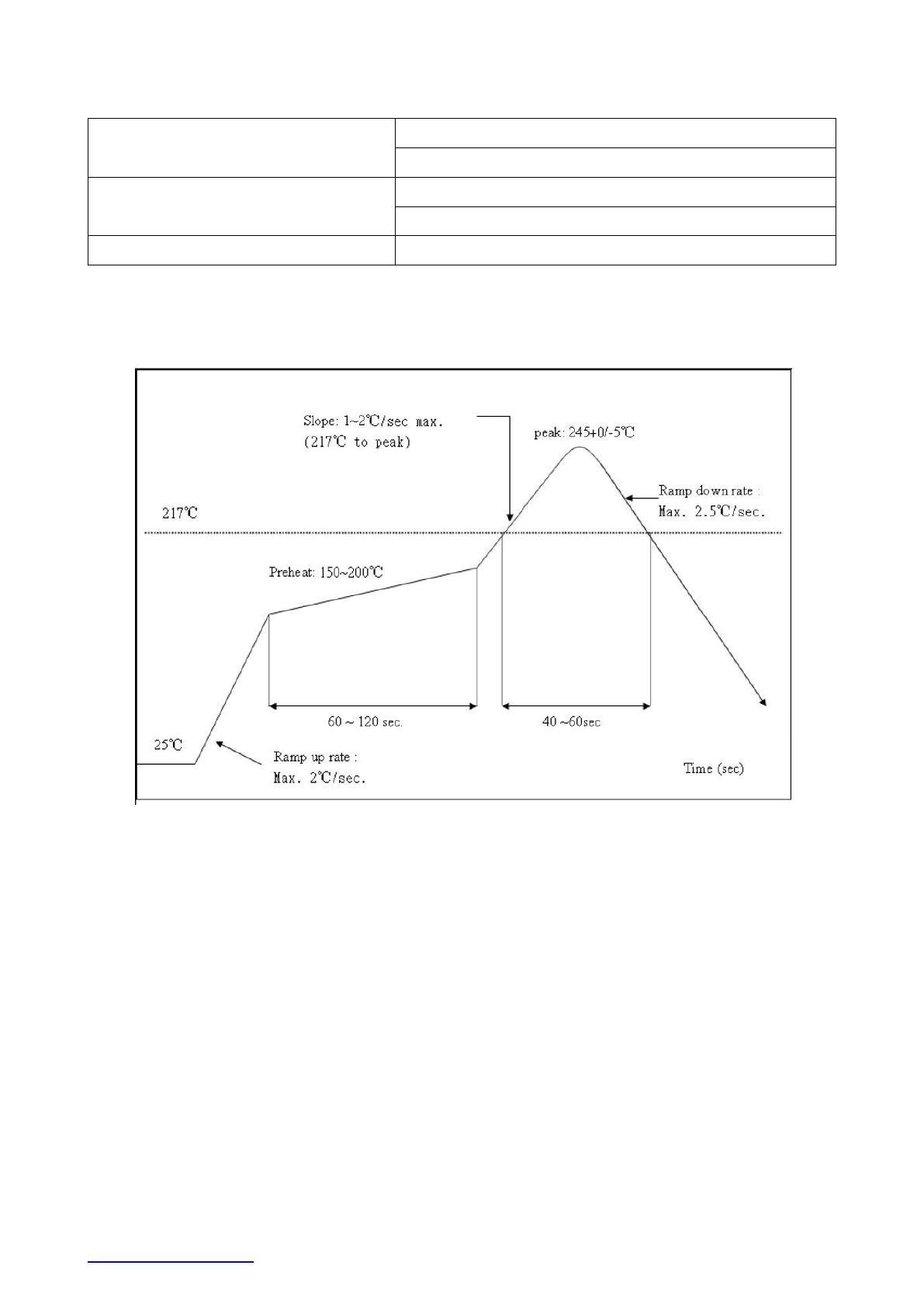

5.2 Recommended Reflow Profile
Referred to IPC/JEDEC standard.
Peak Temperature : <250°C
Number of Times : ≤2 times
5.3 Patch WIFI modules installed before the notice:
WIFI module installed note:
1. Please press 1 : 1 and then expand outward proportion to 0.7 mm, 0.12 mm thickness When open a
stencil
2. Take and use the WIFI module, please insure the electrostatic protective measures.
3. Reflow soldering temperature should be according to the customer the main size of the products, such
as the temperature set at 250 + 5 ℃for the MID motherboard.
About the module packaging, storage and use of matters needing attention are as follows:
1. The module of the reel and storage life of vacuum packing: 1). Shelf life: 8 months, storage
environment conditions: temperature in: < 40 ℃, relative humidity: < 90%RH.
2. The module vacuum packing once opened, time limit of the assembly:
Card: 1) check the humidity display value should be less than 30% (in blue), such as: 30% ~ 40% (pink),
or greater than 40% (red) the module have been moisture absorption.
2.) factory environmental temperature humidity control: ≦-30 ℃,≦60% RH
3). Once opened, the workshop the preservation of life for 168 hours.
3. Once opened, such as when not used up within 168 hours:
1). The module must be again to remove the module moisture absorption.
2). The baking temperature: 125 ℃, 8 hours.
3.) After baking, put the right amount of desiccant to seal packages.
THE END
FN-LINK TECHNOLOGY LIMITED
http://www.fn-link.com Page10/11
FCC Statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference. (2) This device must
accept any interference received, including interference that may cause undesired
operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
---Reorient or relocate the receiving antenna.
---Increase the separation between the equipment and receiver.
---Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
---Consult the dealer or an experienced radio/TV technician for help.
WARNING: Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
LABEL OF THE END PRODUCT:
The final end product must be labelled in a visible area with the following "Contains
FCC ID:
2AATL-F88ETUM35-C2". If the size of the end
product is smaller than 8x10cm, then
additional FCC part 15.19 statement is required to be available in the users manual: This
device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
RF Exposure
This device has been evaluated and shown compliant with the FCC RF Exposure limits
under fixed exposure conditions (antennas are greater than 20cm from a person's body)
when installed in certain specific OEM configurations.
This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
FN-LINK TECHNOLOGY LIMITED
http://www.fn-link.com Page11/11
IMPORTANT NOTE:
This device is intended only for OEM integrators under the following conditions:
(1) This module has been designed to operate with Onboard Metal antenna
having a gain of 0dBi. The module is only certified with the installed antenna.
Any change of the antenna will void the certification.
(2) Integration is typically strictly restricted to Grantee himself or dedicated OEM
integrators under control of the Grantee.
This module is intended for OEM integrator only and the OEM integrators and instructed
to ensure that the end user has no manual instructions to remove or install the device. The
OEM integrator is still responsible for the FCC compliance requirement of the end product,
which integrates this module.
EU Regulatory Conformance
Hereby, we (FN-Link Technology Limited) declared that this device is in compliance with
the essential requirements and other relevant provisions of Directive 1999/5/EC.
The module Integrator will be responsible to satisfy SAR/RF exposure requirements, when the
module integrated into any (portable, mobile, fixed) host device.
