HUNAN FN LINK TECHNOLOGY F88EUUD15 USB WIFI Dongle User Manual FN LINK TECHNOLOGY LIMITED
FN-LINK TECHNOLOGY LIMITED USB WIFI Dongle FN LINK TECHNOLOGY LIMITED
User Manual
FN-LINK TECHNOLOGY LIMITED
http://www.fn-link.com Page 1 /12 3/18/2014
F88EUUD15-B3 series
user 's manual
FN-LINK TECHNOLOGY LIMITED
http://www.fn-link.com Page 2 /12 3/18/2014
Index
How to install the driver
Put the product plug into the USB port of PC……………………..3
Copy the driver into the PC……………..………….…...................3
Install the driver……….……………………………..…...................4
Install driver successfully………...…...........................................4
connect to external wireless network………………......................6
How to set the device to “access point mode”
Set to “access point mode”……………………...…...….................9
Setting internet connection share………......……..….................11
Connect to the access and surf the Internet…………................12
FN-LINK TECHNOLOGY LIMITED
http://www.fn-link.com Page 3 /12 3/18/2014

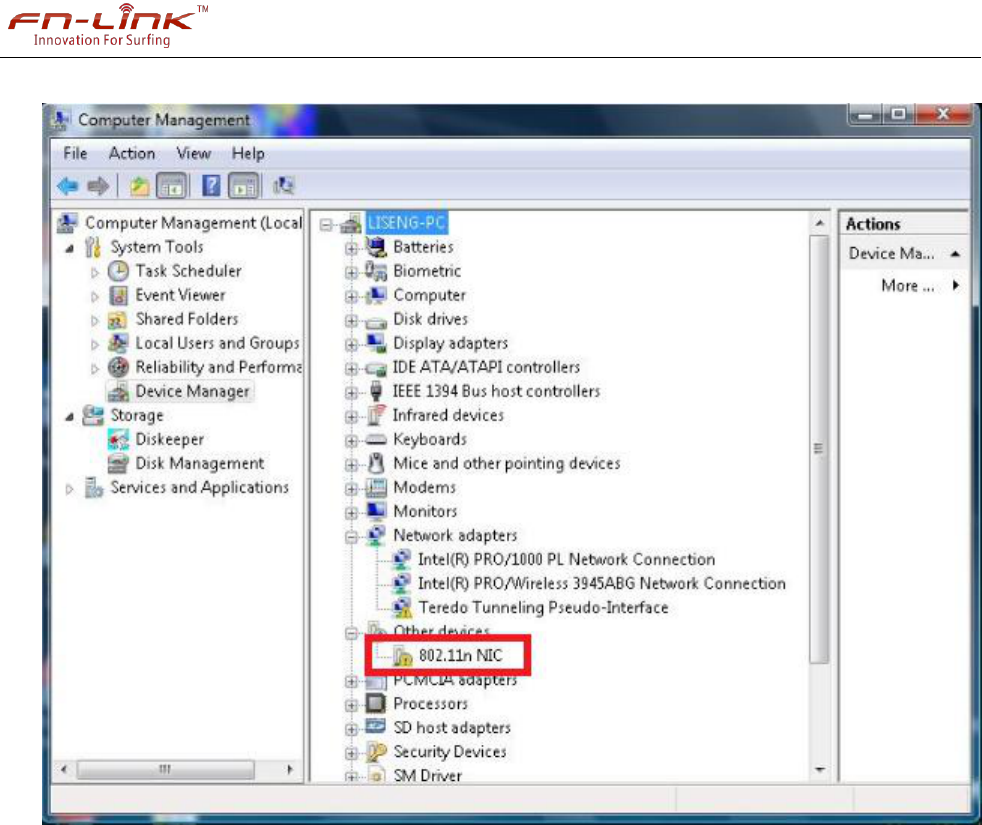

1. Put the product plug into the USB port, the "device manager" of PC is shown below:

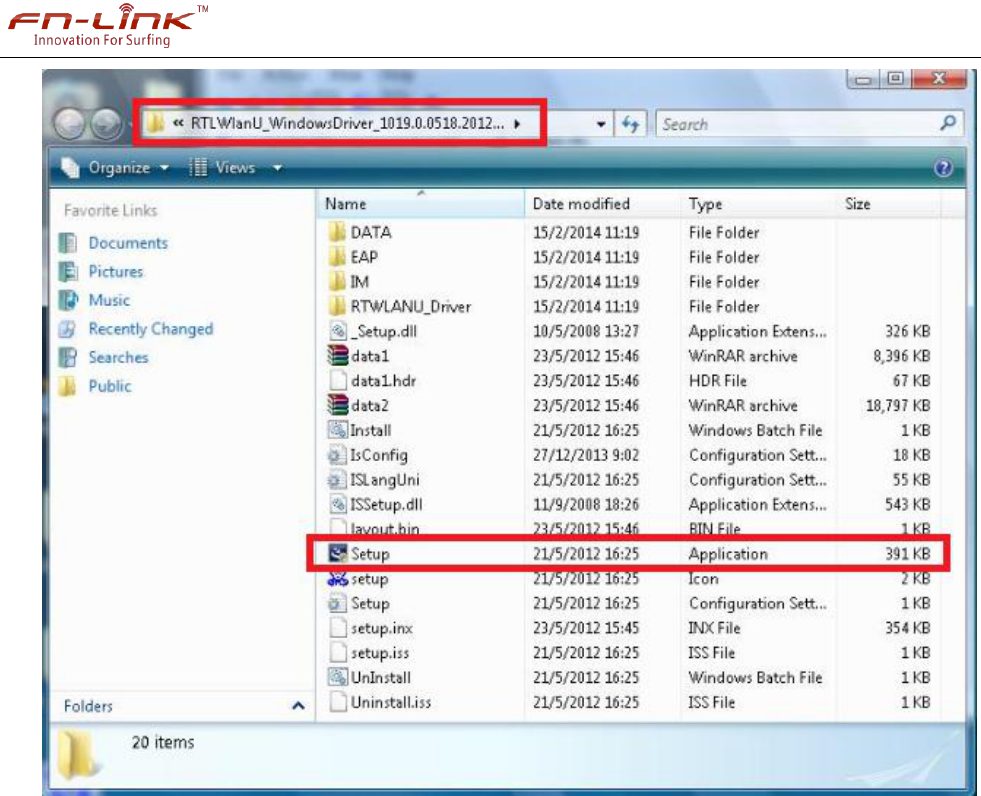

2. Copy the corresponding driver "RTLWlanU_WindowsDriver_1019.0.0518.2012_
UI_1.00.0191_EU" into the PC, and install driver, the installation methods: open the file
"RTLWlanU_WindowsDriver_1019.0.0518.2012_UI_1.00.0191_EU", double click
"Setup" installation program, guide to install.
FN-LINK TECHNOLOGY LIMITED
http://www.fn-link.com Page 4 /12 3/18/2014

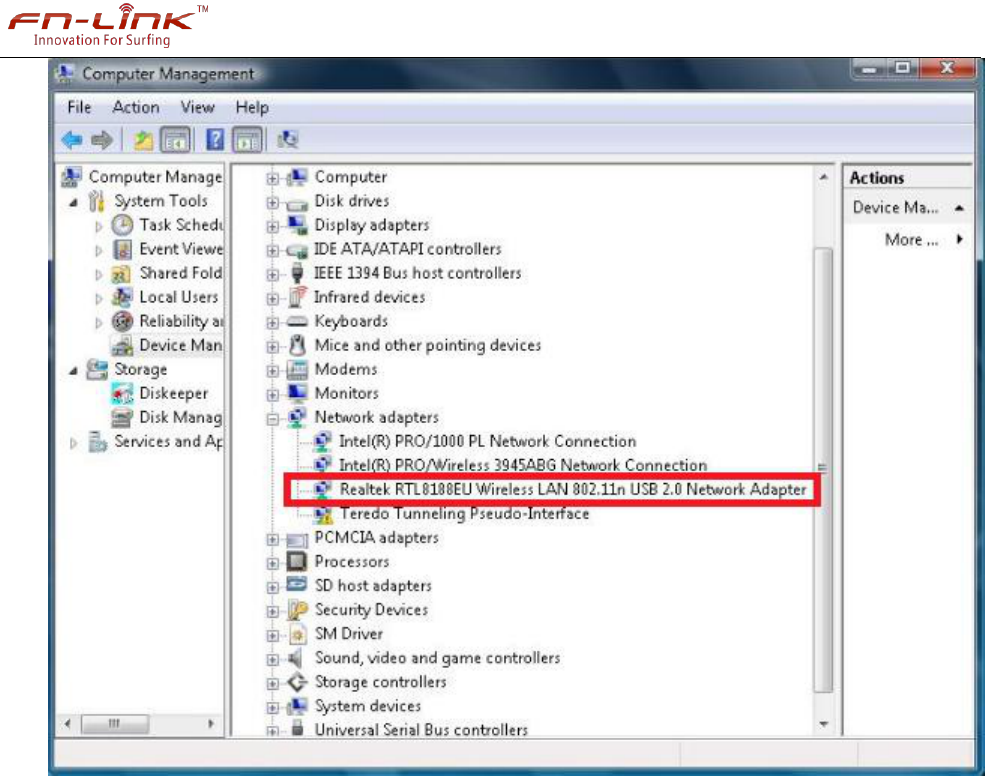

3. After install driver successfully. the "device manager" of PC is shown below:
FN-LINK TECHNOLOGY LIMITED
http://www.fn-link.com Page 5 /12 3/18/2014

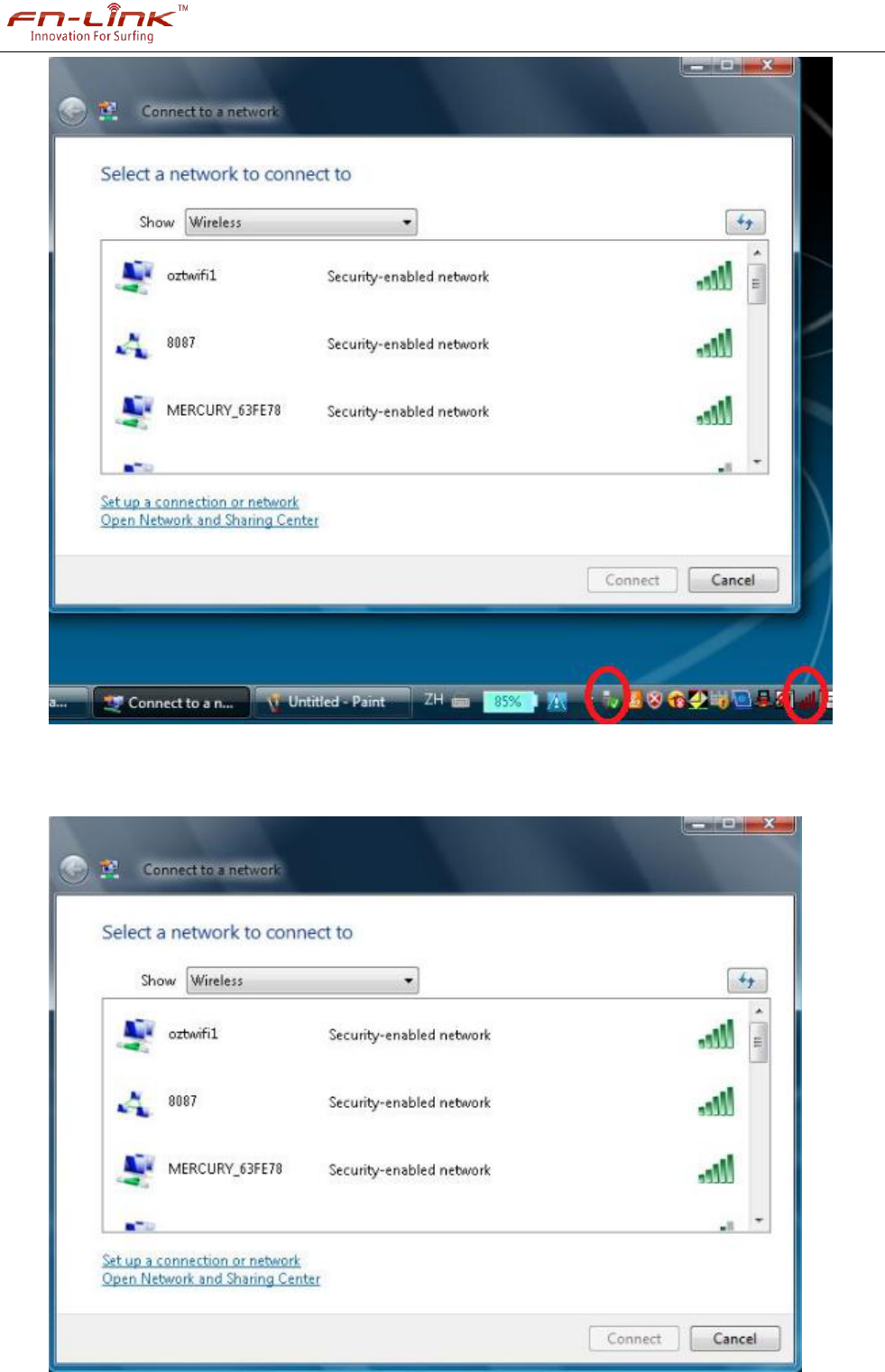

The USB icon and wireless network adapter displaying in the lower right of the screen.
Shown as below:
FN-LINK TECHNOLOGY LIMITED
http://www.fn-link.com Page 6 /12 3/18/2014
4. The default settings is "station mode", we can connect to external wireless network. (i.e.
it is regarded as a wireless adapter)
FN-LINK TECHNOLOGY LIMITED
http://www.fn-link.com Page 7 /12 3/18/2014

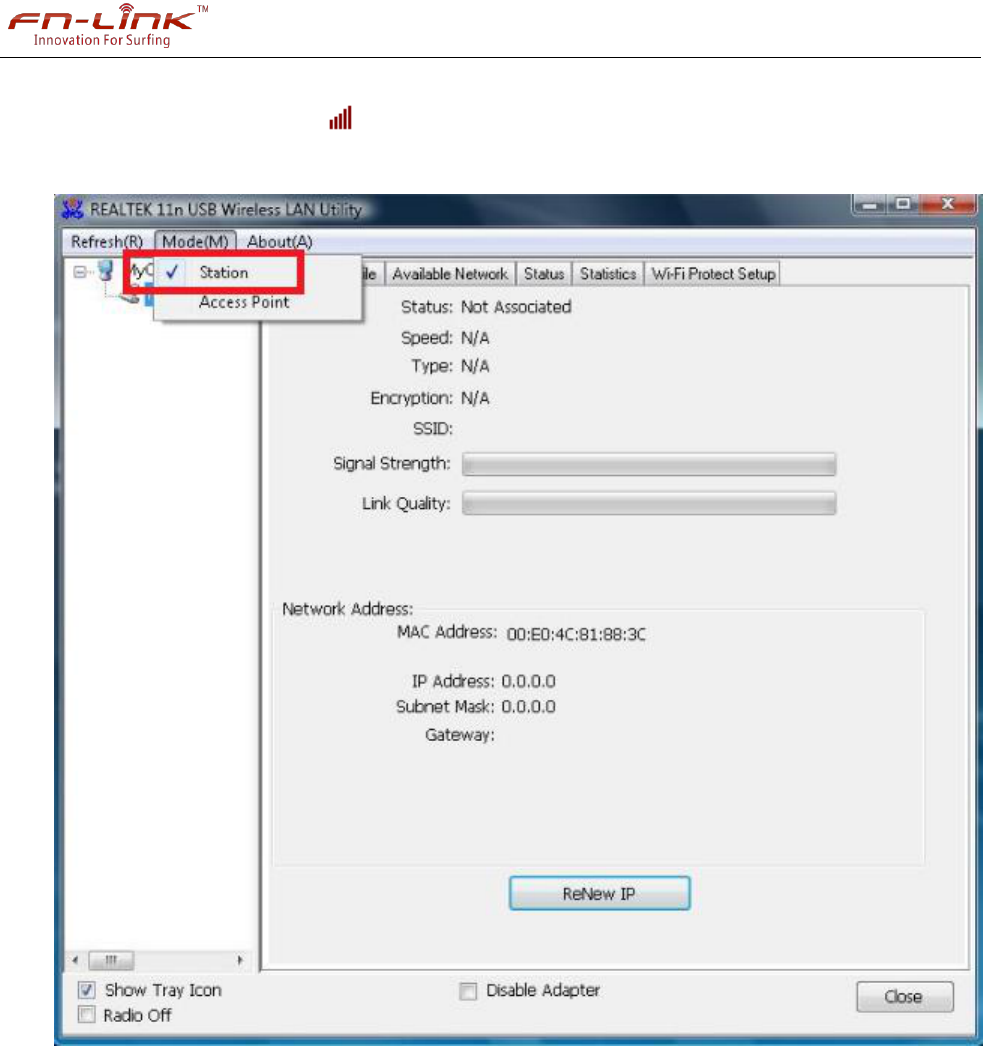

5. Set the device to “access point mode”
(1). Click the device icon “ ” on the lower right of the screen. It will display “REALTEK
11n USB Wireless LAN Utility” configuration interface.

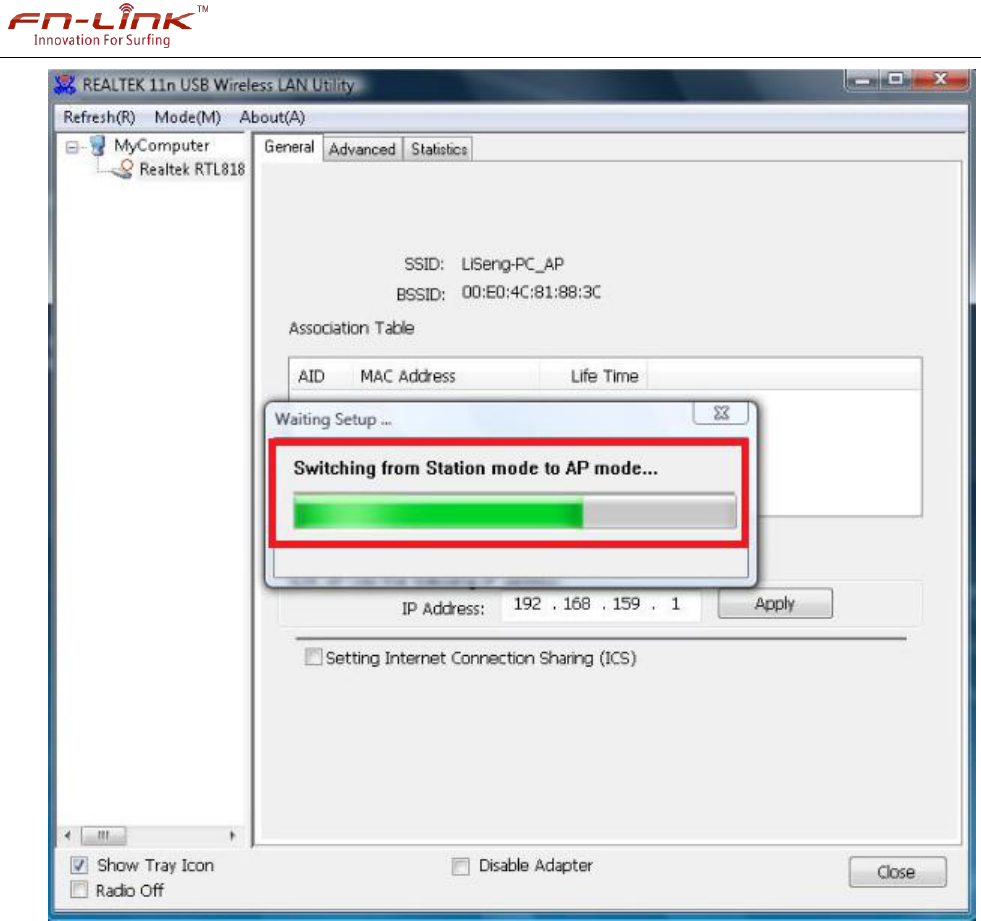

(2). Click on the "mode" button, then select "access points", the screen appears
"Switching from station to AP mode…", then enter the "access point mode", and
the lower right of the screen will show "access points" icon.
FN-LINK TECHNOLOGY LIMITED
http://www.fn-link.com Page 8 /12 3/18/2014
FN-LINK TECHNOLOGY LIMITED
http://www.fn-link.com Page 9 /12 3/18/2014

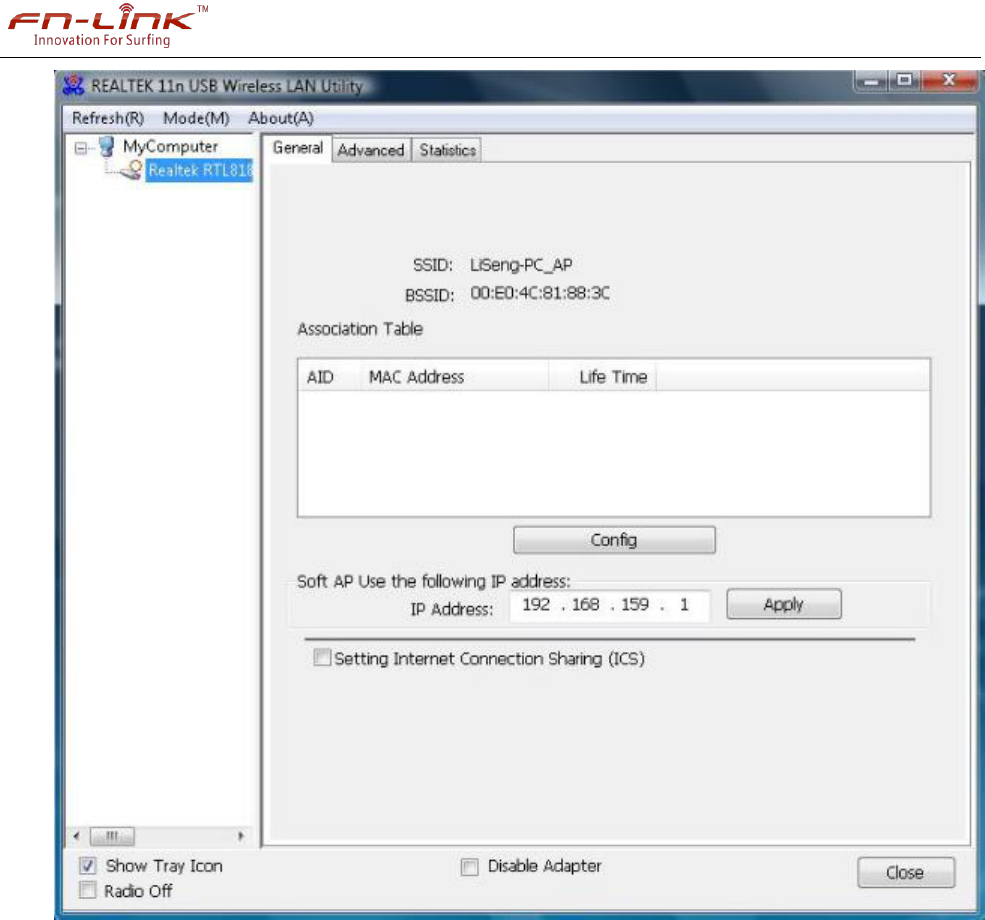

At the same time also shows the name of the access point in the "REALTEK 11n USB
Wireless LAN Utility" configuration interface, the default no secret key, as shown below:
FN-LINK TECHNOLOGY LIMITED
http://www.fn-link.com Page 10 /12 3/18/2014

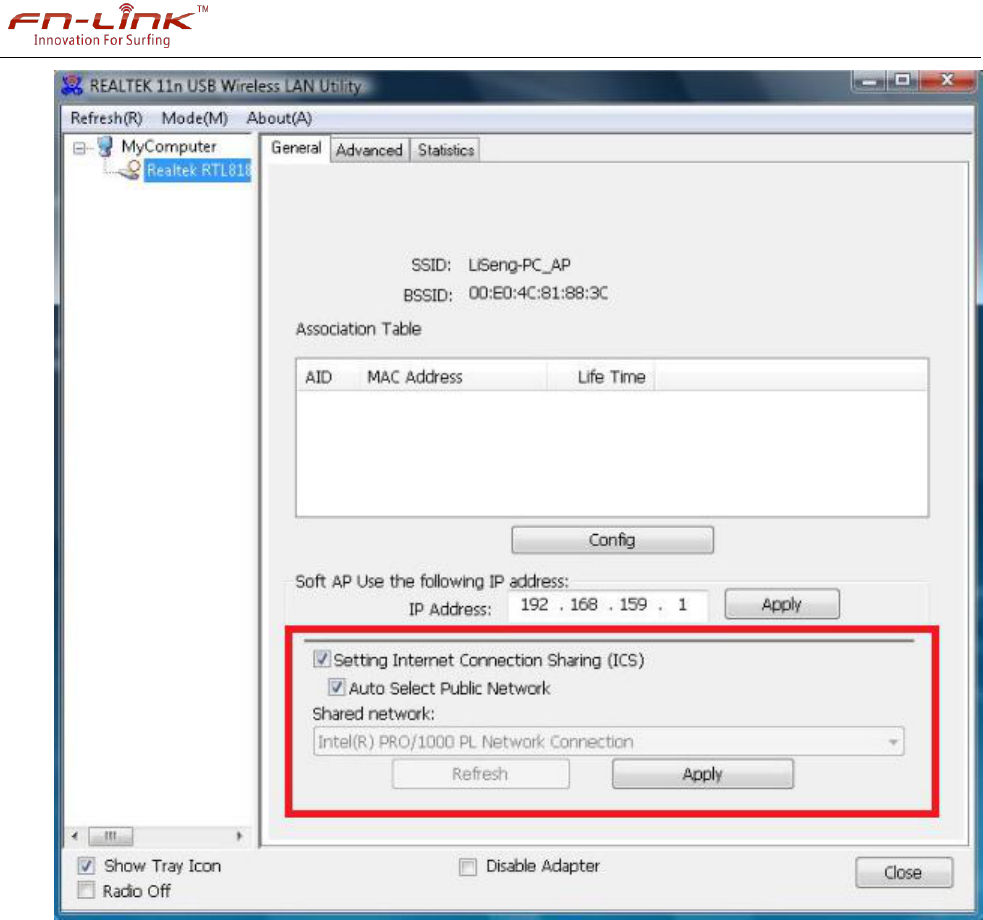

(3).Right now. Switch mode successfully, then select "Setting Internet Connection
Sharing(ICS)", as shown below:
FN-LINK TECHNOLOGY LIMITED
http://www.fn-link.com Page 11 /12 3/18/2014

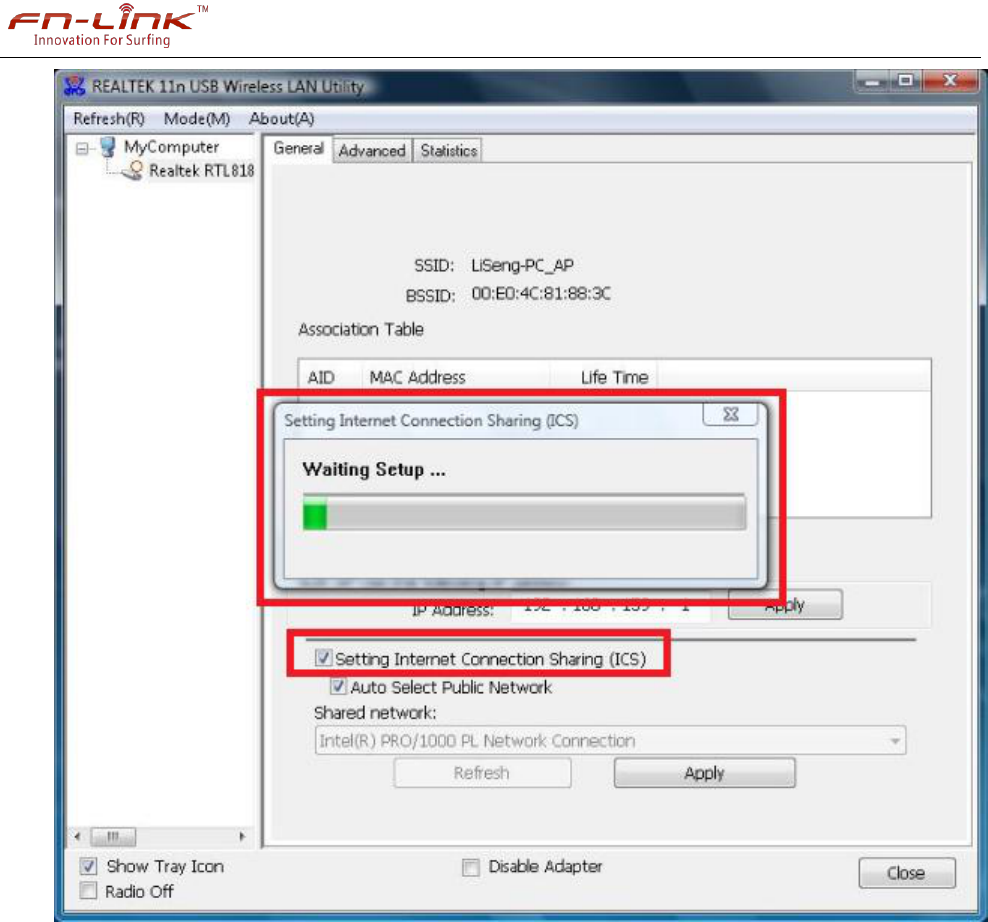

(4). After select " Setting Internet Connection Sharing(ICS)", as shown below:
FN-LINK TECHNOLOGY LIMITED
http://www.fn-link.com Page 12 /12 3/18/2014
(5).It can be connected to the access by mobile phone or other mobile device to surf
the Internet.
FCC ID: 2AATL-F88EUUD15
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
