F89FTSM13

FN-LINK TECHNOLOGY LIMITED

http://www.fn-link.com Page2/12

CONTENTS

0 REVESION HISTORY............................................................................................................................................... 3

1 INTRODUCTIONS......................................................................................................................................................4

1.1 OVERVEIW..........................................................................................................................................................4

1.2 PRODUCT FEATURES.....................................................................................................................................4

2 GENERAL SPECIFICATION.................................................................................................................................... 5

2.1 WIFI RF SPECIFICATION................................................................................................................................ 5

2.2 POWER CONSUMPTION.................................................................................................................................5

3 MECHANICAL SPECIFICATION............................................................................................................................. 6

3.1 OUTLINE DRAWING......................................................................................................................................... 6

3.2 PCB LAYOUT......................................................................................................................................................6

3.3 PIN DEFINITION.................................................................................................................................................7

3.4 APPLICATION CIRCUIT....................................................................................................................................8

4 ENVIRONMENTAL REQUIREMENTS................................................................................................................... 9

4.1 OPERATING & STORAGE TEMPRETURE...................................................................................................9

4.2 RECOMMENDED REFLOW PROFILE.......................................................................................................... 9

4.3 NOTICE................................................................................................................................................................ 9

5 PACKING INFORMATION...................................................................................................................................... 10

FN-LINK TECHNOLOGY LIMITED

http://www.fn-link.com Page3/12

0. Revision History

REV NO Date Modifications Draft

Rev.1.0 2015-7-9 First Released Allen Hu

FN-LINK TECHNOLOGY LIMITED

http://www.fn-link.com Page4/12

1. Introduction

1.1 Overview

F89FTSM13 is a highly integrated and excellent performance Wireless LAN (WLAN) SDIO network

interface device. High-speed wireless connection up to 150 Mbps.

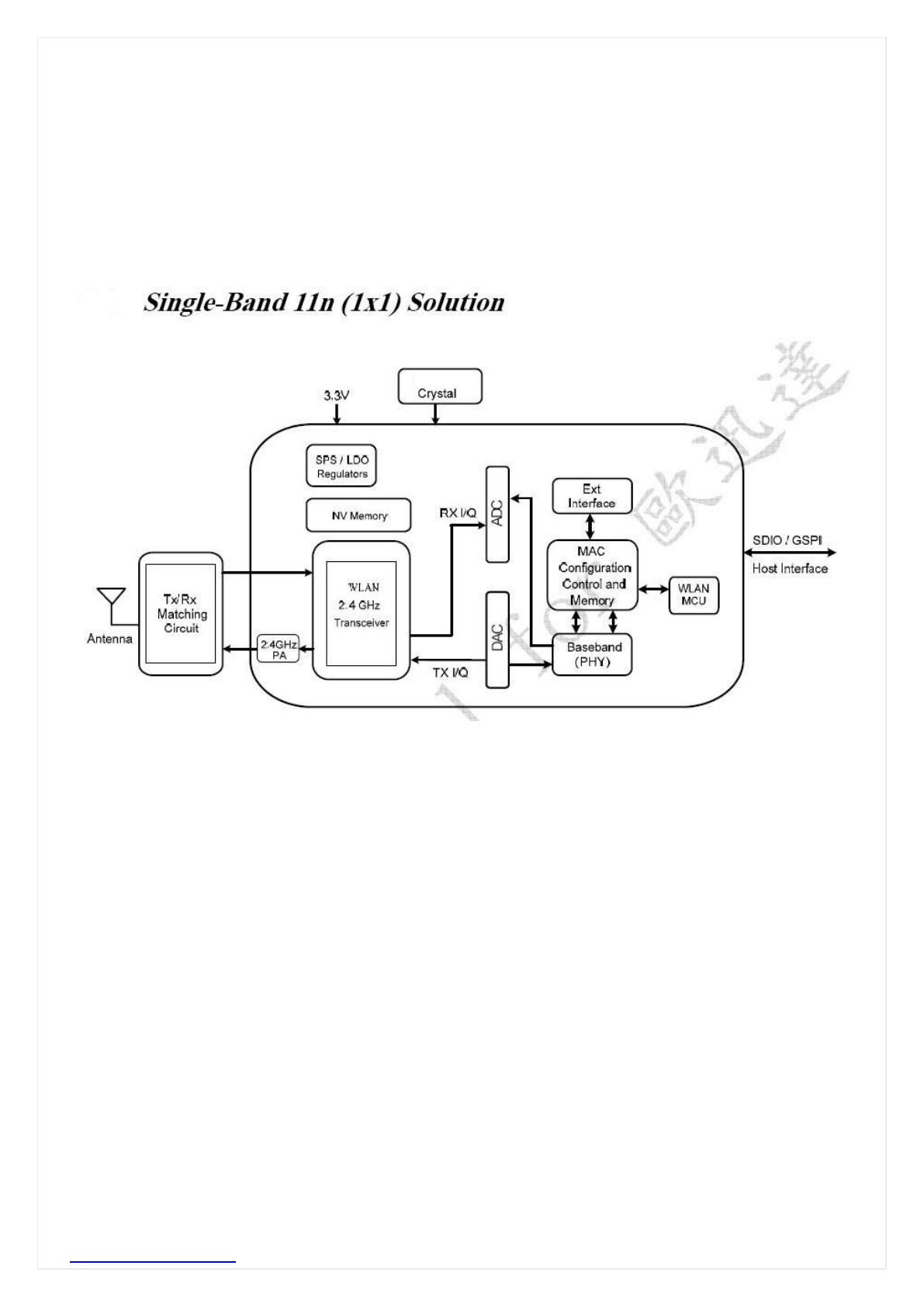

The general hardware for the module is shown in Figure 1. This WLAN Module design is based on Realtek

RTL8189FTV. It is a highly integrated single-chip 1*1 MIMO (Multiple In Multiple Out) Wireless LAN (WLAN)

SDIO network interface controller complying with the 802.11n specification. It combines a MAC, a 1T1R

capable baseband, and RF in a single chip. It is designed to provide excellent performance with low power

Consumption and enhance the advantages of robust system and cost-effective.

1.2 Product Features

Operate at ISM frequency bands (2.4GHz)

SDIO Interface for WiFi

IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n,

Enterprise level security which can apply WPA/WPA2 certification for WiFi.

WiFi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150 Mbps

upstream PHY rates

26MHz

FN-LINK TECHNOLOGY LIMITED

http://www.fn-link.com Page5/12

2. GENERAL SPECIFICATION

2.1 WiFi RF Specifications

Main Chipset RTL8189FTV

Operating Frequency 2.400～2.4835GHz

Standards WiFi:

IEEE 802.11b,

IEEE 802.11g,

IEEE 802.11n,

Modulation WiFi:

802.11b: CCK(11, 5.5Mbps), QPSK(2Mbps), BPSK(1Mbps),

802.11 g/n: OFDM

PHY Data rates WiFi:

802.11b: 11,5.5,2,1 Mbps

802.11g: 54,48,36,24,18,12,9,6 Mbps

802.11n: up to 150Mbps

Transmit Output Power WiFi:

Receiver Sensitivity 802.11b@11Mbps -82±1dBm

802.11g@54Mbps -71±1dBm

802.11n

-67±1dBm (MCS 7_HT20)

-64±1dBm (MCS 7_HT40)

Operating Channel WiFi 2.4GHz:

11: (Ch. 1-11) – United States

Media Access Control WiFi: CSMA/CA with ACK

Antenna Integral (1dBi

Network Architecture WiFi: Ad-hoc mode (Peer-to-Peer )

Infrastructure mode

Software AP

WiFi Direct

Security WiFi: WPA, WPA-PSK, WPA2, WPA2-PSK, WEP 64bit & 128bit,

OS Supported Android /Linux

Host Interface WiFi: SDIO/GPIO

Operating Voltage 3.3Vdc ±10% I/O supply voltage

Dimension Typical L12.0*W12. 0*H1.6mm

2.2 Power Consumption

Mode Status Power(mA) Note

Windows XP

Link 130

RX 130 20M

TX 190 20M(MCS7)

175 40M(MCS7)

Max)

802.11b <16dBm

802.11g <14dBm

802.11n <13dBm

FN-LINK TECHNOLOGY LIMITED

http://www.fn-link.com Page6/12

3. Mechanical Specification

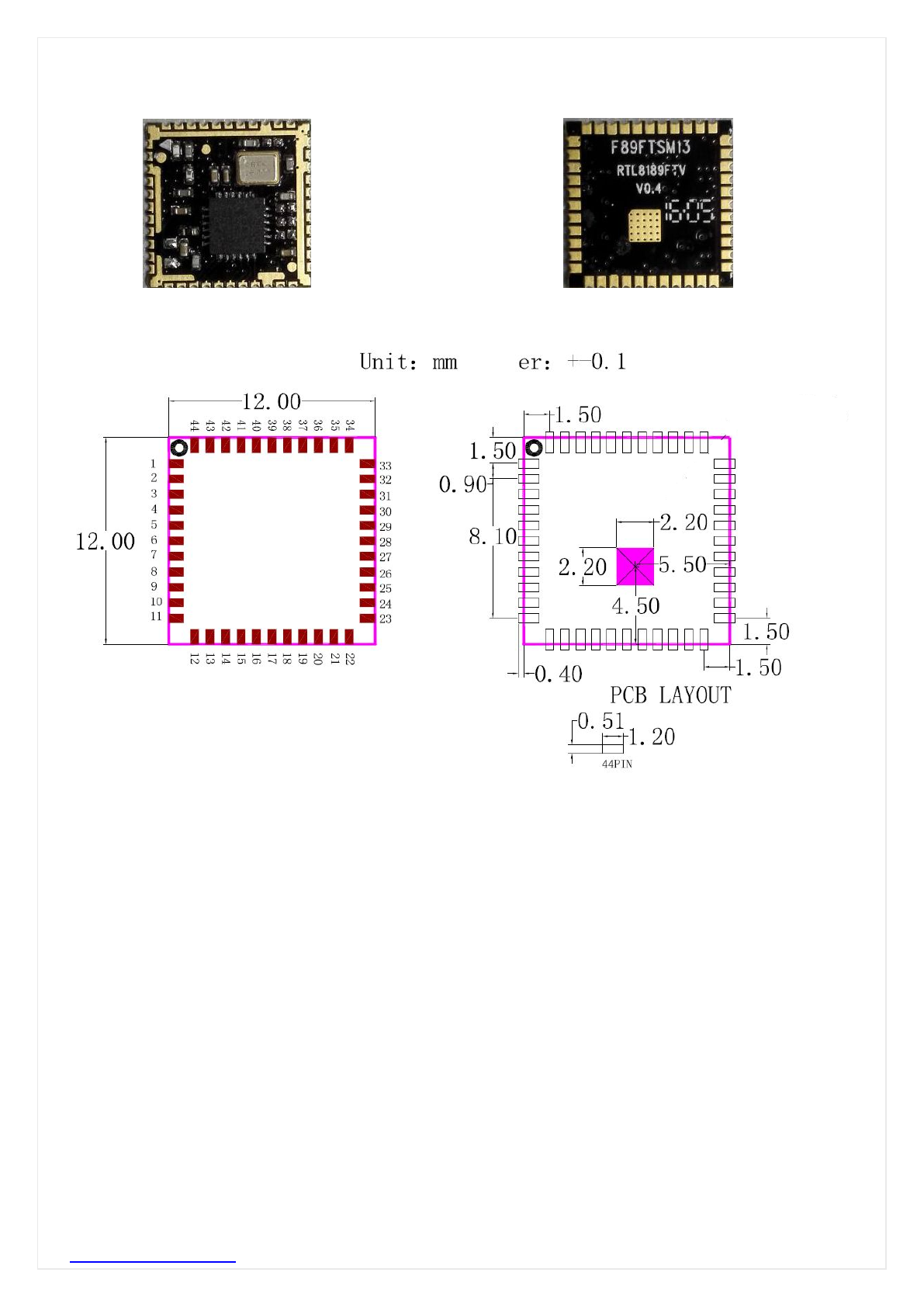

3.1 Outline Drawing

3.2 PCB LAYOUT (Unit: ±0.15mm)

FN-LINK TECHNOLOGY LIMITED

http://www.fn-link.com Page7/12

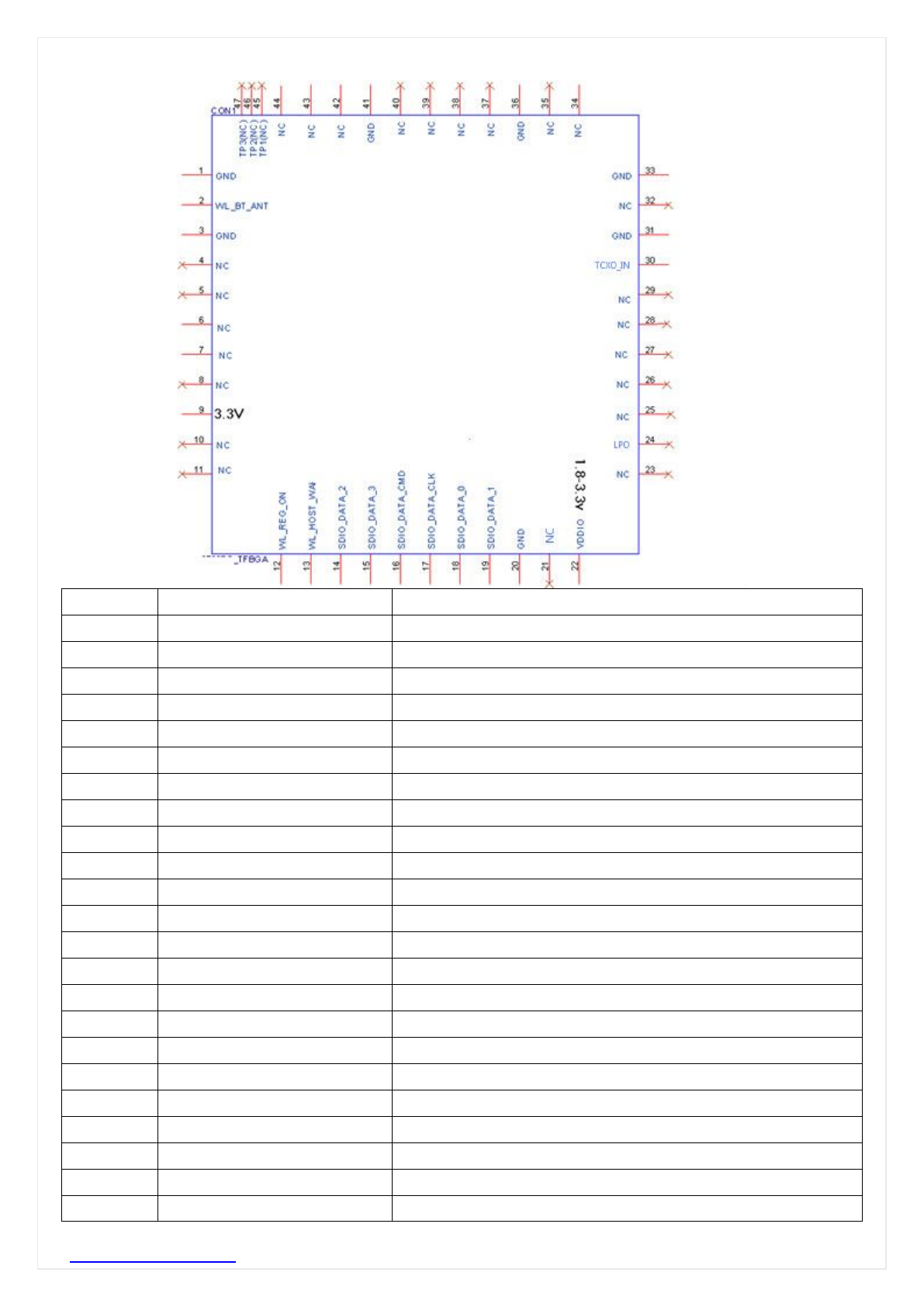

3.3 PIN Assignment

Pin # Name Description

1 GND GND

2 RF RF OUTPUT

3 GND GND

4~8 NC NC

9 VBAT 3.3V Optional

10 NC NC

11 NC NC

12 WL_REG_ON WL_REG_ON

13 WL_HOST_WAKE WAKE UP

14 SDIO_DATA_2 SDIO_D2

15 SDIO_DATA_3 SDIO_D3

16 SDIO_DATA_CMD SDIO_CMD

17 SDIO_DATA_CLK SDIO_CLK

18 SDIO_DATA_D0 SDIO_D0

19 SDIO_DATA_D1 SDIO_D1

20 GND GND

21 NC NC

22 VDIO 1.8~3.3V

23 NC NC

24 LPO CLK_REQ

25~29 NC NC

30 TCXO_IN 26MHz_IN

31 GND GND

FN-LINK TECHNOLOGY LIMITED

http://www.fn-link.com Page8/12

32 NC NC

33 GND GND

34~35 NC NC

36 GND GND

37~40 NC NC

41 GND GND

42~44 NC NC

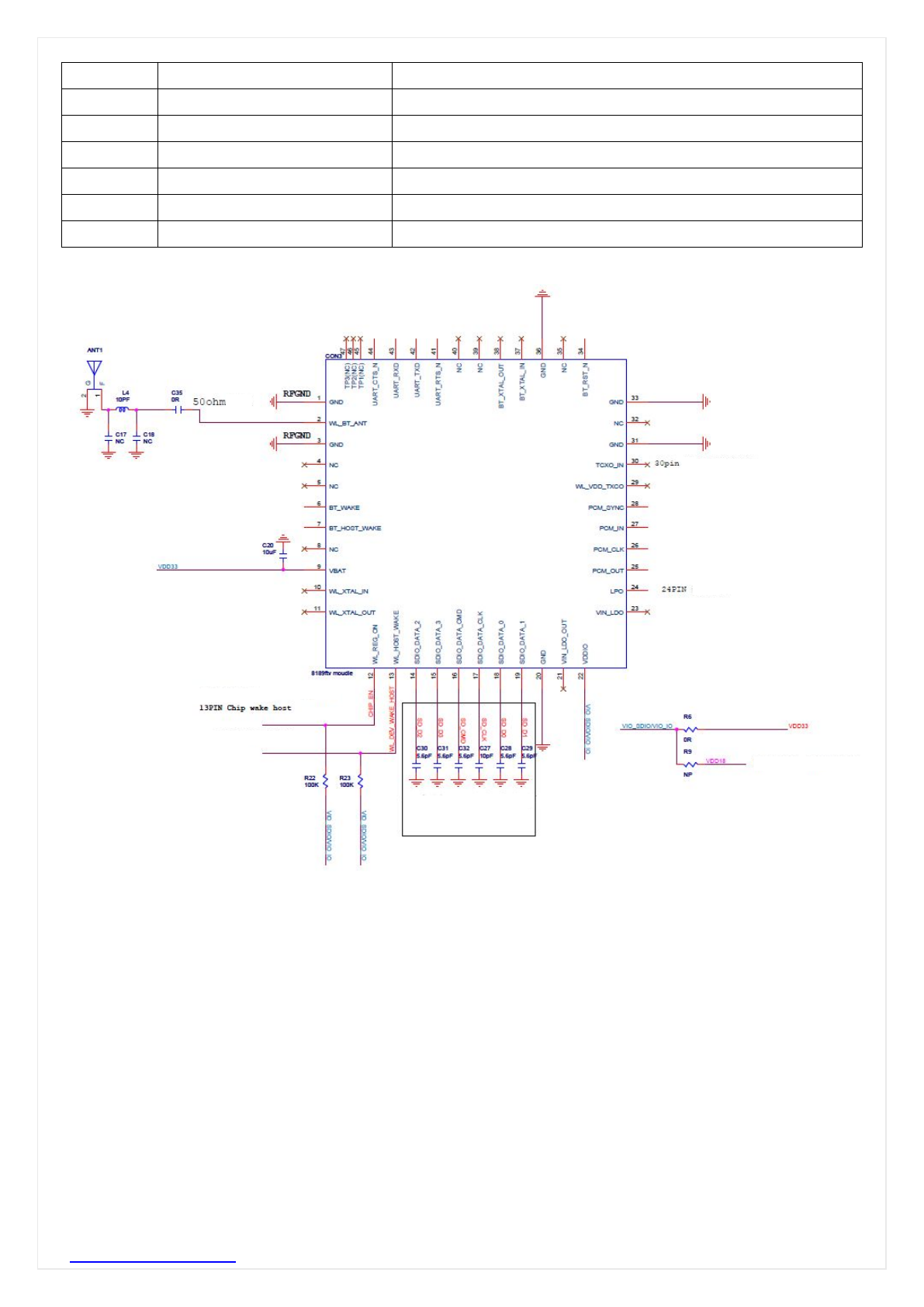

3.4 Application Circuit

FN-LINK TECHNOLOGY LIMITED

http://www.fn-link.com Page9/12

4. Environmental Requirements

4.1 Operating & storage tempreture

Operating

Temperature: -5°C to +55°C

Relative Humidity: 10-90% (non-condensing)

Storage

Temperature: -40°C to +80°C (non-operating)

Relative Humidity: 5-90% (non-condensing)

MTBF (Mean Time Between Failures) Over 150,000hours

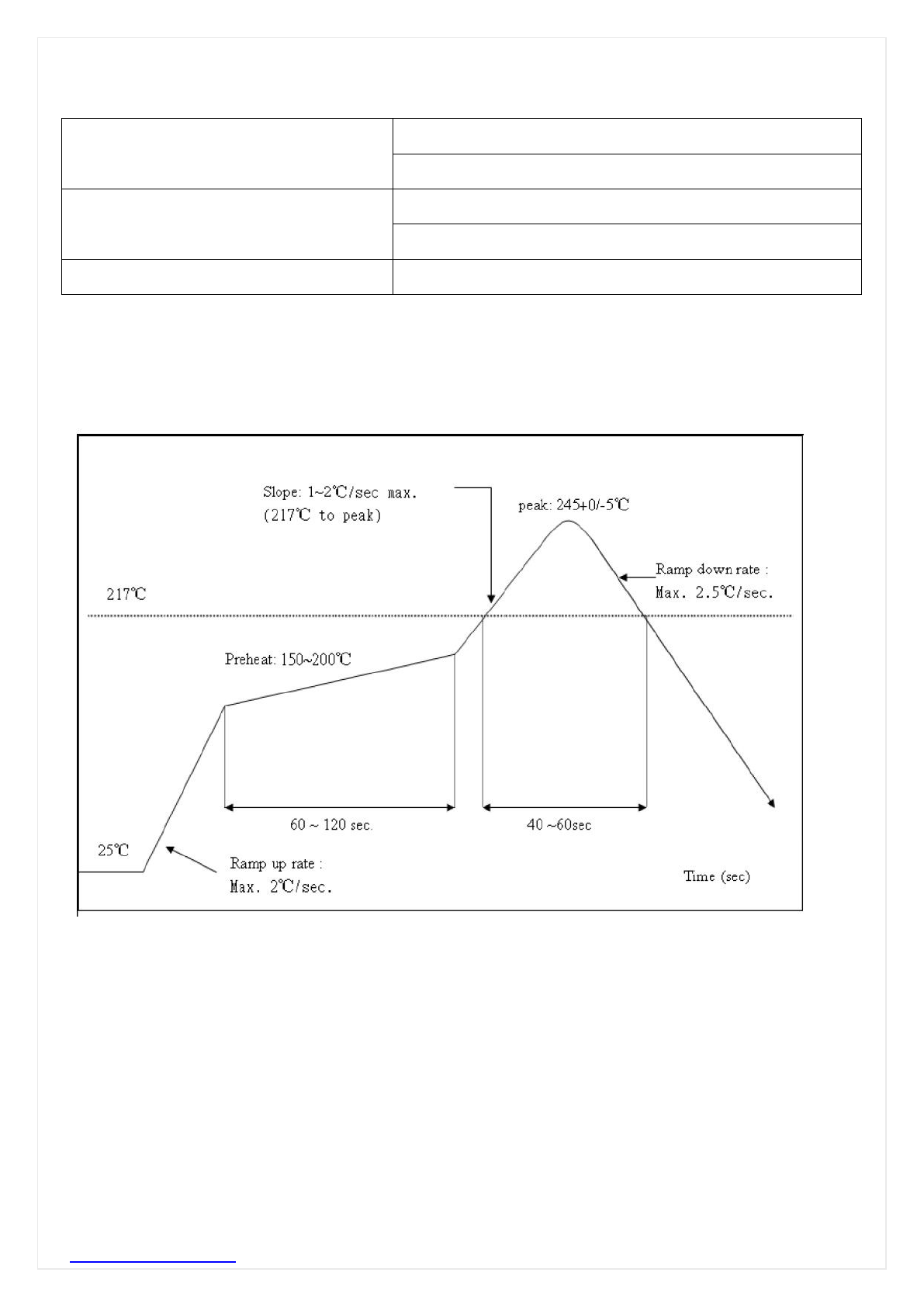

4.2 Recommended Reflow Profile

Referred to IPC/JEDEC standard.

Peak Temperature : <250°C

Number of Times : ≤2 times

4.3 Patch WIFI modules installed before the notice:

WIFI module installed note:

1. Please press 1 : 1 and then expand outward proportion to 0.7 mm, 0.12 mm thickness When open a stencil

2. Take and use the WIFI module, please insure the electrostatic protective measures.

3. Reflow soldering temperature should be according to the customer the main size of the products, such as

the temperature set at 250 + 5 ℃for the MID motherboard.

About the module packaging, storage and use of matters needing attention are as follows:

1. The module of the reel and storage life of vacuum packing: 1). Shelf life: 8 months, storage environment

conditions: temperature in: < 40 ℃, relative humidity: < 90% r.h.

2. The module vacuum packing once opened, time limit of the assembly:

Card: 1) check the humidity display value should be less than 30% (in blue), such as: 30% ~ 40% (pink), or

greater than 40% (red) the module have been moisture absorption.

2.) factory environmental temperature humidity control: ≦-30℃,≦60% r.h..

3). Once opened, the workshop the preservation of life for 168 hours.

FN-LINK TECHNOLOGY LIMITED

http://www.fn-link.com Page10/12

3. Once opened, such as when not used up within 168 hours:

1). The module must be again to remove the module moisture absorption.

2). The baking temperature: 125 ℃, 8 hours.

3.) After baking, put the right amount of desiccant to seal packages.

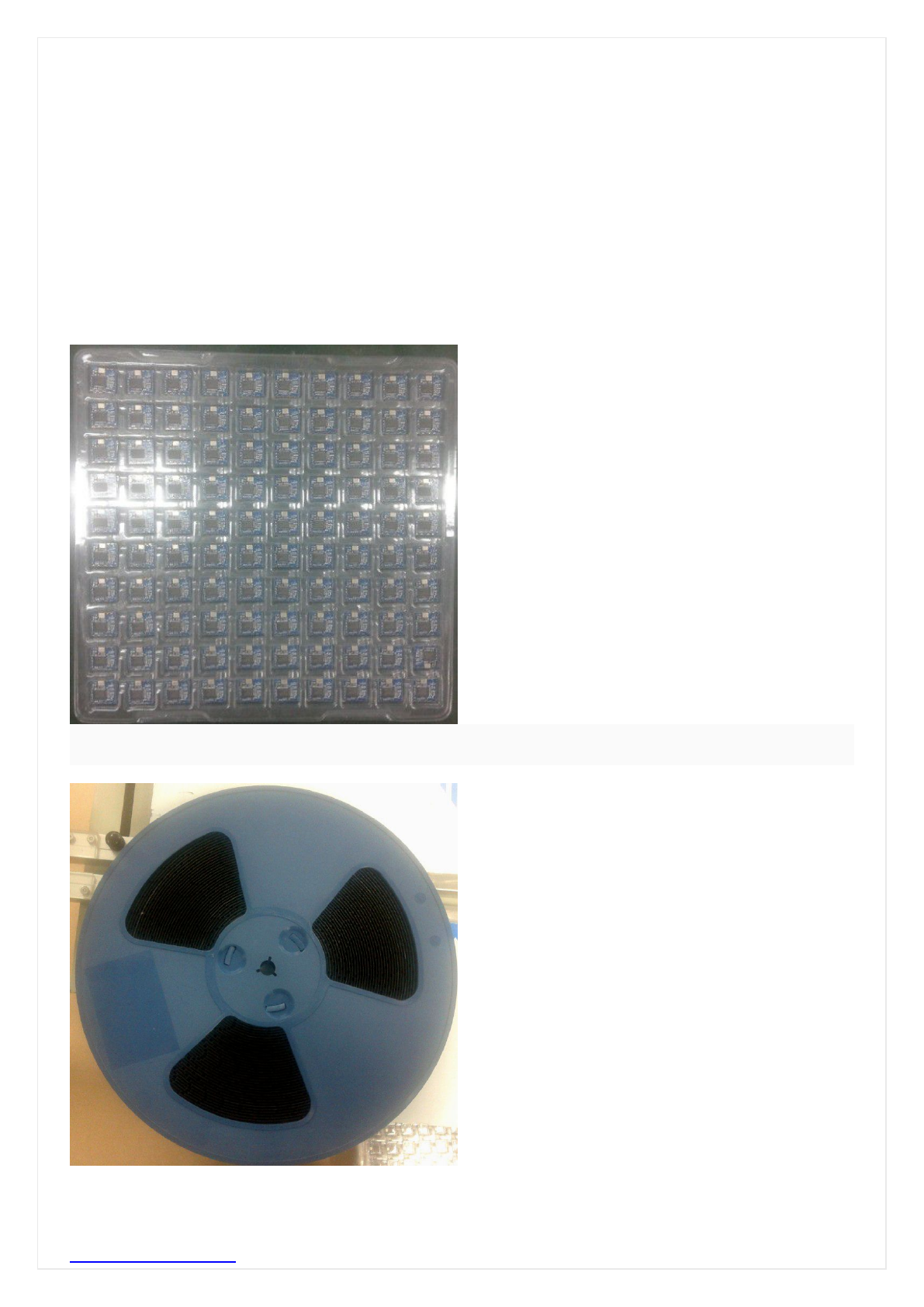

5. PACKING INFORMATION

5.1 Blister packaging

A piece of 100 PCS

5.2 Coiling Packaging

A roll of 2000pcs

2AATL-F89FTSM13

FN-LINK TECHNOLOGY LIMITED

http://www.fn-link.com Page11/12

The module will be responsible to satisfy SAR/RF Exposure requirements, when the module integrated

into any (portable, mobile, fixed) host device.

FN-LINK TECHNOLOGY LIMITED

http://www.fn-link.com Page12/12

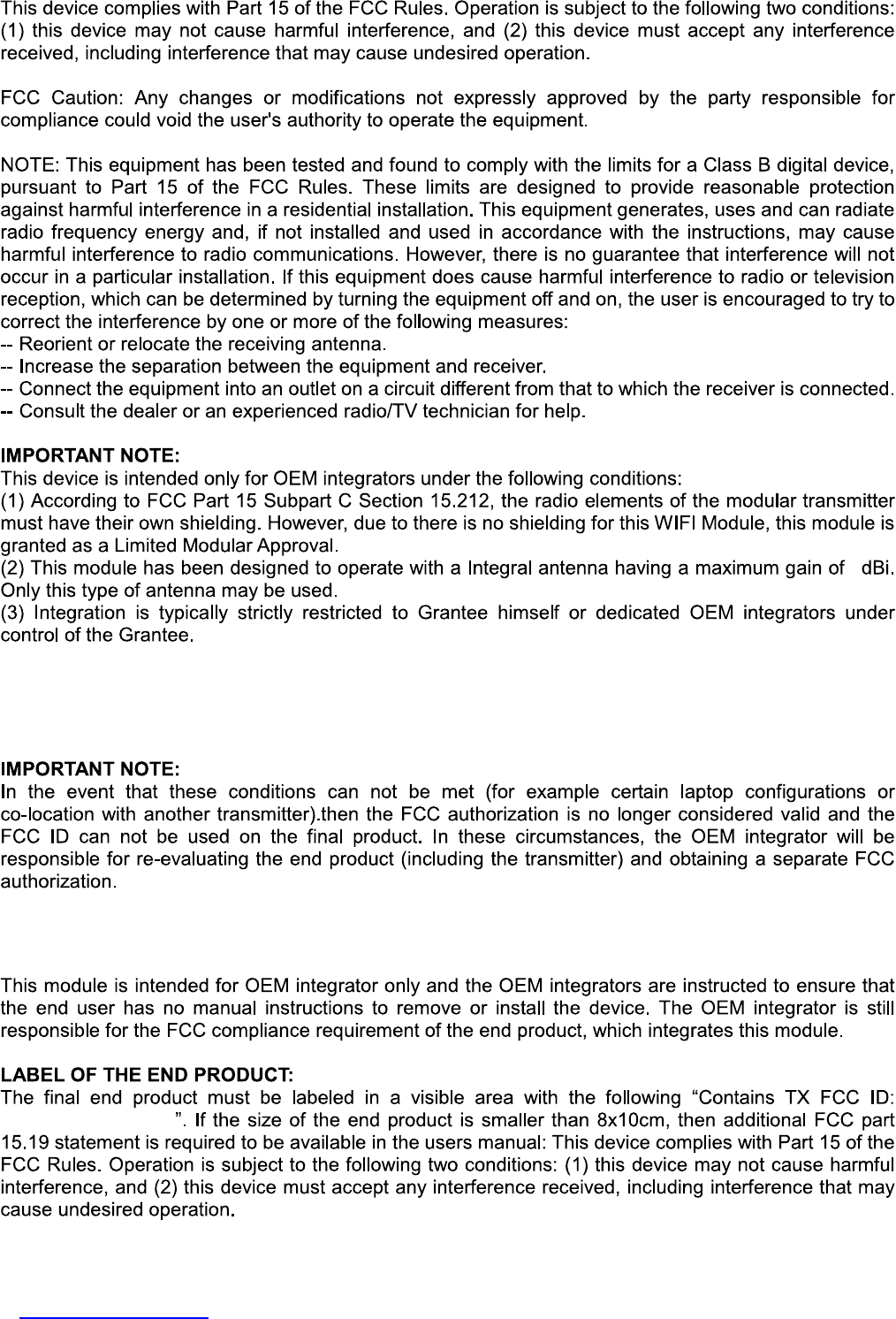

This devic has been evaluated and shown compliant with the FCC RF Exposure limits under fixed

exposure conditions (antennas are greater than 20cm from a person's body) when installed in certain

specific OEM configurations.

FCC Radiation Exposure Statement:

This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Due to missing shielding the module is strictly limited to integration by the Grantee himself or his dedicated

OEM integrator under control of the Grantee.However, the OEM integrator is still responsible for testing

their end-product for any additional compliance requirements required with this module installed.

Note 1: The wifi module has no shielding and tested stand alone.

This module is tested and approved as Limited modular approval with stand alone configuration, any OEM

incorporated this radio module into any system are require additional testing and evaluation.

Note 2: The module is only certified with the installed antenna. Any change of the antenna

will void the certification. The host device including this RF module need to undergo separate

cetification.

Attention:LimitedModularApproval‐thisRFModulemaynotbesoldtothegenericpublic

andrequiresprofessionalinstallation.

DuetothefactthatthisRFModuleisnotequippedwithanownshielding,theend‐product

incl.thisRFModulehastoshowcompliancetotheFCCrules(15C/radiatedemissions).



(OEM)Integratorhastoassurecomplianceoftheentireend‐product

incl.theintegratedRFModule.Additionalmeasurements(15C)and/orequipmentauthorizations

(e.g

mayneedtobeaddresseddependingonco‐locationorsimultaenous

transmissionissuesifapplicable.



Integratorisremindedtoassurethattheseinstallationinstructions

willnotbemadeavailabletotheend‐userofthefinalhostdevice.

   integratedintoany(portable,mobile,fixed)hostdevice.



Thefinalhostdevice,intowhichthisRFModuleisintegrated"hastobelabelled

withanauxilliarylablestatingtheFCCIDoftheRFModule,suchas

"ContainsFCCID: 



Dependingonthesizeofthefinalend‐product,the§15.19FCCstatement

"Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothefollowingtwo

conditions:

(1)thisdevicemaynotcauseharmfulinterference,and

(2)thisdevicemustacceptanyinterferencereceived,including

interferencethatmaycauseundesiredoperation."

shouldbeplacedalsoonthedeviceoralternativelywithinaprominentlocationoftheusers

manual



The§15.21"Changes or modifications to this unit not expressly

approvedbythepartyresponsibleforcompliancecould

voidtheuser’sauthoritytooperatetheequipment."statementhastobeincludedinaprominent

locationoftheusersmanual



)

either a complete new certification or a Class II Permissive Change.

the Integrator will be responsible to satisfy SAR/ RF Exposure requirements,

when the module

2AATL-F89FTSM13
