HUNG WAI A18RK31 Android player main board with wireless module User Manual

HUNG WAI HOLDINGS LIMITED Android player main board with wireless module

User manual

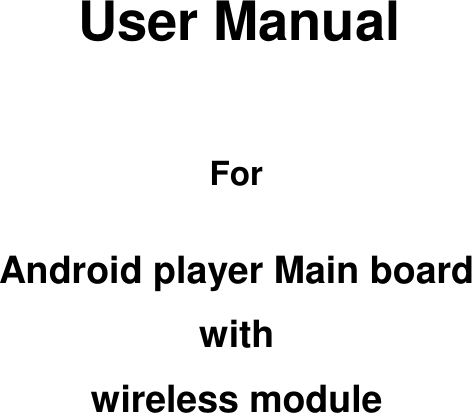

User Manual For Android player Main board with wireless module

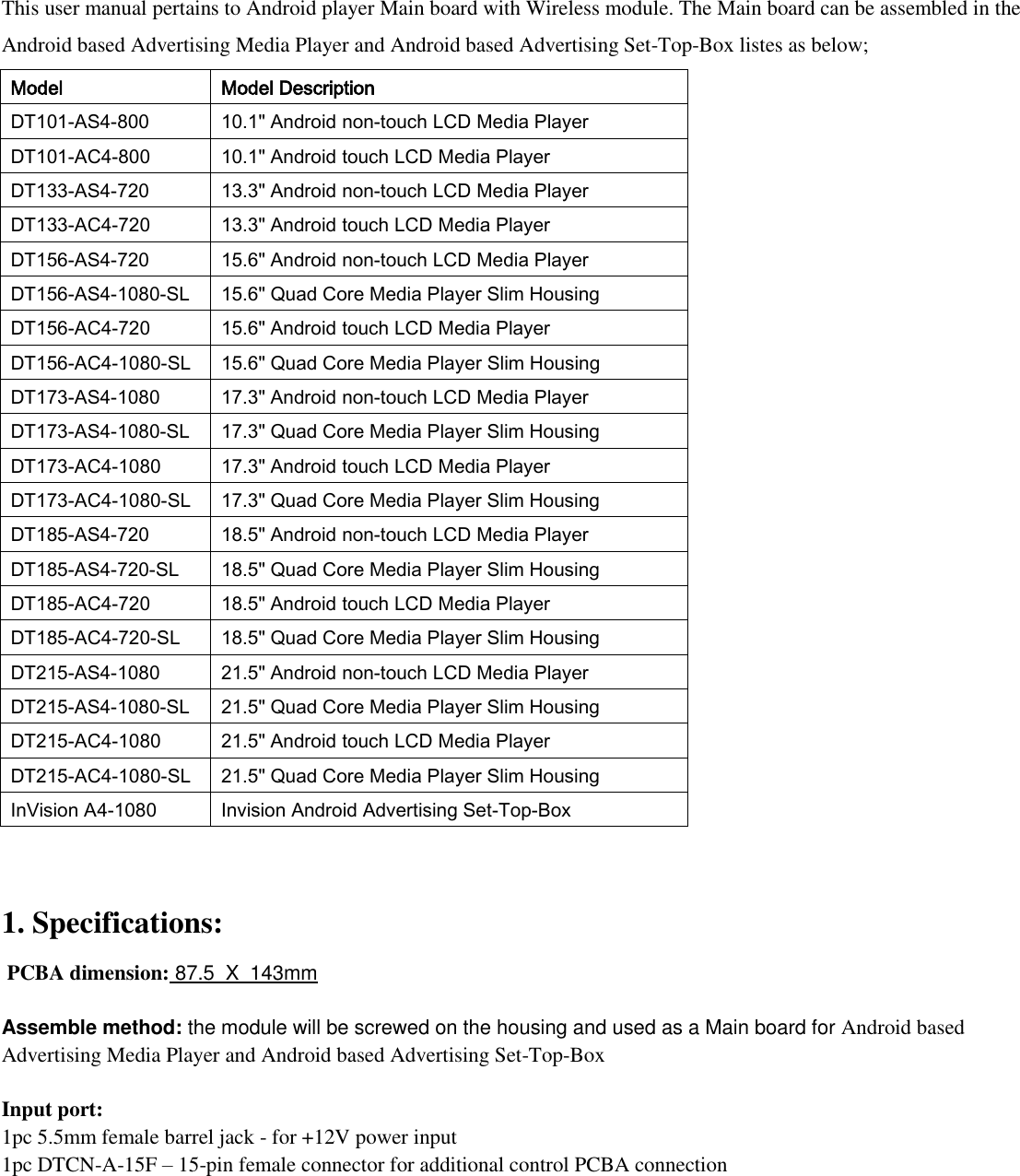

This user manual pertains to Android player Main board with Wireless module. The Main board can be assembled in the Android based Advertising Media Player and Android based Advertising Set-Top-Box listes as below; Model Model Description DT101-AS4-800 10.1" Android non-touch LCD Media Player DT101-AC4-800 10.1" Android touch LCD Media Player DT133-AS4-720 13.3" Android non-touch LCD Media Player DT133-AC4-720 13.3" Android touch LCD Media Player DT156-AS4-720 15.6" Android non-touch LCD Media Player DT156-AS4-1080-SL 15.6" Quad Core Media Player Slim Housing DT156-AC4-720 15.6" Android touch LCD Media Player DT156-AC4-1080-SL 15.6" Quad Core Media Player Slim Housing DT173-AS4-1080 17.3" Android non-touch LCD Media Player DT173-AS4-1080-SL 17.3" Quad Core Media Player Slim Housing DT173-AC4-1080 17.3" Android touch LCD Media Player DT173-AC4-1080-SL 17.3" Quad Core Media Player Slim Housing DT185-AS4-720 18.5" Android non-touch LCD Media Player DT185-AS4-720-SL 18.5" Quad Core Media Player Slim Housing DT185-AC4-720 18.5" Android touch LCD Media Player DT185-AC4-720-SL 18.5" Quad Core Media Player Slim Housing DT215-AS4-1080 21.5" Android non-touch LCD Media Player DT215-AS4-1080-SL 21.5" Quad Core Media Player Slim Housing DT215-AC4-1080 21.5" Android touch LCD Media Player DT215-AC4-1080-SL 21.5" Quad Core Media Player Slim Housing InVision A4-1080 Invision Android Advertising Set-Top-Box 1. Specifications: PCBA dimension: 87.5 X 143mm Assemble method: the module will be screwed on the housing and used as a Main board for Android based Advertising Media Player and Android based Advertising Set-Top-Box Input port: 1pc 5.5mm female barrel jack - for +12V power input 1pc DTCN-A-15F – 15-pin female connector for additional control PCBA connection

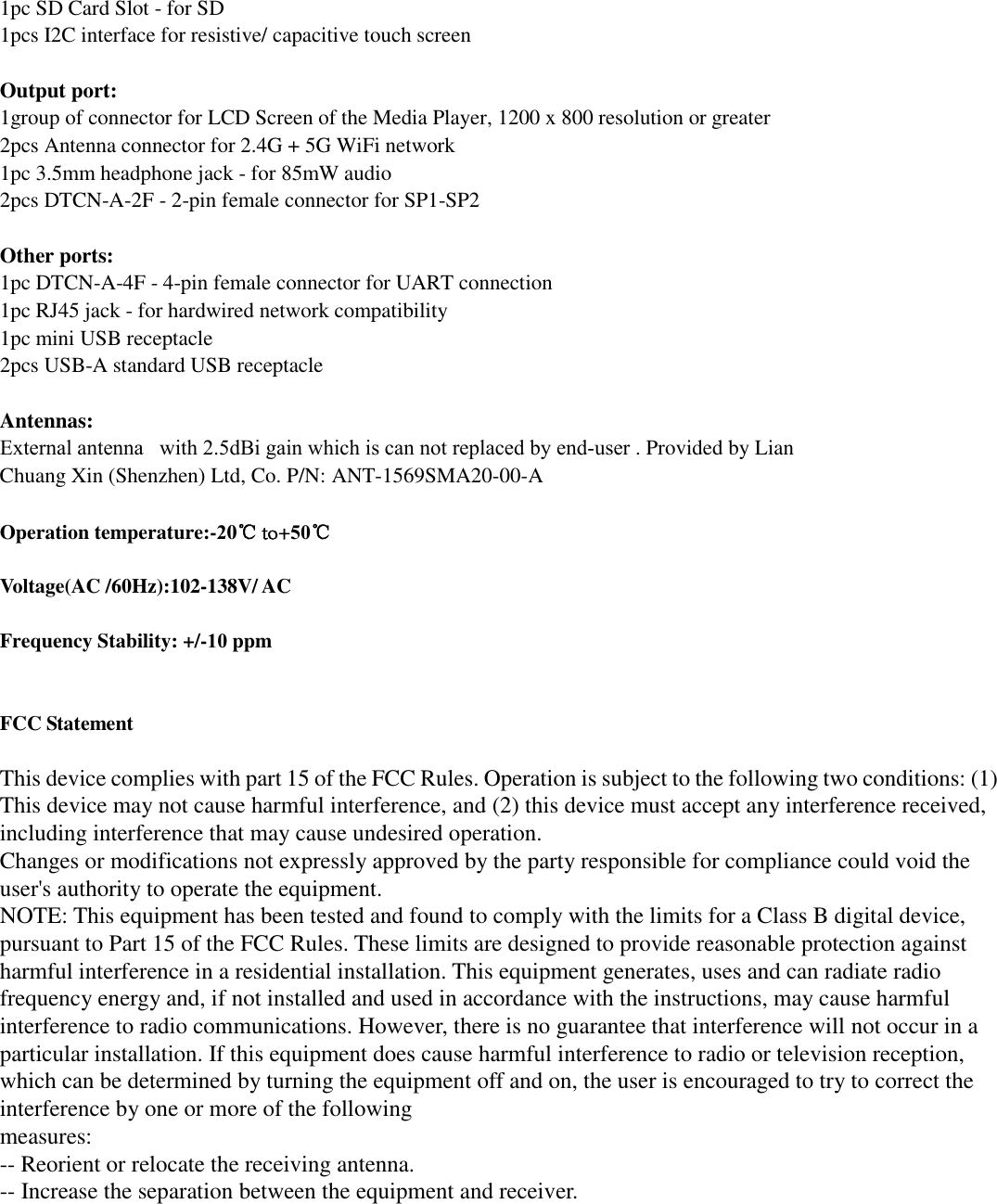

1pc SD Card Slot - for SD 1pcs I2C interface for resistive/ capacitive touch screen Output port: 1group of connector for LCD Screen of the Media Player, 1200 x 800 resolution or greater 2pcs Antenna connector for 2.4G + 5G WiFi network 1pc 3.5mm headphone jack - for 85mW audio 2pcs DTCN-A-2F - 2-pin female connector for SP1-SP2 Other ports: 1pc DTCN-A-4F - 4-pin female connector for UART connection 1pc RJ45 jack - for hardwired network compatibility 1pc mini USB receptacle 2pcs USB-A standard USB receptacle Antennas: External antenna with 2.5dBi gain which is can not replaced by end-user . Provided by Lian Chuang Xin (Shenzhen) Ltd, Co. P/N: ANT-1569SMA20-00-A Operation temperature:-20℃ to+50℃ Voltage(AC /60Hz):102-138V/ AC Frequency Stability: +/-10 ppm FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver.

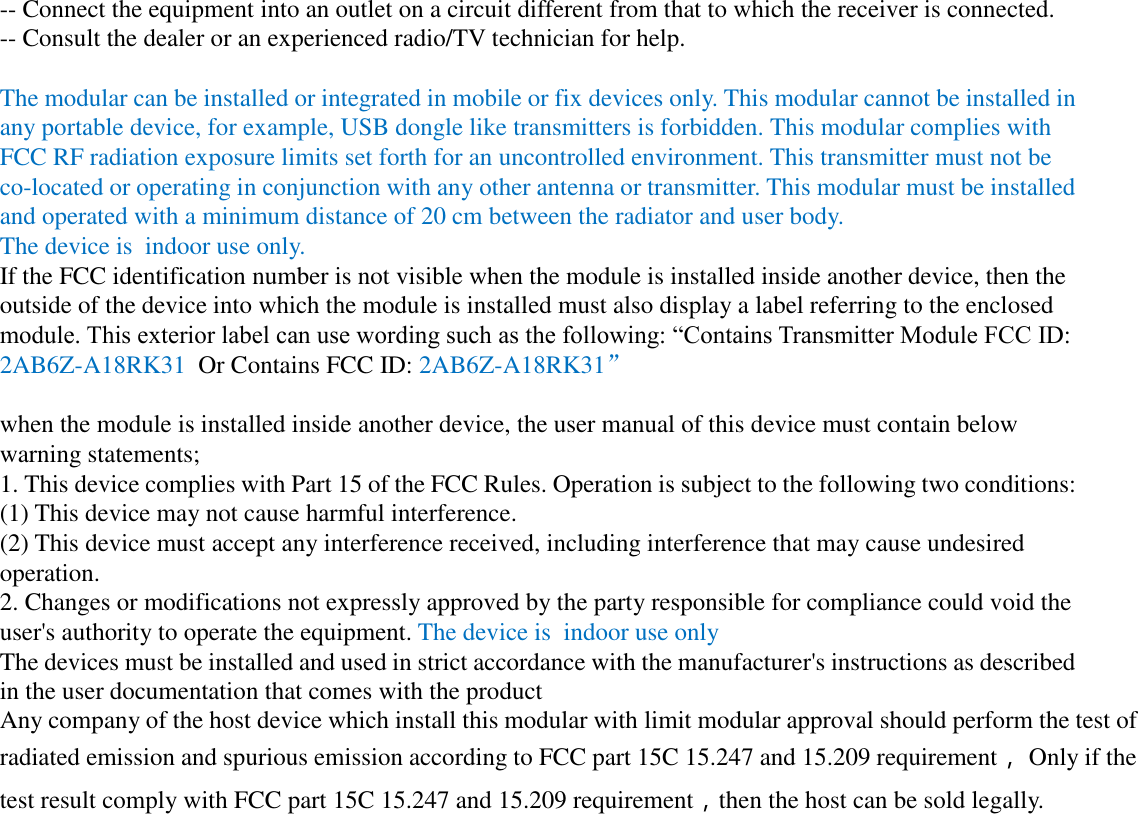

-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The modular can be installed or integrated in mobile or fix devices only. This modular cannot be installed in any portable device, for example, USB dongle like transmitters is forbidden. This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This modular must be installed and operated with a minimum distance of 20 cm between the radiator and user body. The device is indoor use only. If the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: 2AB6Z-A18RK31 Or Contains FCC ID: 2AB6Z-A18RK31” when the module is installed inside another device, the user manual of this device must contain below warning statements; 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The device is indoor use only The devices must be installed and used in strict accordance with the manufacturer's instructions as described in the user documentation that comes with the product Any company of the host device which install this modular with limit modular approval should perform the test of radiated emission and spurious emission according to FCC part 15C 15.247 and 15.209 requirement， Only if the test result comply with FCC part 15C 15.247 and 15.209 requirement，then the host can be sold legally.
