HUNG WAI WL0239 300Mbps Wireless N Dual Band USB Adapter User Manual

HUNG WAI PRODUCTS LIMITED 300Mbps Wireless N Dual Band USB Adapter Users Manual

User Manual

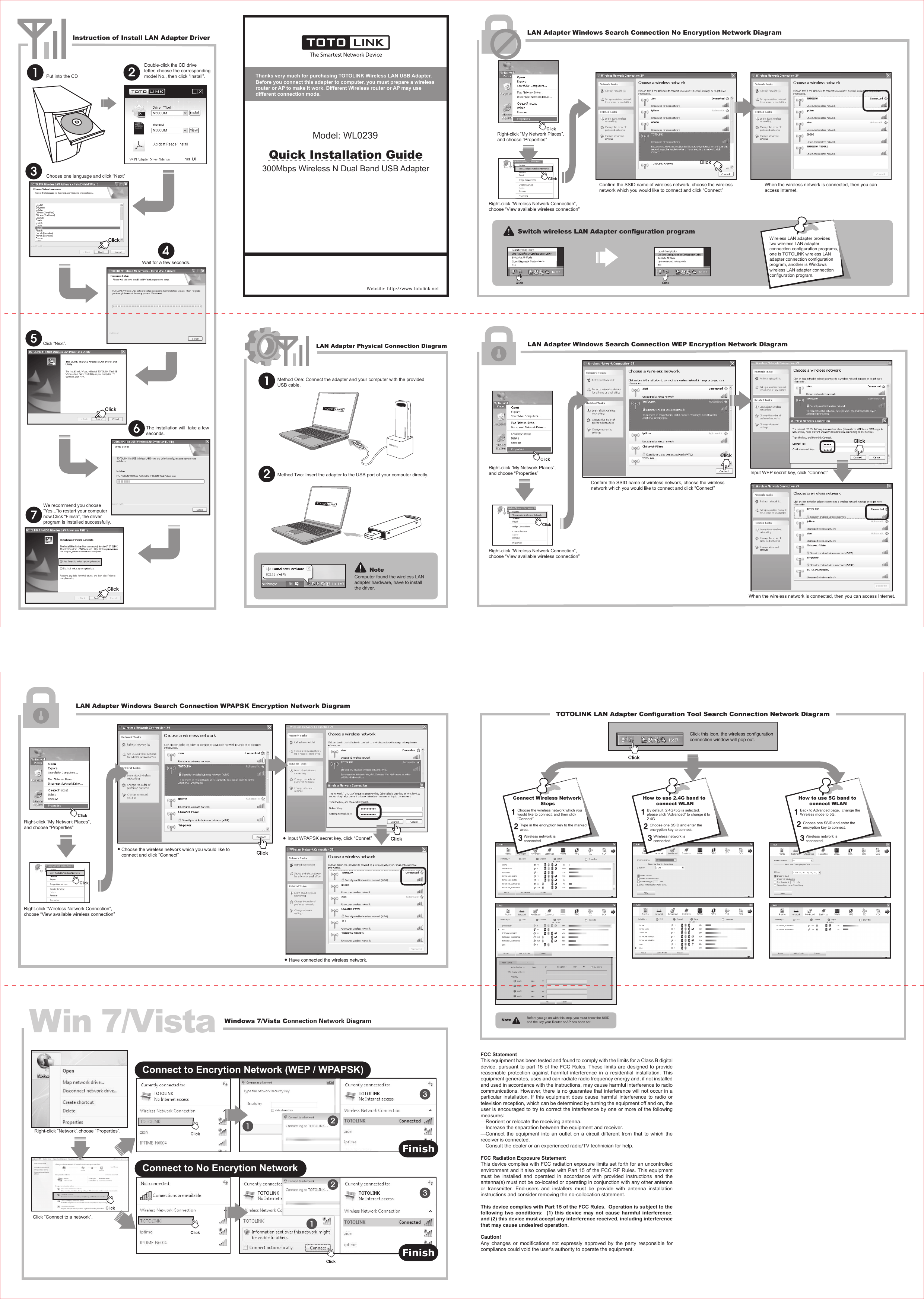

Put into the CDDouble-click the CD drive letter, choose the correspondingmodel No., then click “Install”.Click “Next”.Wait for a few seconds.Choose one language and click “Next”The installation will take a few seconds.We recommend you choose “Yes...”to restart your computer now.Click “Finish”, the driver program is installed successfully.Switch wireless LAN Adapter configuration programWireless LAN adapter provides two wireless LAN adapter connection configuration programs, one is TOTOLINK wireless LAN adapter connection configuration program, another is Windows wireless LAN adapter connection configuration program.Instruction of Install LAN Adapter DriverLAN Adapter Physical Connection Diagram LAN Adapter Windows Search Connection WEP Encryption Network DiagramLAN Adapter Windows Search Connection No Encryption Network DiagramRight-click “My Network Places”, and choose “Properties”Right-click “Wireless Network Connection”, choose “View available wireless connection”Confirm the SSID name of wireless network, choose the wireless network which you would like to connect and click “Connect”When the wireless network is connected, then you can access Internet.Right-click “My Network Places”, and choose “Properties”Right-click “Wireless Network Connection”, choose “View available wireless connection”Confirm the SSID name of wireless network, choose the wireless network which you would like to connect and click “Connect”When the wireless network is connected, then you can access Internet.Input WEP secret key, click “Connect”NoteComputer found the wireless LAN adapter hardware, have to install the driver.Website: http://www.totolink.netMethod One: Connect the adapter and your computer with the provided USB cable. Method Two: Insert the adapter to the USB port of your computer directly. Thanks very much for purchasing TOTOLINK Wireless LAN USB Adapter.Before you connect this adapter to computer, you must prepare a wireless router or AP to make it work. Different Wireless router or AP may use different connection mode. Quick Installation Guide300Mbps Wireless N Dual Band USB AdapterModel: WL0239N500UMN500UMTOTOLINKChoose the wireless network which you would like to connect and click “Connect”Input WPAPSK secret key, click “Connet”Have connected the wireless network.Windows 7/Vista Connection Network DiagramLAN Adapter Windows Search Connection WPAPSK Encryption Network DiagramRight-click “My Network Places”, and choose “Properties”Right-click “Wireless Network Connection”, choose “View available wireless connection”Right-click “Network”,choose “Properties”.Click “Connect to a network”.Win 7/VistaPC TOTOLINKTOTOLINKTOTOLINKTOTO LINKTOTOLINKConnect to No Encrytion NetworkConnect to Encrytion Network (WEP / WPAPSK)FinishFinishTOTOLINK LAN Adapter Configuration Tool Search Connection Network DiagramClick this icon, the wireless configuration connection window will pop out.TOTOLINKTOTOLINKType in the encryption key to the markedarea.Wireless network is connected.Choose the wireless network which you would like to connect, and then click“Connect”.Connect Wireless Network StepsWireless network is connected.Choose one SSID and enter the encryption key to connect.By default, 2.4G+5G is selected. please click “Advanced” to change it to 2.4G.How to use 2.4G band to connect WLANWireless network is connected.Choose one SSID and enter the encryption key to connect.Back to Advanced page, change the Wireless mode to 5G.How to use 5G band to connect WLANNote Before you go on with this step, you must know the SSID and the key your Router or AP has been set.FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and consider removing the no-collocation statement. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
