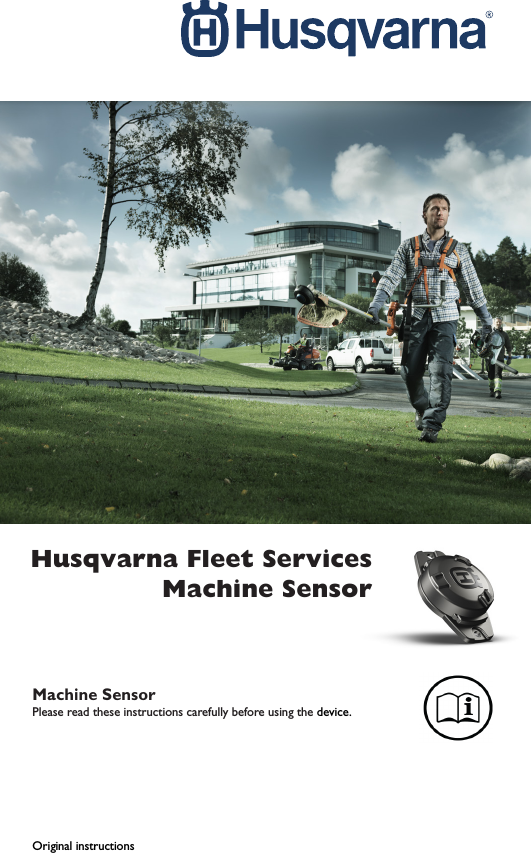

Husqvarna Fleet Services Machine SensorMachine SensorPlease read these instructions carefully before using the device.Original instructions

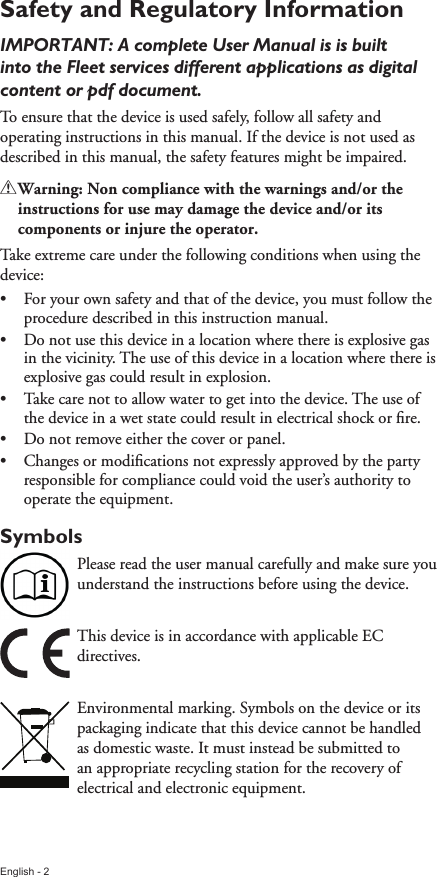

English - 2Safety and Regulatory Information IMPORTANT: A complete User Manual is is built into the Fleet services different applications as digital content or pdf document.To ensure that the device is used safely, follow all safety and operating instructions in this manual. If the device is not used as described in this manual, the safety features might be impaired.!!Warning:!Non!compliance!with!the!warnings!and/or!the!instructions!for!use!may!damage!the!device!and/or!its!components!or!injure!the!operator.Take extreme care under the following conditions when using the device:• For your own safety and that of the device, you must follow the procedure described in this instruction manual.• Do not use this device in a location where there is explosive gas in the vicinity. The use of this device in a location where there is explosive gas could result in explosion.• Take care not to allow water to get into the device. The use of the device in a wet state could result in electrical shock or fire. • Do not remove either the cover or panel.• Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.SymbolsPlease read the user manual carefully and make sure you understand the instructions before using the device.This device is in accordance with applicable EC directives.Environmental marking. Symbols on the device or its packaging indicate that this device cannot be handled as domestic waste. It must instead be submitted to an appropriate recycling station for the recovery of electrical and electronic equipment.

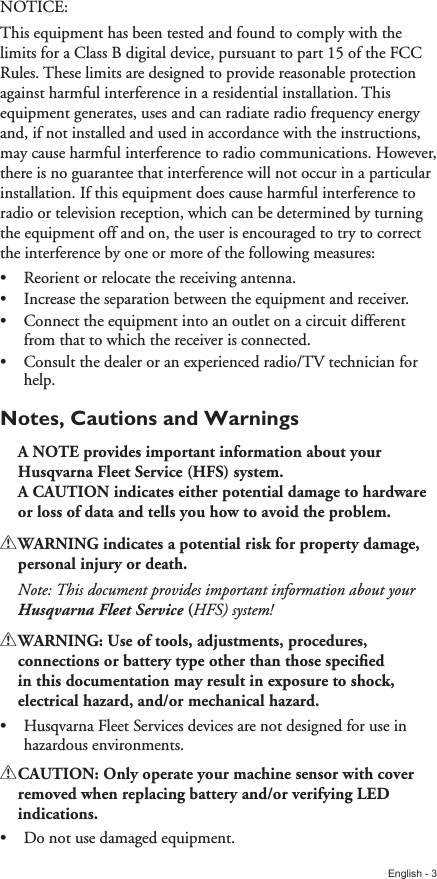

English - 3NOTICE:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.Notes, Cautions and WarningsA!NOTE!provides!important!information!about!your!Husqvarna!Fleet!Service!(HFS)!system.!A!CAUTION!indicates!either!potential!damage!to!hardware!or!loss!of!data!and!tells!you!how!to!avoid!the!problem.!!WARNING!indicates!a!potential!risk!for!property!damage,!personal!injury!or!death.Note: This document provides important information about your Husqvarna Fleet Service!(HFS) system!!!WARNING:!Use!of!tools,!adjustments,!procedures,!connections!or!battery!type!other!than!those!specified!in!this!documentation!may!result!in!exposure!to!shock,!electrical!hazard,!and/or!mechanical!hazard.• Husqvarna Fleet Services devices are not designed for use in hazardous environments.!!CAUTION:!Only!operate!your!machine!sensor!with!cover!removed!when!replacing!battery!and/or!verifying!LED!indications.• Do not use damaged equipment.

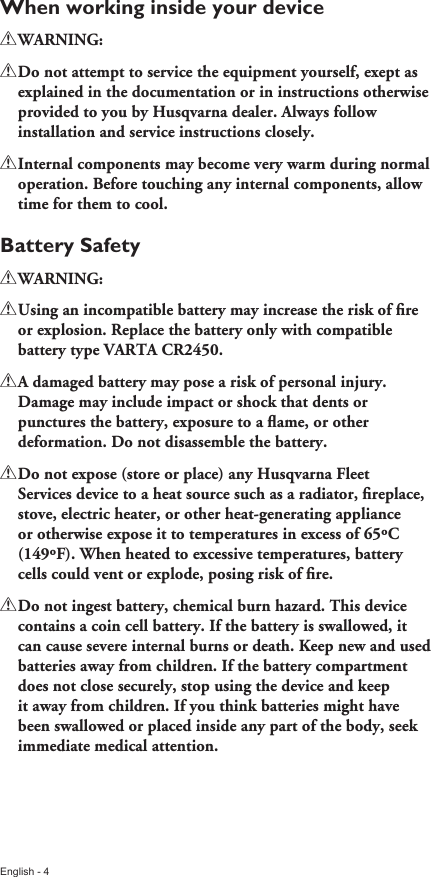

English - 4When working inside your device!!WARNING:!!Do!not!attempt!to!service!the!equipment!yourself,!exept!as!explained!in!the!documentation!or!in!instructions!otherwise!provided!to!you!by!Husqvarna!dealer.!Always!follow!installation!and!service!instructions!closely.!!Internal!components!may!become!very!warm!during!normal!operation.!Before!touching!any!internal!components,!allow!time!for!them!to!cool.Battery Safety!!WARNING:!!!Using!an!incompatible!battery!may!increase!the!risk!of!fire!or!explosion.!Replace!the!battery!only!with!compatible!battery!type!VARTA!CR2450.!!A!damaged!battery!may!pose!a!risk!of!personal!injury.!Damage!may!include!impact!or!shock!that!dents!or!punctures!the!battery,!exposure!to!a!flame,!or!other!deformation.!Do!not!disassemble!the!battery.!!Do!not!expose!(store!or!place)!any!Husqvarna!Fleet!Services!device!to!a!heat!source!such!as!a!radiator,!fireplace,!stove,!electric!heater,!or!other!heat-generating!appliance!or!otherwise!expose!it!to!temperatures!in!excess!of!65ºC!(149ºF).!When!heated!to!excessive!temperatures,!battery!cells!could!vent!or!explode,!posing!risk!of!fire.!!Do!not!ingest!battery,!chemical!burn!hazard.!This!device!contains!a!coin!cell!battery.!If!the!battery!is!swallowed,!it!can!cause!severe!internal!burns!or!death.!Keep!new!and!used!batteries!away!from!children.!If!the!battery!compartment!does!not!close!securely,!stop!using!the!device!and!keep!it!away!from!children.!If!you!think!batteries!might!have!been!swallowed!or!placed!inside!any!part!of!the!body,!seek!immediate!medical!attention.

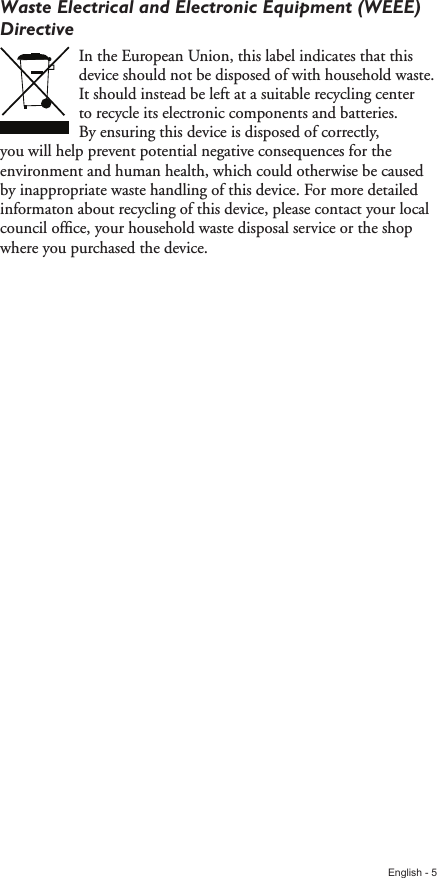

English - 5Waste Electrical and Electronic Equipment (WEEE) DirectiveIn the European Union, this label indicates that this device should not be disposed of with household waste. It should instead be left at a suitable recycling center to recycle its electronic components and batteries. By ensuring this device is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this device. For more detailed informaton about recycling of this device, please contact your local council office, your household waste disposal service or the shop where you purchased the device.

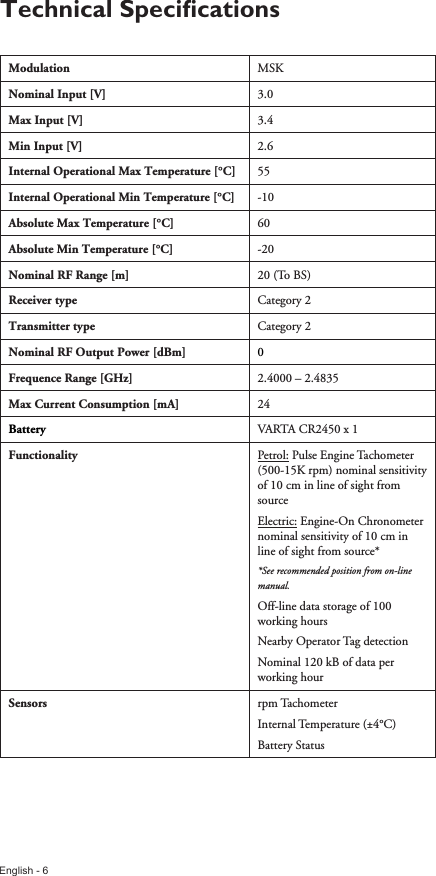

English - 6Modulation MSKNominal!Input![V] 3.0Max!Input![V] 3.4Min!Input![V] 2.6Internal!Operational!Max!Temperature![°C] 55Internal!Operational!Min!Temperature![°C] -10Absolute!Max!Temperature![°C] 60Absolute!Min!Temperature![°C] -20Nominal!RF!Range![m] 20 (To BS)Receiver!type Category 2Transmitter!type Category 2Nominal!RF!Output!Power![dBm] 0Frequence!Range![GHz] 2.4000 – 2.4835Max!Current!Consumption![mA] 24Battery VARTA CR2450 x 1Functionality Petrol: Pulse Engine Tachometer (500-15K rpm) nominal sensitivity of 10 cm in line of sight from sourceElectric: Engine-On Chronometer nominal sensitivity of 10 cm in line of sight from source**See recommended position from on-line manual.Off-line data storage of 100 working hoursNearby Operator Tag detectionNominal 120 kB of data per working hourSensors rpm TachometerInternal Temperature (±4°C)Battery StatusTechnical Specifications
