TR-800 Service Manual
-42-
TR-800 Parts List 2
No. Material No. Material Name Qty.
A 7207002200000 Nut M7.0*2.2mm 1
B 7203002400000 Nut M3.0*2.4mm 9
C 7103008001010 Machine screw M3.0*8.0mm 13
D 7102007020000 Self-tapping screw ST2.0*7.0mm 4
E 7103008020000 Self-tapping screw ST3.0*8.0mm 6
F 7103006001000 Machine screw M3.0*6.0mm 34
G 7103008001020 Machine screw M3.0*8.0mm 8
H 7104006000000 Machine screw M4.0*6.0mm 13
I 7204003001000 Nut M4.0*3.0mm 5
J 7104045000000 Machine screw M4.0*45.0mm 4
1 6000220000000 Front panel 1
2 6000221000000 Volume control Knob 1
3 6201066000000 Inner liner knob 0.20mm 1
4 6000232000010 LCD lens 1
5 6000222000000 SETUP button 1
6 5403000000040 HYT LOGO aluminum 1
7 7500068000000 LCD sponge 1
8 7400048010000 grill cloth 58*35mm 1
9 6100182000000 speaker 1
10 5001020000000
Speaker 16Ω 7W D：35mm 1
11 6201176000000
speaker tabletting 1
12 1302008000000 control board 1
13 3307110600020 LED L-483IDT red 1
14 3307110600010 LED L-483GDT green 1
15 3307110600050 LED L-483EDT orange 1
16 3307110600030 LED L-483YDT yellow 1
17 4301080000040 Momentary contact switch 1
18 5110000000110 LCD Module TM-800 1
19 4210400000100 repeater cable 2
20 5202015200000 HDB15/F socket (DIP) 3
21 5204008000000 RJ45 socket 1
22 4302030000040 Channel selector 1
23 3307990000080 LED LT5CB4-81-XA400714 ultra bright blue 2
24 4210080000700 Connecting cable of speaker (with 2 Pin plug) 2-core 2
25 6100135000000 silica rubber key 1
26 6201197000000 SM07 Hook 1
27 6201166000000 top cover 1
28 4200200000000 jumper cable 2
TR-800 Service Manual
-43-
29 Optional Duplexer 1
30 4220300000200 RF cable 1
31 6201171000000 duplexer bracket 1
32 4200400000200 power cable 1
33 4200250000200 power cable 1
34 6201170000000 bracket 0.8mmSECC 1
35 Optional main radio (Slave radio) 2
36 4408100002000 RF adaptor 1
37 4408100003000 RF adaptor 1
38 4220250000100 RF cable 2
39 6201168000000 rear plate 1
40 5401000000050 DC fan 12Vdc 0.9A 1
41 5205000000240 AC socket L46.80*W27.40mm 3pin 1
42 4099000000150 Cartridge fuse 1
43 4399010000000 Power switch 1
44 7104008000000 GND lug 1
45 4210400000200 T expansion signal cable 1
46 6201192000000 spring lock washer 5
47 6201169000000 housing 1
48 4210250000000 DC jumper cable #14 250mm red 1
49 4210250000100 DC jumper cable #14 250mm black 1
50 4210250000200 DC jumper cable #14 250mm yellow 1
51 4210250000300 DC jumper cable #14 250mm green 1
52 3003991040010 Surface temperature sensor 1
53 4200050000000 power cable of fan (2 pin with plug) 50mm 1
54 5202002100000 Socket 2pin 1
55 5204002000000 DC power socket 1
56 4002000000030 ATO Fuse 2
57 4002000000040 ATO Fuse clamper 2
58 5202002100100 Pin socket 3
59 4200250000000 DC power cable #14 250mm red 1
60 4200250000100 DC power cable #14 250mm black 1
61 1302008000010 Power supply board 1
62 4200400000010 Connection cable 1
63 6201167000000 Base tray 1
64 7500147000100 Foot 4
65 1603S24000010 Switch power 1
TR-800 Service Manual
-44-

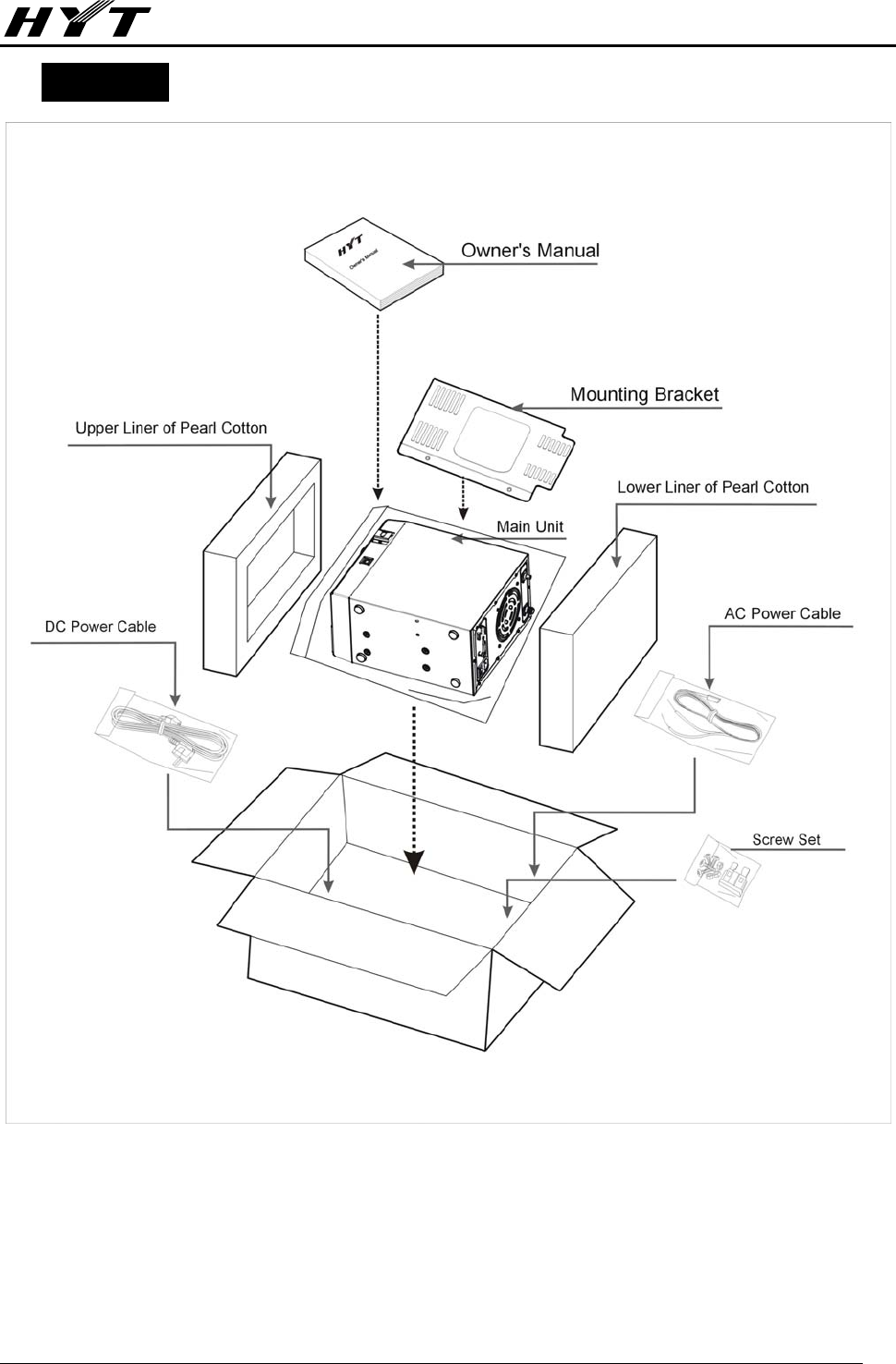

Packing
TR Service Manual
45
Specifications
General
Frequency range (Unit: MHz) VHF:136MHz~174MHz;U5:350MHz~400MHz
U1: 400MHz~470MHz; U2: 450MHz~512MHz
Channel capacity 512
Channel spacing 25KHz / 12.5KHz
Power supply requirement 13.8 V DC±20% / 88-264V AC 50/60Hz
Duty cycle 25W(100% Continuous) / 50W(VHF)45W(UHF)(50% Intermittent)
Power consumption
<1.8A Standby
<2.5A Receive
<13A @ 50/45W Transmit (13.8V dc)
Operating temperature range -25℃ ～ +60℃
Dimensions 190mm（W）×310mm（H）×362mm（D）
Weight 11kg
Receiver
Sensitivity <0.35uV@12dB SINAD
Adjacent channel selectivity ≥70dB(Wide) ≥60dB(Narrow)
Intermodulation response
rejection ≥70dB
Spurious response rejection ≥75dB
Rated Audio Output Power 5W(Int.) 12W(Ext. @ 4Ω)
Rated Audio Distortion ≤3%（3W） ≤10%（5W）
Frequency stability ±2ppm@ -25℃ ～ +60℃
Transmitter
Carrier output power
(Conducted) 25W / 50W(VHF) 45W(UHF)
Spurious emission ≤ -36dBm (below 1GHz)
Max. Frequency deviation 5KHz(Wide) / 2.5KHz(Narrow)
FM Hum and Noise ≥45dB(Wide) ≥40dB(Narrow)
Audio harmonic distortion ≤3% @ 60% Dev.
Frequency stability ±2ppm@ -25℃ ～ +60℃
All Specifications are subject to change without notice due to continuous development.
