User Manual Part 2

4-61

Multimedia System

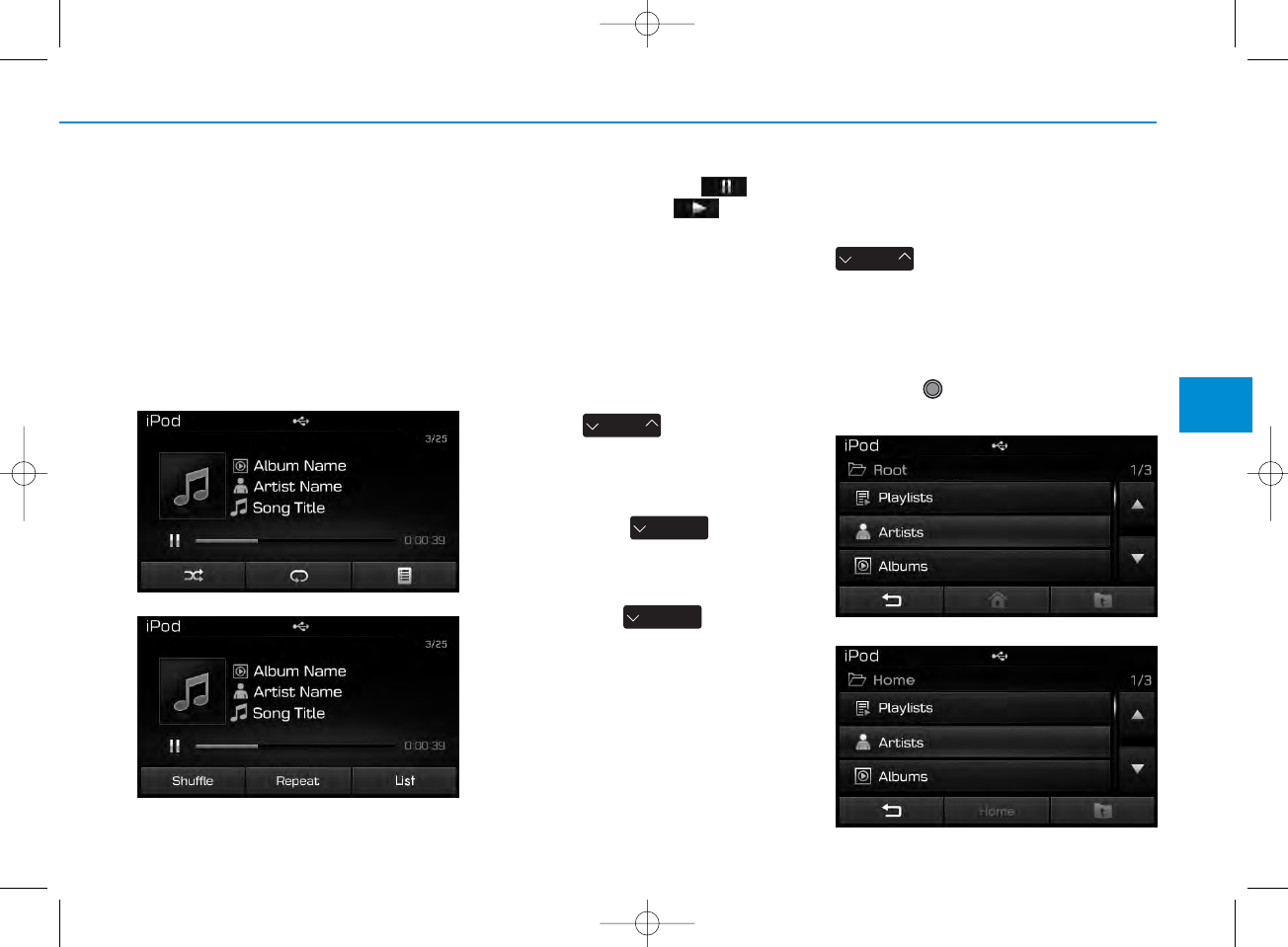

iPod®MODE

Using iPod®Mode

Playing/Pausing iPod

Songs

Once an iPod®is connected, the

mode will automatically start and

begin playing an iPod®song.

While playing, press the button

to pause and press button to

play.

✽NOTICE

iPod®s with unsupported communi-

cation protocols may not properly

operate in the audio system.

Changing Songs

Press the key to move to

the previous or next song.

✽NOTICE

• Pressing the key after

the song has been playing for 2 sec-

onds will start the current song

from the beginning.

• Pressing the key before

the song has been playing for 1 sec-

onds will start the previous song.

• Slight time differences may exist

depending your iPod®product.

Rewinding / Fast-forwarding

Songs

While playing, press and hold the

key (over 0.8 seconds) to

rewind or fast-forward the current

song.

Searching Categories

Turn the TUNE knob left/right to

search for the desired category.

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 61

4-62

Multimedia System

Once you find the desired category,

press the TUNE knob to select

and play.

✽NOTICE

There are eight categories that can be

searched, including Playlists, Artists,

Albums, Genres, Songs, Composers,

Audiobooks and Podcasts.

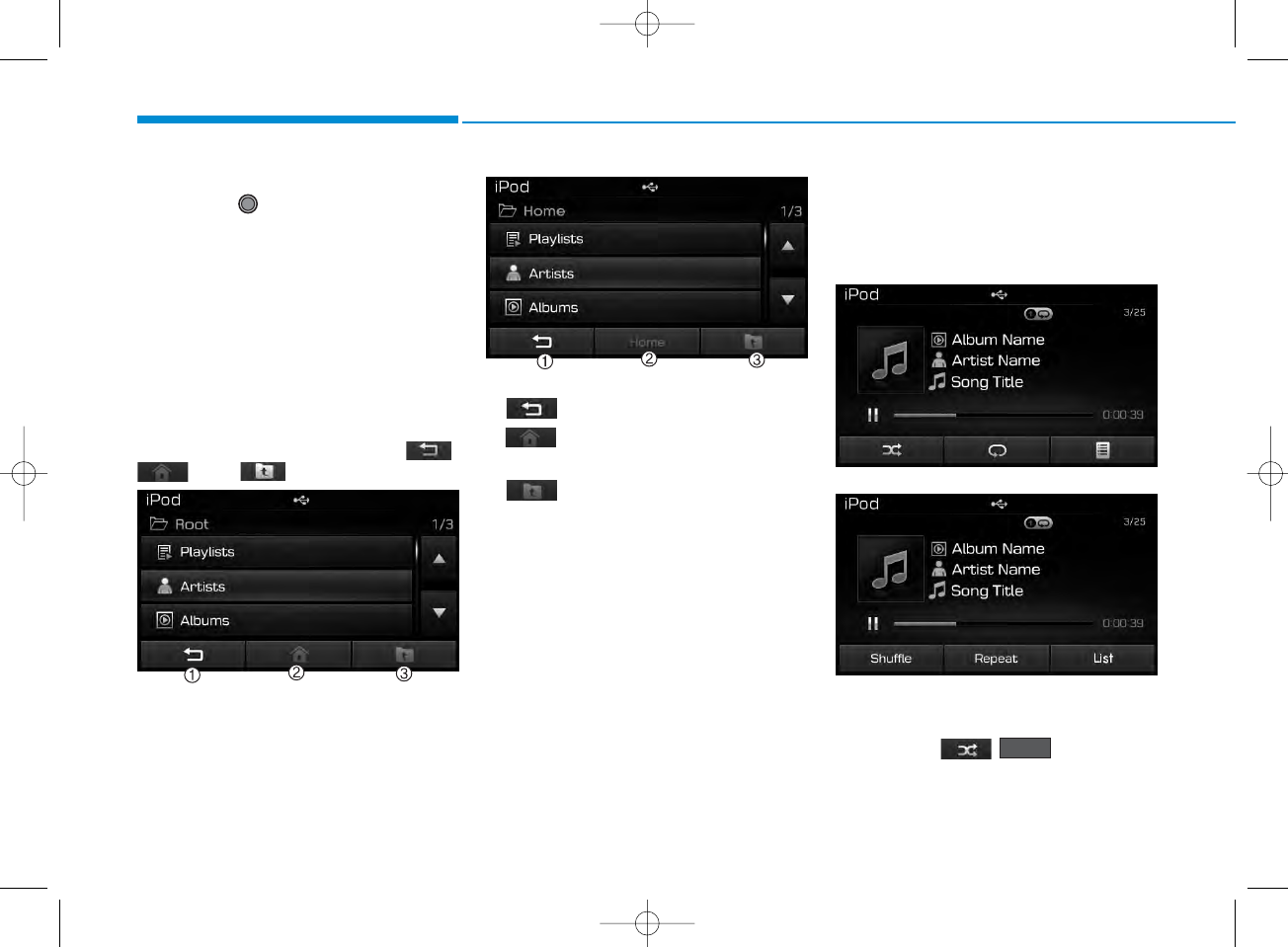

Category Menu

Within the iPod®Category menu,

you will have access to the ,

, and features.

1. : Displays the play screen

2. (Home): Moves to the iPod®

root category screen

3. : Moves to the previous cate-

gory

✽NOTICE

• If the search mode is accessed

while playing a song, the most

recently searched category is dis-

played.

• Search steps upon initial connec-

tion may differ depending on the

type of iPod®device.

iPod®Mode Menu

Within this mode, you will have

access to the Random(Shuffle),

Repeat and List features.

Random(Shuffle)

Press the ( ) button to

play songs in random(Shuffle) order.

• Random(Shuffle) All : Plays all

songs in Random(Shuffle) order.

Shuffle

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 62

4-63

Multimedia System

Repeat

Press the ( ) button to

repeat the current song. Press the

button again to turn the repeat fea-

ture off.

• Repeat : Repeats the current song

List

Press the ( ) button to

display the Category Menu.

Turn the TUNE knob left/right to

search for the desired category.

Once you find the desired category,

press the TUNE knob to select

and play.

List

Repeat

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 63

4-64

Multimedia System

AUX MODE

Using AUX Mode

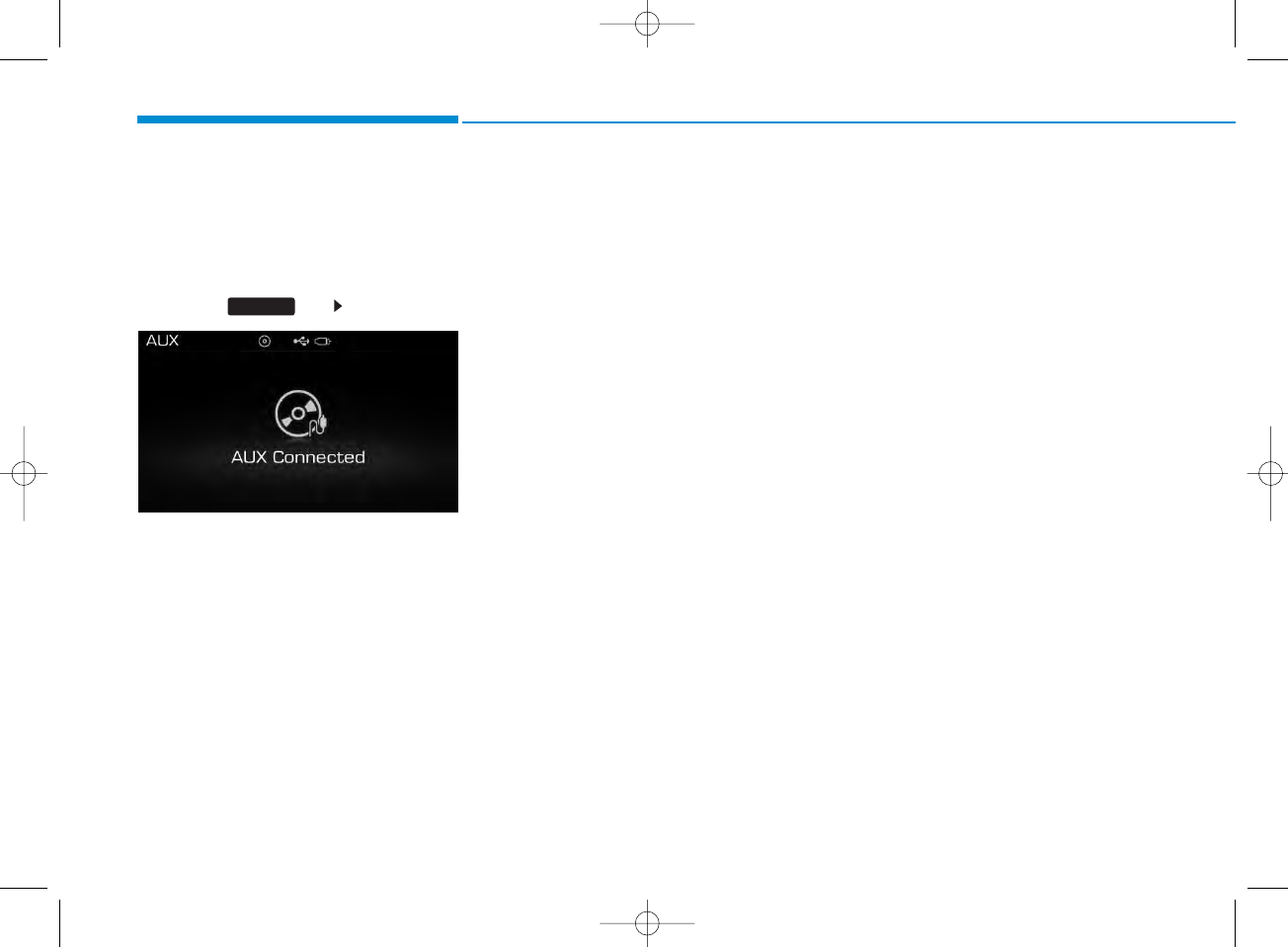

Press the key Select [AUX]

An external device can be connected

to play music.

Connecting an External Device

External audio players (Camcorders,

car VCR, etc.) can be played through

a dedicated cable.

MEDIA

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 64

4-65

Multimedia System

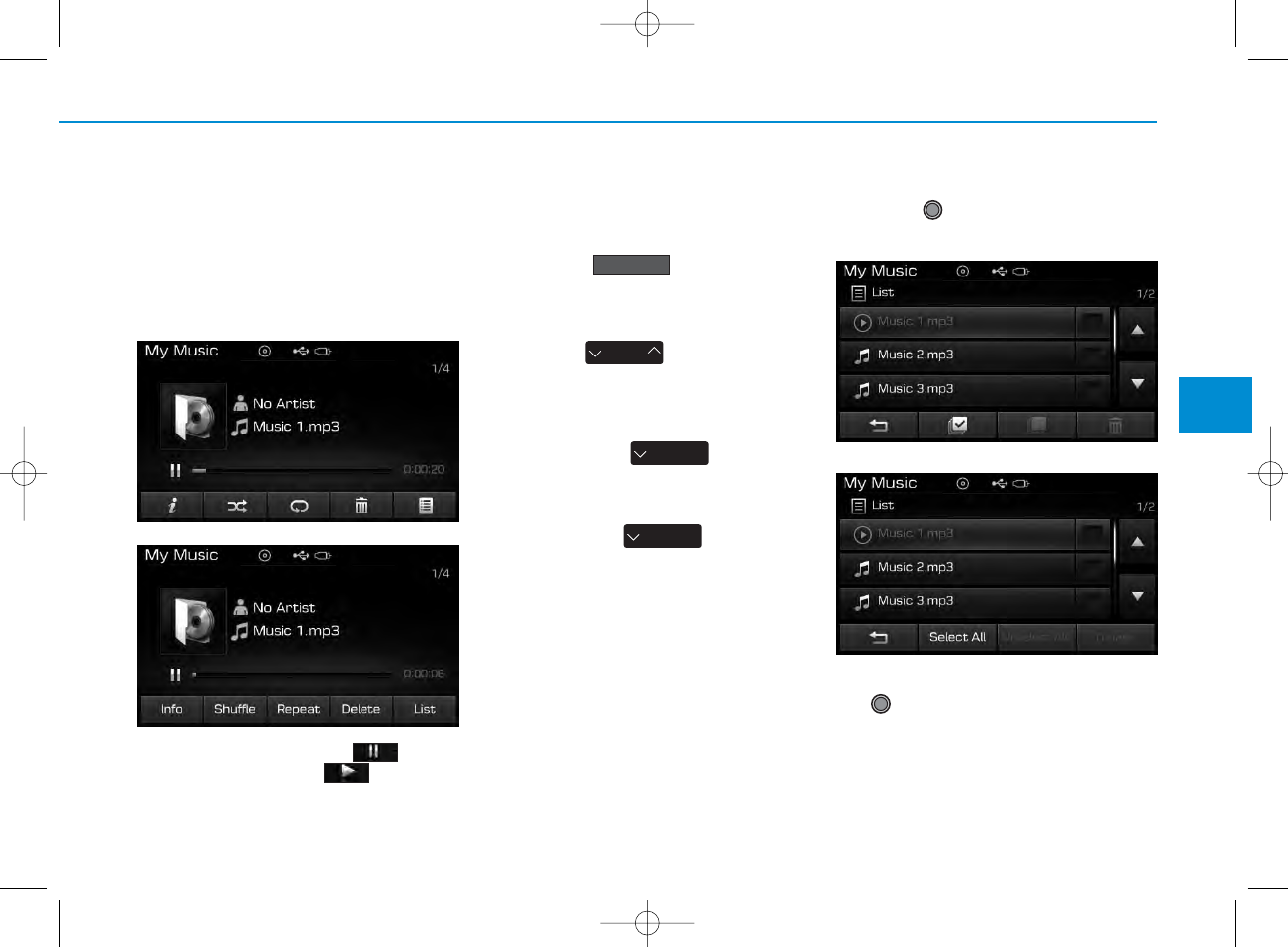

MY MUSIC MODE

Using My Music Mode

Playing/Pausing My Music Files

While playing, press the button

to pause and press button to

play.

✽NOTICE

If there are no files saved within My

Music, the button will be

disabled.

Changing Files

Press the key to move to

the previous or next file.

✽NOTICE

• Pressing the key after

the file has been playing for 2 sec-

onds will start the current file

from the beginning.

• Pressing the key before

the file has been playing for 1 sec-

onds will start the previous file.

Selecting from the List

Turn the TUNE knob left/right to

search for the desired file.

Once you find the desired file, press

the TUNE knob to start playing.

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

My Music

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 65

4-66

Multimedia System

Rewinding / Fast-forwarding

Files

While playing, press and hold the

key to rewind or fast-for-

ward the current file.

Scan

Press the key to play the first

10 seconds of each file.

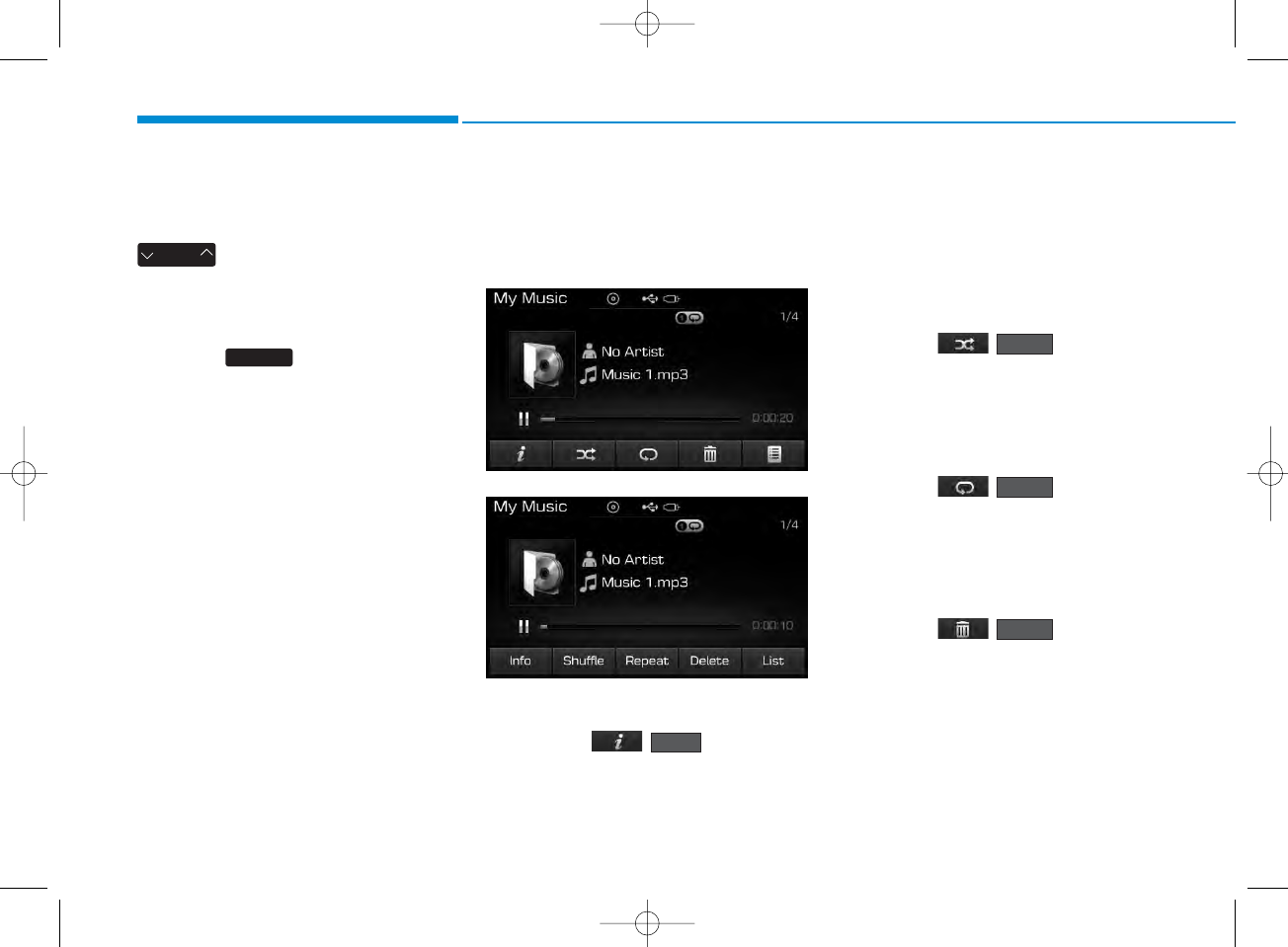

My Music Mode Menu

Within this mode, you will have

access to the Info, Random(Shuffle),

Repeat, Delete and List features.

Info

Press the ( ) button to

display details about the current file.

✽NOTICE

The title, artist and album info are

displayed only when such informa-

tion is recorded within the MP3 file

ID3 tag.

Random

Press the ( ) button to

play files in random order. Press the

button again to turn the Random fea-

ture off.

Repeat

Press the ( ) button to

repeat the current song. Press the

button again to turn the repeat fea-

ture off.

Deleting Files

Press the ( ) button to

delete the current file.

Delete

Repeat

Shuffle

SCAN

SEEK

TRACK

Info

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 66

4-67

Multimedia System

List

Press the button to display the

file list screen.

Turn the TUNE knob left/right to

search for files. Once the desired file

is displayed, press the knob to select

and play.

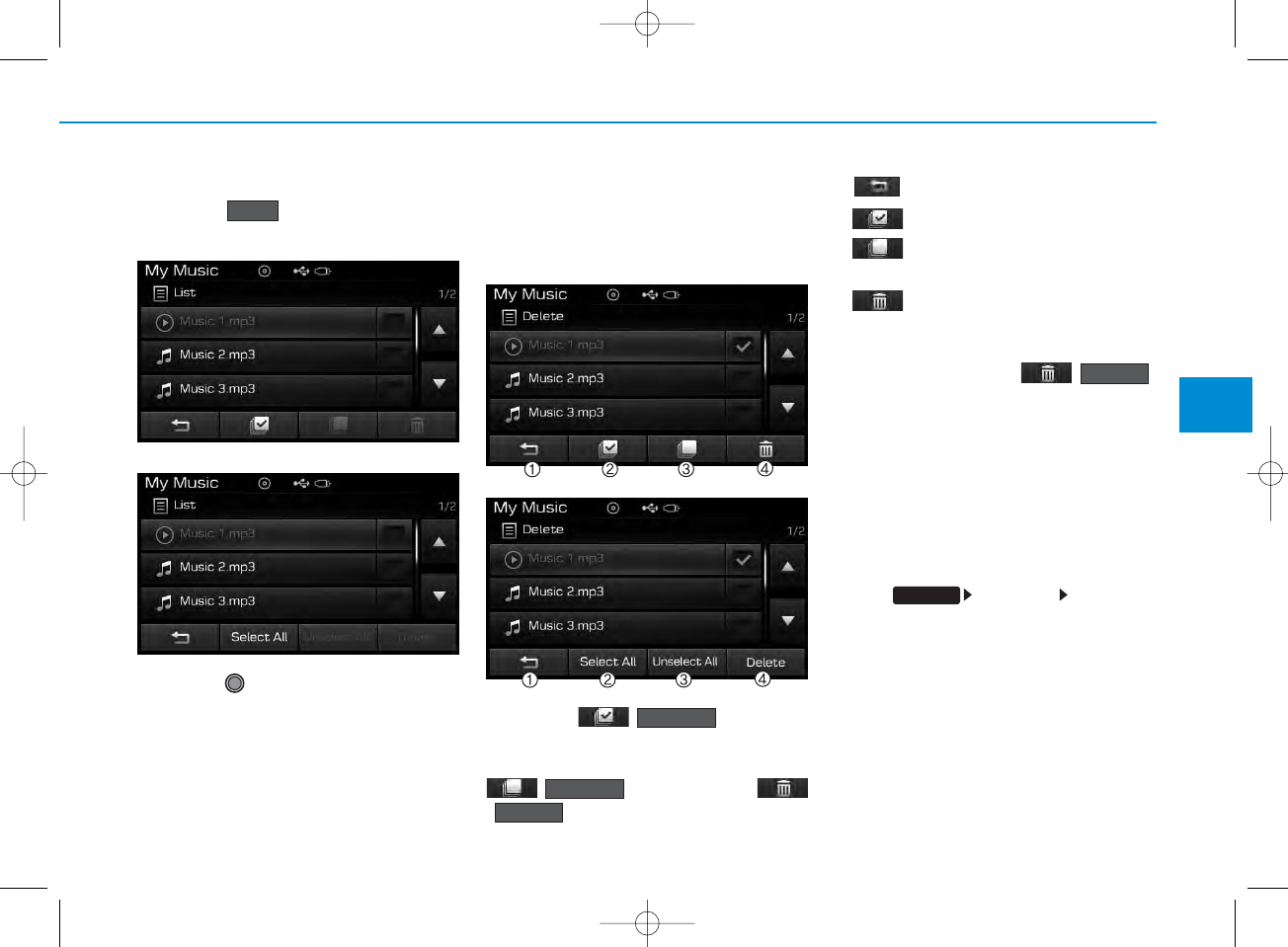

List Menu

From the List screen, it is possible to

delete files you previously saved into

My Music.

Press the ( ) button or

individually select the files you want to

delete. Once files are selected, the

( ) button and

( ) buttons will be enabled.

1) : Moves to the previous screen

2) (Selects all) : Selects all files

3) (Unselect All) : Deselects all

selected files

4) (Delete) : Deletes selected files

After selecting the files you want to

delete, press the ()

button to delete the

selected files.

✽NOTICE

• If there is memory available, up to

6,000 files can be saved.

• Identical files cannot be copied

more than 1,000 times.

• To check memory information, go

to [System] [Memory

Information]

Delete

List

SETUP

Delete

Unselect All

Select All

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 67

4-68

Multimedia System

Bluetooth

Wireless

Technology AUDIO MODE

(for

Bluetooth

Wireless

Technology equipped model)

Using

Bluetooth®

Wireless

Technology Audio Mode

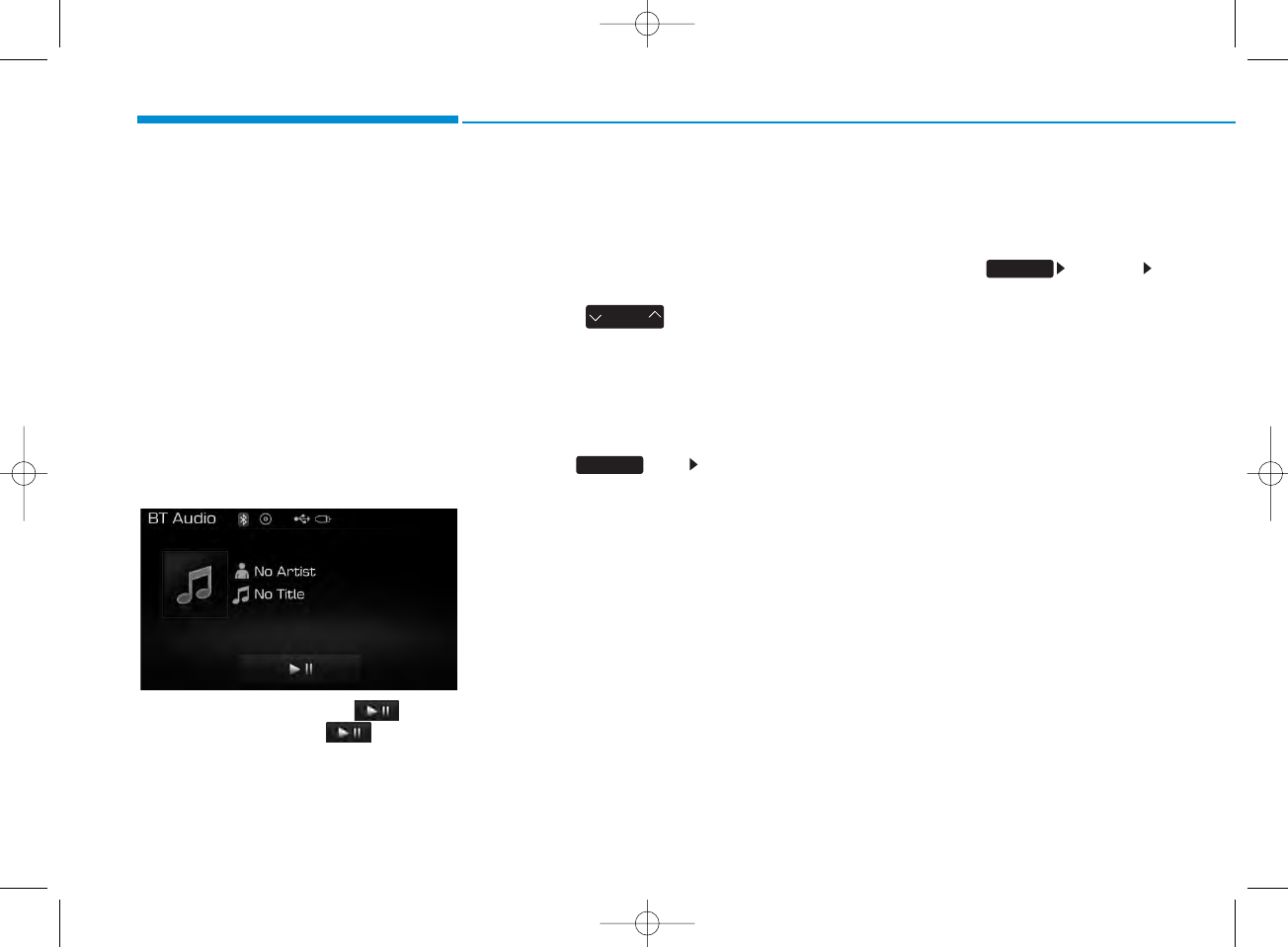

Playing/Pausing Bluetooth

Wireless Technology

Audio

Once a

Bluetooth®

Wireless

Technology device is connected, the

mode will automatically start.

While playing, press the button

to pause and press button to

play.

✽NOTICE

The play/pause feature may operate

differently depending on the mobile

phone.

Changing Files

Press the key to move to

the previous or next file.

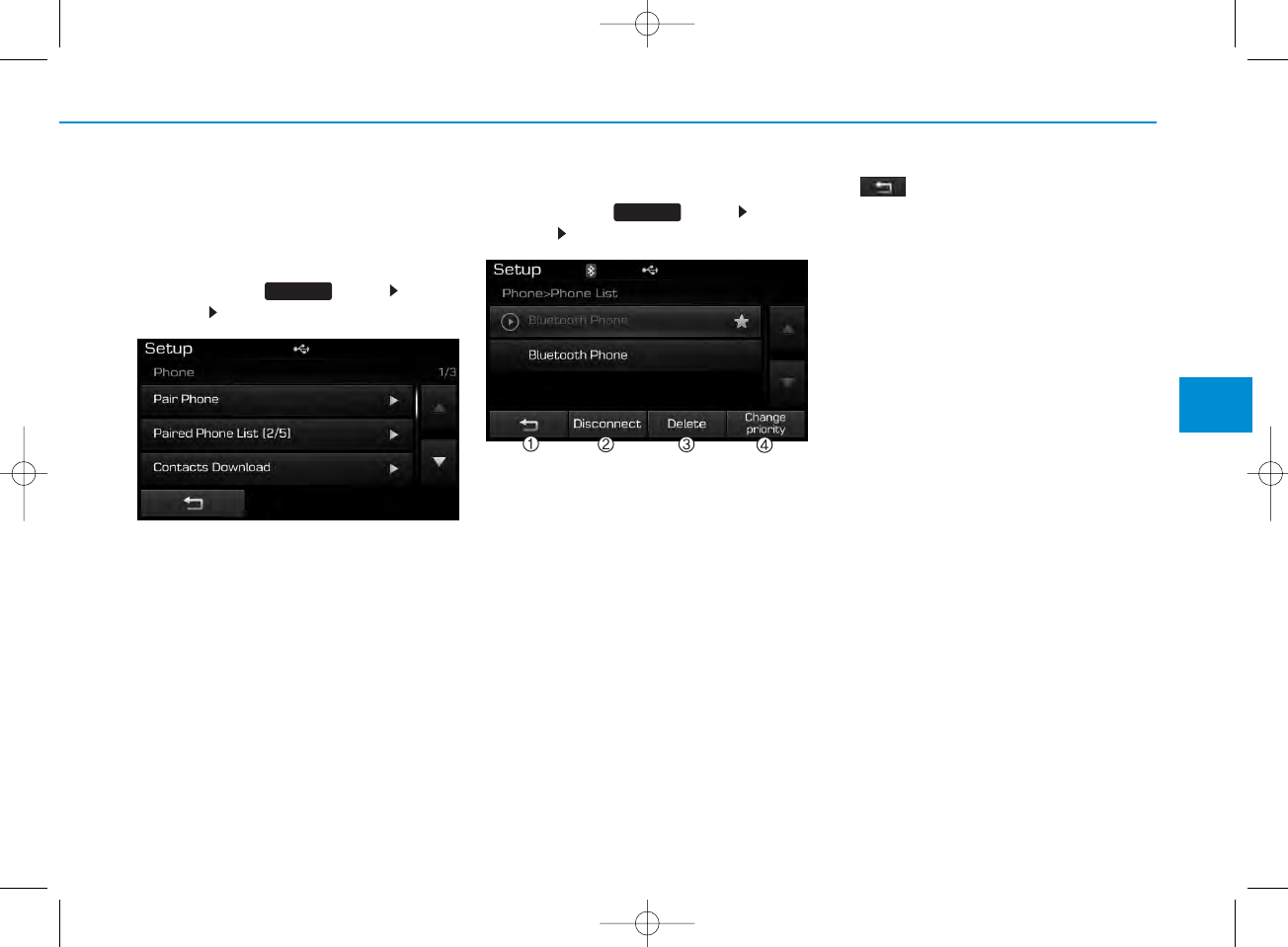

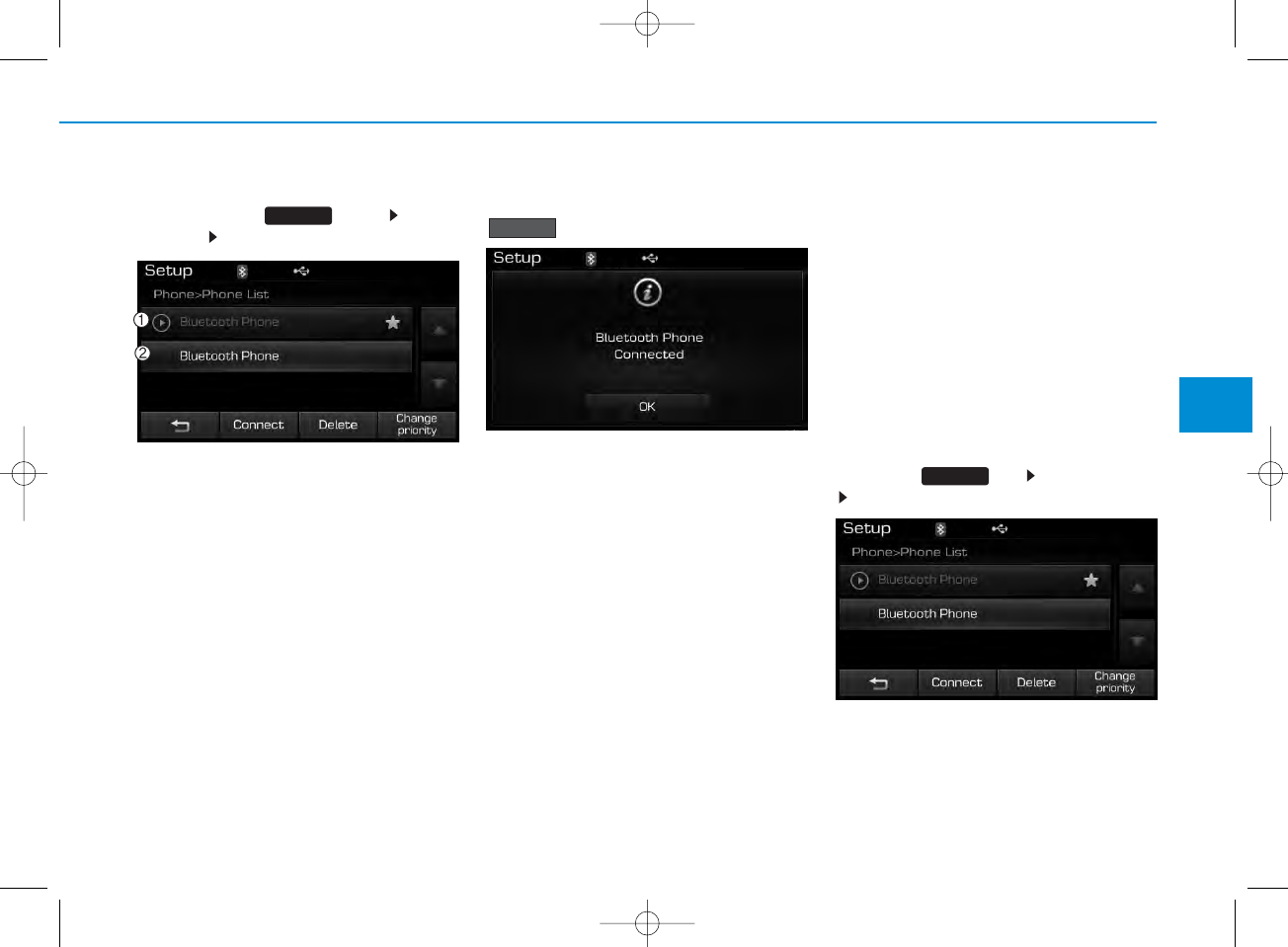

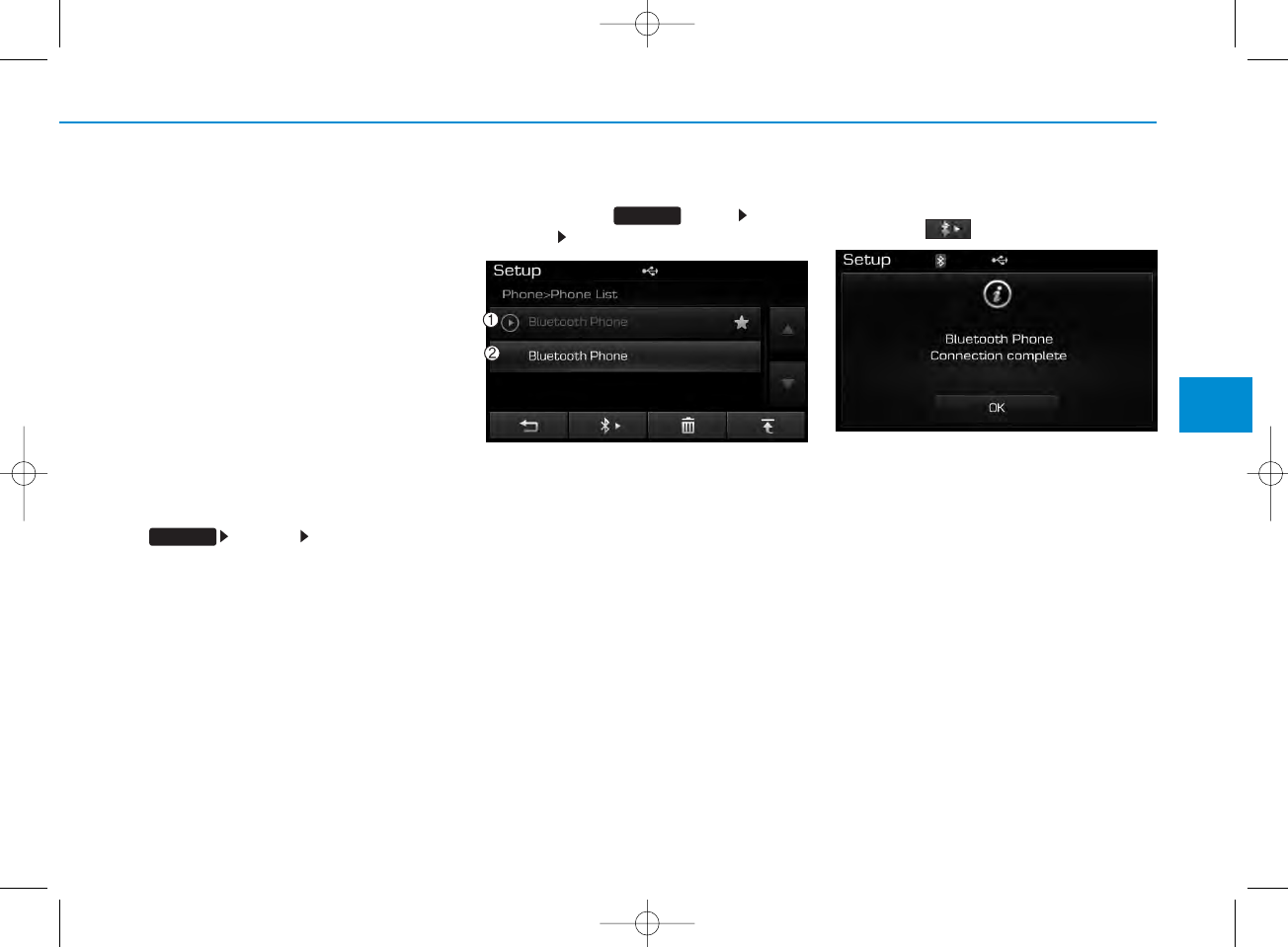

Setting Connection

If a

Bluetooth®

Wireless Technology

device has not been connected,

press the key [Phone] but-

ton to display the

Bluetooth®

Wireless Technology connection

screen.

It is possible to use the pair phone,

connect/disconnect and delete fea-

tures from your

Bluetooth®

Wireless

Technology phone.

✽NOTICE

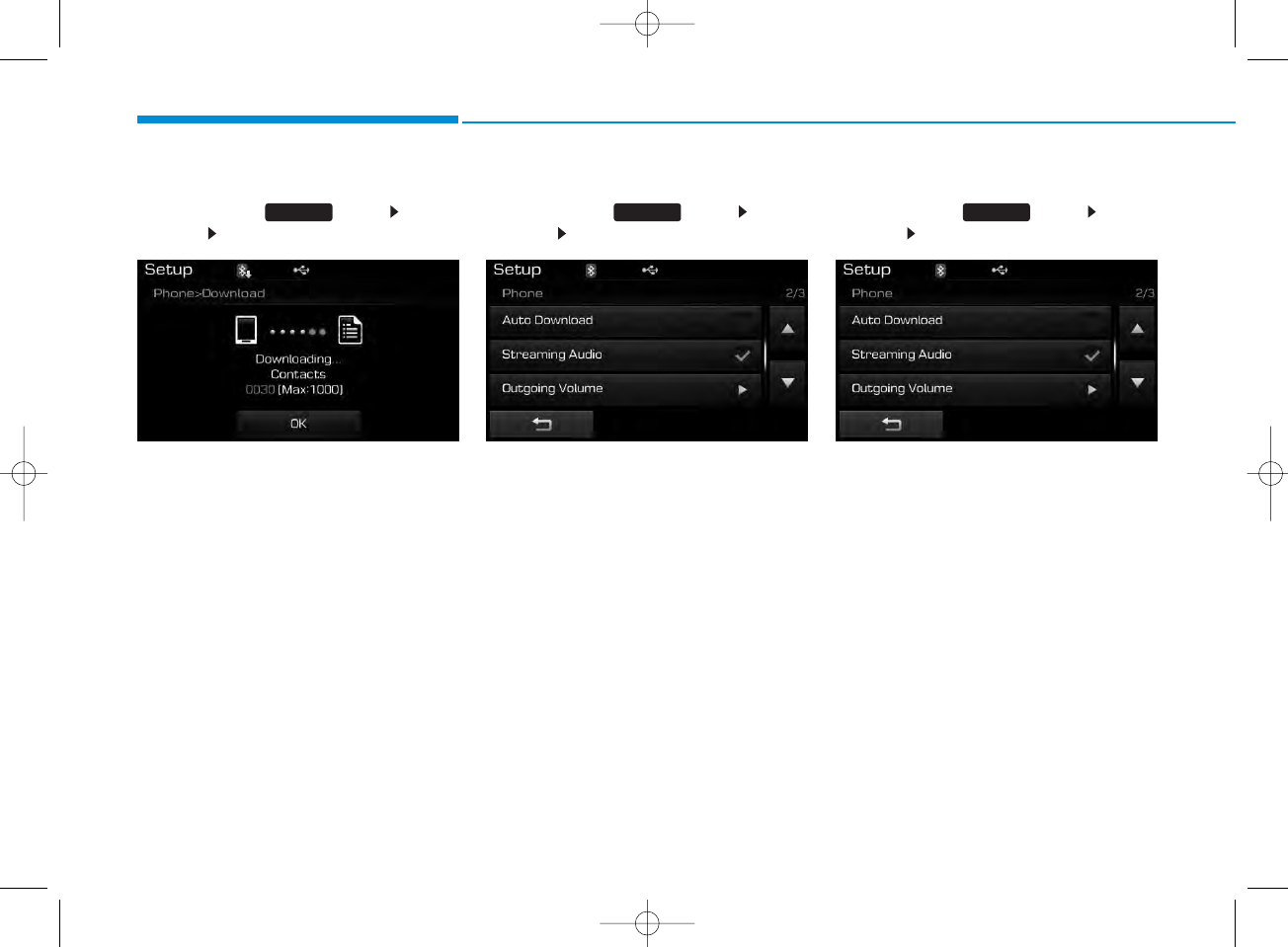

• If the Bluetooth®Wireless

Technology audio is not operating

properly, check whether the feature

is turned off at [Phone]

[Audio streaming] (Streaming

Audio). If the feature is off, turn

back on and try again.

• If music is not yet playing from your

mobile device after converting to

Bluetooth®Wireless Technology

Audio mode, pressing the play but-

ton once may start playing the

mode. Check to see that music is

playing from the Bluetooth®

Wireless Technology device after

converting to Bluetooth®Wireless

Technology Audio Mode.

SEEK

TRACK

SETUP

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 68

4-69

Multimedia System

Bluetooth

Wireless Technology

(for RDS,

Bluetooth

Wireless

Technology equipped model)

Using

Bluetooth

Wireless

Technology Handsfree

•

Bluetooth®

Wireless Technology

refers to a short-distance wireless

networking technology which uses a

2.45GHz frequency to connect vari-

ous devices within a certain dis-

tance.

• Supported within PCs, external

devices,

Bluetooth®

Wireless

Technology phones, PDAs, vari-

ous electronic devices, and auto-

motive environments,

Bluetooth®

Wireless Technology allows data to

be transmitted at high speeds with-

out having to use a connector

cable.

•

Bluetooth®

Wireless Technology

Handsfree refers to a device which

allows the user to conveniently

make phone calls with

Bluetooth®

Wireless Technology mobile

phones through the audio system.

CAUTION

• Bluetooth

Wireless Technology

Handsfree is a feature that

enables drivers to practice safe

driving. Connecting the car audio

system with a Bluetooth

Wireless Technology phone

allows the user to conveniently

make calls, receive calls, and

manage the phone book. Before

using the Bluetooth

Wireless

Technology , carefully read the

contents of this user’s manual.

• Excessive use or operations

while driving may lead to negli-

gent driving practices and be the

cause of accidents.

• Do not operate the device exces-

sively while driving.

• Viewing the screen for prolonged

periods of time is dangerous and

may lead to accidents. When driv-

ing, view the screen only for short

periods of time.

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 69

4-70

Multimedia System

✽NOTICE - USING UPON

CONNECTING

Bluetooth®

Wireless Technology PHONE

• Before connecting the car audio system

with the mobile phone, check to see that

the mobile phone supports Bluetooth®

Wireless Technology features.

• Even if the phone supports Bluetooth®

Wireless Technology, the phone will

not be found during device searches if

the phone has been set to hidden state

or the Bluetooth®Wireless Technology

power is turned off. Disable the hidden

state or turn on the Bluetooth®

Wireless Technology power prior to

searching/connecting with the car

audio system.

• If you do not want to automatically

connect your Bluetooth®Wireless

Technology phone, try the following.

1. Turn off the Bluetooth®Wireless

Technology feature in your mobile

phone.

- For more information on Bluetooth®

Wireless Technology features within

your mobile, refer to your mobile

phone user’s manual.

2. Turn off the Bluetooth®Wireless

Technology feature in your car

audio system.

(Continued)

- To turn off the Bluetooth®Wireless

Technology feature in your car audio

system, go to [Phone] and

[turn off] the Bluetooth®Wireless

Technology feature.

• Park the vehicle when connecting the

car audio system with your mobile

phone.

•Bluetooth®Wireless Technology con-

nection may become intermittently

disconnected in some mobile phones.

Follow these steps to try again.

1. Turn the Bluetooth®Wireless

Technology function within the

mobile phone off/on and try again.

2. Turn the mobile phone power

Off/On and try again.

3 Completely remove the mobile

phone battery, reboot, and then

again.

4. Reboot the audio system and try

again.

5. Delete all paired devices, pair and

try again.

• The Handsfree call volume and quali-

ty may differ depending on the mobile

phone.

(Continued)

SETUP

(Continued)

•Bluetooth®Wireless Technology fea-

tures supported within the vehicle are

as follows. Some features may not be

supported depending on your

Bluetooth®Wireless Technologydevice.

- Answering and placing Bluetooth®

Wireless Technology Handsfree calls

- Menu operation during call (Switch

to Private, Switch to call waiting,

Outgoing volume)

- Download Call History

- Download Mobile Phone book

- Phone book/Call History Auto Download

-Bluetooth®Wireless Technology

device auto connection - Bluetooth®

Wireless Technology Audio

• It is possible to pair up to five

Bluetooth®Wireless Technology

devices to the car system.

• Only one Bluetooth®Wireless

Technology device can be connected at

a time.

• Other devices cannot be paired while a

Bluetooth®Wireless Technologydevice

is already connected.

• When a Bluetooth®Wireless Technology

device is being connected, the connec-

tion process cannot be canceled.

(Continued)

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 70

4-71

Multimedia System

Pairing a

Bluetooth®

Wireless

Technology wireless technolo-

gy Device

What is

Bluetooth®

Wireless

Technology Pairing?

Pairing refers to the process of syn-

chronizing your

Bluetooth®

Wireless

Technology phone or device with the

car audio system for connection.

Pairing is necessary to connect and

use the

Bluetooth®

Wireless

Technology feature.

Pairing Key / Key

on the Steering Remote

Controller

When No Devices have been Paired

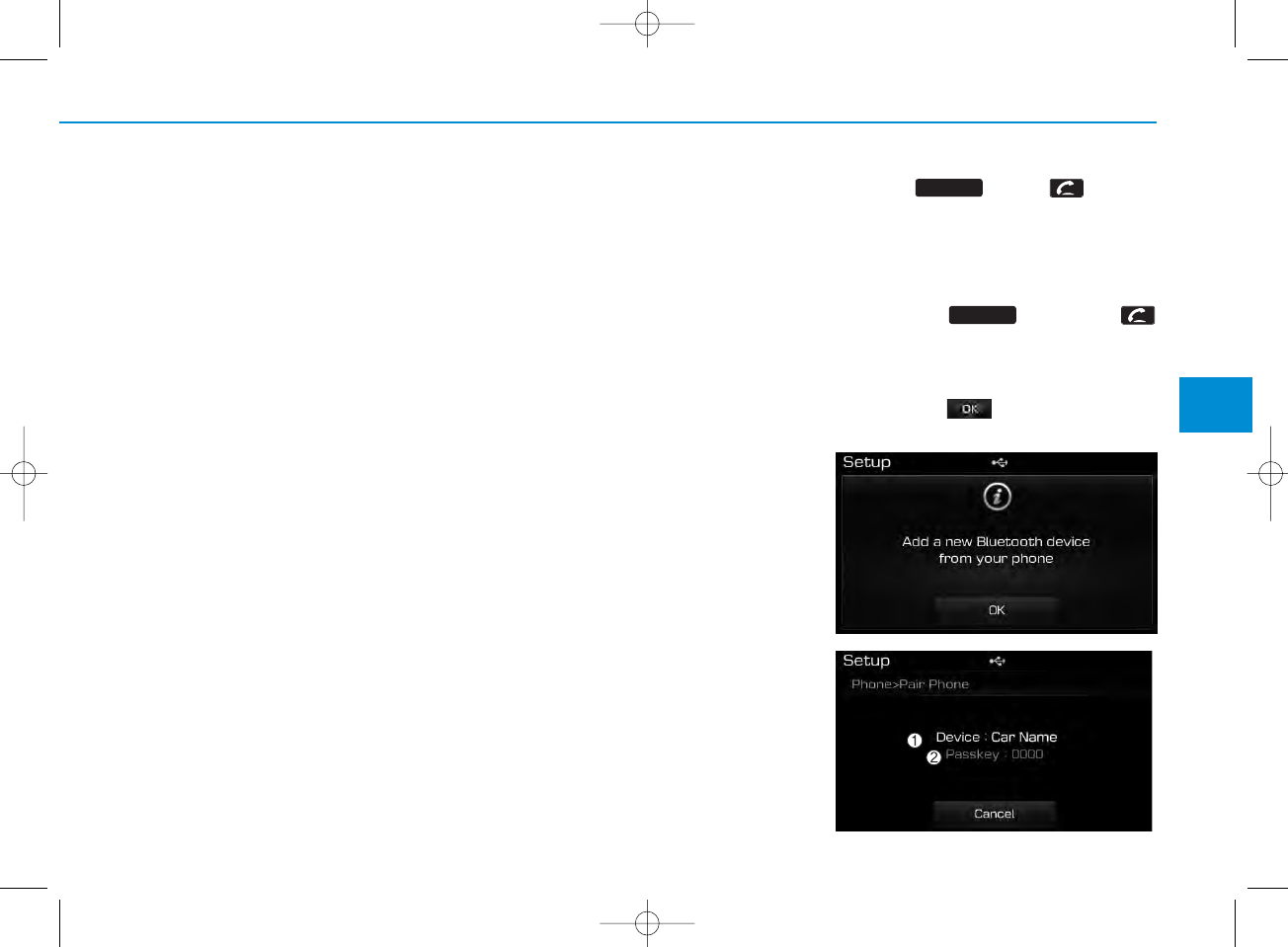

1. Press the key or the

key on the steering remote con-

troller. The following screen is dis-

played.

2. Press the button to enter the

Pair Phone screen.

PHONE

(Continued)

• Only Bluetooth®Wireless Technology

Handsfree and Bluetooth®Wireless

Technology audio related features will

operate within this system.

• Normal operation is possible only for

devices that support Handsfree or

audio features, such as a Bluetooth®

Wireless Technology mobile phone or

a Bluetooth®Wireless Technology

audio device.

• Only one function can be used at a time

between the Bluetooth®Wireless

Technology Handsfree and Bluetooth®

Wireless Technology audio. (While

playing Bluetooth®Wireless Technology

audio, streaming will end upon entering

the Bluetooth®Wireless Technology

phone screen.)

• If a connected Bluetooth®Wireless

Technology device becomes discon-

nected for various reasons, such as

being out of range, turning the device

OFF, or a Bluetooth®Wireless

Technology communication error,

Bluetooth®Wireless Technology

devices are automatically searched

and connected.

• Placing the audio system within an

electromagnetic environment may

result in noise interference.

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 71

4-72

Multimedia System

1) Device : Name of device as shown

when searching from your

Bluetooth®

Wireless Technology

device

2) Passkey : Passkey used to pair the

device

3. From your

Bluetooth®

Wireless

Technology device (i.e. Mobile

Phone), search and select your

car audio system.

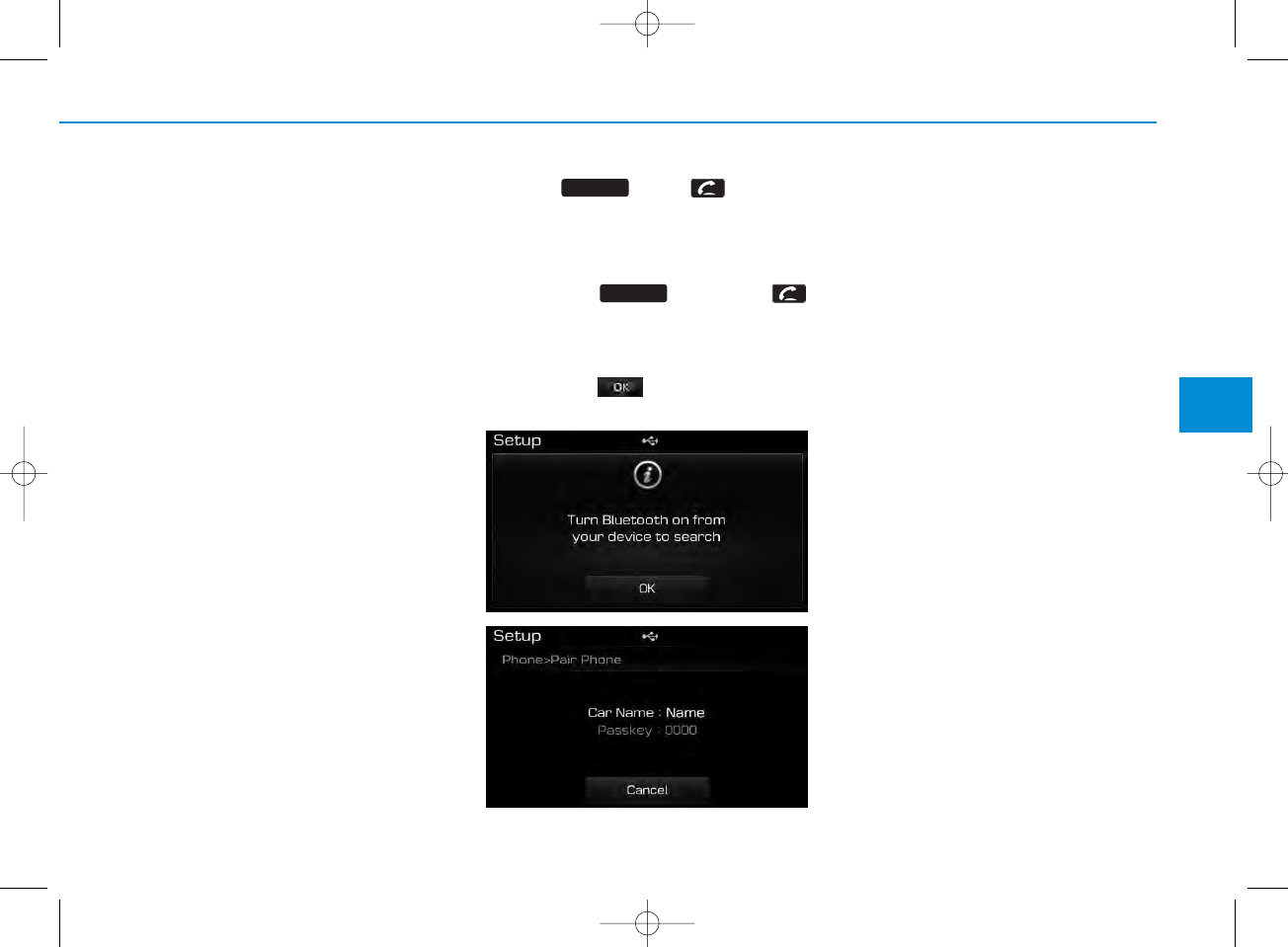

4. After a few moments, a screen is

displayed where the passkey is

entered.

Here, enter the passkey “0000” to

pair your

Bluetooth®

Wireless

Technology device with the car

audio system.

5. Once pairing is complete, the fol-

lowing screen is displayed.

✽NOTICE

• If Bluetooth®Wireless Technology

devices are paired but none are cur-

rently connected, pressing the

key or the key on the

steering remote controller displays the

following screen. Press the [Pair] but-

ton to pair a new device or press the

[Connect] to connect a previously pair

device.

Pairing through [PHONE]

Setup

Press the key Select

[Phone] Select [Pair Phone]

Select TUNE knob

1. The following steps are the same

as the steps described in the

“When No Devices have been

Paired” section.

SETUP

PHONE

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 72

4-73

Multimedia System

✽NOTICE

• The waiting period during phone pair-

ing will last for one minute. The pair-

ing process will fail if the device is not

paired within the given time. If the

pairing process fails, you must start

the process from the beginning.

• Generally, most Bluetooth®Wireless

Technology devices will automatically

connect once pairing is complete.

However, some devices may require a

separate verification process to con-

nect. Check to see whether Bluetooth®

Wireless Technology has been proper-

ly connected within your mobile

phone.

• List of paired Bluetooth®Wireless

Technology devices can be viewed at

[Phone] [Paired Phone

List].

Connecting a Device

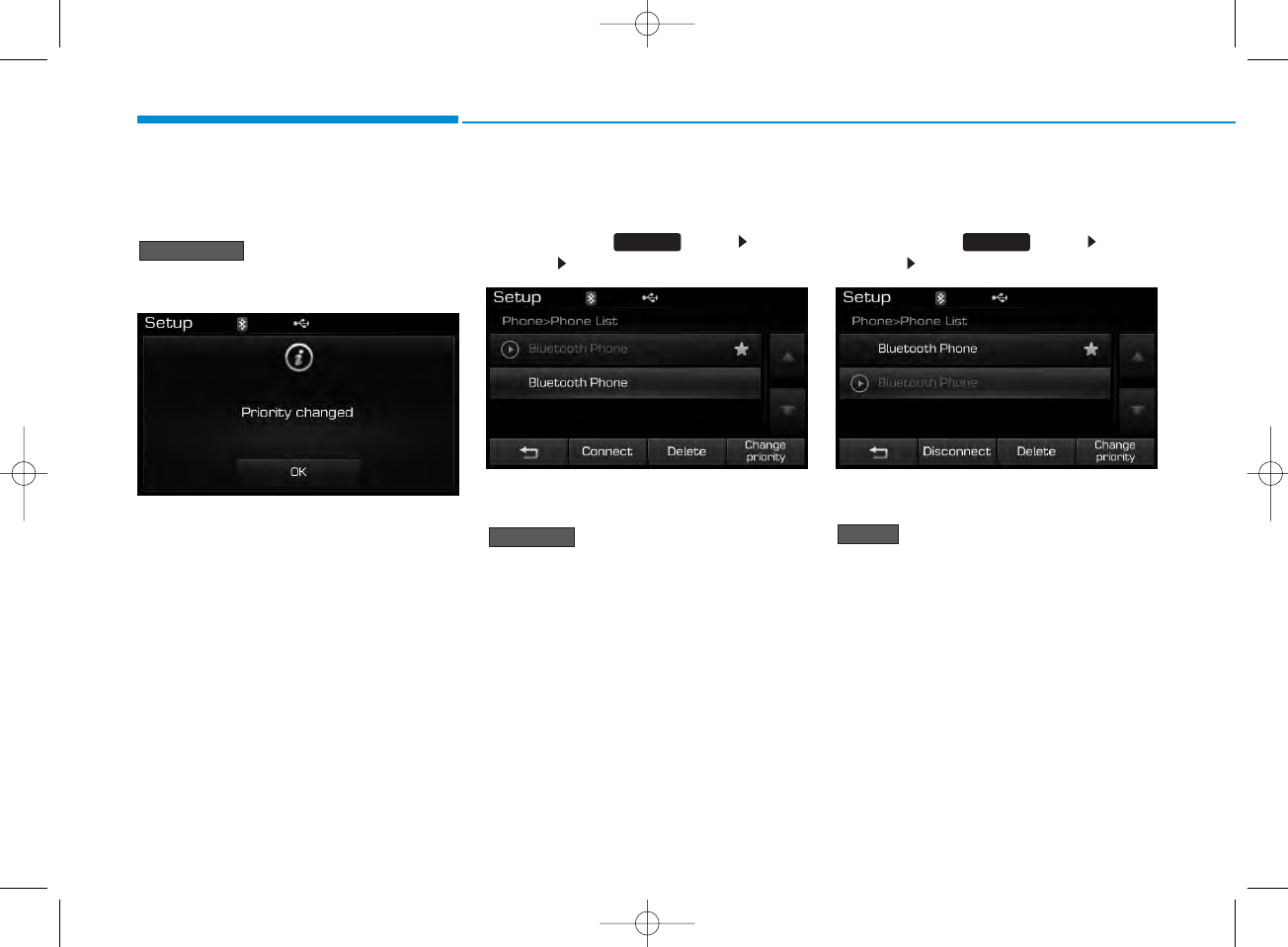

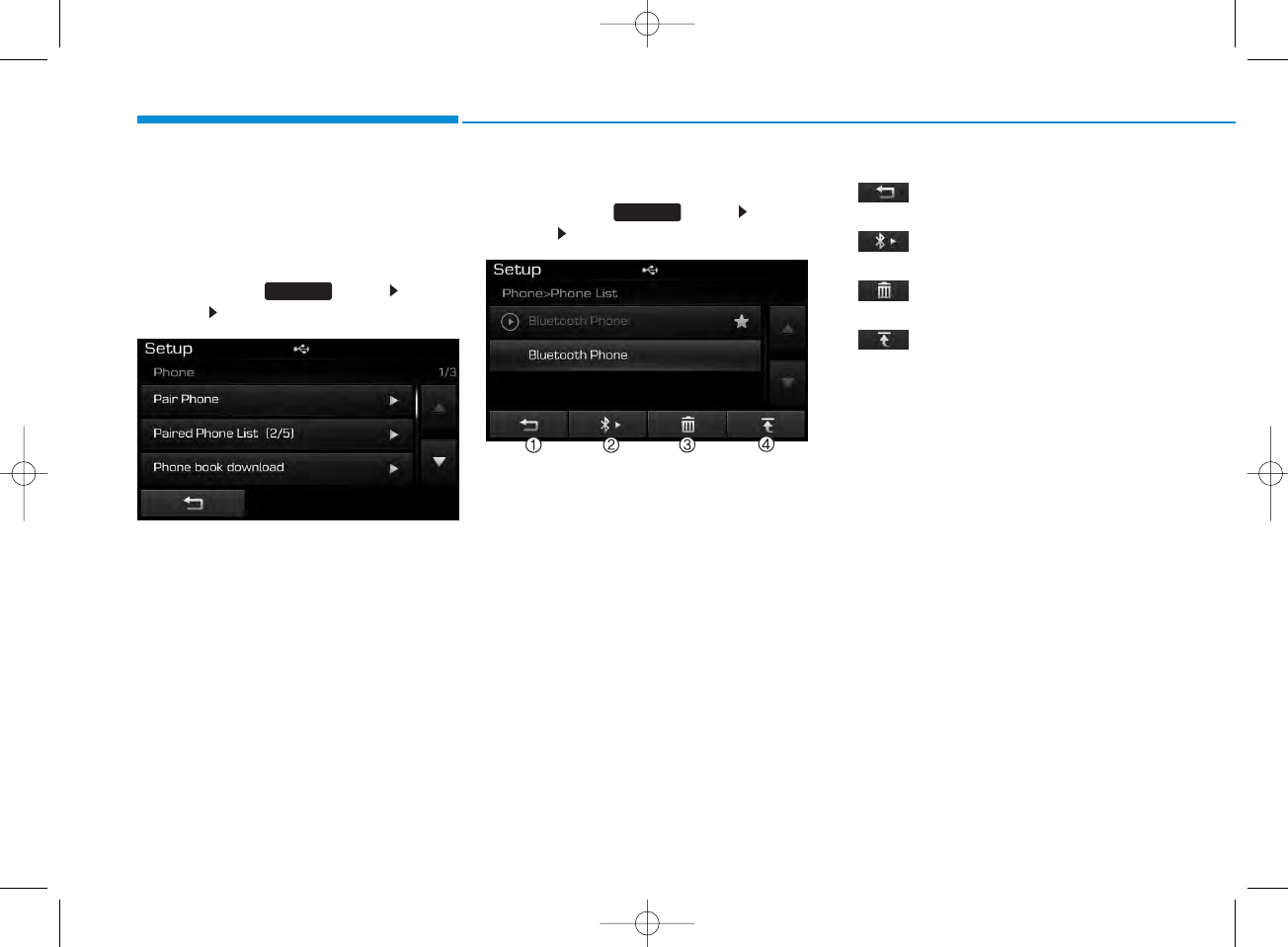

Press the key Select

[Phone] Select [Paired Phone List]

1) Connected Phone : Device that is cur-

rently connected

2) Paired Phone : Device that is paired

but not connected

From the paired phone list, select the

device you want to connect and

press the button.

SETUP

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 73

4-74

Multimedia System

Changing Priority

What is Priority?

It is possible to pair up to five

Bluetooth®

Wireless Technology

devices with the car audio system.

As a result, the “Change Priority’ fea-

ture is used to set the connection pri-

ority of paired phones. However, the

most recently connected phone will

always be set as the highest priority.

Press the key Select

[Phone] Select [Paired Phone List]

From the paired phone list, select

the phone you want to change to the

highest priority, then press the

button from the Menu. The selected

device will be changed to the high-

est priority.

Disconnecting a Device

Press the key Select

[Phone] Select [Paired Phone List]

From the paired phone list, select the

currently connected device and

press the button.

SETUP

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 74

4-75

Multimedia System

Deleting a Device

Press the key Select

[Phone] Select [Paired Phone List]

From the paired phone list, select the

device you want to delete and press

the button.

✽NOTICE

• When deleting the currently connect-

ed device, the device will automatical-

ly be disconnected to proceed with the

deleting process.

• If a paired Bluetooth®Wireless

Technology device is deleted, the

device’s call history and phone book

data will also be deleted.

• To re-use a deleted device, you must

pair the device again.

USING

Bluetooth®

Wireless

Technology

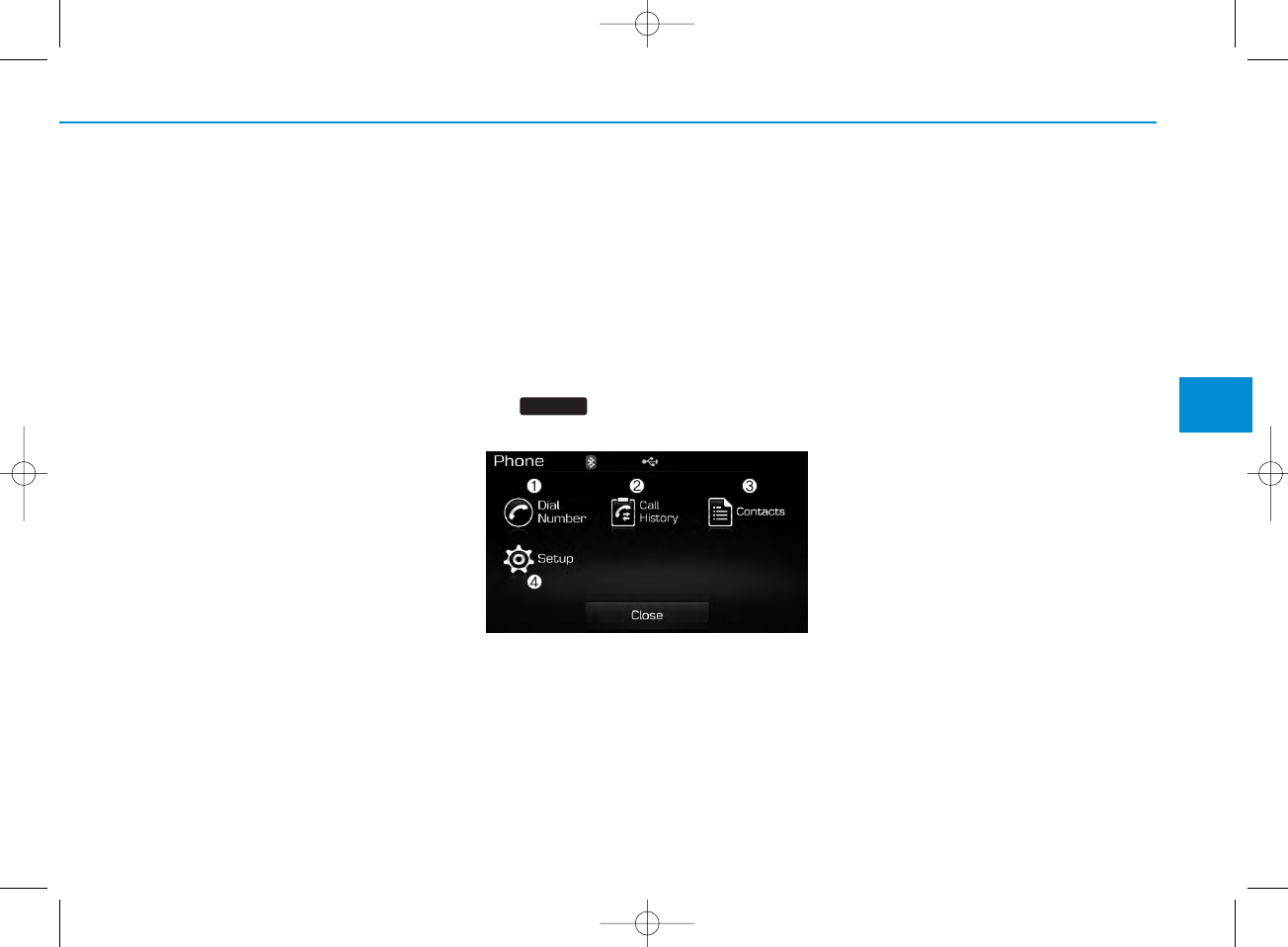

Phone Menu Screen

Phone Menus

With a

Bluetooth®

Wireless

Technology device connected, press

the key to display the Phone

menu screen.

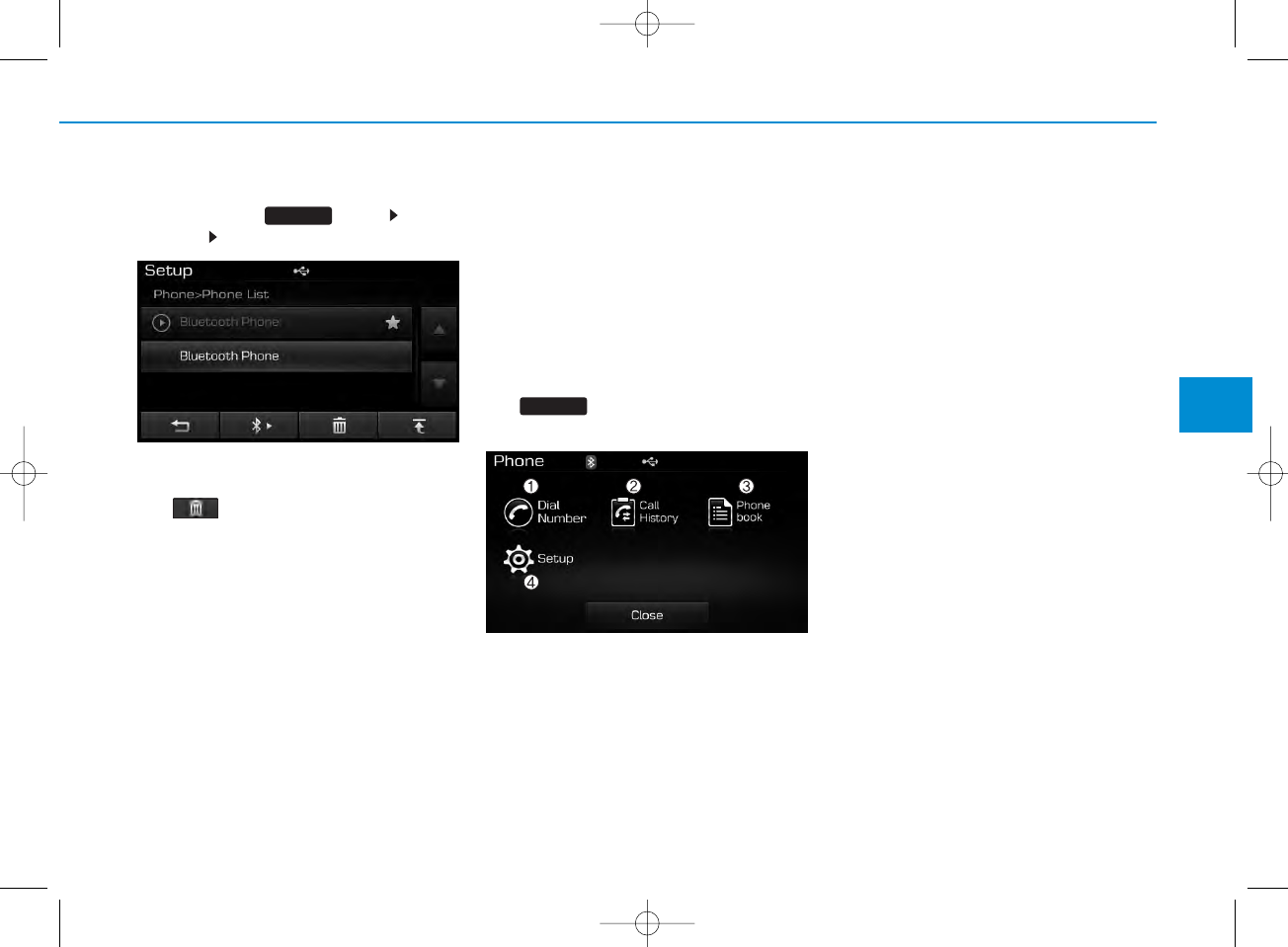

1) Dial Number : Displays the dial screen

where numbers can be dialed to make

calls

2) Call History : Displays the call history

list screen

3) Phone book : Displays the Phone

book list screen

4) Setup : Displays Phone related set-

tings

✽NOTICE

• If you press the [Call History] button

but there is no call history data, a

prompt is displayed which asks

whether to download call history

data.

• If you press the [Phone book] button

but there is no phone book data, a

prompt is displayed which asks

whether to download phone book

data. .

• This feature may not be supported in

some mobile phones. For more infor-

mation on download support, refer

to your mobile phone user’s manual.

PHONE

SETUP

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 75

4-76

Multimedia System

Calling by Dialing a Number

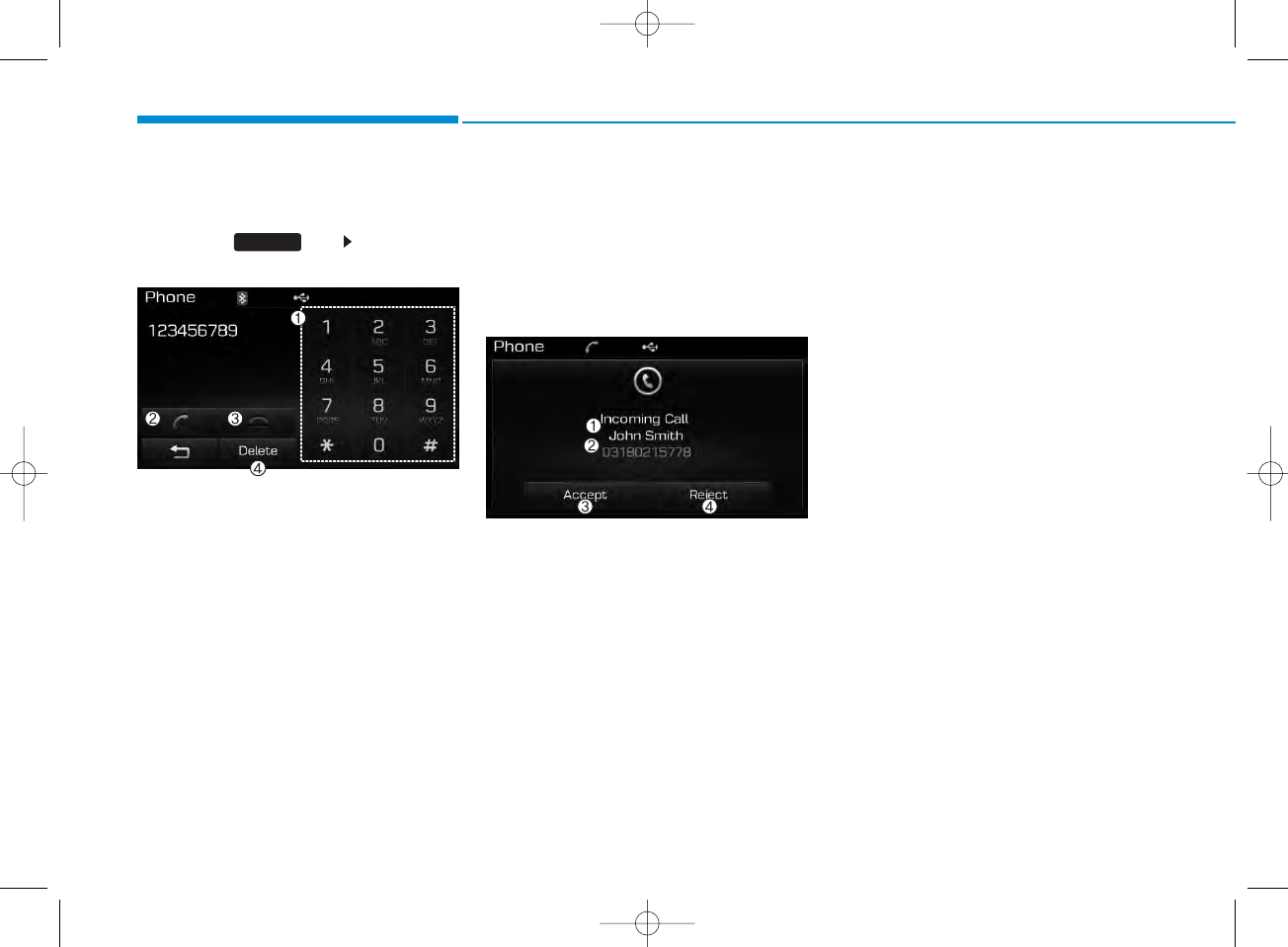

Press the key Select [Dial

Number]

1) Dial Pad : Used to enter phone num-

ber

2) Call : If a number has been entered,

calls the number If no number has

been entered, switches to call history

screen

3) End : Deletes the entered phone num-

ber

4) Delete : Deletes entered numbers one

digit at a time

Answering Calls

Answering a Call

Answering a call with a

Bluetooth®

Wireless Technology device connect-

ed will display the following screen.

1) Caller : Displays the other part’s name

when the incoming caller is saved

within your phone book

2) Incoming Number : Displays the

incoming number

3) Accept : Accept the incoming call

4) Reject : Reject the incoming call

✽NOTICE

• When the incoming call pop-up is dis-

played, most Audio and SETUP mode

features will not operate. Only the call

volume can be operated.

• The telephone number may not be

properly displayed in some mobile

phones.

• When a call is answered with the

mobile phone, the call mode will auto-

matically convert to Private mode.

PHONE

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 76

4-77

Multimedia System

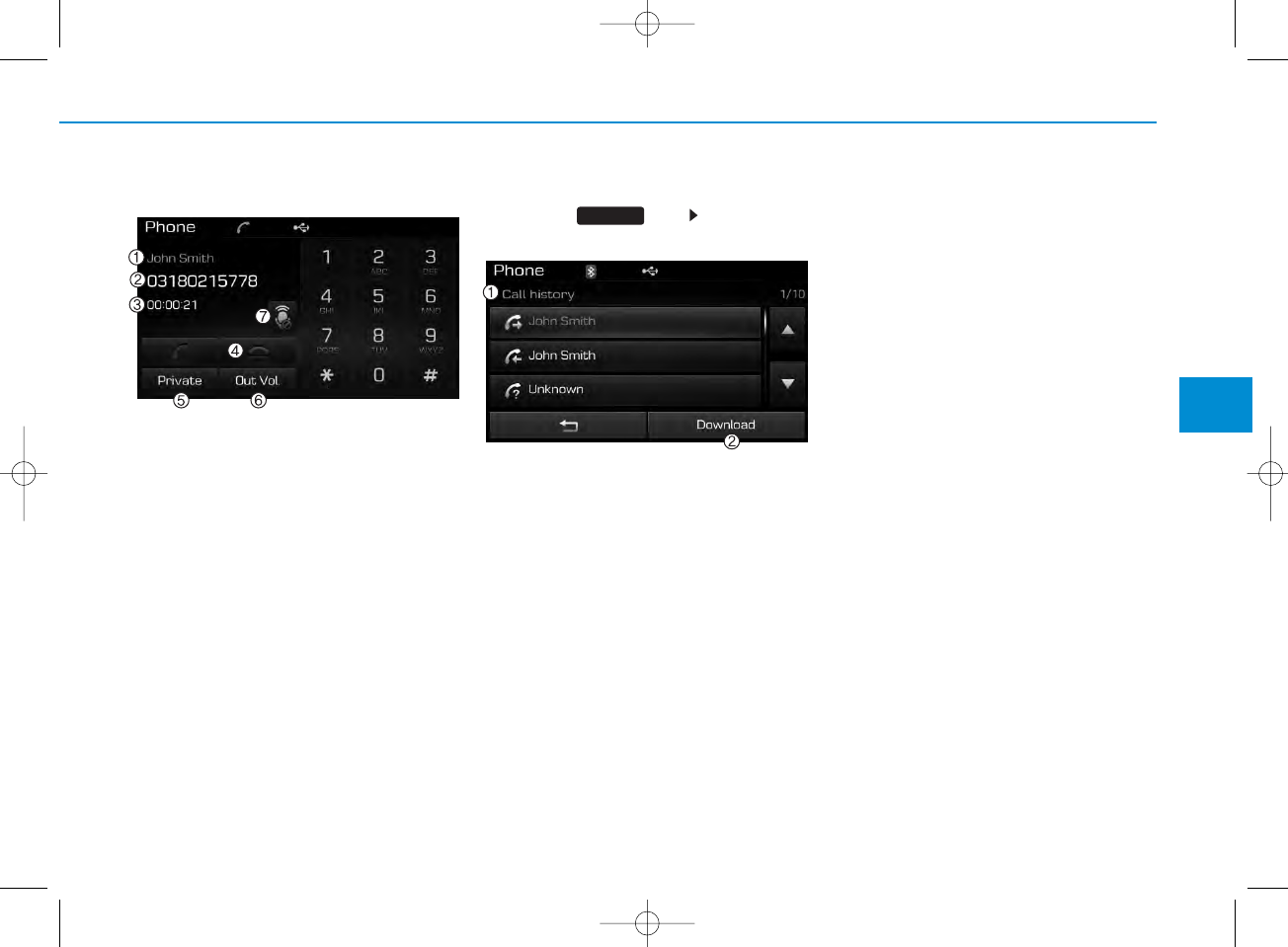

During a Handsfree Call

1)Caller : Displays the other party’s name

if the incoming caller is saved within

your phone book

2)Incoming Number : Displays the

incoming number

3) Call time : Displays the call time

4) End : Ends call

5) Private : Converts to Private mode

6) Out Vol. : Sets call volume as heard by

the other party

7) Mute : Turns Mic Mute On/Off

✽NOTICE

If the mic is muted, the other party will

not be able to hear your voice.

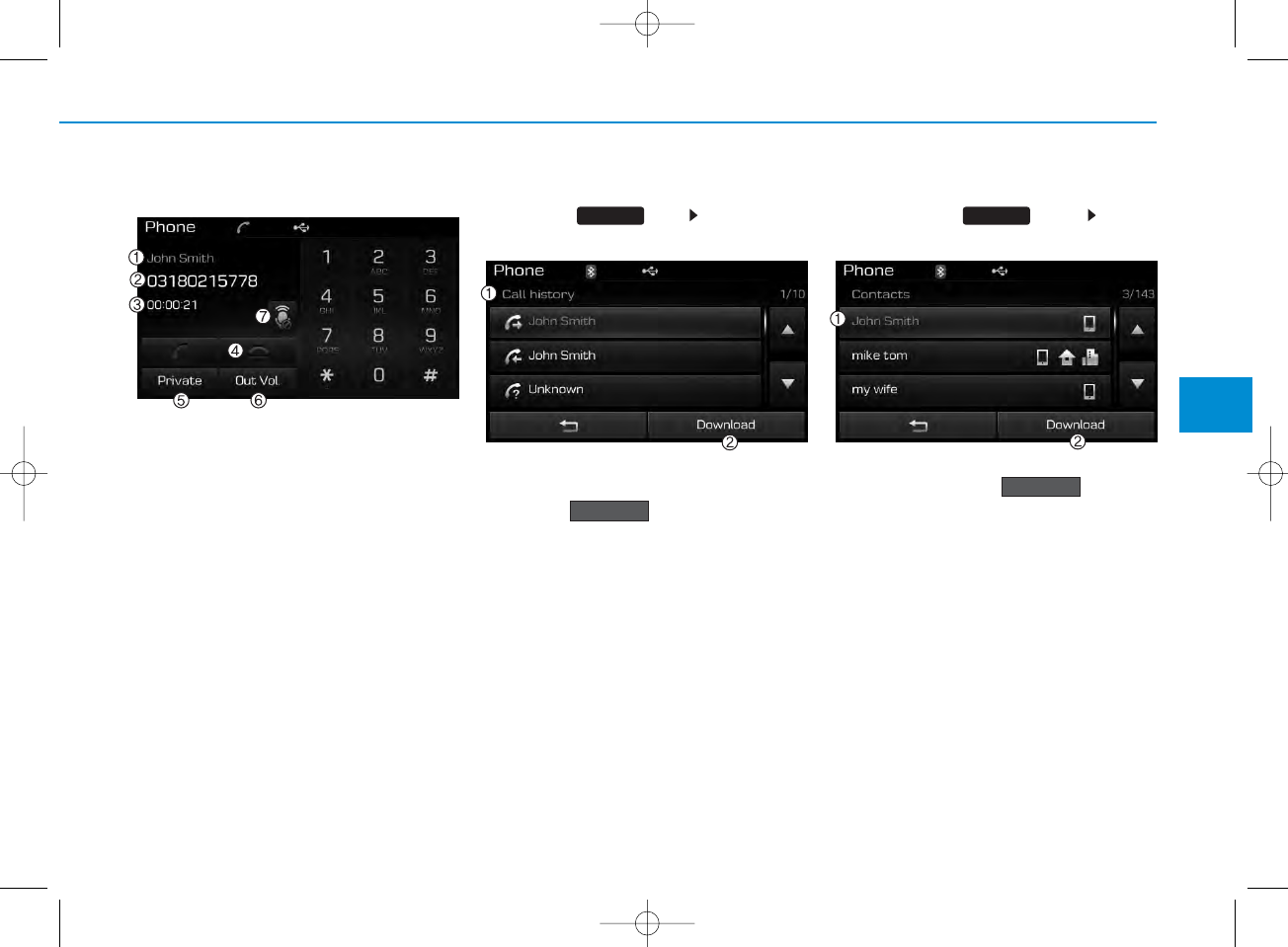

Call History

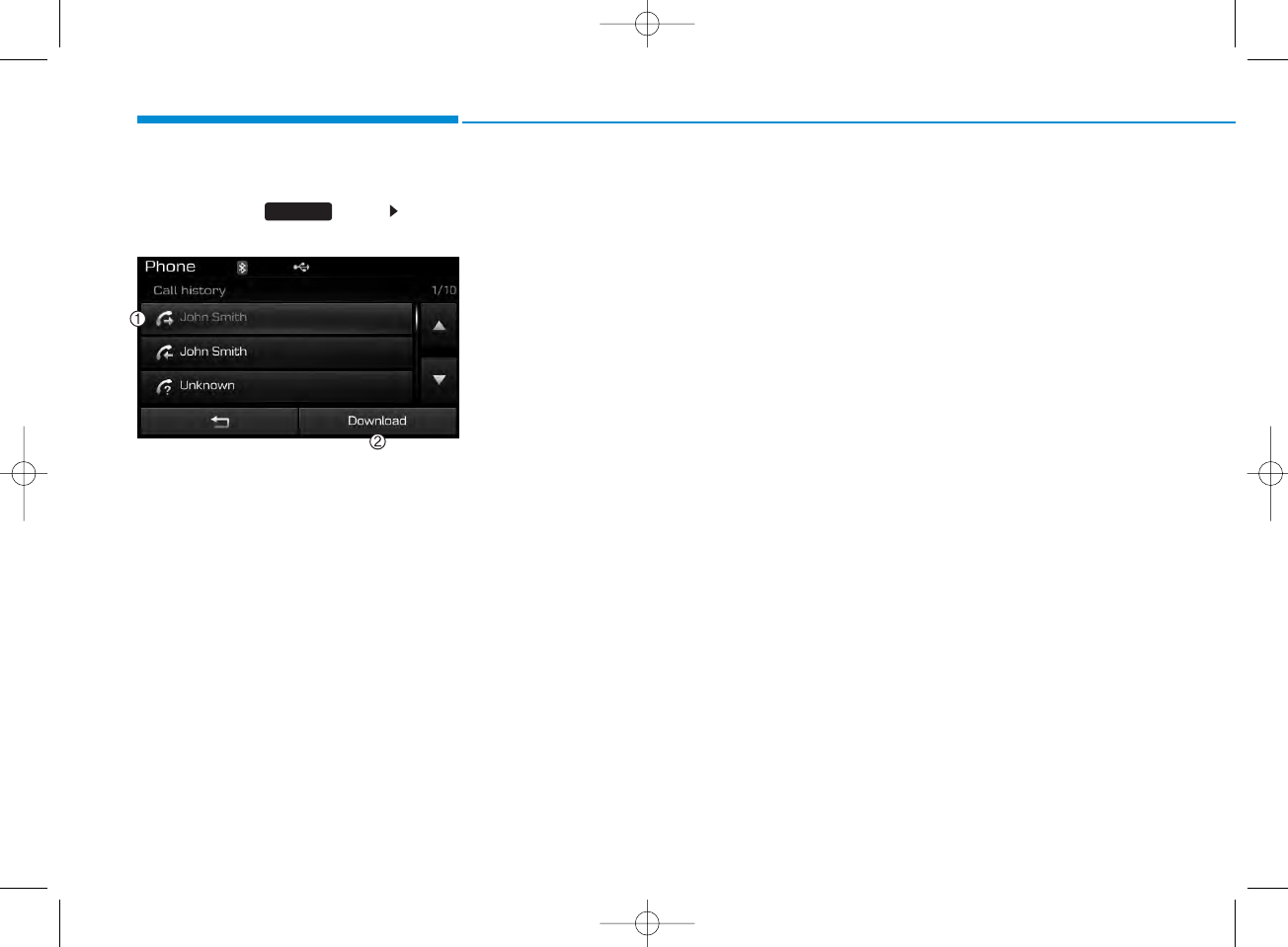

Press the key Select [Call

History]

A list of incoming, outgoing and missed

calls is displayed.

Press the [Download] button to download

the call history.

1) Call History :

- Displays recent calls (call history)

- Connects call upon selection

2) Download : Download Recent Call

History

✽NOTICE

• The call history list will display up to

30 outgoing, incoming, and missed

calls.

• Upon downloading call histories, pre-

viously saved histories are deleted.

• Incoming calls with hidden caller IDs

will not be saved in the call history

list.

• Previously saved phone book entries

are stored even if a device is discon-

nected and re-connected.

• The download feature may not be sup-

ported in some mobile phones. Check

to see that the Bluetooth®Wireless

Technology device supports the down-

load feature.

PHONE

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 77

4-78

Multimedia System

Phone Book

Press the key Select

[Phone book]

The list of saved phone book entries is

displayed. Press the [Download] button

to download the call history.

1) Phone book List :

-Displays downloaded phone book

entries

-Connects call upon selection

2) Download : Download phone book

entries

✽NOTICE

• Up to 1,000 phone book entries can be

copied into car phone book.

• Upon downloading phone book data,

previously saved phone book data will

be deleted.

• Downloading is not possible if the

phone book download feature is

turned off within the Bluetooth®

Wireless Technology device. Also,

some devices may require device

authorization upon attempting to

download. If downloading cannot be

normally conducted, check the

Bluetooth®Wireless Technology

device setting or the screen state.

• Caller ID information will not be dis-

played for unsaved callers.

• The download feature may not be sup-

ported in some mobile phones. Check

to see that the Bluetooth®Wireless

Technology device supports the down-

load feature.

PHONE

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 78

4-79

Multimedia System

Bluetooth

Wireless Technology

(for

Bluetooth

Wireless

Technology equipped model)

Pairing a

Bluetooth®

Wireless

Technology wireless technolo-

gy Device

What is

Bluetooth®

Wireless

Technology Pairing?

Pairing refers to the process of syn-

chronizing your

Bluetooth®

Wireless

Technology phone or device with the

car audio system for connection.

Pairing is necessary to connect and

use the

Bluetooth®

Wireless

Technology feature.

Pairing Key / Key on

the Steering Remote Controller

When No Devices have been Paired

1. Press the key or the

key on the steering remote con-

troller. The following screen is dis-

played.

2. Press the button to enter the

Pair Phone screen.

1) Device : Name of device as shown

when searching from your

Bluetooth®

Wireless Technology device

2) Passkey : Passkey used to pair the

device

3. From your

Bluetooth®

Wireless

Technology device (i.e. Mobile

Phone), search and select your

car audio system.

4. After a few moments, a screen is

displayed where the passkey is

entered.

Here, enter the passkey “0000” to

pair your

Bluetooth®

Wireless

Technology device with the car

audio system.

5. Once pairing is complete, the fol-

lowing screen is displayed.

PHONE

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 79

4-80

Multimedia System

✽NOTICE

• If Bluetooth®Wireless Technology

devices are paired but none are cur-

rently connected, pressing the

key or the key on the

steering remote controller displays the

following screen. Press the [Pair] but-

ton to pair a new device or press the

[Connect] to connect a previously pair

device.

Pairing through [PHONE]

Setup

Press the key Select

[Phone] Select [Pair Phone]

Select TUNE knob

1. The following steps are the same as

the steps described in the “When No

Devices have been Paired” section.

✽NOTICE

• The waiting period during phone

pairing will last for one minute. The

pairing process will fail if the device is

not paired within the given time. If the

pairing process fails, you must start

the process from the beginning.

• Generally, most Bluetooth®Wireless

Technology devices will automatically

connect once pairing is complete.

However, some devices may require a

separate verification process to con-

nect. Check to see whether Bluetooth®

Wireless Technology has been prop-

erly connected within your mobile

phone.

• List of paired Bluetooth®Wireless

Technology devices can be viewed at

[Phone] [Paired Phone

List].

SETUP

PHONE

SETUP

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 80

4-81

Multimedia System

Connecting a Device

Press the key Select

[Phone] Select [Paired Phone List]

1) Connected Phone : Device that is cur-

rently connected

2) Paired Phone : Device that is paired

but not connected

From the paired phone list, select the

device you want to connect and press the

button.

Changing Priority

What is Priority?

It is possible to pair up to five

Bluetooth®

Wireless Technology

devices with the car audio system.

As a result, the “Change Priority’ fea-

ture is used to set the connection pri-

ority of paired phones. However, the

most recently connected phone will

always be set as the highest priority.

Press the key Select [Phone]

Select [Paired Phone List]

Connect

SETUP

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 81

4-82

Multimedia System

From the paired phone list, select

the phone you want to change to the

highest priority, then press the

button from the Menu.

The selected device will be changed

to the highest priority.

Disconnecting a Device

Press the key Select

[Phone] Select [Paired Phone List]

From the paired phone list, select the

currently connected device and press the

button.

Deleting a Device

Press the key Select

[Phone] Select [Paired Phone List]

From the paired phone list, select the

device you want to delete and press the

button.

Delete

Disconnect

Change priority

SETUP SETUP

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 82

4-83

Multimedia System

✽NOTICE

• When deleting the currently connect-

ed device, the device will automatical-

ly be disconnected to proceed with the

deleting process.

• If a paired Bluetooth®Wireless

Technology device is deleted, the

device’s call history and contacts data

will also be deleted.

• To re-use a deleted device, you must

pair the device again.

USING

Bluetooth®

Wireless

Technology

Phone Menu Screen

Phone Menus

With a

Bluetooth®

Wireless

Technology device connected, press

the key to display the Phone

menu screen.

1) Dial Number : Displays the dial screen

where numbers can be dialed to make

calls

2) Call History : Displays the call history

list screen

3) Contacts : Displays the Contacts list

screen

4) Setup : Displays Phone related set-

tings

✽NOTICE

• If you press the [Call History] button

but there is no call history data, a

prompt is displayed which asks

whether to download call history data.

• If you press the [contacts] button but

there is no contacs data, a prompt is

displayed which asks whether to

download contacts data.

• This feature may not be supported in

some mobile phones. For more infor-

mation on download support, refer to

your mobile phone user’s manual.

PHONE

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 83

4-84

Multimedia System

Calling by Dialing a Number

Press the key Select [Dial

Number]

1) Dial Pad : Used to enter phone num-

ber

2) Call : If a number has been entered,

calls the number If no number has

been entered, switches to call history

screen

3) End : Deletes the entered phone num-

ber

4) Delete : Deletes entered numbers one

digit at a time

Answering Calls

Answering a Call

Answering a call with a

Bluetooth®

Wireless Technology device connect-

ed will display the following screen.

1) Caller : Displays the other part’s name

when the incoming caller is saved

within your contacts

2) Incoming Number : Displays the

incoming number

3) Accept : Accept the incoming call

4) Reject : Reject the incoming call

✽NOTICE

• When the incoming call pop-up is dis-

played, most Audio and SETUP mode

features will not operate. Only the call

volume can be operated.

• The telephone number may not be

properly displayed in some mobile

phones.

• When a call is answered with the

mobile phone, the call mode will auto-

matically convert to Private mode.

PHONE

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 84

4-85

Multimedia System

During a Handsfree Call

1) Caller : Displays the other party’s

name if the incoming caller is saved

within your contacts

2) Incoming Number : Displays the

incoming number

3) Call time : Displays the call time

4) End : Ends call

5) Private : Converts to Private mode

6) Out Vol. : Sets call volume as heard by

the other party

7) Mute : Turns Mic Mute On/Off

✽NOTICE

If the mic is muted, the other party will

not be able to hear your voice.

Call History

Press the key Select [Call

History]

A list of incoming, outgoing and missed

calls is displayed.

Press the button to download

the call history.

1) Call History :

- Displays recent calls (call history)

- Connects call upon selection

2) Download : Download Recent Call

History

Contacts

Press the key Select

[Contacts]

The list of saved phone book entries is

displayed. Press the button to

download the call history.

1) Contacts List :

- Displays downloaded contacts entries

- Connects call upon selection

2) Download : Download contacts entries

Download

PHONEPHONE

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 85

4-86

Multimedia System

✽NOTICE

• Up to 1,000 contacts entries can be

copied into car contacts.

• Upon downloading contacts data, pre-

viously saved contacts data will be

deleted.

• Downloading is not possible if the con-

tacts download feature is turned off

within the Bluetooth®Wireless

Technology device. Also, some devices

may require device authorization

upon attempting to download. If

downloading cannot be normally con-

ducted, check the Bluetooth®Wireless

Technology device setting or the

screen state.

• Caller ID information will not be dis-

played for unsaved callers.

• The download feature may not be sup-

ported in some mobile phones. Check

to see that the Bluetooth®Wireless

Technology device supports the down-

load feature.

✽NOTICE - USING THE Voice

Recognition

• When using the voice recognition fea-

ture, only commands listed within the

user's manual are supported.

• Be aware that during the operation of

the voice recognition system, pressing

any key other than the key or

touching the screen will terminate

voice recognition mode.

• For superior voice recognition per-

formance, position the microphone

used for voice recognition above the

head of the driver’s seat and maintain

a proper position when saying com-

mands.

• Within the following situations, voice

recognition may not function properly

due to external sound.

- When the windows and sunroof are

open

- When the wind of the cooling / heat-

ing device is strong

- When entering and passing through

tunnels

- When driving on rugged and uneven

roads

- During severe rain (heavy rains,

windstorms)

• Phone related voice commands can be

used only when a Bluetooth®Wireless

Technology device is connected.

• When making calls by stating a name,

the corresponding contact must be

downloaded and stored within the

audio system.

• After downloading the Bluetooth®

Wireless Technology phone book, it

takes some times to convert the phone

book data into voice information.

During this time, voice recognition

may not properly operate.

• Pronounce the voice commands natu-

rally and clearly as if in a normal con-

versation.

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:43 AM Page 86

4-87

Multimedia System

VOICE RECOGNITION

(if equipped)

Using Voice Recognition

Starting Voice Recognition

Shortly press the key on the

steering remote controller .Say a

command

If voice recognition is in [Normal Mode],

then the system will say “Please say a

command. Beep~”

• If voice recognition is in [Expert

Mode], then the system will only say a

“Beep~”

• To change the Normal Mode/Expert

Mode setting, go to

[System] [Prompt Feedback].

✽NOTICE

For proper recognition, say the com-

mand after the voice instruction and

beep tone.

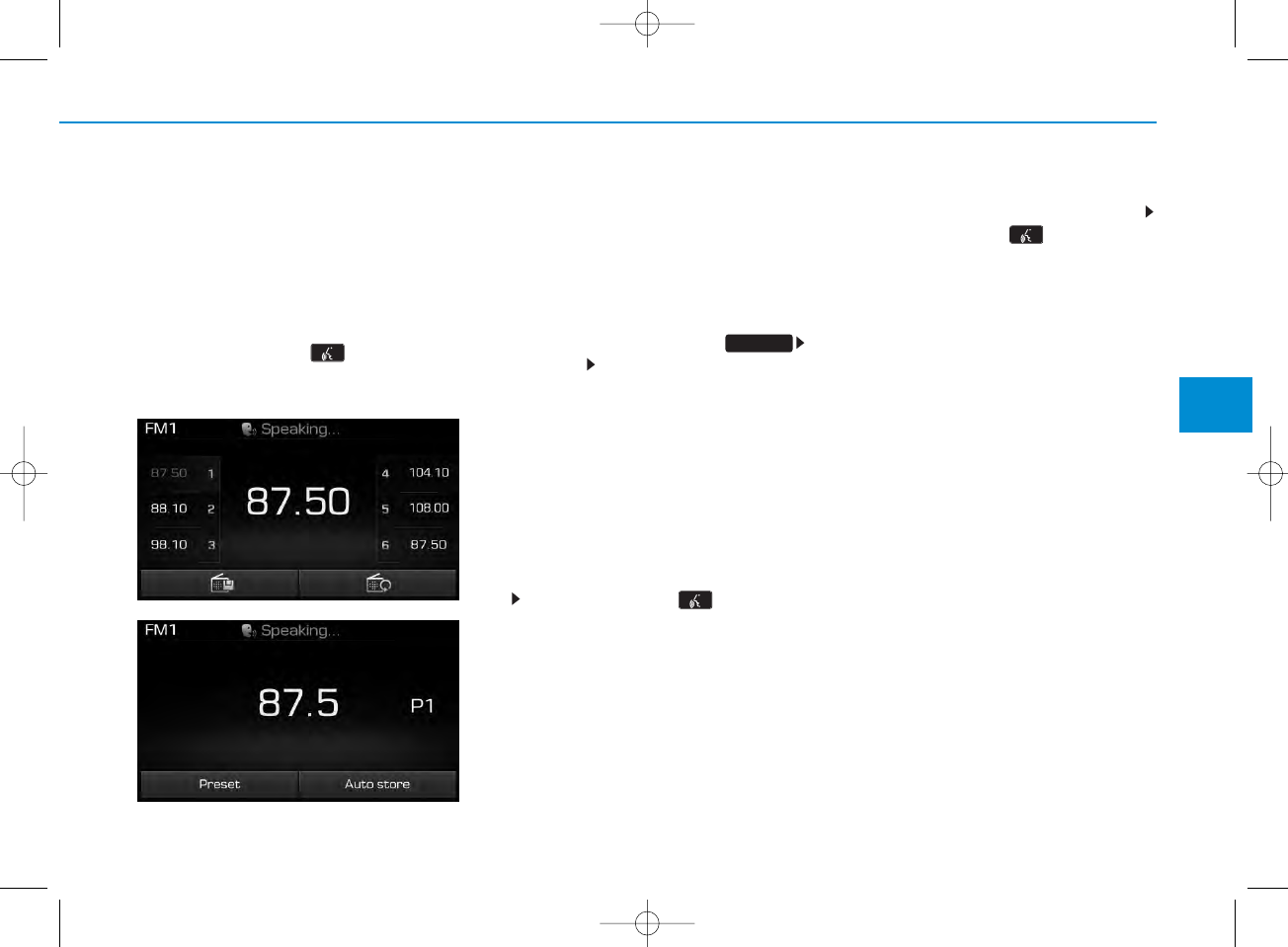

Skipping Prompt Messages

While prompt message is being stat-

ed Shortly press the key on the

steering remote controller (under 0.8

seconds)

The prompt message is immediately

ended and the beep tone will sound.

After the “beep”, say the voice command.

Re-starting Voice Recognition

While system waits for a command

Shortly press the key on the

steering remote controller (under 0.8

seconds)

The command wait state is immediately

ended and the beep ton will sound. After

the “beep”, say the voice command.

SETUP

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 87

4-88

Multimedia System

ENDING VOICE RECOGNITION

While Voice Recognition is operating

Press and hold the key on the

steering remote controller (over 0.8

seconds)

✽NOTICE

• While using voice command, pressing

a steering wheel remote control or a

different key will end voice command.

• In a state where the system is waiting

for a voice command, say “cancel” or

“end” to end voice command.

• In a state where the system is waiting

for a voice command, press and hold

the key on the steering remote

controller to end voice command.

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 88

4-89

Multimedia System

❈ Illustration on using voice commands

• Starting voice command.

Shortly pressing the key (under 0.8 seconds):

• Skipping Voice Recognition

Shortly pressing the key (under

0.8 seconds):

• End voice command.

Shortly pressing the key (under 0.8 seconds):

More Help

Phone book

Cancel

More Help

Please say a command

Please say a...

More Help.

You can say Radio, FM, AM, Media, CD, USB, Aux,

My Music, iPod, Bluetooth Audio, Phone, Call

History or Phone book. Please say a command.

Phone book.

Please say the name of the phone book you

want to call.

More Help.

You can say Radio, FM, AM, Media, CD, USB, Aux,

My Music, iPod, Bluetooth Audio, Phone, Call

History or Phone book. Please say a command.

Ding~

Di-Ding~(Cancel Sound)

Ding~

Shortly pressing the key

(under 0.8 seconds)

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 89

4-90

Multimedia System

Command Function

More Help Provides guidance on commands that can be

used anywhere in the system.

Help Provides guidance on commands that can be

used within the current mode.

Call<Name> Calls <Name> saved in

phone book

Ex) Call “John”

Phone Provides guidance on Phone related com-

mands. After saying this command, say “Call

History”, “

Phone book

”, “Dial Number” to exe-

cute corresponding functions.

Call History Displays the Call History screen.

Phone book

Displays the

phone book

screen. After saying

this command, say the name of a

phone book

saved in the

phone book

to automatically con-

nect the call.

Dial Number Display the Dial number screen. After saying

this command, you can say the number what

you want to call.

Redial Connects the most recently called number.

Radio

•

When listening to the radio, displays the next

radio screen. (FM1➟FM2➟FMA ➟ AM ➟

AMA)

•

When listening to a different mode, displays

the most recently played radio screen.

Command Function

•

When currently listening to the FM radio,

maintains the current state.

•

When listening to a different mode, displays

the most recently played FM screen.

FM1(FM One) Displays the FM1 screen.

FM2(FM Two) Displays the FM2 screen.

FMA Displays the FMA screen.

AM Displays the AM screen.

AMA Displays the AMA screen.

FM Preset 1~6 Plays the most recently played broadcast

saved in FM Preset 1~6.

AM Preset 1~6 Plays the broadcast saved in AM Preset 1~6.

FM 87.5~107.9 Plays the FM broadcast of the corresponding

frequency.

AM 530~1710 Plays the AM broadcast of the corresponding

frequency.

TA on Enable Traffic Announcement

TA off Disable Traffic Announcement

News on Enable RDS News feature

News off Disable RDS News feature

Voice Command List

• Common Commands: These are commands that can be used in all situations. (However, some commands may not be support-

ed in special circumstances.)

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 90

4-91

Multimedia System

Command Function

Media Moves to the most recently played media

screen.

Play Track 1~30 If a music CD has been inserted, plays the

corresponding track.

CD Plays the music saved in the CD.

Search CD Moves to the CD track or file selection screen.

•

For audio CDs, move to the screen and say the

track number to play the corresponding track.

•

Moves to MP3 CD file selection screen. After

manually operate the device to select and

play music.

USB Plays USB music.

Search USB Moves to USB file selection screen. After

manually operate the device to select and play

music.

iPod Plays iPod music.

Search iPod Moves to the iPod file selection screen. After,

manually operate the device to select and play

music.

My Music Plays the music saved in My Music.

Search My Music Moves to My Music file selection screen. After

manually operate the device to select and play

music.

Command Function

AUX (Auxiliary) Plays the connected external device.

Bluetooth Audio Plays the music saved in connected

Bluetooth

Wireless Technology

device.

Mute Mutes the radio or music volume.

Pardon? Repeats the most recent comment.

Cancel (Exit) Ends voice command.

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 91

4-92

Multimedia System

• FM/AM radio commands: Commands that can be used while

listening to FM, AM radio. • Audio CD commands: Commands that can be used while

listening to Audio CD.

Command Function

Preset 1~6 Plays the broadcast saved in Preset 1~6.

Auto Store Automatically selects radio broadcast fre-

quencies with superior reception and saves in

Presets 1~6.

Preset Save 1~6 Saves the current broadcast frequency to

Preset 1~6.

Seek up Plays the next receivable broadcast.

Seek down Plays the previous receivable broadcast.

Next Preset Selects the preset number next to the most

recently selected preset. (Example: When cur-

rently listening to preset no. 3, then preset no.

4 will be selected.)

Previous Preset Selects the preset number previous to the

most recently selected preset. (Example:

When currently listening to preset no. 3, then

preset no. 2 will be selected.)

Scan Scans receivable frequencies from the current

broadcast and plays for 10 seconds each.

Preset Scan Moves to the next preset from the current

present and plays for 10 seconds each.

AF on Enable Alternative Frequency feature

AF off Disable Alternative Frequency feature

Region Enable Region feature

Command Function

Region off Disable Region feature

Program Type Moves to the RDS Program type selection

screen. After, manually operate the device to

select a desired program type.

Random Randomly plays the tracks within the CD.

Random Off Cancels random play to play tracks in sequen-

tial order.

Repeat Repeats the current track.

Repeat Off Cancels repeat play to play tracks in sequen-

tial order.

Next Track Plays the next track.

Previous Track Plays the previous track.

Scan Scans the tracks from the next track for 10

seconds each.

Track 1~30 Plays the desired track number.

Search Track Moves to the track selection screen. After, say

the track name to play the corresponding track.

Information Displays the information screen of the current

track.

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 92

4-93

Multimedia System

• MP3 CD / USB commands: Commands that can be used

while listening to music files saved in CD and USB. • iPod Commands: Commands that can be used while playing

iPod.

Command Function

Random Randomly plays the files within the current

folder.

All Random Randomly plays all saved files.

Random Off Cancels random play to play files in sequential

order.

Repeat Repeats the current file.

Folder Repeat Repeats all files in the current folder.

Repeat Off Cancels repeat play to play files in sequential

order.

Next File Plays the next file.

Previous File Plays the previous file.

Scan Scans the files from the next files for 10 sec-

onds each.

Search File Moves to the file selection screen.

Search Folder Moves to the folder selection screen.

Information Displays the information screen of the current

file.

Copy Copies the current file into My Music.

Command Function

All Random Randomly plays all saved songs.

Random Randomly plays the songs within the current

category.

Random Off Cancels random play to play songs in sequen-

tial order.

Repeat Repeats the current song.

Repeat Off Cancels repeat play to play songs in sequen-

tial order.

Next Song Plays the next song.

Previous Song Plays the previous song.

Search Song Moves to the song selection screen.

Information Displays the information screen of the current

song.

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 93

4-94

Multimedia System

• My Music Commands: Commands that can be used while

playing My Music. •

Bluetooth

Wireless Technology Audio Commands:

Commands that can be used while playing Phone Music.

Command Function

Random Randomly plays all saved files.

Random Off Cancels random play to play files in sequential

order.

Repeat Repeats the current file.

Repeat Off Cancels repeat play to play files in sequential

order.

Next File Plays the next file.

Previous File Plays the previous file.

Scan Scans the files from the next files for 10 sec-

onds each.

Search File Moves to the file selection screen.

Information Displays the information screen of the current

file.

Delete Deletes the current file. You will bypass an

additional confirmation process.

Delete All Deletes all files saved in My Music. You will

bypass an additional confirmation process.

Command Function

Play Plays the currently paused song.

Pause Pauses the current song.

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 94

4-95

Multimedia System

SETUP

(FOR RDS,

BLUETOOTH

®WIRELESS

TECHNOLOGY EQUIPPED MODEL)

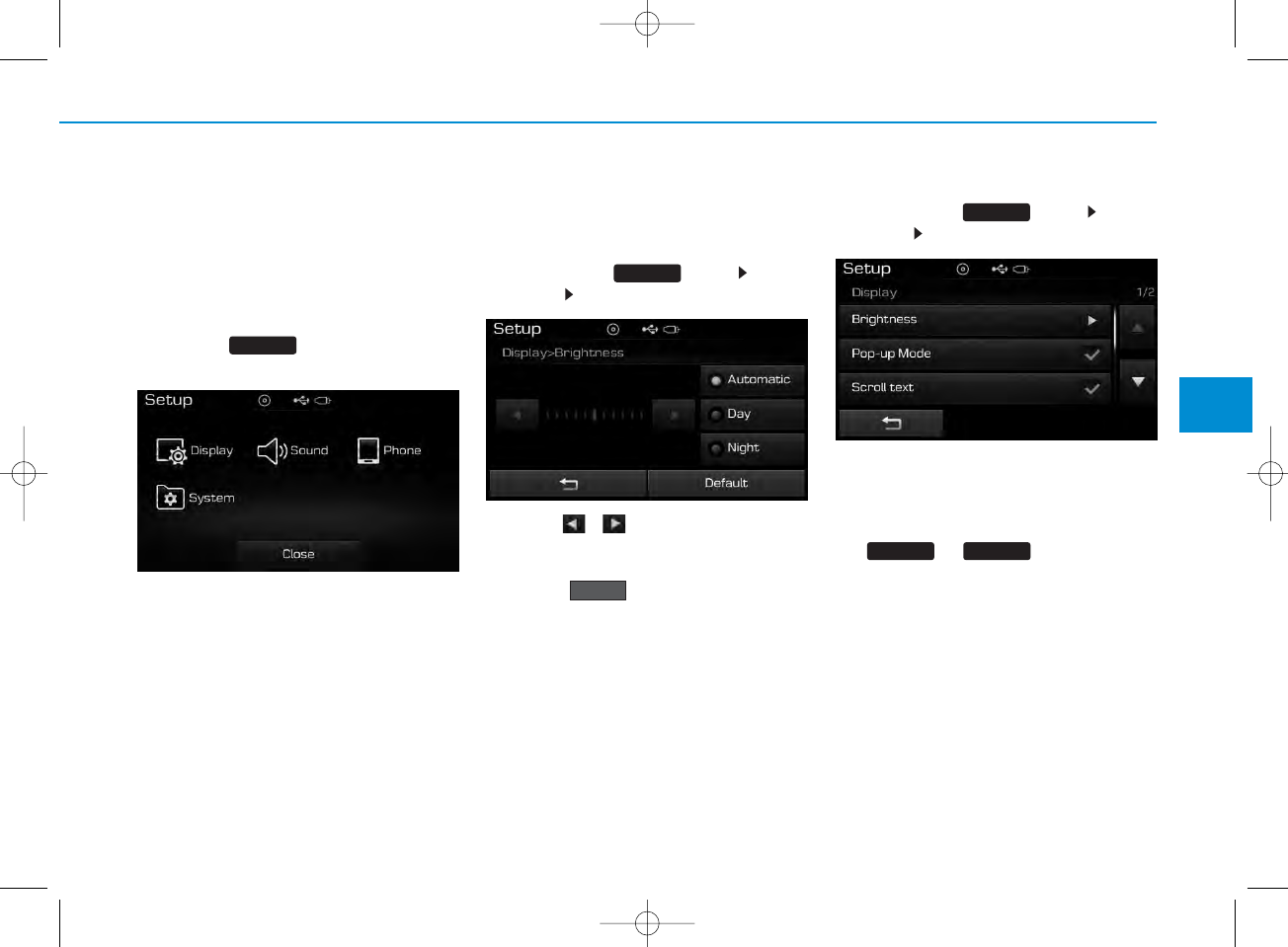

Starting Mode

Press the key to display the

Setup screen.

You can select and control options related

to [Display], [Sound], [Phone] and

[System].

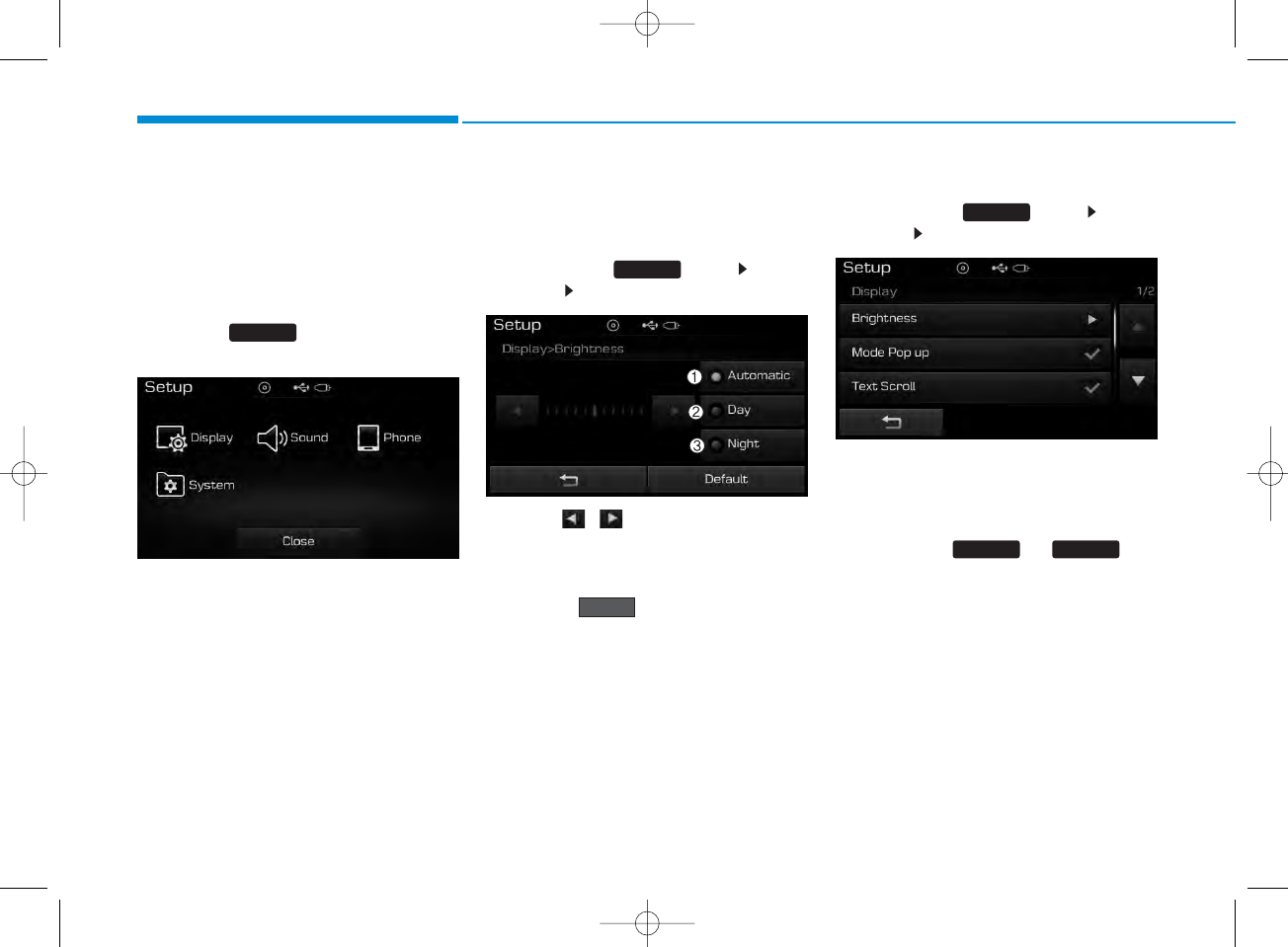

Display Settings

Adjusting the Brightness

Press the key Select

[Display] Select [Brightness]

Use the , buttons to adjust the

screen brightness or set the Brightness

on Automatic, Day, or Night mode.

Press the button to reset.

1) Automatic : Adjusts the brightness

automatically

2) Day : Always maintains the bright-

ness on high

3) Night: Always maintains the

brightness on low

Pop-up Mode

Press the key Select

[Display] Select [Pop-up Mode]

This feature is used to display the Pop-up

Mode screen when entering radio and

media modes.

When this feature is turned on, pressing

the or key will display

the Pop-up Mode screen.

✽NOTICE

The media Pop-up Mode screen can

be displayed only when two or more

media modes have been connected.

MEDIA RADIO

SETUP

Default

SETUP

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 95

4-96

Multimedia System

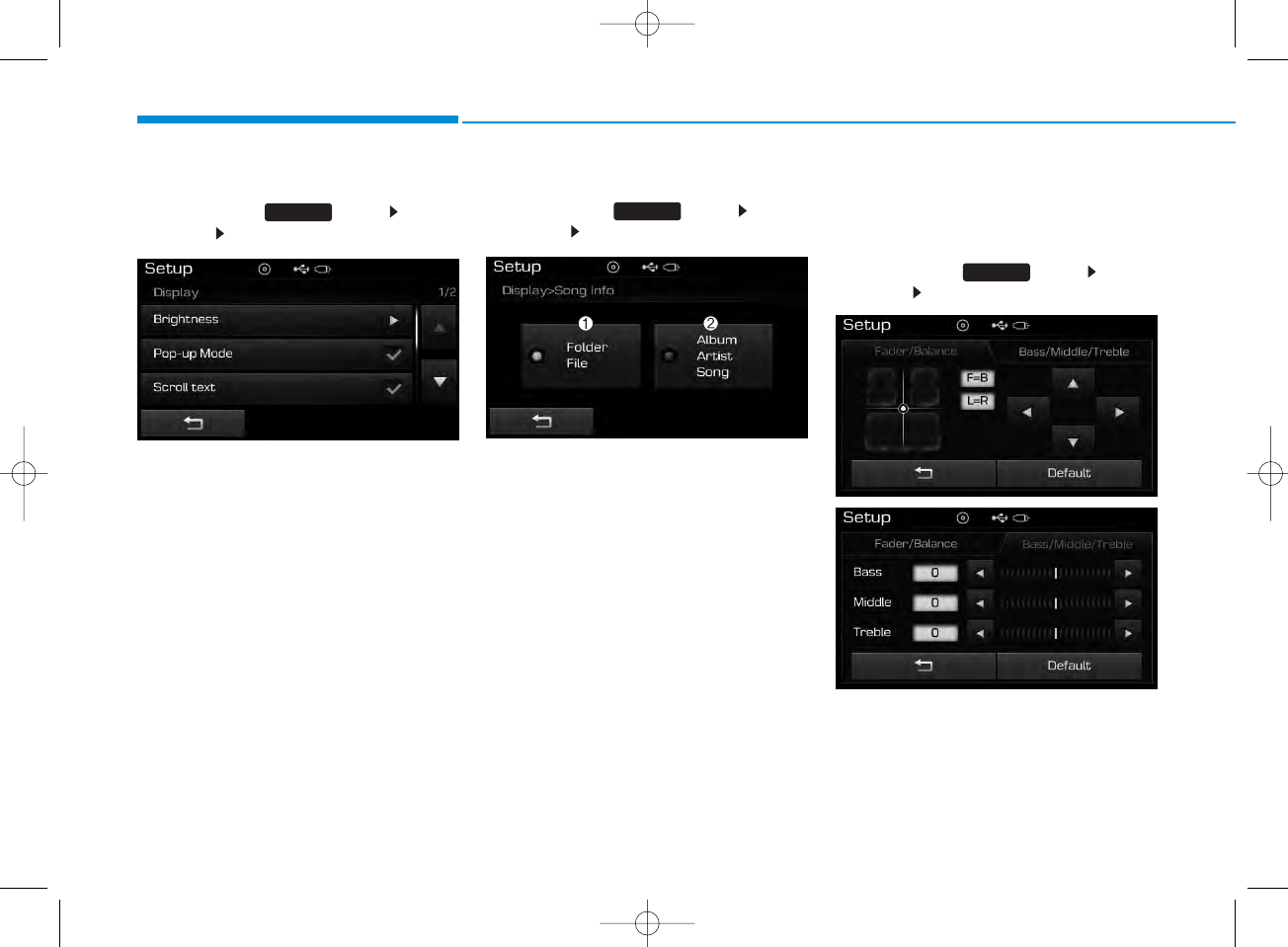

Scroll Text

Press the key Select

[Display] Select [Scroll text]

This feature is used to scroll text dis-

played on the screen when it is too

long to be displayed at once.

When turned on, the text is repeat-

edly scrolled. When turned off, the

text is scrolled just once.

MP3 Information Display

Press the key Select

[Display] Select [Song Info]

This feature is used to change the

information displayed within USB

and MP3 CD modes.

1) Folder File : Displays file name

and folder name

2) Album Artist Song : Displays

album name/artist name/song

Sound Settings

Audio Settings

Press the key Select

[Sound] Select [Audio Setting]

SETUP

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 96

4-97

Multimedia System

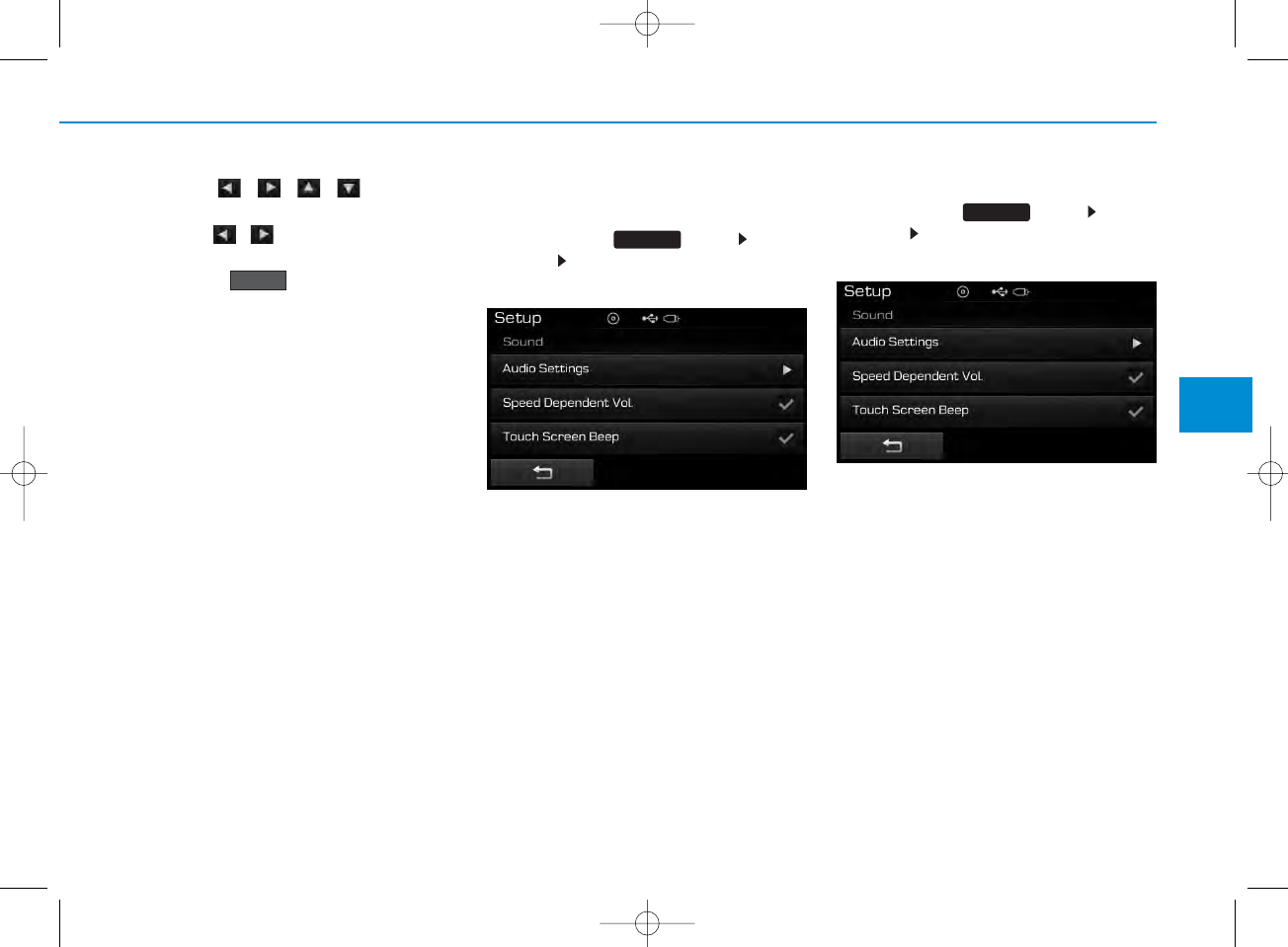

Use the , , , buttons to

adjust the Fader/Balance settings.

Use the , buttons to adjust the

Bass/Middle/Treble settings.

Press the button to reset.

SDVC (Speed Dependent Volume

Control)

Press the key Select

[Sound] Select [Speed Dependent

Vol.]

The volume level is controlled auto-

matically according to the vehicle

speed. SDVC can be set by selecting

from On / Off.

Touch Screen Beep

Press the key Select

[Sound] Select [Touch Screen

Beep]

This feature is used to turn the touch

screen beep on/off.

SETUP

Default

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 97

4-98

Multimedia System

Bluetooth®

Wireless

Technology Setting

Pairing a New Device

Press the key Select

[Phone] Select [Pair Phone]

Bluetooth®

Wireless Technology

devices can be paired with the audio

system.

For more information, refer to the

“Pairing through Phone Setup” sec-

tion within

Bluetooth®

Wireless

Technology.

Viewing Paired Phone List

Press the key Select

[Phone] Select [Paired Phone List]

This feature is used to view mobile

phones that have been paired with

the audio system. Upon selecting a

paired phone, the setup menu is dis-

played.

For more information, refer to the

“Setting

Bluetooth®

Wireless

Technology Connection” section

within

Bluetooth®

Wireless

Technology.

1) : Moves to the previous

screen

2) : Connect/ disconnects cur-

rently selected phone

3) : Deletes the currently

selected phone

4) : Sets currently selected

phone to highest connection

priority

✽NOTICE BEFORE DOWN-

LOADING PHONE BOOKS

• Only phone books within connected

phones can be downloaded. Also

check to see that your mobile phone

supports the download feature.

• To learn more about whether your

mobile phone supports phone book

downloads, refer to your mobile

phone user’s manual.

• The Phone book for only the con-

nected phone can be downloaded.

Before downloading, check to see

whether your phone supports the

download feature.

SETUP

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 98

4-99

Multimedia System

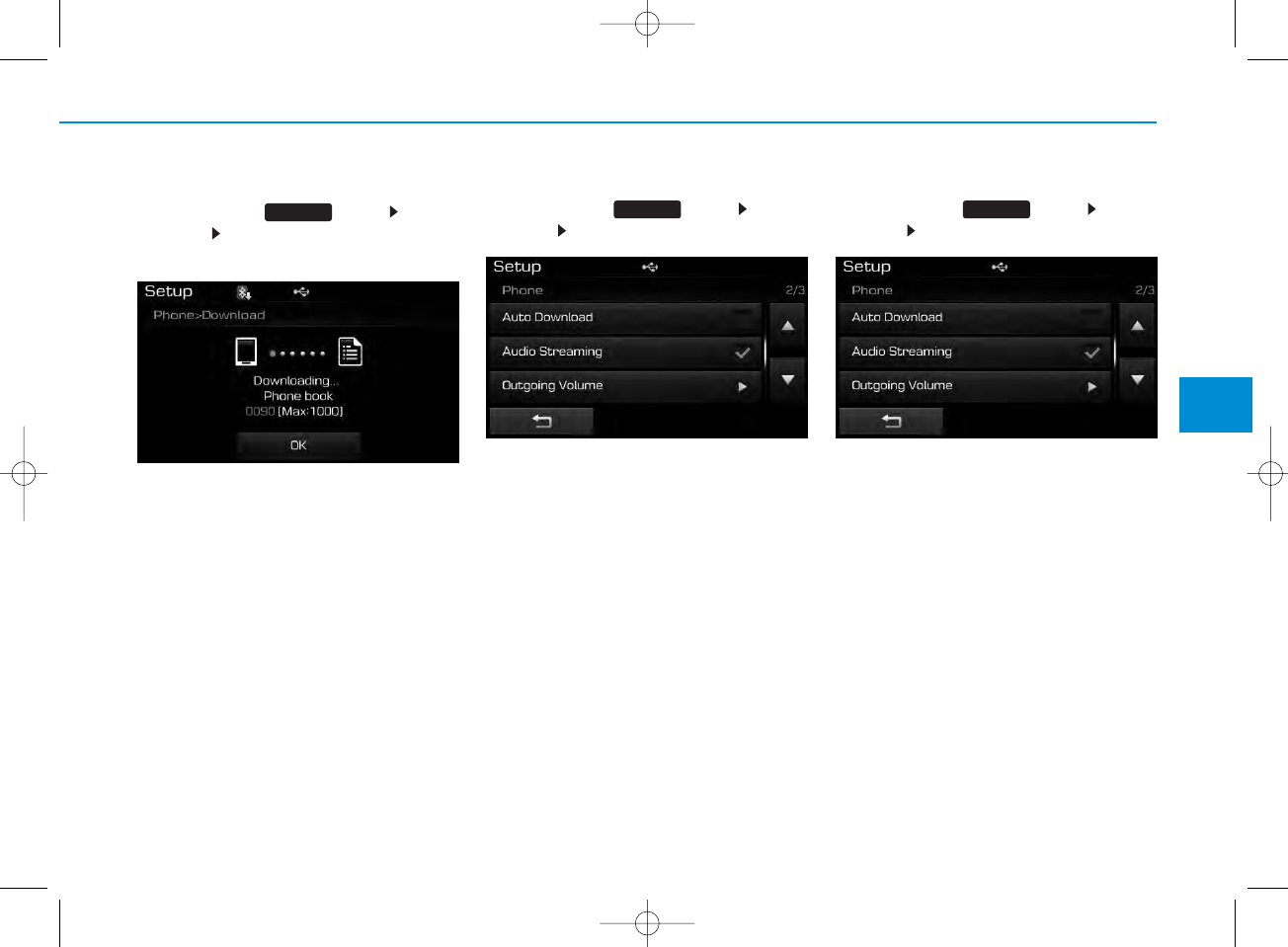

Downloading Phone books

Press the key Select

[Phone] Select [Phone book

Download]

The Phone book is downloaded from

the mobile phone and the download

progress is displayed.

✽NOTICE

• Up to 1,000 phone book entries can

be copied into car phone book.

• Up to 1,000 phone book entries can

be saved for each paired device.

• Upon downloading phone book

data, previously saved phone book

data will be deleted. However,

Phone book entries saved to other

paired phones are not deleted.

Auto Download (Phone Book)

Press the key Select

[Phone] Select [Auto Download]

This feature is used to automatically

download mobile phone book entries

once a

Bluetooth®

Wireless

Technology phone is connected.

✽NOTICE

• The Auto Download feature will

download mobile phone book

entries every time the phone is con-

nected. The download time may dif-

fer depending on the number of

saved phone book entries and the

communication state.

• When downloading a phone book,

first check to see that your mobile

phone supports the phone book

download feature.

Audio Streaming

Press the key Select

[Phone] Select [Audio Streaming]

When Audio Streaming is turned on,

you can play music files saved in

your

Bluetooth®

Wireless

Technology device from the car.

SETUP SETUP SETUP

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 99

4-100

Multimedia System

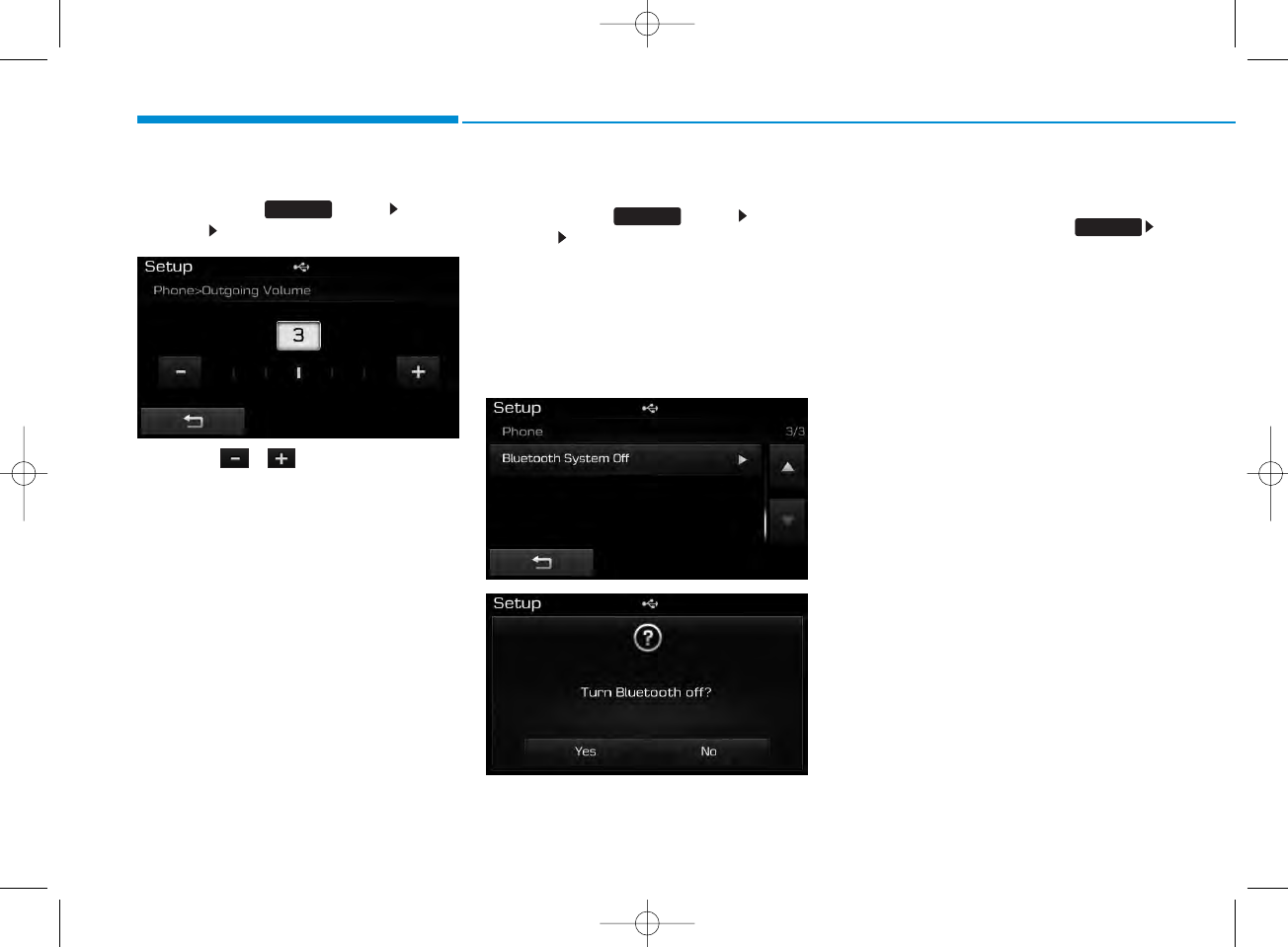

Outgoing Volume

Press the key Select

[Phone] Select [Outgoing Volume]

Use the , buttons to adjust

the outgoing volume level.

Turning Bluetooth System Off

Press the key Select

[Phone] Select [Bluetooth System

Off]

Once

Bluetooth®

Wireless

Technology is turned off,

Bluetooth®

Wireless Technology related features

will not be supported within the audio

system.

✽NOTICE

To turn Bluetooth®Wireless

Technology back on, go to

[Phone] and press “Yes”.

SETUP

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 100

4-101

Multimedia System

CAUTION

• Bluetooth®

Wireless Technology

audio streaming may not be sup-

ported in some Bluetooth®

Wireless Technology

phones.

System Setting

Memory Information

Press the key Select

[System] Select [Memory Information]

This feature displays information

related to system memory.

1) Using : Displays capacity currently

in use

2) Capacity : Displays total capacity

Language

Press the key Select

[System] Select [Language]

This feature is used to change the

system and voice recognition lan-

guage.

If the language is changed, the sys-

tem will restart and apply the select-

ed language.

SETUP

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 101

4-102

Multimedia System

SETUP

(for

Bluetooth

Wireless

Technology equipped model)

Starting Mode

Press the key to display the

Setup screen.

You can select and control options

related to [Display], [Sound], [Phone]

and [System].

Display Settings

Adjusting the Brightness

Press the key Select

[Display] Select [Brightness]

Use the , buttons to adjust the

screen brightness or set the

Brightness on Automatic, Daylight, or

Night mode.

Press the button to reset.

1) Automatic : Adjusts the brightness

automatically

2 Day : Always maintains the bright-

ness on high

3) Night: Always maintains the

brightness on low

Mode Pop up

Press the key Select

[Display] Select [Mode Pop up]

This feature is used to display the

Mode Pop up screen when entering

radio and media modes.

When this feature is turned on,

pressing the or key

will display the Mode Pop up screen.

✽NOTICE

The media Mode Pop up screen can be

displayed only when two or more

media modes have been connected.

RADIO MEDIA

SETUP

Default

SETUP

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 102

4-103

Multimedia System

Text Scroll

Press the key Select

[Display] Select [Text Scroll]

This feature is used to scroll text dis-

played on the screen when it is too

long to be displayed at once.

When turned on, the text is repeat-

edly scrolled. When turned off, the

text is scrolled just once.

MP3 Information Display

Press the key Select

[Display] Select [Media Display]

This feature is used to change the

information displayed within USB

and MP3 CD modes.

1) Folder File : Displays file name

and folder name

2) Album Artist Song : Displays

album name/artist name/song

Sound Settings

Press the key Select

[Sound] Select [Sound Setting]

SETUP

SETUP SETUP

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 103

4-104

Multimedia System

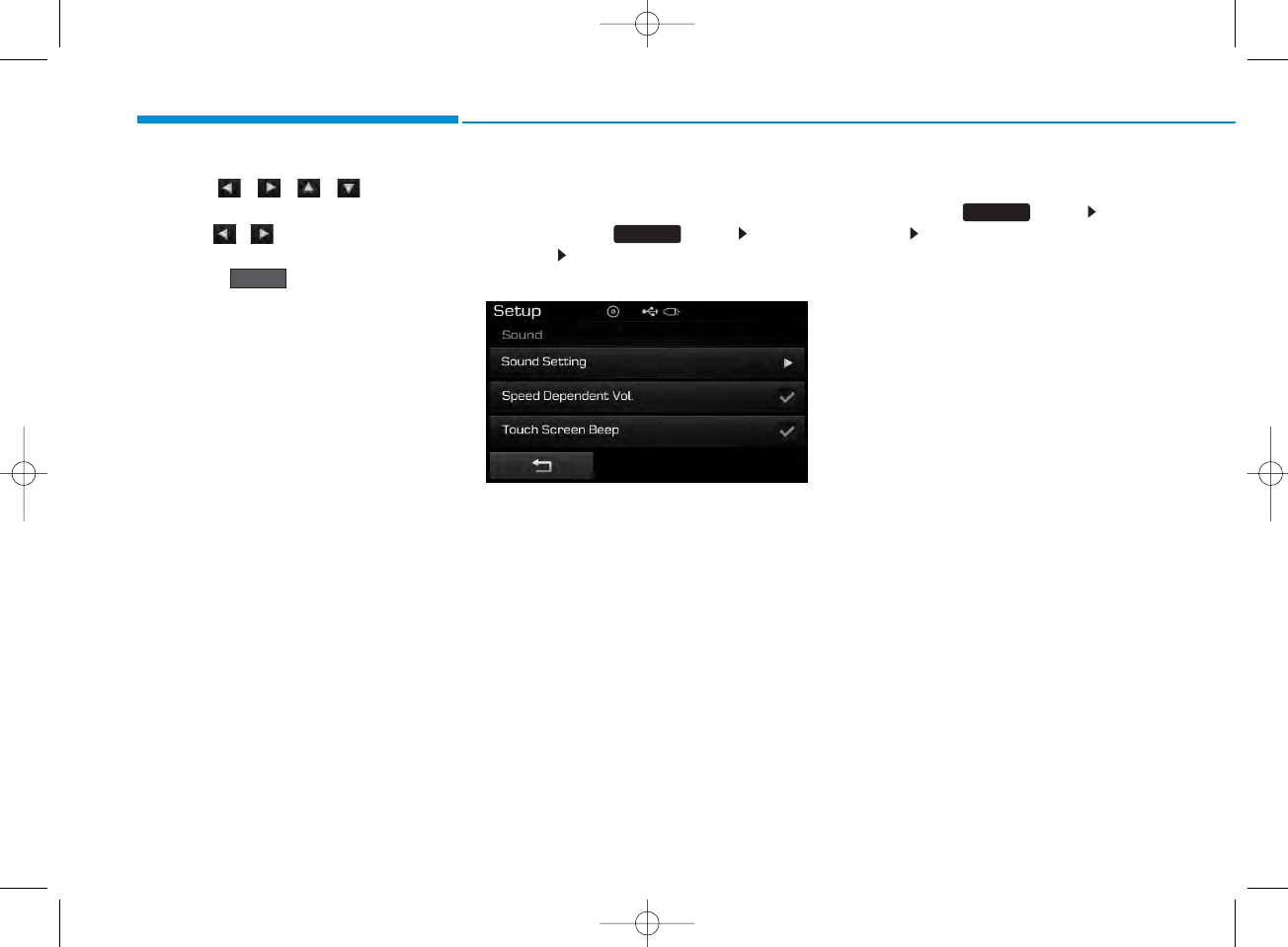

Use the , , , buttons to

adjust the Fader/Balance settings.

Use the , buttons to adjust the

Bass/Middle/Treble settings.

Press the button to reset.

SDVC (Speed Dependent

Volume Control)

Press the key Select

[Sound] Select [Speed Dependent

Vol.]

The volume level is controlled auto-

matically according to the vehicle

speed. SDVC can be set by selecting

from On/Off.

Touch Screen Beep

Press the key Select

[Sound] Select [Touch Screen

Beep]

SETUP

Default

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 104

4-105

Multimedia System

Bluetooth®

Wireless

Technology Setting

Pairing a New Device

Press the key Select

[Phone] Select [Pair Phone]

Bluetooth®

Wireless Technology

devices can be paired with the audio

system.

For more information, refer to the

“Pairing through Phone Setup” sec-

tion within

Bluetooth®

Wireless

Technology.

Viewing Paired Phone List

Press the key Select

[Phone] Select [Paired Phone List]

This feature is used to view mobile

phones that have been paired with

the audio system. Upon selecting a

paired phone, the setup menu is dis-

played.

For more information, refer to the

“Setting

Bluetooth®

Wireless

Technology Connection” section

within

Bluetooth®

Wireless

Technology.

1) : Moves to the previous

screen

2) Connect/Disconnect Phone :

Connect/ disconnects currently

selected phone

3) Delete : Deletes the currently

selected phone

4) Change Priority : Sets currently

selected phone to highest connec-

tion priority

✽NOTICE BEFORE DOWN-

LOADING CONTACTS

• Only contacts within connected

phones can be downloaded. Also

check to see that your mobile phone

supports the download feature.

• To learn more about whether your

mobile phone supports contacts

downloads, refer to your mobile

phone user’s manual.

• The contacts for only the connected

phone can be downloaded. Before

downloading, check to see whether

your phone supports the download

feature.

SETUP

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 105

4-106

Multimedia System

Downloading Contacts

Press the key Select

[Phone] Select [Contacts Download]

The contacts is downloaded from the

mobile phone and the download

progress is displayed.

✽NOTICE

• Up to 1,000 contacts entries can be

copied into car contacts.

• Up to 1,000 contacts entries can be

saved for each paired device.

• Upon downloading contacts data,

previously saved contacts data will

be deleted. However, contacts

entries saved to other paired phones

are not deleted.

Auto Download (Contacts)

Press the key Select

[Phone] Select [Auto Download]

This feature is used to automatically

download mobile contacts entries

once a

Bluetooth®

Wireless

Technology phone is connected.

✽NOTICE

• The Auto Download feature will

download mobile contacts entries

every time the phone is connected.

The download time may differ

depending on the number of saved

contacts entries and the communi-

cation state.

• When downloading a contacts, first

check to see that your mobile phone

supports the contacts download fea-

ture.

Streaming Audio

Press the key Select

[Phone] Select [Streaming Audio]

When Streaming Audio is turned on,

you can play music files saved in

your

Bluetooth®

Wireless

Technology device from the car.

SETUP SETUP SETUP

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 106

4-107

Multimedia System

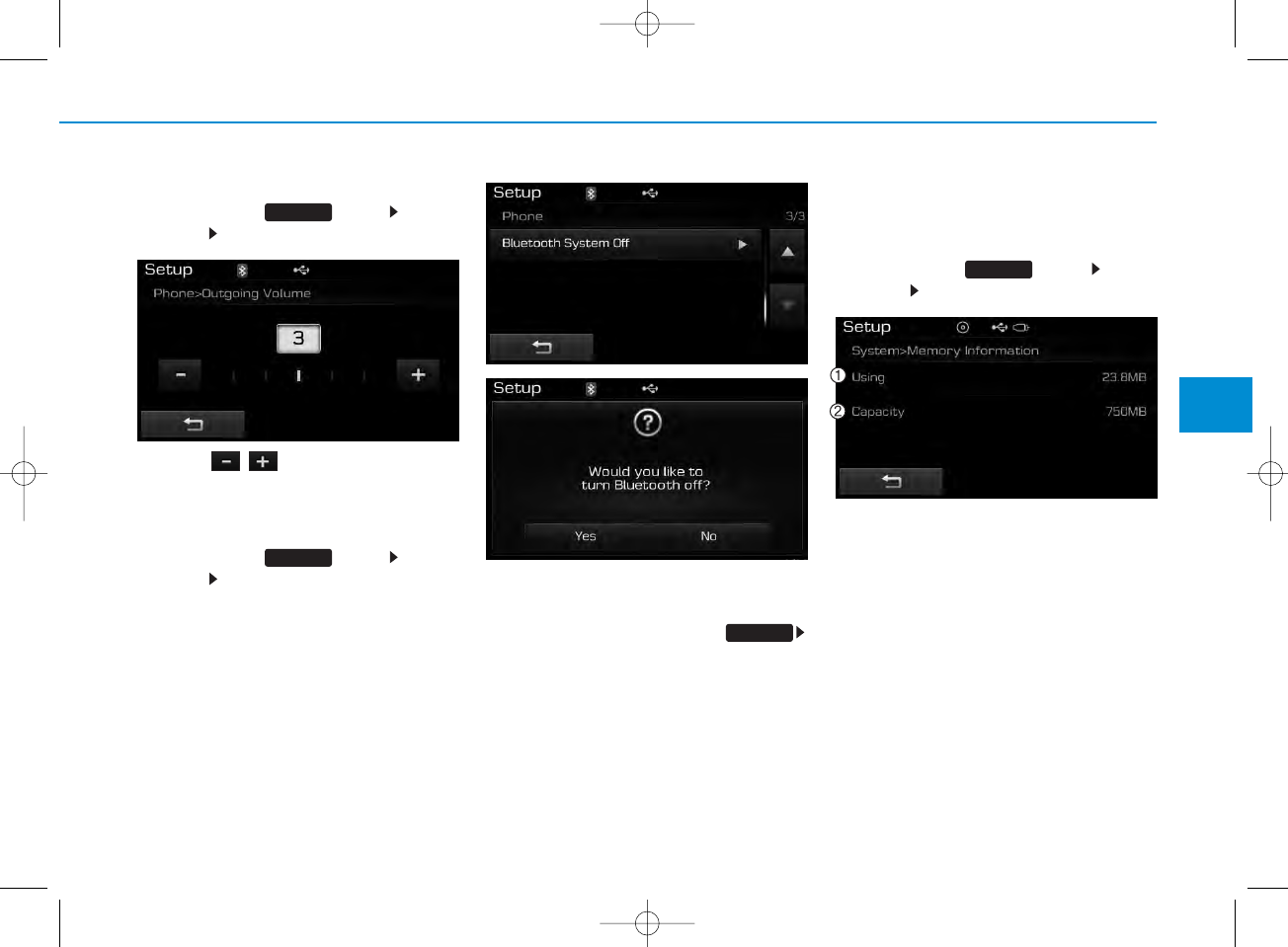

Outgoing Volume

Press the key Select

[Phone] Select [Outgoing Volume]

Use the , buttons to adjust the

outgoing volume level.

Turning Bluetooth System Off

Press the key Select

[Phone] Select [Bluetooth System

Off]

Once

Bluetooth®

Wireless

Technology is turned off,

Bluetooth®

Wireless Technology related features

will not be supported within the audio

system.

✽NOTICE

To turn Bluetooth®Wireless

Technology back on, go to

[Phone] and press “Yes”.

System Setting

Memory Information

Press the key Select

[System] Select [Memory Information]

This feature displays information

related to system memory.

1) Using : Displays capacity currently

in use

2) Capacity : Displays total capacity

SETUP

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 107

4-108

Multimedia System

REAR VIEW CAMERA

(if equipped)

• The system has been equipped

with a rear view camera for user

safety by allowing a wider rear

range of vision.

• The rear view camera will automat-

ically operate when the ignition key

is turned ON and the transmission

lever is set to R.

• The rear view camera will automat-

ically stop operating when set to a

different lever.

The rear view camera has been

equipped with an optical lens to

provide a wider range of vision

and may appear different from

the actual distance. For safety,

directly check the rear and

left/right sides.

CAUTION

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 108

4 109

Features of your vehicle

Name Description

Monday Monday

Tuesday Tuesday

Wednesday Wednesday

Thursday Thursday

Friday Friday

Saturday Saturday

Sunday Sunday

Use tune knob Use tune knob

Volume Volume

Max Volume maxinmum

Min Volume mininmum

AST (Auto store) Automatically selects and saves

channels

No Media Empty media file in CD or USB

No File Empty media file in CD or USB

Empty File Empty media file in MY MUSIC

Info (Information) Information of playing files

Artist Artist name, MP3/CD file

currently being played

Title Song name, MP3/CD file

currently being played

Album Album name, MP3/CD file cur-

rently being played

Genres "Genres" is keyword for search-

ing mode of playlists for iPod

Composers "Composers" is filtering keyword

for searching mode of playlists

for iPod

Name Description

Playlists

"Playlists" is filtering keyword for

searching mode of playlists for iPod

Songs

"Songs" is filtering keyword for

searching mode of playlists for iPod

Audiobooks "Audiobooks" is filtering key-

word for searching mode of

playlists for iPod

Podcasts "Podcasts" is filtering keyword

for searching mode of playlists

for iPod

RPT (Repeat) Audio play mode of Reapeat

FLD.RPT (Folder Repeat)

Audio play mode of Folder

Reapeat

RDM (Random) Audio play mode of Random

FLD.RDM(Folder Random)

Audio play mode of Folder

Random

ALL RDM (All Random)

Audio play mode of All Random

COPY Copy MP3 file to flash memory

for MY MUSIC

Cancel copy Cancel copy mode

File copied Completed File copy

Free Free size of memory

Copy failed Copy failed

Search Search files

Loading CD Loading CD

Reading CD Reading CD

Reading Error Reading Error

Mechanism Error Mechanism Error

APPENDIX

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 109

Features of your vehicle

1104

Name Description

Ejecting CD Ejecting CD

Audio CD Audio CD

Track Audio CD song order

Reading Media Reading Media

Not supported Not supported file format

Empty iPod Empty iPod, iPod don't have

playable data

Communication Error

Communication error between

audio and iPod or usb

Delete Delete the paired phone or files

in MY MUSIC

Del.All Delete all files

Del.Sel Select files to delete

Return Return menu

List List files or paired phones

Select Files Select Files

Memory is full, Memory is full, Delete files

Over 6000 files. can Over 6000 files. can not be

copied not be copied

Over 1000 same files

Over 1000 same files can not

be copied

System will automati

System will automatically

switchoff after 1 hour with igni-

tion off

Battery discharge Battery discharge Start the

engine

Name Description

Setup Setup

Display Setup display mode

Mode Pop up This function is used to select

popup menu on or off

Scroll text This function is used to display

characters longer than the LCD

text displays

Song Info Setup display information being

played

Folder/File Display Folder/file name,

file currently being played

Album/Artist/Song Display Album/Artist/Song

name, file currently being played

Sound Setup sound mode

Audio Settings Setup Audio settings that consist

BASS,Middle,Treble,Fader and

Balance

PowerBass This function is used to improve

bass sound quality

Speed Dependent Vol.

Automatically adjust the volume

according to the car speed

Volume Dialogue Adjust volume level of Dialogue

Bass Bass is sound of low frequency.

It can be adjusted sound by user

Middle Middle is sound of middle fre-

quency. It can be adjusted

sound by user

cally switchoff after 1

hour with ignition off

Delete files

can not be copied

Start the engine

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 110

4 111

Features of your vehicle

Name Description

Expert Expert mode. This function is

used to set exercised value of

voice recognition factor

Language This function is used to select

user language

Deutsch Deutsch

English(UK) English(UK)

Français French

Italiano Italian

Español Spanish

Nederlands dutch

Svenska swedish

Dansk Danish

Russian

Polski Polish

Turkish

The system will be The system will be rebooted

Please change language

Please change language when

ignition ON

Bluetooth not ready

You can use BT System for a

moment Because BT system is

being initialized

Add a new Bluetooth Add a new

Bluetooth

Wireless

Technology device from your phone

Processing Bluetooth

You can use BT System for a

moment Because BT system is

being initialized or processing

other command

Name Description

Treble

Treble is sound of high frequency.

It can be adjusted sound by user

Fader Fader is sound positon between

FRONT and REAR. It can be

adjusted sound by user

Balance Balance is sound positon

between Right and Left. It can

be adjusted sound by user

Default This function is used to initialize

setting value

Clock Setup time

Clock Settings Enters time advanced settings

Day Settings Enters day advanced settings

Time Format Refer to the time display The

time can be displayedin 12

hours or 24 hours

Clock Disp.(Pwr Off) This function is used to select

clock display mode in power off

Automatic RDS Time This function is used to set the RDS

time automatically.

System Setup system or system infor

mation

Memory Information Display used memory size

VRS Mode Setup Voice command mode

Normal Normal mode. This function is

used to set default value of

voice recognition factor

device from your phone

Please try later

Please wait

rebooted

when ignition ON

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 111

Features of your vehicle

1124

Name Description

Incoming Call Receivng phone

Call Ended Call Ended

Call Rejected When there is unwanted call,

You push the button on the

steering remote controller

Unknown "Unknown" mean Headunit or

phone don't have any informa-

tion about phone number

Call is not possible Call is not possible

MIC Mute Microphone mute

Activate

Bluetooth

Activate

Bluetooth®

Wireless

Technology

System

Bluetooth System

Bluetooth®

Wireless Technology

system activated

No phone paired. Empty phone paired. Pair a

phone?

No connected phone.

No connected phone. Connect a

phone?

Phone book is empty.

Phone book is empty

Available only when This is a warning, Do not enter

the MENU about BT Setup.

When vehicle is moving

Listening... Listen to instruction of audio

Phone book Download

Downloading phone book from

phone paired to audio

Auto Download After pairing phone, audio

system automatically download

phone book

Name Description

Audio Streaming

After pairing phone

, a

udio system

can support

Bluetooth

Wireless

Technology streaming mode

Outgoing Volume Set outoging volume "0 ~ 5"

Bluetooth

System Off

Turn off

Bluetooth®

Wireless

Technology

System

Bluetooth

System ON

Turn on

Bluetooth®

Wireless

Technology

System

Device :

Bluetooth®

Wireless

Technology

device name

Passkey Passkey for pairing a phone

Pairing complete Pair a

Bluetooth®

Wireless

Technology

phone to the audio

Pairing failed Audio & Phone connection have

failed

Already 5 devices All 5 phones have already been

paired. Delete a previously

paired phone to pair new phone

Connection complete

Audio & Phone connection have

succeed

Connection failed. Audio & Phone connection have

failed

Priority changed Changed priority about the

registered phones

Overwrite previous Overwrite previous phone book

information

paired. Delete a

paired phone?

phone book?

Retry?

vehicle is stationary

Download?

Connect a phone?

System?

activated

Pair a phone?

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 112

4 113

Features of your vehicle

Phone book download

Name Description

Phone does not support

Phone does not support Phone

book download

No connected There are phone in the connec-

tion list

Phone does not support

But it was actually not connected

BT pairing

Downloading stopped

Bluetooth

device

Bluetooth

audio

H_LF_A,B_AUDIO:BH hma 4-109~(Audio).qxd 5/19/2014 9:44 AM Page 113

WARNING & SAFETY INFORMATION 7

WARNING & SAFETY INFORMATION

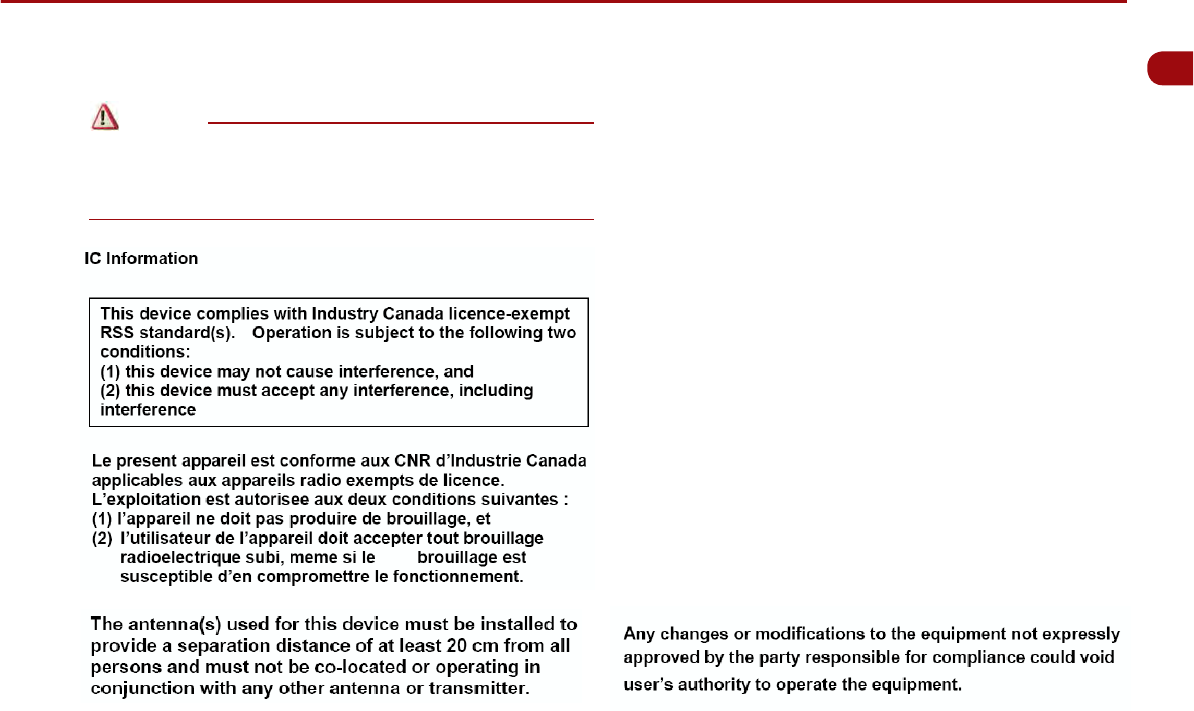

Safety Symbols



FCC Information

6JKUFGXKEGEQORNKGUYKVJRCTVQHVJG(%%4WNGU1RGTCVKQPKUUWDLGEV

VQVJGHQNNQYKPIVYQEQPFKVKQPU

6JKUFGXKEGOC[PQVECWUGJCTOHWNKPVGTHGTGPEGCPF

6JKUFGXKEGOWUVCEEGRVCP[KPVGTHGTGPEGTGEGKXGFKPENWFKPI

KPVGTHGTGPEGVJCVOC[ECWUGWPFGUKTGFQRGTCVKQP

FCC notification to users

6JKUGSWKROGPVJCUDGGPVGUVGFCPFHQWPFVQEQORN[YKVJVJGNKOKVUHQTC

%.#55 $ FKIKVCN FGXKEG RWTUWCPV VQ 2CTV  QH VJG (%% 4WNGU 6JGUG

NKOKVUCTGFGUKIPGFVQ RTQXKFG TGCUQPCDNG RTQVGEVKQPCICKPUVJCTOHWN

KPVGTHGTGPEGYJGPVJGGSWKROGPVKUQRGTCVGFKPCEQOOGTEKCN

GPXKTQPOGPV 6JKU GSWKROGPV IGPGTCVGU WUGU CPF ECP TCFKCVG TCFKQ

HTGSWGPE[GPGTI[CPF KHPQV KPUVCNNGF CPFWUGF KPCEEQTFCPEGYKVJ VJG

KPUVTWEVKQPU OC[ ECWUG JCTOHWN KPVGTHGTGPEG VQ TCFKQ EQOOWPKECVKQPU

*QYGXGTVJGTG KU PQIWCTCPVGGVJCVKPVGTHGTGPEGYKNNPQVQEEWT KP C

RCTVKEWNCTKPUVCNNCVKQP+HVJKUGSWKROGPVFQGUECWUGJCTOHWNKPVGTHGTGPEG

VJG WUGT KU GPEQWTCIGF VQ VT[ VQ EQTTGEV VJG KPVGTHGTGPEG D[ EQPUWNVKPI

YKVJC-+#FGCNGTQTCPGZRGTKGPEGFVGEJPKEKCPHQTVGEJPKECNCUUKUVCPEG

㿋#

9JGPGPEQWPVGTKPIVJKUU[ODQNKPVJGOCPWCN[QWOWUVHQNNQYVJGUG

TGEQOOGPFCVKQPUVQCXQKFKTTGRCTCDNGFCOCIGVQ[QWTECTU[UVGOQT

EQPPGEVGFFGXKEGUQTVQCXQKFCEEKFGPVUYKVJKPLWTKGUQTFGCVJ

㿋#

9JGPGPEQWPVGTKPI VJKU U[ODQNKPVJGOCPWCN[QWOWUVDGXGT[

ECTGHWNCPFHQNNQYVJGTGEQOOGPFCVKQPUVQCXQKFFCOCIGVQ[QWTECT

U[UVGOQTEQPPGEVGFFGXKEGUQTVQCXQKFKPLWT[

㿋#

+PHQTOCVKQPYJKEJ[QWOWUVDGCYCTGQHQTTGEQOOGPFCVKQPUHQT[QWT

EQPXGPKGPEGCPFHQTQRVKOCNQRGTCVKQPQH[QWTU[UVGO

Note

Caution

Warning

HYUNDAI MOBIS AC110E6GG DIGITAL CAR AUDIO SYSTEM User Manual H LF A B AUDIO BH hma 4 109 Audio

HYUNDAI MOBIS CO., LTD. DIGITAL CAR AUDIO SYSTEM H LF A B AUDIO BH hma 4 109 Audio

Contents

User Manual Part 2

Navigation menu

Namespaces

Views

Navigation
