Knowing your vehicle

D300800AHM

How vehicle audio works

AM and FM radio signals are broadcast

from transmitter towers located around

your city. They are intercepted by the

radio antenna on your vehicle. This signal

is then received by the radio and sent to

your vehicle speakers.

When a strong radio signal has reached

your vehicle, the precise engineering of

your audio system ensures the best pos-

sible quality reproduction. However, in

some cases the signal coming to your

vehicle may not be strong and clear. This

can be due to factors such as the dis-

tance from the radio station, closeness of

other strong radio stations or the pres-

ence of buildings, bridges or other large

obstructions in the area.

AM broadcasts can be received at

greater distances than FM broadcasts.

This is because AM radio waves are

transmitted at low frequencies. These

long, low frequency radio waves can fol-

low the curvature of the earth rather than

travelling straight out into the atmos-

phere. In addition, they curve around

obstructions so that they can provide bet-

ter signal coverage.

¢¢¢

JBM002

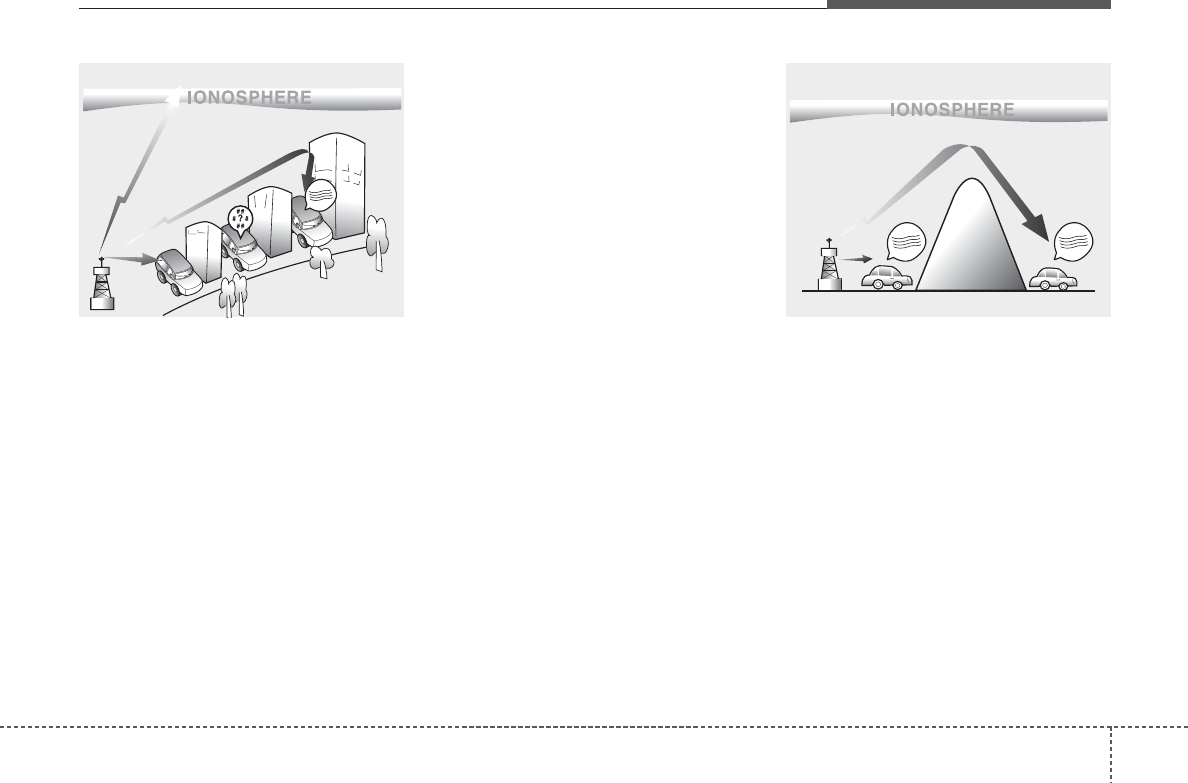

AM radio reception

¢¢¢

JBM001

FM radio reception

Knowing your vehicle

FM broadcasts are transmitted at high

frequencies and do not bend to follow the

earth's surface. Because of this, FM

broadcasts generally begin to fade at

short distances from the station.

Also, FM signals are easily affected by

buildings, mountains, or other obstruc-

tions. These can result in certain listening

conditions which might lead you to

believe a problem exists with your radio.

The following conditions are normal and

do not indicate radio trouble:

• Fading - As your vehicle moves away

from the radio station, the signal will

weaken and sound will begin to fade.

When this occurs, we suggest that you

select another stronger station.

• Flutter/Static - Weak FM signals or

large obstructions between the trans-

mitter and your radio can disturb the

signal causing static or fluttering nois-

es to occur. Reducing the treble level

may lessen this effect until the distur-

bance clears.

• Station Swapping - As a FM signal

weakens, another more powerful sig-

nal near the same frequency may

begin to play. This is because your

radio is designed to lock onto the clear-

est signal. If this occurs, select another

station with a stronger signal.

• Multi-Path Cancellation - Radio signals

being received from several directions

can cause distortion or fluttering. This

can be caused by a direct and reflect-

ed signal from the same station, or by

signals from two stations with close

frequencies. If this occurs, select

another station until the condition has

passed.

JBM005

¢¢¢

JBM004JBM003

FM radio station

Knowing your vehicle

Using a cellular phone or a two-way

radio

When a cellular phone is used inside the

vehicle, noise may be produced from the

audio equipment. This does not mean

that something is wrong with the audio

equipment. In such a case, use the cellu-

lar phone at a place as far as possible

from the audio equipment.

Care of discs

• If the temperature inside the vehicle is

too high, open the vehicle windows for

ventilation before using your vehicle

audio.

• It is illegal to copy and use MP3/WMA

files without permission. Use CDs that

are created only by lawful means.

• Do not apply volatile agents such as

benzene and thinner, normal cleaners

and magnetic sprays made for ana-

logue disc onto CDs.

• To prevent the disc surface from get-

ting damaged. Hold and carry CDs by

the edges or the edges of the center

hole only.

• Clean the disc surface with a piece of

soft cloth before playback (wipe it from

the center to the outside edge).

• Do not damage the disc surface or

attach pieces of sticky tape or paper

onto it.

• Make sure objects other than CDs are

not inserted into the CD player (Do not

insert more than one CD at a time).

• Keep CDs in their cases after use to

protect them from scratches or dirt.

• Depending on the type of CD-R/CD-

RW CDs, certain CDs may not operate

normally according to manufacturing

companies or making and recording

methods. In such circumstances, if you

still continue to use those CDs, they

may cause the malfunction of your

vehicle audio system.

✽✽NOTICE - Playing an

Incompatible Copy

Protected Audio CD

Some copy protected CDs, which do not

comply with the international audio CD

standards (Red Book), may not play on

your vehicle audio. Please note that if

you try to play copy protected CDs and

the CD player does not perform correct-

ly the CDs maybe defective, not the CD

player.

WARNING

Do not use a cellular phone while

driving. Stop at a safe location to

use a cellular phone.

Knowing your vehicle

AC110HG_CDP_BT / AC610HG_CDC_BT

■■ CD Player : AC110HG/AC100HG

AC210HG/AC200HG

■■ CD Changer : AC610HG/AC600HG

❋ There will be no logo if the Bluetooth®feature is not supported.

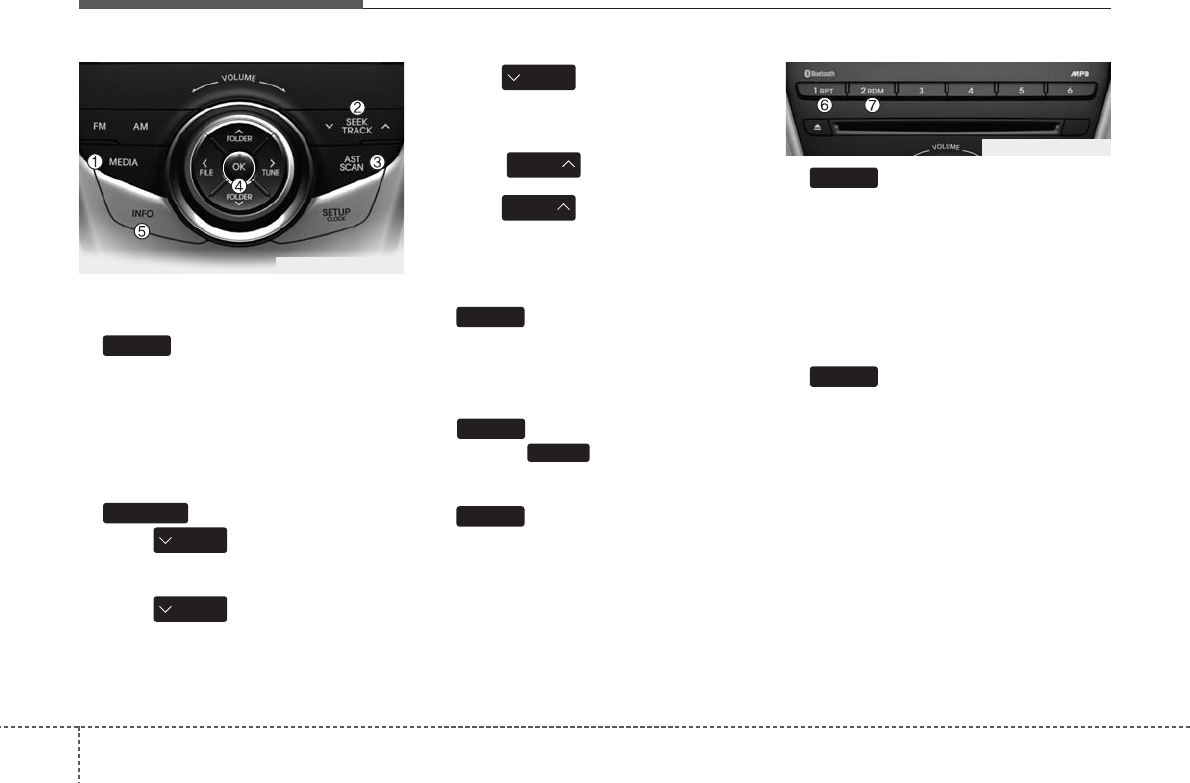

Using RADIO, SETUP, VOLUME

and AUDIO CONTROL

1. Button

Turns to FM mode and toggles FM1and

FM2 when the button is pressed each time.

2. Button

Pressing the button selects the

AM band. AM Mode is displayed on the

LCD.

3. Button

• When the button is pressed,

it increases the band frequency to auto-

matically select channel. Stops at the

previous frequency if no channel is

found.

• When the button is press-

ed, it reduces the band frequency to

automatically select channel. Stops at

the previous frequency if no channel is

found.

4. Button(AUTO STORE

Button)

When the button is pressed, it automati-

cally selects and saves channels with

high reception rate to PRESET buttons

~ and plays the channel

saved in PRESET1. If no channel is

saved after AST, it will play the previous

channel.

• When the button is pressed for longer

than 0.8 second, it automatically scans

the radio preset station upwards.

• Press the button again to stop

the scan feature and to listen to the

currently selected channel.

5. Knob

If the knob is turned clockwise/counter-

clockwise, the volume will increase

/decrease.

6. Button

■

AC110/100/610/600HG

Press this button to turn to the SETUP

adjustment mode.

If no action is taken for 8 seconds after

pressing the button, it will return to the

play mode. (After entering SETUP mode,

select Manual , button

and push button)

The setup changes in the order of

Scroll ➟ SDVC ➟ Media ➟ Sound ➟

Phone ➟ Clock ➟ Scroll...

■AC210/200HG

The setup Change in the order of

Scroll ➟ SDVC ➟ Media ➟ V-EQ ➟

Sound ➟Phone ➟Clock ➟➟

Scroll ...

TUNEFILE

SETUP

VOLUME

SCAN

AST

SEEK

TRACK

SEEK

TRACK

SEEK

Knowing your vehicle

AC110HG_CDP_BT

Knowing your vehicle

• SCROLL

This function is used to display charac-

ters longer than the LCD text display and

can be turned On/Off through the

,button.

• SDVC (Speed Dependent Volume Control)

This function automatically adjusts the

volume level according to the speed of

the vehicle and can be turned On/Off

through the ,button.

• MEDIA

Select default display of MP3 play infor-

mation. “Folder/File” or “Artist/Title” can

be selected.

• V-EQ

Press the ,button to

select the Variable EQ the following

order : Normal, Dynamic, Concert

Select and press the button to

complete and exit from Variable EQ

setup mode.

• SOUND

The Bass, Middle, Treble, Fader, Balance

mode. Press the ,button

to select mode. After selecting each

mode, press , button.

BASS Control

To increase the BASS, press the right

button, while to decrease the BASS,

press the left button.

MIDDLE Control

To increase the MIDDLE, press the right

button, while to decrease the MIDDLE,

press the left button.

TREBLE Control

To increase the TREBLE, press the right

button, while to decrease the TREBLE,

press the left button.

FADER Control

Press the right button to emphasize rear

speaker sound(front speaker sound will

be attenuated). When the left button is

pressed, front speaker sound will be

emphasized(rear speaker sound will be

attenuated).

TUNEFILE

FOLDER

TUNEFILE

AC110HG_CDP_BT

Knowing your vehicle

BALANCE Control

Press the right button to emphasize right

speaker sound(left speaker sound will be

attenuated). When the left button is

pressed, left speaker sound will be

emphasized(right speaker sound will be

attenuated).

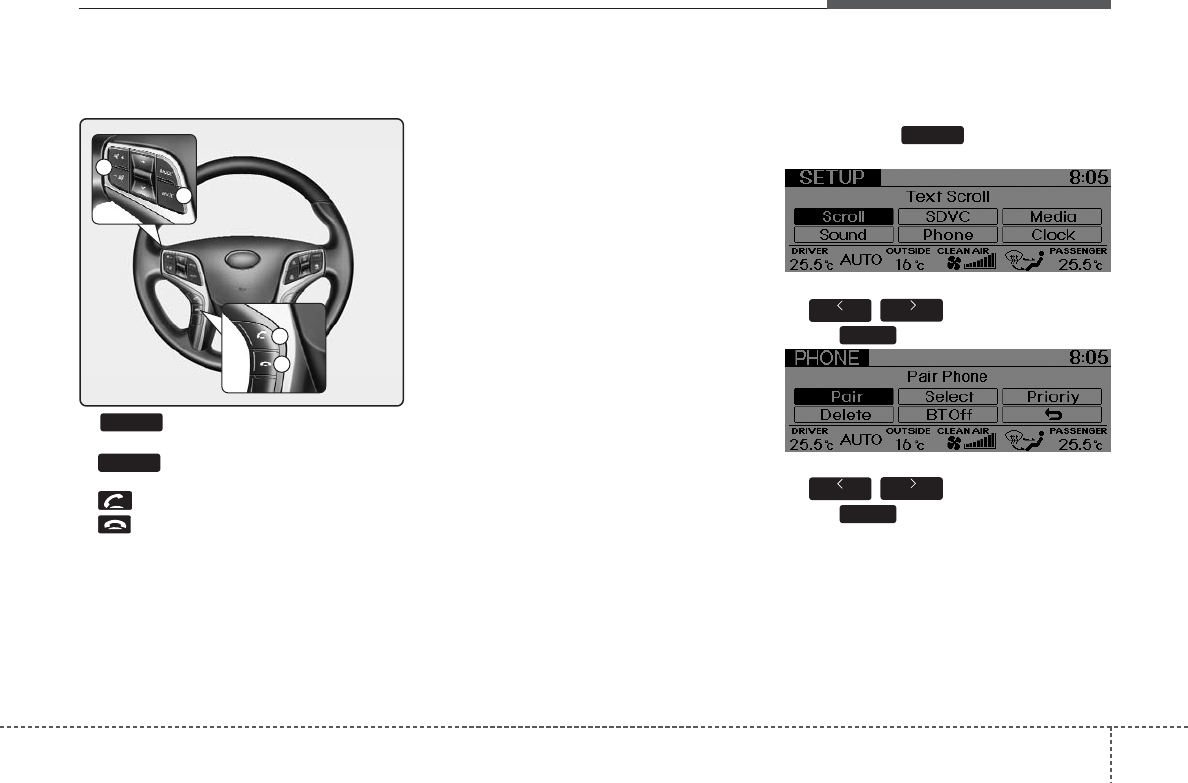

• PHONE (if equipped)

Select this item to enter PHONE setup mode.

Refer to “BLUETOOTH PHONE OPERA-

TION” section for detailed information.

❈“PHONE” menu is not available if the

audio does not support Bluetooth features.

• CLOCK

Select this item to enter Clock setup mode.

Adjust the hour using ,

button and press the button.

Adjust the minute using ,

button and press the button to

complete and exit from clock adjustment

mode.

Press the button for more than 1

seconds while in power off/on, you can

enter the Clock setup mode directly.

• Return( )

This function displays the previous MODE

screen. 8. PRESET Buttons

Push ~ buttons less than 0.8

second to play the channel saved in each

button. Push Preset button for 0.8 sec-

ond or longer to save current channel to

the respective button with a beep.

9. Button

• Turns on/off the set when the IGNI-

TION SWITCH is on ACC or ON.

10. Button

Turn ON/OFF the displayed data and

light on LCD.

When LCD Display is turned OFF, Press

any button to turn ON display.

DISP

SETUP

FOLDER

TUNE

FOLDER

AC110HG_CDP_BT

Knowing your vehicle

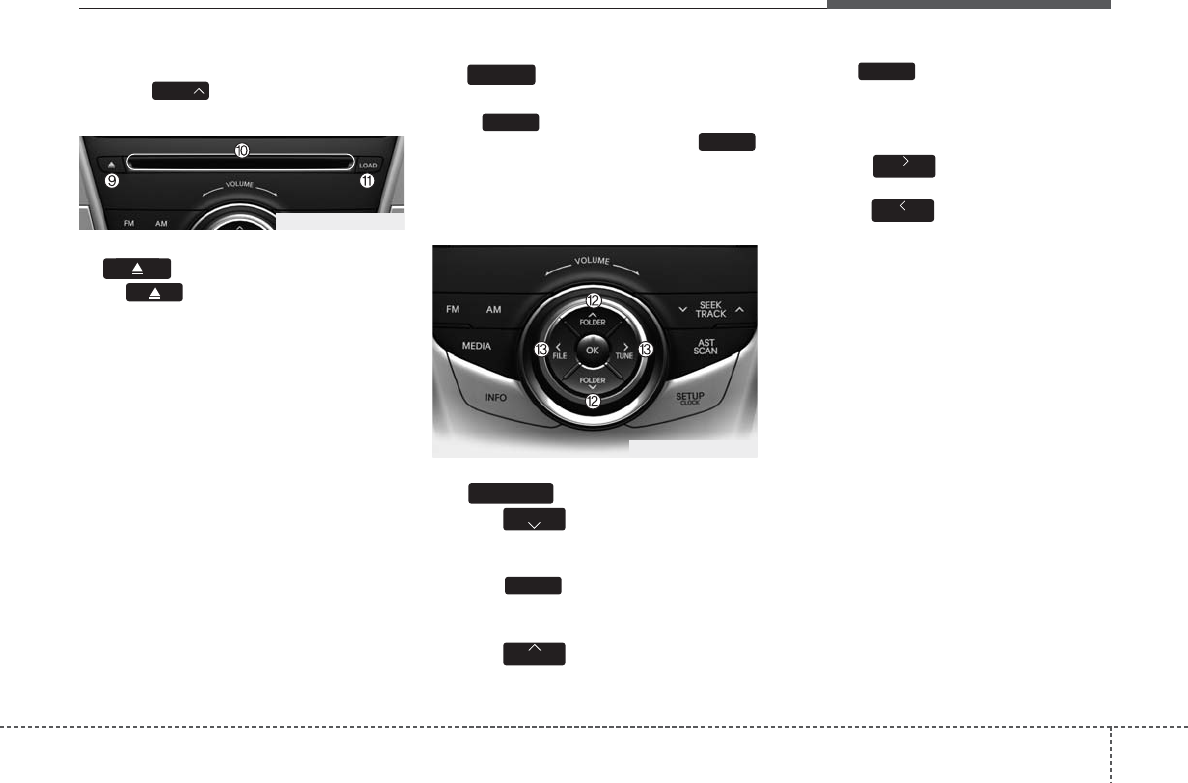

Using CD Player

1. Button (CD)

If the CD is loaded, turns to CD mode.

If no CD, it displays “No Media” for 3 sec-

onds and returns to the previous mode.

2. Button

• Press button for less than

0.8 seconds to play from the beginning

of current song.

• Press button for less than

0.8 seconds and press again within

1 second to play the previous song.

• Press button for 0.8 seconds

or longer to initiate reverse direction

high speed sound search of current

song.

• Press button for less than

0.8 seconds to play the next song.

• Press button for 0.8 seconds

or longer to initiate forward direction

high speed sound search of current

song.

3. Button

Play each song in the CD for 10 seconds.

To cancel SCAN Play, press this button

again.

4. Button

Press the button to play the

select song.

5. Button

Displays the information of the current

CD TRACK(FILE) as below when the

button is pressed each time.

• CDDA : Disc Title, Disc Artist, Track Title,

Track Artist, Total Track.

• MP3/WMA : File Name, Title, Artist,

Album, Folder, Total File.

(not displayed if the information is

not available on the DISC.)

6. Button (REPEAT)

Press this button for less than 0.8 second

to activate ‘RPT’ mode and more than 0.8

seconds to activate ‘FLD.RPT’ mode.

• RPT : Only a track(file) is repeatedly

played back.

•FLD.RPT (MP3/WMA Only) : Only files

in a folder are repeatedly played back.

❈DISC RPT(CD Changer) : Repeats the

entire DISC when this button is pressed

for 0.8 seconds or longer.

7. Button (RANDOM)

Press this button for less than 0.8 second

to activate ‘RDM’ mode and longer than

0.8 second to activate ‘ALL RDM’ mode.

•FLD.RDM : Only files/tracks in a folder/disc

are played back in random sequence.

•ALL RDM(MP3/WMA Only) : All files in

a disc are played back in random

sequence.

8. Button (CD changer :

AC610/600HG)

• Preset Change Button Changes

5DISC

DISC

2 RDM

1 RPT

INFO

SCAN

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

MEDIA

AC110HG_CDP_BTAC610HG_CDC_BT

AC110HG_CDP_BT

Knowing your vehicle

disc to the previous disc.

• Preset Change Button Changes

disc to the next disc.

9. Button (CD Eject)

Push button for less than 0.8 sec-

onds to eject the CD during CD playback.

This button is enabled when ignition switch

is off.

• ALL EJECT(CD Changer : AC610/600HG)

Press this button for more than 0.8 sec-

onds to eject all discs inside the deck in

respective order.

10. CD Slot

Please face printed side upward and

gently push in. When the ignition switch

is on ACC or ON and power is off, power

is automatically turned on if the CD is

loaded. This CDP supports only 12cm

CD. If VCD, Data CD are loaded,

"Reading Error" message will appear

and CD will be ejected.

11. Button

(CD changer :

AC610/600HG)

Push button to load CDs to avail-

able CDC deck (from 1~6). Push

button for more than 2 seconds to load

into all available decks. The last CD will

play. 10 seconds idle status will disable

loading process.

12. Button

• Press button to move to child

folder of the current folder and display

the first song in the folder.

Press button to move to the

folder displayed. It will play the first

song in the folder.

• Press button to move to par-

ent folder of the current folder and dis-

play the first song in the folder.

Press button to move to the

folder displayed.

13. Search Button

Press the button to display the

songs next to the currently played song.

press the button to display the

songs before to the currently played

song.

FILE

TUNE

FOLDER

LOAD

6DISC

AC610HG_CDC_BT

AC110HG_CDP_BT

Knowing your vehicle

104

CAUTION IN USING

USB DEVICE

• To use an external USB device,

make sure the device is not con-

nected when starting up the vehi-

cle. Connect the device after

starting up.

• If you start the engine when the

USB device is connected, it may

damage the USB device. (USB

flashdrives are very sensitive to

electric shock.)

• If the engine is started up or

turned off while the external USB

device is connected, the external

USB device may not work.

• It may not play inauthentic MP3 or

WMA files.

1) It can only play MP3 files with

the compression rate between

8Kbps~320Kbps.

2) It can only play WMA music

files with the compression rate

between 8Kbps~320Kbps.

• Take precautions for static electrici-

ty when connecting or disconnect-

ing the external USB device.

(Continued)

• An encrypted MP3 PLAYER is not

recognizable.

• Depending on the condition of

the external USB device, the con-

nected external USB device can

be unrecognizable.

• When the formatted byte/sector

setting of External USB device is

not either 512BYTE or 2048BYTE,

then the device will not be recog-

nized.

• Use only a USB device formatted

to FAT 12/16/32.

• USB devices without USB I/F

authentication may not be recog-

nizable.

• Make sure the USB connection

terminal does not come in contact

with the human body or other

objects.

• If you repeatedly connect or dis-

connect the USB device in a short

period of time, it may break the

device.

• You may hear a strange noise

when connecting or disconnect-

ing a USB device.

(Continued)

• If you disconnect the external USB

device during playback in USB

mode, the external USB device can

be damaged or may malfunction.

Therefore, disconnect the external

USB device when the audio is

turned off or in another mode. (e.g,

Radio or CD)

• Depending on the type and capacity

of the external USB device or the

type of the files stored in the device,

there is a difference in the time

taken for recognition of the device.

• Do not use the USB device for pur-

poses other than playing music files.

• Playing videos through the USB is

not supported.

• Use of USB accessories such as

rechargers or heaters using USB

I/F may lower performance or

cause trouble.

• If you use devices such as a USB

hub purchased separately, the

vehicle’s audio system may not

recognize the USB device. In that

case, connect the USB device

directly to the multimedia termi-

nal of the vehicle.

(Continued)

411

Knowing your vehicle

(Continued)

• If the USB device is divided by

logical drives, only the music files

on the highest-priority drive are

recognized by car audio.

• Devices such as MP3 Player/

Cellular phone/Digital camera can

be unrecognizable by standard

USB I/F can be unrecognizable.

• Charging through the USB may

not be supported in some mobile

devices.

❋

A car exclusive cable (sold sep-

arately) is required to use the

iPod.

• Some non-standard USB devices

(METAL COVER TYPE USB) can be

unrecognizable.

• Some USB flash memory readers

(such as CF, SD, microSD, etc.) or

external-HDD type devices can be

unrecognizable.

• Music files protected by DRM

(DIGITAL RIGHTS MANAGEMENT)

are not recognizable.

• The data in the USB memory may

be lost while using this audio.

Always back up important data on

a personal storage device.

(Continued)

• A SD-to-USB adapter may not

work with the car audio system.

• Please avoid using USB memory

products which can be used as

key chains or cellular phone

accessories as they could cause

damage to the USB jack. Please

make certain only to use plug type

connector products as shown

below.

Knowing your vehicle

124

Using USB device

1. Button (USB)

If USB is connected, it switches to the

USB mode from the other mode to play

the song files stored in the USB. If no CD

and auxiliary device is not connected, it

displays "No Media" for 3 seconds and

returns to the previous mode.

2. Button

• Press button for less than

0.8 seconds to play from the beginning

of current song.

• Press button for less than

0.8 seconds and press again within

1 second to play the previous song.

• Press button for 0.8 seconds

or longer to initiate reverse direction

high speed sound search of current

song.

• Press button for less than

0.8 seconds to play the next song.

• Press button for 0.8 seconds

or longer to initiate forward direction

high speed sound search of current

song.

Button

Play each song in the CD for 10 seconds.

To cancel SCAN Play, press this button

again.

4. Button

Press the button to play the

select song.

5. Button

Displays the information of the file cur-

rently played in the order of File Name,

Title, Artist, Album, Folder, Total File,

Normal Display.

(Displays no information if the file has no

song information.)

6. Button (REPEAT)

Press this button for less than 0.8 second

to activate 'RPT' mode and longer than

0.8 second to activate 'FLD.RPT' mode.

• RPT : Only the current file is repeated-

ly played back.

•FLD.RPT : All files in a folder are

repeatedly played back.

7. Button (RANDOM)

Press this button for less than 0.8 sec-

onds to activate ‘RDM’ mode and more

than 0.8 seconds to activate ‘ALL RDM’

mode.

•FLD.RDM : Only files in a folder are

played back in a random sequence.

•

ALL RDM

: All files in a USB memory are

played back in the random sequence.

2 RDM

1 RPT

INFO

SCAN

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

MEDIA

AC110HG_CDP_BT

AC110HG_CDP_BTAC110HG_CDP_BT

413

Knowing your vehicle

8. Button

• Press button to move to child

folder of the current folder and display

the first song in the folder.

Press button to move to the

folder displayed. It will play the first

song in the folder.

• Press button to move to par-

ent folder display the first song in the

folder.

Press button to move to the

folder displayed.

9. Search Button

Press the button to display the

songs next to the currently played song.

press the button to display the

songs before to the currently played

song.

FILE

TUNE

FOLDER

AC110HG_CDP_BT

Knowing your vehicle

144

✽✽NOTICE FOR USING THE

iPod DEVICE

• Some iPod models might not sup-

port the communication protocol

and the files will not be played.

Supported iPod models:

- iPod Mini

- iPod 4th(Photo) ~ 6th(Classic)

generation

- iPod Nano 1st~4th generation

- iPod Touch 1st~2nd generation

• The order of search or playback of

songs in the iPod can be different

from the order searched in the

audio system.

• If the iPod disabled due to its own

malfunction, reset the iPod. (Reset:

Refer to iPod manual)

• An iPod may not operate normally

on low battery.

• Some iPod devices, such as the

iPhone, can be connected through the

Bluetooth®interface. The device

must have audio Bluetooth®capabili-

ty (such as for stereo headphone

Bluetooth®). The device can play, but

it will not be controlled by the audio

system.

CAUTION IN USING THE

iPod DEVICE

• The Hyundai iPod Power Cable is

needed in order to operate iPod

with the audio buttons on the

audio system. The USB cable pro-

vided by Apple may cause mal-

function and should not be used

for Hyundai vehicles.

❋

The Hyundai iPod Power Cable

may be purchased through your

Hyundai Dealership.

• When connecting iPod with the

iPod Power Cable, insert the con-

nector to the multimedia socket

completely. If not inserted com-

pletely, communications between

iPod and audio may be interrupted.

• When adjusting the sound effects of

the iPod and the audio system, the

sound effects of both devices will

overlap and might reduce or distort

the quality of the sound.

• Deactivate (turn off) the equalizer

function of an iPod when adjust-

ing the audio system’s volume,

and turn off the equalizer of the

audio system when using the

equalizer of an iPod.

(Continued)

• When the iPod cable is connected,

the system can be switched to AUX

mode even without iPod device

and may cause noise. Disconnect

the iPod cable when you are not

using the iPod device.

• When not using iPod with car

audio, detach the iPod cable from

iPod. Otherwise, iPod may remain

in accessory mode, and may not

work properly.

• When connecting the iPod, use the

USB/AUX terminals.

• When disconnecting the iPod,

disconnect both the USB/AUX ter-

minal.

• The iPod exclusive cable must be

connected to both the USB/AUX

terminals for iPod charging and

operations to be supported.

Detachable USB/AUX

All-in-one USB/AUX

415

Knowing your vehicle

Using iPod

❋iPod is a trademark of Apple Inc.

1. Button (iPod)

If iPod is connected, it switches to the

iPod mode from the previous mode to

play the song files stored in the iPod.

If there is no iPod connected, then it dis-

plays the message "No Media" for 3 sec-

onds and returns to the previous mode.

2. Button

• Press button for less than

0.8 seconds to play from the beginning

of current song.

• Press button for less than

0.8 seconds and press again within

1 second to play the previous song.

• Press button for 0.8 seconds

or longer to initiate reverse direction

high speed sound search of current

song.

• Press button for less than

0.8 seconds to play the next song.

• Press button for 0.8 seconds

or longer to initiate forward direction

high speed sound search of current

song.

3. Button (iPod)

Displays the information of the file cur-

rently played in the order of Title, Artist,

Album, Normal Display.

(Displays no information if the file has no

song information.)

4. Button

Press the button to play the

select song.

5. Button (REPEAT)

Repeats the song currently played.

6. Button (RANDOM)

• Press this button for less than 0.8 sec-

onds to shuffle order of all songs in

current category. (Song Random)

• Press this button for 0.8 seconds or

longer to shuffle order of albums in cur-

rent category. (Album Random)

• To cancel RANDOM Play, press this

button again.

7. CATEGORY Button

Moves to the upper category from cur-

rently played category of the iPod.

To move to (play) the category (song)

displayed, press , but-

ton.

You will be able to search through the

lower category of the selected category.

FOLDER

2 RDM

1 RPT

INFO

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

SEEK

TRACK

MEDIA

AC110HG_CDP_BT

Knowing your vehicle

164

CAUTION IN USING

BLUETOOTH®CELLULAR

PHONE

• Do not use a cellular phone or

perform Bluetooth

settings (e.g.

pairing a phone) while driving.

• Some Bluetooth

-enabled phones

may not be recognized by the

system or fully compatible with

the system.

• Before using Bluetooth

features of the audio system,

refer your phone’s User’s Manual

for phone-side Bluetooth

opera-

tions.

•

The phone must be paired to the

audio system to use Bluetooth®

related features.

• You will not be able to use the

hands-free feature when your

phone (in the car) is outside of

the cellular service area (e.g. in a

tunnel, in a underground, in a

mountainous area, etc.).

• If the cellular phone signal is poor

or the vehicles interior noise is

too loud, it may be difficult to hear

the other person’s voice during a

call.

(Continued)

(continued)

• Do not place the phone near or

inside metallic objects, otherwise

communications with Bluetooth

system or cellular service sta-

tions can be disturbed.

• While a phone is connected

through Bluetooth

your phone

may discharge quicker than usual

for additional Bluetooth

-related

operations.

• Some cellular phones or other

devices may cause interference

noise or malfunction to audio

system. In this case, store the

device in a different location may

resolve the situation.

• Please save your phone name in

English, or your phone name may

not be displayed correctly.

417

Knowing your vehicle

BLUETOOTH®PHONE OPERATION

(if equipped)

1. button : Raises or lowers

speaker volume.

2. button : Mute the microphone

during a call.

3. button : Places and transfers calls.

4. button : Ends calls or cancels func-

tions.

■What is Bluetooth®?

Bluetooth®is a wireless technology that

allows multiple devices to be connected

in a short range, low-powered devices

like hands-free, stereo headset, wireless

remote control, etc. For more informa-

tion, visit the Bluetooth®website at

www.Bluetooth.com

■General Features

• This audio system supports Bluetooth®

hands-free and stereo-headset fea-

tures.

- HANDS-FREE feature: Making or

receiving calls wirelessly.

- STEREO-HEADSET feature: Playing

music from cellular phones (that sup-

ports A2DP feature) wirelessly.

✽✽NOTICE

• The phone must be paired to the sys-

tem before using Bluetooth®features.

• Only one selected (connected) cellular

phone can be used with the system at

a time.

• Some phones are not fully compatible

with this system.

■Phone Setup

All Bluetooth®-related operations can be

performed in PHONE menu.

1) Push the button to enter

SETUP mode.

2) Select “PHONE” item by using

, button, then push

the button.

3) Select desired item by using

, button, then push

the button.

TUNEFILE

SETUP

MUTE

VOLUME

Knowing your vehicle

184

• Pairing a phone

Before using Bluetooth®features, the

phone must be paired (registered) with

the audio system. Up to 5 phones can be

paired with the system.

NOTE:

• The pairing procedure of the phone

varies according to each phone

model. Before attempting to pair

phone, please see your phone’s

User’s Guide for instructions.

• Once pairing with the phone is com-

pleted, there is no need to pair with

that phone again unless the phone

is deleted manually from the audio

system (refer “Deleting a Phone”

section) or the vehicle’s information

is removed from the phone.

1. Press button to enter SETUP

mode.

2. Select “Phone”, then “Pair” in PHONE

menu.

3. The audio displays “searching ----

passkey: 0000”

4. Search the Bluetooth®system on your

phone .Your phone should display your

[vehicle model name] on the

Bluetooth®device list. Then attempt

pairing on your phone.

NOTE:

If the phone is paired to two or more

vehicles of the same model, i.e. both

vehicles are HYUNDAI AZERA, some

phones may not handle Bluetooth®

devices of that name correctly. In this

case, you may need to change the

name displayed on your phone from

AZERA to AZERA1 and AZERA2.

Refer to your phone’s User’s Guide, or

contact your cellular carrier or phone

manufacturer for instructions.

• Connecting a phone

When the Bluetooth®system is enabled,

the phone previously used is automati-

cally selected and re-connected. If you

want to select different phone previously

paired, the phone can be selected

through “Select Phone” menu.

Only a selected phone can be used with

the hands-free system at a time.

1. Press button to enter SETUP

mode.

2. Select “Phone”, then “Select”in

PHONE menu.

3. Select desired phone name from the list

shown.

• Deleting a Phone

The paired phone can be deleted.

- When the phone is deleted, all the infor-

mation associated with that phone is

also deleted (including phonebook).

- If you want to use the deleted phone

with the audio system again, pairing

procedure must be completed once

more.

1. Press button to enter SETUP

mode.

2. Select “Phone”, then “Delete”in

PHONE menu.

3. Select desired phone name from the list

shown.

• Changing Priority

If several phones are paired with the

audio system, the system attempts to

connect following order when the

Bluetooth®system is enabled:

1) “Priority” checked phone.

2) Previously connected phone

3) Gives up auto connection.

1. Press button to enter SETUP

mode.

2. Select “Phone”, then “Priority”in

PHONE menu.

3. Select desired phone name from the

list shown.

SETUP

419

Knowing your vehicle

• Turning Bluetooth®ON/OFF

Bluetooth®system can be enabled (ON)

or disabled (OFF) by this menu.

- If Bluetooth®is disabled, all the com-

mands related to Bluetooth®system

prompts whether you wish to turn

Bluetooth®ON or not.

1. Press button to enter SETUP

mode.

2. Select “Phone”, then “BT Off”in

PHONE menu.

■Receiving a Phone Call

When receiving a phone call, a ringtone

is audible from speakers and the audio

system changes into telephone mode.

When receiving a phone call, “Incoming”

message and incoming phone number

(if available) are displayed on the audio.

• To Answer a Call:

- Press button on the steering wheel.

• To Reject a Call:

- Press button on the steering wheel.

• To Adjust Ring Volume:

- Use VOLUME buttons on the steering

wheel.

• To Transfer a Call to the Phone(Private

Call):

- Press and hold button on the

steering wheel until the audio system

transfers a call to the phone.

■Talking on the Phone

When talking on the phone, “Active Calls”

message and the other party’s phone

number (if available) are displayed on the

audio.

• To Mute the Microphone

- Press button on the steering

wheel.

• To Finish a Call

- Press button on the steering wheel.

■Making a Phone Call

A Call Back can be made by pressing

button on the steering wheel.

- This is the same function as using the

button solely on the cellular phone.

NOTE:

Some phone models require pressing

button twice to make a call.

MUTE

SETUP

✽✽NOTICE

In the following situations, you or the

other party may have difficulty hearing

each other:

1. Speaking at the same time, your voice

may not reach each other parties. (This

is not a malfunction.) Speak alternate-

ly with the other party on the phone.

2. Keep the Bluetooth®volume to a low

level. High-level volume may result in

distortion and echo.

3. When driving on a rough road.

4. When driving at high speeds.

5. When the window is open.

6. When the air conditioning vents are

facing the microphone.

7. When the sound of the air condition-

ing fan is loud.

■Bluetooth®Audio Music Streaming

This audio system supports A2DP (Audio

Advanced Distribution Profile) and

AVRCP(Audio Video Remote Control

Profile).

Both profiles are available for listening to

the MP3 music via Bluetooth cellular phone

supporting above Bluetooth profiles.

To play MP3 music from the Bluetooth

cellular phone, press the button

until “MP3 Play” is displayed on the LCD.

Then try playing music by phone.

When playing music from the Bluetooth

cellular phone, the head unit displays

MP3 MODE.

NOTE:

• Not only MP3 files, all the sounds

that the phone supports can be

heard by the audio system.

• The Bluetooth cellular phones shall

feature A2DP and AVRCP functions.

• Some A2DP and AVRCP Bluetooth

cellular phones may not play music

through the head unit on first try.

Please try the below;

i.e : Menu➟Filemanager➟Music➟

Option➟Play via Bluetooth

• Please refer to User's Guide of your

phone for more.

To stop music, try stop playing

music from the phone then change

the audio mode to other than “MP3

Play” mode (e.g. FM, AM, CD, etc.)

MEDIA

420

Knowing your vehicle

HYUNDAI MOBIS AC610HGMG DIGITAL CAR AUDIO SYSTEMS User Manual H HG 1012 GEN 0104 qxp

HYUNDAI MOBIS CO., LTD. DIGITAL CAR AUDIO SYSTEMS H HG 1012 GEN 0104 qxp

USER MANUAL

Navigation menu

Namespaces

Views

Navigation
