HYUNDAI MOBIS ACBB0H9AN Car Audio System User Manual
HYUNDAI MOBIS CO., LTD. Car Audio System Users Manual
Users Manual
CAR MULTIMEDIA SYSTEM
USER'S MANUAL
A9EUG06
(미국/영어-English)
CAR MULTIMEDIA SYSTEM I
미국/영어-English
K_YP 17MY_UVO3[USA_EU]AV_COVER.indd 2-3K_YP 17MY_UVO3[USA_EU]AV_COVER.indd 2-3 2016-06-02 오후 4:43:392016-06-02 오후 4:43:3
Thank you for purchasing this multimedia
system.
This user's manual explains how to use
the Kia Motor multimedia system.
Before using the product, read the con-
tents of this user's manual carefully and
use this product safely.
•
The screens shown in this manual may
differ with the actual screens of the
product.
•
The design and specification of this
product may change without prior notifi-
cation for product improvement.
•
When transferring the vehicle to another
individual, include this user's manual so
that the next driver can continue its use.
Precaution for safe usage
•
Driving while distracted can result in a
loss of vehicle control, that may lead to
an accident, severe personal injury, and
death. The driver’s primary responsibil-
ity is in the safe and legal operation of a
vehicle, and use of any handheld devices,
other equipment, or vehicle systems which
take the driver’s eyes, attention and focus
away from the safe operation of a vehicle
or which are not permissible by law should
never be used during operation of the
vehicle.
•
Do not operate the
multimedia system
while driving.
•
Do not disassemble, assemble, or modify
the
multimedia system
.
•
Do not watch the screen for prolonged
periods of time while driving.
•
Set the volume to a level which allows the
driver to be aware of external conditions.
•
Do not operate the
multimedia system
for
prolonged periods of time with the vehicle
ignition in ACC. Such operations may lead
to battery discharge.
•
Be cautious not to spill water or introduce
foreign objects into the device.
•
Do not cause severe shock to the device.
Direct pressure onto the front side of the
monitor may cause damage to the LCD or
touch panel.
•
In case of product malfunction, please
contact your place of purchase or service
center.
•
When cleaning the touch screen, make
sure to turn off the device and use a dry
and smooth cloth. Never use tough materi-
als, chemical cloths, or solvents (alcohol,
ammonia, benzene, thinners, etc.) as such
materials may damage the device panel or
cause color and quality deterioration.
•
SiriusXM service requires a subscrip-
tion, sold separately, after 3-month trial
included with vehicle purchase. If you
decide to continue your SiriusXM ser-
vice at the end of your trial subscription,
the plan you choose will automatically
renew and bill at then-current rates until
you call Sirius XM at 1-866-635-2349 to
cancel. See our Customer Agreement
for complete terms at www.siriusxm.
com. Programming subject to change.
Sirius satellite service is available only
to those at least 18 and older in the 48
contiguous USA, D.C., and PR (with
coverage limitations). Traffic informa-
tion not available in all markets. See
siriusxm.com/traffic for details. Sirius,
XM and all related marks and logos are
trademarks of Sirius XM Radio Inc.
WARNING
• Driving while distracted can result in a
loss of vehicle control that may lead to
an accident, severe personal injury, and
death. The driver’s primary responsibil-
ity is in the safe and legal operation
of a vehicle, and use of any handheld
devices, other equipment, or vehicle
systems which take the driver’s eyes,
attention and focus away from the safe
operation of a vehicle or which are not
permissible by law should never be used
during operation of the vehicle.
K_YP 17MY_UVO3[USA_EU]AV_COVER.indd 4-5K_YP 17MY_UVO3[USA_EU]AV_COVER.indd 4-5 2016-06-02 오후 4:43:482016-06-02 오후 4:43:4
Read the following safety precautions
for your safety
Before using the product, read the contents of this user's manual
carefully and use this product safely.
※ The design and specifi cations of this product may change without prior
notifi cation for product and service improvement.
The actual features in the vehicle may differ from the illustrations.
For more accurate information about the vehicle, please refer to the
catalogue.
※ This Audio system contains open source software, including without
limitation, software distributed and/or modifi ed under the GNU General
Public license, Version 2, June 1991, and the GNU lesser General Public
License, Version 2.1, February 1999.
For additional information and to obtain related materials including
without limitation, the previous referred to licenses and software, please
contact us at MOBIS_OSSrequest@mobis.co.kr
Notations used within this User's Manual
WARNING
• Failure to observe the instructions within this category could result in death
or serious injury or damage to the vehicle.
CAUTION
• Information on matters that could potentially lead to injury or vehicle
damage/malfunction Information that could lead to higher user safety
i
Information
• Information and tips that provide additional user convenience in using the
product
NOTICE
• Information on specific features that facilitate proper product use and
functional understanding
• Information on terminology used within this manual
K_YP 17MY_UVO3[USA_EU]AV_PART0.indd 1K_YP 17MY_UVO3[USA_EU]AV_PART0.indd 1 2016-06-02 오후 4:44:042016-06-02 오후 4:44:0
2 I Table of Contents
1. Basic
Warnings and Cautions ............. 1-2
Key Product Features .................. 1-4
Component Names and
Functions ....................................... 1-5
Head Unit (For UVO Model) ……… 1-5
Head Unit (For NON UVO Model) … 1-7
Steering Wheel Controls ………… 1-9
Starting the System for the
First Time ...................................... 1-11
Turning the System On/Off ………1-11
System Reset ………………………1-11
Battery Warning Message ………1-12
Restrictions on Features for Safety
Measures …………………………1-12
Home Screen ……………………… 1-13
On-Screen Touch Controls ……… 1-14
2. Radio/Media
FM/AM (with HD Radio™) ........... 2-2
FM/AM Mode Display Controls …… 2-2
HD Radio™ Technology
(if equipped) ................................ 2-4
Basic Mode Screen
(HD Radio™ reception ON) ……… 2-5
FM/AM ............................................ 2-6
FM/AM Mode Display Controls …… 2-6

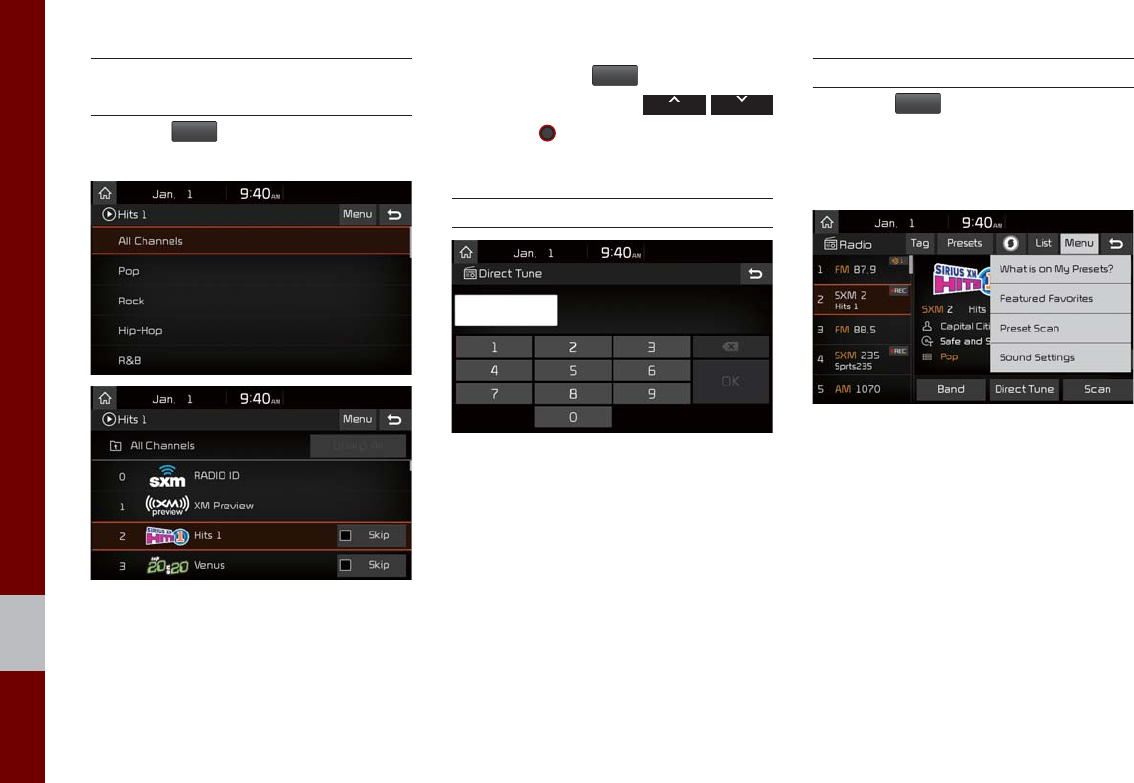

SiriusXM™ ....................................... 2-8
SiriusXM™ Mode Display
Controls …………………………… 2-8
Selecting through Channel/
Category List ………………………2-10
Direct Tune …………………………2-10
Viewing Menu ……………………2-10
USB ................................................ 2-13
Before Playing a USB MP3 ………2-13
Supported USB MP3 music
specifications ………………………2-15
Supported Image Specifications … 2-15
USB Mode Display Controls………2-16
USB Image ………………………… 2-19
iPod .............................................. 2-21
Using iPod Devices ……………… 2-21
iPod Mode Display Controls ……… 2-25
AUX ............................................... 2-28
Connecting an External Device …… 2-28
Bluetooth® Audio ........................ 2-29
Bluetooth Audio Mode Display
Controls ……………………………2-29
Bluetooth Connections Settings …2-30
My Music ...................................... 2-31
My Music Mode Display Controls … 2-31
Table of Contents
K_YP 17MY_UVO3[USA_EU]AV_PART0.indd 2K_YP 17MY_UVO3[USA_EU]AV_PART0.indd 2 2016-06-02 오후 4:44:042016-06-02 오후 4:44:0
Table of Contents I 3
00
3. Bluetooth
Before Using the Bluetooth®
Handsfree ...................................... 3-2
What is
Bluetooth
®
Wireless
Technology? ……………………… 3-2
Precautions for Safe Driving …… 3-2
CAUTIONS upon Connecting
Bluetooth® Phone ………………… 3-3
Bluetooth Connection ................. 3-4
Pairing a New Device …………… 3-4
Connecting Bluetooth Devices…… 3-4
Disconnecting Bluetooth Devices … 3-5
Deleting Bluetooth Devices ……… 3-5
Bluetooth Phone .......................... 3-6
Phone Status Icons ……………… 3-6
Dial ………………………………… 3-7
Accept/Reject Call ………………… 3-7
Using the Menu During
a Phone Call ……………………… 3-8
Call History ………………………… 3-9
Contacts ……………………………3-10
Favorites …………………………… 3-11
4. UVO eServices
(For UVO Model)
The 911 Connect feature
may not operate in the following
situations ........................................ 4-2
About UVO eServices
(For UVO Model) ........................... 4-4
Before using UVO eServices ....... 4-5
Connecting Bluetooth ................. 4-5
Pair a device from
Bluetooth-enabled phone ......... 4-5
Connecting to
smartphone via USB .................... 4-6
Activating UVO eServices ………… 4-6
911 Connect ................................. 4-7
911 Connect ……………………… 4-7
Initiating a 911 Call ………………… 4-7
Roadside Assist ............................. 4-8
Roadside Assist …………………… 4-8
Vehicle Diagnostics ..................... 4-9
Conducting Vehicle Diagnostics …… 4-9
Schedule Service ………………… 4-10
Send Report …………………………4-10
Scheduled Diagnostics ……………4-11
Automatic Diagnostics …………… 4-12
My Car Zone ................................ 4-12
Curfew Limit Alert …………………… 4-13
Speed Alert ………………………… 4-13
Parking Minder ........................... 4-14
Sending Parking Location ………… 4-14
eServices Guide ......................... 4-15
eServices Guide……………………4-15
UVO eServices Settings …………4-15
K_YP 17MY_UVO3[USA_EU]AV_PART0.indd 3K_YP 17MY_UVO3[USA_EU]AV_PART0.indd 3 2016-06-02 오후 4:44:052016-06-02 오후 4:44:0
4 I Table of Contents
5. Voice Recognition
What is Voice Recognition? ....... 5-2
Precautions Required for
Successful Voice Recognition ... 5-2
Starting/Ending and Setting
Voice Recognition ....................... 5-3
Starting Voice Recognition ……… 5-3
Ending Voice Recognition ………… 5-3
Combining Voice Recognition with
On-Screen Commands …………… 5-3
Extending the Listening Time …… 5-4
Skipping Prompt Messages ……… 5-5
Adjusting Voice Recognition
Volume ……………………………… 5-5
Voice Recognition
Screen Overview .......................... 5-6
Start Screen ……………………… 5-6
Help Display ……………………… 5-6
Instructions for Using
Voice Recognition ………………… 5-7
Voice Commands ........................ 5-8
Types of Commands ……………… 5-8
Call Commands …………………… 5-8
Radio Commands ………………… 5-9
Media Commands ………………… 5-10
UVO eServices Commands List
(Optional) …………………………5-12
Other Commands List
(Commands used in List/Help) ……5-12
Siri Eyes Free ................................ 5-13
How to start Siri ……………………5-13
How to use Siri ……………………5-13
6. Apps/Info
Start Up ........................................... 6-2
Pandora® ........................................... 6-3
Pandora® Screen Controls ……… 6-3
SiriusXM™ Data ............................. 6-6
About SiriusXM™ Data Service … 6-6
Accessing SiriusXM™ Data ……… 6-6
SiriusXM™ Weather
Announcement …………………… 6-7
SiriusXM™ Sports Information … 6-8
SiriusXM™ Stock Information …… 6-9
SiriusXM™ Fuel Price Information … 6-11
SiriusXM™ Movie Information …… 6-12
SoundHound .............................. 6-14
Accessing SoundHound ………… 6-14
SoundHound Main Screen ………6-14
Recognizing Music ………………6-15
Searching Music …………………6-15
Song Main Screen …………………6-16
K_YP 17MY_UVO3[USA_EU]AV_PART0.indd 4K_YP 17MY_UVO3[USA_EU]AV_PART0.indd 4 2016-06-02 오후 4:44:052016-06-02 오후 4:44:0
Table of Contents I 5
00
7. Other Features
Camera.......................................... 7-2
Steering-linked camera …………… 7-2
8. Setup
Setup .............................................. 8-2
Sound Settings .............................. 8-3
Display Settings ............................ 8-3
Phone Settings .............................. 8-4
Phone Settings …………………… 8-4
Bluetooth Connection Settings …… 8-4
Auto Connection Priority ………… 8-5
Bluetooth System Information …… 8-5
UVO eServices Settings
(For UVO Model) ........................... 8-6
911 Connect ……………………… 8-6
Parking Minder …………………… 8-7
My Car Zone ……………………… 8-7
Scheduled Diagnostics …………… 8-9
Trip Info Sync Reminder ………… 8-9
Home Screen Settings ............... 8-10
Wi-Fi Settings ............................... 8-10
How to Connect to a Network …… 8-10
Clock Settings ............................. 8-11
Voice Recognition Settings ...... 8-11
Language Settings .................... 8-11
Keyboard Settings ..................... 8-12
Screen Saver Settings ................ 8-12
System Info .................................. 8-12
System Update ……………………8-13
9. Appendix
Product Specification.................. 9-2
Troubleshooting ........................... 9-4
FAQ ................................................. 9-7
About Pairing Mobile Phones …… 9-7
About Making/
Answering Phone Calls …………… 9-8
About
Bluetooth
®
Wireless Technology/
Head Unit Use Environment …… 9-8
K_YP 17MY_UVO3[USA_EU]AV_PART0.indd 5K_YP 17MY_UVO3[USA_EU]AV_PART0.indd 5 2016-06-02 오후 4:44:052016-06-02 오후 4:44:0
iPod®
iPod® is a registered trademark of Apple Inc.
Bluetooth®
Wireless Technology
A compatible
Bluetooth
®
Wireless Technology-enabled cell phone is
required to use
Bluetooth
®
Wireless Technology.
The Bluetooth® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by Kia is under license.
Other trademarks and trade names are those of their respective owners.
A Bluetooth® enabled cell phone is required to use
Bluetooth
®
Wireless
Technology.
Bluetooth
®
Wireless Technology phone compatibility can be checked by
visiting http://www.kia.com.
Pandora®
Pandora, the Pandora logo, and the Pandora trade dress are trademarks
or registered trademarks of Pandora Media, Inc. Used with permission.
Pandora is only available in certain countries. Please visit http://www.
pandora.com/legal for more information.
Wi-Fi®
The Wi-Fi CERTIFIED™ Logo is a certifi cation mark of Wi-Fi Alliance.
K_YP 17MY_UVO3[USA_EU]AV_PART0.indd 6K_YP 17MY_UVO3[USA_EU]AV_PART0.indd 6 2016-06-02 오후 4:44:052016-06-02 오후 4:44:0
Warnings and Cautions
Key Product Features
Component Names and Functions
Starting the System for the First Time
part.1 Basic
K_YP 17MY_UVO3[USA_EU]AV_PART1.indd 1-1K_YP 17MY_UVO3[USA_EU]AV_PART1.indd 1-1 2016-06-02 오후 4:44:212016-06-02 오후 4:44:2
1-2 I Basic
Safety Warnings
• Do not stare at the screen while driving.
Staring at the screen for prolonged peri-
ods of time could lead to traffic accidents.
• Do not disassemble, assemble, or modify
the Multimedia system. Such acts could
result in accidents, fire, or electric shock.
• Heed caution not to spill water or intro-
duce foreign objects into the device.
Such acts could lead to smoke, fire, or
product malfunction.
• If you use phone related functions while
driving, you will find it difficult to concen-
trate on operating the vehicle and the
current traffic conditions, so the possibility
of an accident may increase. Please
use phone related functions only when
parked.
• Please refrain from use if the screen
is blank or no sound can be heard as
these signs may indicate product mal-
function. Continued use in such con-
ditions could lead to accidents (fires,
electric shock) or product malfunctions.
• Do not touch the antenna during thun-
der or lightening as such acts may lead
to lightning induced electric shock.
• Do not stop or park in parking-restricted
areas to operate the product. Such acts
could lead to traffic accidents.
• For most Audio and multimedia modes,
the display will not operate when the
vehicle is in motion. For your safety, first
park the vehicle to watch or view the
screen.(The screen will only operate
when the parking brake is ON for man-
ual transmission vehicles and when the
parking brake is ON or the gearshift is in
the P (PARK) position for automatic.)
• Some functions other than the one
mentioned above cannot be used while
driving. These functions operate only
when the vehicle is parked.
Basic
K_YP 17MY_UVO3[USA_EU]AV_PART1.indd 1-2K_YP 17MY_UVO3[USA_EU]AV_PART1.indd 1-2 2016-06-02 오후 4:44:222016-06-02 오후 4:44:2
Warnings and Cautions I 1-3
01
Safety Cautions
Pay attention to traffic conditions while
driving.
• Operating the device while driving could
lead to accidents due to a lack of atten-
tion to external surroundings. First park
the vehicle before operating the device.
In addition, the touch screen may not
work for some functions when the vehi-
cle is in motion. The touch screen fea-
ture will be supported once the vehicle
has stopped.
• Adjust the volume to levels that allow
the driver to hear sounds from outside
of the vehicle. Driving in a state where
external sounds cannot be heard may
lead to accidents.
• Pay attention to the volume setting when
turning the device on. A sudden output
of extreme volume upon turning the
device on could lead to hearing impair-
ment. (Adjust the volume to a suitable
levels before turning off the device.)
• If you want to change the position of
device installation, please inquire with
your place of purchase or service main-
tenance center. Technical expertise is
required to install or disassemble the
device.
• Turn on the car ignition before using this
device. Do not operate the Multimedia
system for long periods of time with the
ignition turned off as such operations
may lead to battery discharge.
• Upon using the Multimedia system
for more than 10 minutes with the car
engine turned off, the following warning
will be displayed. After 10 minutes, the
warning will be displayed for 5 seconds
every 1 minute.
• Do not subject the device to severe
shock or impact. Direct pressure onto
the front side of the monitor may cause
damage to the LCD or touch screen.
• When cleaning the device, make sure
to turn off the device and use a dry and
smooth cloth. Never use tough materi-
als, chemical cloths, or solvents(alcohol,
benzene, thinners, etc.) as such mate-
rials may damage the device panel or
cause color/quality deterioration. When
experiencing product concerns, inquire
with your place of purchase or service
maintenance center.
• Prevent caustic solutions such as per-
fume and cosmetic oil from contacting
the dashboard because they may cause
damage or discoloration.
K_YP 17MY_UVO3[USA_EU]AV_PART1.indd 1-3K_YP 17MY_UVO3[USA_EU]AV_PART1.indd 1-3 2016-06-02 오후 4:44:222016-06-02 오후 4:44:2
1-4 I Basic
Key Product Features
This device is a Multimedia system equipped with a multi-
functional player that supports Radio (FM, AM), HD Radio™
Technology (if equipped), SiriusXM™, USB, iPod, AUX, Bluetooth
Audio and My Music features. The WIDE VGA LCD provides a
high quality resolution while the powerful and rich sound system
adds to the driving enjoyment.
Display
Wide TFT-LCD Display
• Provides high quality video through a Wide
TFT-LCD Display using an LED Back Light.
•Touch screen for maximum user convenience.
Radio
Digital Tuner Feature
• Digital Tuner using PLL method that supports
memory of 40 broadcast stations.
Radio broadcast station name
•Displays broadcast station names.
HD Radio™ (if equipped)/Satellite Radio feature
• Supports HD Radio™(if equipped) reception
and Satellite Radio (SiriusXM™).
Multimedia
Player
Support for various Media Formats
• Support for various media formats, including
Radio, USB, iPod, AUX and Bluetooth
®
Audio
Streaming modes
My Music
• Supports copying of music stored within USB
devices into My Music (internal memory) mode
Miscellaneous
Bluetooth
®
Wireless Technology
• Convenient use of Bluetooth
®
Handsfree by
using buttons within the steering wheel control
Digital Screen Control Features
•Easy control of features through touch screen
options
Steering Wheel Control
• Control over audio features, voice recognition
and Bluetooth
®
through the steering wheel
control for maximum convenience
K_YP 17MY_UVO3[USA_EU]AV_PART1.indd 1-4K_YP 17MY_UVO3[USA_EU]AV_PART1.indd 1-4 2016-06-02 오후 4:44:222016-06-02 오후 4:44:2
Component Names and Functions I 1-5
01
Component Names and Functions
Head Unit (For UVO Model)
Name Description
RADIO
Selects FM/AM/SiriusXM™ mode
• Each time this is pressed, the mode is changed
in the following order: FM → AM → SiriusXM™
→ FM.
MEDIA
Selects MEDIA mode.
• If the media is not connected MEDIA mode will
not be activated.
SEEK
TRACK
When pressed quickly (less than 0.8 seconds),
• FM/AM mode: Plays the previous/next fre-
quency.
• SiriusXM™ mode: Changes the channel.
• MEDIA (USB/iPod/My Music) mode: Changes
the track, file or title (except for USB Image and
AUX).
When pressed and held down (more than 0.8 sec-
onds),
• FM/AM mode: Continuously changes the fre-
quency until the key is released.
• MEDIA (USB/iPod/My Music) mode: Rewinds
or fast forwards the track or file (except for USB
Image, Bluetooth Audio, and AUX).
POWER/
VOL
• When power is off, press to turn power on.
• When power is on, press and hold (more than
0.8 seconds) to turn the power off.
• When power is on, press quickly (less than 0.8
seconds) to turn Audio off.
• Turn left/right to adjust the volume.
K_YP 17MY_UVO3[USA_EU]AV_PART1.indd 1-5K_YP 17MY_UVO3[USA_EU]AV_PART1.indd 1-5 2016-06-02 오후 4:44:222016-06-02 오후 4:44:2
1-6 I Basic
Head Unit (For UVO Model)
Name Description
APPS/
Moves to the Apps/Info screen.
PHONE
Displays the Bluetooth phone mode.
UVO
Moves to the UVO mode
SETUP
Moves to the Setup screen.
TUNE
• FM/AM mode: Changes the frequency.
• SiriusXM™ mode: Changes the channel.
• MEDIA (USB/iPod/My Music) mode: Changes
the track, file or title (except USB Image,
Bluetooth Audio, and AUX).
RESET
Resets the system settings. (Preset radio channels
and other data will not be deleted)
※ The actual feature in the vehicle may differ from the illustration.
K_YP 17MY_UVO3[USA_EU]AV_PART1.indd 1-6K_YP 17MY_UVO3[USA_EU]AV_PART1.indd 1-6 2016-06-02 오후 4:44:252016-06-02 오후 4:44:2
Component Names and Functions I 1-7
01
Head Unit (For NON UVO Model)
Name Description
RADIO
Selects FM/AM/SiriusXM™ mode
• Each time this is pressed, the mode is changed
in the following order: FM → AM → SiriusXM™
→ FM.
Degradation of the satellite signal may occur
depending on the SiriusXM satellite coverage
(http://www.siriusxm.com).
MEDIA
Selects MEDIA mode.
• If the media is not connected MEDIA mode will
not be activated.
SEEK
TRACK
When pressed quickly (less than 0.8 seconds),
• FM/AM mode: Plays the previous/next fre-
quency.
•SiriusXM™ mode: Changes the channel.
• MEDIA (USB/iPod/My Music) mode: Changes
the track, file or title (except for USB Image and
AUX).
When pressed and held down (more than 0.8 sec-
onds),
• FM/AM mode: Continuously changes the fre-
quency until the key is released.
• MEDIA (USB/iPod/My Music) mode: Rewinds
or fast forwards the track or file (except for USB
Image, Bluetooth Audio, and AUX).
POWER/
VOL
• When power is off, press to turn power on.
•When power is on, press and hold (more than
0.8 seconds) to turn the power off.
•When power is on, press quickly (less than 0.8
seconds) to turn Audio off.
•Turn left/right to adjust the volume.
K_YP 17MY_UVO3[USA_EU]AV_PART1.indd 1-7K_YP 17MY_UVO3[USA_EU]AV_PART1.indd 1-7 2016-06-02 오후 4:44:272016-06-02 오후 4:44:2
1-8 I Basic
Head Unit (For NON UVO Model)
Name Description
APPS/
Moves to the Apps/Info screen.
PHONE
Displays the Bluetooth phone mode.
DISP
Turns the screen on/off.
SETUP
Moves to the Setup screen.
TUNE
• FM/AM mode: Changes the frequency.
• SiriusXM™ mode: Changes the channel.
• MEDIA (USB/iPod/My Music) mode: Changes
the track, file or title (except USB Image,
Bluetooth Audio, and AUX).
RESET
Resets the system settings. (Preset radio channels
and other data will not be deleted)
※ The actual feature in the vehicle may differ from the illustration.
K_YP 17MY_UVO3[USA_EU]AV_PART1.indd 1-8K_YP 17MY_UVO3[USA_EU]AV_PART1.indd 1-8 2016-06-02 오후 4:44:292016-06-02 오후 4:44:2
Component Names and Functions I 1-9
01
Name Description
When pressed quickly (less than 0.8 seconds),
• Activates voice recognition
When pressed and held (more than 0.8 seconds),
• Ends voice recognition
• If iOS device is connected through Bluetooth,
activates or ends Siri Eyes Free
Name Description
MODE
• Each time this is pressed, the mode is changed in
the following order: FM → AM → SiriusXM → USB
or iPod → AUX → Bluetooth Audio → My Music →
Pandora → FM
• If the media is not connected, the corresponding
modes will be disabled
• Press and hold (more than 0.8 seconds) to turn
the Audio system on/off
• When power is off, press button to turn power
back on
-
+
Controls the volume
When pressed quickly (less than 0.8 seconds),
• FM/AM mode: searches broadcast frequencies
saved to Presets
• SiriusXM™ mode: searches broadcast channels
saved to Presets
• MEDIA (USB/iPod/My Music) mode: changes the
track, file or title (except USB Image, AUX)
When pressed and held (more than 0.8 seconds),
• FM/AM mode: automatically searches broadcast
frequencies
• SiriusXM™ mode: automatically searches broad-
cast channels
• MEDIA (USB/iPod/My Music) mode: quickly
looks up songs (excluding USB images, AUX and
Bluetooth audio files)
Steering Wheel Control
K_YP 17MY_UVO3[USA_EU]AV_PART1.indd 1-9K_YP 17MY_UVO3[USA_EU]AV_PART1.indd 1-9 2016-06-02 오후 4:44:302016-06-02 오후 4:44:3
1-10 I Basic
Steering Wheel Control
Name Description
When pressed quickly (less than 0.8 seconds),
• When pressed in the dial screen, makes a call
• When pressed in the incoming call screen,
answers the call
• When pressed during call waiting, switches to
waiting call (Call Waiting)
When pressed and held (more than 0.8 seconds),
• When pressed in Bluetooth
®
Hands-free, redials
the last dialed call
• When pressed during a Bluetooth
®
Hands-free
call, switches call back to mobile phone (Private)
• When pressed while calling on the mobile phone,
switches call back to Bluetooth
®
Hands-free
(operates only when Bluetooth
®
Hands-free is
connected)
• When pressed during a call, ends the phone call
• When pressed in the incoming call screen, rejects
the call
※ The actual feature in the vehicle may differ from the illustration.
K_YP 17MY_UVO3[USA_EU]AV_PART1.indd 1-10K_YP 17MY_UVO3[USA_EU]AV_PART1.indd 1-10 2016-06-02 오후 4:44:302016-06-02 오후 4:44:3
Starting the System for the First Time I 1-11
01
Starting the System for
the First Time
Turning the System On/Off
Press the engine start button or set the
ignition key to On or ACC. Each time you
turn on the system, a boot logo and safety
warning will appear.
Pressing the power key on the head unit
will display the safety guide. To change the
system language between English,
French, Spanish and Korean, select the
Language
button.
NOTICE
• You cannot operate the system while it is
booting up. It may take some time for all of
features of the system, particularly the voice
recognition system, to be ready for use.
Pressing and holding the power key on the
head unit will turn off the system.
You can change Screen Saver Settings
in Setup to display a clock on the Screen
Saver.
i
Information
• If you turn off the system during a phone call
using the Hands-free feature, then the call will
automatically switch to your mobile phone.
NOTICE
• Check the volume when turning on the
system. Before turning on the system, adjust
the volume to a reasonable level.
System Reset
The System Reset function restores the
system when it is not operating correctly.
Press and hold the RESET key for a sec-
ond or longer. (It is recommended that you
press the RESET key using a tool, such as
a pin or a clip.)
K_YP 17MY_UVO3[USA_EU]AV_PART1.indd 1-11K_YP 17MY_UVO3[USA_EU]AV_PART1.indd 1-11 2016-06-02 오후 4:44:312016-06-02 오후 4:44:3
1-12 I Basic
Battery Warning Message
Always use the system while the car
engine is running. If you turn on the sys-
tem while the engine is off, a battery warn-
ing message will appear. When the engine
starts, the message will disappear.
NOTICE
• If you use the system for a long time with
the engine off, the battery may become
completely discharged.
Restrictions on Features for
Safety Measures
Several features are limited while driving.
The restriction screen will disappear when
shifting gears into P or putting the parking
brake on.
WARNING
- Blank Screen
• Refrain from use if the screen is blank or
no sound can be heard as these signs may
indicate product malfunction. Continued use in
such conditions could lead to accidents (fi res,
electric shock).
WARNING
- Touching the Antenna During A
Thunder Storm
• Do not touch the antenna during thunder or
lightning as such acts may lead to lightning
induced electric shock.
K_YP 17MY_UVO3[USA_EU]AV_PART1.indd 1-12K_YP 17MY_UVO3[USA_EU]AV_PART1.indd 1-12 2016-06-02 오후 4:44:322016-06-02 오후 4:44:3
Starting the System for the First Time I 1-13
01
Home Screen
Controls Menu Confi guration for the Home Screen
Tap the icon on any screen to display the Home Screen below.
Features Description
Radio/
Media Widget
• Shows brief information on the radio or
media that is now playing.
• Tap the area to move to the mode that
you are listening to.
Connectivity
Widget
Shows any connected devices such as iPod,
Pandora, and Bluetooth.
All Menus Shows all of the items in the system menu.
My Menu
• You can add up to eight menus here.
• Add your favorite menus to have quick
and easy access to them.
Apps/Info Moves to the Apps/Info screen.
Setup Moves to the Setup screen.
Information Display on the Status Bar
Displays the date and time, along with the system status shown by
the various icons to the right of the clock.
The icons in the following table indicate the various types of sys-
tem status details and events.
Icon Description
Displayed when the audio is muted.
Displays the remaining battery of the Bluetooth phone.
Displayed when connected to Bluetooth for handsfree.
Displayed when connected to Bluetooth for streaming audio.
Displayed when connected to Bluetooth for streaming audio and handsfree.
Displayed when downloading contacts or recent calls from the Bluetooth phone.
Displayed while on a call with the Bluetooth phone.
Displayed when the microphone of the Bluetooth is muted.
Displays the signal strength of the Bluetooth phone.
Displayed when connected to Wi-Fi.
Displayed when connecting to Wi-Fi.
Displayed when 911 connect is available.
K_YP 17MY_UVO3[USA_EU]AV_PART1.indd 1-13K_YP 17MY_UVO3[USA_EU]AV_PART1.indd 1-13 2016-06-02 오후 4:44:332016-06-02 오후 4:44:3
1-14 I Basic
Adding Your Favorite Menu Items to My
Menu
From the Home screen, select
My Menu
icon, and then
Edit
.
From the Edit My Menu screen, select
menu items from the list on the right, then
drag and drop them to a desired place on
the left.
To remove the item from My Menu, drag
item from the left and drop them on the right.
i
Information
• Up to eight items can be added to My Menu.
On-Screen Touch Controls
Learn how to touch the screen to operate
the system.
Select
Tap lightly on a menu or an item to select it.
NOTICE
• The system will not recognize your touch if
you wear a glove or other non-conductive
material. Touch the screen using your fi nger,
an electrostatic touch-screen glove, or a stylus
pen.
Drag & Drop
Select a menu or item you want, then drag
and drop it to where you want to place it.
Drag or touch the slider along the play bar
in the music screens to jump to the point
that you want to play from.
K_YP 17MY_UVO3[USA_EU]AV_PART1.indd 1-14K_YP 17MY_UVO3[USA_EU]AV_PART1.indd 1-14 2016-06-02 오후 4:44:342016-06-02 오후 4:44:3
Starting the System for the First Time I 1-15
01
Drag the frequency bar to the left or right
to move to the frequency that you want.
From the Edit My Menu screen, drag and
drop icons to add, delete, or move to/from
My Menu.
Flick (Quick Scrolling)
Quickly moves up and down in the list.
NOTICE
• Moving the list when there are many items will
display a handler on the right of the display.
You can easily move many items at a time
with the handler.
You can view the previous or next image
by flicking left/right on an image on the
USB Image screen.
Flick left/right on the frequency bar in the
radio player to look up the previous/next
frequency available.
K_YP 17MY_UVO3[USA_EU]AV_PART1.indd 1-15K_YP 17MY_UVO3[USA_EU]AV_PART1.indd 1-15 2016-06-02 오후 4:44:352016-06-02 오후 4:44:3
1-16 I Basic
Press and Hold
Pressing the and buttons
in the music player will fast forward/rewind
the music.
K_YP 17MY_UVO3[USA_EU]AV_PART1.indd 1-16K_YP 17MY_UVO3[USA_EU]AV_PART1.indd 1-16 2016-06-02 오후 4:44:362016-06-02 오후 4:44:3
FM/AM (with HD Radio™)
HD Radio™ Technology (if equipped)
FM/AM
SiriusXM™
USB
iPod
AUX
Bluetooth® Audio
My Music
part.2 Radio/Media
K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-1K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-1 2016-06-02 오후 4:44:512016-06-02 오후 4:44:5
2-2 I Radio/Media
FM/AM (with HD Radio
TM
)
You can access the radio player either by pressing the
RADIO
key or by selecting the Radio menu from All Menus on the Home
screen.
FM/AM Mode Display Controls
i
Information
• If you press the
RADIO
key when power is off, the power will turn on
and a radio broadcast will be tuned from the current mode.
• If you are in radio mode, select the media widget from the Home screen
to access the radio player.
Features Description
Preset
Frequencies
• The stored preset frequencies are displayed
for user selection.
• After selecting frequency, press and hold
the preset button for more than 0.8 seconds.
A beep sound will be heard and the frequency
is to be stored in the selected preset button.
• Flick the preset frequencies up/down to scroll
quickly through presets.
Frequency Bar
• Flick the frequency bar left/right to search for
available radio channels to the left or right of
the current channel.
• Dragging: Drag the frequency bar to the left/
right to find the radio channel that you want.
Frequency Displays the current frequency.
Tag
Saves the current music’s tag information to the
head unit. If connected to iPod, the tag informa-
tion can be saved on the device.
Presets Shows the stored presets for user selection.
SoundHound
Runs the SoundHound feature.
For more details regarding this feature, refer to
the SoundHound information in the Info section.
Menu
• List
Moves to the frequency list.
• Info
Turns the Radio text information transmitted
from the broadcasting station on and off.
• Preset Scan
Plays preset frequencies for 10 seconds per
item.
• Sound Settings
Moves to the Sound Settings.
Radio/Media
K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-2K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-2 2016-06-02 오후 4:44:522016-06-02 오후 4:44:5
FM/AM (with HD Radio
™
) I 2-3
02
Features Description
Scan/
Preset Scan
Displays an active mode from Scan and Preset
Scan modes.
Band Changes to the desired band from among FM,
AM, and SiriusXM.
HD Radio
(if equipped)
Used to set whether to turn HD Radio™ recep-
tion On or Off.
Scan
Shortly plays the broadcasts for the frequen-
cies with superior reception for 5 seconds per
item.
SEEK/TRACK
• When pressed quickly (less than 0.8 sec-
onds): Seeks the previous/next frequency.
• When pressed and held (more than 0.8 sec-
onds): Moves quickly through all of the fre-
quencies. The moment that you release the
button, the system seeks the next available
frequency.
TUNE
Turn the
TUNE
knob to manually seek avail-
able frequencies.
• FM: Increment/decrement by 200 kHz
• AM: Increment/decrement by 10 kHz
K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-3K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-3 2016-06-02 오후 4:44:532016-06-02 오후 4:44:5
2-4 I Radio/Media
If an HD Radio™ broadcast is received,
the radio mode will switch from analog
broadcast to HD Radio™ broadcast.
i
Information
• The HD Radio™ screen is displayed only
when a HD Radio™ broadcast is being
received.
Program Service Data:
Contributes to the superior user experience of HD
Radio™ Technology. Presents song name, artist, station IDs, HD2/HD3
Channel Guide, and other relevant data streams.
Adjacent traditional main stations are extra local FM
channels. These HD2/HD3 Channels provide new, origi-
nal music as well as deep cuts into traditional genre.
Digital, CD-quality sound. HD Radio™ Technology
enables local radio stations to broadcast a clean digital
signal. AM sounds like today’s FM and FM sounds like a CD.
HD Radio™ Technology (if equipped)
K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-4K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-4 2016-06-02 오후 4:44:552016-06-02 오후 4:44:5
HD Radio™ Technology (if equipped) 2-5
02
Basic Mode Screen
(HD Radio™ reception ON)
Name Description
HD Radio™
Reception &
Channel buttons
Displays main HD Radio™ channels and
used to directly select the current available
channels.
The HD Radio™ related icon display
becomes active within regions where an
HD Radio™ signal can be received.
HD Channel
Number
Analog station and corresponding HD
Radio™ channel number saved in the pre-
set list.
HD Broadcast
Info
Displays detailed information about the cur-
rent broadcast (the details of the information
shown are different depending on whether
the Info button is selected)
HD Radio
When the HD Radio™ soft button is ON (the
blue indicator on the HD Radio™ button
is illuminated), HD Radio™ signals will be
broadcast.
K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-5K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-5 2016-06-02 오후 4:44:562016-06-02 오후 4:44:5
2-6 I Radio/Media
FM/AM
You can access the radio player either by pressing the
RADIO
key or by selecting the Radio menu from All Menus on the Home
screen.
FM/AM Mode Display Controls
i
Information
• If you press the
RADIO
key when power is off, the power will turn on
and a radio broadcast will be tuned from the current mode.
• If you are in radio mode, select the media widget from the Home screen
to access the radio player.
Features Description
Preset
Frequencies
• The stored preset frequencies are displayed
for user selection.
• After selecting frequency, press and hold
the preset button for more than 0.8 seconds.
A beep sound will be heard and the frequency
is to be stored in the selected preset button.
• Flick the preset frequencies up/down to scroll
quickly through presets.
Frequency Bar
• Flick the frequency bar left/right to search for
available radio channels to the left or right of
the current channel.
• Dragging: Drag the frequency bar to the left/
right to find the radio channel that you want.
Frequency Displays the current frequency.
Presets Shows the stored presets for user selection.
SoundHound
Runs the SoundHound feature.
For more details regarding this feature, refer to
the SoundHound information in the Info section.
Menu
• List
Moves to the frequency list.
• Preset Scan
Plays preset frequencies for 10 seconds per
item.
• Sound Settings
Moves to the Sound Settings.
K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-6K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-6 2016-06-02 오후 4:44:562016-06-02 오후 4:44:5
FM/AM I 2-7
02
Features Description
Scan/
Preset Scan
Displays an active mode from Scan and Preset
Scan modes.
Band Changes to the desired band from among FM,
AM, and SiriusXM.
Info Turns the Radio text information transmitted
from the broadcasting station on and off.
Scan Shortly plays the broadcasts for the frequencies
with superior reception for 5 seconds per item.
SEEK/TRACK
• When pressed quickly (less than 0.8 sec-
onds): Seeks the previous/next frequency.
• When pressed and held (more than 0.8 sec-
onds): Moves quickly through all of the fre-
quencies. The moment that you release the
button, the system seeks the next available
frequency.
TUNE
Turn the
TUNE
knob to manually seek avail-
able frequencies.
• FM: Increment/decrement by 200 kHz
• AM: Increment/decrement by 10 kHz
K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-7K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-7 2016-06-02 오후 4:44:572016-06-02 오후 4:44:5
2-8 I Radio/Media
SiriusXM™
You can access the radio player either by pressing the
RADIO
key or by selecting the Radio menu option from All Menus on the
Home screen. Select the SiriusXM™ band from the radio player.
SiriusXM™ Mode Display Controls
i
Information
• If you press the
RADIO
key when the power is off, the power will turn
on and a radio broadcast will be tuned from the current mode.
• If you are in the SiriusXM™ mode, select the SiriusXM™ radio widget
from the Home screen to access the radio player.
• When the power is off, pressing the
RADIO
key will turn the power on
and play a SiriusXM™ Radio broadcast.
Features Description
Preset
Frequencies
• Shows the stored presets for user selection.
• After selecting frequency, press and hold
the preset button for more than 0.8 seconds.
A beep sound will be heard and the frequency
is to be stored in the selected preset button.
Channel Logo Displays the current channel logo.
Channel Info Displays the current channel number and name.
Content Info Displays the artist, title and other information
about the current playing song.
Category Info Displays the category of the currently playing
song.
Band Changes to the desired band from among FM,
AM, and SirusXM.
Direct Tune Used to search for the desired channel by
entering the channel number.
Scan Plays all receivable channels for 10 seconds
per item.
Play Live Switches to the live broadcast mode.
Skip Backward
Repeats the previously broadcasted program.
• Holding for less than 0.8 seconds: Moves to
the previous segment.
• Holding for more than 0.8 seconds: Moves to
the previous 5 seconds.
Play/Pause Pauses/plays the current broadcasting program.
Skip Forward Moves to the next segment.
K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-8K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-8 2016-06-02 오후 4:44:582016-06-02 오후 4:44:5
SiriusXM™ I 2-9
02
Features Description
Tag
Saves the current music’s tag information to the
head unit. If connected to iPod, the tag informa-
tion can be saved on the device.
Presets Shows the stored presets for user selection.
SoundHound
Runs the SoundHound feature.
For more details regarding this feature, refer to
the SoundHound information in the Info section.
List Moves to the channel list.
Menu
• What is on My Presets?
The program schedule saved in my preset. (For
more details, see Section 2.5. Viewing Menu.)
• Featured Favorites
Theme channels recommended by SiriusXM™.
(For more details, see Section 2.5. Viewing Menu.)
• Preset Scan
Plays preset channels for 10 seconds each.
• Sound Settings
Moves to the Sound Settings.
SEEK/TRACK
• When pressed quickly (less than 0.8 sec-
onds): Plays the previous/next channel.
• When pressed and held (more than 0.8 sec-
onds): Continuously changes the channel
until the key is released and plays the current
channel.
TUNE Changes the channel.
K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-9K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-9 2016-06-02 오후 4:44:592016-06-02 오후 4:44:5
2-10 I Radio/Media
Selecting through
Channel/Category List
Select the
List
▶ Select the desired cat-
egory and channel.
Select the desired category and the chan-
nel. Once selected, the previous screen
will be restored and the selected channel
will begin playing.
If you select the
Skip
button, you can
scan channels using the
SEEK
TRACK
key or the
TUNE
knob by skipping the
channels that you chose to skip.
Direct Tune
Enter the number of the channel you want
to receive.
Viewing Menu
Using the
Menu
button on the right, you
can view the program schedule and infor-
mation about the Featured Favorites pro-
vided by SiriusXM™.
K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-10K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-10 2016-06-02 오후 4:45:002016-06-02 오후 4:45:0
SiriusXM™ I 2-11
02
What is on My Presets? (Program Schedule)
You can select Menu to see program information and the sched-
ules of broadcast channels listed in the presets.
Name Description
Change
Broadcast
Date
By selecting this option, you can select a broad-
casting date.
Broadcast information will be provided for one
week from the current date.
Preset
Shows saved presets for user selection
A total of 40 frequencies for SiriusXM™ modes
can be displayed.
Program
Information
Shows you the program titles to be broadcasted
at the time that you have chosen.
Select a program to see more details.
If there is more information on the program you
selected, an arrow button will be displayed on
the right of the list. You can see more program
information by selecting the arrow button.
K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-11K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-11 2016-06-02 오후 4:45:022016-06-02 오후 4:45:0
2-12 I Radio/Media
Featured Favorites
Featured Favorites feature allows
SiriusXM™ to broadcast additional presets.
• Example 1: "Martha's Favorites" may
represent Martha Stuart's favorites pre-
sets on her radio.
• Example 2: During holidays, "Holiday
Music" may represent all the SiriusXM™
channels that are playing the holiday
music for easy access by users.
Multiple sets Featured Favorites data
can be broadcast by SiriusXM™ and can
change from time to time.
K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-12K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-12 2016-06-02 오후 4:45:022016-06-02 오후 4:45:0
USB I 2-13
02
USB
Before Playing a USB MP3
Connect the USB device after turning on the engine. The USB
device may become damaged if it is already connected when the
ignition is turned on.
• Files that are not standard format music/image files will not be
played.
• For MP3/WMA/OGG files, only music files with compression
rates between 8Kbps ~ 320Kbps can be played.
• Heed caution to static electricity when connecting/disconnecting
external USB devices.
• Encoded MP3 Players will not be recognized when connected
as an external device.
• When connecting an external USB device, the device may not
properly recognize the USB is in some states.
• Only products formatted with byte/sectors under 64Kbyte will be
recognized.
• USB devices, formatted to the FAT12, FAT16, or FAT32 file sys-
tem, are recommended. File systems other than FAT12, FAT16,
FAT32, exFAT, and NTFS are not supported.
• Some USB devices may not be supported due to compatibility
issues.
• Take caution so that the USB connector does not come in con-
tact with body parts or objects.
• Repeated connecting/disconnecting of USB devices within short
periods of time may result in product malfunction.
• Make sure to connect/disconnect external USB devices with the
audio power turned off.
• The amount of time required to recognize the external USB
device may differ depending on the type, size, or file formats
stored on the USB.
• The use of USB devices for purposes other than playing music
and image files is prohibited.
• Do not use the USB I/F to charge batteries or USB accessories
that generate heat. Such acts may lead to worsened perfor-
mance or damage to the device.
• The device may not recognize the USB device if separately
purchased USB hubs and extension cables are being used.
Connect the USB directly with the multimedia terminal of the
vehicle.
• When using mass storage USB devices with separate logical
drives, only files saved to the root drive can be played.
• When application programs are installed to specific USBs, files
may not properly play.
K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-13K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-13 2016-06-02 오후 4:45:032016-06-02 오후 4:45:0
2-14 I Radio/Media
• The device may not operate normally if MP3 Players, cellu-
lar phones, digital cameras, or other electronic devices (USB
devices not recognized as portable disk drives) are connected
with the device.
• Charging through the USB may not work for some mobile
devices.
• The device may not support normal operation when using a
USB memory type besides Metal Cover Type USB Memory.
• The device may not support normal operation when using for-
mats such as HDD Type, CF, or SD Memory.
• When playing iPods, please use a dedicated iPod car cable.
• Normal operation cannot be guaranteed when other cables are
being used.
• The device will not support files locked by DRM. (Digital Rights
Management)
• USB memory sticks used by connecting an Adaptor (SD Type or
CF Type) may not be properly recognized.
• Only use Plug type connector products, as shown in the figure
below.
• To play USB MP3, the USB device must be connected to the
USB port in the front multibox. The USB port in the center con-
sole storage (if equipped) is for charging only.
Product Name Manufacturer
XTICK LG
BMK BMK Technology
SKY-DRV Sky Digital
TRANSCEND JetFlash Transcend
Sandisk Cruzer SanDisk
Micro ZyRUS ZyRUS
NEXTIK Digiworks
i
Information
• Problems that occur through use of USB devices not listed within the
above table are not covered by the product warranty.
Plug Type Connector
K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-14K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-14 2016-06-02 오후 4:45:032016-06-02 오후 4:45:0
USB I 2-15
02
Supported USB MP3 music specifi cations
Name Description
MP3 File
Specification Specification: MPEG1 AUDIO LAYER 3
Recommended
Bit Rates and
Sampling
Frequency
Acceptable sampling frequency: 32, 44.1, 48 (kHz)
Acceptable bit rate: 32, 40, 48, 56, 64, 80, 96, 112,
128, 160, 192, 224, 256, 320 (Kbps)
96, 128, 192 Kbps fixed bit rate/44.1kHz
ID3 Tag Supports ID3v1.0 and ID3v1.1, ID3v2.2, ID3v2.3,
ID3v2.4 ID3 tags
Detailed
Specifications
Maximum directory layers: 20 layers
Maximum length of folder name/file name: 255Bytes
Supported characters for folder name/file name:
Alphanumeric characters, Korean standard charac-
ter set 2,350 characters, Simplified Chinese 4888
characters
Maximum number of folders which can be stored
onto one USB: 2000 folders (including ROOT)
Maximum number of files which can be stored onto
one USB: 8000
i
Information
• The sound quality of MP3 files that use bitrates exceeding
192 Kbps cannot be guaranteed. When using fi les without fi xed bit rates,
some features (FF/REW features) may not properly operate.
Supported Image Specifi cations
Name Description
Image format JPG, GIF, BMP, PNG (animated GIF, etc.
are not supported)
Supported image
resolution
5M pixels for JPG, BMP, PNG (1M pixels
maximum for GIF)
Supported image file
size
5M pixels for JPG, BMP, PNG (1M pixels
maximum for GIF)
K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-15K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-15 2016-06-02 오후 4:45:092016-06-02 오후 4:45:0
2-16 I Radio/Media
USB Mode Display Controls
Features Description
Mode Displays the current operating mode
File Index Shows the current file/total files within the USB
Repeat/
Shuffle/Scan
From Repeat/Shuffle/Scan, displays the current
operating function
Play Time Displays the current play time/total play time
Song Info
Displays the information of the current track
• When a track in the file tab on the list screen
is selected: Displays folder, file, title, artist,
album info
• When a track in the other tabs on the list screen
is selected: Displays artist, title, album info
List Moves to the list screen
Back Button Converts to basic mode screen
Features Description
Previous File
If button is pressed (less than 0.8 seconds):
Moves to the previous file or play the current file
from the beginning (Depends on the play time)
• If play time is less than 3 seconds, moves to
previous file
• If play time is more than 3 seconds, play the
current file from the beginning
If button is pressed (more than 0.8 seconds) it
rewinds the track
Play/Pause Plays/pauses the current file
Next File
• If button is pressed (less than 0.8 seconds):
Moves to the next file
• If button is pressed (more than 0.8 seconds):
It fast-forwards the track
Repeat
Repeats the current file
• If select the song in the file tab on the list
screen: Select the
Repeat
button to switch
between repeating one song , repeating
folder , and turning repeat off
• If select the song in the other tabs (Playlist,
Artist, Song, Album) on the list screen: Select
the
Repeat
button to switch between repeat-
ing one song and turning repeat off
Shuffle
Plays files in random order
• If select the song in the file tab on the list
screen: Select the
Shuffle
button to switch
between Shuffle Folder , Shuffle All ,
and turning shuffle off
• If select the song in the other tabs (Playlist,
Artist, Song, Album) on the list screen: Select
the
Shuffle
button to switch between Shuffle
Category and turning shuffle off
K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-16K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-16 2016-06-02 오후 4:45:092016-06-02 오후 4:45:0
USB I 2-17
02
Features Description
Scan
Scans the beginning parts of USB files (approx.
10 seconds per file)
• If select the song in the file tab on the list
screen: Select the
Scan
button to switch
between Scan Folder , Scan All ,
and turning scan off
• If select the song in the other tabs (Playlist,
Artist, Song, Album) on the list screen: Select
the
Scan
button to switch between Scan
category and turning scan off
Features Description
Menu
• Add to Playlist: Add the current track to the
Playlist: Playlist is placed on the left tab in the
list
• Save to My Music: You can save the current
track to My Music. You can play saved track
from My Music without USB. Access to My
Music in the Media mode.
• Sound Settings: Moves to the Sound Settings
screen. You can change the settings of the
sound.
SoundHound
Runs the SoundHound feature.
For more details regarding this feature, refer to
the SoundHound information in the Info section.
SEEK/TRACK
If button is pressed (less than 0.8 seconds)
moves to previous/next file or play the current
track from the beginning
• If play time is less than 3 seconds, moves to
previous/next file
• If play time is more than 3 seconds, play the
current file from the beginning
If button is pressed (more than 0.8 seconds) it
will rewind/fast-forward the track
TUNE
Turn the
TUNE
knob to search a desired
track. If the desired track is displayed, select
the
TUNE
knob to play the track.
If the
TUNE
knob is not pressed within
5 seconds of searching tracks, the track
info for the current track is restored.
K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-17K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-17 2016-06-02 오후 4:45:102016-06-02 오후 4:45:1
2-18 I Radio/Media
Features Description
Folder/
Category Name Displays folder/category name in the list
Current Song Displays the current playing file name
Back Button Converts to basic mode screen
Upper Folder/
Category Moves to Upper Folder
Features Description
Menu
• Add to Playlist: Adds the current track to the
Playlist: Playlist is placed on the left tab in the
list (Maximum 100 files) Select a desired track
and press “Add to Playlist” to add the track in
the playlist.
• Delete from Playlist: Select a track you want to
delete from the playlist and press “Delete from
Playlist” to delete the track in the playlist
• Now Playing: When moving to a different list
screen, moves to the list page where the cur-
rent file is located (Becomes disabled when
the current list includes the current file)
• Save to My Music: Stores the music. The
stored music can be played in My Music. (This
function is not provided in Playlist.)
Search Menu
Search tracks by the list type. Search songs
according to File, Playlist, Artist, Song and Album.
If access the search menu while playing a
track, it moves to the previous search mode.
SEEK/TRACK
If button is pressed (less than 0.8 seconds):
Plays previous/next track
• If play time is less than 3 seconds, moves to
previous/next file
• If play time is more than 3 seconds, play the
current file from the beginning
If button is pressed (more than 0.8 seconds):
Moves to play screen, and then it will rewind or
fast-forward the track. It will play the track nor-
mally if button released.
TUNE
Turn the
TUNE
knob to move the focus to the
previous/next list. If the desired track is displayed,
press
TUNE
knob to play the track.
K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-18K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-18 2016-06-02 오후 4:45:112016-06-02 오후 4:45:1
USB I 2-19
02
USB Image
Features Description
Mode Displays the current operating mode
Folder/
File Name Displays folder name where image is located
File Index Shows the current file/total files within the USB
Slideshow Images as slideshow in 5, 10, 20, 30 second
intervals
Rotate Rotate image in clockwise direction
Info Shows the file name, resolution and file type of
current image
Adjust Image
Size Enlarge/reduce (zoom-in/zoom-out) image size
List Moves to the list screen
Previous/
Next image
Swipe image left or right to see Previous/Next
K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-19K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-19 2016-06-02 오후 4:45:122016-06-02 오후 4:45:1
2-20 I Radio/Media
Features Description
Current File Displays the current playing file name
Back Button Converts to basic mode screen
Menu
Now Playing: When moving to a different list
screen, moves to the list page where the current
file is located (Becomes disabled when the cur-
rent list includes the current file)
SEEK/TRACK
Controls background mode
• Radio mode: Changes Frequency and Channel
• Media mode: Changes Track (excluding AUX)
TUNE
Controls background mode
• Radio mode: Changes Frequency and Channel
• Media mode: Changes track (excluding AUX).
If a desired track is displayed, press the knob
to move to the track.
K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-20K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-20 2016-06-02 오후 4:45:122016-06-02 오후 4:45:1
iPod I 2-21
02
iPod
Using iPod Devices
• iPod is a registered trademark of Apple
Inc.
• iPod mode will not operate if the con-
nected iPod cannot be recognized due
to operation of unsupported versions
that do not support related protocols,
iPod abnormalities, or iPod device
defects. Some iPods with unsupported
communication protocols may not prop-
erly operate with the Multimedia system.
• For fifth generation iPod Nano devices,
the iPod may not be recognized when
the battery level is low. Please charge
the iPod for use.
• Search/play orders shown within the
iPod device may differ with the orders
shown within the Multimedia system.
• If the iPod malfunctions due to an iPod
device defect, reset the iPod and try
again. (To learn more, refer to your iPod
manual)
• If repeatedly connect and disconnect
iPod/iPhone to the Multimedia system
with USB cable in a short time, it may
cause abnormal operation.
• The time for recognition of iPod/iPhone
may vary depending on device type,
firmware version and iOS version.
• For some iPod Touch and iPhone
devices, connecting Bluetooth® while the
iPod is operating may result in discon-
tinued iPod sound. When such devices
with Bluetooth® support are connected,
this problem occurs as the sound source
is changed from the Dock Connector
(USB connector cable) to Bluetooth.
• To prevent this symptom, Bluetooth
Audio function in the Multimedia system
is limited if iPod/iPhone is connected
to the system through both cable and
Bluetooth. To listen to the iPod sound,
use either iPod menu with USB connec-
tion or Bluetooth Audio with Bluetooth
connection.
• To listen to the iPod sound, reconnect
the USB cable or change the audio out-
put settings in iPod/iPhone to Dock.
• In order to use the iPod while operating
the keys, you must use a dedicated iPod
cable. (the cable that is supplied when
purchasing iPod/ iPhone products)
※ During ACC ON state, connecting the
iPod through the iPod cable (The cable
that is supplied when purchasing iPod/
iPhone product.) will charge the iPod
through the head unit.
※
※
The use of genuine iPod cables sup-
The use of genuine iPod cables sup-
plied by Apple is recommended. (The
plied by Apple is recommended. (The
use of other products may result in
use of other products may result in
noise or abnormal operation.)
noise or abnormal operation.)
※ To play iPod music through cable con-
nection, the iPod/USB cable must be
connected to the USB port in the front
multibox. The USB port in the center
console storage (if equipped) is for
charging only.
K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-21K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-21 2016-06-02 오후 4:45:132016-06-02 오후 4:45:1
2-22 I Radio/Media
• When connecting with the iPod cable,
make sure to fully insert the jack to pre-
vent communication interference. If the
iPod is connected to the vehicle while it
is playing, a high pitch tone may sound
for about 1~2 seconds immediately
after connection. If possible, connect
the iPod to the vehicle with the iPod
stopped/paused.
• Within iPhones, streaming audio and
iPod control may occasionally conflict.
If problems persist, remove the iPhone
and connect again.
• When connecting to iPod Nano/Classic,
the Kia Motor logo appears on the Apple
device. For the iPod Nano 6 genera-
tion, however, the logo image does not
appear since it is not supported. Also, all
iPhone and iPod Touch products do not
support this function.
• In Apple’s iOS 6.0 version or later,
Podcast and Audiobook media files
are designed to be played with the
Podcasts and iBooks applications spe-
cifically designed for Apple products. If
the Apple device does not provide the
Podcast and Audiobook lists, the playlist
may not be displayed and played in the
iPod mode.
• If the Apple Podcasts and iBooks apps
are not installed on the Apple device, but
the Apple device provides the Podcast
and Audiobook lists, you can play files in
other categories in iPod mode.
• The screen of multimedia system can
be different when you run other music
players (e.g. iHeartRadio) on your con-
nected device.
K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-22K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-22 2016-06-02 오후 4:45:142016-06-02 오후 4:45:1
iPod I 2-23
02
Caution
• While using a connected iPhone/iPod
Touch device, it may not operate nor-
mally if the user changed some func-
tions in the device.
• When calling with an iPhone connec-
tion, song may stop playing due to an
Apple device feature. If sound does
not resume after the call is terminated,
check the device status.
• If lots of songs have the same informa-
tion, skipping may occur when previous/
next song is executed due to an Apple
device feature. Also problems may
occur depending on device type or iOS
version.
• If lots of songs have the same informa-
tion, the song that plays may be differ-
ent between the system and the Apple
device. Reset the device or delete the
same songs in the Apple device using
iTunes.
• If you control pause, repeat, shuffle, or
seek songs when the play time is less
than 3s before the song is finished play-
ing, it may occur difference of playing
song between the Multimedia system
and Apple device. Access to iPod music
from another mode or pause a song and
then play a song again in Apple device.
• We recommend that your Apple device
uses the latest firmware since some
problems may occur due to an outdated
firmware or other software related
issues.
Type 1G 2G 3G 4G 5G 6G 6.5G 7G
iPod Mini Not Supported
iPod Shuffle Not Supported
iPod Nano ○ ○ ○○○ ○Not
released ○
iPod Touch
○
(iOS 1.1
not sup-
ported)
○ ○○○ Not released
iPad ○ (Unable to charge, Not verified, Normal working not guaranteed)
iPad Mini ○ (Unable to charge, Not verified, Normal working not guaranteed)
iPod Classic Not Supported ○
(iPod with
Video)
○
(iPod
Classic)
○
(iPod
Classic)
Not
released
Type 3G 3GS 4 4S 5 5C 5S 6 6+
iPhone
Not verified,
Normal
working not
guaranteed
○○○○○○○○
K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-23K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-23 2016-06-02 오후 4:45:142016-06-02 오후 4:45:1
2-24 I Radio/Media
Caution
• If the iPhone/iPod Touch supports
Bluetooth, the Apple device will not be
able to use the Bluetooth function if the
device is connected through both the
USB port and via Bluetooth. Disconnect
the USB connection then use Bluetooth
Audio
• If iPod/iPhone connected to the
Multimedia system through both USB
and AUX. iPod/iPhone keeps output
sound via AUX, thus it may occur sound
will not output in iPod mode.
• If AUX cable connected to iPod/iPhone
but not connect to the Multimedia sys-
tem, it may occur sound will not output
in iPod mode due to iPod/iPhone’s fea-
ture. Especially, if you use AUX cable
like pictures, this problem may occur.
• Disconnect AUX cable from iPod/iPhone
first, then connect to the Multimedia
system via USB. Or change settings to
“Dock” in iPod/iPhone.
• If connect to the Multimedia system
while podcast or iTunes music down-
loading to iPod/iPhone, it may occur
some problems when you select song
in the list. Reconnect iPod/iPhone to the
Multimedia system when downloading
is finished or the file deleted.
• If connect to the Multimedia system
while sync, it may occur some problems.
Try to use iPod/iPhone connection after
sync complete. (To learn more, refer to
your iPod manual)
• iPhone and iPod Touch devices are
guaranteed to work normally on iOS 8.2
or below. However, they may not work
normally on future iOS versions as their
operations have not yet been tested.
K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-24K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-24 2016-06-02 오후 4:45:142016-06-02 오후 4:45:1
iPod I 2-25
02
iPod Mode Display Controls
Features Description
Mode Displays the current operating mode
Song Index Shows the current song/total songs
Repeat/Shuffle From Repeat/Shuffle, displays the current oper-
ating function
Play Time Displays the current play time/total play time
Song Info Displays the artist/song title/album info
List Moves to the list screen
Features Description
Previous File
If button is pressed (less than 0.8 seconds):
Moves to the previous file or play the current file
from the beginning (Depends on the play time)
• If play time is less than 3 seconds, moves to
previous file
• If play time is more than 3 seconds, play the
current file from the beginning
If button is pressed (more than 0.8 seconds) it
rewinds the track.
Play/Pause Plays/pauses the current file
Next File
• If button is pressed (less than 0.8 seconds),
Moves to the next file
• If button is pressed (more than 0.8 seconds),
it does fast-forward the track.
Repeat
Repeats the current file
Select the
Repeat
button to switch between
repeating 1 track , and turning repeat off
Shuffle
Plays files in random order
When pressing
Shuffle
button, it changes to
shuffle category → deactivate shuffle then
repeat
• Shuffle Category: Shuffle song in the current
category
Back Button Move to home/previous mode screen
SoundHound
Runs the SoundHound feature.
For more details regarding this feature, refer to
the SoundHound information in the Info section.
Menu Sound Settings: Moves to the Sound Settings
screen. You can change the settings of the sound.
K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-25K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-25 2016-06-02 오후 4:45:142016-06-02 오후 4:45:1
2-26 I Radio/Media
Features Description
SEEK/TRACK
If button is pressed (less than 0.8 seconds)
moves to previous/next file or play the current
song from the beginning
• If play time is less than 3 seconds, moves to
previous/next file
• If play time is more than 3 seconds, plays
the current file from the beginning
If button is pressed (more than 0.8 seconds) it
will rewind/fast-forward the track
TUNE
Turn the
TUNE
knob to search a desired
track. If the desired track is displayed, press
the
TUNE
knob to play the track.
If the
TUNE
knob is not pressed within
5 seconds of searching tracks, the track info
for the current track is restored.
K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-26K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-26 2016-06-02 오후 4:45:152016-06-02 오후 4:45:1
iPod I 2-27
02
Features Description
Category Name Displays the category name
Category List
Displays the contents of selected category
If there are many items in the list, items are
added in order and the scroll bar on the right
is adjusted accordingly.
Back Button Converts to basic mode screen
Upper Folder Moves to Upper Folder
Search Menu
Search tracks by the list type. Search songs
according to Playlist, Artist, Song, Album,
Genre, Composer, Podcast and Audiobook .
If access the search menu while playing a
track, it moves to the previous search mode.
SEEK/TRACK
If button is pressed (less than 0.8 seconds)
moves to previous/next file or play the current
song from the beginning
• If play time is less than 3 seconds, moves
to previous/next file
• If play time is more than 3 seconds, plays
the current file from the beginning
If button is pressed (more than 0.8 seconds) it
will rewind/fast-forward the track.
TUNE
Turn the
TUNE
knob to search a desired
track. If the desired track is displayed, press
the
TUNE
knob to play the track.
If you do not anything with the knob for
5 seconds, the
TUNE
knob search will be
terminated.
K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-27K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-27 2016-06-02 오후 4:45:152016-06-02 오후 4:45:1
2-28 I Radio/Media
AUX
Connecting an External Device
If an external device connector is con-
nected with the AUX terminal, then AUX
mode will automatically operate. Once the
connector is disconnected, the previous
mode will be restored.
• AUX mode can be used only when an
external audio player has been con-
nected.
• The AUX volume can also be controlled
separately through the connected
device.
NOTICE
• If only a cable is connected to the AUX
without an external device, the mode will
be changed to AUX, but noise may occur.
When an external device is not being
used, remove the connector jack.
• When the external device power is
connected to the power jack, playing the
external device may output noise. In such
cases, disconnect the power connection
before use.
K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-28K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-28 2016-06-02 오후 4:45:162016-06-02 오후 4:45:1
Bluetooth® Audio I 2-29
02
Bluetooth
®
Audio
Bluetooth Audio Mode Display Controls
Features Description
Mode Displays the current operating mode
Phone Name Displays name of connected phone
Artist Info Name of current artist
Title Name of current song
Previous File
• If play time is less than 3 seconds, moves to
the previous file
• If play time is more than 3 seconds, plays the
current file from the beginning
This function may differ depending on the
model of mobile phone
Play/Pause Plays/Pauses Bluetooth Audio
Next File Moves to the next file
Menu
• Connections: Moves to the Bluetooth Settings
screen. You can pair a new device or change/
delete paired device(s).
• Sound Settings: Moves to the Sound Settings
screen. You can change the settings of the
sound.
SoundHound
Runs the SoundHound feature.
For more details regarding this feature, refer to the
SoundHound information in the Info section.
SEEK/TRACK Plays the previous/next file
TUNE
TUNE
is not supported
i
Information
• Artist info and Title may not be supported by mobile phone
K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-29K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-29 2016-06-02 오후 4:45:162016-06-02 오후 4:45:1
2-30 I Radio/Media
Bluetooth Connections
Settings
Settings for pairing, connection and dis-
connection of a Bluetooth device.
• In Bluetooth Audio play screen, select
Menu
and then
Connections
.
i
Information
• If the music in the mobile phone is not
played after changing to audio streaming
mode, press the play button. Thus check if
the music is playing in the Bluetooth device
after changing to audio streaming mode.
Audio streaming may not be supported for
some mobile phones.
• Please check the Bluetooth compatibility
in below website: KIA Motors Corporation
http://www.kia.com
K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-30K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-30 2016-06-02 오후 4:45:172016-06-02 오후 4:45:1
My Music I 2-31
02
My Music
My Music Mode Display Controls
Features Description
Mode Displays the current operating mode
File Index Shows the current file/total files
Repeat/
Shuffle/Scan
From Repeat/Shuffle/Scan, displays the cur-
rent operating function
Play Time Displays the current play time/total play time
Song Info
Displays the information about the current track
• When a track in the file tab on the list screen is
selected: Displays file, artist, title, album info
• When a track in the other tab on the list
screen is selected: Displays artist, title,
album info
Features Description
List Moves to the list screen
Previous File
If button is pressed (less than 0.8 seconds):
Moves to the previous file or play the current file
from the beginning (Depends on the play time)
• If play time is less than 3 seconds, moves to
previous file
• If play time is more than 3 seconds, play the
current file from the beginning
If button is pressed (more than 0.8 seconds) it
rewinds the track
Play/Pause Plays/pauses the current file
Next File
• If button is pressed (less than 0.8 seconds):
Moves to the next file
• If button is pressed (more than 0.8 seconds)
it will fast-forward the file
Repeat
Repeats the current file
• If select the song in the file tab on the list
screen: Select the
Repeat
button to switch
between repeating one song and turn-
ing repeat off.
• If select the song in the other tabs (Playlist,
Artist, Song, Album) on the list screen:
Select the
Repeat
button to switch between
repeating one song and turning repeat
off
K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-31K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-31 2016-06-02 오후 4:45:182016-06-02 오후 4:45:1
2-32 I Radio/Media
Features Description
Shuffle
Plays files in random order
• If select the song in the file tab on the list
screen: Select the
Shuffle
button to switch
between shuffle and turning shuffle off
• If select the song in the other tabs (Playlist,
Artist, Song, Album) on the list screen: Select
the
Shuffle
button to switch between shuffle
and turning shuffle off
Features Description
Scan
Scans the beginning parts of files (approx. 10
seconds per file)
• If select the song in the file tab on the list
screen: Select the
Scan
button to switch
between scan and turning scan off
• If select the song in the other tabs (Playlist,
Artist, Song, Album) on the list screen: Select
the
Scan
button to switch between scan
and turning scan off
Menu
• Add to Playlist: Adds the current song to the
Playlist: Playlist is placed on the left tab in the list
• Delete Current File: Deletes the current track
from My Music.
• Sound Settings: Moves to the Sound Settings
screen. You can change the settings of the sound.
SoundHound Runs the SoundHound feature.
For more details regarding this feature, refer to
the SoundHound information in the Info section.
SEEK/TRACK
If button is pressed (less than 0.8 seconds)
moves to previous/next file or play the current
song from the beginning
• If play time is less than 3 seconds, moves to
previous/next file
• If play time is more than 3 seconds, plays the
current file from the beginning
If button is pressed (more than 0.8 seconds) it
will rewind/fast-forward the track
TUNE
Turn the
TUNE
knob to search a desired track. If
the desired track is displayed, press the
TUNE
knob to play the track.
If the
TUNE
knob is not pressed within
5 seconds of searching tracks, the track info
for the current track is restored.
K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-32K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-32 2016-06-02 오후 4:45:182016-06-02 오후 4:45:1
My Music I 2-33
02
Features Description
Folder/
Category Name Displays folder/category name in the list
Current Song Displays the current playing file name
Back Button Converts to basic mode screen
Upper Folder Moves to Root Folder
Features Description
Menu
• Add to Playlist: Adds the current track to the
Playlist: Playlist is placed on the left tab in the
list (Maximum 100 files) Select a track and
press “Add to Playlist” to add the track in the
playlist
• Delete from Playlist: Select a track from the
playlist and press “Delete from Playlist” to
delete the track in the playlist
• Delete Files: Deletes files from My Music
If delete file from My Music, the information
related to song also deleted in the list.
• Now Playing: When moving to a different list
screen, moves to the list page where the cur-
rent file is located (Becomes disabled when
the current list includes the current file
Search Menu
Search tracks by the list type. Search songs
according to File, Playlist, Artist, Song and Album.
If access the search menu while playing a
track, it moves to the previous search mode.
SEEK/TRACK
If button is pressed (less than 0.8 seconds)
moves to previous/next file or play the current
song from the beginning
• If play time is less than 3 seconds, moves to
previous/next file
• If play time is more than 3 seconds, plays the
current file from the beginning
If button is pressed (more than 0.8 seconds) it will
rewind/fast-forward the track
TUNE
Turn the
TUNE
knob to move the focus to pre-
vious/next file. If the file you want to play is dis-
played, press
TUNE
knob to play the track.
If the
TUNE
knob is not pressed within
5 seconds of searching tracks, Tune search
will be terminated.
K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-33K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-33 2016-06-02 오후 4:45:192016-06-02 오후 4:45:1
MEMO
K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-34K_YP 17MY_UVO3[USA_EU]AV_PART2.indd 2-34 2016-06-02 오후 4:45:202016-06-02 오후 4:45:2
Before Using the Bluetooth® Handsfree
Bluetooth Connection
Bluetooth Phone
part.3 Bluetooth
K_YP 17MY_UVO3[USA_EU]AV_PART3.indd 3-1K_YP 17MY_UVO3[USA_EU]AV_PART3.indd 3-1 2016-06-02 오후 4:45:432016-06-02 오후 4:45:4
3-2 I Bluetooth
Before Using the
Bluetooth
®
Handsfree
What is
Bluetooth
®
Wireless Technology?
• Bluetooth® Wireless Technology refers
to a short-distance wireless network-
ing technology which uses a 2.45GHz
frequency to connect various devices
within a certain distance.
• Supported within PCs, external devices,
Bluetooth® phones, PDAs, various elec-
tronic devices, and automotive environ-
ments,
Bluetooth
®
Wireless Technology
to be transmitted at high speeds without
having to use a connector cable.
• Bluetooth® Handsfree refers to a device
which allows the user to conveniently
make phone calls with Bluetooth® mobile
phones through the Multimedia system.
• The Bluetooth® Handsfree feature may
not be supported in some mobile phones.
For more information on mobile phone
compatibility, visit the KIA Motor website
- KIA Motors Corporation: http://www.kia.
com
WARNING
- Distracted Driving
• Focus on the road while driving. The driver's
primary responsibility is in the safe and legal
operation of the vehicle. Drivers should not
use any hand held devices or other equipment
or vehicle systems that distract the driver
during vehicle operation.
• Do not stare at the multimedia screen for long
periods of time while driving. Staring at the
screen for prolonged periods of time can lead
to traffi c accidents and can result in personal
injuries.
Precautions for Safe Driving
• Bluetooth® is a feature that enables driv-
ers to make handsfree calls. Connecting
the head unit with a Bluetooth® phone
allows the user to conveniently make
calls, receive calls, and manage the
phonebook. Before using
Bluetooth
®
Wireless Technology, carefully read the
contents of this user’s manual.
• Excessive use or operations while driv-
ing may lead to negligent driving prac-
tices and be the cause of accidents. Do
not operate the device excessively while
driving.
•
•
Viewing the screen for prolonged peri-
Viewing the screen for prolonged peri-
ods of time is dangerous and may lead
ods of time is dangerous and may lead
to accidents. When driving, view the
to accidents. When driving, view the
screen only for short periods of time.
screen only for short periods of time.
Bluetooth
K_YP 17MY_UVO3[USA_EU]AV_PART3.indd 3-2K_YP 17MY_UVO3[USA_EU]AV_PART3.indd 3-2 2016-06-02 오후 4:45:442016-06-02 오후 4:45:4
Before Using the Bluetooth
®
Handsfree I 3-3
03
CAUTIONS upon Connecting
Bluetooth® Phone
• Before connecting the head unit with
the mobile phone, check to see that the
mobile phone supports Bluetooth® fea-
tures
• Even if the phone supports
Bluetooth
®
Wireless Technology, the phone will
not be found during device searches if
the phone has been set to hidden state
or the Bluetooth® power is turned off.
Disable the hidden state or turn on the
Bluetooth® power prior to searching/
connecting with the head unit.
• If Auto Connection is used, the
Bluetooth® phone is automatically con-
nected when the ignition is turned on,
making it unnecessary to have to con-
nect the phone with the head unit every
time.
• If you do not want automatic connection
with your Bluetooth® device, turn the
Bluetooth® feature off of the Bluetooth®
device.
• Park the vehicle when connecting the
head unit with the mobile phone.
• Bluetooth® connection may become
intermittently disconnected in some
mobile phones. Follow these steps to try
again.
1. Turn the Bluetooth® function within the
mobile phone OFF/ON and try again.
2. Turn the mobile phone power OFF/
ON and try again.
3. Completely remove the mobile phone
battery, reboot, and then again.
4. Reboot the Multimedia System and
try again.
5. Delete all paired devices from both of
Phone and Head Unit sides and then
try again
• The Handsfree call volume and quality
may differ depending on the mobile
phone.
• Pairing Bluetooth® devices and use of
other Bluetooth® features are not sup-
ported when the vehicle is in motion. For
safety, please first park your vehicle.
• If you continue having issue download-
ing your contacts to your vehicle, con-
tact your mobile phone provider.
K_YP 17MY_UVO3[USA_EU]AV_PART3.indd 3-3K_YP 17MY_UVO3[USA_EU]AV_PART3.indd 3-3 2016-06-02 오후 4:45:442016-06-02 오후 4:45:4
3-4 I Bluetooth
Bluetooth Connection
Pairing a New Device
Before you can use the Bluetooth feature,
you must first pair/connect your mobile
phone to your car.
Up to 5 Bluetooth devices can be paired.
Only one Bluetooth device can be con-
nected at a time.
Pairing a New Device by Selecting
Phone/Call
Press the
PHONE
key or key in
the steering wheel control. ▶ Pair your car
after your mobile phone detects the
Bluetooth device. ▶ Enter the passkey or
accept the authorization popup. ▶
Connect Bluetooth.
Pairing a New Device Through the
Phone Settings
Press the
SETUP
key. ▶ Select
Phone
. ▶
Select
Bluetooth Connection
. ▶ Select
Add New
. ▶ Pair your car after your mobile
phone detects the Bluetooth device. ▶
Enter the passkey or accept the authoriza-
tion popup. ▶ Connect Bluetooth.
The default passkey is 0000.
The vehicle name above is an example.
Check the actual information on the product.
Connecting Bluetooth Devices
Connects the Bluetooth devices that you
add.
Connecting Devices by Selecting
Phone/Call
Press the
PHONE
key or key in
the steering wheel control. ▶ Select the
name of the device to connect. ▶ Connect
Bluetooth.
K_YP 17MY_UVO3[USA_EU]AV_PART3.indd 3-4K_YP 17MY_UVO3[USA_EU]AV_PART3.indd 3-4 2016-06-02 오후 4:45:442016-06-02 오후 4:45:4
Bluetooth Connection I 3-5
03
Connecting Devices Through the
Phone Settings
Press the
SETUP
key. ▶ Select
Phone
. ▶
Select
Bluetooth Connection
. ▶ Select the
name of the device to connect. ▶ Connect
Bluetooth.
Disconnecting
Bluetooth Devices
Disconnects Bluetooth devices that are
connected.
Press the
SETUP
key. ▶ Select
Phone
. ▶
Select
Bluetooth Connection
. ▶ Select the
name of the device to disconnect.
Deleting Bluetooth Devices
Deletes the Bluetooth devices that you
added. Note that deleting a Bluetooth
device will delete all Call History and
Contact Info downloaded along with it.
Press the
SETUP
key. ▶ Select
Phone
. ▶
Select
Bluetooth Connection
. ▶ Select
Delete Devices
. ▶ Select the device name
to delete. ▶ Select
Delete
.
K_YP 17MY_UVO3[USA_EU]AV_PART3.indd 3-5K_YP 17MY_UVO3[USA_EU]AV_PART3.indd 3-5 2016-06-02 오후 4:45:452016-06-02 오후 4:45:4
3-6 I Bluetooth
Bluetooth Phone
Phone Status Icons
Shows the current phone status in the
right top of the display.
Icons Description
You can use Bluetooth phones
when a Bluetooth Hands-free
connection is established.
You can use Bluetooth audio
features when a Bluetooth
audio connection is estab-
lished.
You can use Bluetooth phones
and audio features when both
Bluetooth Hands-free and audio
connections are established.
Call signal strength indicator
Battery level of the Bluetooth
devices connected
Downloading Call History list
Downloading Contacts
In a Bluetooth phone call
Microphone muted
i
Information
• The battery level icon and the call signal
strength indicator may not be supported in
some Bluetooth devices.
• The battery level may differ from the actual
level remaining.
K_YP 17MY_UVO3[USA_EU]AV_PART3.indd 3-6K_YP 17MY_UVO3[USA_EU]AV_PART3.indd 3-6 2016-06-02 오후 4:45:462016-06-02 오후 4:45:4
Bluetooth Phone I 3-7
03
Dial
Dials a call after the Bluetooth devices are
connected.
• Press the
PHONE
key or key in
the steering wheel control.
• You can also select
All Menus
icon ▶ and
then
Phone
icon.
Name Description
Keypad
Use the keypad to enter
the phone number that you
want to call. Press and hold
the last number of a speed
dial to dial a number that
you added to the Speed
Dial list in the phone
Call
Makes a call after you dial
a number and select CALL.
If the number is listed in
Dialed Calls, you can select
the number and press
CALL to automatically dial
that number again.
Settings Moves to a screen of
Phone Settings.
Delete Deletes the numbers that
you entered.
i
Information
• Some types of mobile phones may not
support the Speed Dial function.
Accept/Reject Call
If there is an incoming call after you made
a Bluetooth connection, a popup message
will appear.
Name Description
Accept Answers the call.
Reject Ignores the call.
i
Information
• In some mobile phones, the caller's number
may not be displayed, and the Reject feature
may not be supported.
K_YP 17MY_UVO3[USA_EU]AV_PART3.indd 3-7K_YP 17MY_UVO3[USA_EU]AV_PART3.indd 3-7 2016-06-02 오후 4:45:472016-06-02 오후 4:45:4
3-8 I Bluetooth
Using the Menu During
a Phone Call
When making a call, you can use the fol-
lowing menu items.
Name Description
Use Private
Switches a voice call
from the car Hands-free
to the mobile phone.
End Ends a call.
Contacts Displays the Contacts list.
Outgoing
Volume
Displays the Mic Volume
settings. You can adjust
the in-call volume that
the other party hears
(level 1 - 5).
Keypad Moves to a screen for
entering ARS numbers.
Switch
Switches to a call on
hold, if any. You can also
switch calls by select-
ing the number in the
Information Display. The
Switch function switches
the current call to a wait-
ing call in order to answer
a new incoming call.
i
Information
• If the caller's number is listed in Contacts, the
caller's name will be displayed. Otherwise,
only the number will be displayed. In some
mobile phones, the phone number may not
be displayed.
• In some Bluetooth devices, the Use Private
feature may not be supported.
• In some Bluetooth devices, the Switch feature
may not be supported.
• During a phone call on a Bluetooth Hands-
free, you cannot access other modes, such as
Radio and Settings.
• Depending on handset types, the in-call
volume the other party hears may differ. If the
other party hears your voice too low or too
loud, adjust the mic volume.
K_YP 17MY_UVO3[USA_EU]AV_PART3.indd 3-8K_YP 17MY_UVO3[USA_EU]AV_PART3.indd 3-8 2016-06-02 오후 4:45:482016-06-02 오후 4:45:4
Bluetooth Phone I 3-9
03
Call History
Press the
PHONE
key, and then
Call History
.
Name Description
All Lists the all call history.
Dialed Lists the calls that you
made.
Received Lists the calls that you
have received.
Missed Lists the calls you
missed.
Call History
Displays all of your call
history. Select from the
list to dial the number.
Information
Displays the details of
your call history
information.
Download
Downloads the call his-
tory information from
your mobile phone.
Call
Dials the selected
number in your Call
History Information.
Contacts Info
Goes to the Contact
Information screen if
the number has been
stored.
i
Information
• In some mobile phones, call records may
not be added to your Call History.
• Calls from restricted ID's are not added to
your Call History Information.
• Up to 50 calls can be added in each Dialed
Calls/Received Calls/Missed Calls list.
• The durations of each dialed/received call are
not displayed in your car's Call History list.
• While the call history download is in progress,
the status bar displays an icon ( ).
• If the call history download is turned off
on the Bluetooth device, the call history
download will fail.
• Some devices require a device authentication
for downloading your call history. If download
fails, check if the Bluetooth settings or
display status are normal.
• Some devices do not support call history
download. Check if your Bluetooth device
supports download feature. For details
regarding Bluetooth-supported devices and
their functional compatibility, visit http://www.
kia.com
K_YP 17MY_UVO3[USA_EU]AV_PART3.indd 3-9K_YP 17MY_UVO3[USA_EU]AV_PART3.indd 3-9 2016-06-02 오후 4:45:492016-06-02 오후 4:45:4
3-10 I Bluetooth
Contacts
Press the
PHONE
key, and then
Contacts
.
Name Description
Contacts List
The list of Contacts.
Select from the list to
dial the number.
Information Displays contact infor-
mation.
Download
Downloads contacts
from your mobile
phone.
Search by
Name
Searches Contacts
for the name that you
enter.
Search by
Number
Searches Contacts for
the number that you
enter.
Add to
Favorites
Adds a phone number
to Favorites.
i
Information
• Up to 5000 phone numbers can be
downloaded from a single, paired Bluetooth
device.
• You cannot edit or delete downloaded
phone numbers from your car.
• Contacts can be viewed only when the
Bluetooth device is connected.
• Even if the Bluetooth device is disconnected,
the downloaded data will remain. (Note that
deleting a paired phone will also delete all
downloaded Contacts and Call History data)
• Downloaded phone numbers may be lost
depending on the condition of the head
unit. Keep your important data in a safe
place.
• Contacts from both the SIM card and your
mobile phone are downloaded at the same
time by default.
• The status bar displays a ( ) while
downloading contacts.
• The download will not be available if the
contacts download function is turned off on
your Bluetooth device.
K_YP 17MY_UVO3[USA_EU]AV_PART3.indd 3-10K_YP 17MY_UVO3[USA_EU]AV_PART3.indd 3-10 2016-06-02 오후 4:45:502016-06-02 오후 4:45:5
Bluetooth Phone I 3-11
03
• Some devices require a device authentication
for downloading your contacts. If download
fails,check your phone screen and confi rm the
download if necessary.
• Some devices do not support contacts
download feature. Check if your Bluetooth
device supports contacts download. For
Bluetooth supporting devices details and
compatibility, visit http://www.kia.com
Favorites
Press the
PHONE
key, and then
Favorites
.
Name Description
Favorites
Lists the phone num-
bers saved as Favorites.
Select from the list to
dial the number.
Add New Adds a new number to
Favorites.
Delete Items
Deletes numbers
that you select from
Favorites.
Delete All Deletes all of the num-
bers from Favorites.
K_YP 17MY_UVO3[USA_EU]AV_PART3.indd 3-11K_YP 17MY_UVO3[USA_EU]AV_PART3.indd 3-11 2016-06-02 오후 4:45:502016-06-02 오후 4:45:5
MEMO
K_YP 17MY_UVO3[USA_EU]AV_PART3.indd 3-12K_YP 17MY_UVO3[USA_EU]AV_PART3.indd 3-12 2016-06-02 오후 4:45:512016-06-02 오후 4:45:5
The 911 Connect feature may not operate in the following situations
About UVO eServices (For UVO Model)
Before using UVO eServices
Connecting Bluetooth
Pair a device from Bluetooth-enabled phone
Connecting to smartphone via USB
911 Connect
Roadside Assist
Vehicle Diagnostics
My Car Zone
Parking Minder
eServices Guide
part.4 UVO eServices
(For UVO Model)
4-2 I UVO eServices
UVO eServices (For UVO Model)
The 911 Connect feature may
not operate in the following situations
When the vehicle ignition is not turned on.
When the phone Bluetooth® feature is set to off.
When the phone Bluetooth® cannot be connected or becomes
disconnected.
When there are no phones paired with the vehicle.
When cellular service is unavailable.
When the power turns off due to phone power (battery) issues.
When a Bluetooth® device without phone feature support has
been connected, such as an MP3 device.
When the system is booting.
When the system power supply is unstable.
When the attempted call is blocked due to user operations.
When the 9-1-1 call is unstable due to phone or other commu-
nication network issues.
When the call feature is not operating due to phone settings set
by the user.
When the phone cannot be controlled via Bluetooth® due to
phone specifications or characteristics.
Using UVO eServices and Precautions I 4-3
04
Using UVO eServices and Precautions
Download the UVO eServices App and install it on your smartphone.
The app can be downloaded from your smartphone’s app store.
For using UVO eServices call features such as 911 Connect,
Roadside Assist and eServices Guide, a smartphone must be
connected with the vehicle via Bluetooth. Pair and connect your
smartphone with the vehicle. For information on connecting
your Bluetooth device, refer to the smartphone user’s manual
and instructions on the Phone Help screen on your radio. Up to
five Bluetooth devices can be paired to the vehicle and only
one device can be connected at a time.
For using data communication of Vehicle Diagnostics, Parking
Minder, and My Car Zone, smartphone must be connected with
the vehicle via USB cable.
※
The use of genuine cable is recommended. (The use of
other products may result in abnormal or non-proper operation.)
Login and activate the UVO eServices App on your smartphone.
Some UVO eServices features will only be available when your
smartphone is connected with the vehicle via USB and the
UVO eServices App is running.
UVO eServices may not operate properly with incompatible
smartphones. To view the list of compatible smartphones,
please visit MyUVO.com
Communication between the vehicle and smartphone app may
temporarily disconnect depending on the phone state.
If the feature is not operating properly, you may need to reset
the UVO eServices App or the smartphone and try again
according to the following steps.
1. Try feature again in the Head Unit
2. Restart smartphone app
3. Re-connect Bluetooth and USB cable
4. Reset smartphone
5. Delete Device and pair again
Some services use the customer’s mobile phone data plan for
data communication. Therefore, the features will function in
accordance with the cellular plan.
Use of the most up-to-date app version is recommended.
For smartphone related inquiries, please visit MyUVO.com.
4-4 I UVO eServices
About UVO eServices (For UVO Model)
UVO eServices provides the following features through Bluetooth
and/or USB connection to your smartphone.
Name Connection Description
911
Connect BT
If an airbag deploys, your vehicle
automatically initiates a call to 9-1-1
and sends your vehicle’s location
information to the 9-1-1 operator.
Roadside
Assist BT & USB If a diagnostic issue exists, you can
connect with a Roadside Assist.
Vehicle
Diagnostics USB
Informs you if there is a diagnostic
issue found in your vehicle. If an
issue is found, you can contact a
call center through Roadside Assist
or reserve an appointment with
your preferred Kia dealer through
Schedule Service.
My Car
Zone USB
Keeps track of predefined triggered
alerts such as Speed Alert and
Curfew Limit Alert from the My Car
Zone feature.
Parking
Minder USB
Saves the location of your parked
vehicle on your UVO eServices
smartphone app.
You can check where your vehicle is
parked through the UVO eServices
App on your smartphone.
eServices
Guide BT Receive guidance on how to use
UVO eServices.
i
Information
• 24-hour Roadside Assistance is a
service plan provided by Kia Motors
America, Inc. Certain limitations apply. Coverage details are available
in the Kia Warranty and Consumer Information Manual. For access
to Enhanced Roadside Assistance, a conn
ected mobile phone via
Bluetooth within the cellular service coverage area is required.
To use UVO eServices, the following conditions must be met.
1. The UVO eServices smartphone app must be installed and
you must log in using your MyUVO account credentials.
2. The smartphone must be connected via Bluetooth and USB
cable to the vehicle.
3. Once this is complete, eServices must be activated.
Pair a device from Bluetooth-enabled phone I 4-5
04
Before using UVO
eServices
Installing the UVO eServices App on your
smartphone
1. Download and install the UVO eSer-
vices App on your smartphone.
The app can be downloaded from the
Apple App Store or Google Play.
2. Register your vehicle and account at
MyUVO.com
Note: MyUVO.com is accessible from
your phone’s browser.
3. Start the UVO eServices App on your
smartphone and log in.
Connecting Bluetooth
Press the key on the steering wheel
or press the
PHONE
key on the head unit.
Press
SETUP
▶
Phone
▶
Bluetooth Connection
.
Pair a device from
Bluetooth-enabled phone
1. Turn on the Bluetooth feature on your
smartphone’s Bluetooth settings screen.
2. Search Bluetooth devices on your
smartphone.
3. Select the Vehicle Name on the phone
that matches the name shown on the
screen.
4. Verify the passkey shown on the touch-
screen.
If the phone supports SSP, check the
passkey on your Bluetooth® device and
confirm the authentication.
4-6 I UVO eServices
Connecting to
smartphone via USB
1. Connect your smartphone with the vehi-
cle via USB cable.
NOTICE
• For smartphone related inquiries, please visit
MyUVO.com.
Activating UVO eServices
Press the
UVO
key, then press the
Vehicle Diagnostics
or
My Car Zone
or
Parking Minder
button.
Press the
Yes
button, then the UVO
eServices activation process will begin.
NOTICE
• Before activating UVO eServices, ensure
your phone is connected to the vehicle via
USB cable.
911 Connect I 4-7
04
911 Connect
911 Connect
If an airbag deploys, your vehicle automat-
ically initiates a call to 9-1-1 and sends
your vehicle’s location information to the
9-1-1 operator.
The 911 Connect feature is available only
when the mobile phone is connected via
Bluetooth.
By default, this feature is turned off. To turn
it on, you must turn it on in the eServices
Settings menu. By enabling this feature,
you are agreeing to the 911 Connect
terms of use.
A ( ) icon is displayed at the top of the
touch screen as shown below when phone
is connected to UVO eServices system via
Bluetooth and the 911 connect feature is
turned on.
Initiating a 911 Call
If an airbag deploys, the following screen
is displayed and a call is automatically
placed to 9-1-1 after 10 seconds.
Once a call is connected with a 9-1-1
operator, it is possible to request emer-
gency services to be dispatched to your
location.
4-8 I UVO eServices
The 9-1-1 operator may request informa-
tion on the current location of your vehicle.
When the 9-1-1 operator requests your
vehicle location, “Sending Location” is
displayed on the screen and the vehicle
location is automatically sent to the 9-1-1
operator.
When the 9-1-1 operator attempts to talk
to the driver again, the call time is dis-
played and allows the driver to speak with
the 9-1-1 operator.
Roadside Assist
Roadside Assist
If there is any issues in the vehicle, you
can connect with a Roadside Assist agent.
The Roadside Assist feature can be used
only when your phone is connected via
Bluetooth.
Press the
UVO
key ▶
Roadside Assist
Vehicle Diagnostics I 4-9
04
Vehicle Diagnostics
Conducting Vehicle
Diagnostics
Vehicle Diagnostics is available only when
the ignition is turned on and the vehicle is
parked.
It also requires that UVO eServices is
activated, and the Phone is connected
via USB cable before starting Vehicle
Diagnostics.
Press the
UVO
key ▶
Vehicle Diagnostics
The Vehicle Diagnostics process will begin.
When a diagnostics check is in progress,
keep the vehicle in park with the ignition
on. To cancel diagnostics, press the
Cancel
button on the touch screen or
any hardkey.
If diagnostic issues are found, press the
Send Report
button to send to your MyUVO
account or press the
Schedule Service
but-
ton to schedule an appointment with your
preferred or nearby Kia dealer.
4-10 I UVO eServices
Schedule Service
When scheduling an appointment using
the
Schedule Service
button, pressing the
Preferred
button will allow you to request an
appointment with your preferred Kia dealer
and send your vehicle’s diagnostics infor-
mation.
Pressing the
Nearest
button will allow you
to request an appointment with the near-
est Kia dealer and send your vehicle’s
diagnostics information.
Press the
Preferred
or
Nearest
button.
Request an appointment with Preferred or
Nearest Kia Dealer and send your vehi-
cle’s diagnostics data.
Send Report
Press the
Send Report
in the vehicle diag-
nostics result screen.
Vehicle Diagnostics Data is transmitted to
your account and you can see the report
on MyUVO.com
Vehicle Diagnostics I 4-11
04
Even if diagnostic issues are not found
after Vehicle Diagnostics, it is recom-
mended that you send the diagnostic
results to your MyUVO account.
Press the
Send Report
button to send the
diagnostics results to your MyUVO
account.
Scheduled Diagnostics
If you have set up Scheduled Diagnostics
on your UVO eServices App, a vehicle
diagnostics check will automatically start
on the day you selected.
On the date of the Scheduled Diagnostics,
the following window will be displayed.
Press the
Yes
button on the touch screen
to proceed with diagnostics.
Press the
Send Report
button to see the
Vehicle Health Report on MyUVO.com.
4-12 I UVO eServices
Automatic Diagnostics
If a critical diagnostics issue with your
vehicle’s powertrain is detected, Automatic
Diagnostics will be notified.
NOTICE
• The screen messages differ based on the
vehicle diagnostics severity. Ensure your
phone is connected to the system via USB
cable before using
Schedule Service
and
Send Report
.
My Car Zone
My Car Zone is a feature that provides
alerts and driving history for Curfew Limit
Alerts and Speed Alerts set by the user.
Name Description
Curfew Limit
Alert
Curfew Limit Alerts are
alerts that are triggered
when a driver is driving
within a predefined time
range.
Speed Alert
Speed Alerts are alerts
that are triggered when
a driver exceeds the
predefined maximum
speed.
My Car Zone features are supported only
when UVO eServices has been activated.
Press the
UVO
key ▶
My Car Zone
Curfew Limit Alerts History
Speed Alerts History
My Car Zone I 4-13
04
Curfew Limit Alert
Speed Alert
Curfew Limit Alert
You can check the Curfew Limit Alert his-
tory for a list of past triggered curfew alerts.
Name Description
Phone
Name of phone con-
nected upon triggered
curfew limit
Alert Time Initial alert time
Duration
Total duration of driving
while curfew limit was
triggered
Driving Time
Total driving time from
turning ignition on until
turning ignition off
Speed Alert
You can check the Speed Alert history for
triggered speed limit alerts of the vehicle.
Name Description
Phone
Name of phone con-
nected upon triggered
speed limit alert
Max. Speed
Maximum vehicle speed
upon triggered speed
limit alert
Alert Time
Time from first triggered
alert until last triggered
alert
Duration
Total triggered alert time
from turning ignition on
to turning ignition off
4-14 I UVO eServices
To check My Car Zone alert history from
your smartphone, you must first send the
alert history to your MyUVO account.
Parking Minder
Sending Parking Location
The location where your vehicle is currently
parked can be sent to your smartphone.
Ensure that your smartphone is connected
via USB and the UVO eServices App is
running before using this feature.
After parking the vehicle, press the
UVO
key ▶
Parking Minder
to send the
vehicle’s location to your smartphone.
Once the parking location has been sent,
you can view your vehicle’s location from
the UVO eServices App on your smart-
phone.
NOTICE
• When the parking location is being sent, do
not drive the vehicle. Ensure that you have
logged into the UVO eServices App, and your
phone is connected to the multimedia system
via USB cable.
• When ignition is turned off while the phone is
connected via USB, Parking Minder can be
transferred automatically if the option is set up
in UVO eService Settings
eServices Guide I 4-15
04
eServices Guide
eServices Guide
eServices Guide provides guidance on
how to use UVO eServices.
This feature is only available when the
mobile phone is connected via Bluetooth.
Press the
UVO
key ▶
eServices Guide
UVO eServices Settings
Refer to
SETUP
key ▶
UVO eServices
.
MEMO
What is Voice Recognition?
Precautions Required for Successful Voice Recognition
Starting/Ending and Setting Voice Recognition
Voice Recognition Screen Overview
Voice Commands
Siri Eyes Free
part.5 Voice Recognition
K_YP 17MY_UVO3[USA_EU]AV_PART5.indd 5-1K_YP 17MY_UVO3[USA_EU]AV_PART5.indd 5-1 2016-06-02 오후 4:46:392016-06-02 오후 4:46:3
5-2 I Voice Recognition
What is Voice Recognition?
The voice recognition feature operates the
multimedia system by recognizing voice
commands and enables hands-free oper-
ation of the system while you are driving
your car.
Not all possible voice commands are rec-
ognized by the system due to technological
limitations. To make up for these limitations,
the system displays the voice commands
that are available for you to use.
There are errors in communication between
people. Likewise, voice recognition some-
times misunderstands your voice command
in some circumstances. If this happens,
either check the screen for the available
options and say the command again, or
manually select and press the button for the
corresponding command on the screen.
Precautions Required
for Successful Voice
Recognition
1. Voice recognition supports only the
commands that are displayed on the
screen and written in the User's Guide.
2. To ensure the correct recognition and
execution of your command, say your
command when you hear the beep after
a voice prompt.
3. Voice recognition automatically ends if:
1) A call is incoming or outgoing
2) A media device (USB or iPod, etc.) is
connected or disconnected
3) The rear view camera is operated
4) The car engine starts or stops
5) A system key, such as
RADIO
key
or
MEDIA
key is selected
4. The microphone used for the voice
recognition system is located in the
headliner directly above the driver's
head. To make your commands better
understood, keep your body straight
in the driver's seat when speaking the
command.
5. Speaking naturally and clearly will
ensure better recognition of your voice
commands.
6. In the following cases voice recognition
will be affected by ambient noise.
1) The sound of the wind if any window
or the sun roof is open.
2) High speed blower from the air vents.
Set climate control to blow lower than
level 3.
3) Vibrations from passing through a
tunnel.
4) Vibrations from driving on an uneven
road.
5) Storms and heavy rain.
Voice Recognition
K_YP 17MY_UVO3[USA_EU]AV_PART5.indd 5-2K_YP 17MY_UVO3[USA_EU]AV_PART5.indd 5-2 2016-06-02 오후 4:46:402016-06-02 오후 4:46:4
Starting/Ending and Setting Voice Recognition I 5-3
05
Starting/Ending
and Setting Voice
Recognition
Starting Voice Recognition
Press the key briefly (less than 0.8
seconds) on the steering wheel control to
activate voice recognition.
Ending Voice Recognition
1. Select “Exit” to the left of the bottom to
end voice recognition.
2. Press and hold (more than 0.8 sec-
onds) the key on the steering
wheel control to end voice recognition.
Combining Voice Recognition
with On-Screen Commands
After pressing the key, say a com-
mand after the beep. The voice recognition
system will execute the desired operation
after understanding the command.
Alternatively, you may touch any of the cor-
responding Frequently Used Commands
on the screen while the Voice Recognition
system is in operation.
Combining voice recognition with available
on-screen commands is useful when the
system is taking longer than expected or
the voice command did not execute as
desired.
K_YP 17MY_UVO3[USA_EU]AV_PART5.indd 5-3K_YP 17MY_UVO3[USA_EU]AV_PART5.indd 5-3 2016-06-02 오후 4:46:402016-06-02 오후 4:46:4
5-4 I Voice Recognition
Extending the Listening Time
When the system is waiting for your com-
mand, after the voice prompt and beep
have been heard, if you press the
key (shorter than 0.8 seconds), then the
beep will sound again and standby mode
will restart.
When activated, voice recognition waits for
your command for 5 seconds. If you say
nothing for 5 seconds, a voice prompt will
ask for your command again.
K_YP 17MY_UVO3[USA_EU]AV_PART5.indd 5-4K_YP 17MY_UVO3[USA_EU]AV_PART5.indd 5-4 2016-06-02 오후 4:46:582016-06-02 오후 4:46:5
Starting/Ending and Setting Voice Recognition I 5-5
05
Skipping Prompt Messages
When you hear the prompt message,
press the key on the steering
wheel control to skip the message and go
directly to listening mode to say your com-
mand.
This results in faster operation when
you feel the message is too long or you
already know the command to use.
i
Information
• Refer to Part 8 for instructions on how to
change the Voice Recognition Settings.
Adjusting Voice
Recognition Volume
During voice recognition, rotate the vol-
ume knob to adjust the message volume.
K_YP 17MY_UVO3[USA_EU]AV_PART5.indd 5-5K_YP 17MY_UVO3[USA_EU]AV_PART5.indd 5-5 2016-06-02 오후 4:47:212016-06-02 오후 4:47:2
5-6 I Voice Recognition
Voice Recognition
Screen Overview
Start Screen
Name Description
Most
frequently
used
commands
Displays the six most fre-
quently used commands.
Not
available
command
Displays commands that
are not available due to
a failure in meeting the
conditions for using them
and thus need additional
settings. The conditions
required for using them
will be described briefly
under each command.
Name Description
Voice
recognition
status icons
Standby
Voice guidance
Voice command
process
Recognized
results
Displays the voice rec-
ognition result.
User's
speaking
volume being
recognized
Displays the voice
command volume in
real time.
Help
Displays all available
help commands in a
tree format.
Exit Ends the voice recog-
nition.
Help Display
Name Description
Command
list
• Shows the available
commands.
• Select or say a command
to display additional com-
mands in detail.
How to
use for
selected
item
This section shows how to
use voice recognition for
the selected item.
How to
use in
general
This section displays how
to use voice recognition in
general.
K_YP 17MY_UVO3[USA_EU]AV_PART5.indd 5-6K_YP 17MY_UVO3[USA_EU]AV_PART5.indd 5-6 2016-06-02 오후 4:47:222016-06-02 오후 4:47:2
Voice Recognition Screen Overview I 5-7
05
Instructions for Using
Voice Recognition
Name Description
Detail
instruction
This section describes
how to use voice recog-
nition in detail.
Close button Closes the screen and
restarts voice recognition.
i
Information
• In the instructions screen, no voice is
recognized, so you must manually issue
commands. Because the instructions screen
displays a lot of content, you can not view it
while driving for safety precautions.
K_YP 17MY_UVO3[USA_EU]AV_PART5.indd 5-7K_YP 17MY_UVO3[USA_EU]AV_PART5.indd 5-7 2016-06-02 오후 4:47:242016-06-02 오후 4:47:2
5-8 I Voice Recognition
Voice Commands
Types of Commands
Voice recognition commands are classified as “Global Commands”
and “Local Commands”.
1. Global Commands (●): Commands that can be used immedi-
ately after activating voice recognition.
2. Local Commands (○): Commands that can be used when a
multimedia or Bluetooth function is running, or displayed on the
screen, after activating voice recognition.
Call Commands
* Check the following before using call commands:
1. Voice commands related to phone calls can be used after con-
necting a Bluetooth device.
2. To call a person, for example “Call <John Smith>” whose name
is listed in Contacts, you must first download the Contacts list.
For details on downloading contacts, see “Part 3. Bluetooth >
Chapter 3. Bluetooth Phone > 3.10 Contacts”.
3. After downloading the Bluetooth contacts, it will take some time
to convert the Contacts into voice data during which time you
cannot make a call by name yet. The time it takes to convert
voice data may vary depending on the number of Contacts
downloaded on the phone.
Command Operation
●Call Displays downloaded Contacts, after this
you can make a call by saying the name.
●Call <Name> You can directly call a person by <Name> in
the downloaded Contacts.
●Call <Name>
on Mobile
You can call a person <name> directly to
the number that is saved as “Mobile” in the
downloaded Contacts.
e.g.) Call “John Smith” on Mobile
●Call <Name>
in Office
You can call a person <name> directly to
the number that is saved as “Office” in the
downloaded Contacts.
e.g.) Call “John Smith” in Office
●Call <Name>
at Home
You can call a person <name> directly to
the number that is saved as “Home” in the
downloaded Contacts.
e.g.) Call “John Smith” at Home
●Call <Name>
on Other
You can call a person <name> directly to
the number that is saved as “Other” than
“Mobile, Home, or Office” in the downloaded
Contacts.
e.g.) Call “John Smith” on Other
●Dial Number Displays a screen where you can say a
phone number to dial.
●Dial <Phone #> You can directly say the number to call.
e.g.) Dial 111 555 1234
●Redial Directly calls at the number that you last
dialed.
●Call History Displays your Call History, where you can
say the list number to make a call.
K_YP 17MY_UVO3[USA_EU]AV_PART5.indd 5-8K_YP 17MY_UVO3[USA_EU]AV_PART5.indd 5-8 2016-06-02 오후 4:47:252016-06-02 오후 4:47:2
Voice Commands I 5-9
05
Radio Commands
Command Operation
●Radio Plays the most recent radio channels
from FM, AM, and SiriusXM™.
●FM Plays FM radio.
●FM
<87.5~107.9>
Tunes to FM <Frequency> according to
what you say.
e.g.) FM 87.5: FM eighty seven point five
●SiriusXM Plays SiriusXM™ radio.
●SiriusXM
<0~999>
Tunes to SiriusXM™ Channel <Channel
Number> according to what you say.
e.g.) SiriusXM 23: SiriusXM Twenty three
●AM Plays AM radio.
●AM <530~1710>
Tunes to AM <Frequency> according to
what you say.
e.g.) AM 530: AM Five Thirty
○Preset <1~40> Tunes to your preset stations (1 to 40).
○Channel
<0~999>
In SiriusXM™ Radio mode, turns on the
<Channel Number> that you say.
K_YP 17MY_UVO3[USA_EU]AV_PART5.indd 5-9K_YP 17MY_UVO3[USA_EU]AV_PART5.indd 5-9 2016-06-02 오후 4:47:252016-06-02 오후 4:47:2
5-10 I Voice Recognition
Media Commands
* Check the following before you use media commands.
1. If no media is connected or if no playable files exist at the time
when you use these commands, a voice message will tell you
that this is not available.
2. If you say the name of the media that is currently playing again,
then that media will continue playing.
e.g.) Saying “USB” while USB content is playing.
Command Operation
●Music Continues the last media you played.
●iPod
Plays the iPod currently connected. This
will work the same when an iPhone is con-
nected. If a USB is connected, then it will
be played instead of the iPod.
●USB
Plays the music on the USB currently con-
nected.
If an iPod is connected, then the iPod will
be played instead of the USB.
●Bluetooth Audio
Plays the music on the Bluetooth phone
currently connected.
This may not be supported depending on
the Bluetooth connection status.
●AUX Plays external devices that are currently
connected.
●My Music Plays My Music files stored in the system.
●Pandora Radio Plays Pandora Radio that is currently con-
nected.
K_YP 17MY_UVO3[USA_EU]AV_PART5.indd 5-10K_YP 17MY_UVO3[USA_EU]AV_PART5.indd 5-10 2016-06-02 오후 4:47:252016-06-02 오후 4:47:2
Voice Commands I 5-11
05
1. USB Music/iPod/My Music Command
Command Operation
○Play Plays a selected file.
Maintains the current settings during playback.
○Pause
Pauses a file that is playing.
Maintains current settings while paused during
playback.
○Shuffle
Plays tracks or files randomly.
Maintains current settings during shuffled
playback.
○Shuffle Off
Cancels Shuffle and plays tracks sequentially.
Maintains current settings during sequential
playback.
○Repeat
Plays the current track or file repeatedly.
Maintains the current settings during repeat
playback.
○Repeat Off
Cancels Repeat and plays multiple tracks or files.
Maintains current settings during multiple track
playback.
2. Pandora Radio Command
Command Operation
○Skip Moves to the next track.
○Thumbs up
If you like the genre of the music currently
playing, say “Thumbs up” so that more
similar music will play.
○Thumbs down
If you don’t like the music currently playing,
say “Thumbs down” to minimize the num-
ber of playbacks of similar genre music.
○Play
Plays a selected file.
Maintains the current settings during play-
back.
○Pause
Pauses a file that is playing.
Maintains current settings while paused
during playback.
○Shuffle
Plays tracks or files randomly.
Maintains current settings during shuffled
playback.
3. Bluetooth audio/AUX Command
For Bluetooth audio and external devices (AUX), local commands
are unavailable, including Play, Pause, Repeat and Shuffle.
K_YP 17MY_UVO3[USA_EU]AV_PART5.indd 5-11K_YP 17MY_UVO3[USA_EU]AV_PART5.indd 5-11 2016-06-02 오후 4:47:252016-06-02 오후 4:47:2
5-12 I Voice Recognition
UVO eServices Commands List (Optional)
Command Operation
●Roadside Assist Connect with a Roadside Assist agent.
●Vehicle
Diagnostics
Informs you if diagnostic issues are found
in your vehicle
●eService Guide Provides guidance on how to use UVO
eServices
Other Commands List
(Commands used in List/Help)
Command Operation
●Help
Moves to the voice recognition help screen.
All available commands can then be identi-
fied and used.
○Line 1~4
(One~Four)
When you cannot select a certain name,
such as in Call History, you can select it
using numbers.
Simple numbers can be recognized, such
as “One” or “Two”.
○Yes/No
When voice recognition is activated, this
command is used when an answer is
requested for a confirmation question.
○Previous/Next
When four or more searched items are
listed, you can move to the previous or
next page using a voice command.
○Manual Input
When Dial entry results are displayed,
this command is used to search manually,
rather than to search with a voice com-
mand.
Voice recognition stops after this command
is used.
○Go Back Moves to the previous screen.
●Exit Ends the voice recognition.
K_YP 17MY_UVO3[USA_EU]AV_PART5.indd 5-12K_YP 17MY_UVO3[USA_EU]AV_PART5.indd 5-12 2016-06-02 오후 4:47:252016-06-02 오후 4:47:2
Siri Eyes Free I 5-13
05
Siri Eyes Free
How to start Siri
If you want to use Siri, you have to con-
nect your iOS device to the Multimedia
system through Bluetooth.
(Please check whether your iOS device
supports Siri and turning Siri On)
Then you can use Siri while pressing and
holding key on the steering wheel.
How to use Siri
When you access the Siri screen while
pressing and holding key on the
steering wheel, you can press
Spea
k
but-
ton and then you can speak what you
want. Note that the Multimedia system
only supports “Phone” related functions.
Other functions will be performed in your
iOS device. If you press voice key quickly,
Siri would re-start. If you hold down voice
key, Siri would be terminated and the
screen would go back to the previous
screen. Eyes-Free mode would be acti-
vated automatically while you are driving.
When shifting gears into P or putting the
Parking brake on, Eyes-Free mode would
be deactivated automatically.
i
Information
• Functions and feedbacks from voice
commands via Siri are executed in the iOS
device. If the iOS version is changed, the
functions and response may be different
according to the iOS device and the latest
version.
K_YP 17MY_UVO3[USA_EU]AV_PART5.indd 5-13K_YP 17MY_UVO3[USA_EU]AV_PART5.indd 5-13 2016-06-02 오후 4:47:252016-06-02 오후 4:47:2
MEMO
K_YP 17MY_UVO3[USA_EU]AV_PART5.indd 5-14K_YP 17MY_UVO3[USA_EU]AV_PART5.indd 5-14 2016-06-02 오후 4:47:262016-06-02 오후 4:47:2
Start up
Pandora®
SiriusXM™ Data
SoundHound
part.6 Apps/Info
K_YP 17MY_UVO3[USA_EU]AV_PART6.indd 6-1K_YP 17MY_UVO3[USA_EU]AV_PART6.indd 6-1 2016-06-02 오후 4:47:412016-06-02 오후 4:47:4
6-2 I Apps/Info
Apps/Info
Start Up
Press the
APPS/
key on the head unit to move to the information
screen. The screen is composed of:
• Pandora®: To listen to Pandora® Radio by connecting a smart
phone
• Quick Guide: To provide information about how to controls and
major functions
• SiriusXM Data: To show weather, sports, stock, fuel prices and
movie information provided by SiriusXM™ Travel Link.
• Voice Commands: To provide information about available voice
command list to use voice recognition.
K_YP 17MY_UVO3[USA_EU]AV_PART6.indd 6-2K_YP 17MY_UVO3[USA_EU]AV_PART6.indd 6-2 2016-06-02 오후 4:47:412016-06-02 오후 4:47:4
Pandora
®
I 6-3
06
Pandora
®
Press the “Pandora” icon after selecting All Menus or the
APPS/
key to enter Pandora®.
Pandora, the Pandora logo, and the Pandora trade dress are
trademarks or registered trademarks of Pandora Media, Inc. Used
with permission. Pandora is only available in certain countries.
Please visit http://www.pandora.com/legal for more information.
Pandora® Screen Controls
Name Description
Mode Displays the current operating mode.
Station Name Shows the station name current playing.
Artist Name Shows the artist/title information current playing.
Name Description
Song Title Shows the song title current playing.
Album Name Shows the album name current playing.
Play Time Displays the current play time.
Thumbs
Down
If you don’t like the music currently playing, press
this button to move to the next song and to minimize
the number of playbacks of similar genre music.
You can move to next song up to specific times
which Pandora
®
allows
Thumbs Up
If you like the genre of the music Thumbs Up,
press this button to send a “Thumbs Up” signal to
Pandora
®
so that more similar music will play.
This function can not be reset once setting is
chosen.
Bookmark
Track
Add the music current playing to the bookmarks list.
You can view your bookmarked songs from
your Pandora
®
profile online. Go to pandora.
com, then click on the “Your profile” button
above the player. That will bring up a page with
your stations, bookmarked songs.
This function can not be reset once setting is
chosen.
Play/Pause Plays/pauses the current song
Skip Moves to the next track
You can move to next song up to specific times
which Pandora
®
allows
Station Moves to the station list screen.
Shared
Station Icon
Indicates that the station is already shared.
Thumbs Up/Down in not available for shared
stations.
K_YP 17MY_UVO3[USA_EU]AV_PART6.indd 6-3K_YP 17MY_UVO3[USA_EU]AV_PART6.indd 6-3 2016-06-02 오후 4:47:412016-06-02 오후 4:47:4
6-4 I Apps/Info
Name Description
Menu
• Sound Settings
Moves to the sound settings screen.
• Quit
Exit current Pandora
®
mode and then move to
previous AV mode.
You can view your bookmarked artists and
songs from your Pandora
®
profile online.
Go to pandora.com, then click on the “Your
Profile” button above the player. That will
bring up a page with your stations, book-
marked artists, and bookmarked songs.
SoundHound Moves to the SoundHound searching music
application.
SEEK/TRACK Press briefly to play the next song.
TUNE
Rotate the
TUNE
knob to search for a station.
Press the
TUNE
knob to play the station when
you find the name that you want.
K_YP 17MY_UVO3[USA_EU]AV_PART6.indd 6-4K_YP 17MY_UVO3[USA_EU]AV_PART6.indd 6-4 2016-06-02 오후 4:47:422016-06-02 오후 4:47:4
Pandora
®
I 6-5
06
Name Description
Current
Station Shows the name of the station current displayed.
Shuffle
Shuffling your stations provides a more diverse
mix of music by randomly playing songs from the
stations in your list.
Search Menu
Sorts stations by the items in the menu.
• A-Z: Sorts stations in alphabetical order.
• By Date: Sorts stations in the order they were
generated.
Shared
Station Icon Indicates that the station is already shared.
SEEK/TRACK Press briefly to play the next song.
TUNE
Rotate the
TUNE
knob to move to the previous/
next list. Press the
TUNE
knob to play a
selected file.
K_YP 17MY_UVO3[USA_EU]AV_PART6.indd 6-5K_YP 17MY_UVO3[USA_EU]AV_PART6.indd 6-5 2016-06-02 오후 4:47:442016-06-02 오후 4:47:4
6-6 I Apps/Info
SiriusXM™ Data
About SiriusXM™ Data Service
The SiriusXM™ Data Service is a paid membership satellite radio
service that provides users with information such as Weather,
Sports, Stocks, Fuel Prices and Movies.
However, weather information is not supported for vehicles pur-
chased in Canada.
Accessing SiriusXM™ Data
Select the “SiriusXM Data” icon after selecting All Menus icon or
the
APPS/
key to enter the SiriusXM™ Data mode.
K_YP 17MY_UVO3[USA_EU]AV_PART6.indd 6-6K_YP 17MY_UVO3[USA_EU]AV_PART6.indd 6-6 2016-06-02 오후 4:47:462016-06-02 오후 4:47:4
SiriusXM™ Data I 6-7
06
SiriusXM™ Weather
Announcement
At the “SiriusXM Data” screen, select
the
W
ea
th
e
r
icon to enter the Weather
Announcement mode.
Weather Forecast
This service provides current weather
information and weather forecasts for the
next five days in your region. To change
the region, select the
O
ther City
button and
select the desired region.
Warnings and Advisories
This service provides weather warnings
and advisories, such as tornado, storm,
flood, etc.
K_YP 17MY_UVO3[USA_EU]AV_PART6.indd 6-7K_YP 17MY_UVO3[USA_EU]AV_PART6.indd 6-7 2016-06-02 오후 4:47:462016-06-02 오후 4:47:4
6-8 I Apps/Info
SiriusXM™ Sports Information
Select the
S
por
t
s
icon to enter the
Sports mode.
This service provides real-time updated
information on scores and schedules for
major sports, such as NFL, NBA, NCAA
football, NCAA basketball, NHL, MLB,
NASCAR and more.
My Teams
You can save teams which you are inter-
ested in as part of My teams to easily view
related scores and schedules.
Select the My Teams menu and then
select the
A
dd
button to search for and
register your favorite teams.
Search for your favorite teams and select
the button on the right to add it to the
“My Teams” list.
You can always check the list of teams
that you added in the “My Teams” menu.
Select the button on the right side of
the team name to delete the team from
“My Teams” or select the
Ad
d
button to
add other teams.
K_YP 17MY_UVO3[USA_EU]AV_PART6.indd 6-8K_YP 17MY_UVO3[USA_EU]AV_PART6.indd 6-8 2016-06-02 오후 4:47:472016-06-02 오후 4:47:4
SiriusXM™ Data I 6-9
06
Select the team name to check daily
results and recent schedules for that team.
SiriusXM™ Stock Information
In the “SiriusXM Data” screen, select the
St
oc
k
s
icon to enter the Stocks mode.
Stocks is a feature that shows the current
value and change of stocks.
For symbols which you are interested in,
select the icon to save the symbol as a
part of the “Saved” symbols which can be
viewed from the “My Favorites” button on
the Stocks Main screen.
K_YP 17MY_UVO3[USA_EU]AV_PART6.indd 6-9K_YP 17MY_UVO3[USA_EU]AV_PART6.indd 6-9 2016-06-02 오후 4:47:492016-06-02 오후 4:47:4
6-10 I Apps/Info
My Favorites
My Favorites shows a list of stocks added
by the user. When entering the Stocks
menu for the first time, a screen is dis-
played for you to add your favorite stock
information. Select the
A
dd
button to
move to the stock search screen.
Stock Search
Use the Stock Search menu to search for
specific stocks.
Select the button after searching for
your favorite stocks to save them in “My
Favorites”.
In the My Favorites screen, you can find
the selected stock information that you
registered.
K_YP 17MY_UVO3[USA_EU]AV_PART6.indd 6-10K_YP 17MY_UVO3[USA_EU]AV_PART6.indd 6-10 2016-06-02 오후 4:47:502016-06-02 오후 4:47:5
SiriusXM™ Data I 6-11
06
SiriusXM™ Fuel Price
Information
At the “SiriusXM Data” screen, select the
F
ue
l
P
r
i
ce
s
icon to enter the Fuel Prices
Information mode.
Search for Nearby Stations, and
Register Key Locations as Favorite
Stations.
Search for nearby stations with the “Nearby
Stations” menu.
It shows station locations, starting from the
nearest one, and select “Nearest” menu
on the top right side to further sort them
by price or brand name.
Select the button to the right of the list
to register key locations as a Favorite
Station so that you can go there again with
the “Favorite Stations” menu.
K_YP 17MY_UVO3[USA_EU]AV_PART6.indd 6-11K_YP 17MY_UVO3[USA_EU]AV_PART6.indd 6-11 2016-06-02 오후 4:47:512016-06-02 오후 4:47:5
6-12 I Apps/Info
My Fuel Type Settings
With the “Filters” menu, you can select fuel
types and favorite brands.
When searching for Nearby Stations, the
results will reflect selected fuel types and
brand information.
SiriusXM™ Movie Information
Select the
M
o
v
ies
icon to enter the
Movie mode.
You can check recent movies and nearby
theaters, and also register your favorite
theater locations.
Search for Nearby Theaters, and
Register Any Key Locations as Favorite
Theaters.
In the “Nearby Theaters” menu, you can
search for any nearby theaters.
It shows theaters, starting from the nearest
one, and selecting the “Nearest” menu at
the top right side will sort them by name.
K_YP 17MY_UVO3[USA_EU]AV_PART6.indd 6-12K_YP 17MY_UVO3[USA_EU]AV_PART6.indd 6-12 2016-06-02 오후 4:47:532016-06-02 오후 4:47:5
SiriusXM™ Data I 6-13
06
Select the button to the right of the list
to register your favorite theater so that you
can always check it again using the
“Favorite Theaters” menu and selecting
the button to view the current movie
information for that theater.
In the “Top Movies” menu, you can check
for any movies that are currently popular.
Press button to the right of a movie
title to view the plot summary and any
other detailed information.
K_YP 17MY_UVO3[USA_EU]AV_PART6.indd 6-13K_YP 17MY_UVO3[USA_EU]AV_PART6.indd 6-13 2016-06-02 오후 4:47:542016-06-02 오후 4:47:5
6-14 I Apps/Info
SoundHound
SoundHound is a music search engine. It enables users to identify
music by playing or singing a song. It is also possible to search by
typing the name of the artist, song, album or lyrics.
The head unit should be connected to the Internet in order to use
SoundHound. (ex. Wi-Fi)
Accessing SoundHound
1. From the Home screen, select All Menus then select
SoundHound button.
2. Select SoundHound button on Radio modes (AM, FM and
SiriusXM) or Media modes (Bluetooth Audio, iPod, USB, My
Music, AUX and Pandora).
SoundHound Main Screen
Name Description
Mode Displays the current operating mode.
Back button Goes back to previous mode.
What’s that
Song?
Starts the song recognition process. After this pro-
cess is complete, it goes to Song screen.
Search Goes to Search screen.
History Goes to History screen.
Favorites Goes to Favorites screen.
Charts Goes to Charts screen.
K_YP 17MY_UVO3[USA_EU]AV_PART6.indd 6-14K_YP 17MY_UVO3[USA_EU]AV_PART6.indd 6-14 2016-06-02 오후 4:47:552016-06-02 오후 4:47:5
SoundHound I 6-15
06
Recognizing Music
After selecting SoundHound button, the song recognition pro-
cess is activated, the system will match the currently playing song
with the SoundHound music database.
Music from Smartphones and MP3 players that are not connected
to the head unit can also be recognized.
Name Description
Now
Listening…
Message displayed while SoundHound is
processing the music.
Retry Starts over the song recognition process.
Cancel Cancels song recognition process and Exits
SoundHound.
Back button Goes back to previous screen.
Searching Music
Music can also be searched by selecting the Search option in
SoundHound main screen and typing a song, artist, album or lyr-
ics into the search field.
Name Description
Search Displays the current operating mode.
Back button Goes back to SoundHound main screen.
Search field
Displays search field. Once text is typed, recom-
mended song, artist, album or lyrics information
that might match the search criteria is displayed in
the scroll menu.
Search icon Starts the searching process.
K_YP 17MY_UVO3[USA_EU]AV_PART6.indd 6-15K_YP 17MY_UVO3[USA_EU]AV_PART6.indd 6-15 2016-06-02 오후 4:47:572016-06-02 오후 4:47:5
6-16 I Apps/Info
Song Main Screen
Name Description
Back button Goes back to previous screen.
Song, Artist
and Album
information
Displays song, artist and album information of
currently playing song.
Album Image If album image is selected, the detailed infor-
mation of the album is displayed.
Artist Image If artist image is selected, the detailed informa-
tion of the artist is displayed.
Favorite
It saves current playing song into Favorites
by tapping on the star icon. Star icon will be
highlighted when song has been saved into
Favorites. To delete song from Favorites, select
the star icon again or go to Favorites menu
screen.
Lyrics Displays current playing song’s lyrics.
Recommended
Songs
Displays a list of recommended songs by
SoundHound.
Similar Artists Displays list of similar artists to currently play-
ing artist.
Song’s Album
Appearances
Displays list of albums on which currently play-
ing song appears.
K_YP 17MY_UVO3[USA_EU]AV_PART6.indd 6-16K_YP 17MY_UVO3[USA_EU]AV_PART6.indd 6-16 2016-06-02 오후 4:47:582016-06-02 오후 4:47:5
Camera
part.7 Other Features
K_YP 17MY_UVO3[USA_EU]AV_PART7.indd 7-1K_YP 17MY_UVO3[USA_EU]AV_PART7.indd 7-1 2016-06-02 오후 4:48:402016-06-02 오후 4:48:4
7-2 I Other Features
Camera
WARNING
- Backing Up & Using Camera
• Never rely solely on the rear view camera
when backing up. Prior to entering your
vehicle always do a visual check of the area
behind your vehicle, and before backing up be
aware of your surroundings and supplement
the rear view camera by looking over your
shoulders and checking your rear view mir-
rors. Due to the difficulty of ensuring that the
area behind you remains clear, always back
up slowly and stop immediately if you even
suspect that a person, and especially a child,
might be behind you.
i
Information
• A separate chipset is used for the camera
screen while booting up, so it may be different
after booting up.
Steering-linked camera
• This device is connected to a rear
detection camera to see behind the car
for safe reversing.
• The Rear View Camera turns on auto-
matically if you shift the gear to R when
the power is on or the engine has
started.
• While the device boots up, shift the gear to
"R" to activate the rear detection cameras.
Shift the gear to another position to deac-
tivate the rear detection camera.
NOTICE
• A wide-angle lens is installed as the rear
detection camera to get a wider view, so
there may be some difference between the
actual distance and the distance that appears.
on-screen. For safety, make sure to view
the back, right, and left sides of the car for
yourself.
• The color of the parking guidelines displayed
in the picture may differ from the actual
screen.
• When booted up, blinking may occur when
you switch to a UI screen.
Name Description
Red Line About 0.5 m from the
rear bumper
Yellow Line 1 About 1 m from the rear
bumper
Yellow Line 2 About 3 m from the rear
bumper
Yellow Line 3 Trajectory of the wheel
on the driver’s side
Yellow Line 4 Trajectory of the wheel
on the passenger side
Blue Line Neutral steering trajec-
tory
As you reverse your car and monitor the
area behind your car, the steering-linked
driving trajectory and the neutral driving
trajectory are both displayed.
Other Features
K_YP 17MY_UVO3[USA_EU]AV_PART7.indd 7-2K_YP 17MY_UVO3[USA_EU]AV_PART7.indd 7-2 2016-06-02 오후 4:48:412016-06-02 오후 4:48:4
Setup
Sound Settings
Display Settings
Phone Settings
UVO eServices Settings (For UVO Model)
Home Screen Settings
Wi-Fi Settings
Clock Settings
Voice Recognition Settings
Language Settings
Keyboard Settings
Screen Saver Settings
System Info
part.8 Setup
K_YP 17MY_UVO3[USA_EU]AV_PART8.indd 8-1K_YP 17MY_UVO3[USA_EU]AV_PART8.indd 8-1 2016-06-02 오후 4:48:542016-06-02 오후 4:48:5
8-2 I Setup
Setup
Setup
Setup is the screen to control Audio sys-
tem settings.
To enter the screen, press the
SETUP
key or the
Setu
p
icon in All Menus.
Features Description
Sound
Provides the sound con-
trol options for Position,
Bass, Mid, Treble, Volume
and Advanced settings.
Display Provides the Mode/
Illumination settings.
Phone
Provides the Bluetooth
Connection/Auto
Connection Priority/
Bluetooth System
Information settings.
UVO
eServices
Provides the 911
Connect/Parking Minder/
My Car Zone/Scheduled
Diagnostics/Trip Info
Sync Reminder Settings.
(For UVO Model)
Connectivity For more details, refer to
Connectivity guide.
Home
Screen
Provides the function
to customize the three
menu items at the bottom
of the Home Screen.
Features Description
Wi-Fi Provides the Wi-Fi
On and Network
Connection settings.
Clock Provides the Time and
View settings.
Voice
Recognition
Provides the Guidance
and Priority settings.
Language Provides the Change
Language settings.
Keyboard Provides settings to
switch keyboard lay-
outs.
Screen
Saver
Provides the Clock/
None settings.
System Info Provides software and
storage space informa-
tion.
Display Off Provides the Display
Off (touch activation)
function.
K_YP 17MY_UVO3[USA_EU]AV_PART8.indd 8-2K_YP 17MY_UVO3[USA_EU]AV_PART8.indd 8-2 2016-06-02 오후 4:48:542016-06-02 오후 4:48:5
Setup I 8-3
08
Sound Settings
Adjusts the sound effects for the whole
system.
Features Description
Position
Select the Up/Down/Left/
Right button to control
sound positioning.
Select
C
e
nt
e
r
to concen-
trate the sound on the
center of vehicle.
Tone
Drag the slide bar to
control bass/mid/treble
settings.
Select
C
en
t
er
to initialize
the settings.
Features Description
Advanced
Select additional audio
options such as “Speed
Dependent Volume
Control” that automatically
controls Audio volume
according to vehicle
speed as well as “Variable
EQ”.
Default Resets the sound to fac-
tory default settings.
Beep Select to activate a beep
when pressing buttons.
i
Information
• Advanced sound settings may differ according
to selected AMP option.
• The seat shape may differ according to
vehicle model.
Display Settings
Adjusts the level of illumination for the
entire system.
Features Description
Mode
Select any of LCD illumi-
nation change modes:
Automatic (changes
the level automatically),
Daylight, and Night.
Illumination
Set the levels of illumina-
tion for day and night.
Select
D
e
f
au
lt
to initialize
the settings.
Default Resets the display to fac-
tory default settings
Display Off Provides the Display Off
(touch activation) function.
K_YP 17MY_UVO3[USA_EU]AV_PART8.indd 8-3K_YP 17MY_UVO3[USA_EU]AV_PART8.indd 8-3 2016-06-02 오후 4:48:562016-06-02 오후 4:48:5
8-4 I Setup
Phone Settings
Changes Bluetooth phone settings.
Phone Settings
Press the
SETUP
key ▶ Select
Pho
n
e
icon.
Bluetooth Connection Settings
Press the
SETUP
key ▶ Select
Ph
o
n
e
▶ Select
Bl
u
et
oo
th C
o
nnecti
o
n
Features Description
Paired Device
List
Displays the paired
Bluetooth device list.
When selecting from
the list, the device is
connected or discon-
nected.
Bluetooth
Audio
Connection
Status
An icon appears when
you make a Bluetooth
Audio connection.
Bluetooth
Hands-Free
Connection
Status
An icon appears when
you make a Bluetooth
Hands-free connection.
Add New Register a new
Bluetooth device.
Delete Devices Select and delete a
paired device.
Help
Switches to the
Bluetooth Connection
Help screen.
K_YP 17MY_UVO3[USA_EU]AV_PART8.indd 8-4K_YP 17MY_UVO3[USA_EU]AV_PART8.indd 8-4 2016-06-02 오후 4:48:572016-06-02 오후 4:48:5
Setup I 8-5
08
i
Information
• Up to 5 Bluetooth devices can be paired.
• Only one Bluetooth device can be connected
at a time.
• During a Bluetooth device connection, another
device cannot be paired.
• When you delete a paired device, the Call
History and Contacts stored in the head unit
are also deleted.
• Bluetooth Hands-free and Bluetooth Audio
functions are supported.
• Hands-free and audio-supported devices,
such as a Bluetooth smartphone or audio, will
function normally.
• When a Bluetooth device is connected, if
the Bluetooth connection is unexpectedly
disconnected, due to being out of
communication range, the device powering
off, or a Bluetooth communication error, the
Bluetooth device automatically searches for
and connects to nearby Bluetooth devices.
• If the system is not stable, due to a vehicle-
Bluetooth device communication error, restore
the Default Factory Settings.
• For Default Factory Settings, the bluetooth
settings are reset to factory settings
• Press the
SETUP
key ▶ Select
P
hone
▶
Select
Bl
ue
t
oo
th
S
ys
t
em
I
n
f
o
▶ Select
D
e
f
au
lt
F
ac
t
ory
S
e
tti
ng
s
Auto Connection Priority
Press the
SETUP
key ▶ Select
Ph
o
n
e
▶ Select
Auto Connection Priorit
y
.
When the engine is running, the selected
Bluetooth device is automatically con-
nected. If you fail to connect the selected
device, the previously-connected device is
automatically connected, and if it also fails,
then it tries to connect all paired devices
sequentially.
Depending on auto connection priority,
connection to a device may take time.
Bluetooth System Information
Press the
SETUP
key ▶Select
P
h
o
n
e
▶ Select
B
luetooth S
y
stem Inf
o
.
Features Description
Vehicle
Name
You can change the
Bluetooth device name of
the vehicle.
Passkey
You can change the pass-
key used for Bluetooth
device authentication. the
initial passkey is 0000.
i
Information
• The vehicle name above is an example.
Check the actual information on the product.
K_YP 17MY_UVO3[USA_EU]AV_PART8.indd 8-5K_YP 17MY_UVO3[USA_EU]AV_PART8.indd 8-5 2016-06-02 오후 4:48:582016-06-02 오후 4:48:5
8-6 I Setup
UVO eServices Settings
(For UVO Model)
Within the eServices Settings screen,
UVO eServices related features can be set,
such as activating 911 Connect, Parking
Minder and setting the My Car Zone.
For safety reasons, My Car Zone Settings
can not be adjusted while driving. Park
the vehicle before making any changes to
your settings.
Press the
SETUP
key ▶
UVO eServices
911 Connect
This feature is used to turn on or off the
911 Connect feature.
When enabing this feature, you must first
agree to the 911 Connect tems of use.
After reading the tems of use, press the
Agree
button on the touch screen to
accept.
K_YP 17MY_UVO3[USA_EU]AV_PART8.indd 8-6K_YP 17MY_UVO3[USA_EU]AV_PART8.indd 8-6 2016-06-02 오후 4:48:582016-06-02 오후 4:48:5
Setup I 8-7
08
Parking Minder
If you want to send vehicle location to your
smartphone automatically when you turn
the ignition off, turn the Parking Minder
feature On.
My Car Zone
This feature is used to set My Car Zone
(Curfew Limit, Speed) alert conditions.
My Car Zone Settings is unavailable when
UVO eServices has not been activated.
Press the
SETUP
key ▶
UVO eServices
▶
My Car Zone
.
The PIN must be entered to use My Car
Zone Settings.
This screen is used to set Curfew Limit
and Speed Alert features.
Set the alert conditions On ▶
Settings
.
K_YP 17MY_UVO3[USA_EU]AV_PART8.indd 8-7K_YP 17MY_UVO3[USA_EU]AV_PART8.indd 8-7 2016-06-02 오후 4:48:592016-06-02 오후 4:48:5
8-8 I Setup
Curfew Limit Alert Settings
Within Curfew Limit Alert Settings, you can
set the Curfew Limit Alert Start and End
Time. You can also set the Alert Interval of
alerts upon Curfew Limit.
Speed Alert Settings
Within Speed Alert Settings, you can set
the vehicle speed limit and Alert Interval of
alerts upon overspeeding.
PIN
This feature is used to change the PIN to
enter My Car Zone Settings.
NOTICE
• Before pressing
Done
, ensure your
smartphone is connected to UVO eServices
system via USB cable.
Press the
Done
button to transmit the new
PIN to your My UVO com account.
K_YP 17MY_UVO3[USA_EU]AV_PART8.indd 8-8K_YP 17MY_UVO3[USA_EU]AV_PART8.indd 8-8 2016-06-02 오후 4:49:012016-06-02 오후 4:49:0
Setup I 8-9
08
Restore Factory Settings
This feature is used to restore all My Car
Zone alert history and settings back to
default state.
Scheduled Diagnostics
This feature is for setting when scheduled
diagnostics alerts display.
Press
SETUP
key ▶
UVO eServices
▶ Set
the Scheduled Diagnostics On ▶
Settings
NOTICE
• For months without the corresponding day,
the last day of the month will automatically be
set as the scheduled diagnostics date.
Trip Info Sync Reminder
Trip Info is a feature used to set whether
system displays alert when trip info(Driv-
ing Distance, Driving Speed, Driving Time,
etc). reaches 90% of memory.
UVO eServices must be activated to use
this feature.
Press
SETUP
key ▶
UVO eServices
▶
Set Trip Info Sync Reminder On
K_YP 17MY_UVO3[USA_EU]AV_PART8.indd 8-9K_YP 17MY_UVO3[USA_EU]AV_PART8.indd 8-9 2016-06-02 오후 4:49:042016-06-02 오후 4:49:0
8-10 I Setup
Home Screen Settings
You can customize the three menu items
at the bottom right of the Home Screen
into the ones you want.
On the Home Screen Settings screen,
drag the menu items on the right to the
area marked in blue in the screen below.
i
Information
• You can select the
Def
au
lt
button to reset
to the factory default settings.
Wi-Fi Settings
You can share a digital-device network
with the vehicle device through Wi-Fi.
Features Description
Wi-Fi Turn on/off Wi-Fi.
MAC
Address Displays the MAC address.
Refresh Searches available net-
works near the vehicle.
Network
Name
Displays available network
AP (Access Point) names.
Add Wi-Fi
Network
Enter the network ID/
password to connect to
a hidden network AP
(Access Point).
Help Shows the Wi-Fi setup
guide.
How to Connect to a Network
1. In the Wi-Fi settings of a digital device,
activate Internet sharing (Hotspot).
2. In the vehicle network list, select the
desired device to connect to. Enter
the password to connect, if any.
K_YP 17MY_UVO3[USA_EU]AV_PART8.indd 8-10K_YP 17MY_UVO3[USA_EU]AV_PART8.indd 8-10 2016-06-02 오후 4:49:052016-06-02 오후 4:49:0
Setup I 8-11
08
Clock Settings
Configure the settings for time and date.
Using the arrow buttons, you can change
the values. Clock settings do not automat-
ically change when crossing into different
time zones. The time must be changed
manually on this screen.
Features Description
Daylight
Saving Time
The daylight saving
time (DST) is applied.
24 Hours The time display is set
in 24-hour format.
Direct entry
If you tap any value,
you can directly enter
the number in the fol-
lowing screen.
Voice Recognition
Settings
Configure how to make a call with
Voice Recognition Guidance and Voice
Recognition.
Features Description
Beginner
For beginners, the voice
recognition system pro-
vides voice prompts.
Normal
For normal users, the
voice recognition system
provides simple and short
voice guidances.
Language Settings
You can configure the displayed system
language.
When the language is changed, the sys-
tem language is automatically changed.
Unique data including MP3 file name is
not changed and voice recognition does
not support some languages.
K_YP 17MY_UVO3[USA_EU]AV_PART8.indd 8-11K_YP 17MY_UVO3[USA_EU]AV_PART8.indd 8-11 2016-06-02 오후 4:49:062016-06-02 오후 4:49:0
8-12 I Setup
Keyboard Settings
You can configure the keyboard layout for
each language.
You can configure ABCD or QWERTY
keyboards for the system.
i
Information
• Configured keyboard layouts are applied
to all input modes.
Screen Saver Settings
You can select any of the following screen
formats to be displayed when the screen
or power is turned off (Press and hold the
Power button).
• Digital clock and date
• Analog clock and date
• None
System Info
At the System Info screen, software ver-
sion information, updates, and storage
status details are available.
Features Description
SW Info
System version informa-
tion and update details
are available.
Select the
U
p
d
a
t
e
button
to update the system.
After update is complete,
the system will reboot
automatically.
Storage
Displays the memory
space available for media
storage.
K_YP 17MY_UVO3[USA_EU]AV_PART8.indd 8-12K_YP 17MY_UVO3[USA_EU]AV_PART8.indd 8-12 2016-06-02 오후 4:49:062016-06-02 오후 4:49:0
Setup I 8-13
08
System Update
At the System Info screen, insert the USB
memory with the latest file downloaded,
and then select the
Update
button to begin
updating. The system will then reboot
automatically.
i
Information
• This product needs supplemented software
updates and additional functions, which
collectively may take some time to complete,
depending on the amount of data.
CAUTION
• If the power is disconnected or the USB is
removed during an update, the data might be
damaged. Please do not turn off the vehicle
while an update is in progress.
K_YP 17MY_UVO3[USA_EU]AV_PART8.indd 8-13K_YP 17MY_UVO3[USA_EU]AV_PART8.indd 8-13 2016-06-02 오후 4:49:082016-06-02 오후 4:49:0
MEMO
K_YP 17MY_UVO3[USA_EU]AV_PART8.indd 8-14K_YP 17MY_UVO3[USA_EU]AV_PART8.indd 8-14 2016-06-02 오후 4:49:082016-06-02 오후 4:49:0
Product Specification
Troubleshooting
FAQ
part.9 Appendix
K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-1K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-1 2016-06-02 오후 4:49:222016-06-02 오후 4:49:2
9-2 I Appendix
Product Specification
TFT-LCD
Screen Size 7 inch(152.4 X 91.44 mm)
Resolution 384000 pixels (Resolution: 800 x 480)
Operating
Method TFT(Thin Film Transistor) Active Matrix
Viewing Angle Left/Right, Top/Bottom: ALL 89°
Internal Lighting LED
Radio
Channels FM: 87.5 MHz ~ 107.9 MHz(Step: 200 kHz)
AM: 530 kHz ~ 1710 kHz(Step: 10 kHz)
Sensitivity FM: Under 10 dBu/AM: Under 35 dBu
Distortion Factor Within 2 %
Common
Name Car TFT LCD Display Audio Unit
Power Supply DC 14.4 V Operating
Power DC 9 V ~ DC 16 V
Current
Consumption 2.5 A Sleep
Current
1 mA
(Head Unit Only)
Operating
Temperature -20 ~ +70 °C
(-4 ~ +158 °F)
Storage
Temperature
-30 ~ +80 °C
(-22 ~ +176 °F)
Dimensions 178 X 139.2 X 89 mm (Main BOX)
Weight 1.8 kg
Appendix
K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-2K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-2 2016-06-02 오후 4:49:232016-06-02 오후 4:49:2
Appendix I 9-3
09
Wi-Fi Details
Frequency 2412 ~ 2462 MHz,
5180 ~ 5825 MHz
Specification IEEE802.11 a/b/g/n/ac
Operating
Temperature
-20 ~ +70
°C
(-4 ~ +158
°F
)
Supported
Bandwidth 20/40/80 MHz
Bluetooth®
Wireless Technology
Frequency
Range 2402 ~ 2480 MHz
Supported
Bluetooth
®
Specification
3.0
Supported
Profile Handsfree(1.6), A2DP(1.2), AVRCP(1.4), PBAP(1.0)
Output -6~4 dBm (Power Class2, Conducted)
Number of
Channels 79 channels
CAUTION
• The producer and installer cannot provide services related to life safety
as the concerned radio equipment is liable to radio interference.
K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-3K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-3 2016-06-02 오후 4:49:232016-06-02 오후 4:49:2
9-4 I Appendix
Troubleshooting
1. Errors which occur during the operation or installation of the
device may be mistaken as a malfunction of the actual device.
2. If you are having problems with the device, try the suggestions
listed below.
3. If the problems persist, contact your Kia dealer.
Problem Possible Cause
There are small red,
blue, or green dots on
the screen
• Because the LCD is manufactured with
technology requiring high point density,
a pixel or lighting deficiency may occur
within 0.01% of total pixels
The sound or image is
not working
• Has the Switch for the vehicle been
turned to [ACC] or [ON]?
• Has the SYSTEM been turned OFF?
The screen is being
displayed but sound is
not working
• Has the volume been set to a low level?
• Has the volume been muted?
When the power is
turned on, the corners
of the screen are dark
• The display appearing somewhat dark
after prolonged periods of use is normal
with LCD panels. It is not a malfunction
• If the screen is very dark, contact your
nearest Kia dealer for assistance
Sound is working from
only one speaker
• Are the positions of Fader or Balance
sound controls adjusted to only one
side?
Problem Possible Cause
Sound does not work in
AUX mode
• Are the audio connector jacks fully
inserted into the AUX terminal?
The external device is
not working
• Is the external device connected with a
standard connector cable?
Upon turning power on,
the most recent mode
screen is not displayed
Within modes that play files by reading
external sources, such as USB, iPod, or
Bluetooth
®
streaming mode, the most
recently played mode screen prior to turn-
ing off power may not properly load
• If the corresponding device is not con-
nected, the mode operated prior to the
most recent mode will operate
• If the previous mode still cannot be
properly played, the mode operated
prior to that will operate
K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-4K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-4 2016-06-02 오후 4:49:232016-06-02 오후 4:49:2
Appendix I 9-5
09
Problem Possible Cause Countermeasure
The power
does not
turn
on
The fuse is
disconnected
• Replace with a suitable fuse
• If the fuse is disconnected
again, please contact your
point of purchase or Kia
dealer
Device is not properly
connected
• Check to see that the
device has been properly
connected
The system
does not
play
The vehicle battery is
low
• Charge the battery If the
problem persists, contact
your point of purchase or
Kia dealer
Problem Possible Cause Countermeasure
The image
color/tone
quality is
low
• The brightness,
saturation, hue,
and contrast levels
are not set properly
• Properly adjust the bright-
ness, saturation, hue, and
contrast levels through
Display Setup
Sound does
not work
• The volume level
is set to the lowest
level
• The connection is
not proper
• The device is
currently fast-for-
warding, rewinding,
scanning, or play-
ing in slow mode
• Adjust the volume level
• Check to see that the
device has been properly
connected
• The sound will not work
when the device is fast-for-
warding, rewinding, scan-
ning, or playing in slow
mode
The sound
or
quality is
low
• Vibration is occur-
ring from where
the conversion
switch has been
installed
• Image color/tone
quality is low
• The sound may be
short-circuited and the
image distorted if the
device vibrates
• The device will return to
normal once vibrations stop
K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-5K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-5 2016-06-02 오후 4:49:232016-06-02 오후 4:49:2
9-6 I Appendix
Problem Possible Cause Countermeasure
The USB
does not
work
• USB memory is
damaged
• USB memory has
been contaminated
• A separately pur-
chased USB HUB
is being used
• A USB extension
cable is being
used
• A USB which is
not a Metal Cover
Type USB Memory
is being used
• An HDD type, CF,
SD Memory is
being used
• There are no
music files which
can be played
• Please use the USB after
formatting it.
• Remove any foreign sub-
stances on the contact
surface of the USB memory
and multimedia terminal
• Directly connect the USB
memory with the multime-
dia terminal on the vehicle
• Directly connect the USB
memory with the multime-
dia terminal on the vehicle
• Use standard USB
Memory
• Use standard USB
Memory
• Only MP3, WMA file
formats are supported.
Please use only the sup-
ported music file formats
The iPod is
not recog-
nized even
though it
has been
connected
• There are no titles
which can be
played
• The iPod firmware
version has not
been properly
updated
• The iPod device
does not recog-
nize downloads
• Use iTunes to download
and save MP3 files into the
iPod
• Use iTunes to update
the firmware version and
reconnect the iPod with the
device
• Reset the iPod and recon-
nect with the device
Problem Possible Cause Countermeasure
Bluetooth
does not
work or its
limited
functions are
available
• Bluetooth on your
mobile phone is
set to OFF
• The Bluetooth
connection is not
made
• Set it to ON
• Make the connection
active
i
Information
• While operating the device, if an abnormality occurs that cannot be
corrected with the above described measures, press the
RESET
key to
reset the system.
• Press and hold the
RESET
key (over 1 second). The device power will
turn off and the system will reset.
K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-6K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-6 2016-06-02 오후 4:49:232016-06-02 오후 4:49:2
Appendix I 9-7
09
FAQ
About Pairing Mobile Phones
Q I cannot pair my mobile phone. What is the cause?
A Check to see that the mobile phone supports Bluetooth® func-
tion. Verify if Bluetooth on the cell phone is set to OFF. If so, set
it to ON. If the cell phone still can’t be registered, try again after
turning Bluetooth off and on, or delete the device registration on
the multimedia system and cell phone and then register the cell
phone again.
Q What is the difference between pairing a mobile phone and con-
necting a mobile phone?
A Pairing occurs through authenticating the head unit and mobile
phone. Mobile phones paired to the head unit can be connected
and disconnected until the paired mobile phone is deleted from
the system. Bluetooth® Handsfree features, such as making/
answering calls or managing contacts, are supported only in
mobile phones connected with the head unit.
Q What is a Passkey?
A A passkey is the password used to authenticate the connection
between the head unit and mobile phone. The passkey only
needs to be entered once when pairing the mobile phone for the
first time.
The initial passkey is 0000. You can change it with
SETUP
▶
Phon
e
▶
B
luetooth S
y
stem Inf
o
▶
Passke
y
menu options.
K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-7K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-7 2016-06-02 오후 4:49:232016-06-02 오후 4:49:2
9-8 I Appendix
About Making/Answering Phone Calls
Q How can I answer a call?
A When there is an incoming call, a notification pop-up will
become displayed. To answer the incoming call, select the
A
ccept
button on the screen or the key on the steering
wheel control
.
To reject the call, select the
Re
j
ect
button on the screen or
press the key on the steering wheel control.
Q What should I do if I am talking on the Handsfree but want to
switch the call to the mobile phone?
A While on a call, press and hold (more than 0.8 seconds)
the key on the steering
wheel control
or select the
U
se
P
r
i
va
t
e
button at the bottom of the Phone screen to switch
the call to your mobile phone.
About
Bluetooth
®
Wireless Technology/
Head Unit Use Environment
Q What is the range of my wireless connection?
A The wireless connection can be used within 15 yards.
Q How many mobile phones can be paired?
A It is possible to pair up to five mobile phones.
Q Why is call quality sometimes poor?
A
Check the reception sensitivity of the mobile phone when call
quality becomes worsened. The call quality may deteriorate when
the signal strength is low. Call quality may also worsen if metal
objects, such as beverage cans, are placed near the mobile
phone. Check to see if there are metal objects in the vicinity of the
mobile phone. The call sound and quality may differ depending on
the type of mobile phone.
K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-8K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-8 2016-06-02 오후 4:49:232016-06-02 오후 4:49:2
Index I 9-9
09
0~9
911 Connect ……………………4-7, 8-6
A
About Bluetooth® Wireless Technology/
Head Unit Use Environment ……… 9-8
About Making/Answering
Phone Calls ………………………… 9-8
About Pairing Mobile Phones ……… 9-7
About SiriusXM™ Data Service…… 6-6
About UVO eServices
(For UVO Model) …………………… 4-4
Accept/Reject Call ………………… 3-7
Accessing SiriusXM™ Data ……… 6-6
Accessing SoundHound …………… 6-14
Activating UVO eServices ………… 4-6
Adjusting Voice Recognition
Volume ……………………………… 5-5
Auto Connection Priority …………… 8-5
Automatic Diagnostics …………… 4-12
AUX ………………………………… 2-28
B
Basic Mode Screen
(HD Radio™ reception ON) ……… 2-5
Battery Warning Message ………… 1-12
Before Playing a USB MP3 ……… 2-13
Before Using the Bluetooth®
Handsfree ………………………… 3-2
Before using UVO eServices ……… 4-5
Bluetooth® Audio …………………… 2-29
Bluetooth Audio Mode Display
Controls …………………………… 2-29
Bluetooth Connection ……………… 3-4
Bluetooth Connection Settings …… 8-4
Bluetooth Connections Settings …… 2-30
Bluetooth Phone …………………… 3-6
Bluetooth System Information …… 8-5
C
Call Commands …………………… 5-8
Call History ………………………… 3-9
Camera …………………………… 7-2
CAUTIONS upon Connecting
Bluetooth® Phone ………………… 3-3
Clock Settings ……………………… 8-11
Combining Voice Recognition with
On-Screen Commands …………… 5-3
Component Names and Functions … 1-5
Conducting Vehicle Diagnostics …… 4-9
Connecting an External Device …… 2-28
Connecting Bluetooth ……………… 4-5
Connecting Bluetooth Devices …… 3-4
Connecting to smartphone via USB … 4-6
Contacts …………………………… 3-10
Curfew Limit Alert ………………… 4-13
D
Deleting Bluetooth Devices ……… 3-5
Dial ………………………………… 3-7
Direct Tune ………………………… 2-10
Disconnecting Bluetooth Devices … 3-5
Display Settings …………………… 8-3
Index
K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-9K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-9 2016-06-02 오후 4:49:242016-06-02 오후 4:49:2
9-10 I Index
E
Ending Voice Recognition ………… 5-3
eServices Guide …………………… 4-15
Extending the Listening Time ……… 5-4
F
FAQ ………………………………… 9-7
Favorites …………………………… 3-11
FM/AM ……………………………… 2-6
FM/AM (with HD Radio™) ………… 2-2
FM/AM Mode Display Controls …2-2, 2-6
H
HD Radio™ Technology
(if equipped) ………………………… 2-4
Head Unit (For NON UVO Model) … 1-7
Head Unit (For UVO Model) ……… 1-5
Help Display ………………………… 5-6
Home Screen ……………………… 1-13
Home Screen Settings …………… 8-10
How to Connect to a Network …… 8-10
How to start Siri …………………… 5-13
How to use Siri …………………… 5-13
I
Initiating a 911 Call ………………… 4-7
Instructions for Using
Voice Recognition ………………… 5-7
iPod ………………………………… 2-21
iPod Mode Display Controls ……… 2-25
K
Key Product Features ……………… 1-4
Keyboard Settings ………………… 8-12
L
Language Settings ………………… 8-11
M
Media Commands ………………… 5-10
My Car Zone ………………… 4-12, 8-7
My Music …………………………… 2-31
My Music Mode Display Controls … 2-31
O
On-Screen Touch Controls ………… 1-14
Other Commands List
(Commands used in List/Help) …… 5-12
P
Pair a device from Bluetooth-enabled
phone ……………………………… 4-5
Pairing a New Device ……………… 3-4
Pandora® …………………………… 6-3
Pandora® Screen Controls ………… 6-3
Parking Minder ……………… 4-14, 8-7
Phone Settings …………………… 8-4
Phone Status Icons ………………… 3-6
Precautions for Safe Driving ……… 3-2
Precautions Required for Successful
Voice Recognition ………………… 5-2
Product Specification ……………… 9-2
K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-10K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-10 2016-06-02 오후 4:49:242016-06-02 오후 4:49:2
Index I 9-11
09
R
Radio Commands ………………… 5-9
Recognizing Music ………………… 6-15
Restrictions on Features for Safety
Measures …………………………… 1-12
Roadside Assist …………………… 4-8
S
Schedule Service ………………… 4-10
Scheduled Diagnostics ……… 4-11, 8-9
Screen Saver Settings …………… 8-12
Searching Music …………………… 6-15
Selecting through Channel/
Category List ……………………… 2-10
Send Report ……………………… 4-10
Sending Parking Location ………… 4-14
Setup ……………………………… 8-2
Siri Eyes Free ……………………… 5-13
SiriusXM™ ………………………… 2-8
SiriusXM™ Data …………………… 6-6
SiriusXM™ Fuel Price Information … 6-11
SiriusXM™ Mode Display Controls … 2-8
SiriusXM™ Movie Information …… 6-12
SiriusXM™ Sports Information …… 6-8
SiriusXM™ Stock Information …… 6-9
SiriusXM™ Weather Announcement … 6-7
Skipping Prompt Messages ……… 5-5
Song Main Screen ………………… 6-16
Sound Settings …………………… 8-3
SoundHound ……………………… 6-14
SoundHound Main Screen ………… 6-14
Speed Alert ………………………… 4-13
Start Screen ………………………… 5-6
Start Up …………………………… 6-2
Starting the System for
the First Time ……………………… 1-11
Starting Voice Recognition ………… 5-3
Starting/Ending and Setting
Voice Recognition ………………… 5-3
Steering-linked camera …………… 7-2
Steering Wheel Controls …………… 1-9
Supported Image Specifications … 2-15
Supported USB MP3 music
specifications ……………………… 2-15
System Info ………………………… 8-12
System Reset ……………………… 1-11
System Update …………………… 8-13
T
The 911 Connect feature may not
operate in the following situations … 4-2
Trip Info Sync Reminder ………… 8-9
Troubleshooting …………………… 9-4
Turning the System On/Off …… 1-11
Types of Commands ……………… 5-8
U
USB ………………………………… 2-13
USB Image ………………………… 2-19
USB Mode Display Controls ……… 2-16
Using iPod Devices ……………… 2-21
Using the Menu During a
Phone Call ………………………… 3-8
UVO eServices Commands List
(Optional) …………………………… 5-12
UVO eServices Settings …………… 4-15
UVO eServices Settings
(For UVO Model) …………………… 8-6
K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-11K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-11 2016-06-02 오후 4:49:242016-06-02 오후 4:49:2
9-12 I Index
V
Vehicle Diagnostics ………………… 4-9
Viewing Menu ……………………… 2-10
Voice Commands ………………… 5-8
Voice Recognition Screen
Overview …………………………… 5-6
Voice Recognition Settings ………… 8-11
W
Warnings and Cautions …………… 1-2
What is Bluetooth® Wireless
Technology? ……………………… 3-2
What is Voice Recognition? ……… 5-2
Wi-Fi Settings ……………………… 8-10
K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-12K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-12 2016-06-02 오후 4:49:242016-06-02 오후 4:49:2
09
Important Information
Before using your Multimedia system, read and follow all instructions and safety information provided in this end user manual ("User's
Guide"). Not following precautions found in this User's Guide can lead to an accident or other serious consequences.
Keep User's Guide in Vehicle
When kept in the vehicle, the User's Guide will be a ready reference for you and other users unfamiliar with the Multimedia system. Please
make certain that before using the system for the first time, all persons have access to the User's Guide and read its instructions and
safety information carefully.
Warning
Operating certain parts of this system while driving can distract your attention away from the road, and possibly cause an accident or other
serious consequences. Do not change system settings or enter data non-verbally (using your hands) while driving. Stop the vehicle in a
safe and legal manner before attempting these operations. This is important since while setting up or changing some functions as you may
to distract your attention away from the road and remove your hands from the wheel.
K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-13K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-13 2016-06-02 오후 4:49:242016-06-02 오후 4:49:2
General Operation
Voice Command Control
Functions within the Multimedia system may be accomplished using only voice commands. Using voice commands while driving allows
you to operate the system without removing your hands from the wheel.
Prolonged Views of Screen
Do not access any function requiring a prolonged view of the screen while you are driving. Pull over in a safe and legal manner before
attempting to access a function of the system requiring prolonged attention. Even occasional short scans to the screen may be hazardous
if your attention has been diverted away from your driving task at a critical time.
Volume Setting
Do not raise the volume excessively. Keep the volume at a level where you can still hear outside traffic and emergency signals while
driving. Driving while unable to hear these sounds could cause an accident.
Use of Speech Recognition Functions
Speech recognition software is inherently a statistical process which is subject to errors. It is your responsibility to monitor any
speech recognition functions included in the system and address any errors.
K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-14K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-14 2016-06-02 오후 4:49:242016-06-02 오후 4:49:2
09
FCC Warning
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• IIncrease the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this
equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum 20 cm between the radiator and your body.
This transmitter must not be collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the
FCC.
K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-15K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-15 2016-06-02 오후 4:49:242016-06-02 오후 4:49:2
MEMO
K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-16K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-16 2016-06-02 오후 4:49:242016-06-02 오후 4:49:2
09
MEMO
K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-17K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-17 2016-06-02 오후 4:49:242016-06-02 오후 4:49:2
MEMO
K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-18K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-18 2016-06-02 오후 4:49:242016-06-02 오후 4:49:2
09
MEMO
K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-19K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-19 2016-06-02 오후 4:49:242016-06-02 오후 4:49:2
MEMO
K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-20K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-20 2016-06-02 오후 4:49:242016-06-02 오후 4:49:2
09
MEMO
K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-21K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-21 2016-06-02 오후 4:49:242016-06-02 오후 4:49:2
MEMO
K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-22K_YP 17MY_UVO3[USA_EU]AV_PART9.indd 9-22 2016-06-02 오후 4:49:242016-06-02 오후 4:49:2
CAR MULTIMEDIA SYSTEM
QUICK REFERENCE GUIDE
A9EUG06
(미국/영어-English)
K_YP 17MY_UVO3[USA_EU]AV_QRG COVER.indd 1-2K_YP 17MY_UVO3[USA_EU]AV_QRG COVER.indd 1-2 2016-06-02 오후 4:49:392016-06-02 오후 4:49:3
Thank you for purchasing this multimedia system.
This user’s manual explains how to use the Kia Motor multimedia system.
Before using the product, read the contents of this user’s manual carefully
and use this product safely.
•
The screens shown in this manual may differ with the actual screens of the product.
•
The design and specification of this product may change without prior notifica-
tion for product improvement.
•
When transferring the vehicle to another individual, include this user’s manual so
that the next driver can continue its use.
Precaution for safe usage
•
Driving while distracted can result in a loss of vehicle control, that may lead to an
accident, severe personal injury, and death. The driver’s primary responsibility is in
the safe and legal operation of a vehicle, and use of any handheld devices, other
equipment, or vehicle systems which take the driver’s eyes, attention and focus away
from the safe operation of a vehicle or which are not permissible by law should never
be used during operation of the vehicle.
•
Do not operate the multimedia system while driving.
•
Do not disassemble, assemble, or modify the multimedia system.
•
Do not watch the screen for prolonged periods of time while driving.
•
Set the volume to a level which allows the driver to be aware of external conditions.
•
Do not operate the multimedia system for prolonged periods of time with the vehicle
ignition in ACC. Such operations may lead to battery discharge.
•
Be cautious not to spill water or introduce foreign objects into the device.
•
Do not cause severe shock to the device. Direct pressure onto the front side of the
monitor may cause damage to the LCD or touch panel.
•
In case of product malfunction, please contact your place of purchase or service center.
•
When cleaning the touch screen, make sure to turn off the device and use a dry
and smooth cloth. Never use tough materials, chemical cloths, or solvents (alcohol,
ammonia, benzene, thinners, etc.) as such materials may damage the device panel
or cause color and quality deterioration.
•
SiriusXM service requires a subscription, sold separately, after 3-month
trial included with vehicle purchase. If you decide to continue your
SiriusXM service at the end of your trial subscription, the plan you choose
will automatically renew and bill at then-current rates until you call Sirius
XM at 1-866-635-2349 to cancel. See our Customer Agreement for com-
plete terms at www.siriusxm.com. Programming subject to change. Sirius
satellite service is available only to those at least 18 and older in the 48
contiguous USA, D.C., and PR (with coverage limitations). Traffic informa-
tion not available in all markets. See siriusxm.com/traffic for details. Sirius,
XM and all related marks and logos are trademarks of Sirius XM Radio
Inc.
WARNING
• Driving while distracted can result in a loss of vehicle control that may lead to
an accident, severe personal injury, and death. The driver’s primary responsi-
bility is in the safe and legal operation of a vehicle, and use of any handheld
devices, other equipment, or vehicle systems which take the driver’s eyes,
attention and focus away from the safe operation of a vehicle or which are not
permissible by law should never be used during operation of the vehicle.
K_YP 17MY_UVO3[USA_EU]AV_QRG COVER.indd 3-4K_YP 17MY_UVO3[USA_EU]AV_QRG COVER.indd 3-4 2016-06-02 오후 4:49:422016-06-02 오후 4:49:4
1
Table of Contents
Table of Contents
........................................................
1
Controls and Functions
.............................................
2
On-Screen Touch Controls
......................................
8
Setup
................................................................................
10
Home Screen
................................................................
11
FM/AM (with HD Radio™)
.......................................
14
HD Radio™ Technology (if equipped)
.................
16
FM/AM
.............................................................................
17
SiriusXM™
.....................................................................
19
USB Music
.....................................................................
22
My Music
.........................................................................
25
Bluetooth
.........................................................................
28
Voice Recognition
.......................................................
33
FAQ
..................................................................................
44
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 1MY_UVO3[USA_EU]AV_QRG.indd 1 2016-06-02 오후 4:49:542016-06-02
2
Controls and Functions
Head Unit (For UVO Model)
Name Description
RADIO
Selects FM/AM/SiriusXM™ mode
• Each time this is pressed, the mode is changed in the following
order: FM → AM → SiriusXM™ → FM.
MEDIA
Selects MEDIA mode.
• If the media is not connected MEDIA mode will not be acti-
vated.
SEEK
TRACK
When pressed quickly (less than 0.8 seconds),
• FM/AM mode: Plays the previous/next frequency.
• SiriusXM™ mode: Changes the channel.
• MEDIA (USB/iPod/My Music) mode: Changes the track, file or
title (except for USB Image and AUX).
When pressed and held down (more than 0.8 seconds),
• FM/AM mode: Continuously changes the frequency until the
key is released.
• MEDIA (USB/iPod/My Music) mode: Rewinds or fast forwards
the track or file (except for USB Image, Bluetooth Audio, and
AUX).
POWER/
VOL
• When power is off, press to turn power on.
• When power is on, press and hold (more than 0.8 seconds)
to turn the power off.
• When power is on, press quickly (less than 0.8 seconds) to
turn Audio off.
• Turn left/right to adjust the volume.
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 2MY_UVO3[USA_EU]AV_QRG.indd 2 2016-06-02 오후 4:49:552016-06-02
3
Name Description
APPS/
Moves to the Apps/Info screen.
PHONE
Displays the Bluetooth phone mode.
UVO
Moves to the UVO mode
SETUP
Moves to the Setup screen.
TUNE
• FM/AM mode: Changes the frequency.
• SiriusXM™ mode: Changes the channel.
• MEDIA (USB/iPod/My Music) mode: Changes the track, file or
title (except USB Image, Bluetooth Audio, and AUX).
RESET
Resets the system settings. (Preset radio channels and other data
will not be deleted).
※ The actual feature in the vehicle may differ from the illustration.
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 3MY_UVO3[USA_EU]AV_QRG.indd 3 2016-06-02 오후 4:49:582016-06-02
4
Controls and Functions
Head Unit (For NON UVO Model)
Name Description
RADIO
Selects FM/AM/SiriusXM™ mode
• Each time this is pressed, the mode is changed in the following
order: FM → AM → SiriusXM™ → FM.
Degradation of the satellite signal may occur depending on
the SiriusXM satellite coverage (http://www.siriusxm.com).
MEDIA
Selects MEDIA mode.
• If the media is not connected MEDIA mode will not be acti-
vated.
SEEK
TRACK
When pressed quickly (less than 0.8 seconds),
• FM/AM mode: Plays the previous/next frequency.
• SiriusXM™ mode: Changes the channel.
• MEDIA (USB/iPod/My Music) mode: Changes the track, file or
title (except for USB Image and AUX).
When pressed and held down (more than 0.8 seconds),
• FM/AM mode: Continuously changes the frequency until the
key is released.
• MEDIA (USB/iPod/My Music) mode: Rewinds or fast forwards
the track or file (except for USB Image, Bluetooth Audio, and
AUX).
POWER/
VOL
• When power is off, press to turn power on.
• When power is on, press and hold (more than 0.8 seconds)
to turn the power off.
• When power is on, press quickly (less than 0.8 seconds) to
turn Audio off.
• Turn left/right to adjust the volume.
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 4MY_UVO3[USA_EU]AV_QRG.indd 4 2016-06-02 오후 4:49:592016-06-02
5
Name Description
APPS/
Moves to the Apps/Info screen.
PHONE
Displays the Bluetooth phone mode.
DISP
Turns the screen on/off.
SETUP
Moves to the Setup screen.
TUNE
• FM/AM mode: Changes the frequency.
• SiriusXM™ mode: Changes the channel.
• MEDIA (USB/iPod/My Music) mode: Changes the track, file or
title (except USB Image, Bluetooth Audio, and AUX).
RESET
Resets the system settings. (Preset radio channels and other data
will not be deleted).
※ The actual feature in the vehicle may differ from the illustration.
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 5MY_UVO3[USA_EU]AV_QRG.indd 5 2016-06-02 오후 4:50:022016-06-02
6
Steering Wheel Controls
Name Description
When pressed quickly (less than 0.8 seconds),
• Activates voice recognition
When pressed and held (more than 0.8 seconds),
• Ends voice recognition
• If iOS device is connected through Bluetooth, activates or ends
Siri Eyes Free
MODE
• Each time this is pressed, the mode is changed in the follow-
ing order: FM → AM → SiriusXM → USB or iPod → AUX →
Bluetooth Audio → My Music → Pandora → FM
• If the media is not connected, the corresponding modes will be
disabled
• Press and hold (more than 0.8 seconds) to turn the Audio sys-
tem on/off
• When power is off, press button to turn power back on
-
+
Controls the volume
When pressed quickly (less than 0.8 seconds),
• FM/AM mode: searches broadcast frequencies saved to
Presets
• SiriusXM™ mode: searches broadcast channels saved to
Presets
• MEDIA (USB/iPod/My Music) mode: changes the track, file or title
(except USB Image, AUX)
When pressed and held (more than 0.8 seconds),
• FM/AM mode: automatically searches broadcast frequencies
• SiriusXM™ mode: automatically searches broadcast channels
• MEDIA (USB/iPod/My Music) mode: quickly looks up songs
(excluding USB images, AUX and Bluetooth audio files)
Controls and Functions
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 6MY_UVO3[USA_EU]AV_QRG.indd 6 2016-06-02 오후 4:50:032016-06-02
7
Name Description
When pressed quickly (less than 0.8 seconds),
• When pressed in the dial screen, makes a call
• When pressed in the incoming call screen, answers the call
• When pressed during call waiting, switches to waiting call (Call
Waiting)
When pressed and held (more than 0.8 seconds),
• When pressed in Bluetooth
®
Hands-free, redials the last dialed call
• When pressed during a Bluetooth
®
Hands-free call, switches
call back to mobile phone (Private)
• When pressed while calling on the mobile phone, switches call
back to Bluetooth
®
Hands-free (operates only when Bluetooth
®
Hands-free is connected)
• When pressed during a call, ends the phone call
• When pressed in the incoming call screen, rejects the call
※ The actual feature in the vehicle may differ from the illustration.
Steering Wheel Controls
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 7MY_UVO3[USA_EU]AV_QRG.indd 7 2016-06-02 오후 4:50:032016-06-02
8
Learn how to touch the screen to
operate the system.
Select
Tap lightly on a menu or an item to
select it.
NOTICE
• The system will not recognize your
touch if you wear a glove or other non-
conductive material. Touch the screen
using your finger, an electrostatic
touch-screen glove, or a stylus pen.
Drag & Drop
Select a menu or item you want,
then drag and drop it to where you
want to place it.
Drag or touch the slider along the
play bar in the music screens to
jump to the point that you want to
play from.
Drag the frequency bar to the left or
right to move to the frequency that
you want.
From the Edit My Menu screen, drag
and drop icons to add, delete, or
move to/from My Menu.
Flick (Quick Scrolling)
Quickly moves up and down in the
list.
NOTICE
• Moving the list when there are many
items will display a handler on the right
of the display. You can easily move
many items at a time with the handler.
On-Screen Touch Controls
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 8MY_UVO3[USA_EU]AV_QRG.indd 8 2016-06-02 오후 4:50:042016-06-02
9
You can view the previous or next
image by flicking left/right on an
image on the USB Image screen.
Flick left/right on the frequency bar
in the radio player to look up the pre-
vious/next frequency available.
Press and Hold
Pressing the and
buttons in the music player will fast
forward/rewind the music.
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 9MY_UVO3[USA_EU]AV_QRG.indd 9 2016-06-02 오후 4:50:052016-06-02
10
Setup
Setup is the screen to control Audio
system settings.
To enter the screen, press the
SETUP
key or the
Setu
p
icon in All Menus.
Features Description
Sound
Provides the sound
control options for
Position, Bass, Mid,
Treble, Volume and
Advanced settings.
Display Provides the Mode/
Illumination settings.
Phone
Provides the
Bluetooth
Connection/Auto
Connection Priority/
Bluetooth System
Information settings.
UVO
eServices
Provides the 911
Connect/Parking
Minder/My Car
Zone/Scheduled
Diagnostics/Trip
Info Sync Reminder
Settings.
(For UVO Model)
Connectivity
For more details,
refer to Connectivity
guide.
Home
Screen
Provides the func-
tion to customize
the three menu
items at the bot-
tom of the Home
Screen.
Features Description
Wi-Fi Provides the Wi-Fi
On and Network
Connection settings.
Clock Provides the Time
and View settings.
Voice
Recognition
Provides the
Guidance and
Priority settings.
Language Provides the
Change Language
settings.
Keyboard Provides settings
to switch keyboard
layouts.
Screen
Saver
Provides the Clock/
None settings.
System
Info
Provides software
and storage space
information.
Display
Off
Provides the
Display Off (touch
activation) function.
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 10MY_UVO3[USA_EU]AV_QRG.indd 10 2016-06-02 오후 4:50:072016-06-02
11
Home Screen
Controls Menu Confi guration for the Home Screen
Tap the icon on any screen to display the Home Screen below.
Features Description
Radio/
Media Widget
• Shows brief information on the radio or media that is now
playing.
• Tap the area to move to the mode that you are listening to.
Connectivity
Widget
Shows any connected devices such as iPod, Pandora, and
Bluetooth.
All Menus Shows all of the items in the system menu.
My Menu
• You can add up to eight menus here.
• Add your favorite menus to have quick and easy access to
them.
Apps/Info Moves to the Apps/Info screen.
Setup Moves to the Setup screen.
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 11MY_UVO3[USA_EU]AV_QRG.indd 11 2016-06-02 오후 4:50:082016-06-02
12
Information Display on the Status Bar
Displays the date and time, along with the system status shown by the various
icons to the right of the clock.
The icons in the following table indicate the various types of system status
details and events.
Icon Description
Displayed when the audio is muted.
Displays the remaining battery of the Bluetooth phone.
Displayed when connected to Bluetooth for handsfree.
Displayed when connected to Bluetooth for streaming audio.
Displayed when connected to Bluetooth for streaming audio and handsfree.
Displayed when downloading contacts or recent calls from the Bluetooth phone.
Displayed while on a call with the Bluetooth phone.
Displayed when the microphone of the Bluetooth is muted.
Displays the signal strength of the Bluetooth phone.
Displayed when connected to Wi-Fi.
Displayed when connecting to Wi-Fi.
Displayed when 911 connect is available.
Home Screen
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 12MY_UVO3[USA_EU]AV_QRG.indd 12 2016-06-02 오후 4:50:092016-06-02
13
Adding Your Favorite Menu Items
to My Menu
From the Home screen, select
My Menu
icon, and then
Edit
.
From the Edit My Menu screen,
select menu items from the list on
the right, then drag and drop them to
a desired place on the left.
To remove the item from My Menu,
drag item from the left and drop
them on the right.
i
Information
• Up to eight items can be added to My
Menu.
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 13MY_UVO3[USA_EU]AV_QRG.indd 13 2016-06-02 오후 4:50:092016-06-02
14
FM/AM (with HD Radio
TM
)
You can access the radio player either by pressing the
RADIO
key or by
selecting the Radio menu from All Menus on the Home screen.
FM/AM Mode Display Controls
i
Information
• If you press the
RADIO
key when power is off, the power will turn on and a
radio broadcast will be tuned from the current mode.
• If you are in radio mode, select the media widget from the Home screen to access the
radio player.
Features Description
Preset
Frequencies
• The stored preset frequencies are displayed for user selec-
tion.
• After selecting frequency, press and hold the preset button for
more than 0.8 seconds. A beep sound will be heard and the
frequency is to be stored in the selected preset button.
• Flick the preset frequencies up/down to scroll quickly
through presets.
Frequency Bar
• Flick the frequency bar left/right to search for available
radio channels to the left or right of the current channel.
• Dragging: Drag the frequency bar to the left/right to find the
radio channel that you want.
Frequency Displays the current frequency.
Tag
Saves the current music’s tag information to the
head unit. If connected to iPod, the tag information can be
saved on the device.
Presets Shows the stored presets for user selection.
SoundHound
Runs the SoundHound feature.
For more details regarding this feature, refer to the
SoundHound information in the Info section.
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 14MY_UVO3[USA_EU]AV_QRG.indd 14 2016-06-02 오후 4:50:092016-06-02
15
Features Description
Menu
• List
Moves to the frequency list.
• Info
Turns the Radio text information transmitted from the
broadcasting station on and off.
• Preset Scan
Plays preset frequencies for 10 seconds per item.
• Sound Settings
Moves to the Sound Settings.
Scan/
Preset Scan Displays an active mode from Scan and Preset can modes.
Band
Changes to the desired band from among FM, AM, and SirusXM.
HD Radio
(if equipped) Used to set whether to turn HD Radio™ reception On or Off.
Scan Shortly plays the broadcasts for the frequencies with supe-
rior reception for 5 seconds per item.
SEEK/TRACK
• When pressed quickly (less than 0.8 seconds): Seeks the
previous/next frequency.
• When pressed and held (more than 0.8 seconds): Moves
quickly through all of the frequencies. The moment that you
release the button, the system seeks the next available fre-
quency.
TUNE Turn the TUNE knob to manually seek available frequencies.
• FM: Increment/decrement by 200 kHz
• AM: Increment/decrement by 10 kHz
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 15MY_UVO3[USA_EU]AV_QRG.indd 15 2016-06-02 오후 4:50:102016-06-02
16
Basic Mode Screen (HD Radio™ reception ON)
Name Description
HD Radio™
Reception &
Channel but-
tons
Displays main HD Radio™ channels and used to directly
select the current available channels.
The HD Radio™ related icon display becomes active
within regions where an HD Radio™ signal can be
received.
HD Channel
Number
Analog station and corresponding HD Radio™ channel
number saved in the preset list.
HD Broadcast
Info
Displays detailed information about the current broadcast
(the details of the information shown are different depending
on whether the Info button is selected)
HD Radio
When the HD Radio™ soft button is ON (the blue indicator
on the HD Radio™ button is illuminated), HD Radio™ sig-
nals will be broadcast.
HD Radio™ Technology (if equipped)
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 16MY_UVO3[USA_EU]AV_QRG.indd 16 2016-06-02 오후 4:50:112016-06-02
17
FM/AM
You can access the radio player either by pressing the
RADIO
key or by
selecting the Radio menu from All Menus on the Home screen.
FM/AM Mode Display Controls
i
Information
• If you press the
RADIO
key when power is off, the power will turn on and a radio
broadcast will be tuned from the current mode.
• If you are in radio mode, select the media widget from the Home screen to access the
radio player.
Features Description
Preset
Frequencies
• The stored preset frequencies are displayed for user selection.
• After selecting frequency, press and hold the preset button for
more than 0.8 seconds. A beep sound will be heard and the
frequency is to be stored in the selected preset button.
• Flick the preset frequencies up/down to scroll quickly
through presets.
Frequency Bar
• Flick the frequency bar left/right to search for available
radio channels to the left or right of the current channel.
• Dragging: Drag the frequency bar to the left/right to find the
radio channel that you want.
Frequency Displays the current frequency.
Presets Shows the stored presets for user selection.
SoundHound
Runs the SoundHound feature.
For more details regarding this feature, refer to the
SoundHound information in the Info section.
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 17MY_UVO3[USA_EU]AV_QRG.indd 17 2016-06-02 오후 4:50:112016-06-02
18
Features Description
Menu
• List
Moves to the frequency list.
• Preset Scan
Plays preset frequencies for 10 seconds per item.
• Sound Settings
Moves to the Sound Settings.
Scan/
Preset Scan Displays an active mode from Scan and Preset Scan modes.
Band
Changes to the desired band from among FM, AM, and SirusXM.
Info
Turns the Radio text information transmitted from the broad-
casting station on and off.
Scan Shortly plays the broadcasts for the frequencies with supe-
rior reception for 5 seconds per item.
SEEK/TRACK
• When pressed quickly (less than 0.8 seconds): Seeks the
previous/next frequency.
• When pressed and held (more than 0.8 seconds): Moves
quickly through all of the frequencies. The moment that you
release the button, the system seeks the next available fre-
quency.
TUNE Turn the TUNE knob to manually seek available frequencies.
• FM: Increment/decrement by 200 kHz
• AM: Increment/decrement by 10 kHz
FM/AM
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 18MY_UVO3[USA_EU]AV_QRG.indd 18 2016-06-02 오후 4:50:112016-06-02
19
You can access the radio player either by pressing the
RADIO
key or by
selecting the Radio menu option from All Menus on the Home screen. Select
the SiriusXM™ band from the radio player.
SiriusXM™ Mode Display Controls
i
Information
• If you press the
RADIO
key when the power is off, the power will turn on and a radio
broadcast will be tuned from the current mode.
• If you are in the SiriusXM™ mode, select the SiriusXM™ radio widget from the Home
screen to access the radio player.
• When the power is off, pressing the
RADIO
key will turn the power on and play a
SiriusXM™ Radio broadcast.
Features Description
Preset
Frequencies
• Shows the stored presets for user selection.
• After selecting frequency, press and hold the preset button
for more than 0.8 seconds. A beep sound will be heard and
the frequency is to be stored in the selected preset button.
Channel Logo Displays the current channel logo.
Channel Info Displays the current channel number and name.
Content Info Displays the artist, title and other information about the cur-
rent playing song.
Category Info Displays the category of the currently playing song.
Band Changes to the desired band from among FM,
AM, and SirusXM.
SiriusXM™
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 19MY_UVO3[USA_EU]AV_QRG.indd 19 2016-06-02 오후 4:50:122016-06-02
20
Features Description
Direct Tune Used to search for the desired channel by
entering the channel number.
Scan Plays all receivable channels for 10 seconds per item.
Play Live Switches to the live broadcast mode.
Skip Backward
Repeats the previously broadcasted program.
• Holding for less than 0.8 seconds: Moves to the previous
segment.
• Holding for more than 0.8 seconds: Moves to the previous
5 seconds.
Play/Pause Pauses/plays the current broadcasting program.
Skip/Forward Moves to the next segment.
Tag
Saves the current music’s tag information to the head unit. If
connected to iPod, the tag information can be saved on the
device.
Presets Shows the stored presets for user selection.
SoundHound
Runs the SoundHound feature.
For more details regarding this feature, refer to the
SoundHound information in the Info section.
List Moves to the channel list.
Menu
• What is on My Presets?
The program schedule saved in my preset. (For more details,
see Section 2.5. Viewing Menu.)
• Featured Favorites
Theme channels recommended by SiriusXM™.
(For more details, see Section 2.5. Viewing Menu.)
• Preset Scan
Plays preset channels for 10 seconds each.
• Sound Settings
Moves to the Sound Settings.
SiriusXM™
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 20MY_UVO3[USA_EU]AV_QRG.indd 20 2016-06-02 오후 4:50:132016-06-02
21
Features Description
SEEK/TRACK
• When pressed quickly (less than 0.8 seconds): Plays the
previous/next channel.
• When pressed and held (more than 0.8 seconds):
Continuously changes the channel until the key is released
and plays the current channel.
TUNE Changes the channel.
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 21MY_UVO3[USA_EU]AV_QRG.indd 21 2016-06-02 오후 4:50:142016-06-02
22
USB Mode Display Controls
Features Description
Mode Displays the current operating mode
File Index Shows the current file/total files within the USB
Repeat/
Shuffle/Scan
From Repeat/Shuffle/Scan, displays the current operating
function
Play Time Displays the current play time/total play time
Song Info
Displays the information of the current track
• When a track in the file tab on the list screen is selected:
Displays folder, file, title, artist, album info
• When a track in the other tabs on the list screen is
selected: Displays artist, title, album info
List Moves to the list screen
Back Button Converts to basic mode screen
Previous File
If button is pressed (less than 0.8 seconds): Moves to the
previous file or play the current file from the beginning
(Depends on the play time)
• If play time is less than 3 seconds, moves to previous file
• If play time is more than 3 seconds, play the current file
from the beginning
If button is pressed (more than 0.8 seconds) it rewinds the
track
Play/Pause Plays/pauses the current file
Next File
• If button is pressed (less than 0.8 seconds): Moves to the
next file
• If button is pressed (more than 0.8 seconds): It fast-for-
wards the track
USB Music
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 22MY_UVO3[USA_EU]AV_QRG.indd 22 2016-06-02 오후 4:50:152016-06-02
23
Features Description
Repeat
Repeats the current file
• If select the song in the file tab on the list screen: Select the
Repeat
button to switch between repeating one song ,
repeating folder , and turning repeat off
• If select the song in the other tabs (Playlist, Artist, Song, Album)
on the list screen: Select the
Repeat
button to switch between
repeating one song and turning repeat off
Shuffle
Plays files in random order
• If select the song in the file tab on the list screen: Select the
Shuffle
button to switch between Shuffle Folder , Shuffle
All , and turning shuffle off
• If select the song in the other tabs (Playlist, Artist, Song, Album)
on the list screen: Select the
Shuffle
button to switch between
Shuffle Category and turning shuffle off
Scan
Scans the beginning parts of USB files (approx. 10 seconds per file)
• If select the song in the file tab on the list screen: Select the
Scan
button to switch between Scan Folder , Scan All
, and turning scan off
• If select the song in the other tabs (Playlist, Artist, Song, Album)
on the list screen: Select the
Scan
button to switch between
Scan category and turning scan off
Menu
• Add to Playlist: Add the current track to the Playlist: Playlist is
placed on the left tab in the list
• Save to My Music: You can save the current track to My Music.
You can play saved track from My Music without USB. Access
to My Music in the Media mode.
• Sound Settings: Moves to the Sound Settings screen. You can
change the settings of the sound.
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 23MY_UVO3[USA_EU]AV_QRG.indd 23 2016-06-02 오후 4:50:152016-06-02
24
Features Description
SoundHound
Runs the SoundHound feature.
For more details regarding this feature, refer to the SoundHound
information in the Info section.
SEEK/TRACK
If button is pressed (less than 0.8 seconds) moves to previ-
ous/next file or play the current track from the beginning
• If play time is less than 3 seconds, moves to previous/next file
• If play time is more than 3 seconds, play the current file from
the beginning
If button is pressed (more than 0.8 seconds) it will rewind/
fast-forward the track
TUNE
Turn the TUNE knob to search a desired track. If the
desired track is displayed, select the TUNE knob to play
the track.
If the TUNE knob is not pressed within 5 seconds of
searching tracks, the track info for the current track is
restored.
USB Music
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 24MY_UVO3[USA_EU]AV_QRG.indd 24 2016-06-02 오후 4:50:162016-06-02
25
My Music
My Music Mode Display Controls
Features Description
Mode Displays the current operating mode
File Index Shows the current file/total files
Repeat/
Shuffle/Scan
From Repeat/Shuffle/Scan, displays the current operating
function
Play Time Displays the current play time/total play time
Song Info
Displays the information about the current track
• When a track in the file tab on the list screen is selected:
Displays file, artist, title, album info
• When a track in the other tab on the list screen is selected:
Displays artist, title, album info
List Moves to the list screen
Previous File
If button is pressed (less than 0.8 seconds): Moves to the pre-
vious file or play the current file from the beginning (Depends
on the play time)
• If play time is less than 3 seconds, moves to previous file
• If play time is more than 3 seconds, play the current file
from the beginning
If button is pressed (more than 0.8 seconds) it rewinds the track
Play/Pause Plays/pauses the current file
Next File
• If button is pressed (less than 0.8 seconds): Moves to the
next file
• If button is pressed (more than 0.8 seconds) it will fast-for-
ward the file
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 25MY_UVO3[USA_EU]AV_QRG.indd 25 2016-06-02 오후 4:50:162016-06-02
26
Features Description
Repeat
Repeats the current file
• If select the song in the file tab on the list screen: Select the
Repeat
button to switch between repeating one song
and turning repeat off.
• If select the song in the other tabs (Playlist, Artist, Song, Album)
on the list screen: Select the
Repeat
button to switch between
repeating one song and turning repeat off
Shuffle
Plays files in random order
• If select the song in the file tab on the list screen: Select the
Shuffle
button to switch between shuffle and turning
shuffle off
• If select the song in the other tabs (Playlist, Artist, Song,
Album) on the list screen: Select the
Shuffle
button to switch
between shuffle and turning shuffle off
Scan
Scans the beginning parts of files (approx. 10 seconds per file)
• If select the song in the file tab on the list screen: Select the
Scan
button to switch between scan and turning
scan off
• If select the song in the other tabs (Playlist, Artist, Song,
Album) on the list screen: Select the
Scan
button to
switch between scan and turning scan off
Menu
• Add to Playlist: Adds the current song to the Playlist: Playlist
is placed on the left tab in the list
• Delete Current File: Deletes the current track from My Music.
• Sound Settings: Moves to the Sound Settings screen. You
can change the settings of the sound.
SoundHound Runs the SoundHound feature.
For more details regarding this feature, refer to the SoundHound
information in the Info section.
My Music
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 26MY_UVO3[USA_EU]AV_QRG.indd 26 2016-06-02 오후 4:50:172016-06-02
27
Features Description
SEEK/
TRACK
If button is pressed (less than 0.8 seconds) moves to previous/next
file or play the current song from the beginning
• If play time is less than 3 seconds, moves to previous/next file
• If play time is more than 3 seconds, plays the current file from
the beginning
If button is pressed (more than 0.8 seconds) it will rewind/
fast-forward the track
TUNE
Turn the TUNE knob to search a desired track. If the desired
track is displayed, press the TUNE knob to play the track.
If the TUNE knob is not pressed within 5 seconds of search-
ing tracks, the track info for the current track is restored.
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 27MY_UVO3[USA_EU]AV_QRG.indd 27 2016-06-02 오후 4:50:182016-06-02
28
Bluetooth Connection
Pairing a New Device
Before you can use the Bluetooth
feature, you must first pair/connect
your mobile phone to your car.
Up to 5 Bluetooth devices can be
paired.
Only one Bluetooth device can be
connected at a time.
Pairing a New Device by Selecting
Phone/Call
Press the
PHONE
key or
key in the steering wheel control. ▶
Pair your car after your mobile phone
detects the Bluetooth device. ▶
Enter the passkey or accept the
authorization popup. ▶ Connect
Bluetooth.
Pairing a New Device Through the
Phone Settings
Press the
SETUP
key. ▶ Select
Phone
. ▶ Select
Bluetooth Connection
.
▶ Select
Add New
. ▶ Pair your car
after your mobile phone detects the
Bluetooth device. ▶ Enter the pass-
key or accept the authorization pop-
up. ▶ Connect Bluetooth.
The default passkey is 0000.
The vehicle name above is an
example. Check the actual informa-
tion on the product.
Connecting Bluetooth
Devices
Connects the Bluetooth devices that
you add.
Connecting Devices by Selecting
Phone/Call
Press the
PHONE
key or
key in the steering wheel control. ▶
Select the name of the device to
connect. ▶ Connect Bluetooth.
Bluetooth
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 28MY_UVO3[USA_EU]AV_QRG.indd 28 2016-06-02 오후 4:50:182016-06-02
29
Connecting Devices Through the
Phone Settings
Press the
SETUP
key. ▶ Select
Phone
. ▶ Select
Bluetooth Connection
.
▶ Select the name of the device to
connect. ▶ Connect Bluetooth.
Dial
Dials a call after the Bluetooth
devices are connected.
• Press the
PHONE
key or
key in the steering wheel control.
• You can also select
All Menus
icon ▶ and then
Phone
icon.
Name Description
Keypad
Use the keypad to
enter the phone num-
ber that you want to
call. Press and hold
the last number of
a speed dial to dial
a number that you
added to the Speed
Dial list in the phone
Call
Makes a call after
you dial a number
and select CALL. If
the number is listed
in Dialed Calls, you
can select the num-
ber and press CALL
to automatically dial
that number again.
Settings Moves to a screen of
Phone Settings.
Delete Deletes the numbers
that you entered.
i
Information
• Some types of mobile phones may not
support the Speed Dial function.
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 29MY_UVO3[USA_EU]AV_QRG.indd 29 2016-06-02 오후 4:50:192016-06-02
30
Using the Menu
During a Phone Call
When making a call, you can use
the following menu items.
Name Description
Use Private
Switches a voice
call from the car
Hands-free to the
mobile phone.
End Ends a call.
Contacts Displays the
Contacts list.
Outgoing
Volume
Displays the Mic
Volume settings.
You can adjust the
in-call volume that
the other party
hears (level 1 - 5).
Keypad
Moves to a screen
for entering ARS
numbers.
Switch
Switches to a call
on hold, if any.
You can also
switch calls by
selecting the
number in the
Information
Display.
The Switch func-
tion switches the
current call to
a waiting call in
order to answer a
new incoming call.
Bluetooth
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 30MY_UVO3[USA_EU]AV_QRG.indd 30 2016-06-02 오후 4:50:202016-06-02
31
Call History
Press the
PHONE
key, and then
Call History
.
Name Description
All Lists the all call
history.
Dialed Lists the calls that
you made.
Received Lists the calls that
you have received.
Missed Lists the calls you
missed.
Call
History
Displays all of your
call history. Select
from the list to dial
the number.
Information
Displays the details
of your call history
information.
Download
Downloads the call
history information
from your mobile
phone.
Call
Dials the selected
number in your
Call History
Information.
Contacts
Info
Goes to
the Contact
Information screen
if the number has
been stored.
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 31MY_UVO3[USA_EU]AV_QRG.indd 31 2016-06-02 오후 4:50:212016-06-02
32
Favorites
Press the
PHONE
key, and then
Favorites
.
Name Description
Favorites
Lists the phone
numbers saved as
Favorites. Select
from the list to dial
the number.
Add New Adds a new number
to Favorites.
Delete
Items
Deletes numbers
that you select from
Favorites.
Delete All
Deletes all of the
numbers from
Favorites.
Contacts
Press the
PHONE
key, and then
Contacts
.
Name Description
Contacts
List
The list of
Contacts. Select
from the list to dial
the number.
Information Displays contact
information.
Download
Downloads con-
tacts from your
mobile phone.
Search by
Name
Searches Contacts
for the name that
you enter.
Search by
Number
Searches Contacts
for the number that
you enter.
Add to
Favorites
Adds a phone
number to
Favorites.
Bluetooth
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 32MY_UVO3[USA_EU]AV_QRG.indd 32 2016-06-02 오후 4:50:222016-06-02
33
Precautions Required
for Successful Voice
Recognition
1. Voice recognition supports only
the commands that are displayed
on the screen and written in the
User’s Guide.
2. To ensure the correct recognition
and execution of your command,
say your command when you hear
the beep after a voice prompt.
3. Voice recognition automatically
ends if:
1) A call is incoming or outgoing
2) A media device (USB or iPod, etc.)
is connected or disconnected
3) The rear view camera is operated
4) The car engine starts or stops
5) A system key, such as
RADIO
key or
MEDIA
key is selected
4. The microphone used for the voice
recognition system is located in the
headliner directly above the driver’s
head. To make your commands
better understood, keep your body
straight in the driver’s seat when
speaking the command.
5. Speaking naturally and clearly will
ensure better recognition of your
voice commands.
6. In the following cases voice rec-
ognition will be affected by ambi-
ent noise.
1) The sound of the wind if any
window or the sun roof is open.
2) High speed blower from the
air vents. Set climate control to
blow lower than level 3.
3) Vibrations from passing through
a tunnel.
4) Vibrations from driving on an
uneven road.
5) Storms and heavy rain.
Voice Recognition
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 33MY_UVO3[USA_EU]AV_QRG.indd 33 2016-06-02 오후 4:50:232016-06-02
34
Starting/Ending
and Setting Voice
Recognition
Starting Voice Recognition
Press the key briefly (less
than 0.8 seconds) on the steering
wheel control to activate voice rec-
ognition.
Ending Voice Recognition
1. Select “Exit” to the left of the bot-
tom to end voice recognition.
2. Press and hold (more than 0.8
seconds) the key on the
steering wheel control to end
voice recognition.
Voice Recognition
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 34MY_UVO3[USA_EU]AV_QRG.indd 34 2016-06-02 오후 4:50:232016-06-02
35
Skipping Prompt
Messages
When you hear the prompt mes-
sage, press the key on the
steering wheel control to skip the
message and go directly to listening
mode to say your command.
This results in faster operation when
you feel the message is too long or
you already know the command to
use.
i
Information
• Refer to Part 8 for instructions on how to
change the Voice Recognition Settings.
Combining Voice
Recognition with
On-Screen Commands
After pressing the key, say
a command after the beep. The
voice recognition system will execute
the desired operation after under-
standing the command.
Alternatively, you may touch any of
the corresponding Frequently Used
Commands on the screen while the
Voice Recognition system is in oper-
ation.
Combining voice recognition with
available on-screen commands
is useful when the system is tak-
ing longer than expected or the
voice command did not execute as
desired.
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 35MY_UVO3[USA_EU]AV_QRG.indd 35 2016-06-02 오후 4:50:402016-06-02
36
Voice Recognition Screen Overview
Start Screen
Name Description
Most frequently
used commands Displays the six most frequently used commands.
Not available
command
Displays commands that are not available due to a failure in
meeting the conditions for using them and thus need addi-
tional settings. The conditions required for using them will
be described briefly under each command.
Voice
recognition
status icons
Standby
Voice guidance
Voice command process
Recognized
results Displays the voice recognition result.
User's speaking
volume being
recognized
Displays the voice command volume in real time.
Help Displays all available help commands in a tree format.
Exit Ends the voice recognition.
Voice Recognition
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 36MY_UVO3[USA_EU]AV_QRG.indd 36 2016-06-02 오후 4:51:042016-06-02
37
Voice Commands
Types of Commands
Voice recognition commands are classified as “Global Commands” and “Local
Commands.”
1. Global Commands (●): Commands that can be used immediately after acti-
vating voice recognition.
2. Local Commands (○): Commands that can be used when a multimedia or
Bluetooth function is running, or displayed on the screen, after activating
voice recognition.
Call Commands
* Check the following before using call commands:
1. Voice commands related to phone calls can be used after connecting a
Bluetooth device.
2. To call a person, for example “Call <John Smith>” whose name is listed in
Contacts, you must first download the Contacts list. For details on down-
loading contacts, see “Part 3. Bluetooth > Chapter 3. Bluetooth Phone > 3.10
Contacts”.
3. After downloading the Bluetooth contacts, it will take some time to convert
the Contacts into voice data during which time you cannot make a call by
name yet. The time it takes to convert voice data may vary depending on
the number of Contacts downloaded on the phone.
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 37MY_UVO3[USA_EU]AV_QRG.indd 37 2016-06-02 오후 4:51:042016-06-02
38
Command Operation
●Call Displays downloaded Contacts, after this you can make
a call by saying the name.
●Call <Name> You can directly call a person by <Name> in the down-
loaded Contacts.
●Call <Name> on
Mobile
You can call a person <name> directly to the number
that is saved as “Mobile” in the downloaded Contacts.
e.g.) Call “John Smith” on Mobile
●Call <Name> in
Office
You can call a person <name> directly to the number
that is saved as “Office” in the downloaded Contacts.
e.g.) Call “John Smith” in Office
●Call <Name> at
Home
You can call a person <name> directly to the number
that is saved as “Home” in the downloaded Contacts.
e.g.) Call “John Smith” at Home
●Call <Name> on
Other
You can call a person <name> directly to the number
that is saved as “Other” than “Mobile, Home, or Office”
in the downloaded Contacts.
e.g.) Call “John Smith” on Other
●Dial Number Displays a screen where you can say a phone number
to dial.
●Dial <Phone #> You can directly say the number to call.
e.g.) Dial 111 555 1234
●Redial Directly calls at the number that you last dialed.
●Call History Displays your Call History, where you can say the list
number to make a call.
Voice Recognition
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 38MY_UVO3[USA_EU]AV_QRG.indd 38 2016-06-02 오후 4:51:052016-06-02
39
Radio Commands
Command Operation
●Radio Plays the most recent radio channels from FM, AM, and
SiriusXM™.
●FM Plays FM radio.
●FM
<87.5~107.9>
Tunes to FM <Frequency> according to what you say.
e.g.) FM 87.5: FM eighty seven point five
●SiriusXM Plays SiriusXM™ radio.
●SiriusXM
<0~999>
Tunes to SiriusXM™ Channel <Channel Number> accord-
ing to what you say.
e.g.) SiriusXM 23: SiriusXM Twenty three
●AM Plays AM radio.
●AM
<530~1710>
Tunes to AM <Frequency> according to what you say.
e.g.) AM 530: AM Five thirty
○Preset <1~40> Tunes to your preset stations (1 to 40).
○Channel
<0~999>
In SiriusXM™ Radio mode, turns on the <Channel
Number> that you say.
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 39MY_UVO3[USA_EU]AV_QRG.indd 39 2016-06-02 오후 4:51:052016-06-02
40
Media Commands
* Check the following before you use media commands.
1. If no media is connected or if no playable files exist at the time when you
use these commands, a voice message will tell you that this is not available.
2. If you say the name of the media that is currently playing again, then that
media will continue playing.
e.g.) Saying “USB” while USB content is playing.
Command Operation
●Music Continues the last media you played.
●iPod Plays the iPod currently connected. This will work the
same when an iPhone is connected. If a USB is con-
nected, then it will be played instead of the iPod.
●USB
Plays the music on the USB currently connected.
If an iPod is connected, then the iPod will be played
instead of the USB.
●Bluetooth Audio
Plays the music on the Bluetooth phone currently con-
nected.
This may not be supported depending on the Bluetooth
connection status.
●AUX Plays external devices that are currently connected.
●My Music Plays My Music files stored in the system.
●Pandora Radio Plays Pandora Radio that is currently connected.
1. USB Music/iPod/My Music Command
Command Operation
○Play Plays a selected file.
Maintains the current settings during playback.
○Pause Pauses a file that is playing.
Maintains current settings while paused during playback.
○Shuffle Plays tracks or files randomly.
Maintains current settings during shuffled playback.
○Shuffle Off Cancels Shuffle and plays tracks sequentially.
Maintains current settings during sequential playback.
○Repeat Plays the current track or file repeatedly.
Maintains the current settings during repeat playback.
○Repeat Off Cancels Repeat and plays multiple tracks or files.
Maintains current settings during multiple track playback.
Voice Recognition
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 40MY_UVO3[USA_EU]AV_QRG.indd 40 2016-06-02 오후 4:51:052016-06-02
41
2. Pandora Radio Command
Command Operation
○Skip Moves to the next track.
○Thumbs up If you like the genre of the music currently playing, say
“Thumbs up” so that more similar music will play.
○Thumbs down
If you don’t like the music currently playing, say “Thumbs
down” to minimize the number of playbacks of similar
genre music.
○Play Plays a selected file.
Maintains the current settings during playback.
○Pause Pauses a file that is playing.
Maintains current settings while paused during playback.
○Shuffle Plays tracks or files randomly.
Maintains current settings during shuffled playback.
3. Bluetooth audio/AUX Command
For Bluetooth audio and external devices (AUX), local commands are unavail-
able, including Play, Pause, Repeat and Shuffle.
UVO eServices Commands List (Optional)
Command Operation
●Roadside Assist Connect with a Roadside Assist agent.
●Vehicle
Diagnostics Informs you if diagnostic issues are found in your vehicle
●eService Guide Provides guidance on how to use UVO eServices
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 41MY_UVO3[USA_EU]AV_QRG.indd 41 2016-06-02 오후 4:51:052016-06-02
42
Other Commands List
(Commands used in List/Help)
Command Operation
●Help Moves to the voice recognition help screen.
All available commands can then be identified and used.
○Line 1~4
(One~Four)
When you cannot select a certain name, such as in Call
History, you can select it using numbers.
Simple numbers can be recognized, such as “One” or “Two”.
○Yes/No When voice recognition is activated, this command is used
when an answer is requested for a confirmation question.
○Previous/Next When four or more searched items are listed, you can move
to the previous or next page using a voice command.
○Manual Input
When Dial entry search results are displayed, this com-
mand is used to search manually, rather than to search
with a voice command.
Voice recognition stops after this command is used.
○Go Back Moves to the previous screen.
●Exit Ends the voice recognition.
Voice Recognition
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 42MY_UVO3[USA_EU]AV_QRG.indd 42 2016-06-02 오후 4:51:052016-06-02
43
Siri Eyes Free
How to start Siri
If you want to use Siri, you have
to connect your iOS device to the
Multimedia system through Bluetooth.
(Please check whether your iOS
device supports Siri and turning Siri
On)
Then you can use Siri while pressing
and holding key on the
steering wheel.
How to use Siri
When you access the Siri screen
while pressing and holding
key on the steering wheel, you can
press
S
p
ea
k
button and then you
can speak what you want. Note that
the Multimedia system only supports
“Phone” related functions. Other
functions will be performed in your
iOS device. If you press voice key
quickly, Siri would re-start. If you hold
down voice key, Siri would be termi-
nated and the screen would go back
to the previous screen. Eyes-Free
mode would be activated automati-
cally while you are driving. When
shifting gears into P or putting the
Parking brake on, Eyes-Free mode
would be deactivated automatically.
i
Information
• Functions and feedbacks from voice
commands via Siri are executed in
the iOS device. If the iOS version is
changed, the functions and response
may be different according to the iOS
device and the latest version.
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 43MY_UVO3[USA_EU]AV_QRG.indd 43 2016-06-02 오후 4:51:052016-06-02
44
About Pairing Mobile Phones
QI cannot pair my mobile phone, What is the cause?
A Check to see that the mobile phone supports Bluetooth® function. Verify
if Bluetooth on the cell phone is set to OFF. If so, set it to ON. If the cell
phone still can’t be registered, try again after turning Bluetooth off and on,
or delete the device registration on the multimedia system and cell phone
and then register the cell phone again.
Q
What is the difference between pairing a mobile phone and connecting a
mobile phone?
A
Pairing occurs through authenticating the head unit and mobile phone.
Mobile phones paired to the head unit can be connected and disconnected
until the paired mobile phone is deleted from the system. Bluetooth®
Handsfree features, such as making/answering calls or managing
Contacts, are supported only in mobile phones connected with the head
unit.
Q
What is a Passkey?
A
A passkey is the password used to authenticate the connection between
the head unit and mobile phone. The passkey only needs to be entered
once when pairing the mobile phone for the first time.
The initial passkey is 0000. You can change it with
SETUP
▶
Ph
one
▶
Bl
ue
t
oo
th
S
ys
t
em
I
n
f
o
▶
P
ass
k
ey
menu options.
FAQ
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 44MY_UVO3[USA_EU]AV_QRG.indd 44 2016-06-02 오후 4:51:052016-06-02
45
About Making/Answering Phone Calls
QHow can I answer a call?
A When there is an incoming call, a notification pop-up will become displayed.
To answer the incoming call, select the
A
ccept
button on the screen or the
key on the steering
wheel control.
To reject the call, select the
Reject
button on the screen or press the
key
on the
steering
wheel control.
Q What should I do if I am talking on the Handsfree but want to switch the call
to the mobile phone?
A While are a call, press and hold (more than 0.8 seconds) the key
on the steering
wheel control
or select the
Use Private
button at the bottom
of the Phone screen to switch the call to your mobile phone.
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 45MY_UVO3[USA_EU]AV_QRG.indd 45 2016-06-02 오후 4:51:052016-06-02
46
About
Bluetooth
®
Wireless Technology/
Head Unit Use Environment
QWhat is the range of my wireless connection?
A The wireless connection can be used within 15 yards.
QHow many mobile phones can be paired?
A It is possible to pair up to five mobile phones.
QWhy is call quality sometimes poor?
A Check the reception sensitivity of the mobile phone when call quality
becomes worsened. The call quality may deteriorate when the signal
strength is low. Call quality may also worsen if metal objects, such as bever-
age cans, are placed near the mobile phone. Check to see if there are metal
objects in the vicinity of the mobile phone. The call sound and quality may
differ depending on the type of mobile phone.
FAQ
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 46MY_UVO3[USA_EU]AV_QRG.indd 46 2016-06-02 오후 4:51:062016-06-02
MEMO
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 47MY_UVO3[USA_EU]AV_QRG.indd 47 2016-06-02 오후 4:51:062016-06-02
MEMO
K_YP 17MY_UVO3[USA_EU]AV_QRG.indd 48MY_UVO3[USA_EU]AV_QRG.indd 48 2016-06-02 오후 4:51:062016-06-02
C600G05
(디오디오/미국/캐나다)
K_UMa 17MY_UVO3[USA_CAN]AV_AA_CP GUIDE.indd 2K_UMa 17MY_UVO3[USA_CAN]AV_AA_CP GUIDE.indd 2 2016-06-02 오후 5:05:082016-06-02 오후 5:05:0
CAR MULTIMEDIA SYSTEM
CONNECTIVITY GUIDE I Android Auto and Apple CarPlay
English
K_UMa 17MY_UVO3[USA_CAN]AV_AA_CP GUIDE.indd 3K_UMa 17MY_UVO3[USA_CAN]AV_AA_CP GUIDE.indd 3 2016-06-02 오후 5:05:152016-06-02 오후 5:05:1
Android Auto/Apple
CarPlay
This manual applies to all KIA models and
includes descriptions and explanations of
optional as well as standard equipment.
As a result, you may find material in this
manual that does not apply to your specific
vehicle.
What is Android Auto/
Apple CarPlay?
You can securely access your smartphone
while driving by using this feature. Various
functions on your smart phone are dis-
played on the multimedia system so you
can easily use them (finding the direction,
making a call, listening to music, etc.).
With Android Auto or Apple CarPlay con-
nected, Android Auto or Apple CarPlay
appears on the display. Available fuctions
and operations may differ depending on the
company model.
For more information, visit the Google or
Apple website.
- Google: http://support.google.com/
androidauto/
- Apple: http://www.apple.com/ios/carplay/
Precautions
• Android Auto is a registered trademark of
Google Inc.
• Apple CarPlay is a registered trademark
of Apple Inc.
• Android Auto or Apple CarPlay is unavail-
able if the phone OS is not the latest
version or your phone is unable to be
recognized due to a shutdown caused by
a failure or defect in the device itself.
• Your phone may not be recognized if its
battery is low. Charge your phone then
try again.
• If your phone is shut down due to a
defect in the device itself, reset your
phone and try again.
• If you repeatedly connect and disconnect
the USB cable on the device in a short
period of time, your phone may malfunc-
tion. This can also cause a device failure.
• The device recognition time may differ
depending on the device type and firm-
ware/OS version.
• Using the USB cable that came with
the phone is recommended. (Using a
non-genuine product may cause noise or
malfunction.)
• Normal operations are not guaranteed
when you arbitrarily manipulate your
phone while Android Auto or Apple
CarPlay is active.
K_UMa 17MY_UVO3[USA_CAN]AV_AA_CP GUIDE.indd 4K_UMa 17MY_UVO3[USA_CAN]AV_AA_CP GUIDE.indd 4 2016-06-02 오후 5:05:152016-06-02 오후 5:05:1
• You cannot run Android Auto during a
UVO call.
• You cannot run Apple CarPlay while
making a call using Bluetooth or UVO.
• Android Auto or Apple CarPlay may not
operate normally due to mobile phone
issues.
• Carrier charges may apply when using
Android Auto or Apple CarPlay.
• The following problems may occur due to
issues with your phone.
[Android Auto]
- Intermittent black screens appear
when entering Android Auto.
- Unable to differentiate between phones
that support Android Auto and those
that do not.
- Black screens appear in some areas of
the screen due to app errors.
[Apple CarPlay]
- Intermittent black screens appear
when entering Apple CarPlay.
- Black screens appear in some areas
of the screen due to app errors when
navigating between screens in Apple
CarPlay.
- Audio volume may not be adjusted
depending on the status of the con-
nected phone.
- Voices may not be heard upon discon-
necting Apple CarPlay during a call via
Apple CarPlay.
※
If services do not work properly due to
problems similar to the specified above,
check your phone, and if necessary,
reconnect your phone after restarting.
Using Android Auto or
Apple CarPlay Features
1. With Android Auto, connect the USB
cable provided by the mobile manufac-
turer. With Apple CarPlay, connect the
USB cable provided by Apple.
2.
On the Home or All Menus screen, select
the Android Auto or Apple CarPlay icon.
※ The actual Home screen in the vehicle
may differ from the screen above.
3.
You can use Android Auto or Apple
CarPlay’s features, such as navigation,
music, and phone.
K_UMa 17MY_UVO3[USA_CAN]AV_AA_CP GUIDE.indd 5K_UMa 17MY_UVO3[USA_CAN]AV_AA_CP GUIDE.indd 5 2016-06-02 오후 5:05:162016-06-02 오후 5:05:1
NOTICE
• Before connecting your mobile phone, check
whether Android Auto or Apple CarPlay is set
to ON in the Connectivity Settings menu.
• After connecting the mobile phone, you must
unlock your phone and accept the Disclaimers
on your phone in order for Android Auto or
Apple CarPlay to launch.
• The screens and features displayed on the
multimedia system are the same as what
Google or Apple originally provide. The screens
and features are subject to change according
to the policy of each individual company.
NOTICE - Android Auto
• Bluetooth media features will be disabled when
Android Auto is activated. You cannot use
Bluetooth Media features such as Bluetooth
Audio and Pandora. If you want to use such
features, remove the USB cable before use.
• Android Auto mode does not support the
feature that enables you to search for music
fi les by controlling the
TUNE
knob.
• If Android Auto is not activated even after a
successful connection, check the following:
-
Phone Application status (Check if an error
has occurred)
-
Check if Android Auto has been closed on
your phone
-
Check whether Android Auto is set to On in
the Connectivity Settings menu
• If Android Auto does not work normally even
after a reconnection has been made, visit the
Google website http://support.google.com/
androidauto
NOTICE - Apple CarPlay
• When Apple CarPlay is activated, you cannot
use Bluetooth. If you want to use Bluetooth
Phone/Audio, remove the USB cable and
connect to Bluetooth before using them.
• Apple CarPlay mode does not support the
feature that enables you to search for music
fi les by controlling the
TUNE
knob.
• If Apple CarPlay is not activated even after a
successful connection, check the following:
-
Check if Apple CarPlay is disabled in your
iPhone's application settings
-
Check whether Apple CarPlay is set to On in
the Connectivity Settings menu
• If Apple CarPlay does not work normally even
after a reconnection has been made, visit
the Apple website http://www.apple.com/ios/
carplay/
K_UMa 17MY_UVO3[USA_CAN]AV_AA_CP GUIDE.indd 6K_UMa 17MY_UVO3[USA_CAN]AV_AA_CP GUIDE.indd 6 2016-06-02 오후 5:05:162016-06-02 오후 5:05:1
Using Steering Wheel Controls
[ ]
When pressed quickly. (less than 0.8 seconds)
- If Android Auto or Apple CarPlay is not
connected, activates the multimedia sys-
tem voice recognition.
- If Android Auto is connected, activates or
ends Google voice recognition.
- If Apple CarPlay Siri is activated, ends
Apple CarPlay Siri recogniton.
When pressed and held. (more than 0.8 seconds)
- If the multimedia system voice recog-
nition is activated, ends the multimedia
system voice recognition.
- If Android Auto is connected, activates or
ends Google voice recognition.
- If Apple CarPlay is connected, activates
Apple CarPlay Siri recognition.
[
MODE
]
Each time this is pressed, the mode is
changed in order of FM → AM → SiriusXM™
→ Disc (if equipped) → USB Music or iPod
→ AUX → Bluetooth Audio → My Music →
Android Auto or Apple CarPlay → FM
※ If the media is not connected, corre-
sponding modes will be disabled.
※ While running Apple CarPlay, you cannot
operate features such as:
- USB, iPod, Bluetooth Audio
Connectivity Settings
You can set Android Auto or Apple CarPlay
to activate when an Android device or
iPhone is connected.
Press
SETUP
key ▶ Select
C
onnectivit
y
icon.
※ The actual Setup screen in the vehicle
may differ from the screen above.
i
Information
• This setting is disabled when a device is
connected to the vehicle USB port.
K_UMa 17MY_UVO3[USA_CAN]AV_AA_CP GUIDE.indd 7K_UMa 17MY_UVO3[USA_CAN]AV_AA_CP GUIDE.indd 7 2016-06-02 오후 5:05:162016-06-02 오후 5:05:1
Android Auto
If Android Auto is checked, you can use
the functions of your Android phone with a
USB cable and Bluetooth connected. The
latest version of Android must be installed
on the phone (Android5.0 and above).
While Android Auto is running, you cannot
use some features.
Apple CarPlay
If Apple CarPlay is checked, you can use
the functions of your iPhone with a USB
cable connected. The latest version of
iOS must be installed on the phone. While
Apple CarPlay is running, you cannot use
some features.
Troubleshooting
Problem
Android Auto does not work with
proper connection
Possible Cause
① Android Auto blocking is made in your phone
② The status of the application has an error
③ Android OS version not supported
④ Android Auto App not installed
⑤ Non acceptance of request of approval
Countermeasure
① Release the blocking
② Clear the error
End the application process and try again
③
The latest version of Android must have
been installed
④ Install Android Auto App through Google Play
⑤
Accept request of approval Android Auto is
connected first time
K_UMa 17MY_UVO3[USA_CAN]AV_AA_CP GUIDE.indd 8K_UMa 17MY_UVO3[USA_CAN]AV_AA_CP GUIDE.indd 8 2016-06-02 오후 5:05:172016-06-02 오후 5:05:1
SYSTÈME MULTIMÉDIA DU VÉHICULE
GUIDE DE CONNECTIVITÉ I Android Auto et Apple CarPlay
Français
K_UMa 17MY_UVO3[USA_CAN]AV_AA_CP GUIDE.indd 9K_UMa 17MY_UVO3[USA_CAN]AV_AA_CP GUIDE.indd 9 2016-06-02 오후 5:05:172016-06-02 오후 5:05:1
Android Auto/Apple
CarPlay
Ce guide s’applique à tous les modèles
KIA et comprend des descriptions et des
explications des équipements en option et
de série.
Il est par conséquent possible que vous
trouviez dans ce guide des renseignements
qui ne s’appliquent pas à votre véhicule
spécifique.
Qu'est-ce qu'Android
Auto/Apple CarPlay?
Pendant la conduite, vous pouvez accéder
à votre téléphone en toute sécurité à l’aide
de cette fonction. Les diverses fonctions de
votre téléphone s’affichent sur le système
multimédia et vous pouvez facilement les
utiliser (trouver la direction, faire un appel,
écouter de la musique, etc.).
Lorsqu’Android Auto ou Apple CarPlay est
connecté, Android Auto ou Apple CarPlay
s’affiche à l’écran. Les fonctions et opéra-
tions disponibles peuvent différer selon le
modèle.
Pour plus d’information, visitez le site Web
de Google ou Apple.
- Google: http://support.google.com/
androidauto/
- Apple: http://www.apple.com/ios/carplay/
Précautions
• Android Auto est une marque de com-
merce déposée de Google Inc.
• Apple CarPlay est une marque de com-
merce déposée d’Apple Inc.
• Android Auto ou Apple CarPlay n’est
pas disponible si la version du système
d’exploitation du téléphone n’est pas la
plus récente ou si votre téléphone ne
peut pas être reconnu à cause d’un arrêt
provoqué par une défaillance ou à cause
d’une défectuosité de l’appareil même.
• Votre téléphone peut ne pas être reconnu
si la batterie est faible. Chargez votre
téléphone et essayez de nouveau.
• Si votre téléphone est mis hors circuit à
cause d’une défectuosité du téléphone
lui-même, réinitialisez-le et réessayez.
• Si vous connectez et déconnectez rap-
idement et à maintes reprises le câble
USB de l’appareil, votre téléphone peut
présenter un mauvais fonctionnement.
Ceci peut aussi provoquer une défail-
lance de l’appareil.
• Le temps de reconnaissance de l’appareil
peut différer selon le type d’appareil et la
version du progiciel ou du système d’ex-
ploitation.
• Il est recommandé d’utiliser le câble USB
livré avec le téléphone. (L’utilisation d’un
produit qui n’est pas d’origine peut provo-
quer du bruit ou un mauvais fonctionne-
ment.)
• Le fonctionnement normal n’est pas
garanti lorsque vous manipulez arbitrai-
rement votre téléphone pendant qu’An-
droid Auto ou Apple CarPlay est activé.
K_UMa 17MY_UVO3[USA_CAN]AV_AA_CP GUIDE.indd 10K_UMa 17MY_UVO3[USA_CAN]AV_AA_CP GUIDE.indd 10 2016-06-02 오후 5:05:182016-06-02 오후 5:05:1
• Vous ne pouvez pas exécuter Android
Auto au cours d’un appel UVO.
• Vous ne pouvez pas exécuter Apple
CarPlay au cours d’un appel Bluetooth
ou UVO.
• Android Auto ou Apple CarPlay peut ne
pas fonctionner normalement à cause de
problèmes de téléphonie cellulaire.
• Les frais d’opérateur peuvent s’appliquer
lors de l’utilisation d’Android Auto ou
d’Apple CarPlay.
• Les problèmes suivants peuvent se
présenter à cause de difficultés subies
par votre téléphone.
[Android Auto]
- Écrans noirs intermittents lors de l’acti-
vation d’Android Auto.
- Impossibilité de faire la différence entre
les téléphones qui prennent en charge
Android Auto et ceux qui ne peuvent
pas le faire.
- Des écrans noirs apparaissent dans
certaines zones de l’écran en raison
d’erreurs de touche.
[Apple CarPlay]
- Écrans noirs intermittents lors de l’acti-
vation d’Apple CarPlay.
- Des écrans noirs apparaissent dans
certaines zones de l’écran en raison
d’erreurs de l’application lors de la
navigation entre les écrans d’Apple
CarPlay.
- Le volume audio ne doit pas être réglé
selon le statut du téléphone connecté.
- Les indications vocales doivent être
inaudibles après la déconnexion
d’Apple CarPlay pendent un appel via
Apple CarPlay.
※ Si les services ne fonctionnent pas
adéquatement à cause de problèmes
semblables à ceux qui sont mention-
nés ci-dessus, vérifiez votre téléphone
et, au besoin, reconnectez-le après le
redémarrage.
Utilisation des fonctions
d'Android Auto ou
d'Apple CarPlay
1. Avec Android Auto, branchez le câble
USB fourni par le fabricant du cellulaire.
Avec Apple CarPlay, branchez le câble
USB fourni par Apple.
2. Sur l’écran Accueil ou Tous les menus,
sélectionnez l’icône Android Auto ou
Apple CarPlay.
※ L’écran réel du véhicule peut différer de
l’illustration ci-dessus.
3. Vous pouvez utiliser les fonctions d’An-
droid Auto ou d’Apple CarPlay telles que
la navigation, l’écoute de musique et la
fonction téléphonique.
K_UMa 17MY_UVO3[USA_CAN]AV_AA_CP GUIDE.indd 11K_UMa 17MY_UVO3[USA_CAN]AV_AA_CP GUIDE.indd 11 2016-06-02 오후 5:05:182016-06-02 오후 5:05:1
AVIS
• Avant de brancher votre téléphone cellulaire,
vérifi ez si Android Auto ou Apple CarPlay est
activé dans le menu Réglages de connectivité.
• Après avoir branché le téléphone mobile,
vous devez le déverrouiller et accepter les
avertissements sur votre téléphone pour
qu'Android Auto ou Apple CarPlay démarre.
• Les écrans et fonctions affichés sur le
système multimédia sont les mêmes que ce
que Google ou Apple fournit à l’origine. Les
écrans et fonctions sont sujets à modifi cation,
conformément à la politique de chaque
entreprise individuelle.
AVIS - Android Auto
• Les fonctions de la connectivité Bluetooth sont
désactivées lorsque Android Auto est activé.
Vous ne pouvez pas utiliser les fonctions
multimédias de Bluetooth comme Bluetooth
Audio et Pandora. Si vous souhaitez utiliser
ces fonctions, débranchez le câble USB avant
l’utilisation.
• Le mode Android Auto ne prend pas en
charge la fonction qui vous permet de
rechercher des fi chiers de musique en utilisant
le bouton TUNE.
• Si Android Auto ne s'active pas, même après
une connexion réussie, vérifi ez ce qui suit:
-
Vérifi ez l'état de l'application sur l'appareil (s’il
s'est produit une erreur)
-
Vérifi ez si Android Auto est désactivé sur le
téléphone.
-
Vérifiez si Android Auto est activé dans le
menu Paramètres de connectivité.
• Si Android Auto ne fonctionne pas normalement,
même après une nouvelle connexion, visitez le
site Web de Google (http://support.google.com/
androidauto).
AVIS - Apple CarPlay
• Lorsque Apple CarPlay est activé, vous ne
pouvez pas utiliser la fonction Bluetooth. Si
vous voulez utiliser les fonctions téléphone/
audio Bluetooth, retirez le câble USB et
connectez-vous au moyen de la fonction
Bluetooth avant l'utilisation.
• Le mode Apple CarPlay ne prend pas en
charge la fonction qui vous permet de
rechercher des fi chiers de musique en utilisant
le bouton TUNE.
• Si Apple CarPlay ne s'active pas, même après
une connexion réussie, vérifi ez ce qui suit:
-
Vérifi ez si Apple CarPlay est désactivé dans
les paramètres des applications de votre
iPhone
-
Vérifi ez si Apple CarPlay est activé dans le
menu Paramètres de connectivité
• Si Apple CarPlay ne fonctionne pas normalement,
même après avoir effectué une nouvelle
connexion, visitez le site Web Apple (http://www.
apple.com/ios/carplay/).
K_UMa 17MY_UVO3[USA_CAN]AV_AA_CP GUIDE.indd 12K_UMa 17MY_UVO3[USA_CAN]AV_AA_CP GUIDE.indd 12 2016-06-02 오후 5:05:182016-06-02 오후 5:05:1
Utilisation des
commandes du volant
[ ]
Lorsque le bouton est enfoncé brièvement.
(moins de 0,8 seconde)
- Si Android Auto ou Apple CarPlay n’est
pas connecté, la reconnaissance vocale
du système multimédia s’active.
- Si Android Auto est connecté, la recon-
naissance vocale Google s’active ou se
désactive.
- Si Siri est activé dans Apple CarPlay
est activé, la reconnaissance vocale Siri
d’Apple CarPlay se désactive.
Lorsque le bouton est enfoncé et maintenu.
(plus de 0,8 seconde)
- Si la reconnaissance vocale du système
multimédia est activée, elle se désactive.
- Si Android Auto est connecté, la recon-
naissance vocale Google s’active ou se
désactive.
- Si Apple CarPlay est activé, la reconnais-
sance vocale Siri d’Apple CarPlay s’active.
[
MODE
]
Chaque fois que vous appuyez sur cette
commande, le mode change dans l’ordre
suivant: FM → AM → SiriusXM™ → Disque
(si un lecteur est installé) → Musique par
USB ou iPod → AUX → Audio Bluetooth
→ Ma Musique → Android Auto ou Apple
CarPlay → FM
※ Si le support n’est pas branché, le mode
correspondant sera désactivé.
※ Pendant que Apple CarPlay est en
marche, vous ne pouvez pas utiliser les
fonctions suivantes:
- USB, iPod, Audio Bluetooth
Réglages de connectivité
Vous pouvez régler Android Auto ou Apple
CarPlay pour qu’il s’active lorsqu’un appar-
eil Android ou iPhone est connecté.
Appuyez sur la touche
SETUP
▶ sélec-
tionnez l’icône
C
onnec
ti
v
ité
.
※ L’écran de configuration réel du véhicule
peut différer de l’illustration ci-dessus.
i
Information
• Ce réglage se désactive lorsqu'un appareil est
branché au port USB du véhicule.
K_UMa 17MY_UVO3[USA_CAN]AV_AA_CP GUIDE.indd 13K_UMa 17MY_UVO3[USA_CAN]AV_AA_CP GUIDE.indd 13 2016-06-02 오후 5:05:182016-06-02 오후 5:05:1
Android Auto
Si le mode Android Auto est activé, vous
pouvez utiliser les fonctions de votre
téléphone Android avec un câble USB et
la connectivité Bluetooth. La version la
plus récente d’Android doit être installée
sur le téléphone (Android 5.0 et versions
ultérieures). Lorsqu’Android Auto est en
cours d’exécution, vous ne pouvez pas uti-
liser certaines fonctions.
Apple CarPlay
Si le mode Apple CarPlay est activé,
vous pouvez utiliser les fonctions de votre
iPhone avec un câble USB. La version la
plus récente d’iOS doit être installée sur
le téléphone. Lorsqu’Apple CarPlay est en
cours d’exécution, vous ne pouvez pas uti-
liser certaines fonctions.
Dépannage
Problème
Android Auto ne fonctionne pas avec une
connexion adéquate
Cause possible
① Blocage Android Auto sur votre téléphone
② L’état de l’application a une erreur
③
La version Android OS n’est pas prise en
charge
④ L’application Android Auto n’est pas installée
⑤ Refus de la demande d’approbation
Solution
① Dégagez le blocage
② Effacez l’erreur
Terminez le processus de l’application et
essayez de nouveau
③
La dernière version d’Android Auto doit
avoir été installée
④
Installez Android Auto à l’aide de Google
Play
⑤
Acceptez une demande d’approbation pour
Android Auto lors de la première connexion
K_UMa 17MY_UVO3[USA_CAN]AV_AA_CP GUIDE.indd 14K_UMa 17MY_UVO3[USA_CAN]AV_AA_CP GUIDE.indd 14 2016-06-02 오후 5:05:192016-06-02 오후 5:05:1
K_UMa 17MY_UVO3[USA_CAN]AV_AA_CP GUIDE.indd 15K_UMa 17MY_UVO3[USA_CAN]AV_AA_CP GUIDE.indd 15 2016-06-02 오후 5:05:192016-06-02 오후 5:05:1
FCC Part 15.21 statement
Any changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate this equipment.
RF Exposure Statement (MPE)
The antenna(s) must be installed such that a minimum separation distance of at least 20 cm is
maintained between the radiator (antenna) and all persons at all times. This device must not be co-located or
operating in conjunction with any other antenna or transmitter.
FCC Warning
FCC Part 15.19 Statements:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
FCC Part 15.105 statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
K_UMa 17MY_UVO3[USA_CAN]AV_AA_CP GUIDE.indd 16K_UMa 17MY_UVO3[USA_CAN]AV_AA_CP GUIDE.indd 16 2016-06-02 오후 5:05:192016-06-02 오후 5:05:1
