CAR MULTIMEDIA SYSTEM

USER'S MANUAL

Read the following safety precautions

for your safety

Before using the product, read the contents of this user's manual

carefully and use this product safely.

※ The design and speciﬁ cations of this product may change without prior

notiﬁ cation for product and service improvement.

The actual features in the vehicle may differ from the illustrations.

For more accurate information about the vehicle, please refer to the

catalogue.

※ This Audio system contains open source software, including without

limitation, software distributed and/or modiﬁ ed under the GNU General

Public license, Version 2, June 1991, and the GNU lesser General Public

License, Version 2.1, February 1999.

For additional information and to obtain related materials including

without limitation, the previous referred to licenses and software, please

Notations used within this User's Manual

WARNING

• Failure to observe the instructions within this category could result in death

or serious injury or damage to the vehicle.

CAUTION

• Information on matters that could potentially lead to injury or vehicle

damage/malfunction Information that could lead to higher user safety

Information

• Information and tips that provide additional user convenience in using the

product

NOTICE

• Information on specific features that facilitate proper product use and

functional understanding

• Information on terminology used within this manual

iPod®

iPod® is a registered trademark of Apple Inc.

Bluetooth

Wireless Technology

A compatible

Bluetooth

Wireless Technology-enabled cell phone is

required to use

Bluetooth

Wireless Technology.

The

Bluetooth

® word mark and logos are registered trademarks owned by

Bluetooth SIG, Inc. and any use of such marks by Kia is under license.

Other trademarks and trade names are those of their respective owners.

A Bluetooth® enabled cell phone is required to use

Bluetooth

Wireless

Technology.

Bluetooth

Wireless Technology phone compatibility can be checked by

visiting http://www.kia.com.

Wi-Fi®

The Wi-Fi CERTIFIED™ Logo is a certiﬁ cation mark of Wi-Fi Alliance.

Warnings and Cautions

Key Product Features

Component Names and Functions

Starting the System for the First Time

part.1 Basic

1-2 I Basic

Safety Warnings

• Do not stare at the screen while driving.

Staring at the screen for prolonged peri-

ods of time could lead to traffic accidents.

• Do not disassemble, assemble, or modify

the Multimedia system. Such acts could

result in accidents, fire, or electric shock.

• Heed caution not to spill water or intro-

duce foreign objects into the device.

Such acts could lead to smoke, fire, or

product malfunction.

• If you use phone related functions while

driving, you will find it difficult to concen-

trate on operating the vehicle and the

current traffic conditions, so the possibility

of an accident may increase. Please

use phone related functions only when

parked.

• Please refrain from use if the screen

is blank or no sound can be heard as

these signs may indicate product mal-

function. Continued use in such con-

ditions could lead to accidents (fires,

electric shock) or product malfunctions.

• Do not touch the antenna during thun-

der or lightening as such acts may lead

to lightning induced electric shock.

• Do not stop or park in parking-restricted

areas to operate the product. Such acts

could lead to traffic accidents.

• For most Audio and multimedia modes,

the display will not operate when the

vehicle is in motion. For your safety, first

park the vehicle to watch or view the

screen.(The screen will only operate

when the parking brake is ON for man-

ual transmission vehicles and when the

parking brake is ON or the gearshift is in

the P (PARK) position for automatic.)

• Some functions other than the one

mentioned above cannot be used while

driving. These functions operate only

when the vehicle is parked.

Basic

Warnings and Cautions I 1-3

Safety Cautions

Pay attention to traffic conditions while

driving.

• Operating the device while driving could

lead to accidents due to a lack of atten-

tion to external surroundings. First park

the vehicle before operating the device.

In addition, the touch screen may not

work for some functions when the vehi-

cle is in motion. The touch screen fea-

ture will be supported once the vehicle

has stopped.

• Adjust the volume to levels that allow

the driver to hear sounds from outside

of the vehicle. Driving in a state where

external sounds cannot be heard may

lead to accidents.

• Pay attention to the volume setting when

turning the device on. A sudden output

of extreme volume upon turning the

device on could lead to hearing impair-

ment. (Adjust the volume to a suitable

levels before turning off the device.)

• If you want to change the position of

device installation, please inquire with

your place of purchase or service main-

tenance center. Technical expertise is

required to install or disassemble the

device.

• Turn on the car ignition before using this

device. Do not operate the Multimedia

system for long periods of time with the

ignition turned off as such operations

may lead to battery discharge.

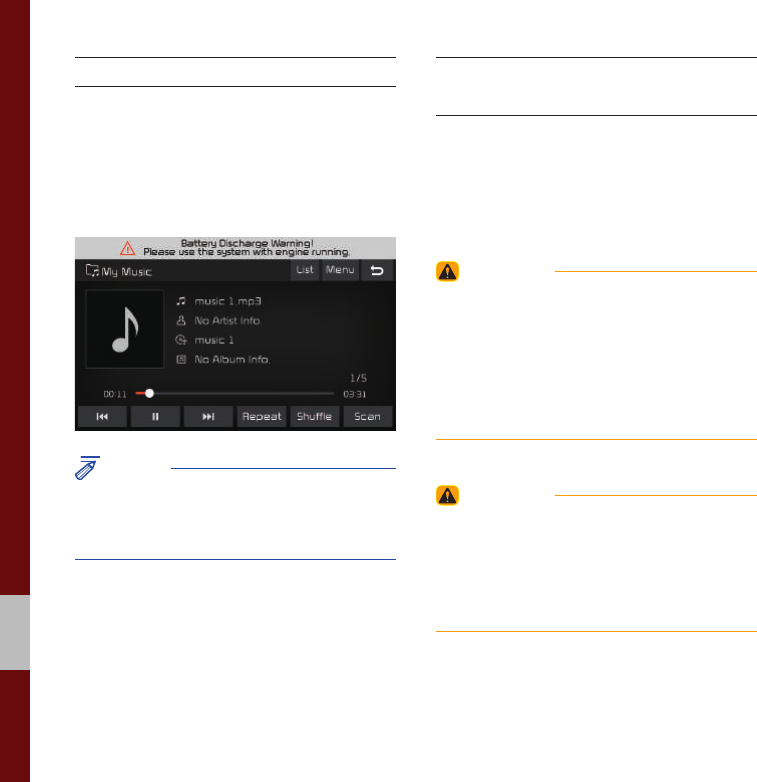

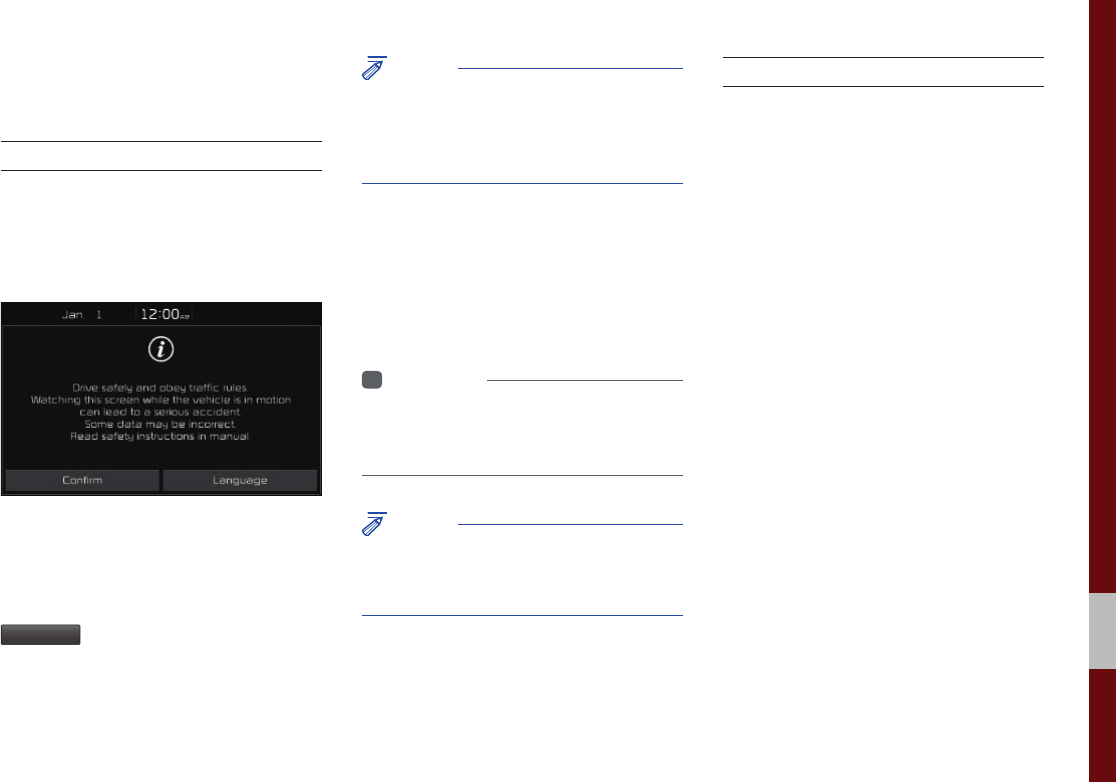

• Upon using the Multimedia system

for more than 10 minutes with the car

engine turned off, the following warning

will be displayed. After 10 minutes, the

warning will be displayed for 5 seconds

every 1 minute.

• Do not subject the device to severe

shock or impact. Direct pressure onto

the front side of the monitor may cause

damage to the LCD or touch screen.

• When cleaning the device, make sure

to turn off the device and use a dry and

smooth cloth. Never use tough materi-

als, chemical cloths, or solvents(alcohol,

benzene, thinners, etc.) as such mate-

rials may damage the device panel or

cause color/quality deterioration. When

experiencing product concerns, inquire

with your place of purchase or service

maintenance center.

• Prevent caustic solutions such as per-

fume and cosmetic oil from contacting

the dashboard because they may cause

damage or discoloration.

1-4 I Basic

Key Product Features

This device is a Multimedia system equipped with a multifunc-

tional player that supports Radio (FM, AM), SiriusXM™, USB,

iPod, AUX, Bluetooth Audio and My Music features. The WIDE

VGA LCD provides a high quality resolution while the powerful

and rich sound system adds to the driving enjoyment.

Display

Wide TFT-LCD Display

• Provides high quality video through a Wide

TFT-LCD Display using an LED Back Light.

• Touch screen for maximum user convenience.

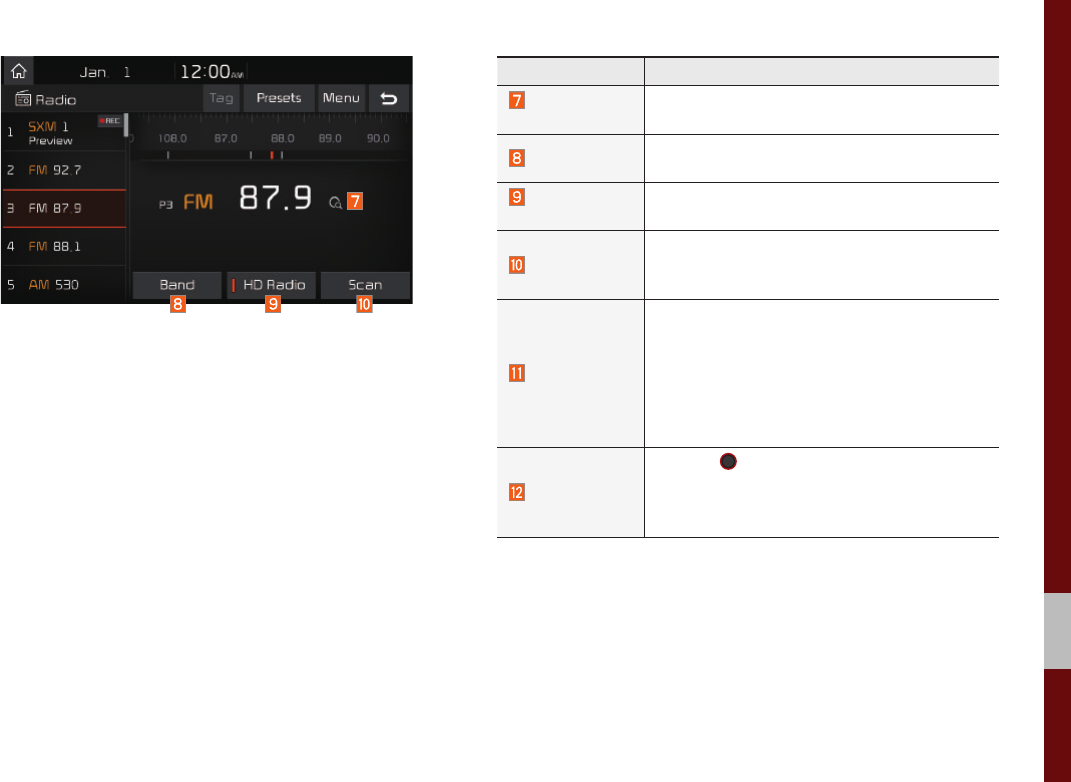

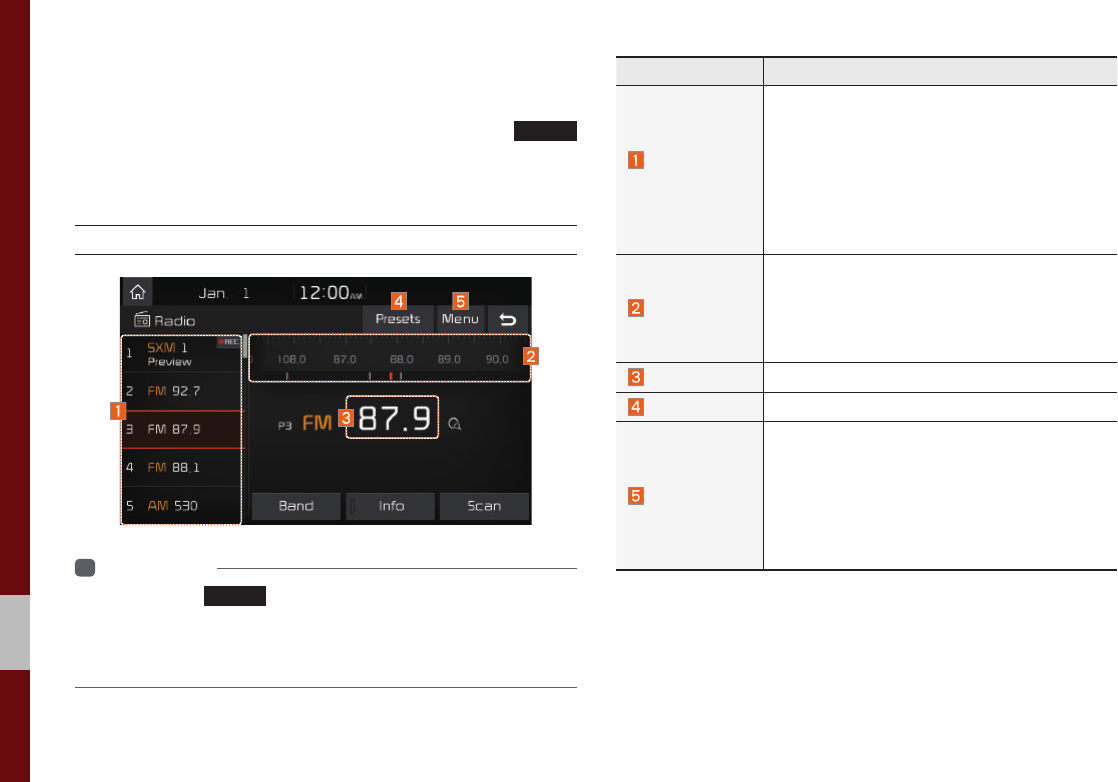

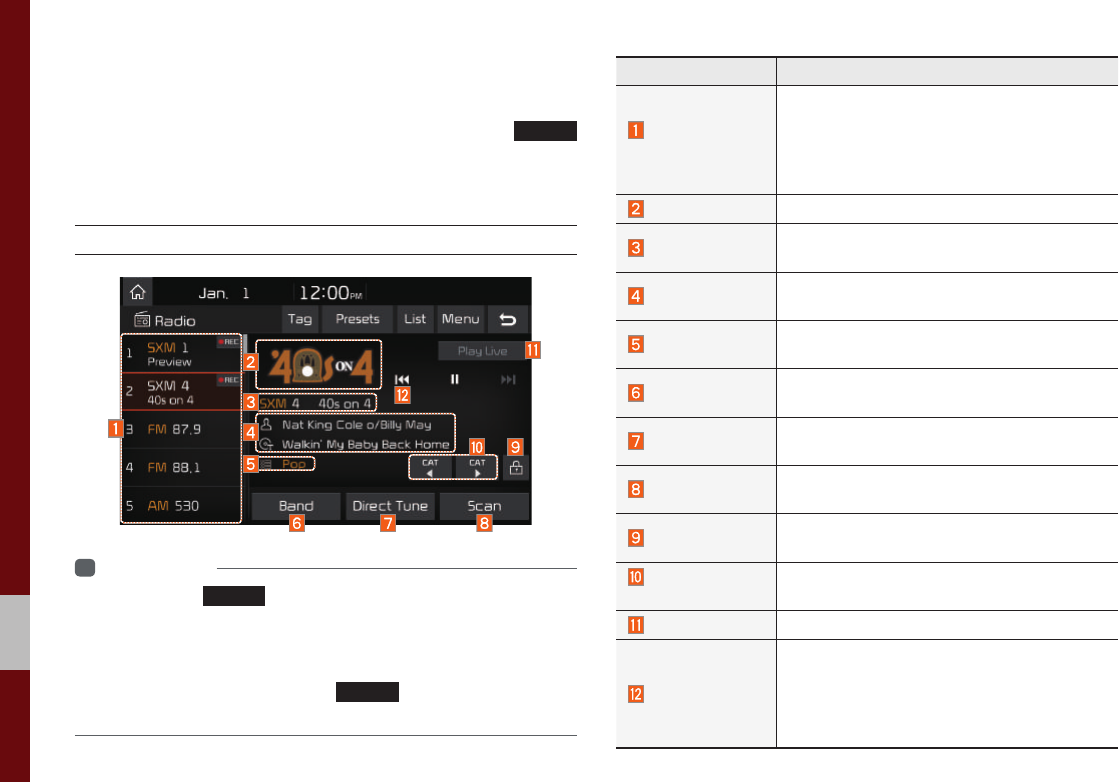

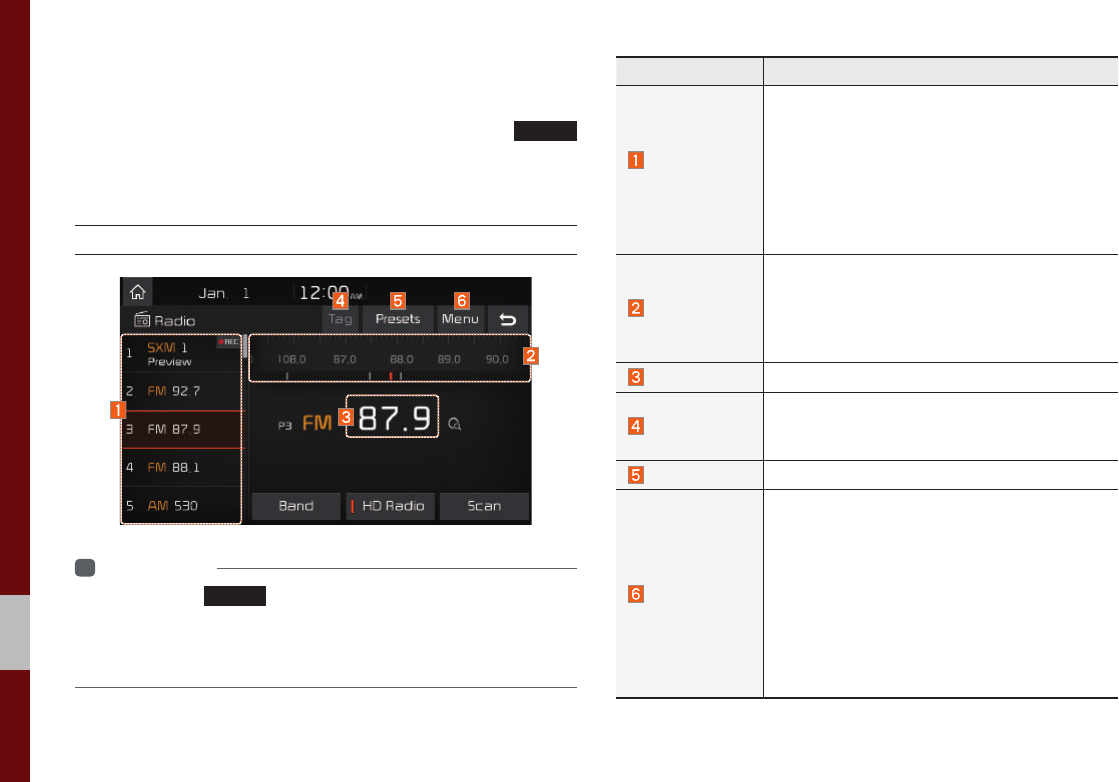

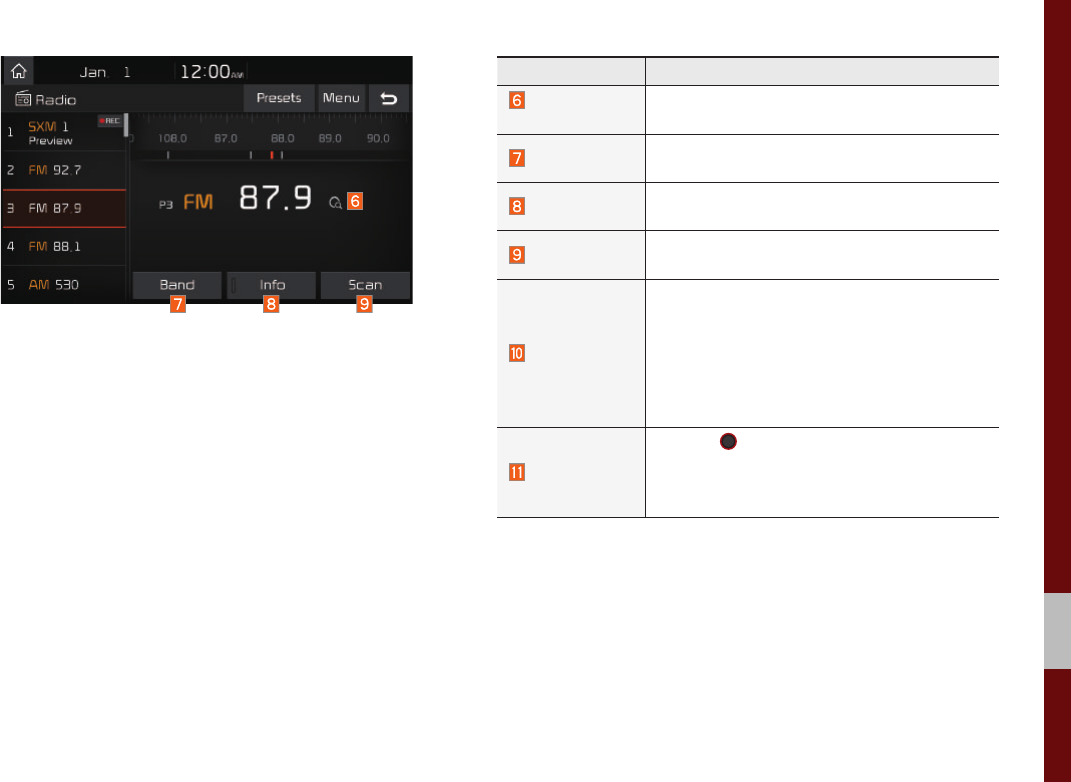

Radio

Digital Tuner Feature

• Digital Tuner using PLL method that supports

memory of 40 broadcast stations.

Radio broadcast station name

• Displays broadcast station names.

Multimedia

Player

Support for various Media Formats

• Support for various media formats, including

Radio, USB, iPod, AUX and Bluetooth

Audio

Streaming modes

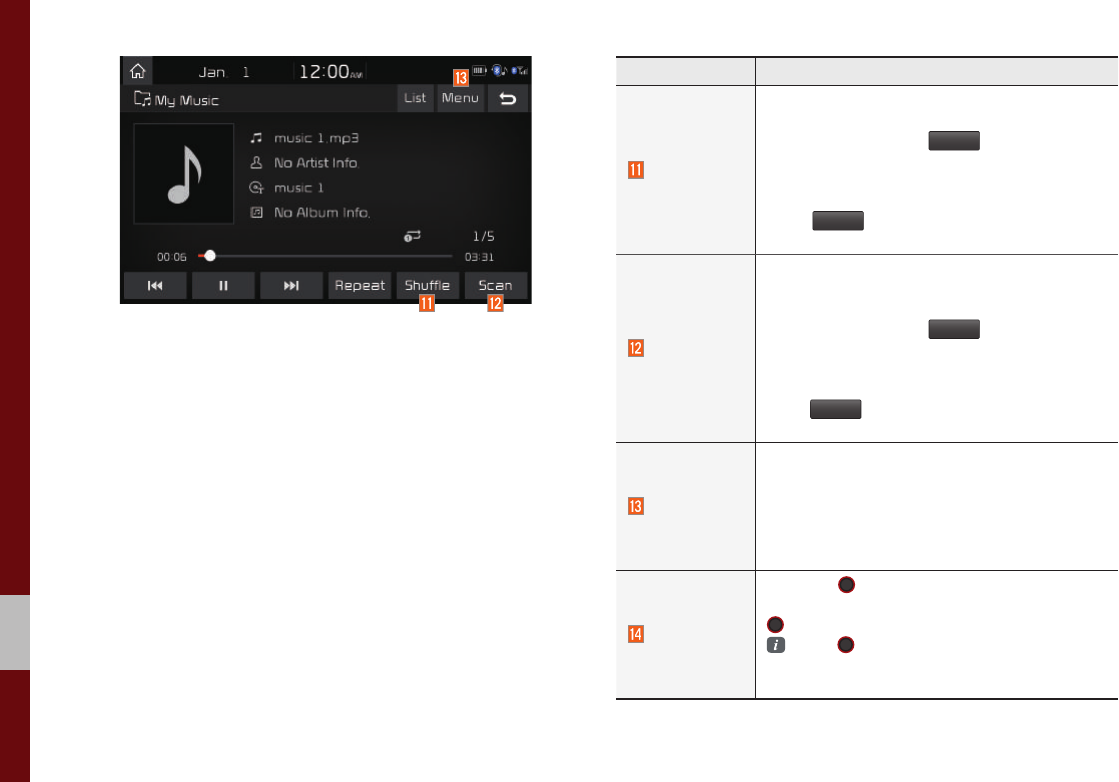

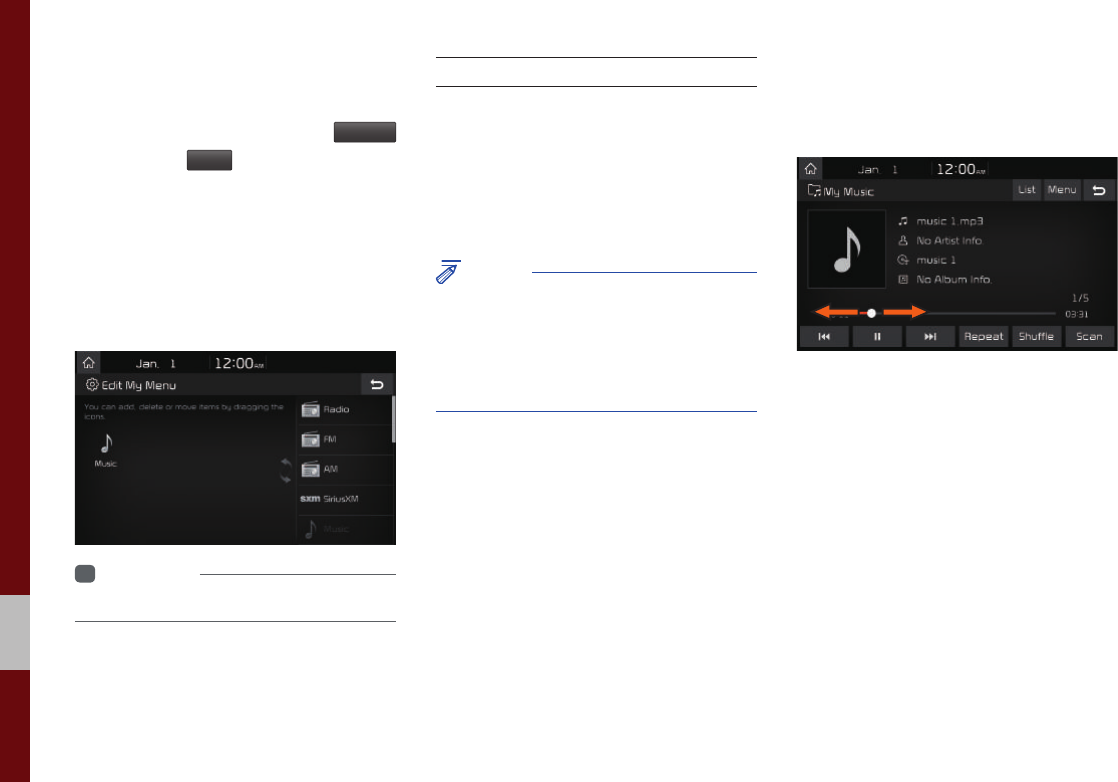

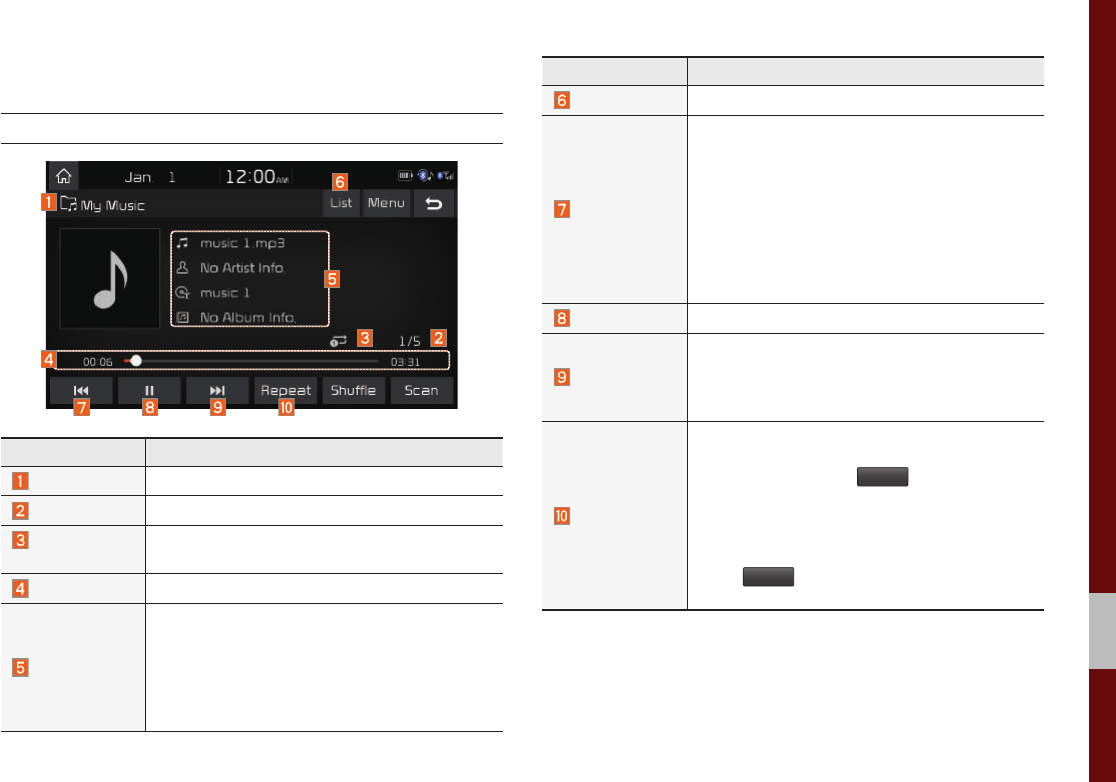

My Music

• Supports copying of music stored within USB

devices into My Music (internal memory) mode

Miscellaneous

Bluetooth

Wireless Technology

• Convenient use of Bluetooth

Handsfree by

using buttons within the steering wheel control

Digital Screen Control Features

• Easy control of features through touch screen

options

Steering Wheel Control

• Control over audio features, voice recognition

and Bluetooth

through the steering wheel

control for maximum convenience

Component Names and Functions I 1-5

Component Names and Functions

Head Unit

Name Description

RADIO

Selects FM/AM/SiriusXM™ mode

• Each time this is pressed, the mode is changed

in the following order: FM → AM → SiriusXM™

→ FM.

MEDIA

Selects MEDIA mode.

• If the media is not connected MEDIA mode will

not be activated.

TRACK

SEEK

When pressed quickly (less than 0.8 seconds),

• FM/AM mode: Plays the previous/next fre-

quency.

• SiriusXM™ mode: Changes the channel.

• MEDIA (USB/iPod/My Music) mode: Changes

the track, file or title (except for USB Image and

AUX).

When pressed and held down (more than 0.8 sec-

onds),

• FM/AM mode: Continuously changes the fre-

quency until the key is released.

• MEDIA (USB/iPod/My Music) mode: Rewinds

or fast forwards the track or file (except for USB

Image, Bluetooth Audio, and AUX).

POWER/

VOL

• When power is off, press to turn power on.

• When power is on, press and hold (more than

0.8 seconds) to turn the power off.

• When power is on, press quickly (less than 0.8

seconds) to turn Audio off.

• Turn left/right to adjust the volume.

Name Description

PHONE

Displays the Bluetooth phone mode.

APPS/

Moves to the Apps/Info screen.

UVO

Moves to the UVO mode

SETUP

Moves to the Setup screen.

TUNE

• FM/AM mode: Changes the frequency.

• SiriusXM™ mode: Changes the channel.

• MEDIA (USB/iPod/My Music) mode: Changes

the track, file or title (except USB Image,

Bluetooth Audio, and AUX).

RESET Resets the system settings. (Preset radio channels

and other data will not be deleted)

※ The actual feature in the vehicle may differ from the illustration.

Component Names and Functions I 1-7

Name Description

When pressed quickly (less than 0.8 seconds),

• Activates voice recognition.

When pressed and held (more than 0.8 seconds),

• Ends voice recognition.

• If iOS device is connected through Bluetooth,

activates or ends Siri Eyes Free.

MODE

• Each time this is pressed, the mode is changed in

the following order: FM → AM → SiriusXM → USB

or iPod → AUX → Bluetooth Audio → My Music →

→ FM

• If the media is not connected, the corresponding

modes will be disabled

• Press and hold (more than 0.8 seconds) to turn

the Audio system on/off

• When power is off, press button to turn power

back on

VOL +

VOL -

Controls the volume

When pressed quickly (less than 0.8 seconds),

• FM/AM mode: searches broadcast frequencies

saved to Presets

• SiriusXM™ mode: searches broadcast channels

saved to Presets

• MEDIA (USB/iPod/My Music) mode: changes the

track, file or title (except USB Image, AUX)

When pressed and held (more than 0.8 seconds),

• FM/AM mode: automatically searches broadcast

frequencies

• SiriusXM™ mode: automatically searches broad-

cast channels

• MEDIA (USB/iPod/My Music) mode: quickly

looks up songs (excluding USB images, AUX and

Bluetooth audio files)

Steering Wheel Controls

Name Description

When pressed quickly (less than 0.8 seconds),

• When pressed in the dial screen, makes a call

• When pressed in the incoming call screen,

answers the call

• When pressed during call waiting, switches to

waiting call (Call Waiting)

When pressed and held (more than 0.8 seconds),

• When pressed in Bluetooth

Hands-free, redials

the last dialed call

• When pressed during a Bluetooth

Hands-free

call, switches call back to mobile phone (Private)

• When pressed while calling on the mobile phone,

switches call back to Bluetooth

Hands-free

(operates only when Bluetooth

Hands-free is

connected)

• When pressed during a call, ends the phone call

• When pressed in the incoming call screen, rejects

the call

※ The actual feature in the vehicle may differ from the illustration.

Starting the System for the First Time I 1-9

Starting the System for

the First Time

Turning the System On/Off

Press the engine start button or set the

ignition key to On or ACC. Each time you

turn on the system, a boot logo and safety

warning will appear.

Pressing the power key on the head unit

will display the safety guide. To change the

system language between English,

French, Spanish and Korean, select the

Language

button.

NOTICE

• You cannot operate the system while it is

booting up. It may take some time for all of

features of the system, particularly the voice

recognition system, to be ready for use.

Pressing and holding the power key on the

head unit will turn off the system.

You can change Screen Saver Settings

in Setup to display a clock on the Screen

Saver.

Information

• If you turn off the system during a phone call

using the Hands-free feature, then the call will

automatically switch to your mobile phone.

NOTICE

• Check the volume when turning on the

system. Before turning on the system, adjust

the volume to a reasonable level.

System Reset

The System Reset function restores the

system when it is not operating correctly.

Press and hold the RESET key for a sec-

ond or longer. (It is recommended that you

press the RESET key using a tool, such as

a pin or a clip.)

1-10 I Basic

Battery Warning Message

Always use the system while the car

engine is running. If you turn on the sys-

tem while the engine is off, a battery warn-

ing message will appear. When the engine

starts, the message will disappear.

NOTICE

• If you use the system for a long time with

the engine off, the battery may become

completely discharged.

Restrictions on Features for

Safety Measures

Several features are limited while driving.

The restriction screen will disappear when

shifting gears into P or putting the parking

brake on.

WARNING

- Blank Screen

• Refrain from use if the screen is blank or

no sound can be heard as these signs may

indicate product malfunction. Continued use in

such conditions could lead to accidents (ﬁ res,

electric shock).

WARNING

- Touching the Antenna During A

Thunder Storm

• Do not touch the antenna during thunder or

lightning as such acts may lead to lightning

induced electric shock.

Starting the System for the First Time I 1-11

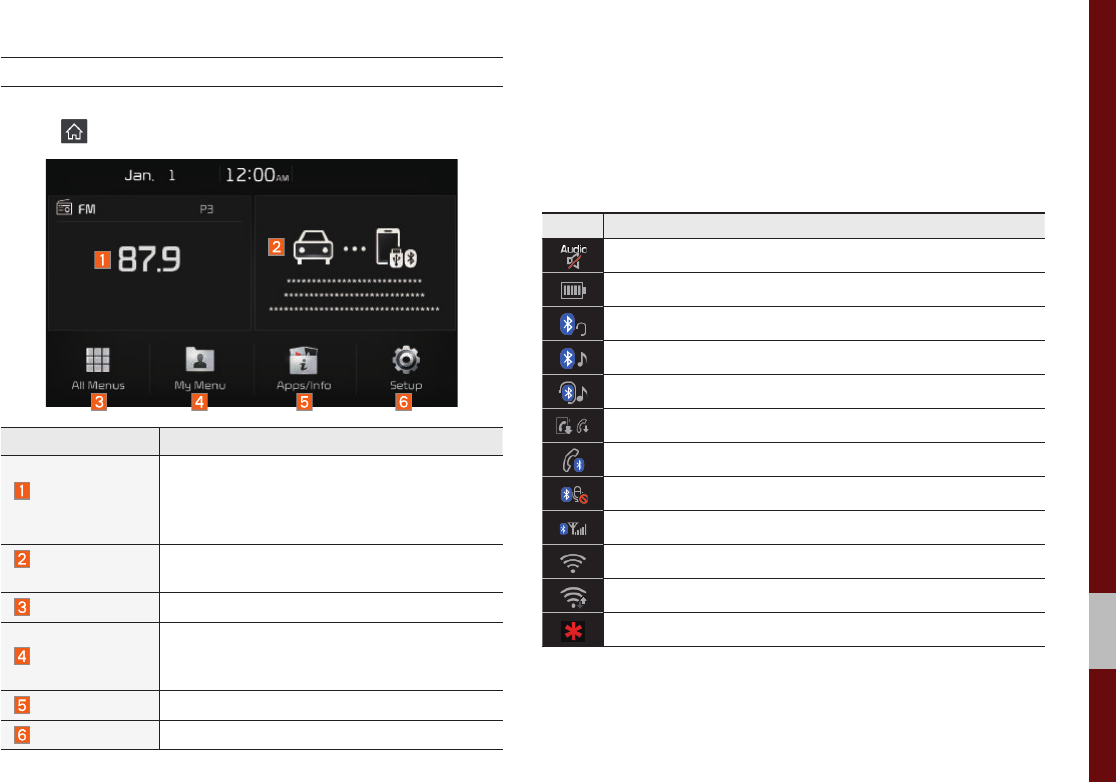

Home Screen

Controls Menu Conﬁ guration for the Home Screen

Tap the icon on any screen to display the Home Screen below.

Features Description

Radio/

Media Widget

• Shows brief information on the radio or

media that is now playing.

• Tap the area to move to the mode that

you are listening to.

Connectivity

Widget

Shows any connected devices such as iPod,

and Bluetooth.

All Menus Shows all of the items in the system menu.

My Menu

• You can add up to eight menus here.

• Add your favorite menus to have quick

and easy access to them.

Apps/Info Moves to the Apps/Info screen.

Setup Moves to the Setup screen.

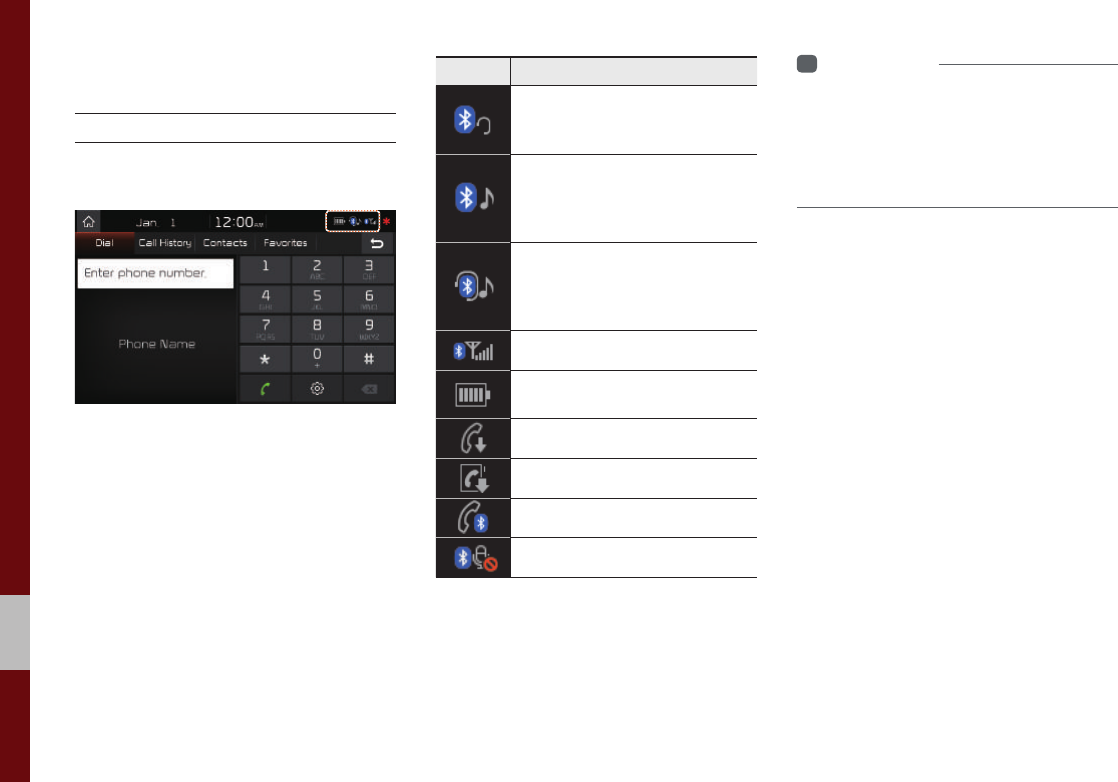

Information Display on the Status Bar

Displays the date and time, along with the system status shown by

the various icons to the right of the clock.

The icons in the following table indicate the various types of sys-

tem status details and events.

Icon Description

Displayed when the audio is muted.

Displays the remaining battery of the Bluetooth phone.

Displayed when connected to Bluetooth for handsfree.

Displayed when connected to Bluetooth for streaming audio.

Displayed when connected to Bluetooth for streaming audio and handsfree.

Displayed when downloading contacts or recent calls from the Bluetooth phone.

Displayed while on a call with the Bluetooth phone.

Displayed when the microphone of the Bluetooth is muted.

Displays the signal strength of the Bluetooth phone.

Displayed when connected to Wi-Fi.

Displayed when connecting to Wi-Fi.

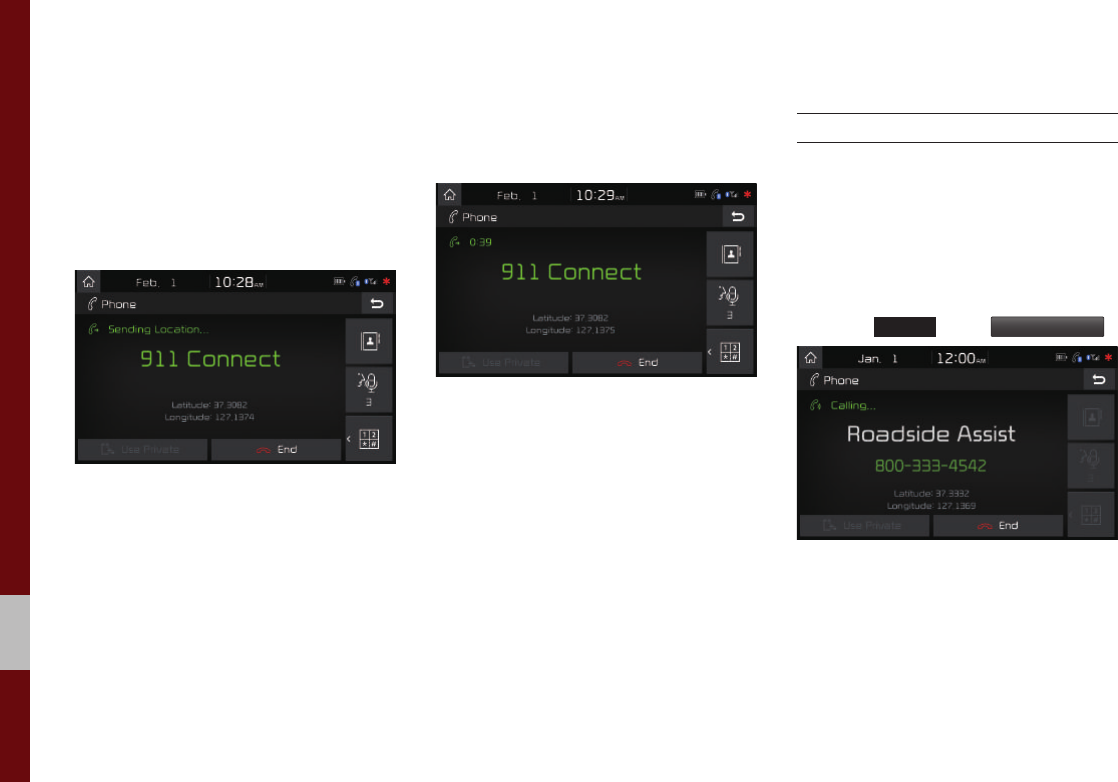

Displayed when 911 connect is available.

1-12 I Basic

Adding Your Favorite Menu Items to My

From the Home screen, select

My Menu

icon, and then

Edit

From the Edit My Menu screen, select

menu items from the list on the right, then

drag and drop them to a desired place on

the left.

To remove the item from My Menu, drag

item from the left and drop them on the right.

Information

• Up to eight items can be added to My Menu.

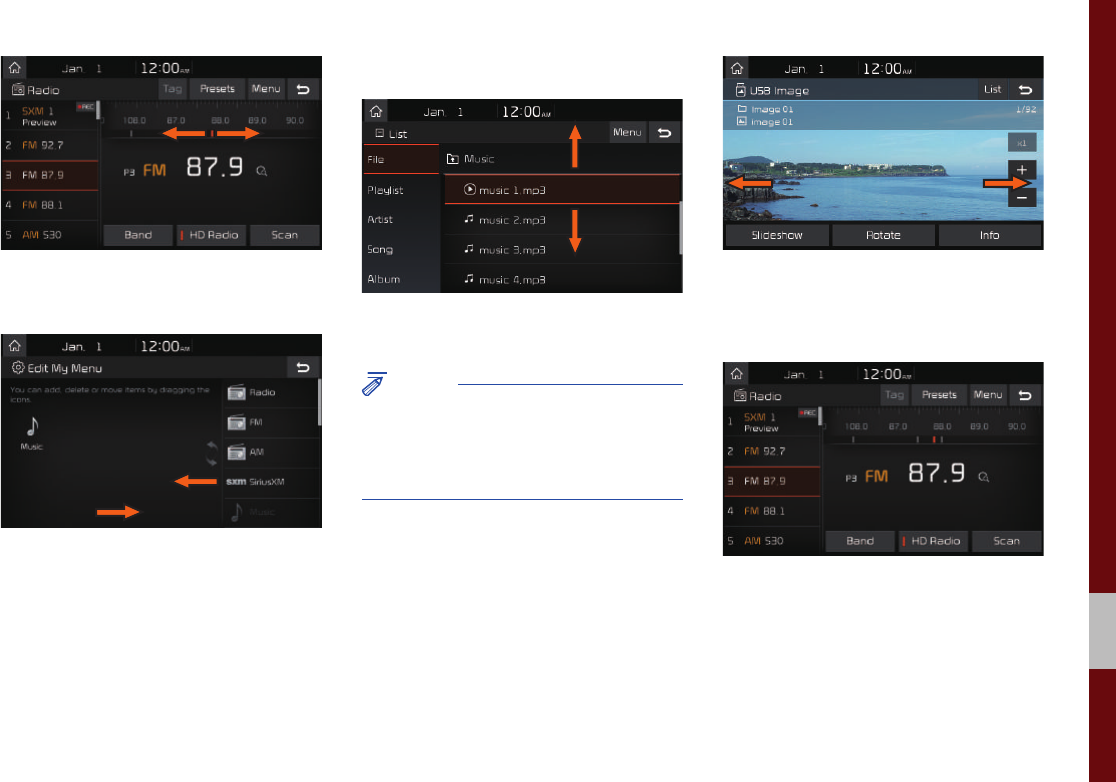

On-Screen Touch Controls

Learn how to touch the screen to operate

the system.

Select

Tap lightly on a menu or an item to select it.

NOTICE

• The system will not recognize your touch if

you wear a glove or other non-conductive

material. Touch the screen using your ﬁ nger,

an electrostatic touch-screen glove, or a stylus

pen.

Drag & Drop

Select a menu or item you want, then drag

and drop it to where you want to place it.

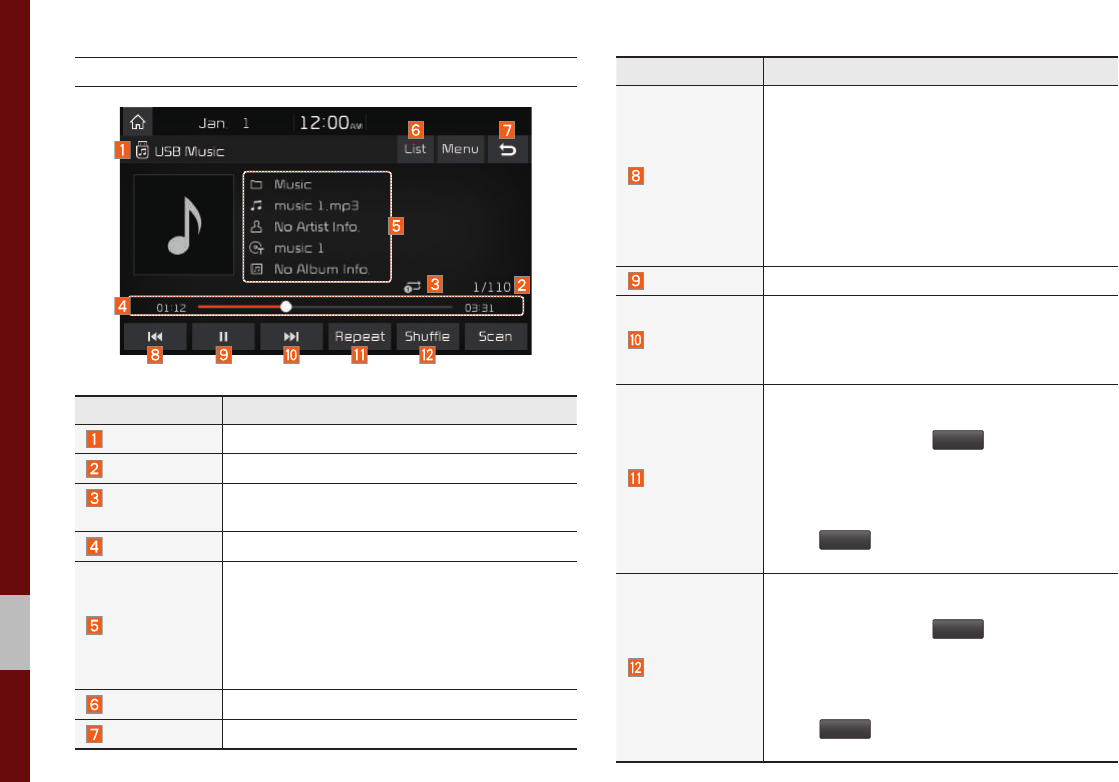

Drag or touch the slider along the play bar

in the music screens to jump to the point

that you want to play from.

Starting the System for the First Time I 1-13

Drag the frequency bar to the left or right

to move to the frequency that you want.

From the Edit My Menu screen, drag and

drop icons to add, delete, or move to/from

My Menu.

Flick (Quick Scrolling)

Quickly moves up and down in the list.

NOTICE

• Moving the list when there are many items will

display a handler on the right of the display.

You can easily move many items at a time

with the handler.

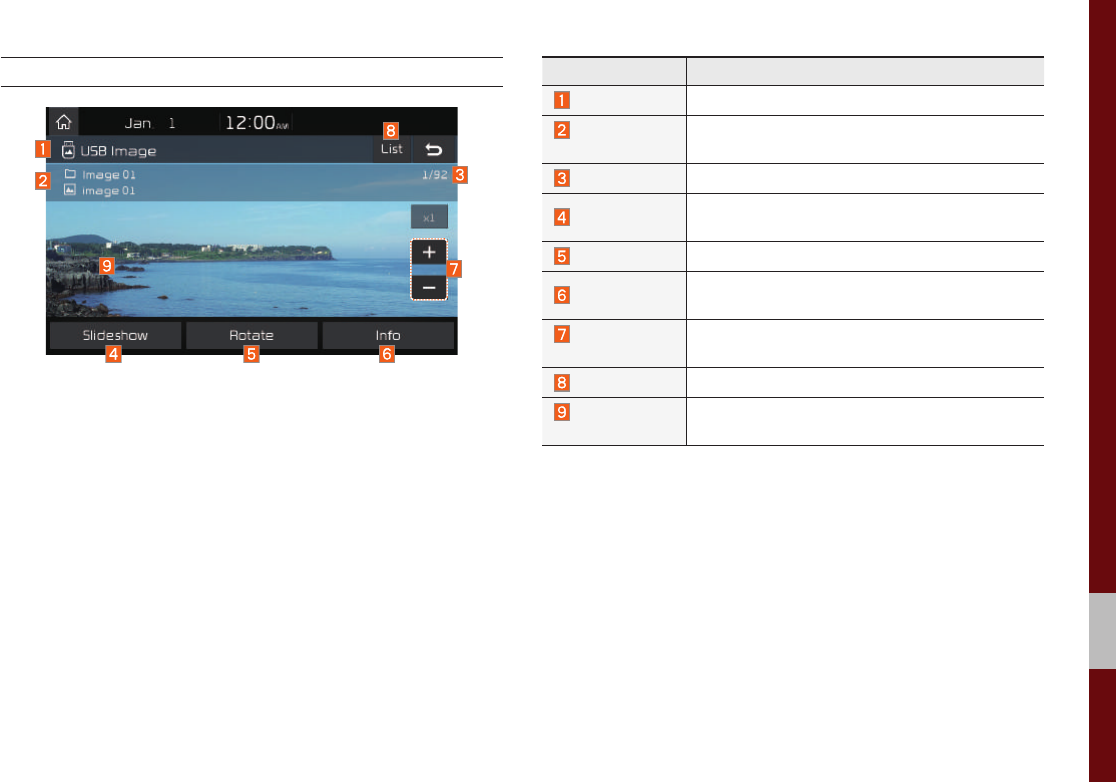

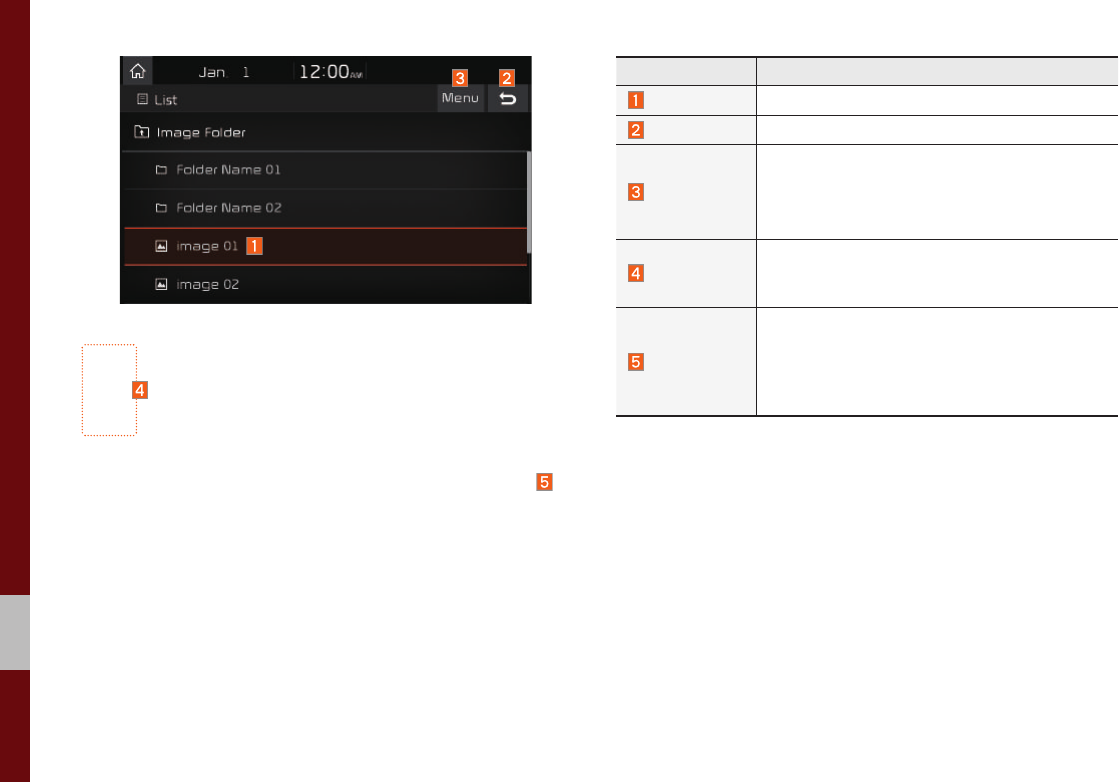

You can view the previous or next image

by flicking left/right on an image on the

USB Image screen.

Flick left/right on the frequency bar in the

radio player to look up the previous/next

frequency available.

1-14 I Basic

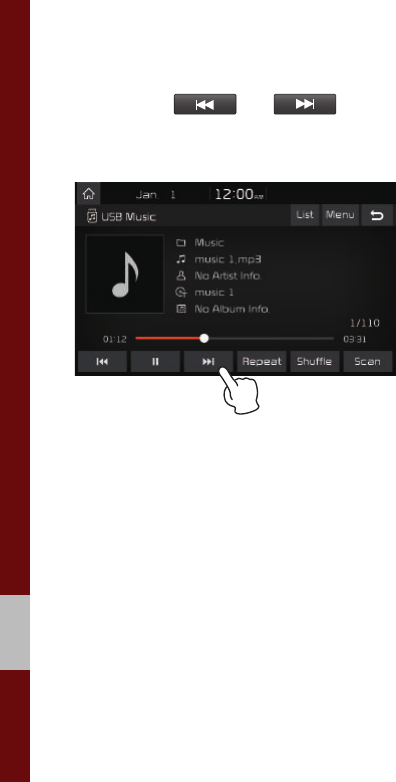

Press and Hold

Pressing the and buttons

in the music player will fast forward/rewind

the music.

FM/AM (with HD Radio™)

HD Radio™ Technology (if equipped)

FM/AM

SiriusXM™

USB

iPod

AUX

Bluetooth® Audio

My Music

part.2 Radio/Media

2-2 I Radio/Media

FM/AM (with HD Radio

)

You can access the radio player either by pressing the

RADIO

key or by selecting the Radio menu from All Menus on the Home

screen.

FM/AM Mode Display Controls

Information

• If you press the

RADIO

key when power is off, the power will turn on

and a radio broadcast will be tuned from the current mode.

• If you are in radio mode, select the media widget from the Home screen

to access the radio player.

Features Description

Preset

Frequencies

• The stored preset frequencies are displayed

for user selection.

• After selecting frequency, press and hold

the preset button for more than 0.8 seconds.

A beep sound will be heard and the frequency

is to be stored in the selected preset button.

• Flick the preset frequencies up/down to scroll

quickly through presets.

Frequency Bar

• Flick the frequency bar left/right to search for

available radio channels to the left or right of

the current channel.

• Dragging: Drag the frequency bar to the left/

right to find the radio channel that you want.

Frequency Displays the current frequency.

Tag

Saves the current music’s tag information to the

head unit. If connected to iPod, the tag informa-

tion can be saved on the device.

Presets Shows the stored presets for user selection.

• List

Moves to the frequency list.

• Info

Turns the Radio text information transmitted

from the broadcasting station on and off.

• Preset Scan

Plays preset frequencies for 10 seconds per

item.

• Sound Settings

Moves to the Sound Settings.

Radio/Media

FM/AM (with HD Radio™) I 2-3

Features Description

Scan/Preset

Scan

Displays an active mode from Scan and Preset

Scan modes.

Band Changes to the desired band from among FM,

AM, and SiriusXM.

HD Radio

(if equipped)

Used to set whether to turn HD Radio™ recep-

tion On or Off.

Scan

Shortly plays the broadcasts for the frequen-

cies with superior reception for 5 seconds per

item.

SEEK/TRACK

• When pressed quickly (less than 0.8 sec-

onds): Seeks the previous/next frequency.

•When pressed and held (more than 0.8 sec-

onds): Moves quickly through all of the fre-

quencies. The moment that you release the

button, the system seeks the next available

frequency.

TUNE

Turn the

TUNE

knob to manually seek avail-

able frequencies.

•FM: Increment/decrement by 200 kHz

•AM: Increment/decrement by 10 kHz

2-4 I Radio/Media

If an HD Radio™ broadcast is received,

the radio mode will switch from analog

broadcast to HD Radio™ broadcast.

Information

• The

HD Radio™

screen is displayed only

when a HD Radio™ broadcast is being

received.

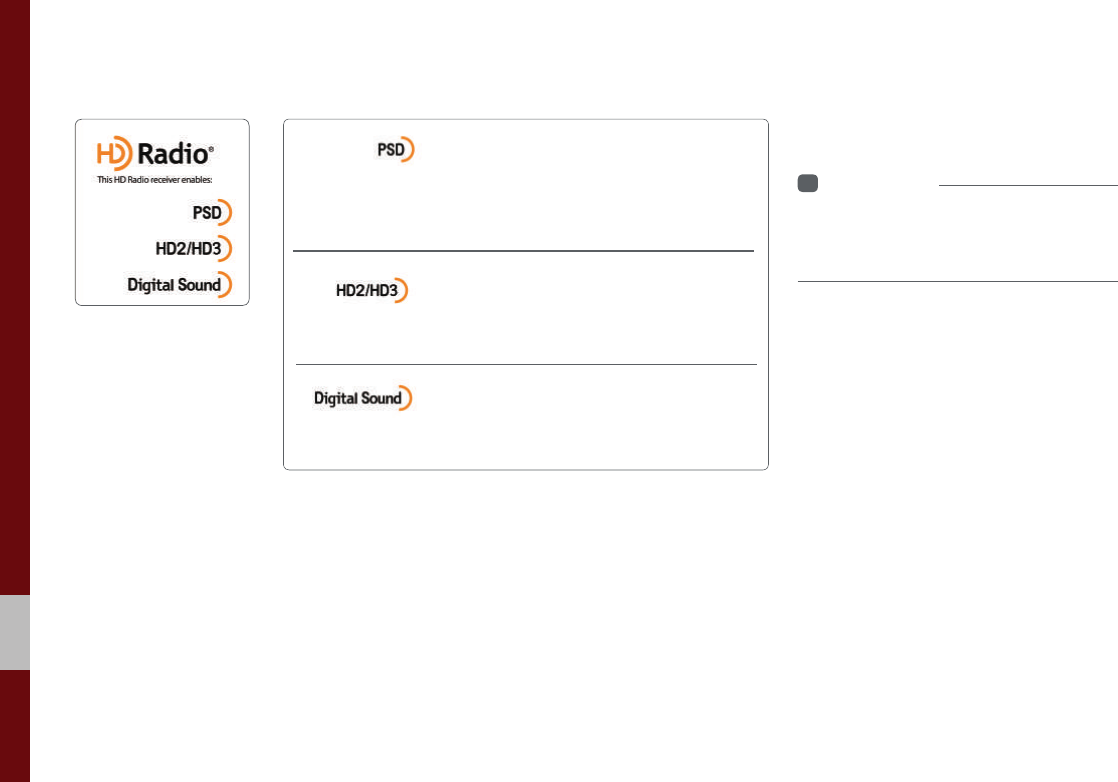

Program Service Data:

Contributes to the superior user experience of HD

Radio™ Technology. Presents song name, artist, station IDs, HD2/HD3

Channel Guide, and other relevant data streams.

Adjacent traditional main stations are extra local FM

channels. These HD2/HD3 Channels provide new, origi-

nal music as well as deep cuts into traditional genre.

Digital, CD-quality sound. HD Radio™ Technology

enables local radio stations to broadcast a clean digital

signal. AM sounds like today’s FM and FM sounds like a CD.

HD Radio™ Technology (if equipped)

HD Radio™ Technology (if equipped) I 2-5

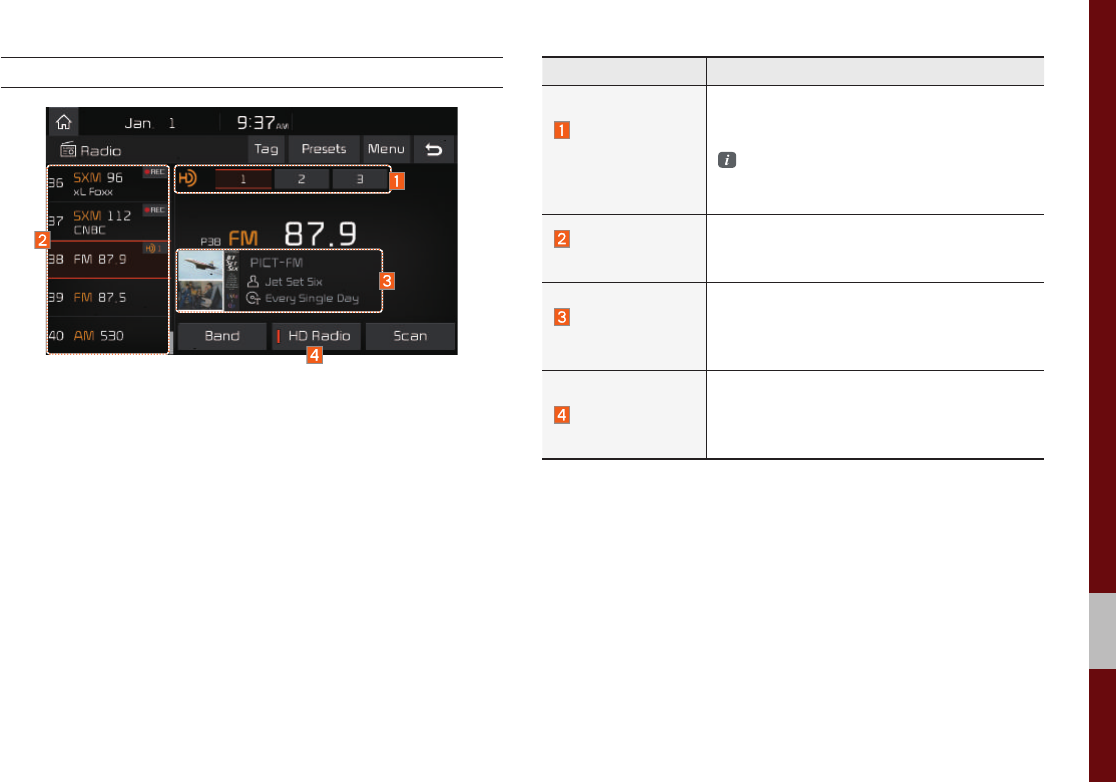

HD Radio™ Mode Display Controls

Name Description

HD Radio™

Reception &

Channel buttons

Displays main HD Radio™ channels and

used to directly select the current available

channels.

The HD Radio™ related icon display

becomes active within regions where an

HD Radio™ signal can be received.

HD Channel

Number

Analog station and corresponding HD

Radio™ channel number saved in the pre-

set list.

HD Broadcast

Info

Displays detailed information about the cur-

rent broadcast (the details of the information

shown are different depending on whether

the Info button is selected)

HD Radio

When the HD Radio™ soft button is ON

(the red indicator on the HD Radio™ button

is illuminated), HD Radio™ signals will be

received.

2-6 I Radio/Media

FM/AM

You can access the radio player either by pressing the

RADIO

key or by selecting the Radio menu from All Menus on the Home

screen.

FM/AM Mode Display Controls

Information

• If you press the

RADIO

key when power is off, the power will turn on

and a radio broadcast will be tuned from the current mode.

• If you are in radio mode, select the media widget from the Home screen

to access the radio player.

Features Description

Preset

Frequencies

• The stored preset frequencies are displayed

for user selection.

• After selecting frequency, press and hold

the preset button for more than 0.8 seconds.

A beep sound will be heard and the frequency

is to be stored in the selected preset button.

• Flick the preset frequencies up/down to scroll

quickly through presets.

Frequency Bar

• Flick the frequency bar left/right to search for

available radio channels to the left or right of

the current channel.

• Dragging: Drag the frequency bar to the left/

right to find the radio channel that you want.

Frequency Displays the current frequency.

Presets Shows the stored presets for user selection.

• List

Moves to the frequency list.

• Preset Scan

Plays preset frequencies for 10 seconds per

item.

• Sound Settings

Moves to the Sound Settings.

FM/AM I 2-7

Features Description

Scan/

Preset Scan

Displays an active mode from Scan and Preset

Scan modes.

Band Changes to the desired band from among FM,

AM, and SiriusXM.

Info Turns the Radio text information transmitted

from the broadcasting station on and off.

Scan Shortly plays the broadcasts for the frequencies

with superior reception for 5 seconds per item.

SEEK/TRACK

• When pressed quickly (less than 0.8 sec-

onds): Seeks the previous/next frequency.

•When pressed and held (more than 0.8 sec-

onds): Moves quickly through all of the fre-

quencies. The moment that you release the

button, the system seeks the next available

frequency.

TUNE

Turn the

TUNE

knob to manually seek avail-

able frequencies.

•FM: Increment/decrement by 200 kHz

•AM: Increment/decrement by 10 kHz

2-8 I Radio/Media

SiriusXM™

You can access the radio player either by pressing the

RADIO

key or by selecting the Radio menu option from All Menus on the

Home screen. Select the SiriusXM™ band from the radio player.

SiriusXM™ Mode Display Controls

Information

• If you press the

RADIO

key when the power is off, the power will turn

on and a radio broadcast will be tuned from the current mode.

• If you are in the SiriusXM™ mode, select the SiriusXM™ radio widget

from the Home screen to access the radio player.

• When the power is off, pressing the

RADIO

key will turn the power on

and play a SiriusXM™ Radio broadcast.

Features Description

Preset

Frequencies

• Shows the stored presets for user selection.

• After selecting frequency, press and hold

the preset button for more than 0.8 seconds.

A beep sound will be heard and the frequency

is to be stored in the selected preset button.

Channel Logo Displays the current channel logo.

Channel Info Displays the current channel number and

name.

Content Info Displays the artist, title and other information

about the current playing song.

Category Info Displays the category of the currently playing

song.

Band Changes to the desired band from among FM,

AM, and SiriusXM.

Direct Tune Used to search for the desired channel by

entering the channel number.

Scan Plays all receivable channels for 10 seconds

per item.

Category Lock If pressed, only the channels for the current

category can be searched or scanned.

Category

Selection Buttons Used to select the previous/next category.

Play Live Switches to the live broadcast mode.

Skip Backward

Repeats the previously broadcasted program.

• Holding for less than 0.8 seconds: Moves to

the previous segment.

• Holding for more than 0.8 seconds: Moves

to the previous 5 seconds.

SiriusXM™ I 2-9

Features Description

Play/Pause Pauses/plays the current broadcasting program.

Skip Forward Moves to the next segment.

Tag

Saves the current music’s tag information to the

head unit. If connected to iPod, the tag informa-

tion can be saved on the device.

Presets Shows the stored presets for user selection.

List Moves to the channel list.

•What is on My Presets?

The program schedule saved in my preset. (For

more details, see Section 3.10. Viewing Menu.)

• Featured Favorites

Theme channels recommended by SiriusXM™.

(For more details, see Section 3.10. Viewing

Menu.)

• Preset Scan

Plays preset channels for 10 seconds each.

• Sound Settings

Moves to the Sound Settings.

SEEK/TRACK

• When pressed quickly (less than 0.8 sec-

onds): Plays the previous/next channel.

•When pressed and held (more than 0.8 sec-

onds): Continuously changes the channel

until the key is released and plays the current

channel.

TUNE Changes the channel.

2-10 I Radio/Media

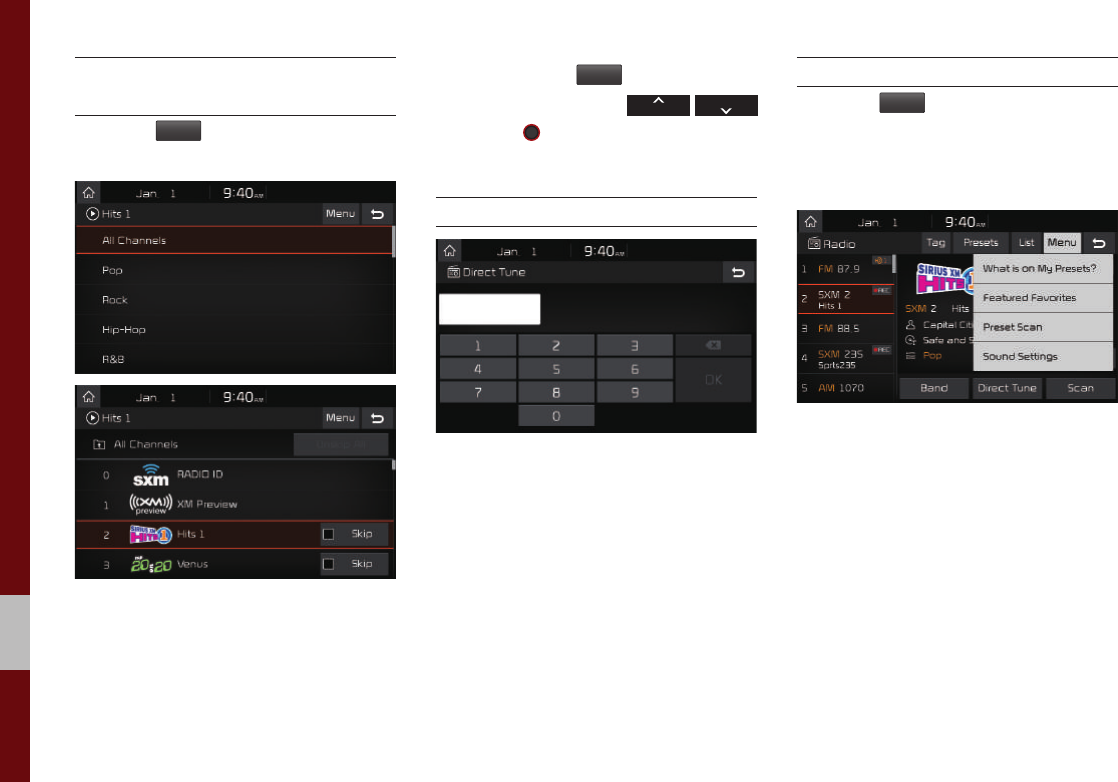

Selecting through

Channel/Category List

Select the

List

▶ Select the desired cat-

egory and channel.

Select the desired category and the chan-

nel. Once selected, the previous screen

will be restored and the selected channel

will begin playing.

If you select the

Skip

button, you can

scan channels using the

SEEK

TRACK

key or the

TUNE

knob by skipping the

channels that you chose to skip.

Direct Tune

Enter the number of the channel you want

to receive.

Viewing Menu

Using the

button on the right, you

can view the program schedule and infor-

mation about the Featured Favorites pro-

vided by SiriusXM™.

SiriusXM™ I 2-11

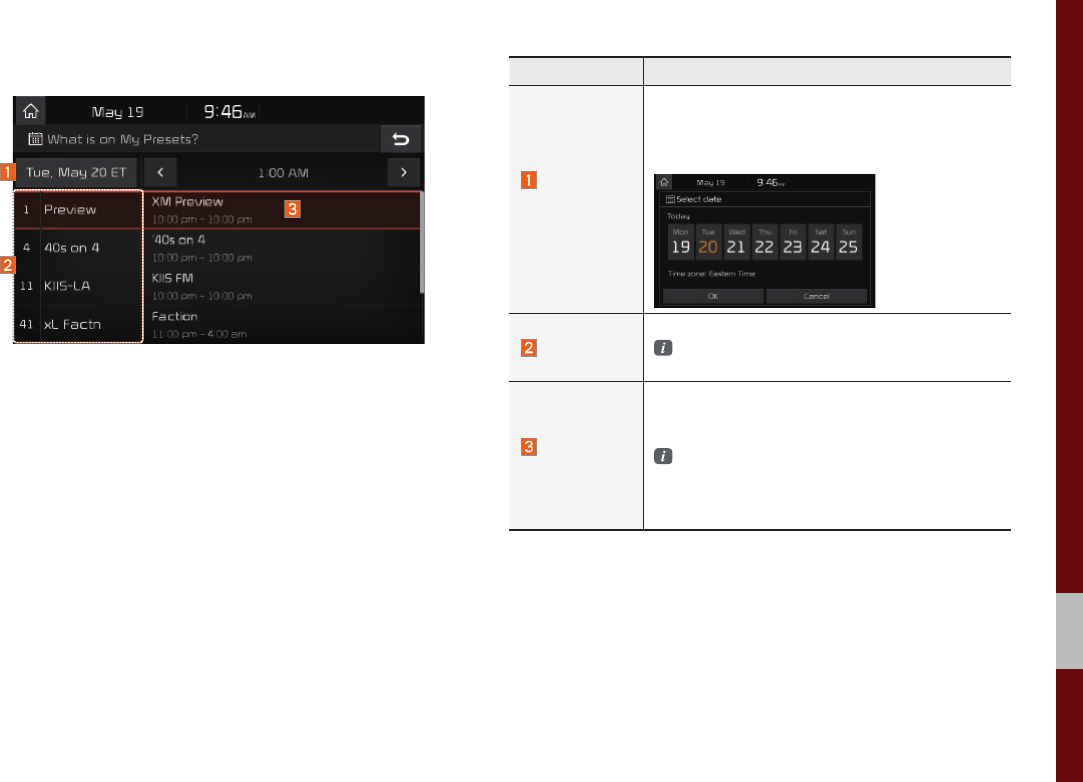

What is on My Presets? (Program Schedule)

You can select Menu to see program information and the sched-

ules of broadcast channels listed in the presets.

Name Description

Change

Broadcast

Date

By selecting this option, you can select a broad-

casting date.

Broadcast information will be provided for one

week from the current date.

Preset

Shows saved presets for user selection

A total of 40 frequencies for SiriusXM™ modes

can be displayed.

Program

Information

Shows you the program titles to be broadcasted

at the time that you have chosen.

Select a program to see more details.

If there is more information on the program you

selected, an arrow button will be displayed on

the right of the list. You can see more program

information by selecting the arrow button.

2-12 I Radio/Media

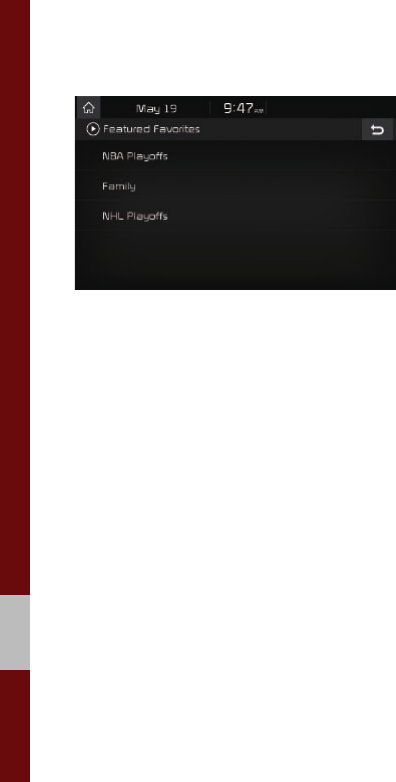

Featured Favorites

Featured Favorites feature allows

SiriusXM™ to broadcast additional presets.

• Example 1: “Martha’s Favorites” may

represent Martha Stuart’s favorites pre-

sets on her radio.

• Example 2: During holidays, “Holiday

Music” may represent all the SiriusXM™

channels that are playing the holiday

music for easy access by users.

Multiple sets Featured Favorites data

can be broadcast by SiriusXM™ and can

change from time to time.

USB I 2-13

USB

Before Playing a USB MP3

Connect the USB device after turning on the engine. The USB

device may become damaged if it is already connected when the

ignition is turned on.

• Files that are not standard format music/image files will not be

played.

• For MP3/WMA/OGG files, only music files with compression

rates between 8Kbps ~ 320Kbps can be played.

• Heed caution to static electricity when connecting/disconnecting

external USB devices.

• Encoded MP3 Players will not be recognized when connected

as an external device.

• When connecting an external USB device, the device may not

properly recognize the USB is in some states.

• Only products formatted with byte/sectors under 64Kbyte will be

recognized.

• USB devices, formatted to the FAT12, FAT16, or FAT32 file sys-

tem, are recommended. File systems other than FAT12, FAT16,

FAT32, exFAT, and NTFS are not supported.

• Some USB devices may not be supported due to compatibility

issues.

• Take caution so that the USB connector does not come in con-

tact with body parts or objects.

• Repeated connecting/disconnecting of USB devices within short

periods of time may result in product malfunction.

• Make sure to connect/disconnect external USB devices with the

audio power turned off.

• The amount of time required to recognize the external USB

device may differ depending on the type, size, or file formats

stored on the USB.

• The use of USB devices for purposes other than playing music

and image files is prohibited.

• Do not use the USB I/F to charge batteries or USB accessories

that generate heat. Such acts may lead to worsened perfor-

mance or damage to the device.

• The device may not recognize the USB device if separately

purchased USB hubs and extension cables are being used.

Connect the USB directly with the multimedia terminal of the

vehicle.

• When using mass storage USB devices with separate logical

drives, only files saved to the root drive can be played.

• When application programs are installed to specific USBs, files

may not properly play.

2-14 I Radio/Media

• The device may not operate normally if MP3 Players, cellu-

lar phones, digital cameras, or other electronic devices (USB

devices not recognized as portable disk drives) are connected

with the device.

• Charging through the USB may not work for some mobile

devices.

• The device may not support normal operation when using a

USB memory type besides Metal Cover Type USB Memory.

• The device may not support normal operation when using for-

mats such as HDD Type, CF, or SD Memory.

• When playing iPods, please use a dedicated iPod car cable.

• Normal operation cannot be guaranteed when other cables are

being used.

• The device will not support files locked by DRM (Digital Rights

Management).

• USB memory sticks used by connecting an Adaptor (SD Type or

CF Type) may not be properly recognized.

• Only use Plug type connector products, as shown in the figure

below.

• To play USB MP3, the USB device must be connected to the

USB port in the front multibox. The USB port in the center con-

sole storage (if equipped) is for charging only.

Product Name Manufacturer

XTICK LG

BMK BMK Technology

SKY-DRV Sky Digital

TRANSCEND JetFlash Transcend

Sandisk Cruzer SanDisk

Micro ZyRUS ZyRUS

NEXTIK Digiworks

Information

• Problems that occur through use of USB devices not listed within the

above table are not covered by the product warranty.

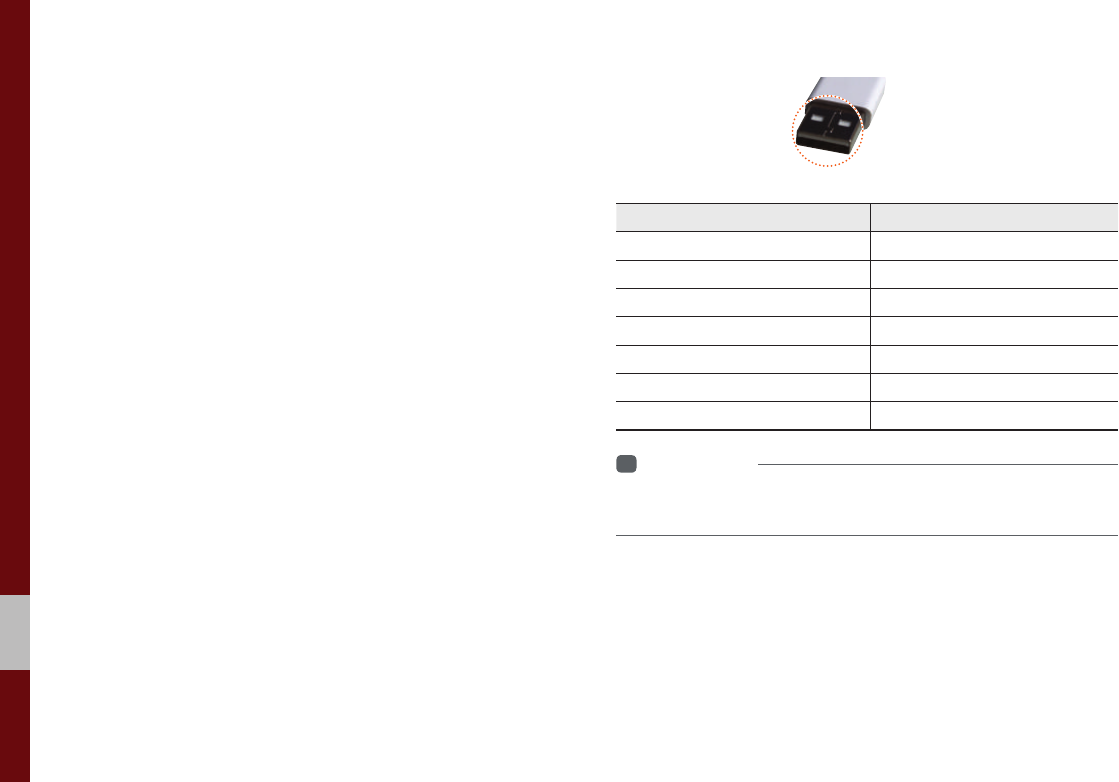

Plug Type Connector

USB I 2-15

Supported USB MP3 music speciﬁ cations

Name Description

MP3 File

Specification Specification: MPEG1 AUDIO LAYER 3

Recommended

Bit Rates and

Sampling

Frequency

Acceptable sampling frequency: 32, 44.1, 48 (kHz)

Acceptable bit rate: 32, 40, 48, 56, 64, 80, 96, 112,

128, 160, 192, 224, 256, 320 (Kbps)

96, 128, 192 Kbps fixed bit rate/44.1kHz

ID3 Tag Supports ID3v1.0 and ID3v1.1, ID3v2.2, ID3v2.3,

ID3v2.4 ID3 tags

Detailed

Specifications

Maximum directory layers: 20 layers

Maximum length of folder name/file name: 255Bytes

Supported characters for folder name/file name:

Alphanumeric characters, Korean standard charac-

ter set 2,350 characters, Simplified Chinese 4888

characters

Maximum number of folders which can be stored

onto one USB: 2000 folders (including ROOT)

Maximum number of files which can be stored onto

one USB: 8000

Information

• The sound quality of MP3 files that use bitrates exceeding

192 Kbps cannot be guaranteed. When using ﬁ les without ﬁ xed bit rates,

some features (FF/REW features) may not properly operate.

Supported Image Speciﬁ cations

Name Description

Image format JPG, GIF, BMP, PNG (animated GIF, etc. are not

supported)

Supported image

file size

5M pixels for JPG, BMP, PNG (1M pixels maxi-

mum for GIF)

2-16 I Radio/Media

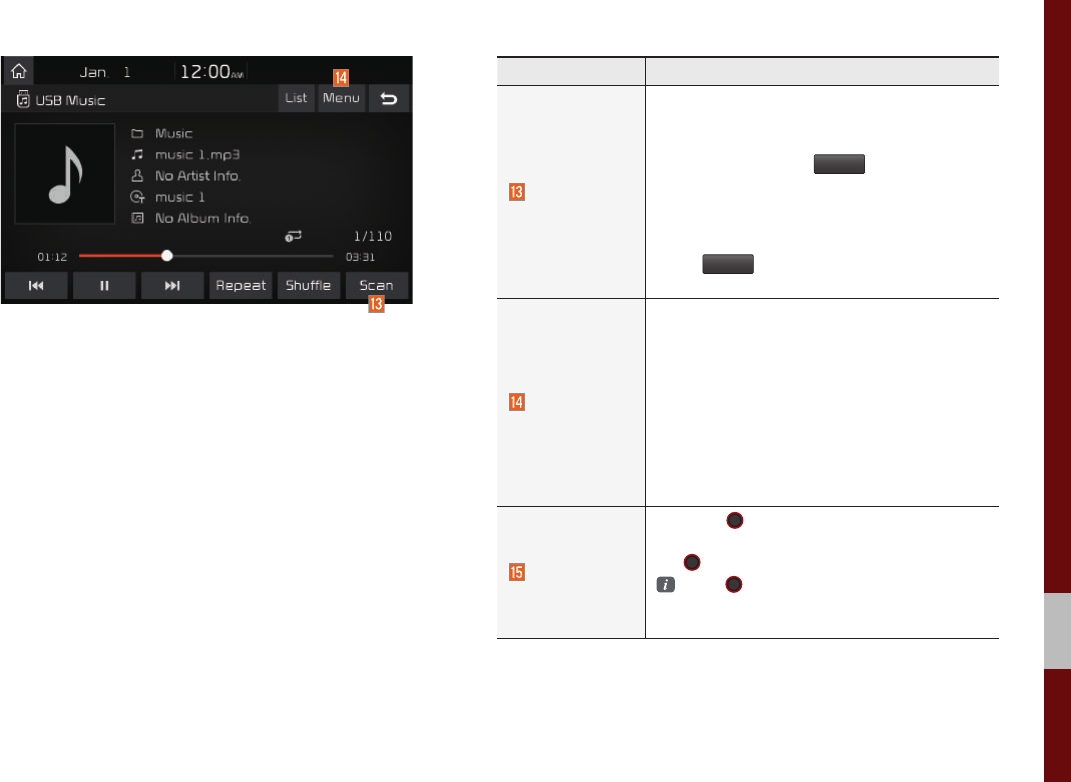

USB Music Mode Display Controls

Features Description

Mode Displays the current operating mode

File Index Shows the current file/total files within the USB

Repeat/

Shuffle/Scan

From Repeat/Shuffle/Scan, displays the current

operating function

Play Time Displays the current play time/total play time

Song Info

Displays the information of the current track

• When a track in the file tab on the list screen

is selected: Displays folder, file, title, artist,

album info

• When a track in the other tabs on the list screen

is selected: Displays artist, title, album info

List Moves to the list screen

Back Button Converts to basic mode screen

Features Description

Previous File

If button is pressed (less than 0.8 seconds):

Moves to the previous file or play the current file

from the beginning (Depends on the play time)

• If play time is less than 3 seconds, moves to

previous file

• If play time is more than 3 seconds, play the

current file from the beginning

If button is pressed (more than 0.8 seconds): It

rewinds the track

Play/Pause Plays/pauses the current file

Next File

• If button is pressed (less than 0.8 seconds):

Moves to the next file

• If button is pressed (more than 0.8 seconds):

It fast-forwards the track

Repeat

Repeats the current file

• If select the song in the file tab on the list

screen: Select the

Repeat

button to switch

between repeating one song, repeating

folder, and turning repeat off

• If select the song in the other tabs (Playlist,

Artist, Song, Album) on the list screen: Select

the

Repeat

button to switch between repeat-

ing one song and turning repeat off

Shuffle

Plays files in random order

• If select the song in the file tab on the list

screen: Select the

Shuffle

button to switch

between Shuffle Folder, Shuffle All, and turn-

ing shuffle off

• If select the song in the other tabs (Playlist,

Artist, Song, Album) on the list screen: Select

the

Shuffle

button to switch between Shuffle

Category and turning shuffle off

USB I 2-17

Features Description

Scan

Scans the beginning parts of USB files (approx.

10 seconds per file)

• If select the song in the file tab on the list

screen: Select the

Scan

button to switch

between Scan Folder, Scan All, and turning

scan off

• If select the song in the other tabs (Playlist,

Artist, Song, Album) on the list screen: Select

the

Scan

button to switch between Scan

category and turning scan off

• Add to Playlist: Add the current track to the

Playlist: Playlist is placed on the left tab in the

list

•Save to My Music: You can save the current

track to My Music. You can play saved track

from My Music without USB. Access to My

Music in the Media mode.

•Sound Settings: Moves to the Sound Settings

screen. You can change the settings of the

sound.

TUNE

Turn the

TUNE

knob to search a desired

track. If the desired track is displayed, select

the

TUNE

knob to play the track.

If the

TUNE

knob is not pressed within

5 seconds of searching tracks, the track

info for the current track is restored.

2-18 I Radio/Media

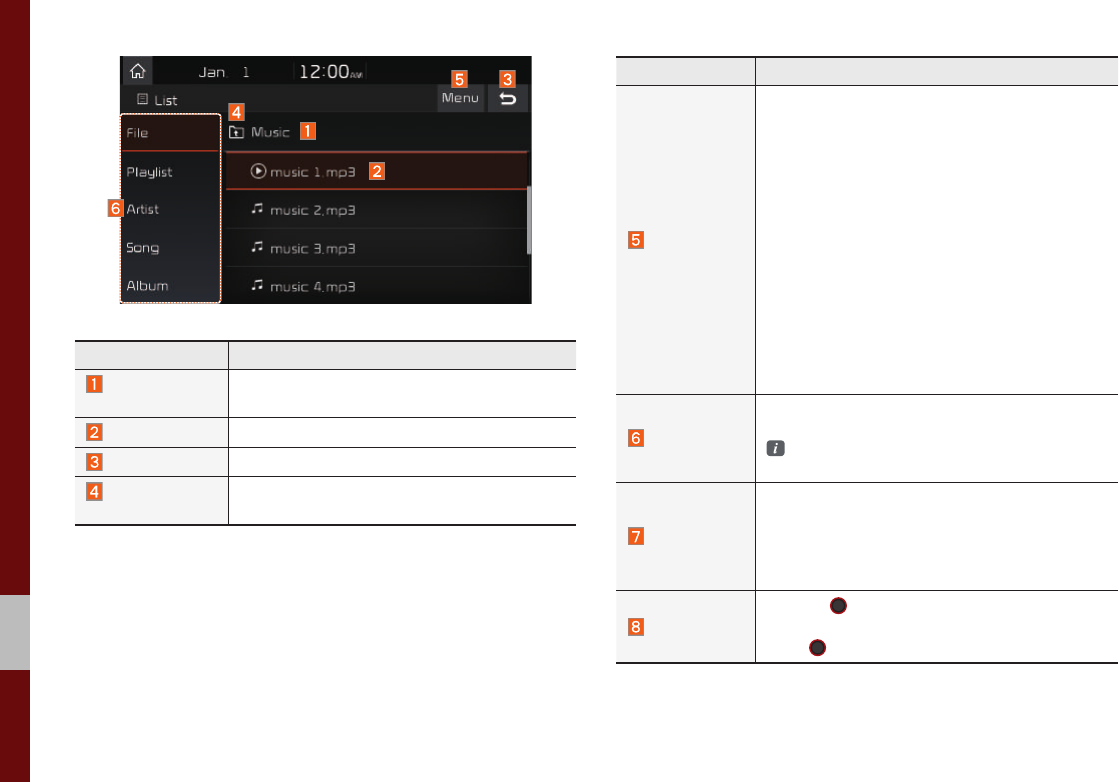

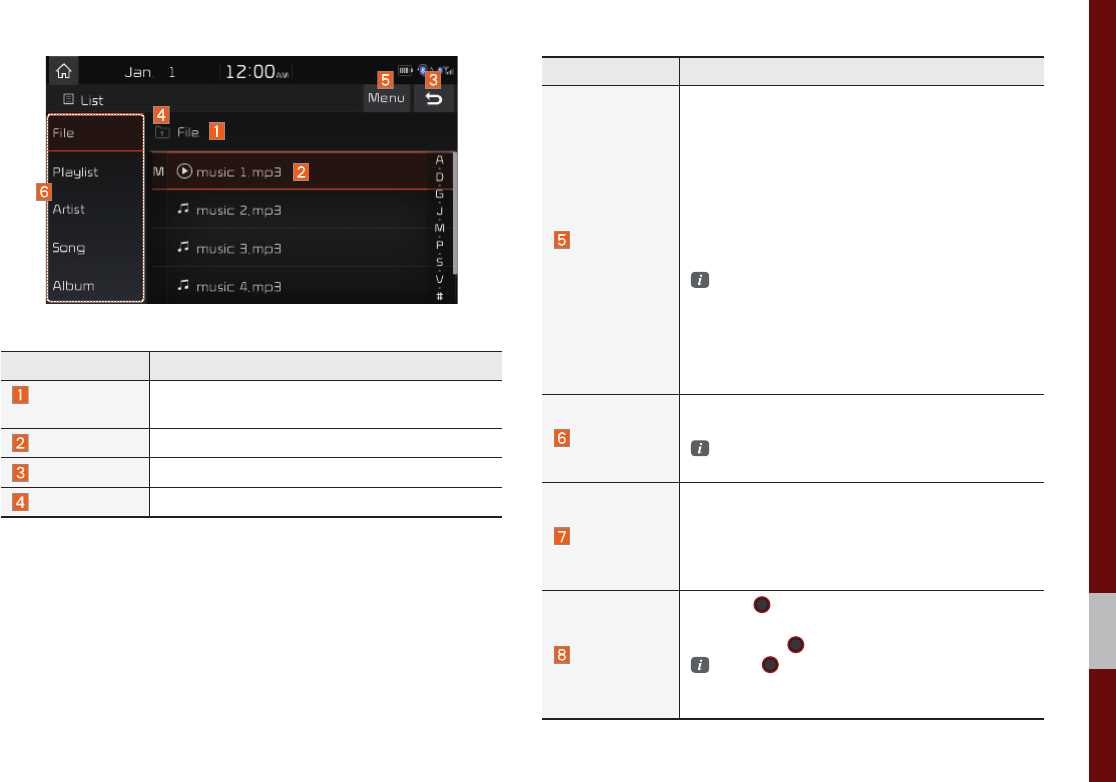

Features Description

Folder/

Category Name Displays folder/category name in the list

Current Song Displays the current playing file name

Back Button Converts to basic mode screen

Upper Folder/

Category Moves to Upper Folder

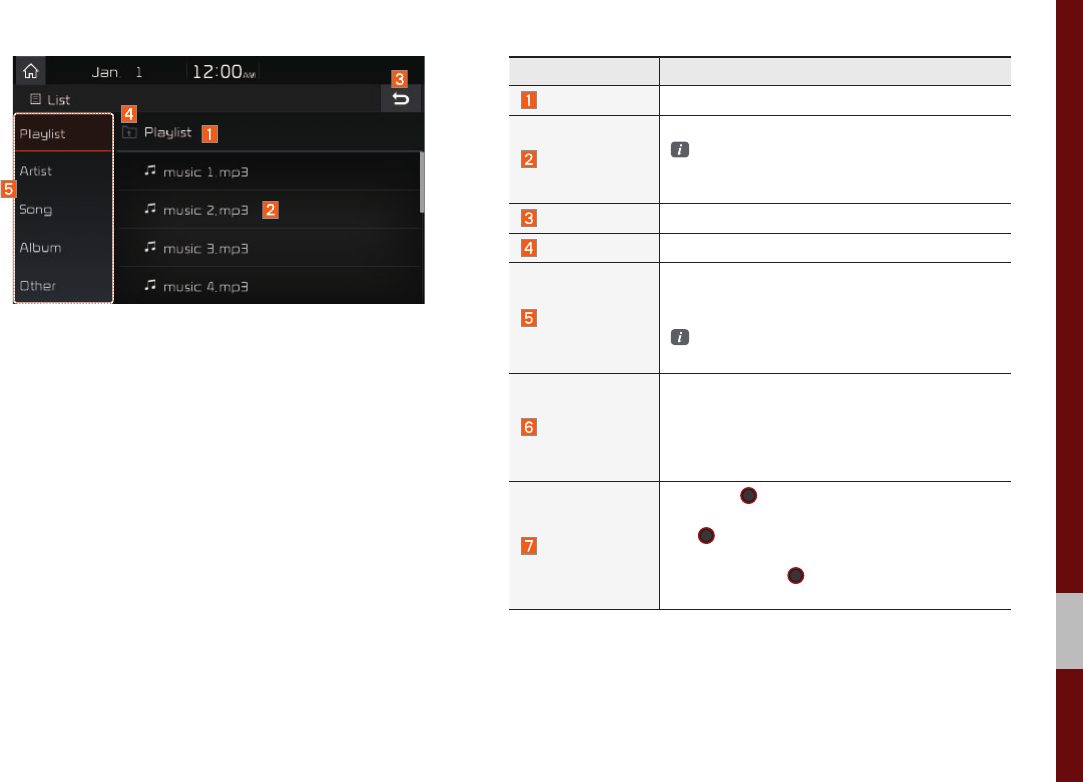

Features Description

• Add to Playlist: Adds the current track to the

Playlist: Playlist is placed on the left tab in the

list (Maximum 100 files) Select a desired track

and press “Add to Playlist” to add the track in

the playlist.

• Delete from Playlist: Select a track you want to

delete from the playlist and press “Delete from

Playlist” to delete the track in the playlist

•Now Playing: When moving to a different list

screen, moves to the list page where the cur-

rent file is located (Becomes disabled when

the current list includes the current file)

• Save to My Music: Stores the music. The

stored music can be played in My Music. (This

function is not provided in Playlist.)

Search Menu

Search tracks by the list type. Search songs

according to File, Playlist, Artist, Song and Album.

If access the search menu while playing a

track, it moves to the previous search mode.

SEEK/TRACK

• If button is pressed (less than 0.8 seconds):

Plays previous/next track.

• If button is pressed (more than 0.8 seconds):

Moves to play screen, and then it will rewind or

fast-forward the track.

TUNE

Turn the

TUNE

knob to move the focus to the

previous/next list. If the desired track is displayed,

press

TUNE

knob to play the track.

USB I 2-19

USB Image Mode Display Controls

Features Description

Mode Displays the current operating mode

Folder/

File Name Displays folder name where image is located

File Index Shows the current file/total files within the USB

Slideshow Images as slideshow in 5, 10, 20, 30 second

intervals

Rotate Rotate image in clockwise direction

Info Shows the file name, resolution and file type of

current image

Adjust Image

Size Enlarge/reduce (zoom-in/zoom-out) image size

List Moves to the list screen

Previous/

Next image

Swipe image left or right to see Previous/Next


2-20 I Radio/Media

Features Description

Current File Displays the current playing file name

Back Button Converts to basic mode screen

Now Playing: When moving to a different list

screen, moves to the list page where the current

file is located (Becomes disabled when the cur-

rent list includes the current file)

SEEK/TRACK

Controls background mode

• Radio mode: Changes Frequency and Channel

• Media mode: Changes Track (excluding AUX)

TUNE

Controls background mode

• Radio mode: Changes Frequency and Channel

• Media mode: Changes track (excluding AUX).

If a desired track is displayed, press the knob

to move to the track.

iPod I 2-21

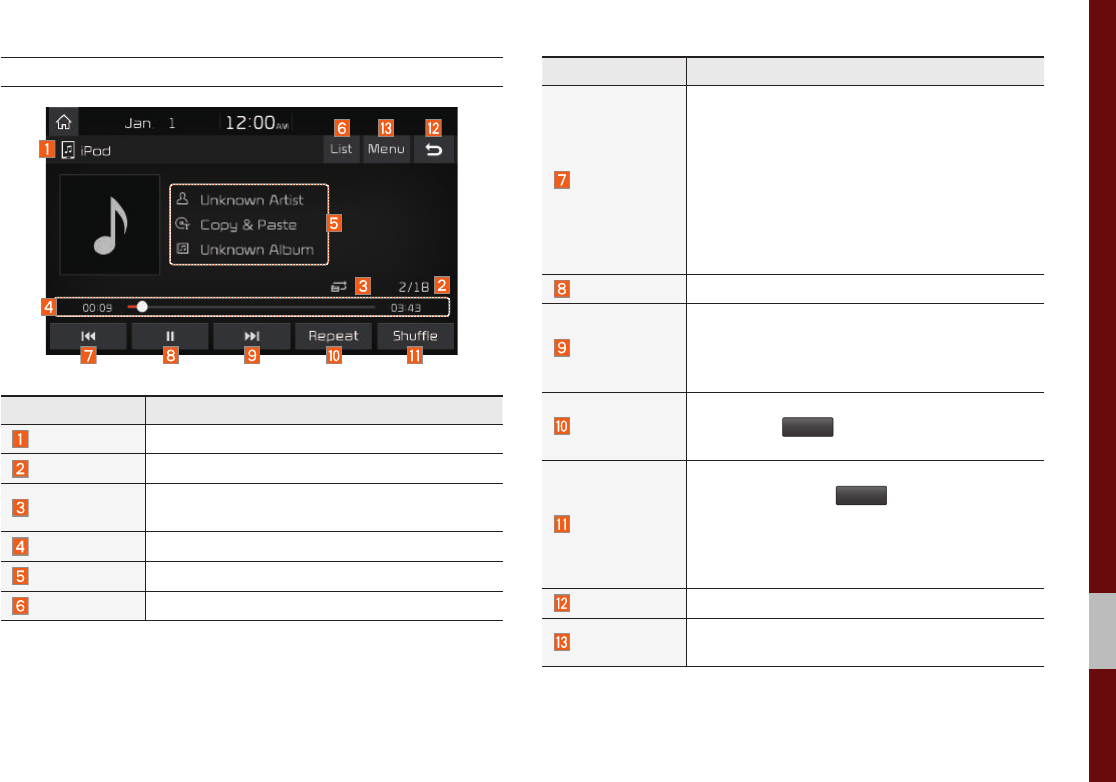

iPod

Using iPod Devices

• iPod is a registered trademark of Apple

Inc.

• iPod mode will not operate if the con-

nected iPod cannot be recognized due

to operation of unsupported versions

that do not support related protocols,

iPod abnormalities, or iPod device

defects. Some iPods with unsupported

communication protocols may not prop-

erly operate with the Multimedia system.

• For fifth generation iPod Nano devices,

the iPod may not be recognized when

the battery level is low. Please charge

the iPod for use.

• Search/play orders shown within the

iPod device may differ with the orders

shown within the Multimedia system.

• If the iPod malfunctions due to an iPod

device defect, reset the iPod and try

again. (To learn more, refer to your iPod

manual)

• If repeatedly connect and disconnect

iPod/iPhone to the Multimedia system

with USB cable in a short time, it may

cause abnormal operation.

• The time for recognition of iPod/iPhone

may vary depending on device type,

firmware version and iOS version.

• For some iPod Touch and iPhone

devices, connecting Bluetooth® while the

iPod is operating may result in discon-

tinued iPod sound. When such devices

with Bluetooth® support are connected,

this problem occurs as the sound source

is changed from the Dock Connector

(USB connector cable) to Bluetooth.

• To prevent this symptom, Bluetooth

Audio function in the Multimedia system

is limited if iPod/iPhone is connected

to the system through both cable and

Bluetooth. To listen to the iPod sound,

use either iPod menu with USB connec-

tion or Bluetooth Audio with Bluetooth

connection.

• To listen to the iPod sound, reconnect

the USB cable or change the audio out-

put settings in iPod/iPhone to Dock.

• In order to use the iPod while operating

the keys, you must use a dedicated iPod

cable. (the cable that is supplied when

purchasing iPod/ iPhone products)

※ During ACC ON state, connecting the

iPod through the iPod cable (The cable

that is supplied when purchasing iPod/

iPhone product.) will charge the iPod

through the head unit.

※ ※ The use of genuine iPod cables sup-The use of genuine iPod cables sup-

plied by Apple is recommended. (The plied by Apple is recommended. (The

use of other products may result in use of other products may result in

noise or abnormal operation.)noise or abnormal operation.)

※ To play iPod music through cable con-

nection, the iPod/USB cable must be

connected to the USB port in the front

multibox. The USB port in the center

console storage (if equipped) is for

charging only.

2-22 I Radio/Media

• When connecting with the iPod cable,

make sure to fully insert the jack to pre-

vent communication interference. If the

iPod is connected to the vehicle while it

is playing, a high pitch tone may sound

for about 1~2 seconds immediately

after connection. If possible, connect

the iPod to the vehicle with the iPod

stopped/paused.

• Within iPhones, streaming audio and

iPod control may occasionally conflict.

If problems persist, remove the iPhone

and connect again.

• When connecting to iPod Nano/Classic,

the Kia Motor logo appears on the Apple

device. For the iPod Nano 6 genera-

tion, however, the logo image does not

appear since it is not supported. Also, all

iPhone and iPod Touch products do not

support this function.

• In Apple’s iOS 6.0 version or later,

Podcast and Audiobook media files

are designed to be played with the

Podcasts and iBooks applications spe-

cifically designed for Apple products. If

the Apple device does not provide the

Podcast and Audiobook lists, the playlist

may not be displayed and played in the

iPod mode.

• If the Apple Podcasts and iBooks apps

are not installed on the Apple device, but

the Apple device provides the Podcast

and Audiobook lists, you can play files in

other categories in iPod mode.

• The screen of multimedia system can

be different when you run other music

players (e.g. iHeartRadio) on your con-

nected device.

iPod I 2-23

Caution

• While using a connected iPhone/iPod

Touch device, it may not operate nor-

mally if the user changed some func-

tions in the device.

• When calling with an iPhone connec-

tion, song may stop playing due to an

Apple device feature. If sound does

not resume after the call is terminated,

check the device status.

• If lots of songs have the same informa-

tion, skipping may occur when previous/

next song is executed due to an Apple

device feature. Also problems may

occur depending on device type or iOS

version.

• If lots of songs have the same informa-

tion, the song that plays may be differ-

ent between the system and the Apple

device. Reset the device or delete the

same songs in the Apple device using

iTunes.

• If you control pause, repeat, shuffle, or

seek songs when the play time is less

than 3s before the song is finished play-

ing, it may occur difference of playing

song between the Multimedia system

and Apple device. Access to iPod music

from another mode or pause a song and

then play a song again in Apple device.

• We recommend that your Apple device

uses the latest firmware since some

problems may occur due to an outdated

firmware or other software related

issues.

Type 1G 2G 3G 4G 5G 6G 6.5G 7G

iPod Mini Not Supported

iPod Shuffle Not Supported

iPod Nano ○ ○ ○○○ ○Not

released ○

iPod Touch

○

(iOS 1.1

not sup-

ported)

○ ○○○ Not released

iPad ○ (Unable to charge, Not verified, Normal working not guaranteed)

iPad Mini ○ (Unable to charge, Not verified, Normal working not guaranteed)

iPod Classic Not Supported ○

(iPod with

Video)

○

(iPod

Classic)

○

(iPod

Classic)

Not

released

Type 3G 3GS 4 4S 5 5C 5S 6 6+

iPhone

Not verified,

Normal

working not

guaranteed

○○○○○○○○

2-24 I Radio/Media

Caution

• If the iPhone/iPod Touch supports

Bluetooth, the Apple device will not be

able to use the Bluetooth function if the

device is connected through both the

USB port and via Bluetooth. Disconnect

the USB connection then use Bluetooth

Audio.

• If iPod/iPhone connected to the

Multimedia system through both USB

and AUX. iPod/iPhone keeps output

sound via AUX, thus it may occur sound

will not output in iPod mode.

• If AUX cable connected to iPod/iPhone

but not connect to the Multimedia sys-

tem, it may occur sound will not output

in iPod mode due to iPod/iPhone’s fea-

ture. Especially, if you use AUX cable

like pictures, this problem may occur.

• Disconnect AUX cable from iPod/iPhone

first, then connect to the Multimedia

system via USB. Or change settings to

“Dock” in iPod/iPhone.

• If connect to the Multimedia system

while podcast or iTunes music down-

loading to iPod/iPhone, it may occur

some problems when you select song

in the list. Reconnect iPod/iPhone to the

Multimedia system when downloading

is finished or the file deleted.

• If connect to the Multimedia system

while sync, it may occur some problems.

Try to use iPod/iPhone connection after

sync complete. (To learn more, refer to

your iPod manual)

• iPhone and iPod Touch devices are

guaranteed to work normally on iOS

9.3.2 or below. However, they may not

work normally on future iOS versions

as their operations have not yet been

tested.

iPod I 2-25

iPod Mode Display Controls

Features Description

Mode Displays the current operating mode

Song Index Shows the current song/total songs

Repeat/Shuffle From Repeat/Shuffle, displays the current oper-

ating function

Play Time Displays the current play time/total play time

Song Info Displays the artist/song title/album info

List Moves to the list screen

Features Description

Previous File

If button is pressed (less than 0.8 seconds):

Moves to the previous file or play the current file

from the beginning (Depends on the play time)

• If play time is less than 3 seconds, moves to

previous file

• If play time is more than 3 seconds, play the

current file from the beginning

If button is pressed (more than 0.8 seconds): It

rewinds the track

Play/Pause Plays/pauses the current file

Next File

• If button is pressed (less than 0.8 seconds):

Moves to the next file

• If button is pressed (more than 0.8 seconds):

It fast-forwards the track

Repeat

Repeats the current file

Select the

Repeat

button to switch between

repeating 1 track, and turning repeat off

Shuffle

Plays files in random order

When selecting the

Shuffle

button, it changes to

shuffle category → deactivate shuffle then

repeat

• Shuffle Category: Shuffle song in the current

category

Back Button Move to home/previous mode screen

Menu Sound Settings: Moves to the Sound Settings

screen. You can change the settings of the sound.

2-26 I Radio/Media

Features Description

TUNE

Turn the

TUNE

knob to search a desired

track. If the desired track is displayed, press

the

TUNE

knob to play the track.

If the

TUNE

knob is not pressed within

5 seconds of searching tracks, the track info

for the current track is restored.

iPod I 2-27

Features Description

Category Name Displays the category name

Category List

Displays the contents of selected category

If there are many items in the list, items are

added in order and the scroll bar on the right

is adjusted accordingly.

Back Button Converts to basic mode screen

Upper Category Moves to Upper Category

Search Menu

Search tracks by the list type. Search songs

according to Playlist, Artist, Song, Album,

Genre, Composer, Podcast and Audiobook.

If access the search menu while playing a

track, it moves to the previous search mode.

SEEK/TRACK

•If button is pressed (less than 0.8 seconds):

Plays previous/next track.

•If button is pressed (more than 0.8 seconds):

Moves to play screen, and then it will rewind

or fast-forward the track.

TUNE

Turn the

TUNE

knob to search a desired

track. If the desired track is displayed, press

the

TUNE

knob to play the track.

If you do not anything with the knob for

5 seconds, the

TUNE

knob search will be

terminated.

2-28 I Radio/Media

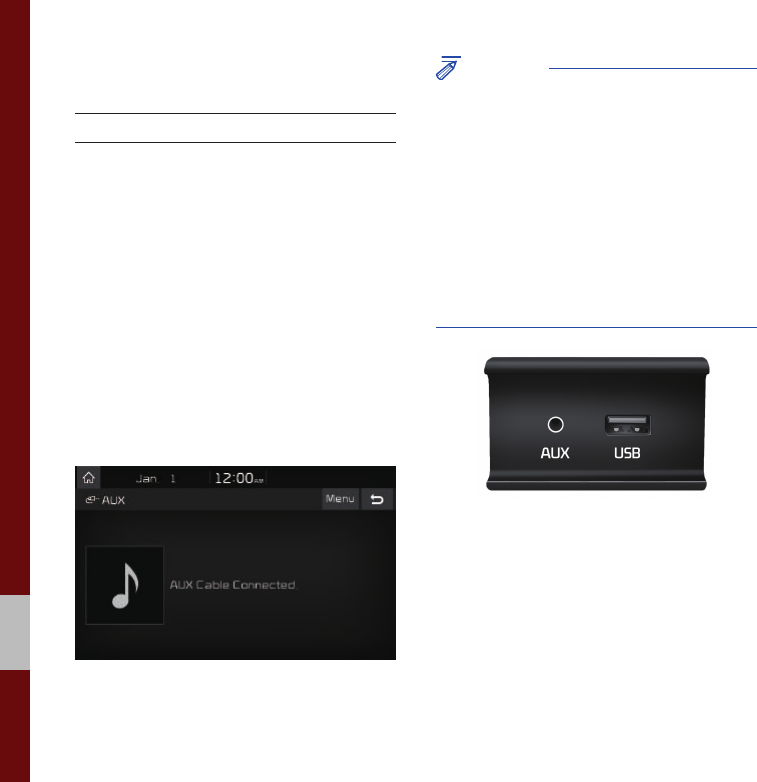

AUX

Connecting an External Device

If an external device connector is con-

nected with the AUX terminal, then AUX

mode will automatically operate. Once the

connector is disconnected, the previous

mode will be restored.

• AUX mode can be used only when an

external audio player has been con-

nected.

• The AUX volume can also be controlled

separately through the connected

device.

NOTICE

• If only a cable is connected to the AUX

without an external device, the mode will

be changed to AUX, but noise may occur.

When an external device is not being

used, remove the connector jack.

• When the external device power is

connected to the power jack, playing the

external device may output noise. In such

cases, disconnect the power connection

before use.

※ The actual feature in the vehicle may

differ from the illustration.

Bluetooth® Audio I 2-29

Bluetooth

Audio

Bluetooth Audio Mode Display Controls

Features Description

Mode Displays the current operating mode

Phone Name Displays name of connected phone

Artist Info Name of current artist

Features Description

Title Name of current song

Previous File

• If play time is less than 3 seconds, moves to

the previous file

•If play time is more than 3 seconds, plays the

current file from the beginning

This function may differ depending on the

model of mobile phone.

Play/Pause Plays/Pauses Bluetooth Audio

Next File Moves to the next file

Repeat

Repeats the current file.

This function may differ depending on the

model of mobile phone.

Shuffle

Plays files in random order.

This function may differ depending on the

model of mobile phone.

•Connections: Moves to the Bluetooth Settings

screen. You can pair a new device or change/

delete paired device(s).

•Sound Settings: Moves to the Sound Settings

screen. You can change the settings of the

sound.

SEEK/TRACK Plays the previous/next file

TUNE

is not supported

Information

• Artist info and Title may not be supported by mobile phone

2-30 I Radio/Media

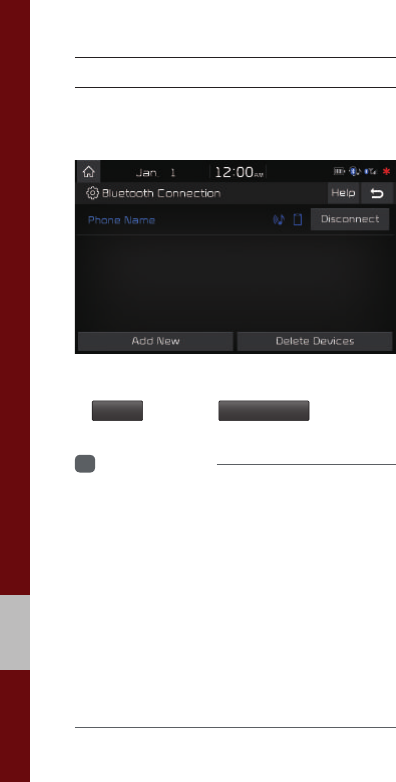

Bluetooth Connection Settings

Settings for pairing, connection and dis-

connection of a Bluetooth device.

• In Bluetooth Audio play screen, select

and then

Connections

Information

• If the music in the mobile phone is not

played after changing to audio streaming

mode, press the play button. Thus check if

the music is playing in the Bluetooth device

after changing to audio streaming mode.

Audio streaming may not be supported for

some mobile phones.

• Please check the Bluetooth compatibility

in below website: KIA Motors Corporation

http://www.kia.com

My Music I 2-31

My Music

My Music Mode Display Controls

Features Description

Mode Displays the current operating mode

File Index Shows the current file/total files

Repeat/

Shuffle/Scan

From Repeat/Shuffle/Scan, displays the cur-

rent operating function

Play Time Displays the current play time/total play time

Song Info

Displays the information about the current track

• When a track in the file tab on the list screen is

selected: Displays file, artist, title, album info

• When a track in the other tab on the list

screen is selected: Displays artist, title,

album info

Features Description

List Moves to the list screen

Previous File

If button is pressed (less than 0.8 seconds):

Moves to the previous file or play the current file

from the beginning (Depends on the play time)

• If play time is less than 3 seconds, moves to

previous file

• If play time is more than 3 seconds, play the

current file from the beginning

If button is pressed (more than 0.8 seconds): It

rewinds the track

Play/Pause Plays/pauses the current file

Next File

• If button is pressed (less than 0.8 seconds):

Moves to the next file

• If button is pressed (more than 0.8 seconds):

It fast-forwards the track

Repeat

Repeats the current file

• If select the song in the file tab on the list

screen: Select the

Repeat

button to switch

between repeating one song and turning

repeat off.

• If select the song in the other tabs (Playlist,

Artist, Song, Album) on the list screen: Select

the

Repeat

button to switch between repeat-

ing one song and turning repeat off

2-32 I Radio/Media

Features Description

Shuffle

Plays files in random order

• If select the song in the file tab on the list

screen: Select the

Shuffle

button to switch

between shuffle and turning shuffle off

• If select the song in the other tabs (Playlist,

Artist, Song, Album) on the list screen: Select

the

Shuffle

button to switch between shuffle

and turning shuffle off

Scan

Scans the beginning parts of files (approx. 10

seconds per file)

• If select the song in the file tab on the list

screen: Select the

Scan

button to switch

between scan and turning scan off

• If select the song in the other tabs (Playlist,

Artist, Song, Album) on the list screen: Select

the

Scan

button to switch between scan and

turning scan off

• Add to Playlist: Adds the current song to the

Playlist: Playlist is placed on the left tab in the list

• Delete Current File: Deletes the current track

from My Music.

• Sound Settings: Moves to the Sound Settings

screen. You can change the settings of the sound.

TUNE

Turn the

TUNE

knob to search a desired

track. If the desired track is displayed, press the

TUNE

knob to play the track.

If the

TUNE

knob is not pressed within

5 seconds of searching tracks, the track info

for the current track is restored.

My Music I 2-33

Features Description

Folder/

Category Name Displays folder/category name in the list

Current Song Displays the current playing file name

Back Button Converts to basic mode screen

Upper Folder Moves to Root Folder

Features Description

• Add to Playlist: Adds the current track to the

Playlist: Playlist is placed on the left tab in the

list (Maximum 100 files) Select a track and

press “Add to Playlist” to add the track in the

playlist

• Delete from Playlist: Select a track from the

playlist and press “Delete from Playlist” to

delete the track in the playlist

•Delete Files: Deletes files from My Music

If delete file from My Music, the information

related to song also deleted in the list.

• Now Playing: When moving to a different list

screen, moves to the list page where the cur-

rent file is located (Becomes disabled when

the current list includes the current file

Search Menu

Search tracks by the list type. Search songs

according to File, Playlist, Artist, Song and Album.

If access the search menu while playing a

track, it moves to the previous search mode.

SEEK/TRACK

• If button is pressed (less than 0.8 seconds):

Plays previous/next track.

• If button is pressed (more than 0.8 seconds):

Moves to play screen, and then it will rewind or

fast-forward the track.

TUNE

Turn the

TUNE

knob to move the focus to pre-

vious/next file. If the file you want to play is dis-

played, press

TUNE

knob to play the track.

If the

TUNE

knob is not pressed within

5 seconds of searching tracks, Tune search

will be terminated.

MEMO

Before Using the Bluetooth® Handsfree

Bluetooth Connection

Bluetooth Phone

part.3 Bluetooth

3-2 I Bluetooth

Before Using the

Bluetooth

Handsfree

What is

Bluetooth

Wireless Technology?

• Bluetooth® Wireless Technology refers

to a short-distance wireless network-

ing technology which uses a 2.45GHz

frequency to connect various devices

within a certain distance.

• Supported within PCs, external devices,

Bluetooth® phones, PDAs, various elec-

tronic devices, and automotive environ-

ments,

Bluetooth

Wireless Technology

to be transmitted at high speeds without

having to use a connector cable.

• Bluetooth® Handsfree refers to a device

which allows the user to conveniently

make phone calls with Bluetooth®

mobile phones through the Multimedia

system.

• The Bluetooth® Handsfree feature may

not be supported in some mobile phones.

For more information on mobile phone

compatibility, visit the KIA Motor website

- KIA Motors Corporation: http://www.kia.com

WARNING

- Distracted Driving

• Focus on the road while driving. The driver's

primary responsibility is in the safe and legal

operation of the vehicle. Drivers should not

use any hand held devices or other equipment

or vehicle systems that distract the driver

during vehicle operation.

• Do not stare at the multimedia screen for long

periods of time while driving. Staring at the

screen for prolonged periods of time can lead

to trafﬁ c accidents and can result in personal

injuries.

Precautions for Safe Driving

• Bluetooth® is a feature that enables driv-

ers to make handsfree calls. Connecting

the head unit with a Bluetooth® phone

allows the user to conveniently make

calls, receive calls, and manage the

phonebook. Before using

Bluetooth

Wireless Technology, carefully read the

contents of this user’s manual.

•Excessive use or operations while driv-

ing may lead to negligent driving prac-

tices and be the cause of accidents. Do

not operate the device excessively while

driving.

••Viewing the screen for prolonged peri-Viewing the screen for prolonged peri-

ods of time is dangerous and may leadods of time is dangerous and may lead

to accidents. When driving, view theto accidents. When driving, view the

screen only for short periods of time.screen only for short periods of time.

Bluetooth

Before Using the Bluetooth® Handsfree I 3-3

CAUTIONS upon Connecting

Bluetooth® Phone

• Before connecting the head unit with the

mobile phone, check to see that the mobile

phone supports Bluetooth® features.

• Even if the phone supports

Bluetooth

Wireless Technology, the phone will

not be found during device searches if

the phone has been set to hidden state

or the Bluetooth® power is turned off.

Disable the hidden state or turn on the

Bluetooth® power prior to searching/

connecting with the head unit.

• If Auto Connection is used, the

Bluetooth® phone is automatically con-

nected when the ignition is turned on,

making it unnecessary to have to con-

nect the phone with the head unit every

time.

• If you do not want automatic connection

with your Bluetooth® device, turn the

Bluetooth® feature off of the Bluetooth®

device.

• Park the vehicle when connecting the

head unit with the mobile phone.

• Bluetooth® connection may become

intermittently disconnected in some

mobile phones. Follow these steps to try

again.

1. Turn the Bluetooth® function within the

mobile phone OFF/ON and try again.

2. Turn the mobile phone power OFF/

ON and try again.

3. Completely remove the mobile phone

battery, reboot, and then again.

4. Reboot the Multimedia System and

try again.

5. Delete all paired devices from both of

Phone and Head Unit sides and then

try again.

• The Handsfree call volume and quality

may differ depending on the mobile

phone.

• Pairing Bluetooth® devices and use of

other Bluetooth® features are not sup-

ported when the vehicle is in motion. For

safety, please first park your vehicle.

• If you continue having issue download-

ing your contacts to your vehicle, con-

tact your mobile phone provider.

3-4 I Bluetooth

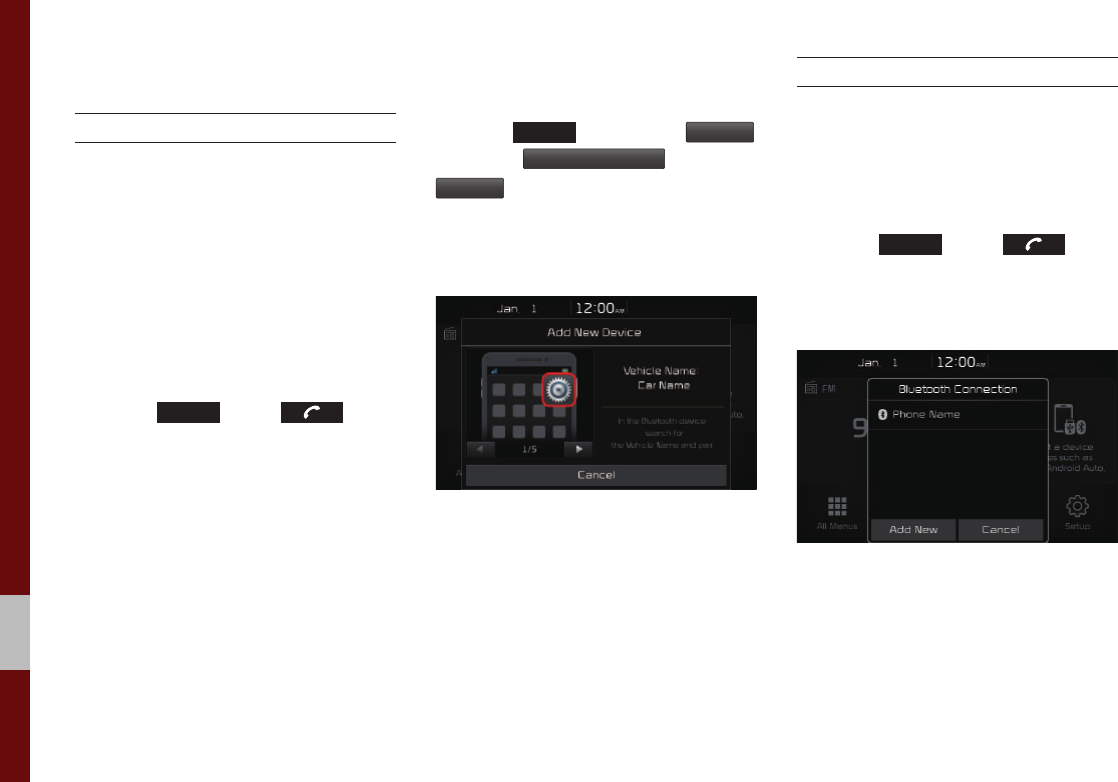

Bluetooth Connection

Pairing a New Device

Before you can use the Bluetooth feature,

you must first pair/connect your mobile

phone to your car.

Up to 5 Bluetooth devices can be paired.

Only one Bluetooth device can be con-

nected at a time.

Pairing a New Device by Selecting

Phone/Call

Press the

PHONE

key or key in

the steering wheel control. ▶ Pair your car

after your mobile phone detects the

Bluetooth device. ▶ Enter the passkey or

accept the authorization popup. ▶

Connect Bluetooth.

Pairing a New Device Through the

Phone Settings

Press the

SETUP

key. ▶ Select

Bluetooth

▶ Select

Bluetooth Connection

. ▶ Select

Add New

. ▶ Pair your car after your mobile

phone detects the Bluetooth device. ▶

Enter the passkey or accept the authoriza-

tion popup. ▶ Connect Bluetooth.

The default passkey is 0000.

The vehicle name above is an example.

Check the actual information on the product.

Connecting Bluetooth Devices

Connects the Bluetooth devices that you

add.

Connecting Devices by Selecting

Phone/Call

Press the

PHONE

key or key in

the steering wheel control. ▶ Select the

name of the device to connect. ▶ Connect

Bluetooth.

Bluetooth Connection I 3-5

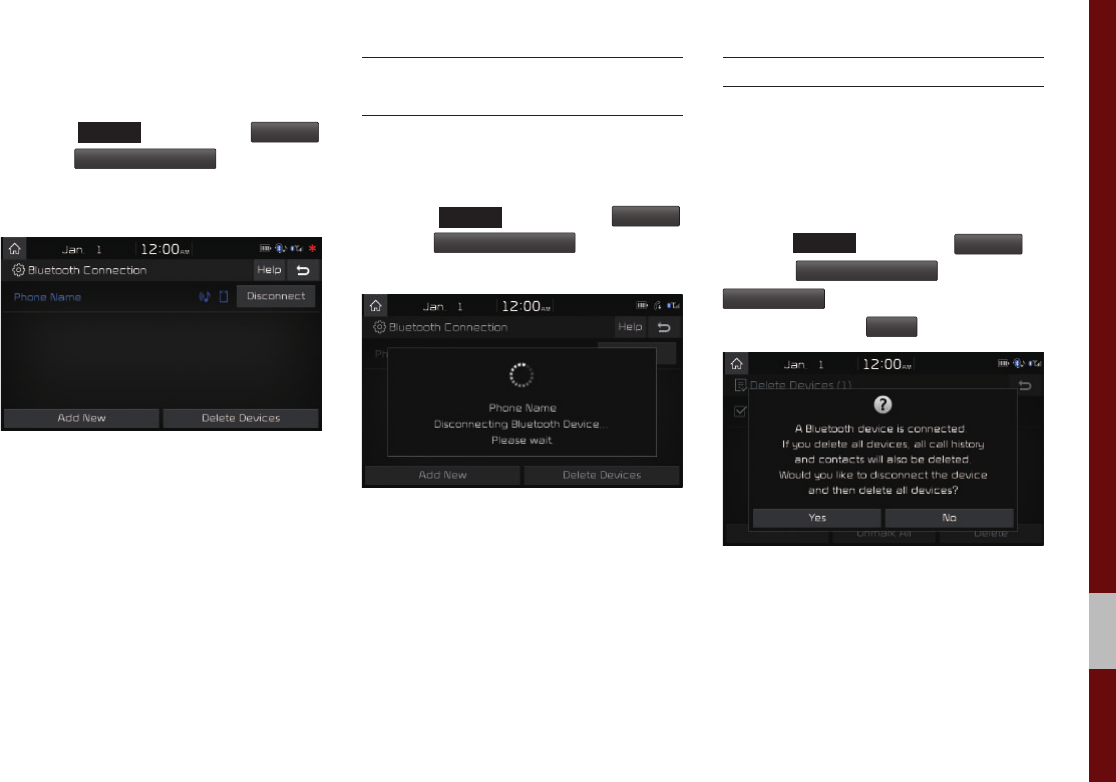

Connecting Devices Through the

Phone Settings

Press the

SETUP

key. ▶ Select

Bluetooth

▶ Select

Bluetooth Connection

. ▶ Select the

name of the device to connect. ▶ Connect

Bluetooth.

Disconnecting

Bluetooth Devices

Disconnects Bluetooth devices that are

connected.

Press the

SETUP

key. ▶ Select

Bluetooth

▶ Select

Bluetooth Connection

. ▶ Select the

name of the device to disconnect.

Deleting Bluetooth Devices

Deletes the Bluetooth devices that you

added. Note that deleting a Bluetooth

device will delete all Call History and

Contact Info downloaded along with it.

Press the

SETUP

key. ▶ Select

Bluetooth

. ▶

Select

Bluetooth Connection

. ▶ Select

Delete Devices

. ▶ Select the device name

to delete. ▶ Select

Delete

3-6 I Bluetooth

Bluetooth Phone

Phone Status Icons

Shows the current phone status in the

right top of the display.

Icons Description

You can use Bluetooth phones

when a Bluetooth Hands-free

connection is established.

You can use Bluetooth audio

features when a Bluetooth

audio connection is estab-

lished.

You can use Bluetooth phones

and audio features when both

Bluetooth Hands-free and audio

connections are established.

Call signal strength indicator

Battery level of the Bluetooth

devices connected

Downloading Call History list

Downloading Contacts

In a Bluetooth phone call

Microphone muted

Information

• The battery level icon and the call signal

strength indicator may not be supported in

some Bluetooth devices.

• The battery level may differ from the actual

level remaining.

Bluetooth Phone I 3-7

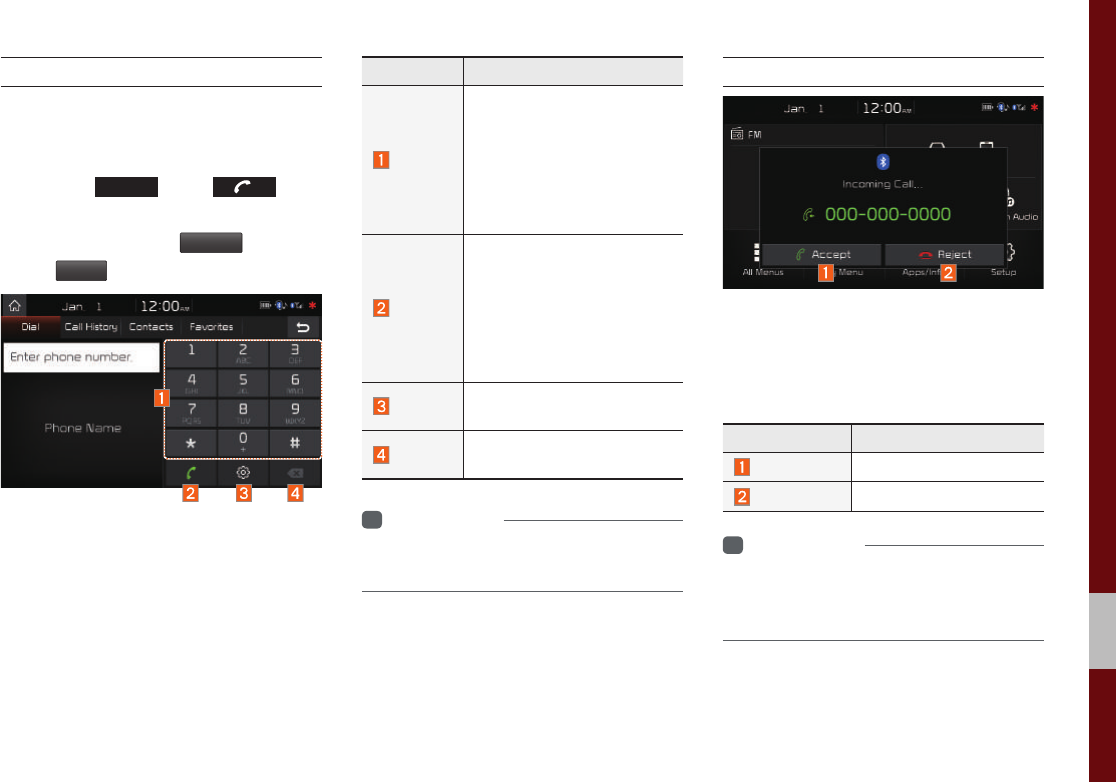

Dial

Dials a call after the Bluetooth devices are

connected.

• Press the

PHONE

key or key in

the steering wheel control.

• You can also select

All Menus

icon, and

then

Phone

icon.

Name Description

Keypad

Use the keypad to enter

the phone number that you

want to call. Press and hold

the last number of a speed

dial to dial a number that

you added to the Speed

Dial list in the phone

Call

Makes a call after you dial

a number and select CALL.

If the number is listed in

Dialed Calls, you can select

the number and press

CALL to automatically dial

that number again.

Settings Moves to a screen of

Phone Settings.

Delete Deletes the numbers that

you entered.

Information

• Some types of mobile phones may not

support the Speed Dial function.

Accept/Reject Call

If there is an incoming call after you made

a Bluetooth connection, a popup message

will appear.

Name Description

Accept Answers the call.

Reject Ignores the call.

Information

• In some mobile phones, the caller's number

may not be displayed, and the Reject feature

may not be supported.

3-8 I Bluetooth

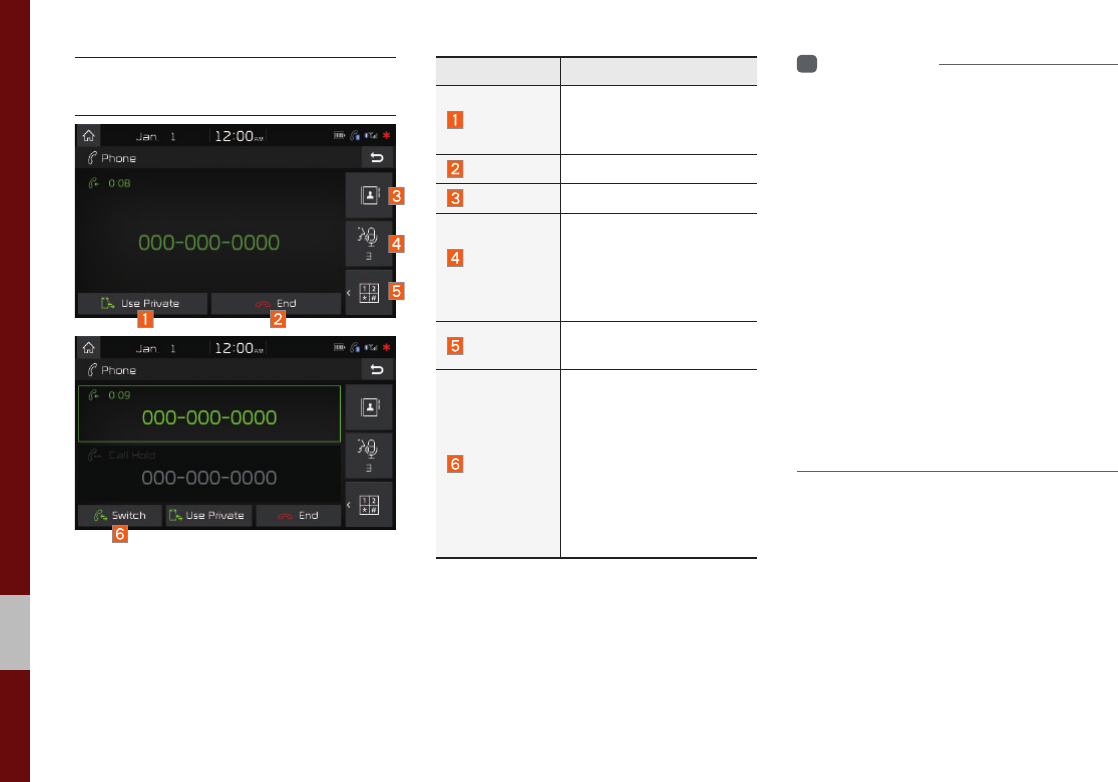

Using the Menu During

a Phone Call

When making a call, you can use the fol-

lowing menu items.

Name Description

Use Private

Switches a voice call

from the car Hands-free

to the mobile phone.

End Ends a call.

Contacts Displays the Contacts list.

Outgoing

Volume

Displays the Mic Volume

settings. You can adjust

the in-call volume that

the other party hears

(level 1 - 5).

Keypad Moves to a screen for

entering ARS numbers.

Switch

Switches to a call on

hold, if any. You can also

switch calls by select-

ing the number in the

Information Display. The

Switch function switches

the current call to a wait-

ing call in order to answer

a new incoming call.

Information

• If the caller's number is listed in Contacts, the

caller's name will be displayed. Otherwise,

only the number will be displayed. In some

mobile phones, the phone number may not

be displayed.

• In some Bluetooth devices, the Use Private

feature may not be supported.

• In some Bluetooth devices, the Switch feature

may not be supported.

• During a phone call on a Bluetooth Hands-

free, you cannot access other modes, such as

Radio and Settings.

• Depending on handset types, the in-call

volume the other party hears may differ. If the

other party hears your voice too low or too

loud, adjust the mic volume.

Bluetooth Phone I 3-9

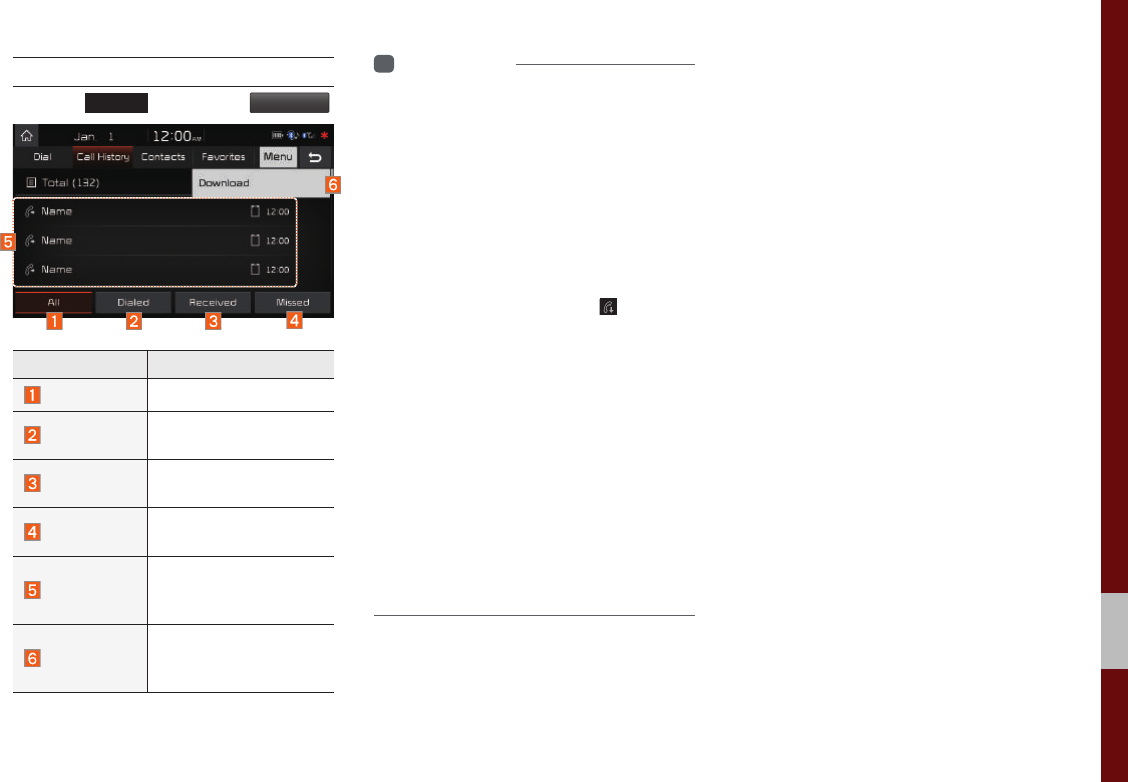

Call History

Press the

PHONE

key, and then

Call History

Name Description

All Lists the all call history.

Dialed Lists the calls that you

made.

Received Lists the calls that you

have received.

Missed Lists the calls you

missed.

Call History

Displays all of your call

history. Select from the

list to dial the number.

Download

Downloads the call

history information from

your mobile phone.

Information

• In some mobile phones, call records may not

be added to your Call History.

• Calls from restricted ID's are not added to

your Call History Information.

• Up to 50 calls can be added in each Dialed

Calls/Received Calls/Missed Calls list.

• The durations of each dialed/received call are

not displayed in your car's Call History list.

• While the call history download is in progress,

the status bar displays an icon ( ).

• If the call history download is turned off on the

Bluetooth device, the call history download

will fail.

• Some devices require a device authentication

for downloading your call history. If download

fails, check if the Bluetooth settings or display

status are normal.

• Some devices do not support call history

download. Check if your Bluetooth device

supports download feature. For details regarding

Bluetooth-supported devices and their functional

compatibility, visit http://www. kia.com

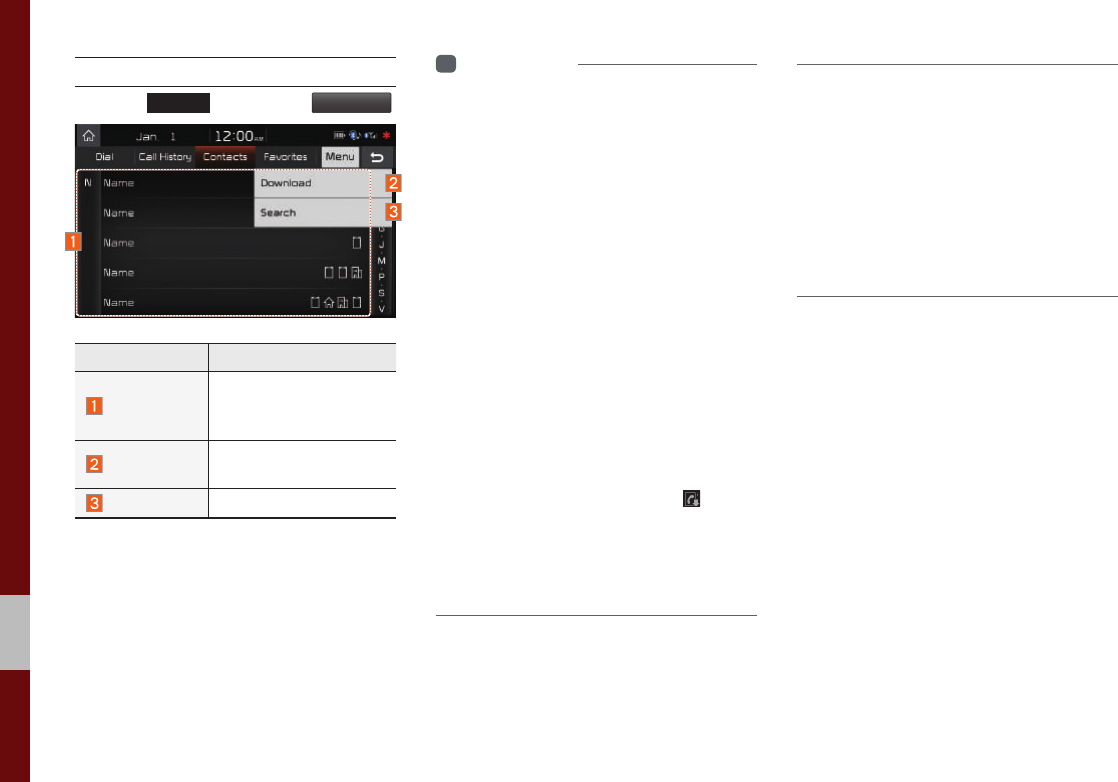

3-10 I Bluetooth

Contacts

Press the

PHONE

key, and then

Contacts

Name Description

Contacts List

The list of Contacts.

Select from the list to

dial the number.

Download Downloads contacts

from your mobile phone.

Search Searches Contacts.

Information

• Up to 5000 phone numbers can be

downloaded from a single, paired Bluetooth

device.

• You cannot edit or delete downloaded phone

numbers from your car.

• Contacts can be viewed only when the

Bluetooth device is connected.

• Even if the Bluetooth device is disconnected,

the downloaded data will remain. (Note that

deleting a paired phone will also delete all

downloaded Contacts and Call History data)

• Downloaded phone numbers may be lost

depending on the condition of the head unit.

Keep your important data in a safe place.

• Contacts from both the SIM card and your

mobile phone are downloaded at the same

time by default.

• The status bar displays a ( ) while

downloading contacts.

• The download will not be available if the

contacts download function is turned off on

your Bluetooth device.

• Some devices require a device authentication

for downloading your contacts. If download

fails, check your phone screen and confirm

the download if necessary.

• Some devices do not support contacts

download feature. Check if your Bluetooth

device supports contacts download. For

Bluetooth supporting devices details and

compatibility, visit http://www.kia.com

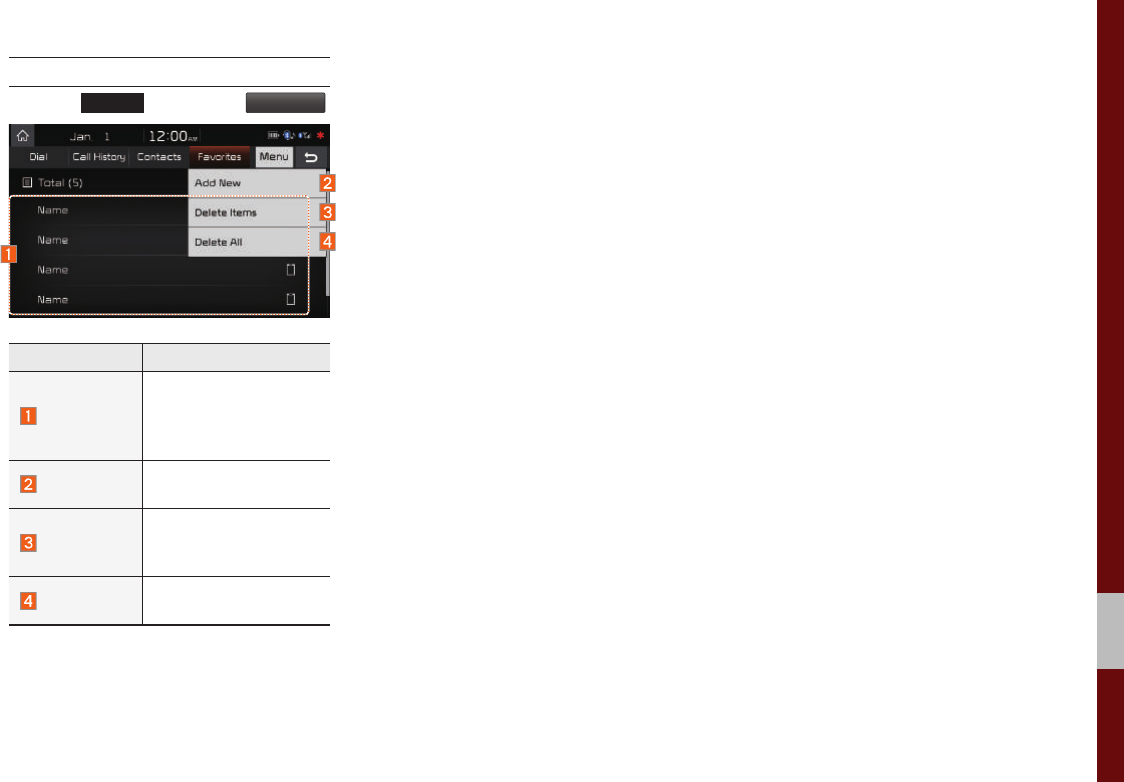

Bluetooth Phone I 3-11

Favorites

Press the

PHONE

key, and then

Favorites

Name Description

Favorites

Lists the phone num-

bers saved as Favorites.

Select from the list to

dial the number.

Add New Adds a new number to

Favorites.

Delete Items

Deletes numbers

that you select from

Favorites.

Delete All Deletes all of the num-

bers from Favorites.

MEMO

The 911 Connect feature may not operate in the following situations

About UVO eServices

Before using UVO eServices

Connecting Bluetooth

Pair a device from Bluetooth-enabled phone

Connecting to smartphone via USB

911 Connect

Roadside Assist

Vehicle Diagnostics

My Car Zone

Parking Minder

eServices Guide

part.4 UVO eServices

4-2 I UVO eServices

UVO eServices

The 911 Connect feature may not

operate in the following situations

When the vehicle ignition is not turned on.

When the phone Bluetooth® feature is set to off.

When the phone Bluetooth® cannot be connected or becomes

disconnected.

When there are no phones paired with the vehicle.

When cellular service is unavailable.

When the power turns off due to phone power (battery) issues.

When a Bluetooth® device without phone feature support has

been connected, such as an MP3 device.

When the system is booting.

When the system power supply is unstable.

When the attempted call is blocked due to user operations.

When the 9-1-1 call is unstable due to phone or other commu-

nication network issues.

When the call feature is not operating due to phone settings set

by the user.

When the phone cannot be controlled via Bluetooth® due to

phone specifications or characteristics.

Using UVO eServices and Precautions I 4-3

Using UVO eServices and Precautions

Download the UVO eServices App and install it on your smartphone.

The app can be downloaded from your smartphone’s app store.

For using UVO eServices call features such as 911 Connect,

Roadside Assist and eServices Guide, a smartphone must be

connected with the vehicle via Bluetooth. Pair and connect your

smartphone with the vehicle. For information on connecting

your Bluetooth device, refer to the smartphone user’s manual

and instructions on the Phone Help screen on your radio. Up to

five Bluetooth devices can be paired to the vehicle and only

one device can be connected at a time.

For using data communication of Vehicle Diagnostics, Parking

Minder, and My Car Zone, smartphone must be connected with

the vehicle via USB cable.

※

The use of genuine cable is recommended. (The use of

other products may result in abnormal or non-proper operation.)

Some UVO eServices features will only be available when your

smartphone is connected with the vehicle via USB and the

UVO eServices App is running.

UVO eServices may not operate properly with incompatible

smartphones. To view the list of compatible smartphones,

please visit MyUVO.com

Communication between the vehicle and smartphone app may

temporarily disconnect depending on the phone state.

If the feature is not operating properly, you may need to reset

the UVO eServices App or the smartphone and try again

according to the following steps.

1. Try feature again in the Head Unit

2. Restart smartphone app

3. Re-connect Bluetooth and USB cable

4. Reset smartphone

5. Delete Device and pair again

Some services use the customer’s mobile phone data plan for

data communication. Therefore, the features will function in

accordance with the cellular plan.

Use of the most up-to-date app version is recommended.

For smartphone related inquiries, please visit MyUVO.com.

4-4 I UVO eServices

About UVO eServices

UVO eServices provides the following features through Bluetooth

and/or USB connection to your smartphone.

Name Connection Description

911

Connect BT

If an airbag deploys, your vehicle

automatically initiates a call to 9-1-1

and sends your vehicle’s location

information to the 9-1-1 operator.

Roadside

Assist BT & USB If a diagnostic issue exists, you can

connect with a Roadside Assist.

Vehicle

Diagnostics USB

Informs you if there is a diagnostic

issue found in your vehicle. If an

issue is found, you can contact a

call center through Roadside Assist

or reserve an appointment with

your preferred Kia dealer through

Schedule Service.

My Car

Zone USB

Keeps track of predefined triggered

alerts such as Speed Alert and

Curfew Limit Alert from the My Car

Zone feature.

Parking

Minder USB

Saves the location of your parked

vehicle on your UVO eServices

smartphone app.

You can check where your vehicle is

parked through the UVO eServices

App on your smartphone.

eServices

Guide BT Receive guidance on how to use

UVO eServices.

Information

• 24-hour Roadside Assistance is a

service plan provided by Kia Motors

America, Inc. Certain limitations apply. Coverage details are available

in the Kia Warranty and Consumer Information Manual. For access

to Enhanced Roadside Assistance, a conn

ected mobile phone via

Bluetooth within the cellular service coverage area is required.

To use UVO eServices, the following conditions must be met.

1. The UVO eServices smartphone app must be installed and

you must log in using your MyUVO account credentials.

2. The smartphone must be connected via Bluetooth and USB

cable to the vehicle.

3. Once this is complete, eServices must be activated.

Pair a device from Bluetooth-enabled phone I 4-5

Before using UVO

eServices

Installing the UVO eServices App on your

smartphone

1. Download and install the UVO eSer-

vices App on your smartphone.

The app can be downloaded from the

Apple App Store or Google Play.

2. Register your vehicle and account at

MyUVO.com

Note: MyUVO.com is accessible from

your phone’s browser.

3. Start the UVO eServices App on your

smartphone and log in.

Connecting Bluetooth

Press the key on the steering

wheel or press the

PHONE

key on the

head unit. Press

SETUP

▶

Bluetooth

▶

Bluetooth Connection

Pair a device from

Bluetooth-enabled phone

1. Turn on the Bluetooth feature on your

smartphone’s Bluetooth settings screen.

2. Search Bluetooth devices on your

smartphone.

3. Select the Vehicle Name on the phone

that matches the name shown on the

screen.

4. Verify the passkey shown on the touch-

screen.

If the phone supports SSP, check the

passkey on your Bluetooth® device and

confirm the authentication.

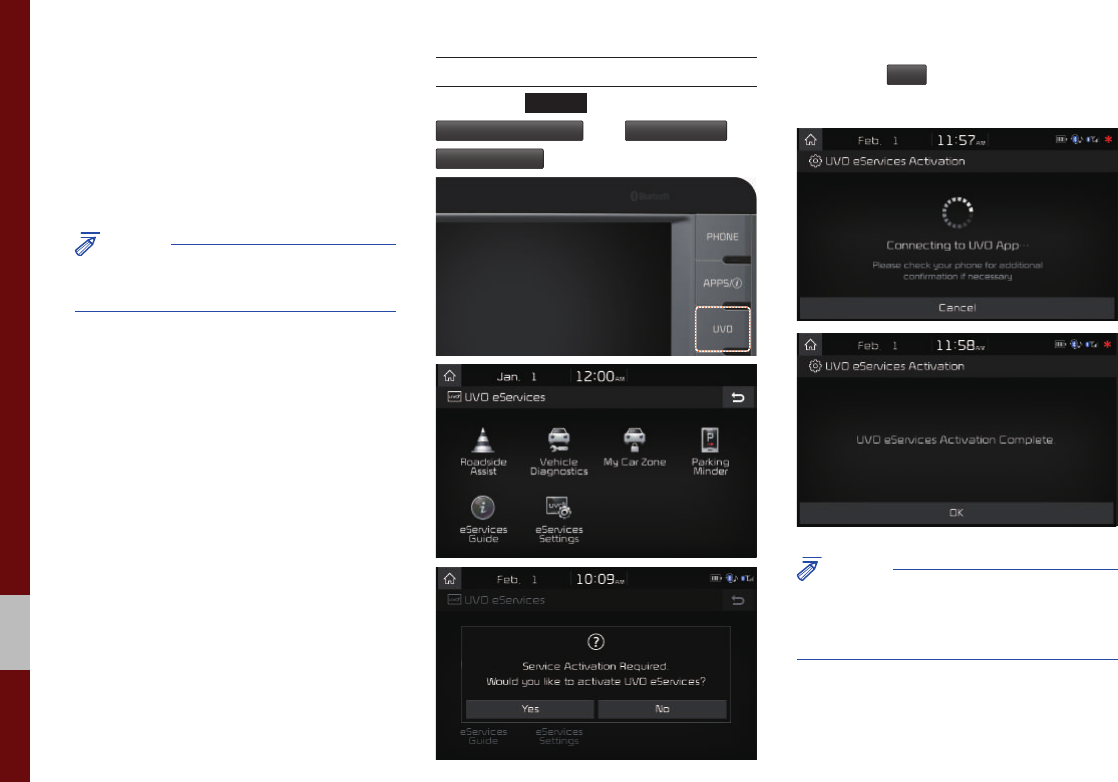

4-6 I UVO eServices

Connecting to

smartphone via USB

1. Connect your smartphone with the vehi-

cle via USB cable.

NOTICE

• For smartphone related inquiries, please visit

MyUVO.com.

Activating UVO eServices

Press the

UVO

key, then press the

Vehicle Diagnostics

My Car Zone

Parking Minder

button.

Press the

Yes

button, then the UVO

eServices activation process will begin.

NOTICE

• Before activating UVO eServices, ensure

your phone is connected to the vehicle via

USB cable.

911 Connect I 4-7

911 Connect

If an airbag deploys, your vehicle automat-

ically initiates a call to 9-1-1 and sends

your vehicle’s location information to the

9-1-1 operator.

The 911 Connect feature is available only

when the mobile phone is connected via

Bluetooth.

By default, this feature is turned off. To turn

it on, you must turn it on in the eServices

Settings menu. By enabling this feature,

you are agreeing to the 911 Connect

A ( ) icon is displayed at the top of the

touch screen as shown below when phone

is connected to UVO eServices system via

Bluetooth and the 911 connect feature is

turned on.

Initiating a 911 Call

If an airbag deploys, the following screen

is displayed and a call is automatically

placed to 9-1-1 after 10 seconds.

Once a call is connected with a 9-1-1

operator, it is possible to request emer-

gency services to be dispatched to your

location.

4-8 I UVO eServices

The 9-1-1 operator may request informa-

tion on the current location of your vehicle.

When the 9-1-1 operator requests your

vehicle location, “Sending Location” is

displayed on the screen and the vehicle

location is automatically sent to the 9-1-1

operator.

When the 9-1-1 operator attempts to talk

to the driver again, the call time is dis-

played and allows the driver to speak with

the 9-1-1 operator.

Roadside Assist

If there is any issues in the vehicle, you

can connect with a Roadside Assist agent.

The Roadside Assist feature can be used

only when your phone is connected via

Bluetooth.

Press the

UVO

key ▶

Roadside Assist

Vehicle Diagnostics I 4-9

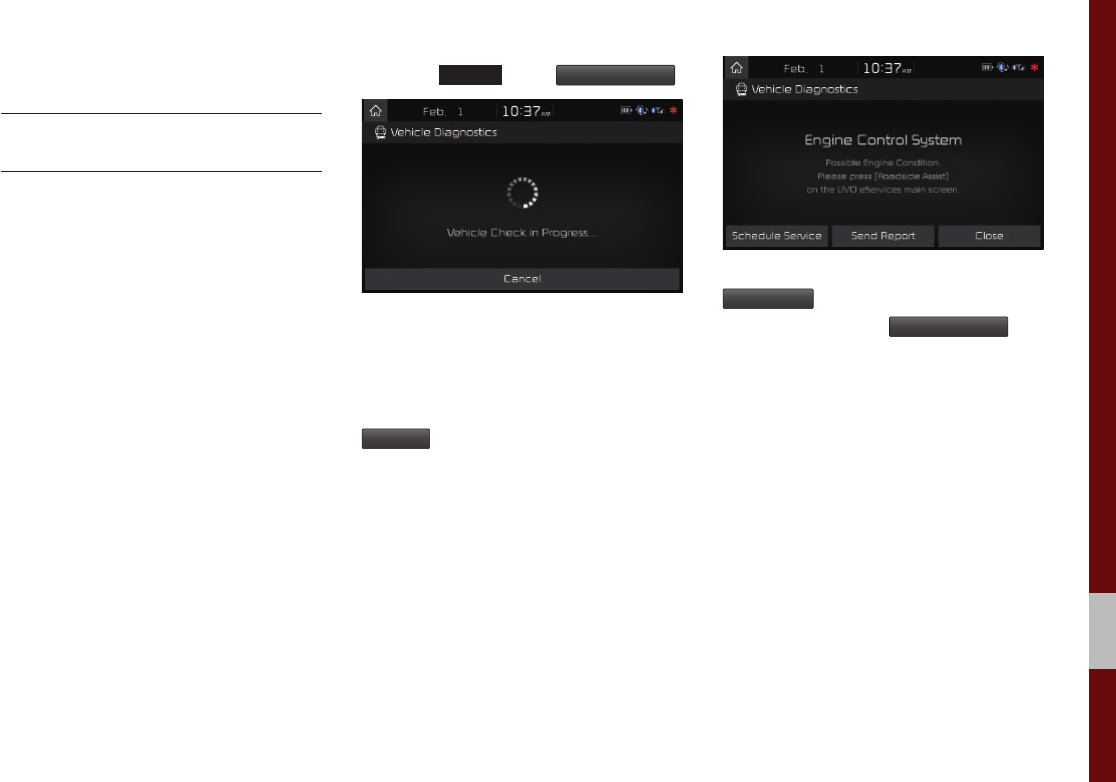

Vehicle Diagnostics

Conducting Vehicle

Diagnostics

Vehicle Diagnostics is available only when

the ignition is turned on and the vehicle is

parked.

It also requires that UVO eServices is

activated, and the Phone is connected

via USB cable before starting Vehicle

Diagnostics.

Press the

UVO

key ▶

Vehicle Diagnostics

The Vehicle Diagnostics process will begin.

When a diagnostics check is in progress,

keep the vehicle in park with the ignition

on. To cancel diagnostics, press the

Cancel

button on the touch screen or

any hardkey.

If diagnostic issues are found, press the

Send Report

button to send to your MyUVO

account or press the

Schedule Service

but-

ton to schedule an appointment with your

preferred or nearby Kia dealer.

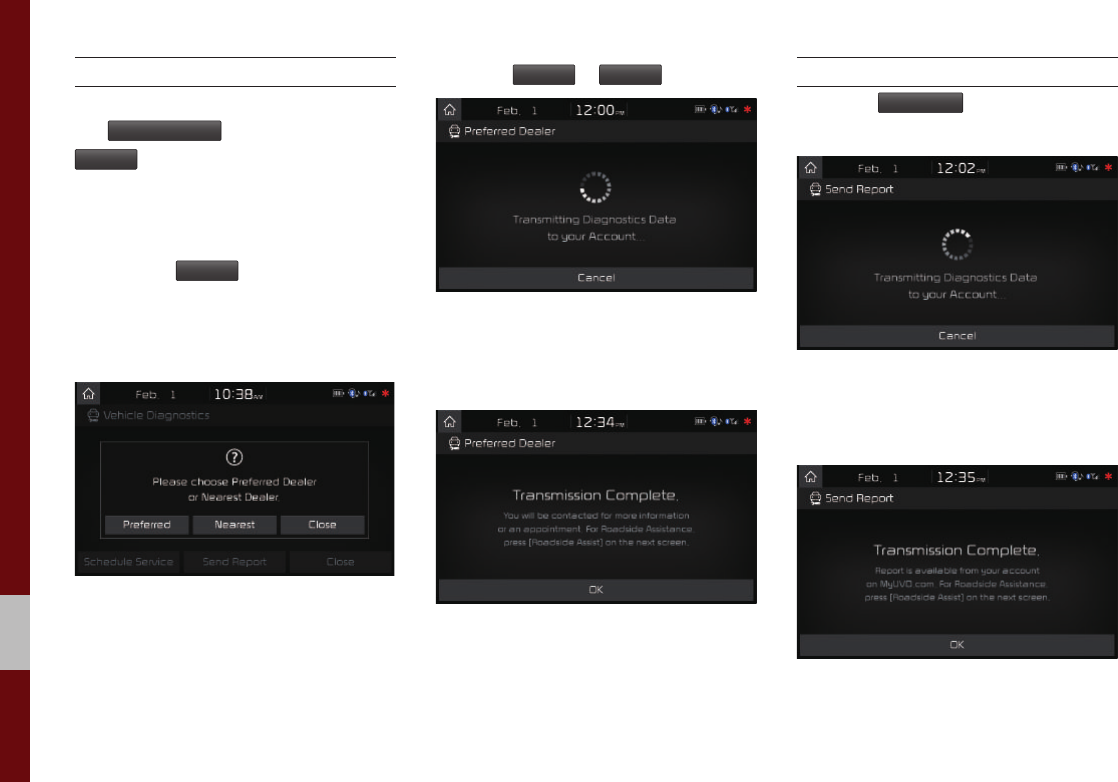

4-10 I UVO eServices

Schedule Service

When scheduling an appointment using

the

Schedule Service

button, pressing the

Preferred

button will allow you to request an

appointment with your preferred Kia dealer

and send your vehicle’s diagnostics infor-

mation.

Pressing the

Nearest

button will allow you

to request an appointment with the near-

est Kia dealer and send your vehicle’s

diagnostics information.

Press the

Preferred

Nearest

button.

Request an appointment with Preferred or

Nearest Kia Dealer and send your vehi-

cle’s diagnostics data.

Send Report

Press the

Send Report

in the vehicle diag-

nostics result screen.

Vehicle Diagnostics Data is transmitted to

your account and you can see the report

on MyUVO.com

Vehicle Diagnostics I 4-11

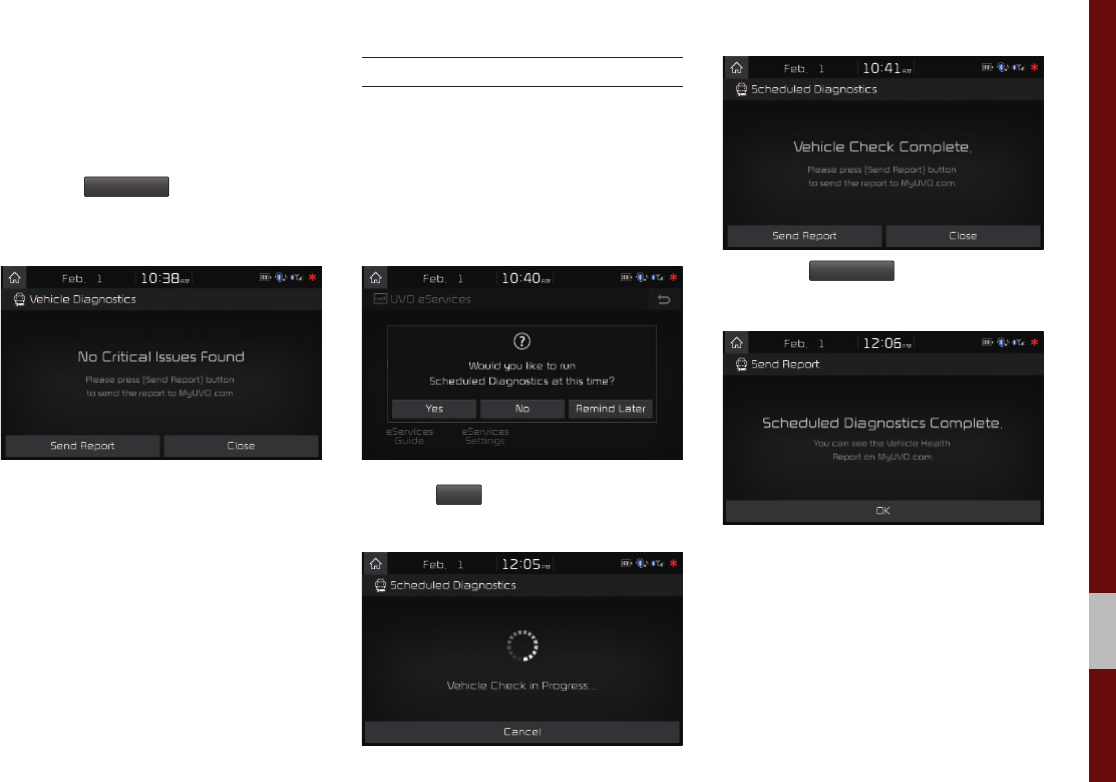

Even if diagnostic issues are not found

after Vehicle Diagnostics, it is recom-

mended that you send the diagnostic

results to your MyUVO account.

Press the

Send Report

button to send the

diagnostics results to your MyUVO

account.

Scheduled Diagnostics

If you have set up Scheduled Diagnostics

on your UVO eServices App, a vehicle

diagnostics check will automatically start

on the day you selected.

On the date of the Scheduled Diagnostics,

the following window will be displayed.

Press the

Yes

button on the touch screen

to proceed with diagnostics.

Press the

Send Report

button to see the

Vehicle Health Report on MyUVO.com.

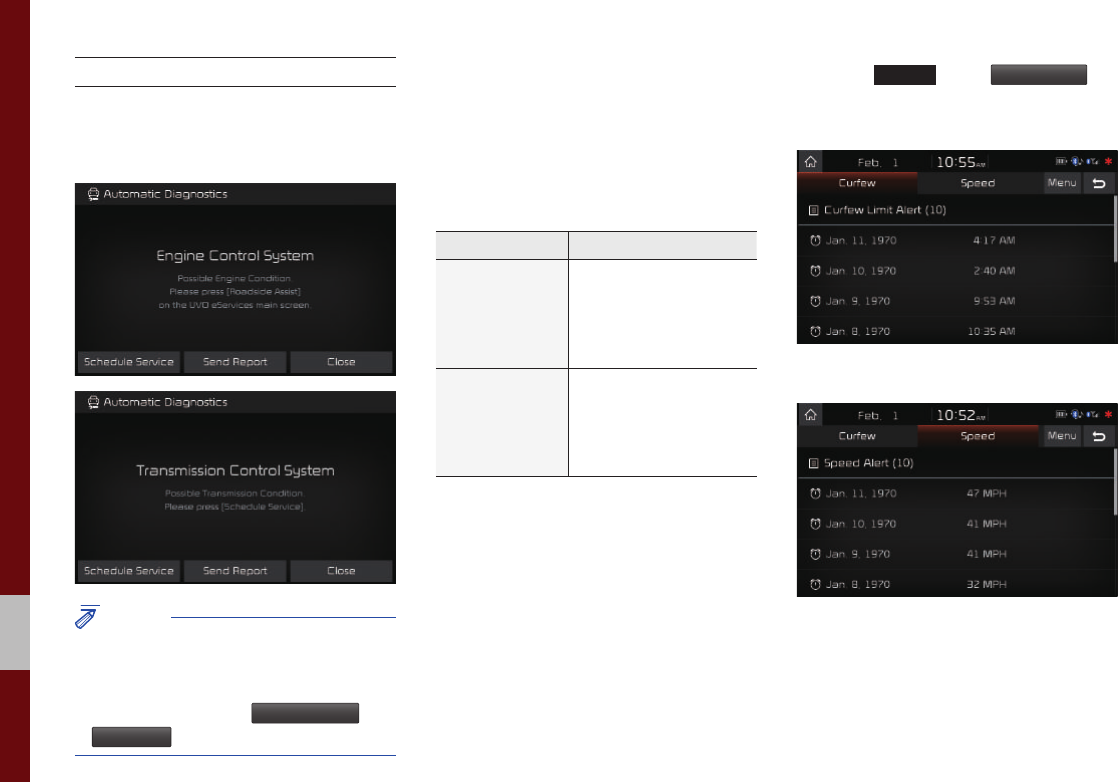

4-12 I UVO eServices

Automatic Diagnostics

If a critical diagnostics issue with your

vehicle’s powertrain is detected, Automatic

Diagnostics will be notified.

NOTICE

• The screen messages differ based on the

vehicle diagnostics severity. Ensure your

phone is connected to the system via USB

cable before using

Schedule Service

and

Send Report

My Car Zone

My Car Zone is a feature that provides

alerts and driving history for Curfew Limit

Alerts and Speed Alerts set by the user.

Name Description

Curfew Limit

Alert

Curfew Limit Alerts are

alerts that are triggered

when a driver is driving

within a predefined time

range.

Speed Alert

Speed Alerts are alerts

that are triggered when

a driver exceeds the

predefined maximum

speed.

My Car Zone features are supported only

when UVO eServices has been activated.

Press the

UVO

key ▶

My Car Zone

Curfew Limit Alerts History

Speed Alerts History

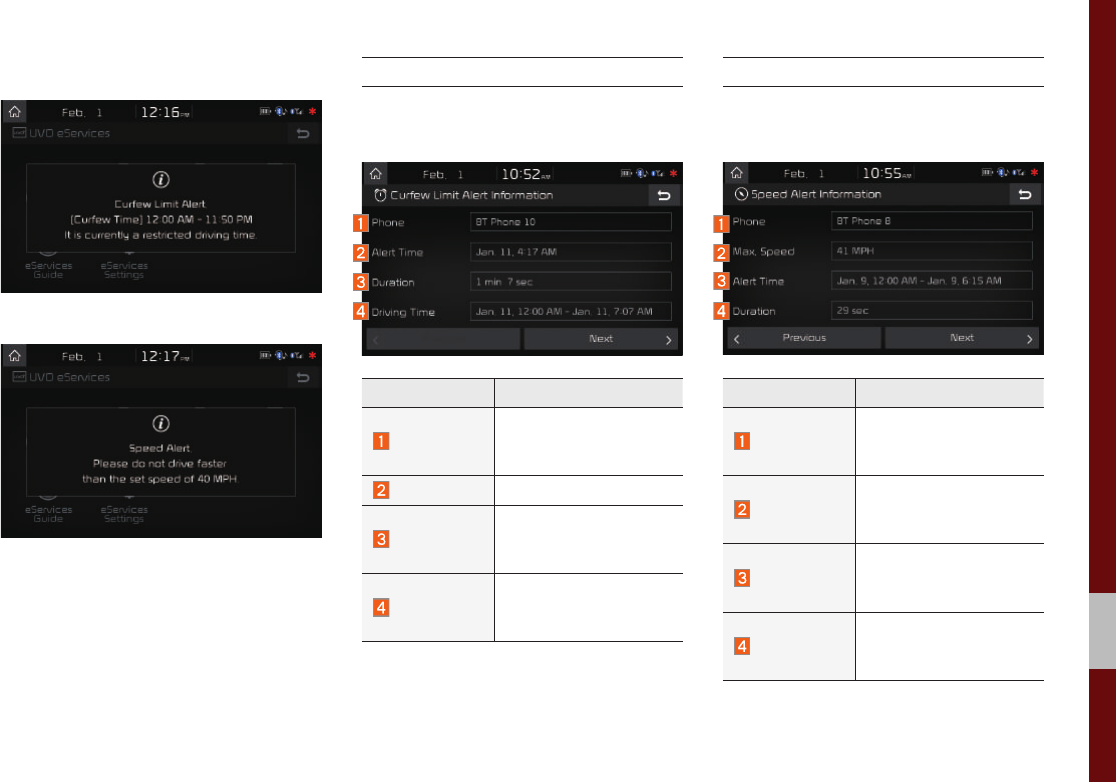

My Car Zone I 4-13

Curfew Limit Alert

Speed Alert

Curfew Limit Alert

You can check the Curfew Limit Alert his-

tory for a list of past triggered curfew alerts.

Name Description

Phone

Name of phone con-

nected upon triggered

curfew limit

Alert Time Initial alert time

Duration

Total duration of driving

while curfew limit was

triggered

Driving Time

Total driving time from

turning ignition on until

turning ignition off

Speed Alert

You can check the Speed Alert history for

triggered speed limit alerts of the vehicle.

Name Description

Phone

Name of phone con-

nected upon triggered

speed limit alert

Max. Speed

Maximum vehicle speed

upon triggered speed

limit alert

Alert Time

Time from first triggered

alert until last triggered

alert

Duration

Total triggered alert time

from turning ignition on

to turning ignition off

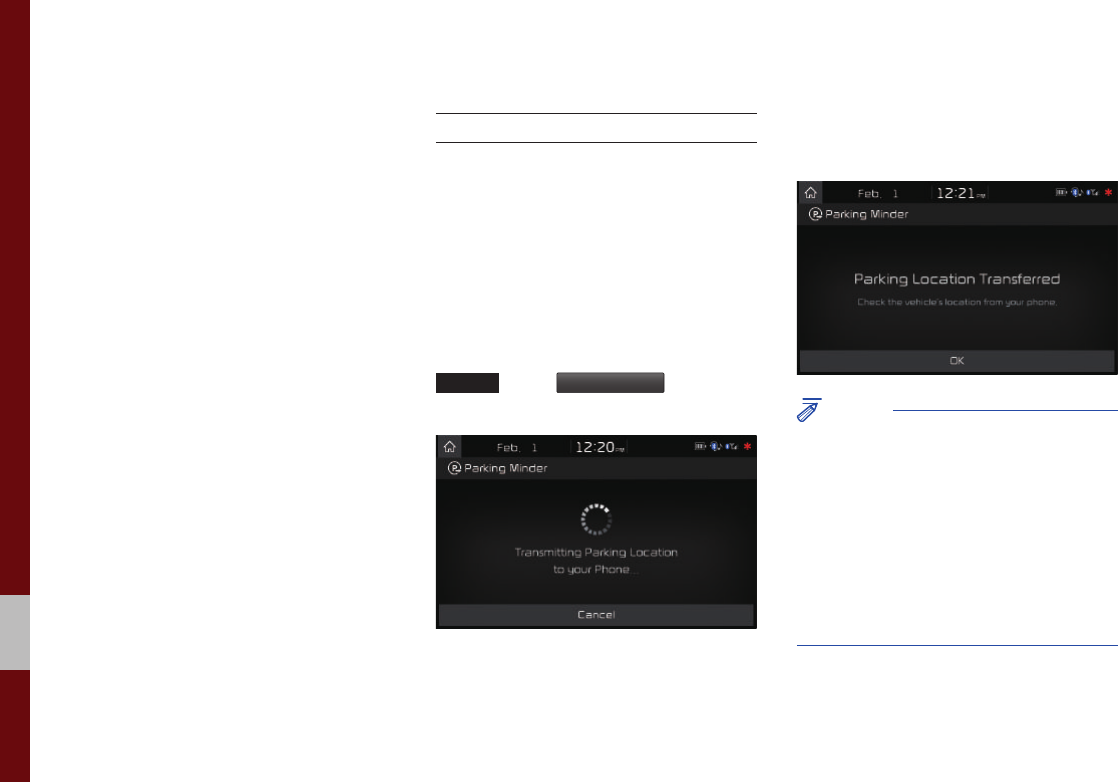

4-14 I UVO eServices

To check My Car Zone alert history from

your smartphone, you must first send the

alert history to your MyUVO account.

Parking Minder

Sending Parking Location

The location where your vehicle is currently

parked can be sent to your smartphone.

Ensure that your smartphone is connected

via USB and the UVO eServices App is

running before using this feature.

After parking the vehicle, press the

UVO

key ▶

Parking Minder

to send the

vehicle’s location to your smartphone.

Once the parking location has been sent,

you can view your vehicle’s location from

the UVO eServices App on your smart-

phone.

NOTICE

• When the parking location is being sent, do

not drive the vehicle. Ensure that you have

logged into the UVO eServices App, and your

phone is connected to the multimedia system

via USB cable.

• When ignition is turned off while the phone is

connected via USB, Parking Minder can be

transferred automatically if the option is set up

in UVO eService Settings

eServices Guide I 4-15

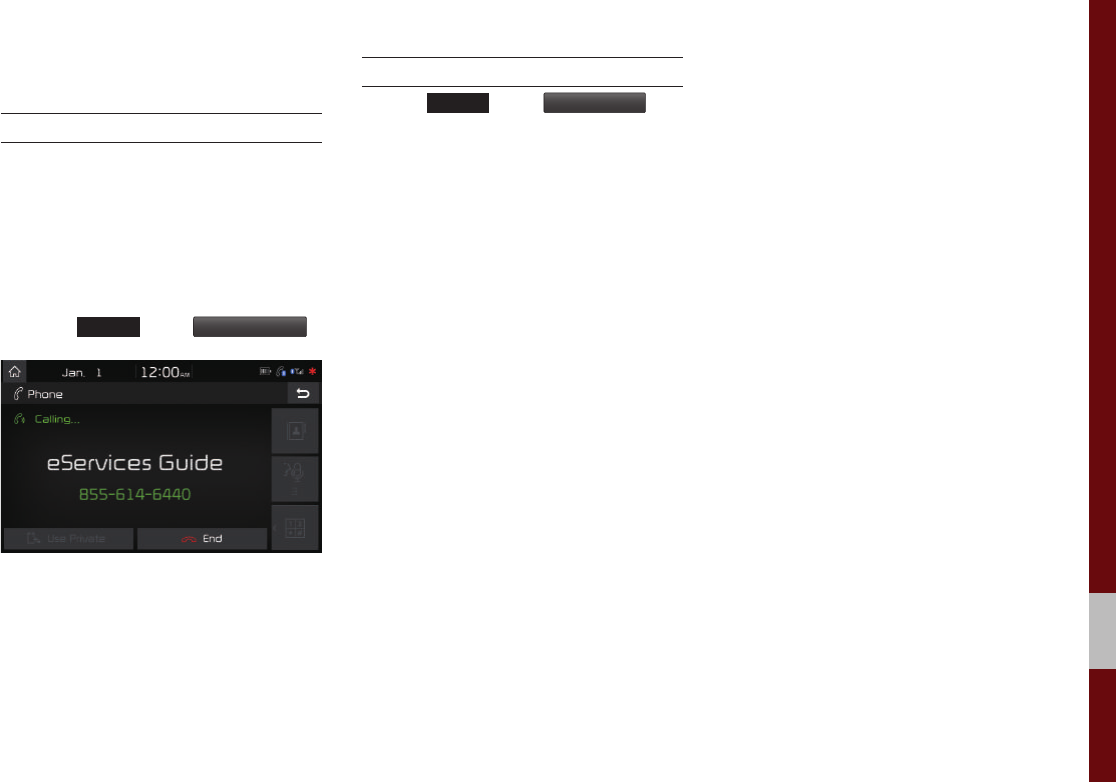

eServices Guide

eServices Guide provides guidance on

how to use UVO eServices.

This feature is only available when the

mobile phone is connected via Bluetooth.

Press the

UVO

key ▶

eServices Guide

UVO eServices Settings

Refer to

SETUP

key ▶

UVO eServices

MEMO

Basic Features

Destination Search

Route Search

Navigation Settings

Troubleshooting

part.5 Navigation

K_DE 16_G4.0[USA_EU]AVN_PART6.indd 6-1K_DE 16_G4.0[USA_EU]AVN_PART6.indd 6-1 2016-11-04 오후 3:02:152016-11-04 오후 3:02:1

6-2 I Navigation

Navigation

Basic Features

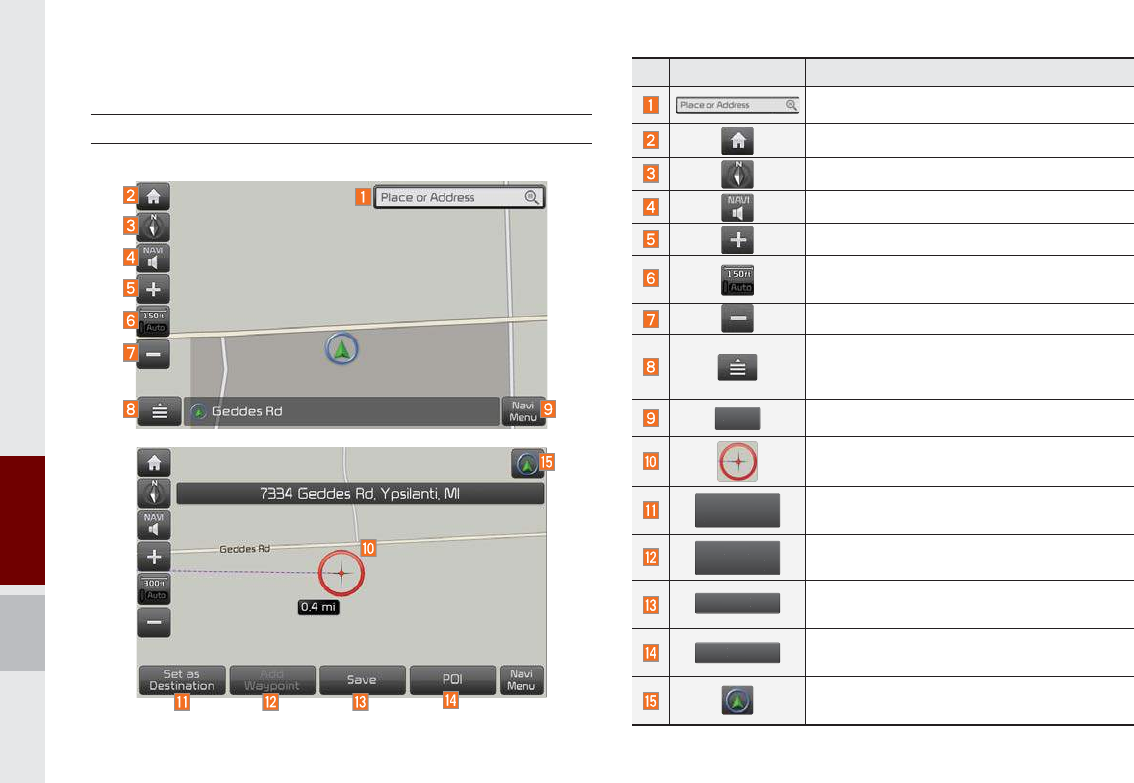

Operating Navigation Screen

Basic features on the map screen.

Name Description

Move to Places Menu.

Go to the Home screen.

Change the map view mode.

Adjusts the volume.

Zoom in the map.

Set the zoom level automatically according

to the guidance.

Zoom out the map.

Quick and easy selection of a destination

and options.

Enter the navigation menu screen.

Touch to scroll the map.

Quick and easy selection of a destination

from the map screen.

oin

Set a waypoint to the current route.

Save frequently used address to address

book.

Find a POI(Point Of Interest) around the

current position.

View the vehicle’s current position on the

map screen.

K_DE 16_G4.0[USA_EU]AVN_PART6.indd 6-2K_DE 16_G4.0[USA_EU]AVN_PART6.indd 6-2 2016-11-04 오후 3:02:162016-11-04 오후 3:02:1

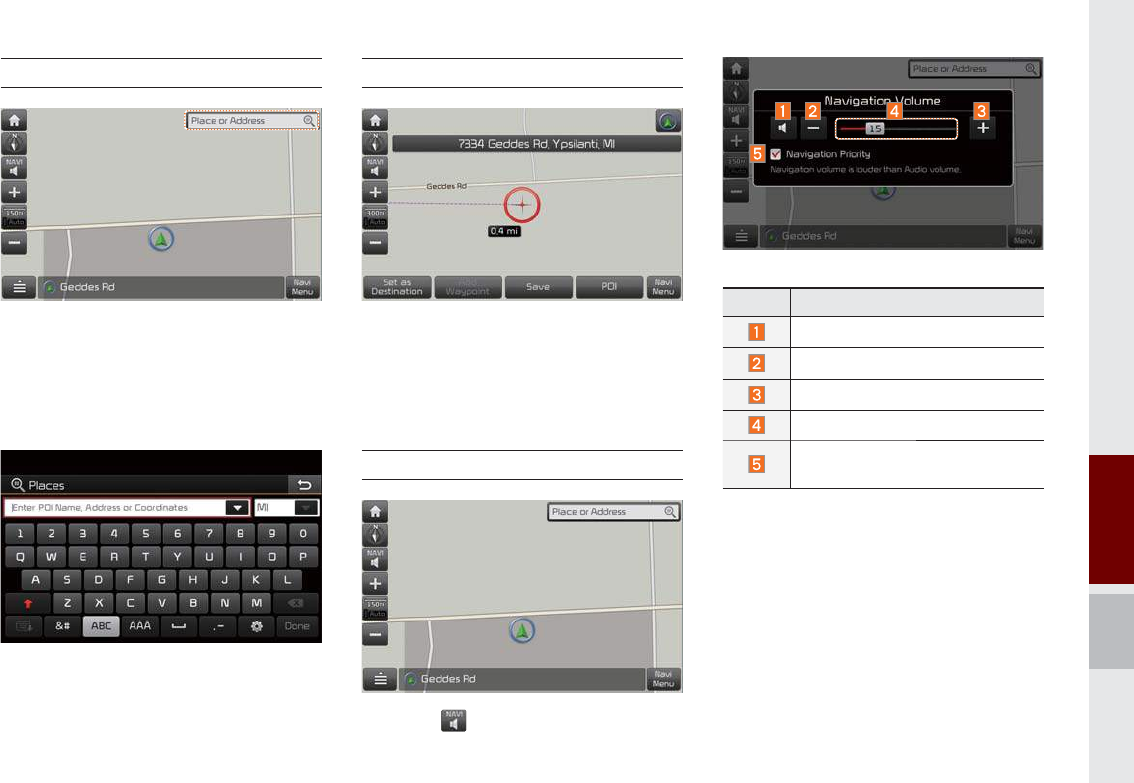

Basic Features I 6-3

Places

You can use this menu when the gear is in

“Parking” mode and there is no destination

set. Press the Search screen to move to

“Places”.

Please refer to “Places” in “Destination

Search” for more details.

Changing Map View

Touch the compass arrow icon to toggle

between a map oriented to the North, ori-

ented parallel to the vehicle’s heading and

3D View.

Navigation Volume

Press the button to adjust the naviga-

tion volume.

Name Description

Set the volume to mute.

Turn the volume down.

Turn the volume up.

Slide to set the volume.

Sets the volume of voice guid-

ance louder than that of audio.

K_DE 16_G4.0[USA_EU]AVN_PART6.indd 6-3K_DE 16_G4.0[USA_EU]AVN_PART6.indd 6-3 2016-11-04 오후 3:02:332016-11-04 오후 3:02:3

6-4 I Navigation

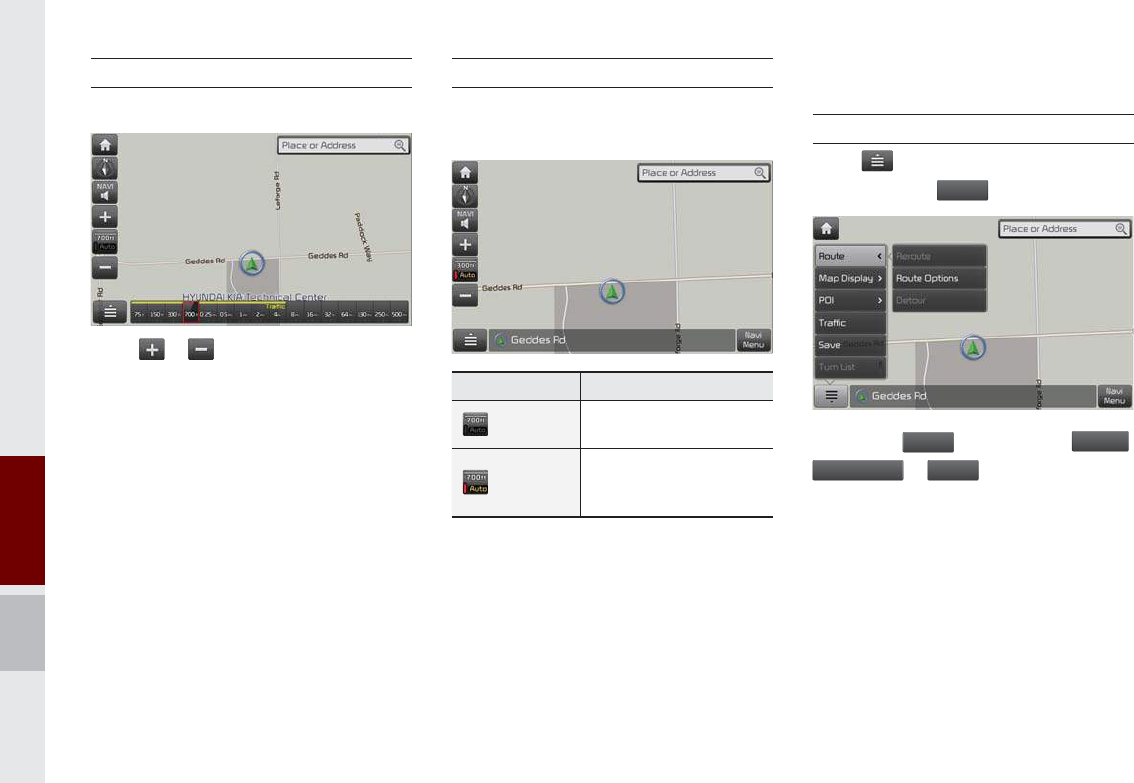

Zoom In/Zoom Out

Zoom the map view screen in and out.

Press or to set the zoom level.

Map Scale

Sets the zoom level automatically accord-

ing to the type of road.

Name Description

Scale Fix Manually adjust the map

scale.

Auto Scale Change the map scale

automatically depending

on the type of road.

Route

Press button on the bottom left of the

screen ▶ Press

button.

Select the

Route

button to set

Route

ption

our

K_DE 16_G4.0[USA_EU]AVN_PART6.indd 6-4K_DE 16_G4.0[USA_EU]AVN_PART6.indd 6-4 2016-11-04 오후 3:02:392016-11-04 오후 3:02:3

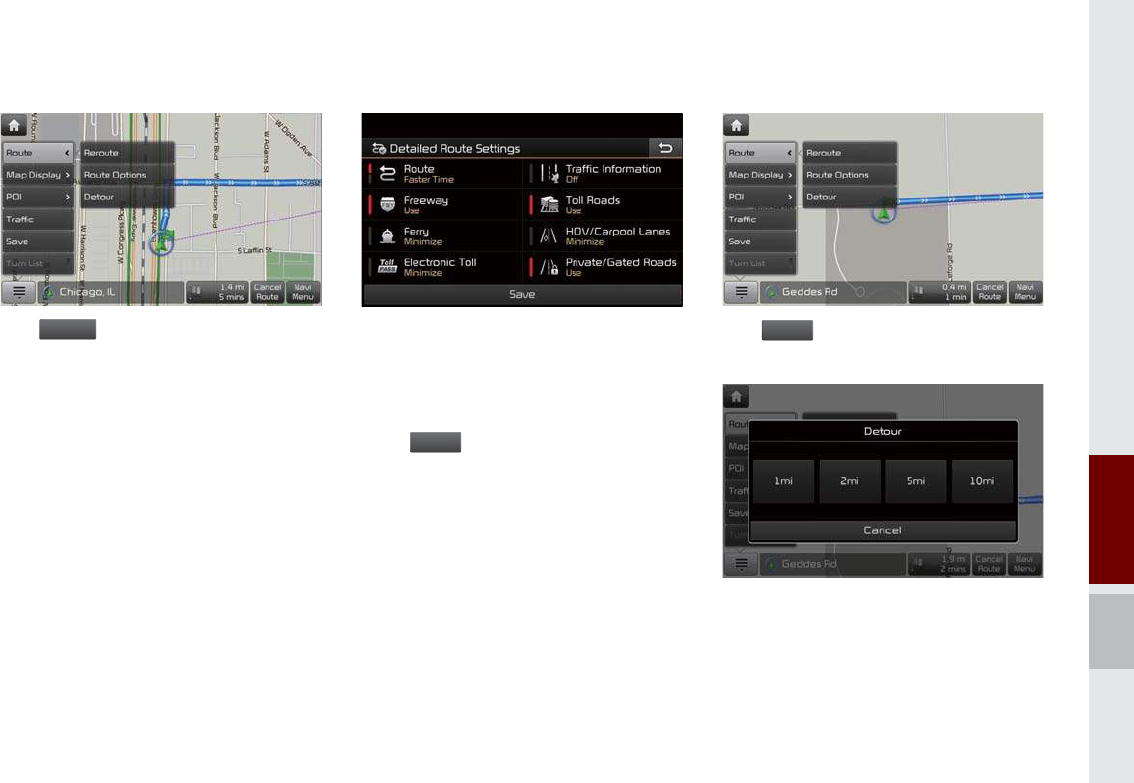

Menu I 6-5

Reroute

The

Rerout

button is active only when

there is an active route.

You can search a route again.

Route Options

You can select an option from Route,

Traffic Information, Freeway, Toll Roads,

Ferry, HOV/Carpool Lanes, Electronic Toll

or Private/Gated Roads.

Press

to save your selection.

If there is a route already saved, another

route will be searched.

Detour

The

button is active only when

there is an active route.

Selected distance is detoured from the

current location.

K_DE 16_G4.0[USA_EU]AVN_PART6.indd 6-5K_DE 16_G4.0[USA_EU]AVN_PART6.indd 6-5 2016-11-04 오후 3:02:412016-11-04 오후 3:02:4

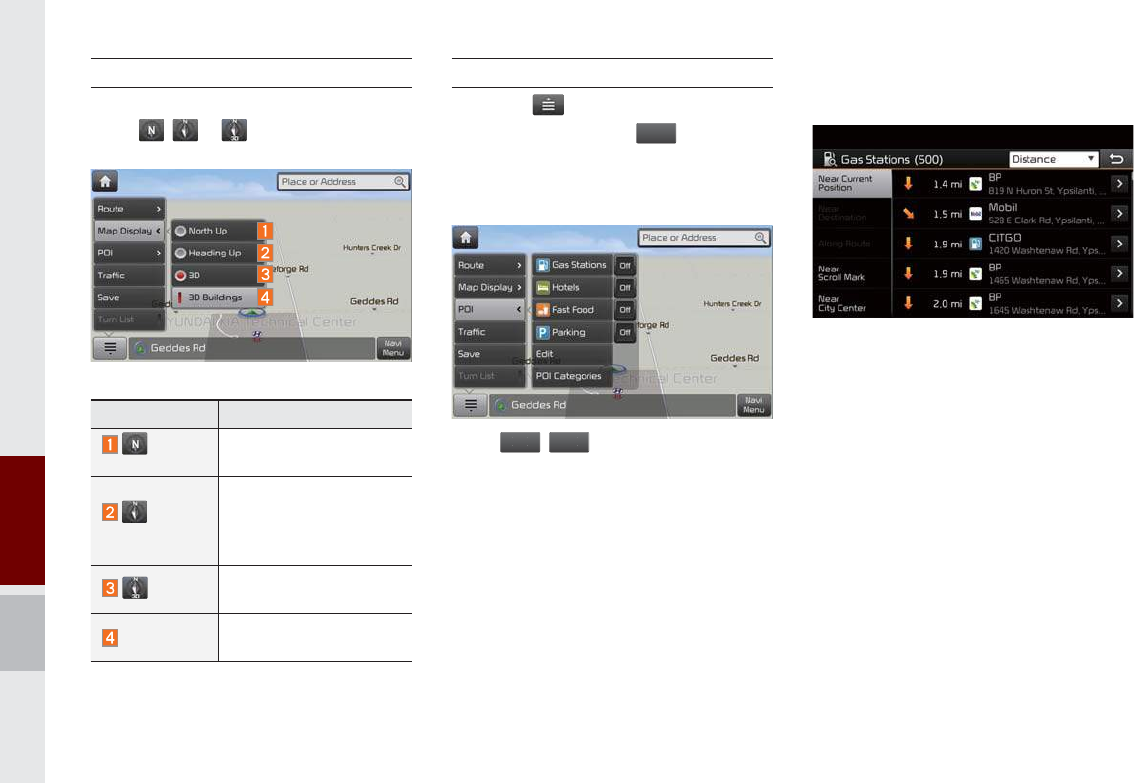

6-6 I Navigation

Map Display

Displays the direction of the map.

Press , or .

Name Description

North

Up (2D)

Displays always has

north at the top of screen.

Heading

Up (2D)

Displays always shows

the vehicle’s direction as

proceeding towards the

top of the screen.

3D Shows the map in

3 dimentions.

3D Buildings

Shows or hides build-

ings on the map.

POI

Select the button on the bottom left of

the screen ▶ Select the

button.

View Nearby POIs

Press

Off

button to set whether to

show nearby POIs or not. When catego-

ries are selected, they will appear on the

map. (ex. Gas Stations)

The lists of nearby gas stations are dis-

played.

The list can be sorted to display in order of

distance or name.

K_DE 16_G4.0[USA_EU]AVN_PART6.indd 6-6K_DE 16_G4.0[USA_EU]AVN_PART6.indd 6-6 2016-11-04 오후 3:02:432016-11-04 오후 3:02:4

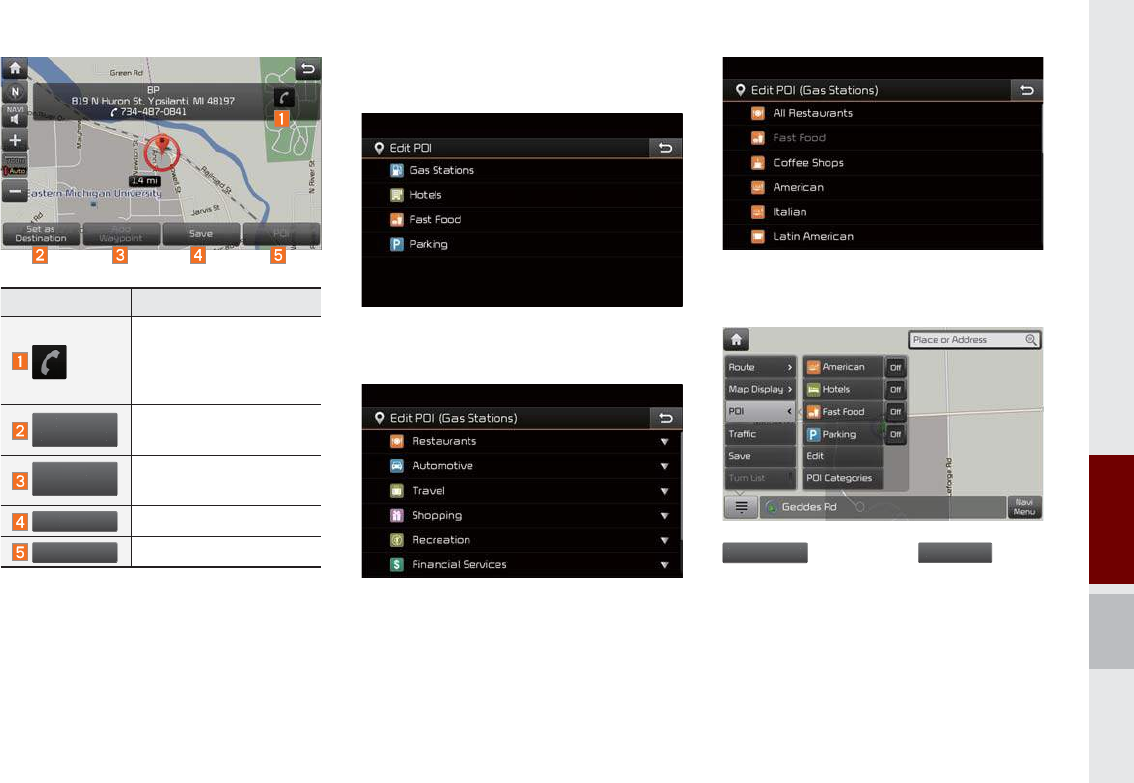

Menu I 6-7

Name Description

Call to the selected

location (Phone needs

to be connected via

Bluetooth).

Destin

Set the place as a des-

tination.

Waypoin

Set the location as a

waypoint.

Sav

Save the location.

Search nearby POIs.

Edit

Change the shortcut POIs to display (ex.

Gas Stations)

Select the desired category to change. (ex

Restaurants)

Select new category to display (ex.

American)

is changed to

merican

K_DE 16_G4.0[USA_EU]AVN_PART6.indd 6-7K_DE 16_G4.0[USA_EU]AVN_PART6.indd 6-7 2016-11-04 오후 3:02:492016-11-04 오후 3:02:4

6-8 I Navigation

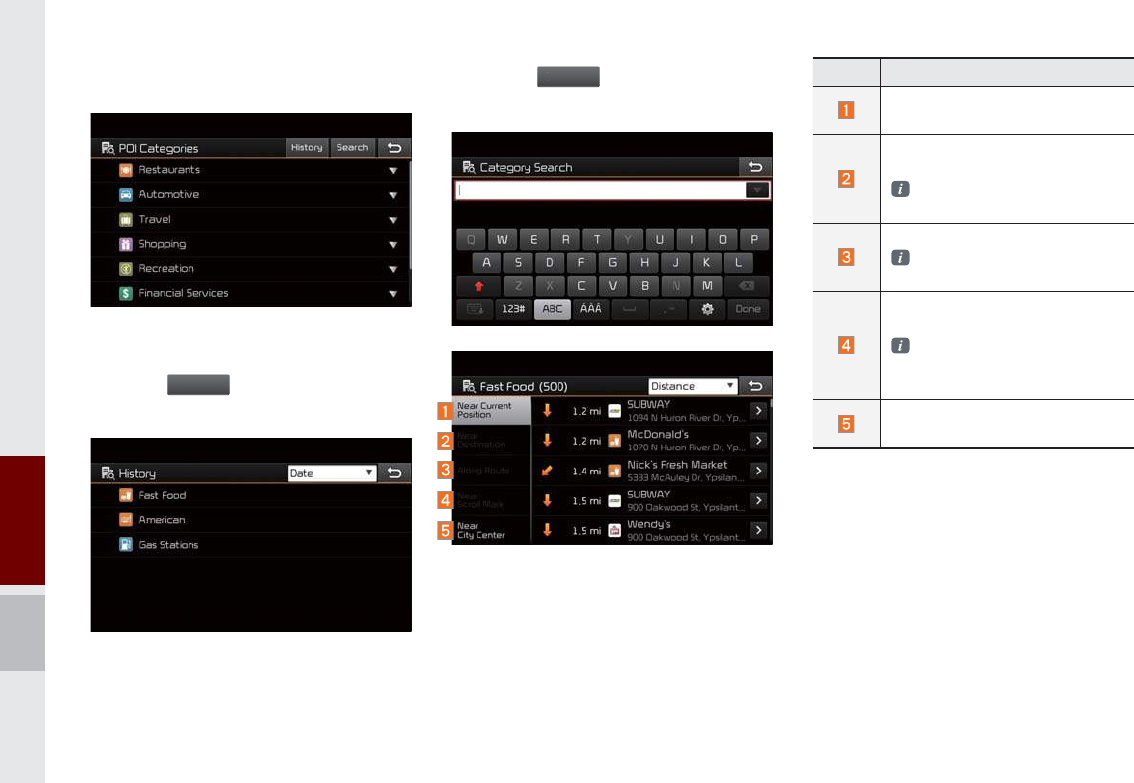

POI Categories

Select the item to search.

Press the

Histor

button to check the pre-

vious search result.

Press the

earc

button to search the

POI category by name.

Select the desired POI to check the loca-

tion and for detailed information.

Name Description

Search POI around the current

position.

Search POI around the destina-

tion.

Active only when a route’s

planned.

Search POI along route.

Active only when a route’s

planned.

Search POI around the current

cursor when the map scrolled.

Active only when the cursor

position is different from the

vehicle position.

Search POI around the city

selected.

K_DE 16_G4.0[USA_EU]AVN_PART6.indd 6-8K_DE 16_G4.0[USA_EU]AVN_PART6.indd 6-8 2016-11-04 오후 3:02:542016-11-04 오후 3:02:5

Menu I 6-9

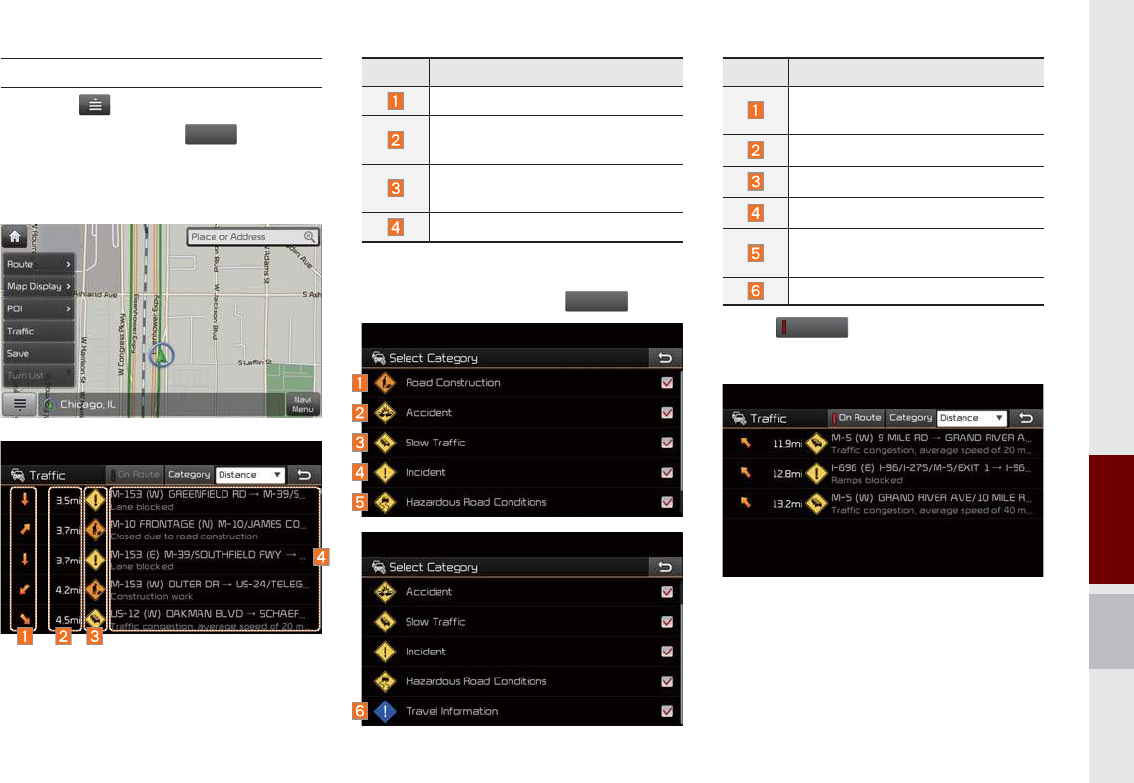

Traf ﬁ c

Press the button on the bottom left of

the screen ▶ Select the

Traffic

button.

Trafﬁ c List

On the traffic list, the current traffic/road

event information is displayed in order of

distance.

Name Description

Direction from the current location.

Distance from the current loca-

tion (mi or km).

Displays traffic info symbol based

on the type of event.

Description of traffic event.

Additional traffic information may be dis-

played upon clicking on the

Cate

button.

Name Description

Display ‘Road Construction’ infor-

mation.

Display ‘Accident’ information.

Display ‘Slow Traffic’ information.

Display ‘Incident’ information.

Display ‘Hazardous Road

Conditions’ information.

Display ‘Travel Information’.

When

On R

is activated, only traffic

information on your route is displayed.

K_DE 16_G4.0[USA_EU]AVN_PART6.indd 6-9K_DE 16_G4.0[USA_EU]AVN_PART6.indd 6-9 2016-11-04 오후 3:02:592016-11-04 오후 3:02:5

6-10 I Navigation

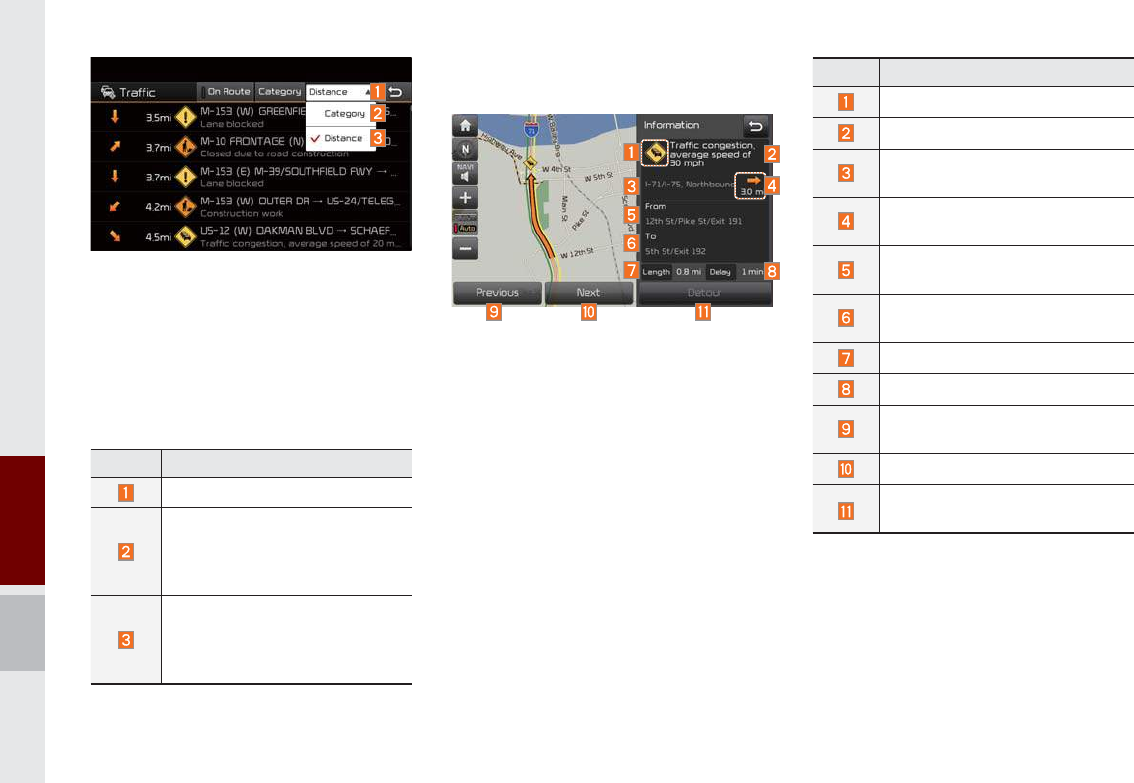

On the traffic list, the current basic traf-

fic/road event information is displayed in

order of distance.

Select the combo box to change the

arrangement in order of Category/

Distance.

Name Description

Select the combo box to arrange.

Arrangement by category: Display

traffic information arranged in

order of traffic information event

type.

Arrangement by distance: Display

the traffic information in order

of distance closer to the current

location.

Trafﬁ c detail

Select the traffic information on the traffic

list to display the detailed screen as shown

in the screen.

Display the symbol of traffic event and

arrow which indicates the road from start

to end of the traffic event. Detailed infor-

mation is available on the right screen.

Name Description

Symbol of traffic event.

Event name of traffic information.

Road name/road number includ-

ing direction.

Direction and distance from the

current location.

Intersection where traffic event

starts.

Intersection where traffic event

ends.

Total distance of traffic event.

Estimated delay time.

Check the previous traffic infor-

mation.

Check the next traffic information.

Detour the route based on the

traffic information.

K_DE 16_G4.0[USA_EU]AVN_PART6.indd 6-10K_DE 16_G4.0[USA_EU]AVN_PART6.indd 6-10 2016-11-04 오후 3:03:092016-11-04 오후 3:03:0

Menu I 6-11

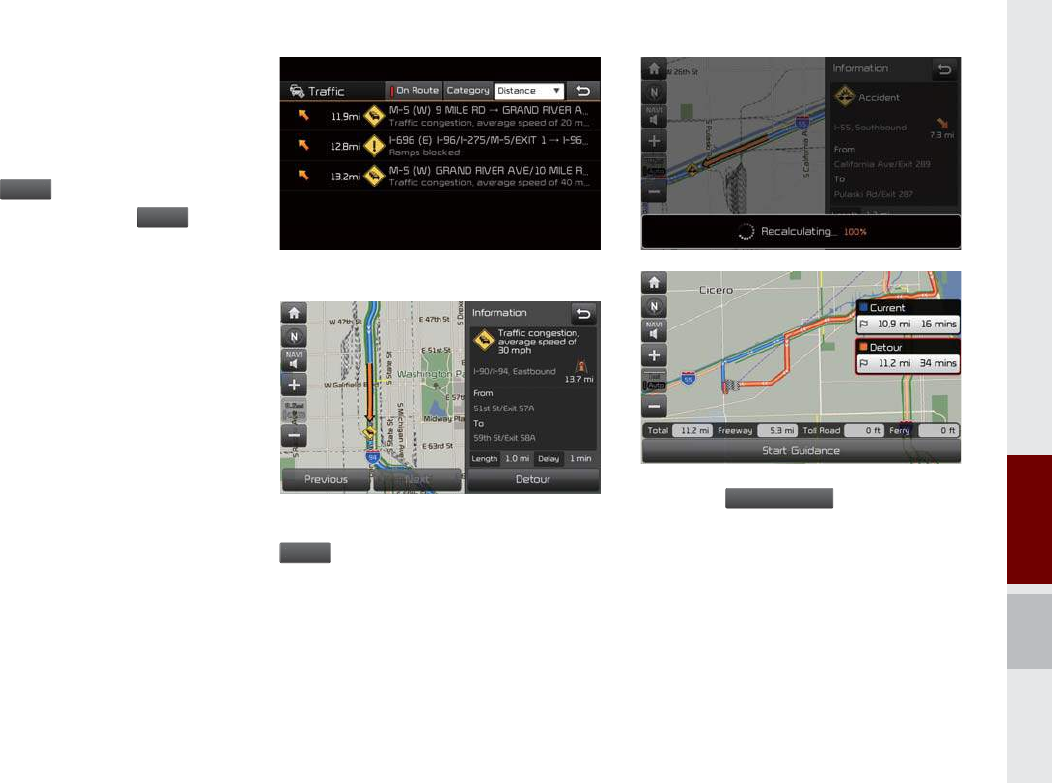

Trafﬁ c detour

If there is traffic information on the route, it

is possible to detour the route using traffic

information and search other routes.

When the

Detour

button is enabled in the

View Traffic Detail, press the

Detour

button

to detour.

on.

Select the desired section.

Check the information and press the

our

button.

Press the

tart Guidance

button to apply

the detoured sections and search other

routes.

K_DE 16_G4.0[USA_EU]AVN_PART6.indd 6-11K_DE 16_G4.0[USA_EU]AVN_PART6.indd 6-11 2016-11-04 오후 3:03:152016-11-04 오후 3:03:1

HYUNDAI MOBIS ADC30C6AN DIGITAL CAR AVN SYSTEM User Manual Part 1

HYUNDAI MOBIS CO., LTD. DIGITAL CAR AVN SYSTEM Part 1

Contents

User Manual Part 1

Navigation menu

Namespaces

Views

Navigation
