HYUNDAI MOBIS AM943DMAN CAR AUDIO User Manual 1

HYUNDAI MOBIS CO., LTD. CAR AUDIO 1

UserManual.wiki >

HYUNDAI MOBIS >

AM943DMAN User Manual HTML Version

Users Manual

Read the following safety cautions for your safety.

Please read the following safety matters for your safety. This User's Manual describes circumstances that may

inflict injury onto drivers and others with the following notations (Warning, Caution, Notice, Information).

Notations used within this User's Manual

Safety Warnings

Failure to observe the safety instructions within this category could result in serious injury or death.

Safety Cautions

Failure to observe the safety instructions within this category could result in accident related injuries or damage to the vehicle.

• Possible Serious Injury or

Death

• Failure to observe safety

instructions in the 'Warning"

category could result in

serious injury or death.

WARNING

• Possible Moderate or Minor

Injury

• Failure to observe safety

instructions in the "Caution"

category can result in

moderate or minor injury.

CAUTION

• Additional information tips

and instructions are indicated

by this symbol (international

symbol for information).

Information

• Possible vehicle damage

Failure to observe instructions

in the "Notice" category

could result in damage

to the vehicle.

NOTICE

Thank you for purchasing this Audio System.

This user's manual explains how to use the Audio System.

Before using the product, read the contents of this user's

manual carefully and use this product safely.

The screens shown in this manual may differ with the actual

screens of the product.

The design and specification of this product may change

without prior notification for product improvement.

When transferring the vehicle to another individual, include

this user's manual so that the next driver can continue its use.

If the temperature inside the vehicle is too high, open the

vehicle windows for ventilation before using your audio system.

When listening to music by connecting an external device

(USB/iPod, AUX), the device may become disconnected when

driving on unpaved roads if the connection state worsens due to

severe vibrations.

Some USB/iPod devices may not operate depending on the

manufacturer, method of manufacturer or recording method. In

such cases, continued use may lead to malfunctions.

When using the Bluetooth® feature, supported options may

differ depending on the manufacturer and the mobile phone

model. (For more information on Bluetooth® compatibility, refer

to the Hyundai Motor or Kia Motors website.)

iPod®

iPod® is a registered trademark of Apple Inc.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks

owned by Bluetooth® SIG, Inc. and any use of such marks by

Hyundai/Kia is under license.

A Bluetooth® enabled cell phone is required to use Bluetooth®

wireless technology.

Before Use

시작하기 전에

Thank you for purchasing this Audio System.

This user's manual explains how to use the Audio System.

Before using the product, read the contents of this user's

manual carefully and use this product safely.

The screens shown in this manual may differ with the actual

screens of the product.

The design and specification of this product may change

without prior notification for product improvement.

When transferring the vehicle to another individual, include

this user's manual so that the next driver can continue its use.

차내 온도가 높을 경우, 창을 열어 환기를 시킨 후 오디오를 동

작시켜 주십시오.

외부기기(USB/iPod, AUX)를 연결하여 음악을 들으며 비포장

도로를 운행할 때 차체 내에 심한 충격이 가해지면 연결상태(접

촉불량)가 나빠져서 연결이 해제되는 현상이 발생할 수 있습니다.

USB/iPod을 사용하실 경우에는 각 매체의 제조회사 및 제조방

법과 사용자의 녹음 방식에 따라 재생이 안될 수도 있습니다. 이

경우, 계속하여 사용하면 고장의 원인이 될 수 있습니다.

블루투스 기능을 사용하실 경우, 각 제조회사의 휴대폰 모델에

따라 지원되는 내용이 상이할 수 있습니다. (블루투스폰 호환성

관련 사항은 현대자동차 또는 기아자동차 홈페이지를 참조하십

시오.)

iPod®

iPod® is a registered trademark of Apple Inc.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks

owned by Bluetooth® SIG, Inc. and any use of such marks by

Hyundai/Kia is under license.

A Bluetooth® enabled cell phone is required to use Bluetooth®

wireless technology.

HD RadioTM

HD Radio Technology manufactured under license from iBiquity

Digital Corporation. U.S. and Foreign Patents. HD Radio™ and

the HD, HD Radio, and “Arc” logos are proprietary trademarks

of iBiquity Digital Corp.

Warnings and Cautions

Component Names and Functions

1Basic

Do not stare at the screen while driving. Staring at the screen for

prolonged periods of time could lead to traffic accidents.

Do not disassemble, assemble, or modify the audio system. Such acts

could result in accidents, fire, or electric shock.

Using the phone while driving may lead to a lack of attention of traffic

conditions and increase the likelihood of accidents. Use the phone

feature after parking the vehicle.

Heed caution not to spill water or introduce foreign objects into the

device. Such acts could lead to smoke, fire, or product malfunction.

Please refrain from use if the screen is blank or no sound can be

heard as these signs may indicate product malfunction. Continued use

in such conditions could lead to accidents(fires, electric shock) or

product malfunctions.

Do not touch the antenna during thunder or lightening as

such acts may lead to lightning induced electric shock.

Do not stop or park in parking-restricted areas to operate

the product. Such acts could lead to traffic accidents.

Warnings and Cautions

1 Basic

Safety Warnings Operating the device while driving could lead to accidents due to a

lack of attention to external surroundings. First park the vehicle before

operating the device.

Adjust the volume to levels that allow the driver to hear sounds from

outside of the vehicle. Driving in a state where external sounds cannot

be heard may lead to accidents.

Pay attention to the volume setting when turning the device on. A

sudden output of extreme volume upon turning the device on could

lead to hearing impairment. (Adjust the volume to a suitable levels

before turning off the device.)

If you want to change the position of device installation, please inquire

with your place of purchase or service maintenance center. Technical

expertise is required to install or disassemble the device.

Turn on the car ignition before using this device. Do not operate the

audio system for long periods of time with the ignition turned off as

such operations may lead to battery discharge.

Do not subject the device to severe shock or impact. Direct pressure

onto the front side of the monitor may cause damage to the LCD or

touch screen.

When cleaning the device, make sure to turn off the device and use a

dry and smooth cloth. Never use tough materials, chemical cloths, or

solvents (alcohol, benzene, thinners, etc.) as such materials may

damage the device panel or cause color/quality deterioration

Do not place beverages close to the audio system. Spilling beverages

may lead to system malfunction.

In case of product malfunction, please contact your place of purchase

or After Service center.

Safety Cautions

RADIO

MEDIA

PHONE

11 12

No. Name Description

1EJECT Press to insert or eject disc

2DISC-IN LED LED that indicates whether a disc is inserted

3DISP Turns the monitor display on/off

4RESET Forced system termination and system restart

5RADIO • Converts to Radio (FM/AM) mode

• Each time this key is pressed, the mode is changed in

order of FM1 FM2 FMA AM AMA

6MEDIA

• Starts Media mode

• Each time this key is pressed, the mode is changed in

order of CD →USB(iPod) →AUX →My Music →BT Audio →

7PHONE Converts to Phone mode

8CLOCK Displays the time/date/day

9SCAN

• In Radio mode, previews all receivable broadcasts for 5 seconds

each

• In CD/USB/iPod/My Music mode, previews each song (file) for 10

seconds each

10 SETUP Converts to Setup mode

11 POWER/VOL • Press to turn power on/off

• Turn left/right to control volume

12 SEEK/TRAC

When [SEEK(<)/TRACK(>)] keys are pressed shortly(under

0.8 seconds)

• In FM/AM mode, plays previous/next frequency

• In CD/USB/iPod/My Music modes changes the track, file or

chapter

When [SEEK(<)/TRACK(>)] keys are pressed shortly(over 0.8

seconds)

• In FM/AM mode, continuously changes the frequency until the

key is released and plays the current frequency.

• In CD/USB/iPod/My Music modes, rewinds or fast forwards the

track or file

• During a Handsfree call, controls the call volume.

13 PTY/FOLDE

R•In CD/USB/MP3 modes, searches folders

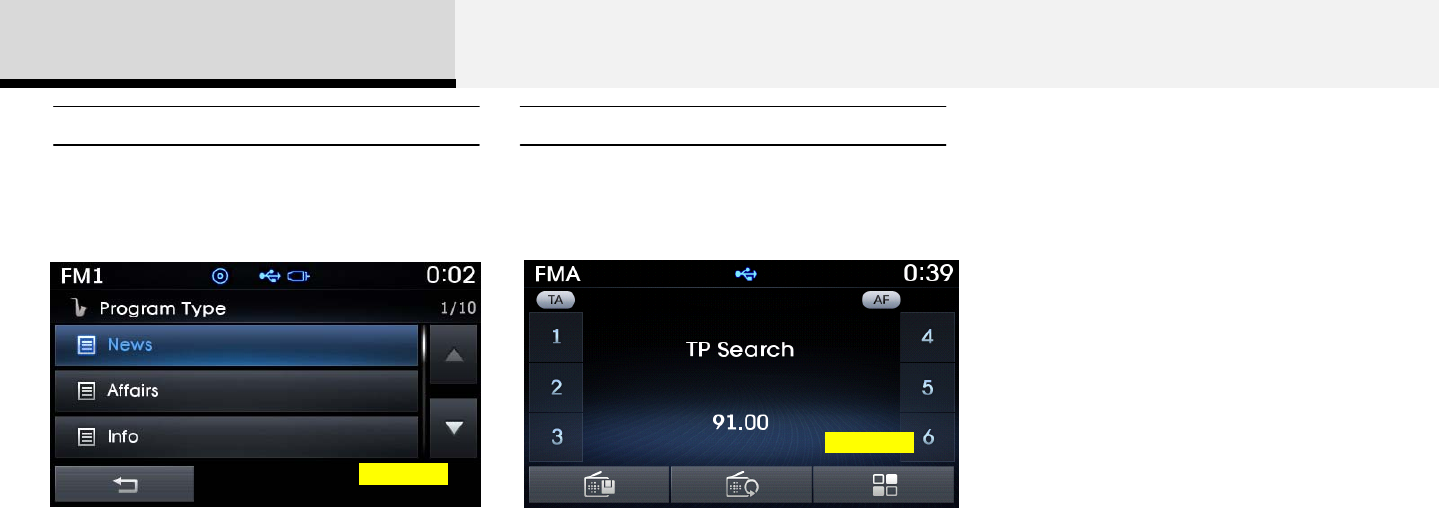

•In RDS Radio mode, searches RDS program types

14 TUNE/FILE • In FM/AM mode, turn to change broadcast frequencies

• In CD, MP3, USB, and iPod modes, turn to search

tracks/channels/files.

CLOCK

SCAN

SETUP

SEEK

TRACK

V Λ CATEGORY

V Λ

VOLUME

POWER

(PUSH)

FILE TUNE

ENTER

DISP

Component Names and Functions

Head Unit

1 Basic

This device supports touch screen operations.

You can conveniently select desired features by pressing corresponding

buttons on the touch screen.

Steering Remote Controller

HG 이미지로 교체 필요

No. Name Description

1[MODE ]

• Each time this key is pressed, the mode is changed in order of FM1→FM2→

FMA→AM→AMA→USB or iPod→AUXMy Music →BT Audio

• If the media is not connected or a disc is not inserted,

corresponding modes will be disabled.

2[Vol] Used to control volume

3V, Λ

When, V, Λ

keys are pressed shortly (under 0.8 seconds)

• In FM/AM mode, searches broadcast frequencies saved to

presets.

• In CD/USB/iPod/My Music/BT Audio modes, changes the

track, file or chapter

When, V, Λ

keys are pressed shortly (over 0.8 seconds)

• In FM/AM mode, automatically searches broadcast frequencies and channels

• In CD/USB/iPod/My Music/BT Audio modes, rewinds or fast

forwards the track or file

* BT Audio mode may not be supported in some mobile phones.

When pressed shortly (under 0.8 seconds)

• Starts voice recognition

• When selecting during a voice prompt, stops the prompt and converts to voice

command waiting state

When pressed and held (over 0.8 seconds)

• Ends voice recognition

When pressed shortly (under 0.8 seconds)

• When pressed in the phone screen, displays call history screen

• When pressed in the dial screen, makes a call

• When pressed in the incoming call screen, answers the call

• When pressed during call waiting, switches to waiting call (Call Waiting)

When pressed and held (over 0.8 seconds)

• When pressed in the Bluetooth® Handsfree wait mode,

redials the last call

• When pressed during a Bluetooth® Handsfree call,

switches call back to mobile phone (Private)

• When pressed while calling on the mobile phone, switches

call back to Bluetooth® Handsfree

• (Operates only when Bluetooth® Handsfree is connected)

6Ends phone call

7Mute Mutes audio volume

1 Basic



Switching between

Radio/Media Mode

Radio Mode

Audio CD Mode

MP3 CD Mode

USB Mode

iPod Mode

AUX Mode

My Music Mode

Bluetooth® Audio Mode

2Audio

2 Audio

Switching between Radio/Media Mode

Switching to Radio Mode Switching to Media Mode

Pressing the [RADIO] key will change the

operating mode in order of FM1 →FM2 →

FMA →AM →AMA.

If [Pop-up Mode] is turned on within [Setup] ▶

[Display], then pressing the [RADIO] key will

display the Radio Pop-up Mode screen.

Turn the [TUNE/FILE] knob to move the focus.

Press the [OK] key to select.

Pressing the [MEDIA] key will change the

operating mode in order of CD USB(iPod)

AUX My Music BT Audio.

If [Pop-up Mode] is turned on within [Setup] ▶

[Display], then pressing the [MEDIA] key will

display the Media Pop-up Mode screen.

Turn the [TUNE/FILE] knob to move the focus.

Press the [OK] key to select.

2 Audio

No. Name Description

1Mode Display Displays currently operating mode

2Frequency current frequency

3Preset Displays current preset number [1] ~ [6]

4Preset

Display Displays saved presets

5Autostore Automatically saves frequencies with superior

reception to Preset buttons

6RDS Menu Displays the RDS Menu

7RDS Info Displays RDS broadcast information

12:05

FM1

PS Name

87.90

Preset AST RDS Menu

PTY Name

RDS_01

Radio Mode

Basic Mode Screen

Press the [SEEK(<)],[TRACK(>)] keys to

play the previous/next frequency.

Turn the [TUNE/FILE] knob to select the

desired frequency.

FM : Increases/decreased by 50kHz

AM : Increases/decreased by 9kHz

Using Seek

Press the [Preset] button to display the

broadcast information for the frequency

saved to each button.

Selecting /Saving Presets

Using TUNE

Auto Store

Press the [Autostore] button to

automatically save receivable frequencies

to Preset buttons.

Searching Radio Frequencies Using Radio Mode

Press the [1]~[6] buttons to play the

desired preset.

RDS_01

RDS_02

While listening to a frequency you want to

save as a preset, press and hold one of

the [1] ~ [6] preset buttons (over 0.8

seconds) to save the current frequency to

the selected preset.

EU_Radio_AS

• While Auto Store is operating, pressing

the [Cancel] button again will cancel Auto

Store and restore the previous frequency.

Information

2 Audio

RDS Menu

Press the [RDS Menu] button to set the

AF (Alternative Frequency), Region and

News features.

• The RDS Menu is not supported within

AM or AMA mode.

Information



Press and hold the [TA/SCAN] key (over

0.8 seconds) to preview frequencies with

superior reception for 5 seconds each.

Scan

• Once scan is complete, the previous

frequency will be restored.

• While Scan is operating, pressing and

holding the [TA/SCAN] key (over 0.8

seconds) will cancel the scan operation.

Information

RDS_03

2 Audio

Program Type TA (Traffic Announcement)

RDS_04

Press the [PTY/FOLDER] key to search

for the desired Program type.

Turn the [TUNE/FILE] knob left/right to

search for the desired program type. Once

you find the desired program type, press

the [TUNE/FILE] knob.

After selecting the desired Program Type

and while the Program Type is blinking

(approximately 5 seconds), pressing the

[(∨)SEEK], [TRACK(∧)] key will allow

you to select a different Program Type

broadcast.

Press the [TA/SCAN] key to turn the TA

(Traffic Announcement) feature On/Off.

(Icon)

RDS_05

Precautions upon handling discs

• This device has been manufactured to be compatible with

software bearing the following logo marks.

• Do not clean discs with chemical solutions, such as record

sprays, antistatic sprays, antistatic liquids, benzene, or thinners.

• After using a disc, put the disc back in its original case to

prevent disc scratches.

• Hold discs by their edges or within the center hole to prevent

damages to disc surfaces.

• Do not to introduce foreign substances into the disc

insert/eject slot. Introducing foreign substances could damage

the device interior.

•Do not insert two discs simultaneously.

• When using CD-R/CD-RW discs, differences in disc reading

and playing times may occur depending on the disc

manufacturer, production method and the recording method as

used by the user.

•Clean fingerprints and dust off the disc surface (coated side)

with a soft cloth.

• The use of CD-R/CD-RW discs attached with labels may

result in disc slot jams or difficulties in disc removal. Such discs

may also result in noise while playing.

• Some CD-R/CD-RW discs may not properly operate

depending on the disc manufacturer, production method and

the record method as used by the user. If problems persist,

trying using a different CD as continued use may result in

malfunctions.

• The performance of this product may differ depending on the

CD-RW Drive Software.

• Copy-protected CDs such as S-type CDs may not function in

the device. DATA discs cannot be played. (However, such discs

may still operate but will do so abnormally.)

• Do not use abnormally shaped discs (8cm, heart-shaped,

octagon-shaped) as such discs could lead to malfunctions.

• If the disc is straddled on the disc slot without removal for 10

seconds, the disc will automatically be re-inserted into the disc

player.

• Only genuine audio CDs are supported. Other discs may

result in recognition failure (e.g. copy CD-R, CDs with labels)

Audio CD Mode

2 Audio

File

System

ISO 9660 Level 1

ISO 9660 Level 2

Romeo / Juliet (128 characters)

Audio

Compress

ion

MPEG1 Audio Layer3

MPEG2 Audio Layer3

MPEG2.5 Audio Layer3

Windows Media Audio Ver 7.X & 8.X

•Supported Audio Formats

※File formats that do not comply with the

above formats may not be properly recognized

or play without properly displaying file names

or other information.

1. Supported Bitrates (Kbps)

MPEG1 MPEG2 MPEG2.5 WMA

44100 22050 11025 32000

48000 24000 12000 44100

3000 16000 8000 48000

- For MP3/WMA compression files, differences

in sound quality will occur depending on the

bitrate.

(Higher sound quality can be experienced

with higher bitrates.)

- This device only recognizes files with

MP3/WMA extensions. Other file extensions

may not be properly recognized.

3. Maximum number of recognized folders and

files

- Folder : 255 folders for CD, 2,000 folders for

USB

- File : 999 files for CD, 6,000 files for USB

- There are no limitations to the number of

recognized folder levels

•Language Support (Unicode Support)

1. Korean: 2,604 characters

2. English: 94 characters

3. Special characters and Symbols : 986

characters

※Languages other than Korean and English

(including Chinese) are not included.

4. Text Display (Based on Unicode)

- File name: Maximum 64 English characters

(64 Korean characters)

- Folder name: Max 32 English characters (32

Korean characters)

•Support for Compressed Files

MP3 File Information

2. Sampling Frequencies (Hz)

2 Audio

※Using the scroll feature allows you to see the

entire name of files with names that are too long

to be displayed at once.

3. When naming files with MP3/WMA file extensions, write

using only Korean and English. (Languages other than

Korean and English are not supported and are displayed as

blank.)

4. Unauthorized use or duplication of music files are

prohibited by law.

5. Prolonged use of CD-R/CD-RW discs that do not satisfy

related standards and/or specifications could result in

product malfunction.

•Compatibility by Disc Type

1. Playing MIXED CDs: First plays the audio CD, then plays the

compressed file(s).

2. Playing EXTRA CDs: First plays the audio CD, then plays the

compressed file(s).

3. Playing multisession CDs: Plays in order of sessions

-MIXED CD

: CD type in which both MP3 and audio CD files are recognized in one

disc.

- Multisession CD

CD type that includes more than two sessions.

Different from Extra CDs, multisession CDs are recorded by sessions

and have no media limitation.

•Precautions upon Writing CDs

1.In all cases except when creating multisession discs, also opt to

close session when writing a CD. While product malfunctions will not

occur, some time may be required for the device to check whether the

session state (approximately 25 seconds). Additional reading time may

also be necessary depending on the number of folders or files.)

2. Changing the MP3/WMA file extensions or changing files of other

extensions to MP3/WMA may result in product malfunction.

2 Audio

• Unauthorized use or duplication of MP3/WMA files is

prohibited by law.

Basic Mode Screen

2 Audio

678 9

EU_CD_01

No. Name Description

1Mode Displays currently operating mode

2Operation

State From Repeat/Shuffle/Scan, displays the

currently operating function

3Track

Information Displays information about the current track

4Play State Displays the play/pause state

5Play Time Displays the current play time and total play

time

6Info Shows detailed information about the current

track

7Shuffle Turns the Shuffle feature on/off

8Repeat Turns the Repeat feature on/off

9List Moves to the list screen

While playing, press the key to pause

and press [ key to play.

Press the [(∨)SEEK], [TRACK(∧)] keys to

move to the previous or next track.

2 Audio

Information

• Only genuine audio CDs are supported.

Other discs may result in recognition

failure (e.g. copy CD-R, CDs with labels)

• The artist and title information are

displayed on the screen if track

information is included within the audio

CD.

Playing/Pausing CD Tracks Changing Tracks

Once an audio CD is inserted, the mode

will automatically start and begin playing.

While playing, press and hold the

[(∨)SEEK], [TRACK(∧)] keys (over 0.8

seconds) to rewind or fast-forward the

current track.

Turn the [TUNE/FILE] knob left/right to

search for the desired track.

Selecting from the List

Rewinding / Fast-forwarding Tracks

Once you find the desired track, press the

[TUNE/FILE] knob to start playing.

Using Audio CD Mode

Press the [TA/SCAN] key to play the first

10 seconds of each track.

Scan

EU_CD_0

EU_CD_02

Information

• Pressing the [(∨)SEEK] key after the

track has been playing for 3 seconds will

start the current track from the beginning.

• Pressing the [SEEK(<)] key before the

track has been playing for 3 seconds will

start the previous track.

Press the [Repeat] button to repeat the

current track. Press the button again to

turn the repeat feature off.

Press the [List] button to display the track

list screen.

Turn the [TUNE/FILE] knob left/right to

search for tracks. Once the desired track

is displayed, press the knob to select and

play.

Press the [Shuffle] button to play tracks in

random order. Press the button again to

turn the shuffle feature off.

2 Audio

Repeat

Shuffle List

Info

EU_CD_0

EU_CD_04

EU_CD_0

Press the [Info] button to display details

about the current disc.

Audio CD Mode Menu

Within this mode, you will have access to

the Info, Shuffle, Repeat and List features.

Shuffle: Plays all tracks in random

order.

Repeat: Repeats the current track.

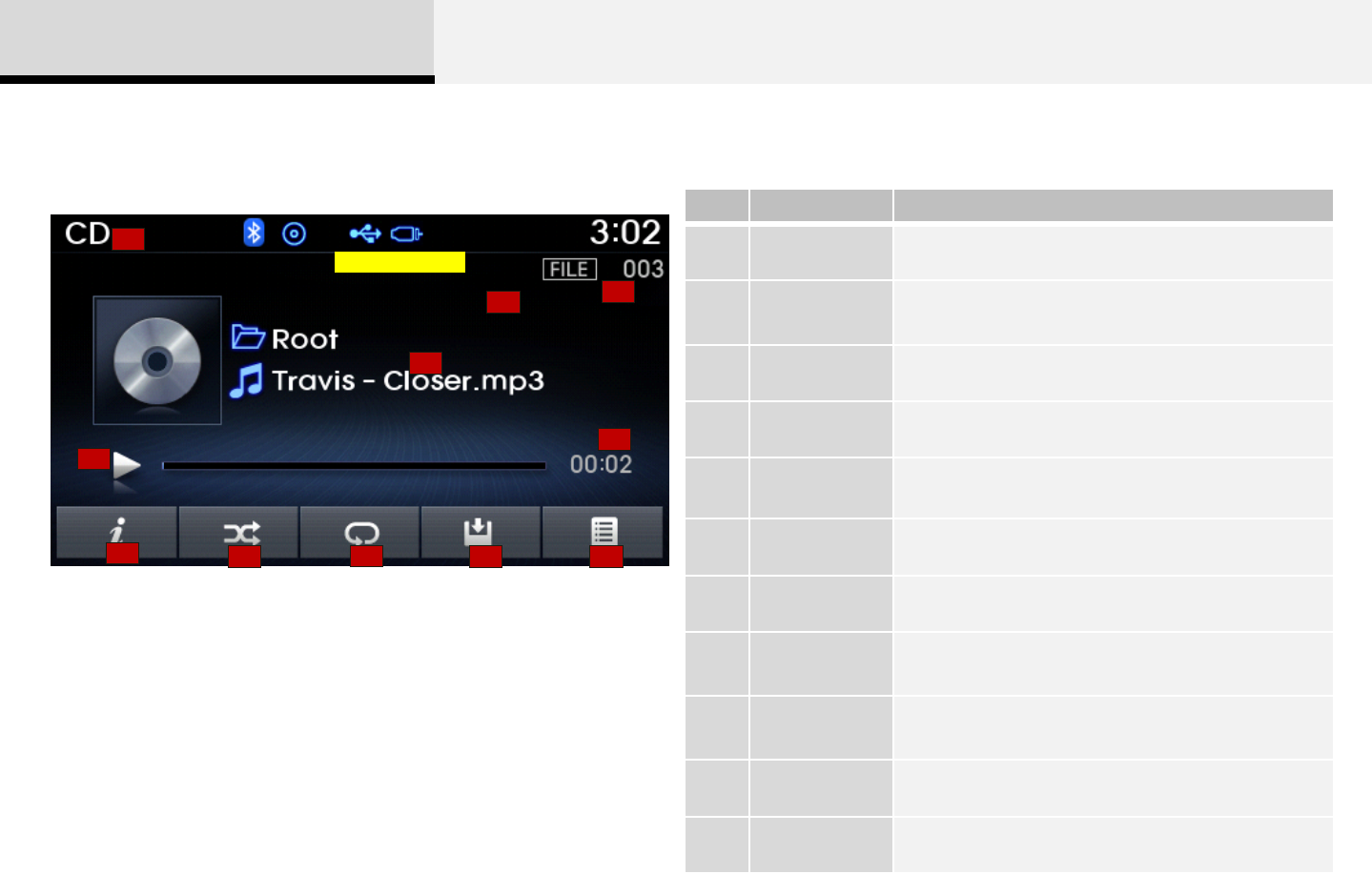

MP3 CD Mode

Basic Mode Screen

2 Audio

78910 11

No. Name Description

1Mode Displays currently operating mode

2Operation

State From Repeat/Shuffle/Scan, displays the currently

operating function.

3File Index Displays the current file number

4File Info Displays information about the current file

5Play State Displays the play/pause state

6Play Time Displays the current play time

7Info Shows detailed information about the current file

8Shuffle Turns the Shuffle feature on/off

(Shuffle Folder, Shuffle All)

9Repeat Turns the Repeat feature on/off

(Repeat, Repeat Folder)

10 Copy Copies the current file into My Music

11 List Moves to the list screen

EU_MP3_CD_01

Information

• If there are numerous songs and

folders within the disc, reading time

could take more than 10 seconds and

the list may not be displayed or song

searches may not operate. Once loading

is complete, try again.

2 Audio

While playing, press and hold the

[(∨)SEEK], [TRACK(∧)] keys (over 0.8

seconds) to rewind or fast-forward the

current file.

Rewinding / Fast-forwarding Files

Playing/Pausing MP3 Files

Selecting from the List

Once an MP3 disc is inserted the mode

will automatically start and being playing.

Searching Folders

Turn the [TUNE/FILE] knob left/right to

search for the desired file.

Press the [PTY/FOLDER] key to select

and search folders.

Using MP3 CD Mode

While playing, press the key to pause

and press key to play.

Scan

Press and hold the [TA/SCAN] key (over

0.8 seconds) to play the first 10 seconds

of each file.

Once you find the desired file, press the

[TUNE/FILE] knob to start playing.

Once the desired folder is displayed,

press the [TUNE/FILE] knob to select. The

first file within the selected folder will

begin playing.

EU_MP3_CD_

EU_MP3_CD_03

EU_MP3_CD_

Press the [(∨)SEEK], [TRACK(∧)] keys to

move to the previous or next file.

Changing Files

Information

• Pressing the [(∨)SEEK] key after the file

has been playing for 3 seconds will start

the current file from the beginning.

• Pressing the [(∨)SEEK] key before the

file has been playing for 3 seconds will

start the previous file.

2 Audio

Repeat

Shuffle

Caution

• The title, artist and album info are

displayed only when such information

are recorded within the MP3 file ID3 tag.

Information

• When the ‘Folder File’ option is set as

the default display within Display setup,

the album/artist/file information are

displayed as detailed file information.

• When the ‘Album Artist Song’ option is

set as the default display, the folder

name/file name are displayed as detailed

file information.

MP3 CD Mode Menu

Within this mode, you will have access to

the Info, Shuffle, Repeat, Copy and List

features. Press the [Repeat] button to repeat the

current file or folder.

Press the [Info] button to display details

about the current file.

Info

Press the [Shuffle] button to play files in

random order. Press the [Copy] button to copy the

current file into My Music.

• Selecting another feature during copying

will display a pop-up asking whether you

wish to cancel copying. To cancel,

select 'Yes’.

Information

Copying Files

EU_MP3_CD_0

Each time the button is pressed, the

feature changes in order of Shuffle

Folder Shuffle All Off.

Shuffle Folder : Plays all files within

the current folder in random order.

Shuffle All : Plays all files in random

order.

Repeat: Repeats the current file.

Repeat Folder: Repeats all files

within the current folder.

Each time the button is pressed, the feature

changes in order of Repeat →Repeat Folder

→Off.

EU_MP3_CD_0

2 Audio

List

Press the [List] button to display the file

list screen.

Turn the [TUNE/FILE] knob left/right to

search for files. Once the desired file is

displayed, press the knob to select and

play.

EU_MP3_CD_0

Before playing a USB MP3

• Connect the USB device after turning on

the engine. The USB device may become

damaged if it is already connected when

the ignition is turned on.

• The USB device may not operate

properly if the car ignition is turned on or

off with the USB device connected.

• Heed caution to static electricity when

connecting/disconnecting USB devices.

• Encoded MP3 Players will not be

recognized when connected as an

external device.

• When connecting an external USB

device, the device may not properly

recognize the USB is in some states.

• Only products formatted with

byte/sectors under 64Kbyte will be

recognized.

• This device recognizes USB devices

formatted in FAT 12/16/32 file formats.

This device does not recognize files in

NTFS file format.

• Some USB devices may not be

supported due to compatibility issues.

• Avoid contact between the USB

connector with bodily parts or foreign

objects.

• Repeated connecting/disconnecting of

USB devices within short periods of time

may result in product malfunction.

• A strange noise may occur when

disconnecting the USB.

• Make sure to connect/disconnect

external USB devices with the audio

power turned off.

• The amount of time required to

recognize the USB device may differ

depending on the type, size or file formats

stored in the USB. Such differences in

time are not indications of malfunctions.

• The device only supports USB devices

used to play music files.

• USB images and videos are not

supported.

• Do not use the USB I/F to charge

batteries or USB accessories that

generate heat. Such acts may lead to

worsened performance or damage to the

device.

• The device may not recognize the USB

device if separately purchased USB hubs

and extension cables are being used.

Connect the USB directly with the

multimedia terminal of the vehicle.

• When using mass storage USB devices

with separate logical drives, only files

saved to the root drive can be played.

• Files may not properly operate if

application programs are installed to the

USBs.

• The device may not operate normally if

MP3 Players, cellular phones, digital

cameras, or other electronic devices (USB

devices not recognized as portable disk

drives) are connected with the device.

• Charging through the USB may not work

for some mobile devices.

• The device may not support normal

operation when using a USB memory type

besides (Metal Cover Type) USB Memory.

USB Mode

2 Audio

• The device may not support normal

operation when using formats such as

HDD Type, CF, or SD Memory.

• The device will not support files locked

by DRM (Digital Rights Management.)

• USB memory sticks used by connecting

an Adaptor (SD Type or CF Type) may

not be properly recognized.

• The device may not operate properly

when using USB HDDs or USBs subject

to connection failures caused by vehicle

vibrations. (e.g. i-stick type)

• Avoid use of USB memory products that

can also be used as key chains or mobile

phone accessories. Use of such products

may cause damage to the USB jack.

2 Audio

• Connecting an MP3 device or phone

through various channels, such as

AUX/BT or Audio/USB mode may result

in pop noises or abnormal operation.

Plug type connector

Basic Mode Screen

2 Audio

No. Name Description

1Mode Displays currently operating mode

2Operation

Status From Repeat/Shuffle/Scan, displays the currently

operating function.

3File Index Displays the current file number

4File Info Displays information about the current file

5Play State Displays the play/pause state

6Play Time Displays the current play time

7Info Displays additional information for the current file

8Shuffle Turns the Shuffle feature on/off

(Shuffle Folder, Shuffle All)

9Repeat Turns the Repeat feature on/off

(Repeat, Repeat Folder)

10 Copy Copies the current file into My Music

11 List Moves to the list screen

78910 11

EU_USB_01

2 Audio

Playing/Pausing USB Files

• Loading may require additional time if

there are many files and folders within

the USB and result in faulty list display

or file searching. Normal operations will

resume once loading is complete.

• The device may not support normal

operation when using a USB memory

type besides (Metal Cover Type) USB

Memory.

Information

Once a USB is connected, the mode will

automatically start and begin playing a

USB file.

While playing, press and hold the

[(∨)SEEK], [TRACK(∧)] keys (over 0.8

seconds) to rewind or fast-forward the

current file.

Turn the [TUNE/FILE] knob left/right to

search for the desired file.

Selecting from the List

Rewinding / Fast-forwarding Files

Once you find the desired file, press the

[TUNE/FILE] knob to start playing.

Press the [PTY/FOLDER] key to select

and search folders.

Searching Folders

12:05

USB



폴더 1

▶폴더2



폴더 3

▲

▼





최상위 폴더

Using USB Mode

While playing, press the key to pause

and press key to play.

Scan

Once the desired folder is displayed,

press the [TUNE/FILE] knob to select. The

first file within the selected folder will

begin playing.

EU_USB_05

EU_USB_02

USB_03

Press and hold the [TA/SCAN] key (over

0.8 seconds) to play the first 10 seconds

of each file.

Press the [(∨)SEEK], [TRACK(∧)] keys to

move to the previous or next file.

Changing Files

Information

• Pressing the [(∨)SEEK] key after the file

has been playing for 3 seconds will start

the current file from the beginning.

• Pressing the [SEEK(<)] key before the

file has been playing for 3 seconds will

start the previous file.

2 Audio

Repeat

Cautions

• The title, artist and album info are

displayed only when such information

are recorded within the MP3 file ID3 tag.

Press the [Info] button to display details

about the current file.

Info

Shuffle

Information

• When the ‘Folder File’ option is set as

the default display within Display setup,

the album/artist/file information are

displayed as detailed file information.

• When the ‘Album Artist Song’ option is

set as the default display, the folder

name/file name are displayed as detailed

file information.

USB Mode Menu

Press the [Copy] button to copy the

current file into My Music.

• Selecting another feature during copying

will display a pop-up asking whether you

wish to cancel copying. To cancel,

select 'Yes’.

Information

Copying Files

Press the [Shuffle] button to play files in

random order.

Each time the button is pressed, the

feature changes in order of Shuffle

Folder →Shuffle All →Off.

Shuffle Folder : Plays the files in the

current folder in random order.

Shuffle All : Plays all files in random

order.

Press the [Repeat] button to repeat the

current file or folder.

Repeat (Icon) : Repeats the current file.

Repeat Folder (Icon) : Repeats all

files within the current folder.

Each time the button is pressed, the feature

changes in order of Repeat →Repeat Folder

→Off.

EU_USB_01

EU_USB_04

Within this mode, you will have access to

the Info, Shuffle, Repeat, Copy and List

features.

2 Audio

Press the [List] button to display the file

list screen.

Turn the [TUNE/FILE] knob left/right to

search for files. Once the desired file is

displayed, press the knob to select and

play.

List

EU_USB_02

• In order to play the iPod by operating the

keys, you must use the dedicated iPod cable

(the cable that is supplied when purchasing

iPod/iPhone products).

※During ACC ON state, connecting the iPod

through the iPod cable (the cable that is

supplied when purchasing iPod/iPhone

products), the iPod will be charged through the

head unit.

• When connecting with the iPod cable, make

sure to fully insert the jack to prevent

communication interference. If the iPod is

connected to the vehicle while it is playing, a

high pitch sound could occur for approximately

1-2 seconds immediately after connecting. If

possible, connect the iPod to the vehicle with

the iPod stopped/paused.

• Within the iPhone, the streaming audio

feature and iPod control features may conflict.

If problems persist, remove the iPhone and

connect again.

• Some iPods may not sync with the System

depending on its version. If the Media is

removed before the Media is recognized, then

the system may not properly restore the

previously operated mode. (iPad charging is

not supported.)

(iPod is a registered trademark of Apple Inc.)

• In order to use the iPod while operating the

keys, you must use a dedicated iPod cable.

(the cable that is supplied when purchasing

iPod/iPhone products)

• During ACC ON state, connecting the iPod

through the iPod cable (the cable that is

supplied when purchasing iPod/iPhone

products), will charge the iPod through the

head unit.

•When connecting with the iPod cable, make

sure to fully insert the jack to prevent

communication interference.

• When the EQ features of an external device,

such as the iPod, and the audio system are

both active, EQ effects could overlap and

cause sound deterioration and distortion.

Whenever possible, turn off the EQ feature

within the external device upon use by

connecting with the audio system.

•Noise may occur when an iPod or AUX

device is connected. When such devices are

not being used, disconnect the device for

storage.

• When the iPod or AUX device power is

connected to the power jack, playing the

external device may result in noise. In such

cases, disconnect the power connection

before use.

iPod Mode

• Skipping or improper operation may occur

depending on the characteristics of your

iPod/Phone device.

•If your iPhone is connected to both the

Bluetooth® and USB, the sound may not be

properly played. In your iPhone, select the

Dock connector or Bluetooth® to change the

sound output (source).

• iPod mode cannot be operated when the

iPod cannot be recognized due to the playing

of versions that do not support communication

protocols, cases of iPod abnormalities and

defects.

• For fifth generation iPod Nano devices,

the iPod may not be recognized when the

battery level is low. Please charge the iPod for

use.

• Search/play orders shown within the iPod

device may differ with the orders shown within

the audio system.

• If the iPod malfunctions due to an iPod

device defect, reset the iPod and try again. (To

learn more, refer to your iPod manual)

Using iPod Devices

2 Audio

No. Name Description

1Mode Displays currently operating mode

2Operation

State From Repeat/Shuffle, displays the currently

operating function

3Song Index Displays the current song/total number of songs

4Song Info Displays information about the current song

5Play State Displays the play/pause state

6Play Time Displays the current play time

7Shuffle Turns the Shuffle feature on/off

(Shuffle Album, Shuffle All)

8Repeat Turns the Repeat feature on/off

(Repeat)

9List Moves to the list screen

Basic Mode Screen

2 Audio

12:05

iPod

00:01

1/10000



Song Title 01



Artist Name



Album Name

789

목록반복랜덤

12:05

iPod

00:01

1/10000



Song Title 01



Artist Name



Album Name

목록반복랜덤

• Some iPods with unsupported

communication protocols may not properly

operate in the audio system.

Playing/Pausing iPod Songs

• There are eight categories that can be

searched, including Playlists, Artists,

Albums, Songs, Genres, Composers,

Audiobooks and Podcasts.

Searching Categories

2 Audio

Information Information

Once an iPod is connected, the mode will

automatically start and begin playing an

iPod song.

Turn the [TUNE/FILE] knob left/right to

search for the desired category.

Using iPod Mode

Once you find the desired category, press

the [TUNE/FILE] knob to select and play.

12:05

iPod



재생목록



아티스트



앨범

최상위 폴더 1/3

최상위 폴더

▲

▼

While playing, press the key to pause

and press key to play.

Press the [(∨)SEEK], [TRACK(∧)] keys to

move to the previous or next song.

Changing Songs

Information

• Pressing the [(∨)SEEK] key after the

song has been playing for 3 seconds will

start the current song from the beginning.

• Pressing the [SEEK(<)] key before the

song has been playing for 3 seconds will

start the previous song.

• Slight time differences may exist

depending your iPod product.

Repeat

Shuffle

2 Audio

Press the [Shuffle] button to play songs in

random order.

iPod Mode Menu

12:05

iPod

00:01

1/10000



Song Title 01



Artist Name



Album Name

목록반복랜덤

List

Press the [List] button to display the

Category Menu.

• If the search mode is accessed while

playing a song, the most recently

searched category is displayed.

• Search steps upon initial connection

may differ depending on the type of iPod

device.

Information

Category Menu

12:05

iPod



재생목록



아티스트



앨범

최상위 폴더 1/3

최상위 폴더

▲

▼

1 2 3

Name Description

1. Displays the play screen

2. 최상위 폴더 Moves to the iPod root

category screen

3. Moves to the previous

category

Within the iPod Category menu, you will

have access to the [], [Home], and []

features.

Shuffle Album : Plays songs within the

current category in random order.

Shuffle All : Plays all songs in random

order

Repeat : Repeats the current song

Within this mode, you will have access to

the Shuffle, Repeat and List features.

Each time the button is pressed, the

feature changes in order of Shuffle

Album Shuffle All Off.

Press the [Repeat] button to repeat the

current song. Press the button again to turn

the repeat feature off.

• If an external device connector is

connected with the AUX terminal, then

AUX mode will automatically operate.

Once the connector is disconnected, the

previous mode will be restored.

• AUX mode can be used only when an

external audio player (camcorder, car

VCR, etc.) has been connected.

• The AUX volume can be controlled

separately from other audio modes.

• Connecting a connector jack to the

AUX terminal without an external

device will convert the system to AUX

mode, but only output noise. When an

external device is not being used, also

remove the connector jack.

• When the external device power is

connected to the power jack, playing

the external device may output noise.

In such cases, disconnect the power

connection before use.

• Fully insert the AUX cable to the AUX

jack upon use.

AUX Mode

Connecting an External Device

2 Audio

Information

Caution

External audio players

(Camcorders, car VCR, etc.) can be

played through a dedicated cable.

Press the [MEDIA] key ▶Select [AUX]

An external device can be connected to

play music.

Using AUX Mode

EU_AUX_01

No. Name Description

1Mode Displays currently operating mode

2Operation

State From Repeat/Shuffle/Scan, displays the currently

operating function.

3File Index Displays the current file/total number of files

4File Info Displays information about the current file

5Play State Displays the play/pause state

6Play Time Displays the current play time

7Info Displays additional information for the current file

8Shuffle Turns the Shuffle feature on/off

9Repeat Turns the Repeat feature on/off

10 Delete Deletes the current file

11 List Moves to the list screen

My Music Mode

Basic Mode Screen

2 Audio

78910 11

EU_My_01

Playing/Pausing My Music Files

• If there are no files saved within My

Music, the [My Music] button will be

disabled.

2 Audio

Information

Rewinding / Fast-forwarding Files

Turn the [TUNE/FILE] knob left/right to

search for the desired file.

Selecting from the List

Once you find the desired file, press the

[TUNE/FILE] knob to start playing.

While playing, press and hold the

[(∨)SEEK], [TRACK(∧)] keys (over 0.8

seconds) to rewind or fast-forward the

current file.

Using My Music Mode

EU_My_05

EU_My_02

While playing, press the key to pause

and press key to play.

Press and hold the [TA/SCAN] key (over

0.8 seconds) to play the first 10 seconds

of each file.

Scan

Press the [(∨)SEEK], [TRACK(∧)] keys to

move to the previous or next file.

Changing Files

Information

• Pressing the [(∨)SEEK] key after the file

has been playing for 3 seconds will start

the current file from the beginning.

• Pressing the [SEEK(<)] key before the

file has been playing for 3 seconds will

start the previous file.

Repeat

Shuffle

2 Audio

List

Press the [List] button to display the file

list screen.

Turn the [TUNE/FILE] knob left/right to

search for files. Once the desired file is

displayed, press the knob to select and

play.

Press the [Repeat] button to repeat the

current song. Press the button again to

turn the repeat feature off.

Press the [Shuffle] button to play files in

random order. Press the button again to

turn the shuffle feature off.

• The title, artist and album info are

displayed only when such information is

recorded within the MP3 file ID3 tag.

Info

Press the [Delete] button to delete the

current file.

Deleting Files

Caution

My Music Mode Menu

EU_My_01

EU_My_03

My_02

Within this mode, you will have access to

the Info, Shuffle, Repeat, Delete and List

features.

Press the [Info] button to display details

about the current file.

Shuffle : Plays all files in random

order.

Repeat : Repeats the current file.

From the List screen, it is possible to

delete files you previously saved into My

Music.

2 Audio

After selecting the files you want to delete,

press the [Delete] button to delete the

selected files.

Name Description

1. Moves to the previous screen

2. Mark All Selects all files

3. Unmark All Deselects all selected files

4. Delete Deletes selected files

•If there is memory available, up to

6,000 files can be saved.

• Identical files cannot be copied more

than 1,000 times.

• To check memory information, go to

[SETUP] ▶[System] ▶Memory

Information.

Information

List Menu

Press the [Mark All] button or individually

select the files you want to delete. Once

files are selected, the [Unmark All] and

[Delete] buttons will be enabled.

My_04

1234

About Using Bluetooth® Audio

2 Audio

Bluetooth® Audio Mode

Bluetooth® Audio Mode can be used only when a Bluetooth®

phone has been connected.

(However, A2DP must be connected).

While Bluetooth® Audio is playing, if the Bluetooth® phone is

connected, then the music will also stop.

Bluetooth® streaming audio may not be supported in some

mobile phones.

Moving the Track up/down while playing Bluetooth® audio

mode may result in pop noises in some mobile phones.

Bluetooth® streaming audio may not be supported in some

mobile phones. For more information on compatible devices,

visit the Blu Members website (http://bl.hyundai.com).

When returning to Bluetooth® Audio mode after ending a call,

the mode may not automatically restart in some mobile phones.

Changing Files

Playing/Pausing Bluetooth® Audio

The play/pause feature may operate

differently depending on the mobile

phone.

Setting Connection

If a Bluetooth® device has not been

connected, press the [SETUP] key

▶[Phone] button to display the

Bluetooth®

connection screen.

• If the Bluetooth® audio is not operating

properly, check whether the feature is

turned off at [SETUP] ▶[Phone] ▶

[Audio streaming]. If the feature is off, turn

back on and try again.

• If music is not yet playing from your

mobile device after converting to

Bluetooth® Audio mode, pressing the play

button once may start playing the mode.

Check to see that music is playing from

the Bluetooth® device after converting to

Bluetooth® Audio Mode.

Press the [(∨)SEEK], [TRACK(∧)] keys

to move to the previous or next file.

It is possible to use the pair phone,

connect/disconnect and delete features

from your Bluetooth® phone.

While playing, press the [▶ll]key to

pause and press [▶ll] key to play.

2 Audio

Information

Using Bluetooth® Audio Mode

12:05

Setup

신규 폰 등록

등록 폰 목록(1/5)

전화번호부 다운로드

1/3

▲

▼



폰

▶

12:05

BT Audio

▶ll

Once a Bluetooth® device is connected,

the mode will automatically start.

BT_Audio

About Using Bluetooth®

Pairing a Bluetooth® Device

Connecting Bluetooth®

Using Bluetooth®

3Bluetooth®

Using Bluetooth® Handsfree

Bluetooth® refers to a short-distance wireless networking

technology which uses a 2.45GHz frequency to connect

various devices within a certain distance.

Supported within PCs, external devices, Bluetooth®

phones, PDAs, various electronic devices, and automotive

environments, Bluetooth® allows data to be transmitted at

high speeds without having to use a connector cable.

Bluetooth® Handsfree refers to a device which allows the

user to conveniently make phone calls with Bluetooth®

mobile phones through the audio system.

※Some features may not be supported in some mobile

phone. To check out lists of compatible mobile phones,

visit the Blu Members website blu.hyundai.com.

Bluetooth® Handsfree is a feature that enables drivers

to practice safe driving. Connecting the head unit with a

Bluetooth® phone allows the user to conveniently make

calls, receive calls, and manage the phone book. Before

using the Bluetooth®, carefully read the contents of this

user’s manual.

Excessive use or operations while driving may lead

to negligent driving practices and be the cause of

accidents.

Do not operate the device excessively while

driving.

Viewing the screen for prolonged periods of time is

dangerous and may lead to accidents. When driving, view

the screen only for short periods of time.

What is Bluetooth®?

Precautions for Safe Driving

About Using Bluetooth®

3 Bluetooth®

Cautions upon Connecting Bluetooth®

Phones

Before connecting the head unit with the mobile phone, check

to see that the mobile phone supports Bluetooth® features.

Even if the phone supports Bluetooth®, the phone will not be

found during device searches if the phone has been set to

hidden state or the Bluetooth® power is turned off. Disable the

hidden state or turn on the Bluetooth® power prior to

searching/connecting with the Head unit.

If you do not want to automatically connect your Bluetooth®

phone, try the following.

1. Turn off the Bluetooth® feature in your mobile phone

- For more information on Bluetooth® features within your

mobile, refer to your mobile phone user’s manual.

2. Turn off the Bluetooth® feature in your car audio system

- To turn off the Bluetooth® feature in your car audio system,

go to [SETUP] > Phone and turn off the Bluetooth® feature.

Park the vehicle when connecting the car audio system with

your mobile phone.

Bluetooth® connection may become intermittently disconnected

in some mobile phones. Follow these steps to try again.

1. Turn the Bluetooth® function within the mobile phone off/on

and try again.

2. Turn the mobile phone power Off/On and try again.

3 Completely remove the mobile phone battery, reboot, and

then again.

4. Reboot the audio system and try again.

5. Delete all paired devices, pair and try again.

The Handsfree call volume and quality may differ depending on

the mobile phone.

• Bluetooth® features supported within the vehicle are as

follows. Some features may not be supported depending

on your Bluetooth® device.

- Answering and placing Bluetooth® Handsfree calls

- Menu operation during call (Switch to Private, Switch to call

waiting, Outgoing volume)

- Download Call History

-Download Mobile Contacts

- Contacts/ Call History Auto Download

- Bluetooth® device auto connection

- Bluetooth® Audio

• It is possible to pair up to five Bluetooth® devices to the car

system.

• Only one Bluetooth® device can be connected at a time.

• Other devices cannot be paired while a Bluetooth® device is

already connected.

• When a Bluetooth® device is being connected, the connection

process cannot be canceled.

• Only Bluetooth® Handsfree and Bluetooth® audio related

features will operate within this system.

• Normal operation is possible only for devices that support

Handsfree or audio features, such as a Bluetooth® mobile

phone or a Bluetooth® audio device.

• Only one function can be used at a time between the Bluetooth®

Handsfree and Bluetooth® audio. (While playing Bluetooth® audio,

streaming will end upon entering the

Bluetooth® phone screen.)

• If a connected Bluetooth® device becomes disconnected for various

reasons, such as being out of range, turning the device OFF, or a

Bluetooth® communication error, Bluetooth® devices are

automatically searched and connected.

3 Bluetooth®

Pairing a Bluetooth® Device

1. Press the [PHONE]] key or the [] key

on the steering remote controller. The

following screen is displayed.

2. Press the [OK] button to enter the Pair

Phone screen.

12:05

Setup

트랙 01

블루투스 폰에서 기기이름을

검색 후 등록하여 주십시오.

12:05

Setup

트랙 01

Phone>Pair Phone

Device : Santa Fe

Cancel

3. From your Bluetooth® device (i.e. Mobile

Phone), search and select your car audio

system.

4. After a few moments, a screen is

displayed where the passkey is entered.

Here, enter the passkey “0000” to pair your

Bluetooth® device with the car audio

system.

5. Once pairing is complete, the following

screen is displayed.

3 Bluetooth®

Pairing [PHONE] Key / [] Key on

the Steering Remote Controller

Name Description

1. Device Name of device as shown

when searching from your

Bluetooth® device

2. Passkey Passkey used to pair the

device

Pairing refers to the process of

synchronizing your Bluetooth® phone or

device with the car audio system for

connection. Pairing is necessary to

connect and use the Bluetooth® feature.

Customarily, pairing Bluetooth® devices

can be done by either searching and

pairing from the car audio system or

searching and pairing from the Bluetooth®

phone.

The car audio system can be searched

and paired from your Bluetooth® device.

What is Bluetooth® Pairing? When No Devices have been Paired

Passkey : 0000

12:05

Setup

트랙 01

폰>폰등록

확인

Phone name

등록되었습니다.

3 Bluetooth®

Pairing through [PHONE] Setup

Press the [SETUP] key ▶Select [Phone]

▶Select [Pair Phone] ▶Select [OK]

• The waiting period during phone pairing

will last for one minute. The pairing

process will fail if the device is not paired

within the given time. If the pairing

process fails, you must start the process

from the beginning.

• Generally, most Bluetooth® devices will

automatically connect once pairing is

complete. However, some devices may

require a separate verification process to

connect. Check to see whether

Bluetooth® has been properly connected

within your mobile phone.

• List of paired Bluetooth® devices can

be viewed at [SETUP] ▶[Phone] ▶

[Paired Phone List].

Information

• If Bluetooth® devices are paired but

none are currently connected, pressing

the [PHONE] key or the [] key on the

steering remote controller displays the

following screen. Press the [Pair] button to

pair a new device or press the [Connect]

to connect a previously pair device.

Information

12:05Title

You need to pair or connect a phone

To use Bluetooth® calling.

Pair Connect Cancel

12:05

Setup

신규폰 등록

등록 폰 목록(1/5)

전화번호부 다운로드

1/3

▲

▼



폰

▶

1. The following steps are the same as the

steps described in the “When No Devices

have been Paired” section.

Press the [SETUP] key ▶Select [Phone]

▶Select [Paired Phone List]

3 Bluetooth®

Connecting Bluetooth®

Connecting a Device

From the paired phone list, select the

device you want to connect and press

the [Connect] button.

Name Description

1. Device Device that is paired but

not connected

2. Connected

Phone Device that is currently

connected • When a device is currently connected,

even if you change the priority to a

different device, the currently connected

phone will always be set as the highest

priority.

Press the [SETUP] key ▶Select [Phone]

▶Select [Paired Phone List]

12:05

트랙 01

연결순서가 변경되었습니다.

확인

From the paired phone list, select the

phone you want to change to the highest

priority, then press the [Change Priority]

button from the Menu. The selected

device will be changed to the highest

priority.

Information

It is possible to pair up to five Bluetooth®

devices with the car audio system. As a

result, the “Change Priority’ feature is

used to set the connection priority of

paired phones.

However, the most recently connected

phone will always be set as the highest

priority.

What is Priority?

Changing Priority

12:05

Setup

신규폰 등록

등록 폰 목록(1/5)

전화번호부 다운로드

1/3

▲

▼



폰

▶

12:05

Setup

Phone name 1

Phone name 2

▲

▼

폰>등록 폰 목록

▶

폰연결 삭제 연결 순서 변경

12:05

Setup

Phone name 1

Phone name 2

▲

▼

폰>등록 폰 목록

▶

폰연결 삭제 연결 순서

변경

12:05

트랙 01

Phone name

연결되었습니다.

확인

3 Bluetooth®

From the paired phone list, select the

currently connected device and press the

[Disconnect] button.

Disconnecting a Device

• When deleting the currently connected

device, the device will automatically be

disconnected to proceed with the deleting

process.

• If a paired Bluetooth® device is deleted,

the device’s call history and contacts data

will also be deleted.

• To re-use a deleted device, you must

pair the device again.

From the paired phone list, select the

device you want to delete and press the

[Delete] button.

Information

Deleting a Device

Press the [SETUP] key ▶Select [Phone]

▶Select [Paired Phone List]

Press the [SETUP] key ▶Select [Phone]

▶Select [Paired Phone List]

12:05

Setup

Phone name 1

Phone name 2

▲

▼

폰>등록 폰 목록

▶

폰연결해제 삭제 연결 순서 변경

12:05

Setup

Phone name 1

Phone name 2

▲

▼

폰>등록 폰 목록

▶

폰연결 삭제 연결 순서 변경

12:05

트랙 01

Phone 삭제되었습니다.

확인

12:05

트랙 01

Phone name 연결 해제되었습니다.

확인

Using Bluetooth®

With a Bluetooth® device connected,

press the [PHONE] to display the Phone

menu screen.

Phone Menus

Press the [PHONE] key ▶Select [Dial

Number]

• If you press the [Call History] button but

there is no call history data, a prompt is

displayed which asks whether to

download call history data.

• If you press the [Contacts] button but

there is no contacts data, a prompt is

displayed which asks whether to

download contacts data. .

• This feature may not be supported in

some mobile phones. For more

information on download support, refer to

your mobile phone user’s manual.

3 Bluetooth®

12:05

Phone

01234567890

2 3

Information

12:05

Phone

번호로

전화걸기 최근통화목록 전화번호부

폰설정 닫기

1 2 3

Name Description

1. Dial

Number

Displays the dial screen

where numbers can be

dialed to make calls

2. Call

History Displays the call history

screen

3. Contacts Displays the contacts list

screen

4. Setup Displays Phone related

settings

Name Description

1. Dial Pad Used to enter phone number

2. 

• If a number has been entered,

calls the number.

•If no number has been

entered, switches to call

history screen.

3. Deletes the entered phone

number

4. Delete Deletes entered numbers one

digit at a time.

Phone Menu Screen

Calling by Dialing a Number

12:05

Setup



Angelina Jolie

01012345678

전화가 왔습니다.

통화 수신거부

During a Handsfree Call

12:05

Phone

Scarlet Johanson

01234567890

00:59:59







• If the mic is muted, the other party will

not be able to hear your voice.

• When the incoming call pop-up is

displayed, most AV and SETUP mode

features will not operate. Only the call

volume can be operated..

• The telephone number may not be

properly displayed in some mobile

phones..

• When a call is answered with the mobile

phone, the call mode will automatically

convert to Private mode.

3 Bluetooth®

3 4

Answering a Call Information

Information

Name Description

1. Caller Displays the other party’s name

if the incoming caller is saved

within your contacts

2. Incoming

Number Displays the incoming number

3. Call time Displays the call time

4. Ends call

5. Private Converts to Private mode

6. Out Vol. Sets cal volume as heard by the

other party

7. Turns Mic Mute On/Off

Name Description

1. Caller

Displays the other part’s

name when the incoming

caller is saved within your

contacts

2. Incoming

Number Displays the incoming

number

3. Accept Accept the incoming call

4. Reject Reject the incoming call

Answering Calls

5 6

Answering a call with a Bluetooth® device

connected will display the following

screen.

Press the [PHONE] key ▶Select [Call

History]

12:05

Phone

최근통화목록



01234567890



Scarlet Johanson

? Angelina Jolie

▲

▼

3 Bluetooth®

12:05

Phone

전화번호부

Name 1

Name 2

Name 3

1/3

Press the [PHONE] key ▶Select [Contacts]

Information

Name Description

1. Call History

Displays recent calls (call

history)

Connects call upon

selection

2. Download Download Recent Call

History

Name Description

1. Contact

List

Displays downloaded

contacts

Connects call upon

selection

2. Download Download Contacts

Call History Contacts

다운로드

A list of incoming, outgoing and missed

calls is displayed.

Press the [Download] button to download

the call history.

▲

▼

다운로드 2

The list of saved contacts is displayed.

Press the [Download] button to download

the call history.

• The call history list will display up to 30

outgoing, incoming, and missed calls.

• Upon downloading call histories,

previously saved histories are deleted.

• Incoming calls with hidden caller IDs will

not be saved in the call history list.

• Previously saved contacts are stored

even if a device is disconnected and re-

connected.

• The download feature may not be

supported in some mobile phones. Check

to see that the Bluetooth® device

supports the download feature.

3 Bluetooth®

Information

• Up to 1,000 contacts can be copied

into car contacts.

• Upon downloading contacts, previously

saved contacts will be deleted.

• Downloading is not possible if the

contacts download feature is turned off

within the Bluetooth® device. Also, some

devices may require device authorization

upon attempting to download. If

downloading cannot be normally

conducted, check the Bluetooth® device

setting or the screen state.

• Caller ID information will not be

displayed for unsaved contacts.

• The download feature may not be

supported in some mobile phones.

Check to see that the Bluetooth® device

supports the download feature.

• To learn more about supported devices

and compatibility, go to the Blu Members

website (blu.hyundai.com).

Before Using Voice Recognition

Using Voice Recognition

Command List

4Voice

Recognition

Phone related voice commands can be used only when a

Bluetooth® device is connected.

When making calls by stating a name, the corresponding

contact must be downloaded and stored within the audio

system.

After downloading the Bluetooth® contacts, it takes some

times to convert the contacts into voice information. During

this time, voice recognition may not properly operate.

Pronounce the voice commands naturally and clearly as if

in a normal conversation.

When using the voice recognition feature, only commands

listed within the user's manual are supported.

Be aware that during the operation of the voice recognition

system, pressing any key other than the [VR] key or

touching the screen will terminate voice recognition mode.

For superior voice recognition performance, position the

microphone used for voice recognition above the head of

the driver’s seat and maintain a proper position when

saying commands.

Within the following situations, voice recognition may not

function properly due to external sound.

• When the windows and sunroof are open

• When the wind of the cooling / heating device is strong

• When entering and passing through tunnels

• When driving on rugged and uneven roads

• During severe rain (heavy rains, windstorms)

Before Using Voice Recognition

4 Voice Recognition

• If voice recognition is in [Expert Mode],

then the system will only say a “Beep~”

• To change the Normal Mode/Expert

Mode setting, go to [SETUP] ▶[System]

▶[Prompt Feedback].

Starting Voice Recognition

Using Voice Recognition

Shortly press the [VR] key on the steering

remote controller ▶Say a command

The prompt message is immediately

ended and the beep tone will sound. After

the “beep”, say the voice command.

If voice recognition is in [Normal Mode],

then the system will say “Please say a

command. Beep~”

While prompt message is being stated▶

Shortly press the [VR] key on the steering

remote controller (under 0.8 seconds)

The command wait state is immediately

ended and the beep ton will sound. After

the “beep”, say the voice command.

While system waits for a command ▶

Shortly press the [VR] key on the steering

remote controller (under 0.8 seconds)

• For proper recognition, say the

command after the voice instruction and

beep tone.

Skipping Prompt Messages

Re-starting Voice Recognition

이미지

4 Voice Recognition

Information

Caution

Starting Voice Recognition

Illustration on Using Voice Recognition

Starting Voice Recognition

Please say a command DING~

More Help

You can say Radio, FM, AM, Media, CD,

USB, Aux, My Music, iPod, Bluetooth®

Audio, Phone, Call History or Phone book.

Please say a command.

Skipping Prompts

Please.....

DING~

More Help

You can say Radio, FM, AM, Media, CD, USB,

Aux, My Music, iPod, Bluetooth® Audio,

Phone, Call History or Phone book. Please

say a command.

4 Voice Recognition

Ending Voice Recognition

Please say a command DING~

Phonebook

Phone book.

Please say the name of the phone book

you want to call.

DING~

Cancel

Di-Ding~ (Cancel Sound)

While Voice Recognition is operating ▶

Press and hold the [VR] key on the

steering remote controller (over 0.8

seconds)

• While using voice command, pressing a

steering wheel remote control or a

different key will end voice command.

▪

In a state where the system is waiting for a

voice command, say “cancel” or “end” to end

voice command.

▪

In a state where the system is waiting for

a voice command, press and hold the

[VR] key on the steering remote controller

to end voice command.

Information

Ending Voice Recognition

4 Voice Recognition

Voice Command List

•Common Commands: These are commands that can be used in all situation. (However, some commands may not be supported

in special circumstances.)

Command Function

More Help Provides guidance on commands that can

be used anywhere in the system.

Help Provides guidance on commands that can

be used within the current mode.

Call<Name> Calls <Name> saved in phone book

Ex) Call “John”

Phone Provides guidance on Phone related

commands. After saying this command, say

“Call History”, “Phone book”, “Dial Number”

to execute corresponding functions.

Call History Displays the Call History screen.

Phone book Displays the phone book screen. After

saying this command, say the name of a

phone book saved in the phone book to

automatically connect the call

Dial Number Displays the Dial number screen. After

saying this command, you can say the

number what you want to call.

Redial Connects the most recently called number.

Radio •When listening to the radio, displays the

next radio screen. (FM1→FM2→FMA→

AM →AMA)

•When listening to a different mode,

displays the most recently played radio

screen.

Command Function

FM ∙

When currently listening to the FM radio,

maintains the current state.

∙

When listening to a different mode,

displays the most recently played FM

screen

FM1(FM One) Displays the FM1 screen.

FM2(FM Two) Displays the FM2 screen.

FMA Displays the FMA screen.

AM Displays the AM screen.

AMA Displays the AMA screen.

FM Preset 1~6 Play the most recently played broadcast

saved in FM Preset 1~6.

AM Preset 1~6 Plays the broadcast saved in AM Preset

1~6.

FM 87.5~107.9 Plays the FM broadcast of the

corresponding frequency.

AM 530~1710 Plays the AM broadcast of the

corresponding frequency.

TA on Enable Traffic Announcement

TA off Disable Traffic Announcement

News on Enable RDS News feature

News off Disable RDS News feature

Command Function

Media Moves to the most recently played media

screen.

Play Track 1~30 If a music CD has been inserted, plays the

corresponding track.

CD Plays the music saved in the CD.

Search CD Moves to the CD track or file selection screen.

∙

For audio CDs, move to the screen and say

the track number to play the corresponding

track.

∙

Moves to MP3 CD file selection screen. After

manually operate the device to select and play

music.

USB Plays USB music.

Search USB Moves to USB file selection screen. After

manually operate the device to select and play

music

iPod Plays iPod music.

Search iPod Moves to the iPod file selection screen. After

manually operate the device to select and play

music.

My Music Plays the music saved in My Music.

Search My Music Moves to My Music file selection screen. After

manually operate the device to select and play

music.

Command Function

AUX (Auxiliary) Plays the connected external device

Bluetooth®

Audio Plays the music saved in connected Bluetooth®

Wireless Technology device.

Mute Mutes the radio or music volume.

Pardon? Repeats the most recent comment.

Cancel (Exit) Ends voice command.

4 Voice Recognition

Command Function

Preset 1~6 Plays the broadcast saved in Preset 1~6.

Auto Store Automatically selects radio broadcast

frequencies with superior reception and saves

in Presets 1~6

Save Preset 1~6 Saves the current broadcast frequency to

Preset 1~6

Seek up Plays the next receivable broadcast.

Seek down Plays the previous receivable broadcast

Next Preset Selects the preset number next to the most

recently selected preset. (Example : When

currently listening to preset no.3, then preset

no.4 will be selected.)

Previous Preset Selects the preset number previous to the

most recently selected preset.

(Example :When currently listening to preset

no.3, then preset no.2 will be selected.)

Scan Scans receivable frequencies from the current

broadcast and plays for 10 seconds each.

Preset Scan Moves to the next preset from the current

preset and plays for 10 seconds each.

AF on Enable alternative Frequency feature

AF off Disable Alternative Frequency feature

Region Enable Region feature.

· FM/AM radio commands: Commands that can be used

while listening to FM, AM radio.

Command Function

Region off Disable Region feature

Program Type Moves to the RDS Program type selection screen.

After, manually operate the device o select a

desired program type.

Random Randomly plays the tracks within the CD.

Random Off Cancels random play to play tracks in sequential

order.

Repeat Repeats the current track.

Repeat Off Cancels repeat play to play tracks in sequential

order

Next Track Plays the next track

Previous Track Plays the previous track.

Scan Scans the tracks from the next track for 10

seconds each.

Track 1~30 Plays the desired track number.

Search Tracks Moves to the track selection screen. After, say the

track name to play the corresponding track

Information Displays the information screen of the current

tracks..

Play Plays the currently paused song.

Pause Pauses the current song.

· Audio CD commands: Commands that can be used

whiled listening to Audio CD.

4 Voice Recognition

Command Function

Random Randomly plays the files within the current

folder.

All Random Randomly plays all saved files.

Random Off Cancels random play to play files in sequential

order.

Repeat Repeats the current file.

Folder Repeat Repeats all files in the current folder.

Repeat Off Cancels repeat play to play files in sequential

order

Next file Plays the next file.

Previous File Plays the previous file.

Scan Scans the files from the next files for

10 seconds each.

Search Files Moves to the file selection screen .

Search Folders Moves to the folder selection screen.

Information Displays the information screen of the current

file.

Copy Copies the current file in My Music.

Play Plays the currently paused song.

Pause Pauses the current song.

·MP3 CD / USB commands : Commands that can be

used while listening to music files saved in CD and USB

Command Function

All Random Randomly plays all saved songs.

Random Randomly plays the songs within the current

category.

Random off Cancels random play to play songs in

sequential order.

Repeat Repeats the current song

Repeat Off Cancels repeat play to play songs in sequential

order.

Next Song Plays the next song.

Previous Song Plays the previous song.

Search song Moves to the song selection screen.

Play Plays the currently paused song.

Pause Pauses the current song.

iPod Commands: Commands that can be use while

playing iPod

4 Voice Recognition

Command Function

Random Randomly plays all saved files.

Random Off Cancels random play to play files in sequential

order.

Repeat Repeats the current file.

Repeat Off Cancels repeat play to play files in sequential

order.

Next File Plays the next file.

Previous File Plays the previous file.

Scan Scans the files from the next files for 10

seconds each.

Search Files Moves to the file selection screen.

Information Displays the information screen of the current

file.

Delete Deletes the current file. You will bypass an

additional confirmation process.

Delete All Deletes all files saved in My Music. You will

bypass and additional confirmation process.

·My Music Commands: Commands that can be used

while playing My Music

Command Function

Play Plays the currently paused song.

Pause Pauses the current song.

·Bluetooth® Wireless Technology Audio Commands:

Commands that can be used while playing Phone Music.

Setup

Using Setup

5Setup

Setup

Basic Mode Screen

No. Name Description

1Display Sets display related settings

2Sound Sets sound related settings

3Clock

/Day Sets clock/date related settings

4Phone Sets phone related settings

5System Sets system related settings

123

EU_Setup

Press the [SETUP] key to display the

Setup screen.

Display Settings

Adjusting the Brightness

You can select and control options related

to [Display], [Sound], [Clock/Day], [Phone]

and [System].

Use the [◀], [▶] buttons to adjust the

screen brightness or set the Brightness on

Automatic, Day, or Night mode.

Press the [Default] button to reset.

Pop-up Mode

Press the [SETUP] key ▶Select [Display]

▶Select [Pop-up Mode]

This feature is used to display the Pop-up

Mode screen when entering radio and

media modes.

When this feature is turned on, pressing

the [RADIO] or [MEDIA] key will display

the Pop-up Mode screen.

• The media Pop-up Mode screen can be

displayed only when two or more media

modes have been connected.

Using Setup

5Setup

• Once settings have been changed, press

the [] key to return to the previous menu.

Starting Mode

Information

Name Description

1. Automatic Adjusts the brightness

automatically

2. Day Always maintains the

brightness on max

3. Night Always maintains the

brightness on min

Press the [SETUP] key ▶Select [Display]

▶Select [Brightness]

EU_Setup

EU_Setup_0

Text Scroll

Press the [SETUP] key ▶Select [Display]

▶Select [Scroll text]

This feature is used to scroll text

displayed on the screen when it is too

long to be displayed at once.

When turned on, the text is repeatedly

scrolled. When turned off, the text is

scrolled just once.

MP3 Information Display

Press the [SETUP] key ▶Select [Display]

▶Select [Song Info]

This feature is used to change the

information displayed within USB and

MP3 CD modes.

5Setup

Name Description

1. Folder File Displays file name and

folder name

2. Album

Artist

Song

Displays album

name/artist name/song

EU_Setup_0

Sound Settings

Press the [SETUP] key ▶Select [Sound]

▶Select [Sound Setting]

Sound Settings SDVC (Speed Dependent Volume Control)

Press the [SETUP] key ▶Select [Sound]

▶Select [Speed Dependent Vol]

The volume level is controlled

automatically according to the vehicle

speed.

SDVC can be set by selecting from

Off/Low/Mid/High.

Virtual Sound

This feature is used to set the Power

Treble and Surround sound options.

5Setup

Use the [▲],[▼],[◀],[▶] buttons to adjust the

Fader/Balance settings.

Use the [◀],[▶] buttons to adjust the

Bass/Middle/Treble settings.

Press the [Default] button to reset.

Press the [SETUP] key ▶Select [Sound]

▶Select [Virtual Sound]

EU_Setup_0

8EU_Setup_0

12:05

Setup

Sound>Variable EQ

Normal Dynamic Concert

Natural sound optimized

for front seats



Variable EQ

This is a premium sound feature in which

the acoustical mode can be selected

according to musical preferences.

❈May differ depending on the selected

audio.

Clock Setting

Press the [SETUP] key ▶Select

[Clock/Day] ▶Select [Clock Settings]

Clock/Date Setting

Calendar Setting

Press the [SETUP] key ▶Select [Clock/Day]

▶Select [Calendar Settings]

5Setup

Touch Screen Beep

Press the [SETUP] key ▶Select [Sound]

▶Select [Touch Screen Beep]

This feature is used to turn the touch

screen beep on/off.

Voice Recognition Setting

Press the [SETUP] key ▶Select [Sound]

▶Select [Volume Dialog]

Use the [-],[+] buttons to adjust the

Volume Dialog volume.

• Press and hold the [CLOCK[ key (over

0.8 seconds) to display the Clock/Day

screen.

Information

EU_Setup_1

2EU_Setup_1

Use the [▲],[▼] buttons to set the Hour,

Minutes and AM/PM setting.

Use the [▲],[▼] buttons to set the Month,

Day, and Year setting.

Clock/Date Setting

5Setup

Clock Display

Press the [SETUP] key ▶Select

[Clock/Day] ▶Select [Clock Display

(Power off)]

This feature is used to display a clock on

the screen when the audio system is

turned off.

Time Format

Press the [SETUP] key ▶Select

[Clock/Day] ▶Select [Time Format]

Automatic RDS Time

Press the [SETUP] key ▶Select

[Clock/Day] ▶Select [Automatic RDS

Time]

This feature is used to set time

automatically by synchronizing with RDS.

EU_Setup_Clock_0

1EU_Setup_Clock_0

EU_Setup_Clock_0

This feature is used to change the clock

format between 12hr or 24hr.

12:05

Setup

Phone name 1

Phone name 2

▲

▼

폰>등록 폰 목록

폰연결 삭제 연결 순서 변경

Pairing a New Device

Press the [SETUP] key ▶Select [Phone]

▶Select [Pair Phone]

Bluetooth® devices can be paired with the

audio system.

For more information, refer to the “Pairing

through Phone Setup” section within Part

3 Bluetooth®.

Bluetooth® Setting Viewing Paired Phone List

Press the [SETUP] key ▶Select [Phone]

▶Select [Paired Phone List]

This feature is used to view mobile

phones that have been paired with the

audio system. Upon selecting a paired

phone, the setup menu is displayed.

5Setup

1234

Downloading Contacts

Contacts are downloaded from the mobile

phone and the download progress is

displayed.

Press the [SETUP] key ▶Select [Phone]

▶Select [Contacts Download]

Information

• Up to 1,000 contacts can be copied into car

contacts.

* Up to 1,000 contacts can be saved for each

paired device.

* Upon downloading contacts, previously saved

contacts will be deleted. However, contacts

saved to other paired phones are not deleted.

Name Description

1. Moves to the previous

screen

2. Connect Connect/disconnects

currently selected phone

3. Delete Deletes the currently

selected phone

4. Change

Priority

Sets currently selected

phone to highest connection

priority

For more information, refer to the “Setting

Bluetooth® Connection” section within

Part 3 Bluetooth®.

12:05

Setup

트랙 01

블루투스 폰에서 기기이름을

검색 후 등록하여 주십시오.

확인 12:05

Setup

트랙 01

다운로드중

전화번호부

(최대 : 1000개)

폰>다운로드

중지

Before Downloading Contacts

• Only contacts within connected phones can

be downloaded. Also check to see that your

mobile phone supports the download feature.

• To learn more about whether your mobile

phone supports contacts downloads, refer to

your mobile phone user’s manual.

• Contacts for only the connected phone can

be downloaded. Before downloading, check to

see whether your phone supports the

download feature.

Auto Download (Contacts)

Press the [SETUP] key ▶Select [Phone]

▶Select [Auto Download]

When Audio Streaming is turned on, you

can play music files saved in your

Bluetooth® device from the car.

Audio Streaming

Press the [SETUP] key ▶Select [Phone]

▶Select [Audio Streaming]

5Setup

This feature is used to automatically

download mobile phone contacts once a

Bluetooth® phone is connected.

Information

• The Auto Download feature will

download mobile phone contacts every

time the phone is connected. The

download time may differ depending on

the number of saved contacts and the

communication state.

• Bluetooth® audio streaming may not be

supported in some Bluetooth® phones.

Outgoing Volume

Press the [SETUP] key ▶Select [Phone]

▶Select [Outgoing Volume]

Use the [-],[+] buttons to adjust the

outgoing volume level

Turning Bluetooth® System Off

Press the [SETUP] key ▶Select [Phone]

▶Select [Bluetooth® System Off]

Once Bluetooth® is turned off, Bluetooth®

related features will not be supported

within the audio system.

Caution

Information

• To turn Bluetooth® back on, go to

[SETUP] ▶[Phone] and press “Yes”.

12:05

Setup

폰

블루투스 오디오 스트리밍

마이크 음량 설정 ▶

2/3

전화번호부 자동 다운로드 





▲

▼

12:05

Setup

폰

블루투스 오디오 스트리밍

마이크 음량 설정 ▶

2/3

전화번호부 자동 다운로드



▲

▼



[SETUP] 키를 누른 후 ▶ [화면] 선택 ▶

[밝기조정] 선택

12:05

Setup

폰>마이크음량설정



ㅣㅣㅣ

ㅣㅣ

12:05

트랙 01

블루투스 기능 사용을 해제하시겠습니까?

NoYes

Voice Recognition Mode Setting

Press the [SETUP] key ▶Select [System]

▶Select [Voice Recognition System]

This feature is used to select the desired

prompt feedback option from Normal and

Expert.

Memory Information

[Press the [SETUP] key ▶Select

[System] ▶

Select [Memory Information]

This feature displays information related

to system memory.

System Setting

5Setup

Name Description

1. Normal When using voice recognition,

provides detailed guidance

prompts

2. Expert When using voice recognition,

omits some guidance prompts

Name Description

1. Using Displays capacity currently in

use

2. Capacity Displays total capacity

Setup_15

EU_Setup_1

Language

Press the [SETUP] key ▶Select [System]

▶Select [Language]

This feature is used to change the system

and voice recognition language.

If the language is changed, the system will

restart and apply the selected language.

EU_Setup_Lang

9-17

APPENDIX

M & SOFT AMERICA MAP CENTER

TEL : 888-757-0010

WEBSITE : www.mapnsoft.com

MAP DATABASE HOTLINE

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

ˍ Reorient or relocate the receiving antenna.

ˍ Increase the separation between the equipment and receiver.

ˍ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

ˍ Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modiﬁcations to this device not explicitly approved by manufacturer could void your authority to operate this

equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired

operation.

,&:DUQLQJ

7KLVGHYLFHFRPSOLHVZLWK,QGXVWU\&DQDGDOLFHQFHH[HPSW566VWDQGDUGV

2SHUDWLRQLVVXEMHFWWRWKHIROORZLQJWZRFRQGLWLRQVWKLVGHYLFHPD\QRWFDXVHLQWHUIHUHQFHDQG

WKLVGHYLFHPXVWDFFHSWDQ\LQWHUIHUHQFHLQFOXGLQJLQWHUIHUHQFHWKDWPD\FDXVHXQGHVLUHGRSHUDWLRQRIWKHGHYLFH



/HSUpVHQWDSSDUHLOHVWFRQIRUPHDX[&15G,QGXVWULH&DQDGDDSSOLFDEOHVDX[DSSDUHLOVUDGLRH[HPSWVGHOLFHQFH

/H[SORLWDWLRQHVWDXWRULVpHDX[GHX[FRQGLWLRQVVXLYDQWHVODSSDUHLOQHGRLWSDVSURGXLUHGHEURXLOODJHHW

OXWLOLVDWHXUGHODSSDUHLOGRLWDFFHSWHUWRXWEURXLOODJHUDGLRpOHFWULTXHVXEL

PrPHVLOHEURXLOODJHHVWVXVFHSWLEOHGHQFRPSURPHWWUHOHIRQFWLRQQHPHQW



7KLVHTXLSPHQWFRPSOLHVZLWK)&&UDGLDWLRQH[SRVXUHOLPLWVVHWIRUWKIRUDQXQFRQWUROOHGHQYLURQPHQW

7KLVHTXLSPHQWVKRXOGEHLQVWDOOHGDQGRSHUDWHGZLWKPLQLPXPFPEHWZHHQWKHUDGLDWRUDQG\RXUERG\

7KLVWUDQVPLWWHUPXVWQRWEHFROORFDWHGRURSHUDWLQJLQFRQMXQFWLRQZLWKDQ\RWKHUDQWHQQDRUWUDQVPLWWHUXQOHVVDXWKRUL]HGWRGRVRE\WKH)&&

HYUNDAI MOBIS AM943DMAN CAR AUDIO User Manual 1

HYUNDAI MOBIS CO., LTD. CAR AUDIO 1

Users Manual

Navigation menu

Namespaces

Views

Navigation
