Users Manual
iPod®
iPod®is a registered trademark of Apple Inc.
Bluetooth®
The Bluetooth®word mark and logos are registered trademarks
owned by Bluetooth SIG, Inc. and any use of such marks by
Hyundai is under license.
A Bluetooth®enabled cell phone is required to use Bluetooth®
wireless technology.
A Bluetooth®enabled cell phone is required to use Bluetooth®
wireless technology. Bluetooth® phone compatibility can be
checked by visiting www.hyundaiusa.com and under the
SERVICE & PARTS –BLUETOOTH COMPATIBILITY menu.
Gracenote®
Gracenote®, Gracenote logo and logotype, and the “Powered by
Gracenote” logo are either a registered trademark or a trademark
of Gracenote, Inc. in the United States and/or other countries.
Music recognition technology and related data are provided by
Gracenote®Portions of the content is copyright © Gracenote or
its providers
Warnings and Cautions
Component Names and Functions
1Basic
Warnings and Cautions
Even when receiving route guidance from the Navigation
system, please abide by actual traffic and road regulations.
Following only the Navigation route guidance may lead to
violations of actual traffic and road regulations and lead to
traffic accidents.
Do not stare at the screen while driving. Staring at the
screen for prolonged periods of time could lead to traffic
accidents.
Do not operate the Navigation system while driving, such
as entering POIs or conducting route searches. Such acts
could lead to accidents, fire, or electric shock. Park the
vehicle before operating the device.
Do not disassemble, assemble, or modify the AVN system.
Such acts could result in accidents, fire, or electric shock.
Heed caution not to spill water or introduce foreign objects
into the device. Such acts could lead to smoke, fire, or
product malfunction.
Please refrain from use if the screen is blank or no sound
can be heard as these signs may indicate product malfunction.
Continued use in such conditions could lead to accidents
(fires, electric shock) or product malfunctions.
Safety Warnings
Do not touch the antenna during thunder or lightening as
such acts may lead to lightning induced electric shock.
Do not stop or park in parking-restricted areas to operate
the product. Such acts could lead to traffic accidents..
For most AV and multimedia modes, the display will not
operate when the vehicle is in motion. For your safety, first
park the vehicle to watch or view the screen.
Driving while distracted can result in a loss of vehicle control,
that may lead to an accident, severe personal injury,
and death. The driver‟s primary responsibility is in the safe
and legal operation of a vehicle, and use of any handheld
devices, other equipment, or vehicle systems which take the
driver‟s eyes, attention and focus away from the safe operation
of a vehicle or which are not permissible by law should
never be used during operation of the vehicle.
Warnings and Cautions
Pay attention to traffic conditions while driving.
In some instances, the navigation may provide guidance
through restricted areas.
Operating the device while driving could lead to accidents
due to a lack of attention to external surroundings. First
park the vehicle before operating the device. In addition,
the touch screen may not work for some functions when
the vehicle is in motion. The touch screen feature will be
supported once the vehicle has stopped.
Adjust the volume to levels that allow the driver to hear
sounds from outside of the vehicle. Driving in a state
where external sounds cannot be heard may lead to accidents.
Pay attention to the volume setting when turning the
device on. A sudden output of extreme volume upon
turning the device on could lead to hearing impairment.
(Adjust the volume to a suitable levels before turning off
the device.)
If you want to change the position of device installation,
please inquire with your place of purchase or service
maintenance center.
Safety Cautions
Technical expertise is required to install or disassemble
the device.
Turn on the car ignition before using this device. Do not
operate the Audio Video Navigation
system for long periods of time with the ignition turned off
as such operations may lead to battery discharge.
Upon using the Audio Video Navigation
system for more than 10 minutes with the car engine
turned off, the following warning will be displayed. After
10 minutes, the warning will be displayed for 5 seconds
every 1 minute.
Do not subject the device to severe shock or impact
Direct pressure onto the front side of the monitor may
cause damage to the LCD or touch screen.
When cleaning the device, make sure to turn off the
device and use a dry and smooth cloth.
Never use tough materials, chemical cloths, or solvents
(alcohol, benzene, thinners, etc.) as such materials may
damage the device panel or cause color/quality deterioration.
When experiencing product malfunctions, inquire with
your place of purchase or service maintenance center.
Key Product Features
This device is an Audio Video Navigation system equipped with a multifunctional disc player that supports Radio (FM1,
FM2, AM), Audio CD, MP3, DVD, USB, iPod, and Audio/Video AUX features. The WIDE VGA LCD provides a high quality
resolution to both driver and passengers while the powerful and rich sound system adds to driving enjoyment.
Display Wide TFT-LCD Display
• Provides high quality video and music through a Wide TFT-LCD Display using an LED Back Light
• Touch screen for maximum user convenience
Radio
Digital Tuner Feature
• Digital Tuner using PPL method that supports memory of 6 broadcast stations for each AM, FM1,
and FM2 modes
Integrated Antenna (RADIO+NAVI)
• Outstanding reception via integrated antenna with high sensitivity Radio broadcast station name
• Displays broadcast station names for key locations
DVD Player Auto Play Feature
• Auto play feature upon inserting Audio CD, MP3, or DVD disc

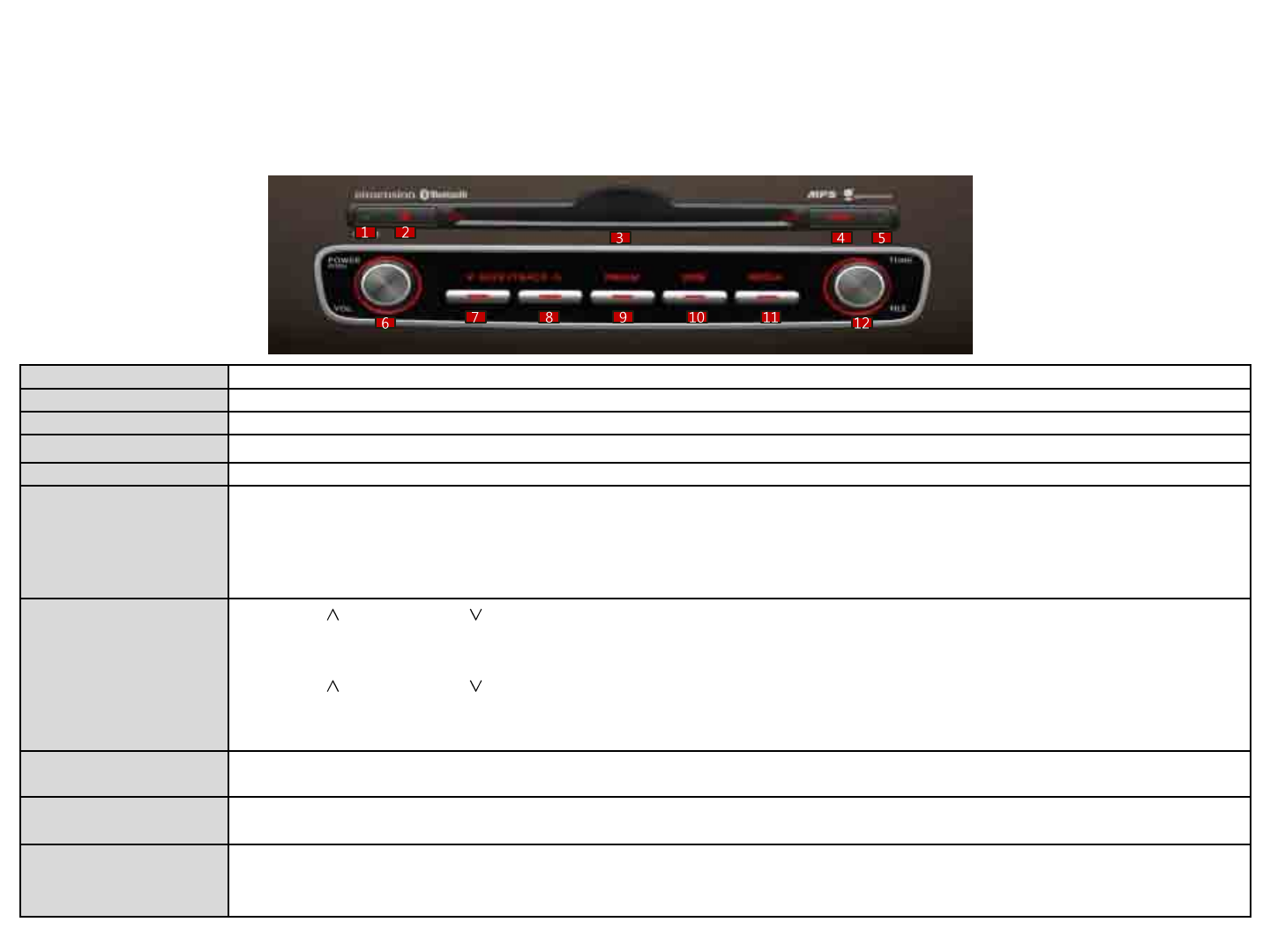

1.CD-IN LED DISC LED
2.DISC IN/OUT DISC insert/eject key
3.DISC Insert Slot DISC insert/eject slot
4.DISP Displays current date and time
5.RESET Resets and restarts the system
6.Power/Volume knob
• Used to turn device power ON/OFF and control volume
• When power is off, press to turn power on
• When power is on, press and hold (over 0.8 seconds) to turn power off
• When power is on, press shortly (under 0.8 seconds) to turn AV off
• Turn left/right to adjust volume
7/ 8. SEEK/TRACK
When the [ SEEK] [TRACK ] keys are pressed shortly (under 0.8 seconds)
• In FM/AM mode, searches broadcast frequencies saved to presets
• In DVDP CD/MP3/DVD and USB/iPod modes, changes the track, file or chapter
When the [ SEEK] [TRACK ] keys are pressed and held (over 0.8 seconds)
• In FM/AM mode, automatically searches broadcast frequencies and channels
• In DVDP CD/MP3/DVD and USB/iPod modes, rewinds or fast forwards the track or file
9.FM/AM • Operates FM/AM mode
• Each time the key is pressed, mode is changed in order of FM1→FM2→AM
10.MEDIA • Operates CD, MP3, DVD, VCD, USB, iPod, AU, Bluetooth Streaming Audio modes
• If the media is not connected or a disc is not inserted, corresponding modes will be disabled
11.TUNE/FILE knob
• In FM/AM mode, turn to change broadcast frequencies
• In CD, MP3, USB, and iPod modes, turn to search tracks/channels/files. When the desired channel or file
name is displayed, press to operate the corresponding track/channel/file
Component Names and Functions
Head Unit
1.LFT Left Soft Key
2.MENU Displays MENU popup screen
3.RHT Right Soft Key

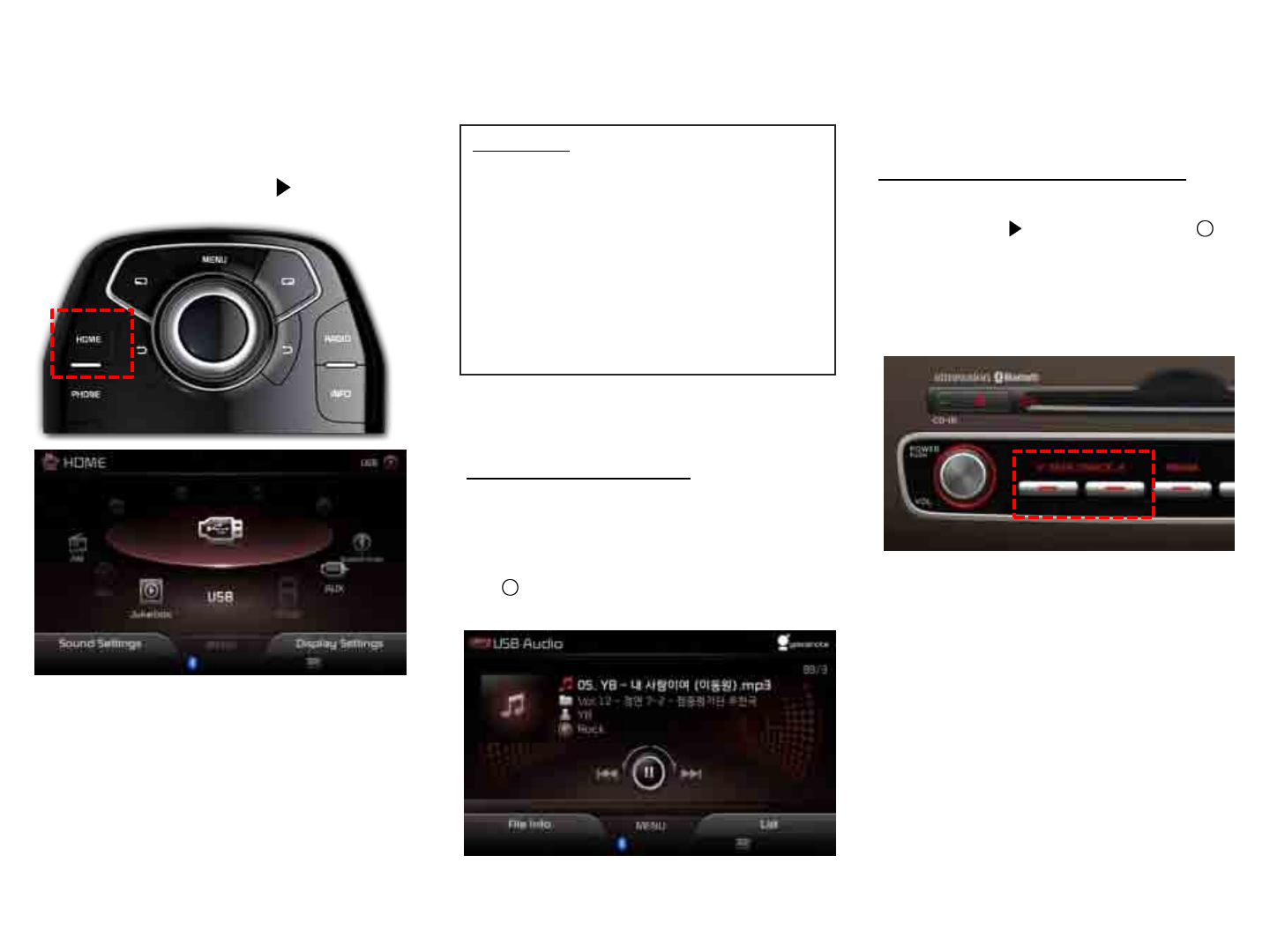

4.HOME Displays HOME screen
5.Back Displays the previous screen
6.Controller
(All desired functions can be operated by turning,
8-directional pushing and pressing the controller.
7.Back Displays the previous screen
8.RADIO Operates FM/AM mode

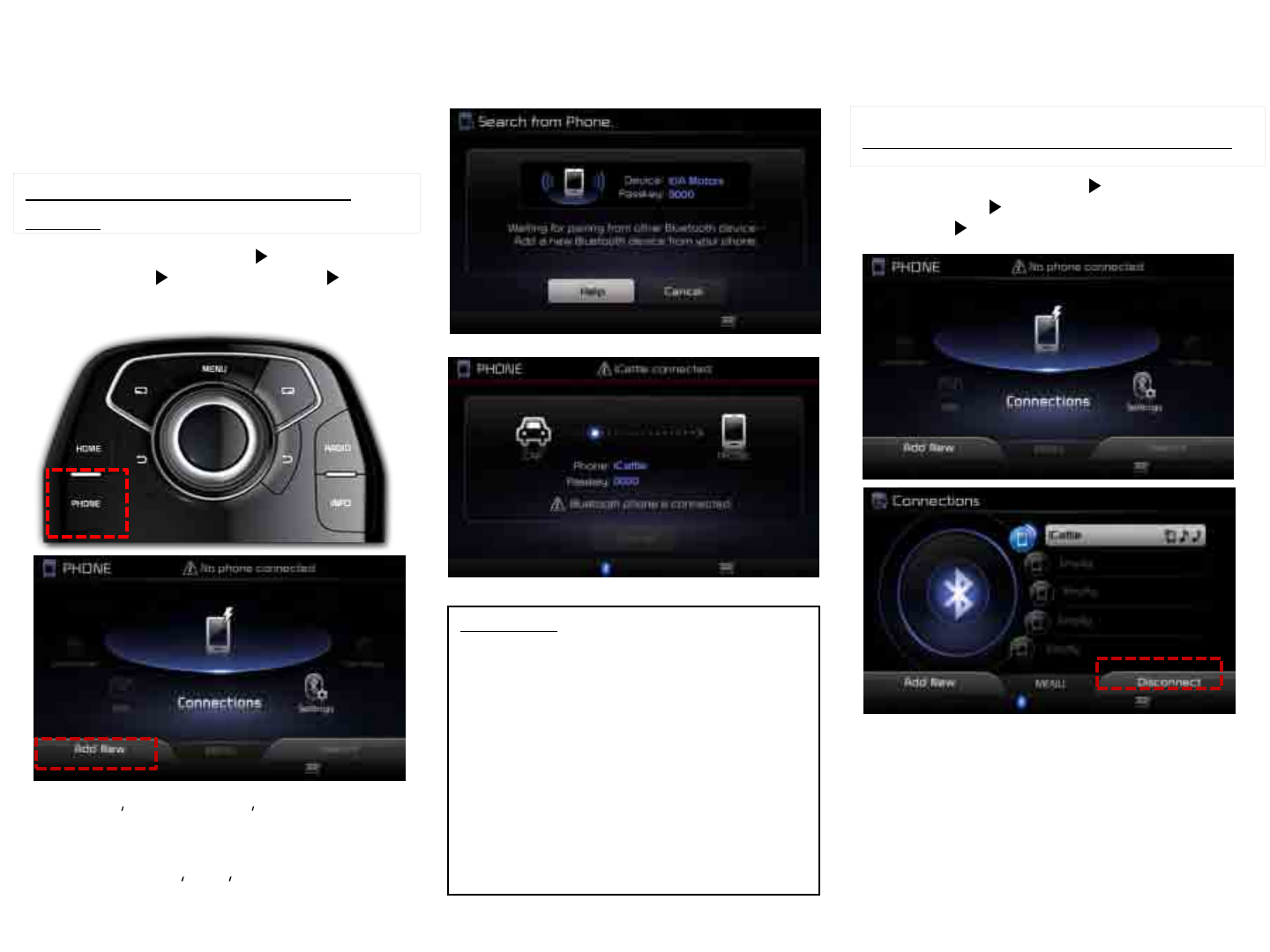

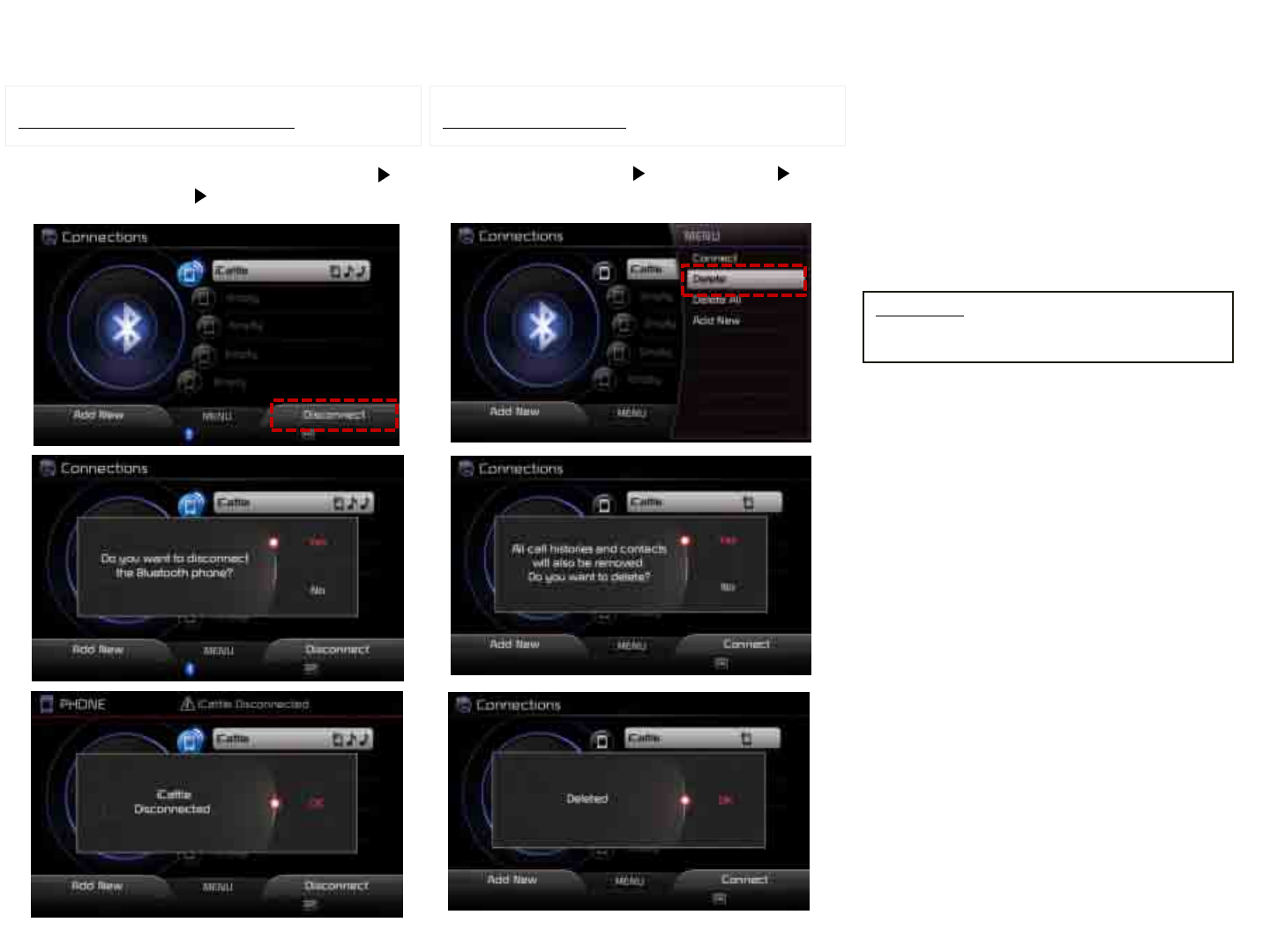

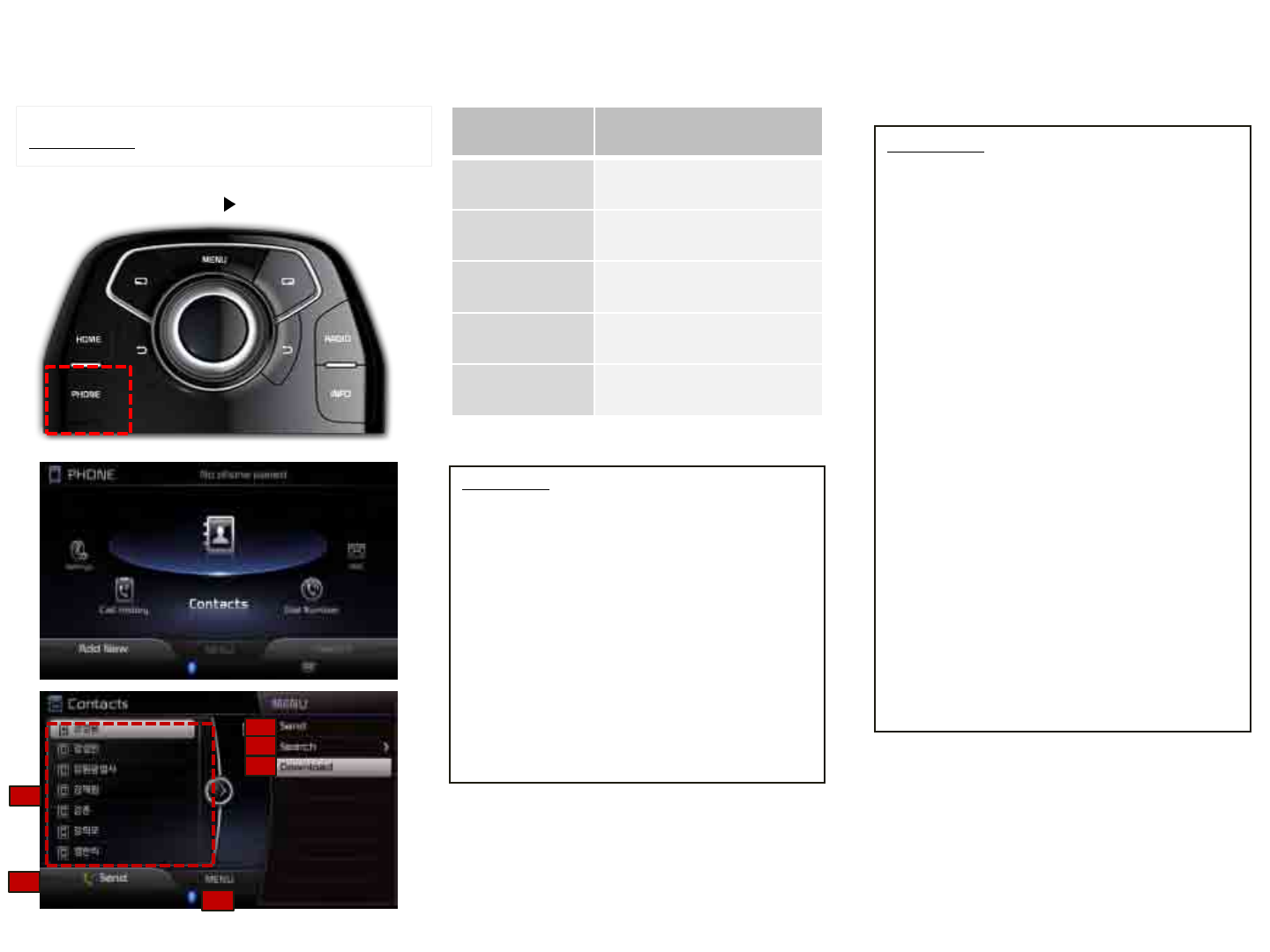

9.PHONE Converts to Bluetooth®Handsfree mode
10.INFO Displays INFO screen
4
10
1
5
2
6
3
7
8
9
`
Component Names and Functions

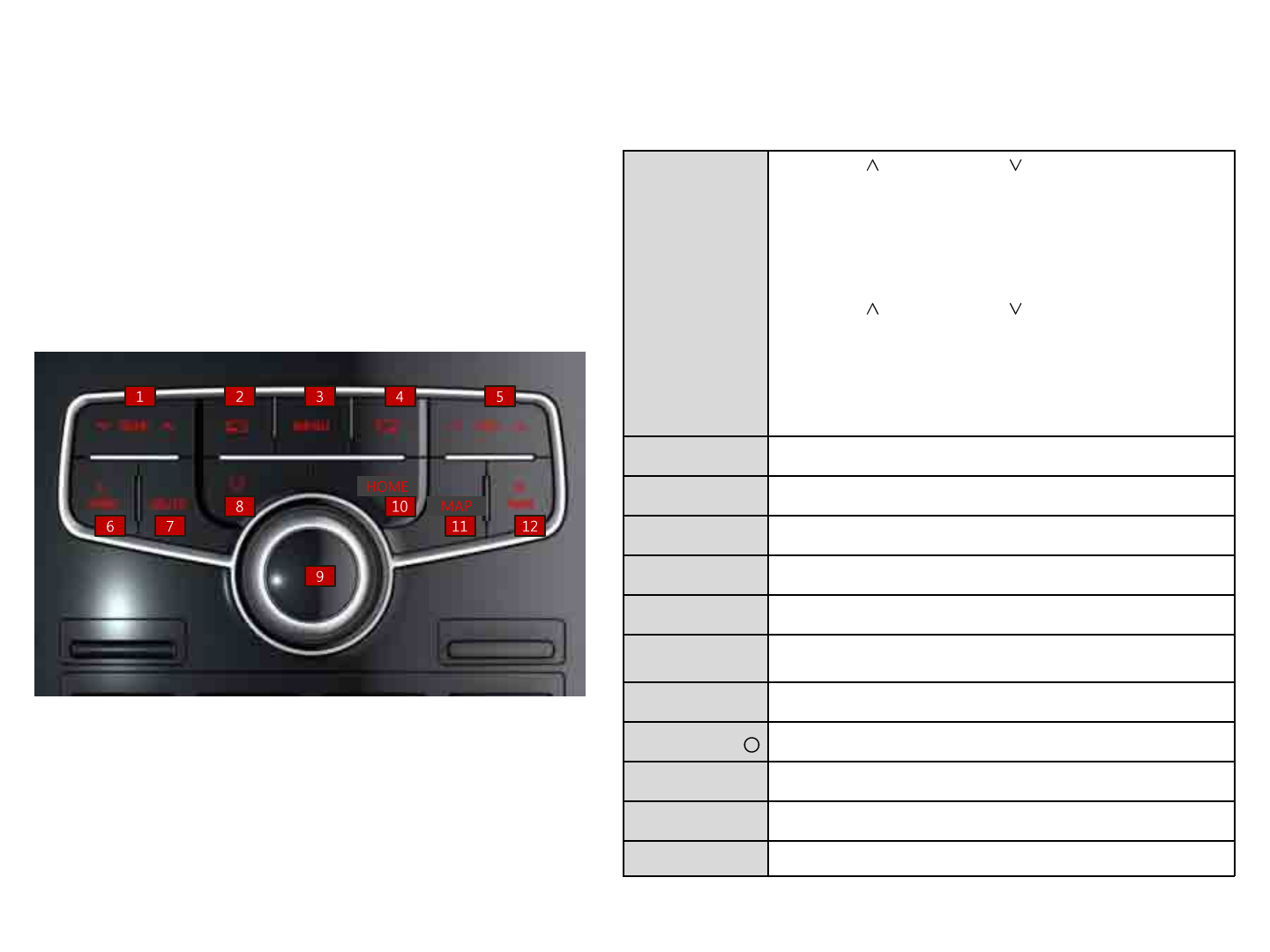

Front Central Controller
1. SEEK/TRACK
When the [ SEEK] [TRACK ] keys are pressed
shortly (under 0.8 seconds)
• In FM/AM mode, searches broadcast frequencies saved
to presets
• In DVDP CD/MP3/DVD and USB/iPod modes, changes
the track, file or chapter
When the [ SEEK] [TRACK ] keys are pressed and
held (over 0.8 seconds)
• In FM/AM mode, automatically searches broadcast frequ
encies and channels
• In DVDP CD/MP3/DVD and USB/iPod modes, rewinds o
r fast forwards the track or file
2. LFT Left Soft Key
3. MENU Displays MENU popup screen
4. RHT Right Soft Key
5. VOL Adjusts Volume
6. L PWR Turns left screen ON/OFF
7. MUTE Mutes sound
8. BACK Displays the previous screen
9. Controller ( ) Move / select menus
10. HOME Displays HOME screen
11. MAP Displays the map for the current position
12. R PWR Turns right screen ON/OFF
Component Names and Functions
Rear Central Controller
FM/AM Mode

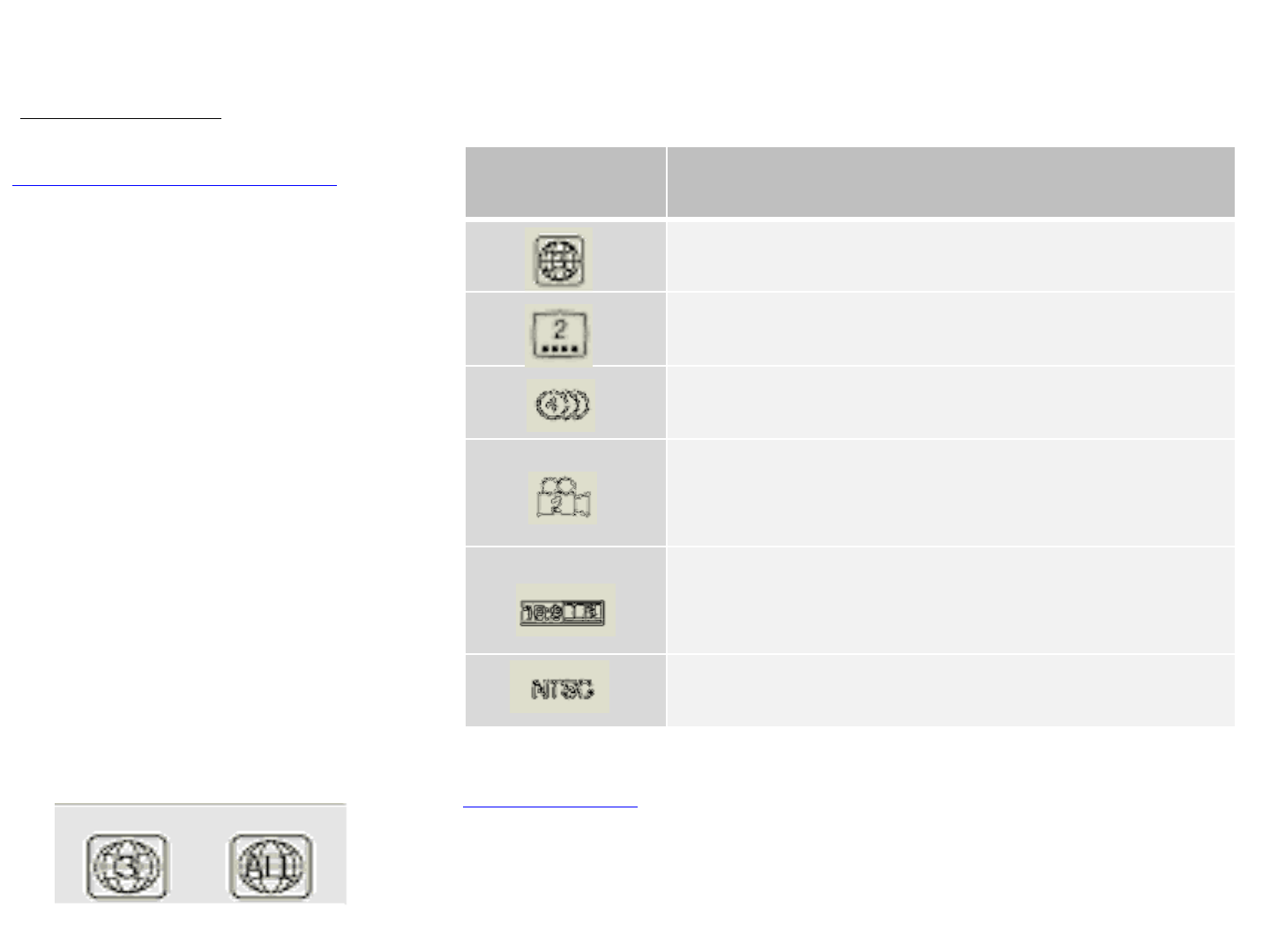

About Discs

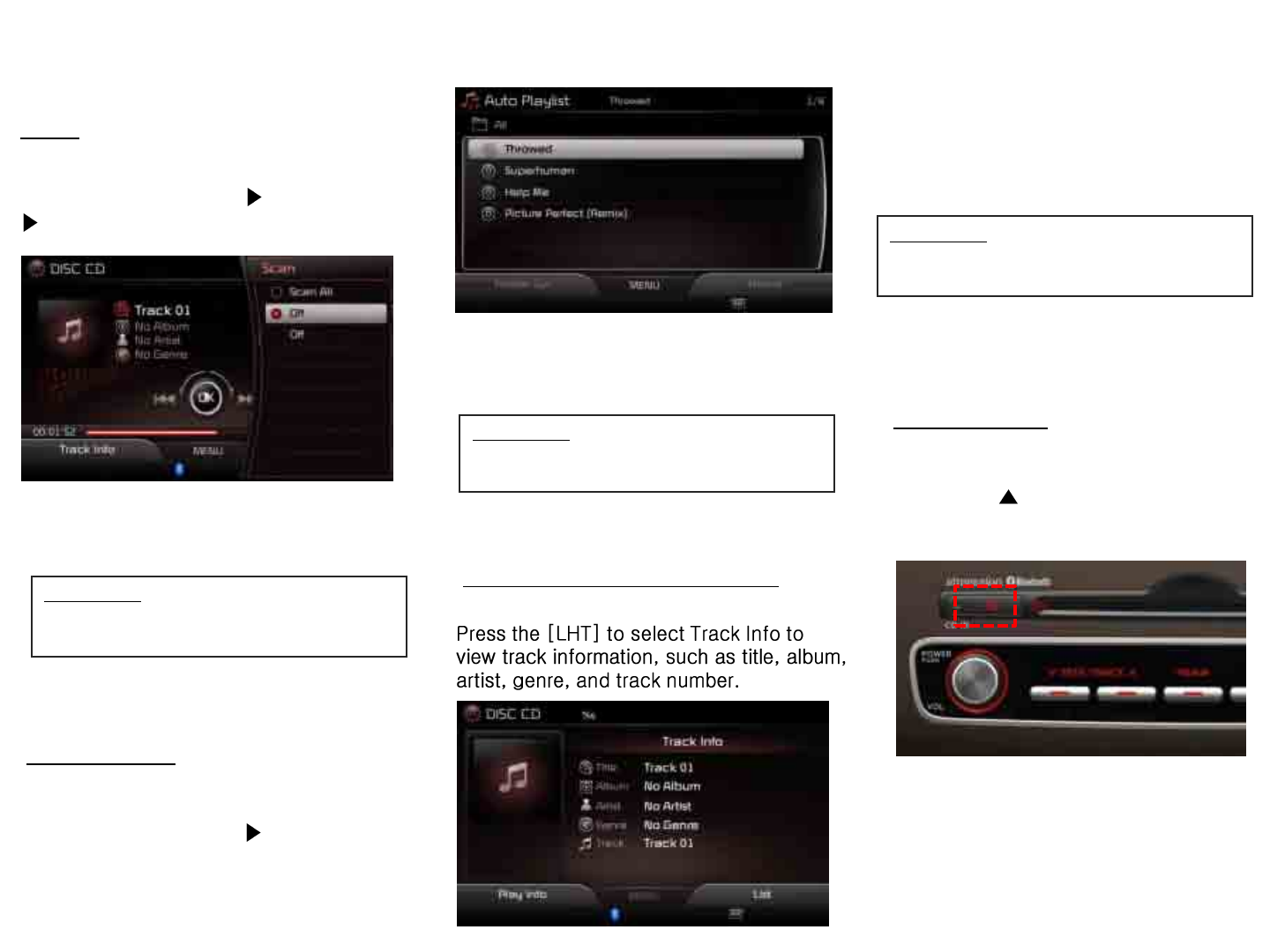

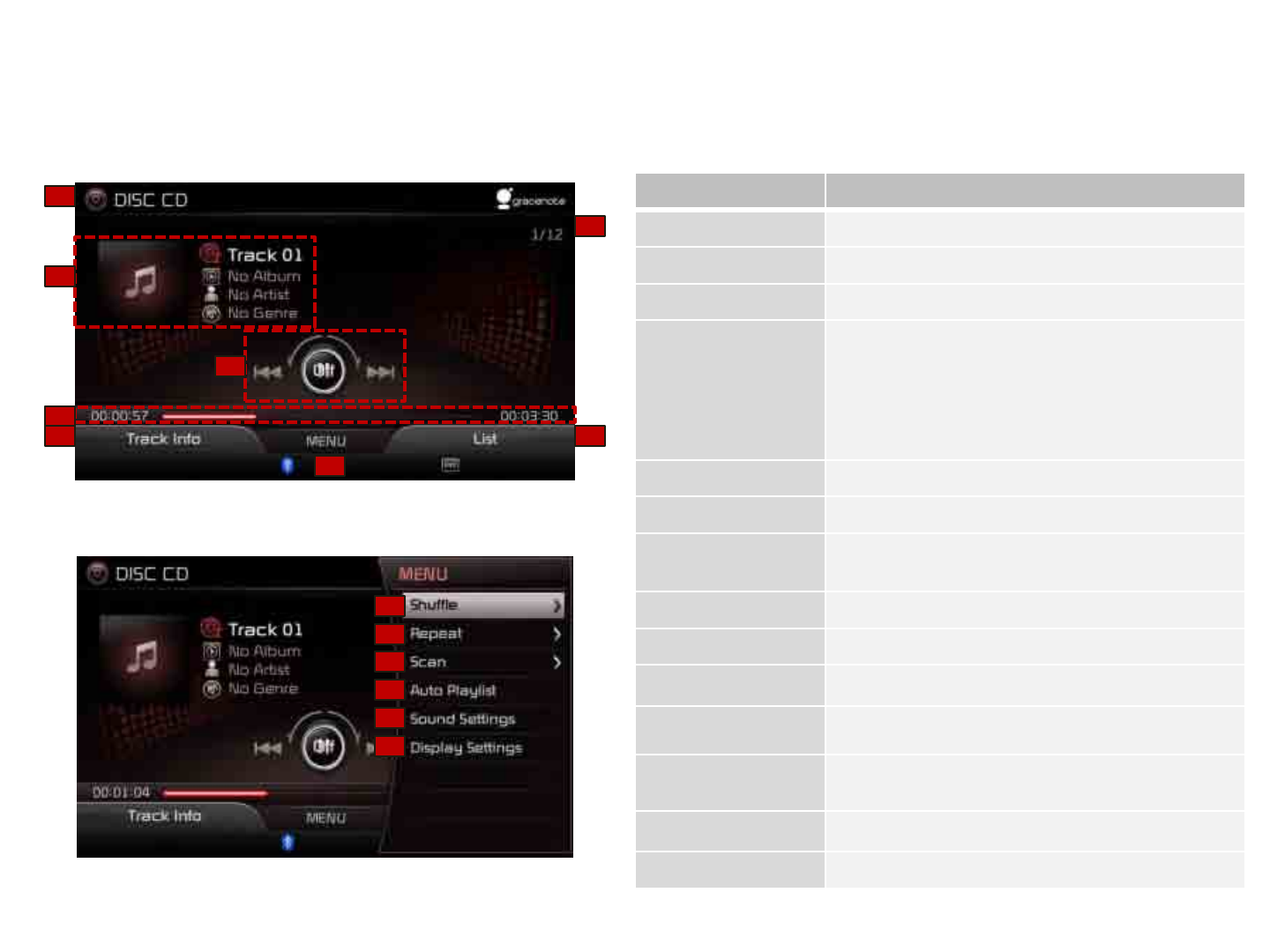

CD Mode

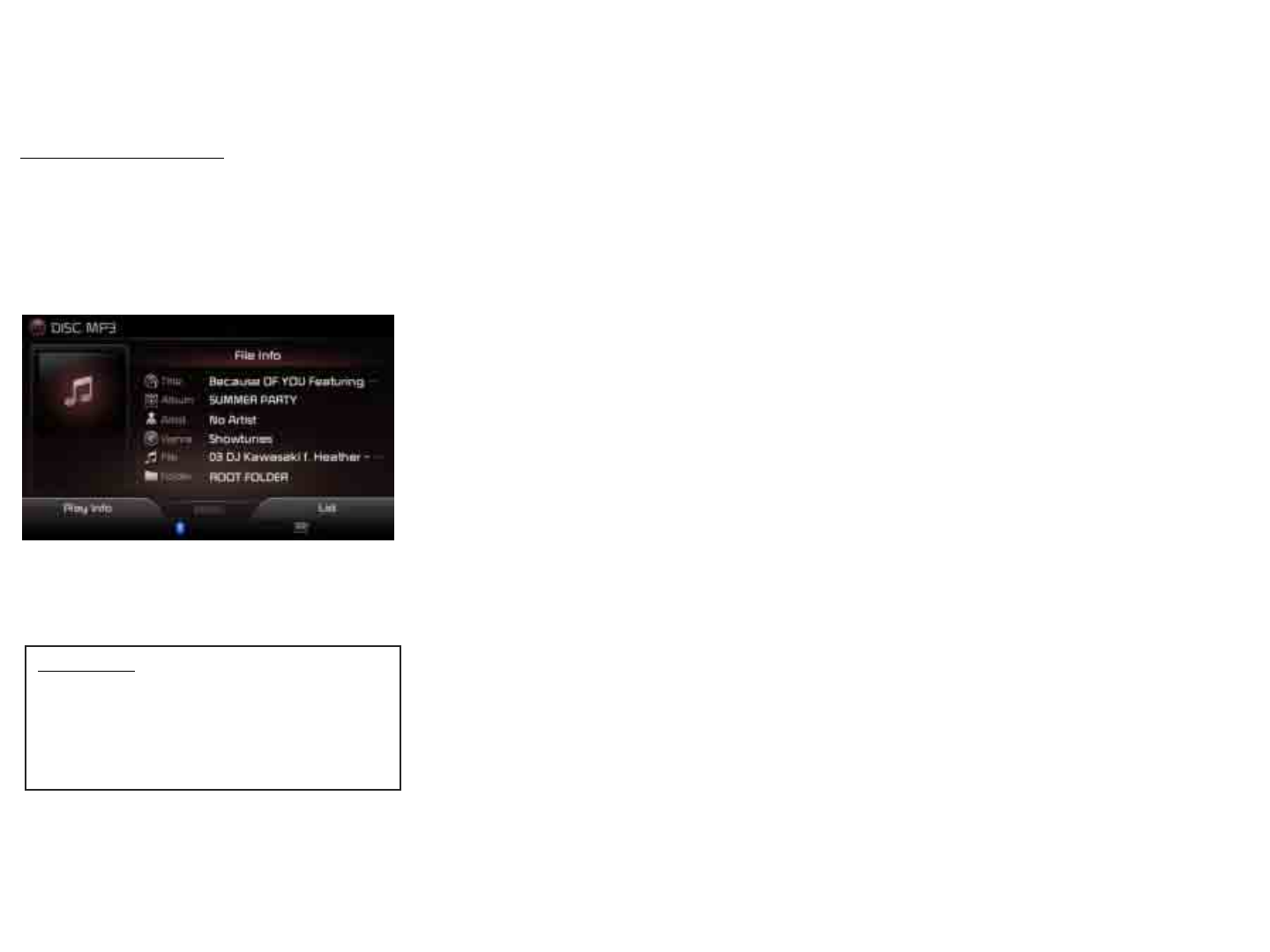

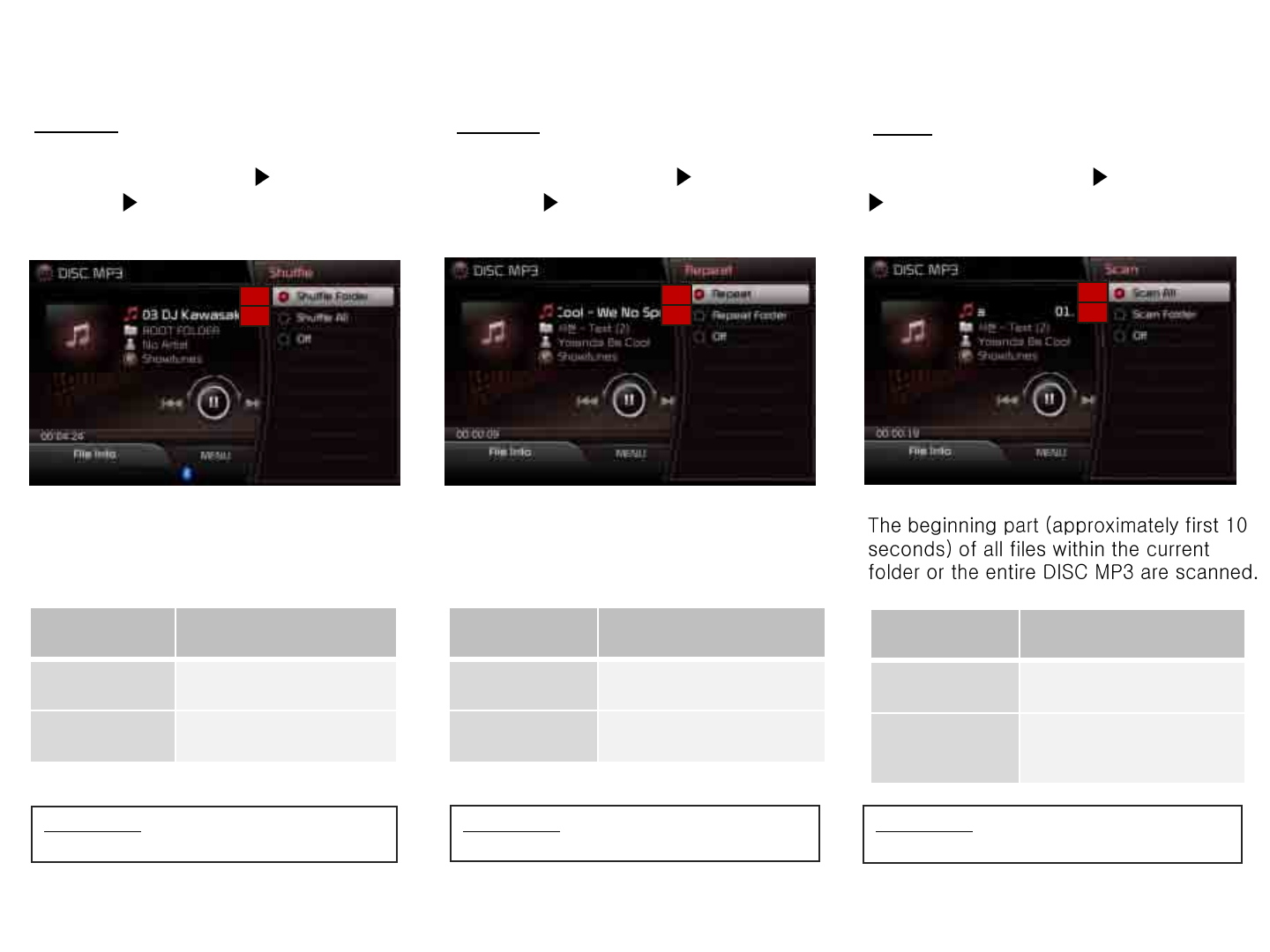

MP3 Mode

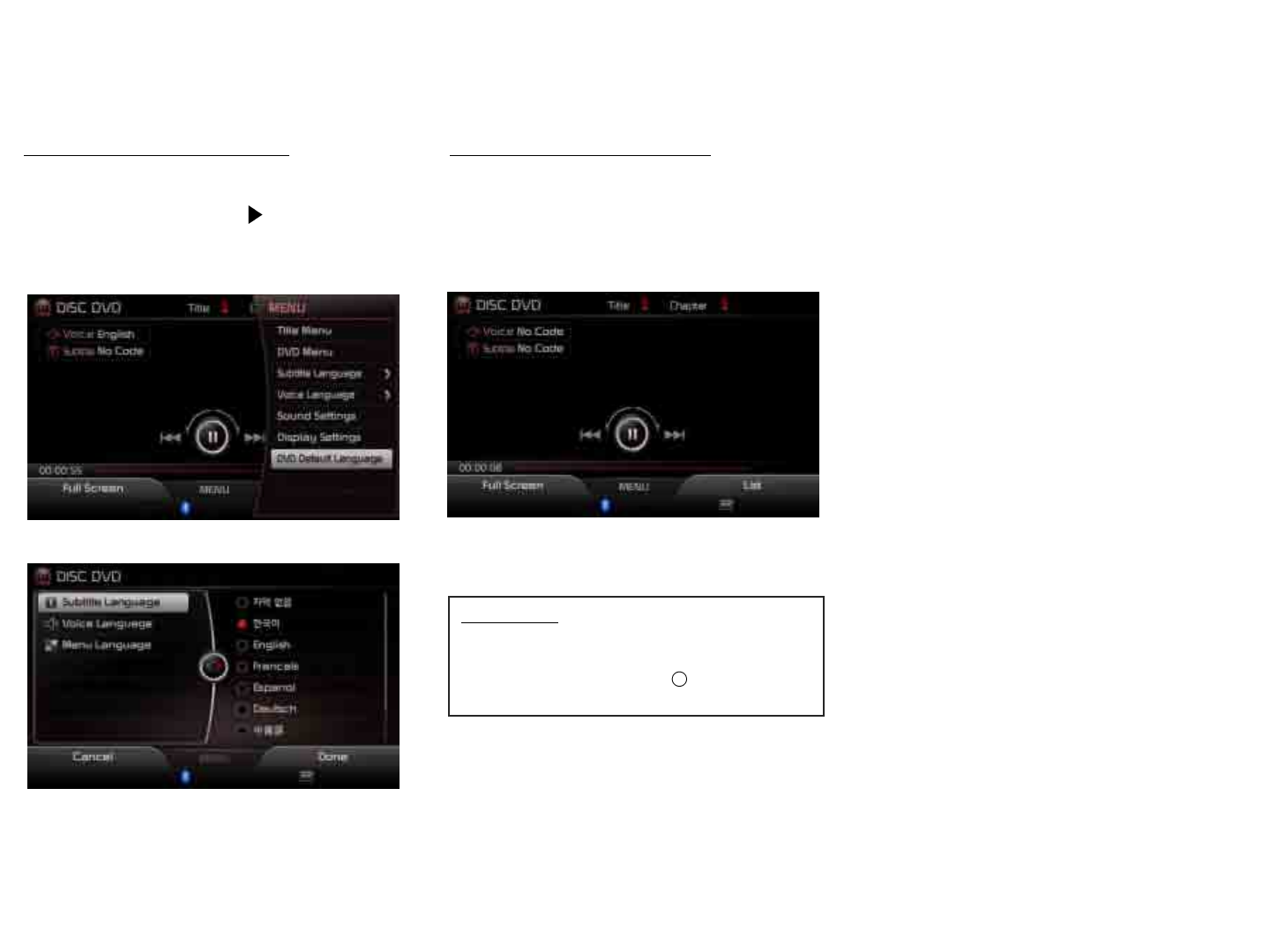

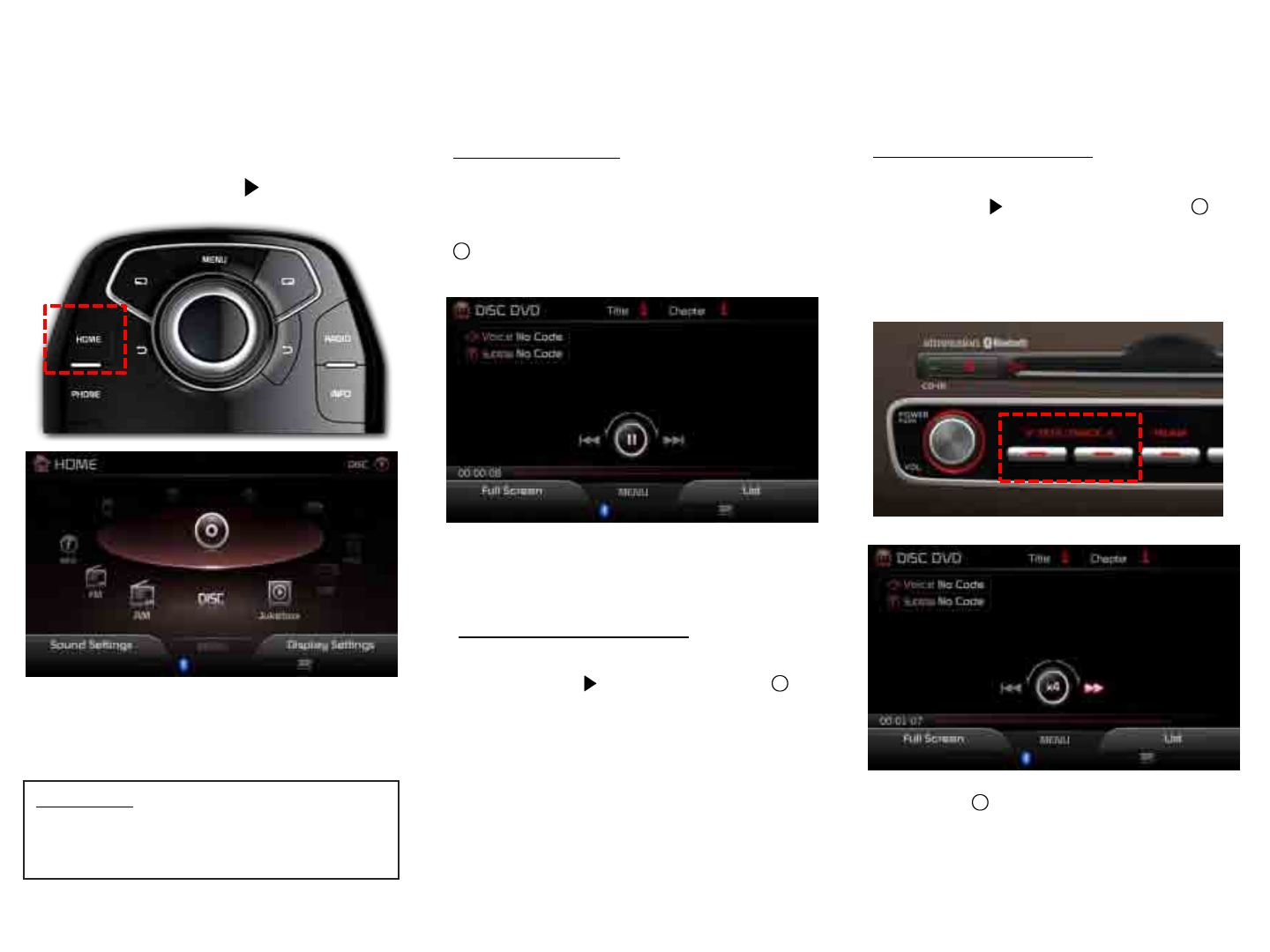

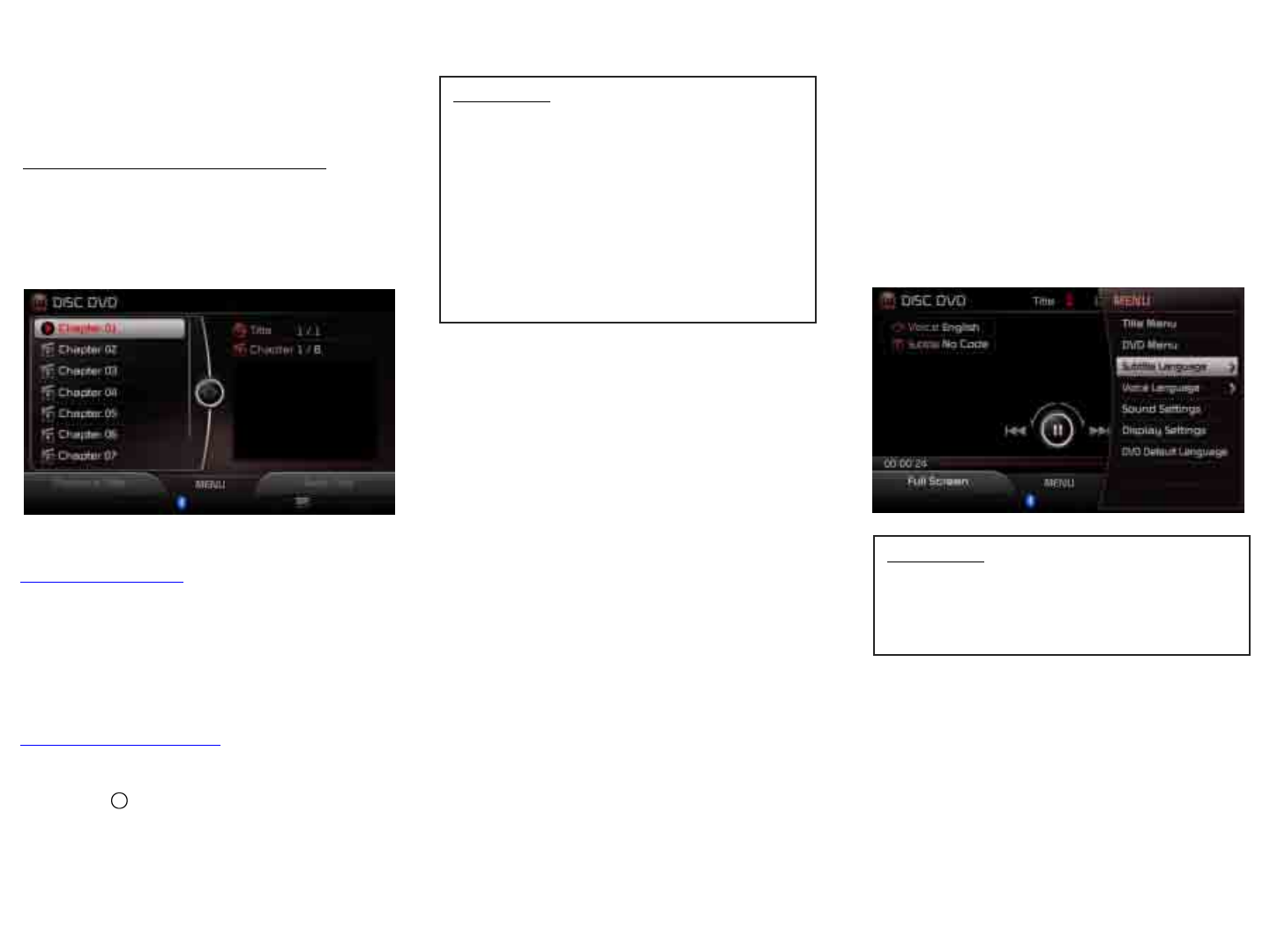

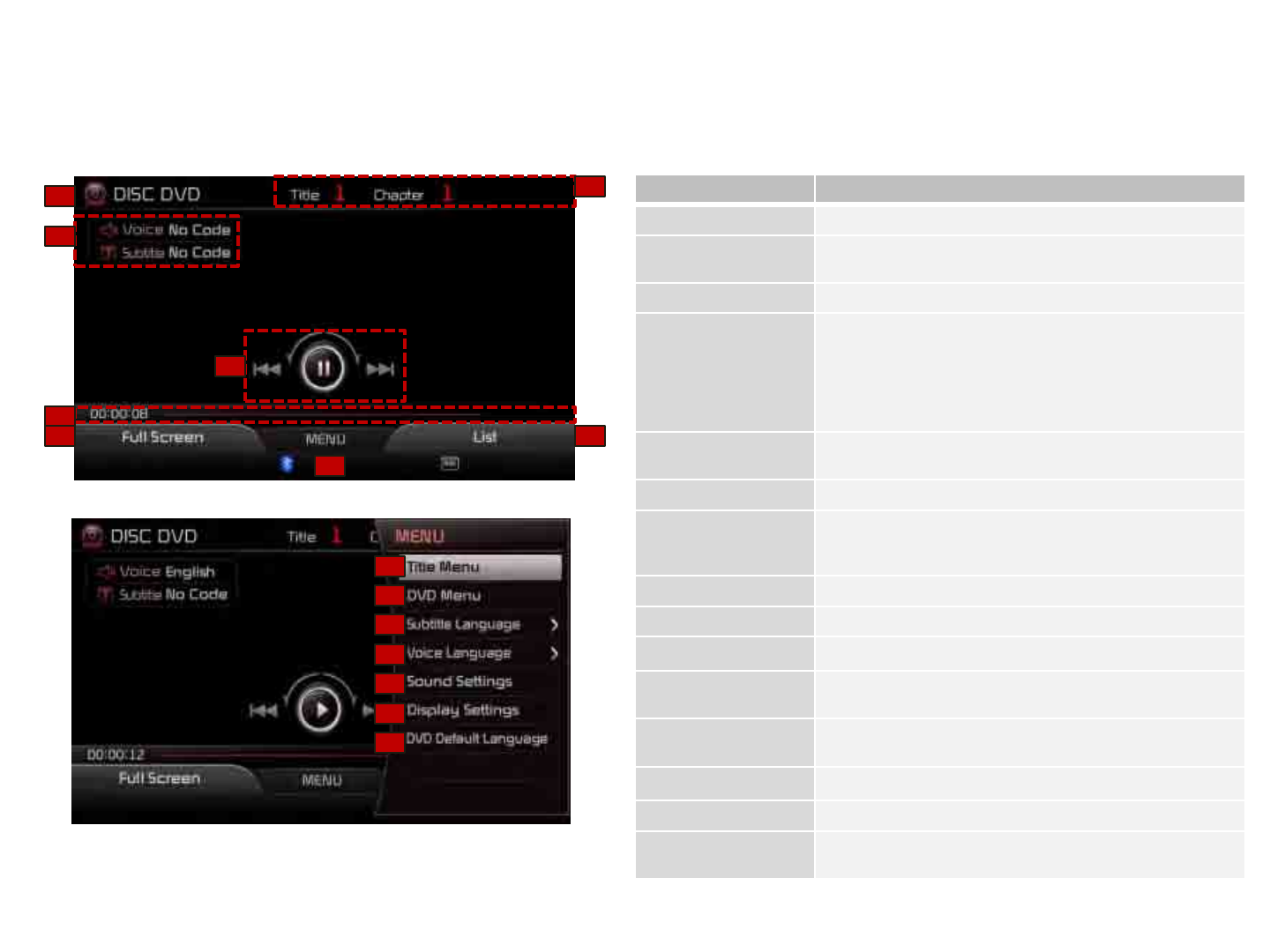

DVD Mode

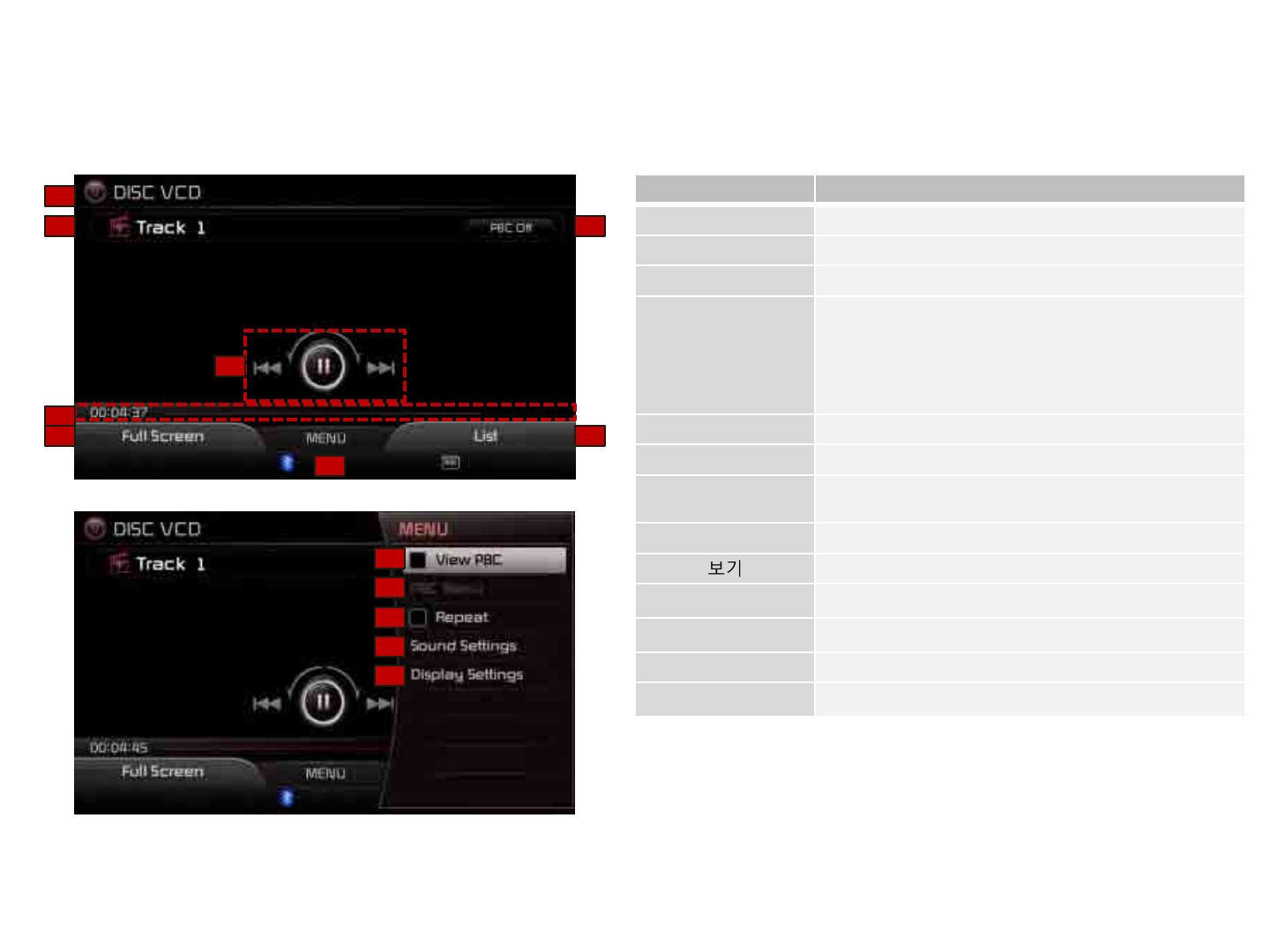

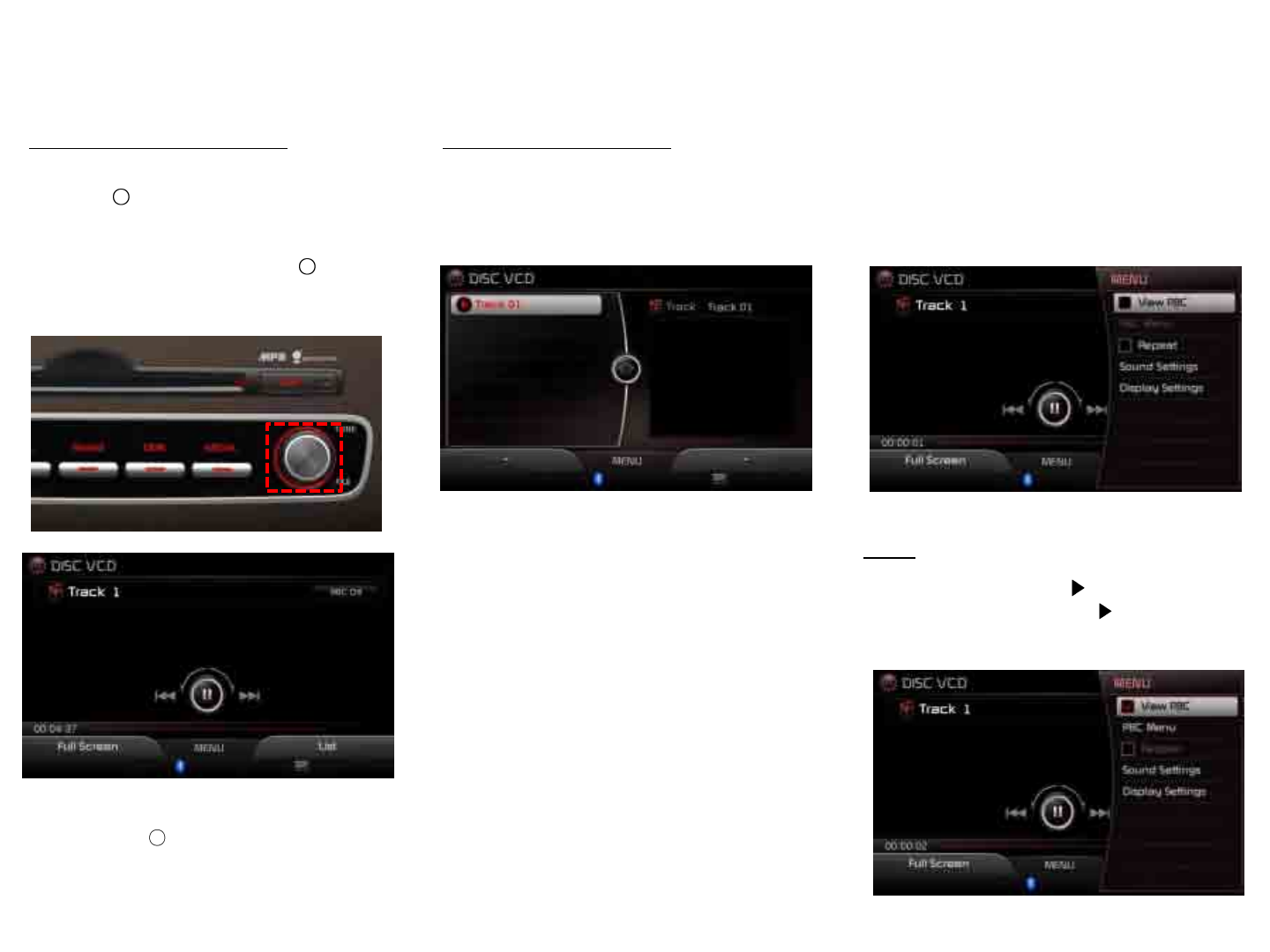

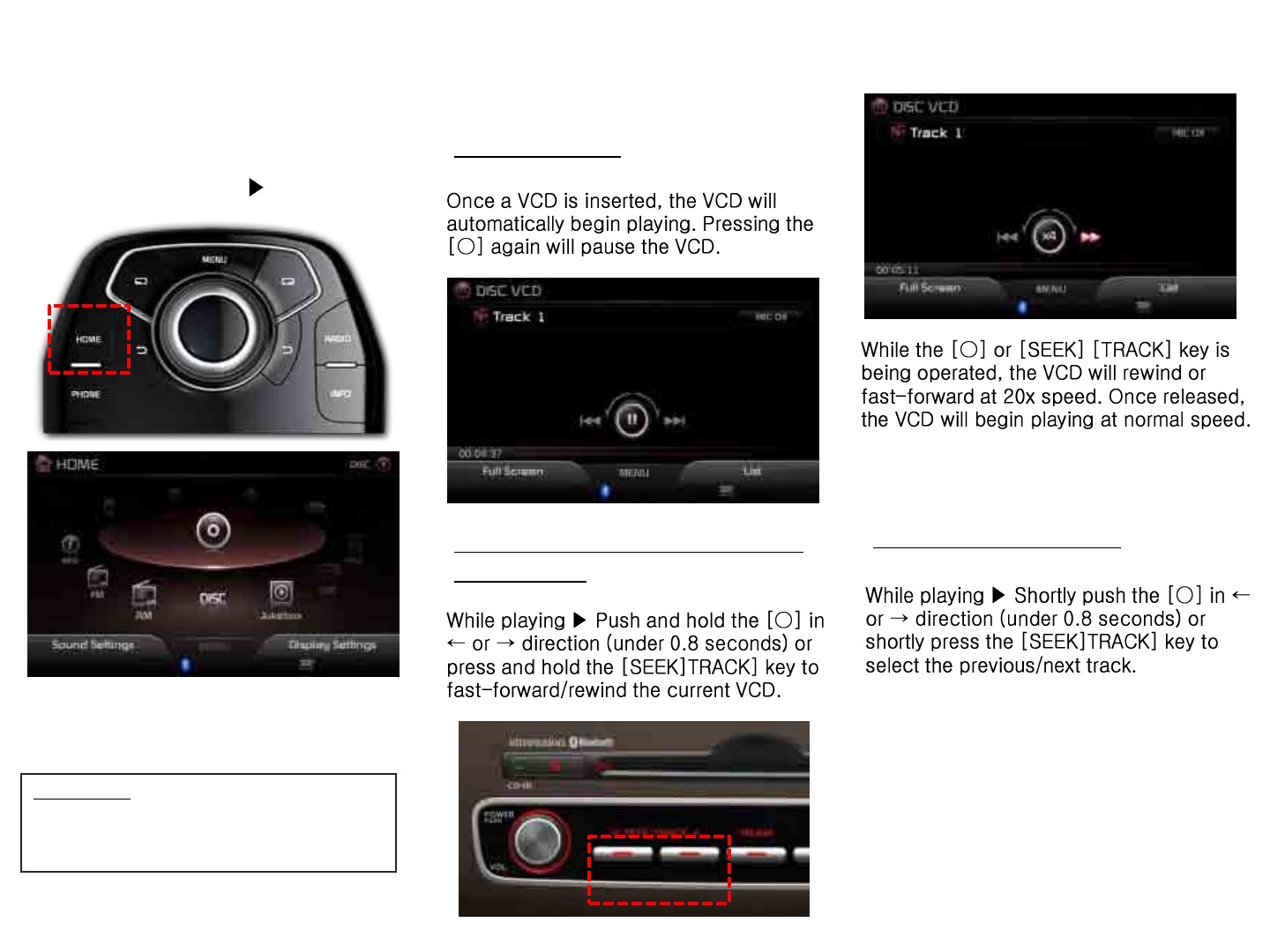

VCD Mode

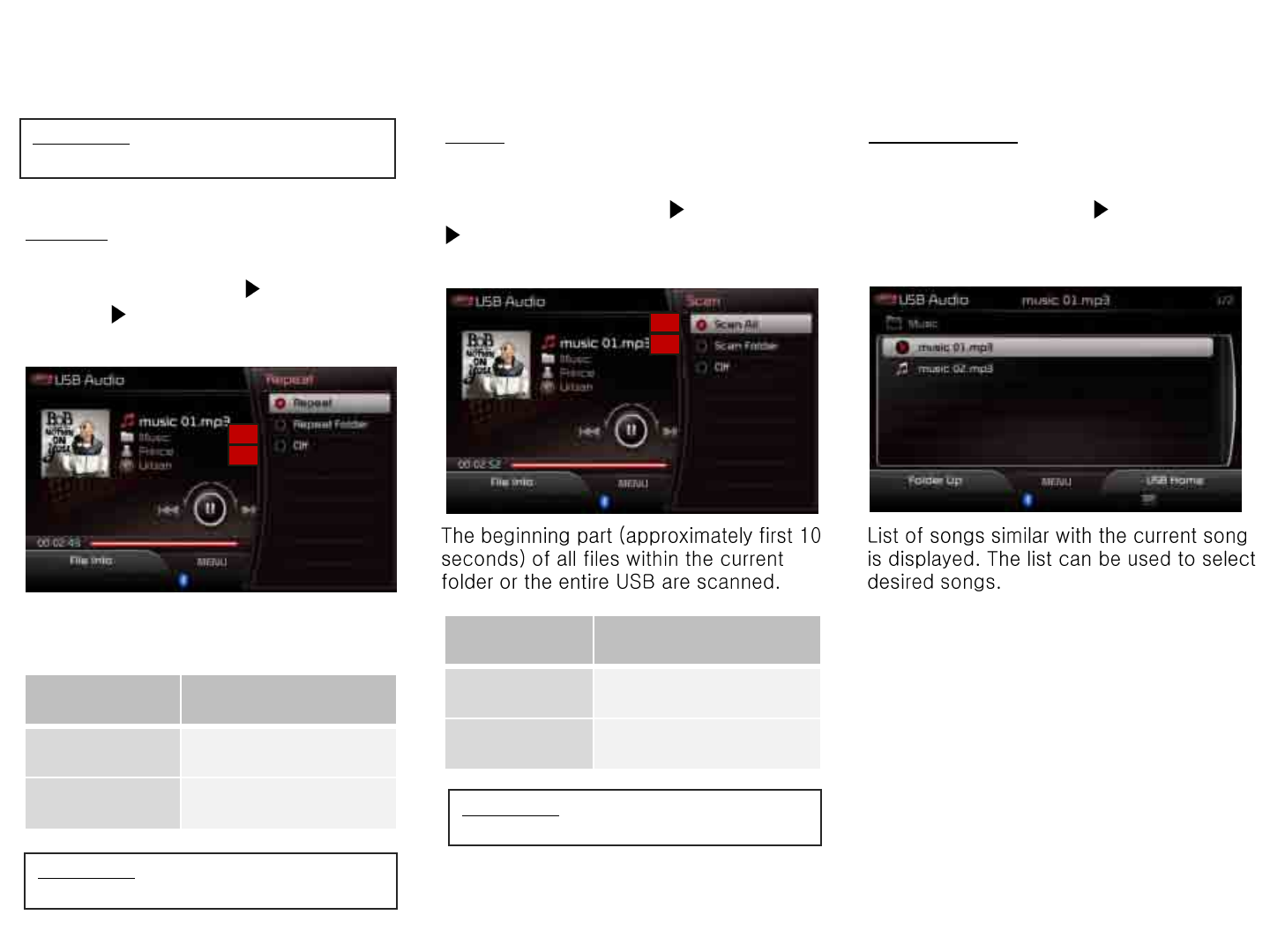

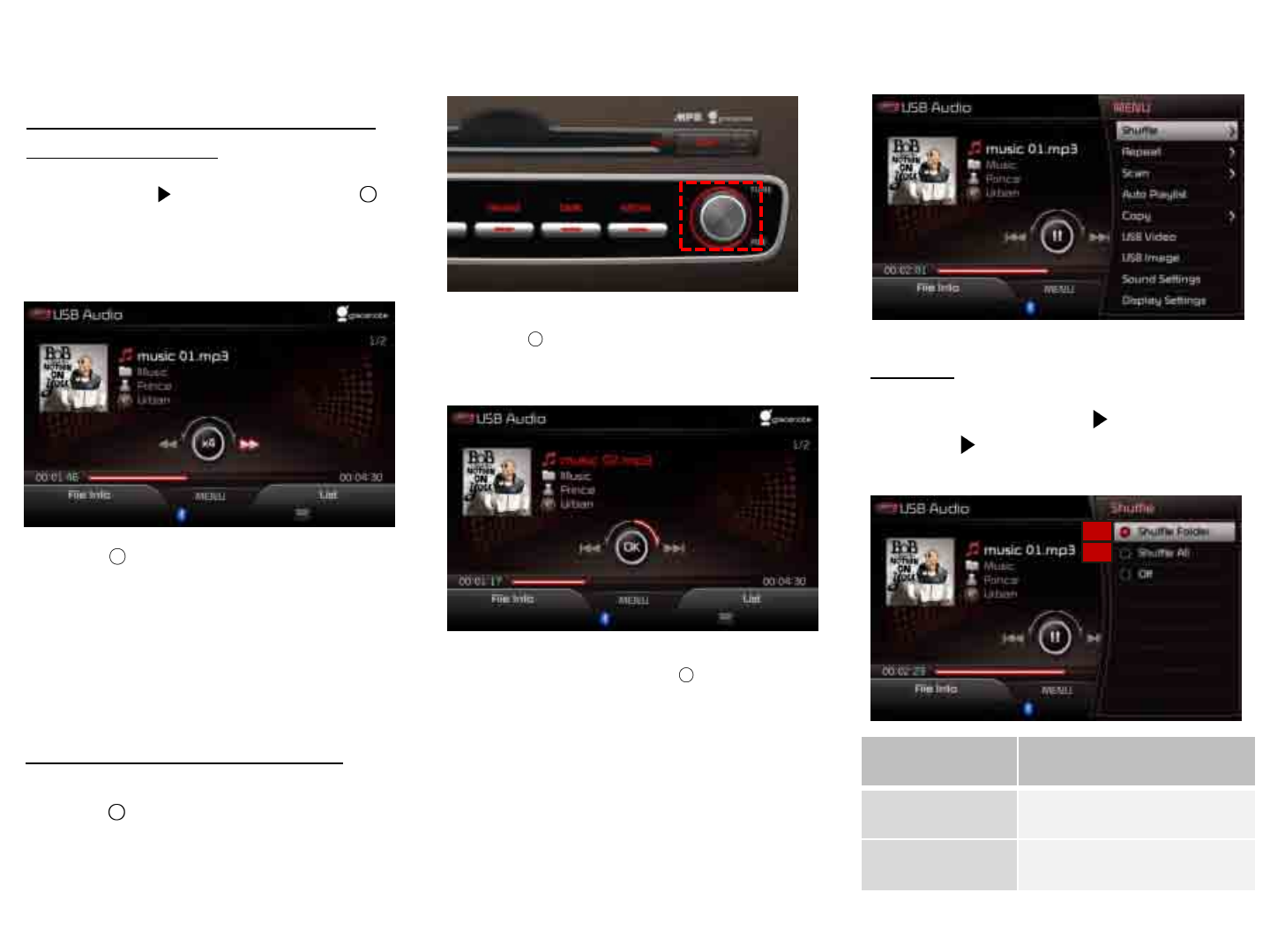

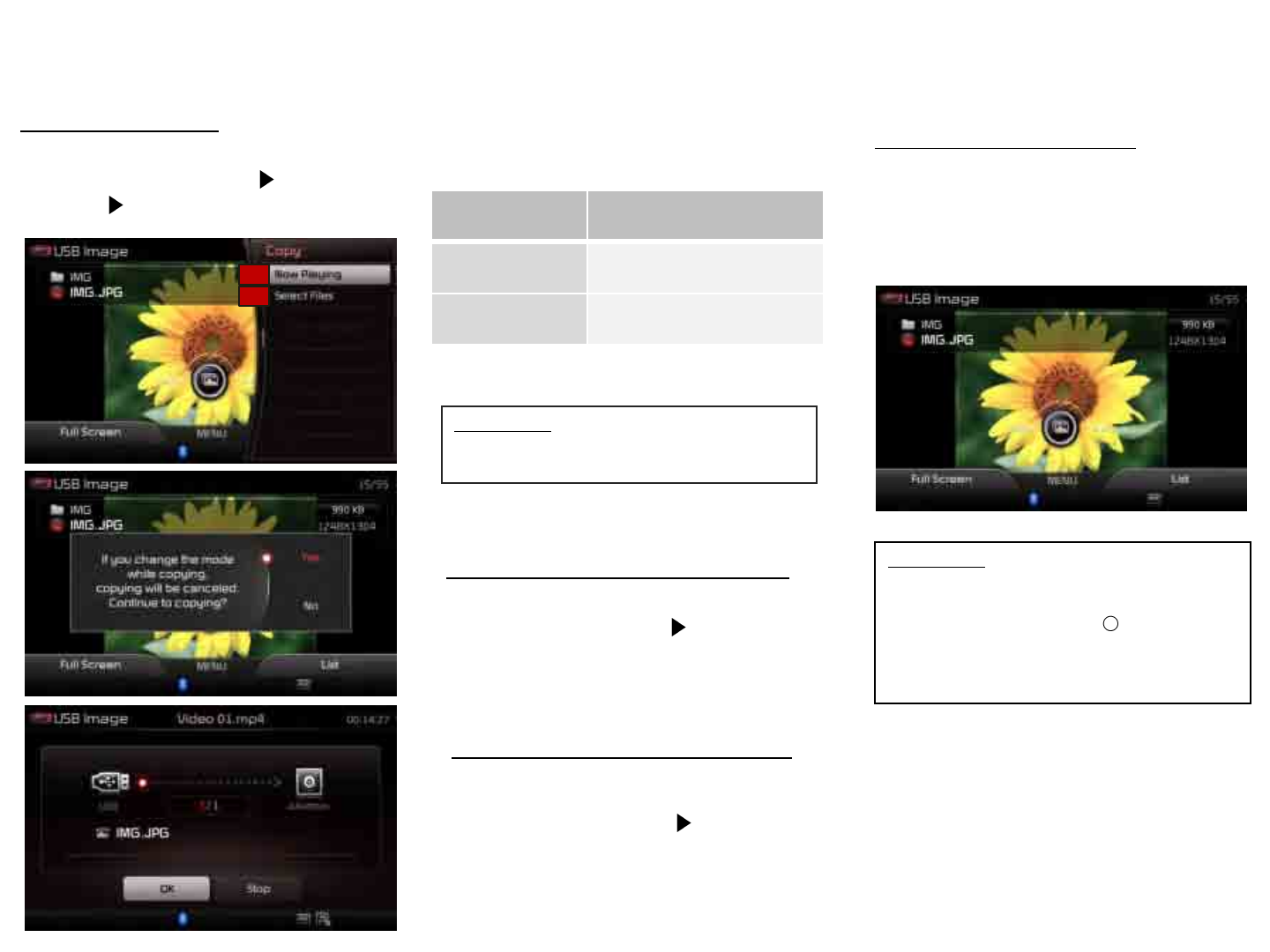

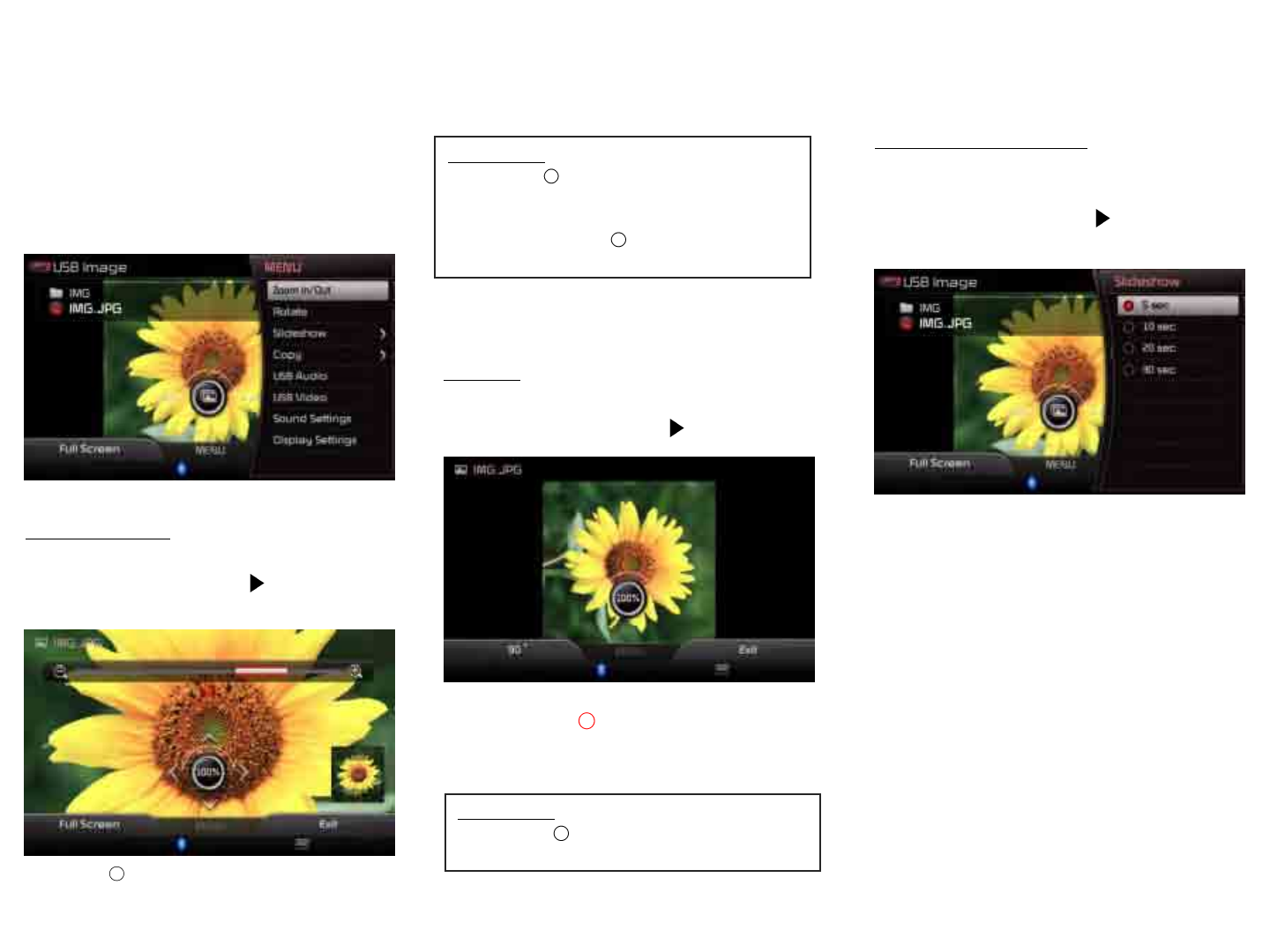

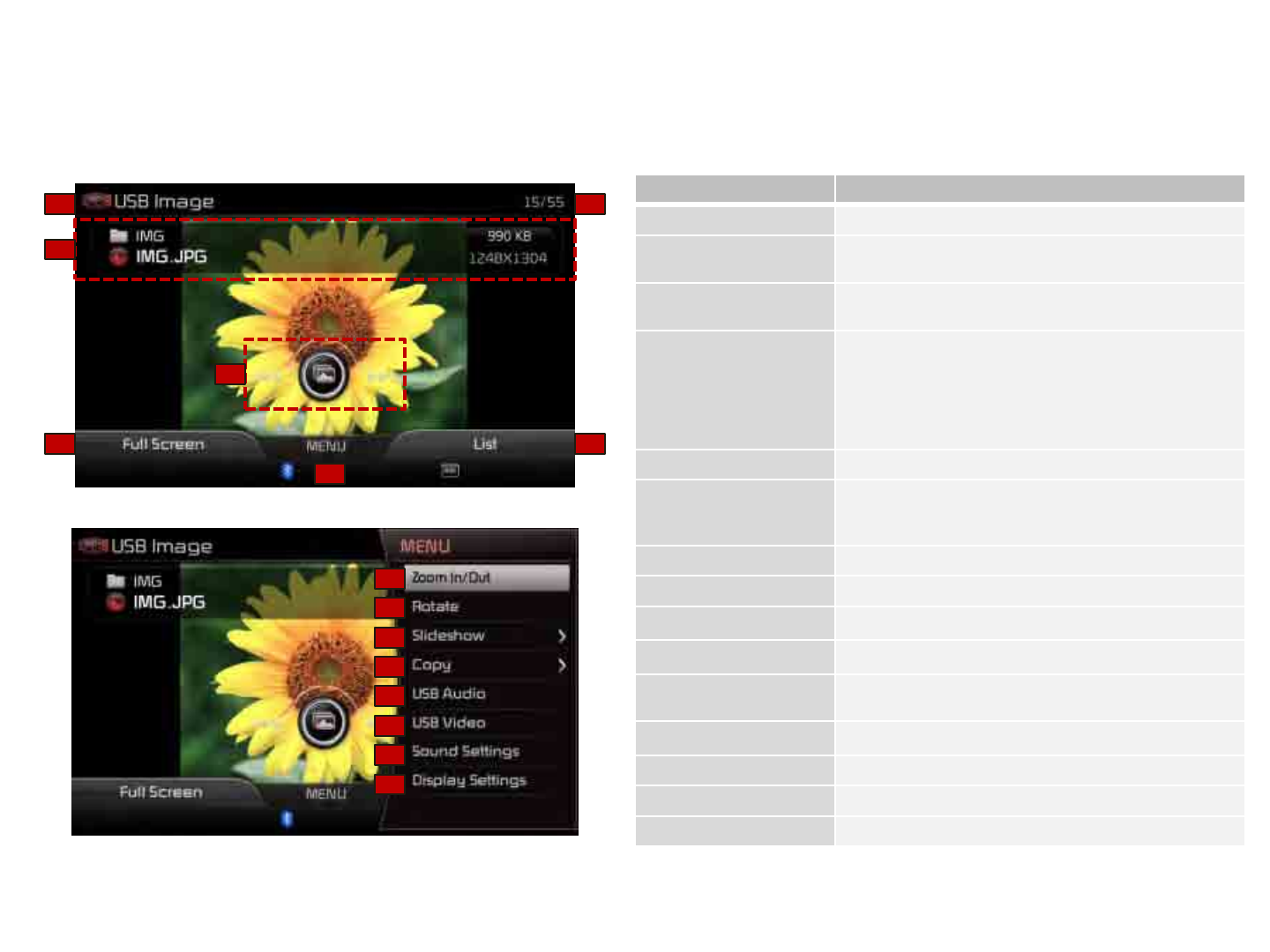

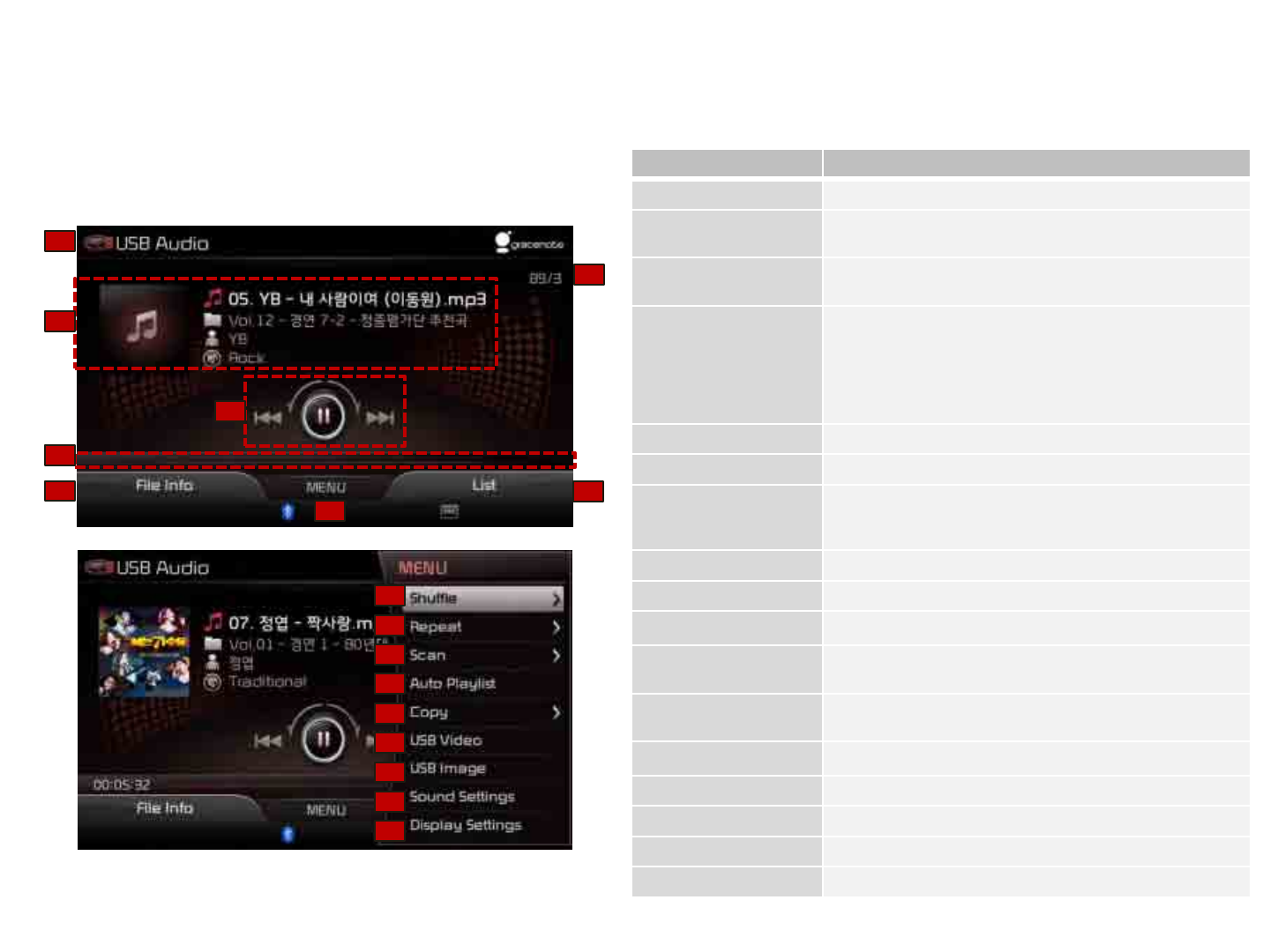

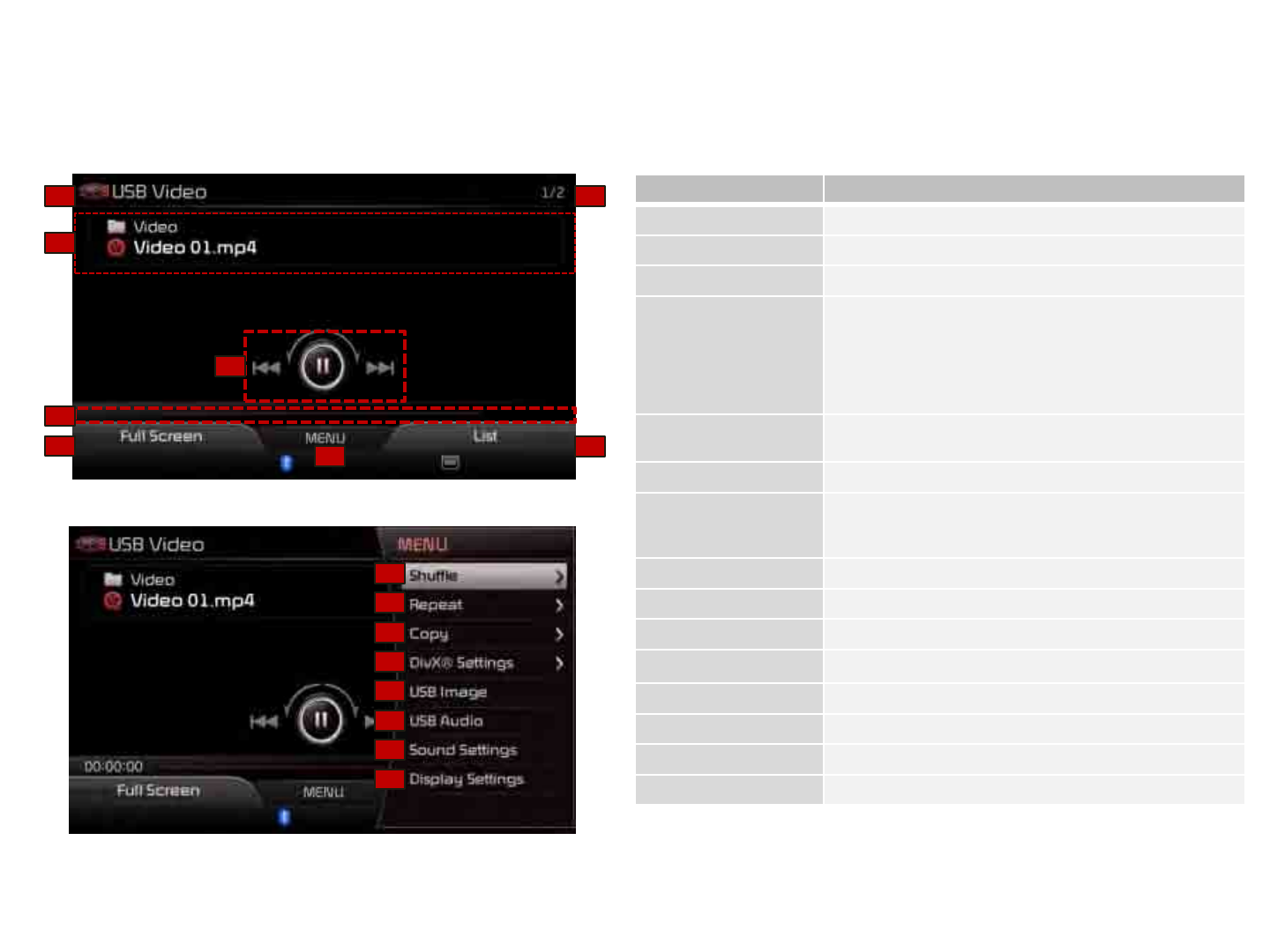

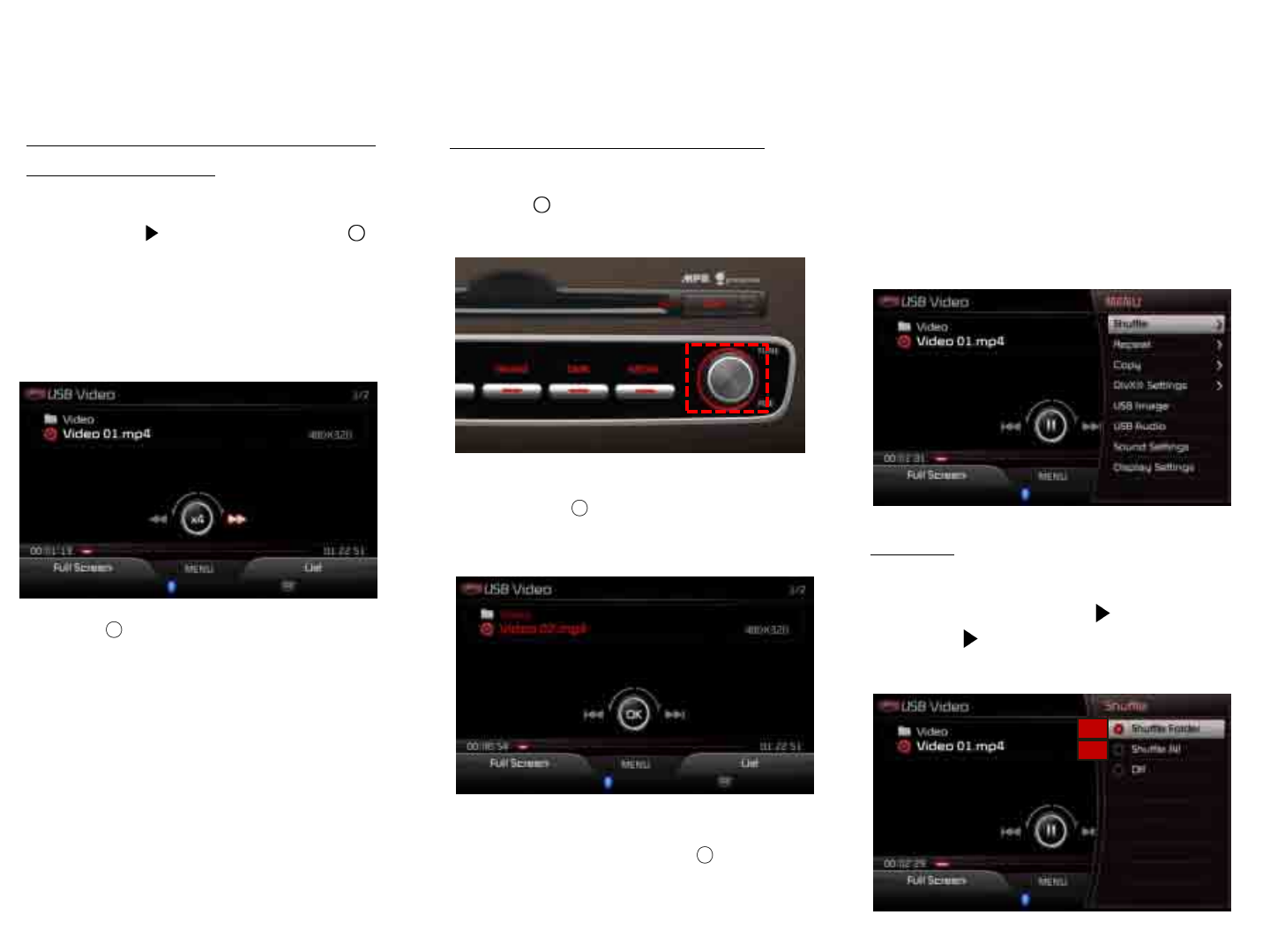

USB Mode

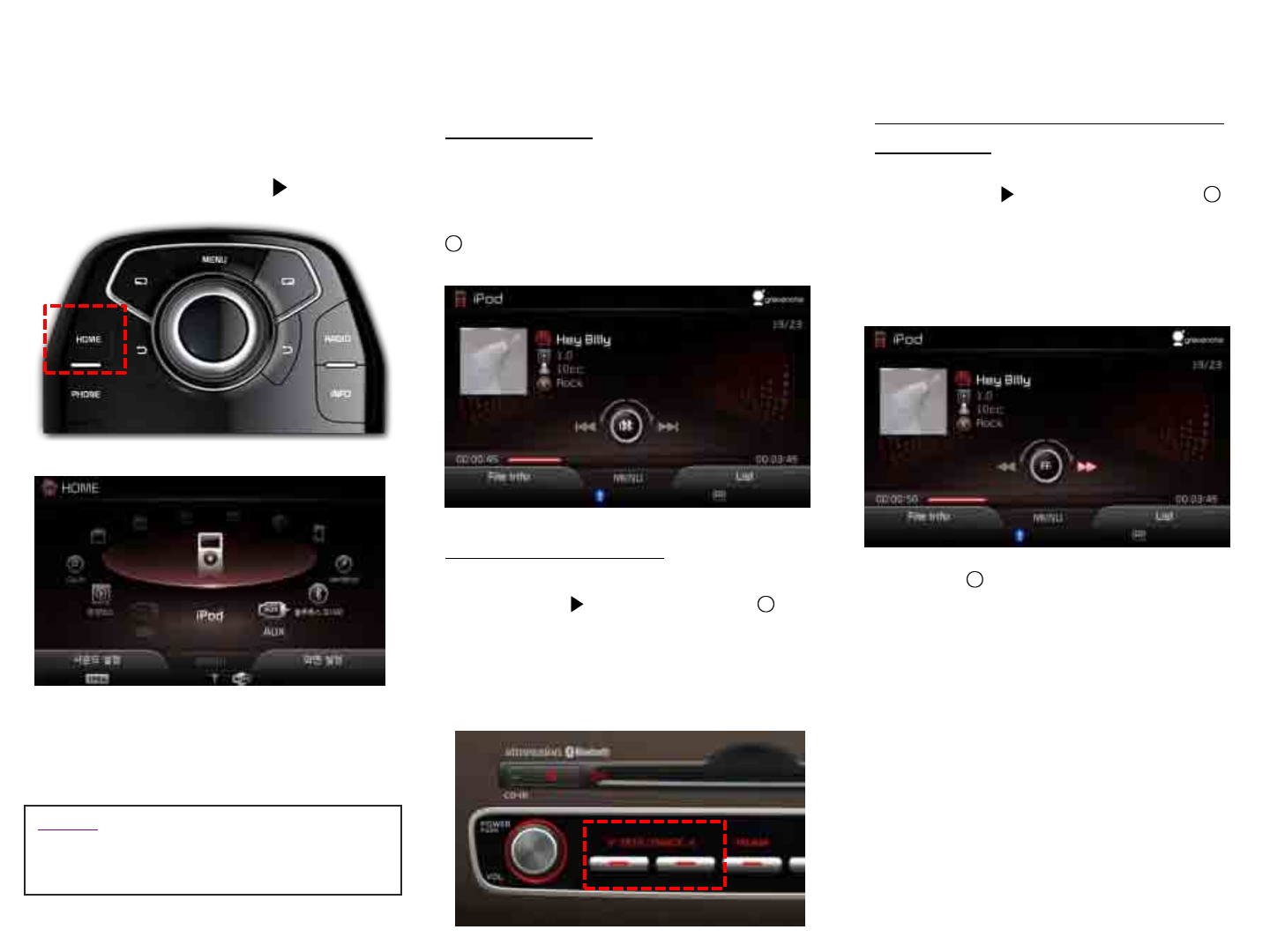

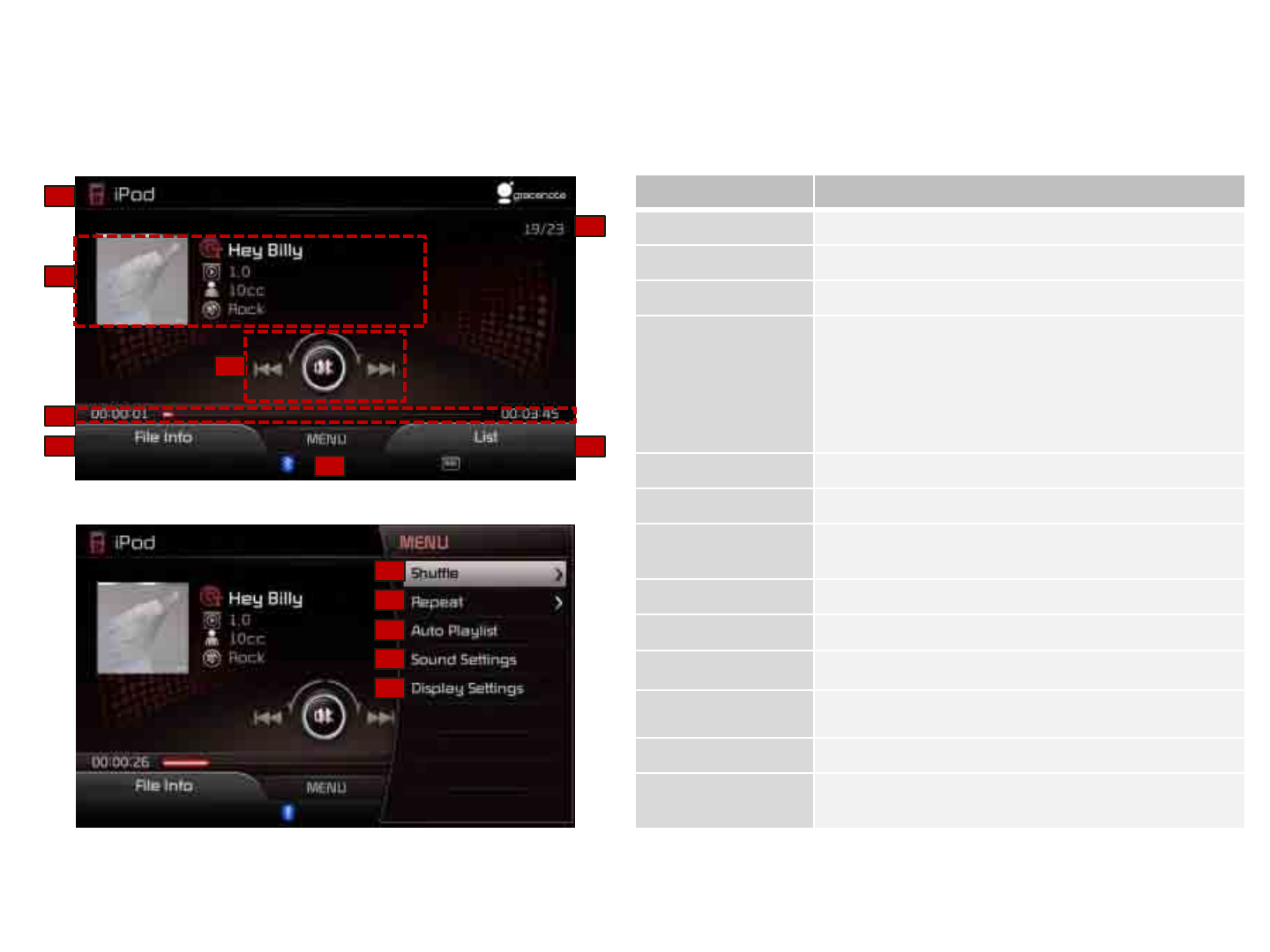

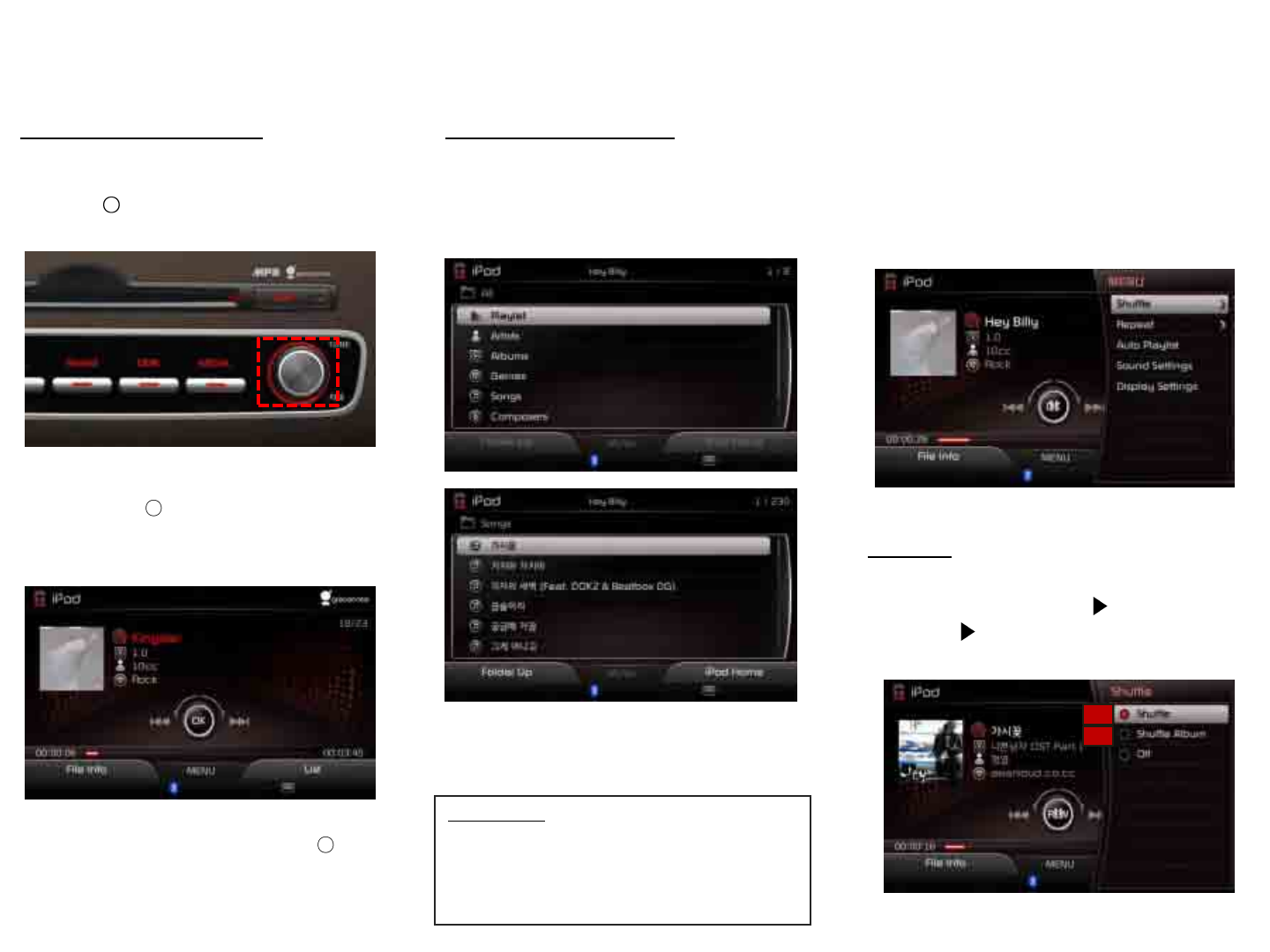

iPod Mode
AUX Mode
Bluetooth Audio Mode
2AV

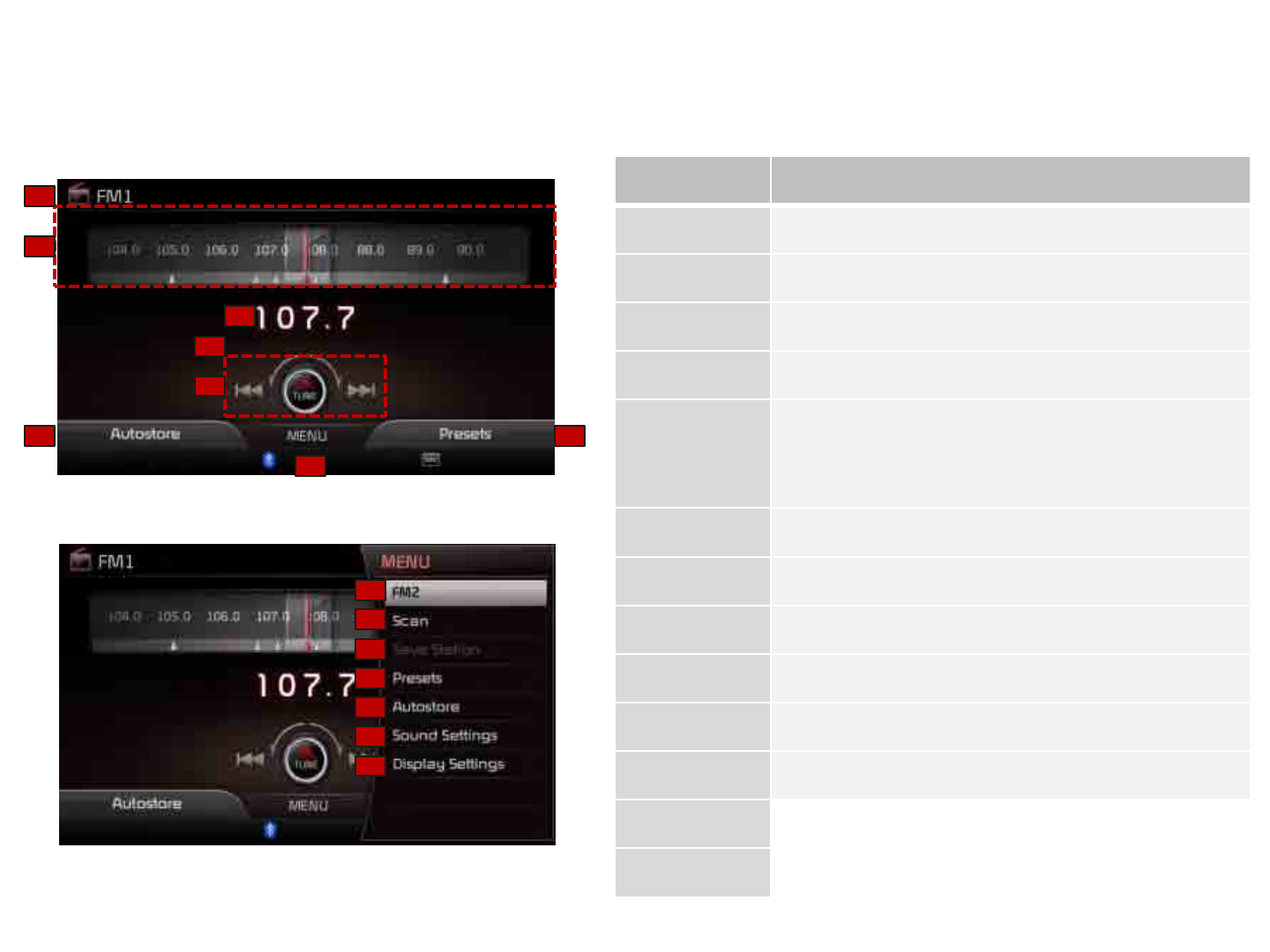

Name Description
1. Mode Display Displays currently operating mode
2. Frequency Range
and Presets Display the frequency range and saved presets
3. Frequency Currently playing frequency
4. Station Name Name of current broadcast station
5.Control Panel
Converts to frequency search function, and preset mode
When turned in Ω directions: moves to previous/next preset station
When pushed in ← or →directions: : moves to previous/next frequency
When pushed in ↑ or ↓directions: converts to TUNE or PRESET mode
6. Preset List Moves to saved preset list
7. MENU Displays Scan/Save Preset/Auto Store/Sound Settings/Display Settings
related menu screens
8. Auto Store Saves frequencies with superior reception to Preset
buttons
9. FM1/FM2 Converts to FM1 or FM2 mode
10. Scan Plays frequencies with superior reception for 5 seconds each
11. Save Frequency Saves current frequency

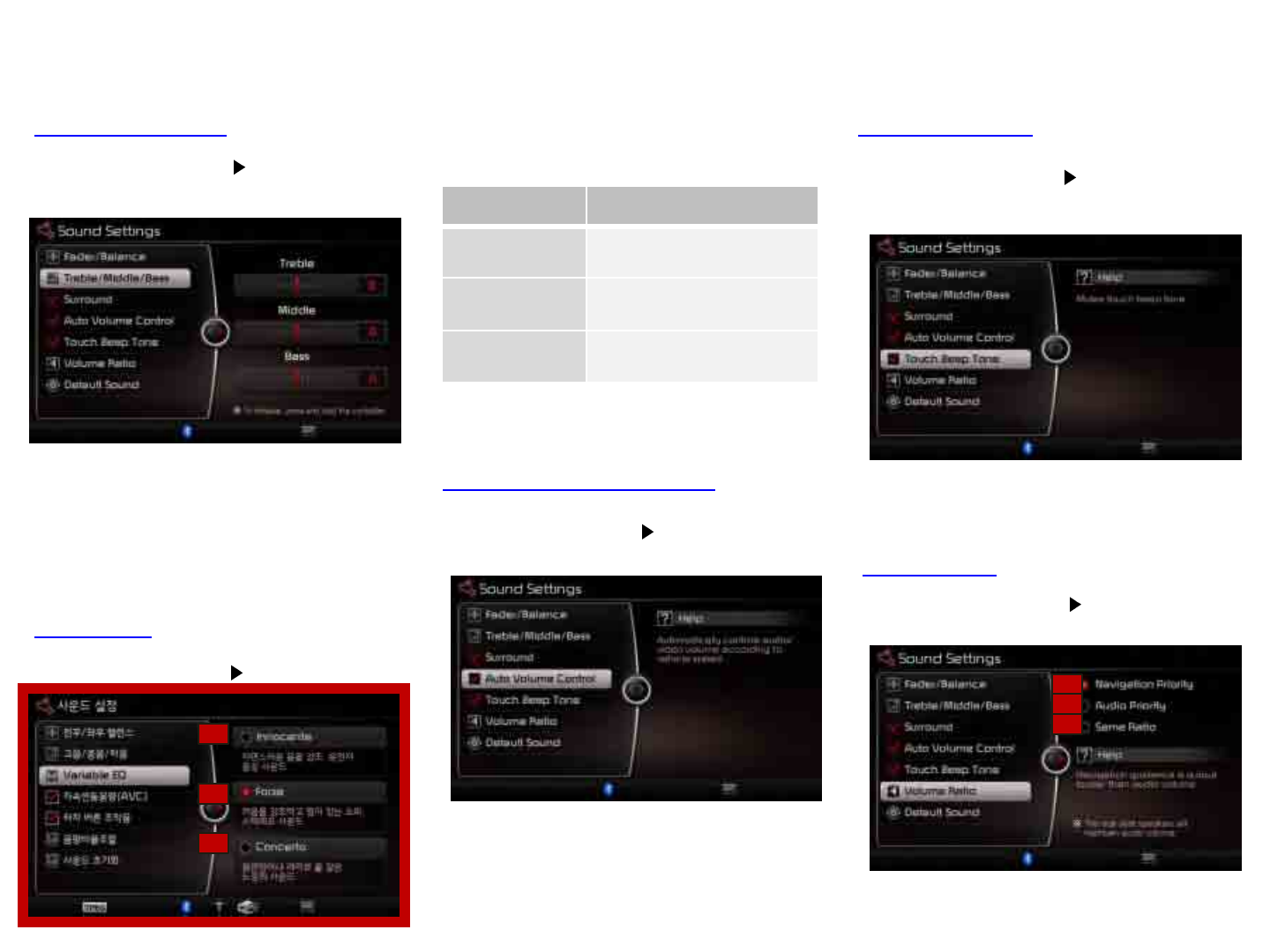

12. Sound Settings Displays sound setup menu

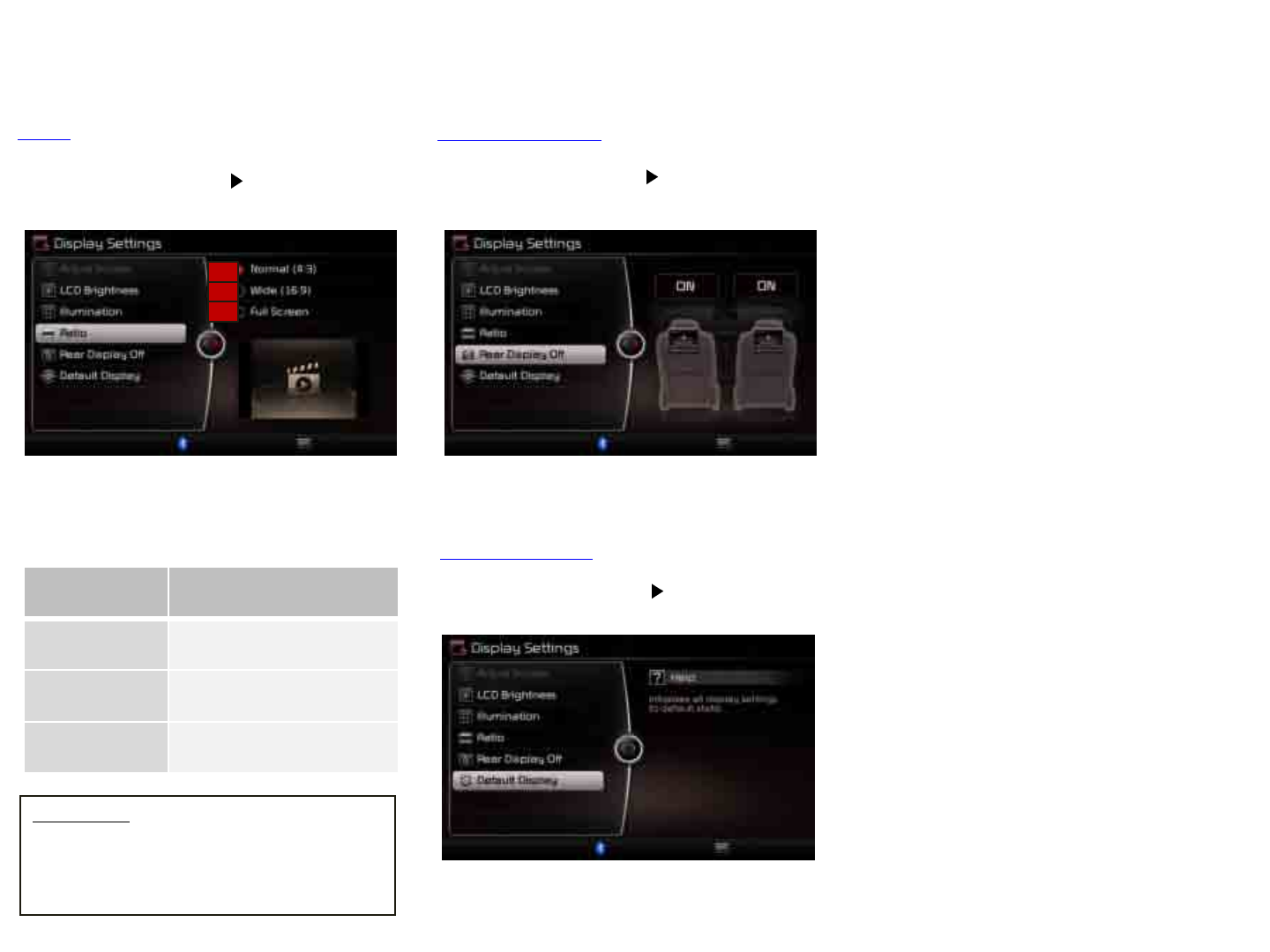

13. Screen Settings Displays display setup menu
Basic Mode Screen
4
10
1
5
12
2
6
3
11
7
8
9
13
6
8
Part 2. AV (FM/AM)

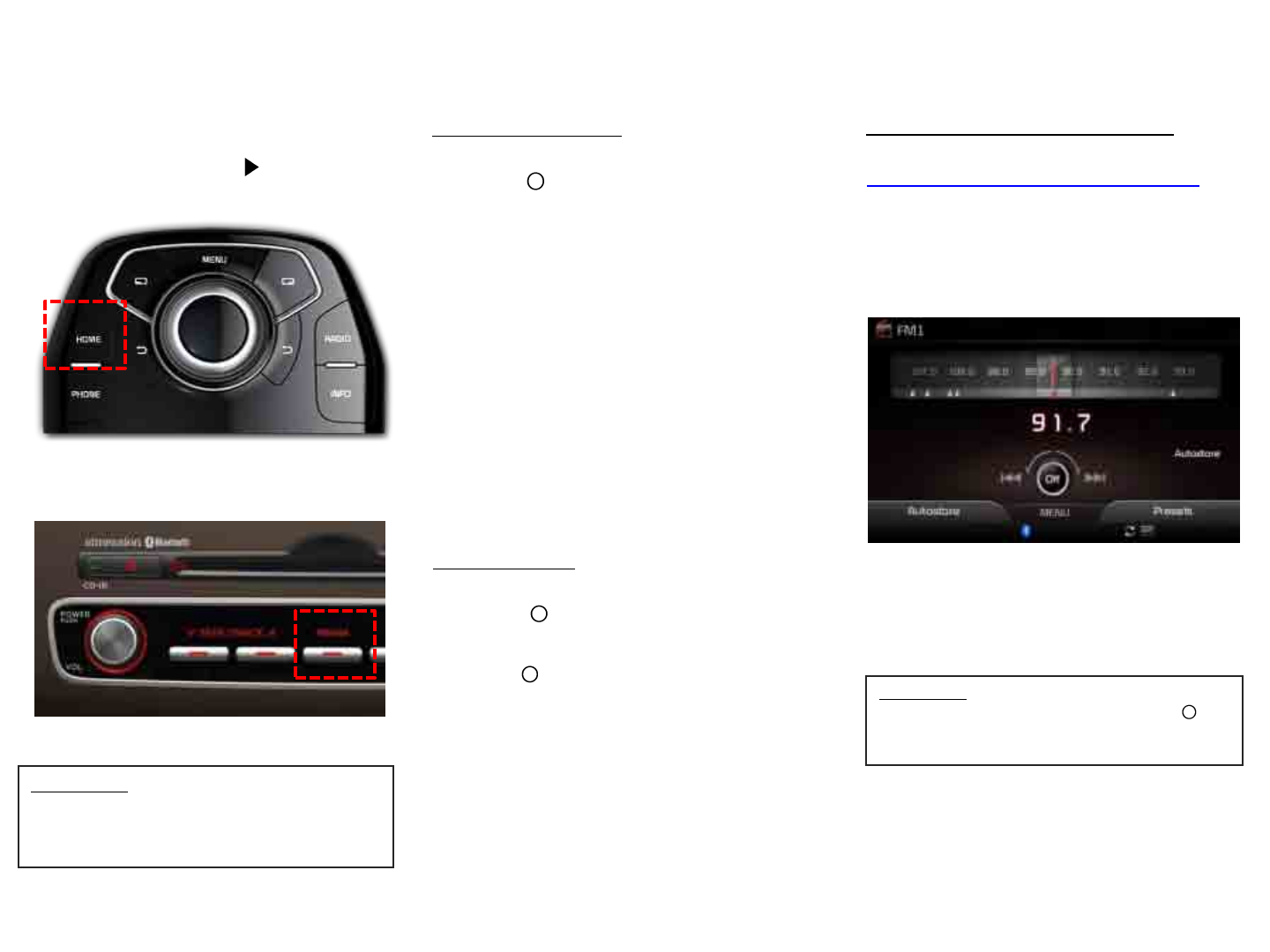

Using the Mode
Press the [HOME] key Select the
desired FM or AM mode
Press the [FM/AM] key on the head unit to
change the mode in order of FM1-> FM2-> AM.
Part 2. AV (FM/AM)
Information
•Pressing the [FM/AM] key while the power
is off will automatically turn the device on
and start radio mode.
Push the [ ] in ↓ direction to enter Preset
mode.
-If the [SEEK/TRACK] keys are shortly pressed
(under 0.8 seconds): Plays previous/next
frequency
-If the [SEEK/TRACK] keys are pressed and
held (over 0.8 seconds): changes the
frequency while pressed and receives the next
frequency upon release.
-When turning the controller in Ω direction:
receives previous/next preset station
When pushed in ← or →directions: : Changes
the frequency while pressed and receives the
next frequency upon release.
• FM1 / FM2: Increases/decreased by
100kHz
• AM: Increases/decreased by 9kHz
Push the [ ] in ↑ direction to enter Tune
mode.
Push the [ ] or turn the [TUNE/FILE] knob in
Ω direction to select the desired frequency.

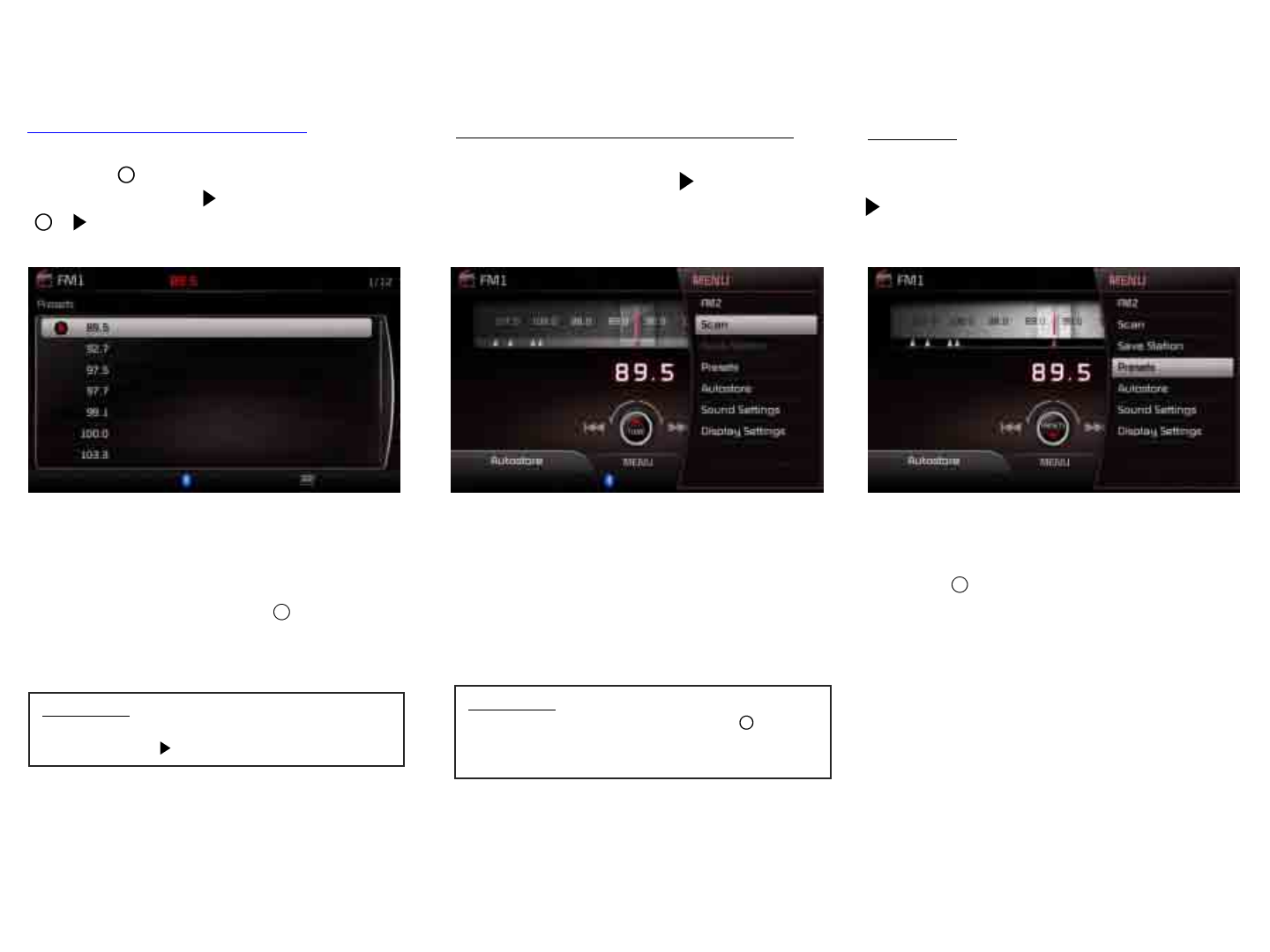

Using Autostore
Using TUNE
Saving Automatically (Autostore)
Press the [LFT] and select the Autostore
feature to automatically save receivable
frequencies with superior reception to
preset buttons
• A total of 36 frequencies with 12 preset
frequencies each for FM1/FM2/AM modes can
be saved.
Information
While Autostore is operating, pressing the [ ] will
cancel the function and return to the previous
frequency.
Saving Radio Frequencies
Part 2. AV (FM/AM)
Selecting Stations Manually
Turn the [ ] in Ω direction and select the
desired frequency Press and hold the
[ ] Select position to save preset
After selecting the desired preset, press and
hold (over 0.8 seconds) the [ ]. A „beep‟ will
sound and the frequency is saved to the
selected preset button.
Information
Stations can also be saved manually by pressing
the [MENU] key Pressing [Save Preset].
Press the [MENU] key Press [Scan]
Starting from the current frequency,
frequencies with superior reception are
scanned for 5 seconds and the previous
frequency is restored.
Information
While Scan is operating, pressing the [ ] will
cancel the function and return to the previous
frequency.
Scanning Radio Frequencies
Press the [RHT] or the [MENU] key
Press [Presets]
Turn the [ ] to select and play the selected
preset stations.
Presets
Precautions upon handling
discs
•Steam can become condensed on the
fiber optic lens due to rain, wet conditions,
or upon operating the heating system. In
such cases, discs may not be properly
recognized could be the cause of product
malfunction. Remove the disc and wait
until the moisture dries.
•Skipping may occur to the audio and
video when driving on bumpy roads for
prolonged periods of time or upon severe
shock to the vehicle. In case of severe
shock, video and audio may not properly
play.
•Do not attach stickers or labels on to
discs. Stickers or labels could cause
damage to the system.
Do not insert more than one disc at
once. Such acts could lead to product
damage or malfunctions.
Do not forcefully eject or pull on discs
when a disc is being loaded into the disc
player. Such acts could lead to product
damage or malfunctions.
•After using a disc, put the disc back in
its original case to prevent disc scratches.
•Do not use abnormally shaped discs
(8cm, heart-shaped, octagon-shaped) as
such discs could lead to malfunctions.
•Do not clean discs with chemical
solutions, such as record sprays,
antistatic sprays, antistatic liquids,
benzene, or thinners.
•Do not expose the disc to direct sunlight
or high temperatures for prolonged
periods of time. Such exposure may lead
to disc deformation.
•Upon playing a disc contaminated by
dirt or other substances, the sound and
video quality may deteriorate and result
in skipping sounds. Writing on either side
of the disc could result in damage to disc
surfaces.
About Discs
•Clean fingerprints and dust off the disc
surface (coated side) with a soft cloth.
•Copy-protected CDs, such as S-type
CDs, may not properly operate in the
device.
•DATA CDs cannot be played. (However,
such discs may still abnormally operate.)
•Do not disassemble the device. Contact
a designated service center in case of
malfunction. (Complete after service
assistance will not be provided if the user
disassembles the device.)
•Do not use water to clean the device.
Exposure to water could lead to product
malfunction.
•Do not to introduce foreign substances
into the disc insert/eject slot. Introducing
foreign substances could damage the
device interior.
•The device may fail to properly operate
in extremely hot or cold temperatures.
(The operating temperature range is: -
10 ~ 65 )
Part 2. AV (DISC)
Supported Disc Formats
When playing a dual-layer disc, video/
sound lags may occur for up to several
seconds. Such phenomena are not
unusual when using a dual-layer disc and
do not signal a product malfunction.
CD-R or CD-RW DISC without quality
guarantees or discs over 650mb may not
be properly recognized by the device.
Inserting an abnormal disc may result in
faulty operation/recognition.
Disc Type
Disc
Type Disc Format Device Support
CD
3”(8cm)
5”(12cm)
CD
CD-R
CD-RW
Multisession-
CD
O
O
O
O (Read Only)
O (Read Only)
O (Read Only)
DVD
DVD
DVD R
DVD RW
DVD-RAM
O
O (Read Only)
O (Read Only)
X
SACD SACD (Single,
SACD layer)
SACD (Hybrid)
X
O (Only CD layer)
Disc Formats
Disc Type Disc Format Device
Support
CD
3CD-DA
MP3
WMA
MPEG4 AAC
VIDE-CD
DTS-CD
CD-RM
CD-G
CD-EXTRA
CD-TEXT
O
O
O
X
O
O
O
O
O
O
DVD
MPEG4(VIDEO)
DivX® (VIDEO)
DVD DVD-VIDEO
DVD-AUDI
DVD-RM
DVD-VR
CPRM
X
X
O
O
O
O
O
Disc/Content Format
Compatibility
Disc
Type Disc Format Device Support
DVD
LPCM
Dolby Digital
DTS
MPEG
O
O
O
O
CD LPCM O
MP3MPEG1, Layer3
MPEG2, Layer3
MPEG2.5
O
O
O
WMA Ver9 O
By Format according to Disc Type
Dual-Layer DVD Video Discs
Part 2. AV (DISC)
This device supports the following disc
formats.
·In the case of MP3/WMA, write using only
Korean or English. (Other languages are not
supported)
· Unauthorized use of copy-protected music
files is prohibited by law.
· Prolonged use of CD-R/CD-RW products
that do not satisfy related specifications may
result in product malfunction.
·When writing CDs, low-speed writing is
recommended.
The DVD Player and DVD discs are
assigned region codes. The region code
of this device is <3>.
Discs that have region codes besides <3> or
<ALL> cannot be played.
DVD Region Code
· This device supports CD-R, CD-RW, and
MP3 discs burned in Audio CD, Video CD
formats.
· The recording of CD-R and CD-RW discs
with this device is not supported.
· CD-R/RW discs recorded as audio CDs that
were not finalized are not supported by this
device.
CD-R/RW Compatibility
When a multi-session disc is being recorded,
make sure to close the session before
recording.
·If mp3/wma file extensions are changed,
such could result in malfunctions.
Cautions upon writing CDs
This device supports PBC-compatible Video
CDs.
PBC (Play-Back Control)-Compatible
Video CD
This device has been
designed/manufactured to be compatible
with software bearing the following logo
marks.
· This device supports the IEO Super VCD
standard. Super VCD supports outstanding
quality and supports 2 sound tracks upon
recording.
·CD-R/RW discs (Audio CD) created with
CD recording devices or PCs may not
properly operate in the device. This is a
result of various causes, including disc
format, recording method, and contamination
to the disc or lens.
Ordinary Disc Compatibility
·Physical formats of CD: Model 1, Model 2
XA format 1.
· This device supports audio file compressed
through MPEG-1 audio stream layer 3 (MP3)
using 8kbps ~ 320kbps (CBR), VBR. For
stable operation, the use of files in
95kbps~192kbps bit rate range and 44.1kHz
SAMPLING frequency is recommended.
· This device supports WMA audio files using
20kbps ~ 320kbps(CBR), VBR.
· Variable bit rate files may operate, but the
play time information may not be properly
displayed.
· This device only supports tracks with file
extension of ".mp3" or".wma".
Compressed Audio Compatibility
·When burning a disc on the PC, the disc
may not operate in this device depending on
the software settings. In such cases, inquire
with the software manufacturer.
·Additional information regarding
compatibility is displayed on the CD-R/RW
software disc box.
·DVD-R/W discs are not compatible with this
device.
PC-created Disc Compatibility
Part 2. AV (DISC)
Detailed Specification
· This device does not support multisession
discs.
· This device supports only 8 layer folders.
· This device supports MP3 ID3 tag versions
of Ver. 1.0, Ver. 1.1, Ver. 2.2, Ver. 2.3, Ver.
2.4. When using discs with other versions,
the ID3 info will not be displayed.
· Although this device has been designated
to be compatible with various bit rates,
playing low bit rate MP3 tracks may result in
low quality sound.

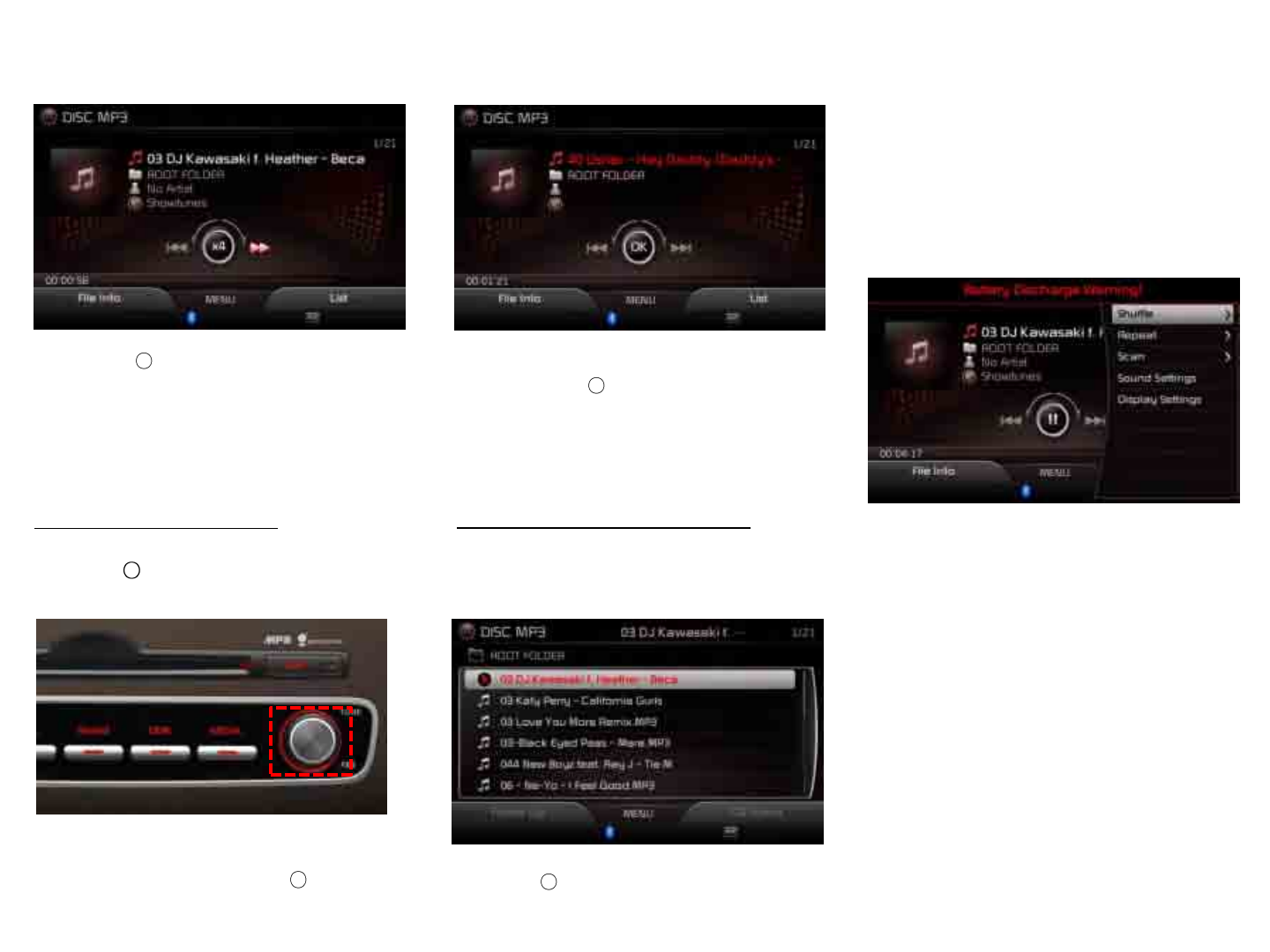

Before playing a MP3 Disc
Precautions upon burning MP3 files
Supported MP3 File Specification
· Acceptable standard: MPEG1 AUDIO
LAYER 33
· Acceptable sampling frequency: 8, 11.025,
12, 16, 22.05, 24, 32, 44.1, 48 (kHz)
· Acceptable bit rate: 8 ~ 320 (Kbps)
Recommended bit rates and
frequency
· Sampling frequency: 96 ~ 192 Kbps fixed
bit rate /44.1kHz
· Maximum directory layers: 8 layers
· Maximum folder length: 64 bytes, file name
length: 64 bytes
· Supported characters for folder name/file
name: Alphanumeric characters, Korean
standard character set 2350 characters,
Simplified Chinese 4888 characters
· Maximum number of folders per disc: 256
folders (including ROOT)
· Maximum number of files per disc: 512 files
·The use of ISO 9660 LEVEL 2 JOLIET
format is recommended.
· Up to 32 characters in Korean/Chinese are
supported for file names and up to 20
characters in Korean/Chinese are supported
for folder names.
·The use of CDs exceeding 700M may result
in faulty disc recognition or errors upon play.
Part 2. AV (DISC)
Notice
· Supported ID3 tags : ID3v1 0, ID3v1 1, ID3v2 2,
ID3v2 3, ID3v2 4
· Supported MP3 Media: CD-ROM
· Supported media formats: ISO9660 LEVEL1
and LEVEL2

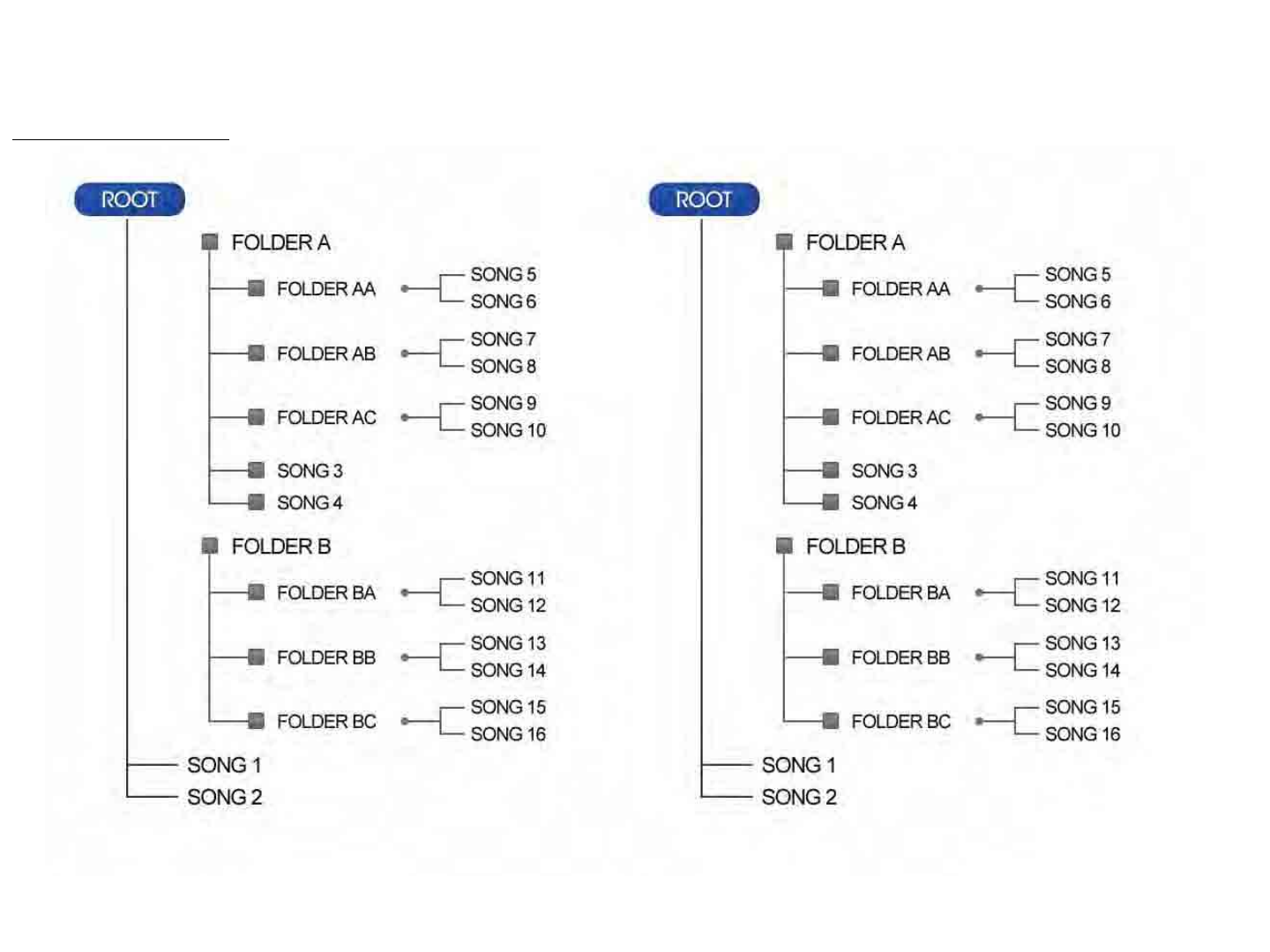

MP3 File Structure
Folder structure as saved in CD-ROM Folder structure recognized by the DVDP
Part 2. AV (DISC)

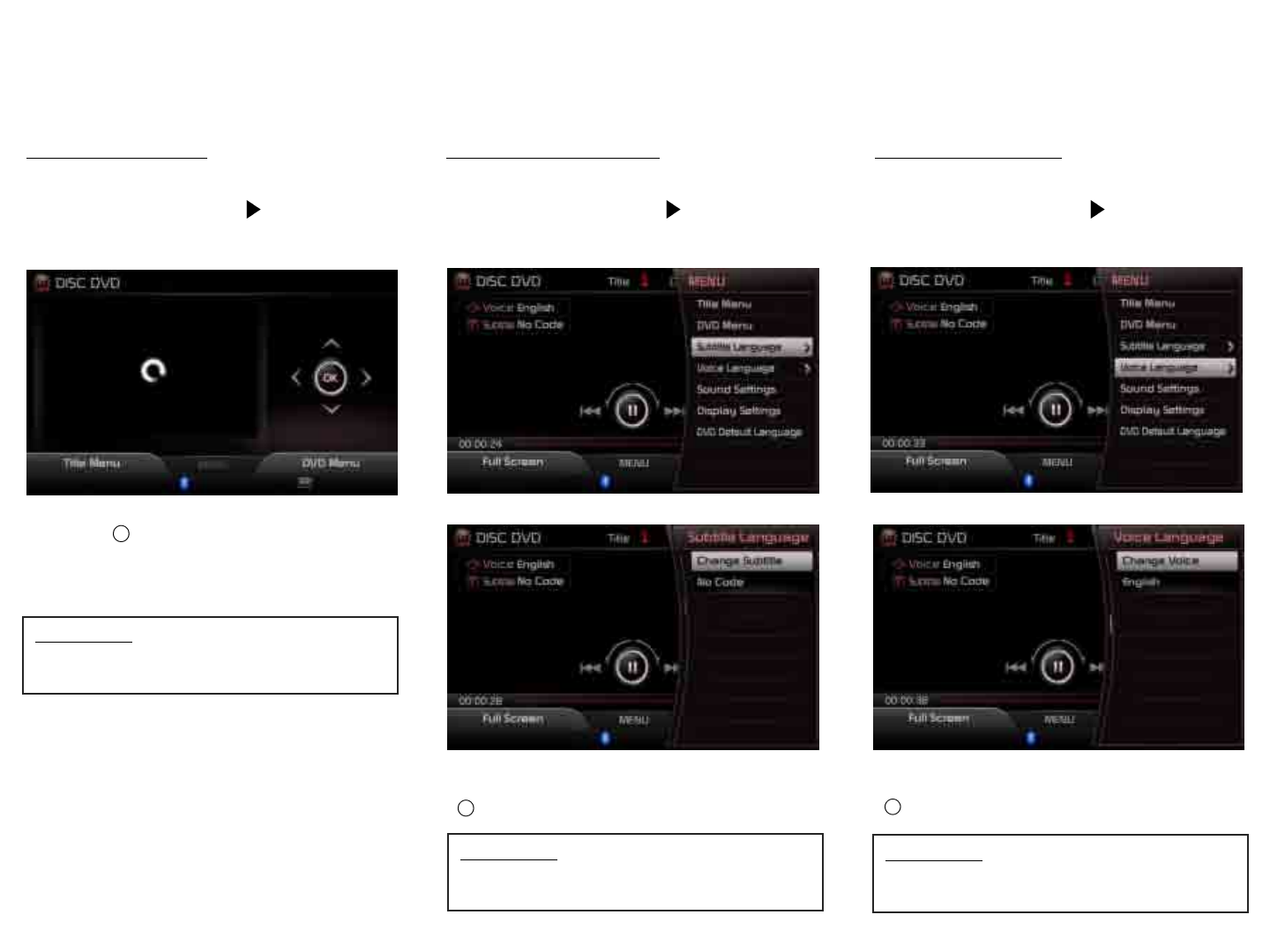

About DVD Titles
•Contents of DVD Titles
The video and sound recorded on a DVD
are divided into titles and can be
recognized by their title numbers. Each
title is sub-divided into smaller units
called chapters and each chapter can be
recognized by the chapter number. The
title number and chapter number of the
currently playing DVD title is displayed on
the upper side of the DVD operation
menu screen.
•DVD Region Code
The DVD player and DVD discs are set
with region codes and can be played in
accordance to the sales region. If a disc
besides "Region Code 3(Korea)" or "All
region disc” is inserted, then a “Region
Code Error” screen will be displayed and
the disc will not normally play.
Color TV Support
Understanding of the DVD Titles Icon Description
Shows the supported region codes.
Up to 32 subtitles can be recorded within a DVD. The number within
the icon indicates the number of subtitle languages recorded within the
DVD.
Up to 8 voice languages can be recorded within a DVD. The number
within the icon indicates the number of voices languages recorded
within the DVD.
DVD allows viewing of filmed footage from up to 9 angles (multi-angle).
The number within the icon indicates the number of screen angles.
This icon the screen ratio and display method. “16:9" or “4:3” indicates
the screen proportion (ratio) while “LB”, “PS” and “WIDE” indicates the
screen display method and stands for “Letter Box”, “Pan-Scan” and
“Wide Screen”, respectively.
NTSC: This is the color method as used in Korea, Japan and the
United States.
This device supports NTSC color encoding methods. Other methods besides
NTSC may not be supported.
Part 2. AV (DISC)
Name description
1. Mode Displays currently operating mode
2. Track Index Shows the current track/total tracks
3. Play File Info Shows track number/album/artist/genre info
4. Control Panel Enables use of play/pause/select/search features
When turned in Ωdirections : Moves to
previous/next track
When pushed in ←or →directions: : Plays
previous/next song
When pressed :Plays or pauses
5. Play Time Displays the current play time and total play time
6. Track Info Shows track info
7. MENU Displays Shuffle/Repeat/Scan/Auto Playlist/ Sound
Setting/Display Setting
8. List Moves to the track list screen
9. Shuffle Plays disc tracks in random order
10. Repeat Repeats the current track or entire tracks
11. Scan Scans the beginning parts of disc tracks (approx
10 seconds per track)
12. Auto Playlist Moves to list screen showing current song and
similar songs
13. Sound Settings Displays sound settings screen
14. Display Settings Displays display settings screen
Basic Mode Screen
4
10
1
5
12
2
6
3
11
7
8
9
13
14
Part 2. AV (CD)
Starting Mode
CD mode will automatically start once a
CD is inserted
While playing Push and hold the [ ] in
← or → direction (under 0.8 seconds) or
press and hold the [SEEK]TRACK] key to
fast-forward/rewind the track.
CD will automatically play once a CD is
inserted, press the [ ] button to pause
the track.

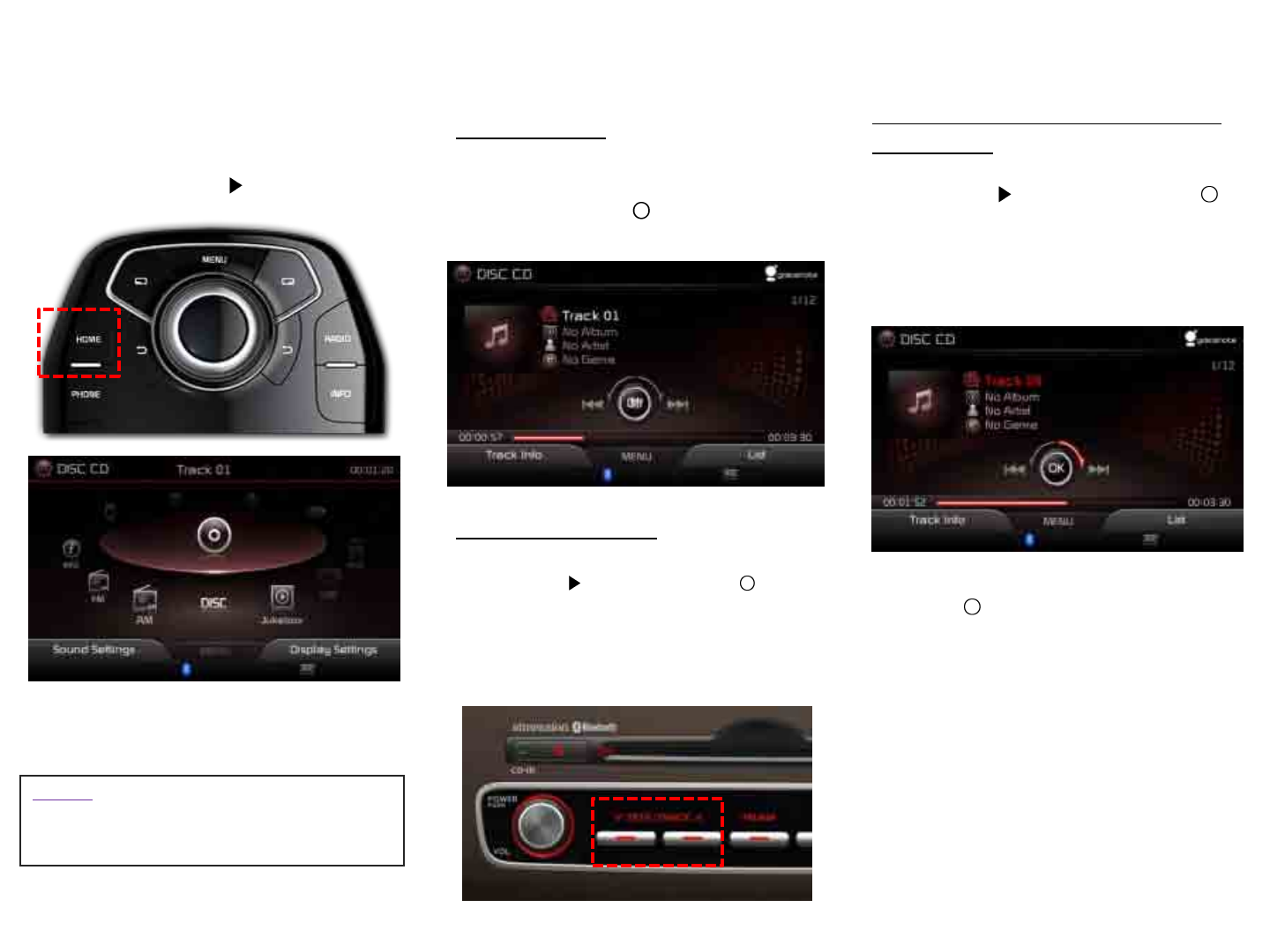

Playing a CD
Press the [HOME] Key Select [Disc]
Menu
Fast-forwarding or Rewinding
CD Tracks
While the [ ] or [SEEK] [TRACK] key is
being operated, the track will rewind or
fast-forward at 20x speed. Once released,
the track will begin playing at normal
speed.
Selecting a Track
While playing Shortly push the [ ] in ← or
→ direction (under 0.8 seconds) or shortly
press the [SEEK]TRACK] key to select the
previous/next track.
Part 2. AV (CD)
NOTICE
•Only genuine audio CDs are supported. Other
discs may result in recognition failure (e.g. copy
CD-R, CDs with labels
Turn the [ ] or [TUNE/FILE] knob to search
tracks
From the searched tracks, once the desired
track name is displayed, press the [ ] or
[TUNE/FILE] knob to play the corresponding
track.
Press the [Menu] button to set the
Shuffle, Repeat, Scan, Auto Playlist options as
well as Sound Settings and Display Settings.
Searching CD Tracks Using the Menu Buttons
Shuffle
Press the [MENU] key Select [Shuffle]
Set Shuffle All to On.
Repeat
Press the [MENU] key Select [Repeat]
Set Repeat to On.
The current track is repeated.
Part 2. AV (CD)
Information
•When searching, the track info is displayed
in red.
•Pressing the [ ] or [TUNE/FILE] knob will
play the selected track and display the basic
display specification.
Information
Select the [Off] button to turn off repeat.
Information
Select the [Off] to turn the shuffle option off.
Songs within the current playlist are played
in random order.
The beginning (approx 10 seconds) of all
tracks within the CD are scanned.
Scan
Track Info/Play Information
Press the [MENU] key Press [Auto
Playlist]
Press [Play Info] to restore the previous
display
Auto Playlist
Press the [MENU] key Press [Scan]
Press [Scan All]
List of songs within the CD similar with the
current song is displayed.
Ejecting Disc
Press the [ ] key to eject the disc.
Part 2. AV (CD)
Information
•Press the [Off] button again to turn the
scan option off.
Information
•For more information on Sound and Display
settings, refer to the Info/Setup section.
Information
•Artist/album info are supported within Text
CDs.
Basic Mode Screen
Name Description
1. Mode Displays currently operating mode
2. Track Index Shows the current MP3 file/total number of MP3
files
3. Play File Info Shows track number/album/artist/genre info
4. Control Panel Enables use of play/pause/select/search features
When turned in Ωdirections : Moves to
previous/next track
When pushed in ←or →directions: : Plays
previous/next song
When pressed :Plays or pauses
5. Play Time Displays the current play time
6. Track Info. Shows track info
7. MENU Displays Shuffle/Repeat/Scan/Sound
Settings/Display Settings menus
8. List Moves to the track list screen
9. Shuffle Plays disc tracks in random order
10. Repeat Repeats the current track or entire tracks
11. Scan Scans the beginning parts of disc tracks (approx 10
seconds per track)
12. Auto Playlist Moves to list screen showing current song and
similar songs
13. Sound Setting Moves to the sound setting screen
14. Display Setting Moves to the display setting screen
4
10
1
5
12
2
6
3
11
7
8
9
13
Part 2. AV (DISC MP3)
Starting Mode
MP3 mode automatically starts when an
MP3 disc is inserted.
While playing Push and hold the [ ] in
← or → direction (under 0.8 seconds) or
press and hold the [SEEK]TRACK] key to
fast-forward/rewind the file.

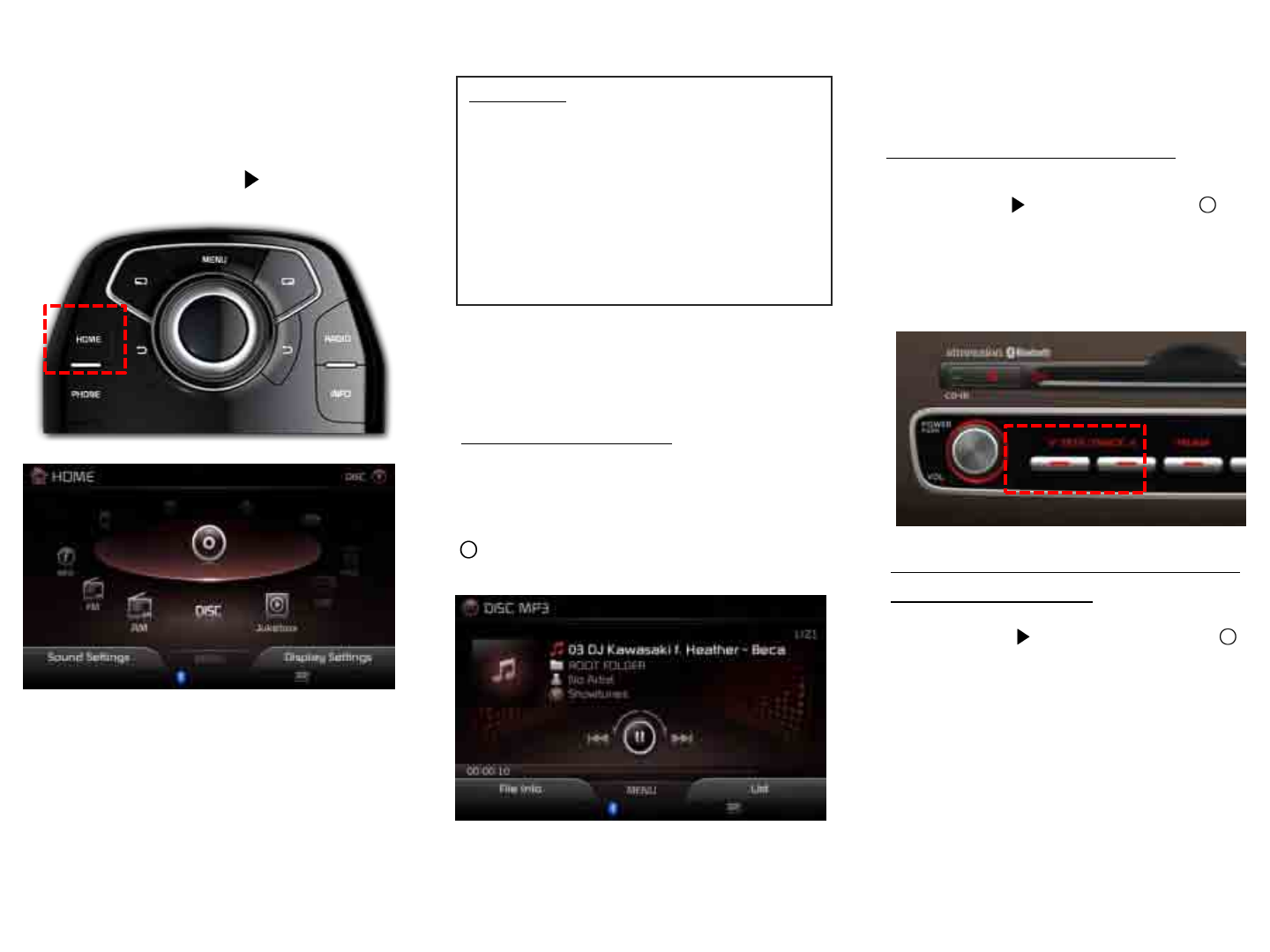

Playing DISC MP3
Selecting DISC MP3 files
While playing Shortly push the [ ] in
← or → direction (under 0.8 seconds) or
shortly press the [SEEK]TRACK] key to
select the previous/next file.
Part 2. AV (DISC MP3)
Information
• If there are numerous songs and folders
within the disc, reading time could take more
than 10 seconds and the list may not be
displayed or song searches may not operate.
Once loading is complete, try again.
• Only genuine audio CDs are supported.
Other discs may result in recognition failure
(e.g. copy CD-R, CDs with labels)
Press the [HOME] Key Select [Disc]
Menu
Once a CD is inserted, the DISC MP3 will
automatically being playing. Pressing the
[ ]again will pause the current song. Fast-forwarding or Rewinding
DISC mp3 Tracks
Turn the [ ] or [TUNE/FILE] knob in Ω
directions to search for files.
During search, the file name is displayed in
red. Press the [ ] or [TUNE/FILE] knob to
play the selected file and display the basic
display info.
Press the [MENU] key to use the
Shuffle, Repeat, Scan, Sound Settings
and Display Settings.
Searching DISC MP3
Using the Menu Buttons
While the [ ] or [SEEK] [TRACK] key is
being operated, the file will rewind or fast-
forward at 20x speed. Once released, the
track will begin playing at normal speed.
Press the [RHT] to select the list and
check the playlist.
Searching DISC MP3 List
Turn the [ ] in Ω direction to select and play
the desired file.
From the searched files, once the desired file
name is displayed, press the [ ] or
[TUNE/FILE] knob to play the corresponding
file.
Part 2. AV (DISC MP3)
Name Description
1. Shuffle
Folder Plays current folder in
random order
2. Shuffle All Plays all files in random
order
Repeat
Press the [MENU] key Select
[Repeat] Press [Repeat Song] or
[Repeat Folder]
The current song or the all files within the
folder can be repeated.
Name Description
1. Repeat Song Repeat current song
2. Repeat Folder Repeat current folder
Scan
Press the [MENU] key Press [Scan]
[Scan All] or [Folder Scan]
Name Description
1. Scan All Scans the beginning parts
(approx 10 seconds) of all
files
2. Folder Scan
Scans the beginning parts
(approx 10 seconds) of all
files within the current
folder
Part 2. AV (DISC MP3)
Information
•Press [Off] to turn the Shuffle feature off. Information
•Press [Off] to turn the Repeat feature off. Information
•Press [Off] to turn the Scan feature off.
Shuffle
Press the [MENU] key select
[Shuffle] Select [Shuffle Folder] or
[Shuffle All]
1
2
All songs or songs within the current folder
can be played in random order.
1
2
1
2
File Info/Play Info
Press the [LFT] to select File Info to
display file information, such as the
title, album, artist, genre, file name,
and folder location.
To return to the previous screen, press the
[LFT] to select Play Info.
Part 2. AV (DISC MP3)
Information
• No information are shown for MP3 files
without file information.
• For more information on Sound and
Display settings, refer to the Info/Setup
section.
Name Description
1. Mode Displays currently operating mode
2. Title/Chapter
Index Shows the current DVD title/chapter number of the
DVD
3. Code Information Shows information on voice and subtitle codes
4. Control Panel Enables use of play/pause/search features
When turned in Ωdirections: Searches
previous/next chapter
When pushed in ←or →directions: Plays
previous/next chapter
When pressed :Plays or pauses
5. Play Time Shows the current and total play time of current
chapter
6. Full screen Converts DVD into full screen
7. MENU Displays Title Menu/DVD Menu/Subtitle
Language/Voice Language/Sound Settings/Display
Settings/DVD Default Language menus
8. List Displays the List Screen
9. Title Menu Moves to the title menu screen
10. DVD Menu Moves to the DVD menu screen
11. Subtitle
Language Set Subtitle Language
12. Voice
Language Set Voice Language
13. Sound Setting Moves to the sound setting screen
14. Display Setting Moves to the display setting screen
15. DVD Default
Language Moves to the DVD default language setting screen
4
10
1
5
12
2
6
3
11
7
8
9
13
15
14
Part 2. AV (DVD)
Basic Mode Screen
Starting Mode
The mode will be disabled when a DVD disc
has not been inserted.
While playing Push and hold the [ ] in
← or → direction (under 0.8 seconds) or
press and hold the [SEEK]TRACK] key to
fast-forward/rewind the current DVD.
Once a DVD is inserted, the DVD will
automatically begin playing. Pressing the
[ ] again will pause the DVD.
Playing a DVD Searching Chapter
Selecting a Chapter
While playing Shortly push the [ ] in
← or → direction (under 0.8 seconds) or
shortly press the [SEEK]TRACK] key to
select the previous/next chapter.
While the [ ] or [SEEK] [TRACK] key is
being operated, the DVD will rewind or
fast-forward at 20x speed. Once released,
the DVD will begin playing at normal
speed.
Part 2. AV (DVD)
Information
•Only genuine DVDs are supported. Other
discs may result in recognition failure (e.g.
copy DVD-R, DVDs with labels)
Press the [HOME] Key Select [Disc]
Menu
Searching Titles
Searching Titles/Chapters
Press the [List] button to search DVD
titles and chapters.
Press the [LFT] and [RHT] to change to
the previous or next title.
Searching Chapters
Turn the [ ] in Ω direction or shortly
press the [SEEK]TRACK] key (under 0.8
seconds) to select the previous/next
chapter.
Press the [MENU] key to use the Title
Menu, DVD Menu, Subtitle Language,
Voice Language, Sound Settings, Display
Settings and DVD Default Language.
Using the Menu Buttons
Part 2. AV (DVD)
Information
• The 1 displays the total number of titles
within the current DVD disc.
• The 2 displays the total number of chapters
within the title.
• The title/chapter search feature can only be
used while the DVD is playing. The feature
will not operate during the initial DVD screen
or when menus are being displayed.
Information
•The DVD Menu and DVD Title options can
only be used within DVDs that support these
features. For DVD Menus, different DVD
titles may have different menu organizations.
Push the [ ] in up/down/left/right directions
to select the desired menu and press the
[OK] button.
Title/DVD Menu
Press the [MENU] key Select [Title
Menu] or [DVD Menu]
Select the desired language and press the
[ ] to change the subtitle language.
Subtitle Language
Press the [MENU] key Select
[Subtitle Language]
Voice Language
Press the [MENU] key Select [Voice
Language]
Select the desired language and press the
[ ] to change the voice language.
Part 2. AV (DVD)
Information
•This is supported only for DVD titles that
support this feature.
Information
•Supported languages may differ according
to DVD title.
Information
•Supported languages may differ according
to DVD title.
Viewing in Full Screen
Press the [LFT] and select [Full Screen]
to view the DVD in full screen.
DVD Default Language
Press the [MENU] key Select [DVD
Default Language]
Part 2. AV (DVD)
Information
•If there are no operations for 10 seconds,
the DVD menu will automatically disappear.
•Press the [MENU] key or [ ] to display the
menu again.
Name Description
1. Mode Displays currently operating mode
2. Track Index Shows the current track number
3. PBC Displays PBC function ON/OFF
4. Control Panel Enables use of play/pause/search features
When turned in Ωdirections : Searches
previous/next file
When pushed in ←or →directions: : Plays
previous/next file
When pressed :Plays or pauses
5. Play Time Displays the current play time/total play time
6. Full Screen Converts VCD into full screen
7. MENU Displays View PBC/PBC Menu/Repeat/Sound
Settings/Display Settings menus
8. List Moves to the list screen
9. PBC PBC ON/OFF
10. PBC Menu Moves to the PBC Menu screen
11. Repeat Repeats the current VCD
12. Sound Setting Moves to the sound setting screen
13. Display Setting Moves to the display setting screen
4
10
1
5
12
2
6
3
11
7
8
9
13
Part 2. AV (Video CD)
Basic Mode Screen
Starting Mode
The mode will be disabled when a VCD disc
has not been inserted.
Playing a VCD
Fast-forwarding or Rewinding
VCD tracks
Selecting VCD tracks
Information
•Only genuine VCDs are supported. Other
discs may result in recognition failure . (e.g.
Copied CD-R, CDs with labels)
Press the [HOME] Key Select [Disc]
Menu
Part 2. AV (Video CD)
Turn the [ ] or [TUNE/FILE] knob in Ω
directions to search for tracks. From the
searched tracks, once the desired file
name is displayed, press the [ ] or
[TUNE/FILE] knob to play the
corresponding track.
During search, the track name is displayed in
red. Press the [ ] or [TUNE/FILE] knob to
play the selected track and display the basic
display info.
Press the [MENU] key to use the View
PBC, PBC Menu, Repeat, Sound Settings
and Display Settings.
Searching VCD tracks Using the Menu Buttons
PBC
Press the [MENU] key Press [View PBC]
Press the [0]~[9] buttons Set and press
[Done]
Press the [List] button to view the play list.
Searching VCD List
Select track you want to play.
Part 2. AV (Video CD)
Within PBC ON state, press the [PBC MENU]
button to display the PBC menu screen.
Viewing in Full Screen
Press the [LFT] and select [Full Screen] to
view the VCD in full screen.
Repeat
Press the [MENU] key Press [Repeat]
The current track is repeated.
Information
• Press the [PBC OFF] button to turn the
PBC setting OFF. The play screen will be
displayed and the first track is displayed.
• Press the [<<] [>>] buttons to move to the
previous/next list menu page.
• While in PBC ON mode state, turning the
power or ignition ON/OFF will return the
VCD to PBC OFF state.
Information
•Press the [Repeat] button again to turn off
shuffle.
Information
•If there are no operations for 10 seconds,
the VCD menu will automatically disappear.
•Press the [MENU] key or [ ] to display the
menu again.
•For more information on Sound and Display
settings, refer to the Info/Setup section.
Part 2. AV (Video CD)
Before playing a USB MP3
•Connect the USB device after turning on the engine. The USB
device may become damaged if it is already connected when the
ignition is turned on.
•Files that are not standard format music/video/image files will not
be played.
•For MP3/WMA files, only music files with compression rates
between 8Kbps ~ 320Kbps can be played.
•Heed caution to static electricity when connecting/disconnecting
external USB devices.
•Encoded MP3 Players will not be recognized when connected as
an external device.
•When connecting an external USB device, the device may not
properly recognize the USB is in some states.
•Only products formatted with byte/sectors under 64Kbyte will be
recognized.
•This device recognizes USB devices formatted in FAT 12/16/32 as
well as NTFS file systems.
•Some USB devices may not be supported due to compatibility
issues.
About USB
•Avoid contact between the USB connector with bodily parts/foreign
objects.
•Repeated connecting/disconnecting of USB devices within short
periods of time may result in product malfunction.
•Make sure to connect/disconnect external USB devices with the
audio power turned off.
•The amount of time required to recognize the external USB device
may differ depending on the type, size, or file formats stored on the
USB. Such differences in required time are not indications of
malfunction.
•Please wait until the device fully recognizes the USB devices. The
device supports only USB devices used to play music/video/image
files.
•Do not use the USB I/F to charge batteries or USB accessories
that generate heat. Such acts may lead to worsened performance or
damage to the device.
•The device may not recognize the USB device if separately
purchased USB hubs and extension cables are being used.
Connect the USB directly with the multimedia terminal of the vehicle.
•When using mass storage USB devices with separate logical
drives, only files saved to the root drive can be played.
•When application programs are installed to specific USBs, files
may not properly play.
Part 2. AV (USB)
•The device may not operate normally if MP3 Players, cellular
phones, digital cameras, or other electronic devices (USB
devices not recognized as portable disk drives) are connected
with the device.
•Charging through the USB may not work for some mobile
devices.
•The device may not support normal operation when using a
USB memory type besides Metal Cover Type USB Memory.
•The device may not support normal operation when using
formats such as HDD Type, CF, or SD Memory.
•Upon playing iPods, please use a dedicated iPod car cable.
Normal operations cannot be guaranteed when other cables are
being used.
•The device will not support files locked by DRM (Digital Rights
Management.)
•USB memory sticks used by connecting an Adaptor (SD Type
or CF Type) may not be properly recognized.

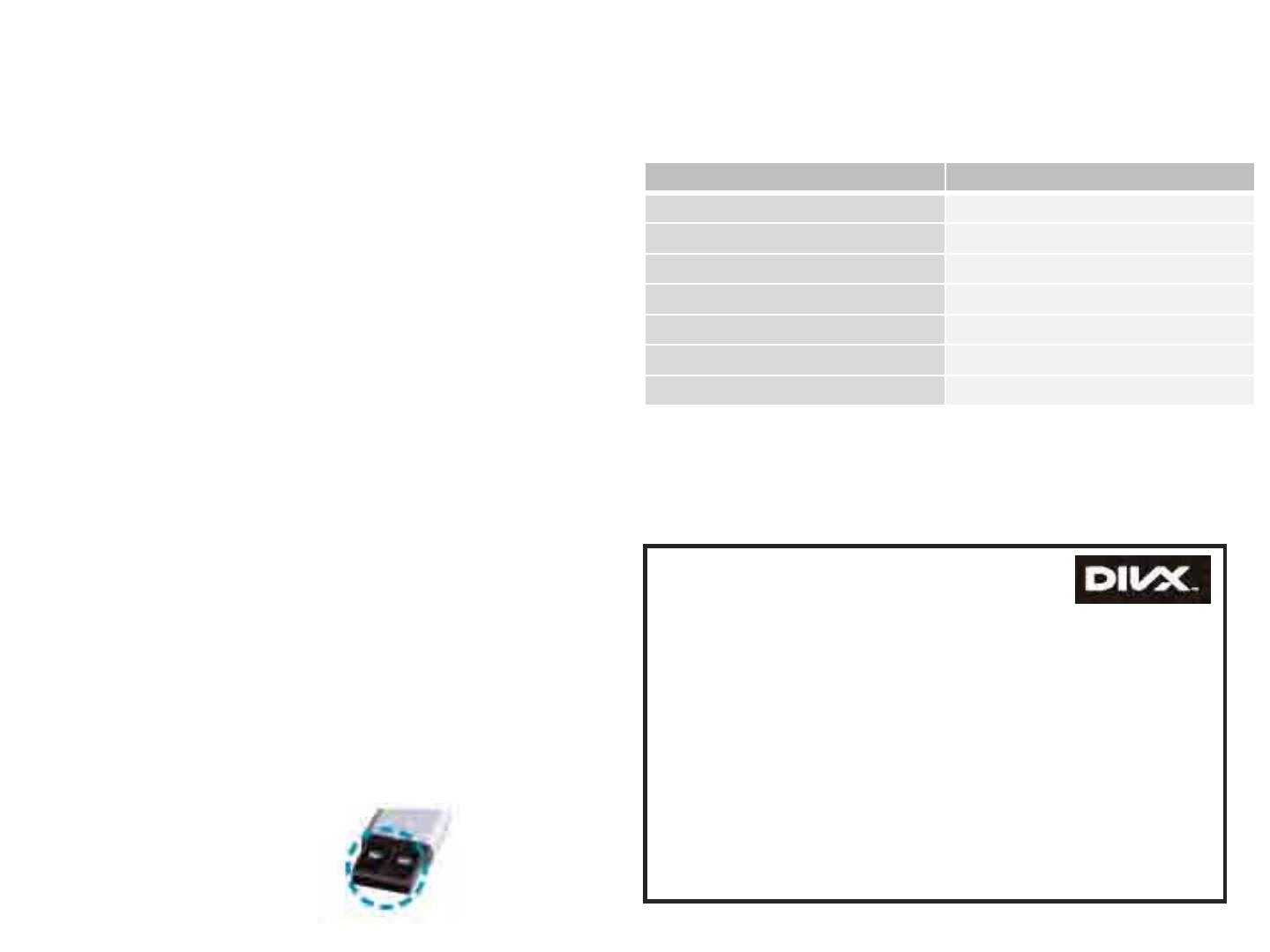

•Only use Plug type connector products, as shown in the figure
below.
Product Name Manufacturer
XTICK LG
BMK BMK Technology
SKY-DRV Skydigital
TRANSCEND JetFlash Transcend
Sandisk Cruzer SanDisk
Micro ZyRUS ZyRUS
NEXTIK Digiworks
* Problems that occur through use of USB devices not listed within the
above table are not covered by the product warranty.
Part 2. AV (USB)

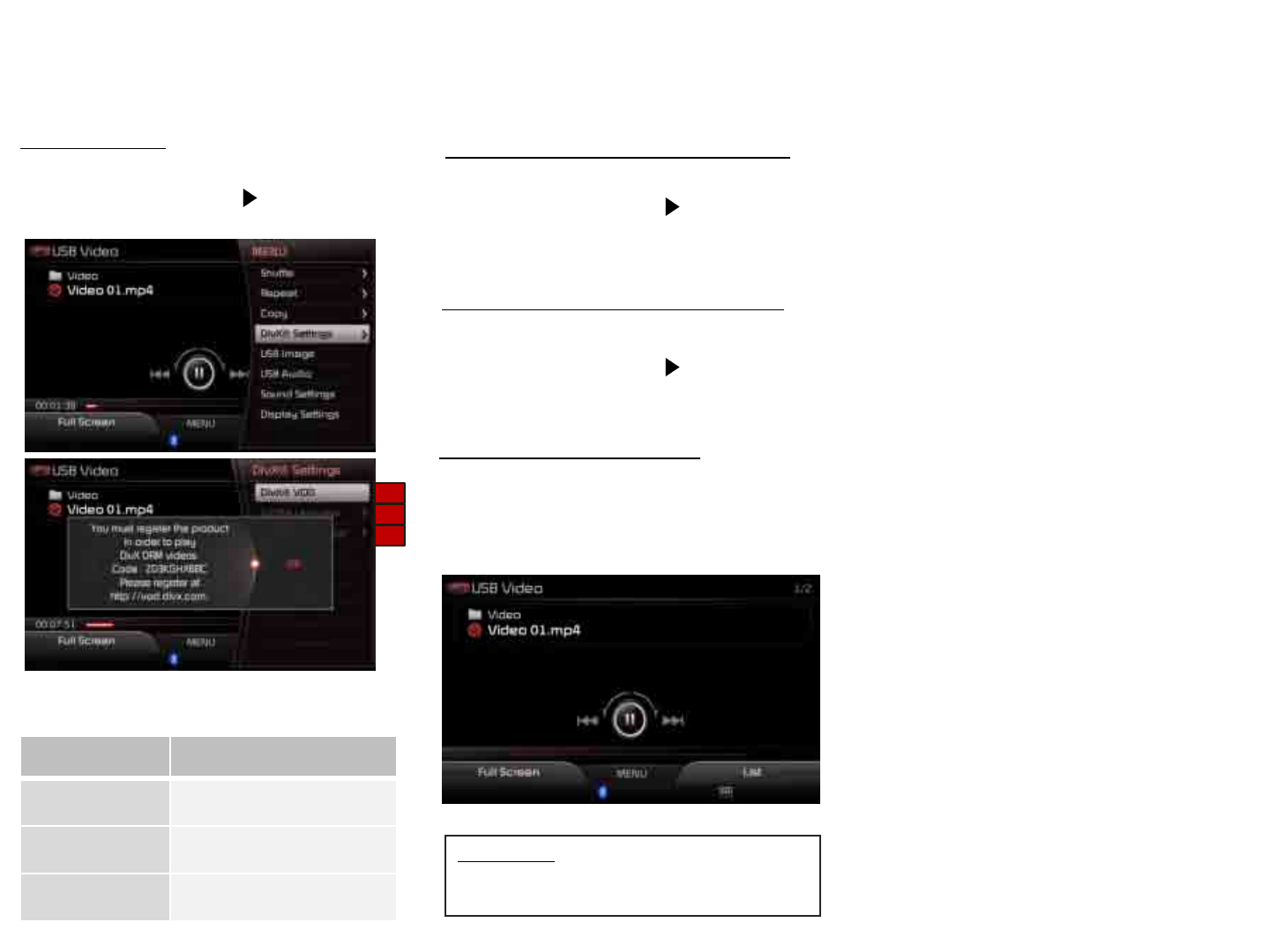

• ABOUT DivX VIDEO:
• DivX is a digital video format created by DivX, LLC,
a subsidiary of RoviCorporation. This is an official
DivX Certified device that plays DivX video.
Visit divx.com for moreinformation and software tools to convert your fil
es into DivX videos.
• ABOUT DivX VIDEO-ON-DEMAND:
• This DivX Certified device must be registered in order to play purchas
ed DivX Video-on-Demand (VOD) movies. To obtain your registration c
ode, locate the DivX VOD section in your device setup menu. Go to vo
d.divx.com for more information on how to complete your registration.
• DivX Certified to play DivX video, including premium content.
• DivX , DivX Certified and associated logos are trademarks of Rovi Co
rporation or its subsidiaries and are used under license.
• Covered by one or more of the following U.S. patents: 7,295,673; 7,46
0,668; 7,515,710; 7,519,274
Product Name Description
MP3 file
Specification Specification: MPEG1 AUDIO LAYER3
Recommended bit
rates and
sampling
frequency
Acceptable sampling frequency:: 32, 44.1, 48 (KHz)
Acceptable frequency: 32, 40, 48, 56, 64, 80, 96, 112,
128, 160, 192, 224, 256, 320 (Kbps)
96, 128, 192 Kbps fixed bit rate / 44.1KHz
ID3 Tag Supports ID3v1.0 and ID3v1.1, ID3v2.2, ID3v2.3,
ID3v2.4 ID3 tags
Detailed
Specifications
Maximum directory layers: 20 layers
Maximum length of folder name/file name: 255Bytes
Supported characters for folder name/file name:
Alphanumeric characters, Korean standard character
set 2350 characters, Simplified Chinese 4888
characters
Maximum number of folders which can be stored
onto one USB: 2000 folders (including ROOT)
Maximum number of files which can be stored onto
one USB: 8000
USB MP3 Information and Precautions
Part 2. AV (USB)
Information
•DivX Certified to play DivX video, including premium content.
• DivX , DivX Certified and associated logos are trademarks of Rovi
Corporation or its subsidiaries and are used under license.
• Covered by one or more of the following U.S. patents: :
7,295,673; 7,460,668; 7,515,710; 7,519,274
Caution
•In cases that are not fixed bit rates, the play time may not be properly
displayed.
Information
•If a problem occurs while playing or when playing an unsupported
video format file, use an up-to-date encoding software to change the
format for use.
Basic Mode Screen(Music)
Name Description
1. Mode Displays currently operating mode
2. Track Index Shows the current MP3 file/total number of MP3
files within the USB
3. Play File Info Displays Track number/Album/Artist/Genre
information
4. Control Panel Enables use of play/pause/select/search features
When turned in Ωdirections : Searches
previous/next file
When pushed in ←or →directions: : Plays
previous/next file
When pressed :Plays or pauses
5. Play Time Displays the current play time and total time
6. File Info Shows file information
7. MENU Moves to Shuffle/Repeat/Scan/Auto Playlist/Copy
to Jukebox/Sound Setting/Display Setting and other
modes
8. List Moves to the track list screen
9. Shuffle Plays disc tracks in random order
10. Repeat Repeats the current track or entire tracks
11. Scan Scans the beginning parts of disc tracks (approx 10
seconds per file)
12. Auto Playlist Moves to list screen showing current song and
similar songs

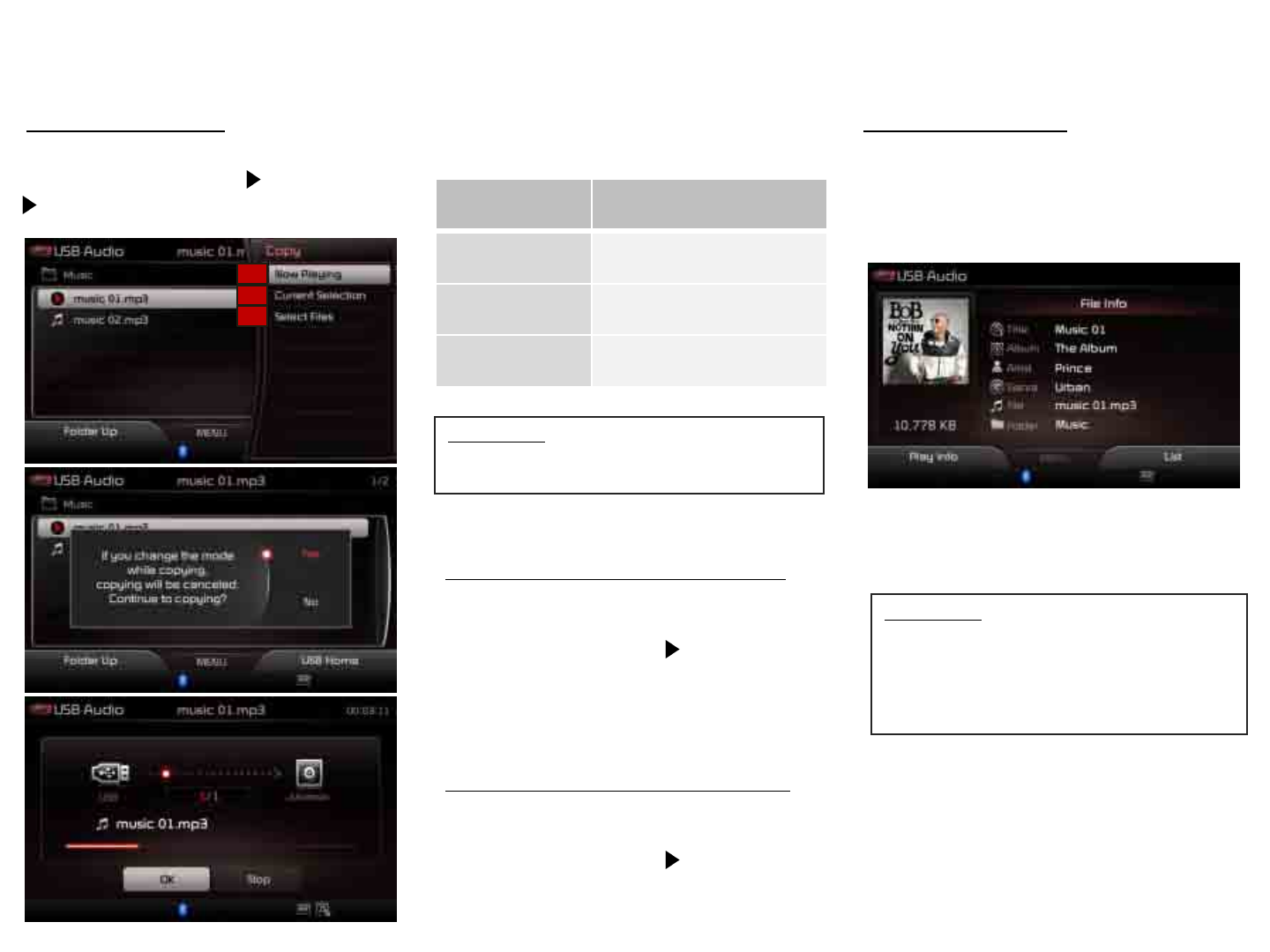

13. Copy Copy USB MP3 file to Jukebox
14. USB Video Moves to the USB Video
15. USB Image Moves to the USB Image
16. Sound Settings Moves to the sound setting screen
17. Display Settings Moves to the display setting screen
4
10
1
5
12
2
6
3
11
7
8
9
13
15
14
16
17
Part 2. AV (USB)
Basic Mode Screen(Image)
Name Description
1. Mode Displays currently operating mode
2. File Index Shows the current image file/total image files
within the USB
3. Play File Info Displays File name/Folder/Size/Resolution
information
4. Control Panel Enables search/selection of previous/next files
When turned in Ωdirections : Searches
previous/next file
When pushed in ←or →directions: : Shows
previous/next file
When pressed :Start/stops slideshow
5. Full Screen Viewing image in full screen
6. MENU Moves to Zoom in/Zoom out/Slide show
setting/Copy to Jukebox/Sound setting/Display
Setting and other mode.
7. List Moves to the USB image list screen
8. Zoom In/Out Enlarges/reduces image (zoom in/out)
9. Rotate Rotate image
10. Slideshow Setting View images as slideshow
11. Copy Copy USB image file to Jukebox
12. USB Audio Moves to the USB Video
13. USB Video Moves to the USB image
14. Sound Settings Moves to the sound setting screen
15. Display Settings Moves to the display setting screen
4
10
1
5
12
2
6
3
11
7
8
9
13
15
14
Part 2. AV (USB)
Basic Mode Screen(Video)
Name Description
1. Mode Displays currently operating mode
2. File Index Shows the current file/total number of files
3. Play File Info Displays File name/Folder/Resolution information
4. Control Panel Enables use of play/pause/select/search features
When turned in Ωdirections : Searches
previous/next file
When pushed in ←or →directions: : Plays
previous/next file
When pressed :Plays or pauses
5. Play Time Displays the current play time/total play time of
current USB video
6. File info Shows file information
7. MENU Moves to Shuffle/Repeat/Copy/DivX Setting/Sound
Setting/Display Setting and other mode
8. List Moves to the USB video list screen
9. Shuffle Plays disc files in random order
10. Repeat Repeats the current file or entire files
11. Copy Copy USB Video file to Jukebox
12. USB Image Moves to the USB image
13. USB Audio Moves to the USB audio
14. Sound Settings Moves to the sound setting screen
15. Display Settings Moves to the display setting screen
4
10
1
5
12
2
6
3
11
78
9
13
15
14
16
Part 2. AV (USB)
Starting Mode(Music Mode)
Once a USB is connected, the USB Music
will automatically begin playing. Pressing
the [ ] again will pause USB Music.
Playing USB Music
Press the [HOME] button Select
[USB]
Selecting USB Music Files
While playing Shortly push the [ ] in
← or → direction (under 0.8 seconds) or
shortly press the [SEEK]TRACK] key to
select the previous/next track.
Part 2. AV (USB)
Information
• If the USB is not connected, then the USB
button will be disabled.
• If a previously played USB is reconnected,
then the song after the most recently played
song is played. However, if a different USB
is connected or the file information within the
USB was changed, then the USB file order
information is deleted and will start playing
from the first song within the USB.
Once a USB is connected, USB Music mode
will operate automatically.
While playing Push and hold the [ ] in
← or → direction (under 0.8 seconds) or
press and hold the [SEEK]TRACK] key to
fast-forward/rewind the current file.
While the [ ] or [SEEK] [TRACK] key is
being operated, the file will rewind or fast-
forward at 20x speed. Once released, the file
will begin playing at normal speed.
Turn the [ ] or [TUNE/FILE] knob in Ω
directions to search for tracks.
Searching USB Music Files
During search, the file name is displayed in red.
Press the [ ] or [TUNE/FILE] knob to play the
selected file and display the basic display info.
Press the [MENU] key to use the Shuffle,
Repeat, Scan, Auto Playlist, Copy, Sound
Settings and Display Settings. This menu
is also used to move to other USB play
modes.
Using the Menu Buttons
Shuffle
Press the [MENU] key Select
[Shuffle] [Shuffle Folder] or [Shuffle
All]
From the searched files, once the desired file
name is displayed, press the [ ] or [TUNE/FILE]
knob to play the corresponding file.
Part 2. AV (USB)
Fast-forwarding or Rewinding
USB Music Files
Name Description
1. Shuffle Folder Plays files within the current
folder in random order.
2. Shuffle All Plays files within the USB in
random order.
1
2
Repeat
Press the [MENU] key Select
[Repeat] Select [Repeat] or [Repeat
Folder]
The current song or the all files within the
folder can be repeated.
Name Description
1. Repeat Once Repeats play of currently
playing file.
2. Repeat Folder Repeats the files in the
current folder.
Scan
Press the [MENU] key Select [Scan]
Select [Scan All] or [Scan Folder]
Name Description
1. Scan All Scans files within the USB
in random order.
2. Folder Scan Searches files within the
current folder.
Auto Playlist
Press the [MENU] key Select [Auto
Playlist]
Part 2. AV (USB)
Information
•Press [Off] to turn the Shuffle feature off.
Information
•Press [Off] to turn the Repeat feature off.
1
2
1
2
Information
•Press [Off] to turn the Repeat feature off.
Copy to Jukebox This feature is used to copy songs within the
USB into the JUKEBOX.
Press the [MENU] key Select [Copy]
Set copy options Name Description
1. Now Playing Copy currently playing file
into the Jukebox
2. Current
Selection Copy currently selected file
into the Jukebox
3. Select Files Select files to
Move to the USB Video Mode
Press the [MENU] key Select [USB
Video]
Move to the USB Image Mode
Press the [MENU] key Select [USB
Image]
File Info/Play Info
Press the [LHT] to select File Info to view
file information, such as title, album, artist,
genre, fie name, and folder location.
To return to the previous screen, press the
[LFT] to select Play Info.
Part 2. AV (USB)
Information
•Copying will be canceled if you move to a
different mode while copying is in progress.
Information
•The title, artist and album info are
displayed only when such information is
recorded within the MP3 file ID3 tag.
•For more information on Sound and Display
settings, refer to the Info/Setup section.
1
2
3

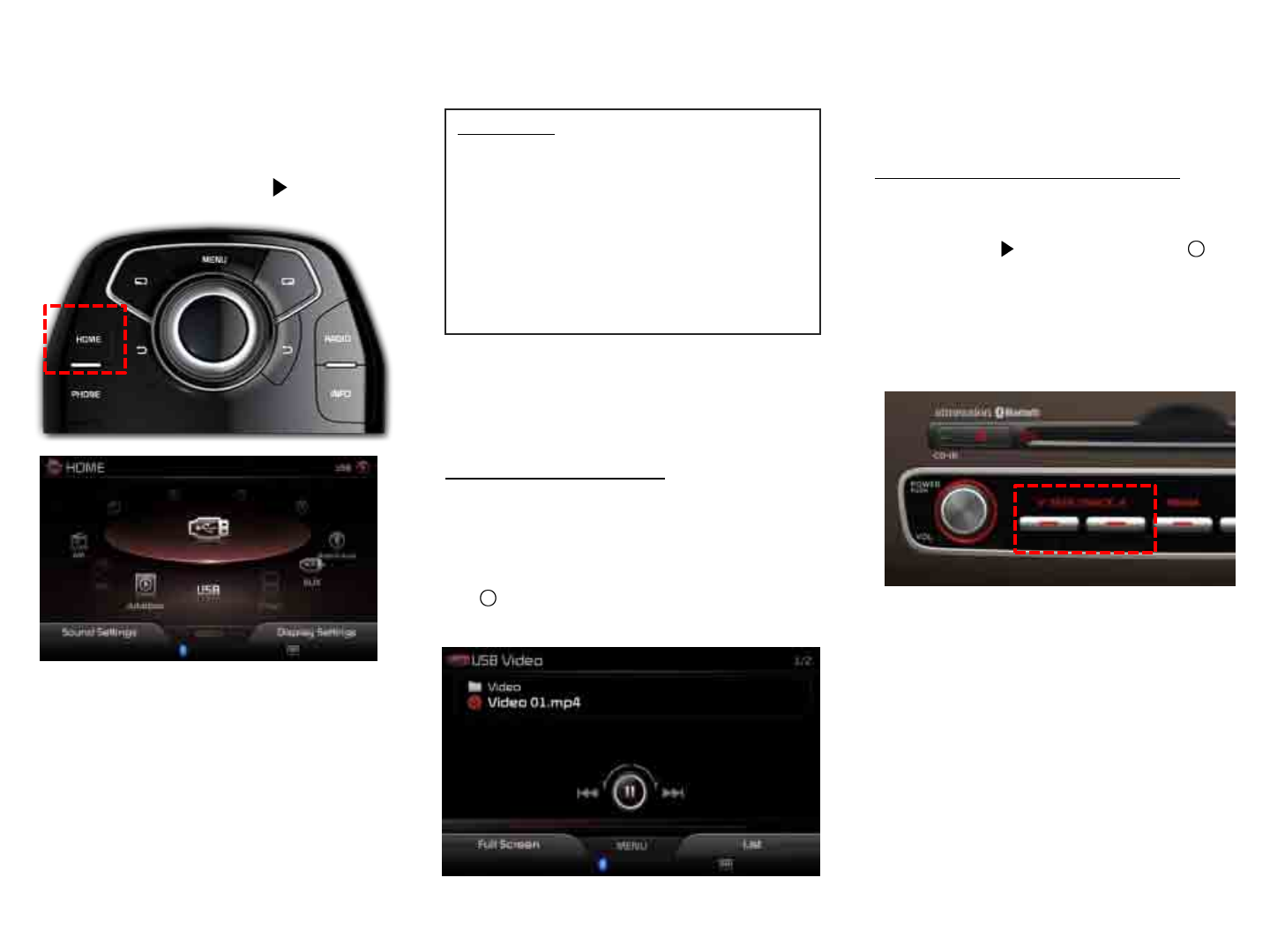

Starting Mode(Video Mode)
Once a USB is connected, the USB Video
will automatically begin playing. Pressing
the [ ] again will pause USB Video.
Playing USB Video
Selecting USB Video Files
While playing Shortly push the [ ] in
← or → direction (under 0.8 seconds) or
shortly press the [SEEK]TRACK] key to
select the previous/next file.
Part 2. AV (USB)
Press the [HOME] button Select
[USB]
Once a USB is connected, USB Video mode
will operate automatically.
Information
• If the USB is not connected, then the USB
button will be disabled.
• If a previously played USB is reconnected,
then the video after the most recently played
video is played. However, if a different USB
is connected or the file information within the
USB was changed, then the USB file order
information is deleted and will start playing
from the first video within the USB.
While playing Push and hold the [ ] in
← or → direction (under 0.8 seconds) or
press and hold the [SEEK]TRACK] key to
fast-forward/rewind the current file.
While the [ ] or [SEEK] [TRACK] key is
being operated, the file will rewind or fast-
forward at 20x speed. Once released, the file
will begin playing at normal speed.
Turn the [ ] or [TUNE/FILE] knob in Ω
directions to search for files.
Searching USB Video Files
From the searched files, once the desired file
name is displayed, press the [ ] or
[TUNE/FILE] knob to play the corresponding
file.
Press the [MENU] key to use the Shuffle,
Repeat, Copy, DivX, Sound Settings and
Display Settings. This menu is also used
to move to other USB play modes.
Shuffle
Press the [MENU] key Select
[Shuffle] [Shuffle Folder] or [Shuffle
All]
During search, the file name is displayed in
red. Press the [ ] or [TUNE/FILE] knob to
play the selected file and display the basic
display info.
Part 2. AV (USB)
Fast-forwarding or Rewinding
USB Video Files
Using the Menu Buttons
1
2
Name Description
1. Shuffle Folder Plays files within the current
folder in random order.
2. Shuffle All Plays files within the USB in
random order.

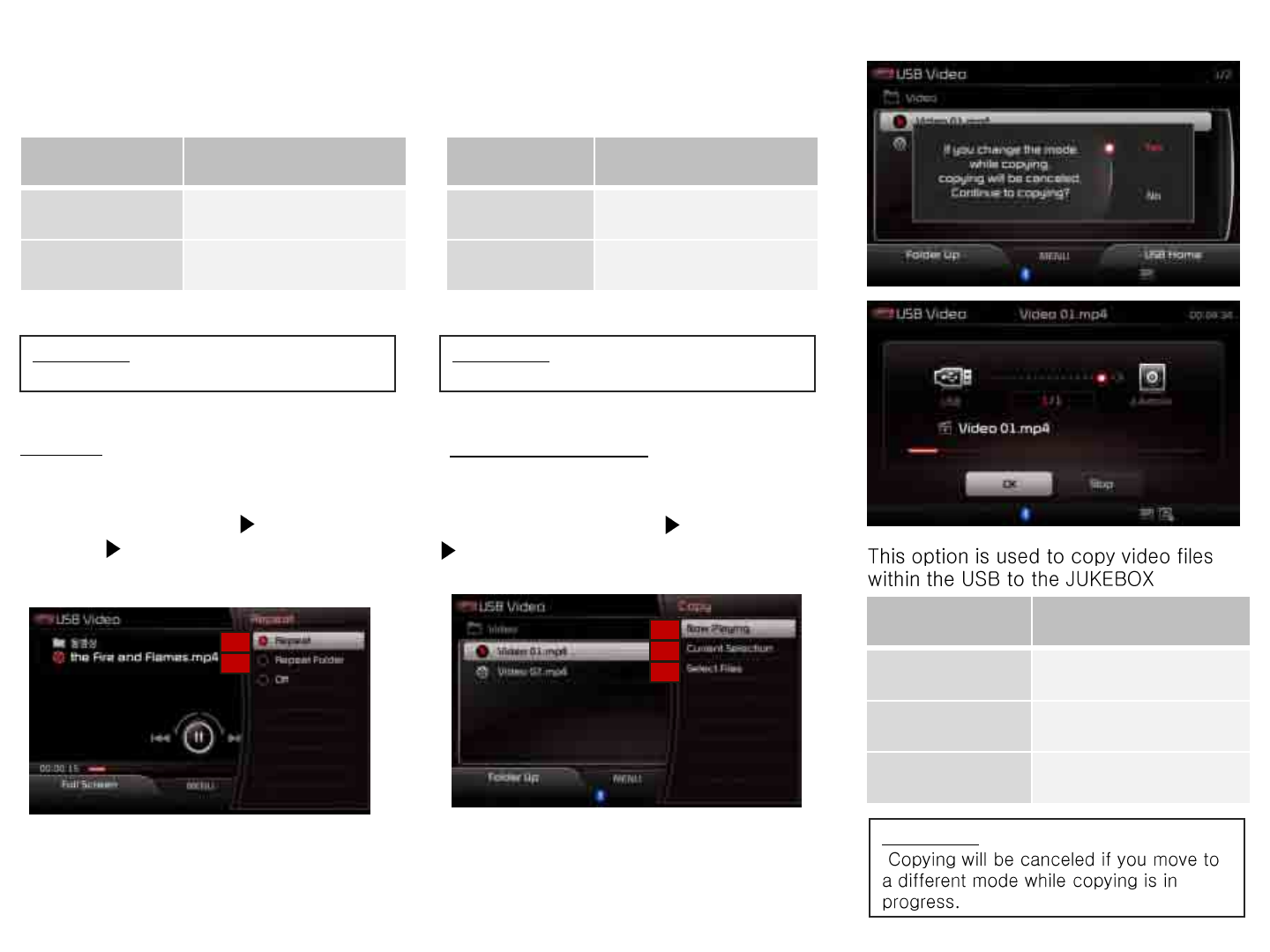

Repeat
Press the [MENU] key Select
[Repeat] Select [Repeat] or [Repeat
Folder]
The current song or the all files within the
folder can be repeated.
Name Description
1. Repeat Once Repeats play of currently
playing file.
2. Repeat Folder Repeats the files in the
current folder.
Copy to Jukebox
Press the [MENU] key Select [Copy]
Set copy options
Name Description
1. Now Playing Copy currently playing
file into the Jukebox
2. Current
Selection Copy currently selected
file into the Jukebox
3. Select Files Select files to
Part 2. AV (USB)
Information
•Press [Off] to turn the Shuffle feature off. Information
•Press [Off] to turn the Repeat feature off.
Information
•
1
2
1
2
3
Press the [MENU] key Select [USB
Image]
Press the [MENU] key Select [USB
Audio]
Press the [LFT] and select [Full Screen] to
view the USB in full screen.
DivX Setting
Press the [MENU] key Select [DivX
Setting]
When using DivX for the first time, you must
register the product through the DivX website.
Name Description
1. DivX VOD Set DivX VOD features
2.Subtitle
Language Set subtitle language
3.Voice
Language Set Voice language
Part 2. AV (USB)
Information
•For more information on Sound and Display
settings, refer to the Info/Setup section.
Move to the USB Image Mode
Move to the USB Audio Mode
Viewing in Full Screen
1
2
3

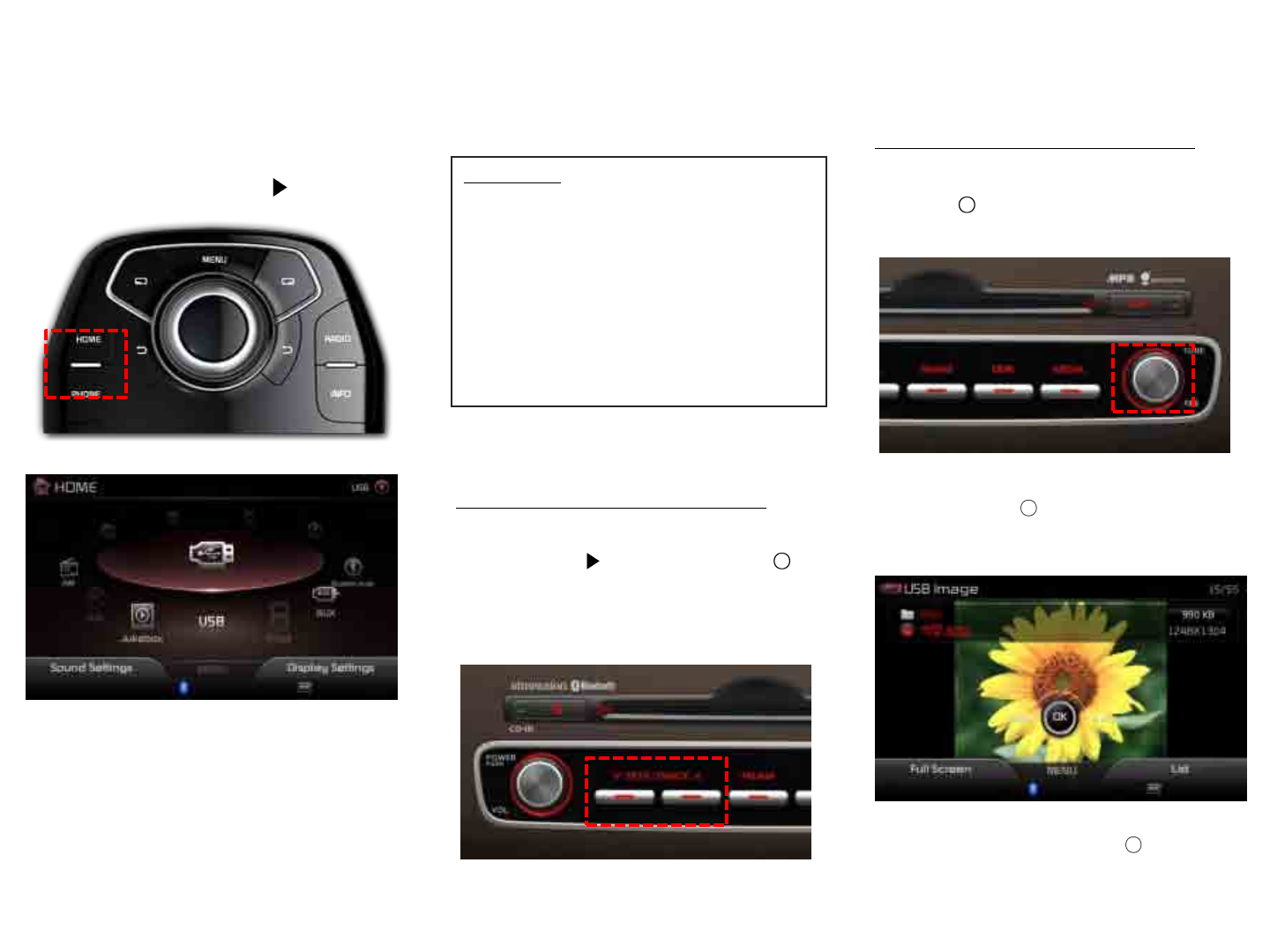

Starting Mode (Image Mode)
Selecting USB Image Files
While playing Shortly push the [ ] in
← or → direction (under 0.8 seconds) or
shortly press the [SEEK]TRACK] key to
select the previous/next file.
Turn the [ ] or [TUNE/FILE] knob in Ω
directions to search for files.
Searching USB Image Files
During search, the image name is displayed
in red. Press the [ ] or [TUNE/FILE] knob to
play the selected image and display the
basic display info.
From the searched files, once the desired file
name is displayed, press the [ ] or
[TUNE/FILE] knob to play the corresponding
image.
Part 2. AV (USB)
Press the [HOME] button Select
[USB]
Once a USB is connected, USB Image mode
will operate automatically.
Information
• If the USB is not connected, then the USB
button will be disabled.
• If a previously played USB is reconnected,
then the image after the most recently
played image is played. However, if a
different USB is connected or the file
information within the USB was changed,
then the USB file order information is deleted
and will start playing from the first image
within the USB.
Press the [MENU] key to use the Zoom In/Out,
Rotate, Slideshow, Copy, Sound Settings and
Display Settings options. This menu is also
used to move to other USB play modes.
Zoom In/Out
Press the [MENU] key Select [Zoom
In/Out]
Turn the [ ] in Ω direction to enlarge or reduce
the image size. The scale can be changed to 1/4,
1/2, 1x, 2x, and 4x.
Rotate
Press the [MENU] key Select [Rotate]
Each time the [ ] is rotated, the image is
rotated from 0 → 90 → 180 → 270 degrees.
Slideshow Setting
Press the [MENU] key Select
[Slideshow]
Image slideshow intervals can be set at
[5secs], [10secs], [20secs], [30secs] intervals.
Part 2. AV (USB)
Information
• Press the [ ] to restore the original image
size.
• When images are not all displayed on the
screen, pushing the [ ] in up/down/left/right
directions will display other images.
Information
• Press the [ ] to restore the original image
size.
Using the Menu Buttons
Move to the USB Audio Mode
Press the [MENU] key Select [USB
Image]
Move to the USB Video Mode
Press the [MENU] key Select [USB
Audio]
Viewing in Full Screen
Press the [LFT] and select [Full Screen] to
view the file in full screen.
Copy to Jukebox
Press the [MENU] key Select
[Copy] Set copy options
This option is used to copy image files within the
USB to the JUKEBOX
Name Description
1. Now Playing Copy currently playing file
2. Select Files Copy by selecting desired
files from list
Part 2. AV (USB)
Information
•Copying will be canceled if you move to a
different mode while copying is in progress.
Information
•If there are no operations for 10 seconds,
the menu will automatically disappear.
•Press the [MENU] key or [ ] to display the
menus again.
•For more information on Sound and Display
settings, refer to the Info/Setup section.
1
2
Supported iPod devices
iPod is a registered trademark of Apple
Inc.
iPod mode will not operate if the
connected iPod cannot be recognized
due to operation of unsupported versions
that do not support related protocols,
iPod abnormalities, or iPod device
defects.
Using iPod Devices
Device /
Generation
Fir
st Se
co
nd
Th
ird Fo
urt
h
Fif
th Si
xt
h
iPod
classic O O Not Released
iPod
nano O O O O O O
iPod
mini Not Supported
iPod
shuffle Not Supported
iPod
touch O O O O Not
Release
d
iPhone Not
Release
dO O Not
Release
d
iPad O O Not Released
Part 2. AV (iPod)
Information
• Some iPods with unsupported
communication protocols may not properly
operate in the Audio Video Navigation
system.
• For fifth generation iPod Nano devices, the
iPod may not be recognized when the
battery level is low. Please charge the iPod
for use.
• Search/play orders shown within the iPod
device may differ with the orders shown
within the Audio Video Navigation system.
• If the iPod malfunctions due to an iPod
device defect, reset the iPod and try again.
(To learn more, refer to your iPod manual)
• For some iPod Touch and iPhone devices,
connecting Bluetooth® while the iPod is
operating may result in discontinued iPod
sound. When such devices with Bluetooth®
support is connected, this problem occurs as
the sound source is changed from the Dock
Connector (USB connector cable) to
Bluebird (Audio Video Navigation Bluetooth®
Module).
• To listen to the iPod sound, re-connect the
USB cable or exit then re-enter iPod mode.
Information
• In order to use the iPod while operating the
keys, you must use a dedicated iPod cable.
(the cable that is supplied when purchasing
iPod/iPhone products)
During ACC ON state, connecting the
iPod through the iPod cable (the cable that is
supplied when purchasing iPod/iPhone
products), will charge the iPod through the
head unit.
• When connecting with the iPod cable,
make sure to fully insert the jack to prevent
communication interference. If the iPod is
connected to the vehicle while it is playing, a
high pitch tone may sound for about 1~2
seconds immediately after connection. If
possible, connect the iPod to the vehicle with
the iPod stopped/paused.
• Within iPhones, streaming audio and iPod
control may occasionally conflict. If problems
persist, remove the iPhone and connect
again.
• Some iPod versions may not sync with the
system. then the system may not properly
restore the previously operated mode. (For
iPads, battery charging is not supported.)
Search Steps
(may differ depending on the type of iPod device.)
1 Step 2 Step 3 Step 4 Step 5 Step
Playlist Playlist Play List name (category is same as iPod)
Artist Artist Artist
Name Album
Name Song
Name
Album Album Album
Name Song
Name
Genre Genre Genre
Name Artist
Name Album
Name Song
Name
Song Song Song Name
Compose
rCompose
rCompose
r Name Album
Name Song
Name
Part 2. AV (iPod)
Basic Mode Screen
Name Description
1. Mode Displays currently operating mode
2. Track Index Shows the current file/total files within the iPod
3. Play File Info Displays File Name/Album/Artist/Genre
4. Control Panel Enables use of play/pause/select/search features
When turned in Ωdirections : Moves to
previous/next files
When pushed in ←or →directions: : Plays
previous/next file
When pressed :Plays or pauses
5. Play Time Displays the current play time and total play time
6. File Info Shows file information
7. MENU Moves to Shuffle/Repeat/Auto Playlist/Sound
Setting/Display Setting and other modes
8. List Moves to the track list screen
9. Shuffle Plays iPod tracks in random order
10. Repeat Repeats the current track or entire tracks
11. Auto Playlist Moves to list screen showing current song and
similar songs
12. Sound Settings Moves to the sound setting screen
13. Display
Settings Moves to the display setting screen
4
10
1
5
12
2
6
3
11
7
8
9
13
Part 2. AV (iPod)
Starting Mode
Press the [HOME] button Select
[iPod]
Once an iPod is connected, iPod mode
will operate automatically.
While playing Push and hold the [ ] in
← or → direction (under 0.8 seconds) or
press and hold the [SEEK]TRACK] key to
fast-forward/rewind the current song.
Once an iPod is connected, the iPod will
automatically begin playing. Pressing the
[ ] again will pause the iPod.
Playing iPod
1 3 4
2
Fast-forwarding or Rewinding
iPod Files
While the [ ] or [SEEK] [TRACK] key is
being operated, the songs will rewind or
fast-forward at 20x speed. Once released,
the song will begin playing at normal
speed.
Selecting iPod File
While playing Shortly push the [ ] in
← or → direction (under 0.8 seconds) or
shortly press the [SEEK]TRACK] key to
select the previous/next song.
Part 2. AV (iPod)
NOTICE
•Some iPods with unsupported communication
protocols may not properly operate in the Audio
Video Navigation system.
Press the [List] button to display the
initial iPod menu screen.
When searching iPod, it is possible to search
by Play list, artist, album, song, genre,
composer, audiobook, and Podcast.
Press the [MENU] key to use the Shuffle,
Repeat, Auto Playlist, Sound Settings and
Display Settings.
Searching iPod List Using the Menu Buttons
Shuffle
Press the [MENU] key Select
[Shuffle] Select [Shuffle] or [Shuffle
Album]
Turn the [ ] or [TUNE/FILE] knob in Ω
directions to search for songs.
During search, the song name is displayed in
red. Press the [ ] or [TUNE/FILE] knob to
play the selected song and display the basic
display info.
Searching iPod Files
From the searched songs, once the desired
song name is displayed, press the [ ] or
[TUNE/FILE] knob to play the corresponding
song.
Part 2. AV (iPod)
Information
• If the search mode is accessed while playing a
song, the most recently searched step will
become displayed.
• Upon initial connection, the search steps may
differ depending on the type of iPod device.
1
2
Name Description
1. Shuffle Plays songs within play
list in random order
2. Shuffle Album Plays files within the
current album in random
order
Repeat
Press the [MENU] key Select
[Repeat] Select [Repeat]
Name Description
1. Repeat Repeats play of currently
playing file.
Auto Playlist
Press the [MENU] key Select [Auto
Playlist]
File Info/Play Info
Part 2. AV (iPod)
Information
•Press [Off] to turn the Shuffle feature off.
Information
•Press [Off] to turn the Repeat feature off.
Information
• No information are shown for MP3 files
without file information.
• For more information on Sound and
Display settings, refer to the Info/Setup
section.
1

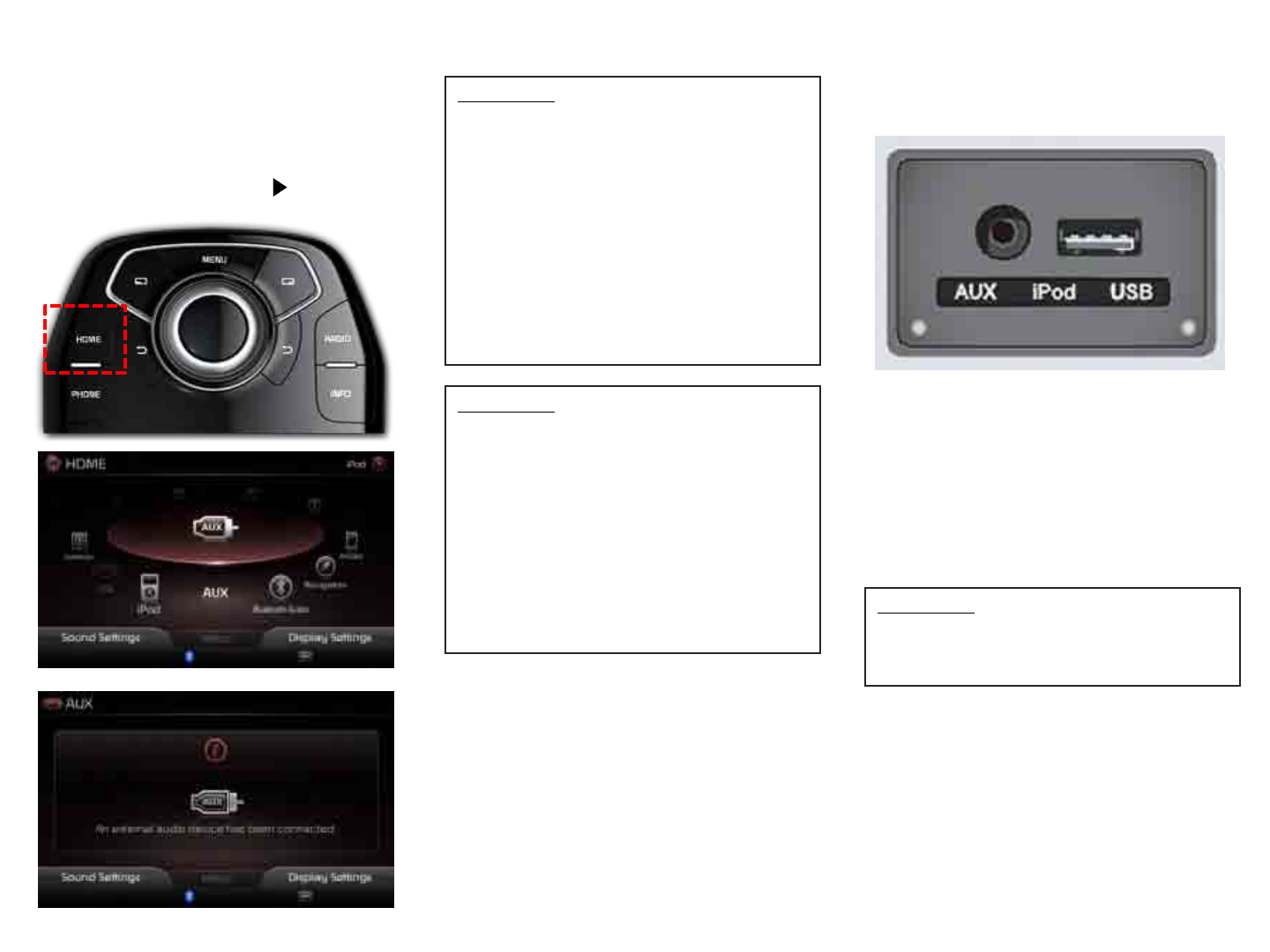

Starting Mode
Press the [HOME] button Select
[AUX]
External AUDIO and VIDEO players
(Camcorders, car VCR, etc.) can be played
through a dedicated cable. The position of
the AUX jack is at the top of the gear box
located between the driver and passenger
seats.
Part 2. AV (AUX)
Information
• If an external device connector is
connected with the AUX terminal, then AUX
mode will automatically operate. Once the
connector is disconnected, the previous
mode will be restored.
• AUX mode can be used only when an
external audio/video player (camcorder, car
VCR, etc.) has been connected.
• The AUX volume can be controlled
separately from other AV modes.
Information
• Connecting a connector jack to the AUX
terminal without an external device will
convert the system to AUX mode, but only
output noise. When an external device is not
being used, also remove the connector jack.
• When the external device power is
connected to the power jack, playing the
external device may output noise. In such
cases, disconnect the power connection
before use.
Information
•The color saturation option is not supported
when using the PAL color system within this
device.
About Using Bluetooth® Audio
•Bluetooth® Audio Mode can be used only when a Bluetooth®
phone has been connected.
•While Bluetooth® Audio is playing, if the Bluetooth® phone is
connected, then the music will also stop.
•Bluetooth® streaming audio may not be supported in some
mobile phones.
•If you switch to the Bluetooth mode screen while playing
streaming audio, then the streaming audio will stop and the
previous AV mode will be restored.
Part 2. AV (Bluetooth Audio)
Name Description
1. Mode Displays currently playing mode
2. Play Info Displays mobile phone name/title/artist
3. Control Panel Enables use of Bluetooth audio play, pause, select and search
features
When pushed in ←or →directions: : Plays previous/next
song
When pressed :Plays or pauses
4. Connections Displays the Connections screen
5. Sound
Settings Displays the sound setting screen
6. Display
Settings Displays the display setting screen
4
1
5
2
6
3
Part 2. AV (Bluetooth Audio)
Information
• The title/artist info may not be supported in some mobile phones. When
not supported, “No Title/No Artist” will be displayed.
• The play/pause feature may operate differently depending on the
mobile phone.
Basic Mode Screen
Starting Mode
Press the [HOME] button Select
[Bluetooth Audio]
Playing Bluetooth Audio
Selecting Bluetooth Audio
Part 2. AV (Bluetooth Audio)
Information
• The title/artist info may not be supported in
some mobile phones.
• For more information on Sound and Display
settings, refer to the Info/Setup section.
Information
•If the Bluetooth® device is not connected, then
the [Bluetooth Audio] button will be disabled.
Before Use
Pairing and Connecting a Phone
Basic Mode Screen
Using Bluetooth
3Bluetooth
Part 3. Bluetooth
Before using the Bluetooth Handsfree
•Bluetooth refers to a short-distance wireless networking
technology which uses a 2.45GHz frequency to connect various
devices within a certain distance.
•Supported within PCs, external devices, Bluetooth phones,
PDAs, various electronic devices, and automotive
environments, Bluetooth allows data to be transmitted at high
speeds without having to use a connector cable.
•Bluetooth Handsfree refers to a device which allows the user
to conveniently make phone calls with Bluetooth mobile phones
through the AV/Navigation system.
•Bluetooth Hands-free may not be supported in some mobile
phones. Supported mobile phones can be checked at
blu.hyundai.com.
Before Use
•Bluetooth Handsfree is a feature that enables drivers to
practice safe driving. Connecting the head unit with a Bluetooth
phone allows the user to conveniently make calls, receive calls,
and manage the phone book. Before
•using the Bluetooth, carefully read the contents of this user s
manual.
•Excessive use or operations while driving may lead to
negligent driving practices and be the cause of accidents. Do
not operate the device excessively while driving.
•Viewing the screen for prolonged periods of time is dangerous
and may lead to accidents. When driving, view the screen only
for short periods of time.
Precautions for safe driving
What is Bluetooth?
Cautions upon connecting Bluetooth phone
Before connecting the head unit with the mobile phone, check
to see that the mobile phone supports Bluetooth features.
Even if the phone supports Bluetooth, the phone will not be
found during device searches if the phone has been set to
hidden state or the Bluetooth power is turned off. Disable the
hidden state or turn on the Bluetooth power prior to
searching/connecting with the Head unit.
If Auto Connection is used, the Bluetooth phone is
automatically connected when the ignition is turned on, making
it unnecessary to have to connect the phone with the head unit
every time.
If you do not want automatic connection with your Bluetooth
device, turn the Bluetooth power off.
The handsfree call volume and quality may differ depending on
the mobile phone.
To set Auto Connection, go to PHONE Settings Auto
Connection.
The car name can be set at PHONE Settings Device
Information.
The passkey needed to connect the mobile phone can be
verified/changed at PHONE Settings Change Passkey.
If the Bluetooth audio does not play, go to PHONE Settings
Bluetooth Audio. If the feature is set to Off , turn On and try
again.
Park the vehicle when connecting the head unit with the mobile
phone.
Bluetooth connection may become intermittently disconnected
in some mobile phones. Follow these steps to try again.
1. Turn the Bluetooth function within the mobile phone off/on
and try again.
2. Turn the mobile phone power Off/On and try again.
3. Completely remove the mobile phone battery, reboot, and
then again.
4. Reboot the Audio Video Navigation System and try again.
5. Delete all paired devices, pair and try again.
Some Bluetooth features may occasionally not operate properly
depending on the firmware version of your mobile phone. If
such features can be operated after receiving a S/W upgrade
from your mobile phone manufacturer, unpair all devices and
pair again before use.
Bluetooth devices cannot be paired when the vehicle is in
motion. For your safety, first park the vehicle to pair a Bluetooth
device.
Part 3. Bluetooth
When no phones have been
paired
Information
• Press the [Help] button within the pop-up
to view the help section with information
related to pairing and connecting Bluetooth
devices, and using Handsfree related
features.
• To learn more about searching from
Bluetooth devices and pairing, refer to
the user's manual for your Bluetooth device.
If the system becomes unstable or the
authentication popup is not displayed due to
some communication error, please wait or
reset the Bluetooth device and try again.
Pairing and Connecting a Phone
Press the [PHONE] button Select
[Connections] Select [Add New] Enter
passkey from the Bluetooth device
When a phone is already paired
Press the [PHONE] button Select
[Connections] Select the device from the
device list Select Connect
Select the device you want to connect and
press the [Connect] button.
If the phone you want to connect does not
exist, press the [Add New] button to pair a
new Bluetooth device.
When the Waiting to Pair screen is
displayed, search for your mobile device
and enter the passkey. The default
passkey is set to 0000 .
Part 3. Bluetooth
Pairing Additional Devices
Information
• When a Bluetooth device is connected, a
new device cannot be paired. If you want to
pair a new phone, first disconnect the
connected Bluetooth device.
Press the [Add New] button to pair a
new Bluetooth device.
For more information on pairing, refer to the
When no phones have been paired section.
Information
• Bluetooth features supported within the
vehicle are as follows. Some features may
not be supported depending on your
Bluetooth device.
- Answering and making Bluetooth
Handsfree calls
-Menu operation during a call (Switch to
Private, Switch to call waiting, Outgoing
volume)
- Download Call History
- Download Mobile Contacts
- Download USIM Contacts
- Download contacts to vehicle
- Contacts/ Call History Auto Download
- Bluetooth device auto connection
Bluetooth Audio Streaming
• It is possible to pair up to five Bluetooth
devices to the car system.
• Only one Bluetooth device can be
connected at a time.
• Other devices cannot be paired while a
Bluetooth device is connected.
• While connecting a Bluetooth device, the
cancel operation is not supported.
• Only Bluetooth Handsfree and Bluetooth
audio related features are supported.
Information
• Normal operation is possible only within
devices that support Handsfree or audio
features, such as a Bluetooth mobile phone
or a Bluetooth audio device.
• Only one function can be used at a time
between the Bluetooth Handsfree and
Bluetooth audio. (While playing Bluetooth
audio, streaming will end upon entering the
Bluetooth phone screen.)
• If a connected Bluetooth device becomes
disconnected due to being out of
communication range, turning the device
OFF, or a Bluetooth communication error,
corresponding Bluetooth devices are
automatically searched and connected.
• If the system becomes unstable due to
communication errors between the vehicle
and the Bluetooth device, reset the Bluetooth
and try again. Upon resetting Bluetooth, the
system is restored to its factory release
state.
Part 3. Bluetooth
Information
•If a paired phone is deleted, the call history and
phone book lists will also be deleted.
Disconnecting a Device A device cannot be deleted when it is
connected.
To delete a paired device, first disconnect the
Bluetooth connection.
Press [Delete All] to delete all paired Bluetooth
devices.
Select the device you want to disconnect
Press [Disconnect] Press [Yes]
Deleting Device
Press the [MENU] key Press [Delete]
Press [Yes]
Part 3. Bluetooth
Information
• The mobile phone battery and signal strength icons may not be supported
in some mobile phones.
• The remaining battery level displayed on your mobile phone battery icon
may slightly differ with the device display.
• The speed dial feature may not be supported in some mobile phones.
• The name of the other party is displayed if the other party s number is
saved within your contacts. If not, only the phone number is displayed..

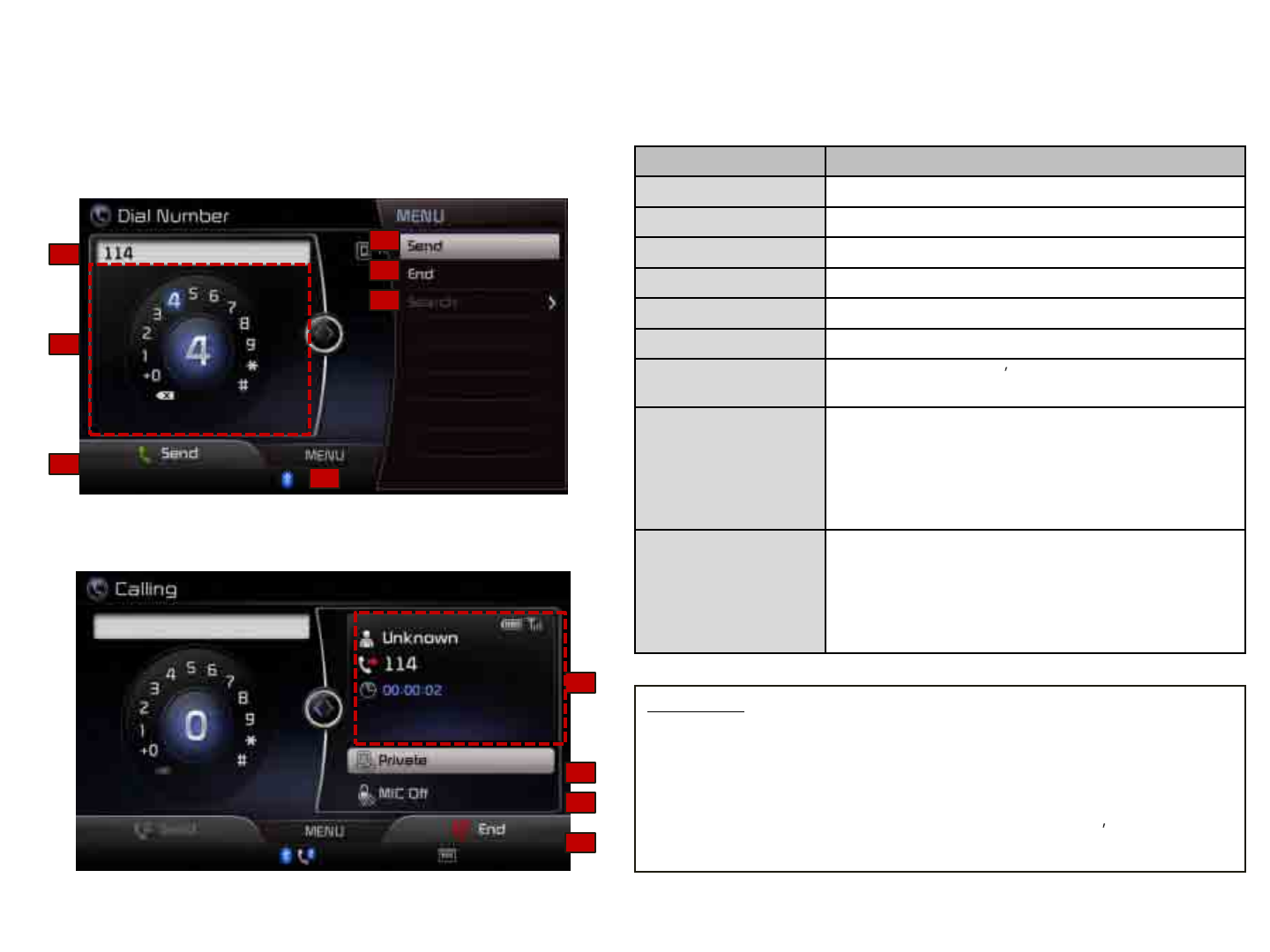

Basic Mode Screen
<Not on a call>
<During a call>
Name Description
1. Number Window Shows entered numbers
2. Send Calls the number
3. End Ends the current call
4. Contacts Displays contacts list screen
5. Dial Pad Used to enter/delete numbers
6. MENU Displays menu screen
7. Call Connection Info Displays the other party s name/number, call time,
battery strength/reception level
8. Private
During a handsfree call, this functions is used to switch
the call to the mobile phone
Upon switching the call to Private, the vehicle mic and
speaker will turn off to allow a private conversation
through the mobile phone
9. MIC Off
Adjusts outgoing volume during calls
Sets call volume as heard by the other party (Levels
0~5)
The outgoing volume may be heard differently
depending on the connected Bluetooth?device0
Part 3. Bluetooth
3
12
3
4
5
26
7
8
9

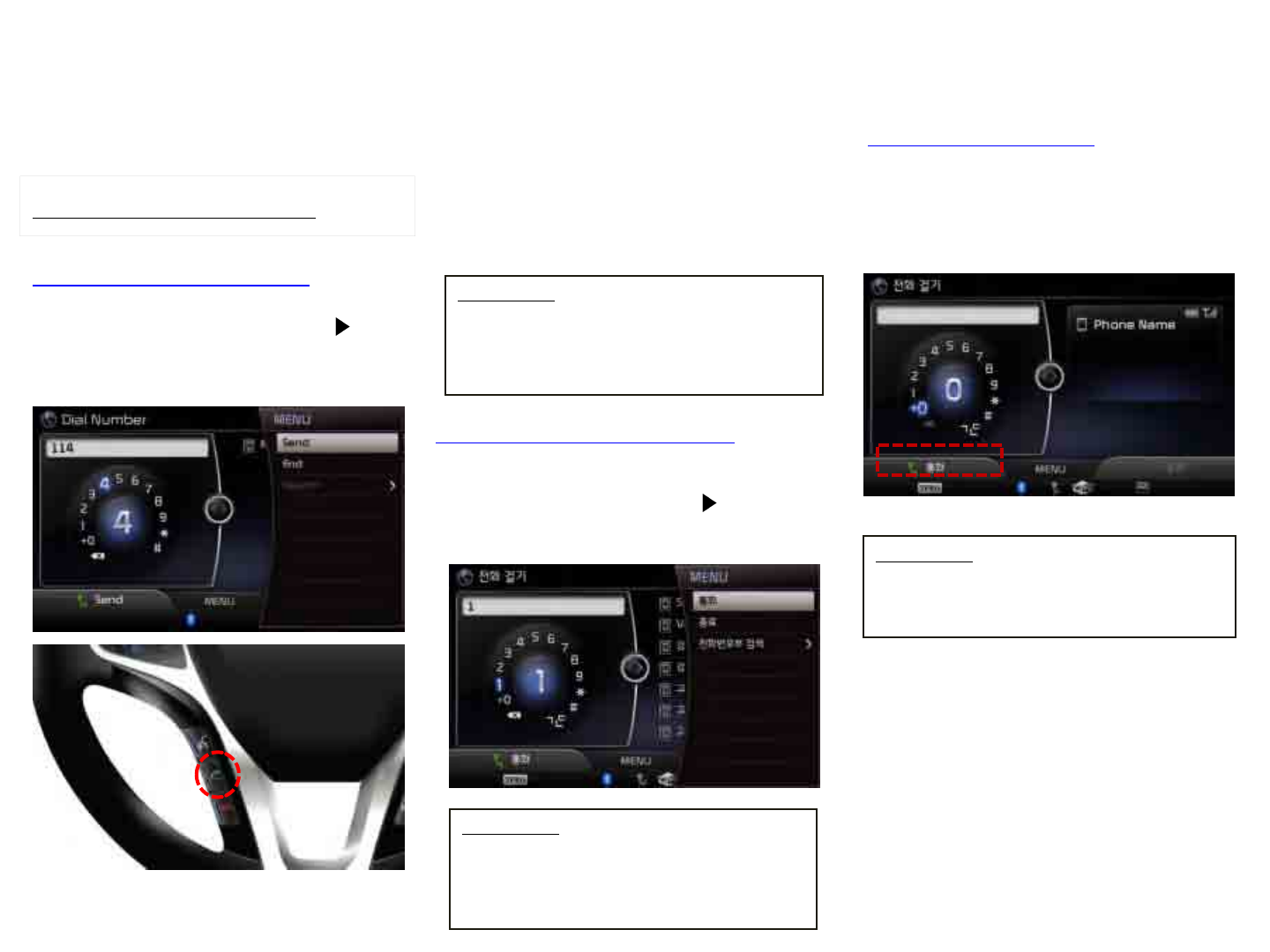

Making/Answering Calls
Information
Most functions within AV mode and INFO will
not operate during a Bluetooth Handsfree
call. Only the call volume and Navigation
screens can be operated.
Starting Mode
Enter number on the dial pad
Press the [Send] button or the [] key
on the steering remote controller.
Calling by dialing a number
If you press the Send button without entering
a number, the Call History screen is
displayed.
Press and hold the dial pad 0 + (over 0.8
seconds) to enter a "+".
Making a call from Speed Dial
Enter the 1 or 2 digit speed dial
number with the Dial Pad Press and
hold the last number.
Information
• For speed dials saved within mobile
phones, up to 2 digits are supported.
• Saving or changing speed dial numbers
through the head unit.
Calling through Redial
Press the hold (over 0.8 seconds) the
[Send] button or the key on the
steering remote controller.
Information
Redialing is not possible when there is no
call history or the Bluetooth phone has not
been connected.
Part 3. Bluetooth

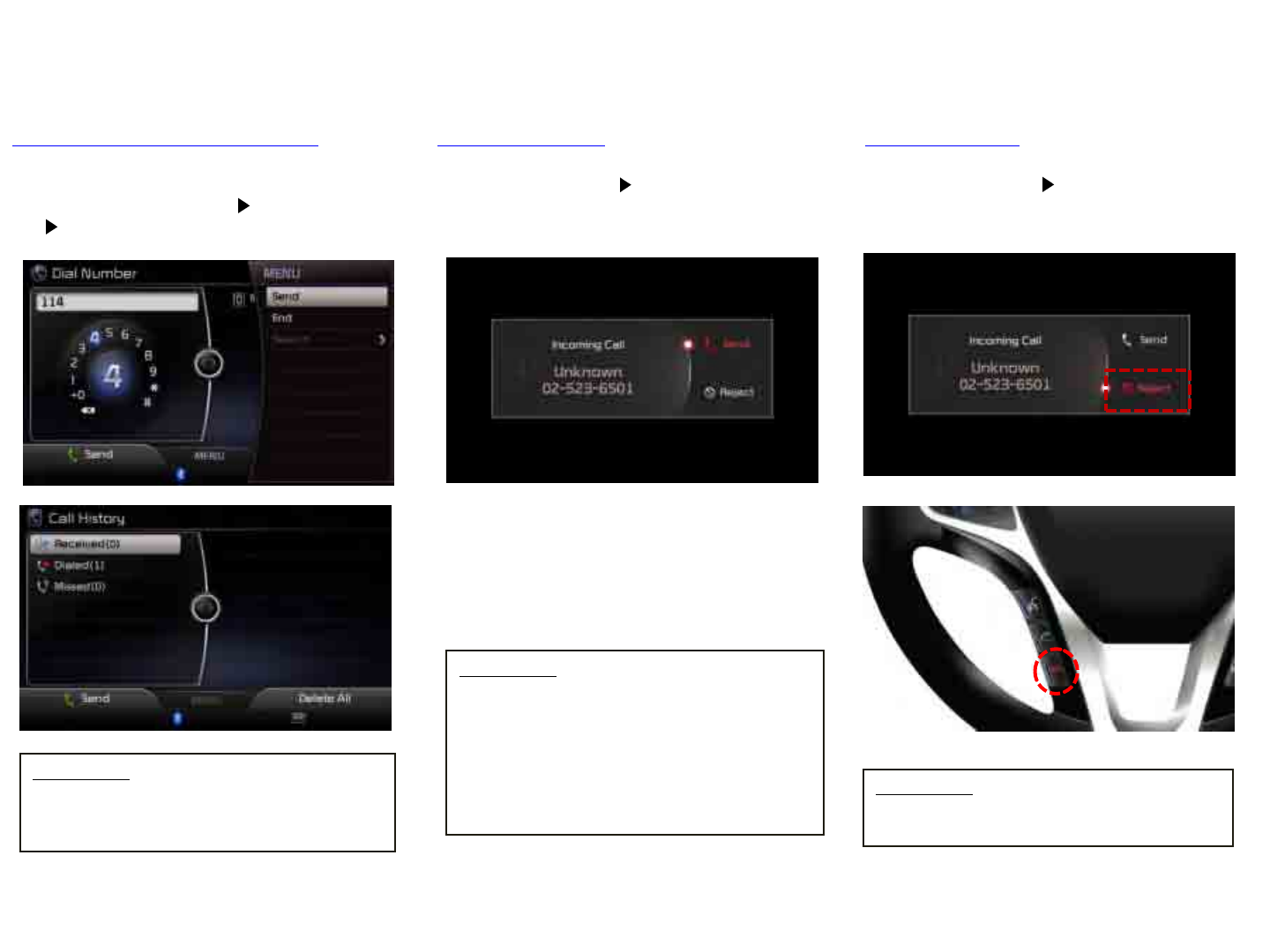

Information
• Calling through the call history is not
possible when there is no call history or the
Bluetooth phone has not been connected.
Making a call from Call history Answering a call
When a call is received on the connected
phone, the bell will sound and the phone
number of the other party will be displayed
on the incoming call pop-up, as shown here.
Information
• When the incoming call pop-up is
displayed, most functions within AV mode
and SETUP will not operate. Only the call
volume and Navigation screens can be
operated.
• The telephone number may not be
displayed in some mobile phones.
Rejecting a call
Press the [Send] button or the Key on the
steering remote controller Select the call
list Press [Call]
Information
• The reject call function may not be
supported in some mobile phones.
Incoming call notice Press the [Accept]
button or the [] key on the steering remote
controller.
Incoming call notice Press the [Reject]
button or the [] key on the steering remote
controller.
Part 3. Bluetooth
Operating Menus during a Call Information
The Private function may not be supported in
some mobile phones.
During Handsfree call Press the [Private]
button or press and hold the [] key (over 0.8
seconds) on the steering remote controller.
The call will be switched from the Handsfree
to the Bluetooth mobile phone.
Switching Call to the Bluetooth
phone
Switching Call to the Handsfree
During call on mobile phone Press the [Use
Handsfree] button or press and hold the [] key
(over 0.8 seconds) on the steering remote
controller.
The call will be switched from the Bluetooth
mobile phone to the car handsfree.
Ending a call
While on a call Press the [End] button or
the [ ] Key on the steering remote
controller.
The Bluetooth handsfree call will end.
Part 3. Bluetooth
Information
• Call waiting is a feature that allows the caller to
answer a second call while already on a call.
When call waiting is used, the first call is placed
on waiting mode.
• The Private function may not be supported in
some mobile phones.
If another person calls while you are already
on a call, the current call must be placed on
hold or ended to answer the new call.
If there is waiting call, press the [ ] key on the
steering remote controller (under 0.8
seconds) or press the [Switch] button on the
Phone screen.
While on a call Select [Mute]
Switching to Call Waiting
While on a call Use the [VOL] knob on the
head unit or the [+], [-] keys on the steering
remote controller to adjust the ring/call
volume.
Setting Mic Off
If you press the [Mute] button, The outgoing
volume is muted and blocked to the other
party.
Name Description
1. Hold 1st call Places current call on call
waiting and answer new call
2. End 1st call Ends current call and answer
new call
3. Reject R e j e c t s new c a l l a n d
maintains current call
4. Switch If there is a call waiting,
switches to the waiting call
waiting call
1
2
3
4
Information
The volume heard by the other party may
differ depending on the mobile phone. If call
volume heard by the other party is too low or
too high, first adjust the volume setting.
Adjusting the Ring/Call Volume
Part 3. Bluetooth
Contacts Information
• If there are numerous list entries, selecting
the list page area will move to the
corresponding list page.
• It is possible to download contacts even
during a call or during Bluetooth streaming
audio.
• When downloading call histories, the icon
will be displayed within the status bar.
• It is not possible to commence download
when the contacts download feature has
been turned of within the Bluetooth device.
In addition, some devices may require
device authorization upon attempting to
download contacts. If downloading does not
normally occur, check the Bluetooth device
settings or the screen state.
• The download feature may not be
supported in some mobile phones. Check to
see that the Bluetooth device supports the
download feature. For more information of
supported Bluetooth devices and
function support, visit the BLUmembers
website (blu.hyundai.com)
• Mobile and car contacts data could be lost
depending on the state of the head unit.
Please back up important data within a safe
location.
Information
• Mobile phone contacts can only be searched
when a Bluetooth device is connected.
• Up to 5,000 contacts saved in your Bluetooth
phone or USIM can be downloaded into the car
contacts. Contacts that have been downloaded to
the car cannot be edited or deleted.
• Mobile phone contacts are managed separately
for each paired Bluetooth device (max 5 devices
x 5,000 contacts each). Previously downloaded
data is maintained even if the Bluetooth device
has been disconnected. (However, the contacts
and call history saved to the phone will be
deleted if a paired phone is deleted.)
Press [PHONE] button Select [Contacts]
Name Description
1. Send Calls the corresponding
number
2. Search Search contacts by name
or number
3. Download Download contacts from
Bluetooth device
4. Contacts List Downloaded Contacts
5. MENU Displays menu screen
1
2
3
4
1
5
Part 3. Bluetooth

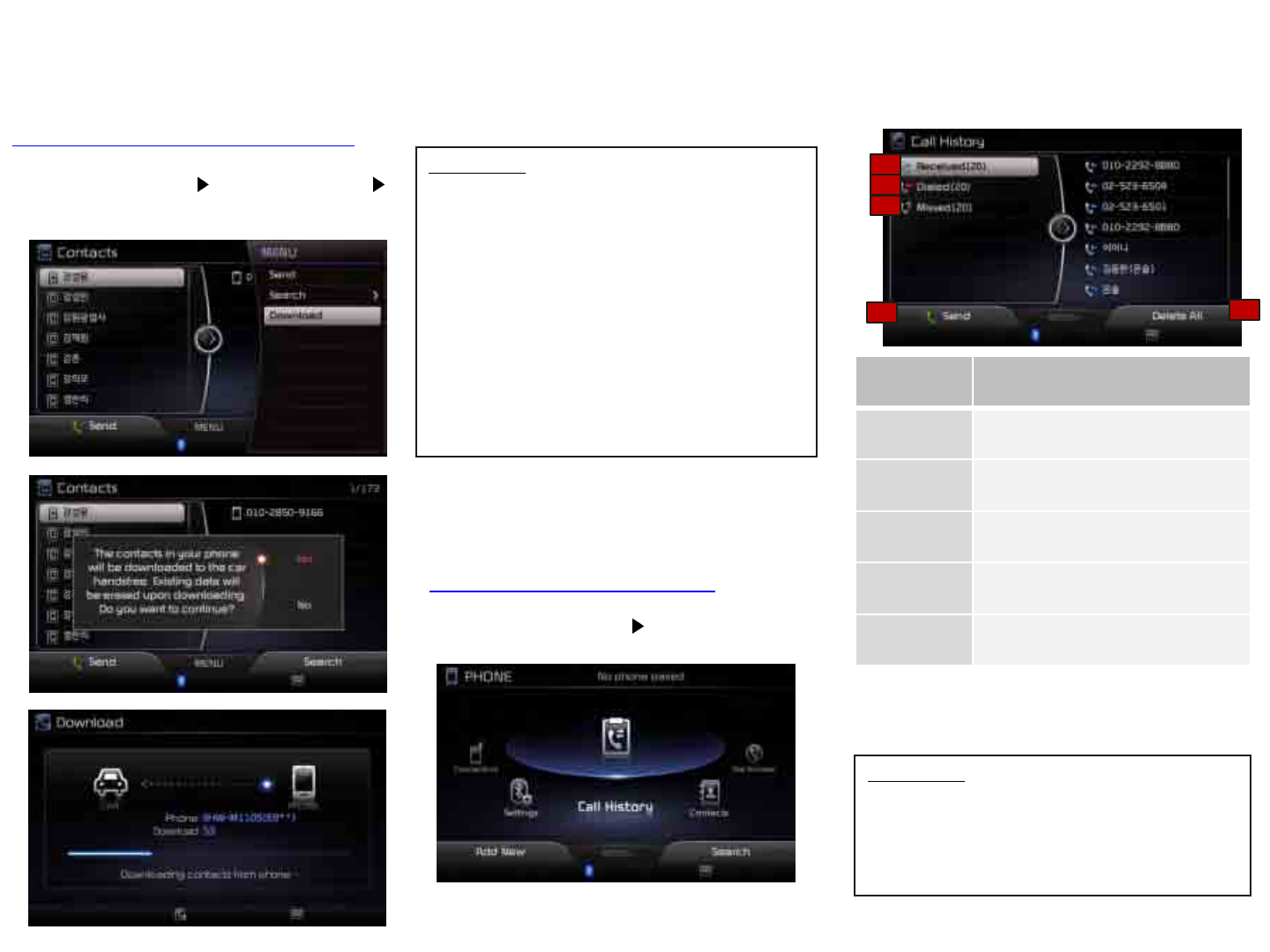

Information
• Upon downloading mobile phone contacts,
the previous corresponding data
is deleted.
• This feature may not be supported in
some mobile phones.
• Upon downloading, contacts saved in
your USIM and mobile phone are
simultaneously downloaded.
• When using Contacts Sync, the contacts
and call histories within your mobile phone are
automatically downloaded upon connecting
Bluetooth. If you do not wish to use this feature,
turn Contacts Sync Setting off.
Press the [MENU] key Press [Download]
Press [Yes]
Download Mobile Phone Contacts
Name Description
1. Received Displays the incoming call
history list
2. Dialed Displays the outgoing call history
list
3. Missed Displays the missed call history
list
4. Send Dial to selected number
5. Delete All Delete entire call history
Entering Call History Screen
Press the [PHONE] Key Select [Call History]
Information
• The call history may not become saved in the
call history list in some mobile phones.
• Calls received with hidden caller ID will not
become saved in the call history list.
1
2
3
56
Part 3. Bluetooth

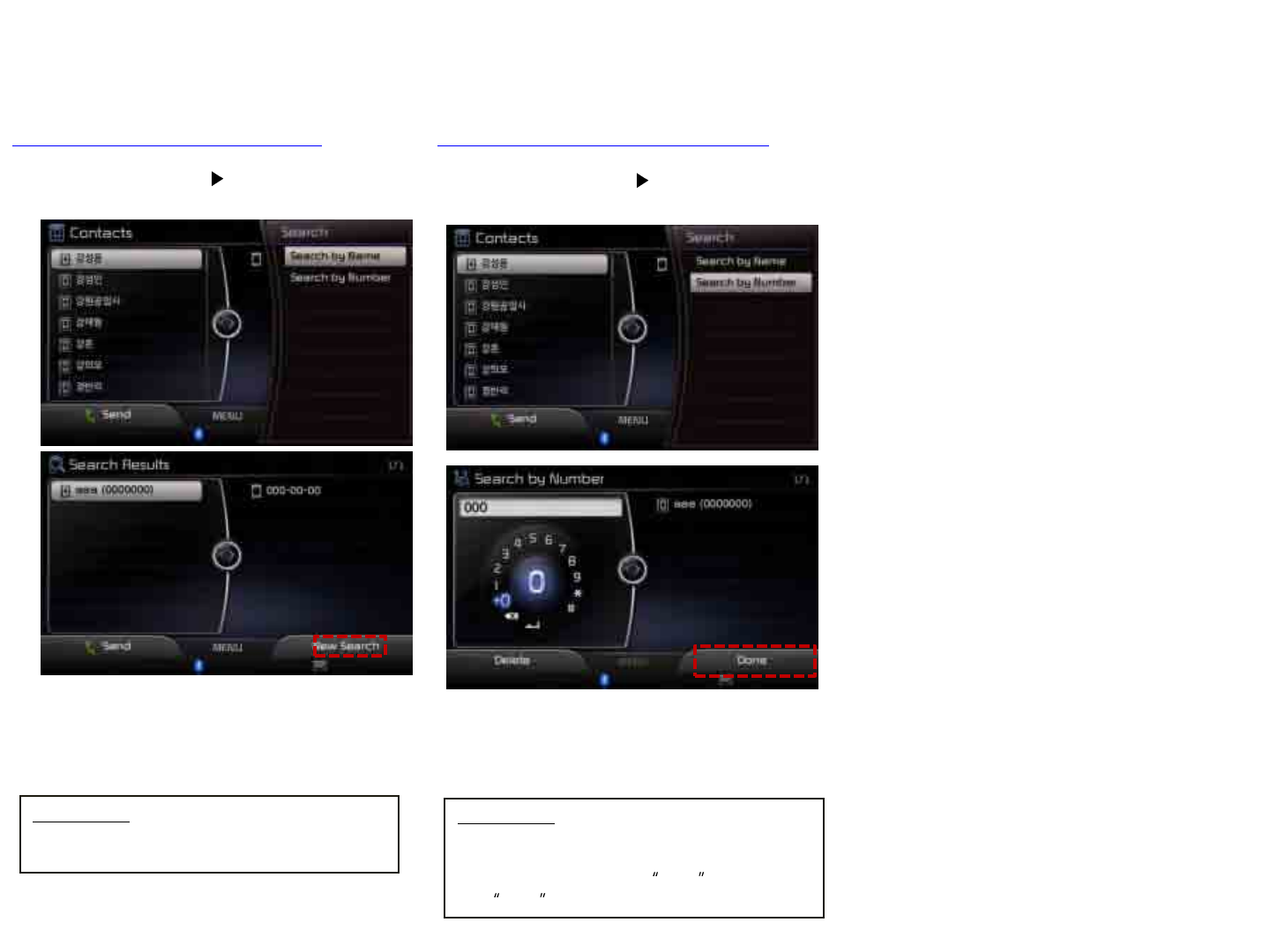

Press the [Search] Key Select [Search by
Name]
Searching Contacts (By Name)
Information
When searching a number, it is possible to
search by entering a part of the entire
number. (ex: if you enter 1544 , all numbers
with 1544 will be searched.
After inputting is complete, press the [Done]
button to save.
Information
Upon search, initial search and intermedial
search is supported.
Searching Contacts (By Number)
Press the [Search] Key Select [Search by
Number]
After inputting is complete, press the [Done]
button to save to search saved numbers.
Part 3. Bluetooth

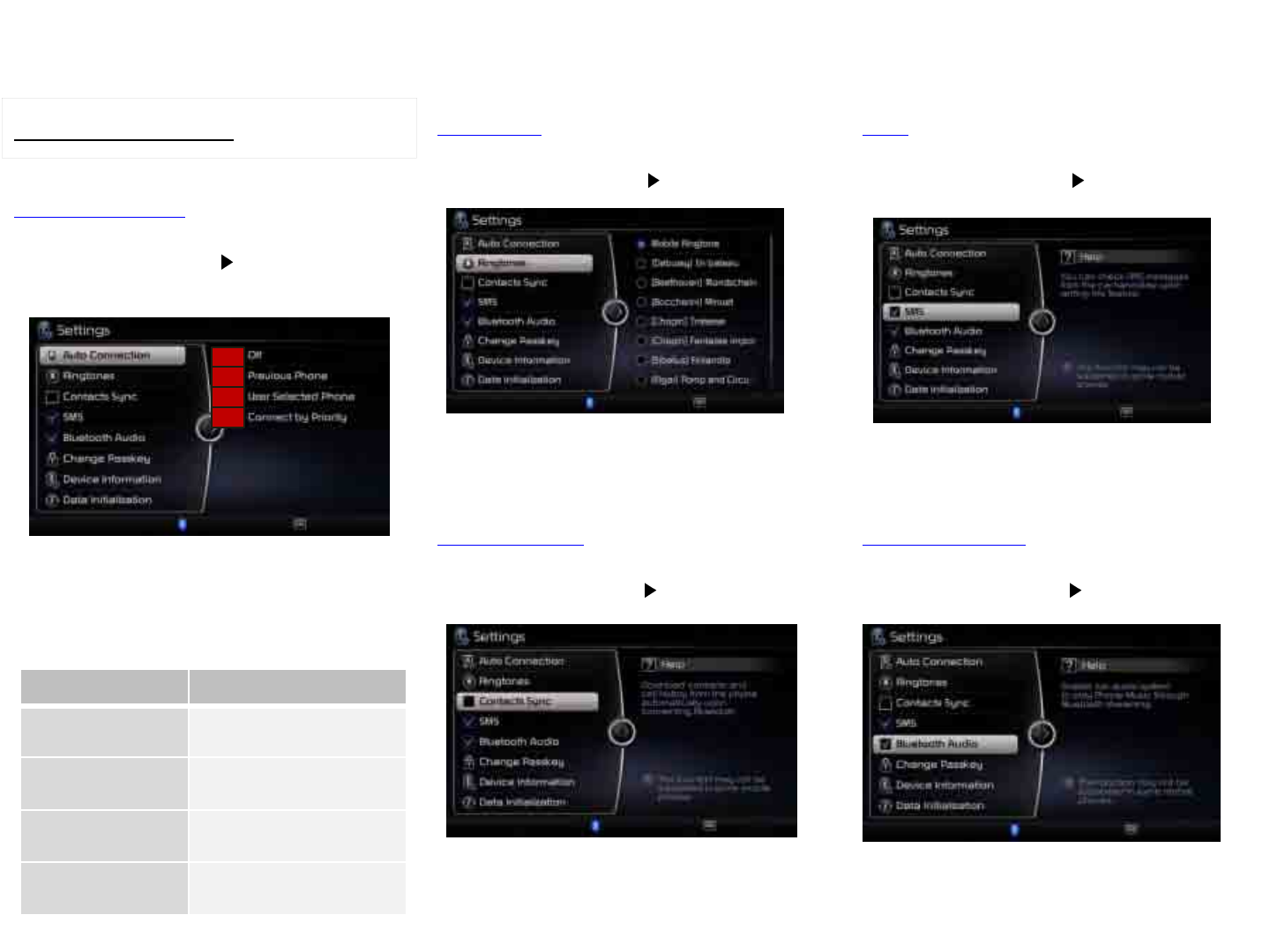

Bluetooth Settings
4
1
2
3
This option is used to select ringtones for the
connected phone.
Auto Connection
Press the [Settings] key Select [Auto
Connection]
If auto connection is turned on, a Bluetooth
device will automatically be connected
according to the option setting when the
car ignition is turned on.
Name Description
1. Off Disables auto connection
2. Previous Phone Auto connection with the
previously connected
Bluetooth phone
3. User Selected
Phone Displays the outgoing call
history list
4 . C o n n e c t by
Priority
Automatically connects
according to the set
Bluetooth phone priority
Ringtones
Press the [Settings] Key Select [Ringtones]
Contacts Sync
Press the [Settings] key Select [Contacts
Sync]
When connecting a Bluetooth device, it is
possible to automatically download new
contacts.
This option is used to check messages
(SMS) through the vehicle handsfree.
SMS
Press the [Settings] Key Select [SMS]
Bluetooth Audio
Press the [Settings] key Select [Bluetooth
Audio]
You can play music files saved in your
Bluetooth device from the car.
Part 3. Bluetooth
This option is used to check information
about the connected device, such as device
name, address, and type.
Name Description
1. Delete all call
history Delete all dialed / received
/ missed call lists
2 . D e l e t e All
Messages D e l e t e a l l r e c e i v e d
messages
3 . D e l e t e All
Phones Delete all r egister ed
phones
4. Factory Defaults Reset Bluetooth settings
and data to factory state
Device Information
Press the [Settings] Key Select [Device
Information]
Data Initialization
Press the [Settings] Key Select [Data
Initialization]
When connecting a Bluetooth device, it is
possible to automatically download new
contacts.
This option is used to change the passkey
needed upon connecting a Bluetooth phone.
Change Passkey
Press the [Settings] key Select [Change
Passkey]
Information
The default pin code is 0000 .
4
1
2
3
Part 3. Bluetooth

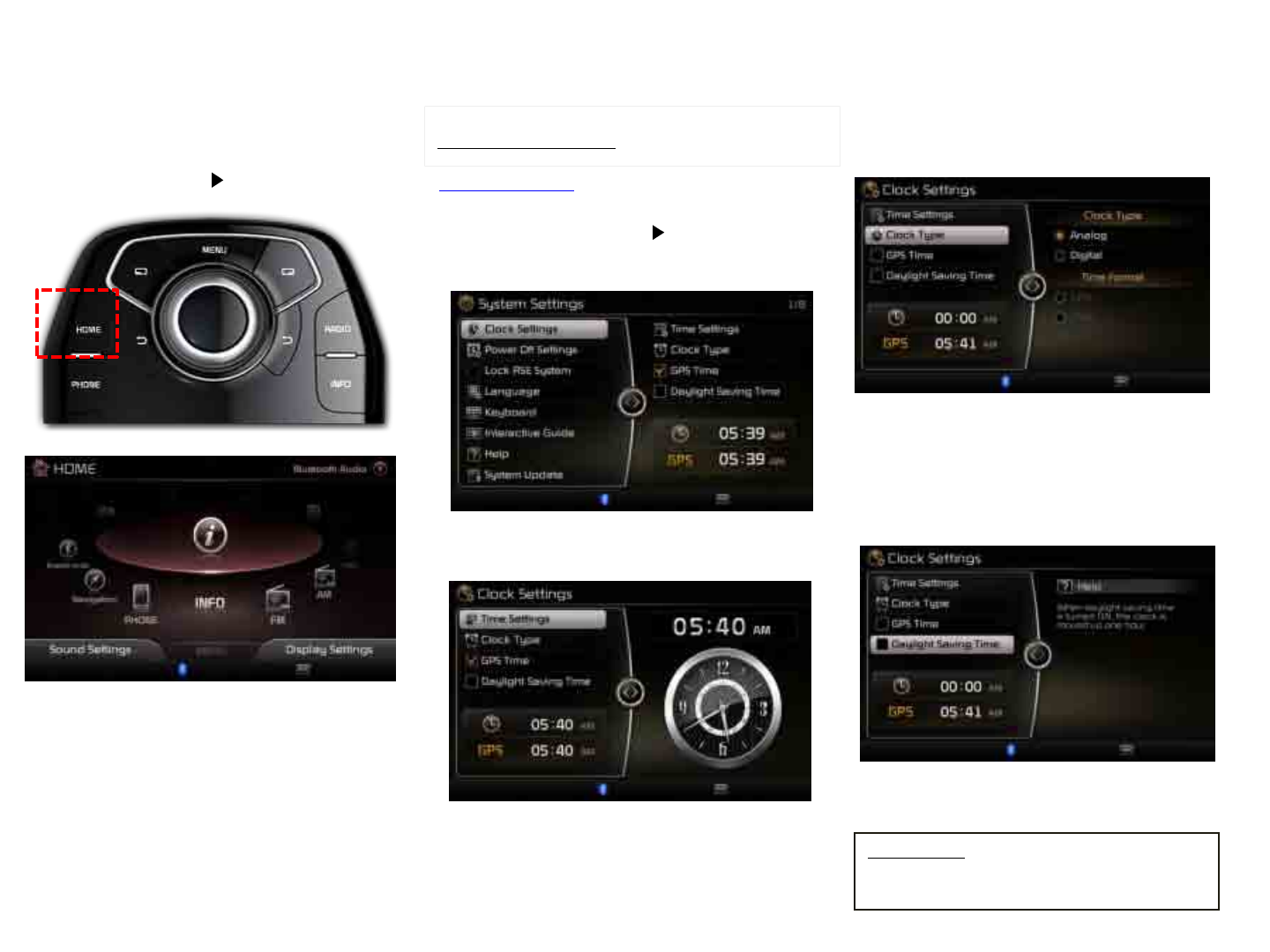

Starting Mode
System Settings
Sound Settings
Display Settings
4INFO
System Setting
Starting Mode
Press the [HOME] Key Press [INFO]
Part 4. INFO
Clock Setting
Press [System Settings] Press [Clock
Settings]
This option is used to set the time used
within the AVN system.
<Time Setting>
These options allow you to set clock related
settings.
<Clock Type>
This option is used to set Daylight Saving
Time.
<Daylight Saving Time>
Information
When Daylight Savings Time is turned
on, the clock is moved back one hour.
Setting Power Off Setting (Frame
Image)
Press [System Settings] Select [Power
Off Settings]
Upon turning the [Lock RSE System] on, the
AV (and Navigation) cannot be operated
from the Rear controller.
Name Description
1. Clock Displays screen as clock
2. Date Display Sets whether to include
Date within the display
3. Image Display screen as image
4. Find Image Used to select a different
Lock RSE System
Press [System Settings] [Clock RSE System]
Part 4. INFO
This option is used to change the language
of the system display. It is possible to set to
Korean, English, and other languages.
Language
Press [System Settings] Press [Language]
1
2
3
4

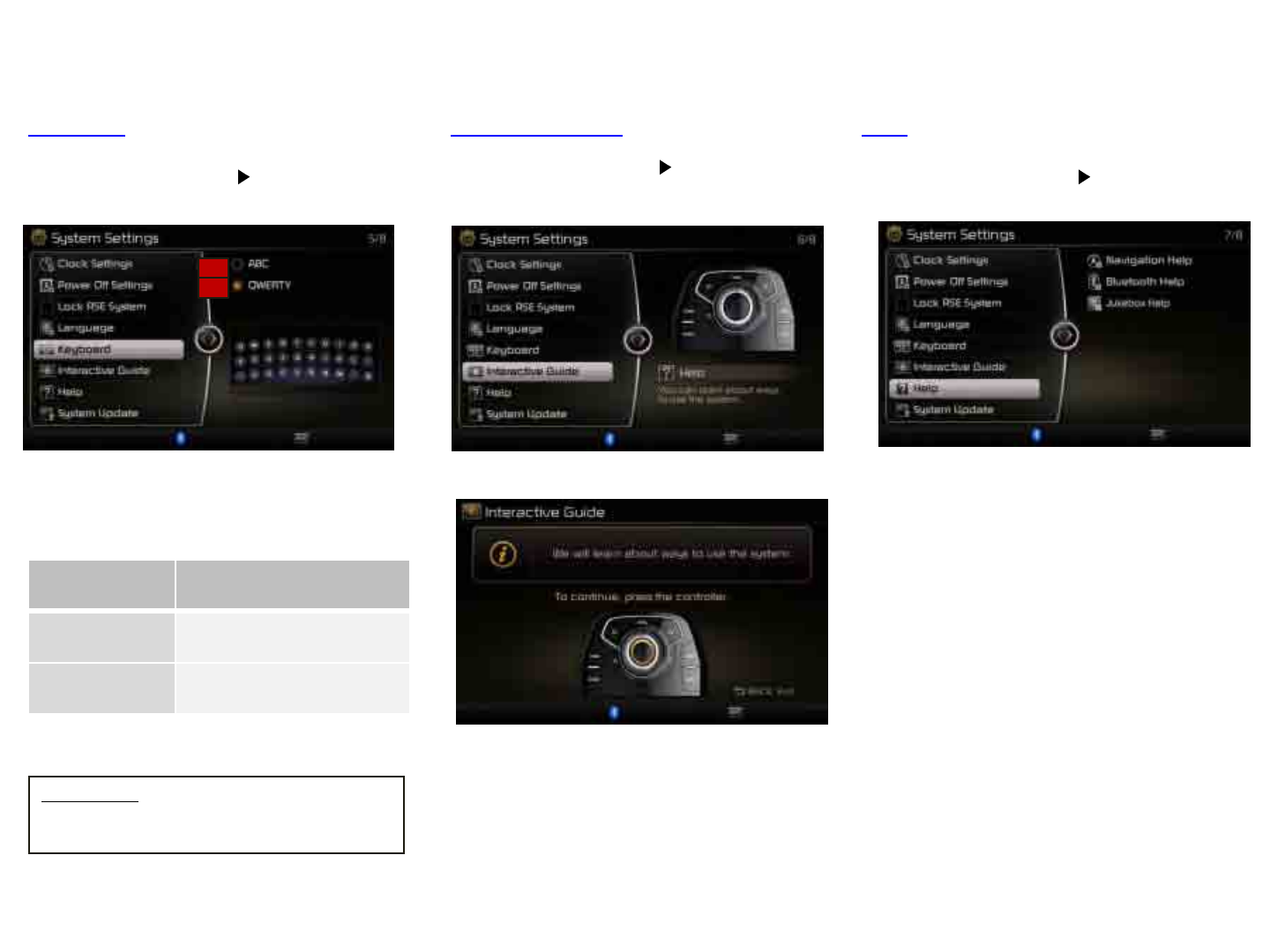

Keyboard
Press [System Settings] Press [Keyboard]
This option allows you to change the type
of keyboard used within the system.
Name Description
1. ABC Keyboard with characters
arranged in order
2. QWERTY Keyboard similar to the one
used within a computer
Information
The set keyboard will be applied to all
input modes across the entire system.
Interactive Guide
Press [System Settings] Press [Interactive
Guide]
This option is used to turn on the Interactive
Guide that provides explanations and
simple examples of ways to use the
Controller.
Part 4. INFO
This option provides Help sections for key
features found within the system.
Help
Press [System Settings] Press [Help]
1
2

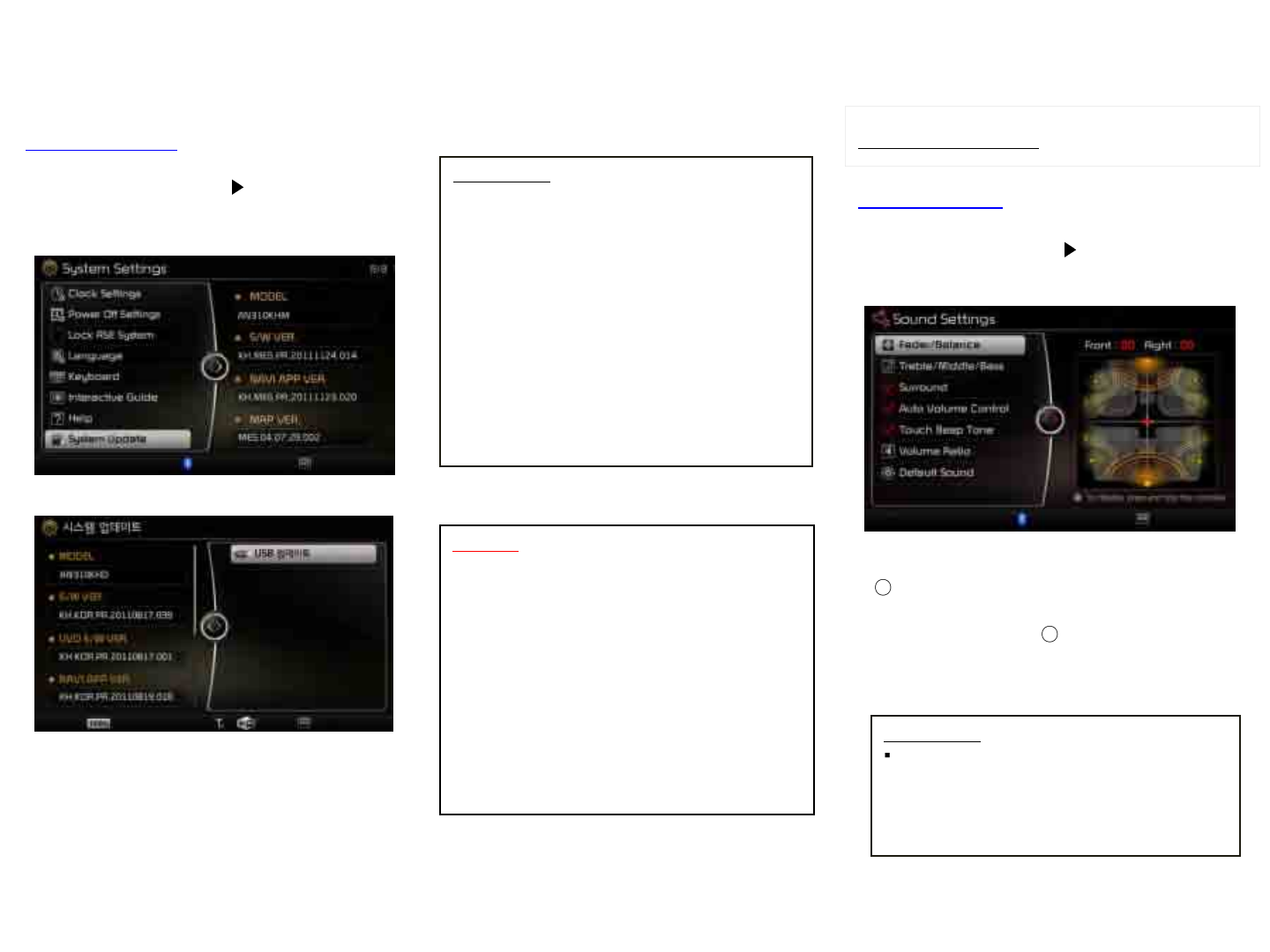

Information
• This product requires regular updates
for software corrections, new functions
and map updates. Updating may
require up to 1 hour depending on the
data size.
• Turning off the power or ejecting the SD
card during the update process may
result in data loss. Make sure to keep
the ignition on and wait until updating is
complete.
• For up-to-date maps and software, visit the
site (blu.hyundai.com) and download
related files to an SD card.
Fader/Balance
Press [Sound Settings] Press
[Fader/Balance]
Use the top/down/left/right buttons on the
[ ] to move the cursor on the control
screen to the desired position.
Press and hold the [ ] for approx 3
seconds to restore sound to the center
position.
Sound Settings
After inserting the SD card where the
updated file is downloaded, press [USB
Update] to start the update. Once updating
is complete, the system will automatically
restart.
System Update
Press [System Settings] Press [System
Update]
Information
The Balance/Fader settings allow the
position of the sound to be set. For example,
the sound can be set towards the driver
seat so that the volume relatively lower in
the passenger seat or back seats.
Part 4. INFO
Caution
• Please use only the SD card that was
included with the vehicle purchase.
• The use of a separately purchased SD
card may result in damage due to heat
related deformation.
• Product malfunctions caused by the
use of separately purchased SD cards
shall not be covered within the product
warranty.
• Repeatedly connecting/disconnecting
the USB in a short period of time may
cause damage to the device.
Use the [<] or [>] cursors to adjust the
bass/mid/treble settings.
Press and hold the controller for approx 3
seconds to restore all settings back to 0.
Treble/Middle/Bass
Press [Sound Settings] Press
[Treble/Middle/Bass]
This option is used to change the sound
according to user preference.
Variable EQ
Press [Sound Settings] Press [Variable EQ]
Name Description
1. Innocente Natural sound, sound
optimized for driver
2. Forza Powerful sound
emphasizing bass, stereo
sound
3. Concerto Sound similar to a concert
or live hall
The volume level is automatically controlled
according to the vehicle speed.
Auto Volume Control (AVC)
Press [Sound Settings] Press [Auto Volume
Control]
Each press of this setting with turn the BEEP
tone ON/OFF.
Touch Beep Tone
Press [Sound Settings] Press [Touch Beep
Tone]
Volume Ratio
Press [Sound Settings] Press [Volume Ratio]
Part 4. INFO
1
2
3
1
2
3
These options are used to set the volume ratio
by selecting from Navigation Priority/ Audio
Priority/Same Ratio.
This option is used to restore all Sound
settings back to the default state.
Information
The rear seat speaker will maintain its
audio volume regardless of which volume
ratio is selected.
Default Sound
Press [Sound Settings] Press [Default
Sound]
Name Description
1.Navigation
Priority
Navigation guidance is
output louder than audio
volume
2. Audio Priority Audio volume is output
louder than the navigation
guidance
3. Same Ratio Audio volume and
navigation guidance are
output in identical volume
LCD Brightness
Press [Display Settings] Press [LCD
Brightness]
This option is used to change the LCD
brightness.
Press and hold the [ ] for approx 3 seconds
to restore brightness to the default setting
Display Settings Illumination
Press [Display Settings] Press [Illumination]
Name Description
1. Automatic Adjusts the brightness
automatically according to
surrounding brightness
2. Daylight Always maintains the
brightness on high
3. Night Always maintains the
brightness on low
Information
When set to Automatic, the screen
brightness and color will automatically be
adjusted according to the surrounding
brightness.
Part 4. INFO
1
2
3
This option is used to restore all Display
settings back to the default state.
This option is used to set the screen ratio in
video modes, such as VCD/DVD/USB
Video/AUX.
Ratio
Press [Display Settings] Press [Ratio]
Rear Display Off
Press [Display Settings] Press [Rear Display
Off]
This option is used to turn the Rear Display
on/off.
Default Display
Press [Display Settings] Press [Default
Display]
Information
If a DVD is created with a defined ratio
(example: 16:9), the screen will not
change even if a different screen ratio
(example: Normal) is selected.
Name Description
1. Normal (4:3) 4:3 screen display
2. Wide (16:9) 16:9 wide screen display
3. Full Screen Full screen display
Part 4. INFO
1
2
3
9-17
APPENDIX
M & SOFT AMERICA MAP CENTER
TEL : 888-757-0010
WEBSITE : www.mapnsoft.com
MAP DATABASE HOTLINE
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
ˍ Reorient or relocate the receiving antenna.
ˍ Increase the separation between the equipment and receiver.
ˍ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
ˍ Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this
equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
,&:DUQLQJ
7KLVGHYLFHFRPSOLHVZLWK,QGXVWU\&DQDGDOLFHQFHH[HPSW566VWDQGDUGV
2SHUDWLRQLVVXEMHFWWRWKHIROORZLQJWZRFRQGLWLRQVWKLVGHYLFHPD\QRWFDXVHLQWHUIHUHQFHDQG
WKLVGHYLFHPXVWDFFHSWDQ\LQWHUIHUHQFHLQFOXGLQJLQWHUIHUHQFHWKDWPD\FDXVHXQGHVLUHGRSHUDWLRQRIWKHGHYLFH
/HSUpVHQWDSSDUHLOHVWFRQIRUPHDX[&15G,QGXVWULH&DQDGDDSSOLFDEOHVDX[DSSDUHLOVUDGLRH[HPSWVGHOLFHQFH
/H[SORLWDWLRQHVWDXWRULVpHDX[GHX[FRQGLWLRQVVXLYDQWHVODSSDUHLOQHGRLWSDVSURGXLUHGHEURXLOODJHHW
OXWLOLVDWHXUGHODSSDUHLOGRLWDFFHSWHUWRXWEURXLOODJHUDGLRpOHFWULTXHVXEL
PrPHVLOHEURXLOODJHHVWVXVFHSWLEOHGHQFRPSURPHWWUHOHIRQFWLRQQHPHQW
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum 20 cm between the radiator and your body.
This transmitter must not be collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the FCC.
