DIGITAL NAVIGATION SYSTEM
User's Manual
DIGITAL NAVIGATION SYSTEM
User's Manual
Thank you for purchasing this Audio
Navigation System.
This user's manual explains how to use
the Kia Motor Audio Navigation System.
Before using the product, read the
contents of this user's manual carefully
and use this product safely.
● The screens shown in this manual
may differ with the actual screens of
the product.
●
The design and specification of this
product may change without prior
notification for product improvement.
● When transferring the vehicle to
another individual, include this user's
manual so that the next driver can
continue its use.
iPod®
iPod® is a registered trademark of Apple
Inc.
Bluetooth®
The Bluetooth® word mark and logos
are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such
marks by Kia is under license.
A Bluetooth® enabled cell phone is
required to use Bluetooth® wireless
technology.
Preface
All Map Database cannot be copied without permission.
This is protected by U.S. copyright laws. All rights not expressly granted are reserved.
You may not otherwise reproduce, modify, and distribute the content without M&Soft, Inc's prior written consent.
PART 1
PRE-OVERVIEW
Introduction ………………………… 1-2
Controller and functions …………… 1-3
Basic operation and setting ………… 1-7
PART 2
AUDIO SYSTEM
Operating the radio ………………… 2-2
Operating the CD Player ………… 2-10
Operating external devices ……… 2-22
PART 3
NAVIGATION SYSTEM
Limitations of the navigation
system ……………………………… 3-2
Map Functions ……………………… 3-5
Setting a destination …………… 3-12
Operating after setting
a destination ……………………… 3-28
Route guidance …………………… 3-30
Setup and Information …………… 3-36
PART 4
VOICE COMMAND SYSTEM
Operating voice command ………… 4-2
Setting up the voice command
system ……………………………… 4-4
Voice command list ………………… 4-6
Table of contents
PART 5
Bluetooth® HANDS FREE
Before using the Bluetooth®
Handsfree …………………………… 5-2
Converting Bluetooth® Handsfree
mode ………………………………… 5-2
Pairing and connecting a Bluetooth®
phone ………………………………… 5-4
Bluetooth® Handsfree screen
layout ………………………………… 5-9
Making a call ……………………… 5-11
Answering a call ………………… 5-13
Operating menus during a call …… 5-14
Phone Book ……………………… 5-16
Call History List …………………… 5-19
Phone Music ……………………… 5-21
Bluetooth® settings ……………… 5-24
Important information …………… 5-30
PART 6
HVAC MODE
Cautions upon operating HVAC
mode ………………………………… 6-2
HVAC mode screen layout ………… 6-2
HVAC System operations …………… 6-3
PART 7
REAR CAMERA
About Rear Detection Camera
………… 7-2
PART 8
APPENDIX
Troubleshooting guide ……………… 8-2
Map legend ………………………… 8-5
INDEX ………………………………… 8-8
Table of contents
PRE-OVERVIEW 1-1
PRE-OVERVIEW
PART 1
PRE-OVERVIEW
Introduction ………………………… 1-2
Important information about this
manual ………………………………… 1-2
Precaution for safe usage ……………… 1-2
Controller and functions …………… 1-3
Control panel …………………………… 1-3
Steering wheel remote controller ……… 1-5
HVAC System …………………………… 1-6
Basic operation and setting ………… 1-7
Turning the Power ON ………………… 1-7
System Power ON ……………………… 1-7
Turning the Power OFF ………………… 1-7
Turning the Audio ON/OFF …………… 1-7
Adjusting audio volume ………………… 1-8
How to operate the screen menu ……… 1-8
Operating typical screen menu ………… 1-8
Inputting letter by using screen
keyboard ………………………………… 1-8
Displaying the list ……………………… 1-8
Selecting an item in a list ……………… 1-9
Sorting items from list ………………… 1-9
How to operate menu by voice
command ……………………………… 1-9
Conditions for voice recognition
system …………………………………… 1-9
Giving voice command ………………… 1-10
Sound setting …………………………… 1-10
FAD/BAL ………………………………… 1-10
BASS/MID/TREB ………………………… 1-11
Auto volume control ON/OFF ………… 1-11
Touch screen beep ON/OFF …………… 1-11
Display setting ………………………… 1-11
Display mode …………………………… 1-11
Brightness ……………………………… 1-11
Display OFF …………………………… 1-11
Display ON ……………………………… 1-11
Setting Picture Frame …………………… 1-12
Display Picture Frame
………………… 1-12
Viewing Current Time ………………… 1-12
Setting the Clock ……………………… 1-13
PART 1 PRE-OVERVIEW
1-2 PRE-OVERVIEW
PART 1 PRE-OVERVIEW
Introduction
Important information about this
manual
This user manual contains instructions related
to safety. Closely observe and comply with all
of the safety instructions found within this
manual.
WARNING !
Disobeying the warnings listed within this
user's manual may cause fatal or serious inju-
ries. Warnings indicate matters which may
directly lead to accidents.
CAUTION!
Disobeying the cautions listed within this user
manual may lead to accidents or cause injury.
Cautions indicate matters which may lead to
vehicle damage or malfunction.
INFORMATION
Information which the user must be aware or
allows for more convenient use of the device.
Precaution for safe usage
WARNING !
●
Do not operate the Audio Navigation system
while driving.
●
Do not disassemble, assemble, or modify the
Audio Navigation system.
●
Do not watch the screen for prolonged peri-
ods of time while driving.
●Set the volume to a level which allows the
driver to be aware of external conditions.
CAUTION!
●
Do not operate the Audio Navigation sys-
tem for prolonged periods of time with the
vehicle ignition in ACC. Such operations
may lead to battery discharge.
●
Be cautious not to spill water or introduce
foreign objects into the device.
●
Do not cause severe shock to the device.
Direct pressure onto the front side of the
monitor may cause damage to the LCD or
touch panel.
●
In case of product malfunction, please con-
tact your place of purchase or service cen-
ter.
●
When cleaning the touch screen, make sure
to turn off the device and use a dry and
smooth cloth. Never use tough materials,
chemical cloths, or solvents (alcohol, ammo-
nia, benzene, thinners, etc.) as such materials
may damage the device panel or cause color
and quality deterioration.
Reference Page
This indicates the title and page that you
should refer to.
This indicates a key on the control panel.
Voice Command
This indicates an operation by voice com-
mand.
PRE-OVERVIEW 1-3
PRE-OVERVIEW
1Power / Volume control knob
●
Push knob (over 0.8 second) : turns the
power off.
●
Push knob (under 0.8 second) : each time the
knob is pressed, the Audio is turned on and off.
●
Tune knob : the range of volume adjustment
is between 0 ~ 35.
2SEEK/TRACK Up/Down
●SHORT KEY(less than 0.8 second)
• FM/AM Mode : automatically searches for
the previous or next broadcast frequency
and starts playing.
• SAT Mode : receives the previous or next
channel.
• CD Mode : plays the previous or next track.
• MP3, USB Mode : Plays the previous or
next file.
• iPod Mode : plays the previous or next song.
●
LONG KEY(over 0.8 second)
• FM/AM Mode : quickly moves through the
frequencies while the button is pressed.
Once released, automatically searches for
broadcasts which can be received.
• SAT Mode : quickly moves to the previous
or next channel.
• CD Mode : REW/FF the current playing
track.
• MP3, USB Mode : REW/FF the current play-
ing file.
• iPod Mode : REW/FF the current playing
song.
3FM/AM
Each press will change the bands in the fol-
lowing order: FM1
→
FM2
→
AM
→
FM1 ...
Controller and functions
Control panel
12
12
3 4 5
10 11
13
6
7 8 9
1-4 PRE-OVERVIEW
PART 1 PRE-OVERVIEW
4SAT
Each press will change the bands in the fol-
lowing order: SIRIUS1
→
SIRIUS2
→
SIRIUS3
→
SIRIUS1 ...
5MEDIA
Each press will change the bands in the fol-
lowing order: DISC(CD, MP3)
→
(USB or iPod)
→
(AUX)
→
(Phone Music)
→
DISC(CD, MP3)...
6TUNE
●
FM/AM Mode : push the keys to search for
the desired frequency. Press the key to
receive the selected frequency.
●
SAT Mode : push the keys to search for the
desired channel. Press the knob to receive
the selected channel.
●
CD Mode : push the keys to search for the
desired track. Press the key to play the
selected track.
●
MP3, USB Mode : push the keys to search
for the desired file. Press the key to play
the selected file.
●
iPod Mode : push the keys to search for the
desired song. Press the key to play the
selected song.
7PHONE
Displays the Bluetooth handsfree screen.
8MAPVOICE
Displays the map screen for the current posi-
tion.
9DEST
Displays the displays setting screen.
10 ROUTE
Displays the Route menu screen.
11 SETUP
Displays the Setup menu screen.
12 DISC eject
Ejects the inserted disc.
13 CLOCK
●Short Key (under 0.8 second)
• When the screen is turned on : displays
the current time in the center of the
screen.
• When the screen is turned off : turns the
full clock screen on and off.
●Long Key (over 0.8 second)
• Displays the clock setting screen.
INFORMATION
If pressing and holding the
POWER/VOL
key
for over 0.8 seconds does not shut down the
system, press the
FM/AM
and
MAP VOICE
keys simultaneously for over 10 seconds to
reset the software. The system power will
shut-off and the system will restart.
PRE-OVERVIEW 1-5
PRE-OVERVIEW
Steering wheel remote controller
1MODE
Each time the Mode key is pressed, the mode
changes in the following order: FM1
→
FM2
→
AM
→
SIRIUS1
→
SIRIUS2
→
SIRIUS3
→
(DISC)
→
(USB or iPod)
→
(AUX)
→
(Phone
Music)
→
FM1 ...
If an unsupported DISC is inserted, if there is
no disc, or if an external device (e.g. iPod, USB
memory stick, etc.) has not been connected,
the mode will not be recognized and auto-
matically switch to the next mode.
●
Press this key for over 0.8 second to turn the
Audio ON and OFF.
●
Press this key when the Power is turned off
to turn the power on.
2Volume Up/Down
Increases or decreases the volume within a
range between 0 ~ 35. Volume for navigation
and voice guidance can be adjusted in the
setup mode.
3Seek Up/Down
●SHORT KEY(less than 0.8 second)
• FM/AM : receives the previous or next pre-
set frequency.
• SIRIUS Mode : receives the previous or
next preset channel.
• CD Mode : plays the previous or next
track.
• MP3, USB Mode : plays the previous or
next file.
• iPod Mode : plays the previous or next
song.
●
LONG KEY(Over 0.8 second)
• FM/AM Mode : quickly moves through the
frequencies while the key is pressed.
Once released, automatically searches for
broadcasts which can be received.
• SIRIUS Mode : quickly moves to the previ-
ous or next channel.
• CD Mode : REW/FF the current playing track.
• MP3, USB Mode : REW/FF the current play-
ing file.
• iPod Mode : REW/FF the current playing
song.
4Voice Recognition
Starts Voice Recognition.
5CALL
Press this key to receive an incoming call. If
pressed while in Audio/Navigation mode, the
bluetooth handsfree screen will be displayed.
6END
Press this key to reject an incoming call.
If pressed while on a call, then the call will be
terminated.
1
6
3
2
4
5
1-6 PRE-OVERVIEW
PART 1 PRE-OVERVIEW
HVAC System
1TEMP
Raises or lowers the driver-side temperature.
2A/C
Turns the air conditioner ON/OFF.
3
Switches the air intake mode to recirculation
or exterior mode.
4FRONT
Removes humidity and frost by blowing fan
towards the front window.
5REAR
The rear window defroster is turned ON/OFF.
When the defroster is operating, the light on
the display window and at the top of the
switch will turn on.
6(FAN)
Sets the fan level.
7AUTO
Operates heating/cooling auto mode which
maintains cabin temperature at suitable levels
by using the outside temperature sensor.
Once AUTO mode is operated, the light at the
top of the switch will turn on.
8MODE
Sets the fan direction.
9OFF
Turns the HVAC system off.
10 CLIMATE
Displays the general status of the HVAC sys-
tem, such as temperature, outside tempera-
ture, fan mode, and fan level.
6
24
8
10
3
9
5
7
1
PRE-OVERVIEW 1-7
PRE-OVERVIEW
Basic operation and setting
Turning the Power ON
1.
Turn the ignition key onto ACC or ON. If the
system power had been on when the igni-
tion was turned off, the system will turn
back on automatically.
2.
If the system power had been off when the
ignition was turned off, the system will
remain off. In this case, press the
POWER/VOL
knob to turn on the system power.
System Power ON
INFORMATION
As system booting starts from the point the
door lock is unlocked, the device may com-
plete booting before the ACC is turned on or
the
POWER/VOL
knob is pressed.
Consequently, the booting screen may not be
displayed upon initially turning on the system
power.
3.
Once system booting is complete, the most
recent operated mode will be displayed. For
example, turning on the system will display
FM1 radio mode if the last operated mode
prior to turning off the system had been
FM1 radio mode.
Turning the Power OFF
If the
POWER/VOL
knob is pressed for over 0.8
second, a beep will sound and the system
power will be turned off.
Turning the Audio ON/OFF
Press the
POWER/VOL
knob for under 0.8 sec-
ond with the system power on to turn the
Audio on and off.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Audio On"
"Audio Off"
INFORMATION
Conducting the following operations while
the AUDIO is off will automatically turn on the
Audio system.
●
Pressing the Audio related keys (
FM/AM
,
SAT
,
MEDIA
).
●
Inserting a DISC or connecting an external
device.
1-8 PRE-OVERVIEW
PART 1 PRE-OVERVIEW
Adjusting audio volume
Turn the
POWER/VOL
knob in clockwise direc-
tion to increase the volume and counter-
clockwise to decrease the volume.
INFORMATION
●
The range of volume adjustment is between
0 ~ 35.
●
Adjustments to the volume cannot be made
while the AUDIO is turned off.
How to operate the screen menu
Operating typical screen menu
●
If a menu button on the screen is pressed,
the corresponding function will begin oper-
ation.
●
The same menu button may perform differ-
ent functions depending on the length of
time the button is pressed (under 0.8 sec-
onds or over 0.8 second). For more informa-
tion, refer to the specific function within this
user manual.
● The current operated button will be high-
lighted upon display.
●
Buttons which cannot be operated under
the current conditions will be displayed in
disabled state. Pressing a disabled button
will not perform any operation.

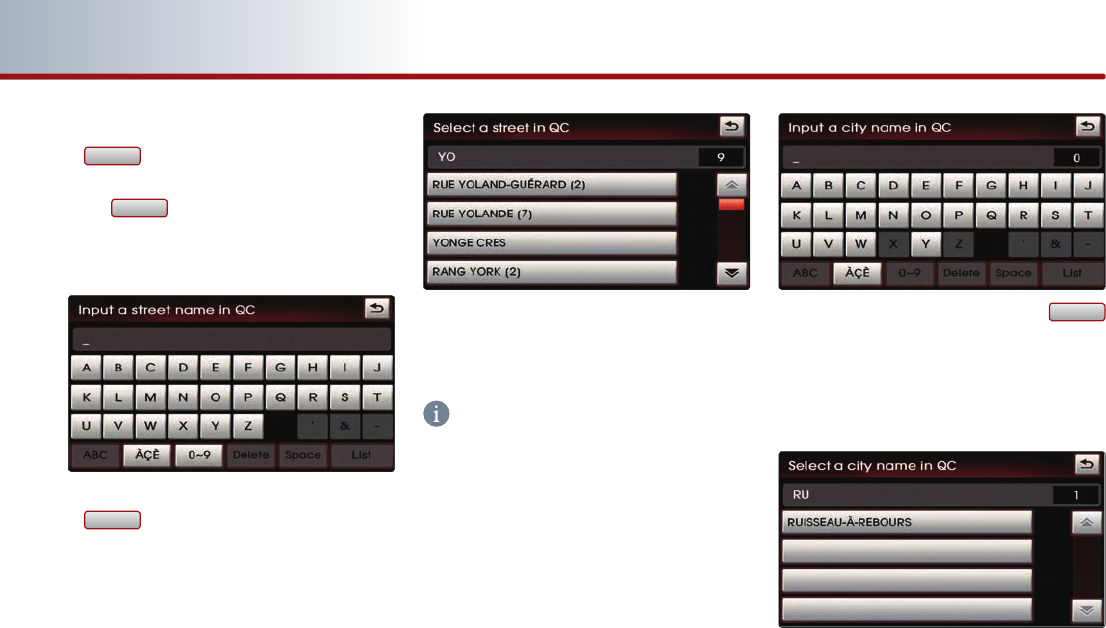

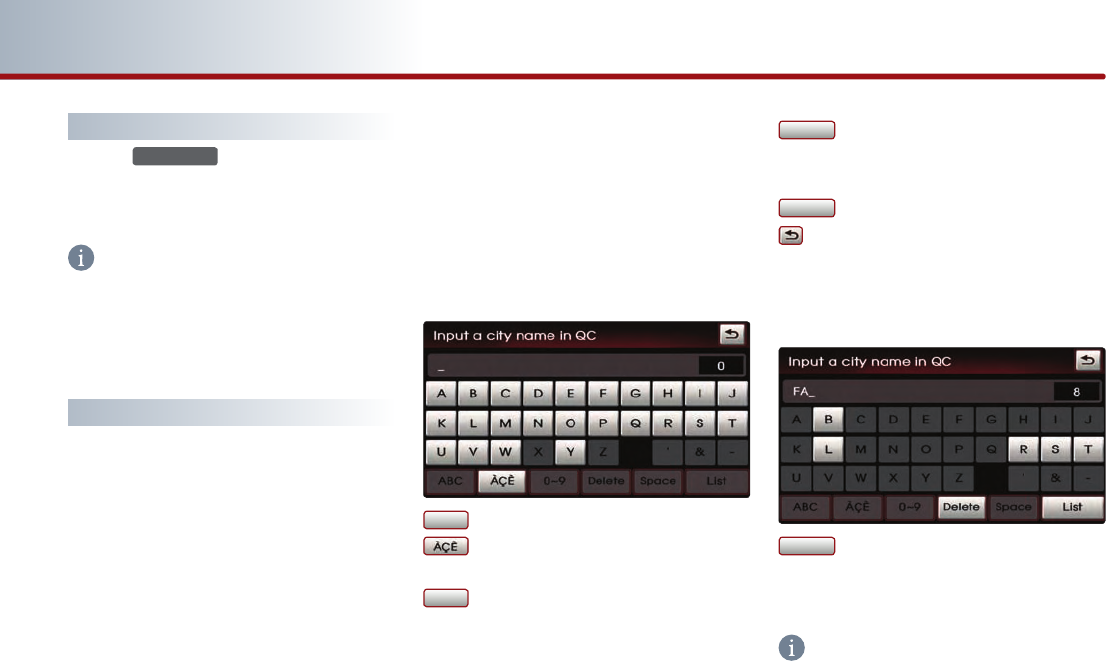

Inputting letter by using screen
keyboard
ABC
: Displays the English alphabet keypad.
: Displays the French alphabet keypad.
(if available)
0 - 9
: Displays the number and symbol key-
pad.
Delete
: Deletes the previously inputted letter.
Pressing for over 0.8 second will delete
all content.
Space
: The input is completed.
: Restores to previous screen. The inputted
text will not be saved.
Displaying the list
List
: Even if input is not complete, the cur-
rent matching items from the data-
base will be displayed.
INFORMATION
The number at the upper-right side of the
screen displays the number of current matches.
PRE-OVERVIEW 1-9
PRE-OVERVIEW
Selecting an item in a list
: Moves to the next page or previous
page.
:
The
button will be displayed if
the text is too long to be displayed in
one button.
Press the button to move the cursor to
the end of the text. Press the
button to
move the cursor to the front of the text.
Sorting items from list
Select the desired sorting method to reorga-
nize the list in accordance to the selected
method.
How to operate menu by voice
command
Conditions for voice recognition system
Most of the functions within the Audio and
Navigation system can be operated by voice.
Please follow the instructions below for opti-
mal voice recognition performance.
●
Close all windows and the sunroof. The
voice recognition can be improved when in
a quiet environment.
●
Press the voice recognition button and say
the desired voice command after the sound
of the beep.
●
The microphone is positioned above the
driver so that voice commands can be said
while maintaining a proper posture.
●
Pronounce the voice commands naturally
and clearly as if in normal conversation.
1-10 PRE-OVERVIEW
PART 1 PRE-OVERVIEW
Giving voice command
1.
Press the key on the steering wheel
remote controller.
A voice command window will be displayed
on the lower side of the screen followed by
a "Command please" system voice com-
ment.
2.
Once the icon changes into the
icon on the pop-up screen with a beep
sound, say the desired voice command.
[Voice command list], page 4-6.
[ Searching a destination by voice com-
mand], page 4-19.
INFORMATION
Press the key shortly to input the desired
voice command. The system voice instruction
comment will immediately terminate. When
the icon changes into the
icon with a
beep sound, it is possible to input voice com-
mands.
Audio Sound setting
Press the
Sound
button on the main screen of
each Audio mode (FM/AM, SIRIUS, CD, MP3,
USB, iPod and AUX) to display the Sound set-
ting screen.
FAD/BAL
The position of the sound can be adjusted by
using the up-down and left-right ( , ,
, ) buttons on the left side of the
screen.
Press the
Default
button to position the
sound in the center of the vehicle.
PRE-OVERVIEW 1-11
PRE-OVERVIEW
BASS/MID/TREB
The BASS/MID/TREB can be adjusted by using
the left/right buttons ( , ) of each con-
trol.
Auto volume control ON/OFF
Each time the
Auto volume control
button is
pressed, the Auto volume control function is
turned on or off.
INFORMATION
The Auto Volume Control is a function which
automatically adjusts the volume level in
accordance to changes in vehicle speed.
Touch screen beep ON/OFF
Each time the
Touch screen beep
button is
pressed, the beeping sound that follows each
press on the screen will turn on or off.
Display setting
Press the
DISP
key on the control panel to
display the Setup menu screen.
Display mode
Press the button for the desired display mode
f r o m
Automatic
,
Daylight
, a n d
Night
modes. The current selected mode is high-
lighted.
●
Automatic
The display is automatically converted
between Daylight and Night modes in
accordance to the on/off state of the vehi-
cle taillights.
●
Daylight
The bright screen is always maintained
regardless of the on/off state of the vehicle
taillights.
●
Night
The dark screen is always maintained
regardless of the on/off state of the vehicle
taillights.
Brightness
Use the left/right buttons ( , ) for con-
trol to make adjustments.
Display OFF
Press the
Display Off
button.
Display ON
Press anywhere on the black screen.
The screen prior to display setting will be dis-
played.
1-12 PRE-OVERVIEW
PART 1 PRE-OVERVIEW
Setting Picture Frame
Display Picture Frame
1. Press th e
Picture Frame
button in the
DISPLAY Setup screen.
2. Press the
My Image
button in the <Picture
Frame> Setup screen.
3. The registered image will be displayed once
power is turned off.
INFORMATION
For Picture Frame setup, the frame must be
set in USB Image mode. (For details on setting
the Picture Frame, refer to the USB IMAGE
page.)
4. To delete an image registered as a frame,
press the
Delete Image
button.
Viewing Current Time
Press the
CLOCK
on the front panel shortly
(under 0.8 second) to display the current time
at the center of the screen.
INFORMATION
If the screen is turned off, selecting the
CLOCK
will display the current time on the
entire screen.
PRE-OVERVIEW 1-13
PRE-OVERVIEW
Setting the Clock
Press and hold the
CLOCK
on the front panel
(over 0.8 second) to display the Clock setting
screen.
●GPS Time
The time received from the GPS will be dis-
played automatically.
●Clock Type
Selects the clock type shown as the entire
screen when the system power is turned off.
●Time Format
When the clock type is digital, this button is
used to convert the time between 12 hour/ 24
hour systems.
●Daylight Saving Time
Turns the Daylight Saving Time function on or
off.
INFORMATION
Clock setting mode can be displayed while
the clock is displayed on the screen even
when the system is turned off.
PART 2 AUDIO SYSTEMPART 2 AUDIO SYSTEM
PART 2
AUDIO SYSTEM
Operating the radio ………………… 2-2
FM/AM Radio …………………………… 2-2
Listening to the FM/AM radio ………2-2
FM/AM screen and functions …………2-2
Selecting FM/AM broadcast
frequency ……………………………2-3
Storing FM/AM preset ………………2-4
Scanning FM/AM broadcast
frequency ……………………………2-5
SIRIUS radio……………………………… 2-6
Listening to the SIRIUS radio …………2-6
SIRIUS screen and functions …………2-6
Switching the SIRIUS mode
(Channel / Category) …………………2-7

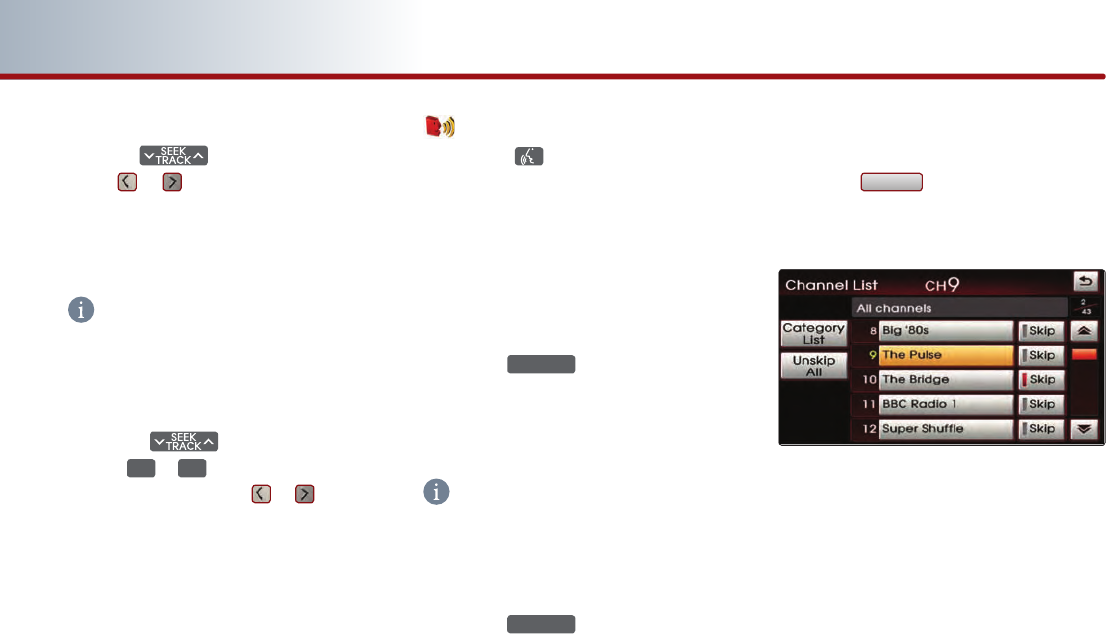

Selecting SIRIUS broadcast channel …2-7
Storing SIRIUS preset …………………2-9
Scanning SIRIUS broadcast channel …2-9
Operating the CD Player …………… 2-10
About CD Player ………………………… 2-10
Precautions upon handling discs … 2-10
For safe and efficient operation …… 2-10
Supported disc formats …………… 2-11
Disc/Content format compatibility … 2-12
Inserting/Ejecting Disc ………………… 2-13
Inserting a Disc …………………… 2-13
Ejecting a Disc …………………… 2-13
CD ……………………………………… 2-14
Listening to CD music …………… 2-14
CD screen and functions ………… 2-14
Selecting the CD track …………… 2-14
REW/FF CD track …………………… 2-15
Setting Repeat function for
CD music …………………………… 2-15
Setting Random function for
CD music …………………………… 2-15
Scanning CD track ………………… 2-16
MP3 …………………………………… 2-17
MP3 disc related information and
precaution ………………………… 2-17
Listening to MP3 music …………… 2-18
MP3 screen and functions ………… 2-18
Selecting to MP3 music …………… 2-19
REW/FF MP3 file …………………… 2-20
Viewing detail information for
MP3 file …………………………… 2-20
Setting Repeat function for
MP3 file …………………………2-20
Setting Random function for
MP3 file …………………………… 2-20
Scanning MP3 file ………………… 2-21
AUDIO SYSTEM 2-1
AUDIO SYSTEM
PART 2
AUDIO SYSTEM
Operating external devices ……… 2-22
iPod® …………………………………… 2-22
Connecting iPod device …………… 2-22
Listening to iPod music ……… 2-22

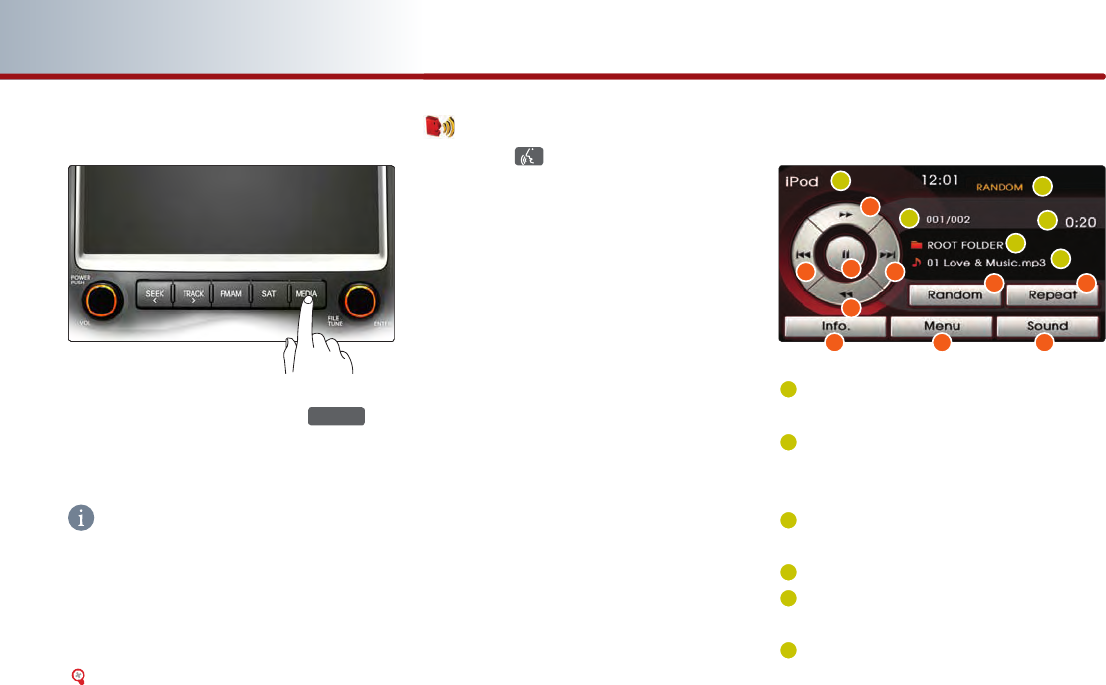

iPod screen and functions ………… 2-23
Selecting an iPod song …………… 2-23
REW/FF iPod song ………………… 2-24
Setting Repeat function for
iPod song ………………………… 2-25
Setting Random function for
iPod song ……………………… 2-25
USB MP3 ………………………………… 2-26
USB MP3 related information and
precaution ………………………… 2-26
Precautions upon handling USB … 2-26

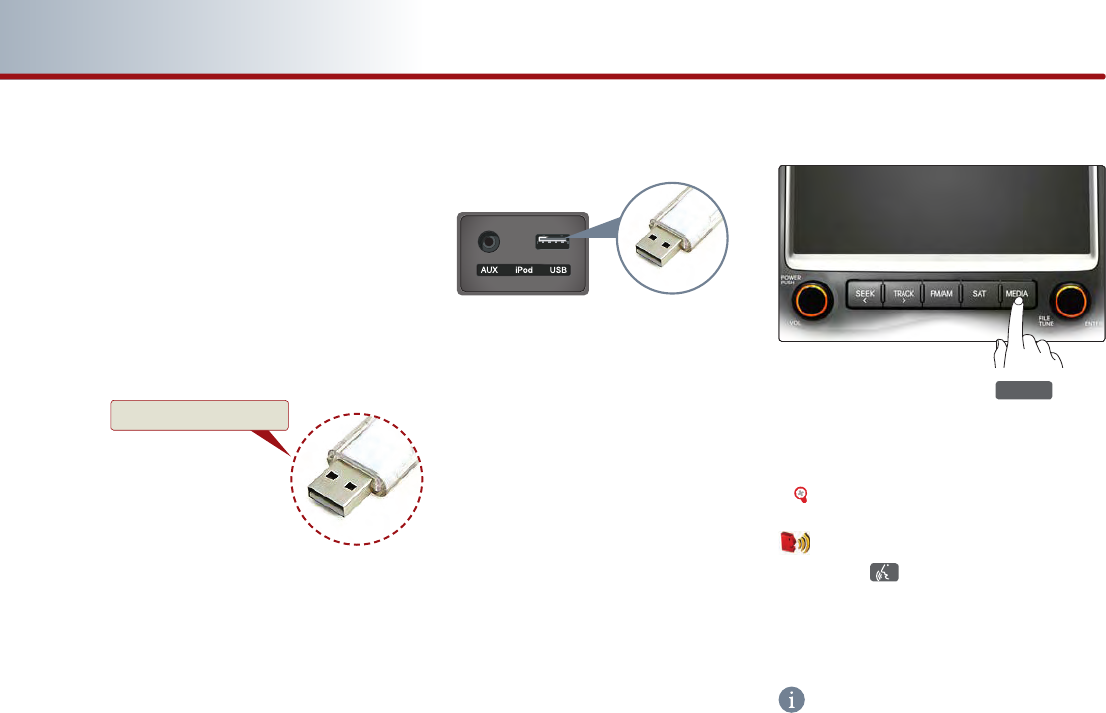

Connecting the USB ……………… 2-28
Listening to USB music …………… 2-28
USB IMAGE Mode ……………………… 2-29
Starting USB IMAGE Mode ………… 2-29
USB IMAGE mode menu screen
configuration ……………………… 2-29
Operating USB IMAGE Mode ……… 2-30
AUX ……………………………………… 2-31

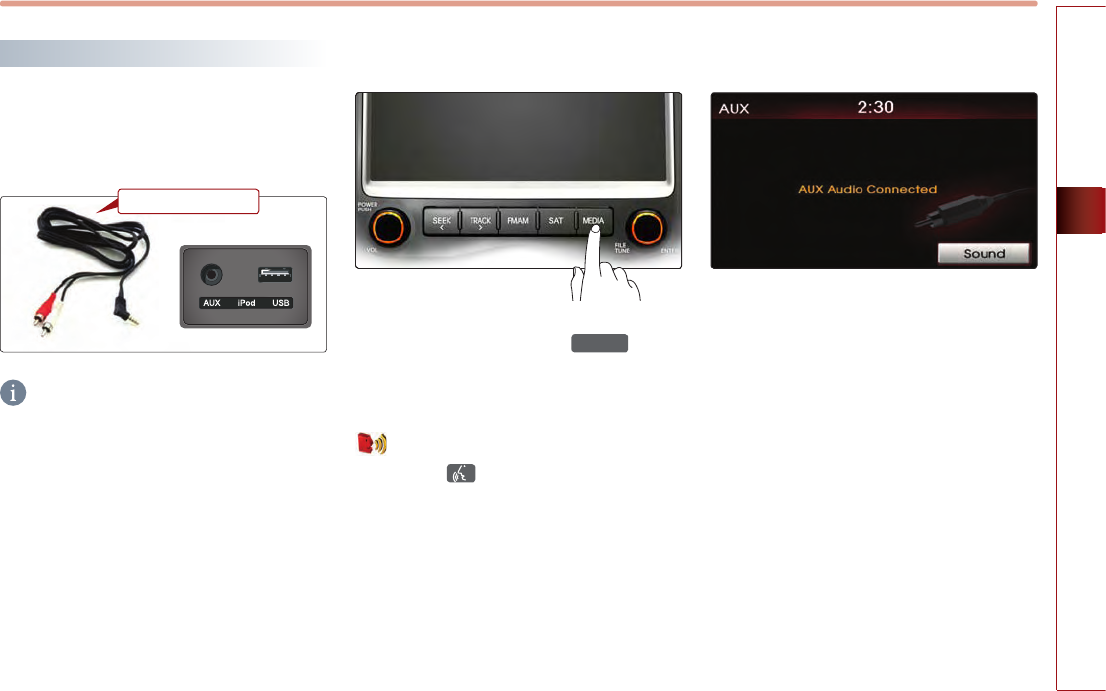

Connecting AUX …………………… 2-31
Playing AUX ……………………… 2-31
AUX screen ………………………… 2-31
2-2 AUDIO SYSTEM
PART 2 AUDIO SYSTEM
Operating the radio
FM/AM Radio
Listening to the FM/AM radio
1. Press the
FM/AM
key on the control panel.
The FM/AM radio band of the most recent
listened station will be displayed.
2. Pres s the
FM/AM
ke y to cha nge the
desired radio band. Each press will change
the bands in the following order: FM1
→
FM2
→
AM
→
FM1 ...
3. Select the desired broadcast frequency.
[Selecting FM/AM broadcast frequency],
page 2-3.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
" Radio"
"(Radio) AM"
"(Radio) FM"
"(Radio) FM <1 or 2>"
"AM Frequency <530 to 1710>"
"FM Frequency <87.5 to 107.9>"
"AM Preset <1 to 6>"
"FM <1 or 2> Preset <1 to 6>"
FM/AM screen and functions
1
Mode display : displays the FM1/FM2/ AM
modes.
2
SEEK/SCAN/PRESET SCAN/AUTO PRESET
indicator : if SEEK/SCAN/PRESET SCAN /
AUTO PRESET is operating, the switch is
displayed.
3
Frequency : displays the current playing
frequency.
1
3
5 4
6
2
8
7
f
a
b
gh i
c
ed
AUDIO SYSTEM 2-3
AUDIO SYSTEM
4
STEREO indicator : if the current frequency
is a stereo broadcast, the indicator is dis-
played
5
Program Service name: displays the pro-
gram service name if data is being broad-
casted.
6
Program Type name: displays the program
type name if data is being broadcasted.
7
Frequency bar : displays the position of
the current frequency within the total fre-
quency range.
8
Radio Text: displays the radio text informa-
tion if data is being broadcasted.
a
BAND
button : changes the desired
radio band. Each press will change the
bands in the following order: FM1 → FM2
→ FM1...
b c
/
(TUNE Up/Down) button
●SHORT KEY(less than 0.8 second)
• The frequency is increased or decreased by
1-step increments (FM : 0.2MHz, AM :
10kHz).
●LONG KEY(over 0.8 second)
•
The frequency is rapidly increased or
decreased by 1-step increments (FM :
0.2MHz, AM : 10kHz) and stops operation
upon KEY RELEASE.
d e
/
(SEEK Up/Down) button
●SHORT KEY(less than 0.8 second)
•
Automatically searches for the previous or
next broadcast frequency and starts playing.
●LONG KEY(over 0.8 second)
•
Quickly moves through the frequencies
while the button is pressed. Once released,
it automatically searches for broadcasts
which can be received.
f Preset buttons : the desired frequency can
be preset and selected.
[Storing FM/AM presets], page 2-5.
g
R.Text
button : turns the Radio Text
information on and off.
INFORMATION
If the
R.Text
is on OFF state, text will not be
displayed even if there is text being transmit-
ted from the broadcast station.
If the
R.Text
is on ON state, the frequency
bar will not be displayed. Even if the
R.Text
in on ON state, text may not be displayed if
text is not being received from the broadcast
station.
h
Scan
button : scans all frequencies or
just the preset frequencies for 5 seconds
each.
[Scanning FM/AM broadcast frequency],
page 2-5.
i
Sound
button : adjusts the FAD/BAL,
BASS/MID/TREB controls.
[Audio Sound setting], page 1-11.
2-4 AUDIO SYSTEM
PART 2 AUDIO SYSTEM
Selecting FM/AM broadcast frequency
There are 3 ways to select the broadcast fre-
quency - (a) selecting through preset, (b)
selecting through SEEK, (c) selecting through
manual search.
(a) Selecting a frequency through preset
Press the preset button of the desired broad-
cast frequency.
INFORMATION
●
Press the
∧
or
∨
keys on the steering
wheel remote controller shortly. The preset
frequencies of the current band will be select-
ed in order.
●
There are 6 preset frequencies each for FM1,
FM2, and AM modes.
[Storing FM/AM preset], page 2-4.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Preset <1 to 6>"
"Preset Up"
"Preset Down"
(b) S el ec ti ng a Br oa dc as t f req ue nc y
through SEEK
Press the key on the control panel
or the
or
buttons on FM1, FM2, and
AM mode screens for less than 0.8 second.
Once the SEEK function is operating (SEEK
indicator blinking), the next or previo us
broadcast frequency with superior reception
will be searched automatically.
INFORMATION
●
Press the key on the control panel
or the
∧
or
∨
keys on the steering
wheel remote controller or the
or
buttons on FM1, FM2, and AM mode
screens for more than 0.8 second to quickly
move to the nearest desired frequency.
Once the button is released, the next fre-
quency with superior reception will be
searched automatically.
●
If the SEEK function is operating, pressing
the key on the control panel
again will terminate SEEK operation and
select the current frequency.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Seek Up"
"Seek Down"
(c) Selecting a broadcast frequency through
manual search
Press the
∨TUNE∧
key to search for desired
frequency.
Each click on the
∨TUNE∧
key or the
or
buttons will increase or decrease the fre-
quency by 1 step (FM: 0.2 MHz, AM: 10 kHz).
Storing FM/AM preset
1. Select the desired frequency.
[Selecting FM/AM broadcast frequency],
page 2-4.
2. Press the preset button to store for over 0.8
second. The frequency will become stored
along with a beep sound.
AUDIO SYSTEM 2-5
AUDIO SYSTEM
INFORMATION
Six preset frequencies each for FM1/ FM2/AM
modes can be stored using the above instruc-
tions.
Scanning FM/AM broadcast frequency
1. Press the
Scan
button.
●
SCAN (less than 0.8 second) : scans all fre-
quencies and plays only frequencies with
superior reception for 5 seconds each.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Scan"
●
PRESET SCAN (over 0.8 second): scans the
6 frequencies stored as delete this part in
the current band for 5 seconds each.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Preset Scan"
2.
Press the
Scan
button again to continue
listening to a frequency. The scan will be ter-
minated and the current frequency will con-
tinue to be played.
INFORMATION
When scanning has completed an entire revo-
lution, the scan function will terminate auto-
matically and the previous played frequency
will be restored.
2-6 AUDIO SYSTEM
PART 2 AUDIO SYSTEM
SIRIUS radio
Listening to the SIRIUS radio
1. Press the
SAT
key on the control panel.
The SIRIUS radio band screen of the most
recent listened station will be displayed.
2.
Press the
SAT
key to change the desired
radio band. Each press will change the
bands in the following order: SIRIUS1
→
SIRIUS2
→
SIRIUS3
→
SIRIUS1 ...
3. Select the desired broadcast channel.
[Selecting SIRIUS broadcast channel], page
2-7.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"SIRIUS"
"SIRIUS <1 or 2 or 3>"
"SIRIUS Channel <0 to 223>"
"SIRIUS <1 or 2 or 3> Preset <1 to 6>"
SIRIUS screen and functions
1
Mode display : displays the SIRIUS1/
SIRIUS2/ SIRIUS3 modes.
2
Channel number: Displays the current
playing channel.
3
SCAN/PRESET SCAN indicator : if SCAN/
PRESET SCAN is operating, the switch is
displayed.
4
Category name : displays the category
name.
5
Channel name : displays the channel
name.
6
Song/Program title: Display the song or
program title.
7
Artist name: Displays the artist or other
related information.
INFORMATION
The Song title display may be delayed in
accordance to the reception quality of the
Sirius broadcast.
1
a
b
c
d
f
2
3
h
gi j k
e
456
7
AUDIO SYSTEM 2-7
AUDIO SYSTEM
a
CAT
button : switches between chan-
nel mode and category mode.
[Switching the SIRIUS modes], page 2-7.
b c
button : moves to the next or
previous category, and automatically
plays the first channel within the select-
ed category.
d e
button : moves to the next or
previous channel.
f Preset buttons : the desired channel can
be preset and selected.
[Storing SIRIUS presets], page 2-9.

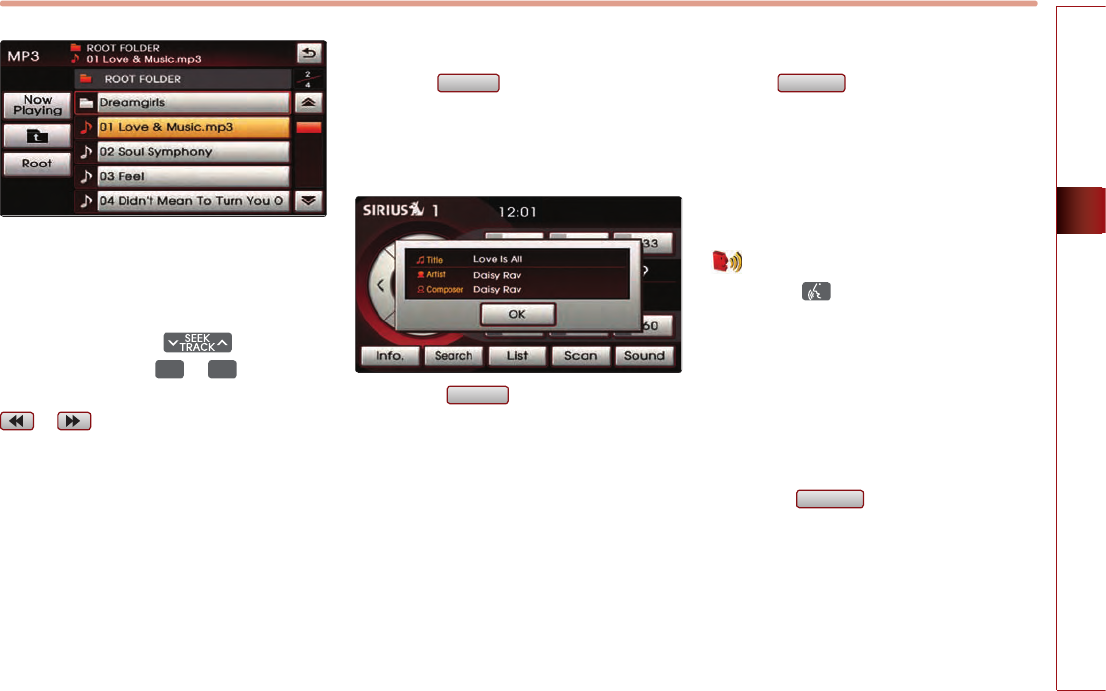

g
Info.
button : displays the Title, Artist,
Composer, and other information for the
current received channel if the informa-
tion exists.
h
Search
button: selects the channel by
directly inputting the channel number.
[Selecting SIRIUS broadcast channel],
page 2-7.
i
List
button: displays the channel or
category list.
[Selecting SIRIUS broadcast channel],
page 2-7.
j
Scan
button: scans all frequencies or
just the preset frequencies for 5 seconds
each.
[Scanning SIRIUS broadcast channel],
page 2-10.
k
Sound
button : adjusts the FAD/BAL,
BASS/MID/TREB controls.
[Audio Sound setting], page 1-11.
Switching the SIRIUS mode (Channel /
Category)
Each time the
CAT
button is pressed, the
mode will switch between channel mode and
category mode.
Category mode will begin operating when the
orange light is turned ON.
Selecting SIRIUS broadcast channel
There are 5 ways to select a broadcast channel
- (a) selecting through preset, (b) selecting
with channel Up/Down, (c) Selecting a chan-
nel through manual search, (d) selecting
through channel/ category list, (e) selecting
by directly inputting the channel number.
(a) Selecting a channel through preset
Press the preset button of the desired chan-
nel.
INFORMATION
●
Press the
∧
or
∨
keys on the steering
wheel remote controller for less than 0.8
second.
The preset channels of the current band will
be selected in order.
●
There are 6 preset channels each for
SIRIUS1, SIRIUS2, and SIRIUS3.
[Storing SIRIUS preset], page 2-9.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Preset <1 to 6>"
"Preset Up"
"Preset Down"
2-8 AUDIO SYSTEM
PART 2 AUDIO SYSTEM
(b) Selecting with Channel Up/Down
Press the key on the control panel
or the or buttons on SIRIUS1, SIRIUS2,
or SIRIUS3 mode screens for less than 0.8 sec-
ond.
The previous or next channel will be selected.
INFORMATION
●
If in Channel mode, the channel is selected
from all channels. If in Category mode, the
previous or next channel of each category is
selected.
●
Press the key on the control panel
or the
∧
or
∨
keys on the steering wheel
remote controller or the
or
buttons on
SIRIUS1, SIRIUS2, and SIRIUS3 mode screens
for more than 0.8 second to quickly move to
the nearest desired channel. Once the button
is released, the current channel will be
selected.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Channel Up"
"Channel Down"
(c) Selecting a channel through manual
search
1. Press the
∨TUNE∧
key to display the previ-
ous or next channel information. After a brief
moment, the selected channel will be dis-
played.
INFORMATION
If in Channel mode, the channel is selected
from all channels. If in Category mode, the
first channel of each category is selected.
2. Press the
∨TUNE∧
key at the desired chan-
nel. The selected channel will begin playing.
(d) Selecting channel through channel/
category list
1. Press the
List
button.
●
If in channel mode, the Channel list screen
will be displayed.
●
If in category mode, the Category list
screen will be displayed.
Select the desired category button to dis-
play the channel list screen for the corre-
sponding category.
AUDIO SYSTEM 2-9
AUDIO SYSTEM
2. Select the desired channel button. The pre-
vious screen will be restored and the select-
ed channel will begin playing.
(e) Selecting channel by directly inputting
the channel number
1. Press the
Search
button. The channel input
screen will be displayed.
2. Input desired channel number, and press
the
Done
button.
The previous screen will be restored and the
selected channel will begin playing.
INFORMATION
To prevent inputting a channel which exceeds
the channel range, numbers which cannot be
inputted are set to disabled state.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Channel<0 to 223>"
Storing SIRIUS preset
1. Select the desired channel.
[Selecting SIRIUS broadcast channel],
page 2-7.
2. Press the preset button for over 0.8 second.
The frequency will be saved along with
beep sound.
INFORMATION
Six preset frequencies each for SIRIUS1/
SIRIUS2/SIRIUS3 modes can be stored using
the above instructions.
Scanning SIRIUS broadcast channel
1. Press the
Scan
button.
●
SCAN (under 0.8 second): scans all channels
for 5 seconds each if in channel mode. If in
category mode, scans all channels within
the current category for 5 seconds each.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Scan"
● PRESET SCAN (over 0.8 second): scans the 6
preset channels within the current band for
5 seconds each.
2-10 AUDIO SYSTEM
PART 2 AUDIO SYSTEM
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Preset Scan"
1.
Press the
Scan
button again to continue
playing the channel. The scan will be termi-
nated and the current channel will continue
to be played.
INFORMATION
●
Within the Channel list screen, if the
button next to each channel name is
pressed, the selected channel will be exclud-
ed from SCAN operation.
●
When scanning has completed an entire
revolution, the scan function is automatically
terminated and the previous played channel
will be restored.
●
Channel 0 is the radio ID and contains infor-
mation required for SIRIUS activation.
Browsing detailed information about the
SIRIUS channel
1. Press the
Info.
button.
The detailed information (Title, Artist and
Composer) for the current channel will be
displayed.
2. Press the
OK
button.
The detailed information will be turned off.
AUDIO SYSTEM 2-11
AUDIO SYSTEM
Operating the CD Player
About CD Player
Precautions upon handling discs
● After using a disc, keep it in the original case
to prevent it from becoming scratched,
which may cause the CD to make popping
sounds.
● Do not use heart-shaped discs, octagon-
shaped discs, or any other abnormally
shaped disc. Such discs may be the cause of
malfunctions.
● Do not clean discs with chemical solutions
such as record sprays, antistatic sprays, anti-
static liquids, benzene, or thinners. Such
materials may cause the surface of DISC to
be unrecoverable.
● Do not expose the disc to direct sunlight for
prolonged periods of time. Such exposure
may lead to disc deformation.
● Dust, scratch, and other substances may
cause popping sound while playing as well
as sound deterioration.
● Never place paper on either side of the disc
or write on disc surfaces. Sharp writing
utensils and inks used in felt-tip pens may
cause damage to disc surfaces
● Clean fingerprints and dust off the signal
surface (coated side) of the disc with a soft
cloth.
Only soft cloths should be used as there are
no grooves for dust to get in as is the case
with LPs.
● Copy-protected CDs such as S-type CDs
may not function in the device.
● DATA CDs are not supported by the device.
(However, such discs may operate abnor-
mally.)
For safe and efficient operation
● Do not disassemble the CD Player for repair
purposes. Contact your place of purchase in
the case of malfunction. (Complete service
assistance will not be provided if the user
disassembles the device.)
● Do not use water to clean the device.
Exposure to water may cause damage to
the device.
● Be cautious not to introduce foreign sub-
stances into the disc insert slot.
Foreign substances may cause damage to
the interior of the device.
● The device may fail to operate properly in
extremely hot or cold temperatures.
Discontinue the use of the device unless
normal temperature is maintained.
( The operational temperature range is:
-10℃ ~ 65℃).
● Steam can be condensed on the fiberoptic
lens due to rain, wet conditions, or upon
operating the heating system.
● Skipping may occur to the audio when driv-
ing on bumpy roads for prolonged periods
of time or upon severe shock to the vehicle.
● Do not use chemical solvent to clean the
device. Such solvents may cause damage to
the surfaces of the device.
Always use a clean and dry cloth.
2-12 AUDIO SYSTEM
PART 2 AUDIO SYSTEM
WARNING !
Always pay full attention to driving.
Avoid operating your system in such a way
that you are distracted from driving your vehi-
cle.
Supported disc formats
● The disc types supported by this device are
as shown below.
● CD-R or CD-RW DISC burned with a bulk CD
without quality guarantees may not be rec-
ognized by the device.
● Inserting an abnormal disc may result in
faulty operation or recognition.
Disc Size
3-inch (7.6 cm)
5-inch (12.7cm)
Disc format Audio format
CD LPCM
MP3
MPEG1, Layer3
MPEG2, Layer3
MPEG2.5
WMA Ver9
Disc Type Disc Media DIsc Format
CD CD-DA
CD-R MP3
CD-RW WMA
Multisession-CD DTS-CD
CD CD-ROM
CD-G
CD-EXTRA
CD-TEXT
AUDIO SYSTEM 2-13
AUDIO SYSTEM
Disc/Content format compatibility
● Ordinary disc compatibility
• This device has been designed/ manufac-
tured to be compatible with software bear-
ing the following logo marks.
•
CD-R/RW discs (Audio CD and MP3 CD) cre-
ated with CD-writing devices or personal
computers may not properly function in the
device. This may be caused by damaged
recording method, contamination by dirt
and other foreign substance on the disc sur-
faces or play lens, and various other rea-
sons.
● Special formats or special features regard-
ing software
•CD-R/RW Compatibility.
• This device operates as a CD-ROM including
CD-R and CD-RW DISC written in CD Audio
or MP3 CD Format.
However, other contents may cause abnor-
mal disc operation such as noise.
• The writing of CD-R and CD-RW discs with
this device is not supported.
• Although CD-R/RW discs burned as audio
CDs which have not been finalized are not
supported by the device, some information
such as play time may be displayed.
•PC-created DISC compatibility.
• When recording a disc with a personal com-
puter, even discs recorded in a "format com-
patible" with the formats described above
may not operate on the device caused by
software settings of the recording applica-
tion. In such cases, contact the software
developer.
•
Additional information regarding compati-
bility can be found on the CD-R/ RW soft-
ware disc box.
DVD-R/RW are not supported by the device.
● Compressed audio compatibility
This device plays audio files compressed by
MPEG-1 audio stream layer 3(MP3) using 32,
44.1 and 48kHz fixed bit rates. Incompatible
files are not supported.
•
Variable bit rate files may operate, but the
play time information may not be properly
displayed.
•
Physical formats of CD : Model 1, Model 2
XA format 1.
•
This device only supports tracks with file
extension of ".MP3" or ".WMA".
•
This device does not support multi-session
discs.
•
This device supports a maximum of 256
folders and maximum 512 files.
Folders and files which exceed this limit will
not be supported.
•
There are various bit rates which can be
encoded onto a MP3 file.
This device has been designed to be com-
patible with various bit rates.
Audio which has been encoded at 128kbps
will sound similar to CD audio sound quality.
Audio-CD CD-R CD-RW
2-14 AUDIO SYSTEM
PART 2 AUDIO SYSTEM
Although this device supports low bit rate
MP3 tracks, such tracks may only provide
low quality sound.
•
For stable operation, the use of files in
95k bps ~ 192kbps bit rate range and
44.1kHz SAMPLING frequency is recom-
mended.
Inserting/Ejecting Disc
● Inserting a Disc
Insert the disc into the slot.
The disc will begin playing automatically after
it has been inserted.
INFORMATION
If the operation mode had been Audio mode
before inserting the disc, the device will con-
vert to the DISC mode screen and begin play-
ing.
If the operation mode had been Navigation
mode, then Navigation mode screen will
remain and the disc play status will be dis-
played through the Audio bar.
● Ejecting a Disc
Press the key.
The disc will immediately be stopped and
ejected.
INFORMATION
● If the operation mode had been in Audio
mode before ejecting the disc, the device
will be converted back to Audio mode.
I f th e o per at i on m od e h ad b ee n i n
Navigation mode, then Navigation mode
screen will remain.
● If the disc is straddled on the slot without
removing for approximately 10 seconds, the
disc will be re-inserted automatically into
the disc player.
In such a case, the disc will not begin play-
ing automatically.
AUDIO SYSTEM 2-15
AUDIO SYSTEM

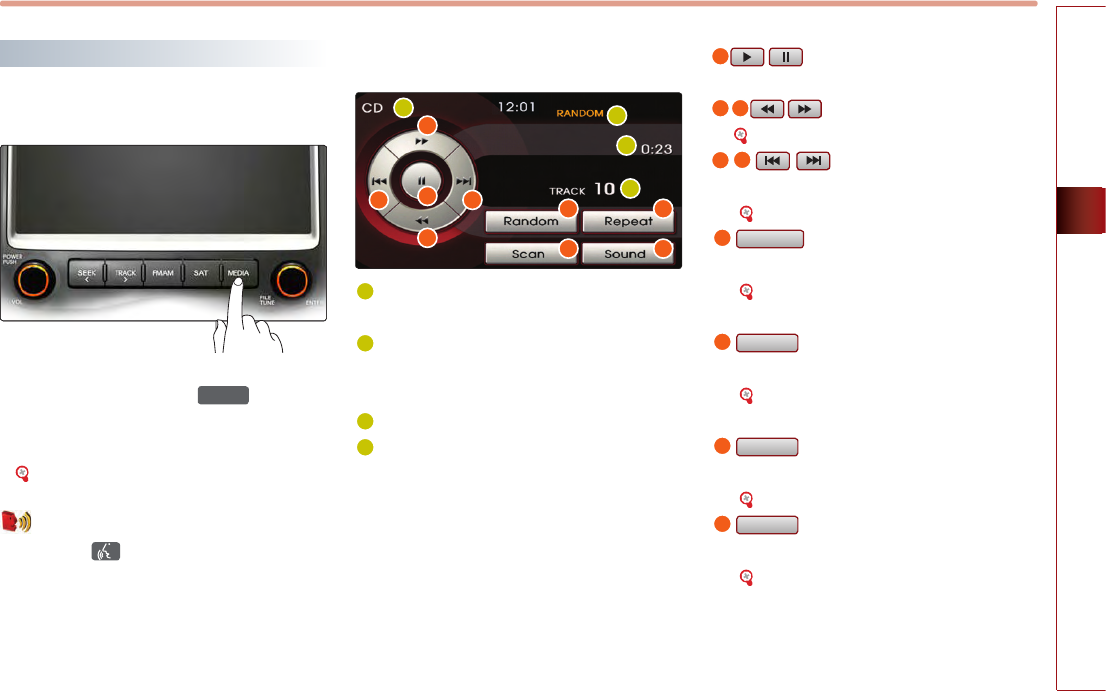

CD
Listening to CD music
1. Insert the CD or press the
MEDIA
key on the
control panel if the CD is already inserted.
2. Select the desired track.
[Selecting the CD track], page 2-16.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"DISC"
"CD"
"CD Track <1 to 665>"
CD screen and functions
1
Mode display : displays that the current
mode is CD mode.
2
REPEAT/RANDOM/SCAN indicator : if
REPEAT/RANDOM/SCAN is operating, the
switch is displayed.
3
Play Time : displays the play time.
4
Track number : displays the track number.
a button : plays or pauses the cur-
rent track.
b c button : REW or FF
[Selecting the CD track], page 2-17.
d e button : previous or next
track.
[REW/FF CD track], page 2-17.
f
Random
button : plays the tracks on the
disc in random order.
[Setting Random function for CD music],
page 2-17.
g
Repeat
button : repeats the current play-
ing track.
[Setting Repeat function for CD music],
page 2-18.
h
Scan
button : plays the tracks on the
disc in random order.
[Scanning CD track], page 2-18.
i
Sound
button : adjusts the FAD/BAL,
BAS, MID, TRE controls.
[Audio Sound setting], page 1-10.
12
3
4
a
c
b
d e fg
h i
2-16 AUDIO SYSTEM
PART 2 AUDIO SYSTEM
Selecting the CD track
There are 2 ways to select a CD Track - (a)
selecting through Track Up/Down, (b) select-
ing through searching Track.
(a) Selecting through Track Up / Down
Press the key on the control panel or
the
∧
or
∨
keys on the steering wheel
remote controller or the or buttons
on the screen for less than 0.8 second.
The next or previous track will begin playing.
INFORMATION
If the key on the control panel or the
∨
key on the steering wheel remote con-
troller or the
button on the screen is
pressed shortly while the track has played for
more than 3 seconds, the start of the current
track will begin playing.
If the track has been playing for less than 2
seconds, the start of the previous track will
begin playing.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Next Track"
"Previous Track"
(b) Selecting track through search
1. Press the
∨TUNE∧
key to search for desired
to display track. Each click on the
∨TUNE∧
key will display the information of the next
or previous track. The current playing track
will continue to be played.
2. Press the
∨TUNE∧
key at the desired track.
The searched track will begin playing.
REW/FF CD track
Press and hold the key on the con-
trol panel or the
∧
or
∨
keys on the steer-
ing wheel remote controller or the or
buttons for over 0.8 second.
The track will play 20 times faster while hold-
ing the button and return to normal play
when the button is released.
Setting Random function for CD music
Press the
Random
button. Each press will
change the function in the following order:
RANDOM
→
RANDOM OFF
→
RANDOM...
●
RANDOM : plays all tracks in the disc in ran-
dom order.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Random"
Say "Normal Play" in order to terminate the
set Random function.
AUDIO SYSTEM 2-17
AUDIO SYSTEM
Setting Repeat function for CD music
Press the
Repeat
button. Each press will
change the function in the following order:
REPEAT
→
REPEAT OFF
→
REPEAT...
●
REPEAT : repeats the current playing track.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Repeat Track"
Say "Normal Play" in order to terminate the
set Repeat.
Scanning CD track
1. Press the
Scan
button. Each press will
change the function in the following order:
SCAN
→
SCAN OFF
→
SCAN...
●
SCAN : scans all tracks in the disc for 10 sec-
onds each.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Scan"
Say "Normal Play" in order to terminate the
set Scan function.
2. Press the
Scan
button again to continue
listening to the track. The scan will be termi-
nated and the current track will continue to
be played.
INFORMATION
When scanning has completed an entire revo-
lution, the scan function is automatically ter-
minated and the previous played track will be
restored.
2-18 AUDIO SYSTEM
PART 2 AUDIO SYSTEM
MP3
MP3 disc related information and
precaution
● Information
• The MP3 file standards supported by the
device are as follows.
• Acceptable standard: MPEG1 AUDIO LAYER 3
• Acceptable sampling frequency: 32, 44.1, 48
(KHz)
• Acceptable bit rate: 32, 40, 48, 56, 64, 80, 96,
112, 128, 160, 192, 224, 256, 320 (Kbps)
•
Recommended bit rate & reference sam-
pling frequency: 96,128, 192 Kbps fixed bit
rate /44.1KHz
• ID3 tag
This device supports ID3v1.0, ID3v1.1,
ID3v2.2, ID3v2.3, and ID3v2.4 ID3 tags.
• Supported media
The MP3 media supported by the device are
CD-ROM and USB.
•Supported media formats
This device supports ISO9660 LEVEL1 and
LEVEL2. Detailed specification is as below.
• Maximum directory layers: 8 layers
•
Maximum folder length: 64 Bytes, file name
length: 64 Bytes
•
Supported characters for folder name/ file
name: Alphanumeric characters, Korean
standard character set 2350 characters,
Simplified Chinese 4888 characters
•
Maximum number of folders which can be
stored onto one disc: 256 folders (including
ROOT directory)
• Maximum number of files which can be
stored onto one disc: 512 files
• Precautions upon burning MP3 files
• The use of ISO 9660 LEVEL 2 JOLIET format
is recommended when burning MP3 files.
Burning in other formats may abnormally
display the file names.
• It is possible to display up to 32 characters for
file and folder names in case of UNICODE, and
up to 64 characters in case of ASCII. Although
the full length of the file name can be dis-
played by using the scroll function, the full
length of folder names may not be displayed
as the scroll function does not operate when
displaying folder names.
●Precaution
Please use a MP3 bit rate which is less than
128 kbps. The sound quality cannot be guar-
anteed for MP3s exceeding 128kbps.
AUDIO SYSTEM 2-19
AUDIO SYSTEM
Listening to MP3 music
1.
Insert the MP3 disc or press the
MEDIA
key
on the control panel if the MP3 disc is
already inserted.
2.
Select the desired file.
[Selecting the MP3 file], page 2-19.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"DISC"
"CD"
"MP3"
MP3 screen and functions
1 Mode display: displays that the current
mode is MP3 disc mode. (MP3 files on
DVDs are not supported.)
2 REPEAT/RANDOM/SCAN indicator: if
REPEAT/RANDOM/SCAN is operating, the
switch is displayed.
3 Play file position : current playing file /
total files
4 Play time: displays the play time.
5 Folder name: displays the folder name.
6 File name: displays the file name.
a button: plays or pauses the cur-
rent file.
b c button : REW or FF.
[REW/FF MP3 file], page 2-22.
de button : previous or next track.
[Selecting the MP3 file], page 2-21.
f
Random
button : plays all files on the disc
or folder in random order.
[Setting Random function for MP3 file] ,
page 2-22.
g
Repeat
button : repeats the current play-
ing folder or file.
[Setting Repeat function for MP3 file],
page 2-23.
h
Info.
button : displays or hides the
detailed file information for the current
playing file.
[Viewing detailed information for MP3
file], page 2-21.
i
List
button : displays the MP3 folders
and file lists for the disc.
[Selecting the MP3 file], page 2-21.
j
Scan
button : scans all files on the disc
or folder for 10 seconds each.
[Scanning MP3 file], page 2-23.
1
4
2
6
5
3
a
c
b
d e f
i jh
g
k
2-20 AUDIO SYSTEM
PART 2 AUDIO SYSTEM
k
Sound
button : Adjusts the FAD/BAL,
BASS/MID/TREB controls.
[Audio Sound setting], page 1-11.
Selecting to MP3 music
There are 3 ways to select an MP3 file - (a)
selecting through file up/down, (b) selecting
through searching files, (c) selecting through
MP3 list.
(a) Selecting through File Up / Down
Press the key on the control panel
or on the
∧
or
∨
keys on the steering
wheel remote controller or the or
buttons on the screen for less than 0.8 second.
The next or previous file will begin playing.
INFORMATION
If the key on the control panel or the
∨
key on the steering wheel remote con-
troller the button on the screen is
pressed shortly while the file has played for
more than 3 seconds, the start of the current
file will begin playing.
If the file has been playing for less than 2 sec-
onds, the start of the previous file will begin
playing.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Next File"
"Previous File"
"Next Folder"
"Previous Folder"
(b) Selecting through search
1.
Press the
∨TUNE∧
key to search for desired
to display file. Each click on the
∨TUNE∧
key will display the information of the next
or previous file. The current playing file will
continue to be played.
INFORMATION
If the operation of the Tune knob is too rapid,
there may be a delay in displaying the file
information.
2. Press the
∨TUNE∧
key at the desired file.
The searched file will begin playing.
(c) Selecting through MP3 List
1. Press the
List
button. The file list of the
folder for the current playing file will be dis-
played.
INFORMATION
●
If many songs and folders are recorded onto
a DISC, file loading time may be longer and
cause the play list to be improperly displayed
or song search through TUNE operation to
operate improperly.
In such cases, wait until file loading is com-
plete and try again.
●
Within the MP3 list screen, if the
Now playing
button is pressed while search-
ing for files within a folder or a page, the
current playing file list will become dis-
played.
AUDIO SYSTEM 2-21
AUDIO SYSTEM
2. Press the desired menu to return to the
main screen and play the selected file.
REW/FF MP3 file
Press and hold the
key on the
control panel or the
∧
or
∨
keys
on the
steering wheel remote controller or the
or buttons for over 0.8 second.
The file will play 20 times faster while
holding the button and return to normal
play when the button is released.
Viewing detail information for MP3 file
1. Press the
Info On
button.
The detailed information (Title, Album,
Artist) for the current playing MP3 will be
displayed.
2. Press the
OK
button. The detailed
information will be turned off.
Setting Random function for MP3 file
Press the
Random
button.
● RANDOM (less than 0.8 second) : Plays all
files in the disc in random order
● FOLDER RANDOM (over 0.8 second) : Plays
the files in the current folder in random
order.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Random"
"Random Folder"
Say "Normal Play" in order to terminate the
set Random function.
3. Press the
Random
button again to contin-
ue listening to the current file.
The random selection will be terminated
and the current file will continue to play.
2-22 AUDIO SYSTEM
PART 2 AUDIO SYSTEM
Setting Repeat function for MP3 file
1. Press the
Repeat
button.
● REPEAT (less than 0.8 second) : Repeats the
current playing file
●
FOLDER REPEAT (over 0.8 second) : Repeats
the files in the current folder
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Repeat File"
"Repeat Folder"
Say "Normal Play" in order to terminate the
set Repeat function.
2. Press the
Repeat
button again to stop
repeating the current file.
The repeat selection will be terminated and
the current file will continue to play once
until the next file starts to play.
Scanning MP3 file
1. Press the
Scan
button.
●
SCAN (less than 0.8 second) : Scans all files
in the disc and plays for 10 seconds each.
●
FOLDER SCAN (over 0.8 second) : Scans all
files in the current folder for 10 seconds
each.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Scan"
"Folder Scan"
Say "Normal Play" in order to terminate the
set Scan function.
2. Press the
Scan
button again to continue
listening to the file.
The scan selection will be terminated and
the current file will continue to play.
INFORMATION
When scanning has completed an entire revo-
lution, the scan function is automatically ter-
minated and the previous played file will be
restored.
PART 2 AUDIO SYSTEM
AUDIO SYSTEM 2-23
AUDIO SYSTEM
Operating external devices
iPod®
iPod® is a registered trademark of Apple
Inc.
Connecting iPod devices
Connect the iPod device as shown in the pic-
ture.
The Kia iPod Power cable is needed in order to
operate iPod with the audio buttons on the
audio system. The USB cable provided by
Apple may cause malfunction and should not
be used for Kia vehicles.
The Kia iPod Power cable maybe purchased
through your Kia dealership.
● Unsupported iPod devices : iPod genera-
tions before iPod 3G, iPod Shuffle, and iPad.
CAUTION!
Some functions may not operate properly
depending on the firmware version in some
iPod or iPhone devices.
INFORMATION
In order to prevent such malfunction, check
the following before connecting your iPod or
iPhone device with the Kia iPod Cable.
● If the battery has been completed dis-
charged, charge the device for at least 10
minutes before connecting.
● Turn on the device before connecting.
● If the device is set to lock, release the lock
before connecting.
● For iPhones, audio will not play if the audio
system and BT are paired. Disconnect the
pairing before connecting.
When there are no songs in the iPod or
iPhone or if there is no response from the
device after connecting with the Kia Cable, a
“No Media Connected” pop-up message will
be displayed for 5 seconds and the previous
mode will automatically be restored.
In such cases, disconnect the iPod or iPhone
and try connecting again.
If the message continues even after recon-
necting the iPod, check to see if there are any
problems with the iPod device.
CAUTION!
If a playing iPod is connected to the audio sys-
tem, a high-pitched tone may occur for
approximately 1-2 seconds.
Please turn the iPod device to pause/stop
prior to connecting it to the vehicle.
2-24 AUDIO SYSTEM
PART 2 AUDIO SYSTEM
Listening to iPod music
1. Connect the iPod or press the
MEDIA
key
on the control panel if the iPod is already
connected.
INFORMATION
Even if the iPod is connected, message may
be displayed if an error has occurred. In such a
case, reconnect the iPod.
2. Select the desired song.
[Selecting an iPod song], page 2-23.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"iPod"
iPod screen and functions
1 Mode display: displays that the current
mode is iPod mode.
2
RANDOM/REPEAT indicator: if RANDOM/
REPEAT is operating, the switch is dis-
played.
3
Play file position: current playing file / total
files
4
Play time: displays the play time.
5
Category name: displays the category
name of the playing file.
6
Title name: displays the title name of the
playing file.
PART 2 AUDIO SYSTEM
12
3
4
5
6
a
c
b
d e fg
h i j
AUDIO SYSTEM 2-25
AUDIO SYSTEM
a button: plays or pauses the cur-
rent file.
b c button : REW or FF.
[REW/FF iPod song], page 2-22.
de button : previous or next file.
[Selcting an iPod song], page 2-25.
f
Random
button : plays all songs in the
current playing list in random order or ran-
domly in album unit.
[Setting random function for iPod
song], page 2-25.
g
Repeat
buttons : repeats the current
playing song.
[Setting repeat function for iPod song],
page 2-25.
h
Info.
button : converts to the search
menu screen.
[
Viewing detailed information for iPod
song], page 2-27.
i
Menu
button : converts to the search
menu screen.
[Selecting an iPod song], page 2-23.
j
Sound
button : adjusts the FAD/BAL,
BASS/MID/TREB controls.
[Audio Sound setting], page 1-10.
Selecting an iPod song
There are 3 ways to select songs from the iPod
device - (a) selecting song through Up/Down,
(b) selecting song through sequential search,
(c) selecting song through menu.
(a) Selecting song through Up / Down
Press the key on the control panel or
the
∧
or
∨
keys on the steering wheel
remote controller or the or buttons
on the screen for less than 0.8 second. The
next or previous song will begin playing.
INFORMATION
If the key on the control panel or the
∨
key on the steering wheel remote con-
troller the button on the screen is
pressed shortly while the song is playing for
more than 3 seconds, the start of the current
song will begin playing. If the song has been
playing for less than 2 seconds, the start of the
previous song will begin playing.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Next Song"
"Previous Song"
(b) Selecting song through search
1.
Press the
∨TUNE∧
key to search for desired
to display file. Operate the
∨TUNE∧
key dial
to display the previous or next channel
information. After a brief moment, the
selected channel will be displayed.
INFORMATION
If the operation of the
∨TUNE∧
key is too
rapid, there may be a delay in displaying the
song information.
2-26 AUDIO SYSTEM
PART 2 AUDIO SYSTEM
(c) Selecting song through Menu
1. Press the
Menu
button. The iPod menu
screen will be displayed.
2. Press the button for the desired search
method.
INFORMATION
If the search mode is accessed while playing a
song, the most recent searched step will be
displayed. The search steps upon initial con-
nection are listed below.
3. Press the desired song button to return to
the main screen and play the selected song.
REW/FF iPod song
Press and hold the key on the con-
trol panel or the
∧
or
∨
keys on the steer-
ing wheel remote controller or the or
buttons for over 0.8 second.
The song will play 20 times faster while hold-
ing the button and return to normal play
when the button is released.
Setting Random function for iPod song
Press the
Random
button. Each press will
change the function in the following order :
Random
→
Album Random
→
Random Off
→
Random ...
●
Album Random : plays the songs in the cur-
rent play list randomly in album units.
However, songs within the same album will
be played sequentially.
e.g.) Album1(Music1
→
Music2
→
Music3
→
...
→
Music10)
→
Album5(Music
→
Music2)
→
Album4(Music1
→
Music2
→
Music3) ...
●
Random : plays all files in the current play
list (All Songs, certain albums, or user desig-
nated iPod Playlists) randomly regardless of
album.
e.g.) Music1
→
Music9
→
Music5
→
Music13 ...
AUDIO SYSTEM 2-27
AUDIO SYSTEM
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Random"
"Random Album"
Say "Normal Play" in order to terminate the set
Random.
Setting Repeat function for iPod song
Press the
Repeat
button. Each press will
change the function in the following order :
Repeat
→
Repeat Off
→
Repeat ...
●
Repeat : repeats the current playing song.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Repeat Song"
Say "Normal Play" in order to terminate the
set Repeat function.
Viewing detailed information for iPod
song
1. Press the
Info.
button.
The detailed information (Title, Album and
Artist) for the current channel will be dis-
played.
2. Press the
OK
button.
The detailed information will be turned off.
1 Step 2 Step 3 Step 4 Step
Playlist Playlist Song
Genre Genre Artist Album Song
Artist Artist Album Song
Composer composer Album Song
Album Album Song
Audiobooks Song
Songs Song
Podcasts Program Episode
2-28 AUDIO SYSTEM
PART 2 AUDIO SYSTEM
USB MP3
USB MP3 related information and
precaution
●Information
• The MP3 file standards supported by the
device are as follows.
•
Acceptable standard: MPEG1 AUDIO LAYER 3
• Acceptable sampling frequency: 32, 44.1, 48
(kHz)
• Acceptable bit rate : 32, 40, 48, 56, 64, 80,
96, 112, 128, 160, 192, 224, 256, 320 (kbps)
• Recommended bit rate & reference sam-
pling frequency: 96,128, 192 kbps fixed bit
rate /44.1kHz
• ID3 tag
This device supports ID3v1.0, ID3v1.1,
ID3v2.2, ID3v2.3, and ID3v2.4 ID3 tags.
• Supported media
The MP3 media supported by the device are
CD-ROM and USB.
•Supported media formats
This device supports ISO9660 LEVEL1 and
LEVEL2. Detailed specification is as below.
•Maximum directory layers: 20 layers
• Maximum length of folder name/file name:
250Bytes
•
Supported characters for folder name/ file
name: Alphanumeric characters, Korean
standard character set 2350 characters,
Simplified Chinese 4888 characters
• Maximum number of folders which can be
stored onto one USB: 2000 folders (includ-
ing ROOT directory)
•
Maximum number of files which can be
stored onto one USB: 6000 files
•
Precautions upon formatting USB & down-
loading MP3 files
•
The device only supports FAT type USB file
system. The device will not play USB media
content if the USB is NTFS type.
●Precaution
Please use an MP3 bit rate which is less than
192Kbps and a fixed bit rate. The sound quali-
ty cannot be guaranteed for MP3s exceeding
192Kbps and operation of specific functions
(limited to FF/REW functions) may be abnor-
mal with variable bit rates.
Precautions upon handling USB
● When using the external USB device, make
sure to keep the device disconnected.
Connect the device only after turning on
the vehicle ignition. The USB device may be
damaged if the USB device already connect-
ed when the ignition is turned on. (USB
device is not an electronic automotive com-
ponent)
● The external USB device may not operate if
the USB device already connected when
vehicle ignition is turned on or off.
● The device will not operate when playing a
format which is not MP3 or WMA file for-
mats.
1. Only MP3 files with compression rates
between 8Kbps~320Kbps are supported.
2. Only WMA files with compression rates
between 8Kbps~320Kbps are supported.
● Be cautious of static electricity when con-
necting/disconnecting the external USB
device.
●
Encoded MP3 Players will not be recognized
when connected as the external device.
AUDIO SYSTEM 2-29
AUDIO SYSTEM
●
When connecting an external USB device,
the device may not be properly recognize
the USB when the USB is in some states.
●
When formatting the external USB device,
the device may not be properly recognize a
Byte/Sector selection other than 512Byte or
2048Byte.
●
The device will only recognize USB devices
formatted in FAT 12/16/32.
●
Some USB devices may not operate proper-
ly because of compatibility issues. Verify
that the external device is supported by the
device before starting use.
●
Avoid contact between the USB connector
with bodily parts and foreign substances.
●
Repeatedly connecting/disconnecting the
USB in a short period of time may cause
damage to the device.
●
When disconnecting the USB, an abnormal
sound may occur occasionally.
●
Abruptly disconnecting the external USB
device while the USB is operating may
cause the device to be damaged or function
abnormally.
Make sure to disconnect the USB device
only after the audio power is turned off or
when the audio is operating in a different
mode.
●
The amount of time required to recognize
the external USB device may differ depend-
ing on the type, size, or file formats stored
on the USB. Such differences in the required
time are not indications of malfunction.
Please wait the period of time required to
recognize the device.
●
The device supports only USB devices used
to play music files.
●
Do not use the USB I/F to charge batteries
or USB accessories which generate heat.
Such acts may lead to deteriorated perfor-
mance or damage to the device.
●
The device may not recognize the USB
device if separately purchased USB hubs
and extension cables are being used.
Connect the USB directly to the multimedia
terminal of the vehicle.
●
In the case of high capacity USB devices,
there are instances where the logical drives
are partitioned for user convenience.
In this case, only the USB music in the top-
level logical drive will be possible to play.
When using partitioned drives, save the
songs desired to play on the device only in
the top-level logical drive.
In addition, certain USB devices are config-
ured with a separate drive used to install
application programs and songs from such
drives may not be possible to play for the
reasons as described above.
●
The device may not support normal opera-
tion if MP3 Players, cellular phones, digital
cameras, or other electronic devices (USB
devices not recognized as portable disk
drives) are connected to the device.
●
The device may not support normal opera-
tion when using a USB memory type
besides the Metal Cover Type USB Memory.
●
The device may not support normal opera-
tion when using formats such as HDD Type,
CF, or SD Memory.
●
The device will not support files locked by
DRM (Digital Rights Management).
2-30 AUDIO SYSTEM
PART 2 AUDIO SYSTEM
●
The device many not support normal opera-
tion if the proper connection with the USB
memory fails due to vibrations caused by
the vehicle. (i-stick type, etc.)
●
Please avoid using USB memory products
which can be used as key chains or cellular
phone accessories as they could cause dam-
age to the USB jack. Please make certain
only to use plug type connector products as
shown below.
Connecting the USB
Connect the USB as shown in the picture.
Listening to USB music
1. Connect a USB or press the
MEDIA
key on
the control panel if the USB is already con-
nected.
2. Select the desired file.
[Selecting the MP3 file], page 2-19.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"USB"
INFORMATION
The USB screen and operation method is the
same with MP3 mode. Please refer to the MP3
mode section for more information.
Plug Type Connector
AUDIO SYSTEM 2-31
AUDIO SYSTEM
USB IMAGE Mode
Starting USB IMAGE Mode
1. The USB mode will automatically start when
the USB is inserted. When in a different
mode, repeatedly press the
MEDIA
key to
convert to USB mode. (Each press will
change in order of AUX
→
DISC
→
USB)
2.
The image will be displayed on the screen.
INFORMATION
Press the
Music
button on the bottom left
side to enter either mode. (Supported only
when compatible files exist within the USB)
USB IMAGE mode menu screen
configuration
1 Mode display : display that the current
mode is <USB Image> mode.
2 Folder name : displays the name of the
folder where photo files are located.
3 File name : displays the file name of the
current photo.
4 File index : displays the number of Image
files within the USB (current file / all files)
5 Slide Show Interval : displays intervals of 5,
10, and 20 seconds.
a button : displays the previous photo.
Slide Show View : displays photos in inter-
vals of 5, 10, and 20 seconds.
b
Slide Show View : displays photos in inter-
vals of 5,10 and 20 seconds.
c
button : displays the next photo. USB
music (MP3) Mode
d
Save
button : upon turning off power,
saves the current image as the frame
screen image.
e
Timer
button : allows changes to slide
show interval.
f
Music
button : converts to <USB Music>
mode.
g
List
button : displays the <Image List>
screen.
h
Hide
button : hides the button display.
1
2
3
4
5
a
b
c
d e
fgh
2-32 AUDIO SYSTEM
PART 2 AUDIO SYSTEM
Operating USB IMAGE Mode
(a) Moving to next IMAGE
1. Press the screen.
2. Within the Image screen, press the or
button to flip through each file.
(b) Displaying USB IMAGE Slideshow Interval
1. Repeatedly press the
Timer
button at the
bottom to change the slideshow interval
(converts in time intervals of 5 seconds
→
10 seconds
→
20 seconds
→
5 seconds).
(c) Registering Frame
1. Press the
Save
button at the bottom of
the <Image> screen. The currently displayed
image will be registered as the frame.
INFORMATION
For details on setting up the frame, refer to
the frame setup page within Screen setup.
Restrictions while driving-Image Play related
buttons cannot be used while the vehicle is in
motion.
There are five buttons such as < / /
Play Icon
/
Save
/
Hide
>.
AUDIO SYSTEM 2-33
AUDIO SYSTEM
AUX
Connecting AUX
Connect the external Audio player as shown
in the picture.
INFORMATION
Connect only by using AUX terminals.
Playing AUX
Connect an AUX or press the
MEDIA
key on
the control panel if the AUX is already con-
nected.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Line In"
AUX screen
Audio AUX screen
External Device
PART 3 NAVIGATION SYSTEM
PART 3
NAVIGATION SYSTEM
Limitations of the navigation
system ……………………………… 3-2
GPS signal reception state ………………3-2
Vehicle position display …………………3-3
Route Guidance …………………………3-4
Route Re-calculation ……………………3-4
Starting navigation system ……………3-5
Map Functions ……………………… 3-5
Current position map screen
(without route) …………………………3-5
Switching map mode
(North Up / Heading Up) ………………3-6
Viewing GPS signal state ………………3-7
Changing the map scale ………………3-8
Displaying / Hiding POI icons on the map 3-9
Displaying/Hiding Q.POI icons ……… 3-9
Displaying / Hiding icons other than
Q.POI icons …………………………… 3-9
Making a call to POI ………………… 3-10
Scrolling map ………………………… 3-11
Setting a destination ……………… 3-12
Destination menu screen and
functions ……………………………… 3-12
Searching a Destination ……………… 3-13
Searching an Address………………… 3-13
Searching a Previous Destination …… 3-17
Searching an Intersection …………… 3-17
Searching a POI ……………………… 3-20
Searching from Address book ……… 3-24
Searching for Emergency facilities … 3-25
Searching your Home ……………… 3-25
Searching favorite places …………… 3-26
Searching from MAP ………………… 3-26
Searching POI by local POI list ……… 3-26
Operating after searching a destination 3-27
Changing destination position ……… 3-27
Setting as Destination / waypoint …… 3-27
Adding to address book …………… 3-27
Operating after setting a destination … 3-28
Starting Route Guideance …………… 3-28
Route guidance screen ……………… 3-28
Selecting other route ………………… 3-29
Route guidance ……………………… 3-30
Route menu screen and functions …… 3-30
Finishing route guidance
(Delete Destination) ………………… 3-30
Route overview (View Entire Route) … 3-31
Changing Route option ……………… 3-32
Editing waypoints …………………… 3-32
Deleting waypoints ………………… 3-34
Re-ordering waypoints ……………… 3-34
Setting detour distance ……………… 3-35
Setting avoid streets on route ……… 3-35
Setup and Information …………… 3-36
Setup menu screen and functions …… 3-36
Main setting ………………………… 3-37
Setting keyboard for inputting letter 3-37
Setting Language …………………… 3-37
System information and update …… 3-37
Initializing system …………………… 3-37
NAVIGATION SYSTEM 3-1
NAVIGATION SYSTEM
PART 3
NAVIGATION SYSTEM
Navigation setting …………………… 3-38
Setting units (mile/ km) ……………… 3-38
Setting arrival time and distance
display ………………………………… 3-38
Registering avoid area ……………… 3-38
Editing avoid area …………………… 3-40
Deleting avoid area ………………… 3-41
Deleting all avoid areas ……………… 3-41
Setting Q.POI icons …………………… 3-42
Setting estimate travel time ………… 3-42
My places setting …………………… 3-43
Registering new address in
address book ………………………… 3-43
Editing an address of address book … 3-45
Deleting an address of address book 3-46
Deleting an address book …………… 3-47
Registering home address …………… 3-48
Deleting home address ……………… 3-48
Registering favorite place …………… 3-49
Deleting favorite place ……………… 3-50
Voice guidance volume setting ……… 3-51
Voice guidance volume control ……… 3-51
Adaptive volume control ON/OFF …… 3-52
Traffic Setup ………………………… 3-52
Traffic Information …………………… 3-52
Help …………………………………… 3-54
3-2 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
Limitations of the navigation
system
GPS signal reception state
●
As the GPS satellite frequency is received /
transmitted in straight lines, reception may
not work if devices are placed on or near
the GPS antenna or when traveling through
the following locations.
•Tunnels
•Basement parking structures
•Underneath an overpass
•Roads within forested areas
•Areas near high rise buildings
•Roads within canyons
NAVIGATION SYSTEM 3-3
NAVIGATION SYSTEM
Vehicle position display
●
If multipass errors occur due to reflections
from buildings or related causes, the current
position mark on the navigation may differ
from the actual position of the vehicle.
● The position of the vehicle on the naviga-
tion may be different from the actual posi-
tion if the vehicle is under the following
conditions. If such differences occur, driving
for a short period of time will automatically
correct the position of the vehicle through
map matching or GPS information (several
minutes may be necessary in certain cases).
•
When driving on a Y-shaped road with a
narrow angle, the current position may be
displayed in the opposite direction.
• If the vehicle is loaded onto a ferry or a car
transport vehicle, the current position mark
may be stalled on the last position prior to
loading.
•When driving on a spiral-shaped road.
• When driving in mountain regions with
sharp turns or sudden brakes.
• When entering a road after having been in
an underground parking structure, building
parking structure, or turntable with many
rotations.
• When the tires have recently been replaced
(Especially upon use of spare or studless
tires)
• If the battery terminal is removed.
• When driving in city streets, the current
position may be displayed on the opposite
side or on an off-road position.
• When changing the zoom level from the
maximum zoom in level to a different zoom
level, the current position mark may be dis-
played on a different road.
• When driving in heavy traffic with frequent
go
·
stops in traffic or intersections.
• When driving under slippery conditions,
such as heavy sand, snow, etc.
• When driving with the tire chain in place.
• When using a tire with an incorrect size
specification.
• When the tire pressure for the 4 tires are dif-
ferent.
• When the replacement tire is a worn or
used tire (Especially studless tires having
passed a 2nd seasons, etc.)
• When driving near high-rise buildings
• If a roof carrier has been installed
• When driving under high speeds or having
calculated a long-distance route.
3-4 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
Route Guidance
●
Suitable route guidance may not occur
caused by search conditions or the driving
position.
•
Guidance to go straight may be given while
driving on a straight road.
•
Guidance may not be given even when hav-
ing turned at an intersection.
•
There are certain intersections in which
guidance may not occur.
•
A route guidance signaling for a U-Turn in a
No U-Turn location may occur.
•
A route guidance signaling entrance into a
no enter zone may occur (No enter zone,
road under construction, etc.).
•
Guidance may be given to a position
removed from the actual destination if
roads to reach the actual destination do not
exist or are too narrow.
•
Faulty voice guidance may be given if the
vehicle breaks from the designated route
(ex: if a turn is made at an intersection while
the navigation provided guidance to go
straight).
•
Map Data may be missing or incorrect caus-
ing route guidance to not be given.
Route Re-calculation
● The following phenomena may occur after
conducting route recalculation.
•
Guidance may be given to a position differ-
ing from the current position when turning
at an intersection.
•
Route Recalculation may take a longer peri-
od of time when driving under high speeds.
•
A route guidance signaling for a U-Turn in a
No U-Turn location may occur.
•
A route guidance signaling entrance into a no
enter zone may occur (No enter zone, road
under construction, etc).
•
Guidance may be given to a position
removed from the actual destination if
roads to reach the actual destination do not
exist or are too narrow.
•
Faulty voice guidance may be given if the
vehicle breaks from the designated route
(ex: if a turn is made at an intersection while
the navigation provided guidance to go
straight)
NAVIGATION SYSTEM 3-5
NAVIGATION SYSTEM
Starting navigation system
Press the Navigation mode key (
MAP VOICE
,
DEST
,
ROUTE
,
SETUP
). The Caution screen
will always be displayed when first entering
into Navigation mode. Read the contents of
the caution screen carefully and press the
Agree
button.
Map Functions
Current position map screen
(without route)
Press the
MAP VOICE
key on the control panel
to display the map of current position and the
neighboring area.
1
GPS signal state indicator : displays the
state of GPS signal reception.
[Viewing GPS signal state], page 3-7.
2
Map scale level indicator : displays the cur-
rent map scale.
[Changing the map scale], page 3-8.
3
Landmark icons : landmark icons are dis-
played on the map when the map scale
level is set to under 300 ft (100m depend-
ing on map data)
[Appendix : landmark icons], page 8-7.
4
POI icons : POI icons are displayed on the
map when the map scale level is set to
under 0.5 mi (800m).
[Appendix : POI icons], page 8-5.
5
Current vehicle position icon : displays the
current position of the vehicle.
2
3
4
5
a
b
c
1
3-6 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
a
North Up / Heading Up switch : displays
the current map mode and the map mode
can be switched between North Up and
Heading Up.
[Switching map mode], page 3-6.
b
POI : displays or hides the POI icon on the
map.
[Displaying/Hiding POI icons on the
map], page 3-9.
c
Map scale : increases or decreases the map
scale.
[Changing the map scale], page 3-8.

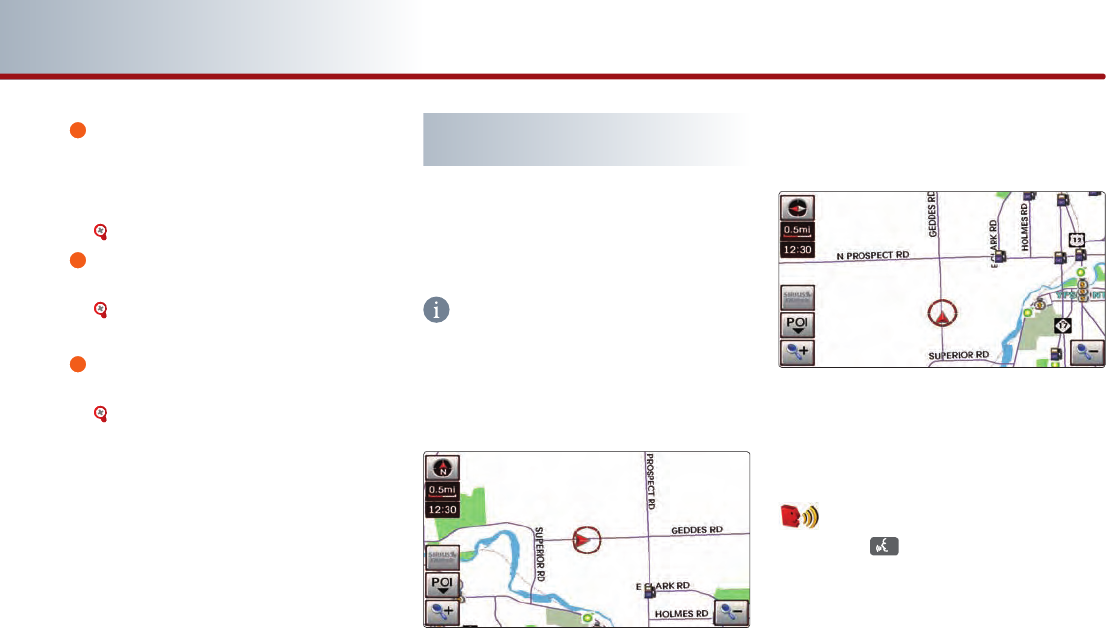

Switching map mode (North Up /
Heading Up)
Each time the compass button is pressed, the
screen will switch in the order shown below.
Heading Up
→
North Up
→
Heading Up ...
INFORMATION
All map screens (map screen after setting des-
tination & whole route display screen) except
the current position screen will always be dis-
played in North Up mode.
● North Up : displays the map always facing
the North direction regardless of the direc-
tion which the vehicle is traveling.
The vehicle icon is displayed in the center
position of the map.
●
Heading Up : displays the map always fac-
ing the direction which the vehicle is travel-
ing. The vehicle icon is displayed in the
lower center position of the map.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"North Up"
"Heading Up"
NAVIGATION SYSTEM 3-7
NAVIGATION SYSTEM
Viewing GPS signal state
The state of GPS signal reception is displayed
as shown below.
● (active) :
GPS reception is satisfactory.
● (inactive) :
GPS reception is unsatisfactory.
[System information and update], page
3-37.
INFORMATION
●
GPS (Global Position System) : GPS is a sys-
tem developed and operated by the United
States which determines the current loca-
tion of the user (longitude, latitude, etc.) by
generally using 4 or more satellites. This
system is used with related GPS informa-
tion, various sensors, road map data, and
other navigation related information.
●
GPS information may not operate under the
following conditions.
• When buildings, tunnels, or other obstruc-
tions block satellite signals.
• When materials are placed above the GPS
antenna and block satellite signals.
• When the satellite does not transmit sig-
nals (signal transmission is controlled by
the satellite control center in the United
States and may not transmit when under
repair, modification, etc).
• When a digital cellular phone (1.5GHz) is
placed near the GPS antenna.
●
This system uses GPS information, various
sensors, road map data, and other related
information to display the current position.
Errors may occur if the satellite is transmit-
ting inaccurate signals or only two or less
satellite signals can be received.
Errors which occur in such conditions can-
not be corrected.
3-8 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM

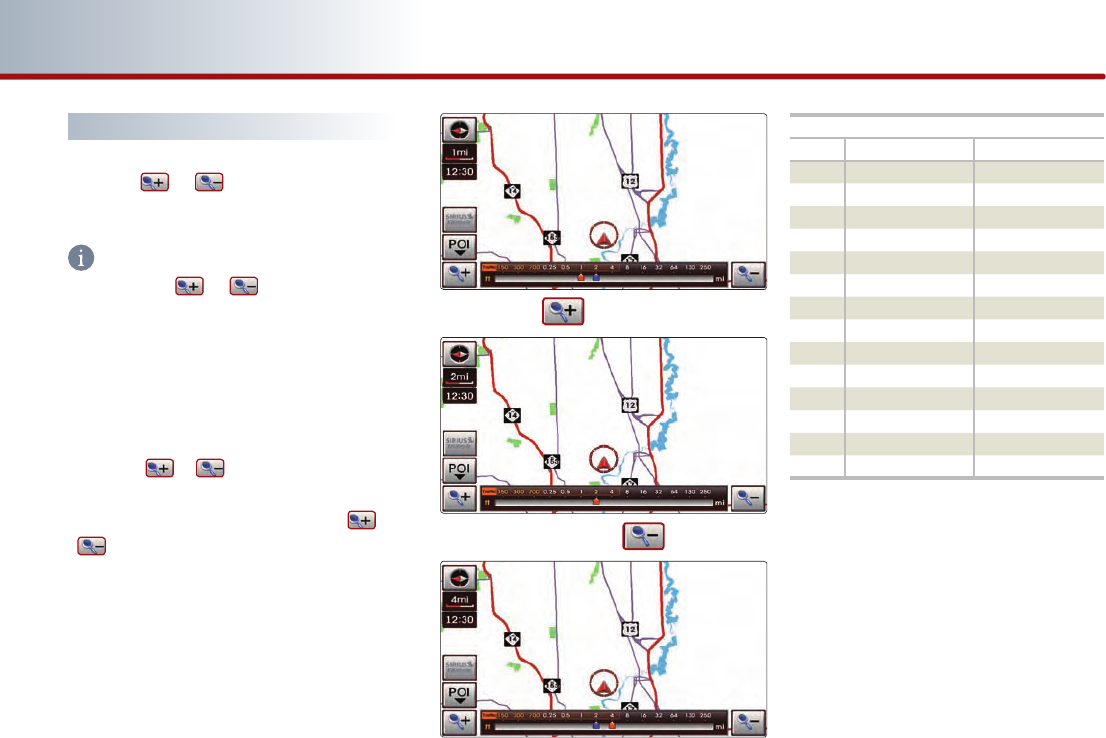

Changing the map scale
Press the or button. The map scale
will be increased or decreased by one level.
INFORMATION
Each time the or button is pressed,
the scale bar will be displayed.
The scale can be changed by directly pressing
the scale level on the scale bar.
The green color on the scale bar indicates the
current scale level while the orange color indi-
cates the selected scale level.
●
Press the or button for over 0.8 sec-
ond. The scale will continuously change.
●
If the scale range limit is reached, the or
button will be disabled.
● The map scale range is between 1 and 14:
10,240,000 ~ 1 : 5,000.
Actual distance
Level
mi / ft km / m
1 150 ft 50 m
2 300 ft 100 m
3 700 ft 200 m
4 0.25 mi 400 m
5 0.5 mi 800 m
6 1 mi 1.6 km
7 2 mi 3.2 km
8 4 mi 6.4 km
9 8 mi 12 km
10 16 mi 25 km
11 32 mi 50 km
12 64 mi 100 km
13 130 mi 200 km
14 250 mi 400 km
NAVIGATION SYSTEM 3-9
NAVIGATION SYSTEM
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Zoom In"
"Zoom Out"
"Zoom Maximum"
"Zoom Minimum"
"Zoom level <1 to 14>"
"Zoom <actual distance>"
" (ex. Zoom 700ft)"

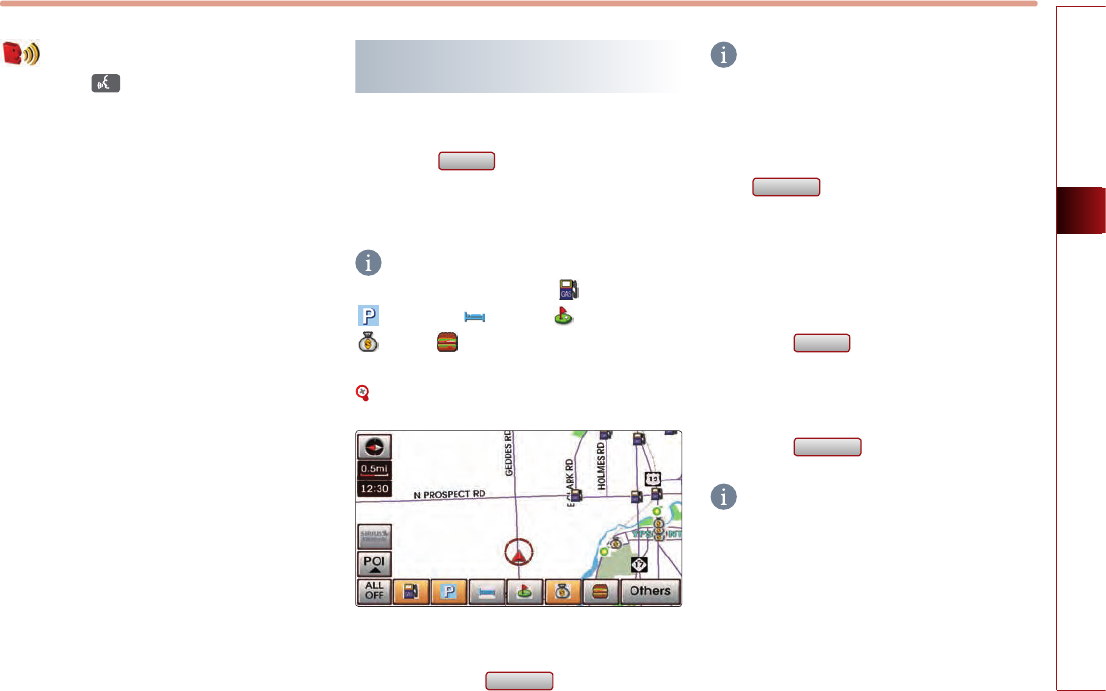

Displaying / Hiding POI icons on
the map
Displaying/Hiding Q.POI icons
1
.
Press the
POI ▼
button.
Related menu buttons will be displayed at
the bottom of the screen.
INFORMATION
The Q.POI icons are set to - Gas Station,
- Parking, - Hotel, - Golf Course,
- Bank, - Fast Food (6 icons) by default.
This setting can be changed in SETUP.
[Setting Q.POI icons], page 3-42.
2
.
Press the icon buttons to display or hide.
To turn off all POI icons displayed on the
map, press the
ALL OFF
button.
INFORMATION
●
The current displayed POI icons are high-
lighted while the icons not being displayed
are shown as normal buttons.
●
If there are no POI icons being displayed,
the
ALL OFF
button will be disabled.
●
POI icons are displayed when the scale is
under 0.5 mi (800m).
Displaying / Hiding icons other than
Q.POI icons
1
.
Press the
POI
▼
button.
Related menu buttons will be displayed at
the bottom of the screen.
2
.
Press the
Others
button.
INFORMATION
Q.POI stands for Quick POI and refers to the
function which turns POI icon display on or off
on the map.
3-10 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
(a) by category list
3
.
Press the desired main category button.
4
.
Select the desired sub category menu to
display or hide (Multiple selections are pos-
sible).
Press the selected menu again to cancel the
selection.
5
.
If the
Show Icon(s)
button is pressed, the
selected menus will be displayed or hidden
on the map screen.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Show <POI name>" (ex. Show ATM)
"Hide <POI name>" (ex. Hide ATM)
"Hide All"
Making a call to POI
After searching a POI, the POI phone number
information can be used to make a call to the
POI facility.
1
.
Use the various search methods, such as the
map scroll function, Q.POI search function,
and destination search function to search
for a POI.
2
.
Press the button.
NAVIGATION SYSTEM 3-11
NAVIGATION SYSTEM
3
.
Bluetooth is used to make a call to the POI
facility.
4
.
Once the call is ended, the map is restored
to the current vehicle location.
INFORMATION
●
Making a call is not possible if there is no
telephone information for a POI or if there is
no mobile phone connected through
Bluetooth.
●
For more information of mobile phone
authentication through Bluetooth or
detailed information on conducting search,
re fe r to [Pairing and connecting
a Bluetooth phone], page 5-4.
Scrolling map
Press the map area on the map screen.
The selected point will be centered on the
screen and the scroll mark will be displayed.
Information about the marked point and
straight line distance from the current posi-
tion will be displayed at the top of the screen.
INFORMATION
If a map area on the map screen is pressed,
the map will continuously scroll in the corre-
sponding direction until the pressing is
released.
3-12 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM

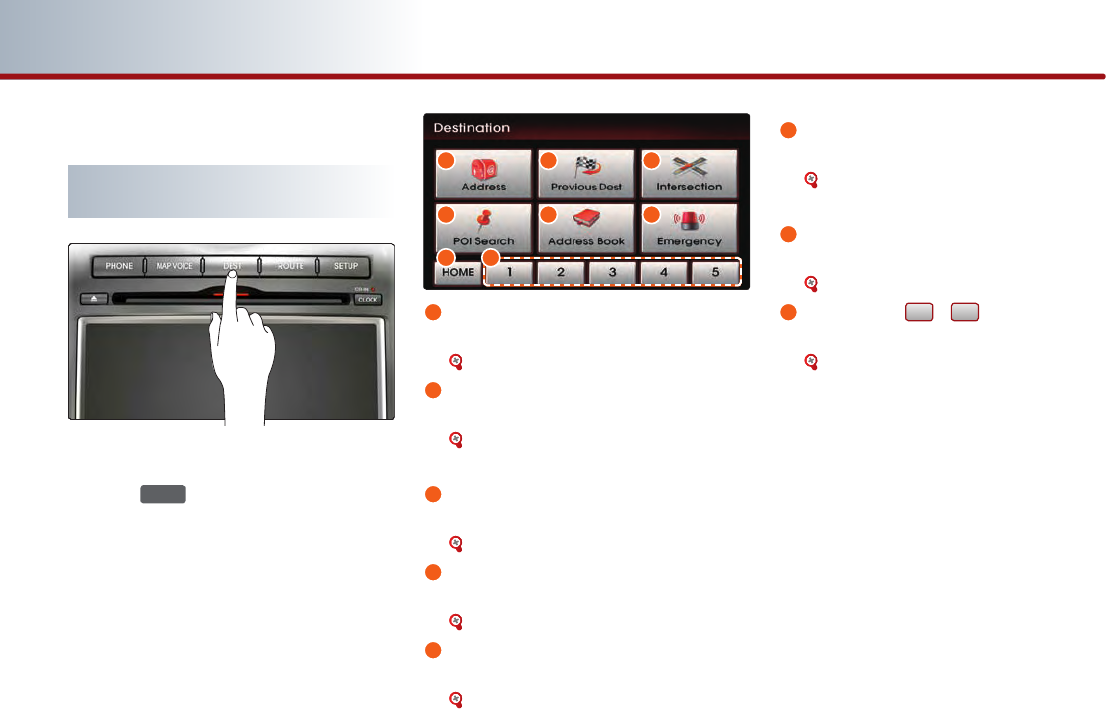

Setting a destination
Destination menu screen and
functions
Press the
DEST
key on the control panel to
display the destination menu screen.
a
Address : sets the destination through
address search.
[Searching an Address], page 3-13.
b
Previous Dest : sets the destination
through the previous destination list.
[Searching a Previous Destination],
page 3-17 .
c
Intersection : sets the destination through
intersection search.
[Searching an Intersection], page 3-17.
d
POI Search : sets the destination through
POI Category search.
[Searching a POI], page 3-20 .
e
Address Book : sets the destination
through address book search.
[Searching from Address book], page
3-24 .
f
Emergency : sets the destination through
emergency facilities search.
[Searching for Emergency facilities],
page 3-25 .
g
HOME : sets the stored HOME as the desti-
nation.
[Searching your Home], page 3-25 .
h Favorite place
1
~
5
: sets the destina-
tion with one of the stored favorite places.
[Searching favorite places], page 3-26 .
a
d
gh
b
e
c
f
NAVIGATION SYSTEM 3-13
NAVIGATION SYSTEM

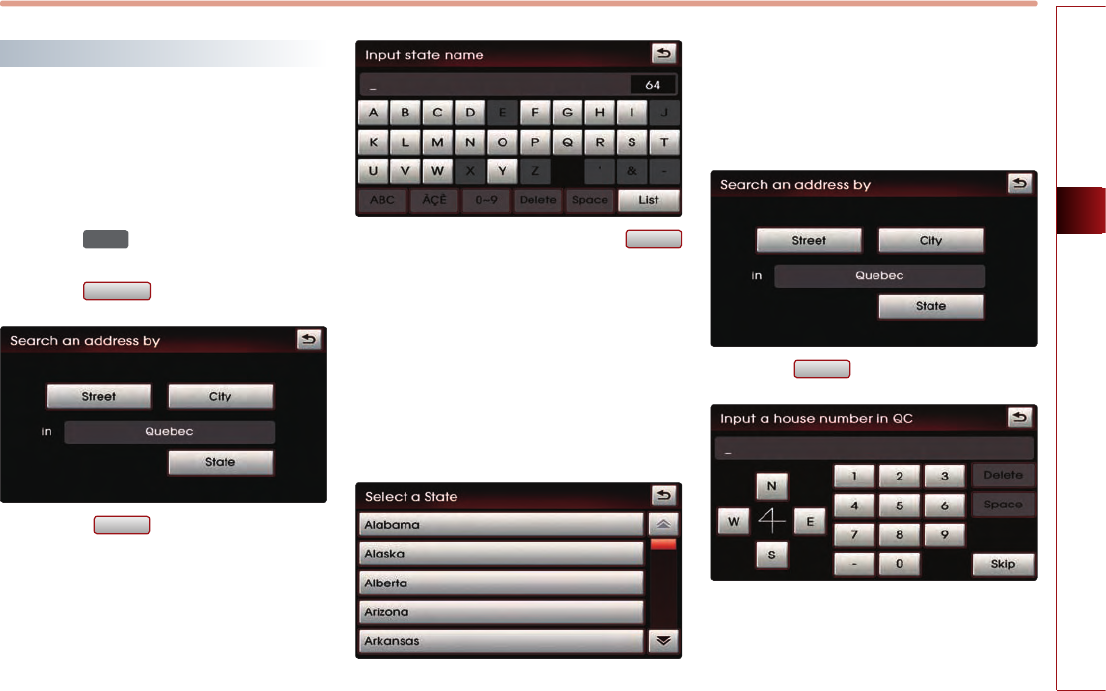

Searching a Destination
Searching an Address
There are 2 ways to set the destination
through address search-(a) by street, (b) by
city.
1
.
Press the
DEST
key.
2
.
Press the
Address
button.
3
.
Press the
State
button to change the
state.
4
.
Input the State name and press the
List
button.
If the number of matches with the input is
less than 4 results, then the state list screen
will be displayed automatically.
If the number of matches is only one result,
then the state will automatically be
changed without having to manually select
the state.
5
.
Select the desired state from the list to
change the state.
(a) by street
6
.
Press the
Street
button.
3-14 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
7
.
Input the House number and Press the
Done
button to complete.
If the House number is not recognized, press
the
Skip
button.
In this case, the range of house numbers
will be displayed during the last step.
8
.
Input the Street name and press the
List
button.
If the number of matches with the input is
less than 4 results, then the street list screen
will be displayed automatically.
9
.
If the desired street from the list is selected,
the corresponding position will be dis-
played on the map.
INFORMATION
If more than 30 cities exist with the selected
street, then the city input screen will be dis-
played. If less than 30 cities exist, then the city
selection screen will be displayed.
10
.
Input the city name and press the
List
button to complete. If the number of
matches with the input is less than 4
results, then the list screen will be dis-
played automatically.
11.Select the desired city from the list.
NAVIGATION SYSTEM 3-15
NAVIGATION SYSTEM

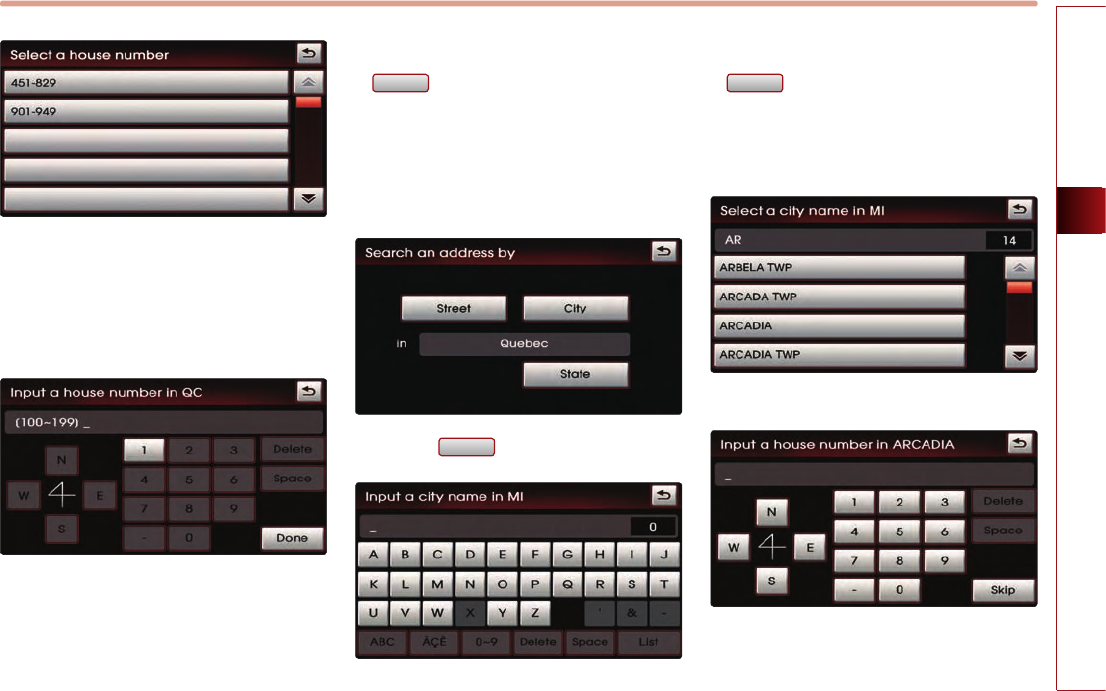

12
.
This screen will be displayed if the House
number had not been inputted during
step 6 and more than 2 house numbers
ranges exist.
Select the desired House number range.
13
.
This screen will be displayed if the House
number had not been inputted and only
one house numbers range exists.
Input the House number and press the
Done
button to complete.
The corresponding position will be dis-
played on the map.
(b) by city
6
.
Press the
City
button.
7
.
Input the city name and press and press the
List
button.
If the number of matches with the input is
less than 4 results, then the city list screen
will be displayed automatically.
8
.
Select the desired city from the list.
3-16 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
9
.
Input the house number and press the
Done
button to complete.
If the House number is not recognized,
press the
Skip
button.
In this case, the range of house numbers
will be displayed during the last step.
10
.
Input the Street name and press the
List
button to complete.
If the number of matches with the input is
less than 4 results, then the street list screen
will be displayed automatically.
11
.
Select the desired street from the list and
the corresponding position will be dis-
played on the map.
12
.
This screen will be displayed if the House
number had not been inputted during
step 8 and more than 2 House number
ranges exist.
Select the desired House number range.
13
.
This screen will be displayed if the House
number had not been inputted during
step
H
and only one House number
range exists.
Select the house number range and Press
the
Done
button to complete.
The corresponding position will be dis-
played on the map.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Find address"
[Find address], page 4-19.
NAVIGATION SYSTEM 3-17
NAVIGATION SYSTEM

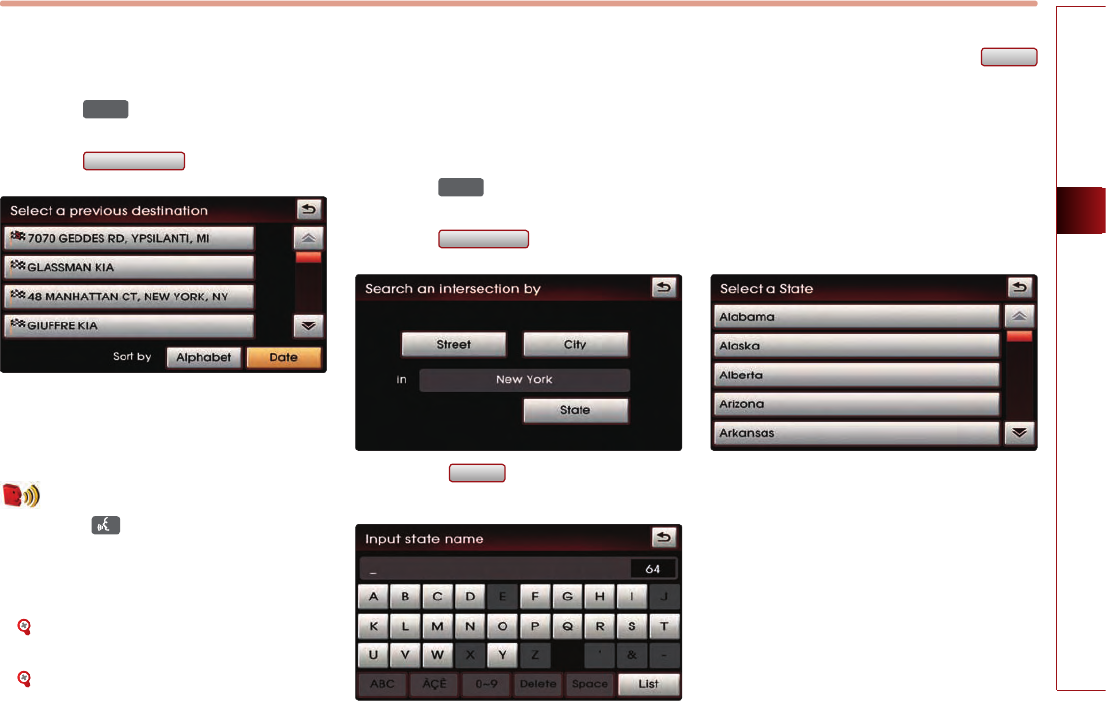

Searching a Previous Destination
1
.
Press the
DEST
key.
2
.
Press the
Previous Dest
button.
3
.
Select the desired previous destination. The
corresponding position will be displayed on
the map.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Previous destination"
[Previous destination], page 4-24.
"Previous start point"
[Previous start point], page 4-25.
Searching an Intersection
There are two ways to set the destination
through intersection search-(a) by street, (b)
by city.
1
.
Press the
DEST
key.
2
.
Press the
Intersection
button.
3
.
Press the
State
button to change the
state.
4
.
Input the state name and press the
List
button. If the number of matches with the
input is less than 4 results, then the state
list screen will be displayed automatically.
If the number of matches is only one result,
then the state will automatically be
changed without having to manually select
the state.
5
.
Select the desired state from the list to
change the state.
3-18 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM

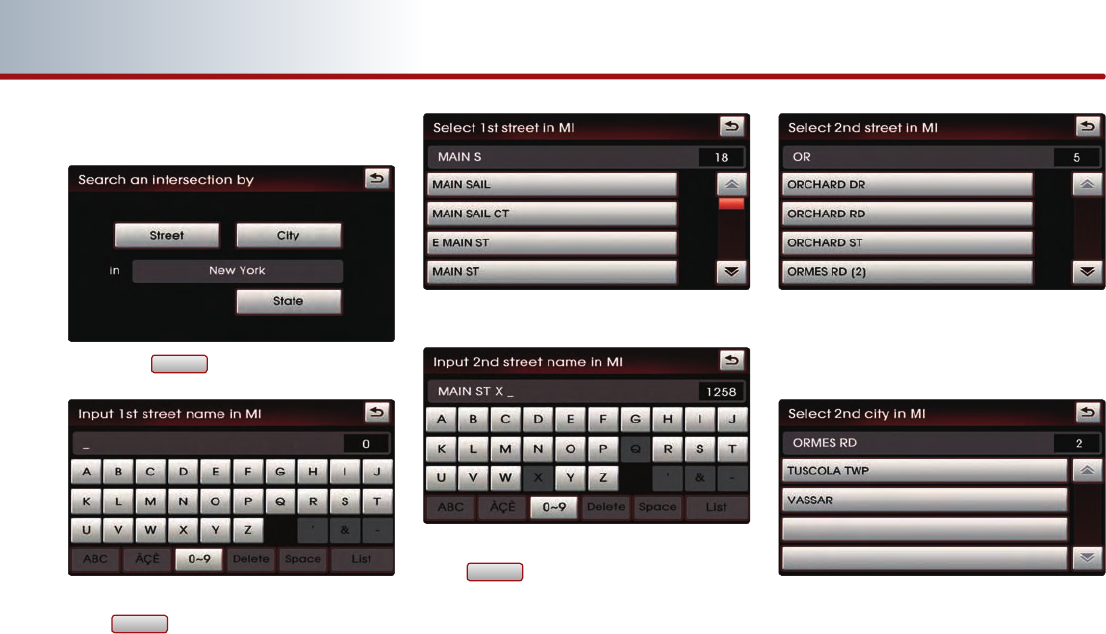

(a) By street
6
.
Press the
Street
button.
7
.
Input the name of the 1st street and press
the
List
button.
If the number of matches with the input is
less than 4 results, then the street list screen
will be displayed automatically.
8
.
Select the desired 1st street from the list.
9
.
Input the name of the 2nd street and press
the
List
button.
If the number of matches with the input is
less than 4 results, then the street list screen
will be displayed automatically.
10
.
Select the desired 2nd street menu from
the list. The corresponding position will be
displayed on the map.
11
.
If the selected 2nd street is within more
than 2 cities, then the city list screen will
be displayed.
Select the desired city menu from the list.
The corresponding position will be dis-
played on the map.
