HYUNDAI MOBIS AV2A0CSAN CAR AVN (BLUETOOTH) User Manual 2 of 3
HYUNDAI MOBIS CO., LTD. CAR AVN (BLUETOOTH) Users Manual 2 of 3
Contents
- 1. Users Manual (1 of 3)
- 2. Users Manual (2 of 3)
- 3. Users Manual (3 of 3)
Users Manual (2 of 3)
NAVIGATION SYSTEM 3-19
NAVIGATION SYSTEM
(b) By city
6
.
Press the
City
button.
7
.
Input the city name and press the
List
button.
If the number of matches with the input is
less than 4 results, then the city list screen
will be displayed automatically.
8
.
Select the desired city name.
9
.
Input the name of the 1st street and press
the
List
button.
If the number of matches with the input is
less than 4 results, then the street list screen
will be displayed automatically.
10
.
Select the desired 1st street menu from
the list.
11
.
Input the name of the 2nd street and press
the
List
button.
If the number of matches with the input is
less than 4 results, then the street list
screen will be displayed automatically.
3-20 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
12
.
Select the desired 2nd street menu from
the list.
The corresponding position will be dis-
played on the map.
13
.
If the selected 2nd street is within more
than 2 cities, then the city list screen will
be displayed. Select the desired city menu
from the list. The corresponding position
will be displayed on the map.
Searching a POI
There are 3 ways to set the destination
through POI search - (a) by category, (b) by
name, (c) by phone number.
1
.
Press the
DEST
key.
2
.
Press the
POI Search
button.
3
.
Press the
State
button.
4
.
Input the state name and press the
List
button. If the number of matches with the
input is less than 4 results, then the state list
screen will be displayed automatically.
If there is only one matching result, then
the state will automatically be changed
without having to manually select the state.
5
.
Select the desired state from the list to
change the state.
NAVIGATION SYSTEM 3-21
NAVIGATION SYSTEM
(a) By category
Searches for facilities nearby the current posi-
tion or from the city center.
6
.
Press the
Category
button.
7
.
Press the
Near current position
button to
search for facilities nearby the current posi-
tion, or press the
Near city center
button
to search for facilities in the near city center.
(a-1) Near current position
Searches for facilities within a 50 mi (80Km)
radius of the current position.
8
.
Press the desired main category menu.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Find nearest POI"
[Find nearest POI], page 4-20.
9
.
Press the desired sub category menu.
10
.
Select the desired menu button.
The corresponding position will be dis-
played on the map.
3-22 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
(a-2) Near city center
Searches for facilities from the city center.
8
.
Input the city name and press the
List
button.
If the number of matches with the input is
less than 4 results, then the city list screen
will be displayed automatically.
9
.
Press the desired city menu.
10
.
Press the desired main category.
11
.
Press the desired sub category.
12
.
Select the desired menu button.
The corresponding position will be dis-
played on the map.
INFORMATION
The distance on each POI item button refers
to the distance from the city center.
NAVIGATION SYSTEM 3-23
NAVIGATION SYSTEM
(b) By name
6
.
Press the
Name
button.
7
.
Input the name of the POI and press the
List
button.
If the number of matches with the input is
less than 4 results, then the facilities list
screen will be displayed automatically.
8
.
Select the desired POI menu.
The corresponding position will be dis-
played on the map.
INFORMATION
When necessary, the search conditions for the
city and category can be changed by pressing
the
Advanced
button.
●Changing City
1
.
Press the
City
button.
2
.
Input the city name and press the
List
button.
3
.
Select the desired city name.
●Changing Category
1
.
Press the
Category
button.
2
.
Select the desired main category menu.
3
.
Select the desired sub category menu.
(c) By phone number
6
.
Press the
Phone #
button.
3-24 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
7
.
Input the phone number and Press the
Done
button to complete.
The corresponding position will be dis-
played on the map.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Destination POI by Phone Number"
[Destination POI by phone number],
page 4-22.
Searching from Address book
1
.
Press the
DEST
key.
2
.
Press the
Address book
button.
3
.
Select the desired address book (user)
menu.
INFORMATION
This system provides 5 address books. Each
addresses book can hold up to 200 entries.
4
.
Select the desired address name from the
list.
The corresponding position will be
displayed on the map.
[Registering new address in address
book], page 3-43.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Destination by address book"
[Destination by address book], page
4-24.
NAVIGATION SYSTEM 3-25
NAVIGATION SYSTEM
Searching for Emergency facilities
1
.
Press the
DEST
key.
2
.
Press the
Emergency
button.
3
.
Select the desired facility category.
4
.
Select the desired facility.
The corresponding position will be dis-
played on the map.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Find emergency <Category>"
[Find emergency <Category>], page
4-23.
Searching your Home
1
.
Press the
DEST
key.
2
.
Press the
HOME
button.
The Home position will be displayed on
the map.
INFORMATION
If the Home address is not registered, then the
HOME
button will not be displayed.
[Registering home address], page 3-48.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Go home"
[Go home], page 4-25.
3-26 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
Searching favorite places
1
.
Press the
DEST
key.
2.
Select the desired button from
1
~
5
.
The corresponding position will be dis-
played on the map.
INFORMATION
If the address of the Favorite place is not regis-
tered, then the
1
~
5
buttons without
registered addresses will be disabled.
[Registering favorite place], page 3-49.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Destination by memory point <1 to 5>"
[Destination by memory point <1 to 5>],
page 4-25.
Searching from MAP
Position the scroll mark at the destination by
scrolling the map on the map screen.
Searching POI by local POI list
1
.
Press the
POI
▼ button on the map
screen.
2
.
Press the
Others
button.
3
.
Press the
Local POI lists
button.
4
.
Select the desired POI menu.
The corresponding position will be dis-
played on the map.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Find nearest <POI name>"
[Find nearest <POI name>], page 4-21.
NAVIGATION SYSTEM 3-27
NAVIGATION SYSTEM
Operating after searching a
destination
Changing destination position :
Changes the position of the destination by
scrolling the map.
[Scrolling map], page 3-11.
Setting as Destination / waypoint :
Sets the position as the destination or way-
point.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Start guidance"
(Sets the position of the scroll mark as the
destination and begins route guidance.)
Adding to address book :
Saves the position in the address book.
[Registering new address in address book],
page 3-43.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Store Marked Location to <text tag>"
3-28 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
Operating after setting a
destination
Starting Route Guidance
Press the
Start Guidance
button. Route Guid-
ance will start.
●Route simulation
• If the
Start Guidance
button is pressed and
held for over 0.8 second, then the route
simulation will start.
• If the
MAP VOICE
key on the control panel is
pressed during route simulation, then route
simulation will be terminated.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Time to destination"
"Distance to destination"
Route guidance screen
● Symbol guidance mode : if the button
is pressed, then the following route guid-
ance screen will be displayed.
● Turn-List mode : if the button is
pressed, then the following route guidance
screen will be displayed.
NAVIGATION SYSTEM 3-29
NAVIGATION SYSTEM

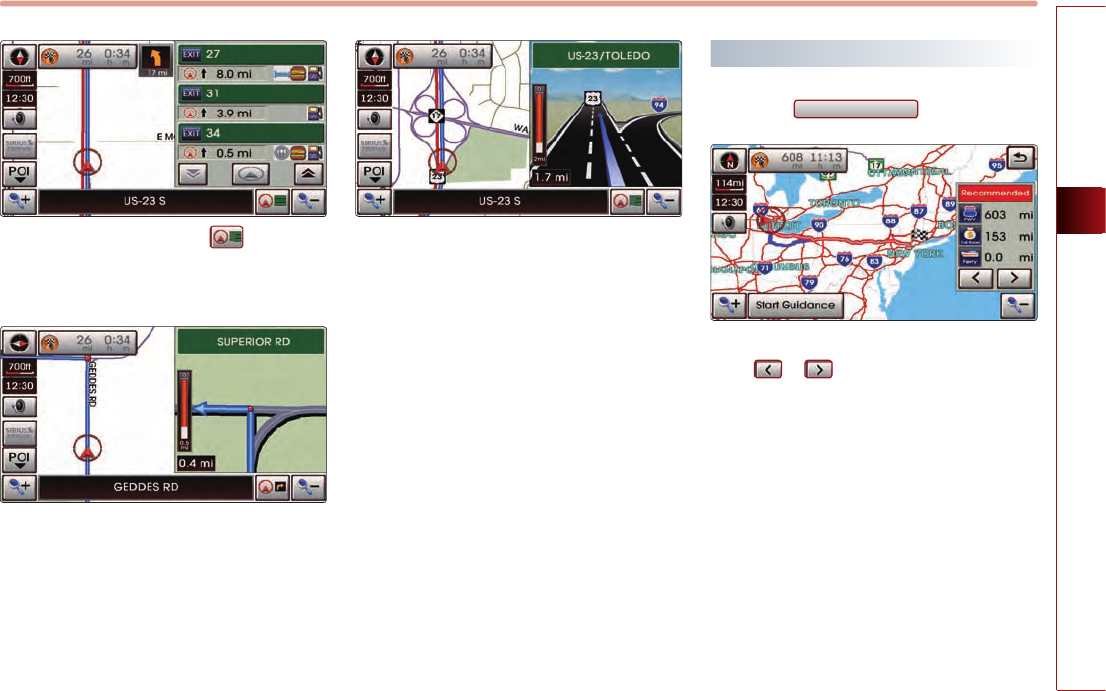

● Highway mode : if the button is
pressed, then the following route guidance
screen will be displayed.
● Intersection zoom mode : this route guidance
screen is automatically displayed during
guidance at an intersection.
Once guidance at the intersection is com-
plete, the screen will automatically disappear
and the previous guidance screen will be
restored.
● Highway junction mode : this route guid-
ance screen is automatically displayed dur-
ing guidance at highway junctions.
Once guidance at a highway junction is
complete, this screen will automatically dis-
appear and the previous guidance screen
will be restored.
Selecting other route
1
.
Press the
Altrenative Route
button.
2
.
Other routes can be selected by pressing
the or buttons.
3-30 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
Route guidance
Route menu screen and functions
Press the
ROUTE
key on the control panel.
The ROUTE menu screen will be displayed.
a
Cancel Route: deletes destination, way-
points and terminates route guidance.
[Finishing route guidance], page 3-30 .
b
Route Overview: displays the entire route
and route detailed.
[Route overview], page 3-31 .
c
Route Option: the route option can be
changed.
[Changing Route option], page 3-32 .
d
Edit Waypoint: waypoints can be added/
deleted and the order can be changed.
[Editing waypoints], page 3-32 .
e
Detour : searches detour routes.
[Setting detour distance], page 3-35 .
f
Avoid Streets: searches routes which avoid
the selected streets.
[Setting avoid streets on route], page
3-35.
Finishing route guidance (Delete
Destination)
1
.
Press the
ROUTE
key.
2
.
Press the
Cancel Route
button.
3
.
Press the
Yes
button.
The destination and waypoints are deleted
and the route guidance is terminated.
[Finishing route guidance], page 3-30 .
a
d
b
e
c
f
NAVIGATION SYSTEM 3-31
NAVIGATION SYSTEM
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Cancel route"
(Terminates route guidance and deletes the
set destination and waypoints.)
Route overview (View Entire Route)
1
.
Press the
ROUTE
key.
2
.
Press the
Route Overview
button.
3
.
Press the
Turn by Turn
button.
INFORMATION
If the
Return to guidance
button is pressed,
route guidance screen is displayed.
4
.
The detailed route information can be
viewed
3-32 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
Changing Route option
1
.
Press the
ROUTE
key.
2
.
Press the
Route Option
button.
3
.
Press the button for the desired route guid-
ance method.
Guidance will be restarted after recalculat-
ing the route with the selected guidance
method.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Replan recommended route"
"Replan shortest route"
Editing waypoints
Adding waypoints
There are 2 ways to add waypoints - (a)
searching for POI nearest to the route, (b)
using advanced search.
1
.
Press the
ROUTE
key.
2
.
Press the
Edit Waypoint
button.
3
.
Press the
Press to add new waypoint
but-
ton.
NAVIGATION SYSTEM 3-33
NAVIGATION SYSTEM

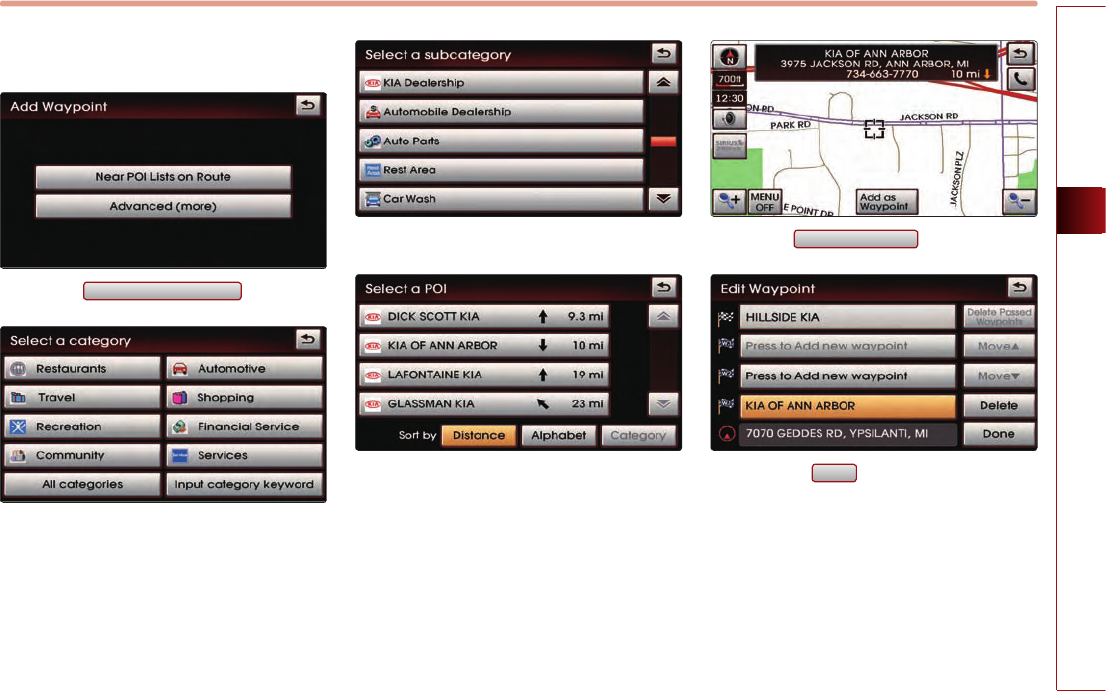

(a) Searching POI lists near route
4
.
Press the
Near POI Lists on Route
button.
5
.
Select the desired category.
6
.
Select the desired sub category from list.
7
.
Select the desired POI from the list.
The corresponding position will be dis-
played on the map.
8
.
Press the
Add as Waypoint
button.
9
.
Press the
Done
button to complete.
Guidance will restart after recalculating the
route.
3-34 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
(b) Using advanced Search
The method for searching waypoints through
the
Advanced(more)
button is the same
method as searching destination.
[Searching a Destination], page 3-13.
Deleting waypoints
1
.
Press the
ROUTE
key.
2
.
Press the
Edit waypoint
button.
3
.
Select the waypoint and press the
Delete
button.
4
.
Press the
Yes
button.
5
.
After deleting, press the
Done
button to
complete.
Guidance will be restart after recalculating
the route.
Re-ordering waypoints
1
.
Press the
ROUTE
key.
2
.
Press the
Edit waypoint
button.
3
.
Select the desired waypoint and use the
Move
▲
,
Move
▼
buttons to change the
order.
4
.
Once re-ordering is complete, press the
Done
button to complete.
Guidance will restart after recalculating the
route.
NAVIGATION SYSTEM 3-35
NAVIGATION SYSTEM
Setting detour distance
1
.
Press the
ROUTE
key.
2
.
Press the
Detour
button.
3
.
Select the desired detour range.
Guidance will restart after recalculating the
detour route.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Detour <1 or 2 or 5 or 10> miles"
"Detour <1 or 2 or 5 or 10> kilometers"
Setting avoid streets on route
1
.
Press the
ROUTE
key.
2
.
Press the
Avoid streets
button.
3
.
Select the desired streets to avoid( avoid,
allow) and press the
Done
button to
complete.
Guidance will restarted after recalculating
the route to avoid the selected streets.
3-36 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
Setup and Information
Setup menu screen and functions
Press the
SETUP
key on the control panel to
display the setup menu screen.
a
Main button : changes to the input key-
board type, voice command feedback ON/
OFF settings and system initialization can
be made.
[Main setting], page 3-36 .
b
Voice Setup button : adjusts the
Navigation guidance volume.
[Voice guidance volume setting], page 3-51.
c
Navigation button : navigation related set-
tings can be set.
[Navigation setting], page 3-38 .
d
Clock Setup button
e
My Places button : the Address book,
Home address, Favorite places, Previous
destination can be edited.
[My places setting], page 3-43 .
f
Help button : the help contents can be
viewed. [Help], page 3-54 .
g
Traffic Setup : sets to display traffic infor-
mation on map, or to provide upcoming
traffic information voice guidance, and or
to display the detour route popup show-
ing upcoming traffic information.
ab
cd
ef
g
NAVIGATION SYSTEM 3-37
NAVIGATION SYSTEM
Main setting
1
.
Press the
SETUP
key.
2
.
Press the
Main
button.
3
.
Select the desired changes and press the
Done
button to complete.
Setting keyboard for inputting letter
Press the desired keyboard type button. The
selection will be highlighted.
Setting voice command feedback ON/OFF
Press the desired setting button.
Setting Language
1
.
Press the
Change
button.
2
.
Press the desired language.
3
.
Press the
Done
button to complete.
System information and update
1. Press the
System Info
button.
Initializing system
1
.
Press the
Factory Default
button.
2
.
Press the menu desired for initialization.
3-38 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
3
.
Press the
Yes
butto
Navigation setting
1
.
Press the
SETUP
key.
2
.
Press the
Navigation
button.
3
.
Select the desired changes and press the
Done
button to complete.
Setting units (mile/ km)
Select the desired distance unit.
Setting arrival time and distance display
Select the desired setting button.
Registering avoid area
1
.
Press the
Avoid Area
button.
2
.
Press the
Add new avoid area
button.
3
.
Set the start position of the avoid area and
press the
Next
button.
NAVIGATION SYSTEM 3-39
NAVIGATION SYSTEM
4
.
Set the end position of the avoid area and
press the
Next
button.
5
.
Press the
Done
button to complete.
6
.
If the Avoid area needs to be renamed,
press the
Rename
button.
7
.
Rename the Avoid area and Press the
Done
button to complete.
8
.
Each time the
Avoid
button is pressed, the
function will switch between avoid ( )or
allow( ).
9
.
Press the
Done
button to complete the set-
ting.
3-40 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
Editing avoid area
1
.
Press the
Avoid area
button.
2
.
Press the
Edit avoid area
button.
3
.
Select the Avoid area button to edit.
4
.
If the Avoid area needs to be renamed,
press the
Rename
button.
5
.
Rename the Avoid area and press the
Done
button to complete.
6
.
Each time the
Avoid
button is pressed, the
function will switch between avoid( )or
allow( ).
7
.
Press the
Done
button once editing is
complete.
NAVIGATION SYSTEM 3-41
NAVIGATION SYSTEM
Deleting avoid area
1
.
Press the
Avoid area
button.
2
.
Press the
Edit avoid area
button.
3
.
Select the
Avoid area
button to delete.
4
.
Press the
Delete
button.
5
.
Press the
Yes
button.
Deleting all avoid areas
1
.
Press the
Avoid area
button.
2 .
Press the
Delete all avoid area
button.
3
.
Press the
Yes
button.
3-42 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
Setting Q.POI icons
1
.
Press the
Edit Q.POI
button.
2
.
Select the desired menu.
3
.
Select the desired category.
4
.
Select the desired sub category.
5
.
Press the
Done
button to complete.
INFORMATION
Q.POI stands for Quick POI and refers to the
function which turns POI icon display on or off
on the map.
Setting estimate travel time
1
.
Press the
Travel Time
button.
2
.
Pr ess th e or bu t ton on the
Residential, Main street, and Freeway con-
trols to adjust the speed.
Press the
Default
butto n to set the
speeds to the default settings.
3
.
Press the
Done
button to complete the set-
ting.
NAVIGATION SYSTEM 3-43
NAVIGATION SYSTEM
My places setting
Registering new address in address book
There are 3 ways to register a new address in
the address book - (a) by DEST menu, (b) by
registering address in address book, (c) from
map scroll.
(a) by DEST menu
1
.
Press the
DEST
key.
2
.
Search through the desired method.
The search process is the same as the meth-
od for destination search.
[Searching a destination], page 3-13.
3
.
Press the
Add to Address Book
button.
4
.
Press the desired address book (user) but-
ton.
5
.
Input the name and telephone information
and press the
Done
button to complete.
[Editing an address of address book],
page 3-45.
(b) by registering in the address book
1
.
Press the
SETUP
key.
2
.
Press the
My Places
button.
3
.
Press the
Address Book
button.
4
.
Press the desired address book (user) but-
ton.
3-44 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
5
.
Press the
New Address
button.
6
.
Press the
Address
button to search the
address.
[Searching an address], page 3-13.
INFORMATION
Press the
Store current position
button to input
the address of the current position.
7
.
Input the name and telephone information
and press the
Done
button to complete.
[Editing an address of address book],
page 3-45.
(c) from map scroll
1
.
In the map screen, scroll the map to the
desired position.
2
.
Press the
Add to Address Book
button.
3
.
Press the desired address book (user) but-
ton.
4
.
Input the name and telephone information
and press the
Done
button to complete.
[Editing an address of address book],
page 3-45.
NAVIGATION SYSTEM 3-45
NAVIGATION SYSTEM
Editing an address of address book
1
.
Press the
SETUP
key.
2
.
Press the
My Places
button.
3
.
Press the
Address Book
button.
4
.
Select the desired address book (user) but-
ton .
5
.
Select the desired address to edit.
6
.
Press the
Name
button to input the
address name.
7
.
Input the address name and press the
Done
button to complete.
8
.
Press the
Address
button to search the
address. The process is the same as the
method for searching an address.
[Searching an Address] , page 3-13.
INFORMATION
Press the
Store current position
button to input
the address of the current position.
3-46 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
9
.
Press the
Phone
button to input the
phone number.
10
.
Input the phone number and press the
Done
button to complete.
11
.
Press the
Done
button to complete.
Deleting an address of address book
1
.
Press the
SETUP
key.
2
.
Press the
My Places
button.
3
.
Press the
Address Book
button.
4
.
Select the desired address book (user) but-
ton.
5
.
Select the desired address button to
delete.
6
.
Press the
Delete
button.
NAVIGATION SYSTEM 3-47
NAVIGATION SYSTEM
7
.
Press the
Yes
button.
Deleting an address book
1
.
Press the
SETUP
key.
2
.
Press the
My Places
button.
3
.
Press the
Address Book
button.
4
.
Press the desired address book (user) but-
ton.
4
.
Press the
Delete all
button.
5
.
Press the
Yes
button.
3-48 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
Registering home address
1
.
Press the
SETUP
key.
2
.
Press the
My Places
button.
3
.
Press the
Home Address
button.
4
.
Press the
Search Address
button.
INFORMATION
Press the
Store current position
button to reg-
ister the current position as Home.
5
.
Search the address.
The process is the same method as search-
ing an address.
[Searching an Address], page 3-13.
6
.
Press the
Done
button to complete.
Deleting home address
1
.
Press the
SETUP
key.
2
.
Press the
My Places
button.
3
.
Press the
Home Address
button.
4
.
Press the
Delete
button.
NAVIGATION SYSTEM 3-49
NAVIGATION SYSTEM
5
.
Press the
Yes
button.
Registering favorite place
1
.
Press the
SETUP
key.
2
.
Press the
My Places
button.
3
.
Press the
Favorite Places
button.
4
.
Press the number of the Favorite Place to
register.
5
.
Press the
Search Address
button.
INFORMATION
Press the
Store current position
button to reg-
ister the current position as a Favorite place.
6
.
Search the address.
The process is the same as the method for
searching an address.
[Searching an Address], page 3-13.
3-50 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
7
.
Press the
Done
button to complete.
Deleting favorite place
1
.
Press the
SETUP
key.
2
.
Press the
My places
button.
3
.
Press the
Favorite Places
button.
4
.
Select the desired favorite place button to
delete.
5
.
Press the
Delete
button.
6
.
Press the
Yes
button.
NAVIGATION SYSTEM 3-51
NAVIGATION SYSTEM
Voice guidance volume setting
1
.
Press the
SETUP
key.
2
.
Press the
Voice Setup
button.
Voice guidance volume control
● Set the desired volume level by using the
or buttons and press the
Listen
button to verify the volume level.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Voice Guidance Louder"
"Voice Guidance Softer"
●
Press the
Mute
button when voice guid-
ance is unnecessary.
Voice guidance can be turned back on by
pressing the or buttons or pressing
the
Mute
button.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Voice Guidance On"
"Voice Guidance Off"
Adaptive volume control ON/OFF
● Press the desired setting button.
INFORMATION
Adaptive Volume Control
If the speed of the vehicle is over approxi-
mately 60 mi/h (100km/h), the volume level
can be increased one level higher than the
current level. If the speed of the vehicle falls
under 60 mi/h (100km/h), the volume level
will return to its original level.
3-52 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
Traffic Setup
1
.
Press the
SETUP
key.
2
.
Press the
Traffic Setup
button.
3
.
Select the desired changes and press the
Done
button.
INFORMATION
●
Display Traffic and Flow data on Map : select
whether to display traffic information on
the map.
●
Voice Prompt for traffic and flow warning :
select whether to provide voice guidance in
front of Traffic Information. (On route -
3mile)
●
Display Detour pop-up message : select
whether to display Detour pop up in front
of Traffic Information. (On route - 3mile)
Traffic Information
(a) Viewing Traffic Information
1
.
When the Traffic option is active, press the
button on the Map screen.
Traffic Flow INFORMATION
Normal, Free Flowing (46 mph ~)
Moderate Congestion (26 ~ 45 mph)
Heavy Traffic, Stop and Go (0 ~ 25 mph)
Road Construction
Accident
Congestion/Slow Traffic
Incient
Hazardous Road Conditions
Travel Information
INFORMATION
●
Traffic information will be shown on the
map up until the scale is ~4mile.
●
Displays the traffic information around vehi-
cle for up to a radius of 50 miles.
(Information exceeding 50 miles will not be
displayed)
●
The above list can be sorted by either
Distance (Default) or Category.
2
.
Select the desired
List
button.
NAVIGATION SYSTEM 3-53
NAVIGATION SYSTEM
3
.
The user can check points of accidents and
traffic details.
(b) Changing Traffic Category
1
.
Press the
Advabed
button at No. 2.
2
.
After selecting the desired menu among
the six menus, press the
Done
button to
save. Once returning to the previous List
screen, the corresponding Category list will
be shown and maintained until Category
information is changed.
3-54 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
Help
1
.
Press the
SETUP
key.
2
.
Press the
Help
button.
3
.
Press the
Navigation
button.
4
.
Press the desired Help menu button.
5
.
The full content of the help section can be
viewed by using the top-down scroll but-
tons.
VOICE COMMAND SYSTEM 4-1
VOICE COMMAND SYSTEM
PART 4
VOICE COMMAND SYSTEM
Operating voice command ………… 4-2
Condition for voice command system …… 4-2
Basic operation for voice
command control ……………………… 4-2
Voice command Help …………………… 4-3
Setting up the voice command system 4-4
Setting voice Prompt ON/OFF ………… 4-4
Speaker adaptation …………………… 4-4
Voice command list ………………… 4-6
Command list of Help ………………… 4-6
Command list of Audio system ………… 4-7
FM/AM Radio ………………………… 4-7
SIRIUS Radio ………………………… 4-8
CD …………………………………… 4-9
MP3 …………………………………… 4-10
USB MP3 ……………………………… 4-11
USB IMAGE …………………………… 4-12
iPod …………………………………… 4-12
Others ………………………………… 4-13
Command list of Navigation system ……… 4-14
Map …………………………………… 4-14
Destination …………………………… 4-15
Destination …………………………… 4-16
Route ………………………………… 4-16
Others ………………………………… 4-17
POI Category list ……………………… 4-18
Searching destination by
voice command ………………………… 4-19
Find address ………………………… 4-19
Find nearest POI ……………………… 4-20
Find nearest <POI name> …………… 4-21
Destination POI by phone number … 4-22
Find emergency <Category> ……… 4-23
Destination by address book ………… 4-24
Previous destination ………………… 4-24
Previous start point ………………… 4-25
Go home ……………………………… 4-25
Destination by memory
point <1 to 5> ……………………… 4-25
4-2 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
Operating voice command
Condition for voice command
system
Most of the functions within the Audio and
Navigation system can be operated by voice.
Please follow the following instructions for
optimal voice recognition performance.
●
Close all windows and the sunroof. The per-
formance of the voice recognition can be
improved if the environment of the car inte-
rior is quiet.
●
Press the voice recognition button and say
the desired voice command after the sound
of the beep.
●
The microphone is positioned above the
driver so that voice commands can be spo-
ken while maintaining a proper posture.
●
Pronounce the voice commands naturally
and clearly as if in a normal conversation.
Basic operation for voice
command control
1. Press the key on the steering wheel
remote controller. A voice command win-
dow will be displayed on the lower side of
the screen followed by a "Command
please" system voice comment.
INFORMATION
The System voice comment "Command
Please" will not be provided when the Voice
prompt is turned OFF.
2. Once the icon changes into the
icon on the pop-up screen with a beep
sound, say the desired voice command (ex :
previous destination)
[Voice command list], page 4-6.
[Searching destination by voice com-
mand], page 4-19.
If the exact command is not known, use the
"Help" command to view the commands list
in detail.
INFORMATION
Press the key shortly to input a voice
command from among the system voice com-
ments. The system voice instruction comment
will immediately terminate. When the
icon changes into the icon with a beep
sound, input the desired voice command.
VOICE COMMAND SYSTEM 4-3
VOICE COMMAND SYSTEM
3. The inputted command is fed back to the
screen and voice system. If the command
was not recognized properly, say "Back".
INFORMATION
● The commands which can currently be
inputted are displayed on the screen in yel-
low.
●
To terminate the voice recognition system,
either say "cancel" or press the
for over
0.8 second.
●
Be aware that during the operation of the
voice recognition system, pressing the hard
keys or the screen will terminate the voice
recognition system.
Voice command Help
1. Press the key on the steering wheel
remote controller. A voice command win-
dow will be displayed on the lower side of
the screen followed by a "Command
please" system voice comment.
INFORMATION
The System voice comment "Command
Please" will not be provided when the Voice
prompt is turned OFF.
2. Once the icon changes into the icon
on the pop-up screen with a beep sound,
say "Help". If the proper Help menu is
already known, voice commands, such as
"destination help" can be inputted directly.
INFORMATION
The "help" command can be used even while
voice recognition dialogue is operating. At
such time, help instructions appropriate to
the state of the dialogue will be provided.
3. Say the name of the desired menu.
(ex : "Destination help")
4. Say the desired voice command.
4-4 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
Setting up the voice command
system
Setting voice Prompt ON/OFF
●
Voice prompt ON : all system prompts are
provided.
● Voice prompt OFF : most of the system
prompts are not provided.
1. Press the key on the steering wheel
remote controller.
2. Once the icon changes into the
icon on the pop-up screen with a beep
sound, say "Voice setup." The "voice prompt
on" or "voice prompt off" can be directly
inputted if the current state is already
known.
3. Once the icon changes into the icon on the
pop-up screen with a beep sound, say
"Voice Prompt on".
INFORMATION
In the Voice Setup Help screen, the com-
mands possible for input within the current
mode are displayed. For example, if the Voice
prompt is currently in Off state, then the com-
mand Voice prompt ON will be displayed on
the screen.
Speaker adaptation
INFORMATION
Speaker adaptation will improve performance
of voice recognition system to a particular
user voice. This will degrade the performance
for other users.
1. Press the key on the steering wheel
remote controller.
2. Once the icon changes into the icon
on the pop-up screen with a beep sound,
say "Voice setup." Or the "Speaker adapta-
tion" command can be directly inputted.
3. Once the icon changes into the
icon on the pop-up screen with a beep
sound, say "Speaker adaptation".
VOICE COMMAND SYSTEM 4-5
VOICE COMMAND SYSTEM
4.
Once the icon changes into the icon
on the pop-up screen with a beep sound,
say "Yes".
5. Listen and repeat the 20 commands
(approximate) as instructed by the device.
● Reset Speaker adaptation: Returns to previ-
ous state prior to applying Speaker adapta-
tion.
1. Press the key on the steering wheel
remote controller.
2. Once the icon changes into the
icon on the pop-up screen with a beep
sound, say "Reset Speaker adaptation".
4-6 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
Voice command list
The voice commands for this system are divid-
ed into Global commands and Local com-
mands.
● Global command () : Commands which
operate in all operating modes.
● Local command () : Commands which
operate only when the corresponding
mode is operating or when the mode
screen to the corresponding mode is dis-
played.
Command list of Help
Command Operation
●Help Displays the main Help screen.
●Destination Help Displays the Destination related command list.
●Map Help Displays the Map related command list.
●Radio Help Displays the FM/AM radio related command list.
●SIRIUS Help Displays the SIRIUS radio related command list.
●Disc Help Displays the DISC mode related command list for the disc
inserted in the CD Player.
●iPod Help Displays the iPod related Command list.
●USB Help Displays the USB related command list.
●Phone Help Displays the Phone help screen.
●Voice setup Help Displays the Voice prompt settings and speaker-adaptive
commands on the screen.
VOICE COMMAND SYSTEM 4-7
VOICE COMMAND SYSTEM
Command Operation
●
Radio Plays the most recent frequency for the most recently operated band.
●
(Radio) AM Plays the most recent frequency for the corresponding band.
●
(Radio) FM Plays the most recent frequency for the corresponding band. In the case of FM, the most recent frequency
within the most recently played FM1 or FM2 band is played.
●
FM <1 or 2> Plays the most recent frequency for the corresponding band.
●
AM frequency <530 to 1710>
(ex. AM frequency 1310) Plays the desired AM band frequency.
●
FM frequency <87.5 to 107.9>
(ex. FM frequency 99.1) Plays the desired FM band frequency.
●
AM Preset <1 to 6> Plays the desired AM band preset frequency.
●
FM <1 or 2> Preset <1 to 6> Plays the desired preset frequency of FM1 or FM2 band.
○
Preset <1 to 6> Plays the desired preset frequency for the current band.
○
Seek Up Searches and plays the next frequency of the current band.
○ Seek Down Searches and plays the previous frequency of the current band.
○ Preset Up Plays the next preset frequency of the current band.
○ Preset Down Plays the previous preset frequency of the current.
○ Scan Scans all frequencies within the current band.
○ Preset Scan Scans the 6 preset frequencies of the current band.
Command list of Audio system
FM/AM Radio
4-8 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
Command Operation
● SIRIUS Plays the last channel within the last band from SIRIUS1, SIRIUS2, and SIRIUS3.
● SIRIUS <1 or 2 or 3> Plays the most recent channel for the corresponding Band.
● SIRIUS Channel <0 to 223> Plays the desired SIRIUS band channel.
●
SIRIUS <1 or 2 or 3> Preset <1 to 6>
Plays the desired preset channel for SIRIUS1 or SIRIUS2 or SIRIUS3 band.
○ Channel < 0 to223 > Plays the desired channel of the current band.
○ Preset <1 to 6> Plays the desired preset channel of the current band.
○ Channel Up Plays the next channel of the current band.
○ Channel Down Plays the previous channel of the current band.
○ Preset Up Plays the next preset channel of the current band.
○ Preset Down Plays the previous preset channel of the current band.
○ Scan Scans all channels within the current band.
○ Preset Scan Scans all preset channels within the current band.
SIRIUS Radio
VOICE COMMAND SYSTEM 4-9
VOICE COMMAND SYSTEM
Command Operation
●DISC Plays the DISC already inserted in the CD Player.
●CD If the DISC inserted in the CD Player is either a CD or MP3 DISC, then the CD or MP3 will be played.
●CD track <1 to 665> If the DISC inserted in the CD Player is a CD, then CD Mode will start and plays the desired track.
○Track <1 to 665> Plays the desired track.
○Next track Plays the next track.
○Previous track Plays the previous track.
○Scan Scans all tracks on the CD DISC.
○Repeat track Repeats the current playing track.
○Random Plays the tracks of the CD DISC in random order.
○Normal play Turns off the Scan, Repeat, and Random functions.
○Pause Pauses the CD.
○
Play
The command will only be enabled when the CD is paused.
CD
4-10 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
Command Operation
● DISC Plays the DISC already inserted into the CD Player.
● CD If the DISC inserted in the CD Player is either a CD or MP3 DISC, then the CD or MP3 will be played.
● MP3 If the DISC inserted in the CD Player is an MP3 DISC, then the MP3 will be played.
○ Next file Plays the next file.
○ Previous file Plays the previous file.
○ Next folder Plays the first file in the next folder.
○ Previous folder Plays the first file in the previous folder.
○ Scan Scans all files within the MP3 DISC.
○ Folder Scan Plays all songs in the folder in which the current playing file is located for 10 seconds each.
○ Repeat File Repeats the current playing file.
○ Repeat Folder Repeats all tracks within the current playing folder.
○ Random Plays all files within the MP3 DISC in random order.
○ Random Folder Plays all files within the current playing folder in random order.
○ Normal play Turns off the Scan, Repeat, and Random functions.
○
Pause
Pauses the MP3 DISC.
○
Play
The command will only be enabled when the MP3 DISC is paused.
MP3
VOICE COMMAND SYSTEM 4-11
VOICE COMMAND SYSTEM
USB MP3
Command Operation
● USB If the USB has been connected to the device, plays the MP3 files within the USB.
○ Next file Plays the next file.
○ Previous file Plays the previous file.
○ Next folder Plays the first chapter of the next folder.
○ Previous folder Plays the first chapter of the previous folder.
○ Scan Scans all files within the USB.
○ Folder Scan Plays all songs in the folder in which the current playing file is located for 10 seconds each.
○ Repeat File Repeats the current playing file.
○ Repeat Folder Repeats all songs within the current playing folder.
○ Random Plays all files within the USB in random order.
○ Random Folder Plays all files within the current playing folder in random order.
○ Normal play Turns off the Scan, Repeat, and Random functions.
○ Pause Pauses the USB.
○ Play The command will only be enabled when the USB is paused.
4-12 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
iPod
Command Operation
● iPod Plays the songs within the iPod if the iPod has been connected to the device.
○ Next song Plays the next song.
○ Previous song Plays the previous song.
○ Repeat song Repeats the current playing song.
○ Random Plays all songs within the iPod in random order.
○ Random Album Plays all songs within the current playing album in random order.
○ Normal play Turns off the Repeat and Random functions.
○Pause Pauses the iPod.
○Play The command will only be enabled when the iPod is paused.
USB IMAGE
Command Operation
● USB If the USB IMAGE has been connected to the device, plays the image files within the USB.
○Next Image Moves to the next Image.
○Previous Image Moves to the previous Image.
○Next folder Moves to the next folder.
○Previous folder Moves to the previous folder.
VOICE COMMAND SYSTEM 4-13
VOICE COMMAND SYSTEM
Others
Command Operation
● Line in Plays the unit connected with the AUX terminal.
● Audio on Turns on the Audio/Video.
● Audio off Turns off the Audio/Video.
Command list of Phone
Command Operation
●
Call Name Makes the call to the name.
●
Dial Number makes the callto the number.
●
Redial The recently called number is redialed.
●
Recent Calls The user can select a number from the outgoing, incoming, and missed calls.
4-14 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
Command list of Navigation system
Navigation commands will operate only agreeing to the terms and conditions for the Navigation system.
Map
Command Operation
●
Map Current location Displays the current position of the vehicle.
●
Zoom In Decreases the map zoom by one level.
●
Zoom Out Increases the map zoom by one level.
●
Zoom minimum Displays the map screen in the maximum zoom level.
●
Zoom maximum Displays the map screen in the minimum zoom level.
●
Zoom level <1 to 14> Displays the map in the zoom level selected from the 14 levels.
●
Zoom <scale factor> Displays the map in the corresponding zoom.
150 feet / 50 meters
300 feet /100 meters
700 feet / 200 meters
0.25 miles / 400 meters
0.5 miles / 800 meters
1 mile / 1.6 kilometers
2 miles / 3.2 kilometers
4 miles / 6.4 kilometers
8 miles / 12 kilometers
16 miles / 25 kilometers
32 miles / 50 kilometers
64 miles / 100 kilometers
130 miles / 200 kilometers
250 miles / 400 kilometers
(ex.Zoom 0.25 miles, zoom 400 meters)
VOICE COMMAND SYSTEM 4-15
VOICE COMMAND SYSTEM
Command Operation
○
North up Displays the map in North Up mode.
○
Heading up Displays the map in Heading Up mode.
○
Show <POI name> (ex. Show ATM) Displays the selected POI categories.
[POI Category list], page 4-18.
○
Hide <POI name> (ex. Hide ATM) Hides the selected POI categories.
[POI Category list], page 4-18.
○
Hide all Hides all POI categories.
○
Daylight mode Converts the map display into daylight mode.
○
Night mode Converts the map display into night mode.
○
Auto mode Converts the map display is between daylight/night modes automatically.
Destination
Command Operation
●Find address Sets the destination through address search for route guidance.
●Find nearest POI Sets a POI near the current position as the destination for route guidance through POI category search.
●Find nearest <POI name> Sets a POI near the current position as the destination by directly inputting the POI name for route
guidance.
[POI Category list], page 4-18.
●Destination POI by phone number Sets the destination by searching the phone number of the facility.
●Find Emergency <Category>
(ex. Find Emergency Hospital)
Searches for an emergency facility which is nearby the current position and sets it as the destination
for route guidance. Emergency facilities are police stations, hospitals, and dealerships.
●Destination by address book Sets one of the list of previously registered addresses in the address book for the user as the
destination.
4-16 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
Destination
Route
Command Operation
●Previous destination Sets one of the previous destination as the current destination.
●Previous start point Sets the previous start point as the current destination.
●Go home Sets the previously registered home address as the destination for route guidance.
●Destination by memory point <1 to 5> Sets a previously registered memory point as the destination for route guidance
Command Operation
●
Cancel route Deletes the designated destination and terminates the route guidance.
●
Repeat voice guidance Repeats the route guidance.
●
Detour <1 or 2 or 5 or 10> miles Searches detour routes within a <1|2|5|10> mile radius.
●
Detour <1 or 2 or 5 or 10> kilometers Searches detour routes within a <1|2|5|10> kilometer radius.
●
Replan recommended route Recalculates the route with the recommended route.
●
Replan shortest route Recalculates the route with the shortest route.
●
Distance to destination Reports the remaining distance until destination by voice.
●
Time to destination Reports the remaining time until destination by voice.
○
View route If the destination has been set, displays the whole route screen until the destination.
○Start guidance Sets the scroll mark displayed on the map as the destination and starts route guidance.
VOICE COMMAND SYSTEM 4-17
VOICE COMMAND SYSTEM
Others
Command Operation
●
Voice guidance on Turns the Voice Guidance On.
●
Voice guidance off Turns the Voice Guidance Off.
●
Voice guidance louder Increases the Voice Guidance volume by 1 level.
●
Voice guidance softer Decrease the Voice Guidance volume by 1 level.
●
Store marked location to <text tag>
(ex. Store marked location to user 1) Registers the selected location into the selected Address book.
4-18 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
POI Category list
All restaurants Car Wash Home Specialty Store Court House
Fast Food restaurant Motorcycle Dealership Clothing shop Fire Department
American restaurant All Travel Shoe Store Convention Center
French restaurant Airport Pharmacy City Hall
Italian restaurant Hotel All Recreation Civic Center
Continental restaurant Tourist Information Amusement Park School
Mexican restaurant Travel Agent Museum Government Offices
Japanese restaurant Tourist Attraction Cinema Waste & Sanitary
Chinese restaurant City Cnter Sports Activities Utilities
Korean restaurant Rental Car Agency Sports Complex All Services
Vegetarian Food restaurant Campground Golf Course Hospital
Seafood restaurant Ferry Terminal Winery Dentist
Latin American restaurant Bus Station Video & Game Rental Photography
Asian restaurant Local Transit Ski Resort Tax Service
African restaurant Train Station Recreation Area Medical Service
Coffee Shop All Shopping Other Recreation Attorney
Other restaurants Department Store All Financial Service Funeral Director
All automotive Convenience Store Bank Hair & Beauty
Gas Station Shopping Center ATM Cleaning & Laundry
Parking Music Store Check Cashing Service Social Service
Auto service Grocery Store Money Transfer Physician
Road Assistance Bookstore Business Facility Communication services
Kia Dealership Electronics Store All Community Tailor & Alteration
Automobile Dealership Hardware Store Police Station Mover services
Auto Parts Gifts shop Post Office
Rest Area Sporting Goods store Library
VOICE COMMAND SYSTEM 4-19
VOICE COMMAND SYSTEM
Searching destination by voice
command
Find address
Sets the destination through address search
for route guidance.
1.
Press the key on the steering wheel
remote controller.
2. Once the icon changes into the icon
on the pop-up screen with a beep sound,
say "Find address".
3. Say "Change state" to change the state.
4. Say the state name.
5. Say the city name.
6. Say the street name.
7.
Say the House number. Here, the range
which can be inputted will be displayed.
8.
Say "Start guidance" if guidance to the
selected position is desired, or say "Show
map" to verify the location of the selected
position on the map.
4-20 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
INFORMATION
Spell recognition
●
It is possible to search the state, city, street
names through the text line inputted by the
user.
● To enter spell search mode, say the "Spell
state, city, street names" command as dis-
played on the screen.
● Text lines can be inputted continuously.
Pick-List(n-best list)
● If there are more than one voice result, then
a pick-list which can be selected by the user
will be displayed.
● There may be more than one list page. The
desired page can be viewed by using com-
mands such as "next page" or "previous
page".
● Here, the "Line + number" voice command
can be used to select the desired result,
such as "Line one". Pressing the desired
result is not supported.
● Also, selectable areas will be highlighted in
yellow, allowing the user to easily see which
results can be selected.
Find nearest POI
Sets a POI near the current position as the
destination for route guidance through POI
category search.
1.
Press the key on the steering wheel
remote controller.
2. Once the icon changes into the
icon on the pop-up screen with a beep
sound, say "find nearest POI".
3. Select the desired main category.
VOICE COMMAND SYSTEM 4-21
VOICE COMMAND SYSTEM
4. Select the desired sub category.
5.
Select the desired POI from the list and say
the line number for the corresponding
menu. Ex) "Line 1".
6.
Say "Start guidance" if guidance to the
selected position is desired, or say "Show
map" to verify the location of the selected
position on the map.
Find nearest <POI name>
Sets a POI near the current position as the
destination by directly inputting the POI
name for route guidance.
1.
Press the key on the steering wheel
remote controller.
2. Once the icon changes into the icon
on the pop-up screen with a beep sound,
say "Find nearest Parking".
3. Select the desired POI from the list and say
the line number for the corresponding
menu. Ex) "Line 1".
4-22 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
4.
Say "Start guidance" if guidance to the
selected position is desired, or say "Show
map" to verify the location of the selected
position on the map.
Destination POI by phone number
Sets the destination by searching the phone
number of the facility.
1. Press the key on the steering wheel
remote controller.
2.
Once the icon changes into the icon
on the pop-up screen with a beep sound,
say "Destination POI by Phone number".
3. Input the 10 numbers for the phone num-
ber.
INFORMATION
Continuous recognition of phone numbers is
possible, and the recognized result will be dis-
played in block units. To correct a block unit,
say "correct". To delete the entire result, say
"delete". To have the input read back, say
"repeat".
4. Say "Show list" to view the resulting search
list.
VOICE COMMAND SYSTEM 4-23
VOICE COMMAND SYSTEM
5. Select the desired location from the list and
say the line command.
6. Say "Start guidance" if guidance to the
selected position is desired, or say "Show
map" to verify the location of the selected
position on the map.
Find emergency <Category> :
Searches for an emergency facility which is
nearby the current position and sets it as the
destination for route guidance. Emergency
facilities are police stations, hospitals, and
dealerships.
1. Press the key on the steering wheel
remote controller.
2.
Once the icon changes into the icon
on the pop-up screen with a beep sound,
say the voice command.
ex)“Find emergency hospital”
3. Select the desired location from the list and
say the line command.
4.
Say "Start guidance" if guidance to the
selected position is desired, or say "Show
map" to verify the location of the selected
position on the map.
4-24 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
Destination by address book
Sets one of the list of previously registered
addresses in the address book for the user as
the destination.
1.
Press the key on the steering wheel
remote controller.
2.
Once the icon changes into the icon
on the pop-up screen with a beep sound,
say "Destination by address book".
3. Select the desired user name(Address book
name).
4. Select the desired location from the list and
say the line command.
5. Say "Start guidance" if guidance to the
selected position is desired, or say "Show
map" to verify the location of the selected
position on the map.
Previous destination
Sets one of the previous destination as the
current destination.
1.
Press the key on the steering wheel
remote controller.
2. Once the icon changes into the icon
on the pop-up screen with a beep sound,
say "Previous destination".
3.
Select the desired location from the list and
say the line command.
VOICE COMMAND SYSTEM 4-25
VOICE COMMAND SYSTEM
4.
Say "Start guidance" if guidance to the
selected position is desired, or say "Show
map" to verify the location of the selected
position on the map.
Previous start point
Sets the previous start point as the current
destination.
1.
Press the key on the steering wheel
remote controller.
2. Once the icon changes into the icon
on the pop-up screen with a beep sound,
say "Previous start point".
3. Say "Start guidance" if guidance to the
selected position is desired, or say "Show
map" to verify the location of the selected
position on the map.
Go home
Sets the previously registered home address
as the destination for route guidance.
1.
Press the key on the steering wheel
remote controller.
2.
Once the icon changes into the icon
on the pop-up screen with a beep sound,
say "Go home".
Destination by memory point <1 to 5>
Sets a previously registered memory point as
the destination for route guidance.
1.
Press the key on the steering wheel
remote controller.
2.
Once the icon changes into the icon
on the pop-up screen with a beep sound,
say "Destination by memory point 1".
PART 5 BLUETOOTH® HANDSFREE
PART 5
BLUETOOTH® HANDSFREE
Before using the Bluetooth®
Handsfree ……………………………… 5-2
What is Bluetooth®? ……………………… 5-2
Functions supported by
Bluetooth® Handsfree …………………… 5-2
Converting Bluetooth® Handsfree
mode …………………………………… 5-2
Converting from Audio/Navigation mode to
Bluetooth® Handsfree mode
……………… 5-2
Converting from Bluetooth® Handsfree
mode to Audio/Navigation mode ………… 5-3
Pairing and connecting a Bluetooth®
phone …………………………………… 5-4
Pairing a mobile phone …………………… 5-4
Deleting a paired phone ………………… 5-6
Connecting a mobile phone ……………… 5-7
Disconnecting a mobile phone …………… 5-8
Bluetooth® Handsfree screen layout … 5-9
Bluetooth® Handsfree screen and
functions …………………………………… 5-9
When there is no mobile phone
connected ……………………………… 5-9
When a mobile phone is connected …… 5-9
When receiving an incoming call ……… 5-10
When already on a call ………………… 5-10
When there is a call waiting …………… 5-10
Making a call ………………………… 5-11
Making a call by dialing a phone
number …………………………………… 5-11
Making a call from Speed Dial …………… 5-11
Making a call by redialing ………………… 5-12
Answering a call …………………… 5-13
Answering an incoming call ……………… 5-13
Rejecting an incoming …………………… 5-13
Operating menus during a call …… 5-14
Switching call to the mobile phone ……… 5-14
Activating Call waiting …………………… 5-14
Ending a call ……………………………… 5-15
Phone Book ………………………… 5-16
Making a call from the Phone book ……… 5-16
Searching the Phone Book ………………… 5-17
Searching by name …………………… 5-17
Searching by number ………………… 5-18
Call History List ……………………… 5-19
Making a call from Call history …………… 5-19
Sorting call history ………………………… 5-19
Dialed number ………………………… 5-20
Received number ……………………… 5-20
Missed number ………………………… 5-20
BLUETOOTH® HANDSFREE 5-1
BLUETOOTH® HANDSFREE
PART 5
BLUETOOTH® HANDSFREE
Phone Music ………………………… 5-21
Before playing Phone music ……………… 5-21
Starting Phone Music ……………………… 5-21
Phone music screen layout ……………… 5-22
Selecting Phone music files ……………… 5-23
Bluetooth® settings ………………… 5-24
Pairing and connecting a mobile phone …… 5-24
Setting mobile phone auto connect
priority …………………………………… 5-24
Setting Handsfree volume ………………… 5-25
Setting Audio streaming ………………… 5-25
Advanced settings ………………………… 5-26
Setting Contacts Auto Download
(Sync) …………………………………… 5-27
Searching and modifying my device
properties ……………………………… 5-27
Changing passkey ……………………… 5-28
Deleting all paired phones …………… 5-28
Initializing Bluetooth® handsfree ……… 5-29
Important information …………… 5-30
About pairing mobile phones …………… 5-30
About making/answering phone calls …… 5-31
About Bluetooth® device environment …… 5-31
5-2 BLUETOOTH® HANDSFREE
PART 5 BLUETOOTH® HANDSFREE
Before using the Bluetooth®
Handsfree
What is Bluetooth®?
●
Bluetooth® allows wireless transmission of
information between PC, mobile phones,
headsets, PDAs, printers and other devices
within close ranges by using 2.45Ghz fre-
quency short-distance wireless telecommu-
nication technologies.
●
Within this vehicle, users can make hands-
free calls, transmit mobile phone data, and
play audio streaming files by connecting a
mobile phone with the system.
Functions supported by
Bluetooth® Handsfree
●
Pairing mobile phones (Up to 5 phones)
●
Connecting/disconnecting mobile phones
●
Making/Answering phone calls
●
Downloading a Phone Book
●Downloading a Call history list
●
Playing music saved in a Bluetooth® phone
in the vehicle
Some functions may not be supported in
some mobile phone.
Converting Bluetooth®
Handsfree mode
Converting from Audio/Navigation
mode to Bluetooth® Handsfree
1
.
While in Audio mode or Navigation mode,
press the
PHONE
key or the key on
the steering wheel.
Bluetooth® is a trademark owned by
Bluetooth® SIG, Inc.
BLUETOOTH® HANDSFREE 5-3
BLUETOOTH® HANDSFREE
2
.
The system will change to Bluetooth®
Handsfree mode and display the PHONE
screen.
3
.
The following screen will become displayed
if no mobile phone has been connected.
Converting from Bluetooth®
Handsfree mode to Audio/
Navigation mode
1
.
While in Bluetooth® Handsfree mode, press
an Audio/Navigation mode key, such as
FM/AM
or
MAP VOICE
.
2
.
The corresponding mode will be displayed.
INFORMATION
Most of the functions of the Audio or SETUP
modes are not supported while on a
Bluetooth® Handsfree call. The call volume and
Navigation (MAP VOICE, DEST, ROUTE) screens
can be operated.
5-4 BLUETOOTH® HANDSFREE
PART 5 BLUETOOTH® HANDSFREE
Pairing and connecting a
Bluetooth® phone
Pairing a mobile phone
1
.
Press the
Settings
button on the PHONE
screen.
2
.
Press the
Pairings
button on the Settings
screen.
3
.
The list of currently paired phones will be
displayed. Press the
Add to
button to pair
a new mobile phone.
INFORMATION
For safety reasons, pairing a Bluetooth® phone
is not possible when the vehicle is in motion.
Park the vehicle in a safe location to pair a
new phone. It is possible to pair up to five
mobile phones. In order to pair a new phone
when there are already five mobile phones
paired, you must first delete one of the pre-
viously paired phones.
4
.
From the Bluetooth® device list within the
mobile phone, add the car handsfree.
The default name of the car system is KIA
MOTORS.
For more information on registering
Bluetooth® devices from the mobile phone,
please refer to the mobile phone user's
manual.
INFORMATION
While conducting a Bluetooth® device search
from the mobile phone, operating to another
screen will prevent the car handsfree from
being found in the mobile phone. Always con-
duct searches for Bluetooth® devices with the
Search Bluetooth® device screen displayed.
BLUETOOTH® HANDSFREE 5-5
BLUETOOTH® HANDSFREE
5
.
When pairing the car handsfree from the
mobile phone, a passkey input window will
become displayed on the mobile phone
screen. Input the passkey set within the car
system into the mobile phone input win-
dow. (The factory state passkey is 0000.)
As shown in the figure, once the passkey
becomes successfully inputted, the
Bluetooth® connection between the car sys-
tem and mobile phone will start.
6
.
Once Bluetooth® connection is successful,
the name of the connected mobile phone
will become displayed on the PHONE
screen and Bluetooth® handsfree functions
will operate.
INFORMATION
Some functions may not be supported due to
limited Bluetooth® compatibility between the
car system and mobile phone.
5-6 BLUETOOTH® HANDSFREE
PART 5 BLUETOOTH® HANDSFREE
Deleting a paired phone
1
.
Press the
Settings
button on the PHONE
screen.
2
.
Press the
Pairings
button on the Settings
screen.
3
.
The list of currently paired phones will be
displayed. Select the phone you wish to
delete from the list and press the
Delete
button.
4
.
A pop-up asking whether you wish to dele-
te the paired phone will be displayed.
Press the
Yes
button to delete the paired
phone and the
No
button to cancel.
CAUTION!
A mobile phone cannot be deleted if it is
currently connected to the car system.
To delete the phone, first disconnect the
mobile phone and try again.
BLUETOOTH® HANDSFREE 5-7
BLUETOOTH® HANDSFREE
Connecting a mobile phone
1
.
Press the
Settings
button on the PHONE
screen.
2
.
Press the
Connections
button on the
Settings screen.
3
.
The list of currently paired phones will be
displayed. Select the phone you wish to
co nn ect from the list and pres s th e
Connect
button.
INFORMATION
When there are no paired phones, pair the
mobile phone through [Settings>Pairings>
Add to]. For more information on pairing
mobile phones, refer to the user's manual
[Pairing and Connecting a Bluetooth® phone
> Pairing a mobile phone].
4
.
The Bluetooth® connection between the car
system and mobile phone will start.
5
.
Once Bluetooth® connection is successful,
the name of the connected mobile phone
will become displayed on the PHONE
screen and Bluetooth® handsfree functions
will operate.
5-8 BLUETOOTH® HANDSFREE
PART 5 BLUETOOTH® HANDSFREE
4
.
If the connection between the mobile
phone and Bluetooth® fails, the following
pop-up will be displayed. If problems occur
while connecting Bluetooth®, check for the
following conditions.
●
Whether the mobile phone you wish to con-
nect is in the vicinity of the car system
●
Whether the power of the mobile phone
Bluetooth® has been turned off
●
Whether the mobile phone Bluetooth® has
been set to hidden state
●
Whether there are Bluetooth® compatibility
issues between the car system and another
mobile phone
Disconnecting a mobile phone
1
.
Press the
Settings
button on the PHONE
screen.
2
.
Press the
Connections
butto n on the
Settings screen.
3
.
The list of currently paired phones will be
displayed. Select the phone you wish to dis-
co nn ect from the list and pres s th e
Disconnect
button.
4
.
pop-up asking whether you wish to discon-
nect the mobile phone will be displayed.
Press the
Yes
button to disconnect the
mobile phone and the
No
button to
cancel.
