BLUETOOTH® HANDSFREE 5-9
BLUETOOTH® HANDSFREE

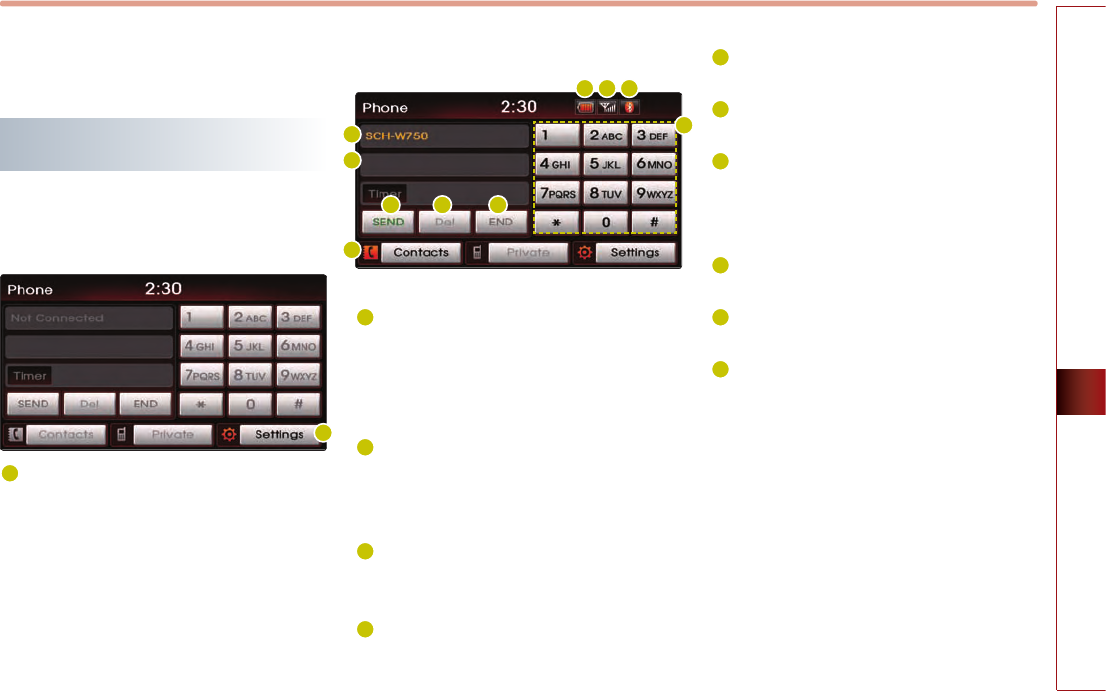

Bluetooth® Handsfree screen
layout
Bluetooth® Handsfree screen and
functions
When there is no mobile phone
connected
1
Settings : the user can set desired settings
for the Bluetooth® handsfree, such as pair/
delete mobile phone, connect/ disconnect
mobile phone, set call volume, change
device name and change passkey.
When a mobile phone is connected
2
Phone battery charge status : displays the
battery charge status of the connected
mobile phone. The battery charge status
may not be displayed in some mobile pho-
nes.
3
Signal strength : displays the mobile
phone signal strength. The signal strength
may not be displayed in some mobile pho-
nes.
4
Bluetooth® connection state : becomes
displayed when a Bluetooth® phone has
been connected with the car system.
5
Name of connected mobile phone : dis-
plays the name of the connected mobile
phone.
6
Phone number input window : displays
the inputted phone number.
7
Dial : input the phone number through
the dial pad.
8
SEND : if a number has not been entered
into the phone number input window,
Pressing the send button displays the call
history list screen.
9
Del : deletes the inputted number one
digit at a time.
10
END : if a number has been inputted, then
erases the entire number.
11
Contacts : displays the phone book screen.
The user can search previously saved
phone numbers. The phone contact list
may not be displayed in some mobile pho-
nes.
1
2
5
6
11
8 9 10
3 4
7
5-10 BLUETOOTH® HANDSFREE
PART 5 BLUETOOTH® HANDSFREE

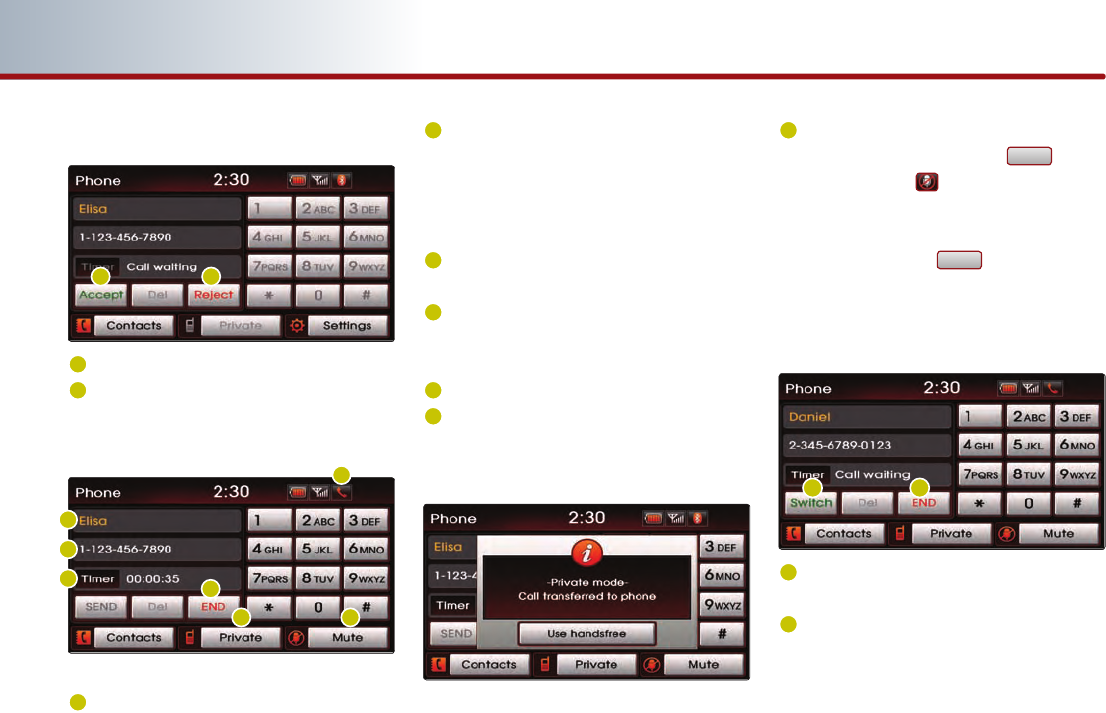

When receiving an incoming call
12
Accept : accepts the incoming call.
13
Reject : rejects the incoming call.
When already on a call
14
Busy icon : when already on a call, displays
an icon shaped like a receiver.
15
Name of incoming caller : displays the
name of incoming caller. The name of the
incoming caller will not be displayed if the
caller's phone number has not been pre-
viously registered in the phone book.
16
Number of incoming caller : displays the
number of the incoming caller.
17
Call state : displays the call state, such as
talk time, phone connection, and end
time.
18
END : ends the call.
19
Private : when talking on the car hands-
free, use this function to switch the call to
the mobile phone.
20
Mute : use this function to mute the out-
going volume. Pressing the
Mute
button
will display the
at the top right side of
the screen and the caller will not be able
to hear the conversation taking place in
the car. Press the
Mute
button again to
release the Mute function.
When there is a call waiting
21
Switch : use this button to switch between
callers when there are calls on call waiting.
22
END : use this button to end the calls with
all callers.
21 22
12
15
14
16
17 18
19 20
13
BLUETOOTH® HANDSFREE 5-11
BLUETOOTH® HANDSFREE
Making a call

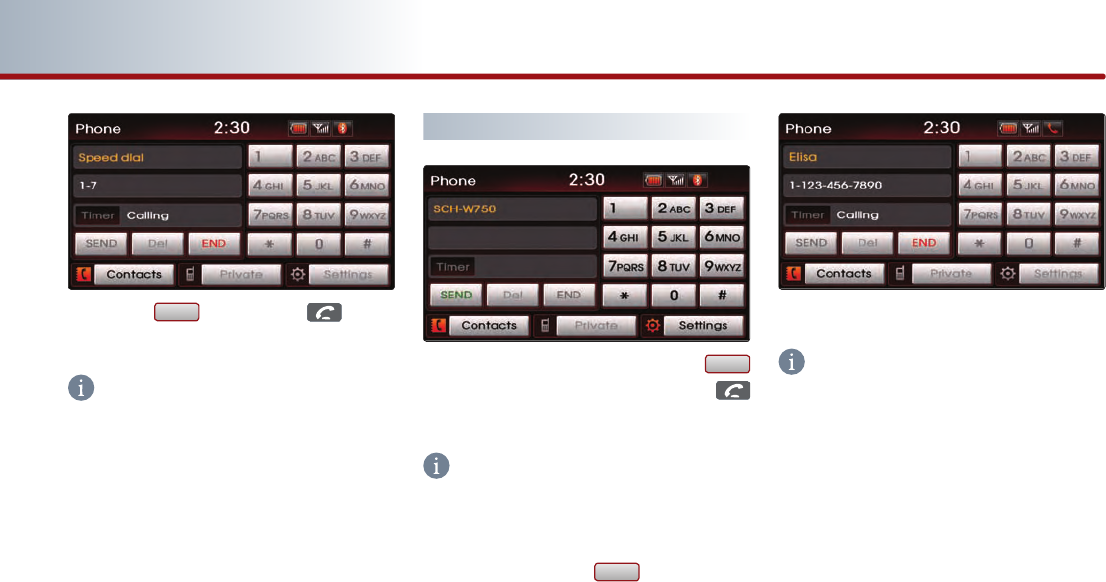

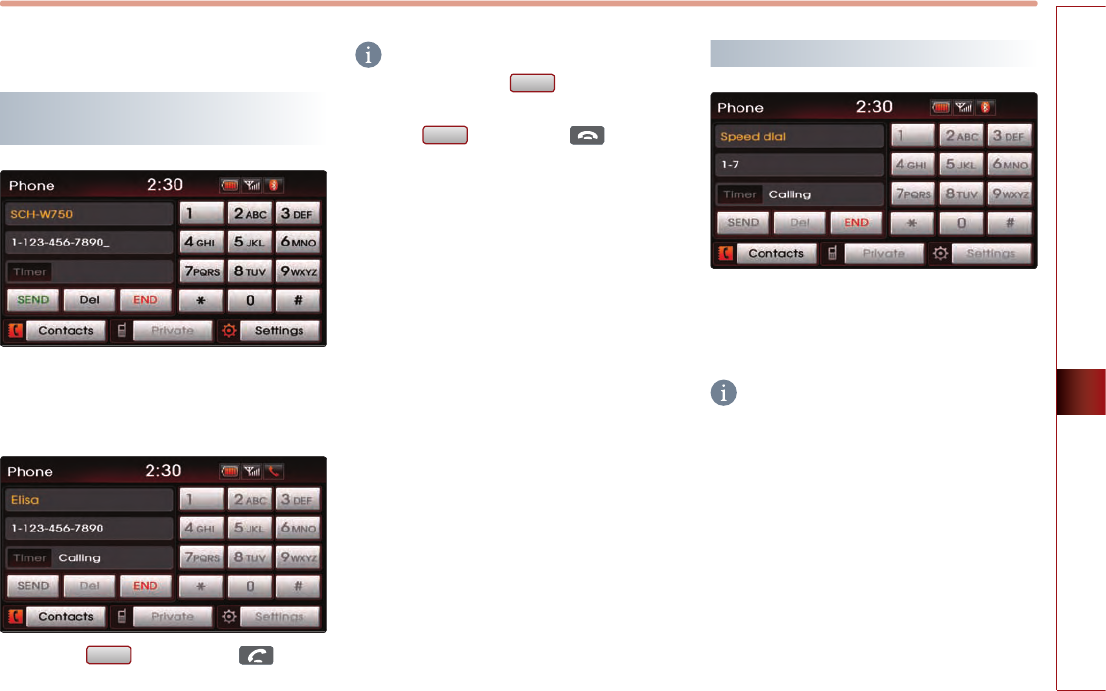

Making a call by dialing a phone
number
1
.
Use the number pad on the right side of the
PHONE screen to input the number you
wish to call.
2
.
Press the
SEND
button or the key on
the steering wheel to make the call.
INFORMATION
To modify, press the
Del
button to delete
the inputted number one digit at a time.
Press the
END
button or the key on the
steering wheel to cancel the call.
Making a call from Speed Dial
1
.
Use the number pad on the right side of the
PHONE screen to input a speed dial num-
ber.
INFORMATION
Only speed dial numbers already stored on
the mobile phone can be used for speed dial
calls.
Up to 2-digit speed dial numbers are suppor-
ted.
5-12 BLUETOOTH® HANDSFREE
PART 5 BLUETOOTH® HANDSFREE
2
.
Press the
SEND
button or the key on
the steering wheel to make the call.
INFORMATION
For 2-digit speed dial numbers, press and hold
the 2nd digit to make a call to the speed dial
number.
Making a call by redialing
1
.
Press and hold (over 0.8 second) the
SEND
button on the PHONE screen or the
key on the steering wheel.
INFORMATION
Redialing is not possible when there is no call
history or the call history list is being down-
loaded from the mobile phone. When there is
no call history list, the
SEND
button will be
inactive.
2
.
The recently called number is redialed.
INFORMATION
It is not possible to display the Audio mode
and Settings screen when on a phone call.
Only the call volume and Navigation (MAP
VOICE, DEST, ROUTE) screens can be operated.
BLUETOOTH® HANDSFREE 5-13
BLUETOOTH® HANDSFREE
Answering a call
Answering an incoming call
1
.
The following screen will be displayed
when you receive an incoming call.
2
.
To answer the incoming call, press the
Accept
button or the key on the
steering wheel.
Rejecting an incoming
1
.
The following screen will be displayed
when you receive an incoming call.
2
.
To reject the incoming call, press the
Reject
button or the key on the stee-
ring wheel. The incoming call will be rejec-
ted.
INFORMATION
Upon receiving a call, the [Reject] function
may not be supported in some mobile pho-
nes.
5-14 BLUETOOTH® HANDSFREE
PART 5 BLUETOOTH® HANDSFREE
Operating menus during a call

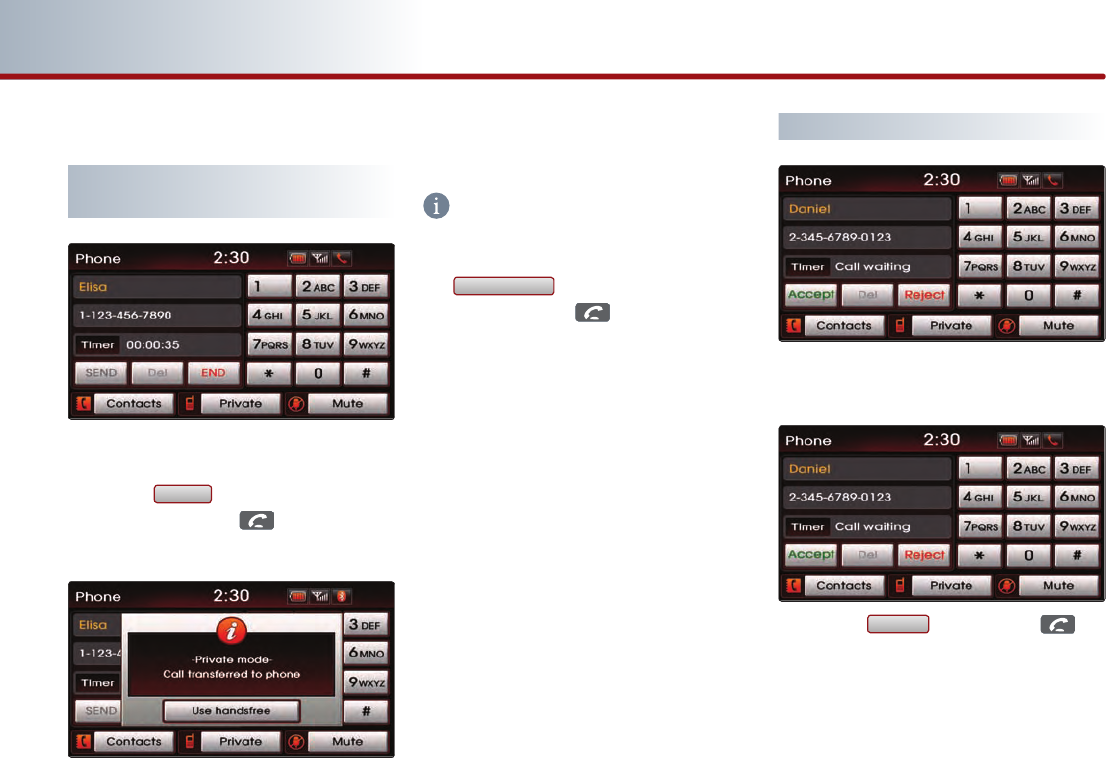

Switching call to the mobile
phone
1
.
If you wish to switch the call to the mobile
phone while talking on the car handsfree,
press the
Private
button or press and hold
(over 0.8 second) the key on the stee-
ring wheel.
2
.
As shown, the call will be switched to the
mobile phone.
INFORMATION
If you wish to switch the call to the car hands-
free while talking on the mobile phone, press
the
Use handsfree
button or press and hold
(over 0.8 second) the key on the steering
wheel. The call will be switched to the car
handsfree.

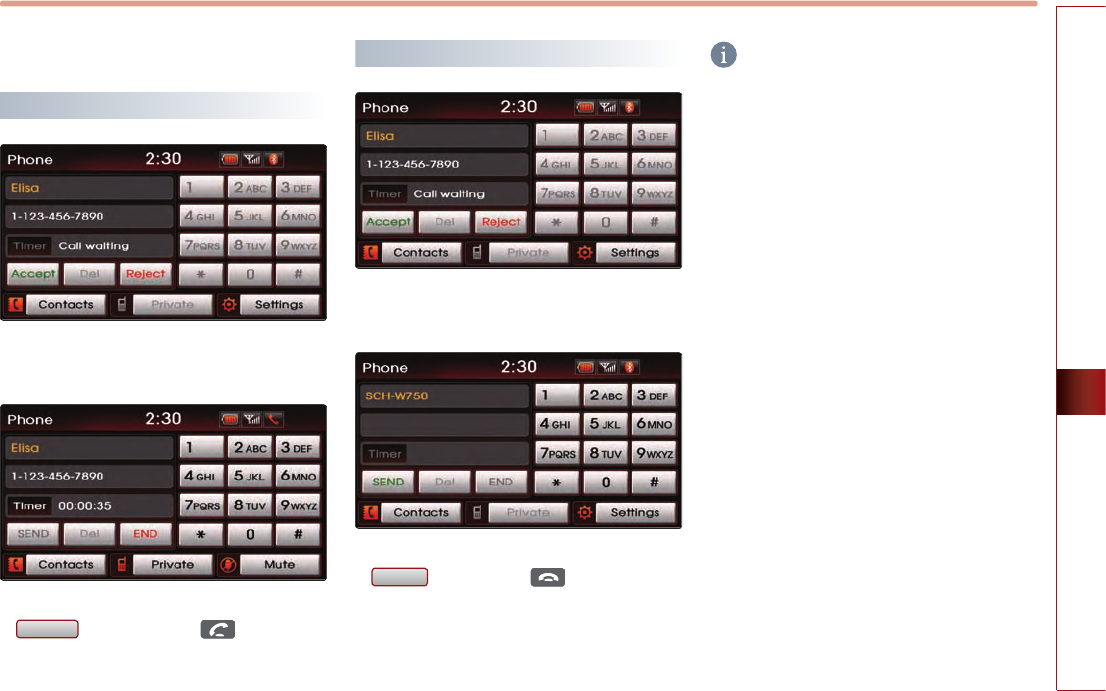

Activating Call waiting
1
.
If another person calls while already on a
call, the following screen will be displayed.
2
.
Press the
Accept
button or the key
on the steering wheel to receive the inco-
ming call by switching to the new caller.
BLUETOOTH® HANDSFREE 5-15
BLUETOOTH® HANDSFREE

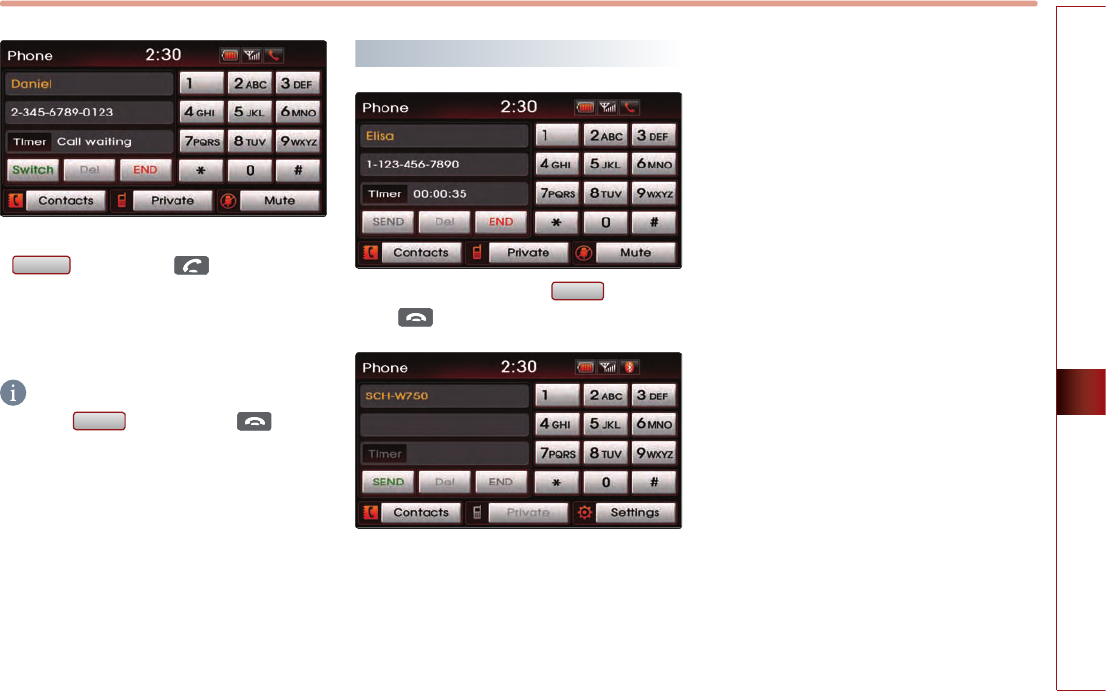

3. To switch again to the other caller, press the
Switch
button or the key on the stee-
ring wheel. The other call will be received
and the previous call will switch back to call
waiting.
INFORMATION
Press the
End
button or the
key on
the steering wheel to end the current call and
call waiting.
Ending a call
1
.
To end a call, press the
End
button or
the key on the steering wheel.
2
.
The call will be ended.
5-16 BLUETOOTH® HANDSFREE
PART 5 BLUETOOTH® HANDSFREE
Phone Book

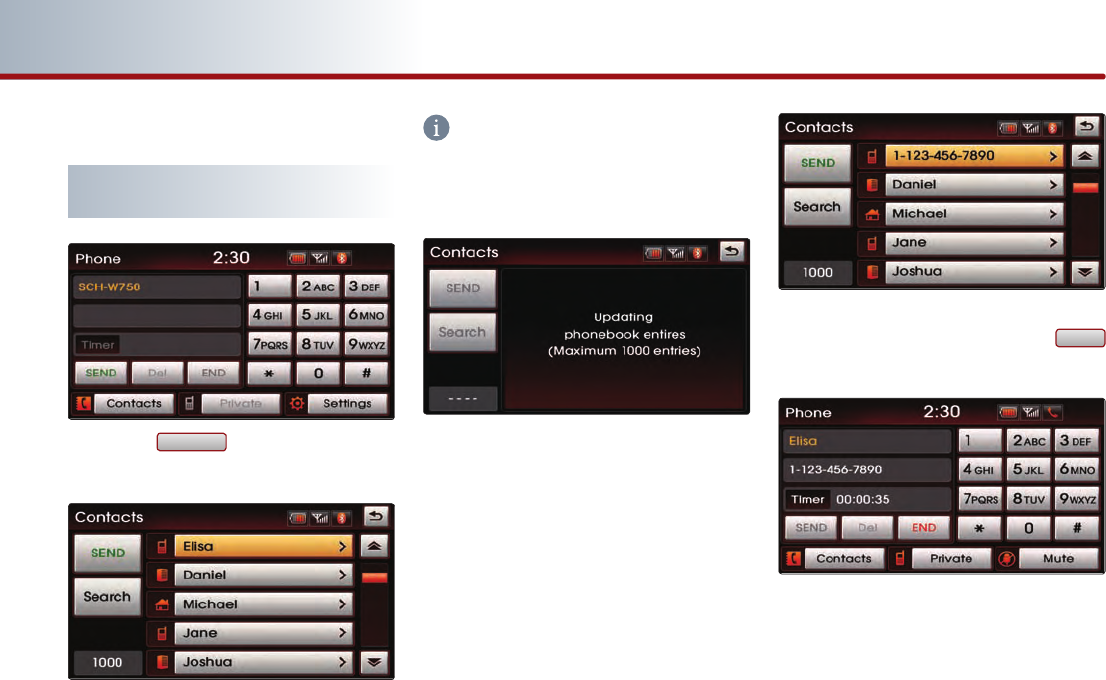

Making a call from the Phone
book
1
.
Press the
Contacts
button on the PHONE
screen.
2
.
The phone book list will be displayed.
INFORMATION
● The system may begin to slow down when
downloading the phone book in some
mobile phones.
● Upon connecting a mobile phone, the
phone book lists saved in the mobile phone
will automatically be downloaded
(Maximum 1000 entries). The phone book
download function may not be supported
in some mobile phones.
● 
If you do not wish to automatically down-
load the mobile phone contacts to the vehi-
cle, turn the Contacts Sync setting OFF.

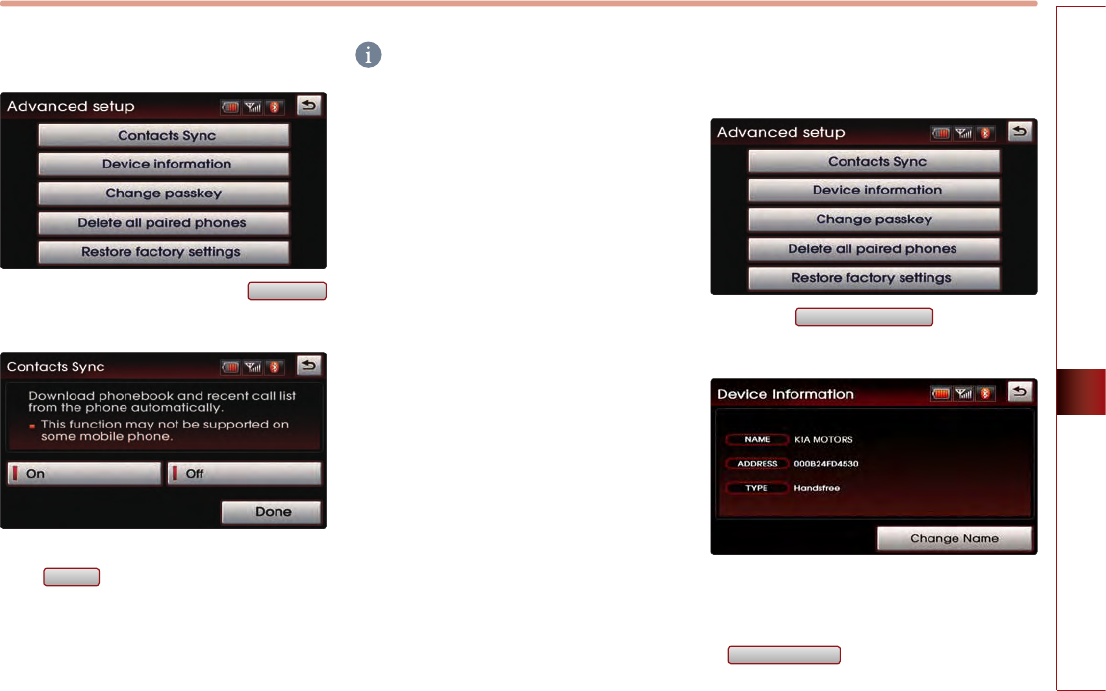

(Phone>Settings>Advanced setup>
Contacts Sync)
3
.
Select the number you wish to call from the
phone book list and press the
SEND
button.
4
.
The call will be made to the selected num-
ber.
BLUETOOTH® HANDSFREE 5-17
BLUETOOTH® HANDSFREE
INFORMATION
●
When there are more than 2 numbers saved
in one phone number list, if the list is repea-
tedly selected, the registered phone num-
bers will be displayed sequentially on the
list.
●
The Mobile Phone/Office/Home categories
received via the mobile phone may differ
from the information actually stored in the
mobile phone.
● 
Select the phone number you wish to con-
nect by repeatedly selecting the phone
number list and press the
SEND
button to
make the call to the selected number.

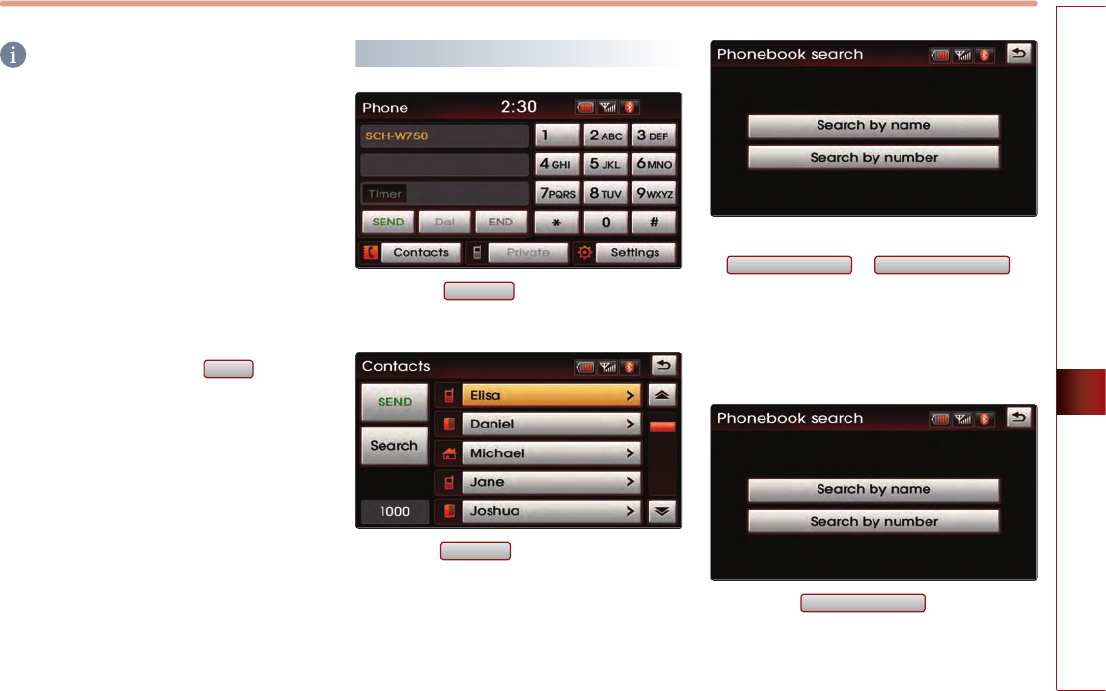

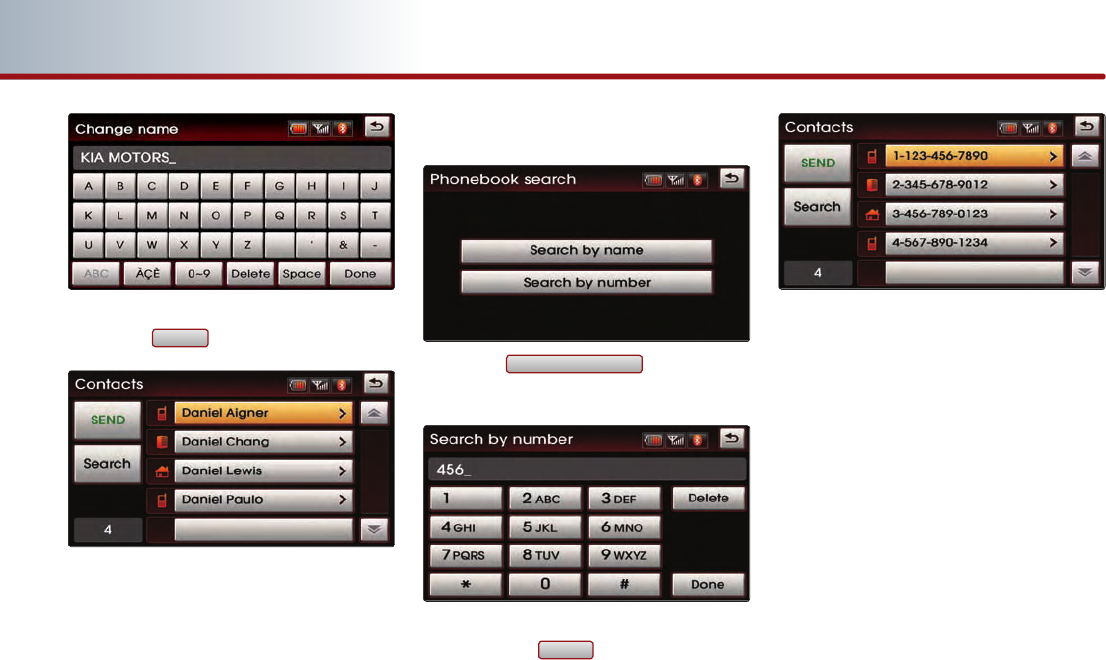

Searching the Phone Book
1
.
Press the
Contacts
button on the PHONE
screen.
2
.
Press the
Search
button on the Contacts
screen.
3
.
Phone numbers can be searched by either
Search by name
or
Search by number
.
From the two methods, select the search
method you wish to use.
Searching by name
4
.
Press the
Search by name
button on the
Phonebook search screen.
5-18 BLUETOOTH® HANDSFREE
PART 5 BLUETOOTH® HANDSFREE
5
.
Input the name you wish to search and
press the
Done
button.
6
.
The search results will be displayed on the
screen.
Searching by number
4.
Press the
Search by number
button on the
Phonebook search screen.
5
.
Input the phone number you wish to search
and press the
Done
button.
6
.
The search results will be displayed on the
screen.
BLUETOOTH® HANDSFREE 5-19
BLUETOOTH® HANDSFREE

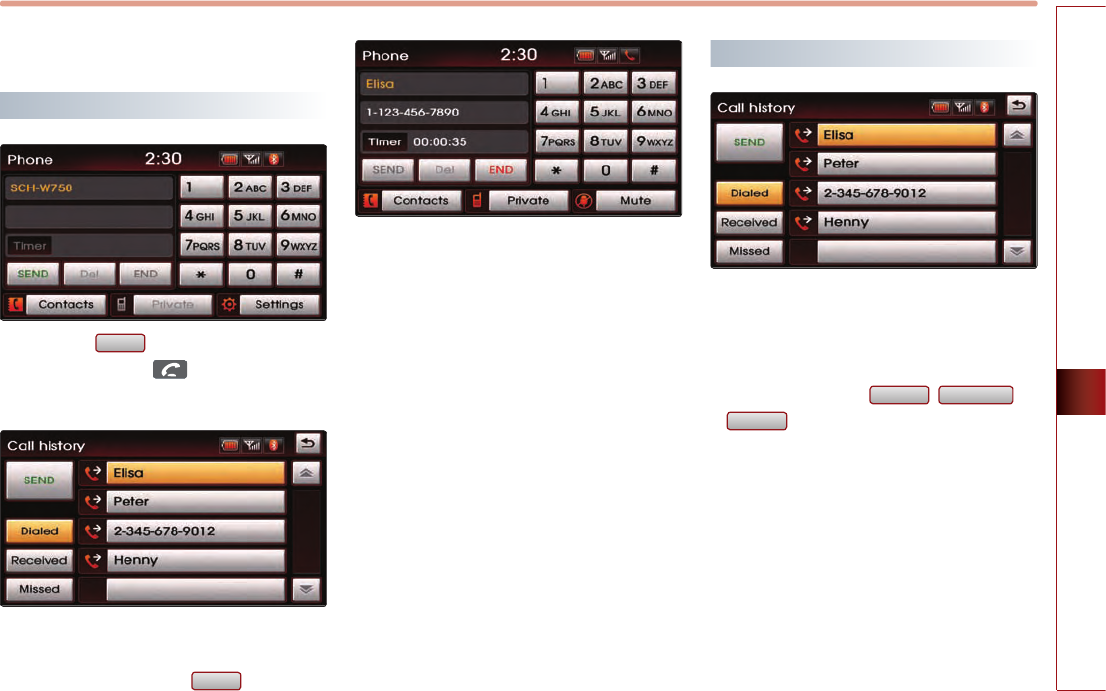

Call History List
Making a call from Call history
1
.
Press the
SEND
button on the PHONE
screen or press the key on the steering
wheel.
2
.
The call history list will be displayed. Select
the number you wish to call from the call
history list and press the
SEND
button.
3
.
The call will be made to the selected num-
ber.
Sorting call history
1
.
The call history can be displayed by sorting
the incoming calls, outgoing calls and mis-
sed calls.
2
.
When pressing the
Dialed
,
Received
, or
Missed
button, the corresponding call his-
tory list will be displayed.
5-20 BLUETOOTH® HANDSFREE
PART 5 BLUETOOTH® HANDSFREE

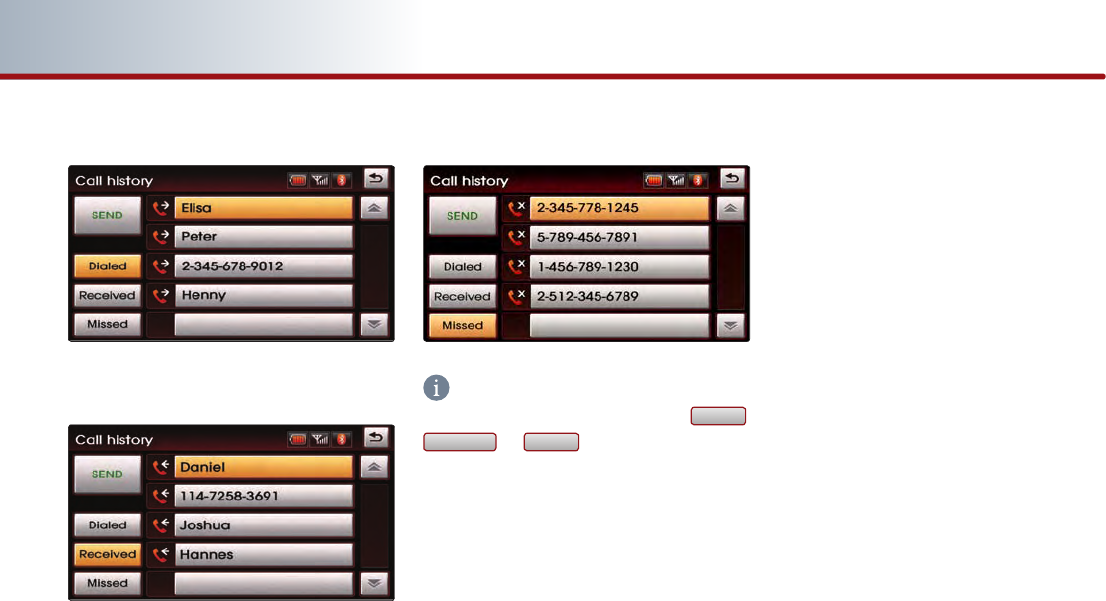

Dialed number
Received number
Missed number
INFORMATION
If there are no entries saved in the
Dialed
,
Received
, or
Missed
lists, the corresponding
button will be inactive. Up to 20 entries can
be saved in each list.
BLUETOOTH® HANDSFREE 5-21
BLUETOOTH® HANDSFREE
Phone Music
Before playing Phone music
Music saved in the mobile phone can be pla-
yed in the car through Bluetooth® Audio
streaming.
Phone music can be played only when a
Bluetooth® phone has been connected. To
play phone music, connect the Bluetooth®
phone to the car system. For more informa-
tion on connecting Bluetooth®, please refer to
the user's manual [Pairing and Connecting a
Bluetooth® phone].
If the Bluetooth® is disconnected while pla-
ying phone music, the music will be disconti-
nued.
The Audio streaming function may not be
supported in some mobile phones.
Only one function can be used at a time bet-
ween the Bluetooth® handsfree or Phone
music function.
For example, if you convert to the Bluetooth®
handsfree while playing Phone music, the
music will be discontinued.
Playing music from the car is not possible
when there are no music files stored in the
mobile phone.

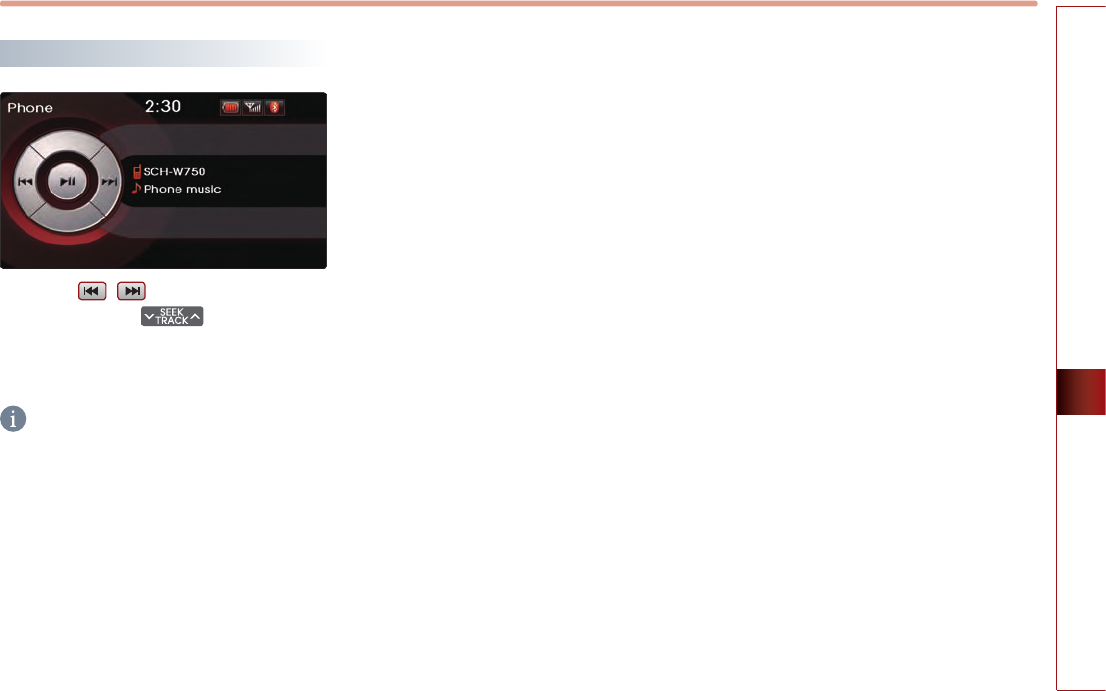

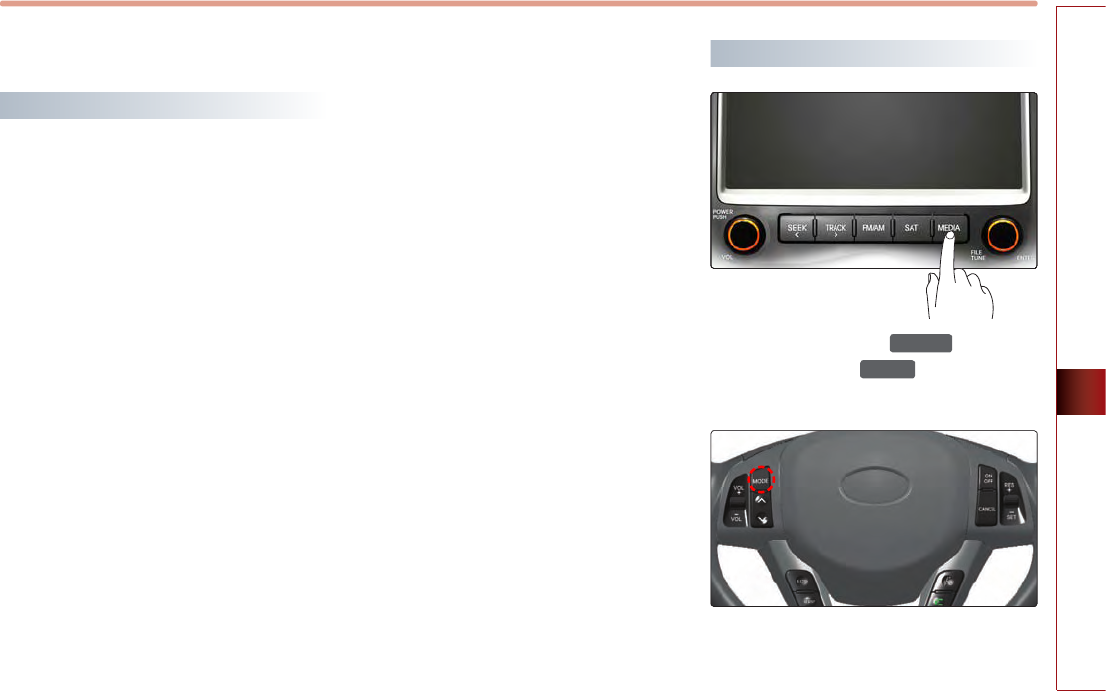

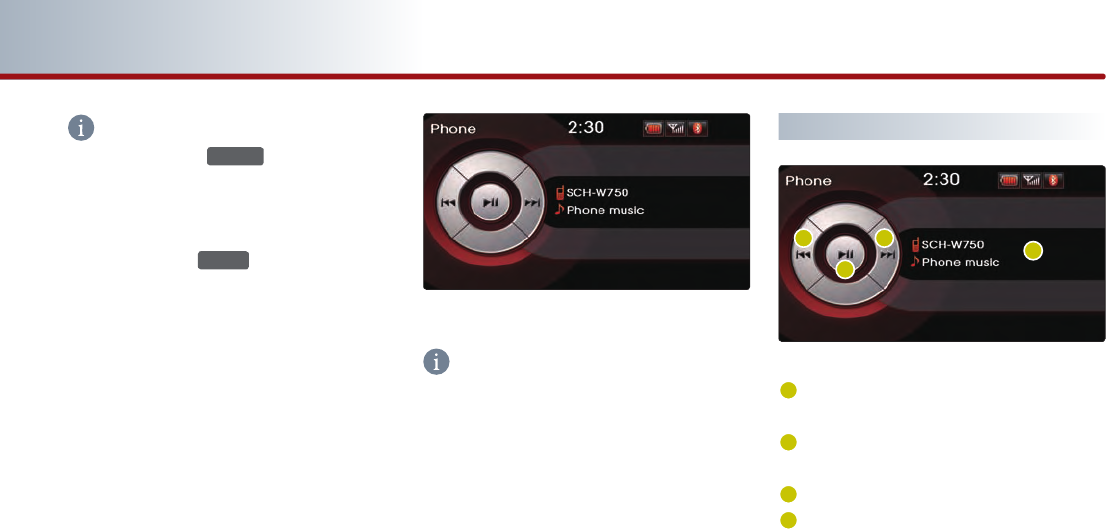

Starting Phone Music
1
.
Repeatedly press the
MEDIA
key on the
front panel or the
MODE
key on the stee-
ring wheel to enter Phone music mode.
5-22 BLUETOOTH® HANDSFREE
PART 5 BLUETOOTH® HANDSFREE
INFORMATION
Each press of the
MEDIA
key on the front
panel will change the function in the order of
DISC
→
USB or iPod
→
AUX
→
Phone Music
→
DISC ...
Each press of the
MODE
key on the steering
wheel will change the Audio mode in the
order of FM1
→
FM2
→
AM
→
SIRIUS1
→
SIRIUS2
→
SIRIUS3
→
DISC
→
USB or iPod
→
AUX
→
Phone Music
→
FM1...
It is not possible to enter Phone music mode if
the mobile phone is not connected or if the
audio streaming setting within Bluetooth®
handsfree settings has been set to [Disable
streaming audio].
For more information on audio streaming set-
ting, please refer to the user’s manual
[Bluetooth® settings > Setting Audio strea-
ming].
2
.
The Phone music screen is displayed.
INFORMATION
While music saved in the mobile phone will
automatically begin playing after converting
to the Phone music screen, this music player
function may not be supported in some mobi-
le phones.
If music does not begin playing even after
converting to the Phone music screen, try
starting the music directly from the mobile
phone.
Phone music screen layout
1
Information Bar : displays information for
the currently playing song.
2
File Down button : plays the previous
song.
3
Play/Pause button : plays/pauses the song.
4
File Up button : plays the next song.
1
2
3
4
BLUETOOTH® HANDSFREE 5-23
BLUETOOTH® HANDSFREE
Selecting Phone music files
Press the , buttons on the Phone
music screen or the key.
The previous or next song will be played each
time the button or key is pressed.
INFORMATION
The file selection function may not be suppor-
ted in some mobile phones.
5-24 BLUETOOTH® HANDSFREE
PART 5 BLUETOOTH® HANDSFREE
Bluetooth® settings
Pairing and connecting a mobile
phone
For more information on pairing and connec-
ting a mobile phone, please refer to [Pairing
and Connecting a Bluetooth® phone].

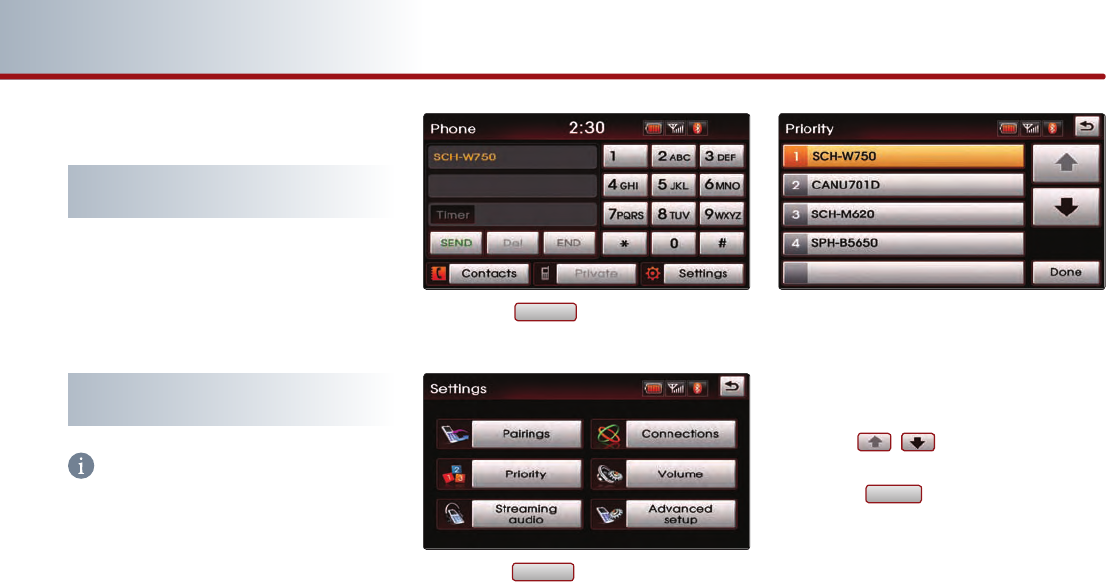

Setting mobile phone auto
connect priority
INFORMATION
After turning on the car ignition and the sys-
tem is booted up, the Bluetooth® connection
between the car system and mobile phone is
automatically made.
The Bluetooth® connection will be conducted
in the order of mobile phone priority.
The auto connect priority will be supported
only for previously paired mobile phones.
1
.
Press the
Settings
button on the PHONE
screen.
2
.
Press the
Priority
button on the Settings
screen.
3
.
The paired mobile phone list and the mobi-
le phone connection priority will be displa-
yed.
When wishing to change the priority order,
select the mobile phone from the list and
use the , buttons to change its
priority.
Press the
Done
button to save the chan-
ged mobile phone priority.
BLUETOOTH® HANDSFREE 5-25
BLUETOOTH® HANDSFREE

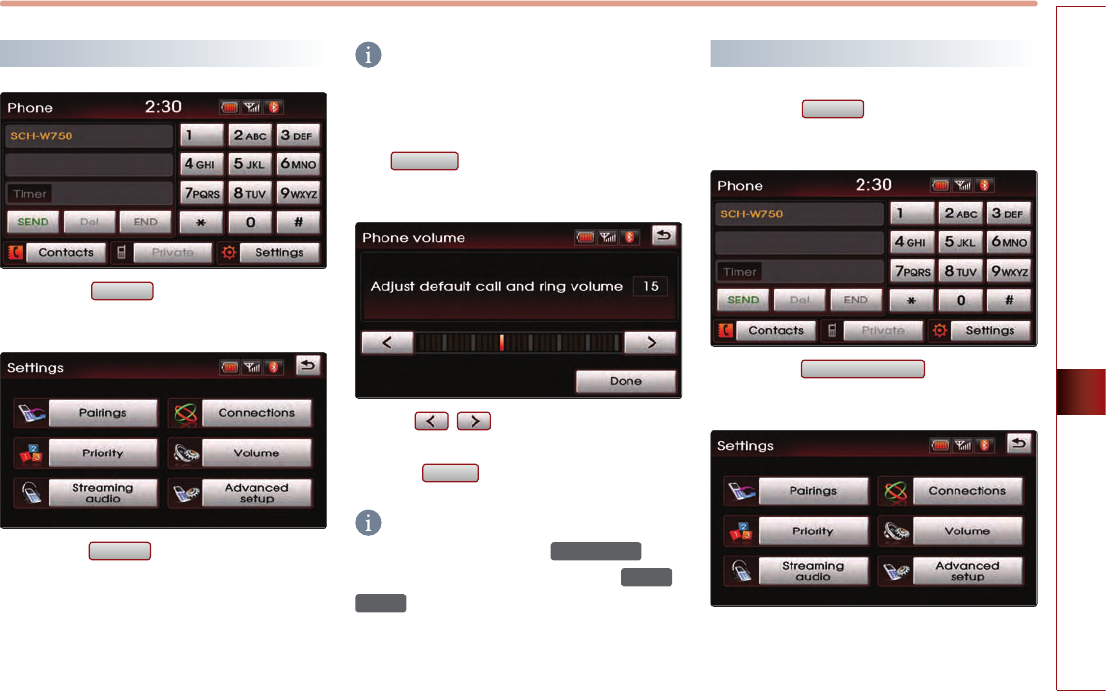

Setting Handsfree volume
1
.
Press the
Settings
button on the PHONE
screen.
2
.
Press the
Volume
button on the Settings
screen.
INFORMATION
The Bluetooth® handsfree volume can be
adjusted only when a mobile phone has been
connected.
The
Volume
cannot be set if no mobile
phone has been connected.
Use the , buttons to set the desired
volume on the Phone volume screen.
Press the
Done
button to save.
INFORMATION
While on a call, turning the
POWER/VOL
knob
to the left/right or pressing the
VOL+
,
VOL-
keys on the steering wheel will also
adjust the call volume.
Set the incoming call volume accordingly.
Setting Audio streaming
1
.
Press the
Settings
button on the PHONE
screen.
2
.
Press the
Streaming audio
button on the
Settings screen.

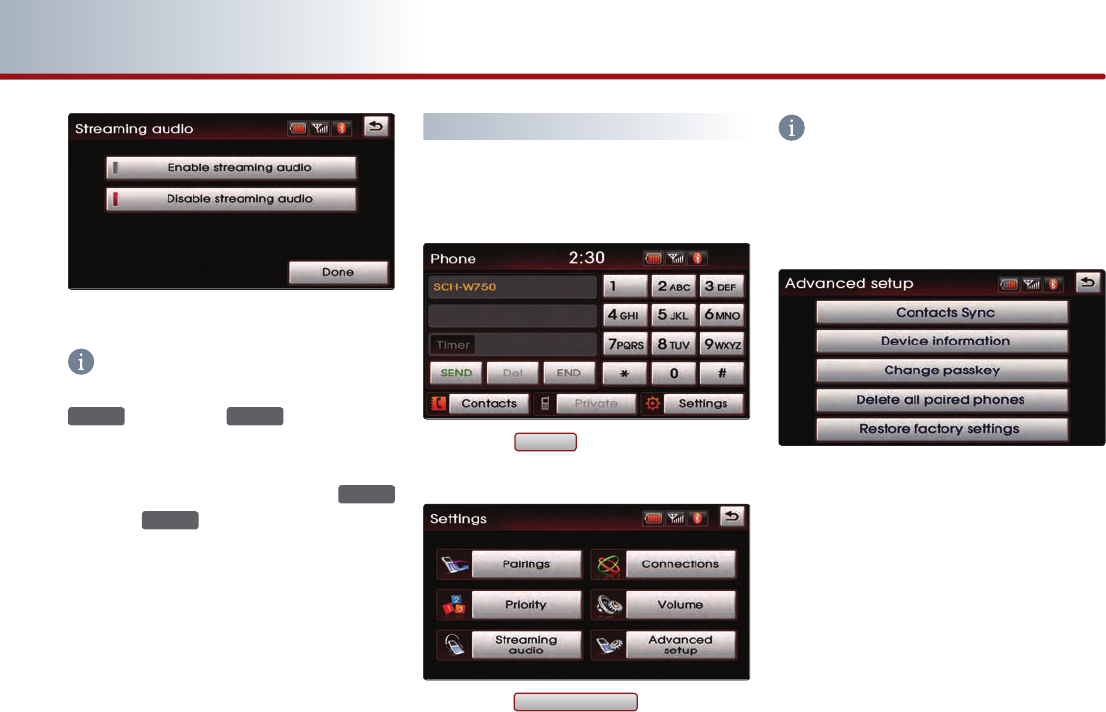

5-26 BLUETOOTH® HANDSFREE
PART 5 BLUETOOTH® HANDSFREE
3
.
Streaming audio setting is selected.
INFORMATION
Enable streaming audio: repeatedly press the
MEDIA
key or the
MODE
key to ente r
Phone music mode. Phone music can be pla-
yed through Bluetooth® audio streaming.
Disable streaming audio: even if the
MEDIA
key or the
MODE
key is repeatedly pressed,
will not be available.
Phone music through Bluetooth® audio strea-
ming is not supported.
Advanced settings
Bluetooth® advanced settings can be chan-
ged. Enter advanced settings through the
following way.
1
.
Press the
Settings
button on the PHONE
screen.
2
.
Press the
Advanced setup
button on the
Settings screen.
INFORMATION
For safety reasons, operation of Advance
setup is not possible when the vehicle is in
motion. Please park in a safe place to make
changes to Advanced setup.
3
.
The Advanced setup screen will be displa-
yed. In Advance setup, the following four
settings can be made.
BLUETOOTH® HANDSFREE 5-27
BLUETOOTH® HANDSFREE
Setting Contacts Auto Download (Sync)
1. While in Advanced setup press the
Contacts Sync
button.
2
.
After turning Contacts Sync ON/OFF, press
the
Done
button.
INFORMATION
● 
If Contacts Sync is turned ON, the contacts
and call history in your mobile phone will
automatically be downloaded to the vehicle
each time you connect a Bluetooth® device.
Searching and modifying my device
properties
1
.
Press the
Device information
button on the
Advanced setup screen.
2
.
Displays the Device information such as the
name and address of the car system.

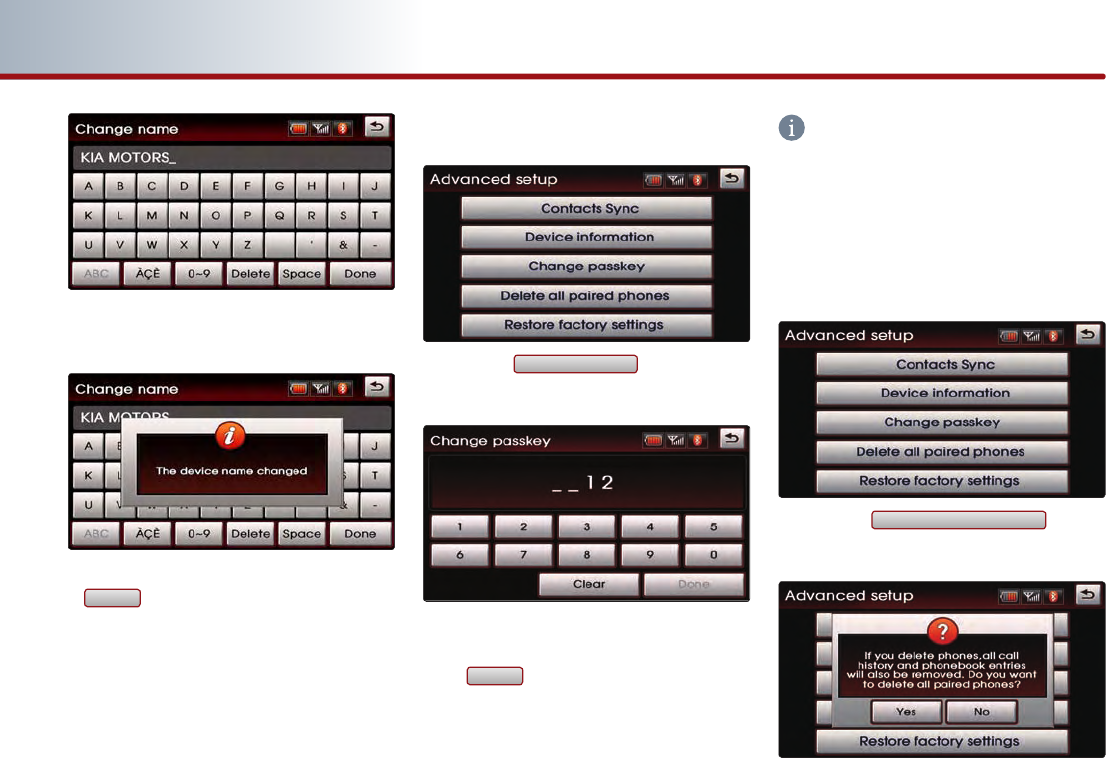

To modify the device name, press the
Change name
button.
5-28 BLUETOOTH® HANDSFREE
PART 5 BLUETOOTH® HANDSFREE
3
.
Use the key pad to input the Device name
you wish to modify.
4
.
After inputting is complete, press the
Done
button to save.
Changing passkey
1
.
Press the
Change passkey
button on the
Advanced setup screen.
2
.
Once the Change passkey screen is displa-
yed, input the desired passkey and press
the
Done
button.
INFORMATION
The passkey is a 4-digit authentication code
used for the Bluetooth® connection between
the mobile phone and car system. The default
passkey is set to 0000.

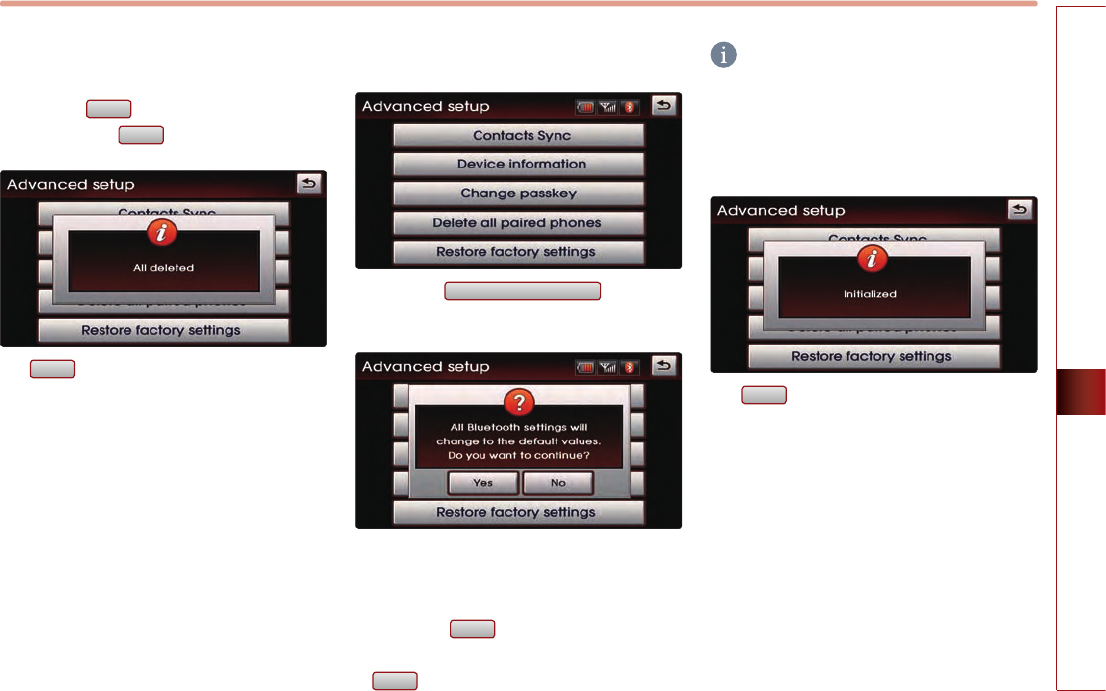

Deleting all paired phones
1
.
Press the
Delete all paired phones
button
on the Advanced setup screen.
BLUETOOTH® HANDSFREE 5-29
BLUETOOTH® HANDSFREE
2
.
A pop-up asking whether you wish to dele-
te all paired phone will be displayed.
Press the
Yes
button to delete all paired
phones or the
No
button to cancel.
3
.
If
Yes
button is pressed, all currently pai-
red phones will be deleted.
Initializing Bluetooth® handsfree
1
.
Press the
Restore factory settings
button on
the Advanced setup screen.
2
.
A pop-up asking whether you wish to initia-
lize the Bluetooth® handsfree will be displa-
yed.
Press the
Yes
button to initialize the
Bluetooth® handsfree system and the
No
button to cancel.
INFORMATION
Upon initializing the Bluetooth® handsfree,
the entire paired phone list will be deleted
and all Bluetooth® related settings will be res-
tored to factory state.
3
.
If
Yes
is pressed, the Bluetooth® hands-
free settings will be initialized.
5-30 BLUETOOTH® HANDSFREE
PART 5 BLUETOOTH® HANDSFREE
Important information
About pairing mobile phones
I cannot search for mobile phones
through the car system. What is the
cause?
Check to see whether the mobile phone
you wish to connect supports Bluetooth®
function. If your mobile phone supports
Bluetooth®, check to see that whether
the Bluetooth® settings in the mobile
phone have been set to hidden state or if
the Bluetooth® power has been turned
off. If the device has been set to hidden,
release the hidden state and if the
Bluetooth® power has been turned off,
turn the power ON and try searching
again.
What is the difference between pairing a
mobile phone and connecting a mobile
phone?
Paring is the process of creating a secure
communication connection between the
mobile phone and the car Bluetooth® sys-
tem.
Through a two-way passkey between the
car system and mobile phones, up to 5
mobile phones can be paired with the
car system. The paired mobile phone will
remain paired with the car system until
the user deletes it manually.
In addition, the call history lists and
phone number books saved in each
mobile phone will also be maintained
until the paired phone is deleted. For
more information on pairing mobile pho-
nes, please refer to the manual [Pairing
and Connecting a Bluetooth® phone >
Pairing a mobile phone].
C o n n e c t i n g a m o b i l e p h o n e t o
Bluetooth® by selecting the desired
mobile phone from the paired phones.
Wi t h i n th e c ar s y s t e m , o n l y o n e
Bluetooth® phone can be connected at
one time.
For more information, please refer to the
manual [Pairing and Connecting a
Bluetooth® phone > Pairing a mobile
phone].
What is a Passkey?
A passkey is an authentication code used
for two-way communication of the car
system and the mobile phone.
Only 4-digit numbers can be used as pass
keys. Passkeys are registered only once
when pairing the phone number for the
first time. The factory-set passkey is 0000.
Q.
A.
A.
A.
Q.
Q.
BLUETOOTH® HANDSFREE 5-31
BLUETOOTH® HANDSFREE
About making/answering phone
calls
How can I answer a call?
When you receive an incoming call, press
the key on the steering wheel or the
Accept
button on the PHONE screen to
answer. To reject the incoming call, press
the key on the steering wheel or the
Reject
button on the PHONE screen.
What should I do if I am talking on the
Handsfree but wish to switch the call to
the mobile phone?
To switch the call to the mobile phone,
press the
Private
button on the PHONE
screen or press and hold (over 0.8
second) the key on the steering
wheel. If you wish to switch the call back
t o t h e c a r h a n d s f r e e , p r e s s t h e
Use handsfree
button on the PHONE
screen or press and hold (over 0.8
second) the key on the steering
wheel.
About Bluetooth® device
environment
What is the range for Bluetooth® wireless
connection?
The wireless connection range is within
Aproximately 30 feet.
How many mobile phones can be paired?
It is possible to pair up to five phones
with the car system.
What is the reason why the call quality
deteriorates?
First, check to see the signal strength of
the mobile phone. The call quality may
deteriorate when the signal strength is
low. Call quality may also deteriorate if
metal objects, such as drink cans, are pla-
ced near the mobile phone.
A.
Q.
A.
Q.
A.
Q.
A.
Q.
A.
Q.
5-32 Bluetooth® HANDSFREE
PART 5 Bluetooth® HANDSFREE
CAUTION!
Mobile Phone Compatibility
Depending on the manufacturer, product and
product specification, some mobile phones
functions may not be supported or may not
operate to specification. Carefully read the
cautions listed below.
● 
The occurrence of problems upon using
mobile phones may be caused by the mobi-
le phone and not by the Audio/Navigation
Unit.
● 
Even mobile phones which support
Bluetooth® function may not operate pro-
perly if the mobile phone connection has
been locked. Release the connection lock
and try connecting the mobile phone with
the system again.
● 
The Mobile phone battery icon and signal
strength icon may not be properly displa-
yed depending on the type of mobile
phone.
● 
Call waiting is supported only when the
connected mobile phones support this fea-
ture. The call waiting pop-up may not be
displayed in some mobile phones.
● 
Audio streaming mode will operate only
when a Bluetooth® phone has been connec-
ted. Connecting or disconnecting a
Bluetooth® phone while audio streaming is
operating will stop music play.
● 
The audio streaming function may not be
supported in some mobile phones.
● 
The phonebook may take a prolonged
period of time to download or may not ope-
rate in some mobile phones.
● 
The quality of Bluetooth® handsfree calls
may differ depending on the mobile phone.
HVAC MODE 6-1
HVAC MODE
PART 6
HVAC MODE
Cautions upon operating HVAC
mode …………………………………… 6-2
HVAC mode screen layout …………… 6-2
HVAC System operations ……………… 6-3
Adjusting cabin temperature ……………… 6-3
Adjusting the driver-side and passenger-side
temperature simultaneously ………… 6-3
Adjusting the driver-side and passenger-side
temperature separately ………………… 6-4
Setting fan direction ……………………… 6-5
Setting fan level …………………………… 6-5
6-2 HVAC MODE
PART 6 HVAC MODE
Cautions upon operating
HVAC mode

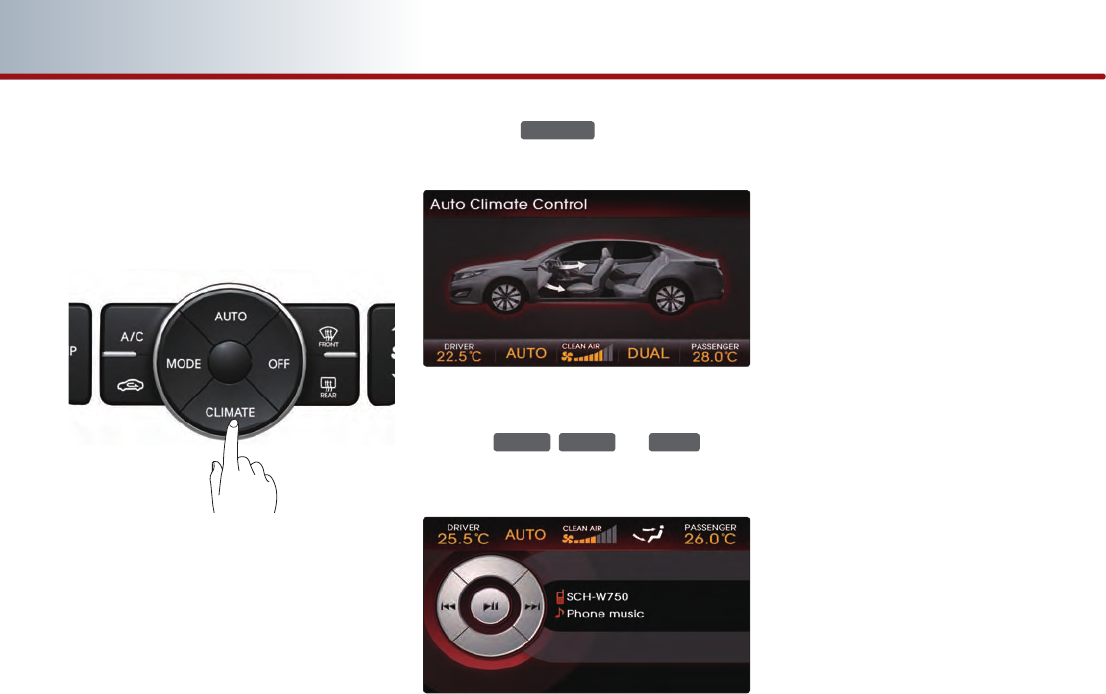

Upon operating the HVAC system, the display
is as shown below.
1. Press the
CLIMATE
key to display the
HVAC system status on the entire screen.
2. When in the AV, Navigation, or Bluetooth®
handsfree mode screen, press a HVAC key,
such as
TEMP
,
AUTO
, or
A/C
to dis-
play the HVAC system status bar at the top
of screen.
HVAC MODE 6-3
HVAC MODE

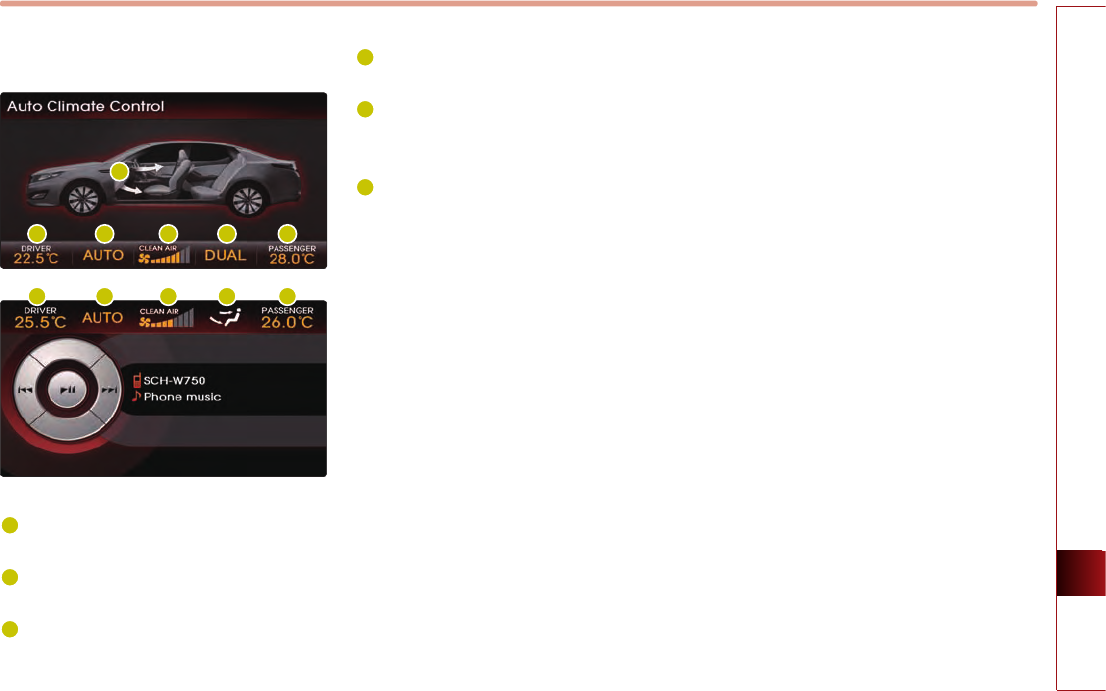

HVAC mode screen layout
1
Fan direction display : displays the set fan
direction.
2
Driver-side temperature display : displays
the driver-side temperature.
3
AUTO display : displays whether the hea-
ting/cooling auto function is ON/OFF.
4
Airflow level and Ionizer Display : displays
the airflow level and ionizer state.
5
DUAL : upon turning on DUAL, the driver-
side and passenger-side temperature can
be set separately.
6
Passenger-side temperature display : dis-
plays the passenger-side temperature.
2 3 4 5 6
2 3 4 1 6
1
6-4 HVAC MODE
PART 6 HVAC MODE

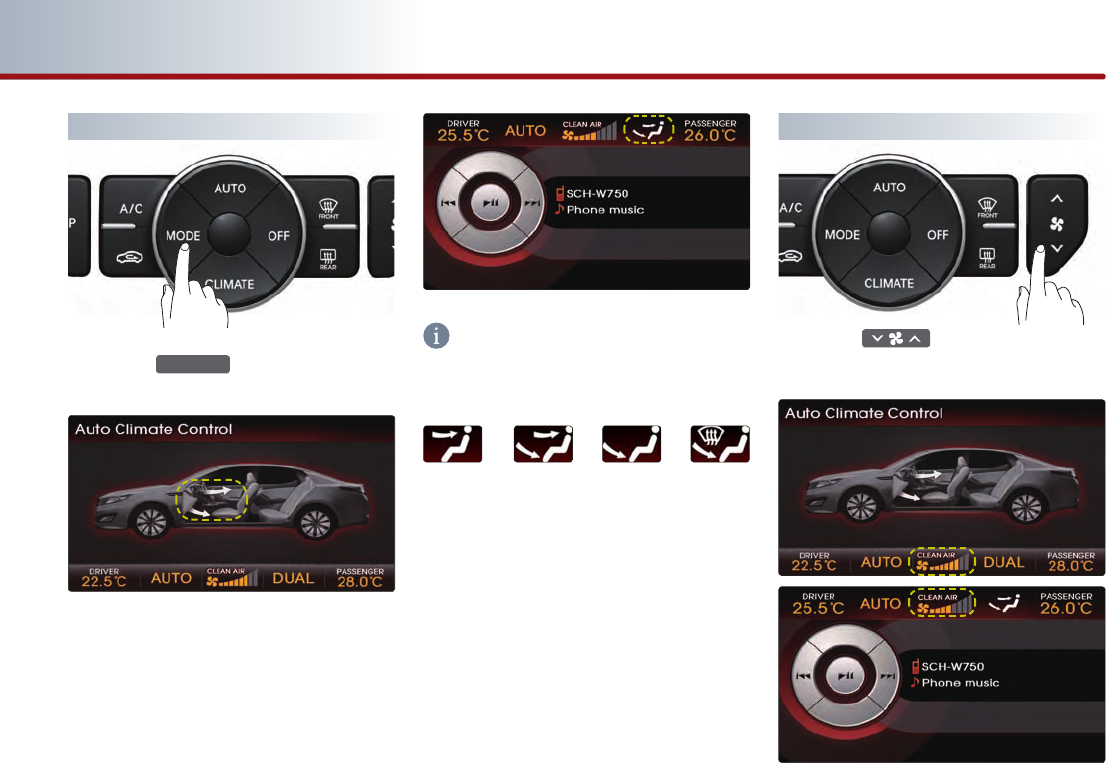

Setting fan direction
1. Press the
∨MODE∧
key. The fan direction
will be changed.
2. The changed fan direction will be displayed
on the screen.
INFORMATION
Changing the fan direction will operate in the
following order.
Setting fan level
1. Press the key. The fan level will be
changed.
  
Rear Camera 7-1
Rear Camera
PART 7
REAR CAMERA
About Rear Detection Camera ………… 7-2
Operating sequence of the Rear Camera … 7-2
7-2 Rear Camera
PART 7 REAR CAMERA
About Rear Detection Camera
● 
This system has been equipped with a rear
camera for user safety by allowing a wider
rear range of vision.
● 
The rart camera will operate automatically
when the ignition KEY is turned ON and the
transmission lever is positioned to P or R.
The rear camera will automatically stop ope-
rating when set to a different lever.

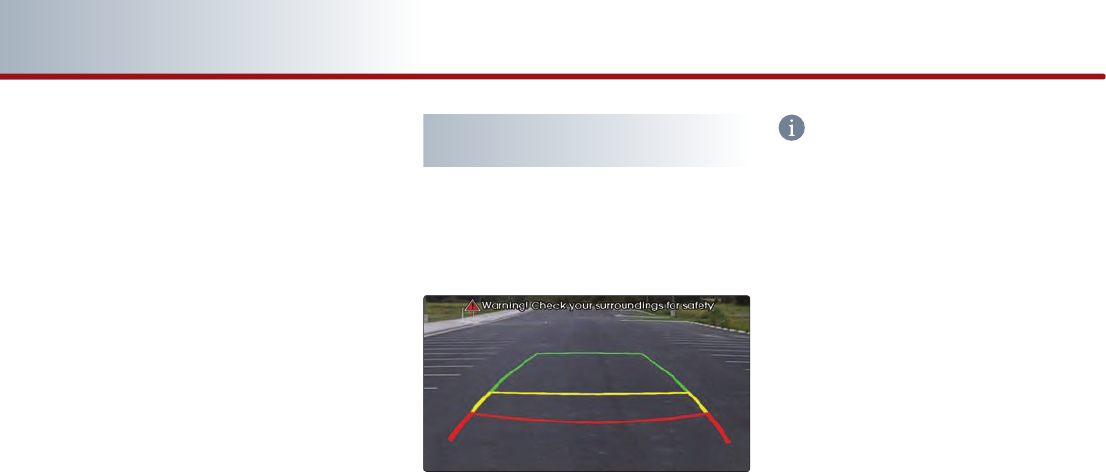

Operating sequence of the Rear
Camera
1. Position the ignition key in ACC or ON.
2. Position the transmission lever to R.
3. The rear camera mode will be displayed on
the screen.
INFORMATION
● 
The rear camera has been equipped with an
optical lens to provide a wider range of
vision and may appear different from the
actual distance. Check the rear and left/
right firsthand for user safety.
● 
The rear camera section pertains only to
customers who have purchased this optical
installaiton.
APPENDIX 8-1
APPEINDIX
PART 8
APPENDIX
Troubleshooting guide ……………… 8-2
Before thinking the product has
malfunctioned …………………………… 8-2
Troubleshooting …………………………… 8-3
Map legend …………………………… 8-5
Road color ………………………………… 8-5
POI icons …………………………………… 8-5
Landmark icons …………………………… 8-7
INDEX …………………………………… 8-8
8-2 APPENDIX
PART 8 APPENDIX
Troubleshooting guide
Before thinking the product has malfunctioned
1. Errors which occur during the operation or installation of the device may be mistaken as a malfunction of the actual device.
2. If you are having problems with the device, try the suggestions listed below.
3. If the problems persist, contact your KIA dealer.
Problem Function
There are small red, blue, or green dots on
the screen
Because the LCD is manufactured with technology requiring high point density, a pixel
deficiency or lighting may occur within 0.01% of total pixels.
The sound or image is not
working
● Has the Switch for the vehicle been turned to [ACC] or [ON]?
●Has the SYSTEM been turned OFF?
The video is being displayed but
sound is not working
●Has the volume been set to a low level?
●Has the volume been set on mute?
When the power is turned on, the corners of
the screen are dark
●
The display looking somewhat darker after prolonged periods of use is a normal
phenomenon with LCD panels. It is not a malfunction.
●
If the screen is very dark, contact your nearest KIA dealer for assistance.
Sound is working from only one speaker
Is the position of FAL/BAL sound controls or volume adjusted to only one side?
Sound and video does not work in AUX
mode Are the audio and video connector jacks fully inserted into the AUX terminal?
The external device is not working Is the external device connected with a standard connector cable?
The road is missing Some map data may be missing or incorrect.
The road name is spoken incorrectly The TTS(Text To Speech) engine speaks the street name based on the phonetic spelling.
This will continuously be update with the map database.
APPENDIX 8-3
APPEINDIX
Problem Possible Cause Solution
The power does not turn
on.
The fuse is blown. Replace with a suitable fuse. If the fuse is blown again, please
contact your nearest KIA dealer for assistance.
Device is not properly connected. Check to see that the device has been properly connected.
SIRIUS only goes through
one category The SIRIUS mode is in category. Press the mode button to change to channel mode.
The CD does not play.
The DISC has not been inserted or has been
inserted upside down.
Insert the disc properly so that the sides are facing the correct
direction.
The DISC has been contaminated. Wipe dirt and other foreign substances from the DISC.
The vehicle battery is low. Charge the battery. If the problem persists, please contact your
nearest KIA dealer for assistance.
A disc which is not supported by the device
has been inserted. Insert a disc which is supported for play by the device.
The video does not work. The brightness level has been set to the
lowest level. Adjust the brightness to a higher level.
The sound does not
work.
The volume level is set the lowest level. Adjust the volume level.
The connector is not properly connected.
Check the connection.
The device is currently fast-forwarding,
rewinding, scanning, or playing in slow mode.
The sound will not work when the device is fast-forwarding,
rewinding, scanning, or playing in slow mode.
Troubleshooting
8-4 APPENDIX
PART 8 APPENDIX
Problem Possible Cause Solution
The sound or video
quality is low.
The DISC is dirty or scratched.
Wipe off water or dirt from the DISC. Do not use a disc which
has been scratched.
Vibration is occurring from the position in
which the conversion switch has been installed.
The sound may be short-circuited and the image distorted if the
device begins to vibrate. The device will return to normal
operation once the vibration has stopped.
The color and tone quality of the image is low.
Aging of the video display and deterioration in performance
may cause certain quality degradations.
The USB does not work.
USB memory is damaged.
Please use after formatting the USB into FAT 12/16/32 format.
USB memory has been contaminated.
Remove any foreign substances on the contact surface of the
USB memory and multimedia terminal.
A separately purchased USB HUB is being used.
Directly connect the USB memory with the multimedia terminal
on the vehicle.
A USB extension cable is being used.
Use standard USB Memory.
A HDD type, CF, SD Memory is being used..
Use standard USB Memory.
There are no music files which can be played.
Only MP3,WMA file formats are supported. Please use only the
supported music file formats.
The iPod is not
recognized even though
it has been connected.
There are no titles which can be played. Use iTunes to download and save MP3 files into the iPod.
The iPod firmware version has not been
properly updated.
Use iTunes to update the firmware version and reconnect the
iPod with the device.
The iPod device does not recognize downloads.
Reset the iPod and reconnect with the device.
APPENDIX 8-5
APPEINDIX

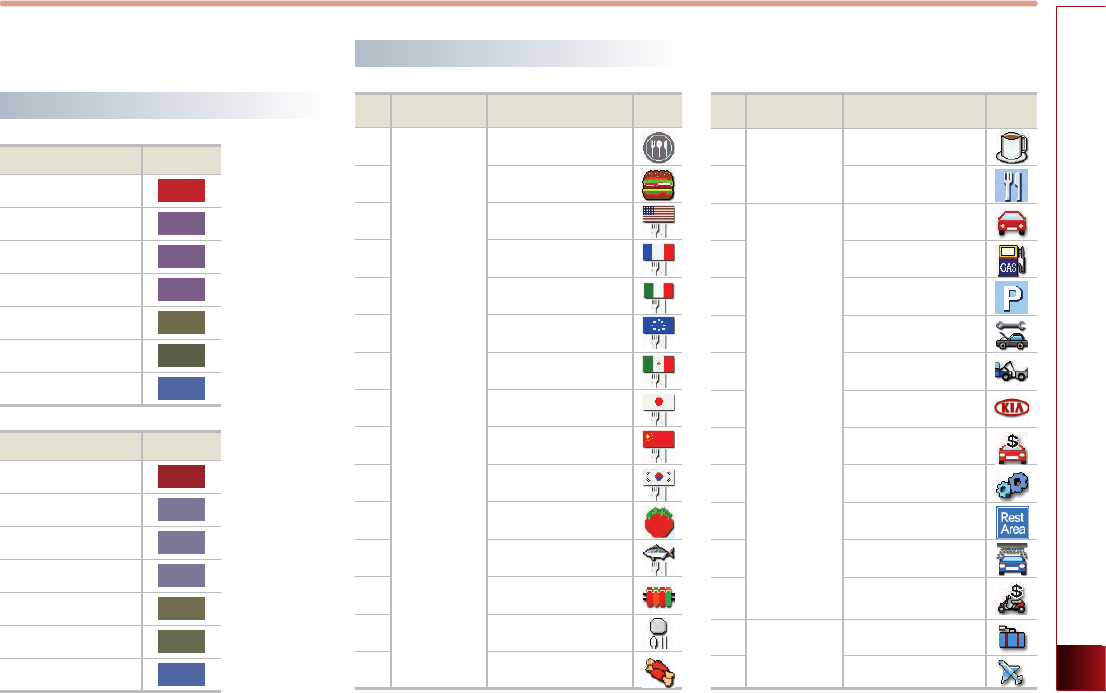

Map legend
Road color
Day Road Type Color
Freeway
Arterial
County
Collector
Local
Unpaved local
Ferry
Night Road Type Color
Freeway
Arterial
County
Collector
Local
Unpaved local
Ferry
No Category Sub Category Icon
1
Restaurants
Representation
2
Fast Food
3
American
4
French
5
Italian
6
Continental
7
Mexican
8
Japanese
9
Chinese
10
Korean
11
Vegetarian Food
12
Seafood
13
Latin American
14
Asian
15
African
No Category Sub Category Icon
16
Restaurants
Coffee Shop
17
Others
18
Automotive
Representation
19
Gas Station
20
Parking
21
Auto service
22
Road Assistance
23
KIA Dealership
24
Automobile Dealership
25
Auto Parts
26
Rest Area
27
Car Wash
28
Motorcycle Dealership
29
Travel Representation
30
Airport
POI icons
8-6 APPENDIX
PART 8 APPENDIX

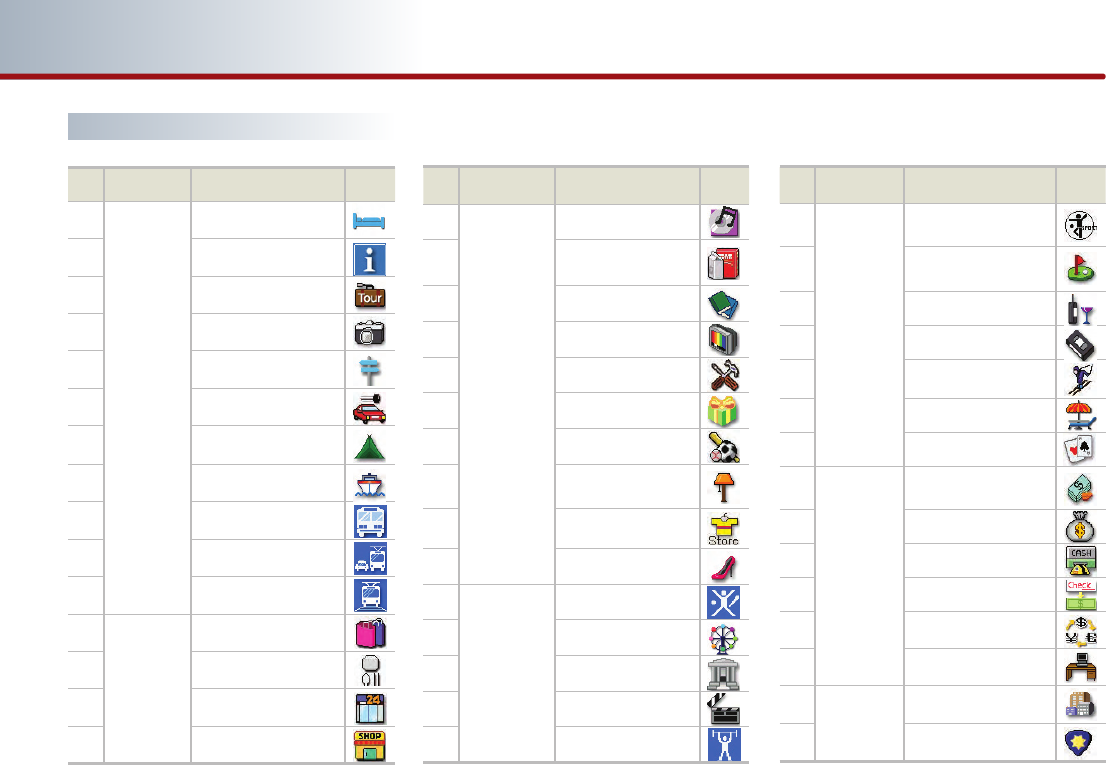

POI icons
No Category Sub Category Icon
31
Travel
Hotel
32
Tourist Information
33
Travel Agent
34
Tourist Attraction
35
Popular Spot
36
Rental Car Agency
37
Campground
38
Ferry Terminal
39
Bus Station
40
Local Transit
41
Train Station
42
Shopping
Representation
43
Department Store
44
Convenience Store
45
Shopping Center
No Category Sub Category Icon
46
Shopping
Music Store
47
Grocery Store
48
Bookstore
49
Electronics
50
Hardware Store
51
Gifts
52
Sporting Goods
53
Home Specialty Store
54
Clothing
55
Shoe Store
56
Recreation
Representation
57
Amusement Park
58
Museum
59
Cinema
60
Sports Activities
No Category Sub Category Icon
61
Recreation
Sports Complex
62
Golf Course
63
Winery
64
Video & Game Rental
65
Ski Resort
66
Recreation Area
67
Other Recreation
68
Financial
Service
Representation
69
Bank
70
ATM
71
Check Cashing Service
72
Money Transfer
73
Business Facility
74
Community
Representation
75
Police Station
APPENDIX 8-7
APPEINDIX

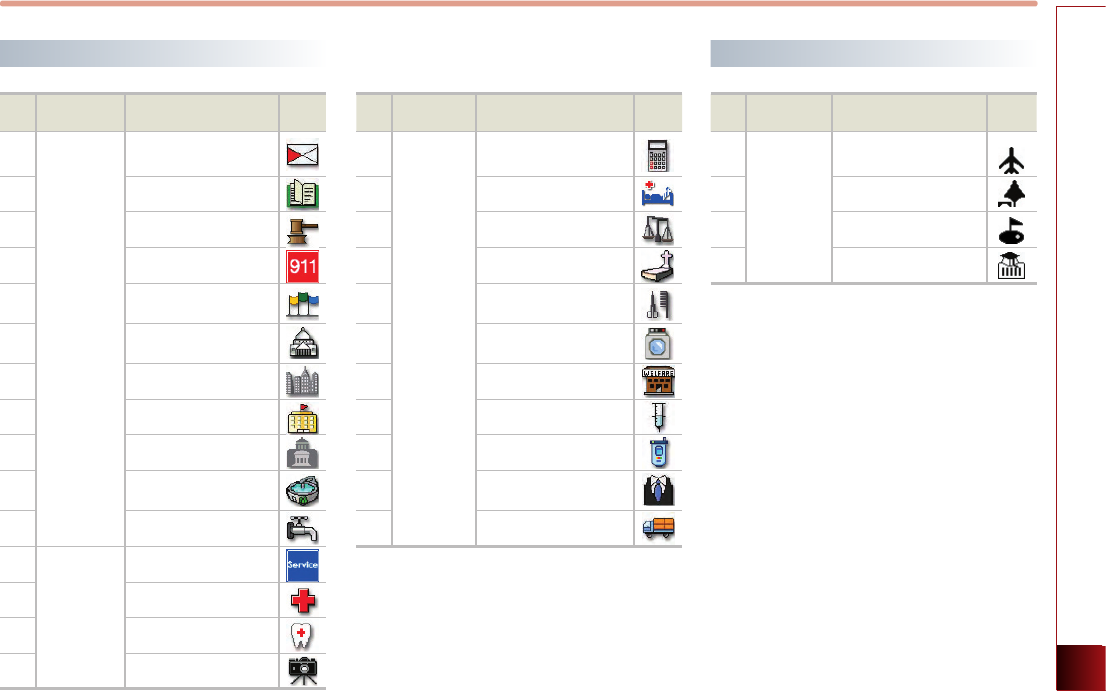

POI icons
No Category Sub Category Icon
76
Community
Post Office
77
Library
78
Court House
79
Fire Department
80
Convention Center
81
City Hall
82
Civic Center
83
School
84
Government Offices
85
Waste & Sanitary
86
Utilities
87
Service
Representation
88
Hospital
89
Dentist
90
Photography
No Category Sub Category Icon
91
Service
Tax Service
92
Medical Service
93
Attorney
94
Funeral Director
95
Hair & Beauty
96
Cleaning & Laundry
97
Social Service
98
Physician
99
Communication
100
Tailor & Alteration
101
Mover
No Category Sub Category Icon
1
Service
Airport
2Park
3Golf
4University
Landmark icons
8-8 APPENDIX
INDEX
A
About Bluetooth® device environment … 5-31
About CD Player ………………………… 2-11
About making/answering phone calls … 5-31
About pairing mobile phones ………… 5-30
About Rear Detection Camera …………… 7-2
About the Rear Camera …………………… 7-2
Activating Call waiting ………………… 5-14
Adaptive volume control ON/OFF ……… 3-51
Adding to address book : ……………… 3-27
Adding waypoints ……………………… 3-32
Adjusting audio volume …………………… 1-8
Adjusting cabin temperature ……………… 6-3
Adjusting driver-side and passenger-side
temperature separately …………………… 6-4
Adjusting driver-side and passenger-side
temperature simultaneously ……………… 6-3
Advanced settings ……………………… 5-26
Answering a call ………………………… 5-13
Answering an incoming call …………… 5-13
Audio Sound setting …………………… 1-10
Auto volume control ON/OFF ………… 1-11
AUX ……………………………………… 2-33
AUX screen ……………………………… 2-33
B
Basic operation and setting ……………… 1-7
Basic operation for voice command
control ……………………………………… 4-2
BASS/MID/TREB ………………………… 1-11
Before playing Phone music …………… 5-21
Before thinking the product has
malfunctioned …………………………… 8-2
Before using the Bluetooth® Handsfree … 5-2
Bluetooth® Handsfree screen and
functions …………………………………… 5-9
Bluetooth® Handsfree screen layout ……… 5-9
Bluetooth® settings …………………… 5-24
Brightness ……………………………… 1-11
Browsing detailed information about the SIRIUS
channel ………………………………… 2-10
C
Call History List ………………………… 5-19
call, When already on a ………………… 5-10
Camera …………………………………… 7-2
Cautions upon operating HVAC mode …… 6-2
CD ……………………………………… 2-15
CD screen and functions ……………… 2-15
Changing destination position : ……… 3-27
Changing passkey ……………………… 5-28
Changing Route option ………………… 3-32
Changing the map scale ……………… 3-8
Command list of Audio system ………… 4-7
Command list of Help ………………… 4-6
Command list of Navigation system …… 4-14
Command list of Phone ………………… 4-13
Condition for voice command system … 4-2
Conditions for voice recognition system 1-9
Connecting a mobile phone …………… 5-7
Connecting AUX ………………………… 2-33
Connecting iPod devices ……………… 2-23
Connecting the USB …………………… 2-30
Controller and functions ……………… 1-3
Control panel …………………………… 1-3
Converting Bluetooth® Handsfree mode 5-2
Converting from Audio/Navigation mode to
Bluetooth® Handsfree ………………… 5-2
Converting from Bluetooth® Handsfree mode to
Audio/Navigation mode ……………… 5-3
Current position map screen (without route) 3-5
D
Deleting all avoid areas ………………… 3-41
Deleting all paired phones ……………… 5-28
APPENDIX 8-9
APPEINDIX
Deleting an address book ……………… 3-47
Deleting an address of address book … 3-46
Deleting a paired phone ………………… 5-6
Deleting avoid area …………………… 3-41
Deleting favorite place ………………… 3-50
Deleting home address ………………… 3-48
Deleting waypoints …………………… 3-34
Destination by address book …………… 4-24
Destination by memory point <1 to 5> 4-25
Destination menu screen and functions 3-12
Destination POI by phone number …… 4-22
Dialed number ………………………… 5-20
Disc/Content format compatibility …… 2-13
Disconnecting a mobile phone …………… 5-8
Displaying / Hiding icons other than
Q.POI icons ………………………………… 3-9
Displaying / Hiding POI icons on the map 3-9
Displaying/Hiding Q.POI icons …………… 3-9
Displaying the list ………………………… 1-8
Display mode …………………………… 1-11
Display OFF ……………………………… 1-11
Display ON ……………………………… 1-11
Display Picture Frame …………………… 1-12
Display setting ………………………… 1-11
E
Editing an address of address book …… 3-45
Editing avoid area ……………………… 3-40
Editing waypoints ……………………… 3-32
Ending a call …………………………… 5-15
F
FAD/BAL ………………………………… 1-10
Find address …………………………… 4-19
Find emergency <Category> : ………… 4-23
Find nearest POI ………………………… 4-20
Find nearest <POI name> ……………… 4-21
Finishing route guidance
(Delete Destination) …………………… 3-30
FM/AM Radio ……………………………… 2-2
FM/AM screen and functions ……………… 2-2
For safe and efficient operation ………… 2-11
Functions supported by Bluetooth®
Handsfree ………………………………… 5-2
G
Giving voice command ………………… 1-10
Go home ………………………………… 4-25
GPS signal reception state ………………… 3-2
H
Help ……………………………………… 3-54
How to operate menu by voice command 1-9
How to operate the screen menu ………… 1-8
HVAC mode screen layout ………………… 6-2
HVAC System ……………………………… 1-6
HVAC System operations ………………… 6-3
I
Important information ………………… 5-30
Important information about this manual 1-2
Initializing Bluetooth® handsfree ……… 5-29
Initializing system ……………………… 3-37
Inputting letter by using screen keyboard 1-8
Inserting/Ejecting Disc ………………… 2-14
Introduction ……………………………… 1-2
iPod® …………………………………… 2-23
iPod screen and functions ……………… 2-24
L
Landmark icons …………………………… 8-7
Limitations of the navigation system …… 3-2
Listening to CD music ………………… 2-15
Listening to iPod music ………………… 2-24
8-10 APPENDIX
INDEX
Listening to MP3 music ………………… 2-19
Listening to the FM/AM radio ………… 2-2
Listening to the SIRIUS radio …………… 2-6
Listening to USB music ………………… 2-30
M
Main setting …………………………… 3-37
Making a call …………………………… 5-11
Making a call by dialing a phone
number ………………………………… 5-11
Making a call by redialing ……………… 5-12
Making a call from Call history ………… 5-19
Making a call from Speed Dial ………… 5-11
Making a call from the Phone book …… 5-16
Making a call to POI …………………… 3-10
Map Functions ………………………… 3-5
Map legend ……………………………… 8-5
MAP VOICE ……………………………… 3-5
Missed number ………………………… 5-20
MP3 ……………………………………… 2-18
MP3 disc related information and
precaution ……………………………… 2-18
MP3 screen and functions ……………… 2-19
My places setting ……………………… 3-43
N
Navigation setting ……………………… 3-38
O
Operating after searching a destination 3-27
Operating after setting a destination … 3-28
Operating external devices …………… 2-23
Operating menus during a call ………… 5-14
Operating sequence of the Rear ……… 7-2
Operating sequence of the Rear
Camera ………………………………… 7-2
Operating the CD Player ……………… 2-11
Operating the radio …………………… 2-2
Operating typical screen menu ………… 1-8
Operating USB IMAGE Mode …………… 2-32
Operating voice command …………… 4-2
P
Pairing a mobile phone ………………… 5-4
Pairing and connecting a Bluetooth®
phone …………………………………… 5-4
Pairing and connecting a mobile phone 5-24
Phone Book……………………………… 5-16
Phone Music …………………………… 5-21
Phone music screen layout …………… 5-22
Pick-List(n-best list) …………………… 4-20
Playing AUX …………………………… 2-33
POI Category list ………………………… 4-18
POI icons …………………………………… 8-5
Precaution for safe usage ………………… 1-2
Precautions upon handling discs ……… 2-11
Precautions upon handling USB ……… 2-28
Previous destination …………………… 4-24
Previous start point …………………… 4-25
R
Received number ……………………… 5-20
Registering avoid area ………………… 3-38
Registering favorite place ……………… 3-49
Registering home address ……………… 3-48
Registering new address in address book … 3-43
Rejecting an incoming ………………… 5-13
Rejecting an incoming ………………… 5-13
Re-ordering waypoints ………………… 3-34
REW/FF CD track ………………………… 2-16
REW/FF iPod song ……………………… 2-26
REW/FF MP3 file ………………………… 2-21
Road color ………………………………… 8-5
Route guidance ………………………… 3-30
Route Guidance ………………………… 3-4
APPENDIX 8-11
APPEINDIX
Route guidance screen ………………… 3-28
Route menu screen and functions ……… 3-30
Route overview (View Entire Route) …… 3-31
Route Re-calculation …………………… 3-4
S
Scanning CD track ……………………… 2-17
Scanning FM/AM broadcast frequency … 2-5
Scanning MP3 file ……………………… 2-22
Scrolling map …………………………… 3-11
Searching a Destination ………………… 3-13
Searching an Address …………………… 3-13
Searching and modifying my device
properties ……………………………… 5-27
Searching an Intersection ……………… 3-17
Searching a POI ………………………… 3-20
Searching a Previous Destination ……… 3-17
Searching by name ……………………… 5-17
Searching by number …………………… 5-18
Searching destination by voice
command ……………………………… 4-19
Searching favorite places ……………… 3-26
Searching for Emergency facilities …… 3-25
Searching from Address book ………… 3-24
Searching from MAP …………………… 3-26
Searching POI by local POI list ………… 3-26
Searching the Phone Book ……………… 5-17
Searching your Home …………………… 3-25
Selecting an iPod song ………………… 2-25
Selecting an item in a list ……………… 1-9
Selecting FM/AM broadcast frequency … 2-4
Selecting other route …………………… 3-29
Selecting Phone music files …………… 5-23
Selecting SIRIUS broadcast channel …… 2-7
Selecting the CD track ………………… 2-16
Selecting to MP3 music ………………… 2-20
Setting a destination …………………… 3-12
Setting arrival time and distance display … 3-38
Setting as Destination / waypoint : …… 3-27
Setting Audio streaming ……………… 5-25
Setting avoid streets on route ………… 3-35
Setting Contacts Auto Download (Sync) … 5-27
Setting detour distance ………………… 3-35
Setting estimate travel time …………… 3-42
Setting fan direction …………………… 6-5
Setting fan direction …………………… 6-5
Setting fan level ………………………… 6-5
Setting fan level ………………………… 6-5
Setting Handsfree volume ……………… 5-25
Setting keyboard for inputting letter … 3-37
Setting Language ……………………… 3-37
Setting mobile phone auto connect
priority ………………………………… 5-24
Setting Picture Frame …………………… 1-12
Setting Q.POI icons ……………………… 3-42
Setting Random function for CD music … 2-16
Setting Random function for iPod song … 2-26
Setting Random function for MP3 file … 2-21
Setting Repeat function for CD music … 2-17
Setting Repeat function for iPod song … 2-27
Setting Repeat function for MP3 file …… 2-22
settings, Advanced ……………………… 5-26
Setting the Clock ……………………… 1-13
Setting units (mile/ km) ………………… 3-38
Setting up the voice command system …… 4-4
Setting voice command feedback
ON/OFF ………………………………… 3-37
Setting voice Prompt ON/OFF ………… 4-4
Setup and Information ………………… 3-36
Setup menu screen and functions ……… 3-36
SIRIUS radio……………………………… 2-6
SIRIUS screen and functions …………… 2-6
Sorting call history ……………………… 5-19
Sorting items from list …………………… 1-9
Speaker adaptation ……………………… 4-4
8-12 APPENDIX
INDEX
Spell recognition ……………………… 4-20
Starting navigation system ……………… 3-5
Starting Phone Music …………………… 5-21
Starting Route Guidance ……………… 3-28
Starting USB IMAGE Mode ……………… 2-31
Steering wheel remote controller ………… 1-5
Storing FM/AM preset …………………… 2-4
Supported disc formats ………………… 2-12
Switching call to the mobile phone …… 5-14
Switching map mode
(North Up / Heading Up) ………………… 3-6
Switching the SIRIUS mode
(Channel / Category) ……………………… 2-7
System information and update ……… 3-37
T
Touch screen beep ON/OFF …………… 1-11
Traffic Information ……………………… 3-52
Traffic Setup …………………………… 3-52
Troubleshooting …………………………… 8-3
Troubleshooting guide …………………… 8-2
Turning the Audio ON/OFF ……………… 1-7
Turning the Power OFF …………………… 1-7
Turning the Power ON …………………… 1-7
U
USB IMAGE Mode ……………………… 2-31
USB IMAGE mode menu screen
configuration …………………………… 2-31
USB MP3 ………………………………… 2-28
USB MP3 related information and
precaution ……………………………… 2-28
V
Vehicle position display …………………… 3-3
Viewing Current Time …………………… 1-12
Viewing detailed information for iPod
song …………………………………… 2-27
Viewing detail information for MP3 file … 2-21
Viewing GPS signal state ………………… 3-7
Voice command Help ……………………… 4-3
Voice command list ……………………… 4-6
Voice guidance volume control ………… 3-51
Voice guidance volume setting ………… 3-51
W
What is Bluetooth®? ……………………… 5-2
When already on a call ………………… 5-10
When a mobile phone is connected ……… 5-9
When receiving an incoming call ……… 5-10
When there is a call waiting …………… 5-10
When there is no mobile phone
connected ………………………………… 5-9
MS
Microsoft® Windows® Automotive Operating System
Important Safety Information
Read and Follow Instructions
Before using your Windows Automotive-based system, read and follow all instructions and safety information provided in this end user manual
("User's Guide"). Not following precautions found in this User's Guide can lead to an accident or other serious consequences.
Keep User's Guide in Vehicle
When kept in the vehicle, the User's Guide will be a ready reference for you and other users unfamiliar with the Windows Automotive-based sys-
tem. Please make certain that before using the system for the first time, all persons have access to the User's Guide and read its instructions and
safety information carefully.
Warning:
Operating certain parts of this system while driving can distract your attention away from the road, and possibly cause an accident or
other serious consequences. Do not change system settings or enter data non-verbally (using your hands) while driving. Stop the vehicle
in a safe and legal manner before attempting these operations. This is important since while setting up or changing some functions you
might be required to distract your attention away from the road and remove your hands from the wheel.
General Operation
Voice Command Control
Functions within the Windows Automotive-based system may be accomplished using only voice commands. Using voice commands while driving
allows you to operate the system without removing your hands from the wheel.
Prolonged Views of Screen
Do not access any function requiring a prolonged view of the screen while you are driving. Pull over in a safe and legal manner before attempting
to access a function of the system requiring prolonged attention. Even occasional short scans to the screen may be hazardous if your attention has
been diverted away from your driving task at a critical time.
Volume Setting
Do not raise the volume excessively. Keep the volume at a level where you can still hear outside traffic and emergency signals while driving.
Driving while unable to hear these sounds could cause an accident.
Navigation Features
Any navigation features included in the system are intended to provide turn by turn instructions to get you to a desired destination. Please make
certain all persons using this system carefully read and follow instructions and safety information fully.
Distraction Hazard
Some navigation features may require manual (non-verbal) setup. Attempting to perform such set-up or insert data while driving can seriously
distract your attention and could cause an accident or other serious consequences. Stop the vehicle in a safe and legal manner before attempting
these operations.
Let Your Judgment Prevail
Any navigation features are provided only as an aid. Make your driving decisions based on your observations of local conditions and existing tra-
ffic regulations. Any such feature is not a substitute for your personal judgment. Any route suggestions made by this system should never replace
any local traffic regulations or your personal judgment or knowledge of safe driving practices.
MS
Route Safety
Do not follow the route suggestions if doing so would result in an unsafe or illegal maneuver, if you would be placed in an unsafe situation, or if
you would be directed into an area that you consider unsafe. The driver is ultimately responsible for the safe operation of the vehicle and therefo-
re, must evaluate whether it is safe to follow the suggested directions.
Potential Map Inaccuracy
Maps used by this system may be inaccurate because of changes in roads, traffic controls or driving conditions. Always use good judgment and
common sense when following the suggested routes.
Emergency Services
Do not rely on any navigation features included in the system to route you to emergency services. Ask local authorities or an emergency services
operator for these locations. Not all emergency services such as police, fire stations, hospitals and clinics are contained in the map database for
navigation features.
Use of Speech Recognition Functions
Speech recognition software is inherently a statistical process which is subject to errors. It is your responsibility to monitor any speech
recognition functions included in the system and address any errors.
M & SOFT AMERICA MAP CENTER
TEL : 888-757-0010
WEBSITE : www.mapnsoft.com
MAP DATABASE HOTLINE
MEMO
MEMO
2KMS7C0001
DIGITAL NAVIGATION SYSTEM
User's Manual
2KENB05
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
ˍ Reorient or relocate the receiving antenna.
ˍ Increase the separation between the equipment and receiver.
ˍ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
ˍ Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this
equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum 20 cm between the radiator and your body. This transmitter must not be collocated or operating
in conjunction with any other antenna or transmitter unless authorized to do so by the FCC.
IC Warning
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.

Navigation menu
