Users Manual - 4 of 4
Settings
Navigation settings
Sound Settings
Display Settings
Bluetooth Settings
Phone projection
Custom Button Settings
Date/Time Settings
Language Settings
Keyboard Settings
Screensaver Settings
Advance Settings
System Info
part.6 Settings
06
6-2 I Settings

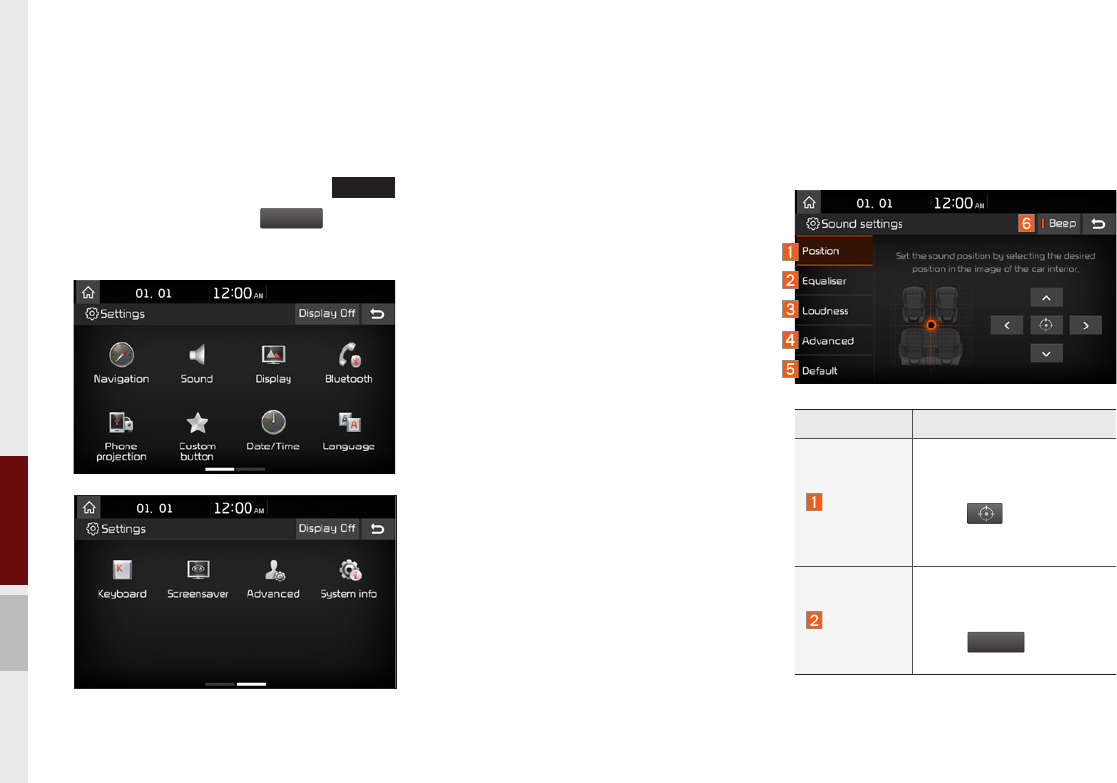

Settings
Settings
The Setup screen is used to control the
system settings of the Multimedia System.
To enter the screen, press the
SETUP
key of the device or the
Settings
button in
All Menus.
Navigation Settings
For more details, refer to part 4. Navigation
Settings.
Sound Settings
Adjusts the sound effects for the whole
system.
Features Description
Position
Select the Up/Down/Left/
Right button to control
sound positioning.
Press to concentrate
the sound in the centre of
the vehicle.
Equaliser
Drag the slide bar to
control bass/middle/treble
settings.
Press
Centre
to initialise
the settings.
Settings I 6-3
06
i
Information
• Advanced sound settings may differ according
to selected AMP option.
• The seat shape may differ according to
vehicle model.

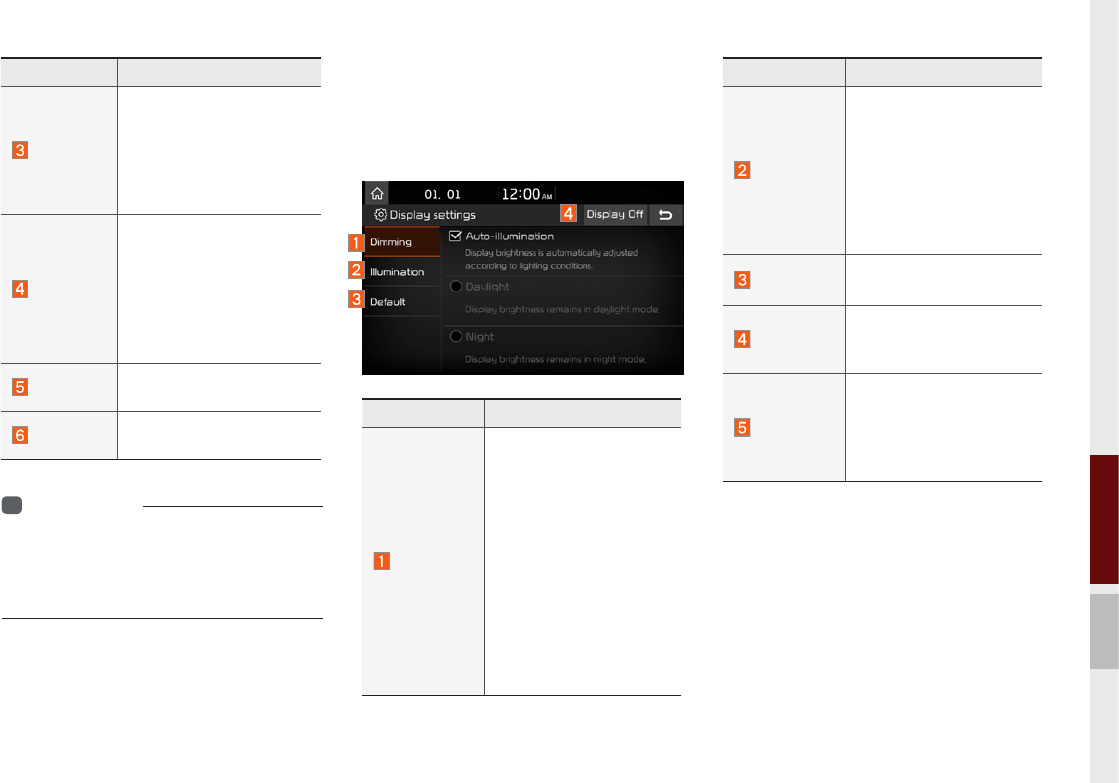

Display Settings
Controls the display brightness and image
rate for the whole system.
Features Description
Illumination
Adjusts the level of
brightness in Daylight or
Night illumination.
(If you use the Auto-
illumination feature, you
can set the brightness for
both Daylight and Night
illumination.)
Default Resets the display to fac-
tory default settings
Display off
Shows the Display Off
(touch activation) func-
tion.
Ratio
Aspect ratio can be
switched between
Normal, Full and Wide.
This option is available
only when in video mode.
Features Description
Loudness
Sets the volume ratio
when reversing the car,
answering a call, using
Navigation Guidance,
turning on the car’s igni-
tion, etc.
Advanced
You can select additional
audio options such as
“Speed Dependent
Volume Control” that auto-
matically controls Audio
volume according to vehi-
cle speed.
Default Resets the sound to fac-
tory default settings.
Beep Select to activate a beep
when pressing buttons.
Features Description
Dimming
Provides the Auto-
illumination feature that
automatically adjusts the
brightness of the screen
according to the bright-
ness levels of the car’s
surroundings.
If you do not use the
Auto-illumination feature,
you can select either
Daylight or Night illumi-
nation and maintain the
brightness accordingly.
6-4 I Settings

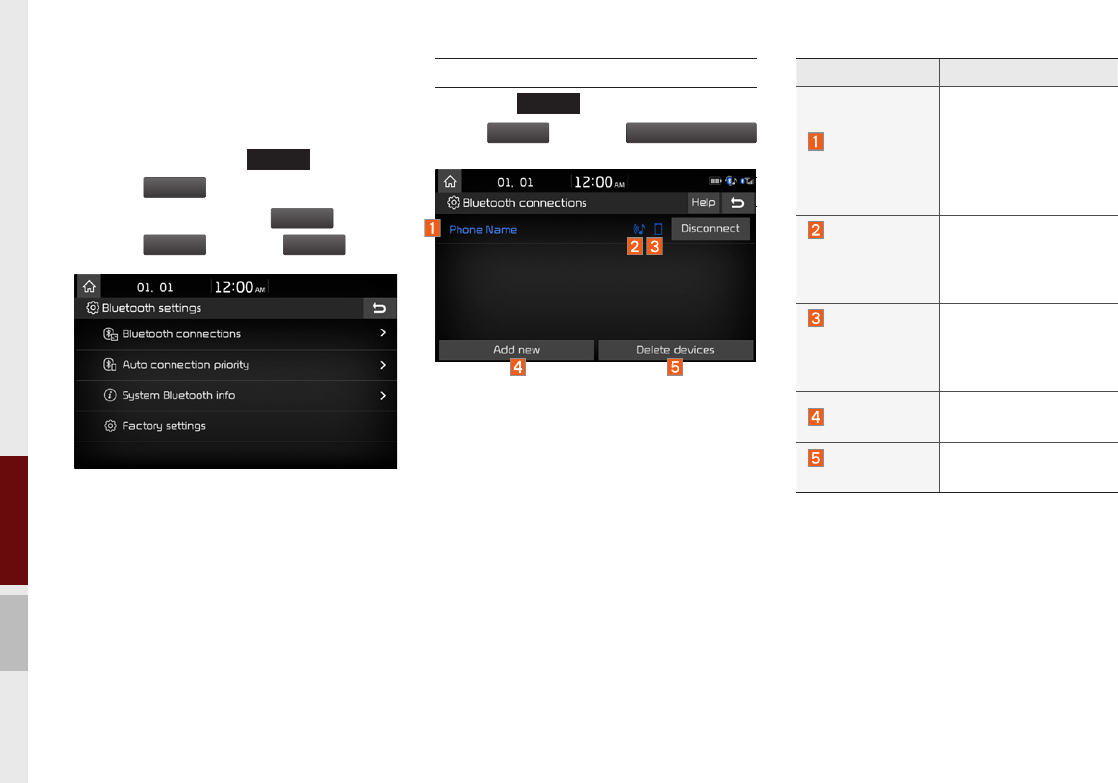

Bluetooth Settings
Changes Bluetooth phone settings.
• Select the head unit
SETUP
key ▶
Select
Bluetooth
.
• Home screen ▶ Select
All menu
▶
Select
Settings
▶ Select
Bluetooth
.
Bluetooth Connections
Select the
SETUP
key in the head unit ▶
Select
Bluetooth
▶ Select
Bluetooth connection
Features Description
Paired device
list
Displays the paired
Bluetooth device list.
When selecting from
the list, the device is
connected or
disconnected.
Bluetooth
audio
connection
status
An icon appears when
you make a Bluetooth
Audio connection.
Bluetooth
Hands-free
connection
status
An icon appears when
you make a Bluetooth
Hands-free
connection.
Add new Register a new
Bluetooth device.
Delete
devices
Select and delete a
paired device.
Settings I 6-5
06
i
Information
• Up to 5 Bluetooth devices can be paired.
• Only one Bluetooth device can be connected
at a time.
• During Bluetooth device connection, another
device cannot be paired.
• When you delete a paired device, the Call
History and Contacts stored in the head unit
are also completely deleted.
• Bluetooth Hands-free and Bluetooth Audio
functions are supported.
• Hands-free and audio-supported devices,
such as a Bluetooth smartphone or audio, will
function normally.
• When a Bluetooth device is connected, if
the Bluetooth connection is unexpectedly
disconnected due to being out of communi-
cation range, the device powering off or a
Bluetooth communication error, the Bluetooth
device automatically searches for and
connects to other nearby Bluetooth devices.
• If the system is not stable due to a vehicle
Bluetooth device communication error,
restore the Default Factory Settings.
• In Default Factory Settings, the Bluetooth
settings are reset to factory settings
• Select the
SETUP
key in the head unit ▶ Select
Bluetooth
▶ Select
Factory settings
.

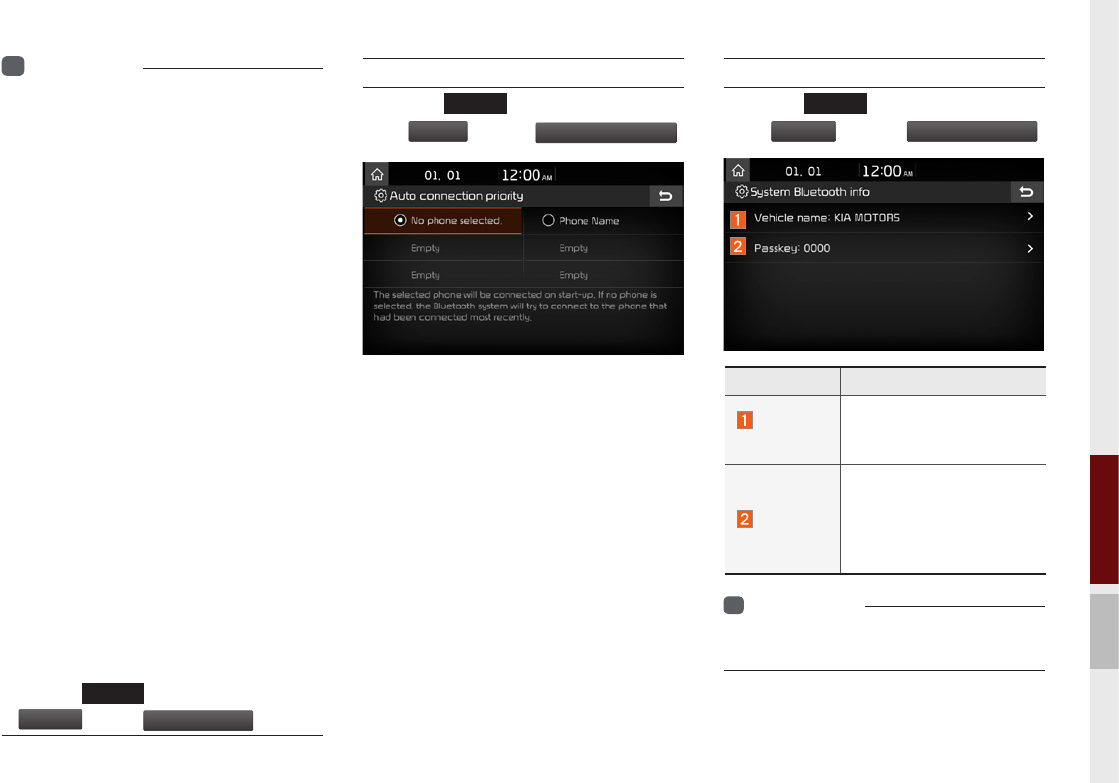

Auto connection priority
Select the
SETUP
key in the head unit ▶
Select
Bluetooth
▶ Select
Auto connection priority
.
When the engine is running, the selected
Bluetooth device is automatically con-
nected. If you fail to connect the selected
device, the previously connected device is
automatically connected. If this also fails, it
tries to connect all paired devices sequen-
tially.
Depending on auto-connection priority,
connection to a device may take some
time.
System Bluetooth Info
Select the
SETUP
key in the head unit ▶
Select
Bluetooth
▶ Select
System Bluetooth Info
.
i
Information
• The device name above is an example. Check
the actual information on the product.
Features Description
Device
name
You can change the
Bluetooth device name of
the vehicle.
Passkey
You can change the
passkey used for
Bluetooth device authen-
tication. The default pass-
key is 0000.
6-6 I Settings
Phone projection
For more details, refer to Phone projection
guide.

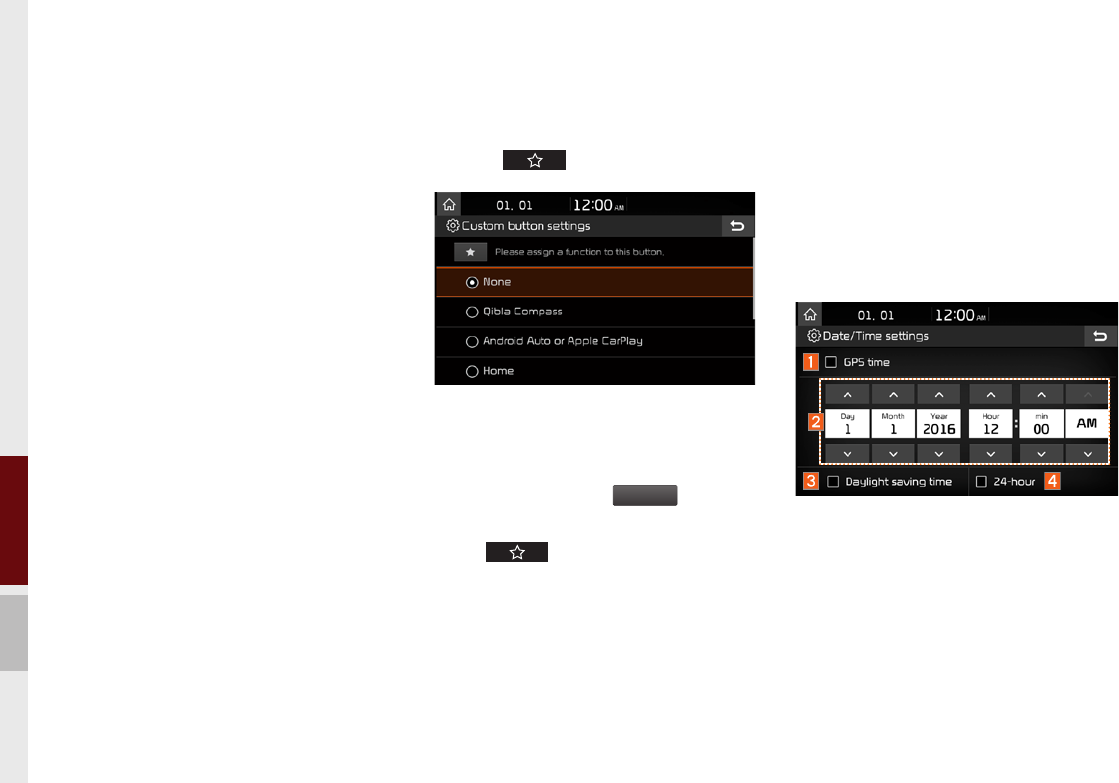

Custom Button Settings
You can configure the feature to be accessed
when the key is pressed.
Setting it to a feature that you frequently use
will allow you to access the feature quickly and
conveniently anytime.
For example, setting it to
My Menu
will enable
you to access the My Menu screen by press-
ing the key.
Date/Time Settings
Configure the settings for time and date.
Using the arrow buttons, you can change
the values. Date/Time settings do not
automatically change when crossing into
different time zones. The time must be
changed manually on this screen.
Settings I 6-7
06

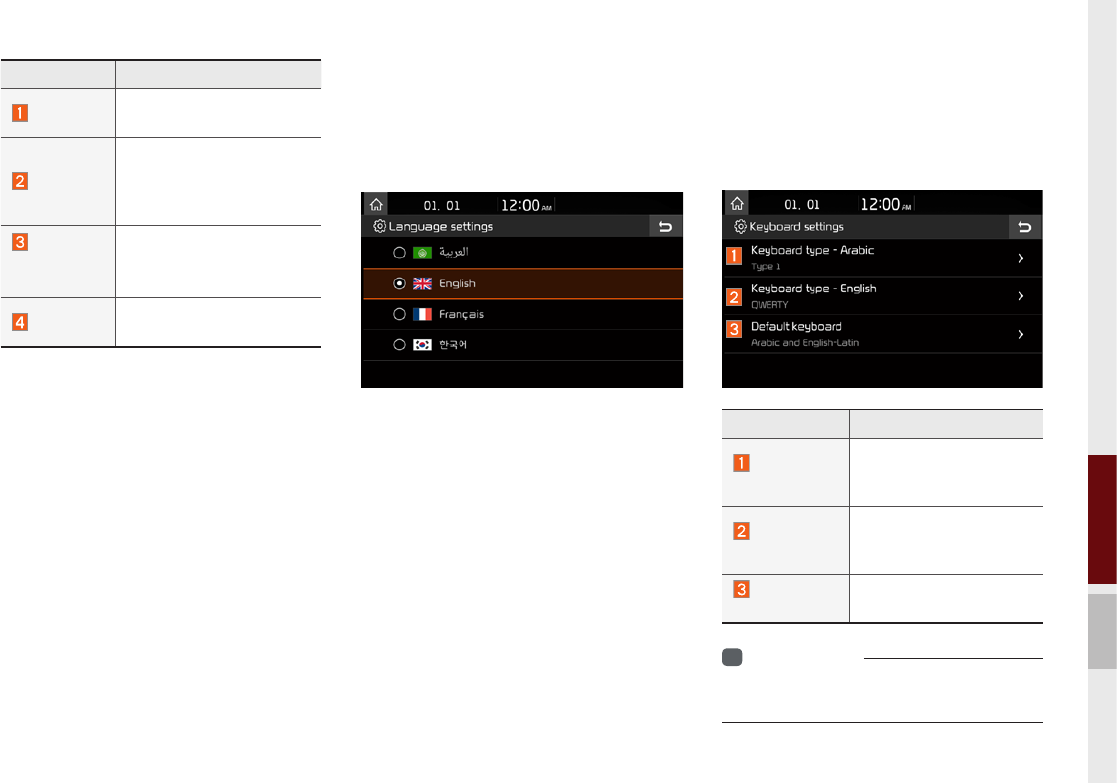

Language Settings
You can configure the displayed system
language.
When the language is changed, the sys-
tem language is automatically changed.
Unique data including MP3 file name is
not changed and some languages don’t
support voice recognition.
Keyboard Settings
You can configure the keyboard layout for
each language.
Features Description
Keyboard
type - Arabic
You can configure Arabic
keyboard layout type for
the system.
Keyboard
t
ype - English
You can configure ABCD
or QWERTY keyboards
for the system.
Default
keyboard
You can select the sys-
tem default keyboard.
i
Information
• Configured keyboard layouts are applied to all
input modes.
Features Description
GPS The time display is set in
GPS Time.
Direct entry
If you tap any value, you
can directly enter the
number in the following
screen.
Daylight
Saving
Time
The daylight saving time
(DST) is applied.
24 Hours The time display is set in
24-hour format.
6-8 I Settings

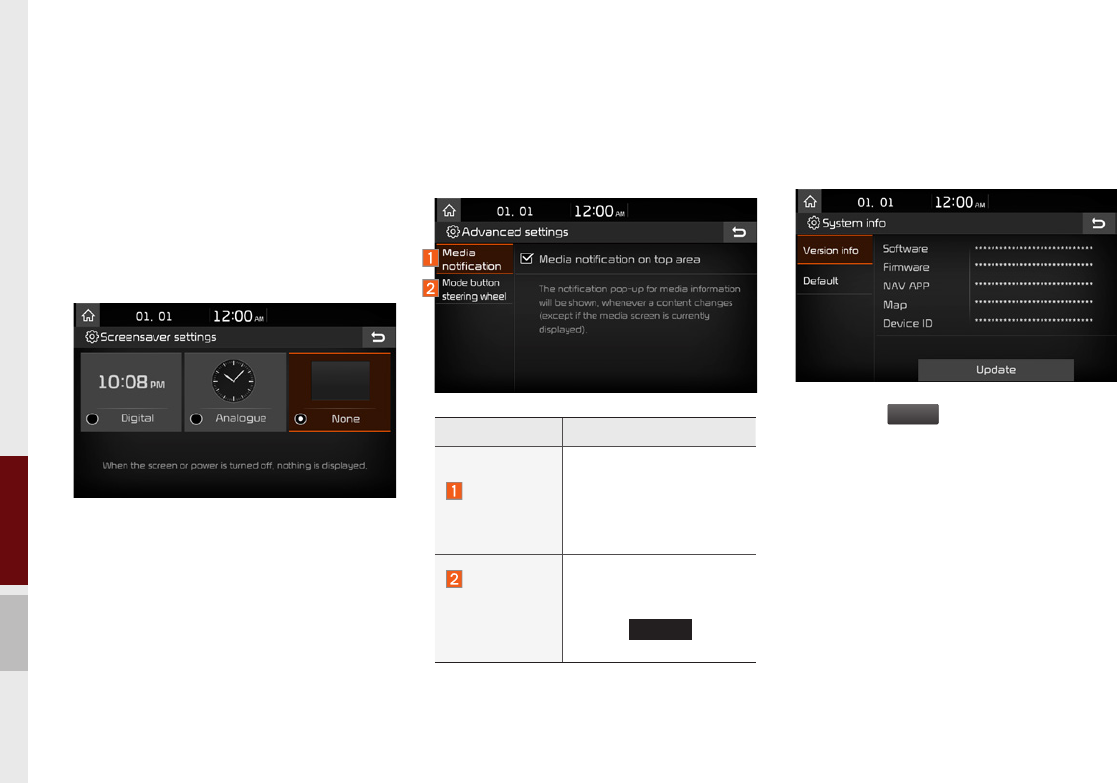

Screensaver Settings
You can select any of the following screen
formats to be displayed when the screen
or power is turned off.
•Digital clock and date
•Analogue clock and date
•None
Advance Settings
You can configure notifications per feature,
etc.
System Info
System version information and update
details are available.
Select the
Update
button to update the
system. After an update is complete, the
system will reboot automatically.
Features Description
Media
notification
Sets whether to display
media information at the
top of the screen as the
next item is played when
not on the media screen.
Mode
button
steering
wheel
You can configure the
media to be accessed
when the steering
wheel’s
MODE
button
is pressed.
Settings I 6-9
06
System Update
On the System Info screen, insert the
updated memory (USB or SD card) with
the latest file downloaded, then select the
Update
button to begin updating. The sys-
tem will then reboot automatically.
i
Information
• This product needs supplementary software
updates, additional new functions and
updated maps, which collectively may take
some time to complete, depending on the
amount of data.
CAUTION
• If the power is disconnected or the USB
device or SD card is removed during an
update, data might be damaged. Please wait
until the update is complete with the engine
on.
MEMO
7-2 I Appendix
Product Specifications
TFT-LCD
Screen Size 7 inch(152.4 × 91.44 mm)
Resolution
384000 pixels (Resolution: 800 x 480)
Operating
Method TFT (Thin Film Transistor) Active Matrix
Viewing
Angle Left/Right, Top/Bottom: ALL 89°
Internal Lighting
LED
Radio
Channels
FM: 87.5 MHz ~ 108.0 MHz (Step : 100 kHz)
AM: 531 kHz ~ 1602 kHz (Step : 9 kHz)
Sensitivity FM : Under 10 dBu/AM : Under 35 dBu
Distortion Factor
Within 2 %
Common
Name Car TFT LCD Display Navigation Unit
Power
Supply DC 14.4 V Operating
Power DC 9 V ~ DC 16 V
Current
Consumption 2.5 A Sleep Current 1 mA
(Head Unit only)
Operating
Temperature
-20 ~ +70 ℃
(-4 ~ +158
℉
)
Storage
Temperature
-30 ~ +80 ℃
(-22 ~ +176
℉
)
Dimensions 178 × 140.2 × 60 mm (MAIN BOX)
Weight 1.8 kg
Appendix
07
Product Specifications I 7-3
Bluetooth®
Wireless Technology
Frequency
Range 2402 ~ 2480 MHz
Supported
Bluetooth
®
Specifications
3.0
Supported
Profile Hands-free(1.6), A2DP(1.2), AVRCP(1.4), PBAP(1.0)
Output -6 ~ 4dBm(Power Class2, Conducted)
Number of
Channels 79 channels
CAUTION
• The manufacturer and installer cannot provide services relating to life
safety as the radio equipment is liable to radio interference.
i
Information
• Further information including the manufacturer's declaration of conformity
is available on Kia web site as follows; http://www.kia-hotline.com
7-4 I Appendix
Common Issues
1. Errors which occur during the operation or installation of the
device may be mistaken as a device malfunction.
2. If you are having problems with the device, try the suggestions
listed below.
3. If the problems persist, contact your Kia dealer.
Problem Possible Cause
There are small red,
blue or green dots on the
screen
•Because the LCD is manufactured with
technology requiring high point density,
a pixel or lighting deficiency may occur
within 0.01 % of total pixels
The sound or image is
not working
•Has the Switch been turned to [ACC] or
[ON]?
•Has the SYSTEM been turned OFF?
The screen is being dis-
played but sound is not
working
•Has the volume been set to a low level?
•Has the volume been muted?
When the power is
turned on, the corners of
the screen are dark
•It is normal with LCD panels for the display
to appear somewhat dark after prolonged
periods of use. It is not a malfunction
•If the screen is very dark, contact your
nearest Kia dealer for assistance
Sound is only coming
from one speaker
•Are the positions of Fader or Balance
sound controls adjusted to only one side?
Problem Possible Cause
Sound does not work in
AUX mode
•Are the audio connector jacks fully
inserted into the AUX terminal?
The external device is
not working
•Is the external device connected with a
standard connector cable?
When turning the power
on, the most recent
mode screen is not dis-
played
Within modes that play files by reading
external sources, such as USB, iPod or
Bluetooth
®
streaming mode, the most
recently played mode screen prior to turn-
ing off power may not properly load
•If there is no disc or the corresponding
device is not connected, the mode oper-
ated prior to the most recent mode will
operate
•If the previous mode still cannot be prop-
erly played, the mode operated prior to
that will operate
07
Troubleshooting I 7-5
Troubleshooting
Problem Possible Cause Solution
The image
colour/tone
quality is low
•The brightness, satura-
tion, hue and contrast
levels are not set prop-
erly
•Adjust the brightness, satu-
ration, hue and contrast lev-
els in Display Setup
Sound is
not working
•The volume level
is set to the lowest
level
•The connection is
not correct
•The device is cur-
rently fast-forward-
ing, rewinding, scan-
ning or playing in
slow motion
•Adjust the volume level
•Check that the device has
been properly connected
•The sound will not work
when the device is fast-
forwarding, rewinding,
scanning or playing in slow
motion
The sound or
image quality
is low
•Vibration is coming
from where the con-
version switch has
been installed
•Image colour/tone
quality is low
•The sound may be short-
circuited and the image dis-
torted if the device vibrates
•The device will return to
normal once vibration stops
Problem Possible Cause Solution
The power
does not turn
on
The fuse is discon-
nected
•Replace with a suitable fuse
•If the fuse disconnects
again, please contact your
point of purchase or service
centre
Device is not properly
connected
•Check that the device has
been properly connected
The system
does not play
The vehicle battery is
low
•Charge the battery. If the
problem persists, contact
your point of purchase or
service centre
7-6 I Appendix
Problem Possible Cause Solution
USB does
not work
•USB memory is
damaged
•USB memory has
been contaminated
•A separately pur-
chased USB HUB is
being used
•A USB extension
cable is being used
•A USB which is not
a Metal Cover Type
USB Memory is
being used
•HDD type, CF, SD
Memory is being
used
•There are no music
files which can be
played
•Please use the USB after
formatting it.
•Remove any foreign sub-
stances on the contact surface
of the USB memory and multi-
media terminal
•Directly connect the USB mem-
ory with the multimedia terminal
on the vehicle
•Directly connect the USB
memory with the multimedia
terminal on the vehicle
•Use standard USB memory
•Use standard USB memory
•Only MP3, WMA file formats
are supported. Please use
only the supported music file
formats
Problem Possible Cause Solution
The iPod is
not recog-
nised even
though it has
been con-
nected
•There are no titles
that can be played
•The iPod firmware
version has not
been properly
updated
•The iPod device
does not recognise
downloads
•Use iTunes to download and
save MP3 files onto the iPod
•Use iTunes to update the firm-
ware version and reconnect
the iPod to the device
•Reset the iPod and reconnect
to the device
i
Information
• While operating the device, if an abnormality occurs that cannot be
corrected using the above described measures, press the RESET key to
reset the system.
• Press and hold the RESET key (for more than 1 second). The device
power will turn off and the system will reset.
07
FAQ I 7-7
FAQ
Pairing Mobile Phones
Q I cannot pair my mobile phone. What is the cause?
A Check that the mobile phone supports Bluetooth® function.
Check whether Bluetooth on the mobile phone is set to OFF.
If so, set it to ON. If the mobile phone still can’t be paired, try
again after turning Bluetooth off and on, or delete the device
registration on the Multimedia System and mobile phone and
then register the mobile phone again.
Q What is the difference between pairing a mobile phone and con-
necting a mobile phone?
A Pairing takes place after authentication of the head unit and
mobile phone. Mobile phones paired to the head unit can be
connected and disconnected until the paired mobile phone is
deleted from the system. Bluetooth® Hands-free features, such
as making/answering calls or managing contacts, are supported
only on mobile phones connected to the head unit.
Q What is a passkey?
A A passkey is the password used to authenticate the connection
between the head unit and mobile phone. The passkey only
needs to be entered once when pairing the mobile phone for the
first time.
The initial passkey is 0000. You can change it in
SETUP
▶
Bluetooth
▶
System Bluetooth info
▶
Passkey
using the
menu options.
7-8 I Appendix
Making/Answering Phone Calls
Q How can I answer a call?
A When there is an incoming call, a notification pop-up will be dis-
played. To answer the incoming call, press the
Accept
button
on the screen or the key on the steering remote con-
troller.
To reject the call, press the
Reject
button on the screen or
press the
key
on the steering remote controller.
Q What should I do if I am talking on the Hands-free but want to
switch the call to my mobile phone?
A While on a call, press and hold (more than 0.8 seconds)
the key on the steering remote controller or press the
Use private
button at the bottom of the Phone screen to switch
the call to your mobile phone.
Bluetooth
®
Wireless Technology/Head Unit Use
Q What is the range of my wireless connection?
A The wireless connection can be used within 10m.
Q How many mobile phones can be paired?
A It is possible to pair up to five mobile phones.
Q Why is call quality sometimes poor?
A
Check the reception sensitivity of the mobile phone when call
quality deteriorates. Call quality may deteriorate when the signal
strength is low. Call quality may also deteriorate if metal objects
such as drink cans are placed near the mobile phone. Check if
there are any metal objects in the vicinity of the mobile phone.
The call sound and quality may differ depending on the type of
mobile phone.
07
Important Safety Information I 7-9
Important Safety Information
Before using your Multimedia System, read and follow all instructions and safety information provided in this end user manual ("User
Guide"). Not following precautions found in this User Guide can lead to an accident or other serious consequences.
Keep User Guide in Vehicle
When kept in the vehicle, the User Guide will be a handy reference for you and other users unfamiliar with the Multimedia System. Please
ensure that, before using the system for the first time, all users have access to the User Guide and read the instructions and safety infor-
mation carefully.
Warning:
Operating certain parts of this system while driving can distract your attention away from the road and potentially cause an accident or
other serious consequences. Do not change system settings or enter data non-verbally (using your hands) while driving. Stop the vehicle
in a safe and legal manner before attempting these operations. This is important since, when setting up or changing some functions, you
might be required to distract your attention away from the road and remove your hands from the wheel.
7-10 I Appendix
General Operation
Prolonged Viewing of Screen
Do not access any functions requiring a prolonged view of the screen while you are driving. Pull over in a safe and legal manner before
attempting to access a function of the system that requires prolonged attention. Even occasional short scans to the screen may be haz-
ardous if your attention has been diverted away from your driving task at a critical time.
Volume Settings
Do not raise the volume excessively. Keep the volume at a level where you can still hear outside traffic and emergency signals while
driving. Driving while unable to hear these sounds could cause an accident.
Navigation Features
Any navigation features included in the system are intended to provide turn-by-turn instructions to get you to a desired destination. Please
make certain all system users carefully read and follow instructions and safety information fully.
Distraction Hazards
Some navigation features may require manual (non-verbal) setup. Attempting to perform such setup or insert data while driving can seri-
ously distract your attention and could cause an accident or other serious consequences. Stop the vehicle in a safe and legal manner
before attempting these operations.
07
Important Safety Information I 7-11
Let Your Judgement Prevail
Any navigation features are provided only as an aid. Make your own driving decisions based on your observation of local conditions and
existing traffic regulations. Any such feature is not a substitute for your personal judgement. Any route suggestions made by this system
should never replace any local traffic regulations or your personal judgement or knowledge of safe driving practices.
Route Safety
Do not follow the route suggestions if doing so would result in an unsafe or illegal manoeuvre, if you would be placed in an unsafe situation
or if you would be directed into an area that you consider unsafe. The driver is ultimately responsible for the safe operation of the vehicle
and must therefore evaluate whether it is safe to follow the suggested directions.
Potential Map Inaccuracy
Maps used by this system may be inaccurate because of changes in roads, traffic controls or driving conditions. Always use good judge-
ment and common sense when following the suggested routes.
Emergency Services
Do not rely on any navigation features included in the system to route you to emergency services. Ask local authorities or an emergency
services operator for these locations. Not all emergency services such as police stations, fire stations, hospitals and clinics are contained
in the map database.
영어
FCC
FCC Part 15.19 Statements
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
FCC Part 15.21 statement
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to
operate this equipment.
RF Exposure Statement (MPE)
The antenna(s) must be installed such that a minimum separation distance of at least 20 cm is maintained between the
radiator (antenna) and all persons at all times.
This device must not be co-located or operating in conjunction with any other antenna or transm
영어
FCC Part 15.105 statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
