NAVIGATION SYSTEM 3-47
NAVIGATION SYSTEM
Press the button.

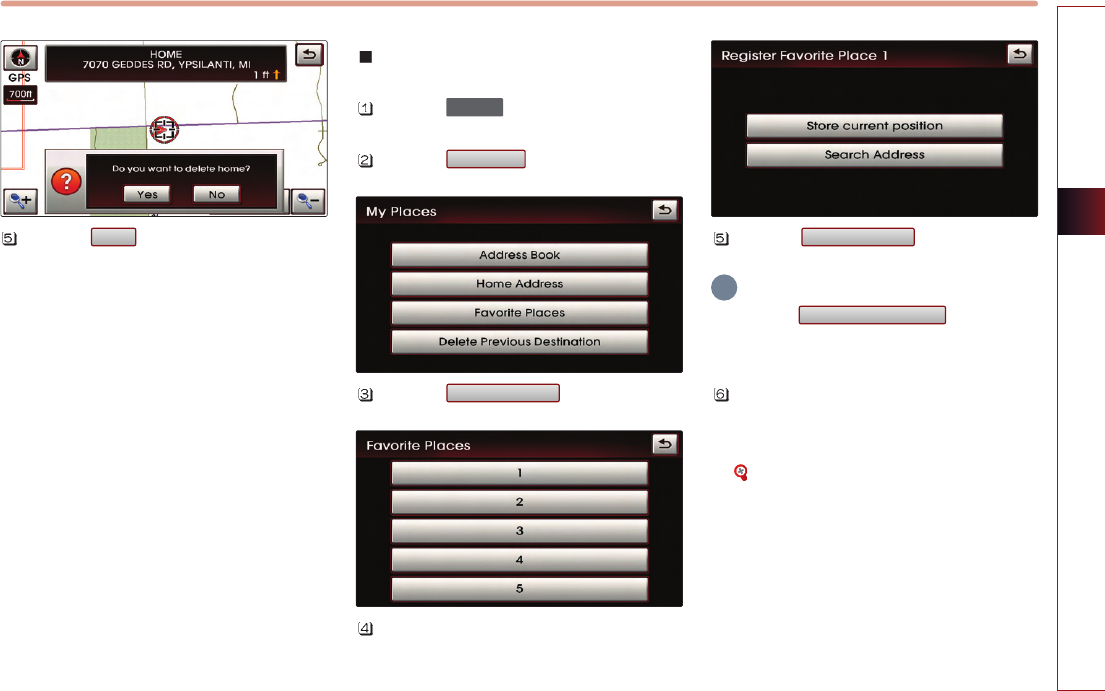

Deleting an address book
Press the key.
Press the button.
Press the button.
Press the desired address book (user)
button.
Press the button.
Press the button.
Yes
Delete all
Address book
My places
SETUP
Yes
3-48 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
Registering home address
Press the key.
Press the button.
Press the button.
Press the button.
INFORMATION
Press the button to
register the current position as Home.
Search the address.
The process is the same method as
searching an address.
[Searching an Address], page 3-13.
Press the button to complete.
Deleting home address
Press the key.
Press the button.
Press the button.
Press the button.
Delete
Home Address
My places
SETUP
Done
Store current position
Search Address
Home Address
My places
SETUP
i
NAVIGATION SYSTEM 3-49
NAVIGATION SYSTEM
Press the button.
Registering favorite place
Press the key.
Press the button.
Press the button.
Press the number of the Favorite Place to
register.
Press the button.
INFORMATION
Press the button to
register the current position as a Favorite place.
Search the address.
The process is the same as the method
for searching an address.
[Searching an Address], page 3-13.
Store current position
Search address
Favorite Places
My places
SETUP
Yes
i
3-50 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM
Press the button to complete.

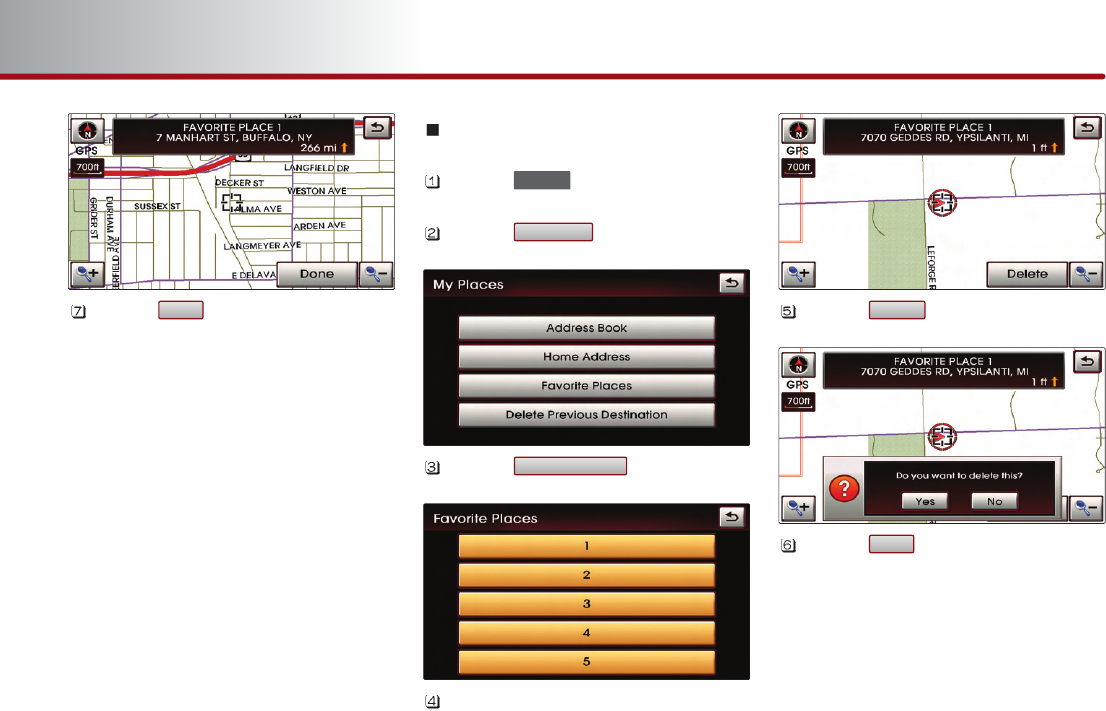

Deleting favorite place
Press the key.
Press the button.
Press the button.
Select the desired favorite place button
to delete.
Press the button.
Press the button.
Yes
Delete
Favorite Places
My places
SETUP
Done
NAVIGATION SYSTEM 3-51
NAVIGATION SYSTEM
System information and update
Press the key.
Press the button.
Voice guidance volume setting
Press the key.
Press the button.
Voice guidance volume control
Set the desired volume level by using the
or buttons and press the
button to verify the volume level.
Voice Command
1. Press the key on the steering wheel
remote controller.
2. After the beep sound, say a command.
"Voice Guidance Louder"
"Voice Guidance Softer"
Press the button when voice
guidance is unnecessary.
Voice guidance can be turned back on by
pressing the or buttons or
pressing the button.
Voice Command
1. Press the key on the steering Wheel
remote controller.
2. After the beep sound, say a command.
"Voice Guidance On"
"Voice Guidance Off"
MUTE
MUTE
Listen
Voice Setup
SET UP
System Info
SETUP
NAVIGATION SYSTEM 3-53
NAVIGATION SYSTEM
INFORMATION
Traffic information will be shown on the map
up until the scale is ~4mile.
Displays the traffic information around vehi-
cle for up to a radius of 50 miles.
(Information exceeding 50 miles will not be
displayed)
The above list can be sorted by either
Distance (Default) or Category.
Select the desired button.
The user can check points of accidents
and traffic details.
(b) Changing Traffic Category
Press the button at No. 2.
After selecting the desired menu among
the six menus, press the button
to save. Once returning to the previous
List screen, the corresponding Category
list will be shown and maintained until
Category information is changed.
Done
Category Select
List
i
3-54 NAVIGATION SYSTEM
PART 3 NAVIGATION SYSTEM

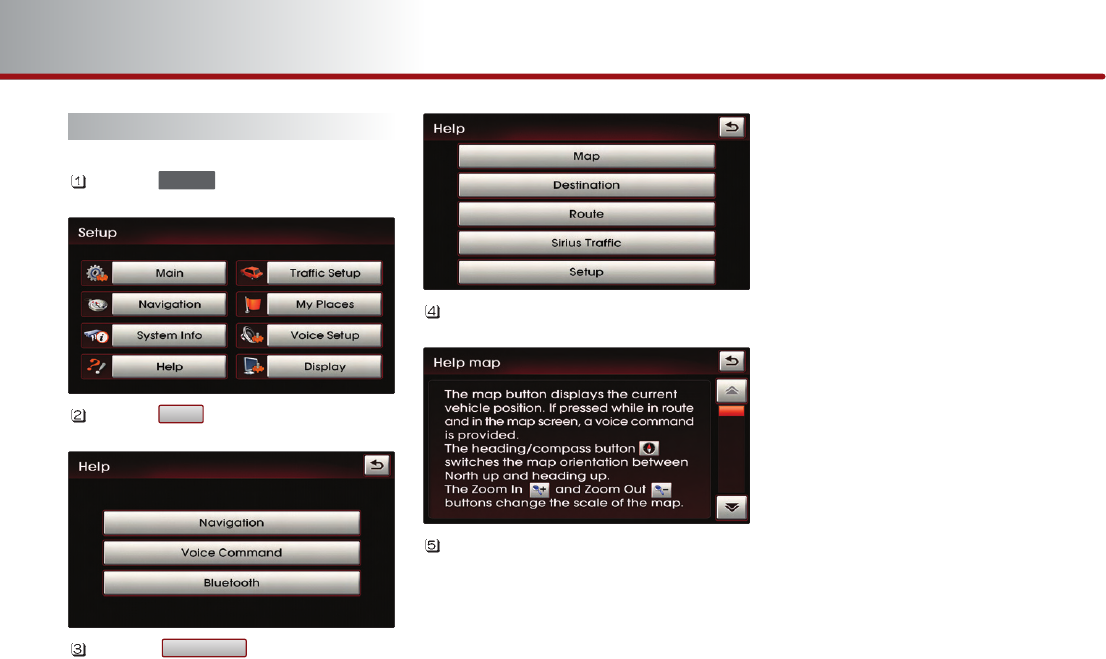

Help
Press the key.
Press the button.
Press the button.
Press the desired Help menu button.
The full content of the help section can
be viewed by using the top-down scroll
buttons.
Navigation
Help
SETUP
NAVIGATION SYSTEM
MEMO
MEMO
VOICE COMMAND SYSTEM 4-1
VOICE COMMAND SYSTEM
PART 4
VOICE COMMAND SYSTEM
Operating voice command …4-2
Condition for voice command system
…4-2
Basic operation for voice
command control …………………… 4-2
Voice command help ……………… 4-3
Setting up the voice command
system ………………………… 4-4
Setting voice Prompt ON/OFF ……… 4-4
Speaker adaptation ………………… 4-4
Voice command list …………… 4-6
Command list of Help ……………… 4-6
Command list of Audio system
……… 4-7
FM/AM Radio …………………… 4-7
SIRIUS Radio …………………… 4-8
CD ……………………………… 4-9
MP3 …………………………… 4-10
USB……………………………… 4-11
iPod …………………………… 4-12
Others ………………………… 4-12
Command list of Phone
…………… 4-13
Command list of Navigation system
…4-13
Map …………………………… 4-13
Destination …………………… 4-15
Route …………………………… 4-16
Others ………………………… 4-17
POI Category list ……………… 4-19
Searching a destination by
voice command …………………… 4-19
Find address …………………… 4-19
Find nearest <POI name>……… 4-20
Destination POI by phone
number ………………………… 4-22
Find emergency <Category> …4-23
Destination by address book …4-24
Previous destination …………… 4-24
Previous start point …………… 4-25
Go home ……………………… 4-25
Destination by memory point
<1 to 5> ………………………… 4-25
4-2 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
Operating voice command
Condition for voice command
system
Most of the functions within the AV and
Navigation system can be operated by
voice. Please follow the following
instructions for optimal voice recognition
performance.
●
Close all windows and the sunroof. The
performance of the voice recognition
can be improved if the environment of
the car interior is quiet.
●
Press the voice recognition button and
say the desired voice command after
the sound of the beep.
●
The microphone is positioned above
the driver so that voice commands can
be said while maintaining a proper
posture.
●
Pronounce the voice commands
naturally and clearly as if in a normal
conversation.
Basic operation for voice
command control
Press the button on the steering
wheel remote controller.
A voice command window will be
displayed on the lower side of the
screen followed by a "Command please"
system voice comment.
INFORMATION
The System voice comment "Command
Please" will not be provided when the Voice
prompt is turned OFF.
Once the icon changes into the
icon on the pop-up screen with a
beep sound, say the desired voice
command (ex : previous destination)
[Voice command list], page 4-6.
[Searching a destination by voice
command], page 4-19.
If the exact command is not known, use the
"Help" command to view the commands
list in detail.
INFORMATION
Press the shortly to input a voice
command from among the system voice
comments.
The system voice instruction comment will
immediately terminate.
i
i
VOICE COMMAND SYSTEM 4-3
VOICE COMMAND SYSTEM
When the icon changes into the
icon with a beep sound, input the desired
voice command.
The inputted command is fed back to
the screen and voice system.
If the command was not recognized
properly, say "Back".
INFORMATION
●The commands which can currently be
inputted are displayed on the screen in
yellow.
●To terminate the voice recognition system,
either say "cancel" or press the for
over 0.8 second.
●Be aware that during the operation of the
voice recognition system, pressing the hard
keys or the screen will terminate the voice
recognition system.

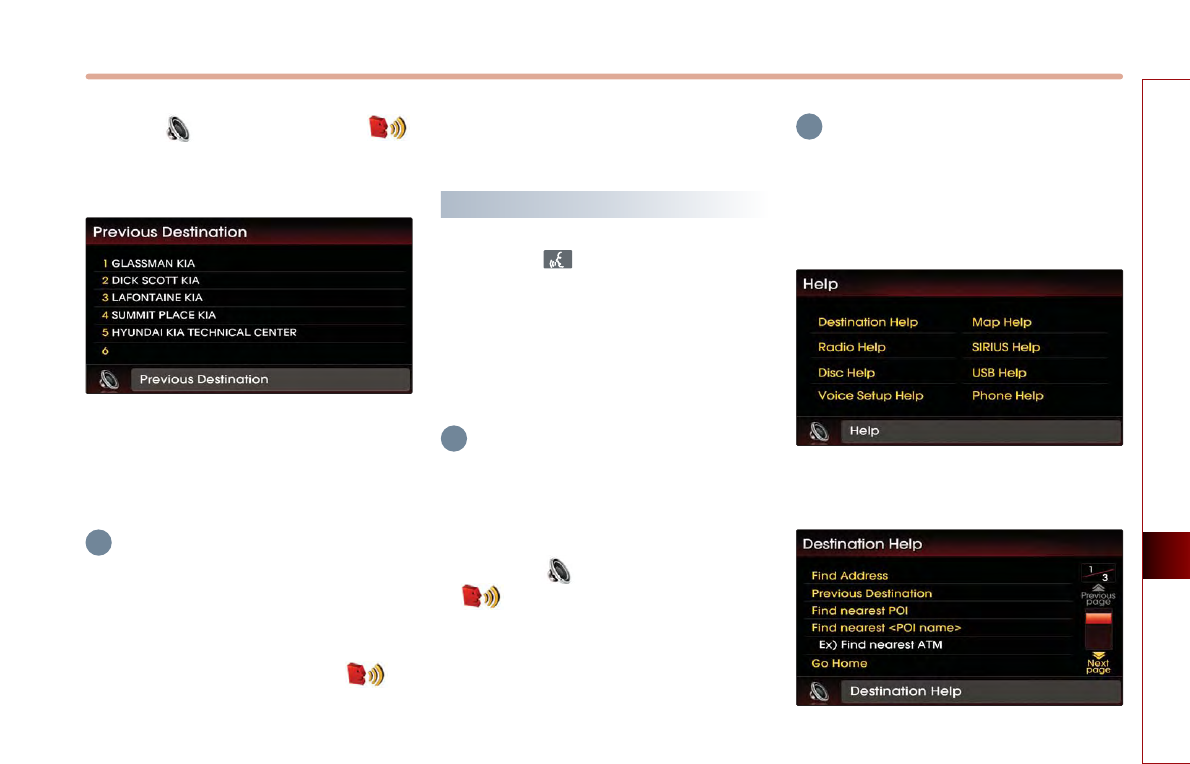

Voice command Help
Press the button on the Steering
wheel remote controller.
A voice command window will be
displayed on the lower side of the
screen followed by a "Command please"
system voice comment.
INFORMATION
The System voice comment "Command
Please" will not be provided when the Voice
prompt is turned OFF.
Once the icon changes into the
icon on the pop-up screen with a
beep sound, say "Help".
If the proper Help menu is already
known, voice commands, such as
"destination help" can be inputted
directly.
INFORMATION
The "help" command can be used even while
voice recognition dialogue is operating.
At such time, help instructions appropriate to
the state of the dialogue will be provided.
Say the name of the desired menu.
(ex : "Destination help")
Say the desired voice command.
i
i
i
4-4 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
Setting up the voice
command system
Setting voice prompt ON/OFF
●
Voice prompt ON : All system prompts
are provided.
●
Voice prompt OFF : Most of the system
prompts are not provided.
Press the button on the Steering
wheel remote controller.
Once the icon changes into the
icon on the pop-up screen with a
beep sound, say "Voice setup." The
"voice prompt on" or "voice prompt
off" can be directly inputted if the
current state is already known.
Once the icon changes into the icon
on the pop-up screen with a beep
sound, say "Voice Prompt on".
INFORMATION
In the Voice Setup Help screen, the commands
possible for input within the current mode are
displayed. For example, if the Voice prompt is
currently in Off state, then the command Voice
prompt ON will be displayed on the screen.
Speaker adaptation
Press the button on the Steering
wheel remote controller.
Once the icon changes into the
icon on the pop-up screen with a
beep sound, say "Voice setup."
Or the "Speaker adaptation" command
can be directly inputted.
Once the icon changes into the
icon on the pop-up screen with a
beep sound, say "Speaker adaptation".
i
VOICE COMMAND SYSTEM 4-5
VOICE COMMAND SYSTEM
Once the icon changes into the
icon on the pop-up screen with a
beep sound, say "Yes".
Listen and repeat the 20 commands
(approximate) as instructed by the
device.
●
Reset Speaker adaptation: Returns to
previous state prior to applying Speaker
adaptation.
Press the button on the Steering
wheel remote controller.
Once the icon changes into the
icon on the pop-up screen with
a beep sound, say "Reset Speaker
adaptation".
4-6 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
Voice command list
The voice commands for this system are
divided into Global commands and Local
commands.
●
Global command (●) : Commands
which operate in all operating modes.
●
Local command (○) : Commands which
operate only when the corresponding
mode is operating or when the mode
screen to the corresponding mode is
displayed.
Command Operation
●Help Displays the main Help screen.
●Destination Help Displays the Destination related command list.
●Map Help Displays the Map related command list.
●Radio Help Displays the FM/AM radio related command list.
●SIRIUS Help Displays the SIRIUS radio related command list.
●Disc Help Displays the DISC mode related command list for the
disc inserted in the CDP.
●iPod Help Displays the iPod related command list.
●USB Help Displays the USB related command list.
●Phone Help Displays the Phone Help screen.
●Voice setup Help Displays the Voice prompt settings and speaker-
adaptive commands on the screen.
Command list of Help
VOICE COMMAND SYSTEM 4-7
VOICE COMMAND SYSTEM
Command Operation
●Radio Plays the most recent frequency for the most recently operated Band.
●(Radio) AM Plays the most recent frequency for the corresponding Band.
●(Radio) FM Plays the most recent frequency for the corresponding Band. In the case of FM, the most recent
frequency within the most recently played FM1 or FM2 band is played.
●FM <1 or 2> Plays the most recent frequency for the corresponding Band.
●AM frequency <530 to 1710> Plays the desired AM band frequency. (ex. AM frequency 1310)
●FM frequency <87.5 to 107.9> Plays the desired FM band frequency.(ex. FM frequency 99.1)
●AM Preset <1 to 6> Plays the desired AM band preset frequency.
●FM <1 or 2> Preset <1 to 6> Plays the desired preset frequency of FM1 or FM2 band.
○Preset <1 to 6> Plays the desired preset frequency for the current Band.
○Seek Up Searches and plays the next frequency of the current band.
○Seek Down Searches and plays the previous frequency of the current band.
○Preset Up Plays the next preset frequency of the current band.
○Preset Down Plays the previous preset frequency of the current.
○Scan Scans all frequencies within the current band.
○Preset Scan Scans the 6 preset frequencies of the current band.
○Auto Preset / Auto Store Searches all frequencies within the current band and stores the 6 frequencies with the most superior
reception as preset buttens.
Command list of Audio system
■
FM/AM Radio
4-8 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
■SIRIUS Radio
Command Operation
●SIRIUS Plays the last channel within the last band from SIRIUS1, SIRIUS2, and SIRIUS3.
●SIRIUS <1 or 2 or 3> Plays the most recent channel for the corresponding Band.
●SIRIUS Channel <0 to 223> Plays the desired SIRIUS band channel.
●SIRIUS <1 or 2 or 3> Preset <1 to 6> Plays the desired preset channel for SIRIUS1 or SIRIUS2 or SIRIUS3 band.
○Channel < 0 to 223 > Plays the desired channel of the current band.
○Preset <1 to 6> Plays the desired preset channel of the current band.
○Channel Up Plays the next channel of the current band.
○Channel Down Plays the previous channel of the current band.
○Preset Up Plays the next preset channel of the current band.
○Preset Down Plays the previous preset channel of the current band.
○Scan Scans all frequencies within the current band.
○Preset Scan Scans the 6 preset frequencies of the current band.
VOICE COMMAND SYSTEM 4-9
VOICE COMMAND SYSTEM
■CD
Command Operation
●DISC Plays the DISC already inserted in the CDP.
●CD If the DISC inserted in the CDP is either a CD or MP3 DISC, then the CD or MP3 will be played.
●CD track <1 to 665> If the DISC inserted in the CDP is a CD, then CD Mode will start and plays the desired track.
○Track <1 to 665> Plays the desired track.
○Next track Plays the next track.
○Previous track Plays the previous track.
○Scan Scans all tracks on the CD.
○Repeat track Repeats the current playing track.
○Random Plays the tracks of the CD in random order.
○Normal play Turns off the Scan, Repeat, and Random functions.
○Pause Pauses the CD.
○Play The command will only be enabled when the CD is paused.
4-10 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
■MP3
Command Operation
●DISC Plays the DISC already inserted into the CDP.
●CD If the DISC inserted in the CDP is either a CD or MP3 DISC, then the CD or MP3 will be played.
●MP3 If the DISC inserted in the CDP is an MP3 DISC, then the MP3 will be played.
○Next file Plays the next file.
○Previous file Plays the previous file.
○Next folder Plays the first file in the next folder.
○Previous folder Plays the first file in the previous folder.
○Scan Scans all files within the MP3 DISC.
○Folder Scan Plays all songs in the folder in which the current playing file is located for 10 seconds each.
○Repeat File Repeats the current playing file.
○Repeat Folder Repeats all tracks within the current playing folder.
○Random Plays all files within the MP3 DISC in random order.
○Random Folder Plays all files within the current playing folder in random order.
○Normal play Turns off the Scan, Repeat, and Random functions.
○Pause Pauses the CD.
○Play The command will only be enabled when the CD is paused.
VOICE COMMAND SYSTEM 4-11
VOICE COMMAND SYSTEM
■USB
Command Operation
●USB If the USB has been connected to the device, plays the MP3 files within the USB.
○Next file Plays the next file.
○Previous file Plays the previous file.
○Next folder Plays the first chapter of the next folder.
○Previous folder Plays the first chapter of the previous folder.
○Scan Scans all files within the USB.
○Folder Scan Plays all songs in the folder in which the current playing file is located for 10 seconds each.
○Repeat File Repeats the current playing file.
○Repeat Folder Repeats all songs within the current playing folder.
○Random Plays all files within the MP3 DISC in random order.
○Random Folder Plays all files within the current playing folder in random order.
○Normal play Turns off the Scan, Repeat, and Random functions.
○Pause Pauses the CD.
○Play The command will only be enabled when the CD is paused.
4-12 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
■iPod
Command Operation
●iPod Plays the songs within the iPod if the iPod has been connected to the device.
○Next song Plays the next song.
○Previous song Plays the previous song.
○Repeat song Repeats the current playing song.
○Random Plays all songs within the iPod in random order.
○Random Album Plays all songs within the current playing album in random order.
○Normal play Turns off the Repeat and Random functions.
○Pause Pauses the CD.
○Play The command will only be enabled when the CD is paused.
■Others
Command Operation
●Line in Plays the unit connected with the AUX terminal.
●Audio on Turns on the Audio.
●Audio off Turns off the Audio.
VOICE COMMAND SYSTEM 4-13
VOICE COMMAND SYSTEM
■Map
Command Operation
●Map Current location Displays the current position of the vehicle.
●Zoom In Decreases the map zoom by one level.
●Zoom Out Increases the map zoom by one level.
●Zoom minimum Displays the map screen in the maximum zoom level.
●Zoom maximum Displays the map screen in the minimum zoom level.
●Zoom level <1 to 14> Displays the map in the zoom level selected from the 14 levels.
●Zoom <scale factor> Displays the map in the corresponding zoom.
Command list of navigation system
Navigation commands will operate only agreeing to the terms and conditions for the Navigation system.
Command Operation
●Call Name Makes the call to the name.
●Dial Number Makes the call to the number.
●Redial The recently called number is redialed.
●Recent Calls The user can selest a number from the outgoing, incoming, and missed calls.
Command list of Phone
4-14 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
Command Operation
150 feet / 50 meters
300 feet /100 meters
700 feet / 200 meters
0.25 miles / 400 meters
0.5 miles / 800 meters
1 mile / 1.6 kilometers
2 miles / 3.2 kilometers
4 miles / 6.4 kilometers
8 miles / 12 kilometers
16 miles / 25 kilometers
32 miles / 50 kilometers
64 miles / 100 kilometers
130 miles / 200 kilometers
250 miles / 400 kilometers
(ex.Zoom 0.25 miles, zoom 400 meters)
○North up Displays the map in North Up mode.
○Heading up Displays the map in Heading Up mode.
○Show <POI name> (ex. Show ATM) Displays the selected POI categories. [POI Category list], page 4-18.
○Hide <POI name> (ex. Hide ATM) Hides the selected POI categories. [POI Category list], page 4-18.
○Hide all Hides all POI categories.
○Daylight mode Converts the map display into daylight mode.
○Night mode Converts the map display into night mode.
○Auto mode Converts the map display is between daylight/night modes automatically.
VOICE COMMAND SYSTEM 4-15
VOICE COMMAND SYSTEM
■Destination
Command Operation
●Find address Sets the destination through address search for route guidance.
●Find nearest POI
Sets a POI near the current position as the destination for route guidance through POI category search.
●Find nearest <POI name> Sets a POI near the current position as the destination by directly inputting the POI name for
route guidance. [POI Category list], page 4-18.
●Destination POI by phone number Sets the destination by searching the phone number of the facility.
●Find Emergency <Category> Searches for an emergency facility which is nearby the current position and sets it as the
destination for route guidance. Emergency facilities are police stations, hospitals, and
dealerships.
●Destination by address book Sets one of the list of previously registered addresses in the address book for the user as the
destination.
●Previous destination Sets one of the previous destination as the current destination.
●Previous start point Sets the previous start point as the current destination.
●Go home Sets the previously registered home address as the destination for route guidance.
●Destination by memory point <1 to 5> Sets a previously registered memory point as the destination for route guidance.
(ex. Find Emergency Hospital)
4-16 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
■Route
Command Operation
●Cancel route Deletes the designated destination and terminates the route guidance.
●Repeat voice guidance Repeats the route guidance.
●Detour <1 or 2 or 5 or 10> miles Searches detour routes within a <1|2|5|10> mile radius.
●Detour <1 or 2 or 5 or 10> kilometers Searches detour routes within a <1|2|5|10> kilometer radius.
●Replan recommended route Recalculates the route with the recommended route.
●Replan shortest route Recalculates the route with the shortest route.
●Replan minimize freeway route Recalculates the route with the minimize freeway route.
●Replan minimize toll road route Recalculates the route with the minimize toll route.
●Distance to destination Reports the remaining distance until destination by voice.
●Time to destination Reports the remaining time until destination by voice.
○View route If the destination has been set, displays the whole route screen until the destination.
○Start guidance Sets the scroll mark displayed on the map as the destination and starts route guidance.
VOICE COMMAND SYSTEM 4-17
VOICE COMMAND SYSTEM
■Others
Command Operation
●Voice guidance on Turns the Voice Guidance On.
●Voice guidance off Turns the Voice Guidance Off.
●Voice guidance louder Increases the Voice Guidance volume by 1 level.
●Voice guidance softer Decrease the Voice Guidance volume by 1 level.
●Store marked location to <text tag> Registers the selected location into the selected Address book.
(ex. Store marked location to user 1)
4-18 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
All Restaurants
Fast Food restaurant
American restaurant
French restaurant
Italian restaurant
Continental restaurant
Mexican restaurant
Japanese restaurantl
Chinese restaurant
Korean restaurant
Vegetarian Food restaurant
Seafood restaurant
Latin American restaurant
Asian restaurant
African restaurant
Coffee Shop
Other restaurants
All Automotive
Gas Station
Parking
Auto service
Road Assistance
KIA Dealership
Automobile Dealership
Auto Parts
Rest Area
Car Wash
Motorcycle Dealership
All Travel
Airport
Hotel
Tourist Information
Travel Agent
Tourist Attraction
City Center
Rental Car Agency
Campground
Ferry Terminal
Bus Station
Local Transit
Train Station
All Shopping
Department Store
Convenience Store
Shopping Center
Music Store
Grocery Store
Bookstore
Electronic Store
Hardware Store
Gifts shop
Sporting Goods store
Home Specialty Store
Clothing shop
Shoe Store
Pharmacy
All Recreation
Amusement Park
Museum
Cinema
Sports Activities
Sports Complex
Golf Course
Winery
Video & Game Rental
Ski Resort
Recreation Area
Other Recreation
All Financial Service
Bank
ATM
Check Cashing Service
Money Transfer
Business Facility
All Community
Police Station
Post Office
Library
Court House
Fire Department
Convention Center
City Hall
Civic Center
School
Government Offices
Waste & Sanitary
Utilities
All Services
Hospital
Dentist
Photography
Tax Service
Medical Service
Attorney
Funeral Director
Hair & Beauty
Cleaning & Laundry
Social Service
Physician
Communication services
Tailor & Alteration
Mover services
●POI Category list
VOICE COMMAND SYSTEM 4-19
VOICE COMMAND SYSTEM
Searching a destination by voice
command
■

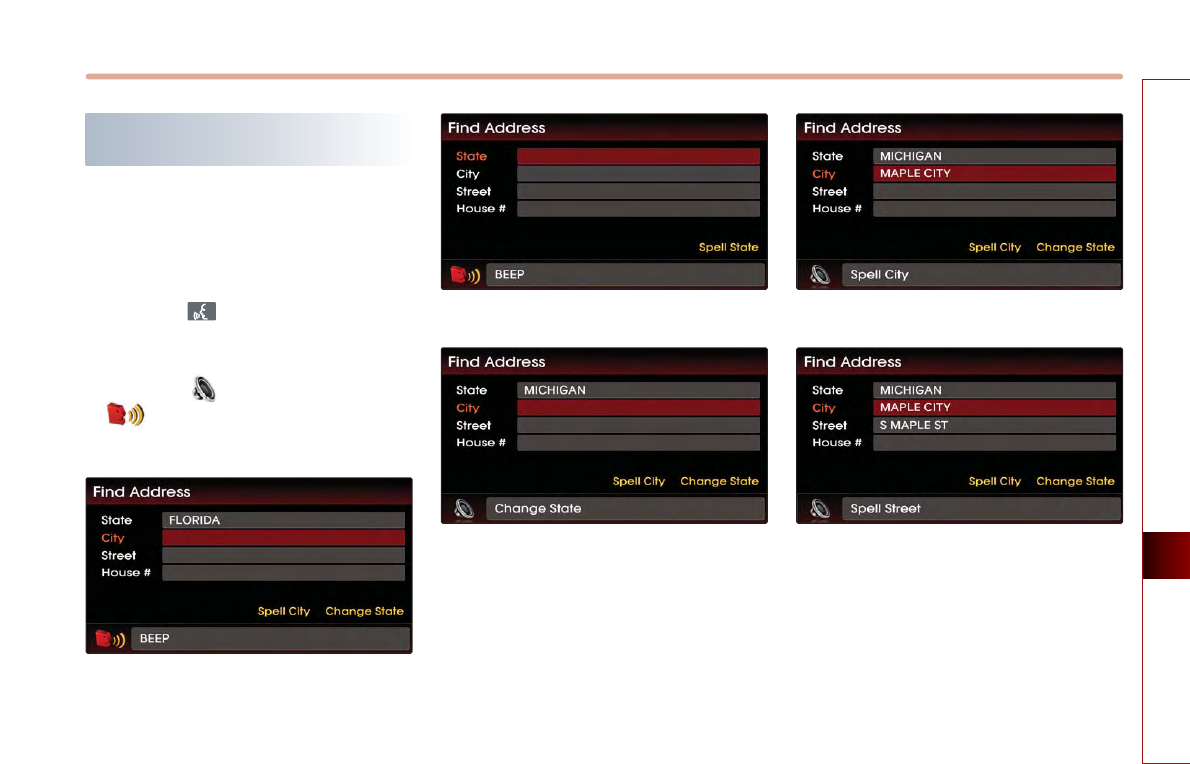

Find address
Sets the destination through address
search for route guidance.
Press the button on the Steering
wheel remote controller.
Once the icon changes into the
icon on the pop-up screen with a
beep sound, say "Find address".
Say "Change state" to change the state.
Say the state name.
Say the city name.
Say the street name.
Say the House number.
Here, the range which can be inputted
will be displayed.
Say "Start guidance" if guidance to the
selected position is desired, or say
"Show map" to verify the location of
the selected position on the map.
4-20 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
INFORMATION
Spell recognition
●It is possible to search the state, city, street
names through the text line inputted by the
user.
●To enter spell search mode, say the "Spell
000" command as displayed on the screen.
●Text lines can be inputted continuously.
Pick-List(n-best list)
●If there are more than one voice result, then
a pick-list which can be selected by the user
will be displayed.
●There may be more than one list page. The
desired page can be viewed by using
commands such as "next page" or "previous
page".
●Here, the "Line + number" voice command
can be used to select the desired result,
such as "Line one". Pressing the desired
result is not supported.
●Also, selectable areas will be highlighted in
yellow, allowing the user to easily see which
results can be selected.
■

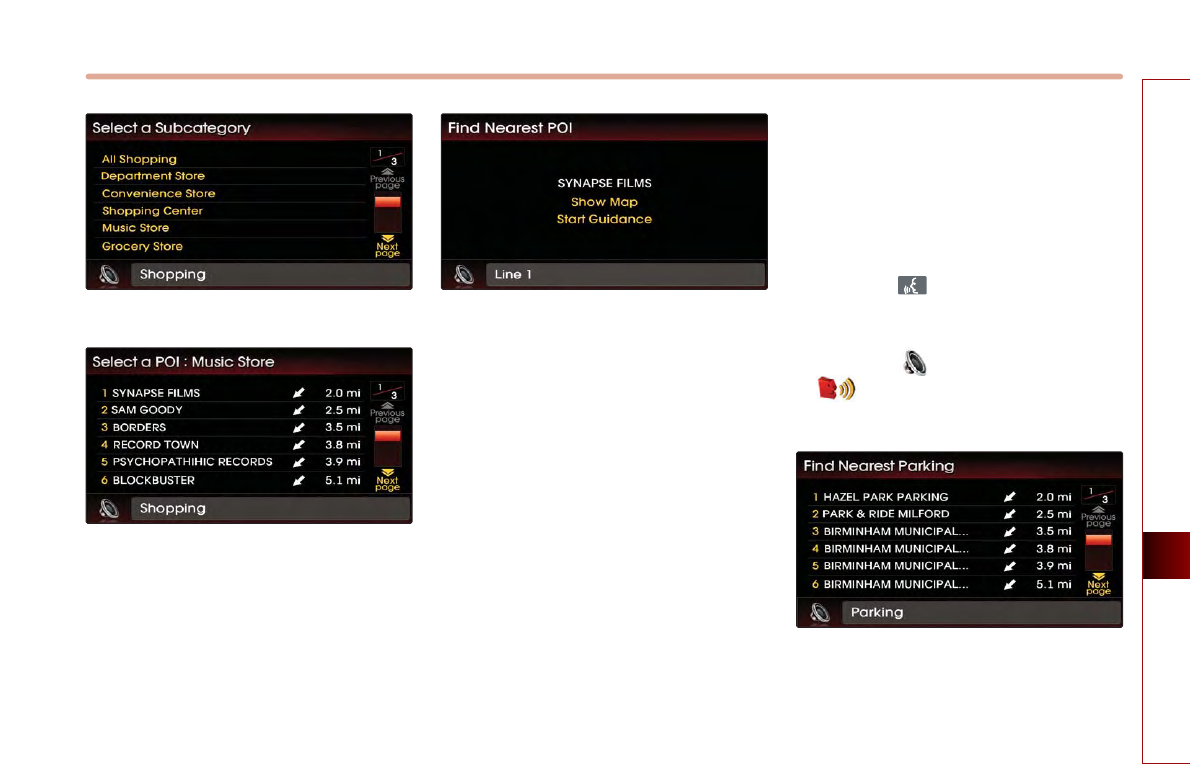

Find nearest POI
Sets a POI near the current position as the
destination for route guidance through
POI category search.
Press the button on the Steering
wheel remote controller.
Once the icon changes into the
icon on the pop-up screen with a
beep sound, say "find nearest POI".
Select the desired main category.
i
VOICE COMMAND SYSTEM 4-21
VOICE COMMAND SYSTEM
Select the desired sub category.
Select the desired POI from the list and
say the line number for the
corresponding menu. Ex) "Line 1".
Say "Start guidance" if guidance to the
selected position is desired, or say
"Show map" to verify the location of
the selected position on the map.
■
Find nearest <POI name>
Sets a POI near the current position as the
destination by directly inputting the POI
name for route guidance.
Press the button on the Steering
wheel remote controller.
Once the icon changes into the
icon on the pop-up screen with a
beep sound, say "Find nearest Parking".
Select the desired POI from the list and
say the line number for the correspond-
ing menu.
e.g) "Line 2".
4-22 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
Say "Start guidance" if guidance to the
selected position is desired, or say
"Show map" to verify the location of
the selected position on the map.
■

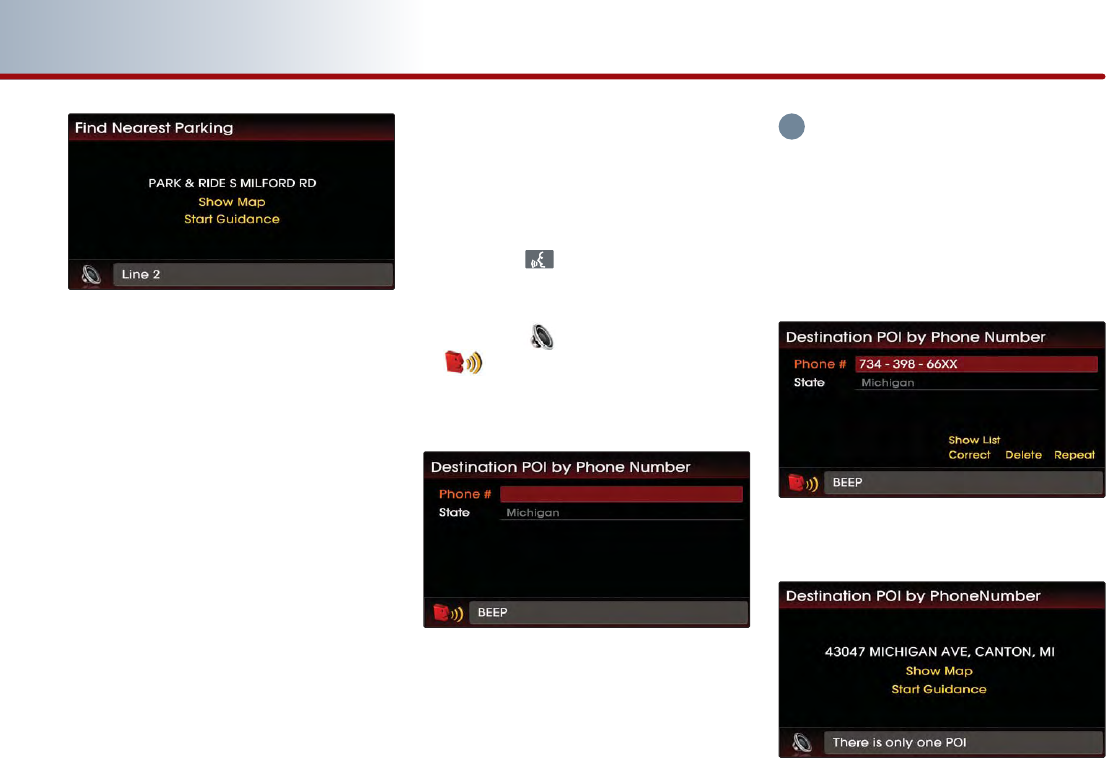

Destination POI by phone number
Sets the destination by searching the
phone number of the facility.
Press the button on the Steering
wheel remote controller.
Once the icon changes into the
icon on the pop-up screen with a
beep sound, say "Destination POI by
Phone number".
Input the 10 numbers for the phone
number.
INFORMATION
Continuous recognition of phone numbers is
possible, and the recognized result will be
displayed in block units. To correct a block
unit, say "correct". To delete the entire result,
say "delete". To have the input read back, say
"repeat".
Say "Show list" to view the resulting search
list.
i
VOICE COMMAND SYSTEM 4-23
VOICE COMMAND SYSTEM
Select the desired location from the list
and say the line command.
Say "Start guidance" if guidance to the
selected position is desired, or say
"Show map" to verify the location of
the selected position on the map.
■

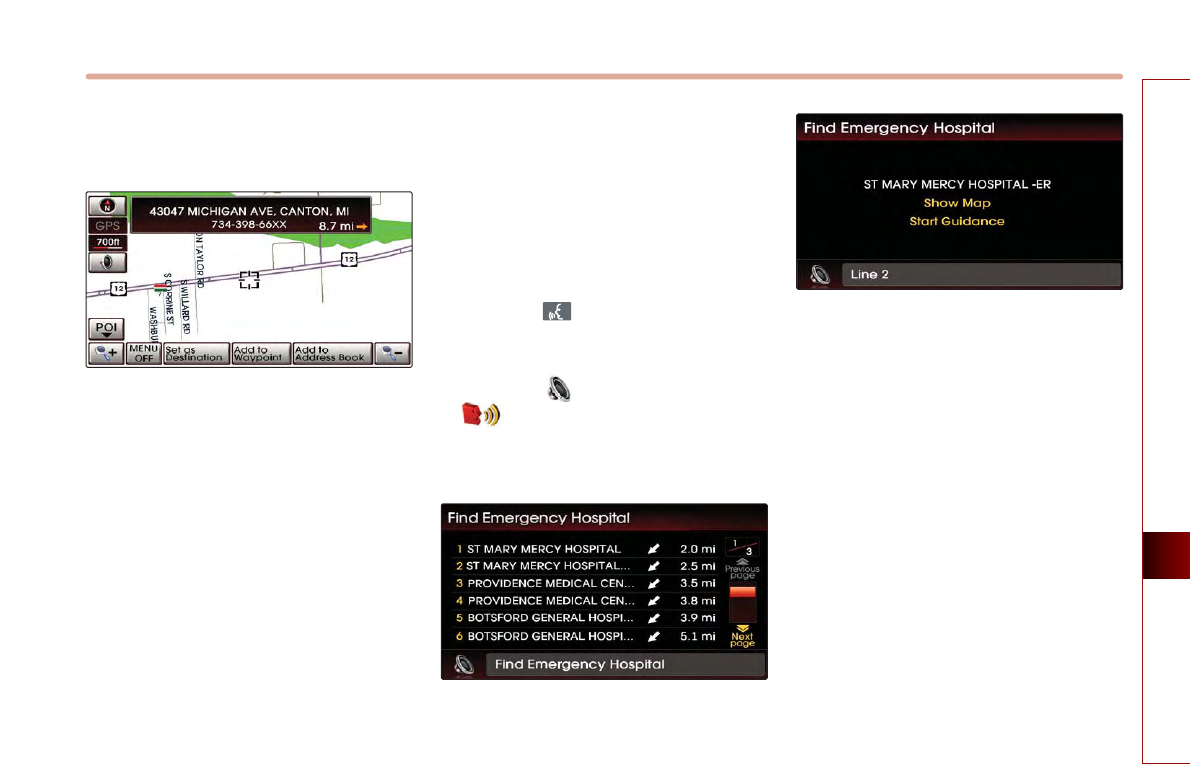

Find emergency <Category> :
Searches for an emergency facility which
is nearby the current position and sets it
as the destination for route guidance.
Emergency facilities are police stations,
hospitals, and dealerships.
Press the button on the Steering
wheel remote controller.
Once the icon changes into the
icon on the pop-up screen with a
beep sound, say the voice command.
Ex)
“Find emergency hospital”
Select the desired location from the list
and say the line command.
Say "Start guidance" if guidance to the
selected position is desired, or say
"Show map" to verify the location of
the selected position on the map.
4-24 VOICE COMMAND SYSTEM
PART 4 VOICE COMMAND SYSTEM
■
Destination by address book
Sets one of the list of previously
registered addresses in the address book
for the user as the destination.
Press the button on the Steering
wheel remote controller.
Once the icon changes into the
icon on the pop-up screen with a
beep sound, say "Destination by
address book".
Select the desired user name(Address
book name).
Select the desired location from the list
and say the line command.
Say "Start guidance" if guidance to the
selected position is desired, or say
"Show map" to verify the location of
the selected position on the map.
■
Previous destination
Sets one of the previous destination as
the current destination.
Press the button on the Steering
wheel remote controller.
Once the icon changes into the
icon on the pop-up screen with a
beep sound, say "Previous destination".
Select the desired location from the list
and say the line command.
VOICE COMMAND SYSTEM 4-25
VOICE COMMAND SYSTEM
Say "Start guidance" if guidance to the
selected position is desired, or say
"Show map" to verify the location of
the selected position on the map.
■
Previous start point
Sets the previous start point as the
current destination.
Press the button on the Steering
wheel remote controller.
Once the icon changes into the
icon on the pop-up screen with a
beep sound, say "Previous start point".
Say "Start guidance" if guidance to the
selected position is desired, or say
"Show map" to verify the location of
the selected position on the map.
■
Go home
Sets the previously registered home
address as the destination for route
guidance.
Press the button on the Steering
wheel remote controller.
Once the icon changes into the
icon on the pop-up screen with a
beep sound, say "Go home".
■
Destination by memory point
<1 to 5>
Sets a previously registered memory point
as the destination for route guidance.
Press the button on the Steering
wheel remote controller.
Once the icon changes into the
icon on the pop-up screen with a
beep sound, say "Destination by
memory point 1".
PART 5 BLUETOOTH HANDSFREE
PART 5
BLUETOOTH HANDSFREE
Before using the Bluetooth
Handsfree
……………………… 5-2
What is Bluetooth? …………………… 5-2
Functions supported by Bluetooth
Handsfree ……………………………… 5-2
Converting Bluetooth Handsfree
mode
…………………………… 5-2
Converting from AV/Navigation mode to
Bluetooth Handsfree mode …………… 5-2
Converting from Bluetooth Handsfree mode
to AV/Navigation mode ……………… 5-3
Pairing and connecting a Bluetooth
phone
…………………………… 5-4
Pairing a mobile phone ……………… 5-4
Deleting a paired phone ……………… 5-6
Connecting a mobile phone…………… 5-7
Disconnecting a mobile phone ……… 5-8
Bluetooth Handsfree screen
layout
…………………………… 5-9
Bluetooth Handsfree screen and
functions ……………………………… 5-9

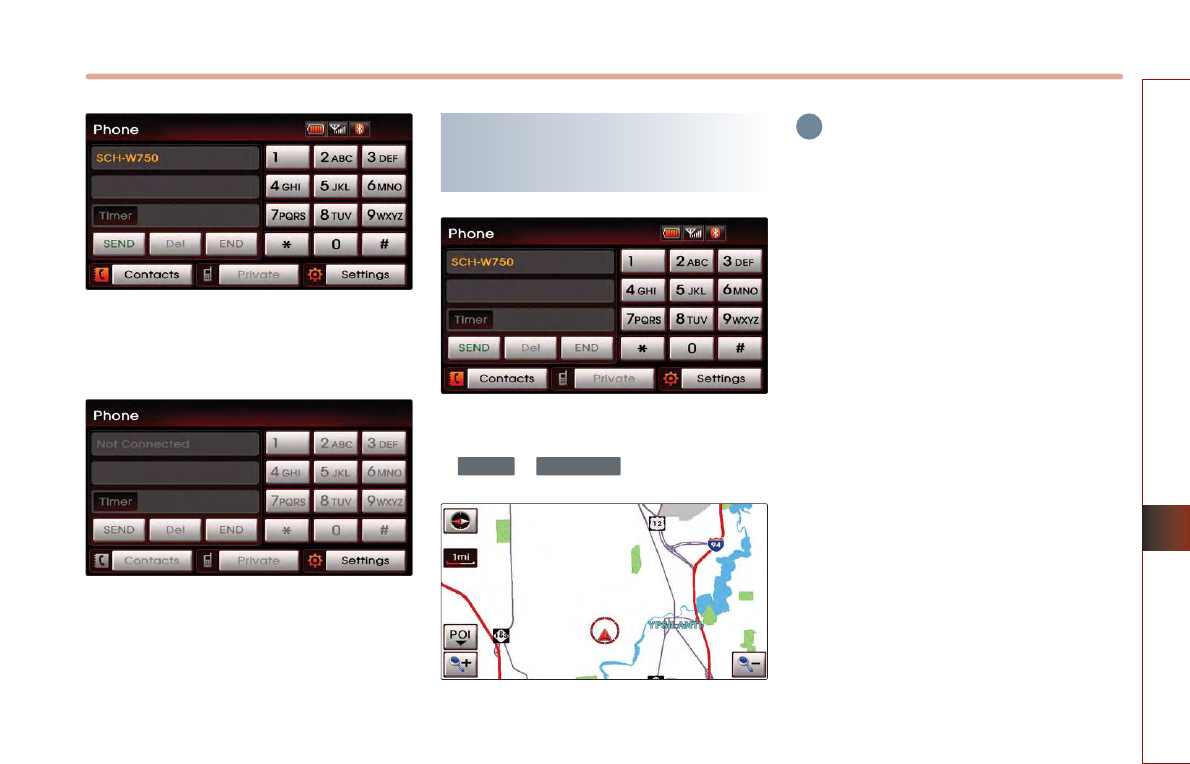

When there is no mobile phone
connected ……………………………… 5-9
When a mobile phone is connected …5-9
When receiving an incoming call …… 5-10
When already on a call ……………… 5-10
When there is a call waiting ………… 5-10
Making a call
…………………… 5-11
Making a call by dialing a phone
number ……………………………… 5-11
Making a call from Speed Dial ……… 5-11
Making a call by redialing …………… 5-12
Answering a call
……………… 5-13
Answering an incoming call ………… 5-13
Rejecting an incoming call …………… 5-13
Operating menus during a call
…5-14
Switching call to the mobile phone …5-14
Activating Call waiting ……………… 5-14
Ending a call ………………………… 5-15
Phone Book
…………………… 5-16
Making a call from the Phone book …5-16
Searching the Phone Book …………… 5-17
Searching by name ………………… 5-17
Searching by number ……………… 5-18
Call History List
………………… 5-19
Making a call from Call history ……… 5-19
Sorting call history …………………… 5-19
Phone Music
…………………… 5-21
Before playing Phone Music ………… 5-21
Starting Phone Music ………………… 5-21
Phone Music screen layout…………… 5-22
Selecting Phone Music files ………… 5-23
BLUETOOTH HANDSFREE 5-1
BLUETOOTH HANDSFREE
PART 5
BLUETOOTH HANDSFREE
Bluetooth settings
…………… 5-24
Pairing and connecting a mobile
phone ………………………………… 5-24
Setting mobile phone auto connect
priority………………………………… 5-24
Setting Handsfree volume …………… 5-25
Setting Audio streaming……………… 5-26
Advanced settings …………………… 5-26
Searching and modifying
my device properties ………………… 5-27
Changing passkey …………………… 5-28
Deleting all paired phones…………… 5-28
Initializing Bluetooth handsfree……… 5-29
Important information
………… 5-30
About pairing mobile phones ……… 5-30
About making/answering phone calls 5-31
About Bluetooth device environment 5-31
5-2 BLUETOOTH HANDSFREE
PART 5 BLUETOOTH HANDSFREE
Before using the Bluetooth
Handsfree
What is Bluetooth?
●
Bluetooth allows wireless transmission of
information between PC, mobile phones,
headsets, PDAs, printers and other devices
within close ranges by using 2.45Ghz
frequency short-distance wireless
telecommunication technologies.
●
Within this vehicle, users can make
handsfree calls, transmit mobile phone
data, and play audio streaming files by
connecting a mobile phone with the
system.
Functions supported by
Bluetooth Handsfree
●
Pairing mobile phones (Up to 5 phones)
●
Connecting/disconnecting mobile phones
●
Making/Answering phone calls
●
Downloading a Phone Book
●
Downloading a Call history list
●
Playing music saved in a Bluetooth phone
in the vehicle
Some functions may not be supported in
some mobile phone.
Converting Bluetooth
Handsfree mode
Converting from AV/Navigation
mode to Bluetooth Handsfree mode
While in AV mode or Navigation mode,
press the key or the key on
the steering wheel.
PHONE
Bluetooth is a trademark owned by
Bluetooth SIG, Inc.
BLUETOOTH HANDSFREE 5-3
BLUETOOTH HANDSFREE
The system will change to Bluetooth
Handsfree mode and display the PHONE
screen.
The following screen will become
displayed if no mobile phone has been
connected.
Converting from Bluetooth
Handsfree mode to
AV/Navigation mode
While in Bluetooth Handsfree mode, press
an AV/Navigation mode key, such as
or .
The corresponding mode will be displayed.
INFORMATION
Most of the functions of the AV or SETUP
modes are not supported while on a
Bluetooth Handsfree call. The call volume and
Navigation (MAPVOICE, DEST, ROUTE) screens
can be operated.
MAPVOICEFM/AM
i
i
5-4 BLUETOOTH HANDSFREE
PART 5 BLUETOOTH HANDSFREE
Pairing and connecting a
Bluetooth phone
Pairing a mobile phone

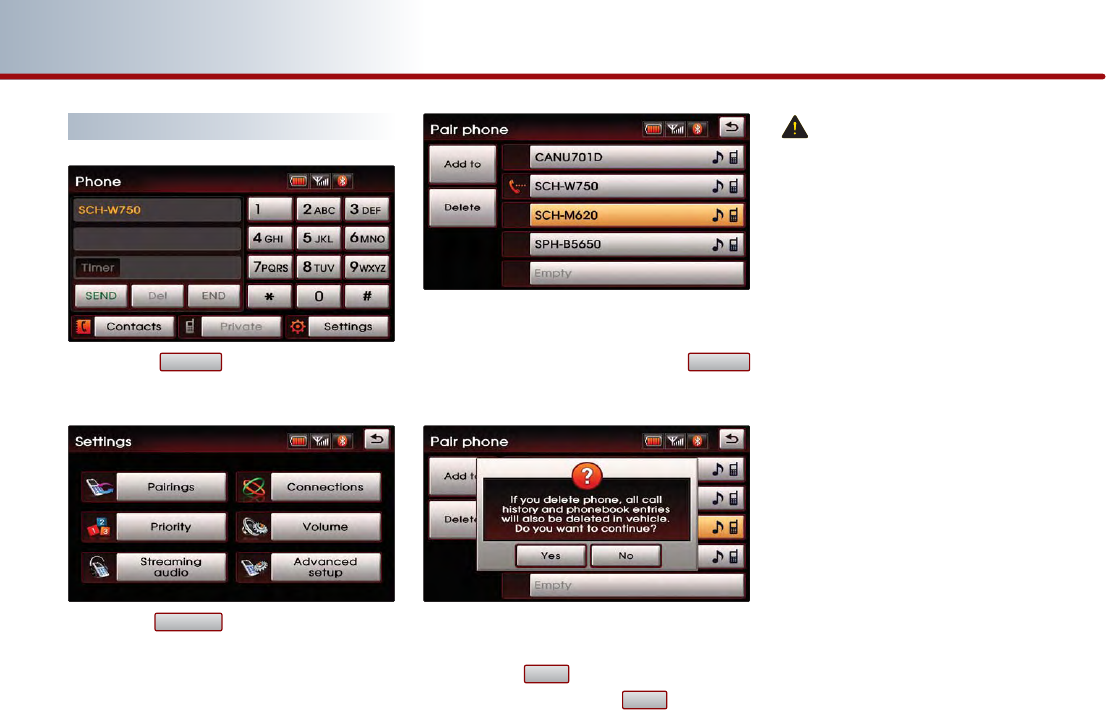

Press the button on the PHONE

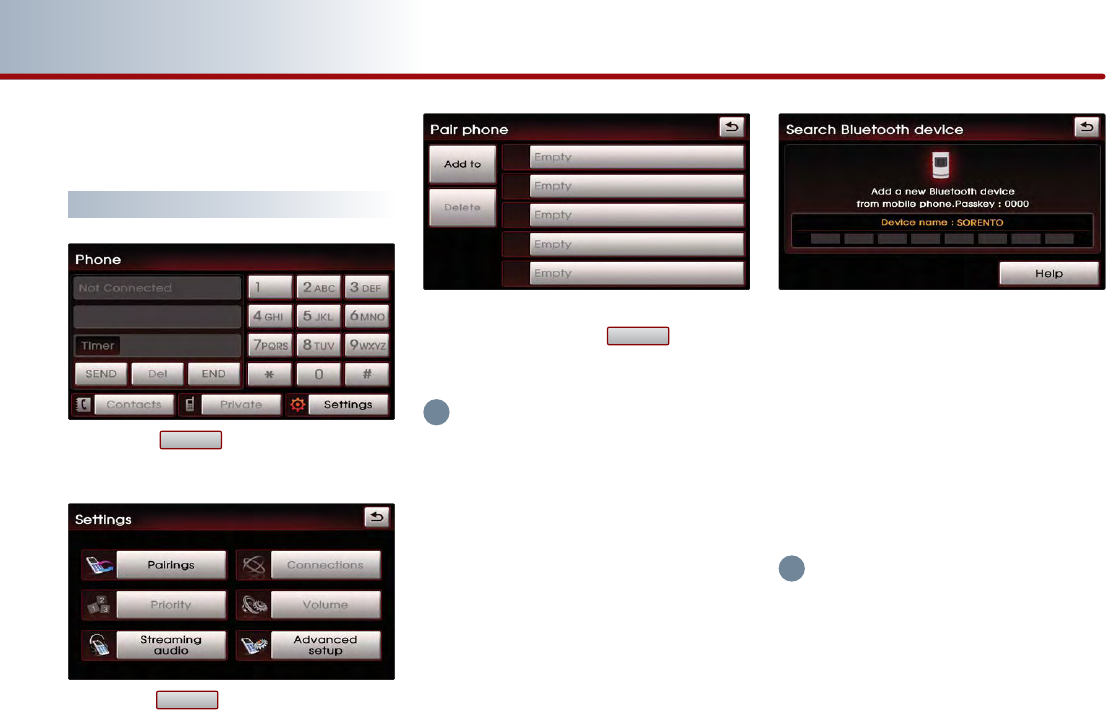

screen.
Press the button on the Settings
screen.
The list of currently paired phones will be
displayed. Press the button to
pair a new mobile phone.
INFORMATION
For safety reasons, pairing a Bluetooth
phone is not possible when the vehicle is in
motion.
Park the vehicle in a safe location to pair a
new phone. It is possible to pair up to five
mobile phones. In order to pair a new
phone when there are already five mobile
phones paired, you must first delete one of
the previously paired phones.
From the Bluetooth device list within the
mobile phone, add the car handsfree.
The default name of the car system is
SORENTO.
For more information on registering
Bluetooth devices from the mobile phone,
please refer to the mobile phone user's
manual.
INFORMATION
While conducting a Bluetooth device search
from the mobile phone, operating to
another screen will prevent the car
handsfree from being found in the mobile
phone. Always conduct searches for
Bluetooth devices with the Search
Bluetooth device screen displayed.
Add to
Pairings
Settings
i
BLUETOOTH HANDSFREE 5-5
BLUETOOTH HANDSFREE
When pairing the car handsfree from the
mobile phone, a passkey input window
will become displayed on the mobile
phone screen. Input the passkey set within
the car system into the mobile phone
input window. (The factory state passkey is
0000.) As shown in the figure, once the
passkey becomes successfully inputted,
the Bluetooth connection between the car
system and mobile phone will start.
Once Bluetooth connection is successful,
the name of the connected mobile phone
will become displayed on the PHONE
screen and Bluetooth handsfree functions
will operate.
INFORMATION
Some functions may not be supported due
to limited Bluetooth compatibility between
the car system and mobile phone.
i
5-6 BLUETOOTH HANDSFREE
PART 5 BLUETOOTH HANDSFREE
Deleting a paired phone
Press the button on the PHONE
screen.
Press the button on the Settings
screen.
The list of currently paired phones will be
displayed. Select the phone you wish to
delete from the list and press the
button.
A pop-up asking whether you wish to
delete the paired phone will be displayed.
Press the button to delete the
paired phone and the button to
cancel.
CAUTION!
A mobile phone cannot be deleted if it is
currently connected to the car system.
To delete the phone, first disconnect the
mobile phone and try again.
No
Yes
Delete
Pairings
Settings
BLUETOOTH HANDSFREE 5-7
BLUETOOTH HANDSFREE
Connecting a mobile phone
Press the button on the PHONE
screen.
Press the button on the
Settings screen.
The list of currently paired phones will be
displayed. Select the phone you wish to
connect from the list and press the
button.
INFORMATION
When there are no paired phones, pair the
mobile phone through [Settings>Pairings>
Add to]. For more information on pairing
mobile phones, refer to the user's manual
[Pairing and Connecting a Bluetooth phone >
Pairing a mobile phone].
The Bluetooth connection between the car
system and mobile phone will start.
Once Bluetooth connection is successful,
the name of the connected mobile phone
will become displayed on the PHONE
screen and Bluetooth handsfree functions
will operate.
Connect
Connections
Settings
i
5-8 BLUETOOTH HANDSFREE
PART 5 BLUETOOTH HANDSFREE
If the connection between the mobile
phone and Bluetooth fails, the following
pop-up will be displayed. If problems occur
while connecting Bluetooth, check for the
following conditions.
●
Whether the mobile phone you wish to
connect is in the vicinity of the car system
●
Whether the power of the mobile phone
Bluetooth has been turned off
●
Whether the mobile phone Bluetooth has
been set to hidden state
●
Whether there are Bluetooth compatibility
issues between the car system and another
mobile phone
Disconnecting a mobile phone
Press the button on the PHONE
screen.
Press the button on the
Settings screen.
The list of currently paired phones will be
displayed. Select the phone you wish to
disconnect from the list and press the
button.
A pop-up asking whether you wish to
disconnect the mobile phone will be
displayed.
Press the button to disconnect the
mobile phone and the button to
cancel.
No
Yes
Disconnect
Connections
Settings
BLUETOOTH HANDSFREE 5-9
BLUETOOTH HANDSFREE
Bluetooth Handsfree screen
layout
Bluetooth Handsfree screen and
functions
■
When there is no mobile phone
connected
Settings : The user can set environment
settings for the Bluetooth handsfree, such
as pair/delete mobile phone, connect/
disconnect mobile phone, set call volume,
change device name and change passkey.
■
When a mobile phone is connected
Phone battery charge status : Displays
the battery charge status of the
connected mobile phone. The battery
charge status may not be displayed in
some mobile phones.
Signal strength : Displays the mobile
phone signal strength. The signal
strength may not be displayed in some
mobile phones.
Bluetooth connection state : Becomes
displayed when a Bluetooth phone has
been connected with the car system.
Name of connected mobile phone :
Displays the name of the connected
mobile phone.
Phone number input window : Displays
the inputted phone number.
Dial : Input the phone number through
the dial pad.
SEND : If a number has not been inputted
into the phone number input window,
then displays the call history list screen.
Del : Deletes the inputted number one
digit at a time.
END : If a number has been inputted, then
erases the entire number.
Contacts : Displays the phone book
screen. The user can search previously
saved phone numbers.
1
2
2
5
6
11
8 9
10
3 4
3
4
5
6
7
8
9
10
11
1
7
5-10 BLUETOOTH HANDSFREE
PART 5 BLUETOOTH HANDSFREE
■

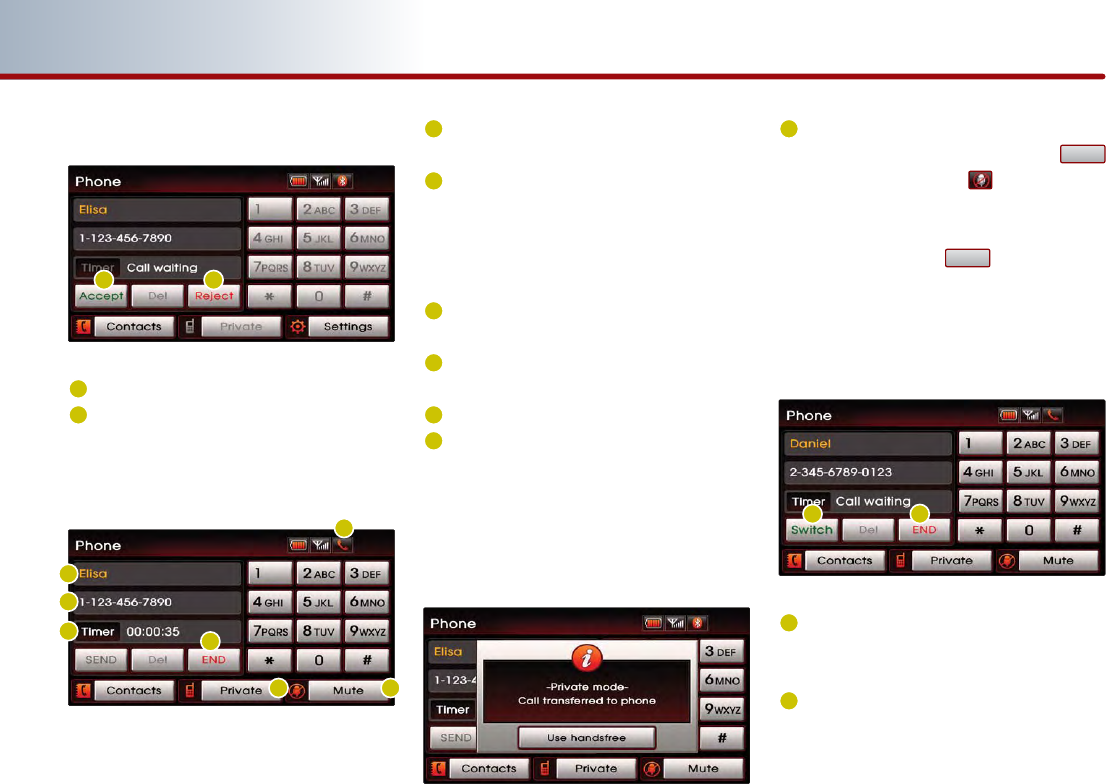

When receiving an incoming call
Accept : Accepts the incoming call.
Reject : Rejects the incoming call.
■
When already on a call
Busy icon : When already on a call, displays
an icon shaped like a receiver.
Name of incoming caller : Displays the
name of incoming caller. The name of the
incoming caller will not be displayed if the
caller's phone number has not been
previously registered in the phone book.
Number of incoming caller : Displays the
number of the incoming caller.
Call state : Displays the call state, such as
talk time, phone connection, and end time.
END : Ends the call.
Private : When talking on the car
handsfree, use this function to switch the
call to the mobile phone. Press this button
and the following screen will be displayed.
The speaker and microphone will be
switched to the mobile phone.
Mute : Use this function to mute the
outgoing volume. Pressing the
button will display the at the top right
side of the screen and the caller will not be
able to hear the conversation taking place
in the car. Press the button again to
release the Mute function.
■
When there is a call waiting
Switch : Use this button to switch
between callers when there are calls on
call waiting.
END : Use this button to end the calls with
all callers.
Mute
Mute
12
12 13
14
14
15
16
17
18
19
20
15
16
17 18
21
21
22
22
19 20
13
BLUETOOTH HANDSFREE 5-11
BLUETOOTH HANDSFREE
Making a call
Making a call by dialing a phone
number
Use the number pad on the right side of
the PHONE screen to input the number
you wish to call.
Press the button or the key on
the steering wheel to make the call.
NFORMATION
To modify, press the button to delete
the inputted number one digit at a time.
Press the button or the key on the
steering wheel to cancel the call.

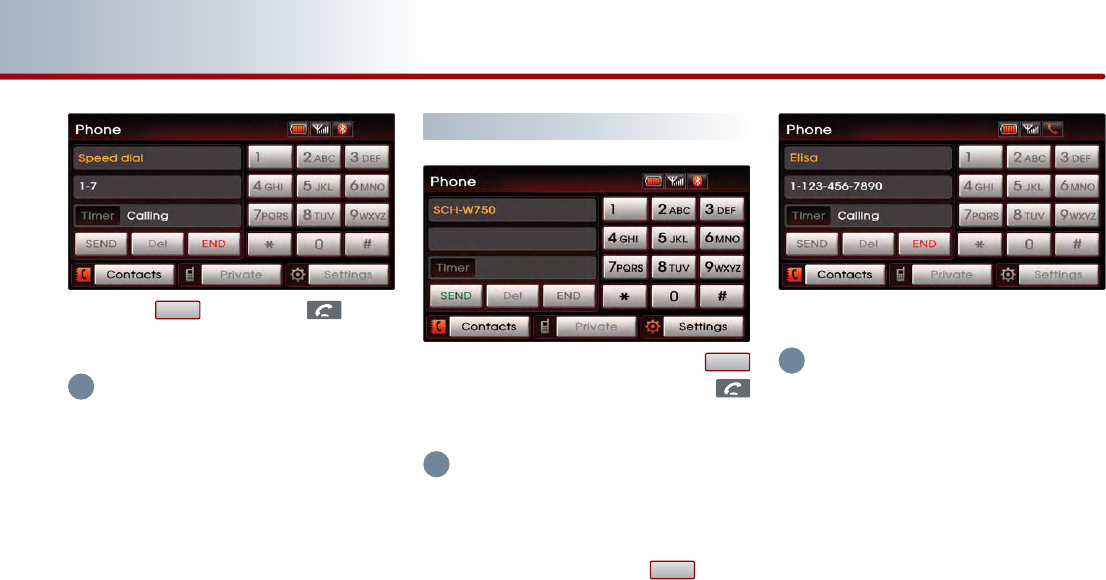

Making a call from Speed Dial
Use the number pad on the right side of
the PHONE screen to input a speed dial
number.
INFORMATION
Only speed dial numbers already stored on
the mobile phone can be used for speed dial
calls.
Up to 2-digit speed dial numbers are
supported.
END
Del
SEND
i
i
5-12 BLUETOOTH HANDSFREE
PART 5 BLUETOOTH HANDSFREE
Press the button or the key on
the steering wheel to make the call.
INFORMATION
For 2-digit speed dial numbers, press and
hold the 2nd digit to make a call to the speed
dial number.
Making a call by redialing
Press and hold (over 0.8 second) the
button on the PHONE screen or the
key on the steering wheel.
INFORMATION
Redialing is not possible when there is no call
history or the call history list is being
downloaded from the mobile phone. When
there is no call history list, the button
will be inactive.
The recently called number is redialed.
INFORMATION
It is not possible to display the AV mode and
Settings screen when on a phone call. Only
the call volume and Navigation (MAP, DEST,
ROUTE) screens can be operated.
SEND
SEND
SEND
i
i
i
BLUETOOTH HANDSFREE 5-13
BLUETOOTH HANDSFREE
Answering a call
Answering an incoming call
The following screen will be displayed
when you receive an incoming call.
To answer the incoming call, press the
button or the key on the
steering wheel.
Rejecting an incoming
The following screen will be displayed
when you receive an incoming call.
To reject the incoming call, press the
button or the key on the
steering wheel. The incoming call will be
rejected.
INFORMATION
Upon receiving a call, the [Reject] function
may not be supported in some mobile
phones.
Reject
Accept
i
5-14 BLUETOOTH HANDSFREE
PART 5 BLUETOOTH HANDSFREE
Operating menus during a
call

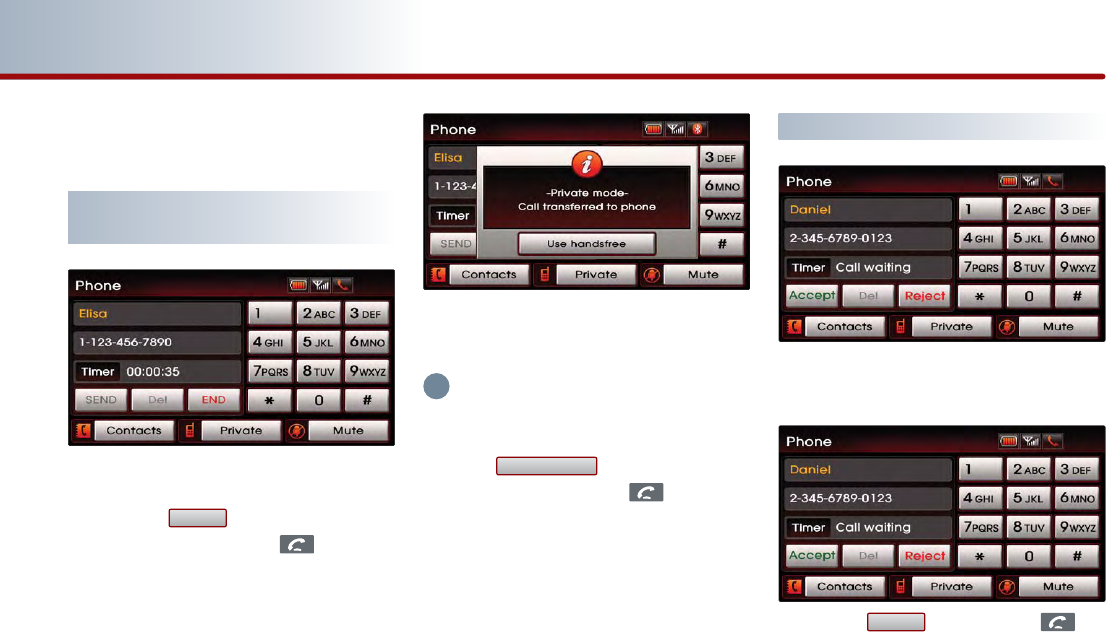

Switching call to the mobile
phone
If you wish to switch the call to the mobile
phone while talking on the car handsfree,
press the button or press and
hold (over 0.8 second) the key on the
steering wheel.
As shown, the call will be switched to the
mobile phone.
INFORMATION
If you wish to switch the call to the car
handsfree while talking on the mobile phone,
press the button or press and
hold (over 0.8 second) the key on the
steering wheel. The call will be switched to
the car handsfree.

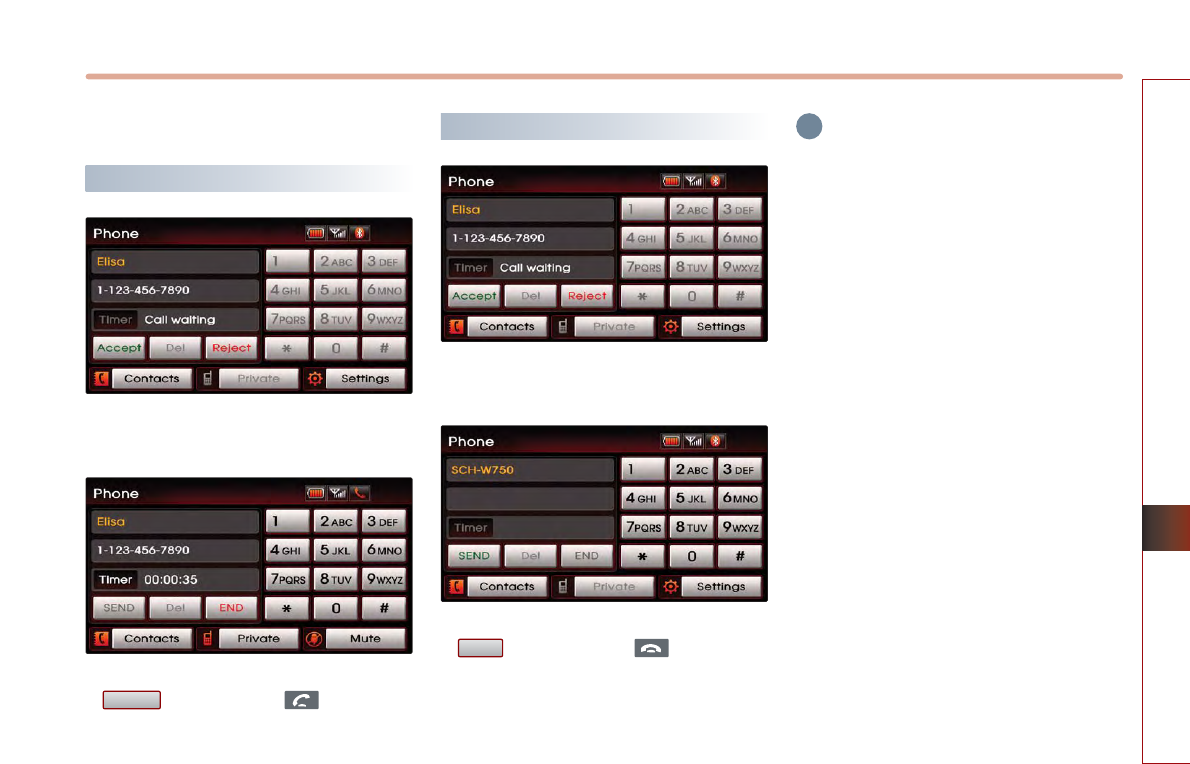

Activating Call waiting
If another person calls while already on a
call, the following screen will be displayed.
Press the button or the key
on the steering wheel to receive the
incoming call by switching to the new
caller.
Accept
Use handsfree
Private
i
