Hager I 1303 DBL_ACT_SPRING_HINGE_REVB DBL ACT Spring Hinge Installation Instructions Revb

User Manual: Hager 1303 DBL ACT Spring Hinge Installation Instructions Installation Instructions

Open the PDF directly: View PDF PDF.
Page Count: 1

5/16” [8MM] NON-MORTISED
1/4” [6MM] MORTISED
5/16” [8MM] NON-MORTISED
1/4” [6MM] MORTISED
1/4” [6MM] TYP.
3/16” [5MM] MIN.
3” [76MM]
[50MM-76MM]
2” TO 3”
7” [177MM]
DOORS ROTATING AROUND DOOR FLANGE DETAIL B
TENSION PIN TENSION LUG WITH
ADJUSTMENT HOLES
SHEET 1 OF 1
Q.A.
ENG. APPR.
DRAWN
THREE PLACE DECIMAL:
0.01”
AT 1-800-325-9995 FOR THE LATEST
WEIGHT: N/A
B
1-1303 DBL_ACT_SPRING_HINGE
N/A
N/A
DMH 01-27-06
INSTALLATION INSTRUCTIONS
REVISION DATE OF TEMPLATE.
MATERIAL
1303 DBL ACT SPRING HINGE
FINISH
DO NOT SCALE DRAWING 0.004” SCALE: 1:4
REV.
SIZE
B
DWG. NO.
TOLERANCES:
FRACTIONAL: 0.015”
ANGULAR: MACH: 1 BEND 1
TWO PLACE DECIMAL:
HAGER RESERVES THE RIGHT TO
MAKE DESIGN CHANGES WITHOUT
NOTICE. CALL HAGER ENGINEERING
PRIMARY DIMENSIONS SHOWN IN INCHES,
DIMENSIONS IN [ ] ARE MILLIMETERS.
ROD
(FIG. 1)
TENSION LUG ON BOTTOM
TENSION
DOORS ROTATING AROUND JAMB FLANGE
TOP VIEW
TO INCREASE TENSION, INSERT TENSION ROD AND ROTATE AS SHOWN
TENSION
ROD
JAMB
DOOR
DOOR
FLANGE
B
REVISIONS
B
DOOR
DOOR
JAMB
JAMB
TENSION LUG ON TOP
JAMB
ADJUSTMENT HOLES
DETAIL A
TENSION LUG WITH
TENSION PIN
JAMB
DOOR
FLANGE
JAMB
FLANGE
A
FIG. 2
B
B
B
DOOR
DOOR
DOOR
JAMB
JAMB
FLANGE
REV.
A
B
DESCRIPTION DATE
FOR COMPUTER
APPROVED
02/28/06
ADDED CLEARANCES
01/27/06

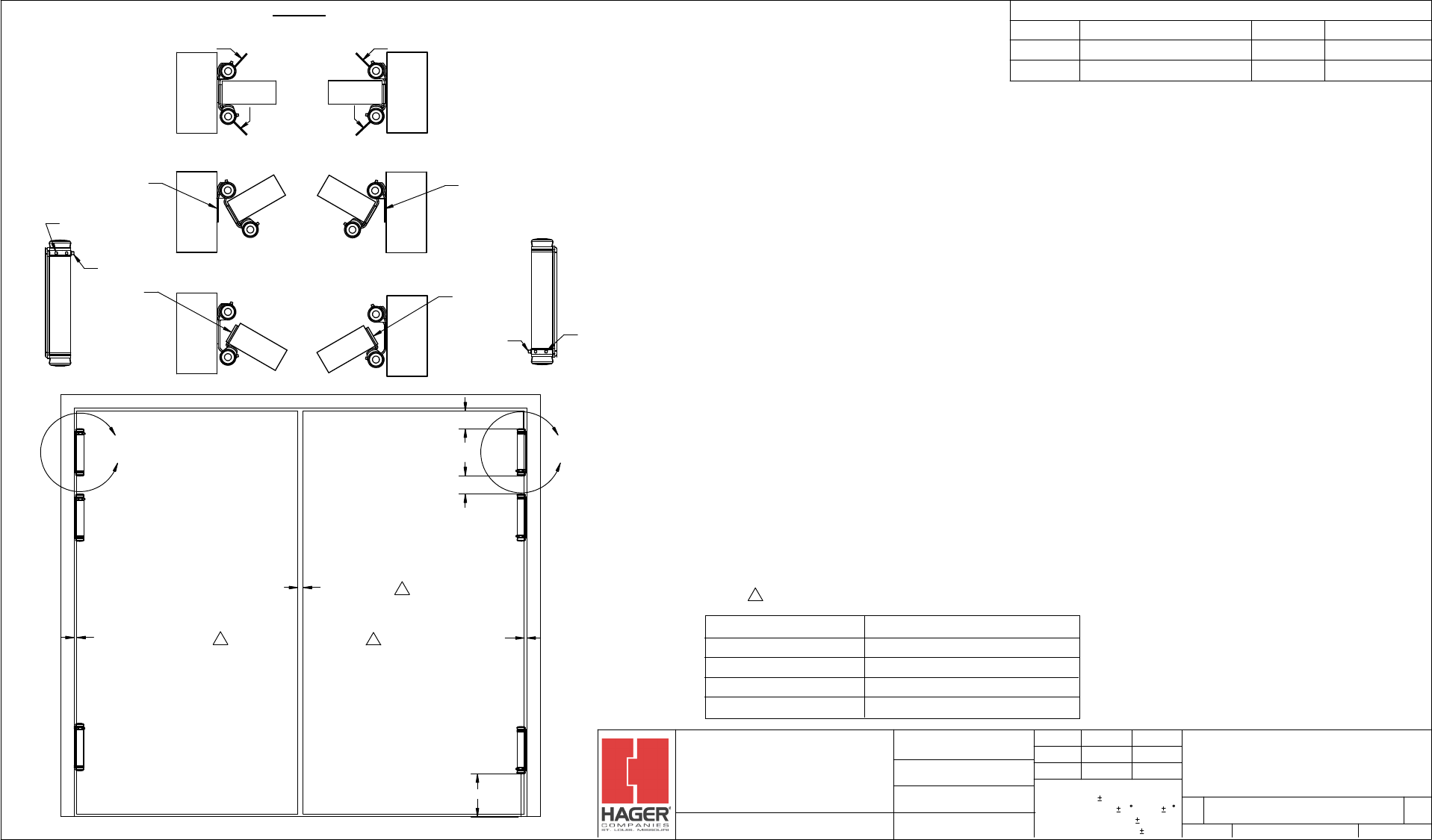

INSTALLATION INSTRUCTIONS:
1. TO PROPERLY MOUNT SPRING HINGES, IT IS NECESSARY TO RELEASE THE TENSION ON THE SPRINGS. INSERT
THE TENSION ROD INTO ONE OF THE ADJUSTMENT HOLES ON THE TENSION LUG AND TURN IT SO THAT THE
TENSION PIN CAN BE EASILY REMOVED (FIG. 1).
2. MOUNT THE DOOR LEAF TO THE DOOR FLANGE. THE DOOR LEAF MAY BE MORTISED OR SURFACE APPLIED AND
MUST BE CENTERED BETWEEN THE AXIAL CENTERS OF THE DOUBLE ACTING HINGE.
3. ALIGN THE DOOR CENTERLINE WITH THE CENTERLINE OF THE FRAME. ATTACH THE JAMB FLANGE TO THE
SURFACE OF THE DOOR CASING. SHIMS UNDER THE JAMB FLANGES MAY BE NECESSARY FOR PROPER DOOR
ALIGNMENT.
4. THE HINGES SHOULD BE MOUNTED AT THE HEIGHT LOCATIONS DESIGNATED IN FIG. 2.
5. THE AXIAL CENTER OF EACH HINGE MUST ALSO BE VERTICALLY ALIGNED.
SPRING ADJUSTMENT TENSIONING INSTRUCTIONS:
1. PLACE DOOR IN THE CLOSED POSITION AND WEDGE UP FROM THE FLOOR UNTIL IT IS PLUMB.
2. INSERT TENSION ROD INTO THE ADJUSTMENT HOLES ON THE TENSION LUG AND TURN IN THE CORRECT
DIRECTION (FIG. 1). TURN IT TOWARDS THE LEFT WHEN THE HINGE IS MOUNTED WITH THE TENSION LUG AT THE
TOP AND TOWARDS THE RIGHT WHEN IT IS MOUNTED WITH THE TENSION LUG AT THE BOTTOM. ONE HOLE OF
TENSION IS RECOMMENDED FOR THE BOTTOM HINGES. DO NOT EXCEED FIVE HOLES OF TENSION.
3. INSERT TENSION PIN AND REMOVE TENSION ROD.
4. INCREASE TENSION ON TOP HINGE IF THE DOOR SAGS OR RETURN ACTION IS TOO SLOW.
CAUTION: IMPROPER USE OR MOUNTING MAY CAUSE INJURY!
DO NOT USE ON DOORS WITH HINGE EDGE BEVELED.
HINGE SIZE DOOR MORTISE DEPTH
3” 5/64”
4” 5/64”
5” 3/32”
6” 7/64”
