Haier Phone G31

User Manual

www.haier.com

Congratulations! You have just purchased your HaierPhone G31. Please

read this manual before using the device to ensure safe and proper use.

Some contents may differ from your device depending on the region,

service provider, or device’s software.

What’s in the box:

1. HaierPhone G31

2. AC Adaptor

3. Micro USB cable

4. Battery

5. Hands-free kit

6. User manual

7. Warranty card

Main Features:

Operating System Android™4.4 (KitKat)

Processor MT6572M Dual Core 1.0GHz

ROM 4 GB

RAM 512 MB

Network 3G WCDMA 850/1900/900/2100 MHz

2G GSM 850/900/1800/1900 MHz

Display Size 5.0’’

Display Resolution FWVGA (854*480 pixels)

Battery 2000 mAh Li-ion

Main camera 5 Megapixels by software

Front camera 2 Megapixels by software

Wi-Fi IEEE 802.11 b/g/n

PORT USB™ 2.0

Audio Jack 3.5mm jack

Bluetooth 4.0

GPS Yes

READ ME FIRST

8. Protective film

Please read this safety informaƟon carefully to ensure safe and proper

use.

Driving

Using a mobile phone can distract the user and result in an accident. You

must fully comply with the local regulaƟons and laws regarding the use of

cell phones whilst driving.

Near SensiƟve Electronics

Don’t use your phone near sensiƟve electronic equipment – parƟcularly

medical devices such as pacemakers and electronic implants, as it could

cause them to malfuncƟon. Your phone may cause interference with TV,

radio, Įre detectors, and other automaƟc-control equipments.

For more informaƟon about how your phone aīects pacemaker s or other

electronic equipments, please contact the manufacturer or your local

distributor.

lying

Your phone can cause interference with aircraŌ equipment. So please

turn your phone oī when Ňying.

Hospitals

Your phone may interfere with the operaƟon of medical equipments. You

must observe and follow any instrucƟons or warnings in hospitals and

treatment centers.

At Petrol StaƟons

Don’t use your phone in petrol staƟons. In fact, it’s suggested to be

switched oī near any fuels, chemicals or explosives.

Safety InformaƟŽŶ

Contact with liquid

Keep your phone away from water (or any other liquid). Any damage

caused by liquid may be irreparable.

Making Repairs

Never take your phone apart. Please handle the repairs with the

professionals. Any unauthorized repairs would break warranty terms.

Broken Antenna

Don’t use your phone if the antenna is damaged, as it could cause injury.

Around Children

Keep your mobile out of children’s reach. It should never be used as a toy

and it might not be good for their health.

Original Accessories

Only use the original accessories supplied with your phone or those

approved by the manufacturer. The use of unauthorized accessories may

damage your phone or cause a safety risk.

Near Explosives and Fire hazard

Turn oī your phone in or near explosive materials or heat sources such

as radiators or cookers. Always obey local regulaƟons and laws. Turn oī

your phone when requested.

Emergency Calls

To make an emergency call your phone must be turned on and in an area

Safety InformaƟŽŶ

where there’s network coverage. Dial the na onal emergency number

and press ‘send’. Explain exactly where you are and don’t hang up un

help has arrived.

Working Temperature

The working temperature for the phone is between 0 Degree and 40

Degree Celsius. Please don’t use the phone outside the range. Using the

phone under too high or too low temperature might cause malfunc on.

Always make a backup or keep a wri en record of all important data in

your mobile phone.

Aen on:

z Use cell phone when the signal is good. Keep your calls

short, use headset or send a text message. This advice

applies especially to children, adolescents and pregnant women.

z If you are using a Bluetooth headset device, please make sure it has a

low power emi er.

z Informa on about the meaning of Logo WEEE (Waste Electrical and

Electronic Equipment):

The WEEE logo on the product or on its box indicates

that this product must not be disposed of or dumped

with your other household waste. You are liable to

dispose of all your electronic or electrical waste

equipment by reloca ng over to the speciĮed

collec on point for recycling of such hazardous waste. Isolated collec on

and proper recovery of your electronic and electrical waste equipment at

the time of disposal will allow us to help conserving natural resources.

Moreover, proper recycling of the electronic and electrical waste

equipment will ensure safety of human health and environment.

Backup

Safety Informa



SafetyInformation



 Caution:riskof

explosion

ifbatteryis

replaced

byani

ncorrecttype.



 Disposeofusedbatteries

according

tothe

instruc

ons.



 For

pluggableequipment,

the

socket‐outlet

shallbe

installed

near

the

equipment

andshallbeeasily

accessible.



 RADIO

WAVES:



FCCRFexposureinformation(SAR)

Thisdeviceisdesignedandmanufacturednottoexceedtheemissionlimits

forexposuretoradiofrequency(RF)energysetbytheFederal

CommunicationsCommissionoftheU.S.Government.

Theexposurestandardforwirelessdevicesemploysaunitofmeasurement

knownastheSpecificAbsorptionRate,orSAR.TheSARlimitsetbytheFCCis

1.6W/kg.

AlthoughtheSARisdeterminedatthehighestcertifiedpowerlevel,the

actualSARlevelofthedevicewhileoperatingcanbewellbelowthe

maximumvalue.WhiletheremaybedifferencesbetweentheSARlevelsof

variousdevicesandatvariouspositions,theyallmeetthegovernment

requirements.

TheFCChasgrantedanEquipmentAuthorizationforthismodeldevicewith

allreportedSARlevelsevaluatedasincompliancewiththeFCCRFexposure

guidelines.SARinformationonthismodeldeviceisonfilewiththeFCCand

canbefoundundertheDisplayGrantsectionof

http://www.fcc.gov/oet/ea/fcc idafter searchingontheFCCIDforyour

device,whichcanbefoundonthebackofthedevice

ThehighestSARvaluesundert

heFCCguidelinesfor

thisdevicemodelare



Maximum

SARforthismodeland

conditions

underwhichit

was

recorded.



SAR



Head

1.139

W/kg(1g)

SAR



Body‐Worn

0.986

W/kg(1g)

SARHotspot

1.083

W/kg(1g)



Duringuse,theactualSARvaluesforthisdeviceareusuallywell

below

thevaluesstatedabove.Thisis

because,

for

purposes

of

systemeﬃciency



andto

minimizeinterference

onthe

network,

the

opera

ng

powerofyour

mobiledeviceis

automaticallydecreased

whenfull

power

isnotneeded

forthecall.Thelowerthepoweroutputofthedevice,

the



lower its SAR value.

If you are not using an approved accessory ensure that whatever product

is used is free of any metal and that it posiƟons the phone the indicated

distance away from the body.

OrganizaƟons such as the World Health OrganizaƟon has stated that if

people are concerned and want to reduce their exposure they could use

a hands-free device to keep the phone away from the head and body

during phone calls, or reduce the amount of Ɵme spent on the phone.

As mobile devices oīer a range of funcƟons, they can be used in

posiƟons other than against your ear. In such circumstances the device

will be compliant with the guidelines when used with headset or usb data

cable. If you are using another accessory ensure that whatever product is

used is free of any metal and that it posiƟons the phone at least 1.0 cm

away from the body.

To prevent possible hearing damage, do not listen at high

volume levels for long periods.

Safety InformaƟŽŶ

Getting to know your Phone

Your phone

Headset Jack

Volume

+/-

Front

Camera

Touch

Screen

Power

button

Menu Key

Home Key

Back Key

Micro USB Port

Geƫng to know your Phone

Bu on Func on

Power bu on

Press and hold to turn on / oī the

phone; press lightly to lock the touch

screen.

Menu Enter the op on menu.

Home

Short Press to return to home screen;

long press to show the list oī previous

applica on opened.

Return

Return to the previous screen; close

the onscreen keyboard.

Volume +/- Increase/decrease volume.

Geƫng to know your Phone

Missed calls. Alarm acƟvated

Call incoming

Bluetooth on

Dowloading

Connected to

computer

Connected to Wi-Fi

GPS in use

Synchronizing

New voice mail

Icons Descrip ons Icons Descrip ons

Network signal

strength

Ba ery level

Speaker ac vated New SMS

Call on hold

USB connected

Vibra on mode Flight mode

3G network in use

2G network in

use

NoƟĮcaƟŽŶ icons on the status bar

Geƫng to know your Phone

Removing the BaƩery Cover &

installing the baƩery

Removing the BaƩery Cover

1. Hold the device Įrmly and locate the cover release latch.

2. Place your Įngernail in the opening and remove the cover according to

the arrow direcƟon.

Installing the BaƩery

1. With the metallic contacts of the baƩery facing the metallic contacts in

the baƩery slot, press the baƩery down unƟů it locks into the place.

2. Ensure the baƩery is inserted in the phone. To charge the baƩery, plug

in the charger connector at your phone (USB interface) and then plug the

other end into an AC power socket.

The baƩery symbol indicates the charging status. While charging, the

charge indicators will scroll. When all the scroll bars are steady, the

baƩery is fully charged. Disconnect the charger from the phone, and then

disconnect the charger from the AC power socket.

AƩenƟon: If the baƩery is powerless, the baƩery icon will reappear aŌer

a few minutes of charging.

Geƫng to know your Phone



Installing the SIM Card

Make sure that the clipped corner of the SIM card and the metallic

contacts are facing to the correct direcƟon. Slide the SIM card into the

card slot unƟů it stops.





Geƫng to know your Phone

Installing the microSD Memory Card

Slide microSD card into the SD card slot with the metallic pins facing

downwards. Push the card unƟů it locks into place.

Lock & Unlock Screen

Locking the Screen

Press the Power button to lock the screen.

Unlocking the Screen

Press again the Power button to unlock the screen, and then drag the

lock icon to the right on the screen to unlock according to the clue on the

screen.

Lock icon

Unlock icon

Home Screen

Status Bar and Notifications

When there are new notifications such as messages or missed calls,

indicator icons appear on the status bar. To see more information about

the icons, open the notification panel and view the details.

Toolkits

In the toolkits you can quickly activate or deactivate various features or

configure settings.

To close it, drag the bar from the

bottom of the screen upwards.

Tap to open the

notification panel.

Tap to access settings.

the

status

bar

see

information

abou

ication panel and view the details.

To open the notification panel,

drag the status bar downwards.

Home Screen

The Home screen is your gateway to

the main features in your phone.

Drag down to open the

NoƟĮcaƟon panel.

Status bar

Launcher:

Tap to enter Main menu to browse

all the installed applicaƟons.

Tap the applicaƟons in the Favorite

Tray to enter applicaƟons;

Tap and hold the applicaƟons to drag

them in or out from the tray.

Slide the Home

screen leŌ or

right to view

more contents in

others panels on

Home screen.

Customizing

Tap and hold the Home Screen for

customization.

Tap to select

a wallpaper.

Tap to access Settings.

Tap to set Widgets.

Phone Function

Making a Call

Tap to access the Dial pad.

The phone offers you several ways to make a call. You can make a call

through the Phone, People, Messaging and Call log.

Tap People to access the list of contacts.

Dial pad

Call log Tap to choose the card,

and dial the number.

Delete a

preceding

character.

Phone Function

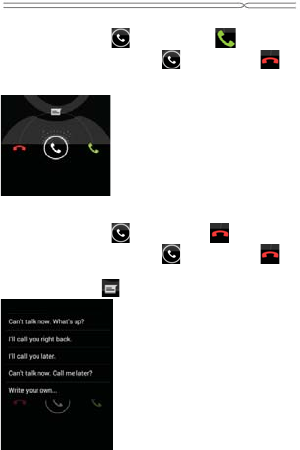

Receiving calls

When a call comes in, drag D

rag to the right to . If you are

using an app when a call comes in, drag D

rag to the left to . .

If the call waiting service is activated, another call can be made. When

the second call is answered, the first call is put on hold.

Rejecting a call

When a call comes in, drag D

rag to the left to . If you are

using an app when a call comes in, drag Drag to the left to . .

To send a message when rejecting an incoming call, drag the reject

message bar upwards to .then choose a message ,or Write your own.

Phone Function

Missed calls

If a call is missed, appears on the status bar. Open the notifications

panel to view the list of missed calls. Alternatively, on the Apps screen,

tap Phone ɠ t

o view missed calls.Connecting to Wi-Fi

1. Tap Launcher ɠ S

ettings ɠ Wi-Fi.

2. Drag the Wi-Fi switch to the right.

3. Tap Wi-Fi.

4. Select a network from list of detected Wi-Fi networks.

5. Networks that requires a password appear with a lock icon.

Phone Function

6. Tap Connect. After the phone connects to a Wi-Fi network, it will

automatically connect to it any time it is avalaible.

Internet access

Browsing webpages

1. Tap to access web browser.

2. Tap the address Įeld and enter the web address, and then tap Go.

View Bookmarks webpages.

Open the webpage window manager.

Move to the previously-visited page.

Web address

Internet access

3. When viewing the web page, tap the Menu Key, following options are

available:

Internet access

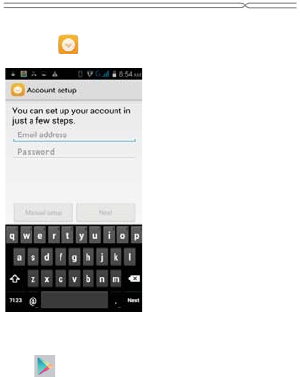

1. Tap Email

2. Enter the email address and password. Tap Next.

Play Store

1. Tap

2. Log in with Gmail account to view and download the applications in

Google Play Store.

Gallery

Taking pictures and videos

Tap to access to Camera.

View taken

photos or

videos.

Take picture

Flash On/Off/Auto

Settings

Record video

Switch between

front and back

camera.

Panorama mode

Normal mode

Gallery

Tap o

n the Apps screen.

Share the file

Send by message

Edit the photo

More options

Tap to access to Music.

Categories:

Select Genres, Artists,

Albums, and Songs.

Tap to open the

album, songs or

playlist

Shuffle

Repeat

Next song

Previous song

Play/Pause

Repeat

Music Player

The phone automaƟcally corrects and suggests words as you type.

Cut, Copy and Paste

Tad and hold the text contents, then slide your Įnger to move the

inserƟon points, then choose to cut, copy, or paste. You could copy text

from web pages, email, text messages.

Intelligent keyboard

Messaging

View receved and sent messages.

Clock

Set and stop Alarms; World clock; Stopwatch and Ɵmmer.

Calculator

Make simple and complex calculaƟons.

Calendar

View the calendar & add events.

File Manager

Veiw all the Įůes and install the Įůes in APK format.

Google seƫngs

ConĮgure seƫng for features provided by Google.

Other Function

x SIM management

x Wi-Fi

x Bluetooth

x Data Usage

x More...

x Audio proĮůes

x Display

x Storage

x BaƩery

x Apps

x LocaƟon

x Security

x Language & input

x Backup & reset

x Add account

x Date & Time

x Scheduled power on & oī

x Accessibility

x Developer opƟons

x About phone

All you can find on settings menu

Your device should be handled with cares. The following suggesƟons will

help you to use your phone in a safe and proper way:

zUse a dry soŌ cloth to wipe general dirt. Do not use a hard cloth,

benzene or thinner to wipe the phone, otherwise, the surface of the

phone will be scratched or could even result in the fading of color.

zKeep the small parts of the phone away from children.

zKeep the device dry. PrecipitaƟon, humidity, and all types of liquids or

moisture can contain minerals that will rust electronic circuits. If your

device does get wet, remove the baƩery, and allow the device to dry

completely before replacing it.

zDo not use or store the device in dusty, dirty areas. Its moving parts and

electronic components can be damaged.

zDo not store the device in high or cold temperature. High temperatures

can shorten the life of electronic devices and damage baƩeries.

zDo not aƩempt to open the device other than as instructed in this

guide.

zDo not drop, knock, or shake the device. Rough handling can break

internal circuit boards and Įne mechanics.

zDo not use harsh chemicals, cleaning solvents, or strong detergents to

clean the device. Only use a soŌ, clean, dry cloth to clean the surface of

the device.

zDo not paint the device. Paint can clog the moving parts and prevent

proper operaƟon.

zUse indoor chargers.

Cautions

Troubles Cause and SoluƟon

Fail to turn on

Press the Power Key for over 1 second.

Check if the baƩery is properly connected. Please

remove and install it again, retry to turn it on;

Check if baƩery is appropriately charged.

Fail to

connect

network

Weak signal. Please try and move to a locaƟon with

strong signal and try connecƟng to the network

again;

Please ensure that you are not beyond the network

coverage of service providers;

Please ensure you have a valid SIM card. Please

contact your network provider for further

informaƟon;

Poor quality

of calling

Please check if the sound volume is tuned

improperly

In an area with poor receiving condiƟon, example:

basement, the signal might be weak. Try searching

a locaƟon with stronger signal recepƟon and call

again.

While using the mobile phone in the peak period of

communicaƟon, like commute Ɵme, you may be

unable to call because of line congesƟon.

SIM Card

Error

Dirt on the metal surface of an SIM card. Use clean

cloth to wipe the metal touch point on an SIM card.

The SIM card is not installed.

The SIM card is damaged. Please contact your

network service provider.

Callers cannot

contact you

Please check if the mobile phone is on and

connected with the network.

Please check if the Call barring or call divert is

acƟvated.

Please check if the SIM card is valid.

Fail to set

some

funcƟons

Wrong operaƟon.

The network provider does not support the

funcƟon, or you have not applied for it.

Trouble Shooting

Haier Packing List

3-5 Rue des Graviers

Immeuble Le Totem,

92200 Neuilly sur Seine- France

Phone +33 (0) 173 794 820 / Fax +33 (0) 147 383 481

www.haier.com

Haier Telecom 20151015G31 Mobile phone User Manual G31 final NEW

Haier Telecom (Qingdao) Co., Ltd. Mobile phone G31 final NEW

Contents

Users Manual

Navigation menu

Namespaces

Views

Navigation
