Haier US Appliance Solutions BLEC001 BT Module Ph2 with harness connection User Manual ITON BB2710 29 V1 3
Haier US Appliance Solutions, Inc. BT Module Ph2 with harness connection ITON BB2710 29 V1 3
Users Manual
BT Module:ZGU36ESLSS
I
MODULE SPECIFICATION
Version: 1.0
Model No.:ZGU36ESLSS
Part No.: 191D9618G001
HW Version: 1.1
FCC ID:ZKJ-BLEC001
Manufacturer:iTON Technology Corp.
BT Module:ZGU36ESLSS
II
CONTENT
CONTENT ......................................................................................................................... II
1.Summary ........................................................................................................................ 1
2.Functional Block Diagram .............................................................................................. 1
3.Module Hardware Characteristic .................................................................................... 2
3.1 RF Specifications ..................................................................................................... 2
3.2 Electrical Characteristics ......................................................................................... 4
4. Connector pin definitions............................................................................................... 5
5. Module Size .................................................................................................................. 6
5.1 Sample Picture ........................................................................................................ 6
5.2 Mechanical Dimensions ........................................................................................... 6
6. FCC statements............................................................................................................7
BT Module:ZGU36ESLSS
III
BT Module:ZGU36ESLSS
1
1.Summary
The Module which use the Cypress® CYW20707UA2 that is a single-chip Bluetooth
4.2-compliant, stand-alone baseband processor with an integrated 2.4 GHz transceiver.
The Module is the optimal solution for embedded and IoT applications. Built-in firmware adheres
to the Bluetooth Low Energy (BLE) profile.
Features：
1）Complies with Bluetooth Core Specification version 4.2 including BR/EDR/BLE
2）Supports Broadcom proprietary LE data rate up to 2 Mbps
3）BLE HID profile version 1.00 compliant
4）Bluetooth Device ID profile version 1.3 compliant
5）Supports Generic Access Profile (GAP)
6）Supports Adaptive Frequency Hopping (AFH)
7）Excellent receiver sensitivity

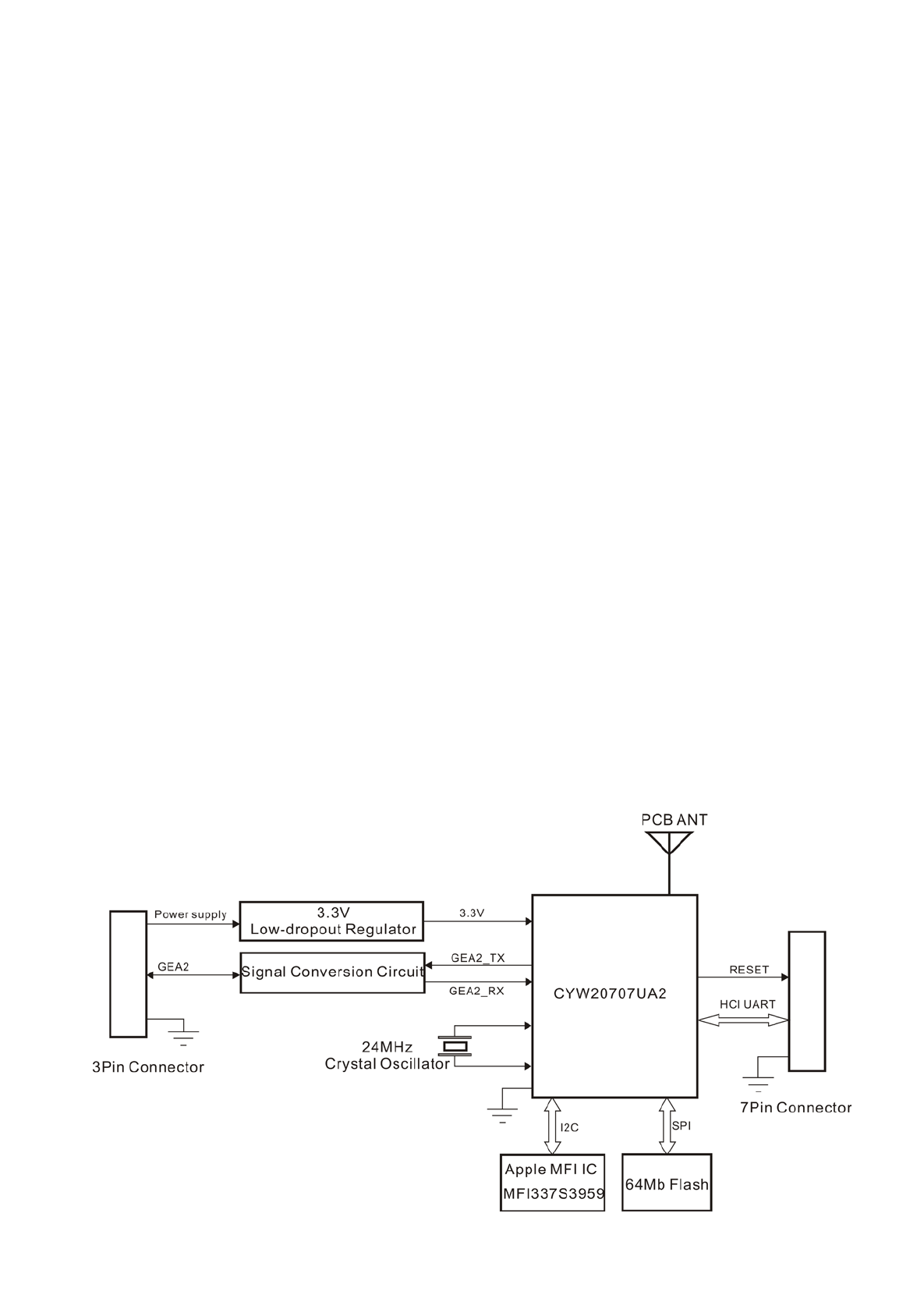

2.Functional Block Diagram
BT Module:ZGU36ESLSS
2
3.Module Hardware Characteristic
3.1 RF Specifications

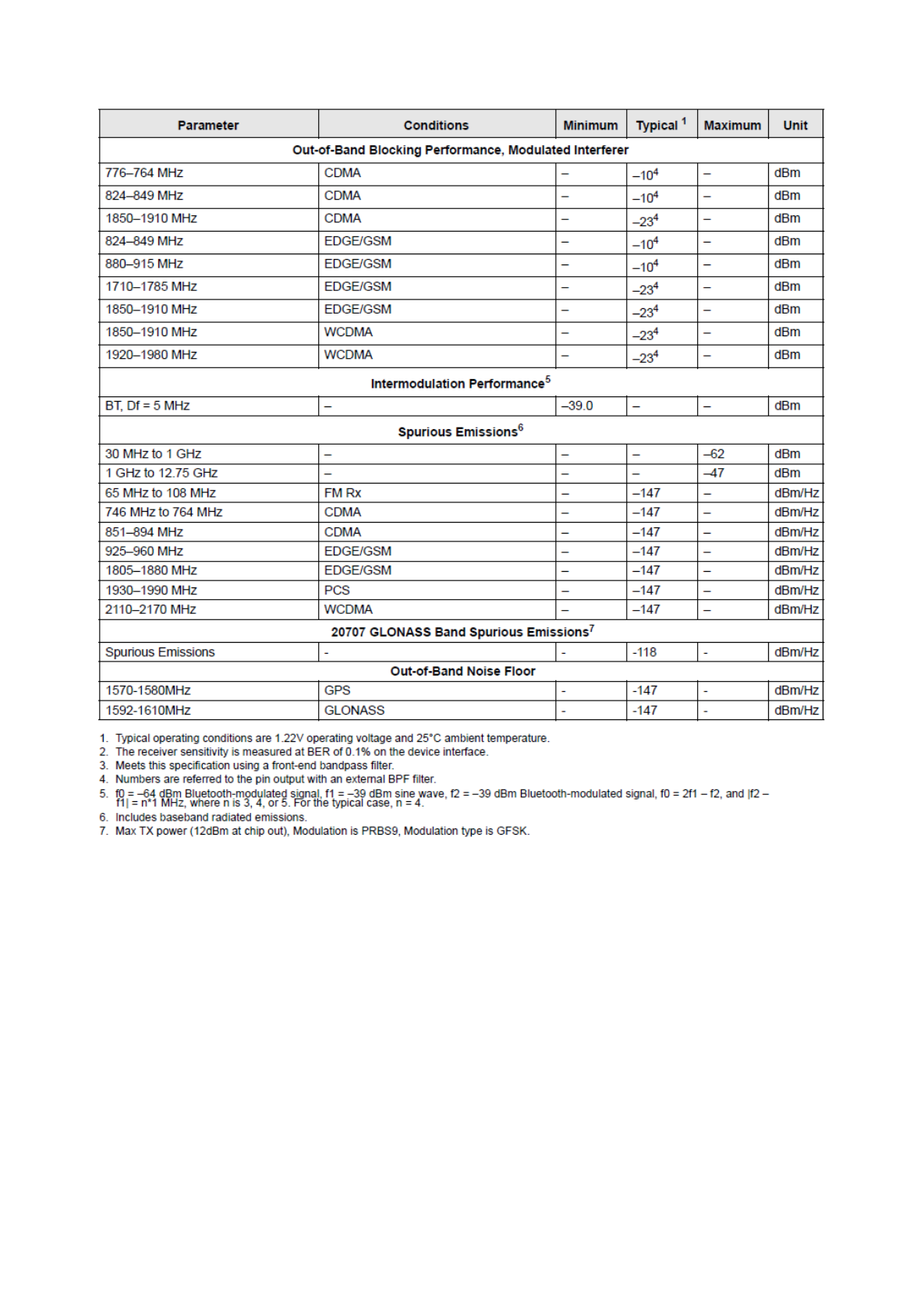

1.Receiver RF Specifications
BT Module:ZGU36ESLSS
3
BT Module:ZGU36ESLSS
4

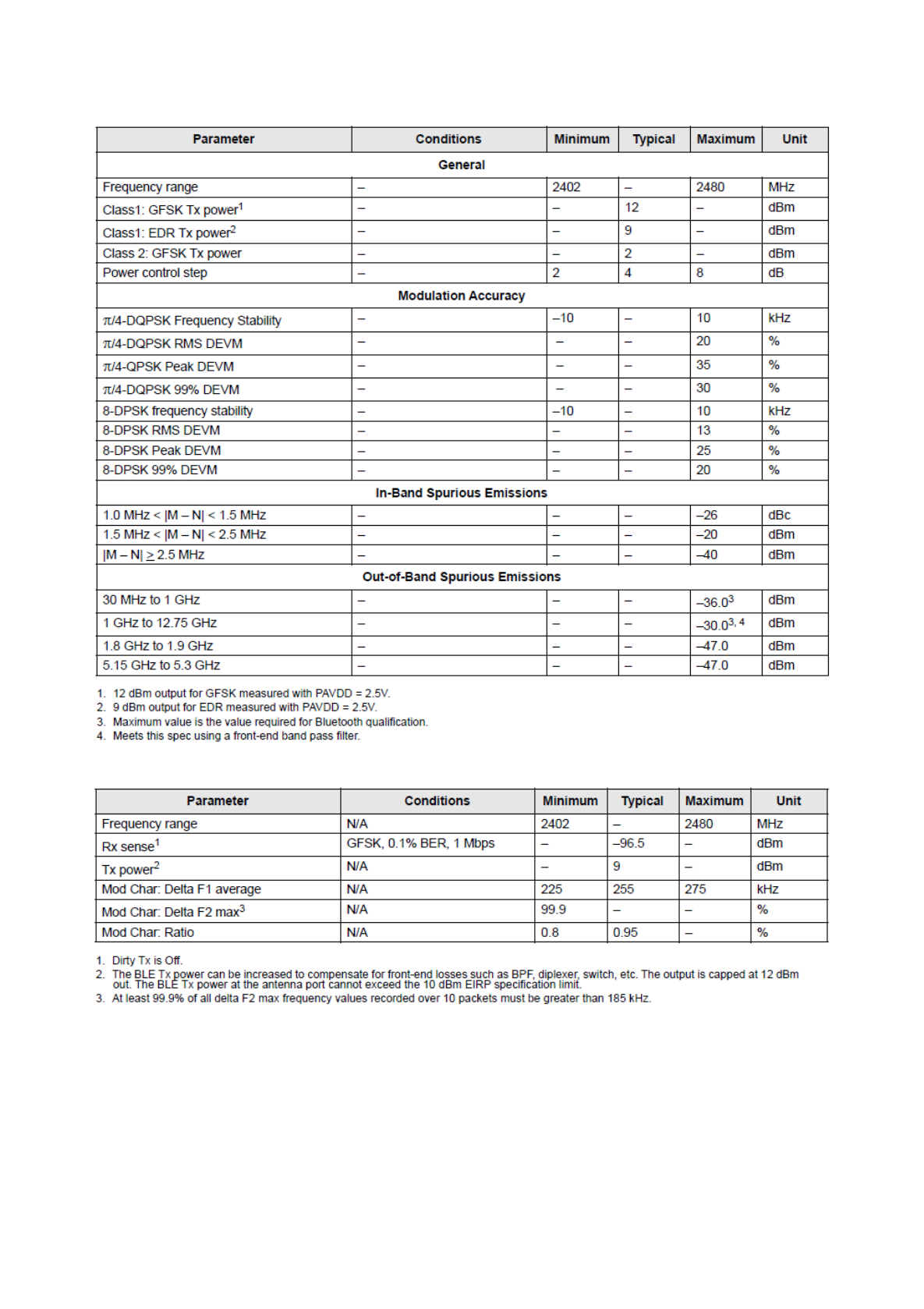

2.Transmitter RF Specifications
3.BLE RF Specifications
4.Antenna：PCB Antenna.
5.Antenna Gain: 1.43dBi
3.2 Electrical Characteristics
1. Operation temperature range： -25℃~+85℃
2. Storage temperature range：-40℃~+125℃
BT Module:ZGU36ESLSS
5

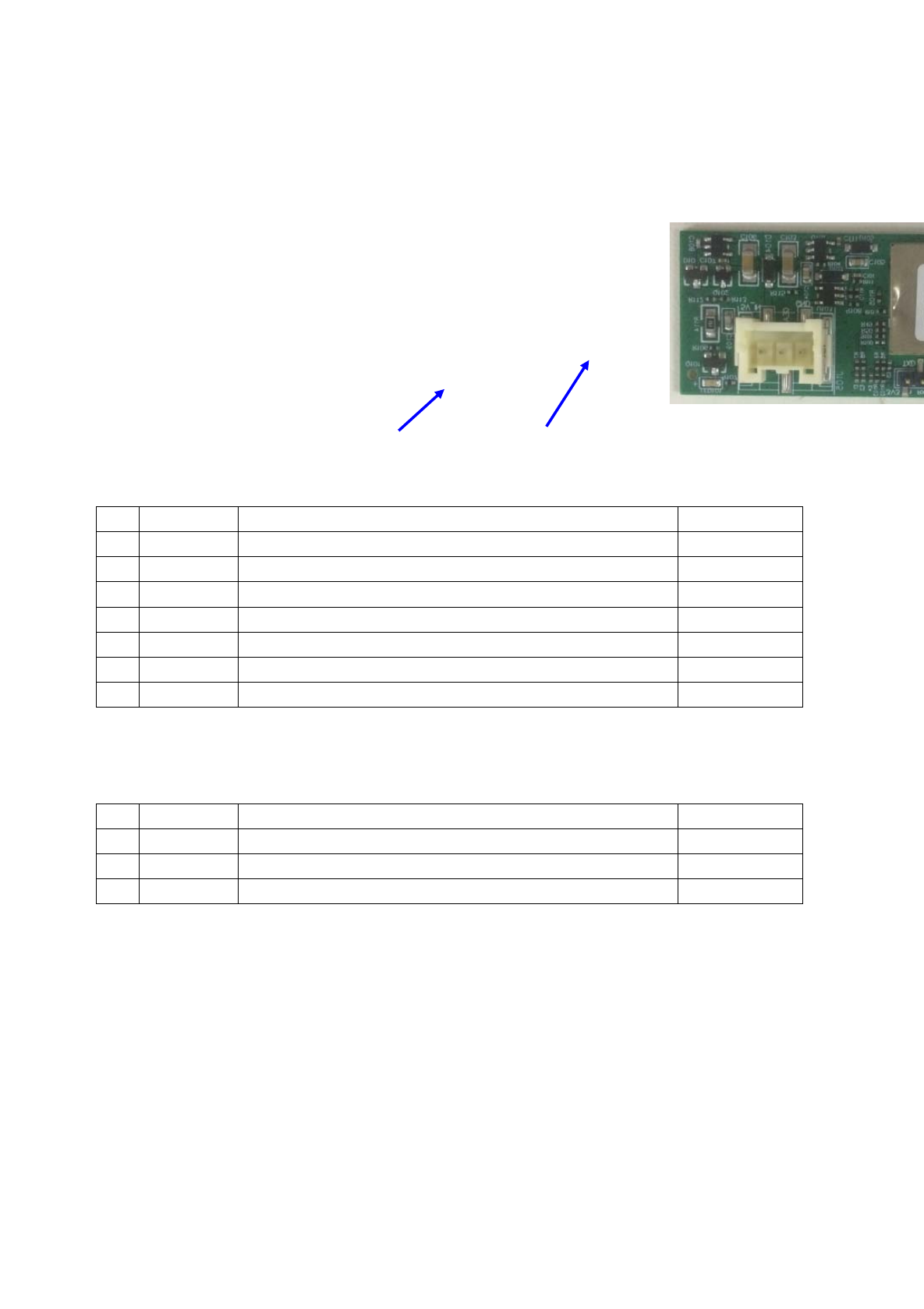

4. Connector pin definitions
7Pin connector（J101)model:TMM-107-01-F-S-SM
3Pin connector(J105) model:BM03B-XASS-TF
J101 connector pin definition
J105 connector pin definition
Pin Signal Description Remark
1 3V3 Output voltage:3.3V typ
2 TXD 20707 HCI UART_TX: UART transmit data
3 RXD 20707 HCI UART_RX:UART receive data
4 RST 20707 Reset :Active-low reset input
5 RTS 20707 HCI UART_RTS: UART request to send output
6 CTS 20707 HCI UART_CTS:UART clear to send input
7 GND Ground
Pin Signal Description Remark
1 5V_IN Power supply Range:4V~6.5V(5V typ)
2 GEA2 Communication signals
3 GND Ground
J101_1Pin J105_1Pin
BT Module:ZGU36ESLSS
6
5. Module Size
5.1 Sample Picture
5.2 Mechanical Dimensions
BT Module:ZGU36ESLSS
7
6.FCC statements:
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
NOTE: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications or changes to this equipment. Such modifications or changes could
void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement, The device can be
used in portable exposure condition without restriction
Federal Communication Commission (FCC) Radiation Exposure Statement
Power is so low that no RF exposure calculation is needed.
This device is intended only for OEM inltegrators under the
following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and
users,and
2) The transmitter module may not be co-located with any other transmitter or antenna.As long
as two conditions above are met,further transmitter test will not be required.However,the OEM
integrator is still responsible for testing their end-product for any additional compliance
requirements required with this module installed.To ensure compliance with all non-transmitter
functions the host manufacturer is responsible for ensuring compliance with the module(s)
installed and fully operational.For example,if a host was previously authorized as an
unintentional radiator under the Declaration of Conformity procedure without a transmitter
certifed module and a module is added,the host manufacturer is responsiblefor ensuring that the
after the module is installed and operational the host continues to be compliant with the Part
BT Module:ZGU36ESLSS
8
15B unintentional radiator requirements.The module is limited to OEM installation ONLY.
The module is limited to installation in mobile or fxed application.We hereby acknowledge our
responsibility to provide guidance to the host manufacturer in the event that they require
assistance for ensuring compliance with the Part 15 Subpart B requirements.
IMPORTANTNOTE: In the event that thesecond itions cannot be met (for example certain laptop
confgurations or co-location with another transmitter),then the FCC authorization is no longer
considered valid and the FCC ID cannot be used on the final product.In these circumstances,the
OEM integrator will be responsible for reevaluating the end product(including the transmitter)
and obtaining a separate FCC authorization.
