Please read this manual carefully
before operating the unit, and keep
it for future reference.
TFT-LCD COLOUR TELEVISION RECEIVER
OWNER'S MANUAL
This User's Manual is applicable for the following models:
L26A9-AK,L37A9-AK,L37A9-AKF
![](asset-2.png)
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Warning
*To avoid electric hazards, it is strongly suggested that the back cover not be opened, as
there is no any accessory inside the casing.
*If necessary, please contact authorized after-sales services.
*A lighting flash mark in a triangle: A potentially hazardous situation, which, if not avoided,
could result in serious injury by high voltage.
*An exclamation mark in a triangle: Major part or accessory of which technical specifications
must be followed if it is to be replaced.
Warning:
To avoid fire or electric hazards, never place your television
receiver in an area with heavy moisture. Attention should be
paid to avoid accidental scratches or impacts onto the LCD
screen.
*Please read this manual carefully before using your television and keep this
manual in a good place for future reference.
*To achieve the best performance of your television, read this User's Manual
carefully and properly store it for future reference.
*Information of screen displays and figures in the User's Manual may vary due
to technical innovations.
Caution:
Unauthorized disassembly of this product is prohibited.
![](asset-3.png)
CONTENTS
Safety precautions
Preparation for the Remote Control
Keys and Ports
Front panel
Side panel
Back panel
Keys of remote control
OSD display
Power on / off
Viewing TV program
Program play
Quick view and program scan
Tuning
Automatic search
Manual search
MFT
Skip
Channel exchange and edit
Adjusting the picture
Multiple picture modes
Adjusting the sound
Multiple sound modes
Sound limit and mute
Setting the timer
Setting the Clock and time on/off
On Prog
Setting the function
Language and OSD position
Menu timeout and menu background option
PIP
Child lock
De-interlace
PC setup
Setting the other function
Picture still,sleep timer and program edit

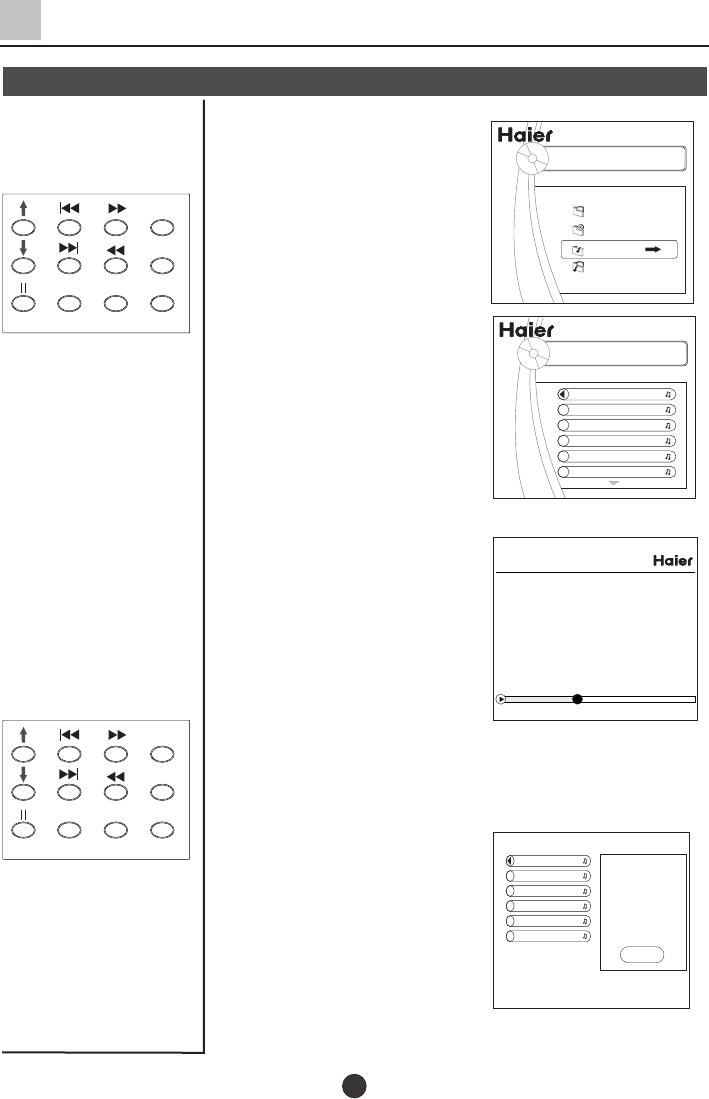

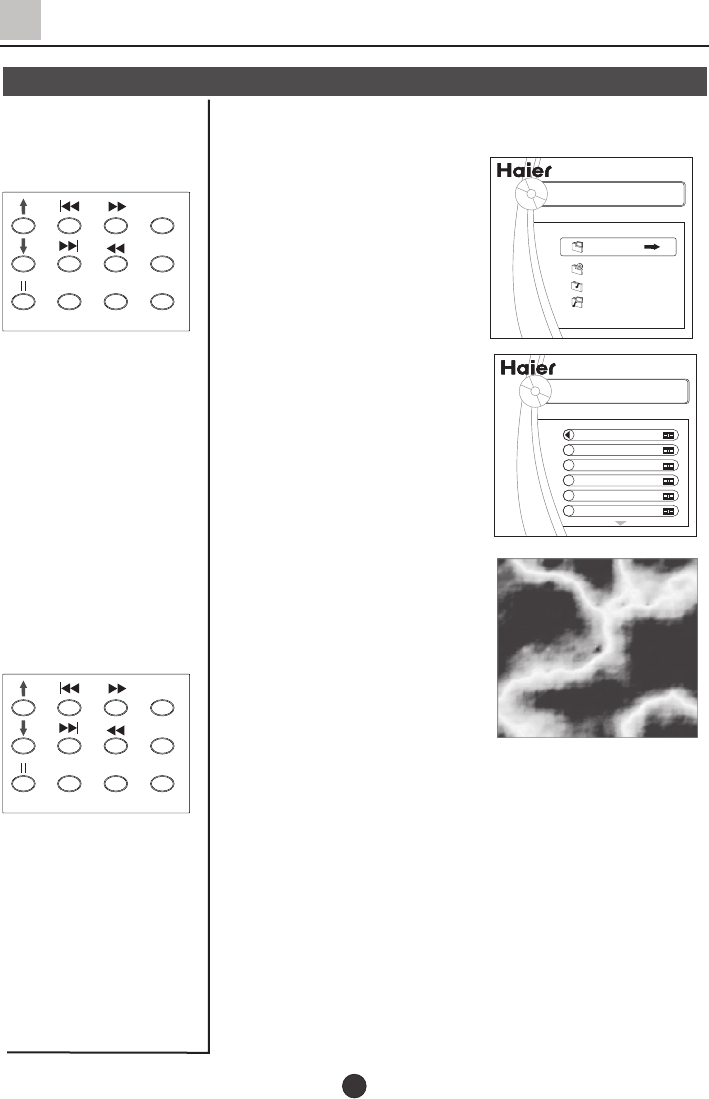

Stream media broadcast system
Connecting additional equipments
Antenna connection
How to connect the signal with other equipments
How to connect the video input terminal
How to connect the component input terminal
How to connect the PC input terminal
External speaker installation
Woofer installation
Troubleshooting
Specification
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
...............................................................
1
3
4
4
4
5
6
7
8
9
9
10
11
11
12
13
14
15
16
16
17
17
18
19
19
20
21
21
22
23
23
24
25
26
26
27
36
36
37
38
38
39
40
40
41
42
![](asset-4.png)
1

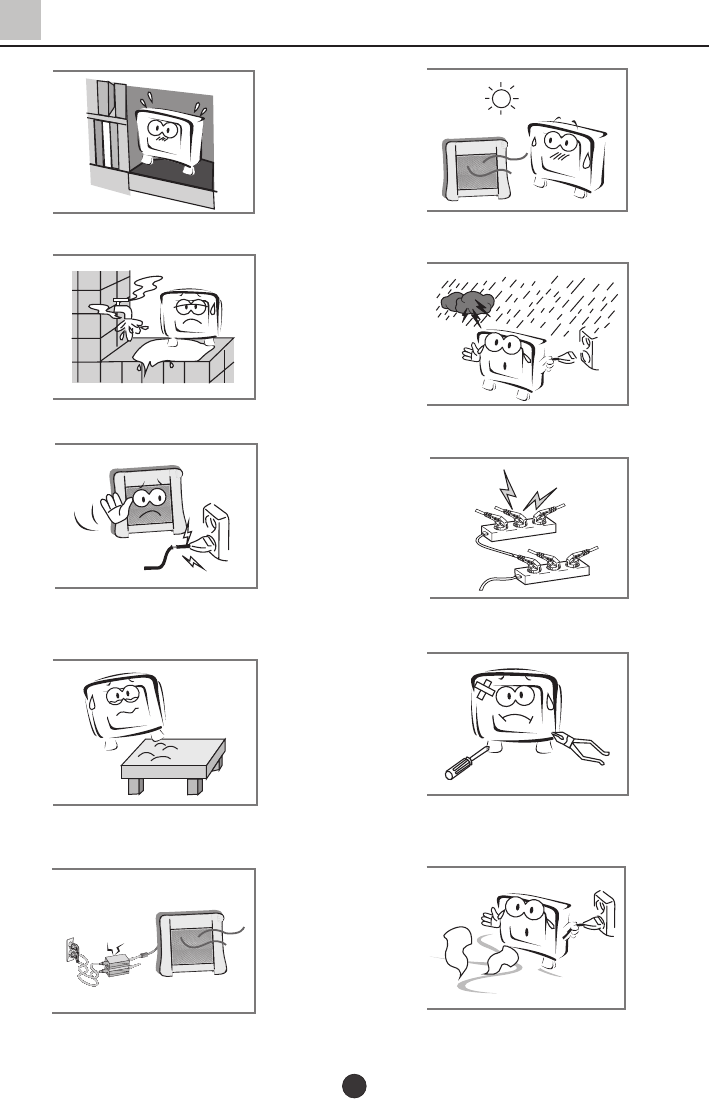

The product should be tightly fixed to
avoid drop damages and even fire.
To avoid fire hazards, do not use this
product under direct sunlight or closely
to heat sources.
Do not locate the product close to water
or oil, which may cause fire hazards. Unplug the power supply and antenna of
the product when there is a rainstorm,
especially thunderstorm.
Do not use damaged or worn electric
plugs, and keep electric cord away from
heat sources to avoid electric shocks or
fire hazards.
Do not connect excessive sockets in
parallel or share the same socket by
multiple plugs to avoid fire hazards.
The product must be placed on a solid
and stable surface to avoid collapse.
Unauthorized disassembly of the television
is prohibited to avoid electric shocks or fire
hazards. Contact authorized after-sales
service if technical service is needed.
Keep the product away from a transformer
or heat source to avoid fire hazards.
Disconnect the product from power supply
and contact authorized after-sales service
if abnormal sound is heard in the product.
Safety Precautions
![](asset-5.png)
2

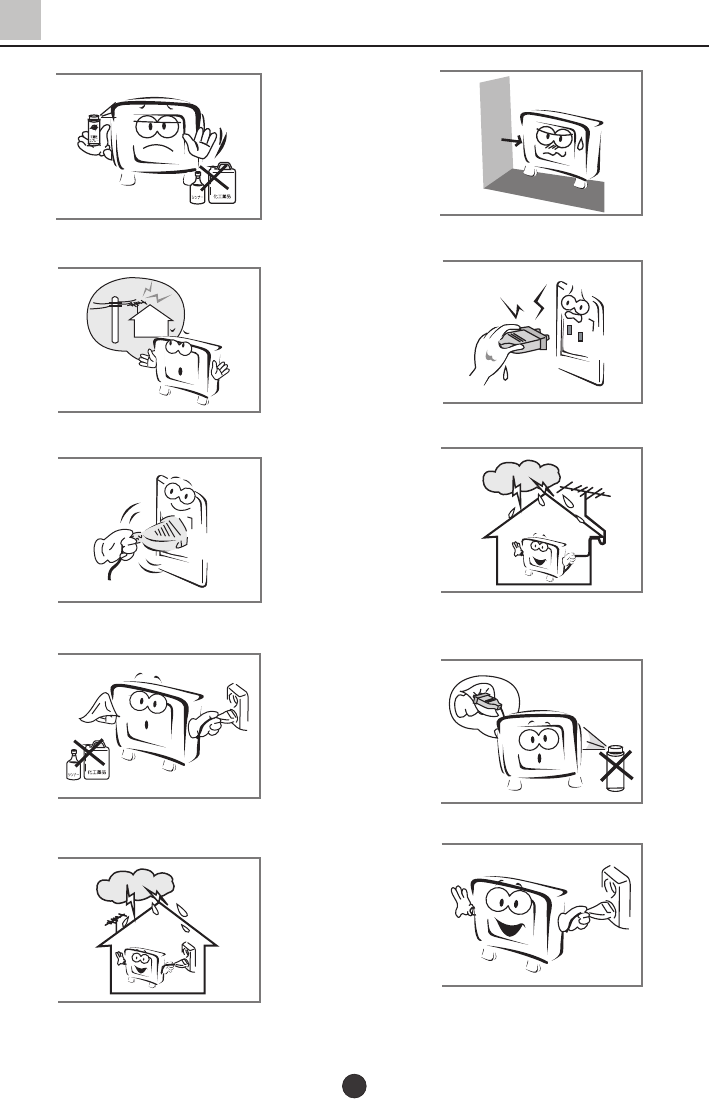

Don't use or store inflammable
materials near the product to avoid
explosion or fire hazards.
Don't place the product in a humid area to avoid
fire hazards.
The antenna of the product should
be away from electric cable to avoid
electric shocks.
Never touch the plug when your hand is wet
as this might cause electric shocks.
Always make sure that the television
is well plugged as poor electric
connection might cause fire.
When antenna is used, measures should be
taken to prevent water from flowing down along
the cable into the television.
Unplug the television, use soft fabric,
never chemicals, if you are going to
make cleaning of the product. Make
sure that no water drops in the product.
The plug and electric cable must be kept
clean to avoid electric shocks or fire hazards.
Disconnect the television from power
supply and antenna when there is a
rainstorm or thunderstorm to avoid
electric shocks or fire hazards.
Disconnect the television from power
supply to avoid electric shocks or fire
hazards in a long vocation.
Safety Precautions (continued)
![](asset-6.png)
3
Precautions
Battery loading
1.Slide open the cover of the battery compartment on the back of
the remote controller.
2.Load two 7# alkaline batteries in the compartment. (plus and
minus poles to respective mark)
3.Replace the cover of the battery compartment.
Make sure that there is no
obstacle between the remote
controller and television set.
As strong light may interfere the
signals, change your position to
operate the remote controller if
the television cannot be turned
on or off as you expect.
Keep the remote controller
away from heat source or
humid area to ensure
effective performance of
the remote controller.
Make sure that two 7# 1.5V alkaline
batteries are loaded. The batteries
must be of the same type. The batteries
must be located properly. The batteries
are not rechargeable.
Preparation for the Remote Control
13
2
+
![](asset-7.png)
Keys and Ports
Front panel
Side panel
POWER
- CH + - VOL +
1、CH-/+ :
2、VOL-/+ :
3、TV/AV: :TV-VIDEO-SIDE VIDEO-S VIDEO-YUV-
USB-VGA-DVI
4、MENU:
5、
6、
7、POWER : AC power on/off
8、Multi-media input
program minus and plus , menu options
volume decrease and increase , menu reset and entry
all input source select
menu display
Power on/off and indicator: in red when standby mode, in blue when display.
Remote control signal receive window
8
12345
7
6
TV/AV MENU
Rear terminal
Audio L
Audio R
Video
USB
VIDEO
AUDIO
L
R
VIDEO
AUDIO
-L
AUDIO
-R
4
![](asset-8.png)
1、POWER:
2、R- :
4
5
13 PC/DVI AUDIO IN
AC power input
For PC display purpose. Connects to the VGA analog
output connector of the PC display card.
external video input
is an video input terminal connecting to the video output
terminal of the video output device(Y Cb Cr/ Y Pb Pr).
For high quality PC display purpose. Connects to the DVI digital output
connector of the PC display card.
audio output (to external speaker)
external video output
external YUV (YCbCr,YPbPr) audio input
external S-VIDEO/VIDEO audio input
external D-SUB/DVI audio input
Connect antenna or CATV 75 Ω coaxial cable to receive TV/
CATV signal.
AUDIO-L OUT External audio output
3WOOFER External woofer output
D-SUB IN Computer input,
S-VIDEO IN S-VIDEO input
6VIDEO IN
7YCbCr,YPbPr
8、DVI IN
9R-AUDIO-L OUT
10 VIDEO OUT:
11、L-HD-R IN:
12、L-V/S-R IN:
、:
14 ANT.:
、:
、:
、:
、:
、:
:
、:
、
、
5
ANT.
DVI IN
D-SUB IN VIDEO
OUT
S-VIDEO
IN
VIDEO
IN
Y
R-AUDIO-L
OUT
POWER WOOFER Cb/Pb Cr/Pr R-AUDIO-L
OUT
L - HD- R
IN
L -V/S- R
IN
PC/DVI
AUDIO IN
12345678910 11 12 13 14
}
(Not available on L26A9-AK)
Keys and Ports (continued)
Back panel
![](asset-9.png)
Keys of remote control
6
The remote controller cannot be operated unless the batteries are
properly loaded.
Note:
The function just takes the remote control for example in this manual
P+/-(CH+/-),V+/-(VOL+/-),MENU,TV/AV and POWER on TV panel are corresponding
with the CH+/-,VOL+/-,MENU,TV/AV and POWER keys.
DISPLAY
POWER
MUTE STILL
I/II
PIC.SIZE
TV/AV
S-VIDEO
DVD/DTV
PC/DVI
OK
Q.VIEW
CH+
CH-
VOL-
VOL+
MENU
PSM
123
456
789
-/-- 0
ZOOM/MOVE
USB
PIP SWAP SCAN
CH.EDIT
SHUTTLE
SLEEP
H.LOCK
TIME SKIP
ZOOM
RETURN
S
SM
HELPENTER
The cover of the multi-media keys
press down to the appropriate position
1
3
5
7
9
11
13
16
18
19
23
21
25
27
29
2
4
6
8
10
12
14
15
17
20
22
24
26
28
1.DISPLAY: Display the current info
2. POWER: Press to turn on the TV from standby
mode. Press again to switch off the TV to standby
mode.
3.STILL: Press it to freeze-frame the current screen
press again to continue playing(never see the still
picture for long time, it would burn-in the screen)
4. ¢ñ/¢ò: Nicam selection in the signal
5. MUTE: Press this button to mute the sound.
Press again to reactivate the sound. Sound also
reactivated if the power is turned off then on or
if press VOL+ button.
6. PIC.SIZE: Press to select the display the size of
the screen(never see the 4:3 picture for long time,
it would burn-in the screen)
7. S-VIDEO: Press it to select S terminal input.
8. DVD/DTV: Select YUV input
9. TV/AV : Press this key to select the sources
10. PC/DVI: Press it to select inputs as follows:
TV-VGA-DVI-TV
11. OK: Press to confirm
12. Q.VIEW: Back to the last channel
13. CH+/-: Select the option up and down in menu
or select channels when there is no OSD.
14. MENU: Press to display or exit the menu
15. VOL+/-: Left and right orientation in menu option
or adjust the volume when there is no OSD.
16. PSM: Press to select the picture mode
17. : Press to select the sound mode
18. Number key: Press to select the channel number
19£¬26£¬27£¬28 are not available in these set .
20. ZOOM/MOVE: PIP moving
21. PIP: PIP on or off
22. SCAN: Scan all preconcerted channel program
23.SWAP: Switch the input signal of the PIP and
the main picture
24. CH.EDIT: Press to display the stored channel
diagram
25. SLEEP: Can be used to set time to change
the TV into the standby status after a period of
preset time.
29. Only for the multi-media ,reference to
the instruction following.
SSM
![](asset-a.png)
OSD display
Picture menu
Brightness 50
Contrast 50
Saturation 50
Hue 50
Sharpness 50
Color Temp. Std
B
C
A
7
Note:
There may be some difference between the above OSD and your realset,you could adjust
it according to what you want following the steps as follow:
1. Press MENU button to enter the main menu
2. Press VOL-/+ to select the main menu left and right orientation
3. Press OK or CH+/- to enter the submenu
4. Press MENU to back to the last menu
5. Press VOL+/- to adjust the item of the menu
6. There is no SubWoofer Switch and SubWoofer in sound menu in L26A9-AK
There are some OSD (on screen display)following for you to reference
Picture Audio Tuner Func PC Time
Bass 50
Treble 50
Balance 50
Surround Off
SubWoofer Switch Off
SubWoofer 50
AVL Off
B
C
A
Picture Audio Tuner Func PC Time
Audio menu
Tuner menu
Prog. 0
Color Sys. PAL
Sound Sys. DK
Skip Off
Prog.Name -----
Search Set
Auto Search
Exchange
>>>
>>>
>>>
B
C
A
Picture Audio Tuner Func PC Time
OSD Position
OSD Timer 60S
OSD Language English
PIP
Transparency 0
De-interlace
Child Lock Off
>>>
>>>
>>>
B
C
A
Picture Audio Tuner Func PC Time
Function menu
PC menu
Auto
Clock 0
Phase 0
H_Position 0
V_Position 0
I/P Info. VGA
>>>
B
C
A
Picture Audio Tuner Func PC Time
Clock 0:00
Off Time Off
Off Time 0:00
On Time Off
On Time 0:00
On Prog. 0
B
C
A
Picture Audio Tuner Func PC Time
Time menu
![](asset-b.png)
Power on/off
Power on/off
3
8
Power ON/OFF
1.Switch on power supply (indicator in
red in standby)
2.If the television is on standby mode ,
you could press POWER button on
remote controlleror POWER£¨ £©
button on the TV to turn on the TV.
3.If you want to switch off the TV to
standby mode press POWER£¨ £©
button on TV or POWER button on
remote controller .
4.Disconnect the power supply or unplug
the television if it is intended to completely
cease the television performance.
POWER
![](asset-c.png)
CH+
CH-
VOL- VOL+
MENU
Viewing TV Program
观看电视节目
Program play
How to select program
Select desired program
Choose the proper volume you like
Press VOL+/- button to adjust sound volume.
1.Select buttons directly
If program number is selected, press digit
1~9 directly.
2.Select buttons in sequence
Press CH+/- button for program option. (Note:
If Skip mode is activated, the program will not
appear by this way.)
If the color or sound of one channel is abnormal
If the color of the picture is abnormal
If the sound is abnormal
There are 160 channels from 0 to 159.
9
It might be because the color or
sound system has been set
improperly, you may follow the
instruction below to adjust it :
press MENU and VOL+/- to
select Tuner menu ,you can see
the form , then press
CH+/- to enter
Press CH+/- to "Color Sys ”, then press VOL+/- to
select the proper system.(AUTO、PAL,NTSC443 and
NTSC M will appear in sequence).
.
Enter the Tuner as above and
CH+/- to “Sound Sys.”item.
Then press VOL+/- to select the
system you want.
Prog. 0
Color Sys. PAL
Sound Sys. DK
Skip Off
Prog.Name -----
Search Set
Auto Search
Exchange
>>>
>>>
>>>
B
C
A
Picture Audio Tuner Func PC Time
Prog. 0
Color Sys. PAL
Sound Sys. DK
Skip Off
Prog.Name -----
Search Set
Auto Search
Exchange
>>>
>>>
>>>
B
C
A
Picture Audio Tuner Func PC Time
1 2 3
456
7 8 9
0
![](asset-d.png)
CH+
CH-
VOL- VOL+
MENU
Viewing TV Program(continued)
Quick view and program scan
Quick view function can back to the channel you watched just now quickly
Program scanning function is to let the television automatically scan all preconcerted
channel program .
Quick view
18
Program scanning function
1、If you want to scan the programs and select your favorite
channel, just press the SCAN button then the television
will start scanning from the present channel with a rate
of three seconds per channel
and until all the preconcerted
programs have been
displayed once.
0
1
2.If you want to terminate
this function during the
scanning, press the SCAN or
MENU button again, and the
program will stay at the
present channel
18
8
10
0
1.For example, if you have
viewed channel 8 just now
and you are watching channel
18 now (as right figure)
2.If you want to back to
channel 8,just press
Q.VIEW button
3.If you want to return to
channel 18,press Q.VIEW
button again .
Q.VIEW
SCAN
![](asset-e.png)
CH+
CH-
VOL- VOL+
MENU
CH+
CH-
VOL- VOL+
MENU
Tuning
There are three ways of searching:automatic search,manual search and MFT
manual fine tune)
You may operate it either on the TV or on the remote control.Here is mainly
about the remote control
Automatic search
Automatic search
2、Press CH+/- button to
move to Auto Search item。
3、Press VOL+,then Auto Search
will work。The TV set will search
automatically all available
programs, after that, all available
program will be stored in turn
and the TV set will return to the
first channel
1、Press MENU button and
VOL+/- to select Tuner menu,
Then press CH+/- to enter
After searching
Press CH+/- button to check the channels.
If the color or sound is abnormal in a certain channel, it
may be the color or sound system has not been set properly,
so you should adjust it to the proper system (Reference to
page 9).
Freq. 308MHz CH 9
Auto Search
11
If you want to stop the search, just press MENU button
The order of the automatic search is due to the frequency of the
program, generally speaking, it is used only at the first time you
search the program, and once the order of the program has been
confirmed, you don't have to use this function, otherwise the
order of the program will be changed.
Prog. 0
Color Sys. PAL
Sound Sys. DK
Skip Off
Prog.Name -----
Search Set
Auto Search
Exchange
>>>
>>>
>>>
B
C
A
Picture Audio Tuner Func PC Time
Prog. 0
Color Sys. PAL
Sound Sys. DK
Skip Off
Prog.Name -----
Search Set
Auto Search
Exchange
>>>
>>>
>>>
B
C
A
Picture Audio Tuner Func PC Time
![](asset-f.png)
CH+
CH-
VOL- VOL+
MENU
CH+
CH-
VOL- VOL+
MENU
B
C
A
Picture Audio Tuner Func PC Time
Tuning(continued)
Manual search
Manual search
5. Press VOL+/- button to start
searching.
VOL- button is used to search the
lower frequency channel.
VOL+ button is used to search the
higher frequency channel.
Repeat the steps until you find
the channel you need.
1. Press CH+/- button or the
Direct-digit choosing button to
select a channel directly(take
channel 1 for example).
3、Press CH+/- to move to
Search Set,then press
VOL+ to enter
1
2 Press MENU and VOL+/-
to select Tuner menu then
press CH+ to enter
、,
4、Press CH+/- to move to
Search Fine 32
Search >>>
Freq. 112.28MHz
12
Prog. 0
Color Sys. PAL
Sound Sys. DK
Skip Off
Prog.Name -----
Search Set
Auto Search
Exchange
>>>
>>>
>>>
B
C
A
Picture Audio Tuner Func PC Time
![](asset-10.png)
Tuning(continued)
MFT
MFT(manual fine tune)
When you can't get a satisfactory picture and audio effect,
you can fine tune to obtain.
5. Press VOL+/- button repeatedly to fine tune, until the
picture and the sound become satisfactory.
1. Press CH+/- button or the
Direct-digit choosing button
to select a channel directly (take
channel 1 for example).
3、Press CH+/- to move to
Search Set,then press
VOL+ to enter the menu
1
2 Press MENU and VOL+/-
to select Tuner then
press CH+/- to enter
、,
4、Press CH+/- to move to
Fine.
13
VOL- button is used to search the lower frequency channel.
VOL+ button is used to search the higher frequency channel.
VOL-
B
C
A
Picture Audio Tuner Func PC Time
Fine 32
Search >>>
Freq. 112.28MHz
Prog. 0
Color Sys. PAL
Sound Sys. DK
Skip Off
Prog.Name -----
Search Set
Auto Search
Exchange
>>>
>>>
>>>
B
C
A
Picture Audio Tuner Func PC Time
CH+
CH-
VOL- VOL+
MENU
CH+
CH-
VOL- VOL+
MENU
![](asset-11.png)
CH+
CH-
VOL- VOL+
MENU
CH+
CH-
VOL- VOL+
MENU
Tuning(continued)
Skip
Skip
4. Press VOL+/- button to set it
On.
5. Press MENU button to close the menu. When you
select channels with CH+/- button, this channel will be
skipped. However, you can also use the Direct-digit Choosing
button on the remote control to select this channel directly.
And the channel number will be in red.
After the programs are preset, you can skip some
programs so that to select your favorite channels only.
If you want to recover the skipped channel
1. Use Direct-digit choosing button to select the number of the
channel to be recovered.
2. Do the above steps again.
3. Press VOL+/- button to set Skip Off.
You could also select your
favorite channel number in
menu
1. Press CH+/- button or
Direct-digit choosing button to
select a channel directly (take
channel 1 for example).
1
2 Press MENU and VOL+/-
to select the Tuner menu then
press CH+/- to enter.
¡¢
£¬
3¡¢Press CH+/- to move to
Skip.
14
Prog. 0
Color Sys. PAL
Sound Sys. DK
Skip Off
Prog.Name -----
Search Set
Auto Search
Exchange
>>>
>>>
>>>
B
C
A
Picture Audio Tuner Func PC Time
Prog. 0
Color Sys. PAL
Sound Sys. DK
Skip Off
Prog.Name -----
Search Set
Auto Search
Exchange
>>>
>>>
>>>
B
C
A
Picture Audio Tuner Func PC Time
![](asset-12.png)
CH+
CH-
VOL- VOL+
MENU
CH+
CH-
VOL- VOL+
MENU
B
C
A
Picture Audio Tuner Func PC Time
Tuning(continued)
Channel exchange and edit
The function of channel exchange will enable you to exchange any two programs
and you can conveniently adjust the order of the programs due to your own need.
Channel Exchange
()
For example, to change between channel 6 and 9
2、Press CH+/- and move to
Exchange
3、Press VOL+ to enter
the submenu.
4、Press CH+/- to move to
Exchange Prog. then press
direct-digit to set the channel
you want to exchanged to 6.
And then press OK to confirm
5、Press CH+/- button, move to Exchange then
press VOL+ button to confirm.Then the programs of the two
channel will be exchanged.
,
1、Press MENU and VOL+/-
to select the Tuner menu,
then press CH+/- to enter。
Current Prog. 009
Exchange Prog. 006
Exchange >>>
Program edit function
This function can enable you to rename your favorite
channel
1、Press MENU and VOL+/- to
select the Tuner menu,then
press CH+/- to enter.
2、Press CH+/- to select
Prog.,Press VOL+/- to set
the channel number
3、Press CH+/- to select
Prog.Name,and press VOL+/-
to select the position you want to adjust ,
then press CH+/- to select among "A-Z","0-9" ,"、" ,
and blank .
"-"
4、After the operation, just press OK to confirm
15
Prog. 0
Color Sys. PAL
Sound Sys. DK
Skip Off
Prog.Name -----
Search Set
Auto Search
Exchange
>>>
>>>
>>>
B
C
A
Picture Audio Tuner Func PC Time
Prog. 0
Color Sys. PAL
Sound Sys. DK
Skip Off
Prog.Name -----
Search Set
Auto Search
Exchange
>>>
>>>
>>>
B
C
A
Picture Audio Tuner Func PC Time
OK
![](asset-13.png)
CH+
CH-
VOL- VOL+
MENU
PSM
Multiple picture modes
Adjusting the Picture
Set the parameter of USER
2. Press CH+/- button, move to
the option you want to adjust,
then press VOL+/- button to do
the adjustment . Then the
parameter will be automatically
stored in USER option.
1、Press MENU and CH+/- to
enter Picture menu。
Note:Hue only available in NTSC system.
How to select the picture mode
You may select the mode you want from the three preset
modes and one individual mode.
Press the PSM button to select a mode you
like. STANDARD, SOFTNESS,USER and BTIGHTNESS
totally four picture modes can be selected alternately.
You could set it just by your favorite
16
MODE
SOFTNESS
STANDARD
USER
BRIGHTNESS
OPTION
Brightness BRIGHT DARK
Contrast STRONG WEAK
THICK LIGHT
Hue GREEN PURPLE
Sharpness SHARP SOFT
Color Temp. Std-Cool-Warm
Saturation
VOL+
PICTURE QUALITY
MEDIUM COLOR AND BRIGHTNESS
LOW COLOR AND BRIGHTNESS
SET BY YOURSELF
BRIGHT COLOR
VOL-
Brightness 50
Contrast 50
Saturation 50
Hue 50
Sharpness 50
Color Temp. Std
B
C
A
Audio Tuner Func PC Time
![](asset-14.png)
CH+
CH-
VOL- VOL+
MENU
Multiple Sound Modes
Adjusting the Sound
How to select the sound mode
You may select the mode you want from the four preset
modes and one individual mode.
Press the .SSM button to select the sound quality that you
want.
Setting the parameter of USER
FILM
NEWS
MUSIC
STANDARD
USER
Theater sound
Clear
For Music
Standard sound
For your convenient to set
2. Press CH+/- button, move to
the option you want to adjust, then
press VOL+/- button to do the
adjustment.
1、Press MENU and VOL+/-
to select Audio menu,
then press CH+/- to enter
You could set the parameter if you select USER mode.
Note:SubWoofer can only be adjusted when SubWoofer Switch is
set On, SubWoofer and SubWoofer Switch is not available in
L26A9-AK.
17
Mode Sound quality
OPTION VOL- VOL+
Bass 50
Treble 50
Balance 50
Surround Off
SubWoofer Switch Off
SubWoofer 50
AVL Off
B
C
A
Picture Audio Tuner Func PC Time
Bass
Treble
Balance
Decrease Increase
Decrease Increase
Decrease right channel Decrease left channel
OPTION
Surround
SubWoofer Switch
Select On
Stereo sound
Enhance the effect
SSM
![](asset-15.png)
CH+
CH-
VOL- VOL+
MENU
Adjusting the Sound (continued)
Sound limit and mute
How to use the MUTE function
1、Press MUTE button, a sign
will appear at the top right
corner of the screen, and the
sound of the TV set is cut off.
When you want to pay attention to the environment or
answer a telephone, or to meet guests, using the mute
function is very convenient.
2.In order to recover the sound,
press MUTE button again or
press VOL+button.
Sound limit
2、Press VOL+/- to select
Audio menu。
3、Press CH+/- to enter it .
1、Press MENU to display
the menu.
4、Press CH+/- to select
AVL .
5、press VOL+/- button to adjust
the parameter you expect or set
On or Off.
X
18
Note: If you have pressed VOL- button in the condition of
the mute mode, the value of the volume would decrease, but
the sound of the TV is still in mute mode.
Bass 50
Treble 50
Balance 50
Surround Off
SubWoofer Switch Off
SubWoofer 50
AVL Off
B
C
A
Picture Audio Tuner Func PC Time
Bass 50
Treble 50
Balance 50
Surround Off
SubWoofer Switch Off
SubWoofer 50
AVL Off
B
C
A
Picture Audio Tuner Func PC Time
MUTE
![](asset-16.png)
CH+
CH-
VOL- VOL+
MENU
Setting the Timer
Timer on/off
2、Press CH+/- to move to
On Time, Press VOL+ to enter
the digit position
18:00)。
, and then press
CH+/- to adjust the value
(eg.
Setting the Clock and timer on/off
Setting the Clock
1、Press MENU and VOL+/- to
select Time menu。
4、Repeat steps 1 and 2 to
set Off Time(eg.23:00)。
Same as step 2 of Clock setting .
1、Press MENU and VOL+/- to
select Time menu.
3.Press CH+/- to move to
Off Time,then press VOL+/- to
set on
19
This TV set provides you with three timer functions such as timer on, timer off and On Prog.
The basic unit of the time in the menu is minute.
The Clock will recover to 0 00 and the On Prog. will recover to 0 when switch the TV on
after off.
£º
You should check whether the Clock is the same with the standard
time of the area you are being in; if not, please adjust it as follows
2.Press CH+/- to move to Clock
and press VOL+ to enter the
digital position you want to adjust,
then press CH+/- to adjust the
value
3.After the setting, press OK to confirm
When timer on function is used, the TV set can automatically turn the
power on at the preset time in the standby status and display the
preset program.Using timer off function can turn the TV set
automatically into standby status at the preconcerted time.
Clock 0:00
Off Time Off
Off Time 0:00
On Time Off
On Time 0:00
On Prog. 0
B
C
A
Picture Audio Tuner Func PC Time
Clock 0:00
Off Time Off
Off Time 0:00
On Time Off
On Time 0:00
On Prog. 0
B
C
A
Picture Audio Tuner Func PC Time
Clock 0:00
Off Time Off
Off Time 0:00
On Time Off
On Time 0:00
On Prog. 0
B
C
A
Picture Audio Tuner Func PC Time
OK
CH+
CH-
VOL- VOL+
MENU
![](asset-17.png)
CH+
CH-
VOL- VOL+
MENU
Setting the Timer (continued)
On Prog.
On Prog.
4.Press VOL+/- button to set
the channel number you want
(eg. 18)
1、Press MENU to display
the menu.
2、Press VOL+/- to select
Time menu.
3、Press CH+/- to move to
On Prog.
20
Using this function ,the TV set can display the preset program
automatically when the TV set is turned on.
Clock 0:00
Off Time Off
Off Time 0:00
On Time Off
On Time 0:00
On Prog. 0
B
C
A
Picture Audio Tuner Func PC Time
Clock 0:00
Off Time Off
Off Time 0:00
On Time Off
On Time 0:00
On Prog. 0
B
C
A
Picture Audio Tuner Func PC Time
![](asset-18.png)
CH+
CH-
VOL- VOL+
MENU
CH+
CH-
VOL- VOL+
MENU
B
C
A
Picture Audio Tuner Func PC Time
Setting the Function
Language and the OSD position
How to select the language on the screen
2.Press CH+/- button, move to
OSD Language.
1.Press MENU and VOL+/-
to select the Func menu.
3.press VOL+/-button to
select the language and the menu on the screen will
be displayed with the language you select.
How to select the OSD position
1.Press MENU and VOL+/- to
select the Func menu .
OSD H-Position 50
OSD V-Position 50
21
Using this function,you could select the position of the OSD
on the screen you want.
2.Press CH+/-, move to
OSD Position .
3.Press VOL+/- to enter
submenu of the OSD Position .
4.Press CH+/- to select the item
you want to adjust, and then
press VOL+/- to adjust. After all,
press MENU to back to the main menu.
OSD Position
OSD Timer 60S
OSD Language English
PIP
Transparency 0
De-interlace
Child Lock Off
>>>
>>>
>>>
B
C
A
Picture Audio Tuner Func PC Time
OSD Position
OSD Timer 60S
OSD Language English
PIP
Transparency 0
De-interlace
Child Lock Off
>>>
>>>
>>>
B
C
A
Picture Audio Tuner Func PC Time
![](asset-19.png)
CH+
CH-
VOL- VOL+
MENU
CH+
CH-
VOL- VOL+
MENU
Setting the Function(continued)
基
本
操
作
Menu timeout option
If time you set in OSD menu expires after the latest press, the
menu will disappear automatically
Menu timeout and menu background option
Menu background option
22
Note:
the basic unit of the OSD Timer is second。
1.Press MENU and VOL+/- to
select the Func menu .
2.Press CH+/- and move to
OSD Timer .
3.Press VOL+/- to select the time
1.Press MENU and VOL+/- to
select the Func menu .
2.Press CH+/- to move to
Transparency .
3.Press VOL+/- to adjust the
value you want. You could press
MENU to back to the main menu.
OSD Position
OSD Timer 60S
OSD Language English
PIP
Transparency 0
De-interlace
Child Lock Off
>>>
>>>
>>>
B
C
A
Picture Audio Tuner Func PC Time
OSD Position
OSD Timer 60S
OSD Language English
PIP
Transparency 0
De-interlace
Child Lock Off
>>>
>>>
>>>
B
C
A
Picture Audio Tuner Func PC Time
OSD Position
OSD Timer 60S
OSD Language English
PIP
Transparency 0
De-interlace
Child Lock Off
>>>
>>>
>>>
B
C
A
Picture Audio Tuner Func PC Time
![](asset-1a.png)
CH+
CH-
VOL- VOL+
MENU
CH+
CH-
VOL- VOL+
MENU
Setting the Function(continued)
PIP
PIP
Child Lock
23
PIP Size Off
PIP Source VGA
PIP H-POS 100
PIP V-POS 100
Using this function,you could adjust the H-POSITION ,
V-POSITION and the size of the PIP.
1.Press MENU and VOL+/- to
select the Func menu .
2.Press CH+/- and move to
PIP .
3.Press VOL+/- to enter the
submenu of PIP .
4.Press CH+/- to select the item
you want to adjust ,then press
VOL+/- to adjust. After this ,you
could press MENU to back to
the main menu.
Note:Press source buttons(eg.TV/AV)to change the main input;
The signal of PIP can be changed in the submenu of PIP .
If Child Lock is set On,the keys on the TV will be locked
that means you could not operation the TV with these buttons.
1.Press MENU and VOL+/- to
select the Func menu .
2.Press CH+/- and move to
Child Lock .
3.Press VOL+/- to set On or Off. You could press MENU to
back to the main menu.
OSD Position
OSD Timer 60S
OSD Language English
PIP
Transparency 0
De-interlace
Child Lock Off
>>>
>>>
>>>
B
C
A
Picture Audio Tuner Func PC Time
B
C
A
Picture Audio Tuner Func PC Time
OSD Position
OSD Timer 60S
OSD Language English
PIP
Transparency 0
De-interlace
Child Lock Off
>>>
>>>
>>>
B
C
A
Picture Audio Tuner Func PC Time
![](asset-1b.png)
CH+
CH-
VOL- VOL+
MENU
Setting the Function(continued)
De-interlace
De-interlace
Using this function,you could improve the effect of the
picture.
MOTION Medium
FILM MODE Off
LADI On
MOTION To decrease the blur of the motorial image
FILM MODE To improve the image while filming
LADI To decrease the sawtooth
24
1.Press MENU and VOL+/- to
select the Func menu.
2.Press CH+/- and move to
De-interlace .
3.Press VOL+/- to enter the
submenu
4.Press CH+/- to select the item
you want to adjust, then press
VOL+/- to adjust it .
B
C
A
Picture Audio Tuner Func PC Time
OSD Position
OSD Timer 60S
OSD Language English
PIP
Transparency 0
De-interlace
Child Lock Off
>>>
>>>
>>>
B
C
A
Picture Audio Tuner Func PC Time
![](asset-1c.png)
CH+
CH-
VOL- VOL+
MENU
PC Setup
PC setup
PC setup
25
You could adjust the correlative item if you use this set as
a monitor
1.Press MENU and VOL+/- to
select the PC menu .
2.Press CH+/- and move to the
item you want to adjust
3.Press VOL+/- to adjust the item
or enter its submenu(according
the item setting)
4.If enter the submenu ,press CH+/- and move to the item
you want to adjust , and then press VOL+/- to adjust. Then
you could press MENU to back to the main menu.
Auto
Clock 0
Phase 0
H_Position 0
V_Position 0
I/P Info. VGA
>>>
B
C
A
Picture Audio Tuner Func PC Time
![](asset-1d.png)
CH+
CH-
VOL- VOL+
MENU
CH.EDIT
SLEEP
Picture still,sleep timer and program edit
Picture still
Setting the other Function
Sleep timer
Using this function, the TV set can be changed into the
standby status after a period of preset time from when
this function is activated.
Program edit
0 Q
1 CCTV1
2 CCTV2
3 CCTV3
4 CCTV4
5 CCTV5
6 CCTV6
7 CCTV7
8 CCTV8
9 CCTV9
TV-1
26
You could press STILL button
to “freeze-frame”the current
screen. And press the button
again to continue playing
1.Press CH.EDIT button to display
the current program diagram
2.There are ten channels per page. You
could select the channel on this page
with CH+/-, also, you could press
VOL+/- to turn to the other page , you
could press CH+/- to select the channel
you want to watch, then press OK to
confirm. Press or MENU to
exit.
CH.EDIT
3. You could see every channel¡¯s name by the
program edit function. It is very convenient for you
to watch the program you want.
Note:
The program name can not be more than five letters
Freeze
Prog. Prog.Name
STILL
![](asset-1e.png)
Stream Media Broadcast System
27
Stream media play prepare
1. Supporting equipment
1.Equipment supporting Mass and
Storage agreements include USB,
mobile hard disk, card reader, some
MP3 and digital camera.
2.Equipment supporting PTP
agreement includes some digital
camera.
2. 1 Supporting media:
picture, music, MPEG4, MPEG2
and MPEG1;
Supporting file format£º
*.Avi, *.DIVX, *.MPEG,*.DAT, *.MP3,
*.WHA, *.JPG and *.JPEG. Due to
particularity of file code and file mode,
It is possible that some files cannot be
read.
2 If Pic & Music mode is activated,
relative media file format will include
JPEG and MP3 files. After Picture is
selected, MP3 files set for play will
open both music and picture files for
sync play performance. As some files
must be read while music is being
played, the speed of picture operation
response might be affected.
3.Before starting operation, verify
USB storage device is of FAT32 and
FAT file system format. At present, this
television does not support NTFS and
the file systems of other format.
4.Many movie files use suffix of AVI and
MPG. However, many kinds of format
are used for internal files. This
television can only play some AVI
and MPG files of this format. Those
files with suffix of dat are not movie
files, but data files used by
computers, and cannot be played for
movies.
5.External card reader supports
most digital cards available in the
market. Readable digital cards are
classified according to the property
of card readers and can be
connected to mobile hard disks
(working voltage 5.0V, working
current not over 500mA).
6. Some time the television operation
may be halted due to excessive rate
of information code errors. In such
case, restart the system. As there are
many nonstandard USB mobile
devices in the market. If this kind of
USB mobile devices are used in the
stream media play system, the
problem of identification failure
might occur. The same problem may
also happen with computers, not
televisions.
7.It is suggested that the external
devices with USB2.0 interface be
used to improve velocity of
information reading and continuity of
information play.
![](asset-1f.png)
28
Stream media system setup
Note: Memory cards or USB devices are not
supplied with this TV.
USB setup
1 Insert USB in the card slots at the left side the TV.
2 Insert it to be clicked in.
3 Press USB button on the remote controller to enter
the stream media system.
CARD setup
SETUP
File Copy
USB
Remove USB
Press ENTER key to play this devices
AAA Multimedia Player
1、Jack of card :Instructions
Jack of SM card
Jacks of SD、MMC、MS card
Jack of CF card
}
}
Jack 1
Jack 2
DIGITAL MEMORY CARD
COMPACT FLASH
128
MB
2、Insert the card as right direction. As following Card in common use
1)CF card:
(jack)
CARD
MULTIMEDIA
128
MB
2)MMC card:
3)MS card:
MEMORY STICK
128MB
4)SM card:5)SD card:
ID 128MB
SD
128MB
This TV is compatible with the card of SD/MMC/CF/MS/SM
format.
How to use
Card
(jack)(jack)(jack)(jack)
Note
1.Please note chooses uses
the digital memory card with
you corresponds the receptacle
2.Card reader in 1 cannot
simultaneously insert two kind
of cards in the graphical
representation position
Note:
1.the card insertion time, after the flows media system starts 2s , insert the card
to numerical code card reader , do not bring card to start flow media system.
2. After card insertion, indicator light will shines, and enters glitters condition,
after period of time , indicator light enters constant bright condition, indicates
already distinguishes finished, this time carries on play operation and so on .
3, In the market ,the digital card type are very many, please uses standard
product of the standard factory , meets reads takes difficult or reads speed
limits, please replaces the digital card.
Stream Media Broadcast System
![](asset-20.png)
29
Removing USB device
1 ¡ü¡ý
press RETURN button to exit menu.
3 Remove the memory card/USB device.
4 If to remove the card device, press RETURN
button to return to the main menu, and
remove the card.
Press up or down to select Remove USB,
and press ENTER button to ensure it.
2
¡ü¡ý
Card data protection
- Do not remove the card/USB device when the content is being read or when
browsing. Such action may damage the memory card/USB device.
- Do not touch the terminals on the back of the card.
- Always insert a card in the correct direction. Failure to do so may result in
damage to the card and the unit.
- Do not subject the card to excessive pressure or strong impacts.
- Malfunctions of the unit or card may result in data loss or damage to the card.
- Haier shall not accept any liability for damage or loss of stored data.
Warning:
Memory cards can be swallowed
by young children. Do not allow
children to handle memory cards.
Please remove the memory card
immediately after use.
SETUP
File Copy
Card
USB
Remove USB
Press ENTER key to remove USB devices
AAA Multimedia Player
Stream Media Broadcast System
![](asset-21.png)
30
1. Press up or down to select the item with up or down.↑↓
2、Press or to select the desired item of submenu
with left or right.
3、Press ENTER button to ensure the desired option、to
enter the submenu、to resume the speed of standard.
4. Press or button to operate play quickly or slowly.
5.Press pause button to make the program stop,and press
again to resume it.
6.Press ZOOM button to make zoom, and press or
or / button to enjoy the detail.↑↓
8、press RETURN button to return to previous menu and
stop play, press RETURN button repeatedly to return to main
menu.
To start the media play
1. Press USB button to enter media play system.
2. Press up or down button
to select the desired option.
3. Press ENTER button to
enter desired option.
4. Press to return the
previous menu.
5. If to exit USB system, you need to return to the main
menu to protection card data.
¡ü¡ý
RETURN
SETUP
File Copy
Card
USB
Remove USB
Press ENTER key to play this devices
To operate the menu
AAA Multimedia Player
7、Press HELP button to call up or exit the OSD information.
And press HELP button to call up or exit the OSD during
operating file copy.
Note: If there are no operation two minute later, the
TV will enter the saver automatically, at the time, press
any button of USB system to exit the saver menu.
Stream Media Broadcast System
USB
ZOOM
RETURN
HELPENTER
![](asset-22.png)
31
1. Press up or down
button to select Picture item.
2. Press ENTER button to
enter the menu of play.
3. Press again up or down
button to select desired
enjoy picture, and then
press ENTER button to enter
the play menu.
4. On screen display, Press
or to select the speed
of play.(Normal, Slow, Fast).
5. Press or button to
swap the picture of next and
previous. Press RETURN button
to return.
↑↓
↑↓
↑
↓
To play picture
JPEG
Play
Slideshow speed :Slow IMAGE
To enjoy the picture detail
1. After selecting the picture to play, press ZOOM to
select desired zoom.
2. Press HELP button to exit the display, and then
press or or or
to move and enjoy the picture detail.
¡ü¡ý¡ü¡ý
To select stream media broadcast system
1.Press up or down button
to select "Card"or "USB".
(The device be inserted
and identified).
2. Press ENTER button to
enter adjusted option.
↑↓
Music
Movie
Music and Pic
F-007 .JPG
F-008 .JPG
F-009 .JPG
F-010 .JPG
F-011 .JPG
F-012 .JPG
To make the picture overturn
0
Each press of button to make overturn 90 with right,
press ENTER button to resume the program playing.
AAA Multimedia Player
AAA Multimedia Player
AAA Multimedia Player
Note:
the play file menu are
different with your USB
devices.
Press ENTER key to play this devices
SETUP
File Copy
Card
USB
Remove USB
Stream Media Broadcast System
USB
ZOOM
RETURN
HELPENTER
![](asset-23.png)
32
1. Press up or down button
to select "Music" option.
2. Press ENTER button to enter
play menu.
3. Press up or down button to
select desired music, and
then press ENTER button to
play music.
Note: The play file menu are
different with your USB device.
4. When playing music,
press up or down to select
play mode, (play mode:
standard, program, Random;
Repeat mode: Disc Repeat,
Folder Repeat, File Repeat)
and press ENTER button to
ensure the mode.
5. When playing music, press
or button to swap the
next and previous music
6. Press RETURN button to exit
the playing.
Note: 1. DISC Repeat mode: press up or down button,
the DISC Repeat will appear on
the screen, and then press
ENTER to ensure it.
2. Program mode:
press or button to select
the music in right list, and press
ENTER button to program in turn,
and then press button to
select "Done", and then press ENTER button
to ensure it.
↑↓
↑↓
↑↓
↑↓
↑↓
To enjoy music
The day went away .MP3
Play mode:standard
The day you went away.MP3
01£º07 / 04£º20
Music
Movie
Music and Pic
AAA Multimedia Player
AAA Multimedia Player
The day went .MP3
Soft .MP3 1:__
2:__
3:__
4:__
5:__
Done
The day went .MP3
Soft .MP3
Stream Media Broadcast System
USB
ZOOM
RETURN
HELPENTER
USB
ZOOM
RETURN
HELPENTER
![](asset-24.png)
33
1. Press up or down button to
select "Movie" option.
2. Press ENTER to enter play
menu.
3. Press again up or down
button to select desired
music, and press again
ENTER button to play it.
4. On screen display, press
or button to select in
turn:
File*-PlayBack Control-Audio
channel-Play Mode
5. Press or button
to set speed, press ENTER button
to resume to standard mode.
6. Press or button to
select the next movie or
previous.
7. Press RETURN button repeatedly
to return.
↑↓
↑↓
To play Movie
E08-8SOBTILES-1
Music
Movie
Music and Pic
AAA Multimedia Player
AAA Multimedia Player
Stream Media Broadcast System
USB
ZOOM
RETURN
HELPENTER
USB
ZOOM
RETURN
HELPENTER
![](asset-25.png)
34
1. Press up or down button
to select "Music and Pic"
option, and press ENTER
button to enter menu.
2. Press up or down to select
desired file, and press
button to ensure it.
( to cancel). Repeat step
2 to select more file, and
press ENTER button to enter
play menu.
3. On screen display menu,
press up or down to select
the speed to play.( Normal,
Slow, Fast).
4. Press or button
to swap the next and previous
picture, press or
button to select the music.
Note: press pause button to
stop playing the picture.
5. Press repeatedly RETURN button
to return.
↑↓
↑↓
↑↓
F-007 .JPG
F-008 .JPG
F-009 .JPG
F-010 .JPG
F-011 .JPG
F-012 .JPG
MP3
The day you went away .MP3
JPEG
Play
Play mode:standard IMAGE
00:01:43
Music
Movie
Music and Pic
AAA Multimedia Player
AAA Multimedia Player
Note: On the music and picture, the playing music
is *.mp3 format.
To select the Music and PIC item
Stream Media Broadcast System
USB
ZOOM
RETURN
HELPENTER
USB
ZOOM
RETURN
HELPENTER
![](asset-26.png)
35
1. Press up or down to select
"File Copy" item.
2. Press ENTER button to enter
the copy menu.
3. Press ENTER button to
enter the file menu, and
press up or down button to
select "Card" or "USB"。
4. Press ENTER button to enter
Card or USB, and select the
files to copy, then press
HELP button to call up COPY
and PASTE, and then press
/ button to select
COPY, and press ENTER button
to confirm, press again
/ button to select
PASTE, then press
ENTER button to paste, in this
time, the "File already exits,
overwrite it?"will appears
on the screen, and press
or button to select
YES/NO, and then press ENTER
button to confirm.
5. Press ENTER to cancel.
↑↓
↑↓
↑↓
↑↓
Copy file function
Card
Select source Port:
USB
F-007 .JPG
F-008 .JPG
F-009 .JPG
F-010 .JPG
F-011 .JPG
F-012 .JPG
Root
F-007 .JPG
F-008 .JPG
F-009 .JPG
F-010 .JPG
F-011 .JPG
F-012 .JPG
Root COPY
PASTE
Press ENTER key to enter COPY menu
AAA Multimedia Player
Note:
button to select the
all files;
button to cancel.
SETUP
File Copy
Card
USB
Remove USB
Stream Media Broadcast System
USB
ZOOM
RETURN
HELPENTER
![](asset-27.png)
Generally speaking,to enjoy a clearer picture.We reconmmend that
you use a CATV system or an outdoor antenna.In different places,
the suitable antenna type and position are different.
Note£º
It is recommended that you had better use 75 ¦¸coaxial to remove the
disturbance caused by airwave.
Do not lay the twin-lead cable under the TV set.
You need the suitable coaxial cable. and plug to receive the best picture
and sound.
300 twin-lead cable
75 coaxial cable
Antenna adapter
£¨
£©
additional
purchase
Plug
£¨
£©
additional
purchase
VHF UHF
Mixer
£¨additional
purchase£©
+
+
AC power socket
Antenna input
£¨75 standard
coaxial type£©
AC cable
Connecting Additional Equipments
Antenna connection
ANT.
36
![](asset-28.png)
37
Output signal
VCR
Video output
Audio output
TV
ANT.
DVI IN
D-SUB IN VIDEO
OUT
S-VIDEO
IN
VIDEO
IN
Y
R-AUDIO-L
OUT
POWER WOOFER Cb/Pb Cr/Pr R-AUDIO-L
OUT
L - HD- R
IN
L -V/S- R
IN
PC/DVI
AUDIO IN
VIDEO
OUT
R-AUDIO-L
OUT
TV/AV:All source inputs
S-VIDEO:S-VIDEO input
DVD/DTV:YUV input
PC/DVI:PC and DVI input
Connecting Additional Equipments
Some additional equipments could connect with this set. There is some
description about this following. You could check the input after the
connection.
Note:
You could also use the TV/AV button on the front panel of the TV to change the inputs
How to connect the signal with other equipments
DISPLAY
MUTE STILL
I/II
PIC.SIZE
TV/AV
S-VIDEO
DVD/DTV
PC/DVI
OK
Q.VIEW
CH+
CH-
VOL-
VOL+
MENU
PSM
123
456
789
-/-- 0
ZOOM/MOVE
USB
PIP SWAP SCAN
CH.EDIT
SHUTTLE
SLEEP
H.LOCK
TIME.SKIP
ZOOM
RETURN
S
SM
HELPENTER
![](asset-29.png)
VCR
VCR
S-VIDEO VCR
DVD digital box
(DTV-STB)
DVD Player
S-VIDEO output
Y、Pb,Pr
output
Video output
Audio output
Y
Pb
Pr
38
ANT.
DVI IN
D-SUB IN VIDEO
OUT
S-VIDEO
IN
VIDEO
IN
Y
R-AUDIO-L
OUT
POWER WOOFER Cb/Pb Cr/Pr R-AUDIO-L
OUT
L - HD- R
IN
L -V/S- R
IN
PC/DVI
AUDIO IN
S-VIDEO
IN
VIDEO
IN
L -V/S- R
IN
ANT.
DVI IN
D-SUB IN VIDEO
OUT
S-VIDEO
IN
VIDEO
IN
Y
R-AUDIO-L
OUT
POWER WOOFER Cb/Pb Cr/Pr R-AUDIO-L
OUT
L - HD- R
IN
L -V/S- R
IN
PC/DVI
AUDIO IN
Y Cb/Pb Cr/Pr L - HD- R
IN
Video output
Connecting Additional Equipments
How to connect the video input terminal
Output signal
How to connect the component input terminal
Output signal
![](asset-2a.png)
39
ANT.
DVI IN
D-SUB IN VIDEO
OUT
S-VIDEO
IN
VIDEO
IN
Y
R-AUDIO-L
OUT
POWER WOOFER Cb/Pb Cr/Pr R-AUDIO-L
OUT
L - HD- R
IN
L -V/S- R
IN
PC/DVI
AUDIO IN
PC/DVI
AUDIO IN
D-SUB IN DVI IN
Connecting Additional Equipments
How to connect the PC input terminal
Note:
The computer above is just an example
The other equipments and coaxial are not included in the TV set
PC input terminal is the DDC1/2B. If the computer is not provide
with DDC1/2B,you should adjust it when connecting.
Some models of PC can not be connected with this TV set
The D-sub 15P terminal of DOS/V need not adapter for the computer
The H/V scan frequence can not exceed the regulate range.
![](asset-2b.png)
Screw hole
Woofer installation
External speaker
40
Connecting Additional Equipments
External speaker installation
1. Face the LCD screen upside down on a clean blanket or a bracket and pay
attention not to indent the casing. Lay the two speaker aside of the LCD.
2. Lay a bracket on the speaker and hind
rind, Fix 4 screws to the speaker and
hind rind.
3. Connect the speaker cable to the speaker
terminal of LCD TV and the speaker terminal,
and insert the connecting cable into the terminal
slot, Release the speaker terminal, and ensure
that the white connecting cable is inserted in the
terminal slot marked red and black connecting
cable is inserted in the black terminal slot, and
that anode and cathode poles are correctly
connected.
1. Take the woofer out, and place it the hind rind. (See picture)
2. Connect cable to the woofer terminal and
LCD TV terminal.
Note:It is not suitable for L26A9-AK
Note:It is not suitable for L26A9-AK
Woofer
![](asset-2c.png)
41
Determine and try to solve the problems of your television by yourself before
applying for technical assistance by authorized after-sales service.
Do not leave the television with static picture in an extended period as it may
result in residual image on your television screen.
Troubleshooting
No picture, no sound Verify if the television is properly plugged.
Verify if the television is properly supplied power.
Verify if electricity is available.
Blank screen Verify if correct signals are input.
Press TV/AV button to change signal input to TV input.
Restart the television of power supply is interrupted.
No sound
Press Mute button and verify if Mute mode is set.
Switch to other channel and verify if the same problem
happens.
Press VOL+ button to see if the problem can be solved.
Poor sound Verify if sound system is correct. Refer to some chapter
for adjust.
No picture in some
channel
Verify if correct channel is selected.
Adjust the antenna.
Make adjustments by Fine Tune and Manual Search.
No color for some channel
program (black and white)
Verify if the same problem exists in other channels.
Check out of picture and sound systems.
Refer to relative instructions in the Manual for color
adjust.
Spots with some or
all pictures
Verify if the antenna is correctly connected.
Verify if the antenna is in good condition.
Make fine adjustment of channel.
Television out of control
Disconnect the television from power supply and, 10
seconds later, connect the television to the power supply.
If the problem still exists, contact authorized after-sales
service for technical assistance.
Note£º
Design and specifications are subject to change without notice.
The dimension in this manual is a approximation.
Troubleshooting
![](asset-2d.png)
Specification
Model L37A9-AK/L37A9-AKF
Power ~150V-240V£¬50/60Hz
Power
consumption Average£º180W
standby consumption£º<3W
LCD screen
size£º37.02 inch (94.03cm)
viewing angel£º>170¡ã
System
PAL £¬ DK£¬I£¬BG
NTSC 3.58
NTSC 4.43
PAL 50£¬PAL 60
TV
Condition
Working temperature
Working humidity
Store temperature
Store humidity
5¡æ - 35¡æ
20£¥ -80£¥
-25
5
¡æ - 45¡æ
£¥ -90£¥
Connection
terminal
Video (RCA) 1.0Vp-p (75ohm)
S-video(Mini D2N4£© Y
£©
¡À
1.0Vp-p (75ohm) C 0.286Vp-p(75ohm)
Audio L-R(RCAX2 0.5Vrms
Y 1.0Vp-p
PbPr 0.35Vp-p
VGA Analog RGB 0.7Vp-p;75ohm,TTL
DVI DVI-D
USB 2.0
1151mm mm mmX124 X664
42
}
Video
L26A9-AK
861mmX300mmX526mm
(stand including)
Average£º140W
standby consumption£º<3W
size£º26 inch (66.03cm)
viewing angel£º>170¡ã
Following are some reference specifications, which may vary from
that of the television that you have just purchased due to technical
innovations.
Design and specifications contained in the manual might vary due to
technical innovations.
Dimensions
(WXDXH)
Accessory
User's Manual
Remote control
Electric cord
Warranty card
External speaker
Woofer
User's Manual
Remote control
Electric cord
Warranty card
Warranty card is only for the special countries and areas.
![](asset-2e.png)
43
Input mode Refurbish frequency(Hz) Remark
640x480 60
800x600 60 , 75
1024x768 60 , 75
/
Resolution Vertical(Hz) Horizontal(KHz) Clock(MHz)
60 31.5 25.2
640x480 75 37.5 31.5
60 37.9 40.0
800x600 75 46.9 49.5
60 48.4 65.0
1024x768 75 60.0 78.75
1600x1200 60 75.0 162.0
Specification(continued)
DVI supporting
PC supporting
![](asset-2f.png)
01
0090507703
