NAUTIZ X2 User Manual
- 1 -
1 Introduction
1.1 Appearance of NAUTIZ X2

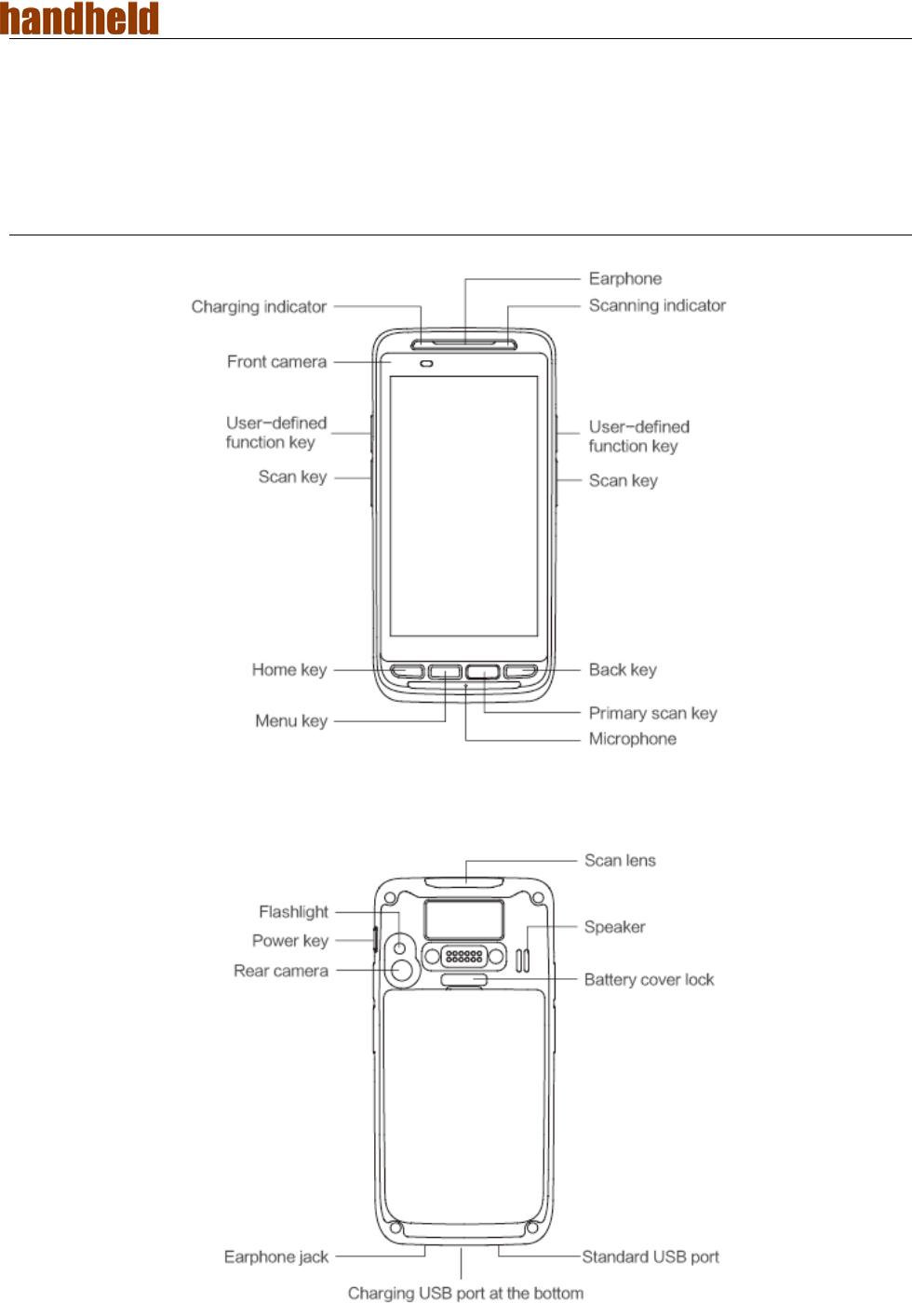

Figure 1-1 Front view of NAUTIZ X2
Figure 1-2 Rear view of NAUTIZ X2
NAUTIZ X2 User Manual
- 2 -

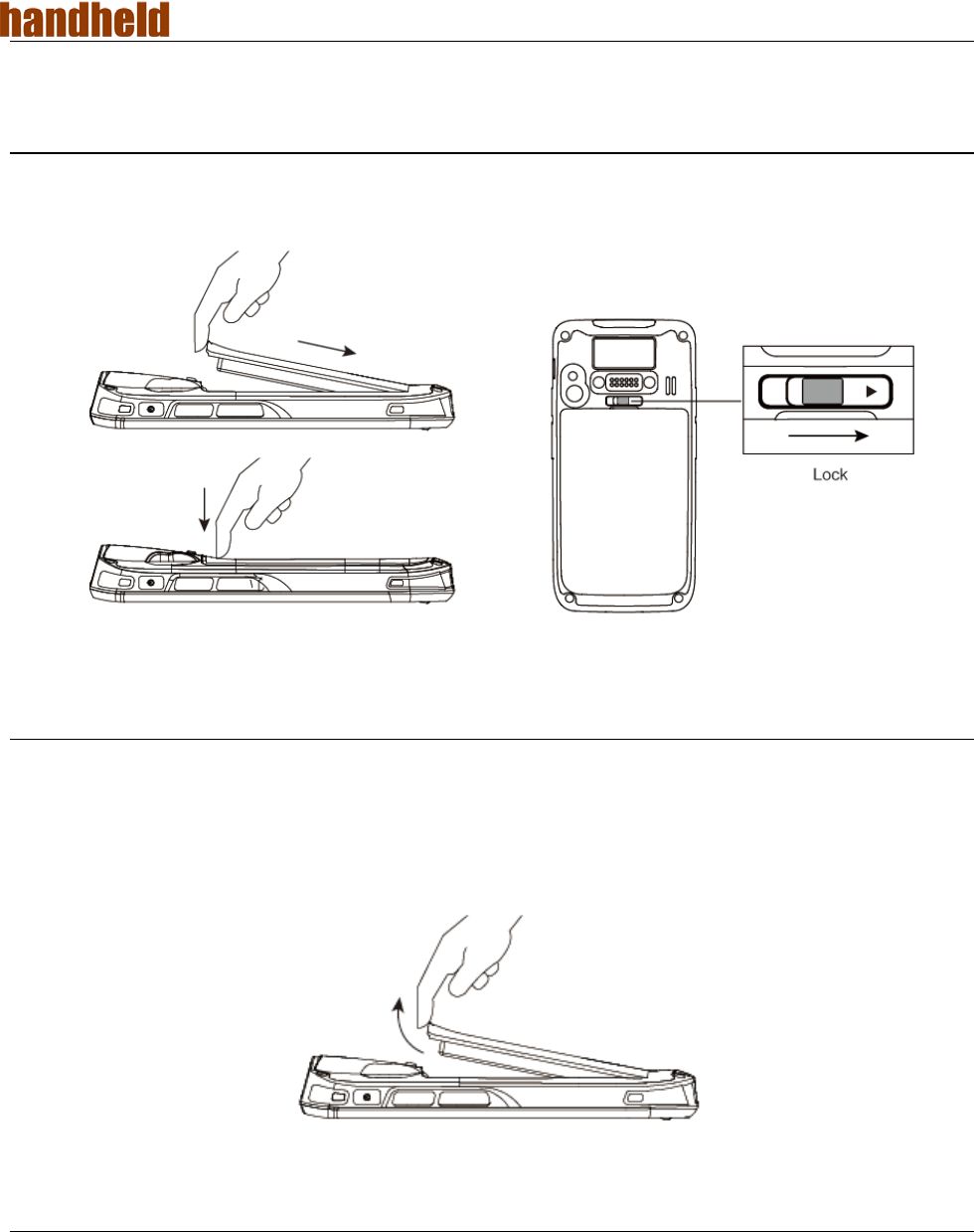

1.2 Installing the Battery
1. Push the battery to the bottom of the battery compartment and press it downwards.
2. Push the battery cover lock to the right to lock the battery cover.
1.3 Removing the Battery
1. Push the battery cover lock to the left.
2. Pull up the battery cover from the groove at the upper end of the battery cover.
(Note: The NAUTIZ X2 adapts integrated design for the battery and battery cover.)

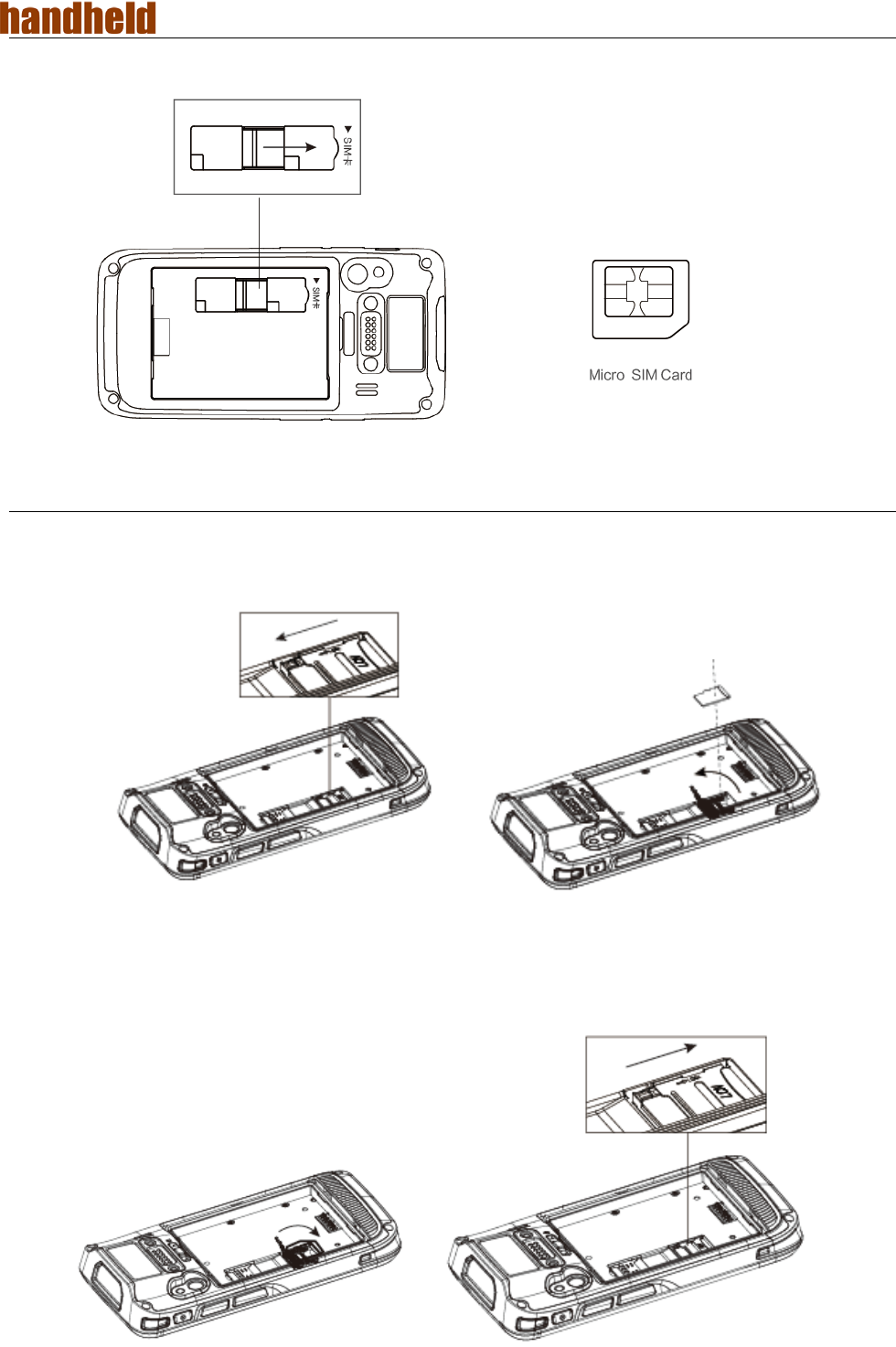

1.4 Inserting a SIM Card
1. Insert a SIM card by following the direction in the figure below.
(Note: Micro SIM cards are applicable to the NAUTIZ X2. After replacing a SIM card, restart
the NAUTIZ X2.)
NAUTIZ X2 User Manual
- 3 -
1.5 Inserting a TF Card
1. Push the card cover by following the OPEN direction marked on the card cover.
2. Open the card cover upwards and insert a TF card, as shown in the figure below.
3. Close the card cover, as shown in the figure below.
4. Pull back the card cover by following the LOCK direction marked on the card cover.
(Note: TF cads, namely Micro SD cards, are applicable to the NAUTIZ X2. After replacing a TF card,
restart the NAUTIZ X2.)
NAUTIZ X2 User Manual
- 4 -
1.6 Charging
You can charge a battery in the following ways:

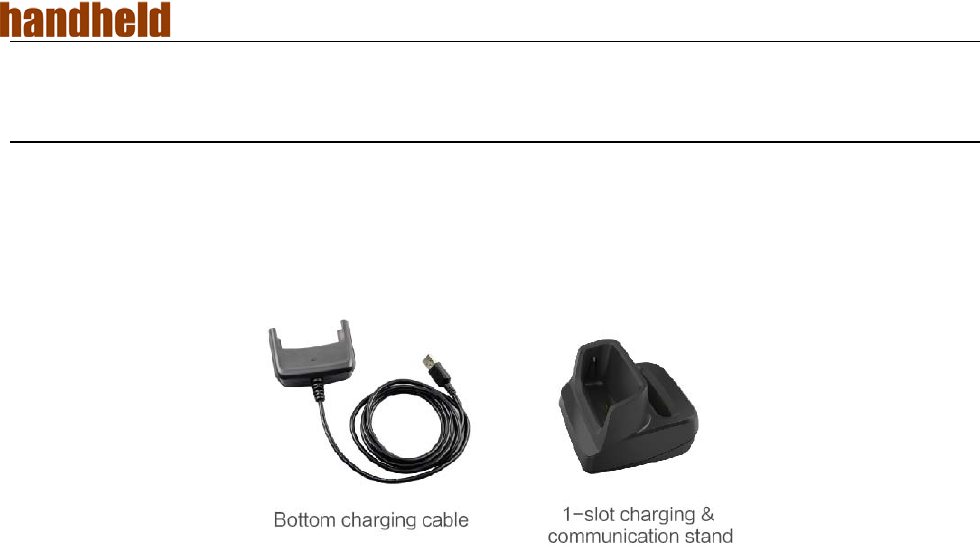

1. Bottom charging cable;
2. 1-slot charging & communication stand (to be purchased separately).
Description of charging indicator:
When the battery is in the charging status, the charging indicator is in red.
When the battery is fully charged, the charging indicator is in green.
When the battery volume is low,
(1) a message indicating that the battery volume is less than 20% is displayed on the
screen.
(2) the NAUTIZ X2 gives out a low battery prompt tone.
(3) the charging indicator blinks in red.
★ Tips
The following operations help obtain a longer standby duration of the NAUTIZ X2.
Shorten the time to sleep by selecting Settings > Display > Sleep.
Set the screen brightness to a small value by selecting Settings > Display > Brightness.
Disable functions that are not frequently used, for example, GPS, Bluetooh, Wi-Fi and 3G
communication.
NAUTIZ X2 User Manual
- 5 -
2 Using the NAUTIZ X2
2.1 Powering On/Off the NAUTIZ X2
After installing a SIM card and a battery and charging the NAUTIZ X2 completely, you can
use the NAUTIZ X2.
1. To power on the NAUTIZ X2, press the On/Off key on the right for some time. The
NAUTIZ X2 vibrates, displays the startup screen and enters the Android OS after the
guide progress is complete. It takes some time for the NAUTIZ X2 to initialize. Please
wait patiently.
2. To power off the NAUTIZ X2, press the On/Off key on the right for some time. A
dialog box that provides shutdown options is displayed. Click Power Off.
2.2 Locking and Unlocking the NAUTIZ X2
Locking the NAUTIZ X2
Press the On/Off key momentarily to lock the NAUTIZ X2. If you do not perform any
operation for the NAUTIZ X2 within the default locking time, the NAUTIZ X2 is automatically
locked.
Unlocking the NAUTIZ X2
Press the On/Off key momentarily and slide the unlock
key to the right on the screen.
2.3 Keys

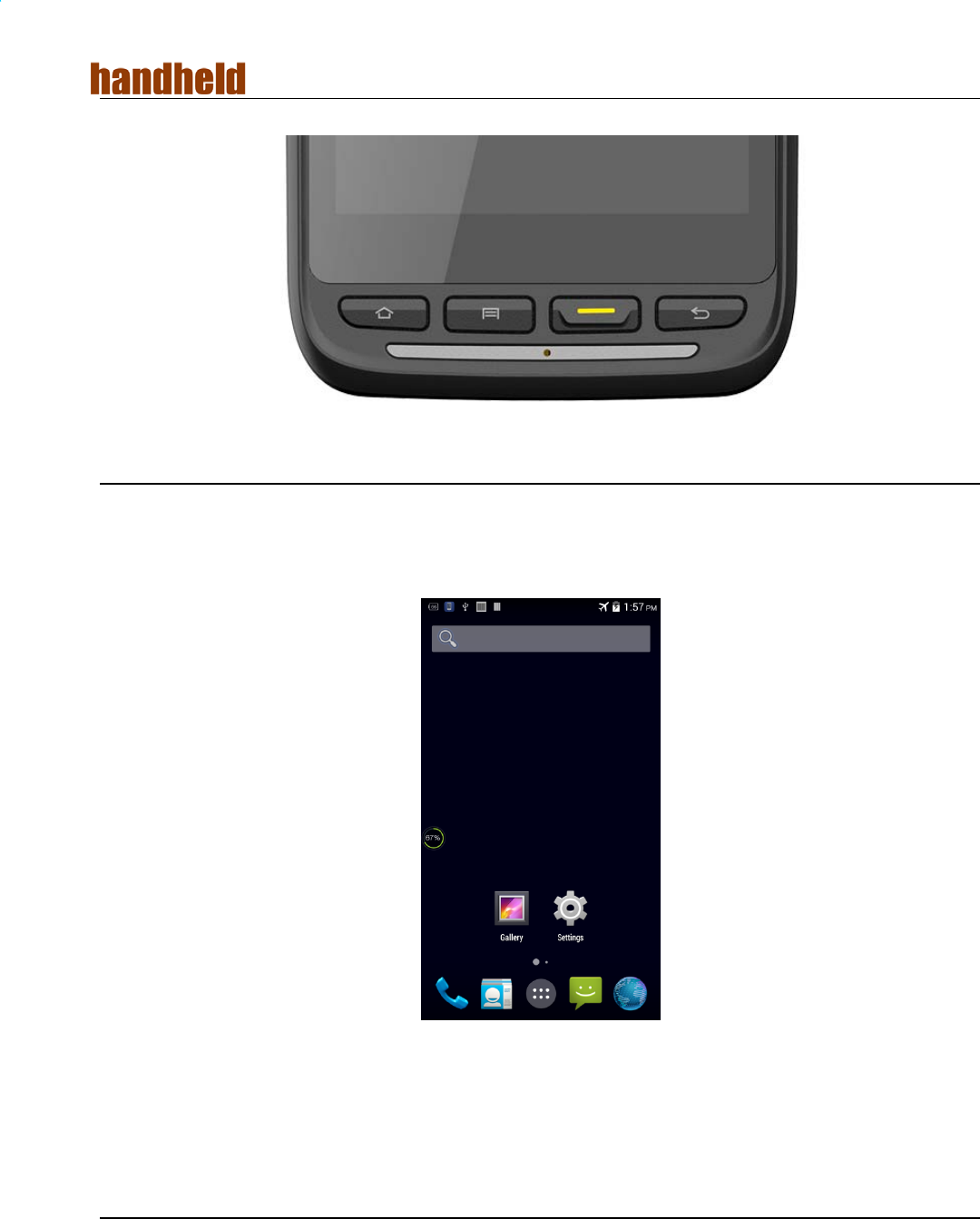

The NAUTIZ X2 provides a physical keypad that consists of four keys, as shown in the
figure below.
On the physical keypad of the NAUTIZ X2, keys are respectively home key, menu key, scan
key, and back key from left to right.
Home key: used to go back to the home screen.
Menu key: used to show menus.
Scan key: used to scan.
Return key: used to return to the previous operation screen.
NAUTIZ X2 User Manual
- 6 -
2.4 Home Screen
By default, the NAUTIZ X2 has one home screen. You can add home screens by placing
applications to the home screen and slide to the left or right to switch to another home
screen. On the home screen, click the icon of any application to open the application.
★ Tips
You can freely add or delete the icon of an application in the blank of the home screen.

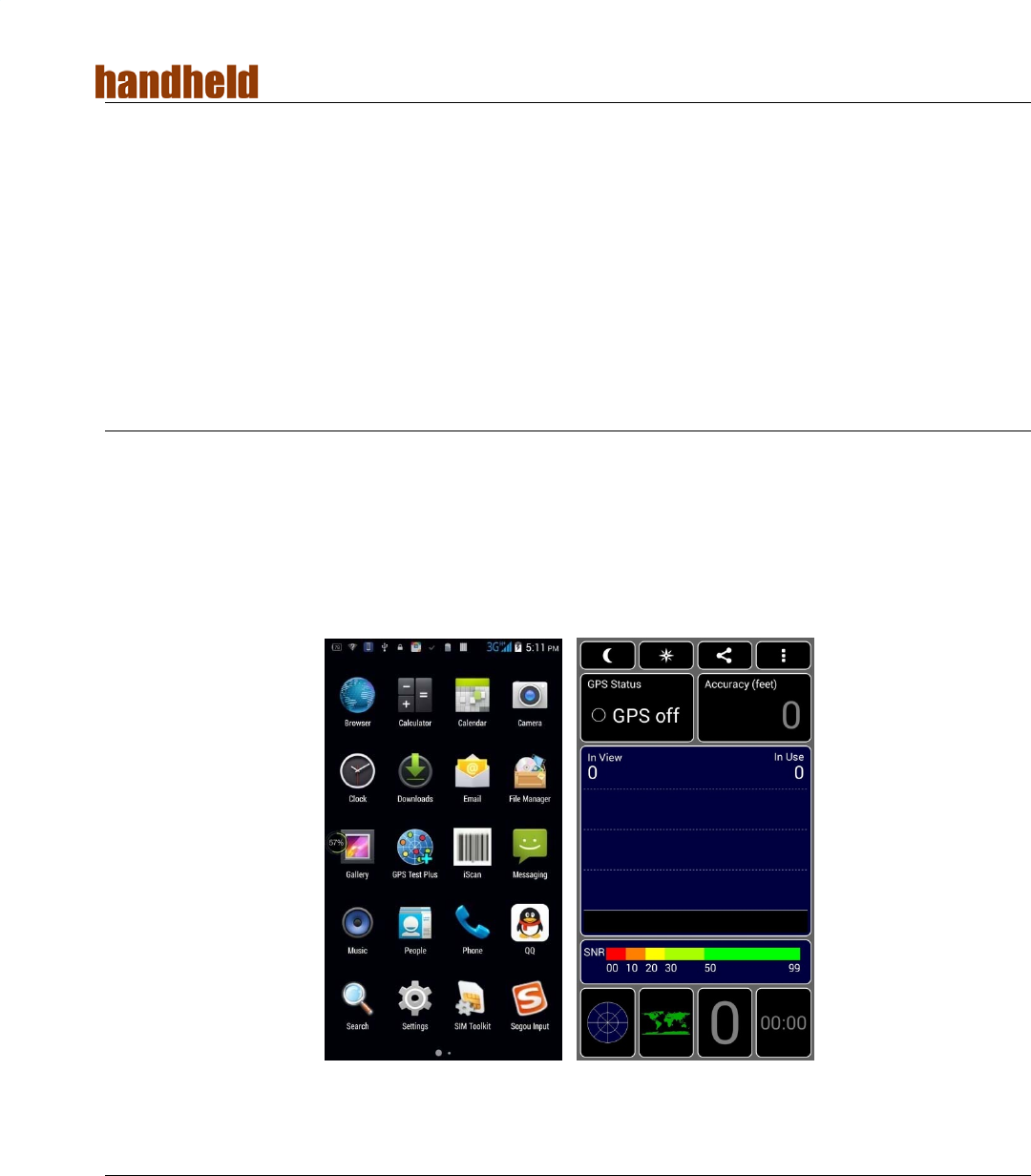

If you click the application tray, all applications can be viewed.
2.5 Status Icons and Indicators
Status icons and indicators are in the status bar at the upper part of the screen and show
device status and notifications.
Return key
Scan key
Application tray
Home key
Menu key
NAUTIZ X2 User Manual
- 7 -

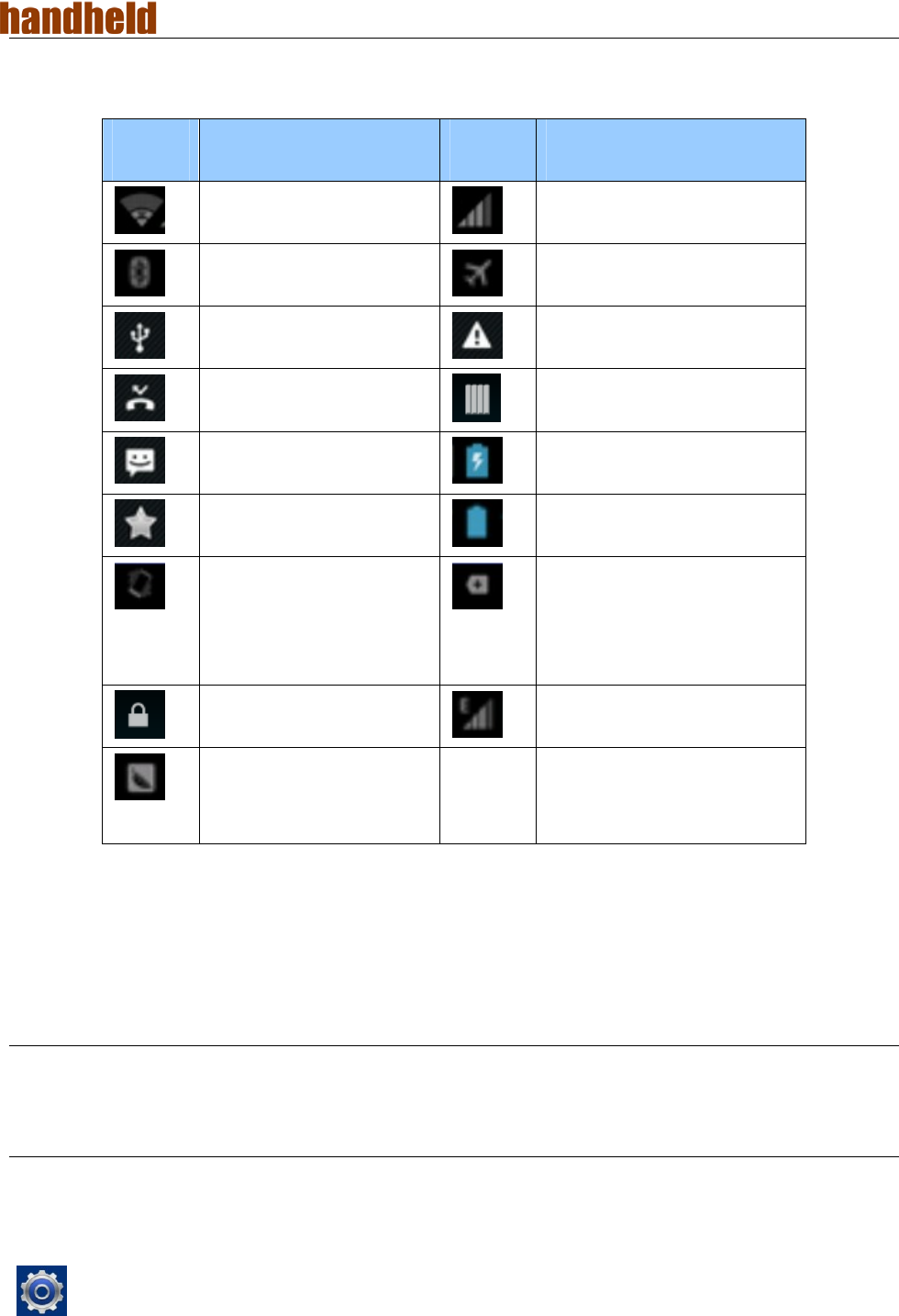

Table 2-1 Status icons
Icon Description Icon Description
WLAN Signal strength
Bluetooth Flight mode
USB connection Network access restricted
Missed calls USB debugging
New messages Charging
Modem logs Battery full
Silent mode Multiple notification icons,
which are beyond the scope
of display
Application permission EDGE
Connection between USB
and PC pea pod
★ Note
As software is upgraded continuously, status indicators may be different from those
displayed on the NAUTIZ X2. The actual status indicators prevail.
2.6 Basic Settings
2.6.1 Date and Time Settings
To change the date and time in the NAUTIZ X2, do as follows:
1. Find the following icon.
NAUTIZ X2 User Manual
- 8 -

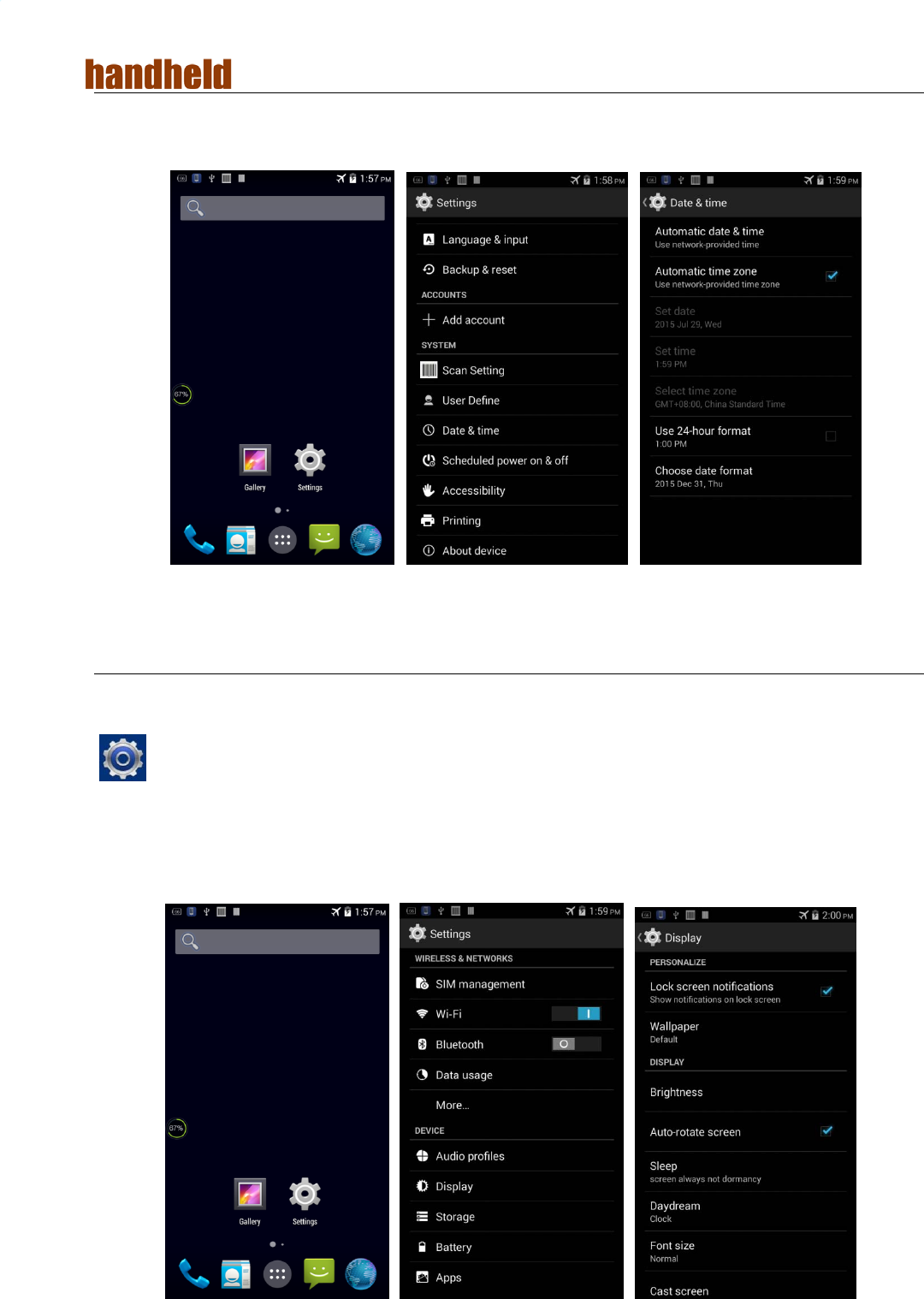

2. Select Settings > Date & time > Set date or Set time.
2.6.2 Display Setting
1. Find the following icon.
2. Select Settings > Display > Lock screen
notification/Wallpaper/Brightness/Auto-rotate screen/Sleep/Interactive
screensaver/Font size/Cast screen.
NAUTIZ X2 User Manual
- 9 -

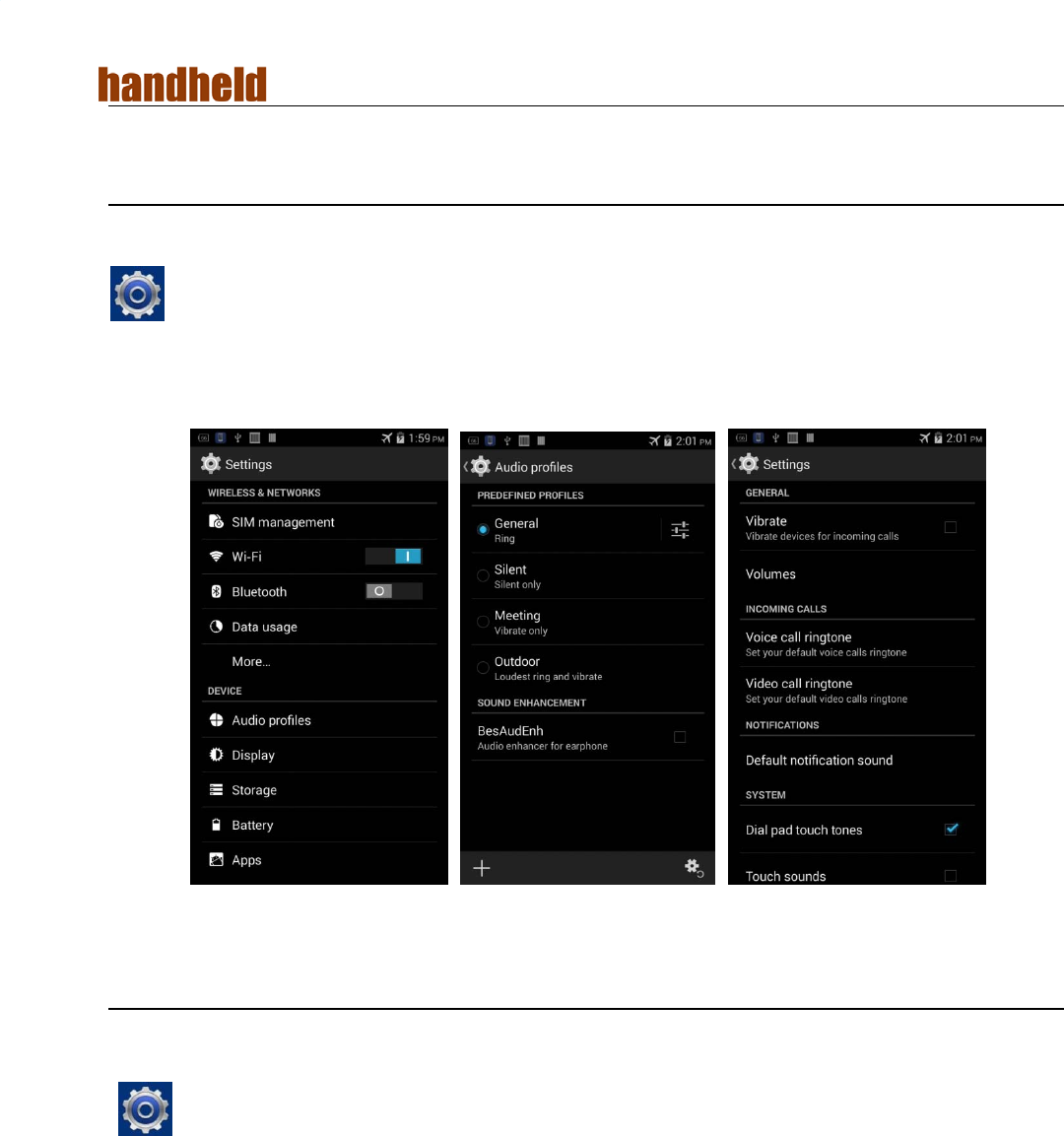

2.6.3 Ringtone Setting
1. Find the following icon.
2. Select Settings > Audio profiles > General/Silent/Meeting/Outdoor. Click different
modes and set the ringtone in the modes.

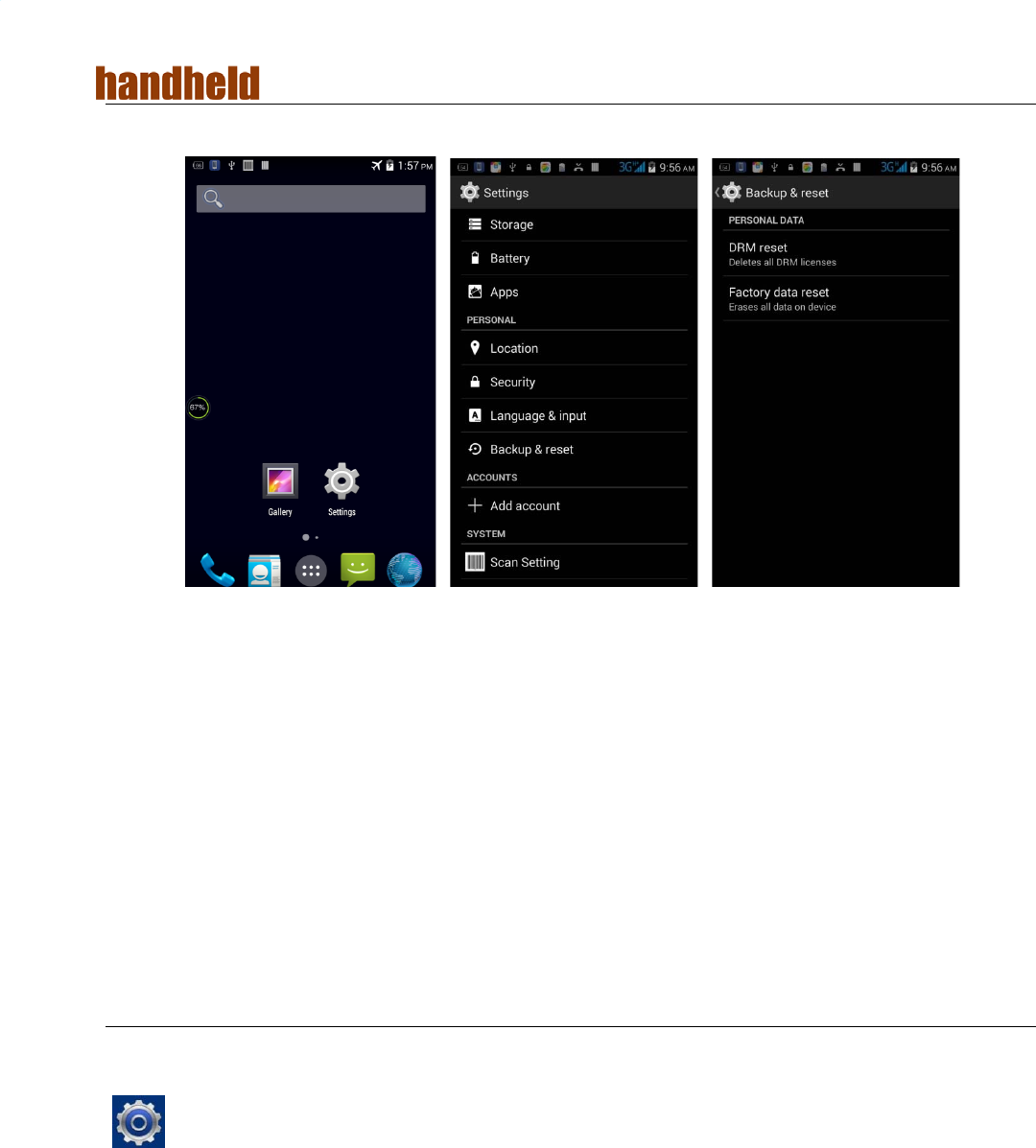

2.6.4 Security Setting
1. Find the following icon.
2. Select Settings > Backup & reset > Factory data reset.
The NAUTIZ X2 starts to restore factory settings.
NAUTIZ X2 User Manual
- 10 -
★ Caution
If you perform the preceding operation, the following data will be cleared:
Account
Data and settings of the system and applications
Downloaded applications
The following data will not be cleared:
Current system software and bound applications
Files in the SD card, for example, music and photos

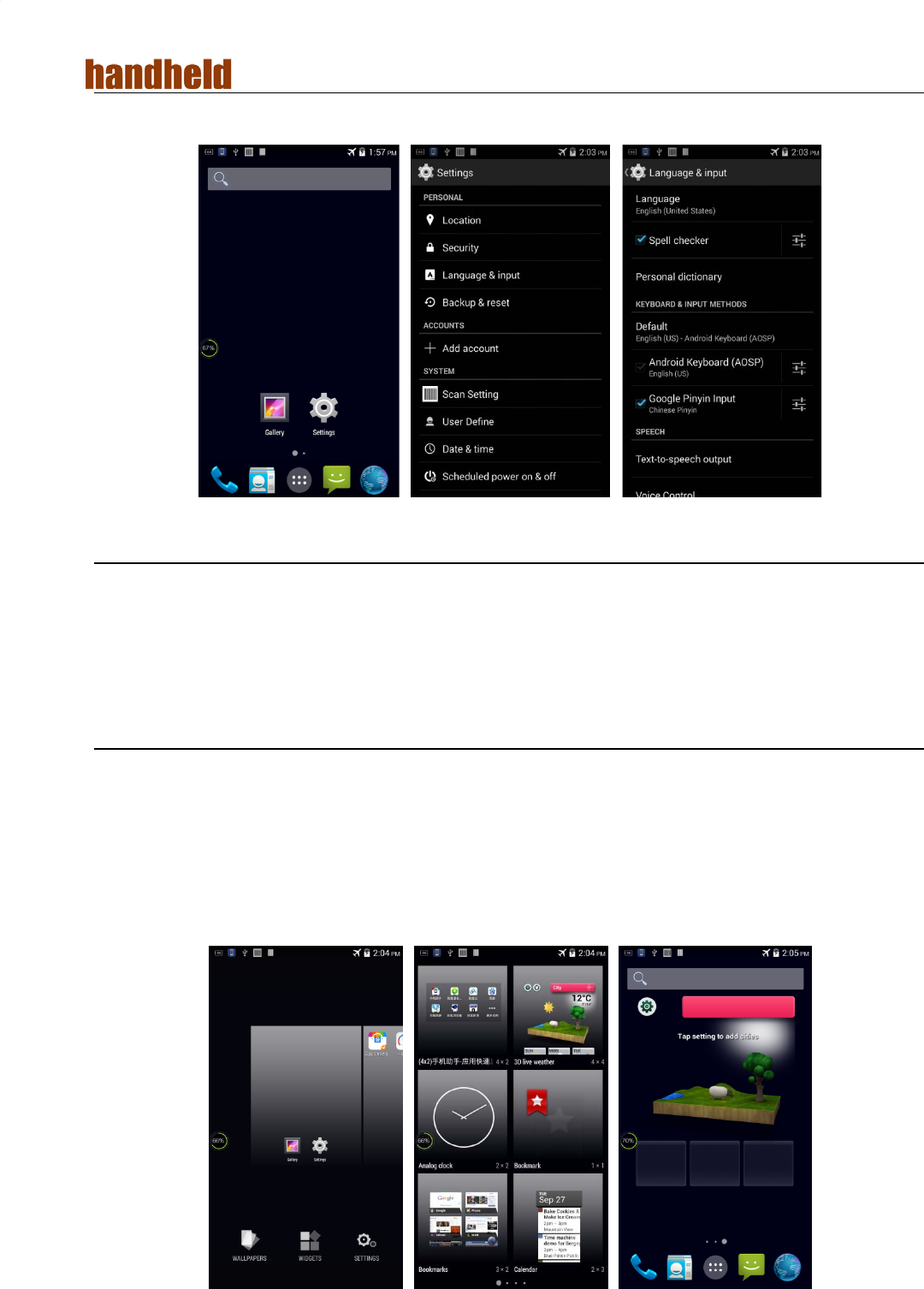

2.6.5 Language and Input Method Setting
1. Find the following icon.
2. Select Settings > Language & input, click Language, select a language, click Default,
and select an input method.
NAUTIZ X2 User Manual
- 11 -
2.6.6 Shortcuts
You can add shortcut icons on the home screen of the NAUTIZ X2.
On the home screen, click the icon of application tray, press and hold an icon and drag it to
the home screen.
2.6.7 Widgets
You can add widgets such as clock, music player and calendar on the home screen of the
NAUTIZ X2.
On the home screen, press and hold a blank space. The entry for setting wallpaper and
widgets is displayed. Click a widget and drag it to a blank space.
Click the icon of a widget to open the widget.
NAUTIZ X2 User Manual
- 12 -
3 Call Function

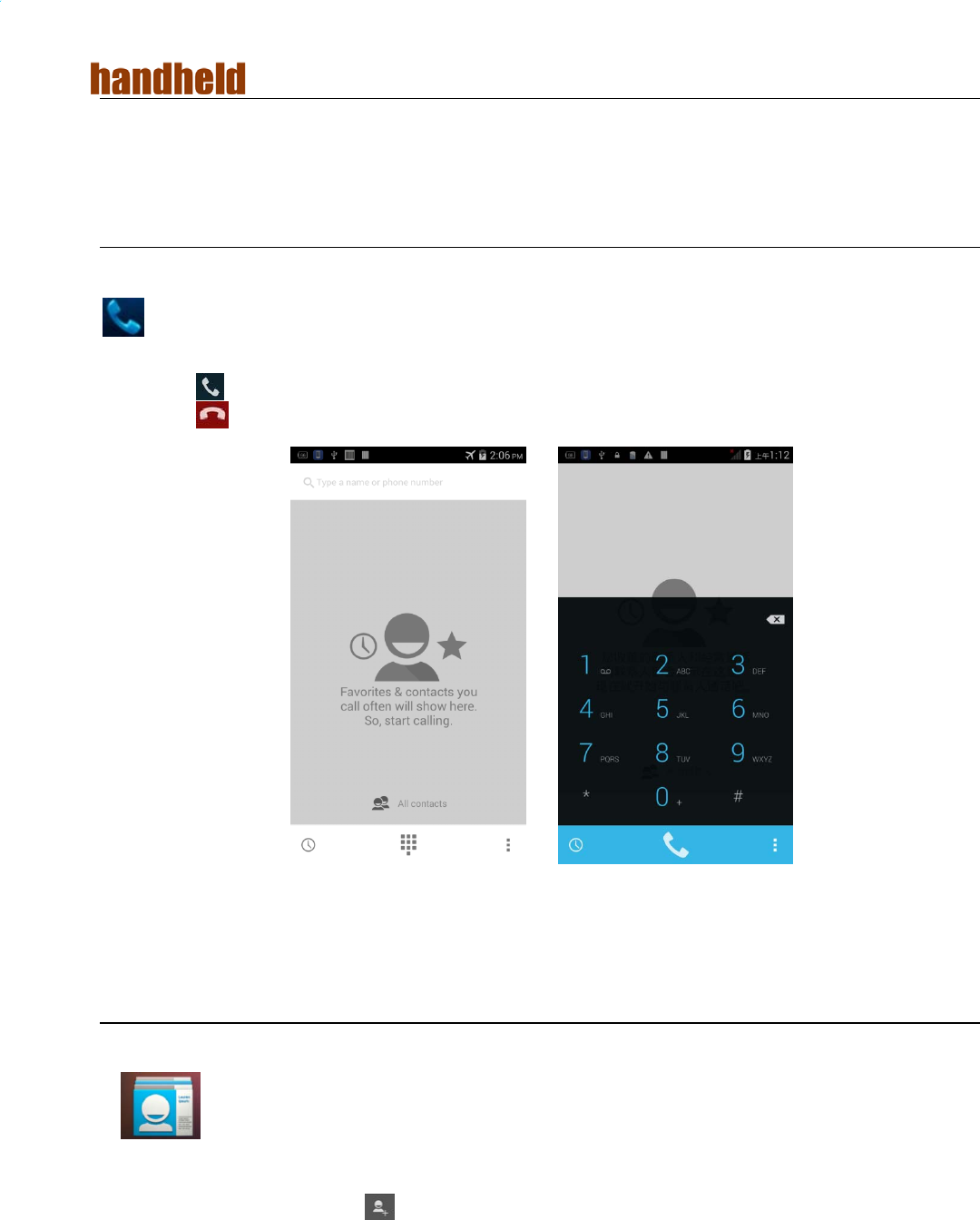

3.1 Making a Call
1. Find the following icon.
2. Enter a phone number.
3. Click to make a call.
4. Click to terminate the call.

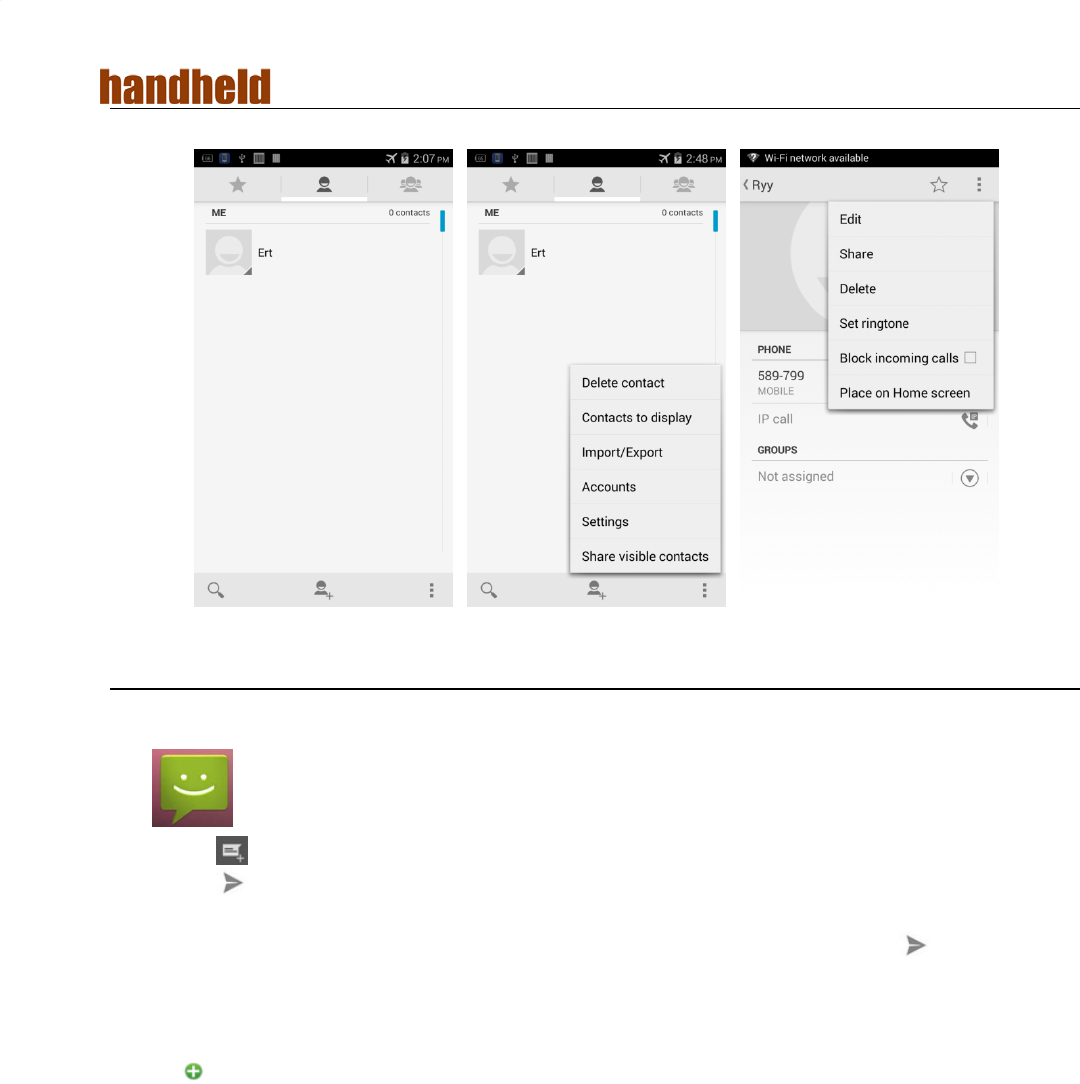

3.2 Contacts
1. Find the following icon.
2. Click Contacts to open the list of contacts.
3. To add a contact, click .
4. To import or export contacts, press the menu key and click Import/Export.
5. To edit or delete a contact, select the contact, press the menu key and click Edit/Delete.
Call records
Contacts
Keypad for dialing Voice call
NAUTIZ X2 User Manual
- 13 -
3.3 SMS and MMS
1. Find the following icon.
2. Click enter a receiver and text to be sent.
3. Click to send the message.
4. On the message editing page, press the menu key, click Add subject to convert the
message into a multimedia message. After editing the message, click to send the
message.
★ Tips
Click to add attachments such as photo, video and audio.
NAUTIZ X2 User Manual
- 14 -

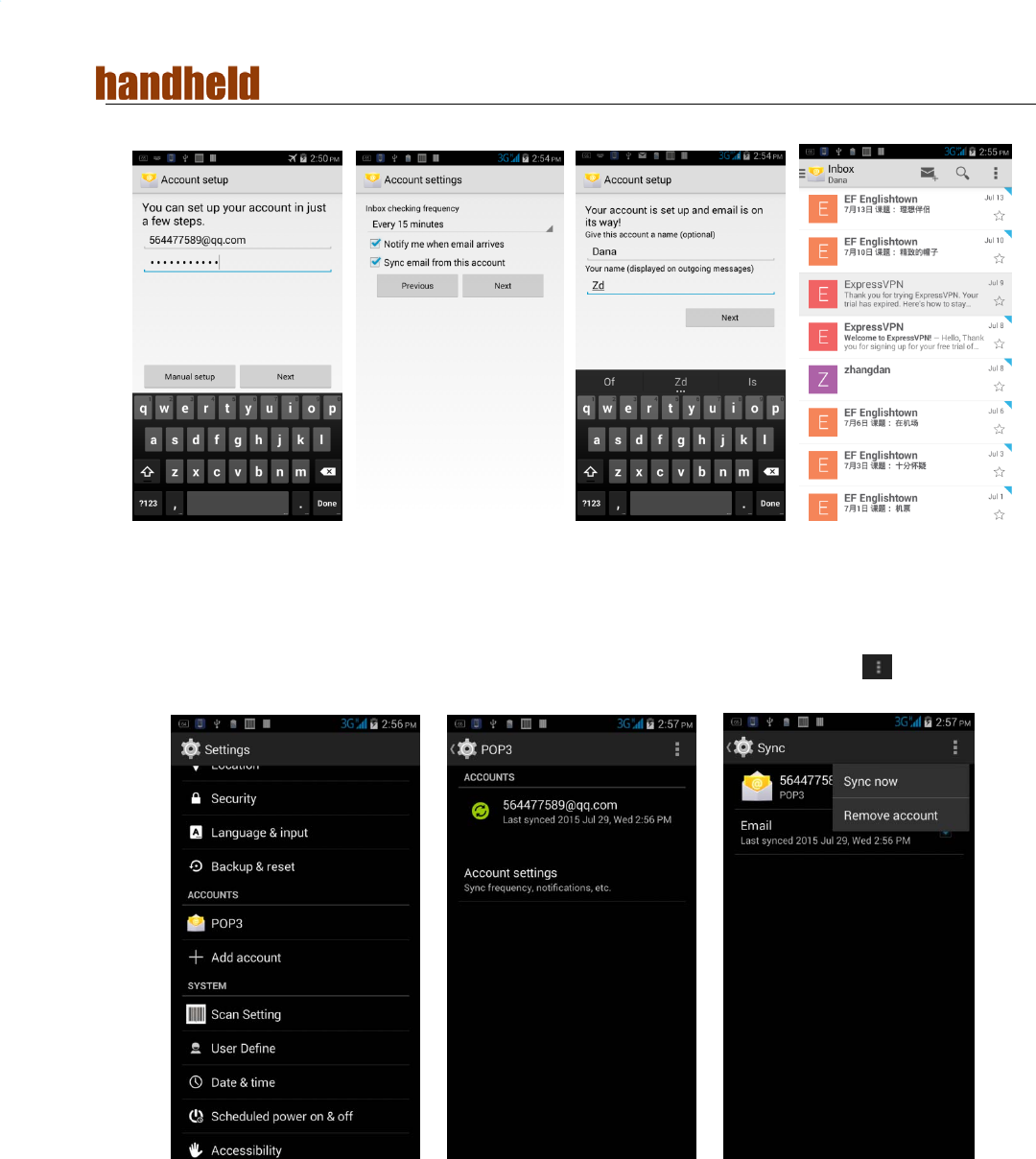

3.4 Email
You can send or receive emails.
★ Note
To create an email account on the NAUTIZ X2, first set the account on a PC. Take a QQ
email account as an example. Log in to the QQ email account, click Settings in the upper
right corner of the email account page, find and select the server option and inbox option
and then save. The email account is set.
To set an email account on the NAUTIZ X2, do as follows:
1. Find the following icon.
2. Enter an email address and password and click Next.
3. Set
Inbox checking frequency and click Next.
4. Create a name for the account and click Next. The email receiving page is displayed.
NAUTIZ X2 User Manual
- 15 -

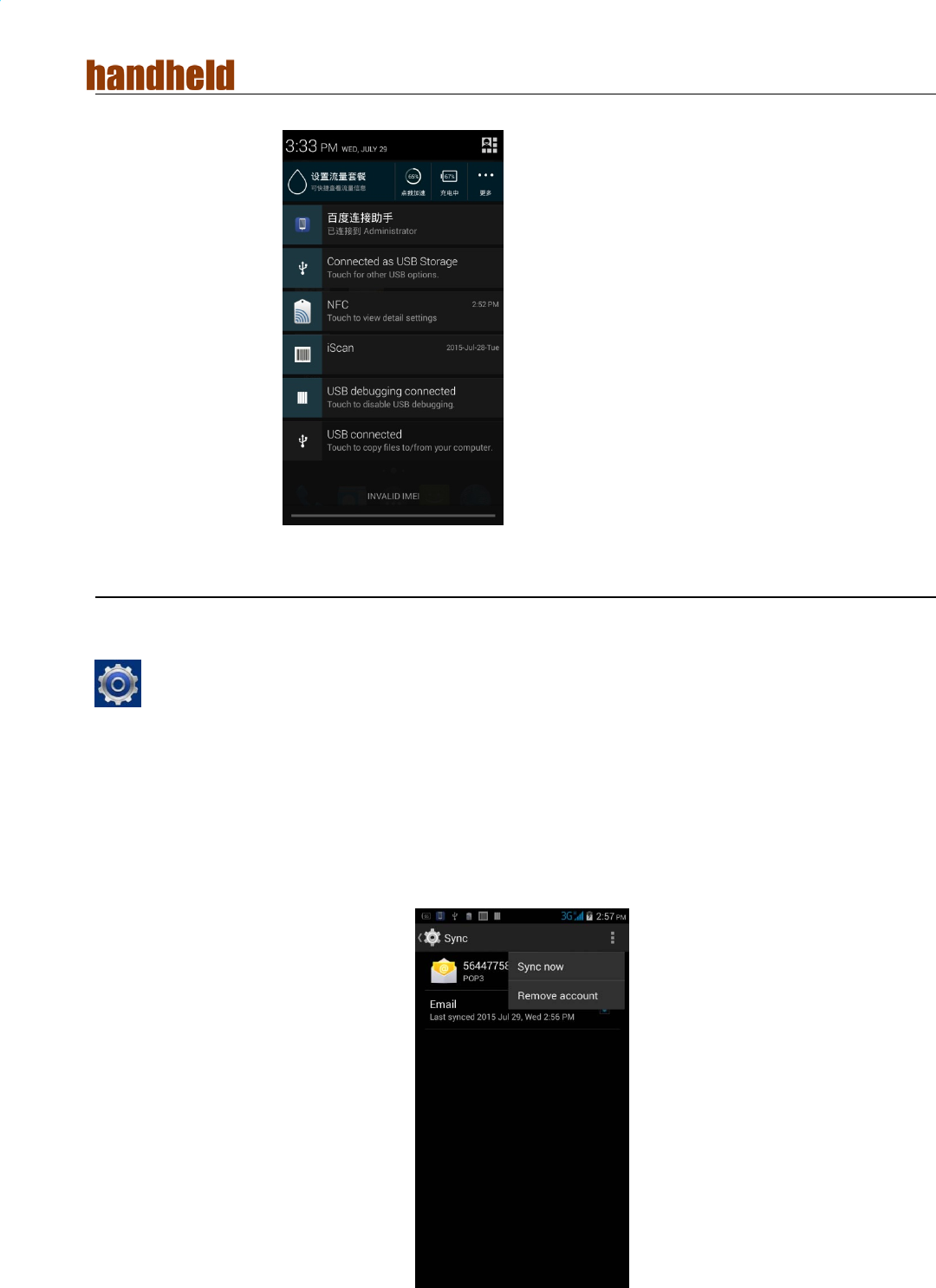

To synchronize or delete an account, do as follows:
1. On the home screen, click Settings.
2. Under the
ACCOUNTS option, click POP3 to open added accounts and click the name
of an account to be synchronized or deleted. On the Sync page, click in the upper
right corner and select Sync now or Remove account.
NAUTIZ X2 User Manual
- 16 -
4 Network Connection and Connection
Synchronization
4.1 GPRS Data Connection

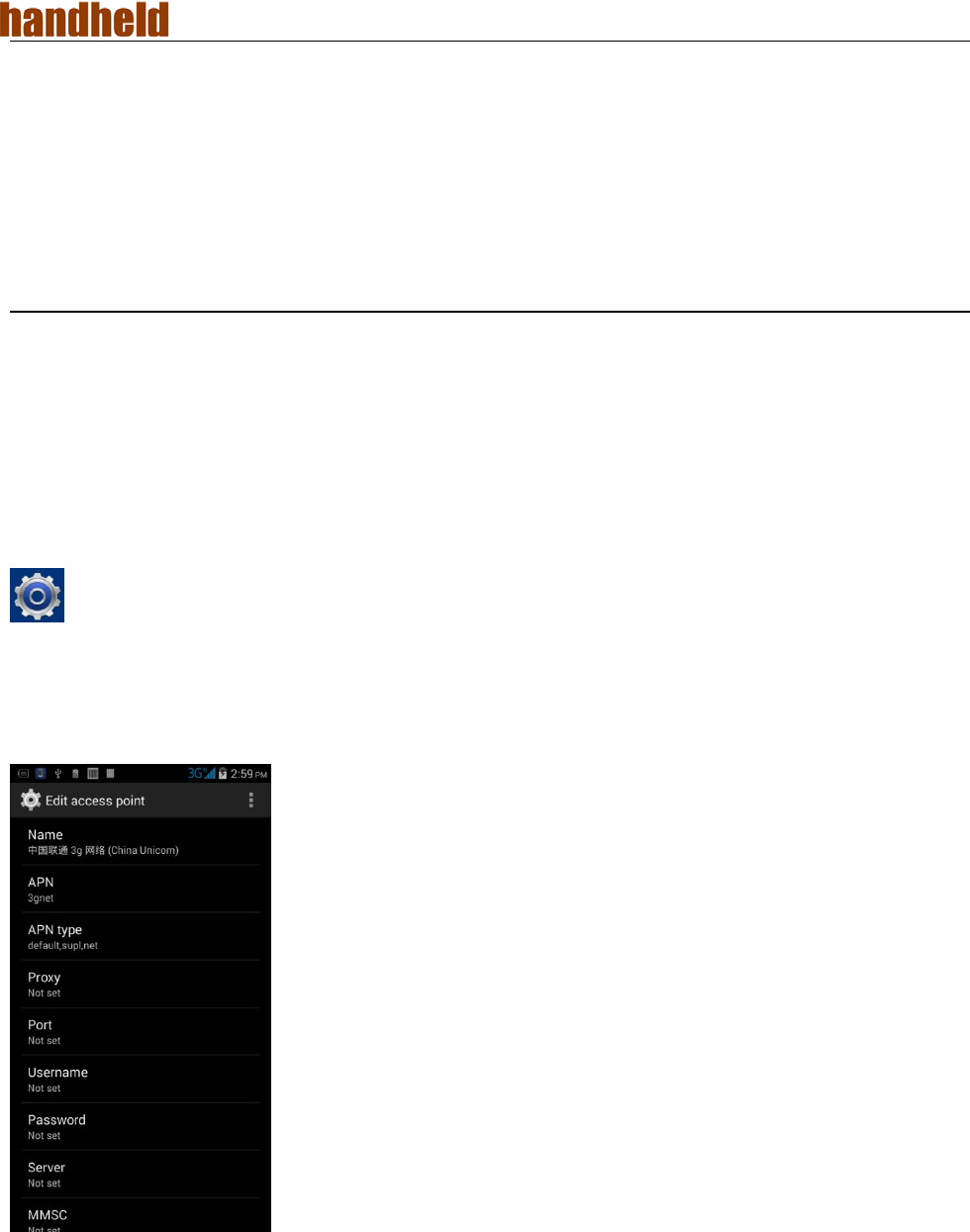

After a GPRS data connection is established, you can access the Internet. To establish a
GPRS data connection, ensure that a SIM card is installed in the NAUTIZ X2. In general,
the Internet access configuration is set on the NAUTIZ X2. If you delete the default
configuration by accident, you can set the network by performing the following steps (take
the network of China Unicom as the example):
1. Find the following icon.
2. Select Settings > More > Mobile network > APN > China Unicom 3G Network.
Then set the following items:
Name: China Unicom 3G network
APN: 3gnet
APN type: default, supl, net
Proxy: not set
Port: not set
Username: not set
Password: not set
Server: null
MMSC: not set
MMSC: not set
MMS port: not set
MCC: 460
MNC: 01
Authentication type: not set
APN protocol: IPv4
Enable/disable APN: APN enabled
Bearer system: not set
NAUTIZ X2 User Manual
- 17 -
4.2 Wi-Fi Network Connection
1. Find the following icon.
2. Select
Settings > WIRELESS & NETWORKS > WLAN.
3. Click
Enable/disable WLAN. The NAUTIZ X2 starts to search for networks. If WLAN is
enabled, click Scan. The NAUTIZ X2 lists networks in the range of search.
4. Click a network and enter the password in the dialog box that is displayed.
5. Click Connect. The Wi-Fi connection is completed.
4.3 Bluetooth
After you enable the Bluetooth function on the NAUTIZ X2, you can establish wireless
connections with other Bluetooth devices such as computers and mobile phones. In the
scope without solid obstacles, the effect of Bluetooth connections is good.
1. Find the following icon.
2. Select
Setting > WIRELESS & NETWORKS > Bluetooth.
3. Click the icon for enabling/disabling Bluetooth to enable Bluetooth and search for other
Bluetooth devices.
4. In the list of searched devices, click a device to pair the device.
Click to connect the network
Click to enable Wi-Fi
and search for networks
NAUTIZ X2 User Manual
- 18 -
5. In the dialog box that is displayed, confirm the PIN and click Pair to connect the device.
6. Click on the right of a paired device. The Rename, Unpair and Internet access
options are displayed. Perform operation as required.

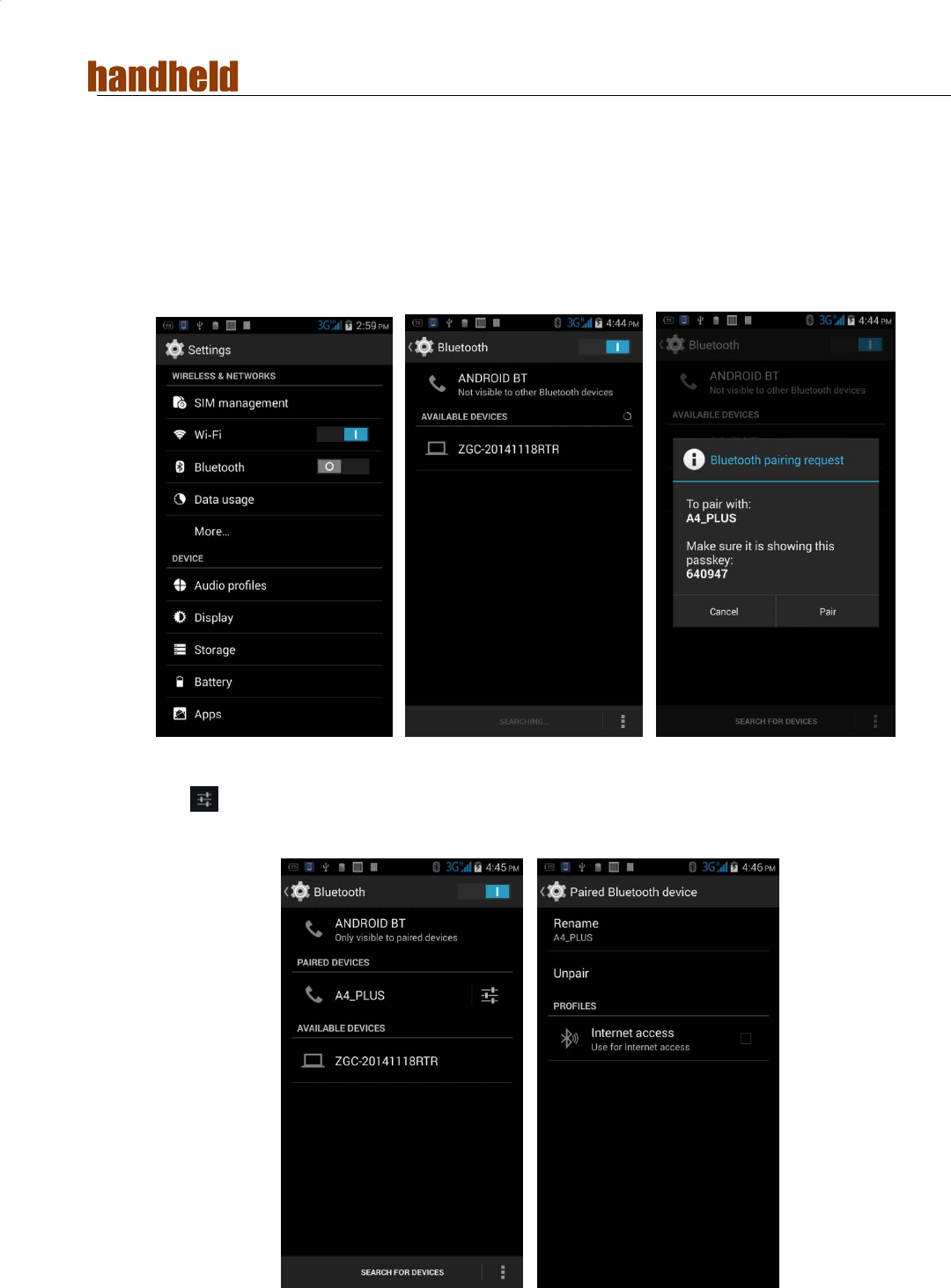

Click to enable Bluetooth and
search for Bluetooth devices
Click to make other devices
able to detect the device
NAUTIZ X2 User Manual
- 19 -
★ Caution
Ensure that the device to be connected to the NAUTIZ X2 has enabled the Bluetooth
function and Bluetooth visibility.
During the connection process, set and pair the PIN. The NAUTIZ X2 does not support
connection without a password.
4.4 GPS
The NAUTIZ X2 is equipped with a high-performance navigation chip and can quickly and
accurately obtain position information. iData provides a GPS positioning demonstration
program GPS Test. Before using GTS positioning, install the demonstration program. You
can download navigation software in HiMarket (for details about how to install GPS
navigation software and information about HiMarket, see 6.1 “Installing Programs”) and
view position information.
4.5 Connecting the NAUTIZ X2 to a PC
Connect the NAUTIZ X2 to a PC by using a USB data cable so that you can transmit and
process files such as photo, video and music files between the memory card of the NAUTIZ
X2 and the PC.
1. Connect the device to a USB port of the PC by using a USB data cable.
2. The status bar of the NAUTIZ X2 displays the USB connection icon. Slide downwards
the status bar. The USB connection status can be viewed and the USB connection
mode can be selected.
NAUTIZ X2 User Manual
- 20 -
4.6 Synchronization
1. Find the following icon.
2. Select
Settings > Accounts & sync.
3. Click
Add account to set a new account.
4. Select
Company or Email, enter the email address and password, click Next and wait
until the connection is complete (for details about email setting, see 3.4 “Email”).
5. Click
Accounts. On the synchronization setting page, perform setting as required.
Click the option to open the USB storage
device and copy files between the PC and
the device
NAUTIZ X2 User Manual
- 21 -
5 Enabling the Scan Function

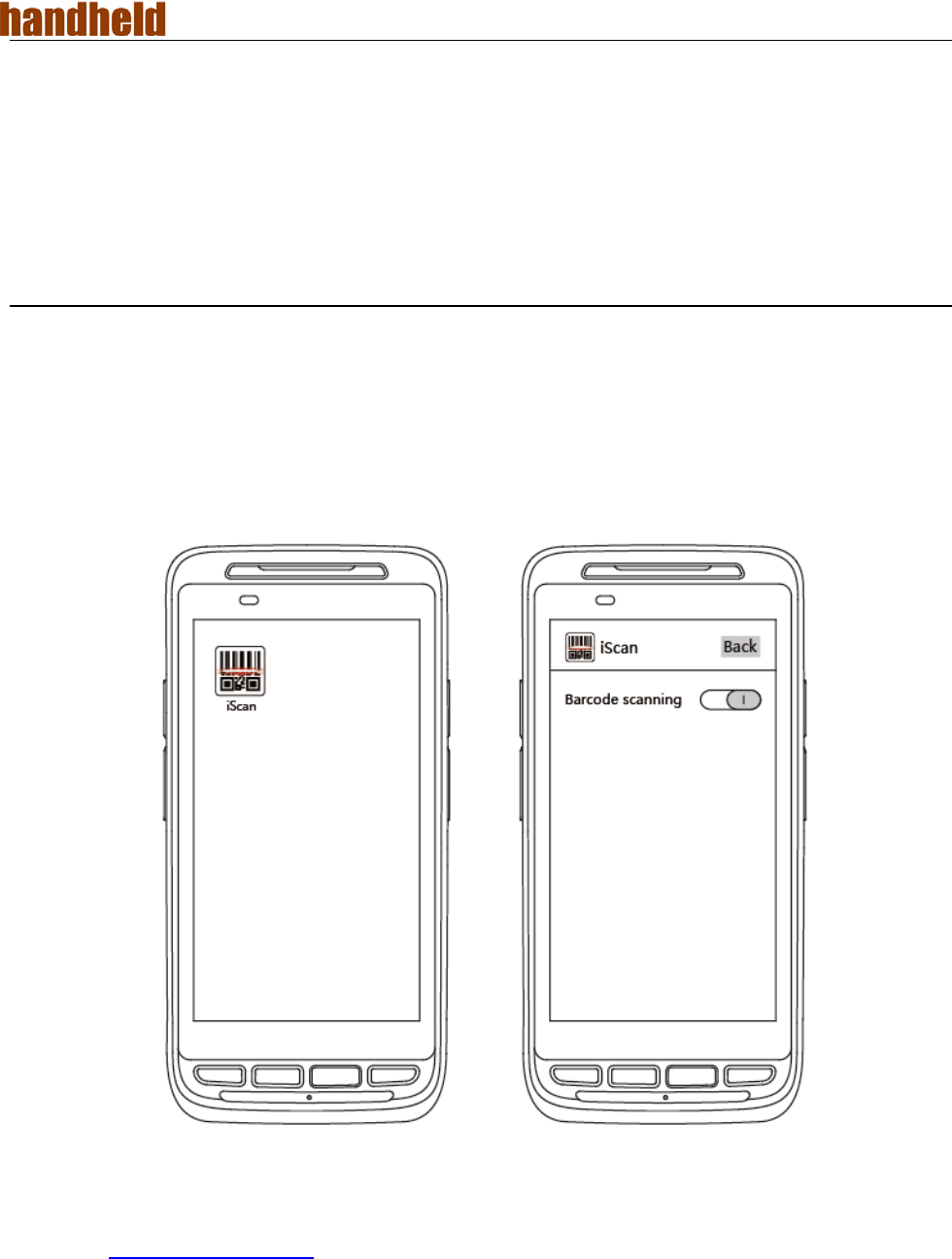

5.1 To start the iScan program and enable scanning, do as
follows:
1. Click the iScan icon on the menu page.
2. Click the blue slider on the right of Enable Barcode Scanning to enable the scanning
function (if you click the slider again, the scanning function is disabled).
3. Press the yellow key to scan a barcode. When the scanning indicator becomes green
from red and a beep is heard, the barcode is scanned successfully.
Note: iScan is used to scan barcodes. By default, iScan is installed and scanning is
enabled upon delivery of the device. You can down the latest version from the following
address: http://t.cn/8k5hWCo
NAUTIZ X2 User Manual
- 22 -
6 Enabling the NFC Function
6.1 To enable the NFC function, do as follows
1. Click the Settings icon on the menu page.
2. Select WIRELESS & NETWORKS/More > NFC.
3. Click the blue slider on the right to enable NFC (if you click the blue slider again, NFC is
disabled).

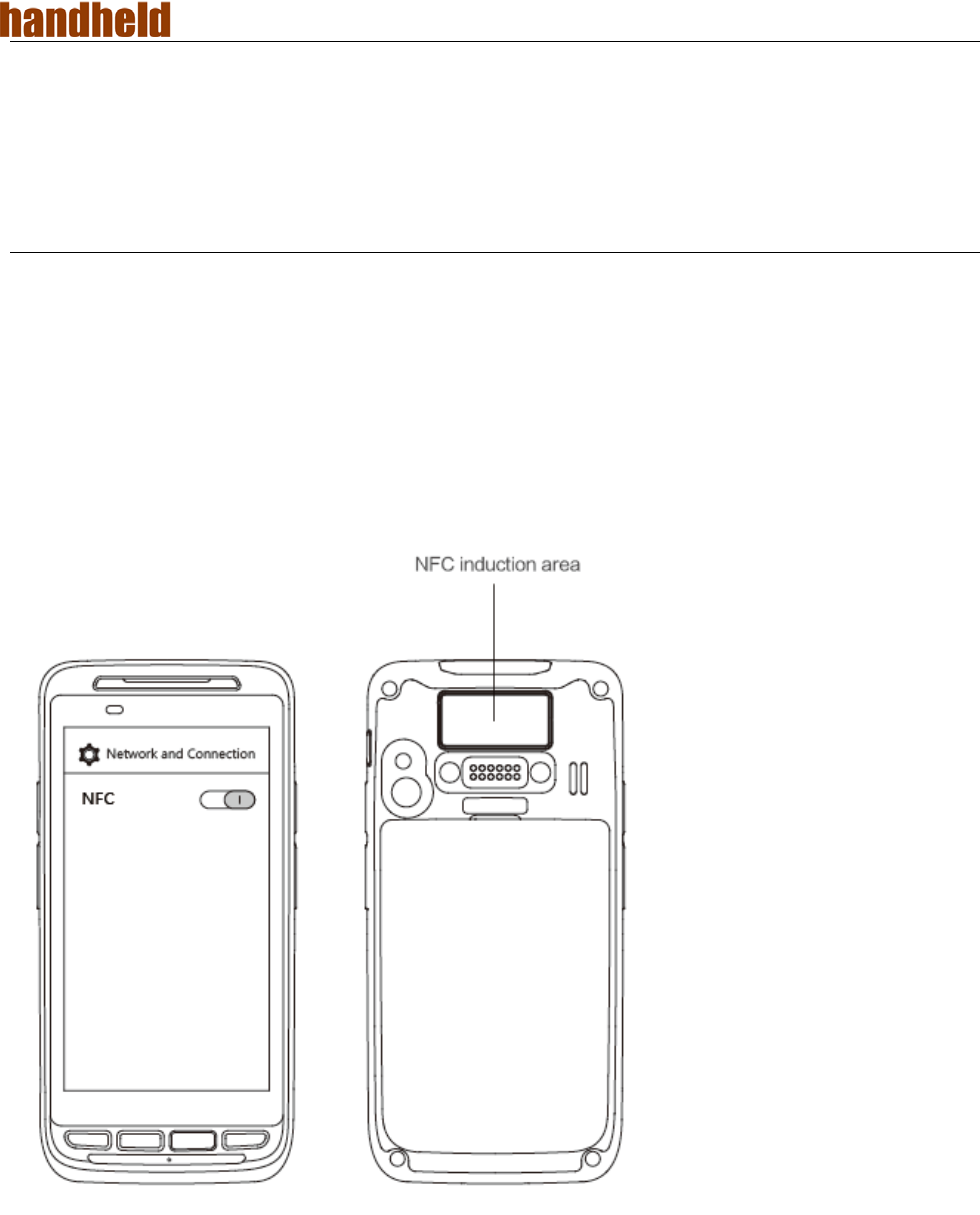

4. Put an NFC card close to the back of the NAUTIZ X2. After a beep is heard, the card is
read successfully.
NAUTIZ X2 User Manual
- 23 -
7 Managing the NAUTIZ X2
7.1 Installing Applications
The NAUTIZ X2 uses Google Android OS, where the suffix of Android software is apk. To
install programs on the NAUTIZ X2, use the following methods:
1. Download software at the online software store (Google Play) provided by Google or on
the Android software download platform (HiMarket) available in China and install
software. HiMarket is recommended.
2. Download software installation packages, store them on the SD cad and install the
software through file manager.
3. Connect the NAUTIZ X2 to a PC by using a USB data cable and install software for the
NAUTIZ X2 on the PC. However, first of all, you need to install phone assistant software
such as APK install, pea pod and phone assistant 91. In this way, programs can be
installed in batches.
7.2 Uninstalling Applications

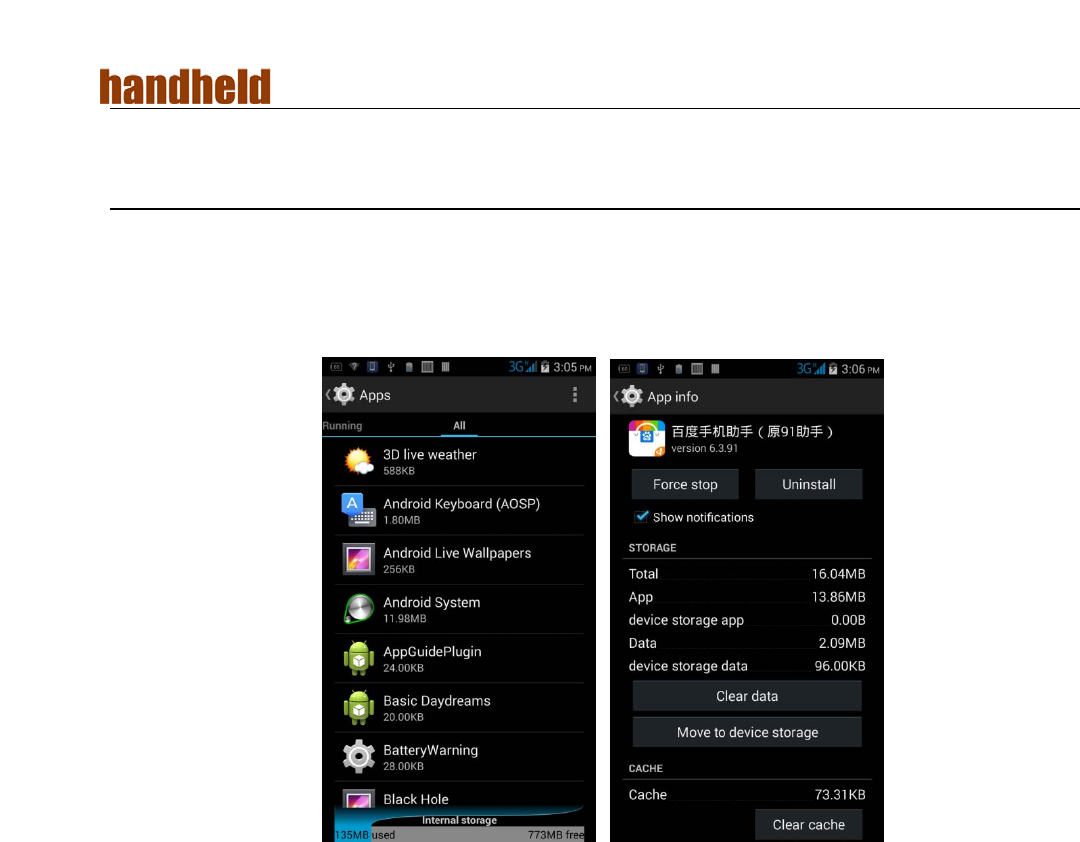

If too many programs are installed or some programs are unnecessary, uninstall programs
to improve the running speed of the NAUTIZ X2. To uninstall a program, do as follows:
1. Select
Settings > App. In the application list that is displayed, select an application and
click it. On the page for uninstalling the application, click Uninstall and then click OK.
Wait several seconds until the application is uninstalled.

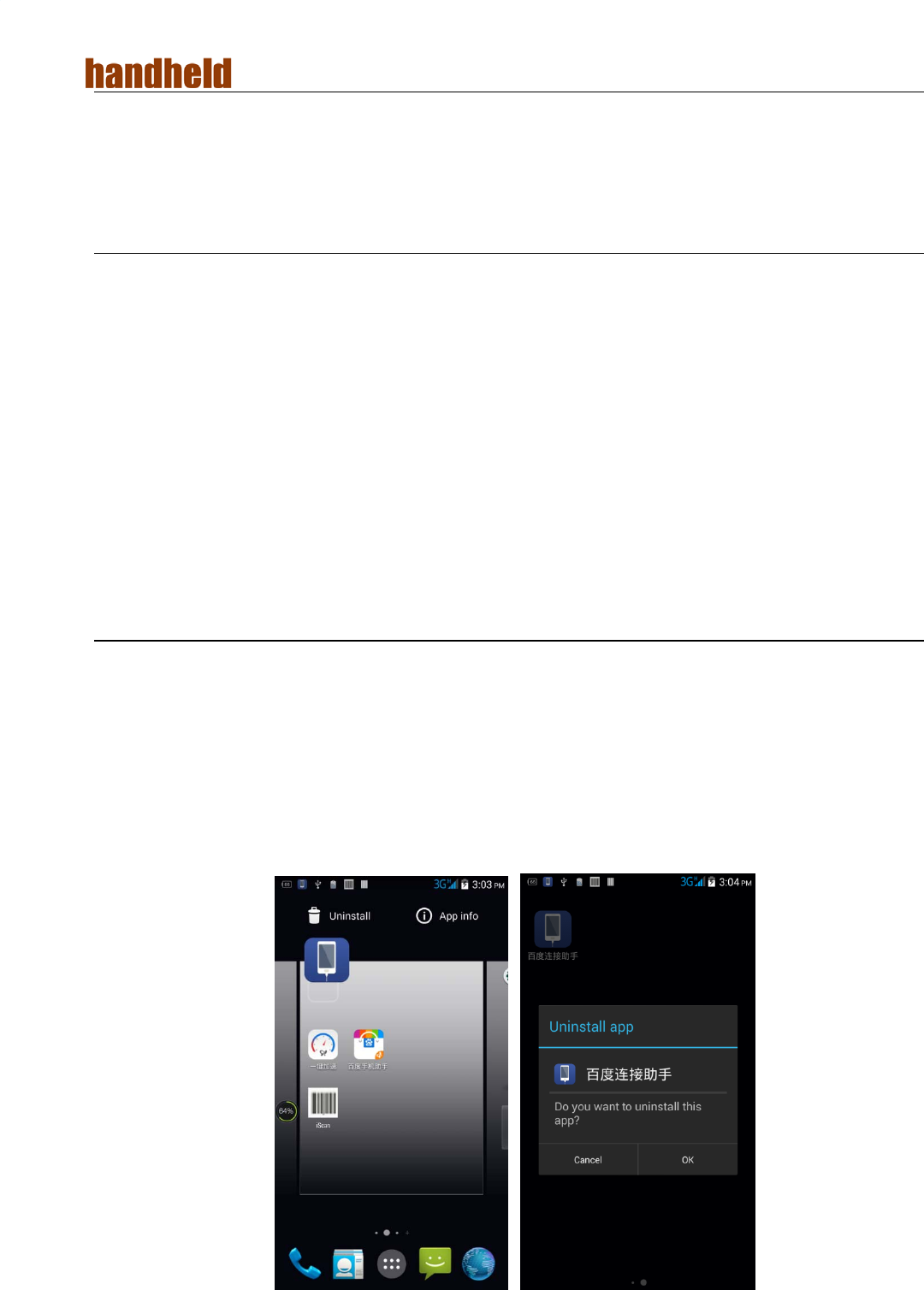

2. Click the application tray. On the application screen, find the icon of an application,
press and drag the icon to the dustbin to uninstall the application.
NAUTIZ X2 User Manual
- 24 -
7.3 Managing Applications
Select Settings > App. On the application management screen, you can view application
status in the options such as Downloaded, SD Card and Running, click an application,
access the application information screen, and perform operations such as forcibly
stopping, uninstalling and stopping an application.
NAUTIZ X2 User Manual
- 25 -
8 Precautions and Troubleshooting
8.1 Precautions
To ensure that the NAUTIZ X2 does not fail, follow the following precautions during
use of the NAUTIZ X2:
Put the NAUTIZ X2 and its components and accessories in the places where children
cannot reach.
Keep the NAUTIZ X2 dry. Rain, moisture and liquid contain acidic materials and will
corrode the circuit board.
Do not store or use the NAUTIZ X2 in dusty or dirty places.
Do not store the NAUTIZ X2 in a place that is too hot. High temperature will shorten the
service life of electronic components.
Do not store the NAUTIZ X2 in a place that is too cold. When the temperature inside the
NAUTIZ X2 rises, moisture is generated inside the NAUTIZ X2, which may damage the
circuit board.
Do not try to disassemble the NAUTIZ X2. Otherwise, the NAUTIZ X2 may be damaged.
Do not touch the screen surface of the NAUTIZ X2 by using a pen, a pencil or other
sharp articles in case the screen may be scratched.
Do not throw, beat or violently collide the NAUTIZ X2. Otherwise, the components of the
NAUTIZ X2 may be damaged and the NAUTIZ X2 may be faulty.
Do not use strong chemical products or strong detergent to clean the NAUTIZ X2. If the
NAUTIZ X2 become dirty, clean the surface of the NAUTIZ X2 by using a soft cloth
soaked with dilute glass detergent.
Please use the protective film to reduce wear as much as possible. The screen
protective film can improve the availability and durability of the screen.
Pay attention to the following during use of the battery.
The area where the NAUTIZ X2 is charged must keep away from scraps, inflammables
or chemical substances.
When you charge the battery of a mobile device, the temperature on the battery and
charger must be in the range 0°C to 40°C.
Do not use incompatible batteries or chargers, which may cause fire, explosion, leakage
or other hazards.
Do not disassemble, press, twist, pierce or cut the battery.
Do not make the battery short-circuited or contact the connecting terminal of the battery
by using metal or other conductive objects.
Do not insert other materials into the battery, contact the battery with water or other
liquid, or expose the battery in an open fire, explosive source or other sources of
danger.
Do not put or store the battery in the environment where the temperature is too high.
Do not put the battery in a microwave oven or a drying machine.
NAUTIZ X2 User Manual
- 26 -
Do not put the battery into a fire.
If the battery leaks, do not let the liquid stain your skin or eyes. Otherwise, wash your
skin or eyes with lots of water and go to see the doctor immediately.
Cleaning NAUTIZ X2
Shell
Clean the shell by using a cloth soaked with alcohol, including keys and space between
keys.
Display screen
You can clean the display screen by using a cloth soaked with alcohol. Do not let the
liquid gather around the screen. Otherwise, dry the screen by using a soft non-woven
cloth in case strip marks are left on the screen.
Scan lens
Clean the scan lens regularly by using lens paper or other articles suitable for cleaning
optical materials.
8.2 Troubleshooting
Table 8-1 NAUTIZ X2 troubleshooting
Fault Cause Solution
After the power key is
pressed, the NAUTIZ X2
is not powered on.
The battery volume is too
low or the battery is not
charged.
Charge the battery or replace the battery.
The battery is incorrectly
installed. Correctly install the battery.
The system breaks down. Restore factory settings.
The rechargeable
battery can no longer be
charged.
The battery fails. Replace the battery.
The temperature of the
battery is too high or low. Put the battery in normal temperature.
During data
communication, data is
not transmitted or
transmitted data is
incomplete.
The cable configuration is
incorrect. Consult the system administrator.
The communication
software is incorrectly
installed or configured.
Install or reinstall the synchronization
software to update the driver.
The relevant function is
not activated after a user
clicks a button or icon.
The system does not
respond. Restart the system.
No sound can be heard. The volume is too low or is
disabled. Adjust the volume.
The NAUTIZ X2 is
closed.
The NAUTIZ X2 is in the
inactive state.
After being inactive for a period of time, the
NAUTIZ X2 is locked.
The battery is used up. Replace the battery.
The iData responds at a Too many files are stored in Remove unused memos and records. If
NAUTIZ X2 User Manual
- 27 -
Fault Cause Solution
low speed. the NAUTIZ X2. necessary, save the records on the host or
increase the storage capacity by using an
SD card.
Too many applications are
installed on the NAUTIZ X2.
Remove applications installed on the
NAUTIZ X2.
The NAUTIZ X2 cannot
decode a barcode while
reading it.
The scan application is not
loaded. Load the scan application in the NAUTIZ X2.
Reading a barcode fails. Check that the barcode is indefective.
The battery volume is low.
If the scanner stops sending out a light
beam after you press the trigger switch,
check the battery volume.
NAUTIZ X2 User Manual
- 28 -
Table 8-2 Bluetooth troubleshooting
Fault Cause Solution
The NAUTIZ X2 cannot
detect any Bluetooth
device nearby.
The NAUTIZ X2 system is
too far away from other
Bluetooth devices.
Move the NAUTIZ X2 close to other
Bluetooth devices, making the distance
between them within 10 meters.
The Bluetooth devices
nearby are not enabled.
Enable the Bluetooth devices you are
searching for.
Bluetooth devices are in a
mode that cannot be
detected.
Set Bluetooth devices in a mode that can be
detected.
When a user attempts to
connect a Bluetooth
phone to the NAUTIZ X2,
the Bluetooth phone
identifies the NAUTIZ X2
as the previously paired
NAUTIZ X2.
The Bluetooth phone
memorizes the name and
address of the NAUTIZ X2
paired previously over
Bluetooth.
Remove the paired device and the name
from the Bluetooth phone.
A Bluetooth device can
be detected but cannot
be connected.
The NAUTIZ X2 does not
support connecting a
Bluetooth device without a
password.
Set a password for the Bluetooth device.
Table 7-3 Cable troubleshooting
Fault Cause Solution
Charging fails. The cable is in poor
contact. Replace the cable.
Connecting to the
NAUTIZ X2 fails.
The cable is in poor
contact. Replace the cable.
Table 7-4 Wi-Fi troubleshooting
Fault Cause Solution
Connecting to an AP
fails.
The message
“Authentication failed” is
displayed.
The password for the WLAN device is
incorrect.
NAUTIZ X2 User Manual
- 29 -
Appendix
Table 1 Accessories of the NAUTIZ X2
Component Description
NAUTIZ X2
Standard battery
Power adapter Used to charge the battery.
Bottom charging cable
Hand strap
Package
USB data cable Used to communicate with the NAUTIZ X2 or charge the
NAUTIZ X2.
Instructions
Warranty card
One-slot USB charging base Optional
Silicon protective sleeve Optional
Table 2 Technical specifications of the NAUTIZ X2
Item NAUTIZ X2
System configuration
CPU High-performance quad-core 1.3 GHz processor
Operating System Android 5.1
Memory 8 GB ROM+1 GB RAM
Expansion Slot Micro SD card, up to 32 GB
Display 4.7- inch, 1280 x 720 High resolution
Touch Panel Industrial-grade capacitive touch panel (supporting operation with gloves)
Camera (Optional) 8 MXP camera in the back side, autofocus lens, LED flash
Exit Window Corning® Gorilla® glass
Keypad 4 front keys, 4 side keys , Power key
Battery 3.7 V 3300 mAh rechargeable lithium polymer battery
Audio Built-in microphone /Mini USB/Headphone connector
Notification Vibrator alerts/LED/Audio notification
Vibration Motor Built-in programmable vibration motor
Structure parameters
Dimensions (L x W x D) 150 mm x 73.5 mm x 16 mm (24 mm thick at the head)
Weight 230g (including battery)
Communication and transmission
Wireless WAN
(Network frequency)
North America:GSM-Quad band support (Band 5/8/3/2)
UMTS/HSPA+ Primary bands 2/5. Roaming bands 8.
LTE Bands 2/4/5/17 .
NAUTIZ X2 User Manual
- 30 -
Item NAUTIZ X2
Europe: GSM - Quad band support (Band 5/8/3/2)
UMTS Primary bands 1/8. Roaming bands 2/5.
LTE Bands 1/3/7/8/20
Wireless WAN
(Data service) GPRS/ EDGE/WCDMA(HSPA+)/ FDD-LTE
Wireless LAN Wi-Fi 802.11a/b/g/n（Dual-band Wi-Fi: 2.4G+5G）
Bluetooth Bluetooth 4.0
GPS (optional) Supporting GPS/AGPS/Glonass
Operating environment
Development tool Android SDK+JDK+Eclipse
Supported language Java
Operating Temp. -10℃ ~ 50℃ (14℉ to 122℉)
Storage Temp. -20℃ ~ 60℃ (-4℉ to 140℉)
Humidity 0 to 95% (non-condensing)
Drop specification Multiple drops to cement ground from a distance of 1.2m
Sealing standard IP65
ESD ± 15 kV air discharge, ±8 kV direct discharge
1D laser scanning engine
Optical resolution ≥ 4 mil
Scan depth of field 3.81 cm to 60.98 cm
Scanning angle 47±3° (standard)
Scanning speed 102±12 times per second (two-way)
1D/2D image scanning engine
Optical resolution ≥ 3 mil
Scanning angle Omni-directional
Scanning speed 300 times per second
NFC
Frequency 13.56 MHz
Reading distance Within 10 mm
Communication protocol ISO14443A/14443B/15693,
Input/output port
USB Port 1 (Micro USB port)
Charger Port 1 (Charging interface at the bottom)
Headset Port 1
NAUTIZ X2 User Manual
- 31 -
Power Adapter:
1.Manufacturer: SHENZHEN FUJIA APPLIANCE CO.,LTD.
Model: FJ-SW1260502000UN
Input: AC 100-240V; 50/60Hz;0.4Amax
Output: DC5.0V;2000mA
2.Manufacturer: SHENZHEN FUJIA APPLIANCE CO.,LTD.
Model: FJ-SW1202000N
Input: AC 100-240V; 50/60Hz;0.6Amax
Output: DC12.0V;2000mA
Battery:
Manufacturer:HANDHELD GROUP AB
Model: 1ICP9/65/85
Capacity:3300 mAh 12.2Wh
Nominal Voltage:DC 3.7V
Maximum Charge Voltage:DC 2.4V
CE marking:
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE
OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
To prevent possible hearing damage, do not listen at high volume levels for long periods.
Fully understand user manual before use.
Ensure your player at low volume levels or power off before you leaving.
© 2015 Handheld Group AB. All Rights Reserved.
This document is prepared by Handheld Group AB according to the existing information.
The content in this document is subject to update without notice.
Without written approval of Handheld Group AB, no one shall copy, extract, back up, modify,
spread, or translate any part of this document in any form or method or use the whole or
part of this document for business purposes.
If you have any question, you are free to send an email to www.handheldgroup.com.
FCC Caution.
§ 15.19 Labelling requirements.
This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this
device does not cause harmful interference.
§ 15.21 Information to user.
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
§ 15.105 Information to the user.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
Specific Absorption Rate (SAR) information:
This Rugged Mobile PDA meets the government's requirements for exposure to radio waves. The
guidelines are based on standards that were developed by independent scientific organizations
through periodic and thorough evaluation of scientific studies. The standards include a substantial
safety margin designed to assure the safety of all persons regardless of age or health.
FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is 1.6 W/kg averaged
over one gram of tissue. Device types: Rugged Mobile PDA (FCC ID: YY3-14242) has also been tested
against this SAR limit. The highest SAR value reported under this standard during product
certification for use at the ear is 0.577 W/Kg and when properly worn on the body is 1.311 W/Kg.
This device was tested for typical body-worn operations with the back of the handset kept10mm
from the body. To maintain compliance with FCC RF exposure requirements, use accessories that
maintain a 10mm separation distance between the user's body and the back of the handset. The use
of belt clips, holsters and similar accessories should not contain metallic components in its
assembly. The use of accessories that do not satisfy these requirements may not comply with FCC
RF exposure requirements, and should be avoided.
Body-worn Operation
This device was tested for typical body-worn operations. To comply with RF exposure requirements,
a minimum separation distance of 10mm must be maintained between the user’s body and the
handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this
device should not contain any metallic components. Body-worn accessories that do not meet these
requirements may not comply with RF exposure requirements and should be avoided. Use only the
supplied or an approved antenna.
