Handlink Technologies GW-1 Guest Wi-Fi User Manual Copyright Notice

Handlink Technologies Inc. Guest Wi-Fi Copyright Notice

user manual

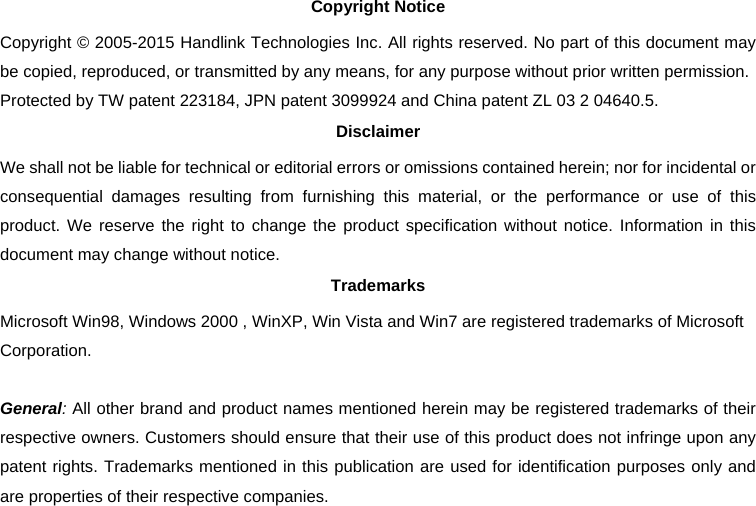

Copyright Notice Copyright © 2005-2015 Handlink Technologies Inc. All rights reserved. No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission. Protected by TW patent 223184, JPN patent 3099924 and China patent ZL 03 2 04640.5. Disclaimer We shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. We reserve the right to change the product specification without notice. Information in this document may change without notice. Trademarks Microsoft Win98, Windows 2000 , WinXP, Win Vista and Win7 are registered trademarks of Microsoft Corporation.  General: All other brand and product names mentioned herein may be registered trademarks of their respective owners. Customers should ensure that their use of this product does not infringe upon any patent rights. Trademarks mentioned in this publication are used for identification purposes only and are properties of their respective companies.

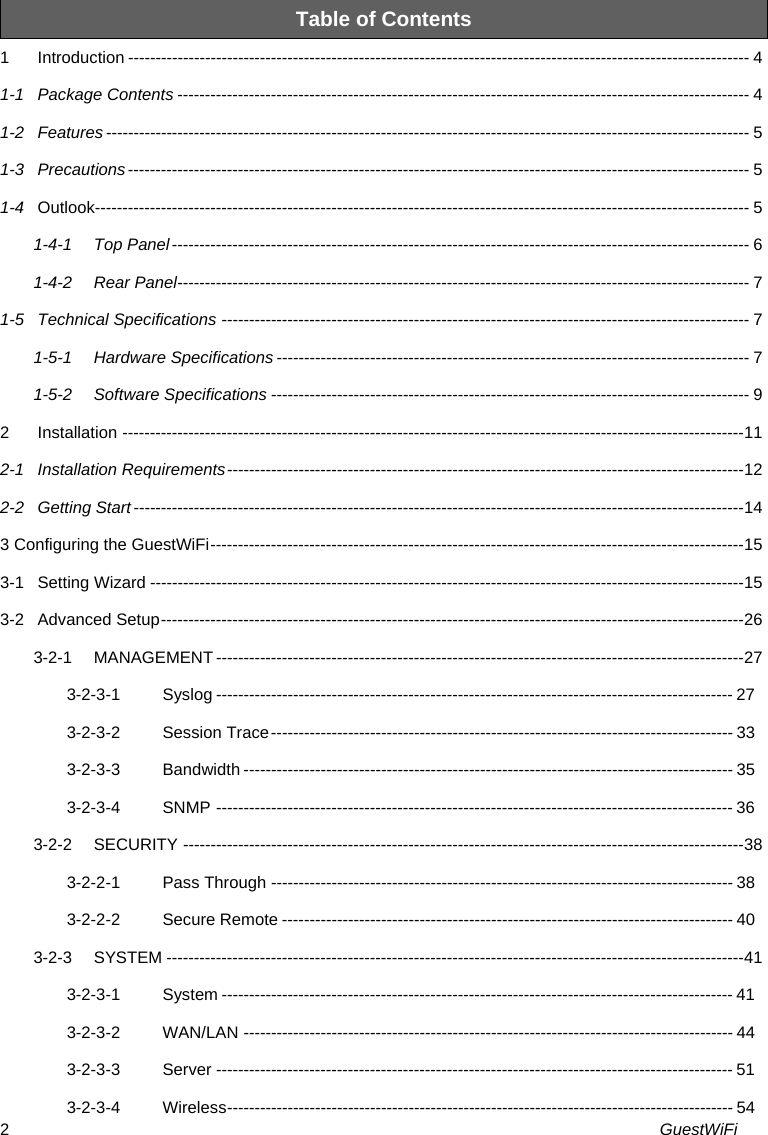

GuestWiFi 2Table of Contents 1Introduction ----------------------------------------------------------------------------------------------------------------- 41-1Package Contents -------------------------------------------------------------------------------------------------------- 41-2Features --------------------------------------------------------------------------------------------------------------------- 51-3Precautions ----------------------------------------------------------------------------------------------------------------- 51-4Outlook----------------------------------------------------------------------------------------------------------------------- 51-4-1Top Panel ---------------------------------------------------------------------------------------------------------  61-4-2Rear Panel -------------------------------------------------------------------------------------------------------- 71-5Technical Specifications ------------------------------------------------------------------------------------------------ 71-5-1Hardware Specifications -------------------------------------------------------------------------------------- 71-5-2Software Specifications --------------------------------------------------------------------------------------- 92Installation ----------------------------------------------------------------------------------------------------------------- 112-1Installation Requirements ---------------------------------------------------------------------------------------------- 122-2Getting Start --------------------------------------------------------------------------------------------------------------- 143 Configuring the GuestWiFi ------------------------------------------------------------------------------------------------- 153-1Setting Wizard ------------------------------------------------------------------------------------------------------------ 153-2Advanced Setup ---------------------------------------------------------------------------------------------------------- 263-2-1MANAGEMENT ------------------------------------------------------------------------------------------------ 273-2-3-1Syslog ---------------------------------------------------------------------------------------------- 273-2-3-2Session Trace ------------------------------------------------------------------------------------  333-2-3-3Bandwidth ----------------------------------------------------------------------------------------- 353-2-3-4SNMP ---------------------------------------------------------------------------------------------- 363-2-2SECURITY ------------------------------------------------------------------------------------------------------ 383-2-2-1Pass Through ------------------------------------------------------------------------------------ 383-2-2-2Secure Remote ---------------------------------------------------------------------------------- 403-2-3SYSTEM --------------------------------------------------------------------------------------------------------- 413-2-3-1System --------------------------------------------------------------------------------------------- 413-2-3-2WAN/LAN ----------------------------------------------------------------------------------------- 443-2-3-3Server ---------------------------------------------------------------------------------------------- 513-2-3-4Wireless --------------------------------------------------------------------------------------------  54

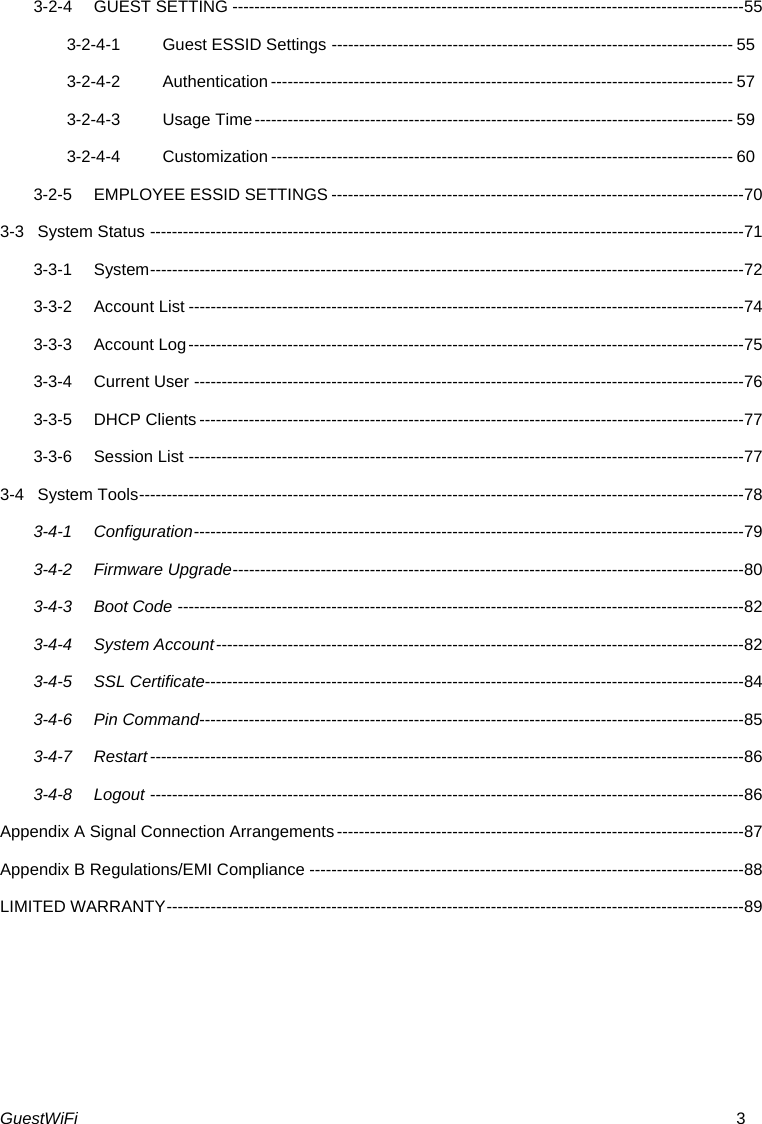

GuestWiFi  3 3-2-4GUEST SETTING --------------------------------------------------------------------------------------------- 553-2-4-1Guest ESSID Settings ------------------------------------------------------------------------- 553-2-4-2Authentication ------------------------------------------------------------------------------------ 573-2-4-3Usage Time ---------------------------------------------------------------------------------------  593-2-4-4Customization ------------------------------------------------------------------------------------ 603-2-5EMPLOYEE ESSID SETTINGS --------------------------------------------------------------------------- 703-3System Status ------------------------------------------------------------------------------------------------------------ 713-3-1System ------------------------------------------------------------------------------------------------------------ 723-3-2Account List ----------------------------------------------------------------------------------------------------- 743-3-3Account Log ----------------------------------------------------------------------------------------------------- 753-3-4Current User ---------------------------------------------------------------------------------------------------- 763-3-5DHCP Clients --------------------------------------------------------------------------------------------------- 773-3-6Session List ----------------------------------------------------------------------------------------------------- 773-4System Tools -------------------------------------------------------------------------------------------------------------- 783-4-1Configuration ---------------------------------------------------------------------------------------------------- 793-4-2Firmware Upgrade --------------------------------------------------------------------------------------------- 803-4-3Boot Code ------------------------------------------------------------------------------------------------------- 823-4-4System Account ------------------------------------------------------------------------------------------------ 823-4-5SSL Certificate-------------------------------------------------------------------------------------------------- 843-4-6Pin Command--------------------------------------------------------------------------------------------------- 853-4-7Restart ------------------------------------------------------------------------------------------------------------ 863-4-8Logout ------------------------------------------------------------------------------------------------------------ 86Appendix A Signal Connection Arrangements -------------------------------------------------------------------------- 87Appendix B Regulations/EMI Compliance ------------------------------------------------------------------------------- 88LIMITED WARRANTY --------------------------------------------------------------------------------------------------------- 89

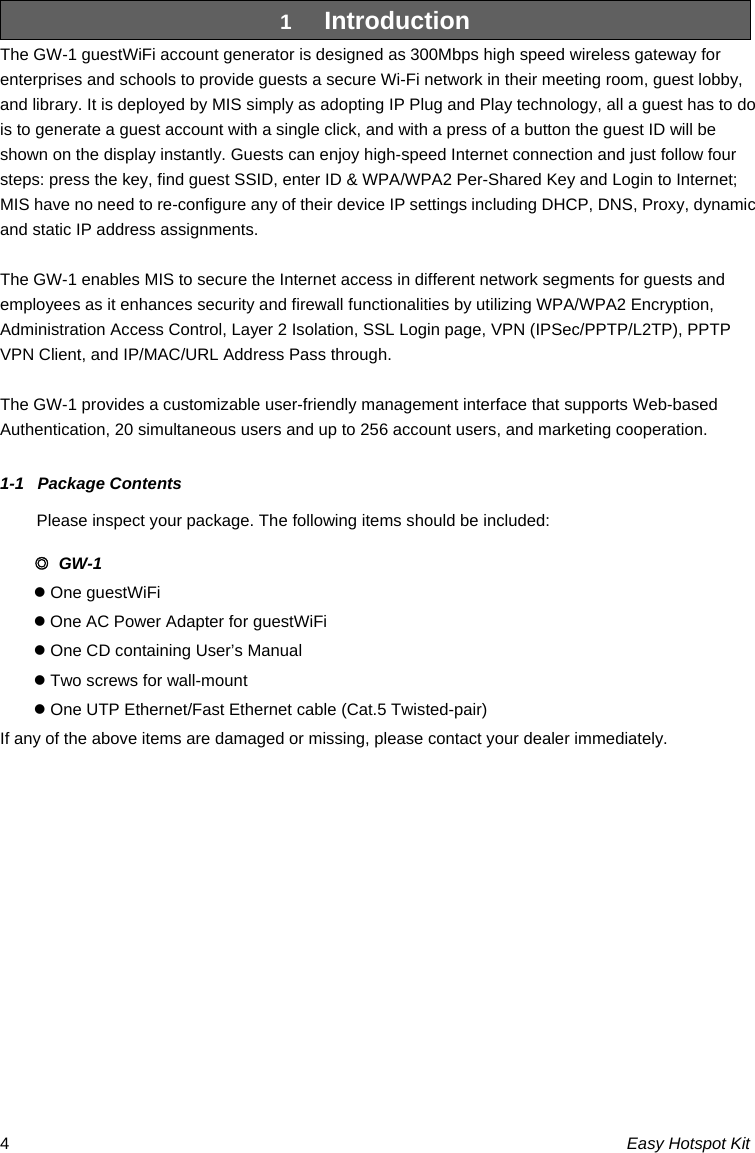

Easy Hotspot Kit 41  Introduction The GW-1 guestWiFi account generator is designed as 300Mbps high speed wireless gateway for enterprises and schools to provide guests a secure Wi-Fi network in their meeting room, guest lobby, and library. It is deployed by MIS simply as adopting IP Plug and Play technology, all a guest has to do is to generate a guest account with a single click, and with a press of a button the guest ID will be shown on the display instantly. Guests can enjoy high-speed Internet connection and just follow four steps: press the key, find guest SSID, enter ID & WPA/WPA2 Per-Shared Key and Login to Internet; MIS have no need to re-configure any of their device IP settings including DHCP, DNS, Proxy, dynamic and static IP address assignments.  The GW-1 enables MIS to secure the Internet access in different network segments for guests and employees as it enhances security and firewall functionalities by utilizing WPA/WPA2 Encryption, Administration Access Control, Layer 2 Isolation, SSL Login page, VPN (IPSec/PPTP/L2TP), PPTP VPN Client, and IP/MAC/URL Address Pass through.  The GW-1 provides a customizable user-friendly management interface that supports Web-based Authentication, 20 simultaneous users and up to 256 account users, and marketing cooperation.  1-1  Package Contents Please inspect your package. The following items should be included: ◎ GW-1 z One guestWiFi z One AC Power Adapter for guestWiFi z One CD containing User’s Manual   z Two screws for wall-mount z One UTP Ethernet/Fast Ethernet cable (Cat.5 Twisted-pair) If any of the above items are damaged or missing, please contact your dealer immediately.

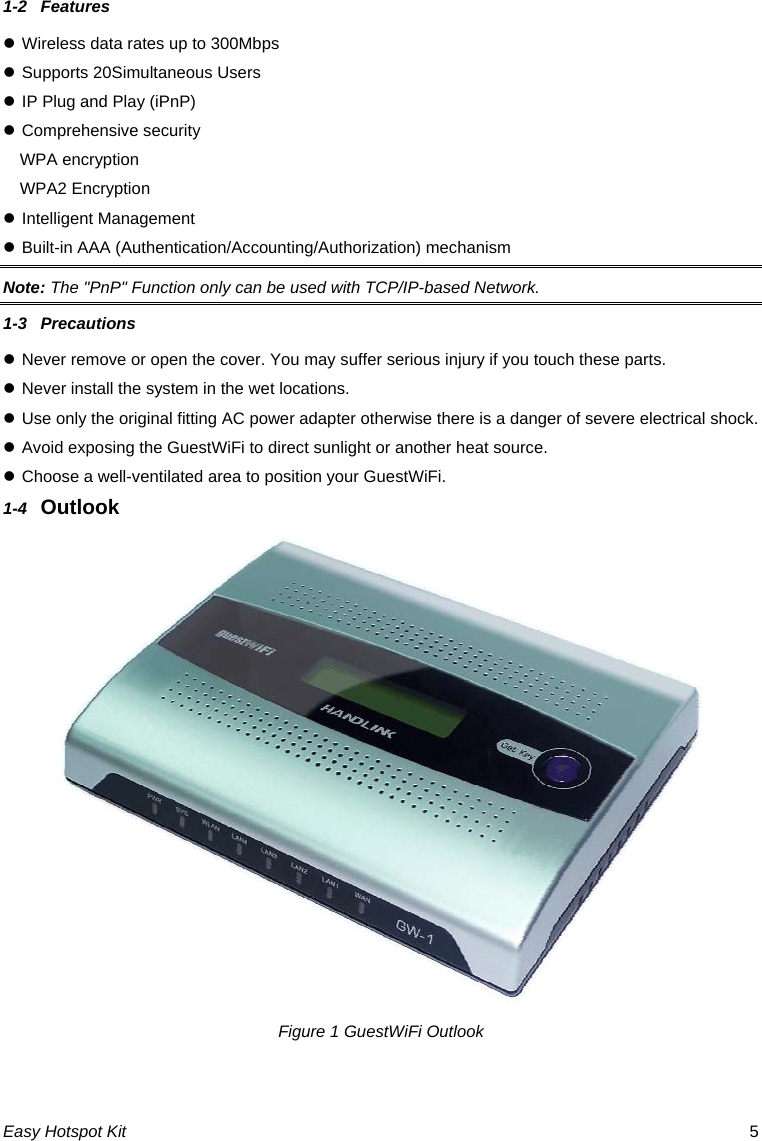

1-2  Features z Wireless data rates up to 300Mbps z Supports 20Simultaneous Users z IP Plug and Play (iPnP) z Comprehensive security WPA encryption WPA2 Encryption z Intelligent Management  z Built-in AAA (Authentication/Accounting/Authorization) mechanism Note: The "PnP" Function only can be used with TCP/IP-based Network. 1-3  Precautions z Never remove or open the cover. You may suffer serious injury if you touch these parts. z Never install the system in the wet locations. z Use only the original fitting AC power adapter otherwise there is a danger of severe electrical shock. z Avoid exposing the GuestWiFi to direct sunlight or another heat source. z Choose a well-ventilated area to position your GuestWiFi. 1-4  Outlook  Figure 1 GuestWiFi Outlook Easy Hotspot Kit  5

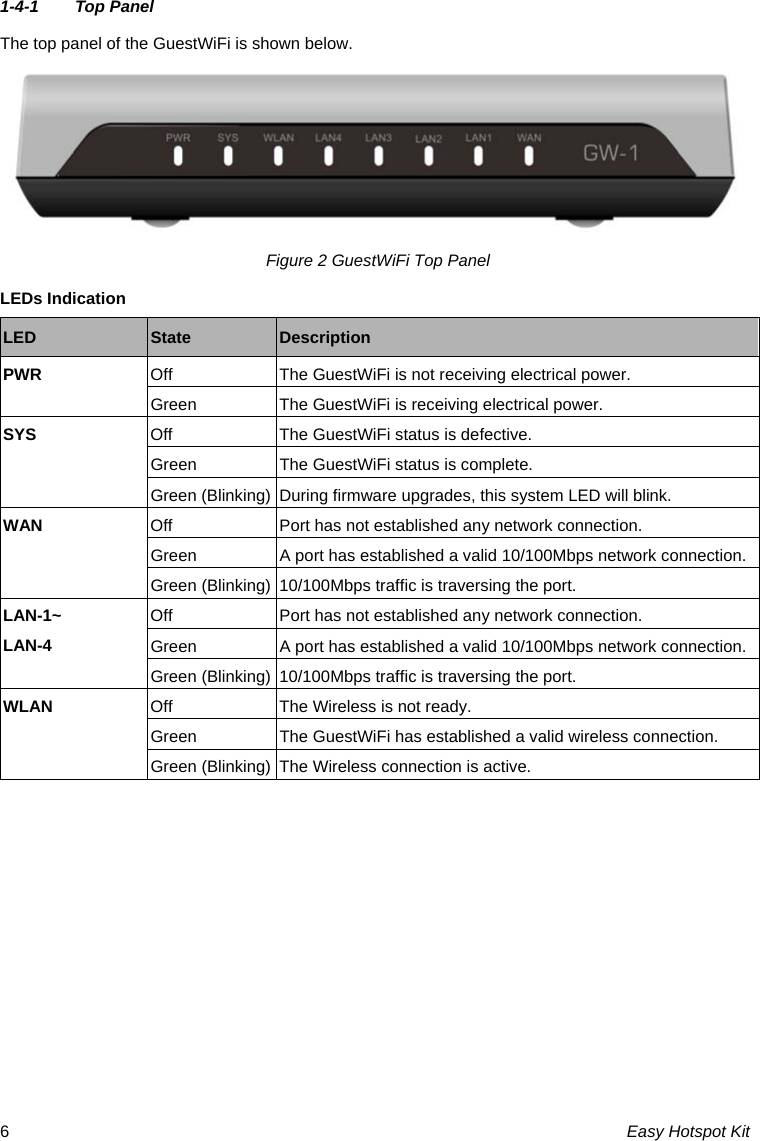

1-4-1  Top Panel The top panel of the GuestWiFi is shown below. Figure 2 GuestWiFi Top Panel LEDs Indication LED  State  Description PWR  Off  The GuestWiFi is not receiving electrical power. Green  The GuestWiFi is receiving electrical power. SYS  Off  The GuestWiFi status is defective. Green  The GuestWiFi status is complete. Green (Blinking) During firmware upgrades, this system LED will blink. WAN  Off  Port has not established any network connection. Green  A port has established a valid 10/100Mbps network connection. Green (Blinking) 10/100Mbps traffic is traversing the port. LAN-1~ LAN-4 Off  Port has not established any network connection. Green  A port has established a valid 10/100Mbps network connection. Green (Blinking) 10/100Mbps traffic is traversing the port. WLAN  Off  The Wireless is not ready. Green  The GuestWiFi has established a valid wireless connection. Green (Blinking) The Wireless connection is active.  Easy Hotspot Kit 6

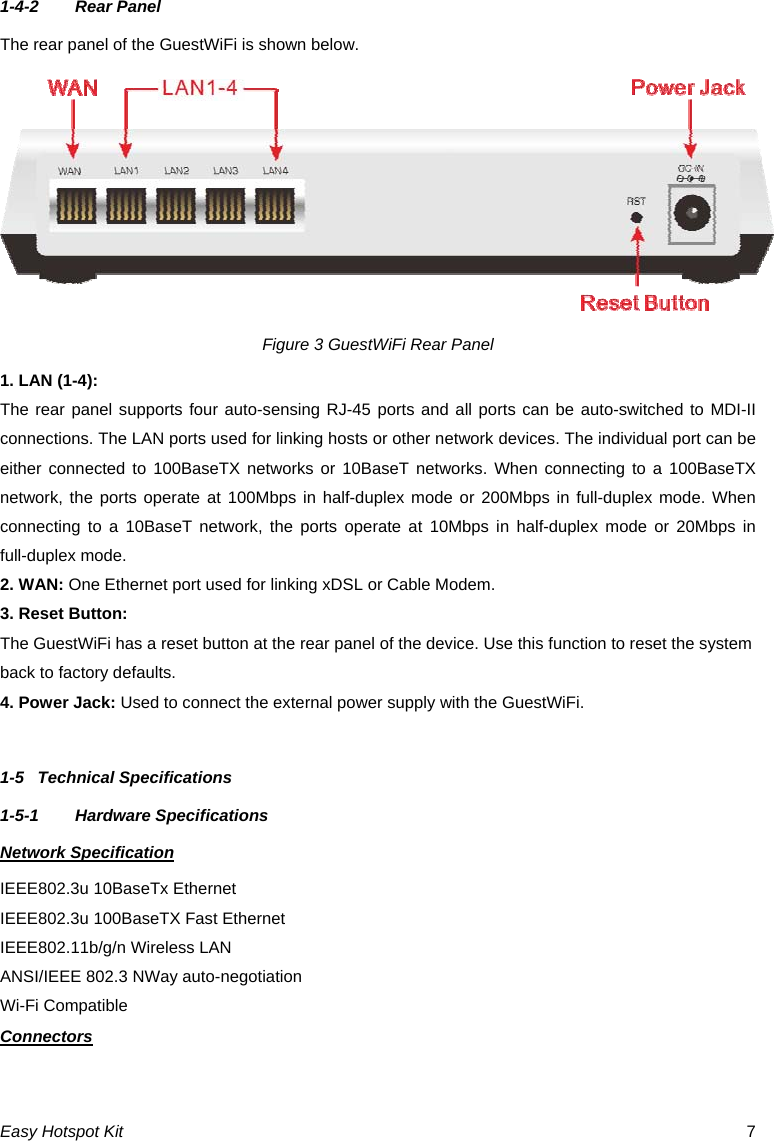

1-4-2  Rear Panel The rear panel of the GuestWiFi is shown below. Figure 3 GuestWiFi Rear Panel 1. LAN (1-4): The rear panel supports four auto-sensing RJ-45 ports and all ports can be auto-switched to MDI-II connections. The LAN ports used for linking hosts or other network devices. The individual port can be either connected to 100BaseTX networks or 10BaseT networks. When connecting to a 100BaseTX network, the ports operate at 100Mbps in half-duplex mode or 200Mbps in full-duplex mode. When connecting to a 10BaseT network, the ports operate at 10Mbps in half-duplex mode or 20Mbps in full-duplex mode. 2. WAN: One Ethernet port used for linking xDSL or Cable Modem. 3. Reset Button: The GuestWiFi has a reset button at the rear panel of the device. Use this function to reset the system back to factory defaults. 4. Power Jack: Used to connect the external power supply with the GuestWiFi.  1-5  Technical Specifications 1-5-1  Hardware Specifications Network Specification IEEE802.3u 10BaseTx Ethernet   IEEE802.3u 100BaseTX Fast Ethernet IEEE802.11b/g/n Wireless LAN ANSI/IEEE 802.3 NWay auto-negotiation Wi-Fi Compatible Connectors Easy Hotspot Kit  7

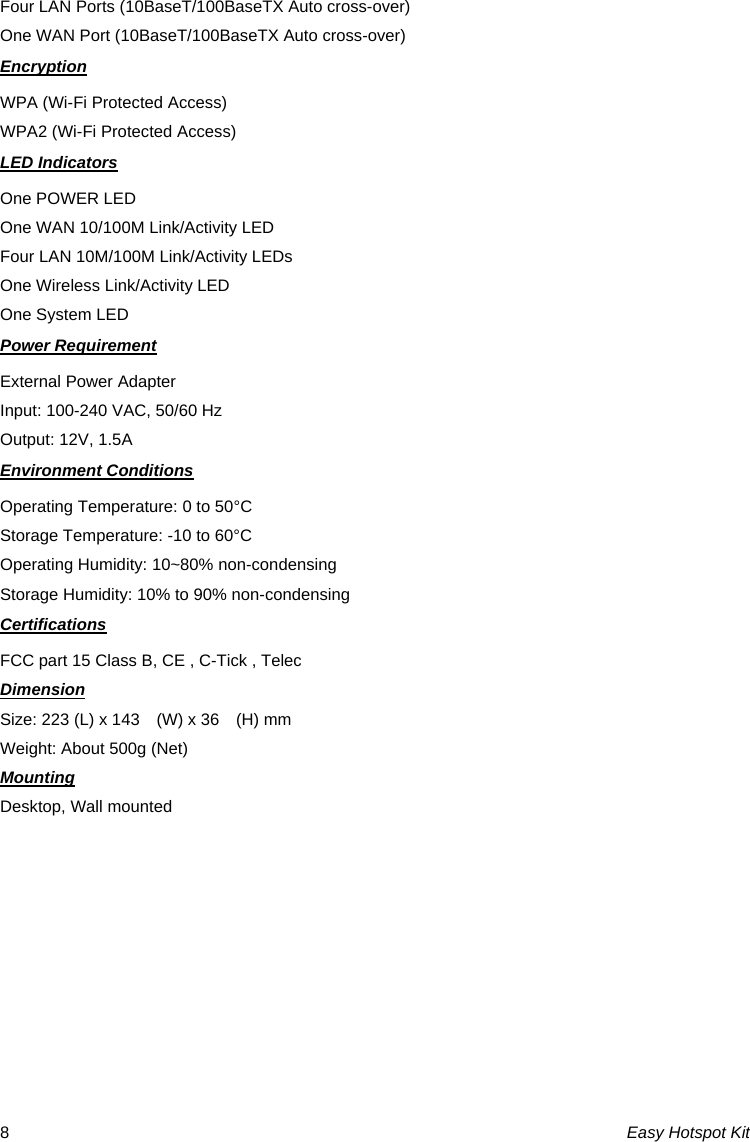

Four LAN Ports (10BaseT/100BaseTX Auto cross-over) One WAN Port (10BaseT/100BaseTX Auto cross-over) Encryption WPA (Wi-Fi Protected Access) WPA2 (Wi-Fi Protected Access) LED Indicators One POWER LED One WAN 10/100M Link/Activity LED Four LAN 10M/100M Link/Activity LEDs One Wireless Link/Activity LED One System LED Power Requirement External Power Adapter Input: 100-240 VAC, 50/60 Hz Output: 12V, 1.5A Environment Conditions Operating Temperature: 0 to 50°C Storage Temperature: -10 to 60°C Operating Humidity: 10~80% non-condensing Storage Humidity: 10% to 90% non-condensing Certifications FCC part 15 Class B, CE , C-Tick , Telec Dimension Size: 223 (L) x 143    (W) x 36    (H) mm Weight: About 500g (Net) Mounting Desktop, Wall mounted Easy Hotspot Kit 8

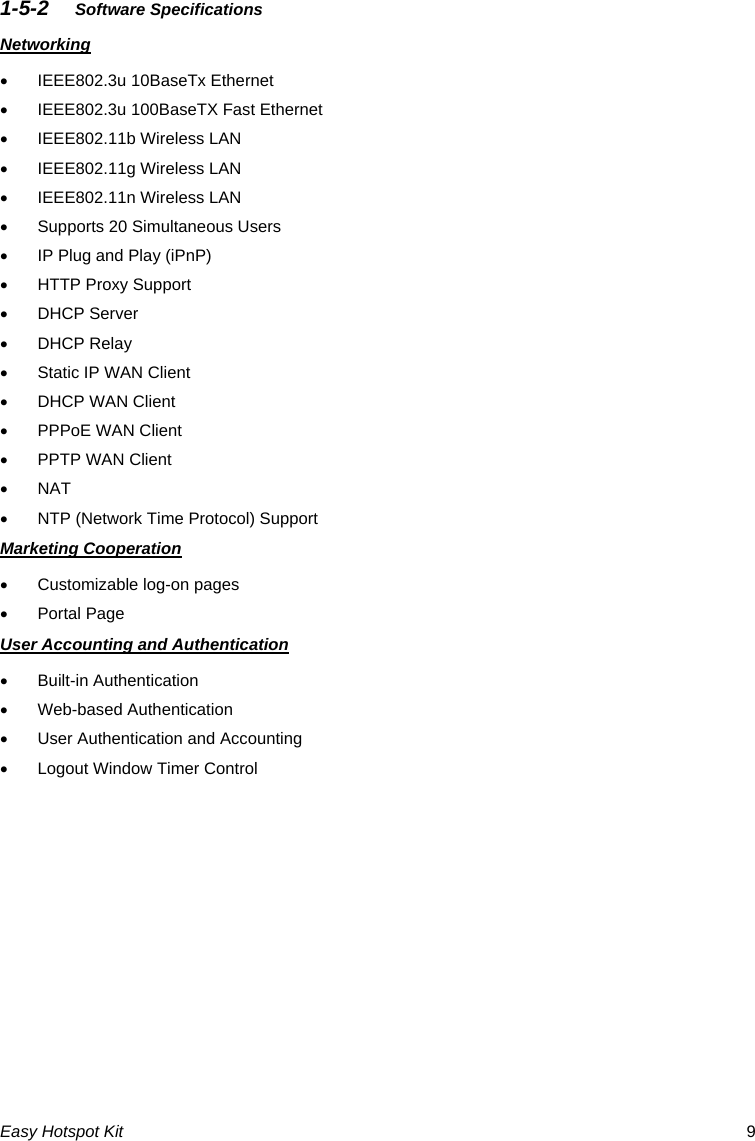

1-5-2  Software Specifications Networking •  IEEE802.3u 10BaseTx Ethernet   •  IEEE802.3u 100BaseTX Fast Ethernet •  IEEE802.11b Wireless LAN •  IEEE802.11g Wireless LAN •  IEEE802.11n Wireless LAN •  Supports 20 Simultaneous Users •  IP Plug and Play (iPnP) •  HTTP Proxy Support • DHCP Server  • DHCP Relay  •  Static IP WAN Client •  DHCP WAN Client •  PPPoE WAN Client •  PPTP WAN Client • NAT •  NTP (Network Time Protocol) Support Marketing Cooperation •  Customizable log-on pages • Portal Page User Accounting and Authentication • Built-in Authentication • Web-based Authentication •  User Authentication and Accounting •  Logout Window Timer ControlEasy Hotspot Kit  9

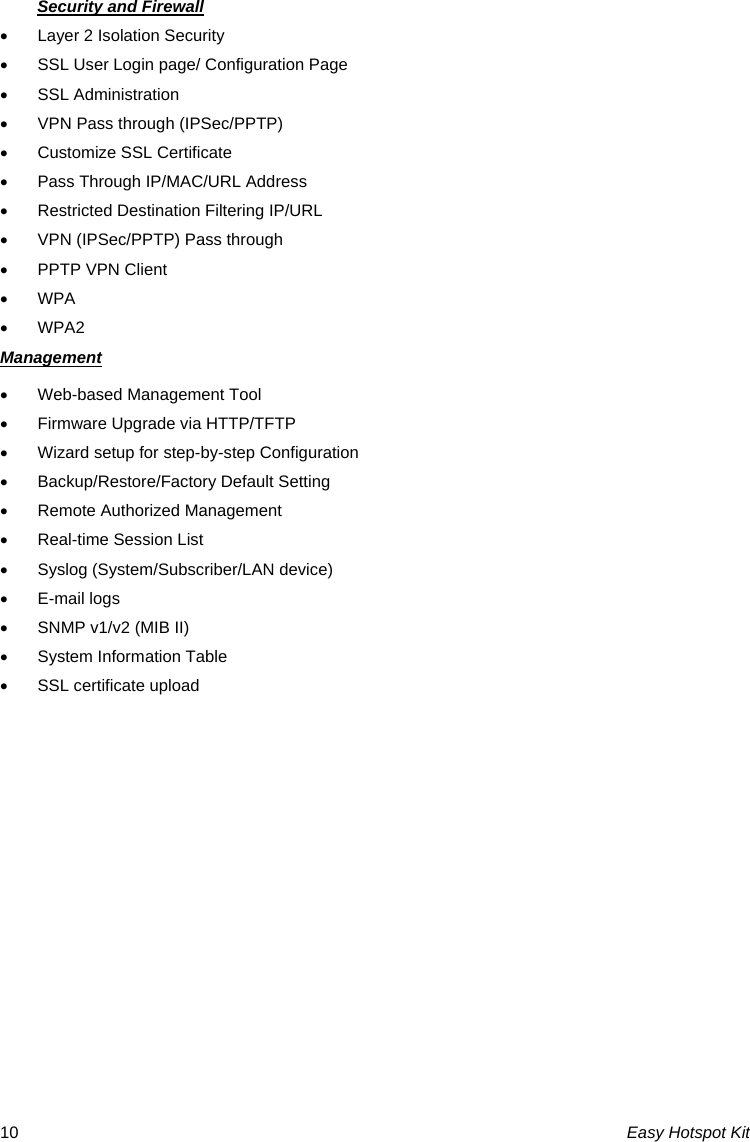

Security and Firewall •  Layer 2 Isolation Security •  SSL User Login page/ Configuration Page • SSL Administration •  VPN Pass through (IPSec/PPTP) •  Customize SSL Certificate •  Pass Through IP/MAC/URL Address •  Restricted Destination Filtering IP/URL •  VPN (IPSec/PPTP) Pass through •  PPTP VPN Client • WPA • WPA2 Management •  Web-based Management Tool •  Firmware Upgrade via HTTP/TFTP •  Wizard setup for step-by-step Configuration • Backup/Restore/Factory Default Setting •  Remote Authorized Management •  Real-time Session List • Syslog (System/Subscriber/LAN device) • E-mail logs •  SNMP v1/v2 (MIB II) •  System Information Table •  SSL certificate upload          Easy Hotspot Kit 10

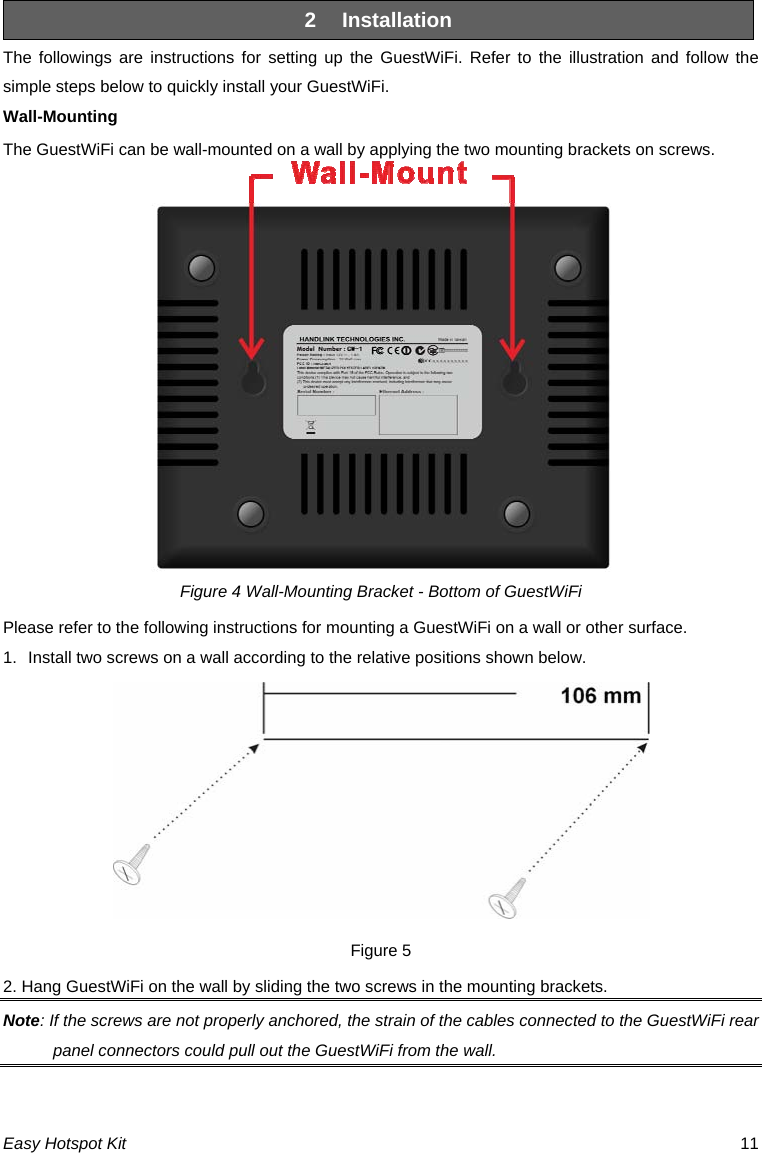

2  Installation The followings are instructions for setting up the GuestWiFi. Refer to the illustration and follow the simple steps below to quickly install your GuestWiFi. Wall-Mounting The GuestWiFi can be wall-mounted on a wall by applying the two mounting brackets on screws.  Figure 4 Wall-Mounting Bracket - Bottom of GuestWiFi Please refer to the following instructions for mounting a GuestWiFi on a wall or other surface. 1.  Install two screws on a wall according to the relative positions shown below.  Figure 5 2. Hang GuestWiFi on the wall by sliding the two screws in the mounting brackets. Note: If the screws are not properly anchored, the strain of the cables connected to the GuestWiFi rear panel connectors could pull out the GuestWiFi from the wall.   Easy Hotspot Kit  11

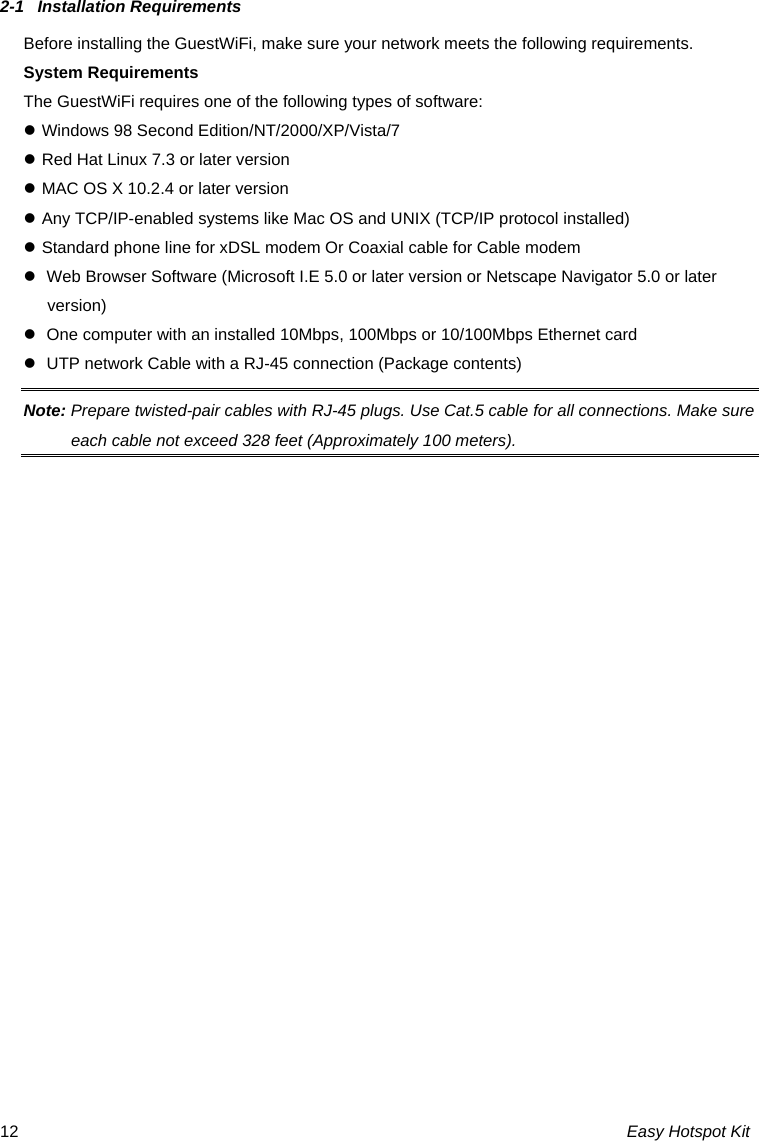

2-1  Installation Requirements Before installing the GuestWiFi, make sure your network meets the following requirements. System Requirements The GuestWiFi requires one of the following types of software: z Windows 98 Second Edition/NT/2000/XP/Vista/7 z Red Hat Linux 7.3 or later version z MAC OS X 10.2.4 or later version z Any TCP/IP-enabled systems like Mac OS and UNIX (TCP/IP protocol installed) z Standard phone line for xDSL modem Or Coaxial cable for Cable modem z  Web Browser Software (Microsoft I.E 5.0 or later version or Netscape Navigator 5.0 or later version)  z  One computer with an installed 10Mbps, 100Mbps or 10/100Mbps Ethernet card z  UTP network Cable with a RJ-45 connection (Package contents) Note: Prepare twisted-pair cables with RJ-45 plugs. Use Cat.5 cable for all connections. Make sure each cable not exceed 328 feet (Approximately 100 meters). Easy Hotspot Kit 12

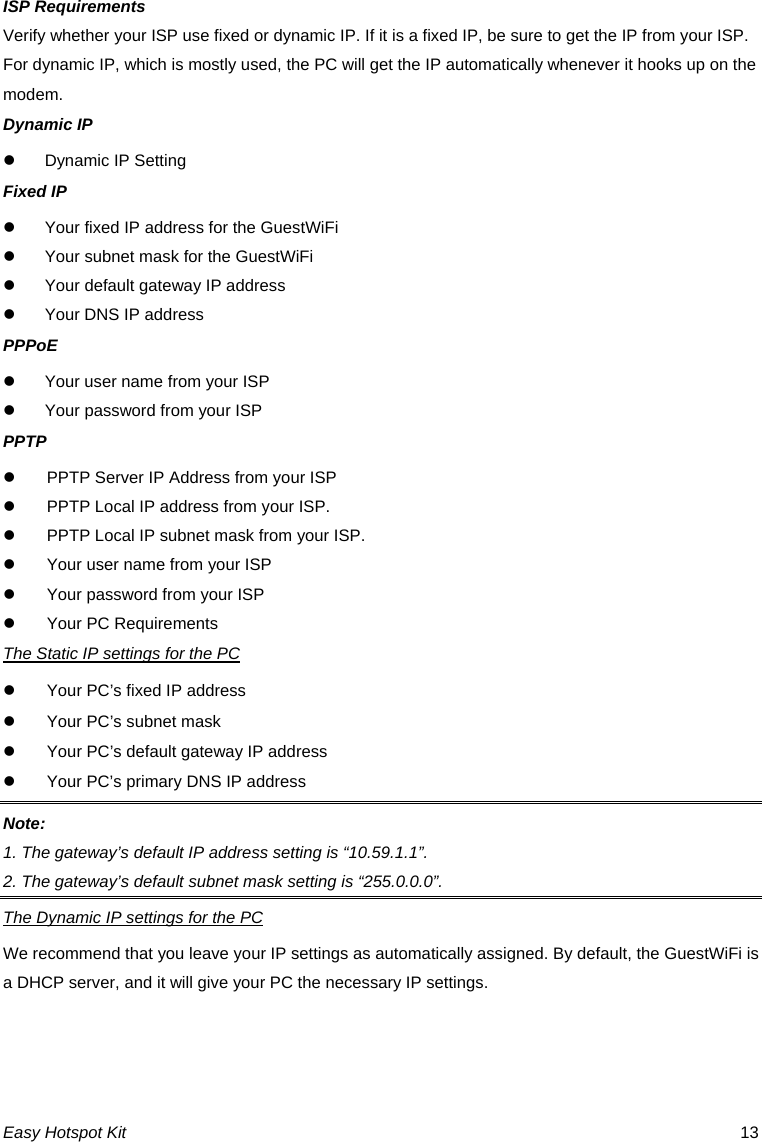

ISP Requirements Verify whether your ISP use fixed or dynamic IP. If it is a fixed IP, be sure to get the IP from your ISP. For dynamic IP, which is mostly used, the PC will get the IP automatically whenever it hooks up on the modem. Dynamic IP z  Dynamic IP Setting Fixed IP z  Your fixed IP address for the GuestWiFi z  Your subnet mask for the GuestWiFi z  Your default gateway IP address z  Your DNS IP address PPPoE z  Your user name from your ISP z  Your password from your ISP PPTP z  PPTP Server IP Address from your ISP z  PPTP Local IP address from your ISP. z  PPTP Local IP subnet mask from your ISP. z  Your user name from your ISP z  Your password from your ISP z  Your PC Requirements The Static IP settings for the PC z  Your PC’s fixed IP address z  Your PC’s subnet mask z  Your PC’s default gateway IP address z  Your PC’s primary DNS IP address Note:  1. The gateway’s default IP address setting is “10.59.1.1”. 2. The gateway’s default subnet mask setting is “255.0.0.0”. The Dynamic IP settings for the PC We recommend that you leave your IP settings as automatically assigned. By default, the GuestWiFi is a DHCP server, and it will give your PC the necessary IP settings.  Easy Hotspot Kit  13

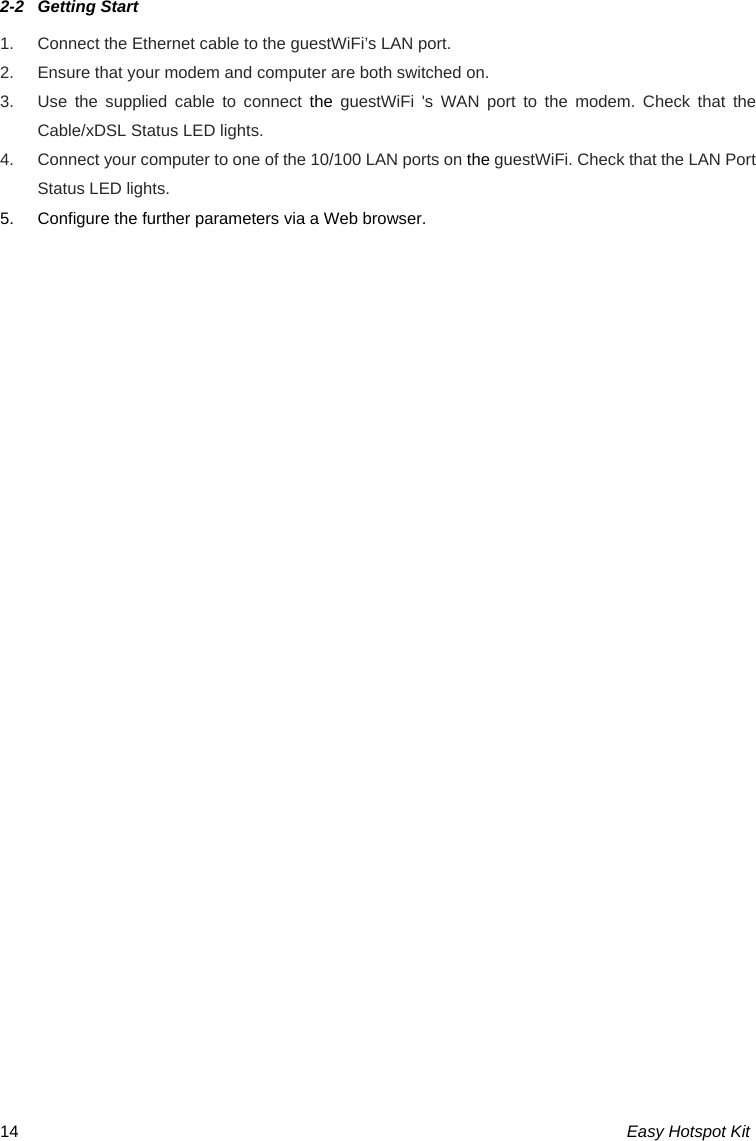

Easy Hotspot Kit 142-2  Getting Start 1.  Connect the Ethernet cable to the guestWiFi’s LAN port. 2.  Ensure that your modem and computer are both switched on. 3.  Use the supplied cable to connect the  guestWiFi 's WAN port to the modem. Check that the Cable/xDSL Status LED lights. 4.  Connect your computer to one of the 10/100 LAN ports on the guestWiFi. Check that the LAN Port Status LED lights. 5.  Configure the further parameters via a Web browser.

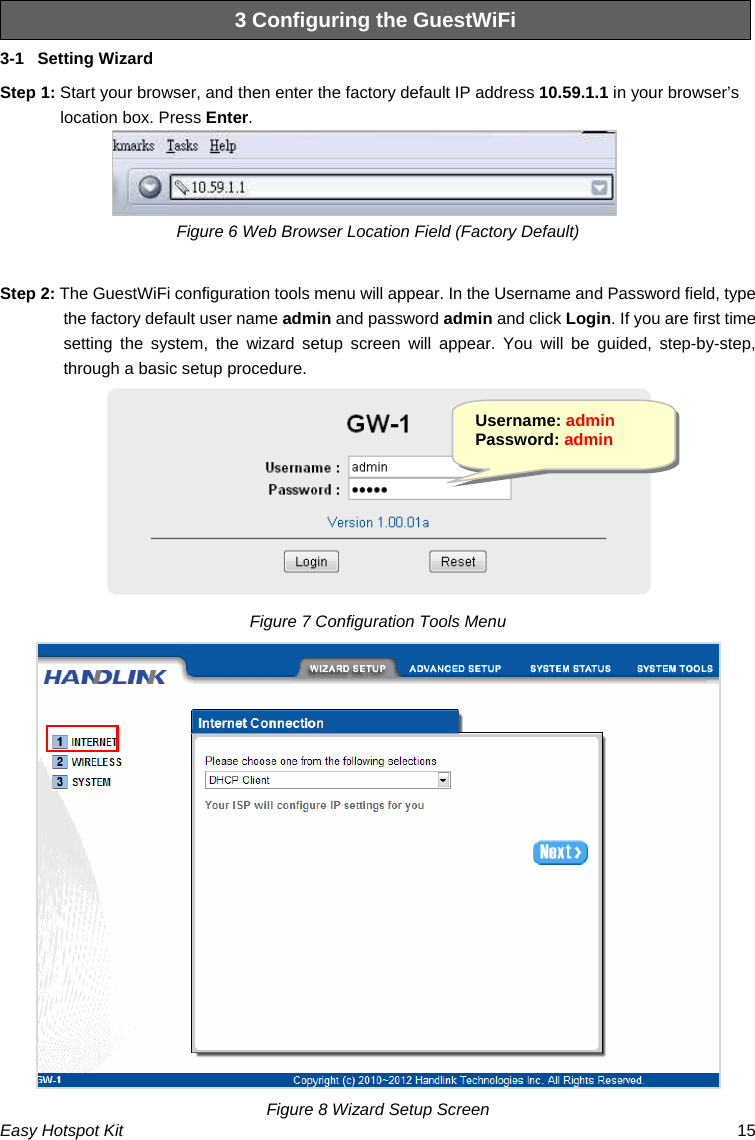

3 Configuring the GuestWiFi 3-1  Setting Wizard Step 1: Start your browser, and then enter the factory default IP address 10.59.1.1 in your browser’s location box. Press Enter. Figure 6 Web Browser Location Field (Factory Default)  Step 2: The GuestWiFi configuration tools menu will appear. In the Username and Password field, type the factory default user name admin and password admin and click Login. If you are first time setting the system, the wizard setup screen will appear. You will be guided, step-by-step, through a basic setup procedure.  Username: admin Password: admin Figure 7 Configuration Tools Menu  Easy Hotspot Kit  15 Figure 8 Wizard Setup Screen

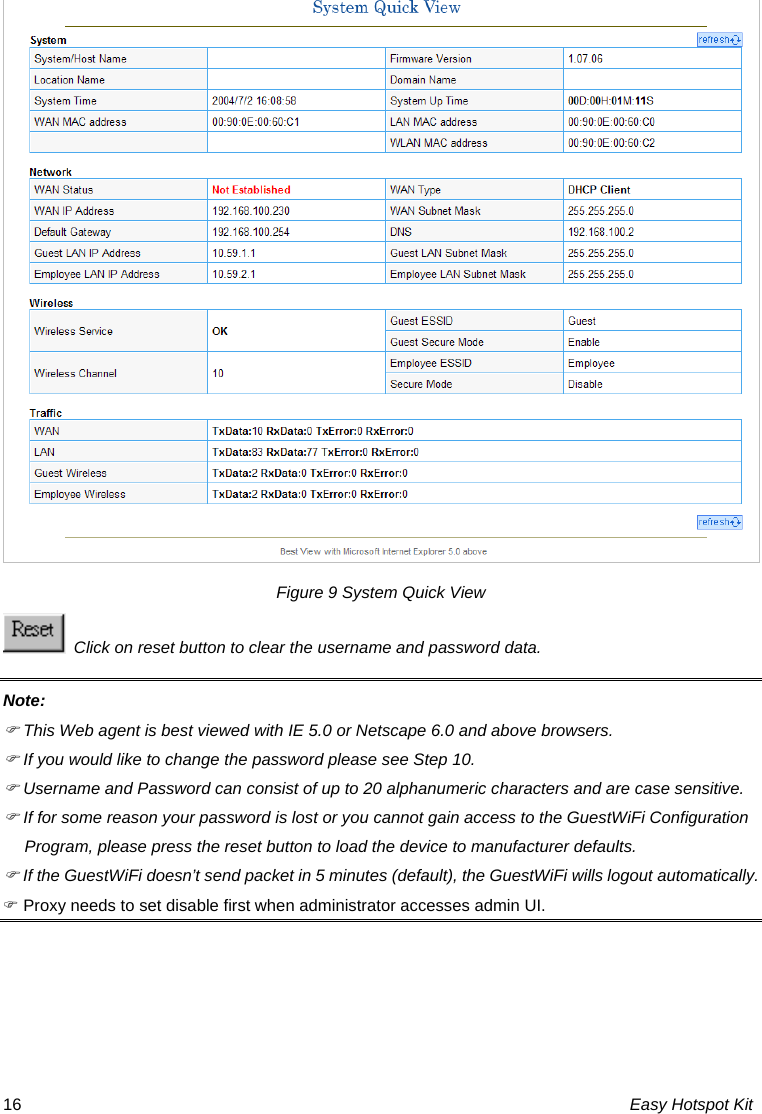

Figure 9 System Quick View   Click on reset button to clear the username and password data. Note: ) This Web agent is best viewed with IE 5.0 or Netscape 6.0 and above browsers. ) If you would like to change the password please see Step 10. ) Username and Password can consist of up to 20 alphanumeric characters and are case sensitive. ) If for some reason your password is lost or you cannot gain access to the GuestWiFi Configuration Program, please press the reset button to load the device to manufacturer defaults. ) If the GuestWiFi doesn’t send packet in 5 minutes (default), the GuestWiFi wills logout automatically. ) Proxy needs to set disable first when administrator accesses admin UI.  Easy Hotspot Kit 16

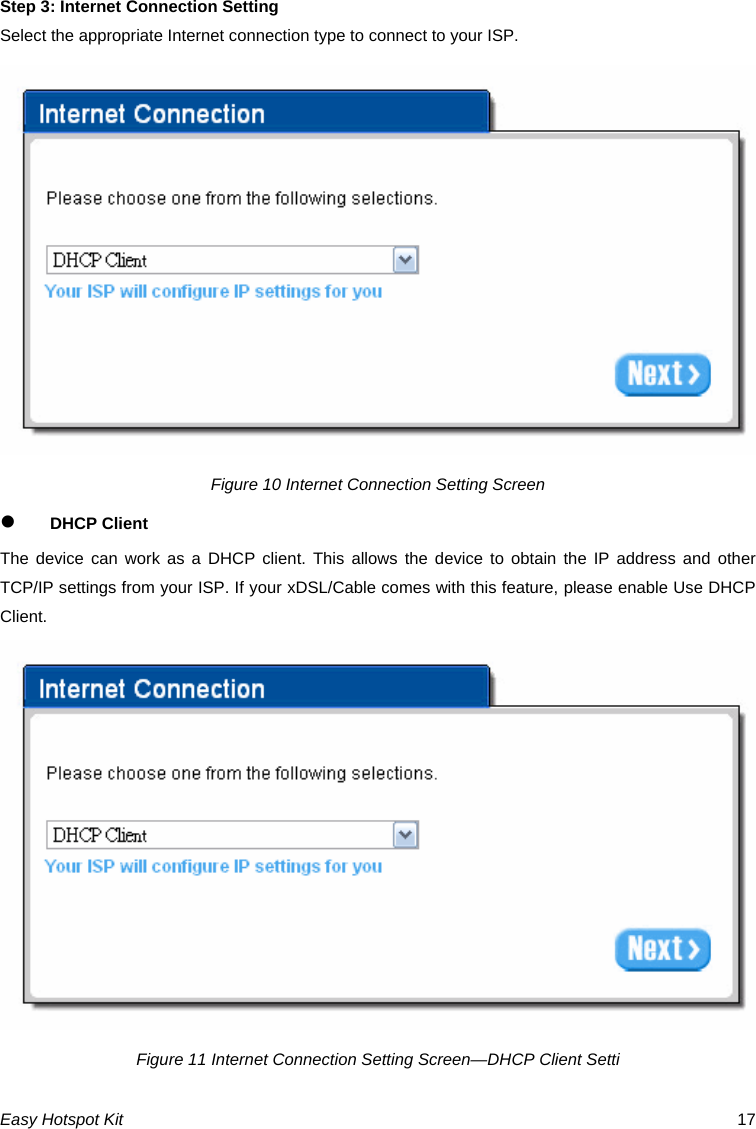

Step 3: Internet Connection Setting Select the appropriate Internet connection type to connect to your ISP. Figure 10 Internet Connection Setting Screen z DHCP Client The device can work as a DHCP client. This allows the device to obtain the IP address and other TCP/IP settings from your ISP. If your xDSL/Cable comes with this feature, please enable Use DHCP Client. Figure 11 Internet Connection Setting Screen—DHCP Client SettiEasy Hotspot Kit  17

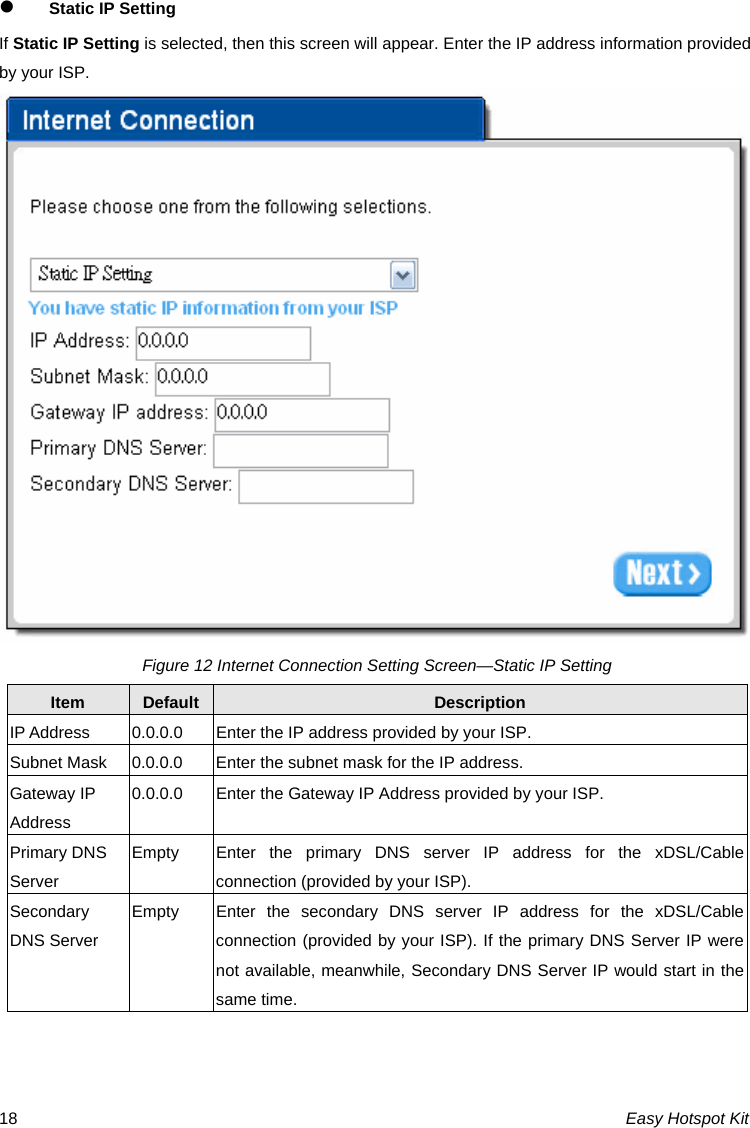

z Static IP Setting If Static IP Setting is selected, then this screen will appear. Enter the IP address information provided by your ISP. Figure 12 Internet Connection Setting Screen—Static IP Setting Default Description Item IP Address  0.0.0.0  Enter the IP address provided by your ISP. Subnet Mask  0.0.0.0  Enter the subnet mask for the IP address. Gateway IP Address 0.0.0.0  Enter the Gateway IP Address provided by your ISP. Primary DNS Server Empty  Enter the primary DNS server IP address for the xDSL/Cable connection (provided by your ISP). Secondary DNS Server Empty  Enter the secondary DNS server IP address for the xDSL/Cable connection (provided by your ISP). If the primary DNS Server IP were not available, meanwhile, Secondary DNS Server IP would start in the same time.   Easy Hotspot Kit 18

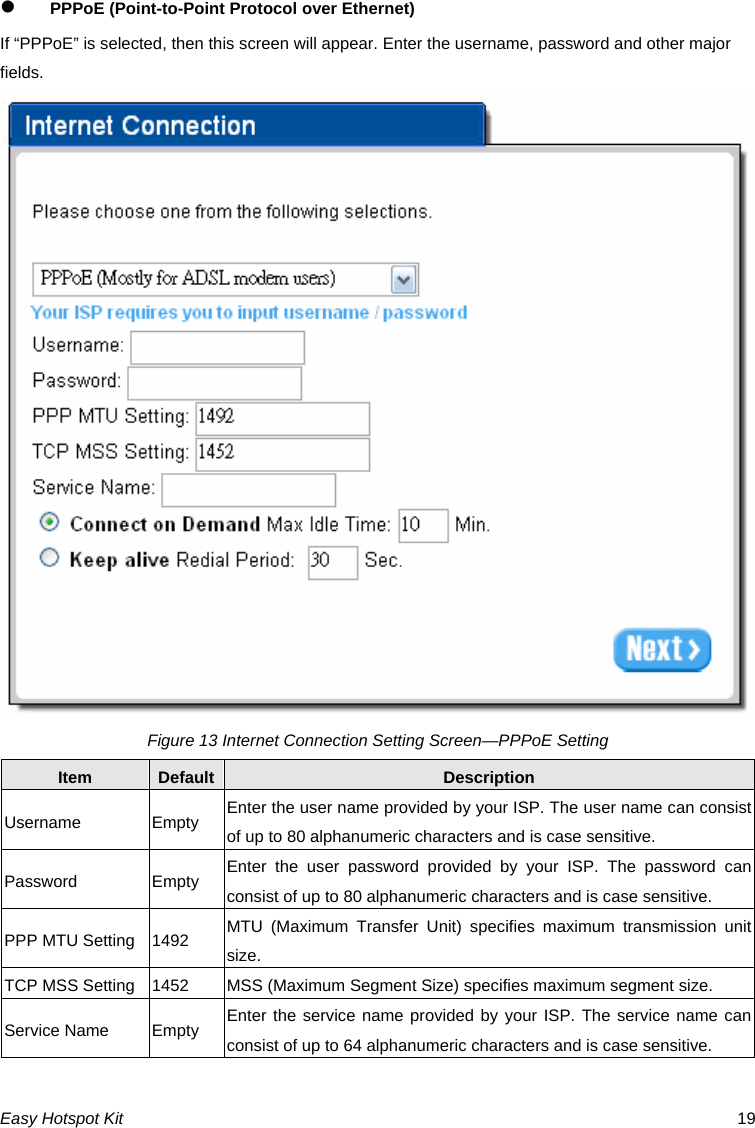

z PPPoE (Point-to-Point Protocol over Ethernet) If “PPPoE” is selected, then this screen will appear. Enter the username, password and other major fields.  Figure 13 Internet Connection Setting Screen—PPPoE Setting Default Description Item Empty Enter the user name provided by your ISP. The user name can consist of up to 80 alphanumeric characters and is case sensitive. Username Empty Enter the user password provided by your ISP. The password can consist of up to 80 alphanumeric characters and is case sensitive. Password 1492  MTU (Maximum Transfer Unit) specifies maximum transmission unit size. PPP MTU Setting TCP MSS Setting  1452  MSS (Maximum Segment Size) specifies maximum segment size. Service Name  Empty  Enter the service name provided by your ISP. The service name can consist of up to 64 alphanumeric characters and is case sensitive. Easy Hotspot Kit  19

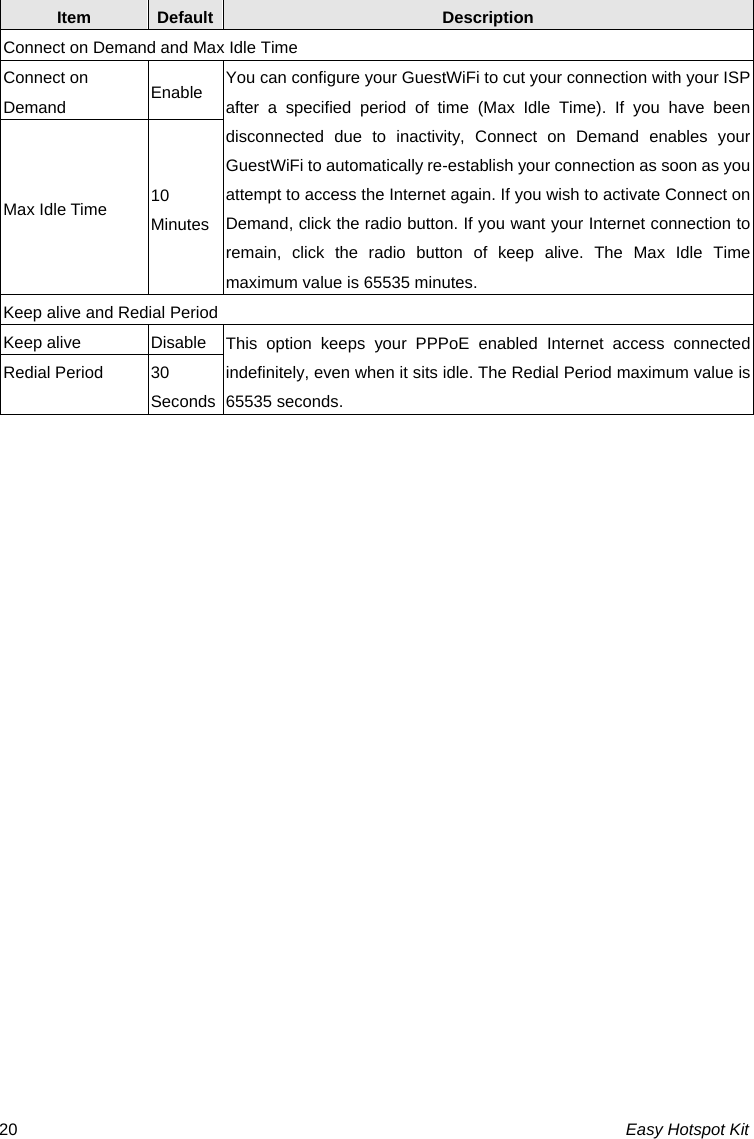

Easy Hotspot Kit 20Item  Default Description Connect on Demand and Max Idle Time Connect on Demand  Enable  You can configure your GuestWiFi to cut your connection with your ISP after a specified period of time (Max Idle Time). If you have been disconnected due to inactivity, Connect on Demand enables your GuestWiFi to automatically re-establish your connection as soon as you attempt to access the Internet again. If you wish to activate Connect on Demand, click the radio button. If you want your Internet connection to remain, click the radio button of keep alive. The Max Idle Time maximum value is 65535 minutes. Max Idle Time  10 MinutesKeep alive and Redial Period Keep alive  Disable This option keeps your PPPoE enabled Internet access connected indefinitely, even when it sits idle. The Redial Period maximum value is 65535 seconds. Redial Period  30 Seconds

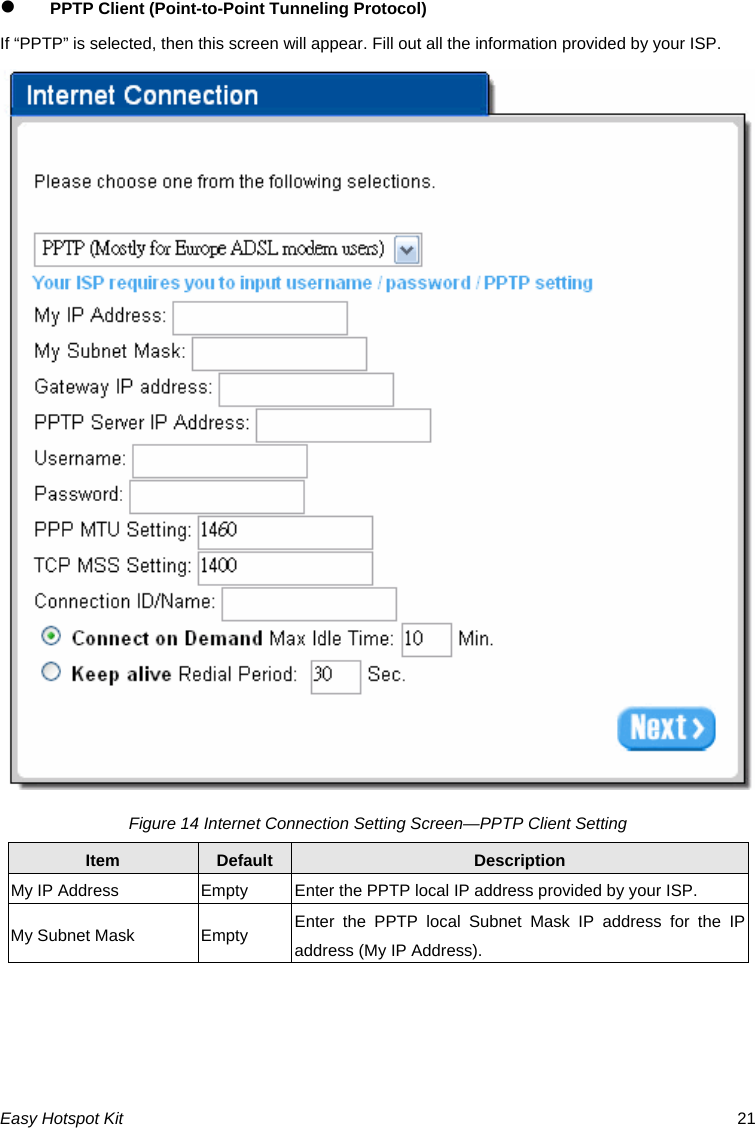

z PPTP Client (Point-to-Point Tunneling Protocol) If “PPTP” is selected, then this screen will appear. Fill out all the information provided by your ISP. Figure 14 Internet Connection Setting Screen—PPTP Client Setting Default Description Item My IP Address  Empty  Enter the PPTP local IP address provided by your ISP. Enter the PPTP local Subnet Mask IP address for the IP address (My IP Address). My Subnet Mask  Empty   Easy Hotspot Kit  21

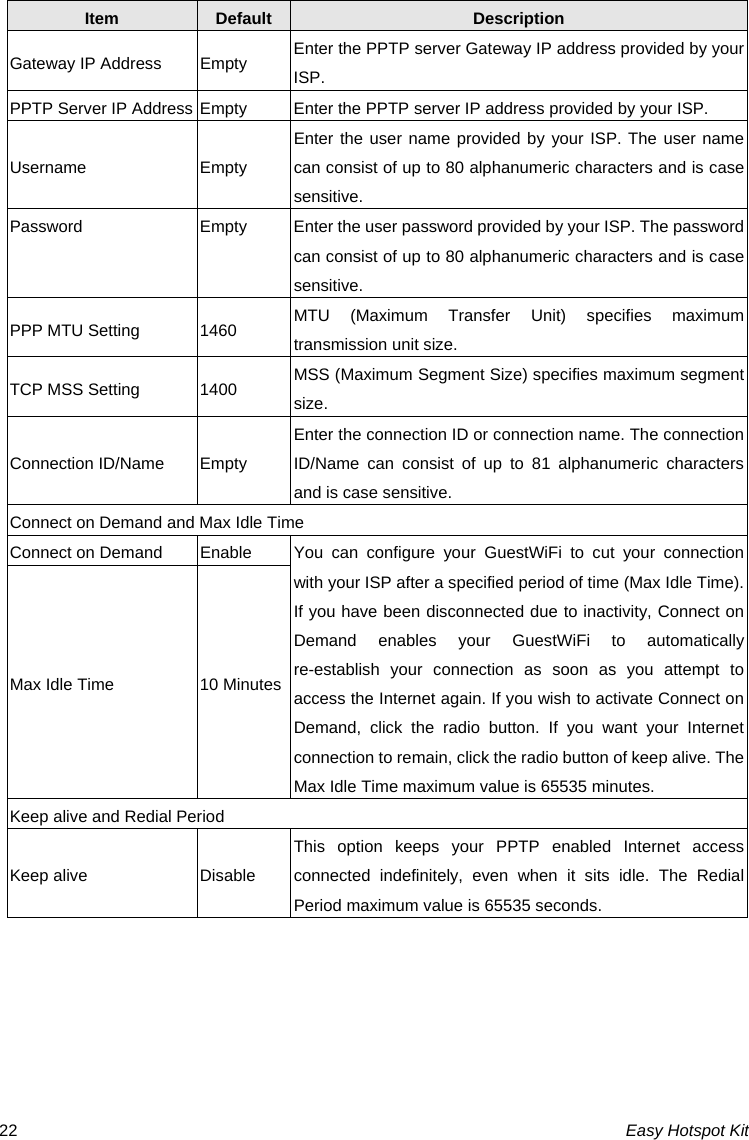

Easy Hotspot Kit 22Item  Default Description Gateway IP Address  Empty  Enter the PPTP server Gateway IP address provided by your ISP. PPTP Server IP Address Empty  Enter the PPTP server IP address provided by your ISP. Username Empty Enter the user name provided by your ISP. The user name can consist of up to 80 alphanumeric characters and is case sensitive. Password  Empty  Enter the user password provided by your ISP. The password can consist of up to 80 alphanumeric characters and is case sensitive. PPP MTU Setting  1460  MTU (Maximum Transfer Unit) specifies maximum transmission unit size. TCP MSS Setting  1400  MSS (Maximum Segment Size) specifies maximum segment size. Connection ID/Name  Empty Enter the connection ID or connection name. The connection ID/Name can consist of up to 81 alphanumeric characters and is case sensitive. Connect on Demand and Max Idle Time Connect on Demand  Enable  You  can  configure  your GuestWiFi to cut your connection with your ISP after a specified period of time (Max Idle Time). If you have been disconnected due to inactivity, Connect on Demand enables your GuestWiFi to automatically re-establish your connection as soon as you attempt to access the Internet again. If you wish to activate Connect on Demand, click the radio button. If you want your Internet connection to remain, click the radio button of keep alive. The Max Idle Time maximum value is 65535 minutes. Max Idle Time  10 MinutesKeep alive and Redial Period Keep alive  Disable This option keeps your PPTP enabled Internet access connected indefinitely, even when it sits idle. The Redial Period maximum value is 65535 seconds.

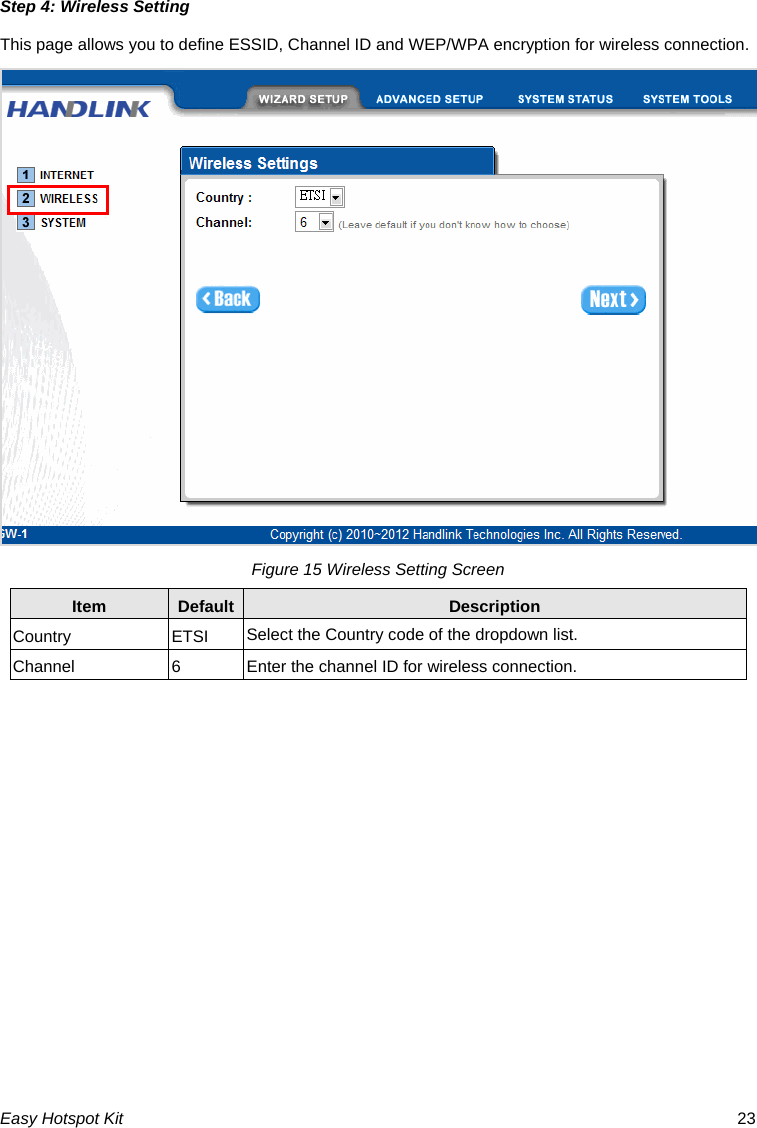

Step 4: Wireless Setting This page allows you to define ESSID, Channel ID and WEP/WPA encryption for wireless connection.  Figure 15 Wireless Setting Screen Default Description Item ETSI Select the Country code of the dropdown list. Country Channel  6  Enter the channel ID for wireless connection. Easy Hotspot Kit  23

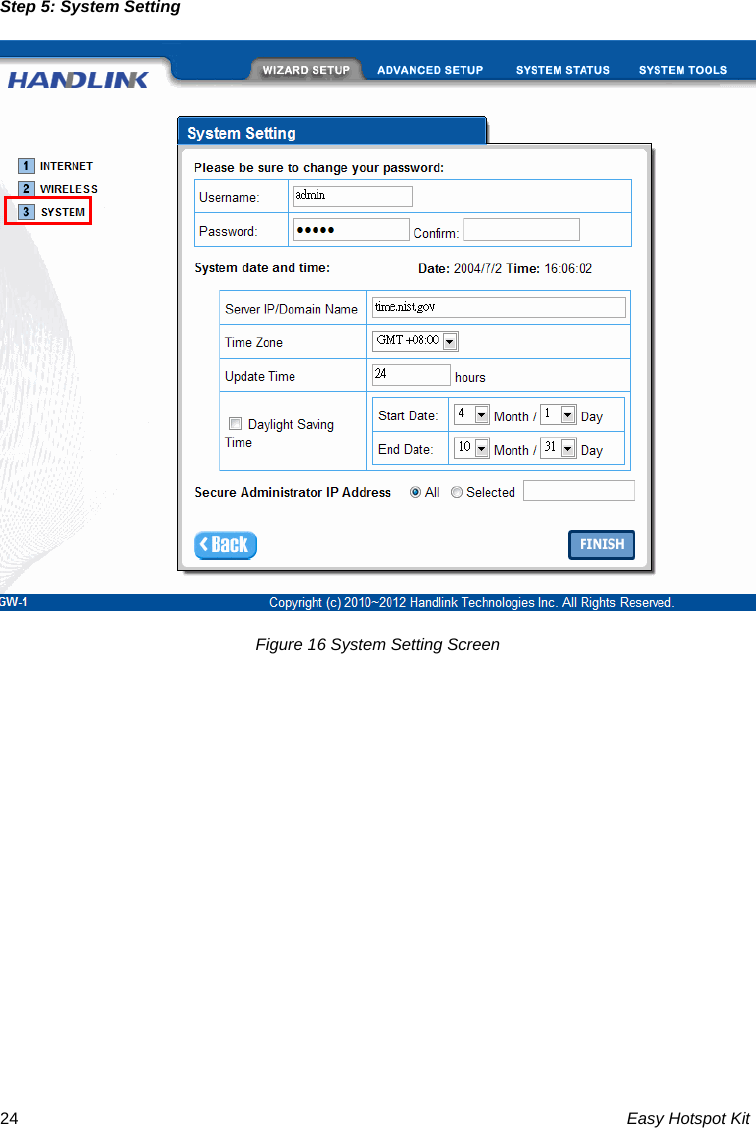

Step 5: System Setting  Figure 16 System Setting Screen             Easy Hotspot Kit 24

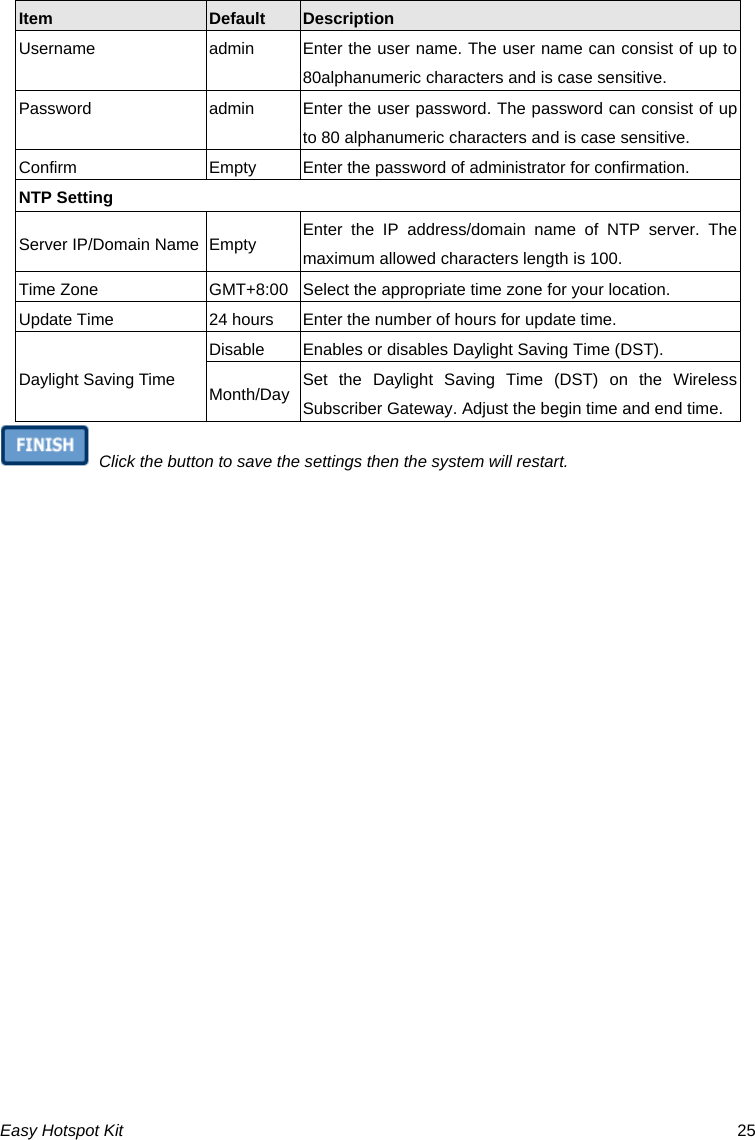

Default  Description Item Username  admin  Enter the user name. The user name can consist of up to 80alphanumeric characters and is case sensitive. Password  admin  Enter the user password. The password can consist of up to 80 alphanumeric characters and is case sensitive. Confirm  Empty  Enter the password of administrator for confirmation. NTP Setting Empty  Enter the IP address/domain name of NTP server. The maximum allowed characters length is 100. Server IP/Domain NameTime Zone  GMT+8:00 Select the appropriate time zone for your location. Update Time  24 hours  Enter the number of hours for update time. Disable Enables or disables Daylight Saving Time (DST). Daylight Saving Time  Set the Daylight Saving Time (DST) on the Wireless Subscriber Gateway. Adjust the begin time and end time. Month/Day  Click the button to save the settings then the system will restart. Easy Hotspot Kit  25

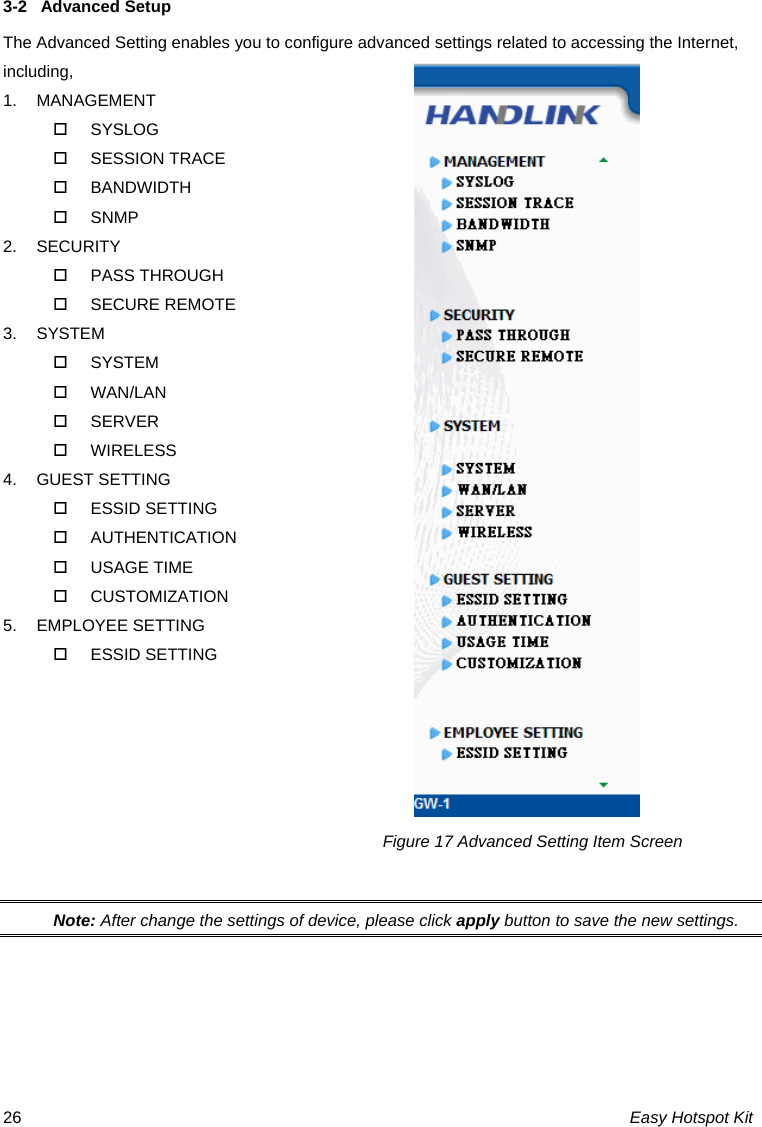

3-2  Advanced Setup The Advanced Setting enables you to configure advanced settings related to accessing the Internet, including, 1. MANAGEMENT  SYSLOG  SESSION TRACE  BANDWIDTH  SNMP 2. SECURITY  PASS THROUGH  SECURE REMOTE 3. SYSTEM  SYSTEM  WAN/LAN  SERVER  WIRELESS 4. GUEST SETTING  ESSID SETTING  AUTHENTICATION  USAGE TIME  CUSTOMIZATION 5. EMPLOYEE SETTING  ESSID SETTING          Note: After change the settings of device, please click apply button to save the new settings. Figure 17 Advanced Setting Item Screen Easy Hotspot Kit 26

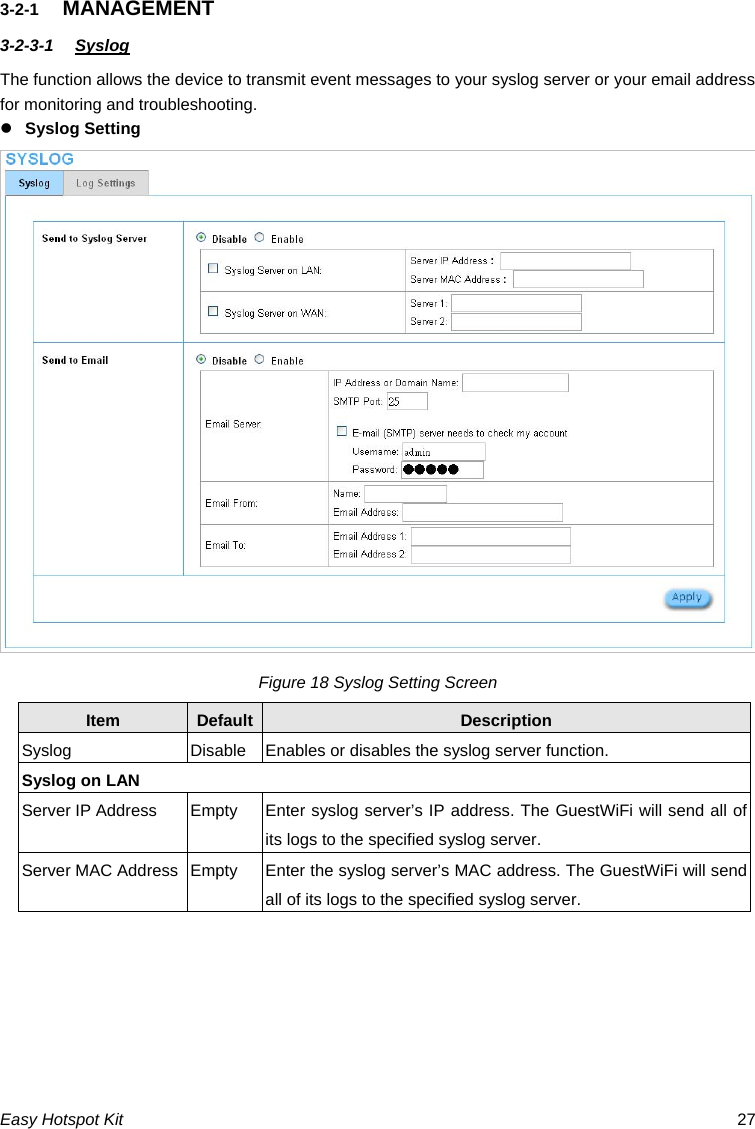

3-2-1  MANAGEMENT 3-2-3-1  Syslog The function allows the device to transmit event messages to your syslog server or your email address for monitoring and troubleshooting. z Syslog Setting Figure 18 Syslog Setting Screen Default Description Item Syslog Disable Enables or disables the syslog server function. Syslog on LAN Server IP Address  Empty  Enter syslog server’s IP address. The GuestWiFi will send all of its logs to the specified syslog server. Server MAC Address  Empty  Enter the syslog server’s MAC address. The GuestWiFi will send all of its logs to the specified syslog server. Easy Hotspot Kit  27

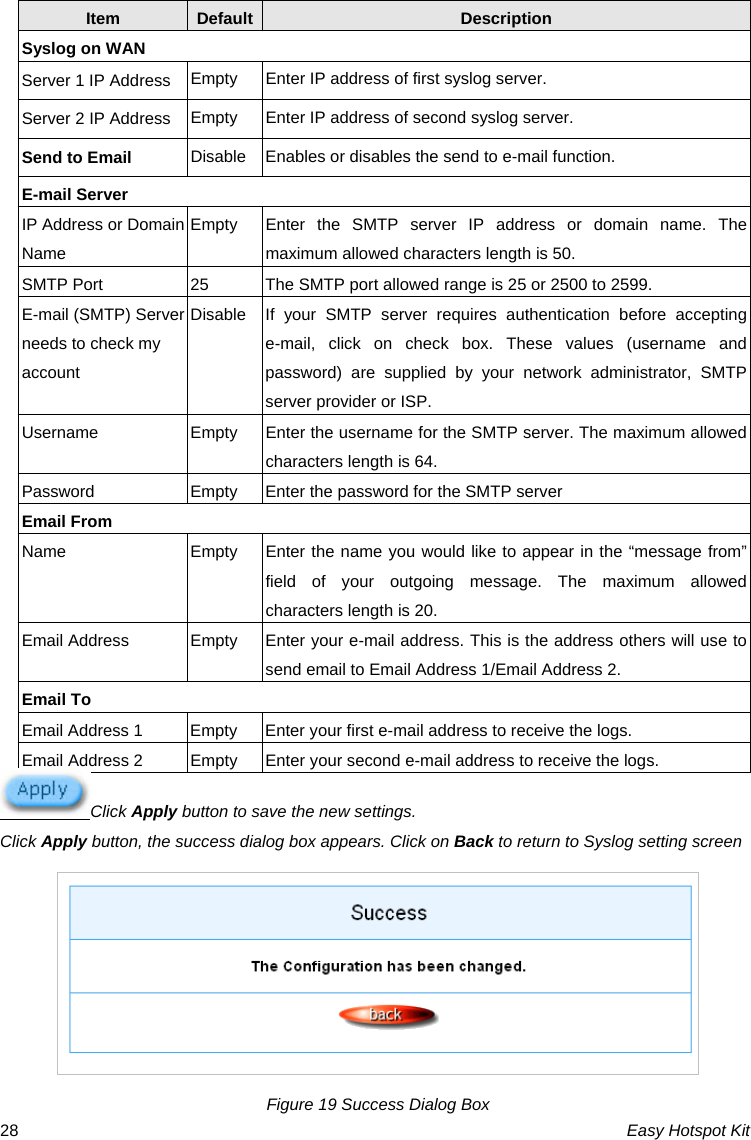

Item  Default Description Syslog on WAN Empty  Enter IP address of first syslog server. Server 1 IP Address Empty  Enter IP address of second syslog server. Server 2 IP Address Disable Enables or disables the send to e-mail function. Send to Email E-mail Server IP Address or Domain Name Empty  Enter the SMTP server IP address or domain name. The maximum allowed characters length is 50. SMTP Port  25  The SMTP port allowed range is 25 or 2500 to 2599. E-mail (SMTP) Server needs to check my account Disable If your SMTP server requires authentication before accepting e-mail, click on check box. These values (username and password) are supplied by your network administrator, SMTP server provider or ISP. Username  Empty  Enter the username for the SMTP server. The maximum allowed characters length is 64. Password  Empty  Enter the password for the SMTP server Email From Name  Empty  Enter the name you would like to appear in the “message from” field of your outgoing message. The maximum allowed characters length is 20. Email Address  Empty  Enter your e-mail address. This is the address others will use to send email to Email Address 1/Email Address 2. Email To Email Address 1  Empty  Enter your first e-mail address to receive the logs. Email Address 2  Empty  Enter your second e-mail address to receive the logs. Click Apply button to save the new settings. Click Apply button, the success dialog box appears. Click on Back to return to Syslog setting screen  Figure 19 Success Dialog Box Easy Hotspot Kit 28

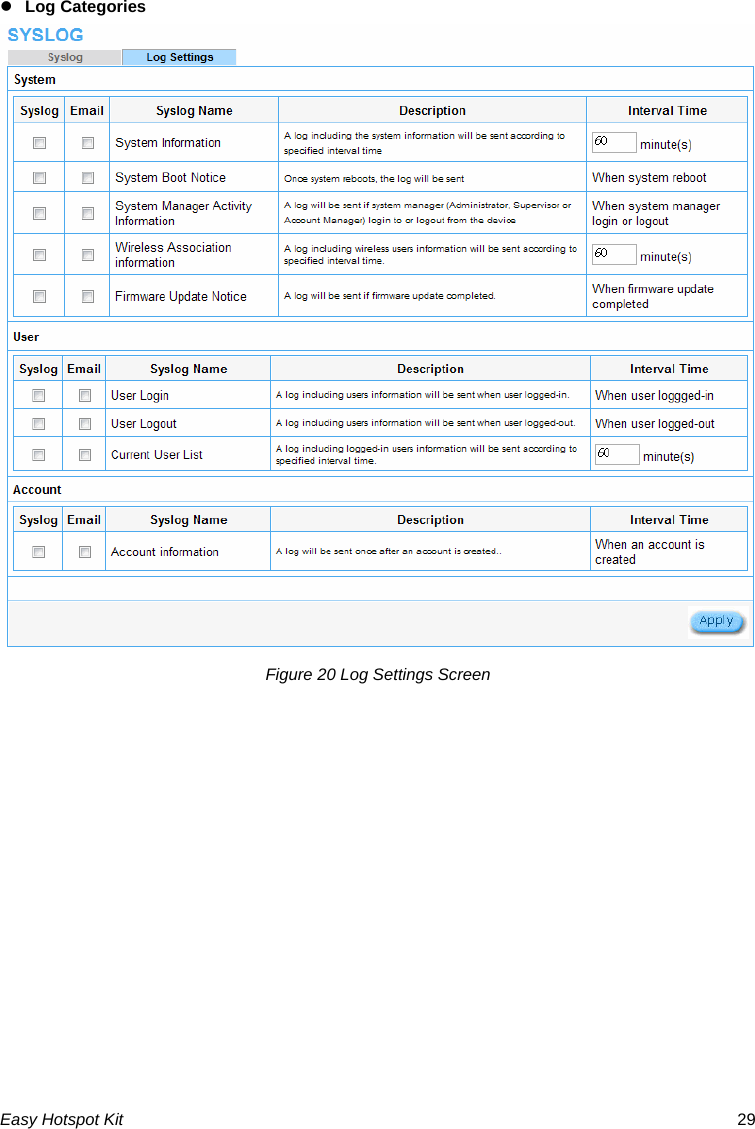

z Log Categories Figure 20 Log Settings Screen            Easy Hotspot Kit  29

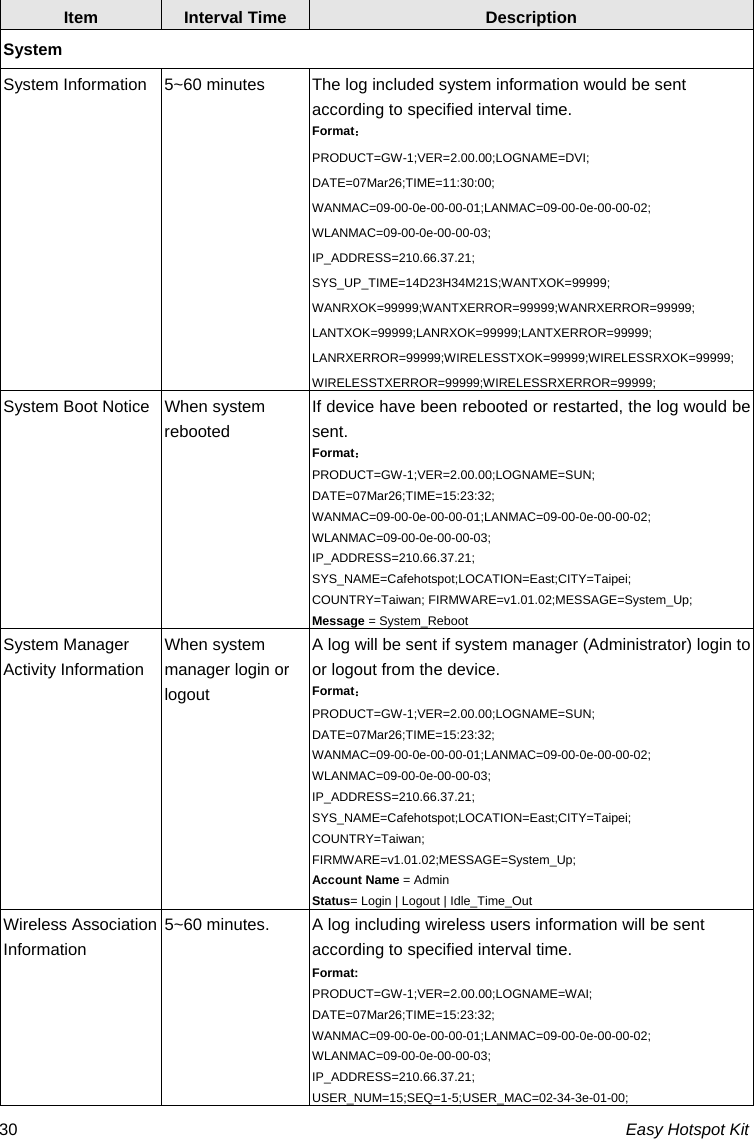

Easy Hotspot Kit 30Item  Interval Time  Description System System Information  5~60 minutes  The log included system information would be sent according to specified interval time. Format: PRODUCT=GW-1;VER=2.00.00;LOGNAME=DVI; DATE=07Mar26;TIME=11:30:00; WANMAC=09-00-0e-00-00-01;LANMAC=09-00-0e-00-00-02; WLANMAC=09-00-0e-00-00-03; IP_ADDRESS=210.66.37.21; SYS_UP_TIME=14D23H34M21S;WANTXOK=99999; WANRXOK=99999;WANTXERROR=99999;WANRXERROR=99999; LANTXOK=99999;LANRXOK=99999;LANTXERROR=99999; LANRXERROR=99999;WIRELESSTXOK=99999;WIRELESSRXOK=99999; WIRELESSTXERROR=99999;WIRELESSRXERROR=99999; System Boot Notice  When system rebooted  If device have been rebooted or restarted, the log would be sent. Format: PRODUCT=GW-1;VER=2.00.00;LOGNAME=SUN; DATE=07Mar26;TIME=15:23:32; WANMAC=09-00-0e-00-00-01;LANMAC=09-00-0e-00-00-02; WLANMAC=09-00-0e-00-00-03; IP_ADDRESS=210.66.37.21; SYS_NAME=Cafehotspot;LOCATION=East;CITY=Taipei; COUNTRY=Taiwan; FIRMWARE=v1.01.02;MESSAGE=System_Up; Message = System_Reboot System Manager Activity Information When system manager login or logout A log will be sent if system manager (Administrator) login to or logout from the device. Format: PRODUCT=GW-1;VER=2.00.00;LOGNAME=SUN; DATE=07Mar26;TIME=15:23:32; WANMAC=09-00-0e-00-00-01;LANMAC=09-00-0e-00-00-02; WLANMAC=09-00-0e-00-00-03; IP_ADDRESS=210.66.37.21; SYS_NAME=Cafehotspot;LOCATION=East;CITY=Taipei; COUNTRY=Taiwan; FIRMWARE=v1.01.02;MESSAGE=System_Up; Account Name = Admin   Status= Login | Logout | Idle_Time_OutWireless Association Information 5~60 minutes.  A log including wireless users information will be sent according to specified interval time. Format: PRODUCT=GW-1;VER=2.00.00;LOGNAME=WAI; DATE=07Mar26;TIME=15:23:32; WANMAC=09-00-0e-00-00-01;LANMAC=09-00-0e-00-00-02; WLANMAC=09-00-0e-00-00-03; IP_ADDRESS=210.66.37.21; USER_NUM=15;SEQ=1-5;USER_MAC=02-34-3e-01-00;

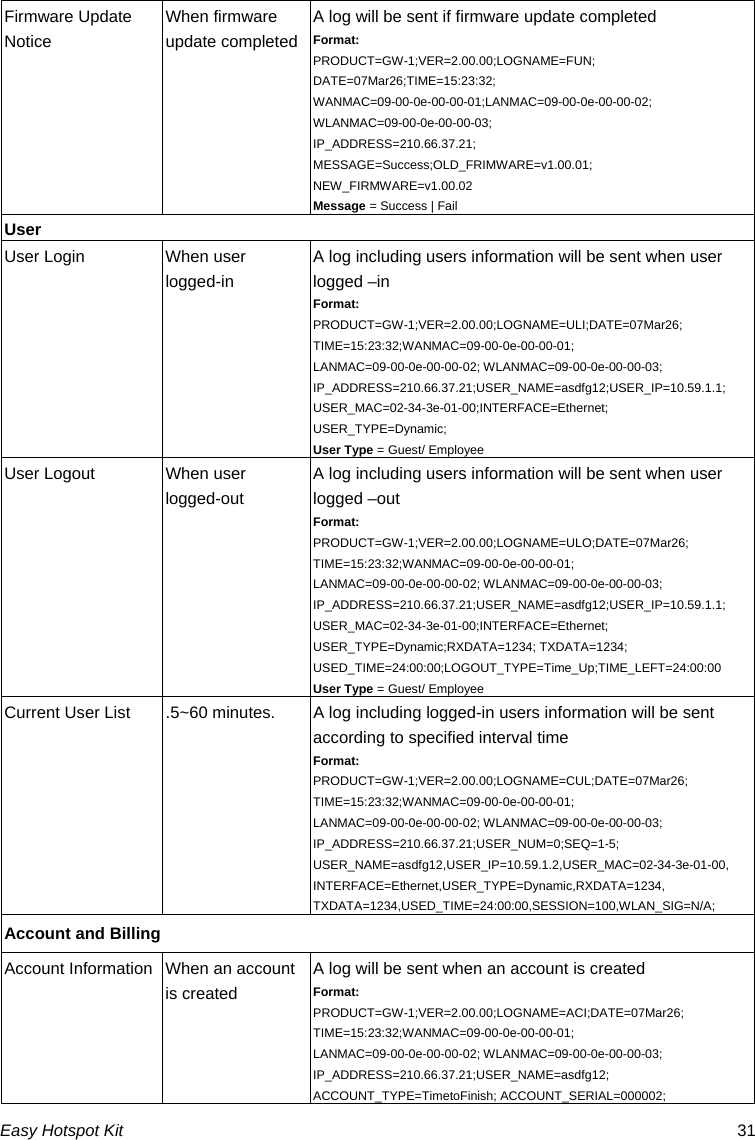

Easy Hotspot Kit  31 Firmware Update Notice When firmware update completedA log will be sent if firmware update completed Format: PRODUCT=GW-1;VER=2.00.00;LOGNAME=FUN; DATE=07Mar26;TIME=15:23:32; WANMAC=09-00-0e-00-00-01;LANMAC=09-00-0e-00-00-02; WLANMAC=09-00-0e-00-00-03; IP_ADDRESS=210.66.37.21; MESSAGE=Success;OLD_FRIMWARE=v1.00.01; NEW_FIRMWARE=v1.00.02 Message = Success | Fail User User Login  When user logged-in A log including users information will be sent when user logged –in Format: PRODUCT=GW-1;VER=2.00.00;LOGNAME=ULI;DATE=07Mar26; TIME=15:23:32;WANMAC=09-00-0e-00-00-01; LANMAC=09-00-0e-00-00-02; WLANMAC=09-00-0e-00-00-03; IP_ADDRESS=210.66.37.21;USER_NAME=asdfg12;USER_IP=10.59.1.1; USER_MAC=02-34-3e-01-00;INTERFACE=Ethernet; USER_TYPE=Dynamic; User Type = Guest/ Employee User Logout  When user logged-out A log including users information will be sent when user logged –out Format: PRODUCT=GW-1;VER=2.00.00;LOGNAME=ULO;DATE=07Mar26; TIME=15:23:32;WANMAC=09-00-0e-00-00-01; LANMAC=09-00-0e-00-00-02; WLANMAC=09-00-0e-00-00-03; IP_ADDRESS=210.66.37.21;USER_NAME=asdfg12;USER_IP=10.59.1.1; USER_MAC=02-34-3e-01-00;INTERFACE=Ethernet; USER_TYPE=Dynamic;RXDATA=1234; TXDATA=1234; USED_TIME=24:00:00;LOGOUT_TYPE=Time_Up;TIME_LEFT=24:00:00 User Type = Guest/ EmployeeCurrent User List  .5~60 minutes.  A log including logged-in users information will be sent according to specified interval time Format: PRODUCT=GW-1;VER=2.00.00;LOGNAME=CUL;DATE=07Mar26; TIME=15:23:32;WANMAC=09-00-0e-00-00-01; LANMAC=09-00-0e-00-00-02; WLANMAC=09-00-0e-00-00-03; IP_ADDRESS=210.66.37.21;USER_NUM=0;SEQ=1-5; USER_NAME=asdfg12,USER_IP=10.59.1.2,USER_MAC=02-34-3e-01-00, INTERFACE=Ethernet,USER_TYPE=Dynamic,RXDATA=1234, TXDATA=1234,USED_TIME=24:00:00,SESSION=100,WLAN_SIG=N/A;  Account and Billing Account Information  When an account is created A log will be sent when an account is created Format: PRODUCT=GW-1;VER=2.00.00;LOGNAME=ACI;DATE=07Mar26; TIME=15:23:32;WANMAC=09-00-0e-00-00-01; LANMAC=09-00-0e-00-00-02; WLANMAC=09-00-0e-00-00-03; IP_ADDRESS=210.66.37.21;USER_NAME=asdfg12; ACCOUNT_TYPE=TimetoFinish; ACCOUNT_SERIAL=000002;

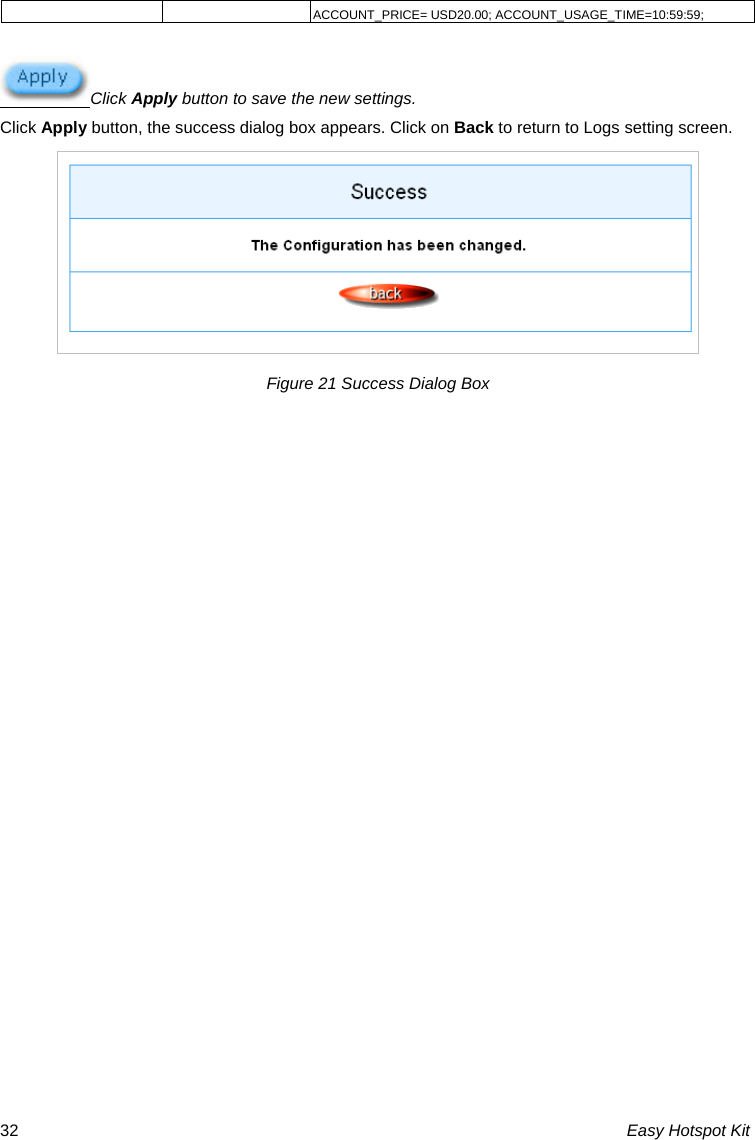

ACCOUNT_PRICE= USD20.00; ACCOUNT_USAGE_TIME=10:59:59;    Click Apply button to save the new settings. Click Apply button, the success dialog box appears. Click on Back to return to Logs setting screen.  Figure 21 Success Dialog Box Easy Hotspot Kit 32

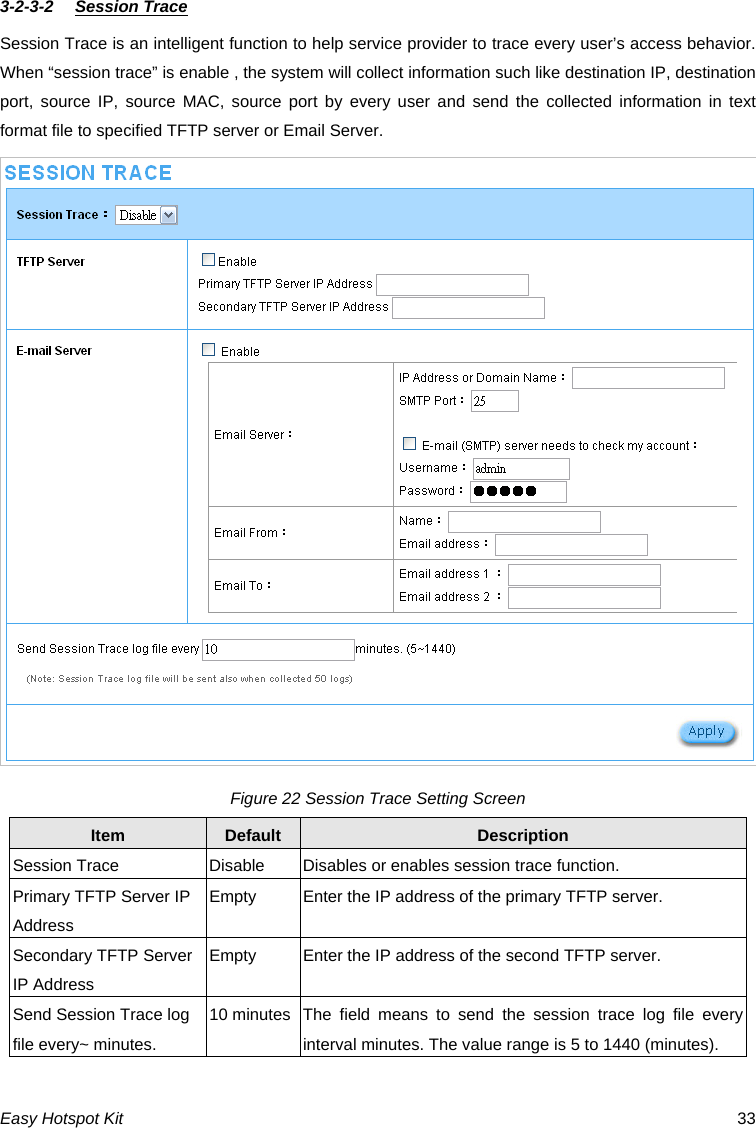

3-2-3-2  Session Trace Session Trace is an intelligent function to help service provider to trace every user’s access behavior. When “session trace” is enable , the system will collect information such like destination IP, destination port, source IP, source MAC, source port by every user and send the collected information in text format file to specified TFTP server or Email Server. Figure 22 Session Trace Setting Screen Default Description Item Session Trace  Disable  Disables or enables session trace function. Primary TFTP Server IP Address Empty  Enter the IP address of the primary TFTP server. Secondary TFTP Server IP Address Empty  Enter the IP address of the second TFTP server. Send Session Trace log file every~ minutes. 10 minutes The field means to send the session trace log file every interval minutes. The value range is 5 to 1440 (minutes).  Easy Hotspot Kit  33

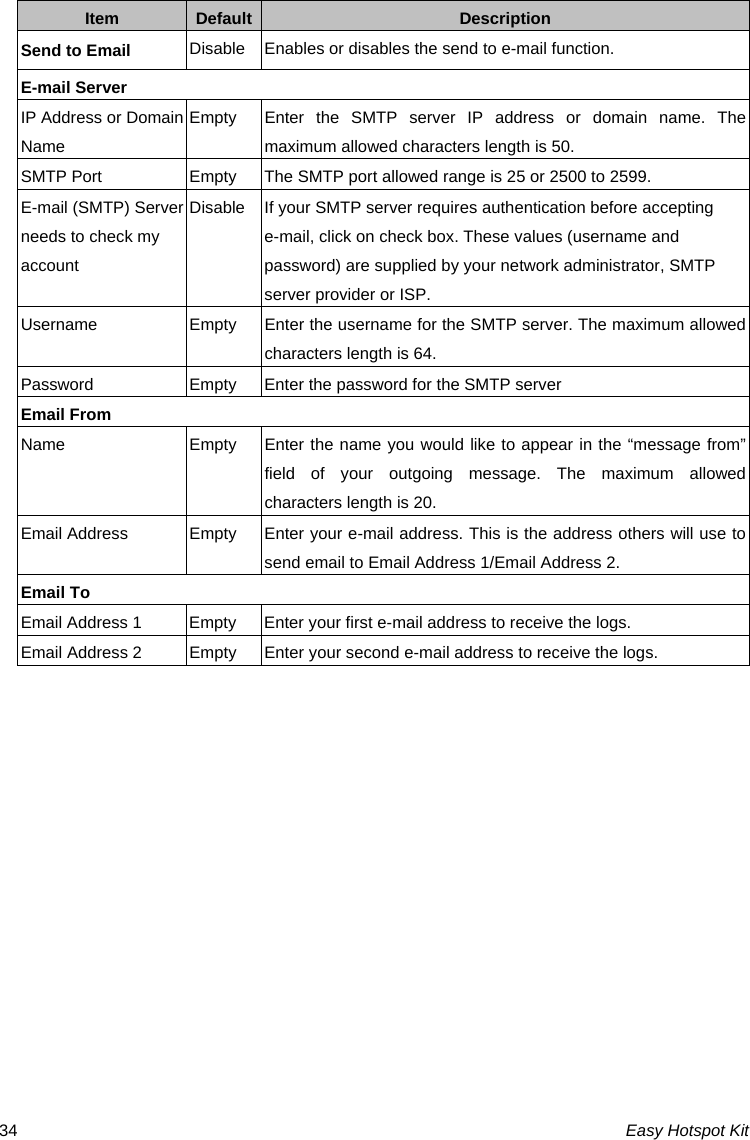

Easy Hotspot Kit 34Item  Default Description Send to Email  Disable Enables or disables the send to e-mail function. E-mail Server IP Address or Domain Name Empty  Enter the SMTP server IP address or domain name. The maximum allowed characters length is 50. SMTP Port  Empty  The SMTP port allowed range is 25 or 2500 to 2599. E-mail (SMTP) Server needs to check my account Disable If your SMTP server requires authentication before accepting e-mail, click on check box. These values (username and password) are supplied by your network administrator, SMTP server provider or ISP. Username  Empty  Enter the username for the SMTP server. The maximum allowed characters length is 64. Password  Empty  Enter the password for the SMTP server Email From Name  Empty  Enter the name you would like to appear in the “message from” field of your outgoing message. The maximum allowed characters length is 20. Email Address  Empty  Enter your e-mail address. This is the address others will use to send email to Email Address 1/Email Address 2. Email To Email Address 1  Empty  Enter your first e-mail address to receive the logs. Email Address 2  Empty  Enter your second e-mail address to receive the logs.

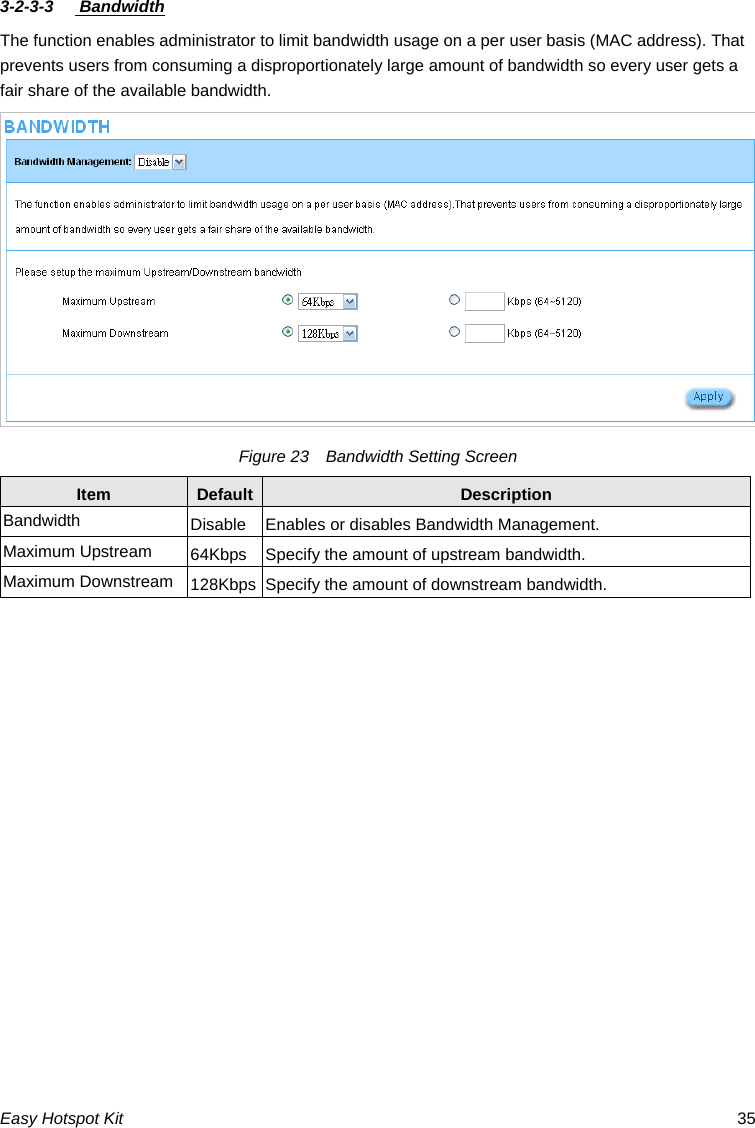

3-2-3-3   Bandwidth The function enables administrator to limit bandwidth usage on a per user basis (MAC address). That prevents users from consuming a disproportionately large amount of bandwidth so every user gets a fair share of the available bandwidth. Figure 23    Bandwidth Setting Screen Default Description Item Bandwidth  Disable Enables or disables Bandwidth Management. Maximum Upstream  64Kbps Specify the amount of upstream bandwidth. Maximum Downstream  128Kbps Specify the amount of downstream bandwidth. Easy Hotspot Kit  35

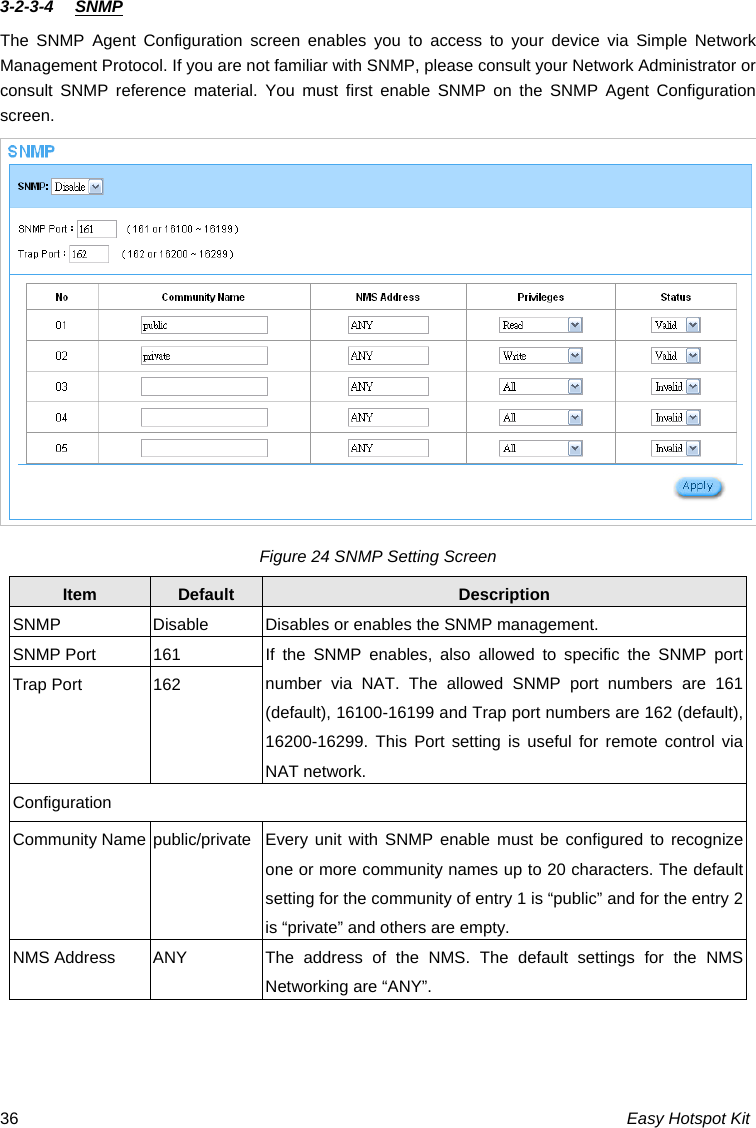

3-2-3-4  SNMP The SNMP Agent Configuration screen enables you to access to your device via Simple Network Management Protocol. If you are not familiar with SNMP, please consult your Network Administrator or consult SNMP reference material. You must first enable SNMP on the SNMP Agent Configuration screen.  Figure 24 SNMP Setting Screen Default  Description Item SNMP Disable Disables or enables the SNMP management. SNMP Port  161  If the SNMP enables, also allowed to specific the SNMP port number via NAT. The allowed SNMP port numbers are 161 (default), 16100-16199 and Trap port numbers are 162 (default), 16200-16299. This Port setting is useful for remote control via NAT network. Trap Port  162 Configuration Community Name public/private Every unit with SNMP enable must be configured to recognize one or more community names up to 20 characters. The default setting for the community of entry 1 is “public” and for the entry 2 is “private” and others are empty. NMS Address  ANY  The address of the NMS. The default settings for the NMS Networking are “ANY”. Easy Hotspot Kit 36

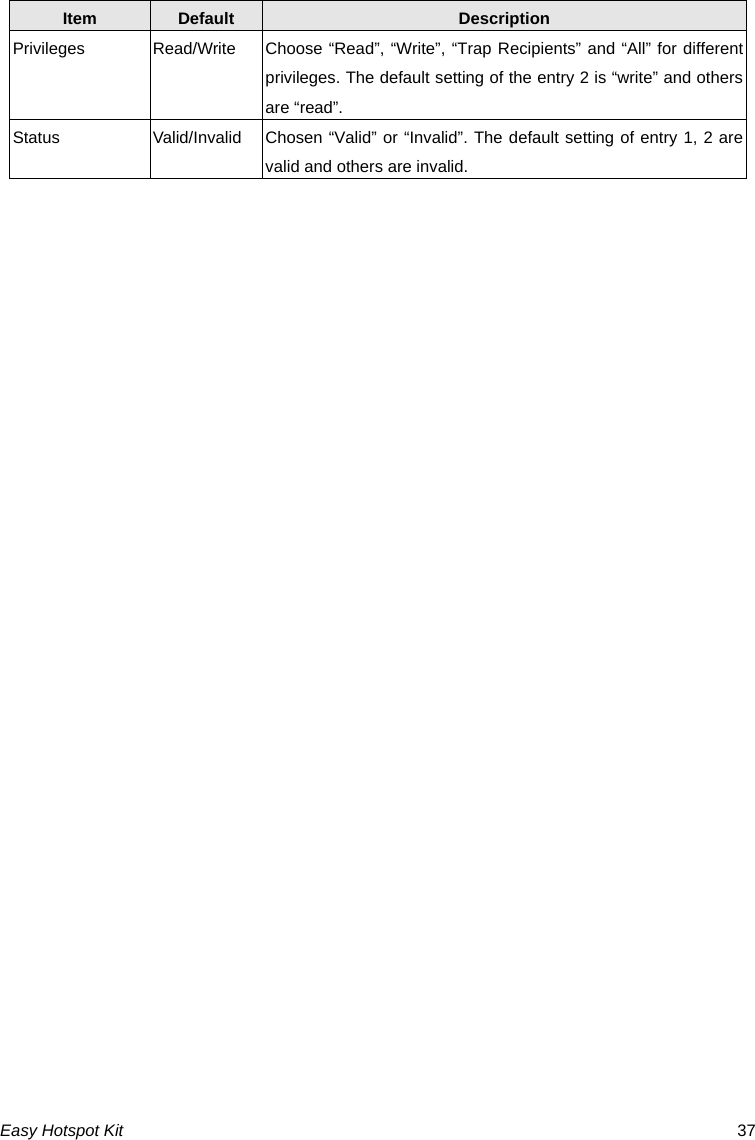

Easy Hotspot Kit  37 Item  Default  Description Privileges Read/Write Choose “Read”, “Write”, “Trap Recipients” and “All” for different privileges. The default setting of the entry 2 is “write” and others are “read”. Status  Valid/Invalid  Chosen “Valid” or “Invalid”. The default setting of entry 1, 2 are valid and others are invalid.

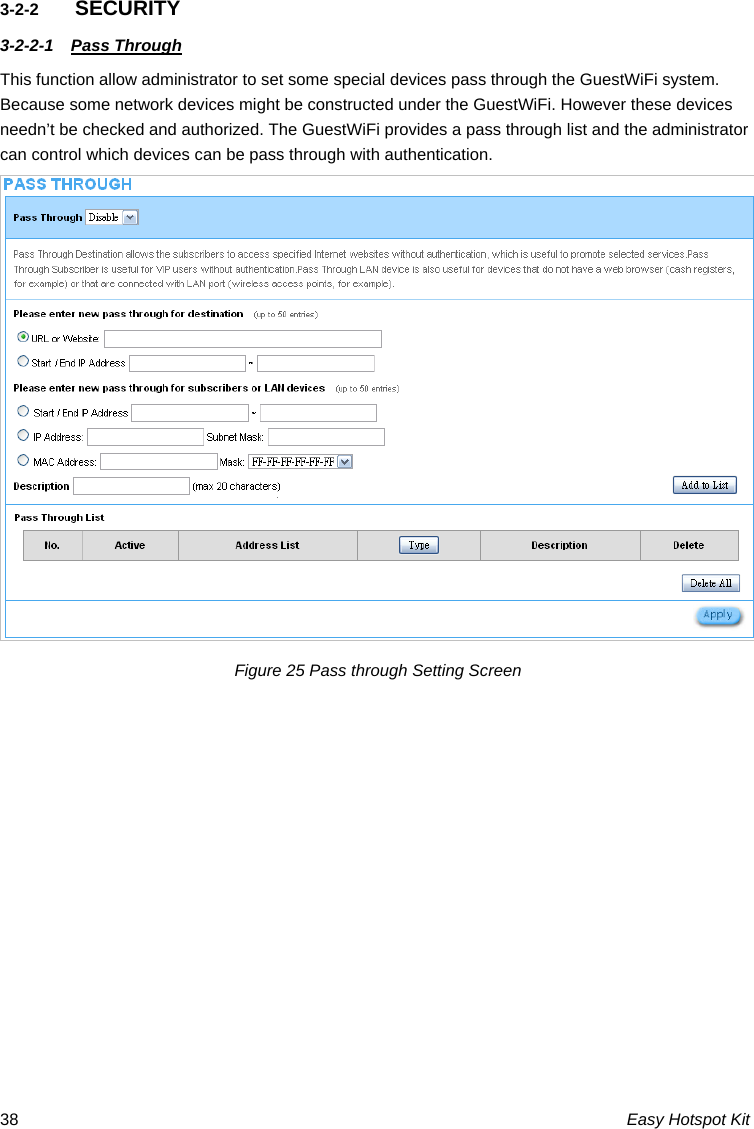

3-2-2  SECURITY 3-2-2-1  Pass Through This function allow administrator to set some special devices pass through the GuestWiFi system. Because some network devices might be constructed under the GuestWiFi. However these devices needn’t be checked and authorized. The GuestWiFi provides a pass through list and the administrator can control which devices can be pass through with authentication. Figure 25 Pass through Setting Screen  Easy Hotspot Kit 38

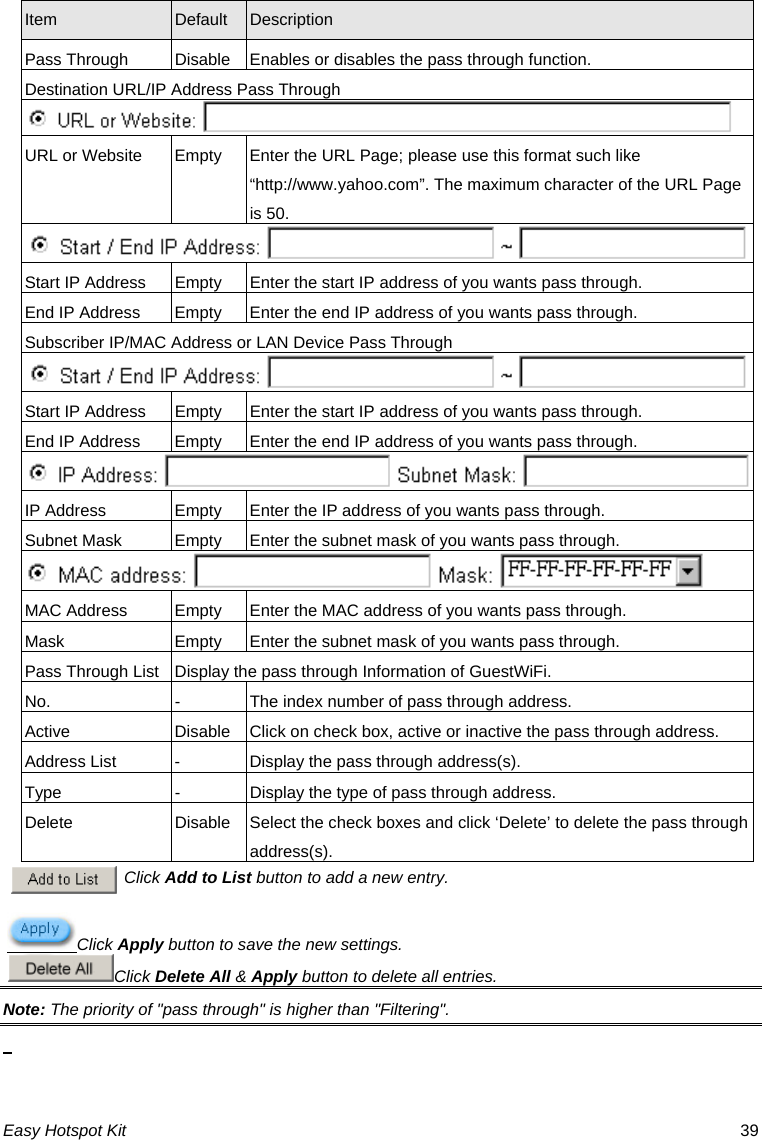

Item  Default  Description Pass Through  Disable Enables or disables the pass through function. Destination URL/IP Address Pass Through  URL or Website  Empty  Enter the URL Page; please use this format such like “http://www.yahoo.com”. The maximum character of the URL Page is 50.  Start IP Address  Empty  Enter the start IP address of you wants pass through. End IP Address  Empty  Enter the end IP address of you wants pass through. Subscriber IP/MAC Address or LAN Device Pass Through  Start IP Address  Empty  Enter the start IP address of you wants pass through. End IP Address  Empty  Enter the end IP address of you wants pass through. IP Address  Empty  Enter the IP address of you wants pass through. Subnet Mask  Empty  Enter the subnet mask of you wants pass through. MAC Address  Empty  Enter the MAC address of you wants pass through. Mask  Empty  Enter the subnet mask of you wants pass through. Pass Through List  Display the pass through Information of GuestWiFi. No.  -  The index number of pass through address. Active  Disable Click on check box, active or inactive the pass through address. Address List  -  Display the pass through address(s). Type  -  Display the type of pass through address. Delete Easy Hotspot Kit  39 Disable Select the check boxes and click ‘Delete’ to delete the pass through address(s). Click Add to List button to add a new entry. Click Apply button to save the new settings.Click Delete All & Apply button to delete all entries. Note: The priority of "pass through" is higher than "Filtering".

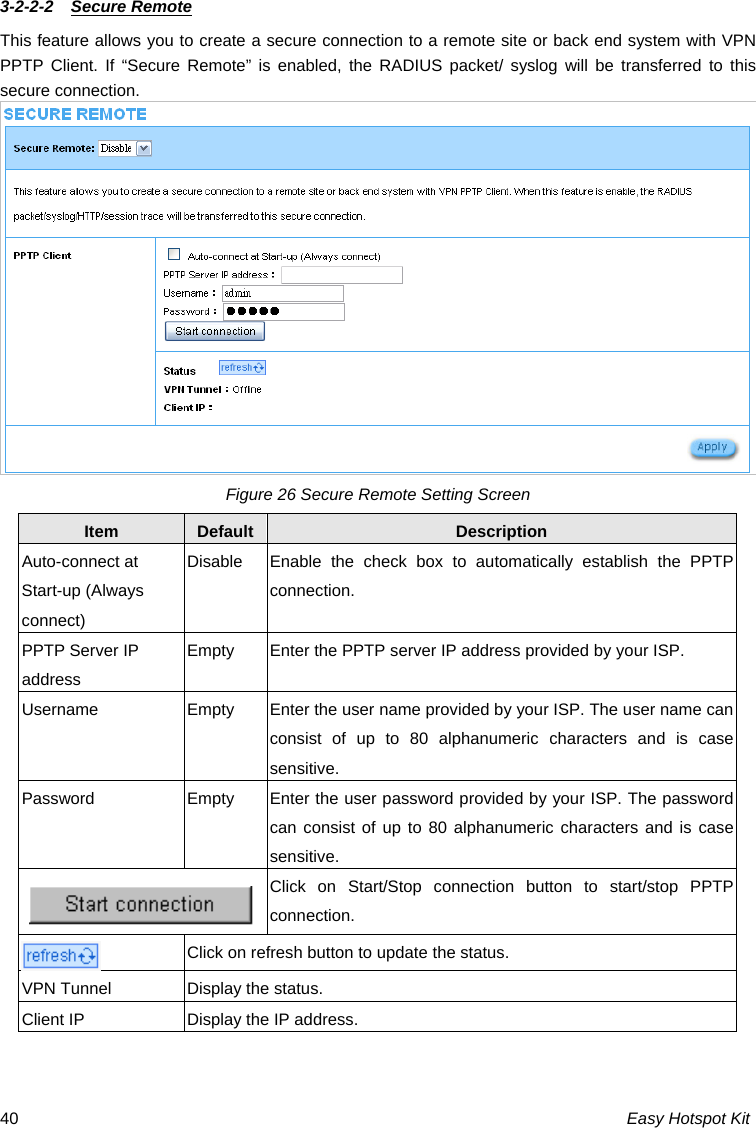

3-2-2-2  Secure Remote This feature allows you to create a secure connection to a remote site or back end system with VPN PPTP Client. If “Secure Remote” is enabled, the RADIUS packet/ syslog will be transferred to this secure connection.   Figure 26 Secure Remote Setting Screen fault DescriptionItem  De  Auto-connect at  D Enable the check box  ly establish the PPTP Start-up (Always connect) isable  to automaticalconnection. PPTP Server IP  Empty  Enter the PPTP server IP address provided by your ISP. address Username  Empty  Enter the user name provided by your ISP. The user name can consist of up to 80 alphanumeric characters and is case sensitive. Password  Empty  ser password provided by your ISP. The password Enter the ucan consist of up to 80 alphanumeric characters and is case sensitive. Easy Hotspot Kit 40  Click on Start/Stop connection button to start/stop PPTP connection.   Click on refresh button to update the status. VPN Tunnel  Display the status. Client IP  Display the IP address.

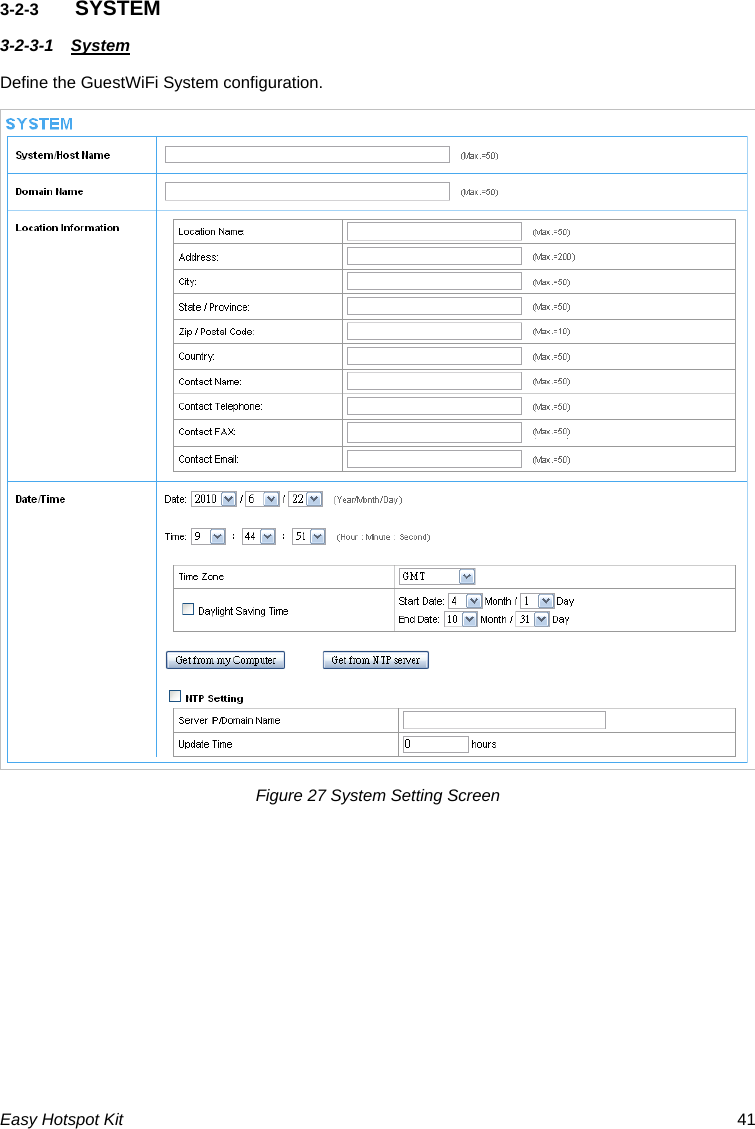

3-2-3  SYSTEM 3-2-3-1  System Define the GuestWiFi System configuration. Figure 27 System Setting Screen Easy Hotspot Kit  41

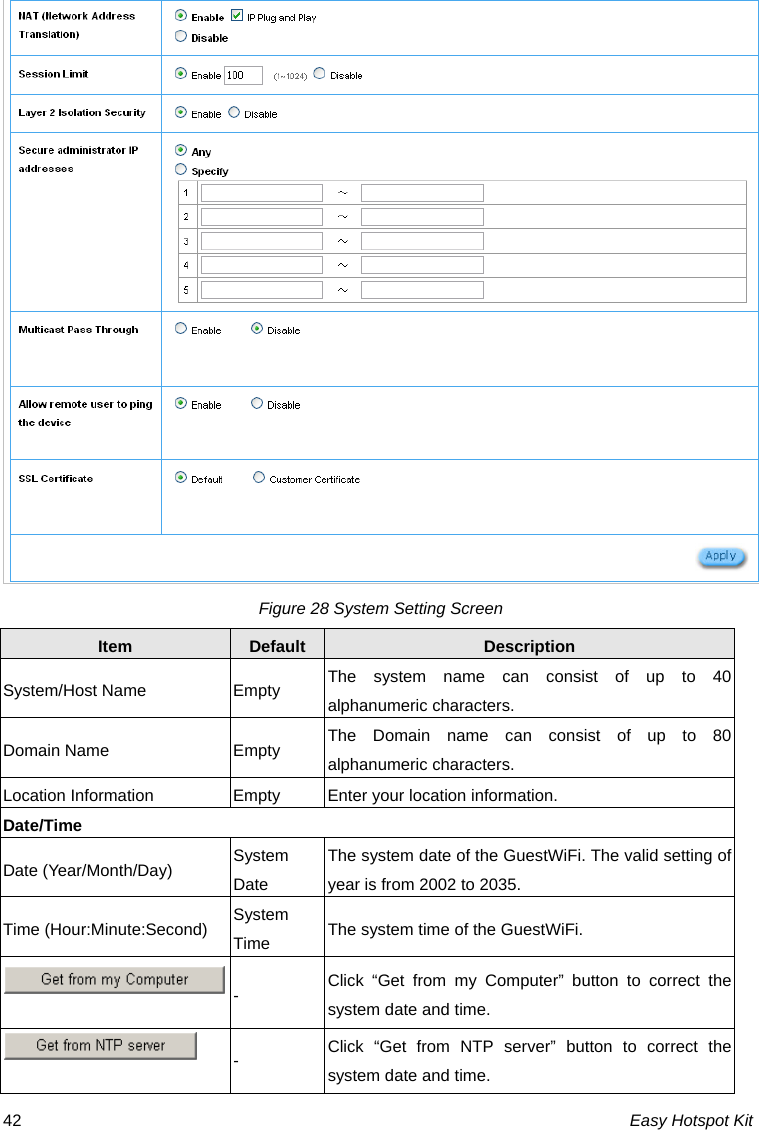

Figure 28 System Setting Screen Item  Default  Description System/Host Name  Empty  The system name can consist of up to 40 alphanumeric characters. Domain Name  Empty  The Domain name can consist of up to 80 alphanumeric characters. Location Information  Empty  Enter your location information. Date/Time Date (Year/Month/Day)  System Date The system date of the GuestWiFi. The valid setting of year is from 2002 to 2035. Time (Hour:Minute:Second)  System Time The system time of the GuestWiFi.  -  Click “Get from my Computer” button to correct the system date and time.  -  Click “Get from NTP server” button to correct the system date and time. Easy Hotspot Kit 42

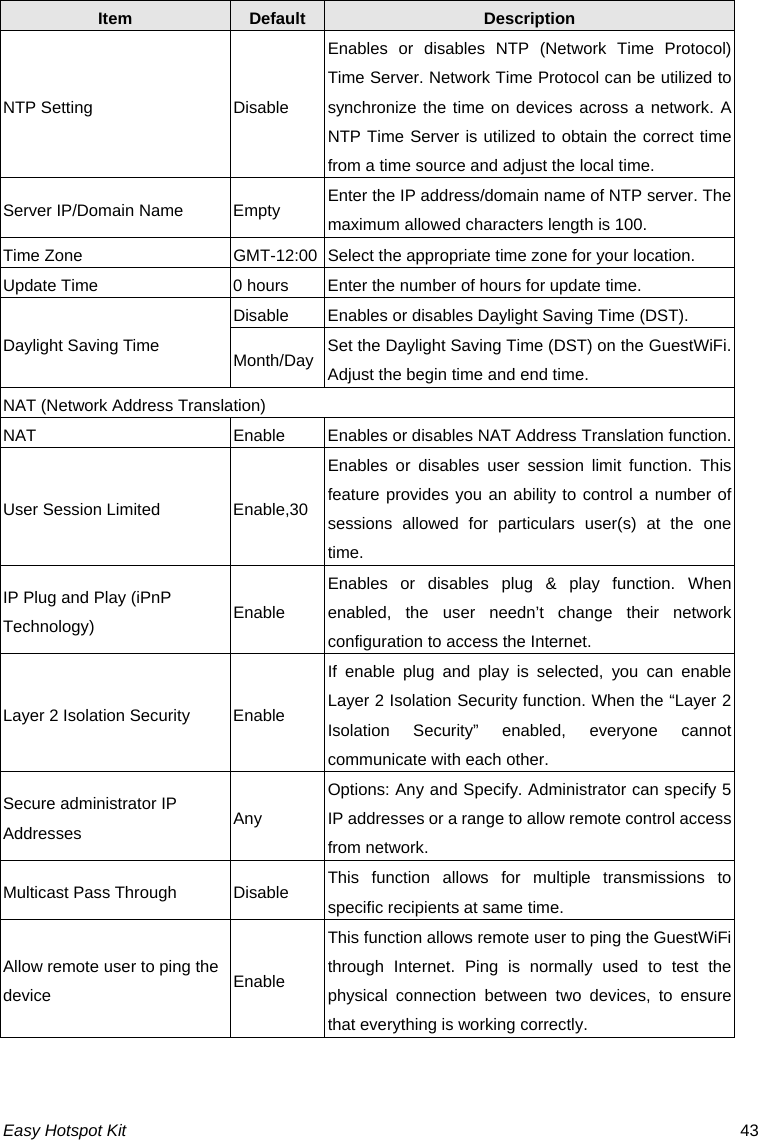

Easy Hotspot Kit  43 Item  Default  Description NTP Setting  Disable Enables or disables NTP (Network Time Protocol) Time Server. Network Time Protocol can be utilized to synchronize the time on devices across a network. A NTP Time Server is utilized to obtain the correct time from a time source and adjust the local time. Server IP/Domain Name  Empty  Enter the IP address/domain name of NTP server. The maximum allowed characters length is 100. Time Zone  GMT-12:00 Select the appropriate time zone for your location. Update Time  0 hours  Enter the number of hours for update time. Daylight Saving Time Disable Enables or disables Daylight Saving Time (DST). Month/Day Set the Daylight Saving Time (DST) on the GuestWiFi. Adjust the begin time and end time. NAT (Network Address Translation) NAT Enable Enables or disables NAT Address Translation function. User Session Limited  Enable,30Enables or disables user session limit function. This feature provides you an ability to control a number of sessions allowed for particulars user(s) at the one time. IP Plug and Play (iPnP Technology)  Enable Enables or disables plug & play function. When enabled, the user needn’t change their network configuration to access the Internet. Layer 2 Isolation Security  Enable If enable plug and play is selected, you can enable Layer 2 Isolation Security function. When the “Layer 2 Isolation Security” enabled, everyone cannot communicate with each other. Secure administrator IP Addresses  Any Options: Any and Specify. Administrator can specify 5 IP addresses or a range to allow remote control access from network. Multicast Pass Through  Disable  This function allows for multiple transmissions to specific recipients at same time. Allow remote user to ping the device  Enable This function allows remote user to ping the GuestWiFi through Internet. Ping is normally used to test the physical connection between two devices, to ensure that everything is working correctly.

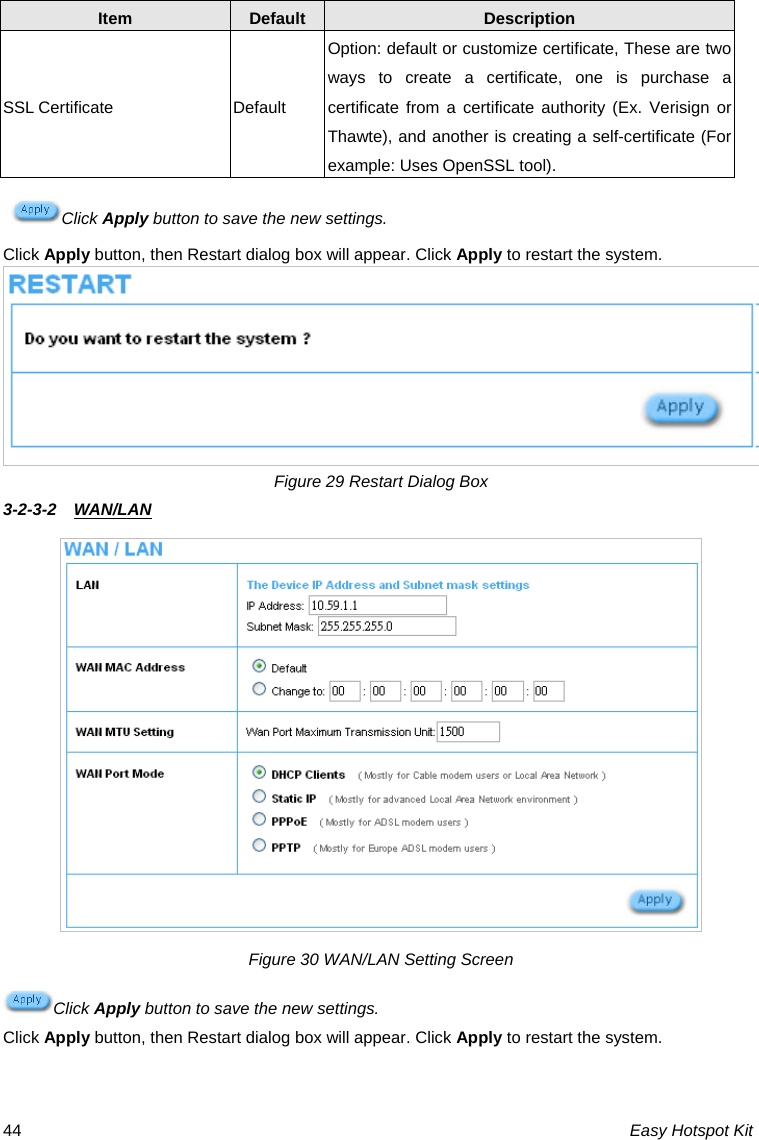

Item  Default  Description SSL Certificate Option: default or customize certificate, These are two ways to create a certificate, one is purchase a certificate from a certificate authority (Ex. Verisign or Thawte), and another is creating a self-certificate (For example: Uses OpenSSL tool). Default Click Apply button to save the new settings. Click Apply button, then Restart dialog box will appear. Click Apply to restart the system. Figure 29 Restart Dialog Box 3-2-3-2  WAN/LAN  Figure 30 WAN/LAN Setting Screen Click Apply button to save the new settings. Click Apply button, then Restart dialog box will appear. Click Apply to restart the system. Easy Hotspot Kit 44

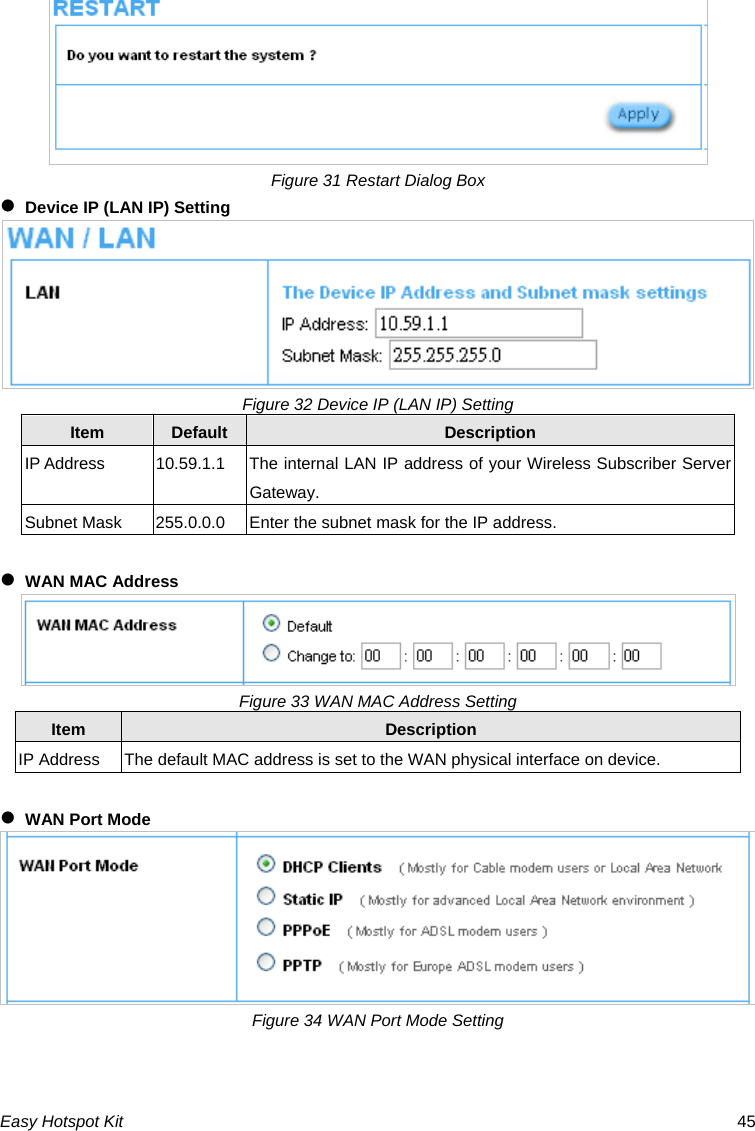

 Figure 31 Restart Dialog Box z Device IP (LAN IP) Setting  Figure 32 Device IP (LAN IP) Setting Item  Default Description IP Address  10.59.1.1  The internal LAN IP address of your Wireless Subscriber Server Gateway. Subnet Mask  255.0.0.0  Enter the subnet mask for the IP address.  z WAN MAC Address  Figure 33 WAN MAC Address Setting Item  Description IP Address  The default MAC address is set to the WAN physical interface on device.  z WAN Port Mode Figure 34 WAN Port Mode Setting Easy Hotspot Kit  45

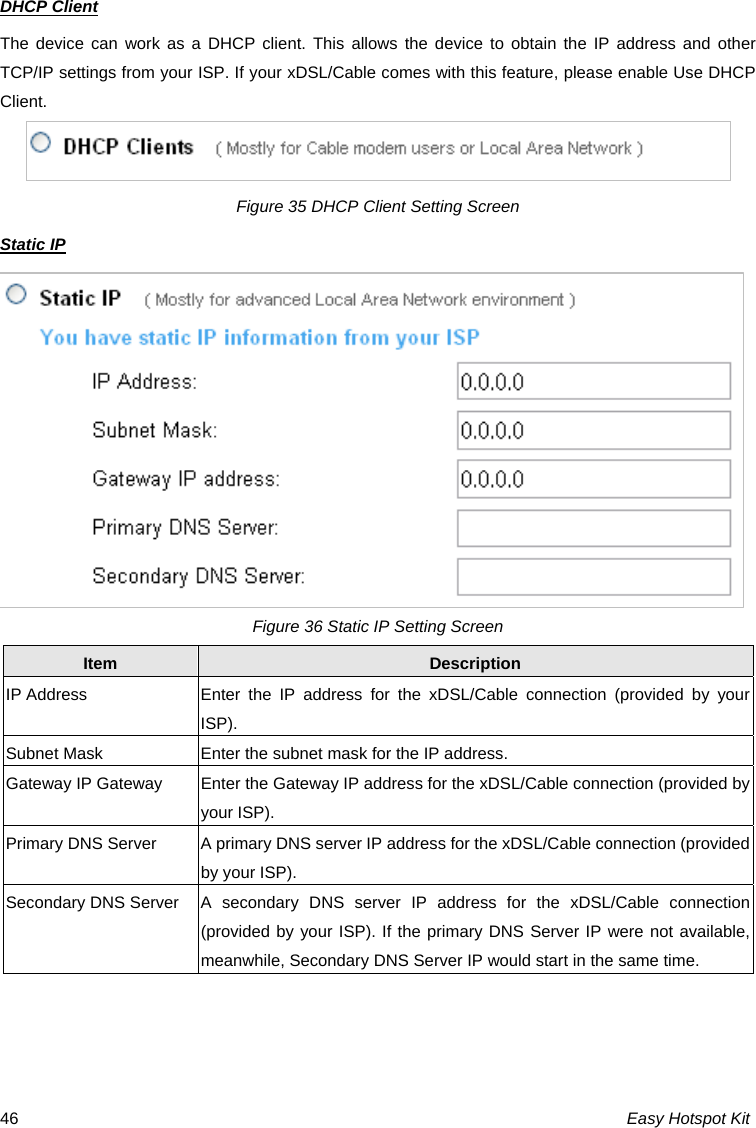

DHCP Client The device can work as a DHCP client. This allows the device to obtain the IP address and other TCP/IP settings from your ISP. If your xDSL/Cable comes with this feature, please enable Use DHCP Client.  Figure 35 DHCP Client Setting Screen Static IP Figure 36 Static IP Setting Screen Item  Description IP Address  Enter the IP address for the xDSL/Cable connection (provided by your ISP). Subnet Mask  Enter the subnet mask for the IP address. Gateway IP Gateway  Enter the Gateway IP address for the xDSL/Cable connection (provided by your ISP). Primary DNS Server  A primary DNS server IP address for the xDSL/Cable connection (provided by your ISP). Secondary DNS Server  A secondary DNS server IP address for the xDSL/Cable connection (provided by your ISP). If the primary DNS Server IP were not available, meanwhile, Secondary DNS Server IP would start in the same time.  Easy Hotspot Kit 46

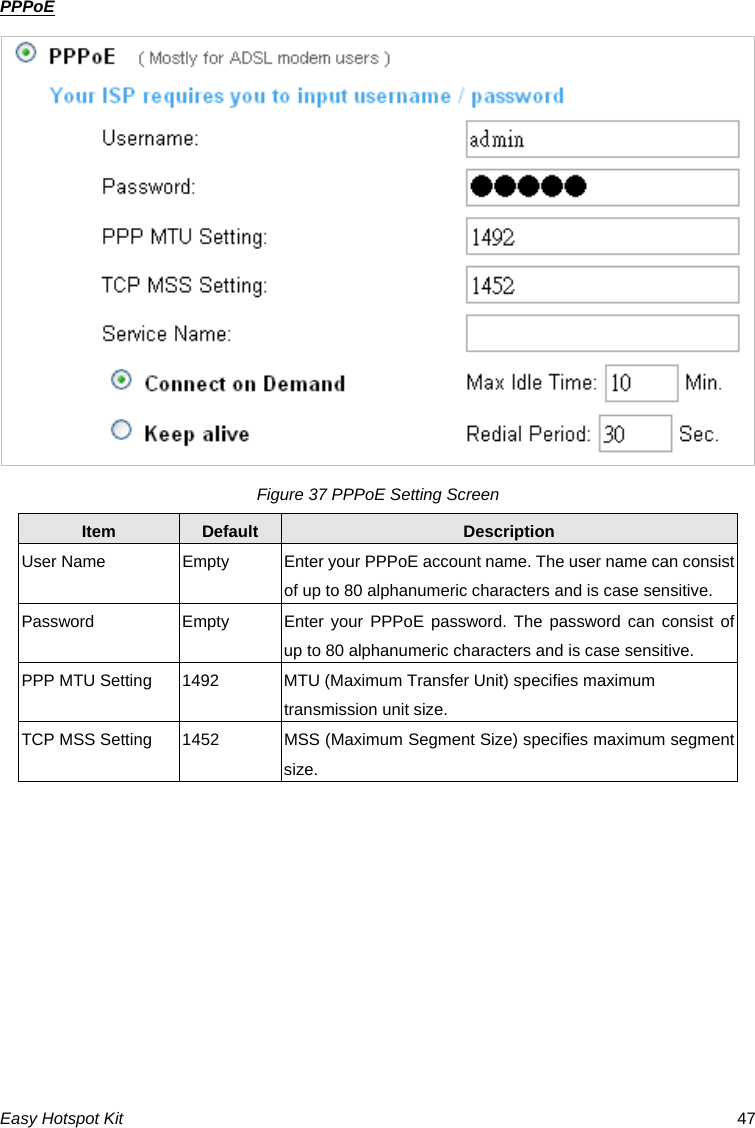

PPPoE Figure 37 PPPoE Setting Screen Item  Default  Description User Name  Empty  Enter your PPPoE account name. The user name can consist of up to 80 alphanumeric characters and is case sensitive. Password  Empty  Enter your PPPoE password. The password can consist of up to 80 alphanumeric characters and is case sensitive. PPP MTU Setting  1492  MTU (Maximum Transfer Unit) specifies maximum transmission unit size. TCP MSS Setting  1452  MSS (Maximum Segment Size) specifies maximum segment size. Easy Hotspot Kit  47

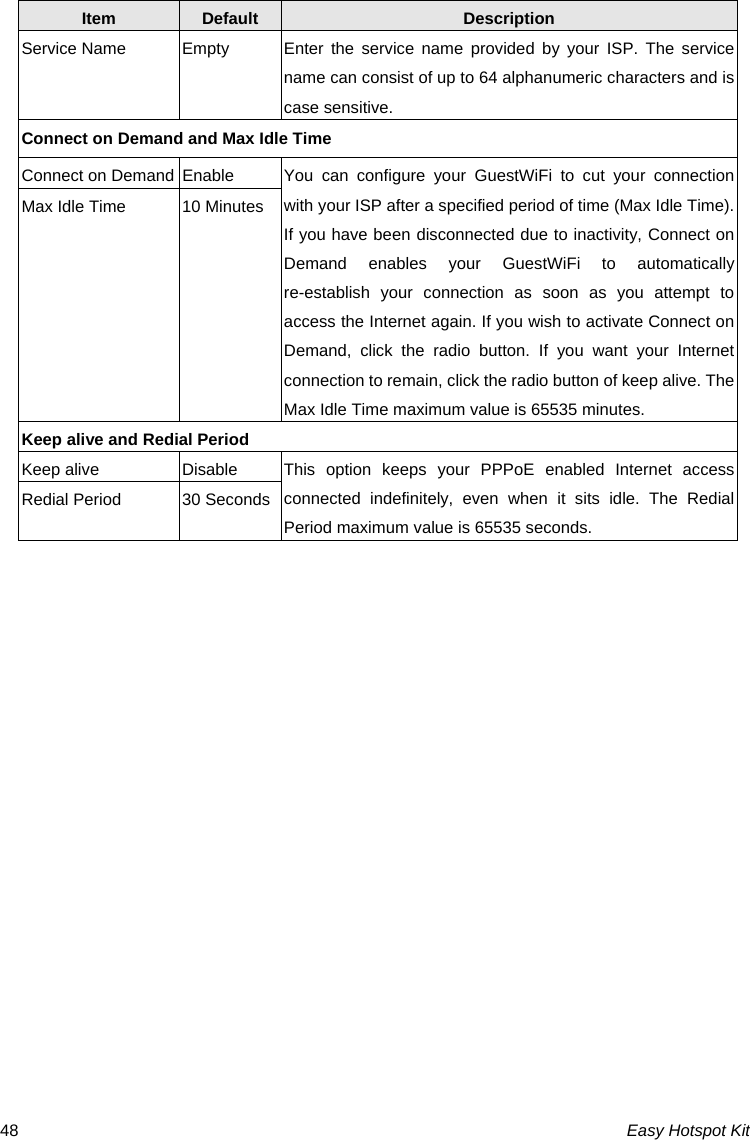

Easy Hotspot Kit 48Item  Default  Description Service Name  Empty  Enter the service name provided by your ISP. The service name can consist of up to 64 alphanumeric characters and is case sensitive. Connect on Demand and Max Idle Time Connect on Demand  Enable  You  can  configure  your GuestWiFi to cut your connection with your ISP after a specified period of time (Max Idle Time). If you have been disconnected due to inactivity, Connect on Demand enables your GuestWiFi to automatically re-establish your connection as soon as you attempt to access the Internet again. If you wish to activate Connect on Demand, click the radio button. If you want your Internet connection to remain, click the radio button of keep alive. The Max Idle Time maximum value is 65535 minutes. Max Idle Time  10 MinutesKeep alive and Redial Period Keep alive  Disable  This option keeps your PPPoE enabled Internet access connected indefinitely, even when it sits idle. The Redial Period maximum value is 65535 seconds. Redial Period  30 Seconds

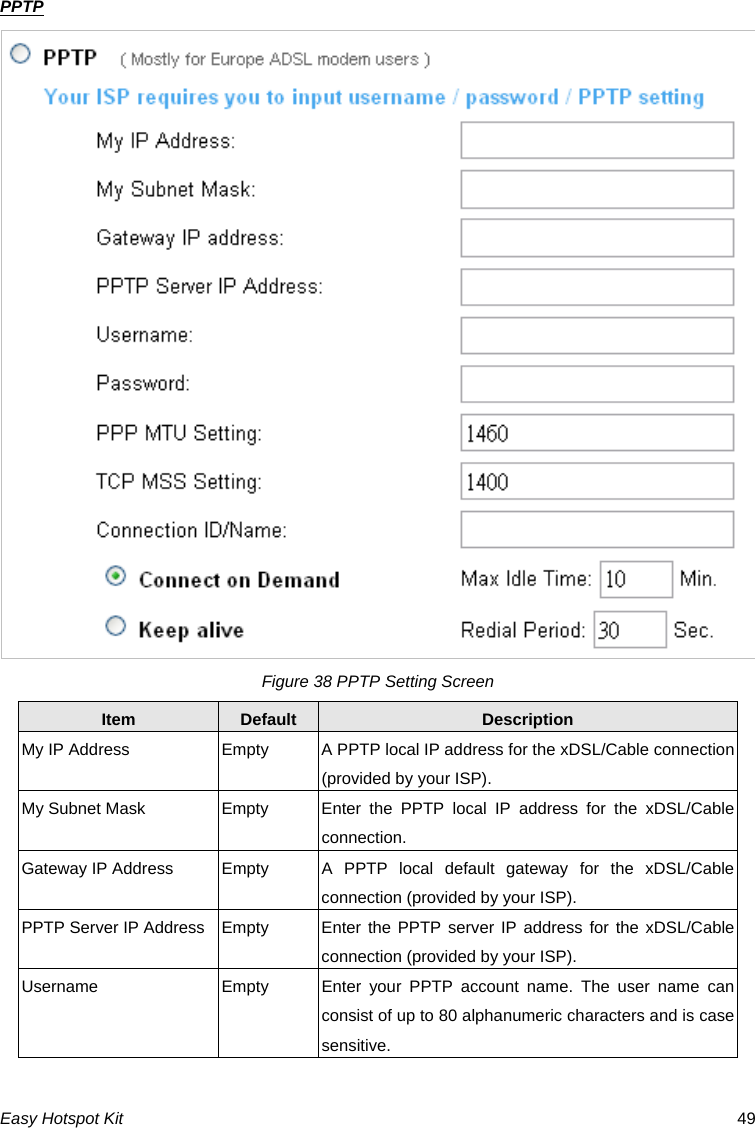

PPTP Figure 38 PPTP Setting Screen Item  Default  Description My IP Address  Empty  A PPTP local IP address for the xDSL/Cable connection (provided by your ISP). My Subnet Mask  Empty  Enter the PPTP local IP address for the xDSL/Cable connection. Gateway IP Address  Empty  A PPTP local default gateway for the xDSL/Cable connection (provided by your ISP). PPTP Server IP Address Empty  Enter the  PPTP server IP address for the xDSL/Cable connection (provided by your ISP). Username  Empty  Enter your PPTP account name. The user name can consist of up to 80 alphanumeric characters and is case sensitive. Easy Hotspot Kit  49

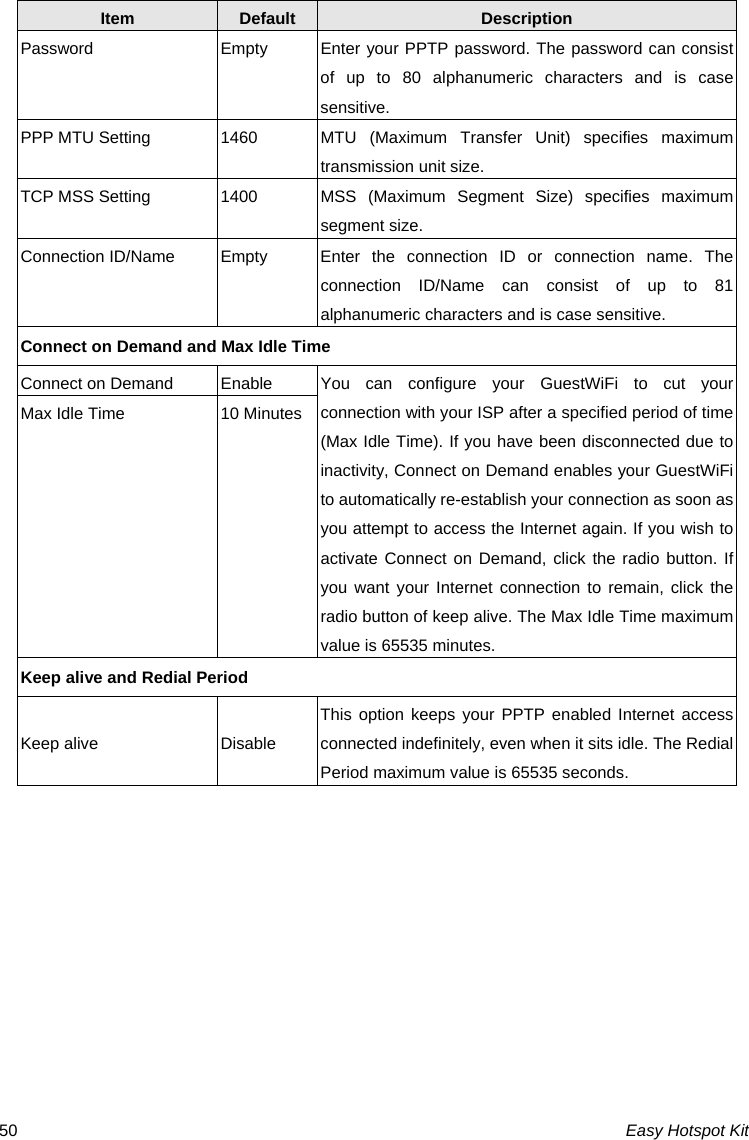

Easy Hotspot Kit 50Item  Default  Description Password  Empty  Enter your PPTP password. The password can consist of up to 80 alphanumeric characters and is case sensitive. PPP MTU Setting  1460  MTU (Maximum Transfer Unit) specifies maximum transmission unit size. TCP MSS Setting  1400  MSS (Maximum Segment Size) specifies maximum segment size. Connection ID/Name  Empty  Enter the connection ID or connection name. The connection ID/Name can consist of up to 81 alphanumeric characters and is case sensitive. Connect on Demand and Max Idle Time Connect on Demand  Enable  You  can  configure your GuestWiFi to cut your connection with your ISP after a specified period of time (Max Idle Time). If you have been disconnected due to inactivity, Connect on Demand enables your GuestWiFi to automatically re-establish your connection as soon as you attempt to access the Internet again. If you wish to activate Connect on Demand, click the radio button. If you want your Internet connection to remain, click the radio button of keep alive. The Max Idle Time maximum value is 65535 minutes. Max Idle Time  10 MinutesKeep alive and Redial Period Keep alive  Disable This option keeps your PPTP enabled Internet access connected indefinitely, even when it sits idle. The Redial Period maximum value is 65535 seconds.

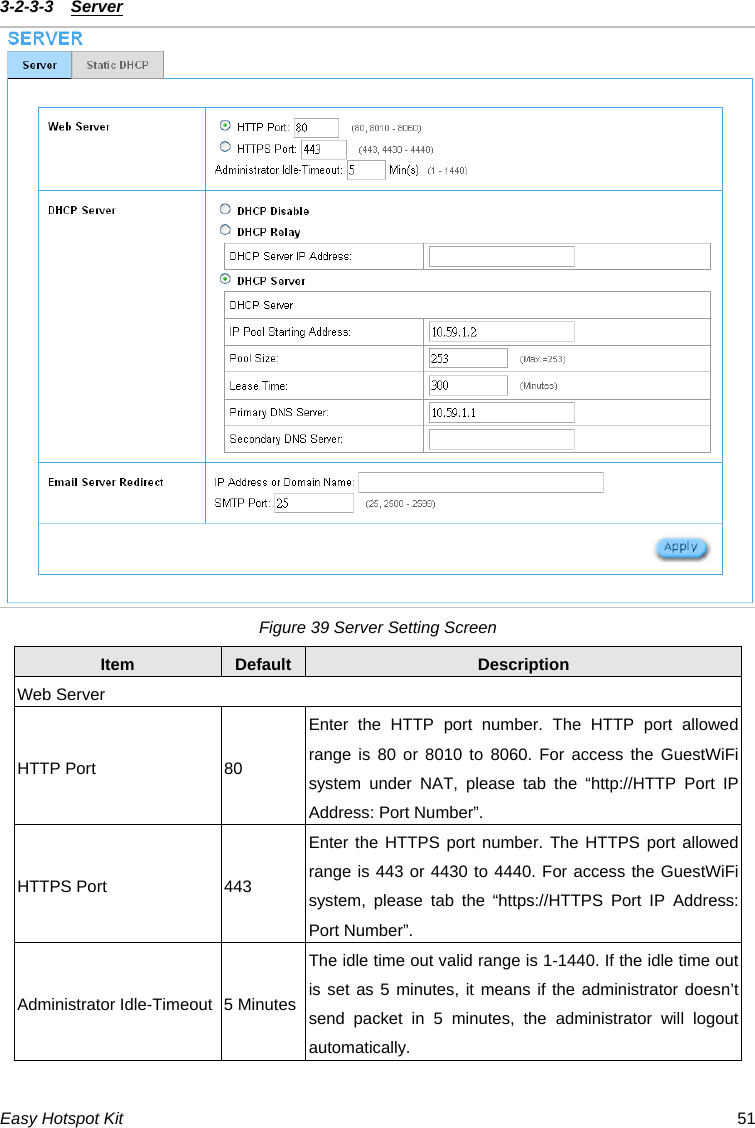

3-2-3-3  Server Figure 39 Server Setting Screen Item  Default Description Web Server HTTP Port  80 Enter the HTTP port number. The HTTP port allowed range is 80 or 8010 to 8060. For access the GuestWiFi system under NAT, please tab the “http://HTTP Port IP Address: Port Number”. HTTPS Port  443 Enter the HTTPS port number. The HTTPS port allowed range is 443 or 4430 to 4440. For access the GuestWiFi system, please tab the “https://HTTPS Port IP Address: Port Number”. Administrator Idle-Timeout 5 MinutesThe idle time out valid range is 1-1440. If the idle time out is set as 5 minutes, it means if the administrator doesn’t send packet in 5 minutes, the administrator will logout automatically. Easy Hotspot Kit  51

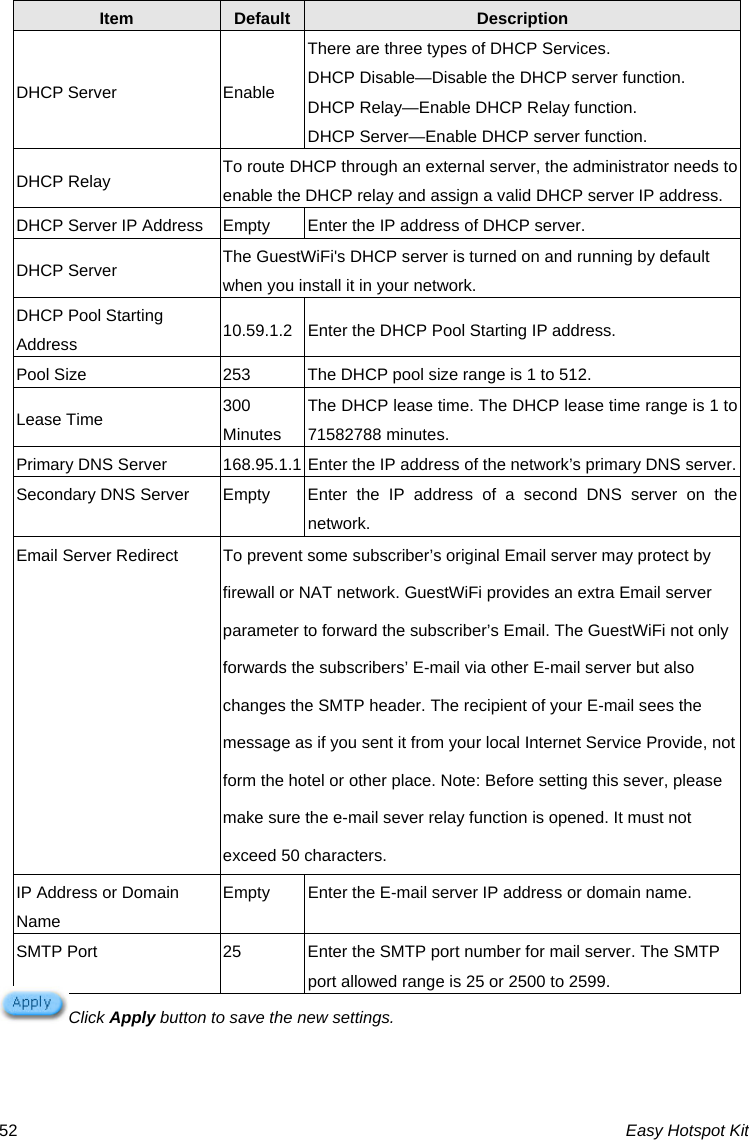

Item  Default Description DHCP Server  Enable There are three types of DHCP Services. DHCP Disable—Disable the DHCP server function. DHCP Relay—Enable DHCP Relay function. DHCP Server—Enable DHCP server function. DHCP Relay  To route DHCP through an external server, the administrator needs to enable the DHCP relay and assign a valid DHCP server IP address. DHCP Server IP Address Empty  Enter the IP address of DHCP server. DHCP Server  The GuestWiFi's DHCP server is turned on and running by default when you install it in your network. DHCP Pool Starting Address  10.59.1.2 Enter the DHCP Pool Starting IP address. Pool Size  253  The DHCP pool size range is 1 to 512. Lease Time  300 Minutes The DHCP lease time. The DHCP lease time range is 1 to 71582788 minutes. Primary DNS Server  168.95.1.1 Enter the IP address of the network’s primary DNS server. Secondary DNS Server  Empty  Enter the IP address of a second DNS server on the network. Email Server Redirect  To prevent some subscriber’s original Email server may protect by firewall or NAT network. GuestWiFi provides an extra Email server parameter to forward the subscriber’s Email. The GuestWiFi not only forwards the subscribers’ E-mail via other E-mail server but also changes the SMTP header. The recipient of your E-mail sees the message as if you sent it from your local Internet Service Provide, not form the hotel or other place. Note: Before setting this sever, please make sure the e-mail sever relay function is opened. It must not exceed 50 characters. IP Address or Domain Name Empty  Enter the E-mail server IP address or domain name. SMTP Port  25  Enter the SMTP port number for mail server. The SMTP port allowed range is 25 or 2500 to 2599. Click Apply button to save the new settings. Easy Hotspot Kit 52

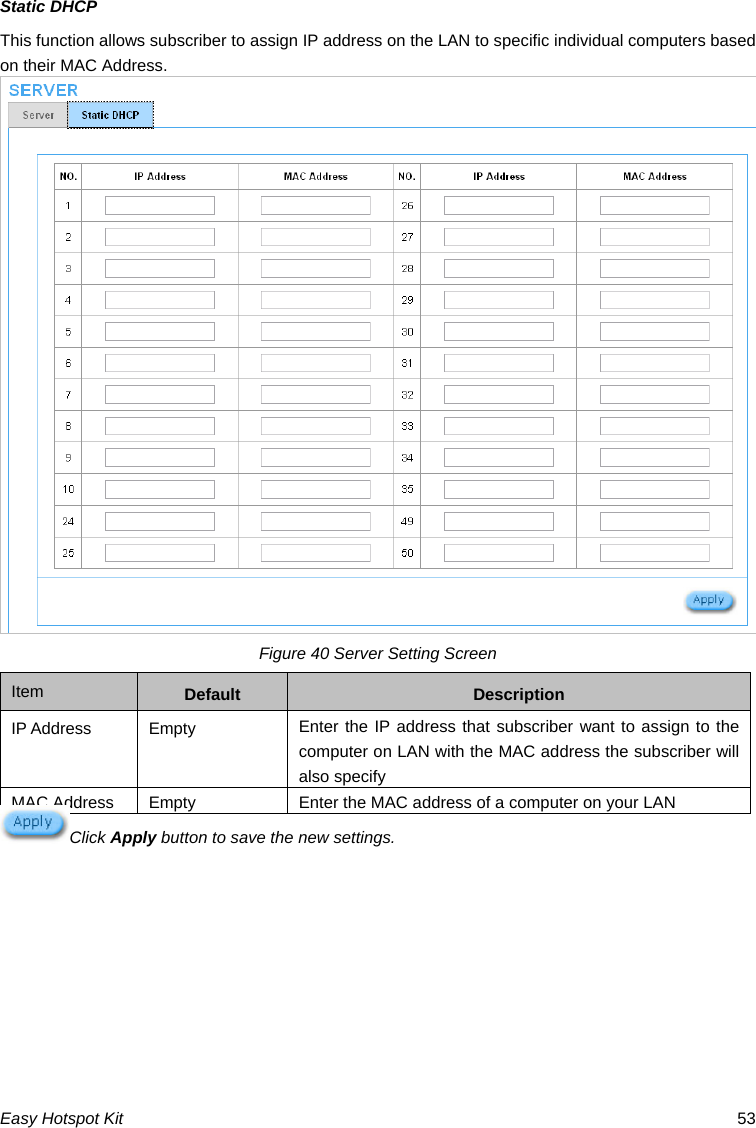

Static DHCP This function allows subscriber to assign IP address on the LAN to specific individual computers based on their MAC Address.  Figure 40 Server Setting Screen Item  Default  Description IP Address  Empty  Enter the IP address that subscriber want to assign to the computer on LAN with the MAC address the subscriber will also specify MAC Address    Empty  Enter the MAC address of a computer on your LAN Click Apply button to save the new settings.           Easy Hotspot Kit  53

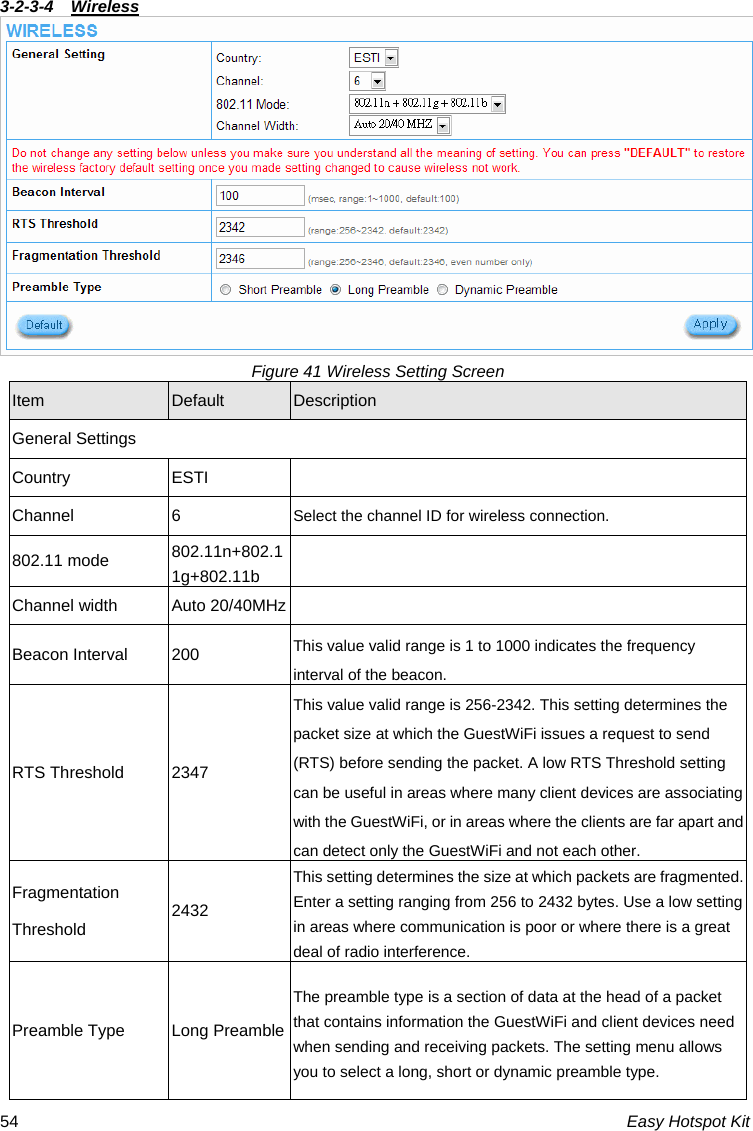

3-2-3-4  Wireless  Figure 41 Wireless Setting Screen Item  Default  Description General Settings Country ESTI  Channel 6  Select the channel ID for wireless connection. 802.11 mode  802.11n+802.11g+802.11b   Channel width  Auto 20/40MHz  Beacon Interval  200  This value valid range is 1 to 1000 indicates the frequency interval of the beacon. RTS Threshold  2347 This value valid range is 256-2342. This setting determines the packet size at which the GuestWiFi issues a request to send (RTS) before sending the packet. A low RTS Threshold setting can be useful in areas where many client devices are associating with the GuestWiFi, or in areas where the clients are far apart and can detect only the GuestWiFi and not each other. Fragmentation Threshold  2432 This setting determines the size at which packets are fragmented. Enter a setting ranging from 256 to 2432 bytes. Use a low setting in areas where communication is poor or where there is a great deal of radio interference. Preamble Type  Long PreambleThe preamble type is a section of data at the head of a packet that contains information the GuestWiFi and client devices need when sending and receiving packets. The setting menu allows you to select a long, short or dynamic preamble type. Easy Hotspot Kit 54

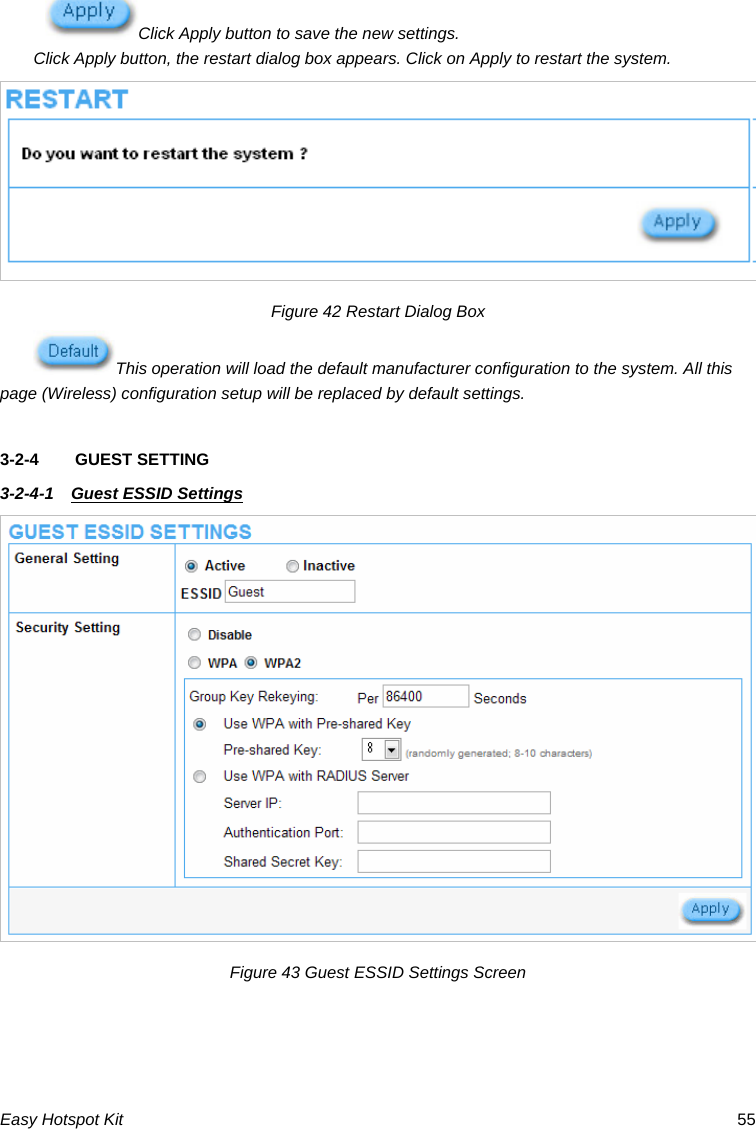

Click Apply button to save the new settings. Click Apply button, the restart dialog box appears. Click on Apply to restart the system. Figure 42 Restart Dialog Box This operation will load the default manufacturer configuration to the system. All this page (Wireless) configuration setup will be replaced by default settings.  3-2-4  GUEST SETTING   3-2-4-1  Guest ESSID Settings  Figure 43 Guest ESSID Settings Screen    Easy Hotspot Kit  55

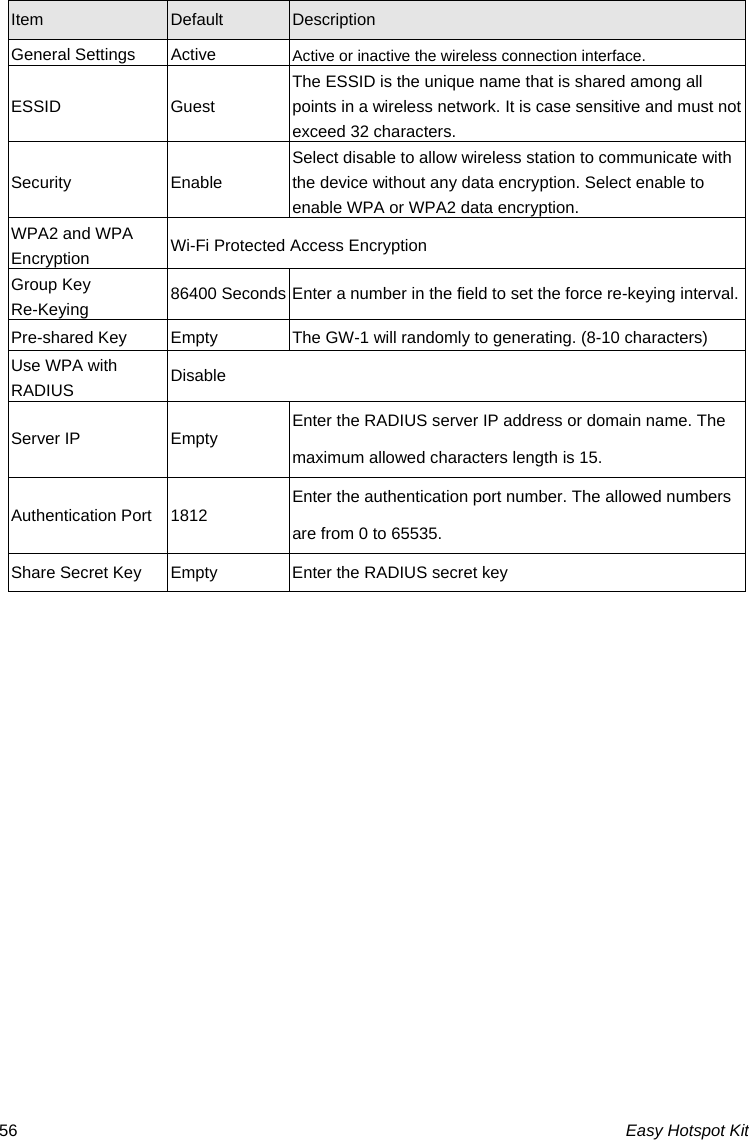

Easy Hotspot Kit 56Item  Default  Description General Settings  Active  Active or inactive the wireless connection interface. ESSID Guest  The ESSID is the unique name that is shared among all points in a wireless network. It is case sensitive and must not exceed 32 characters. Security Enable Select disable to allow wireless station to communicate with the device without any data encryption. Select enable to enable WPA or WPA2 data encryption. WPA2 and WPA Encryption  Wi-Fi Protected Access Encryption Group Key Re-Keying  86400 Seconds Enter a number in the field to set the force re-keying interval. Pre-shared Key  Empty  The GW-1 will randomly to generating. (8-10 characters) Use WPA with RADIUS  Disable Server IP  Empty  Enter the RADIUS server IP address or domain name. The maximum allowed characters length is 15. Authentication Port  1812  Enter the authentication port number. The allowed numbers are from 0 to 65535. Share Secret Key  Empty  Enter the RADIUS secret key

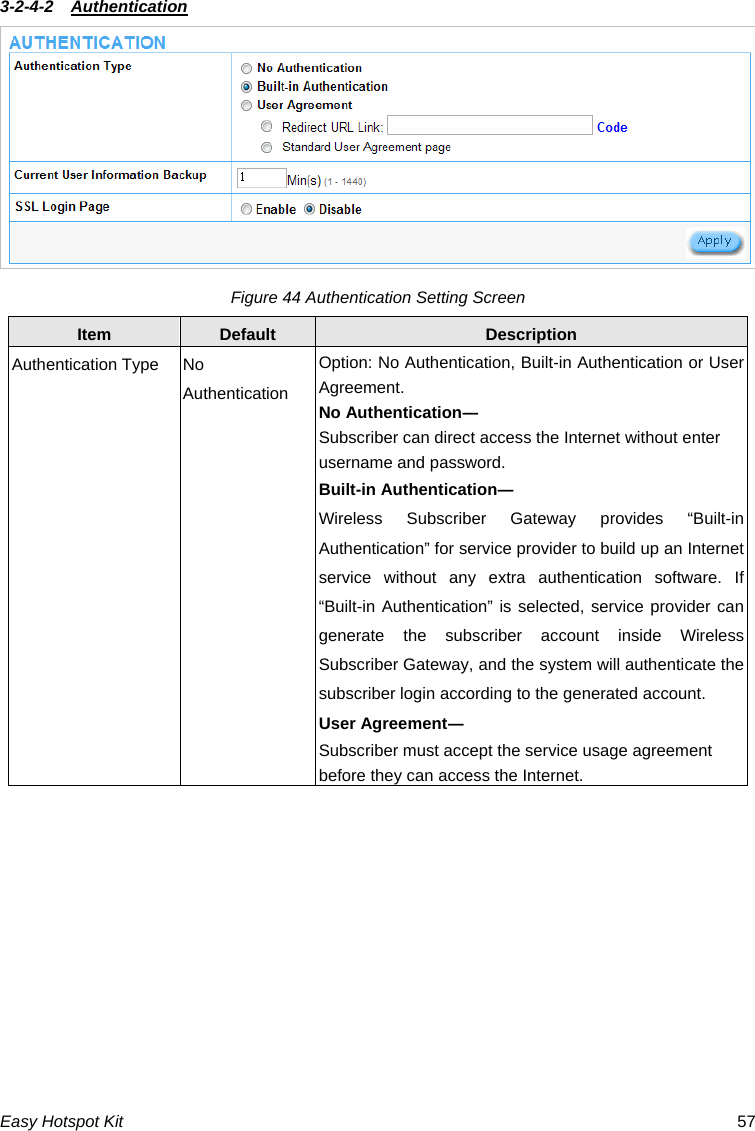

3-2-4-2  Authentication  Figure 44 Authentication Setting Screen Item  Default  Description Authentication Type  No Authentication Option: No Authentication, Built-in Authentication or User Agreement. No Authentication― Subscriber can direct access the Internet without enter username and password. Built-in Authentication― Wireless Subscriber Gateway provides “Built-in Authentication” for service provider to build up an Internet service without any extra authentication software. If “Built-in Authentication” is selected, service provider can generate the subscriber account inside Wireless Subscriber Gateway, and the system will authenticate the subscriber login according to the generated account. User Agreement― Subscriber must accept the service usage agreement before they can access the Internet. Easy Hotspot Kit  57

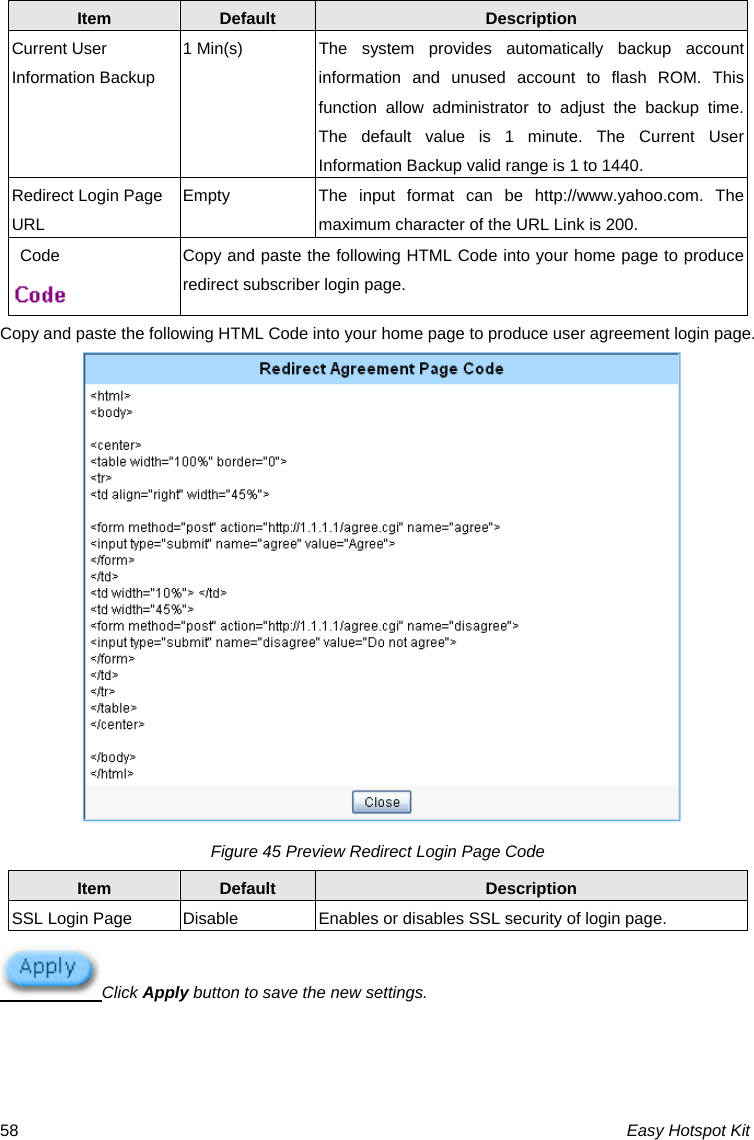

Item  Default  Description Current User Information Backup 1 Min(s)  The system provides automatically backup account information and unused account to flash ROM. This function allow administrator to adjust the backup time. The default value is 1 minute. The Current User Information Backup valid range is 1 to 1440. Redirect Login Page URL Empty  The input format can be http://www.yahoo.com. The maximum character of the URL Link is 200. Code  Copy and paste the following HTML Code into your home page to produce redirect subscriber login page.  Copy and paste the following HTML Code into your home page to produce user agreement login page.  Figure 45 Preview Redirect Login Page Code Item  Default  Description SSL Login Page    Disable  Enables or disables SSL security of login page.  Click Apply button to save the new settings.  Easy Hotspot Kit 58

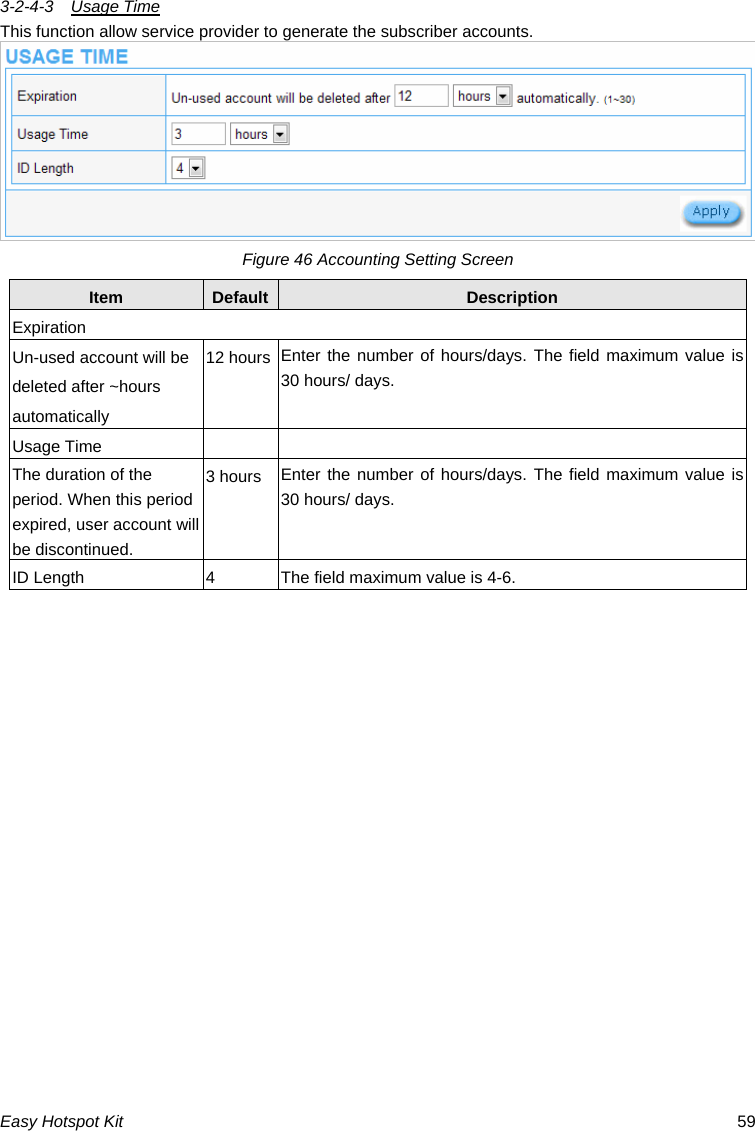

3-2-4-3  Usage Time This function allow service provider to generate the subscriber accounts.  Figure 46 Accounting Setting Screen Item  Default Description Expiration Un-used account will be deleted after ~hours automatically 12 hours Enter the number of hours/days. The field maximum value is 30 hours/ days. Usage Time     The duration of the period. When this period expired, user account will be discontinued. 3 hours Enter the number of hours/days. The field maximum value is 30 hours/ days. ID Length  4  The field maximum value is 4-6.  Easy Hotspot Kit  59

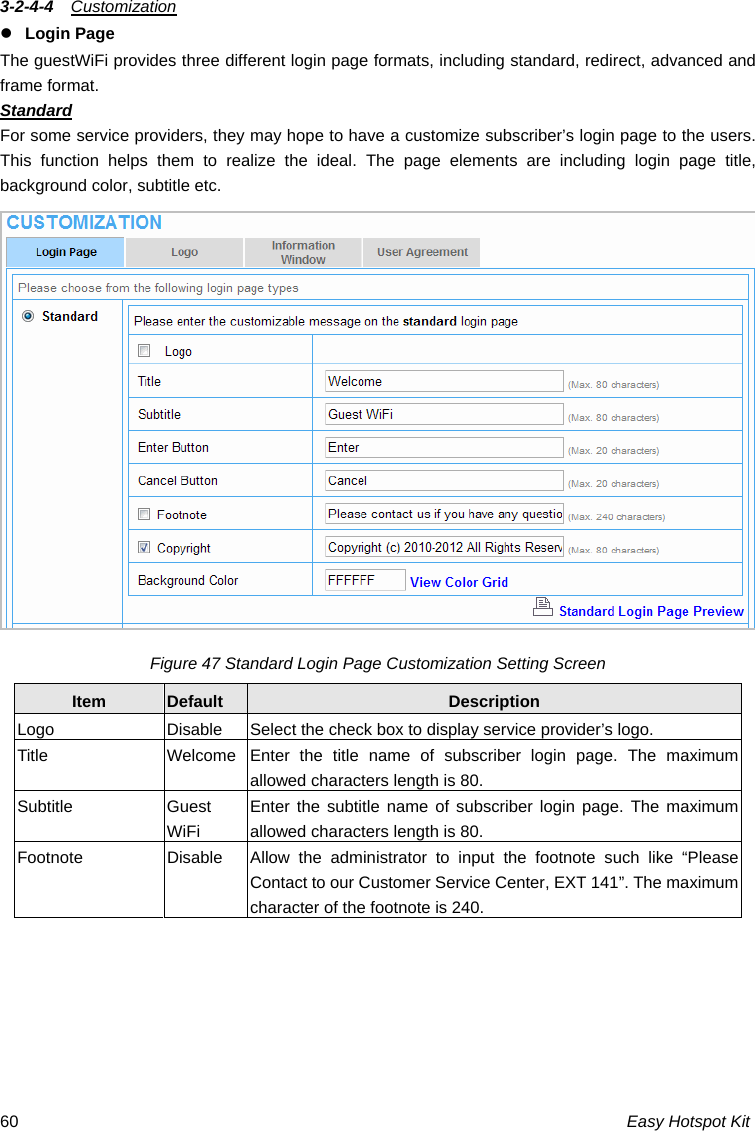

3-2-4-4  Customization z Login Page  The guestWiFi provides three different login page formats, including standard, redirect, advanced and frame format. Standard For some service providers, they may hope to have a customize subscriber’s login page to the users. This function helps them to realize the ideal. The page elements are including login page title, background color, subtitle etc.   Figure 47 Standard Login Page Customization Setting Screen Item  Default  Description Logo  Disable  Select the check box to display service provider’s logo. Title  Welcome Enter the title name of subscriber login page. The maximum allowed characters length is 80. Subtitle Guest WiFi Enter the subtitle name of subscriber login page. The maximum allowed characters length is 80. Footnote  Disable  Allow the administrator to input the footnote such like “Please Contact to our Customer Service Center, EXT 141”. The maximum character of the footnote is 240. Easy Hotspot Kit 60

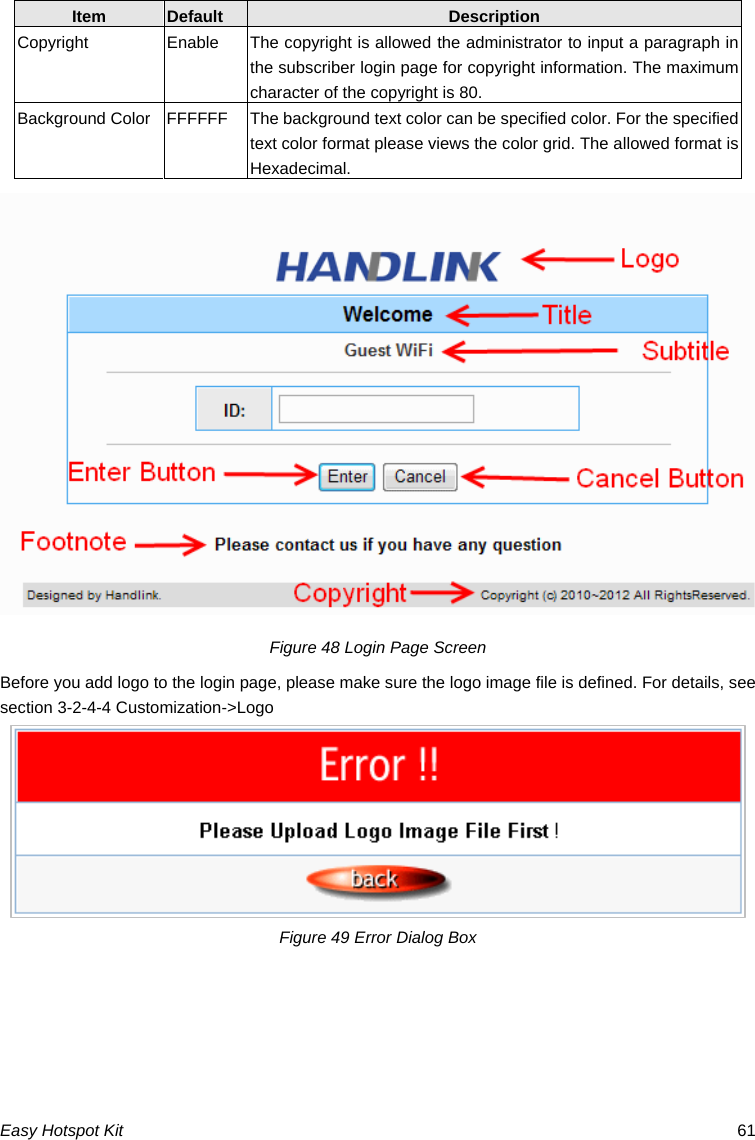

Item  Default  Description Copyright  Enable  The copyright is allowed the administrator to input a paragraph in the subscriber login page for copyright information. The maximum character of the copyright is 80. Background Color  FFFFFF  The background text color can be specified color. For the specified text color format please views the color grid. The allowed format is Hexadecimal. Figure 48 Login Page Screen Before you add logo to the login page, please make sure the logo image file is defined. For details, see section 3-2-4-4 Customization->Logo Figure 49 Error Dialog Box Easy Hotspot Kit  61

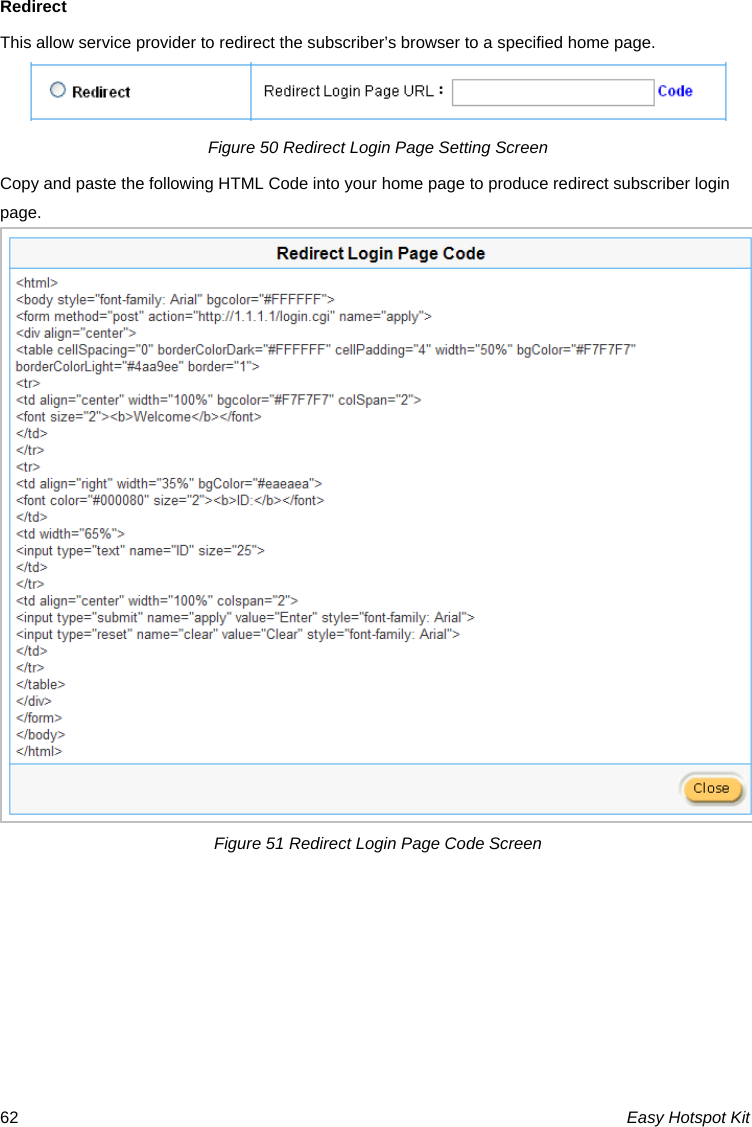

Redirect This allow service provider to redirect the subscriber’s browser to a specified home page.  Figure 50 Redirect Login Page Setting Screen Copy and paste the following HTML Code into your home page to produce redirect subscriber login page.  Figure 51 Redirect Login Page Code Screen Easy Hotspot Kit 62

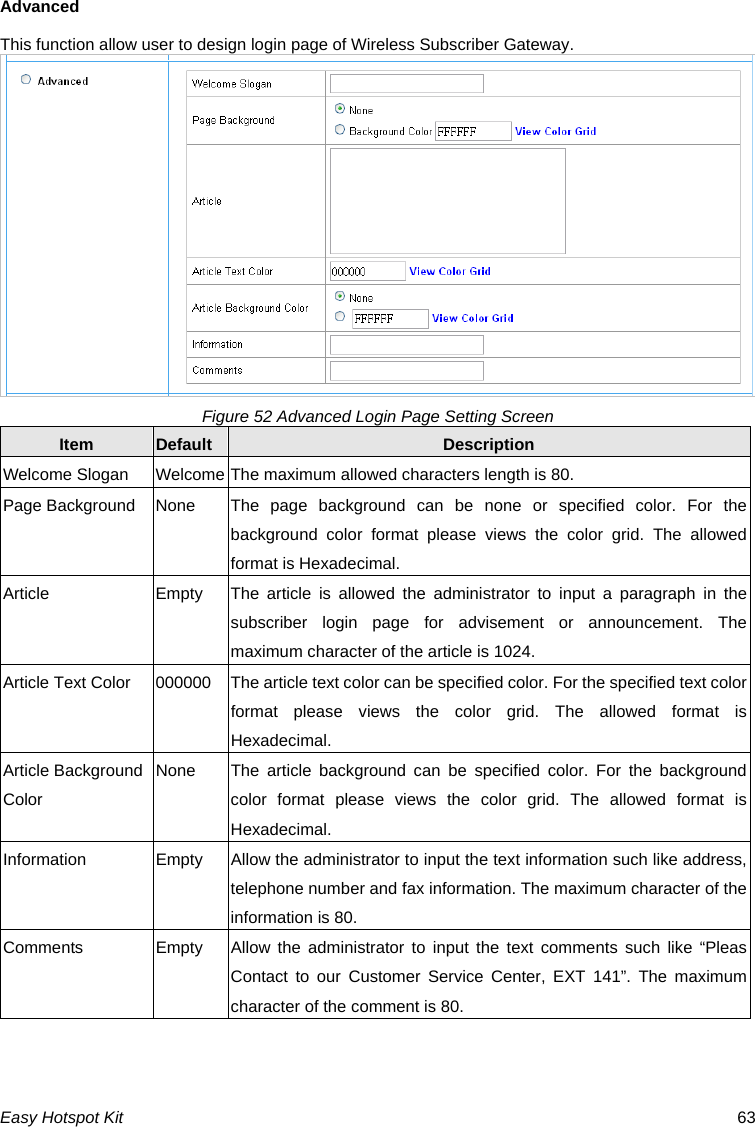

Advanced This function allow user to design login page of Wireless Subscriber Gateway. Figure 52 Advanced Login Page Setting Screen Item  Default Description Welcome Slogan  Welcome The maximum allowed characters length is 80. Page Background  None  The page background can be none or specified color. For the background color format please views the color grid. The allowed format is Hexadecimal. Article  Empty  The article is allowed the administrator to input a paragraph in the subscriber login page for advisement or announcement. The maximum character of the article is 1024. Article Text Color  000000 The article text color can be specified color. For the specified text color format please views the color grid. The allowed format is Hexadecimal. Article Background Color None  The article background can be specified color. For the background color format please views the color grid. The allowed format is Hexadecimal. Information  Empty  Allow the administrator to input the text information such like address, telephone number and fax information. The maximum character of the information is 80. Comments  Empty  Allow the administrator to input the text comments such like “Pleas Contact to our Customer Service Center, EXT 141”. The maximum character of the comment is 80.  Easy Hotspot Kit  63

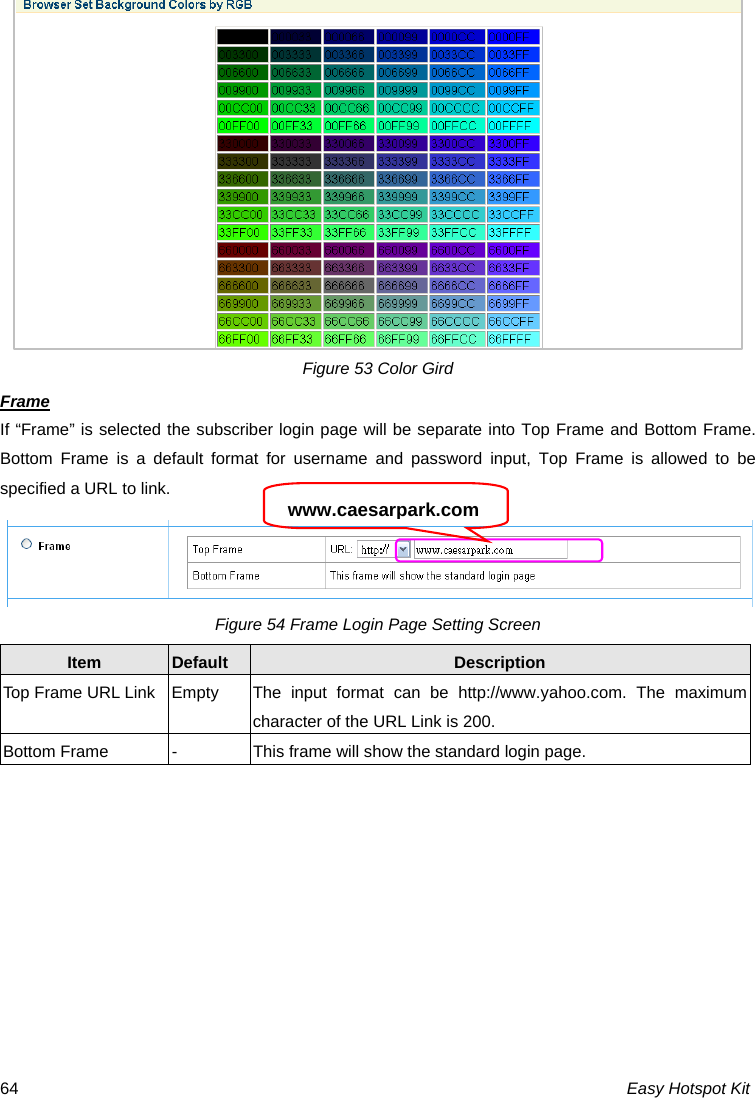

Figure 53 Color Gird Frame If “Frame” is selected the subscriber login page will be separate into Top Frame and Bottom Frame. Bottom Frame is a default format for username and password input, Top Frame is allowed to be specified a URL to link.  www.caesarpark.comFigure 54 Frame Login Page Setting Screen Item  Default  Description Top Frame URL Link  Empty  The  input  format can be http://www.yahoo.com. The maximum character of the URL Link is 200. Bottom Frame  -  This frame will show the standard login page. Easy Hotspot Kit 64

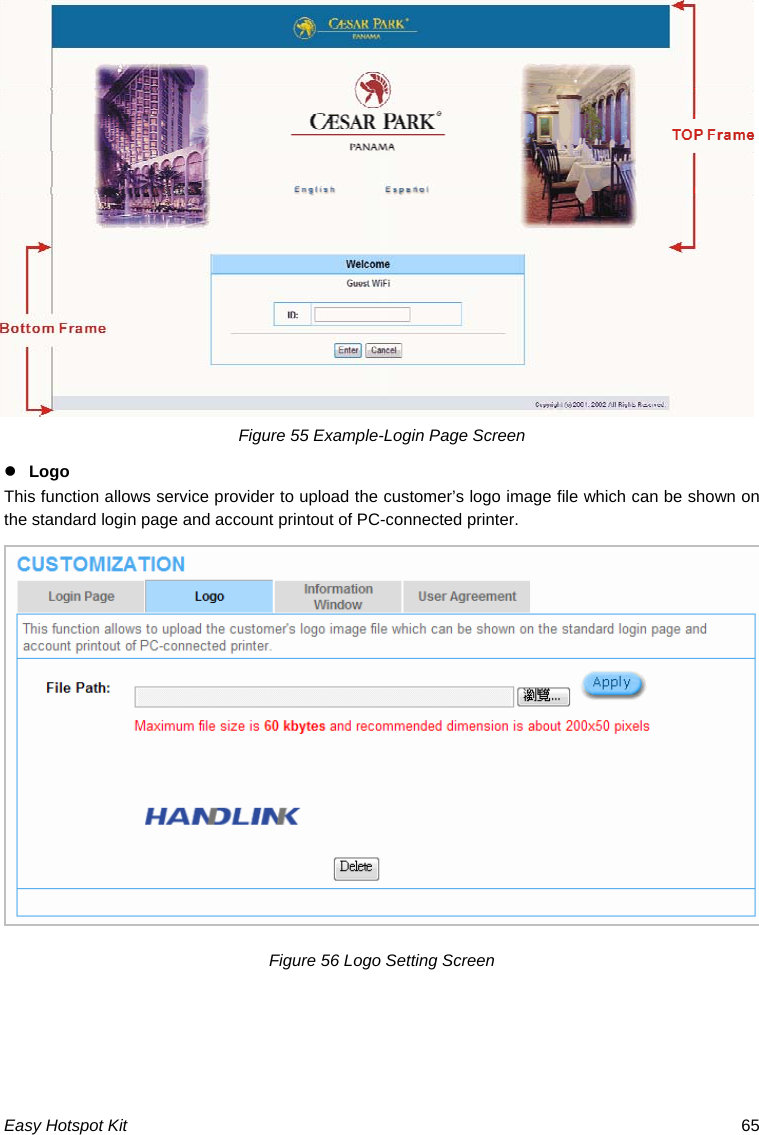

Figure 55 Example-Login Page Screen z Logo This function allows service provider to upload the customer’s logo image file which can be shown on the standard login page and account printout of PC-connected printer.  Figure 56 Logo Setting Screen    Easy Hotspot Kit  65

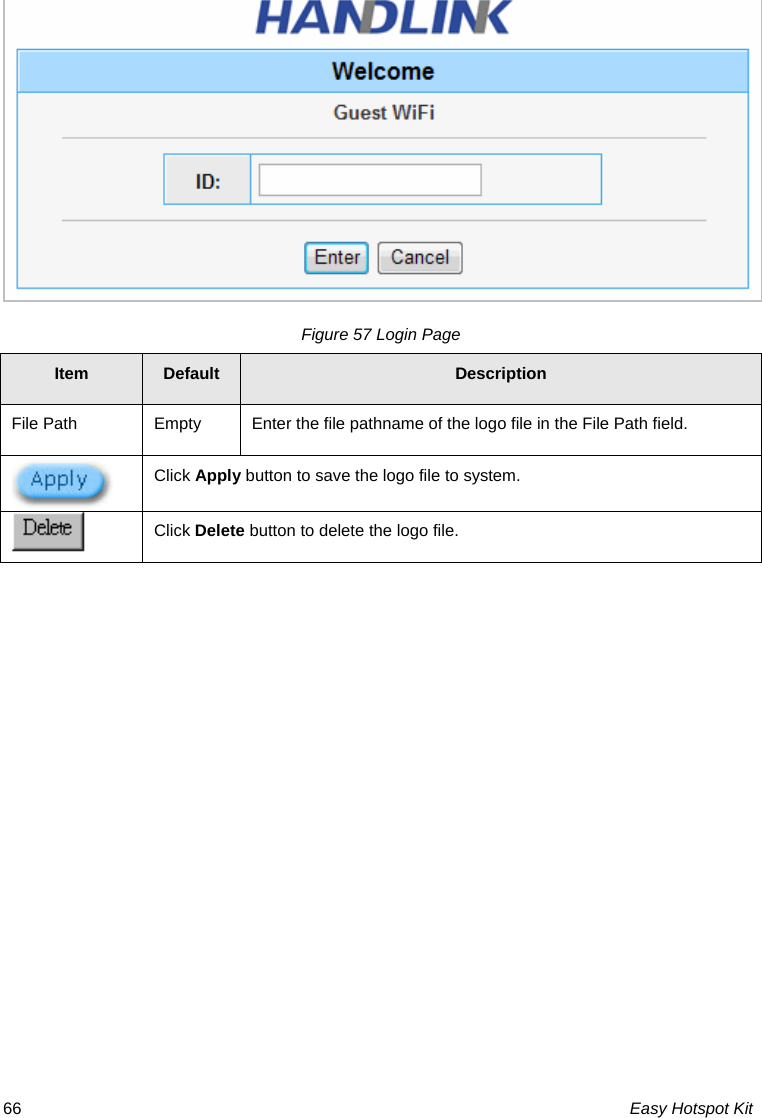

Figure 57 Login Page Item  Default  Description File Path  Empty  Enter the file pathname of the logo file in the File Path field.  Click Apply button to save the logo file to system.  Click Delete button to delete the logo file. Easy Hotspot Kit 66

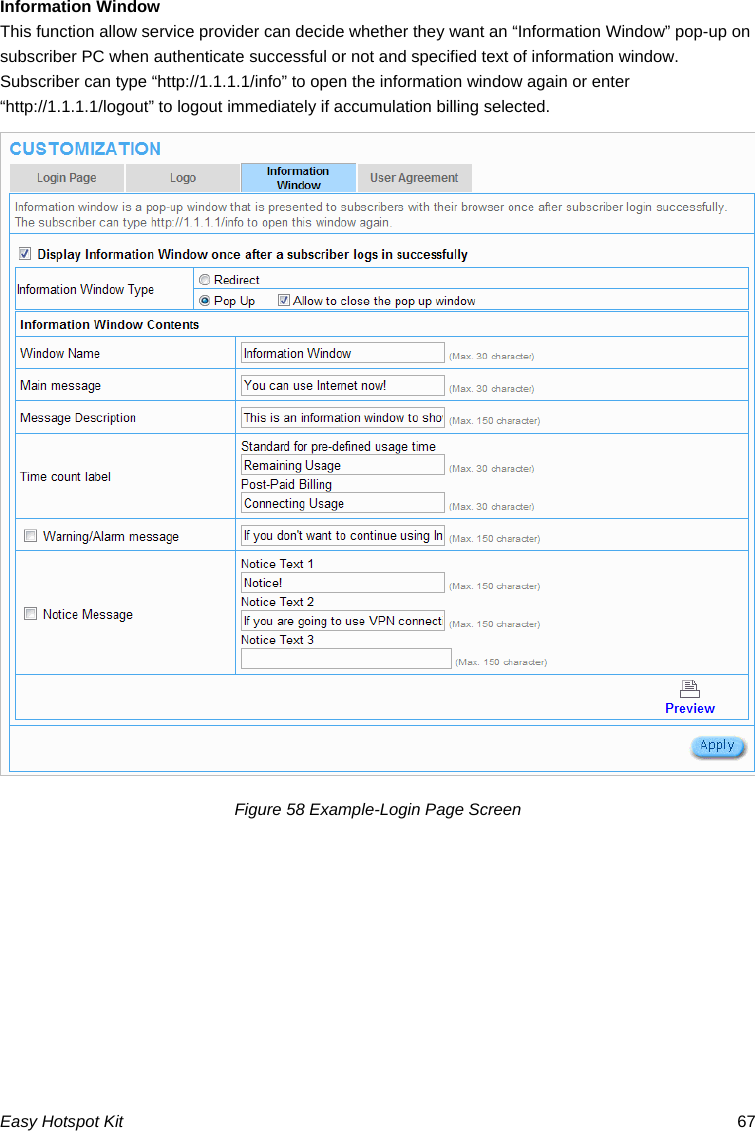

Information Window This function allow service provider can decide whether they want an “Information Window” pop-up on subscriber PC when authenticate successful or not and specified text of information window. Subscriber can type “http://1.1.1.1/info” to open the information window again or enter “http://1.1.1.1/logout” to logout immediately if accumulation billing selected. Figure 58 Example-Login Page Screen Easy Hotspot Kit  67
Easy Hotspot Kit 68 Figure 59 Example-information windows Screen

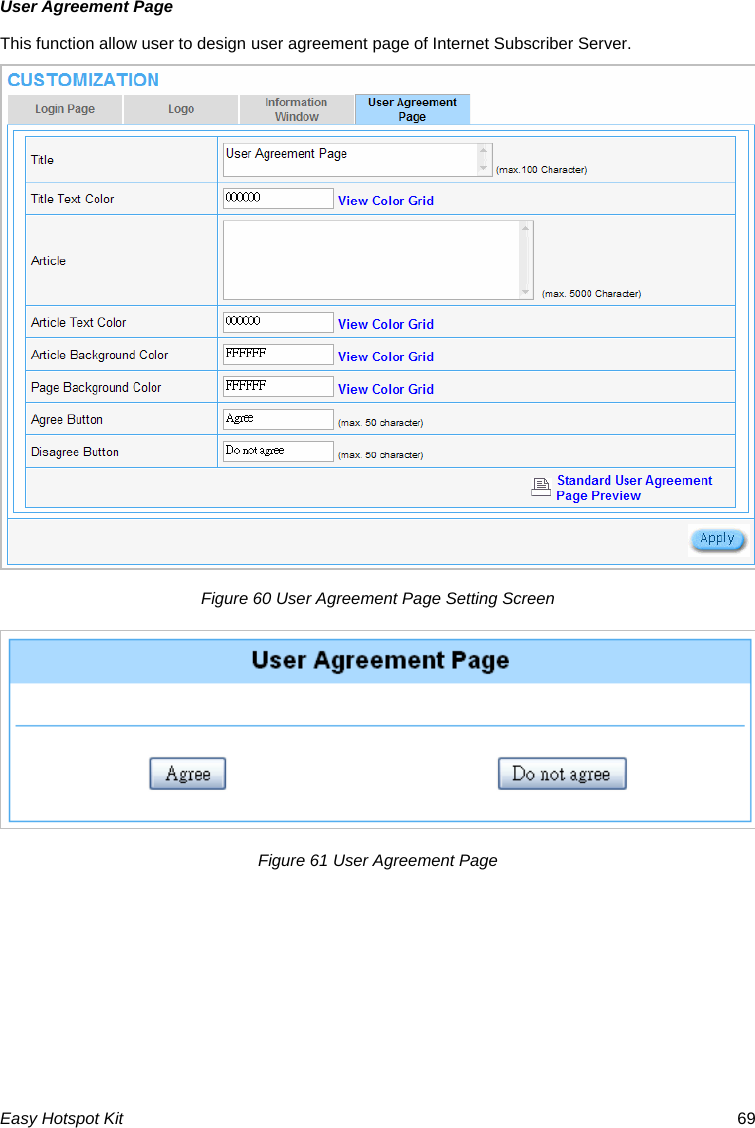

User Agreement Page This function allow user to design user agreement page of Internet Subscriber Server. Figure 60 User Agreement Page Setting Screen Figure 61 User Agreement Page Easy Hotspot Kit  69

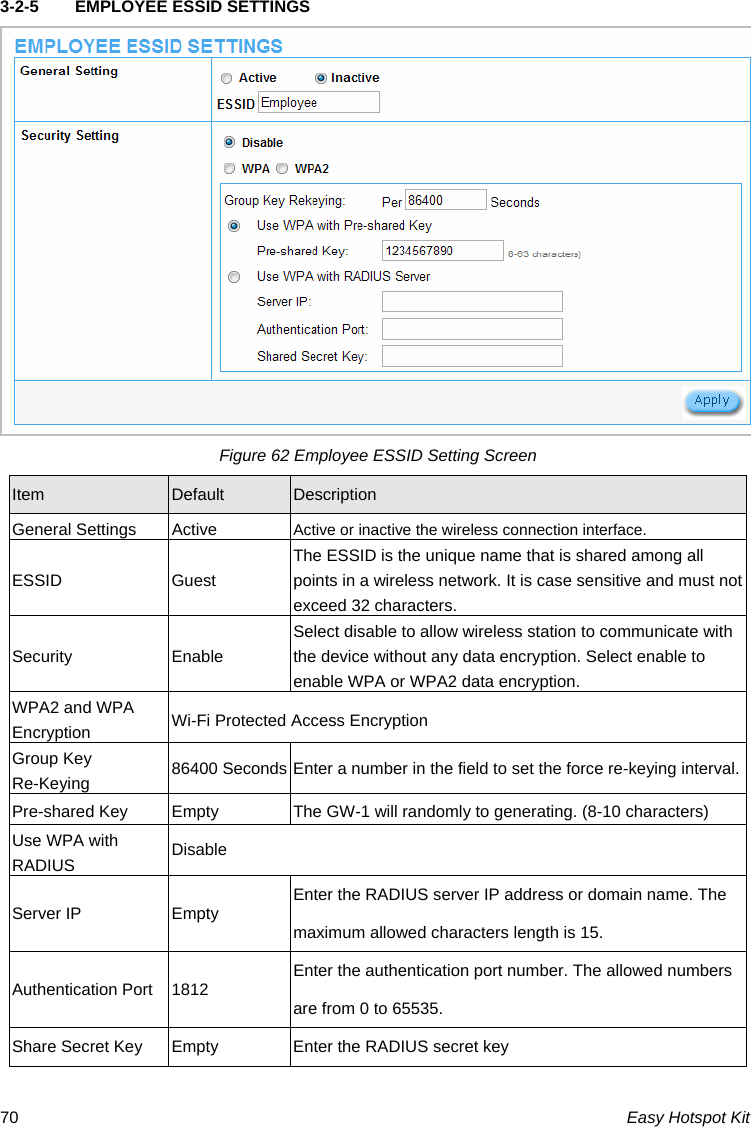

3-2-5  EMPLOYEE ESSID SETTINGS    Figure 62 Employee ESSID Setting Screen Item  Default  Description General Settings  Active  Active or inactive the wireless connection interface. ESSID Guest  The ESSID is the unique name that is shared among all points in a wireless network. It is case sensitive and must not exceed 32 characters. Security Enable Select disable to allow wireless station to communicate with the device without any data encryption. Select enable to enable WPA or WPA2 data encryption. WPA2 and WPA Encryption  Wi-Fi Protected Access Encryption Group Key Re-Keying  86400 Seconds Enter a number in the field to set the force re-keying interval. Pre-shared Key  Empty  The GW-1 will randomly to generating. (8-10 characters) Use WPA with RADIUS  Disable Enter the RADIUS server IP address or domain name. The maximum allowed characters length is 15. Server IP  Empty Enter the authentication port number. The allowed numbers are from 0 to 65535. Authentication Port  1812 Share Secret Key  Empty  Enter the RADIUS secret key  Easy Hotspot Kit 70

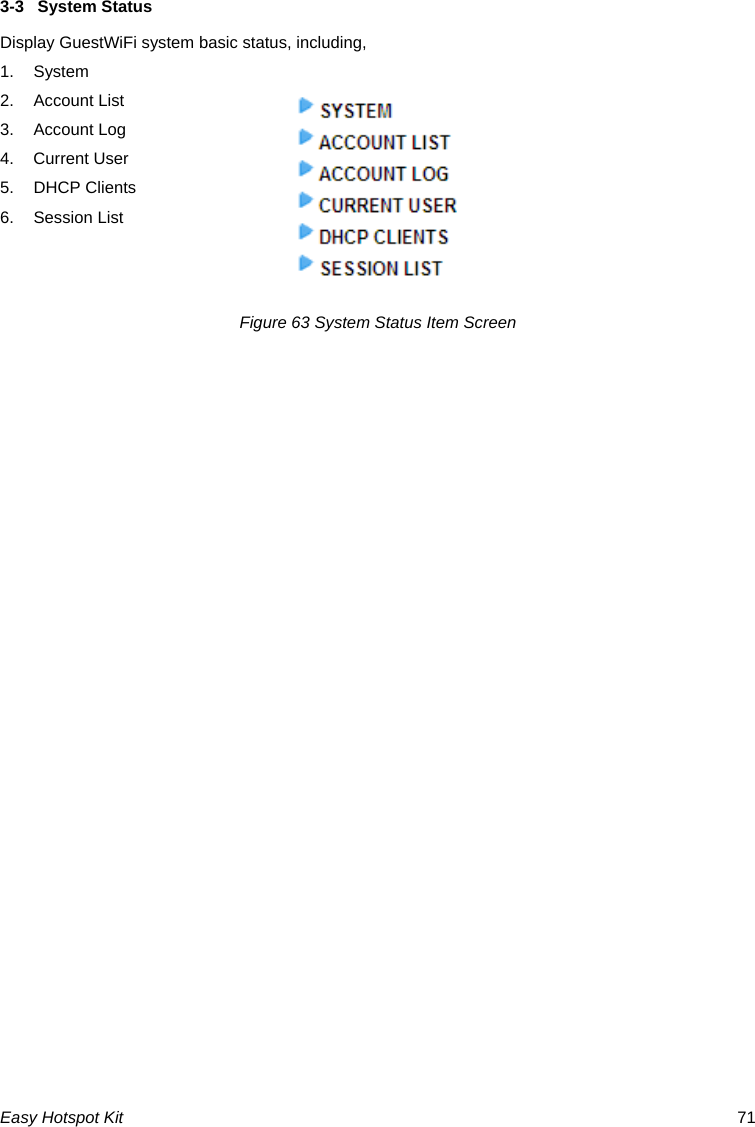

3-3  System Status Display GuestWiFi system basic status, including, 1. System 2. Account List 3. Account Log 4. Current User 5. DHCP Clients 6. Session List   Figure 63 System Status Item Screen Easy Hotspot Kit  71

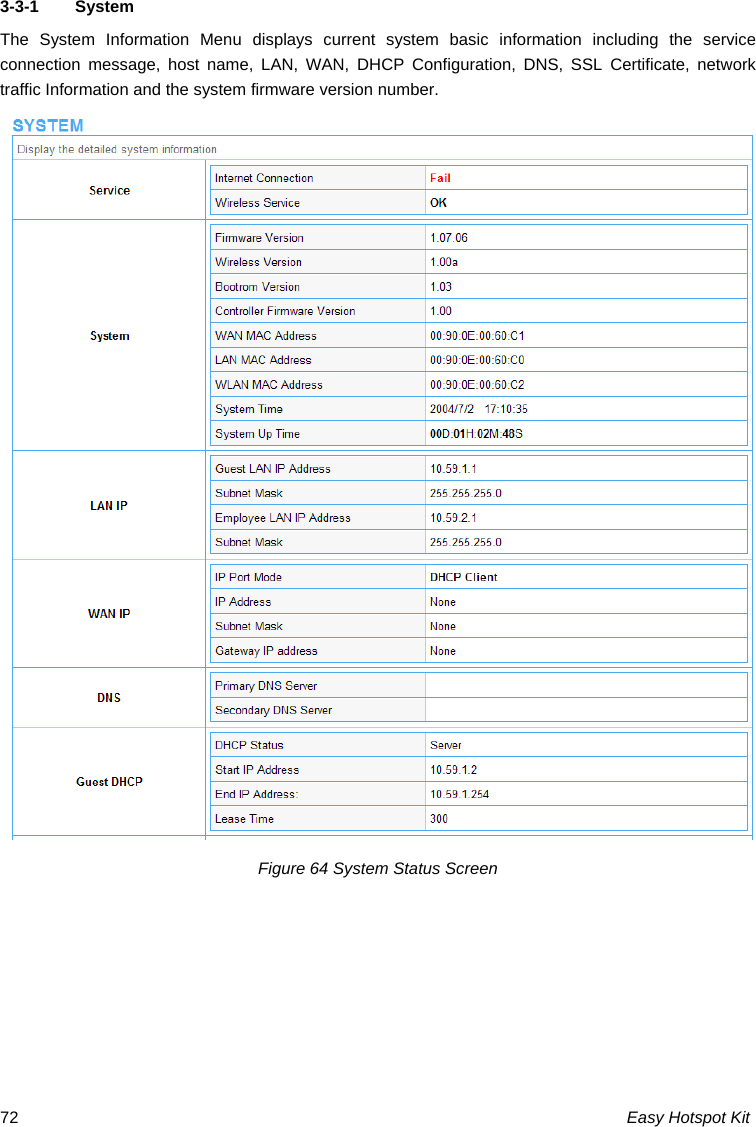

3-3-1  System The System Information Menu displays current system basic information including the service connection message, host name, LAN, WAN, DHCP Configuration, DNS, SSL Certificate, network traffic Information and the system firmware version number.  Figure 64 System Status Screen  Easy Hotspot Kit 72

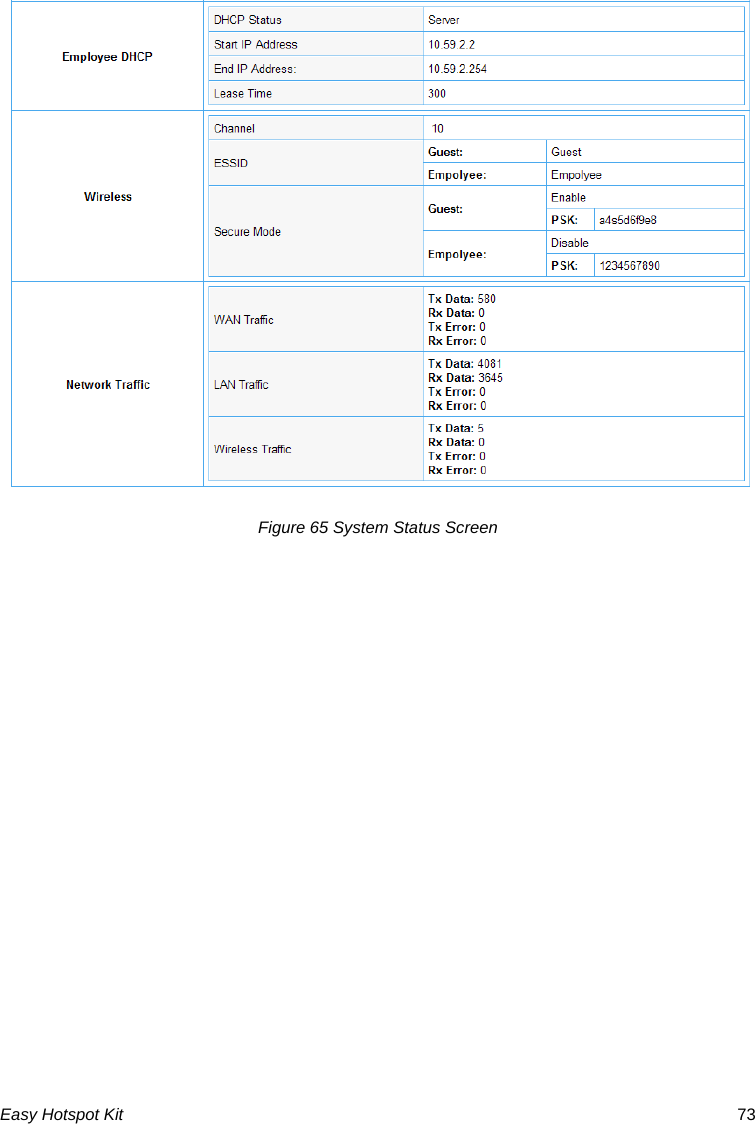

 Figure 65 System Status Screen Easy Hotspot Kit  73

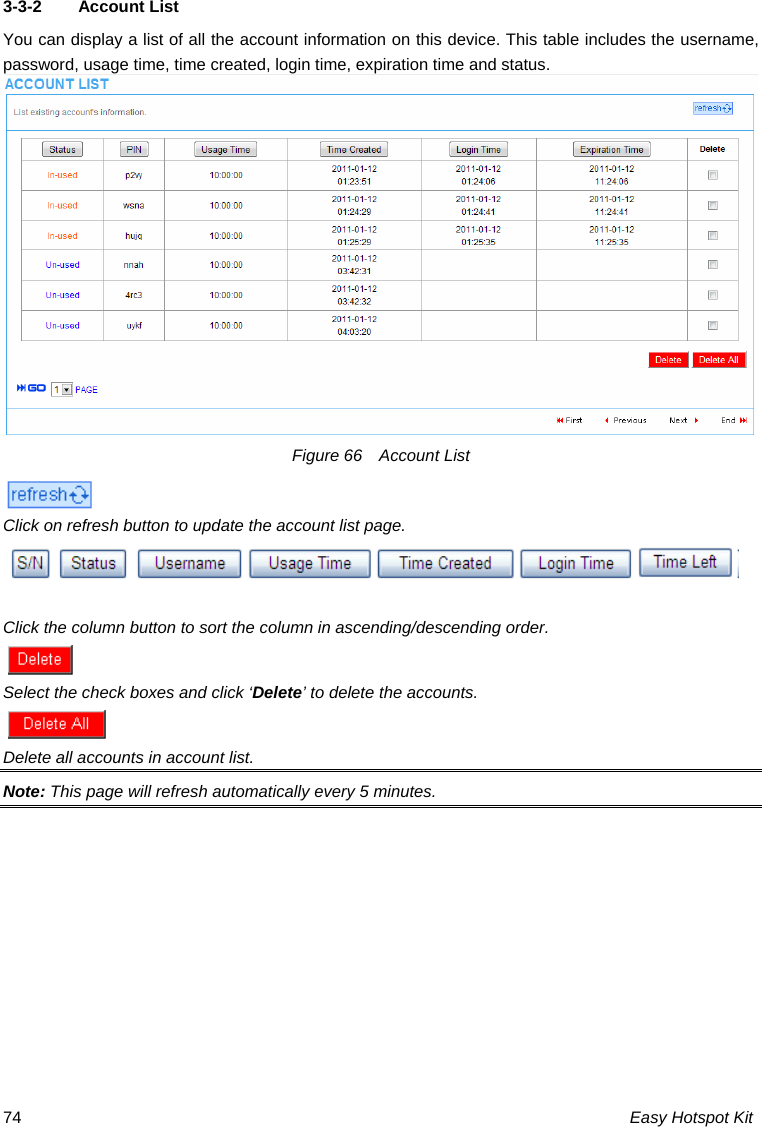

3-3-2  Account List You can display a list of all the account information on this device. This table includes the username, password, usage time, time created, login time, expiration time and status.  Figure 66  Account List Easy Hotspot Kit 74 Click on refresh button to update the account list page.  Click the column button to sort the column in ascending/descending order.  Select the check boxes and click ‘Delete’ to delete the accounts.  Delete all accounts in account list. Note: This page will refresh automatically every 5 minutes.

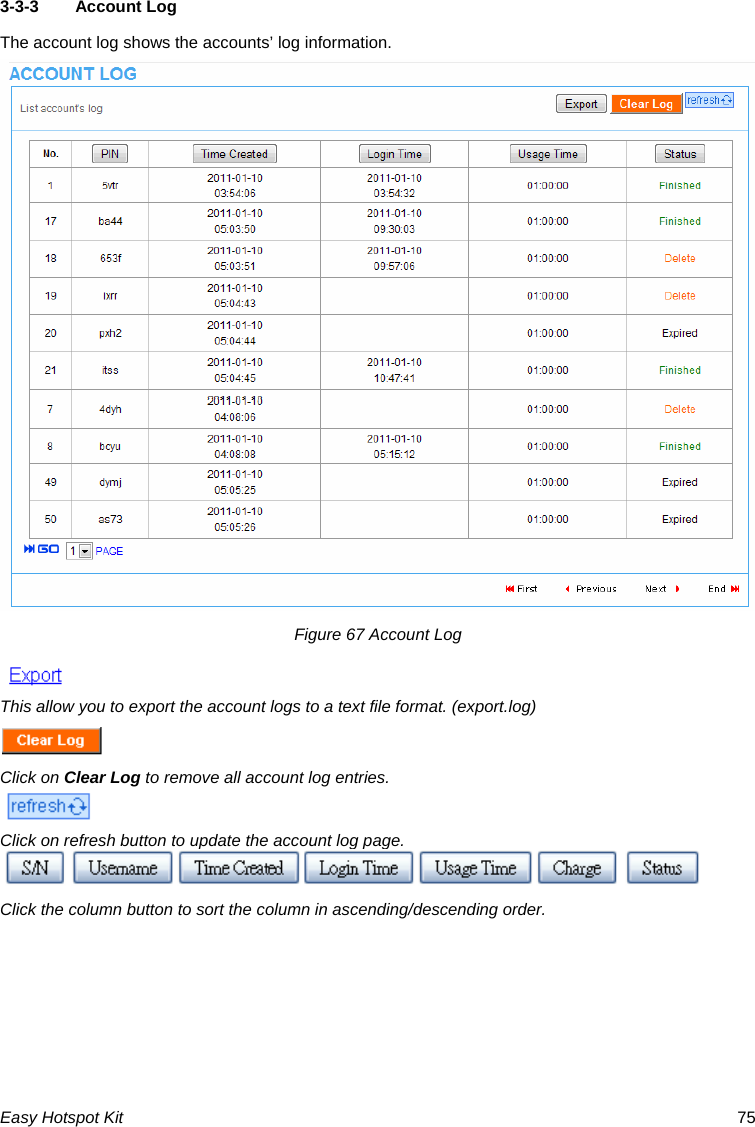

3-3-3  Account Log The account log shows the accounts’ log information. Figure 67 Account Log  This allow you to export the account logs to a text file format. (export.log)  Click on Clear Log to remove all account log entries.  Click on refresh button to update the account log page.  Click the column button to sort the column in ascending/descending order. Easy Hotspot Kit  75

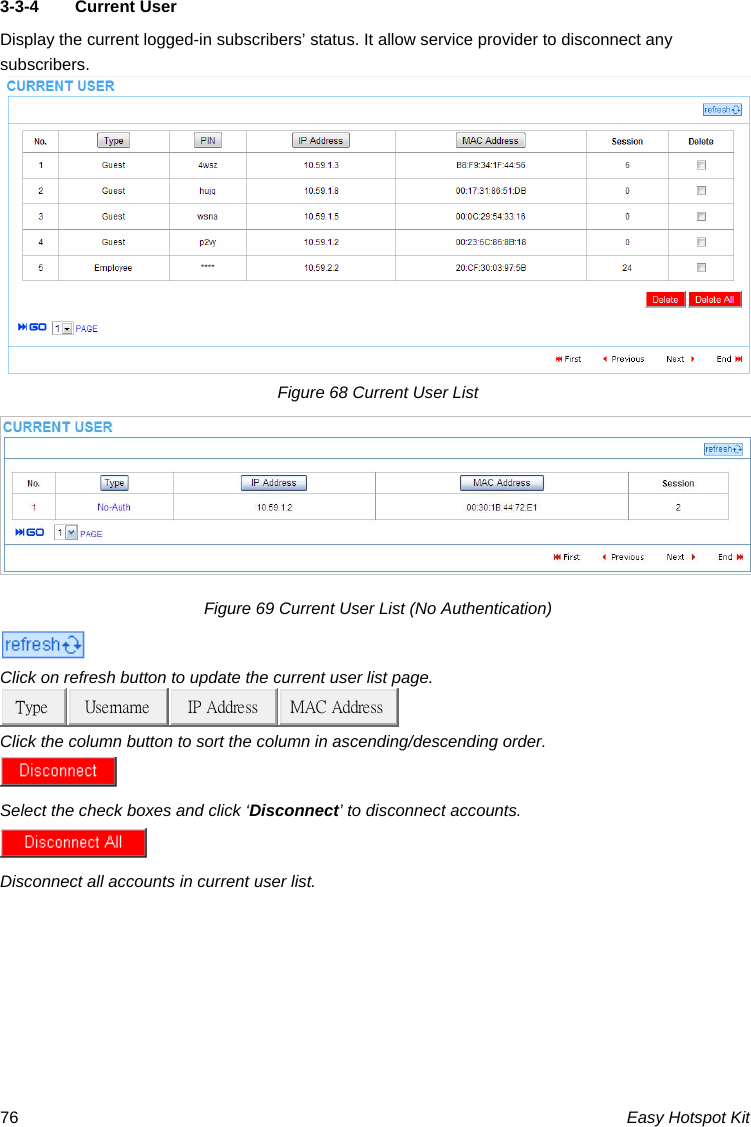

3-3-4  Current User Display the current logged-in subscribers’ status. It allow service provider to disconnect any subscribers. Figure 68 Current User List  Figure 69 Current User List (No Authentication)  Click on refresh button to update the current user list page. Type Username IP Address MAC AddressClick the column button to sort the column in ascending/descending order. Select the check boxes and click ‘Disconnect’ to disconnect accounts.  Disconnect all accounts in current user list. Easy Hotspot Kit 76

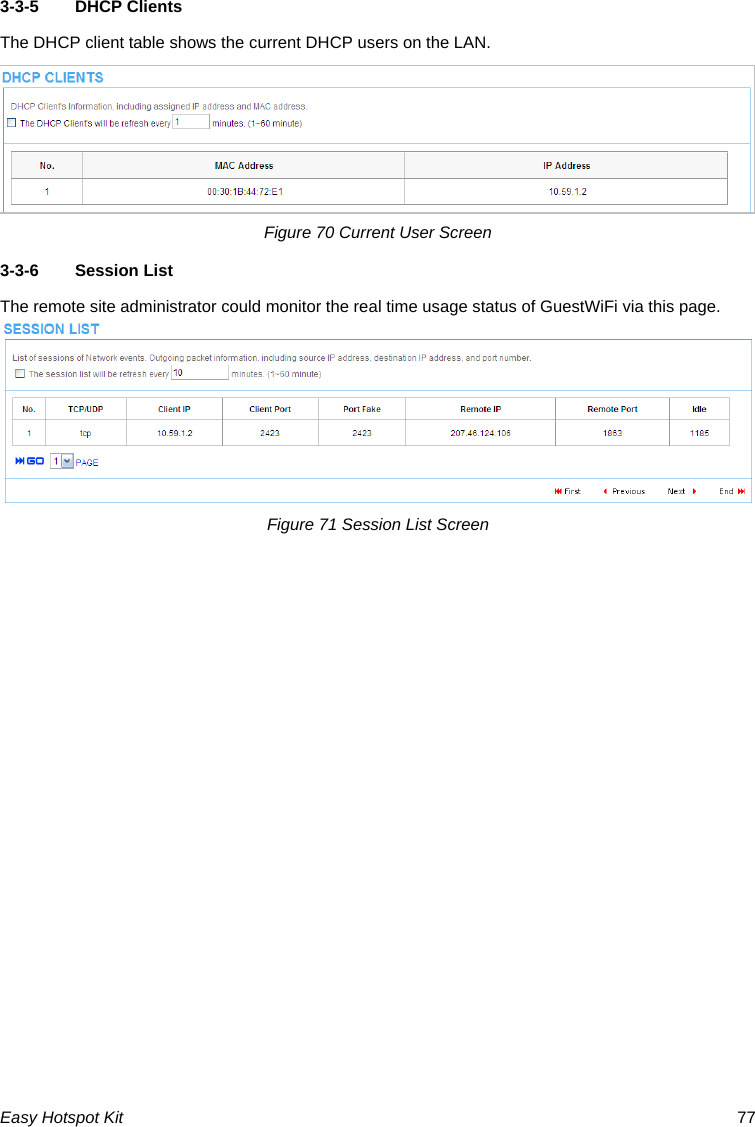

3-3-5  DHCP Clients The DHCP client table shows the current DHCP users on the LAN. Figure 70 Current User Screen 3-3-6  Session List The remote site administrator could monitor the real time usage status of GuestWiFi via this page. Figure 71 Session List Screen  Easy Hotspot Kit  77

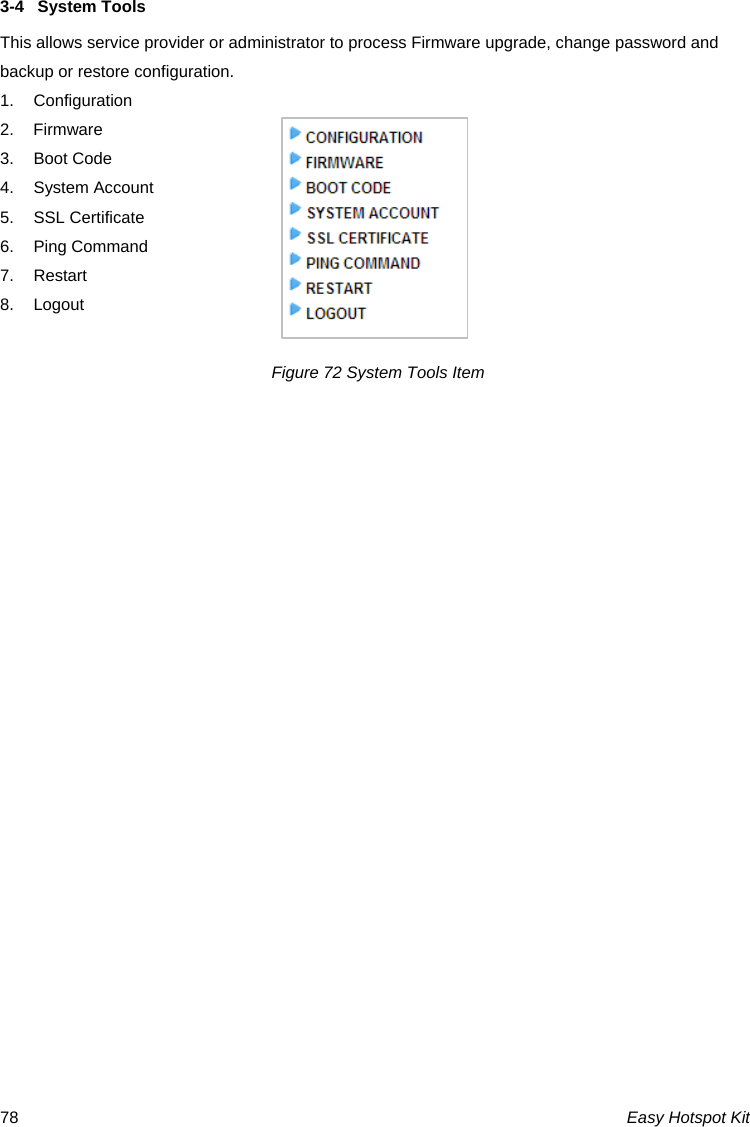

3-4  System Tools This allows service provider or administrator to process Firmware upgrade, change password and backup or restore configuration. 1. Configuration 2. Firmware 3. Boot Code 4. System Account 5. SSL Certificate 6. Ping Command 7. Restart 8. Logout  Figure 72 System Tools Item Easy Hotspot Kit 78

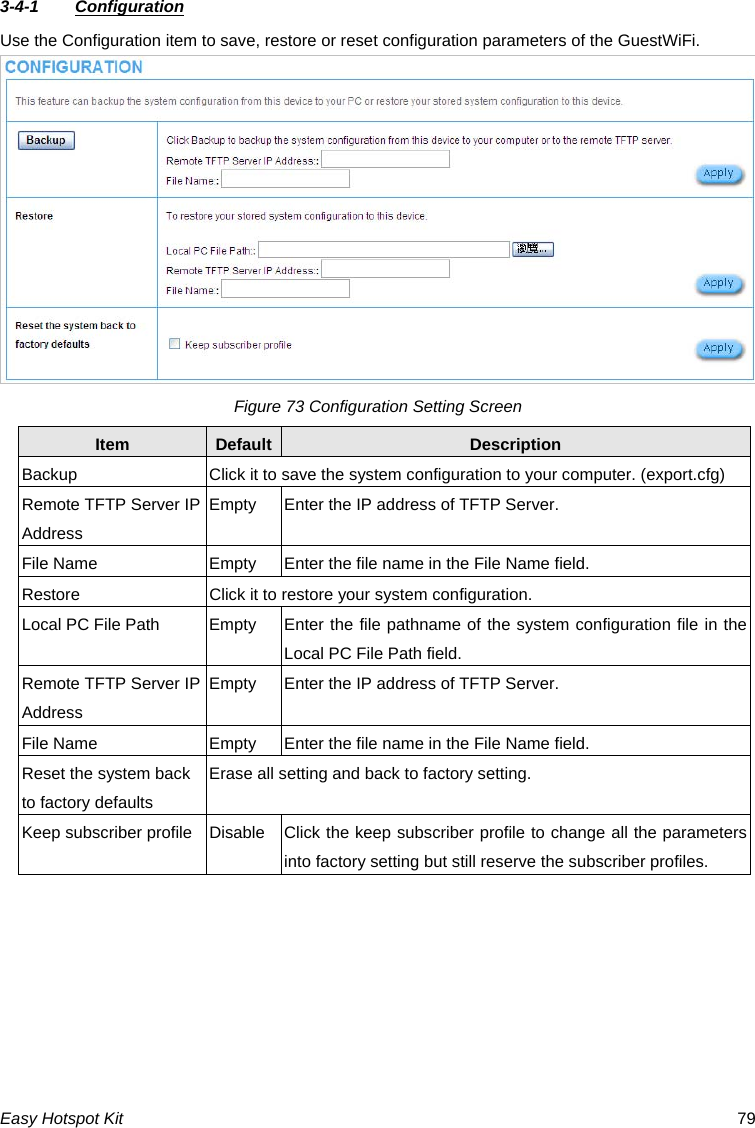

3-4-1  Configuration Use the Configuration item to save, restore or reset configuration parameters of the GuestWiFi. Figure 73 Configuration Setting Screen Default Description Item Backup  Click it to save the system configuration to your computer. (export.cfg) Remote TFTP Server IP Address Empty  Enter the IP address of TFTP Server. File Name  Empty  Enter the file name in the File Name field. Restore  Click it to restore your system configuration. Local PC File Path  Empty  Enter the file pathname of the system configuration file in the Local PC File Path field. Remote TFTP Server IP Address Empty  Enter the IP address of TFTP Server. File Name  Empty  Enter the file name in the File Name field. Reset the system back to factory defaults Erase all setting and back to factory setting. Keep subscriber profile  Disable Click the keep subscriber profile to change all the parameters into factory setting but still reserve the subscriber profiles. Easy Hotspot Kit  79

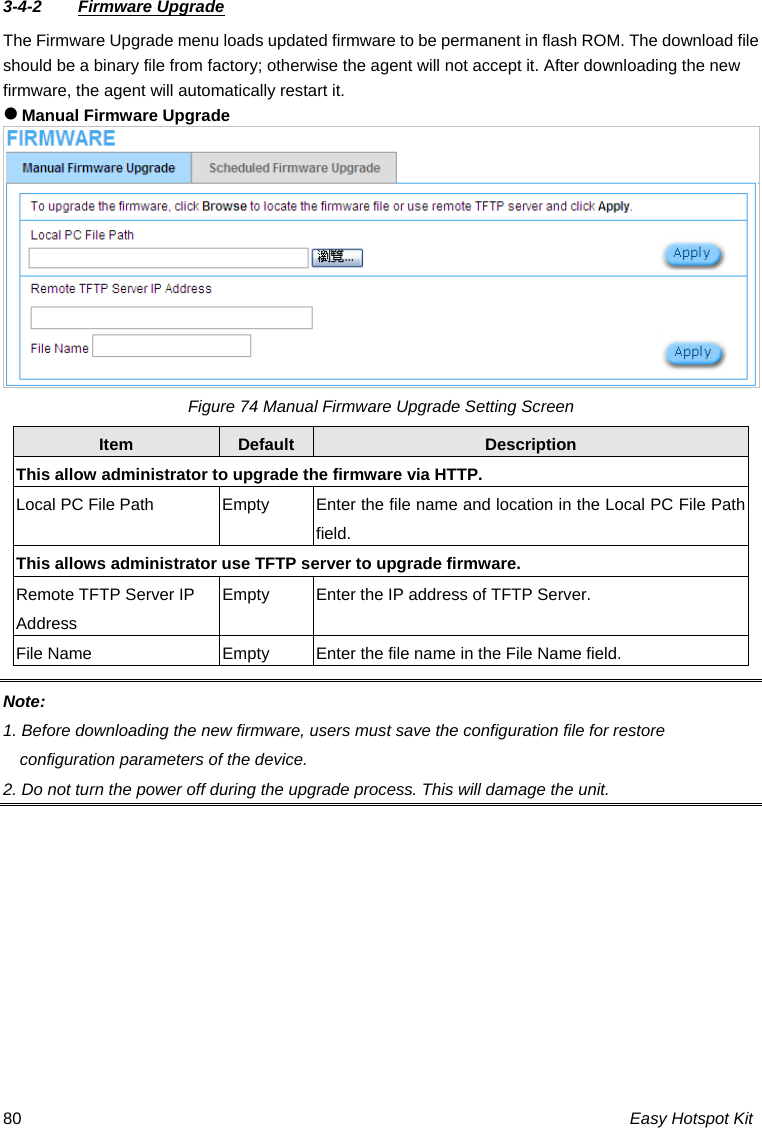

3-4-2  Firmware Upgrade The Firmware Upgrade menu loads updated firmware to be permanent in flash ROM. The download file should be a binary file from factory; otherwise the agent will not accept it. After downloading the new firmware, the agent will automatically restart it. z Manual Firmware Upgrade Figure 74 Manual Firmware Upgrade Setting Screen Default Description Item This allow istrator to   the firmware via HTTP. admin upgrade  Local PC File Path  Empty  Enter the file name and location in the Local PC File Path field. This allows administrator use TFTP s o upgrade firmware. erver tRemote TFTP Server IP  Empty  Enter the IP address of TFTPAddress  Server. File Name  Empty  Enter the file name in the File Name field. Note:  1. Before downloading the new firmware, users must save the configuration file for restore 2. rade process. This will damage the unit. configuration parameters of the device.  Do not turn the power off during the upgEasy Hotspot Kit 80

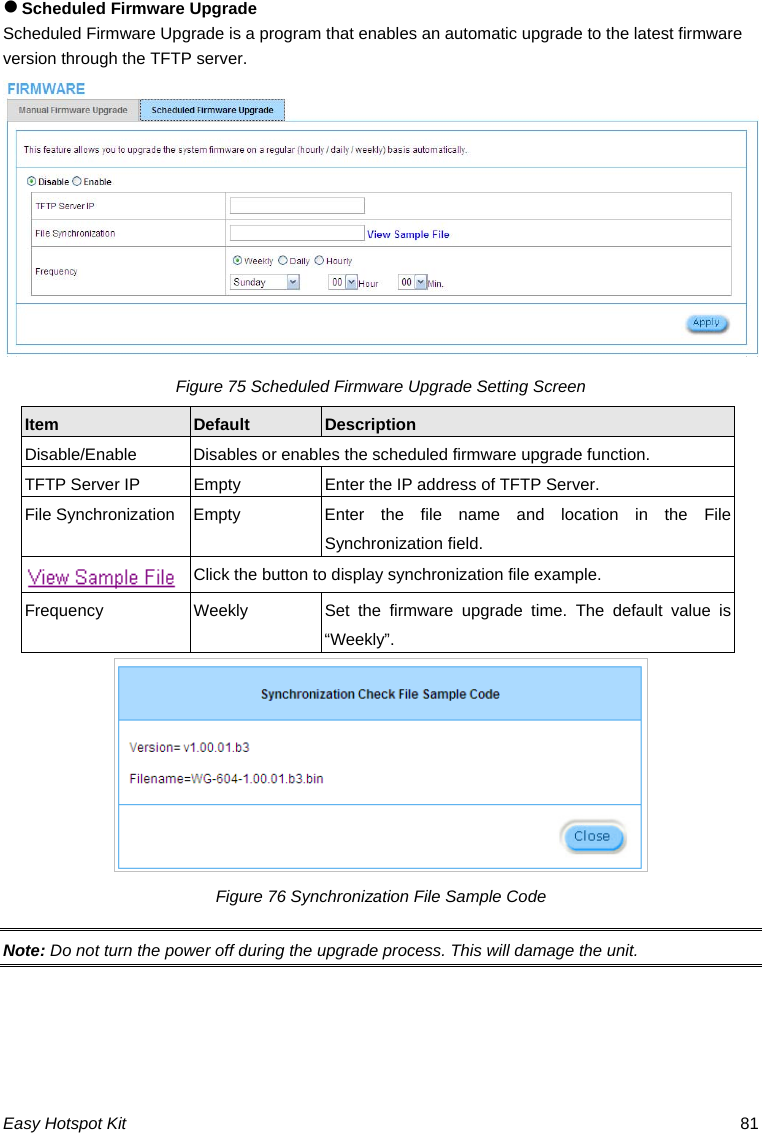

z Scheduled Firmware Upgrade Scheduled Firmware Upgrade is a program that enables an automatic upgrade to the latest firmware version through the TFTP server. Figure 75 Scheduled Firmware Upgrade Setting Screen Default  Description Item Disable/Enable  Disables or enables the scheduled firmware upgrade function. TFTP Server IP  Empty  Enter the IP address of TFTP Server. Easy Hotspot Kit  81 File Synchronization Empty  Enter the file name and location in the File Synchronization field.   Click the button to display synchronization file example. Frequency  Weekly  Set the firmware upgrade time. The default value is “Weekly”.  Figure 76 Synchronization File Sample Code Note: Do not turn the power off during the upgrade process. This will damage the unit.

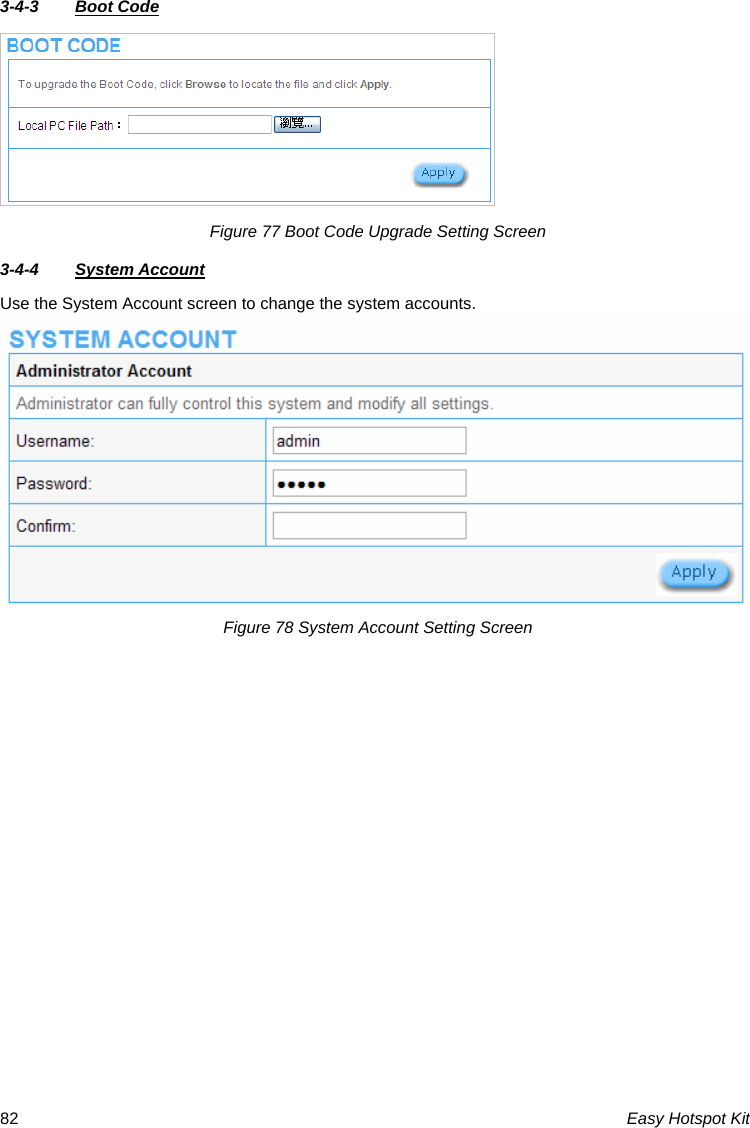

3-4-3  Boot Code  Figure 77 Boot Code Upgrade Setting Screen 3-4-4  System Account Use the System Account screen to change the system accounts.  Figure 78 System Account Setting Screen Easy Hotspot Kit 82

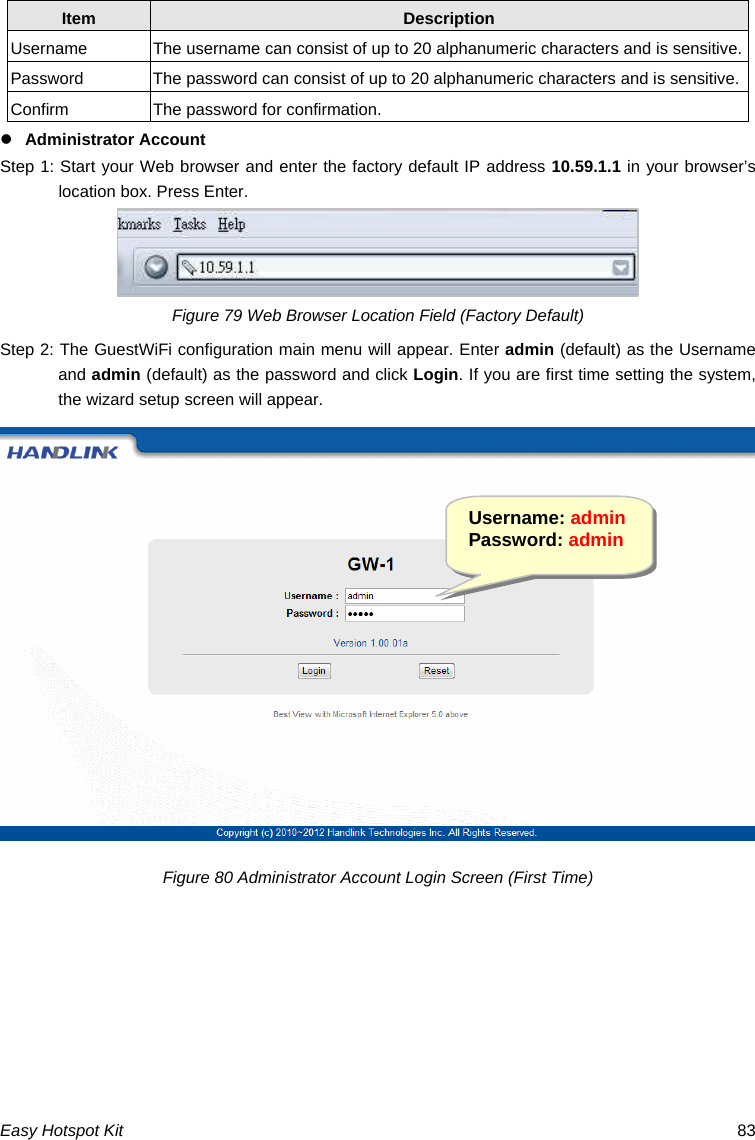

Item  Description Username  The username can consist of up to 20 alphanumeric characters and is sensitive. Password  The password can consist of up to 20 alphanumeric characters and is sensitive. Confirm  The password for confirmation. z Administrator Account Step 1: Start your Web browser and enter the factory default IP address 10.59.1.1 in your browser’s location box. Press Enter. Figure 79 Web Browser Location Field (Factory Default) Step 2: The GuestWiFi configuration main menu will appear. Enter admin (default) as the Username and admin (default) as the password and click Login. If you are first time setting the system, the wizard setup screen will appear. Figure 80 Administrator Account Login Screen (First Time) Username: adminPassword: admin Easy Hotspot Kit  83

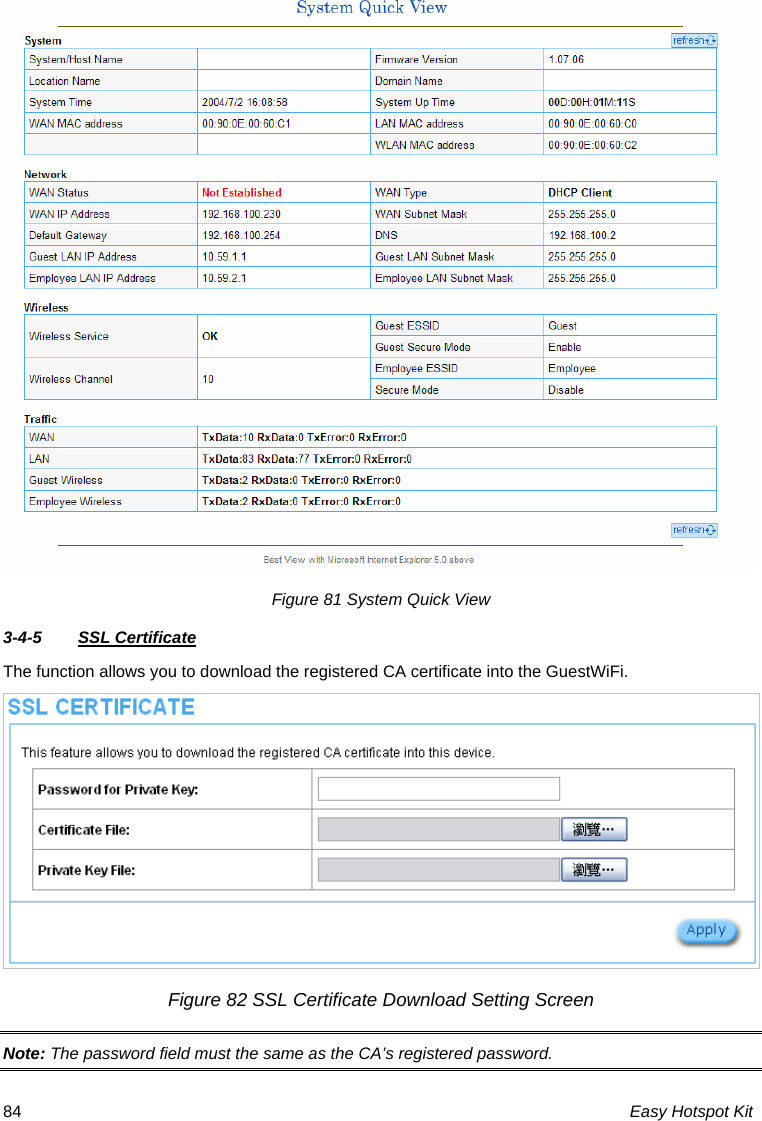

Figure 81 System Quick View   3-4-5  SSL Certificate The function allows you to download the registered CA certificate into the GuestWiFi. Figure 82 SSL Certificate Download Setting Screen Note: The password field must the same as the CA’s registered password. Easy Hotspot Kit 84

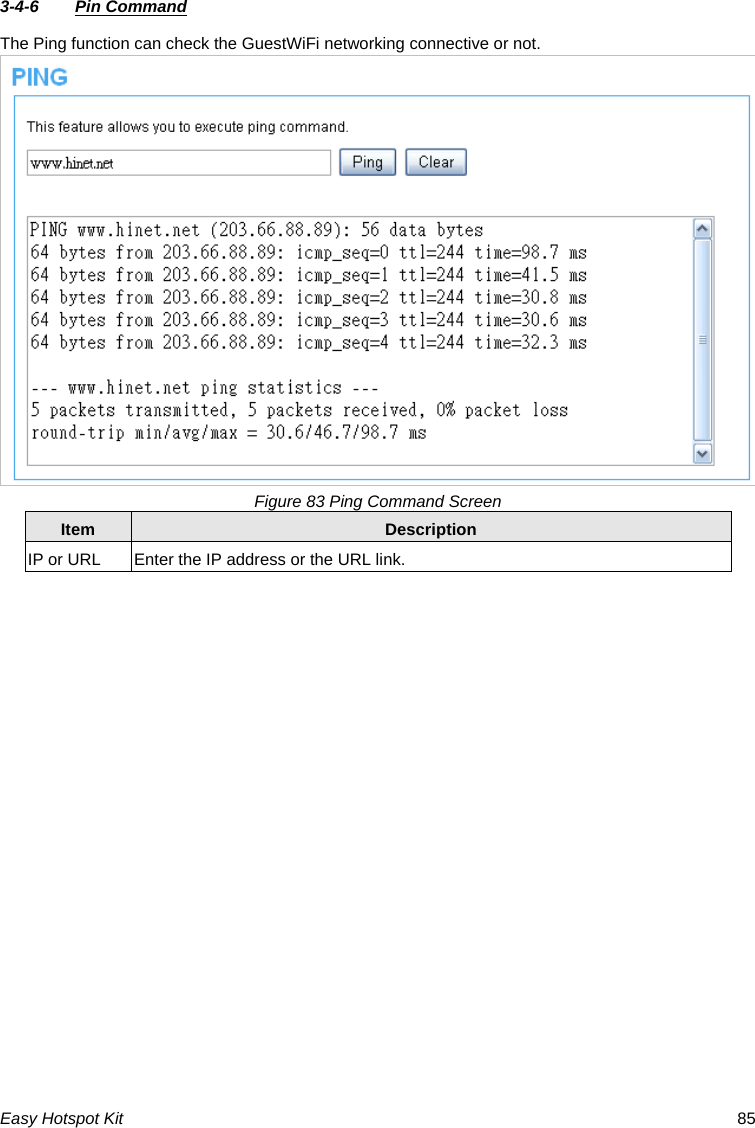

3-4-6  Pin Command The Ping function can check the GuestWiFi networking connective or not.  Figure 83 Ping Command Screen Item  Description IP or URL  Enter the IP address or the URL link. Easy Hotspot Kit  85

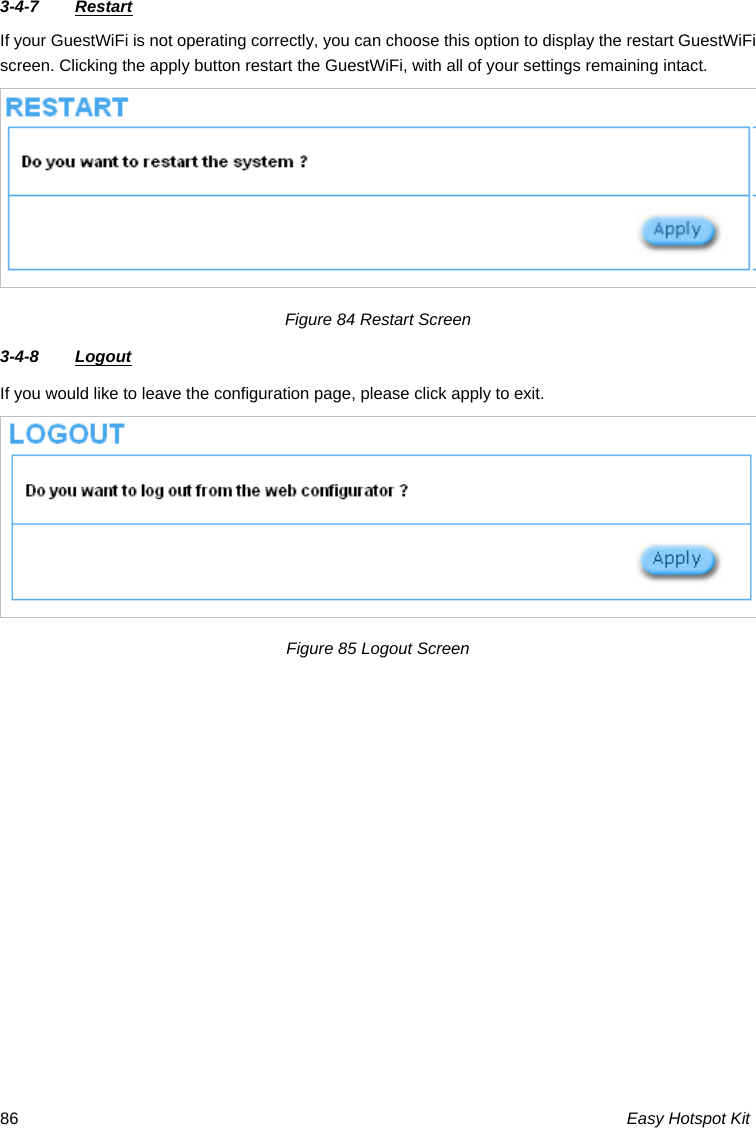

3-4-7  Restart If your GuestWiFi is not operating correctly, you can choose this option to display the restart GuestWiFi screen. Clicking the apply button restart the GuestWiFi, with all of your settings remaining intact. Figure 84 Restart Screen 3-4-8  Logout If you would like to leave the configuration page, please click apply to exit. Figure 85 Logout Screen  Easy Hotspot Kit 86

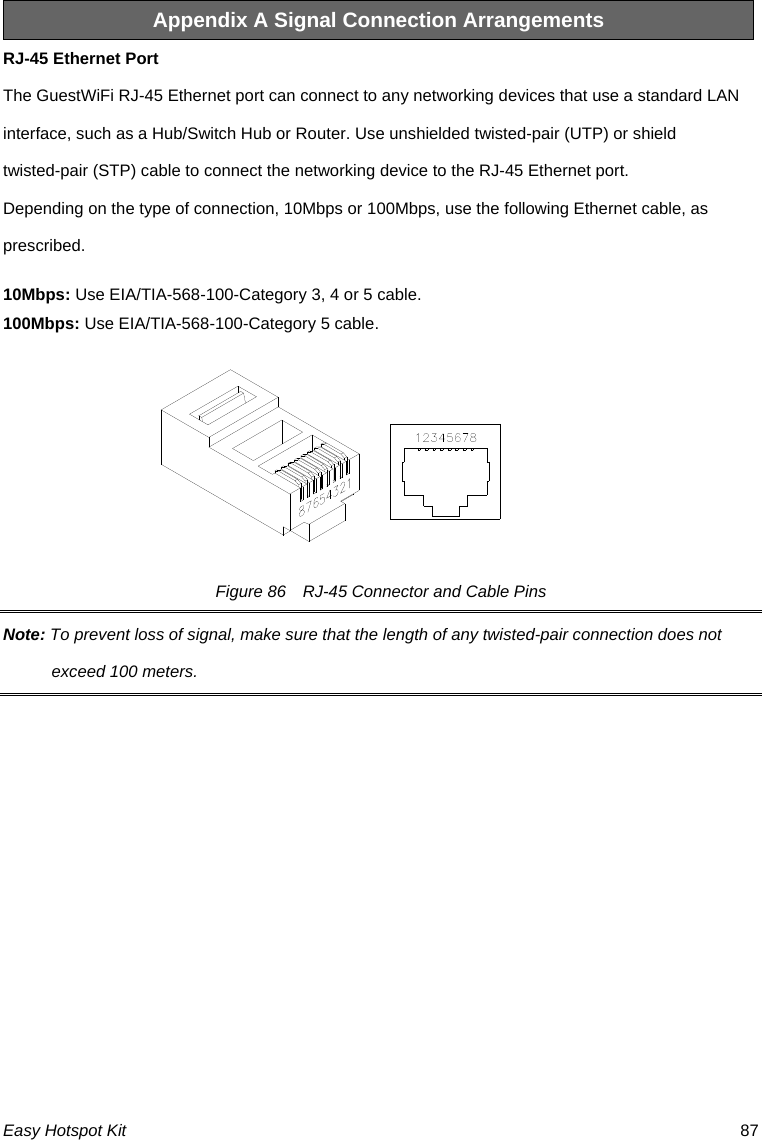

Appendix A Signal Connection Arrangements RJ-45 Ethernet Port The GuestWiFi RJ-45 Ethernet port can connect to any networking devices that use a standard LAN interface, such as a Hub/Switch Hub or Router. Use unshielded twisted-pair (UTP) or shield twisted-pair (STP) cable to connect the networking device to the RJ-45 Ethernet port.   Depending on the type of connection, 10Mbps or 100Mbps, use the following Ethernet cable, as prescribed. 10Mbps: Use EIA/TIA-568-100-Category 3, 4 or 5 cable. 100Mbps: Use EIA/TIA-568-100-Category 5 cable. Figure 86    RJ-45 Connector and Cable Pins Note: To prevent loss of signal, make sure that the length of any twisted-pair connection does not exceed 100 meters. Easy Hotspot Kit  87

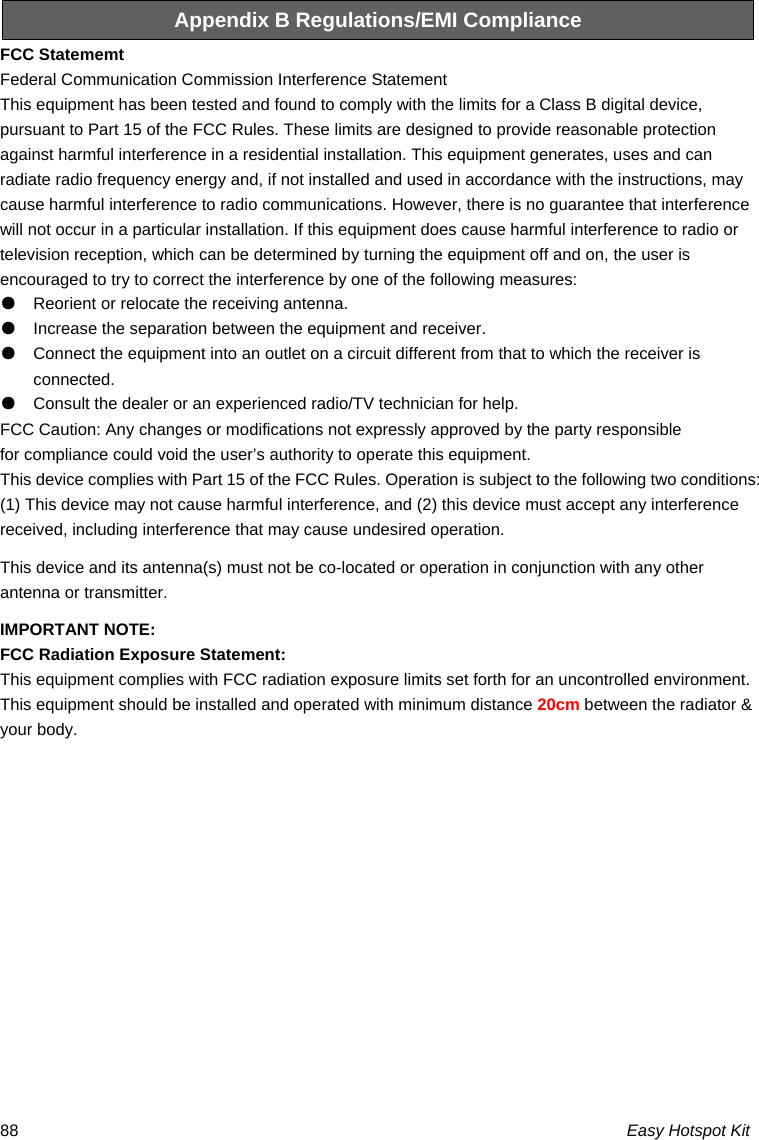

Easy Hotspot Kit 88Appendix B Regulations/EMI Compliance FCC Statememt Federal Communication Commission Interference Statement   This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ●    Reorient or relocate the receiving antenna. ●    Increase the separation between the equipment and receiver. ●    Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ●    Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible   for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

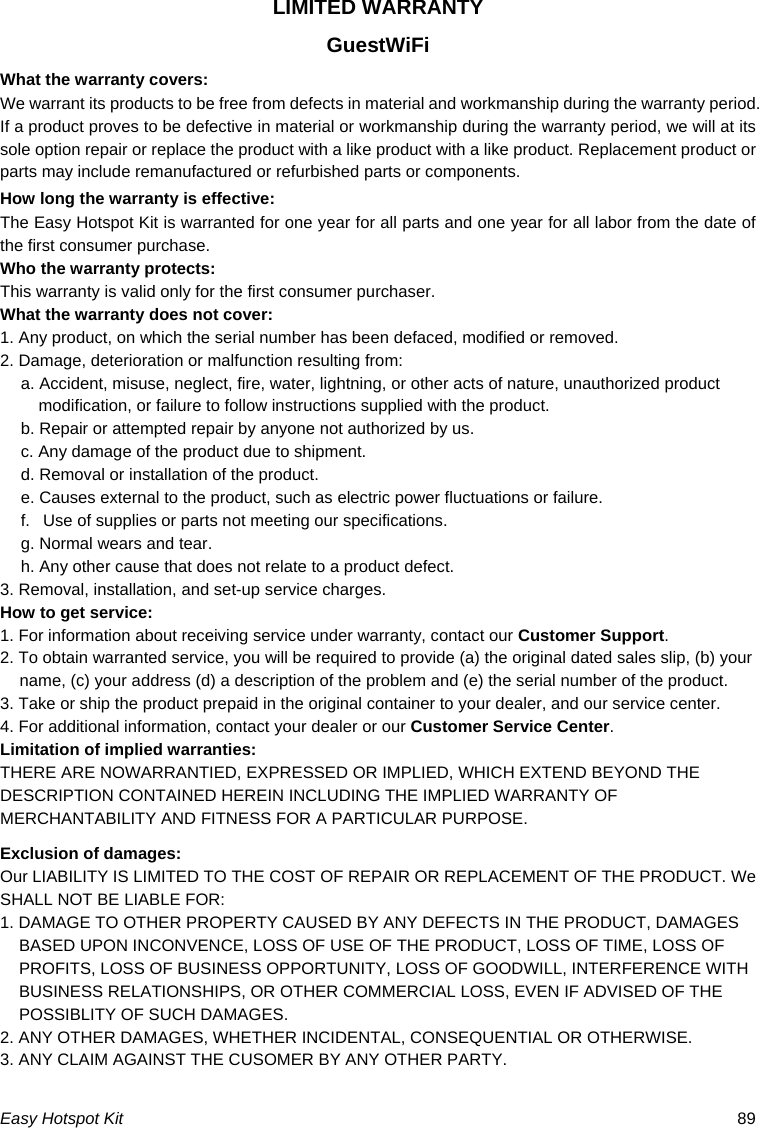

Easy Hotspot Kit  89 LIMITED WARRANTY GuestWiFi What the warranty covers: We warrant its products to be free from defects in material and workmanship during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, we will at its sole option repair or replace the product with a like product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components. How long the warranty is effective: The Easy Hotspot Kit is warranted for one year for all parts and one year for all labor from the date of the first consumer purchase. Who the warranty protects: This warranty is valid only for the first consumer purchaser. What the warranty does not cover: 1. Any product, on which the serial number has been defaced, modified or removed. 2. Damage, deterioration or malfunction resulting from: a. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product. b. Repair or attempted repair by anyone not authorized by us. c. Any damage of the product due to shipment. d. Removal or installation of the product. e. Causes external to the product, such as electric power fluctuations or failure. f.   Use of supplies or parts not meeting our specifications. g. Normal wears and tear. h. Any other cause that does not relate to a product defect. 3. Removal, installation, and set-up service charges. How to get service: 1. For information about receiving service under warranty, contact our Customer Support. 2. To obtain warranted service, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your address (d) a description of the problem and (e) the serial number of the product. 3. Take or ship the product prepaid in the original container to your dealer, and our service center. 4. For additional information, contact your dealer or our Customer Service Center. Limitation of implied warranties: THERE ARE NOWARRANTIED, EXPRESSED OR IMPLIED, WHICH EXTEND BEYOND THE DESCRIPTION CONTAINED HEREIN INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Exclusion of damages: Our LIABILITY IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF THE PRODUCT. We SHALL NOT BE LIABLE FOR: 1. DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THE PRODUCT, DAMAGES BASED UPON INCONVENCE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, LOSS OF PROFITS, LOSS OF BUSINESS OPPORTUNITY, LOSS OF GOODWILL, INTERFERENCE WITH BUSINESS RELATIONSHIPS, OR OTHER COMMERCIAL LOSS, EVEN IF ADVISED OF THE POSSIBLITY OF SUCH DAMAGES. 2. ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE. 3. ANY CLAIM AGAINST THE CUSOMER BY ANY OTHER PARTY.
