User’s Manual HPS
Introduction
HandyWave Co., Ltd. 1/5
202-4 Yatap-dong, Bundang-gu, Seongnam City, Gyunggi Province 463-070, Republic of Korea
Tel: 82-31-709-8900, Fax: 82-31-708-9455
http://www.handywave.com
2006 HandyWave Co., Ltd. All rights reserved.
Introduction
The HPS from HandyWave is a ready-to-use short-range wireless connectivity solution for
industrial. It provides the most economic and powerful way of cable replacement for the serial
communication systems including RS-232, RS-422, and RS-485.
Features
z Supports DIN-RAIL and Wall Mount
z Supports Bluetooth Serial Port Profile and Generic Access Profile
z No need of external host and software
z Easy of installation and use
z Supports configuration of the local device
z Supports configuration of the remote device via Over-the-Air
z Easy of maintenance
z Supports up to 100 meter (Line of Sight)
z Supports RS-232, RS-422, and RS-485
z Supports Point-to-Point and Point-to-Multipoint Topology
Specifications
z Standard: Bluetooth Specification Version 1.2 and/or above
z Operation Frequency: 2.4GHz ISM Band
z Transmitted Power: Max 12.4dBm (Conducted)
z Received Sensitivity: More than –80dBm
z Power Supply: DC +5 ~ +30V
z Current Consumption: Up to 200mA at DC 5V
z Operation Temperature: -20 ~ 60 °C
z Dimension: 52.5mm (W) x 86.0mm (D) x 58.0mm (H)
z Baud Rate: 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6, and 115.2Kbps
z Antenna Interface:
Left-handed SMA Female Connector
z Signal Interface: 14 Terminals and screws
Contents
z HPS 2 EA
z Antenna 2 EA
z A User’s Manual
User’s Manual HPS
Hardware Setup
HandyWave www.handywave.com 2/5
Hardware Setup

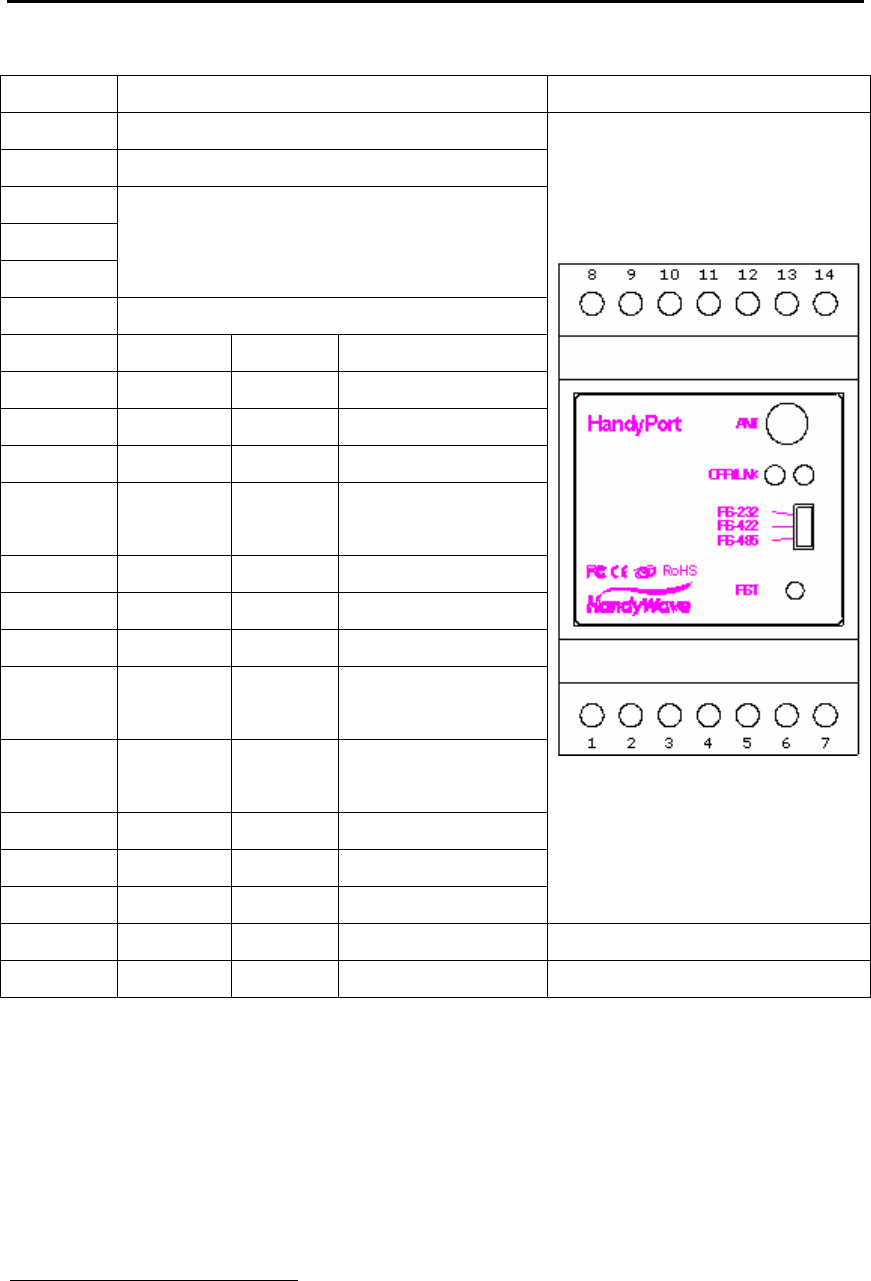

Interface
Items Description Figure
ANT Antenna Interface
OPR/LNK LED Display
RS-232
RS-422
RS-485
Operation Selection Switch for
RS-232,
RS-422, or RS-485
RST Configuration Button
Pin # Signal Direction Descriptions
1 TxD O1 TxD for RS-232
2 RxD I2 RxD for RS-232
3 RTS/DTR O RTS/DTR for RS-232
4 CTS/DSR I CTS/DSR for RS-
232
5 GND Common Signal Ground
6 GND Common Power Ground
7 Power I Power Supply
8 TX+/TRX+ I/O TX+: RS-422
TRX+: RS-485
9 TX-/TRX- I/O RX-: RS-422
TRX-: RS-485
10 RX+ I RX+: RS-422
11 RX- I RX-: RS-422
12 GND Common Signal Ground
13 EoR+ O End of Resistor3 + RS-485 Only
14 EoR- I End of Resistor – RS-485 Only
Quick Installation Guide
Step 1: Assemble a provided antenna to the antenna port on the HandyPort.
Step 2: Select a serial interface using the operation selection switch on the HandyPort.
Step 3: Make connections using 14 terminals and screws for power and serial interface.
Step 4: Configure the HandyPort, if necessary.
1 O: Output
2 I: Input
3 End of Resistor: If the HandyPort is required an end of resistor, you can make a loop between
EoR+ and EoR-. It is only for RS-485.
User’s Manual HPS
Hardware Setup
HandyWave www.handywave.com 3/5
Connection Overview for Power and Serial Interfaces
Power
Pin # Signal Descriptions
6 GND Power Ground
7 Power Power Supply (DC +5V ~ +30V)
RS-232

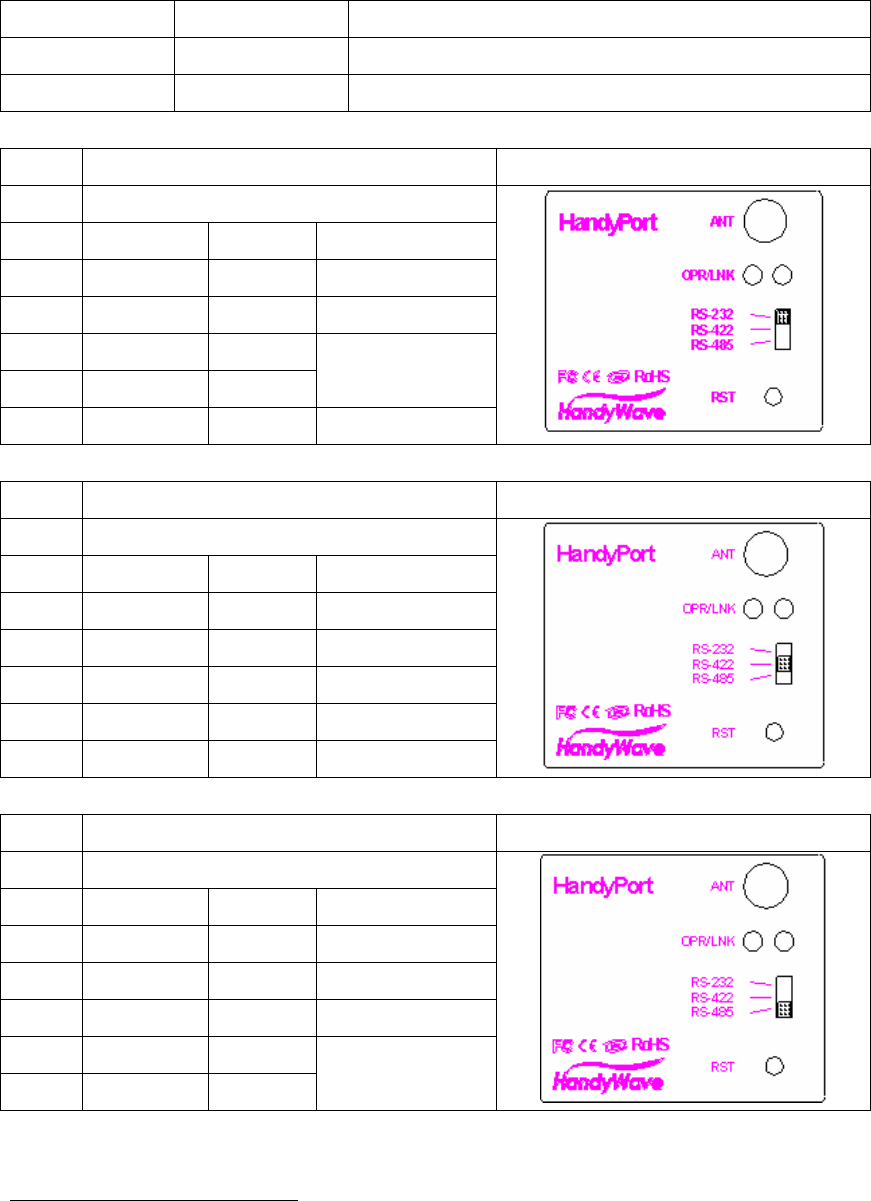

Items Location Figure
Switch RS-232
Pin # Signal Direction Remarks
1 TxD O1
2 RxD I2
3 RTS/DTR O
4 CTS/DSR I
Please see the
below.3
5 GND Common
RS-422
Items Location Figure
Switch RS-422
Pin # Signal Direction Remarks
8 TX+ TX+
9 TX- TX-
10 RX+ RX+
11 RX- RX-
12 GND GND
RS-485
Items Location Figure
Switch RS-422
Pin # Signal Direction Remarks
8 TRX+ I/O
9 TRX- I/O
12 GND Common
13 EoR+ O
14 EoR- I
Please see the
below.4
1 O: Output
2 I: Input
3 Flow Control (RTS/CTS and/or DTR/DSR): You can use the flow control for RS-232. To use
the flow control, you have to set the flow control for the HandyPort and DTE accordingly.
4 EoR (End of Resistor): If the HandyPort is required an end of resistor, you can make a loop
between EoR+ and EoR-. It is only for RS-485.
User’s Manual HPS
Configuration
HandyWave www.handywave.com 4/5
Configuration
You can change the configuration of HandyPort using HyperTerminal or similar terminal
emulator.
HyperTerminal Settings
z COM Port Settings: 9600 8-N-1, Flow Control: None (Factory Settings of HandyPort)
z Emulation: VT100
Switch Location
To configure the HandyPort, the switch location shall be in RS-232.
Start Configurations
Step 1: Make a RS-232 connection between the PC and HandyPort. And supply power for
HandyPort.
Step 2: Open a Hyper Terminal at the PC and set it up.
Step 3: Push the RST button on HandyPort. If you enter the configuration mode successfully,
LNK LED will be flashing every second.
Step 4: Hit the <Enter> key, 5 second later.
Step 5: Change the configuration of HandyPort with commands, if necessary.
Usage Printing
If you are in the configuration mode, type “?<Enter>” for listing commands. If you want to know
the usage of specific command, type “?[command]<Enter>”. All commands and parameters are
case sensitive. Therefore, you have to use the capital letter for commands and parameters.
End Configurations
After finishing the configuration, you have to execute a command “X” to apply changes and exit
the configuration mode.
Frequently Used Commands
Command Syntax Description
A ABD_ADDR<CR> Change the remote device address
B BBR[D]<CR> Change the baud rate
M MMode<CR> Change the connection mode
P PPA[D]<CR> Change the parity bit
S SST[D]<CR> Change the stop bits
V V Display the device information
User’s Manual HPS
Configuration
HandyWave www.handywave.com 5/5
Note.
