1 Overview

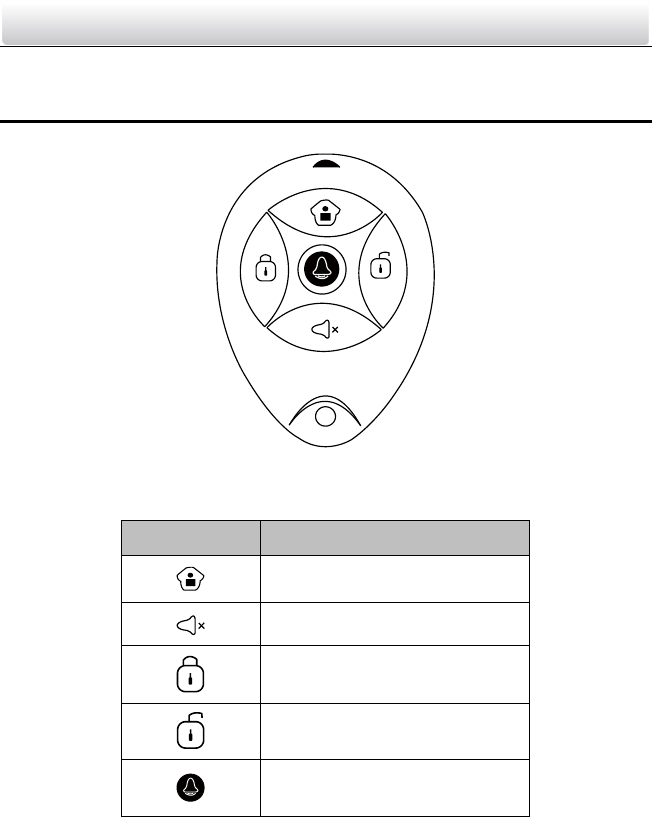

Figure 1-1 The Appearance of the Keyfob
Table 1-1 The Description of the Buttons
Button
Description
Stay Arming Button
Clearing Alarm Button
Arming Button
Disarming Button
Panic Button
Keyfob·User Manual
2
2 Operations
Before You Start:
The control panel supports up to 32-ch keyfods.
In the Keyfob – Keypad – Control Panel structure, the keyfod controls the control
panel via the keypad. The control panel decides the number of RF keypads (Network
Security Control Panel supports up to 9 keypads. Video Security Control Panel
supports up to 9 keypads. Network Security Control Panel with Bus Expending Module
supports up to 32 LCD keypads).
The control panel can connect to/delete the keyfob. In the Keyfob – Keypad – Control
Panel structure, add the keyfob to the partition which the receiving keypad belong.
For successful operation, the keyfob and receiving keypad
The control panel can recognize different operations of a keypad. The wireless user
No. (1 to 32) corresponds to the CID Report No. (201 to 232).
Only installers and main users have the permission.
2.1 Connecting Control Panel and Wireless Device
Purpose:
Connect the control panel with wireless device.
Command:
【Password】+【*】+【91】+【Number】+【#】
Steps:
1. Enter the command to initialize the connection mode.
2. Press any button on the keyfob to exit the connection mode.
2.2 Deleting the Specified Connected Wireless Device
Purpose:
Delete the connected wireless device in the Control Panel.
Command:
【Password】+【*】+【90】+【Number】+【#】
2.3 Deleting All Connected Wireless Device
Purpose:
Delete all the connected wireless devices.
Keyfob·User Manual
3
Command:
【Password】+【*】+【92】+【#】
2.4 Setting the Wireless User Permission (No.1 - 32)
Purpose:
Set the wireless user permission.
Command:
701 0 0 0 0 0 #
1 2 463 5 7
Figure 2-1 The Command of Setting Wireless User Permission
Table 2-1 Description of Command Data
Description
1
Command Address of setting the permission of wireless user. The address
701 to 732 corresponds to the User No. 1 to 32.
2
Permission: Arming
0: Support
1: Not Support
3
Permission: Sending Arming Report
0: Support
1: Not Support
4
Permission: Disarming
0: Support
1: Not Support
5
Permission: Sending Disarming Report
0: Support
1: Not Support
6
Permission: Clearing Alarm
0: Support
1: Not Support
7
End the Command

Navigation menu
