1. Product Overview

TYWE2S is a low power consumptionmodulewithbuilt-in Wi-Fi connectivity

solution designed by Hangzhou AiXiangJi Technology Co., Ltd.The Wi-Fi Module

consistsof a highly integratedwireless radio chip ESP8285 andsome extra componentthathas

been programed with Wi-Fi network protocol and plenty of software

examples.TYWE2Sincludea 32-bit CPU, 1M byte flash, 50kB SRAM and various peripheral

resources.

TYWE2S is a RTOS platform, embedded with all the Wi-Fi MAC and TCP/IP protocol

function examples, users can customize their Wi-Fi product by using these software examples.

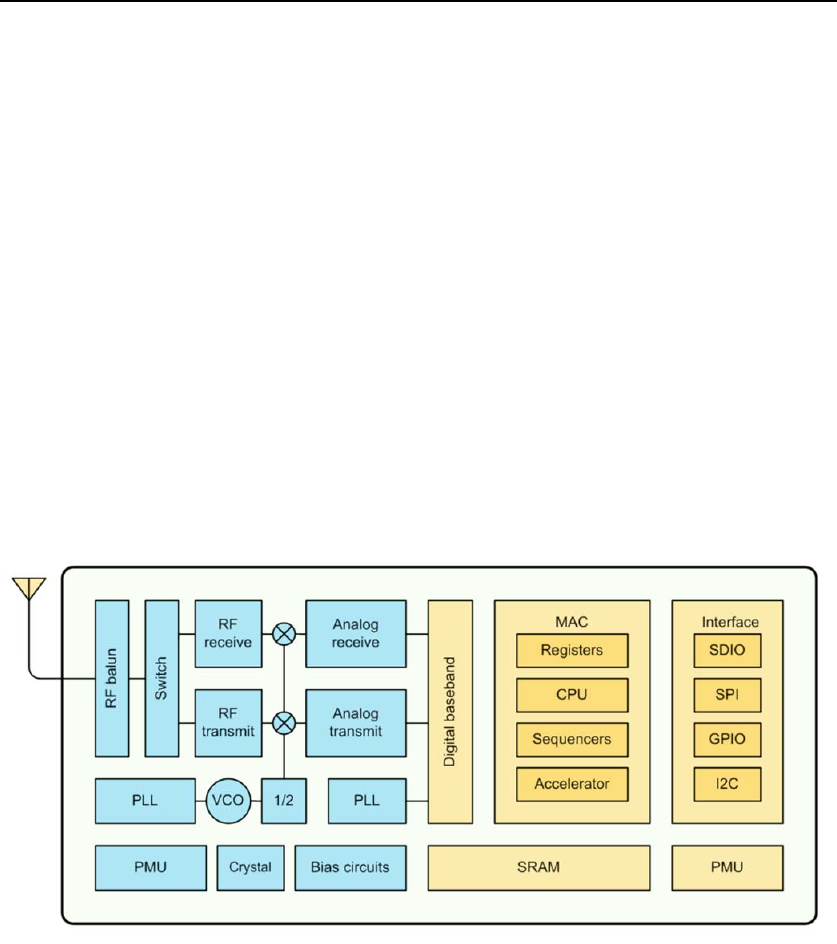

Figure 1 shows the block diagramof the TYWE2S.

Figure 1. The block diagram of the TYWE2S

1.1 Features

Integrated low power consumption 32-bit CPU, also known as application processor

Basic frequency of the CPU can support both 80MHz and 160MHz

Supply voltage range: 3V to 3.6V

Peripherals: 5 GPIO channels, 1 UART, 1 ADC

Wi-Fi connectivity:

802.11 b/g/n20

Channel 1 to 11 @ 2.4GHz

Support WPA/WPA2

+16dBm output power

Support STA/AP/STA+AP operation mode

Support SmartConfig function for both Android and IOS devices

On-board PCB antenna

TYWE2SDATASHEET

Operating temperature range: -20℃ to 85℃

1.2 Main ApplicationFields

Intelligent Building

Intelligent home, Intelligent household applications

Health care

Industrial wireless control

Baby monitor

Webcam

Intelligent bus

TYWE2SDATASHEET

2. Dimensions and Footprint

2.1Dimensions

TYWE2S has 2 columns of Pins.The distance between each Pin is

2mm. Size of TYWE2S: 15mm (L) ×17.3mm (W) × 2.8 mm (H)

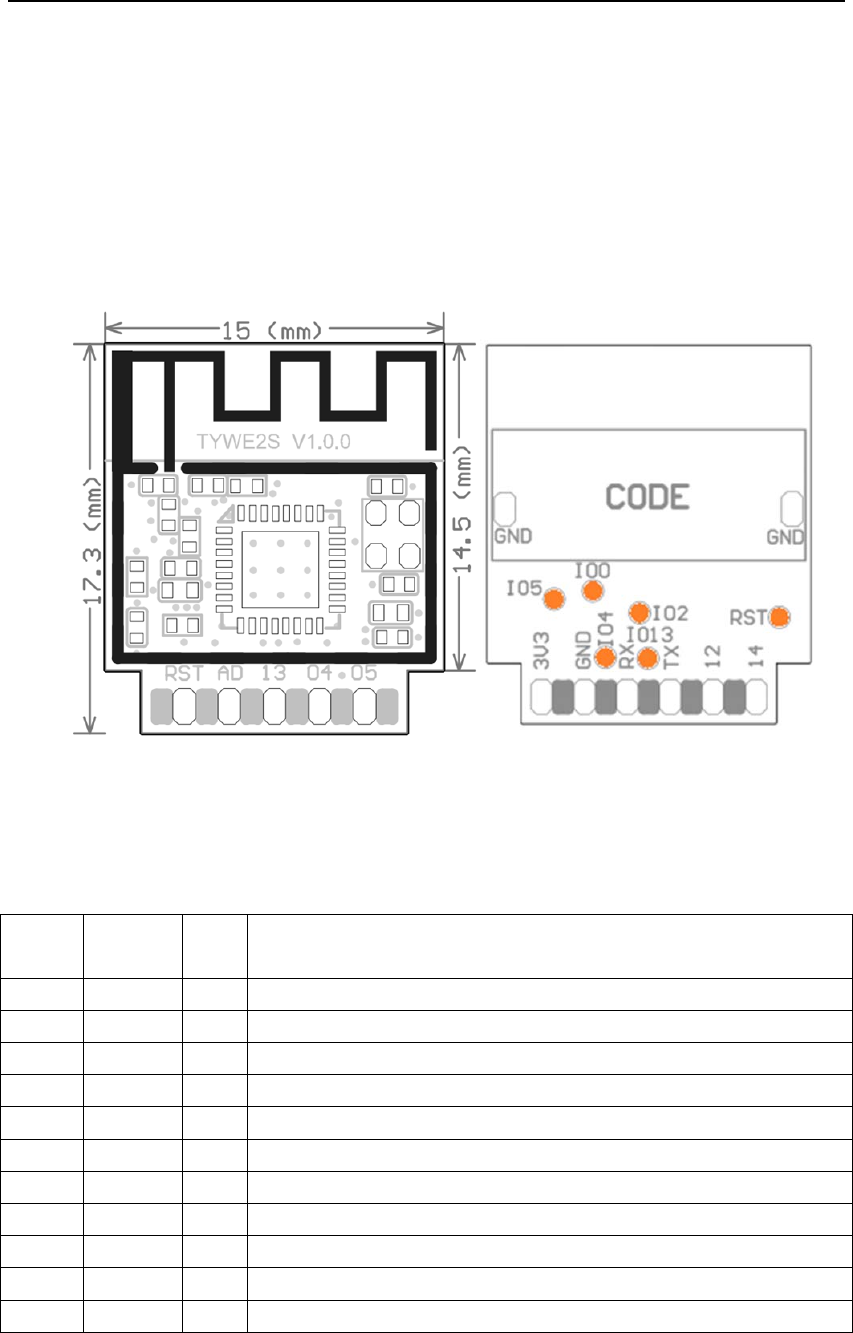

Figure 2 shows the dimensions of TYWE2S.

Figure 2. The dimensions of TYWE2S

2.2 Pin Definition

Table 1 shows the generalpin attributes of TYWE2S

Table 1. The typical pin definitionof TYWE2S

PIN

NO.

NAMETYPEDISCREPTION

1 RST I/O

Externalreset(lowleveleffects,there'salreadyhadpull‐upresistor)

2 AD AI

ADCterminal(10‐bitsSARADC)(1)

3 13 I/O GPIO_13

4 04 I/O GPIO_04

5 05 I/O GPIO_05

6 3V3 P

Supplyvoltage(3.3V)

7 GND P

Ground

8 RX I/O

UART0_RXD ）（2

9 TX I/O

UART0_TXD ）（2

10 12 I/O GPIO_12

11 14 I/O GPIO_14

Note: S: Power supply pins; I/O: Digital input or output pins; AI: Analog input.RST pin is the

module hardware reset pin; it cannot eliminate module-pairing information.

TYWE2SDATASHEET

(*1) This pin can only be used as ADC input, cannot use it as normal I/O. when not using,

just connect nothing. When used as ADC input, the input voltage range is 0~1.0V.

(*2) UART0 is serial port, during power on progress; this serial port will output something,

which can be ignored.

2.3Test PinDefinition

Table 2 shows the general test pin definition of TYWE2S

Table 2. The generaltest pin definitionof TYWE2S

PINNONameIOTypeFunction

12 IO4 I/O GPIO_04

13 IO13 I/O GPIO_13

14 IO2 I/O UART1_TXD

15 RST I/O Reset Pin

16 IO5 I/O GPIO_05

17 IO0 I/O IO0

TYWE2SDATASHEET

3. Electrical Characteristics

3.1 Absolute Maximum Ratings

Table 3. Absolute Maximum Ratings

PARAMETERSDESCRIPTIONMINMAXUNIT

TsStoragetemperature‐2085℃

VCCSupplyvoltage ‐0.33.6V

Staticelectricityvoltage

(humanmodel)

TAMB‐25℃‐ 2KV

Staticelectricityvoltage

(machinemodel)

TAMB‐25℃‐ 0.5KV

3.2 Electrical Conditions

Table 4. Electrical Conditions

PARAMETERSDESCRIPTIONMINTYPICAL MAXUNIT

TaWorkingtemperature ‐20‐ 85℃

VCCWorkingvoltage33.33.6V

VILIOlowlevelinput ‐0.3‐ VCC*0.25V

VIHIOhighlevelinputVCC*0.75 ‐ VCCV

VOLIOlowleveloutput ‐‐VCC*0.1V

VoHIOhighleveloutputVCC*0.8‐ VCCV

ImaxIOdrivecurrent ‐‐12mA

3.3 Wi-Fi Transmitting Current Consumptions

Table 5. Wi-Fi TX current consumption

PARAMETERSMODERATEtransmittingpowerTYPICALUNIT

IRF11b1Mbps16dBm220mA

IRF11g6Mbps21dBm110mA

IRF11nMCS021.5dBm100mA

3.4 Wi-Fi Receiving CurrentConsumptions

Table 6. Wi-Fi RX currentconsumption

PARAMETERSMODERATETYPICALUNIT

IRF11b1Mbps76mA

IRF11g6Mbps76mA

IRF11nMCS076mA

TYWE2SDATASHEET

3.5 Working Mode CurrentConsumptions

Table 7. The module working currentconsumption

WORKMODEATTA=25℃TYPICALMAX*UNIT

EZModeTYWE2SisunderEZparingmode,Wi‐Fi

indicatorlightflashesquickly

80151mA

APModeTYWE2SisunderAPparingmode,Wi‐Fi

indicatorlightflashesslowly

90451mA

OperationModeTYWE2Sisconnected,Wi‐Fiindicatorlightison 58.5411mA

Disconnection

Mode

TYWE2Sisdisconnected,Wi‐Fiindicatorlightis

off

80430mA

4. WLAN Radio Specification

4.1 Basic Radio Frequency Characteristics

Table 8.Basic Radio frequency characteristics

PARAMETERSDESCRIPTION

Frequencyband2.4GHzto2.5GHz

Wi‐FistandardIEEE802.11n/g/b

Datatransmittingrate11b:1,2,5.5,11(Mbps)

11g:6,9,12,18,24,36,48,54(Mbps)

11n:HT20,MCS0~7

AntennatypeOn‐boardPCBAntenna

4.2Wi-Fi TransmittingPower

Table 9. Wi-Fi transmitting power

PARAMETERSMIN TYPICALMAXUNI

T

RFaverageoutputpower,802.11bCCKMode1M‐ 16‐dBm

RFaverageoutputpower,802.11gOFDMMode6M‐ 21‐dBm

RFaverageoutputpower,802.11nOFDMModeMCS0‐ 21.5

‐dBm

TheFrequencyerror ‐10‐ 10ppm

4.3Wi-Fi Receiving Sensitivity

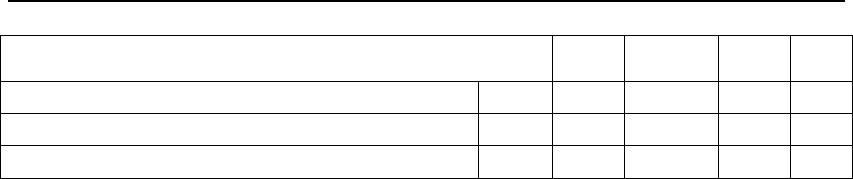

Table 9. Wi-Fi Receiving sensitivity

PARAMETERSMIN TYPICALMAXUNI

TYWE2SDATASHEET

T

PER<8%,Receivingsensitivity,802.11bCCKMode1M ‐ ‐91‐dBm

PER<10%,Receivingsensitivity,802.11gOFDMMode 6M‐ ‐75‐dBm

PER<10%,Receivingsensitivity,802.11nOFDMMode MCS0‐ ‐72‐dBm

TYWE2SDATASHEET

5. Antenna Information

5.1 Antenna Type

Antenna can be connected only using On-board PCB antenna.

5.2 Reduce Antenna Interference

While using the On-board PCBantenna, in order to have the best Wi-Fi performance, it’s

recommended to keep a minimum15mm distance between the antenna part and the other metal

pieces.

User’s own PCBA design is recommended NOT to pass any wire, NOT do copper pour under

the region of the module’s antenna, to avoid interferences.

TYWE2SDATASHEET

6. Packaging Information And Production Guide

6.1 Mechanical Dimensions

Figure 3. Top view of the module

Figure 4. The module’s mechanical view

6.2PCBRecommended Package

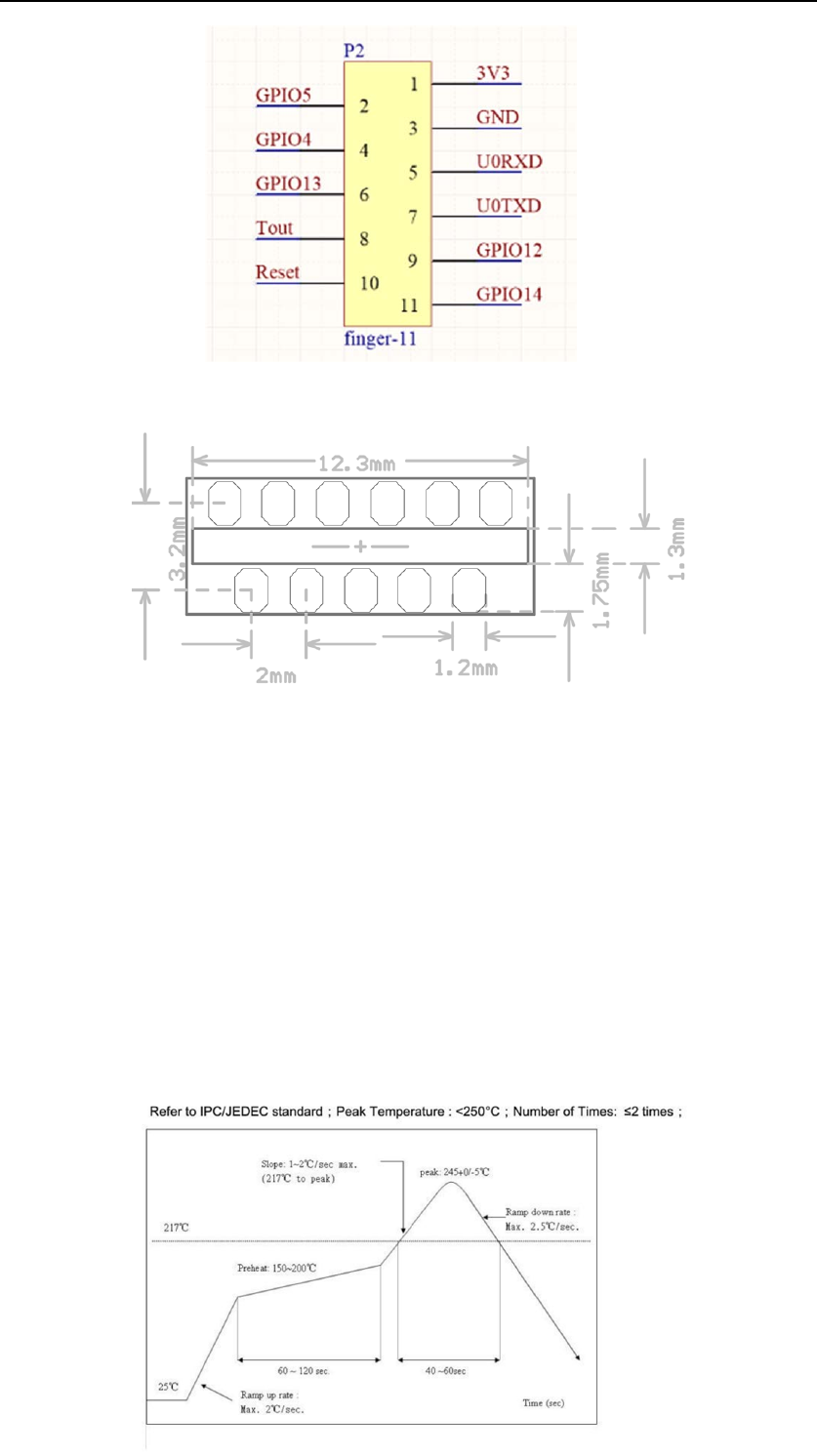

Figure 5. PCB schematic Drawing

TYWE2SDATASHEET

Figure 6. PCB Package Drawing

6.3 Production Guide

The storage for the delivered module should meet the following condition:

1. The anti-moisture bag should be kept in the environment withtemperature< 30℃ and

humidity< 85% RH.

2. The expiration date is 6 months since the dry packaging products was sealed.

Cautions:

1. All the operators should wear electrostatic ringin the whole process of production.

2. While operating, water and dirt should not have any contact with the modules.

6.4 Recommended furnace temperature curve

Figure 7. PCB Package DrawingRecommended furnace temperature curve

TYWE2SDATASHEET

FCC Waring

$Q\&KDQJHVRUPRGLILFDWLRQVQRWH[SUHVVO\DSSURYHGE\WKHSDUW\UHVSRQVLEOHIRUFRPSOLDQFHFRXOG

YRLGWKHXVHU¶VDXWKRULW\WRRSHUDWHWKHHTXLSPHQW

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference (2) this device must accept any

interference received, including interference that may cause undesired operation.

)&&5DGLDWLRQ([SRVXUH6WDWHPHQW 

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment .This equipment should be installed and operated with minimum distance 20cm

between the radiator& your body.

FCC/ISED Label Instructions

The outside of final products that contains this module device must display a label referring to the

enclosed module. This exterior label can use wording such as: "Contains Transmitter Module FCC

ID:2ANDL-TYWE2S or IC:23243-TYWE2S"or “Contains FCC ID:2ANDL-TYWE2S or

IC:23243-TYWE2S", Any similar wording that expresses the same meaning may be used.

ISED RSS Warning:

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to

the following two conditions: (1) this device may not cause interference, and (2) this device must

accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio

exempts de licence.

L'exploitation est autorisée aux deux conditions suivantes:

(1) l'appareil ne doit pas produire de brouillage, et

(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage

est susceptible d'en compromettre le fonctionnement.

ISED5DGLDWLRQ([SRVXUH6WDWHPHQW 

This equipment complies with ISED radiation exposure limits set forth for an uncontrolled

environment .This equipment should be installed and operated with minimum distance 20cm between

the radiator& your body. This transmitter must not be co-located or operating in conjunction with any

other antenna or transmitter.

Le rayonnement de la classe b repecte ISED fixaient un environnement non contrôlés.Installation et

mise en œuvre de ce matériel devrait avec échangeur distance minimale entre 20 cm ton

corps.Lanceurs ou ne peuvent pas coexister cette antenne ou capteurs avec d’autres.
