Hangzhou Tuya Information Technology TYWE3L Wi-Fi Module User Manual TYWE3L V1 00 ENx

Hangzhou Tuya Information Technology Co.,Ltd Wi-Fi Module TYWE3L V1 00 ENx

User Manual

TYWE3L DATASHEET
Wi-Fi Module UserManual
1. Product Overview
TYWE3L is a low power consumption module with built-in Wi-Fi connectivity solution
designed by HangZhouTuya Information Technology Corporation. The Wi-Fi Module consists of
a highly integrated wireless radio chip ESP8266 and some extra component that has been
programed with Wi-Fi network protocol and plenty of software examples.TYWE3L include a 32-
bit CPU, 1M byte flash, 50k SRAM and various peripheral resources.
TYWE3L is a RTOS platform, embedded with all the Wi-Fi MAC and TCP/IP protocol
function examples, users can customize their Wi-Fi product by using these software examples.
Figure 1 shows the block diagram of the TYWE3L.

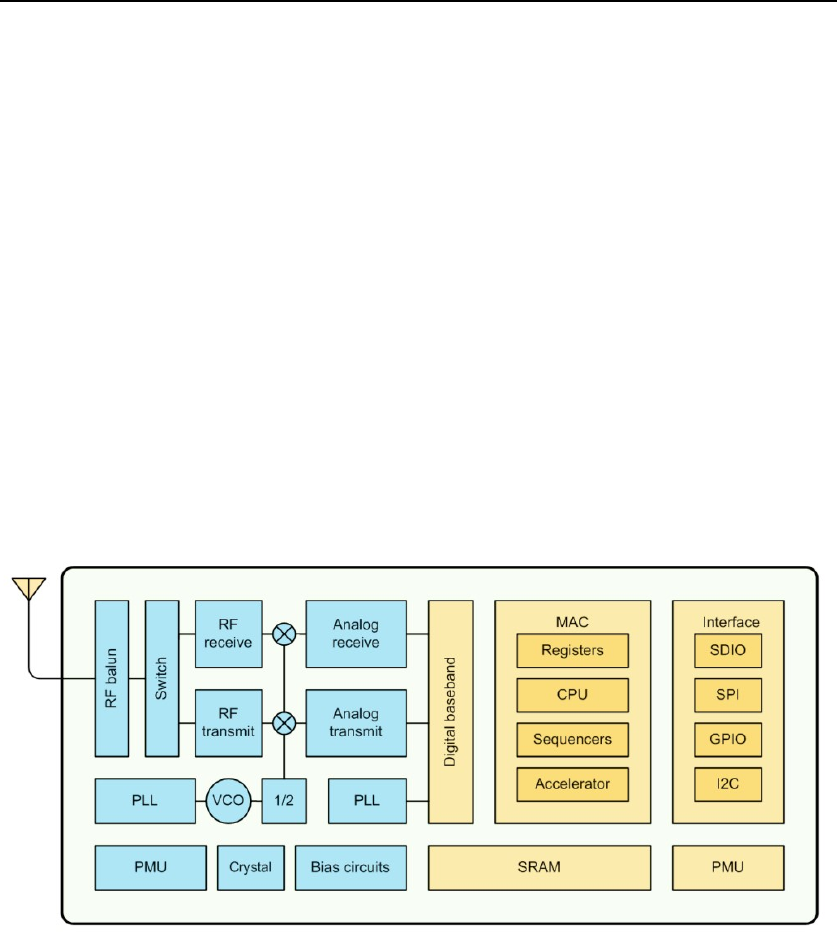

Figure 1. The block diagram of the TYWE3L
1.1 Features
Integrated low power consumption 32-bit CPU, also known as application processor
Basic frequency of the CPU can support 160MHz
Supply voltage range: 3V to 3.6V
Peripherals: 9 GPIO channels, 1 UART, 1 ADC
Wi-Fi connectivity:
802.11 b/g/n
channel 1 to 11@2.4G for FCC
Support WPA/WPA2
+20.22dBm output power in 802.11b mode
Support STA/AP/STA+AP operation mode
Support SmartConfig function for both Android and IOS devices
On-board PCB antenna
TYWE3L DATASHEET
Operating temperature range: -20 to 105
1.2 Main ApplicationFields
Intelligent Building
Intelligent home, Intelligent household applications
Health care
Industrial wireless control
Baby monitor
Webcam
Intelligent bus
2. Dimensions and Footprint
2.1Dimensions
TYWE3L has 2 columns of Pins.The distance between each Pin is 2mm.
Size of TYWE3L: 16mm(W)*24mm(L)*3.5mm(H)
Figure 2 shows the dimensions of TYWE3L.

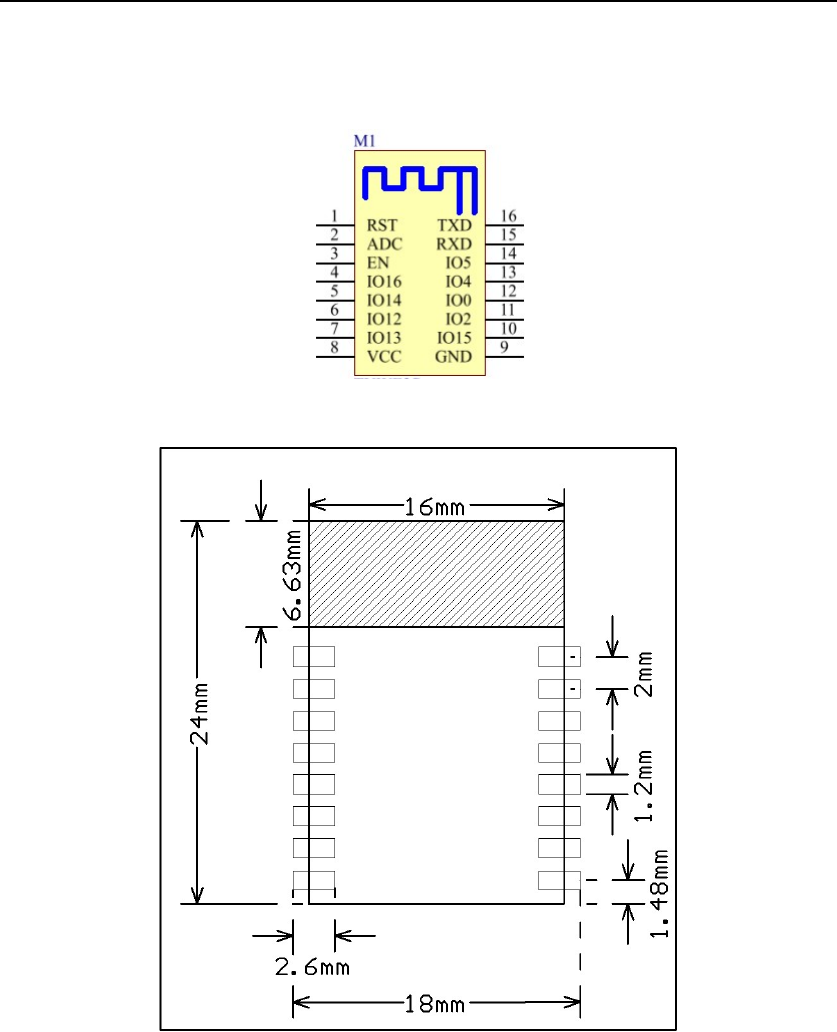

Figure 2. The dimensions of TYWE3L
2.2 Pin Definition
Table 1 shows the generalpin attributes of TYWE3L
RST
ADC
EN
IO16
IO14
IO12
IO13
VCC GND
IO15
IO2
IO0
IO4
IO5
RXD
TXD
TYWE3L DATASHEET
Table 1. The typical pin definitionof TYWE3L
PIN
NO.
NAME TYP
E
DISCREPTION
1 RST I/O
2 ADC AI
3 EN I
GPIO_05
4 GPIO16 I/O
GPIO_04
5 GPIO14 I/O
GPIO_0(processing during initials, caution when used)
6 GPIO12 I/O
UART0_TXD(used to print module's internal information)
7 GPIO13 I/O
GPIO_15(processing during initials, caution when used)
8 VCC P Supply voltage (3.3V)
9 GND P
10 GPIO15 I/O
GPIO_13
11 GPIO2 I/O
GPIO_12
12 GPIO0 I/O
GPIO_14
13 GPIO4 I/O
14 GPIO5 I
Enable pin for module, high level effects
15 RXD0 AI
ADC terminal(10-bits SAR ADC)(1)
16 TXD0 I/O
External reset (low level effects, there's already had pull-up resistor)
Note: S: Power supply pins; I/O: Digital input or output pins; AI: Analog input.RST pin is the
module hardware reset pin; it cannot eliminate module-pairing information.
(*1) This pin can only be used as ADC input, cannot use it as normal I/O. when not using,
just connect nothing. When used as ADC input, the input voltage range is 0~1.0V.
(*2) UART0 is serial port, during power on progress; this serial port will output something,
which can be ignored.
2.3Test PinDefinition
Table 2 shows the generaltest pindefinition of TYWE3L
Table 2. The generaltest pindefinitionof TYWE3L
PIN NO.
NAME TYPE
DESCRIPTION
- TEST I Used for module’s production test
Note: This test pin is not recommended to use.
GPIO_1610k pull-up resistor needed)
Ground
UART0_RXD (2)
UART0_TXD (2)
TYWE3L DATASHEET
3. Electrical Characteristics
3.1 Absolute Maximum Ratings
Table 3. Absolute Maximum Ratings
PARAMETERS DESCRIPTION MIN MAX UNIT
Ts Storage temperature -20 105
VCC Supply voltage -0.3 3.6 V
Static electricity voltage
(human model)
TAMB-25 - 2 KV
Static electricity voltage
(machine model)
TAMB-25 - 0.5 KV
3.2 Electrical Conditions
Table 4. Electrical Conditions
PARAMETERS
DESCRIPTION MIN TYPICAL
MAX UNIT
Ta Working temperature -20 - 105
VCC Working voltage 3 3.3 3.6 V
VIL IO low level input -0.3 - VCC*0.25 V
VIH IO high level input VCC*0.75
- VCC V
VOL IO low level output - - VCC*0.1 V
VoH IO high level output VCC*0.8 - VCC V
Imax IO drive current - - 12 mA
3.3 Wi-Fi Transmitting Current Consumptions
Table 5. Wi-Fi TX current consumption
PARAMETERS MODE RATE transmitting power TYPICAL
UNIT
IRF 11b 1Mbps + 20.22dBm 220 mA
IRF 11g 6Mbps +23.00dBm 110 mA
IRF 11n MCS0 +22.74dBm 100 mA
3.4 Wi-Fi Receiving CurrentConsumptions
Table 6. Wi-Fi RX currentconsumption
PARAMETERS MODE RATE TYPICAL UNIT
IRF 11b 1Mbps 76 mA
IRF 11g 6Mbps 76 mA
IRF 11n MCS0 76 mA
TYWE3L DATASHEET
3.5 Working Mode CurrentConsumptions
Table 7. The module working currentconsumption
WORK MODE AT TA=25 TYPICAL
MAX*
UNIT
EZ Mode TYWE3L is under EZ paring mode, Wi-Fi
indicator light flashes quickly
80 151 mA
AP Mode TYWE3L is under AP paring mode, Wi-Fi
indicator light flashes slowly
90 451 mA
Operation Mode
TYWE3L is connected, Wi-Fi indicator light is on
58.5 411 mA
Disconnection
Mode
TYWE3L is disconnected, Wi-Fi indicator light is
off
80 430 mA
4. WLAN Radio Specification
4.1 Basic Radio Frequency Characteristics
Table 8.Basic Radio frequency characteristics
PARAMETERS DESCRIPTION
Frequency band 2.412GHz to 2.462GHz
Wi-Fi standard IEEE 802.11n/g/b (Terminal 1-11)
Data transmitting rate 11b:1,2,5.5,11(Mbps)
11g:6,9,12,18,24,36,48,54(Mbps)
11n:HT20,MCS0~7
Antenna type On-board PCB Antenna
4.2Wi-Fi TransmittingPower
Table 9. Wi-Fi transmitting power
PARAMETERS MIN
TYPICAL
MAX
UNI
T
RF average output power, 802.11b CCK Mode 1M - 20.22 - dBm
RF average output power, 802.11g OFDM Mode 6M - 23.00 - dBm
RF average output power, 802.11n OFDM Mode MCS0 - 22.74 - dBm
The Frequency error -10 - 10 ppm
4.3Wi-Fi Receiving Sensitivity
Table 9. Wi-Fi Receiving sensitivity
PARAMETERS MIN
TYPICAL
MAX
UNI
TYWE3L DATASHEET
T
PER<8%, Receiving sensitivity, 802.11b CCK Mode 1M - -91 - dBm
PER<10%, Receiving sensitivity, 802.11g OFDM Mode 6M - -75 - dBm
PER<10%, Receiving sensitivity, 802.11n OFDM Mode
MCS0 - -72 - dBm
TYWE3L DATASHEET
5. Antenna Information
5.1 Antenna Type
Antenna can be connected only using On-board PCB antenna.
5.2 Reduce Antenna Interference
While using the On-board PCBantenna, in order to have the best Wi-Fi performance, it’s
recommended to keep a minimum15mm distance between the antenna part and the other metal
pieces.
Users own PCBA design is recommended NOT to pass any wire, NOT do copper pour under
the region of the module’s antenna, to avoid interferences.
TYWE3L DATASHEET
6. Packaging Information And Production Guide
6.1 Mechanical Dimensions

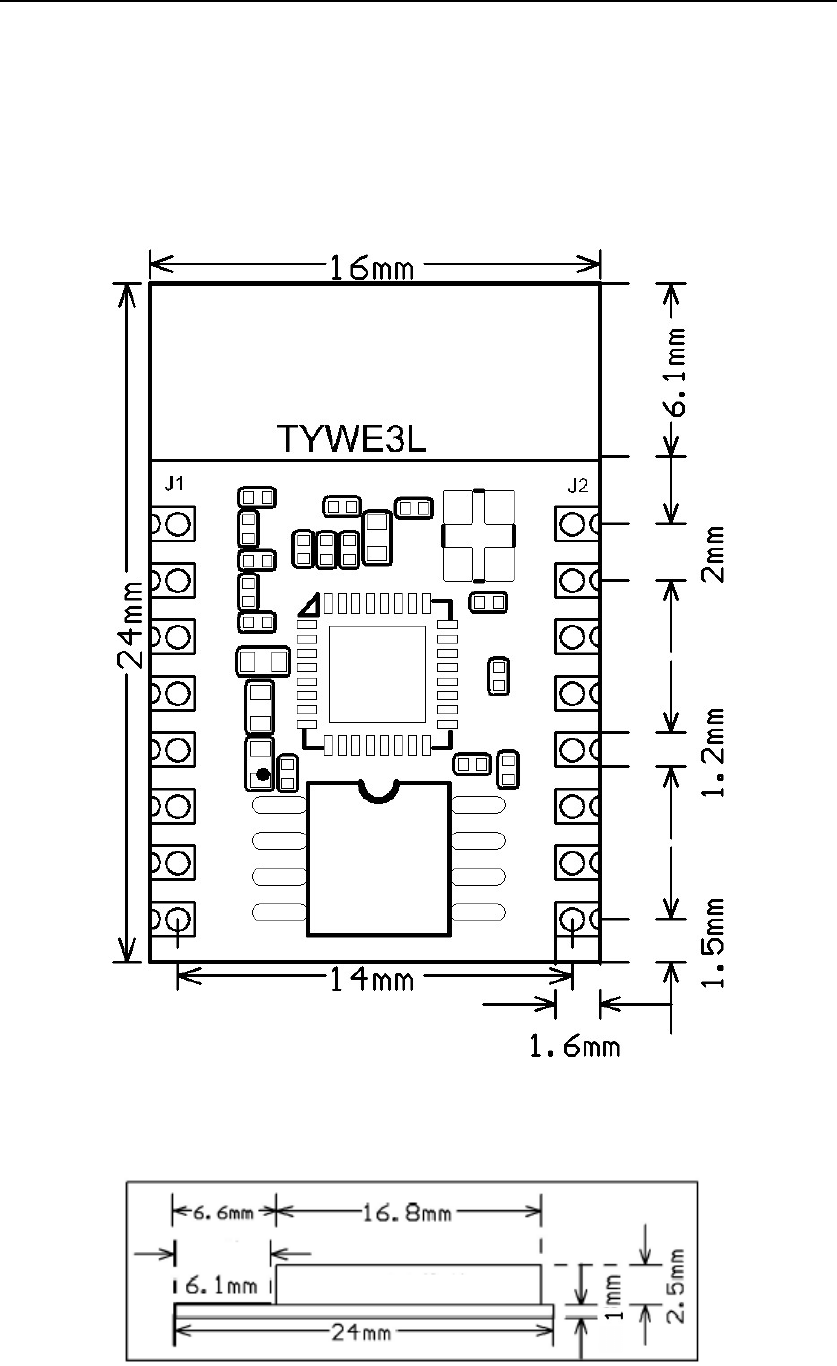

Figure 3. Top view of the module
Figure 4. The module’s mechanical view
TYWE3L DATASHEET
6.2PCBRecommended Package

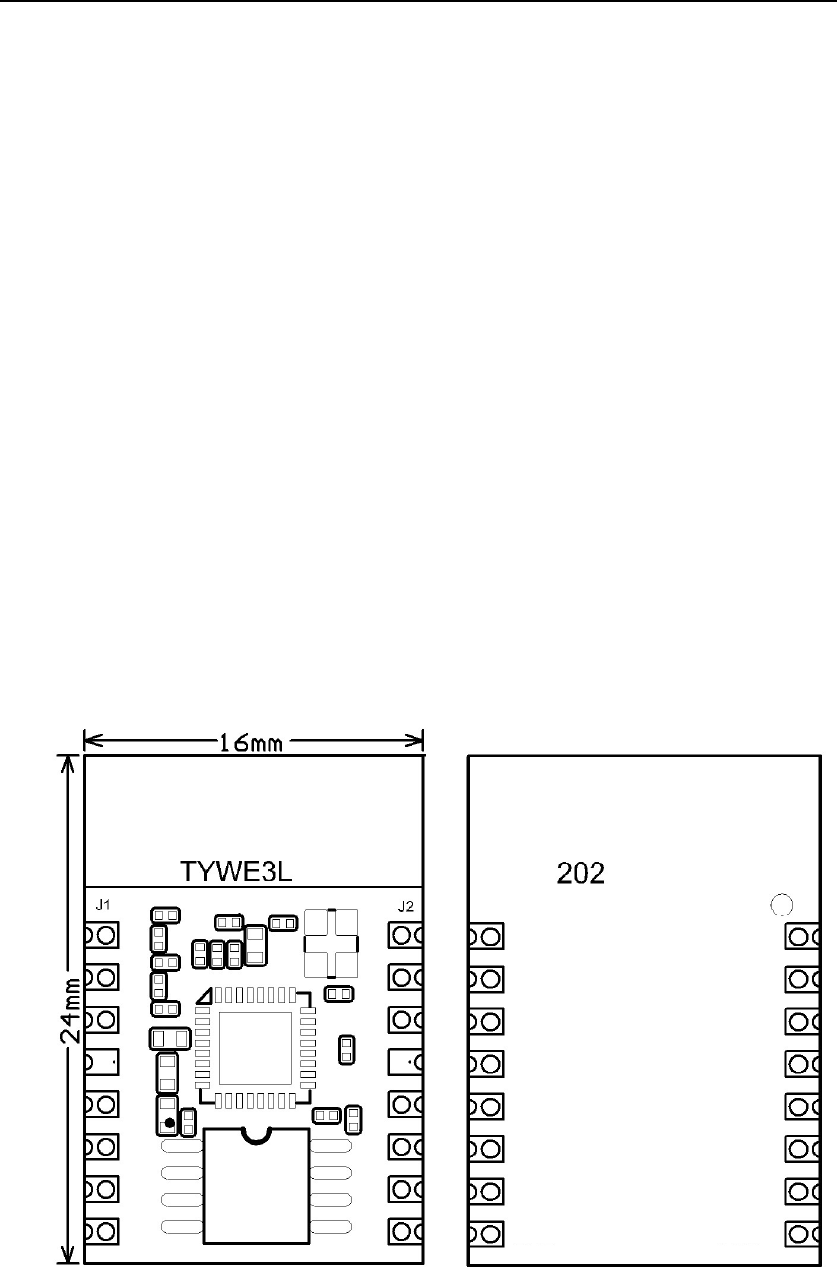

Figure 5. PCB schematic Drawing
Figure 6. PCB Package Drawing
6.3 Production Guide
The storage for the delivered module should meet the following condition:
1. The anti-moisture bag should be kept in the environment withtemperature< 30 and
humidity< 85% RH.
2. The expiration date is 6 months since the dry packaging products was sealed.
Cautions:
1. All the operators should wear electrostatic ringin the whole process of production.
2. While operating, water and dirt should not have any contact with the modules.
TYWE3L DATASHEET

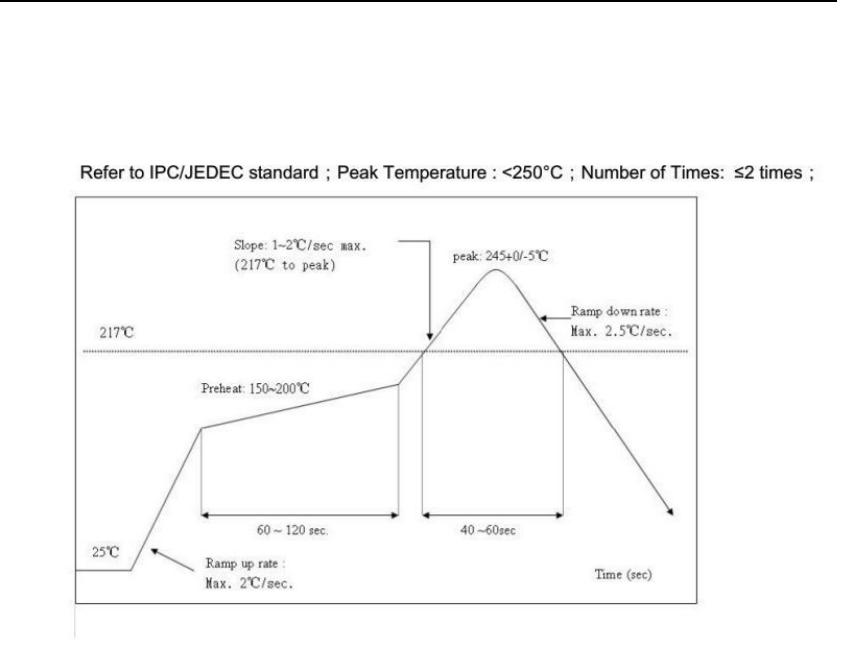

6.4 Recommended furnace temperature curve
Figure 7. PCB Package DrawingRecommended furnace temperature curve
FCC Statement
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment .This equipment should be installed and operated with
minimum distance 20cm between the radiator& your body.
FCC Label Instructions
The outside of final products that contains this module device must display a label
referring to the enclosed module. This exterior label can use wording such as: “Contains
Transmitter Module FCC ID:2ANDL-TYWE3L,or “Contains FCC ID:2ANDL-TYWE3L, Any
similar wording that expresses the same meaning may be used.
