1. Product appearance
01
11.03.03.SMS-RE601/602YT-02-V1
Emitter Instruction for RE601/RE602/RE601-i/RE602-i series
WSRE602-i
Power: 3v Model CR2032
Code: rolling code
Working Temperature -20℃ to +60℃:
2. Technique Data
Currency：≤16mA
Frequency：433.92MHz
3. Code learning
25%
50%
75%
25%
50%
75%
Four Channels
Featured 3 intermediate Limits
Position: 25%,50%,75%
Channel Switch
UP
STOP
DOWN

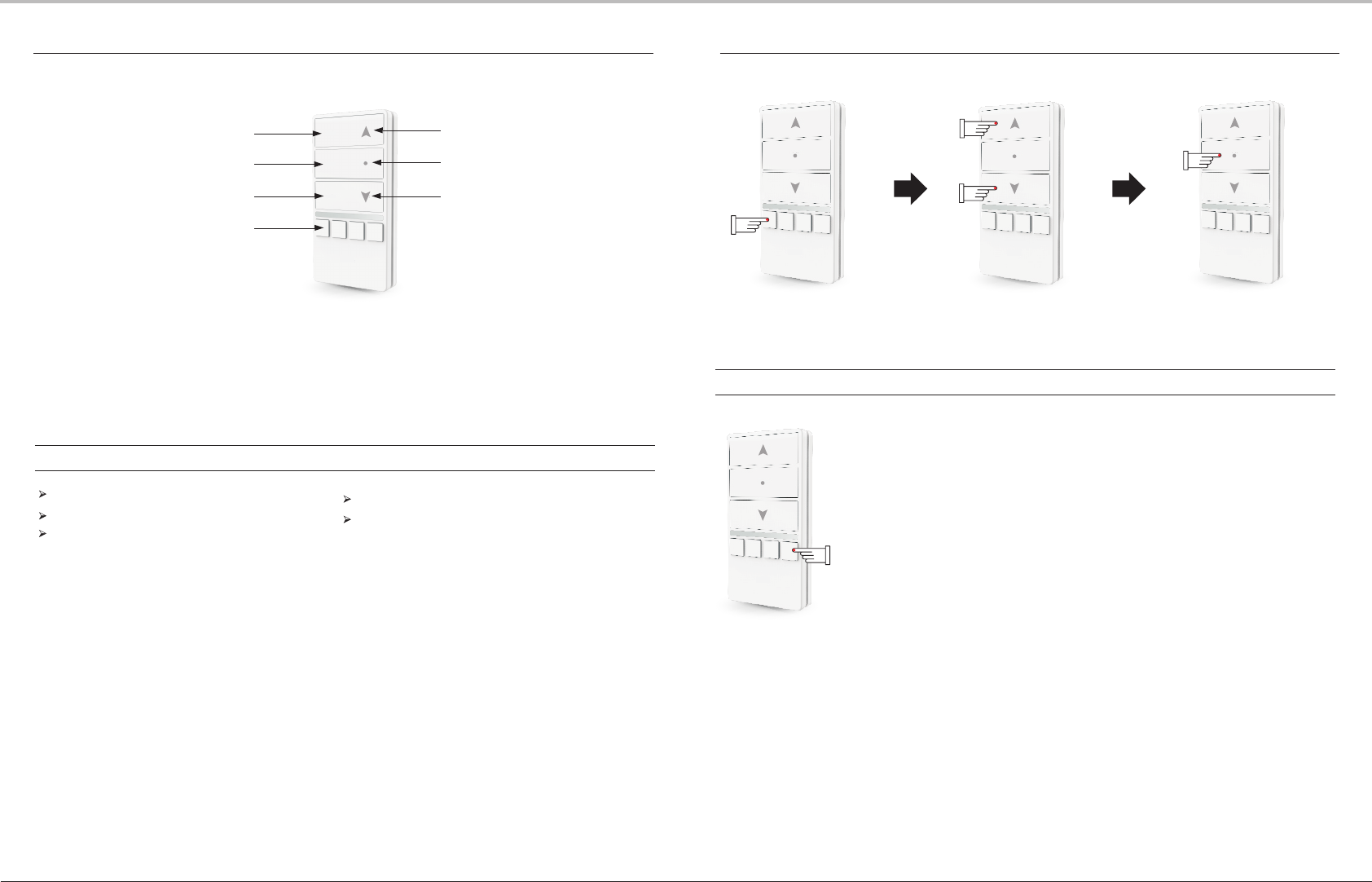

1). Short press the Channel Switch
Button to select a channel (from 1
to 4), once selected, the
corresponding light will shine.
2). Press UP and DOWN buttons
simultaneously once.
3). Then short press the Stop
button, now the code learning
of the selected channel is
successful. other channels to
learn code in the same way.
4 channel emitter
4. Group control
Example: RE602 series could set four Channels, each channel with corresponding button and light.
a). During Sleep Mode(all lights are off),press any one switch button once, could check
which channel have been set(corresponding light will shine).
b). During channel checking (channel light are on), press the channel switch button again.
If the channel haven’t ever is set, it will be set now, if the channel have ever been set , it
will be deleted now and corresponding light off.
02
11.03.03.SMS-RE601/602ZX-02-V1
Note
!
If you need set group control, you have to add or delete channels within 3-4s after checking channel.
Only after code learning successful ,you can control the percentage.
You’d better not press the emitter’s buttons too long so as to prolong the battery . The button press should be
about 0.5s with 1s interval.
The emitter will stop working if the battery is in low power. Please replace the battery in this case.

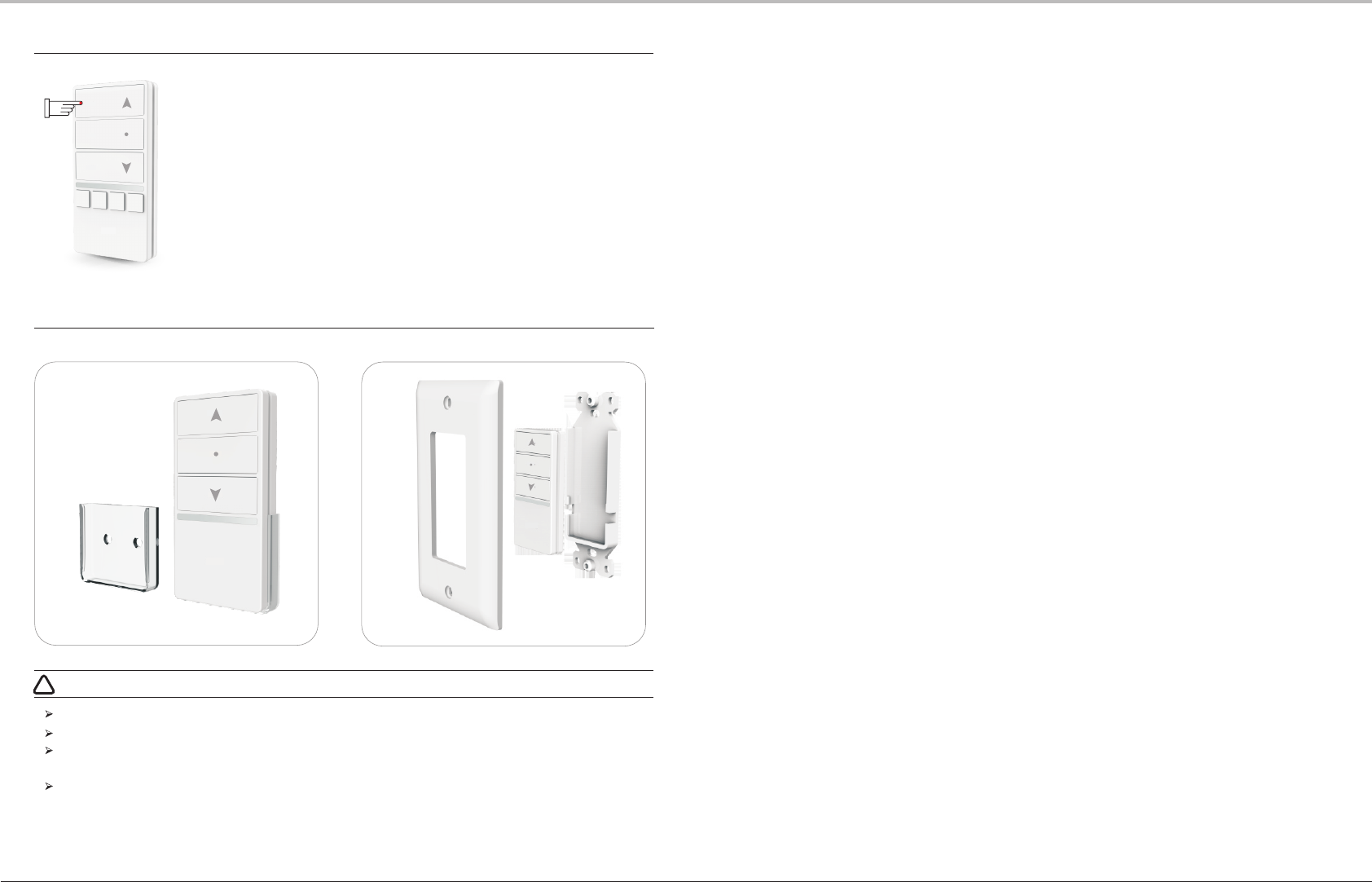

Way2：American insert installation
Way1：Direct wall installation
25%
50%
75%
5. Percentage control
After code learning successful, press the left buttons 25%,50%,70%,
could control the percentage.
Emitter Instruction for RE601/RE602/RE601-i/RE602-i series
6. bracket installation
1.03.03.SMS-RE601/602YT-02-V1
