Hannstar display HSG1279 Tablet PC User Manual

Hannstar display corp. Tablet PC

User manual

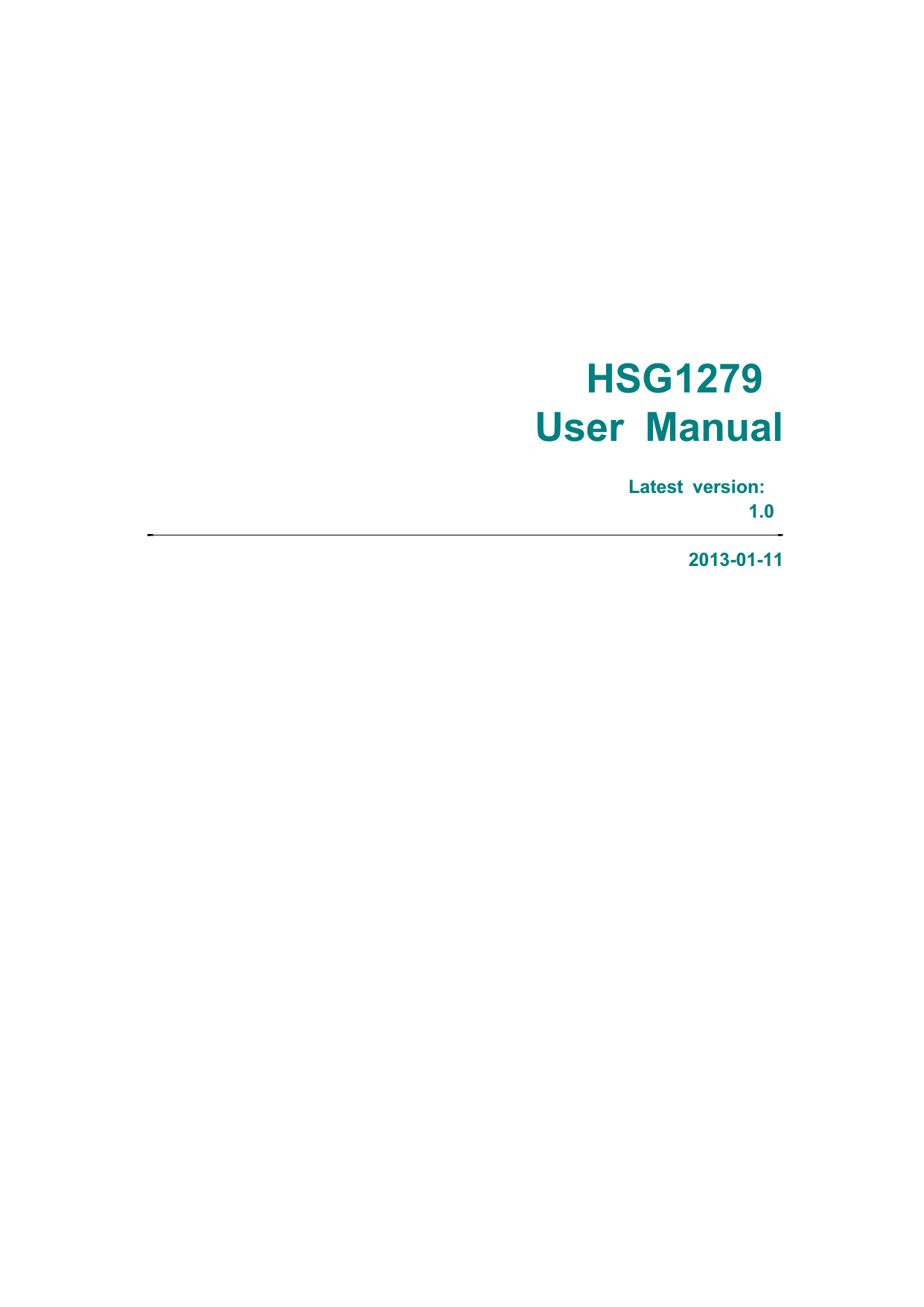

HSG1279User Manual Latest version: 1.02013-01-11

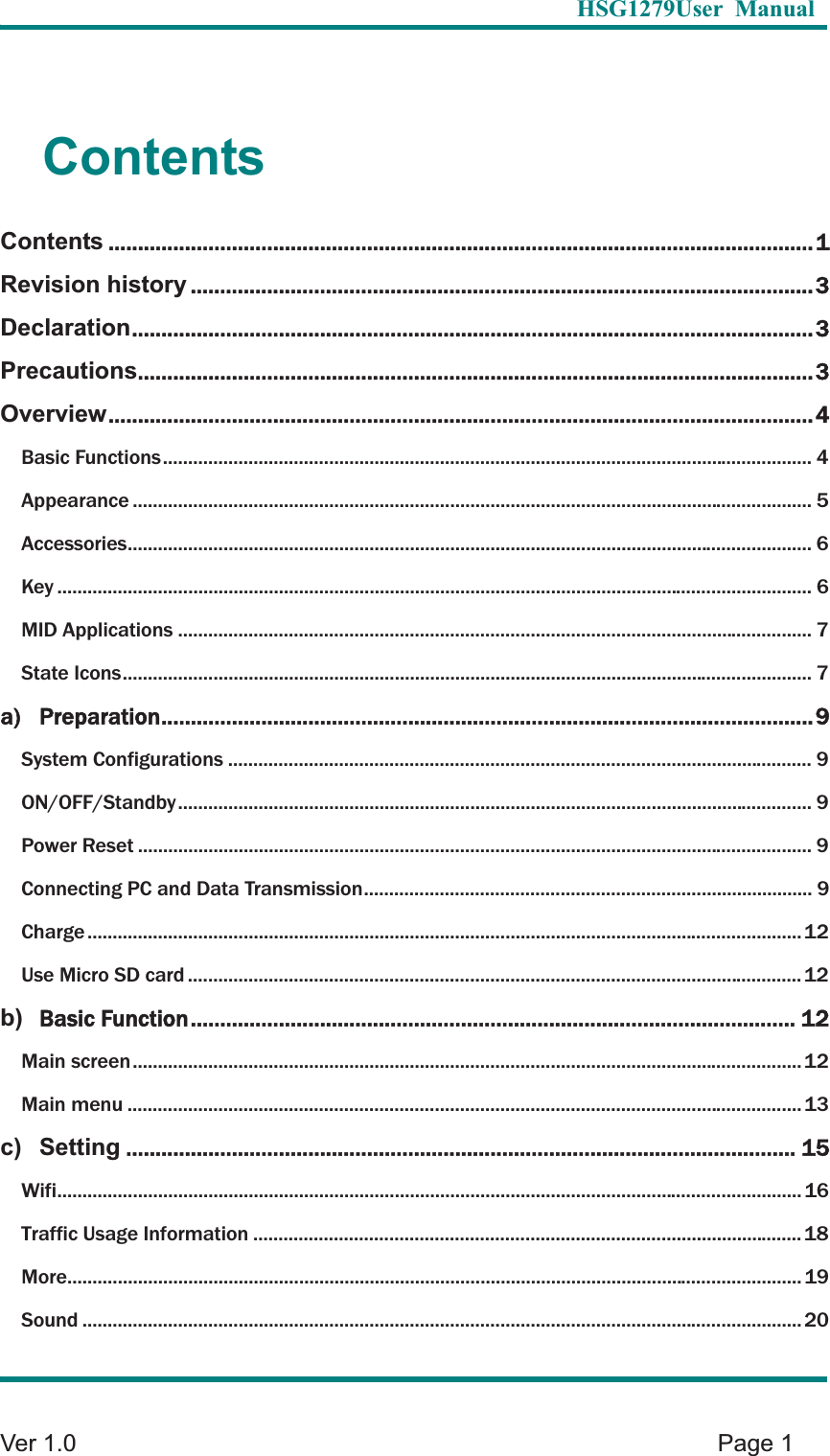

HSG1279User Manual Ver 1.0 Page 1 Contents Contents ........................................................................................................................ 1Revision history .......................................................................................................... 3Declaration .................................................................................................................... 3Precautions ................................................................................................................... 3Overview ........................................................................................................................ 4Basic Functions ................................................................................................................................. 4Appearance ....................................................................................................................................... 5Accessories ........................................................................................................................................ 6Key ...................................................................................................................................................... 6MID Applications .............................................................................................................................. 7State Icons ......................................................................................................................................... 7a) Preparation ............................................................................................................... 9System Configurations .................................................................................................................... 9ON/OFF/Standby .............................................................................................................................. 9Power Reset ...................................................................................................................................... 9Connecting PC and Data Transmission ......................................................................................... 9Charge .............................................................................................................................................. 12Use Micro SD card .......................................................................................................................... 12b)Basic Function ....................................................................................................... 12Main screen ..................................................................................................................................... 12Main menu ...................................................................................................................................... 13c) Setting .................................................................................................................. 15Wifi .................................................................................................................................................... 16Traffic Usage Information ............................................................................................................. 18More .................................................................................................................................................. 19Sound ............................................................................................................................................... 20

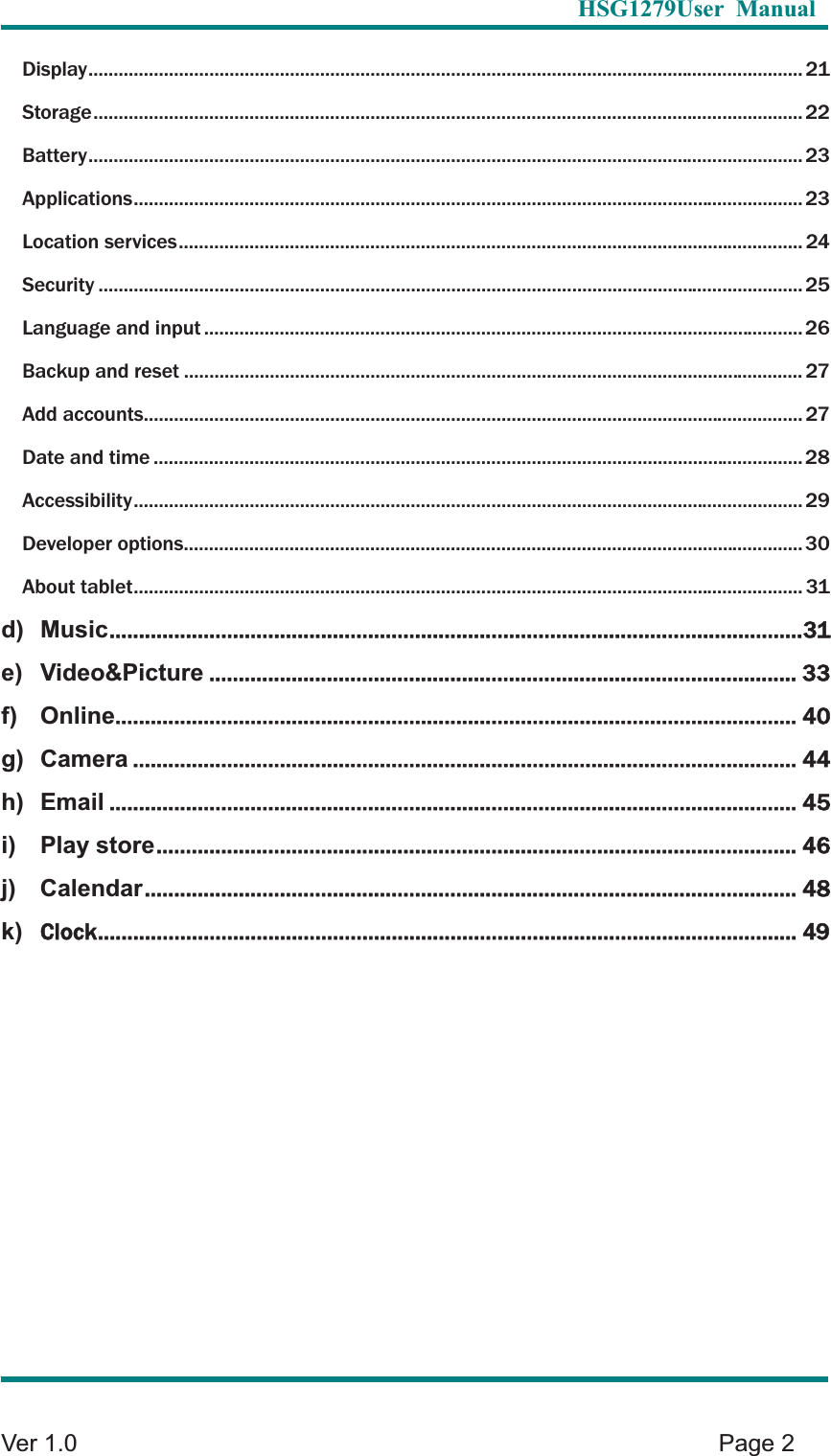

HSG1279User Manual Ver 1.0 Page 2 Display .............................................................................................................................................. 21Storage ............................................................................................................................................. 22Battery .............................................................................................................................................. 23Applications ..................................................................................................................................... 23Location services ............................................................................................................................ 24Security ............................................................................................................................................ 25Language and input ....................................................................................................................... 26Backup and reset ........................................................................................................................... 27Add accounts ................................................................................................................................... 27Date and time ................................................................................................................................. 28Accessibility ..................................................................................................................................... 29Developer options ........................................................................................................................... 30About tablet ..................................................................................................................................... 31d) Music ...................................................................................................................... 31e) Video&Picture .................................................................................................... 33f) Online .................................................................................................................... 40g) Camera ................................................................................................................. 44h) Email ..................................................................................................................... 45i) Play store ............................................................................................................. 46j) Calendar ............................................................................................................... 48k)Clock ....................................................................................................................... 49
HSG1279User Manual Ver 1.0 Page 3 Revision history Declaration1. The information in this manual may not, except under written license by The Company, be copied, transmitted, distributed, or stored. 2. Although efforts have been made for correctness and completeness during the preparation of the manual, there is no guarantee that this manual is free from any error or omission. The Company assumes no reliability regarding the errors or omissions that might exist in the manual. 3. For sustainable development, The Company reserves the right to modify and improve any product described in this manual without prior notice. 4. Under no circumstance shall the Company assume any liability, direct or indirect, related to data or income loss, or any special, accidental, incidental or indirect losses.൞ᵠPrecautionsFor the correct use and good performance of the player, the user must fully understand the manual as well as strictly follow the instructions provided. z Please avoid high temperature (over 35 ) or low ćtemperature (below -5 ).ćz Never knock the main machine violently. z Never contact with chemicals such as benzene, thinner etc. z Do not close to strong magnetic field, electric field etc. z Keep away from direct sunlight or heating appliances. z Never privately dissemble, repair or modify the player. z Using the player and the earpiece during bicycling, car and motorcycle driving is likely to cause danger. z Never use higher volume, which may damage your hearing ability. z Divide scraped packing, batteries, old electronic products and dispose them properly. Date Version Description 2013-01-11 1.0 New version released

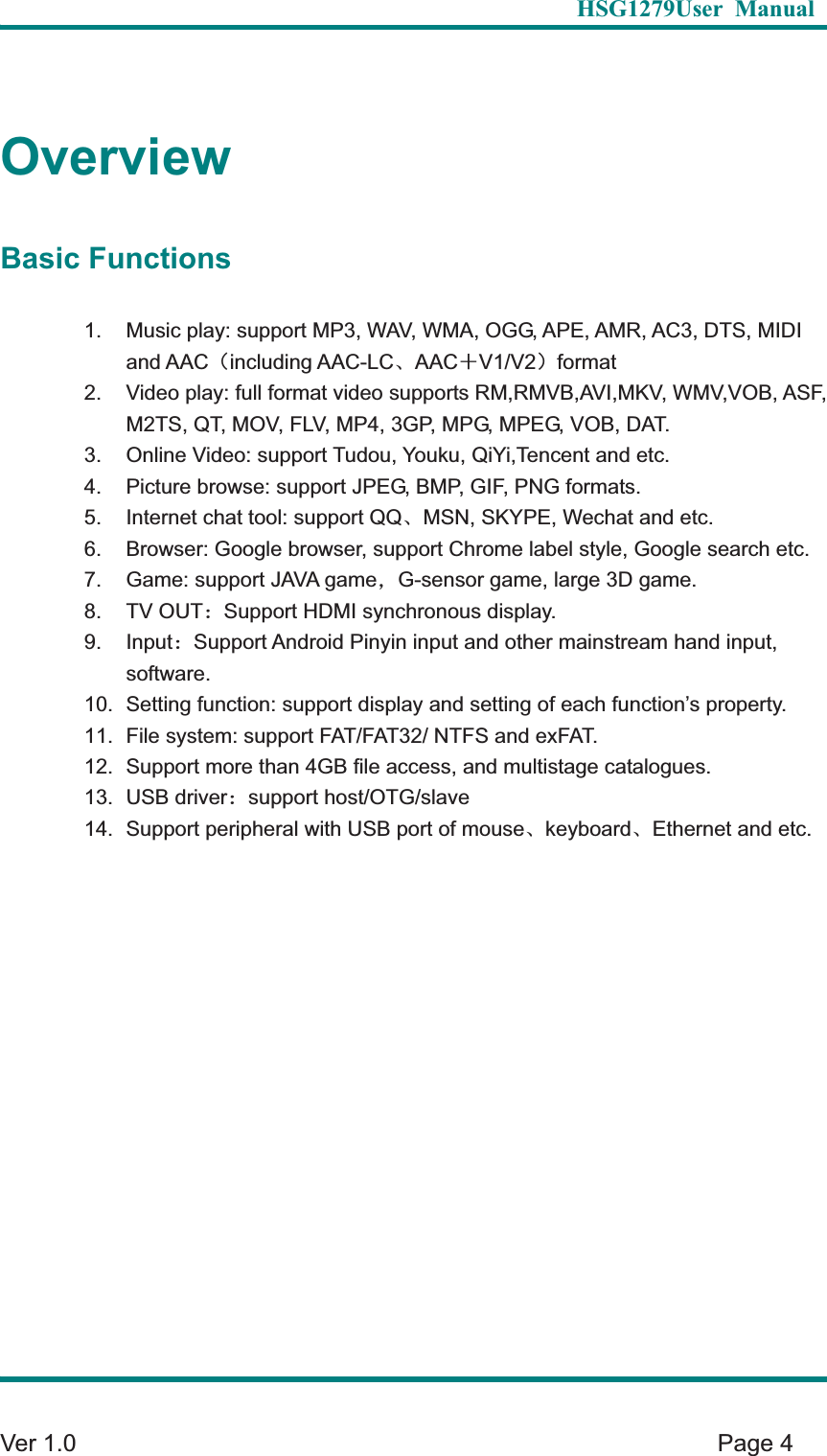

HSG1279User Manual Ver 1.0 Page 4 OverviewBasic Functions 1. Music play: support MP3, WAV, WMA, OGG, APE, AMR, AC3, DTS, MIDI and AACδincluding AAC-LCȽAACηV1/V2εformat2. Video play: full format video supports RM,RMVB,AVI,MKV, WMV,VOB, ASF, M2TS, QT, MOV, FLV, MP4, 3GP, MPG, MPEG, VOB, DAT. 3. Online Video: support Tudou, Youku, QiYi,Tencent and etc. 4. Picture browse: support JPEG, BMP, GIF, PNG formats. 5. Internet chat tool: support QQȽMSN, SKYPE, Wechat and etc. 6. Browser: Google browser, support Chrome label style, Google search etc. 7. Game: support JAVA gameθG-sensor game, large 3D game. 8. TV OUTφSupport HDMI synchronous display. 9. InputφSupport Android Pinyin input and other mainstream hand input, software. 10. Setting function: support display and setting of each function’s property. 11. File system: support FAT/FAT32/ NTFS and exFAT. 12. Support more than 4GB file access, and multistage catalogues. 13. USB driverφsupport host/OTG/slave 14. Support peripheral with USB port of mouseȽkeyboardȽEthernet and etc.

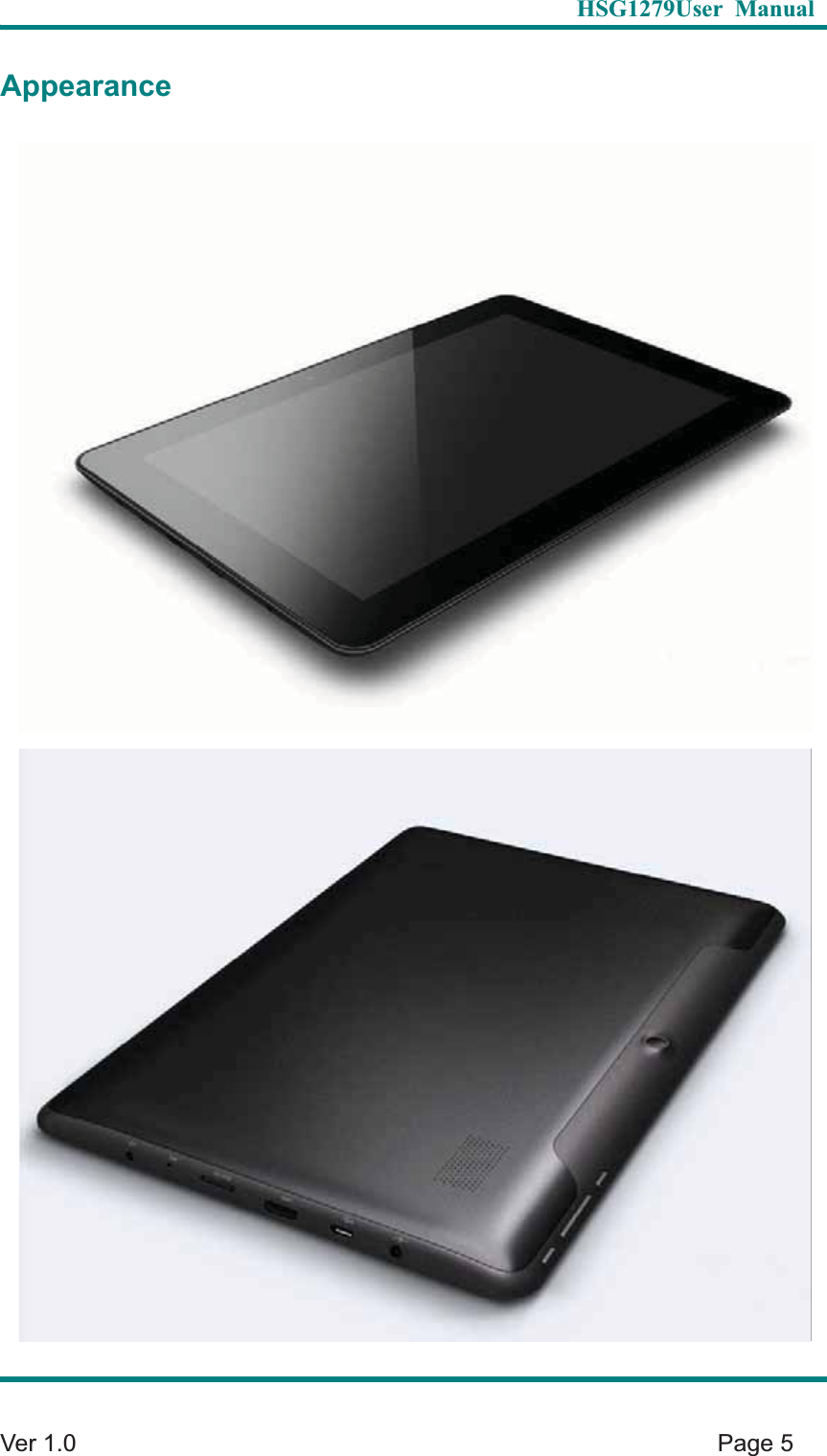

HSG1279User Manual Ver 1.0 Page 5 Appearance

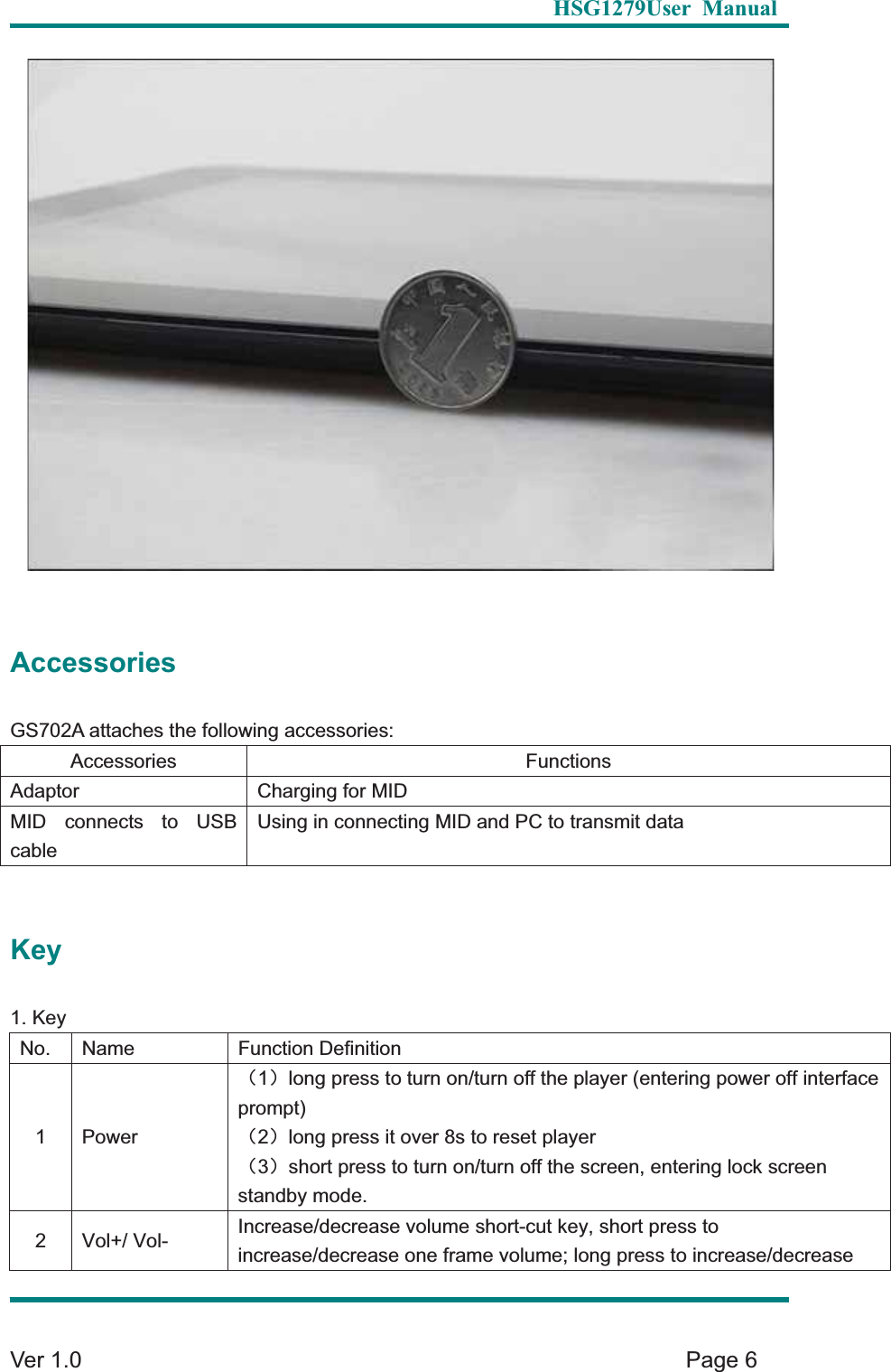

HSG1279User Manual Ver 1.0 Page 6 AccessoriesGS702A attaches the following accessories: Accessories Functions Adaptor Charging for MID MID connects to USB cableUsing in connecting MID and PC to transmit data Key1. Key No. Name Function Definition 1 Power δ1εlong press to turn on/turn off the player (entering power off interface prompt) δ2εlong press it over 8s to reset player δ3εshort press to turn on/turn off the screen, entering lock screen standby mode. 2 Vol+/ Vol- Increase/decrease volume short-cut key, short press to increase/decrease one frame volume; long press to increase/decrease

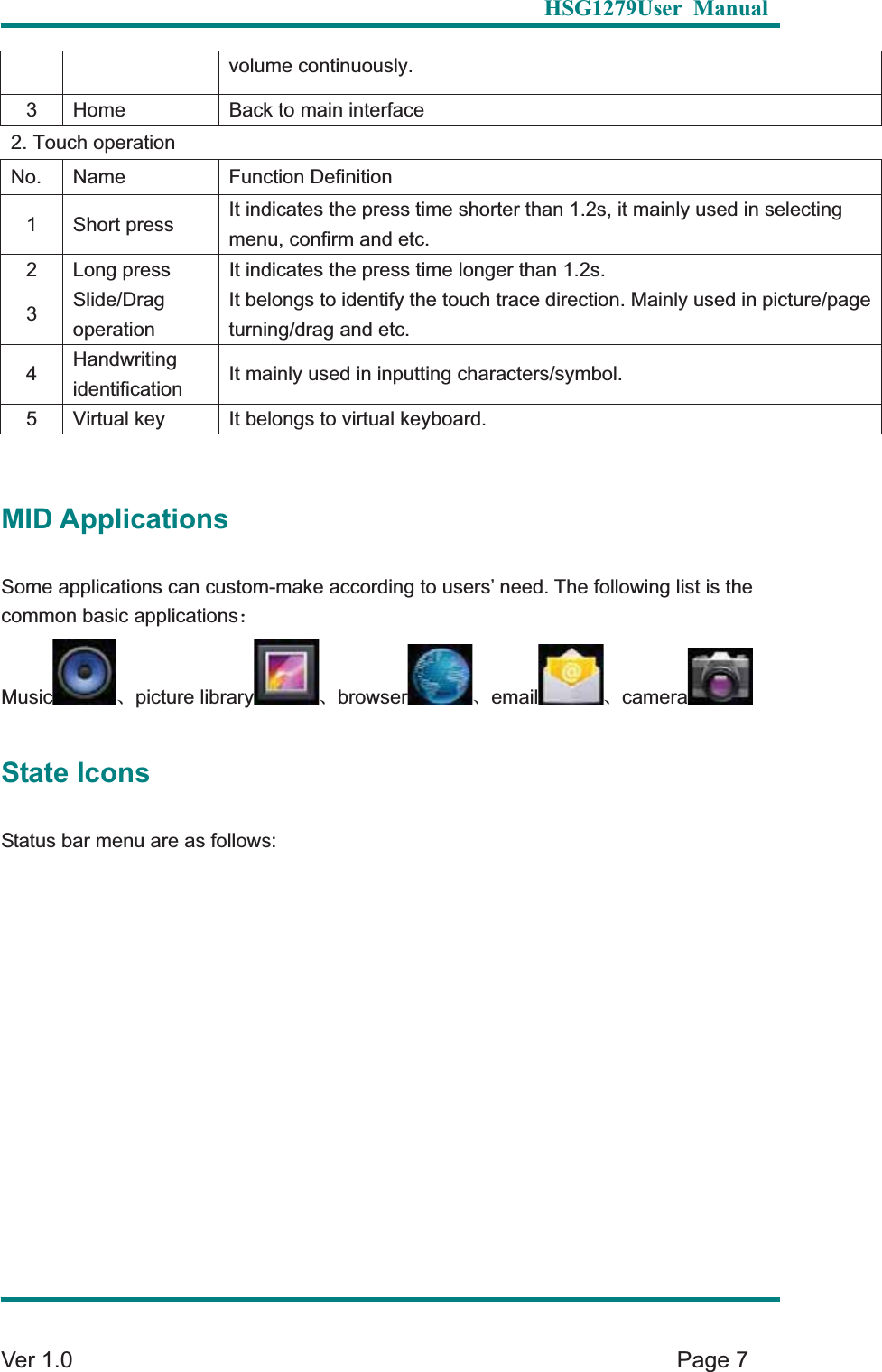

HSG1279User Manual Ver 1.0 Page 7 volume continuously. 3 Home Back to main interface 2. Touch operation No. Name Function Definition 1 Short press It indicates the press time shorter than 1.2s, it mainly used in selecting menu, confirm and etc.2 Long press It indicates the press time longer than 1.2s.3Slide/Dragoperation It belongs to identify the touch trace direction. Mainly used in picture/page turning/drag and etc.4Handwriting identification It mainly used in inputting characters/symbol.5 Virtual key It belongs to virtual keyboard.MID Applications Some applications can custom-make according to users’ need. The following list is the common basic applicationsφMusic Ƚpicture library Ƚbrowser Ƚemail ȽcameraState Icons Status bar menu are as follows:

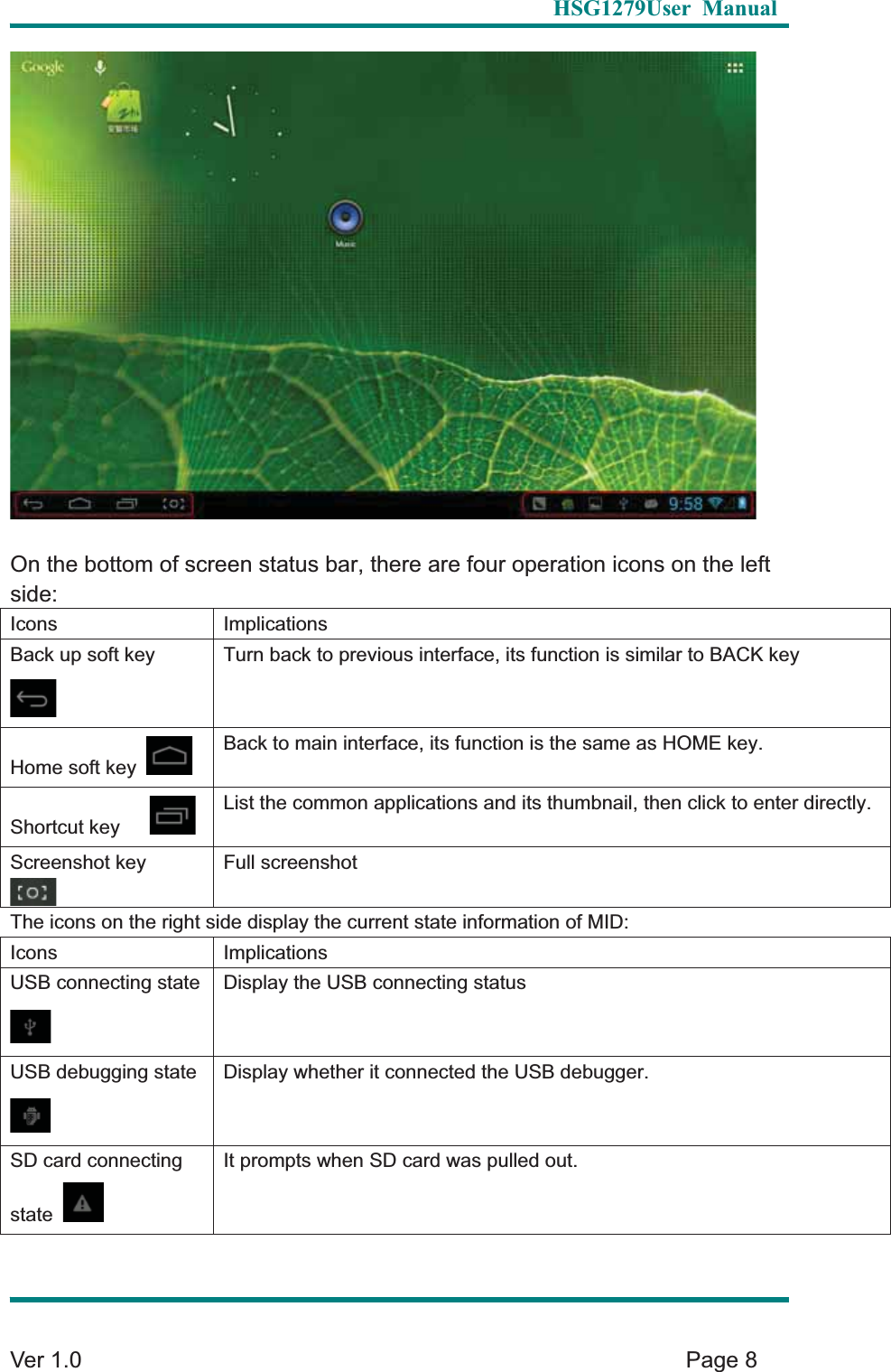

HSG1279User Manual Ver 1.0 Page 8 On the bottom of screen status bar, there are four operation icons on the left side:Icons Implications Back up soft key Turn back to previous interface, its function is similar to BACK key Home soft key Back to main interface, its function is the same as HOME key. Shortcut key List the common applications and its thumbnail, then click to enter directly. Screenshot key Full screenshot The icons on the right side display the current state information of MID: Icons Implications USB connecting state Display the USB connecting status USB debugging state Display whether it connected the USB debugger. SD card connecting stateIt prompts when SD card was pulled out.

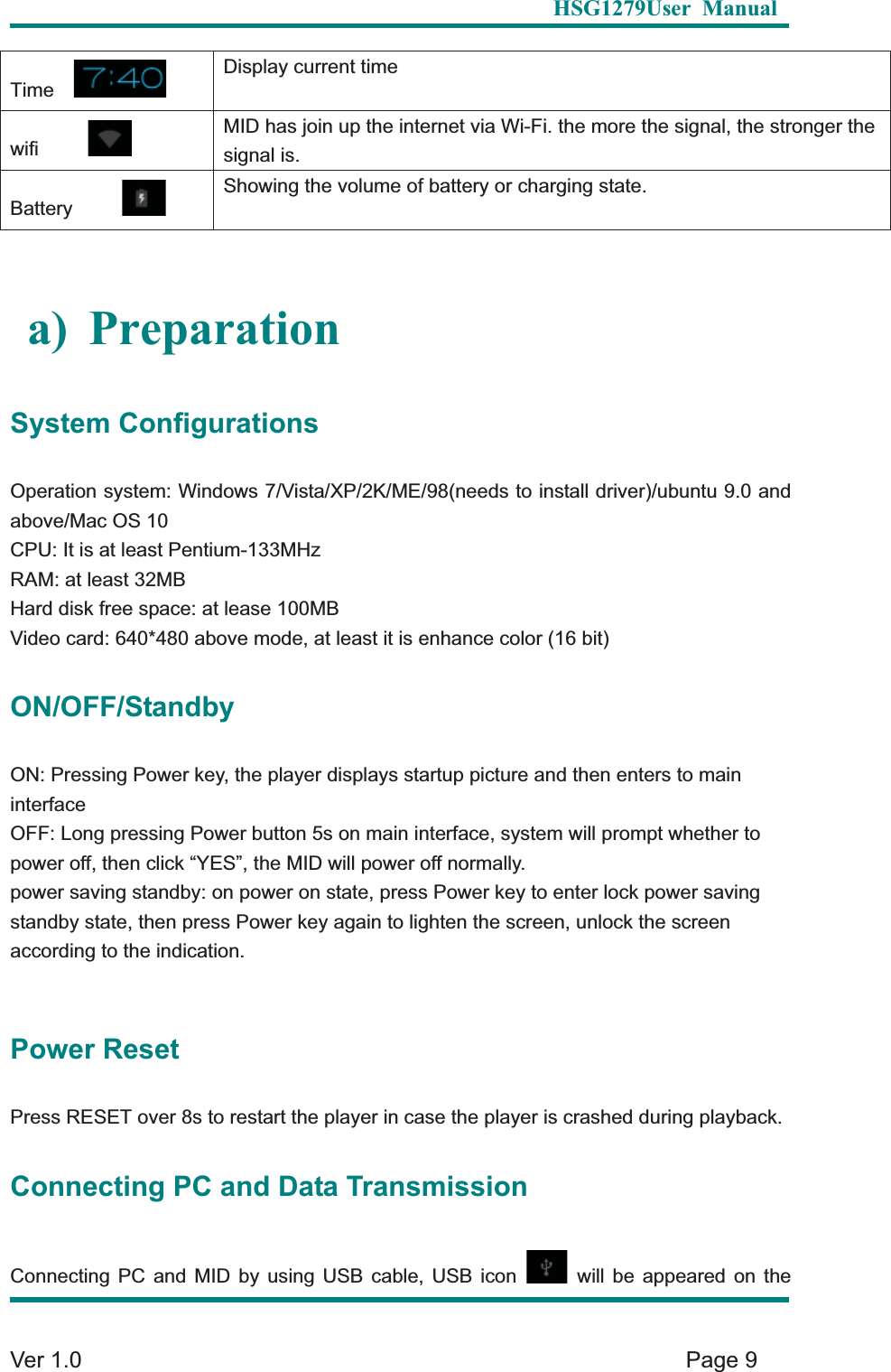

HSG1279User Manual Ver 1.0 Page 9 Time Display current time wifi MID has join up the internet via Wi-Fi. the more the signal, the stronger the signal is. Battery Showing the volume of battery or charging state. a) Preparation System Configurations Operation system: Windows 7/Vista/XP/2K/ME/98(needs to install driver)/ubuntu 9.0 and above/Mac OS 10 CPU: It is at least Pentium-133MHz RAM: at least 32MB Hard disk free space: at lease 100MB Video card: 640*480 above mode, at least it is enhance color (16 bit) ON/OFF/Standby ON: Pressing Power key, the player displays startup picture and then enters to main interfaceOFF: Long pressing Power button 5s on main interface, system will prompt whether to power off, then click “YES”, the MID will power off normally. power saving standby: on power on state, press Power key to enter lock power saving standby state, then press Power key again to lighten the screen, unlock the screen according to the indication. Power Reset Press RESET over 8s to restart the player in case the player is crashed during playback. Connecting PC and Data Transmission Connecting PC and MID by using USB cable, USB icon will be appeared on the

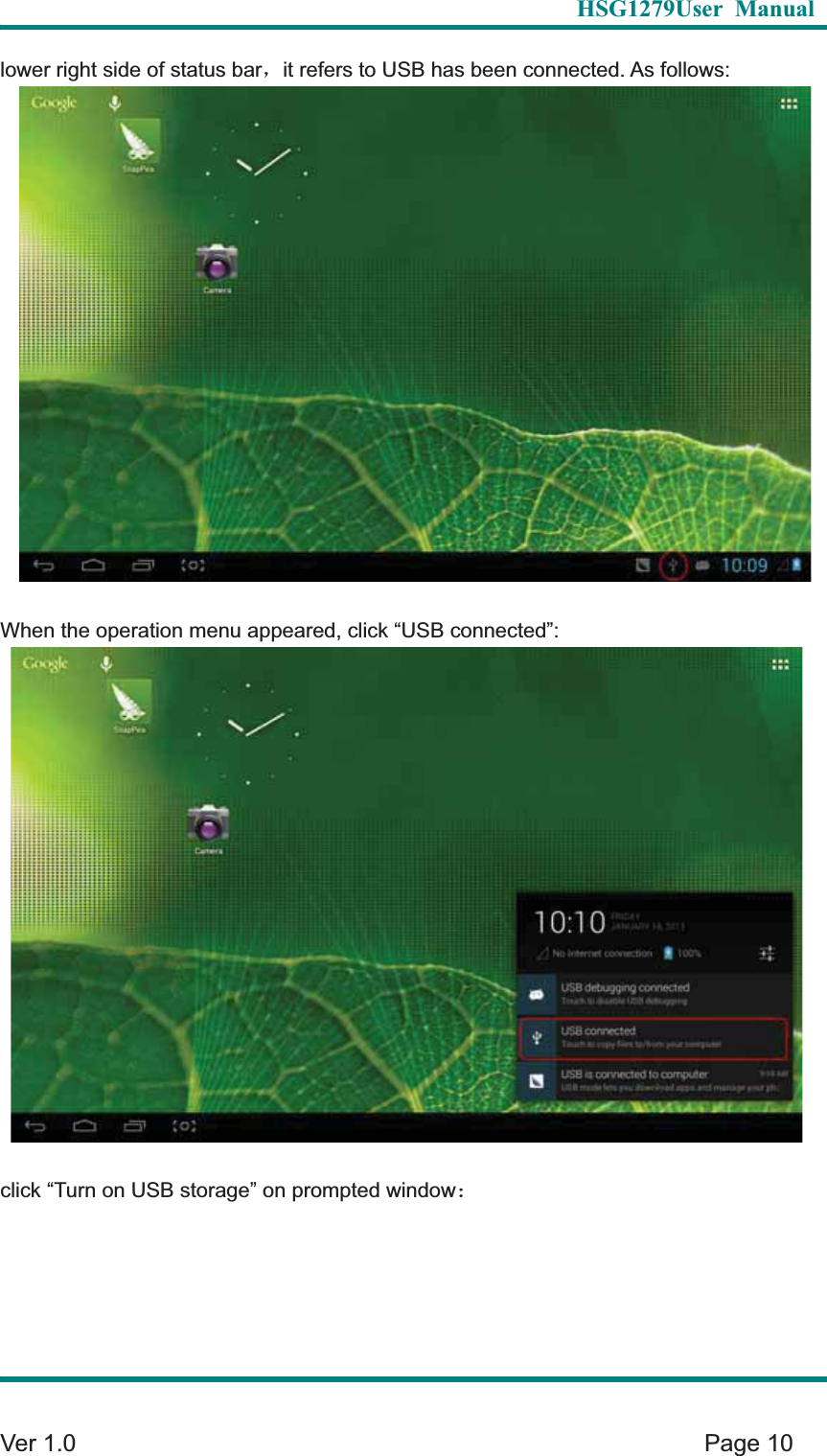

HSG1279User Manual Ver 1.0 Page 10 lower right side of status barˈit refers to USB has been connected. As follows: When the operation menu appeared, click “USB connected”: click “Turn on USB storage” on prompted windowφ

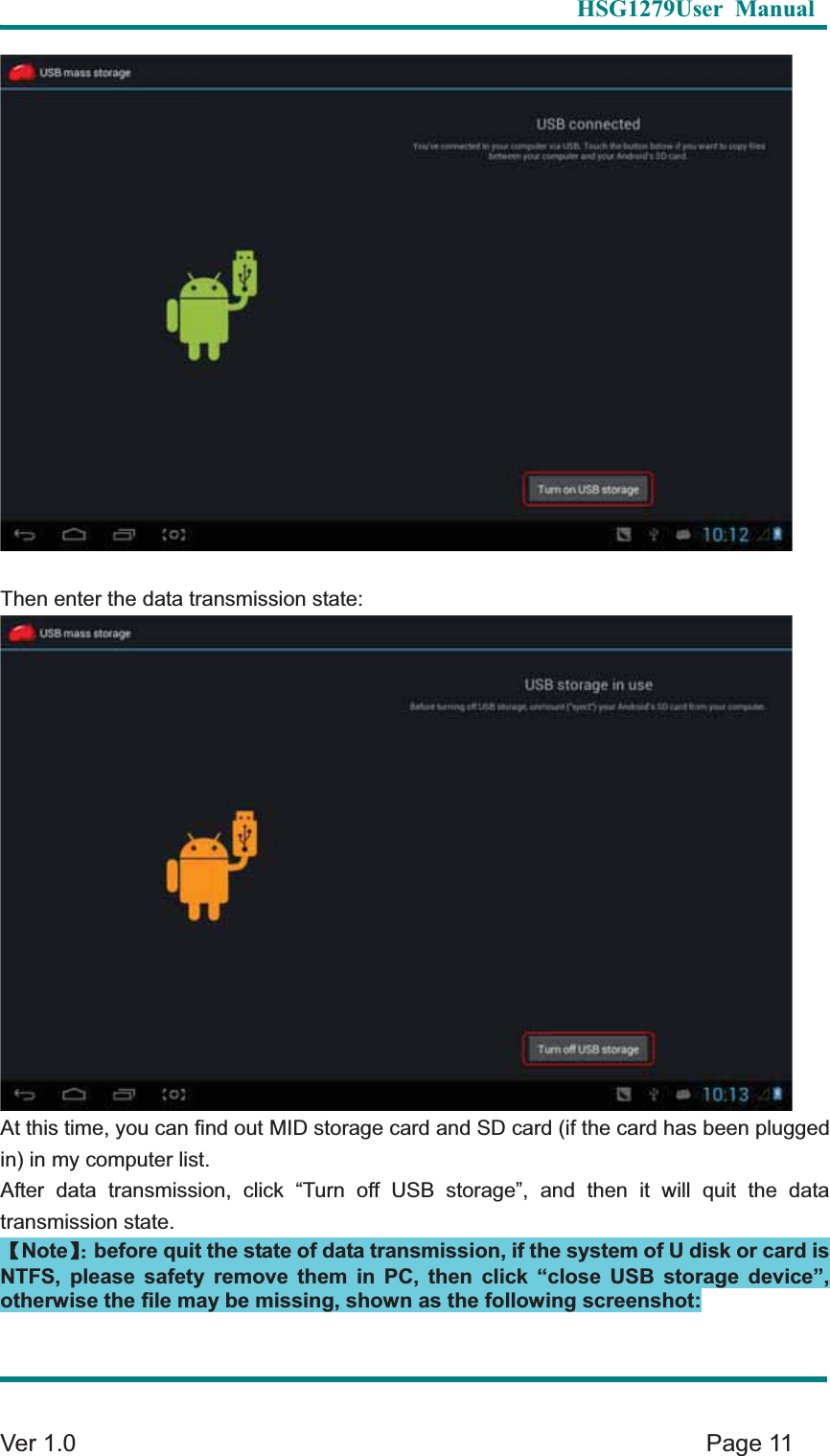

HSG1279User Manual Ver 1.0 Page 11 Then enter the data transmission state: At this time, you can find out MID storage card and SD card (if the card has been plugged in) in my computer list. After data transmission, click “Turn off USB storage”, and then it will quit the data transmission state. ɋNoteɌφbefore quit the state of data transmission, if the system of U disk or card is NTFS, please safety remove them in PC, then click “close USB storage device”, otherwise the file may be missing, shown as the following screenshot:

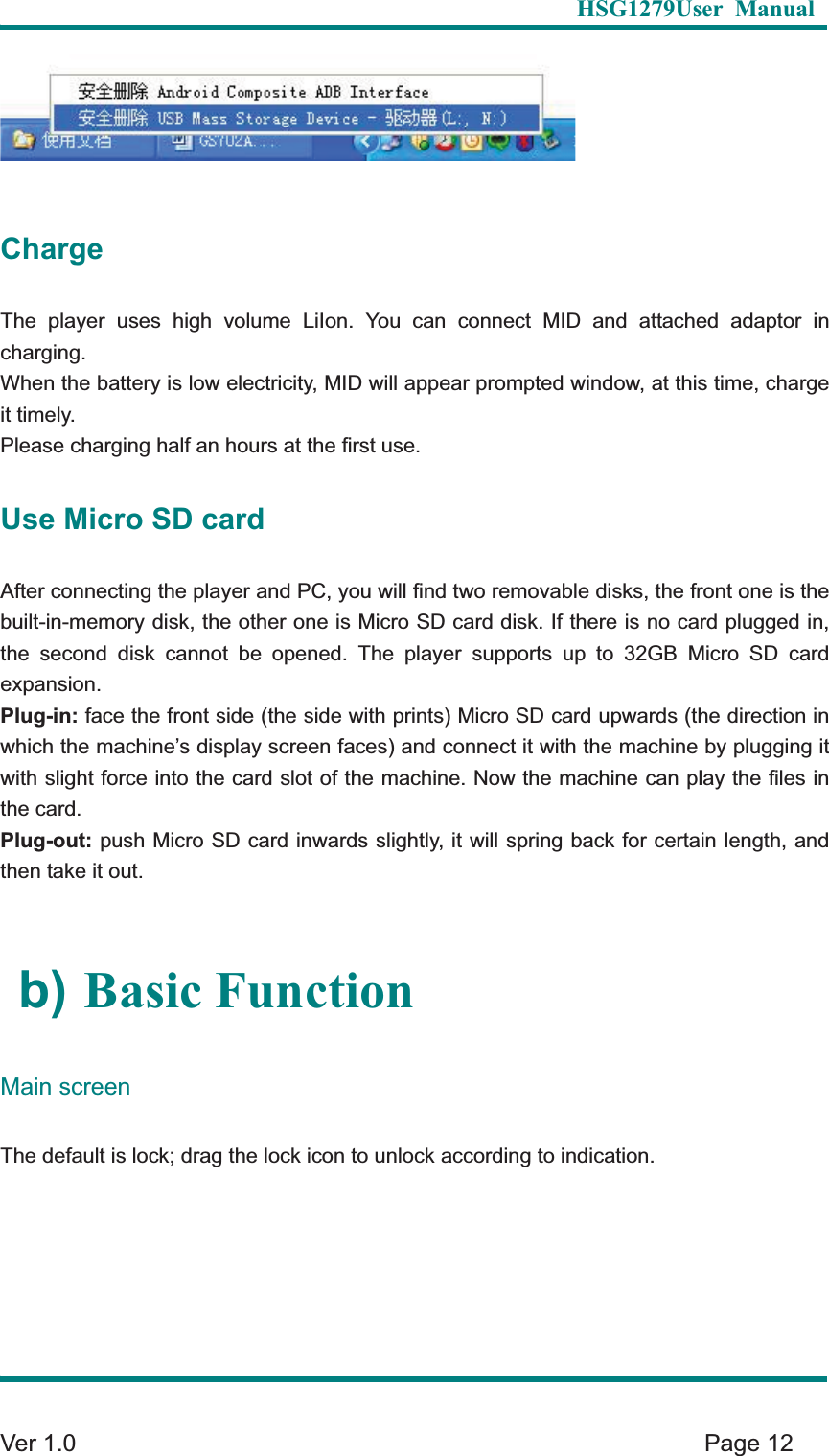

HSG1279User Manual Ver 1.0 Page 12 Charge The player uses high volume LiIon. You can connect MID and attached adaptor in charging. When the battery is low electricity, MID will appear prompted window, at this time, charge it timely. Please charging half an hours at the first use. Use Micro SD card After connecting the player and PC, you will find two removable disks, the front one is the built-in-memory disk, the other one is Micro SD card disk. If there is no card plugged in, the second disk cannot be opened. The player supports up to 32GB Micro SD card expansion. Plug-in: face the front side (the side with prints) Micro SD card upwards (the direction in which the machine’s display screen faces) and connect it with the machine by plugging it with slight force into the card slot of the machine. Now the machine can play the files in the card. Plug-out: push Micro SD card inwards slightly, it will spring back for certain length, and then take it out. b) Basic FunctionMain screenThe default is lock; drag the lock icon to unlock according to indication.

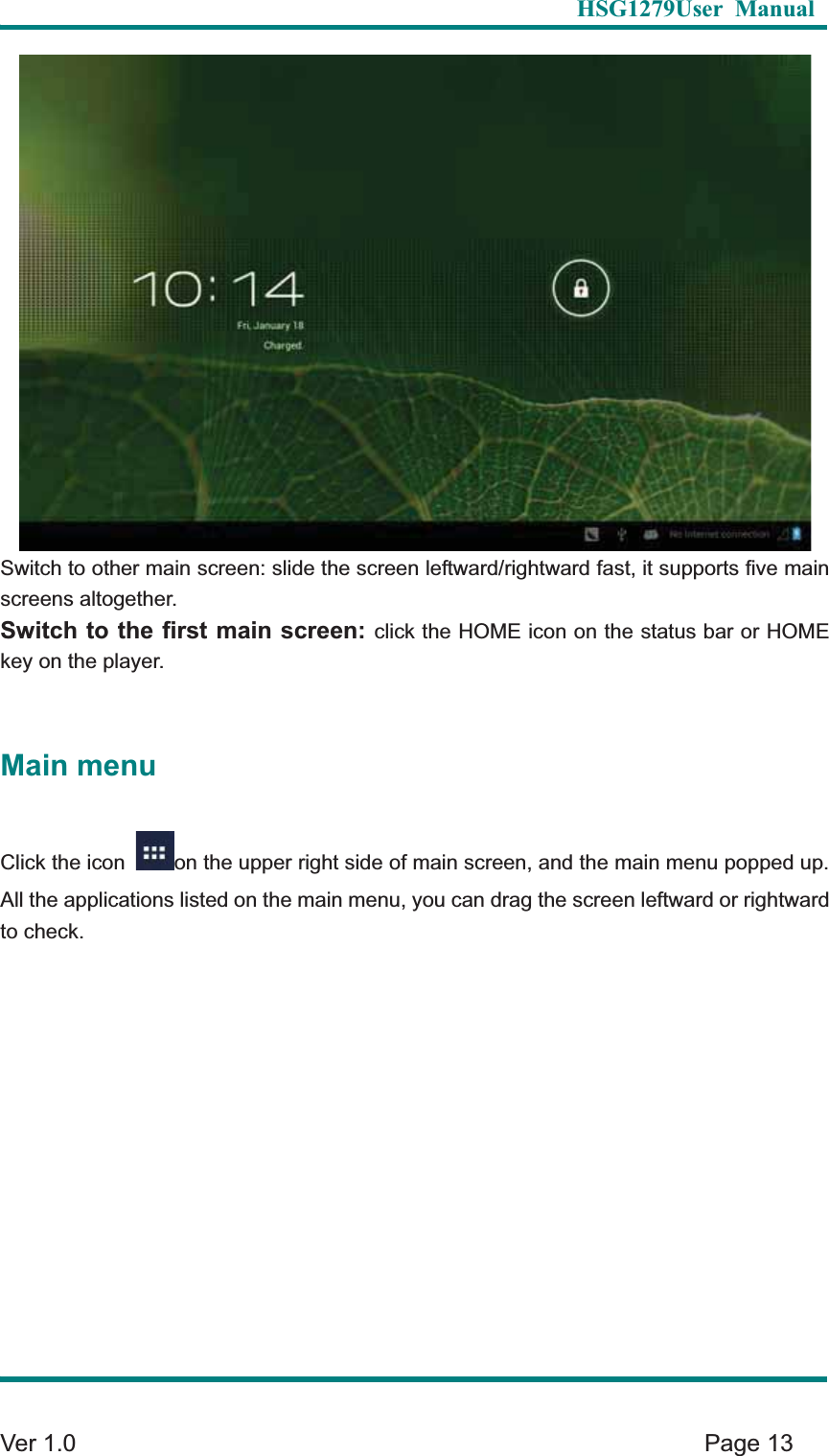

HSG1279User Manual Ver 1.0 Page 13 Switch to other main screen: slide the screen leftward/rightward fast, it supports five main screens altogether. Switch to the first main screen: click the HOME icon on the status bar or HOME key on the player. Main menu Click the icon on the upper right side of main screen, and the main menu popped up. All the applications listed on the main menu, you can drag the screen leftward or rightward to check.

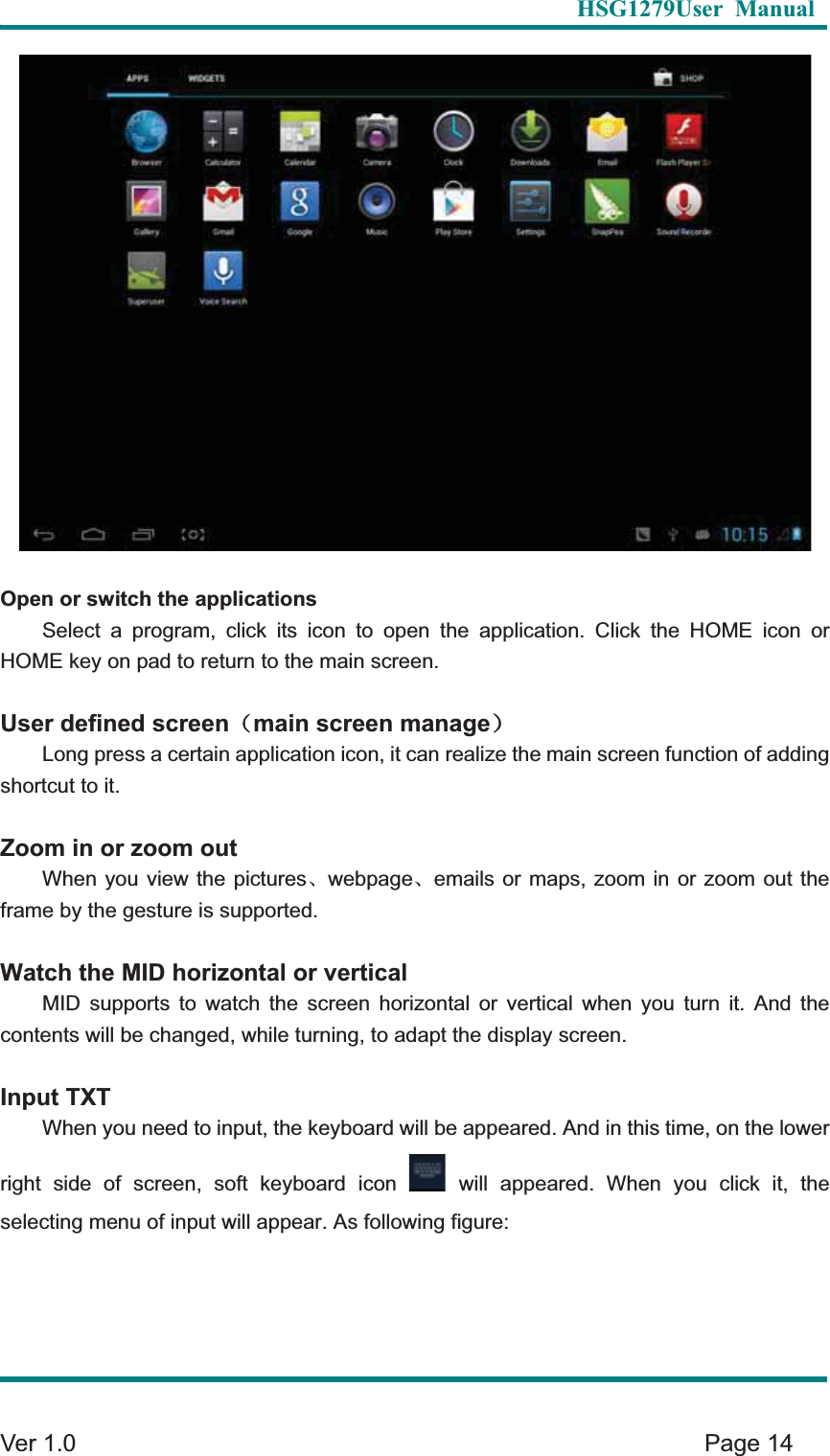

HSG1279User Manual Ver 1.0 Page 14 Open or switch the applications Select a program, click its icon to open the application. Click the HOME icon or HOME key on pad to return to the main screen. User defined screen˄main screen manage˅Long press a certain application icon, it can realize the main screen function of adding shortcut to it. Zoom in or zoom outWhen you view the picturesȽwebpageȽemails or maps, zoom in or zoom out the frame by the gesture is supported.Watch the MID horizontal or verticalMID supports to watch the screen horizontal or vertical when you turn it. And the contents will be changed, while turning, to adapt the display screen. Input TXTWhen you need to input, the keyboard will be appeared. And in this time, on the lower right side of screen, soft keyboard icon will appeared. When you click it, the selecting menu of input will appear. As following figure:

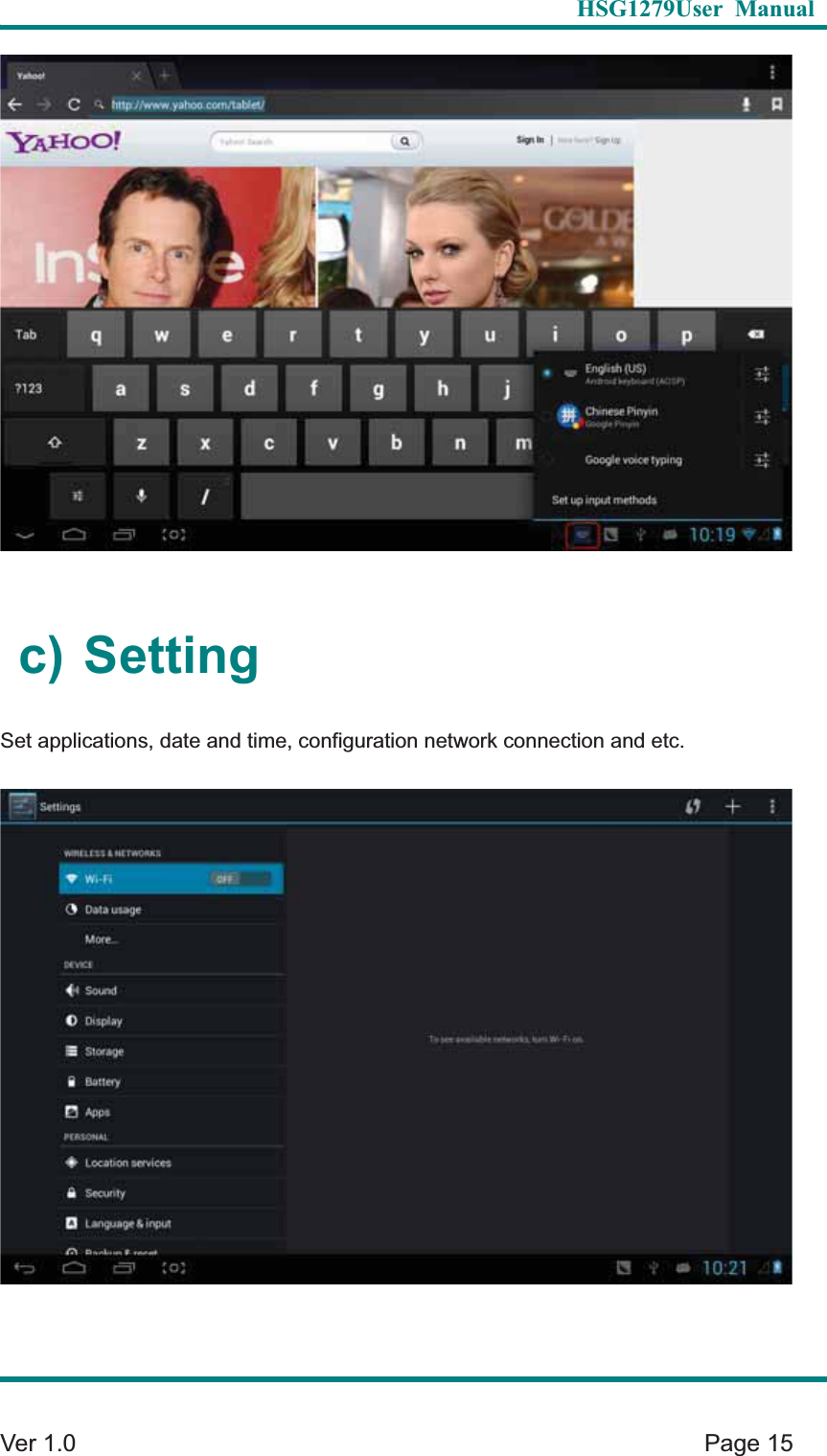

HSG1279User Manual Ver 1.0 Page 15 c) Setting Set applications, date and time, configuration network connection and etc.

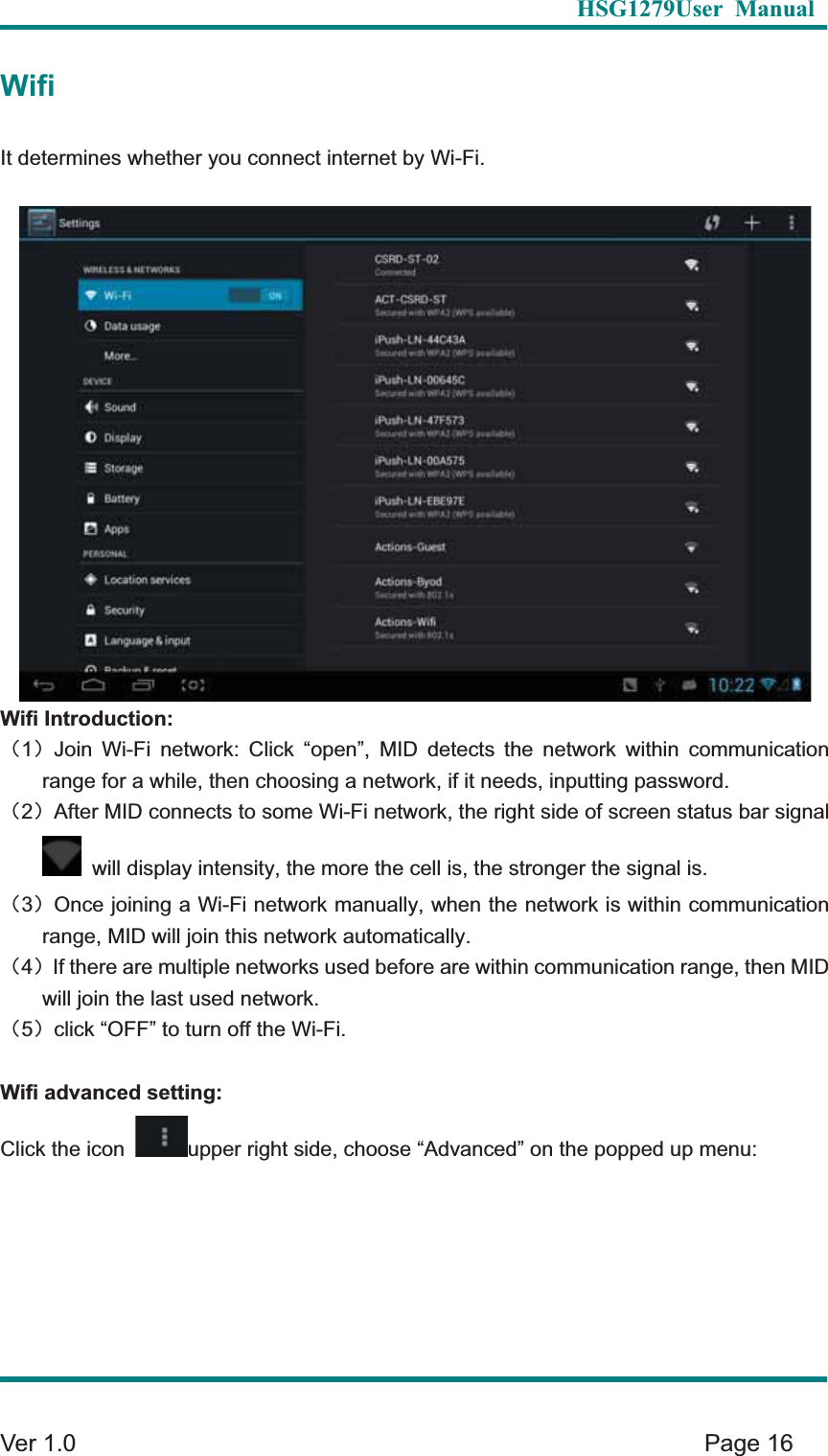

HSG1279User Manual Ver 1.0 Page 16 WifiIt determines whether you connect internet by Wi-Fi. Wifi Introduction: δ1εJoin Wi-Fi network: Click “open”, MID detects the network within communication range for a while, then choosing a network, if it needs, inputting password. δ2εAfter MID connects to some Wi-Fi network, the right side of screen status bar signal will display intensity, the more the cell is, the stronger the signal is. δ3εOnce joining a Wi-Fi network manually, when the network is within communication range, MID will join this network automatically. δ4εIf there are multiple networks used before are within communication range, then MID will join the last used network. δ5εclick “OFF” to turn off the Wi-Fi. Wifi advanced setting: Click the icon upper right side, choose “Advanced” on the popped up menu:

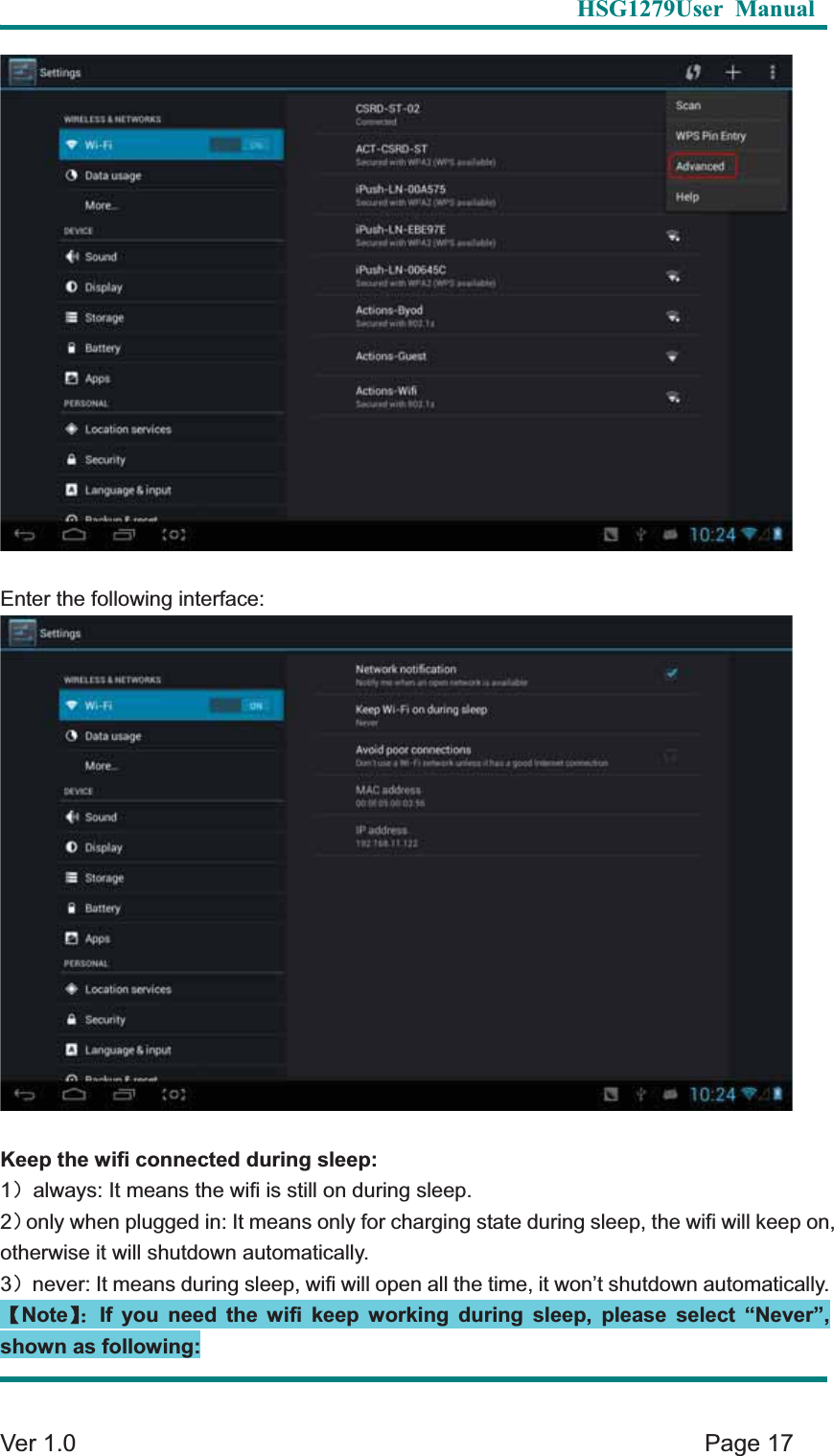

HSG1279User Manual Ver 1.0 Page 17 Enter the following interface: Keep the wifi connected during sleep: 1εalways: It means the wifi is still on during sleep. 2εonly when plugged in: It means only for charging state during sleep, the wifi will keep on, otherwise it will shutdown automatically. 3εnever: It means during sleep, wifi will open all the time, it won’t shutdown automatically. ɋNoteɌφIf you need the wifi keep working during sleep, please select “Never”, shown as following:

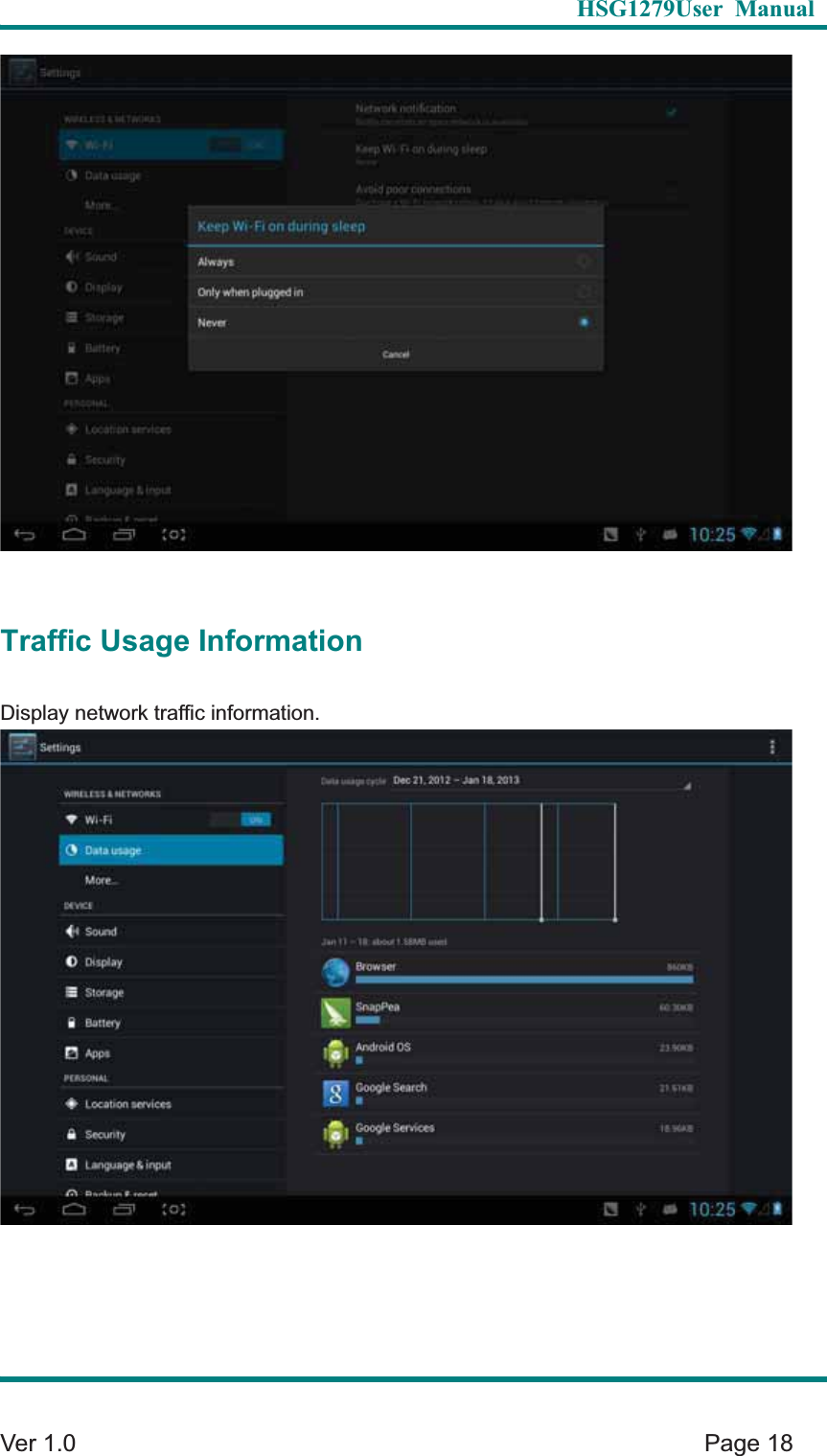

HSG1279User Manual Ver 1.0 Page 18 Traffic Usage Information Display network traffic information.

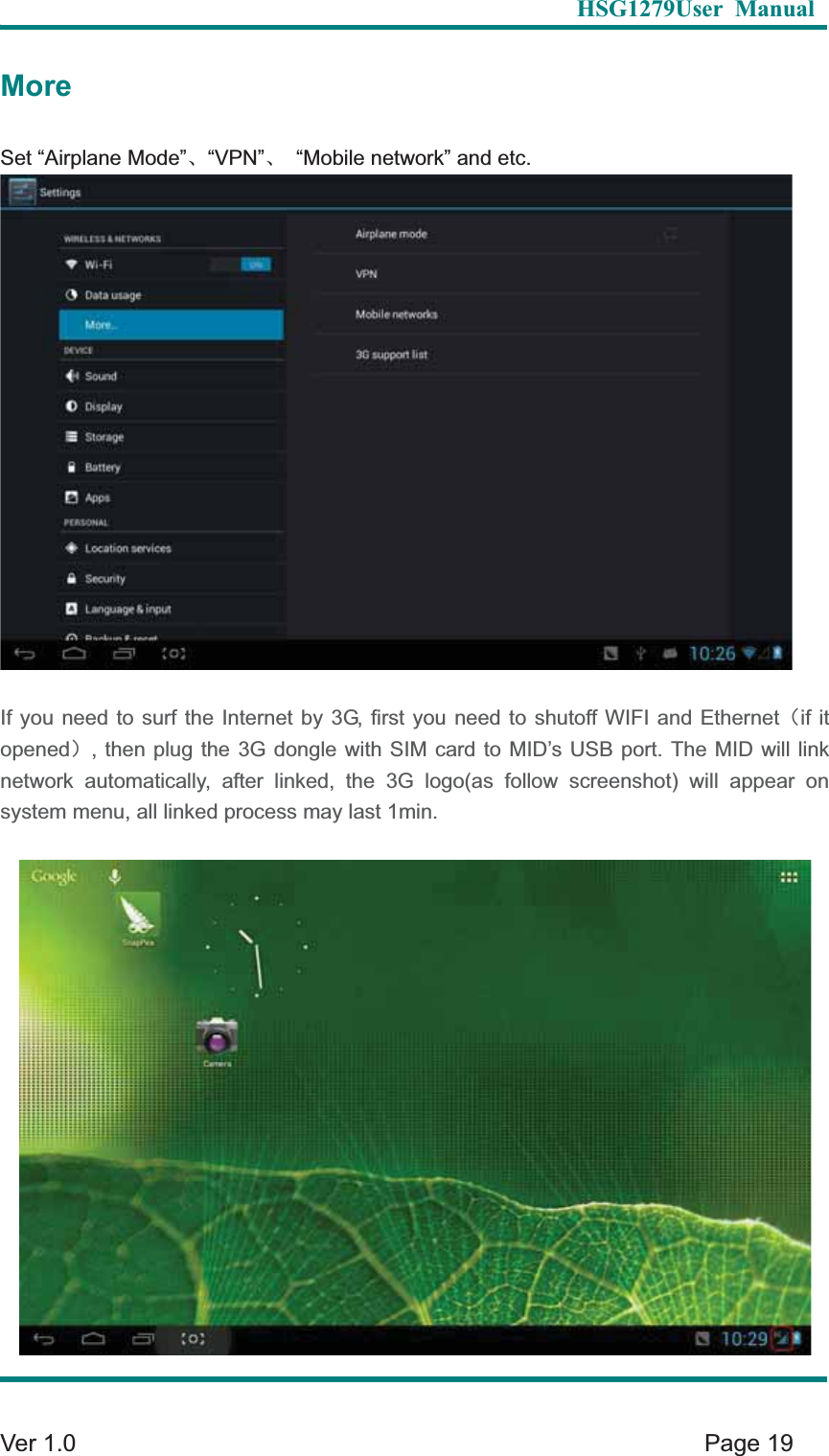

HSG1279User Manual Ver 1.0 Page 19 MoreSet “Airplane Mode”Ƚ“VPN”Ƚ “Mobile network” and etc. If you need to surf the Internet by 3G, first you need to shutoff WIFI and Ethernetδif it openedε, then plug the 3G dongle with SIM card to MID’s USB port. The MID will link network automatically, after linked, the 3G logo(as follow screenshot) will appear on system menu, all linked process may last 1min.

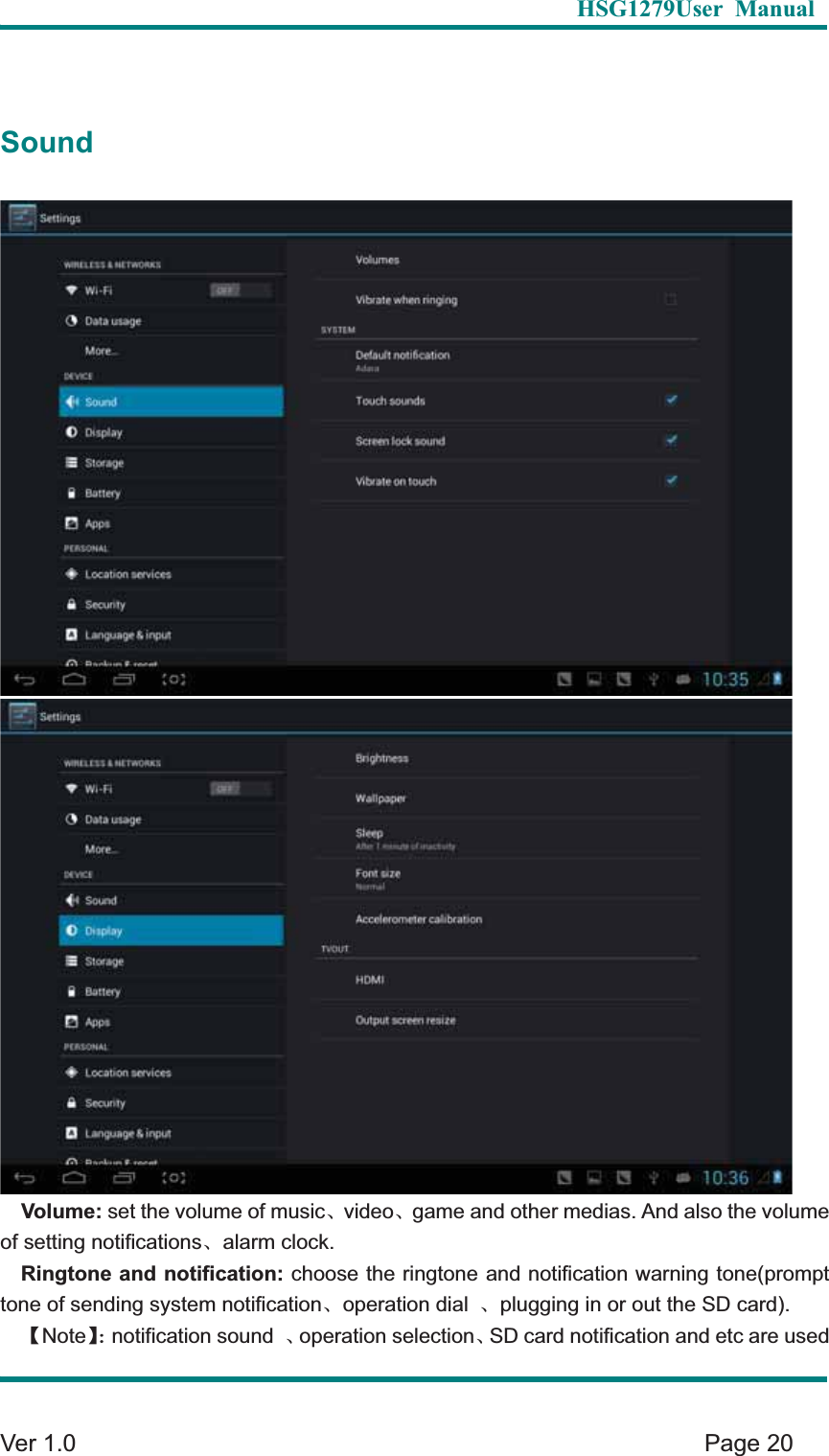

HSG1279User Manual Ver 1.0 Page 20 SoundVolume: set the volume of musicȽvideoȽgame and other medias. And also the volume of setting notificationsȽalarm clock. Ringtone and notification: choose the ringtone and notification warning tone(prompt tone of sending system notificationȽoperation dial Ƚplugging in or out the SD card). ɋNoteɌφnotification sound Ƚoperation selectionȽSD card notification and etc are used

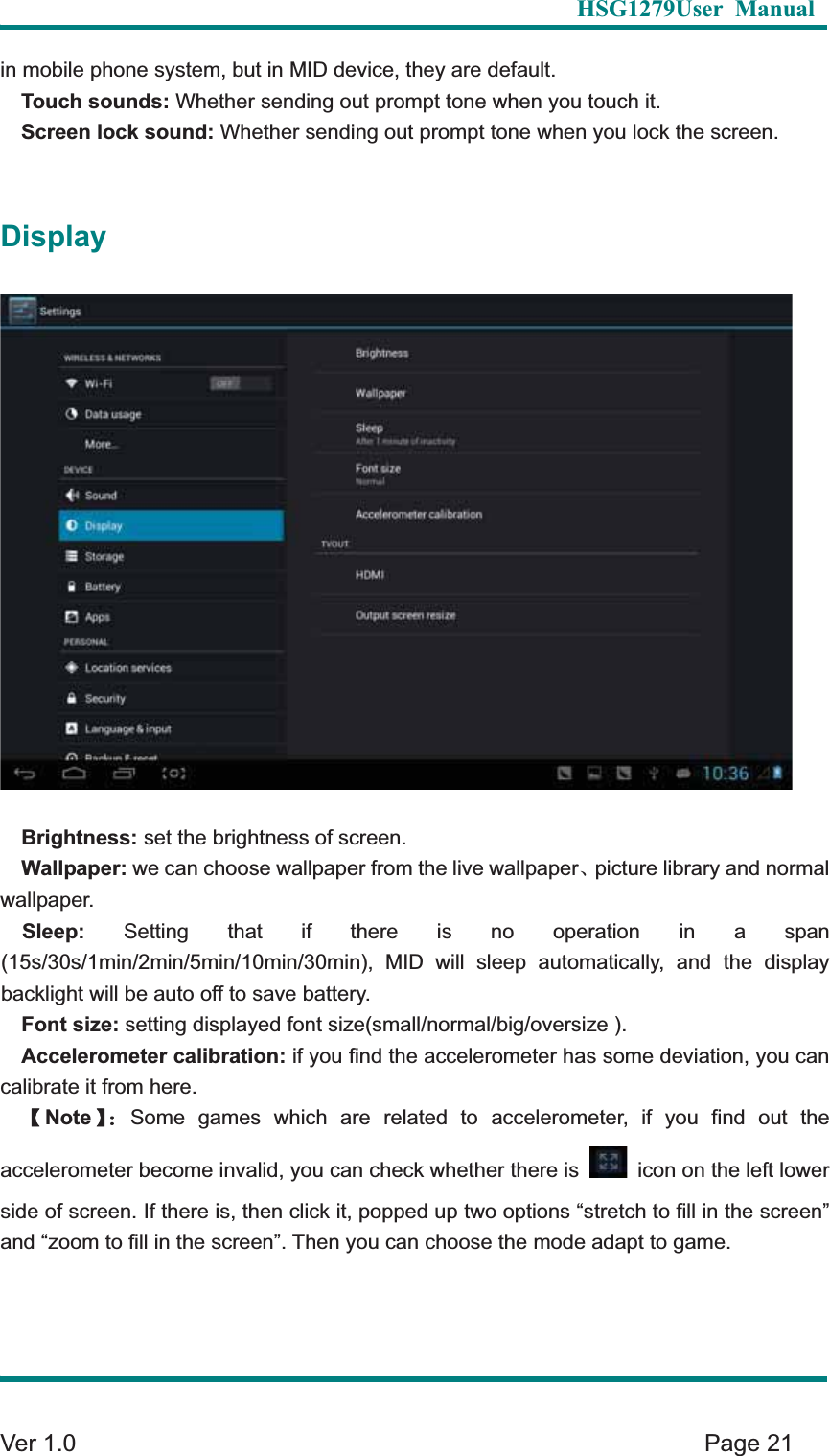

HSG1279User Manual Ver 1.0 Page 21 in mobile phone system, but in MID device, they are default. Touch sounds: Whether sending out prompt tone when you touch it. Screen lock sound: Whether sending out prompt tone when you lock the screen. DisplayBrightness: set the brightness of screen. Wallpaper: we can choose wallpaper from the live wallpaperȽpicture library and normal wallpaper. Sleep: Setting that if there is no operation in a span (15s/30s/1min/2min/5min/10min/30min), MID will sleep automatically, and the display backlight will be auto off to save battery. Font size: setting displayed font size(small/normal/big/oversize ). Accelerometer calibration: if you find the accelerometer has some deviation, you can calibrate it from here. ɋNoteɌφSome games which are related to accelerometer, if you find out the accelerometer become invalid, you can check whether there is icon on the left lower side of screen. If there is, then click it, popped up two options “stretch to fill in the screen” and “zoom to fill in the screen”. Then you can choose the mode adapt to game.

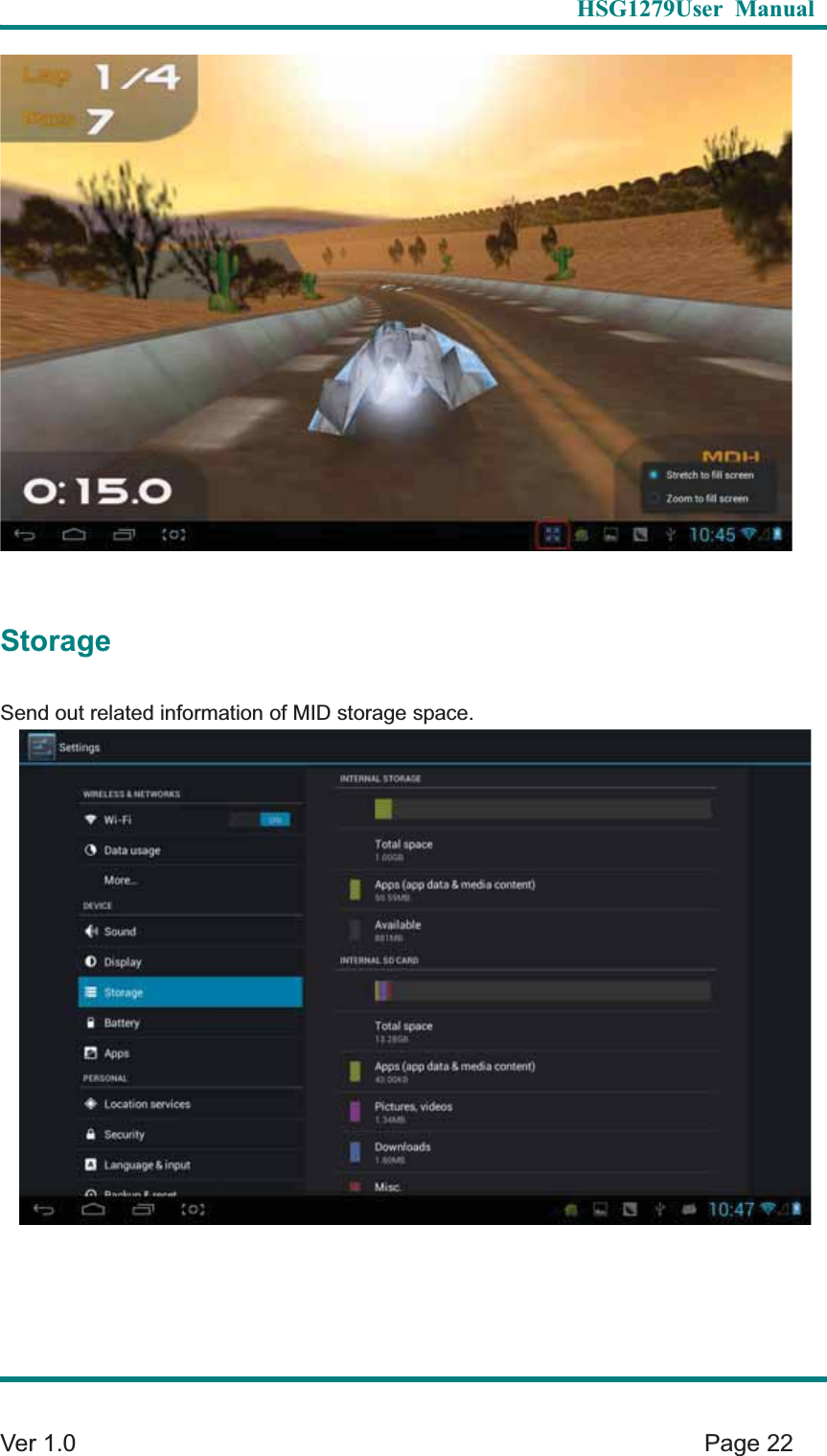

HSG1279User Manual Ver 1.0 Page 22 Storage Send out related information of MID storage space.

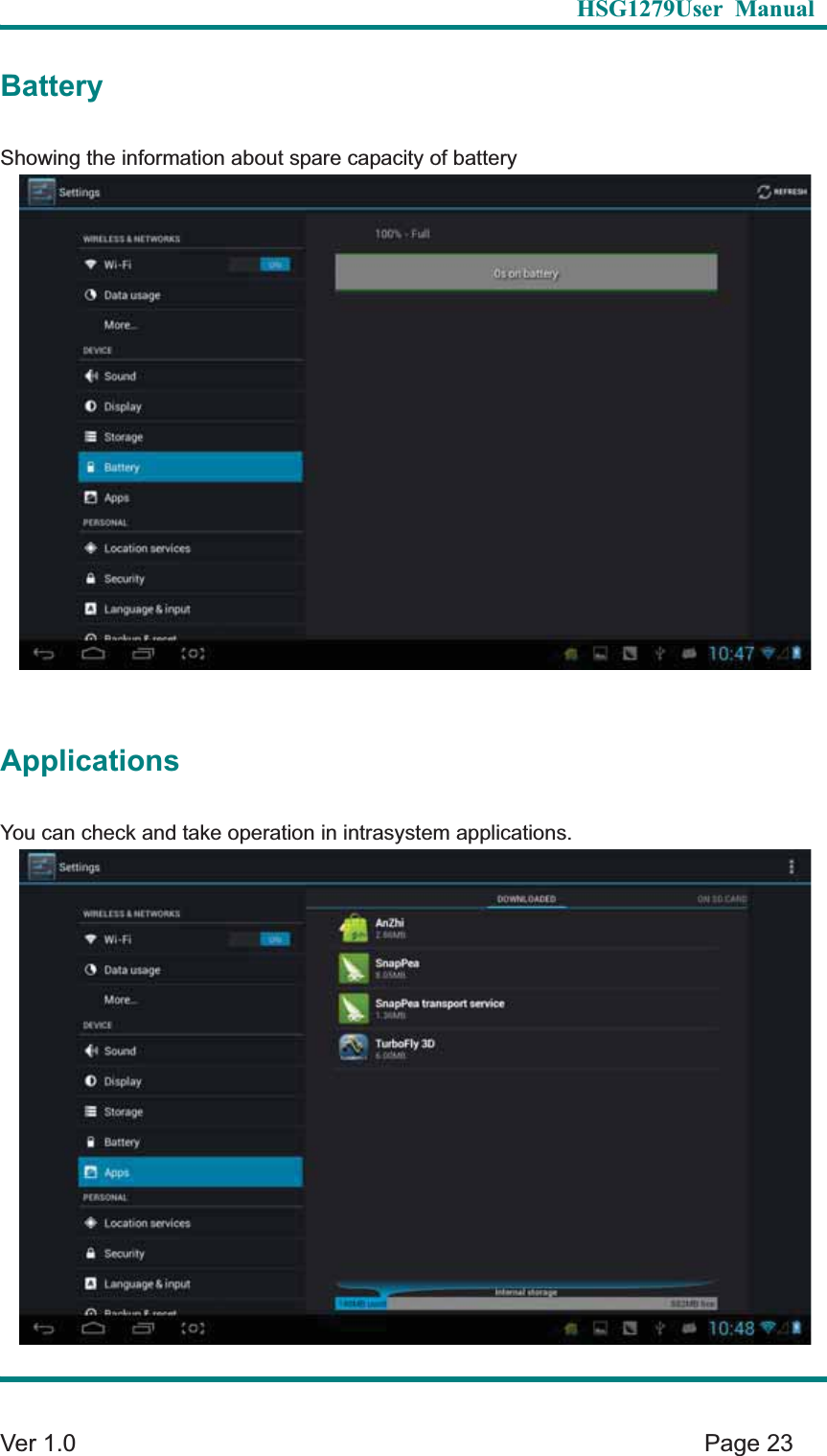

HSG1279User Manual Ver 1.0 Page 23 BatteryShowing the information about spare capacity of battery ApplicationsYou can check and take operation in intrasystem applications.

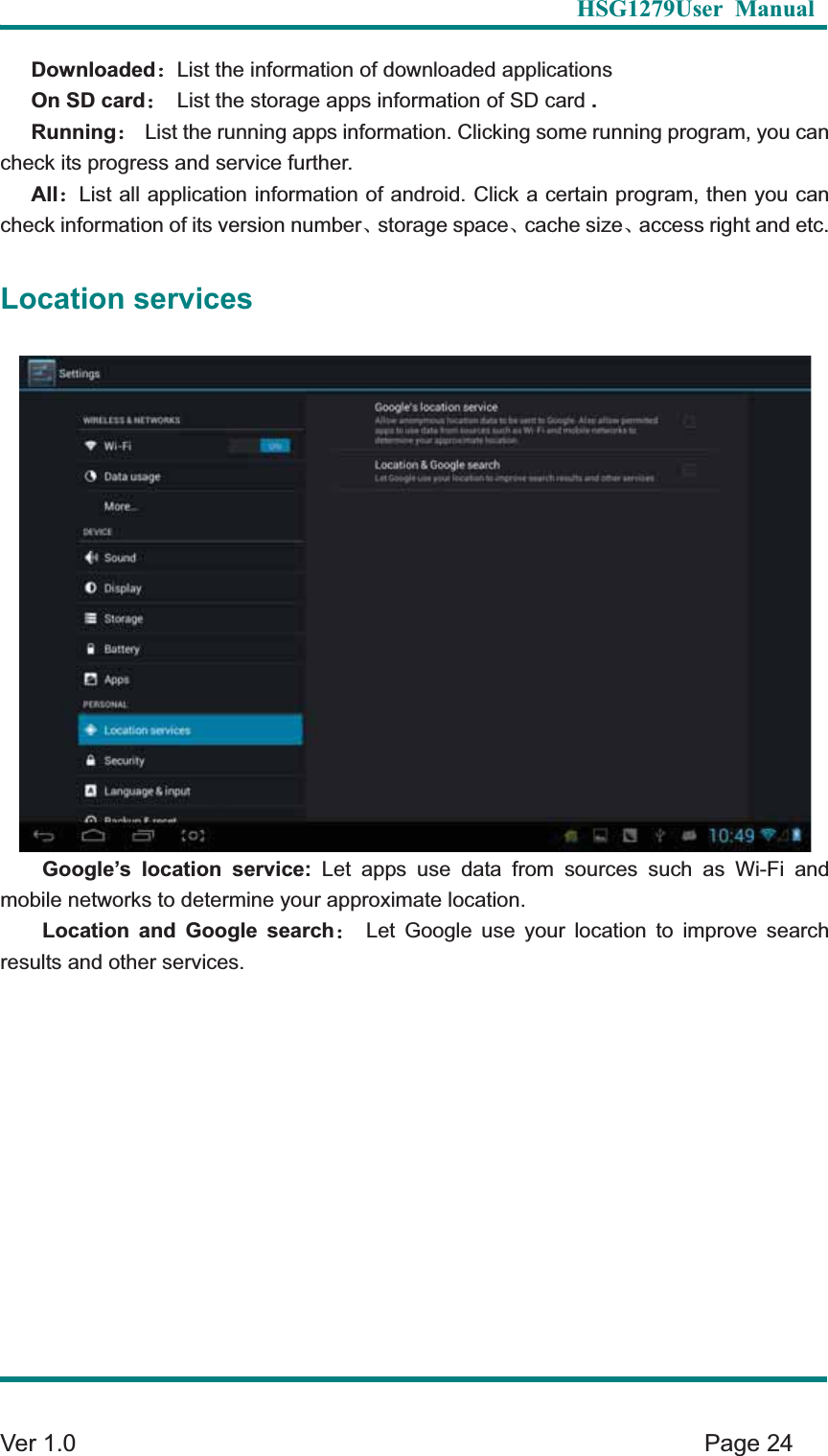

HSG1279User Manual Ver 1.0 Page 24 DownloadedφList the information of downloaded applications On SD cardφList the storage apps information of SD card .RunningφList the running apps information. Clicking some running program, you can check its progress and service further. AllφList all application information of android. Click a certain program, then you can check information of its version numberȽstorage spaceȽcache sizeȽaccess right and etc. Location services Google’s location service: Let apps use data from sources such as Wi-Fi and mobile networks to determine your approximate location. Location and Google searchφLet Google use your location to improve search results and other services.

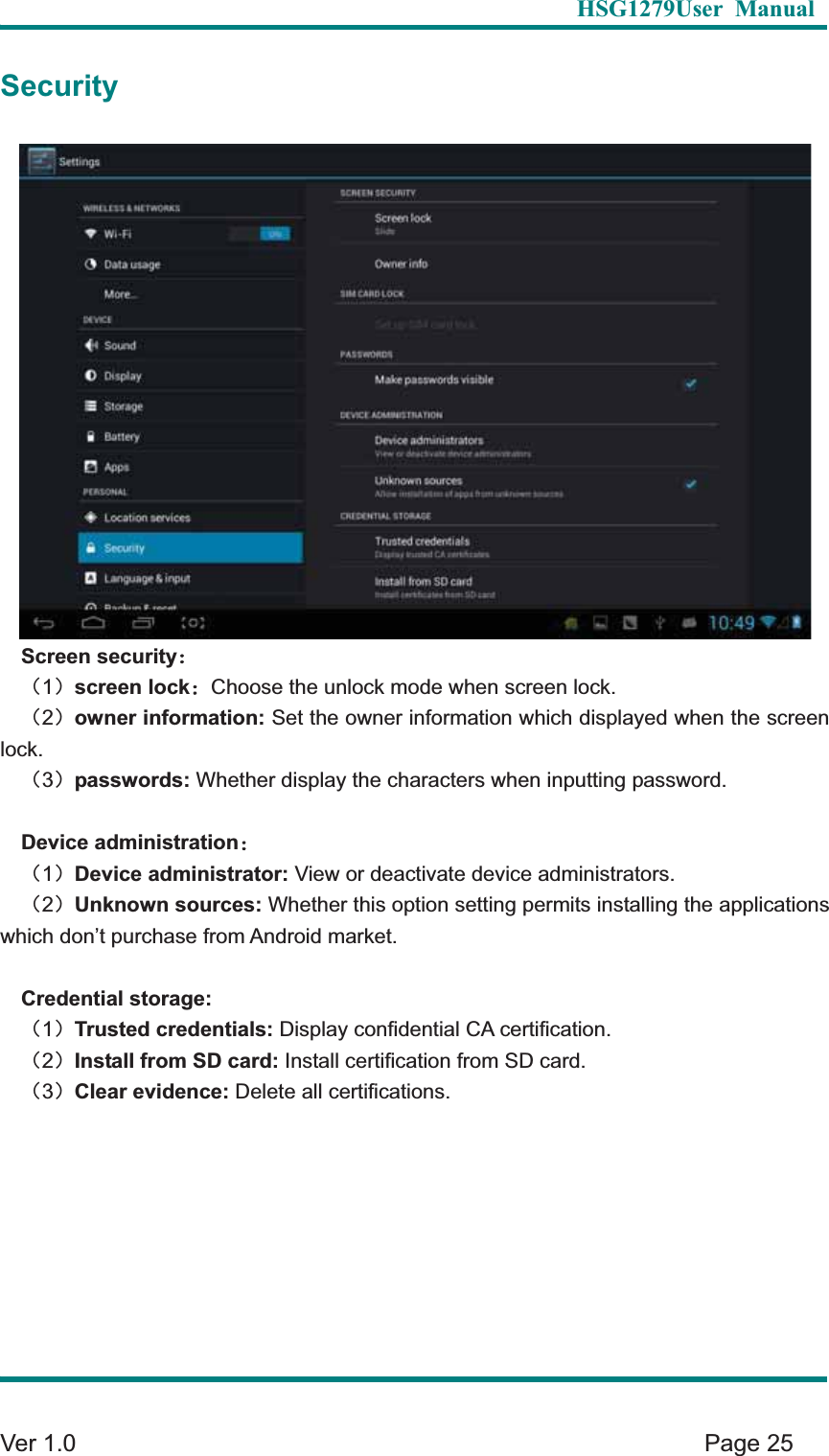

HSG1279User Manual Ver 1.0 Page 25 SecurityScreen securityφδ1εscreen lockφChoose the unlock mode when screen lock. δ2εowner information: Set the owner information which displayed when the screen lock. δ3εpasswords: Whether display the characters when inputting password. Device administrationφδ1εDevice administrator: View or deactivate device administrators. δ2εUnknown sources: Whether this option setting permits installing the applications which don’t purchase from Android market. Credential storage: δ1εTrusted credentials: Display confidential CA certification. δ2εInstall from SD card: Install certification from SD card. δ3εClear evidence: Delete all certifications.

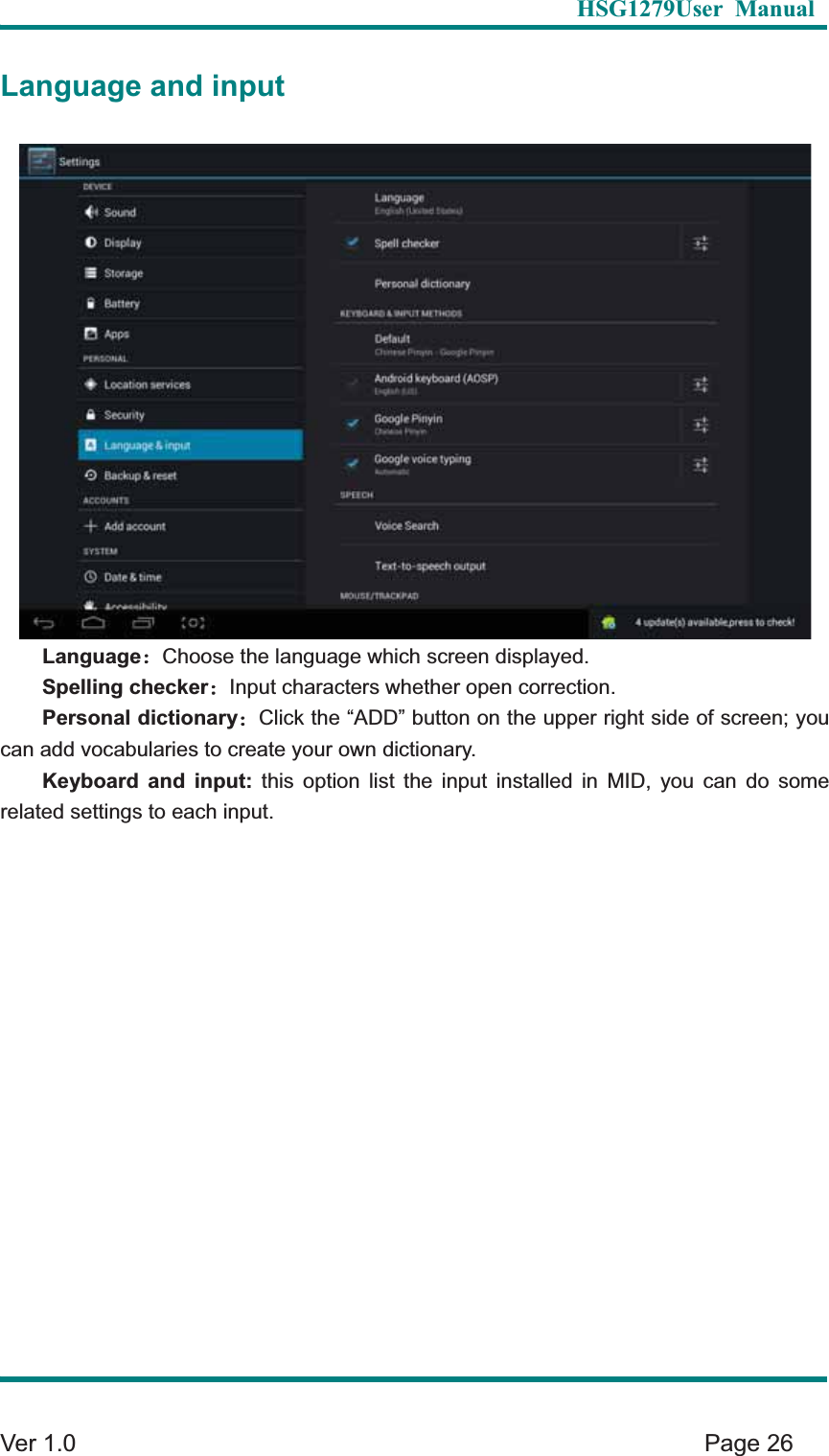

HSG1279User Manual Ver 1.0 Page 26 Language and input LanguageφChoose the language which screen displayed. Spelling checkerφInput characters whether open correction. Personal dictionaryφClick the “ADD” button on the upper right side of screen; you can add vocabularies to create your own dictionary. Keyboard and input: this option list the input installed in MID, you can do some related settings to each input.

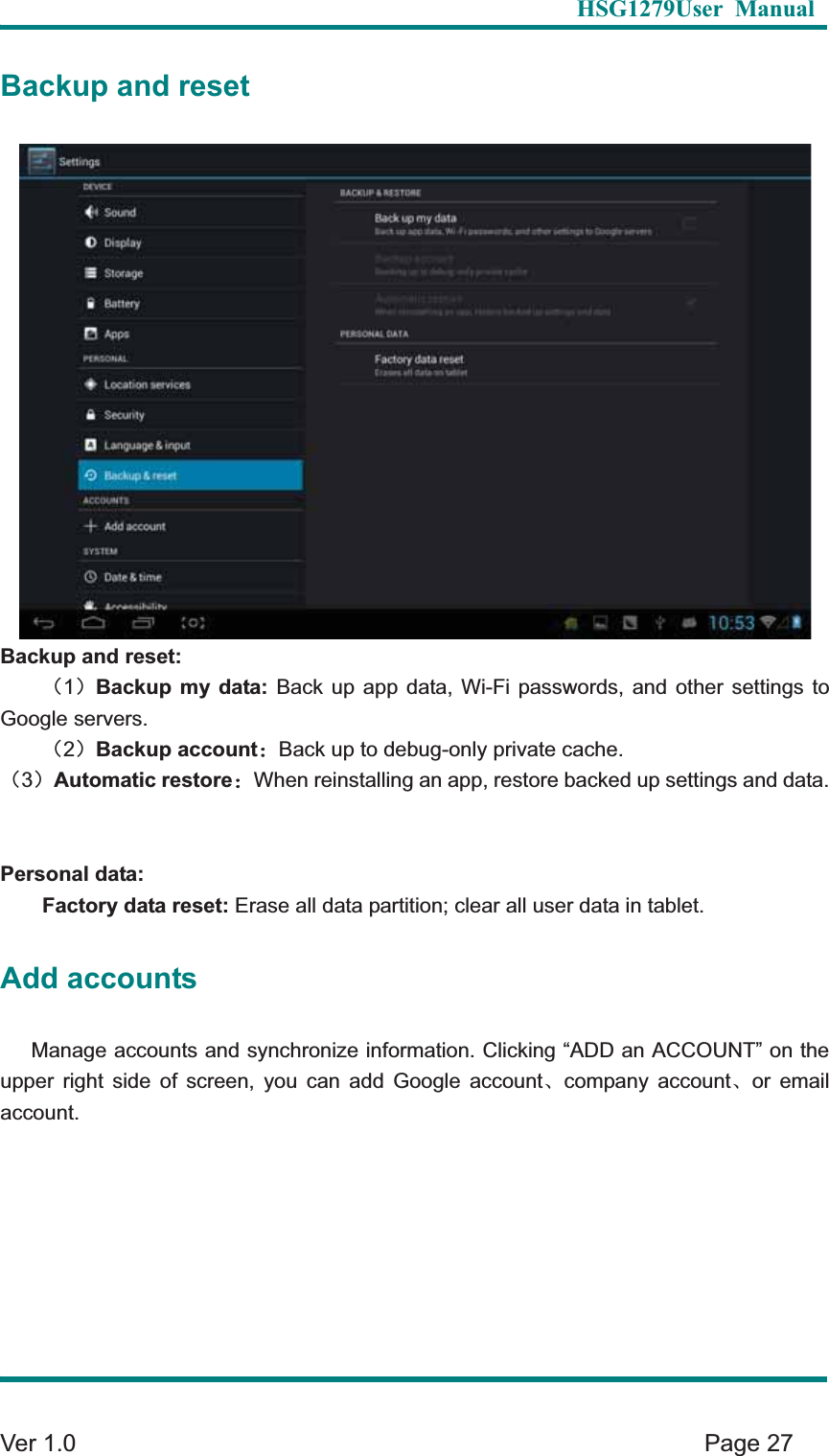

HSG1279User Manual Ver 1.0 Page 27 Backup and reset Backup and reset: δ1εBackup my data: Back up app data, Wi-Fi passwords, and other settings to Google servers. δ2εBackup accountφBack up to debug-only private cache. δ3εAutomatic restoreφWhen reinstalling an app, restore backed up settings and data.Personal data: Factory data reset: Erase all data partition; clear all user data in tablet. Add accounts Manage accounts and synchronize information. Clicking “ADD an ACCOUNT” on the upper right side of screen, you can add Google accountȽcompany accountȽor email account.

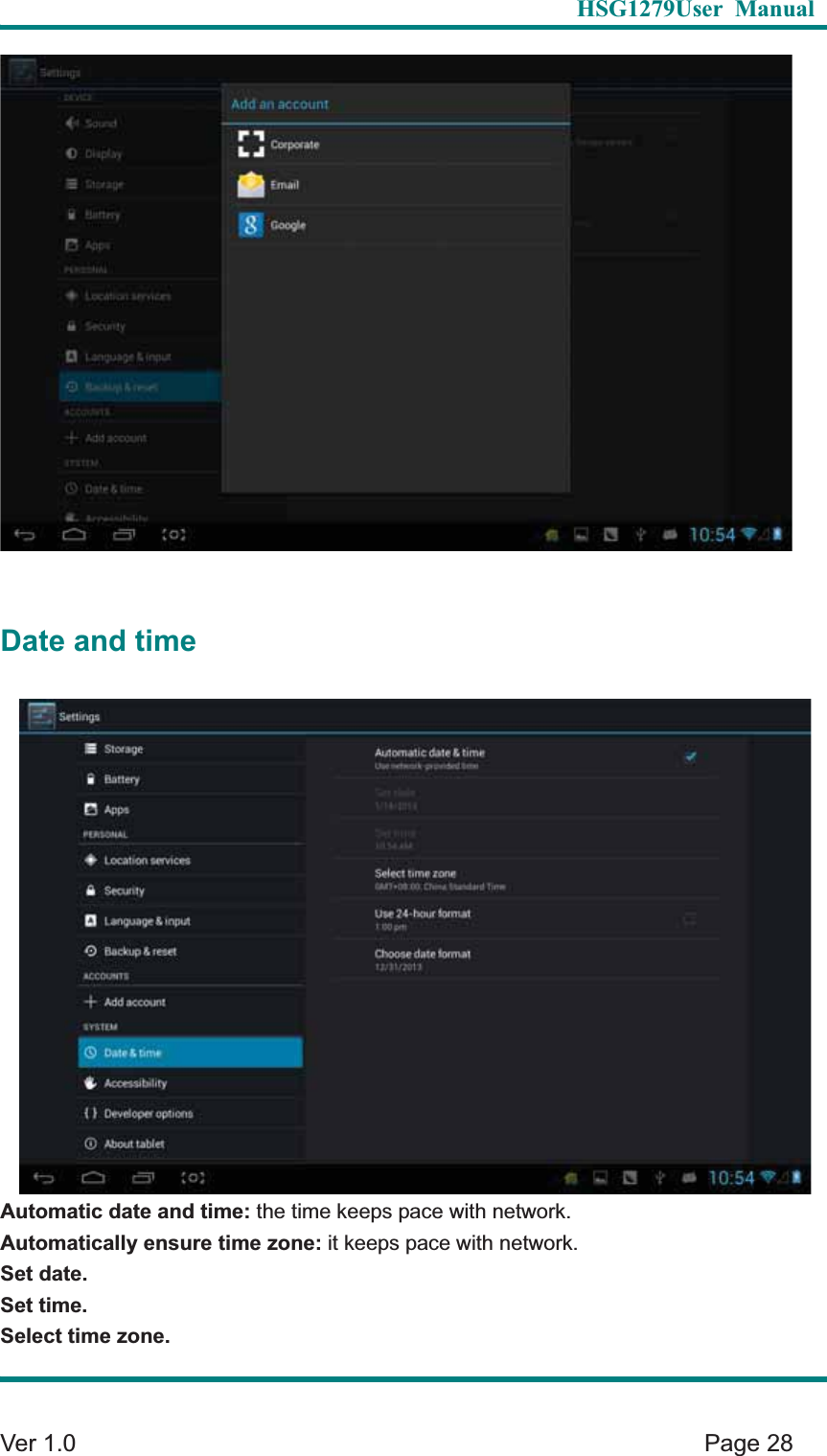

HSG1279User Manual Ver 1.0 Page 28 Date and time Automatic date and time: the time keeps pace with network.Automatically ensure time zone: it keeps pace with network.Set date. Set time. Select time zone.

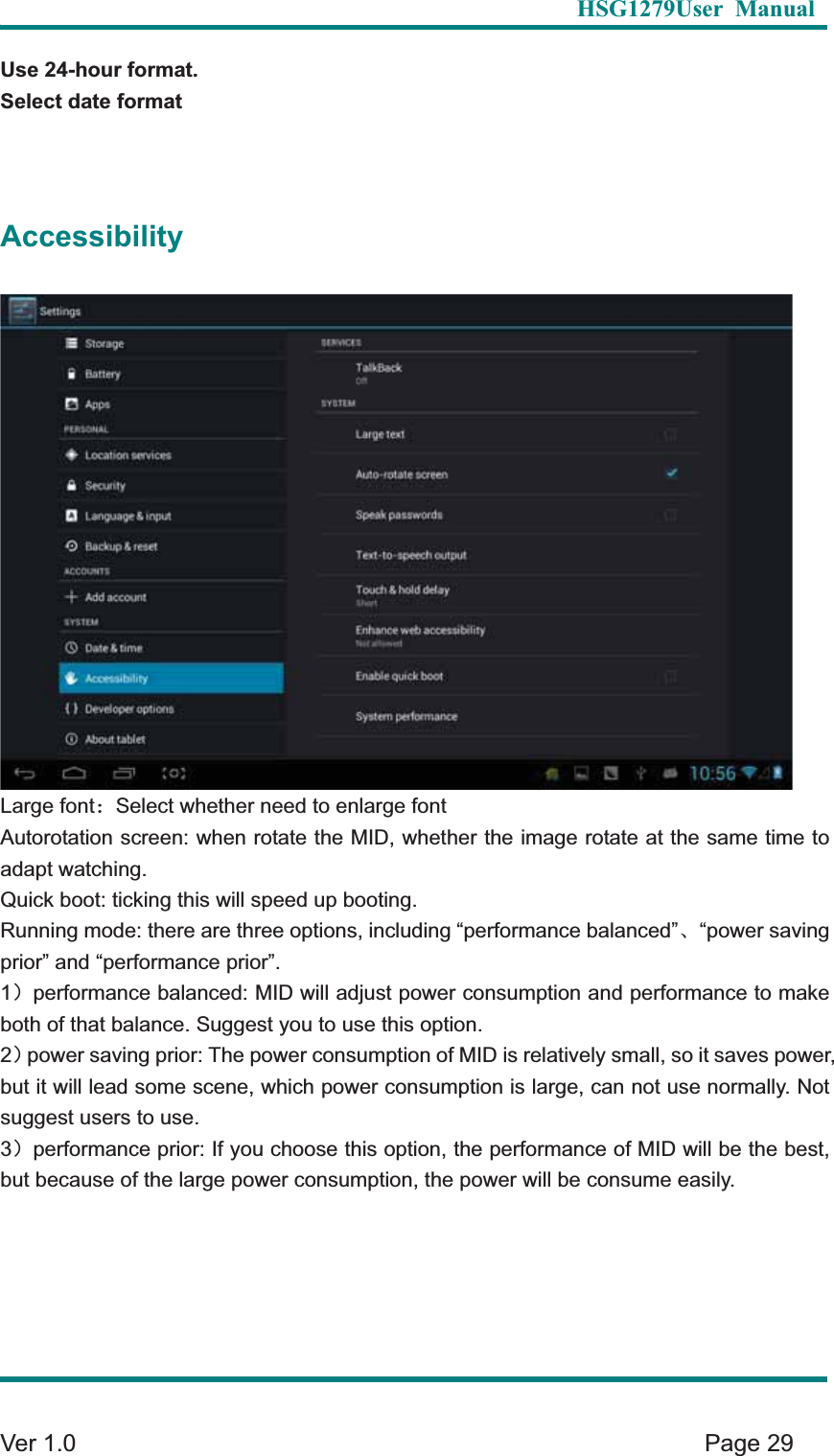

HSG1279User Manual Ver 1.0 Page 29 Use 24-hour format. Select date formatAccessibilityLarge fontφSelect whether need to enlarge font Autorotation screen: when rotate the MID, whether the image rotate at the same time to adapt watching. Quick boot: ticking this will speed up booting. Running mode: there are three options, including “performance balanced”Ƚ“power saving prior” and “performance prior”. 1εperformance balanced: MID will adjust power consumption and performance to make both of that balance. Suggest you to use this option. 2εpower saving prior: The power consumption of MID is relatively small, so it saves power, but it will lead some scene, which power consumption is large, can not use normally. Not suggest users to use. 3εperformance prior: If you choose this option, the performance of MID will be the best, but because of the large power consumption, the power will be consume easily.

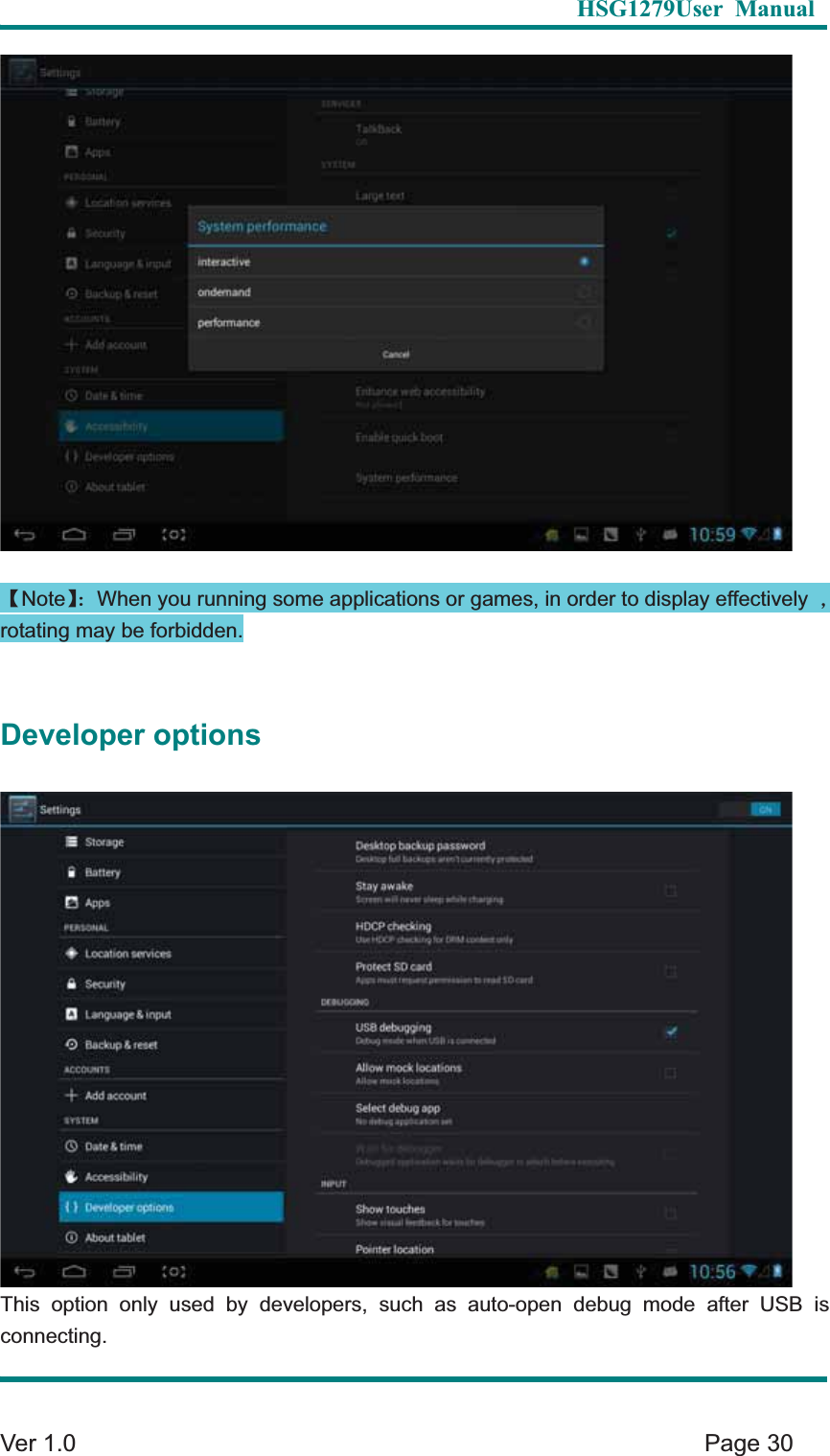

HSG1279User Manual Ver 1.0 Page 30 ɋNoteɌφWhen you running some applications or games, in order to display effectively θrotating may be forbidden. Developer options This option only used by developers, such as auto-open debug mode after USB is connecting.

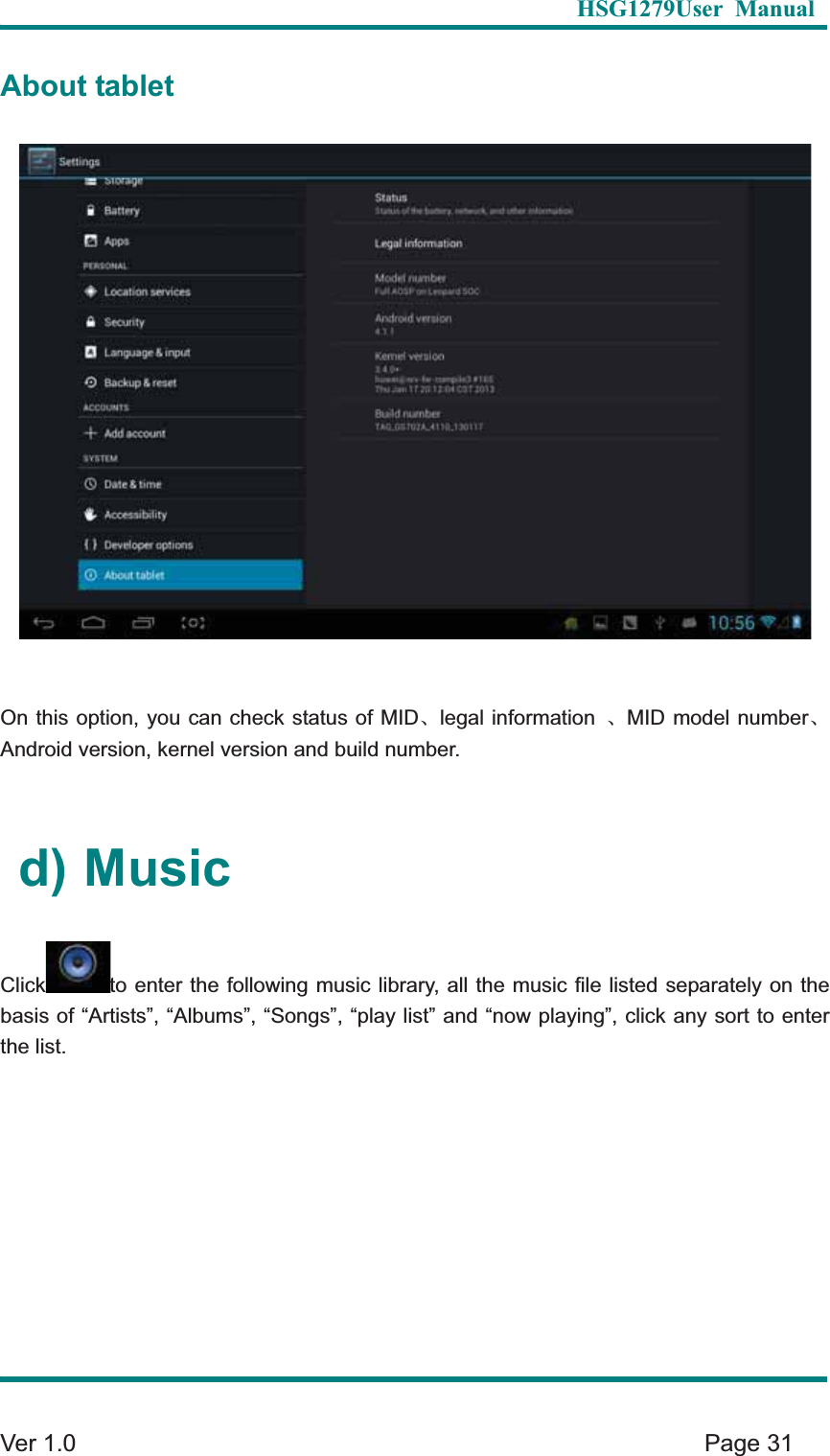

HSG1279User Manual Ver 1.0 Page 31 About tablet On this option, you can check status of MIDȽlegal information ȽMID model numberȽAndroid version, kernel version and build number. d) Music Click to enter the following music library, all the music file listed separately on the basis of “Artists”, “Albums”, “Songs”, “play list” and “now playing”, click any sort to enter the list.

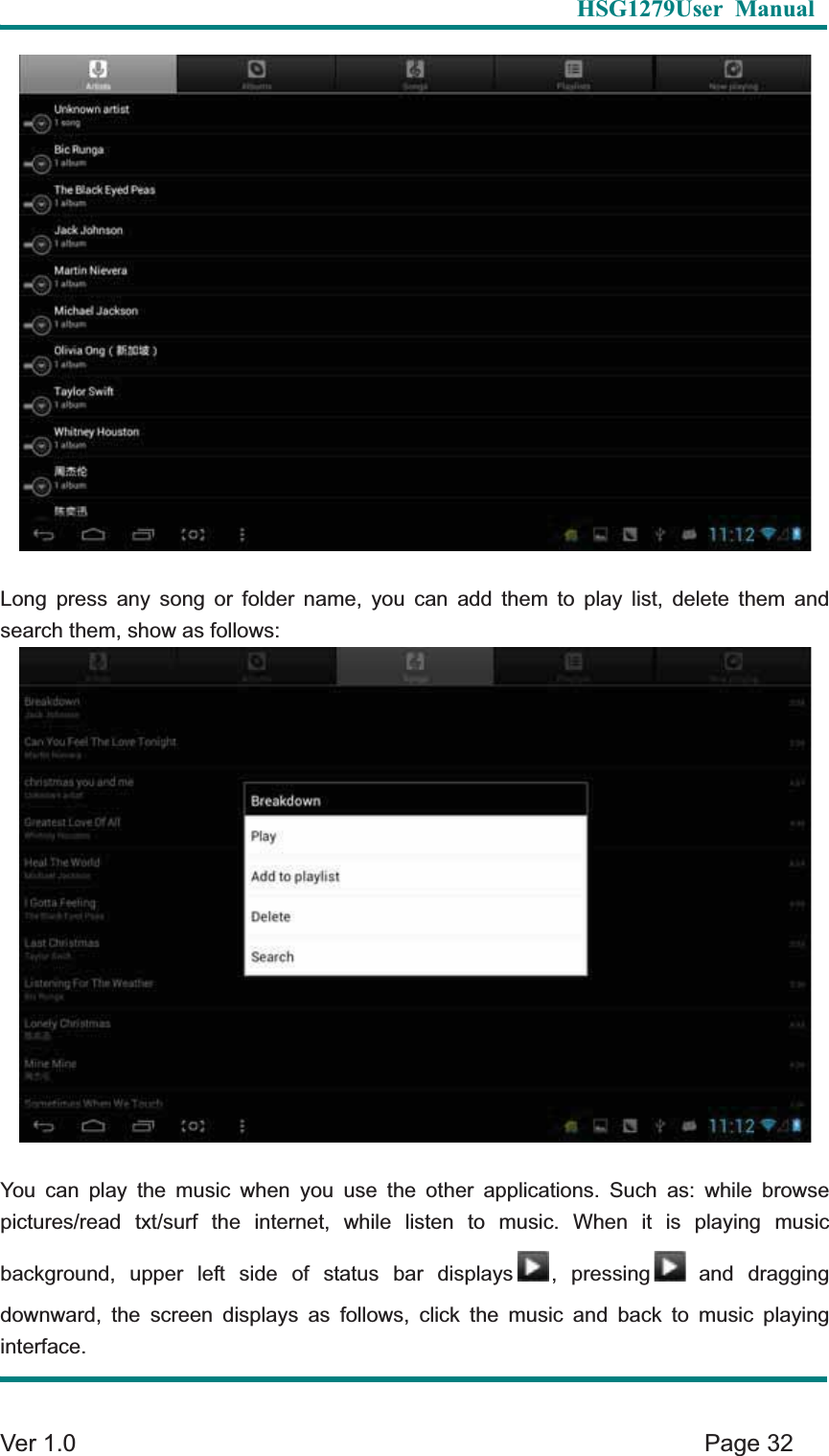

HSG1279User Manual Ver 1.0 Page 32 Long press any song or folder name, you can add them to play list, delete them and search them, show as follows: You can play the music when you use the other applications. Such as: while browse pictures/read txt/surf the internet, while listen to music. When it is playing music background, upper left side of status bar displays , pressing and dragging downward, the screen displays as follows, click the music and back to music playing interface.

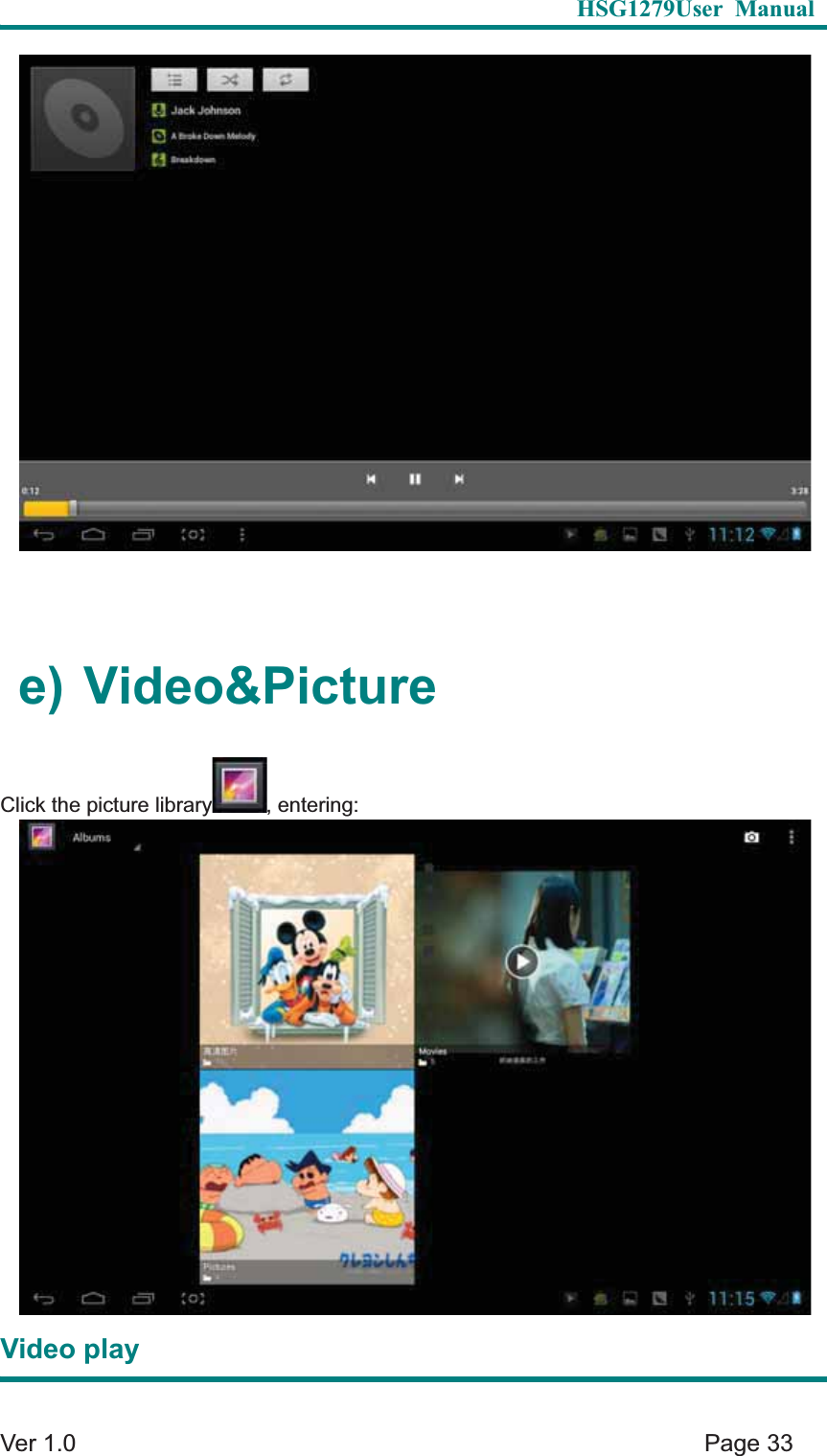

HSG1279User Manual Ver 1.0 Page 33 e) Video&Picture Click the picture library , entering: Video play

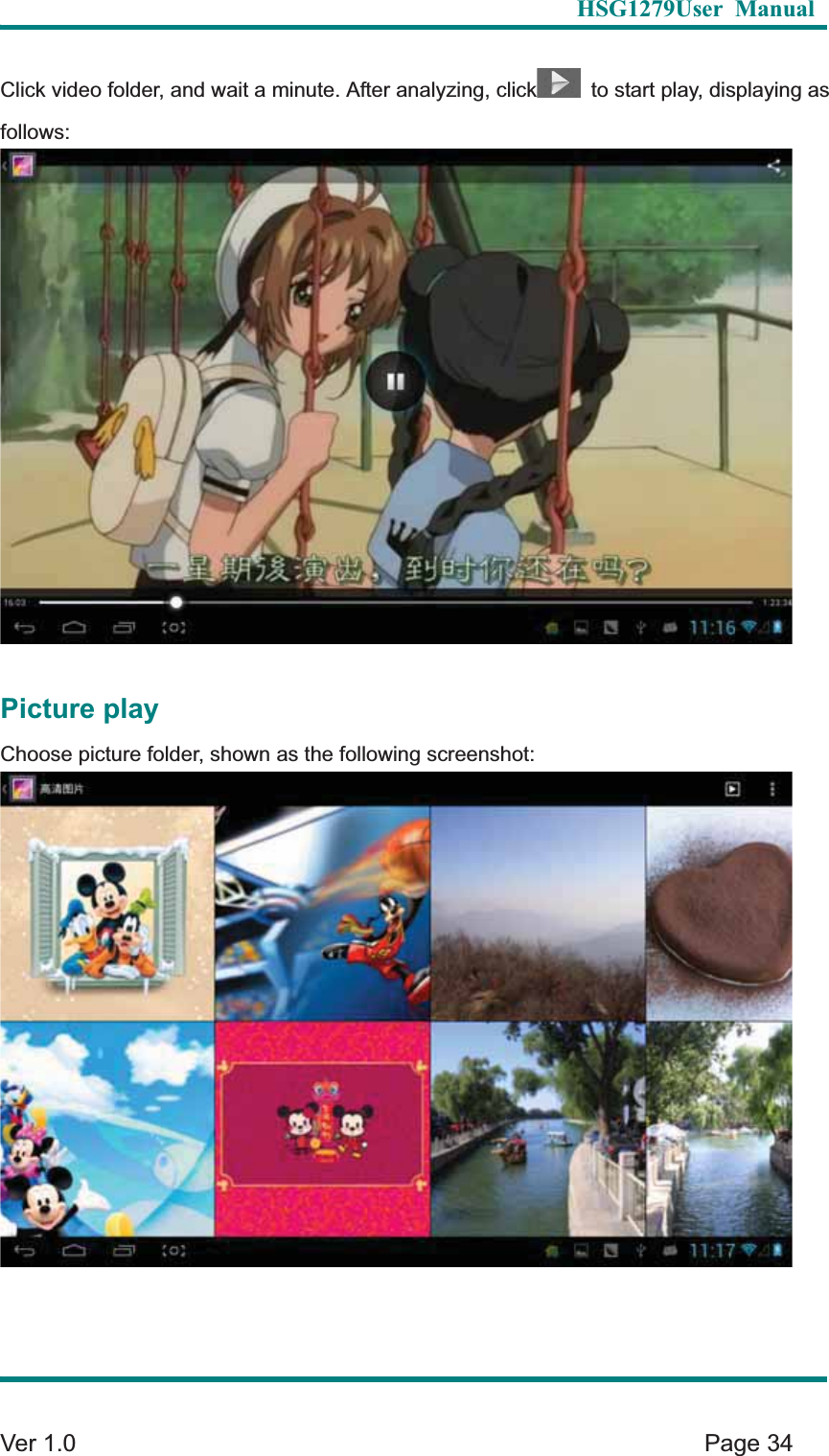

HSG1279User Manual Ver 1.0 Page 34 Click video folder, and wait a minute. After analyzing, click to start play, displaying as follows:Picture play Choose picture folder, shown as the following screenshot:

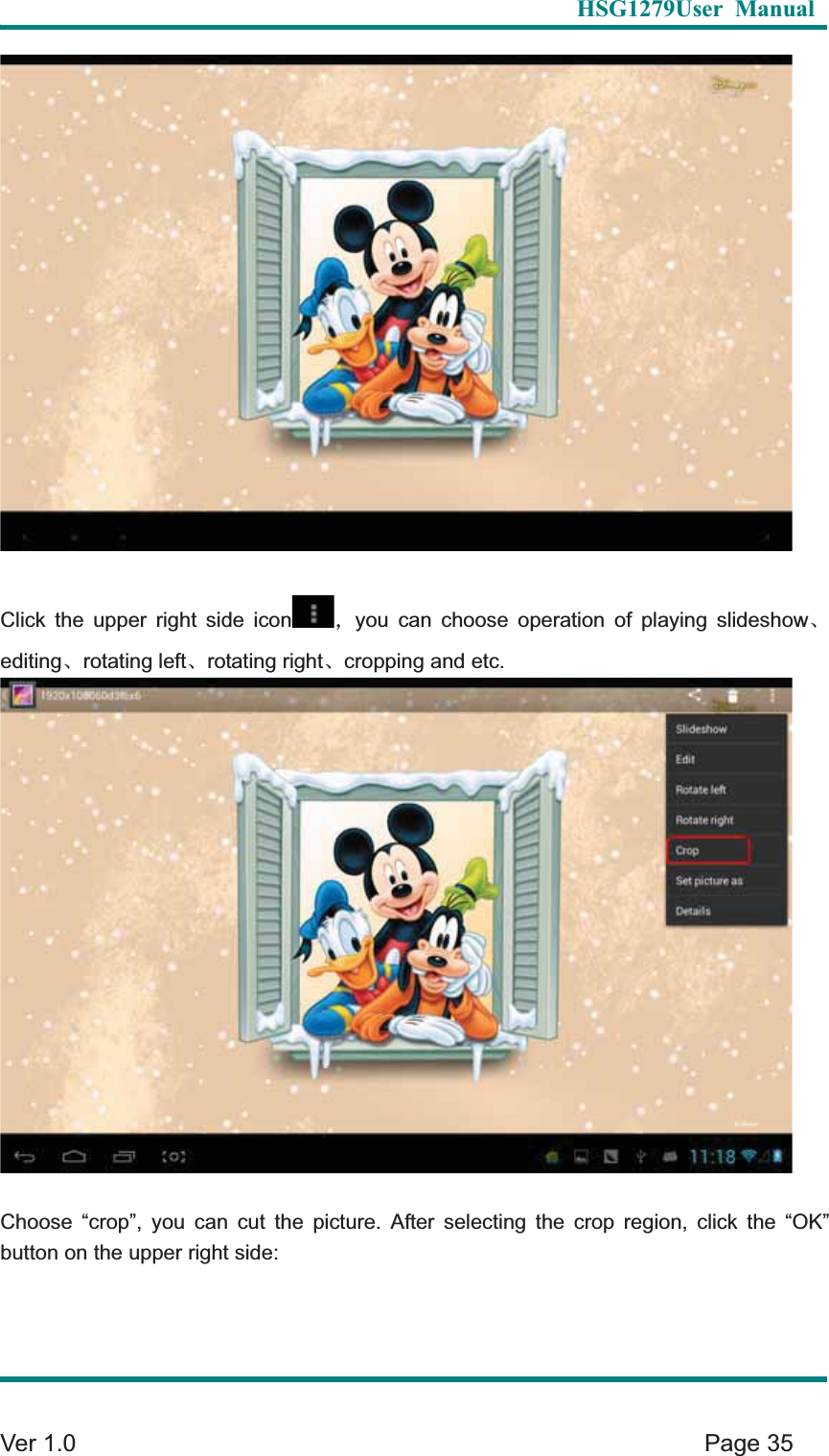

HSG1279User Manual Ver 1.0 Page 35 Click the upper right side icon θyou can choose operation of playing slideshowȽeditingȽrotating leftȽrotating rightȽcropping and etc. Choose “crop”, you can cut the picture. After selecting the crop region, click the “OK” button on the upper right side:

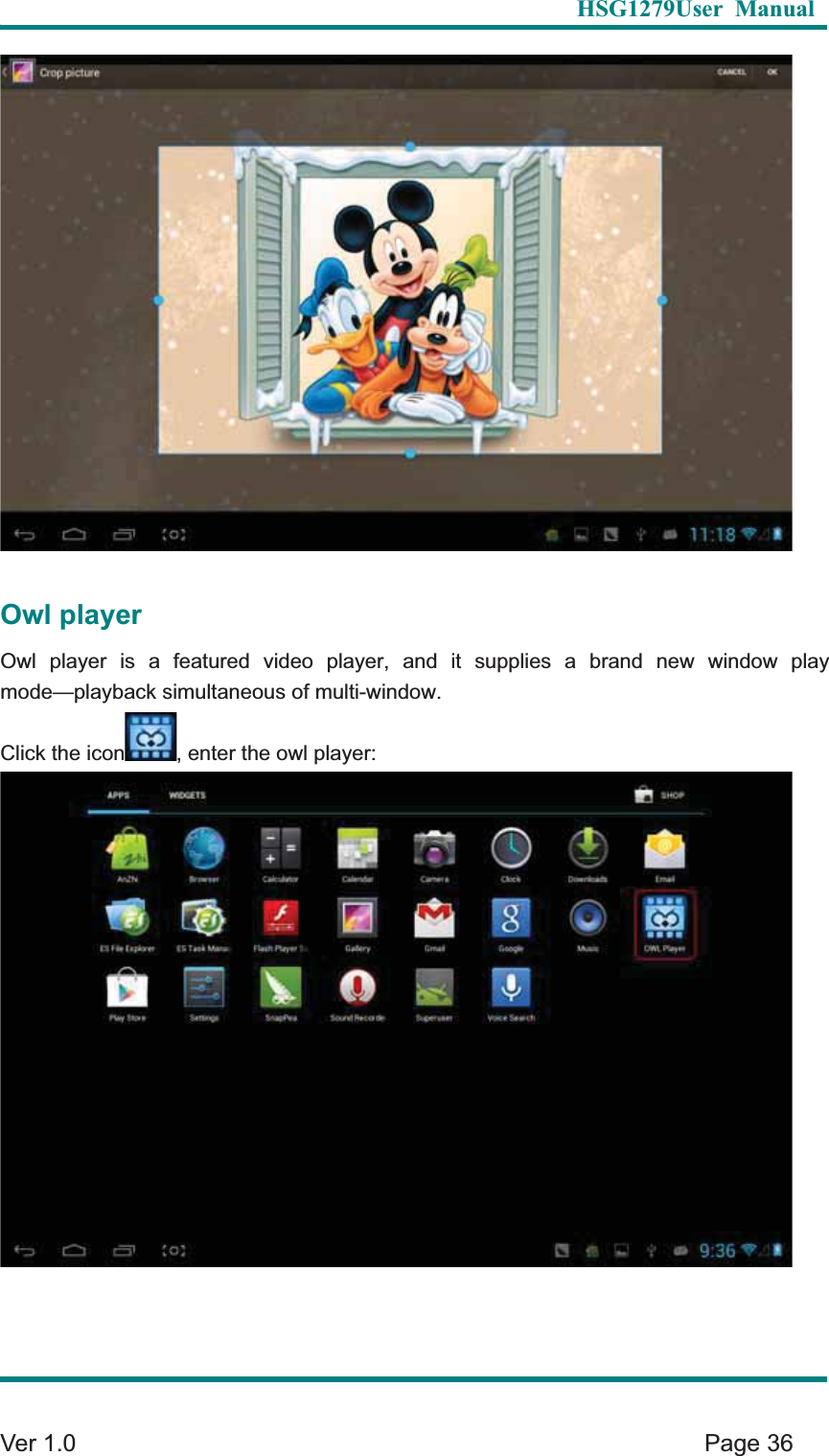

HSG1279User Manual Ver 1.0 Page 36 Owl player Owl player is a featured video player, and it supplies a brand new window play mode—playback simultaneous of multi-window. Click the icon , enter the owl player:

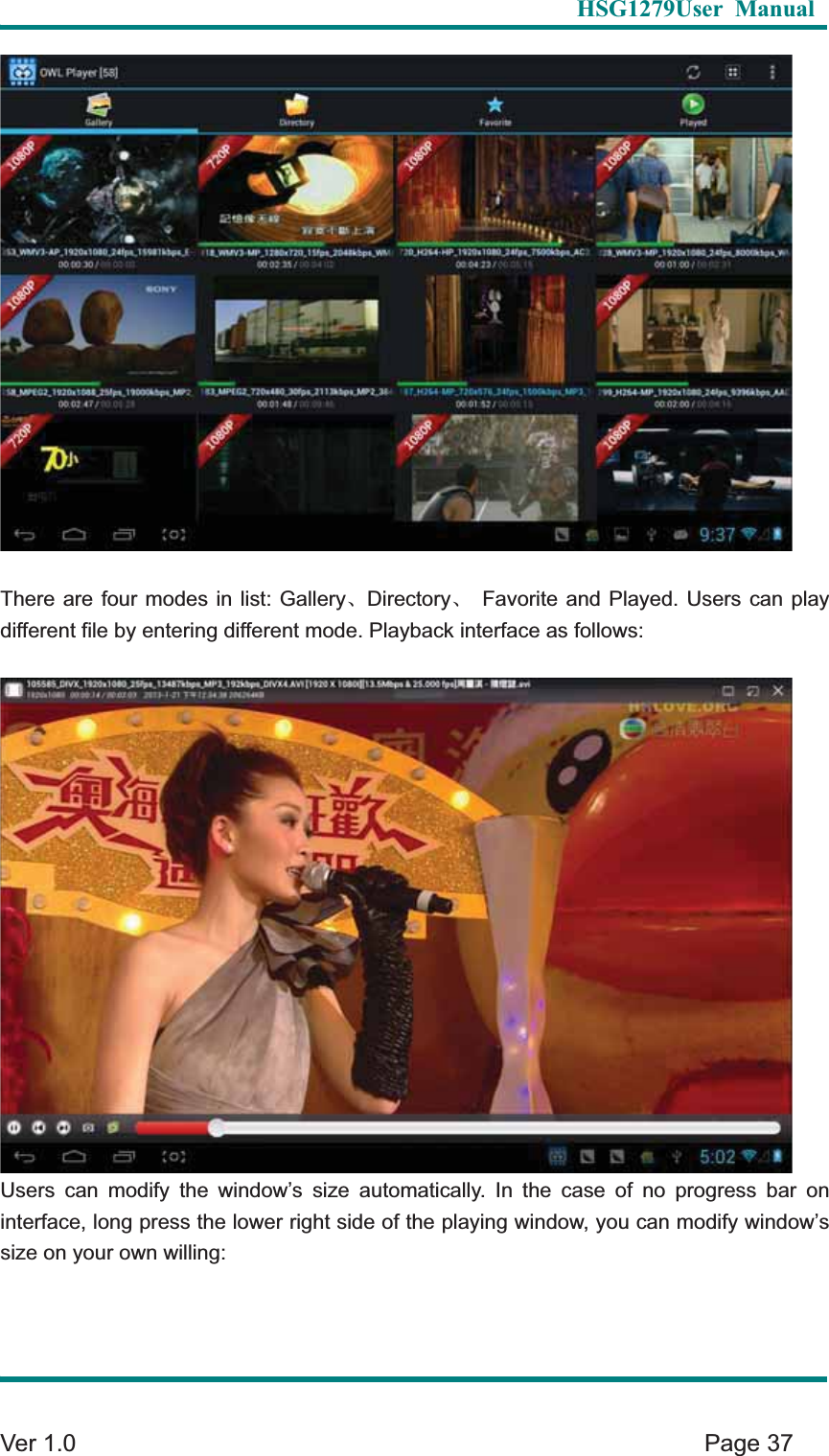

HSG1279User Manual Ver 1.0 Page 37 There are four modes in list: GalleryȽDirectoryȽ Favorite and Played. Users can play different file by entering different mode. Playback interface as follows: Users can modify the window’s size automatically. In the case of no progress bar on interface, long press the lower right side of the playing window, you can modify window’s size on your own willing:

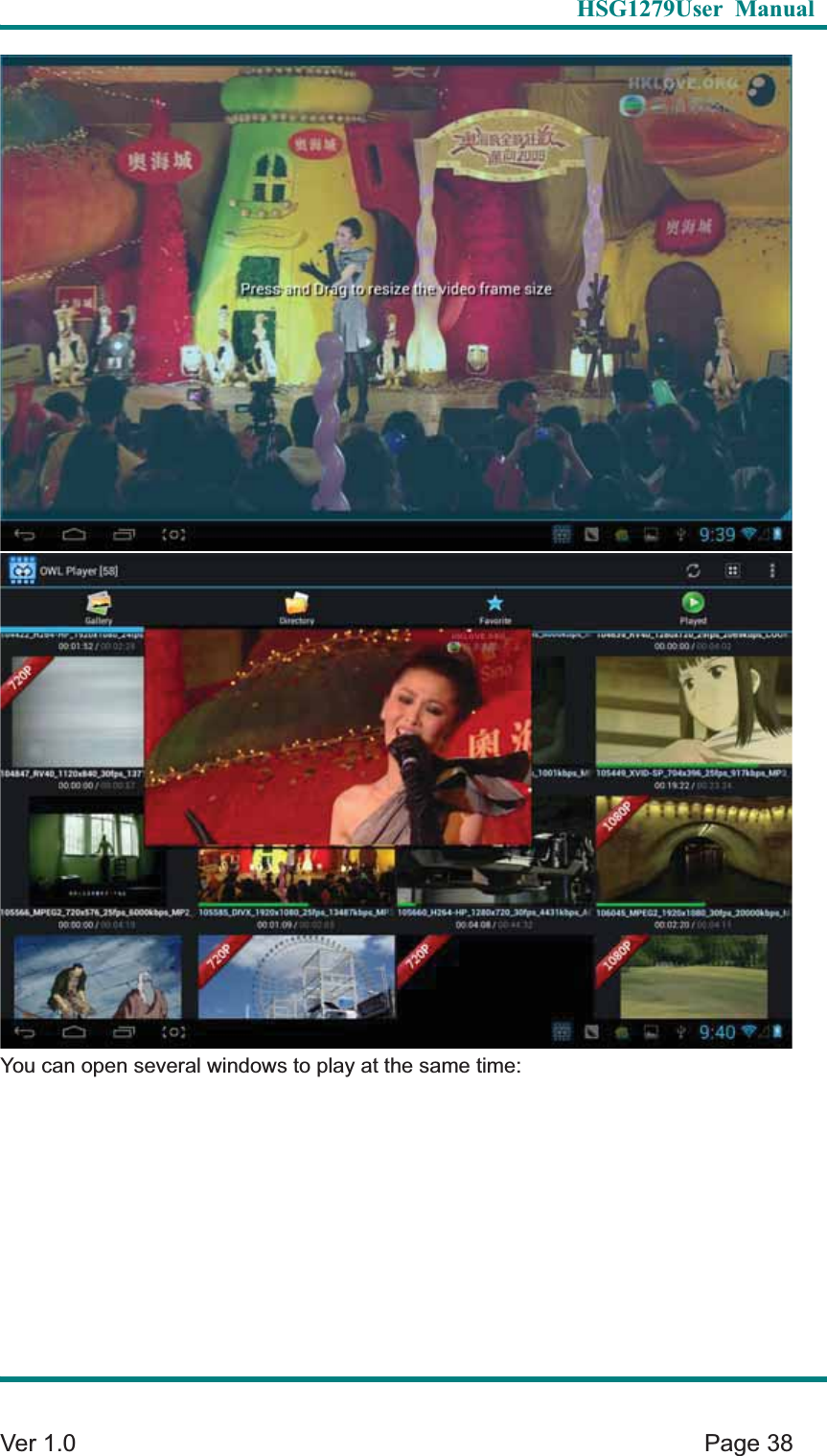

HSG1279User Manual Ver 1.0 Page 38 You can open several windows to play at the same time:

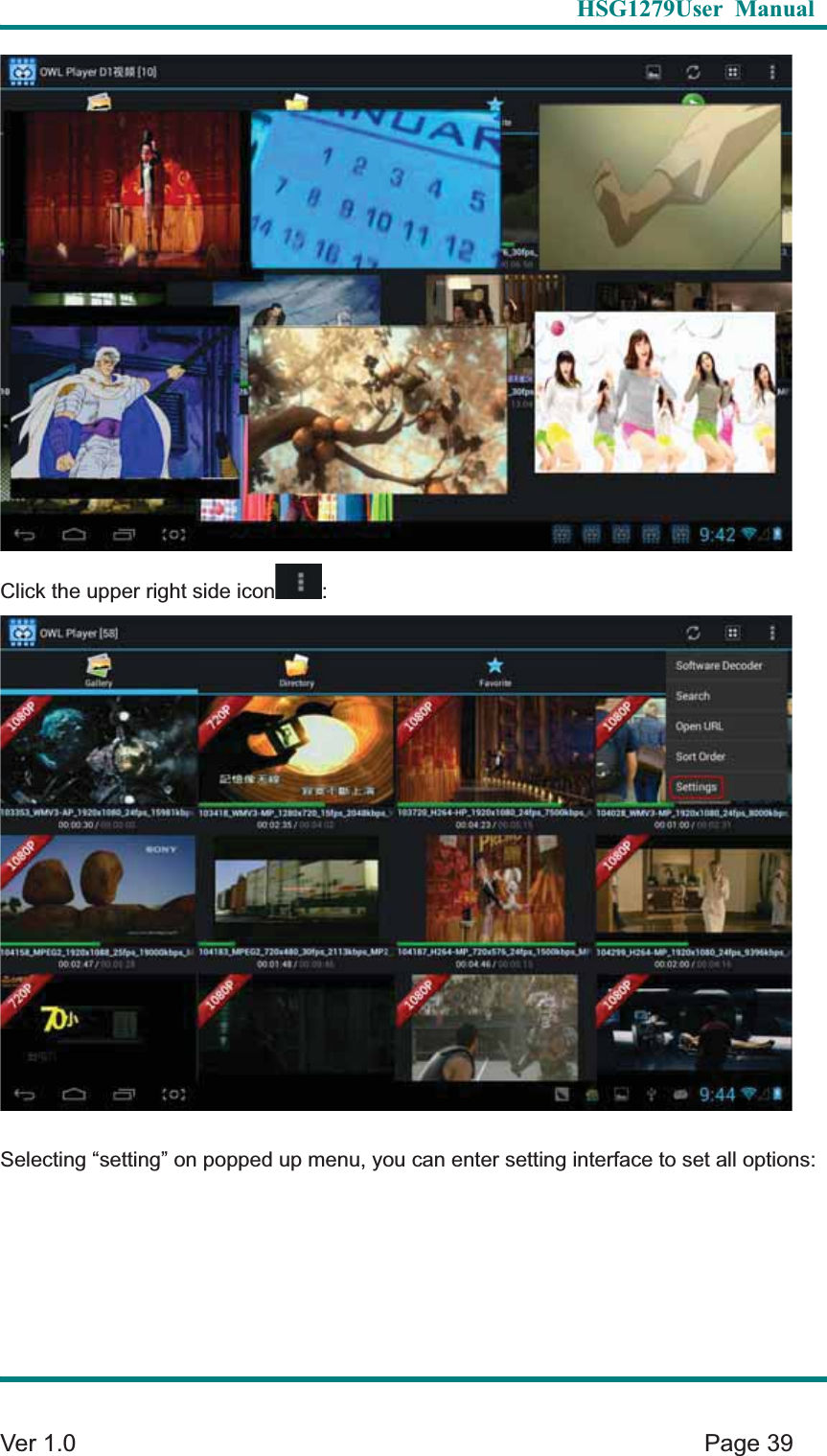

HSG1279User Manual Ver 1.0 Page 39 Click the upper right side icon :Selecting “setting” on popped up menu, you can enter setting interface to set all options:

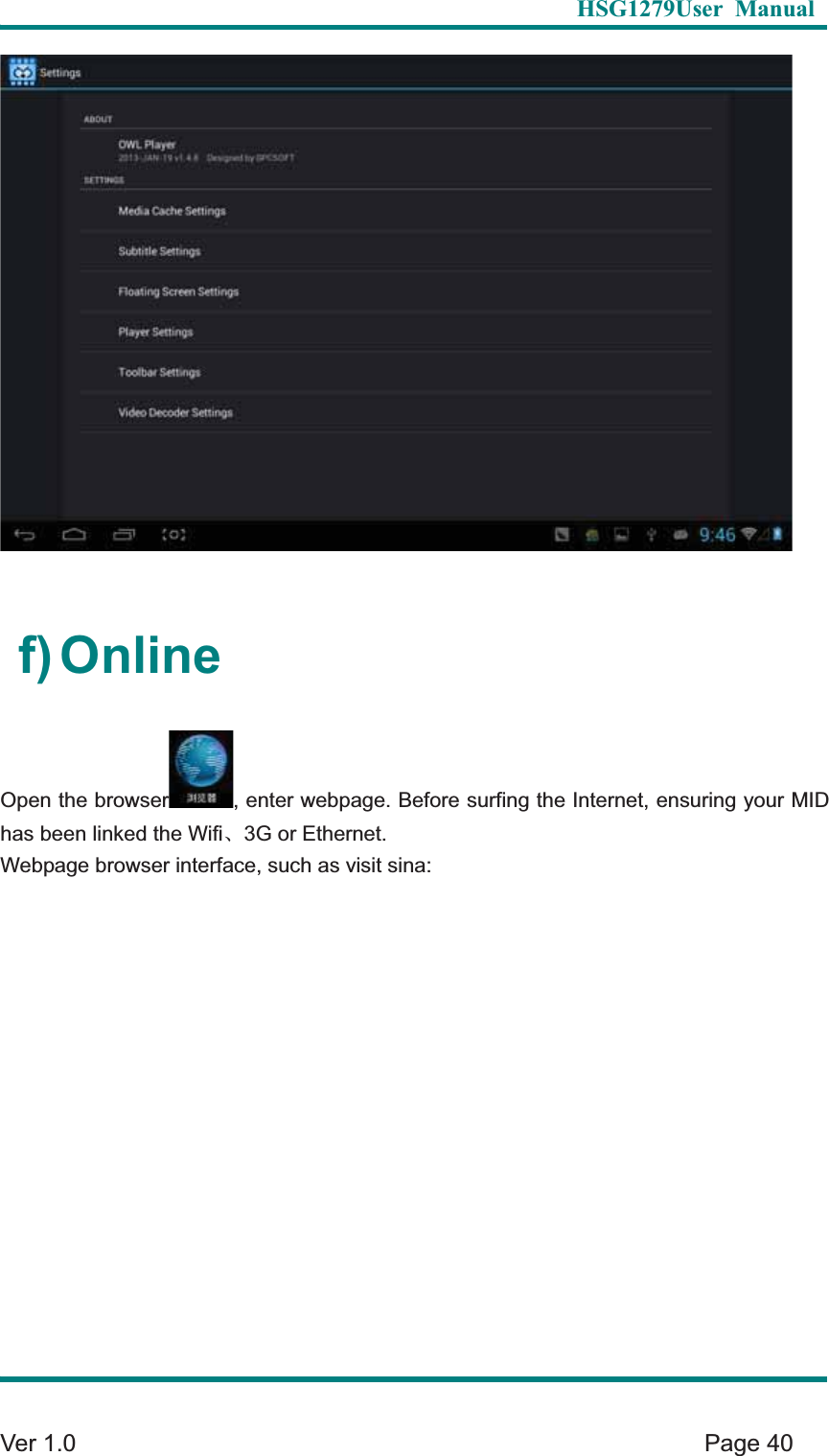

HSG1279User Manual Ver 1.0 Page 40 f) Online Open the browser , enter webpage. Before surfing the Internet, ensuring your MID has been linked the WifiȽ3G or Ethernet. Webpage browser interface, such as visit sina:

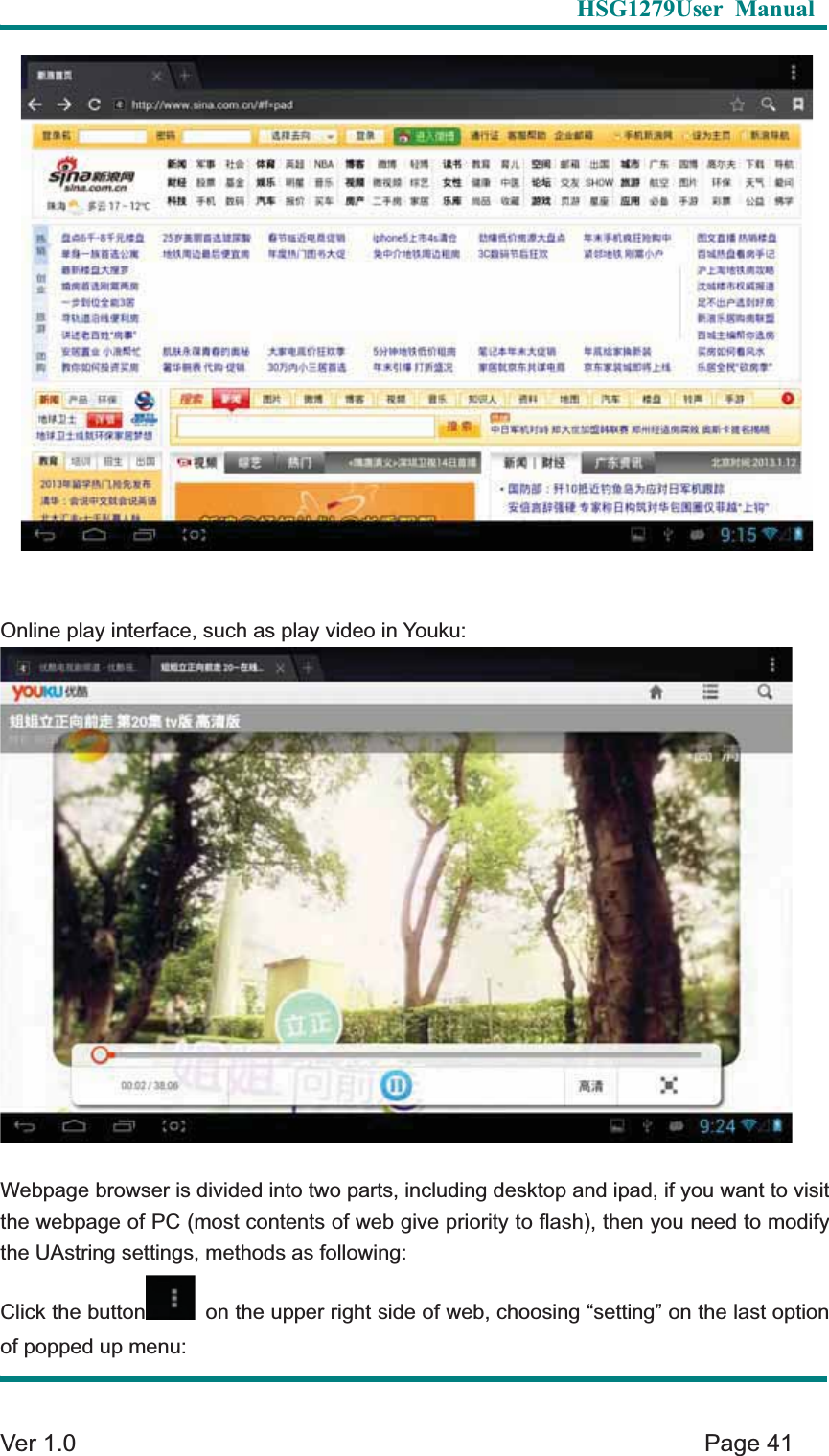

HSG1279User Manual Ver 1.0 Page 41 Online play interface, such as play video in Youku: Webpage browser is divided into two parts, including desktop and ipad, if you want to visit the webpage of PC (most contents of web give priority to flash), then you need to modify the UAstring settings, methods as following: Click the button on the upper right side of web, choosing “setting” on the last option of popped up menu:

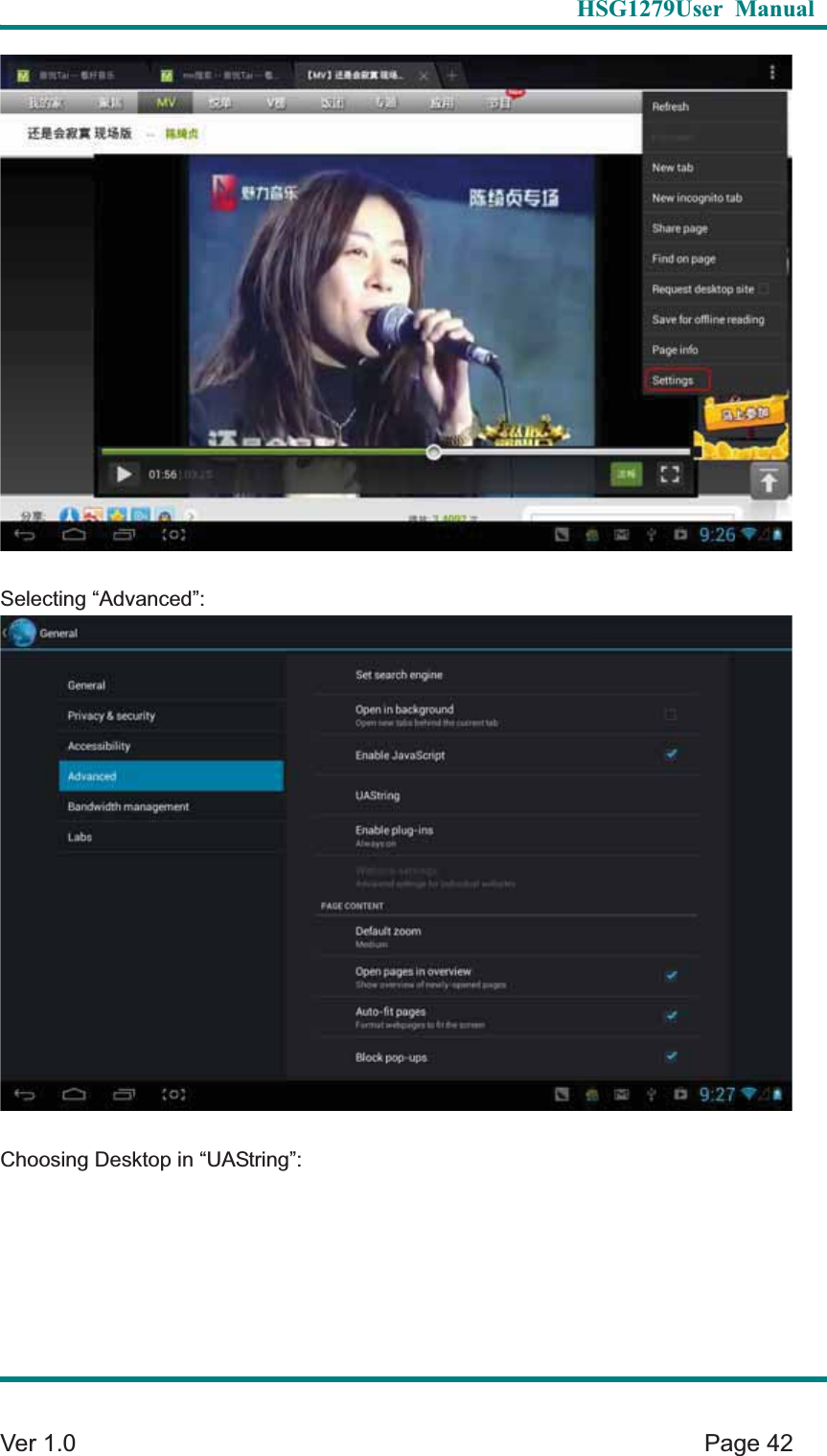

HSG1279User Manual Ver 1.0 Page 42 Selecting “Advanced”: Choosing Desktop in “UAString”:
HSG1279User Manual Ver 1.0 Page 43 Then come back to web playing interface and refresh: If you need to visit webpage of MID(most contents give priority to HTML5), then you need to change “UAstring” to ipadφ

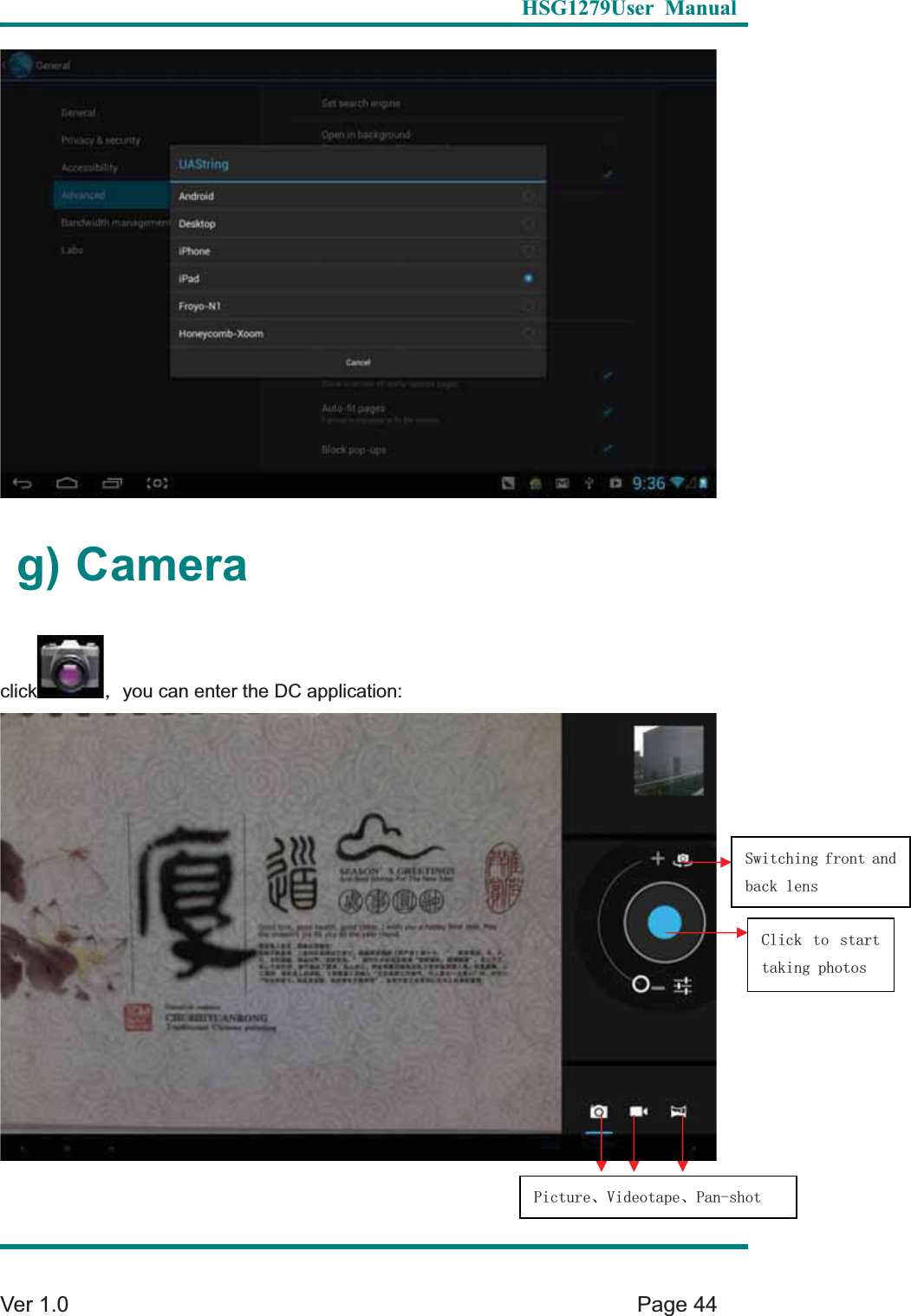

HSG1279User Manual Ver 1.0 Page 44 g) Camera click θyou can enter the DC application:6ZLWFKLQJIURQWDQGEDFNOHQV&OLFN WR VWDUWWDNLQJSKRWRV3LFWXUHǃ9LGHRWDSHǃ3DQVKRW

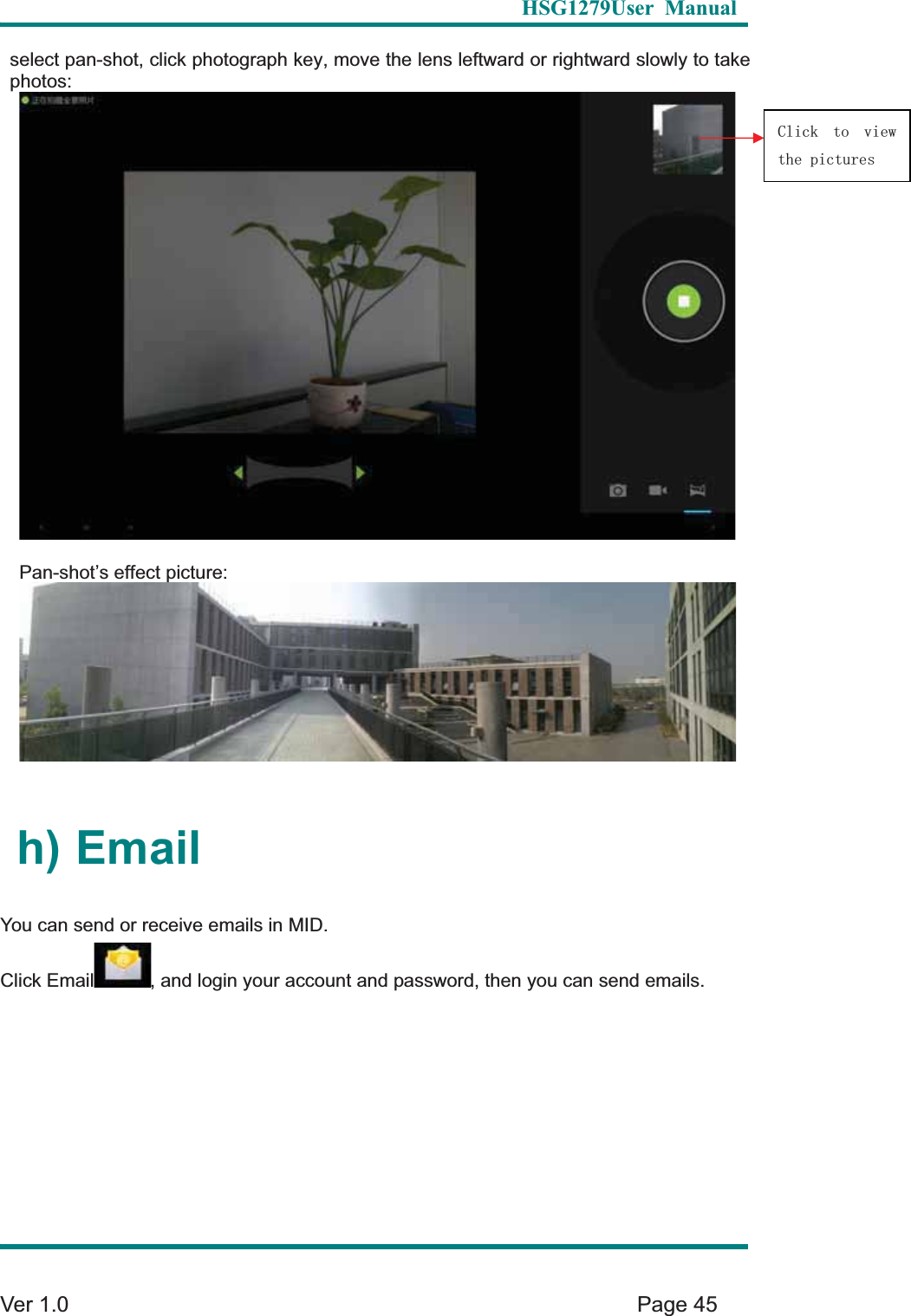

HSG1279User Manual Ver 1.0 Page 45 select pan-shot, click photograph key, move the lens leftward or rightward slowly to take photos:Pan-shot’s effect picture: h) Email You can send or receive emails in MID. Click Email , and login your account and password, then you can send emails.&OLFN WR YLHZWKHSLFWXUHV

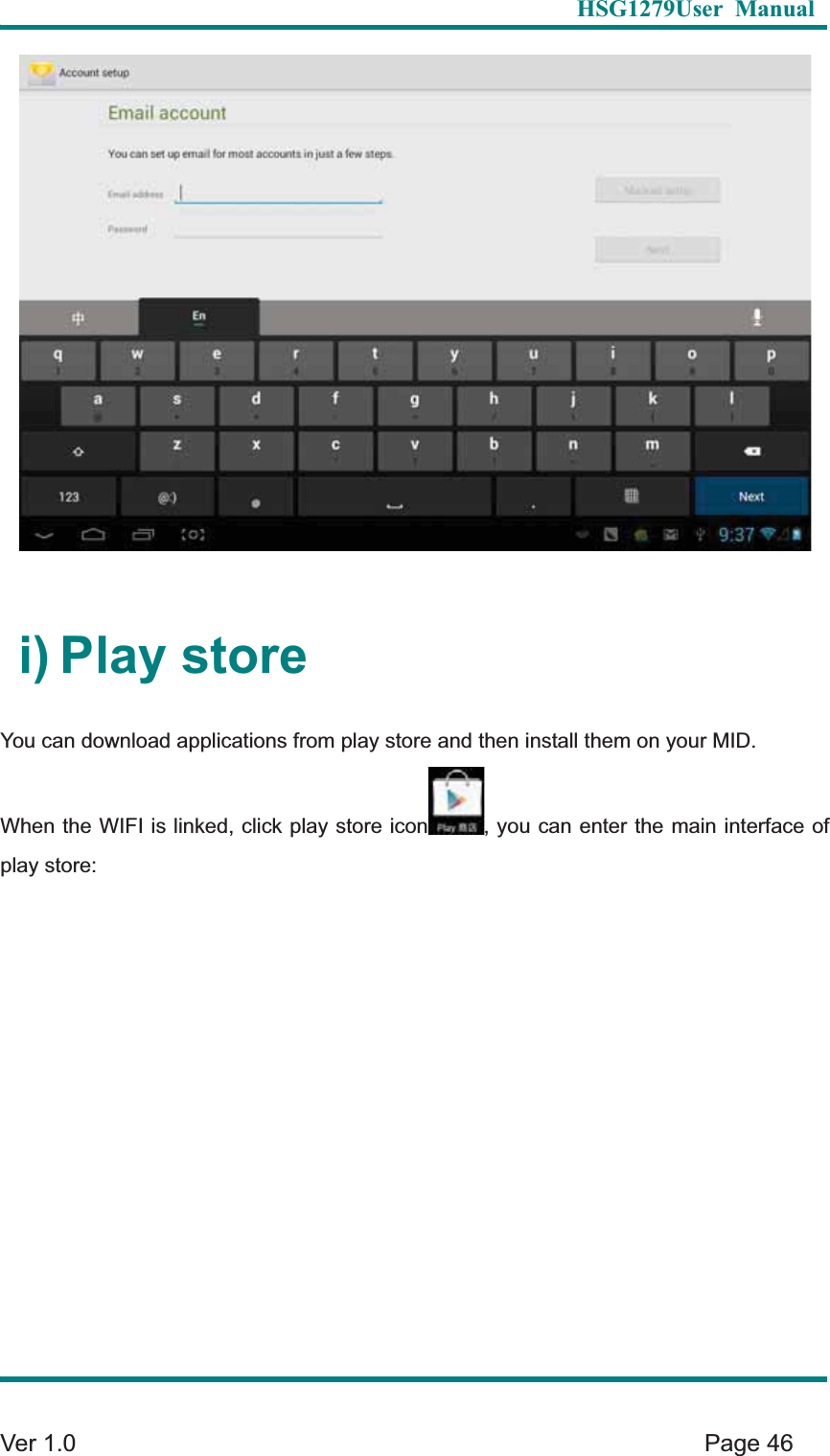

HSG1279User Manual Ver 1.0 Page 46 i) Play store You can download applications from play store and then install them on your MID. When the WIFI is linked, click play store icon , you can enter the main interface of play store:

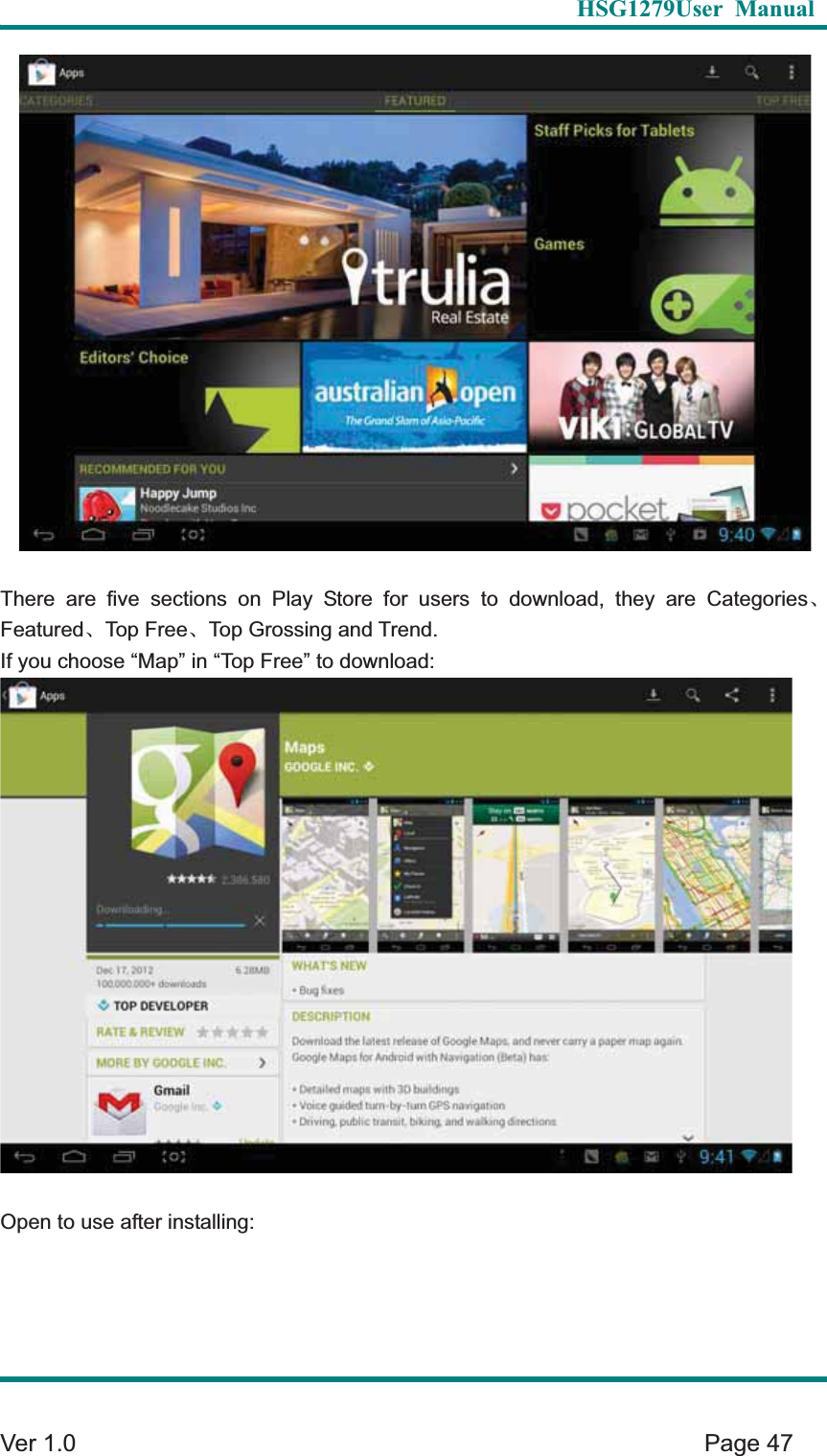

HSG1279User Manual Ver 1.0 Page 47 There are five sections on Play Store for users to download, they are CategoriesȽFeaturedȽTop FreeȽTop Grossing and Trend. If you choose “Map” in “Top Free” to download: Open to use after installing:

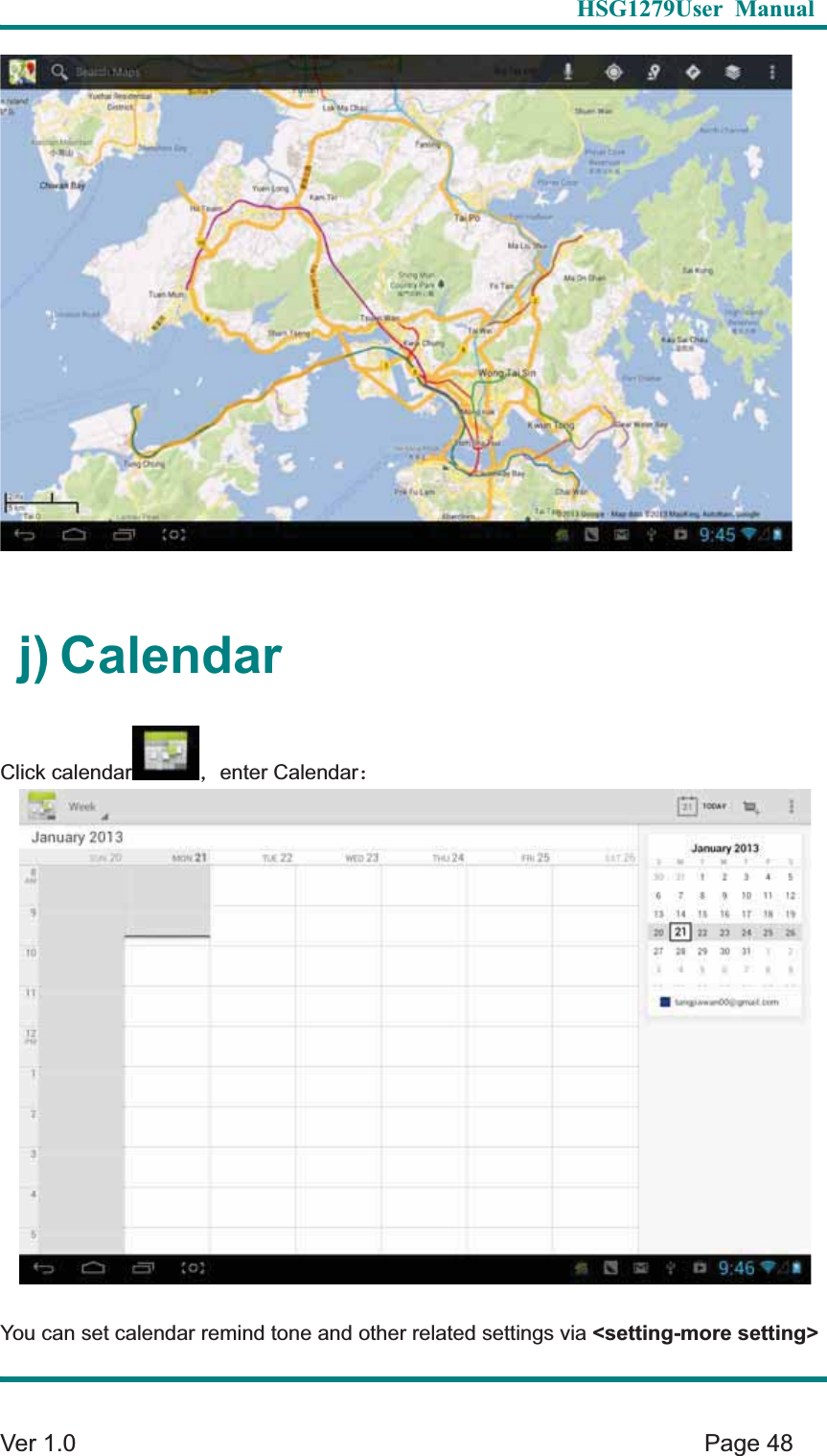

HSG1279User Manual Ver 1.0 Page 48 j) Calendar Click calendar θenter CalendarφYou can set calendar remind tone and other related settings via <setting-more setting>

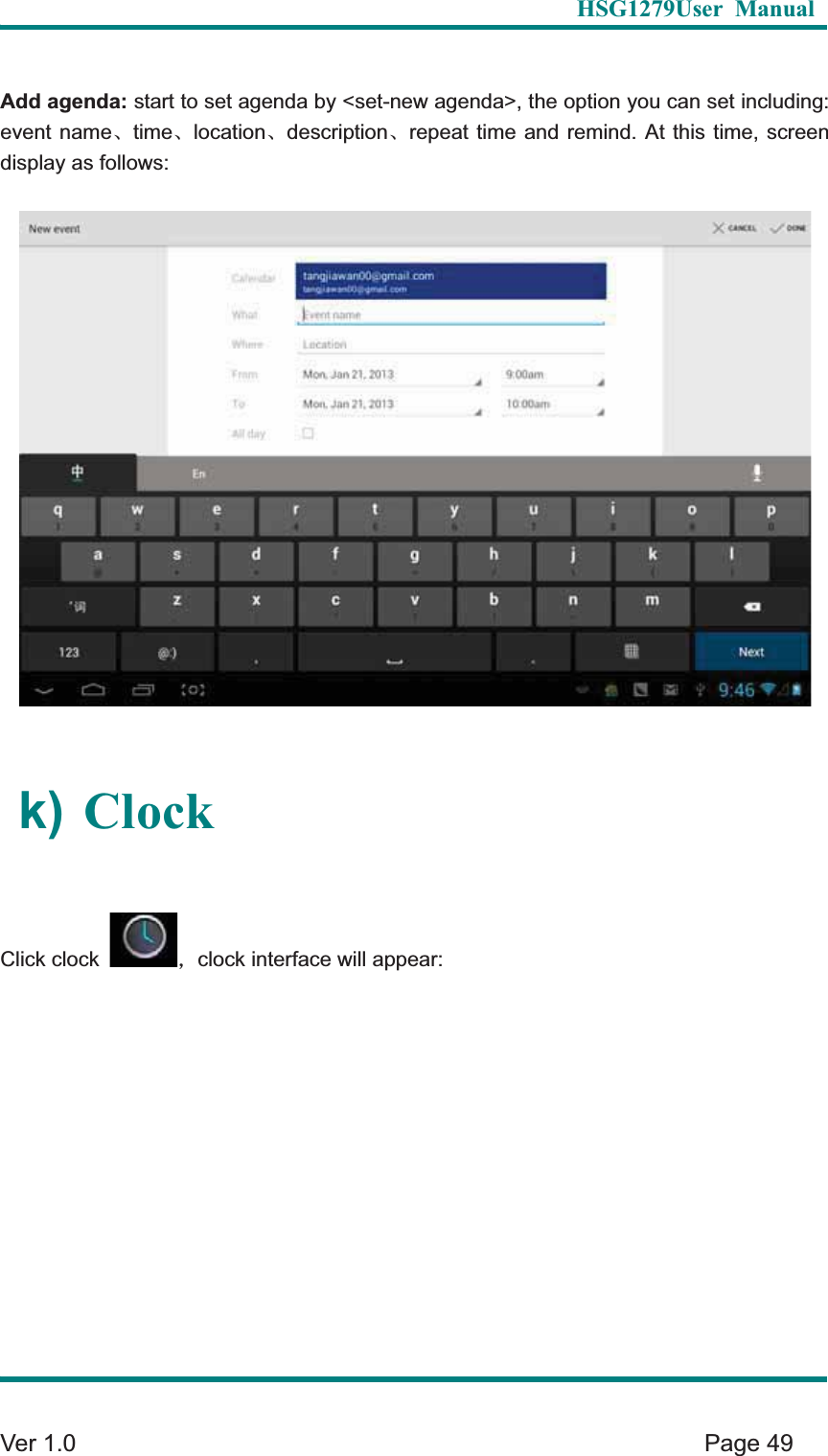

HSG1279User Manual Ver 1.0 Page 49 Add agenda: start to set agenda by <set-new agenda>, the option you can set including: event nameȽtimeȽlocationȽdescriptionȽrepeat time and remind. At this time, screen display as follows: k) ClockClick clock θclock interface will appear:
HSG1279User Manual Ver 1.0 Page 50 Click to set clock:

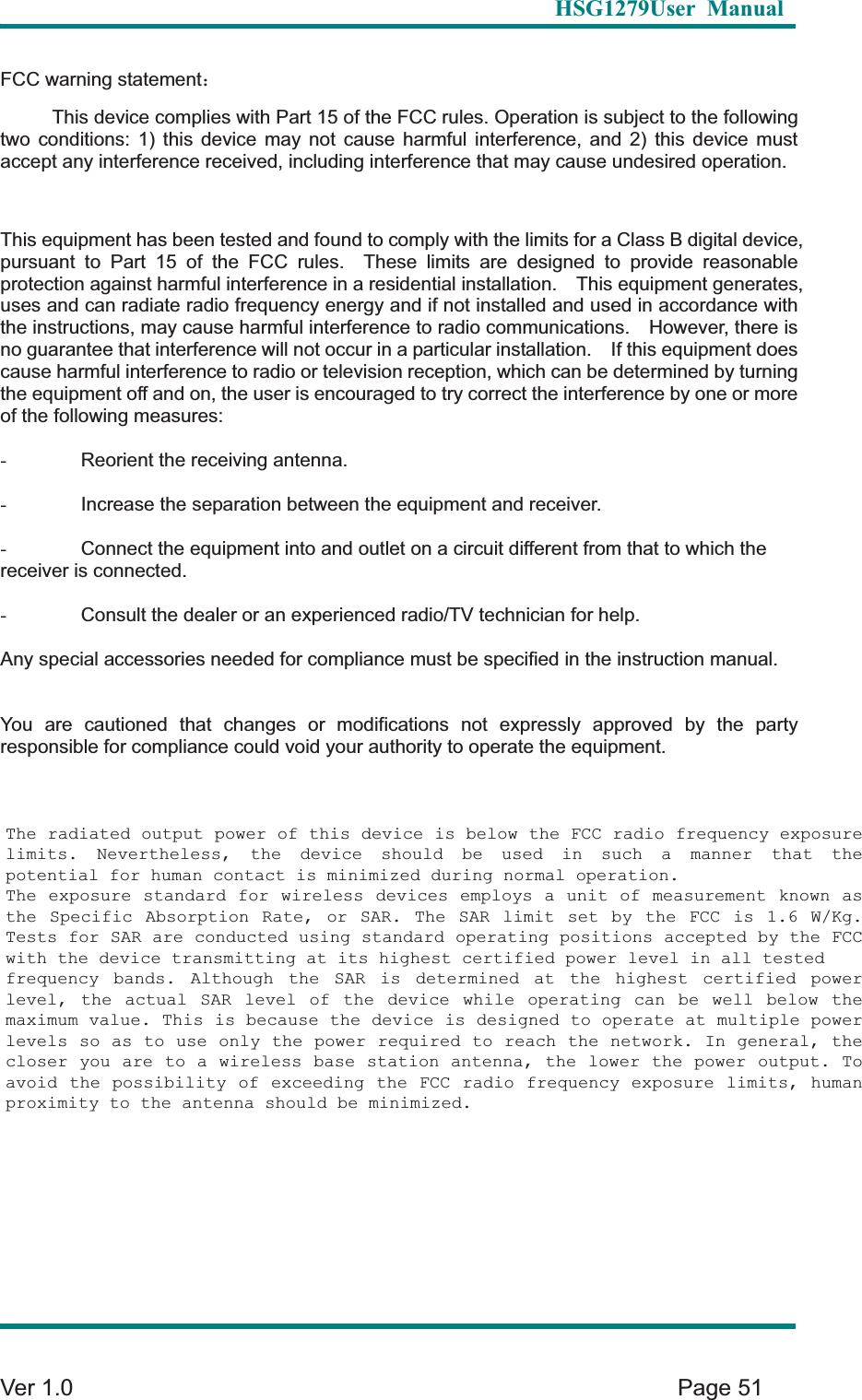

HSG1279User Manual Ver 1.0 Page 51 FCC warning statement˖This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correct the interference by one or more of the following measures: - Reorient the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into and outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Any special accessories needed for compliance must be specified in the instruction manual. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.The radiated output power of this device is below the FCC radio frequency exposure limits. Nevertheless, the device should be used in such a manner that the potential for human contact is minimized during normal operation. The exposure standard for wireless devices employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/Kg. Tests for SAR are conducted using standard operating positions accepted by the FCC with the device transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating can be well below the maximum value. This is because the device is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. To avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna should be minimized.
