Hansol LCD 720NF CRT Monitor User Manual
Hansol LCD Inc. CRT Monitor
User Manual
User’s Manual2User’s Manual 3
FCC Information
This equipment has been tested and found to comply with limits for a class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment can generates, uses, and radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful inteference to radio
Communications. However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause unacceptable interference to radio and television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures.
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced Radio/TV technician for help.
DECLARATION OF CONFORMITY
PRODUCT NAME : 17" COLOR MONITOR
MODEL NUMBER : 720NF
FCC RULES : TESTED TO COMPLY WITH FCC PART 15, CLASS B
OPERATING ENVIRONMENT : FOR HOME OR OFFICE USE
FCC COMPLIANCE STATEMENT :
This device complies with part 15 of FCC Rules. Operation is subject to the following two
conditions : (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE
HANSOL MULTITECH, INC.
7001, VILLAGE DRIVE, SUITE 255, BUENA PARK, CA. 90621, USA
TEL : (714)562-5151
Introduction
Package 4
Safety Information 4
Features 5
Power management system 6
Installation
Connection to your personal computer. 7
Pin assignment table D-sub mini 15 pin connector 7
Controls
OSD Menus 9
Troubleshooting
No picture 13
Image is scrolling or unstable 13
Picture is fuzzy 13
Picture bounces or a waving pattern is present in the picture
13
Edges of the display image are not square 13
Display image is not centered, too small, or too large 13
Specifications
Electrical specifications 14
Mechanical specifications 14
Environmental specifications 14
Appendix
Preset Timings 15
Caution
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Canadian Notice
This Class B digital apparatus meets all requirements of the Canadian
Interference Causing Equipment Regulations.
Avis Canadien
Cet appareil numérique de la classe B respecte toutes les exigences du
Règlement sur le matériel brouilleur du Canada.
Notice
The information contained in this document is subject to change without notice.
English
Introduction
User’s Manual 5
Introduction
User’s Manual4
ENGLISH

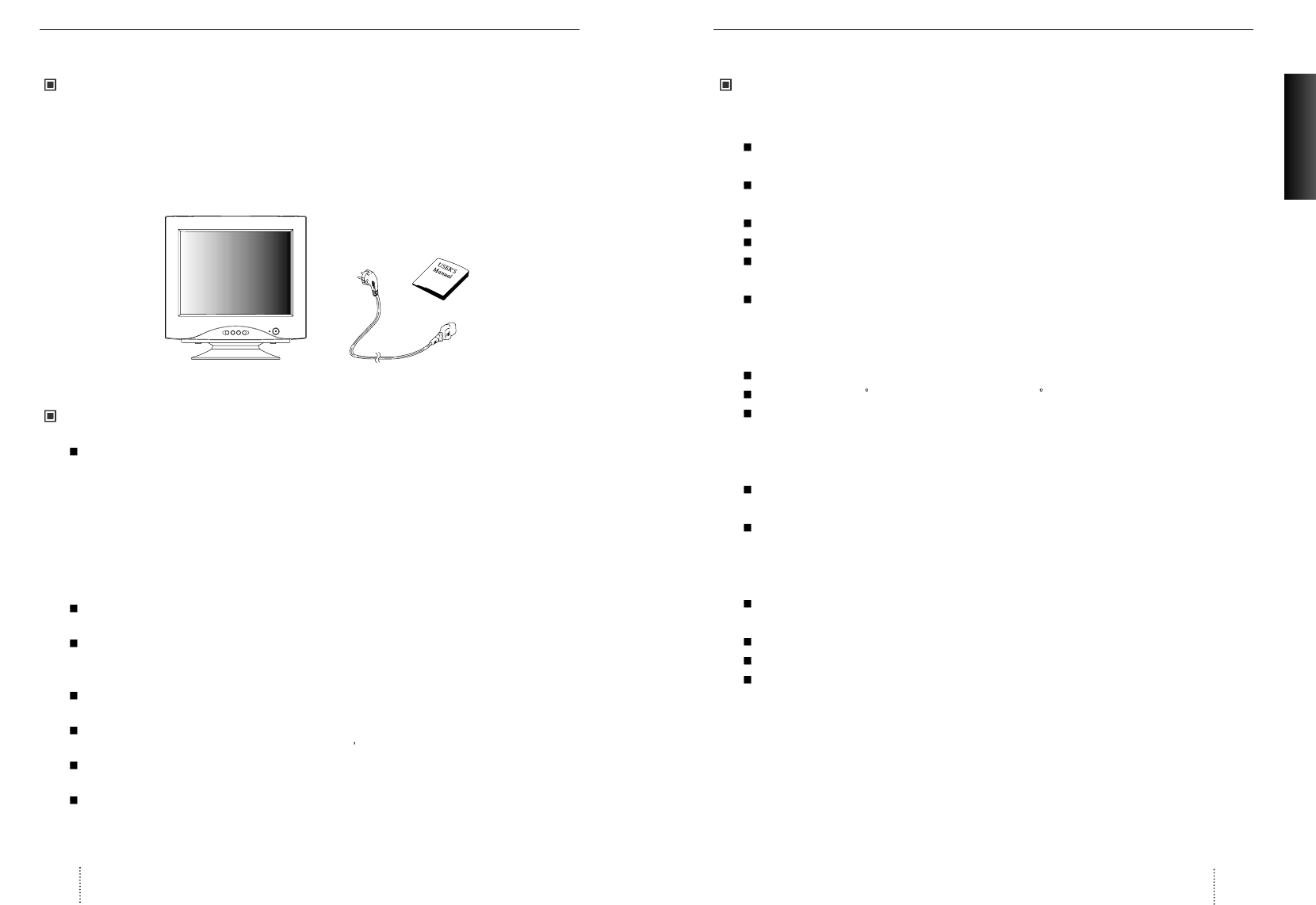

Package
Congratulations on your purchase of this top quality color monitor!
The items illustrated below are contained in the carton.
First, be sure that your carton includes all of them.
If any items are missing or damaged, please contact your local dealer or supplier.
Safety information
Provided with this monitor is a detachable power supply cord with IEC320 style terminations. It
may be suitable for connection to any UL listed personal computer with similar configuration.
Before making the connection ensure that the voltage rating of the computer convenience
outlet is the same as the monitor and that the ampere rating of the computer convenience
outlet is equal to or exceeds the monitor current rating.
For 120Volt applications use only UL listed detachable power cord with NEMA configuration
5-15P type(parallel blades) plug cap.
For 240Volt applications use only UL listed detachable power cord with NEMA configuration
6-15P type(tandem blades) plug cap.
Use only a power source and connection appropriate for the monitor as indicated on the
marking label.
Slots and openings in the cabinet are provided for ventilation;
these openings must not be blocked or covered. Never push objects of any kind into cabinet
slots or other openings.
Never insert anything metallic into the monitor openings.
Doing so may create a danger of electric shock.
To avoid electric shock, never touch the inside of the monitor.
Only a qualified technician should open the monitor s case.
Unplug the monitor from the wall outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp, lint-free cloth for cleaning.
Install the monitor near an outlet that you can reach easily. Disconnect the product by
grasping the plug firmly and pulling in from the outlet.
Never disconnect it by pulling the cord.
Display Monitor AC Power Input Cable
Features
Superior image
On Screen menu fingertip control system to visually select and adjust screen using buttons on
front panel and on screen menus.
The exclusive double dynamic focus system with a hyperbolic focus compensation circuit
controls the electron beams resulting in a fine image display over the entire area of the screen.
Super contrast screen for superior contrast and richer color.
Advanced INVAR Shadow mask for superior focus, brightness and color.
17", 0.25 Aperture grill pitch high resolution, non-interlaced technology provides sharp, flicker-
free images.
On screen menu color control system easily allows the white of the image to be adjusted as
well as R.G.B signals, resulting in true-to-life colors.
Ergonomic Design
Flat, square screen to reduce image distortion and glare, thus relieving eye strain.
Tilt base allowing 90 rotation in the horizontal and 17 in the vertical for greater user comfort.
Low-leak radiation prevention meeting MPR II and the very stringent TCO (option) magnetic
field emissions standards for increased user safety.
Environmentally Friendly
Power management circuit conforming to VESA DPMS standards controls energy
consumption when monitor is not in use, you save energy.
All plastic parts are recyclable. All materials are strictly selected to ensure ease of
maintenance, inspection and disposal.
Timing
Automatic tracking of horizontal frequencies of 30 to 95 kHz,and vertical frequencies of
47 to 160 Hz.
Thirteen timings are factory preset for image size and position
Ten additional timings are user definable.
Synchronizing separate input signal.
User’s Manual 7
ENGLISH
Installation

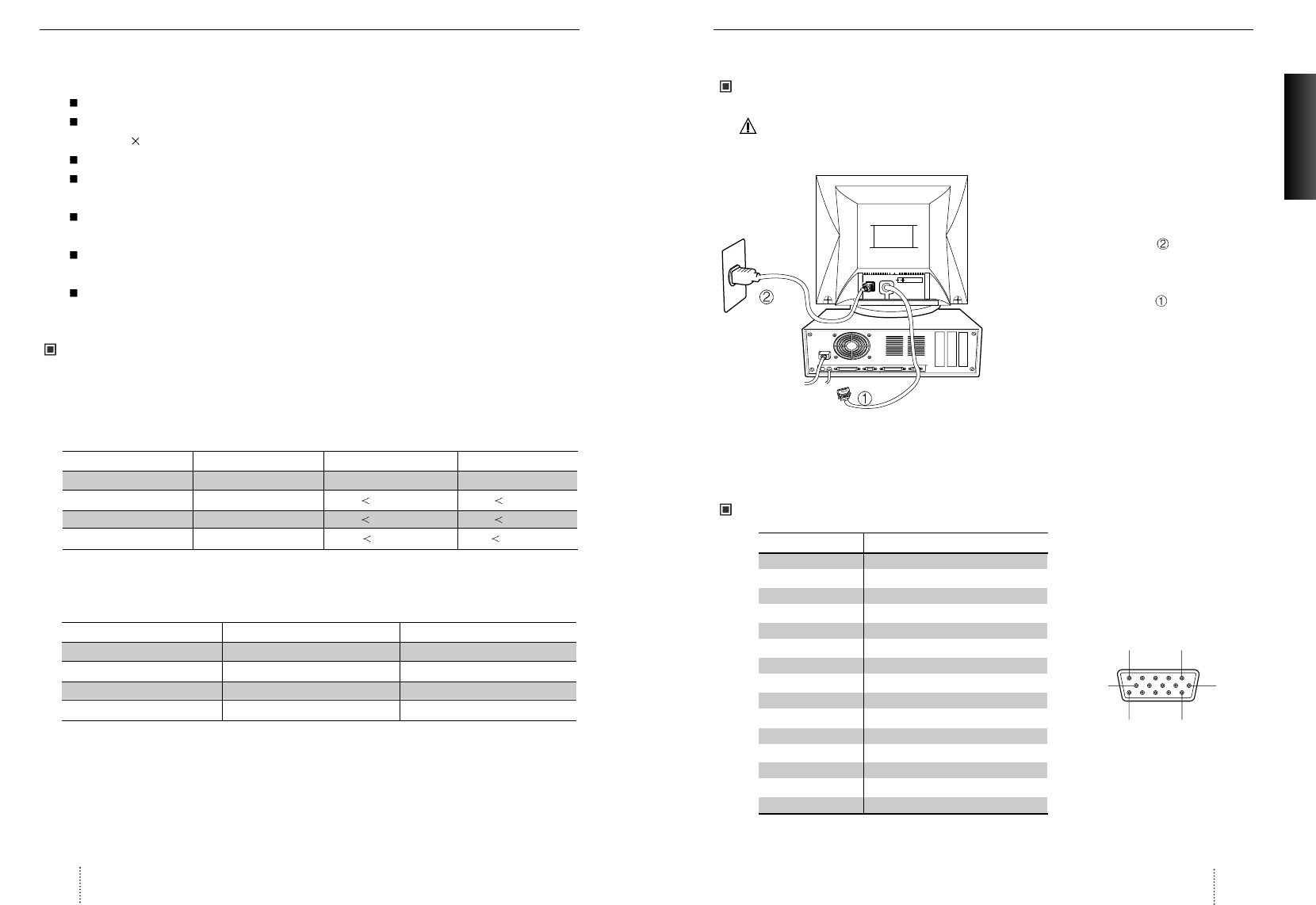

Connection to your computer
CAUTION
Ensure that both the PC and the display monitor are switched off.
To attach the monitor to your system, as
shown in the following illustrations.
1. Insert the AC power cord into monitor
and then into an AC power outlet.
2. Connect the signal cable to the 15pin
graphics connector of the system and
tighten the fastening screws.
3. To turn on the monitor, push the power
switch.
Note : To attach the monitor to the Macintosh system, please contact an authorized
dealer.(Need to use a special adaptor)
Pin assignment table D-Sub Mini 15pin connector
The 15-pin D-Sub connector
(male) of the signal cable
(IBM Systems) :
(15 Pin D-Sub)
15
11 15
610
Pin No. Assignment
1 Red Video
2 Green Video
3 Blue Video
4 Frame Ground
5 Ground
6 Red Video Ground
7 Green Video Ground
8 Blue Video Ground
9N.C
10 Sync. Ground
11 Ground
12 SDA
13 H-Sync.
14 V-Sync.
15 SCL
Introduction
User’s Manual6
System Flexibility
Equipped with DDC1, DDC2B and DDC2Bi for Plug & Play compatibility.
Monitor is compatible with VGA, SVGA, VESA and high resolution video modes up to
1600(H) 1200(V) @ 75Hz
Monitor may be used with IBM or compatible PC, MAC.
Automatic universal power supply is built in permitting AC power input of 100 - 240V AC, 50
or 60Hz.
Self-test menu allows the display unit to be checked on screen without connecting to a
computer.
Compact case minimizes desktop space giving you a large screen image without loss of
workspace.
Power cable included easily plugs into a standard outlet.
Power management system
This monitor complies with VESA, Nutek, and Energy Star power saving requirements. The
power saving system works only when used with VESA DPMS compliant PC’s and/or graphic
controllers.
The monitor goes into various power saving stages depending on the incoming
video signal as shown in the following table
Note
The monitor automatically goes through the DPMS steps when it is idle.
To release the monitor from the DPMS condition, press any key on the keyboard or mouse.
State Horizontal Sync Vertical Sync
On On On
Stand by Off On
Suspend On Off
Off Off Off
State LED Power Recovery Time
On Green Normal (100 Watts) N/A
Stand by Green 65 Watts 2 Sec
Suspend Amber 15 Watts 5 Sec
Off Amber/Blink 5 Watts 15 Sec
User’s Manual 9
ENGLISH
User’s Manual8

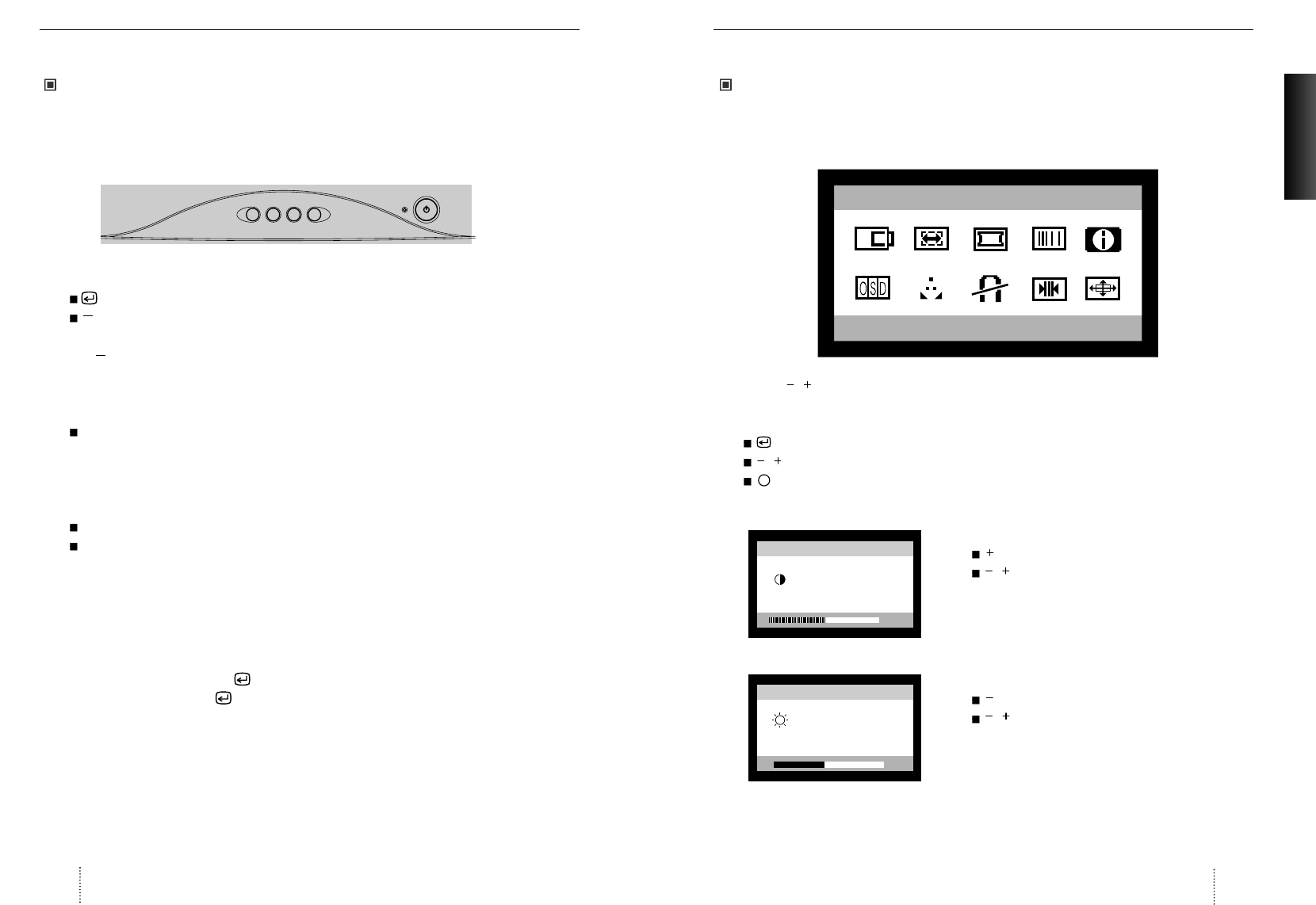

Controls
OSD Menu
Controls
OSD controls
"ON SCREEN MENU" controls include the following extended controls such as Size, Position,
Geometry, Color Adjust, Brightness and Contrast Utilities. Adjustments are saved instantly. The
currently addressed control can be reset to factory settings by pressing the Reset button.
Function of OSD buttons on the front of the monitor
: In the main menu, exits the OSD controls. In a submenu, exits to the OSD main menu.
/+
1) When no OSD on the Screen,
: Direct access to Brightness controls.
+: Direct access to Contrast controls.
2) When Main menu is displayed. : Moves to function what you want to adjust.
3) When the Sub menu is displayed. : Controls the amount what you want to adjust.
MENU : Displays OSD main Menu.
1) When Main menu is displayed. : Selects function with RED ICON.
2) When Sub menu is displayed. : Selects function with RED ICON.
Additional front controls
Power Switch : Turns the monitor power on or off. When the power is on, the LED is on.
LED Power indicator Light : Located left side of the power switch and indicates the monitor's
power mode. Each mode reduces the amount of power used by the monitor.
Accessing on screen menu
Press MENU Button.
Turning off on screen menu
When in the main menu, press button.
When in submenus, press button twice.
Main Menu
OSD main menu allows you to adjust user controls.
Use the / : Control buttons to scroll through all of the menus.
Main Menu control guide
: Exits the OSD controls.
/ : Move the function to choose.
: Proceed to the selected menu.
PRESS MENU KEY
POSITION
Contrast Menu
: Exits the Contrast menu.
/ : Increase or decrease the Contrast.
Brightness Menu
: Exits the Brightness menu.
/ : Increase or decrease the Brightness .
CONTRAST
48KHz 60Hz NN
99%
BRIGHTNESS
PP
50%
31.5KHz 60Hz
User’s Manual 11
ENGLISH
User’s Manual10
Controls
Controls

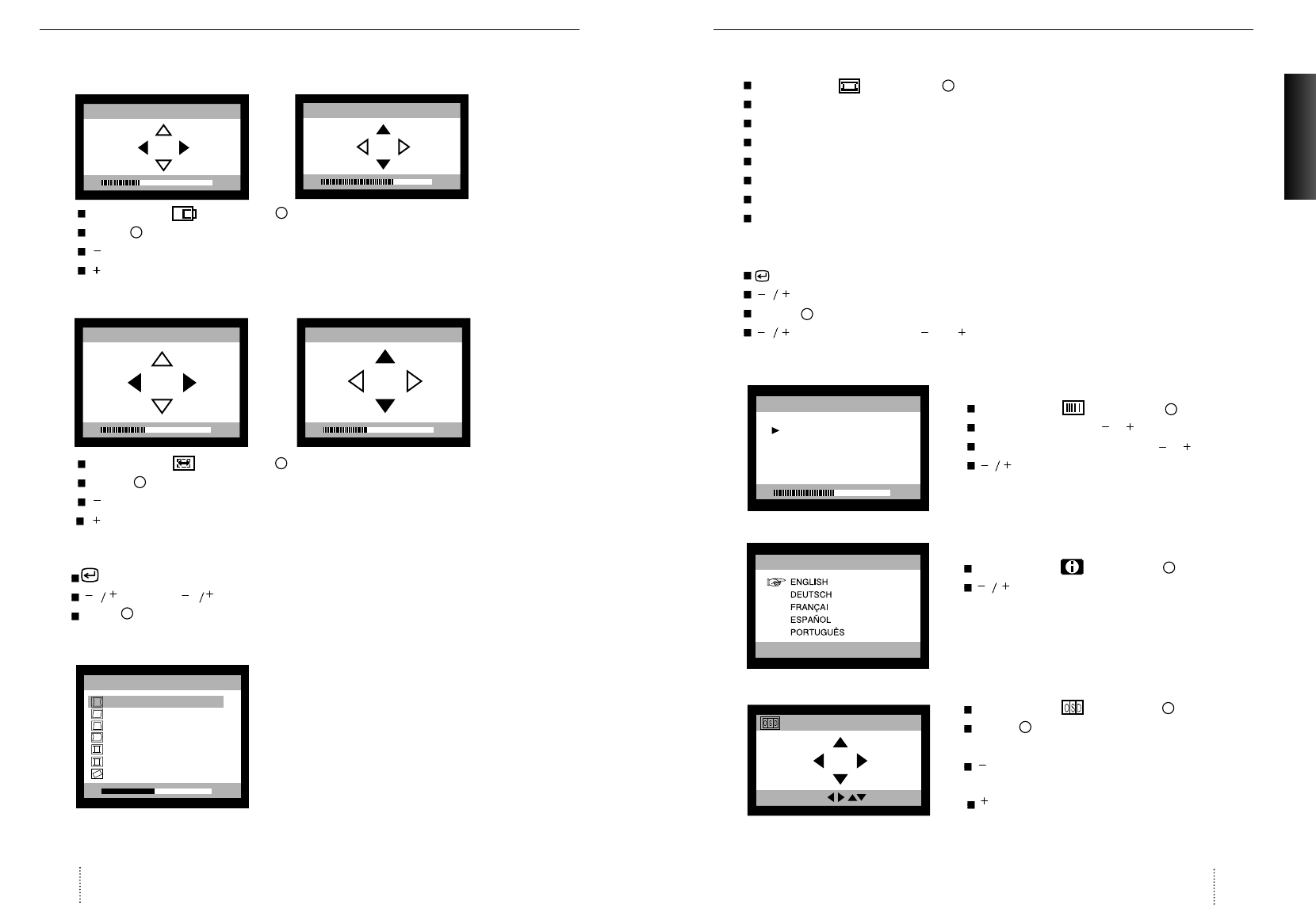

Position Menu
After choosing , Push MENU( ) button.
MEUN( ) : Push this button again & again to change the H/V-position.
: Moves the image vertically up or down.
: Moves the image horizontally left or right.
Size Menu
After choosing , Push MENU( ) button.
MENU ( ) : Push this botton again & agiain to change the H/V-size.
: Increases or Decreases the vertical size of the image.
: Decreases or Increases the horizontal size of the image.
H. POSITION
32%
V. POSITION
74%
H. SIZE
43%
V. SIZE
42%
Atfer choosing , push MENU( ) button.
Pincushion : Increase or decrease the curvature of the sides either inward or outward.
Parallelogram : Increase or decrease the tilt of the sides either to the left or right.
Trapezoid : Increase or decreases the bottom of the screen to be the same as the top.
Pin Balance : Increase or decrease the curvature of the sides.
Top Corner : Increase or decreases the curvature of the top sides.
Bottom Corner : Increase or decrease the curvature of the bottom sides.
Rotation : Rotate the entire display to clockwise or counterclockwise.
Geometry Menu control guide
: Exit to the main menu.
: Move the function to choose.
MENU( ) : Function to choose.
: Move the bow in the or direction to increase or decrease the adjustment.
Moire Menu
After choosing , Push MENU( ) button.
Select ON or OFF with / key.
Select H.MOIRE or V.MOIRE with / key.
: Adjust the Moire.
50%
MOIRE CONTROL
H. MOIRE ADJUST
V. MOIRE ADJUST
Position and size Menu control guide
: Exit to the main menu.
: Refer to
MENU( ) : Toggle position and menu directly.
Geometry Menu
The Geometry controls allow you to adjust the
curvature or angle of displayed image.
50%
GEOMETRY
PINCUSHION
PARALLELOGRAM
TRAPEZOID
PINBALANCE
TOP CORNER
BOTTOM CORNER
ROTATION
Language Menu
After choosing , Push MENU( )button.
: Select the language.
OSD Position Menu
After choosing , Push MENU( )button.
MENU ( ): Push this button again & again to
change the H/V-position.
: Move the OSD menu Vertical bottom or
Horizontal left.
: Move the OSD menu Vertical top or
Horizontal right.
LANGUAGE
PRESS DO KEY
POSITION
PRESS KEY

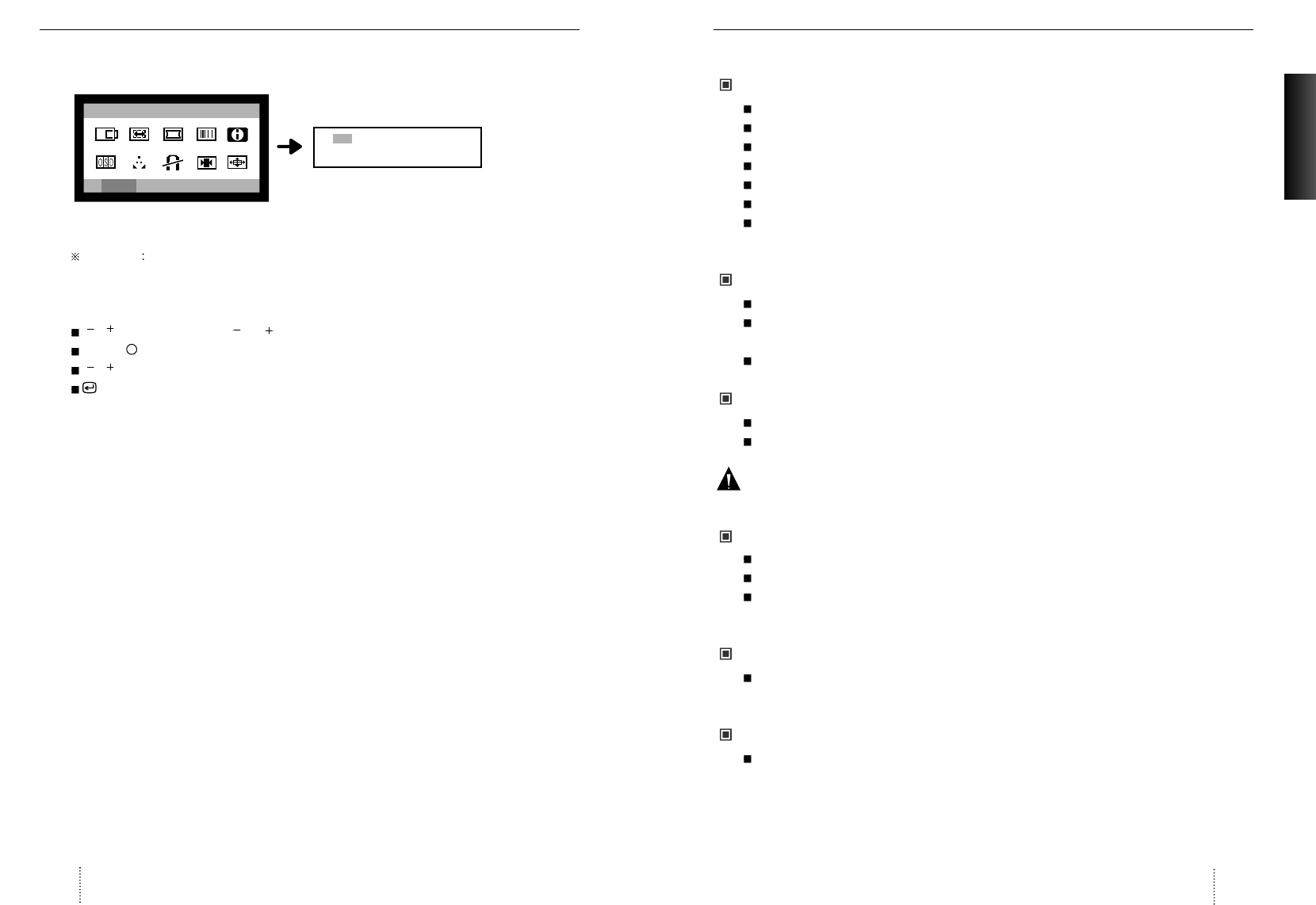

Troubleshooting
User’s Manual 13
ENGLISH
No picture
Check that the AC cord is correctly connected.
Check that the AC socket is live by plugging in another piece of equipment.
Power switch and computer power switch should be in position.
Ensure that the signal cable is properly connected to the video card or PC.
Ensure that the video card is securely seated in the PC.
Check the connector for bent or pushed-in pins.
Press a key on the keyboard or move the mouse, in case the screen power-saver mode has
blanked the screen.
Image is scrolling or unstable
Signal cable should be securely attached to the computer.
Check the pin assignments and signal timings of the monitor and your video card with respect
to recommended timings and pin assignments.
Ensure that the video card is securely seated in the PC.
Picture is fuzzy
Adjust the Contrast and Brightness Controls.
Push the Degauss Button once.
Caution : A minimum interval of 20 minutes should exist before the Degauss Button is used a
second time. Do not hold the button down continuously.
Picture bounces or a waving pattern is present in the picture
Move electrical devices that may be causing electrical interference away from the monitor.
See the inside front cover of this manual for FCC information.
Unshielded audio speakers placed next to the monitor can cause picture distortion. Move the
speakers away.
Edges of the display image are not square
Adjust the distortion using the Side Pincushion or Trapezoid Pincushion Balance, Parallel
adjustment controls under the on screen menu.
Display image is not centered, too small, or too large
Adjust the horizontal and vertical image sizes using the Horizontal and Vertical Size
adjustment controls under the on screen menu.
Introduction
User’s Manual12
Color Temp Menu
Presetting Select the desired color setting. The bar is replaced by the color setting choice.
" USER, 6500K, 9300K "
Color adjustment is available only in USER mode.
/ : Move the bar with or key to select the user
MENU( ) : Press MENU button for 5 seconds.
/ : Increcse or decrease the selected coldr adjustment.
(Exit) : Exit to the main menu.
50%
RB GB BB RG GG BG
USER
COLOR TEMP MENU
USER 6500K 9300K

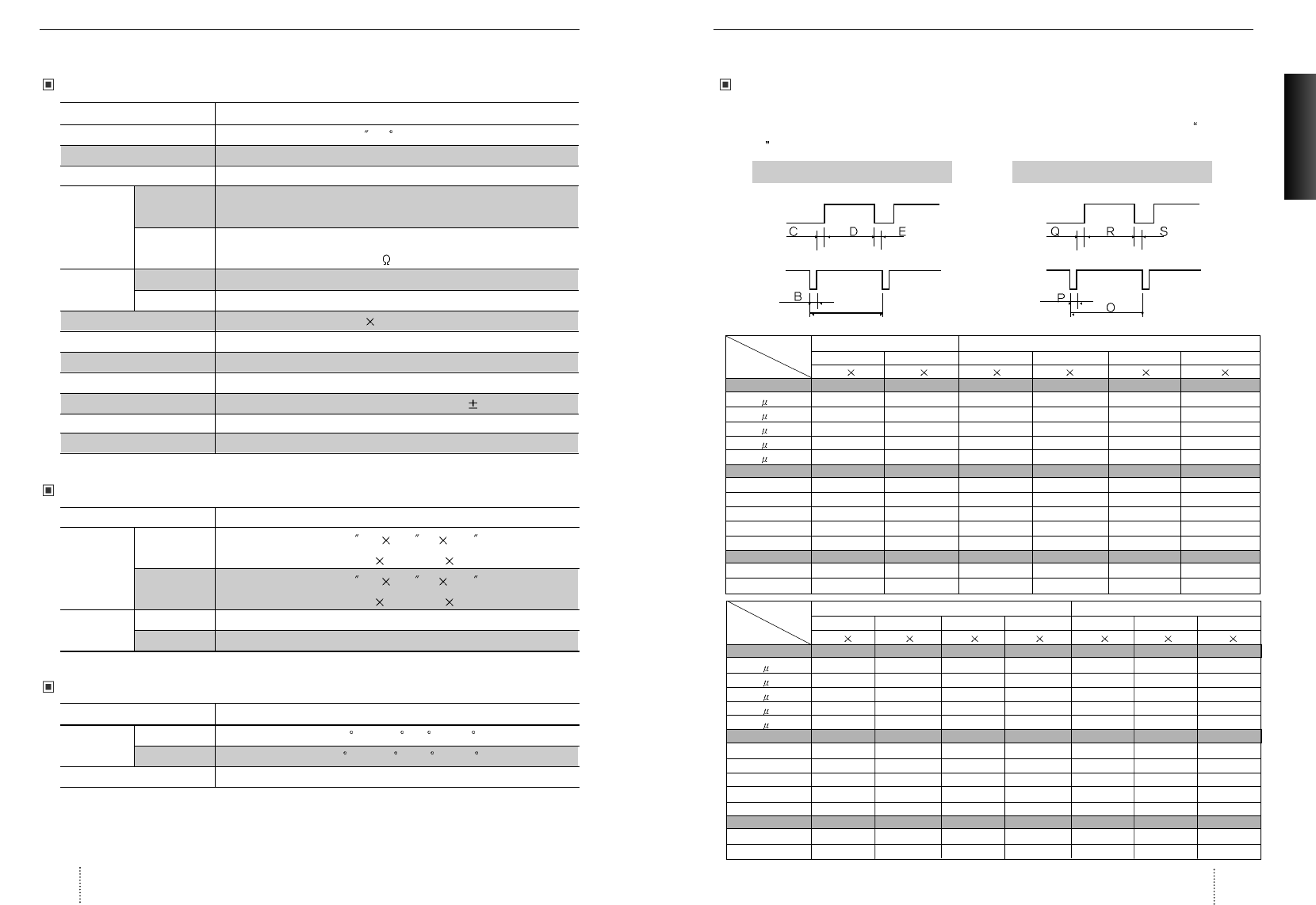

Specifications
User’s Manual 15
ENGLISH
Appendix
Preset Timings
This Monitor 720NF has preset modes for the 13 most popular industry standards for Plug and
Play capability.
Video
Sync
Vertical
Video
Sync
Horizontal
1024/85Hz 1280/75Hz 1280/85Hz 1600/75Hz 640/67Hz 832/75Hz 1152/75Hz
1024 768 1280 1024 1280 1024 1600 1200 640 480 832 624 1152 870
H-Freq(kHz) 68.677 79.976 91.146 93.75 35 49.726 68.681
Asec 14.561 12.504 10.971 10.667 28.571 20.11 14.560
Bsec 1.016 1.067 1.016 0.948 2.116 1.117 1.280
Csec 2.201 1.837 1.422 1.501 3.175 3.91 1.440
Dsec 10.836 9.481 8.127 7.901 21.164 14.524 11.520
Esec 0.508 0.119 0.406 0.316 2.116 0.559 0.320
V-Freq(Hz) 84.997 75.025 85.024 75 66.667 74.551 75.062
Omsec 11.765 13.329 11.761 13.333 15 13.414 13.322
Pmsec 0.044 0.038 0.033 0.032 0.086 0.06 0.044
Qmsec 0.524 0.475 0.579 0.491 1.114 0.784 0.568
Rmsec 11.183 12.804 11.235 12.8 13.714 12.549 12.667
Smsec 0.015 0.013 0.011 0.011 0.086 0.02 0.044
Pixel rate(MHz) 94.5 135 157.5 202.5 30.24 57.284 100
H-Polarity Positive Positive Positive Positive Negative Negative Negative
V-Polarity Positive Positive Positive Positive Negative Negative Negative
VESA MACINTOSH
Resolution
Timing
VGA/70Hz VGA/60Hz 640/85Hz 800/75Hz 800/85Hz 1024/75Hz
720 400 640 480 640 480 800 600 800 600 1024 768
H-Freq(kHz) 31.469 31.469 43.269 46.875 53.674 60.023
Asec 31.777 31.777 23.111 21.333 18.631 16.660
Bsec 3.813 3.813 1.556 1.616 1.138 1.219
Csec 1.907 1.907 2.222 3.232 2.702 2.235
Dsec 25.422 25.422 17.778 16.162 14.222 13.003
Esec 0.636 0.636 1.556 0.323 0.569 0.203
V-Freq(Hz) 70.09 59.94 85.008 75 85.061 75.029
Omsec 14.268 16.684 11.764 13.333 11.756 13.328
Pmsec 0.064 0.064 0.069 0.064 0.056 0.050
Qmsec 1.08 1.048 0.578 0.448 0.503 0.466
Rmsec 12.711 15.253 11.093 12.8 11.179 12.795
Smsec 0.413 0.318 0.023 0.021 0.019 0.017
Pixel rate(MHz) 28.322 25.175 36 49.5 56.25 78.750
H-Polarity Negative Negative Negative Positive Positive Positive
V-Polarity Positive Negative Negative Positive Positive Positive
Resolution
Timing
IBM VESA
User’s Manual14
Electrical Specifications
Mechanical Specifications
Environmental Specifications
ITEM 720NF
CRT Type 17 , 90 deflection FST
CRT Aperture grill pitch 0.25mm
CRT Surface Non-glare
H/V Separate, TTL, positive/negative
H/V Composite, TTL, positive/negative
RGB Analog (0.7Vp-p), positive
75 Terminated
30kHz~95kHz (Automatically)
47Hz~160Hz (Automatically)
Maximum Resolution 1600Dots 1200Lines (Non-interlace)
Pixel Clock (Max.) 205 MHz
Display Size (Standard) Horizontal 306mm, Vertical 230mm
Power Consumption (Max.) 120 Watts
Power Supply AC 100~240Volt, 50/60Hz 3Hz
Input Connector D-Sub, 15Pin Connectors
Display Colors Unlimited
ITEM 720NF
16.3 (W) 17.0 (D) 16.6 (H)
415mm(W) 433mm(D) 422mm(H)
20.9 (W) 21.9 (D) 21.3 (H)
530mm(W) 555mm(D) 540mm(H)
37.5Ibs (17.0Kg)
44.8Ibs (20.3Kg)
ITEM 720NF
32 F to 104 F (0 C to 40 C)
-4 F to 140 F (-20 C to 60 C)
10% to 85% R.H. Non-condensing
Input
Signal
Dimension
Sync
Video
Carton
Unit
Horizontal
Net
Vertical
Gross
Operating
Storage
Humidity
Scanning
frequency
Weight
Temperature
