USER'S MANUALSUN TELECOMINTERNATIONALAlpha Numeric Pager Alpha Numeric Pager TITANII

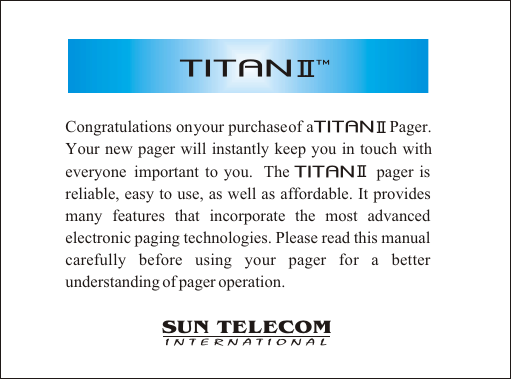

Congratulations on your purchase of a Pager. Your new pager will instantly keep you in touch with everyone important to you. The pager is reliable, easy to use, as well as affordable. It provides many features that incorporate the most advanced electronic paging technologies. Please read this manual carefully before using your pager for a better understanding of pager operation.SUN TELECOMINTERNATIONALTITANIITITANIITITANII

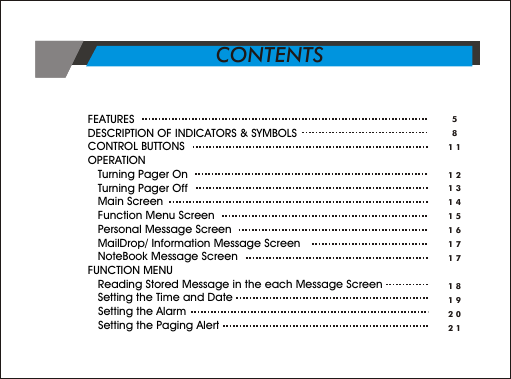

FEATURES DESCRIPTION OF INDICATORS & SYMBOLS CONTROL BUTTONS OPERATION Turning Pager On Turning Pager Off Main Screen Function Menu Screen Personal Message Screen MailDrop/ Information Message Screen NoteBook Message Screen FUNCTION MENU Reading Stored Message in the each Message Screen Setting the Time and Date Setting the Alarm Setting the Paging Alert58111213141516171718192021CONTENTS

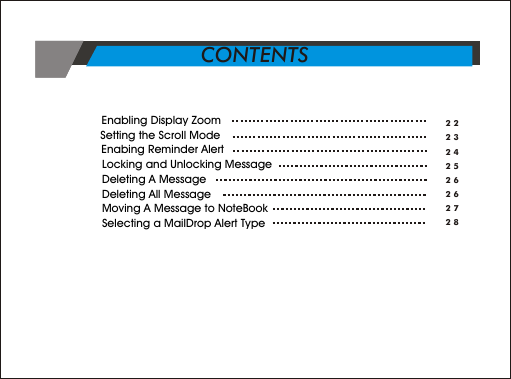

Enabling Display Zoom Setting the Scroll Mode Enabing Reminder Alert Locking and Unlocking Message Deleting A Message Deleting All Message Moving A Message to NoteBook Selecting a MailDrop Alert Type2223242526262728CONTENTS

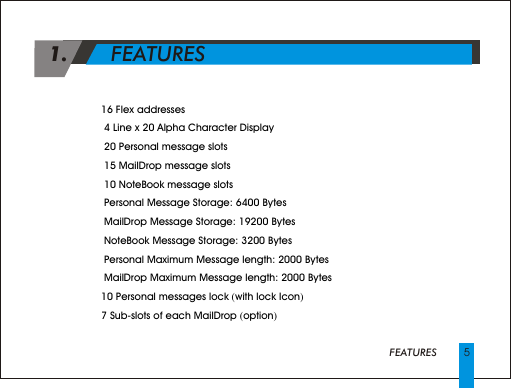

1. FEATURES 5FEATURES4 16 Flex addresses 4 4 Line x 20 Alpha Character Display 4 20 Personal message slots4 15 MailDrop message slots4 10 NoteBook message slots4 Personal Message Storage: 6400 Bytes4 MailDrop Message Storage: 19200 Bytes4 NoteBook Message Storage: 3200 Bytes4 Personal Maximum Message length: 2000 Bytes4 MailDrop Maximum Message length: 2000 Bytes4 10 Personal messages lock (with lock Icon)4 7 Sub-slots of each MailDrop (option)

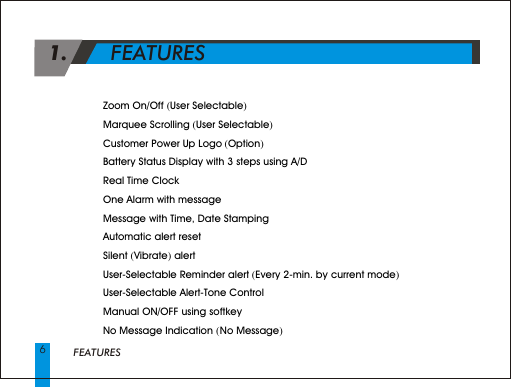

FEATURES4 Zoom On/Off (User Selectable)4 Marquee Scrolling (User Selectable) 4 Customer Power Up Logo (Option)4 Battery Status Display with 3 steps using A/D4 Real Time Clock 4 One Alarm with message 4 Message with Time, Date Stamping4 Automatic alert reset4 Silent (Vibrate) alert4 User-Selectable Reminder alert (Every 2-min. by current mode)4 User-Selectable Alert-Tone Control 4 Manual ON/OFF using softkey4 No Message Indication ( No Message) 1. FEATURES 6

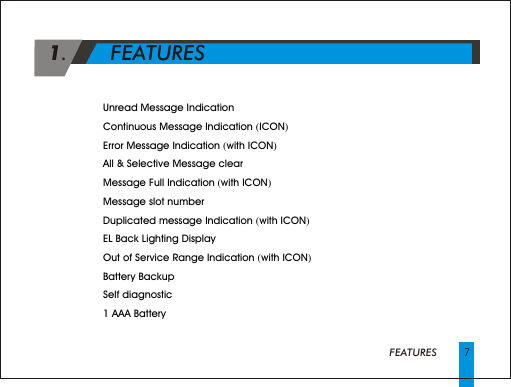

FEATURES4 Unread Message Indication 4 Continuous Message Indication (ICON)4 Error Message Indication (with ICON) 4 All & Selective Message clear4 Message Full Indication (with ICON)4 Message slot number4 Duplicated message Indication (with ICON)4 EL Back Lighting Display4 Out of Service Range Indication (with ICON)4 Battery Backup 4 Self diagnostic4 1 AAA Battery7 1. FEATURES

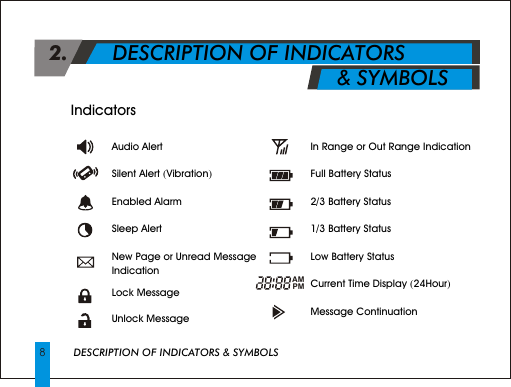

Indicators 2. DESCRIPTION OF INDICATORS & SYMBOLSAudio Alert Silent Alert (Vibration)Enabled AlarmSleep AlertNew Page or Unread Message IndicationLock MessageUnlock MessageIn Range or Out Range IndicationFull Battery Status2/3 Battery Status1/3 Battery StatusLow Battery StatusCurrent Time Display (24Hour)Message Continuation8DESCRIPTION OF INDICATORS & SYMBOLSAMPM

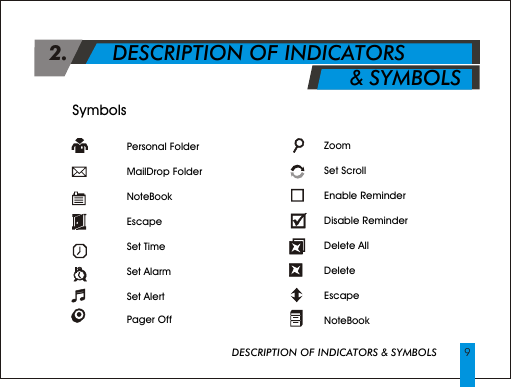

Symbols 2. DESCRIPTION OF INDICATORS & SYMBOLSPersonal FolderMailDrop FolderNoteBookEscapeSet TimeSet AlarmSet AlertPager Off Zoom Set ScrollEnable Reminder Disable Reminder Delete AllDelete EscapeNoteBookDESCRIPTION OF INDICATORS & SYMBOLS 9

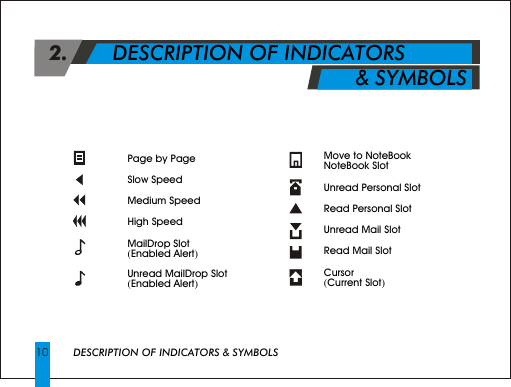

2. DESCRIPTION OF INDICATORS & SYMBOLSPage by PageSlow SpeedMedium SpeedHigh SpeedMailDrop Slot(Enabled Alert)Unread MailDrop Slot(Enabled Alert)Move to NoteBookNoteBook SlotUnread Personal SlotRead Personal SlotUnread Mail SlotRead Mail SlotCursor(Current Slot)DESCRIPTION OF INDICATORS & SYMBOLS10

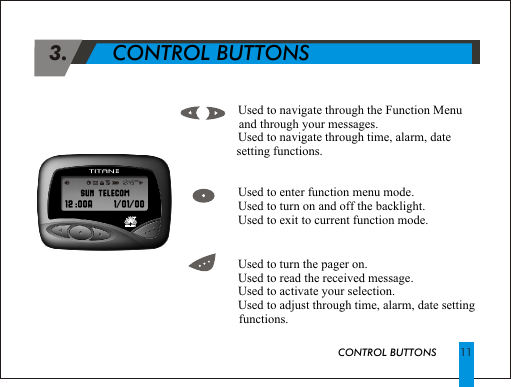

3. CONTROL BUTTONSCONTROL BUTTONS! Used to navigate through the Function Menu and through your messages.! Used to navigate through time, alarm, date setting functions.! Used to enter function menu mode. ! Used to turn on and off the backlight.! Used to exit to current function mode.! Used to turn the pager on.! Used to read the received message.! Used to activate your selection.! Used to adjust through time, alarm, date setting functions.11AMTITANII SUN TELECOM SUN TELECOM 12 :00A 1/01/00 // 12 :00A 1 01 00

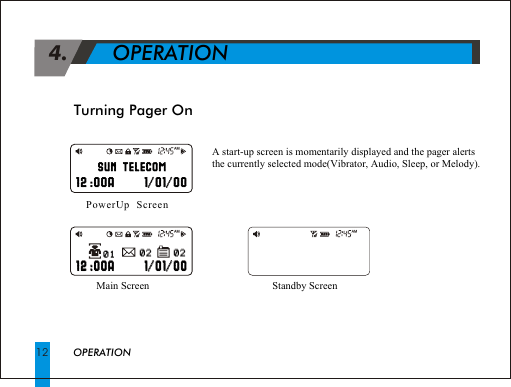

Turning Pager On 4. OPERATIONA start-up screen is momentarily displayed and the pager alertsthe currently selected mode(Vibrator, Audio, Sleep, or Melody).OPERATION12Main Screen PowerUp ScreenStandby Screen AM 02 02 02 02 AM 01 01 AM SUN TELECOM SUN TELECOM 12 :00A 1/01/00 // 12 :00A 1 01 00 12 :00A 1/01/00 // 12 :00A 1 01 00

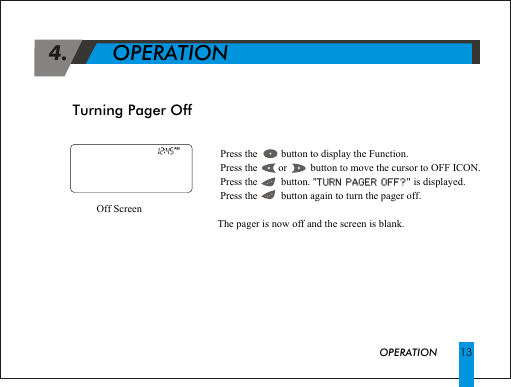

Turning Pager Off 4. OPERATION! Press the button to display the Function.! Press the or button to move the cursor to OFF ICON.! Press the button. "TURN PAGER OFF?" is displayed.! Press the button again to turn the pager off.The pager is now off and the screen is blank.TURN PAGER OFF?Off Screen OPERATION 13AM

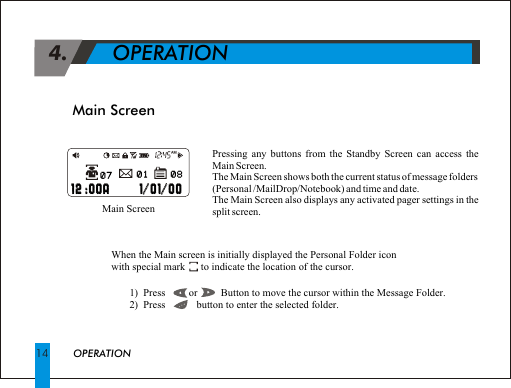

Main Screen 4. OPERATIONPressing any buttons from the Standby Screen can access the Main Screen.The Main Screen shows both the current status of message folders(Personal /MailDrop/Notebook) and time and date.The Main Screen also displays any activated pager settings in the split screen. Main ScreenWhen the Main screen is initially displayed the Personal Folder iconwith special mark to indicate the location of the cursor. 1) Press or Button to move the cursor within the Message Folder. 2) Press button to enter the selected folder.OPERATION14 12 :00A 1/01/00 // 12 :00A 1 01 00 01 01 08 08 AM 07 07

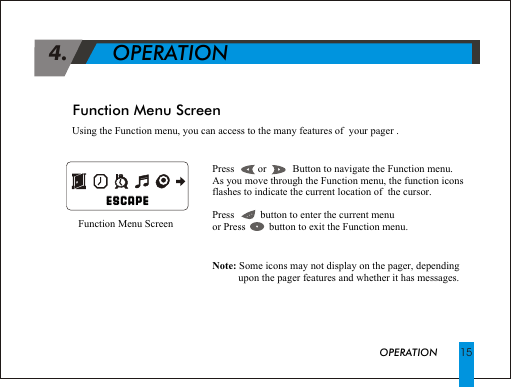

ESCAPE ESCAPEFunction Menu Screen 4. OPERATIONPress or Button to navigate the Function menu.As you move through the Function menu, the function icons flashes to indicate the current location of the cursor.Press button to enter the current menuor Press button to exit the Function menu. Note: Some icons may not display on the pager, depending upon the pager features and whether it has messages. Function Menu ScreenOPERATION 15Using the Function menu, you can access to the many features of your pager .

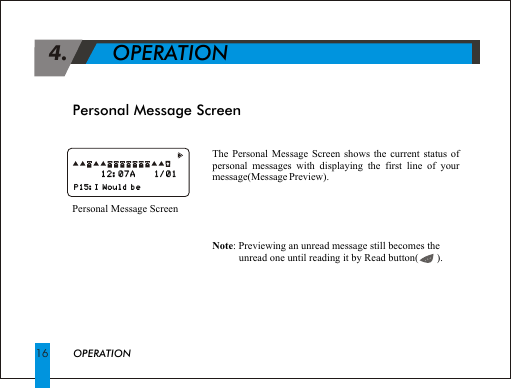

Personal Message Screen 4. OPERATIONThe Personal Message Screen shows the current status of personal messages with displaying the first line of your message(Message Preview).Personal Message ScreenNote: Previewing an unread message still becomes the unread one until reading it by Read button( ).OPERATION16 P15:I Would be P15:I Would be 12:07A 1/01 12:07A 1/01

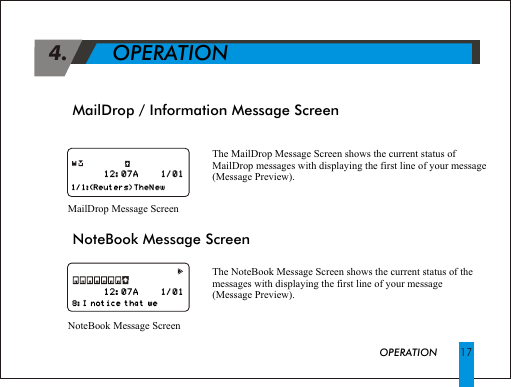

MailDrop / Information Message Screen 4. OPERATIONThe MailDrop Message Screen shows the current status of MailDrop messages with displaying the first line of your message (Message Preview).MailDrop Message ScreenOPERATION 17NoteBook Message ScreenThe NoteBook Message Screen shows the current status of the messages with displaying the first line of your message (Message Preview).NoteBook Message Screen 8:I notice that we 8:I notice that we 1/1:(Reuters)TheN ew 1/1:(Reuters)TheN ew 12:07A 1/01 12:07A 1/01 12:07A 1/01 12:07A 1/01

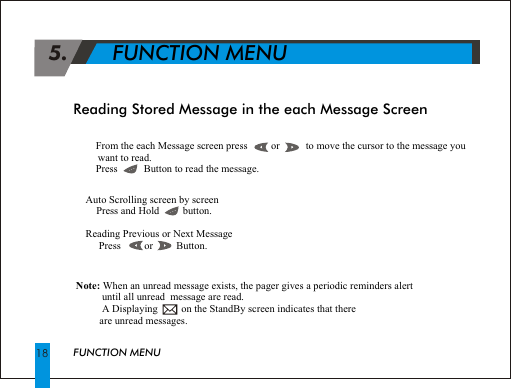

!From the each Message screen press or to move the cursor to the message you want to read. !Press Button to read the message.Reading Stored Message in the each Message ScreenAuto Scrolling screen by screen !Press and Hold button.Reading Previous or Next Message! Press or Button.18Note: When an unread message exists, the pager gives a periodic reminders alert until all unread message are read. A Displaying on the StandBy screen indicates that there are unread messages. 5. FUNCTION MENUFUNCTION MENU

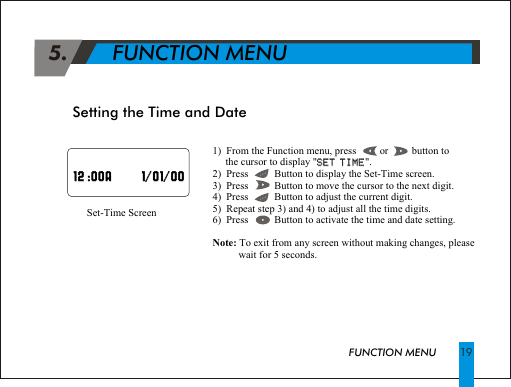

1) From the Function menu, press or button to the cursor to display "SET TIME".2) Press Button to display the Set-Time screen.3) Press Button to move the cursor to the next digit.4) Press Button to adjust the current digit.5) Repeat step 3) and 4) to adjust all the time digits.6) Press Button to activate the time and date setting.Note: To exit from any screen without making changes, please wait for 5 seconds.SET TIMESet-Time ScreenSetting the Time and Date 19 12 :00A 1/01/00 // 12 :00A 1 01 00 5. FUNCTION MENUFUNCTION MENU

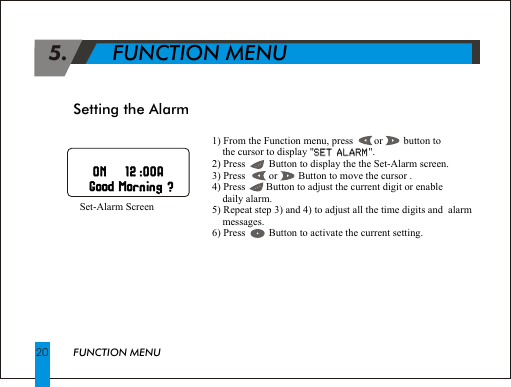

5. FUNCTION MENU1) From the Function menu, press or button to the cursor to display "SET ALARM".2) Press Button to display the the Set-Alarm screen.3) Press or Button to move the cursor .4) Press Button to adjust the current digit or enable daily alarm.5) Repeat step 3) and 4) to adjust all the time digits and alarm messages.6) Press Button to activate the current setting.SET ALARMSetting the Alarm Set-Alarm Screen ON 12 :00A ON 12 :00AGGMM20 FUNCTION MENU

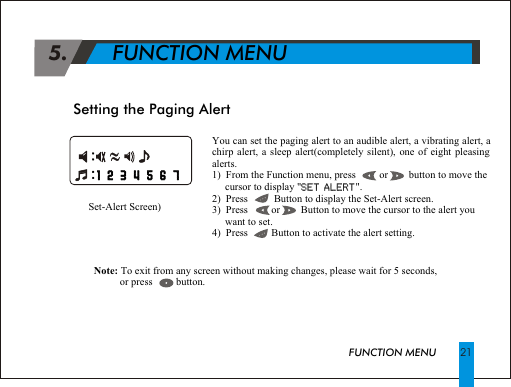

You can set the paging alert to an audible alert, a vibrating alert, a chirp alert, a sleep alert(completely silent), one of eight pleasing alerts.1) From the Function menu, press or button to move the cursor to display "SET ALERT".2) Press Button to display the Set-Alert screen.3) Press or Button to move the cursor to the alert you want to set.4) Press Button to activate the alert setting.SET ALERTSetting the Paging AlertSet-Alert Screen) Note: To exit from any screen without making changes, please wait for 5 seconds, or press button. 1 2 3 4 5 6 7 1 2 3 4 5 6 7FUNCTION MENU 21 5. FUNCTION MENU

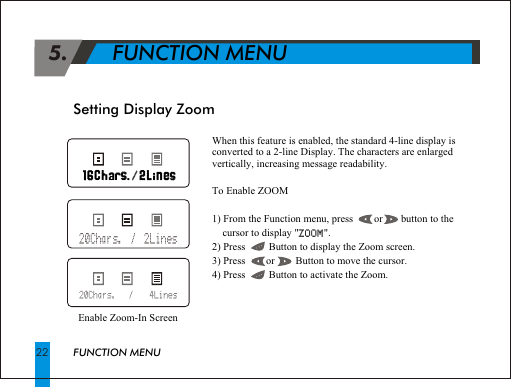

5. FUNCTION MENUWhen this feature is enabled, the standard 4-line display is converted to a 2-line Display. The characters are enlarged vertically, increasing message readability.To Enable ZOOM1) From the Function menu, press or button to the cursor to display "ZOOM".2) Press Button to display the Zoom screen.3) Press or Button to move the cursor.4) Press Button to activate the Zoom.ZOOMSetting Display ZoomEnable Zoom-In ScreenFUNCTION MENU22 . .221616 //20Chars. / 2Lines20Chars. / 4Lines

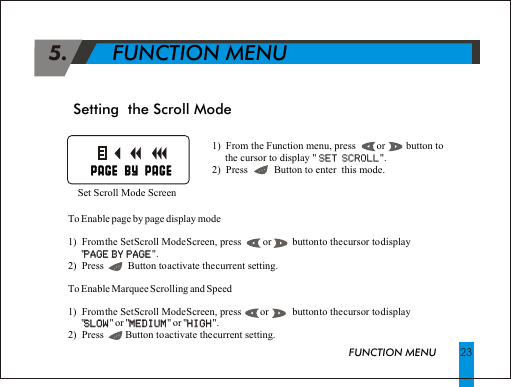

5. FUNCTION MENUFUNCTION MENU 231) From the Function menu, press or button to the cursor to display " SET SCROLL".2) Press Button to enter this mode.SET SCROLLSetting the Scroll Mode Set Scroll Mode Screen PAGE BY PAGE PAGE BY PAGE To Enable page by page display mode1) From the Set Scroll Mode Screen, press or button to the cursor to display "PAGE BY PAGE".2) Press Button to activate the current setting.To Enable Marquee Scrolling and Speed1) From the Set Scroll Mode Screen, press or button to the cursor to display "SLOW" or "MEDIUM" or "HIGH".2) Press Button to activate the current setting.PAGE BY PAGESLOW MEDIUM HIGH

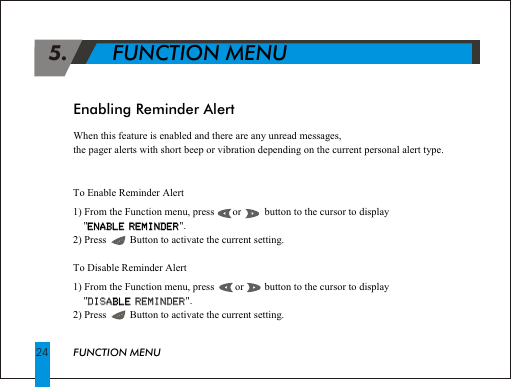

5. FUNCTION MENUFUNCTION MENU24To Enable Reminder Alert1) From the Function menu, press or button to the cursor to display "ENABLE REMINDER".2) Press Button to activate the current setting.To Disable Reminder Alert1) From the Function menu, press or button to the cursor to display "DISABLE REMINDER".2) Press Button to activate the current setting.ENABLE REMINDERBLE DISA REMINDEREnabling Reminder AlertWhen this feature is enabled and there are any unread messages,the pager alerts with short beep or vibration depending on the current personal alert type.

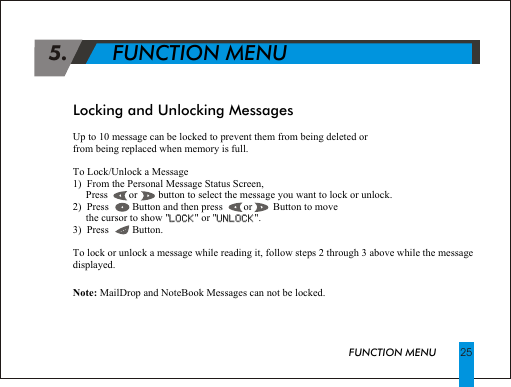

Up to 10 message can be locked to prevent them from being deleted orfrom being replaced when memory is full. To Lock/Unlock a Message1) From the Personal Message Status Screen, Press or button to select the message you want to lock or unlock.2) Press Button and then press or Button to move the cursor to show "LOCK" or "UNLOCK".3) Press Button.To lock or unlock a message while reading it, follow steps 2 through 3 above while the message displayed.Note: MailDrop and NoteBook Messages can not be locked.LOCK UNLOCK 5. FUNCTION MENULocking and Unlocking MessagesFUNCTION MENU 25

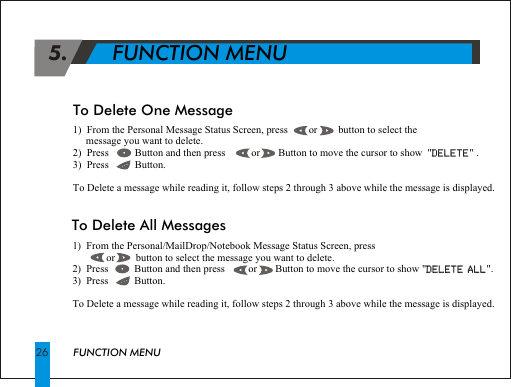

1) From the Personal Message Status Screen, press or button to select the message you want to delete.2) Press Button and then press or Button to move the cursor to show "DELETE" .3) Press Button.To Delete a message while reading it, follow steps 2 through 3 above while the message is displayed.DELETE 5. FUNCTION MENUFUNCTION MENU26To Delete One Message1) From the Personal/MailDrop/Notebook Message Status Screen, press or button to select the message you want to delete.2) Press Button and then press or Button to move the cursor to show "DELETE ALL". 3) Press Button.To Delete a message while reading it, follow steps 2 through 3 above while the message is displayed.DELETE ALLTo Delete All Messages

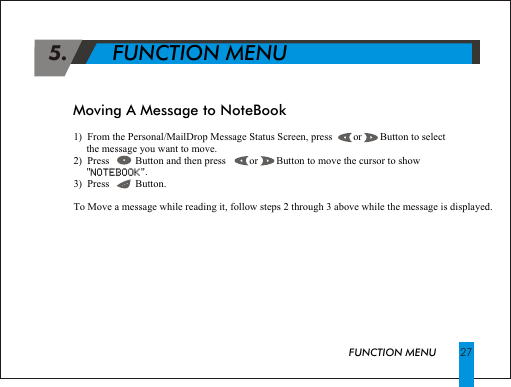

1) From the Personal/MailDrop Message Status Screen, press or Button to select the message you want to move.2) Press Button and then press or Button to move the cursor to show "NOTEBOOK". 3) Press Button.To Move a message while reading it, follow steps 2 through 3 above while the message is displayed.NOTEBOOK 5. FUNCTION MENUFUNCTION MENUMoving A Message to NoteBook27

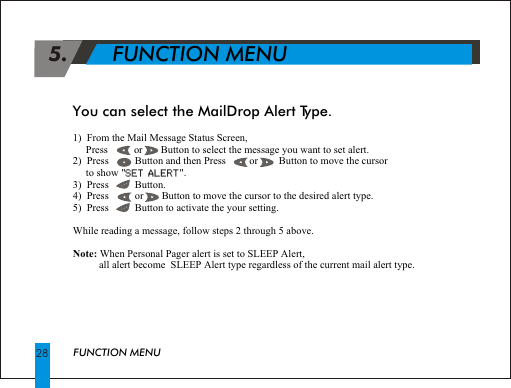

1) From the Mail Message Status Screen, Press or Button to select the message you want to set alert.2) Press Button and then Press or Button to move the cursor to show "SET ALERT".3) Press Button. 4) Press or Button to move the cursor to the desired alert type.5) Press Button to activate the your setting.While reading a message, follow steps 2 through 5 above.Note: When Personal Pager alert is set to SLEEP Alert, all alert become SLEEP Alert type regardless of the current mail alert type. SET ALERT 5. FUNCTION MENUFUNCTION MENU28 You can select the MailDrop Alert Type.

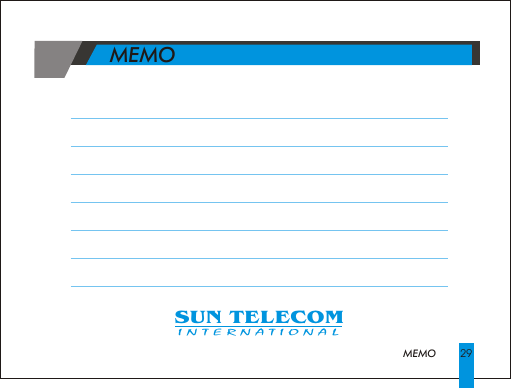

MEMO MEMOSUN TELECOMINTERNATIONAL29

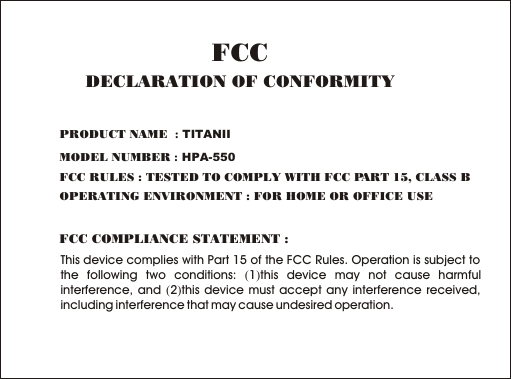

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.FCC COMPLIANCE STATEMENT :PRODUCT NAME : TITANIIMODEL NUMBER : HPA-550FCC RULES : TESTED TO COMPLY WITH FCC PART 15, CLASS B OPERATING ENVIRONMENT : FOR HOME OR OFFICE USE FCCDECLARATION OF CONFORMITY

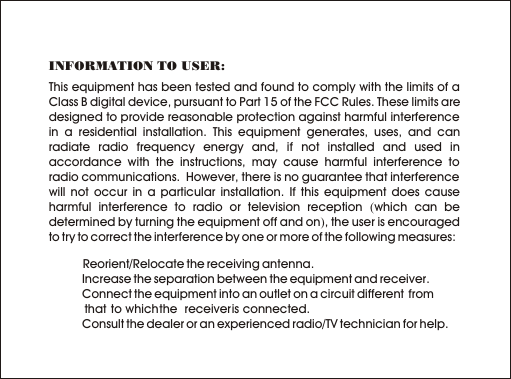

This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception (which can be determined by turning the equipment off and on), the user is encouraged to try to correct the interference by one or more of the following measures: 1 Reorient/Relocate the receiving antenna. 1 Increase the separation between the equipment and receiver. 1 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 1 Consult the dealer or an experienced radio/TV technician for help.INFORMATION TO USER:

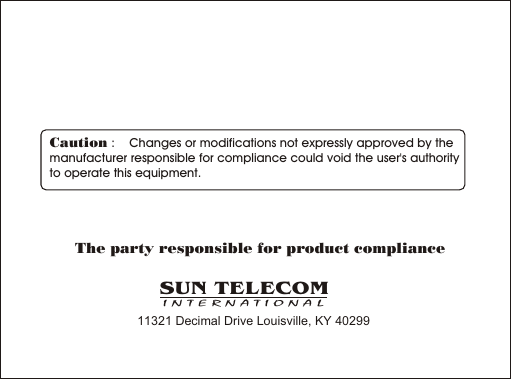

Caution : Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate this equipment.The party responsible for product compliance11321 Decimal Drive Louisville, KY 40299SUN TELECOMINTERNATIONAL
