Thank you for buying a Samsung Camera. This manual will guide you through using the Digimax
U-CA 3, including taking images, downloading images and using the MGI PhotoSuite III SE software.
Please read this manual before using your new camera.
ENGLISH
2
Instructions
Use this camera in the following order
Insert the
USB cable
Set up the
camera driver
Before connecting the camera to a PC, via the USB
cable, you will need to set up the camera driver.
Install the camera driver that is contained in the
Application S/W CD-ROM.(p.98)
Take a picture (p.27)
Insert the supplied USB cable into the PC’s USB port
and the camera’s USB connection terminal.(p.82)
Check the camera’s power
If the power is turned off, press the camera button to
power it on.(p.30)
Take a picture
Check the
camera’s power
Check
[Removable Disk]
Open Window s EXPLORER and search for
[Removable Disk].(p.85)
To play back a video shot with this camera, be sure to use the QuickTime player supplied
on the software CD-ROM. Applications that do not support the MPEG-4 codec
(e.g., Windows Media Player) may not be able to play back the video.
A
3
Contents
READY
RECORDING
PLAY / SETUP
•Getting to know your camera ------------ 5
•About the icons ------------------------------ 5
•Danger ---------------------------------------- 6
•Warning --------------------------------------- 6
•Caution ---------------------------------------- 7
•An FCC warning ----------------------------- 7
•This digital camera can be used for -----8

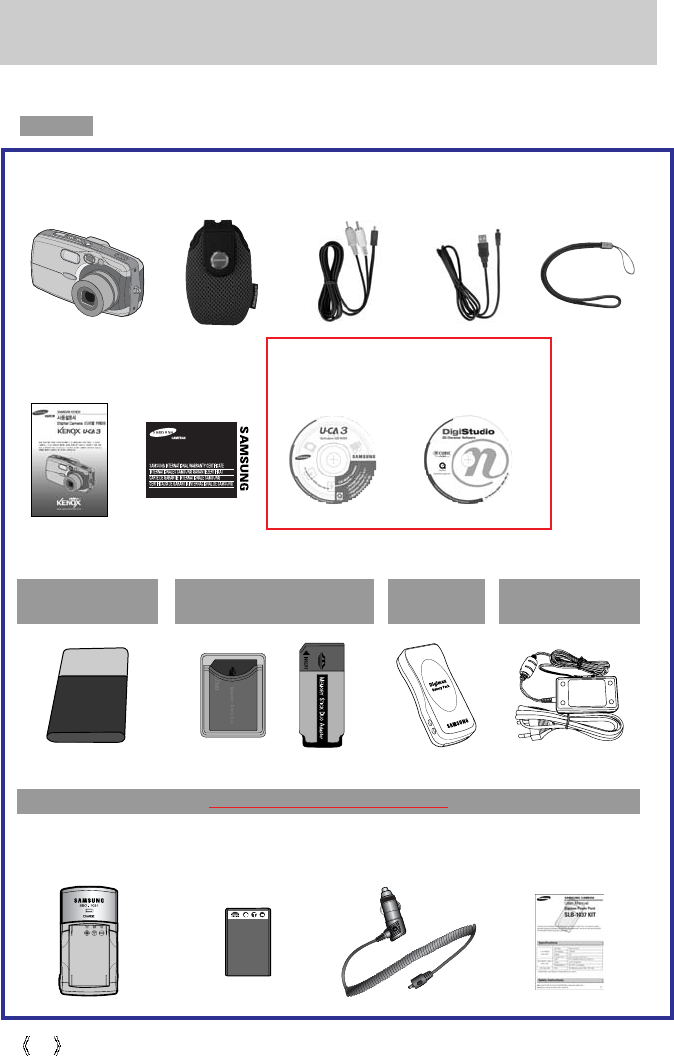

•Manufacturer's contents ----------------- 10

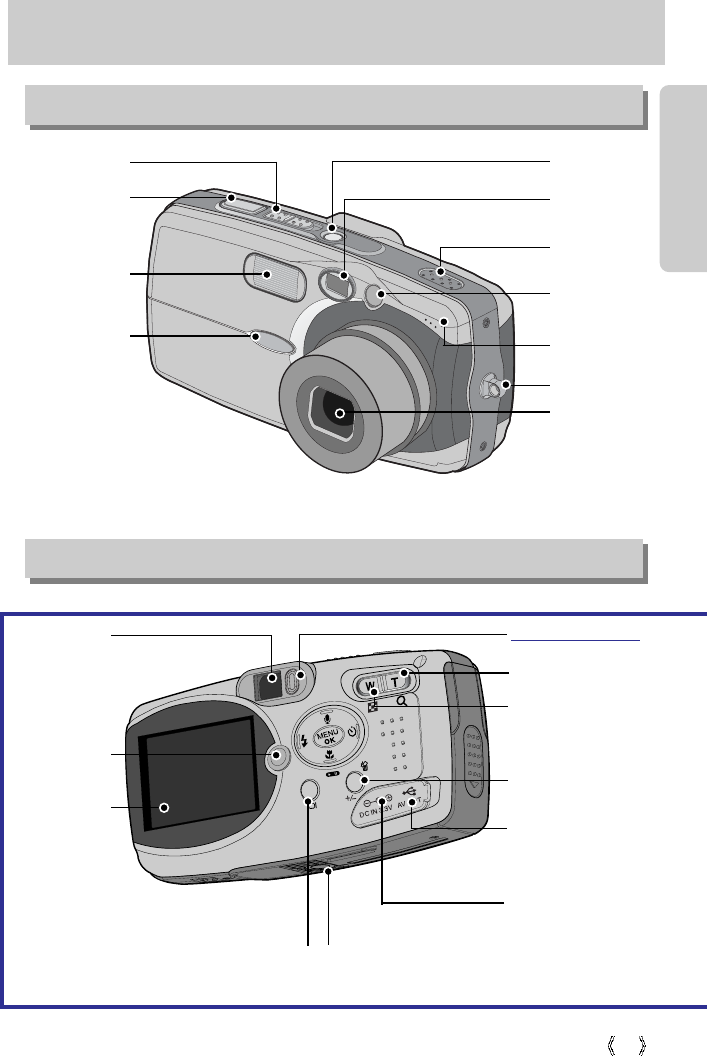

•Identification of features ------------------11
•Front & Top --------------------------------- 11
•Back & Bottom ----------------------------- 11
•Side/ 5-function button ------------------- 12
•Mode switch -------------------------------- 12
•Lamp ------------------------------------------ 13
•Connecting to a Power Source -------- 13
•Using the AC power adapter
(3.3V 2.0A) ---------------------------------- 14
•Using the batteries -------------------------15
•Removing the battery --------------------- 15
•Using the Digimax battery pack
(Optional : SBP-3603, 3.3V) ------------- 15
•Precautions on Using the Memory
Stick Duo ------------------------------------- 16
•Inserting the memory card --------------- 18
•Removing the memory card ------------- 18
•When Using the Camera for the
First Time ------------------------------------- 19
•LCD monitor indicator --------------------- 20
•Starting the recording mode ------------- 21
•Things to watch out for when taking
pictures ---------------------------------------23
•Using the camera buttons to adjust
the camera ---------------------------------- 24
•POWER button ----------------------------- 24
•SHUTTER button -------------------------- 24
•WIDE / TELE button ---------------------- 24
•Voice memo/UP button ------------------ 26
•Macro/Down button (Focusing) -------- 27
•Fixed focus --------------------------------- 28
•FLASH/LEFT button --------------------- 28
•Self-timer/Right button ------------------ 30
•MENU/ OK button ---------------------- 31
•+/- button --------------------------------- 31
•LCD button ------------------------------- 35
•Using the LCD monitor to adjust
the camera ------------------------------- 36
•How to use the menu ------------------ 37
•Mode --------------------------------------- 38
•Size ----------------------------------------- 38
•Quality ------------------------------------- 39
•Metering ----------------------------------- 40
•Effect --------------------------------------- 40
•Sharpness --------------------------------- 41
•Starting play mode ---------------------- 42
•LCD monitor indicator ------------------ 44
•Using the camera buttons to
adjust the camera ----------------------- 45
•Thumbnail/Enlargement button ------ 46
•Voice memo / Up button ---------------- 47
•Play & Pause/Down button ------------ 47
•LEFT/RIGHT/ MENU/ OK button ---- 48
•LCD button -------------------------------- 48
•Delete button ------------------------------ 49
•Setting up the play back function
using the LCD monitor ------------------ 50
•Deleting all images ---------------------- 52
•Protecting images ----------------------- 53
•Starting the slide show ----------------- 53
•Resize -------------------------------------- 54
•Rotating an image ----------------------- 55
•DPOF : PRINT ORDER ---------------- 55
•DPOF : STANDARD -------------------- 56
•DPOF : INDEX --------------------------- 56
•DPOF : PRINT SIZE -------------------- 57
•DPOF : CANCEL ------------------------ 57
•PictBridge ---------------------------------- 58
•PictBridge: Picture Selection ---------- 59
•PictBridge: Print Setting ---------------- 60
•PictBridge: Picture Printing ------------ 61
•PictBridge : DPOF AUTO PRINT ---- 62
•PictBridge : RESET --------------------- 62
•Setup menu ------------------------------- 63
•File name ---------------------------------- 65
•Auto power off ---------------------------- 65
4
Contents
SOFTWARE
•Language ------------------------------------- 66
•Formatting a memory card --------------- 66
•Setting up the Date/Time/Date type --- 67
•Imprinting the recording date ------------ 67
•Function lamp ------------------------------- 68
•Sound ----------------------------------------- 69
•LCD brightness ----------------------------- 69
•Selecting Video out type ----------------- 70
•Quick view ----------------------------------- 71
•Connecting an External Device(USB)- 72
•Initialization(RESET ALL) ---------------- 72
•Setting up the MYCAM menu ----------- 73
•Avatar ----------------------------------------- 73
•Start up image ------------------------------ 74
•Start up sound ------------------------------ 75
•Shutter sound ------------------------------- 75
•List of camera functions ------------------ 76
•Starting PC mode -------------------------- 82
•Important notes ----------------------------- 85
•Warning indicator -------------------------- 86
•Before contacting a service center ---- 87
•Specifications ------------------------------- 90
•Software Notes ---------------------------- 92
•About the software ------------------------ 92
•Setting up the application software --- 94
•Removing the USB Driver for
Windows 98SE --------------------------- 102
•Removable Disk -------------------------- 103
•Removing the removable disk --------- 104
•Setting up the USB Driver for MAC -- 105
•Using the USB Driver for MAC -------- 105
•Digimax Viewer 2.1 ----------------------- 106
•MGI PhotoSuite III SE ------------------- 107
•Get -------------------------------------------- 109
•Prepare -------------------------------------- 111
•Compose ------------------------------------ 112
•Organize ------------------------------------- 113
•Share ----------------------------------------- 116
•Print ------------------------------------------- 116
•FAQ ------------------------------------------- 117
A
5
Thank you for buying a Samsung Digital Camera.
Prior to using this camera, please read the user manual thoroughly.
When you require After Sales service, please bring the camera and the cause of the camera
malfunction (such as Batteries, Memory card etc.) to the A/S center.
Please check that the camera is operating properly prior to when you intend to use it (e.g. for a
trip or an important event) to avoid disappointment. Samsung camera takes no responsibility
for any loss or damages that may result from camera malfunction.
Keep the manual in a safe place.
Microsoft, Windows and Windows logo are registered trademarks of Microsoft Corporation
incorporated in the United States and/or other countries.
Apple, Mac and QuickTime logo are registered trademarks of Apple computer.
Memory Stick Duo is a registered trademark of Sony Corporation.
All brand and product names appearing in this manual are registered trademarks of their
respective companies.
Getting to know your camera
This manual contains instructions on using this camera that will help you to use this camera safely
and correctly. This will help prevent danger and injury to others.
About the icons
DANGER
DANGER indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING
WARNING indicates a potentially hazardous situation, which, if not avoided, could
result in death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation, which, if not avoided, may
result in a minor or moderate injury.
6
Do not attempt to modify this camera in any way. This may result in fire, injury, electric shock
or severe damage to you or your camera. Internal inspection, maintenance and repairs should
be carried out by your dealer or Samsung Camera Service Center.
Please do not use this product in close proximity to flammable or explosive gases, as this could
increase the risk of explosion.
Should any form of liquid or a foreign object enter the camera, do not use it. Switch off the
camera, and then disconnect the power source (batteries or AC Power Adapter). You must
contact your dealer or Samsung Camera Service Center. Do not continue to use the camera
as this may cause a fire or electric shock.
Do not insert or drop metallic or inflammable foreign objects into the camera through access
points e.g. the memory card slot and battery chamber. This may cause a fire or electric shock.
Do not operate this camera with wet hands. This could pose a risk of electric shock.
Danger
Do not use the flash in close proximity to people or animals. Positioning the flash too close to
your subject’s eyes, may cause eyesight damage.
When taking photographs, never point the lens of the camera directly into very strong light. This
may result in permanent damage to your eyesight.
For safety reasons keep this product and accessories out of reach of children or animals to
prevent accidents e.g.:
Swallowing batteries or small camera accessories. If an accident should occur, please
consult a doctor immediately.
There is the possibility of injury from the camera’s moving parts.
Batteries and camera may become hot during prolonged use and it may result in camera
malfunction. Should this be the case, allow the camera to sit idle for a few minutes to allow it
time to cool.
Do not recharge non rechargeable batteries. This may cause an explosion.
Do not leave this camera in places subject to extremely high temperatures, such as a sealed
vehicle, direct sunlight or other places of extreme variances in temperature. Exposure to
extreme temperatures may adversely affect the camera s internal components and could
cause a fire.
When in use, do not cover the camera or AC Power Adapter. This may cause heat to build up
and distort the camera body or cause a fire. Always use the camera and its accessories in a
well-ventilated area.
Warning
A
7
Leaking, overheating, or burst batteries could result in fire or injury.
Use batteries with the correct specification for the camera.
Do not short circuit, heat or dispose of batteries in fire.
Do not insert the batteries with the reverse polarities.
Remove the batteries when not planning to use the camera for a long period of time.
Batteries may leak corrosive electrolyte and irreparably damage the camera's components.
Do not fire the flash while it is in contact with hands or objects. Do not touch the flash after
using it continuously. It may cause burns.
Do not move the camera while it is switched on, if you are using the AC Power Adapter.
After use, always switch off the camera before unplugging the adapter from the wall socket.
Then make sure that any connector cords or cables to other devices are disconnected before
moving the camera. Failure to do so may damage the cords or cables and cause a fire or
electric shock.
Caution
An FCC warning
This device has been tested in accordance with the limits of a class B digital device under
item 15 of the FCC rules. These limits are designed to provide protection against harmful
interference in commercial installation. This equipment generates, absorbs and can emit
radio frequency energy. If it is not installed and used in accordance with the instructions, it
may cause harmful interference to radio communication. There is however, no guarantee
that interference will not occur in some situations. Should any interference occur when this
device is in operation, please try one or more of the following measures.
Change the location and direction of any aerial.
Increase distance between the camera and the affected device.
Use a different socket away from the affected device.
Please contact a Samsung agent or a radio/TV engineer.
This device complies with part 15 of the FCC Rules.
CAUTION
Changes or modifications not expressly approved by the party responsible for
compliance could void user's authority to operate the equipment.
8

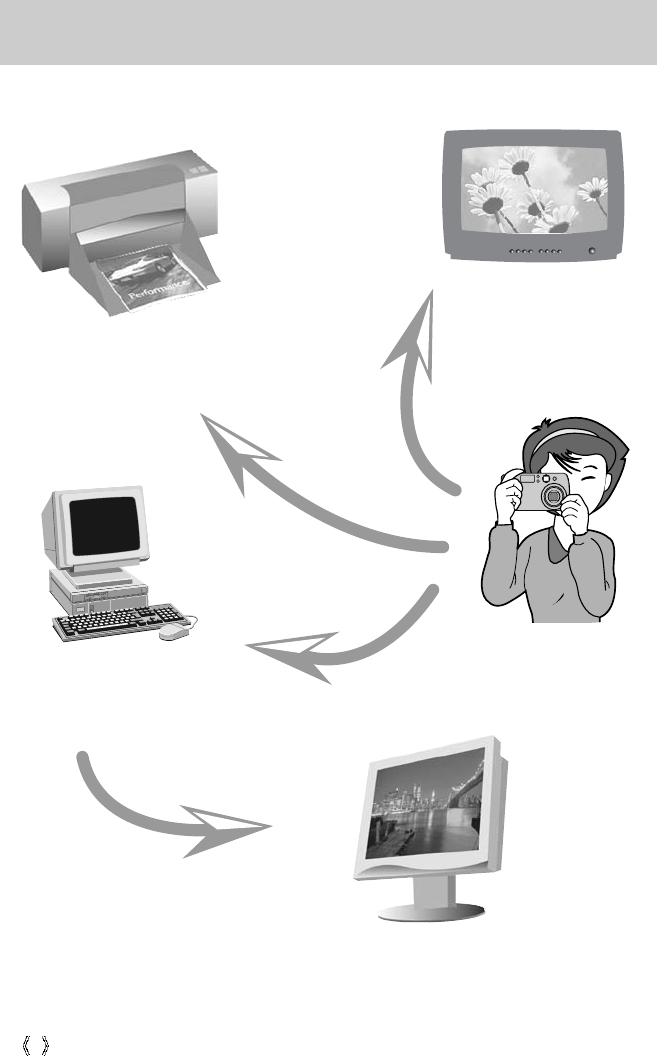

This digital camera can be used for
Printing images using a dedicated printer,
DPOF and PictBridge compatible printer or a
DPOF-equipped photo lab. (refer to page 63)
Down loading image files from
camera to computer. (refer to page
83)
Editing images on a PC.
(refer to page 111)
Viewing images on a TV.
(refer to page 79)
Taking a picture. (refer to
page 25~50)
A
9
This digital camera can be used for
Inserting images directly into any
electronic document.
Taking a self-portrait and using the image
to personalize name cards.
You can even create your own unique gift wrap
paper by using your digital images.
Creation of a digital photo album.
Recording your voice.
(refer to page 36/58) Recording a movie clip
(refer to page 27)
10
Manufacturer's contents
Please check that you have the correct contents before using this product.
marked contents are optional.
Digital Camera USB cableAV cablePouch Camera strap
Software CD DigiStudioProduct warrantyUser manual
Duracell CP-1
battery AC adapter (3.3V)
Battery pack
(SBP-3603)
Memory Stick Duo/
adapter/ Case
Battery charger User manualCigar jack for a carRechargeable battery
Digimax Battery Pack : SLB-1037 KIT
A
11
Identification of features
Front & Top
Back & Bottom
Mode switch
Viewfinder
Auto Focus
lamp
Microphone
Strap eyelet
Speaker
Lens
Power button
Flash
Shutter button
Function lamp
LCD
monitor
Viewfinder Camera status lamp
WIDE/THUMBNAIL button
TELE/Digital zoom button
+&-/ DELETE button
USB/ AV
connection terminal
DC input
connection point
Tripod socket
LCD button
PLAY mode
button
12

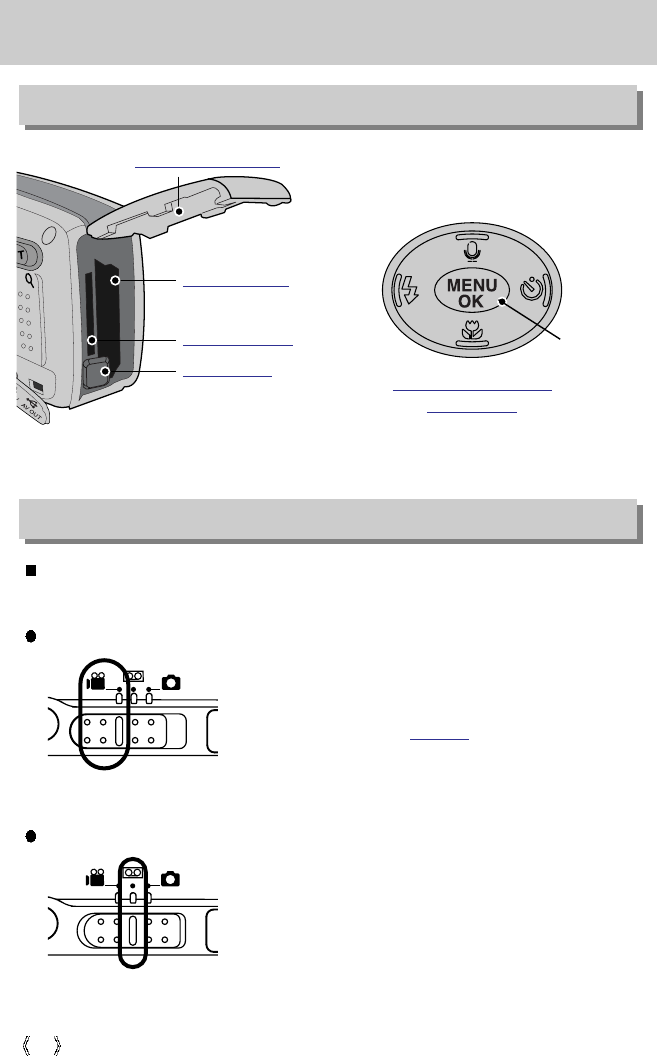

Identification of features
Voice recording mode
A movie clip can be recorded for as long as the available
recording time of the memory capacity allows.
Image size and type are listed below.
- Image size : 320X240,160X120
- Movie clip file type : *.mov (MPEG4)
A voice recording can be recorded for as long as the
available recording time of the memory capacity allows.
(Max: 1 hour)
- File type : *.wav(G. 711)
Movie clip mode
You can select the desired working mode by using the mode switch located on the top of the
camera. This digital camera has 3 recording modes. These are listed below.
FLASH/
LEFT
button
MENU/ OK
button
MACRO/PLAY&PAUSE/
DOWN button
SELF-TIMER/
RIGHT button
Voice memo/ UP button
Side/ 5-function button
Mode switch
Battery chamber
Battery holder
Memory card slot
Battery chamber cover
A
13
Identification of features

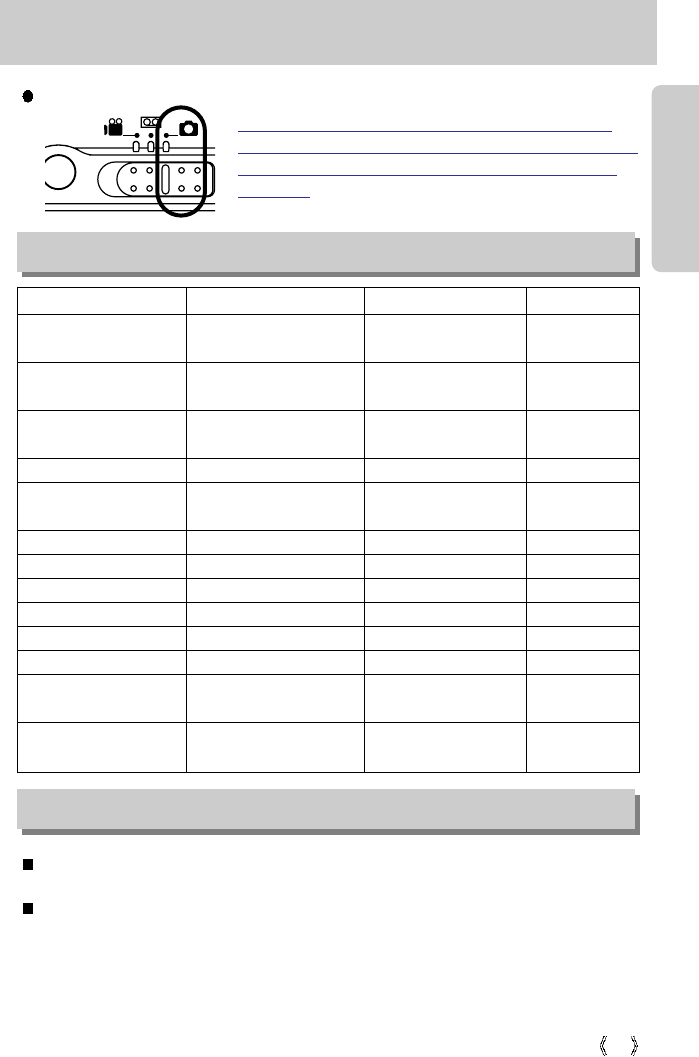

Still image mode
There are two ways in which to provide the camera with power. You can use batteries or
alternatively, you can use an AC(100 ~ 250V) Adapter (DC 3.3V 2.0A).
We recommend using batteries for a digital camera.(use batteries that are within a year of their date
of manufacture) The batteries are listed below.
Non rechargeable batteries : Duracell CP-1 battery
Rechargeable batteries : Digimax power pack (SLB-1037)
Battery pack : Digimax Battery Pack (SBP-3603)
Lamp
Connecting to a Power Source
You can select from Auto, Manual, or Night mode. In Myset
mode, any changes made to settings other than Self-Timer and
Voice Recording will be maintained even after the camera is
turned off.
Type Operation Lamp Camera Status Lamp LCD Monitor
When turning on the
power
7 color lights blink and then turns off when
the camera is ready to take a picture
Blinks orange once X
When the camera is in focus (when the
SHUTTER button is pressed halfway)
X Green lamp lights up Autofocus mark
lights up green
When the camera is out of focus (when the
SHUTTER button is pressed halfway)
X Green lamp blinks Autofocus mark
lights up red
While the flash is charging
X Red lamp blinks X
While saving an image X Green lamp blinks X
While shooting a video
Purple lamp blinks at a 1-second interval
XWhite
During voice recording
Blue lamp blinks at a 1-second interval
XX
While the camera is connected to a PC
X Green lamp lights up X
While transferring data between the camera and a PC
X Green lamp blinks X
When shooting an image
Green lamp blinks once for 0.3 second
XX
Flash is ready (when the SHUTTER
button is pressed halfway)
X Red lamp lights up X
While the self-timer is
running
Red lamp blinks for 7 seconds at a 1-second interval/blinks
for 3 seconds at a 0.25 second interval
XX
When the LCD monitor is
turned off in Still Image mode
Green lamp lights up XX
14

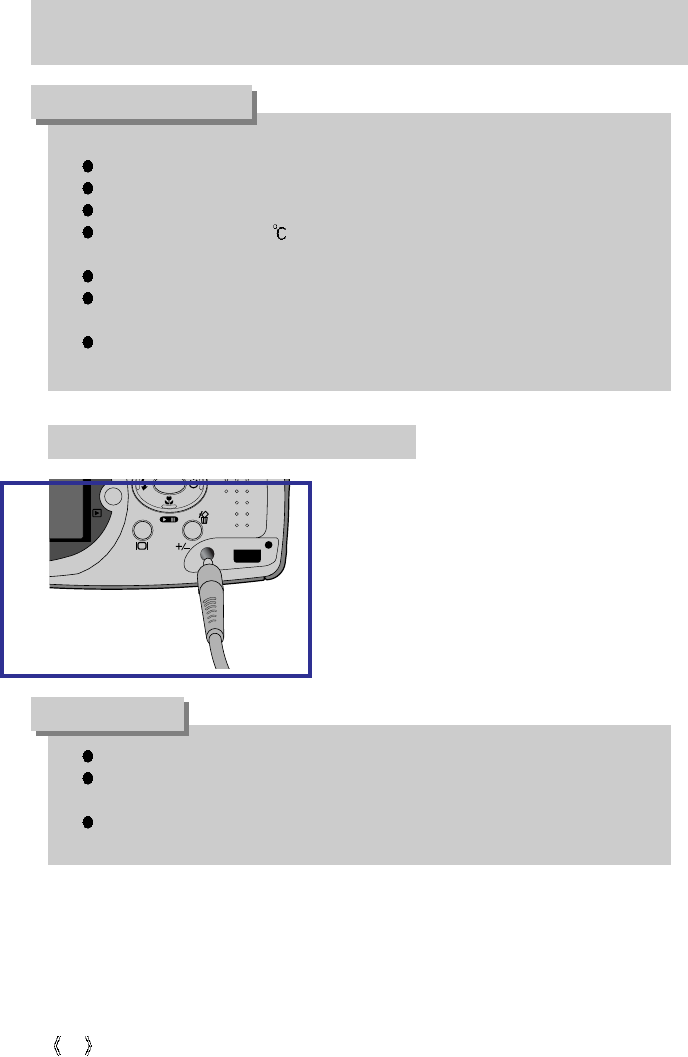

Connecting to a Power Source
Important information about battery usage
Do not recharge the non rechargeable batteries. This may cause an explosion.
Please remove the batteries if the camera will not be used for long periods.
Batteries can lose power over time and are prone to leaking if kept inside the camera.
Low temperatures (below 0 ) can affect the performance of the batteries and you may
experience reduced battery life.
Batteries will usually recover at normal temperatures.
During extended use of the camera, the camera body may become warm. This is
perfectly normal.
If you are planning to use this camera for long periods of time, it is advisable to use an
AC adapter (3.3V 2.0A).
Always turn off the power before taking the AC adapter out of the mains supply.
As with all mains powered devices, safety is important. Ensure that neither the camera
nor adapter comes into contact with water or metallic materials.
Please ensure that you use an AC adapter (3.3V 2.0A) with the correct specification for
the camera. Failure to do so may affect your warranty.
INFORMATION
DANGER
If you have access to a mains supply, using an AC
Adapter (3.3V 2.0A) allows the camera to be used for
long periods of time.
Plug the adapter into the connection point (DC IN
3.3V) on the camera.
Remove the batteries from the camera when using an
AC adapter.
Using the AC power adapter (3.3V 2.0A)
A
15
Connecting to a Power Source
Using the batteries :
If the camera does not turn on after you have inserted batteries, please
check whether the batteries are inserted with the polarity(+ and-).
The Digimax Battery Pack is a rechargeable external Li-ion
battery for use with most digital cameras. These optional
battery packs provide long lasting power and their operating
performances are much improved over Ni-MH and Alkaline
batteries. This is due to the mass storage lithium ion cell.
Refer to the illustrations
Using the Digimax battery pack ( Optional : SBP-3603, 3.3V)
Battery status
Battery indicator
The batteries are fully
charged. Prepare new batteries.
There is no battery
capacity. Replace with
new batteries.
There are 3 indicators for battery condition that are displayed on the LCD monitor.
Removing the battery
1. Turn off the camera power. Open the battery chamber cover
and move the battery holder aside. The battery will be
released.
2. Take out the battery and close the battery chamber cover.

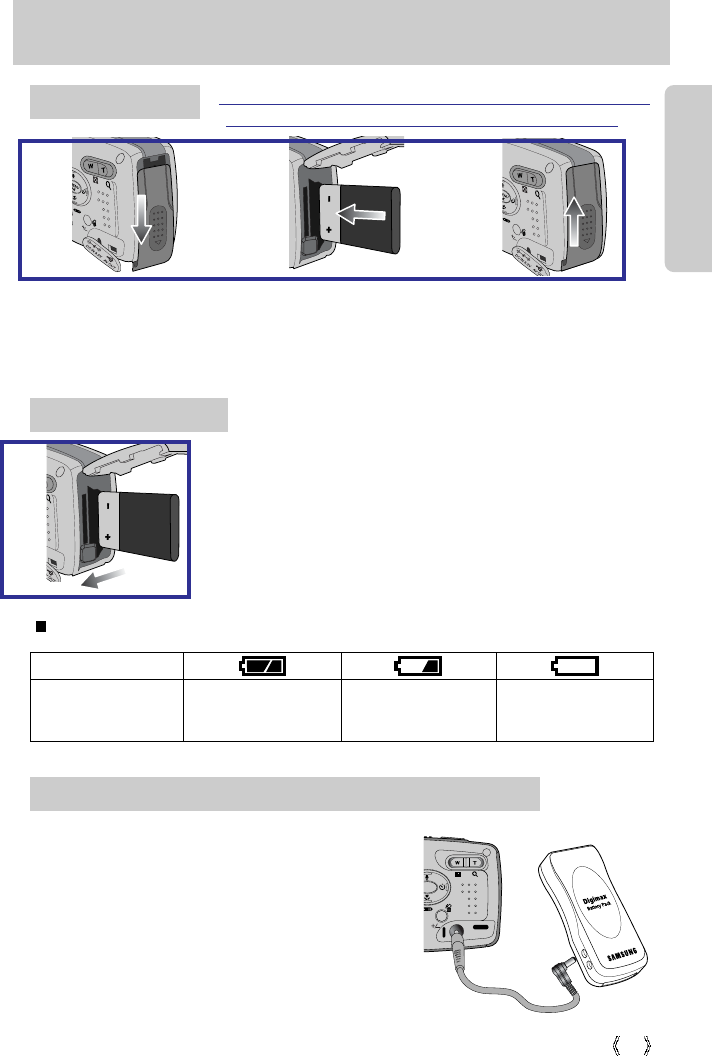

1. Open the battery chamber
cover by pushing in the
direction of the arrow.
2. Insert the batteries according
to the polarity marks (+ and -)
on the back of the battery
chamber cover.
3. To close the battery
chamber cover, push it
until it clicks.
16
Precautions on Using the Memory Stick Duo
Do not insert the Memory Stick Duo on its own into a Memory Stick-compatible device.
Do not insert the Memory Stick Duo adapter into a Memory Stick-compatible device without
attaching the Memory Card Duo to the adapter. Using it without the Memory Stick Duo may
adversely affect the device into which it is inserted.
Be sure to check the proper direction of insertion before use .
Insert the Memory Stick Duo all the way into the Memory Stick Duo adapter. If the Memory
Stick Duo is not inserted correctly into the adapter, it may not operate properly.
Do not attach labels to any part of the Memory Stick Duo and Memory Stick Duo adapter. The
labels may come off as you insert the Memory Stick Duo into the adapter or into a Memory
Stick-compatible device.
When inserting the Memory Stick Duo into the slot, do not force or bend it.
Do not touch the Memory Stick Duo adapter's card pins with your fingers or with metal objects.
Do not allow dirt or foreign material to get into the Memory Stick Duo adapter slot.
Do not leave the Memory Stick Duo with its adapter in areas subject to high temperatures.
Those models with the write-protect switch on the back of the card prevents accidental erasure
of data from deletion or formatting. By sliding the switch to the top of the memory card, the data
will be protected. By sliding the switch to the bottom of the memory card, the data protection
ability will be canceled. Please use a pointed object to move the write-protect switch. Check the
switch position before taking an image.

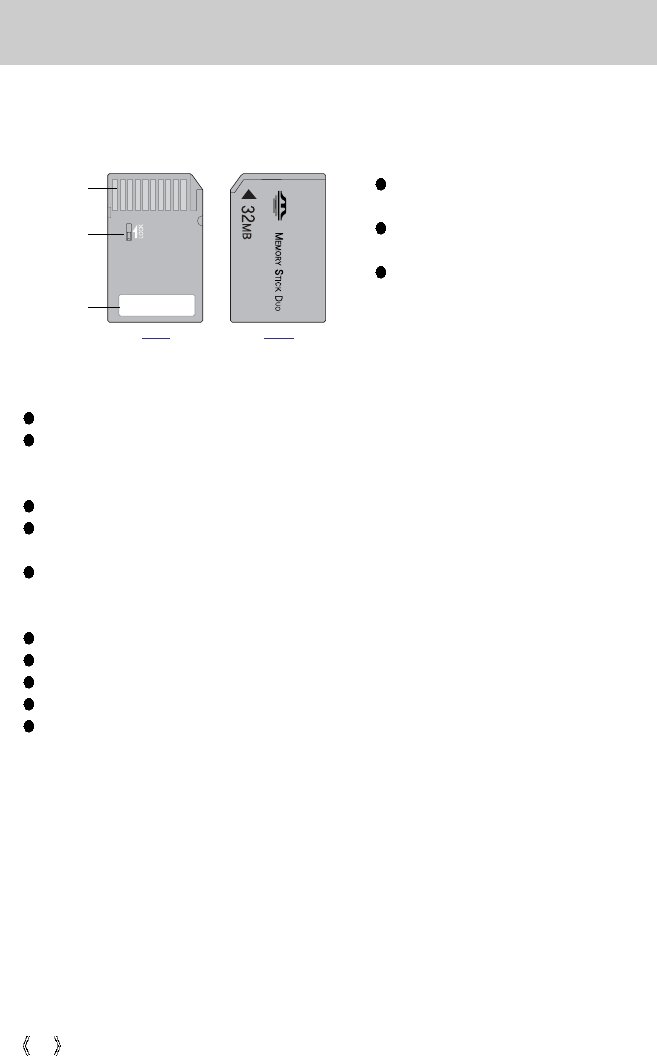

Card pins(A)
Write
protect
switch(B)
Label(C)
[ Memory Stick Duo ]
Front
Back
This camera operates only with a Memory Stick Duo.
Some models of Memory Stick Duo media do not have the write-protect switch (B).
Do not touch the card pins (part A) with
your fingers or with metal objects.
Do not press hard when writing on the
label (part C).
If you insert the Memory Stick Duo into
the Memory Stick Duo adapter, you will
be able to use it with a Memory Stick-
compatible device.
A
17
Precautions on Using the Memory Stick Duo
Maintenance of the Memory Stick Duo(Hereafter the Memory Stick Duo is
referred to as the "Memory Card".)
Turn off the camera power whenever the memory card is being inserted or removed.
Repeated use of the memory card will eventually reduce the memory card's performance.
Should this be the case, you will need to purchase a new memory card.
Wear and tear on the memory card is not covered by the Samsung warranty.
The memory card is an electronic precision device. Do not bend, drop or subject the memory
card to any heavy impact.
Do not store the memory card in an environment with strong electronic or magnetic fields, e.g.
near loud speakers or TV receivers.
Please do not use or store in an environment where there are extremes in temperature.
Do not allow the memory card to become dirty or to come into contact with any liquid. Should
this happen, clean the memory card with a soft cloth.
Please keep the memory card in its case when not in use.
During and after periods of extended use, you may notice that the memory card is warm.
This is perfectly normal.
Do not use a memory card that has been used in another digital camera or memory card reader.
Do not use a memory card formatted by another digital camera or memory card reader.
Preserving the memory card data
Do not remove the memory card while the camera status lamp (green) is blinking.
Doing so will corrupt the data on the memory card.
Samsung cannot be held responsible for lost data.
It is advisable to copy important data onto other media as back-up e.g. floppy disks, hard disks,
CD etc.
If there are no shots remaining
When you press the shutter button, a [CARD FULL !] message is displayed and the camera will
not operate. To optimize the amount of memory in the camera, replace the memory card or
delete unnecessary images stored in the memory.
18
Inserting the memory card
1. Turn off the camera’s power and pull the memory card
cover in the direction of the arrow to open.
2. Have the front of the memory card facing toward the front
of the camera (lens) and the card pins toward the back of
the camera (LCD monitor), and then push the memory
card into the card slot until you hear a click.
3. To close, push the card cover until you hear a click. If the
memory card does not slide in smoothly, do not attempt to
insert it by force. Check the direction of insertion, and then
insert it correctly.
1. Turn the power off using the power button.
Open the battery chamber cover and press the memory
card as shown in the image and release.
2. Remove the memory card and close the memory card
cover.
Do not insert the memory card the wrong way round . Doing so may damage the
memory card slot.
INFORMATION
Removing the memory card
19
When Using the Camera for the First Time
If the camera is turned on for the first time, a menu will be displayed to set date, time and
language in the LCD monitor. This menu will not be displayed after setting up the date, time
and language. Set up the date, time and language before using this camera.

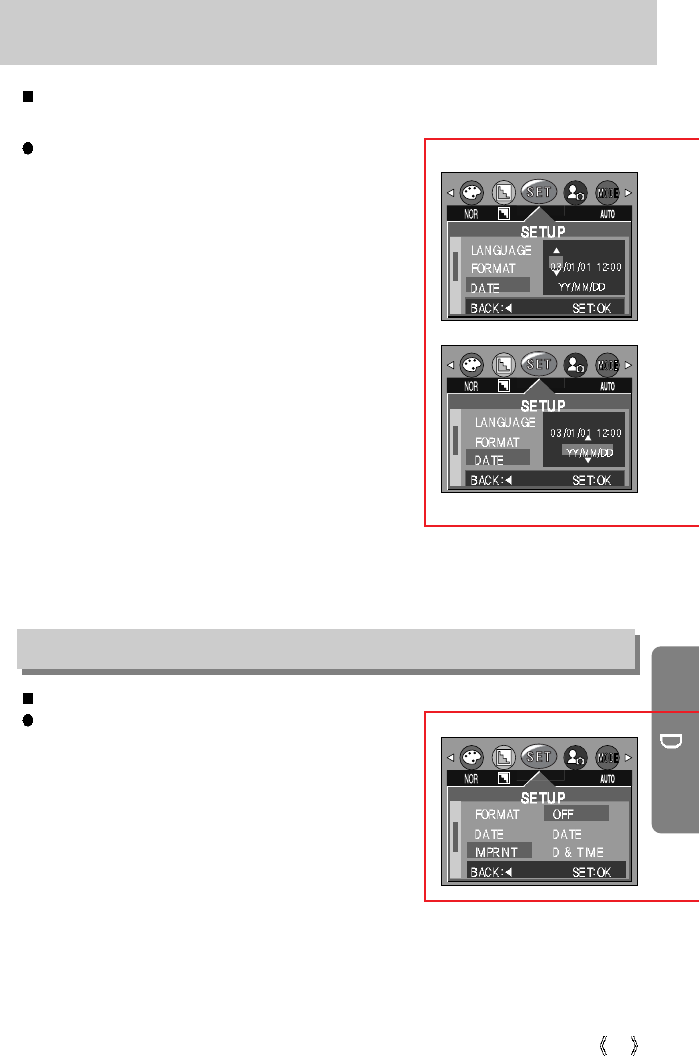

Setting up the date, time and date type
1. Select the [DATE.TIME] menu by pressing the UP/DOWN
button and press the RIGHT button.
2. Select the desired sub menu by pressing the UP/ DOWN/
LEFT/ RIGHT button.
RIGHT button : selects YEAR/ MONTH/ DAY/ HOUR /
MINUTE/DATE TYPE
LEFT button : Moves the cursor to the [DATE/TIME]
main menu if the cursor is at the first
item of the date and time setup. In all other instances, the cursor will be
shifted to the left of its current position.
UP/ DOWN button : changes the value of each item.
Date setting range : 2003/01/01 ~ 2050/12/31
(Leap years and months are corrected automatically)
You will need to check and select the correct Date / Time when the batteries have been
removed for a period longer than 1 hour.
INFORMATION
You can select 16 languages. These are listed below.English, Korean, T. Chinese, S.
Chinese, Japanese, Russian, Germany, Spanish, French, Italian, Danish, Dutch,
Swedish, Finnish, Portuguese, Thai.
Even if the camera is restarted, the language setting will be maintained.
INFORMATION
Setting up the language
1. Select the [LANGUAGE] menu by pressing the
UP/DOWN button and press the RIGHT button.
2. Select the desired sub menu by pressing the UP/ DOWN
button and press the OK button. ,
2.
20

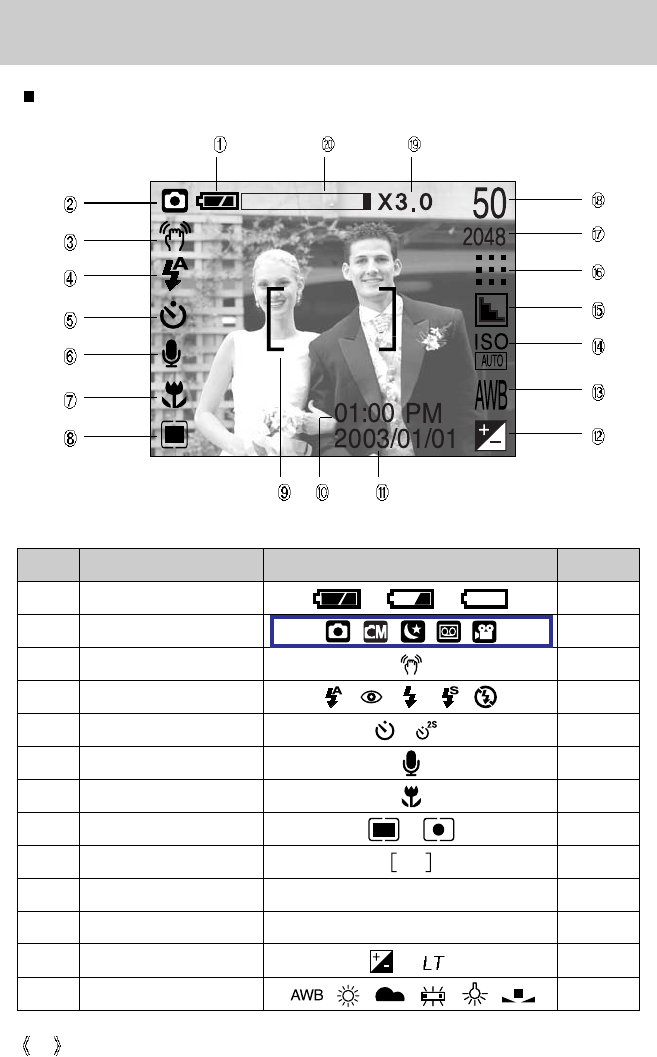

LCD monitor indicator
The LCD monitor displays information about the shooting functions and selections.
[ Image & Full Status ]
No. Description Icons Page
1
Battery
p.20
2
Recording mode
p.18
3
Camera shake warning
p.29
4
Flash
p.38
5
Self-timer
p.40
6
Voice memo
p.33
7
Macro
p.49
8
Metering
p.37
9
Auto focus frame
p.36
10
Time
01:00 PM p.74~76
11
Date
2003/01/01 p.74~76
12
Exposure compensation
13
White Balance
p.43
21
LCD monitor indicator
Starting the recording mode
Recording a Movie clip
1. Insert the batteries (p.16). Insert the batteries taking note of the polarity (+ / -).
2. Insert the memory card (p.22).
3. Close the memory card cover.
4. Press the power button to turn on the camera.
5. Select the MOVIE CLIP( ) mode by sliding the mode
switch.
6. Point the camera towards the subject and compose the
image by using either the viewfinder or LCD monitor.
7. Press the shutter button to take a movie clip.
Press the shutter button once and movie clips are
recorded for as long as the available recording time
allows. Movie clips will still be recorded if the shutter
button is released. If you wish to stop recording, press the
shutter button again. Image size and type are listed below.
- Image size : 320X240, 160X120(Selectable)
- File type : *.mov (MPEG4)
The available recording time may vary depending on shooting conditions and camera
settings.
INFORMATION
14 ISO p.46
15
Sharpness
p.46
16
Image quality
p.42
17
Image size
2048, 2048P, 1600, 1024, 640
18
Number of available shots remaining
50
Remaining time( Movie clip/ Voice recording)
00:05:00 p.34~35
19
Digital Zoom rate
X3.0 p.34~35
20
Optical zoom
[ MOVIE CLIP mode ]
22

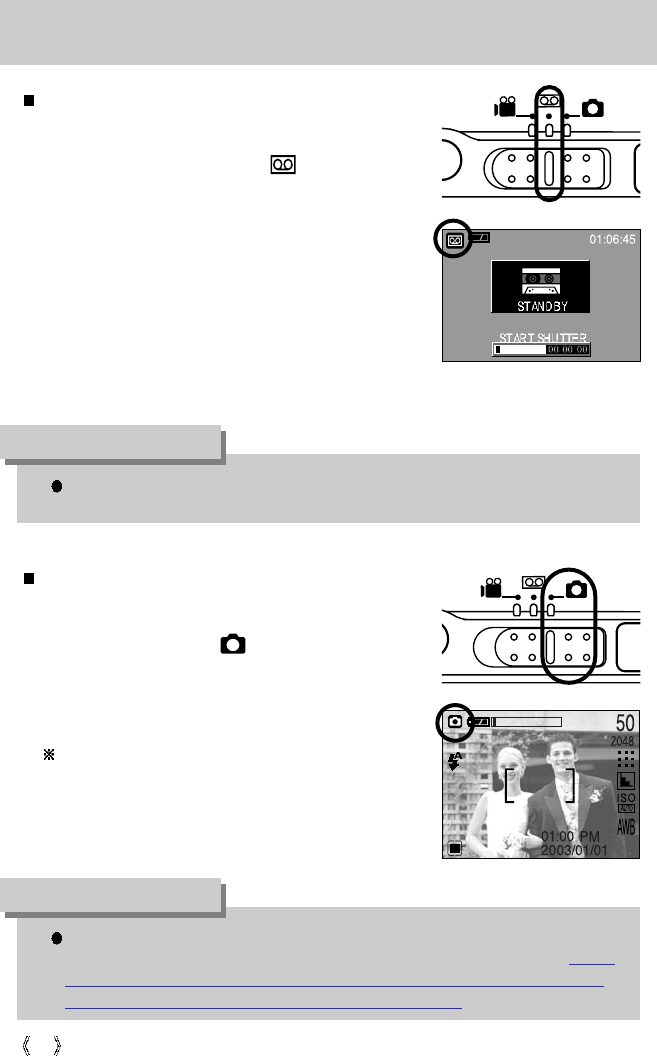

Starting recording mode
Recording a still image
Steps from 1-4 are the same as those for recording a movie
clip.
5. Select the STILL IMAGE( ) mode by sliding the mode
switch.
6. Point the camera towards the subject and compose the
image by using either the viewfinder or LCD monitor.
7. Press the shutter button to capture an image.
A [DELETE?] message may be displayed after taking a
picture. Refer to p.93 for more information about this
[DEL. ANSWER].
Recording Voice
Steps from 1-4 are the same as those for recording a movie
clip.
5. Select the VOICE RECORDING( ) mode by sliding
the mode switch.
6. Press the shutter button to record a voice.
- Press the shutter button once and voice is recorded for
as long as the available recording time allows.
The recording time will be displayed on the LCD monitor.
- Voice will still be recorded if the shutter button is
released.
- If you wish to stop recording, press the shutter button
again.
- File type : *.wav
A distance of 40cm between you and the camera (microphone) is the best distance to
record sound.
INFORMATION
Manner mode: Pressing the power button for more than 2 seconds changes the buzzer
and start-up sound setting to OFF, even though you may have set these to ON. To turn
on the startup sound and operation sound, set the startup sound (MyCAM mode) and
operation sound (Setup mode) to a submenu other than [OFF].
INFORMATION
[ STILL IMAGE mode ]
[ VOICE RECORDING mode ]
23
Things to watch out for when taking pictures
If the camera is in focus, when you press the SHUTTER button halfway, the camera
status lamp (green) will light up and the LCD monitor's autofocus mark will turn green. If
the camera is out of focus, when you press the SHUTTER button halfway, the camera
status lamp (green) will blink and the LCD monitor's autofocus mark will turn red.
If the camera status lamp (orange) lights up when you press the SHUTTER button
halfway, the camera is in focus and you can use the flash also.
The camera status lamp (red) blinks while the flash is charging.
The camera status lamp (green) blinks while saving a picture to the memory card and
turns off when saving is finished.
When the Flash Off or Slow synchro mode is selected in a low lighting condition, the
camera shake warning indicator ( ) may appear on the LCD monitor. In this case,
use a tripod, support the camera on a solid surface or change the flash mode to flash
shot mode.
Backlight compensated shots : When taking an outdoor shot, avoid facing the sun, as
the image may be dark because of the strong backlight. In backlight conditions, please
use exposure compensation. (refer to page 51).
Avoid obstructing the lens or the flash when you capture an image.
As there can be some differences between what is seen through the Viewfinder and the
resulting image when taken at a range closer than 1.5m, it is recommended that you
use the LCD monitor to compose these shots.
Using the LCD monitor extensively will drain the batteries.
We recommend turning off the LCD monitor and using the optical viewfinder as often as
possible in order to extend battery life.
Under certain conditions the auto focus system may not perform as expected.
- When photographing a subject that has little contrast.
- If the subject is highly reflective or shiny.
- If the subject is moving at high speed.
- When there is strong reflected light, or when the background is very bright.
- When the subject matter has only horizontal lines or the subject is very narrow
(such as a stick or flagpole).
- When the surroundings are dark
- If the subject is the same colour as the background
INFORMATION
24
Using the camera buttons to adjust the camera
The RECORDING(STILL IMAGE, VOICE RECORDING, MOVIE CLIP) mode function can be
set up by using the camera buttons.
Used for turning the camera’s power on / off.
If there is no operation during the specified time, the
camera’s power will be turned off automatically to save
battery life. Pressing the power button for over 2 seconds will
deactivate the buzzer sound function.
POWER button
Used for taking an image or recording voice in the
RECORDING (STILL IMAGE, VOICE RECORDING,
MOVIE CLIP) mode.
In MOVIE CLIP mode : Pressing the shutter button down
fully starts the process for recording a movie clip. Press the
shutter button once and the movie clip is recorded for as long
as the available recording time in the memory allows. If you
wish to stop recording, press the shutter button again.
In STILL IMAGE mode
Pressing the shutter button down halfway activates the autofocus and checks the condition of
the flash. Pressing the shutter down fully takes the image and stores the relevant data
regarding the shot. If you select voice memo recording, the recording will start after the camera
has finished storing the image data.
SHUTTER button
If the menu is displayed in Still Image mode, pressing the
WIDE(W)/TELE(T) button will skip 5 menu tabs at a time.
If the menu is not displayed, this button works as the
OPTICAL ZOOM or DIGITAL ZOOM button.
This camera has a 3X optical zoom and a 3X digital zoom
function. Using both will offer a total zoom ratio of 9X.
When you press the zoom (W/T) button, the zoom bar will
display in the upper center part of the LCD monitor.
WIDE / TELE button
25

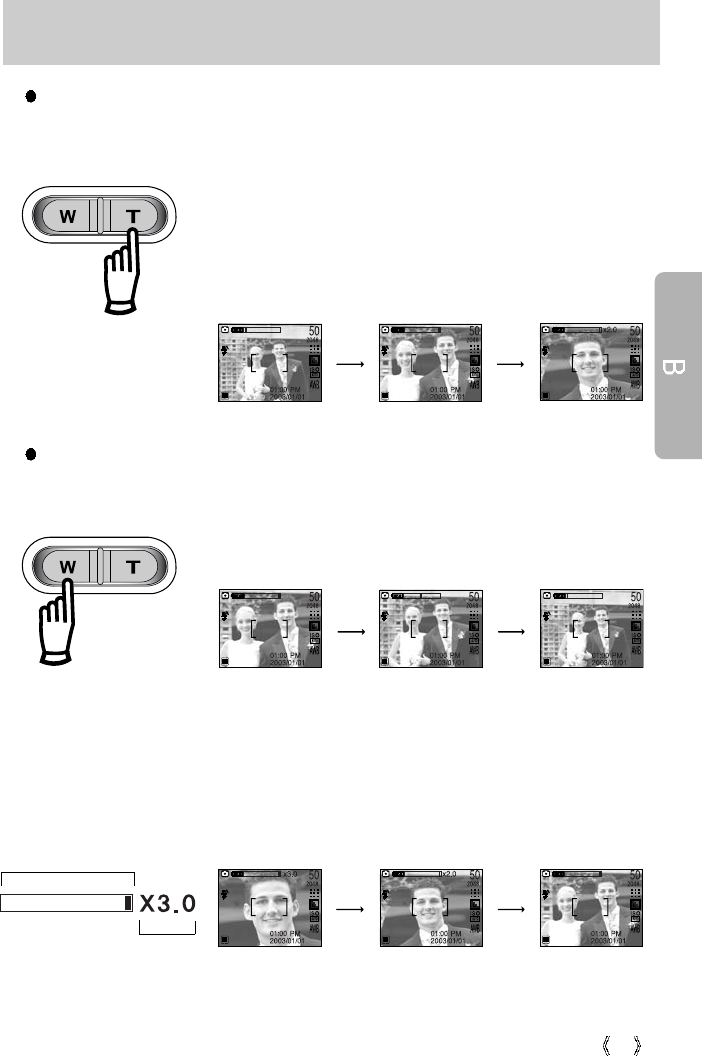

WIDE / TELE button
TELE Zoom
Optical zoom TELE : Pressing the zoom button T. This will zoom into the subject i.e. the
subject will appear nearer.
Digital zoom TELE : When the maximum (3X) optical zoom is selected, pressing the zoom
button T activates the digital zoom software. Releasing zoom button T
stops the digital zooming at the required setting. Once the maximum
digital zoom (3X) is achieved, pressing the zoom button T will have no
effect. You can check the digital zoom rate with the [X1.5 ~ X 3.0]
numerical mark next to the zoom bar.
[ WIDE zoom ] [ TELE zoom ] [ Digital zoom 2.0X ]
Pressing the
TELE button
Pressing the
TELE button
WIDE Zoom
Optical zoom WIDE : Pressing the zoom button W. This will zoom out from the subject
i.e. the subject will appear further away. Pressing the W button
continuously will set the camera to its minimum zoom setting i.e.
the subject appears at its furthest from the camera.
Digital zoom WIDE : When the digital zoom is in operation, pressing the zoom button
W will reduce the digital zooming in steps. Releasing zoom button
W stops digital zooming. Pressing the W button will reduce the
digital zoom and then it will continue to reduce the optical zoom
until the minimum setting is reached.
[ TELE zoom ] [ Optical zoom 2X ] [ WIDE zoom ]
Pressing the
WIDE button Pressing the
WIDE button
[ Digital zoom 3.0X ] [ Digital zoom 2.0X ] [ Optical zoom 3X ]
Pressing the
WIDE button
Pressing the
WIDE button
Optical zoom
Digital zoom
26
WIDE / TELE button
To use the digital zoom the LCD monitor has to be turned on.
Images taken using the digital zoom may take a little longer for the camera to process.
Allow time for this to take place.
The digital zoom cannot be used in movie clip shots.
You may notice a decrease in image quality when using the digital zoom.
When the maximum(3X) optical zoom is selected, pressing the zoom button T
increases the digital zoom ratio by 0.5 steps.
If the movie clip is being recorded, the zoom operation cannot be activated.
Take care not to touch the lens to avoid taking an unclear image and possibly causing
camera malfunction.
If the image is dim, turn the camera power off and on again to modify the lens position.
Take care not to press the lens as this may cause a camera malfunction.
When the camera is turned on, take care not to touch the camera s moving lens parts
as this may cause the resulting image to be dim and unclear.
Take care not to touch the lens during zoom operation as this may cause damage.
INFORMATION
Voice memo( )/ UP button
While the menu is showing, press the UP button to move up the submenu cursor.
When the menu is not displayed on the LCD monitor, the UP button operates as the voice
memo( ) button. You can add your voice-over to a stored still image.
Recording a voice memo
1. Select the STILL IMAGE mode by sliding the mode switch.
2. Press the VOICE MEMO( ) button. If the voice memo indicator is displayed on the LCD
monitor, the setting is completed.
[ Preparing for Voice Memo ] [ Recording Voice Memo ]
27

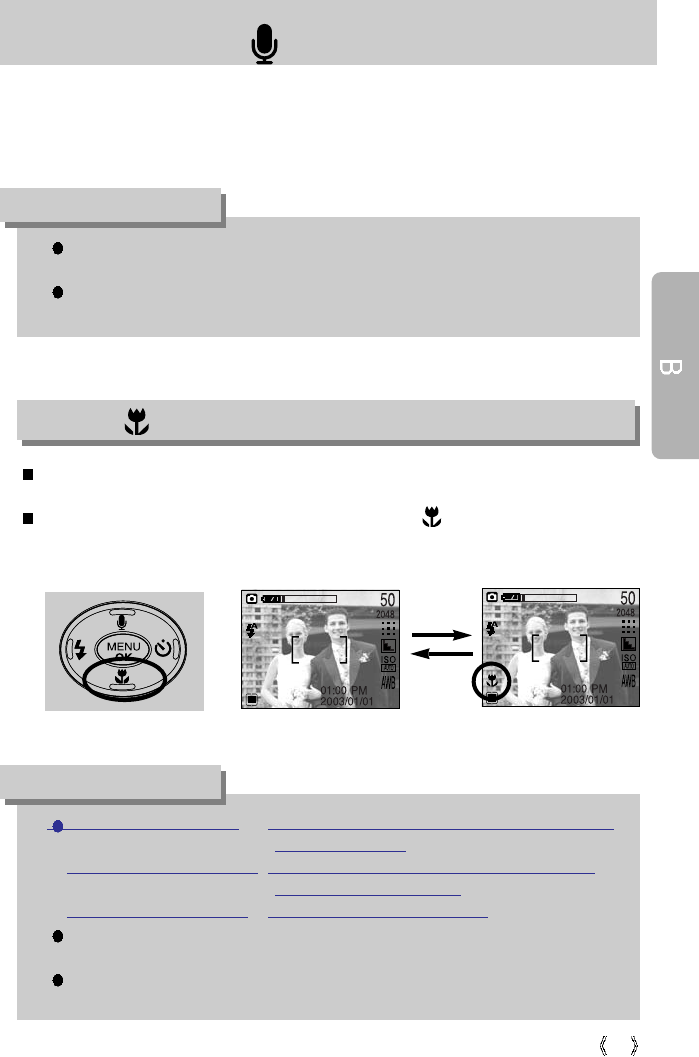

Voice memo( )/ UP button
3. Press the shutter button and take a picture. The picture is stored on the memory card.
4. Voice memo will be recorded for ten seconds from the moment the picture is stored.
In the middle of the sound recording, pressing the shutter button will stop the voice memo.
A distance of 40cm between you and the camera (microphone) is the best distance to
record sound.
The voice memo function will operate only once, and then it will automatically be
cancelled.
INFORMATION
Auto (Auto Shooting Mode) : The changed Focus mode will be maintained until the
camera is turned off.
Myset (Myset Shooting Mode) : The changed Focus mode will be maintained even
after the camera is turned off.
Night (Night Shooting Mode) : The MACRO button will not work.
When the macro mode is selected, it is possible that camera shake will occur.
If this is the case, use a tripod to eliminate this.
When the macro mode is selected, it is recommended that you use the LCD monitor to
compose these shots.
INFORMATION
Macro( ) / Down button (Focusing)
While the menu is showing, press the DOWN button to move from the main menu to a
submenu, or to move down the submenu cursor.
When the menu is not showing, you can use the MACRO ( )/DOWN button to take macro
pictures (within the distance range of 5-80 cm for WIDE and 50-80 cm for TELE) in the STILL
IMAGE mode.
[ Macro ][ Autofocus ]
Pressing the
MACRO button
28
Fixed focus
To focus on the subject positioned outside of the center, use the focus lock function.
Using the Focus Lock
1. Ensure the subject in the center of the autofocus frame.
2. Press the SHUTTER button halfway. The camera status lamp (green) will light up, indicating
that the camera is in focus. Be careful not to press the SHUTTER button all the way down to
avoid taking an unwanted picture.
3.
With the SHUTTER button still pressed down only halfway, move the camera to recompose your
picture as desired, and then press the SHUTTER button completely to take the picture. If you
release your finger from the SHUTTER button, the focus lock function will be canceled.
[ The image to be captured ] [ Press the SHUTTER button
halfway and focus on the subject ]
[ Recompose the picture and fully
depress the SHUTTER button ]
FLASH( ) / LEFT button
AUTO
FOCUS
MACRO
AUTO 100 200 400
WIDE 0.8~3 0.8~2.6 1~3.7 1~5.2
TELE 0.8~2 0.8~1.5 1~2.1 1~2.9
WIDE 0.2~0.8 0.2~0.8 0.2~0.8 0.2~0.8
TELE 0.5~0.8 0.5~0.8 0.5~0.8 0.5~0.8
(Unit : m)
[ Selecting the Auto flash ]
Flash range
When the menu is displayed on the LCD monitor, pressing
the LEFT( ) button makes the cursor shift to the left tab.
When the menu is not displayed on the LCD monitor, the
LEFT( ) button operates as the FLASH ( ) button.

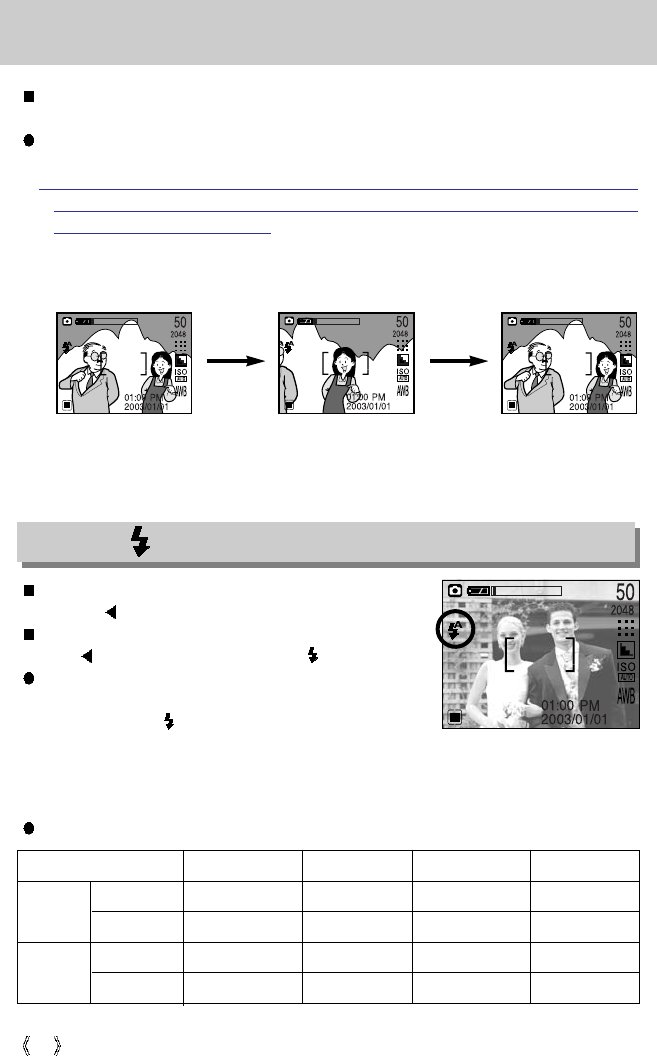

Selecting the flash mode
1. Slide the mode switch to the STILL IMAGE mode.
2. Press the Flash( ) button until the desired flash mode
indicator displays on the LCD monitor.
3. A flash mode indicator will be displayed on the LCD monitor.
Use the correct flash to suit the environment.
ISO
29
FLASH( ) / LEFT button

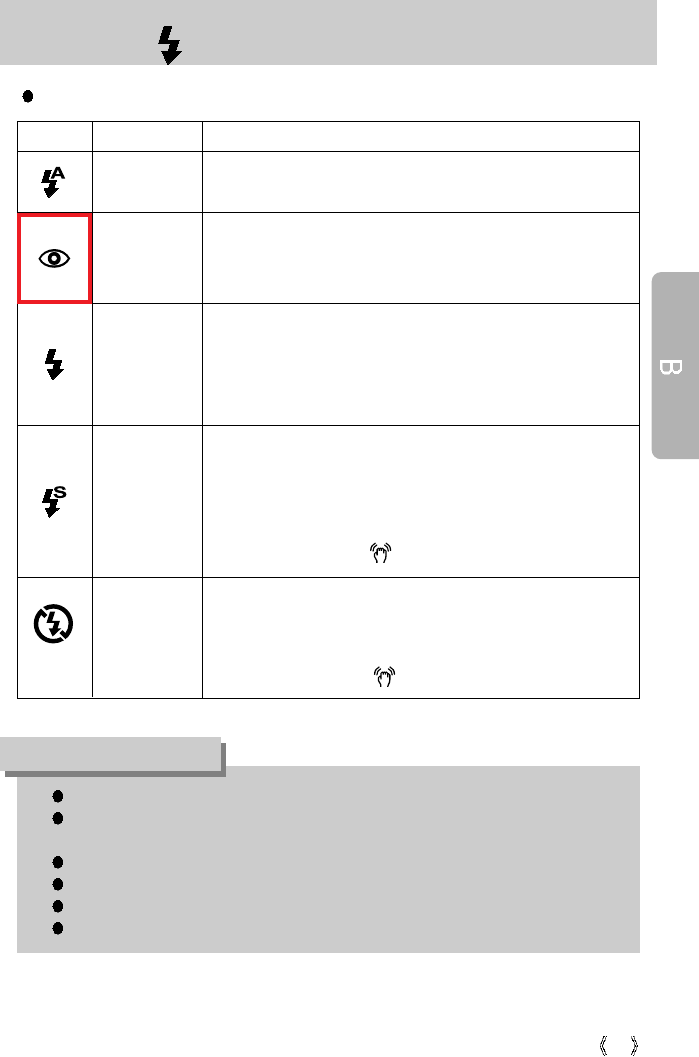

ICON Flash mode Description
Flash mode indicator
If the subject or background is dark, the camera flash will operate
automatically.
Auto flash
Red eye
reduction
Slow synchro
Fill in flash
Flash off
If a subject or background is dark, the camera flash will work
automatically and will reduce the red-eye effect by using the red-
eye reduction function.
The flash will operate in conjunction with a slow shutter speed in
order to obtain the correct exposure. We recommend using a
tripod for this function.
When you take an image in a condition with poor light, the camera
shake warning indicator ( ) will display on the LCD monitor.
The flash fires regardless of available light. The intensity of the
flash will be controlled, according to the prevailing conditions.
The brighter the background or subject is, the less intense the flash
will be.
The flash does not fire. Select this mode when capturing images in
a place or situation where flash photography is prohibited.
When you capture an image in a poorly lit condition, the camera
shake warning indicator ( ) will display on the LCD monitor.
Using the flash frequently will reduce the life of the batteries.
Under normal operating conditions the charging time for the flash is normally within 7
seconds. If the batteries are weak, the charging time will be longer.
During the movie clip mode, the flash function will not operate.
Take photographs within the flash range.
The image quality is not guaranteed if the subject is too close or highly reflective.
The LCD monitor is turned off for a while after using the flash to recharge it.
INFORMATION
30

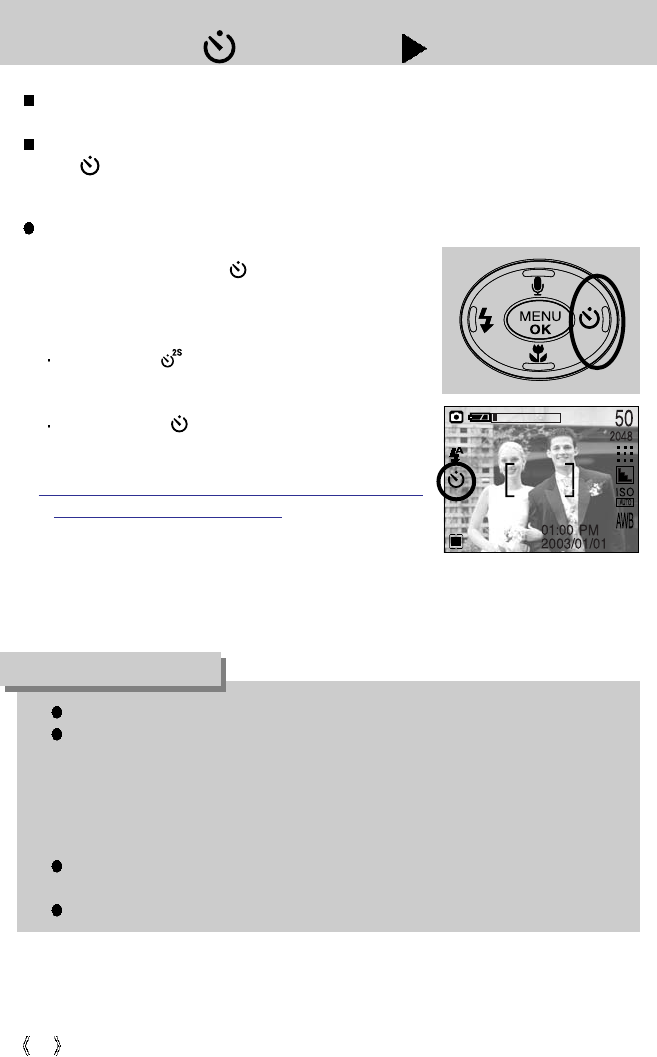

Self-timer( ) / Right( ) button
Selecting the self-timer
1. Slide the mode switch to the STILL IMAGE mode.
2. Press the SELF-TIMER( ) button until the desired
mode indicator displays on the LCD monitor. A 2 second
self-timer or 10 second self-timer icon appears on the
LCD monitor.
2SEC self-timer( )
: Pressing the shutter button will allow an interval of 2
seconds before the image is taken.
10SEC self-timer( )
: Pressing the shutter button will allow an interval of 10
seconds before the image is taken.
3. Press the SHUTTER button. The picture will be taken
after the specified time has elapsed.
When the menu is displayed on the LCD monitor, pressing the Right button makes the cursor
shift to the sub tab.
When the menu is not displayed on the LCD monitor, the RIGHT button operates as the Self-
timer( ) button. This function is used when the photographer would also like to be in the
image.
[ Selecting the 10SEC self-timer ]
The default is OFF.
When taking a picture using the self-timer, the function lamp works as follows:
2 second self-timer setting : The function lamp blinks at 0.25 second interval for 2
seconds.
10 second self-timer setting : The function lamp blinks at 1 second interval for the first 7
seconds. It blinks at 0.25 second interval for the remaining
3 seconds.
If you operate the Power button, Mode switch, and Self-timer button during the self-timer
operation, the self-timer function is cancelled.
Use a tripod to prevent the camera from shaking.
INFORMATION
31
MENU/ OK button
If the menu is displayed, use the 5-Function buttons ( ///) to change the data values
and for your changes to be accepted.
If the menu is not displayed, press the MENU/OK button to display a menu for the current
camera mode on the LCD monitor. Press the button again to return to the previous state.
Exposure compensation : This camera automatically adjusts the exposure
according to the ambient lighting conditions. In Auto or Myset mode, the
exposure compensation can be adjusted between -2.0EV and +2.0EV (at
0.5EV increment), and in Night mode, you can set the long time shutter.
The setting value you have adjusted in Auto mode will remain unchanged
even after the camera is turned off.

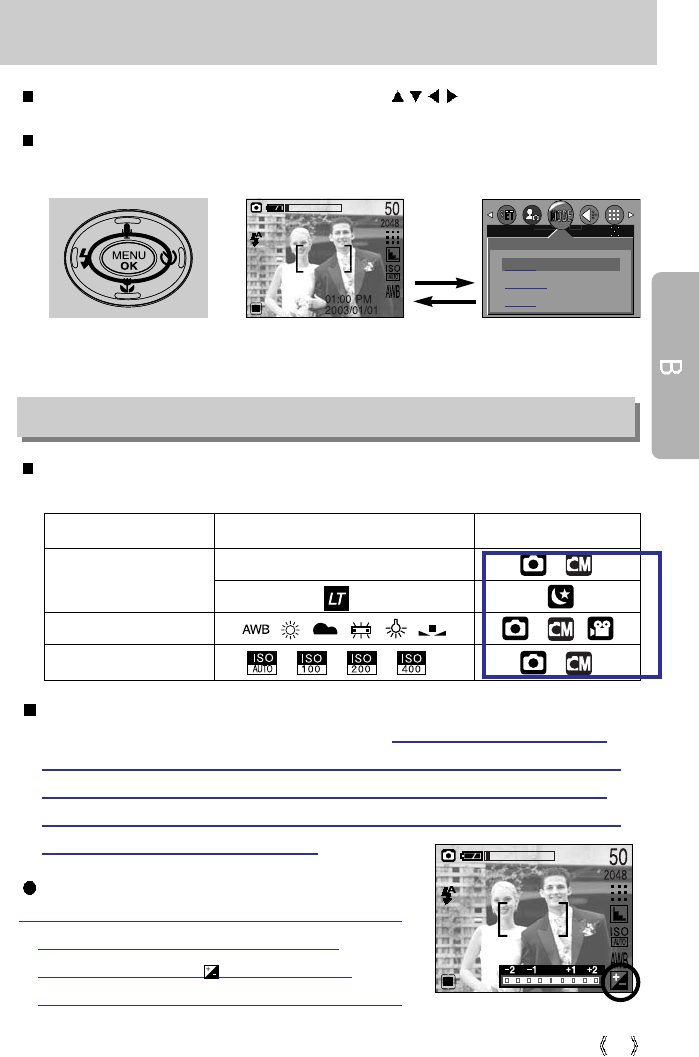

Compensating Exposure

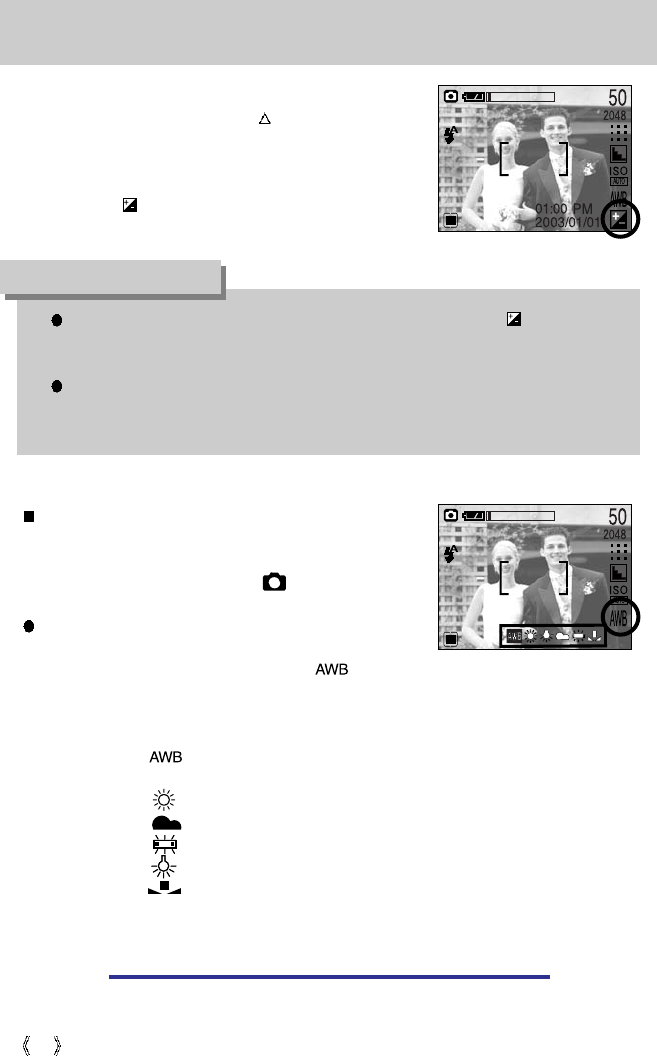

1. Press the +/- button, and then use the UP and
DOWN buttons to select the exposure
compensation icon ( ). The exposure
compensation menubar will appear as shown.
+/- button
You can use the +/- button to adjust the values for the exposure compensation, white balance,
and ISO.
Main menu Sub menu Available camera mode
-2.0EV ~ +2.0EV(0.5EV steps)
White balance
ISO
Exposure
[ Menu on ][ Menu off ]
Pressing the
MENU
button
2048
AUTO
MANUAL
NIGHT
MODE
AUTO
32
+/- button
The amount of exposure compensation you set in Night Shot mode ( ) remains
unchanged until the power is turned off, but it will automatically be set to 0.0EV when
the power is turned on again. (Canceling Exposure Compensation setup mode)
A negative exposure compensation value reduces the exposure. Note that a positive
exposure compensation value increases the exposure and the LCD monitor will appear
white or you may not get good pictures.
INFORMATION
2. Use the LEFT and RIGHT buttons to set the desired
exposure compensation factor ( Ev).
3. Press the +/- button again. The value you set will be
saved and the Exposure Compensation setup mode will
close. If you change the exposure value, the exposure
indicator ( ) will be displayed on the bottom of the LCD
monitor.
White balance
: The white balance control allows you to adjust the colours
to appear more natural looking. The White Balance is
available in Auto Shooting mode ( ), MySET mode,
and Movie Clip mode.
Selecting a White Balance
1. Press the +/- button, and then use the UP and DOWN
buttons to select the white balance icon ( ). The white balance menu bar will appear as
shown.
2. Use the LEFT and RIGHT buttons to set the white balance to the desired value. The value
you set will be displayed on the LCD monitor.
- AUTO : The camera automatically selects the appropriate white balance
settings, depending on the prevailing lighting conditions.
- DAYLIGHT : For taking images outside.
- CLOUDY : For taking images under a cloudy and overcast sky.
- FLUOR. : For shooting under fluorescent lighting.
- TUNGSTEN : For shooting under tungsten (standard light bulb) lighting.
- CUSTOM : Allows the user to set the white balance according to the shooting
condition. (See page 33.)
Different lighting conditions may cause a colour cast on your images.
3. Press the +/- button again. The value you set will be saved and White Balance setup mode
will end. This value will remain unchanged until the camera is turned off.
33
+/- button

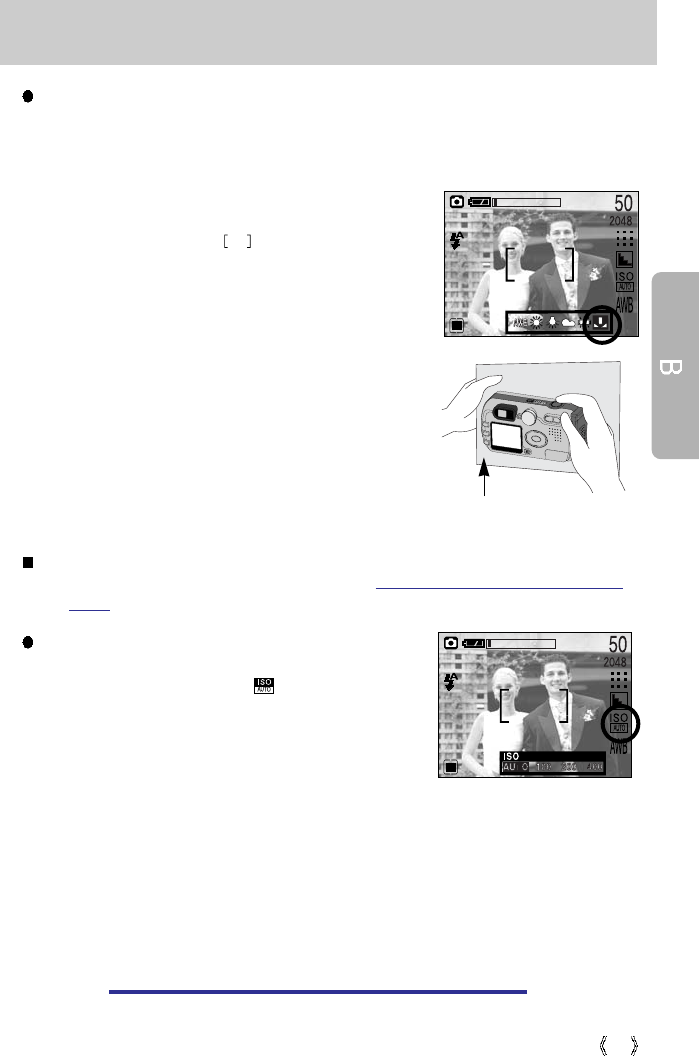

ISO: You can select the ISO sensitivity when taking pictures. The speed or specific light-
sensitivity of a camera is rated by ISO numbers. This is available only in Auto or Manual
mode.
Selecting an ISO Sensitivity
1. Press the +/- button, and then use the UP and DOWN
buttons to select the ISO icon ( ). The ISO menu bar
will appear as shown.
2. Use the LEFT and RIGHT buttons to select the desired
ISO sensitivity value.
- AUTO : The camera's sensitivity is
automatically changed by variables
such as lighting value or subject brightness.
- 100, 200, 400 : You can increase the shutter speed while the same amount of light is
present, by increasing the ISO sensitivity. However, the image may be
saturated in high luminance.
The higher the ISO value, the higher the camera’s sensitivity to light is and therefore the
greater its capacity to take pictures in dark conditions. However, the noise level in the image
will increase as the ISO value increases, making the image appear coarse.
3. When you press the +/- button again, the value you set will be saved and ISO setup mode
will end. This value will remain unchanged until the camera is turned off.
Using the Custom White Balance
White balance settings may vary slightly depending on the shooting environment. You can
select the most appropriate white balance setting for a given shooting environment by setting
up the custom white balance.
1. Select the [CUSTOM] menu, and then press the +/-
button.
2. The autofocus indicator ( ) on the LCD monitor will
blink in green.
3. Place a sheet of white paper in front the camera so that
the LCD monitor shows only white, and then press the
SHUTTER button.
4. Your custom white balance value is stored.
- The custom white balance value will be applied, starting
with the next picture you take.
- If you select another White Balance submenu, your
custom white balance value will be cleared. In this
instance, store the custom white balance value again
before using it.
White paper
34
+/- button

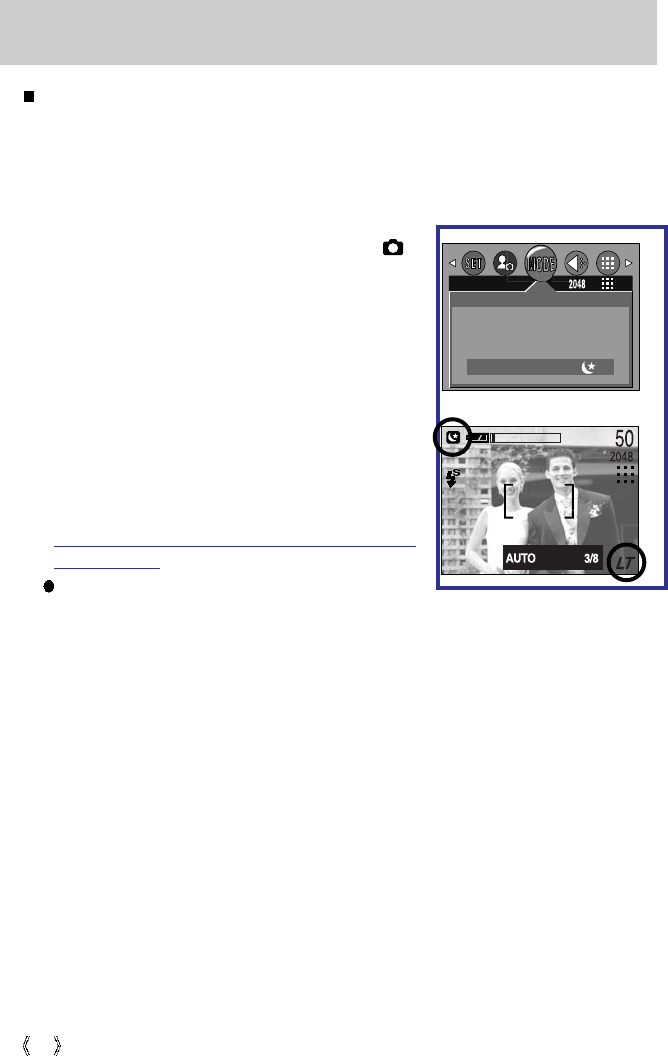

2) Setting Manual Shooting
1. In Night Shot mode, press the +/- button. A screen
appears as shown to the right.
2. Use the LEFT and RIGHT buttons to set the shutter
speed. Available shutter speeds are as follows:
AUTO, 1/8, 3/16, 1/4, 3/8, 1/2, 3/4, 1, 3/2, 2, 3, 4, 6, 8, 12,
and 16 seconds.
Use the UP and DOWN buttons to set the aperture value.
Use the UP and DOWN button to display the large/small
aperture values at the top left of the shutter speed bar.
3. Press the +/- button again. The value you set will be saved and the mode will switch to Night
Shot mode. Press the SHUTTER button to take the picture.
Manual Shooting
: This camera automatically adjusts the shutter speed and aperture values to the shooting
environment. However, in Night Shot mode, you can set the shutter speed and aperture
values to your preference. Select Night Shot mode, and then press the +/- button.
The zoom function does not work while setting up the aperture value and shutter speed.
1) Selecting the Night Shot Mode
1. Slide the MODE switch to select Still Image mode ( ).
2. Press the MENU button.
3. Use the LEFT and RIGHT buttons to select the [MODE]
menu tab, and then use the UP and DOWN buttons to
select the [NIGHT] menu.
4. Press the MENU button. The menu will disappear and the
mode will switch to Night Shot mode.
AUTO
MANUAL
NIGHT
MODE
35
+/- button

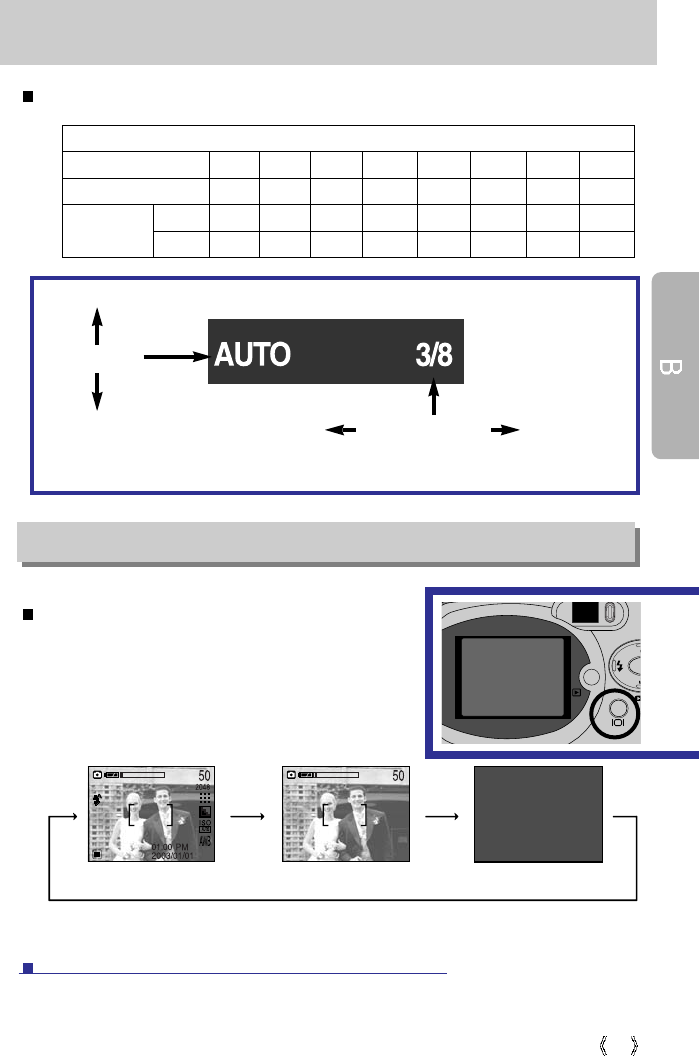

zoom0 zoom1 zoom2 zoom3 zoom4 zoom5 zoom6 zoom7
5.8 7.4 9.1 10.7 12.4 14.0 15.7 17.4
2.8 3.1 3.4 3.7 4.0 4.3 4.6 4.8
5.8 6.4 7.0 7.6 8.2 8.8 9.4 10.0
Optical Zoom
Large
Small
Aperture
Value
Zoom Position
Focusing range(mm)
[ Image & full information ] [ Image & basic information ] [ LCD off ]
You can check the recording status in the LCD monitor.
Pressing the LCD button in the RECORDING (STILL
IMAGE, MOVIE CLIP) mode will change the display as
shown below.
Pressing the
LCD button
Pressing the
LCD button
Pressing the LCD button
Aperture values that can be selected for each zoom position are as follows:
LCD button
If the LCD monitor is turned off, the camera status lamp will blink.
Aperture Value
Large (Press the UP button.)
Small (Press the
DOWN button.)
Shutter Speed
Fast (Press the
LEFT button.)
Slow (Press the
RIGHT button.)
36

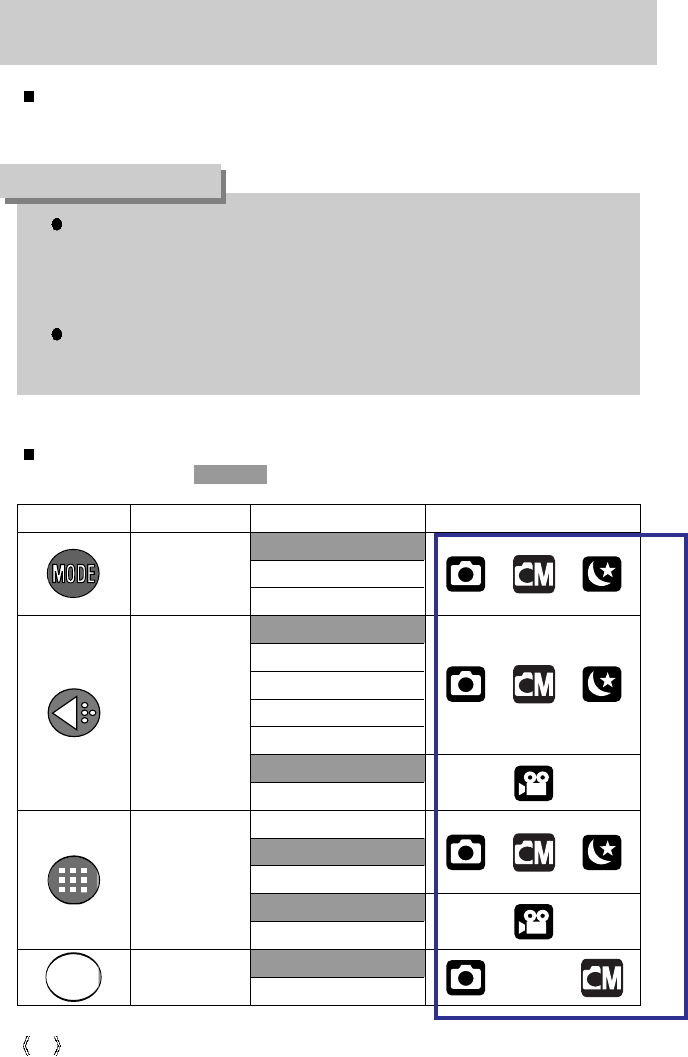

Using the LCD monitor to adjust the camera
You can use the menu on the LCD monitor to set up recording functions.
In the STILL IMAGE/ MOVIE CLIP mode, pressing the MENU button displays the menu on the
LCD monitor.
The following functions are available, depending on the mode you have selected.
The items indicated by are default settings.
Menu tab Main menu Sub menu Camera working mode
AUTO
NIGHT
MYSET
2048X1536
2048X1360
1600X1200
1024X768
640X480
320X240
160X120
S.FINE
FINE
NORMAL
HIGH
LOW
MULTI
SPOT
The menu will not be displayed on the LCD monitor in the following circumstances:
- When another button is being operated.
- While image data is being processed.
(when the green LED next to the viewfinder blinks)
- When there is no battery capacity.
When the menu is showing on the LCD monitor, it is not possible to operate the shutter
button i.e. capture an image. To capture an image, simply cancel the menu display by
pressing the MENU button.
INFORMATION
METERING
MODE
SIZE
QUALITY
37

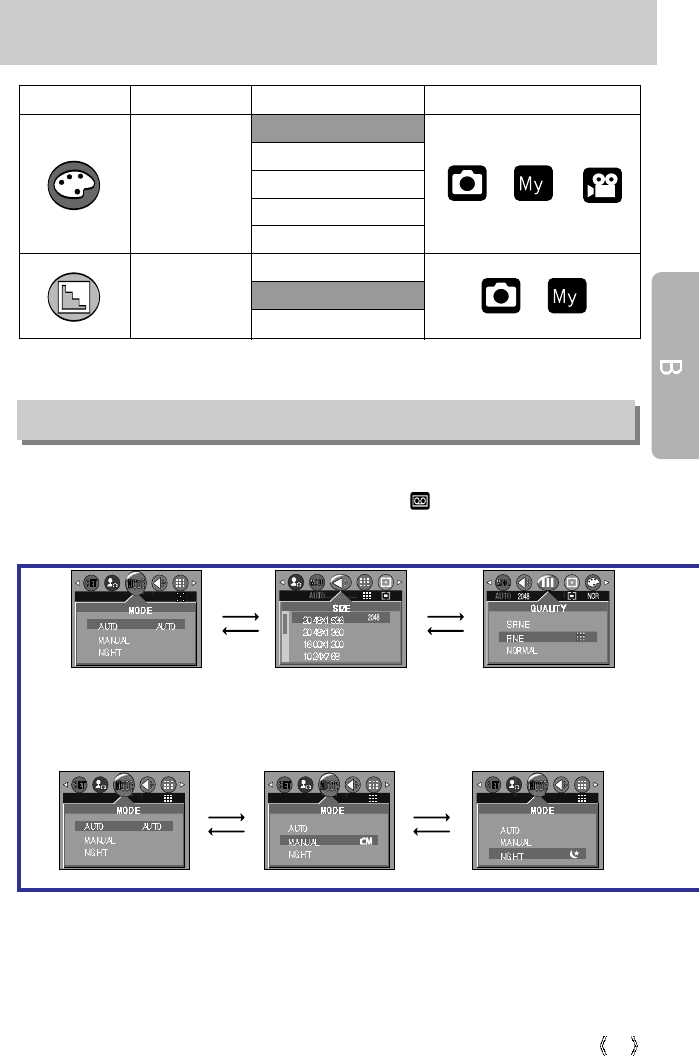

Using the LCD monitor to adjust the camera settings
Menu tab Main menu Sub menu Camera working mode
NORMAL
B&W
SUNSET
SEPIA
RGB
SOFT
NORMAL
VIVID
How to use the menu
3. Use the UP and DOWN buttons to select a sub menu.
4. Select a sub menu, and then press the OK button. The value you set will be saved and the
menu will disappear.
1. Turn on the camera and press the MENU button. A menu for each camera mode appears.
However, there is no menu for Voice Recording mode. ( )
2. Use the LEFT and RIGHT buttons to navigate through the menus.
EFFECT
SHARP
2048
Press the LEFT
or RIGHT button.
Press the LEFT or
RIGHT button.
2048 2048 2048
Press the UP or
DOWN button.
Press the UP or
DOWN button.
38

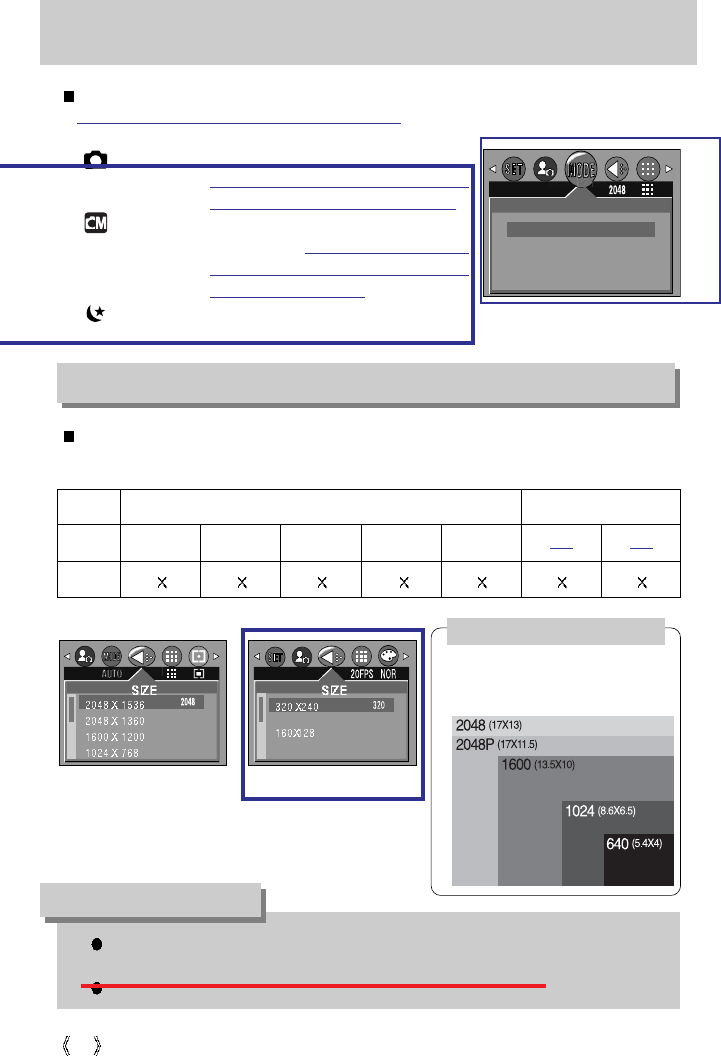

Mode
AUTO : Use this for shooting basic still images.
The changed settings will return to their
defaults when the camera is turned off.
MANUAL : Use this to store your custom settings for
the camera. Any changes made to
settings other than Self-Timer and Voice
Recording will be saved.
NIGHT : Use this for shooting still images at night
or in other dark conditions.
You can select the image size appropriate for your application.
You can select from AUTO, MANUAL, NIGHT and Movie Clip modes.
Size
The higher the resolution, the lower the number of available shots will be because high
resolution images require more memory than lower resolution images.
This value will be maintained, even after the camera is turned off.
INFORMATION
Print sizes for different megapixel
and dip settings are as follows:
Image Size to Print Size by DPI (300 DPI)
You can select the desired Still Image mode.
This is available in Auto, Manual, and Night modes.
(Unit: cm)
Mode
Icon
2048 2048P 1600 1024 640
Size
2048 1536 2048 1360 1600 1200 1024 768 640 480 320 240 160 120
STILL IMAGE mode MOVIE CLIP mode
320 160
[ STILL IMAGE mode ]
[ STILL IMAGE mode ]
AUTO
MANUAL
NIGHT
MODE
AUTO
[ MOVIE CLIP mode ]
39

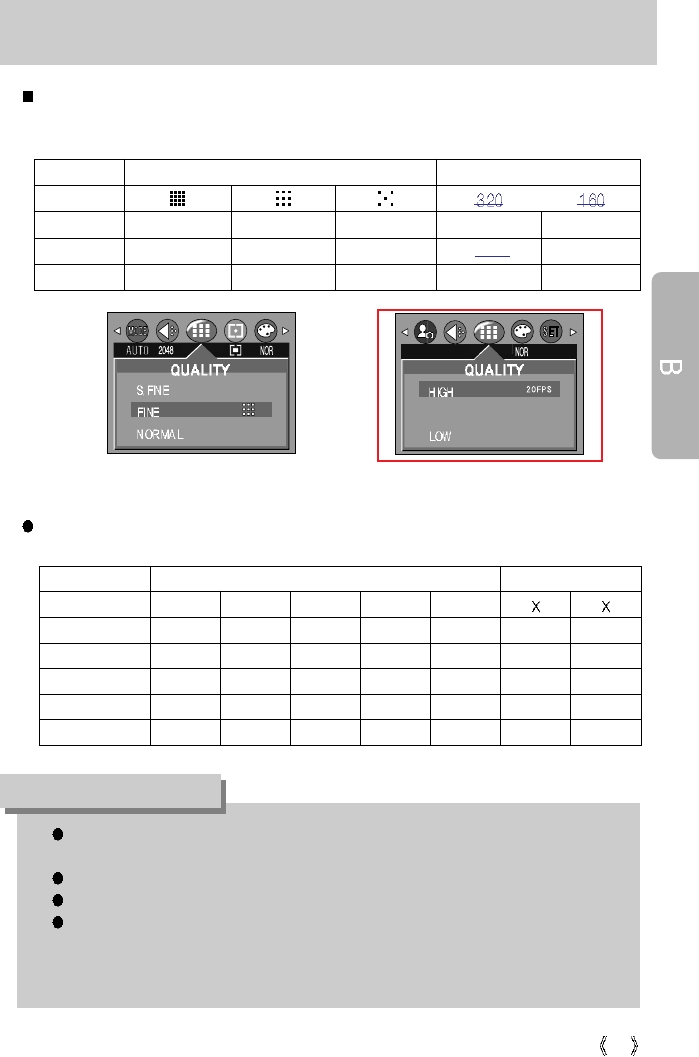

Quality
You can select the compression ratio appropriate for your application of the captured images.
The higher the compression ratio, the lower the picture quality. You can select from AUTO,
NIGHT, MySET, and Movie Clip modes.
Mode
Icon
Sub menu S.FINE FINE NORMAL HIGH LOW
Compression Ratio
1:4 1:8 1:12 20fps 15fps
File Format jpeg jpeg jpeg mov mov
STILL IMAGE mode MOVIE CLIP mode
Image Size and Quality for the Number of Images that can be saved in a Memory Card/Shooting
Time(When using a 32MB Memory Stick Duo; based on Samsung's own testing)
S.FINE is the highest quality and NORMAL is the lowest setting. Choose the setting
appropriate for your needs.
This file format complies with the DCF(Design rule for Camera File system).
Even if the camera should be restarted, the quality setting is maintained.
JPEG (Joint Photographic Experts Group): JPEG is the image compression standard
developed by the Joint Photographic Experts Group. This type of compression is most
commonly used for compressing photos and graphics because it can compress the files
efficiently without damaging the data.
INFORMATION
STILL IMAGE mode MOVIE CLIP mode
Mode
Quality/Size
2048 2048P 1600 1024 640
320 240 160 120
S.FINE
17 19 27 66 169 - -
FINE
33 38 54 132 336 - -
NORMAL
50 56 82 198 501 - -
HIGH
-----
3 MIN 6 MIN
LOW
-----
6 MIN 12 MIN
[ STILL IMAGE mode ] [ MOVIE CLIP mode ]
40

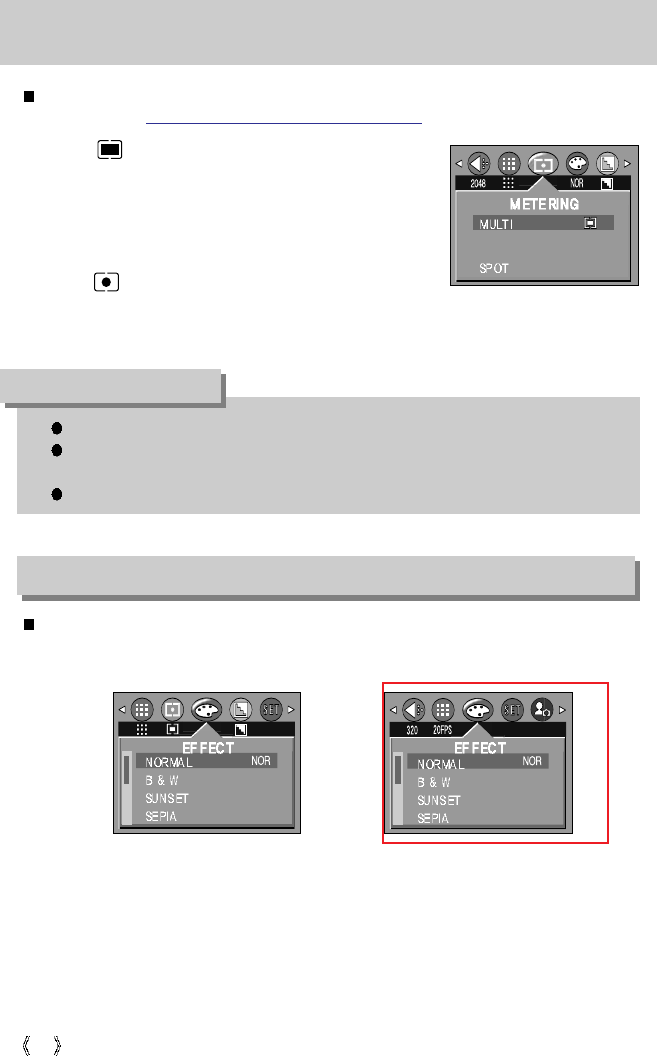

Metering
If you cannot obtain suitable exposure conditions, you can change the metering method to take
brighter pictures. This can be set in Auto and Manual modes.
MULTI( ) : Exposure will be calculated based on an
average of the available light in the
image area. However, the calculation
will be biased towards the centre of the
image area. This is suitable for general
use.
SPOT( ) : Only the rectangular area in the center
of the LCD monitor will be metered for
light. This is suitable when the subject in the center is exposed correctly,
regardless of the back lighting.
The default metering mode is Multi pattern metering.
If the subject is not the centre of the focus area, do not use the spot metering as this may
result in an exposure error. In this circumstance, rather use exposure compensation.
The changed Metering mode will remain unchanged even after the power is turned off.
INFORMATION
Effect
By using the camera’s digital processor, it is possible to add special effects to your images.
You can select from AUTO, MANUAL, and Movie Clip modes. The value you set will remain
unchanged until the camera is turned off.
NORMAL : No effect is added to the image.
B & W : Converts the image to black and white.
SUNSET : Used for capturing images at sunset
SEPIA :
Captured images will be stored in a sepia tone (a gradient of yellowish brown colours).
RGB : Allows the user to adjust the R (Red), G (Green), and B (Blue) values of the images
to be captured.
[ STILL IMAGE mode ] [ MOVIE CLIP mode ]
41

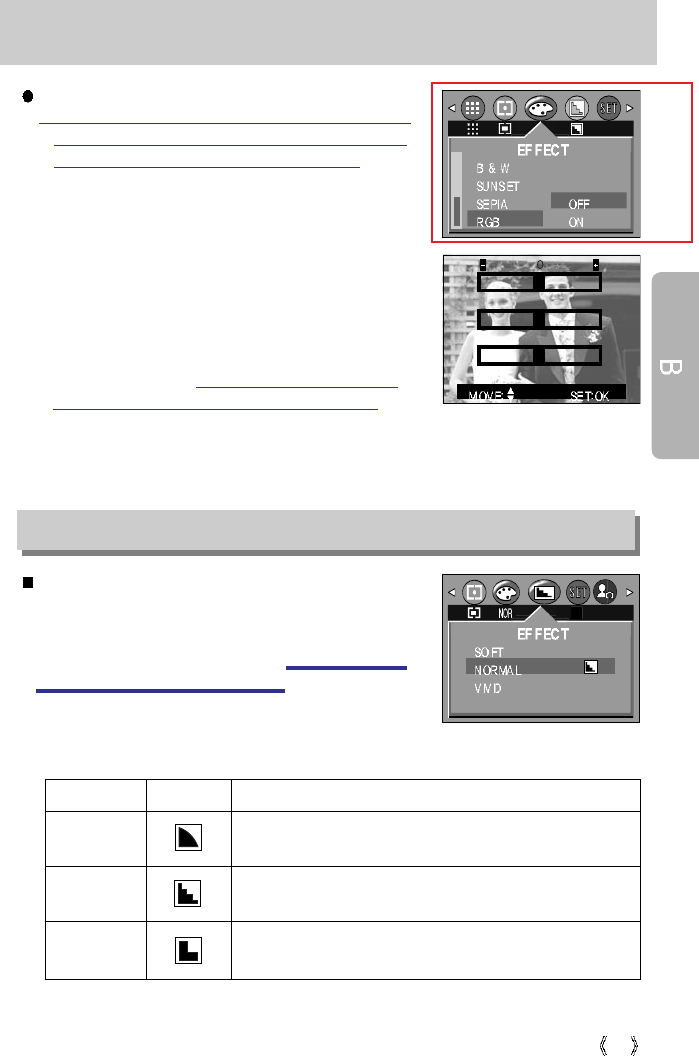

Effect
Sharpness
You can adjust the sharpness of the picture you want to take.
You cannot check the sharpness effect on the LCD monitor
before you take a picture, because this function is applied only
when the captured image is stored on the memory. You can
select from AUTO and MANUAL modes. This value will remain
unchanged until the camera is turned off.
Sub menu Icon Description
The edges of the image are softened.
This effect is suitable for editing images on your PC.
The edges of the image are sharp.
This is suitable for printing.
The edges of the image are emphasized. The edges will
appear sharp, but noise may occur in the recorded image.
Setting RGB Values
1. Use the DOWN button to select "RGB" among the Effect
submenus, and then press the OK button. A screen that
looks like the one shown on the right will appear.
2. Use the UP and DOWN buttons to select the [CANCEL]
or [CHANGE] auxiliary menu, and then press the OK
button.
[CANCEL] : Select this if you do not want to change
the RGE values.
[CHANGE] : Select this to open a window where you
can adjust the RGB values.
Use the UP and DOWN buttons to navigate the R, G, and
B controls. Use the LEFT and RIGHT buttons to set the
value for each control. If you press the OK button, your
changes will be saved and the menu will disappear.
VIVID
NORMAL
SOFT
R
G
B
[ STILL IMAGE mode ]
42

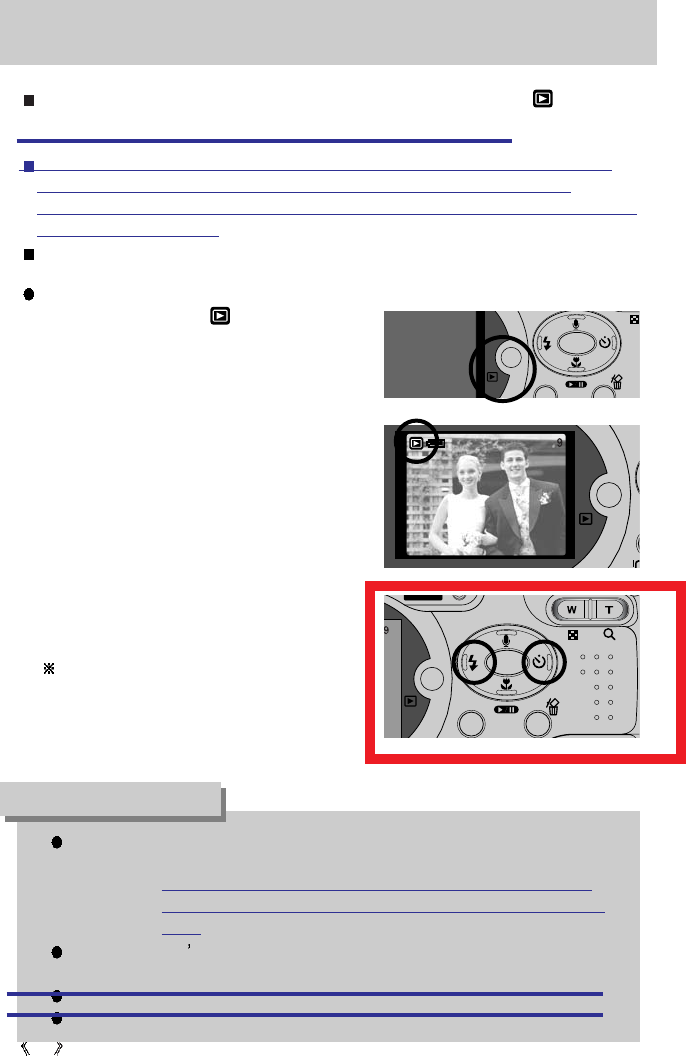

Starting play mode
Turn the camera on and select Play mode by pressing the play mode button ( ).
The camera can now play back the images stored in the memory.
Press the PLAY button ( ) again to switch to the Recording mode.
If you have turned on the camera by pressing the POWER button, you can press the PLAY
button once to switch to Play mode and press it again to switch to Recording mode.
If you have turned on the camera by pressing the PLAY button, you can press the PLAY button
again to turn off the camera.
You can set up the PLAY mode function by using the camera buttons and LCD monitor.
Playing back a still image
1. Select the PLAY mode( ) by pressing the
play mode button.
2. The last image stored on the memory is
displayed on the LCD monitor.
3. Select an image that you want to play back by
pressing the LEFT / RIGHT button.
Press and hold the LEFT or RIGHT button to
play back the images quickly.
Manner mode:
Pressing the power button for more than 2 seconds changes the buzzer and
start-up sound setting to OFF, even though you may have set these to ON.
To turn on the startup sound and operation sound, set the startup sound
(MyCAM mode) and operation sound (Setup mode) to a setting other than
[OFF].
Even if the camera s power is off, you can start the play mode by pressing the play
mode button.
The LCD monitor will remain in operation until the camera is switched off in PLAY mode.
To turn off the camera’s power, press the power button.
INFORMATION
43
Starting play mode

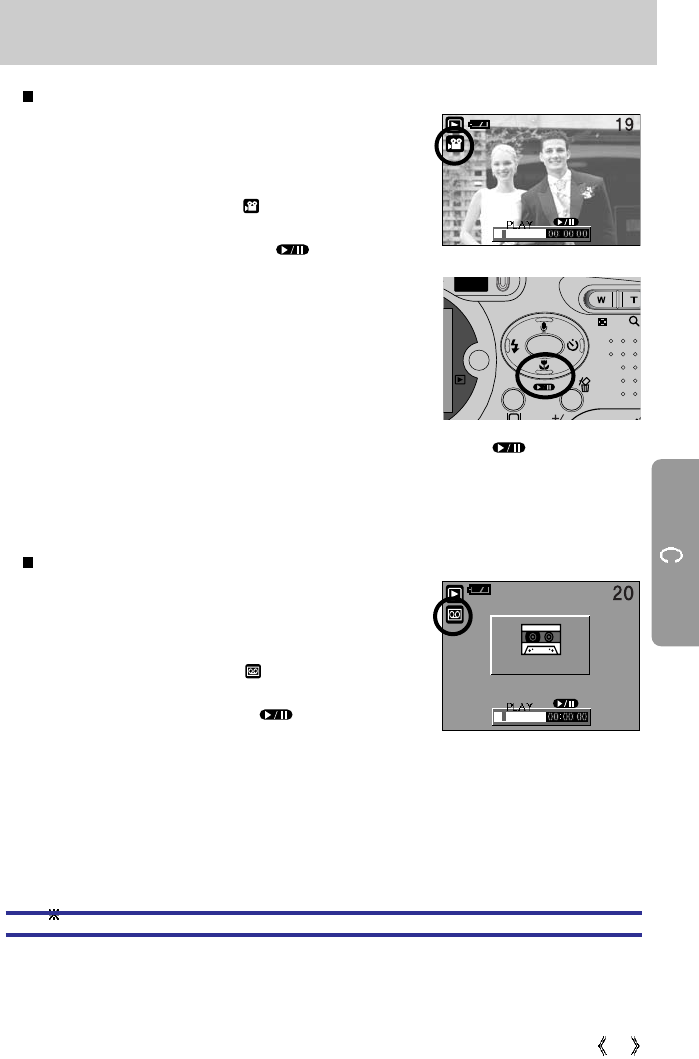

Playing back a movie clip
Steps from 1-2 are the same as those to play back a still
image.
3. Select the recorded movie clip that you want to play back
by using the LEFT/RIGHT button. If you select a movie
clip, the movie clip indicator ( ) will be displayed on the
LCD monitor.
4. Press the play & pause button ( ) to play back a
movie clip file.
- To pause a movie clip file while playing it back, press the
play & pause button again.
- Pressing the play & pause button again will cause the
movie clip file will restart.
- To rewind the movie clip while it is playing, press the
LEFT button. To fast forward the movie clip, press the
RIGHT button.
- To stop playback of the movie clip, press the play & pause button ( ), and then press
the LEFT or RIGHT button.
Playing back a recorded voice
Steps from 1-2 are the same as those to play back a still
image.
3. Select the recorded voice that you want to play back by
using the LEFT/RIGHT button. If you select a recorded
voice file, the voice indicator ( ) will be displayed on the
LCD monitor.
4. Press the play & pause button ( ) to play back a
recorded voice file.
- To pause a recorded voice file, while playing it back,
press the play & pause button again.
- To resume playback of the voice file, press the play & pause button.
- To rewind the voice file while it is playing, press the LEFT button. To fast forward the voice
file, press the RIGHT button.
- To stop playback of the voice file, press the play & pause button, and then press the LEFT
or RIGHT button.
The method of playing back a voice memo ( ) recorded on a still image is the same as
playing back a recorded voice file.
44
LCD monitor indicator
The LCD monitor displays information about the shooting conditions.
No. Description Icon Page
1 Battery
2 Play mode
3 File Type
4 Voice memo
5 Protect indicator
6DPOF indicator
7 Stored image number
SIZE : 2048X1536 Size
AV : F2.8 Aperture value
TV : 1/60 Shutter speed
ISO : 100 ISO sensitivity
FLASH : OFF Whether or not the
flash is used.
DATE : 03.09.01 Recording date
9
If you press the LCD button, you can check the following recording information:
45

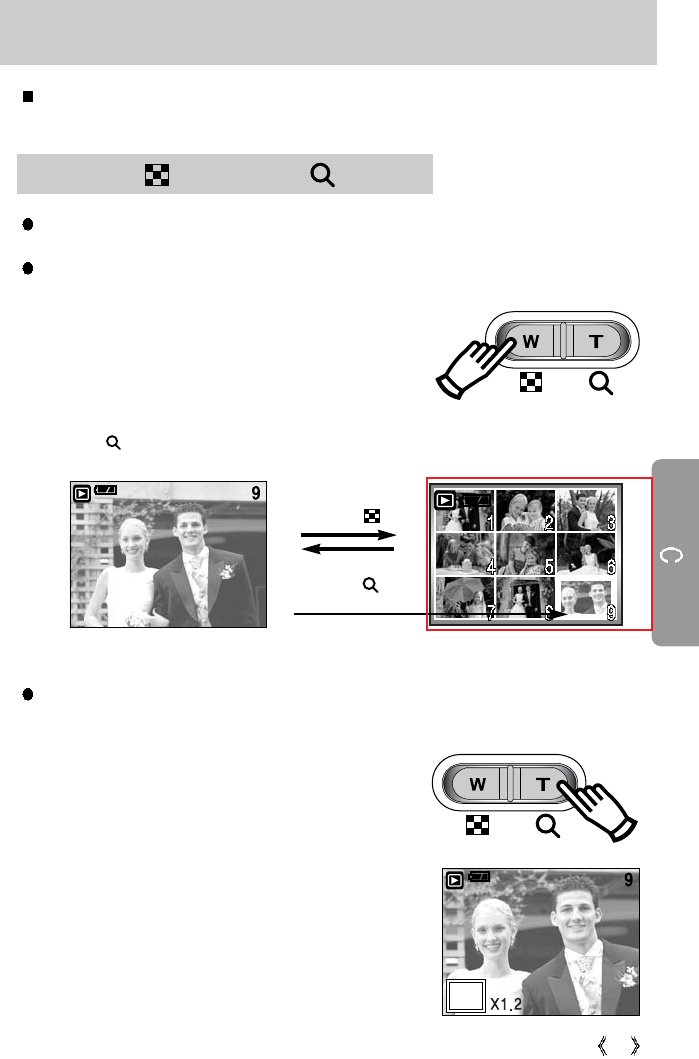

Using the camera buttons to adjust the camera
The play mode function can be set up by using the camera button.
Image enlargement
1. Select an image that you want to enlarge and press the enlargement button.
2. Different parts of the image can be viewed by pressing the
5 function button.
3. Pressing the thumbnail button will zoom back to the
original full sized image.
- You can tell whether the image displayed is an enlarged
view by checking the image enlargement indicator shown
at the bottom left of the LCD monitor. (If the image is not
an enlarged view, the indicator will not be displayed.)
You can also check the area of enlargement.
- Movie clips and WAV files can’t be enlarged.
- If an image is enlarged, a loss of quality may occur.
Thumbnail( ) / Enlargement( ) button
[ Normal display mode ]
Pressing the thumbnail
button( )
Pressing the enlargement
button( )
Highlighted image
You can view multiple pictures, enlarge a selected picture, and crop and save a selected area
of an image.
Thumbnail display
1. While an image is displayed full screen, press the
thumbnail button.
2. The thumbnail display will highlight the image that had
been showing at the time the thumbnail mode was
selected.
3. Press the 5 function button to move to a desired image.
4. To view an image separately, press the enlargement
button ( ).
[ Thumbnail display mode ]
46

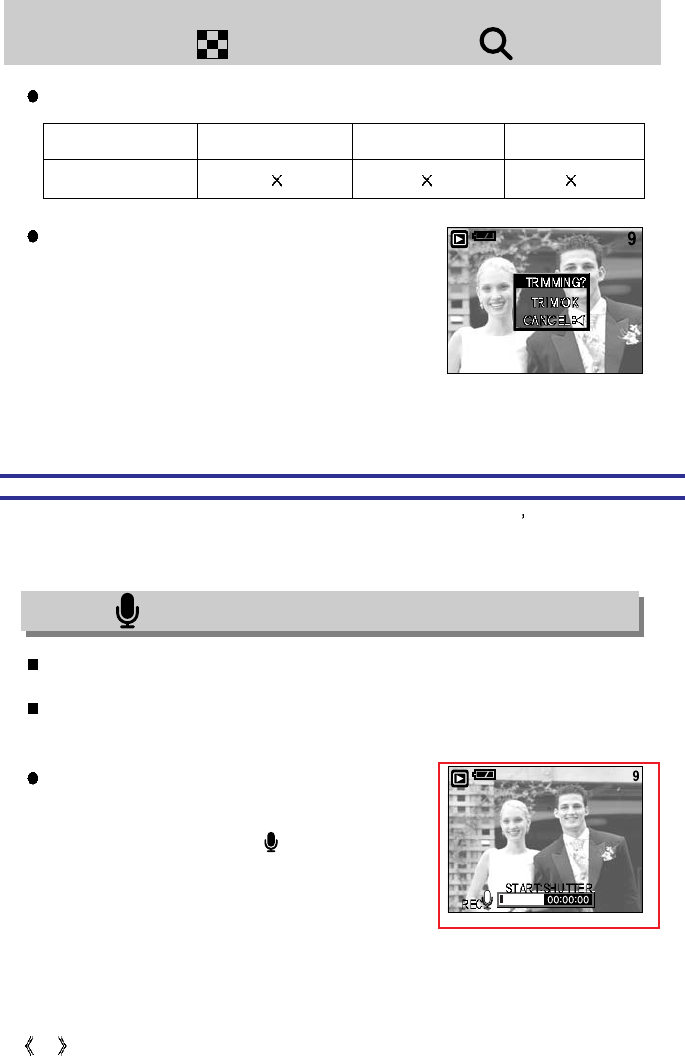

Thumbnail( ) / Enlargement( ) button
The maximum enlargement rate in proportion to the image size.
Trimming : You can extract part of the image that you want
and save it separately.
1. Select an image that you want to enlarge and press the
enlargement button.
2. Different parts of the image can be viewed by pressing the
5 function button.
3. Press the MENU button and a message will be displayed
as shown alongside.
4. Press the OK button to save the trimmed image with a
new file name. The trimmed image will be displayed on the LCD monitor. Press the LEFT
button to return to the image before it was selected.
- The image size of the trimmed image cannot be defined as it extracts only the part of the
image displayed on the LCD monitor.
- If there is little memory space to save the trimmed image, the image can t be trimmed.
Image size 2048/2048P 1600/1024 640
Maximum enlargement rate
5 3 1.5
Voice( ) memo / Up button
When the menu is displayed on the LCD monitor, pressing the UP button makes the menu
cursor move up.
When the menu is not displayed on the LCD monitor, the UP button operates as the voice
memo button. You can add your audio to a stored still image.
Adding a Voice Memo to a Still Image
1. Press the LEFT/ RIGHT button to select an image that
you wish to add sound to.
2. Press the voice memo button ( ) and the voice memo
indicator will display. The camera is now ready to record a
voice memo.
47
Voice( ) memo / Up button
3. Press the shutter button to start recording. The [REC]
message will be displayed on the LCD monitor (as shown)
and voice will be recorded to the still image for 10
seconds.
4. The recording can be stopped by pressing the shutter
button again.
5. The ( ) icon will be displayed on the LCD monitor after
voice memo recording has finished.
- Voice memos can’t be recorded onto movie clip files.
- A distance of 40cm between you and the camera
(microphone) is the best distance to record sound.
- The voice memo will be saved in *.wav format, but has
the same file name as the still image to which it
corresponds.
- If you add a new voice memo to the still image that
already has a voice memo, the existing voice memo will be erased.
Play & Pause( )/ Down button
In Play mode, the play & pause/ down button works as follows:
- If the menu is displayed
Press the DOWN button to move from the main menu to a sub menu, or to move down the
sub menu cursor.
- If a still image with a voice memo, a voice file, or a movie clip is playing
In Stop mode : Plays a still image with a voice memo, a voice file, or a movie clip.
During playback : Temporarily stops playback.
In Pause mode : Resumes playback
[ Voice recording is stopped. ] [ Voice recording is paused. ][ Voice file is playing. ]
48
LEFT / RIGHT/ MENU/ OK button
LEFT / RIGHT/ MENU/ OK buttons activate the following.
- LEFT button : While the menu is showing, press the LEFT button to select the menu tab
to the left of the cursor.
- RIGHT button : While the menu is showing, press the RIGHT button to select the menu
tab to the right of the cursor, or to move an auxiliary menu.
- MENU button : When you press the MENU button, the play mode menu will be displayed
on the LCD monitor. Pressing it again will return the LCD to the initial
display.
- OK button : When the menu is displayed on the LCD monitor, the OK button is used
for confirming data that is changed by using the 5 function button.
The shooting information will be displayed on the LCD
monitor.
The last image stored in the memory is displayed on the
LCD monitor by pressing the play mode button.
Pressing the LCD button in the PLAY( ) mode will
change the display as shown below. [Image & Icons]
[Image & Information] [Image only]
[ Image & Icons ] [ Image & Information ] [ Image only ]
LCD button
Pressing
the LCD
button
Pressing the LCD button
Pressing
the LCD
button
If you press the LCD button in Thumbnail Display mode, the image to be deleted ( ) will be
selected.
49

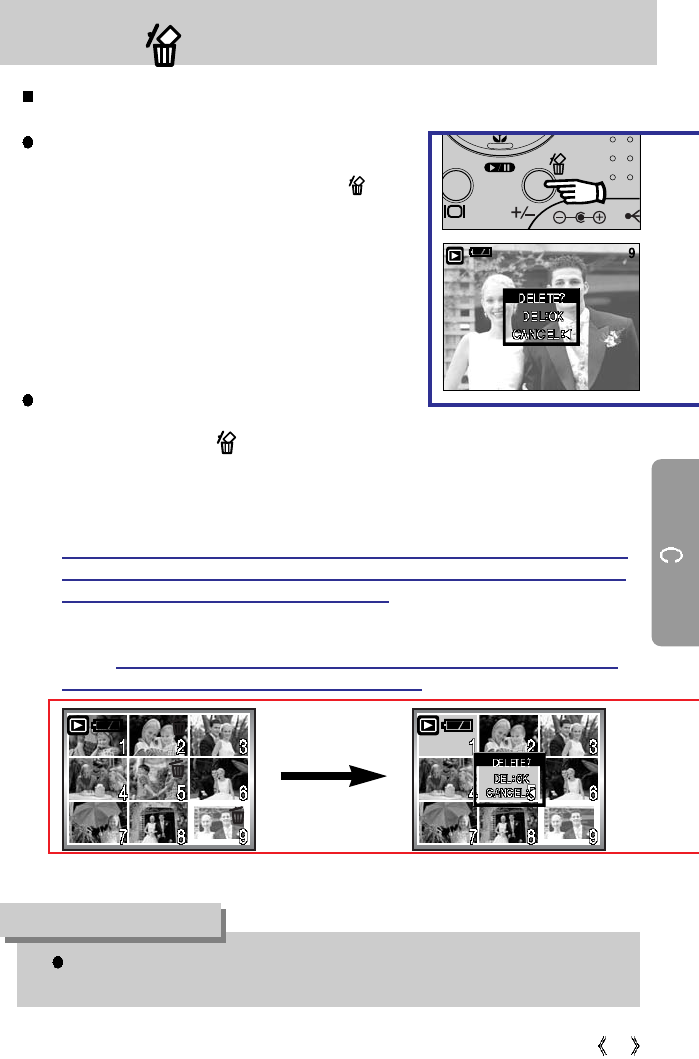

Delete( ) button
This deletes images stored on the memory card.
Before deleting images from the camera, you should protect or download images to
your computer that you wish to keep.
INFORMATION
Deleting Images in Thumbnail Display Mode
1. Use the UP, DOWN, LEFT, and RIGHT buttons to select the image you want to delete, and
then press the DELETE ( ) button.
2. The following message will be displayed on the LCD monitor.
3. Press the OK button to delete the image. The image that precedes the deleted one will be
displayed on the LCD monitor.
- Deleting Multiple Images
You can only delete the image displayed on the LCD monitor. If you press the LCD button
with an image displayed on the LCD monitor selected, the image will maintain its selected
state (V mark) as shown in the following illustration. Use the UP, DOWN, LEFT, RIGHT
and LCD buttons to select multiple images(i.e., press the LCD button each time you select
the image you want to delete), and then press the DELETE button to delete all selected
images. If you want to de-select the image, press the LCD button again. The image over
which the cursor is placed will be deleted simultaneously.
Deleting Images in Play Mode
1. Select an image that you want to delete by pressing the
LEFT / RIGHT button and press the DELETE( ) button.
2. A message will display as shown alongside on the LCD
monitor.
3. Press the OK button to delete the image. The image that
precedes the deleted one will then be displayed on the
LCD monitor.
Press the
DELETE
button.
50

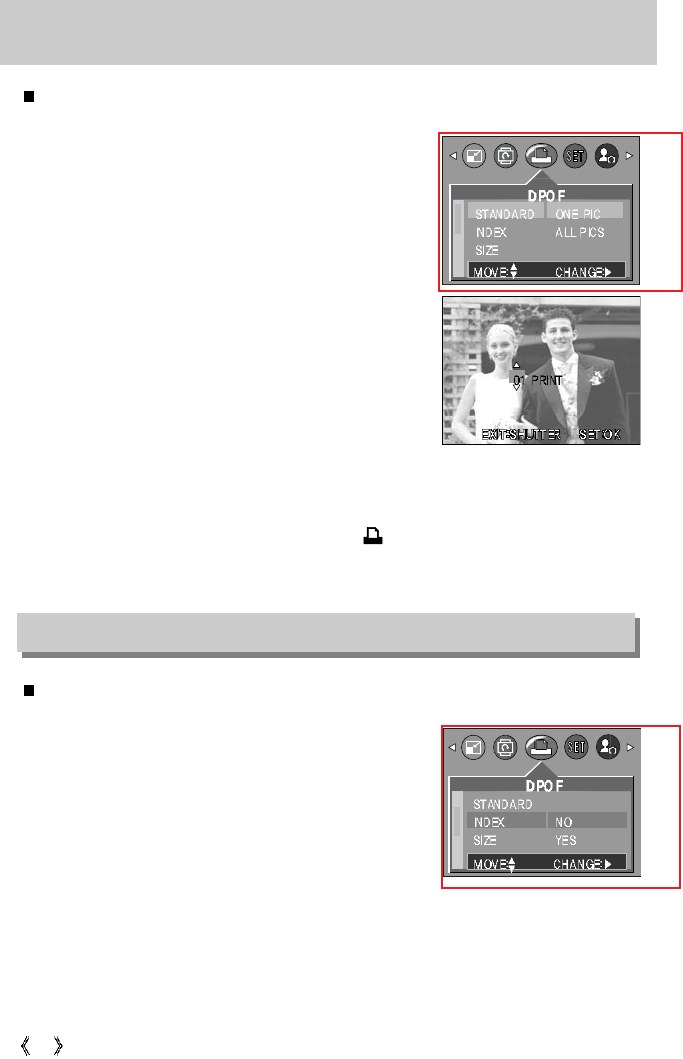

Setting up the play back function using the LCD monitor
PLAY mode functions can be changed by using the LCD monitor. In the PLAY mode, pressing
the MENU button displays the menu on the LCD monitor. The menus you can set up in Play
mode are as follows. To capture an image after setting up the play menu, press the PLAY
button.
The items indicated by are default settings.
Menu tab Main menu Sub menu Secondary menu Page
-
-
SLIDE SHOW
PROTECT
RESIZE
ROTATE
DEL. ALL
STANDARD
INDEX
PRINT SIZE
CANCEL
D
P
O
F
ON
p. 59
p. 59
p. 59
p. 59
p. 59
p. 59
p. 59
p. 59
p. 59
0 ~ 30 PRINTS
REPEAT
ONE PIC UNLOCK
LOCK
UNLOCK
LOCK
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
ALL PICS
1600X1200
1024X768
640X480
LOGO
OFF
ON
NO
YES
NO
YES
3X5
4X6
5X7
8X10
STANDARD
INDEX
PRINT SIZE
ONE PIC
ALL PICS
OFF
OFF ~ 10 SEC
51

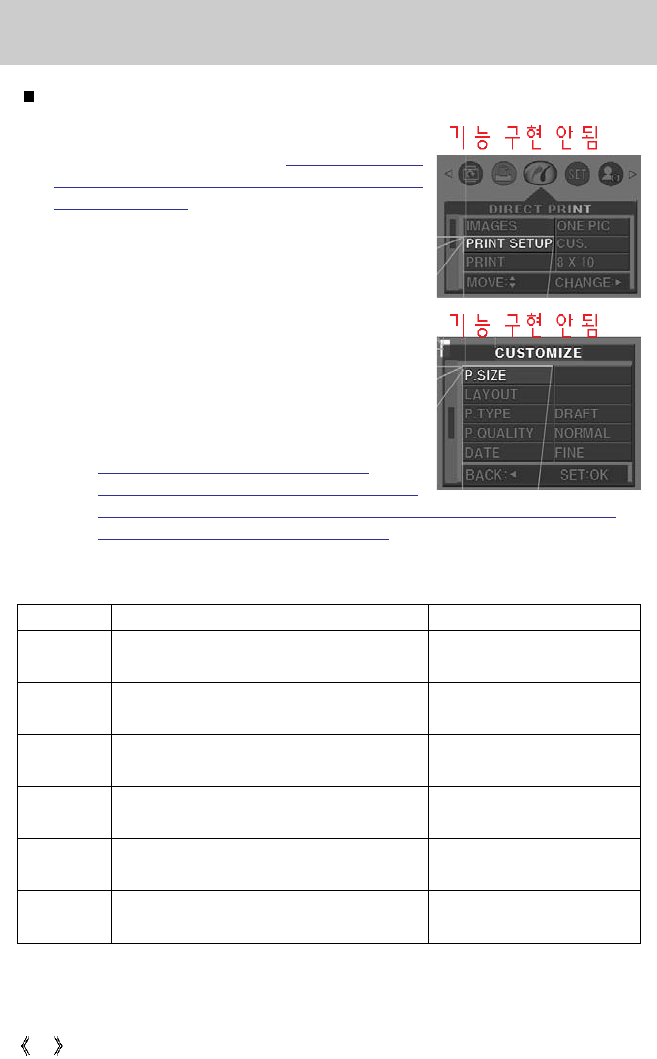

Setting up the play back function using the LCD monitor
Menu tab Main menu Sub menu Secondary menu Page
ONE PIC -
ALL PIC -
DEFAULT -
POSR CARD
4X6, 8X6
A6, A4, B5
FULL
1, 2, 4, 6, 8
INDEX
PLAIN
FASTPHOTO
DRAFT
NORMAL
FINE
ON
OFF
ON
OFF
YES -
NO -
YES -
NO -
YES -
NO -
Menus are subject to change without prior notice.
P
I
C
T
B
R
I
D
G
E
C
U
S
T
O
M
p. 59
p. 59
p. 59
p. 59
p. 59
PRINTER
SETUP
PRINT
IMAGES
DPOF AUTO
PRINT
RESET
P. SIZE
LAYOUT
P. TYPE
P.QUALITY
DATE
FILE
52

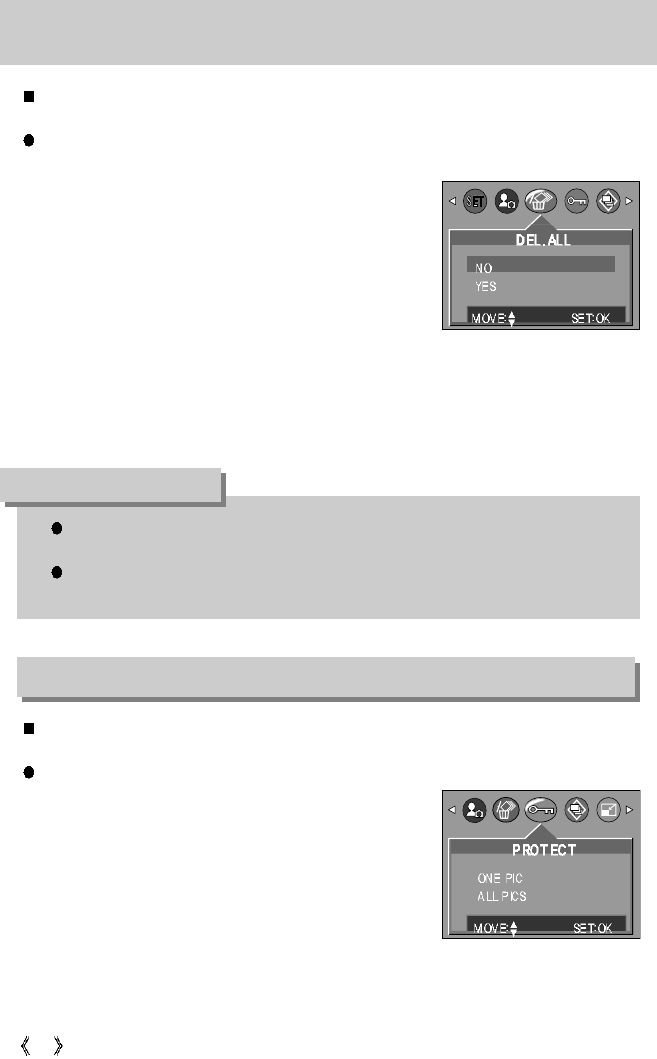

Deleting all images
Of all the files stored in the memory card, the unprotected files in the DCIM subfolder will be
deleted.
Deleting all images
1. Press the play mode button and press the menu button.
2. Press the LEFT/ RIGHT button and select the [DEL.ALL]
menu tab.
3. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
Selecting [NO] : The display returns to the initial menu.
Selecting [YES] : A delete confirmation window will
appear. When you press the OK button,
a [PLEASE WAIT!] message will
display while all the unprotected images
are deleted. If there aren’t protected images, all the images are deleted
and a [NO IMAGE!] message will display. Press the PLAY button or slide
the Mode switch to clear the message.
Remember that this will permanently delete unprotected images.
Important shots should be stored on a computer before deletion takes place.
The startup image is stored in the camera's internal memory (i.e., not on the memory
card) and it will not be deleted even if you delete all files on the memory card.
INFORMATION
Protecting images
This is used to protect specific shots from being accidentally erased (LOCK).
It also unprotects images that have been previously protected (UNLOCK).
Protecting Images
1. Press the play mode button and press the menu button.
2. Press the LEFT/ RIGHT button and select the
[PROTECT] menu tab.
3. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
[ONE PIC] : Only an image that is displayed on the LCD
monitor is protected or unprotected.
[ALL PICS] : All of the stored images are protected or
unprotected.
53

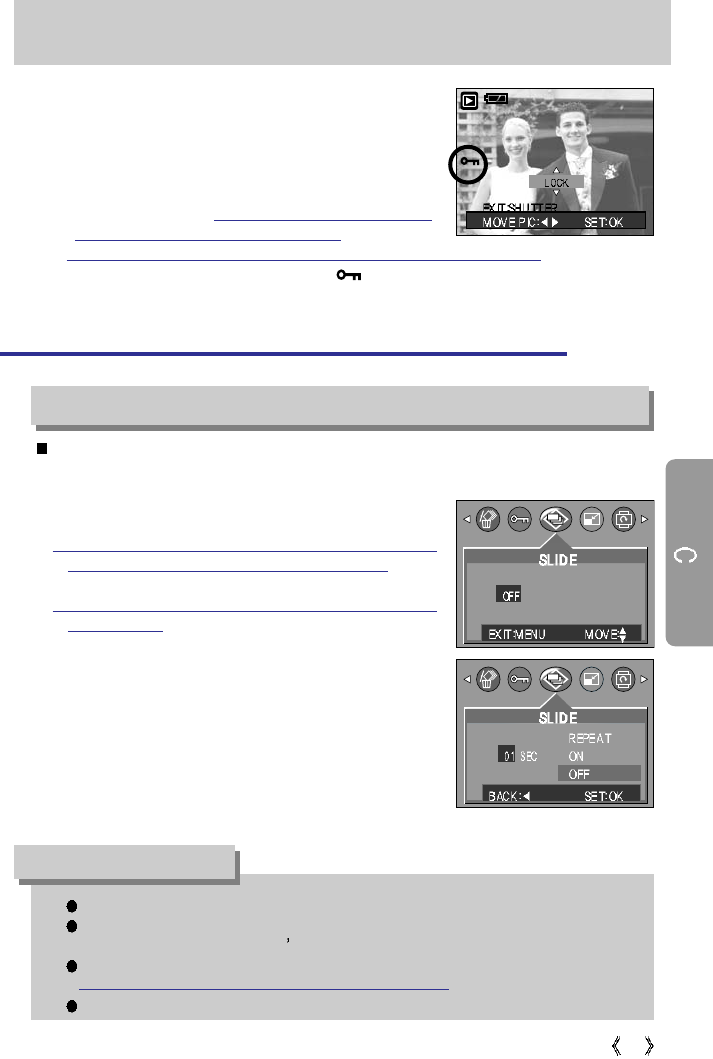

Protecting images
4. Select the desired secondary menu by pressing the
UP/DOWN button and press the OK button.
[UNLOCK] : Cancels the protect function.
[LOCK] : Sets up the protect function.
- If you select the[ONE PIC] sub menu at step 3, you can
protect or unprotect another image by pressing the
LEFT/ RIGHT button. If you press the SHUTTER button,
the Image Protection menu will disappear.
- If you selected [ALL] in Step 3, the Image Protection menu will disappear.
- If you protect an image, the protect icon( ) will be displayed on the LCD monitor.
(An unprotected image has no indicator)
- An image in LOCK mode will be protected from [DELETE] or [DELETE ALL] functions, but
will NOT be protected from the [FORMAT] function.
5. Press the menu button and the menu will disappear.
Images can be displayed continuously at pre-set intervals. You can view the slide show by
connecting the camera to an external monitor. (p.93)
1. Press the play mode button and press the menu button.
2. Press the LEFT/ RIGHT button and select the [SLIDE
SHOW] menu tab.
3. Use the UP and DOWN buttons to select the desired
submenu value, and then press the RIGHT button.
- Slide Show Display Interval: OFF, 1 ~10 seconds
4. Use the UP and DOWN buttons to set whether to repeat
the slide show.
[ON] : Even once a cycle(from the first image to the last
image) is completed, the slide show will continue to
repeat itself.
[OFF]: If a cycle is completed, the slide show will stop
automatically.
5. Press the OK button and the slide show will start.
- To pause the slide show, press the play & pause button.
-To start the slide show again, press the play & pause
button again.
- Press the menu button again and the slide show will stop.
The loading time depends on the image size and quality.
The slide show will start from an image that was displayed on the LCD monitor.
The [POWER OFF] function can t be activated.
While the slide show is playing, only the first frame of an MOVIE file is displayed.
In case of a voice file, the voice recording icon will appear.
If there is only one image in the memory card, the slide show will not start.
INFORMATION
Starting the slide show
54

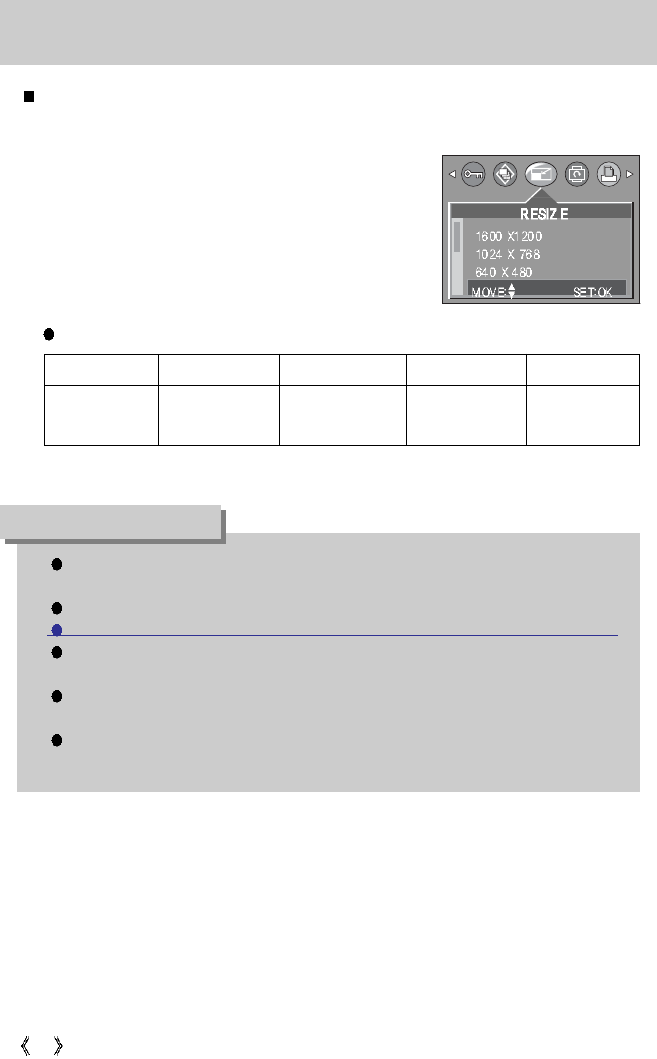

Resize
A stored image size can be changed and used as a logo image.
The resized image will have a new file name.
1. Press the play mode button and press the menu button.
2. Press the LEFT/ RIGHT button and select the [RESIZE]
menu tab.
3. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
A Large image can be resized to be made smaller, but a small image cannot be resized
to become larger.
Only JPG images can be resized. MOVIE and WAV files can’t be resized.
You can change the resolution of only those files compressed in the JPEG 4:2:2 format.
The resized image will have a new file name.
The start-up image is stored not on the memory card but on the internal memory.
Only one startup image can be saved. If you save a new startup image, the existing
startup image will be deleted.
If the memory capacity is insufficient to store the resized image, a [N/A] message will
display on the LCD monitor and the resized image will not be stored.
INFORMATION
Image Resize Types
Sub menu 1600X1200 1024X768 640X480 LOGO
Application For printing For wallpaper For simple
storage
For the startup
55

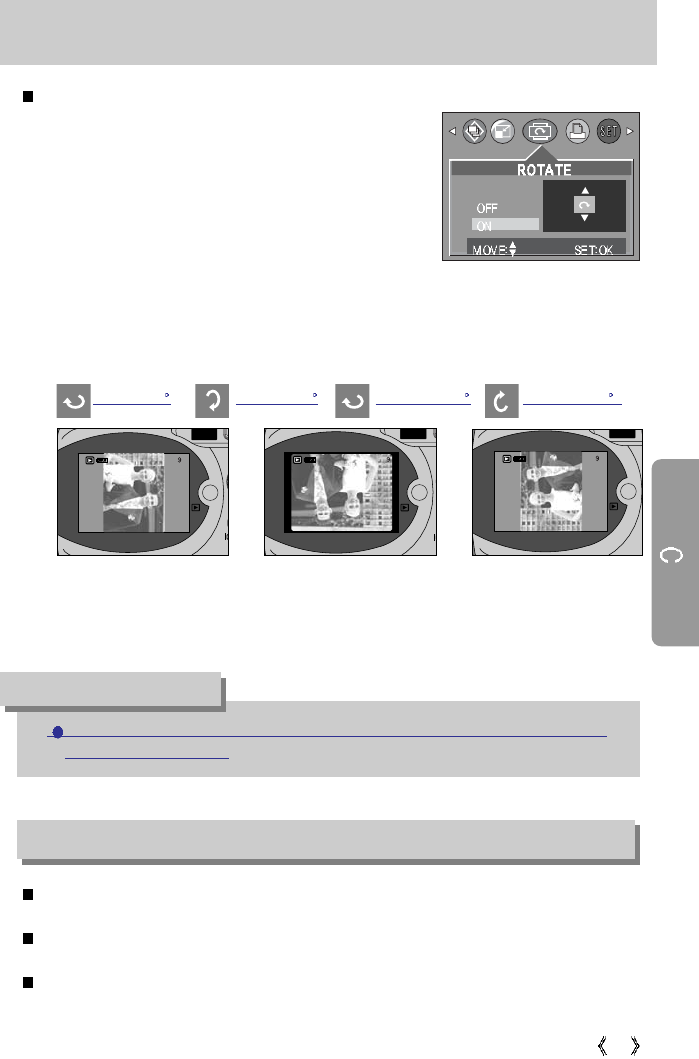

Rotating an image
You can rotate the stored images by 90, 180, or 270 degrees.
1. Press the play mode button and press the menu button.
2. Press the LEFT/ RIGHT button and select the [ROTATE]
menu tab.
3. Select a desired sub menu by pressing the UP/ DOWN
button.
If [No] is selected : Press the OK button to cancel the
image rotation.
If [Yes] is selected : If you press the OK button, an
auxiliary menu from which you can select a rotation orientation will
appear. Use the UP and DOWN buttons to select the degree of rotation.
The image will be rotated according to the value you selected and be
displayed on the LCD monitor.
[ Rotated 180 degrees ][ Rotated 90 degrees ] [ Rotated 270 degrees ]
If you display the rotated image on the LCD monitor, empty spaces may appear to the
left and right of the image.
INFORMATION
DPOF : PRINT ORDER
DPOF(Digital Print Order Format) allows you to embed printing information on your memory
card. Select the pictures to be printed and how many prints to make.
The DPOF indicator will display on the LCD monitor when an image that has DPOF information
plays back. Images can then be printed on DPOF printers, or at an increasing number of photo labs.
This function is not available for Movie clips and WAV files.
4. Press the OK button. The rotated image will be saved with a new file name and the menu
will disappear.
: Rotate 0 : Rotate 90 : Rotate 180 : Rotate 270
56
DPOF : STANDARD
This function allows you to embed print quantity information on a stored image.
1. Press the play mode button and press the menu button.
2. Press the LEFT/ RIGHT button and select the [DPOF]
menu tab.
3. Select the [STANDARD] menu by pressing the UP/
DOWN button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button .
[ONE PIC] : Specifies the number of copies for a
selected image.
[ALL PICS] : Specifies the number of copies for all
images except for movie clips and voice
recording files.
5. Press the OK button and a display to select the quantity
will appear on the LCD monitor.
6. Select the print quantity by pressing the UP/DOWN
button. If you select the [ONE PIC] sub menu at step 4,
you can embed a print quantity on another image by pressing the LEFT / RIGHT button.
7. Press the OK button to confirm the setting.
8. Press the shutter button and the camera working mode is turned to play mode. If an image
carries DPOF instructions, the DPOF indicator ( ) will show.
9. Press the MENU button twice and the menu will disappear.
Images (except for movie clips and voice file) are printed as index type.
1. Press the play mode button and press the menu button.
2. Press the LEFT/ RIGHT button and select the [DPOF]
menu tab.
3. Select the [INDEX] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button.
If [NO] is selected : The image will be printed in standard
print format.
If [YES] is selected : The image will be printed in index
format.
5. Press the OK button to confirm the setting.
6. Press the menu button twice and the menu will disappear.
DPOF : INDEX
57

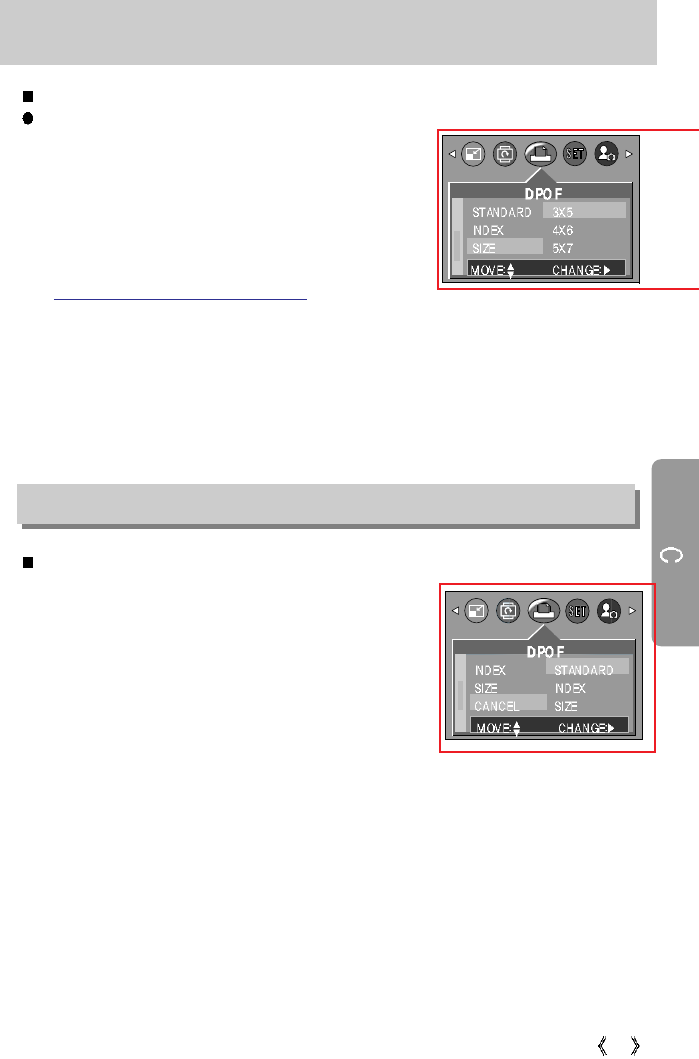

DPOF : PRINT SIZE
You can specify the print size when printing images stored on the memory card.
Setting the Print Size
1. Press the play mode button and press the menu button.
2. Press the LEFT/ RIGHT button and select the [DPOF]
menu tab.
3. Select the [PRINT SIZE] menu by pressing the UP/
DOWN button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button.
Print size: Default, 3X5, 4X6, 5X7, 8X10
5. Press the OK button to confirm the setting.
6. Press the menu button twice and the menu will disappear.
You can cancel the [Standard], [Index], or [Print Size] settings.
1. Press the play mode button and press the menu button.
2.
Press the LEFT/ RIGHT button and select the [DPOF]
menu tab.
3. Select the [CANCEL] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button.
If [STANDARD] is selected : Cancels the standard
print setting.
If [INDEX] is selected : Cancels the index print setting.
If [PRINT SIZE] is selected : Cancels the print size setting.
5. Press the OK button to confirm the setting.
6. Press the menu button twice and the menu will disappear.
DPOF : CANCEL
58
PictBridge
You can use the USB cable to connect this camera to a printer that supports PictBridge (sold
separately) and print the stored images directly. Movie clips and voice files cannot be printed.
You can set up the following settings from the PictBridge menu.
IMAGES : Setting up the scope of PictBridge
PRINTER SETUP : Setting up printing
PRINT : Printing pictures
DPOF AUTO PRINT : Printing the DPOF files
RESET : Initializing the PictBridge functions

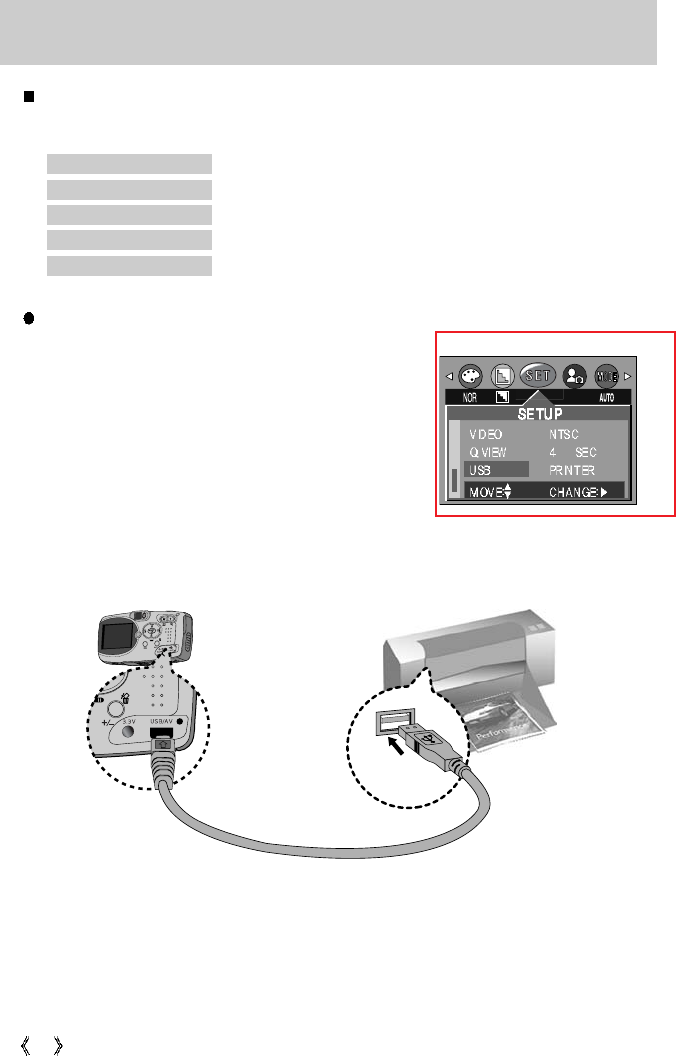

Connecting the Camera to a Printer
1. Press the POWER button to turn on the camera.
2. In a mode other than Voice Recording mode, press the
MENU button.
3. Press the LEFT/ RIGHT button and select [SETUP] menu
tab.
4. Select [USB] menu by pressing the UP/ DOWN button
and press the RIGHT button.
5. Select [PRINTER] menu by pressing the UP/ DOWN
button and press the OK button.
6. Press the menu button twice and the menu will disappear.
7. Use the supplied USB cable to connect the camera to the
printer as shown below.
8. Turn on the printer to connect the camera to the printer.
59

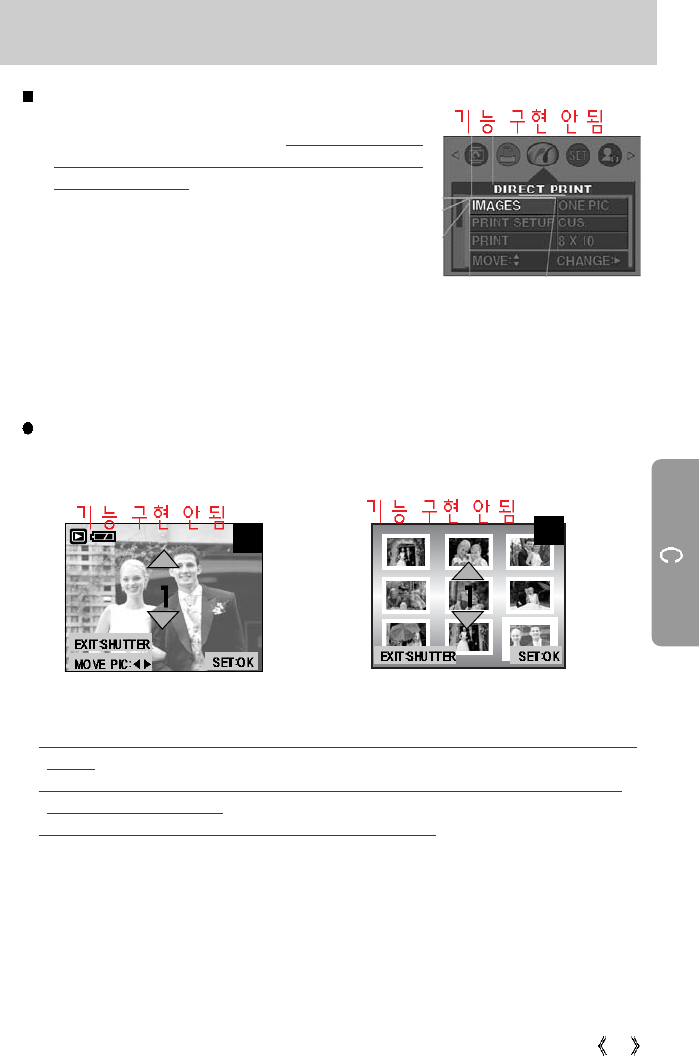

PictBridge: Picture Selection
1. Connect the camera to your printer. The USB menu must
be set to "PRINTER" before you connect the camera to
the printer.(See p.58)
2. The [PictBridge] menu will appear.
3. Use the UP and DOWN buttons to select [IMAGES], and
then press the RIGHT button.
4. Use the UP and DOWN buttons to select the desired
submenu value, and then press the OK button.
When [ONE PIC] is selected : The PictBridge function will be applied only to the picture
currently displayed.
When [ALL PICS] is selected : The PictBridge function will be applied to all pictures,
excluding movie clips and voice files.
Setting the Number of Copies to Print
- Select [ONE PIC] or [ALL PICS]. A screen where you can set the number of copies to print
will appear as shown below. When the camera is connected to the printer via the USB cable,
a connection icon appears on the top right of the LCD monitor.
- Use the UP and DOWN buttons to select the number of copies to print and then press the OK
button. The number of copies you wish to make: 1 ~ 99
- When selecting [ONE PIC] in Step 4, you can use the LEFT and RIGHT buttons to move to
the previous or next picture.
- Press the SHUTTER button to return to the PictBridge menu.
You can select the scope of the PictBridge function.
[ When [ONE PIC] is selected ] [ When [ALL PICS] is selected ]
60
PictBridge: Print Setting
You can select the Paper Size, Print Format, Paper Type, Print Quality, Date Print, and File
Name Print menus for printed pictures.
Menu Function Sub menu
1. Connect the camera to your printer. The USB menu must
be set to "PRINTER" before you connect the camera to
the printer.(See p.58)
2. The [PictBridge] menu will appear.
3. Use the UP and DOWN buttons to select [PRINTER
SETUP], and then press the RIGHT button.
4. Use the UP and DOWN buttons to select the desired
submenu value, and then press the OK button.
If [DEFAULT] is selected
: The print format will be set to the printer's default
values.
If [CUSTOM] is selected
: A window from which the user can set up the print
format with the desired values will appear.
Use the UP and DOWN buttons to select a
submenu value, and then press the RIGHT button.
Auxiliary menus will appear. Use the UP and DOWN buttons to select the desired
auxiliary menu, and then press the OK button.
The menus you can set up are as follows:
P.SIZE Setting the size of the printing paper
Setting the number of pictures to be printed on a
sheet of paper
Setting the quality of the printing paper
Setting the quality of the picture to be printed
Setting whether to print the date
Setting whether to print the file name
POST CARD, 4X6, 8X6, A6, A4,
B5
FULL, 1, 2, 4, 6, 8, INDEX
PLAIN, PHOTO, FASTPHOTO
DRAFT, NORMAL, FINE
ON, OFF
ON, OFF
LAYOUT
P.TYPE
P.QUALITY
DATE
FILE
61

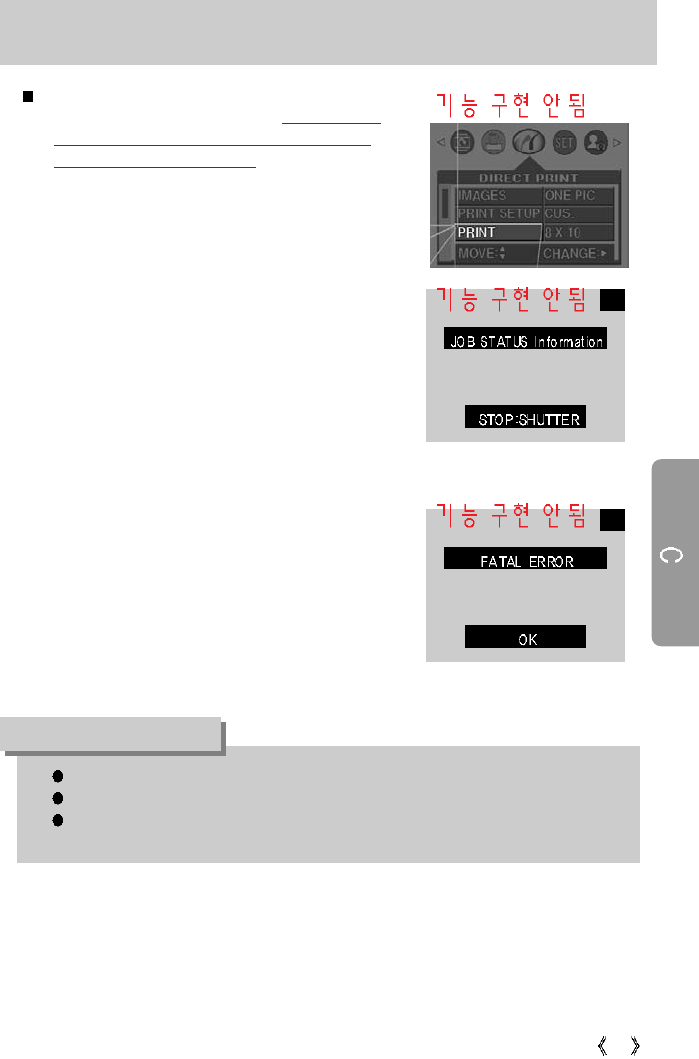

PictBridge: Picture Printing
Printing Pictures
1. Connect the camera to your printer. The USB menu
must be set to "PRINTER" before you connect the
camera to the printer.(See p.58)
2. The [PictBridge] menu will appear.
3. Use the UP and DOWN buttons to select the [PRINT]
menu, and then press the RIGHT button.
4. Use the UP and DOWN buttons to select the desired
submenu value, and then press the OK button.
If [YES] is selected : The screen shown on the right
appears and the picture(s) will print.
Press the SHUTTER button to stop
printing.
If [No] is selected : The command to print the picture
will be canceled and the
[PictBridge] menu will appear.
When printing pictures by connecting the camera to the printer, use the AC adapter.
The camera's MODE button does not work while printing a picture.
If the printer is turned off during printing, the printing will stop and the paper will be dispelled.
INFORMATION
- Fatal Error : Press the OK button to cancel
printing. Follow the Steps 1 to 4 again
to print the picture(s).
5. If an error occurs during printing, the screen shown below will appear.
[ Fatal error ]
62

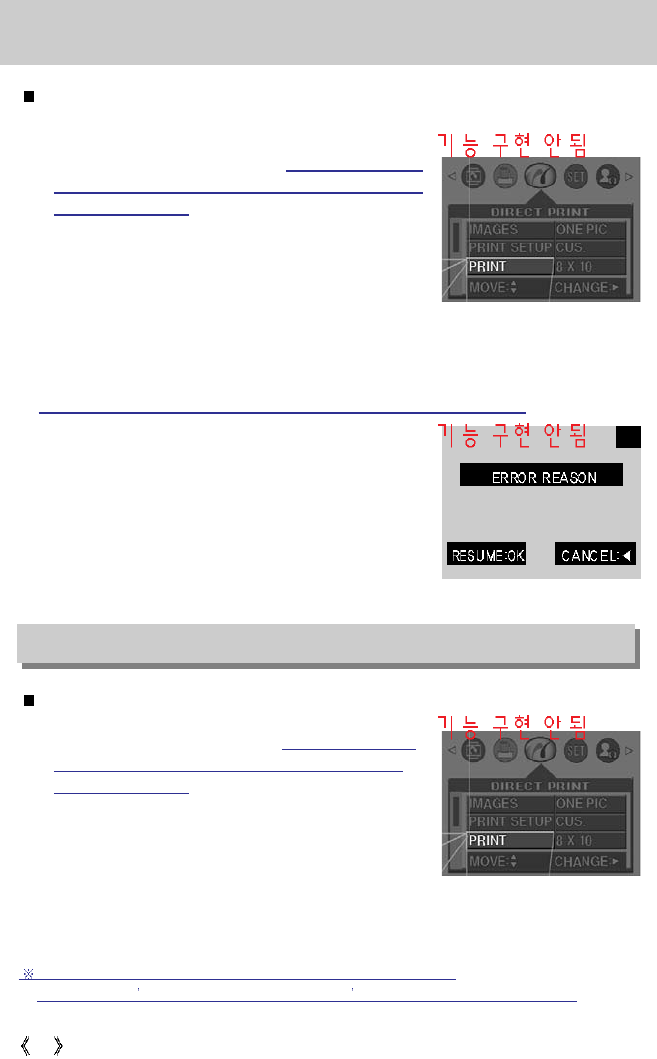

PictBridge : DPOF AUTO PRINT
This allows you to directly print the files with DPOF information.
For instructions on how to set up DPOF, refer to pages 70 to 89.
This allows you to restore the values of the PictBridge menu, which was changed in
CUSTOMIZE, to their default values.
1. Connect the camera to your printer. The USB menu must
be set to "PRINTER" before you connect the camera to
the printer.(See p.58)
2. The [PictBridge] menu will appear.
3. Use the UP and DOWN buttons to select the [RESET]
menu, and then press the RIGHT button.
4. Use the UP and DOWN buttons to select the desired
submenu value, and then press the OK button.
If [NO] is selected : The changed values will be maintained.
If [YES] is selected : Restores the changed values to their default values.
PictBridge : RESET
[ Recoverable error ]
1. Connect the camera to your printer. The USB menu must
be set to "PRINTER" before you connect the camera to
the printer.(See p.58)
2. The [PictBridge] menu will appear.
3. Use the UP and DOWN buttons to select the [DPOF
AUTO PRINT], and then press the RIGHT button.
4. Use the UP and DOWN buttons to select the desired
submenu value, and then press the OK button.
If [Yes] is selected : The picture will be printed.
If [No] is selected : The command to print the picture will be canceled and the [PictBridge]
menu will appear.
5. If an error occurs during printing, the screen shown on the right will appear.
- Recoverable Error : Press the OK button to resume
printing, or press the RIGHT button to
cancel printing.
Default print setting varies depending on the printer manufacturer.
For your printer s default setting, refer to the user s guide that came with your printer.
63
Setup menu
In this mode, you can set up basic settings. Every camera working mode has [SETUP] tab in
their own menu. You can use the setup menu in all camera modes, except Voice Recording
mode. The changed setup mode values will be maintained even if you turn the camera off and
then back on. The items indicated by are default settings.
Menu tab Main menu Sub menu Secondary menu Page
RESET
p.59
SERIES
OFF
p.59
KOREAN JAPANESE
p.59
ENGLISH RUSSIAN
FRENCH PORTUGUESE
GERMAN DUTCH
SPANISH DANISH
ITALIAN SWEDISH
S.CHINESE FINNISH
T.CHINESE THAI
NO
YES
Y/M/D
M/D/Y
D/M/Y
OFF
DATE
DATE&TIME
OFF
ON
01 ~ 03 ~10
MIN
03/01/01 13:00
FILE NAME
POWER OFF
LANGUAGE
FORMAT
DATE/ TIME
DATE TYPE
IMPRINT
LAMP
ON
64

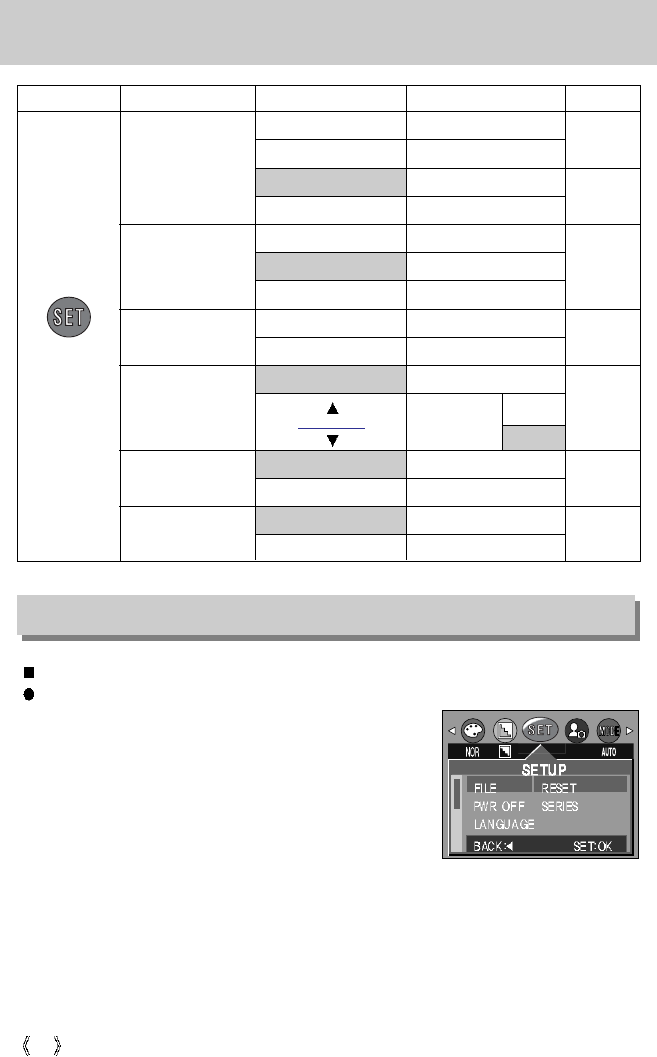

Setup menu
This function allows the user to select the file naming format.
Assigning File Names
1. In any mode other than Voice Recording mode, press the
MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [FILE NAME] menu by pressing the UP/
DOWN button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
[RESET] : After using the reset function, the next file
name will be set from 0001 even after formatting, deleting all or inserting a new
memory card.
[SERIES] : Under this system, the file name will directly follow the last stored file name,
regardless of any actions such as file deletion or formatting.
5. Press the menu button twice and the menu will disappear.
File name
Menu tab Main menu Sub menu Secondary menu Page
OFF
p.59
LOW
NORMAL
p.59
HIGH
LOW
p.59
NORMAL
HIGH
NTSC
p.59
PAL
OFF
p.59
COMPUTER p.59
PRINTER
NO p.59
YES
1 ~ 5 SEC
DELANSWER
ON
OFF
SOUND
LCD
VIDEO OUT
QUICKVIEW
USB
RESET ALL
65
File name
The first stored folder name is 100SSCAM, and the first file name is SUC30001.
Whenever you store an image, the file number is increased by 1.
The file numbers are named from SUC30001 to SUC39999 automatically, 9999 files will
be stored in a folder.
The folder number is assigned sequentially from 000 to 999 as follows: 100SSCAM
101SSCAM ~ 999SSCAM.
The files used with the memory card conform to the DCF(Design rule for Camera File
systems) format.
INFORMATION
Even if the batteries or AC adapter are removed and inserted again, the power off
setting will be preserved.
Note that the automatic power off function will not operate if the camera is in PC mode,
slide show, playing back a voice recording or movie clip.
INFORMATION

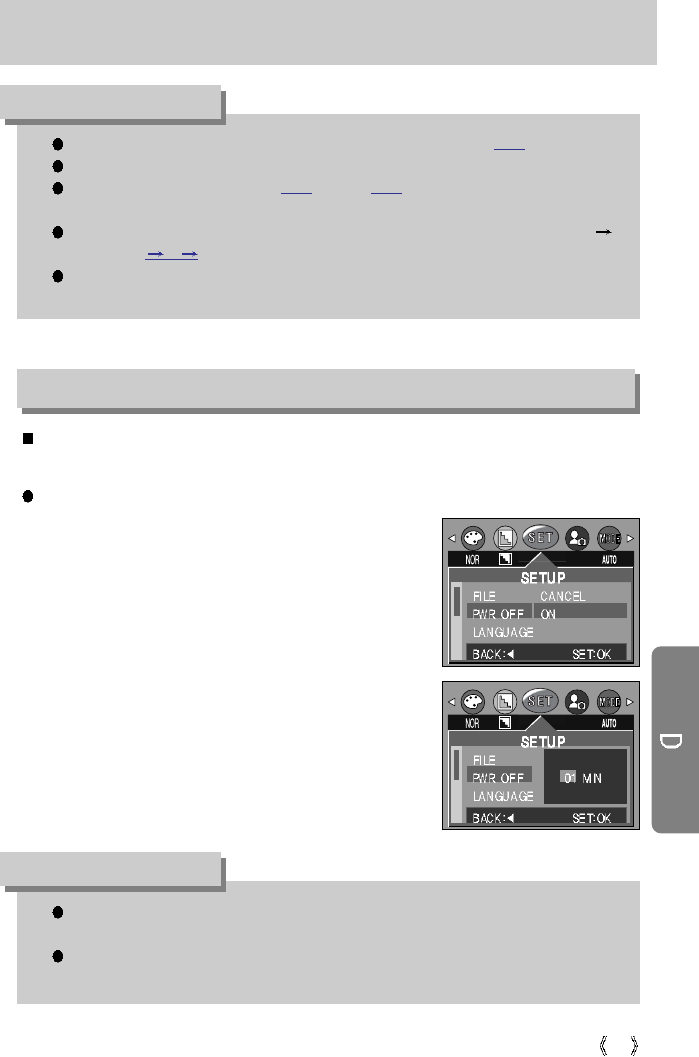

Auto power off
Setting Power Off
1. In any mode other than Voice Recording mode, press the
MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [PWR OFF] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
Selecting [OFF] : The power off function will not operate.
Selecting [ON] : A menu will be displayed on the LCD
monitor as shown alongside. Select the
desired time by pressing the
UP/DOWN button.
5. Press the menu button twice and the menu will disappear.
This function switches the camera off after a set amount of time in order to prevent
unnecessary battery drainage.
66

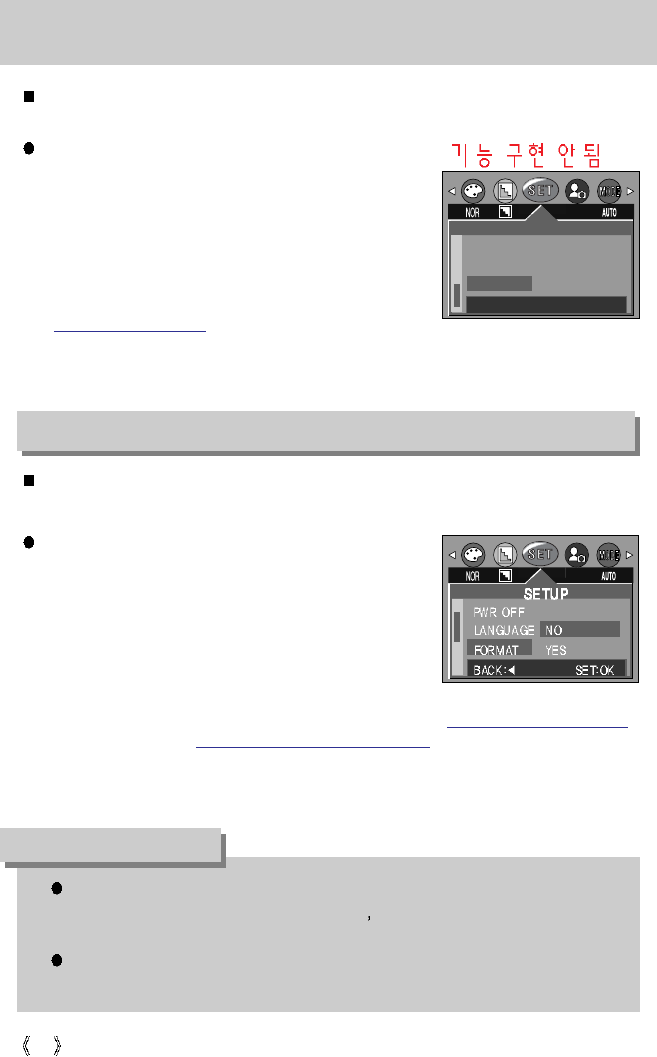

Language
Setting Language
1. In any mode other than Voice Recording mode, press the
MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [LANGUAGE] menu by pressing the UP/
DOWN button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
LANGUAGE sub menu: Korean, English, French,
German, Spanish, Italian, T.Chinese, S.Chinese, Japanese,
Russian, Portuguese, Dutch, Danish, Swedish, Finnish, Thai.
5. Press the menu button twice and the menu will disappear.
There is a choice of languages that can be displayed on the LCD monitor. Even if the batteries
or AC adapter are removed and inserted again, the language setting will be preserved.
Formatting a memory card
Formatting a Memory Card
1. In any mode other than Voice Recording mode, press the
MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [FORMAT] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
If [No] is selected : The memory card will not be formatted. Press the menu button twice
and the menu display will disappear.
If [Yes] is selected : A [PLEASE WAIT!] message appears and the memory card will be
formatted. If you ran FORMAT in Play mode, a [NO IMAGE!]
message will appear.
This is used for formatting the memory card. If you run [FORMAT] on the memory card, all
images, including the protected images, will be deleted. Be sure to download important images
to your PC before formatting the memory card.
Be sure to run [FORMAT] on the following types of memory card.
- A new memory card, or an unformatted memory card.
- A memory card that has a file this camera can t recognize or one that has been taken
from another camera.
Always format the memory card using this camera. If you insert a memory card that has
been formatted using other cameras, memory card readers, or PCs, you will get a
[CARD ERROR!] message.
INFORMATION
67
Setting up the Date/ Time/ Date type
You can change the date and time that will be displayed on the captured images and set up the
date type.
Setting Date/Time & Selecting Date type
1. In any mode other than Voice Recording mode, press the
MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [DATE.TIME] menu by pressing the UP/
DOWN button and press the RIGHT button.
4.
Use the UP, DOWN, LEFT, and RIGHT buttons to select the
desired submenu value, and then press the OK button.
RIGHT button : Selects the
year/month/day/hour/minute/date type.
LEFT button : Moves the cursor to the [DATE/TIME]
main menu if the cursor is at the first item
of the date and time setup. In all other
cases, the cursor will be shifted to the left
of its current position.
UP and DOWN buttons: Changes the setting value.
- Date type
[YY/MM/DD] : year/month/day [MM/DD/YY] : month/day/year
[DD/MM/YY] : day/month/year
5. Press the menu button twice and the menu will disappear.
There is an option to include DATE/TIME on still images.
Date Imprinting
1. In any mode other than Voice Recording mode, press the
MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [IMPRINT] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Use the UP and DOWN buttons to select the desired date
imprint type, and then press the OK button.
[OFF] : The DATE & TIME will not be imprinted on the image file.
[DATE] : Only the DATE will be imprinted on the image file.
[DATE&TIME] : The DATE & TIME will be imprinted on the image file.
5. Press the menu button twice and the menu will disappear.
Imprinting the recording date
68

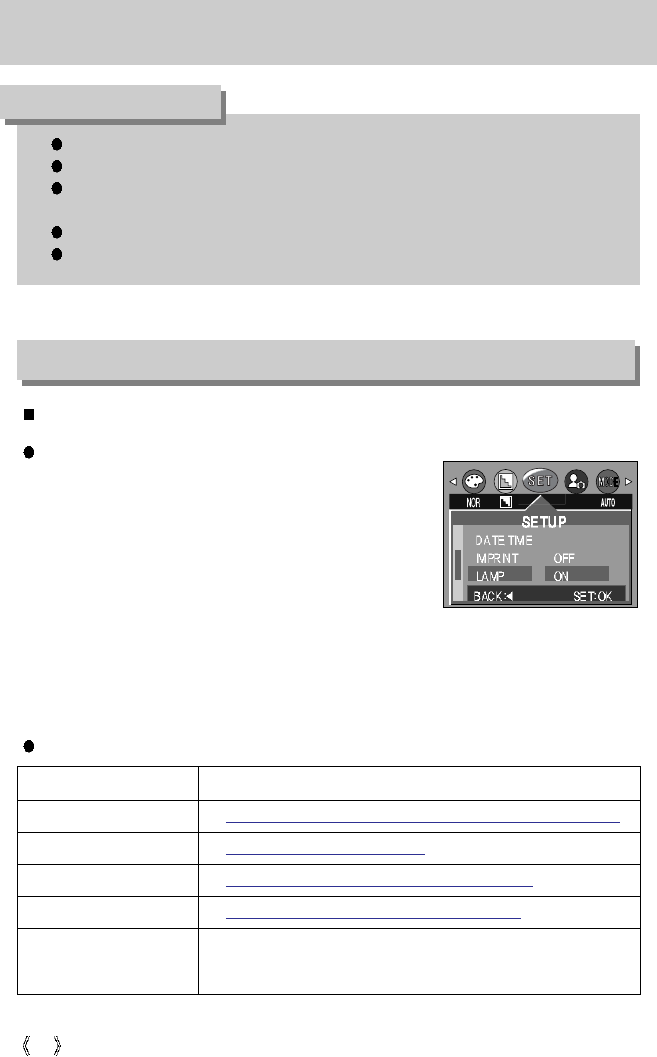

Imprinting the recording date
The Date & Time are imprinted at the bottom right side of the still image.
The date will be imprinted as a DATE TYPE setting.
TIME is imprinted in the following way : [Hour : Minute] and hours are shown using the
12 hour clock.
The imprint function is unaffected by the camera being switched on and off.
The imprint function is applied only to still images.
INFORMATION
Function lamp
Setting the function lamp
1. In any mode other than Voice Recording mode, press the
MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [LAMP] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
If [OFF] is selected : The fucntion lamp will not light up.
If [ON] is selected : The function lamp will light up.
5. Press the menu button twice and the menu will disappear.
Description of the Function lamp
Function Description
During power-on
7 color lights blink and then turns off when the camera is ready to take a picture
After an image is captured
The green lamp will blink once.
While recording a movie clip
The purple lamp will blink at a 1-second interval.
During voice recording The blue lamp will blink at a 1-second interval.
You can turn on and off the function lamp located on the front of the camera.
When the self-timer is
activated
Even if the function lamp is set to OFF, the self-timer LED will
work. (See page 32.)
69

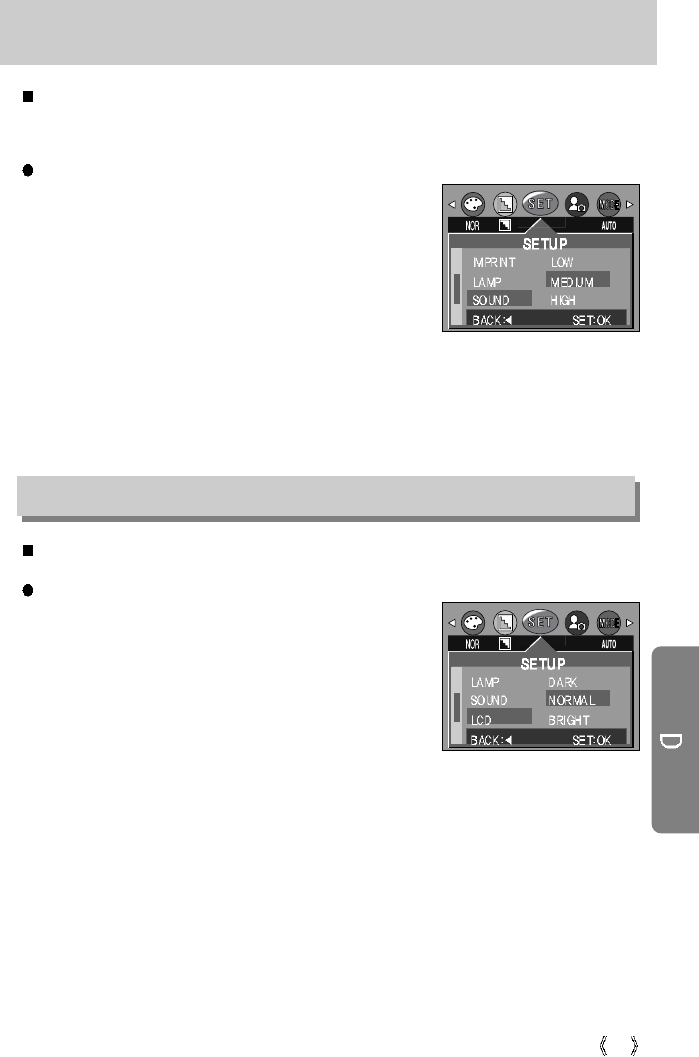

Sound
If you set the operation sound to ON, various sounds will be activated for camera startup, when
button are pressed, and if there is a card error, so that you can be aware of the camera
operation status.
Setting Operation Sounds
1. In any mode other than Voice Recording mode, press the
MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [SOUND] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
- [SOUND] sub menu : OFF/LOW/MEDIUM/HIGH
5. Press the menu button twice and the menu will disappear.
Adjusting LCD Brightness
1. In any mode other than Voice Recording mode, press the
MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [LCD] menu by pressing the UP/ DOWN button
and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
- [LCD] sub menu : DARK, NORMAL, BRIGHT
5. Press the menu button twice and the menu will disappear.
LCD brightness
You can adjust the LCD brightness.
70

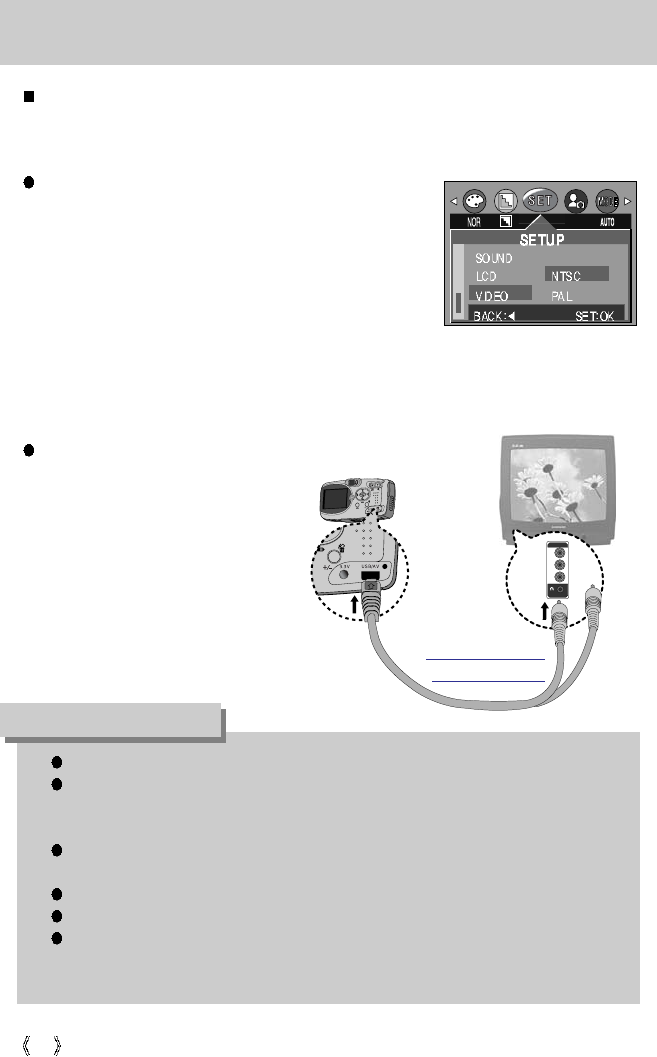

Selecting Video out type
The Movie output signal from the camera can be NTSC or PAL.
Your choice of output will be governed by the type of device (monitor or TV, etc.) to which the
camera is connected. PAL mode can support only BDGHI.
Setting the Video Out Type
1. In any mode other than Voice Recording mode, press the
MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [VIDEO OUT] menu by pressing the UP/
DOWN button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
- [VIDEO OUT] sub menu : NTSC, PAL
5. Press the menu button twice and the menu will disappear.
NTSC : U.S.A, Canada, Japan, South Korea, Taiwan, Mexico.
PAL : Australia, Austria, Belgium, China, Denmark, Finland, Germany, U.K.,
Holland, Italy, Kuwait, Malaysia, New Zealand, Singapore, Spain, Sweden,
Switzerland, Thailand, Norway.
When using a TV as an external monitor, you will need to select the external or AV
channel of the TV.
There will be a digital noise on the external monitor, but it is not a malfunction.
If the image is not in the centre of the screen, use the TV controls to centre it.
When the camera is connected to an external monitor, the menu will be visible on the
external monitor and the menu functions are the same as those indicated on the LCD
monitor.
INFORMATION
Connecting to an external monitor
In RECORDING/ PLAY mode,
you can view the stored still
images or movie clips by
connecting the camera to an
external monitor via the A/V
cable. When the camera is
connected to an external
monitor, the LCD monitor will be
turned off automatically. Yellow color-Video
White color-Voice
71

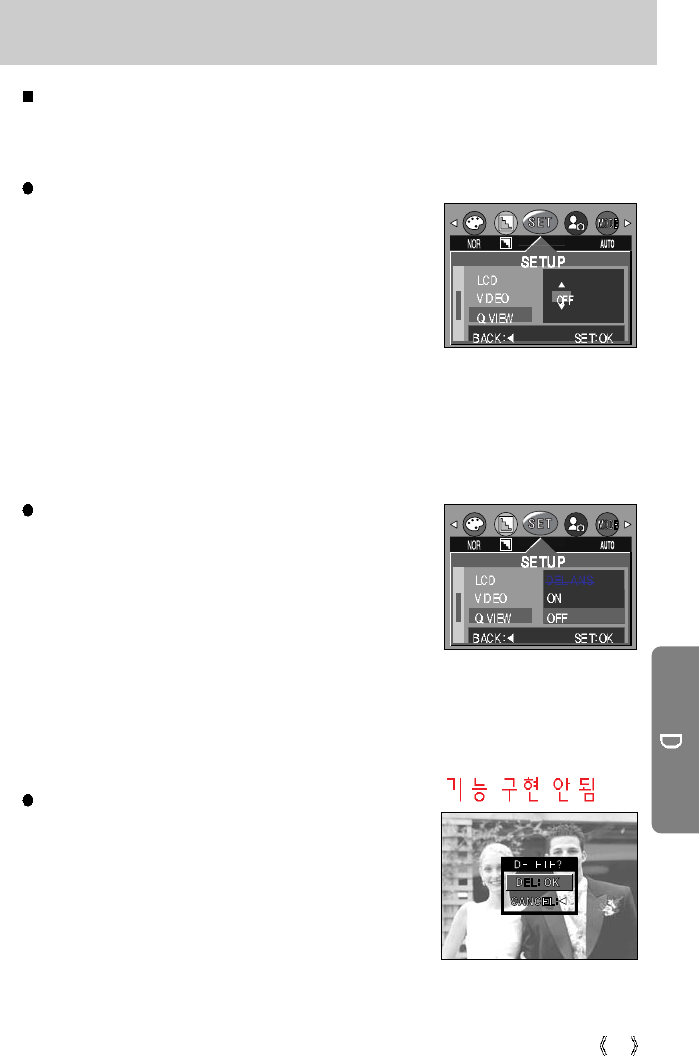

Quick view
If you enable Quick View before capturing an image, you can view the image you just captured
on the LCD monitor for the duration set in the [Quick View] setup. Quick view is possible only
with still images.
Setting Quick View
1. In any mode other than Voice Recording mode, press the
MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [QUICK VIEW] menu by pressing the UP/
DOWN button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
[OFF] : The quick view function can’t be activated.
[1 ~ 5 SEC] : The captured image is briefly displayed during the selected time.
5. Press the menu button twice and the menu will disappear.
Deleting Images in Quick View
You can delete images directly from the quick view screen.
If you select the [1~5SEC] sub menu at step 4, press the
RIGHT button and the [DEL. ANSWER] menu will be
displayed.
5. Select the desired [DEL. ANSWER] sub menu by
pressing the UP/DOWN button.
Selecting [OFF] : A [DELETE?] message will not display.
Selecting [ON] : You can delete the captured image at once.
6. Press the menu button twice and the menu will disappear.
Using the [DEL.ANSWER] menu
If you select [ON] at the [DEL.ANSWER] menu, a message
as shown alongside will be displayed after taking a picture.
Pressing the OK button : the captured image is deleted.
Pressing the LEFT button : the captured image is stored.
72

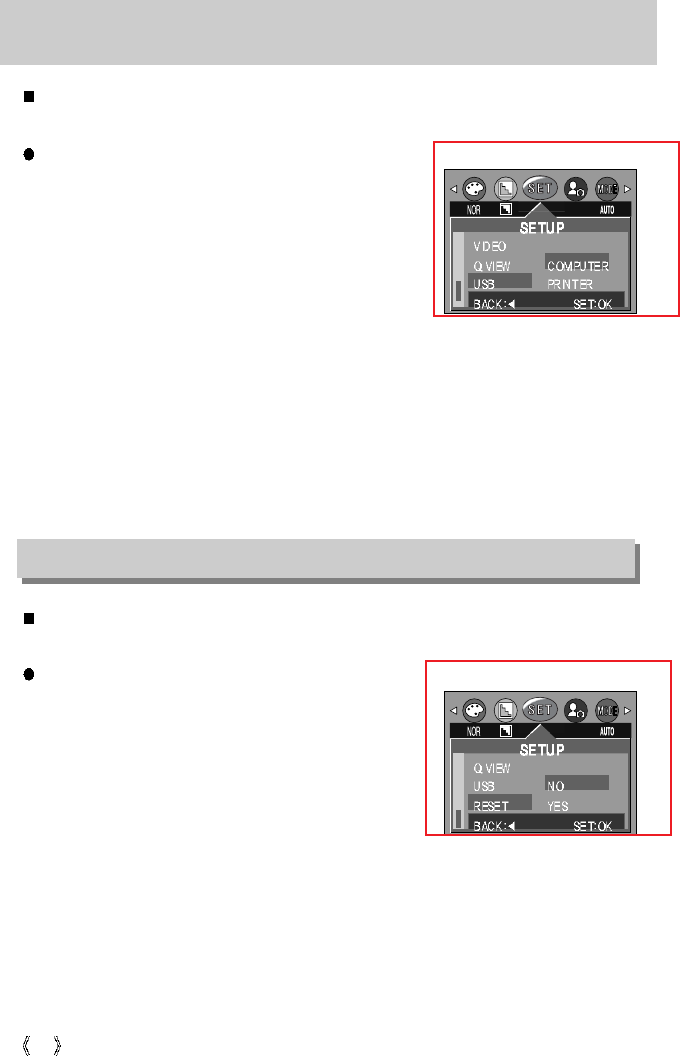

Connecting an External Device (USB)
You can select an external device to which you want to connect the camera using the USB
cable.
Selecting an External Device
1. In any mode other than Voice Recording mode, press the
MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [USB] menu by pressing the UP/ DOWN button
and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
COMPUTER : Select this if you want to connect the camera to your PC. Refer to page 70 for
instructions on how to connect the camera to your PC.
PRINTER : Select this if you want to connect the camera to your printer. Refer to page 60
for instructions on how to connect the camera to your printer.
5. Press the menu button twice and the menu will disappear.
All camera menu and function settings will be restored to their default values. However, values
for DATE/TIME, LANGUAGE, and VIDEO OUT will not be changed.
Initializing the Camera
1. In any mode other than Voice Recording mode, press the
MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [RESET ALL] menu by pressing the UP/
DOWN button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
If [NO] is selected : Settings will not be restored to their defaults.
If [YES] is selected : All settings will be restored to their defaults.
5. Press the menu button twice and the menu will disappear.
Initialization(RESET ALL)
73

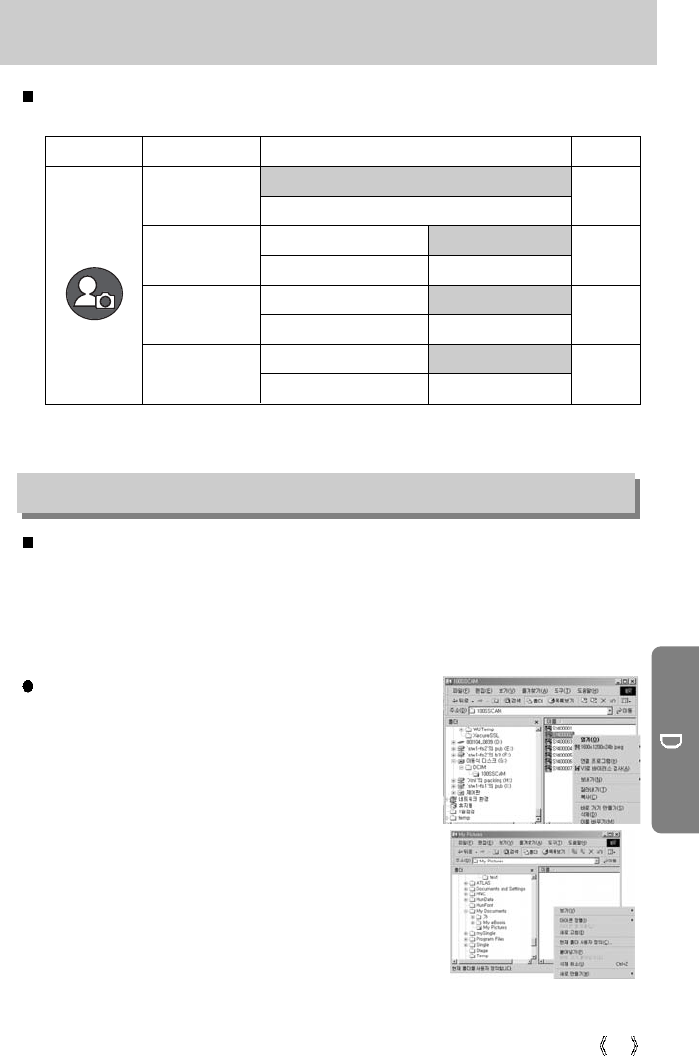

Setting up the MYCAM menu
You can set up a start up image, start up sound, shutter sound and AVATAR. Every camera
working mode (with the exception of Voice recording mode) has the MyCAM menu.
Avatar
You can use a captured image to create a 3D image on your PC, and then transfer it to the
camera and use it as an avatar. You can view the avatar stored on the camera when you turn
on the camera.
Avatar : The word "avatar" came from ancient Sanskrit and referred to the incarnation of a
god that appears in this world. In computer terms, an avatar is a 3D or 2D graphic
representation. See page 87 for how to create and use an avatar.
Storing Avatars on the Camera
1. Connect the camera to your PC. (See page 100.)
2. Open Windows Explorer, select the folder in which your
avatars are located, and then select the avatar you want
to store on the camera.
3. Left-click on the avatar and select "Copy".
4. Select the DCIM/100SSCAM folder in the removable
drive.
5. Left-click on the removable drive and select "Paste" to
copy the avatar to the memory card.
6. You can select the avatar from the camera's MYCAM
menu.
Menu tab Main menu Sub menu Page
NO
CHANGE
OFF IMAGE1
IMAGE2 IMAGE3
OFF SOUND1
SOUND2 SOUND3
OFF SH.SOUND1
SH.SOUND2 SH.SOUND3
AVATAR
S.IMAGE
S.SOUND
SH.SOUND
P.59
P.59
P.59
P.59
74

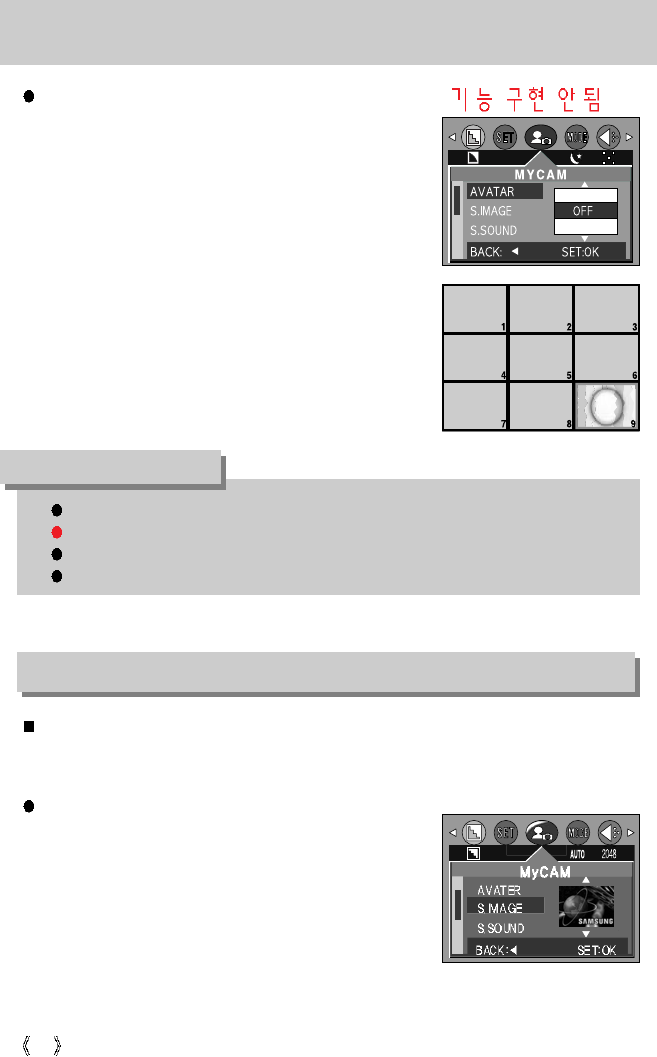

Avatar
Selecting Avatars
1. In a mode other than Voice Recording mode, press the
MENU button.
2. Use the LEFT and RIGHT buttons to select the [MYCAM]
menu tab.
3. Select [AVATAR] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
If [NO] is selected: Avatars will not be used by the
camera.
If [CHANGE] is selected
: Avatars will be displayed in
thumbnail format.
Use the UP, DOWN, LEFT, and RIGHT buttons to select
the desired avatar, and then press the OK button.
5. Press the menu button twice and the menu will disappear.
Only avatars stored in the 100SSCAM folder of the memory card can be selected.
Avatar file format is "avatxxxx.mov".
You can store as many avatars as memory capacity allows.
When the avatar is selected, the startup image will be replaced by the avatar.
INFORMATION
You can select the image that is first displayed on the LCD monitor whenever the camera is
turned on. If both the avatar and startup image are selected, only the avatar will be displayed.
To view the startup image, cancel the selection of an avatar.
Setting Startup Image
1. In a mode other than Voice Recording mode, press the
MENU button.
2. Press the LEFT/ RIGHT button and select [MYCAM]
menu tab.
3. Select [S.IMAGE] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
5. Press the menu button twice and the menu will disappear.
Start up image
75

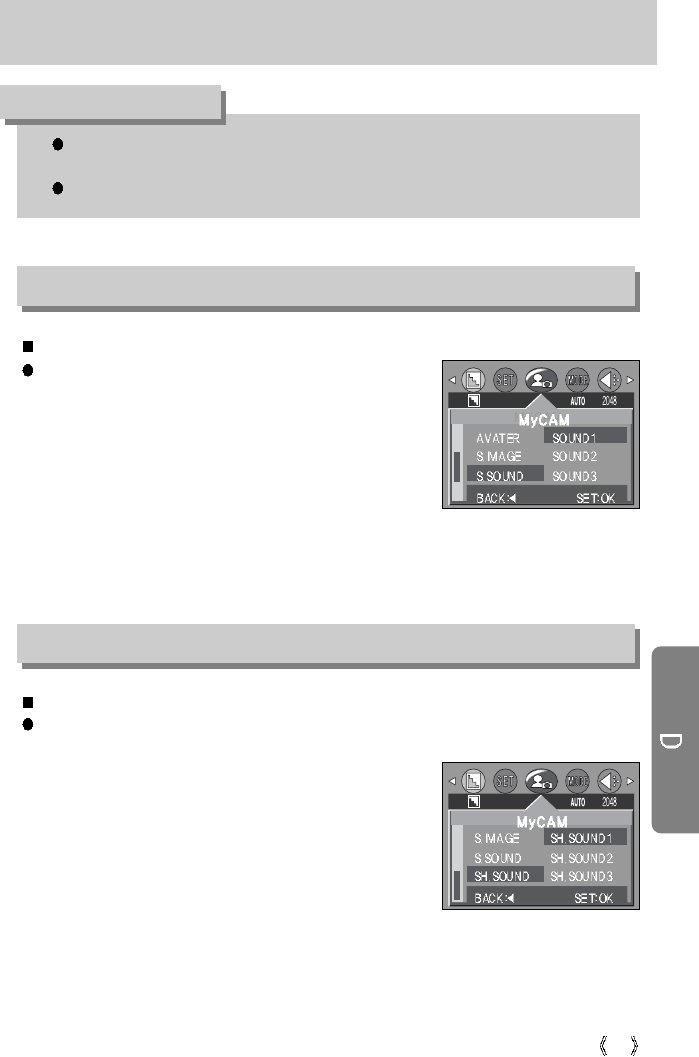

Start up image
Only an image that is saved as a LOGO in the [RESIZE] sub menu can be used as the
start up image.
The logo image will not be deleted by the [DEL.ALL] or [FORMAT] menu.
INFORMATION
Start up sound
Setting the Startup Sound
1. In any mode other than Voice Recording mode, press the
MENU button.
2. Press the LEFT/ RIGHT button and select the [MYCAM]
menu tab.
3. Select the [S.SOUND] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
5. Press the menu button twice and the menu will disappear.
Shutter sound
You can select the shutter sound.
Selecting the Shutter Sound
1. In any mode other than Voice Recording mode, press the
MENU button.
2. Press the LEFT/ RIGHT button and select the [MYCAM]
menu tab.
3. Select the [SH.SOUND] menu by pressing the UP/
DOWN button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
5. Press the menu button twice and the menu will disappear.
You can select the sound that is activated whenever the camera is turned on.
76
List of camera functions
D: Default
-: There is no related menu.
K: Altered settings and values are maintained even after the camera is turned off. (KEEP)
R: A default value is restored when the camera is turned off. (RETURN)
O: A default value is restored after the function has been executed. (ONCE)
: Settings can be stored in Myset mode.
2048x1536 K(D) K(D) K(D) - - - - -
2048x1360 K K K - - - - -
1600x1200 K K K - - - - -
1024x768 K K K - - - - -
640x480 K K K - - - - -
320x240 - - - K(D) - - - -
160x120 - - - K - - - -
S.FINE KKK - - - - -
FINE K(D) K(D) K(D) - - - - -
NORMAL KKK - - - - -
HIGH(24fps) ---K(D) - - - -
LOW(15fps) ---K----
Optical zoom RRRR - - - -
Digital zoom RRR - R - - -
MULTI K(D) K(D) K(D) K(D) - - - -
SPOT R-R- - - - -
AUTO K(D) K(D) K(D) K(D) - - - -
100 R - R - - - - -
200 R - R - - - - -
400 R - R - - - - -
Function
Camera working
mode Recording Movie
clip
Voice
recording
Auto Night Myset
Play
Still image
Movie clip
Voice memo
SIZE
QUALITY
Zoom
METERING
ISO
77
List of camera functions
Auto K(D) K(D) K(D) K(D) - - - -
Daylight R-RR- - - -
Cloudy R-RR- - - -
Fluorescent R-RR- - - -
Tungsten R-RR- - - -
User set R-RR- - - -
NORMAL K(D) K(D) K(D) K(D) - - - -
B & W R-RR- - - -
SUNSET R-RR- - - -
SEPIA R-RR- - - -
RGB R-RR- - - -
SOFT R-R- - - - -
NORMAL K(D) K(D) K(D) - - - - -
VIVID R-R- - - - -
Auto K(D) - K(D) - - - - -
Red eye (with Auto) R-R- - - - -
Fill-in R-R- - - - -
Slow sync.
(with Red eye)
Off RRRK(D) - - - -
-0.5 ~-2.0EV
(1/2 steps)
0.0EV K(D) K(D) K(D) - - - - -
-0.5 ~-2.0EV
(1/2 steps)
F4.8~F2.8 - R - - - - - -
F5.6 - K(D) - - - - - -
F6.7 - R - - - - - -
White
balance
EFFECT
Sharpness
Flash
Exposure
compensation
Manual
Exposure
compensation
Function
Camera working
mode Recording Movie
clip
Voice
recording
Auto Night Myset
Play
Still image Movie clip
Voice memo
RK(D) R - - - - -
R-R- - - - -
R-R- - - - -
78
List of camera functions
Function
Camera working
mode Recording Movie
clip
Voice
recording
Auto Night Myset
Play
Still image
Movie clip
Voice memo
Off K(D) K(D) K(D) K(D) - - - -
2sec OOO - - - - -
10sec OOO - - - - -
Do not record --------
Record -------K(D)
Do not record K(D) K(D) K(D) - K(D) - - -
Record OOOK(D) O - - -
80 cm ~ infinity K(D) K(D) K(D) K(D) - - - -
5 ~ 80cm R-RR- - --
4 ~ 10 SEC ----R---
3 SEC ----K(D) - - -
OFF, 1, 2 SEC ----R---
No repeat ----K(D) - - -
Repeat ----R---
UNLOCK ----K(D) K(D) K(D) -
LOCK ----RRR-
----K(D) - - -
----K---
----K(D) - - -
----K---
NO ----K(D) - - -
YES ----K---
3X5 - - - - K(D) - - -
4X6 - - - - K - - -
5X7 - - - - K - - -
8X10 - - - - K - - -
STANDARD ----K(D) - - -
INDEX ----O---
PRINT SIZE ----O---
D
P
O
F
STAND
ARD
INDEX
PRINT
SIZE
CANCEL
ONE
PIC
0 PRINTS
1~30 PRINTS
0 PRINTS
1~30 PRINTS
ALL
PICS
Self-timer
Voice
recording
Voice
memo
Auto focus
Slide show
(1sec step)
PROTECT
79
List of camera functions
Function
Camera working
mode Recording Movie
clip
Voice
recording
Auto Night Myset
Play
Still image
Movie clip
Voice memo
ONE PIC - - - - K(D) - - -
ALL PICS - - - - D - - -
DEFAULT - - - - K(D) - - -
USER SET - - - - D - - -
----K(D) - - -
----D---
----D---
----D---
----D---
----D---
----K(D) - - -
----D---
----D---
----D---
----D---
----D---
----D ---
----K(D) - - -
----D---
----D---
----D---
----K(D) - - -
----D---
----K(D) - - -
----D ---
----K(D) - - -
----D---
NO - - - - K(D) - - -
YES - - - - D - - -
NO - - - - K(D) - - -
YES - - - - D - - -
NO - - - - K(D) - - -
YES - - - - D - - -
PRINT
RESET
DPOF AUTO
PRINT
C
U
S
T
O
M
I
Z
E
P
R
I
N
T
E
R
S
E
T
U
P
P
i
c
t
B
r
i
d
g
e
IMAGES
L
A
Y
O
U
T
PAP
ER
TYP
E
PRINT
QUALI
TY
DA
TE
FIL
E
POSTCARD
4X6
8X6
A6
A4
B5
FULL
1
2
4
6
8
INDEX
PLAIN
FAST PHOTO
DRAFT
NORMAL
FINE
OFF
ON
OFF
ON
80
List of camera functions
1, 2 MIN
3 MIN
4~10 MIN
RESIZE
ROTATE
Trimming
E
d
i
t
No - - - - K(D) - - -
YES - - - - O - - -
1600X1200 - - - - O - - -
1024X768 - - - - O - - -
640X480 - - - - O - - -
LOGO - - - - O - - -
NO - - - - K(D) - - -
YES - - - - O - - -
No - - - - K(D) K(D) K(D) -
YES - - - - O O O -
No - - - - K(D) K(D) K(D) -
YES - - - - O O O -
RESET K(D) -
SERIES K -
OFF K -
K-
K(D) -
K-
16 languages
K-
NO K(D) -
YES O -
2003/01/01 K -
~ 2050/12/31 K -
12:00 A.M K -
~11:59 P.M K -
OFF K(D) -
DATE K-
DATE&TIME K-
Deletion
DEL.ALL
FILE
PWR
OFF
FORMAT
LANGUAGE
DATE
TIME
Function
Camera working
mode Recording Movie
clip
Voice
recording
Auto Night Myset
Play
Still image
Movie clip
Voice memo
IMPRINT
ON
81
List of camera functions
Function
Camera working
mode Recording Movie
clip
Voice
recording
Auto Night Myset
Play
Still image
Movie clip
Voice memo
Y/M/D K(D) -
M/D/Y K -
D/M/Y K -
OFF K(D) -
LOW K-
NORMAL K-
HIGH K-
LOW K -
NORMAL K(D) -
HIGH K -
NTSC K -
PAL K -
OFF K(D) -
1 sec. K -
2~5 sec. K -
K(D) -
K-
COMPUTER K(D) -
PRINTER K -
NO K -
YES K(D) -
CANCEL K(D) -
CHANGE K -
IMAGE1 K(D) -
OFF, IMAGE 2, 3
K-
SOUND 1 K(D) -
OFF, SOUND 2, 3
K-
SH.SOUND 1 K(D) -
OFF, SH.SOUND 2, 3
K-
DEL
ANSWER
OFF
ON
The list of camera functions is subject to change without prior notice.
Date type
SOUND
LCD
VIDEO
OUT
QUICK
VIEW
S.IMAGE
S.SOUND
SH.SOUND
USB
RESET
ALL
AVATAR
82

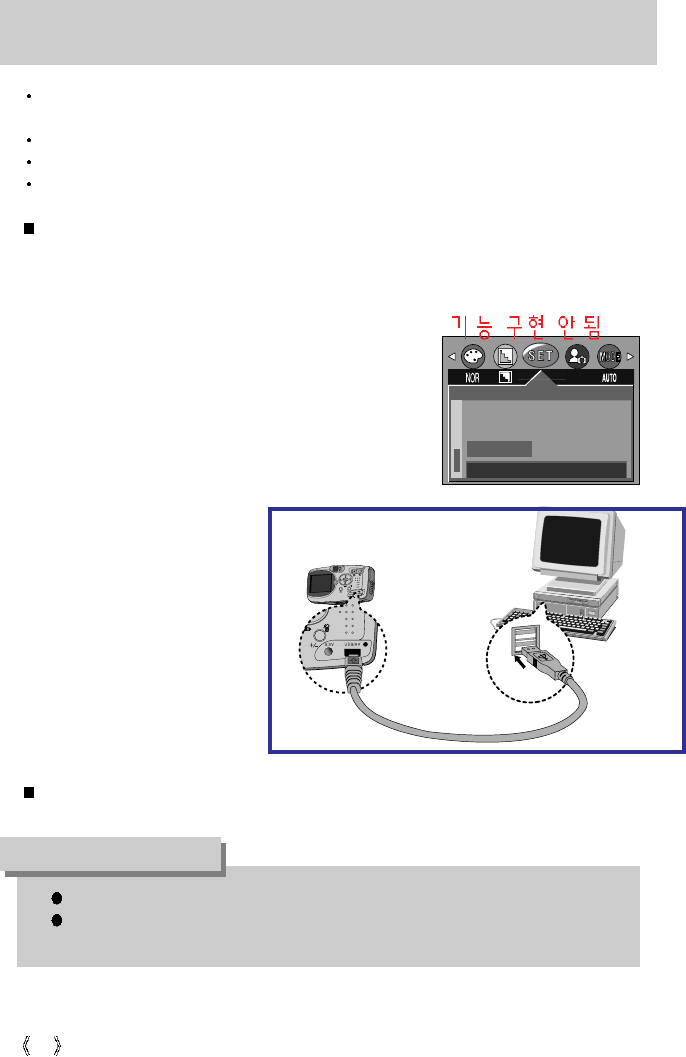

Starting PC mode
If you insert the USB cable into the USB connection terminal, the camera working mode will
change to the PC mode automatically.
In this mode, you can download stored images to your PC through the USB cable.
The LCD monitor is always turned off in PC mode.
The function lamp will blink when the files are transferring via the USB connection.
Connecting the camera to a PC
1. Turn the PC power on.
2. Turn the camera power on.
3. In any mode other than Voice Recording mode, press the MENU button.
4. Press the LEFT/ RIGHT button and select the [SETUP] menu tab.
5. Select the [USB] menu by pressing the UP/ DOWN button
and press the RIGHT button.
6. Use the UP and DOWN buttons to select [COMPUTER],
and then press the OK button.
7. Press the menu button twice and the menu will disappear.
8. Connect the PC and the camera via the USB cable.
- Insert the small plug of the USB cable into the camera
USB connection terminal.
- Insert the large connector of the USB cable into the USB port of the PC.
- The plugs must be firmly inserted.
The camera driver must be installed before using PC mode.
To save battery power, it is recommended that you use an AC adapter (Optional) when
connecting the camera to a computer
INFORMATION
Disconnecting the camera and PC : Refer to page 127 (Removing the removable disk).
83
Starting PC mode
Downloading stored images
You can download the still images stored on the camera to your PC's hard disk and print them
or use photo editing software to edit them.
1. Connect the camera to your PC with the USB cable. (p.94)
2. On your computer’s desktop display, select [My computer]
and double click [Removable Disk DCIM
100SSCAM]. The image files will then be displayed.
3. Select an image and press the right mouse button.
4. A pop-up menu will open. Click the [Cut] or [Copy] menu
[Cut] : cuts a selected file.
[Copy] : copies files.
5. Click a folder that you want to paste the file into.
6. Press the right mouse button and a pop-up menu will
open. Click [Paste].
84

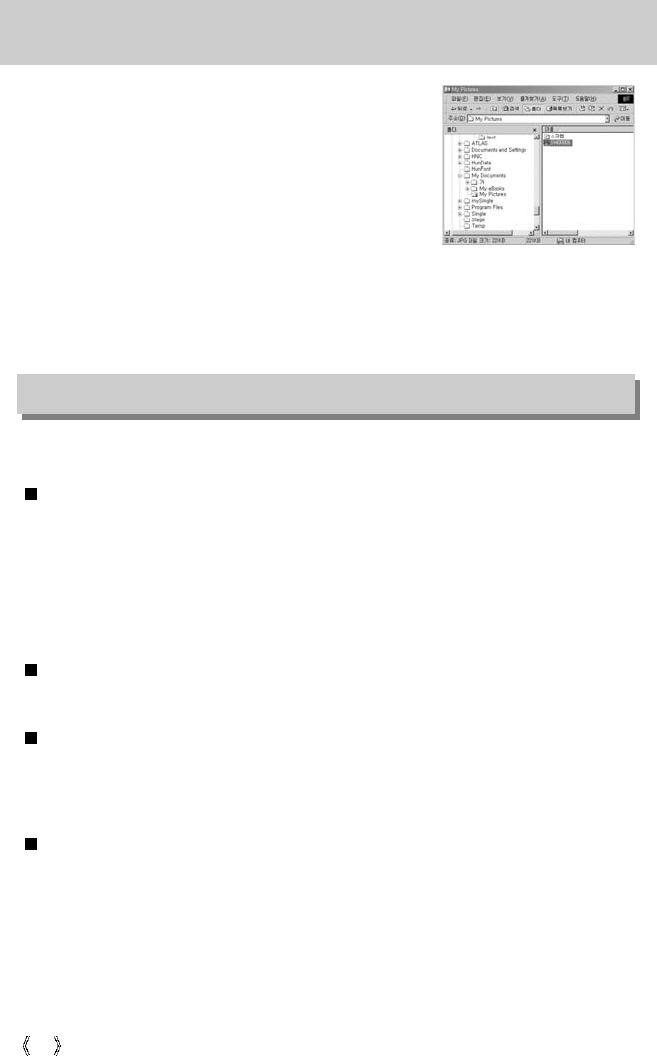

Starting PC mode
7. An image file is transferred from the camera to your PC.
- By using [Digimax Viewer], you can see the stored images in the memory directly on the PC
monitor and you can copy or move the image files. (p.130)
Important notes
Be sure to observe the following precautions!
This unit contains precision electronic components. Do not use or store this
unit in the following locations.
- Areas exposed to severe changes in temperature and humidity.
- Areas exposed to dust and dirt.
- Areas exposed to direct sunlight or the inside of a vehicle in hot weather.
- Environments where there is high magnetism or excessive vibration.
- Areas with high explosives or highly flammable materials.
Do not let the unit come into contact with dust, vinyl goods, or chemicals,
such as insecticides, for an extended period of time.
Sand can be particularly troublesome to cameras.
- Do not let sand get inside the unit when using it on beaches, coastal dunes, or other areas
where there is lots of sand.
- Doing so may result in failure or may permanently render the unit unusable.
Extremes in temperature may cause problems.
- If the camera is transferred from a cold to a warm and humid environment, condensation can
form on the delicate electronic circuitry.
If this occurs, turn the camera off and wait for at least 1 hour until all moisture is dispersed.
Moisture build up can also occur in the memory card. If this happens, turn off the camera and
remove the memory card. Wait until the moisture has dispersed.
85
Important notes
Caution on Using the Lens
- If the lens is subjected to direct sunlight, it could result in discoloration and deterioration of the
image sensor.
- Do not apply excessive force to the zoom lens.
- Pay attention not to get fingerprints or foreign substances on the surface of the lens.
If the digital camera is not used for a long period, an electric discharge can
occur. It is a good idea to remove the batteries and the memory card if you
do not intend using the camera for an extended period of time.
If the camera is exposed to an electronic interference, it will turn itself off to
protect the memory card.
Camera Maintenance
- Use a soft brush (available from photo stores) to gently clean the lens and LCD assemblies.
If this does not work, lens-cleaning paper with lens cleaning fluid can be used.
Clean the camera body with a soft cloth. Do not allow this camera to come into contact with
solvent materials such as benzol, insecticide, thinners etc. This may damage the body shell
of the camera and also affect its performance.
Rough handling can damage the LCD monitor. Take care to avoid damage and keep the
camera in its protective carry case at all times when not in use.
Do not attempt to disassemble or modify the camera.
Under certain conditions, static electricity can cause the flash unit to fire.
This is not harmful to the camera and is not a malfunction.
When images are uploaded or downloaded, the data transfer may be
affected by static electricity. In this case, disconnect and re-connect the
USB cable before trying the transfer again.
86
Warning indicator
There are several warnings that may appear on the LCD display
Warning indicator Causes Remedy
-
Turn off the camera power and turn it on again
- Insert the memory card again
- Format the memory card (p.85)
- Memory card error
- There is insufficient
memory capacity to take
an image
- There are no images
stored on the memory card
- A memory card is not
inserted
- The camera can t
recognize the memory
card
- File error
- Memory card error
-
There is low battery capacity
- The memory card is
locked
CARD ERROR !
CARD FULL !
NO IMAGE !
NO CARD !
FILE ERROR !
LOW BATTERY !
CARD LOCKED !
- Insert a new memory card
- Delete unnecessary image files to free up
some memory
- Take images
- Insert a memory card that is holding
some images
-
Insert a memory card
-
Insert the memory card again
- Turn off the camera power and turn it on
again
- Format the memory card
- Contact a camera service center
- Insert fresh batteries
- Slide the write protect switch to the
bottom of the memory card.(p.30)
- When taking pictures in
dark places
Dark - Use a tripod and take pictures in Flash
Photography mode.
87
Before contacting a service center
Please check the following
Symptom Causes Remedy
- Insert fresh batteries
- Connect an AC Power Adapter
- Insert the batteries according to the
polarity marks (+, -).
- There is low battery capacity
- An AC Power Adapter is not
connected
- Batteries are inserted
incorrectly with the reverse
polarities.
- The batteries are exhausted
- The Camera is turned off
automatically.
- The Adapter plug is not
connected securely
- The Camera is being used
in low temperatures
- The memory card is not
inserted
-
There is insufficient memory capacity
-
The memory card has not been formatted
- The memory card is
exhausted
- The camera’s power is off
-
The batteries are exhausted
- The memory card is locked
- Batteries are inserted
incorrectly with the reverse
polarities.
The camera doesn t
switch on
The camera power
ceases whilst in use
Batteries drain
quickly
Camera does not
take images when
pressing the
Shutter button
- Insert fresh batteries
- Slide the power switch to reactivate
camera
- Remove and re-insert the plug
- Keep the camera in warm conditions
(i.e. inside a coat or jacket) and only
remove it in order to take images
- After turning the camera off, insert a new
memory card
- Delete unnecessary image files
- Format the memory card (p.85)
- Insert a new memory card
- Turn the camera power on
- Insert fresh batteries
- Slide the write protect switch to the
bottom of the memory card
- Insert the batteries according to the
polarity marks (+, -).
- The camera was stopped
due to a malfunction.
The camera
suddenly stops
working while in
use.
- Press the power button for longer than 3
seconds. The camera will restart to its
normal operation state.
88
Before contacting a service center
Symptom Causes Remedy
-
A picture was taken within 0.8 m
from the subject without setting
an appropriate macro mode.
- Taking a picture beyond
the flash range
- The lens is smudged or
dirty.
- Flash off mode has been
selected
The images are
unclear
The flash does not
fire
- If the subject is closer than 0.8m, select
macro shot mode.
- Take a picture within the flash range
- Clean the lens
- Dis-engage flash off mode
- Reset the date and time correctly- The date and time have
been set incorrectly or the
camera has adopted the
default settings
- Camera malfunction
- Incorrect memory card
format
Incorrect date and
time is displayed
The camera
buttons do not
operate
A card error has
occurred while the
memory card is in
the camera.
- Remove /re-insert batteries and switch
the camera on
- Re-format the memory card (p.85)
- Incorrect file name.
(Violation of DCF format)
The images don't
play back
- Do not change the image file name.
89
Before contacting a service center
Symptom Causes Remedy
- White balance setting is
incorrect.
- Exposure is excessive.
- Cable connection is
incorrect.
- The camera is off.
- There are no batteries, the
batteries are exhausted or
the AC adapter is not
connected.
- The operating system is
not Windows 98, 98SE,
2000, ME, XP/ Mac OS
9.0~10.2. Alternatively the
PC does not support USB.
- The USB driver is not
installed.
Colour of image is
different to the
original scene
Images are too
bright
When using the
PC’s explorer, the
[Removable Disk]
file does not show
- Select appropriate White balance.
- Reset exposure compensation.
- The external monitor has
not been connected
properly with the camera.
- There are incorrect files in
the memory card.
No image on
external monitor
- Check the connection cables.
- Insert a memory card that has correct
files.
- Check the connection.
- Turn the camera on.
- Insert new batteries or check the
adapter connection.
- Install Windows 98, 98SE, 2000, ME,
XP/ Mac OS 9.0~10.2 to PC that
supports USB.
- Install a [USB Storage Driver].
90
Specifications
Type 1/2.7" CCD
Effective Pixels Approx. 3.2 Mega pixels
Total Pixels Approx. 3.3 Mega pixels
SHD Lens f = 5.8 ~ 17.4mm
(35mm film equivalent : 38~114mm)
F No. F2.8 ~F4.8
Still Image mode : 1.0X ~ 3.0X
Play mode : 1.0X ~ 5.0X (depends on image size)
Optical Viewfinder
Real image optical viewfinder
LCD Monitor 1.5" color TFT LCD
Type TTL auto focus
Normal : 80cm ~ infinity
Macro : Wide -5 cm ~80cm Tele - 50cm ~80cm
Type Mechanical and Electronic shutter
Speed Normal : 2 ~ 1/2,000 sec. Night : 16 ~ 1/2,000 sec.
Program AE
Metering : Multi, Spot
Compensation 2.0EV (0.5EV steps)
ISO AUTO, 100, 200, 400
Manual Exposure
Electronic shutter : 1/8 ~16 sec (1EV steps)
Mode Auto/ Red-eye reduction/ Fill-in flash / Slow sync/ Flash off
Normal - WIDE : 0.8 ~ 3.0m, TELE : 0.8 ~ 2.0m
Macro - WIDE : 0.2 ~ 0.8m, TELE : 0.5 ~ 0.8m
Recharging Time
Approx. 7sec.
Sharpness Soft/ Normal/ Vivid
Effect Normal/ B&W/ Sunset/ Sepia/ RGB
White balance Auto/ Daylight/ Cloudy/ Fluorescent/ Tungsten/ User set
Voice recording
Voice memo(Max. 10sec : Still image)
Imprint Off/ Date/ Date&Time (user selectable)
Mode : Auto, Night, Myset
Self-timer : 2sec, 10sec
With voice
Size : 320x240, 160x128 (user selectable)
(15,20 frames/sec, Recording time : memory capacity dependent)
Media
Memory Stick Duo (up to 256MB guaranteed)
Still image : JPEG(DCF), EXIF 2.2, DPOF
Movie clip : MOV(MPEG4)
Voice file: WAV(G.711, recording time: Max. 1 hour)
2048 : 2048x1536, 2048P:2048x1360,
1600:1600x1200, 1024:1024x768, 640:640x480
Sensor
Lens
Focal Length
Range
Control
Range(AUTO)
Digital Zoom
Viewfinder
Focusing
Shutter
Exposure
Flash
Voice recording
Shooting
Storage
Movie clip
Still Image
Image size
(Pixels)
File Format
91
Specifications
2048 : Super fine 17, Fine 33, Normal 5 0
2048P : Super fine 27, Fine 54, Normal 82
1600 : Super fine 27, Fine 54, Normal 82
1024 : Super fine 63, Fine 132, Normal 198
640 : Super fine 169, Fine 336, Normal 501
*
These figures are measured under Samsung s standard conditions
and may vary depending on shooting conditions and camera settings.
Image Play Single image/ Thumbnails/ Slide show/ Movie Clip
Digital output connector : USB Audio : Mono
Video output : NTSC, PAL (user selectable)
DC power input connector : 3.3V
Included : Rechargeable Lithium-ion Battery(1000mAh, 3.7V)
Optional : Duracell CP-1 battery, AC adapter(DC 3.3V, 2A)
* Included battery may vary depending on sales region.
Dimensions (WxHxD) 102x53.8x31.6mm
Weight Approx. 119g (without batteries and card)
Operating Temperature 0 ~ 40
Operating Humidity 5 ~ 85%
Camera Driver
Storage Driver (Windows98/98SE/2000/ME/XP, Mac OS 9.0 ~ 10.2)
Application MGI PhotoSuite,Digimax Viewer 2.1, DigiStudio
Special Function
Avatar Start Screen, MPEG-4 Movie clip, 7 Colors Function lamp, RGB Color Effect
Capacity (32MB)
Storage
Interface
Power Source
Software
Specifications are subject to change without prior notice.
System Requirements
For Windows
For Macintosh
Digimax U-CA 3
PC with processor better than MMX Pentium 233MHz (XP : Pentium II 300MHz)
Windows 98/98SE/2000/ME/XP
Minimum 32MB RAM (XP : 128MB)
140MB of available hard-disk space
USB port
CD-ROM drive
800x600 pixels, 16-bit colour display compatible monitor
(24-bit color display recommended)
Power Mac G3 or later
Mac OS 9.x ~ 10.2
Minimum 64MB RAM
110MB of available hard-disk space
USB port
CD-ROM drive
QuickTime 4.0 or later for Movie Clip
92

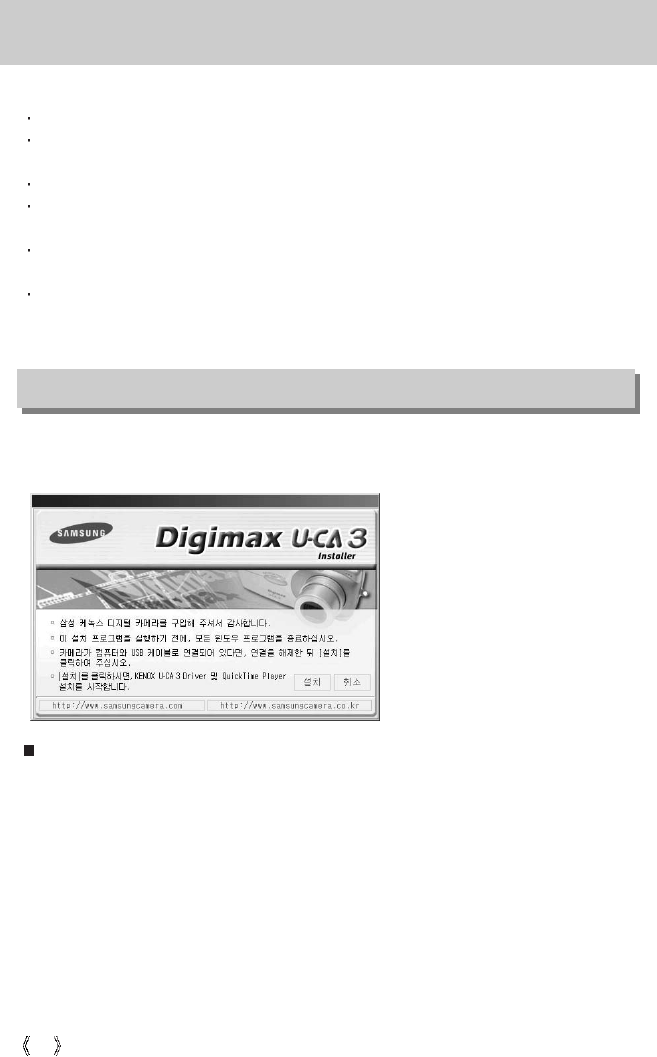

Software Notes
Please ensure that you read the instruction manual carefully before use.
The attached software is a camera driver and image editing software tool for Windows.
Under no circumstances should all or part of either the software or the user manual be
reproduced.
Copyrights for software are licensed only for use with a camera.
In the unlikely event of a manufacturing fault, we will repair or exchange your camera.
We cannot, however, be held responsible in any way for damage caused by inappropriate use.
Using a Hand-made PC or a PC that has not been guaranteed by the manufacturer is not
covered by the Samsung warranty.
Before reading this manual, you should have a basic knowledge of computers and O/S
(Operating Systems).
After inserting the CD-ROM provided with this camera into the CD-ROM drive, the following
window should automatically run.
Before connecting the camera to
the PC, you should first install the
camera driver.
Camera driver : This enables images to transfer between the camera and PC.
This camera uses the USB Storage Driver as the camera driver. You can use the camera as a
USB card reader.
After installing the driver and connecting this camera to the PC, you can find [Removable Disk] in
[Windows Explorer] or [My computer]. A USB Storage Driver is provided only for Windows.
A USB Driver for MAC is not included with the Application CD. But you can use the camera with
Mac OS 9.0~10.2.
About the software
93
Software Notes
QuickTime Player : The program for playing back QuickTime movies (.mov). It can also play
video files compressed with MPEG4 codec.
This software is only compatible with Windows.
Digimax Viewer 2.1: This is a program for viewing stored images.
You can see the stored images in the memory directly on a PC monitor. You can also copy,
move or delete the images and enlarge /downscale the image sizes with Digimax Viewer. This
software is only compatible with Windows.
MGI PhotoSuite III SE: Image editing program
You can edit or store still images that you download from the camera.
This software is only compatible with Windows.
DigiStudio: Software for creating 3D avatars.
You can store 3D avatar files on the camera and use one of the avatar as the startup image.
Please be sure to check the system requirements for the software before installing. This
software is only compatible with Windows.
Be sure to check the system requirements (page 112) before installing the driver.
You should allow 5~10 seconds for running the automatic setup program according to
the capability of the computer. If the frame does not show, run the [Windows Explorer]
and select [samsung.exe] in the CD-ROM Drive root directory.
INFORMATION
Recommended System Requirements
Minimum System Requirements
CPU Pentium III 500Mhz Pentium II 400Mhz
RAM 64MB 128MB
Graphic Card
Sound Card 16 Bit Stereo Sound Card
Hard Disk 150MB or more available space
Operating System
Windows 98SE/2000/ME/XP
Web Browser
Internet Explorer 5.0 or later
Graphic card with 3D acceleration and
at least 16MB of video RAM
Graphic card with 3D acceleration and
at least 8MB of video RAM
94

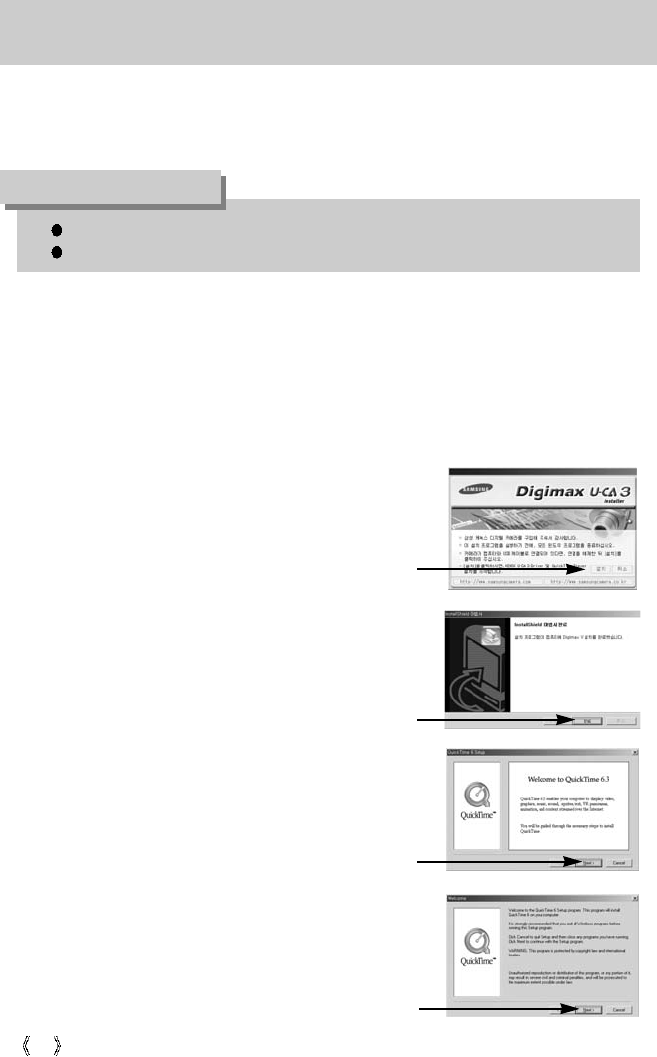

Setting up the application software
To use this camera with a PC, install the application software first.
After this has been done, the stored images in the camera can be moved to the PC and can be
edited by an image editing program.
You can visit the Samsung web-site through the internet.
http://www.samsungcamera.com : English
http://www.samsungcamera.co.kr : Korean
Close other programs before installing the application software.
Before installing the application software, disconnect the USB connection.
INFORMATION
4. A Welcome window will appear.
Click [Next >] to proceed to the next screen.
[Click !]
1. Click the [Install] menu in the Autorun frame.
The UCA 3 camera driver is installed automatically.
2. Installation is complete.
Click the [Finish] button.
3. Click [Next >] to begin installing QuickTime.
[Click !]
[Click !]
[Click !]
95
Setting up the application software

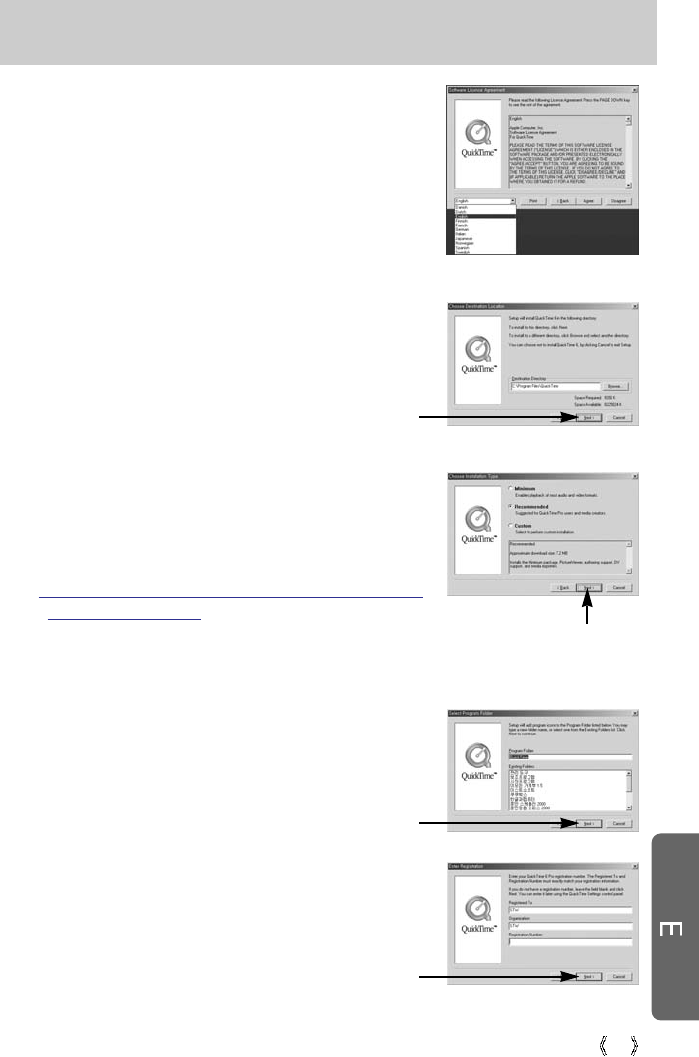

5. The Software License Agreement window will be displayed. If
you agree to this, click [Yes], the window will then move to
the next step. If you disagree, click [ No ] and the installation
program will be canceled.
6. Click [Browse...] to specify a destination directory for the
installation, and then click [Next >].
7. The [Choose Installation Type ] window appears. Select the
type of installation you want to perform and click [Next >].
Minimum : Installs required files only.
Recommended : Installs required files and the most
commonly used optional files.
* When using the DigiStudio program, please be sure to
select "Recommended".
Custom : Allows you to install only the
components you choose.
8. Select the program folder in which you want to create the
program's shortcuts, and then click [Next >].
[Click !]
[Click !]
[Click !]
9. The Enter Registration window appears.
Enter your name and organization in the respective fields,
and then click [Next >].
You do not have to enter a registration number.
[Click !]
96

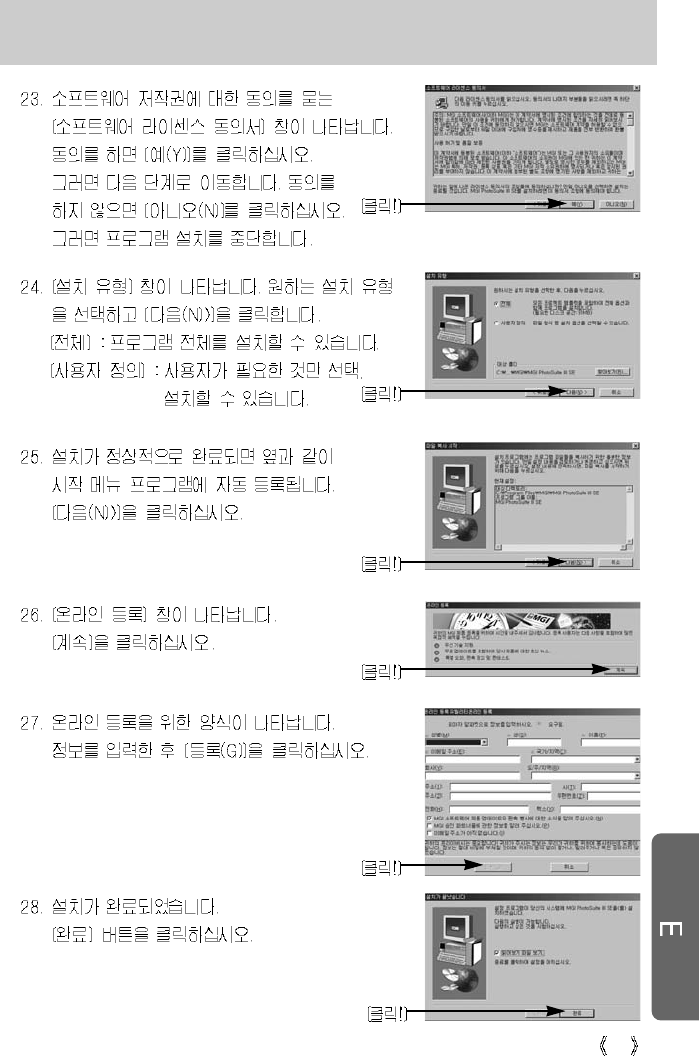

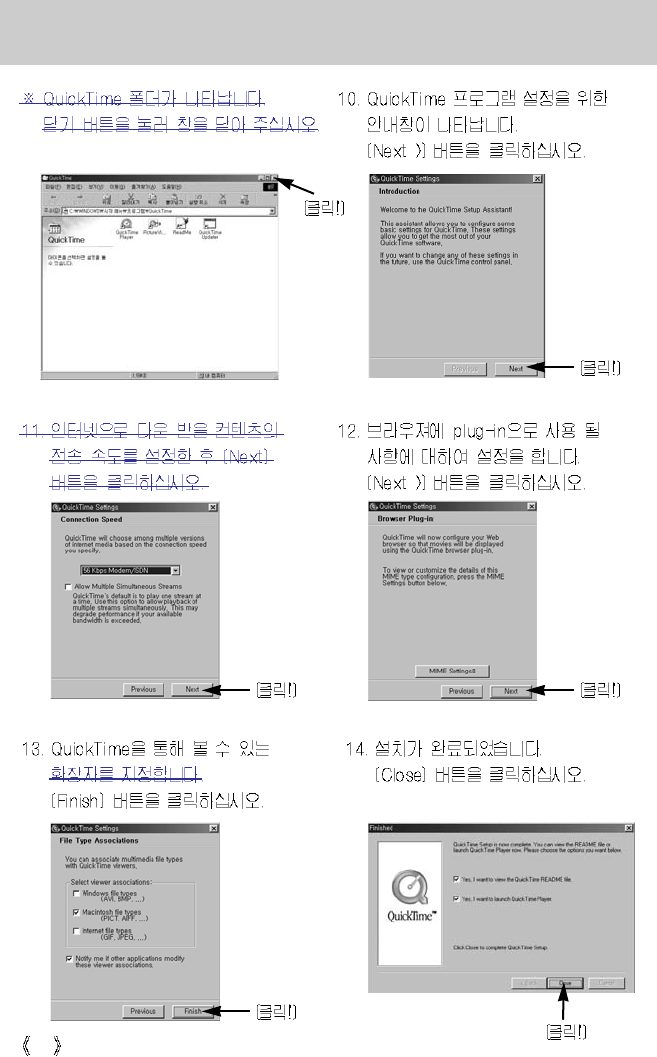

Setting up the application software
97

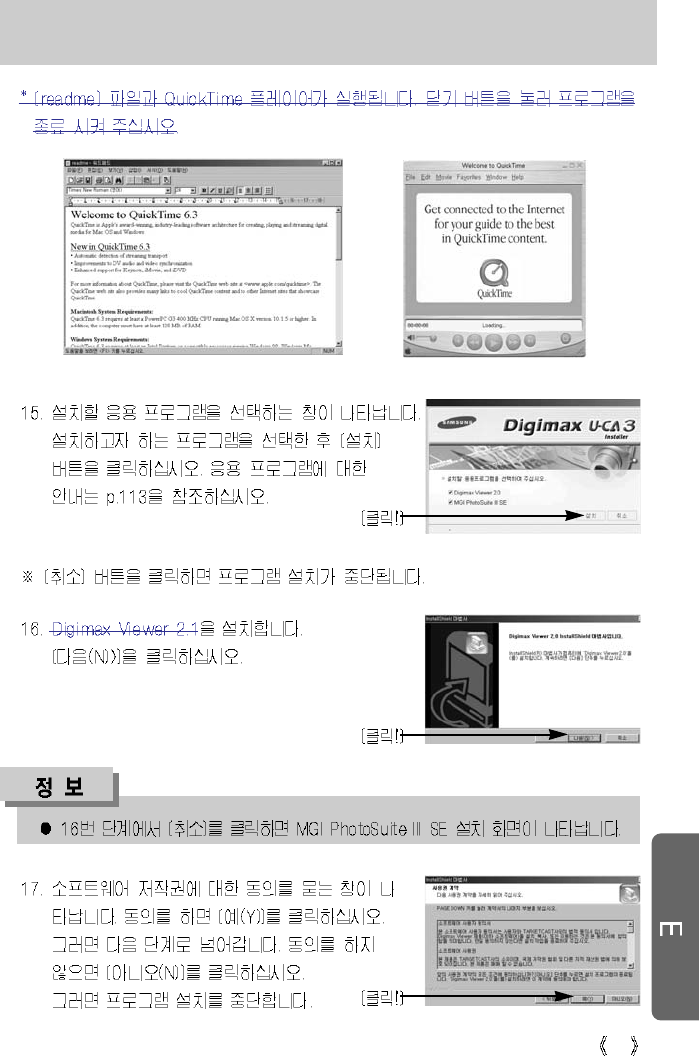

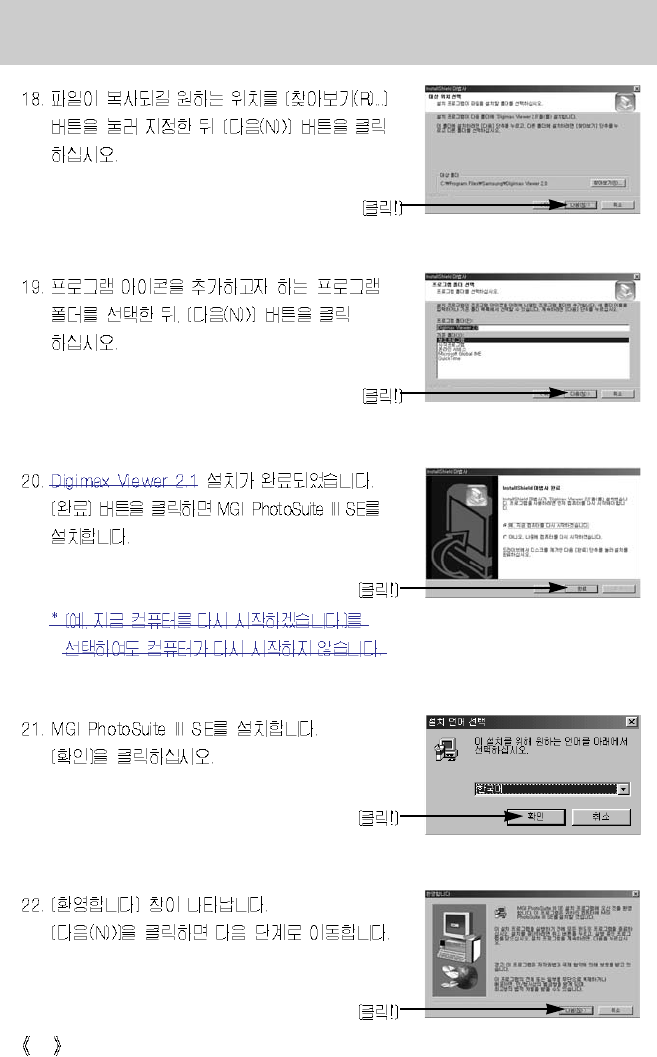

Setting up the application software
98
Setting up the application software
99
Setting up the application software
100

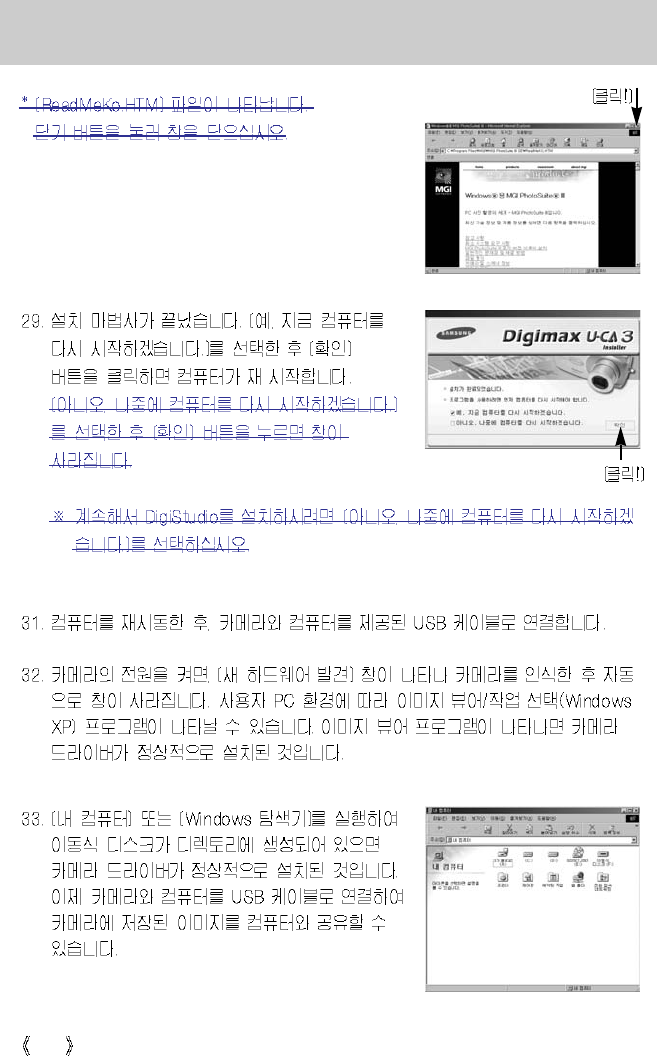

Setting up the application software
101

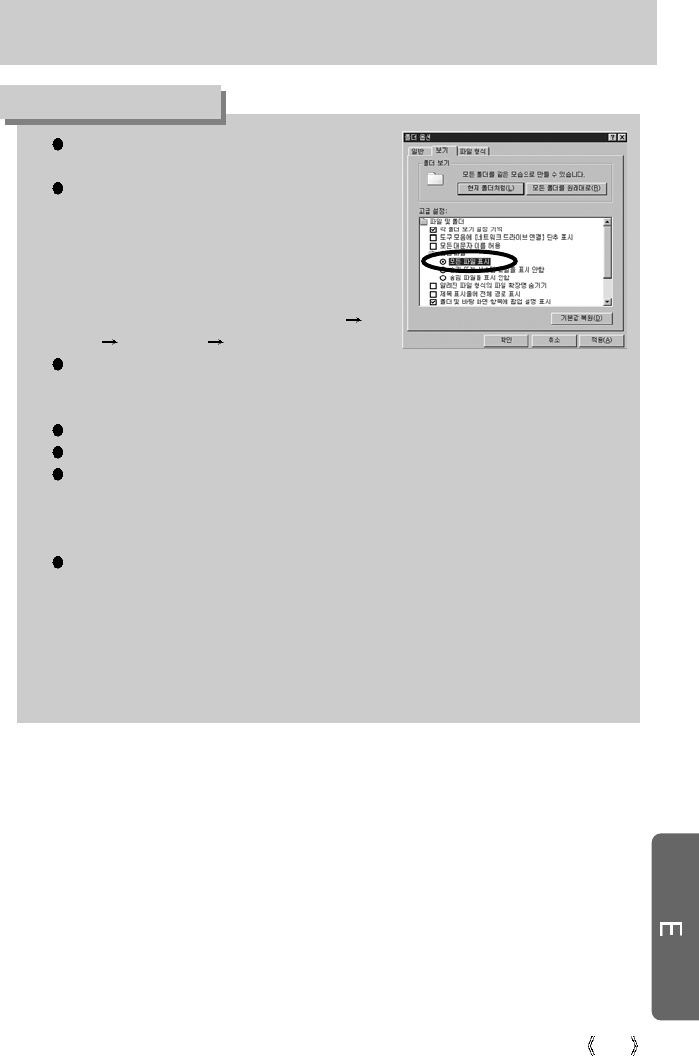

Setting up the application software
If you have installed the camera driver, [Found
New Hardware Wizard] may not open.
On a Windows 98 or 98 SE system, the Found
New Hardware Wizard dialog box opens and a
window asking you to select a driver file may
appear. In this case, select the
[C:\WINDOWS\INF\OTHER] folder.
If you can’t find the [INF\OTHER] folder, check the
[Show all files] button in [Window's Explorer
View Folder option View].
When connecting the camera to your PC, it is
recommended that you use an AC power
adapter.
Before connecting the camera to the PC, You should first install the camera driver.
After installing the camera driver, you have to restart your PC.
If you connect the camera to the PC before installing the camera driver, the [Found
New Hardware Wizard] will open.
In this case, cancel the [Found New Hardware Wizard] and disconnect the camera.
Install the camera driver and connect the camera to the PC again.
Should the computer not find the camera driver after installation, please try one or more
of the following measures.
1. Delete the camera driver (p.124), and re-install the driver.
2. Refer to FAQ (p.146) to check for a possible solution to the problem.
3. If your PC’s central processing unit is VIA chip (This is shown in the USB Host
Controller), download the patch file from the Samsung Camera web page.
(http://www.samsungcamera.com)
INFORMATION
102

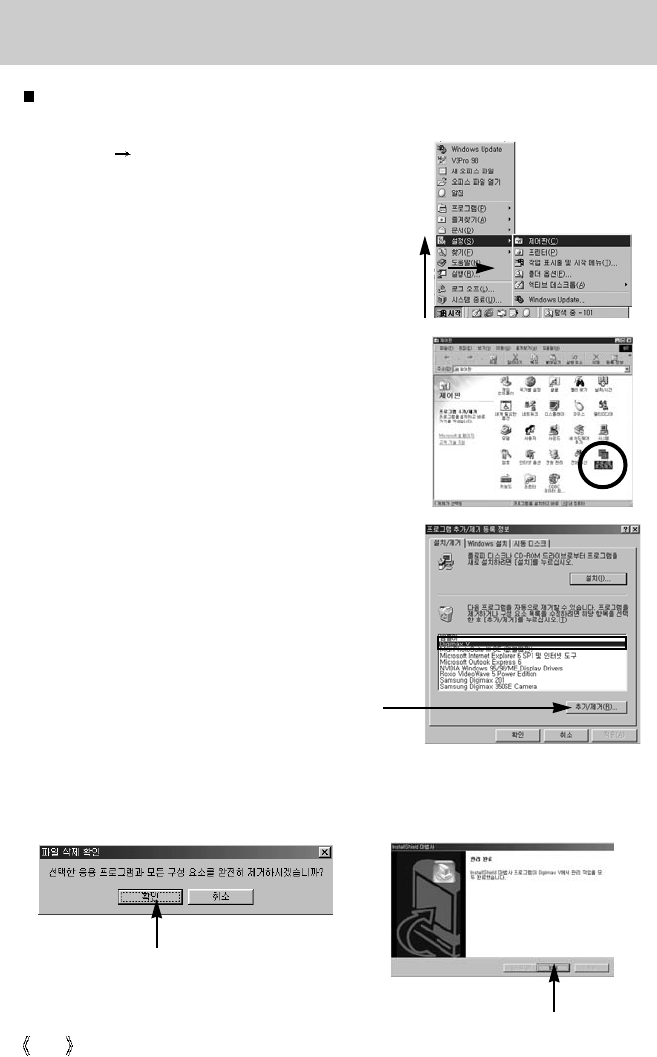

Removing the USB Driver for Windows 98SE
To remove the USB driver, refer to the process shown below.
1. Trace [Start Settings] and click [Control Panel].
[Click !]
4. A window will open. Click the [OK] button and
the camera driver will be removed.
5. Uninstallation is complete.
Click the [Finish] button and the window
will disappear.
[Click !]
[Click !]
2. Double-click [Add/Remove programs].
3. The [Add/Remove Programs Properties] window will
open. Click [Digimax U-CA3 Camera] and click the
[Add/Remove] button.
103
Removable Disk
To use this camera as a Removable Disk, install (p.115) the USB Driver.
1. Before turning the camera power on, connect the camera to the PC with the USB cable.
2. Click [Removable Disk] under [My computer] or [Windows Explorer].
3. Image files stored in the Removable Disk (DCIM 100SSCAM) can be transferred to the PC.
Important information whilst using the Removable Disk
The [Removable Disk] indicator will not show when the camera power is off.
We recommend that you should copy the images to the PC to view them. Opening
images directly from the removable disk may be subject to unexpected disconnection.
When uploading images from the PC to the camera, ensure that the uploaded file
names are not the same as those already stored on the memory.
When you upload a file that is not taken by this camera to Removable Disk, the [FILE
ERROR!] message will be displayed on the LCD monitor in the PLAY mode, and
nothing is displayed in THUMBNAIL mode.
The function lamp will blink, when a file is transferred (copy or deletion) between the PC
and the camera. Do not remove the USB cable until the lamp stops blinking. To remove
the USB cable in Windows 2000/ME/XP, use the [Unplug or Eject Hardware] icon on
the task bar.
INFORMATION
104

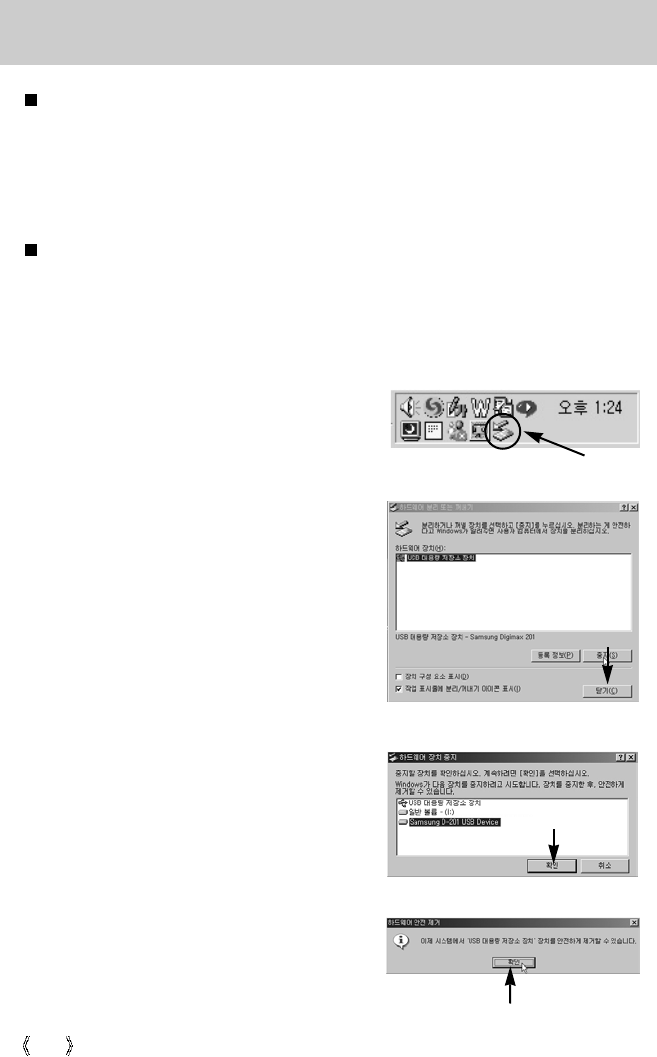

Removing the removable disk
Windows 98SE
1. Check whether the camera and PC are transferring a file. If the function lamp blinks, you have
to wait until the lamp illuminates.
2. Unplug the USB cable.
Windows 2000/ME/XP
(The illustrations may be different from the real display in accordance with
the Windows O/S.)
1. Check whether the camera and PC are transferring a file. If the function lamp blinks, you have
to wait until the lamp illuminates.
2. Double-click the [Unplug or Eject Hardware] icon on the
task bar.
3. The [Unplug or Eject Hardware] window will open.
Select the [USB Mass Storage Device] and click the
[Stop] button.
4. The [Stop a Hardware device] window will open. Select
the [SAMSUNG DIGIMAX UCA3 USB Device] and
click the [OK] button.
5. A [Safe to Remove Hardware] window will open.
Click the [OK] button.
[Click !]
[Double-click]
[Click !]
[Click !]
105
Removing the removable disk
If you use Mac OS 10.0 or later, you may experience an error occurring when you
transfer files from the PC to the camera.
If you cannot play a video in MAC OS 9.x, check the version of your QuickTime Player.
If your version of QuickTime Player is earlier than 5.x, then install a version 6.0.3 or
later. To install QuickTime Player, use the supplied CD-ROM or download a free version
from the Apple site at http://www.apple.com.
INFORMATION
1. A USB Driver for MAC is not included with the software CD as MAC OS supports the camera
driver.
2. Check the MAC OS. You can check the MAC OS version during MAC OS start-up.
This camera is compatible with MAC OS 9.X~10.2.
3. Connect the camera to the Macintosh and turn the camera power on in PC mode.
4. A new icon (Untitled) will be displayed on the desktop after connecting the camera to the MAC.
Using the USB Driver for MAC
Setting up the USB Driver for MAC
1. Double click a new icon (Untitled) on the desktop and the folder in the memory will be
displayed.
2. Select an image file and copy or move it to MAC.
6. A [Unplug or Eject Hardware] window will open.
Click the [Close] button and the removable disk will be
removed safely.
7. Unplug the USB cable.
[Click !]
106

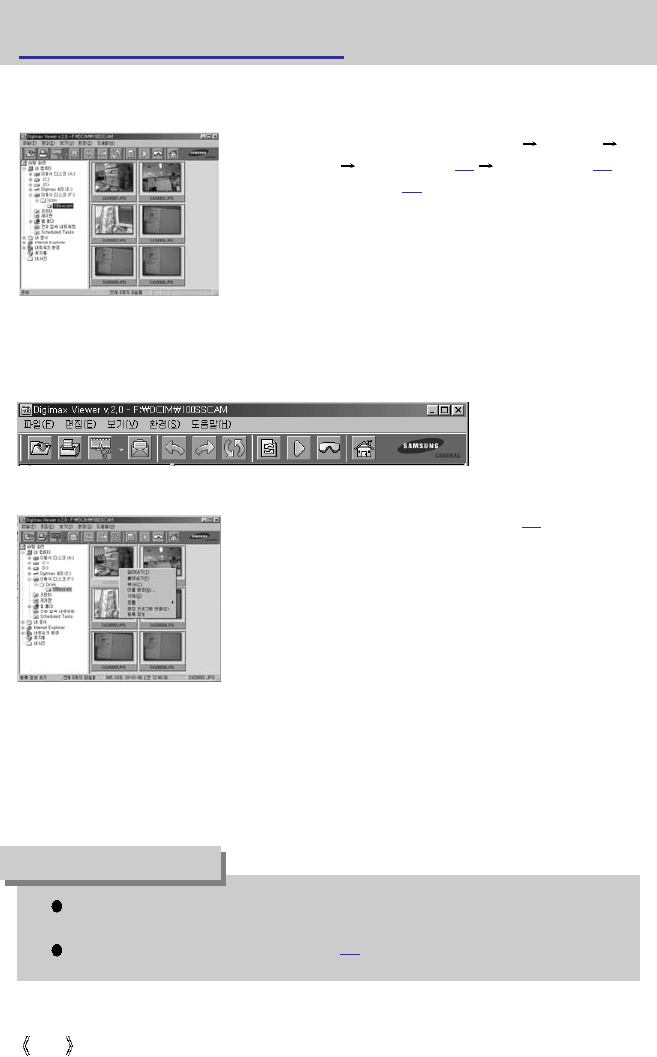

Digimax Viewer 2.1
This software is only compatible with Windows.
1.
To open Digimax Viewer, click the [Start Programs
Samsung Digimax Viewer 2.1 Digimax Viewer 2.1 ]
and Digimax Viewer 2.1 will then open.
3. You can easily use the Digimax viewer
2.1
program as it
offers a FILE menu and TOOL bar.And, you can use the
pop up menu. Click an image and press the right mouse
button.
Digimax Viewer functions are listed below.
- Basic functions : Copy, Move, Delete, Rotate, Rename, changing file type, Resize,
Property.
- Advanced functions : Print, Slide show, Export, Sending e-mail, On-line print, Web album etc.
2. If the [Auto Launch] option is selected, this program will be executed automatically with
recognizing the camera.
Before deleting images from the camera, you should protect or download images to
your computer that you wish to keep.
Refer to the [Help] menu in Digimax viewer
2.1
for further information.
INFORMATION
107

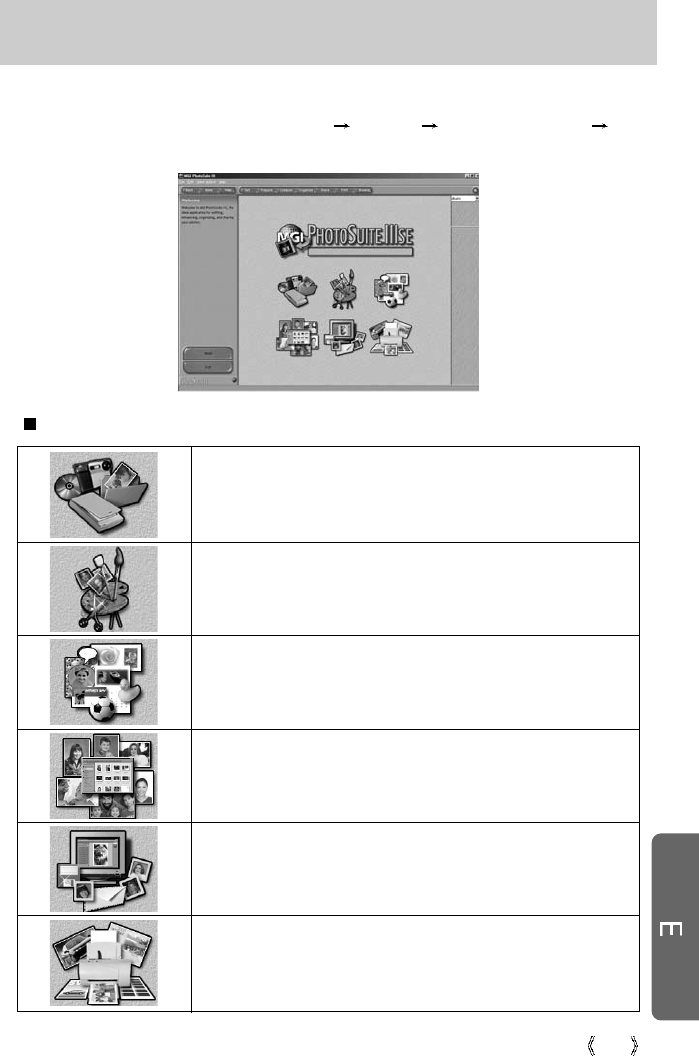

MGI PhotoSuite III SE
An introduction to the Welcome screen
This software is only compatible with Windows.
To open MGI PhotoSuite lll SE, click the [Start Programs MGI PhotoSuite lll SE MGI
PhotoSuite lll SE] and MGI PhotoSuite lll SE will then open.
Get
Get images.
Prepare
A number of photo editing activities can be performed within this module.
Compose
Use your photos in a variety of fun, creative and interesting ways.
Organize
Organize your photos and other media files into albums.
Share
Save your results to show to others.
Print
Print hard copies of photos and projects.
108
MGI PhotoSuite III SE

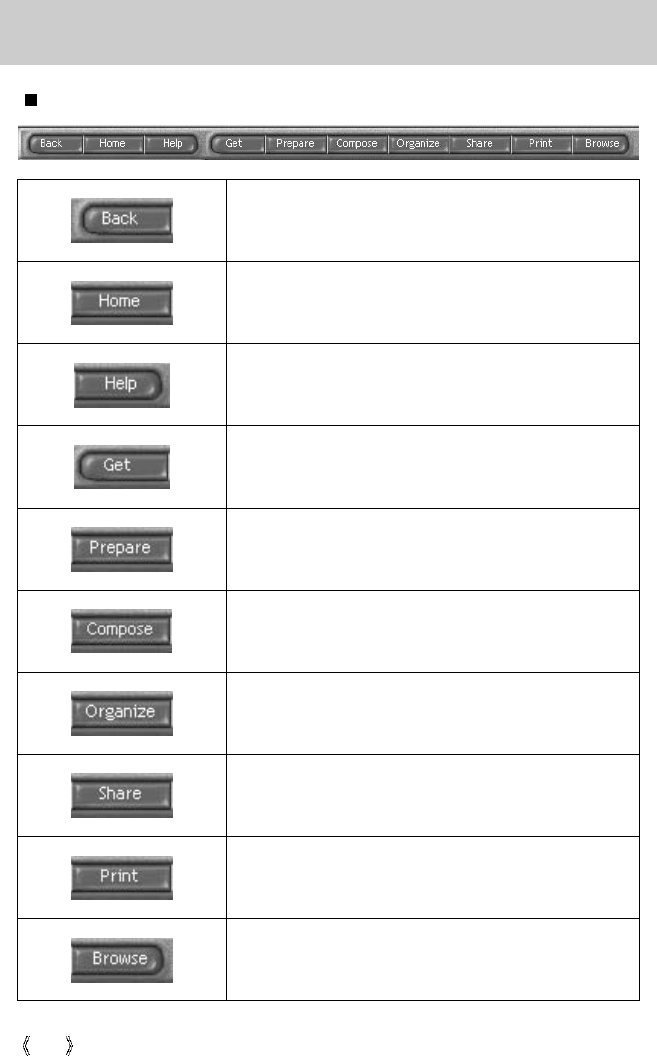

Introduction to navigation bar
Back
Return to the previous step.
Home
Return to Welcome screen.
Help
Display help window.
Get
Get images.
Prepare
A number of photo editing activities can be performed within this module.
Compose
Use your photos in a variety of fun and interesting ways.
Organize
Organize your photos and other media files into albums.
Share
Save your results to show to others.
Print
Print hard copies of photos and projects.
Browse
Browse the web site.
109

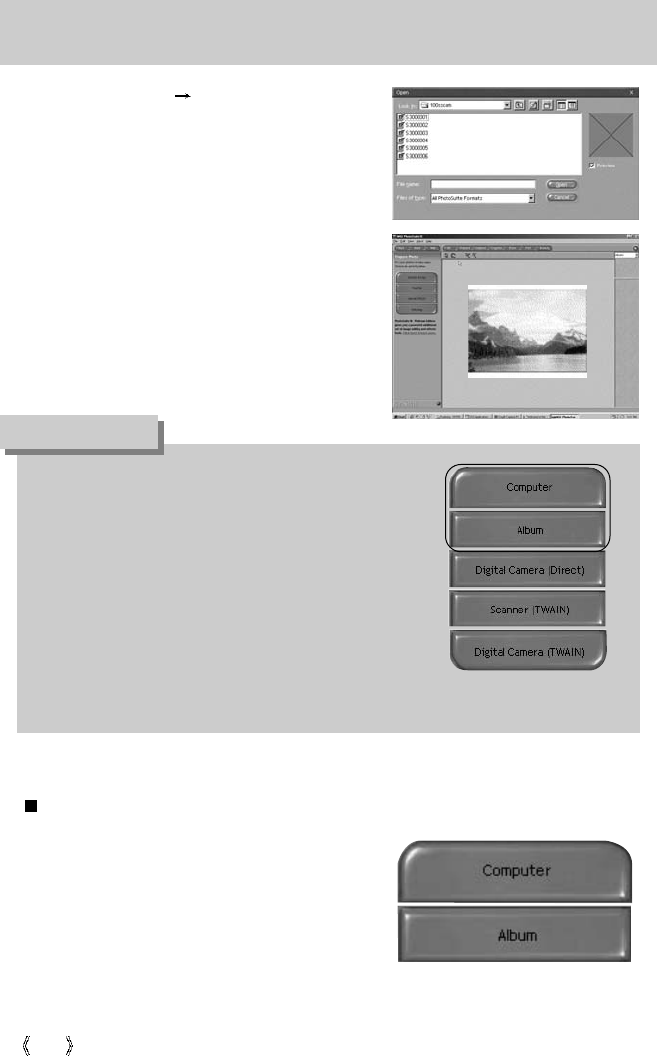

MGI PhotoSuite III SE
Get
When you obtain images from the digital camera.
Before transferring an image file, check the USB connection.
1. To acquire images, click the large [Get] button
on the Welcome screen, or the [Get] button on
the Navigation bar. Click [Computer] from the list
of options displayed on the activity panel.
2. The Open file selector is displayed. Click [Look
in :] to choose [Removable Disk( :)] and click
[open] for the open file window to be displayed.
To obtain images from the computer
1. To acquire images, Click the large [Get] button
on the Welcome screen, or the [Get] button on
the Navigation bar. Click [Computer] from the list
of options displayed on the activity panel.
2. The Open file selector is displayed.
Now select the image file and click [open].
3. The Welcome screen will change to the next
work step, with the selected image displayed.
110
MGI PhotoSuite III SE
3. Select the [ DCIM 100sscam ] folder.
Then select an image and click [ Open ].
When you use the Digimax camera, only [Computer]
and [Album] from the list of options displayed are
available.
You will be able to obtain images from the
digital camera.
NOTICE
4. The Welcome screen will change to the next
work step, with the selected image displayed.
[Computer and Album Only]
1. To acquire images, click the large [Get] button
on the Welcome screen, or the [Get] button on
the Navigation bar. Click [Album] from the list of
options displayed on the activity panel.
Acquiring images from an Album.
111
MGI PhotoSuite III SE
2. After selecting Album on the [ Choose a photo
album], click an image in the album and click
[Open].
3. The Welcome screen will change to the next
work step, with the selected image displayed.
Refer to page 95 for more information about
creating an Album.
Prepare
When the image is loaded, the step changes to Prepare automatically.
Menu for [PREPARE] steps
Rotate & Crop
You can rotate, flip or crop images along with a host of others.
Touchup
Remove Red eye, Remove Scratches etc.. are available in this menu.
Special Effects
A number of special effects can be applied.
Stitching
Join a series of photos together to create a sweeping panoramic effect.
112
MGI PhotoSuite III SE

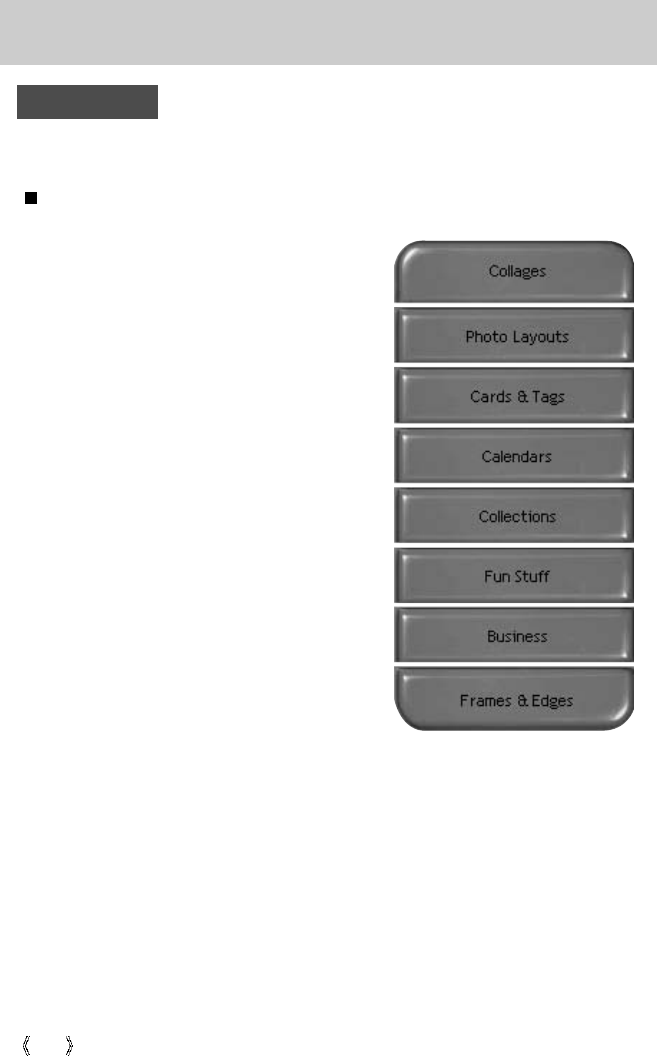

Compose
Add text, Compound Images etc. are available in this step.
Menu of [COMPOSE] steps
Collages : A collage consists of several
photos or sections of photos
arranged together on a
common background.
Photo Layouts : The Photo Layouts activity
includes many collage and
layout options.
Cards & tags : Use your photos to create
items such as Gift Tags,
Greeting Cards, Invitations,
Postcards, and Sports Cards.
Calendars : Use your photos to create a
variety of calendars (monthly,
quarterly, seasonal, yearly).
Collections : Photos can also be used to
create a variety of items for
business purposes.
Fun stuff : You can create magazine
covers, Backgrounds etc. in
this menu.
Business : You can make business items
such as business cards,
certificates, signs, labels,
promotions, name tags,
stationary
Frames & Edges : Add frames and edge effects
to your photos according to
predefined templates.
113
MGI PhotoSuite III SE

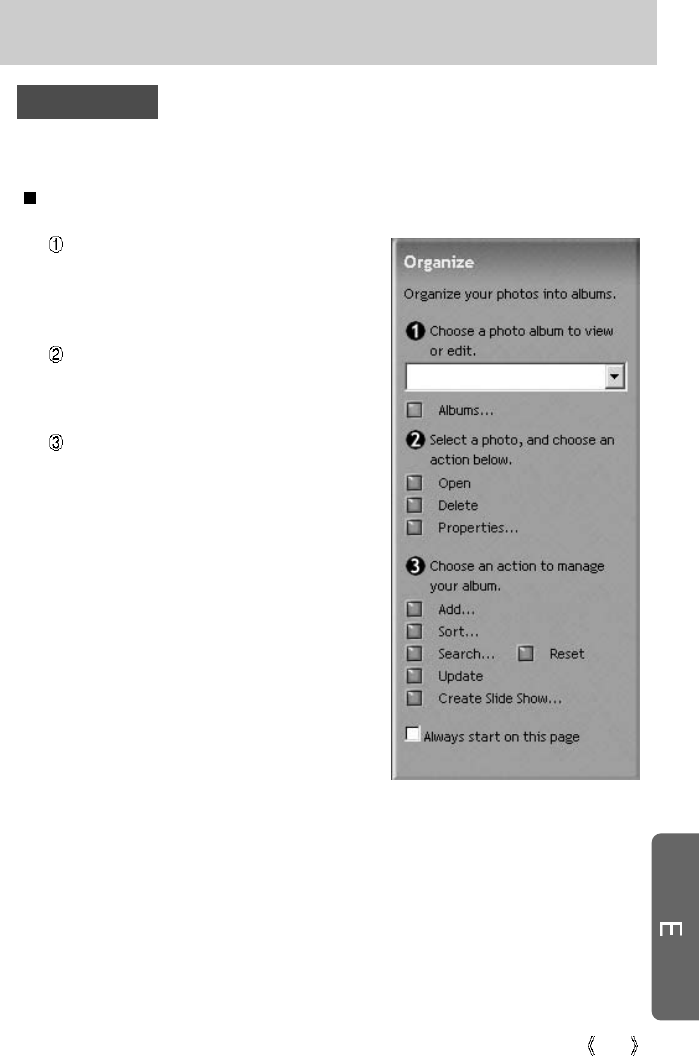

Organize
Organize your photos and other media files into albums.
Menu of [ORGANIZE] steps
[Choose a photo album to view or edit]
Select Album : To create an Album, click
[Organize] in the welcome
screen or navigation bar.
Album.. : Open Master Album.
[Select a photo, and choose an action below.]
- Open : Open selected image.
- Delete : Delete selected image.
- Properties... : view image information.
[Choose an action to manage your album.]
- Add : click [Add] to add an image to an
Album.
- Sort : click [Sort] to Sort saved images.
- Search : click [Search] to Search saved
images.
- Reset : click [Reset] to reset the setting.
- Update : click [Update] to update images.
- Create Slide Show : click [Create Slide
Show] to create a Slide
Show.
Always start on this page : If you select this
option, the program will start in [Organize].
114
MGI PhotoSuite III SE

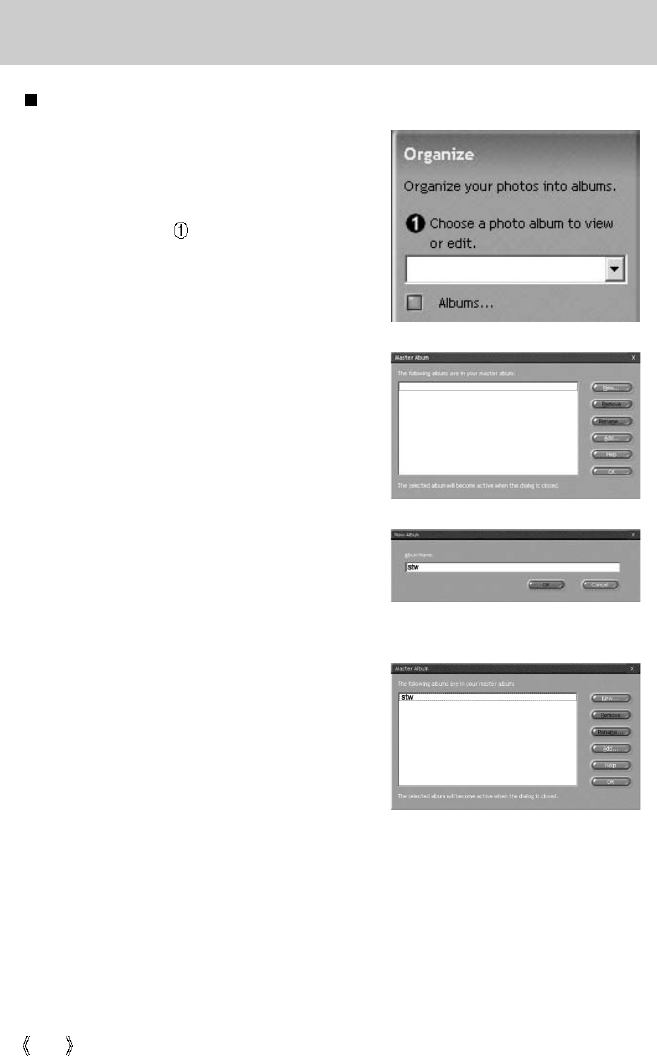

Creating an Album
1. To create an Album, click the large Organize
button on the Welcome screen, or the
Organize button on the Navigation bar.
2. Click [Album..] in [ Choose a photo album to
view or edit.]
3. The Master Album window will be displayed,
then click [New..].
4. Put a new Album name in the New Album
window and click [OK]. A new album will now
be created.
5. A [Master Album] window will open. Click the
[OK] button.
115
MGI PhotoSuite III SE

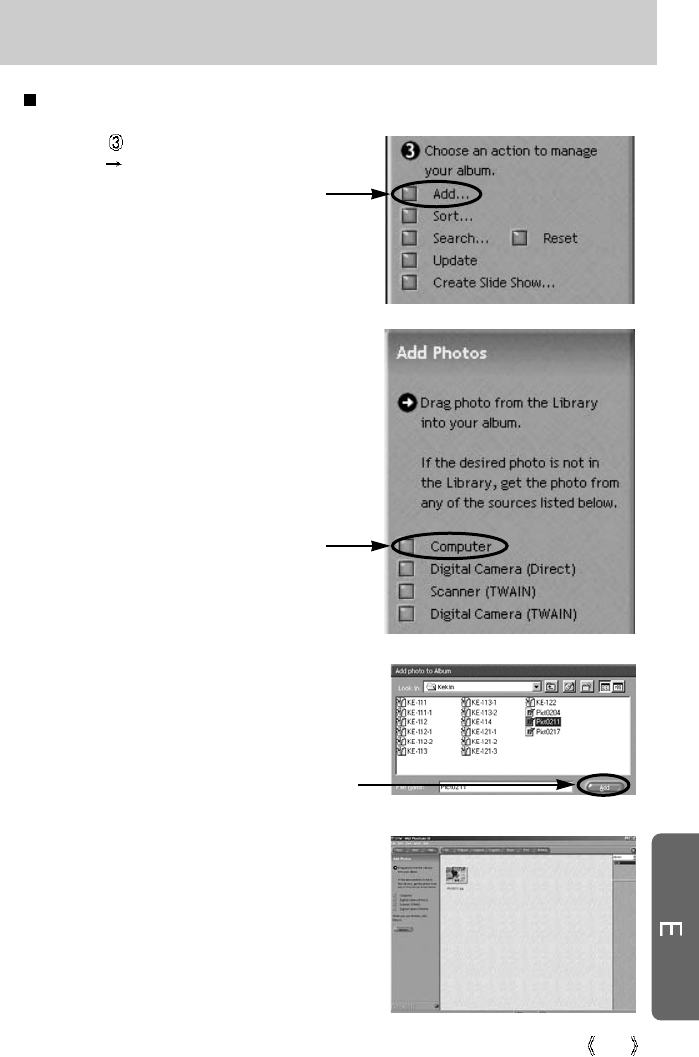

Add images to the album
1. Select [ Choose an action to manage your
album. Add..] to add images to the album.
2. Click [Computer] in Add Photos menu.
[Digital Camera(Direct)], [Scanner(TWAIN)],
[Digital Camera(TWAIN)] sources can't be
used.
[Click!]
[Click!]
3. A [Add photo to Album] window will open.
Select images that you want to add.
Click the [Add] button.
4. Adding images is complete.
[Click!]
116
MGI PhotoSuite III SE

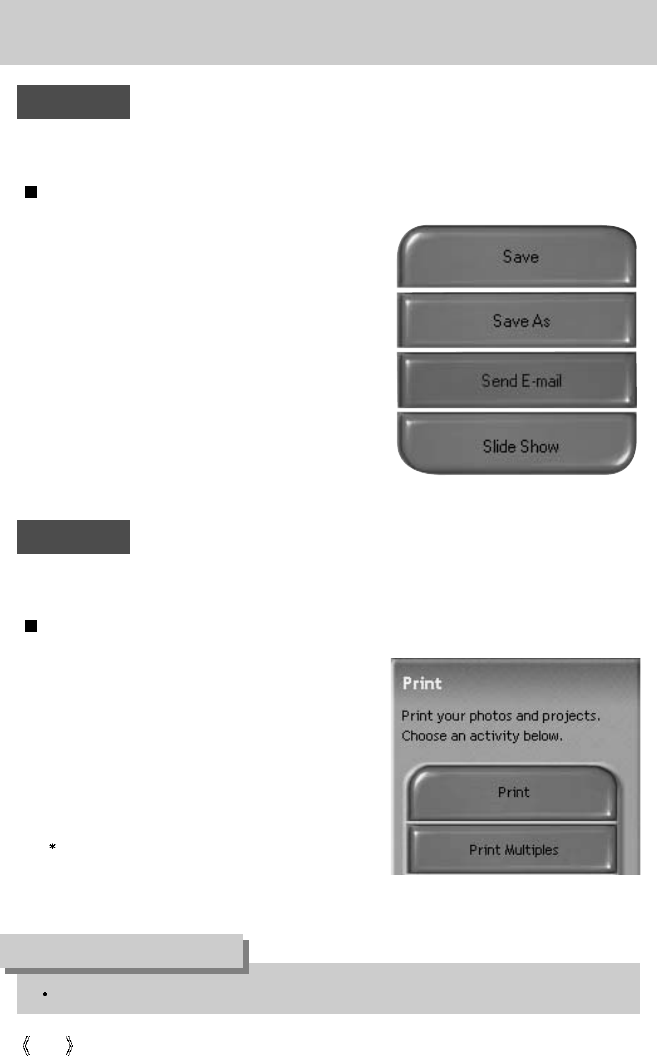

Menu of [SHARE] steps
Save
To save the active file according to its current
name and path.
Save As
To assign a new name or path to the file.
Send E-mail
e-mailing images.
Slide Show
Viewing images as a slide show.
Saving or sharing images.
Share
Print
You can print images.
Menu for the [PRINT] steps
Print
Printing images.
Print Multiples
Print multiple copies of a photo or project, or one
copy of each of the photos included in an album,
according to a predefined template.
Choose a printer, an orientation, the print size,
and the number of copies.
You can then print the images.
For more information, please refer to the Help file in [Help MGI PhotoSuite lll help].
INFORMATION
117
FAQ
Please check the following if the USB connection malfunctions.
[Case 1] The camera power is off.
Turn the camera power on. We recommend using an AC power adapter in PC
mode.
[Case 2] USB Driver is not installed correctly.
Install the USB Driver correctly. Refer to page 115.
[Case 3] The USB cable is not connected or you are using a cable with an incorrect
specification.
Use a USB cable with the correct specification.
[Case 4] The camera is not recognized by your PC.
Sometimes, the camera may appear under [Unknown Devices] in Device
Manager.
Install the camera driver correctly.
Turn off the camera, remove the USB cable, plug in the USB cable again, and
then turn on the camera.
[Case 5] There is an unexpected error during file transfer
Turn the camera power off and on again. Transfer the file again.
[Case 6] How do I know my computer supports a USB Interface?
Check the USB port in your computer or keyboard.
Check the OS version. A USB Interface is available in Windows 98, 98SE, 2000,
ME .XP.
Check [Universal serial bus controller] in Device Manager. Do the following to
check [Universal serial bus controller].
Win 98/ME : Trace [Start Setting Controller System Device
Manager Universal serial bus controller]
Win 2K : Trace [Start Setting Controller System Hardware
Device Manager Universal serial bus controller].
118
FAQ
Win XP : Trace [Start Control Panel Performance and
Maintenance System Hardware Device Manager
Universal Serial Bus controller].
There must be USB Host Controller and USB root hub under [Universal serial bus
controller].
When all the conditions mentioned above are met, the computer can support the
USB interface.
[Case 7] When using the USB hub.
There may be a problem in connecting the camera to the PC through the USB
hub if the PC and the hub are not compatible. Wherever possible, connect the
camera to the PC directly.
[Case 8] Are other USB cables connected to the PC?
The camera may malfunction when it is connected to the PC at the same time as
another USB cable. In this case, disconnect the other USB cable, and connect
only one USB cable to the camera.
Please check the following if you encounter a problem while running DigiStudio.
[Case 1] My PC slows down when I launch DigiStudio.
Check the system requirements for the installation of DigiStudio.
If your PC does not meet the recommended system requirements for the
installation, your PC may run slowly.
6806-1671
SAMSUNG TECHWIN CO., LTD.
OPTICS & DIGITAL IMAGING DIVISION
145-3, SANGDAEWON 1-DONG, JUNGWON-
GU,SUNGNAM-CITY, KYUNGKI-DO, KOREA 462-
121
TEL : (82) 31-740-8086,8088, 8090, 8092, 8099
FAX : (82) 31-740-8398, 8111
SAMSUNG OPTO-ELECTRONICS AMERICA, INC.
HEADQUARTERS
40 SEAVIEW DRIVE, SECAUCUS, NJ07094, U.S.A.
TEL : (1) 201-902-0347
FAX : (1) 201-902-9342
WESTERN REGIONAL OFFICE
18600 BROADWICK ST.,
RANCHO DOMINGUEZ, CA 90220, U.S.A.
TEL : (1) 310-537-7000
FAX : (1) 310-537-1566
SAMSUNG OPTO-ELECTRONICS UK LIMITED
SAMSUNG HOUSE
1000 HILLSWOOD DRIVE
HILLSWOOD BUSINESS PARK
CHERTSEY KT16 OPS U.K.
TEL : +44 (0) 1932 455000
FAX : +44 (0) 1932 455325
SAMSUNG OPTO-ELECTRONICS GMBH
AM KRONBERGER HANG 6
D-65824 SCHWALBACH/TS., GERMANY
TEL : (49) 6196 66 53 03
FAX : (49) 6196 66 53 66
SAMSUNG FRANCE S.A.S.
BP 51 TOUR MAINE MONTPARNASSE
33, AV .DU MAINE
75755, PARIS CEDEX 15, FRANCE
HOTLINE PHOTO NUMÉRIQUE :
00 800 22 26 37 27(Numéro Vert-Appel Gratuit)
TEL : (33) 1-4279-2282/5
FAX : (33) 1-4320-4510
SAMSUNG TECHWIN MOSCOW OFFICE
KORP. 14 37-A LENNINGRADSKY PR-KT
MOSCOW, 125167, RUSSIA
TEL : (7) 095-258-9296, 9298, 9299
FAX : (7) 095-258-9297
TIANJIN SAMSUNG OPTO-ELECTRONICS CO.,LTD.
7 PINGCHANG ROAD NANKAI DIST., TIANJIN
P.R CHINA
POST CODE:300190
TEL : (86) 22-2761-8867
FAX : (86) 22-2761-8864
Internet address - http : //www.samsungcamera.com/
The CE Mark is a Directive conformity
mark of the European Community (EC)
