Hanwha Techwin SEW3042WN Wireless Baby Monitor User Manual
Hanwha Techwin Co., Ltd. Wireless Baby Monitor
User manual
SEW-3042W
RealVIEW
User Manual
English
IMPORTANT SAFETY INSTRUCTIONS
1.
Read these instructions.
2.
Keep these instructions.
3.
Heed all warnings.
4.
Follow all instructions.
5.
Do not use this apparatus near water.
6.
Clean only with dry cloth.
7.
Do not block any ventilation openings, Install in accordance with the manufacturer’s
instructions.
8.
Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10.
Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11.
Only use attachments/ accessories specified by the manufacturer.
12.
Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13.
Unplug this apparatus during lighting storms or when unused for
long periods of time.
14.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
Copyright
©2015 Hanwha Techwin Co., Ltd. All rights reserved.
Trademark
Each of trademarks herein is registered. The name of this product and other trademarks
mentioned in this manual are the registered trademark of their respective company.
Restriction
Copyright of this document is reserved. Under no circumstances, this document shall be
reproduced, distributed or changed, partially or wholly, without formal authorization.
Disclaimer
Samsung makes the best to verify the integrity and correctness of the contents in this
document, but no formal guarantee shall be provided. Use of this document and the
subsequent results shall be entirely on the user’s own responsibility. Samsung reserves
the right to change the contents of this document without prior notice.
RealVIEW
User Manual
For wireless camera only(FCC ID: NLMSEB101BRWN)
To comply with FCC RF exposure compliance requirements, a separation distance of at least 20
cm must be maintained between the antenna of this device and all persons. This device must
not be co-located or operation in conjunction with any other antenna or transmitter.
This equipment complies with FCC
SPECIFY SERVICE INSTRUCTIONS AND WARRANTY
TERMS
FCC Caution :
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions :
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Note :
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
o Reorient or relocate the receiving antenna.
o Increase the separation between the equipment and monitor.
o Connect the equipment into an outlet on a circuit different from that to which the monitor is
connected.
o Consult the dealer or an experienced radio/TV technician for help.
WARNING
o STRANGULATION HAZARD - Keep cord out of child's reach. NEVER place camera or cords
within 3 feet of crib or playpen. Never use extension cords with AC Adapters. Only use the AC
Adapters provided.
o Some adult assembly or installation required.
o This product contains small parts that may cause choking. Keep small parts away from children.
o This product is NOT intended to replace proper supervision of children. You MUST check your
child’s activity regularly, as this product will not alert parents to silent activities of a child.
o Before using this product, read and follow all instructions contained in this booklet, and read and
follow all instructions and warnings on the product.
o NEVER use the transmitter or monitor near water, including near a bathtub, sink, laundry tub, wet
basement, etc.
o This product is intended for indoor use only.
o This product is not intended for use as a medical monitor and its use should not replace adult
supervision.
o The transmitter detects normal sound levels within a range of 2 to 3 meters (6 to 10 feet) from a
child. If the child moves outside of this range, if may not be able to detect sounds from him or her.
o It is essential that you check the operating range and condition of the transmitter monitor on initial
installation, and on a regular basis after that.
o Check reception regularly. Test monitor before use and after changing camera location.
The wireless signal transfer range may be shortened if an obstacle such as a
concrete wall is in between the camera and monitor.
o To prevent overheating, keep the product and AC power adapters away from any direct sunlight
and heat sources such as radiators, heat registers, cooking devices (e.g., stoves and ovens) and
other appliances that produce heat (e.g., amplifiers, televisions and stereos).
o Ensure that the product is well ventilated during use. Avoid contact with pillows and furniture that
may block ventilation.
o Use only the AC adapters provided with the product, as other adapters may damage the product.
Plug the adapters only into standard household current (100~240 volts AC).
Place the AC adapters avoiding pinch points otherwise you can damage the adapters.
o When an AC adapter is plugged into a power source, DO NOT touch the exposed end of the AC
adapter’s cord.
o Do not use extension cords with the AC power adapters to avoid entanglement.
o This product should only be serviced by qualified and authorized Samsung service centers.
o Images and sounds are transmitted by the product over public airwaves and transmissions may
be picked up by other units. (Although the transmission distance is 100m or longer, it may vary
depending on whether there are obstacles between the camera and the monitor.)
o Caution if you use the system to watch a young child, do not place the camera where the child
can reach.
o When using the system with only battery power and the charge is low, then the picture and or
sound may affected.
o If this occurs then please connect the AC power adapter.
CAUTION
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
Contents
WHAT’S INCLUDED
Package Contents ………………………………………………… 5
GETTING STARTED
Functional Description ……………………………………………… 6
Powering your monitor ……………………………………………………… 6
Operating the System ……………………………………………………… 6
VIEWING MODE DISPLAY
Indicator Description ……………………………………………… 8
How to use the indicator …………………………………………………… 8
Menu Operation …………………………………………………… 9
How to use the function tools ……………………………………………… 9
How to use the setup icon ………………………………………………… 9
OVERVIEW
Getting to know your Monitoring system ……………………… 11
Wireless Monitor …………………………………………………………… 11
Wireless Camera …………………………………………………………… 13
INSTALLATION
How to Install ……………………………………………………… 14
Wireless Monitor …………………………………………………………… 14
Wireless Camera …………………………………………………………… 14
APPENDIX
Specifications …………………………………………………… 15
Troubleshooting ………………………………………………… 16
English ·
5
01 What’s Included
WHAT’S INCLUDED
Package Contents
The system comes with the following components:
Wireless camera Wireless monitor User Manual & Warranty Card
Camera Adapter Monitor Adapter Screws (2EA) & Plastic anchors (2EA)
Check your package to confirm that you have received the complete system, including all components shown above.
6
· Getting Started
Functional Description

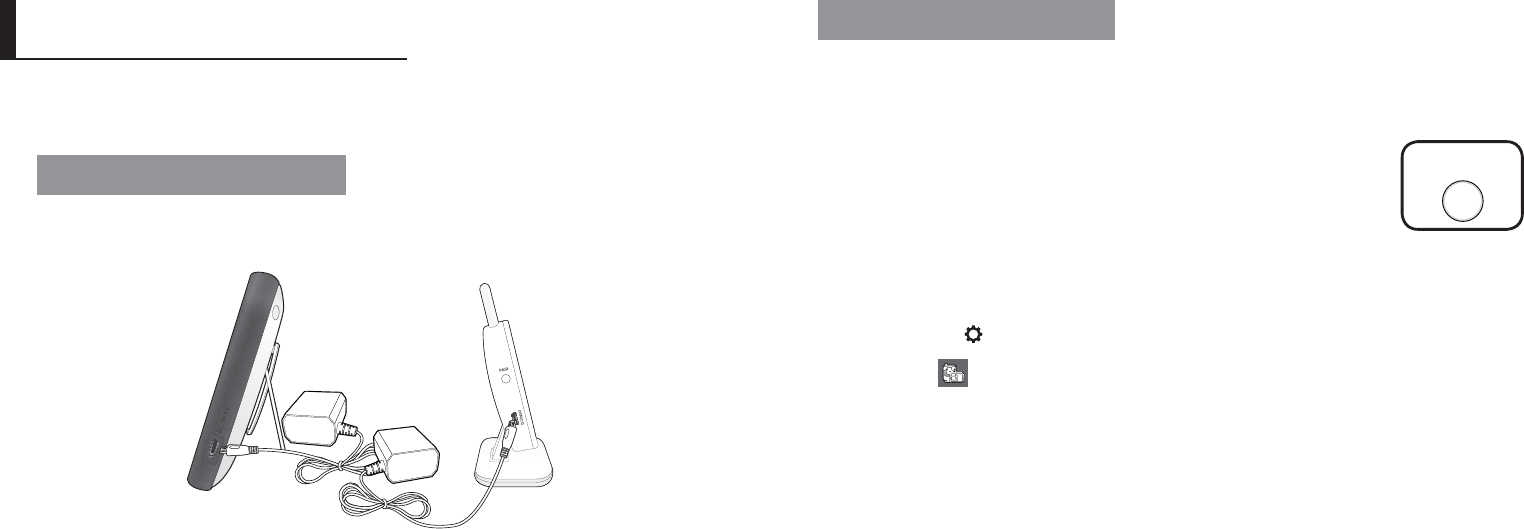

Powering your monitor
After opening the box, fully charge the monitor before use. After initial charge, recharge
as needed.
Wireless Camera
The Wireless Camera must be plugged in at all times in order to view.
Wireless Monitor
You can use the device while charging with connected adapter, and the device is
portable if charged.
n
`Check if the Power LEDs of wireless monitor is turned on.
GETTING STARTED
Operating the System
The basic operation is as follows:
Pairing
The units already come paired for your convenience. This button is
used to add an additional camera. User can select camera number
to assign. Up to 4 Cameras may be paired.
1. Power on wireless monitor and wireless camera.
The power LED for the monitor should be ON.
2. Touch the live view screen on the monitor, and then the settings icon will appear.
3. Press the [ ] button on the monitor.
4. Select [ ] icon.
5. Select camera number.
The monitor search a camera which sets to pairing mode.
A count down clock appears at the middle of screen which starts counting from
30 to 0.
6. Press the [PAIR] button on the camera.
7. Within 30 seconds, if the monitor successfully pairs with the camera, the monitor
will automatically switch to the camera's current view.
PAIR
English ·
7
02 Getting Started
Voice activated (VOX)
Select to monitor significant sound with reduced ambient noise.
The screen goes off in “VOX” mode if there is no significant sound
louder than a certain level about 30 seconds. Meanwhile, the monitor
screen turns on as soon as detecting sound around the camera. In
“VOX” mode, you can set the sensitivity.
o Low Sound Level Detection : Sets to higher sensitivity.
o High Sound Level Detection : Sets to lower sensitivity.
Multi camera mode
Press [ / ] switch the split mode.
According to the paired camera, screen split mode is different. When
two cameras are paired, it displays as 2-split mode.
When there are more than 2 cameras are paired, it displays as 4 split
mode.
Up to 4 cameras can be paired.
Out of Range
If the monitor is outside of transmission range with the paired
camera, the “Out of Range” message appears with warning beeps
at regular intervals.
Two-way talk
Press the [ ] icon while talking.
Sound level
The louder the sound around the camera, the more LEDs turn on.
Portable monitoring

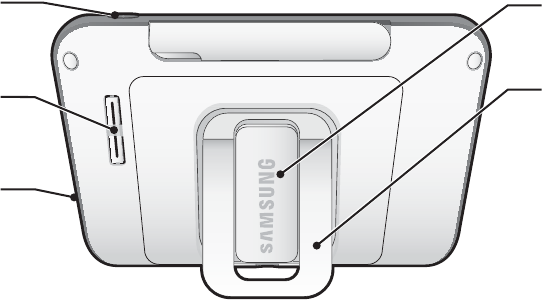

Slide the belt clip upwards to use the integrated belt clip on the
monitor. When not in use, please push the clip back to its original
position.
8
· Viewing Mode Display

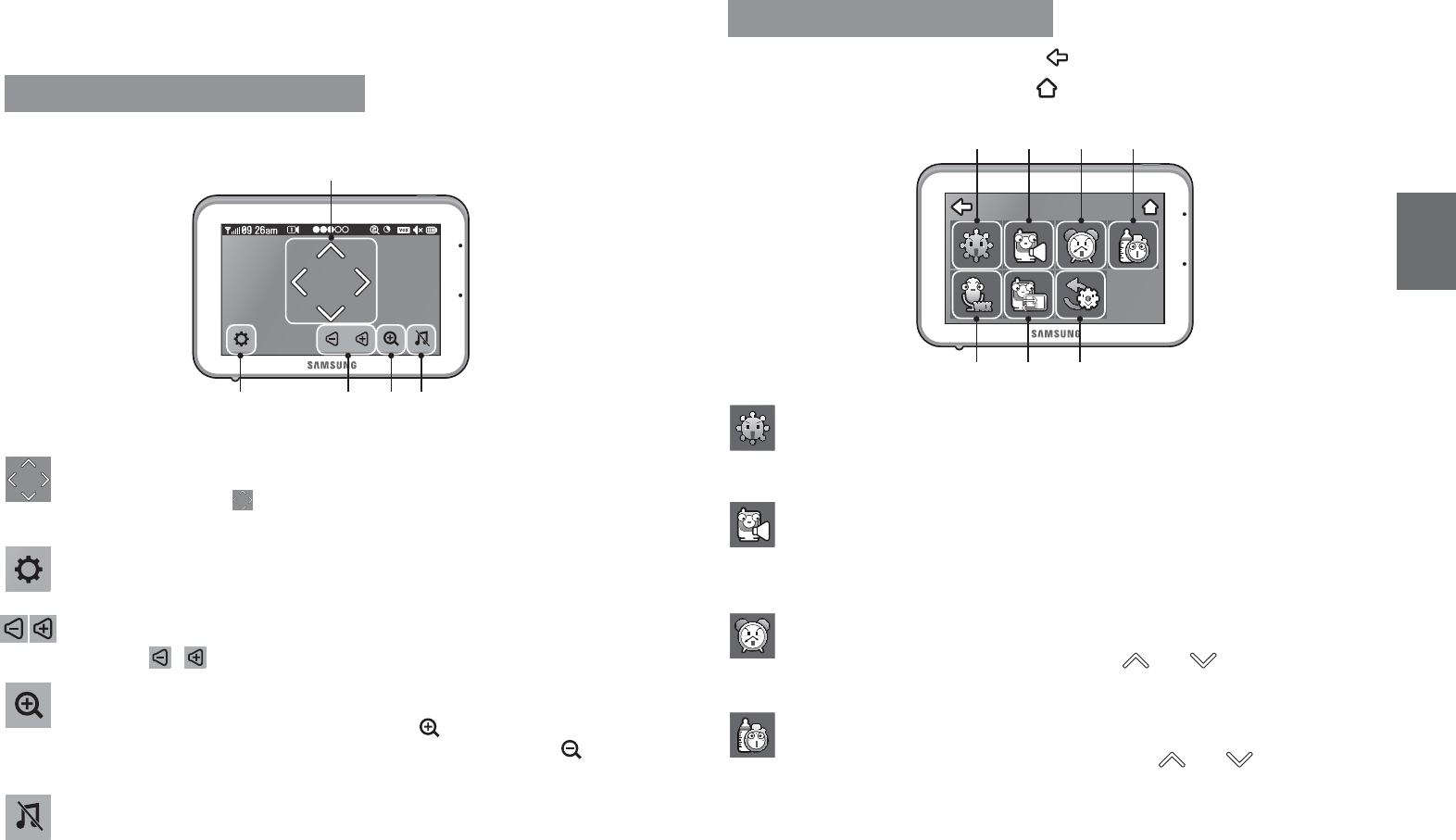

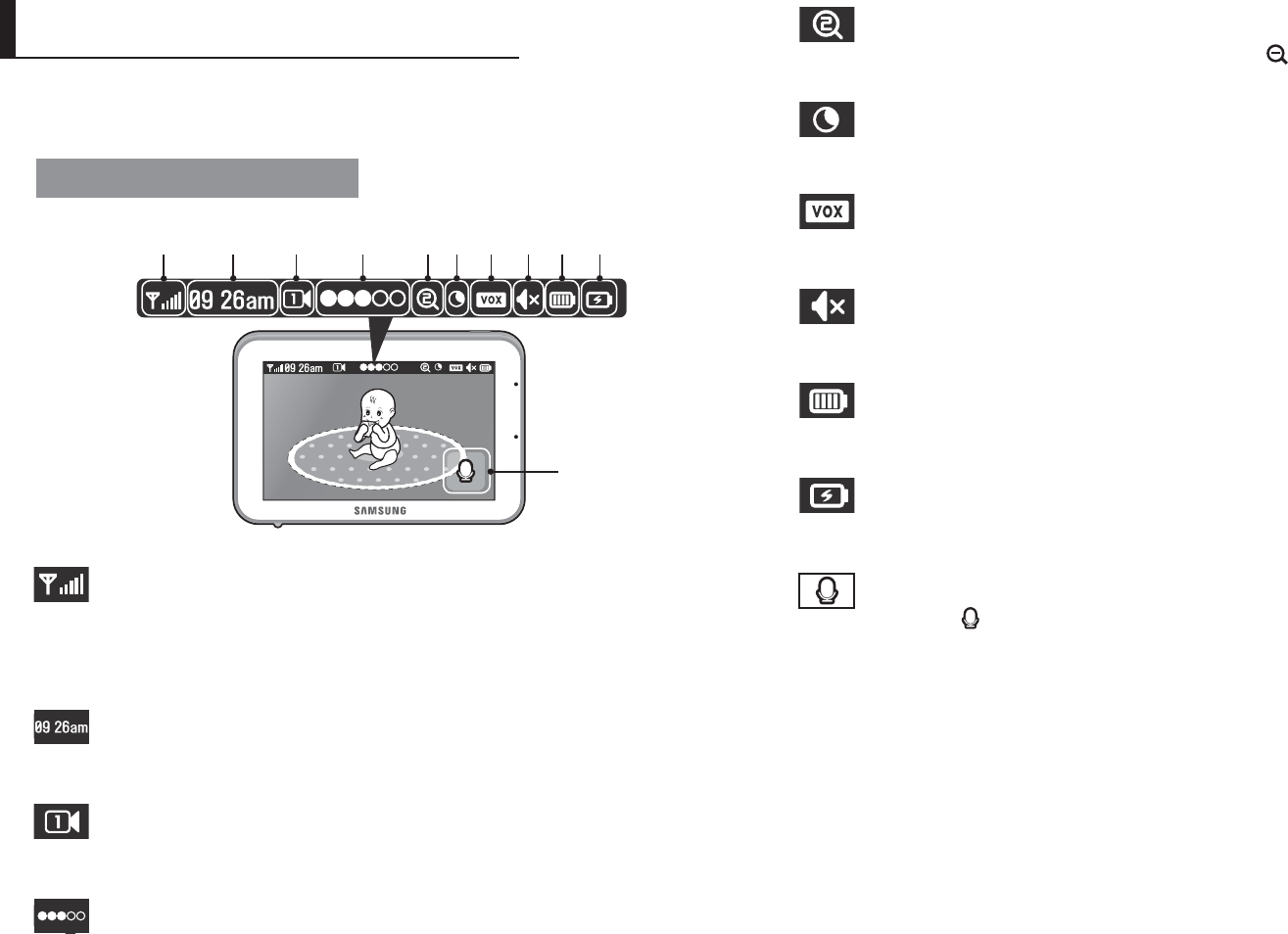

Indicator Description
How to use the indicator
bc
Signal Indicator
The signal indicator shows the strength of the signal being received from the
camera.
The number of bars in the signal indicator shows the strength of the signal –
One or no bars indicate the signal is poor, and 5 bars indicate a strong signal.
b Digital Clock
Displays the time that is set on the monitor. It only provides AM / PM time
format and no 24hour format.
c Camera Number
Indicates which camera is being displayed on the current screen. When scan mode
is selected, this icon will flash.
Sound level Indicator
Indicate the sound level of the Active Camera.
x1/x1.5/x2 Zoom mode
Indicates that current screen is Zoomed in. Press [
] icon on the monitor to
zoom back out.
Night Vision Indicator
Indicates camera night vision mode is turned on.
The screen will appear in Black/White in this mode.
VOX On
Indicates you select Low Sound level detection or High Sound level detection in
VOX menu.
Monitor Speaker Mute
Indicates the monitor speaker is muted. Once the monitor’s speaker is muted,
no sound from the camera is produced.
Battery Capacity Level
Indicates remaining battery charge. Indicated in 4 levels, and one discharge
warning.
Charging
Indicates the battery is charging by DC input power. If battery nearly empty,
it will flash to alert user to charge up the unit.
Two-way talk
Press the [ ] icon while talking.
No Signal Warnings
The "Out of Range" message means the monitor cannot access the camera.
Please reposition the camera, or check the camera power.
VIEWING MODE DISPLAY
English ·
9
03 Viewing Mode Display
Menu Operation
How to use the function tools
Press the screen of the monitor to display the menu screen.
bc
Navigation Controls
Using the navigation [ ] icons, you can move screen around in x1.5 or x2
zoom mode.
b Menu Setting
Menu setting mode is including monitor and camera settings.
c Monitor Volume
Using the [ / ] icons, you can adjust the monitor volume.
Zoom IN / Zoom Out
When x1/x1.5 Zoom mode, the magnifier icon is [
] inside, means press this icon
will zoom in video image. When x2 Zoom mode, the magnifier icon is [
] inside,
means press this icon will zoom out video image.
Lullaby
Press the icon to turn on and turn off lullabies.
How to use the setup icon
After configuring the settings, press the [ ] icon to save the changes.
To return to the Live screen, press the [ ] icon.
6HWWLQJV
b c
Brightness
Adjusts the brightness of the image shown. If you are using multiple camera,
you can adjust the brightness of each individual camera.
b Set Camera Speaker Volume
Adjust the volume of the speaker on the camera in this menu. The volume can
be adjusted from 0 to 5, with 5 being the loudest setting and 0 is mute.
c Time Setting
Set the time shown on the monitor. Use the [ ] or [ ] icon to change the
numbers in the selected field.
Feed Timer
Set the feed time shown on the monitor. Use the [ ] or [ ] icon to change
the numbers in the selected field.
10
· Viewing Mode Display
Camera VOX Sensitivity
If not in “VOX” mode, [ ] icon is not displayed.
In VOX mode, you can select “Low Sound Level Detection” or “High Sound
Level Detection”. If set to “Low Sound Level Detection”, monitor can be
triggered by lower audio level than “High Sound Level Detection” setting.
o Audio Only Mode :Video will turn on 30 seconds and then video will turn off,
monitor speaker is still playing camera background sound.
o Continuous Video and Audio Mode : Video will not turn off and always
streaming video all the time.
When you press Power Key, Monitor will be automatically switched to Low
Sound Level Detection mode.
o Low Sound Level Detection : Small baby cry level can trigger video to turn on
for 30 seconds, then back to stand-by.
o High Sound Level Detection : Loud baby cry level can trigger video to turn on
for 30 seconds, then back to stand-by.
Pairing
You can register a wireless camera with the monitor using the registration menu
where you can view the video of the selected wireless camera.
Reset
Choose <YES> to reset the monitor to factory defaults.
All settings except for time information will be reset to the factory defaults.
English ·
11
04 Overview
Getting to know your Monitoring system
Wireless Monitor
After opening the box, fully charge the monitor before use. After initial charge, recharge as needed.
Front Controls
OVERVIEW
5" LCD Screen
Displays video from the camera.
Power LED
When the monitor is being recharged or monitor has low
electricity, red light flashes.
When the monitor is working, the LED becomes solid
red light.
Microphone
Transmits audio to the camera when [
] icon is
pressed down and held like a walkie talkie.
Monitor Antenna
Receives and sends signals from or to the camera.
Navigation Controls
Viewing Mode: The following controls are used while watching live video from the camera:
o Press [ ] icon to zoom in/out the screen.
While in zooming, use [
] icon to move the screen around.
Menu Mode: Press the [ ] icon to confirm the menu selection.
12
· Overview
Back Controls
n
`You must have more than one camera configured on the system when using the functions that requires more than one camera.
Power On/Off
Turn on/off the wireless monitor.
Speaker
Produces the sound transmitted from the camera(s).
DC 5V Power Input
Connect the included AC power adapter to power and/or
charge the monitor battery. (when the monitor is not placed
in the optional Charge cradle).
Belt Clip
When you carry the monitor, use the belt hanger to hold the
monitor onto your belt.
Kick Stand
Use to hold the monitor onto a table.
English ·
13
04 Overview

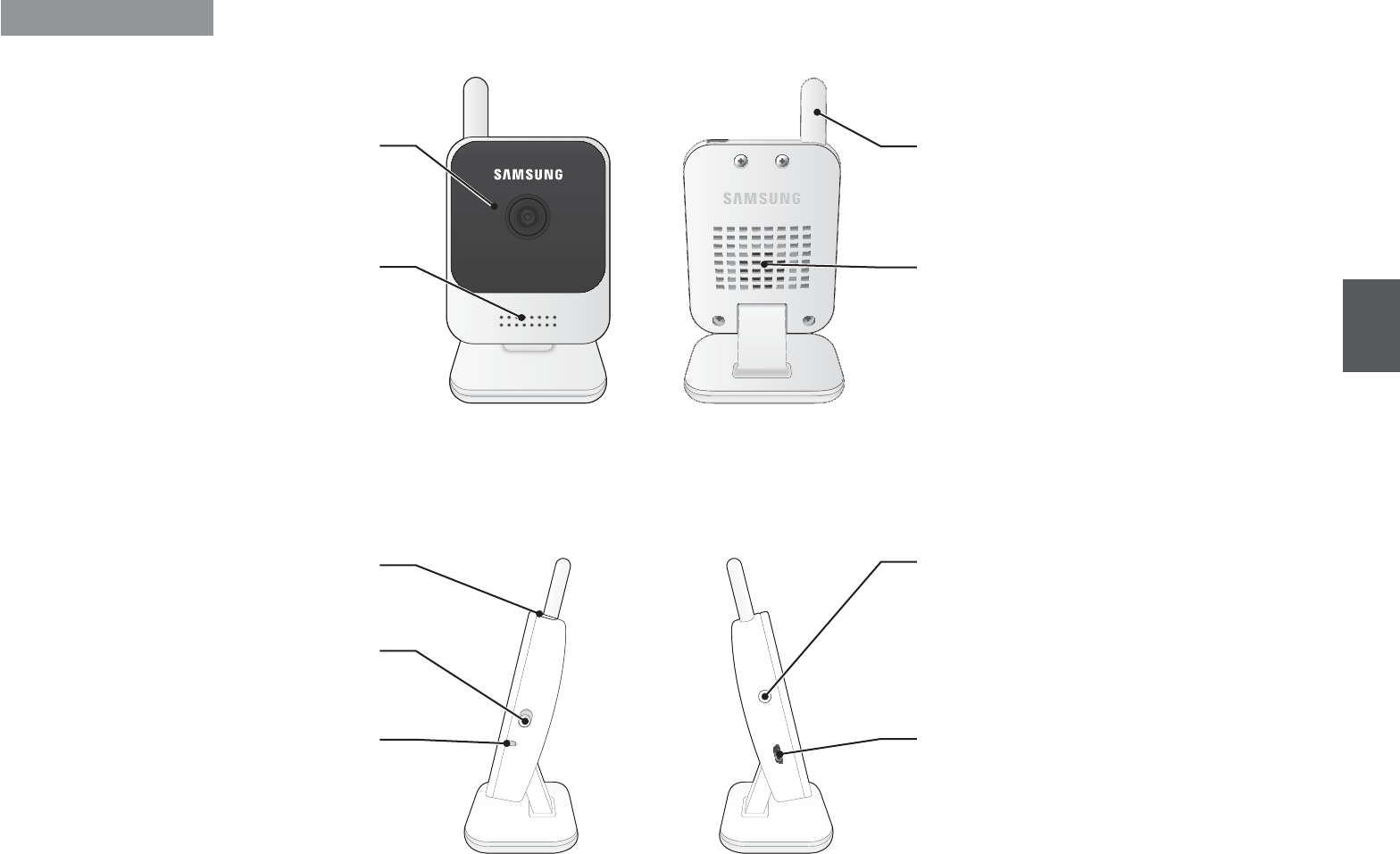

Wireless Camera
Front & Back Controls
Side & Bottom Controls
IR LEDs
Infrared LED’s provide viewing in no / low light
conditions.
Microphone
Receives sounds for the area near the camera, and
transmits sound from the camera to the monitor.
Camera Antenna
Sends & receives signals to or from the monitor.
Speaker
Produces the sound transmitted from the monitor.
Night vision sensor
Detects light levels where the camera is placed.
PAIRING Button
Press this button to pair with a monitor.
Power Slide Switch
Turns the camera ON or OFF.
ON
OFF
PAIR
DCIN5V
Power LED
LED turns on when powered.
DC 5V Power Input
Connect the adapter to the camera.
14
· Installation
How to Install
CAUTION: If you use the system to watch a young child, do not place the camera in the
child's reach.
Wireless Monitor
1. Place the monitor in a place that will have clear
reception with your camera(s).
2. Pull out the stand.
n
`Do not pull up the stand lever with an excessive
force.
Wireless Camera
Before you install the camera, carefully plan where and how it will be positioned, and
where you will route the cable that connects the camera to the power adapter.
Before starting permanent installation, verify its performance by observing the image
on the monitor when camera is positioned in the same location/position where it will be
permanently installed and the monitor is placed in the location where it will be used
most of the time.
Installation Warnings
Aim the camera(s) to best optimize the viewing area: Select a location for the camera
that provides a clear view of the area you want to monitor, which is free from dust, and
is not in line-of-sight to a strong light source or direct sunlight.
Avoid installing the camera where there are thick walls or obstructions between the
camera and the monitor.
STRANGULATION HAZARD - Keep cord out of child's reach. NEVER place camera or
cords within 3 feet of crib or playpen. Never use extension cords with AC Adapters.
Only use the AC Adapters provided.
1. Carefully unpack the camera.
If you are installing cameras that did not come with the system, please see the
pairing camera section of this manual for details on installation.
2. Mount the camera to the wall.
Mark the position of the screw holes on the wall, and
drill holes and insert 2 screws, then firmly attach the
camera to the wall by placing the stand over the
installed screws and pushing the base downwards.
n
`To install on a concrete wall, drill a hole and use plastic
anchor to fix.

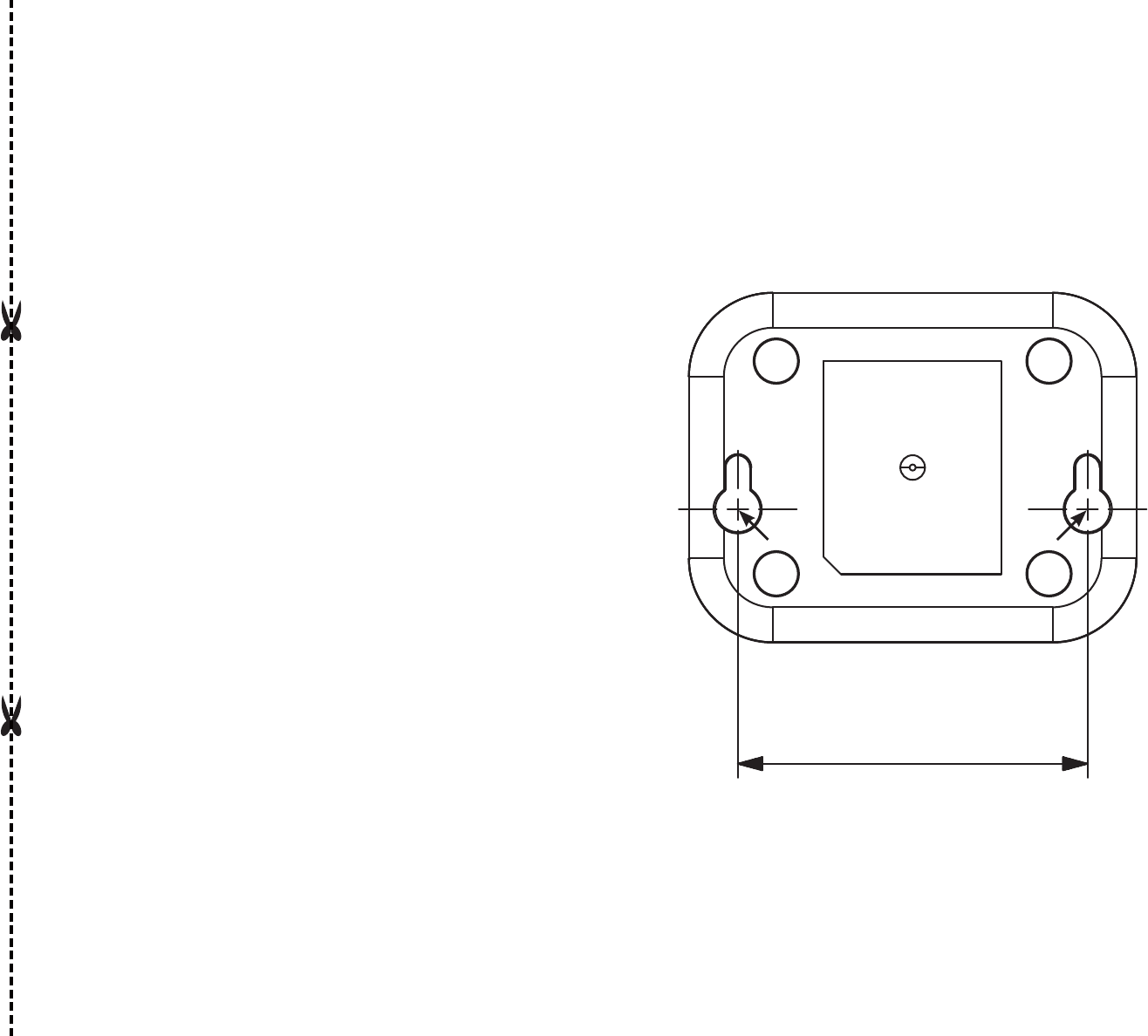

`Use the drilling template to drill holes on the wall for
camera installation. (Page 18)
`The camera can also be placed on a flat surface, such
as a table or shelf, and no mounting hardware is
required.
3. Adjust the viewing angle of the camera.
n
`Adjusting the camera with excessive force may
damage the unit.
INSTALLATION
ON
OFF
ON
OFF
F
ON
ON
OFF
OFF
O
O
OF
OF
FF
ON
OFF
English ·
15
Appendix
06
Item Details
System General
Operating Frequency Range 2400 MHz~2483.5 MHz
Transmitting Power 17dBm Max
Monitor Sensitivity -88dBm
Type of Spread Spectrum TX FHSS
Type of Modulation GFSK
Data Rate 4Mbps
Transmission range
Outdoor 300 m (Eye of Sight)
Wireless Camera
Image Sensor Type 1/4” Color CMOS Image Sensor
Effective Pixel H: 1280, V: 1024
Resolution 1280x720
Image Compression MPEG4
White Balance Auto
Lens EFL=4.5mm, F=2.0
Viewing Angle (Diagonal) 55 degree
IR LED Type/ Night Vision 8pcs IR LED – 940nm / 5m
Lullabies 4 songs (Monitor Remote On / Off)
Night Light No
Loud Speaker Output 0.8W, 95dB spl
Power Requirement DC 5V ± 10%
Power Consumption 3.9Watt (max)
VOX level detection High: 50dBA / Low: 60dBA
Item Details
Operating Temperature Range 0°C~+40°C
Operating Humidity Range 85% RH
Environment Rating Indoor use only
Pan Angle Not support
Tilt Angle
100°
Regulation Compliance FCC/CE
RoHS Compliance Yes for CE version only
Audio Built in Microphone/ Speaker
Weight 108g
Wireless Monitor
Display Type/Size Color TFT 5”
Resolution 800X480
Viewing Angle 12 o'clock
Digital Zoom x1, x1.5, x2
Real Time Clock (RTC) +/- 2sec / day
Feed Timer Alert Yes (beep sound)
Number of Camera Support Up to 4 cameras
Power Requirement Adapter : DC 5V ± 10%, Battery : 3.8 Li-ion
Loud Speaker Output 1W, 85dB spl
Power Consumption
6.7 Watt (max)
Operating Temperature Range 0°C~+40°C
Operating Humidity Range 85% RH
Environment Rating Indoor use only
Regulation Compliance FCC/CE
RoHS Compliance Yes for CE version only
APPENDIX
16.6 dBm Max.
16
· Appendix
Troubleshooting
Problem Solution
No picture from a
camera
1. Check all connections to the camera. Make sure the adapter is plugged in.
2. Make sure that the cameras and monitor are both ON.
3. Make sure that the camera is in range of the monitor.
4. Make sure the camera and monitor are paired.
5. Adjust the monitor antenna to vertical position.
The picture is or has
become choppy
The picture may become choppy when experiencing a lower frame rate
(i.e. 10 frames per second vs. a higher 20 frames per second).
1. Try moving the camera closer to the monitor.
2. Remove obstructions between the monitor and camera.
3. Adjust the monitor antenna to vertical position.
No sounds (even with
both units turned on)
1. Make sure that the power adapter is connected to the camera.
2. The battery on the monitor may be dead, be sure to charge it using the
adapter included.
3. The monitor may be out of range of the camera; be sure to check if the
Range LED in on continuously.
Your RealVIEW is
emitting an high
pitched noise/
feedback.
This sound is normal feedback which occurs if the monitor and camera are too
close together. Move them further apart.
n
`Low batteries will cause the supply current to become unstable and will affect the quality
of the video/audio. Please charge the battery fully for use for superior video.
Item Details
Audio Built in Microphone/ Speaker
Other Special Feature Volume control, Pairing
Battery Type Li-on
Battery Capacity 2500mAh, Replaceble
Battery time duration Min 4 hours
Weight 239g (battery inside)
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection
systems)
This marking on the product, accessories or literature indicates that the product and
its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of
with other household waste at the end of their working life. To prevent possible harm
to the environment or human health from uncontrolled waste disposal, please separate
these items from other types of waste and recycle them responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product,
or their local government office, for details of where and how they can take these items
for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product and its electronic accessories should not be mixed with
other commercial wastes for disposal.
Correct disposal of batteries in this product
(Applicable in the European Union and other European countries with separate battery
return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this
product should not be disposed of with other household waste at the end of their working
life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains
mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries
are not properly disposed of, these substances can cause harm to human health or the
environment.
To protect natural resources and to promote material reuse, please separate batteries from
other types of waste and recycle them through your local, free battery return system.
Samsung cares for the environment at all product manufacturing stages, and is taking
measures to provide customers with more environmentally friendly products.
The Eco mark represents Samsung devotion to creating environmentally friendly products,
and indicates that the product satisfies the EU RoHS Directive.
This template is used to install
the camera on the wall.
TEMPLATE
Screw holes for
the Camera
installation
50,0 mm
MEMO
SALES NETWORK
HEAD OFFICE
6, Pangyo-ro 319beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, 463-400 Rep. of KOREA
Tel : +82-70-7147-8753, 8764 Fax : +82-31-8018-3740
www.samsungsecurity.com
SAMSUNG TECHWIN AMERICA Inc.
100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660
Customer support : +1-877-349-3149
www.samsungsv.com
SAMSUNG TECHWIN EUROPE LTD.
Samsung House, 1000 Hillswood Drive, Hillswood Business Park Chertsey,
Surrey, UNITED KINGDOM KT16 OPS
Customer support : 00800-8010-8022
www.samsungsecurehome.eu
