Hanwha Techwin SSA-R2001V RFID Reader User Manual Z8100239101A SSA R2001V ENG 100927 indd
Samsung Techwin Co Ltd RFID Reader Z8100239101A SSA R2001V ENG 100927 indd
User manual
RFID Reader
User Manual SSA-R2001V
Copyright
©2010 Samsung Techwin Co., Ltd. All rights reserved.
Trademark
is the registered logo of Samsung Techwin Co., Ltd.
The name of this product is the registered trademark of Samsung Techwin Co., Ltd.
Other trademarks mentioned in this manual are the registered trademark of their respective company.
Restriction
Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this docu-
ment shall be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung
Techwin.
Disclaimer
Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but
no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the
user’s own responsibility. Samsung Techwin reserves the right to change the contents of this document without
prior notice.
Warranty
If the product does not operate properly in normal conditions, please let us know. Samsung Techwin will resolve
the problem for free of charge. The warranty period is 3 years. However, the followings are excluded:
If the system behaves abnormally because you run a program irrelevant to the system operation.
Deteriorated performance or natural worn-out in process of time
Sensory phenomenon that does not affect the performance or quality of the product (ex : working noise)
•
•
•
RFID Reader
User Manual
English English _ 3
safety information
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol indicates that dangerous voltage consisting a risk of electric shock is
present within this unit.
This exclamation point symbol is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
WARNING
To reduce the risk of fi re or electric shock, do not expose this appliance to rain or moisture.
WARNING
Be sure to use only the standard adapter that is specifi ed in the specifi cation sheet.
Using any other adapter could cause fi re, electrical shock, or damage to the product.
Incorrectly connecting the power supply or replacing battery may cause explosion, fi re, electric shock, or damage to
the product.
Do not connect multiple controllers to a single adapter. Exceeding the capacity may cause abnormal heat generation or fi re.
Securely plug the power cord into the power receptacle. Insecure connection may cause fi re.
When installing the controller, fasten it securely and fi rmly. The fall of controller may cause personal injury.
Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or containers fi lled with water on top of the
controller. Doing so may cause personal injury due to fi re, electric shock, or falling objects.
Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fi re or electric shock.
If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately disconnect the
power source and contact the service center. Continued use in such a condition may cause fi re or electric shock.
If this product fails to operate normally, contact the nearest service center. Never disassemble or modify this product in
any way. (SAMSUNG is not liable for problems caused by unauthorized modifi cations or attempted repair.)
. When cleaning, do not spray water directly onto parts of the product. Doing so may cause fi re or electric shock.
CAUTION
Do not drop objects on the product or apply strong blows to it. Keep away from a location subject to excessive
vibration or magnetic interference.
Do not install in a location subject to high temperature (over 50°C), low temperature (below -25°C), or high humidity.
Doing so may cause fi re or electric shock.
If you want to relocate the already installed product, be sure to turn off the power and then move or reinstall it.
Remove the power plug from the outlet when there is a lighting storm. Neglecting to do so may cause fi re or damage
to the product.
Keep out of direct sunlight and heat radiation sources. It may cause fi re.
Install it in a place with good ventilation.
Avoid aiming the controller directly towards extremely bright objects such as sun.
Apparatus shall not be exposed to dripping or splashing and no objects fi lled with liquids, such as vases, shall be
placed on the apparatus.
The Mains plug is used as a disconnect device and shall stay readily operable at any time.
•
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
1.
2.
3.
4.
5.
6.
7.
8.
9.
SAFETY INFORMATION
FCC Statement
Caution : Any changes or modifi cations in construction of this device which are not expressly approved by the
party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, any cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
1)
2)
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, or other apparatus (including amplifi ers) that
produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third
prong is provided for your safety. If the provided plug does not fi t into your outlet, consult an electrician for
replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
Only use attachments/accessories specifi ed by the manufacturer.
Use only with cart, stand, tripod, bracket, or table specifi ed by the manufacturer, or sold with
the apparatus.
Unplug this apparatus when a card is used. Use caution when moving the cart/ apparatus
combination to avoid injury from tip-over.
Refer all servicing to qualifi ed service personnel. Servicing is required when the apparatus has been damaged in any
way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
IMPORTANT SAFETY INSTRUCTIONS
4_ safety information
safety information
English English _ 5
CONTENTS
contents
PRODUCT INTRODUCTION
6
6 Features
6 What’s included
7 At a Glance
8 Cable Color Scheme
8 Cable Selection
INSTALLATION AND EXTERNAL
CONNECTION
9
9 Installation
10 Precautions on installation
11 External Connection
INITIALIZATION
12
12 Basic Operations

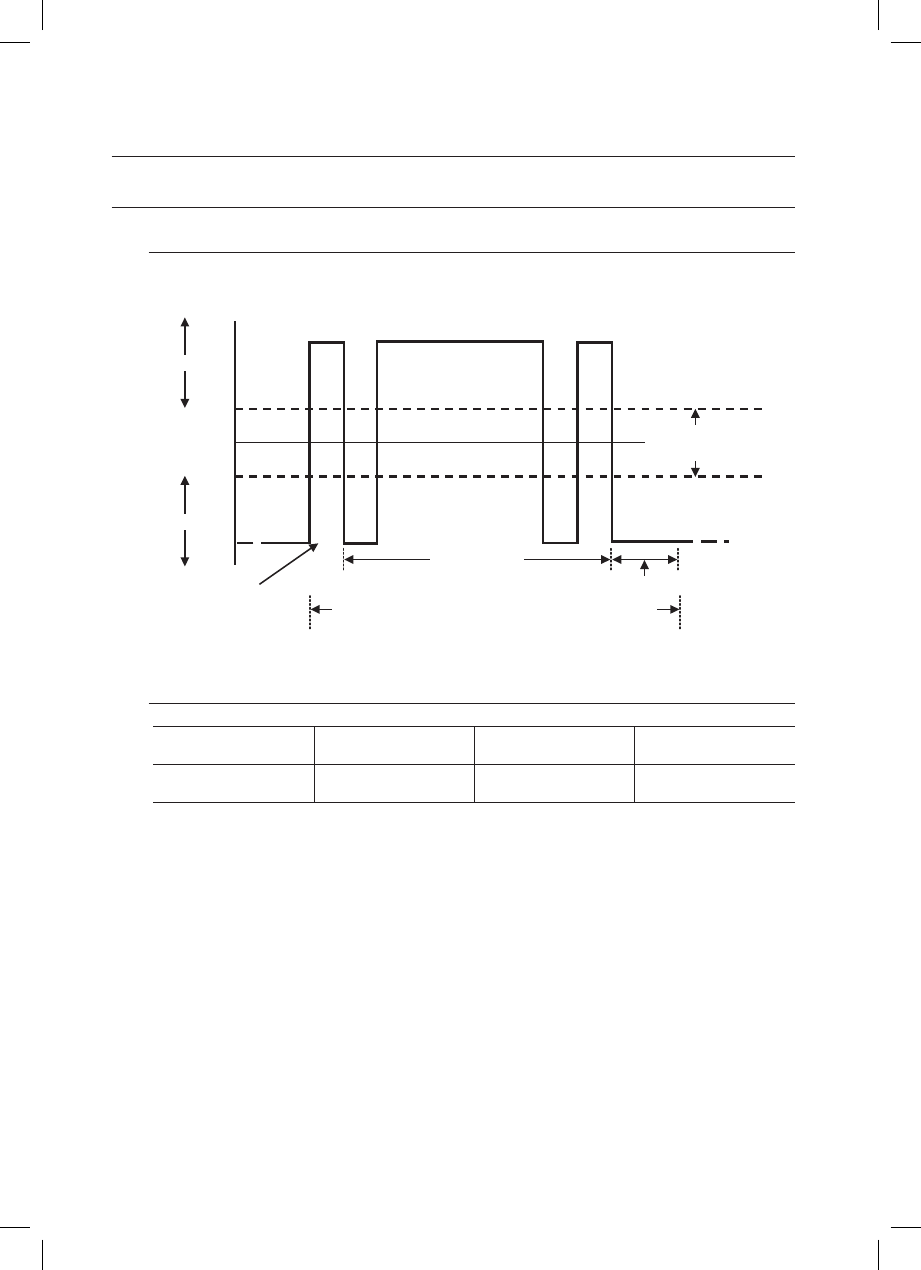

OUTPUT FORMAT
13

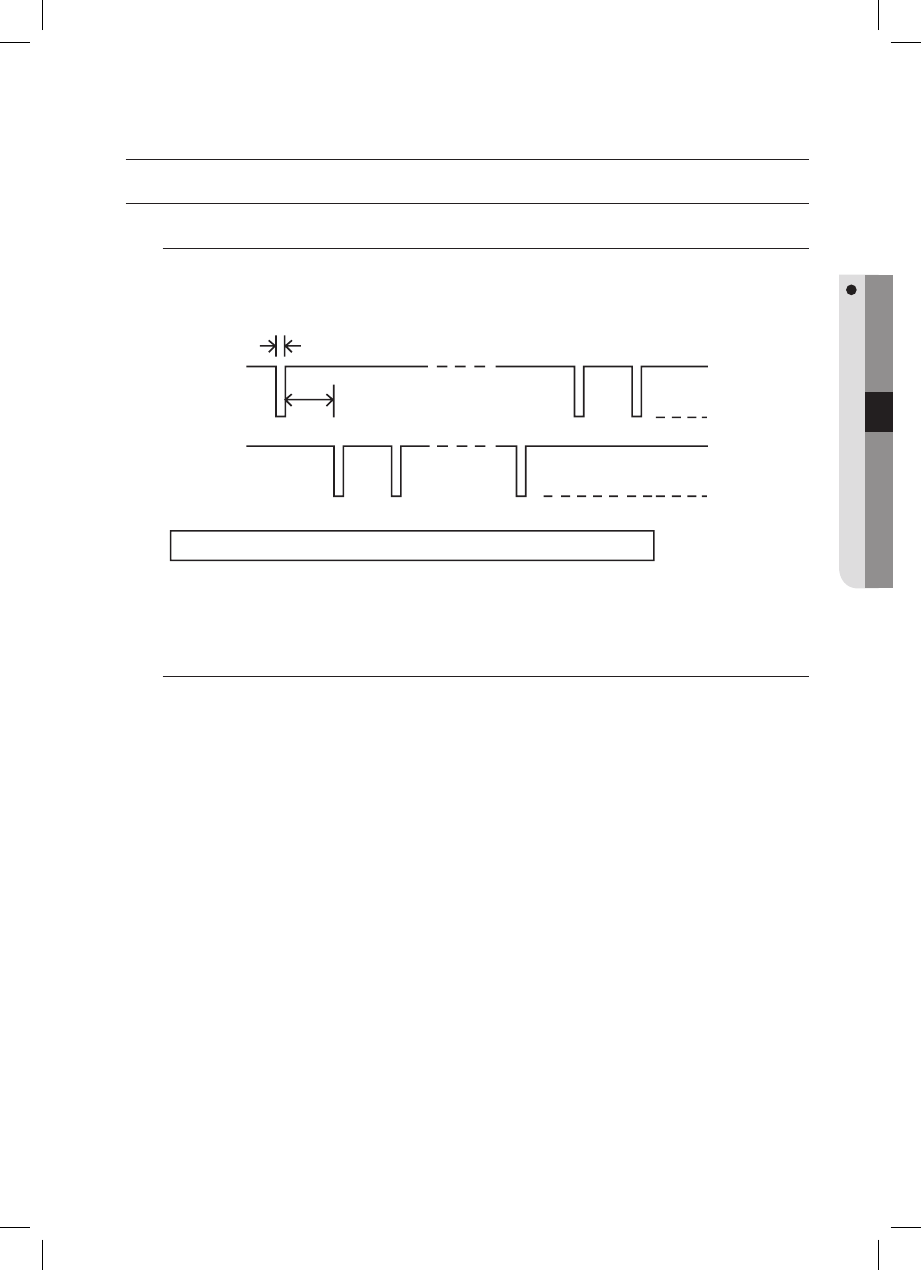

13 WIEGAND Output
14 RS-232 Output
15 8 Bit Burst Output Format
TROUBLESHOOTING
16
16 Troubleshooting
PRODUCT SPECIFICATIONS
17
17 Product Specifi cations
6_ product introduction
FEATURES
This model is an elegant-looking proximity reader that is featured by the capacitive touch-sensing keypad. The back-lighted
keypad is useful especially for night operation, and its epoxy adhesion and aluminium case relieve you of worries about the
rain or any other challenging weather conditions. This model permits user access through authentication of the presented
proximity card and personal identifi cation number using the keypad. With its red, green and orange indicators as well as the
Piezo buzzer, this model is guaranteed to make a stable and correct operation.
13.56 MHz [MIFARE] Contactless Smart Card & PIN Reader
Compatible with ISO14443 Type A
34 bit Wiegand & RS-232 Data Output
8 Bit Burst Output Format supported
Numeric keypad with backlighting for night operation
Control of External LED Indicators
Control of External Buzzer
Tamper Switch
Reverse Polarity Protection
Weatherproof and Dustproof
WHAT’S INCLUDED

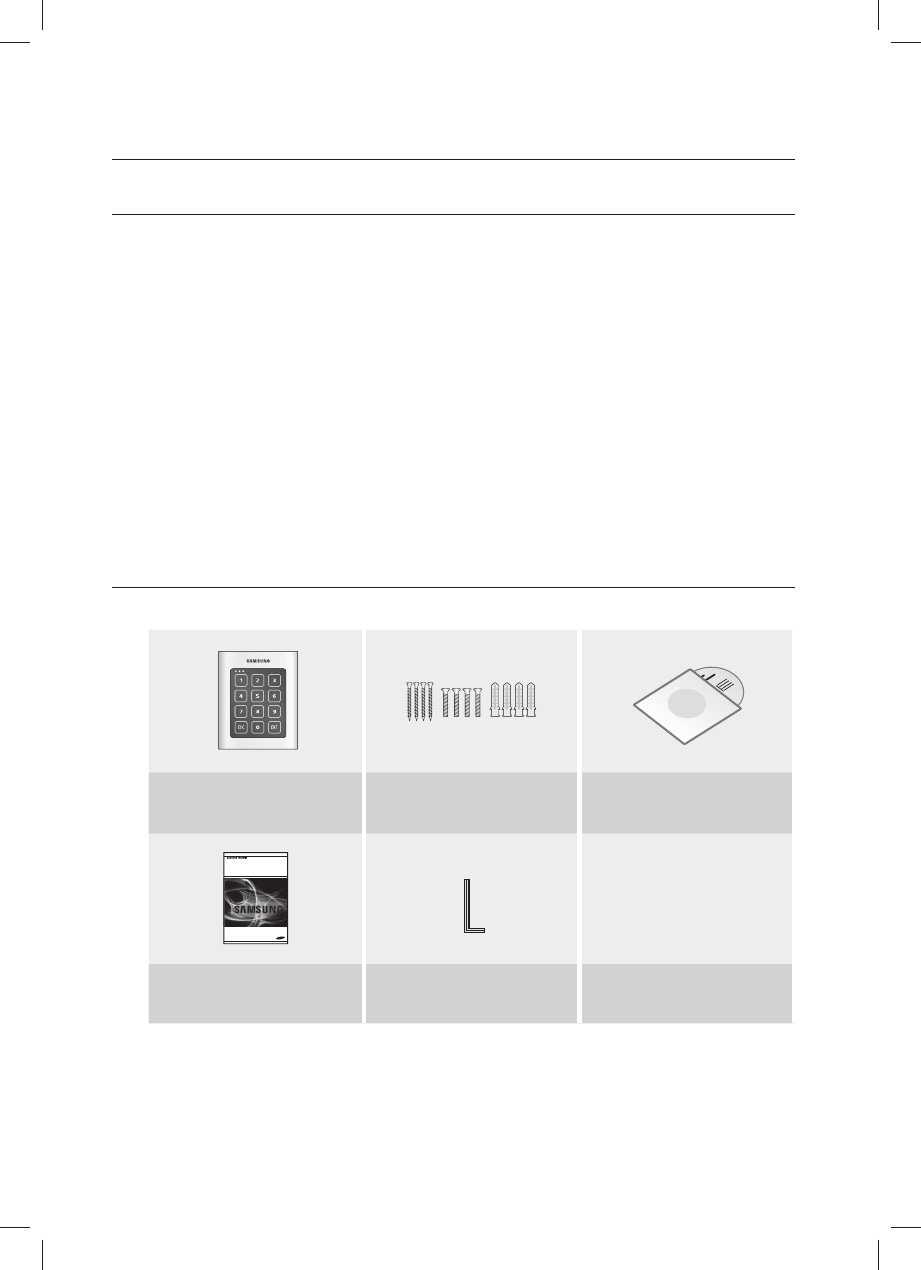

Check if the following items are included in the product package.
SSA-R2001V
Main Unit
3.5 x 40mm Screws (x4)
3.5 x 25mm Screws (x4)
6 x 30mm Plastic Anchor (x4)
CD Manual
RFID Reader
User Manual SSA-R2001V
Quick Guide 3mm Hex Wrench (x1)
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
product introduction
English English _ 7
PRODUCT INTRODUCTION
AT A GLANCE
Front/Rear
1LED Displays the status of the system operation.
2Keypad Used to enter the ID/password.
3Tamper Switch A tamper switch to detect falling from the wall.
4Connection Cable Used to connect to the power source or I/O cable.
5Buzzer Piezo buzzer.
6Fixing Hole Fixing hole for wall-mounting.
SSA-R2001V
3
5
6
4
8_ product introduction
product introduction
CABLE COLOR SCHEME
Name of I/O Pin Signal Line Cable Color
Power (+12V)
DC +12V
Red
Power Ground GND(-)
Black
Wiegand Data Output 0 WIK_DATA0
Green
Wiegand Data Output 1 WIK_DATA1
White
Not used. Not used.
Orange
RS-232 TX TX OUT
Purple
Not used. Not used.
Brown
RS-232 GND GND
Black
LED Control Green LED Control
Yellow
LED Control Orange LED Control
Gray
Buzzer Control BUZZER Control
Blue
Tamper Switch COM Tamper COM
Pink
Tamper Switch NC Tamper NC
Light yellow
CABLE SELECTION
Item
Cable Type
Cable Type
1
Power (DC12V)
Belden #9409, 18 AWG 2 Conductor, Unshielded
Belden #9409, 18 AWG 2 Conductor, Unshielded
2
Card/PIN data (Wiegand)
Control Signal (LED,BUZZER)
TAMPER
Belden #9512, 22 AWG 4 Conductor, Shielded
Belden #9514, 22 AWG 8 Conductor, Shielded
3
RS-232 Cable Belden #9829, 24 AWG 2-twisted pair, Shielded
English English _ 9
INSTALLATION AND EXTERNAL CONNECTION
SSA-R2001V
64.00
0.00
6.00
18.50
36.50
54.50
72.50
85.50
91.50
93.00
7.80
0.00
8.30
18.30
31.30
8.30
50.30
30.30
81.80
12.50
26.23
69.10
79.60
1.00
99.80
20.30
60.30
86.50
40.30
49.30
56.30
62.30
72.30 72.80
80.60
100.80
Ø1.50
Ø1.50
Ø1.00
40.00
Ø1.00
installation and external connection
INSTALLATION

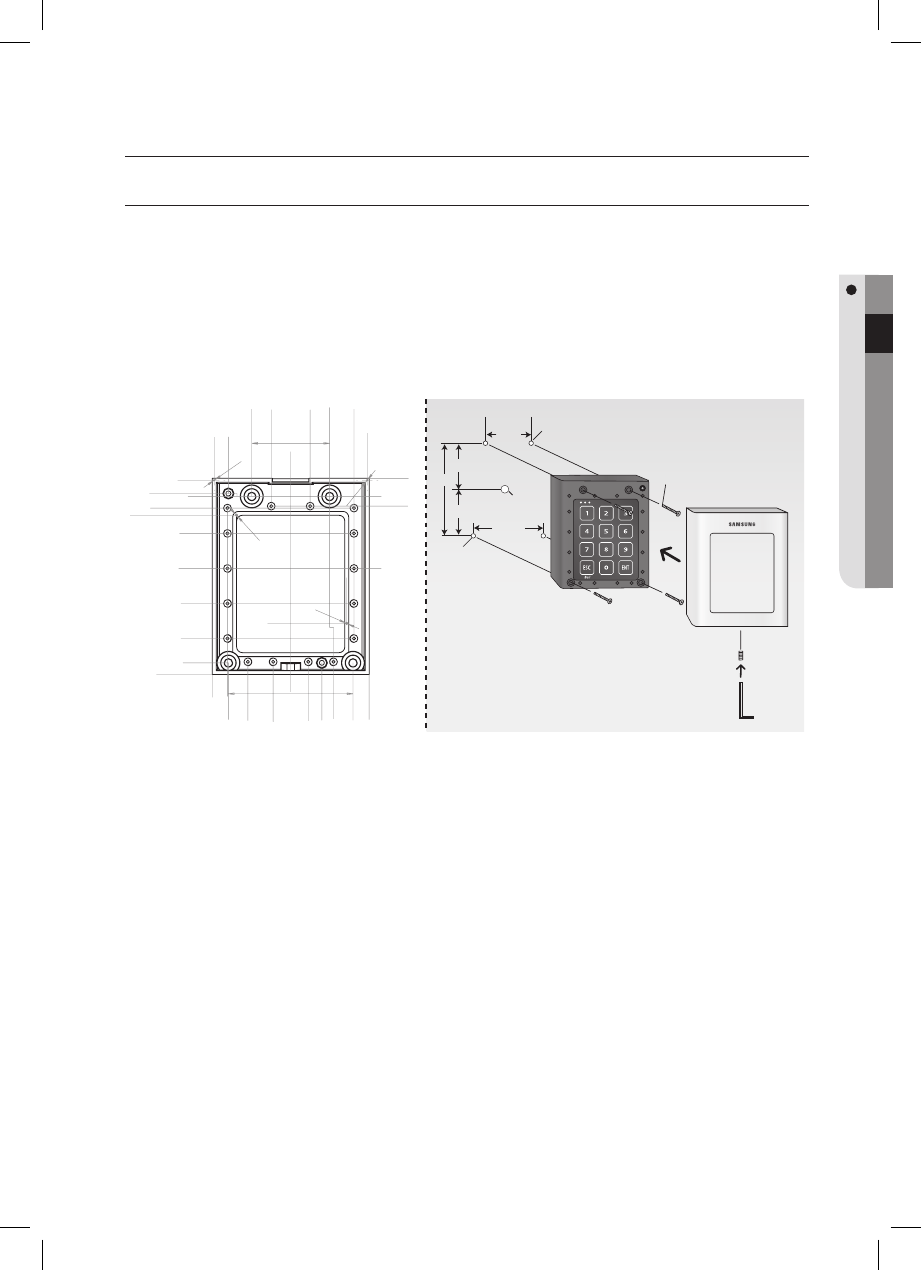

See [Figure 1] to drill 6-32” holes and 1/2” holes (totally 4) into the wall.
Tighten the four screws to secure the product to the wall.
With the provided 3mm hex wrench, fi x the outer case to the product.
1.
2.
3.
6-32 or M3 Screws
Reader Module
Bezel
3mm Hex Wrench
6-32 hole
4cm
4.35cm
8.7cm
4.35cm 1/2˝ hole
6.4cm
6-32 hole
[Figure 1] [Figure 2]
10_
installation and external connection
installation and external connection
SSA-R2001V
BACK TO BACK
INSTALLATION
SIDE BY SIDE
INSTALLATION
SSA-R2001V
SSA-R2001V
SSA-R2001V
PRECAUTIONS ON INSTALLATION

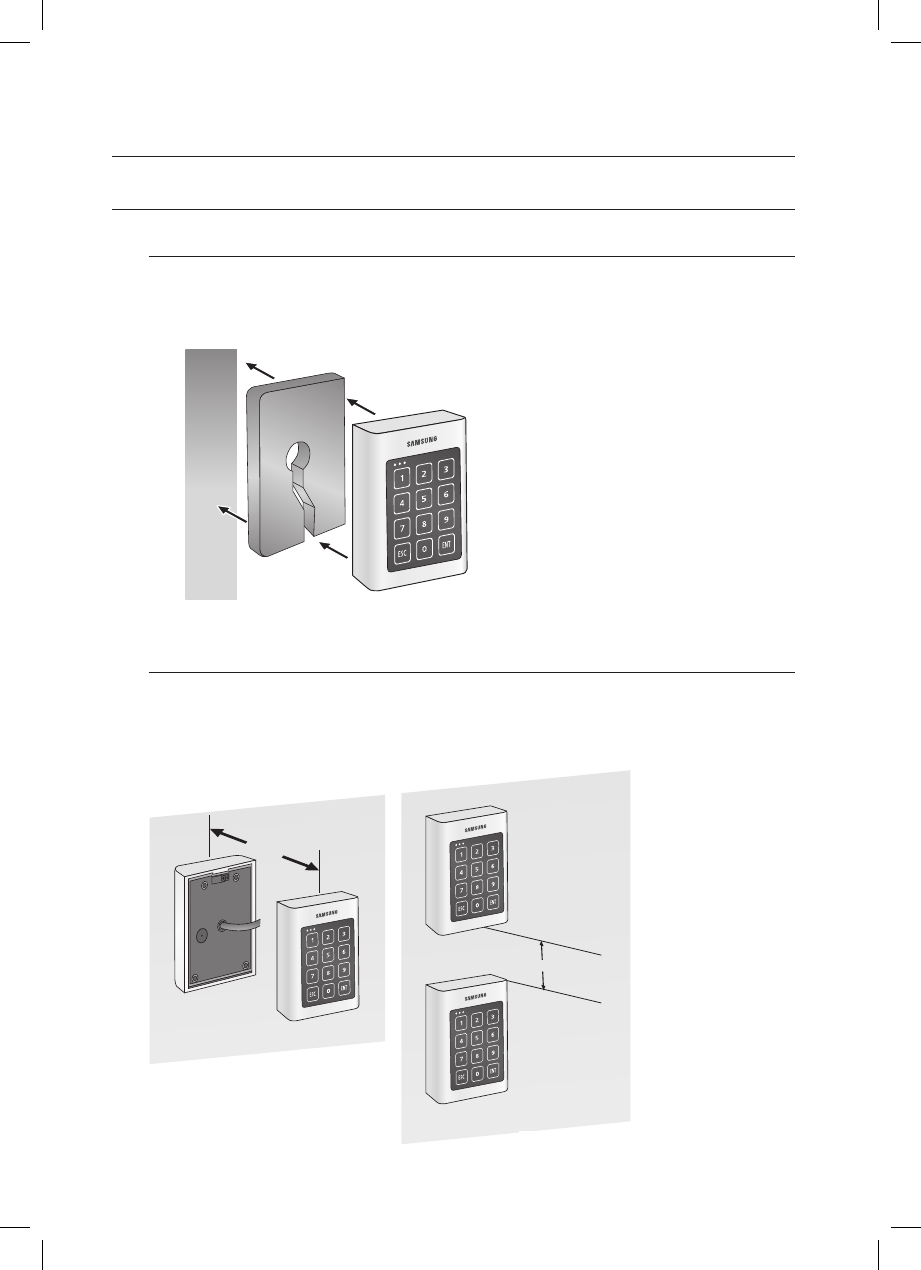

IF INSTALLING ON A METAL WALL
If you install the reader on a metal wall, the read range may be reduced.
To avoid this problem, it is recommended to insert the spacer between the metal wall and the reader as shown
below.
IF INSTALLING MORE THAN ONE READER SIDE BY SIDE OR
FRONT AND BACK
If you install more than one reader side by side or front and back, the read range may be reduced. In this case, if
you present a card to one reader, the other reader may recognize the same card, meaning both readers read the
same card simultaneously.
To avoid this problem
, keep at least 20 cm of space between the two readers.
Spacer
Reader
Metal
Wall
<Front and Back>
<Side by Side>
Minimum
20cm
Minimum
20cm
#Reader 1
#Reader 2
#Reader 1
#Reader 2
English English _ 11
INSTALLATION AND EXTERNAL CONNECTION
SSA-R2001V
EXTERNAL CONNECTION
WIRING DIAGRAM
Category Cable Wiring
Power Supply Unit
Connect the DC+12V to the red line.
Connect GND to the black line.
Wiegand Connection
Connect the green line of the product to the Wiegand D0 input port of the controller.
Connect the white line of the product to the Wiegand D1 input port of the controller.
LED Control
Enables you to turn on or off the LED indicators.
To control green indicator, connect the yellow line to the controller’s output (relay). Connect the Gray to
control the orange indicator, connect the white with red stripes to control the red indicator. (see page 12)
Buzzer Control Enables you to turn on or off the buzzer.
To control the buzzer, connect the blue line to the controller’s output (relay).
(see page 12)
Tamper Control Connect the COM port (Pink line) of the product’s tamper switch to GND; connect the NC port (Light yellow)
of the tamper switch to the input port of the controller.
RS-232 Connection Connect to the COM port of the PC. (Connect pin 2 of the DB-9 connector to the purple line; connect the
black of the device (RS-232 GND) to pin 5 of the DB-9 connector)
Wiegand Data 0 Out
Wiegand Data 1 Out
PC
POWER
CONTROLLER
SSA-R2001V
Red Black
DC +12V GND
RS-232(GND)
RS-232(TX)
Purple
Black
Tamper Switch Out(NC)
Tamper Switch Out(COM)
Buzzer Control In
LED Control In(Green)
LED Control In(Orange)
Green
White
Light yellow
Pink
Blue
Yellow
Gray
12_ initialization
initialization
BASIC OPERATIONS
Initial State (when the power is supplied)
When you apply power to the product, it will sound beep fi ve times before entering Standby with the red indicator
turned on.

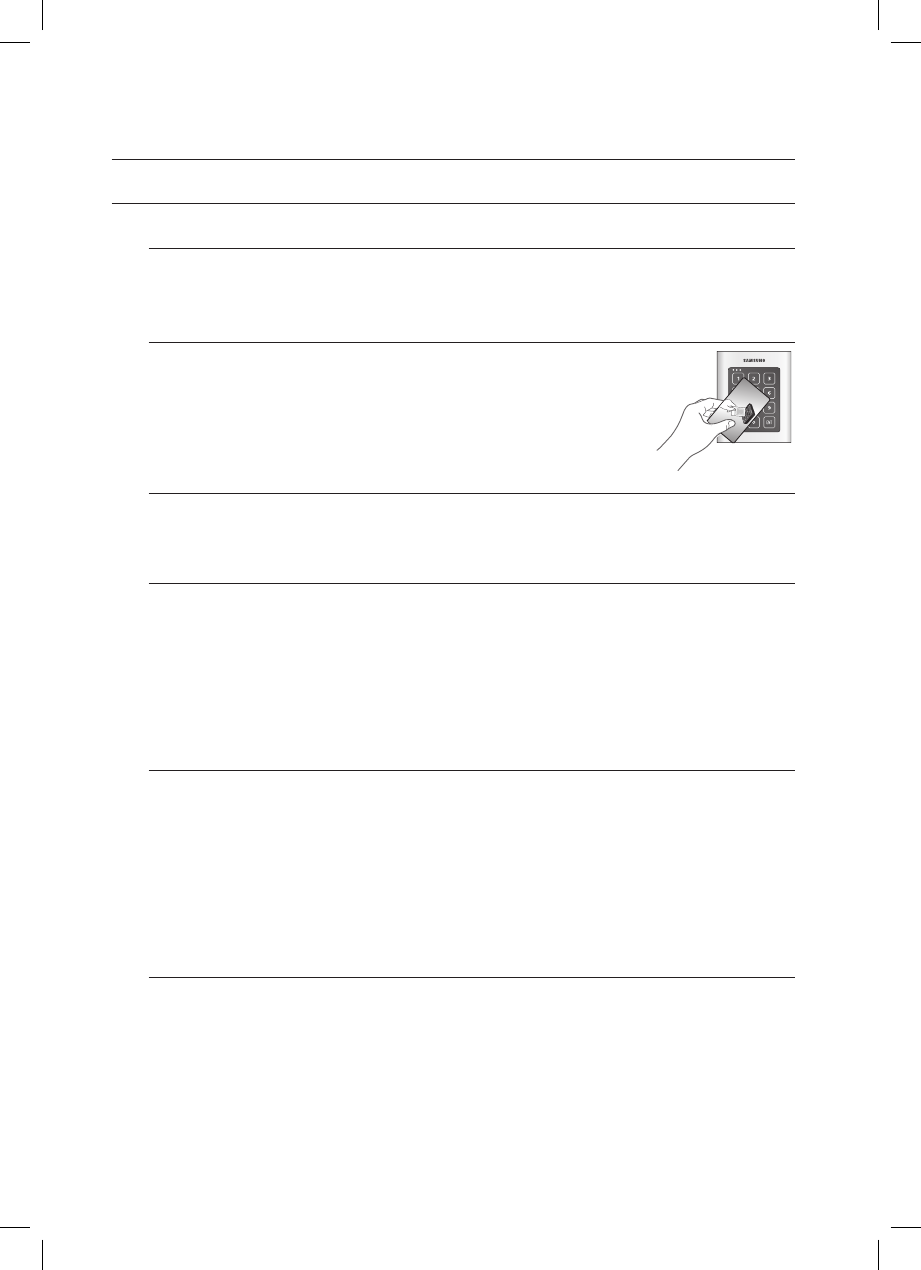

Using the card
Present the card to the product until you hear a beep and the green indicator turns on.
The reader keeps the green indicator turned on while transferring the card data to the
controller.
When it is done, the green indicator turns off and for receiving the next card, the red
indicator stays ON.
Using the keypad
Hold down the keypad until you hear a beep. As soon as you press the keypad, the yellow indicator turns on,
followed by the reader transferring the keypad data to the controller.
LED Control
You can control both green and orange indicators at will.
To control the green indicator, connect the green-indicator control line (yellow) to NO of the controller relay output,
and connect COM to GND. Set I/O of the controller; now you can control turning on/off the indicator.
You can turn on/off the indicators according to the I/O settings of the controller, which can be applied to various
situations.
For more information about the I/O settings of the controller, refer to the user manual of the controller.
To control the orange indicator, connect the gray line to NO of the controller.
Buzzer Control
Connect the buzzer control input line (blue) to the NO port of the controller relay output, and GND to the COM port.
You can confi gure the I/O settings of the controller so that it beeps. If the product continues to beep, it means that
the buzzer control is working properly.
The controller can use the I/O settings to set the buzzer control so that it sounds an additional beep for authorized
or unauthorized access upon user authentication.
Furthermore, you can make various modifi cations according to the different I/O settings of the controller.
For more information about the I/O settings of the controller, refer to the user manual of the controller.
Card reading is not available while the buzzer control is sounding the buzzer.
Tamper Control
You can set the signal that you want to output if the device is dismantled forcibly.
Connect the COM port (Pink line) of the product’s tamper switch to GND; connect the NC port (Light yellow) of the
tamper switch to the input port of the controller. If the tamper of the reader operates, the controller produces an input
signal and generates the corresponding output depending on the controller setting.
SSA-R2001V
Card
XYZ
[\]
^_`
lzjlzj
W
i
zzhTzYWWW
English English _ 13
OUTPUT FORMAT
output format
WIEGAND OUTPUT
Timing Diagram
Data Format (34-bit)
Bit 1 : Even Parity (bit 2 ~ bit 17)
Bit 2~Bit33 : 4-byte ID Number
Bit 34 : Odd Parity (bit 18 ~ bit 33)
•
•
•
100us
1ms
DATA-0
DATA-1
123
5V
0V
0V
5V
0LOGIC 1 1 1 0 0
n-2 n-1 n *n : 34 or26
14_ output format
output format
RS-232 OUTPUT
Output Waveform
Data Type
START (0X02H) DATA (10 Char) END (0x03H) LRC
START(0X02H) DATA (10 Char) END (0x03H) LRC
Check the following settings:
Baud Rate : 9600bps
Data Bit : 8
Parity Bit : None
Stop Bit : 1
LRC : This is the result of XOR operation of each byte from Start to End.
M
Mark(=1)
Space(=0)
+15V LSB
01 10 0000 0
MSB
+3V
-3V
-15V
0V
Data packet corresponding to ASCII character ‘A’
Start Bit
8 Data Bits
Indeterminate
Region
2 Stop Bits
English English _ 15
OUTPUT FORMAT
8 BIT BURST OUTPUT FORMAT
8Bit Burst Output Format
Keypads
Binary Hexa
Keypads
Binary
Hexa
0 11110000 F0 6 10010110 96
1 11100001 E1 7 10000111 87
2 11010010 D2 8 01111000 78
3 11000011 C3 9 01101001 69
4 10110100 B4 ESC 01011010 5A
5 10100101 A5 ENT 01001011 4B
16_ troubleshooting
troubleshooting
TROUBLESHOOTING
If the product does not function properly, please see the below for trouble shooting.
PROBLEM SOLUTION
My card is not read properly. 1) Check the rated voltage specifi ed in the user manual and the catalog.
2) Ensure that you are using an ISO14443 Type A card.
- Cards of 125 kHz format can not be used. However, the 13.56 MHz card can
not be used if it is of Type B, ISO15693.
(Contact the card retailer regarding the card format.)
3) If the problem persists, contact the nearest customer service for your
assistance.
When I turn on the product, it sounds a
beep with dimly turned on indicator.
1) Ensure that you are using a larger-capacity adaptor than specifi ed in the user
manual or the catalog, which should cover the rated current consumption of the
reader. If you are using multiple readers that are connected to one adaptor,
make sure that the adaptor should be large enough to cover the current
consumption multiplied by the reader count.
2)
Even with a large adaptor enough to supply adequate power, if the power cable is
not a dedicated line (such as communication line or UPT cable), or if it’s so long to
cause power loss, you’d better replace it with a dedicated line or reinforce it.
3) If the problem persists, contact the nearest customer service for your
assistance.
The read range (R/R) of the card differs
each time the product reads the card.
1) The characteristics of a card are determined by the nature of the coils used and in the
manufacturing process engaged by the card manufacturer. So what you do fi rst is to check
that the cards in use are made by the same manufacturer.
If you are using cards from different card makers, the read range (R/R) differs by the card,
which is the result of normal operation.
2)
If you encounter a different read range for each card that is made by the
same manufacturer, please contact the nearest customer service.
English English _ 17
product specifi cations
PRODUCT SPECIFICATIONS
Item SSA-R2001V
Power / Current DC 12V / Max. 150mA
Reading Time (Card) 30ms
Input Port 2 ea : External LED Control, External Buzzer Control
Output Port 34bit Wiegand, 8bit Burst for PIN
LED Indicator 3 LED Indicators (Red, Green and Yellow)
Beeper Piezo Buzzer
Keypad 12 Key Touch Keypad with Back Lighting
Operating Temperature -25°C to +50°C
Operating Humidity 10% to 90% Relative Humidity Non-Condensing
Color / Material Silver with Black / Polycarbonate & Aluminum Die casting
Dimension
(W x H x D(mm)) 87.0 x 109.0 x 25.0
Weight 350g ± 10
Correct disposal of batteries in this product
(Applicable in the European Union and other European countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of
with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate
that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are
not properly disposed of, these substances can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste and
recycle them through your local, free battery return system.
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g.
charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To
prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these
items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for
details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
P/No. : Z8100239101A
www.samsungsecurity.com
www.samsungtechwin.com
SAMSUNG TECHWIN CO., LTD.
Samsungtechwin R&D Center, 701, Sampyeong-dong, Bundang-gu, Seongnam-si, Gyeonggi-do, Korea, 463-400
TEL : +82-70-7147-8740~60 FAX : +82-31-8018-3745
SAMSUNG TECHWIN EUROPE LTD.
Samsung House, 1000 Hillswood Drive, Hillswood Business
Park Chertsey, Surrey, UNITED KINGDOM KT16 OPS
TEL : +44-1932-45-5300 FAX : +44-1932-45-5325
SAMSUNG TECHWIN AMERICA Inc.
1480 Charles Willard St, Carson, CA 90746, UNITED STATES
Tol Free : +1-877-213-1222 FAX : +1-310-632-2195
www.samsungcctvusa.com
SALES NETWORK
