Hanwha Techwin SSA-S1000V Standalone RFID Access Controller User Manual 20101005 v1 Appen
Samsung Techwin Co Ltd Standalone RFID Access Controller 20101005 v1 Appen
User manual
Standalone RFID
Access Controller
User Manual SSA-S1000V
Copyright
©2010 Samsung Techwin Co., Ltd. All rights reserved.
Trademark
is the registered logo of Samsung Techwin Co., Ltd.
The name of this product is the registered trademark of Samsung Techwin Co., Ltd.
Other trademarks mentioned in this manual are the registered trademark of their respective company.
Restriction
Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this docu-
ment shall be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung
Techwin.
Disclaimer
Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but
no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the
user’s own responsibility. Samsung Techwin reserves the right to change the contents of this document without
prior notice.
Warranty
If the product does not operate properly in normal conditions, please let us know. Samsung Techwin will resolve
the problem for free of charge. The warranty period is 3 years. However, the followings are excluded:
If the system behaves abnormally because you run a program irrelevant to the system operation.
Deteriorated performance or natural worn-out in process of time
Sensory phenomenon that does not affect the performance or quality of the product (ex : working noise)
•
•
•
Standalone RFID Access Controller
User Manual
English English _ 3
safety information
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol indicates that dangerous voltage consisting a risk of electric shock is
present within this unit.
This exclamation point symbol is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
WARNING
To reduce the risk of fi re or electric shock, do not expose this appliance to rain or moisture.
WARNING
Be sure to use only the standard adapter that is specifi ed in the specifi cation sheet.
Using any other adapter could cause fi re, electrical shock, or damage to the product.
Incorrectly connecting the power supply or replacing battery may cause explosion, fi re, electric shock, or damage to
the product.
Do not connect multiple controllers to a single adapter. Exceeding the capacity may cause abnormal heat generation or fi re.
Securely plug the power cord into the power receptacle. Insecure connection may cause fi re.
When installing the controller, fasten it securely and fi rmly. The fall of controller may cause personal injury.
Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or containers fi lled with water on top of the
controller. Doing so may cause personal injury due to fi re, electric shock, or falling objects.
Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fi re or electric shock.
If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately disconnect the
power source and contact the service center. Continued use in such a condition may cause fi re or electric shock.
If this product fails to operate normally, contact the nearest service center. Never disassemble or modify this product in
any way. (SAMSUNG is not liable for problems caused by unauthorized modifi cations or attempted repair.)
. When cleaning, do not spray water directly onto parts of the product. Doing so may cause fi re or electric shock.
CAUTION
Do not drop objects on the product or apply strong blows to it. Keep away from a location subject to excessive
vibration or magnetic interference.
Do not install in a location subject to high temperature (over 50°C), low temperature (below -20°C), or high humidity.
Doing so may cause fi re or electric shock.
If you want to relocate the already installed product, be sure to turn off the power and then move or reinstall it.
Remove the power plug from the outlet when there is a lighting storm. Neglecting to do so may cause fi re or damage
to the product.
Keep out of direct sunlight and heat radiation sources. It may cause fi re.
Install it in a place with good ventilation.
Avoid aiming the controller directly towards extremely bright objects such as sun.
Apparatus shall not be exposed to dripping or splashing and no objects fi lled with liquids, such as vases, shall be
placed on the apparatus.
The Mains plug is used as a disconnect device and shall stay readily operable at any time.
•
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
1.
2.
3.
4.
5.
6.
7.
8.
9.
SAFETY INFORMATION
FCC Statement
Caution : Any changes or modifi cations in construction of this device which are not expressly approved by the
party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, any cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
1)
2)
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, or other apparatus (including amplifi ers) that
produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third
prong is provided for your safety. If the provided plug does not fi t into your outlet, consult an electrician for
replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
Only use attachments/accessories specifi ed by the manufacturer.
Use only with cart, stand, tripod, bracket, or table specifi ed by the manufacturer, or sold with
the apparatus.
Unplug this apparatus when a card is used. Use caution when moving the cart/ apparatus
combination to avoid injury from tip-over.
Refer all servicing to qualifi ed service personnel. Servicing is required when the apparatus has been damaged in any
way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
IMPORTANT SAFETY INSTRUCTIONS
safety information
4_ safety information
English English _ 5
contents
PRODUCT INTRODUCTION
6
6 Feature
7 What’s included
8 At a Glance
9 Cable Color Scheme
9 Cable Selection
INSTALLATION AND EXTERNAL
CONNECTION
10
10 Installation
10 Bypass Diode Connection
11 I/O Connection
SYSTEM INITIALIZATION & BASIC
OPERATIONS
13

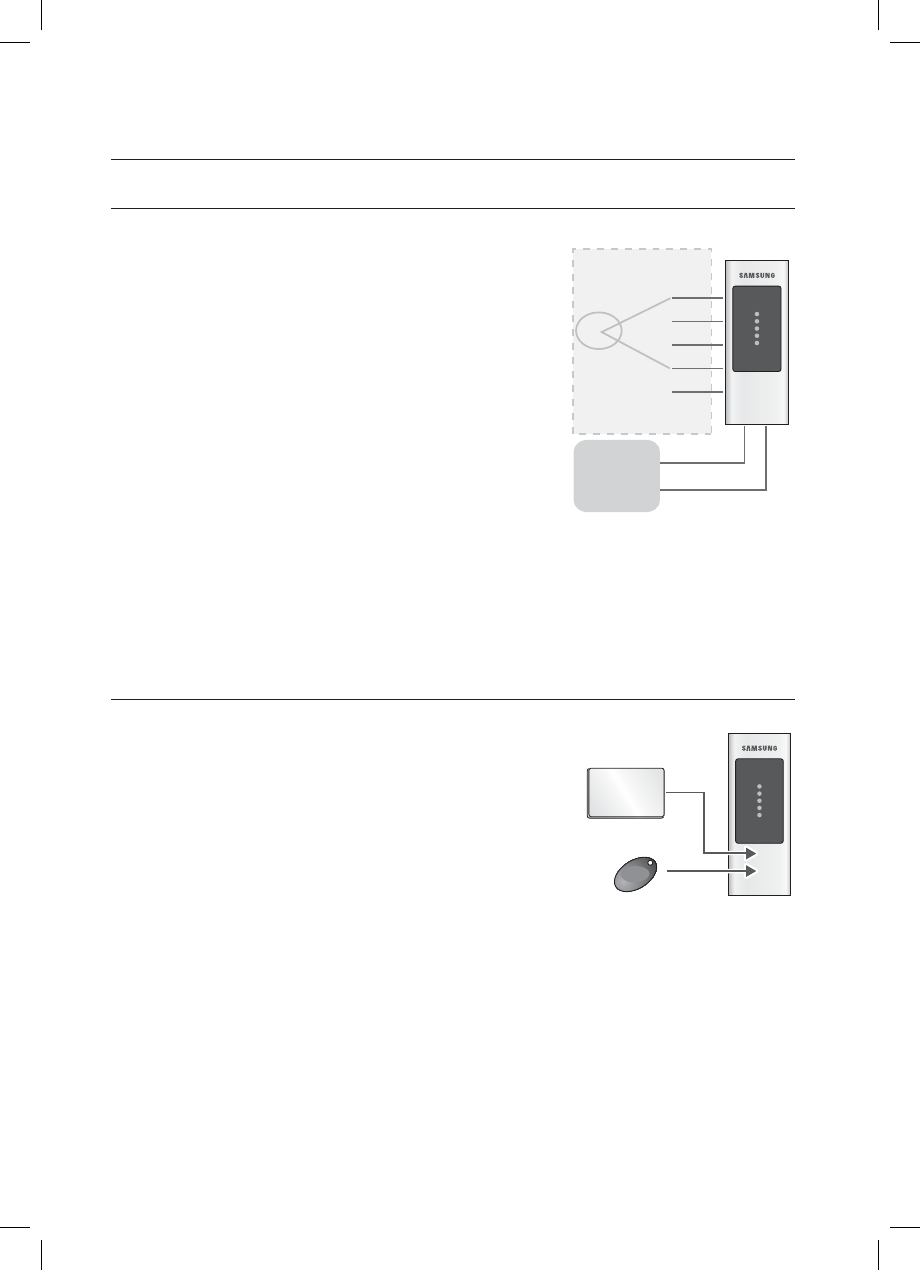

13 Initializing the system by short-circuiting
13 Basic Operations
14 To register /delete Master ID
14 To register/delete ID card
TROUBLESHOOTING
15
15 TroubleShooting
PRODUCT SPECIFICATIONS
16
16 Product Specifi cations
CONTENTS
6_ product introduction
FEATURE
This product is designed for use with one-door access control for security applications. With its compact design, you can
install this product on the wall or a doorframe; Its epoxy adhesion and aluminium case guarantee shock-resistance as well as
stable operation in a challenging environment.
This product enables you to control the door using the user card and provides
a simple method to register or delete cards, and initialize the system, which is, one of the most convenient and safest door
controller.
And it is also featured by the 2-color LED indicator and the internal buzzer, enabling you to easily check the current mode
and operation of the door lock.
125 kHz Proximity Access Controller
Up to 512 users including one Master ID can be registered
Standalone (no application S/W required)
Direct Control of the Door Lock
Can select a lock device type from Power Fail Safe and Power Fail Secure
Epoxy adhesion and aluminium case
Weatherproof and Dustproof
◆
◆
◆
◆
◆
◆
◆
product introduction
English English _ 7
PRODUCT INTRODUCTION
WHAT’S INCLUDED
Check if the following items are included in the product package.
SSA-S1000V
tGj
Bezel Main Module Master Card (x1)
Keytag (x5)
3mm Hex Wrench (x1)
3.5 x 40mm Screws (x2)
3.5 x 25mm Screws (x2)
6 x 30mm Plastic Anchors (x2)
Diode (X 2)
(UF4004, 1N4001~4007)
Quick Guide CD Manual
8_ product introduction
product introduction
AT A GLANCE
Front/Rear
1LED Displays the system operation status using red and green indicators.
2Fixing Hole Fixing hole for wall-mounting.
3Connection Cable Used to connect to the power or I/O cable.
4Tamper Switch A tamper switch to detect falling from the wall.
5Buzzer Piezo buzzer.
5
3
4
SSA-S1000V
English English _ 9
PRODUCT INTRODUCTION
CABLE COLOR SCHEME
Item Cable Color Signal Line Description
Power
Red DC+12V +12V supplied
Black GND Earth-Grounding for Power
Input
Yellow AUX INPUT#1 Select a Lock Type
Blue Door Contact Sensor Door Sensor Connection Port
Green Exit Button Exit Button Connection Port
Output
Purple Alarm Out Alarm Device Connection
Port
White Door Lock Out Door Lock device connection
port
Tamper
Pink
TAMPER COM
COM Port of Tamper
Switch
Light yellow TAMPER NC NC Port of Tamper Switch
Not used
Gray
Orange
Brown
CABLE SELECTION
Item Cable Type
1Power (DC +12V)
Belden #9409, 18 AWG 2 Conductor, Unshielded
Belden #9409, 18 AWG 2 Conductor, Unshielded
2
Door Contact Sensor
Exit Button
Sensor Input
Tamper
Belden #9512, 22 AWG 4 Conductor, Shielded
Belden #9514, 22 AWG 8 Conductor, Shielded
3Door Lock
Alarm Device
Belden #9409, 18AWG 2 Conductor, Unshielded
10_ installation and external connection
installation and external connection

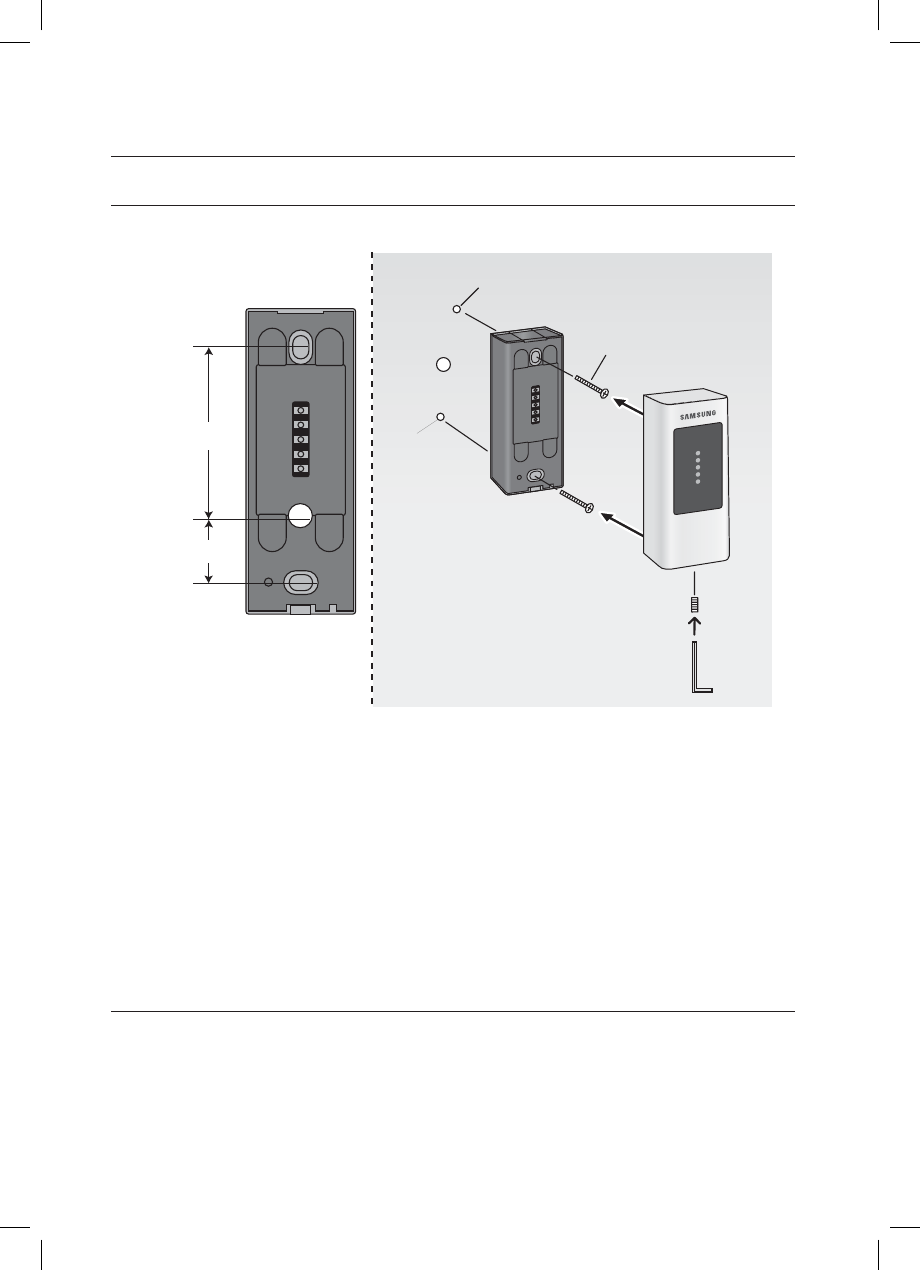

INSTALLATION
- On a doorframe or the wall
Drill a 1/2-inch (12.7 mm) hole onto the center of the doorframe or the wall where SSA-S1000V is installed,
which makes room for the cable of the reader module.
Drill a 6-32 inch hole at the 43.1mm point straight higher from the center hole and at 22.1mm straight lower,
respectively.
Insert the reader module cable to the center hole and fi x the module using two screws inserted in the upper and
lower corners.
Insert the outer case into the product and fi x it with the 3mm hex wrench.
BYPASS DIODE CONNECTION
If you connected an inductor (door lock or alarm device) to the output relay, there should occur a voltage surge while the
inductor was between turning on and turning off. If you do not connect a reverse diode to the relay, the voltage surge will
cause damage to the electric circuit of the controller. To reduce this surge, it is recommended to connect the bypass
diode to the relay.
1.
2.
3.
4.
SSA-S1000V
6-32 hole
6-32 or M3 Screws
1/2” hole
6-32 hole
Reader
Module
3mm Hex Wrench
Bezel
63.1mm
22.1mm
English English _ 11
INSTALLATION AND EXTERNAL CONNECTION

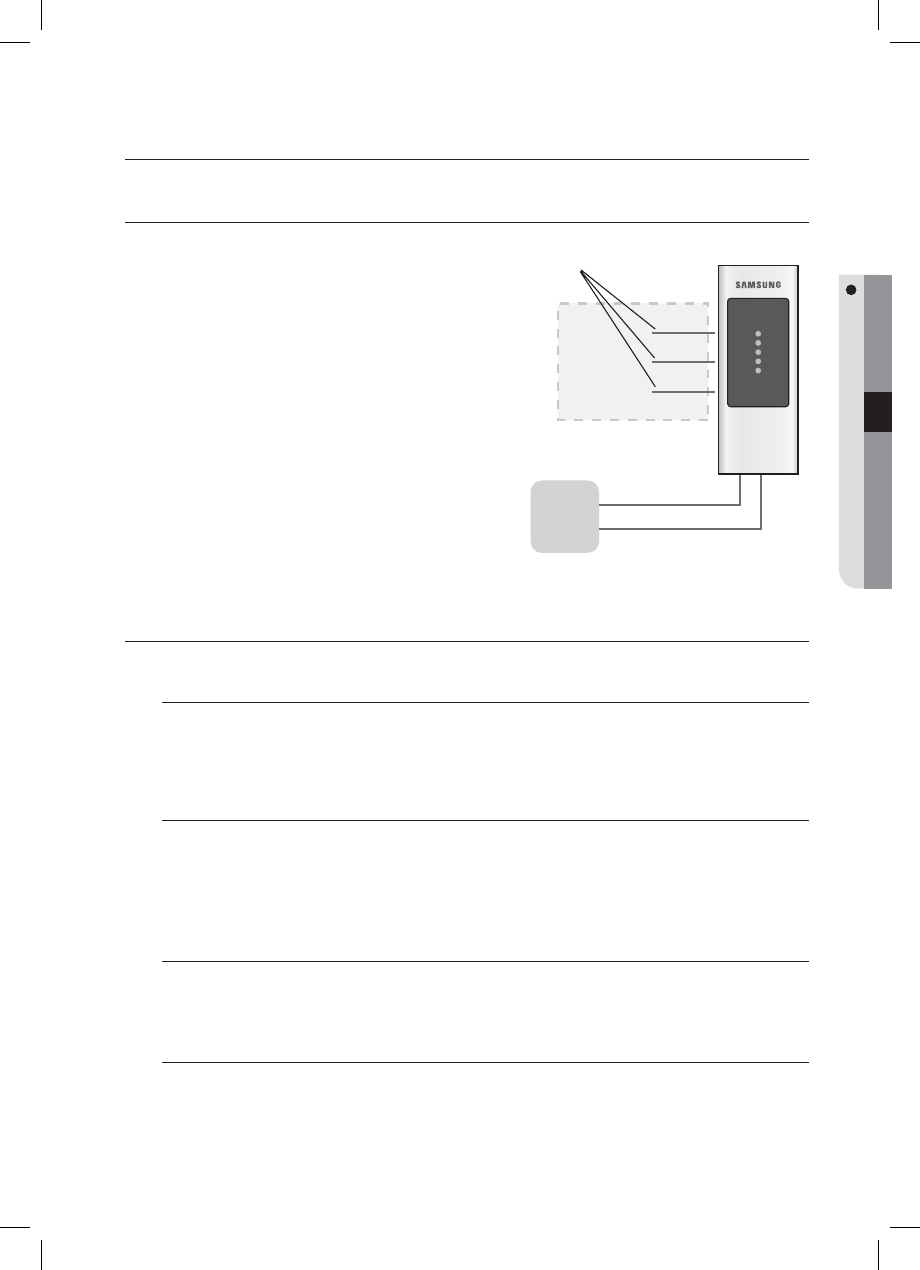

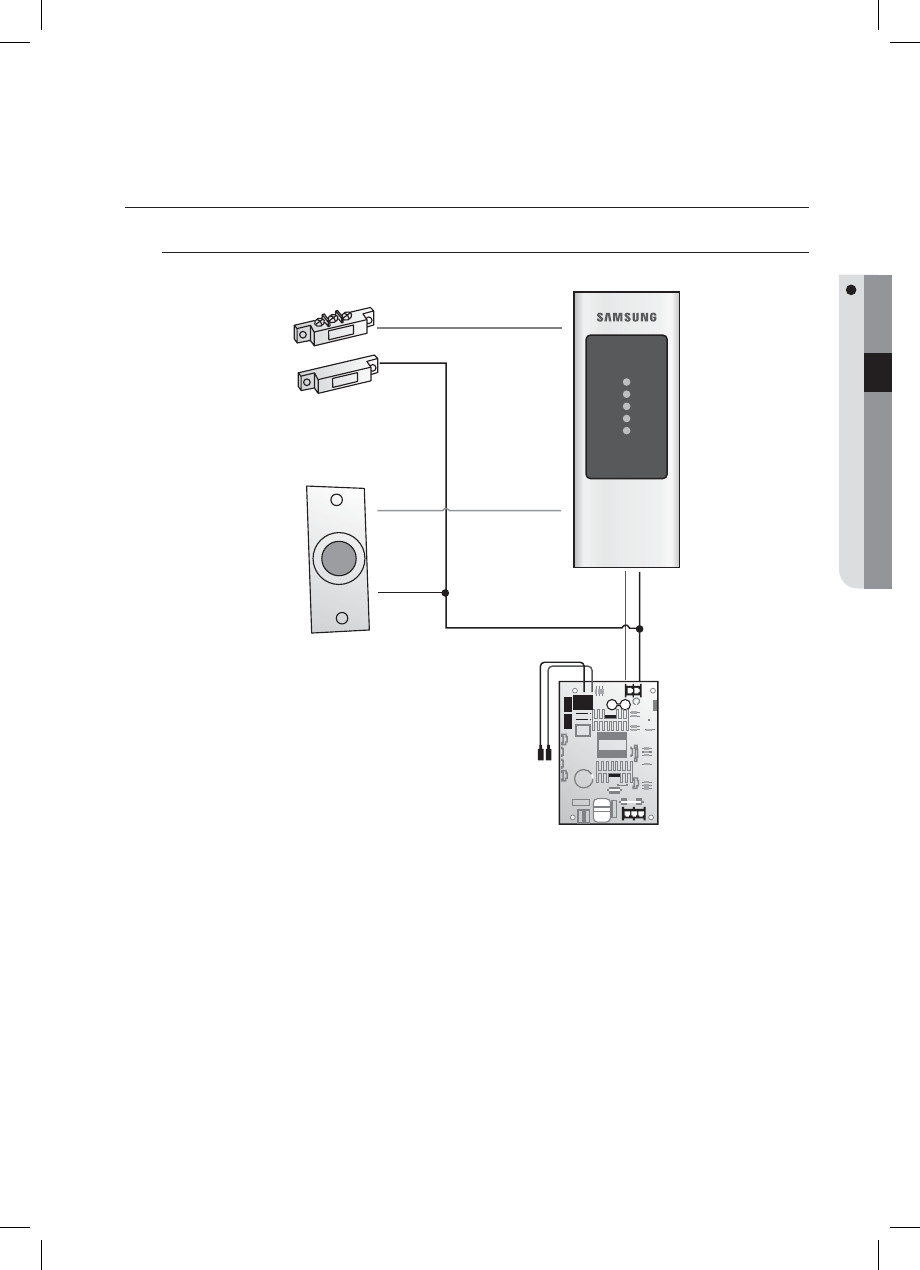

I/O CONNECTION
Input Connection
- To connect the power supply unit
Connect the DC+12V to the red line.
Connect GND to the black line.
- To connect the Door Contact Sensor
Connect the COM port of the sensor to the blue line.
Connect the NO port of the sensor with the GND line.
- To connect the Exit Button
Connect one end of the button to the green line.
Connect the other end of the button to GND.
1.
2.
1.
2.
1.
2.
PUSH
SSA-S1000V
DOOR CONTACT (blue)
EXIT BUTTON
(green)
GND
(black)
DC +12V
(red)
GND
DC +12V
DC 12V(+) POWER
Exit Button
Door Contact Sensor
12_ installation and external connection
installation and external connection

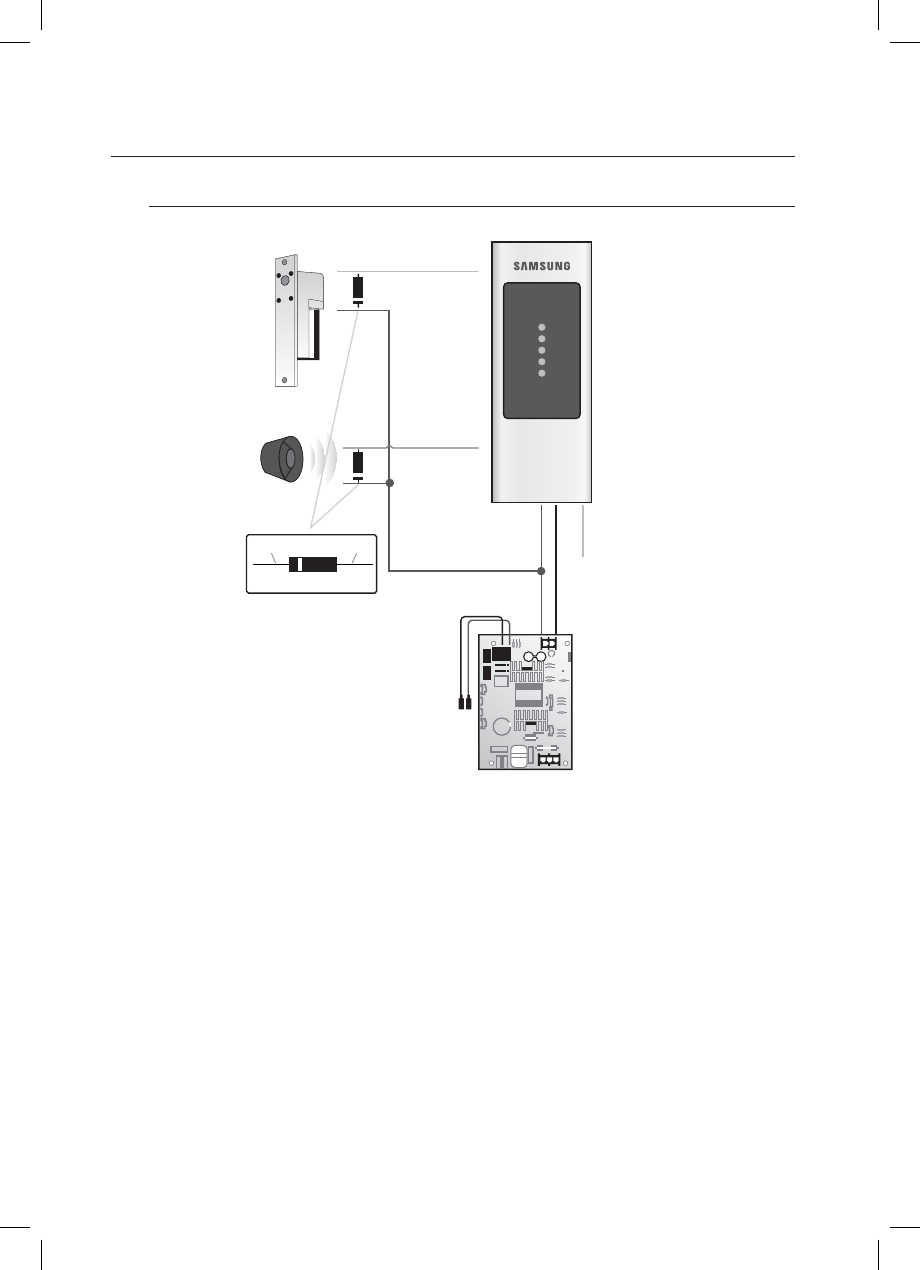

Output Connection
- To connect the power supply unit
Connect the DC+12V to the red line.
Connect GND to the black line.
- To connect the door lock device
Connect the plus(+) line of the lock device to DC+12V.
Connect the minus(-) line of the lock device to the white line.
- To connect the alarm device
Connect the plus(+) line of the alarm device to DC+12V.
Connect the minus(-) line of the alarm device to the purple line.
- To specify the lock type
POWER FAIL SAFE: Connect the yellow line to GND.
POWER FAIL SECURE: Leave the yellow line in the fl oating state.
1.
2.
1.
2.
1.
2.
SSA-S1000V
DOOR LOCK OUT
(white)
ALARM OUT
(purple)
Door Lock
Alarm Device
Cathode Anode
1N4004 ~ 1N4007 or equiv.
GND
DC +12V
Lock Type Select
(yellow)
DC 12V(+) POWER
English English _ 13
SYSTEM INITIALIZATION & BASIC OPERATIONS
system initialization & basic operations
INITIALIZING THE SYSTEM BY SHORT-CIRCUITING
Turn off the product and short-circuit three lines: white line of
the door lock device, green line of the Exit button, and yellow
line of the lock type.
When you turn the product back on, all of the LED indicators
turn red or green, repeat turning on/off twice before being
completely turned off.
In the power-off condition, all LED indicators turn green
bottom up in sequence.
When you hear a beep 4 times, that indicates that the
initialization is completed.
If you initialize the system, all of the data settings will return to the factory default.
BASIC OPERATIONS
When the power is supplied
All of the LED indicators will turn red or green, and repeat turning ON/OFF twice before being completely turned
OFF. In the power-off condition, all LED indicators turn red bottom up in sequence.
You will hear a beep once.
When you present a registered card to the product or press the Exit button
All LED indicators turn from red to green, and turn off top down in sequence before turning back red.
Then, the door stays open for the specifi ed time with the upper one indicators turning green, which indicates the
door is open.
You will hear a beep once.
When you present an unregistered card to the product
All LED indicators turn red, and repeat turning on/off twice before staying in ON.
You will hear a beep twice.
When you present a user card to the product while the door is open
The one LED indicators from the top stay green, indicating the door is open; in the mean time, the other
indicators refl ect the authentication results.
1.
2.
3.
4.
M
1.
2.
1.
2.
3.
1.
2.
1.
SSA-S1000V
Exit Button Green
Yellow
Lock Type
Door Lock
White
Short-Circuit
Power
Black
Red
14_ system initialization & basic operations
system initialization & basic operations
TO REGISTER /DELETE MASTER ID
First turn off the product, and short-circuit two lines: purple line of
Alarm Out and blue line of the Door Contact Sensor.
When you turn the product back on, you will hear the beep twice while
all of the LED indicators turn red, and repeat turning on/off twice before
being completely ON; then the Master card will be deleted.
Upon deletion of the Master Card, you will hear a beep once and
all of the LED indicators toggle between green and red twice
before turning off; in this condition, they turn red from bottom up
in sequence.
When the deletion is completed, turn off the product.
Connect the purple line of Alarm Out and the blue line of the Door
Contact Sensor back to their original ports, respectively.
When you turn the product back on, it recognizes and registers the fi rst-read card as the Master Card. And
if you present a registered user card to the product upon deletion of the Master Card, that card will be
registered as the Master Card.
If you present a registered user card after the Master Card is deleted, that card will be registered as the Master Card.
TO REGISTER/DELETE ID CARD
If you present the Master Card to the product, it will sound the beep
once and the fi rst two LED indicators from the top will turn green from
the top.
If you present a new user card to the product, it will sound the beep
once and all of the LED indicators except for the fi rst
two
ones from
the top will turn from red to green. Then, they all turn off and turn
back on bottom up in sequence. When all of the LED indicators turn
back on, they will turn red except for the fi rst
two
LED indicators from
the top . Then, the user card will be registered.
If you present a registered user card, the product will sound the beep twice and all LED indicators except for the
fi rst 2 from the top will turn red, and repeat turning on/off twice before being completely ON. Then the user card
will be deleted.
When you present the Master Card to the product after the user card is deleted, the product will sound the
beep once and all of the LED indicators turn red, starting with the fi rst
two
LED indicators from the top turning
from green to red.
If you present a registered user card after the Master Card is deleted, that card will be registered as the Master Card.
1.
2.
3.
4.
5.
M
1.
2.
3.
4.
M
SSA-S1000V
SSA-S1000V
MASTER CARD
SSA-S1000V
Cable
Blue
Yellow
Green
Purple
White
Short-Circuit
Power
Red
Black
DC12V
GND
SSA-S1000V
English English _ 15
TROUBLESHOOTING
troubleshooting
TROUBLESHOOTING
If the product does not function properly, please see the below for trouble shooting.
PROBLEM SOLUTION
The user card is not deleted. 1) Check if the product works properly.
- If the product works properly and you have the Master Card
c Read the Master Card.
d Read the card to delete.
e Read the Master Card again to switch to normal mode.
f For more information about deleting user cards, refer to the ID registration and
deletion section in this manual.
- If you lost the Master Card
c Turn off the product and short-circuit the purple and blue lines, then turn the
product back on.
d The Master ID will be deleted with a fl ashing LED indicator and beep.
e When the Master card is deleted, turn off the product and restore the purple
and blue lines to their respective original positions.
f The very fi rst card read by the product after turning on the product will be
registered as the Master Card.
g For deleting the ID once the Master Card is registered, refer to the ID
registration and deletion section in this manual.
h Turn off the product and short-circuit the purple and blue lines, then turn the
product back on.
i The Master ID will be deleted with a fl ashing LED indicator and beep.
j When the Master card is deleted, turn off the product and restore the purple
and blue lines to their respective original.
k The very fi rst card read by the product after turning on the product will be
registered as the Master Card.
The Exit button does not work at all. 1) Check if the Exit button is connected to SSA-S1000V properly. (the Exit button
should be used with a NO-type button)
2) Check if the Exit button works normally.
- Check the connection cable between the Exit button and SSA-S1000V for any
disconnection or short-circuit.
- Try to connect the two lines on the Exit button.
c If SSA-S1000V responds when you press the Exit button
¥ Replace the Exit button as it is defective.
d If SSA-S1000V does not respond at all
¥ Initialize the product as it is damaged or malfunctions. (Initializing the product
will lose all user data.)
3) If the trouble persists after following the procedures above, contact a
designated service center.
16_ product specifi cations
product specifi cations
PRODUCT SPECIFICATIONS
Item SSA-S1000V
Users 512 Users
Power / Current DC 12V / Max.180mA
Reading Time (Card) 30ms
Door Open Time 5sec. (Fixed)
Input Port 3ea: Exit Button, Door Sensor, Lock Type Select [Power fail Safe / Power Fail Secure]
Output Port 2ea : TR Output / DC 12V. Rating Max. 300mA Alarm Output, DC 12V. Rating Max.
1A Lock Output
LED Indicator 5 LED Indicators (Red and Green)
Beeper Piezo Buzzer
Operating Temperature -20°C to +50°C
Operating Humidity 10% to 90% Relative Humidity Non-Condensing
Color / Material Silver with Black/ Polycarbonate & Aluminum Die casting
Dimension
(W x H x D(mm)) 47 x 120 x 26
Weight 250g ±10
Correct disposal of batteries in this product
(Applicable in the European Union and other European countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of
with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate
that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are
not properly disposed of, these substances can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste and
recycle them through your local, free battery return system.
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g.
charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To
prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these
items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for
details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
P/No. : Z8100239401A
www.samsungsecurity.com
www.samsungtechwin.com
SAMSUNG TECHWIN CO., LTD.
Samsungtechwin R&D Center, 701, Sampyeong-dong, Bundang-gu, Seongnam-si, Gyeonggi-do, Korea, 463-400
TEL : +82-70-7147-8740~60 FAX : +82-31-8018-3745
SAMSUNG TECHWIN EUROPE LTD.
Samsung House, 1000 Hillswood Drive, Hillswood Business
Park Chertsey, Surrey, UNITED KINGDOM KT16 OPS
TEL : +44-1932-45-5300 FAX : +44-1932-45-5325
SAMSUNG TECHWIN AMERICA Inc.
1480 Charles Willard St, Carson, CA 90746, UNITED STATES
Tol Free : +1-877-213-1222 FAX : +1-310-632-2195
www.samsungcctvusa.com
SALES NETWORK
