ITEM 61725

Visit our website at: http://www.harborfreight.com

Email our technical support at: productsupport@harborfreight.com

Email our engine support at: predator@harborfreight.com

13,500 WATT

PORTABLE

GENERATOR

11,000 RUNNING WATTS

13,500 PEAK WATTS

Owner’s Manual & Safety Instructions

Save This Manual Keep this manual for the safety warnings and precautions, assembly,

operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the

back of the manual near the assembly diagram (or month and year of purchase if product has no number).

Keep this manual and the receipt in a safe and dry place for future reference.

Using a generator indoors CAN

KILL YOU IN MINUTES.

Generator exhaust contains

carbon monoxide. This is a poison

you cannot see or smell.

NEVER use inside

a home or garage,

EVEN IF doors and

windows are open.

Only use OUTSIDE

and far away from

windows, doors,

and vents.

When unpacking, make sure that the product is intact

and undamaged. If any parts are missing or broken,

please call 1-888-866-5797 as soon as possible.

No portion of this manual or any artwork contained herein may be reproduced in

any shape or form without the express written consent of Harbor Freight Tools.

Diagrams within this manual may not be drawn proportionally. Due to continuing

improvements, actual product may differ slightly from the product described herein.

Tools required for assembly and service may not be included.

Read this material before using this product.

Failure to do so can result in serious injury.

SAVE THIS MANUAL.

REV 15a

Page 2 For technical questions, please call 1-888-866-5797. ITEM 61725

Table of Contents

Specifications ............................................. 2

Safety ......................................................... 3

Setup .......................................................... 8

Operation ................................................... 16

Maintenance .............................................. 20

Troubleshooting ......................................... 24

Warranties ................................................. 26

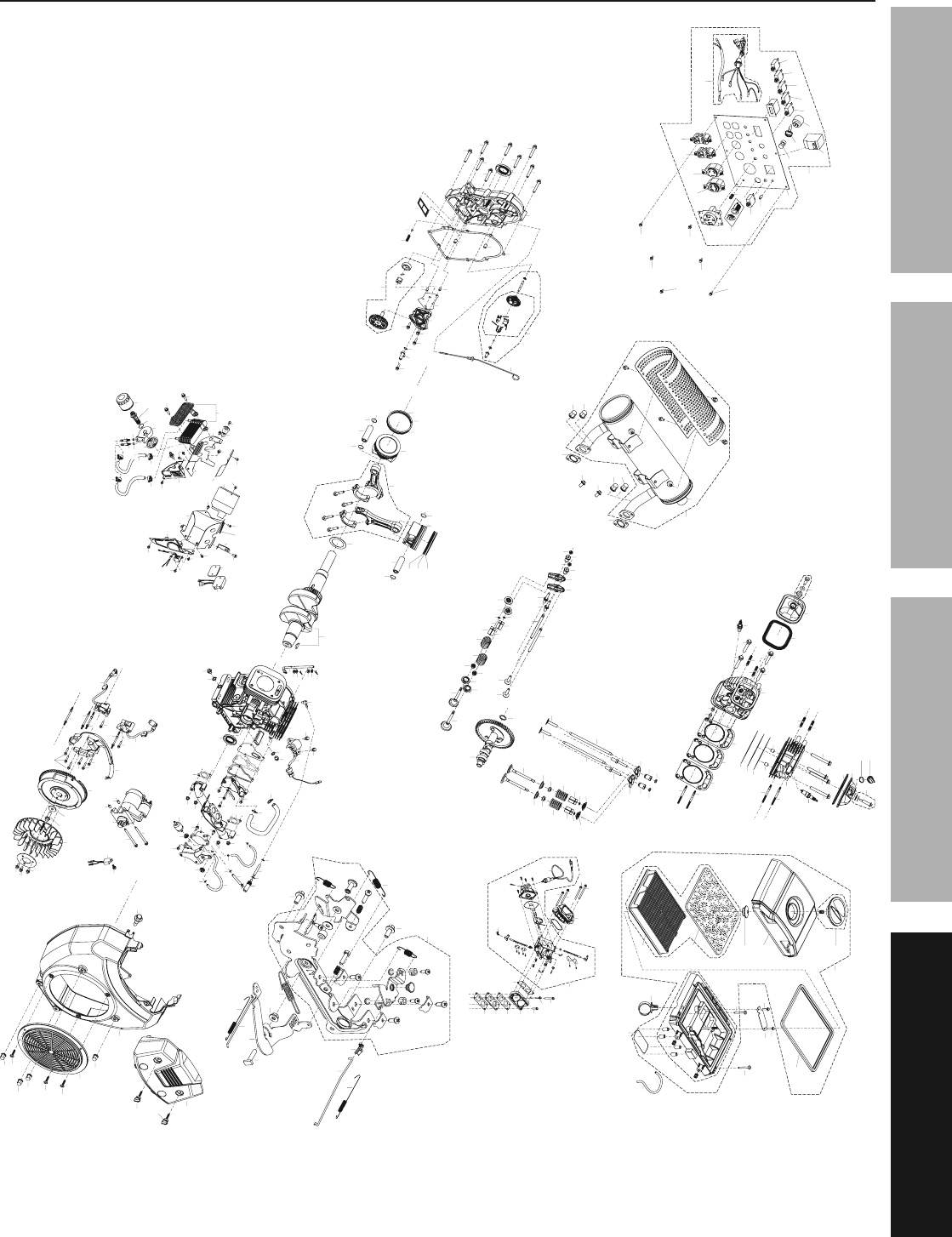

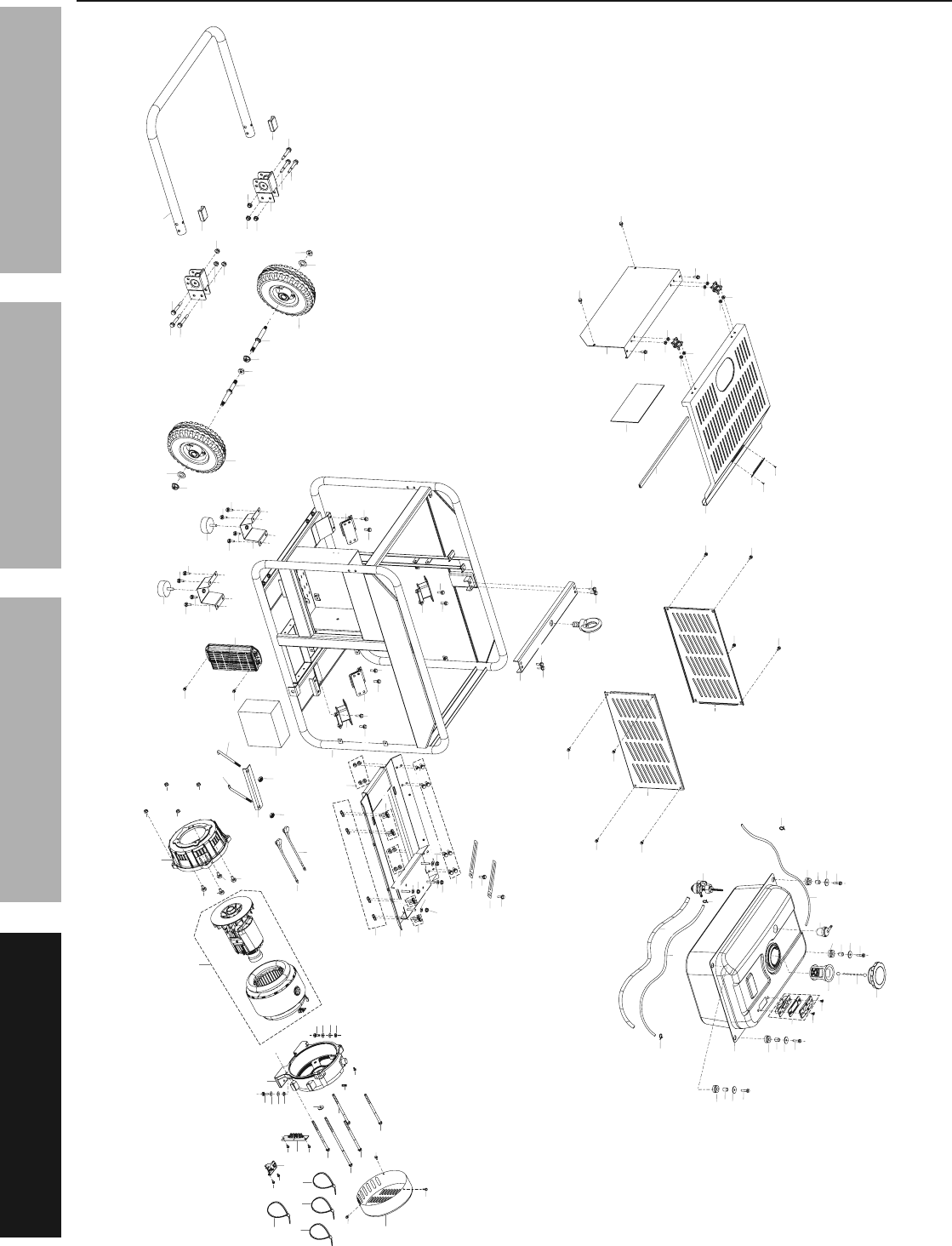

Parts Lists and Diagrams .......................... 28

Specifications

Generator Output

120/240VAC, 60Hz, 1 Phase

11,000W Rated

13,500W Maximum

Receptacles See Figure A: Control Panel on page 8

Displacement 670cc

Engine Type Horizontal Dual Cylinder

4-stroke

Cooling System Forced air cooled

Fuel Type 87+ octane stabilizer treated

unleaded gasoline

Capacity 7 Gallon

Engine Oil Type SAE

10W-30 above 32° F

5W30 at 32° F or below

SJ class oil

Capacity 2 Quart

Run Time @ 50% Load

with full tank 7.5 hr.

Sound Level at 3 feet 78 dB

Bore x Stroke 78 mm x 70 mm

Compression Ratio 7.93:1

Rotation viewed from PTO

(power takeoff - the output shaft) Counterclockwise

Spark Plug Type NGK® BP-6ES

NHSP® / Torch® F6TC

Gap 0.7 - 0.8 mm

Valve Clearance Intake 0.10 - 0.15 mm

Exhaust 0.15 - 0.20 mm

Speed Idle 1800 RPM

The emissions control system for this Engine is warranted for standards set by the

U.S. Environmental Protection Agency. For warranty information, refer to the last pages of this manual.

Page 3For technical questions, please call 1-888-866-5797.ITEM 61725

SAFETYOPERATIONMAINTENANCE SETUP

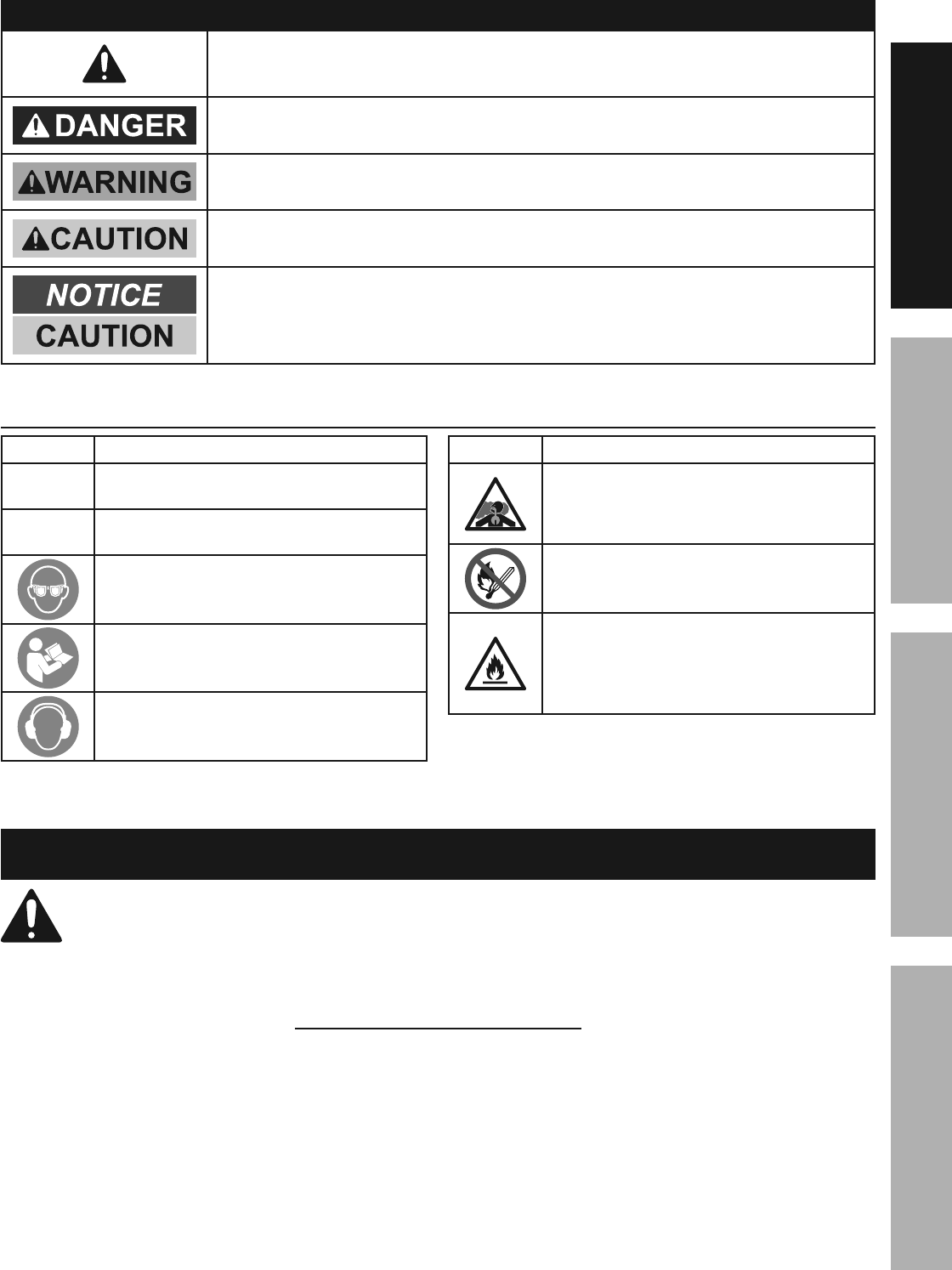

WARNING SYMBOLS AND DEFINITIONS

This is the safety alert symbol. It is used to alert you to potential

personal injury hazards. Obey all safety messages that

follow this symbol to avoid possible injury or death.

Indicates a hazardous situation which, if not avoided,

will result in death or serious injury.

Indicates a hazardous situation which, if not avoided,

could result in death or serious injury.

Indicates a hazardous situation which, if not avoided,

could result in minor or moderate injury.

Addresses practices not related to personal injury.

Symbol Definitions

Symbol Property or Statement

RPM Revolutions Per Minute

HP Horsepower

WARNING marking concerning

Risk of Eye Injury. Wear ANSI-approved

safety goggles with side shields.

Read the manual before

set-up and/or use.

WARNING marking concerning

Risk of Hearing Loss.

Wear hearing protection.

Symbol Property or Statement

WARNING marking concerning

Risk of Respiratory Injury.

Operate engine OUTSIDE and far away

from windows, doors, and vents.

WARNING marking concerning

Risk of Fire while handling fuel.

Do not smoke while handling fuel.

WARNING marking concerning

Risk of Fire.

Do not refuel while operating.

Keep flammable objects

away from engine.

IMPORTANT SAFETY INSTRUCTIONS

WARNING! Read all instructions.

Failure to follow all instructions listed below may result in fire, serious injury and/or DEATH.

The warnings and precautions discussed in this manual cannot cover all possible conditions and

situations that may occur. It must be understood by the operator that common sense and caution

are factors which cannot be built into this product, but must be supplied by the operator.

SAVE THESE INSTRUCTIONS

Page 4 For technical questions, please call 1-888-866-5797. ITEM 61725

SAFETY OPERATION MAINTENANCESETUP

Set up Precautions

1. Gasoline fuel and fumes are flammable, and

potentially explosive. Use proper fuel storage

and handling procedures. Do not store fuel

or other flammable materials nearby.

2. Have multiple ABC class fire extinguishers nearby.

3. Operation of this equipment may create sparks that

can start fires around dry vegetation.

A spark arrestor may be required. The operator

should contact local fire agencies for laws or

regulations relating to fire prevention requirements.

4. Set up and use only on a flat, level,

well-ventilated surface.

5. All connections and conduits from the Generator

to the load must only be installed by trained and

licensed electricians, and in compliance with all

relevant local, state, and federal electrical codes and

standards, and other regulations where applicable.

6. Connections for standby power to a building

electrical system must be made by a qualified

electrician. The connection must isolate the

generator power from utility power, and must comply

with all applicable laws and electrical codes.

7. Wear ANSI-approved safety goggles, heavy-duty

work gloves, and dust mask/respirator during set up.

8. Use only lubricants and fuel recommended

in the Specifications chart of this manual.

9. Improper connections to a building electrical system

can allow electrical current from the generator

to backfeed into the utility lines. Such backfeed

may electrocute utility company workers or others

who contact the lines during a power outage,

and the generator may explode, burn, or cause

fires when utility power is restored. Consult

the utility company and a qualified electrician if

intending to use the generator for back up power.

10. Do not operate the Generator before grounding.

The Generator must be earth-grounded

in accordance with all relevant electrical

codes and standards before operation.

Page 5For technical questions, please call 1-888-866-5797.ITEM 61725

SAFETYOPERATIONMAINTENANCE SETUP

Operating Precautions

1. CARBON MONOXIDE HAZARD

Using a generator indoors

CAN KILL YOU IN MINUTES.

Generator exhaust contains

carbon monoxide. This is a poison

you cannot see or smell.

NEVER use inside a home or garage,

EVEN IF doors and windows are open.

Only use OUTSIDE and far away from windows,

doors, and vents.

2. Never use a generator indoors, including in

garages, basements, crawl spaces and sheds.

Opening doors and windows or using fans will NOT

prevent carbon monoxide build up in the home.

3. When using generators, keep them outdoors

and far away from open doors, windows,

and vents to avoid toxic levels of carbon

monoxide from building up indoors.

4. If you start to feel sick, dizzy, or weak while

using a generator, get to fresh air right away.

The carbon monoxide from generators can

quickly lead to full incapacitation and death.

5. Keep children away from the equipment,

especially while it is operating.

6. Keep all spectators at least six feet

from the Engine during operation.

7. Fire Hazard! Do not fill fuel tank while engine is

running. Do not operate if gasoline has been spilled.

Clean spilled gasoline before starting engine.

Do not operate near pilot light or open flame.

8. Do not touch engine during use.

Let engine cool down after use.

9. Never store fuel or other flammable

materials near the engine.

10. If the plugged in product operates abnormally

or unusually slow, immediately stop using the

generator as a power source. Read and adhere

to the instruction manual of the product to be

powered to make sure that it can be safely and

efficiently powered by a portable generator.

11. Before connecting an appliance or power cord

to the generator: Make sure that it is in good

working order. Faulty appliances or power cords

can create a potential for electrical shock.

12. Do not exceed the maximum power rating of the

generator. Make sure that the total electrical rating

of the all of the tools or appliances plugged into

the generator at the same time does not exceed

that of the generator. Check that the startup surge

will not be beyond the limit of the Generator.

13. Avoid substantially overloading which will trip

the circuit breaker. Slightly overloading the

generator may not trip the circuit breaker,

but will lead to premature generator failure.

14. Do not attempt to connect or disconnect

load connections while standing in water,

or on wet or soggy ground.

15. Do not touch electrically energized parts of

the Generator and interconnecting cables

or conductors with any part of the body, or

with any non-insulated conductive object.

16. Connect the Generator only to a load that is

compatible with the electrical characteristics

and rated capacities of the Generator.

17. Insulate all connections and disconnected wires.

18. Guard against electric shock. Prevent body contact

with grounded surfaces such as pipes,

radiators, ranges, and refrigerators.

19. Only use a suitable means of transport and

lifting devices with sufficient weight bearing

capacity when transporting the generator.

20. Secure the generator on transport vehicles to

prevent it from rolling, slipping, and tilting.

21. Industrial applications must follow

OSHA requirements.

22. Do not leave the generator unattended when it is

running. Turn off the generator (and remove safety

keys, if available) before leaving the work area.

23. The generator can produce high noise levels.

Prolonged exposure to noise levels

above 85 dBA is hazardous to hearing.

Wear ear protection when operating the generator

or when working nearby while it is operating.

24. Wear ANSI-approved safety glasses

and hearing protection during use.

25. People with pacemakers should consult their

physician(s) before use. Electromagnetic fields in

close proximity to a heart pacemaker could cause

pacemaker interference or pacemaker failure.

Caution is necessary when near the

engine’s magneto or recoil starter.

Page 6 For technical questions, please call 1-888-866-5797. ITEM 61725

SAFETY OPERATION MAINTENANCESETUP

26. Use only accessories that are recommended

by Harbor Freight Tools for your model.

Accessories that may be suitable for one

piece of equipment may become hazardous

when used on another piece of equipment.

27. Do not operate in explosive atmospheres,

such as in the presence of flammable

liquids, gases, or dust. Gasoline-powered

engines may ignite the dust or fumes.

28. Stay alert, watch what you are doing and

use common sense when operating this

generator. Do not use while tired or under the

influence of drugs, alcohol or medication.

29. Dress properly. Do not wear loose clothing or

jewelry. Keep hair, clothing and gloves away

from moving parts. Loose clothes, jewelry or

long hair can be caught in moving parts.

30. Parts, especially exhaust system components,

get very hot during use. Stay clear of hot parts.

31. Do not cover the generator during operation.

32. Keep the generator and surrounding

area clean at all times.

33. Use the equipment, accessories, etc., in

accordance with these instructions and in the

manner intended for the particular type of

equipment, taking into account the working

conditions and the work to be performed.

Use of the equipment for operations different from

those intended could result in a hazardous situation.

34. Do not operate the equipment with known

leaks in the engine’s fuel system.

35. WARNING: This product contains or, when

used, produces a chemical known to the State

of California to cause cancer and birth defects

or other reproductive harm. (California Health

& Safety Code § 25249.5, et seq.)

36. When spills of fuel or oil occur, they must be

cleaned up immediately. Dispose of fluids and

cleaning materials as per any local, state, or

federal codes and regulations. Store oil rags in

a bottom-ventilated, covered, metal container.

37. Keep hands and feet away from moving parts.

Do not reach over or across

equipment while operating.

38. Before use, check for misalignment or binding of

moving parts, breakage of parts, and any other

condition that may affect the equipment’s operation.

If damaged, have the equipment serviced

before using. Many accidents are caused

by poorly maintained equipment.

39. Use the correct equipment for the application.

Do not modify the equipment and do not use the

equipment for a purpose for which it is not intended.

Operating Precautions (cont.)

Page 7For technical questions, please call 1-888-866-5797.ITEM 61725

SAFETYOPERATIONMAINTENANCE SETUP

Service Precautions

1. Before service, maintenance, or cleaning:

a. Unplug all devices from the generator.

b. Turn the engine switch to its “OFF” position.

c. Allow the engine to completely cool.

d. Then, remove the spark plug cap

from the spark plug.

2. Keep all safety guards in place and in

proper working order. Safety guards include

muffler, air cleaner, mechanical guards,

and heat shields, among other guards.

3. Keep all electrical equipment clean and dry.

Replace any wiring where the insulation is

cracked, cut, abraded, or otherwise degraded.

Replace terminals that are worn, discolored, or

corroded. Keep terminals clean and tight.

4. Do not alter or adjust any part of the

equipment or its engine that is sealed by the

manufacturer or distributor. Only a qualified

service technician may adjust parts that may

increase or decrease governed engine speed.

5. Wear ANSI-approved safety goggles,

heavy-duty work gloves, and

dust mask/respirator during service.

6. Maintain labels and nameplates on the equipment.

These carry important information.

If unreadable or missing, contact

Harbor Freight Tools for a replacement.

7. Have the equipment serviced by a qualified repair

person using only identical replacement parts.

This will ensure that the safety of the equipment

is maintained. Do not attempt any service or

maintenance procedures not explained in this

manual or any procedures that you are uncertain

about your ability to perform safely or correctly.

8. Store equipment out of the reach of children.

9. Follow scheduled engine and

equipment maintenance.

Refueling:

1. Do not smoke, or allow sparks, flames,

or other sources of ignition around the

equipment, especially when refuelling.

2. Do not refill the fuel tank while the

engine is running or hot.

3. Do not fill fuel tank to the top.

Leave a little room for the fuel to expand as needed.

4. Refuel in a well-ventilated area only.

5. Wipe up any spilled fuel and allow excess

to evaporate before starting engine.

To prevent FIRE, do not start the engine

while the smell of fuel hangs in the air.

SAVE THESE INSTRUCTIONS.

Page 8 For technical questions, please call 1-888-866-5797. ITEM 61725

SAFETY OPERATION MAINTENANCESETUP

Set Up

Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual

including all text under subheadings therein before set up or use of this product.

TO PREVENT SERIOUS INJURY:

Operate only with proper spark arrestor installed.

Operation of this equipment may create sparks that can start fires around dry vegetation.

A spark arrestor may be required.

The operator should contact local fire agencies for laws or regulations

relating to fire prevention requirements.

Components and Controls

Display

Switch

Choke Knob

120/240VAC

46A Breakers Low Oil Indicator

120/240VAC 46A

Receptacle

120/240VAC

30A Receptacle

and Breakers

120VAC 30A

Receptacle

and Breaker

120VAC 20A

Receptacles

and Breaker

120VAC 20A

Receptacles

and Breaker

Ground

Terminal

12VDC Receptacle

and Breaker

Figure A: Control Panel

Page 9For technical questions, please call 1-888-866-5797.ITEM 61725

SAFETYOPERATIONMAINTENANCE SETUP

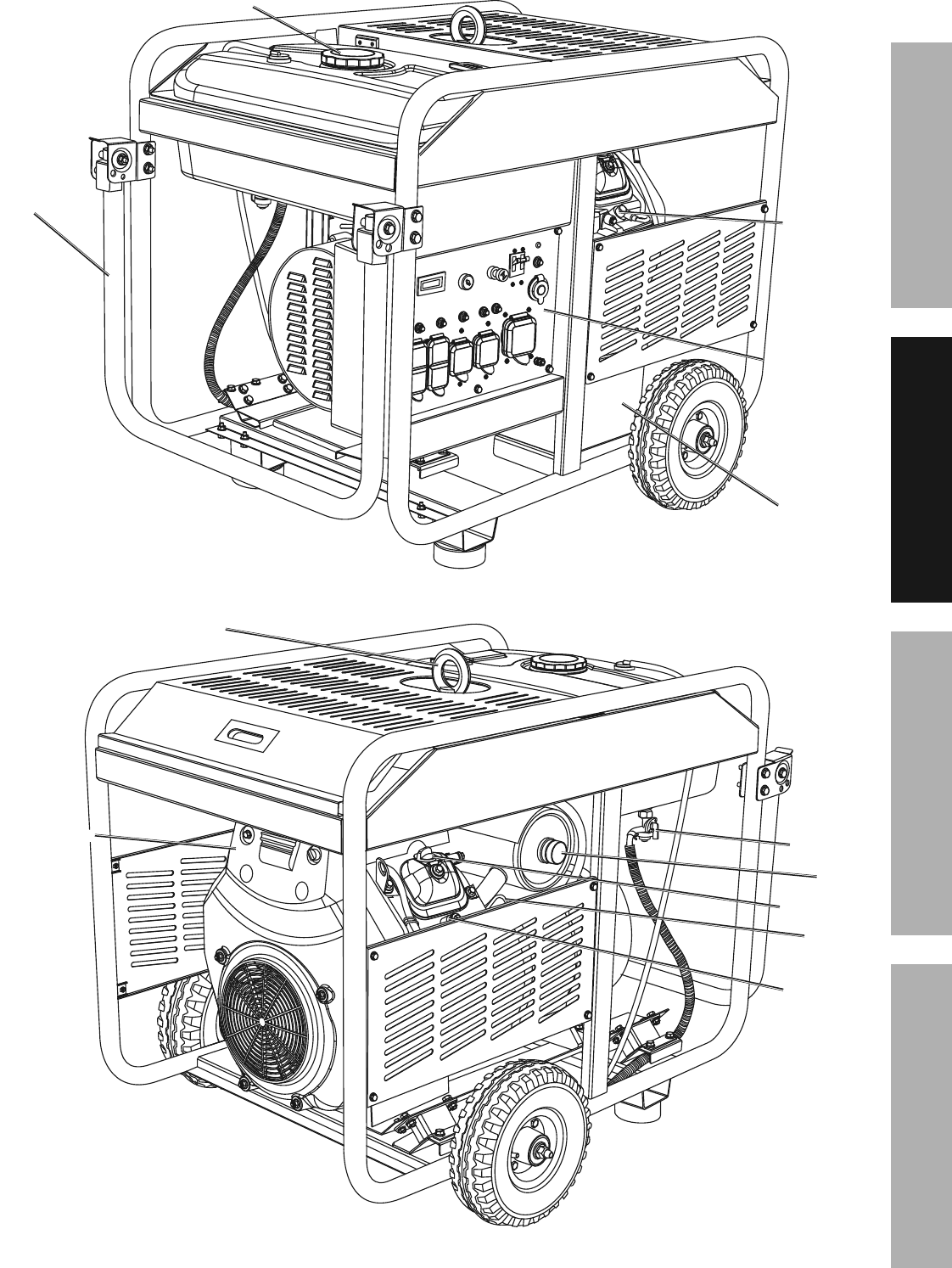

Control Panel

Battery

(sold separately)

Handle

Spark Plug

(1 of 2)

Fuel Cap

Figure B: Generator Front

Lifting Bracket

Fuel Valve

Muffler

Oil Fill Plug

Dipstick

Spark Plug

(2 of 2)

Air Cleaner

Figure C: Generator Back

Page 10 For technical questions, please call 1-888-866-5797. ITEM 61725

SAFETY OPERATION MAINTENANCESETUP

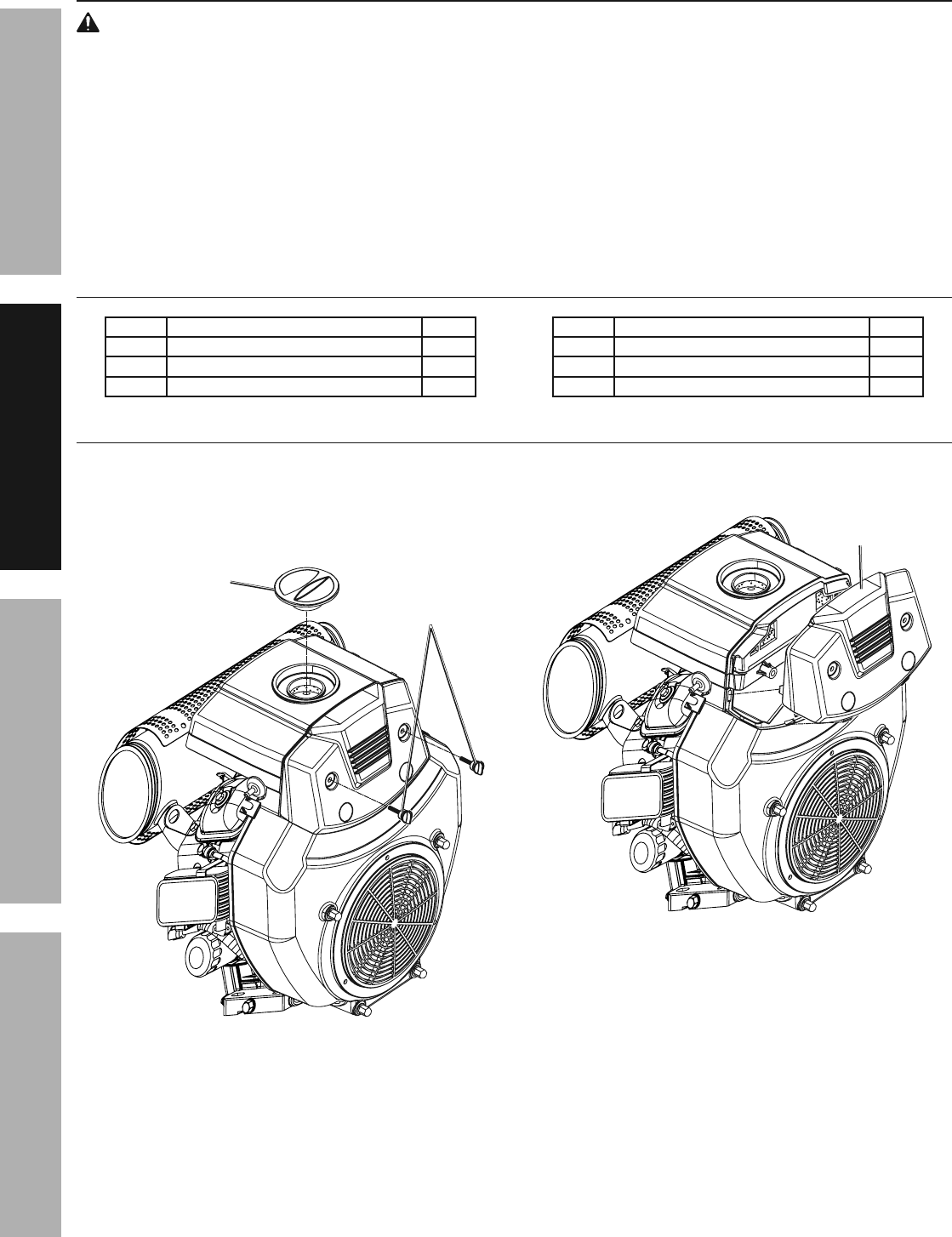

High Altitude Operation Above 3000 feet

WARNING! TO PREVENT SERIOUS INJURY FROM FIRE:

Follow instructions in a well-ventilated area away from ignition sources.

If the engine is hot from use, shut the engine off and wait for it to cool before proceeding. Do not smoke.

NOTICE: Warranty void if necessary adjustments are not made for high altitude use.

At high altitudes, the engine’s carburetor, governor, and any other parts that control the fuel-air ratio will need

to be adjusted by a qualified mechanic to allow efficient high-altitude use and to prevent damage to the engine

and any other devices used with this product. The fuel system on this engine may be influenced by operation

at higher altitudes. Proper operation can be ensured by installing an altitude kit at altitudes higher than 3000 ft.

above sea level. At elevations above 8000 ft, the engine may experience decreased performance, even with

the proper main jet. Operating this engine without the proper altitude kit installed may increase the engine’s

emissions and decrease fuel economy and performance. The kit should be installed by a qualified mechanic.

High Altitude Kit Parts List - A

Part Description Qty

A1 Left Main Jet 3000-6000 ft. 1

A2 Right Main Jet 3000-6000 ft. 1

A3 Left Main Jet 6000-8000 ft. 1

Part Description Qty

A4 Right Main Jet 6000-8000 ft. 1

137d Outer Bowl O-ring (replacement) 1

137e Inner Bowl O-ring (replacement) 1

Disassembly

1. Turn off the engine.

2. Close the fuel valve.

3. Remove the Air Cleaner Top Knob (142a) and the

two Air Cleaner Front Knobs (102). See Figure D.

Air Cleaner

Top Knob (142a)

Air Cleaner

Front Knob

(102)

Figure D: Remove Knobs

4. Remove the Air Cleaner Front Cover (101),

pulling it up then out. See Figure E.

Air Cleaner

Front Cover (101)

Figure E: Remove Front Cover

Page 11For technical questions, please call 1-888-866-5797.ITEM 61725

SAFETYOPERATIONMAINTENANCE SETUP

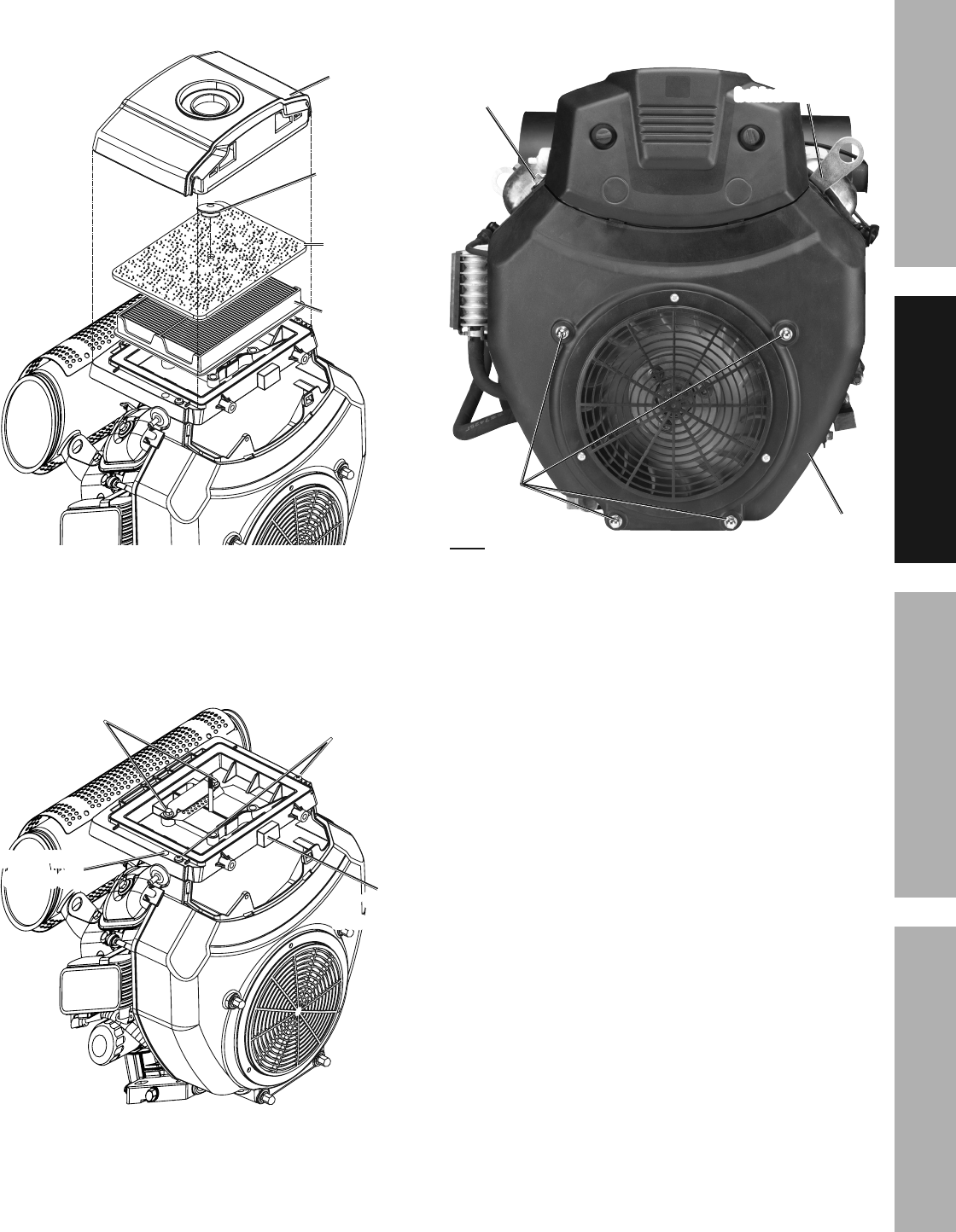

5. Remove the Air Cleaner Top Cover (142b) and

internal Air Cleaner components

(Spacer, Foam and Paper Filters (142c-142e)).

See Figure F.

Air Cleaner

Top Cover

(142b)

Air Cleaner

Spacer (142c)

Foam Air

Filter (142d)

Paper Air

Filter (142e)

Figure F: Remove Air Cleaner

Top Cover and components

6. Remove the two Intake Cover Bolts (143) and the

two Air Cleaner Base Bolts (146). See Figure G.

7. Detach the top of the Fuel Filter Clip (147)

from the Air Cleaner Base (142g).

Intake Cover

Bolts (143)

Air Cleaner

Base Bolts

(146)

Fuel Filter

Clip (147)

Air Cleaner

Base (142g)

Figure G: Remove Bolts and Clip

from Air Cleaner Base

8. Remove the Air Cleaner Base.

9. Remove the four Shroud Nuts (99) and the two

Flange Shoulder Bolts (112) from the Shroud (100).

The Flange Shoulder Bolt on the right holds the

Lifting Bracket (111) in place. See Figure H.

Shroud

Nuts (99)

Flange

Shoulder

Bolt (112)

Flange Shoulder

Bolt (112)

behind Lifting Bracket

Shroud (100)

Note: Air Cleaner Front Cover is still shown,

although it should have been removed in step 4.

Figure H: Remove Shroud

10. Remove the Shroud.

Page 12 For technical questions, please call 1-888-866-5797. ITEM 61725

SAFETY OPERATION MAINTENANCESETUP

11. WARNING! TO PREVENT SERIOUS INJURY FROM FIRE, BEFORE CONTINUING:

a. Make sure that the work area is well-ventilated and that there are no ignition sources.

b. Have multiple class ABC fire extinguishers available.

c. Double-check that fuel hose leading from fuel tank to Fuel Filter is clamped or fuel valve is closed.

d. Use a safe, proper means to clean up all fuel spills immediately.

12. Squeeze the Spring Clamp (140) and slide it back.

Detach the Fuel Hose (141) from the port at

the top of the Carburetor. See Figure I.

Spring

Clamp (140)

fuel

port

Fuel

Hose (141)

Figure I: Detach Fuel Hose

13. Locate the Throttle Rod (174) connection on

the left side of the carburetor. See Figure J.

Throttle

Rod (174)

Throttle Rod

Spring (175) Throttle Rod

Clip (139)

Figure J: Disconnect Throttle Rod

14. A: Swing the black Throttle Rod Clip (139) down

to release the Throttle Rod. See Figure K.

B: Pull the Throttle Rod out of the Clip.

Figure K: Throttle Rod Clip

15. Disconnect the Throttle Rod Spring

from the Throttle Rod Clip.

16. Squeeze the Spring Wire Clamp (32) and slide

it back. Detach the Breather Hose (33) from the

right side of the Carburetor. See Figure L.

Spring Wire

Clamp (32)

Breather

Hose (33)

Figure L: Detach Breather Hose

17. Locate the Choke Rod (177) connection on the

right side of the carburetor. See Figure M.

Choke

Rod (177)

Choke Rod

Clip (176)

Figure M: Disconnect Choke Rod

18. Swing the black Choke Rod Clip (176) aside to

release the Choke Rod. Disconnect the Choke Rod.

Page 13For technical questions, please call 1-888-866-5797.ITEM 61725

SAFETYOPERATIONMAINTENANCE SETUP

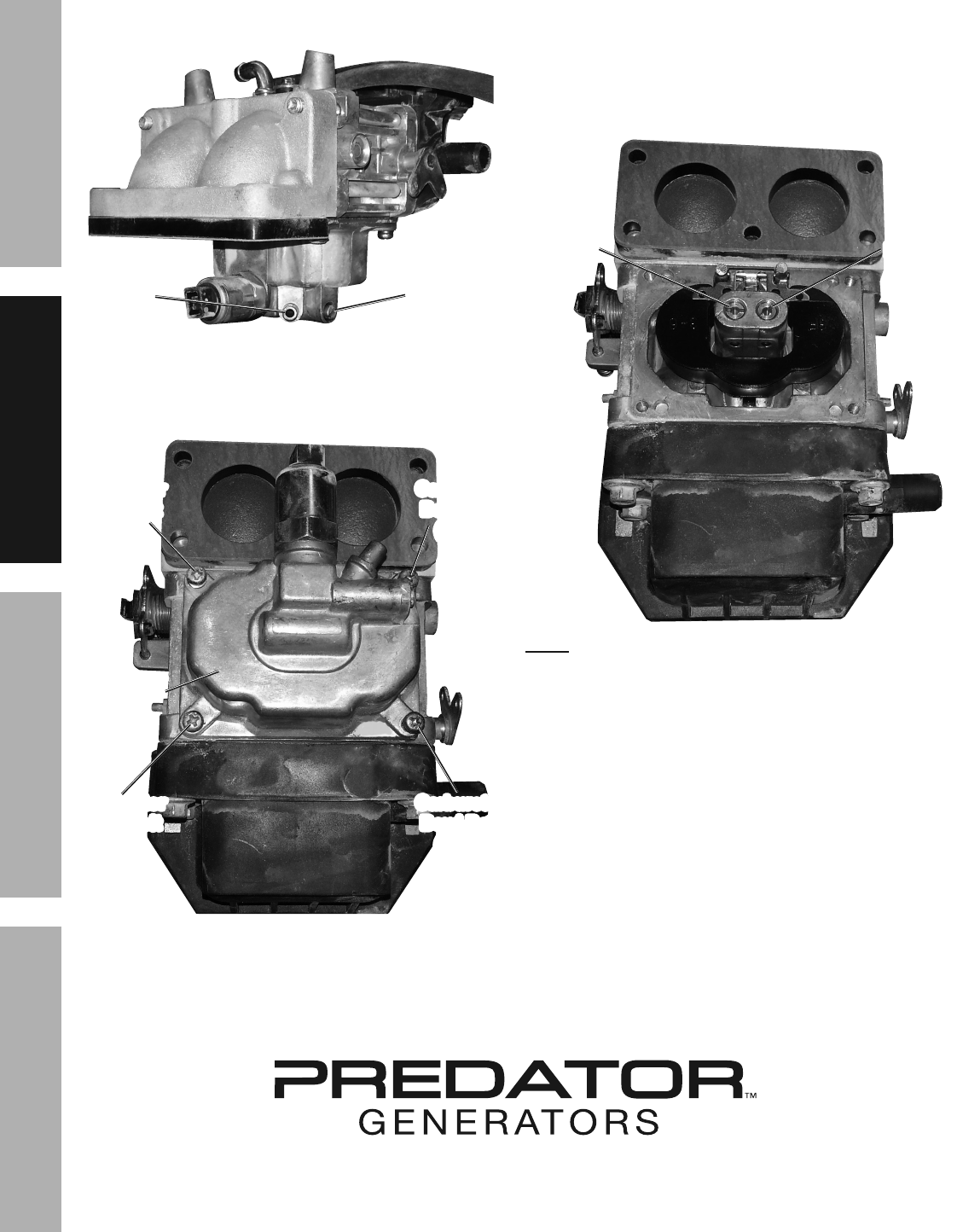

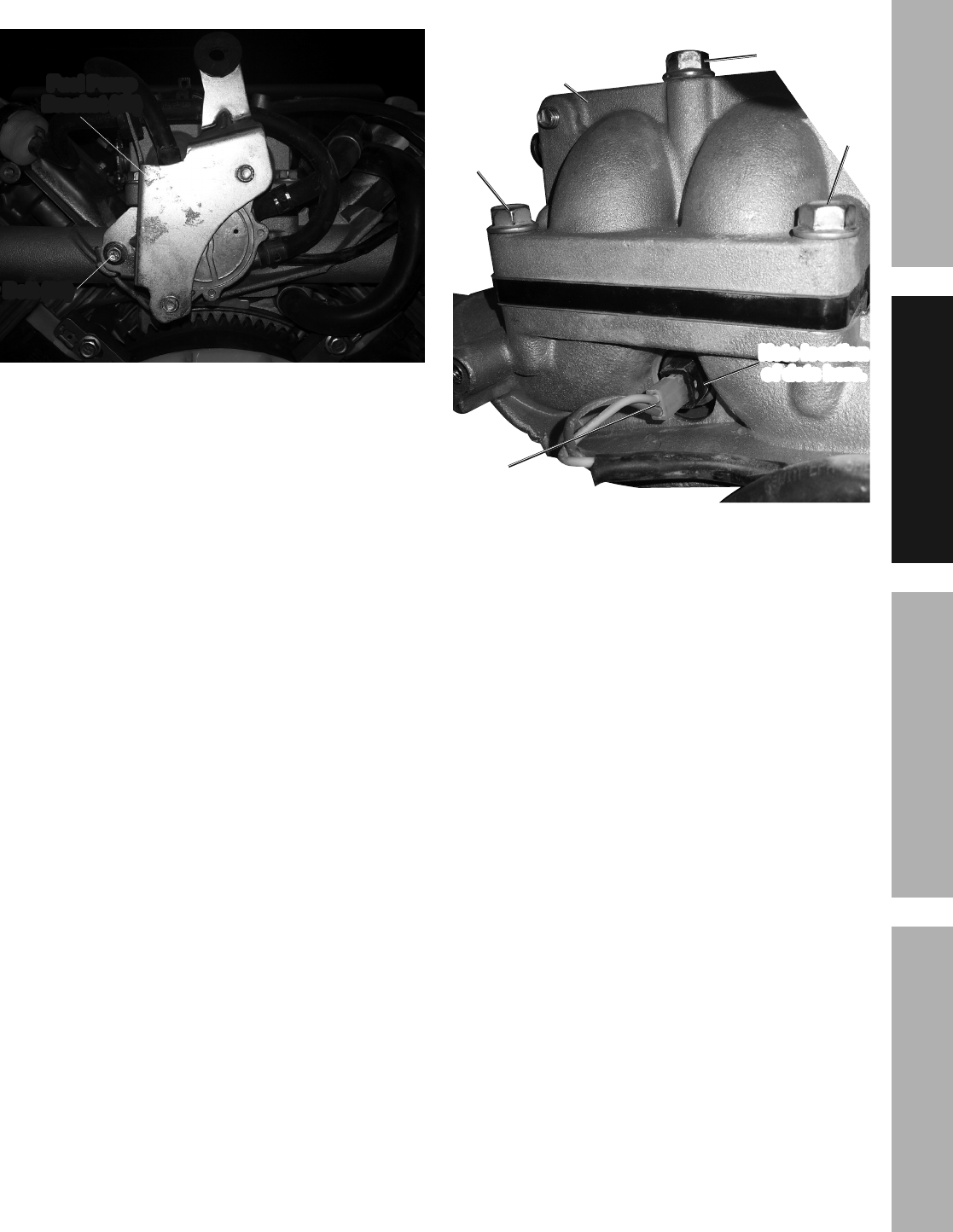

19. At the front of the Carburetor,

remove the Bolt (38) holding the

Fuel Pump Bracket (40) in place. See Figure N.

Fuel Pump

Bracket (40)

Bolt (38)

Figure N: Remove Fuel Pump Bracket

20. Underneath where the Fuel Pump Bracket was,

the Solenoid Valve (138) is connected.

Note the location of the green wire and green dot on

the connector. Unplug the connector. See Figure O.

Solenoid wire

connector

Note location

of dots here.

Bolt (133)

Carburetor

Intake Elbow

(131) Bolt

(132)

Bolt

(132)

Figure O: Disconnect Solenoid Valve wire connector

21. Remove Bolt (133) and two Bolts (132) from the

Carburetor Intake Elbow (131). See Figure O.

22. Remove the Carburetor assembly from the engine.

Keep it upright, it may contain fuel.

Page 14 For technical questions, please call 1-888-866-5797. ITEM 61725

SAFETY OPERATION MAINTENANCESETUP

23. Hold the fuel drain port over a bowl, and open the

Carburetor Drain Plug (137a) to allow fuel to drain

out of that port. Once the carburetor is empty,

close the Carburetor Drain Plug. See Figure P.

Carburetor

Drain Plug

(137a)

fuel

drain

port

Figure P: Carburetor Drain

24. Turn the Carburetor assembly over.

25. Remove the four Carburetor Bowl Bolts (137b) and

remove the Carburetor Bowl (137c). See Figure Q.

Carburetor

Bowl Bolt

(137b)

Carburetor

Bowl Bolt

(137b)

Carburetor

Bowl

(137c)

Carburetor

Bowl Bolt

(137b)

Carburetor

Bowl Bolt

(137b)

Figure Q: Carburetor Bowl Bolts

26. Use a carburetor screwdriver (sold separately)

to remove the Left Main Jet and replace it with

the proper replacement Left Main Jet (A1 or A3)

for the altitude. See Figure R.

27. Use a carburetor screwdriver to remove the

Right Main Jet and replace it with the replacement

Right Main Jet (A2 or A4) for the same altitude

as the Left Main Jet. See Figure R.

Right

Main Jet

(A2/A4)

Left

Main Jet

(A1/A3)

Note: Since carburetor is upside-down,

left and right sides are reversed.

Figure R: Main Jets

Page 15For technical questions, please call 1-888-866-5797.ITEM 61725

SAFETYOPERATIONMAINTENANCE SETUP

Reassembly

Note: Reassembly step references shown in brackets.

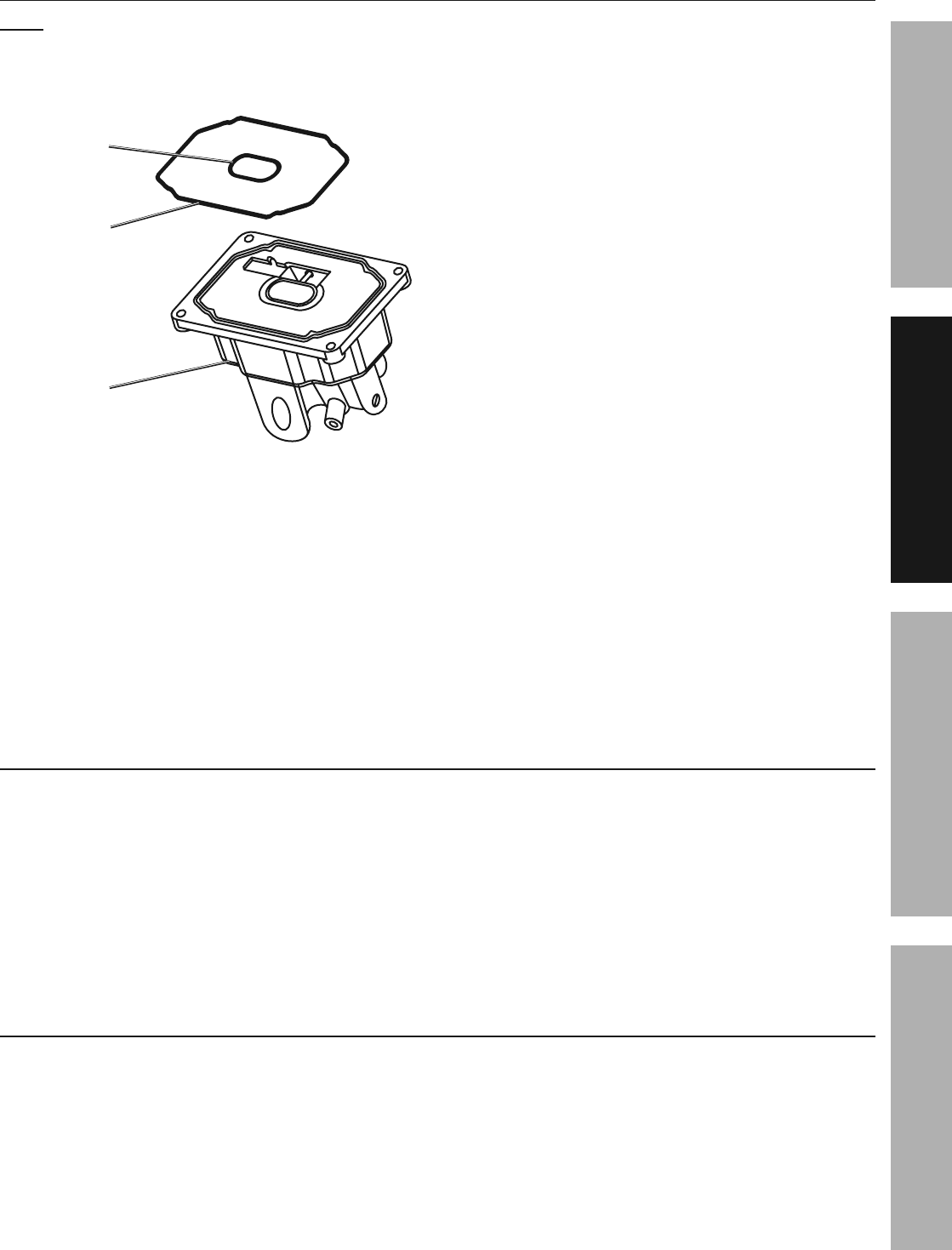

1. Replace the Outer and Inner Bowl O-rings

(137d, 137e) with the replacements

from the altitude kit. Do not reuse existing O-rings.

Carburetor

Bowl

Outer Bowl

O-ring

Inner Bowl

O-ring

Figure S: Replace Bowl O-rings

2. Assemble the Carburetor Bowl using four

Carburetor Bowl Bolts. [#25] Assemble Carburetor

Intake Elbow to Intake using Bolts. [#21]

3. Attach Solenoid Valve connector, line up green

wire with the green dot on the connector. [#20]

4. Attach Fuel Pump Bracket to front of intake

using Bolt. Gently lift the Bracket after

assembly to ensure proper alignment. [#19]

5. Attach the Choke Rod on the right side of the

Carburetor, and secure it with its Clip. [#17,18]

6. Attach the Breather Hose to the Carburetor,

and secure it with its Clamp. [#16]

7. Attach the Throttle Rod Spring to the Throttle Rod

Clip on the left side of the Carburetor. [#15]

8. Insert the Throttle Rod on the left side of the

Carburetor, and secure it with its Clip. [#14]

9. Attach the Fuel Hose to the port at the top of the

Carburetor and attach it using its Clamp. [#12]

10. Install Shroud using four Shroud Bolts and two

Flange Shoulder Bolts. [#9,10] Include the Lifting

Bracket in place on the right Flange Shoulder Bolt.

11. Install Air Cleaner Base using two Air Cleaner Base

Bolts. Connect Fuel Filter Clip under left side of

Air Cleaner Base. Install the Intake Cover and

Intake Screen using the Intake Cover Bolts. [#6-8]

12. Place the Paper Air Filter, Foam Air Filter,

Air Cleaner Spacer, and Air Cleaner Top Cover

into place on the Air Cleaner Base. [#5]

13. Replace the Air Cleaner Front Cover. [#4]

14. Use the Air Cleaner Top Knob and Air Cleaner

Front Knobs to secure the Covers in place. [#3]

15. Once all connections are secure, open fuel valve.

16. Wipe up any spilled fuel and allow excess

to evaporate before starting engine.

To prevent FIRE, do not start the engine

while the smell of fuel hangs in the air.

Battery Setup Instructions

1. Place a fully charged, lead-acid 12 volt,

36 Ah battery (not included) in a stable,

flat location near the engine.

2. Use provided battery cables only.

3. Attach the positive cable securely to

the positive battery terminal to prevent

disconnection and short circuits.

4. Attach the negative cable securely to

the negative battery terminal to prevent

disconnection and short circuits.

5. Coat the terminals and cable ends with

a corrosion-preventive coating.

Grounding

1. The Generator must be properly grounded

in accordance with all relevant electrical

codes and standards before operation.

Have the unit grounded by a qualified electrician

if you are not qualified to do so.

2. To ground the Generator, connect a #XX AWG

grounding wire (not included) from the

Grounding Terminal on the Control Panel

to a grounding rod (not included).

The grounding rod must be an earth-driven

copper or brass rod (electrode) which can

adequately ground the Generator.

3. Refer to local regulations for

ground source information.

Page 16 For technical questions, please call 1-888-866-5797. ITEM 61725

SAFETY OPERATION MAINTENANCESETUP

Operation

Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual

including all text under subheadings therein before set up or use of this product.

Pre-Start Checks

Inspect engine and equipment looking for damaged, loose, and missing parts before set up and starting.

If any problems are found, do not use equipment until fixed properly.

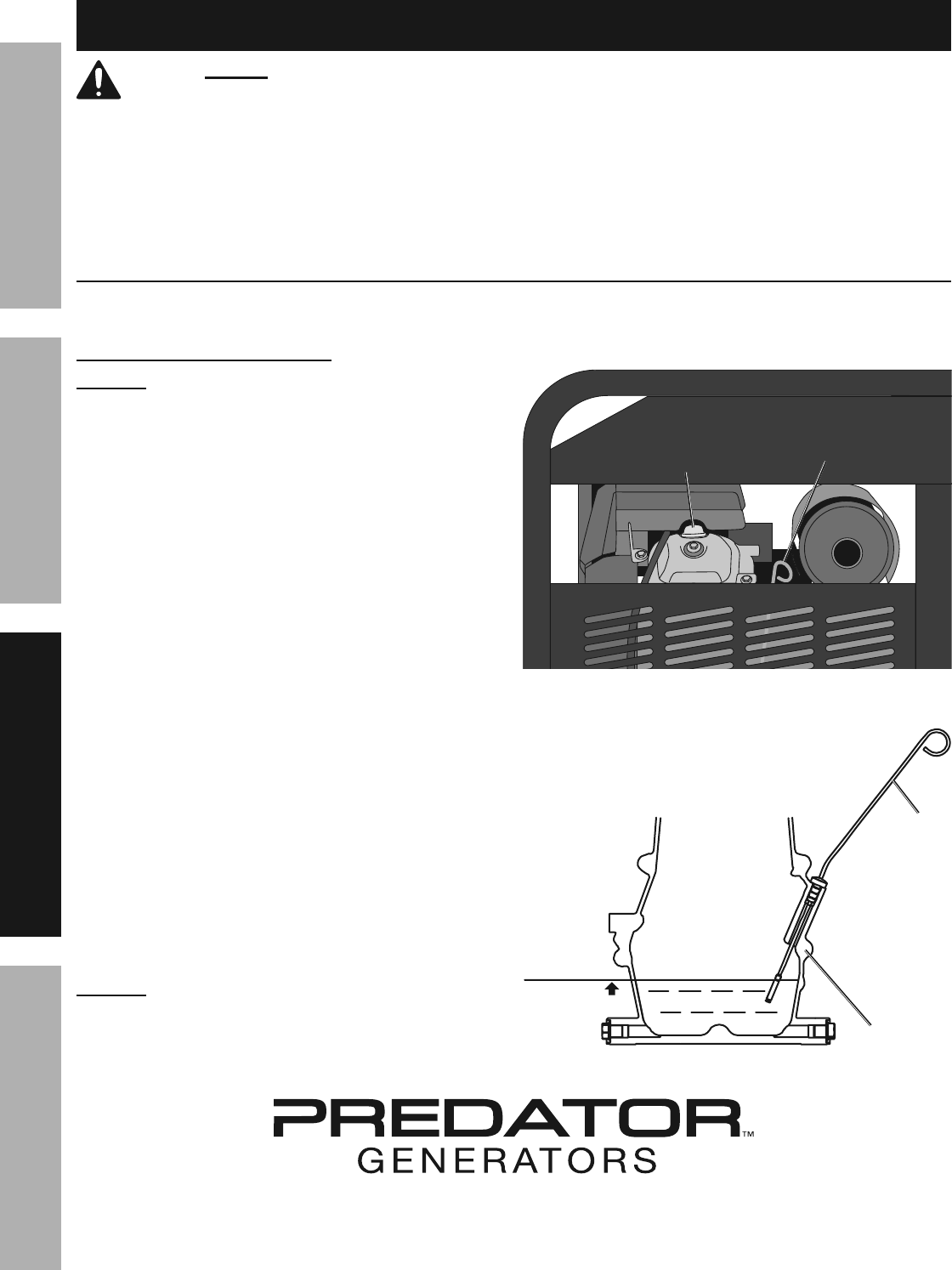

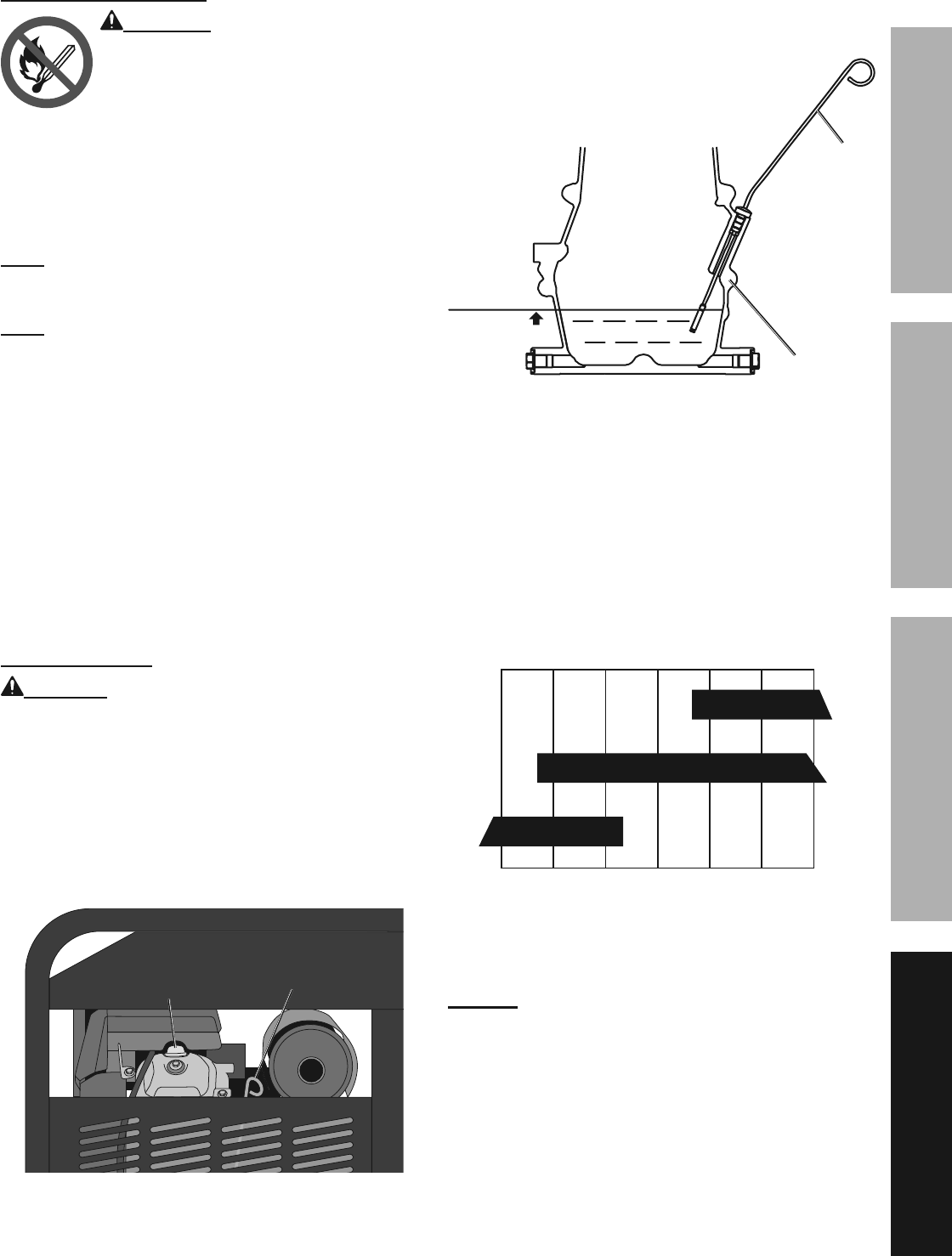

Checking and Filling Engine Oil

NOTICE: Your Warranty is VOID if the engine’s

crankcase is not properly filled with oil before

each use. Before each use, check the oil level.

Do not run the engine with low or no engine oil.

Running the engine with no or low engine oil

WILL permanently damage the engine.

1. Make sure the engine is stopped and is level.

2. Close the Fuel Valve.

3. On the back of the Generator, pull the Dipstick out,

and wipe its end off with a clean, lint free rag.

4. Reinsert the Dipstick fully and remove it to

check the oil level. The oil level should be

up to the full level as shown in Figure U.

5. If the oil level is at or below the low mark:

a. Clean the top of the yellow Oil Fill Cap

and the area around it.

b. Remove the Oil Fill Cap by turning

it counterclockwise.

c. Add the appropriate type of oil until the oil level

is at the proper level. SAE 10W-30 oil is

recommended for general use.

(Table A: SAE Viscosity Grades on page 21 in

the Maintenance section shows other viscosities

to use in different average temperatures.)

6. Thread the Oil Fill Cap back in

and reinsert the Dipstick.

NOTICE: Do not run the engine with too little oil.

The engine will be permanently damaged.

Oil Fill Cap

(yellow) Dipstick

Figure T: Oil Fill Cap and Dipstick

(on back of Generator)

Full Level

Dipstick

Engine

Crankcase

Figure U: Oil Fill Level

Page 17For technical questions, please call 1-888-866-5797.ITEM 61725

SAFETYOPERATIONMAINTENANCE SETUP

Checking and Filling Fuel

WARNING! TO PREVENT SERIOUS

INJURY FROM FIRE:

Fill the fuel tank in a well-ventilated area

away from ignition sources. If the engine is

hot from use, shut the engine off and wait

for it to cool before adding fuel.

Do not smoke.

1. Clean the Fuel Cap and the area around it.

2. Unscrew and remove the Fuel Cap.

3. If needed, fill the Fuel Tank to about 1 inch under

the fill neck of the Fuel Tank with 87 octane or

higher unleaded gasoline that has been treated

with a fuel stabilizer additive. Follow fuel stabilizer

manufacturer’s recommendations for use.

Note: Do not use gasoline containing more than

10% ethanol (E10). Do not use E85 ethanol.

Note: Do not use gasoline that has been stored in a

metal fuel container or a dirty fuel container. It can

cause particles to enter the carburetor, effecting

engine performance and/or causing damage.

4. Then replace the Fuel Cap.

5. Wipe up any spilled fuel and allow excess

to evaporate before starting engine.

To prevent FIRE, do not start the engine

while the smell of fuel hangs in the air.

Page 18 For technical questions, please call 1-888-866-5797. ITEM 61725

SAFETY OPERATION MAINTENANCESETUP

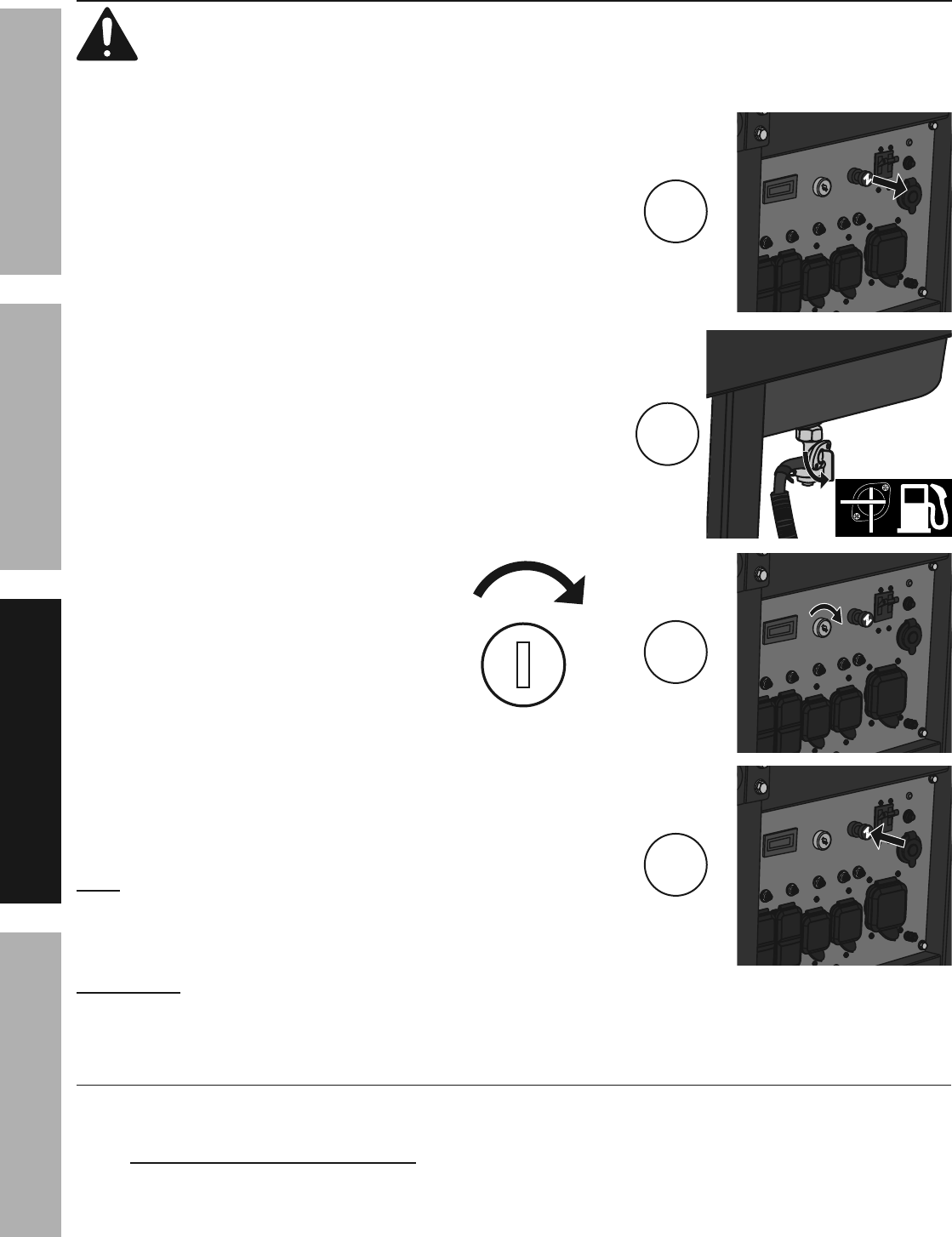

Starting the Engine

Before starting the engine:

a. Inspect the generator and engine.

b. Disconnect all electrical loads from the generator.

c. Fill the engine with the proper amount and type of both unleaded gasoline and oil.

1. To start a cold engine, pull the START Knob out

to the START position.

To restart a warm engine, push the START Knob in

to the RUN position.

2. Open the Fuel Valve.

3. Turn the Engine Switch to START.

4. Allow the Engine to run for several seconds.

Then, if the START lever is in the START position,

move the START Lever very slowly to its RUN position.

Note: Moving the START Lever too

fast could stall the engine.

IMPORTANT: Allow the engine to run at no load for five minutes with no

load after each start-up so that the engine can stabilize.

5. Adjust the Throttle as needed.

Break-in Period:

a. Breaking-in the engine will help to ensure proper equipment and engine operation.

b. The break-in period will last about 25 hours of use. DO NOT exceed

75% of the Generator’s rated capacity during this period.

• Change the engine oil after this period.

Under normal operating conditions subsequent maintenance follows

the schedule explained in the MAINTENANCE section.

OFF START

OFF

Page 19For technical questions, please call 1-888-866-5797.ITEM 61725

SAFETYOPERATIONMAINTENANCE SETUP

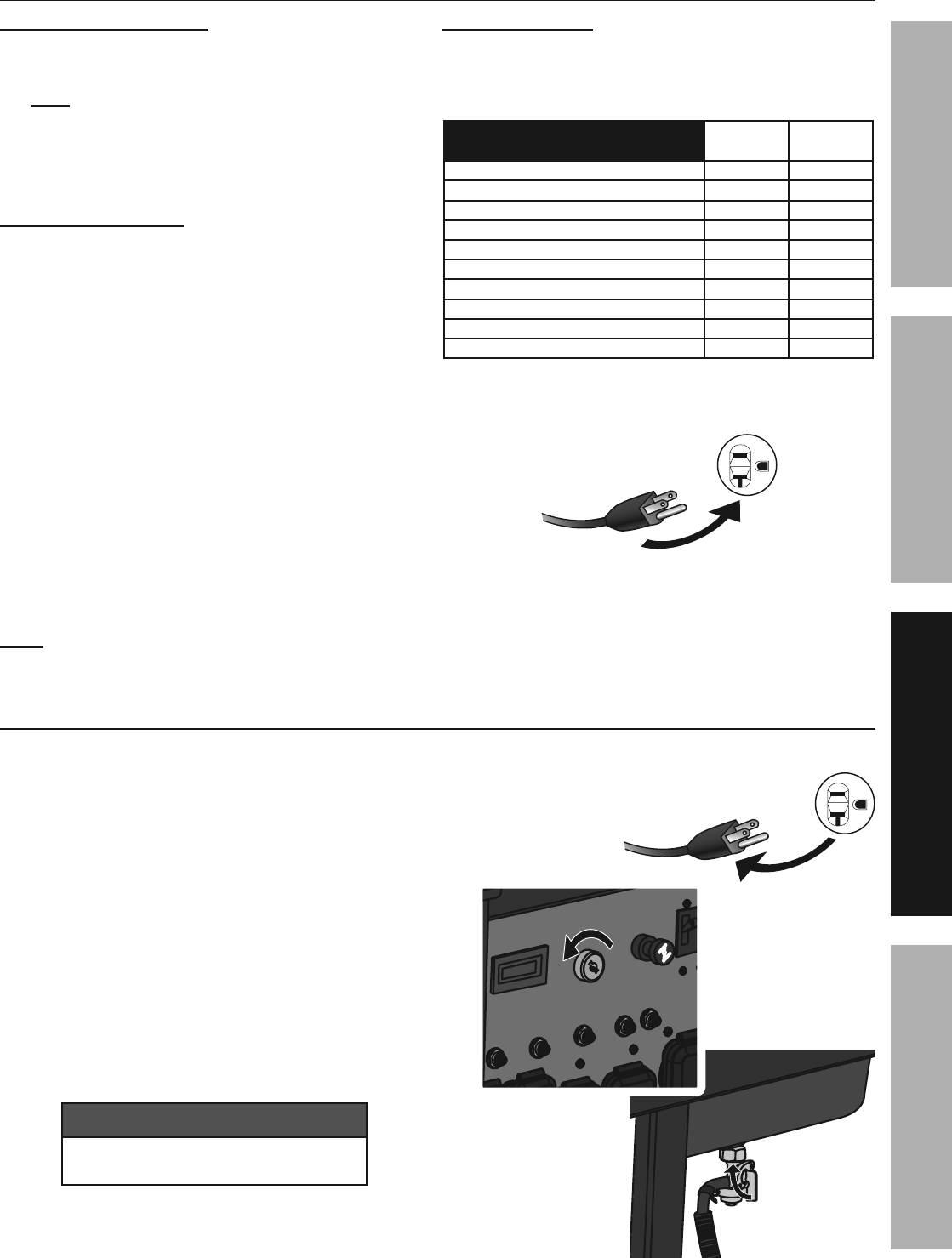

Connecting Loads to the Generator

Load and Circuit Breaker:

1. The total combined load through the outlet

on the Generator must not exceed the

rated maximum power of the unit.

2. Reduce the load if the AC Circuit Breaker turns off.

Once the load is reduced, press the Circuit Breaker

Button to reset the Generator and continue operation.

Calculate Power Draw:

Power draw can be calculated by multiplying volts

and amps. The resulting number is wattage.

• Never exceed the rated maximum wattage for

the Generator or any outlet amperage rating.

• Refer to appliance/tool owner’s manuals to

determine the wattage of electrical load devices.

• Long power cords and extension cords draw

additional power. Keep cord length at a minimum.

Wattage Estimates

Wattages listed below are estimates for that

type of equipment only. Check nameplate wattages

on all loads before connecting to Generator.

This Unit Can Power Any

One of the Following Items:

Running

Watts

Start-up

Watts

1/4 HP Air Compressor 600 900

1/6 HP Motor 500 800

3/8" Drill 400 600

Mini Refrigerator 400 700

Table/Box Fan 200

15 Amp Battery Charger 380

String Trimmer 350

Hedge Trimmer 500

Radio 50

Ten 75 Watt Light Bulbs 750

3. Allow the Engine to run at no load for five minutes

after each start-up to allow the Engine to stabilize.

Figure V: Plug Load In

4. Plug the power cord of the 120 volt appliance/

tool into the 120 volt AC Outlet on the Generator.

Note: Do not allow the generator to completely run out of fuel with devices attached.

A generator’s output may sharply spike as it runs out of fuel, causing damage to attached devices.

Stopping the Engine

1. To stop the engine in an emergency,

turn the Engine Switch off.

2. Under normal conditions, use the following procedure:

a. Remove all electrical load devices

from the Generator.

b. Turn the Engine Switch off.

c. Close the Fuel Valve.

NOTICE

See Long-Term Storage on page 23

for complete storage instructions.

Page 20 For technical questions, please call 1-888-866-5797. ITEM 61725

SAFETY OPERATION MAINTENANCESETUP

Maintenance

WARNING

TO PREVENT SERIOUS INJURY FROM ACCIDENTAL STARTING:

Turn the Power Switch of the equipment to its “OFF” position, wait for the engine to cool, and disconnect

the spark plug cap before performing any inspection, maintenance, or cleaning procedures.

TO PREVENT SERIOUS INJURY FROM EQUIPMENT FAILURE:

Do not use damaged equipment. If abnormal noise, vibration, or excess

smoking occurs, have the problem corrected before further use.

Follow all service instructions in this manual. The engine may fail critically if not serviced properly.

Many maintenance procedures, including any not detailed in this manual, will need to be performed

by a qualified technician for safety. If you have any doubts about your ability to safely service the

equipment or engine, have a qualified technician service the equipment instead.

Cleaning, Maintenance, and Lubrication Schedule

Note: This maintenance schedule is intended solely as a general guide. If performance decreases or if

equipment operates unusually, check systems immediately. The maintenance needs of each piece of equipment

will differ depending on factors such as duty cycle, temperature, air quality, fuel quality, and other factors.

Note: The following procedures are in addition to the regular checks and maintenance

explained as part of the regular operation of the engine and equipment.

Procedure Before

Each Use

Monthly or

every 20

hr. of use

Every 3 mo. or

50 hr. of use

Every 6 mo. or

100 hr. of use

Yearly or

every 300

hr. of use

Every

2 Years

Brush off outside of engine

Check engine oil level

Check air cleaner

Check sediment cup

Change engine oil

Clean air filter *

Check and clean spark plug

1. Check/adjust idle speed

2. Check/adjust valve clearance

3. Clean fuel tank, strainer

and carburetor

4. Clean carbon build-up from

combustion chamber

** **

Replace fuel line if necessary **

*Service more frequently when used in dusty areas.

**These items should be serviced by a qualified technician.

Page 21For technical questions, please call 1-888-866-5797.ITEM 61725

SAFETYOPERATIONMAINTENANCE SETUP

Checking and Filling Fuel

WARNING! TO PREVENT SERIOUS

INJURY FROM FIRE:

Fill the fuel tank in a well-ventilated area

away from ignition sources. If the engine is

hot from use, shut the engine off and wait

for it to cool before adding fuel. Do not smoke.

1. Clean the Fuel Cap and the area around it.

2. Unscrew and remove the Fuel Cap.

3. Remove the Strainer and remove any dirt

and debris. Then replace the Strainer.

Note: Do not use gasoline containing more than

10% ethanol (E10). Do not use E85 ethanol. Add fuel

stabilizer to the gasoline or the Warranty is VOID.

Note: Do not use gasoline that has been stored in a

metal fuel container or a dirty fuel container. It can

cause particles to enter the carburetor, affecting

engine performance and/or causing damage.

4. If needed, fill the Fuel Tank to about 1 inch under

the fill neck of the Fuel Tank with 87 octane or

higher unleaded gasoline that has been treated

with a fuel stabilizer additive. Follow fuel stabilizer

manufacturer’s recommendations for use.

5. Then replace the Fuel Cap.

6. Wipe up any spilled fuel and allow excess

to evaporate before starting engine.

To prevent FIRE, do not start the engine

while the smell of fuel hangs in the air.

Engine Oil Change

CAUTION! Oil is very hot during operation and can

cause burns. Wait for engine to cool before changing oil.

1. Make sure the engine is stopped and is level.

2. Close the Fuel Valve.

3. Place a drain pan (not included) underneath

the crankcase’s drain plug.

4. Remove the drain plug and allow the

oil to drain out. Recycle used oil.

5. Replace the drain plug and tighten it.

Oil Fill Cap

(yellow) Dipstick

Figure W: Oil Fill Cap and Dipstick

(on back of Generator)

6. On the back of the Generator, pull the Dipstick out,

and wipe its end off with a clean, lint free rag.

7. Reinsert the Dipstick fully and remove it to

check the oil level. The oil level should be

up to the full level as shown in Figure X.

Full Level

Dipstick

Engine

Crankcase

Figure X: Oil Fill Level

8. If the oil level is at or below the low mark:

a. Clean the top of the yellow Oil Fill Cap

and the area around it.

b. Remove the Oil Fill Cap by turning

it counterclockwise.

c. Add the appropriate type of oil until the oil level

is at the proper level. SAE 10W-30 oil is

recommended for general use.

The SAE Viscosity Grade chart

shows other viscosities to use in

different average temperatures.

10W-30

5W-30

-20 0 20 40 60 80 100°F

Average outdoor temperature

Table A: SAE Viscosity Grades

9. Thread the Oil Fill Cap back in

and reinsert the Dipstick.

NOTICE: Do not run the engine with too little oil.

The engine will be permanently damaged.

Page 22 For technical questions, please call 1-888-866-5797. ITEM 61725

SAFETY OPERATION MAINTENANCESETUP

Air Filter Maintenance

1. Remove the Air Cleaner Cover and the air filters

and check for dirt. Clean as described below.

2. Cleaning:

• For paper filters:

To prevent injury from dust and debris,

wear ANSI-approved safety goggles,

NIOSH-approved dust mask/respirator, and

heavy-duty work gloves. In a well-ventilated

area away from bystanders, use pressurized

air to blow dust out of the filter.

• For foam filters:

Wash the filter in warm water and mild

detergent several times. Rinse. Squeeze out

excess water and allow it to dry completely.

Soak the filter in lightweight oil briefly,

then squeeze out the excess oil.

3. Install the cleaned filters. Secure the

Air Cleaner Cover before use.

Spark plug Maintenance

1. Disconnect spark plug caps from end of plugs.

Clean out debris from around spark plugs.

2. Using a spark plug wrench, remove the spark plugs.

3. Inspect the spark plugs:

If the electrode is oily, clean it using a clean, dry rag.

If the electrode has deposits on it, polish it using

emery paper. If the white insulator is cracked or

chipped, the spark plug needs to be replaced.

Recommended Spark Plugs

NGK®BP-6ES

NHSP® / TORCH®F6TC

NOTICE: Using an incorrect spark plug

may damage the engine.

4. When installing a new spark plug,

adjust the plug’s gap to the specification on the

Specifications chart. Do not pry against the

electrode, the spark plug can be damaged.

5. Install the new spark plugs or

the cleaned spark plugs into the engine.

• Gasket-style:

Finger-tighten until the gasket

contacts the cylinder head,

then tighten about 1/2-2/3 turn more.

• Non-gasket-style:

Finger-tighten until the plug

contacts the cylinder head,

then tighten about 1/16 turn more.

NOTICE: Tighten the spark plugs properly.

If loose, the spark plugs will cause the

engine to overheat.

If overtightened, the threads in the

engine block will be damaged.

6. Apply dielectric spark plug boot protector

(not included) to the end of the spark plugs

and reattach the wires securely.

Page 23For technical questions, please call 1-888-866-5797.ITEM 61725

SAFETYOPERATIONMAINTENANCE SETUP

Long-Term Storage

When the equipment is to remain idle for longer than

20 days, prepare the engine for storage as follows:

1. CLEANING:

Wait for engine to cool, then clean engine with

dry cloth. NOTICE: Do not clean using water.

The water will gradually enter the engine

and cause rust damage. Apply a thin coat

of rust preventive oil to all metal parts.

2. FUEL:

To protect the fuel tank during storage, fill the

tank with gasoline that has been treated with

a fuel stabilizer additive. Follow fuel stabilizer

manufacturer’s recommendations for use. Refer

to Checking and Filling Fuel on page 23.

WARNING! TO PREVENT SERIOUS

INJURY FROM FIRE:

Fill tank in a well-ventilated area away from

ignition sources. If the engine is hot from

use, shut the engine off and wait for it to

cool before adding fuel. Do not smoke.

3. LUBRICATION:

a. Change engine oil.

b. Clean out area around spark plug.

Remove spark plug and pour one tablespoon of

engine oil into cylinder through spark plug hole.

c. Replace spark plug, but leave

spark plug cap disconnected.

d. Pull Starter Handle to distribute oil in cylinder.

Stop after one or two revolutions when you

feel the piston start the compression stroke

(when you start to feel resistance).

4. BATTERY:

Disconnect battery cables (if equipped).

Recharge batteries monthly while in storage.

5. STORAGE AREA:

Cover and store in a dry, level, well-ventilated

area out of reach of children. Storage area should

also be away from ignition sources, such as

water heaters, clothes dryers, and furnaces.

NOTICE: During extended storage periods the

Engine must be started every 3 months and allowed

to run for 15 – 20 minutes or the Warranty is VOID.

6. AFTER STORAGE:

Before starting the engine during or after

storage, keep in mind that untreated gasoline

will deteriorate quickly. Drain the fuel

tank and change to fresh fuel if untreated

gasoline has been sitting for a month, if

treated gasoline has been sitting beyond the

fuel stabilizer’s recommended time period,

or if the engine does not start.

Page 24 For technical questions, please call 1-888-866-5797. ITEM 61725

SAFETY OPERATION MAINTENANCESETUP

Troubleshooting

Problem Possible Causes Probable Solutions

Engine will not start FUEL RELATED:

1. No fuel in tank or fuel valve closed.

2. START not in START position, cold engine.

3. Gasoline with more than 10% ethanol used.

(E15, E20, E85, etc.)

4. Low quality or deteriorated, old gasoline.

5. Carburetor not primed.

6. Dirty fuel passageways.

7. Carburetor needle stuck.

Fuel can be smelled in the air.

8. Too much fuel in chamber. This can be

caused by the carburetor needle sticking.

9. Clogged Fuel Filter.

FUEL RELATED:

1. Fill fuel tank with fresh 87+ octane

stabilizer-treated unleaded gasoline and

open fuel valve.

Do not use gasoline with more than

10% ethanol (E15, E20, E85, etc.).

2. Move START to START position.

3. Clean out ethanol rich gasoline from fuel

system. Replace components damaged by

ethanol. Use fresh 87+ octane stabilizer-

treated unleaded gasoline only.

Do not use gasoline with more than

10% ethanol (E15, E20, E85, etc.).

4. Use fresh 87+ octane stabilizer-treated

unleaded gasoline.

Do not use gasoline with more than

10% ethanol (E15, E20, E85, etc.).

5. Pull on Starter Handle to prime.

6. Clean out passageways using

fuel additive. Heavy deposits

may require further cleaning.

7. Gently tap side of carburetor float

chamber with screwdriver handle.

8. Turn START to RUN position.

Remove spark plug and pull the start

handle several times to air out the

chamber. Reinstall spark plug and

set START to START position.

9. Replace Fuel Filter.

IGNITION (SPARK) RELATED:

1. Spark plug cap not connected securely.

2. Spark plug electrode wet or dirty.

3. Incorrect spark plug gap.

4. Spark plug cap broken.

5. Circuit breaker tripped.

6. Incorrect spark timing or

faulty ignition system.

IGNITION (SPARK) RELATED:

1. Connect spark plug cap properly.

2. Clean spark plug.

3. Correct spark plug gap.

4. Replace spark plug cap.

5. Reset circuit breaker. Check wiring and

starter motor if breaker continues to trip.

6. Have qualified technician diagnose/

repair ignition system.

COMPRESSION RELATED:

1. Cylinder not lubricated.

Problem after long storage periods.

2. Loose or broken spark plug.

(Hissing noise will occur

when trying to start.)

3. Loose cylinder head or damaged

head gasket. (Hissing noise will

occur when trying to start.)

4. Engine valves or tappets

mis-adjusted or stuck.

COMPRESSION RELATED:

1. Pour tablespoon of oil into

spark plug hole. Crank engine a

few times and try to start again.

2. Tighten spark plug.

If that does not work, replace spark plug.

If problem persists, may have

head gasket problem, see #3.

3. Tighten head.

If that does not remedy problem,

replace head gasket.

4. Have qualified technician adjust/

repair valves and tappets.

Follow all safety precautions whenever diagnosing or servicing the generator or engine.

Page 25For technical questions, please call 1-888-866-5797.ITEM 61725

SAFETYOPERATIONMAINTENANCE SETUP

Problem Possible Causes Probable Solutions

Engine misfires 1. Spark plug cap loose.

2. Incorrect spark plug gap or

damaged spark plug.

3. Defective spark plug cap.

4. Old or low quality gasoline.

5. Incorrect compression.

1. Check wire connections.

2. Re-gap or replace spark plug.

3. Replace spark plug cap.

4. Use only fresh 87+ octane stabilizer-treated

unleaded gasoline.

Do not use gasoline with more than

10% ethanol (E15, E20, E85, etc.).

5. Diagnose and repair compression.

(Use Engine will not start:

COMPRESSION RELATED section.)

Engine stops

suddenly

1. Fuel tank empty or full of impure or low

quality gasoline.

2. Low oil shutdown.

3. Defective fuel tank cap creating vacuum,

preventing proper fuel flow.

4. Faulty magneto.

5. Disconnected or improperly

connected spark plug cap.

1. Fill fuel tank with fresh 87+ octane

stabilizer-treated unleaded gasoline.

Do not use gasoline with more than

10% ethanol (E15, E20, E85, etc.).

2. Fill engine oil to proper level.

Check engine oil before EVERY use.

3. Test/replace fuel tank cap.

4. Have qualified technician service magneto.

5. Secure spark plug cap.

Engine stops when

under heavy load

1. Dirty air filter

2. Engine running cold.

1. Clean element.

2. Allow engine to warm up prior

to operating equipment.

Engine knocks 1. Old or low quality gasoline.

2. Engine overloaded.

3. Incorrect spark timing, deposit buildup,

worn engine, or other mechanical problems.

1. Fill fuel tank with fresh 87+ octane

stabilizer-treated unleaded gasoline.

Do not use gasoline with more than

10% ethanol (E15, E20, E85, etc.).

2. Do not exceed equipment’s load rating.

3. Have qualified technician

diagnose and service engine.

Engine backfires 1. Impure or low quality gasoline.

2. Engine too cold.

3. Intake valve stuck or overheated engine.

4. Incorrect timing.

1. Fill fuel tank with fresh 87+ octane

stabilizer-treated unleaded gasoline.

Do not use gasoline with more than

10% ethanol (E15, E20, E85, etc.).

2. Use cold weather fuel and

oil additives to prevent backfiring.

3. Have qualified technician

diagnose and service engine.

4. Check engine timing.

Attached device

doesn’t have power

1. Device not plugged in properly.

2. Circuit Breaker tripped.

3. Product needs service.

1. Turn off and unplug the device,

then plug it back in again and turn on.

2. Turn off and unplug device, reset Circuit

Breaker, plug in device and turn on.

3. Have product repaired.

Attached device

begins to operate

abnormally

1. Problem with device.

2. Rated load capacity exceeded.

1. Immediately unplug device.

Have device repaired by a qualified

technician, or replace device.

2. Lower the number of items plugged into

the generator to stay within the rated

capacity, or use a more powerful generator.

Follow all safety precautions whenever diagnosing or servicing the generator or engine.

Page 26 For technical questions, please call 1-888-866-5797. ITEM 61725

SAFETY OPERATION MAINTENANCESETUP

Warranties

Limited 90 Day Warranty

Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,

and warrants to the original purchaser that this product is free from defects in materials and workmanship for the

period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,

to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper

installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries

to persons or property, or for incidental, contingent, special or consequential damages arising from the use of

our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the

above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.

To take advantage of this warranty, the product or part must be returned to us with transportation charges prepaid.

Proof of purchase date and an explanation of the complaint must accompany the merchandise.

If our inspection verifies the defect, we will either repair or replace the product at our election or

we may elect to refund the purchase price if we cannot readily and quickly provide you with a replacement.

We will return repaired products at our expense, but if we determine there is no defect, or that the defect resulted

from causes not within the scope of our warranty, then you must bear the cost of returning the product.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

Emissions Control System Warranty

United States Emissions Control

Defects Warranty Statement

The United States Environmental Protection Agency (herein EPA)

and Harbor Freight Tools (herein HFT) are pleased to explain the

emissions control system warranty on your 2014-2015 Small Off-Road

Engine (herein engine). Within the United States, new off-road,

spark-ignition engines certified for model year 2014-2015,

must meet similar standards set forth by the EPA. HFT must

warrant the emissions control system on your engine for the

periods of time described below, provided there has been no

abuse, neglect or improper maintenance of your engine.

Your emissions control system may include parts such as the

carburetor or fuel-injection system, and the ignition system.

Also included may be hoses, belts, connectors

and other emissions-related assemblies.

Where a warrantable condition exists, HFT will repair your

engine at no cost to you including diagnosis, parts and labor.

Manufacturer’s Warranty Coverage

The 2014-2015 engines are warranted for two (2) years.

If any emissions-related part on your engine is defective,

the part will be repaired or replaced by HFT.

Harbor Freight Tools Emissions Control

Defects Warranty Coverage

Engines are warranted for a period of two (2) years relative

to emissions control parts defects, subject to the provisions

set forth below. If any emissions related part on your engine

is defective, the part will be repaired or replaced by HFT.

Owner’s Warranty Responsibilities

• As the engine owner, you are responsible for the performance

of the required maintenance listed in your Owner’s Manual.

HFT recommends that you retain all receipts covering

maintenance on your engine, but HFT cannot deny warranty

solely for the lack of receipts or for your failure to

ensure the performance of all scheduled maintenance.

• As the engine owner, you should, however, be aware

that HFT may deny you warranty coverage if your

engine or a part has failed due to abuse, neglect,

improper maintenance, or unapproved modifications.

• You are responsible for shipping your engine to a HFT

warranty station as soon as a problem exists. Contact the

HFT Customer Service department at the number below to

make shipping arrangements. The warranty repairs should be

completed in a reasonable amount of time, not to exceed 30 days.

If you have any questions regarding your warranty rights

and responsibilities, you should contact the Harbor Freight Tools

Customer Service Department at 1-888-866-5797.

Page 27For technical questions, please call 1-888-866-5797.ITEM 61725

SAFETYOPERATIONMAINTENANCE SETUP

Harbor Freight Tools Emissions Control

Defects Warranty Provisions

1. Length of Coverage

HFT warrants to a first retail purchaser and each

subsequent purchaser that the engine is free from

defects in materials and workmanship that cause

the failure of warranted parts for a period of two (2) years

after the date of delivery to the first retail purchaser.

2. No Charge Repair or Replacement

Repair or replacement of any warranted part will be

performed at no charge to the owner if the work is

performed through a warranty station authorized by HFT.

For emissions warranty service, contact the HFT

Customer Service Department at 1-888-866-5797.

3. Consequential Damages Coverage

Coverage under this warranty shall also extend to the failure

of any engine components caused by the failure of any

warranted part while it is still covered under this warranty.

4. Coverage Exclusions

Warranty claims shall be filed in accordance with the provisions

of the HFT warranty policy explained in the box at the top of the

previous page. HFT shall not be liable for any loss of use of

the engine, for any alternative usage, for any damage to goods,

loss of time, or inconvenience. Warranty coverage shall also be

excluded for any part which fails, malfunctions, or is damaged

due to failure to follow the maintenance and operating instructions

set forth in the Owner’s Manual including, but not limited to:

a) Use of parts which are not authorized by HFT

b) Improper installation, adjustment or repair of

the engine or of any warranted part unless

performed by an authorized warranty center

c) Failure to follow recommendations on fuel use

contained in the Owner’s Manual

d) Improper or inadequate maintenance of any warranted parts

e) Repairs performed outside of

the authorized warranty service dealers

f) Alterations by changing, adding to or

removing parts from the engine.

5. Service and Maintenance

Component parts which are not scheduled for replacement

as required maintenance or are scheduled only for regular

inspection to the effect of “repair or replace as necessary”

are warranted for the warranty period. Any warranted part

which is scheduled for replacement as required maintenance

is warranted for the period of time up to the first scheduled

replacement point for that part. Any replacement part, provided

it is equivalent in durability and performance, may be used

in performance of maintenance or repairs. The owner is

responsible for commissioning a qualified technician/mechanic

to perform all required maintenance, as outlined in the

Inspection, Cleaning, and Maintenance section in this manual.

6. Warranted Parts

1) Fuel Metering System

i) Carburetor and its internal parts.

ii) Fuel pump (if so equipped).

iii) Cold start enrichment system.

2) Air Induction System

i) Intake pipe/manifold.

ii) Air cleaner.

3) Ignition System

i) Spark plug.

ii) Magneto ignition system.

4) Catalyst System (if so equipped)

i) Exhaust pipe stud.

ii) Muffler.

iii) Catalytic converter (if so equipped).

5) Miscellaneous Items Used in Above Systems

i) Vacuum, temperature and time

sensitive valves and switches.

ii) Hoses, belts, connectors, and assemblies.

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM

IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR

MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS

QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE

ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY

STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND

LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY

ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS

THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

Record Product’s Serial Number Here:

Note: If product has no serial number, record

month and year of purchase instead.

Note: Some parts are listed and shown for

illustration purposes only, and are not available

individually as replacement parts.

Page 28 For technical questions, please call 1-888-866-5797. ITEM 61725

SAFETY OPERATION MAINTENANCESETUP

Parts Lists and Diagrams

Parts List

Part Description Qty

1 Cylinder Head Cover Bolt 2

2 Cover, Cylinder Head 1

3 Gasket, Cylinder Head Cover 2

4 Plug, Spark 2

5 Bolt, Cylinder Head 8

6 Cylinder Head 1

7 Right Cylinder Head 1

8 Pin 4

9 Gasket, Cylinder Head 4

10 Cross-Band Veneer 2

11 Stud 4

12 Stud 4

13 Cover, Cylinder Head 1

14 Plug , Engine Oil 1

15 Ring, Seal 1

16 Crankcase 1

17 Pin 2

18 Washer, Flat 3

19 Arm, Governor 1

20 Seal, Oil 1

21 Bolt, Drain Plug 2

22 Washer, Flat 2

23 Seal, Oil 1

24 Strainer, Breath Groove 1

25 Piece, Breath 1

26 Gasket, Breath Groove 1

27 Gasket, Breath Groove 1

28 Plate, Breath Groove Cover 1

29 Clamp 1

30 Bolt 2

31 Bolt 2

32 Clamp 2

33 Tube, Breather 1

34 Gasket, Inlet 2

35 Tube, Intake 1

36 Nut 4

37 Pump Asm, Gasoline 1

38 Bolt 3

39 Sleeve, Gasoline Pump Rubber 2

40 Support, Gasoline Pump 1

41 Strainer, Fuel 1

42 Clamp 6

43 Tube, Negative Pressure 1

44 Tube, Negative Pressure 1

45 Clamp 2

46 Tube, Fuel 1

47 Separator, Gas and Oil 1

48 Tube, Fuel 1

49 Mouth, Negative Pressure 1

50 Sensor, Engine Oil 1

51 Bolt 2

52 Bolt 7

53 Bolt 2

54 Cover , Crankcase 1

55 Pin 2

56 Gasket, Crankcase 1

57 Seal, Oil 1

58 Tube, Suction Oil 1

59 Washer 1

60 Bolt 2

61 Bolt 2

62 Pin 2

63 Pump Asm, Oil 1

64 Cover, Oil Pump 1

65 Spring, Pressure Relief Valve 1

66 Ball, Steel 1

67 Strainer, Oil 1

68 Gear Asm, Governor 1

Part Description Qty

69 Oil Dipstick 1

70 Gasket, Oil Pump 1

71 Crankshaft Asm. 1

72 Washer, Thrust 1

73 Rod, Connecting 1

74 Piston 2

75 Pin, Piston 2

76 Clip, Piston Pin 4

77 Ring, The First 2

78 Ring, The Second 2

79 Ring Set, Oil 2

80 Nut, Valve Lock 4

81 Nut, Valve Adjusting 4

82 Rocker, Valve 4

83 Bolt, Valve Adjusting 4

84 Lifter, Valve 4

85 Tappet, Valve 4

86 Seat, Valve Spring 4

87 Check Ring 4

88 Clamp, Valve Lock 8

89 Spring, Valve 4

90 Guide, Seal 4

91 Retainer, Valve Spring 2

92 Valve, Exhaust 2

93 Valve, Intake 2

94 Camshaft Asm. 1

95 Washer, Camshaft 1

96 Shield, Shroud 1

97 Screw 3

98 Nut 4

99 Shroud Asm. 1

100 Plate, Fan Shield Decorated 1

101 Handle , Lock 2

102 Shroud 2, Cylinder Body 1

103 Diode 1

104 Shroud, Cylinder Body 1

105 Shield, Lower 1

106 Bolt 13

107 Sensor, Pressure 1

108 Shield, Crankcase Side 1

109 Bolt, Flange Shoulder 1

110 Lug 2

111 Bolt, Flange Shoulder 1

112 Shield 1

113 Shield 1

114 Gasket, Oil Filter Cover 1

115 Oil Filter Block 1

116 Ring, Seal 1

117 Tube, Oil Filter Installation 1

118 Oil Filter 1

119 Washer, Flat 2

120 Adapter, Cooling Pipe 2

121 Clamp 4

122 Pipe, Cooling 1

123 Pipe, Cooling 1

124 Radiator Asm. 1

125 Bolt 2

126 Gasket 1

127 Regulator, Voltage 1

128 Clamp 1

129 Gasket, Carburetor 2

130 Gasket, Carburetor Insulator 1

131 Joint, Intake Tube 1

132 Bolt 2

133 Bolt 1

134 Washer 1

135 Tube, Air Cleaner Connecting 1

136 Bolt 4

Page 29For technical questions, please call 1-888-866-5797.ITEM 61725

SAFETYOPERATIONMAINTENANCE SETUP

Parts List (continued)

Part Description Qty

137 Carburetor Asm. 1

138 Clip, Governor Rod 1

139 Line, Solenoid Valve AC 1

140 Cleaner, Air 1

141 Cover, Intake Tube 1

142 Bolt 2

143 Screw 2

144 Collar 1

145 Washer 1

146 Tube, Fuel 1

147 Coil, Ignition 1

148 Coil, Ignition 1

149 Bolt 2

150 Stud 2

151 Stud 2

152 Coil , Charge 1

153 Bolt 6

154 Flywheel Asm. 1

155 Washer 1

156 Bolt, Flywheel 1

157 Impeller 1

158 Tray, Impeller Setting 1

159 Bolt 3

160 Pin 2

161 Motor Asm,Starting 1

162 Bolt 2

163 Protector, Oil 1

164 Bolt 1

165 Control Asm, Throttle 1

166 Bolt 2

167 Spring, Governor 1

168 Spring, Choke Return 1

169 Spring, Governor 1

170 Nut 1

171 Bolt, Governor Support 1

172 Support , Governor 1

173 Rod, Governor 1

174 Spring, Throttle Valve Returning 1

175 Rod, Choke 1

176 Clip, Choke Rod 1

177 Bolt 2

178 Nut 4

179 Gasket, Exhaust Outlet 2

180 Mufer Asm. 1

181 Spark Collector 1

182 Tank, Fuel 1

183 Leveler Asm, Oil 1

184 Screw, Cross Groove Pan 2

185 Valve, One Way 1

186 Tube, Fuel 2

187 Sleeve, Fuel Tank Rubber 4

188 Bush 4

189 Washer, Flat 4

190 Bolt 4

191 Strainer, Fuel 1

192 Chain Clip 1

193 Cap Off The Chain 1

194 Cover, Fuel Tank 1

195 Cock Asm, Fuel 1

196 Clamp 1

197 Bellows 1

198 Clamp 1

199 Frame Asm, Engine 1

200 Power Support Combination 1

201 Bolt 16

202 Nut 16

203 Nut 4

204 Washer, Flat 4

205 Cushion, Engine Frame 4

206 Bolt 8

207 Bolt 4

Part Description Qty

208 Lifting Handle 1

209 Screw 1

210 Support, Engine Frame Shock Absorption 2

211 Bolt 8

212 Seat, Engine Frame Shock Absorption 2

213 Bolt 2

214 Regulator, Voltage 1

215 Battery 1

216 Bolt, Battery 2

217 Nut 2

218 Clamp, Battery 1

219 Wire, Anode 1

220 Wire, Cathode 1

221 Clip 2

222 Bolt 2

223 Panel, Control 1

224 Oil Temp Ind 1

225 Protector, Overcurrent 1

226 DC Cigarette Lighter 1

227 Terminal, Grounding 1

228 Socket, Power Supply 1

229 Socket, Power Supply 1

230 Socket, Power Supply 1

231 Socket, Power Supply 2

232 Harness, Control Panel Wiring 1

233 Timer 1

234 Key, Stop Engine Switch 1

235 Switch 1

236 Choke Zip Combination 1

237 Protector, Overcurrent 3

238 Protector, Overcurrent 2

239 Breaker, Double-Pole 1

240 Panel , Control 1

241 Bolt 6

242 Cover, Motor Front End 1

243 Bracket, Motor 1

244 Cover, Rear Motor 1

245 Bolt, Stator 4

246 Bolt, Rotor 1

247 Washer, Flat 1

248 Bolt 8

249 Block, Terminal 1

250 Brush , Carbon 1

251 Band 4

252 Nut 4

253 Bolt 4

254 Nut 2

255 Washer, Flat 4

256 Bolt 2

257 Screw 1

258 Motor Asm. 1

259 Plate, Mufer Insulator 1

260 Bolt 4

261 Frame Cover Hinge 2

262 Nut 8

263 Guard Unit 1

264 Protective Sleeve 1

265 Bar, Handle 1

266 Screw Cross Groove Pan 2

267 Guard Unit 2 2

268 Bolt 8

269 Thermal Bafe 1

270 Tube, Handle 1

271 Tube, Handle 2

272 Seat, Handle Tube Connecting 2

273 Bolt 6

274 Nut 6

275 Wheel, Front 2

276 Nut 4

277 Washer, Flat 2

278 Shaft, Front Wheel 2

Page 30 For technical questions, please call 1-888-866-5797. ITEM 61725

SAFETY OPERATION MAINTENANCESETUP

185

195

182

187

188

189

190

187

188

189

190

187

188

189

190

187

188

189

190

183

184

191

192

186

193

194

198

196

186

197

271

270

271272

272

273

274

273

274

273

276

277

275

276

278

276

275

277

276

278

199

206

205

206

205

206

205

206

205

215

218

213

216

217

211

210

211

212

202

201

203

201

208

207

209

207

221

200

206

214

204

221

222

211

210

211

212

220

219

202

204

203

201

204

263

265

266

264

259

260

262

267268

268

267

268

261

262

260

262

261

262

260

269

248

243

252

247

253

254

255

256

254

255

256

253

248

249

248

250

251 251 251

251

245

246

244

258

257

242

Assembly Diagram

Page 31For technical questions, please call 1-888-866-5797.ITEM 61725

SAFETYOPERATIONMAINTENANCE SETUP

232

223

224

225

226

228

229

241

230

231

239

236

237

238

233

227

240

234

235

178

177

179

180

178

181

140

140a

140b

140c

140d

140e

140f

140g

143

144

134

135

136

137

84 86

82 82

711

911

142

142141

87 87

146

145

7778 7 9 78

22 21

2830

37 38

179

128

129

130

129

131

132

133

136

139

138

148

147

149

150

151

152

153

154

155

156

157

158

159

162

160

162

160161

159

163

164

100

101

80 80

85 85

83 83

166

165

167

169

170

171

173

174

172

175

176

115

106

104

118

105

106

110

109

106

108

106

117

106

110

102

111

106

112

113

106

103

106

125

120

123

122

121121

114

121

119

124

116

127

126

107

106

121

168

128

111

Assembly Diagram (continued)

3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • 1-888-866-5797

Harbor Freight 13500 Peak 11000 Running Watts 22 Hp 670Cc Gas Generator Epa Iii Product Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
