Open the PDF directly: View PDF .
Page Count: 28

Visit our website at: http://www.harborfreight.com

Email our technical support at:

productsupport@harborfreight.com

Email our Engine support at: predator@harborfreight.com

Using an engine indoors

CAN KILL YOU IN MINUTES.

Engine exhaust contains carbon monoxide.

This is a poison you cannot see or smell.

NEVER use inside

a home or garage,

EVEN IF doors and

windows are open.

Only use OUTSIDE

and far away from

windows, doors,

and vents.

Owner’s Manual & Safety Instructions

Save This Manual Keep this manual for the safety warnings and precautions, assembly,

operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the

back of the manual near the assembly diagram (or month and year of purchase if product has no number).

Keep this manual and the receipt in a safe and dry place for future reference.

Using a generator indoors CAN

KILL YOU IN MINUTES.

Generator exhaust contains

carbon monoxide. This is a poison

you cannot see or smell.

NEVER use inside

a home or garage,

EVEN IF doors and

windows are open.

Only use OUTSIDE

and far away from

windows, doors,

and vents.

When unpacking, make sure that the product is intact

and undamaged. If any parts are missing or broken,

please call 1-888-866-5797 as soon as possible.

No portion of this manual or any artwork contained herein may be reproduced in

any shape or form without the express written consent of Harbor Freight Tools.

Diagrams within this manual may not be drawn proportionally. Due to continuing

improvements, actual product may differ slightly from the product described herein.

Tools required for assembly and service may not be included.

Read this material before using this product.

Failure to do so can result in serious injury.

SAVE THIS MANUAL.

REV 15a

Page 2 For Generator technical questions, please call 1-888-866-5797. ITEM 61169

Table of Contents

Specifications ............................................. 2

Safety ......................................................... 3

Setup .......................................................... 7

Operation .................................................... 8

Maintenance .............................................. 13

Troubleshooting ......................................... 17

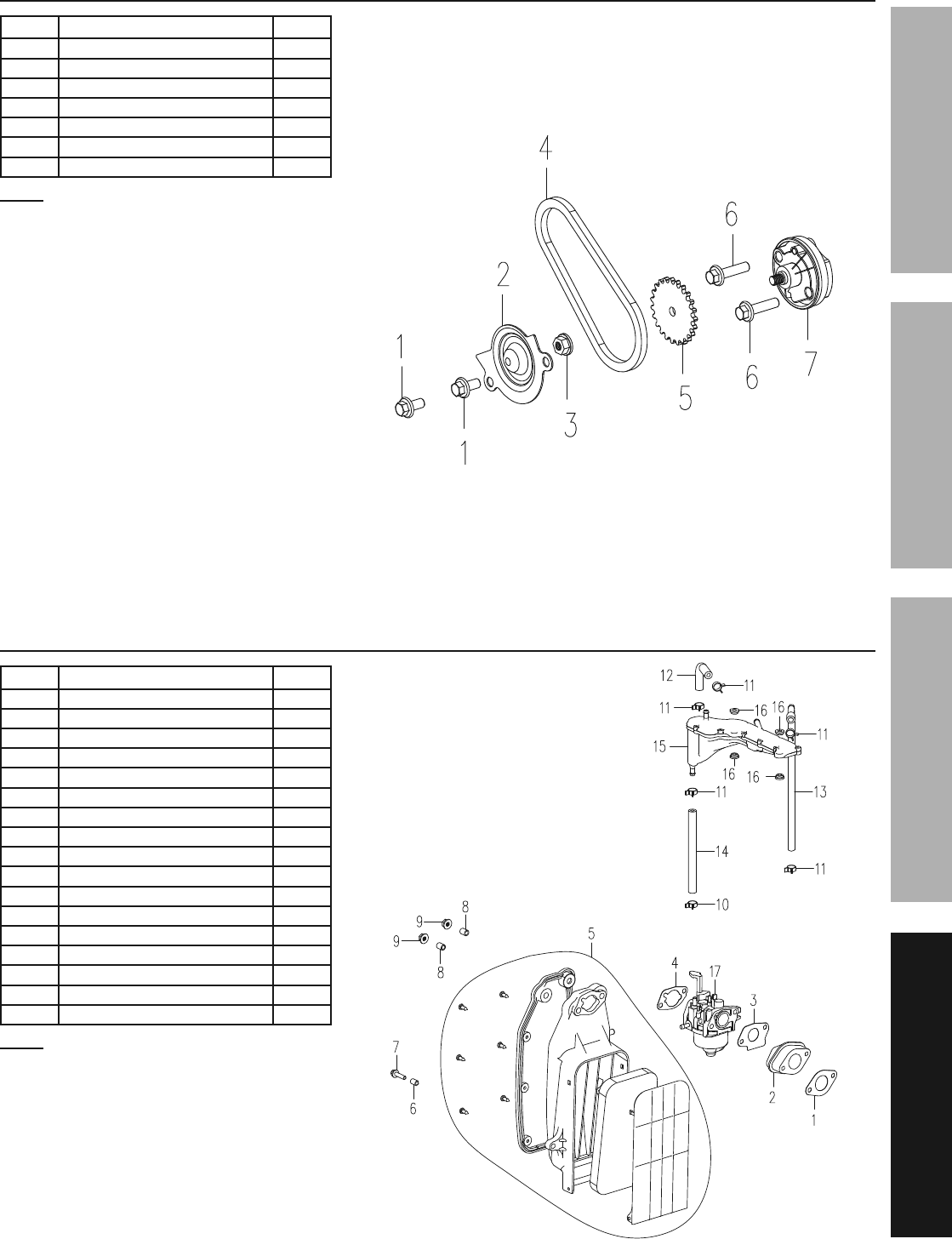

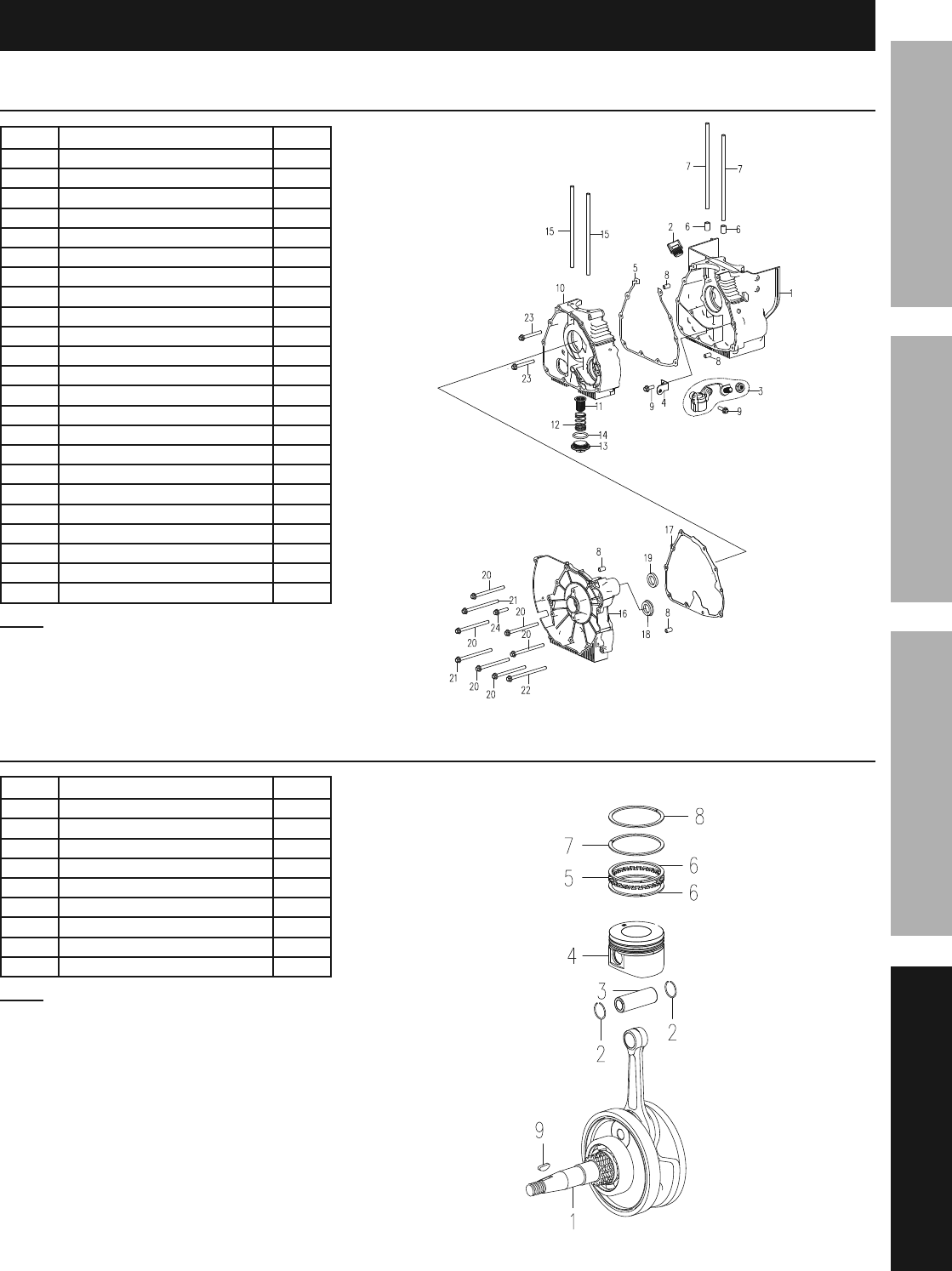

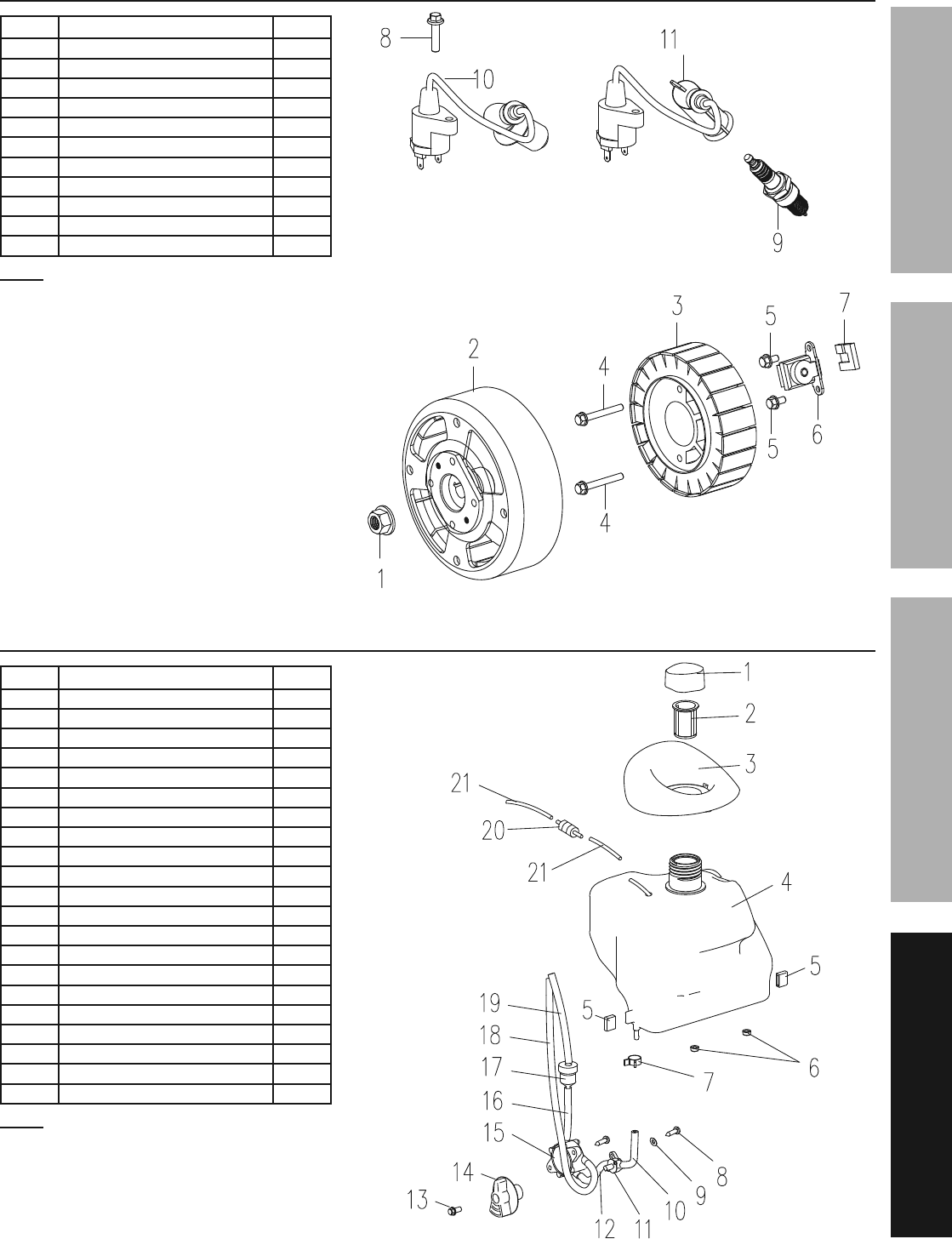

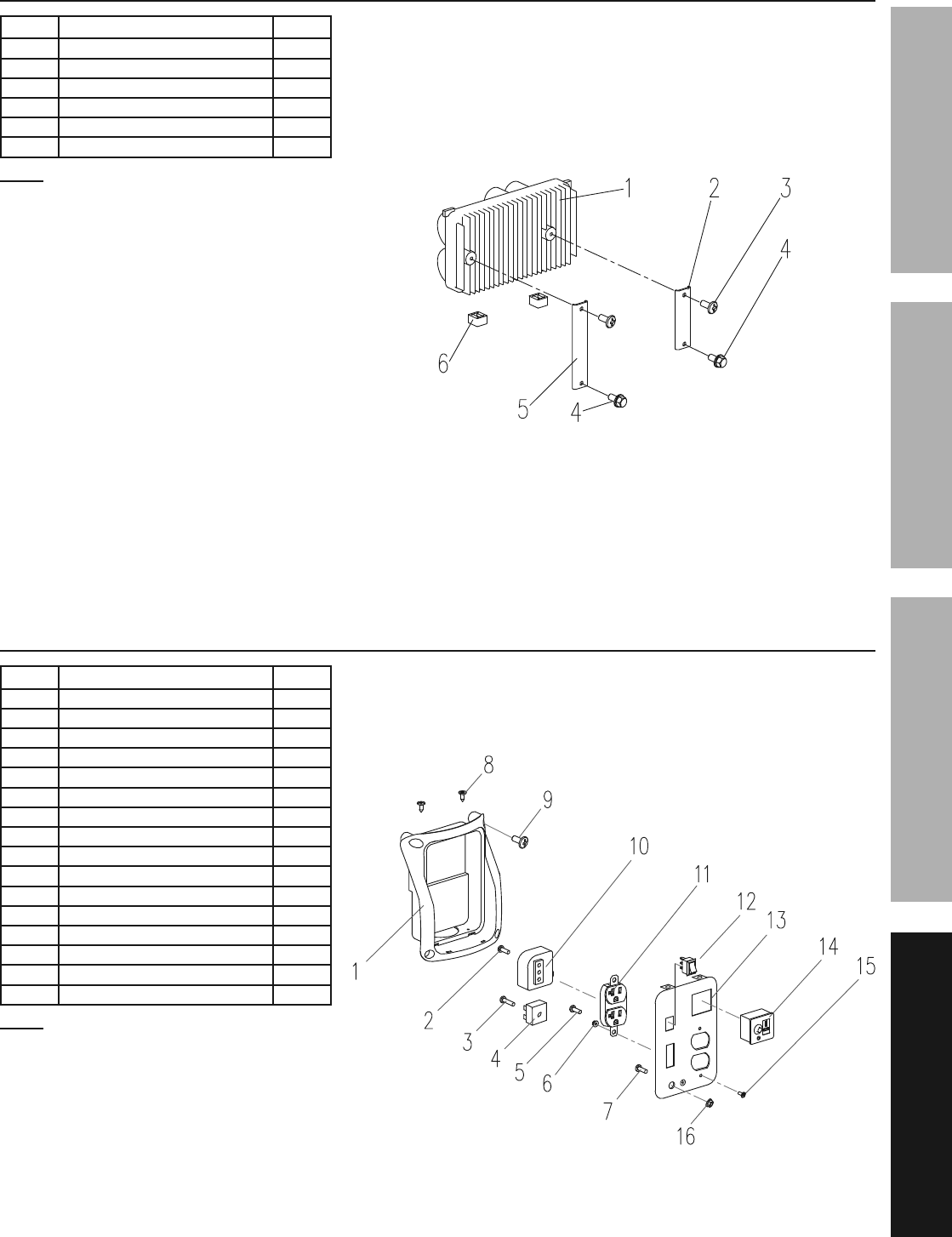

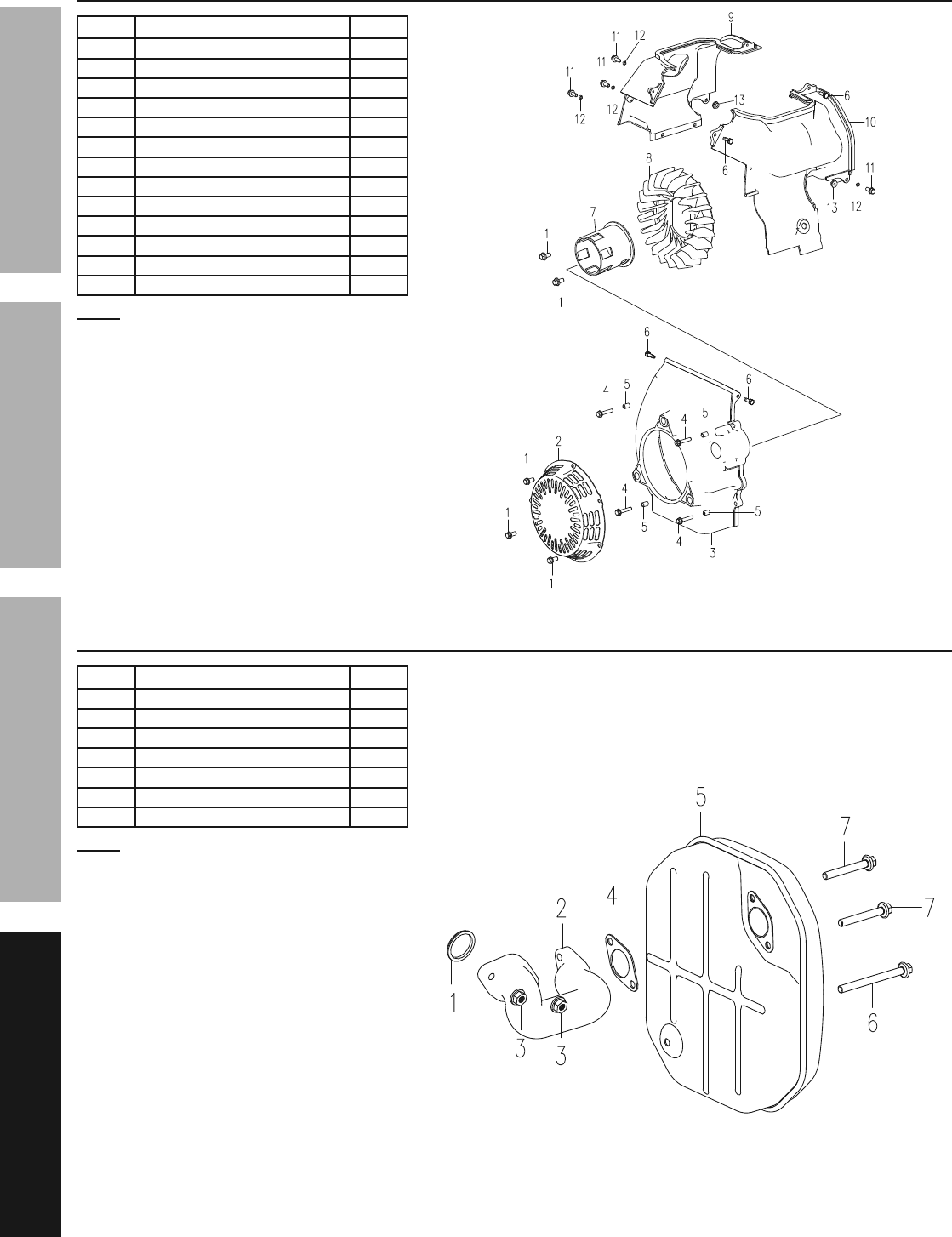

Parts Lists and Diagrams .......................... 19

Warranties ................................................. 27

Specifications

Generator

Output

120VAC, 60Hz, 1 Phase

12VDC, 8.3A (nominal)

2200W Running

2500W Peak

Receptacles 2x NEMA #5-20 (3-prong, 120VAC)

1x 12VDC Two Pin Outlet

Displacement 125cc

Compression Ratio 8.5:1

Engine Type Horizontal Single Cylinder

4-stroke, OHC

Cooling System Forced air cooled

Fuel Type 87+ octane stabilizer treated

unleaded gasoline

Capacity 1.35 Gallon

Engine Oil Type SAE 10W-30

Capacity 1 Quart

Run Time @ 50% Load

with full tank 5-1/2 hr.

Sound Level at 23 feet, 50% load 64 dB

Bore x Stroke 52.4mm x 57.8mm

Spark Plug Type A7RTC

Gap 0.7 - 0.8 mm

Valve Clearance Intake 0.10 - 0.15 mm

Exhaust 0.15 - 0.20 mm

Engine Speed 5500 RPM

The emissions control system for this Engine is warranted for standards set by the

U.S. Environmental Protection Agency. For warranty information, refer to the last pages of this manual.

Page 3

For Generator technical questions, please call 1-888-866-5797.

ITEM 61169

SAFETYOPERATIONMAINTENANCE SETUP

WARNING SYMBOLS AND DEFINITIONS

This is the safety alert symbol. It is used to alert you to potential

personal injury hazards. Obey all safety messages that

follow this symbol to avoid possible injury or death.

Indicates a hazardous situation which, if not avoided,

will result in death or serious injury.

Indicates a hazardous situation which, if not avoided,

could result in death or serious injury.

Indicates a hazardous situation which, if not avoided,

could result in minor or moderate injury.

Addresses practices not related to personal injury.

Symbol Definitions

Symbol Property or Statement

RPM Revolutions Per Minute

HP Horsepower

AWG American Wire Gauge

WARNING marking concerning

Risk of Eye Injury. Wear ANSI-approved

safety goggles with side shields.

Read the manual before

set-up and/or use.

Symbol Property or Statement

WARNING marking concerning

Risk of Hearing Loss.

Wear hearing protection.

WARNING marking concerning

Risk of Respiratory Injury.

Operate engine OUTSIDE and far away

from windows, doors, and vents.

WARNING marking concerning

Risk of Fire while handling fuel.

Do not smoke while handling fuel.

WARNING marking concerning

Risk of Fire.

Do not refuel while operating.

Keep flammable objects

away from engine.

IMPORTANT SAFETY INSTRUCTIONS

WARNING! Read all instructions.

Failure to follow all instructions listed below may result in fire, serious injury and/or DEATH.

The warnings and precautions discussed in this manual cannot cover all possible conditions and

situations that may occur. It must be understood by the operator that common sense and caution

are factors which cannot be built into this product, but must be supplied by the operator.

SAVE THESE INSTRUCTIONS

Page 4 For Generator technical questions, please call 1-888-866-5797. ITEM 61169

SAFETY OPERATION MAINTENANCESETUP

Setup Precautions

1. Gasoline fuel and fumes are flammable, and

potentially explosive. Use proper fuel storage

and handling procedures. Do not store fuel

or other flammable materials nearby.

2. Have multiple ABC class fire extinguishers nearby.

3. Operation of this equipment may create sparks that

can start fires around dry vegetation.

A spark arrestor may be required. The operator

should contact local fire agencies for laws or

regulations relating to fire prevention requirements.

4. Set up and use only on a flat, level,

well-ventilated surface.

5. All connections and conduits from the generator

to the load must only be installed by trained and

licensed electricians, and in compliance with all

relevant local, state, and federal electrical codes and

standards, and other regulations where applicable.

6. Connections for standby power to a building

electrical system must be made by a qualified

electrician. The connection must isolate the

generator power from utility power, and must comply

with all applicable laws and electrical codes.

7. Wear ANSI-approved safety goggles, heavy-duty

work gloves, and dust mask/respirator during set up.

8. Use only lubricants and fuel recommended

in the Specifications chart of this manual.

9. Improper connections to a building electrical system

can allow electrical current from the generator

to backfeed into the utility lines. Such backfeed

may electrocute utility company workers or others

who contact the lines during a power outage,

and the generator may explode, burn, or cause

fires when utility power is restored. Consult

the utility company and a qualified electrician if

intending to use the generator for back up power.

10. Do not operate the generator before grounding.

The generator must be earth-grounded

in accordance with all relevant electrical

codes and standards before operation.

Operating Precautions

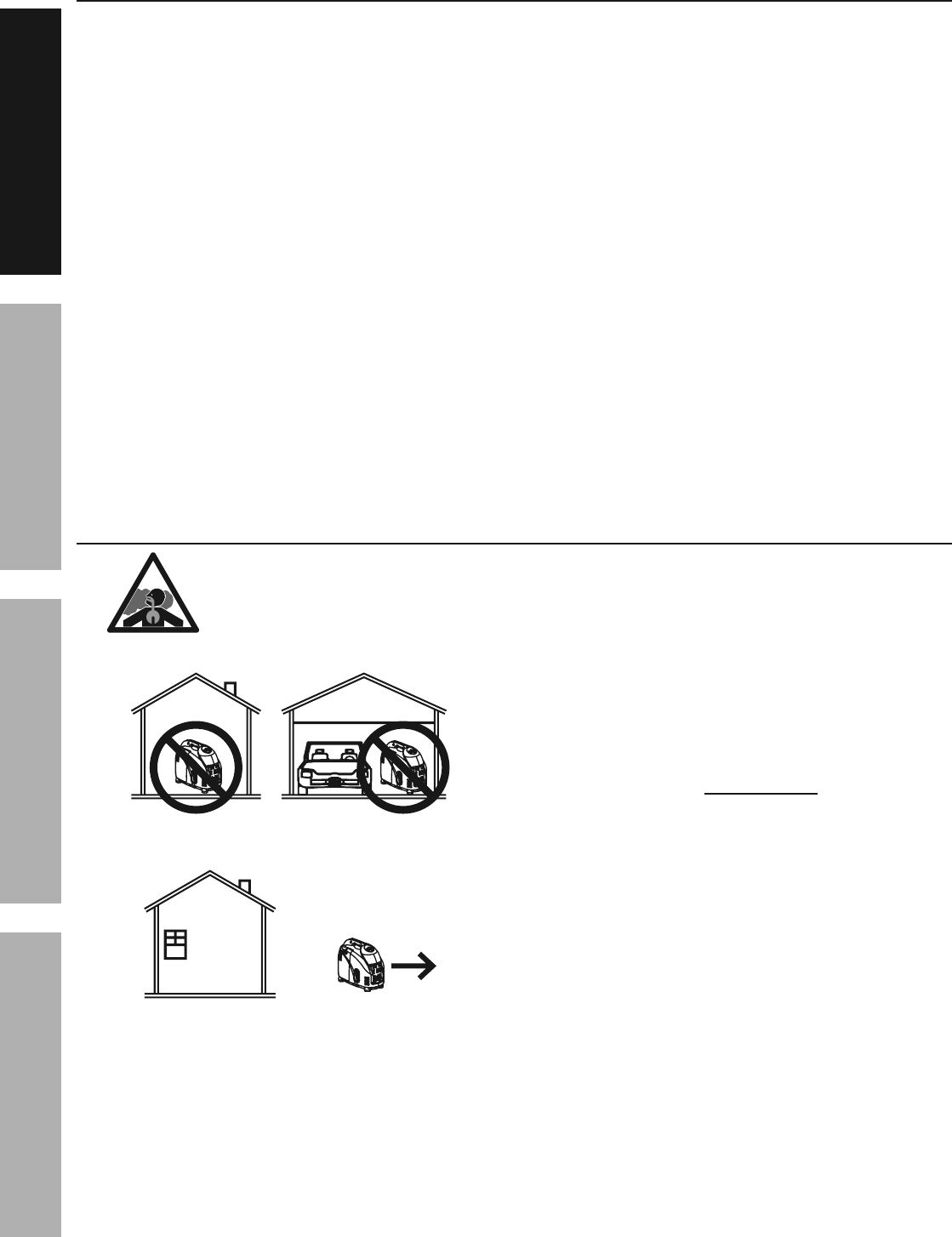

1. CARBON MONOXIDE HAZARD

Using a generator indoors CAN KILL

YOU IN MINUTES.

Generator exhaust contains

carbon monoxide. This is a poison

you cannot see or smell.

NEVER use inside a home or garage,

EVEN IF doors and windows are open.

Only use OUTSIDE and far away from windows,

doors, and vents.

2. Never use a generator indoors, including in

garages, basements, crawl spaces and sheds.

Opening doors and windows or using fans will NOT

prevent carbon monoxide build up in the home.

3. When using generators, keep them outdoors

and far away from open doors, windows,

and vents to avoid toxic levels of carbon

monoxide from building up indoors.

4. If you start to feel sick, dizzy, or weak while

using a generator, get to fresh air right away.

The carbon monoxide from generators can

quickly lead to full incapacitation and death.

5. Keep children away from the equipment,

especially while it is operating.

6. Keep all spectators at least six feet

from the engine during operation.

7. Fire Hazard! Do not fill gas tank while engine is

running. Do not operate if gasoline has been spilled.

Clean spilled gasoline before starting engine.

Do not operate near pilot light or open flame.

8. Do not touch engine during use.

Let engine cool down after use.

9. Never store fuel or other flammable

materials near the engine.

10. If the plugged in product operates abnormally

or unusually slow, immediately stop using the

generator as a power source. Read and adhere

to the instruction manual of the product to be

powered to make sure that it can be safely and

efficiently powered by a portable generator.

11. Before connecting an appliance or power cord

to the generator: Make sure that it is in good

working order. Faulty appliances or power cords

can create a potential for electrical shock.

Page 5

For Generator technical questions, please call 1-888-866-5797.

ITEM 61169

SAFETYOPERATIONMAINTENANCE SETUP

12. Do not exceed the running wattage of the generator.

Make sure that the total electrical rating of the

all of the tools or appliances plugged into the

generator at the same time does not exceed that

of the generator. Check that the startup surge

will not be beyond the limit of the generator.

13. Avoid substantially overloading which will trip

the circuit breaker. Slightly overloading the

generator may not trip the circuit breaker,

but will lead to premature generator failure.

14. Do not attempt to connect or disconnect

load connections while standing in water,

or on wet or soggy ground.

15. Do not touch electrically energized parts of

the generator and interconnecting cables or

conductors with any part of the body, or with

any non-insulated conductive object.

16. Connect the generator only to a load that is

compatible with the electrical characteristics

and running wattage of the generator.

17. Insulate all connections and disconnected wires.

18. Guard against electric shock.

Prevent body contact with grounded surfaces such

as pipes, radiators, ranges, and refrigerators.

19. Only use a suitable means of transport and

lifting devices with sufficient weight bearing

capacity when transporting the generator.

20. Secure the generator on transport vehicles to

prevent it from rolling, slipping, and tilting.

21. Industrial applications must follow

OSHA requirements.

22. Do not leave the generator unattended when it is

running. Turn off the generator (and remove safety

keys, if available) before leaving the work area.

23. The generator can produce high noise levels.

Prolonged exposure to noise levels

above 85 dBA is hazardous to hearing.

Wear ear protection when operating the generator

or when working nearby while it is operating.

24. Keep access doors on enclosures locked.

25. Wear ANSI-approved safety glasses

and hearing protection during use.

26. People with pacemakers should consult their

physician(s) before use. Electromagnetic fields in

close proximity to a heart pacemaker could cause

pacemaker interference or pacemaker failure.

Caution is necessary when near the

engine’s magneto or recoil starter.

27. Use only accessories that are recommended

by Harbor Freight Tools for your model.

Accessories that may be suitable for one

piece of equipment may become hazardous

when used on another piece of equipment.

28. Do not operate in explosive atmospheres,

such as in the presence of flammable

liquids, gases, or dust. Gasoline-powered

engines may ignite the dust or fumes.

29. Stay alert, watch what you are doing and

use common sense when operating this

generator. Do not use while tired or under the

influence of drugs, alcohol or medication.

30. Dress properly. Do not wear loose clothing or

jewelry. Keep hair, clothing and gloves away

from moving parts. Loose clothes, jewelry or

long hair can be caught in moving parts.

31. Parts, especially exhaust system components,

get very hot during use. Stay clear of hot parts.

32. Do not cover the generator during operation.

33. Keep the generator and surrounding

area clean at all times.

34. Use the equipment, accessories, etc.,

in accordance with these instructions and in

the manner intended for the particular type of

equipment, taking into account the working

conditions and the work to be performed.

Use of the equipment for operations different from

those intended could result in a hazardous situation.

35. Do not operate the equipment with known

leaks in the engine’s fuel system.

36. WARNING: This product contains or, when

used, produces a chemical known to the State

of California to cause cancer and birth defects

or other reproductive harm. (California Health

& Safety Code § 25249.5, et seq.)

37. When spills of fuel or oil occur, they must be

cleaned up immediately. Dispose of fluids and

cleaning materials as per any local, state, or

federal codes and regulations. Store oil rags in

a bottom-ventilated, covered, metal container.

38. Keep hands and feet away from moving parts.

Do not reach over or across

equipment while operating.

39. Before use, check for misalignment or binding of

moving parts, breakage of parts, and any other

condition that may affect the equipment’s operation.

If damaged, have the equipment serviced

before using. Many accidents are caused

by poorly maintained equipment.

40. Use the correct equipment for the application.

Do not modify the equipment and do not use the

equipment for a purpose for which it is not intended.

Operating Precautions (cont.)

Page 6 For Generator technical questions, please call 1-888-866-5797. ITEM 61169

SAFETY OPERATION MAINTENANCESETUP

Service Precautions

1. Before service, maintenance, or cleaning:

a. Unplug all devices from the generator.

b. Turn the engine switch to its “OFF” position.

c. Allow the engine to completely cool.

d. Then, remove the spark plug cap

from the spark plug.

2. Keep all safety guards in place and in

proper working order. Safety guards include

muffler, air cleaner, mechanical guards,

and heat shields, among other guards.

3. Keep all electrical equipment clean and dry.

Replace any wiring where the insulation is

cracked, cut, abraded, or otherwise degraded.

Replace terminals that are worn, discolored, or

corroded. Keep terminals clean and tight.

4. Do not alter or adjust any part of the

equipment or its engine that is sealed by the

manufacturer or distributor. Only a qualified

service technician may adjust parts that may

increase or decrease governed engine speed.

5. Wear ANSI-approved safety goggles,

heavy-duty work gloves, and

dust mask/respirator during service.

6. Maintain labels and nameplates on the equipment.

These carry important information.

If unreadable or missing, contact

Harbor Freight Tools for a replacement.

7. Have the equipment serviced by a qualified repair

person using only identical replacement parts.

This will ensure that the safety of the equipment

is maintained. Do not attempt any service or

maintenance procedures not explained in this

manual or any procedures that you are uncertain

about your ability to perform safely or correctly.

8. Store equipment out of the reach of children.

9. Follow scheduled engine and

equipment maintenance.

Refueling:

1. Do not smoke, or allow sparks, flames,

or other sources of ignition around the

equipment, especially when refuelling.

2. Do not refill the fuel tank while the

engine is running or hot.

3. Do not fill fuel tank to the top.

Leave a little room for the fuel to expand as needed.

4. Refuel in a well-ventilated area only.

5. Wipe up any spilled fuel and allow excess

to evaporate before starting engine.

To prevent FIRE, do not start the engine

while the smell of fuel hangs in the air.

SAVE THESE INSTRUCTIONS.

Page 7

For Generator technical questions, please call 1-888-866-5797.

ITEM 61169

SAFETYOPERATIONMAINTENANCE SETUP

Set Up

Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual

including all text under subheadings therein before set up or use of this product.

TO PREVENT SERIOUS INJURY AND FIRE: Operate only with proper spark arrestor installed.

Operation of this equipment may create sparks that can start fires around dry vegetation.

A spark arrestor may be required.

The operator should contact local fire agencies for laws or regulations relating to fire

prevention requirements.

At high altitudes, the engine’s carburetor, governor, and any other parts that control the fuel-air ratio

will need to be adjusted by a qualified mechanic to allow efficient high-altitude use and

to prevent damage to the engine and any other devices used with this product.

Grounding

1. The Generator must be properly grounded

in accordance with all relevant electrical

codes and standards before operation.

Have the unit grounded by a qualified electrician

if you are not qualified to do so.

2. To ground the Generator, connect a #6 AWG

grounding wire (not included) from the Grounding

Terminal on the control panel to a grounding rod

(not included). The grounding rod must be an

earth-driven copper or brass rod (electrode)

which can adequately ground the Generator.

3. Refer to local regulations for

ground source information.

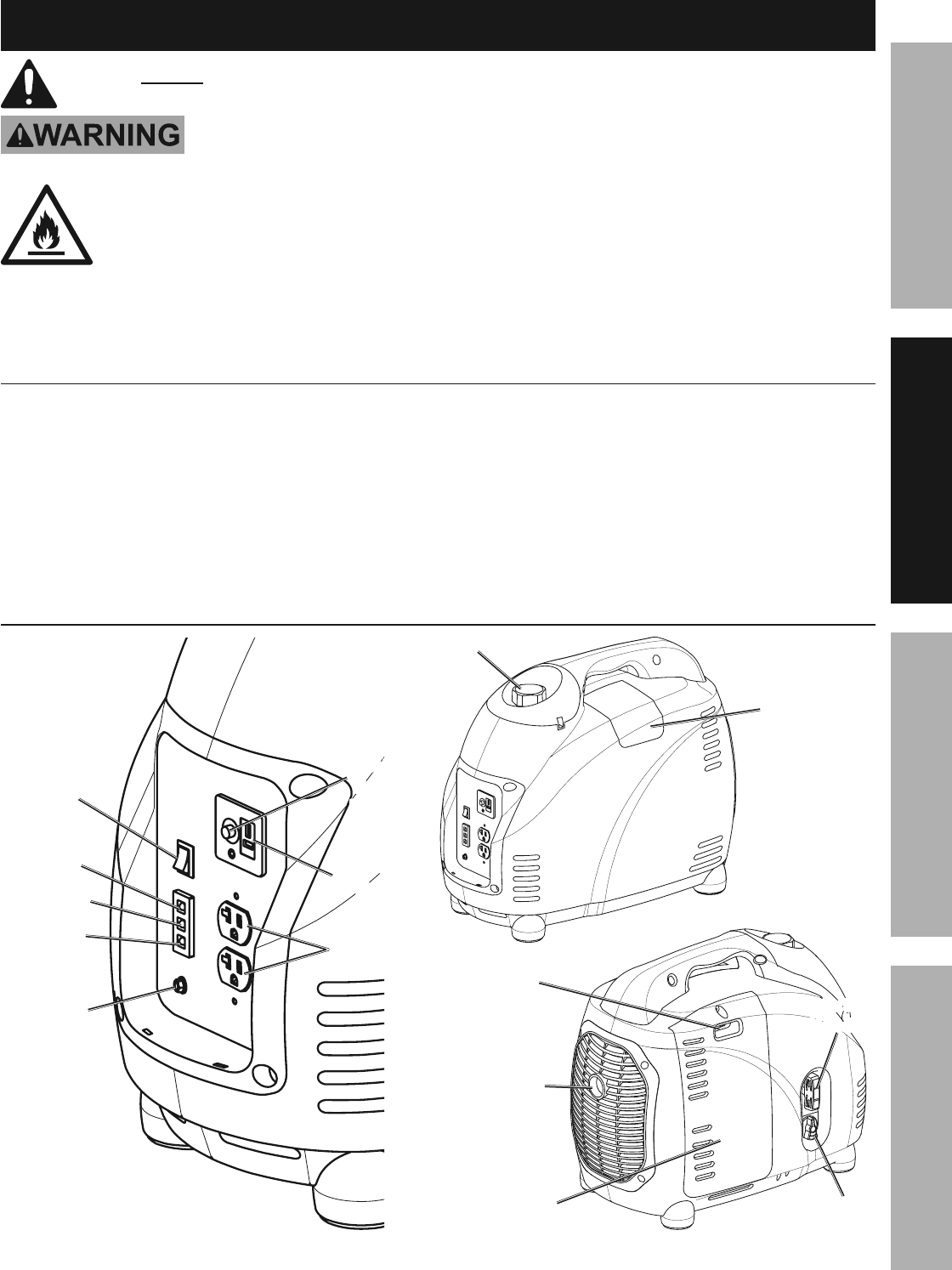

Components and Controls

Fuel Cap

Spark Plug

Access Panel

Fuel

Valve

Choke

Exhaust

Starter

Handle

Air Filter

and Oil Fill

Access Panel

Engine

Switch

Ground

Terminal

Output

Overload

Oil

Indicator 120VAC

Receptacles

12VDC

Breaker

Reset

Button

12VDC

Receptacle

Page 8 For Generator technical questions, please call 1-888-866-5797. ITEM 61169

SAFETY OPERATION MAINTENANCESETUP

Operation

Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual

including all text under subheadings therein before set up or use of this product.

Pre-Start Checks

Inspect Engine and Generator looking for damaged, loose, and missing parts before set up and starting.

If any problems are found, do not use equipment until fixed properly.

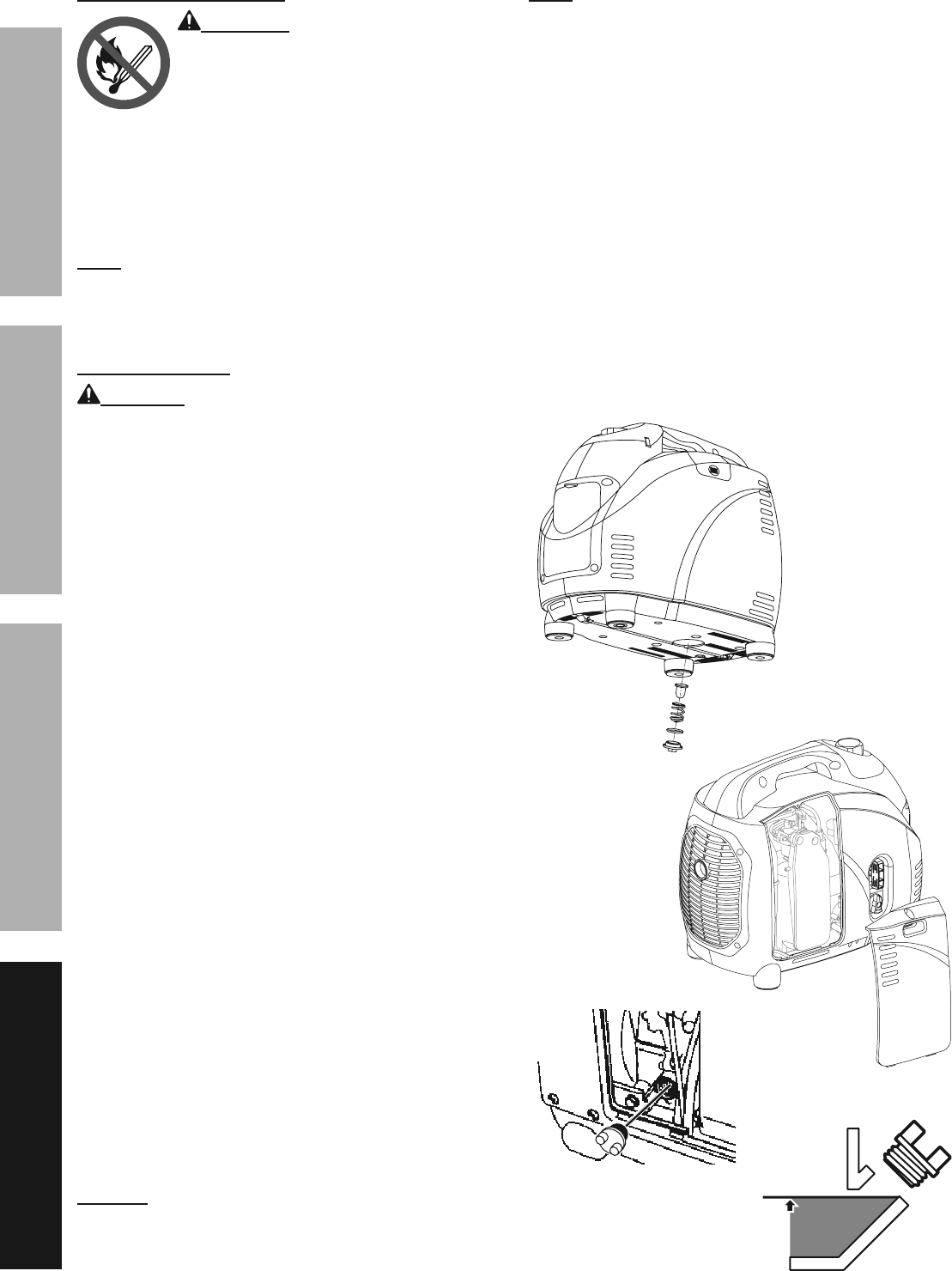

Checking and Filling Engine Oil

NOTICE: Your Warranty is VOID if the Engine’s

crankcase is not properly filled with oil before

each use. Before each use, check the oil level.

Do not run the Engine with low or no Engine oil.

Running the Engine with no or low Engine

oil WILL permanently damage the Engine.

1. Make sure the Engine is stopped and is level.

2. Close the Fuel Valve.

3. Remove the Access Panel on

the side of the Generator.

4. Clean the top of the Dipstick and the area around it.

Remove the Dipstick, turning it counterclockwise.

5. Check the oil level. The oil level should be

up to the edge of the hole as shown.

6. As needed, add the appropriate type of

oil until the oil level is at the proper level.

SAE 10W-30 oil is recommended for general use.

7. Thread the Dipstick back in clockwise

and replace the Access Panel.

Full level

Checking and Filling Fuel

WARNING! TO PREVENT SERIOUS

INJURY FROM FIRE:

Fill the fuel tank in a well-ventilated area

away from ignition sources. If the Engine

is hot from use, shut the Engine off and

wait for it to cool before adding fuel. Do not smoke.

1. Clean the Fuel Cap and the area around it.

2. Unscrew and remove the Fuel Cap.

3. Remove the Strainer and remove any dirt

and debris. Then replace the Strainer.

Note: Do not use gasoline containing more than

10% ethanol (E10). Do not use E85 ethanol.

Note: Do not use gasoline that has been stored in a

metal fuel container or a dirty fuel container. It can

cause particles to enter the carburetor, affecting

Engine performance and/or causing damage.

4. If needed, fill the Fuel Tank to about 1 inch under

the fill neck of the Fuel Tank with 87 octane or

higher unleaded gasoline that has been treated

with a fuel stabilizer additive. Follow fuel stabilizer

manufacturer’s recommendations for use.

5. Then replace the Fuel Cap.

6. Wipe up any spilled fuel and allow excess

to evaporate before starting Engine.

To prevent FIRE, do not start the Engine

while the smell of fuel hangs in the air.

Note: Fill Fuel Tank completely before first use.

Fuel Tank needs to be completely full to properly prime Carburetor.

Page 9

For Generator technical questions, please call 1-888-866-5797.

ITEM 61169

SAFETYOPERATIONMAINTENANCE SETUP

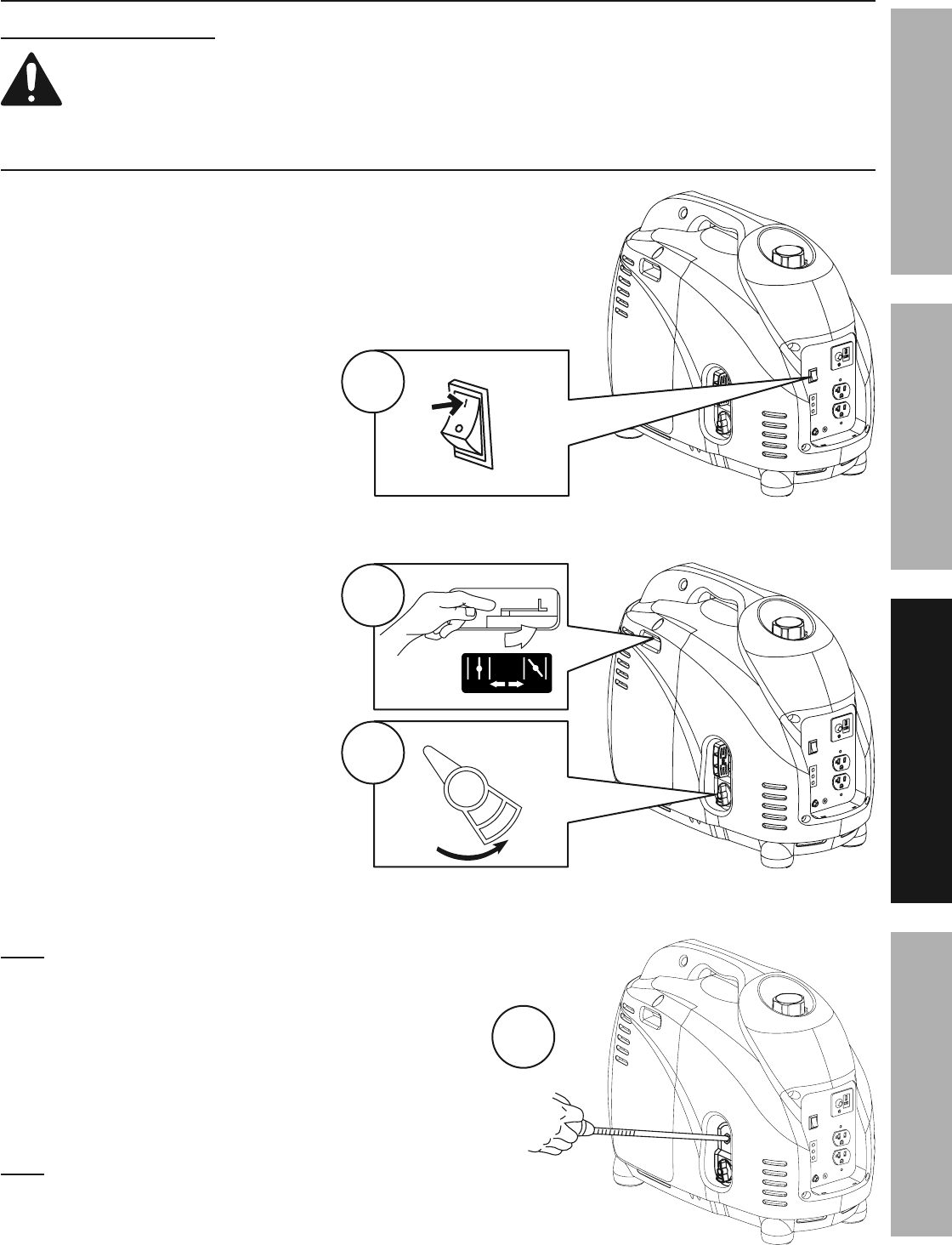

Starting the Engine

Before Starting the Engine

a. Inspect the Generator and Engine.

b. Disconnect all electrical loads from the Generator.

c. Fill the Engine with the proper amount and type of both unleaded gasoline and oil.

Manual Start

1. Turn the Engine Switch on.

2. Move the Choke to the START position.

3. Turn the Fuel Valve to the ON position.

Note: After unpacking, before first use,

slowly pull recoil handle 20 times to prime the Engine.

4. Grip the Starter Handle of the Engine loosely and

pull it slowly several times to allow the gasoline to

flow into the Engine’s carburetor. Then pull the Starter

Handle gently until resistance is felt.

Allow Cable to retract fully and then pull it

quickly. Repeat until the Engine starts.

Note: Do not let the Starter Handle snap back against the housing.

Hold it as it recoils so it doesn't hit the housing.

STARTRUN

ON OFF

Page 10 For Generator technical questions, please call 1-888-866-5797. ITEM 61169

SAFETY OPERATION MAINTENANCESETUP

5. Allow the Engine to run for

several seconds.

Then, move the Choke Lever

very slowly to its RUN position.

Note: Moving the Choke Lever too fast

could stall the Engine.

IMPORTANT: Allow the Engine

to run at no load for five minutes

with no load after each start-up so

that the Engine can stabilize.

6. Wait for the OUTPUT light to light up.

Break-in Period:

a. Breaking-in the Engine will help to ensure proper equipment and Engine operation.

b. The break-in period will last about 25 hours of use.

DO NOT exceed 75% of the Generator’s running wattage during this period.

• Change the Engine oil after this period.

Under normal operating conditions subsequent maintenance follows

the schedule explained in the MAINTENANCE section.

Nominal 12VDC Output

1. Do not use any 120VAC outlet

while using the 12VDC outlet.

2. Only use the 12VDC receptacle to

charge a 12 volt lead-acid type battery

using an appropriate charge controller.

(Battery and controller not included.)

The 12VDC output is not regulated.

3. Do not connect any device to the 12VDC

terminal that draws more than 8 amps.

4. If this 12VDC circuit protection is tripped,

reduce the load, and press

the red Reset Button next to the outlet.

STARTRUN

Move Slowly

OUTPUT

OVERLOAD

LOW OIL

Reset Button

12VDC

+ Positive

Terminal

12VDC

– Negative

Terminal

Page 11

For Generator technical questions, please call 1-888-866-5797.

ITEM 61169

SAFETYOPERATIONMAINTENANCE SETUP

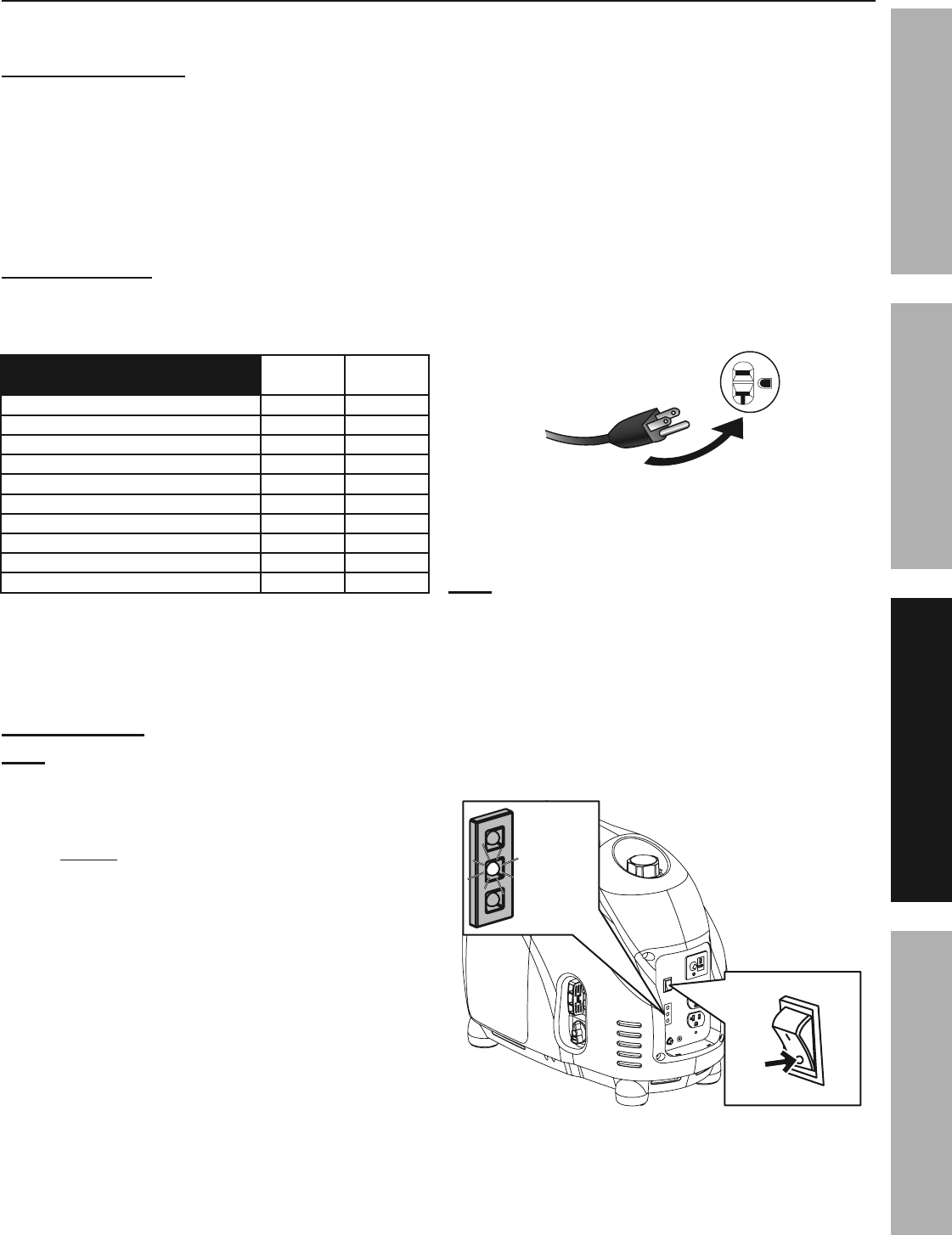

Connecting 120VAC Loads to the Generator

Calculate Power Draw:

Power draw can be calculated by multiplying volts and amps. The resulting number is wattage.

• Never exceed the running wattage for the Generator or any outlet amperage rating.

• Refer to appliance/tool owner’s manuals to determine the wattage of electrical load devices.

• Long power cords and extension cords draw additional power. Keep cord length at a minimum.

Wattage Estimates

Wattages listed below are estimates for that type of equipment only.

Check nameplate wattages on all loads before connecting to Generator.

This Unit Can Power Any

One of the Following Items:

Running

Watts

Start-up

Watts

1/4 HP Air Compressor 600 900

1/6 HP Motor 500 800

3/8" Drill 400 600

Mini Refrigerator 400 700

Table/Box Fan 200

15 Amp Battery Charger 380

String Trimmer 350

Hedge Trimmer 500

Radio 50

Ten 75 Watt Light Bulbs 750

Figure A: Plug Load In

Plug the power cord of the 120 volt appliance/

tool into the 120 volt AC Outlet on the Generator.

Plug in appliances from largest to smallest load.

Note: Do not allow the Generator to completely run

out of fuel with devices attached. A Generator’s

output may sharply spike as it runs out of fuel,

causing damage to attached devices.

OVERLOAD Light

Note: The OVERLOAD light may turn on for a few seconds as a large device starts up.

This is normal for loads approaching the capacity of this Generator.

1. The total combined load through the

outlet on the Generator must not exceed

the running power of the unit.

2. If the OVERLOAD light turns on and the Generator

stops producing power, it has been overloaded.

3. Turn Engine switch off,

disconnect all electrical devices, and

compare device requirements to Generator rating.

Move anything that may be limiting

Generator ventilation away.

4. Restart Generator (the OVERLOAD device will

automatically reset), and reconnect devices

while being careful to not overload Generator.

OUTPUT

OVERLOAD

LOW OIL

Page 12 For Generator technical questions, please call 1-888-866-5797. ITEM 61169

SAFETY OPERATION MAINTENANCESETUP

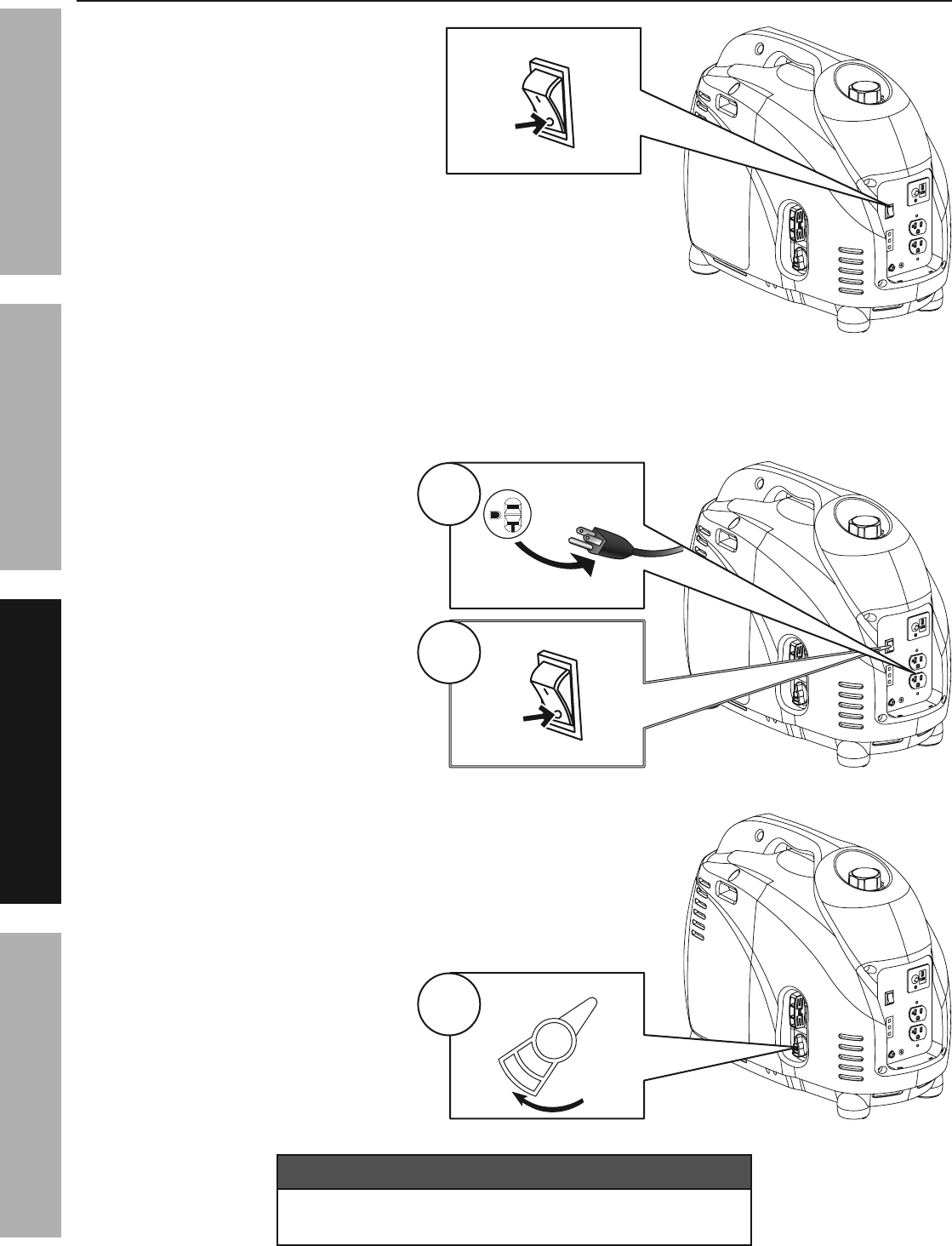

Stopping the Engine

To stop the Engine in an emergency,

turn the Engine Switch off.

Under normal conditions, use the following procedure to shut off the Generator:

1. Unplug all electrical load devices

from the Generator.

2. Turn the Engine Switch off.

3. Close the Fuel Valve.

NOTICE

Drain fuel at end of season or warranty is void.

See Storage on page 16 for complete storage instructions.

EMERGENCY

SHUT OFF

Unplug Loads

ON OFF

Page 13

For Generator technical questions, please call 1-888-866-5797.

ITEM 61169

SAFETYOPERATIONMAINTENANCE SETUP

Maintenance

WARNING

TO PREVENT SERIOUS INJURY FROM ACCIDENTAL STARTING:

Turn the Engine Switch of the equipment to its “OFF” position, wait for the engine to cool, and disconnect

the spark plug cap before performing any inspection, maintenance, or cleaning procedures.

TO PREVENT SERIOUS INJURY FROM EQUIPMENT FAILURE:

Do not use damaged equipment. If abnormal noise, vibration, or

excess smoking occurs, have the problem corrected before further use.

Follow all service instructions in this manual. The engine may fail critically if not serviced properly.

Many maintenance procedures, including any not detailed in this manual, will need to be performed

by a qualified technician for safety. If you have any doubts about your ability to safely service the

equipment or engine, have a qualified technician service the equipment instead.

Cleaning, Maintenance, and Lubrication Schedule

Note: This maintenance schedule is intended solely as a general guide. If performance decreases or if

equipment operates unusually, check systems immediately. The maintenance needs of each piece of equipment

will differ depending on factors such as duty cycle, temperature, air quality, fuel quality, and other factors.

Note: The following procedures are in addition to the regular checks and maintenance

explained as part of the regular operation of the engine and equipment.

Procedure Before

Each Use

Monthly or

every 20

hr. of use

Every 3 mo. or

50 hr. of use

Every 6 mo. or

100 hr. of use

Yearly or

every 300

hr. of use

Every

2 Years

Brush off outside of engine

Check engine oil level

Check air cleaner

Change engine oil

Clean/replace air cleaner *

Check and clean spark plug

1. Check/adjust idle speed

2. Check/adjust valve clearance

3. Clean fuel tank, strainer

and carburetor

4. Clean carbon build-up from

combustion chamber

** **

Replace fuel line if necessary **

*Service more frequently when used in dusty areas.

**These items should be serviced by a qualified technician.

Page 14 For Generator technical questions, please call 1-888-866-5797. ITEM 61169

SAFETY OPERATION MAINTENANCESETUP

Checking and Filling Fuel

WARNING! TO PREVENT SERIOUS

INJURY FROM FIRE:

Fill the fuel tank in a well-ventilated area

away from ignition sources. If the engine is

hot from use, shut the engine off and wait

for it to cool before adding fuel. Do not smoke.

1. Clean the Fuel Cap and the area around it.

2. Unscrew and remove the Fuel Cap.

3. Remove the Strainer and remove any dirt

and debris. Then replace the Strainer.

Note: Do not use gasoline containing more than

10% ethanol (E10). Do not use E85 ethanol.

Note: Do not use gasoline that has been stored in a

metal fuel container or a dirty fuel container. It can

cause particles to enter the carburetor, affecting

engine performance and/or causing damage.

4. If needed, fill the Fuel Tank to about 1 inch under

the fill neck of the Fuel Tank with 87 octane or

higher unleaded gasoline that has been treated

with a fuel stabilizer additive. Follow fuel stabilizer

manufacturer’s recommendations for use.

5. Then replace the Fuel Cap.

6. Wipe up any spilled fuel and allow excess

to evaporate before starting engine.

To prevent FIRE, do not start the engine

while the smell of fuel hangs in the air.

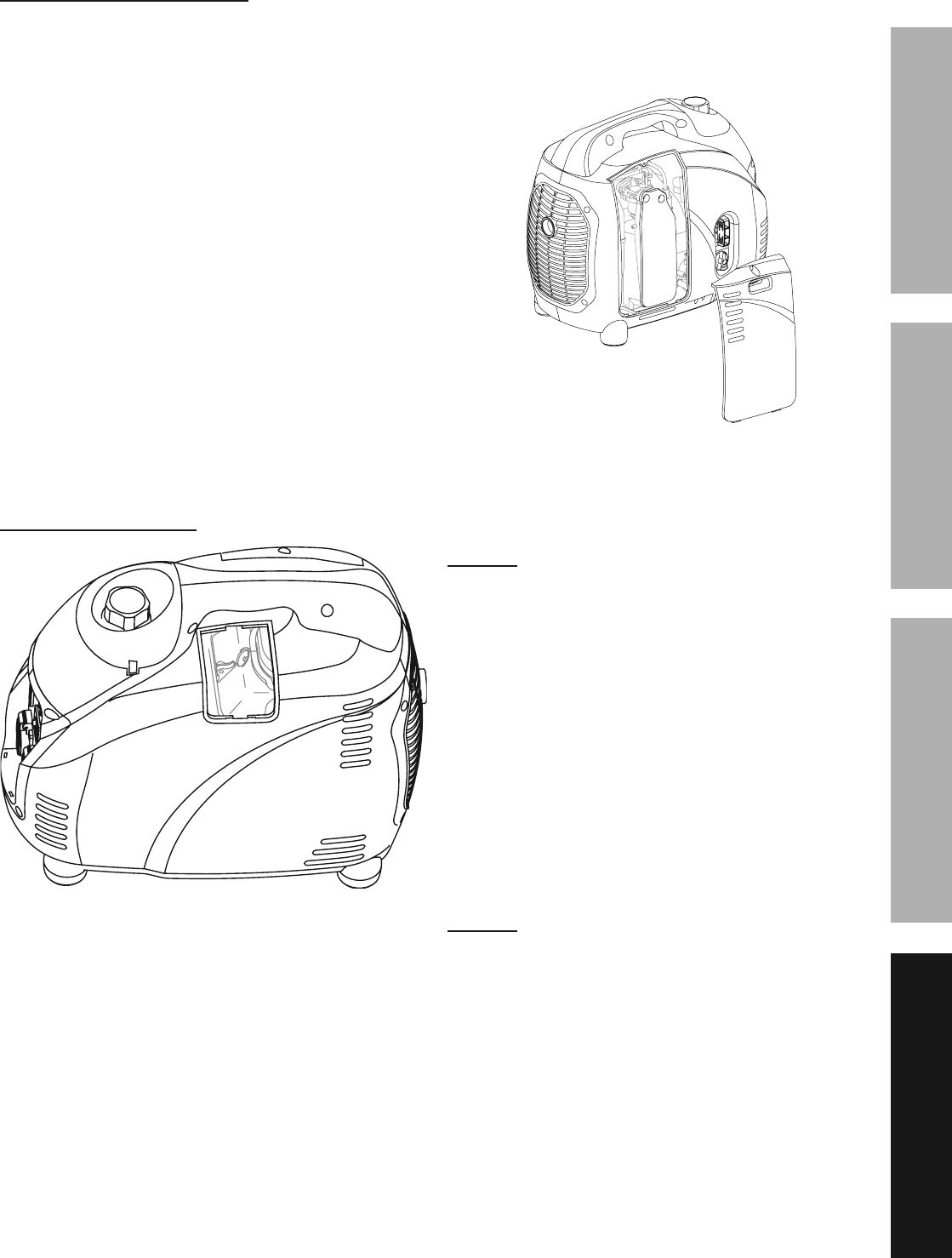

Engine Oil Change

CAUTION! Oil is very hot during operation and can cause burns. Wait for engine to cool before changing oil.

1. Make sure the engine is stopped and is level.

Place the Generator on stands with the drain

centered over a proper oil drain pan.

2. Close the Fuel Valve.

3. Remove the Drain Plug and wait for oil to

drain completely. Recycle used oil.

4. Replace the Drain Plug and tighten it.

5. Remove the Access Panel on the

side of the Generator.

6. Clean the top of the Dipstick and the area around it.

Remove the Dipstick, turning it counterclockwise.

7. Add the appropriate type of oil until the oil

level is at the proper level. SAE 10W-30

oil is recommended for general use.

8. Check the oil level. The oil level should be

up to the edge of the hole as shown.

9. Thread the Dipstick back in clockwise

and replace the Access Panel.

NOTICE: Do not run the engine with too little oil.

The engine will be permanently damaged.

Full level

Page 15

For Generator technical questions, please call 1-888-866-5797.

ITEM 61169

SAFETYOPERATIONMAINTENANCE SETUP

Air Filter Element Maintenance

1. Remove the Access Panel on the

side of the Generator.

2. Remove the Air Cleaner Cover and

the air filter elements and check for

dirt. Clean as described below.

3. Cleaning:

• For “paper” filter elements:

To prevent injury from dust and debris,

wear ANSI-approved safety goggles,

NIOSH-approved dust mask/respirator, and

heavy-duty work gloves. In a well-ventilated

area away from bystanders, use pressurized

air to blow dust out of the air filter.

If this does not get the filter clean, replace it.

• For foam filter elements:

Wash the element in warm water and

mild detergent several times. Rinse.

Squeeze out excess water and allow it to dry

completely. Soak the filter in lightweight oil

briefly, then squeeze out the excess oil.

4. Install the cleaned filter.

5. Secure the Air Cleaner Cover and

replace the Access Panel before use.

Spark Plug Maintenance

1. Remove Access Panel from top

of Generator, see above.

2. Disconnect spark plug cap from end of plug.

Clean out debris from around spark plug.

3. Using a spark plug wrench, remove the spark plug.

4. Inspect the spark plug:

If the electrode is oily, clean it using a clean, dry rag.

If the electrode has deposits on it, polish it using

emery paper. If the white insulator is cracked or

chipped, the spark plug needs to be replaced.

NOTICE: Use only A7RTC type spark plug. Using

an incorrect spark plug may damage the engine.

5. When installing a new spark plug,

adjust the plug’s gap to the specification on the

Specifications chart. Do not pry against the

electrode, the spark plug can be damaged.

6. Install the new spark plug or

the cleaned spark plug into the engine.

• Gasket-style:

Finger-tighten until the gasket

contacts the cylinder head,

then tighten about 1/2-2/3 turn more.

• Non-gasket-style:

Finger-tighten until the plug

contacts the cylinder head,

then tighten about 1/16 turn more.

NOTICE: Tighten the spark plug properly.

If loose, the spark plug will cause the

engine to overheat.

If overtightened, the threads in the

engine block will be damaged.

7. Apply dielectric spark plug boot protector

(not included) to the end of the spark plug

and reattach the wire securely.

8. Replace Access Panel.

Page 16 For Generator technical questions, please call 1-888-866-5797. ITEM 61169

SAFETY OPERATION MAINTENANCESETUP

Storage

When the equipment is to remain idle for longer than

20 days, prepare the Engine for storage as follows:

1. CLEANING:

Wait for Engine to cool, then clean Engine with

dry cloth. NOTICE: Do not clean using water.

The water will gradually enter the Engine

and cause rust damage. Apply a thin coat

of rust preventive oil to all metal parts.

2. FUEL:

To protect the fuel tank during storage, fill the

tank with gasoline that has been treated with

a fuel stabilizer additive. Follow fuel stabilizer

manufacturer’s recommendations for use.

Refer to Checking and Filling Fuel on page

Checking and Filling Fuel on page 8.

WARNING! TO PREVENT SERIOUS

INJURY FROM FIRE:

Fill tank in a well-ventilated area away from

ignition sources. If the engine is hot from

use, shut the engine off and wait for it to

cool before adding fuel. Do not smoke.

3. LUBRICATION:

a. Change engine oil.

b. Clean out area around spark plug.

Remove spark plug and pour one tablespoon of

engine oil into cylinder through spark plug hole.

c. Replace spark plug, but leave

spark plug cap disconnected.

d. Pull Starter Handle to distribute oil in cylinder.

Stop after one or two revolutions when you

feel the piston start the compression stroke

(when you start to feel resistance).

4. STORAGE AREA:

Cover and store in a dry, level, well-ventilated

area out of reach of children. Storage area should

also be away from ignition sources, such as

water heaters, clothes dryers, and furnaces.

NOTICE: During extended storage periods the

Engine must be started every 3 months and allowed

to run for 15 – 20 minutes or the Warranty is VOID.

5. AFTER STORAGE:

Before starting the Engine during or after

storage, keep in mind that untreated gasoline

will deteriorate quickly. Drain the fuel

tank and change to fresh fuel if untreated

gasoline has been sitting for a month, if

treated gasoline has been sitting beyond the

fuel stabilizer’s recommended time period,

or if the Engine does not start.

Page 17

For Generator technical questions, please call 1-888-866-5797.

ITEM 61169

SAFETYOPERATIONMAINTENANCE SETUP

Troubleshooting

Problem Possible Causes Probable Solutions

Engine will not start FUEL RELATED:

1. No fuel in tank or fuel valve closed.

2. Choke not in START position, cold engine.

3. Gasoline with more than 10% ethanol used.

(E15, E20, E85, etc.)

4. Low quality or deteriorated, old gasoline.

5. Carburetor not primed.

6. Dirty fuel passageways.

7. Carburetor needle stuck.

Fuel can be smelled in the air.

8. Too much fuel in chamber. This can be

caused by the carburetor needle sticking.

9. Clogged Fuel Filter.

FUEL RELATED:

1. Fill fuel tank with fresh 87+ octane

stabilizer-treated unleaded gasoline and

open fuel valve.

Do not use gasoline with more than

10% ethanol (E15, E20, E85, etc.).

2. Move Choke to START position.

3. Clean out ethanol-rich gasoline from fuel

system. Replace components damaged by

ethanol. Use fresh 87+ octane stabilizer-

treated unleaded gasoline only.

Do not use gasoline with more than

10% ethanol (E15, E20, E85, etc.).

4. Use fresh 87+ octane stabilizer-treated

unleaded gasoline.

Do not use gasoline with more than

10% ethanol (E15, E20, E85, etc.).

5. Pull on Starter Handle to prime.

6. Clean out passageways using

fuel additive. Heavy deposits

may require further cleaning.

7. Gently tap side of carburetor float

chamber with screwdriver handle.

8. Turn Choke to RUN position.

Remove spark plug and pull the start

handle several times to air out the

chamber. Reinstall spark plug and

set Choke to START position.

9. Replace Fuel Filter.

IGNITION (SPARK) RELATED:

1. Spark plug cap not connected securely.

2. Spark plug electrode wet or dirty.

3. Incorrect spark plug gap.

4. Spark plug cap broken.

5. Incorrect spark timing or

faulty ignition system.

IGNITION (SPARK) RELATED:

1. Connect spark plug cap properly.

2. Clean spark plug.

3. Correct spark plug gap.

4. Replace spark plug cap.

5. Have qualified technician diagnose/

repair ignition system.

COMPRESSION RELATED:

1. Cylinder not lubricated.

Problem after long storage periods.

2. Loose or broken spark plug.

(Hissing noise will occur

when trying to start.)

3. Loose cylinder head or damaged

head gasket. (Hissing noise will

occur when trying to start.)

4. Engine valves or tappets

mis-adjusted or stuck.

COMPRESSION RELATED:

1. Pour tablespoon of oil into

spark plug hole. Crank engine a

few times and try to start again.

2. Tighten spark plug.

If that does not work, replace spark plug.

If problem persists, may have

head gasket problem, see #3.

3. Tighten head.

If that does not remedy problem,

replace head gasket.

4. Have qualified technician adjust/

repair valves and tappets.

Follow all safety precautions whenever diagnosing or servicing the generator or engine.

Page 18 For Generator technical questions, please call 1-888-866-5797. ITEM 61169

SAFETY OPERATION MAINTENANCESETUP

Problem Possible Causes Probable Solutions

Engine misfires 1. Spark plug cap loose.

2. Incorrect spark plug gap or

damaged spark plug.

3. Defective spark plug cap.

4. Old or low quality gasoline.

5. Incorrect compression.

1. Check wire connections.

2. Re-gap or replace spark plug.

3. Replace spark plug cap.

4. Use only fresh 87+ octane stabilizer-treated

unleaded gasoline.

Do not use gasoline with more than

10% ethanol (E15, E20, E85, etc.).

5. Diagnose and repair compression.

(Use Engine will not start:

COMPRESSION RELATED section.)

Engine stops

suddenly

1. Fuel tank empty or full of impure or low

quality gasoline.

2. Low oil shutdown.

3. Defective fuel tank cap creating vacuum,

preventing proper fuel flow.

4. Faulty magneto.

5. Disconnected or improperly

connected spark plug cap.

1. Fill fuel tank with fresh 87+ octane

stabilizer-treated unleaded gasoline.

Do not use gasoline with more than

10% ethanol (E15, E20, E85, etc.).

2. Fill engine oil to proper level.

Check engine oil before EVERY use.

3. Test/replace fuel tank cap.

4. Have qualified technician service magneto.

5. Secure spark plug cap.

Engine stops when

under heavy load

1. Dirty air filter

2. Engine running cold.

1. Clean or replace element.

2. Allow engine to warm up prior

to operating equipment.

Engine knocks 1. Old or low quality gasoline.

2. Engine overloaded.

3. Incorrect spark timing, deposit buildup,

worn engine, or other mechanical problems.

1. Fill fuel tank with fresh 87+ octane

stabilizer-treated unleaded gasoline.

Do not use gasoline with more than

10% ethanol (E15, E20, E85, etc.).

2. Do not exceed equipment’s load rating.

3. Have qualified technician

diagnose and service engine.

Engine backfires 1. Impure or low quality gasoline.

2. Engine too cold.

3. Intake valve stuck or overheated engine.

4. Incorrect timing.

1. Fill fuel tank with fresh 87+ octane

stabilizer-treated unleaded gasoline.

Do not use gasoline with more than

10% ethanol (E15, E20, E85, etc.).

2. Use cold weather fuel and

oil additives to prevent backfiring.

3. Have qualified technician

diagnose and service engine.

4. Check engine timing.

Attached device

doesn’t have power

1. Device not plugged in properly.

2. Circuit Breaker tripped.

3. Product needs service.

1. Turn off and unplug the device,

then plug it back in again and turn on.

2. Turn off and unplug device, reset Circuit

Breaker, plug in device and turn on.

3. Have product repaired.

Attached device

begins to operate

abnormally

1. Problem with device.

2. Running wattage exceeded.

1. Immediately unplug device.

Have device repaired by a qualified

technician, or replace device.

2. Lower the number of items plugged into

the generator to stay within the running

wattage, or use a more powerful generator.

Follow all safety precautions whenever diagnosing or servicing the generator or engine.

Page 19

For Generator technical questions, please call 1-888-866-5797.

ITEM 61169

SAFETYOPERATIONMAINTENANCE SETUP

Parts Lists and Diagrams

Parts List and Diagram A - Crankcase

Part Description Qty

1a Left Crankcase Asm. 1

2a Oil Cork 1

3a Oil Sensor 1

4a Stand of Oil Sensor 1

5a Paper Washer 1

6a Dowel Pin 10×15.7 2

7a Stud 2

8a Dowel Axis 4

9a Bolt M6×17 2

10a Right Crankcase Asm. 1

11a Fuel Filter Asm. 1

12a Spring 1

13a Cap 1

14a O-Ring 1

15a Stud 2

16a Right Cover 1

17a Right Crankcase Gasket 1

18a Drain Plug 1

19a Oil Seal 19.8X30x5 1

20a Bolt M6×80 6

21a Bolt M6×90 2

22a Bolt M6×100 1

23a Bolt M6×50 2

Note: When ordering parts from this

diagram add an -a suffix.

Parts List and Diagram B - Piston

Part Description Qty

1b Crankshaft Asm. 1

2b Piston Pin Clip 2

3b Piston Pin 1

4b Piston 1

5b Piston Spacer Ring 1

6b Spacer Rails 2

7b Second Piston Ring 1

8b Top Piston Ring 1

9b Semicircle Key 1

Note: When ordering parts from

this diagram add a -b suffix.

Page 20 For Generator technical questions, please call 1-888-866-5797. ITEM 61169

SAFETY OPERATION MAINTENANCESETUP

Parts List and Diagram C - Cylinder Head

Part Description Qty

1c Cylinder Base Gasket 1

2c Cylinder 1

3c Plate Washer 6 1

4c Flange Bolt M6×12 1

5c Dowel Pin 10×15.7 4

6c Cylinder Head Gasket 1

7c Bolt M6×32 2

8c Cylinder Head Asm. 1

9c Bolt M6×118 2

10c Valve 1

11c Flange Bolt M6×100 1

12c Copper Plate Washer 8 4

13c Nut M8 4

14c Valve Cover Seal 1

15c Valve Cover 1

16c Flange Bolt M6×25 2

17c Flange Bolt M6×36 2

18c Cam Journal 1

Note: When ordering parts from

this diagram add a -c suffix.

Parts List and Diagram D - Camshaft

Part Description Qty

1d Screw, Pan Head 1

2d Oil Seal 15.2×1.5 1

3d Chain Guide 1

4d Chain 6.35×90 1

5d Tension Bar 1

6d Gasket 1

7d Camshaft Chain Regulator 1

8d Flange Bolt M6×22 2

9d Oil Ring 9×1.9 1

10d Pin 1

11d Exhaust Valve 1

12d Intake Valve 1

13d Valve Spring Seat 2

14d Valve Spring 2

15d Oil Seal For Valve 2

16d Valve 2

17d Camshaft Asm. 1

18d Check Plate 1

19d Valve Rocker 2

20d Intake Valve Spring Rocker 1

21d Intake Valve Rocker Shaft 1

Note: When ordering parts from

this diagram add a -d suffix.

Page 21

For Generator technical questions, please call 1-888-866-5797.

ITEM 61169

SAFETYOPERATIONMAINTENANCE SETUP

Parts List and Diagram E - Oil Pump

Part Description Qty

1e Bolt M6×12 2

2e Oil Pump Gear Cap 1

3e Nut M6 1

4e Chain 6.35×44 1

5e Gear 1

6e Bolt 2

7e Oil Pump Asm. 1

Note: When ordering parts from this

diagram add an -e suffix.

Parts List and Diagram F - Air Cleaner and Carburetor

Part Description Qty

1f Carburetor Gasket A 1

2f Carburetor Asm. 1

3f Carburetor Gasket B 1

4f Air Cleaner Gasket 1

5f Air Cleaner Asm. 1

6f Fan Volute Bushing 1

7f Bolt M5×20 1

8f Air Cleaner Bushing 2

9f Nut M6 2

10f Clip Ø11 1

11f Clip Ø10 5

12f Rubber Tube 1

13f Rubber Tube 1

14f Rubber Tube 1

15f Oil Separator Asm. 1

16f Spacer 4

17f Carburetor Asm. 1

Note: When ordering parts from

this diagram add a -f suffix.

Page 22 For Generator technical questions, please call 1-888-866-5797. ITEM 61169

SAFETY OPERATION MAINTENANCESETUP

Parts List and Diagram G - Recoil Starter

Part Description Qty

1g Bolt M6×12 5

2g Recoil Starter 1

3g Fan Cover 1

4g Bolt M5×20 4

5g Fan Cover Bushing 4

6g Screw ST4.8×16-F.H 4

7g Recoil Cage 1

8g Cooling Fan 1

9g Shroud B 1

10g Shroud 1

11g Bolt M5×12 4

12g Shroud Bushing 4

13g Nut M5 2

Note: When ordering parts from

this diagram add a -g suffix.

Parts List and Diagram H - Muffler

Part Description Qty

1h Gasket 1

2h Elbow 1

3h Nut M6 2

4h Gasket 1

5h Muffler Asm. 1

6h Bolt M6×80 1

7h Bolt M6×50 2

Note: When ordering parts from

this diagram add a -h suffix.

Page 23

For Generator technical questions, please call 1-888-866-5797.

ITEM 61169

SAFETYOPERATIONMAINTENANCE SETUP

Parts List and Diagram I - Generator Head

Part Description Qty

1i Nut M12×1.25 1

2i Stator 1

3i Rotor 1

4i Bolt M5×40 2

5i Bolt M5×15 2

6i Trigger 1

7i Rubber Block 1

8i Bolt M6×25 1

9i Spark Plug 1

10i Ignition Asm. 1

11i Ignition Cap 1

Note: When ordering parts from

this diagram add an -i suffix.

Parts List and Diagram J - Fuel Tank

Part Description Qty

1j Fuel Cap Asm. 1

2j Fuel Filter 1

3j Rubber Tank Fitting 1

4j Fuel Tank 1

5j Rubber Bumper 2

6j Rubber Foot 2

7j Clamp Ø9 1

8j Screw ST4.2×19 1

9j Washer 1

10j Fuel Hose 1

11j Fuel Cock 1

12j Hose 1

13j Bolt M4×16 1

14j Fuel Valve 1

15j Fuel Pump Asm. 1

16j Fuel Hose 1

17j Fuel Filter Asm. 1

18j Fuel Hose 1

19j Fuel Hose 1

20j Dump Valve 1

21j Tube 2

Note: When ordering parts from

this diagram add a -j suffix.

Page 24 For Generator technical questions, please call 1-888-866-5797. ITEM 61169

SAFETY OPERATION MAINTENANCESETUP

Parts List and Diagram K - Housing

Part Description Qty

1k Screw M6×12 5

2k Side Cover 1

3k Screw M6×20 2

4k Lift Cover 1

5k Protector Asm. 1

6k Protector Asm. Seal 1

7k Top Cover 1

8k Right Cover 1

9k Bolt ST4.2×13 1

10k Nut M8 8

11k Cover Plate 1

12k Bolt M8×12 4

13k Rear Damping Pad 2

14k Front Damping Pad 2

15k Chassis Asm. 1

16k Bolt M6×16 4

17k Foot 4

18k Screw M5×16 2

19k Nut M5 2

Note: When ordering parts from

this diagram add a -k suffix.

Parts List and Diagram M - Governor

Part Description Qty

1m Governor Arm 1

2m Stepper Motor Stand 1

3m Bolt M4×16 2

4m Bolt M4×10 1

5m Bolt M4×6 1

6m Stepper Motor Asm. 1

7m Governor Spring 1

Note: When ordering parts from this

diagram add a -m suffix.

Page 25

For Generator technical questions, please call 1-888-866-5797.

ITEM 61169

SAFETYOPERATIONMAINTENANCE SETUP

Parts List and Diagram N - Inverter

Part Description Qty

1n Inverter Asm. 1

2n U Rack 1

3n Screw M6×12 2

4n Bolt M6×13 2

5n U Rack 1

6n Rubber Foot 2

Note: When ordering parts from

this diagram add a -n suffix.

Parts List and Diagram P - Control Panel

Part Description Qty

1p Box 1

2p Screw M5×16 1

3p Screw M5×20 1

4p Rectifier Bridge KBPC 3502 1

5p Screw M5×10 4

6p Nut M4 2

7p Screw M5×16 8

8p Screw ST4.2×13 4

9p Screw M6×12 4

10 Ignition Controller 1

11 AC Outlet 1

12 Engine Switch 1

13 Panel Asm. 1

14 DC Outlet 1

15 Screw M4×12 2

16 Nut M5 1

Note: When ordering parts from

this diagram add a -p suffix.

Page 26 For Generator technical questions, please call 1-888-866-5797. ITEM 61169

SAFETY OPERATION MAINTENANCESETUP

Wiring Diagram

Inverter

OUTPUT

OVERLOAD

LOW OIL

Oil sensor

BL Y/G

DC coil

Step motor

Main

coil

Control

coil

Engine

switch

High

voltage

coil

Spark

plug

Spring coil

Ignition coil

Y/G

FUSE R

BL Black

BU Blue

G Green

Y Yellow

P Purple

GR Gray

BR Brown

R Red

W White

O Orange

Y/G Yellow/Green

PI Pink

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM

IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR

MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS

QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE

ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY

STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND

LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY

ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS

THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

Record Product’s Serial Number Here:

Note: If product has no serial number,

record month and year of purchase instead.

Note: Some parts are listed and shown for

illustration purposes only, and are not available

individually as replacement parts.

Page 27

For Generator technical questions, please call 1-888-866-5797.

ITEM 61169

SAFETYOPERATIONMAINTENANCE SETUP

Warranties

Limited 90 Day Warranty

Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,

and warrants to the original purchaser that this product is free from defects in materials and workmanship for the

period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,

to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper

installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries

to persons or property, or for incidental, contingent, special or consequential damages arising from the use of

our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the

above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.

To take advantage of this warranty, the product or part must be returned to us with transportation charges prepaid.

Proof of purchase date and an explanation of the complaint must accompany the merchandise.

If our inspection verifies the defect, we will either repair or replace the product at our election or

we may elect to refund the purchase price if we cannot readily and quickly provide you with a replacement.

We will return repaired products at our expense, but if we determine there is no defect, or that the defect resulted

from causes not within the scope of our warranty, then you must bear the cost of returning the product.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

Emissions Control System Warranty

United States Emissions Control

Defects Warranty Statement

The United States Environmental Protection Agency (herein EPA)

and Harbor Freight Tools (herein HFT) are pleased to explain the

emissions control system warranty on your 2014-2015 Small Off-

Road Engine (herein engine). Within the United States, new off-

road, spark-ignition engines certified for model year 2014-2015,

must meet similar standards set forth by the EPA. HFT must

warrant the emissions control system on your engine for the

periods of time described below, provided there has been no

abuse, neglect or improper maintenance of your engine.

Your emissions control system may include parts such as the

carburetor or fuel-injection system, and the ignition system.

Also included may be hoses, belts, connectors

and other emissions-related assemblies.

Where a warrantable condition exists, HFT will repair your

engine at no cost to you including diagnosis, parts and labor.

Manufacturer’s Warranty Coverage

The 2014-2015 engines are warranted for two (2) years.

If any emissions-related part on your engine is defective,

the part will be repaired or replaced by HFT.

Harbor Freight Tools Emissions Control

Defects Warranty Coverage

Engines are warranted for a period of two (2) years relative

to emissions control parts defects, subject to the provisions

set forth below. If any emissions related part on your engine

is defective, the part will be repaired or replaced by HFT.

Owner’s Warranty Responsibilities

• As the engine owner, you are responsible for the performance

of the required maintenance listed in your Owner’s Manual.

HFT recommends that you retain all receipts covering

maintenance on your engine, but HFT cannot deny warranty

solely for the lack of receipts or for your failure to

ensure the performance of all scheduled maintenance.

• As the engine owner, you should, however, be aware

that HFT may deny you warranty coverage if your

engine or a part has failed due to abuse, neglect,

improper maintenance, or unapproved modifications.

• You are responsible for shipping your engine to a HFT

warranty station as soon as a problem exists. Contact the

HFT Customer Service department at the number below to

make shipping arrangements. The warranty repairs should be

completed in a reasonable amount of time, not to exceed 30 days.

If you have any questions regarding your warranty rights

and responsibilities, you should contact the Harbor Freight Tools

Customer Service Department at 1-888-866-5797.

3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • 1-888-866-5797

Harbor Freight Tools Emissions Control

Defects Warranty Provisions

1. Length of Coverage

HFT warrants to a first retail purchaser and each

subsequent purchaser that the engine is free from

defects in materials and workmanship that cause

the failure of warranted parts for a period of two (2) years

after the date of delivery to the first retail purchaser.

2. No Charge Repair or Replacement

Repair or replacement of any warranted part will be performed at

no charge to the owner if the work is performed through a warranty

station authorized by HFT. For emissions warranty service,

contact the HFT Customer Service Department at 1-888-866-5797.

3. Consequential Damages Coverage

Coverage under this warranty shall also extend to the failure

of any engine components caused by the failure of any

warranted part while it is still covered under this warranty.

4. Coverage Exclusions

Warranty claims shall be filed in accordance with the provisions

of the HFT warranty policy explained in the box at the top of the

previous page. HFT shall not be liable for any loss of use of

the engine, for any alternative usage, for any damage to goods,

loss of time, or inconvenience. Warranty coverage shall also be

excluded for any part which fails, malfunctions, or is damaged

due to failure to follow the maintenance and operating instructions

set forth in the Owner’s Manual including, but not limited to:

a) Use of parts which are not authorized by HFT

b) Improper installation, adjustment or repair of

the engine or of any warranted part unless

performed by an authorized warranty center

c) Failure to follow recommendations on fuel use

contained in the Owner’s Manual

d) Improper or inadequate maintenance of any warranted parts

e) Repairs performed outside of

the authorized warranty service dealers

f) Alterations by changing, adding to or

removing parts from the engine.

5. Service and Maintenance

Component parts which are not scheduled for replacement as

required maintenance or are scheduled only for regular inspection

to the effect of “repair or replace as necessary” are warranted for

the warranty period. Any warranted part which is scheduled for

replacement as required maintenance is warranted for the period

of time up to the first scheduled replacement point for that part.

Any replacement part, provided it is equivalent in durability and

performance, may be used in performance of maintenance or

repairs. The owner is responsible for commissioning a qualified

technician/mechanic to perform all required maintenance,

as outlined in the Maintenance section in this manual.

6. Warranted Parts

1) Fuel Metering System

i) Carburetor and its internal parts.

ii) Fuel pump (if so equipped).

iii) Cold start enrichment system.

2) Air Induction System

i) Intake pipe/manifold.

ii) Air cleaner.

3) Ignition System

i) Spark plug.

ii) Magneto ignition system.

4) Catalyst System (if so equipped)

i) Exhaust pipe stud.

ii) Muffler.

iii) Catalytic converter (if so equipped).

5) Miscellaneous Items Used in Above Systems

i) Vacuum, temperature and time

sensitive valves and switches.

ii) Hoses, belts, connectors, and assemblies.

Harbor Freight 2500 Peak 2200 Running Watts 4 7 Hp 125Cc Portable Inverter Generator Epa Iii Product Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
