User Instruction Manual
NTG5 Infotainment System
NTG5 HU - head unit
NTG5 FU - fond unit
NTG5 P104 - wireless headphone
Commercial name:
COMAND Online
Version: 1.0 - english
Date: 2013-03-07
Symbols
In this manual, you will find the following sym-
bols:
GWARNING
Warning notices draw your attention to haz-
ards that may endanger your health or life, or
the health or life of others.
HEnvironmental note
Environmental notes provide you with infor-
mation on environmentally aware actions or
disposal.
! Notes on material damage alert you to
dangers that could lead to damage to your
vehicle.
iThese symbols indicate useful instruc-
tions or further information that could be
helpful to you.
XThis symbol designates an instruc-
tion you must follow.
XSeveral consecutive symbols indi-
cate an instruction with several
steps.
(Y page) This symbol tells you where you
can find further information on a
topic.
YY This symbol indicates a warning or
an instruction that is continued on
the next page.
Display This text indicates a message on
the multifunction/COMAND dis-
play.
Parts of the software in the vehicle are pro-
tected by copyright © 2005
The FreeType Project
http://www.freetype.org. All rights
reserved.
Thank you for buying Mercedes-Benz
Before you first drive off, read this Owner's
Manual carefully and familiarise yourself with
your vehicle. For your own safety and a longer
vehicle life, follow the instructions and warn-
ing notices in this manual. Disregarding them
may lead to damage to the vehicle or personal
injury.
The equipment or model designation of your
vehicle may vary according to:
RModel
ROrder
RCountry variant
RAvailability
The illustrations in this manual show a left-
hand-drive vehicle. On right-hand-drive vehi-
cles, the layout of components and controls
differs accordingly.
Mercedes-Benz is constantly updating its
vehicles to the state of the art.
Mercedes-Benz therefore reserves the right
to introduce changes in the following areas:
RDesign
REquipment
RTechnical features
The equipment in your vehicle may therefore
differ from that shown in the descriptions and
illustrations.
The following are integral components of the
vehicle:
ROwner's Manual
RService Booklet
REquipment-dependent supplements
Keep printed copies of the documents in the
vehicle at all times. If you sell the vehicle,
always pass the documents on to the new
owner.
iYou can get to know the important fea-
tures of your vehicle in the interactive Own-
er's Manual on the Internet at:
http://www.mercedes-benz.de/
betriebsanleitung
The technical documentation team at
Daimler AG wishes you safe and pleasant
motoring.
xxxxxxxxxx ÉxxxxxxxxxxÌËÍ
Index ....................................................... 4
Introduction ......................................... 31
At a glance ........................................... 37
Safety ................................................... 49
Opening and closing ........................... 93
Seats, steering wheel and mirrors .. 119
Lights and windscreen wipers ......... 143
Climate control ................................. 157
Driving and parking .......................... 185
On-board computer and displays .... 293
COMAND Online ................................ 357
Stowing and features ....................... 565
Maintenance and care ...................... 595
Breakdown assistance ..................... 611
Wheels and tyres .............................. 635
Technical data ................................... 661
Contents 3
Operating safety ............................... 358
At a glance ......................................... 361
System settings ................................ 373
Vehicle functions .............................. 381
Navigation ......................................... 395
Telephone .......................................... 423
Online and Internet ........................... 463
Radio .................................................. 484
Media ................................................. 491
Sound ................................................. 533
Rear Seat Entertainment System .... 536
357
COMAND Online
Operating safety
Important safety notes
GWARNING
Your attention must always be focused on the
traffic conditions.
Only use COMAND Online or the telephone
when the road and traffic conditions permit.
Bear in mind that, at a speed of only
50 km/h, your vehicle covers a distance of
nearly 14 m per second. The navigation sys-
tem does not provide you with information
about stop signs, give way signs, traffic regu-
lations or road safety features. It is up to you
to pay attention to these while driving the
vehicle. Only enter a new destination when
the vehicle is stationary.
Declarations of conformity
Wireless vehicle components
The following information applies to all com-
ponents of the vehicle and the COMAND
Online system which receive and/or transmit
radio waves:
The components of this vehicle which receive
and/or transmit radio waves are compliant
with the basic requirements and other rele-
vant provisions of Directive 1999/5/EC. You
can obtain further information from a
Mercedes-Benz Service Centre.
Electromagnetic compatibility
The electromagnetic compatibility of the vehi-
cle components has been checked and certi-
fied according to the currently valid version
of Directive ECE-R 10.
Correct use
Observe the following information when using
COMAND Online:
Rthe safety notes in this manual
Rtraffic rules and regulations
Rlaws and safety standards pertaining to
motor vehicles
iImproper work on electronic components
or other systems (e.g. radio, DVD changer)
and their software may result in malfunc-
tion or failure. Even systems that have not
been modified could be affected because
the electronic systems are connected.
Electronic malfunctions can seriously jeop-
ardise the operational safety of your vehi-
cle.
iThe functionality of a roof aerial (tele-
phone, GPS) may be impaired if roof carrier
systems are used.
Attaching metallised retrofit film to the
windscreen may affect radio reception and
have a negative impact on all other aerials
(e.g. emergency aerial) in the vehicle inte-
rior.
iOnly have work or changes to electronic
components carried out at a qualified spe-
cialist workshop. This workshop should
have the necessary specialist knowledge
and tools to carry out the work required.
Mercedes-Benz recommends that you use
a Mercedes-Benz Service Centre. In partic-
ular, work relevant to safety or on safety-
related systems must be carried out at a
qualified specialist workshop.
iProtection against theft: this device is
equipped with technical provisions to pro-
tect it against theft. Further information on
protection against theft can be obtained
from a Mercedes-Benz Service Centre.
Data stored in the vehicle
A wide range of electronic components in
your vehicle contain data memories.
358 Operating safety
COMAND Online
These data memories temporarily or perma-
nently store technical information about:
Rthe vehicle's operating state
Revents
Rfaults
In general, this technical information docu-
ments the state of a component, a module, a
system or the surroundings.
These include, for example:
Roperating conditions of system compo-
nents, e.g. fluid levels
Rthe vehicle's status messages and those of
its individual components, e.g. number of
wheel revolutions/speed, deceleration in
movement, lateral acceleration, accelera-
tor pedal position
Rmalfunctions and defects in important sys-
tem components, e.g. lights, brakes
Rvehicle reactions and operating conditions
in special driving situations, e.g. airbag
deployment, intervention of stability con-
trol systems
Rambient conditions, e.g. outside tempera-
ture
This data is of an exclusively technical nature
and can be used to:
Rassist in recognising and rectifying faults
and defects
Ranalyse vehicle functions, e.g. after an acci-
dent
Roptimise vehicle functions
The data cannot be used to trace the vehicle's
movements.
When your vehicle is serviced, technical infor-
mation can be read from the event data mem-
ory and fault data memory.
Services include, for example:
Rrepair services
Rservice processes
Rwarranties
Rquality assurance
It is read by employees of the service network
(including manufacturers) using special diag-
nostic testers. More detailed information is
obtained from it, if required.
After a fault has been rectified, the informa-
tion is deleted from the fault memory or is
continually overwritten.
When operating the vehicle, situations are
conceivable in which this technical data, in
connection with other information (if neces-
sary, under consultation with an authorised
expert), could be traced to a person.
Examples include:
Raccident reports
Rdamage to the vehicle
Rwitness statements
Further additional functions that have been
contractually agreed upon with the customer
allow certain vehicle data to be conveyed by
the vehicle as well. The additional functions
include, for example, vehicle location in case
of an emergency.
Qualified specialist workshop
Read the information on qualified specialist
workshops in the vehicle Owner's Manual.
Copyright information
General notes
You can find information on licences for free
and open-source software used in your vehi-
cle and its electronic components on the fol-
lowing website: http://www.mercedes-
benz.com/opensource.
Features of your COMAND Online
These operating instructions describe all
standard and optional equipment available
for your COMAND Online system at the time
of purchase. Country-specific differences are
possible. Please note that your
COMAND Online system may not be equip-
ped with all the features described. This is
Operating safety 359
COMAND Online
Z
also the case for systems and functions rele-
vant to safety. Therefore, the equipment on
your COMAND Online system may differ from
that in the descriptions and illustrations.
Should you have any questions concerning
equipment and operation, please consult a
Mercedes-Benz Service Centre.
Function restrictions
For safety reasons, some COMAND functions
are restricted or unavailable while the vehicle
is in motion. You will notice this, for example,
because either you will not be able to select
certain menu items or COMAND Online will
display a message to this effect.
360 Operating safety
COMAND Online
At a glance

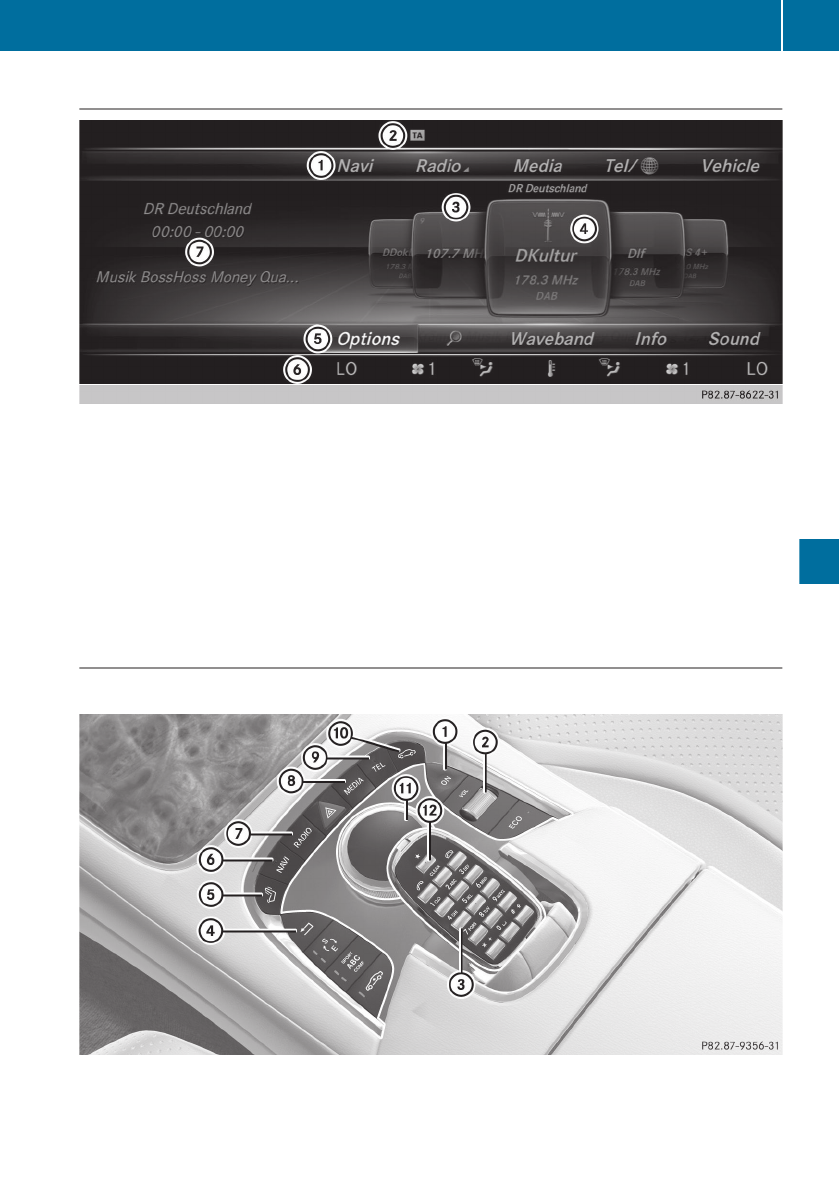

Overview
Components
:COMAND display
;DVD changer/single DVD drive
=Controller and buttons
COMAND Online consists of:
Rthe COMAND display
The COMAND display has 1440 x 540 pixels.
Rthe DVD changer/single DVD drive
Rthe controller
Rthe buttons
Rthe touch-sensitive telephone keypad
Rports in the centre console (2 x USB, AUX)
An iPod® is connected via USB cable.
Ra universal telephone interface for the driver's mobile phone or equipment with SAP tele-
phone module
Rheadphones for the front passenger (cordless or connected by means of a cable to the audio
jack in the footwell)
iCOMAND Online can be operated from the front-passenger side using the corresponding
remote control if your vehicle is equipped with the Rear Seat Entertainment System. The
front passenger views the display in SPLITVIEW. The COMAND display can show separate
information for the driver and the front passenger.
At a glance 361
COMAND Online
Z
Functions
RRadio/DAB radio
RMedia
Media support: audio CD, MP3 CD, DVD
video, 2 x USB, SD card, iPod®, Bluetooth
audio
Music search using all media
Digital TV reception for TV and radio sta-
tions with the electronic programme guide
(EPG), data services, subtitles and lan-
guage selection options
RSound system
Burmester high-end sound system for ulti-
mate listening pleasure
RNavigation system
Destination entry using keyword search
Realistic 3D map
Personal POIs
Travel guide with GPXD data
Navitainment for passengers, e.g. Drive-
show, Routeflight, Google Maps, Services
Premium Traffic
RCommunication
Telephony via Bluetooth interface/SAP
telephone module
Messaging functions (text messages,
email)
Address book
Internet browser
Mercedes-Benz Apps with Google™ Local
Search, Destination/Route Download,
Weather, Facebook, Google™ Street View
WLAN interface for the connection of a
smartphone to COMAND Online and the
option of remote control for the front
passenger (SPLITVIEW)
Mercedes-Benz emergency call system
RVehicle functions
Setting the multicontour seat with new
massage programmes
Climate control functions
Controlling ambient light: several colour
and brightness level options
360° camera
RFavourites button
Faster access of frequently used functions
RMulti-user entertainment
All passengers have access to entertain-
ment options via COMAND Online
Business telephony in the rear compart-
ment
Digital remote control operation and digital
cordless headphones
362 At a glance
COMAND Online
COMAND display
Example: radio display
:Status bar with active traffic announcements
;Main function bar with active radio function
=Main display field with available stations in carousel view
?Radio station currently set
ARadio menu bar
BAir-conditioning function bar
CContext display with additional radio text information
Buttons and controller
Overview
:Switches COMAND Online on/off
;Sets the volume or mutes
=Telephone keypad
At a glance 363
COMAND Online
Z
?Back button
ASeat adjustment button
BNavigation button
CRadio button
DMedia button
ETelephone, address book, online and Internet button
FVehicle and system settings button
GController
Hg Favourites button
Back button
You can use the % back button to exit a
menu or to call up the basic display of the
current operating mode.
XTo exit the menu: briefly press the %
back button.
COMAND Online changes to the next
higher menu level in the current operating
mode.
XTo call up the basic display: press and
hold the % back button.
COMAND Online changes to the basic dis-
play of the current operating mode.
Telephone keypad
The telephone keypad is touch-sensitive: as
soon as one or several of the keys are gently
touched, the telephone keypad is shown in
the COMAND Online display. The key being
touched is highlighted.
Controller
The controller is used to:
Rselect menu items from the COMAND dis-
play
Renter characters
Renter a destination on the map
Rsave entries
The controller can be:
Rturned
Rslid left or right XVY
Rslid forwards or back ZVÆ
Rslid diagonally aVb
Rpressed briefly or pressed and held
Components
SplitView
Method of operation
SPLITVIEW allows you to simultaneously use
different COMAND Online functions on the
front-passenger side and on the driver's side.
Different content is seen depending on your
perspective when viewing the display.
The "Navi" function, for example, can be used
from the driver's side while a video is watched
from the front-passenger side.
SPLITVIEW is operated with the COMAND
remote control from the front-passenger
side.
To do so, use the cordless headphones. Using
the headphones on the correct sides ensures
an optimal sound.
You can connect your own headphones to a
special headphones jack. You can use the
COMAND remote control to operate them.
364 At a glance
COMAND Online
Points to remember
RYou can only adjust the volume for the
headphones supplied, directly on the head-
phones.
ROnly entertainment functions, i.e. audio,
TV, video and Internet, for example, may be
used with SPLITVIEW.
RIf media from different sources are used,
they can be used separately from the driv-
er's and front-passenger sides. Example: if
a medium from the DVD changer is being
played on the driver's side. Then, no other
medium can be used separately on the
front-passenger side that is also played
from the DVD changer. However, other
media can be used at the same time on the
front-passenger side, including radio,
memory card, MUSIC REGISTER, Media
Interface, USB or AUX.
RIf you use the same medium on both sides,
you can both carry out the respective set-
tings.
RThe Internet can be separately used by both
the driver and front passenger at the same
time. A corresponding message appears on
the display.
RInternet can only be used, if it is set and
connected via a telephone on the driver's
side.
RThe multifunction steering wheel can only
be used for functions which relate to the
driver's side.
Switching SPLITVIEW on/off
From the driver's side
:SPLITVIEW symbol
;SPLITVIEW mode
Activating
XPress the vehicle button on the controller.
The carousel view for the vehicle settings
appears.
XSlide the controller.
The menu bar appears.
XTo select ùOn in the menu bar (as illus-
trated in ;): turn and press the controller.
SPLITVIEW switches on. The ù display
changes to Off.
In the status bar, the SPLITVIEW symbol
appears (as illustrated in :).
The front passenger sees the display of the
function last activated. If the switch-on
time was longer than 30 minutes previ-
ously, the display from the driver's side is
shown.
XDeactivating
To select ùOff in the menu bar: turn and
press the controller.
The ù display changes to On.
The SPLITVIEW symbol is hidden in the sta-
tus bar.
From the front-passenger side
XActivating
To select the SPLITVIEW display using the
COMAND remote control: turn thumb-
wheel : until the SPLITVIEW symbol
appears in the window.
XPress the u button on the COMAND
remote control.
XDeactivating
Press the u button on the COMAND
remote control again.
The ù display changes to On.
The SPLITVIEW symbol is hidden in the sta-
tus bar.
The menu called up on the driver's side is
shown.
At a glance 365
COMAND Online
Z
The SPLITVIEW display remains on for approx-
imately 30 minutes after the key has been
turned to position 0 in the ignition lock. After
this time or after the key has been removed,
the settings on the front-passenger side are
saved for approximately 30 minutes longer.
After this period, reactivation on the front-
passenger side means that the settings from
the driver's side will be used.
From media mode
SPLITVIEW can be switched on from any
media mode.
Activating
XTo switch on from any media mode, e.g.
Media Interface Options: press the con-
troller.
A menu appears.
XTo select Start this application in
other location: turn and press the con-
troller.
A menu appears.
XSelect SplitView.
A window with the message Starting
source in SplitView… appears.
SPLITVIEW switches on. The ù symbol
appears in the status bar.
XDeactivating
XFrom the driver's side via vehicle settings.
XFrom the front-passenger side using the
COMAND remote control.
Transferring a destination to the driver
Using SPLITVIEW you can select a destination
from the front-passenger side and transfer
this to the driver's side.
XTo activate SPLITVIEW: press the vehicle
button on the controller.
XTo select ùOn in the menu bar: turn and
press the controller.
The SPLITVIEW symbol appears in the dis-
play, and the ù display switches to Off.
XSelect ® in the main function bar with the
COMAND remote control.
The carousel view appears.
XSelect Mercedes-Benz Apps with the
COMAND remote control.
You see the selection of Mercedes-Benz
Apps.
XSelect Google Local Search with the
COMAND remote control.
Using a menu you can select a category for
the destination.
366 At a glance
COMAND Online
XSelect At current location, for exam-
ple.
Using a menu you can determine the type
of search enquiry.
XSelect Enter search term, for example.
An input field appears.
XEnter the destination with the COMAND
remote control and confirm the entry with
b.
You see the results list from Google.
XSelect the exact destination with the
COMAND remote control.
An additional menu appears.
XSelect Navigate to.
XA pop-up window appears on the driver's
side with the message: Should the nav‐
igation data from Mercedes-Benz
Apps be accepted?
Features of your COMAND Online
These operating instructions describe all
standard and optional equipment available
for your COMAND Online system at the time
of purchase. Country-specific differences are
possible. Please note that your
COMAND Online system may not be equip-
ped with all the features described. This is
also the case for systems and functions rele-
vant to safety. Therefore, the equipment on
your COMAND Online system may differ from
that in the descriptions and illustrations.
Should you have any questions concerning
equipment and operation, please consult a
Mercedes-Benz Service Centre.
Operating COMAND Online
Selecting a main function
Situation: switching from navigation mode
(address entry menu) to the system settings.
XTo switch on navigation mode: press the
Ø function button.
XTo show the menu: press W the COMAND
controller.
XSelect Destination by sliding VÆ and
turning cVd the COMAND controller and
press W to confirm.
XSelect Address entry and press W to
confirm.
The address entry menu appears.
XSlide ZV the COMAND controller and
switch to main function bar :.
XSelect System in the main function bar by
turning cVd the COMAND controller and
press W to confirm.
The system menu appears.
At a glance 367
COMAND Online
Z
Selecting the menu of a main function
If one of the navigation, audio, telephone or
video main functions is switched on, trian-
gle : appears next to the entry in the main
function bar. You can now select an associ-
ated menu.
The example shows how to call up the audio
menu from audio CD mode (an audio CD is
playing).
XSelect Audio in the main function bar by
sliding ZV the COMAND controller and
press W to confirm.
The Audio menu appears.
The # dot indicates the currently selected
audio mode.
XSelect another audio mode, e.g. Radio, by
turning cVd the COMAND controller and
press W to confirm.
Radio mode is activated.
Selecting a menu item
XSelect the station by turning cVd the
COMAND controller and press W to con-
firm.
The station is set.
Basic functions of COMAND Online
Switching COMAND Online on/off
XPress the u button on the centre con-
sole to the right of the COMAND controller.
When you switch on COMAND Online, a
warning message will appear.
COMAND Online calls up the previously
selected menu.
If you switch off COMAND Online, playback
of the current audio or video source will
also be switched off.
Adjusting the volume
Adjusting the volume for the audio or
video source
XTo adjust: turn thumbwheel :.
or
XPress the W or X button on the mul-
tifunction steering wheel.
The volume of the currently selected audio
or video source changes.
You can also adjust the volume for the fol-
lowing:
Rtraffic announcements
Rnavigation announcements
368 At a glance
COMAND Online
Rphone calls
RLINGUATRONIC voice control (see the sep-
arate operating instructions)
Adjusting the volume for traffic
announcements and navigation
announcements
During traffic or navigation announcements:
XTurn dial :.
or
XPress the W or X button on the mul-
tifunction steering wheel.
iYou can set the volume of traffic and nav-
igation announcements relative to the vol-
ume of the audio or video source.
Adjusting the volume for phone calls
You can adjust the volume for hands-free
mode during a telephone call.
XTurn dial :.
or
XPress the W or X button on the mul-
tifunction steering wheel.
Adjusting the sound settings
Character entry (telephony)
Example: entering characters
The example describes how to enter the sur-
name "Schulz".
XCall up the input menu with data fields
(Y page 441).
XSelect S and confirm W with the COMAND
controller.
S appears in the data field.
XSelect c and confirm W with the COMAND
controller.
The letter c is added to S in the data field.
XRepeat the process until the name has
been entered in full.
Other input menu functions:
RDeleting a character/entry (Y page 370)
RSwitching between upper/lower-case let-
ters (Y page 370)
RChanging the character set (Y page 370)
RMoving the cursor to the next data field
(Y page 370)
X To enter a phone number: select the dig-
its one by one in the corresponding data
field by turning cVd and sliding ZVÆ the
COMAND controller and press W to con-
firm.
Switching data fields
In the input menu, if you want to enter a first
name after you have entered a surname, for
example, proceed as follows to switch
between the data fields:
Option 1
XSelect 4 or 5 in the character bar and
press W to confirm.
The input menu shows the data field selec-
ted.
At a glance 369
COMAND Online
Z
Option 2
XSlide ZV the COMAND controller repeat-
edly until the character bar disappears.
XSelect the data field by sliding ZVÆ and
press W to confirm.
Saving an entry
XAfter making an entry in the input
menu, to create a new entry, for exam-
ple (Y page 441): select the ¬ symbol
in the character bar by turning cVd the
COMAND controller and press W to con-
firm.
The entry is stored in the address book.
Further functions available in the char-
acter bar
Changing the language of the character
bar
While making an entry in the input menu
(Y page 441):
XSelect B and press W to confirm.
XSelect the language by turning cVd the
COMAND controller and press W to con-
firm.
Switching the character bar to letters
While making an entry in the input menu, to
create a new entry, for example
(Y page 441):
XSelect the * (upper case) or E
(lower case) symbol and press W to con-
firm.
Changing the character set
While making an entry in the input menu
(Y page 441):
XSelect the p symbol and press W to
confirm.
RABC (upper/lower case)
R123 (digits)
ROther (special characters such as @, €,
etc.)
Moving the cursor to the next data field
While making an entry in the input menu
(Y page 441):
XSelect the 2 or 3 symbol and press W
to confirm.
Deleting a character/entry
While making an entry in the input menu
(Y page 441):
XTo delete characters: press the $ but-
ton on the control panel.
or
XSelect the F symbol by sliding VÆ and
turning cVd the COMAND controller and
press W to confirm.
or
XPress the j button next to the
COMAND controller.
370 At a glance
COMAND Online
XTo delete an entry: press and hold the
$ button on the control panel until the
entire entry has been deleted.
or
XSelect the F symbol and press and hold
W the COMAND controller until the entire
entry has been deleted.
or
XPress and hold the j button next to the
COMAND controller until the entire entry is
deleted.
Character entry (navigation)
General notes
The following paragraphs describe how to
enter characters using town input for BER‐
LIN as an example.
If you want to use the address entry menu to
enter a town, a street or a house number, for
example, COMAND Online offers you:
Ra list with a character bar (option 1)
Ra selection list (option 2)
You can enter the characters using either the
character bar or the number keypad. In the
selection list, you select an entry to copy it to
the address entry menu.
Option 1: list of towns/streets with
character bar
XCall up the town list with the character bar
(Y page 401).
The alphabetically sorted town list shows
the first available entries.
:Character entered by the user B
;Characters automatically added by
COMAND Online AABE
=List entry that most closely resembles the
current entry by the user
?To switch to the selection list
ATo delete an entry
BTo change the character set (Latin/Cyril-
lic)
CCharacters not currently available
DCharacters currently available
ECharacter bar
FTo cancel an entry
GCurrently selected character
HList
Entering characters using the character
bar
XSelect B by turning cVd the COMAND con-
troller and press W to confirm.
List H shows all available town names
beginning with a B. List entry most closely
resembling current entry by user = is
always highlighted at the top of the list
(BAABE in the example).
All of the characters that have been
entered so far are shown in black (letter
B: in the example). Letters added by
COMAND Online are shown in grey ;
(AABE in the example).
At a glance 371
COMAND Online
Z
Character bar E shows the letters still
available for selection in black D. These
can be selected. In the example, the letter
A is highlighted G. The characters availa-
ble depend on the entry made by the user
so far and the data contained in the digital
map. Characters that are no longer availa-
ble are shown in grey C.
XSelect E, R, L, I, N in succession, confirming
each by pressing W.
Entering characters using the number
keypad
XTo enter the letter B: press the l num-
ber key twice in quick succession.
The character appears at the bottom of the
display when the key is pressed. The first
available letter is highlighted.
You see which characters you can enter
with that key. Each time the key is pressed,
the next character is selected.
Example: key l:
Rpress once = A
Rpress twice = B
Rpress three times = C
XWait until the character display goes out.
The entries matching your input are shown
in the list.
XEnter E, R, L, I, N using the corresponding
keys.
Further functions in the list with char-
acter bar
XTo delete characters: press the $ but-
ton on the control panel.
or
XPress the j button next to the
COMAND controller.
or
XSelect the F symbol in the character bar
by sliding VÆ and turning cVd the
COMAND controller and press W to con-
firm.
XTo delete an entry: press $ on the
control panel.
or
XPress and hold the j button next to the
COMAND controller until the entire entry is
deleted.
or
XSelect the F symbol in the character bar
and press and hold W the COMAND con-
troller until the entire entry is deleted.
XTo switch the character set: select
B and press W to confirm.
This will switch the character set from Latin
to Cyrillic and back.
372 At a glance
COMAND Online
XTo cancel an entry: select the & symbol
in the bottom left of the character bar and
press W to confirm.
or
XPress the % back button.
The address entry menu appears.
XTo accept the first list entry: press and
hold W the COMAND controller until the
address entry menu appears.
The accepted list entry is shown there.
Calling up the list as a selection list
It is also possible to switch from the town list
with character bar to the town selection list
at any time during character input.
XSlide ZV the COMAND controller repeat-
edly until the town list appears as a selec-
tion list.
Select the desired town from the selection
list.
or
XSelect¬in the character bar by turning
cVd the COMAND controller and press
W to confirm.
If there are several entries for a town or if
several towns of the same name are stored,
then ¬ is highlighted in the character bar.
XPress W the COMAND controller.
Option 2: town list as selection list
COMAND Online either shows the selection
list automatically or you can call up the selec-
tion list from the list with the character bar.
The example shows the selection list after the
town BERLIN has been entered. The entry is
highlighted automatically.
XConfirm BERLING by pressing W the
COMAND controller.
You see the available entries.
XConfirm BERLIN(1XXXX) by pressing W
the COMAND controller.
The address entry menu appears.
Observe the information relating to destina-
tion entry (Y page 400).
System settings
Features of your COMAND Online
These operating instructions describe all
standard and optional equipment available
for your COMAND Online system at the time
of purchase. Country-specific differences are
possible. Please note that your
System settings 373
COMAND Online
Z
COMAND Online system may not be equip-
ped with all the features described. This is
also the case for systems and functions rele-
vant to safety. Therefore, the equipment on
your COMAND Online system may differ from
that in the descriptions and illustrations.
Should you have any questions concerning
equipment and operation, please consult a
Mercedes-Benz Service Centre.
Display settings
Setting the brightness
The brightness detected by the display light
sensor affects the setting options for this
function.
XPress W.
XTo select Options: turn and press the con-
troller.
XSelect Display.
XSelect Brightness.
XSelect brightness with the COMAND con-
troller.
Display design
Your COMAND Online display features opti-
mised designs for operation during daytime
and night-time hours. You can customise the
design by manually selecting day or night
design, or opt for an automatic setting.
XPress W.
XTo select Options: turn and press the con-
troller.
XSelect Display.
XSelect Day design, Night design or
Automatic.
A dot indicates the current setting.
Design Explanation
Day design The display is set perma-
nently to day design.
Night design The display is set perma-
nently to night design.
Automatic If the Automatic setting
is selected,
COMAND Online evalu-
ates the readings from
the automatic vehicle
light sensor and auto-
matically switches
between the display
designs.
Time settings
General notes
If COMAND Online is equipped with a naviga-
tion system and has GPS reception, COMAND
Online automatically sets the time and date.
You can also adjust the time yourself in 30-
minute increments, but the date cannot be
changed.
iIf you set the time in 30-minute incre-
ments, any time zone settings and settings
for changing between summer and stand-
ard time are lost. Switching between sum-
mer and standard time (Y page 375).
iThe following navigation system functions
require the time, time zone and summer/
standard time to be set correctly in order
to work properly:
Rroute guidance on routes with time-
dependent traffic guidance
Rcalculation of expected time of arrival
iUse this function to set the time for all
displays in the vehicle.
374 System settings
COMAND Online
Setting the time
XPress W.
XSelect Time by turning cVd the COMAND
controller and press W to confirm.
XSelect Set time and press W to confirm.
XSet the time by turning cVd the COMAND
controller and press W to confirm.
The time is accepted.
Setting the time/date format
XPress W.
XSelect Time by turning cVd the COMAND
controller and press W to confirm.
XSelect Format and press W to confirm.
The # symbols show the current settings.
XSet the format by turning cVd the
COMAND controller and press W to con-
firm.
Abbreviation Meaning
DD . MM . YY Day . Month . Year
(date format, two
digits)
MM / DD / YYYY Month/Day/Year
date format, year (all
four digits)
YY / MM / DD Year/Month/Day
date format, year
(two digits)
Abbreviation Meaning
HH : MM (24 hrs) Hours : Minutes
(24 hour time for-
mat)
HH : MM (AM/PM) Hours : Minutes
(AM/PM time for-
mat)
Adjusting the time zone and switching
to summer time
XPress W.
XSelect Time by turning cVd the COMAND
controller and press W to confirm.
XSelect Time zone and press W to confirm.
A list of countries or time zones appears.
The # dot indicates the current setting.
XSelect the country or time zone by turning
cVd the COMAND controller and press
W to confirm.
A time zone list may also be displayed,
depending on the country selected.
XSelect the time zone and press W to con-
firm.
The entry for the Automatic time set‐
tings is accepted.
Subsequent operation depends on whether
the navigation system has GPS reception and
whether the changeover function to summer
time is available.
XTo switch manually: select On or Off and
press W to confirm.
XTo switch automatically: select Auto‐
matic and press W to confirm.
The entry for the Automatic time set‐
tings is accepted.
XTo switch the automatic time setting
off/on: press the W button.
XSelect Time by turning cVd the COMAND
controller and press W to confirm.
System settings 375
COMAND Online
Z
XPress W to confirm the Automatic time
settings.
Switch the automatic time setting off ª or
on again O.
To switch on: the menu item is switched
on as the default setting. If Automatic
time settings is reactivated, the previ-
ous settings for time zone and summer
time changeover are selected.
To switch off: the time zone is deselected
and the summer time is switched off. If
Automatic is set for the summer time
changeover, a prompt will appear asking
whether this should be maintained.
XSelect Yes or No and press W to confirm.
If you select Yes, the settings will not be
changed.
If you select No, the settings will be
switched Off.
Text reader settings
XPress the vehicle button.
XSlide VÆ the controller.
XTo select System settings: turn and
press the controller.
XSelect Text reader speed.
A list appears. The # dot indicates the cur-
rent setting.
XSelect the setting.
LINGUATRONIC settings
Opening/closing the help window
The help window provides information in addi-
tion to the audible instructions during indi-
vidualisation and during the subsequent voice
control.
XPress W.
XSelect Settings by turning cVd the
COMAND controller and press W to con-
firm.
XSelect Linguatronic and press W to con-
firm.
XSelect Help window and press W to con-
firm.
You have switched the help window on
O or off ª.
Individualisation
Using individualisation, you can fine-tune LIN-
GUATRONIC to your own voice and thus
improve voice recognition. See the separate
operating instructions.
WLAN
Overview
Prerequisite for establishing a connection
between COMAND Online and a WLAN-ena-
bled device, such as a tablet computer or
smartphone:
RWLAN must be activated at COMAND
Online and at the device to be connected.
376 System settings
COMAND Online
Prerequisites for using COMAND Online as a
WLAN hotspot:
RCOMAND Online must be connected to a
mobile phone via Bluetooth or USB.
RThe Internet access data for the mobile
phone network provider must be selected
or set for COMAND Online.
RThere must be an Internet connection to
COMAND Online.
Activating WLAN
XTo select Vehicle in the main function bar:
turn the controller and press to confirm.
XTo switch to the menu bar: slide the
controller.
XTo select System settings: turn and
press the controller.
The system settings menu is shown.
XTo select WLAN: turn and press the control-
ler.
The WLAN menu appears.
XSelect Activate and press the controller.
Switch the connection on O or off ª,
depending on the previous setting.
Connecting the device via WPS pin
A prerequisite for this type of connection is
that the device to be connected supports a
connection via WPS pin.
XTo select Vehicle in the main function bar:
turn the controller and press to confirm.
XTo switch to the menu bar: slide the
controller.
XTo select System settings: turn and
press the controller.
The system settings menu is shown.
XTo select WLAN: turn and press the control-
ler.
The WLAN menu appears.
XTo select Connect via WPS pin: turn and
press the controller.
XSelect the vehicle from the device to be
connected and establish a connection via
WPS pin. The vehicle is displayed with the
SSID MB WLAN XXXXX.
XThe device to be connected usually gener-
ates a pin. Enter this pin into COMAND
Online also.
iThe exact procedure taken varies
between the different devices. Follow the
instructions that are shown in the display.
Further information can be found on the
operating instructions for the device you
wish to connect.
System settings 377
COMAND Online
Z
Connecting the device by pressing a
button (push button)
A prerequisite for this type of connection is
that the device to be connected supports a
connection via push button.
XTo select Vehicle in the main function bar:
turn the controller and press to confirm.
XTo switch to the menu bar: slide the
controller.
XTo select System settings: turn and
press the controller.
The system settings menu is shown.
XTo select WLAN: turn and press the control-
ler.
The WLAN menu appears.
XTo select Connect via WPS PBC: turn and
press the controller.
XSelect the vehicle from the device to be
connected and establish a connection via
WPS PBC pin. The vehicle is displayed with
the SSID MB WLAN XXXXX.
XSelect Continue on COMAND Online.
iThe exact procedure taken varies
between the different devices. Follow the
instructions that are shown in the display.
Further information can be found on the
operating instructions for the device you
wish to connect.
Connecting the device via SSID and
security key
XTo select Vehicle in the main function bar:
turn the controller and press to confirm.
XTo switch to the menu bar: slide the
controller.
XTo select System settings: turn and
press the controller.
The system settings menu is shown.
XTo select WLAN: turn and press the control-
ler.
The WLAN menu appears.
XTo select Connect via security key:
turn and press the controller.
XSelect the vehicle from the device to be
connected. The vehicle is displayed with
the SSID MB WLAN XXXXX.
XEnter the security key that is to be dis-
played in COMAND Online into the device
and confirm the entry.
iThe exact procedure taken varies
between the different devices. Follow the
instructions that are shown in the display.
Further information can be found on the
operating instructions for the device you
wish to connect.
378 System settings
COMAND Online
Generating a new security key
XTo select Vehicle in the main function bar:
turn the controller and press to confirm.
XTo switch to the menu bar: slide the
controller.
XTo select System settings: turn and
press the controller.
The system settings menu is shown.
XTo select WLAN: turn and press the control-
ler.
The WLAN menu appears.
XTo select Generate a new security
key: turn and press the controller.
XSelect Generate new.
A dialogue for entering the security key
appears.
XEnter the new security key, select ¬ and
press the controller.
The new security key will now be displayed
and verified when a connection is estab-
lished via the security key.
Changing the name of the SSID
XTo select Vehicle in the main function bar:
turn the controller and press to confirm.
XTo switch to the menu bar: slide the
controller.
XTo select System settings: turn and
press the controller.
The system settings menu is shown.
XTo select WLAN: turn and press the control-
ler.
The WLAN menu appears.
XTo select Change the SSID name: turn
and press the controller.
A dialogue for entering the SSID appears.
XEnter the new SSID, select ¬ and press
the controller.
The vehicle with the new SSID will now be
shown on the device when a connection is
established.
Bluetooth® settings
General information about Bluetooth®
Bluetooth® technology is a standard for
short-range wireless data transmissions up to
approximately 10 metres. Bluetooth® allows,
for example, the exchange of vCards.
Bluetooth® is a registered trademark of Blue-
tooth Special Interest Group (SIG) Inc.
Activating/deactivating Bluetooth®
XPress the W button.
The system menu appears.
XTo select Options: turn and press the con-
troller.
XSelect Activate Bluetooth.
This switches Bluetooth® on O or off ª.
Setting the system language
This function allows you to determine the lan-
guage for the menu displays and the naviga-
System settings 379
COMAND Online
Z
tion announcements. The selected language
affects the characters available for entry.
The navigation announcements are not avail-
able in all languages. If a language is not avail-
able, the navigation announcements will be in
English.
If you change the system language, the lan-
guage for LINGUATRONIC will be also be
changed. If the selected language is not sup-
ported by LINGUATRONIC, English will be
selected.
XPress the W button.
XSelect Settings by turning cVd the
COMAND controller and press W to con-
firm.
XSelect Language and press W to confirm.
The list of languages appears. The # dot
indicates the current setting.
XSelect the language by turning cVd the
COMAND controller and press W to con-
firm.
COMAND loads the selected language and
sets it.
iIf you are using Arabic map data, the text
information can also be shown in Arabic on
the navigation map. To do this, select Eng‐
lish (Arabic map) as the language from
the list of languages. Navigation announce-
ments are then made in Arabic.
Assigning a favourites button
XTo assign a favourites button: press the
W button.
XTo select Options: turn the controller and
press to confirm.
XSelect Assign as favourite.
The list of predefined functions appears.
The dot # indicates the currently selected
function.
XSelect the desired function.
The favourites button is assigned the selec-
ted function.
XExample: to call up a favourite: press the
g favourites button.
This calls up the predefined function.
You can select the following predefined func-
tions in a menu:
RDisplay off/on: you can switch the dis-
play off or on.
RFull screen: 'Clock': you can call up
the full screen with clock.
R®Menu: you can call up the COMAND
Online and Internet functions.
RFull screen: 'Map': you can call up the
full screen with map.
RSpoken driving tip: you can call up the
current driving recommendation.
RDisplay traffic messages: you can call
up traffic reports.
RNavigate to 'Home address': you can
start route guidance to your home address
if you have already entered and saved the
address (Y page 402).
RDetour menu: you can call up the Detour
menu and then avoid a section of the route
and recalculate the route (Y page 414).
RCompass screen: you can call up the com-
pass.
RDriver’s seat massage, Front-pas‐
senger's seat massage or Massage:
both front seats: you can start the mas-
sage function, depending on which seats
are selected (Y page 387).
Importing/exporting data
Reset function
You can completely reset COMAND Online to
the factory settings. Amongst other things,
this will delete all personal COMAND data.
This includes the station presets, entries in
380 System settings
COMAND Online
the destination memory and in the list of pre-
vious destinations in the navigation system
and address book entries. In addition, an acti-
vated PIN protection, which you have used to
protect your data against unwanted export,
will be deactivated. Resetting is recommen-
ded before handing over or selling the vehicle,
for example.
Data on the internal hard drive, e.g. music
files in the MEDIA REGISTER, will be deleted.
You can also delete music files from the
MEDIA REGISTER using the "Delete all music
files" function.
XPress the W function button.
XTo select Options: turn and press the con-
troller.
XSelect Reset.
A prompt appears asking whether you wish
to reset.
XSelect Yes or No.
If you select No, the process will be cancel-
led.
If you select Yes, a prompt will appear again
asking whether you really wish to reset.
XSelect Yes or No.
If you select Yes, a message will be shown.
COMAND Online is reset and restarted.
If you select No, the process will be cancel-
led.
Vehicle functions
Features of your COMAND Online
These operating instructions describe all
standard and optional equipment available
for your COMAND Online system at the time
of purchase. Country-specific differences are
possible. Please note that your
COMAND Online system may not be equip-
ped with all the features described. This is
also the case for systems and functions rele-
vant to safety. Therefore, the equipment on
your COMAND Online system may differ from
that in the descriptions and illustrations.
Should you have any questions concerning
equipment and operation, please consult a
Mercedes-Benz Service Centre.
Vehicle settings
Calling up vehicle settings
XPress the vehicle button on the controller.
The vehicle menu appears.
XTo select Vehicle settings: turn and
press the controller.
The carousel view for the vehicle settings
is active.
XTo select the desired vehicle setting: turn
and press the controller.
The main area with the setting element is
active.
Selecting a different vehicle setting:
XTo activate the carousel view for selecting
the vehicle setting: slide Z the controller.
Exiting the vehicle settings:
XTo select &: slide ¬ the controller and
press to confirm.
Vehicle functions 381
COMAND Online
Z
Ambient lighting
Setting the colour
XCall up vehicle settings (Y page 381).
XTo select Ambient lighting: colour:
turn and press the controller.
The setting element is active.
XTo select a colour: turn the controller.
For further information, see (Y page 152).
Setting the brightness
XCall up vehicle settings (Y page 381).
XTo select Ambient lighting: bright‐
ness: turn and press the controller.
The setting element is active.
XTo change the brightness: turn the control-
ler.
For further information, see (Y page 152).
Setting the zone
XCall up vehicle settings (Y page 381).
XTo select Ambient lighting: zone: turn
and press the controller.
The setting element is active.
XTo select a zone: turn the controller.
For further information, see (Y page 152).
Activating/deactivating the ambient
lighting display
This display lighting adjustment function is
only available if the vehicle is not equipped
with the adjustment functions for ambient
lighting: colour, brightness and zone.
XCall up vehicle settings (Y page 381).
XTo select Ambient lighting: display:
turn and press the controller.
The function switches on or off, depending
on the previous setting.
For further information, see (Y page 152).
Setting the EASY-ENTRY/EXIT feature
The EASY-ENTRY/EXIT feature makes getting
in and out of your vehicle easier.
382 Vehicle functions
COMAND Online
XCall up vehicle settings (Y page 381).
XTo select Easy Entry/Exit: turn and
press the controller.
The setting element is active.
XTo change the setting: turn the controller.
For further information, see (Y page 136).
Activating/deactivating the panel heat-
ing
The panel heating function warms the surfa-
ces with which the vehicle occupants fre-
quently come into contact.
XCall up vehicle settings (Y page 381).
XTo select Panel heating: turn and press
the controller.
XTo change the setting: turn the controller.
Activating/deactivating the acoustic
locking confirmation
You can also set an audible signal to confirm
that the vehicle has been locked.
XCall up vehicle settings (Y page 381).
XTo select Acoustic lock feedback: turn
and press the controller.
The function switches on or off, depending
on the previous setting.
For further information, see (Y page 95).
Activating/deactivating the seat-belt
adjustment function
The seat-belt adjustment function adjusts the
driver's and front-passenger seat belt to the
upper body of the occupants.
XCall up vehicle settings (Y page 381).
XTo select Belt adjustment: turn and
press the controller.
The function switches on or off, depending
on the previous setting.
For further information, see (Y page 62).
Activating/deactivating the automatic
folding mirror function
If the function "Automatic folding mirror func-
tion" is switched on, the exterior mirrors fold
in automatically as soon as you lock the vehi-
Vehicle functions 383
COMAND Online
Z
cle from the outside and then fold out again
when you unlock it.
XCall up vehicle settings (Y page 381).
XTo select Automatic mirror-folding
function: turn and press the controller.
The function switches on or off, depending
on the previous setting.
For further information, see (Y page 138).
Switching the locator lighting on/off
If the locator illumination (surround lighting)
is switched on, as well as the turn signals, the
headlamps will also light up briefly when the
vehicle is unlocked.
XCall up vehicle settings (Y page 381).
XTo select Locator illumination: turn
and press the controller.
The function switches on or off, depending
on the previous setting.
For further information, see (Y page 95).
Switching the automatic locking fea-
ture on/off
When the automatic locking feature is acti-
vated, the vehicle is locked automatically
when the ignition is switched on and the vehi-
cle is travelling faster than walking pace.
XCall up vehicle settings (Y page 381).
XTo select Automatic locking feature:
turn and press the controller.
The function switches on or off, depending
on the previous setting.
For further information, see (Y page 102).
Setting the delayed switch-off time
Interior lighting delayed switch-off time
The interior lighting is activated for the dura-
tion of the delayed switch-off time when the
key is removed from the ignition lock.
XCall up vehicle settings (Y page 381).
XTo select Interior lighting delayed
shut-off: turn and press the controller.
The setting element is active.
XTo change the delayed switch-off time: turn
the controller.
For further information, see (Y page 152).
384 Vehicle functions
COMAND Online
Exterior lighting delayed switch-off time
The surround lighting is activated for the dura-
tion of the delayed switch-off time when the
vehicle is unlocked using the remote control
key.
XCall up vehicle settings (Y page 381).
XTo select Exterior lighting delayed
shut-off: turn and press the controller.
The setting element is active.
XTo change the delayed switch-off time: turn
the controller.
For further information, see (Y page 95).
Priming/deactivating tow-away protec-
tion
An audible and visual alarm is triggered if your
vehicle's angle of inclination is altered while
tow-away protection is primed. This can occur
if the vehicle is jacked up on one side, for
example.
XCall up vehicle settings (Y page 381).
XTo select Tow-away protection: turn and
press the controller.
The function switches on or off, depending
on the previous setting.
Priming/deactivating the interior
motion sensor
When the interior motion sensor is primed, a
visual and audible alarm is triggered if move-
ment is detected in the vehicle interior. This
can occur if someone reaches into the vehicle
interior, for example.
XCall up vehicle settings (Y page 381).
XTo select Interior motion sensor: turn
and press the controller.
The function switches on or off, depending
on the previous setting.
Activating/deactivating the boot lid
opening limiter
The boot lid opening limiter makes it easier to
close the boot lid manually.
Vehicle functions 385
COMAND Online
Z
XCall up vehicle settings (Y page 381).
XTo select Boot opening-height
restriction: turn the controller.
XTo activate/deactivate the function: press
the controller.
Seats
Overview
Using the T button next to the controller
or the seat settings menu item in the vehicle
menu, you can call up the following adjust-
ment functions:
Rbackrest side bolsters
Rlumbar
Rshoulder section
Rmassage
Rdriving dynamics
Rseat heating balance
iYou also can save and recall the current
settings of a seat function using the mem-
ory button and the corresponding memory
position switch; see the separate vehicle
Owner's Manual.
The massage function cannot be started or
stopped using the memory button.
Selecting the adjustment function and
seat
XPress the T button.
The menu for the seat settings appears.
or
XTo select Vehicle in the main function bar:
turn the controller and press to confirm.
XTo select Seat settings from the carou-
sel: turn the controller and press to con-
firm.
The carousel for selecting the seat function
is activated.
The settings for the driver's seat appear in
the left of the display; those for the front
passenger in the right.
XTo select the desired seat function: turn the
controller and press to confirm.
XTo switch between the Driver and Front
passenger: slide XVY the controller.
Adjustment functions
Setting the backrest side bolsters
XCall up the seat functions (Y page 386).
XTo select Backr. sides: turn and press
the controller.
XTo select a seat: slide XVY the controller.
XTo change the setting: turn the controller.
The change can be seen in the settings dis-
play.
XTo exit the menu: press the % button.
386 Vehicle functions
COMAND Online
Adjusting the seat contour in the lumbar
region of the seat backrest
This function allows you to adjust the air
cushions in the lumbar region of the backrest
(4-way lumbar support).
XCall up the seat functions (Y page 386).
XTo select Lumbar: turn the controller and
press to confirm.
XTo select a seat: slide XVY the controller.
XTo activate the setting element: press the
controller.
XTo change the setting: slide ZV¬ or
XVY the controller.
The change will be visible in the setting ele-
ment.
XTo exit the menu: press the % button.
Setting the shoulder section
XCall up the seat functions (Y page 386).
XTo select the Shoulders: turn the control-
ler and press to confirm.
XTo select a seat: slide XVY the controller.
XTo change the setting: turn the controller.
The change can be seen in the settings dis-
play.
XTo exit the menu: press the % button.
Massage function
XCall up the seat functions (Y page 386).
XTo select Massage: turn the controller and
press to confirm.
XTo select a seat: slide XVY the controller.
XTo select the massage function (1 to 6):
turn the controller and press to confirm.
The massage function runs for approx-
imately 15 to 25 minutes, depending on the
setting.
You may select the following massage
options:
R1: Hot relaxing massage for back
R2:Hot relaxing massage for should‐
ers
R3: Activating Massage
R4: Classic Massage
R5: Mobilizing Massage
R6: Active Workout
XTo change the massage intensity: turn the
controller to ? and press to confirm.
The intensity becomes stronger or weaker
each time the controller is pressed.
XTo exit the menu: press the % button.
Vehicle functions 387
COMAND Online
Z
Setting the driving dynamics
XCall up the seat functions (Y page 386).
XTo select a seat: slide XVY the controller.
XTo select Dynamic seat: turn the control-
ler and press to confirm.
You can select:
R0: Off
R1: Level 1 (weak)
R2: Level 2 (strong)
XTo select the setting: turn the controller.
XTo exit the menu: press the % button.
Seat heating balance
The Balance function controls the distribution
of heat on the seat backrest and cushion.
The Balance function influences the currently
set heating level of the seat heating; see the
separate vehicle Owner's Manual.
XCall up the seat functions (Y page 386).
XTo select Seat heating balance: turn
and press the controller.
XTo select a seat: slide XVY the controller.
XTo change the setting: turn the controller.
The change can be seen in the settings dis-
play.
The settings represent the following:
R0 — the backrest and seat cushion are
evenly heated according to the setting
selected with the seat heating button.
R1 to 3 the heat output to the seat cushion
is reduced one level at a time.
R-1 to -3 — the heat output to the backrest
is reduced one level at a time.
XTo exit the menu: press the % button.
Resetting all adjustments
XCall up the seat functions (Y page 386).
XSelect a seat (Y page 386).
XTo select Reset: turn the controller and
press to confirm.
XTo select a seat: slide XVY the controller.
XTo reset: press the controller.
A query appears.
XSelect Yes or No and turn the controller.
If you select No, the process will be cancel-
led.
After you select Yes, all seat adjustments
are reset to the default values (factory set-
ting).
388 Vehicle functions
COMAND Online
Climate control settings
Basic settings
Climate control bar
Climate control bar
:Adjusts temperature, airflow and air dis-
tribution, left
;Calls up the climate control menu
=Adjusts temperature, airflow and air dis-
tribution, right
Calling up the climate control menu:
XTo switch to the climate control bar: slide
the controller.
XTo select the thermometer symbol E in
the climate control bar: turn and press the
controller.
The carousel for selecting climate control
functions is activated.
XTo select the desired climate control func-
tion: turn and press the controller.
The selected climate control function
appears.
The following climate control functions can
also be called up directly from the climate
control bar:
RTemperature left and right, displayed as the
actual temperature, e.g. 20 °C.
RAirflow left and right, displayed as J and
the current setting, e.g. 1.
RAir distribution left and right, displayed by
the current setting, e.g. O.
Switching climate control on/off
XCall up the climate control menu
(Y page 389).
XTo switch to the footer: slide the con-
troller.
XTo select Climate ctrl on: turn and press
the controller.
XSwitch the climate control function on O
or off ª. If climate control is switched off,
the adjustment functions are deactivated.
Synchronising the climate control set-
tings
With the synchronise option, you can decide
whether you wish to activate the climate con-
trol settings for all zones together or sepa-
rately.
XCall up the climate control menu
(Y page 389).
XTo switch to the footer: slide the con-
troller.
XTo select Sync: turn and press the control-
ler.
XSwitch the synchronisation function on
O (left and right synchronised) or off ª
(left and right separate).
Vehicle functions 389
COMAND Online
Z
With the synchronisation function switched
off, you can alternate between driver and
front passenger.
XTo switch from the footer to the main area:
slide VZ the controller.
XTo switch between left and right: slide
XVY the controller.
Not all climate control functions allow
switching between the driver and front
passenger.
iThe synchronise function can also be
deactivated by sliding the controller to the
left or right in the setting area. The setting
elements for the driver and front passenger
are then shown separately once again.
Further information (Y page 168)
Switching climate control functions from
front to rear
XCall up the climate control menu
(Y page 389).
XTo switch to the footer: slide the con-
troller.
XTo select the Rear setting: turn and
press the controller.
XThe climate control function is switched
from the front to the rear. The vehicle inte-
rior display changes accordingly.
XTo switch the setting back to the front
again: select Exit rear climate con‐
trol.
After a short time, COMAND Online auto-
matically switches the adjustment func-
tions back to the front.
Activating/deactivating cooling with air
dehumidification
Activating the cooling with air dehumidifica-
tion facilitates the cooling of the vehicle inte-
rior even with high outside temperatures.
XCall up the climate control menu
(Y page 389).
XTo switch to the footer: slide the con-
troller.
XTo select A/C: turn and press the controller.
XSwitch cooling with air dehumidification on
O or off ª.
Setting the temperature
XTo select the current temperature in the
climate control bar on the left or right: turn
and press the controller.
The temperature setting scale appears.
XTo change the setting: turn the controller.
XTo close the temperature setting scale:
press the controller.
iYou can also set the temperature using
the climate control menu, i.e. as described
for setting the footwell temperature
(Y page 391).
Setting the airflow
XTo select J on the left or right in the
climate control bar: turn and press the con-
troller.
The airflow setting scale appears.
XTo change the setting: turn the controller.
XTo close the temperature setting scale:
press the controller.
390 Vehicle functions
COMAND Online
iYou can also set the airflow using the cli-
mate control menu, i.e. as described for
setting the footwell temperature
(Y page 391).
Setting the air distribution
XTo select the current air distribution display
on the left or right in the climate control bar,
e.g. O: turn and press the controller.
The air distribution setting scale appears.
XTo change the setting: turn the controller.
XTo close the temperature setting scale:
press the controller.
iYou can also set the air distribution using
the climate control menu, i.e. as described
for setting the footwell temperature
(Y page 391).
Further settings
Adjusting the footwell temperature
XCall up the climate control menu
(Y page 389).
XTo select Adjust footwell: turn and
press the controller.
XIf necessary, change sides: slide XVY the
controller.
XTo change the setting: turn and press the
controller.
Exiting a menu
XSlide the controller.
XTo select &: turn and press the controller.
Setting the climate mode
Setting the climate mode determines the
strength of the airflow (force).
XCall up the climate control menu
(Y page 389).
XTo select Climate mode: turn and press
the controller.
XIf necessary, change sides: slide XVY the
controller.
XTo change the setting: turn and press the
controller.
Exiting a menu
XSlide the controller.
XTo select &: turn and press the controller.
Starting/stopping the perfume atomizer
Vehicle functions 391
COMAND Online
Z
XCall up the climate control menu
(Y page 389).
XTo select Air freshener: turn and press
the controller.
Depending on the previous status, you start
or stop the perfume atomizer.
XSetting the intensity: turn the controller
when the atomizer is switched on.
Exiting a menu
XSlide the controller.
XTo select &: turn and press the controller.
You can connect the perfume atomiser with
the pre-entry climate control, i.e. the atom-
iser switches on together with the pre-entry
climate control.
XTo activate the control element on the right:
slide VY the controller.
XTo switch the connection on/off: turn the
controller.
The connection is switched on O or off
ª, depending on the previous setting.
Further information (Y page 172)
Switching the ionisation on/off
XCall up the climate control menu
(Y page 389).
XTo select Ionisation: turn and press the
controller.
You switch it on or off, depending on the
previous status.
Exiting a menu
XSlide the controller.
XTo select &: turn the controller and press
to confirm.
You can connect the ionisation function with
the pre-entry climate control, i.e. the ionisa-
tion function switches on together with the
pre-entry climate control.
XTo activate the control element on the right:
slide VY the controller.
XTo switch the connection on/off: turn the
controller.
The connection is switched on O or off
ª, depending on the previous setting.
Pre-entry climate control
392 Vehicle functions
COMAND Online
XCall up the climate control menu
(Y page 389).
XTo select Pre-entry climate control:
turn and press the controller.
XTo switch on or off: turn the controller and
press to confirm.
You switch it on or off, depending on the
previous status.
Exiting a menu
XSlide the controller.
XTo select &: turn the controller and press
to confirm.
Further information (Y page 174)
Auxiliary heating
You can pre-set three departure times for
automatic activation of the auxiliary heating.
To select the pre-set time:
XCall up the climate control menu
(Y page 389).
XTo select Auxiliary heating: turn and
press the controller.
XTurn the controller.
Changing the pre-set time:
XCall up the climate control menu
(Y page 389).
XTo select Auxiliary heating: turn and
press the controller.
XTo select the departure time that will be
changed: turn and press the controller.
A menu for changing the time opens.
XTo select the required setting element (ana-
logue clock, hours or minutes): slide VZ
and VY the controller.
XTo change the setting: turn the controller.
XTo exit the menu: press the controller.
360° camera
Important safety notes
GWARNING
Make sure that no persons or animals are in
the manoeuvring range. Otherwise, they
could be injured.
Overview
The 360° camera covers the immediate sur-
roundings of the vehicle and assists you, for
instance when parking or at exits with
reduced visibility. It detects moving objects
and displays these objects on the ground
using bars.
For a detailed description of the 360° cam-
era, see the separate vehicle Owner's Man-
ual.
Settings for the COMAND Online 360°
camera
Activating/deactivating using the reverse
gear:
XPress the vehicle button on the controller.
The vehicle menu appears.
Vehicle functions 393
COMAND Online
Z
XTo switch to the menu bar: slide ¬ the
controller.
XTo select Settings: turn and press the
controller.
XTo select the 360° camera: turn and press
the controller.
XTo select Activation by R gear: turn
and press the controller.
The function is switched on O or off ª,
depending on the previous status.
iThis function must only be switched on if
you want the image from the 360° camera
to be displayed when the reverse gear is
engaged. The other activation options are
always available.
Switching object detection on/off:
XTo select Object detection: turn and
press the controller.
The function is switched on O or off ª,
depending on the previous status.
Opening the camera cover:
XTo select Open camera cover: turn and
press the controller.
Image of the 360° camera
The 360° camera image can be displayed if:
Ryour vehicle is equipped with a 360° cam-
era
RCOMAND Online is switched on
(Y page 368)
Rthe 360° camera function is activated
Displaying the image of the 360° camera:
XTo select the 360° camera from the vehicle
carousel: turn and press the controller.
The split view of the 360° camera appears.
or
XEngage reverse gear (only possible if the
Activation by R gear option is activa-
ted)
The 360° camera in split view and the
reverse drive image appears.
If the function is activated, the COMAND dis-
play will automatically switch back to the pre-
viously selected display as soon as you shift
out of the forward or reverse gear, or if the
vehicle exceeds a speed of approx. 3 km/h.
You can also switch the display by selecting
the & symbol in the display and pressing
W the COMAND controller to confirm.
Reversing camera
The reversing camera is only an aid. It is not
a substitute for your attention to the imme-
diate surroundings. The responsibility for safe
manoeuvring and parking remains with you.
Make sure that there are no persons, animals
or objects in range while manoeuvring and
parking.
The image from the reversing camera is
shown in the COMAND display when reverse
gear is engaged if:
Ryour vehicle is equipped with a reversing
camera
RCOMAND Online is switched on
Rthe Activation by R gear function is
activated.
If the function is activated, the COMAND dis-
play will automatically switch back to the pre-
viously selected display as soon as you shift
out of reverse gear.
iFor further information on the reversing
camera, see separate vehicle Owner's
Manual.
XPress the vehicle button.
The vehicle carousel appears.
XSlide VÆ the controller.
XTo select System settings: turn and
press the controller.
XSelect Reversing camera.
XSelect Activation by R gear.
The function is switched on O or off ª,
depending on the previous status.
394 Vehicle functions
COMAND Online
Navigation
Features of your COMAND Online
These operating instructions describe all
standard and optional equipment available
for your COMAND Online system at the time
of purchase. Country-specific differences are
possible. Please note that your
COMAND Online system may not be equip-
ped with all the features described. This is
also the case for systems and functions rele-
vant to safety. Therefore, the equipment on
your COMAND Online system may differ from
that in the descriptions and illustrations.
Should you have any questions concerning
equipment and operation, please consult a
Mercedes-Benz Service Centre.
Introduction
Important safety notes
GWARNING
For safety reasons, only enter a new destina-
tion when the vehicle is stationary. You may
otherwise be distracted from the traffic con-
ditions, cause an accident and injure yourself
and others.
COMAND Online calculates the route to the
destination without taking account of the fol-
lowing, for example:
Rtraffic lights
Rstop and give way signs
Rparking or stopping restrictions
Rroad narrowing
Rother road and traffic rules and regulations
COMAND Online may give incorrect driving
recommendations if the data on the digital
map does not correspond to actual condi-
tions. For example, a route may have been
diverted or the direction of a one-way street
may have changed.
For this reason, you must always observe road
and traffic rules and regulations during your
journey. Road and traffic rules and regulations
always have priority over the system's driving
recommendations.
General notes
Operational readiness of the navigation
system
In vehicles for certain countries, the naviga-
tion system is not operational immediately
after delivery. The digital map is not pre-
installed.
If this is the case, the following message
appears in the display after you switch to nav-
igation mode:
Please insert DVD number
<<xxxxx_xx>>.
XTo install the digital map:(Y page 420).
The navigation system must determine the
position of the vehicle before first use or
whenever operational status is restored.
Therefore, you may have to drive for a while
before precise route guidance is possible.
GPS reception
Correct functioning of the navigation system
depends, amongst other things, on GPS
reception. In certain situations, GPS recep-
tion may be impaired, there may be interfer-
ence or there may be no reception at all, e.g.
in tunnels or multi-storey car parks.
iThe functionality of a roof aerial (tele-
phone, GPS) may be impaired if roof carri-
ers are used.
Entry restriction
For vehicles in certain countries, there is a
data entry restriction.
The restriction is active above a vehicle speed
of about 5 km/h. The restriction is deactiva-
ted as soon as the vehicle speed drops below
about 3 km/h.
When the restriction is active, certain entries
cannot be made. This will be indicated by the
fact that certain menu items are greyed out
and cannot be selected.
Navigation 395
COMAND Online
Z
The following entries are not possible, for
example:
Rentering the destination town and street
Rentering a destination via the map
Rentering POIs in the vicinity of a town or via
a name search
Rediting entries
Rdirect entry using the number keypad
Other entries are possible, however, such as
entering POIs in the vicinity of the destination
or current position.
396 Navigation
COMAND Online
Switching to navigation mode
XPress the ß button.
The map displays the current vehicle position.
FURTHER ACTIVATION OPTION:
XTo activate the menu: slide ZV the controller (e.g. in radio mode).
XTo select Navi: turn and press the controller.
Showing/hiding the menu
You can, for example, make a destination entry or select navigation settings using the menu.
XTo show: press the controller when the map appears.
Route guidance not active: Destination is marked. Route guidance is active: y is high-
lighted.
XTo hide: press the % button.
or
XSlide ZV and then press the controller.
iRoute guidance is not active: no destination entered yet, no route has been calculated.
Navigation 397
COMAND Online
Z
Route guidance is active: the destination has been entered, the route has been calculated.
The display shows the route, changes of direction and lane recommendations. Navigation
announcements guide you to your destination.
Moving the map
REQUIREMENT: the map is in full screen mode, the menu is faded out (Y page 397).
XSlide XVY, ZVÆ or aVb the controller.
The crosshair is shown. The map moves in the corresponding direction under the crosshair.
Setting the map scale
REQUIREMENT: the map is in full screen
mode, the menu is faded out (Y page 397).
XTurn the controller until the desired scale
is set.
Basic settings
Setting route type and route options
XTo switch to navigation mode: press the
ß button.
XTo show the menu: press the controller.
XTo select Settings: turn and press the
controller.
XSelect Route settings.
XSelect a route type.
Route type is switched on O or off ª,
depending on the previous status.
RActive route guidance: COMAND Online
calculates a new route.
RInactive route guidance: COMAND
Online uses the new setting for the next
route guidance process.
iRoute guidance active: a destination has
been entered and the route has been cal-
culated.
Route guidance inactive: no destination
has been entered yet and no route has been
calculated yet.
398 Navigation
COMAND Online
Fast route COMAND Online calculates
a route with the shortest
journey time.
Dynamic
route
The same route type as
Fast route. To avoid a traf-
fic jam, for example, any
traffic reports received with
regard to the route are
taken into account. If possi-
ble, it will bypass blocked
roads.
Dynamic
route after
query
Dynamic route, querying if
you wish to adopt the new
route or prefer to continue
along the original route.
Economic
route
Economic route is a variant
of the route type Fast
route. COMAND Online will
attempt to minimise the
journey distance at the
expense of a slightly
increased journey time.
Short route COMAND Online calculates
a route covering the short-
est distance.
XTo calculate alternative routes: select
Calculate alternative routes.
Switch the function on O or off ª.
When this function is activated, all route
types are calculated.
XTo avoid/use route options: select one
of the options:
RAvoid motorways
RAvoid ferries
RAvoid motorail trains
RAvoid tunnels
RAvoid unpaved roads
RAvoid routes requiring special toll sticker
RAvoid toll roads
The option is then avoided O or used ª.
iRDS-TMC is not available in all countries.
iThe route calculated may, for example,
include ferry connections, even if the
Avoid ferries route option is switched
on.
In some cases, e.g. when calculating par-
ticularly long routes, COMAND Online may
not be able to take all the selected route
options into account.
iTo avoid routes requiring a special toll
sticker: route calculation is performed
excluding route networks (e.g. a country's
motorway network) which require you to
pay a fee (vignette). A vignette allows tem-
porary use of the route network. Example
time limits are 10 days, 2 months or 1 year.
To avoid toll roads: route calculation is
performed excluding sections (e.g. tunnels,
stretches of motorway, inner cities) which
require you to pay a fee (toll).
XTo exit a menu: slide XVY the controller.
Navigation 399
COMAND Online
Z
Entering a destination
Important safety notes
GWARNING
For safety reasons, only enter a new destination when the vehicle is stationary. You could oth-
erwise be distracted from the traffic conditions, cause an accident and injure yourself and others.
As an address
Calling up the address entry menu
XTo switch to navigation mode: press the ß button.
XTo show the menu: press the controller.
XSelect Destination.
Route guidance not active: press the controller. Route guidance active: turn and press the
controller.
XSelect Address entry.
Address entry options
Examples of how you can enter an address:
RTown/postcode, street, house number
RTown/postcode, street
RTown/postcode, centre
RTown/postcode, street, junction
RStreet, town/postcode, house number
RStreet, town/postcode, junction
iEntering the street before the town is use-
ful if the address has an unusual street
name.
While entering an address, you can also
switch to other destination entry options:
RKeyword Search
RMap
RPOI
400 Navigation
COMAND Online
Entering an address
The example shows you how to enter a town,
street and house number for an address, e.g.
for your home address.
XIn the address entry menu, select Town:
press the controller (Y page 400).
XEnter BERLIN. Character entry
(Y page 371).
XTo call up the list: select OK or slide ZV the
controller repeatedly until the character
bar disappears.
The entry for BERLIN has additional selec-
tion options. This is indicated by the G
icon.
XSelect BERLING: turn and press the con-
troller.
XSelect GERMANY(1XXXX).
The address entry menu transfers the
entry.
XTo select Street: press the controller.
XEnter the street, e.g. UNTER DEN L. Then
call up the list and select an entry. Proceed
in the same way as when entering a town.
XTo select House no.: press the controller.
XEnter the house number. Then call up the
list and select an entry. Proceed in the
same way as when entering a town.
The address entry menu shows the
address. The map section on the left shows
the destination.
iYou can enter any of the towns, streets,
postcodes, etc. which are stored in the dig-
ital map. However, postcodes are not avail-
able for some countries.
Country and town are sufficient to start
navigating. You can enter either a town or
a postcode. The street and house number
complete the destination address.
Navigation 401
COMAND Online
Z
Entering additional address data
You can enter additional address data:
RCountry
RPostcode
Entering a postcode will delete a previously
entered town.
RCentre
Entering a centre will delete a previously
entered street.
RJunction
Entering a junction will delete a previously
entered house number.
XIn the address entry menu, select Coun‐
try, Postcode, Centre or Junc‐
tion(Y page 400).
XSelect an entry. Proceed as described
under "Entering an address" (Y page 401).
Saving an address
You can store the address you have entered
either as your home address or as another
navigable contact in the address book.
XCall up the address entry menu
(Y page 400).
XTo select Save: slide VÆ, turn and press
the controller.
XTo save as your home address: select
As "My address".
COMAND Online stores your home address
under My address in the list of contacts.
Own address
XTo save as a contact: select As a new
address book entry.
XSelect Not classified, Home or Work.
XEnter a surname and first name. Character
entry
XTo select OK: turn and press the controller.
The destination address is saved in the
address book as a navigable contact.
402 Navigation
COMAND Online
Starting route calculation
The entered destination appears in the address entry menu.
XTo confirm Start: press the controller.
Calculating route. While route calculation is in progress, an arrow will indicate the direction
to your destination. Once the route has been calculated, route guidance begins. If the vehicle
is travelling on a non-digitised road, the system displays the linear distance to the destina-
tion, the direction to the destination and the Road off map message.
If route guidance is already active: a prompt appears asking whether you wish to end
the current route guidance. Confirm the prompt with Yes or No.
If you select Yes, the current route guidance is stopped and route calculation to the new
destination is started.
If you select No, the currently active route guidance is continued.
iThe route is calculated using digital map data. The calculation time depends on the dis-
tance from the destination, for example.
The calculated route may differ from the ideal route, e.g. due to roadworks or incomplete
map data. Please also refer to the notes about the digital map (Y page 420).
Using keyword search
Entering keywords
The keyword search supports Latin fonts. You
can search for an address, a POI or a syno-
nym. For example, you can search for the
Houses of Parliament or Big Ben. The keyword
search finds geographically tolerant hits. If,
for example, you are searching for a street
located on the edge of a city, the search will
also cover adjacent smaller towns.
XTo switch to navigation mode: press the
ß button.
XTo show the menu: press the controller.
XSelect Destination.
Navigation 403
COMAND Online
Z
Route guidance not active: press the con-
troller. Route guidance active: turn and
press the controller.
XSelect Keyword search.
XEnter the first few letters of the town and
street, e.g. STUT and KÖN.
The hits are displayed in the following
order: exact hits/total hits.
---/--- is displayed if fewer than three
characters have been entered.
999+ is displayed if there are too many hits.
XSelect OK.
The search results are divided into catego-
ries, e.g. town, street. The number of exact/
total hits is shown in brackets.
XSelect Town, street: press the controller.
Exact hits appear at the very top of the list;
hits are sorted alphabetically in the list. The
search term that you entered is highlighted in
orange in the entries.
XSelect an entry: turn and press the control-
ler.
The address entry menu appears, showing
the destination address.
XTo start route calculation: select Start.
Selecting search options
XTo switch to navigation mode: press the
ß button.
XTo show the menu: press the controller.
XSelect Destination.
Route guidance not active: press the con-
troller. Route guidance active: turn and
press the controller.
XSelect Keyword search.
XSelect Search options.
XSelect Error-tolerant search, POI
search or Online search.
Switch the setting on O or off ª.
Error-tolerant search: useful if parts of the
address are incomplete or the spelling is
unclear.
POI search: points of interest are taken into
account in the search.
Online search: the search is performed via
the online functions.
Selecting the country
XTo switch to navigation mode: press the
ß button.
XTo show the menu: press the controller.
XSelect Destination.
Route guidance not active: press the con-
troller. Route guidance active: turn and
press the controller.
XSelect Keyword search.
XSelect Country .
The alphabetical list of countries is dis-
played.
XSelect a country: turn and press the con-
troller.
404 Navigation
COMAND Online
Searching via COMAND Online
XTo switch to navigation mode: press the
ß button.
XTo show the menu: press the controller.
XSelect Destination.
Route guidance not active: press the con-
troller. Route guidance active: turn and
press the controller.
XSelect Keyword search.
XSelect Online search.
The search switches to the online func-
tions.
Selecting a destination from the list of
last destinations
COMAND Online automatically stores the last
100 destinations.
XTo switch to navigation mode: press the
ß button.
XTo show the menu: press the controller.
XSelect Destination.
Route guidance not active: press the con-
troller. Route guidance active: turn and
press the controller.
XSelect From last destinations.
XSelect the destination.
The address entry menu appears, showing
the destination address.
XTo start route calculation: select Start.
Selecting an address book contact as a
destination
You can select navigable address book con-
tacts as the destination. These are identified
by the L symbol. If you have already entered
and saved your home address, you can select
this as the destination by using My address.
XTo switch to navigation mode: press the
ß button.
XTo show the menu: press the controller.
XSelect Destination.
Route guidance not active: press the con-
troller. Route guidance active: turn and
press the controller.
XSelect From contacts.
XSelect the destination.
The address entry menu appears, showing
the contact and associated destination
address.
XTo start route calculation: select Start.
Selecting a destination from POIs
Calling up the POI menu
Navigation 405
COMAND Online
Z
XTo switch to navigation mode: press the
ß button.
XTo show the menu: press the controller.
XSelect Destination.
Route guidance not active: press the con-
troller. Route guidance active: turn and
press the controller.
XSelect From POIs.
406 Navigation
COMAND Online
Defining the position for the POI search
Selection Characteristic Instructions
Near destina‐
tion
Route guidance is active XIn the POIs menu, select In the vicin‐
ity of the destination.
XSelect a POI category (Y page 407).
Current posi‐
tion
Search in the vicinity of
the current vehicle posi-
tion
XIn the POIs menu, select Current
position.
XSelect a POI category (Y page 407).
Other town After entering a town,
the search is performed
within the town's boun-
daries
Option 1
XIn the POIs menu, select Other town.
XSelect the country, if desired
(Y page 402).
XEnter the town (Y page 401).
XSelect a POI category (Y page 407).
Option 2
XEnter a town in the address entry menu
(Y page 401).
XSelect POIs.
XSelect a POI category (Y page 407).
Search by name Search for all POIs on the
digital map or around
one of the three previ-
ously specified positions
XIn the POIs menu, select Search by
name.
XSelect All POIs or one of the three pre-
viously selected positions.
The POI list with character bar appears.
XEnter a name.
Search by phone
number
This function gives you
access to all POIs that
have a phone number.
XSelect Search by phone number.
You will see a list of phone numbers.
XEnter the telephone number.
Selecting a POI category After entering a town, POI categories appear
after choosing the menu item Near desti‐
nation, Current position or Other town.
Navigation 407
COMAND Online
Z
XSelect a POI category: turn and press the
controller.
The G symbol after an entry shows that
further categories are available.
XSelect a sub-category.
The search for POIs begins within a radius
of approximately 100 km of the selected
position.
Once the search is completed, the POI list
is displayed.
The search results display the following
information:
Ran arrow that shows the linear direction
to the POI
Rthe linear distance to the POI
Rthe name of the POI
XSelecting a POI.
The complete address of the POI is shown.
408 Navigation
COMAND Online
Selecting a POI
The complete address of the POI is shown.
XTo start route calculation: select Start.
XTo save the POI: select Save.
The POI can be saved as a navigable address book contact or as "My address".
XTo call up the map: select Map.
XYou can move the map, change the map scale and select POIs (Y page 410).
XTo call a POI: select Call.
COMAND Online switches to telephone mode .
XTo load data from the Internet: select www.
Available data are loaded from the Internet.
XTo view the surrounding area in Street View: select the icon on the left hand side, next
to Map.
The street in the vicinity of the destination address is shown.
Navigation 409
COMAND Online
Z
Using map
:Current vehicle position
;Crosshair
=Distance of crosshair position from current vehicle position
XTo switch to navigation mode: press the ß button.
XTo show the menu: press the controller.
XSelect Destination.
Route guidance not active: press the controller. Route guidance active: turn and press the
controller.
XSelect Using map.
The map with crosshair is shown.
XTo move the map: slide XVY, ZVÆ or aVb the controller.
XTo change the map scale: turn the controller until the desired map scale is set.
The scale is displayed at the bottom. Turning clockwise zooms out from the map; turning
anti-clockwise zooms in.
XTo select a destination: press the controller.
If the digital map provides navigable address data, you will see the destination address in
the address entry menu. If not, the Destination from map entry is shown.
XTo start route calculation: select Start.
Entering way points
Introduction
You can map the route yourself by entering
up to four waypoints. The sequence of the
waypoints can be changed at any time.
COMAND Online provides a selection of pre-
defined destinations in eight categories for
this purpose, e.g. FILLING STATION or COF‐
FEE SHOP. You can also use the destination
entry options to enter waypoints.
Creating waypoints
410 Navigation
COMAND Online
XTo switch to navigation mode: press the
Ø button.
XTo show the menu: press the controller.
XTo select Destination: turn and press the
controller.
XSelect Way points.
The destination is entered into the way-
points menu. The waypoints are not yet
entered.
XTo select Add: press the controller.
XTo select the category or Other: turn and
press the controller.
After selecting a category, the POIs which
are available along the route and in the
vicinity are displayed.
COMAND Online first searches for destina-
tions along the route. If there are no desti-
nations available there, it then continues
searching for destinations within a radius
of approximately 100 km of the vehicle
position.
XAfter selecting Other, select one of the
destination entry options from the list.
Selection Step
Address entry XEnter a destina-
tion by address
(Y page 401).
Keyword Search XSelect a destina-
tion by means of a
keyword search.
From last desti‐
nations
XSelect a destina-
tion from the list
of last destina-
tions
(Y page 405).
From POIs XSelect a POI
(Y page 405).
Using map XEnter a destina-
tion using the map
(Y page 410).
Selection Step
From the memory
card
XSelect a destina-
tion from the SD
card.
From Mercedes-
Benz Apps
XEnter a destina-
tion from
Mercedes-Benz
Apps.
Using geo-coor‐
dinates
XEnter a destina-
tion using the geo-
coordinates
(Y page 413).
XTo select a POI: turn the controller and
press to confirm.
After selecting a POI or entering a destina-
tion, the address of the waypoint is dis-
played.
After entering a destination using the map,
the address entry menu is displayed. OK is
highlighted.
XTo accept the waypoint: select OK.
When you have accepted the waypoint, it is
entered in the waypoint menu.
XTo select details: turn and press the con-
troller.
XTo make a call: select Call.
iCOMAND Online switches to telephone
mode (Y page 435).
This menu item is available if the waypoint
has a telephone number and a mobile
phone is connected to COMAND Online
(Y page 426).
XTo call up the map: select Map.
XYou can move the map and select the des-
tination.
XTo store a waypoint in the destination
memory: select Presets.
Navigation 411
COMAND Online
Z
Editing waypoints
You can:
Rchange waypoints
Rchange the sequence in the waypoint menu
Rdeleted
To change the sequence, at least one way-
point and the destination must be entered.
XTo select a waypoint in the waypoint menu:
turn the controller and press to confirm.
A menu appears.
XTo change the waypoint: in the menu,
select Edit.
XChange the address, e.g. the town and
street. Then confirm with OK.
The waypoint menu appears and displays
the modified waypoint.
You can change the sequence of the way-
points and the destination.
XTo change the order: in the menu, select
Move.
XTurn the controller and move the waypoint
or destination to the desired position. Then
press the controller.
XTo delete waypoints: In the menu, select
Delete.
Accepting waypoints for the route
XIn the waypoints menu, select Start.
The route is calculated with the entered
waypoints.
iContinue is displayed instead of Start
when Calculate alternative routes
is activated in the navigation menu .
iIf a waypoint has been passed during
route guidance, the waypoint will be dis-
played in the waypoint menu with a green
arrow. Once the route has been recalcula-
ted, the waypoint is deleted from the way-
point menu.
Searching for a filling station when the
fuel level is low
If the reserve fuel warning is displayed, you
will see the message: Fuel tank reserve
level. Do you want to start the
search for filling stations?.
XSelect Yes or No.
If you select Yes, the filling station search
starts. When the search is complete, a list
of the filling stations available along the
route or in the vicinity is displayed.
If you select No, the search is cancelled.
XTo select a filling station: turn the controller
and press to confirm.
The address of the filling station is dis-
played.
XTo select Start: press the controller.
The selected filling station is entered into
position 1 of the waypoints menu. Route
guidance begins.
If the waypoints menu already contains
four waypoints, a prompt will be displayed,
asking you whether you wish to enter the
filling station into position 1. If you select
Yes, the filling station is transferred into the
list and waypoint 4 is deleted.
Entering a destination from Mercedes-
Benz Apps
XTo switch to navigation mode: press the
Ø button.
XTo show the menu: press the controller.
XTo select Destination: turn and press the
controller.
412 Navigation
COMAND Online
XSelect From Mercedes-Benz Apps.
If an Internet connection is established, you
will see the message Do you want to
accept the navigation data sent
via Mercedes-Benz Apps?
Using geo-coordinates
XTo switch to navigation mode: press the
ß button.
XTo show the menu: press the controller.
XSelect Destination.
Route guidance not active: press the con-
troller. Route guidance active: turn and
press the controller.
XSelect Using geo-coordinates.
Entering the latitude and longitude coor-
dinates
XTo change the value: turn the controller.
XTo move the selection within the line: slide
XVY the controller.
XTo move the selection between lines: slide
ZVÆ the controller.
XTo confirm the value: press the controller.
XTo save the destination: select Save.
The destination can be saved as a navigable
address book contact or as "My address".
XTo start route calculation: select Start
route guidance.
Personal POIs
General notes
iThe use of personal POIs to display traffic
monitoring installations is not permitted in
all countries. Please observe the country-
specific regulations and always drive at a
suitable speed.
Travel guide
Text
Route guidance
Changing direction
Lane recommendations
Motorway information
Displays
Navigation 413
COMAND Online
Z
You can use this function to display upcoming
motorway exits, filling stations, restaurants
and similar types of information.
XTo switch to navigation mode: press the
Ø button.
XTo show the menu: press the controller.
XSelect Settings: turn and press the con-
troller.
XSelect Map content.
XSelect Motorway information.
Depending on the previous status, motor-
way information is switched on or off.
Using for route guidance
Destination or area of destination
reached
Navigation announcements
Cancelling/continuing route guidance
Route information
Destination information
Alternative routes
Route list
Traffic jam function
Recording the route
Dynamic route guidance
Introduction
An RDS-TMC radio station transmits RDS-
TMC traffic reports in addition to the radio
programme. COMAND Online can receive
RDS-TMC traffic reports and take them into
consideration for dynamic (traffic-depend-
ent) route guidance. The navigation system
can, for example, guide you around a traffic
jam.
In Germany, COMAND Online uses high-qual-
ity traffic data for the TMCpro traffic jam
warning system. TMCPro provides exclusive
traffic data that is detected with an automa-
ted sensor network, in addition to the mes-
sages generated by the TMC service. The traf-
fic data received from the traffic jam warning
services named above could differ.
There may also be differences between the
traffic reports received and the actual road
and traffic conditions.
The respective traffic data being received
appears at the bottom right of the display with
the symbols "TMCPro" or "TMC". If there is no
reception, no symbol is displayed.
iRDS-TMC is not available in all countries.
414 Navigation
COMAND Online
Switching dynamic route guidance on/
off
XTo switch on: select the Dynamic route
or Dynamic route only after
request route type (Y page 398).
XTo switch off: select the Fast route or
Short route route type (Y page 398).
iCOMAND Online calculates a new route if
you change the route type setting with
route guidance active. If you change the
route type setting when route guidance is
inactive, COMAND Online uses the new
setting for the next route guidance.
RDS-TMC traffic reports on the map
COMAND Online can show certain traffic inci-
dents on the map. The displays can be shown
in map scales of 50 m to 20 km.
XTo set the map scale: turn the controller
until the desired map scale is selected.
The display shows the entire affected route
section with the corresponding symbols,
regardless of how long the incident actually
is. The symbols are placed on the side of the
carriageway affected by the incident.
RDS-TMC symbols on the map
:Traffic jam on the route
;Slow-moving traffic on the route
=Road blocked
?Road blocked
ASlow-moving traffic (yellow line along the
affected route)
BTraffic jam (red line along the affected
route)
Displaying RDS-TMC traffic reports
Starting a search for traffic reports
XTo switch to navigation mode: press the
Ø button.
XTo show the menu: press the controller.
XTo select TMC: turn the controller in the
menu bar and press.
A menu appears. COMAND Online first
searches for RDS-TMC stations within
receiver range. If RDS-TMC stations are
found, a search for traffic reports is then
started.
If no RDS-TMC stations are found, or there
are no traffic reports, you will see a mes-
sage to this effect.
XTo close the report: press the controller.
Traffic symbol information
:Affected section of road
;Symbol for incident (traffic jam in the
example shown)
=Line indicating the affected section of
road
Navigation 415
COMAND Online
Z
XTo switch to navigation mode: press the
Ø button.
XTo show the menu: press the controller.
XTo select Traffic symbol information:
turn the controller in the menu bar and
press.
XSelect Traffic symbol information.
XTo display the next/previous incident:
select Next or Previous (if available).
XTo display details: select Details.
XTo scroll the map: select Map.
You can move the map to enable further
traffic reports to be displayed
(Y page 398).
Displaying reports on the route
:Country designation, road number, direc-
tion and number/total number of reports
for the affected road (1/2)
;Section of the road to which the traffic
report applies
=Traffic report
?Type of traffic report (warning)
XTo switch to navigation mode: press the
Ø button.
XTo show the menu: press W the COMAND
controller.
XTo select TMC: turn the controller in the
menu bar and press.
XSelect Reports on the route.
The traffic report is displayed. If there is
more than one traffic report for a section of
the route, this is indicated by 1/2, for
example.
XTo scroll within a report or to access
the next report: turn the controller.
XTo close the report: slide XVY the con-
troller one or more times.
Displaying all traffic reports
XTo switch to navigation mode: press the
Ø button.
XTo show the menu: press W the COMAND
controller.
XTo select TMC: turn the controller in the
menu bar and press.
XSelect Show all reports.
A list is shown containing all roads, areas
or regions affected by traffic reports.
Roads, areas or regions not on the route
also appear in the list.
XTo show a traffic report: select a road, an
area or a region and press W to confirm.
The traffic report is displayed. If there is
more than one traffic report for a section of
the route, this is indicated by 1/2, for
example.
You can find an example of a traffic report
here: (Y page 416).
XTo close the report: slide XVY the con-
troller one or more times.
Reading out traffic reports on the route
Calling up traffic reports
You can select from the following text reader
properties:
RLanguage (Y page 379)
RText reader speed (Y page 376)
XTo switch to navigation mode: press the
Ø button.
XTo show the menu: press the controller.
XTo select TMC: turn the controller and press
it.
XSelect Read out reports on the
route.
COMAND Online reads out the messages
in sequence.
No reports on the route: the Read out
reports on the route function does not
work.
416 Navigation
COMAND Online
XTo cancel the text reader function:
select Cancel text reader function.
The current traffic report is read out to the
end and then the function is deactivated.
or
XBriefly press the 8 button.
The function is deactivated immediately.
iCOMAND Online interrupts the read-
aloud function automatically as it recalcu-
lates the route following a new RDS-TMC
traffic report.
Automatic read-aloud function
Traffic reports can be read out automatically
on the route. Announcements are made as
you approach traffic incidents.
XTo switch on/off: press the Ø button.
XTo show the menu: press the controller.
XTo select TMC: turn the controller and press
it.
XSelect Read out traffic reports
automatically.
XThe function is activated O or deactivated
ª.
Saving destinations
Overview
Map functions
General notes
Company logos displayed on the map are
trademarks of the respective companies and
used solely for the purpose of indicating the
locations of these companies. The use of such
logos on the map does not indicate approval
of, support of or advertising by these compa-
nies for the navigation system itself.
Navigation 417
COMAND Online
Z
Map settings
Rotating the 3D map
You can use this function to explore the area of the map. The function is available in all map
scales.
REQUIREMENT: the 3D map display must be switched on.
XTo switch to navigation mode: press the Ø button.
XTo show the menu: press the controller.
XTo select Settings: turn and press the controller.
XSelect Map orientation.
XSelect 3D map rotation.
XTurn the controller.
MORE FUNCTIONS:
RMoving the map (Y page 398)
RChanging the map scale (Y page 398)
418 Navigation
COMAND Online
Map display
Globe scrolling
COMAND Online displays globe satellite images. This allows for a realistic map display free
from distortion in all map scales.
The current position of the vehicle can be moved on the globe up to a map scale of 20 km. If
the 3D map setting has been activated, up to a scale of 10 km.
MORE FUNCTIONS:
RMoving the map (Y page 398)
RChanging the map scale (Y page 398)
Building images
With small map scales, important buildings are depicted realistically; other buildings are shown
as models.
Navigation 419
COMAND Online
Z
Elevation model
Cities located in mountainous regions are
realistically depicted using an elevation
model.
Speed Limit Assist
Avoiding an area
Compass function
Showing the map data version
Updating the digital map
Navigation functions
420 Navigation
COMAND Online
Problems with the navigation system
Problem Possible causes/consequences and M Solutions
COMAND Online is
unable to continue
route guidance after
the journey has been
interrupted.
Route guidance is cancelled if you interrupt the journey for more
than two hours.
"Interrupting the journey" refers to stopping the vehicle.
"Continuing route guidance" refers to switching COMAND Online
back on and driving on.
XContinue route guidance (Y page 414).
Problem Possible causes/consequences and M Solutions
COMAND Online is
unable to determine
the vehicle's position.
COMAND Online has to redetermine the position of the vehicle if
the vehicle has been transported.
Examples:
Rafter transporting the vehicle by ferry
Rafter transporting the vehicle by motorail
Rafter the vehicle has been towed
XStart the vehicle and pull away.
COMAND Online determines the vehicle's position. Depending
on the driving situation, this may take some time.
Route guidance may be restricted during the determination of
the vehicle's position.
When positioning is complete, route guidance is resumed with
navigation announcements and route guidance displays.
Navigation 421
COMAND Online
Z
Problem Possible causes/consequences and M Solutions
The Navigation
unavailable message
appears.
COMAND Online has an integrated hard drive on which the digital
map is stored.
To protect the integrated hard drive against damage,
COMAND Online deactivates it at very high and low temperatures.
The navigation system will then be temporarily unavailable.
XLet the vehicle and COMAND Online cool down.
XTo hide the message: switch COMAND Online off and then on
again.
If an area of the hard disk has a fault, COMAND Online can no
longer access the map data in this area. This may occur when
calculating a route, for example.
XTo hide the message: switch COMAND Online off and then on
again.
The navigation system will be operational again until it has to
access the faulty area of the hard drive once more. The message
will then reappear.
XConsult a Mercedes-Benz Service Centre.
Problem Possible causes/consequences and M Solutions
You see a message
informing you that the
DVD containing the dig-
ital map is incompatible
with the system soft-
ware.
The DVD containing the digital map cannot be used for the update.
XTo confirm the message: press the COMAND controller.
XEject the DVD.
XHave the system database checked at a Mercedes-Benz Service
Centre.
Problem Possible causes/consequences and M Solutions
The map software
update has failed.
The DVD is dirty.
XClean the DVD.
XRestart the update.
The DVD is scratched.
XConsult a Mercedes-Benz Service Centre.
422 Navigation
COMAND Online
Problem Possible causes/consequences and M Solutions
There is overheating due to excessive temperatures in the vehicle
interior.
XWait until the vehicle interior has cooled down.
XRestart the update.
COMAND Online's integrated hard disk is defective.
XConsult a Mercedes-Benz Service Centre.
Problem Possible causes/consequences and M Solutions
COMAND Online asks
for an activation code
during the map update.
The digital map is secured with an activation code.
XConsult a Mercedes-Benz Service Centre.
Telephone
Features of your COMAND Online
These operating instructions describe all
standard and optional equipment available
for your COMAND Online system at the time
of purchase. Country-specific differences are
possible. Please note that your
COMAND Online system may not be equip-
ped with all the features described. This is
also the case for systems and functions rele-
vant to safety. Therefore, the equipment on
your COMAND Online system may differ from
that in the descriptions and illustrations.
Should you have any questions concerning
equipment and operation, please consult a
Mercedes-Benz Service Centre.
General notes
Important safety notes
GWARNING
Operating communications equipment inte-
grated into the vehicle while driving will dis-
tract you from traffic conditions. You could
then lose control of the vehicle. There is a risk
of an accident.
Only operate these devices if road traffic con-
ditions permit. If you are unsure about the
surrounding conditions, pull over to a safe
location and make entries only while the vehi-
cle is stationary.
GWARNING
If you use the RF transmitter in the vehicle in
an improper way, its electromagnetic radia-
tion can disrupt vehicle electronics, e.g. if:
Rthe RF transmitter is not connected to an
exterior aerial
Rthe exterior aerial is fitted incorrectly or is
not a low-reflection aerial
This can jeopardise the operating safety of the
vehicle. There is a risk of an accident.
Have the low-reflection exterior aerial fitted at
a qualified specialist workshop. When oper-
ating in the vehicle, always connect the RF
transmitter to the low-reflection exterior aer-
ial.
You must observe the legal requirements for
the country in which you are currently driving
when operating mobile communications
equipment in the vehicle.
Telephone 423
COMAND Online
Z
Excessive levels of electromagnetic radiation
may cause damage to your health and to the
health of others.
There is scientific discussion surrounding the
possible health risks posed by electromag-
netic fields. You can reduce this risk by using
an exterior aerial.
Therefore, only use mobile communication
equipment if it is connected to the exterior
aerial of the vehicle.
Introduction
COMAND Online allows you to use the fol-
lowing modes of telephony:
RTelephony via the Bluetooth® interface
using COMAND Online
Rpermanently installed/SAP telephony (only
in conjunction with a data-enabled MB
SAP module)
RBusiness telephony via the Bluetooth®
interface of the Rear Seat Entertainment
System.
iBusiness telephony is only available if the
vehicle is equipped with a Rear Seat Enter-
tainment System and the business teleph-
ony option.
In telephony via Bluetooth® interface
mode, the mobile phone is connected directly
to COMAND Online via Bluetooth®.
Enhancing this operating mode with the
optional mobile phone bracket allows you to:
Rconnect the mobile phone to the exterior
aerial on the vehicle
Rcharge the mobile phone
In the permanently installed/SAP teleph-
ony mode, the optional data-enabled MB
SAP module is inserted into the fitting in the
armrest designed for housing the mobile
phone bracket.
When connecting Bluetooth®-capable mobile
phones with PBAP (Phone Book Access
Profile), the contacts are automatically down-
loaded to COMAND Online or the Rear Seat
Entertainment System.
You can use the text message and e-mail
function under the following conditions:
Rthe mobile phone supports the MAP Blue-
tooth® profile (Message Access Profile).
Further information on the following topics
can be obtained from your Mercedes-Benz
Service Centre or on the Internet at http://
www.mercedes-benz.com/connect:
Rsuitable mobile phones
Ravailable mobile phone brackets
Rconnecting Bluetooth®-capable mobile
phones to COMAND Online
Roverview of the functions for the operating
modes
Business telephony
If your vehicle is equipped with a Rear Seat
Entertainment System, you can also select
the business telephony option.
The following scenarios are possible:
ROperation of two telephones:
-A mobile phone is connected to
COMAND Online as the COMAND Tele-
phone. COMAND Online is generally
used as a hands-free system here when
making calls. A call can be transferred to
the business telephone in the rear com-
partment.
-A second mobile phone is connected as
a business telephone with the Rear Seat
Entertainment System. With the busi-
ness telephony option, a passenger in
the rear compartment uses the handset
when making calls. He can transfer the
call to the COMAND telephone.
Both telephones can be used independ-
ently of each other.
ROperation with one telephone
A mobile phone is either connected with
COMAND Online as a COMAND telephone
or with the Rear Seat Entertainment Sys-
tem as a business telephone. A call can be
transferred from front to rear or from rear
424 Telephone
COMAND Online
to front. Only one call can be made at a
time.
Disconnecting a call while the vehicle is
in motion
A call may be disconnected if:
Rthere is insufficient GSM network coverage
in certain areas
Ryou move from one GSM or UMTS trans-
mitter/receiver area (GSM/UMTS cell) into
another and no channels are free
Ryou use a SIM card that is not compatible
with the network available
Ryou are using a mobile phone with "Twin-
card" and the mobile phone with the sec-
ond SIM card is logged into the network at
the same time
Operating options
You can operate the telephone by:
Rusing the controller:
turning
sliding XVY or ZVÆ
pressing
Rusing the 6 or ~ button and using
the telephone keypad on COMAND Online
Rusing the 6 or ~ button on the mul-
tifunction steering wheel
Rusing LINGUATRONIC (see the separate
LINGUATRONIC operating instructions)
Unless stated otherwise, the descriptions and
illustrations in this section refer to
COMAND Online.
Function restrictions
You will not be able to use the telephone, will
no longer be able to use the telephone, or you
may have to wait before using it in the follow-
ing situations:
Rif the mobile phone is switched off
Rif the "Bluetooth®" function is switched off
in COMAND Online
Rif the Bluetooth® function is switched off on
the mobile phone while you are using Blue-
tooth® interface telephony
Rif the mobile phone is not logged into a
mobile phone network
iThe telephone automatically tries to log
on to a network. If no network is available,
you may not be able to make a "999" or
"112" emergency call. If you attempt to
make an outgoing call, the No service
message will appear for a short while.
If you switch COMAND Online off during a call
in hands-free mode, the call will be termina-
ted. You can prevent this as follows:
Telephony via the Bluetooth® interface
XSwitch the mobile phone to private mode
before switching off COMAND Online (see
the mobile phone operating instructions).
"999" or "112" emergency call
The following conditions must be fulfilled in
order to make a 999 or 112 emergency call:
Rthe mobile phone must be switched on
Ra network must be available
Ra valid and operational SIM card must be
inserted in the mobile phone
Rthe PIN must have been entered
If you cannot make an emergency call, you
must arrange rescue measures yourself.
iThe 999 or 112 emergency call number
is a public service. Any misuse is punisha-
ble by law.
Telephony via the Bluetooth® inter-
face
Conditions
For telephony via COMAND Online's Blue-
tooth® interface, a Bluetooth®-capable
mobile phone is required.
Telephone 425
COMAND Online
Z
On COMAND Online
XActivate the Bluetooth® function in
COMAND Online (Y page 379).
On the mobile phone
XSwitch on the mobile phone and enter the
PIN when prompted to do so (see the
mobile phone operating instructions).
XActivate Bluetooth® functions and, if nec-
essary, Bluetooth® visibility on the mobile
phone (see the mobile phone operating
instructions).
The battery of the mobile phone should
always be kept sufficiently charged in order
to prevent malfunctions.
In preparation for telephoning via the Blue-
tooth® interface, you should check the fol-
lowing items on your mobile phone (see the
mobile phone operating instructions):
RHands-Free Profile
The mobile phone must support Hands-
Free Profile 1.0 or above.
RBluetooth® visibility
On certain mobile phones, the device itself
must be made "visible" to other devices, as
well as activating the Bluetooth® function
(see the mobile phone operating instruc-
tions).
This visibility is for restricted periods of
time on some mobile phones.
RBluetooth® device name
Every Bluetooth® device has a Bluetooth®
device name. This device name is freely
definable, but can be identical for all devi-
ces from the same manufacturer. It is
therefore recommended that you change
this name so that you can easily recognise
your mobile phone (see the mobile phone
operating instructions).
iNot all mobile phones available on the
market are equally suitable. Further infor-
mation on suitable mobile phones and
mobile phone brackets can be obtained at
your Mercedes-Benz Service Centre or on
the Internet at http://www.mercedes-
benz.com/connect.
iNot all mobile phones available on the
market are equally suitable. Further infor-
mation on suitable mobile phones can be
obtained from a Mercedes-Benz Service
Centre.
iSome displays (e.g. the signal strength)
depend on the supported version of the
Hands-Free Profile.
Connecting a mobile phone
General notes
Before using your mobile phone with
COMAND Online for the first time, you will
need to:
Rsearch(Y page 426) and then
Rauthorise (register) it (Y page 428).
Device-specific information on authorising
and connecting Bluetooth®-capable mobile
phones can be found on the Internet at
http://www.mercedes-benz.com/
connect.
When you authorise a new mobile phone, it is
connected automatically.
You can authorise up to 15 mobile phones.
If the mobile phone supports PBAP (Phone
Book Access Profile) and MAP (Message
Access Profile), the following contacts and
messages are downloaded into COMAND
Online when connecting:
Rthe phone book
Rthe call lists
Rthe messages (text and e-mail)
Further information on the conditions for con-
necting (Y page 425).
Searching for a mobile phone
XPress the % button.
XTo switch to the menu bar in the telephone
basic menu: slide VÆ the controller.
XTo select Connect device: turn the con-
troller and press to confirm.
426 Telephone
COMAND Online
If your vehicle is equipped with a Rear Seat
Entertainment System, you can decide
whether you wish to connect the mobile
phone as a COMAND telephone or a business
telephone. Further information on business
telephony .
XTo select the COMAND telephone or Busi‐
ness phone: turn and press the controller.
If you select the COMAND telephone, the
mobile phone will be connected with
COMAND Online. If you select the Busi‐
ness phone, the mobile phone will be con-
nected with the Rear Seat Entertainment
System.
XTo select Search for phones: turn the
controller and press to confirm.
A message appears.
XTo select Start search: slide the control-
ler VY and press to confirm.
The Searching for Bluetooth devi‐
ces message appears. COMAND Online
looks for Bluetooth® telephones within
range and adds them to the Bluetooth® tel-
ephones list.
If a new phone is found, it appears in the
list with the Ï symbol.
The duration of the search depends on the
number of Bluetooth® telephones within
range and their characteristics.
Telephone 427
COMAND Online
Z
Symbols in the Bluetooth® phone list
Sym-
bol
Explanation
ÏNew mobile phone in range, but
not yet authorised
YAuthorised mobile phone
#Currently connected mobile
phone
ÑMobile phone in range and
authorised
Ñ
(grey)
Mobile phone not in range, but
already authorised
The Bluetooth® telephones list shows all
mobile phones within range and all previously
authorised mobile phones, whether or not
they are in range.
iMobile phones that are connected to the
optional data-enabled MB SAP module are
shown in a separate phone list. These are
found below the entry Telephones of
the SAP module.
iCOMAND Online cannot recognise
mobile phones on which Bluetooth® visibil-
ity has not been activated, even if they are
within range.
iIf the Bluetooth® telephones list is already
full, you will be requested to de-authorise a
mobile phone (Y page 430). If COMAND
Online does not find your mobile phone,
external authorisation may be necessary
(Y page 429).
iWhen you call up the phone list again, de-
authorised devices will be removed from
the list. In this case, start a new search to
update the Bluetooth® telephone list.
Authorising (registering) a mobile phone
Option 1: using the passkey (access num-
ber)
XTo select the mobile phone with the Ï
symbol in the Bluetooth® telephones list:
turn the controller and press to confirm.
The input menu for the passkey appears.
The passkey is any one to sixteen-digit num-
ber combination which you can choose your-
self. You must enter the same number com-
bination in COMAND Online and in the Blue-
tooth®-capable mobile phone (see the mobile
phone operating instructions).
iSome mobile phones require a passkey
with four or more digits.
iIf you wish to re-authorise the mobile
phone after de-authorising it, you can
choose another passkey for it.
iMercedes-Benz recommends de-authori-
sation in COMAND Online and on the
mobile phone (Y page 430). Subsequent
authorisation may otherwise fail.
XTo enter a passkey in COMAND Online:
press the number keys in turn.
¬ is highlighted after the first number
has been entered.
XTo select ¬ after entering all numbers:
turn the controller and press to confirm.
FURTHER ENTRY OPTIONS:
RUsing the character list in the input menu
XTo enter the passkey on the mobile
phone: if the Bluetooth® connection is suc-
cessful, you will be requested to enter the
428 Telephone
COMAND Online
passkey (access code, passkey; see the
mobile phone operating instructions).
XEnter the same passkey in the mobile
phone as the one already entered in
COMAND Online.
The Connecting profiles... message
appears.
The Authorisation successful mes-
sage appears once authorisation is com-
pleted.
iAfter entering the passkey, you may also
need to enter a confirmation in your mobile
phone in order to make calls. Please check
your mobile phone display. On some mobile
phones, this confirmation can be saved. In
this case, you do not need to enter it again.
If the COMAND Online display shows the
Authorisation failed message, you
may have exceeded the prescribed time
period. Repeat the procedure.
The mobile phone is authorised and connec-
ted to COMAND Online. You can now make
phone calls using the COMAND Online hands-
free system.
Option 2: using Secure Simple Pairing
PREREQUISITE:
To connect via Secure Simple Pairing, the
mobile phone (or Bluetooth® audio equip-
ment) must support Bluetooth® Version 2.1.
COMAND Online creates a six-digit code,
which is displayed on both devices that are to
be connected.
If the number code is the same on both devi-
ces:
XTo select Yes: press the controller.
If you select Yes, authorisation is continued
and the mobile phone is connected.
If you select No, the process will be cancel-
led.
XConfirm the message on the mobile phone.
External authorisation
If COMAND Online does not detect your
mobile phone, this may be due to particular
security settings on your mobile phone. In this
case, you can test if your mobile phone can
find COMAND Online. The Bluetooth® device
name of COMAND Online is "MB Bluetooth".
After entering the passkey, you must re-
establish the connection to COMAND Online
on some mobile phones (see mobile phone
operating instructions). The mobile phone
cannot otherwise be authorised.
XPress the % button on COMAND Online.
XTo switch to the menu bar in the telephone
basic menu: slide VÆ the controller.
XTo select Connect device: turn and press
the controller.
The Bluetooth® telephones list appears.
XTo select Search via telephone: turn
and press the controller.
A message appears.
Telephone 429
COMAND Online
Z

Navigation menu
