Foreword

Thank you for choosing the MMI Navigation System plus.

Your new Audi is designed with the latest technology, enabling you to control all

on-board electronic systems and other settings centrally via the MMI.

We recommend that you read this Operating Manual carefully so that you quick-

ly become familiar with all the available functions of the MMI and can take full

advantage of them in everyday use.

Please note that this Operating Manual is intended to supplement the informa-

tion in the Owner's Manual for your vehicle, so it should only be used in conjunc-

tion with the current edition of the Owner's Manual.

We wish you safe and enjoyable motoring with your Audi.

AUDI AG



1315663MH20

2 Titel oder Name, Abteilung, Datum

statements FCC part 15.19 and 15.21:

"This device complies with part 15 of the FCC Rules. Operation

is subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) this device must accept

any interference received, including interference that may

cause undesired operation."

"Changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to

operate the equipment."

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme

NMB-003 du Canada.

2 Table of Contents

Notes about this Operating

Manual . . . . . . . . . . . . . . . . . . . . . . . . 4

Controls . . . . . . . . . . . . . . . . . . . . . . . 5

Overview . . . . . . . . . . . . . . . . . . . . . . 5

Controls and displays at a glance . . . . 5

Notes on traffic safety . . . . . . . . . . . . . 5

Cleaning and care . . . . . . . . . . . . . . . . . 6

Notes on software licences . . . . . . . . . 6

MMI control console . . . . . . . . . . 7

Switching the MMI system on/off . . . . 7

Adjusting the volume . . . . . . . . . . . . . 7

How to use the controls . . . . . . . . . . . . 7

MMI touch . . . . . . . . . . . . . . . . . . . . . . 8

Speller for letters/numbers . . . . . . . . 9

Menus and symbols . . . . . . . . . . . . . . . 10

Multi-function steering wheel 12

How to use the controls . . . . . . . . . . . . 12

Using the telephone . . . . . . . . . . . . . . 13

Navigation . . . . . . . . . . . . . . . . . . . . . . 14

Listening to the radio . . . . . . . . . . . . . . 15

Playing media . . . . . . . . . . . . . . . . . . . . 15

Speech dialogue system . . . . . . 17

How to use the speech dialogue

system . . . . . . . . . . . . . . . . . . . . . . . . . 16

Notes on the overviews of commands 18

Global commands . . . . . . . . . . . . . . . . 18

Telephone . . . . . . . . . . . . . . . . . . . . . . . 18

Navigation . . . . . . . . . . . . . . . . . . . . . . 19

Radio . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Media . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Media drives/connections . . . . 22

Introduction . . . . . . . . . . . . . . . . . . . . . 22

Notes . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Jukebox . . . . . . . . . . . . . . . . . . . . . . . . . 23

DVD drive . . . . . . . . . . . . . . . . . . . . . . . 24

SD card readers . . . . . . . . . . . . . . . . . . 24

Bluetooth audio players . . . . . . . . . . . . 25

Audi music interface . . . . . . . . . . . . . . 25

Supported media and file formats . . . 27

Troubleshooting . . . . . . . . . . . . . . . . . . 28

System settings . . . . . . . . . . . . . . . 29

Setting the time/date . . . . . . . . . . . . . 29

Adjusting the sound . . . . . . . . . . . . . . . 29

Adjusting the system volume . . . . . . . 30

Restarting the MMI system (Reset) . . 31

Speed display on driving school

vehicles . . . . . . . . . . . . . . . . . . . . . . . . . 31

Other settings . . . . . . . . . . . . . . . . . . . 31

Communication . . . . . . . . . . . . . . . 33

Telephone . . . . . . . . . . . . . . . . . . . . . 33

Introduction . . . . . . . . . . . . . . . . . . . . . 33

Bonding a mobile phone . . . . . . . . . . . 33

Calling up the telephone . . . . . . . . . . . 35

Dialling a telephone number . . . . . . . . 35

Answering/ignoring telephone calls . . 36

During a telephone call . . . . . . . . . . . . 37

Storing a telephone number . . . . . . . . 37

Other settings . . . . . . . . . . . . . . . . . . . 38

Audi Phone Box . . . . . . . . . . . . . . . . . . 39

Directory . . . . . . . . . . . . . . . . . . . . . . 41

Calling up the directory . . . . . . . . . . . . 41

Storing a contact . . . . . . . . . . . . . . . . . 41

Using a contact . . . . . . . . . . . . . . . . . . 42

Editing/deleting a contact . . . . . . . . . . 43

Importing/exporting contacts . . . . . . 43

Other settings . . . . . . . . . . . . . . . . . . . 44

Navigation . . . . . . . . . . . . . . . . . . . . . 45

Calling up the navigation menu . . . . . 45

Entering a destination . . . . . . . . . . . . . 45

Starting/stopping route guidance . . . . 48

How to use the map . . . . . . . . . . . . . . . 49

Calling up traffic information . . . . . . . 50

Other settings . . . . . . . . . . . . . . . . . . . 50

Entertainment . . . . . . . . . . . . . . . . 54

Listening to the radio . . . . . . . . . 54

Calling up the radio . . . . . . . . . . . . . . . 54

Radio functions . . . . . . . . . . . . . . . . . . 54

2 Titel oder Name, Abteilung, Datum

3Table of Contents

ControlsCommunicationNavigationEntertainment

Other settings . . . . . . . . . . . . . . . . . . . 55

Troubleshooting . . . . . . . . . . . . . . . . . . 57

Playing media . . . . . . . . . . . . . . . . . 58

Calling up the media menu . . . . . . . . . 58

Media centre . . . . . . . . . . . . . . . . . . . . 59

Other settings . . . . . . . . . . . . . . . . . . . 60

Index . . . . . . . . . . . . . . . . . . . . . . . . . . 62

2 Titel oder Name, Abteilung, Datum

4 Notes about this Operating Manual

This Operating Manual contains important in-

formation, tips, suggestions and warnings.

Please ensure that this Operating Manual is

always kept in the vehicle. It should always be

available to anyone else driving the vehicle,

i.e. anyone renting, borrowing or buying the

vehicle from you.

Some sections of this Operating Manual do

not apply to all vehicles. If this is the case, a

text at the start of the section indicates which

vehicles it applies to, e.g. “Applies to vehicles:

with phone pre-installation”. This optional or

vehicle-specific equipment is also marked

with an asterisk “*”.

Illustrations are intended as a general guide,

and may vary from the equipment fitted in

your vehicle in some details.

At the beginning of this Operating Manual,

you will find a table of contents showing all

the items described in this manual in the or-

der in which they appear. An alphabetical in-

dex is included at the end of the Operating

Manual.

All references to positions such as “left”,

“right”, “front” or “rear” are given as seen fac-

ing in the direction of travel.

Optional or vehicle-specific equipment.

The section is continued on the following

page.

Registered trademarks are marked ®.

However, the absence of this symbol does

not constitute a waiver of the rights con-

cerning any proprietary name.

ð Refers to a “WARNING” within the same

section. If the WARNING symbol is followed

by a page number the warning text referred to

is included in a different section.

WARNING

Texts with this symbol contain safety infor-

mation. They warn you of serious dangers,

possibly involving accident or injury.



CAUTION

Texts with this symbol draw your attention

to a possible risk of damage to your vehi-

cle.

For the sake of the environment

Texts with this symbol refer to points rele-

vant to the protection of the environment.

Note

Texts with this symbol contain additional

information of a more general nature.

2 Titel oder Name, Abteilung, Datum

5Overview

ControlsCommunicationNavigationEntertainment

Overview

Controls and displays at a glance

The Multi Media Interface (MMI) combines different communication, navigation* and entertain-

ment systems in your Audi.

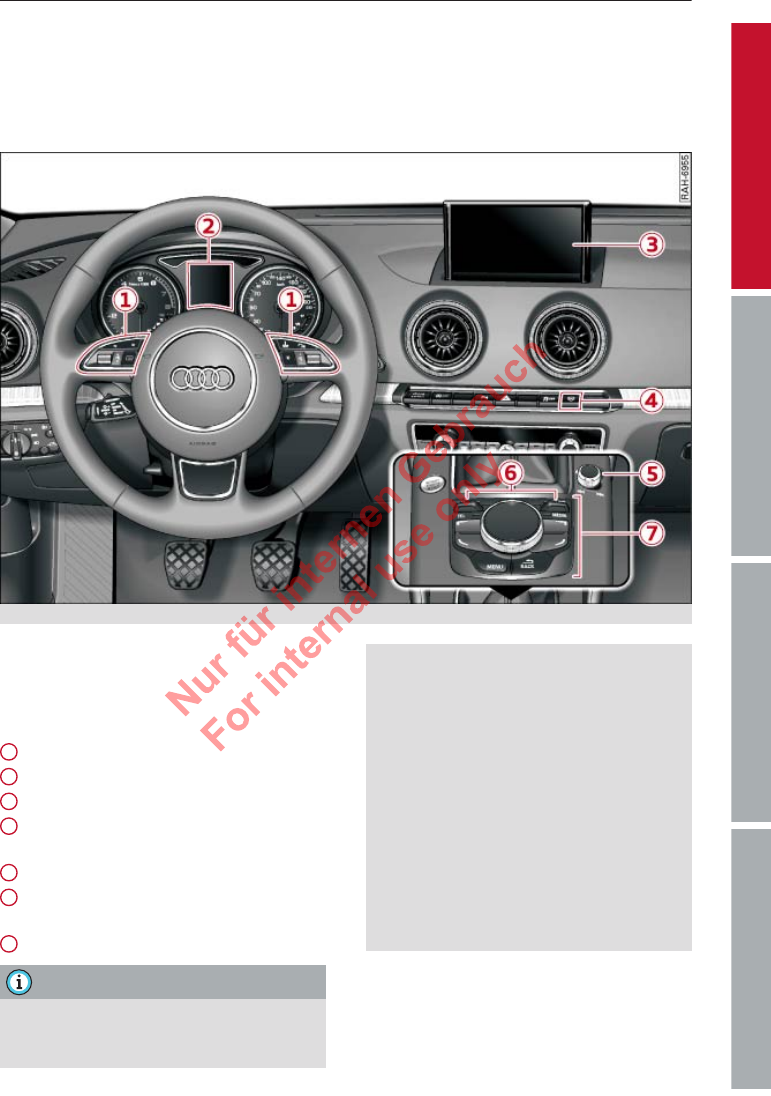

Fig. 1 MMI controls and displays

You can operate your MMI system via the MMI

control console, the multi-function steering

wheel* or the speech dialogue system*

ð Fig. 1:

Multi-function steering wheel . 12

Driver information system . . . . 12

MMI display

Button for folding the MMI dis-

play in and out

ON/OFF button . . . . . . . . . . . . . . 7

Buttons for calling up menus di-

rectly . . . . . . . . . . . . . . . . . . . . . . 7

MMI control console . . . . . . . . . 7

Note

–Please note that only the MMI and its

components are described in this Operat-

ing Manual. For more information about

your vehicle's equipment and features,

please refer to your Owner's Manual.

–This manual describes the equipment

available for the vehicle at the time of

going to print. Some of the equipment

described here will not be available until

a later date, or may only be available in

certain markets.

–The arrangement of the system compo-

nents on right-hand drive models* may

be slightly different from the layout

shown in ð Fig. 1. However, the symbols

used to identify the controls are the

same.

Notes on traffic safety

You should only perform important functions,

e.g. enter a destination, while the vehicle is

stationary. Please always be prepared to stop 

2 Titel oder Name, Abteilung, Datum

6 Overview

operating the system in the interest of your

safety and that of other road users.

WARNING

–Today's driving conditions require your

full attention. As the driver, you have full

responsibility for the safety of the vehi-

cle and other road users. For this reason,

only operate the MMI system when the

traffic conditions allow you to do so safe-

ly and when you can maintain proper

control of your vehicle - risk of accident.

–The volume of the audio sources (radio,

CD player, etc.) should only be set at a

level which enables you to hear distant

police and emergency vehicles clearly –

failure to do so could result in an acci-

dent.

–Please observe the laws regulating the

use of telephones in vehicles.

Cleaning and care

For information on the care and cleaning of

the infotainment system's controls and dis-

plays, please refer to the Cleaning and care

chapter of your car's Owner's Manual.

Notes on software

licences

For information on the MMI system's software

and its licence conditions, select: MENU but-

ton > control button Setup MMI > Version in-

formation > section Software info; or go to

www.audi.com/softwareinfo.

2 Titel oder Name, Abteilung, Datum

7MMI control console

ControlsCommunicationNavigationEntertainment

MMI control console

Switching the MMI

system on/off

The MMI system is switched on/off automati-

cally when the ignition is switched on/off. In

addition it can be switched on/off manually.

–To switch on manually: Briefly press the

ON/OFF button 5 ð page 5, Fig. 1.

–To switch off manually: Press and hold the

ON/OFF button until the MMI is switched

off. The MMI system will not be switched on

automatically when the ignition is switched

on if it was turned off manually the last

time it was operated.

When the system is switched on, the last se-

lected menu will be displayed, and the last se-

lected audio source will be played.

The MMI system remains in operative mode

for approximately ten minutes after the igni-

tion is switched off. If you do not press any

button or the rotary pushbutton on the MMI

control console within this period, the MMI

system will be switched off automatically.

Note

–If the engine is switched off and the bat-

tery charge level is low, the MMI system

will be switched off automatically.

–You can also switch on the MMI system

manually by pressing the MENU button

or one of the buttons for calling up me-

nus directly 6 ð page 5, Fig. 1.

Adjusting the volume

Using the ON/OFF button, you can adjust the

volume of an audio source or system message

(e.g. during a speech dialogue) directly while

it is being played.

–Volume up/down: Turn the ON/OFF button

clockwise or anti-clockwise.

–Mute: Briefly press the ON/OFF button.

–Unmute: Briefly press the ON/OFF button or

turn the ON/OFF button clockwise.

Note

When you switch on the MMI system, very

high/very low volume levels are automati-

cally reduced/increased to a preset level.

How to use the

controls

You can easily call up the various functions of

the MMI system with its intuitive and stand-

ardised control layout.

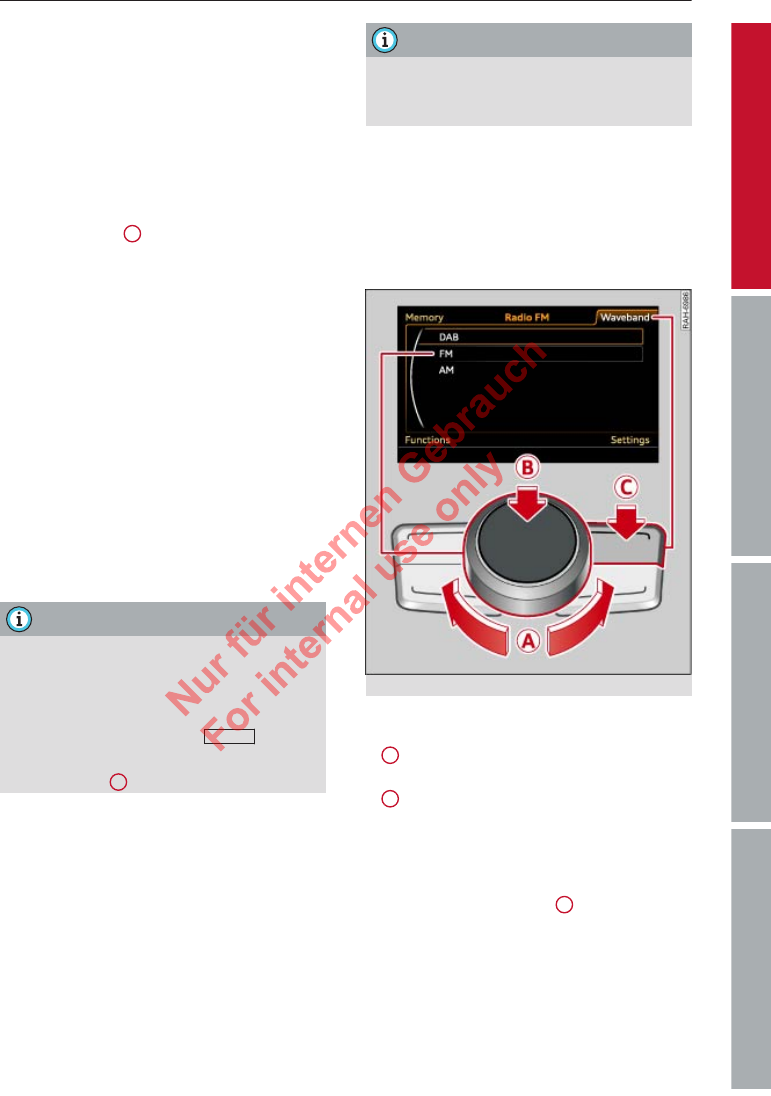

Fig. 2 How to use the controls

Selecting and confirming a function

►A To select a function: Turn the rotary

pushbutton to the desired function.

►B To confirm the function: Press the rotary

pushbutton.

Calling up a function in a corner of the

display

►Press the control button C that corre-

sponds to the corner of the display. For in-

stance, the top right control button corre-

sponds with the top right corner of the dis-

play. 

2 Titel oder Name, Abteilung, Datum

8 MMI control console

Calling up the main menu

►Press the MENU button. The MMI menus

(e.g. Radio) are displayed.

Calling up a menu directly

►Press the corresponding button 6

ð page 5, Fig. 1 towards the menu you wish

to open (e.g. RADIO or MEDIA ).

Returning to the previous function level

►Press the BACK button.

MMI touch

The MMI touch pad is located on the surface

of the rotary pushbutton.

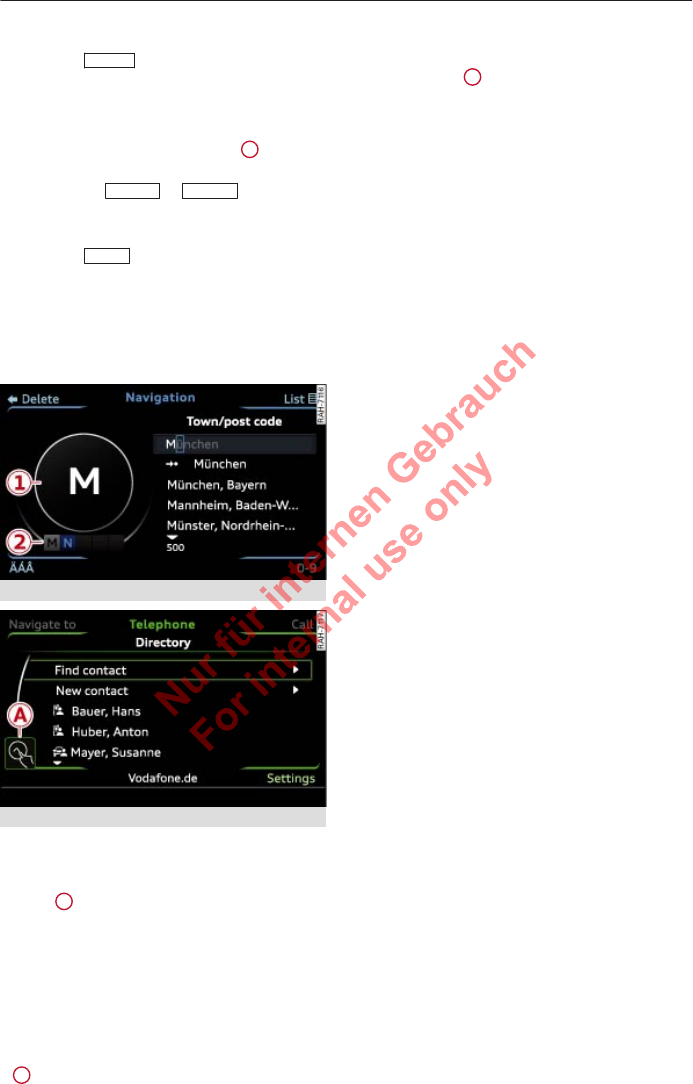

Fig. 3 Entering a navigation destination

Fig. 4 Display when MMI touch is active

When you can operate the system using the

MMI touch pad, the MMI screen shows the

symbol A ð Fig. 4 and the ring on the outside

of the touch pad on the rotary pushbutton

lights up.

Entering letters, numbers and symbols

–Write the character on the touch pad using

your finger. When the system recognises the

character, it will show it on the MMI display

1 ð

Fig. 3 and read it out loud.

–To select a different character: Turn the ro-

tary pushbutton clockwise or anti-clockwise

and press it 2.

–To enter a space: Move your finger from left

to right across the touch pad.

–To delete a character: Move your finger from

right to left across the touch pad.

–To end the entry: Press the rotary pushbut-

ton.

In navigation* mode you can stop entering

characters (e.g. for a destination) and jump di-

rectly to the selection list (of e.g. the towns

found) by pressing the rotary pushbutton.

Finding a contact in the directory

–To jump to a particular initial letter in the

list: Write the desired letter on the touch

pad with your finger.

–To narrow your search: Write further letters

on the touch pad with your finger.

You can select the function Find contact if you

want to stop entering letters for the contact;

you can then jump directly to the selection list

of the contacts found by pressing the rotary

pushbutton.

Moving the map/adjusting the sound

focus

–To move the crosshairs on the map: Press

the rotary pushbutton. The crosshairs will

appear on the map. To move the crosshairs,

move your finger in the desired direction on

the touch pad.

–Alternatively: Put your finger on the corre-

sponding area at the edge of the touch pad.

–To move the crosshairs of the sound focus:

Move your finger in the desired direction on

the touch pad.

Browsing through album covers/selecting

an album cover

–To browse through the album covers: Move

your finger to the left or right on the touch

pad.

–To select an album cover: Press the rotary

pushbutton. 

2 Titel oder Name, Abteilung, Datum

9MMI control console

ControlsCommunicationNavigationEntertainment

Operating the DVD main menu

–To select a menu option: Move your finger

up/down or to the left/right on the touch

pad.

–To confirm your selection: Press the rotary

pushbutton.

Speller for letters/numbers

Applies to vehicles: with phone pre-installation or navigation system

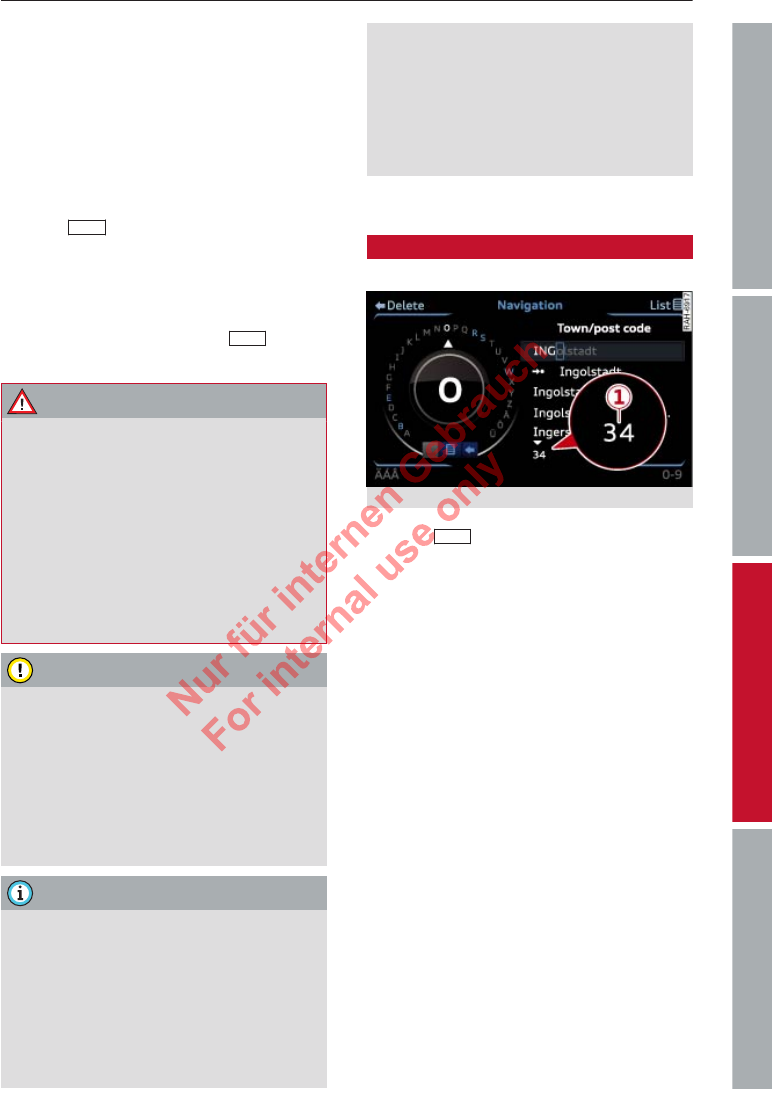

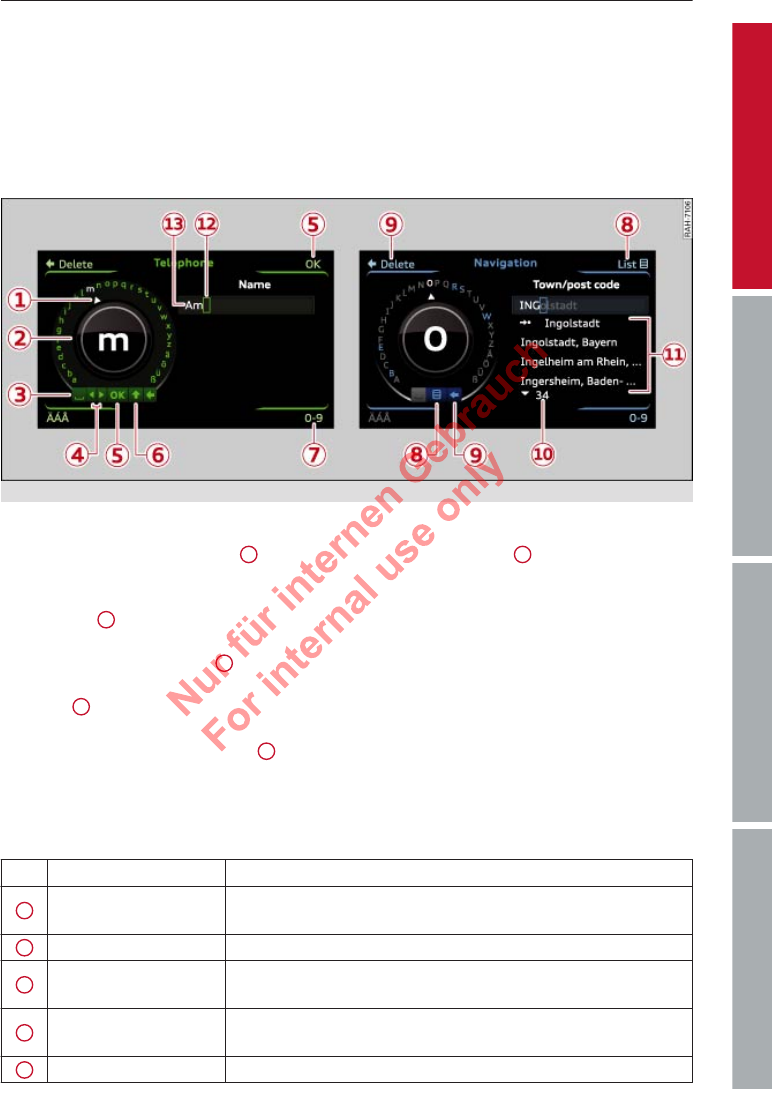

Fig. 5 Speller

–To enter a letter/number: Turn the rotary

pushbutton and use the pointer 1 ð Fig. 5

to select the desired letter/number. The se-

lected character will appear larger in the se-

lection ring 2. Press the rotary pushbutton

to confirm the letter/number. Your entry

will appear in the entry field 13 . When you

have entered all characters, select and con-

firm OK 5.

–To delete a letter/number: Using the rotary

pushbutton, turn the pointer to  9 and

press the rotary pushbutton. To delete all

characters in the entry field, select  and

press and hold the rotary pushbutton until

all characters have been deleted.

–To enter a special character: Press the con-

trol button for 0-9 7 ð Fig. 5 and enter the

desired special character (such as a hyphen

or full stop) using the speller for numbers.

–Input help: In some cases (such as the navi-

gation function) certain letters are not avail-

able for selection if they are an illogical op-

tion. This means that you can only select

those letters that are offered as a logical

possibility for this entry.

Overview of the symbols in the speller

The symbols of the speller for letters/num-

bers are explained in the following table:

Symbol / marking Explanation

1Pointer The selected character is highlighted in white and appears larger

in the selection ring.

2Selection ring The character selected with the pointer appears larger.

3To enter a space in the entry field.

4To move the cursor in the entry field forwards and backwards.

5OK To confirm the entry. 

2 Titel oder Name, Abteilung, Datum

10 MMI control console

Symbol / marking Explanation

6To switch from lower case to upper case letters and vice versa.

70-9/A-Z To switch the speller from letters to numbers and vice versa.

8List To display a list of suggestions.

9/Delete To delete the character to the left of the cursor.

10 No. of entries The number of list entries found is displayed.

11 List of suggestions E.g. while entering a destination, a list of large towns first and

then other towns in alphabetical order is displayed.

12 Cursor The position that is currently being edited is marked.

13 Entry field The current entry is displayed.

Menus and symbols

Fig. 6 Menus and symbols

Symbol / marking Explanation

1Selected option Selected function

2Arrow

up/down Further available functions

3Mute Audio source muted ð page 7

4TMC Reception of TMC traffic information

5Copying procedure Copying of audio/video files to the jukebox

6Time Time setting ð page 29

7Bluetooth* Bluetooth activated on the MMI ð page 38

8TP Reception of traffic announcements ð table on page 56

9Import process Import/update of contacts in the directory/call list

10 Bluetooth* Bluetooth device connected ð page 25 / ð page 33

11 Signal strength indica-

tor

Reception strength of mobile phone network of a connected mo-

bile phone ð page 33 

2 Titel oder Name, Abteilung, Datum

11MMI control console

ControlsCommunicationNavigationEntertainment

Symbol / marking Explanation

12 Entry field Entries that can be changed using the speller for letters/num-

bers ð page 9

13 Selection list Settings for the selected function that can be called up by press-

ing the rotary pushbutton

14 Arrow Submenu with additional functions that can be called up by

pressing the rotary pushbutton

15 Heading Selected menu (e.g. Telephone)

2 Titel oder Name, Abteilung, Datum

12 Multi-function steering wheel

Multi-function steering

wheel

How to use the

controls

Applies to vehicles: with multi-function steering wheel

You can use the multi-function steering wheel

to operate a number of MMI functions, adjust

the volume and switch the speech dialogue

system on/off.

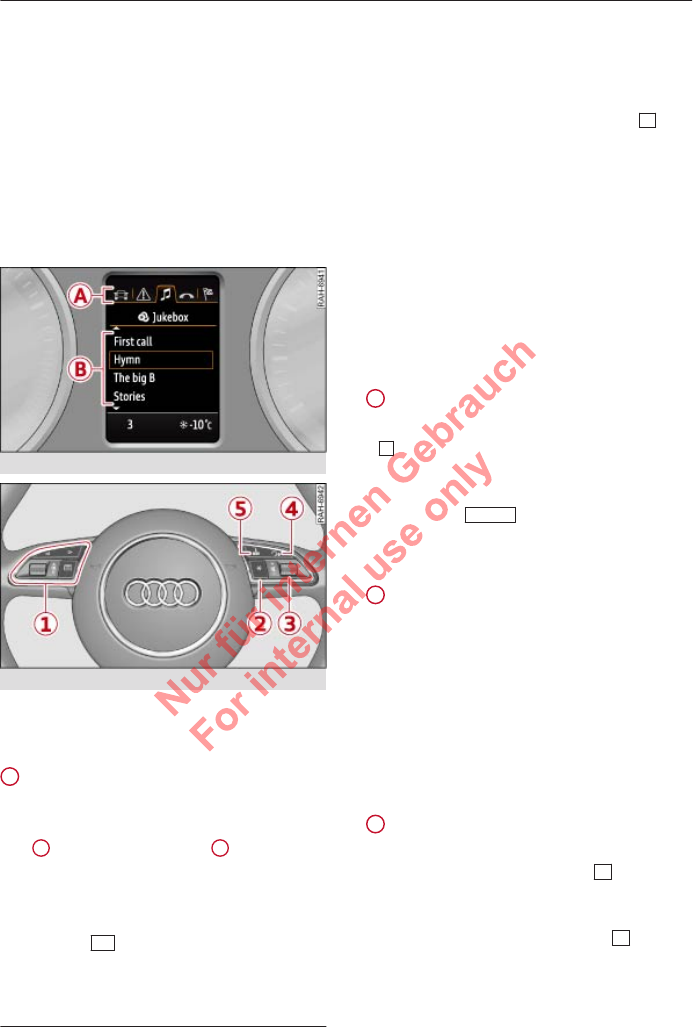

Fig. 7 Driver information system

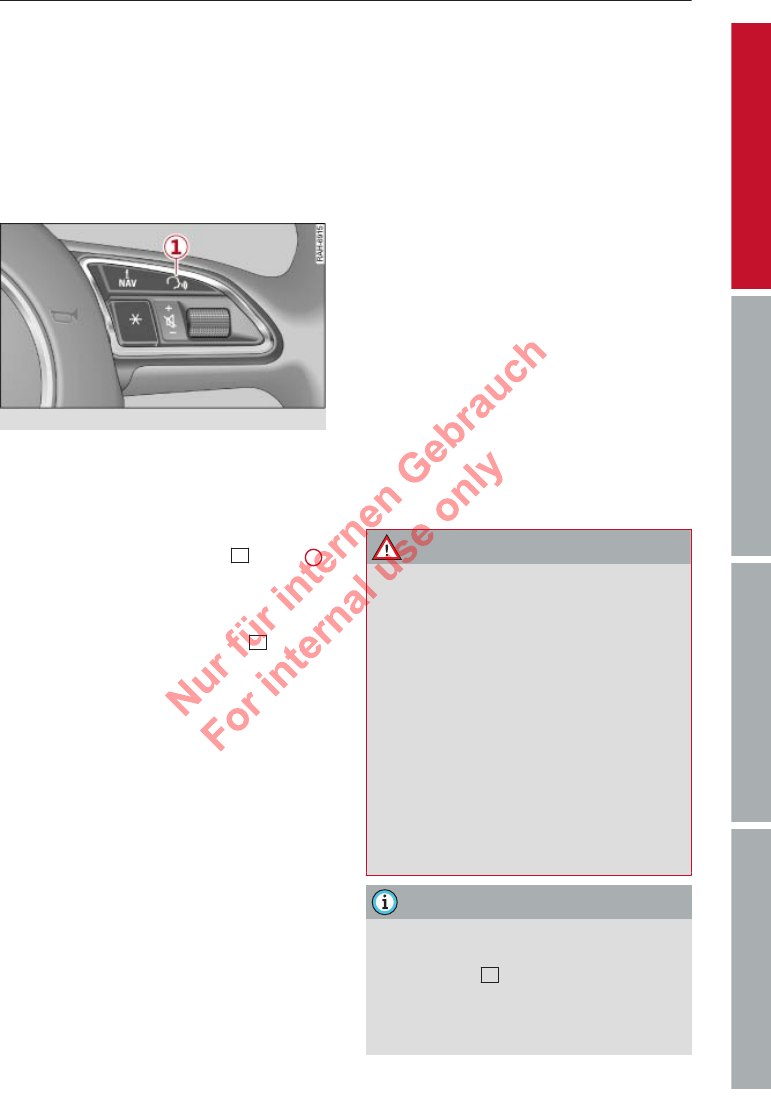

Fig. 8 Controls on the multi-function steering wheel

Important: The ignition and the MMI system

must be switched on ð page 7.

1 How to use the driver information

system

The driver information system shows informa-

tion B in several display tabs A. The driver

information system can be operated using the

multi-function steering wheel:

–To switch between tabs: Press the left/right

side of the   button.

–To select a function: Scroll the left thumb-

wheel to the desired function.

–To confirm your selection: Press the left

thumbwheel.

–To scroll through lists rapidly: Scroll the

left thumbwheel quickly.

–To open/leave a submenu: Press the  but-

ton.

The equipment installed on your vehicle de-

termines which of the following tabs are avail-

able:

–1st tab: Information on car, assist systems

–2nd tab1): Warning/indicator lamps, driver

messages, speed warning

–3rd tab: Radio/media ð page 15

–4th tab: Telephone* ð page 13

–5th tab: Navigation* ð page 14

2 Steering wheel button

–To call up the assigned function: Press the

 button on the multi-function steering

wheel.

–To change the assigned function: On the

MMI, select MENU button > Car > control

button Car systems* > Vehicle settings >

Steering wheel button.

3 Adjusting the volume

You can adjust the volume of an audio source

or system message (e.g. during a speech dia-

logue) directly while it is being played.

–Volume up/down: Scroll the right thumb-

wheel up/down.

–Mute: Press the right thumbwheel.

–Unmute: Scroll the right thumbwheel up or

press the right thumbwheel.

4 Switching the speech dialogue system

on/off

–To switch on: Briefly press the  button on

the multi-function steering wheel. Give a

spoken command after the beep signal.

–To switch off: Press and hold the  button

for several seconds. Or: Say the command

CANCEL.

1) The second tab is only visible if one or more warning/

indicator lamps or driver messages are displayed or if

the relevant system is switched on.

2 Titel oder Name, Abteilung, Datum

13Multi-function steering wheel

ControlsCommunicationNavigationEntertainment

For more information about the speech dia-

logue system, refer to ð page 17.

5 Navigation cue during active route

guidance*

–To have the last navigation cue repeated:

Press the  button.

–To adjust the volume of the navigation

cues: Scroll the right thumbwheel up/down

while a navigation cue is being played.

Using the telephone

Overview

Applies to vehicles: with multi-function steering wheel

and phone pre-installation

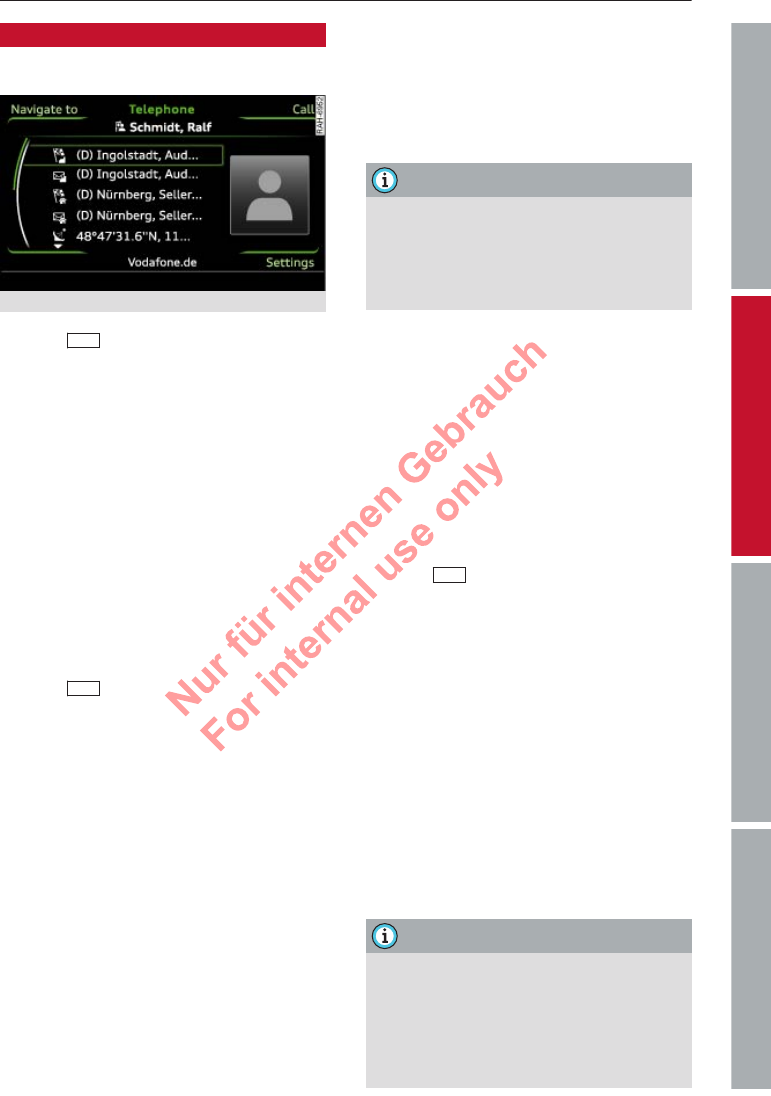

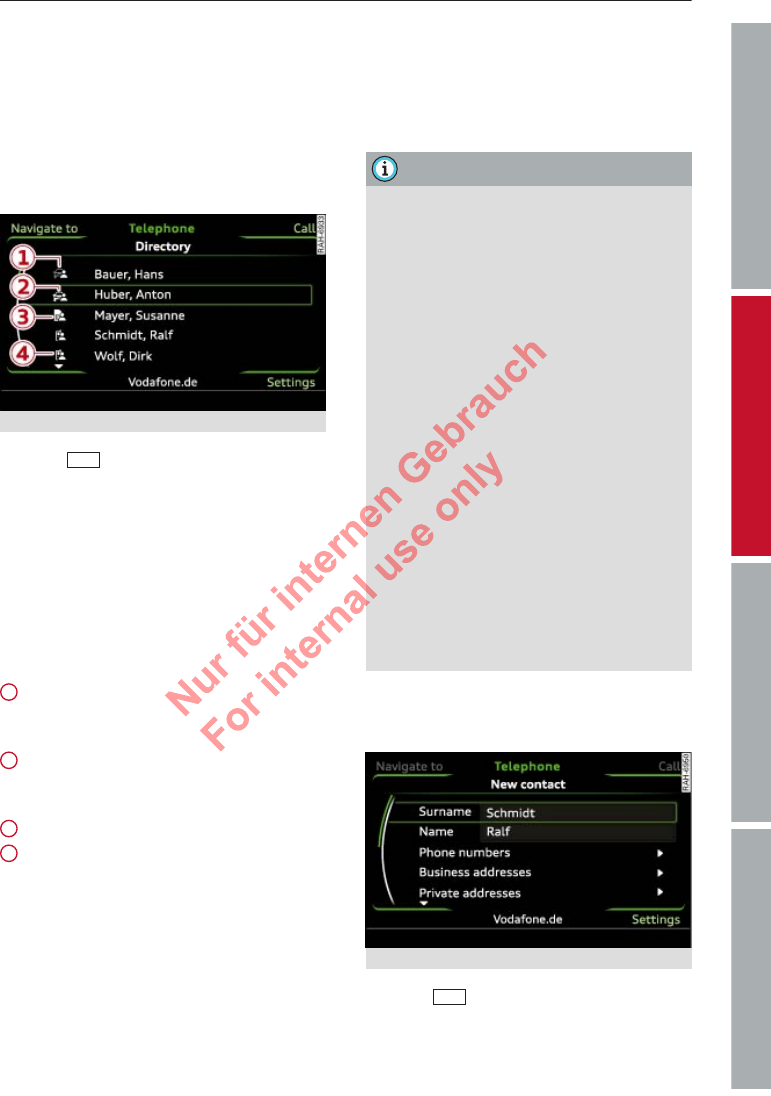

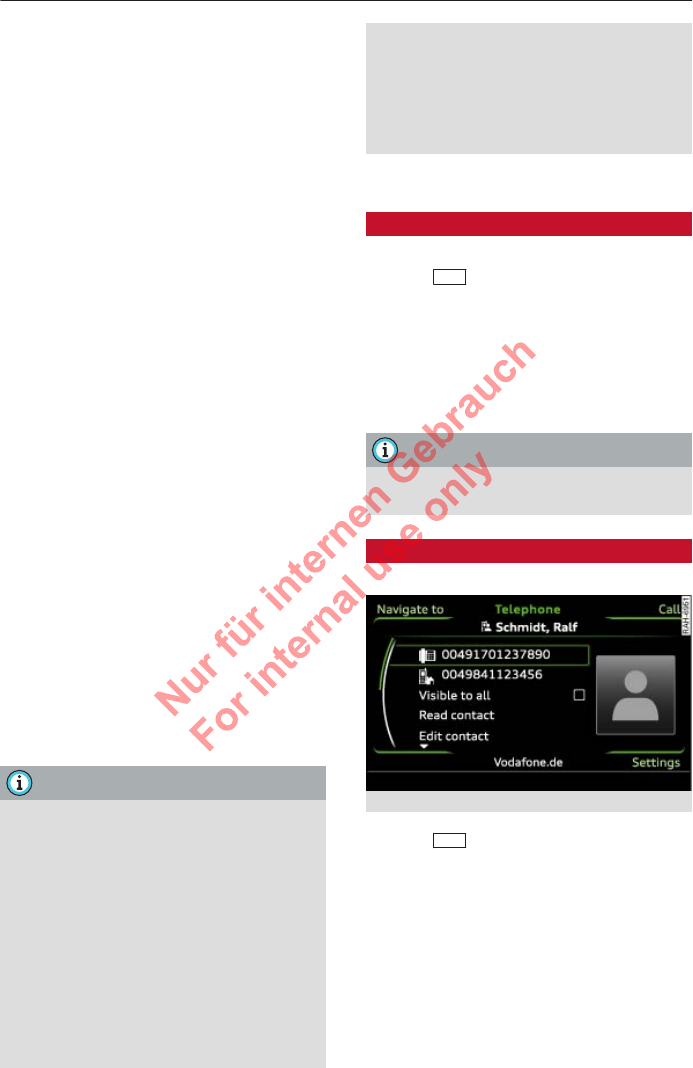

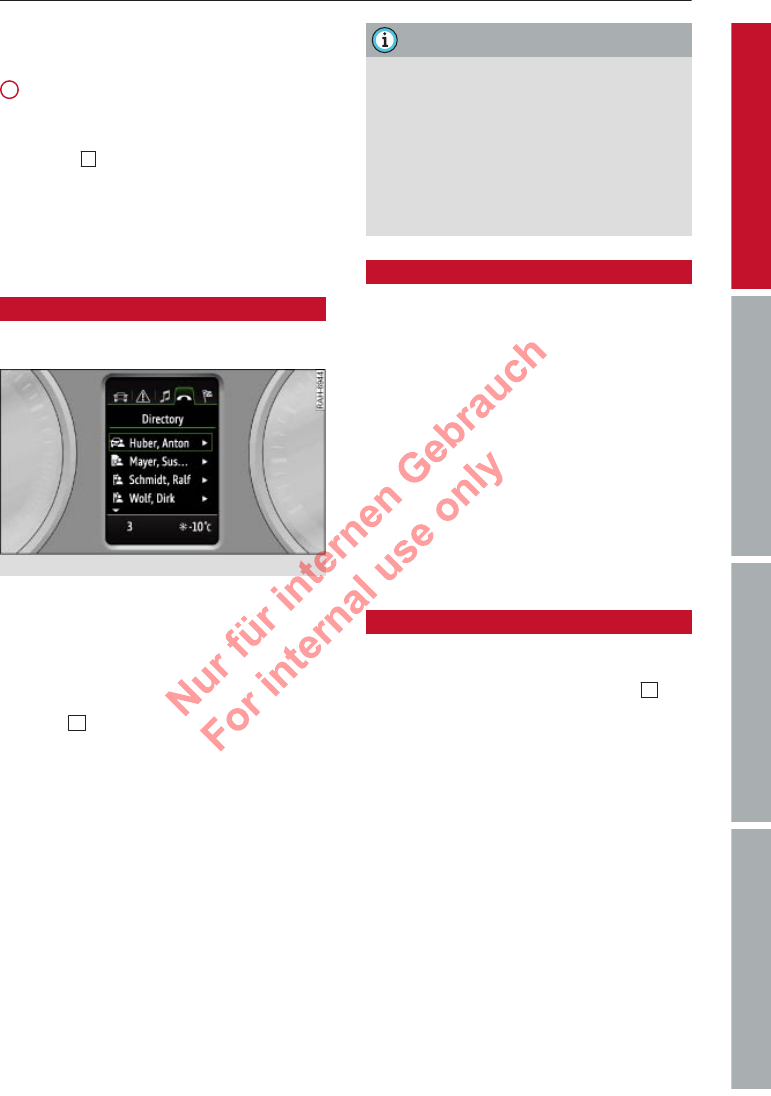

Fig. 9 Directory

Important: A mobile phone must be connec-

ted to the MMI ð page 33, and the tele-

phone display tab must be displayed

ð page 12.

The following options are available when you

press the  button:

–To call a directory contact: Select Directory.

Select and confirm a contact.

–To call a contact in the call list: Select Call

list. Select and confirm a contact.

Directory contacts: Only directory contacts for

which a telephone number is stored are dis-

played in the driver information system. If

several telephone numbers are stored for one

contact, the list of stored telephone numbers

is displayed first when the contact is selected.

For more information on the symbols dis-

played, refer to ð page 41, Fig. 33.

Call list: The call lists contain all received,

placed and missed calls ð page 35, Fig. 26.

Note

–The functions of the telephone can be

operated using the multi-function steer-

ing wheel only if the telephone equip-

ment was installed at the factory.

–The functions of the telephone depend

on your mobile phone and whether they

are supported by your mobile network

service provider.

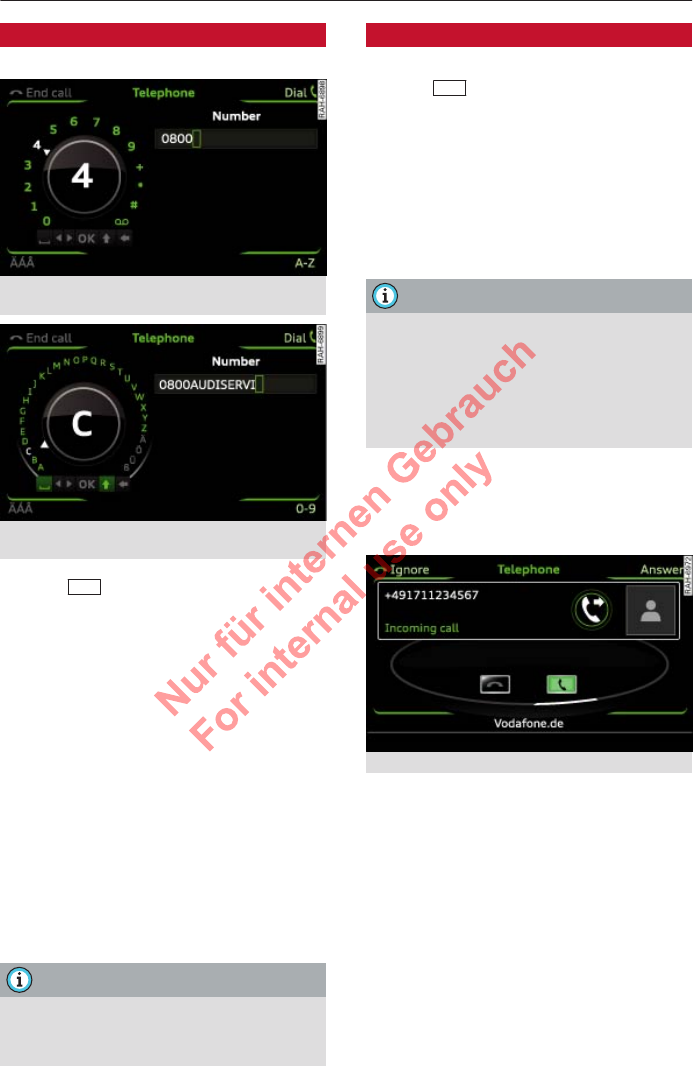

Incoming call

Applies to vehicles: with multi-function steering wheel

and phone pre-installation

►To answer a call: Press the left thumbwheel

when there is an incoming call.

►To ignore a call: Select and confirm Ignore

when there is an incoming call.

►To end a call: Select and confirm End call.

Caller information: Depending on whether

the caller is stored in the directory and wheth-

er the telephone number is transmitted with

the call, the name, the telephone number or

Unknown will appear on the display of the

driver information system.

During a call

Applies to vehicles: with multi-function steering wheel

and phone pre-installation

–To make a further call: Select Hold >  but-

ton > Directory or Call list > entry in list.

–To answer a further call when you are talk-

ing on the phone and have another call on

hold: Select Replace. The current call will be

replaced by the incoming call.

Other functions are:

Microphone off: If you select and confirm this

option, the caller will no longer be able to

hear you; you will still be able to hear the call-

er.

Hold/Resume: You can put a call on hold and

retrieve it from the hold queue later.

Switch: You can switch between two phone

calls (one of them will be on hold at any given

time). Select End call to end whichever call is 

2 Titel oder Name, Abteilung, Datum

14 Multi-function steering wheel

active. The call on hold will remain in the hold

queue and can be retrieved by selecting Re-

sume.

Conference: Up to five callers and one caller

on hold can take part in a conference (depend-

ing on the network service). To set up a fur-

ther call, select Hold to place all the members

of an existing conference on hold. You can

then press the  button to place another call

to a contact in the directory or the call list. Se-

lect Resume if you want to retrieve all partici-

pants in an existing conference from the hold

queue.

Note

The option Call waiting must be activated

on your mobile phone for you to be made

aware of incoming calls during a conversa-

tion. The call options depend on your mo-

bile network service provider. For more in-

formation, contact your service provider.

Navigation

Overview

Applies to vehicles: with multi-function steering wheel

and navigation system

Important: A destination or tour plan must

have been entered ð page 45, the route

guidance function must have been started

ð page 48, and the navigation display tab

must be open ð page 12.

The following options are available when you

press the  button:

–To display the navigation screen when

route guidance is active: Select Route guid-

ance.

–To display the compass when route guid-

ance is not active: Select Compass.

–To cancel the active route guidance: Select

Stop route guidance.

–To switch off the navigation cues: Select

Voice guidance off.

–To start route guidance to the stored home

address: If applicable, select Stop route

guidance, and then select Home address.

Display when route guidance is active

Applies to vehicles: with navigation system

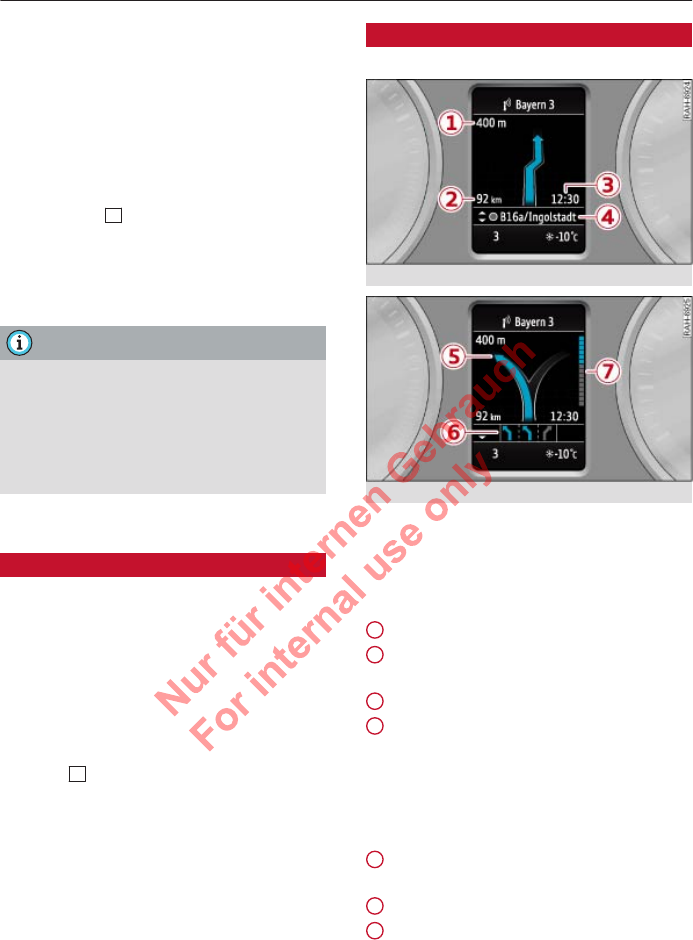

Fig. 10 Display when a lane change is required

Fig. 11 Display when a turn-off is required

After you have entered a destination or a tour

and have started route guidance, the naviga-

tion display tab is opened in the driver infor-

mation system:

Distance to turn-off

Total distance to destination/

next stopover

Estimated time of arrival

Name of motorway, major road

or street you are driving on. If

the symbol  is displayed in

front of the street name, you are

being directed to turn into the

street.

Arrow indicating direction of up-

coming turn-off

Lane recommendation

If an arrow is displayed, a bar

graph will also appear. The few-

er bars are displayed, the short-

er the distance to the turn-off

point.

If route guidance has not been started, a com-

pass is shown in the navigation display tab. 

2 Titel oder Name, Abteilung, Datum

15Multi-function steering wheel

ControlsCommunicationNavigationEntertainment

WARNING

The route calculated by the navigation sys-

tem is a recommendation of how best to

reach a destination. Pay attention to traffic

lights, no-stopping signs, lane change re-

strictions, one-way streets, etc.

Note

An exclamation mark “!” in front of the

street name indicates that the navigation

data of the MMI system do not contain all

the information on this street or street

section. Pay attention to traffic rules such

as one-way streets or pedestrian zones.

Listening to the radio

Applies to vehicles: with multi-function steering wheel

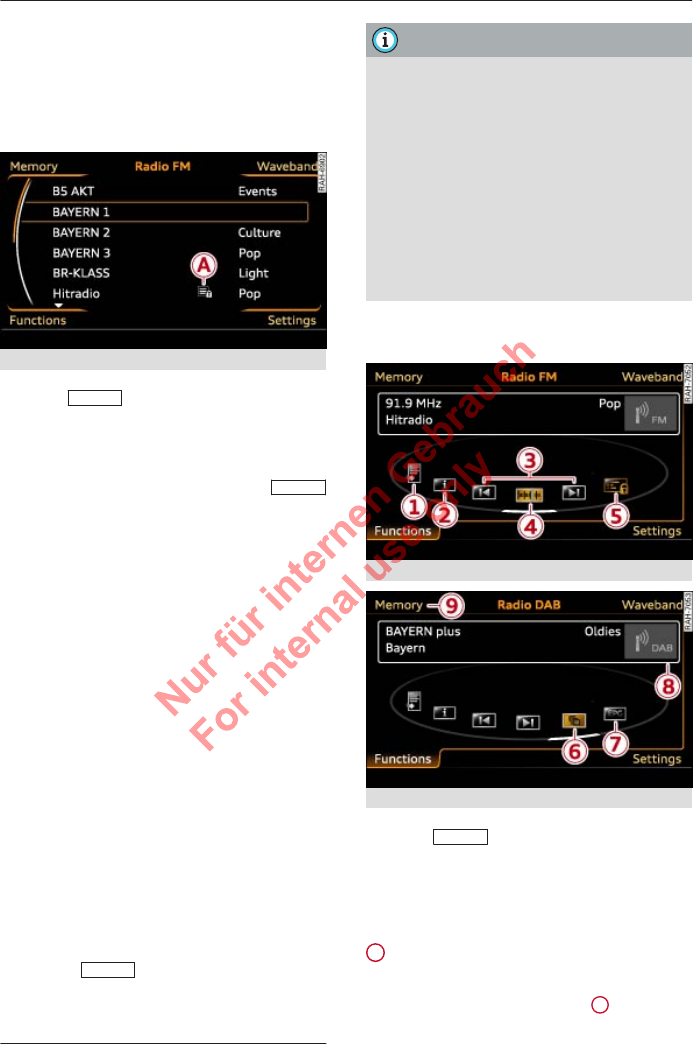

Fig. 12 Radio menu

Important: The radio/media display tab must

be displayed ð page 12.

►To tune to a station from the station list:

Select and confirm a radio station.

The following options are available when you

press the  button:

–To tune to a station from the memory list:

Select and confirm Memory and then select

and confirm a radio station.

–To set the waveband: Select and confirm

the waveband.

–To call up media via the overview of sour-

ces: Select and confirm an audio source.

Playing media

Applies to vehicles: with multi-function steering wheel

Important: A media drive must contain audio

files ð page 22, and the media display tab

must be displayed ð page 12.

►To play an audio file: Select and confirm a

track.

►To pause/resume playback: Press the right

thumbwheel. To continue playback, press

the right thumbwheel again.

The following options are available when you

press the  button:

–To select a source: Select and confirm a

source, e.g. Audi music interface.

–To call up the radio via the overview of

sources: Select and confirm a waveband.

Note

The MMI media drives do not support

DRM-protected files; these files are

marked with the symbol .

2 Titel oder Name, Abteilung, Datum

16 Speech dialogue system

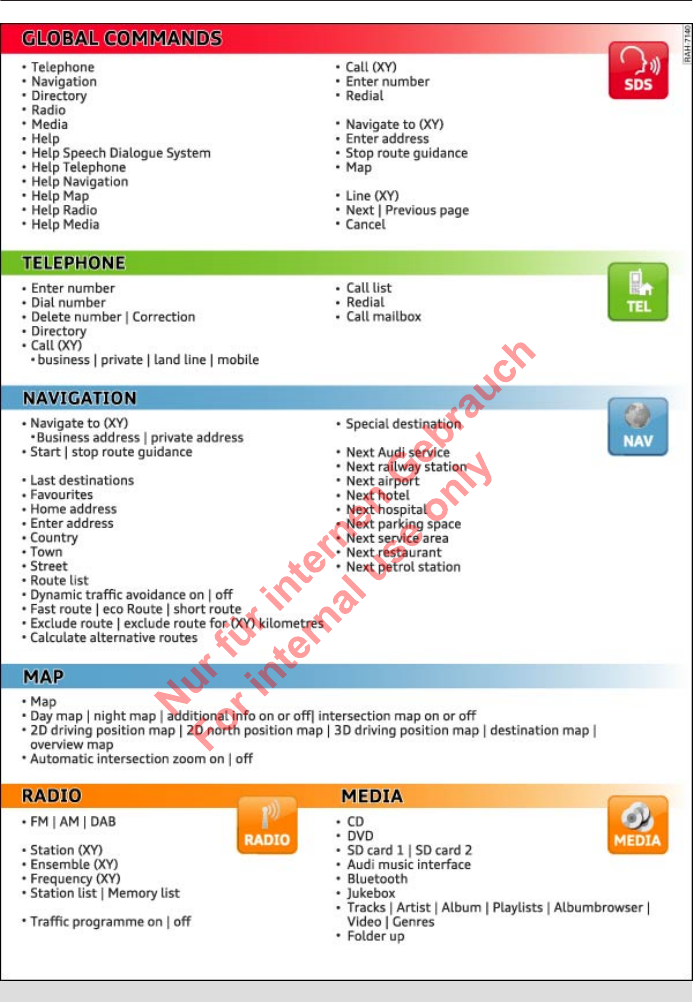

Fig. 13 Overview of commands

2 Titel oder Name, Abteilung, Datum

17Speech dialogue system

ControlsCommunicationNavigationEntertainment

Speech dialogue

system

How to use the speech

dialogue system

Applies to vehicles: with speech dialogue system

You can operate many infotainment func-

tions conveniently by voice.

Fig. 14 Talk button and right thumbwheel

Important: The ignition and the MMI system

must be switched on ð page 7, you must not

be talking on the phone, and the parking aid

must not be active.

►To switch on: Briefly press the  button 1

ð Fig. 14 on the multi-function steering

wheel* and give a spoken command after

the beep signal.

►To switch off: Press and hold the  button

for several seconds. Or: Say the command

CANCEL.

Input help

The system guides you through the input rou-

tine with cues and messages.

–Input help messages on screen: After the

speech dialogue system is switched on, the

MMI display will show a selection of possi-

ble commands.

–Spoken input help cues: To have the system

play the commands currently possible,

switch on the speech dialogue system and

say Help.

How to help the system understand you

Speak clearly in a normal volume. Speak loud-

er if you are driving fast.

Speak in a normal tone without long pauses.

Avoid speaking when the speech dialogue sys-

tem is saying a cue.

Close doors, windows and sun roof* to reduce

background noise. Make sure that passengers

are not talking when you say a command.

Keep the air outlets of the air distribution sys-

tem pointed away from the microphone,

which is fitted in the vicinity of the front inte-

rior lights in the headliner.

The system should only be operated by the

driver, since the handsfree microphone is di-

rected towards the driver.

Other settings

Press the Setup MMI control button to access

the main menu if you would like to change

other settings, e.g. for the individual speech

training to adapt the system to your voice,

the Command display or the volume of the

navigation cues ð page 31.

WARNING

–Please direct your full attention to the

road at all times! As the driver, you have

full responsibility for the safety of the

vehicle and other road users. For this rea-

son, you should only use the functions in

a manner that allows you to maintain

control of the vehicle in all situations -

accident risk!

–The speech dialogue system must not be

used in cases of emergency, since the

voice changes in stressful situations. This

could result in a failed or delayed tele-

phone connection. Always dial emergen-

cy numbers manually!

Note

–You can interrupt a spoken cue from the

speech dialogue system any time by

pressing the  button; you can now en-

ter a new command.

–The speech dialogue system can be can-

celled and deactivated by pressing any 

2 Titel oder Name, Abteilung, Datum

18 Speech dialogue system

one of the buttons on the MMI control

console (except the rotary pushbutton).

–The dialogue is paused when an incom-

ing telephone call is received; you can

continue the dialogue by ignoring the

call. If you answer the call, the dialogue

will be cancelled.

–No navigation cues* or traffic announce-

ments are given when a dialogue is run-

ning.

–The command display can be switched

on/off in the main menu via the Setup

MMI control button.

–You can select an entry from a list both

via the speech dialogue system and us-

ing the rotary pushbutton.

Notes on the overviews

of commands

The following overviews show you the com-

mands that you can give to operate the MMI

via the speech dialogue system.

Alternative commands are separated by the

symbol “|”; for example you can say: Tele-

phone | (or) Navigation | (or) Radio.

Commands that belong together and should

be spoken as a sequence are marked with the

symbol “>”; for example you can say: Enter

address > (and subsequently) Enter country.

Global commands

Applies to vehicles: with speech dialogue system

You can give global commands any time, irre-

spective of the menu currently selected.

Function Say:

Calling up the menu Telephone | Directory | Navigation | Radio | Media

Having the system play the possi-

ble commands

Help | Help speech Dialogue System | Help Telephone | Help

Navigation | Help Map | Help Radio | Help Media

Telephone functions Call (XY), e.g. Call John Smith |

Enter number | Redial | Directory

Navigation functions Navigate to (XY), e.g. Navigate to John Smith |

Enter address | Stop route guidance | Map

Selecting an entry from a list Line (XY)

Scrolling through a list Next page | Previous page

Switching off the speech dialogue

system

Cancel

Telephone

Applies to vehicles: with speech dialogue system and phone pre-installation

Important: A mobile phone must be connec-

ted to the MMI ð page 33, and the Tele-

phone menu must be open ð page 35.

2 Titel oder Name, Abteilung, Datum

19Speech dialogue system

ControlsCommunicationNavigationEntertainment

Function Say:

Calling a contact from the direc-

tory

Call (XY), e.g. Call John Smith

Dialling a specific number stored

for a contact

Call (XY) business | private | land line | mobile,

e.g. Call John Smith private

Dialling a phone number when an

address card is open

Call | Call business number | Call private number | Call land

line | Call mobile business number

Displaying call list Call list

Calling the last number dialled Redial

Dialling a telephone number Enter number > phone number in blocks of individual digits

when requested, e.g. 0744 12 345 67 > Dial

Correcting an entered phone

number

Delete number | Correction

Displaying contact information Directory > desired contact when requested, e.g. John Smith

Listening to voice mail messages Call mailbox

Note

If you have a mobile phone that transmits

first names and surnames separately, you

can select directory contacts both by en-

tering the full name (“first name, sur-

name” and “surname, first name”) and by

saying only the first name or surname.

Navigation

Applies to vehicles: with speech dialogue system and navigation system

Important: The Navigation must be open

ð page 45.

You can say the following commands to enter

a destination:

Function Say:

Calling up a navigation list Last destinations | Favourites | Home address

Entering an address with assis-

tance from the system

Enter address > follow the directions given by the system

Entering an address directly Enter address > name of town, street and house number,

e.g. “London, Edgware Road 132”.

Individual commands for entering

a destination

Enter address > Country | Town | Post code | Street | House

number

Entering a town centre as the des-

tination

Enter address > town when requested > Centre > Start route

guidance

Navigating to a contact Navigate to (XY), e.g. Navigate to John Smith

Navigating to a specific address

stored for a contact

Navigate to (XY) business address | Private address,

e.g. Navigate to John Smith business address

Starting route guidance when an

address card is open

Navigate | Navigate to private address | Navigate to busi-

ness address

Changing the address while route

guidance is active

Enter address > desired address when requested > confirm

new destination when requested 

2 Titel oder Name, Abteilung, Datum

20 Speech dialogue system

Function Say:

Adding a stopover while route

guidance is active

Enter address > desired address when requested > No > con-

firm address as new stopover when requested

Starting route guidance after

entering a destination

Start route guidance

Cancelling the active route guid-

ance

Stop route guidance

Calculating three alternative

routes

Calculate alternative routes

The following special destinations

can be set directly as the destina-

tion

Next Audi Service | Next railway station | Next airport |

Next hotel | Next hospital | Next parking space | Next serv-

ice area | Next restaurant | Next petrol station

Changing the search area for

entering a special destination

Special destination > Change search area >

In immediate vicinity | In vicinity of route | In vicinity of

destination | In vicinity of stopover | In new town | Nation-

wide | In new country

Entering a special destination

in the selected search area with

assistance from the system

Enter special destination > Audi Service | Railway station |

Restaurant | Petrol station

Entering a special destination

in the selected search area directly

Enter special destination > special destination and search

area, e.g. “Find petrol station in immediate vicinity”

You can say the following commands to make

additional navigation settings:

Function Say:

General map options Map | Day map | Night map | Additional info off | Intersec-

tion map on/off

Map type 2D driving position map | 2D north position map | 3D driv-

ing position map | Destination map | Overview map

Automatic map zoom Automatic zoom | Automatic zoom off

Displaying the route list Route list

Displaying remaining distance/

time

during active route guidance

Destination info

Switching the navigation cues on/

off during active route guidance

Voice guidance on | Voice guidance off

Dynamic traffic avoidance Dynamic traffic avoidance on | Dynamic traffic avoidance

off

Route criteria Fast route | Eco route | Short route

Excluding the next section

of the route

Exclude route

Excluding a certain section of the

route

Exclude route for (XY) km 

2 Titel oder Name, Abteilung, Datum

21Speech dialogue system

ControlsCommunicationNavigationEntertainment

Note

–Depending on the selected menu lan-

guage and the country you are in, you

may have to spell destinations to enter

them for route guidance.

–You can also switch on the speech dia-

logue system and say a command when

route guidance is active and a navigation

cue is being played.

–Navigation cues are not played during a

running dialogue.

Radio

Applies to vehicles: with speech dialogue system

Important: The Radio menu must be open

ð page 54.

Function Say:

Selecting a waveband FM | AM | DAB*

Tuning to a station from the sta-

tion list

Station (XY) | Ensemble (XY)a) | Station list > Line (XY)

Tuning to a station from the

memory list

Memory list > Line (XY)

Setting the frequency Frequency (XY)

Switching the traffic announce-

ments on/off

Traffic programme on | Traffic programme off

a) Applies for the DAB* waveband.

Media

Applies to vehicles: with speech dialogue system

Important: The Media must be open

ð page 58.

Function Say:

DVD

To select an audio/video* file

from the jukebox:

browser

Selecting an audio/video* file

from an iPod® (source: Audi mu-

sic interface)

| Composers | Audiobooks

Navigating in a structure of fold-

ers/list

Folder up | Line (XY)

2 Titel oder Name, Abteilung, Datum

22 Media drives/connections

Media drives/

connections

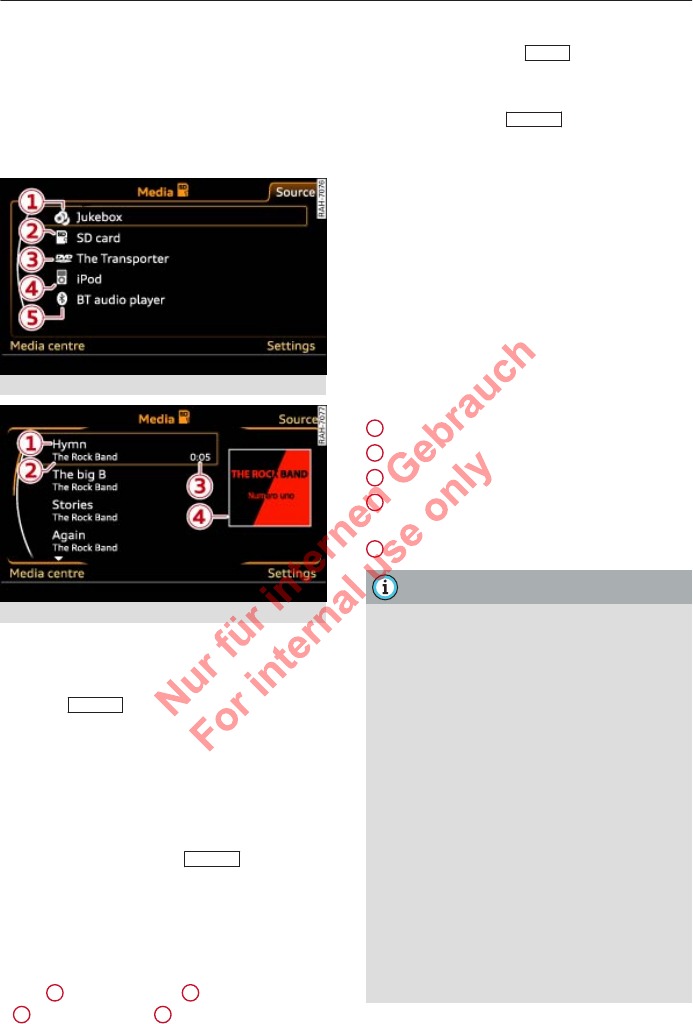

Introduction

The MMI system includes various media drives

and connections. For example, you can play

audio/video* files from the jukebox or connect

a portable player to the Audi music interface

and operate it via the MMI.

Notes

General notes

Media and format limitations: The MMI sys-

tem (including the SD card reader and the

connection for the USB mass storage device*)

has been tested for use with many of the

products and media currently available on the

market. However, there may be some devices/

media and audio/video* files that are not sup-

ported or cannot be played, or the functionali-

ty may be limited under certain circumstan-

ces.

are copyright-protected.

The MMI media drives do not support DRM-

protected files; these files are marked with

the symbol .

Data storage: Never store important data on

SD cards, the jukebox, CDs/DVDs or portable

players. Audi shall not accept any liability

whatsoever for the loss of files or data and

media.

Loading times: The more files, folders or play-

lists are stored on a storage device, the longer

it will take to load the audio files/video* files.

We recommend using a storage device which

contains only audio/video* files. If you want

to reduce the time it takes to load the audio/

video* files, you can create subfolders (e.g. for

an artist or album). The loading time will be

extended additionally if you are importing da-

ta.

Additional information: Additional informa-

tion stored on audio files (e.g. artists, tracks,

album covers) will be displayed automatically

when the files are played. If this information

is not stored on the relevant medium, the

MMI system will use Gracenote®. Neverthe-

less, additional information may not be dis-

played in some cases.

Restricted functionality: If you experience re-

stricted functionality, reset the Media set-

tings to the factory defaults ð page 31.

For information on the characteristics of the

supported media and file formats, please re-

fer to ð page 27.

CD/DVD mode

CD/DVD and format limitations: In view of

the variety of CDs/DVDs and the difference in

memory capacities, the functionality may be

restricted in the case of some storage devices.

Under certain circumstances, audio CDs/video

DVDs that are copy-protected or CDs/DVDs

that do not comply with the standard audio

format, and multisession CDs cannot be

played at all, or the functionality may be limi-

ted. We recommend always finalising the

burning process when creating multisession

CDs. Multisession is not supported for DVDs.

Handling CDs/DVDs and the DVD drive: To

ensure perfect, high-quality playback and

avoid read error messages or damage to the

media drive, always store unused CDs/DVDs in

a suitable case and do not expose them to di-

rect sunlight. Do not use:

–Damaged, dirty or scratched CDs/DVDs

–Single CDs/DVDs (diameter 8 cm / 3 inches)

–Non-circular CDs/DVDs (shape CDs)

–CDs/DVDs with stickers

–Protective rings

–Cleaning disks

Thermal cut-out: In the case of extremely hot

or cold outside temperatures, it is possible

that the playback of a CD/DVD will temporari-

ly not function. A thermostat switch is instal-

led to protect the CD/DVD and the reading la-

ser. 

2 Titel oder Name, Abteilung, Datum

23Media drives/connections

ControlsCommunicationNavigationEntertainment

Laser devices: Laser devices are divided into

the safety classes 1 to 4, as specified by DIN

IEC 76 (CO) 6/VDE 0837. The optical readers

installed in your vehicle are classified as safe-

ty class 1. Lasers used in devices that fall into

this category are very weak and well screened,

so there is no danger if used correctly.

Device cover: Never remove the device cover.

The device has no components that can be

serviced by the owner.

Jukebox

Audio/video files on a CD/DVD-ROM, on a USB

mass storage device or on an SD card can be

copied onto the jukebox.

►Select: MEDIA button > control button

Settings > Fill/delete jukebox.

The used/free space in the jukebox memory

(max. 10 GB) and the number of stored tracks

are shown on the MMI display.

Filling the jukebox

–To select files/folders: Select Copy data to

jukebox > source > files/folders. To select

all files/folders, press the control button for

All. Or: Select and confirm a folder, and

press and hold the rotary pushbutton for

several seconds. All files in the folder will be

selected for copying.

–To start the copying procedure: Press the

control button for Copy. The status of the

copying procedure will be shown on the MMI

display, and the corresponding symbol will

appear in the status line.

–To hide the copying procedure: Select and

confirm Continue copying in background.

The copying procedure will be hidden.

–To cancel the copying procedure: Select and

confirm Cancel copying procedure. Or: Re-

move the source you are importing files

from. Files that have already been copied

will remain stored.

During the copying procedure, the audio files

are automatically sorted according to the cat-

egories in the media centre based on the addi-

tional information stored for the files

ð page 59. Video files are copied into the

Videos category in the media centre.

Deleting the jukebox

Important: The jukebox must contain audio/

video files.

–To select files/folders: Select Delete data

from jukebox > structure of folders in juke-

box > files/folders. To select all files/fold-

ers, press the control button for All. Or: Se-

lect and confirm a folder, and press and hold

the rotary pushbutton for several seconds.

All files in the folder will be selected for de-

letion.

–To delete files/folders: Select the control

button for Start deletion > Yes, delete files.

The status of the deletion process will be

shown on the MMI display. During the dele-

tion process the playback of the jukebox is

interrupted; it is started again automatically

once the deletion process has been comple-

ted.

The jukebox is started and operated via the

MMI ð page 58.

CAUTION

Only copy audio/video files while the en-

gine is running; otherwise the vehicle bat-

tery will be discharged.

Note

–For legal reasons it is not possible to

copy tracks from audio CDs onto the

jukebox.

–Files that have already been copied are

recognised and greyed out automatical-

ly; they will not be copied again.

–It is not possible to copy and play audio/

video files in the DVD drive at the same

time.

–For legal reasons there is no export func-

tion for the jukebox.

–Files or tracks that do not include stored

additional information are listed as un-

known. We recommend marking the au-

dio files with the corresponding addi-

tional information (e.g. ID3 tags). 

2 Titel oder Name, Abteilung, Datum

24 Media drives/connections

–When handing over your vehicle e.g. to a

new buyer, reset the jukebox to the fac-

tory settings ð page 31.

DVD drive

The DVD drive is located in the glove box.

Fig. 15 DVD drive

–To load a CD/DVD: Insert the CD/DVD (text

facing upwards) into the DVD slot 2

ð Fig. 15, holding it straight.

–To eject a CD/DVD: Press button 1.

After it has been ejected, the CD/DVD will be

pulled back into the DVD drive automatically

after about ten seconds if it is not removed

from the DVD slot.

The DVD drive is started and operated via the

MMI ð page 58.

CAUTION

–Never use any force to push a CD/DVD in-

to the drive. The CD/DVD will be drawn

into the slot automatically.

–Do not insert any CDs/DVDs with stickers

into the media drive. The stickers could

become detached from the CD/DVD and

damage the drive.

Note

It is possible that the playback of the CD/

DVD may stutter if it contains audio/video

files with a high data rate.

SD card readers

The SD card readers are located in the glove

box.

Fig. 16 Inserting SD card

–To insert an SD card: Insert the SD card

(printed side facing up, contact surface fac-

ing down) into the slot of the card reader 1

ð Fig. 16. The cut-away corner of the SD

card should be at the front right. Then push

the SD card into the slot until you feel it en-

gage.

–To remove the SD card: Briefly press the SD

card to release it.

The SD card reader is started and operated via

the MMI ð page 58.

CAUTION

Only use one-piece SD cards. If you use

adapter cards (more than one piece), the

SD card can become detached from the

adapter (e.g. caused by jolting, etc). Parts

could then get stuck in the drive, impairing

the functionality of the system.

Note

–We recommend using SD cards with per-

formance category 4 or higher to access

the audio files as quickly as possible.

–Store the SD cards in a suitable case to

protect them from dirt and dust and to

avoid damage.

2 Titel oder Name, Abteilung, Datum

25Media drives/connections

ControlsCommunicationNavigationEntertainment

Bluetooth audio

players

Applies to vehicles: with phone pre-installation

Bluetooth audio players (e.g. mobile phones

with integrated audio players) can be connec-

ted to the MMI system via Bluetooth.

Important: The vehicle must be stationary,

and the Bluetooth function of your portable

player and the Audio player of the MMI sys-

tem must be switched on ð page 38.

–To bond a Bluetooth audio player: Select

MEDIA button > control button Source >

Bluetooth audio player > Connect new BT

audio player. The available Bluetooth audio

players are displayed. Select and confirm

the desired Bluetooth audio player and then

select and confirm the Audio player profile.

A 4-digit PIN code will appear on the dis-

play. Select and confirm Yes and enter this

PIN code on the Bluetooth audio player.

–To enter any 4 to 16-digit PIN code, select

and confirm No when the PIN code is dis-

played and enter your own personal PIN

code on the MMI and then on the Bluetooth

audio player.

–Fast bonding (secure simple pairing): If

your Bluetooth audio player supports this

function, a 6-digit PIN code will be shown

on your audio player and on the MMI display

simultaneously. Confirm this PIN code on

the Bluetooth audio player and on the MMI.

Depending on the device you are using, the

media are started and operated using the

portable player or the MMI system

ð page 58.

Note

–Pay attention to any connection queries

on your Bluetooth audio player.

–You have to enter the PIN code once on-

ly. Any Bluetooth devices that have al-

ready been bonded to the MMI system

once are connected automatically when

they are within range.

–You can bond several Bluetooth audio

players to the MMI system; however only

one connection is active at a time.

–The system supports the Bluetooth pro-

tocols A2DP and AVRCP (1.0/1.3).

–Which media functions are supported

depends on the Bluetooth audio player

you are using.

–For more information on which devices

are supported, please go online (e.g.

www.audi.com/mp3 or www.audi.com/

bluetooth) or contact an Audi dealer.

Audi music interface

Introduction

You can connect your portable player (e.g.

MP3 player) to the Audi music interface using

special adapter cables*. The adapter cables*

are available from Audi dealers or specialist

retailers.

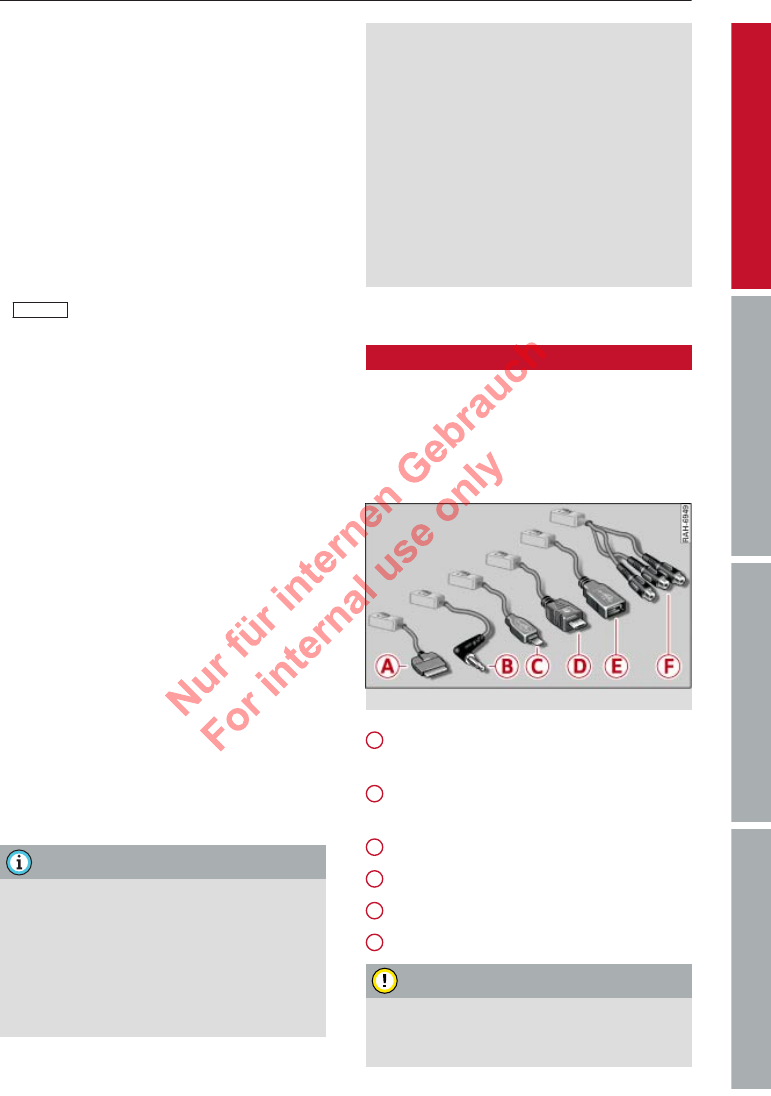

Fig. 17 Adapter cable

A iPod® adapter cable*/iPod® adapter cable

plus*

B Stereo adapter cable with 3.5 mm jack

plug*

C Mini USB adapter cable*

D Micro USB adapter cable*

E USB adapter cable*

F AV adapter cable*

CAUTION

Handle the adapter cable with care. Make

sure the cable does not become pinched or

trapped.

2 Titel oder Name, Abteilung, Datum

26 Media drives/connections

Setup

The Audi music interface is located in the cen-

tre console beneath the centre armrest.

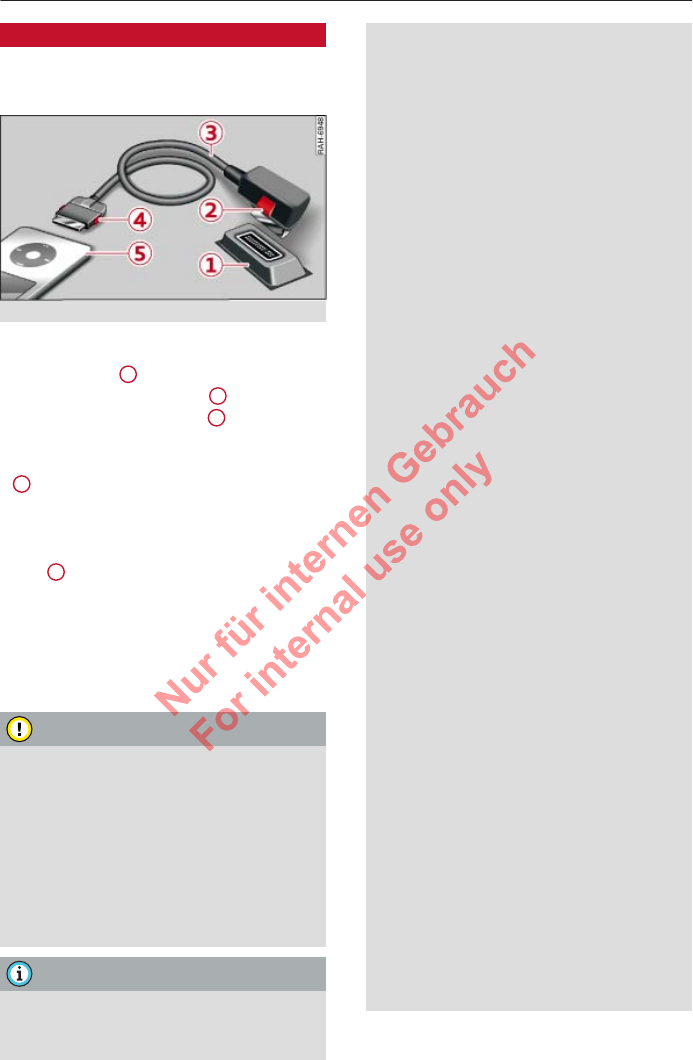

Fig. 18 Connecting a portable player

–To connect an adapter cable: Connect the

adapter cable* 3 ð Fig. 18 to the interface

on the Audi music interface 1 before con-

necting the portable player 5 (e.g. iPod®).

–To disconnect the adapter cable from the

Audi music interface: With the release tab

2 pressed, pull the connector off the Audi

music interface.

–To disconnect the iPod® adapter cable

(plus)* from the iPod®: With the release

tabs 4 pressed, pull the iPod® connector

out of the iPod®.

Depending on the device you are using, the

media are started and operated using the

portable player or the MMI system

ð page 58.

CAUTION

–To avoid damaging the connection,

please take care when detaching the con-

nector from the Audi music interface.

–Very high or very low temperatures (a

common occurrence in a car's interior)

can cause damage to portable players

and/or impair their performance. Please

do not leave your portable player in the

vehicle in case of extreme temperatures.

Note

–Do not use USB extension cables or

adapters as these impair the functionali-

ty.

–It cannot be guaranteed that portable

players which do not meet the specifica-

tion USB 2.0 will function via the MMI.

–USB hubs are not supported.

–The iPod®/iPhone®/iPad® battery is

charged via the iPod® adapter cable

(plus)* when the device is connected to

the Audi music interface and the ignition

is switched on.

–Use only the iPod® adapter cable (plus)*

with red/blue markings to connect an

iPod®/iPhone®/iPad®.

–Some iPod® versions (e.g. iPod shuffle®)

cannot be connected with the iPod®

adapter cable (plus)*. You can connect

these devices using the optional adapter

cable with 3.5 mm jack plug*.

–Some of the iPod®'s control functions

are not supported, such as rating tracks,

Cover Flow or adding tracks to “on-the-

go” playlists. The iPod® can only display

covers and play videos if it is connected

via an iPod® adapter cable plus* (red

marking).

–If you would like to play videos, you can

also connect your iPod® with the AV

adapter cable*; you will also need an Ap-

ple AV cable. Please refer to the iPod®

operating instructions for more informa-

tion on Apple AV cables.

–For more information on the Audi music

interface and on which devices are sup-

ported, please go online (e.g.

www.audi.com/mp3 or www.audi.com/

bluetooth) or contact an Audi dealer.

–iPod®/iPhone®/iPad® malfunctions also

affect the operation of the MMI. In this

case, please reset your iPod®/iPhone®/

iPad®.

–Please refer to the iPod®/iPhone®/iPad®

operating instructions for important in-

formation on how to use your iPod®/

iPhone®/iPad®. We recommend that you

update the iPod®/iPhone®/iPad® soft-

ware to the latest status.

2 Titel oder Name, Abteilung, Datum

27Media drives/connections

ControlsCommunicationNavigationEntertainment

Supported media and file formats

The following audio/video file specifications are supported by the DVD drive, the jukebox, the SD

card readers and the connection for the USB mass storage device*:

Audio files Video files

File extension .mp3 .wma;

.asf

.m4a;

.m4b;

.aac

.mpg;

.mpeg

.avi .mp4;

.m4v;

.mov

.wmv

Format MPEG-1/-

Layer 3

Windows

Media Au-

dio 9 and

MPEG-2/-

MPEG-1/-

ISO-

MPEG-4;

DivX 3, 4

and 5;

Xvid

ISO-

MPEG-4 H.

264

(MPEG-4

AVC)

Windows

Media

Video 9

Playlists .M3U; .PLS; .WPL; .M3U8; .ASX

File system SD/SDHC/SDXC/MMC memory cards

USB mass storage device: exFAT, FAT/FAT32, NTFS file system

USB mass storage device: max. 4 partitions

DVD drive: ISO9660, Joliet, UDF

Specifica-

tions

Up to max. 320 kbit/sec and 48

kHz sampling frequency

Up to max. 2000 kbit/sec, 720x576 px. and

25 fps

Number

of files

DVD drive: max. 1000 files per directory and

max. 1000 files per playlist;

Jukebox (max. 10 GB memory capacity): max. 3000 files can be copied;

USB mass storage device and memory cards: max. 1000 files per directory and

max. 1000 files per playlist

Supported

media

SD cards: with a capacity of up to 64 GB;

DVD drive: audio CDs (up to 80 minutes), CD-ROMs with a capacity of up to

700 MB; DVD±R/RW; standard video DVD and audio DVD compatible with video

DVD;

Audi music interface: portable players (e.g. iPod® ð page 25, MTP players, USB

mass storage devices belonging to “USB Device Subclass 1 and 6” compatible

with USB 2.0: USB sticks, USB MP3 players that do not require special driver soft-

ware, external USB flash memories and external USB hard drives)

Album covers Album covers up to 800x800 px.

(GIF, JPG, PNG): depending on

availability the album cover will

be displayed using the corre-

sponding medium or Gracenote®.

Note

–The format Windows Media Audio 9

Voice is not supported by the media

drives.

–We recommend a bit rate of at least 160

kbit/sec for compressing MP3 files. In

the case of audio files with variable bit

rate, the display of remaining playing

time may differ from the actual figure.

–The display of country-specific characters

(e.g. for ID3 tag information) depends

on the language set on the system; it

cannot be ensured that these characters

are displayed correctly. 

2 Titel oder Name, Abteilung, Datum

28 Media drives/connections

–The manufacturer will provide you with

information on the “USB Device Sub-

class” of a USB memory device.

–Some functions of MTP players such as

video playback and the rating of tracks

are not supported.

Troubleshooting

Subject Advice

Audi music interface/Bluetooth

audio player*: The portable

player/Bluetooth audio player is

not supported.

Please observe the notes on the Audi music interface

ð page 25/Bluetooth audio player* ð page 25. For information

on which devices are supported, please see the Audi mobile de-

vice database (www.audi.com/bluetooth).

Audi music interface: When

starting playback via the adapt-

er cable with 3.5 mm jack plug*

or AV adapter cable*, the vol-

ume is too high/low.

Set the volume of the portable player to about 70 percent of

maximum (Input level) ð page 60.

Audi music interface: Problems

during audio playback via an

iPod®/iPhone®/iPad®.

The Audio player function is switched on. Switch the function

off ð page 38 when you are not using a Bluetooth audio

player*.

Audi music interface: Interfer-

ence audible when plugging in

or unplugging the adapter cable

with 3.5 mm jack plug*/AV

adapter cable* or when connect-

ing or disconnecting the porta-

ble player to the adapter cable

with 3.5 mm jack plug*/AV

adapter cable*.

Audi music interface is already selected as the source when

connecting/disconnecting the adapter cable/portable player.

Activate the mute function or another audio source (e.g. radio

ð page 54) before connecting and disconnecting the porta-

ble player.

Jukebox: The tracks in the im-

ported playlist are greyed out.

When importing playlists, you must copy all files yourself.

Media centre: Imported tracks

cannot be played or cannot be

found.

If you cannot find imported tracks via the media centre, this

could mean that they are not supported and have been moved.

To free up some memory space, select the control button for

Settings > Fill/delete jukebox > Delete, folder: Unplayable

files.

2 Titel oder Name, Abteilung, Datum

29System settings

ControlsCommunicationNavigationEntertainment

System settings

Setting the time/date

The time can be set manually or via GPS*.

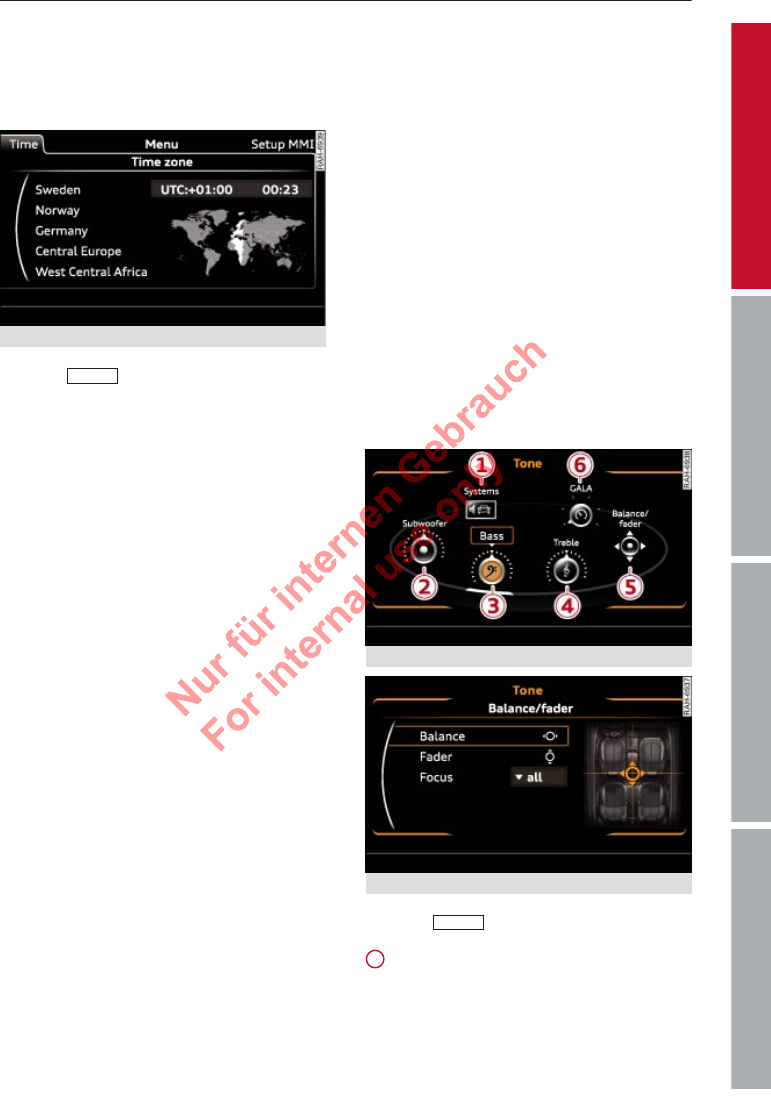

Fig. 19 Setting the time zone

►Select: MENU button > control button

Time.

Time source*

manual: All time settings are adjusted man-

ually.

GPS : The time and date are set via GPS de-

pending on the time zone (selected manual-

ly). If you take your vehicle into a different

time zone, the time zone will have to be ad-

justed manually on the MMI.

Time

The Time can be set manually. The Time

source* must be set to manual.

Time format

When this option is set to 24h, for example

13:00 will be displayed as the time. When it

is set to AM/PM, for example 1:00 PM will be

displayed.

Auto summer time*

When the automatic summer time option is

on, the time will be set one hour forward or

back automatically when summer or winter

time starts.

Manual summer time

If this function is on, an hour is added to the

Time set.

Time zone

When selecting the correct time zone, a list of

corresponding countries is displayed as an ex-

ample.

Date

The Date can be set manually. The Time

source must be set to manual.

Date format

When this option is set to TT.MM, for example

31.12. will be displayed as the date. When it

is set to MM/TT, for example 12/31 will be

displayed.

Adjusting the sound

You can adjust the sound and volume of the

MMI individually.

Fig. 20 Sound settings

Fig. 21 Adjusting balance/fader

►Select: MENU button > Tone.

1 Systems

The volume of the Telephone* and Navigation

functions*, the Speech dialogue system, the

Traffic announcements and the Parking aid*

can be adjusted individually ð page 30.

2 Titel oder Name, Abteilung, Datum

30 System settings

2 Subwoofer1) / 3 Bass / 4 Treble

You can adjust the Subwoofer*, Bass and Tre-

ble settings by turning the rotary pushbutton.

New settings apply only to the currently acti-

vated audio source, allowing the settings of

each audio source to be adjusted individually.

5 Balance/fader (sound focus)

The settings depend on the equipment fitted

in your vehicle:

–To set the left/right volume ratio: Select

and confirm Balance. Turn the rotary push-

button clockwise or anti-clockwise to the de-

sired position.

–To set the front/rear volume ratio: Select

and confirm Fader. Turn the rotary pushbut-

ton clockwise or anti-clockwise to the de-

sired position.

–To set the volume ratio using MMI touch:

Move your finger in the desired direction on

the MMI touch pad.

–To set the sound focus*: Select and confirm

Focus > all (evenly distributed sound focus)/

front/rear (sound focus distributed evenly in

front/rear interior of vehicle).

6 GALA (speed-dependent volume

control)

You can adjust the automatic volume adaption

to the interior noise level by turning the rotary

pushbutton.

Surround2)

Turn the rotary pushbutton to adjust the vol-

ume of the surround effect.

Adjusting the system

volume

►Select: MENU button > Tone > Systems.

Telephone*

Ring tone: see ð page 38

Ring tone volume/Volume of telephone call:

The volume of the selected ring tone/the vol-

ume of the telephone call can by adjusted by

turning the rotary pushbutton.

Systems

Speech dialogue system volume*: Turn the

rotary pushbutton to adjust the volume of the

spoken cues.

MMI touch volume: Turn the rotary pushbut-

ton to adjust the volume of the spoken cues

for MMI touch.

Announcements

Traffic programme: see ð page 55

DAB announcements*: see ð page 55

Traffic programme volume/Announcement

volume: You can adjust the volume of a traffic

announcement by turning the rotary pushbut-

ton.

Navigation*

Voice guidance: see ð page 52

Navigation cues during call: see ð page 52

Volume of spoken cues/In-car entertainment

fader: Volume of navigation cues while route

guidance is active. The in-car entertainment

fader is an option that reduces the volume of

the current audio source when the parking aid

is active or a navigation cue is being played.

Parking aid*

Turn the rotary pushbutton to adjust the vol-

ume of the beeps.

1) Applies to vehicles with Bang & Olufsen Sound System

and Audi Sound System (6-channel)

2) Applies to vehicles with Bang & Olufsen sound system

2 Titel oder Name, Abteilung, Datum

31System settings

ControlsCommunicationNavigationEntertainment

Restarting the MMI

system (Reset)

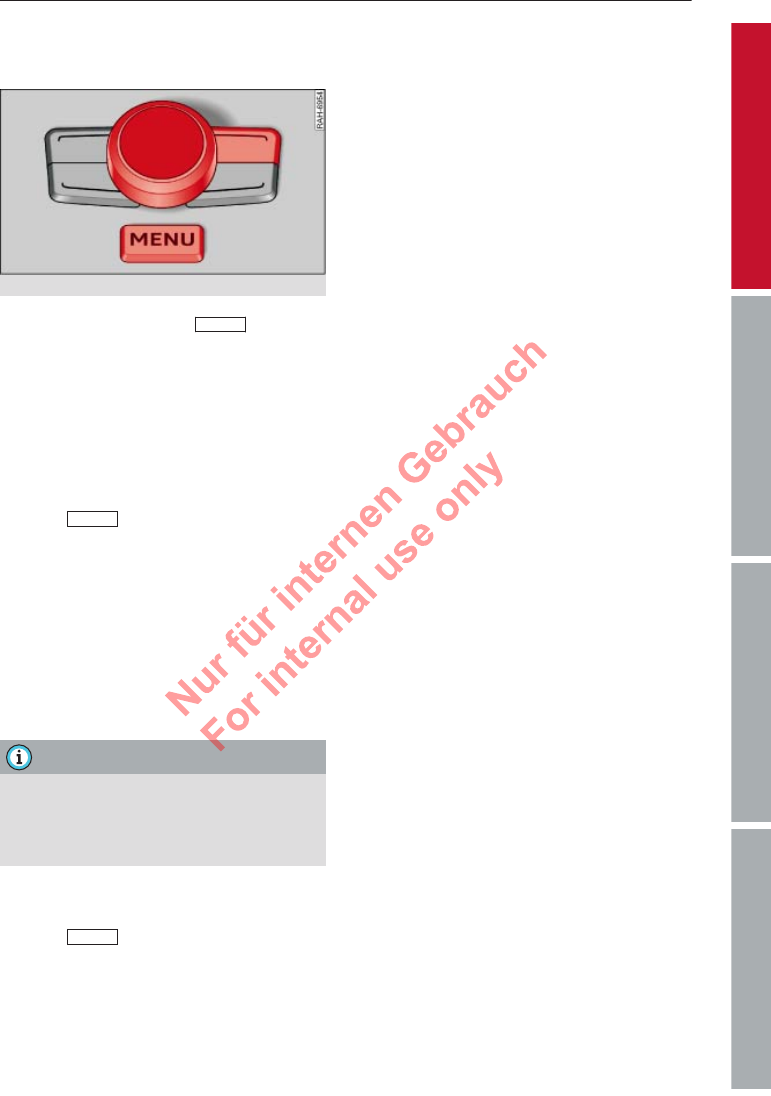

Fig. 22 Combination of buttons for restart

–Press and briefly hold the MENU button,

the rotary pushbutton and the top right con-

trol button ð Fig. 22 simultaneously and

then release the buttons again.

Speed display on

driving school vehicles

Applies to vehicles: with equipment for driving schools

►Select: MENU button > Car > control but-

ton Car systems* > Driver assist > Driving

school mode.

When this function is on, the speed of the ve-

hicle and the direction indicated by the turn

signals will appear on the MMI display.

When the mode is switched (e.g. to radio),

the vehicle speed and indicated direction will

appear again on the display after five seconds.

Note

–The additional speed display is only avail-

able for driving school vehicles.

–The value indicated in the speedometer

is the relevant speed.

Other settings

►Select: MENU button > control button Set-

up MMI.

Language

The language of texts shown on the MMI dis-

play and the driver information system as well

as the language of the navigation cues* and

speech dialogue system* can be altered.

The number of languages available depends

on the market.

Measurement units

The following measurement units can be set

in the MMI display and the driver information

system:

–Speed (km/h or mph)

–Distance (km or miles)

–Temperature (°C or °F)

–Consumption (ltr/100 km, mpg (US), mpg

(UK) or km/ltr)

–Capacity (litres, gallons (UK) or gallons

(US))

Speech dialogue system*

Command display: The display of possible

commands during a speech dialogue can be

switched on/off.

Short dialogue: This option can be switched

on/off; when it is activated, the spoken cues

played by the system are abbreviated.

Volume settings: Turn the rotary pushbutton

to adjust the volume of the spoken cues.

Individual speech training (only possible

when the vehicle is stationary): You can use

the individual speech training to adapt the

speech dialogue system to your voice or pro-

nunciation so that the speech dialogue system

can then better recognise what you are saying.

The individual speech training prompts you to

repeat 20 spoken phrases that consist of cer-

tain commands and blocks of digits. If you

would like to delete the stored speech train-

ing setup, you can use the function Reset

speech training.

Display brightness

You can adjust the brightness of the MMI dis-

play by turning the rotary pushbutton.

Factory settings

You can reset the following functions to the

factory settings: 

2 Titel oder Name, Abteilung, Datum

32 System settings

–Sound settings

–Radio

–Media

–Jukebox

–Directory*

–Telephone*

–Bluetooth*

–Navigation settings*

–Navigation memory*

–Speech dialogue system*

You can select the desired options individually

or mark Select all entries. Select and confirm

Restore factory settings.

System update

The system update function can be used to

update the MMI software via USB or an SD

card.

For further information on the System up-

date, please go online (e.g. www.audi.com/

bluetooth) or ask an Audi dealer.

Version information

The software version of the MMI and the navi-

gation database* are displayed. In addition,

you can use the Software info function to dis-

play information on the MMI's software and li-

cence conditions.

2 Titel oder Name, Abteilung, Datum

33Telephone

ControlsCommunicationNavigationEntertainment

Telephone

Introduction

Applies to vehicles: with phone pre-installation

After connecting your mobile phone to the

MMI system via Bluetooth, you can operate

the telephone functions conveniently via the

MMI.

WARNING

–According to health organisations, mo-

bile phones may interfere with the func-

tion of pacemakers. A minimum distance

of 20 cm should be kept between the

mobile phone aerial and the pacemaker.

–Do not carry a mobile phone in your

breast pocket directly over the pace-

maker when the phone is switched on.

–If you suspect interference, switch the

mobile phone off immediately.

–The speech dialogue system ð page 17

must not be used in cases of emergency,

since the voice changes in stressful situa-

tions. This could result in a failed or de-

layed telephone connection. Always dial

emergency numbers manually!

–Switch off your mobile phones in all

areas where there may be a risk of explo-

sion. Remember that these areas may

not always be adequately marked. Such

places are filling stations, fuel and chem-

ical storage facilities or transport

vehicles and other places where fumes,

chemicals (e.g. from leaking propane or

fuel vapours in vehicles or buildings) or

large quantities of dust particles (e.g.

from flour, wood or metal) could accu-

mulate in the air. This warning also ap-

plies to all other places where you would

normally switch off your engine.

–Today's driving conditions require the full

attention of drivers. Please see ð page 5,

Notes on traffic safety.

CAUTION

–Please observe the laws regulating the

use of telephones in vehicles.

–You must switch off the telephone in

areas where the use of mobile tele-

phones is prohibited. Please observe all

relevant caution notices and regulations.

Note

–The telephone functions will depend on

the mobile network service provider and

the mobile phone used. For further infor-

mation, please contact your mobile net-

work service provider, see the operating

instructions for your mobile phone, or go

online (e.g. www.audi.com/bluetooth).

–The maximum range of the Bluetooth

connection is limited to the interior of

the vehicle. The connection can be sus-

ceptible to interference with other elec-

tronic devices.

Bonding a mobile

phone

Applies to vehicles: with phone pre-installation

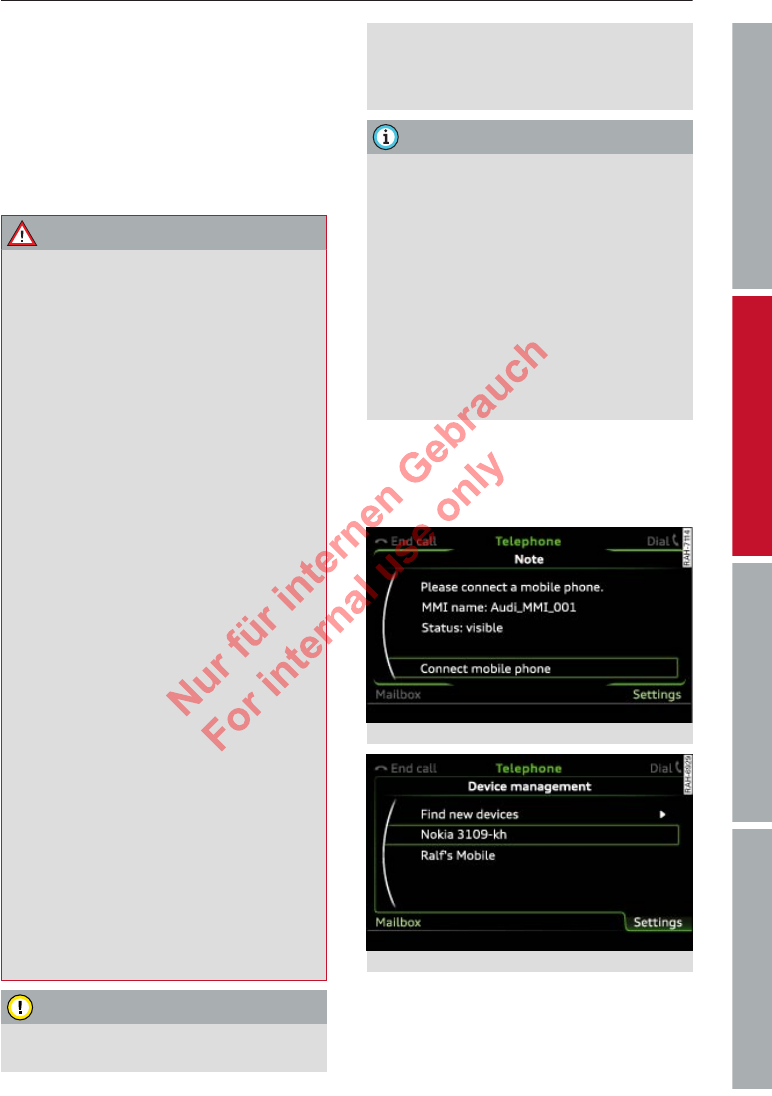

Fig. 23 Searching for new mobile phones

Fig. 24 Device management

Requirements for bonding

–The vehicle must be stationary, and the igni-

tion must be switched on. 

2 Titel oder Name, Abteilung, Datum

34 Telephone

–The Bluetooth function and the discoverabil-

ity of the MMI system ð page 38 and the

mobile phone must be activated.

–The on-board phone system and the mobile

phone you would like to bond must not be

connected actively to any other Bluetooth

device.

Searching for a mobile phone

–To find a new mobile phone: Select TEL

button > Connect mobile phone > Find new

devices. Or: Select TEL button > control

button Settings > Bluetooth > Device man-

agement > Find new devices. The available

Bluetooth devices are shown on the MMI

display.

Bonding a mobile phone

–To bond a mobile phone with PIN entry: Se-

lect and confirm the mobile phone you wish

to use. Select and confirm Handsfree. A PIN

code for establishing the connection will ap-

pear on the MMI display. Select and confirm

Yes. When the phone requests it, enter the

PIN code shown into your mobile phone. Or:

To enter any 4 to 16-digit PIN code, select

and confirm No when the PIN code is dis-

played and enter your own personal PIN

code on the MMI and then on the mobile

phone.

–Fast bonding (secure simple pairing): If

your mobile phone supports this function, a

6-digit PIN code will be shown on your mo-

bile phone and on the MMI display simulta-

neously. Confirm this PIN code on your mo-

bile phone and in the MMI.

Please confirm any connection queries on your

mobile phone.

After bonding: The signal strength bar 11

ð page 10, Fig. 6 and Bluetooth symbol 10

will appear in the status line of the MMI dis-

play when the mobile phone has successfully

bonded. In addition, the contacts on the mo-

bile phone are automatically loaded into the

directory of the MMI. This may take several

minutes, depending on how many contacts

are stored on the mobile phone.

If there is no memory capacity left for directo-

ries and you bond another mobile phone, a

message will appear asking you to replace the

contacts from one of the phones. If you select

the option Restricted use of telephone, only

the contacts from the mobile phone or SIM

card and the local MMI memory (public) will

be available ð page 41.

Note

–You have about 30 seconds to enter the

PIN code.

–Bluetooth devices only have to be bon-

ded once; any devices that have already

been bonded to the MMI system once

are connected automatically when they

are within range and the ignition is on.

–You can speed up the automatic connec-

tion by authorising MMI bonding on your

mobile phone.

–For further information, contact your

mobile network service provider or refer

to the operating instructions for your

mobile phone.

–You can bond several mobile phones to

the MMI system; however only one con-

nection is active at a time.

–Any Bluetooth device that is already con-

nected to the MMI system is disconnec-

ted when another device is bonded to

the system.

–The Bluetooth connection between the

system and the mobile phone is auto-

matically terminated when you leave the

car.

–For further information on using a phone

in your car, please go online (e.g.

www.audi.com/bluetooth) or ask an Audi

dealer.

2 Titel oder Name, Abteilung, Datum

35Telephone

ControlsCommunicationNavigationEntertainment

Calling up the

telephone

Applies to vehicles: with phone pre-installation

Fig. 25 Telephone functions

Important: A mobile phone must be connec-

ted to the MMI system ð page 33.

►Select: TEL button.

The MMI display will show the telephone

menu that was last activated. You can call up

the telephone functions by pressing the TEL

button again while the Telephone menu is

open.

The following telephone functions are availa-

ble ð Fig. 25:

Call list ð page 35

Directory ð page 41

Favourites ð page 38

Enter number ð page 36

Note

The telephone functions will depend on

the mobile network service provider and

the mobile phone used. For further infor-

mation, contact your mobile network serv-

ice provider or refer to the operating in-

structions for your mobile phone.

Dialling a telephone

number

From the directory

Applies to vehicles: with phone pre-installation

You can dial a telephone number directly from

the directory ð page 41.

From a list

Applies to vehicles: with phone pre-installation

Fig. 26 Selecting a telephone number from the call

list

Important: A telephone number must be stor-

ed in the call list, the favourites or in the di-

rectory.

►Select: TEL button.

Call list

–To dial a telephone number: Select and con-

firm the desired telephone number in the

call list. Select and confirm Call.

Symbols in the call list ð Fig. 26:

Numbers dialled

Missed calls

Received calls

Directory

Calling up the directory

Applies to vehicles: with phone pre-installation

After a mobile phone has been bonded suc-

cessfully, the contacts from the mobile phone

are automatically imported into the directory

of the MMI system.

Fig. 33 List of contacts

►Select: TEL button > Directory.

–To select a contact: Select and confirm a

contact in the directory. The address card

will be displayed.

The contacts are displayed in alphabetical or-

der; they can be sorted according to first

name/surname ð page 44 and are displayed

together with a symbol indicating where they

are stored ð Fig. 33:

Public MMI directory: These contacts can

be seen and used by any user, irrespective

of which mobile phone is connected.

Private MMI directory: These contacts are

only visible if the corresponding mobile

phone is connected.

SIM card

Mobile phone

You can bond up to four different mobile

phones to the MMI system, allowing you to

manage up to four private directories in addi-

tion to the public directory.

If there is no memory capacity left for directo-

ries and you bond another mobile phone, a

message will appear asking you to replace the

contacts from one of the phones. If you select

the option Restricted use of telephone, only

the contacts from the mobile phone or SIM

card and the local MMI memory (public) will

be available.

You can open the directory via the Telephone*

menu and via the Navigation* menu.

Note

–Please pay attention to any synchronisa-

tion queries on your mobile phone. You

must confirm any synchronisation quer-

ies from the directory before the con-

tacts can be loaded from your mobile

phone into the MMI directory.

–Which contacts are displayed on the

MMI depends on the mobile phone you

are using. For more information on

which mobile phones are supported,

please go online (e.g. www.audi.com/

bluetooth) or contact an Audi dealer.

–In certain cases, contacts from a mobile

phone may not be transmitted in alpha-

betical order. If there are too many en-

tries, contacts with certain initial letters

may not be displayed on the MMI sys-

tem.

–The contacts in the local MMI memory

(public) are visible anytime and are

therefore not protected against access

by other users.

Storing a contact

Applies to vehicles: with phone pre-installation

Fig. 34 Creating new contact

►Select: TEL button > Directory > New con-

tact.

2 Titel oder Name, Abteilung, Datum

42 Directory

Surname/First name

Enter the surname and first name using the

speller.

Phone numbers

You can store up to five telephone numbers

for each address card. In addition, you can as-

sign a type (business or private) and a cate-

gory (land line, mobile or fax) to each tele-

phone number. You can also select a tele-

phone number that you use frequently as pre-

ferred number. This number is then displayed

first when the address card is opened.

You can import a telephone number from the

Call list into an address card by selecting the

option New number and then pressing the

control button for List.

Business addresses/Private addresses

You can store a business address and a private

address in an address card. To delete the busi-

ness or private address, select the function

Delete postal address.

The function Create navigation destination

can be used to create a Navigation destina-

tion* from the selected address. The input

menu will appear on the MMI display so that

you can add any necessary address details.

Structured addresses from a mobile phone

that include details of the country, post code,

town and street are imported into the directo-

ry directly.

Note

–The contacts in the local MMI memory

(public) are visible anytime and are

therefore not protected against access

by other users.

–The new contact you have created is stor-

ed in the local memory (private) of the

directory you are currently using.

–Whether addresses can be imported de-

pends on your mobile phone.

–You can store up to 500 contacts in the

local memory of each public or private

directory.

–Contacts that have been edited in the

MMI directory cannot be updated auto-

matically on the connected mobile

phone. We recommend that you edit

contacts on a mobile phone directly on

the mobile phone.

Using a contact

Finding

Applies to vehicles: with phone pre-installation

►Select: TEL button > Directory.

–Select and confirm Find contact. Enter the

name using the speller. Or: Select and con-

firm the contact via List.

The system searches for both the first name

and surname within a name.

Note

You can scroll rapidly through long lists by

turning the rotary pushbutton quickly.

Calling

Applies to vehicles: with phone pre-installation

Fig. 35 Calling a contact

►Select: TEL button > Directory.

–Select and confirm the desired contact in

the directory. Select and confirm the desired

telephone number. Or: Select the telephone

number you would like to call and press the

control button for Call.

2 Titel oder Name, Abteilung, Datum

43Directory

ControlsCommunicationNavigationEntertainment

Navigating

Applies to vehicles: with phone pre-installation and navi-

gation system

Fig. 36 Selecting a destination

►Select: TEL button > Directory.

–Select and confirm the desired contact in

the directory. Select and confirm the desired

destination. Or: Select the destination you

would like to navigate to and press the con-

trol button for Navigate to. To start navigat-

ing, select and confirm Start route guid-

ance.

Editing/deleting a

contact

Applies to vehicles: with phone pre-installation

You can edit/delete contacts in the local MMI

memory (private/public) any time.

►Select: TEL button > Directory > contact

from directory.

Visible to all

You can mark a contact so it is Visible to all

. The contact will then be stored in the local

MMI memory (public) and can be accessed by

all directory users.

Read contact

The MMI system automatically creates a name

tag for each contact in the directory, which

you can have the system read to you.

Copy contact

To edit a contact, select and confirm Copy

contact. A copy of the contact will be stored in

the local MMI memory (private).

You can now change the details in the entry

fields using the speller ð page 41.

Delete contact

You can delete only the contacts in the local

MMI memory (private/public).

Note

Contacts that have been edited in the MMI

directory cannot be updated automatically

on the connected mobile phone. We rec-

ommend that you edit contacts on a mo-

bile phone directly on the mobile phone.

Importing/exporting

contacts

Applies to vehicles: with phone pre-installation

You can import or export contacts in the

vCard format (.vcf) into or from the directory.

Important: An SD card must be inserted in the

SD card reader ð page 24, or a USB mass stor-

age device must be connected to the Audi mu-

sic interface ð page 25.

►Select: TEL button > Directory > control

button Settings.

–To import contacts from a storage device:

Select and confirm Import contacts > SD

card or USB storage device > desired con-

tacts > Import.

–To export contacts to a storage device: Se-

lect and confirm Export contacts > SD card

or USB storage device > desired contacts >

Export.

–To select all contacts at once for import/ex-

port: Select and confirm Import contacts/

Export contacts > SD card or USB storage

device > control button All > Import/Ex-

port.

Note

–The imported contacts are stored in the

local memory of the directory you are us-

ing.

–You can import up to 500 contacts. You

can call up the memory capacity of the

directory any time ð page 44.

2 Titel oder Name, Abteilung, Datum

44 Directory

–Never store important data on SD cards

or USB mass storage devices. Audi shall

not accept any liability whatsoever for

the loss of data or media.

Other settings

Applies to vehicles: with phone pre-installation

►Select: TEL button > Directory > control

button Settings.

Memory capacity

The Memory capacity of the directory will be

displayed.

You can manage up to 10500 contacts with

the directory. Up to 2000 contacts can be loa-

ded from your mobile phone into each private

directory. Additionally, you can create up to

500 contacts in the local MMI memory (pri-

vate), as well as 500 in the local MMI memory

(public).

Sort order

You can sort the contacts in your directory al-

phabetically according to the surname or first

name.

Public contacts

You can choose to activate or deactivate the

display of public contacts. Select yes to show

all contacts in the local MMI memory (public);

if you select no they are hidden if a mobile

phone is connected to the MMI.

Download phone book

To update the contacts in the MMI, you can

download the contacts from your mobile

phone manually. Depending on the mobile

phone you are using, the Bluetooth connec-

tion may have to be disconnected and re-es-

tablished before you can update the contacts.

Delete contacts

You can delete all contacts in the local memo-

ry at once by selecting the option Delete all

contacts. Select Delete private contacts to

delete all contacts stored in the local memory

(private). The contacts in the local memory

(public) can be deleted by selecting Delete

public contacts.

2 Titel oder Name, Abteilung, Datum

45Navigation

ControlsCommunicationNavigationEntertainment

Navigation

Calling up the

navigation menu

Applies to vehicles: with navigation system

The navigation system guides you directly to

your destination, avoiding traffic obstruc-

tions and using alternative routes if desired.

►Select: NAV button.

After calling up the navigation, the menu that

was last open will be displayed.

–To switch between the map and the desti-

nation entry screen: Press the NAV button

again.

WARNING

–Today's driving conditions require the full

attention of drivers. Please see ð page 5,

Notes on traffic safety.

–Pay attention to traffic rules when driv-

ing.

–The route calculated by the navigation

system is a recommendation of how best

to reach a destination. Pay attention to

traffic lights, no stopping signs, lane

change restrictions, one-way streets, etc.

CAUTION

–Should the navigation directions contra-

dict the current traffic regulations, you

must always follow the traffic regula-

tions.

–The volume should only be set at a level

which enables you to hear distant police

and emergency vehicles clearly - failure

to do so could result in an accident.

Note

–Snow or other obstructions on the GPS

aerial or interference caused by trees or

large buildings could affect the reception

of the satellite signals and make posi-

tioning difficult. GPS reception and vehi-

cle positioning can also be adversely af-

fected by deactivation or a malfunction

of several satellites.

–Street and town names can change;

therefore the names stored on the MMI

can in exceptional cases be different

from the actual names.

–For information on updating the naviga-

tion data, please contact your Audi deal-

er.

Entering a destination

Entering an address

Applies to vehicles: with navigation system

Fig. 37 Enter destination

►Select: NAV button > control button Dest.

> Address.

–To change the country: Select and confirm

Country and enter a country.

–To enter a destination via the town/post

code: Select and confirm Town/post code.

Enter a town or a post code. Now you can se-

lect the town from the list and confirm it.

Select and confirm additional details for the

destination such as the Street, House num-

ber, Special destination in town or Centre.

Start the route guidance function.

–To enter a destination via the street: Select

and confirm Street. Select a town from the

list and confirm it. Enter a street. Select and

confirm additional details for the destina-

tion such as the House number or an Inter-

section. Start the route guidance function.

Help entering an address: While you are en-

tering an address, suggestions based on your

previous entries are made in the entry field for

the town. You can set the suggested town as

the destination by pressing the control button

for List. Further towns matching your entry 

2 Titel oder Name, Abteilung, Datum

46 Navigation

are listed below the entry field (large towns

first and then other towns in alphabetical or-

der). In addition, the total number of towns

found is displayed 1 ð Fig. 37.

Setting a destination from the map

Applies to vehicles: with navigation system

A point on the map can be set as the destina-

tion or stored in the directory.

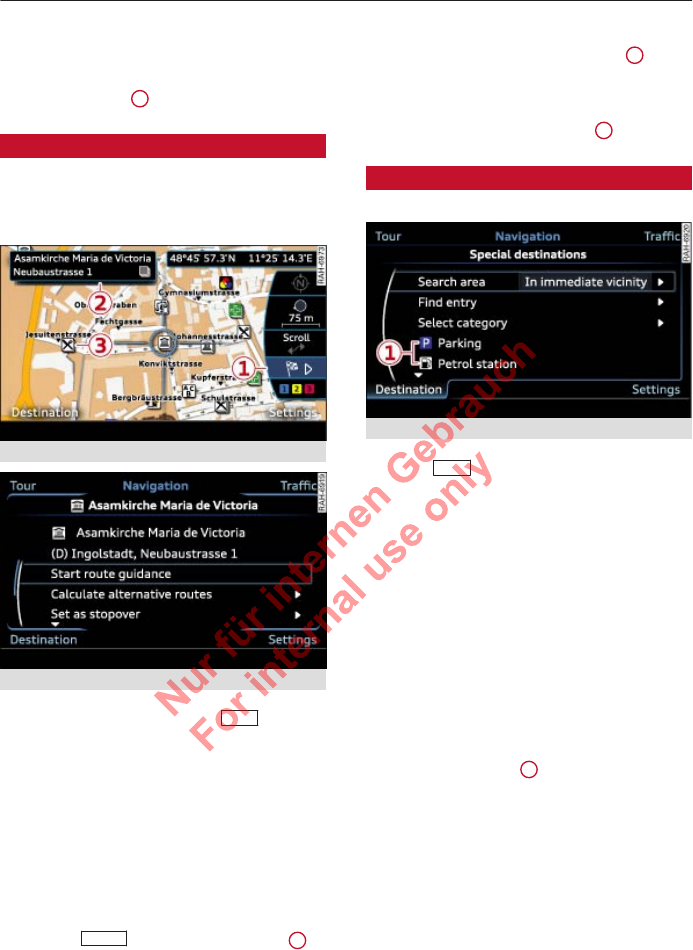

Fig. 38 Setting a destination from the map

Fig. 39 Setting map position as destination

–To call up the map: Press the NAV button

repeatedly until the map appears.

–To set a convenient map scale (in order to

be able to move the crosshairs faster): Turn

the rotary pushbutton clockwise/anti-clock-

wise.

–To move the crosshairs: Press the rotary

pushbutton. Move the crosshairs onto the

destination using MMI touch ð page 8.

–To use the destination for route guidance:

Press the BACK button. Select symbol 1 in

the legend menu. Select and confirm Start

route guidance.

Additional information on the point selected

with the crosshairs: If you use the crosshairs

to select a location on the map, any existing

information on this location (e.g. address or

traffic information) will be displayed 2.

Stacked map content: If several special desti-

nations are located close to each other, their

symbols are stacked on the map 3.

Entering a special destination

Applies to vehicles: with navigation system

Fig. 40 Entering a special destination

►Select: NAV button > control button Desti-

nation > Special destinations.

–To change the search area: Select Search

area. Now you can select a search area from

the list and confirm it.

–To find the name of a special destination in

the selected search area: Select Find entry.

Enter the name of the special destination.

–To find a special destination in a certain

category: Select Select category. Select and

confirm a category, for example Airport.

–To find a special destination in the selected

search area: Select and confirm a category

directly (fast access 1 ð Fig. 40). You can

now select and confirm a special destina-

tion.

The following search categories are available:

In immediate vicinity: You can select special

destinations from different categories. The

special destinations are displayed in a list,

starting with destinations in the immediate

vicinity and going up to destinations within a

radius of 200 km.

In vicinity of route: Special destinations

along the route can only be selected when the

route guidance function is active. The special 

2 Titel oder Name, Abteilung, Datum

47Navigation

ControlsCommunicationNavigationEntertainment

destination is located directly on or in the im-

mediate vicinity of your route.

In vicinity of destination: You can select spe-

cial destinations from different categories; for

example, you can look for a hotel at the desti-

nation.

In new town: Enter the name of the town in

the speller. You can select special destinations

from different categories. This function can be

used to find special destinations in a town ir-

respective of the destination.

Nationwide: You can either find the special

destination by entering the name or by select-

ing it from different categories. A special des-

tination can be found irrespective of your cur-

rent position and your destination. You can

use this function, for example, to navigate to

an airport in the country currently selected.

In new country: Enter the name of the coun-

try in the speller. A special destination can be

found irrespective of your current position and

destination. You can use this function to find

special destinations that you already know in

a new country.

Note

–The distances to special destinations are

shown as the crow flies from your cur-

rent location (arrow not filled in). The ac-

tual driving distance between your cur-

rent position and the special destination

is updated automatically (filled in ar-

row).

–Sometimes there are destination entries

in the list that cannot be displayed com-

pletely because they are too long. If you

select one of these entries with the rota-

ry pushbutton, detailed information on

the selected entry will be displayed auto-

matically after a few seconds.

Setting a favourite/home address as the

destination

Applies to vehicles: with navigation system

Using the favourites makes it easier to enter

destinations that you use often.

Important: A favourite or home address must

be stored ð page 50.

►Select: NAV button > control button Desti-

nation > Favourites.

►Select and confirm a favourite/your home

address. Start the route guidance function.

Loading the last destination

Applies to vehicles: with navigation system

The last destinations are stored automatical-

ly and can be loaded again directly as a new

destination.

►Select: NAV button > control button Desti-

nation > Last destinations.

►Select a last destination from the list and

confirm it. Start the route guidance func-

tion.

Note

You can delete the list of last destinations

ð page 52.

Setting a destination from the directory

Applies to vehicles: with navigation system

You can navigate directly to entries in the di-

rectory.

Important: The directory must contain con-

tacts with private/business addresses stored

as destinations ð page 41.

►Select: NAV button > control button Desti-

nation > Directory.

►Select and confirm a private/business ad-

dress and start route guidance.

2 Titel oder Name, Abteilung, Datum

48 Navigation

Entering a destination via the

coordinates

Applies to vehicles: with navigation system

►Select: NAV button > control button Desti-

nation > Address > Coordinates.

►Select and confirm the Latitude and Longi-

tude coordinates. Start the route guidance

function.

Entering a stopover/tour plan

Applies to vehicles: with navigation system

You can enter up to nine stopovers directly in

the tour plan or using the various ways of en-

tering destinations.

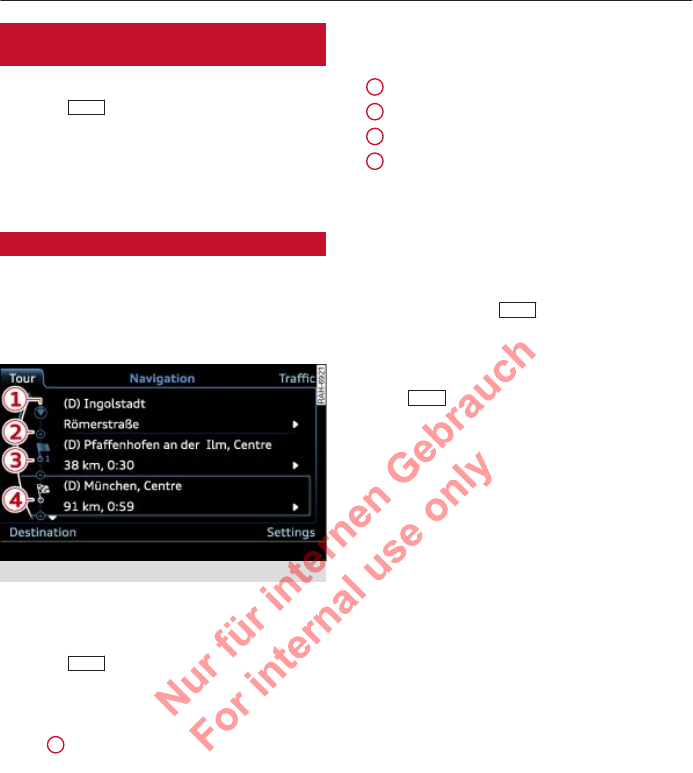

Fig. 41 Tour plan

Important: You must have entered a destina-

tion ð page 45.

►Select: NAV button > control button Tour.

–To enter a destination as a stopover: Select

and confirm the symbol for entering a stop-

over 2 ð Fig. 41. Enter a destination

ð page 45. Select and confirm Set as stop-

over in the Destination details menu.

–To change a tour plan: Press the control

button for Tour. Select and confirm the des-

tination/stopover and then select Change,

Move, Delete or Start tour plan from here.

–To store a tour plan: Press the control but-

ton for Tour. Select and confirm Tour mem-

ory and then Store tour plan. Enter a name.

–To load/delete a tour plan: Press the control

button for Tour. Select and confirm Tour

memory and then Load tour plan/Delete

tour plan.

The following information is displayed in the

legend menu of the tour plan ð Fig. 41:

Location of the vehicle

Symbol for entering a stopover

Stopover entered

Destination

Starting/stopping

route guidance

Applies to vehicles: with navigation system

–To enter a new destination and start route

guidance: Select NAV button > control but-

ton Destination > enter destination > Start

route guidance.

–To restart/stop the last route guidance: Se-

lect NAV button > control button Destina-

tion > Start/Cancel.

When you enter a new destination, the follow-

ing additional functions are available in the

Destination details menu ð page 46, Fig. 39:

Calculate alternative routes: Three suggested

routes are calculated for the destination cur-

rently entered. The legend menu will show in-

formation on the alternative route, such as

the distance to the destination and the calcu-

lated arrival time.

Enter special destination in town: With this

option you can look for e.g. tourist attractions

or public buildings (hospital, cinema, recrea-

tion areas, etc.) in the vicinity of the town en-

tered. The special destination can be set di-

rectly as the destination.

Select centre: The navigation system calcu-

lates a route leading to the centre of the se-

lected town/district.

Destination on map: The destination is shown

on the map.

2 Titel oder Name, Abteilung, Datum

49Navigation

ControlsCommunicationNavigationEntertainment

How to use the map

Applies to vehicles: with navigation system

Fig. 42 Map with crosshairs switched off

Fig. 43 Map with crosshairs switched on

–To call up the map: Press the NAV button

repeatedly until the map appears.

–To switch on the crosshairs: Press the rotary

pushbutton while the map is being dis-

played.

–To switch off the crosshairs: Press the

BACK button.

Crosshairs switched off:

Orientation: The map is displayed either

from the north position or from the driv-

ing position.

Scale: Turn the rotary pushbutton clock-

wise/anti-clockwise to zoom in or out.

Distance to destination/stopover

Calculated time of arrival at destination/

stopover

Speed display1)

Altitude display

Location of the vehicle

Display of upcoming turn-off

Additional information ð page 52

Crosshairs switched on:

Additional information on the point selec-

ted with the crosshairs: If you use the

crosshairs to select a point on the map,

any existing information on this location,

e.g. the address, will be displayed.

Display of position coordinates of the

crosshairs (longitude/latitude)

Moving along the route: This function can

be used while route guidance is activated.

Turn the rotary pushbutton clockwise/an-

ti-clockwise to move the map along the

current route.

Destination details menu: If available, de-

tails on the point selected with the cross-

hairs are displayed (e.g. address). The

point on the map selected with the cross-

hairs can be set as a destination or stop-

over, stored in the directory and called up

on the telephone.

Calculating alternative routes

ð page 53

Map contents such as traffic information,

favourite destinations or restaurants

1) Applies to vehicles without camera-based speed limit

display only.

2 Titel oder Name, Abteilung, Datum

50 Navigation

Calling up traffic

information

Applies to vehicles: with navigation system

When the traffic avoidance function is activa-

ted, the MMI system uses the traffic informa-

tion to guide you around traffic obstructions

whenever possible.

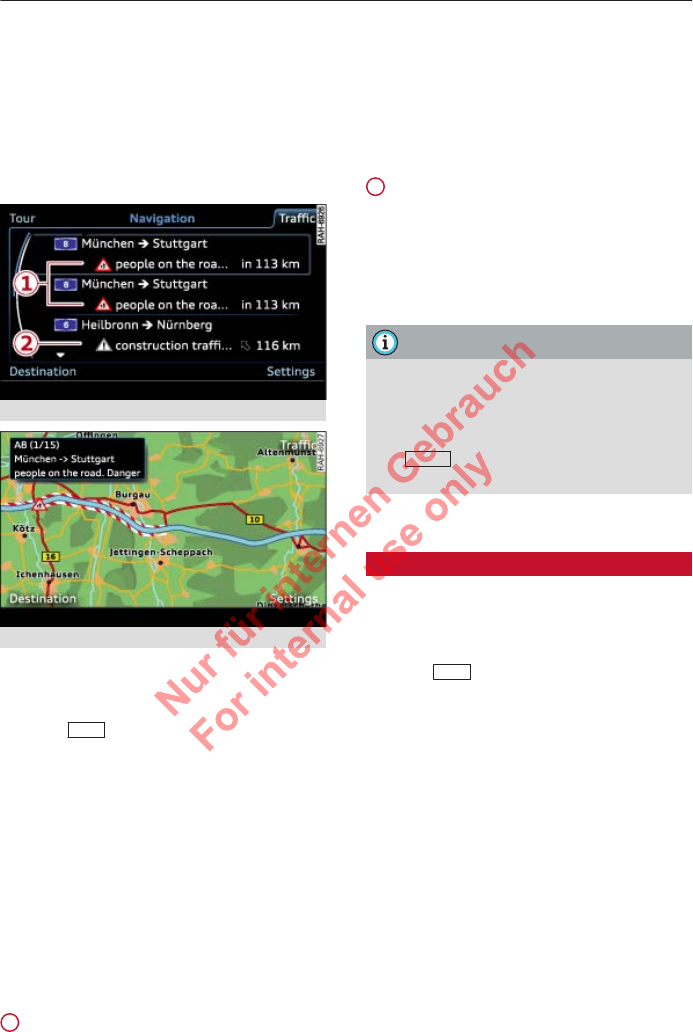

Fig. 44 Calling up traffic information

Fig. 45 Displaying traffic information on the map

Important: The traffic avoidance function

must be switched on ð

page 51.

►Select: NAV button > control button Traf-

fic.

–To call up the detail view for traffic infor-

mation: Select a piece of traffic information

from the list and confirm it.

–To call up the next piece of traffic informa-

tion: Press the rotary pushbutton.

–To call up traffic information on the map:

Select and confirm Show on map.

–To display the next piece of traffic informa-

tion on the map: Press the rotary pushbut-

ton.

1 Traffic information on your route

An immediately upcoming traffic obstruction

comes up in the first position and is displayed

with a red warning symbol. Any other traffic

obstructions which are relevant for your route

are sorted by distance to your current loca-

tion. Traffic obstructions that you have avoi-

ded on your route are marked with the sym-

bol .

2 Other traffic information

Traffic obstructions that are not relevant for

your route are shown with a greyed-out warn-

ing symbol. They are sorted according to road

category (motorways, major roads, other

roads), country and road number.

Note

Urgent traffic information, such as a car

travelling in the wrong direction on the

motorway, is displayed automatically. To

hide the traffic information, simply press

the BACK button or the rotary pushbut-

ton.

Other settings

Storing a favourite/home address

Applies to vehicles: with navigation system

The favourites you store are automatically

displayed as a contact in the directory.

►Select: NAV button > control button Desti-

nation > Favourites.

–To store a favourite: Select Create favour-

ite. Select and confirm a favourite with the

functions displayed.

–To store your home address: Select Home

address. Select and confirm the home ad-

dress with the functions displayed.

Other functions are:

–Call: Select and confirm a favourite/your

home address. Select and confirm Call.

–Change: Select and confirm a favourite/your

home address. Select and confirm Assign

new favourite/Reassign home address.

–Show on map: Select and confirm a favour-

ite/your home address. Select and confirm

Destination on map.

2 Titel oder Name, Abteilung, Datum

51Navigation

ControlsCommunicationNavigationEntertainment

–Delete: Select and confirm a favourite/your

home address. Select and confirm Delete fa-

vourite/home address.

Storing a destination in the directory

Applies to vehicles: with navigation system

Two addresses (private/business) can be stor-

ed as a destination for each contact in the di-

rectory.

►Select: NAV button > control button Desti-

nation > enter destination > Store in direc-

tory.

–To store a destination as a new address

card: Select New contact. Enter a name. En-

ter additional data if desired. Select and

confirm Store contact.

–To assign a destination to an existing ad-

dress card: Select and confirm an address

card. Select and confirm Store contact. If a

destination is already stored in an existing

address card, the old destination will be

overwritten automatically.

Show as favourite: If you would like to be

able to access the destination quickly, you can

add it to the list of favourites when this func-

tion is switched on  ð page 47.

General settings

Applies to vehicles: with navigation system

►Select: NAV button > control button Set-

tings.

Route criteria

Dyn. traffic avoidance: When the dynamic

traffic avoidance function is on, the route is

automatically optimised using the current

traffic information. If the MMI system does

not display a detour route although the dy-

namic traffic avoidance function is on and a

traffic jam has been reported on the planned

route, this is because the estimated time re-

quired for the detour is longer than the esti-

mated time required for remaining on the

route with the traffic jam.

Route type: You can select a short, fast or

economical (eco) route.

Motorway/Vignette/Toll road/Tunnel/Ferry/

Motorail: If you do not want the navigation

system to include motorways, vignette/toll

roads, tunnels, ferries or motorail transit

routes in the route calculation, you can set the

option avoid.

Closed certain times: Select avoid to exclude

roads that are closed at certain times of the

day (e.g. pedestrian zones) from the route cal-

culation. When auto is selected, the MMI sys-

tem will determine whether the restricted

road can be included in the route calculation

based on the entries stored in the navigation

data.

Seasonally restricted: Select avoid to exclude

roads that are closed during certain seasons

(e.g. mountain passes) from the route calcula-

tion. When auto is selected, the MMI system

will determine whether the seasonally restric-

ted road can be included in the route calcula-

tion based on the entries stored in the naviga-

tion data.

Map colours

day/night: The map is displayed with a light/

dark background colour.

auto: When the lights are on, the map

scheme will switch from day to night.

Map type

destination: The map indicates the destina-

tion and is set to face north.

2D driv. pos./2D north pos.: The map depicts

the vehicle's current location and is set to face

the direction of travel or north.

3D driv. pos.: When this function is activated,

the current vehicle position is displayed in a

three-dimensional map, and the map is set to

face the direction of travel. If the map scale is

more than 100 km, the map is set to face

north.

overview: The entire route from the vehicle

position to the final destination is displayed 

2 Titel oder Name, Abteilung, Datum

52 Navigation

on the map. The map scale varies according to

the length of the route. The map is set to face

north.

Map content

The display of map contents such as traffic in-

formation, favourite destinations or restau-

rants can be switched on  and off.

Additional info

Important: The route guidance function must

have been started ð page 48.

Route info: During route guidance, the next

three manoeuvres together with the calcula-

ted distances and arrival times are displayed

9 ð page 49, Fig. 42. In addition, the street

you are currently on, upcoming turn-offs, traf-

fic information or special destinations on the

current route are displayed. The next upcom-

ing turn-off is shown in the bottom line.

Overview map: The entire route from the ve-

hicle position to the final destination is dis-

played in the additional info.

off: No additional info is shown.

Intersection map

When this option is on, a detail view of the in-

tersection is displayed temporarily in the ad-

ditional info when there is an upcoming turn-

off.

Auto zoom

on: The map scale is selected automatically

according to the category of the road you are

on (motorway, major road, other road). When

there is an upcoming turn-off, the map display

will automatically zoom in for a better view of

the details. This will be indicated in the map's

legend menu 2 ð page 49, Fig. 42.

Intersection: When route guidance is active

and there are upcoming turn-offs, the map

display will temporarily switch to a more de-

tailed scale so that the road layout can be

identified more easily.

off: The map scale you have set will remain

unaltered.

Petrol station msg

When the fuel gauge is below the reserve

zone, a message will appear when this func-

tion is on. Confirm this message, and a list of

petrol stations in the vicinity will be displayed.

When you select one of the petrol stations,

the route to this station will be calculated

based on the current position of your car.

Speed display

You can switch the display of the maximum

speed limit on motorways, dual carriageways

and other major roads on and off if it is stored

in the navigation data.

Voice guidance

Voice guidance: The navigation cues can be

played in complete or compact form. You can

use the traffic option to have the system play

only those announcements on traffic obstruc-

tions that are relevant for your route. Select

off if you do not want the system to play any

navigation cues.

Navigation cues during call: You can switch

the navigation cues while you are on the

phone on  or off.

Delete favourites

You can delete stored favourites individually

or all at once.

Delete last destinations

The destinations that were last entered are

stored automatically. You can delete them in-

dividually or all at once.

Presentation mode

Use the Presentation mode to plan and dis-

play a route effectively by displaying map con-

tents or route criteria. You can enter your

start location manually (Set start location) if,

for example, you would like to calculate a

route starting from a different position than

the current position of the vehicle. Start the

Presentation mode to simulate a route guid-

ance.

2 Titel oder Name, Abteilung, Datum

53Navigation

ControlsCommunicationNavigationEntertainment

Tour settings

Applies to vehicles: with navigation system

►Select: NAV button > control button Tour.

Calculate alternative routes

Up to three suggested routes and their char-

acteristics are displayed in the map's legend

menu.

The route which was calculated on the basis of

your criteria is highlighted. In addition the

distance to the destination and the estimated

time of arrival will be displayed. You can use

the rotary pushbutton to select the possible

alternative routes.

You can use the Via function to determine the

course of the alternative route yourself.

Route list

The route list is only visible when the route

guidance function is active; it contains infor-

mation on the route, street names and the

length of the route sections.

Exclude route

When route guidance is activated, a section of

the calculated route that you have set will be

avoided if possible. The navigation system will

calculate an alternative route.

The blocking of the route that you have en-

tered applies only to the current route guid-

ance; if required, the route section to be avoi-

ded must be re-entered.

If you exclude a route section, this section will

be hatched in red and white on the map.

Information on country

With this option you can view the speed limits

for towns and country roads in the country

you have selected. This information is dis-

played automatically when you cross a border.

2 Titel oder Name, Abteilung, Datum

54 Listening to the radio

Listening to the radio

Calling up the radio

The radio supports the wavebands DAB* (digi-

tal radio), FM and AM.

Fig. 46 FM station list

►Select: RADIO button.

After calling up the radio, the menu that was

last open will be displayed.

–To display the station list: Press the RADIO

button again. The stations which are cur-

rently within reception range are displayed

in the station list ð Fig. 46 and can be selec-

ted.

–To tune to a station from the station list:

Select and confirm a station from the sta-

tion list (FM: max. 200 stations; AM: max.

200 stations; DAB*: max. 250 stations).

–To store a station: Select a station from the

station list ð Fig. 46 and confirm it. Press

and hold the rotary pushbutton until Store

station name here appears in the memory

list. Select and confirm the desired memory

position.

–To tune to a stored station: Press control

button Memory. Now you can select a sta-

tion from the memory list and confirm it.

–To set the waveband: Press the control but-

ton for Waveband. Select and confirm the

desired waveband. The current waveband

will then appear in the display header. Or:

Press the RADIO button repeatedly until

the desired waveband appears.

Note

–If you leave the range of DAB* reception,

radio stations of the selected ensemble1)

ð page 56 are marked with a crossed-

out signal reception signal. The symbol

disappears as soon as the radio station

can be received again.

–The DAB waveband* also supports the

transmission standards DAB+ and DMB

Audio. Please not that these transmis-

sion standards are not available in all

countries.

Radio functions

Fig. 47 FM waveband functions

Fig. 48 DAB waveband functions

►Select: RADIO button > control button

Functions.

Depending on the waveband setting, you can

select the following functions:

1 Storing a station

The selected station will appear at the next

free position in the memory list 8 ð Fig. 48.

1) Applies for the DAB waveband* when the station sort-

ing setting is set to ensemble.

2 Titel oder Name, Abteilung, Datum

55Listening to the radio

ControlsCommunicationNavigationEntertainment

Select and confirm the desired memory posi-

tion.

2 Displaying the radio text (FM, DAB*)

Additional information as a supplement to

the normal programme is displayed.

3 Tuning to previous/next station

The system will select the previous  or next

 available frequency. Or: Move the ON/OFF

button to the left/right ( / ).

4 Setting the frequency manually (FM,

AM)

The frequency bar will appear. Select and con-

firm the desired station frequency.

5 Freezing/releasing station names

(FM)*

The current name of the selected station will

be frozen in the memory list and marked with

the symbol A ð page 54, Fig. 46. Changing

station names are not displayed. To release

the station name, select and confirm Freeze

station names again.

6 Displaying the slide show (DAB*)

Additional information as a supplement to

the normal programme (such as images from

the studio, current photographs of artists or

covers of music albums) is shown if available.

7 Displaying the programme guide (EPG)

(DAB*)

If available, an overview of the radio stations

within reception range and the current and

following radio programmes will be shown.

Select and confirm a radio programme. De-

tailed information on the radio programme

will now be displayed.

8 Info box

Depending on whether it is available, informa-

tion on the selected station (e.g. station

name, ensemble, type of programme etc.) will

be shown.

9 Memory list

The memory list can contain up to 50 stations

from all wavebands.

–To store a station: Select control button

Memory > station name store. The selected

station will appear at the next free position

in the memory list. Select and confirm the

desired memory position.

–To tune to a stored station: Press control

button Memory. Now you can select a sta-

tion from the memory list and confirm it.

–To move a stored station: Press control but-

ton Memory. Select and the station in the

memory list and then select station name

move. Select and confirm the desired mem-

ory position.

Other settings

►Select: RADIO button > control button Set-

tings.

Depending on the waveband setting (FM, AM

or DAB*), you can select the following func-

tions:

Sound settings

Refer to ð page 29.

Announcements*

Traffic programme (TP): Traffic announce-

ments can be received via FM and played by

the system irrespective of the selected wave-

band. The function DAB and FM can be used

to have the system play traffic announce-

ments from both wavebands while the DAB*

waveband is selected. If, for example, no traf-

fic announcements are available from the se-

lected DAB* station, these are received in the

FM waveband. The display of the TP symbol 8

ð page 10, Fig. 6 shows you whether the traf-

fic programme is switched on ð table on

page 56.

DAB announcements: When the DAB an-

nouncements are on, information on the se-

lected station (e.g. news or weather informa-

tion) is played. 

2 Titel oder Name, Abteilung, Datum

56 Listening to the radio

Volume of announcements: see ð page 30.

TP symbol Meaning

Displayed The traffic programme func-

tion is switched on and traffic

announcements will cut in.

Greyed out The traffic programme func-

tion is switched on, but traffic

announcements cannot be re-

ceived.

Not dis-

played

The traffic programme func-

tion is switched off.

Alternative frequency (FM, DAB*)

on: The tuner attempts to switch to an alter-

native frequency of the current station when

the reception quality becomes weaker. When

the reception is lost in the DAB* waveband,

the system will automatically switch to an al-

ternative station in the FM waveband, if there

is one available.

off: The tuner will not switch to alternative

frequencies in the FM waveband. The current

frequency will be maintained, and in some ca-

ses may no longer be received. The Alternative

frequency function is automatically switched

on again when the station is changed. When

the DAB waveband is set, the tuner will not

switch to alternative stations in the FM wave-

band.

Switch regional stations (FM)

Important: The Alternative frequency function

must be switched on.

Some FM stations split up their transmission

and provide different regions with regional

programmes with differing content. When the

function is on , the system switches to al-

ternative region-specific frequencies.

L band (DAB*)

There are two wavebands for the digital radio:

Band III and L band. Ensembles in the band

III usually have a larger range extending into

several regions. They can be received at all

times. In some regions DAB is broadcast in

the L band. When this option is on, stations

from the L band will also be received.

Station sorting (FM)

A-Z: The stations are displayed in the station

list in alphabetical order. Radio stations with

variable station names are displayed after the

alphabetical list; radio stations without sta-

tion names appear at the end of the list.

ID: The stations in the station list are sorted

according to the station's ID (e.g. all BBC ra-

dio stations are sorted together). Radio sta-

tions without station names are displayed at

the end of the list.

Station sorting (DAB*)

A-Z: The stations are displayed in the station

list in alphabetical order.

Ensemble: Ensembles comprise various radio

stations of a specific area (e.g. a town or re-

gion); they are listed together as an ensemble

in the station list. To open/close the list of ra-

dio stations in an ensemble, select and con-

firm the ensemble. Available sub-pro-

grammes* (additional services provided by

DAB* radio stations) are listed beneath the ra-

dio station (indented).

Station information (DAB*)

When this function is switched on , detailed

programme information on the selected radio

station is displayed in the station list.

Reduced display

When this function is switched on  and the

station or memory list is open, information on

the selected station (e.g. the station name,

artist, track, DAB slide show, radio text/DAB

slide show availability) is shown after approx.

ten seconds.

Delete stored stations

Important: A station must be stored in the

memory list ð page 54.

You can delete stored stations individually or

all at once. 

2 Titel oder Name, Abteilung, Datum

57Listening to the radio

ControlsCommunicationNavigationEntertainment

Note

If the Traffic programme or DAB an-

nouncements* function is switched on,

playback is interrupted for announce-

ments. You can cancel an announcement

while it is being played by briefly pressing

the ON/OFF button.

Troubleshooting

Subject Advice

A station with poor reception is no lon-

ger listed in the station list after switch-

ing to another station.

You can store the station in advance and call it up via

the memory list ð page 54.

2 Titel oder Name, Abteilung, Datum

58 Playing media

Playing media

Calling up the media

You can start and operate various media

drives via the MMI control console.

Fig. 49 Possible sources

Fig. 50 Playlist

Important: A media drive must contain audio/

video files ð page 22.

►Select: MEDIA button.

After calling up the media, the display will

show an overview of the sources, or the file

will be played that was playing last.

–To select a source: Press the control button

for Source. Select a source from the list and

confirm it. Or: Press the MEDIA button re-

peatedly until the desired source appears.

–To play an audio/video file: Select control

button Media centre > category (e.g. Ar-

tists) > folder > track/title. Depending on

availability, the playlist will show the track/

title 1 ð Fig. 50, artist 2, playback time

3 and album cover 4.

–To access the next level up in the structure

of folders: Press the BACK button. Or: Se-

lect and confirm Go up.

–To access the top level in the structure of

folders: Press the MEDIA button.

–To select the previous/next track/title/

chapter: Move the ON/OFF button to the

left/right briefly ( / ).

–To fast forward/rewind an audio/video file:

Move and hold the ON/OFF button to the

left/right ( / ) until the desired play-

ing position has been reached.

–To pause/resume playback: Briefly press the

ON/OFF button.

–To show the playlist: Press the control but-

ton for Now playing.

Possible sources are ð Fig. 49:

Jukebox ð page 23

SD card reader ð page 24

DVD drive ð page 24

Audi music interface (e.g. iPod®, USB or

external audio/video input*) ð page 25

Bluetooth audio player* ð page 25

Note

–You can scroll rapidly through long fold-

er/track lists by turning the rotary push-

button quickly. The scroll speed depends

on the number of folders/tracks.

–If the Traffic programme (TP) or DAB

announcements* function is switched

on, playback is interrupted for announce-

ments ð page 55. You can cancel an an-

nouncement while it is being played by

briefly pressing the ON/OFF button.

–For safety reasons, the video picture is

not available while the vehicle is moving.

While you are driving, only the sound is

played.

–Video playback via an iPod®/iPhone®/

iPad® will not continue automatically

when you switch on the engine after it

was switched off completely.

2 Titel oder Name, Abteilung, Datum

59Playing media

ControlsCommunicationNavigationEntertainment

Media centre

In the media centre several categories for se-

lecting audio/video files are available.

Fig. 51 SD card categories (level 1)

Fig. 52 SD card categories (level 2)

►Select: MEDIA button > control button Me-

dia centre.

Depending on the active source, you can se-

lect audio/video files from the following cate-

gories and copy them into the playlist

ð page 58, Fig. 50:

1 Tracks

All available tracks are displayed. Select and

confirm a track.

2 Artists

All available artists are displayed. Select and

confirm an artist, an album and then a track.

3 Albums

All available albums are displayed. Select and

confirm an album and then a track.

4 Album browser

All available album covers are displayed. Se-

lect and confirm an album cover from the

overview. The first track of the selected album

will be played.

5 Folders

The folder structure or the track/chapter list

of the selected source will be displayed. Se-

lect a folder (if applicable) and select and con-

firm a track.

6 Playlists

All available playlists are displayed. Select and

confirm a playlist and then a track.

7 More

The second level of the media centre is dis-

played.

8 Back

The first level of the media centre is dis-

played.

9 Genres

All available genres are displayed. Select and

confirm a genre (e.g. Pop), an artist, an album

and then a track.

10 Find music

Enter a search term (artist, album or track)

using the speller. Select and confirm OK, and

then select and confirm an audio file.

11 Videos

All available video files are displayed. Select a

video file from the list and confirm it.

Repeat

Important: A category (e.g. Albums) must be

selected.

Press the control button for Repeat to narrow

down the playlist. If you would like to copy

e.g. all tracks of a selected genre into the

playlist, select a category (e.g. Genres) > de-

sired genre (e.g. Pop) > control button Re-

peat.

2 Titel oder Name, Abteilung, Datum

60 Playing media

Note

–Only the categories supported by the

medium used are available. For example,

CD/DVD-ROM tracks cannot be selected

via categories such as Artists, Albums or

Genres. When you are using an iPod®

(source: Audi music interface), the cate-

gories Podcasts, Audiobooks and Com-

posers are available additionally.

–For safety reasons, the video picture is

not available while the vehicle is moving.

While you are driving, only the sound is

played.

–Video playback via an iPod®/iPhone®/

iPad® will not continue automatically

when you switch on the engine after it

was switched off completely.

–On some video DVDs it is not possible to

select e.g. the audio track, subtitles or

track/chapter while they are being

played.

–If you synchronise an iPod/iPhone/iPad

with "cloud" services (iCloud), the play-

lists may not be displayed correctly on

the MMI. Use the Apple device's local

media library.

Other settings

Important: A source must be selected.

►Select: MEDIA button > control button

Settings.

Depending on the active source and the stor-

age device used, you can select the following

settings:

Sound settings

Refer to ð page 29.

Input level

Important: A portable player must be connec-

ted via an adapter cable with 3.5 mm jack

plug*/AV adapter cable*/iPod® adapter cable

(plus)* ð page 26.

The volume of the portable player will be

adapted to the MMI system. We recommend

setting the volume of the portable player to

about 70 percent of the maximum volume.

Random playback

When the function is switched on , all the

files in the playlist will be played and shown in

random order.

Repeat track

When the function is switched on , the cur-

rent track in the playlist will be repeated.

Video picture settings

Important: A portable player must be connec-

ted via an iPod® adapter cable plus*/AV

adapter cable* ð page 26

Picture format: The picture format can be ad-

justed automatically. The width of the picture

will vary depending on the film format. Alter-

natively you can select the formats 4:3 and

16:9. The zoom function can be used to ex-

pand the picture to the full MMI screen; select

original if you would like to view the picture in

the stored format. You can set the cinema-

scope option to display the picture in the for-

mat 47:20.

AV standard: PAL, NTSC or auto can be set as

the standard for an externally connected play-

er. The same standard must also be set on the

player. If you select the wrong AV standard,

the following problems can occur: no picture

or a poor picture or no colour picture.

Brightness: The brightness can be increased/

reduced.

Contrast: The picture contrast can be in-

creased/reduced.

Colour: The colour intensity can be increased/

reduced.

Reduced display

When this function is switched on  and the

playlist is open, information on the selected

track (e.g. the artist, album, embedded album

cover*) as well as the total and remaining

playing time will be displayed. When this dis-

play is active, you can also select and confirm 

2 Titel oder Name, Abteilung, Datum

61Playing media

ControlsCommunicationNavigationEntertainment

a new track or the desired playing position for

the current track by pressing the rotary push-

button.

Display full screen

Important: A video must be playing, and the

vehicle must be stationary.

The video picture will expand to the full

screen. To switch off the full screen display,

press the BACK button or any control button.

The chapter list will be displayed.

Display DVD menu

Important: A video DVD must be playing, and

the vehicle must be stationary.

The DVD main menu will appear on the MMI

display. To select a menu option, move your

finger on the MMI touch pad and press the ro-

tary pushbutton.

Audio track

Important: A video DVD must be playing.

The audio track (language and audio format)

can be adjusted manually. It depends on the

video DVD whether different languages and

audio formats are available.

Subtitles

Important: A video DVD must be playing.

You can select the subtitle setting manually.

It depends on the video DVD whether differ-

ent languages are available.

Child lock

Important: A video DVD must be playing, and

the password must have been entered (pass-

word set at the factory: "1234").

You can use the child lock to restrict video

DVD playback. Select and confirm a safety lev-

el (e.g. Level 5). Eight safety levels are availa-

ble for the child lock function. If you select

child lock level 5, for example, all DVDs with

safety levels 1-5 can be played. Playback of

DVDs with a higher safety level will be

blocked. To cancel all restricted access set-

tings select off.

Use the function Change password for child

lock if you would like to edit the current pass-

word.

Fill/delete jukebox

Refer to ð page 23.

Note

–For safety reasons, the video picture is

not available while the vehicle is moving.

While you are driving, only the sound is

played.

–If you change the source while the Media

menu is open, the Repeat track and Ran-

dom playback functions are deactivated

automatically.

–The DTS audio format (Digital Theater

Systems) is only supported by the DVD

drive ð page 24.

–The child lock safety levels comply with

the US standards of the Motion Picture

Association of America (MPAA). Please

note that DVD classifications may differ

in European countries.

–Not all video DVDs have a child lock fea-

ture.

–If you enter the wrong child lock pass-

word three times in a row, you will not be

able to enter a password for approxi-

mately one minute. The password can

only be reset by an Audi workshop.

2 Titel oder Name, Abteilung, Datum

62 Index

Adapter cable for Audi music interface . . . 25

Address

Entering as a destination . . . . . . 43, 45, 47

see also Destination, entering . . . . . . . . 45
